Victron energy Zigbee to RS485 converter - DRF2659C, DTK
Manuals and User Guides for Victron energy Zigbee to RS485 converter - DRF2659C, DTK. We found 1 manuals for free downloads Data Sheet
Victron energy Zigbee to RS485 converter - DRF2659C, DTK enables wireless communication between Zigbee and RS485 networks. With a range of up to 1600 meters in open areas, it's ideal for industrial automation, building management, and other applications requiring reliable data transmission over long distances. Its compact size and easy installation make it suitable for various scenarios.
Key Features
Wireless communication between Zigbee and RS485 networks
Long transmission distance of up to 1600 meters in open areas
Supports Coordinator and Router configurations
Wide range of compatible Zigbee channels (2405MHz - 2480MHz)
UART baud rate configurable from 9600bps to 115200bps
Low power consumption with operating currents as low as 40mA in standby mode
Compact size (705024mm) for easy installation

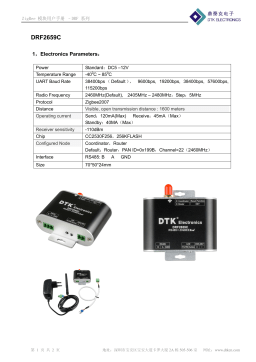

Pages: 1 Victron energy Zigbee to RS485 converter - DRF2659C, DTK Data Sheet
Brand: Victron energy Category: Interface components Size: 2 MB
Languages: German, English, Chinese
Open manualFrequently Answers and Questions
What is the default configuration of the device?
The default configuration is Router mode, with PAN ID 0x199B and Channel 22 (2460MHz).
What is the maximum operating current of the device?
The maximum operating current is 120mA during transmission and 45mA during reception.
What is the supported temperature range for the device?
The supported temperature range is -40°C to 85°C.
Questions & Answers
T T P
How can the ZigBee module be configured?
The module can be configured to operate as either a Coordinator or a Router in the network.
What type of devices can the module connect to?
Since the module is equipped with an RS485 interface (contacts B, A, GND), it can connect to devices that support the RS485 communication standard.
