jet promac SX-823DGVI
Manuals and User Guides for jet promac SX-823DGVI. We found 1 manuals for free downloads Operating instructions
The SX-823DGVI and SX-827DGVI metal band saws are designed for sawing machinable metal and plastic materials. They feature a hydraulic cylinder for efficient cutting of thin or stainless steel section bars, with adjustable speed and a manual/auto cutting mode. The saws include a cooling system and a vise for secure clamping of workpieces. The machines have been designed to cut metal building materials, with different shapes and profiles, used in workshops, turner's shops and general mechanical structural work.
Key Features
Hydraulic cylinder for efficient cutting
Adjustable cutting speed
Manual/Auto cutting mode
Cooling system
Vise for secure clamping

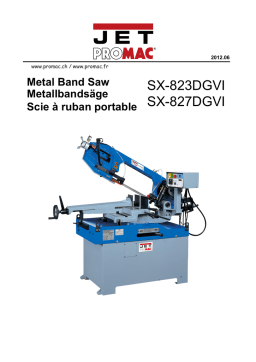

Pages: 77 jet promac SX-823DGVI Operating instructions
Brand: jet promac Category: Power tools Size: 4 MB
Languages: German, English, French
Table of contents
Open manualFrequently Answers and Questions
What type of materials can I cut with this saw?
This machine is designed for sawing machinable metal and plastic materials.
How do I adjust the cutting speed?
You can adjust the cutting speed by turning the speed selector knob.
How do I change the saw blade?
To change the blade, lift the saw arm, loosen the blade with the hand wheel, remove the mobile blade-guard cover, open the flywheel guards and remove the old blade from the flywheels and the blade guide blocks. Assemble the new blade by placing it first between the pads and then on the race of the flywheels, paying particular attention to the cutting direction of the teeth. Tension the blade and make sure it perfectly fits inside the seat of the flywheels. Assemble the mobile blade-guide end, the flywheel guard, and fasten it with the relative knobs.
What type of blade should I use for different materials?
The choice of toothing (i.e. the number of teeth per inch) should be such that at least 3 teeth are always in action at the same time. The general rule is the harder the material being cut, the slower the blade speed. For further information please contact your saw band dealer.
How often should I lubricate the saw blade?
The lifetime of the saw band can be extended significantly by lubricating it with stick wax item no. 100103.
