Siemens CCIC1410 is a versatile indoor color camera with built-in microphone (select models) for audio recording and can be used for dual-streaming of MJPEG/MPEG4 video. It features a 1/4" VGA image sensor capable of capturing footage in low-light conditions (min. illumination of 0.4 lux at F2.0 aperture). It has built-in Ethernet connectivity and can also be configured for wireless operation using an access point or router. The camera supports simultaneous dual-streaming of MJPEG and MPEG4 video, making it suitable for a variety of surveillance applications.
advertisement

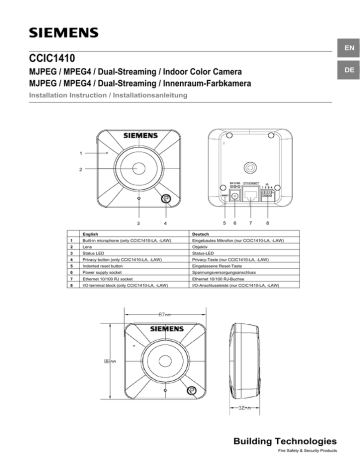

CCIC1410
MJPEG / MPEG4 / Dual-Streaming / Indoor Color Camera
MJPEG / MPEG4 / Dual-Streaming / Innenraum-Farbkamera
Installation Instruction / Installationsanleitung
EN
DE
1
2
3 4 5 6 7 8
6
7
8
3
4
5
English
1 Built-in microphone (only CCIC1410-LA, -LAW)
2
Deutsch
Eingebautes Mikrofon (nur CCIC1410-LA, -LAW)
Lens Objektiv
Status LED
Privacy button (only CCIC1410-LA, -LAW)
Indented reset button
Status-LED
Privacy-Taste (nur CCIC1410-LA, -LAW)
Eingelassene Reset-Taste
Power supply socket
Ethernet 10/100 RJ socket
I/O terminal block (only CCIC1410-LA, -LAW)
Spannungsversorgungsanschluss
Ethernet 10/100 RJ-Buchse
I/O-Anschlussleiste (nur CCIC1410-LA, -LAW)
Building Technologies
Fire Safety & Security Products
CCIC1410 MJPEG / MPEG4 / Dual-Streaming / Indoor Colour Camera
Package contents
• 1 x SIEMENS CCIC1410 IP Camera
• 1 x Documentation CD
• 1 x Utilities CD
• 1 x Installation instruction (English, German)
• 1 x Installation instruction (French, Spanish, Italian)
• 1 x Power adapter
• 1 x Wall/Ceiling bracket
• 1 x Ethernet cable (1:1, 2 m)
• 2 Wall plugs
• 2 x Mounting screw
Target readers
The instructions in this document are designed only for the following target readers:
Target readers
Installer
Qualification Activity
Technical training for electrical installations.
Installs the product, individual components of the product or replacement parts.
Condition of the product
Components of the product are not yet installed or need to be replaced or modified.
General safety precautions
• Read the general safety precautions before installing, configuring and operating the device.
• Keep this document for reference.
• Always pass this document on together with the product.
• Please also take into account any additional countryspecific, local safety standards or regulations concerning project planning, operation and disposal of the product.
• Follow all warnings and instructions marked on the device.
• Do not attempt to service or modify this device yourself.
Refer this work to qualified service personnel.
Liability claim
• Do not make any changes or modifications to the device unless they have been approved by the manufacturer.
• Use only spare parts and accessories that have been approved by the manufacturer.
Installation
• It is recommended that all preparatory work (e.g. fitting of accessories) be carried out in a workshop prior to final installation.
Radio interference with other devices in the environment
• When handling modules that are susceptible to electrostatic discharge, please observe the ESD guidelines.
Damage due to unsuitable mounting location
• The environmental conditions recommended by the manufacturer must be observed. See section
Specifications.
• Do not operate the device in dusty places.
• Do not expose the device to mechanical vibrations or shocks.
• Protect the device against moisture.
• Place the unit on a stable surface that will hold its weight.
• The mounting surface must be solid and noncombustible.
• Do not operate the device close to sources of powerful electromagnetic radiation.
Danger of electrical shock due to incorrect connection
• Connect the device only to power sources with the specified voltage. Voltage supply requirements can be found on the mains adapter.
• Make sure the device is permanently connected to the electricity supply; a readily accessible disconnect device must be provided.
• This device is designed to work with 5 V DC-systems. Do not connect the device to any other power systems
Transportation
• Keep the packaging material for future transportation.
• Do not expose the device to mechanical vibrations or shocks.
Ordering data
CCIC1410-L S54561-C90-A1 1/4" VGA IP-Camera
Colour
CCIC1410-LA S54561-C90-A2 1/4" VGA IP-Camera
Colour Audio
CCIC1410-LAW S54561-C90-A3 1/4" VGA IP-Camera
Colour Audio WLAN
Installing the camera
Step 1: Network deployment
1 2 3 4
1
2
3
4
Power
Digital Output
Digital Input
Ground
1. If you have external devices such as sensors and alarms, make connection from general I/O terminal block.
2. Connect the camera to a switch/hub via Ethernet cable.
Use Category 5 Cross Cable when Network Camera is directly connected to PC.
3. Connect the supplied power adapter from the camera to a power outlet.
Step 2: Assigning an IP address
Software Utility directory from the supplied CD.
2. The program will conduct analyses on your network environment. After your network is analyzed, please click on the Next button to continue the program.
3. The program will search the SIEMENS Network Devices in the same LAN.
4. After searching the SIEMENS Network Devices, the main installer window will pop up. Click on the MAC address that matches the one labeled on the rear of your device to connect the web browser (ex. Microsoft® Internet
Explorer, Mozilla Firefox or Netscape) to the Network
Camera.
5. Retrieve live videos through web browsers or recording software.
Configuring the wireless connection
(CCIC1410-LAW only)
1. Check the SSID currently set on your wireless access point (AP).
Note
SSID, abbreviated from Service Set Identifier, is the name assigned to the wireless network. The
CCAC1410-LAW factory SSID setting is set to
"default".
Note
Select "Ad-Hoc" wireless mode if you want the
CCIC1410-LAW to communicate without using an AP or wireless router.
Note
If the Ethernet cable is not connected, the camera will switch to WLAN when it is restarted.
8. Replug the power cable to the camera.
Î The Network Camera now operates in wireless mode.
For further set up, please refer to the Configuration Manual on the supplied CD.
Care and maintenance
The camera is maintenance-free. Small amounts of dirt or dust can be cleaned from the camera using a clean soft cloth.
• Do not touch the lens area. Use a soft cloth moistened to clean the surface if it is touched accidentally
Update
For the latest camera firmware update, please refer to the following download link: http://www.siemens.com/cctv
Specifications
Image sensor
Effective pixels
Image compression method
Image frame rate
Min. Illumination
1/4" CMOS sensor
640 (H) x 480 (V)
MJPEG / MPEG4 simultaneous dual-streaming
VGA (640 x 480) at max. 30 ips
0.4 lux (F2.0)
Synchronisation Internal
Network connection 1 x 10/100 base-T Ethernet connection for LAN / WAN
Internet protocol
Power requirement
IPv4, TCP/IP, HTTP, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP,
FTP, TelNet, DHCP, NTP, DNS,
DDNS, PPPoE
5 V DC (plug-type power supply included)
Camera weight
Operating temperature
0.128 kg
0 – 40 ºC
Disposal
Electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
EN
3. Type in the SSID consistent with the setting on your access point (AP).
4. Select the Wireless mode as Infrastructure.
Î The Network Camera starts to reboot.
6. Wait for the live image is reloaded to your browser.
7. Unplug the power cable and Ethernet cable from the
Network Camera.
2
Siemens Building Technologies
Fire Safety & Security Products 04.2009
CCIC1410 MJPEG / MPEG4 / Dual-Streaming / Innenraum-Farbkamera
Lieferumfang
Transport
• 1 x SIEMENS CCIC1410 IP-Kamera
• 1 x Dokumentations-CD
• 1 x Dienstprogramme-CD
• 1 x Installationsanleitung (Englisch, Deutsch)
• 1 x Installationsanleitung (Französisch, Spanisch,
Italienisch)
• 1 x Netzadapter
• 1 Wand-/Deckenhalterung
• 1 x Ethernet-Kabel (1:1, 2 m)
• 2 Dübel
• 2 x Befestigungsschraube
• Bewahren Sie das Verpackungsmaterial für einen zukünftigen Transport auf.
• Setzen Sie das Gerät keinen mechanischen
Erschütterungen oder Stößen aus.
Bestelldaten
CCIC1410-L S54561-C90-A1 1/4" VGA IP-Kamera
Farbe
CCIC1410-LA S54561-C90-A2 1/4" VGA IP-Kamera
Farbe Audio
Zielgruppe
CCIC1410-LAW S54561-C90-A3 1/4" VGA IP-Kamera
Farbe Audio WLAN
Die Anweisungen in diesem Dokument gelten nur für folgende Personen:
Kamerainstallation
Zielgruppe Qualifikation Tätigkeit Zustand des
Produkts
Installer Besitzt Fachkenntnisse im
Bereich
Elektroinstallationen.
Installiert das Produkt,
Einzelkomponenten oder Ersatzteile des Produkts.
Einzelkomponenten des Produkts sind noch nicht installiert oder müssen ersetzt oder umgebaut werden.
Schritt 1: Netzwerkanschluss
1 2 3 4
Allgemeine
Sicherheitshinweise
• Lesen Sie die allgemeinen Sicherheitshinweise, bevor
Sie das Gerät installieren, konfigurieren und in Betrieb nehmen.
• Bewahren Sie dieses Dokument zum Nachschlagen auf.
• Geben Sie dieses Dokument bei der Weitergabe des
Produktes mit.
• Beachten Sie bitte alle zusätzlichen länderspezifischen, lokalen Sicherheitsnormen oder -vorschriften hinsichtlich
Projektplanung, Betrieb und Entsorgung des Produkts.
• Befolgen Sie alle auf dem Gerät angebrachten
Warnungen und Anweisungen.
• Lassen Sie Wartungsarbeiten und Änderungen an diesem Gerät nur von Fachpersonal durchführen.
Haftungsanspruch
• Nehmen Sie nur Veränderungen am Gerät vor, die vom
Hersteller genehmigt sind.
• Verwenden Sie ausschließlich vom Hersteller genehmigte Ersatz- und Zubehörteile.
Montage
• Wir empfehlen Ihnen, alle vorbereitenden Arbeiten (wie z.
B. Installation von Zubehörteilen) an einem dafür vorgesehenen Ort (z. B. in einer Werkstatt) vor der endgültigen Installation des Produkts auszuführen.
Funkstörungen im Umfeld anderer Geräte
• Beachten Sie beim Berühren von elektrostatisch gefährdeten Baugruppen und Bauteilen die
Handhabungsvorschriften (EGB-Richtlinie).
Schäden aufgrund eines ungeeigneten Montageortes
• Beachten Sie die vom Hersteller empfohlenen
Umgebungsbedingungen. Siehe Abschnitt Technische
Daten.
• Betreiben Sie das Gerät nicht an staubigen Orten.
• Setzen Sie das Gerät keinen mechanischen
Erschütterungen oder Stößen aus.
• Schützen Sie das Gerät vor Feuchtigkeit und Nässe.
• Achten Sie bei der Aufstellung des Gerätes auf stabilen
Untergrund und sicheren Stand.
• Montieren Sie das Gerät nur auf festen und nicht brennbaren Oberflächen.
• Betreiben Sie das Gerät nicht in der Nähe starker elektromagnetischer Strahlung.
Stromschlaggefahr durch falschen Anschluss an die
Spannungsversorgung
• Schließen Sie das Gerät nur an Stromquellen mit der vorgeschriebenen Spannung an. Angaben zur
Versorgungsspannung finden Sie auf dem Netzteil.
• Betreiben Sie das Gerät nur mit Festanschluss und gut zugänglicher Trennvorrichtung am Versorgungskreis.
• Dieses Gerät ist ausgelegt für den Betrieb mit 5 V DC-
Systemen. Schließen Sie das Gerät nicht an andere
Stromversorgungsnetze an.
1
2
Spannungsversorgung
Digitaler Ausgang
3 Digitaler Eingang
4 Masse
1. Wenn Sie externe Geräte wie z.B. Sensoren und
Alarmgeber anschließen wollen, nehmen Sie den
Anschluss über die allgemeine I/O-Anschlussleiste vor.
2. Schließen Sie die Kamera über Ethernet-Kabel an einen
Switch / Hub an. Verwenden Sie ein gekreuztes Kabel der Kategorie 5, wenn die Netzwerkkamera direkt an einen PC angeschossen wird.
3. Schließen Sie den mitgelieferten Netzadapter an eine
Steckdose an.
Schritt 2: IP-Adresse zuweisen
Software-Diensteverzeichnis auf der mitgelieferten CD.
2. Das Programm nimmt eine Analyse Ihrer
Netzwerkumgebung vor. Wenn die Analyse Ihres
Netzwerks abgeschlossen ist, klicken Sie auf die
Schaltfläche Next, um mit dem Programm fortzufahren.
3. Das Programm sucht nach SIEMENS-Netzwerkgeräten im gleichen LAN.
4. Nachdem die Suche nach SIEMENS-Netzwerkgeräten abgeschlossen ist, öffnet sich das Hauptinstallationsfenster. Klicken Sie auf die MAC-Adresse, die den
Angaben an der Rückseite Ihres Gerätes entspricht, um den Web Browser (Bsp. Microsoft® Internet Explorer,
Mozilla Firefox oder Netscape) mit der Netzwerkkamera zu verbinden.
5. Rufen Sie Livevideos über Web Browser oder
Aufzeichnungssoftware ab.
Konfiguration des Wireless-
Anschlusses (nur CCIC1410-LAW)
1. Prüfen Sie die aktuelle Einstellung des SSID auf Ihrem
Wireless Access Point (AP).
HINWEIS
SSID, Abkürzung für Service Set Identifier, ist der
Name für das drahtlose Netzwerk. Die
Werkseinstellung des CCAC1410-LAW SSID ist
"Default".
HINWEIS
Wählen Sie den Wireless Mode "Ad-Hoc", wenn die
Kommunikation mit der CCIC1410-LAW ohne AP- oder Wireless-Router erfolgen soll.
2. Gehen Sie zu CCAC1410-LAW Configuration >
Wireless LAN.
3. Geben Sie den SSID ein, der der Einstellung an Ihrem
Access Point (AP) entspricht.
4. Wählen Sie den Wireless Mode als Infrastruktur.
5. Klicken Sie auf Save.
Î Die Netzwerkkamera startet neu.
6. Warten Sie, bis das Live-Bild auf Ihren Browser geladen ist.
7. Ziehen Sie das Netzkabel und das Ethernet-Kabel von der Netzwerkkamera ab.
HINWEIS
Wenn das Ethernet-Kabel nicht angeschlossen ist, schaltet die Kamera nach dem Neustart auf WLAN um.
8. Schließen Sie das Netzkabel wieder an die Kamera an.
Î Die Netzwerkkamera arbeitet jetzt im Wireless Mode.
Weitere Konfigurationsmöglichkeiten finden Sie im
Konfigurationshandbuch auf der mitgelieferten CD.
Service und Wartung
Die Kamera ist wartungsfrei. Entfernen Sie leichte
Verschmutzungen oder Staub auf dem Kamera mit einem sauberen weichen Tuch.
• Berühren Sie nicht den Objektivbereich. Sollte er versehentlich berührt worden sein, reinigen Sie die
Oberfläche mit einem weichen, leicht mit Alkohol getränkten Tuch.
Update
Die neueste Version der Kamera-Firmware können
Sie unter folgendem Link herunterladen: http://www.siemens.com/cctv
Technische Daten
Effektive Bildpunkte 640 (H) x 480 (V)
Dual-
Streaming MJPEG / MPEG4
Bildrate VGA (640 x 480) bei max.
30 ips
Mindestbeleuchtungsstärke 0,4 lux (F2.0)
Synchronisation Intern
Netzwerkanschluss 1 x 10/100 base-T Ethernet-
Anschluss für LAN / WAN
Internetprotokoll
Leistungsaufnahme
IPv4, TCP/IP, HTTP, UPnP,
RTSP/RTP/RTCP, IGMP,
SMTP, FTP, TelNet, DHCP,
NTP, DNS, DDNS, PPPoE
5 V DC (Steckernetzgerät im
Lieferumfang enthalten)
Gewicht der Kamera
Betriebstemperatur
0,128 kg
0 – 40 ºC
Entsorgung
Alle Elektro- und Elektronikgeräte sind getrennt vom allgemeinen Hausmüll über dafür staatlich vorgesehene Stellen zu entsorgen.
DE
Issued by
Siemens Building Technologies
Fire & Security Products GmbH & Co. oHG
D-76181 Karlsruhe www.buildingtechnologies.siemens.com
Document no. A6V10248478
Edition 21.04.2009
© 2009 Copyright by
Siemens Building Technologies
Data and design subject to change without notice.
Supply subject to availability.
advertisement
