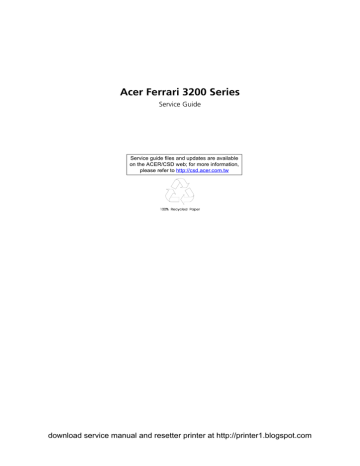

Acer Ferrari 3200 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

download service manual and resetter printer at http://printer1.blogspot.com

Revision History

Please refer to the table below for the updates made on Ferrari 3200 service guide.

Date

2004/04/29

2004/06/25

Chapter 3

Chapter 3

Chapter Updates

Correct CPU removing SOP on page 56.

Correct tools for disassembly on page 45

Correct the tool to remove CPU on page 56

II download service manual and resetter printer at http://printer1.blogspot.com

Copyright

Copyright © 2004 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.


III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV download service manual and resetter printer at http://printer1.blogspot.com

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.


V

VI download service manual and resetter printer at http://printer1.blogspot.com

Table of Contents

Chapter 1 System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Outlook View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Open View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Left Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Right Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Lock Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Embedded Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

The Euro Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Launch Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Chapter 2 System Utilities 31

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Infomation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Chapter 3 Machine Disassembly and Replacement 45

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the Optical Module/HDD Module/Wireless Lan Card and LCD module . .51

Removing the Optical Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the Wireless LAN Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Remove the function key board and the keyboard . . . . . . . . . . . . . . . . . . . . . . .53

Separate the main unit into the logic upper and the logic lower assembly . . . . .53

Disassembling the logic upper assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Disassembling the logic lower assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

VII download service manual and resetter printer at http://printer1.blogspot.com

Table of Contents

Disassembling the External Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Disassembling the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Disassembling the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Chapter 4 Troubleshooting 61

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Touchpad check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

POST Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

How to Build NAPP Master Hard Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

CD to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Disk to Disk Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Chapter 5 Jumper and Connector Locations 85

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Chapter 6 FRU (Field Replaceable Unit) List 87

Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Appendix A Model Definition and Configuration 96

Ferrari 3200 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Appendix B Test Compatible Components 97

Microsoft® Windows® XP Home Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . .98

Appendix C Online Support Information 101

Index 103

VIII download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1

System Specifications

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

T

T

T

T

T

Mobile AMD Athlon

TM

64 processor

Memory upgradeable up to 2GB DDR SDRAM with 2 slots (only one slot for user accessible)

High-capacity, Enhanced-IDE hard disk

Li-Ion main battery pack

Microsoft Windows XP operating system

Display

T

T

T

T

T

T

T

Thin-Film Transistor (TFT) liquid-crystal display (LCD) displaying 32-bit true colour up to

1400X1050 Super eXtended Graphics Array (SXGA

+

) resolution for 15.0”

ATI

®

MOBILITY

TM

RADEON

TM

9700 with 128MB of video memory

3D graphics engine

Simultaneous LCD and CRT display support

S-video for output to a television or display device that supports S-video input

“Automatic LCD dim” feature that automatically decides the best settings for your display and conserves power

DualView

TM

Multimedia

T

T

T

T

T

T

T

AC’97 stereo audio

Built-in dual speakers

Built-in microphone

High-speed optical drive

Built-in slot loading optical drive (DVD Super Multi)

15.0” TFT SXGA

+

(1400x1050 resolution) panel

Audio input and output jacks

Connectivity

T

T

T

T

T

T

T

T

High-speed fax/data modem port

Gigabit Ethernet (GbE) port

Fast infrared wireless communication

Four USB 2.0 (Universal Serial Bus) ports

IEEE 1394 port

Invilink 802.11g wireless LAN (manufacturing optional)

Bluetooth ready

SD/MMC/SM/MS memory slot

Chapter 1 download service manual and resetter printer at http://printer1.blogspot.com

1

Keyboard and Pointing Device

T

84-/85-/88-key Windows keyboard

T

T

T

Sleek, smooth and stylish design

Acer FinTouch full-sized curved keyboard

Ergonomically-centered touchpad pointing device with four-way scroll button

Expansion

T

T

One type II CardBus PC Card slot

Upgradeable memory

I/O Ports

T

T

T

T

T

T

T

T

T

T

T

T

T

T

One Card bus type II slot

One RJ-11 jack for 56Kbps fax/modem

One RJ-45 jack for LAN

One DC-in jack for AC adapter

One ECP/EPP compliant 25-pin parallel port

One external 15-pin VGA port

One speaker/headphone/line-out jack

One audio line-in jack

One microphone-in jack

Four USB 2.0 ports

One IEEE 1394 port

One S-video (NTSC/PAL) output port

4-in-1 Card Reader (Manufacture optional)

FIR (Fast Infred) port

2 Chapter 1 download service manual and resetter printer at http://printer1.blogspot.com

System Block Diagram

Chapter 1 3


Board Layout

Top View

17

16

15

1

7

8

5

6

9

3

4

1

2

CPU socket

S-video port

CRT

Printer port

RJ45

RJ11

Power jack

LCD connector

DIMM Socket

14

2 3 4

8

10

11

9

12

13

14

15

16

17

10

11

12

13

Optical drive connector

Keyboard connector

Main battery connector

IR

HDD connector

PCMCIA slot

IEEE 1394 port

Four USB ports

5 6

7


Bottom View

1

2

3

4

3

4

1

2

5

Line-in connector

Microphone-in connector

Line-out connector

Mini PCI connector

DIMM socket

5


5

Outlook View

A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.

Front Open View

5

6

7

2

3

#

1

4

8

9

Icon Item

Display screen

Power button

Touchpad

Click buttons (left, center and right)

Palmrest

Keyboard

Status indicators

Microphone

Launch keys

Description

Also called LCD (liquid-crystal display), displays computer output.

Turns on the computer.

Touch-sensitive pointing device which functions like a computer mouse.

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

Comfortable support area for your hands when you use the computer.

Inputs data into your computer.

LEDs (light-emitting diode) that turn on and off to show the status of the computer, its functions and components.

Internal microphone for sound recording.

Special keys for launching Internet browser, E-mail program and frequently used programs. Located at the top of the keyboard are five buttons. They are designated as P1, P2, P3, E-mail button and Web browser button. P1, P2 and P3 launch user-programmable applications; Email and Web browser launch E-mail and

Internet browser applications.


Front Panel

#

1

2

3

4

7

8

5

6

Icon Item

Outputs sound.

Description

Speaker

4-in-1 memory reader Reads cards from Smart Media, Memory

Stick, MultiMedia, and Secure Digital cards.

4-in-1 status indicator Displays activity of 4-in-1 memory reader.

Infrared port

Interfaces with infrared devices (e.g., infrared printer, IR-aware computer).

Bluetooth button

Bluetooth indicator

Starts Bluetooth functionality.

Indicates that (optional) Bluetooth is enabled.

InviLink button

InviLink indicator

Enables or disables wireless connectivity.

Indicates status of wireless communication

9 Latch

Latch for opening and closing the laptop.

NOTE: Only one card can operate at any given time.


7

Left Panel

4

5

6

7

2

3

#

1

Icon Item Description

Four (4) USB 2.0 ports Connect to Universal Serial Bus devices

(e.g., USB mouse, USB camera).

IEEE 1394 port

PC Card slot

Connects to IEEE 1394 devices.

The slot supports a standard Type II

CardBus PC Card.

PC Card eject button

Line-in jack

Ejects the PC Card from the slot.

Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

Microphone jack Accepts input from external microphone.

Headphone/Speaker/

Line-out jack

Connects to headphones or other line-out audio devices (speakers).


Right Panel

2

3

#

1

4

5

Icon Item

Slot loading optical drive eject button

Optical disc access indicator

Optical drive eject button

Optical drive emergency eject hole

Power jack

Description

Press the eject button to remove a disc from the slot loading optical drive.

LED that indicates when an optical disc is being read or written.

Press the eject button to remove a disc from the optical drive.

Used to eject an optical disc when the computer is turned off.

Connects to an AC adapter.


9

Rear Panel

4

5

6

2

3

#

1

Icon Item

Modem jack

Description

Connects to a phone line.

Network jack

Parallel port

Connect to an Ethernet 10/100-based network.

Connects to a parallel device (e.g., parallel printer).

External display port Connects to a display device (e.g., external monitor, LCD projector).

S-video

Security keylock

Connects t a television or display device with S-video input.

Connects to a Kensington-compatible computer security lock.


Bottom Panel

3

4

5

#

1

2

6

7

8

9

Icon Item

Battery bay

Battery release latch

Battery lock

Mini-PCI slot

Hard disk protector

Hard disk bay

Description

Houses the computer’s battery pack.

Unlatches the battery to remove the battery pack.

Locks the battery in place.

Slot for adding mini-PCI cards.

Protects the hard disk from accidental bumps and vibration.

Houses the computer’s hard disk (secured by a screw).

Memory compartment Houses th computer’s main memory.

Cooling fan Helps keep the computer cool.

Note: Don’t cover or obstruct the opening of the fan.

Personal identification slot

Insert a business card or similar-sized indentification card to presonalize your computer.


11

Indicators

The computer has three easy-to-read status indicators below the display screen. And two on the front of the computer.

The Power and Battery status indicators are visible even when the display is closed.

Icon Function

Caps lock

Description

Lights when Caps Lock is activated.

Num lock

Media Activity

Power

Battery

Lights when Num Lock is activated.

Lights when the disc or optical drive is activated.

Lights gree when the power is on and orange when the computer is in standby mode.

Lights orange when the battery is charging.


Using the Keyboard

The full-sized keyboardincludes an embedded numeric keypad, separate cursor keys, two Windows keys and twelve function keys.

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key

Caps Lock

Num lock

(Fn-F11)

Scroll lock

(Fn-F12)

Description

When Caps Lock is on, all alphabetic characters are typed in uppercase. Toggle on and off by pressing the

Caps Lock key on the left of the keyboard.

When Num Lock is on, the embedded numeric keypad can be used. Toggle on and off by pressing the Fn +

F11 keys simultaneously.

When Scroll Lock is on, the screen moves one line up or down when you press w and y respectively.


13

Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired Access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num Lock On

Type numbers in a normal manner.

Hold j while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Num Lock Off

Hold Fn while using cursorcontrol keys.

Type the letters in a normal manner.


Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key

Windows logo key

Icon

Application key

Description

Start button. Combinations with this key perform special functions. Below are a few examples:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

+ M (Minimizes All) j + Windows logo key + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Opens a context menu (same as a right-click).


15

Hot Keys

Using the Fn key with another key creates a hot key, providing a quick and convenient method for controlling various functions.

To activate hot keys, first hold down the Fn key. Next, press the second key in the combination. Finally, release both keys.

Fn-F4

Fn-F5

Fn-F6

Hot Key

Fn-F1

Fn-F2

Fn-F3

Fn-F7

Fn-F8

Fn-w

Icon Function

Hot key help

Description

Displays help on hot keys.

Setup Accesses the computer’s configuration utility.

Power management scheme toggle

Switches the power management scheme used by the computer (function available if supported by operating system).

Sleep Puts the computer in Sleep mode.

Display toggle

Screen blank

Touchpad toggle

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

Speaker toggle Turns the speakers on and off.

Volume up Increases the speaker volume.


Hot Key

Fn-y

Fn-x

Fn-z

Icon Function

Volume down

Description

Decreases the speaker volume.

Brightness up Increases the screen brightness.

Brightness down Decreases the screen brightness


17

The Euro Symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a

European layout, you can type the Euro symbol on your keyboard.

NOTE: For US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type in Windows XP, follow the steps below:

1.

Click on Start, Control Panel.

2.

Double-click on Regional and Language Options.

3.

Click on the Language tab and click on Details.

4.

Verify that the keyboard layout used for "En English (United States)" is set to United States-International.

If not, select and click on ADD; then select United States-International and click on OK.

5.

Click on OK.

To type the Euro symbol:

1.

Locate the Euro symbol on your keyboard.

2.

Open a text editor or word processor.

3.

Hold Alt Gr and press the Euro symbol.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.


Launch Keys

Located at the top of keyboard are five buttons. The left-most button is the power button. To the right of the power button are the four launch keys. They are designated as the mail button, the web browser button, and two programmable buttons (P1 and P2).

NOTE: To the left of these five launch keys is the wireless communication button. This wireless communication button works for model with 802.11b wireless LAN only.

Mail

Launch Key

Web browser

P1

P2

Default application

Email application

Internet browser application

User-programmable

User-programmable

E-mail Detection

Click right button at the Launch Manager icon on the taskbar and click on E-mail Detection. In this dialog box, you have the option to enable disable mail checking, set the time interval for mail checking, etc. If you already have an email account, you can fill in User Name. Password and POP3 Server in the dialog box. The POP3

Server is the mail server where you get your email.


19

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimal comfort and support.

NOTE: If you are using an external USB mouse, you can press Fn-F7 to disable the touchpad.

Touchpad Basics

The following items teache you how to use the touchpad:

T

T

T

Move your finger across the touchpad to move the cursor.

Press the left (1) and right (3) buttons located on the edge of the touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad produces similar results.

Use the 4-way scroll (2) button (top/bottom/left/and right) to scrolla page up, down, left or right.

This button mimics your cursor pressing on the vertical and horizontal scroll bars of Windows applications.

Function

Execute

Select

Drag

Access context menu

Left Button

Click twice quickly

Click once

Click and hold, then use finger to drag the cursor on the touchpad

Right Button

Click once

Scroll Button Tap

Tap twice (at the same speed as double-clicking the mouse button)

Tap once

Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap to drag the cursor


Function

Scroll

Left Button Right Button Scroll Button

Click and hold the button in the desired direction (up/ down/left/right)

Tap

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response.

Tapping too hard will not increase the touchpad’s responsiveness.


21

Hardware Specifications and Configurations

Processor

Item

CPU type

CPU package

CPU core voltage

AMD Mobile Athlon

TM

64

0.9V/1.2V

Specification

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

Specification

Phneoix

Ver.3B23

Flash ROM

512KB

PLCC

ACPI 1.0b, PC Card 95, SM BIOS 2.3, EPP/IEEE 1284, ECP/IEEE 1284

1.7 & 1.9, PCI 2.2, PnP 1.0a, DMI 2.0, PS/2 keyboard and mouse, USB

2.0, VGA BIOS, CD-ROM bootable, IEEE 1394

Set by setup manual BIOS password control

Second Level Cache

Item

Cache controller

Cache size

1st level cache control

2st level cache control

Cache scheme control

System Memory

Item

Memory controller

Memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Supports DIMM package

Memory module combinations

Built-in CPU

512KB

Always enabled

Always enabled

Fixed in write-back

Specification

Specification

AMD Mobile Athlon TM 64 built-in

0MB (no on-board memory)

2 sockets

1024MB

2048MB (by two 1024MB SO-DIMM module)

DDR Synchronous DRAM

333 MHz

2.5V

200-pin soDIMM

You can install memory modules in any combinations as long as they match the above specifications.


Memory Combinations

Slot 1 Slot 2 Total Memory

0MB

0MB

0MB

256MB

256MB

256MB

512MB

512MB

512MB

1024MB

1024MB

256MB

512MB

1024MB

256MB

512MB

1024MB

256MB

512MB

1024MB

256MB

512MB

256MB

512MB

1024MB

512MB

768MB

1280MB

768MB

1024MB

1536MB

1280MB

1536MB

1024MB 1024MB 2048MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

LAN Interface

Chipset

Supports LAN protocol

Item

LAN connector type

LAN connector location

Modem Interface

Item

Chipset

Broadcom BCM5788M

10/100/1000 Mbps

RJ45

Rear panel

Specification

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

Specification

South bridge/VIA VT8235CE--controller on the main board

International Agere LU 97 Scorpio+CSP1037B--chipset on modem board itself

56K

V.92 MDC

RJ11

Rear panel

Bluetooth-MODEM Interface

Item

Chipset

Data throughput

Protocol

Interface

Connector type

Specification

South bridge/VIA VT8235CE--controller on the mainboard

CSR BC212615BEN-E4/Agere Scorpio solution--chipset on the combo module itself

200k bps (Blue-tooth)/56K bps (MODEM)

Blue-tooth 1.1

USB 1.1+MDC

RJ11 (MODEM)


23

Wireless Module 802.11g (optional device)

Item

Chipset

Data throughput

Protocol

Interface

BCM4306KFB

11M bps

802.11g

Mini-PCI type II

Four-in-One Card Reader

Item

Chipset

Data throughput

Protocol

Specification

M220V0315

USB 1.1

SMC, MS, MMC, and SD

Specification

Hard Disc Drive Interface

Item

Vendor &

Model Name

Capacity

(MB)

Physical Layout

HGST MORAGA

IC25N008ATMR04

80000

512 Bytes per sector

Number of data heads

4

2 Number of disks

Logical heads

Logical sectors/track

Logical cylinders

16

63

16,383

Spindle speed

(RPM)

4200 RPM

Performance Specifications

Buffer size 8192KB

ATA-6

350Mb/s

Interface

Media data transfer rate

Data transfer rate

(host~buffer,

Mbytes/s)

100 MB/Sec.

DC Power Requirements

Voltage tolerance

5V(DC) +/- 5%

TOSHIBA PLUTO

MK8025GAS

80000

2

16

512

4

63

16,383

4200 RPM

8192KB

ATA-6

342Mb/s

100 MB/Sec.

5V(DC) +/- 5%


DVD Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Data Buffer

Interface

Applicable disc format

Loading mechanism

Specification

MKE-825-CQB

N/A

N/A

The UJ-825-CQB drive has a data buffer that is implemented as a ring buffer.

The buffer has a size of 2 Mbyte.

IDE/ATAPI (compliant to ATA/ATAPI-5)

DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R (3.95G/4.7G),

DVD-RAM (2.6G/4.7G), DVD-RW, +R, +RW

CD: CD-Audio, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2, form 1 and form 2), CD-I (mode 2, form 1 and form 2), CD-I Ready, CD-I Bridge, CD-

R, CD-RW, Photo CD, Video CD Enhanced Music CD, CD-TEXT

Load: semi-automatically

(To load the disc in the drive, it is needed to push the disc manually.)

Release: (a) Electrical Release (Eject Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)

Power Requirement

Input Voltage

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Mixed sound source

Voice channel

Sampling rate

Internal microphone

Internal speaker / Quantity

Supports PnP IRQ

Speakers

Number of speaker

Rating

Connector type

Item

Video Interface

Item

Chipset

Package Specifications

Specification

Realtek ALC202

Built-in

Stereo

20 bit stereo Digital to analog converter

18 bit stereo Analog to Ditial converter

AC97

Line-in, CD

8/16-bit, mono/stereo

44,1 KHz (48K byte for AC97 interface)

Yes

Yes/2

IRQ10

Specification

2

1W, max; 4 ohm

Headphone out, microphone in and line-in

Specification

ATI

®

MOBILITY

TM

RADEON 9700 (ATI M11P)

Package, Size: 708 BGA


25

Video Interface

Item

Supports ZV (Zoomed Video) port

Resolution Support

Bus Specifications

Memory Type

VGA Ram Size

Specification

No

Support for fixed resolution displays (e.g. panels) from VGA

(640x480) to wide UXGA (1600x1200) resolution

LVDS: support LCD panels up to QXGA (2048x1536) 60Hz resolution

TMDS: 1600x1200 at 60Hz

AGP bus support / PCI bus support:

AGP2.0: 2X (3.3V)/

AGP 3.0: 4X (1.5V) /8X (1.5V)/ PCI 2.3

Hynix 8MBx32 DDR SDRAM

128MB

Parallel Port

Item

Parallel port controller

Number of parallel port

Location

Connector type

Parallel port function control

Supports ECP/EPP/Bi-directional/Output only

(PS/2 compatible)

Optional ECP DMA channel (in BIOS Setup)

Optional parallel port I/O address (in BIOS

Setup)

Optional parallel port IRQ (in BIOS Setup)

Specification

PC87393

1

Rear side

25-pin D-SUB

Enable/Disable/Auto (BIOS or operating system chooses configuration) by BIOS Setup

Note: Depending on your operating system, disabling an unused device may help free system resources for other devices.

Yes (set by BIOS setup)

Note: When Mode is selected as EPP mode, “3BCh” will not be available.

DMA channel 3

378h, 278h, 3BCH

IRQ7, IRQ5

USB Port

Item

Chipset

USB Compliancy Level

OHCI

Number of USB port

Serial port function control

IEEE 1394 Port

Item

Chipset

Interface USB Compliancy Level

Number of IEEE 1394 port

Connector type

Specification

VIA VT8235CE

2.0

USB 2.0

4

Enable/Disable by BIOS Setup

TI PCI4510

IEEE 1394 1.0

1

IEEE 1394

Specification


PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

System Board Major Chips

Item

Core logic

VGA

LAN

IEEE 1394

USB 2.0

Super I/O controller

MODEM

Blue tooth

Wireless 802.11g

PCMCIA

Audio

Four-in-one card reader

Touchpad

IR

Keyboard

Item

Keyboard controller

Keyboard vendor & model name

Total number of keypads

Windows logo key

Internal & external keyboard work simultaneously

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Cell voltage

Number of battery cell

Package configuration

TI PCI4510

Type-II

One type-II

Left panel

No ZV support

Yes (IRQ10)

Controller

VIA K8T800 (AMD Athlon

TM

64-M processor, VIA K8T800+VIA

VT8235CE)

ATI

®

MOBILITY TM RADEON 9700 (ATI M11P)

Broadcom BCM5788M

TI PCI4510

VIA VT8235CE embedded USB controller

NS PC87393

South bridge/VIA VT8235CE

South bridge/VIA VT8235CE

BCM4306KFB

TI PCI4510

RealTek ALC202

M220V0315

Synaptics TM41P-353

Vishay TFU6102F

NS 87570 C4

DARFON

84-/85-/88- key

Yes

Yes

Specification

Specification

Specification

Simplo/Sanyo

Li-ion

4400 Ah

3.7V/cell

8

4 cells in series, 2 series in parallel


27

Battery

Package voltage

Item Specification

14.8V

LCD

Item

Vendor & model name

Screen Diagonal (mm)

Active Area (mm)

Display resolution (pixels)

Pixel Pitch

Pixel Arrangement

Display Mode

Typical White Luminance (cd/m

2

) also called Brightness

Luminance Uniformity

Contrast Ratio

Response Time (Optical Rise Time/Fall

Time)

Nominal Input Voltage VDD

Typical Power Consumption (watt)

Weight

Physical Size(mm)

Electrical Interface

Support Color

CMO IDT N150P3

380.625

304.5 (H) x 228.375 (V)

1400x1050 SXGA+

0.2175x0.2175

R.G.B. Vertical Stripe

Normally Black

200

N/A

400

60/120msec

HSD 150PK17

N/A

304.5 (H) x 228.375 (V)

1400x1050 SXGA+

0.21750.2175

R.G.B. Vertical Stripe

Normally White

200

N/A

350

7/15

+3.3V Typ.

6.1 typ./7.0 max.

575

317.3x242.0x6.2

8 pairs LVDS (Even/Odd

R/G/B Data (6 bit), 3 sync singals, Clock)

262K colors (RGB 6-bit data driver)

+3.3V Typ.

4.1(B/L system)

610

317.3x242.0x6.3

2 channel LVDS

262,144 colors

Viewing Angle (degree)

Horizontal: Right/Left

Vertial: Upper/Lower

85/85

85/85

55/55

35/55

Operating

Storage (shipping)

0 to +50

-20 to +60

0 to +50

-20 to +60

AC Adaptor

Model number

Input rating

Output rating

Item Specification

LITE- ON PA-1900-05QA, 3pins

LSE 0202C1990, 3pins

90VAC to 264VAC, 47Hz to 63Hz

75W, 19V (18.8V, min to 20V, max), 4A (0A, min to 4A, max)

System Power Management

ACPI mode

Mech. Off (G3)

Soft Off (G2/S5)

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices in the system are turned off completely.


System Power Management

Working (G0/S0)

ACPI mode

Suspend to RAM (S3)

Save to Disk (S4)

Power Management

Individual devices such as the CPU and hard disk may be power managed in this state.

CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Also called Hibernate state. System saves all system states and data onto the disk prior to power off the whole system.

Power Management

Power Saving Mode

Standby Mode

Enter Standby Mode when

1.Standby/Hibernation hot-key is pressed and system is not ready to enter Hibernation mode.

2.System standby/ Hibernation timer expires and system is not ready to enter Hibernation mode.

Hibernation Mode

Enter Hibernation Mode (suspend to HDD) when

1.Hibernation hot-key is pressed and system is ready to enter Hibernation mode

2.System Hibernation timer expires and system is ready to enter Hibernation mode.

Display Standby Mode

Keyboard, built-in touchpad, and an external

PS/2 pointing device are idle for a specified period.

Hard Disk Standby Mode

Hard disk is idle within a specified period of time.

T

T

Phenomenon

The buzzer beeps

The Sleep indicator lights up

T

All power shuts off

T

The display shuts off

T

Hard disk drive is in standby mode.

(spindle turned-off)

Environmental Requirements

Temperature

Operating

Non-operating

Humidity

Operating

Item

Non-operating

Non-operating

Vibration

Operating

Non-operating (unpacked)

+5~+35

-20~+65

° C

° C

Specification

20% to 80% RH, non-condensing without diskette

20% to 80% RH, non-condensing with diskette

20% to 80% RH, non-condensing (Unpacked)

20% to 80% RH, non-condensing (Storage package)

5~250Hz 0.5Grms, 15mins per axis

1.04 Grms, 2-200Hz 15 mins per axis


29

Environmental Requirements

Item

Non-operating (packed)

Specification

1.04 Grms, 2-200Hz 15 mins per axis

Mechanical Specification

Item

Dimensions

Weight

I/O Ports

Drive Bays

Material

Indicators

Switch

Specification

330(W) x 272(D) x 31.8(H)mm

6.64lbs (3.01kg) for 15.1”LCD model with battery

Two Type II CardBus PC Card slot

One IEEE 1394 port

One FIR port (IrDA)

One RJ-11 modem jack (V.92, 56K)

One RJ-45 network jack (Gigabit Ethernet)

One DC-in jack

One parallel port (ECP/EPP)

One S-video TV-out port

One VGA port for external monitor

One speaker/headphone-out jack (3.5 mm mini jack)

One audio line-in jack (3.5mm mini jack)

One microphone-in jack (3.5mm mini jack)

Four USB 2.0 ports

4-in-1 Card Reader

One

Plastic

There are 9 LEDs totally:

Power-on, 4-in-1 card active LED, Battery Status, HDD/CD-ROM Active LED,

Wireless, Bluetooth, E-mail, CapsLock and NumLock

Power


Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press

m

during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m to enter setup. Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

. Info.

PhoenixBIOS Setup Utility

Main Advanced Security Boot Exit

CPU Speed:

HDD Model Name:

HDD Serial Number:

ATAPI Device:

System BIOS Ver:

VGA BIOS Ver:

KBC Ver:

Serial Number

Asset Tag Number:

Product

Manufacturer Name:

UUID:

AMD Athlon(tm) 64

1800 MHz

IC25N080ATMR04-0

MRG408K4GY5HUH

MATSHITADVD-RAM UJ-825S

S3A16

ATi 008.017M.123.000

1A25 xxxxxxxxxxxxxxxxxxxxxx

N/A

Ferrari 3200

Acer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

22 Byte

32 Byte

16 Byte

16 Byte

16 Byte

F1 Help ↑ ↓ Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit → Select Menu Select 4 Sub - Menu F10 Save and Exit

Chapter 2 31 download service manual and resetter printer at http://printer1.blogspot.com

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys (zx).

To choose a parameter, use the cursor up/down keys ( wy).

T

T

T

T

To change the value of a parameter, press por q.

A plus sign (+) indicates the item has sub-items. Press e to expand this item.

Press ^ while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t. You can also press u to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values.

This menu provides you the information of the system.


Infomation

. Info.


Main Advanced Security Boot Exit

CPU Speed:

HDD Model Name:

HDD Serial Number:

ATAPI Device:

System BIOS Ver:

VGA BIOS Ver:

KBC Ver:

Serial Number

Asset Tag Number:

Product

Manufacturer Name:

UUID:

AMD Athlon(tm) 64

1800 MHz

IC25N080ATMR04-0

MRG408K4GY5HUH

MATSHITADVD-RAM UJ-825S

S3A16

ATi 008.017M.123.000

1A25 xxxxxxxxxxxxxxxxxxxxxx

N/A

Ferrari 3200

Acer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

22 Byte

32 Byte

16 Byte

16 Byte

16 Byte


Esc Exit → Select Menu Select 4 Sub - Menu F10 Save and Exit

Parameter

HDD Model Name

HDD Serial Number

ATAPI Device

ATAPI Serial Number

Serial Number

UUID Number

Description

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.

This field shows the serial number of devices installed on secondary IDE master.

This field displays the serial number of this unit.

This will be visible only when there is an internal LAN device present.

UUID=16bytes in length


33

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.


Info.

Main

Advanced Security Boot Exit

Item Specific Help

[02:19:31]

[04/21/2004]

624 KB

<Tab>, <Shift-Tab>, or

<Enter> selects field.

Shows system base memory size

522240 KB

128 MB

Shows extended memory size

VGA memory size

[Enabled]

[Auto ]

[Enabled]

[Disabled]

System Time:

System Date:

System Memory:

Extended Memory:

Video Memory

Quiet Boot:

Power on Display:

LCD Auto Dim:

F12 Boot Menu:

F1 Help ↑ ↓ Select Item Change Values F9 Setup Defaults

Esc Exit ← Select Menu Enter Select 4 Sub -Menu F10 Save and Exit

NOTE: The screen above is for reference only. Actual values may differ.


The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

Video Memory

Quiet Boot

Power on display

LCD Auto Dim

F12 Boot Menu

Description

Sets the system time.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of system base memory. Memory size is fixed to 640KB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size. The default value is set to 128MB

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Determines if the system will automatically dim the LCD brightness in order to save power when

AC power is not present.

Enables or disables Boot Menu function during

POST.

Option: Enabled or Disabled

Option: Auto or Both

Option: Enabled or Disabled

Option: Disabled or Enabled

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.


35

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.


Info.

Main

Advanced

Security Boot Exit

Item Specific Help

Infrared Port:

Base I/O address:

Interrupt:

DMA channel

[Enabled]

[2F8]

[IRQ 3]

[DMA1]

Configure Infrared Port using options:

Parallel port:

Mode:

Base I/O address:

Interrupt:

DMA channel

[Enabled]

[ECP]

[378]

[IRQ 7]

[DMA3]

[Disable]

No configuration

[Enabled]

User configuration

[Auto]

BIOS or OS chooses

configuration

(OS Controlled)

Displayed when controlled

by OS


Esc Exit ← → 4 Sub - Menu F10 Save and Exit

The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Infrared Port (FIR)

Parallel Port

Mode

Base I/O address

Interrupt

DMA channel

Description

Enables, disables or auto detects the infrared port.

Enables, disables or auto detects the parallel port.

Sets the operation mode of the parallel port.

Sets the I/O address of the parallel port. This parameter is enabled only if Mode is set to ECP or

Bi-directional. This parameter is enabled only if

Mode is set to ECP.

Sets the interrupt request of the parallel port.

Sets a DMA channel for the printer to operate in

ECP mode. This parameter is enabled only if Mode is set to ECP.

Options

Disabled /EnabledDisabled/Auto

Enabled /Disabled/Auto

ECP , EPP, Normal or Bi-directional

378h /278h/3BCH

IRQ7 /IRQ5

DMA3 /DMA1


Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.


Info.

Main Advanced

Security

Supervisor Password Is:

User Password Is:

HDD Password Is:

HDD Master ID:

Set Supervisor Password

Set User Passord

Set HDD Password

Password on Boot

Clear

Clear

Clear

47874073

[Enter]

[Enter]

[Enter]

[Disabled]

Boot Exit

Item Specific Help

Supervisor Password controls accesses of the whole setup utility.

It can be used to boot up when Password on boot is enabled.


Esc Exit ← → 4 Sub -Menu F10 Save and Exit


37

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Supervisor Password is

User Password is

HDD Password is

HDD Master ID

Set Supervisor Password

Set User Password

Set HDD Password

Password on Boot

Description

Shows the setting of the Supervisor password

Shows the setting of the uer password.

This feature is available to user when

Supervisor password is set. Password can be written on HDD only when Supervisor password or user password is set and password on HDD is set to enabled.

Supervisor Password is written to HDD only when Supervisor password is being set. User password is written to HDD when both passwords are set. When both Supervisor and user password are present, both passwords can unlock the HDD.

You can use HDD Master ID and MasterID program together to remove HDD password.

Note: Remove HDD password SOP wll not be released in service guide because of security concern. Please request Remove HDD SOP via tracking system--http://csd.acer.com.tw

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access.

Press Enter to set the user password. When set, this password protects the BIOS Setup

Utility from unauthorized access.

Note: The user password may not be set unless the supervisor password is set. If the user wishes to have only one password, please set supervisor password.

Press Enter to set the HDD password. When set, this password protects the internal hard disk from unauthorized access.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Option

Clear or Set

Clear or Set

Disabled or Enabled

Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:


2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3.

Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4.

When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.


39

3.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.

Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5.

If desired, you can enable the Password on boot parameter.

6.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u.

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.


Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.


Info.

Main Advanced Security

Boot

Exit

Item Specific Help

CD-ROM/DVD Drive

+Hard Drive

Removable Devices

Network Boot

+ and - indicate device categories. Use <Enter> to expand/collapses.

Boot order is top-down using only the top device in each category.

Use <F6> and <F5> to move highlighted item up and down.


Esc Exit ← → Enter F10 Save and Exit


41

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

Info.

Exit Saving Changes

Exit Dicarding Changes

Load Setup Defaults

Discard Changes

Save Changes


Main Advanced Security Boot

Exit

Item Specific Help

Exit System Setup and save your changes to CMOS.


Esc Exit ← → Enter F10 Save and Exit

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.


BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Fellow the steps below to run the Phlash.

1.

Prepare a bootable diskette.

2.

Copy the Phlash utilities to the bootable diskette.

3.

Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.


43


Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

T

T

T

Small Philips screwdriver

Philips screwdriver

Flat blade screwdriver

Plastic flat blade screwdriver

T

Hex wrench (2.5mm)

T

Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the stripe cover, please be careful not to scrape the cover.


General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

3.

Remove the battery pack.

NOTE: Ferrari 3 200 series product uses mylar or tape to fasten the FFC/FPC/connectors/cable, you may need to tear the tape or mylar before you disconnect different FFC/FPC/connectors.


Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Start

Battery

Hx2

HDD Door

Hx2

Dimm Door

Ox4

Middle Cover

Hx2

PCI Door ODD Module

HDD Module

Touchpad

Memory

Hx2

Mx3

Keyboard

Sx4

LCD Module

Hx3

Function Key

Board

Wireless LAN

Card

Logic Upper

Assembly

Qx4

Touchpad

Shielding

Main Unit

Assembly

Front Bezel

Sx19

Hx2

Ux3

Logic Lower

Assembly

Ax4

Hx1

Hx1

Main Board

Cx4

ODD Bracket

Fx2

ODD Board ODD

Touchpad

Board

Hx4

Touchpad

Holder

CPU

Dimm

Tx2

HDD

Bracket

Dx3

4-in-1 Card

Rearder

Hx2

Modem/

Bluetooth

Combo Card

Fx2

Smart Card

Reader

Ex4

Thermal

Module

Hx1

Top Cover

Shielding

Touchpad

Cable (FFC)

Antenna Line Modem Cable


47

LCD Module

6 LCD

Cushions

Jx6

LCD Bezel

LCD Inverter

Hx4

LCD

LCD

Assembly

Hx4

LCD Coaxial

Cable

Dx4

LCD Brackets

Wireless

Antenna

LCD Panel

Hx2

LCD Latch Kit

Bracket

Dx1

LCD Latch Kit

Screw List

F

G

D

E

Item

A

B

C

J

K

H

I

Description

NUT-I/O

SCREW M1.6X4.0-I-NI-NYLOK




SCREW M2.0X5-I-NI-NYLOK


SCREW M2.5X4.0-B-NI-NYLOK

SCREW M2.5X4-I-NYLOK


SCREW M2.5X5.5-P-NI-NYLOK


Item

L

M

P

Q

N

O

T

U

R

S

Description

SCREW M2.5X0.45+7I-NYLOK

SCREW M1.7X3.5-I-BZN

SCREW M2X3-I-BNI-NYLOK

SCREW M2.0X5.0-I-BNI-NYLOK



SCREW M2.5X4-I-BNI

SCREW M2.5X7

SCREW M3.0X3.5

SCREW M2.5X5 (BLACK)


49

Removing the Battery Pack

1.

Release the battery lock.

2.

Slide the battery latch then remove the battery.


Removing the Optical Module/HDD Module/Wireless Lan Card and LCD module

Removing the Optical Module

1.

Slide the optical disk drive latch.

2.

Remove the ODD module.

Removing the HDD Module

1.

Remove the two screws holding the HDD cover.

2.

Remove the HDD cover.

3.

Remove the HDD module.

Removing the Wireless LAN Card

1.

Remove the screw that secures the PCI door then remove the PCI door.

2.

Disconnect the right and the left wireless antenna.

3.

Pop out the wireless LAN card then remove it.


51

Removing the LCD Module

1.

Remove the four screws that secures the middle cover; two one each side.

2.

Detach middle cover with the assistance of a plastic flat head screw driver.

3.

Disconnect the LCD cable then take out the cable from the upper case.

4.

Disconnect the left wireless LAN antenna line. Then take out the antenna from the upper case with a tweezers.

5.

Unscrew the four screws holding the LCD hinges; two on each side.

6.

Then remove the entire LCD module.


Disassembling the Main Unit

Remove the function key board and the keyboard

1.

Take the wireless antenna out of the hook on the function key board.

2.

Disconnect function key board connector

3.

Unscrew the three screws holding the function key board.

4.

Remove the three screws that secure the keyboard.

5.

Turn over the unit and remove the two screws as the picture shows.

6.

Turn over the keyboard. Disconnect the keyboard FFC then remove the keyboard.

Separate the main unit into the logic upper and the logic lower assembly

1.

Remove the three screws on the rear panel.

2.

Unscrew the 19 screws on the bottom panel.

3.

Detach the front bezel from the main unit.

4.

Remove the two screws. Then take the right and the left antenna off the main unit.

5.

Disconnect the touchpad cable.

6.

Pull out the right and the left wireless LAN antenna, then detach the logic upper assembly from the logic lower assembly.


53

Disassembling the logic upper assembly

1.

Take out the touchpad cable from the small hook on touchpad holder.

2.

Remove the four screws holding the touchpad shielding and the touchpad board.

3.

Disconnect the touchpad FFC from the touchpad board.

4.

Remove the touchpad board.

5.

Remove the wireless and bluetooth button off the touchpad board.

6.

Remove the four screws that fasten the touchpad holder.

7.

Remove the touchpad off the logic upper assembly.

8.

Disconnect touchpad FFC.


Disassembling the logic lower assembly

1.

In order to take out the main board from the upper case, first remove the four screws that fasten the top cover shielding.

2.

Remove the three screws holding the 4-in-1 card reader, then remove it.

3.

Unscrew the four screws that secure the thermal module.

4.

Disconnect the fan connector then remove the thermal module.

5.

Remove one screw that secures the main board as picture shows.

6.

Remove another screw that fastens the main board.

7.

Take out the bluetooth antenna.

8.

Disconnect the speaker set cable.

9.

To remove the main board from the lower case assembly, first press the PCMCIA card button.

10. Then take the main board off the lower case assembly.

11. Unscrew the two screws that fasten the HDD bracket.

12. Remove one screw holding the top cover shielding.


55

13. Disconnect the microphone cable. Then remove the top cover shielding.

14. Use a hex wrench (2.5mm) to turn the CPU lock counter clock-wise. Then remove the CPU.

15. Put the CPU back to the socket then use a hex wrench (2.5mm) to fasten the CPU lock as shown.

16. Pop out the memory then remove it.

17. Unscrew the two screws that secure the modem/bluetooth combo card. Remove the modem/bluetooth combo card then disconnect the connector.

18. Disconnect the bluetooth antenna and the modem cable.

19. Disconnect the smart card reader FPC.

20. Unscrew the two screws holding the smart card reader then remove it.


Disassembling the LCD Module

1.

Remove the six screw pad and the six screws.

2.

Detach the LCD bezel carefully.

3.

Disconnect LCD inverter.

4.

Remove the two screws holding the LCD to LCD panel.

5.

Then remove the LCD.

6.

Remove the four screws that fasten the right and the left LCD brackets. Then remove the right and the left

LCD brackets.

.

7.

Tear off the electric conductive tape that fastens the LCD coaxial cable.

8.

Tear off another electric conductive tape that fastens the LCD coaxial cable.

9.

Disconnect the LCD coaxial cable.

10. Detach the wireless antenna from the LCD panel.

11. Remove the two screws holding the LCD latch kit.

12. Remove the LCD latch kit bracket.


57

13. Unhook the spring.

14. Remove the screw that fastens the LCD latch kit.

15. Then remove the LCD latch kit.


Disassembling the External Modules

Disassembling the HDD Module

1.

Remove the four screws holding the HDD bracket; two on each side.

2.

Take out the HDD from the HDD bracket.

Disassembling the Optical Drive Module

1.

Remove the two screws holding the ODD bracket.

2.

Remove another screw as the picture shows.

3.

Then remove the last two screws on the back side of the ODD module.

4.

Slide the ODD from the ODD bracket.

5.

Then remove the optical bracket.

6.

In order to open the ODD, use an uncurved pin to press the emergency eject hole.

7.

Remove the three screws that fasten the ODD door.

8.

Then detach the ODD door.


59


Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Duplicate symptom and obtain the failing symptoms in as much detail as possible.

2.

Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Disassemble and assemble the unit without any power sources.

4.

If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You can check the following: power cords are properly connected and secured; there are no obvious shorts or opens; there are no obviously burned or heated components; all components appear normal.

5.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 63.

“Power-On Self-Test (POST) Error Message” on page 65

“Undetermined Problems” on page 77

“Error Message List” on page 66


Use the customer-reported symptoms and go to


“Intermittent Problems” on page 76

“Undetermined Problems” on page 77


System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if FDD Test is passed as the program runs to FDD Test.

3.

Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.


If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.


Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.


The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.


Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.


NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Battery Pack” on page 64


63

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.

2.

Run utility with the PS/2 mouse function and check if the mouse is working.

3.

If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.

4.

If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB connects properly.

5.

If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then replace switch board. If no, then go to next step.

6.

Replace touch pad PCB.

7.

If the touch pad still does not work, then replace FPC on Track Pad PCB.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.


Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 77.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.


65

Index of Error Messages

Error Message List

Struck Key

Error Messages

System CMOS checksum bad - Default configuration used

Real time clock error

Previous boot incomplete - Default configuration used

Invalid System Configuration Data

Operating system not found

FRU/Action in Sequence

See ““Keyboard or Auxiliary Input Device Check” on page 62

RTC battery

Run BIOS Setup Utility to reconfigure system, then reboot system.

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

Main board

“Load Default Settings” in BIOS Setup Utility.

RTC batter

Main baord.

“Load Default Settings” in BIOS Setup Utility.

Main board.

Enter Setup and see if fixed disk and drive A are properly identified.

Dikette drive

Hard disk drive

Main board.


Error Message List

No beep Error Messages

Power-on indicator turns off and LCD is blank.

Power-on indicator turns on and LCD is blank.

Power-on indicator turns on and LCD is blank.

But you can see POST on an external CRT.

Power-on indicator turns on and a blinking cursor shown on LCD during POST.

FRU/Action in Sequence

Power source (battery pack and power adapter.) See “Power

System Check” on page 63

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

Main board.

Power source (battery pack and power adapter.) See “Power

System Check” on page 63

Reconnect the LCD connector

Hard disk drive

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD connectors.

LCD cable

LCD inverter

LCD

Main board

Ensure every connector is connected tightly and correctly.

Main board


67

POST Codes

28h

29h

2Ah

2Ch

2Eh

20h

22h

24h

26h

17h

18h

1Ah

1Ch

12h

13h

14h

16h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

0Ch

0Eh

0Fh

10h

11h

2Fh

30h

3Ch

3Dh

42h

45h

46h

32h

33h

36h

38h

3Ah

Code

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

Beeps POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Check ROM copyright notice 2-1-2-3


7Eh

80h

81h

82h

70h

72h

76h

7Ch

83h

84h

85h

86h

87h

88h

89h

8Ah

8Bh

8Ch

5Ah

5Bh

5Ch

60h

52h

54h

58h

59h

4Ch

4Eh

50h

51h

48h

49h

4Ah

4Bh

68h

69h

6Ah

6Bh

62h

64h

66h

67h

6Ch

6Eh

Code

2-2-3-1


Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and IRQs

Late POST device initialization

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable Devices

(optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

Initialize floppy controller


69

C3h

C4h

C5h

C6h

BFh

C0h

C1h

C2h

C7h

C8h

C9h

D2h

B5h

B6h

B9h

BAh

BBh

BCh

BDh

BEh

A4h

A8h

AAh

ACh

AEh

B0h

B2h

B4h

9Eh

9Fh

A0h

A2h

99h

9Ah

9Ch

9Dh

93h

95h

96h

97h

98h

8Fh

90h

91h

92h

Code

1-2

1


Determine number of ATA drives (optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Unknown interrupt


E8h

E9h

EAh

EBh

ECh

EDh

EEh

EFh

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

F4h

F5h

F6h

F7h

F0h

F1h

F2h

F3h

Code

1

Beeps For Boot Block in Flash ROM

Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS


71

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

First, plug a monitor to CRT port. Next, enter BIOS utility to running

“Load Default Settings” then reboot the system.


Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.


Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD cable

LCD cable

LCD

Main board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

HDD/CD-ROM active indicators cannot work

Main board

HDD/CD-ROM drive

Device driver

Main board


Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system cannot power-on.

The system cannot power-off.


Power source (battery pack and power adapter). See “Power

System Check” on page 63.

Battery pack

AC adapter

See if the thermal module is overheat (Heat sink or fan).

Main board

Power source (battery pack and power adapter). See “Power

System Check” on page 63.

Battery pack

Power adapter

CPU

Main board

In Windows XP operating system, hold and press the power switch for more than 4 seconds. If the system can power off, then the main board is OK. Verify OS in the HDD.

Main board


Power-Related Symptoms

Symptom / Error

Battery can’t be charged or discharged

System hang during POST


See “Check the Battery Pack” on page 64.

Battery pack

Main board

ODD/HDD/FDD/RAM module

Main board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA)

PCMCIA slot pin is damaged.

PC Card cannot be inserted or ejected


PCMCIA slot assembly

Main board

PCMCIA slot assembly

Check if the PCMCIA slot is blocked

Main board

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

System can power on, but you hear two long beeps: “B--, B--” and the LCD is blank.


Enter BIOS Setup Utility to execute “Load Default Settings” then reboot system.

RAM module

Main board

Check BIOS revision

Reinsert DIMM

DIMM

Main board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

OS volume control

Audio driver

Speaker

Main board


Internal speakers make noise or emit no sound.

Speaker

Main board

Microphone cannot work Audio driver

Volume control in Windows XP

Main board

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation mode

The system doesn’t enter standby mode after closing the lid of the portable computer.


Power option in Windows XP

Hard disk drive

Main board

Driver of Power Option Properties

Lid close switch in upper case

Main board


73

Power Management-Related Symptoms

The system doesn't resume from hibernation/ standby mode.

Symptom / Error

The system doesn't resume from standby mode after opening the lid of the portable computer.

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.


Connect AC adapter then check if the system resumes from

Standby/Hibernation mode.

Check if the battery is low.

Hard disk drive

Main board

LCD cover switch

Main board

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

Main board

Reconnect hard disk/CD-ROM drives.

Main board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Parallel port device problems


Enter BIOS Setup Utility to execute “Load Setup defaults”, then reboot system.

Reconnect hard disk/CD-ROM drives/FDD or other peripherals.

Main board

Press Fn+F5, LCD/CRT/Both display switching

Keyboard

Main board

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Run printer self-test.

Printer driver

Printer cable

Printer

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Device driver

Device cable

Device

Main board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.


Reconnect the keyboard cable.

Keyboard

Main board

Reconnect touchpad cable.

Touchpad board

Main board


Modem/LAN-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Internal LAN does not work correctly


Phone cable

Driver

Reconnect the Internal modem cable to the main board tightly.

Main board

Lan cable

Driver

Main board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 77.


75

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.


Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 63):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

T

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

System board

T

LCD assembly


77

How to Build NAPP Master Hard Disc Drive

CD to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

4.

NAPP CD will start to preload the system, please click [Y].

5.

Select CD to Disk Revocery.


6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.

After you place the Recovery CD to the optical drive, you will see the display below.


79

7.

Then insert the System CD to the optical drive.

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.


Disk to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

4.

NAPP CD will start to preload the system, please click [Y].


81

5.

Select Disk to Disk Recovery. Then choose Single Language or Multi-Languages Recovery.

NOTE: For Multi-Languages Recovery, not more than five languages could be loaded to the system.

6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.


After you place the Recovery CD to the optical drive, you will see the display below.

7.

Then insert the System CD to the optical drive.


83

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.


Jumper and Connector Locations

Top View

2 3 4 5 6

7

8

5

6

3

4

1

2

9

17

16

15

1

8

10

11

9

12

14

13

U4

CN1

CN4

CN3

CN2

CN2

CN6

CN8

CPU socket

S-video port

CRT

Printer port

LAN Connector (RJ45)

Modem Connector (RJ11)

Power jack

LCD connector

14

15

16

17

10

11

12

13

CN17

CN19

CN20

U14

CN21

CON1

CN16

CN9,

CN11,

CN13,

CN14

Optical drive connector

Keyboard connector

Main battery connector

IR

HDD connector

PCMCIA slot

IEEE 1394 port

Four USB ports

CN15 DIMM socket

7

Chapter 5


Bottom View

1

2

3

4

3

4

1

2

5

CN26

CN28

CN29

CN27

CN25

Line-in connector

Microphone-in connector

Line-out connector

Mini PCI connector

DIMM socket

5


Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Ferrari 3200 series products. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise

Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

NOTE: Exploded diagram is not ready as service CD released. We will update the service guide to CSD website, please download the exploded diagram from the website if you need the files


Exploded Diagram

1

12

7

14

9

8

6

10

11

13

3

4

5 2


.

Adapter


NS

No.

Partname And Description Part Number

ADAPTER LITE- ON PA-1900-05QA 3PIN W/

LED 90W

ADAPTER LSE 0202C1990 3PIN W/LED 90W

AP.A1003.001

AP.A1007.001

Battery

13 BATTERY SANYO LI-ION 8CELL (4UR18650F-

2-QC-ZG1, 4400mAH)

BATTERY SIMPLO LI-ION 8CELL (LI-ION

BATTERY PACK ZG14S2P, 4400mAH)

BT.FR103.001

BT.FR107.001

Boards

NS MODEM CARD (Ambit T60M283.10) 54.T29V7.001

NS

NS

MODEM /BLUETOOTH COMBO BOARD AMBIT

T60M665.00

54.T23V7.002

WIRELESS LAN BOARD (802.11g) WNC KM8-1 54.A13V7.001

4 LAUNCH BOARD 55.T23V7.001

NS TOUCH PAD BOARD W/CABLE 55.T23V7.002

Cables

NS TOUCHPAD CABLE 50.T23V7.001


89


NS

No.

Partname And Description

MODEM CABLE

NS COVER SWITCH CABLE

NS

NS

NS

Case/Cover/Bracket Assembly

3

NS

NS

NS

NS

NS

POWER CORD US (3 pin)

POWER CORD EU ( 3 Pin)

POWER CORD PRC ( 3 Pin)

POWER CORD UK (3 PIN)

POWER CORD ITALIAN (3 PIN)

POWER CORD DANISH (3 PIN)

POWER CORD AU (3 PIN)

MIDDLE COVER W/ NAME PLATE

DIMM DOOR W/SCREW

Part Number

50.FR2V7.001

50.T23V7.003

27.A03V7.001

27.T23V7.002

27.T23V7.003

27.A03V7.004

27.A03V7.005

27.A03V7.006

27.A03V7.008

42.FR1V7.001

42.FR1V7.002

10 LOWER CASE W/SPEAKER AND ANTENNA 60.FR2V7.001

5 UPPER CASE W/TOUCHPAD HOLDER 60.FR2V7.002

NS FRONT BEZEL FOR 4 IN 1 MODEL 42.T23V7.003

NS TOUCH PAD SHIELDING FOR TOUCH PAD

BOARD

33.T23V7.001



NS

No.


WIRELESS BOARD COVER

Part Number

42.FR1V7.003

8

NS

Communication Module

NS

I/O BRACKET W/MICROPHONE

TOUCHPAD BOARD BUTTON

NS

BLUETOOTH ANTENNA

WIRELESS LAN ANTENNA Y CABLE

33.FR2V7.001

33.T41V7.00142.T23V7.103

50.T23V7.004

50.A13V7.001

CPU

NS

HDD/ Hard Disk Drive

12

NS

AMD Athlon64 2800+(REV cg) 35W Low-

Voltage OPGA

HDD 2.5 IN. 80G HGST MORAGA

IC25N008ATMR04-0 AD4A

HDD 2.5 IN. 80G TOSHIBA PLUTO

MK8025GAS

HDD COVER

KC.A2802.35W

KH.08007.007

KH.08004.001

42.FR1V7.005

Keyboard

NS

NS

2

HDD CASE

HDD HOLDER

KEYBOARD DARFON US INTERNATIONAL

33.FR1V7.002

33.FR2V7.003

KB.T4107.001

KEYBOARD DARFON CHINESE

KEYBOARD DARFON SPANISH

KEYBOARD DARFON THAI

KEYBOARD DARFON BRAZILIAN

PROTUGESE

KB.T4107.002

KB.T4107.003

KB.T4107.004

KB.T4107.005


91

LCD


1

NS

No.


KEYBOARD DARFON UK

KEYBOARD DARFON GERMAN

KEYBOARD DARFON ITALIAN

KEYBOARD DARFON FRENCH

KEYBOARD DARFON SWISS/G

KEYBOARD DARFON PORTUGUESE

KEYBOARD DARFON ARABIC

KEYBOARD DARFON BELGIUM

KEYBOARD DARFON SWEDEN

KEYBOARD DARFON CZECH

KEYBOARD DARFON HUNGAIAN

KEYBOARD DARFON NORWAY

KEYBOARD DARFON DANISH

KEYBOARD DARFON TURKISH

KEYBOARD DARFON CANADIAN FRENCH

KEYBOARD DARFON GREEK

KEYBOARD DARFON RUSSIAN

Part Number

KB.T4107.007

KB.T4107.008

KB.T4107.009

KB.T4107.010

KB.T4107.011

KB.T4107.012

KB.T4107.013

KB.T4107.014

KB.T4107.015

KB.T4107.016

KB.T4107.017

KB.T4107.018

KB.T4107.019

KB.T4107.020

KB.T4107.021

KB.T4107.023

KB.T4107.024

LCD MODULE 15" TFT SXGA+ HSD 150PK17

W/ANTENNA

LCD MODULE 15" TFT SXGA+ CMO IDT

N150P3 W/ANTENNA

LCD MODULE 15" TFT SXGA+ CPT CLAA

150PB01 W/ANTENNA

6M.FR2V7.002

6M.FR2V7.003

6M.FR2V7.004

LCD 15" TFT SXGA+ HSD 150PK17

LCD 15" TFT SXGA+ CMO IDT N150P2-L04

LCD 15" TFT SXGA+ CPT CLAA 150PB01

LK.15007.007

LK.1500D.003

LK.1500A.003

NS INVERTER BOARD W/MAYLAR E SUMIDA

53261-0590

19.T23V7.011

NS LCD BRACKET 15" RIGHT W/HINGE 33.T23V7.007

NS LCD BRACKET 15” LEFT W/HINGE 33.T23V7.008



NS

No.


LCD PANEL WITH LOGO-15”

Part Number

60.FR1V7.003

NS LCD BEZEL 15" 42.FR1V7.006

NS LCD COAXIAL CABLE FOR 15" XGA spwg-B 50.T23V7.021

Main Board

9 MAINBOARD 128MB VGA W/SMART CARD

READER,PCMCI SLOT,W/O CPU MEMORY

LB.FR206.001

NS PCMCIA SLOT 22.A13V7.001

Memory

NS 256MB DDR333 NT256D64SH8BAGM-6K

NANYA

KN.25603.009

256MB DDR333 MT8VDDT3264HDG-335C3

MICRON

MEMORY DDR333 256MB INFINEON

HYS64D32020HDL-6-C (.11u)

SODIMM 256M M470L3224FT0-CB3

KN.25604.009

KN.25602.012

512MB DDR333 HYS64D64020GBDL-6-B

INFINEON

512MB DDR333 NT512D64S8HBAFM-6K

NANYA

KN.2560B.008

KN.51202.007

KN.51203.005

512MB DDR333 EBD52UC8AARA-6B ELPIDA KN.51209.002

Optical Drive


93


11

No.


DVD SUPER MULTI MODULE 4X MKE-825-

CQB

Part Number

6M.FR2V7.001

NS DVD SUPER MULTI 4X MKE-825-CQB KU.00407.004

NS

NS

DVD SUPER MULTI BEZEL FOR MKE

OPTICAL DEVICE BRACKET

42.FR1V7.004

33.FR2V7.002

Pointing Device

NS TOUCHPAD 56.FR1V7.001

Speaker

Heatsink

14

7

FERRARI 3200 MOUSE

SPEAKER SET

THERMAL MODULE

NS VGA MEMORY HEATSINK

NB HEATSINK

CHIP SINK

MS.FR207.001

6K.T23V7.002

60.FR2V7.004

34.A13V7.002

34.FRV7.001

34.FRV7.002

Reader


Others

Screws


NS

No.


4 IN 1 READER

Part Number

6K.FR2V7.001

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

LCD LATCH W/O SPRING

LCD SCREW RUBBER UPPER

LCD SCREW RUBBER LOWER

6K.FR1V7.001

47.FR1V7.001

47.FR1V7.002

NUT-I/O 86.T23V7.001

SCREW M1.6X4.0-I-NI-NYLOK 86.T23V7.002



86.A03V7.007

86.A03V7.012




SCREW M2.5X4.0-B-NI-NYLOK

86.T23V7.005

86.T23V7.006

86.A03V7.010

86.T23V7.008

SCREW M2.5X4-I-NYLOK


SCREW M2.5X5.5-P-NI-NYLOK

SCREW M2.5X0.45+7I-NYLOK

SCREW M1.7X3.5-I-BZN

SCREW M2X3-I-BNI-NYLOK

SCREW M2.0X5.0-I-BNI-NYLOK



SCREW M2.5X4-I-BNI

86.T23V7.009

86.T23V7.010

86.T23V7.011

86.T23V7.012

86.A03V7.009

86.T23V7.014

86.T23V7.015

86.T23V7.017

86.T23V7.018

86.T23V7.019


95

Appendix A

Model Definition and Configuration

Ferrari 3200 Series

Model

Number

3200LMi

CPU

Athlon 64

2800+ 35W

LCD

15.0"

SXGA+200 nit

Memory

DDR333

2x256MB

HDD

(GB)

80

ODD

Slot 4x

DVD-SMulti

Card

Reader

4 in 1

Wireless

LAN

11g

Model

Number

3200LMi

MDC(Bluet ooth)

Modem+BT

-FR3200

VGA

ATI Mobility

Radeon

9700

128MB

Appendix A 96 download service manual and resetter printer at http://printer1.blogspot.com

Appendix B

Test Compatible Components

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows

®

XP Home.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the Ferrari 3200 series

Compatibility Test Report released by the Acer Mobile System Testing Department.

Appendix B 97 download service manual and resetter printer at http://printer1.blogspot.com

Microsoft

®

Windows

®

XP Home Environment Test

Item

Processor

Memory

LCD

Hard Disk Drive

DVD Super Multi

AC Adapter

Battery

Network Adapters

Gigabit LAN Hub

LAN Ethernet/10baseT/100base

Multifunction Card (Combo)

Wireless LAN Card

Modem Adapters

Modem (up to 56K)

I/O Peripheral

I/O - Display(LCD)

I/O - Display(CRT)

I/O - Projector

Specifications

AMD Athlon64 2700+( Rev. CG) 35W

AMD Athlon64 2800+(Rev. CG) 35W

AMD Athlon64 3000+(Rev. CG) 35W

256MB Infineon HYS64D32020HDL-6-C

256MB Nanya NT256D64SH8BAGM-6K

256MB Micron MT8VDDT3264HDG-335C3

512MB Infineon HYS64D64020GBDL-6-B

512MB Nanya NT512D64S8HBAFM-6K

512MB Micron MT16VDDF6464HG-335C2

1GB Elpida EBD11UD8ABDA-6B

15” SXGA+ TFT

HannStar HSD150PK14-A

CMO N150P2-L04

80GB

HGST Moraga IC25N080ATMR04-0

Toshiba PLUTO MK8025GAS

Panasonic UJ-825-CQB

Lite_On PA-1900-05QA(PFC), 3pins 90W

Li_Shin 0202C1990(PFC), 3pins 90W

Sanyo LiIon 4.4AHr 8cell

SIMPLO LiIon 4.4AHr 8cell (Panasonic cell)

3COM SUPER STACK II \ 3C16611 24port

3COM Lan Card (3CCFE574BT)

D-Link Fast Ethernet DFE-650

D-Link CardBus DFE-660

Xircom CardBus (CBEM56G-100)

Quanta Wireless LAN Card \ WL-211F

Intel(R) PRO / Wireless 2011B LAN PC Card

D-Link Air Pro 5GHZ Wireless CardBus DWL-A650

3Com 56K Modem (3CXM756)

Xircom 56K Modem (CM-56G)

Psion - Gold Card Glabal 56K+Fax

Akia KX1 Moniter

Compaq TFT 5004

Compaq FP745A

ViewSonic GS790

Dell Trinitron 21'

ViewSonic GS773

ViewSonic GT7755

ViewSonic PF775

Acer 7755C

Panasonic PT-L757EA

98 Appendix B download service manual and resetter printer at http://printer1.blogspot.com

Item

I/O - Legacy (Parallel) Printer/Cable

I/O - Storage Device(Parallel)

I/O - 1394

I/O - USB Hub

I/O - USB Storage Drive

I/O-USB Flash Drive

I/O - USB Keyboard/Keypad/Mouse

I/O - USB (Printer/Scanner)

I/O - USB (Camera)

I/O - USB LAN

I/O - USB Speaker

I/O - USB Gamepad

I/O - USB to Serial Transfer Connector

Specifications

HP Laser Jet 5M

HP Desk Jet 840C

Canon BJC-3000

ECP Cable (LL5)

IOMega ZIP 100 (LPT Port)

1394 HDD

1394 External HDD CASE-OXFORD IDE Device

1394 CCD (APLUX C102T)

1394 DV:JVC GR-D70U

1394 Cable P to P(Pci_)

Adaptec\4 Port USB 2.0 interface

Highspeed\4 Port USB 2.0 interface

VIPower(Smart Family Disk) HDD USB interface

YAMAHA CD/RW-70 CD-ROM USB interface

Pioneer DVR-104 DVD/CD-RW combo USB interface

Ricoh MP5125A DVD/CD-RW combo USB interface

IOMega USB ZIP 650

IOMega USB ZIP 250

Acer Y-E Data FDD

Teac USB FDD

HD 530 Tested to comply with FCC Standards (external HDD case)

Iwill 6-in-1 card reader

BenQ 256MB

JMTEK USB DRIVE 128MB

Microsoft Internet Keyboard Pro

SILITEK

LUNARIS-TK-LU2BSV USB keypad

Logitech K/B+Mouse+ receiver

Tarus Genius Usb wheel mouse

Intel Agua cypress mouse

Logitech Wheel Mouse M-BJ58

Acer USB Mouse MP0930

HP psc 2110 all-in-one office machine USB port\ C8644A

HP DiskJet 3425 Colour inklet printer

HP DeskJet 840C

HP DeskJet 930C

HP DeskJet 450

Canon BJC-3000

HP ScanJet 5300c

Flexicom A300 USB web camera

Logitech QuickCam Express

Dlink WebCam DSB-C300

LINKSYS USB Network Adapter

Billionton USB-10/100 FastEthernet

Philips USB Speaker (DIGITAL Speaker System)

Logitech WingMan RUMBLEPAD

GMUS-03

Appendix B download service manual and resetter printer at http://printer1.blogspot.com

99

I/O Acess Point (802.11a/b)

PCMCIA

PCMCIA - Card Reader

PCMCIA - LAN

PCMCIA - SCSI

PCMCIA - ATA

PCMCIA - ZIP

PCMCIA - 1394

PC Cards

Item

I/O - Audio Jacks (Speaker)

I/O - Audio Jacks (Earphone)

S-Video

Specifications

DENON Amplifier AVR-1802

LOUDSPEAKER

Gateway Speaker

SANYO 3D Speaker/OTTO-301

JS 3D Speaker /J-2202

Panasonic Earphone

AIMA Earphone

AIWA HP-X121 Earphone

AOC STEREO DYNAMIC HEADPHONES AHP-850

PHILIPS Stereo Headphone SBC HP090

Condenser MIC. EM-420T

Intel Pro/Wireless 5000 LAN Dual

Apapter PCMCIA 4 in 1

PQI CF CARD Reader

PNY PCMCIA 4 in 1

3COM Lan Card (3CCFE574BT)

Xircom CardBus Ethernet II 10/100 (CBE2-100)

Adaptec SlimSCSI APA-1460D Card

Adaptec SlimSCSI 1480A CardBus UltraSCSI Card

IBM Microdrives 1GB

Adapter 4 in 1 CardReder Card+Transcend 128MB

PQI Compact Flash Card+PQI CF Card 128 MB

Zip Card:ZIOMEGA USB ZIP 250

VST FireWire CardBus Card

MMC Card:

Apacer 64MB

SanDisk 64MB

MS Card:

Apacer 128MB

Sony Memory Stick 128MB

Sony Memory Pro (MS Card) 256MB

SD Card:

Toshiba 256MB

AGIWARA SYS-COM 128MB

Apacer 128MB

SM Card:

Transcend 128MB

SanDisk 128MB

CF Card

Transcend CompactFlash (CF Card) 512MB

SanDisk 128MB

TV: Sony Trinitron 14” \ PVM-14M4U

Sony Trinitron 14” \ PVM-14M2U

100 Appendix B download service manual and resetter printer at http://printer1.blogspot.com

Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

T

T

T

T

Service guides for all models

User's manuals

Training materials

Bios updates

T

T

Software utilities

Spare parts lists

T

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

T

Detailed information on Acer's International Traveler's Warranty (ITW)

T

T

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 101 download service manual and resetter printer at http://printer1.blogspot.com

102 Appendix C download service manual and resetter printer at http://printer1.blogspot.com

Combinations 23 external 51 package 22 removing 51 socket number 22

Speed 22 voltage 22

Disassembly

Battery Pack 48

CD-ROM/DVD-ROM Module 53

Floppy Disk Drive 57

Procedure Flowchart 47

Display Standby Mode 29

E

Embedded Numeric Keypad 14

Environmental Requirements 29

Error Symptom-to-Spare Part Index 65

External CD-ROM Drive Check 62

External Diskette Drive Check 62

F

Features on System Specifications 1

Flash Utility 43

Floppy Disk removing the 57

FRU (Field Replaceable Unit) List 87

Exploded Diagram 88

H

Hard Disk Standby Mode 29

Hibernation Mode 29

Hot Keys 13, 16

I

Indicators 12

Intermittent Problems 76

J

K

Jumper and Connector Locations 85

Top View 85

Keyboard 27

Keyboard or Auxiliary Input Device Check 62

Index

A

ACPI 1.0b 22

AFLASH Utility 43

AMD Mobile Athlon64 22

Audio 25

B

C

Battery on indicator 12

Battery Pack 50

BIOS 22 package 22 password control 22

ROM size 22

ROM type 22

Supports protocol 22 vendor 22

Version 22

BIOS Setup Utility 31

Advanced 36

Boot 41

Exit 42

Info. 33

Main 34

Navigating the BIOS utility 32

Security 37

BIOS Utility 31

Onboard Device Configuration 39

System Information 32

System Security 42

Board Layout

Bottom View 5

Top View 4

Cache controller 22 size 22

Caps lock on indicator 12

CardBus 27

CPU core voltage 22 package 22 type 22

D

DIMM

Index 103 download service manual and resetter printer at http://printer1.blogspot.com

L

M

L2 cache 22

LAN 23 chipset 23 connector location 23 connector type 23 support protocol 23

Launch Keys 19

Lock Keys

Using the Keyboard 13

Mail on Launch Keys 19

Mechanical Specification 30

Media Activity on indicator 12

Memory Check 63

Model Definition 96

N

Num lock on indicator 12

O

Online Support Information 101

Outlook View 6

Bottom Panel 11

Front Open View 6

Front Panel 7

Left Panel 8

Rear Panel 10

Right Panel 9

P

P1 on Launch Keys 19

P2 on Launch Keys 19

Parallel Port 26

PC Card 27

PCMCIA 27

Power on indicator 12

Power Management 29

Power System Check 63

Battery Pack 64

Processor 22

R

RMA (Return Merchandise Authorizatin) 87

S

Second Level Cache 22

Standby Mode 29

System

Block Diagram 3

System Block Diagram on System Specifications 3

System Memory 22

System Specification

Hardware Specifications and Configurations 22

System Specifications 1

Board Layout 4

System Utilities 31

T

Temperature 29

Test Compatible Components 97

The Euro Symbol 18

Touchpad Check 64

Troubleshooting 61

U

Undetermined Problems 77

USB 26

Using the Keyboard 13 utility

BIOS 31

V

W

Video 25

Web browser on Launch Keys 19

Windows 2000 Environment Test 98

Windows Keys 15

104 Index download service manual and resetter printer at http://printer1.blogspot.com

105 Index download service manual and resetter printer at http://printer1.blogspot.com

No results
