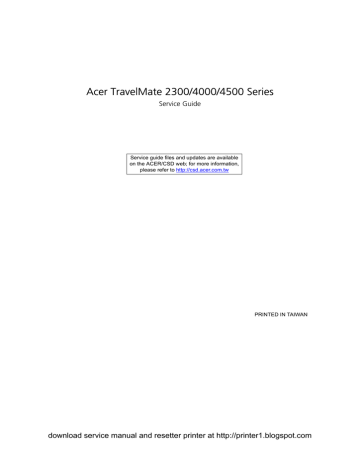

Acer TravelMate 2300/4000/4500 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN download service manual and resetter printer at http://printer1.blogspot.com

Revision History

Please refer to the table below for the updates made on TravelMate 2300/4000/4500 service guide.

Date

2004/10/13

2005/01/07

Chapter 1

Chapter 3

Chapter Updates

Specify core logic for TravelMate 2300 series

ODD module disassembling SOP

II download service manual and resetter printer at http://printer1.blogspot.com

Copyright

Copyright © 2004 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

download service manual and resetter printer at http://printer1.blogspot.com

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV download service manual and resetter printer at http://printer1.blogspot.com

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

download service manual and resetter printer at http://printer1.blogspot.com

V

VI download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1

System Specifications

Features

Below is a brief summary of the computer’s many feature:

Performance

T

T

T

T

T

T

T

Intel

®

Pentium M

®

processor 705, 715, 725, 735, 745, 755 or Intel

®

Celeron M

®

processor

Intel

®

855GME or 852GM chipset (manufacturing option; Intel

®

855GME is for TM4000/4500 and

Intel

®

852GM is for TM2300)

256/512 MB of DDR333 SDRAM standard, upgradeable to 2048 MB with dual soDimm modules

30 GB and above high-capacity, Enhanced-IDE hard disk

Advanced Configuration Power Interface (ACPI) power management system.

Internal removable optical drive (AcerMedia bay)

Li-ion main battery pack

Display

T

T

T

T

T

T

The TFT LCD panel providing a lare viewing area for maximum efficiency and ease-of-use: t

14.1” XGA (1024x768) resolution t

15.0” XGA (1024x768) or SXGA+ (1400x1050) resolution t

15.4” WXGA (1200x800) or WSXGA+ (1680x1050) resolution

ATI MOBILITY

TM

RADEON

TM

9700 with 64MB of video memory (manufacturing option)

3D graphics support

Simultaneous display on LCD and CRT monitor, and other display devices like projector support

“Automatic LCD dim” feature that automatically decides the best settings for your display and conserves pwer

Dual indenpendent display

Multimedia

T

T

T

T

T

High-speed drive: DVD/CD-RW Combo, DVD-Dual or DVD-Super Multi

16-bit high-fidelity AC’97 stereo audio

Built-in microphone and dual speakers

Built-in microphone

High-speed DVD/CD-RW Combo, DVD-Dual or DVD-Super Multi drive

Connectivity

T

T

T

T

T

T

Built-in 56Kbps fax/data modem

Integrated 10/100/1000 Mbps Fast Ethernet connection (manufacturing option)

Fast infrared wireless communication (manufacturing option)

Three Universal Serial Bus (USB) 2.0 ports

IEEE 1394 port

Invilink

TM

802.11b/g or LnviLink

TM

802.11a/b/g dual-band tri-mode Wireless LAN (manufacturing option)

Chapter 1 download service manual and resetter printer at http://printer1.blogspot.com

1

Expansion

T

T

T

I/O Ports

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

T

Bluetooth

®

(manufacturing option)

SD/MMC/MS memory card reader (manufacturing option; for TravelMate 4500 only)

100-pin port replicator connector (manufacturing option)

Human-centric design and ergonomics

T

Rugged, yet extremely portable design

T

T

T

T

T

Stylish appearance

Full-size keyboard with four programmable launch keys

Ergonomically-centered touchpad pointing device

Acer FineTouch keyboard with a 5-degree curve

Internet 4-way scroll button

Keyboard and Pointing Device

T

88/89-key Windows keyboard

T

T

Ergonomically-centered touchpad pointing device with scroll function

Acer FineTouch

TM

keyboard with a 5-degree curve

One Type II CardBus PC Card slot

Upgradeable memory modules

Acer EasyPort (only in TravelMate 4500)

One Type II PC Card slot

One RJ-11 phone jack (V.92, 56Kbps modem)

One RJ-45 network jack

One DC-in jac (AC adapter)

One 100-pin port replicator connector (manufacturing option) for TravelMate 4500 only

One external monitor port

One speaker/headphone-out jack (3.5mm mini jack)

One audio line-in jack (3.5mm mini jack)

One microphone-in jack (3.5mm mini jack)

One Infrared (FIR) port (manufacturing option)

One IEEE 1394 port (manufacturing option)

One S-video TV-out port (manufacturing option)

Three USB 2.0 ports

3-in-1 (MS/MMC/SD) memory card reader (manufacturing option; for TravelMate 4500 only)

2 Chapter 1 download service manual and resetter printer at http://printer1.blogspot.com

System Block Diagram


3

Board Layout

Top View

3

4

1

2

5

6

Keyboard Connector

Bluetooth Board Connector

LCD Cable Connector

LED Board Connector

Lid Switch

Modem Cable Connector

7

8

9

10

11

3 in 1 Connector

Speaker Connector

Internal Microphone Connector

Modem Board Connector

Touchpad Board Connector


Bottom View

7

8

5

6

3

4

1

2

9

10

11

12

Power Jack

CRT

Docking

Audio Cable Connector

Main Battery Connector

ODD Connector

Media Bay Connector

Mini PCI Slot

Second Battery Connector

RTC Battery Connector

DDR DIMM Connector

HDD Connector

20

21

22

23

16

17

18

19

24

25

26

27


Line-in Connector

Headphone Out Connector

Microphone-in Connector

USB Connector

IEEE 1394 Connector

PCMCIA

USB Connector

CPU Socket

USB Connector

S-Video

RJ45 and RJ11 Connector


5

13

14

15

IR

Bluetooth Switch

Wireless Switch

28

29

30

LAN Cable Connector

FAN Connector

LAN Cable Connector


A TravelMate tour

After knowing your computer features, let us show you around your new TravelMate computer.

Front Open View

7

8

2

3

4

#

1

5

6

Icon Item

Display screen

Microphone

Keyboard

Palmrest

Click buttons (Left, center and right)

Touchpad

Status indicators

Launch keys

Description

Also called LCD (liquid-crystal display), displays computer output.

Internal microphone for sound recording.

Inputs data into your computer.

Comfortable support area for our hands when you use the computer.

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

Touch-sensitive pointing device which functions like a computer mouse.

Turns on the computer power.

Light-Emitting Diodes (LEDs) that turn on and off to show the status of the computer’s function and components.

Buttons for launching frequently used programs.


7

9 Power button Turns the computer on and off.


Front Closed View

3

4

5

6

7

8

9

10

11

#

1

2

Icon

Speakers

Item

Infrared port

Power indicator

Description

Left and right speakers deliver stereo audio output.

Interfaces with infrared devices (e.g., infrared printer, IR-aware computer). The function is for TravelMate 4000 and TravelMate

4500.

Lights when the computer is on.

Battery indicator

Lights when the battery is being charged

Bluetooth

® communications

Indicates that (optional) Bluetooth is enabled.

Wireless communication

Line-in/Mic-in jack

Line-in/MIc-in jack

Indicates status of wireless LAN communication.

Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

Speaker/Line-Out/

Headphone jack

Connects to audio line-out devices (e.g., speakers, headphones).

USB 2.0 port

Latch

Connects to Universal Serial Bus (USB) 2.0 devices (e.g., USB mouse, USB camera).

Locks and releases the lid.


9

Left View

2

3

#

1

4

5

Icon Item

Optical drive

Description

Internal optical drive; accepts CDs or DVDs depending on the optical drive type.

Lights up when the optical drive is active.

LED indicator

Emergency eject hole Ejects the optical drive tray when the computer is turned off.

Optical drive eject button

Ejects the optical drive tray from the drive.

AcerMedia bay

(Manufacturing option)

Houses an AcerMedia drive module.


Right Panel

2

3

#

1

4

5

6

7

8

9

Icon Item

IEEE 1394 port


Description

Connects to IEEE 1394 devices. The function is for TravelMate 4000 and

TravelMate 4500 only.

Ejects the PC Card from the slot.

PC Card slot eject button

PC Card slot Connects to one Type II CardBus PC Card.

3-in-1 card reader

Two USB 2.0 ports

Accepts MS, MMC and SD card.

Note: The 3-in-1 card reader is a manufacturing option, subject to configuration. Only one card can operate at any given time.

Connects to Universal Serial Bus (USB) 2.0 devices (e.g., USB mouse, USB camera).

S-video port

Network jack

Connects to a television or display device with S-video input. This is for TravelMate

4000 and TravelMate 4500 only.

Connect to an Ethernet 10/100-based network.

Modem jack

Connects to a phone line.

Ventilation slots Enable the computer to stay cool, even after prolonged use.


11

Rear Panel

#

1

2

3

4

Icon Item

Power jace

External display port

Description

Connects to an AC adapter.

Connects a display device (e.g., external monitor, LCD projector).

100-pin port replicator connector


Connects to an I/O port replicator, or Acer

EasyPort expansion devices.(for

TravelMate 4500 only)

Security keylock Connects to a Kensington-compatible computer security lock.


Bottom Panel

2

3

4

5

6

7

8

#

1

Item

Cooling fan

Battery bay

Description

Helps keep the computer cool.

Note: Do not cover or obstruct the opening of the fan.

Battery lock Locks the battery in place.

Memory compartment Houses the computer’s main memory.

Hard disk bay

AcerMedia bay release latch

Houses the computer’s hard disk (secured by a screw).

Unlatches the AcerMedia drive for removing the optical drive. (Only in

TravelMate 4500)

AcerMedia bay

Battery release latch

Houses an AcerMedia drive module.

Unlatches the battery to remove the battery pack.

Houses the computer’s battery pack.


13

Indicators

The computer has three easy-to-read status icons on the upper-right above the keyboard.

Icon Function

Caps lock

Description

Lights when Caps Lock is activated.

Num lock

Media Activity

Lights when Num Lock is activated.

Lights when the disc or AcerMedia is activated.


In addition, there are two indicators at the front panel. Even when the cover is closed, the state or features can still be seen.

Icon

Power

Function Description

Lights when the computer is on.

Battery indicator Lights when the battery is being charged.


15

Using the Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key

Caps Lock

Num lock

(Fn-F11)

Scroll lock

(Fn-F12)

Description

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator

(complete with the arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press w and y respectively.

Scroll Lock does not work with some applications.


Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired Access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num Lock On

Type numbers in a normal manner.

Hold j while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Num Lock Off

Hold Fn while using cursorcontrol keys.

Type the letters in a normal manner.


17

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key

Windows key

Application key

Icon Description

Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the

Start menu. It can also be used with other keys to provide a variety of function:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F1 (Opens Help and Support)

+ F (Opens the Find: All Files dialog box

+ M (Minimizes all windows) j

+ + M (Undoes the minimize all windows)

+ R (Displays the Run... dialog box)

This key has the same effect as clicking the right mouse button; it opens the application’s context menu.


Hot Keys

The computer employs hot keys or key combinations to access most of the computer’s controls like sreen brightness, volume output and the BIOS utility.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

Fn-F5

Fn-F6

Fn-F7

Fn-F8

Fn-w

Hot Key

Fn-F1

Fn-F2

Fn-F3

Fn-F4

Icon Function

Hot key help

Description

Displays help on hot keys.

Acer eSetting Launches the Acer eSetting in the Acer eManager set by the Acer Empowering key.

Acer ePowerManagement

Launches the Acer ePowerManagement in the Acer eManager set by the Acer Empowering key.

Sleep Puts the computer in Sleep mode.

Display toggle

Screen blank

Touchpad toggle

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

Speaker toggle Turns the speakers on and off.

Volume up Increases the speaker volume.


19

Hot Key

Fn-y

Fn-x

Fn-z

Alt Gr-$

Icon Function

Volume down

Description

Decreases the speaker volume.

Brightness up Increases the screen brightness.

Brightness down Decreases the screen brightness

US dollar Types the US dollar sign.

Alt Gr-Euro Euro Types the Euro symbol.


Special Key

You can locate the Euro symbol and US dollar sign at the upper-center and/or bottom-right of your keyboard.

To type:

The Euro symbol

1.

Open a text editor or word processor.

2.

Either directly press the Euro symbol at the bottom-right of the keyboard, or hold Alt Gr and then press the Euro symbol at the upper-center of the keyboard.

The US dollar sign

1.

Open a text editor or word processor.

2.

Either directly press the dollar sign at the bottom-right of the keyboard, or hold Alt Gr and then press the

dollar sign at the upper-center of the keyboard.

NOTE: This function varies by the operating system version.


21

Launch Keys

Located at the upper-right above the keyboard are four buttons. These buttons are called launch keys. They are designated as the mail, Web browser, Empowering and programmable keys.

Press the Acer Empowering Key to run the Acer EManager. The mail and Web browser are default for Email and Internet programs, but can be reset by users. To set the mail, Web browser and programmable keys, run the acer Launch Manager.

e

P

Mail

Launch Key

Web browser

Default application

Email application (user-programmable)

Internet browser application (user programmable)

Acer eManager application (userprogrammable)

User-programmable


In addition, there are two launch keys at the front panel. Even when the cover is closed, you can easily access the features of Wireless and Bluetooth

®

. However, the Wireless and Bluetooth keys cannot be set by users.

Description

Bluetooth

® communications

Default application

Lights to indicate the status of Bluetooth

(optional) communications.

Wireless communications

Lights to indicate the status of wireless LAN

(optional) communications.


23

Touchpad

The built-in touchpad is a PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

NOTE: If you are using an external USB or serial mouse, you can press Fn-F7 to disable the touchpad.

Touchpad Basics

The following teaches you how to use the touchpad:

T

T

T

Move your finger across the touchpad to move the cursor.

Press the left (1) and right (3) buttons located on the edge of the touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad produces similar results.

Use the 4-way scroll (2) button (top/bottom/left/and right) to scroll.

Function

Execute

Select

Drag

Access context menu

Left Button

Click twice quickly

Click once

Click and hold, then use finger to drag the cursor on the touchpad

Right Button

Click once

Scroll Button Tap

Tap twice (at the same speed as double-clicking the mouse button)

Tap once

Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap to drag the cursor


Function

Scroll

Left Button Right Button Scroll Button

Click and hold the button in the desired direction (up/ down/left/right)

Tap

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response.

Tapping too hard will not increase the touchpad’s responsiveness.


25

Hardware Specifications and Configurations

Processor

Item

CPU type

Core logic

CPU package

CPU core voltage

Specification

Intel

®

Celeron M processor at 1.3GHz~1.4GHZ for TravelMate 2300

Intel

®

Pentium M processor at 1.5GHz~1.6GHz (Dothan) for TravelMate

4000

Intel

®

Pentium M processor at 1.8GHz (Dothan) for TravelMate 4500

Inte

I

®

855GME+ICH4 for TravelMate 4000/4500

Intel

®

852GM+ICH4 for TravelMate 2300

Intel socketable 478pin Micro-BGA

1.308V (highest frequency mode) to 0.956V (low frequency mode)

0.748V (deeper sleep mode)

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

Specification

Phneoix

3A03

SST 39SF040A, 512KX8 CMOS Boot Block Flash Memory

512KB

32-pin PLCC

ACPI 1.0b, PC Card 95, SM BIOS 2.3, IEEE1284-ECP/EPP, PCI 2.2, PnP

1.0a, DMI 2.0, PS/2 keyboard and mouse, USB 2.0, VGA BIOS, CD-ROM bootable, IEEE 1394

Set by setup manual BIOS password control

Second Level Cache

Item

Cache controller

Cache size

1st level cache control

2st level cache control

Cache scheme control

System Memory

Item

Memory controller

Specification

Built-in CPU

512K for Intel

®

Celeron M processor at 1.3~1.4GHz-TravelMate 2300

2MB for Intel

®

Pentium M processor at 1.5~1.6GHz (Dothan)-TravelMate

4000

2MB for Intel

®

Pentium M processor at 1.8GHz (Dothan)-TravelMate 4500

Always enabled

Always enabled

Fixed in write-back

Memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Specification

Intel

®

855GME built-in (TravelMate 4000/4500);

Intel

®

852GM built-in (TravelMate 2300)

0MB (no on-board memory)

2 sockets

1024MB

2G (by two 1024MB SO-DIMM module)

DDR Synchronous DRAM

333 MHz

2.5V and 1.25V


System Memory

Item

Supports DIMM package

Memory module combinations

Specification

200-pin soDIMM

You can install memory modules in any combinations as long as they match the above specifications.

Memory Combinations

Slot 1

256MB

256MB

256MB

256MB

512MB

512MB

512MB

512MB

0MB

0MB

0MB

0MB

128MB

128MB

128MB

1284MB

1024MB

1024MB

1024MB

1024MB

1024MB

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

0MB

128MB

256MB

512MB

1024MB

Slot 2

384MB

512MB

768MB

1280MB

640MB

768MB

1024MB

1536MB

128MB

256MB

512MB

1024MB

256MB

384MB

640MB

1152MB

1024MB

1125MB

1280MB

1536MB

2048MB

Total Memory

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

LAN Interface

Item

Chipset

Supports LAN protocol

LAN connector type

LAN connector location

Features

Specification

Broadcom BCM4401 (10/100M) ; BroadCom BCM5788M (1G)-

BroadCom BCM5788M chipset is manufacturing option

10/100/1000Mbps

RJ45

Right panel

Integrated 10/100 BASE-T transceiver

Wake on LAN support compliant with ACPI 2.0

PCI v2.2

IR Interface

Item Specification

Part name

Package

VISHAY TFU6102F

8-pin SMT type


27

IR Interface

Item

Performance

Compliant

Modem Interface

Item

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

Bluetooth Interface

Item

Chipset

Data throughput

Protocol

Interface

Connector type

4Mbit/s

IrDA 1.1

56K

V.90/V.92

RJ11

Right panel

Specification

Specification

Specification

Broadcom BCM2035

723 bps (full speed data rate)

Bluetooth 1.1 (Upgradeable to Bluetooth 1.2 when SIG specification is ratified).

USB 1.1

Mini-USB

Wireless Module 802.11b/g (optional device)

Item

Chipset

Data throughput

Protocol

Interface

Intel

®

11~54 Mbps

802.11b+g

Mini-PCI type II

Specification

Wireless Module 802.11a/b/g (optional device)

Item

Chipset

Data throughput

Protocol

Interface

Intel

®

11~54 Mbps

802.11 a+b+g

Mini-PCI type II

3-in-1 card reader

Chipset

Protocol

Item

Specification

Specification

TI PC7411 support Smart Media, Multi-Media Card and Security Digital


Hard Disk Drive Interface

Item

Vendor &

Model Name

Data heads

Drive Format

HGST

HTS424030M9AT00/

Toshiba Pluto

MK3025GAS/

Capacity (MB) 30000

Bytes per sector

512

2

Disks

Spindle speed

(RPM)

1

4200 RPM

Performance Specifications

Buffer size 2048KB/

Interface

Max. media transfer rate

(disk-buffer,

Mbytes/s)

ATA/ATAPI-6; ATA-6

372

Data transfer rate

(host~buffer,

Mbytes/s)

100 MB/Sec.

Ultra DMA mode-5

DC Power Requirements

Voltage tolerance

5V(DC) +/- 5%

Specification

HGST

HTS424040M9AT00/

Toshiba Pluto

MK4025GAS/

HGST MORAGA

IC25N060ATMR04-0

Toshiba Pluto

MK6025GAS

40000

512

60000

512

HGST MORAGA

IC25N080ATMR04-0

Toshiba Pluto

MK8025GAS

80000

512

2

1

4200 RPM

2048KB

ATA/ATAPI-6; ATA-6

372

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

3/4 (for Toshiba)

2

4200 RPM

8192KB

ATA/ATAPI-6; ATA-6

350

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

4

2

4200 RPM

8192KB

ATA/ATA-6; ATA-6

350

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

Combo Drive Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Buffer Memory

Interface

Applicable disc format

Loading mechanism

Power Requirement

Input Voltage

Specification

DVD/CDRW KME UIDA760 (24x24x8x24x)

DVD/CDRW QSI SBW-242C (24x24x8x24x)

With CD Diskette With DVD Diskette

Sustained:

Max 3.6Mbytes/sec

2MB

Enhanced IDE(ATAPI) compatible

Sustained:

Max 10.8Mbytes/sec

DVD: DVD-ROM, (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single border), DVD-RW, DVD-RAM (2.6GB, 4.7GB)

CD: CD-DA, CD-ROM, CD-ROM XA, CD-R, CD-RW Photo (Multisession)

Video CD, CD-Extra, (CD+), CD-test

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)


29

DVD-Dual Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Buffer Memory

Interface

Applicable disc format

Loading mechanism

Power Requirement

Input Voltage

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Mixed sound source

Voice channel

Sampling rate

Internal microphone

Internal speaker / Quantity

Audio Jack

Number of audio jack

Item

Rated input

Connector type

Specification

DVD Dual HLDS GWA-4040N

With CD Diskette

Sustained:

Max 3.6Mbytes/sec

With DVD Diskette

Sustained:

Max 10.8Mbytes/sec

2MB

Enhanced IDE(ATAPI) compatible

Support disc formats

1. Reads data in each CD-ROM, CD-ROM XA, CD-1, Video CD, CD-Extra and

CD-Text

2. Reads data in Photo CD (single and Multi-session)

3. Reads standard CD-DA

4. Reads and writes CD-R discs

5. Reads and writes CD-RW discs

6. Reads and writes in each dVD+R/RW (Ver. 1.1)

7. Reads data in each DVD-ROM and DVD-R (Ver. 2.0 for Authoring)

8. Reads and writes in each DVD-R (Ver. 2.0 for general), DVD-RW and

DVD+R/RW (Ver1.1)

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)

Specification

Conexant CX20468-31

Built-in

Stereo

18 bit stereo digital to analog converter

18 bit stereo analog to digital converter

AC97

Line-in, CD

8/16-bit, mono/stereo

44,1 KHz (48K byte for AC97 interface)

Yes

Yes/2

Specification

Internal: 2

External:3

1W

Internal: two 1W speakers

External: Headphone out, microphone in and line-in


Video Interface

Item

Chipset

Package

Interface

Supports ZV (Zoomed Video) port

Video Memory

Item

Chipset

Memory size

Interface

Specification

ATI Mobility RADEON 9700 (optional for TM4000/4500)

MBGA 708 pin

AGP8X

Yes

Specification

TM4000 and TM4500 has two types of PCBAs. One is with Intel

855GME and the other is ATI M11 (ATI Mobility RADEON 9700)

TM2300 Intel 852GM integrated

UMA 16/32/64MB for TM2300

UMA 16/32/64MB or ATI M11-P 64MB for TM4000

UMA 16/32/64MB or ATI M11-P 64MB for TM4500

DDR

USB Port

Item

Chipset

USB Compliancy Level

OHCI

Number of USB port

Location

Serial port function control

IEEE 1394 Port

Item

Chipset

Number of IEEE 1394 port

Connector type

PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

Specification

ICH4-M

2.0

USB 1.1 and USB 2.0 Host controller

3 two on the right side; one on the front side

Enable/Disable by BIOS Setup

TI PC7411

1

IEEE 1394

TI PC7411

Type-II

One type-II

Right panel

No ZV support

Yes

Specification

Specification


31

System Board Major Chips

Item

Core logic

VGA

LAN

IEEE 1394

USB 2.0

Super I/O controller

MODEM

Bluetooth

Wireless 802.11 b

Wireless 802.11 b+g

PCMCIA

Audio

3-in-1 card reader

Keyboard

Item

Keyboard controller

Total number of keypads

Windows logo key

Internal & external keyboard work simultaneously

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Number of battery cell

Package configuration

Normal voltage

Charge voltage

LCD 14.1 inch

Item

Vendor & model name

Screen Diagonal (mm)

Active Area (mm)

Display resolution (pixels)

Controller

Intel

®

855GME+ICH4 (TravelMate 4000/4500)

Intel

®

852GM+ICH4 (TravelMate 2300)

ATI Mobility RADEON 9700 (optional for TravelMate 4000/4500)

BroadCom BCM4401 (10/100M); BCM5788M(1G)

TI PC7411

ICH4-M

NS 87383

Conexant RD01-D620

Broadcom BCM2035

Intel

®

Intel

®

TI PC7411

Conexant CX20468-31

TI PC7411

Specification

NS PC97551

88-/89-key

Yes

1. Plug USB keyboard to the USB port directly: Yes

2. Use port replicator then plug a USB/PS 2 keyboard to the USB port/PS 2 port on the port replicator: Yes

Specification

Sanyo 4UR18650F-2-QC140

Panasonic CGR-B/8B5AE

Simplo 916-3020

Li-ion

4400 mAh

8

4 cells in series, 2 series in parallel

14.4V

16.8+-0.2v

Specification

AU B141XG05

357(14.1inch)

285.7(H)x214.3(V)

XGA (1024x768)

CMO N141XB-L01

14inch

285.7(H)x214.3(V)

XGA (1024x768)

QDI QD141XLH12

360(14.1inch)

285.7(H)x214.3(V)

XGA (1024x768)


LCD 14.1 inch

Pixel Pitch

Item

Pixel Arrangement

Display Mode

Typical White Luminance (cd/m

2

) also called Brightness

Luminance Uniformity

Weight

Physical Size(mm)

Electrical Interface

Support Color

Viewing Angle (degree)

Horizontal: Right/Left

Vertial: Upper/Lower

Specification

0.279(H)x0.279(H) mm

RGB vertical stripe

Normally white

150

Contrast Ratio

Response Time (Optical Rise Time/Fall

Time)msec

Nominal Input Voltage VDD

Typical Power Consumption (watt)

1.2(5 points)

1.5(13 points)

250 (min)/ 300 (typ)

15/10

+3.3V

5.3

400g (w/o inverter)

299(W)x228(H)x5.5

(D)

R/G/B Data, 3Sync,

Signals, Clock (4 pairs LVDS)

Native 262K colours

45/45

15/35

0.279(H)x0.279(H) mm

RGB vertical stripe

Normally white

130(min)/160(typ) not show

300(min)/450(typ)

6/17(typ)

10/25(max) not show

4.03 (for backlight unit)

420g

299(W)x228(H)x5.2

(D)

1 channel LVDS

262K colours

45/45

15/35

Operating

Storage (shipping)

0 to +50

-20 to +60

0 to +50

-20 to +60

0.279(H)x0.279(H) mm

RGB vertical stripe

Normally white

120

1.45(5 points)

2(13 points)

300(min)

12.5/22.5

+3.3V

N/A

460g

299(W)x228(H)x6.2

(D)

1 channel LVDS

262K colours

40/40

10/30

0 to +50

-25 to +60

LCD 15 inch

Item

Vendor & model name


Active Area (mm)


Pixel Pitch

Pixel Arrangement

Display Mode


2



Contrast Ratio


Time)msec


Specification

AU:

B150XG01

381

304.1x228.1

1024x768 XGA

0.297x0.297

R.G.B. Vertical

Stripe

Normally White

180 (5 point average)

150 (5 point average)

N/A

300

24/11

15/35

+3.3V Typ.

QDI

QD15XL06-01

15.0 inches

304.1x228.1

1024x768 XGA

0.099x0.297

R.G.B. Vertical

Stripe

Normally White

160

N/A

300

8/17

+3.3V

Hannstar

HSD150PX14-A07

15.0 inches

304.1x228.1

1024x768 XGA

0.297x0.297

R.G.B. Vertical

Stripe

Normally White

150

70

250

10/25

3.3V


33

LCD 15 inch

Item


Weight

Physical Size(mm)


Support Color




Operating

Storage (shipping)

Specification

5.6/5.7

550

317.3x242.0x6.0

1 channel LVDS

262K colors (RGB

6-bit data driver)

40/40

10/30

0 to +50

-20 to +60

3.96

570

317.3x242.0x5.9

1 channel LVDS

262,144

45/45

15/35

0 to +50

-25 to +60

N/A

600

317.3x242.0x6.5

1 channel LVDS

262,144

40/40

20/40

0 to +50

-20 to +60

LCD 15 inch and 15.4 inch

Item

Vendor & model name


Active Area (mm)


Pixel Pitch

Pixel Arrangement

Display Mode

Specification

SAMSUNG

LTN150XB-L03

304.1x228.1

1024x768 XGA

0.297x0.297

R.G.B. Vertical

Stripe

Normally White

Hitachi

TX38D81VC1CAB

15.0 inches, 381

304.1x228.1

1024x768 XGA

0.297x0.297

R.G.B. Vertical

Stripe

Transmissive & normally White

170


2



Contrast Ratio


Time)msec



Weight

Physical Size(mm)

160

N/A

200

10/30(typ)

+3.3V

4.6 for backlight unit only

585

317.3x242.1x6.0

40

200

30/30

+3.3V

N/A

580

317.3x242.1x6.0


Support Color




1 channel LVDS

262K

45/45

25/45

N/A

1 channel LVDS

262K

40/40

20/40

Operating

Storage (shipping)

0 to +40

-20 to +60

LCD 15.4" WXGA

QDI

390.1

331.2x207.0

1280x800 WXGA

0.2588x0.2588

R.G.B. Vertical

Stripe

Normally White

185

1.4 (5pts)

400

5/20

+3.3V Typ.

4.38

585

344x222.0x6.35 max

1 channel LVDS

262K colors (RGB

6-bit data driver)

15/35

45/45

0 to +50

-25 to +60


LCD Inverter

Item

Vendor & model name

Brightness conditions

Input voltage (V)

Input current (mA)

Output voltage (V, rms)

Output current (mA, rms)

Output voltage frequency (k Hz)

AC Adaptor

Item

Input rating

Maximum input AC current

Inrush current

Efficiency

System Power Management

ACPI mode

Mech. Off (G3)

Soft Off (G2/S5)

Working (G0/S0)

Suspend to RAM (S3)

Save to Disk (S4)

SUMIDA TWS-449-147

Vadj=3.3V

8~20

350 (max)

1600 (no load)

5.6~5.4

55~58K Hz

Specification

Specification

90V AC to 264V AC, 47Hz to 63Hz

1.7A

220A@115VAC

220A@230VAC

82% min. @115VAC input full load

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices in the system are turned off completely.

Individual devices such as the CPU and hard disc may be power managed in this state.

CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Also called Hibernate state. System saves all system states and data onto the disc prior to power off the whole system.


35


Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press

m

during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

. Info.

PhoenixBIOS Setup Utility

Main Advanced Security Boot Exit

CPU Type:

CPU Speed:

Intel (R) Pentium (R) M processor 1.70Ghz

1700 MHz

HDD1 Model Name:

HDD1 Serial Number:

HDD2 Model Name:

HDD2 Serial Number:

ATAPI Device:

System BIOS Ver:

VGA BIOS Ver:

KBC Ver:

Serial Number

IC25N080ATMR04-0

MPAA01Q2G0746A

MATSHITADVD-RAM UJ-825S

3A01

Montara-GME3360

PQ1A24

1234567890123456789012

Asset Tag Number: 1234567890

Product Aspire1680

Manufacturer Name: Acer

UUID: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

F1 Help ↑ ↓ Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit

→

Select Menu Enter Select

4

Sub - Menu F10 Save and Exit

Chapter 2 37 download service manual and resetter printer at http://printer1.blogspot.com

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys (zx).

To choose a parameter, use the cursor up/down keys ( wy).

T

T

T

T

To change the value of a parameter, press por q.

A plus sign (+) indicates the item has sub-items. Press e to expand this item.

Press ^ while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t. You can also press u to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values. Please

note that system information vary in models.


Information

. Info.


Main Advanced Security Boot Exit

CPU Type:

CPU Speed:

Intel (R) Pentium (R) M processor 1.70Ghz

1700 MHz

HDD1 Model Name:

HDD1 Serial Number:

HDD2 Model Name:

HDD2 Serial Number:

ATAPI Device:

System BIOS Ver:

VGA BIOS Ver:

IC25N080ATMR04-0

MPAA01Q2G0746A

MATSHITADVD-RAM UJ-825S

3A01

Montara-GME3360

KBC Ver:

Serial Number

PQ1A24

1234567890123456789012

Asset Tag Number: 1234567890

Product Aspire1680

Manufacturer Name: Acer

UUID: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

F1 Help

↑ ↓

Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit → Select Menu Enter Select

4


NOTE: The system information is subject to different models.

Parameter

Floppy Disk Drive

HDD Model Name

HDD Serial Number

ATAPI Model Name

ATAPI Serial Number

Serial Number

UUID Number

Description

Shows floppy drive type informaiton only when this model has floppy disk drive.

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.

This field shows the serial number of devices installed on secondary IDE master.

This field displays the serial number of this unit.

This will be visible only when an internal LAN device is presenting.

UUID=32bytes


39

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.


Info.

Main

Advanced Security Boot Exit

Item Specific Help

System Time:

System Date:

Quiet Boot:

System Memory:

Extended Memory:

Video Memory

Power on Display:

Network boot:

F12 Boot Menu:

D2D recovery:

[05:34:07]

[07/23/2004]

640 KB

<Tab>, <Shift-Tab>, or

<Enter> selects field.

Shows system base memory size

238MB

[16MB]

Shows extended memory size

VGA memory size

[Enabled]

[Auto ]

[Enabled]

[Disabled]

[Enabled]

F1 Help

↑ ↓

Select Item Change Values F9 Setup Defaults

Esc Exit ← Select Menu Enter Select

4

Sub -Menu F10 Save and Exit

NOTE: The screen above is for your reference only. Actual values may differ.


The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

VGA Memory

Fast Boot

Power on display

LCD Auto Dim

Network Boot

F12 Boot Menu

D2D Recovery

Description

Sets the system time. The hours are displayed with 24-hour format.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of the system.

Memory size is fixed to 640MB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size. VGA Memory size=64/128MB

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Determines if the system will automatically dim the LCD brightness in order to save power when

AC is not present.

The system will support an automatic dimming of the LCD backlight when the AC power is NOT available (running on battery power).

Enables, disables the system boot from LAN

(remote server).

Enables, disables Boot Menu during POST.

Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.

Option:

Enabled

or Disabled

Option:

Auto

or Both

Option:

Enabled

or Disabled

Option:

Enabled

or Disabled

Option:

Disabled

or Enabled

Option:

Enabled

or Disabled

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.


41

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.


Info.

Main

Advanced

Security Boot Exit

Item Specific Help

Internal Touchpad:

[Both]

Infrared Port (FIR):

[Enabled]

Configure Infrared Port using options:

[Disable]

No configuration

[Enabled]

User configuration

[Auto]

BIOS or OS chooses

configuration

(OS Controlled)

Displayed when controlled

by OS


Esc Exit

← →

Enter

4


The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.

.

Parameter

Infrared Port

Parallel Port

Mode

Base I/O address

Interrupt

DMA channel

Description

Enables, disables or auto detects the infrared port.

Enables, disables or auto detects the parallel port.

Sets the operation mode of the parallel port.

Sets the I/O address of the parallel port.

Sets the interrupt request of the parallel port.

Sets a DMA channel for the printer to operate in

ECP mode. This parameter is enabled only if Mode is set to ECP.

Options

Disabled

/Disabled/Auto

Enabled

/Disabled/Auto

ECP

, EPP, Output only or Bidirectional

378

/278

IRQ7

/IRQ5

DMA3

/DMA1


Parameter

Legacy USB Support

Hard Disk Recovery

Description

Enables, disables USB interface devices support.

(Enable for use with a non-USB aware Operating

System such as DOS or UNIX).

Enables or disables Hard Disk to Hard Disk system

Recovery by pressing Fn+F10 key during POST.

Options

Option:

Disabled

or Enabled

Option:

Disabled

or Enabled


43

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.


Info.

Main Advanced

Security

Boot Exit

Supervisor Password Is:

User Password Is:

Primary HardDisk Security:

HDD Master ID:

Set Supervisor Password

Set User Passord

Set HDD Password

Password on Boot

Clear

Clear

Clear

43883445

[Enter]

[Enter]

[Enter]

[Disabled]

Item Specific Help

When shown as [Locked], the hard drive password currently can not be changed or disabled.

To change or disable it, turn off the system and enter Setup immediately after turning it back on.

Press [Enter] to input, change, or disable hard drive passwords.


Esc Exit

← →

Enter

4

Sub -Menu F10 Save and Exit


The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

User Password is

Supervisor Password is

Set User Password

Set Supervisor Password

Primary Harddisk Security

Password on Boot

Description

Shows the setting of the user password.

Shows the setting of the Supervisor password

Press Enter to set the user password. When user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.

This feature is available to user when

Supervisor password is set. Password can be written on HDD only when Supervisor password or user password is set and password on HDD is set to enabled.

Supervisor Password is written to HDD only when Supervisor password is being set. User password is written to HDD when both passwords are set. When both Supervisor and user password are present, both passwords can unlock the HDD.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Option

Clear

or Set

Clear

or Set

Disabled

Disabled

or Enabled

or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:

2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.


45

3.

Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4.

When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.

Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5.

If desired, you can enable the Password on boot parameter.

6.

When you are done, press u to save the changes and exit the BIOS Setup Utility.


If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u.

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.


47

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.


Info.

Main Advanced Security

Boot

Exit

Item Specific Help

CD-ROM/DVD Drive

Floppy Devices

+Hard Drive

Network Boot

+ and - indicate device categories. Use <Enter> to expand/collapses.

Boot order is top-down using only the top device in each category.

Use <F6> and <F5> to move highlighted item up and down.

F1 Help

↑ ↓

Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit

← →

Enter

4 Sub-Menu

F10 Save and Exit


Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

Info.


Main Advanced Security Boot

Exit

Item Specific Help

Exit Saving Changes

Exit Dicarding Changes

Load Setup Defaults

Discard Changes

Save Changes

Exit System Setup and save your changes to CMOS.


Esc Exit

← →

Enter

4 Sub-Menu

F10 Save and Exit

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.


49

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Fellow the steps below to run the Phlash.

1.

Prepare a bootable diskette.

2.

Copy the Phlash utilities to the bootable diskette.

3.

Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.


Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

T

Small Philips screw driver

Philips screwdriver

T

Plastic flat head screw driver

T

Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the stripe cover, please be careful not to scrape the cover.


General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

3.

Remove the battery pack.

NOTE: The screws used to secure bottom case and upper case are more than one type. Please group same type of screw together as you disassemble the system for service purpose. The image below is for your reference. Please pay attention to the explanation below.

IO Bezel

Battery

The screws that secure heatsink cover, MIni PCI cover and HDD cover are with the covers. There is no need to worry about mix them up. However, please notice that you have to group the screws on the following locations together. There are twenty screws holding the bottom case to upper case but some screws are inside the system. You may have to remove the HDD, the heatsink cover to see these screws. Mini PCI cover here also called RAM/Wireless cover.

Screw Type

M2.5*6

(Part number: 86.T23V7.010)

Location

Bottom case and IO bezel

(hightlight with yellow circle)

14

Quantity


Screw Type

M2.5*6


M2.5*6


M2.5*6


M2.5*3


M2.5*3


Location

Remove the IO bezel then you will see.

Remove the heatsink cover then you will see.

Remove the HDD cover then you will see.

Detach the HDD module then you will see.

Remove the battery then you will see.

2

1

1

1

1

Quantity


53

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Start

Battery

*2

HDD Cover

HDD Module

Wireless LAN

Card

*2

RAM/Wireless

Cover

Memory

CPU

E*2

IO Bezel ODD Module

*2 back side

*4 left/right side

Heatsink

Cover

*2

ODD

Connector

Board special screw for thermal*3

Ex1

Thermal

Module

ODD Drive

ODD Holder

E*3

Middle Cover

B*2

Keyboard

*4

(right and left hinges)

LCD Module

B*2

Switch Board

B*5

E*16+B*2

Lower and

Upper Case

Assembly

Lower Case

Assembly

VGA Heatsink

*3

E*2

*2 screw nuts

Main Board 3-in-1 Cover

*4

Speaker Set

B*2

Modem Board

Upper Case

Assembly

Touchpad

Touchpad

Bracket

B*2

Bluetooth

Module

Touchpad

Board


LCD Module

4 screw pads

M*4

LCD Bezel

Antenna set

Screw List

F

G

D

E

Item

A

B

C

H

I

J

Description

SCREW M2.0X3.0-I-NI-NYLOK

SCREW I2.5*3M-BNIH(M2.5L3)

SCREW M2.5*4L-BZN-NYLOK

SCREW M2.0X5-I-NI-NYLOK

SCREW MM25060IL69

SCREW M2.0*5-I(NI)(NYLOK)


SCREW I2*3M-NIHY (M2L3)

SCREW M1.7*3.0-I (BK)

SCREW I3*3.5M-NIH(M3L3.5)

LCD

LCD Cover

*6 hinges

*2 brackets

LCD

Assembly

*4

LCD Inverter

LCD Cable LCD Brackets


55

Removing the Battery Pack

1.

Unlock the battery lock.

2.

Slide the battery latch as shown then remove the battery pack.


Removing the HDD Module/the Memory and the Wireless LAN Card/the

Thermal Module and the CPU/ODD Module and LCD Module

Removing the HDD Module

1.

Remove the two screws holding the HDD cover.

2.

Remove the HDD cover.

3.

Detach the HDD module then remove it.

Removing the Memory and the Wireless LAN Card

1.

Remove the two screws that secure the RAM/Wireless cover.

2.

Remove the RAM/Wireless cover.

.

3.

Pop up the memory then remove it.

4.

Disconnect the auxiliary and the main wireless antennae.

5.

Pop the wireless LAN card then remove it.

Removing the Thermal Module and CPU

1.

Remove the two screws holding the IO bezel.

2.

Then remove the IO bezel.

3.

Remove the two screws that secure the heatsink cover.


57

4.

Remove the heatsink cover from the main unit.

5.

Disconnect the fan cable.

6.

Remove the four screws that secure the thermal module.

7.

Pull the thermal module outwards then remove it.

NOTE: The edge of the thermal module as shown is very sharp. Be very careful as you remove the thermal module.

8.

Use a flat-bladed screwdriver to release the CPU lock.

9.

Remove the CPU from the socket carefully.


Removing the ODD Module

1.

Remove the three screws holding the middle cover.

2.

Detach the middle cover carefully.

3.

Turn over the keyboard as shown.

4.

Disconnect the keyboard cable from the main board then remove the keyboard.

.

5.

Remove the screw that fastens the ODD module.

6.

Turn over the notebook computer then detach the ODD module carefully.

NOTE: When you reattach the ODD, please make sure you attach the ODD module completely to the main unit. Otherwise, you can not fasten the screw and the screw may damage the main board.

Removing the LCD Module

1.

Remove the three screws holding the keyboard cover.

2.

Open the LCD module as the picture shown then detach the keyboard cover from the main unit.


59

.

.

3.

Remove the two screws that secure the keyboard as shown.

4.

Turn over the keyboard as shown and disconnect the keyboard cable then remove the keyboard.

5.

Pull out the antenna set with a tweezers then take out the antenna set from the main unit.

.

6.

Disconnect the LCD coaxial cable.

7.

Remove the four screws holding the right and the left hinge. Two on each side.

8.

Then detach the LCD module from the main unit.


Disassembling the Main Unit

Separate the Main Unit Into the Upper and the Lower Case Assembly

1.

Remove the two screws holding the switch board.

2.

Remove the switch board.

3.

Disconnect the touchpad FFC from the main board.

4.

Disconnect the bluetooth cable.

5.

Remove the five screws that secure the upper case.

6.

Remove the eighteen screws on the bottom as shown.

7.

Detach the upper case assembly and place it next to the lower case assembly.

8.

Disconnect the microphone cable then remove the upper case assembly.

Disassembling the Upper Case Assembly

1.

Disconnect the touchpad board to touchpad FFC.

2.

Disconnect the touchpad board to main board FFC.

3.

Then detach the touchpad board to main board FFC from the touchpad board.


61

4.

Remove the three screws that secure the touchpad board.

5.

Remove the touchpad board from the upper case.

6.

Disconnect the touchpad board to touchpad FFC.

7.

Remove the touchpad board to touchpad FFC from the uppwer case assembly.

8.

Remove the four screws holding the touchpad bracket.

9.

Detach the touchpad bracket from the upper case assembly.

10. Remove the touchpad from the upper case.

11. Remove the two screws that secure the bluetooth module.

12. Disconnect the bluetooth module then remove it.

Disassembling the Lower Case Assembly


1.

Disconnect the MDC cable from the modem board.

2.

Detach the MDC cable from the main board.

3.

Remove the two screws holding the modem board.

4.

Remove the modem board from the lower case.

5.

Disconnect the speaker cable from the main board.

6.

Remove the two screws that secure the main board.

7.

Remove the two screw nuts as shown.

8.

The you can detach the main board from the upper case.

9.

Remove the three screws that secure the VGA heatsink.

10. Remove the VGA heatsink from the main board as shown.

11. Remove the three in one cover from the lower case.

12. Remove the two screws that secure the speaker set on one side.

13. Then remove another two screws holding the speaker set on the other side.

14. Then take out the speaker set from the lower case.


63


Disassembling the LCD Module

1.

Remove the four screw caps as shown.

2.

Remove the four screws holding the LCD bezel.

3.

Then detach the LCD bezel from the LCD module.

4.

Disconnect the inverter board then remove it.

5.

Remove the three screws holding the right hinge.

6.

Then remove the three screws that secure the left hinge.

.

7.

Remove one screw that secure the LCD bracket.

8.

Remove another screw holding the LCD bracket on the other side.

9.

Then detach the LCD panel from the LCD cover carefully.

10. Remove the two screws holding the right bracket.

11. Then remove the right bracket.

12. Remove another two screws that tighten the left bracket.


65

13. Remove the left bracket as the picture shows.

14. Tear off the tape fastening the LCD cable.

15. Tear off the the LCD cable fastening the LCD cable, then remove it..


Disassembling the External Modules

Disassembling the HDD Module

1.

Remove the two screws holding the HDD bracket on one side.

2.

Remove another two screws holding the HDD bracket on the other side.

3.

Then take the hard disc drive out from the HDD bracket.

Disassembling the Optical Drive Module

1.

Remove the four screws as the picture shows.

2.

Remove the two screws that secure the optical disc drive and the ODD holder.

3.

Push the ODD holder as shown.

4.

Detach the ODD holder.

5.

Disconnect the ODD connector board then remove it.


67


Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Duplicate symptom and obtain the failing symptoms in as much detail as possible.

2.

Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Disassemble and assemble the unit without any power sources.

4.

If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You can check the following: power cords are properly connected and secured; there are no obvious shorts or opens; there are no obviously burned or heated components; all components appear normal.

5.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 71.

“Power-On Self-Test (POST) Error Message” on page 73

“Undetermined Problems” on page 85

“Error Message List” on page 74


Use the customer-reported symptoms and go to


“Intermittent Problems” on page 84

“Undetermined Problems” on page 85


System Check Procedures

External Diskette Drive Check

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.

Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.


Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.


The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.

Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.


Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Battery Pack” on page 72


71

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.

2.

Run utility with the PS/2 mouse function and check if the mouse is working.

3.

If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.

4.

If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB connects properly.

5.

If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then replace switch board. If no, then go to next step.

6.

Replace touch pad PCB.

7.

If the touch pad still does not work, then replace FPC on Track Pad PCB.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.


Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 85.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.


73

Index of Error Messages

Error Message List

Struck Key

Error Messages

System CMOS checksum bad - Default configuration used

Real time clock error

Previous boot incomplete - Default configuration used

Invalid System Configuration Data

Operating system not found

FRU/Action in Sequence

See “Keyboard or Auxiliary Input Device Check” on page 70

RTC battery

Run BIOS Setup Utility to reconfigure system, then reboot system.

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

Main board

“Load Default Settings” in BIOS Setup Utility.

RTC battery

Main baord

“Load Default Settings” in BIOS Setup Utility.

Main board

Enter Setup and see if fixed disk and drive A are properly identified.

Dikette drive

Hard disk drive

Main board


Error Message List

No beep Error Messages

Power-on indicator turns off and LCD is blank.

Power-on indicator turns on and LCD is blank.

Power-on indicator turns on and LCD is blank.

But you can see POST on an external CRT.

Power-on indicator turns on and a blinking cursor shown on LCD during POST.

FRU/Action in Sequence

Power source (battery pack and power adapter.) See “Power

System Check” on page 71

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

Main board.

Power source (battery pack and power adapter.) See “Power

System Check” on page 71

Reconnect the LCD connector

Hard disk drive

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD connectors.

LCD cable

LCD inverter

LCD

Main board

Ensure every connector is connected tightly and correctly.

Main board


75

Phoenix BIOS Beep Codes

28h

29h

2Ah

2Ch

2Eh

20h

22h

24h

26h

17h

18h

1Ah

1Ch

12h

13h

14h

16h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

0Ch

0Eh

0Fh

10h

11h

2Fh

30h

3Ch

3Dh

42h

45h

46h

32h

33h

36h

38h

3Ah

Code

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

Beeps POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Check ROM copyright notice 2-1-2-3


7Eh

80h

81h

82h

70h

72h

76h

7Ch

83h

84h

85h

86h

87h

88h

89h

8Ah

8Bh

8Ch

5Ah

5Bh

5Ch

60h

52h

54h

58h

59h

4Ch

4Eh

50h

51h

48h

49h

4Ah

4Bh

68h

69h

6Ah

6Bh

62h

64h

66h

67h

6Ch

6Eh

Code

2-2-3-1


Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and IRQs

Late POST device initialization

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable Devices

(optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

Initialize floppy controller


77

C3h

C4h

C5h

C6h

BFh

C0h

C1h

C2h

C7h

C8h

C9h

D2h

B5h

B6h

B9h

BAh

BBh

BCh

BDh

BEh

A4h

A8h

AAh

ACh

AEh

B0h

B2h

B4h

9Eh

9Fh

A0h

A2h

99h

9Ah

9Ch

9Dh

93h

95h

96h

97h

98h

8Fh

90h

91h

92h

Code

1-2

1


Determine number of ATA drives (optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Unknown interrupt


E8h

E9h

EAh

EBh

ECh

EDh

EEh

EFh

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

F4h

F5h

F6h

F7h

F0h

F1h

F2h

F3h

Code

1


Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS


79

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

First, plug a monitor to CRT port. Next, enter BIOS utility to running

“Load Default Settings” then reboot the system.


Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.


Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD cable

LCD cable

LCD

Main board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

HDD/CD-ROM active indicators cannot work

Main board

HDD/CD-ROM drive

Device driver

Main board


Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system cannot power-on.

The system cannot power-off.


Power source (battery pack and power adapter). See “Power

System Check” on page 71.

Battery pack

AC adapter

See if the thermal module is overheat (Heat sink or fan).

Main board

Power source (battery pack and power adapter). See “Power

System Check” on page 71.

Battery pack

Power adapter

CPU

Main board

In Windows XP operating system, hold and press the power switch for more than 4 seconds. If the system can power off, then the main board is OK. Verify OS in the HDD.

Main board


Power-Related Symptoms

Symptom / Error

Battery can’t be charged or discharged

System hang during POST


See “Check the Battery Pack” on page 72.

Battery pack

Main board

ODD/HDD/FDD/RAM module

Main board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA)

PCMCIA slot pin is damaged.

PC Card cannot be inserted or ejected


PCMCIA slot assembly

Main board

PCMCIA slot assembly

Check if the PCMCIA slot is blocked

Main board

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

System can power on, but you hear two long beeps: “B--, B--” and the LCD is blank.


Enter BIOS Setup Utility to execute “Load Default Settings” then reboot system.

RAM module

Main board

Check BIOS revision

Reinsert DIMM

DIMM

Main board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

OS volume control

Audio driver

Speaker

Main board


Internal speakers make noise or emit no sound.

Speaker

Main board

Microphone cannot work Audio driver

Volume control in Windows XP

Main board

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation mode

The system doesn’t enter standby mode after closing the lid of the portable computer.


Power option in Windows XP

Hard disk drive

Main board

Driver of Power Option Properties

Lid close switch in upper case

Main board


81

Power Management-Related Symptoms

The system doesn't resume from hibernation/ standby mode.

Symptom / Error

The system doesn't resume from standby mode after opening the lid of the portable computer.

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.


Connect AC adapter then check if the system resumes from

Standby/Hibernation mode.

Check if the battery is low.

Hard disk drive

Main board

LCD cover switch

Main board

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

Main board

Reconnect hard disk/CD-ROM drives.

Main board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Parallel port device problems


Enter BIOS Setup Utility to execute “Load Setup defaults”, then reboot system.

Reconnect hard disk/CD-ROM drives/FDD or other peripherals.

Main board

Press Fn+F5, LCD/CRT/Both display switching

Keyboard

Main board

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Run printer self-test.

Printer driver

Printer cable

Printer

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Device driver

Device cable

Device

Main board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.


Reconnect the keyboard cable.

Keyboard

Main board

Reconnect touchpad cable.

Touchpad board

Main board


Modem/LAN-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Internal LAN does not work correctly


Phone cable

Driver

Reconnect the Internal modem cable to the main board tightly.

Main board

Lan cable

Driver

Main board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 85.


83

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.


Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 71):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

T

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

System board

T

LCD assembly


85

Use NAPP CD to Build Master Hard Disc Drive

CD to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

4.

NAPP CD will start to preload the system, please click [Y].

5.

Select CD to Disk Revocery.


6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.

After you place the Recovery CD to the optical drive, you will see the display below.


87

7.

Then insert the System CD to the optical drive.

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.


Disk to Disk Recovery

1.

Prepare NAPP CD, Recovery CD and System CD.

2.

Put NAPP CD into the optical drive. Then boot up the system.

3.

The system will ask you if you want to build NAPP Master HDD. Please press any key to continue.

4.

NAPP CD will start to preload the system, please click [Y].


89

5.

Select Disk to Disk Recovery. Then choose Single Language or Multi-Languages Recovery.

NOTE: For Multi-Languages Recovery, not more than five languages could be loaded to the system.

6.

Put the Recovery CD to the optical drive. This step is to create image files to the system, you do not have to put the Recovery CD to the optical drive in order. Place one Recovery CD to the drive at one time till you finish all Recovery CDs.


After you place the Recovery CD to the optical drive, you will see the display below.

7.

Then insert the System CD to the optical drive.


91

8.

You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.


Jumper and Connector Locations

Top View

Chapter 5

3

4

1

2

Keyboard Connector

Bluetooth Board Connector

LCD Cable Connector

LED Board Connector

CN5

CN6

CN2

CN3

7

8

9

10

3 in 1 Connector

Speaker Connector

Internal Microphone Connector

Modem Board Connector

CN10

CN12

CN11

CN9


5

6

Lid Switch

Modem Cable Connector

SW2

CN4

11 Touchpad Board Connector CN8


Bottom View

7

8

5

6

3

4

1

2

9

10

11

12

13

Power Jack

CRT

Docking


Main Battery Connector

ODD Connector

Media Bay Connector

Mini PCI Slot

Second Battery Connector

RTC Battery Connector

DDR DIMM Connector

HDD Connector

IR

CN13

CN14

CN15

CN16

CN18

CN19

CN23

CN24

CN26

CN31

CN32

CN33

U53

20

21

22

23

16

17

18

19

24

25

26

27

28


Line-in Connector

Headphone Out Connector

Microphone-in Connector

USB Connector

IEEE 1394 Connector

PCMCIA

USB Connector

CPU Socket

USB Connector

S-Video

RJ45 and RJ11 Connector

LAN Cable Connector

CN34

CN39

CN37

CN38

CN36

CN35

CN30

CN28

U41

CN27

CN25

CN22

CN21


95

14

15

Bluetooth Switch

Wireless Switch

SW4

SW3

29

30

FAN Connector

LAN Cable Connector

CN20

CN17


Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of TravelMate 4000/

4500 series products. Refer to this chapter whenever ordering for parts to repair or for RMA (Return

Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.


Exploded Diagram


TravelMate 4000

Adapter


Battery

N/S

N/S

N/S

N/S

No.

Boards

9

Partname And Description

ADAPTER 65W 3 PIN DELTA SADP-65KB BF

19V

ADAPTER 65W 3 PIN LITE-ON PA-1650-02

QA 19V

ADAPTER 65W 3 PIN LI-SHIN SLS0335A 19V

TBD

TBD

TBD

BATTERY SANYO LI-ION 4S2P 4.4A

4UR18650F-2-QC140

BATTERY PANASONIC LI-ION 4S2P 4.4A

CGR-B/8B5AE

BATTERY SIMPLO LI-ION 4S2P 4.4A 916-

3020

TBD

TBD

TBD

Part Number

MODEM BOARD 54.T50V7.001

14 BLUETOOTH MODULE W/ANTENNA 54.T48V7.001

N/S WIRELESS LAN BOARD (802.11b+g) INTEL KI.CAX01.005

12 LAUNCH BOARD

31 TOUCH PAD BOARD

55.T50V7.001

55.T50V7.002


99

TravelMate 4000


Cables

N/S

No.


FFC CABLE - TP/B TO MB

N/S MODEM CABLE

Part Number

50.T50V7.001

50.T50V7.002

Case/Cover/Bracket Assembly

13

10

1

N/S POWER CORD US (3 PIN)

POWER CORD PRC (3 PIN)

POWER CORD KOERA ( Pin)

POWER CORD EU (3 PIN)

POWER CORD UK (3 PIN)

POWER CORD ITALIAN (3 PIN)

POWER CORD- SWISS

POWER CORD AU (3 PIN)

POWER CORD DANISH (3 PIN)

POWER CORD AF (3 PIN)

MIDDEL COVER ERGO W/BUTTON

Note: The middle cover on the exploded diagram is non-ergo for Aspire series.

UPPER CASE ERGO W/TP, TP BRACKET,

TP TO TP BOARD FFC CABLE

Note: The upper case on the exploded diagram is non-ergo for Aspire series.

LOWER CASE W/SPEAKER

27.A03V7.001

27.A03V7.003

27.T23V7.006

27.A03V7.002

27.A03V7.004

27.A03V7.005

27.A03V7.007

27.A03V7.008

27.A03V7.006

27.T48V7.001

42.T50V7.001

60.T50V7.001

60.T51V7.001

37 I/O BEZEL

23 DIMM/WIRELESS COVER

42.T51V7.001

42.T50V7.002


TravelMate 4000


22

No.


HEATSINK COVER

Part Number

42.T50V7.003

26 HDD COVER 42.T50V7.004

36

25

3 IN 1 DUMMY COVER

Note: The image on the left is 3 in 1 cover. If that is 3 in 1 dummy cover, there is no card insert space on the cover.

HDD BRACKET

42.T51V7.002

33.T50V7.001

Communication Module

N/S WIRELESS LAN ANTENNA 50.T50V7.003

CPU

N/S

Optical Disc Drive Module

N/S

INTEL PENTIUM M 1.5G 2M 400FSB uFCPGA2 SL6F9 B-1 STEPPING

INTEL PENTIUM M 1.6G 2M 400FSB uFCPGA2 SL7EG B-1 STEPPING

INTEL PENTIUM M 1.7G 2M 400FSB uFCPGA2 SL7EP B-1 STEPPING

INTEL PENTIUM M 1.8G 2M 400FSB uFCPGA2 SL7EN B-1 STEPPING

INTEL PENTIUM M 2.0G 2M 400FSB uFCPGA2 SL7EM B-1 STEPPING

KC.N0001.715

KC.N0001.725

KC.N0001.735

KC.N0001.745

KC.N0001.755

DVD-ROM MODULE 8X QSI SDR-083

DVD/CDRW COMBO MODULE 24X QSI

SBW-242C

DVD/CDRW COMBO MODULE KME UIDA-

760

DVD DUAL MODULE QSI SDW-042

DVD DUAL MODULE PIONEER DVR-K14RA

DVD DUAL MODULE LITE-ON SOSW-852S

DVD SUPER MULTI MODULE KME UJ-830B

DVD SUPER MULTI MODULE HLDS GSA-

4080N

6M.T51V7.008

6M.T51V7.001

6M.T51V7.002

6M.T51V7.003

6M.T51V7.004

6M.T51V7.005

6M.T51V7.006

6M.T51V7.007


TravelMate 4000


27

No.

29


DVD-ROM DRIVE 8X QSI SDR-083

DVD/CDRW COMBO DRIVE 24X QSI SBW-

242C

DVD/CDRW COMBO DRIVE 24X KME UIDA-

760

DVD DUAL DRIVE QSI SDW-042

DVD DUAL DRIVE PIONEER DVR-K14RA

DVD DUAL DRIVE LITE-ON SOSW-852S

DVD SUPER MULTI DRIVE KME UJ-830B

DVD SUPER MULTI DRIVE HLDS GSA-

4080N

Part Number

KV.00803.003

KO.02407.014

KO.02406.008

KU.00403.001

KU.00805.001

KU.00805.001

KU.00807.003

TBD

OPTICAL DEVICE HOLDER-FIX 42.T51V7.003

28

HDD/Hard Disk Drive

24

DVD-ROM BEZEL FOR QSI

DVD/CDRW BEZEL FOR QSI

DVD/CDRW BEZEL FOR KME

DVD DUAL BEZEL FOR QSI

DVD DUAL BEZEL FOR PIONEER

DVD DUAL BEZEL FOR LITE-ON

DVD SUPER MULTI BEZEL FOR KME

DVD SUPER MULTI BEZEL FOR HLDS

30G HGST 2.5" 4200 Moraga+

HTS424030M9AT00 13G1486 fw:DA1017

Toshiba Pluto 30G 4200rpm MK3025GAS

Seagate 30G ST93015A,2MB F/W:4.05


HTS424040M9AT00 13G1132 fw:DA1017

Toshiba PLUTO 40G 4200rpm MK4025GAS

,KA100A F/W:KA100A

SEAGATE 40G 4200rpm ST94019A, 2MB F/

W:3.05

HGST 60G 4200rpm MORAGA

IC25N060ATMR04-0 08K0634 F/W:AD4A


(phase in Mar/Apr) F/W:KA200A


IC25N080ATMR04-0 08K635 F/W:AD4A

TOSHIBA PLUTO 80G 4200rpm

MK8025GAS, 8MB F/W:KA023A

42.T51V7.004

42.T50V7.008

42.T50V7.009

42.T50V7.010

42.T50V7.011

42.T50V7.012

42.T50V7.013

42.T50V7.014

KH.03007.006

KH.03004.002

KH.03001.001

KH.04007.010

KH.04004.002

KH.04001.010

KH.06007.006

KH.06004.003

KH.08007.007

KH.08004.001

Keyboard


TravelMate 4000


11

No.


TM4500/TM4000/TM2300 KEYBOARD

DARFON US International

Note: The keyboard on the exploded diagram is non-ergo for Aspire series.


DARFON Chinese


DARFON Spanish


DARFON Thai


DARFON Brazilian Protugese


DARFON Korea


DARFON UK


DARFON German


DARFON Italian


DARFON French


DARFON Swiss/G


DARFON Portuguese


DARFON Arabic


DARFON Belgium


DARFON Sweden


DARFON Czech


DARFON Hungaian


DARFON Norway


DARFON Danish


DARFON Turkish


DARFON Canadian French


DARFON Japanese


DARFON Greek


DARFON Hebrew


DARFON Russian

Part Number

KB.T5007.001

KB.T5007.010

KB.T5007.011

KB.T5007.012

KB.T5007.013

KB.T5007.014

KB.T5007.015

KB.T5007.016

KB.T5007.017

KB.T5007.002

KB.T5007.003

KB.T5007.004

KB.T5007.005

KB.T5007.006

KB.T5007.007

KB.T5007.008

KB.T5007.009

KB.T5007.018

KB.T5007.019

KB.T5007.020

KB.T5007.021

KB.T5007.022

KB.T5007.023

KB.T5007.024

KB.T5007.025


TravelMate 4000


LCD Module

N/S

No.


LCD MODULE 14.1 IN. XGA AU B141XG05

Part Number

6M.T51V7.011

20

LCD MODULE 14.1 IN. XGA QDI

QD141XLH12

LCD MODULE 14.1 IN. XGA CMO N141XB-

L01

LCD MODULE 15 IN. XGA AU B150XG01

LCD MODULE 15 IN. XGA QDI QDI150XL06-

01

LCD MODULE 15 IN. XGA HANNSTAR

HSD150PX14-A07

LCD MODULE 15 IN. XGA SAMSUNG

LTN150XB-L03

LCD MODULE 15 IN. XGA HITACHI

TX38D81VC1CAB

LCD MODULE 15.4 IN. WXGA QDI

QD15TL02-01

LCD 14.1 IN. TFT XGA AU B141XG05

6M.T51V7.012

6M.T51V7.013

6M.T50V7.011

6M.T50V7.012

6M.T50V7.013

6M.T50V7.014

6M.T50V7.015

6M.T50V7.019

LK.14105.006

17

LCD 14.1 IN. TFT XGA QDI QD141XLH12

LCD 14.1 IN. TFT XGA CMO N141XB-L01

LCD 15" TFT XGA AU B150XG01 V2 (spwg-

B)

LCD 15 IN. XGA QDI QDI150XL06-01

LCD 15 IN. XGA HANNSTAR HSD150PX14-

A07

LCD 15 IN. XGA SAMSUNG LTN150XB-L03

LCD 15 IN. TFT XGA HITACHI

TX38D81VC1CAB (SPWG-B)

LCD 15.4 IN. WXGA QDI QD15TL02-01

LCD INVERTER BOARD

LK.14109.003

LK.1410D.003

LK.15005.001

LK.15009.002

LK.15007.009

LK.15006.004

LK.15004.006

LK.15409.001

19.T50V7.001


TravelMate 4000


16

No.


LCD CABLE - 14.1 IN. XGA

LCD CABLE - 15 IN. XGA

LCD CABLE - 15.4 IN. WXGA

Part Number

50.T51V7.001

50.T50V7.004

50.T50V7.006

19

18

38

LCD BRACKET W/HINGE 14 IN. - L

LCD BRACKET W/HINGE 14 IN. - R



LCD BRACKET W/HINGE 15.4 IN. - L

LCD BRACKET W/HINGE 15.4 IN. - R

LCD PANEL W/LOGO ANTENNA 14/15 IN.

LCD PANEL W/LOGO ANTENNA 15.4 IN.

33.T51V7.001

33.T51V7.002

33.T50V7.002

33.T50V7.003

33.T50V7.004

33.T50V7.005

60.T50V7.003

60.T50V7.005

20 LCD BEZEL W/RUBBER PAD 14 IN.

LCD BEZEL W/RUBBER PAD 15 IN.

LCD BEZEL W/RUBBER PAD 15.4 IN.

60.T51V7.002

60.T50V7.004

60.T50V7.006

Main Board

2 MAINBOARD 855GME M11 64MB W/PCMCIA

SLOT W/O CPU MEMORY

MAINBOARD 855GME UMA W/PCMCIA

SLOT W/O CPU MEMORY

LB.T5206.001

LB.T5306.001

Memory

N/S 256MB NANYA SO-DIMM DDR333 256MB

NT256D64SH8BAGM-6K (.14u)

256M Infineon SO-DIMM DDR333

HYS64D32020GDL-6-C (.11u/B) (Sample

April/M, 09/04' by firm PO)

256M Infineon SO-DIMM DDR333 256MB

HYS64D32020HDL-6-C 32x64 (.11u/G) (MP in

Sept.)

256M Micron SO-DIMM DDR333 256MB

MT4VDDT3264HG-335C2

256M Samsung SO-DIMM DDR333 256MB

M470L3224FT0-CB3 (.13u)

256M Hynix SO-DIMM DDR333 256MB

HYMD232M646D6-J AA

KN.25603.009

KN.25602.022

KN.25602.012

KN.25604.016

KN.2560B.008

KN.2560G.001


TravelMate 4000


N/S

No.



HYS64D64020GBDL-6-C (.11u/B)

Part Number

KN.51202.013

Speaker

N/S

N/S

N/S

512MB NANYA SO-DIMM DDR333 512MB

NT512D64SH8A0FM-6K

512MB Micron SO-DIMM DDR333 512MB

MT8VDDT6464HDG-335C1 (.11u),

SPEAKER SET

KN.51203.011

KN.51204.013

23.T50V7.001

Heatsink

21 THERMAL MODULE 60.T50V7.007

4 VGA HEATSINK W/PAD

Miscellaneous

Screw

K

I

G

A

N/S

C

N/S

N/S

D

N/S

7

N/S

N/S

32

NAME PLATE

RUBBER FOOT

LCD SCREW RUBBER PAD

LCD BEZEL RUBBER PAD





SCREW MM25060IL69






34.T50V7.001

47.T51V7.001

47.T50V7.002

47.T50V7.003

47.T50V7.004

86.A03V7.012

86.T25V7.012

86.A03V7.006

86.T23V7.006

86.A08V7.004

86.T23V7.010

86.A03V7.007

86.T25V7.008

86.T50V7.001

86.A03V7.011


TravelMate 4500

Adapter


Battery

Boards

Cable

Case/Cover/Bracket Assembly

No.


ADAPTER 65W 3 PIN DELTA SADP-65KB BF

19V

ADAPTER 65W 3 PIN LITE-ON PA-1650-02

QA 19V

ADAPTER 65W 3 PIN LI-SHIN SLS0335A 19V

TBD

TBD

TBD

BATTERY SANYO LI-ION 4S2P 4.4A

4UR18650F-2-QC140

BATTERY PANASONIC LI-ION 4S2P 4.4A

CGR-B/8B5AE

BATTERY SIMPLO LI-ION 4S2P 4.4A 916-

3020

TBD

TBD

TBD

Part Number

MODEM BOARD

BLUETOOTH MODULE W/ANTENNA

WIRELESS LAN BOARD (802.11b+g) INTEL

LAUNCH BOARD

TOUCH PAD BOARD

54.T50V7.001

54.T48V7.001

KI.CAX01.005

55.T50V7.001

55.T50V7.002

FFC CABLE - TP/B TO MB

MODEM CABLE

POWER CORD US (3 PIN)

POWER CORD PRC (3 PIN)

POWER CORD KOERA ( Pin)

POWER CORD EU (3 PIN)

POWER CORD UK (3 PIN)

POWER CORD ITALIAN (3 PIN)

POWER CORD- SWISS

POWER CORD AU (3 PIN)

POWER CORD DANISH (3 PIN)

POWER CORD AF (3 PIN)

MIDDEL COVER ERGO W/BUTTON

UPPER CASE ERGO W/TP, TP BRACKET,

TP TO TP BOARD FFC CABLE

LOWER CASE FOR SWAP W/SPEAKER

I/O BEZEL FOR DOCKING

DIMM/WIRELESS COVER

HEATSINK COVER

HDD COVER

3 IN 1 COVER

HDD BRACKET

WIRELESS LAN ANTENNA

50.T50V7.001

50.T50V7.002

27.A03V7.001

27.A03V7.003

27.T23V7.006

27.A03V7.002

27.A03V7.004

27.A03V7.005

27.A03V7.007

27.A03V7.008

27.A03V7.006

27.T48V7.001

42.T50V7.001

60.T50V7.001

60.T50V7.002

42.T50V7.005

42.T50V7.002

42.T50V7.003

42.T50V7.004

42.T50V7.006

33.T50V7.001

50.T50V7.003

Communication Module

CPU


TravelMate 4500


Combo Module

No.


INTEL PENTIUM M 1.5G 2M 400FSB uFCPGA2 SL6F9 B-1 STEPPING

INTEL PENTIUM M 1.6G 2M 400FSB uFCPGA2 SL7EG B-1 STEPPING

INTEL PENTIUM M 1.7G 2M 400FSB uFCPGA2 SL7EP B-1 STEPPING

INTEL PENTIUM M 1.8G 2M 400FSB uFCPGA2 SL7EN B-1 STEPPING

INTEL PENTIUM M 2.0G 2M 400FSB uFCPGA2 SL7EM B-1 STEPPING

Part Number

KC.N0001.715

KC.N0001.725

KC.N0001.735

KC.N0001.745

KC.N0001.755

DVD/CDRW COMBO MODULE 24X QSI

SBW-242C SWAP

DVD/CDRW COMBO DRIVE 24X QSI SBW-

242C

OPTICAL DEVICE CONNECTOR BOARD W/

MYLARY

OPTICAL DEVICE HOLDER-SWAP

DVD/CDRW BEZEL FOR QSI

6M.T50V7.001

KO.02407.014

55.T50V7.003

42.T50V7.007

42.T50V7.008

DVD/CDRW COMBO MODULE KME UIDA-

760 SWAP

DVD/CDRW COMBO DRIVE 24X KME UIDA-

760


MYLARY


DVD/CDRW BEZEL FOR KME

6M.T50V7.002

KO.02406.008

55.T50V7.003

42.T50V7.007

42.T50V7.009

DVD DUAL MODULE QSI SDW-042 SWAP

DVD DUAL DRIVE QSI SDW-042


MYLARY


DVD DUAL BEZEL FOR QSI

6M.T50V7.003

KU.00403.001

55.T50V7.003

42.T50V7.007

42.T50V7.010

DVD DUAL MODULE PIONEER DVR-K14RA

SWAP

DVD DUAL DRIVE PIONEER DVR-K14RA


MYLARY


DVD DUAL BEZEL FOR PIONEER

6M.T50V7.004

KU.00805.001

55.T50V7.003

42.T50V7.007

42.T50V7.011

DVD DUAL MODULE LITE-ON SOSW-852S

SWAP

DVD DUAL DRIVE LITE-ON SOSW-852S


MYLARY


6M.T50V7.005

KU.00804.007

55.T50V7.003

42.T50V7.007


TravelMate 4500


HDD/Hard Disk Drive

Keyboard

No.


DVD DUAL BEZEL FOR LITE-ON

Part Number

42.T50V7.012

DVD SUPER MULTI MODULE KME UJ-830B

SWAP

DVD SUPER MULTI DRIVE KME UJ-830B


MYLARY


DVD SUPER MULTI BEZEL FOR KME

6M.T50V7.006

KU.00807.003

55.T50V7.003

42.T50V7.007

42.T50V7.013

DVD SUPER MULTI MODULE HLDS GSA-

4080N SWAP

DVD SUPER MULTI DRIVE HLDS GSA-

4080N


MYLARY


DVD SUPER MULTI BEZEL FOR HLDS

6M.T50V7.007

TBD

55.T50V7.003

42.T50V7.007

42.T50V7.014


HTS424030M9AT00 13G1486 fw:DA1017

Toshiba Pluto 30G 4200rpm MK3025GAS

Seagate 30G ST93015A,2MB F/W:4.05


HTS424040M9AT00 13G1132 fw:DA1017


,KA100A F/W:KA100A

SEAGATE 40G 4200rpm ST94019A, 2MB F/

W:3.05


IC25N060ATMR04-0 08K0634 F/W:AD4A


(phase in Mar/Apr) F/W:KA200A


IC25N080ATMR04-0 08K635 F/W:AD4A

TOSHIBA PLUTO 80G 4200rpm

MK8025GAS, 8MB F/W:KA023A


DARFON US International


DARFON Chinese


DARFON Spanish


DARFON Thai


DARFON Brazilian Protugese


DARFON Korea

KH.03007.006

KH.03004.002

KH.03001.001

KH.04007.010

KH.04004.002

KH.04001.010

KH.06007.006

KH.06004.003

KH.08007.007

KH.08004.001

KB.T5007.001

KB.T5007.002

KB.T5007.003

KB.T5007.004

KB.T5007.005

KB.T5007.006


TravelMate 4500


LCD

No.



DARFON UK


DARFON German


DARFON Italian


DARFON French


DARFON Swiss/G


DARFON Portuguese


DARFON Arabic


DARFON Belgium


DARFON Sweden


DARFON Czech


DARFON Hungaian


DARFON Norway


DARFON Danish


DARFON Turkish


DARFON Canadian French


DARFON Japanese


DARFON Greek


DARFON Hebrew


DARFON Russian

LCD MODULE 15 IN. XGA AU B150XG01

LCD 15" TFT XGA AU B150XG01 V2 (spwg-

B)

LCD INVERTER BOARD






6M.T50V7.011

LK.15005.001

19.T50V7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

LCD MODULE 15 IN. XGA QDI QDI150XL06-

01

6M.T50V7.012

Part Number

KB.T5007.007

KB.T5007.008

KB.T5007.009

KB.T5007.010

KB.T5007.011

KB.T5007.012

KB.T5007.013

KB.T5007.014

KB.T5007.015

KB.T5007.016

KB.T5007.017

KB.T5007.018

KB.T5007.019

KB.T5007.020

KB.T5007.021

KB.T5007.022

KB.T5007.023

KB.T5007.024

KB.T5007.025


TravelMate 4500

Picture No.


LCD 15 IN. XGA QDI QDI150XL06-01

LCD INVERTER BOARD






LCD MODULE 15 IN. XGA HANNSTAR

HSD150PX14-A07

LCD 15 IN. XGA HANNSTAR HSD150PX14-

A07

LCD INVERTER BOARD






LCD MODULE 15 IN. XGA SAMSUNG

LTN150XB-L03

LCD 15 IN. XGA SAMSUNG LTN150XB-L03

LCD INVERTER BOARD






LCD MODULE 15 IN. XGA HITACHI

TX38D81VC1CAB

LCD 15 IN. TFT XGA HITACHI

TX38D81VC1CAB (SPWG-B)

LCD INVERTER BOARD






LCD MODULE 15 IN. SXGA CMO N150P2-

L04

LCD 15" TFT SXGA+ CMO N150P2-L04

LCD INVERTER BOARD

LCD CABLE - 15 IN. SXGA



6M.T50V7.015

LK.15004.006

19.T50V7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

6M.T50V7.016

LK.1500D.003

19.T50V7.001

50.T50V7.005

33.T50V7.002

33.T50V7.003

Part Number

LK.15009.002

19.T50V7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

6M.T50V7.013

LK.15007.009

19.T50V7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

6M.T50V7.014

LK.15006.004

19.T50V7.001

50.T50V7.004

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004


TravelMate 4500


Mainboard

Memory

No.




LCD MODULE 15 IN. SXGA AU B150PG01

LCD 15" TFT SXGA+ AU B150PG01

LCD INVERTER BOARD






LCD MODULE 15 IN. SXGA SAMSUNG

LTN150P4-L03

LCD 15 IN. TFT SXGA+ SAMSUNG

LTN150P4-L03 (150nit)

LCD INVERTER BOARD






LCD MODULE 15.4 IN. WXGA QDI

QD15TL02-01

LCD 15.4 IN. WXGA QDI QD15TL02-01

LCD INVERTER BOARD

LCD CABLE - 15.4 IN. WXGA

LCD BRACKET W/HINGE 15.4 IN. - L

LCD BRACKET W/HINGE 15.4 IN. - R

LCD PANEL W/LOGO ANTENNA 15.4 IN.

LCD BEZEL W/RUBBER PAD 15.4 IN.

MAINBOARD 855GME M11 64MB DOCKING

3 IN 1 W/PCMCIA SLOT W/O CPU MEMORY

MAINBOARD 855GME UMA DOCKING 3 IN 1

W/PCMCIA SLOT W/O CPU MEMORY

LB.T5006.001

LB.T5106.001


NT256D64SH8BAGM-6K (.14u)

256M Infineon SO-DIMM DDR333

HYS64D32020GDL-6-C (.11u/B) (Sample

April/M, 09/04' by firm PO)


HYS64D32020HDL-6-C 32x64 (.11u/G) (MP in

Sept.)

256M Micron SO-DIMM DDR333 256MB

MT4VDDT3264HG-335C2

KN.25603.009

KN.25602.022

KN.25602.012

KN.25604.016

Part Number

60.T50V7.003

60.T50V7.004

6M.T50V7.017

LK.15005.002

19.T50V7.001

50.T50V7.005

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

6M.T50V7.018

LK.15006.006

19.T50V7.001

50.T50V7.005

33.T50V7.002

33.T50V7.003

60.T50V7.003

60.T50V7.004

6M.T50V7.019

LK.15409.001

19.T50V7.001

50.T50V7.006

33.T50V7.004

33.T50V7.005

60.T50V7.005

60.T50V7.006


TravelMate 4500


Speaker

Heatsink

No.


256M Samsung SO-DIMM DDR333 256MB

M470L3224FT0-CB3 (.13u)

256M Hynix SO-DIMM DDR333 256MB

HYMD232M646D6-J AA


HYS64D64020GBDL-6-C (.11u/B)


NT512D64SH8A0FM-6K

512MB Micron SO-DIMM DDR333 512MB

MT8VDDT6464HDG-335C1 (.11u),

SPEAKER SPEAKER SET

Miscellaneous

THERMAL MODULE

VGA HEATSINK W/PAD

NAME PLATE

RUBBER FOOT

LCD SCREW RUBBER PAD

LCD BEZEL RUBBER PAD

Weights Saver

2nd HDD Base

WEIGHT SAVER

2nd HDD BASE W/CONNECT

2nd HDD Cover

2nd HDD Bracket Kit

2nd HDD COVER

2nd HDD BRACKET KIT

Screw





SCREW MM25060IL69






Part Number

KN.2560B.008

KN.2560G.001

KN.51202.013

KN.51203.011

KN.51204.013

23.T50V7.001

60.T50V7.007

34.T50V7.001

47.T50V7.001

47.T50V7.002

47.T50V7.003

47.T50V7.004

60.T50V7.008

60.T50V7.009

42.T50V7.015

6K.T50V7.001

86.A03V7.012

86.T25V7.012

86.A03V7.006

86.T23V7.006

86.A08V7.004

86.T23V7.010

86.A03V7.007

86.T25V7.008

86.T50V7.001

86.A03V7.011




Appendix A

Model Definition and Configuration

TravelMate 4000 Series

Model Number

4001WLCi

4001WLMi

4001WFLMi

4001WFLCi

4001WNLCi

4001WNLMi

LCD

15.4"

WXGA

15.4"

WXGA

15.4"

WXGA

15.4"

WXGA

15.4"

WXGA

15.4"

WXGA

XGA

XGA

CPU

PM 715

(1.5GHz/2M)

PM 715

(1.5GHz/2M)

PM 715

(1.5GHz/2M)

PM 715

(1.5GHz/2M)

PM 715

(1.5GHz/2M)

PM 715

(1.5GHz/2M)

(1.5GHz/2M)

(1.5GHz/2M)

Memory

DDR333 1 or

2x256MB

DDR333 1 or

2x256MB

DDR333

1x256MB

DDR333

1x256MB

DDR333

1x256MB

DDR333

1x256MB

DDR333

2x256MB

DDR333

2x256MB

HDD

40GB

40/

60GB

40GB

40GB

40GB

40GB

40GB

40/

60GB

ODD

24x Combo

Wireless

LAN

11b/g

OS

XPH

4x DVD-

Dual

4x DVD-

Dual

24x Combo

24x Combo

4x DVD-

Dual

24x Combo

4x DVD-

Dual

11b/g

11b/g

11b/g

11b/g

11b/g

11b/g

11b/g

XPH

IBM DOS

IBM DOS

Linux

Linux

XPH

XPH

Appendix A 116 download service manual and resetter printer at http://printer1.blogspot.com

Appendix B

Test Compatible Components

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows

®

XP Home environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the TravelMate 2300/4000/4500 series Compatibility Test Report released by the Acer Mobile System Testing Department.

NOTE: Test Compatible List is NOT ready when the service guide is released. We will update test compatible list accordingly once we got test report.

Appendix B 119 download service manual and resetter printer at http://printer1.blogspot.com

Microsoft

®

Windows

®

XP Pro Environment Test

Item

Processor

Memory

LCD

LCD

LCD

LCD

Specifications

Intel Celeron 1.3GHz

Intel Celeron 1.4GHz

Intel PMP 705Banias 1.5 GHz, Tj85

Intel Dothan 715/1.5GHz





256MB NANYA SO-DIMM DDR333 NT256D64SH8BAGM

256MB Infineon SO-DIMM DDR333 HYS64D32020GDL

256MB Infineon SO-DIMM DDR333 HYS64D32020HDL

256MB Micron SO-DIMM DDR333 MT4VDDT3264HG

256MB Samsung SO-DIMM DDR333 M470L3224FT0

256MB Hynix SO-DIMM DDR333 HYMD232M646D6

512M Infineon SO-DIMM DDR333 HYS64D64020GBDL

512MB Micron SO-DIMM DDR333 MT8VDDT6464HDG

1GMB Elpida SO-DIMM DDR333 EBD11UD8ADDA

14.1"XGA B141XG05 (AU)

14.1"XGA QD141X1LH12 (QDI)

14.1"XGA N141XB-L01 (CMO)

15.0"XGA B150XG01 V. 2 (AU)

15.0"XGA B150XG02 V.2 170 nits (AU)

15.0"XGA QD150XL06-01 160nits (QDI)

15.0"XGA LP150X08-A3 160nits (LG)

15.0"XGA HSD150PX14-A07 (Hannstar)

15.0"XGA LTN150XB-L03-C00 (Samsung)

15.0"XGA TX38D81VC1CAB Rev.B (Hitachi)

15.0"XGA N150X3-L07 (CMO/IDT)

15.0"XGA CLAA150XH01-N (CPT)

15.0"SXGA+ B150PG01 with NEC driver IC (AU)

15.0"SXGA+ N150P2-L04 (200nit) (IDT(CMO)

15.0"SXGA+ B150PG03 (200nit) (AU)

15.0"SXGA+ LTN150P4-L03 (Samsung)

15.0"SXGA+ QD15FL02 RV.01 (200nit) (QDI)

15.4"WXGA B154EW01 V.5 (170nit) (AU)

15.4"WXGA QD15TL02-01 (TN type) (185nit) (QDI)

15.4"WXGA N154I1-L09 (185nit) (CMO/IDT)

15.4"WXGA LTN154X2-L02 Low cost (Samsung)

15.4"WXGA Low cost TN TYPE (CPT)

15.4"WXGA Low Cost TN TYPE (LG)

15.4"WXGA TX39D85VC1FAA Low Cost (Hitachi)

15.4"WSXGA+ LP154W02-B1 (185nit) (LG)

15.4"WSXGA+ TX39D99VC1FAA (Hitachi)

15.4"WSXGA+ Low cost (Samsung)

120 Appendix B download service manual and resetter printer at http://printer1.blogspot.com

Hard Disk Drive

Item

DVD-ROM Drive 8X

DVD/CD-RW Combo

DVD-dual

DVD-Super Multi

AC Adapter (3 pin)

Power Cord

Battery Li-Ion, 8 cells

CRT Port

Parallel Port

Specifications

30G HGST Moraga+ HTS424030M9AT00

30G Toshiba MK3025GAS30GB

30G Seagate 30G ST93015A

40G HGST Moraga+ HTS424040M9AT0040GB

40G Toshiba PLUTO MK4025GAS

40G SEAGATE ST94019A40G

60G HGST Moraga IC25N060ATMR04-0

60G TOSHIBA Neptune MK6021GAS

80G HGST Moraga IC25N080ATMR04

80G TOSHIBA Pluto MK8025GAS

DVD-ROM QSI SDR-083

KME UJDA-760

QSI SBW-242C

DVR-K14RA

Lite-on SOSW-852S

QSI SDW-042

QSI SDW-082

KME UJ-830B

HLDS GSA-4080N

Delta NB Asapter 65W, SADP-65KB BF

Lite-on NB Adapter 65W, PA-1650-02

LSE NB Adapter 65W, P0335A1965

King Cord

Sanyo 4UR18650F-2-QC140 ZL1,4S2P,4.4A / AHA842223I4

Panasonic CGR-B/8B5AE,ZL1,4S2P,14.8V,4.4A / AHA84222050

Simplo 916-3020 4S2P,4.4A / AHA842221I0

Sanyo 4UR18650F-QC141 ZL1,4S1P,2.2A / AHA44122A01

Panasonic CGR-B/423AE,ZL1,4S1P,14.8V,2.2A / AHA44122712

Simplo 916-2990 4S1P,2.2A / AHA44122909

Sanyo 3UF103450P-2-QC148 ZL1,3S2P,3.8A 6cell 2nd Bat /

AHA63217219

CRT Monitor:

ViewSonic PF775

Philips Brilliance 109P 19"

LCD Monitor:

LCD Quanta ADT 20"

LCD akia KX1

Projector:

Panasonic PT-LC80U

Printer:

HP Desk Jet 840C

HP Laser Jet 5M

HP Deskjet 450

Cable:

LL5 cable


1394 Port

Item

USB 2.0

USB Port

Specifications

HDD:

IEEE 1394 (Fire Wire)/USB 1.1 Combo Hard Drive

CCD:

1394 CCD (APLUX C102T)

1394 CardBus Card:

IEEE 1394 CardBus Card \DV Magician\UPMOST

Cable:

1394 four to four cable

HUB:

Highspeed\4 Port

UNION START UH-364

W-FORCE 4 Port USB2.0 Super Mini Hub

HDD:

USB HDD:VIPower(Smart Family Disk)

DVD/CD-RW:

Pioneer DVR-104

Ricoh MP5125A

YAMAHA CD/RW-70

Printer:

HP3425 Printer

Handy Drive:

SanDisk Cruzer USB 2.0 Handy Drive 256MB

USB Mouse:

BenQ M102-G80

Logitech Mouse M-BE58

Microsoft Wheel Mouse Optical USB & PS2 Compatible

Acer MP0930

USB Keyboard:

Microsoft Internet Keyboard Pro

BenQ 6511-ME

KILITEK

USB KeyPad:

LUNARIS TK-LU2BSV USB Keypad


USB Port

Item

GB LAN HUB

PS/2 Port

COM Port

S-Video

PC Card

Specifications

USB CCD:

ViewQuest NB330

USB HDD:

HD 530 Tested to comply with FCC Standards

USB FDD:

Teac USB FDD

Yano USB FDD UFD-04

NEC USB FDD

Mitsumi USB FDD D353FUE

USB Speaker:

J-S USB 3D Speaker /J1321

USB Printer:

Canon BJC-3000

HD DeskJet 930C

HP DeskJet 840C

USB Hub:

PCI_ USB HUB\UH-400

USB Hub /UH-9124Z

USB LAN:

BUFFALO USB-10/100M Ethernet LUX-TX

USB Handy Drive:

JMTEK USB 1.1 Handy Drive 128MB

3COM SUPER STACK II \ 3C16611 24port

Keyboard:

Microsoft Internet Keyboard Pro

BTC Keyboard

PS/2 Keypad:

PC Keypad KB-5640

Mouse:

Logitech M-C48

Mouse:

Logitech Serial Mouse M-MM43

TV:

SONY Trinitron 14"\PVM-14M2U

Modem Card:

Psion - Gold Card Glabal 56K+Fax

SyCard:

16bit

32bit

16 bit LAN Card:

3COM 10M LAN Card (3CCFE589ET)

Xircom EtherNet 10/100+Modem56 CEM56-100

CardBus LAN Card:

3COM 10/100 CardBus LAN Card (3CCFE575CT)

SCSI:

Adaptec SlimSCSI APA-1460D Card

Adaptec SlimSCSI 1480A CardBus UltraSCSI Card

RATOC REX-CB80


PC Cards

Item

Memory Card

Audio Jacks

Access Point

Bluetooth

HDD

ODD

Specifications

LAN+Modem card:

Xircom CreditCard Ethernet + Modem 56k (CEM56-100)

ATA Card:

4 in1 WIN&MAC Card reader+Transcend 128MB

Apapter CF Card Read + PNY CF CARD 128MB

Wireless LAN Card:

CISCO AIRONET 350 SERIES\AIR-PCM350

Linksys WPC11ver.4

Intel(R)PRO / Wireless 2011B LAN PC Card

MMC:

SanDisk 64MB

Compact Flash Card:

PNY 128MB

Memory Stick:

SONY 256MB

SD Memory Card:

Apacer 128MB

Toshiba 256MB

Smart Media:

Transcend 128 MB

Fuji 128 MB

Speaker:

J-S 3D Speaker /J-2202

Headphone:

PHILIPS Stereo Headphone SBC HP090

Labtec Stereo Headphone Elite-840

Earphone:

Philips Earphone

Microphone:

Condenser MIC. EM-420T

Labtec deskmic 524 Microphone

Intel 802.11B

Linksys 54G

HP Deskjet 450 with Ericsson bluetooth card

Toshiba 40G

Toshiba 60G

Toshiba 80G

HITACHI 60G

MATSHITA UJDA755 DVD/CDRW


Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

T

T

T

T

Service guides for all models

User's manuals

Training materials

Bios updates

T

T

Software utilities

Spare parts lists

T

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

T

Detailed information on Acer's International Traveler's Warranty (ITW)

T

T

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 125 download service manual and resetter printer at http://printer1.blogspot.com

126 Appendix C download service manual and resetter printer at http://printer1.blogspot.com

No results
