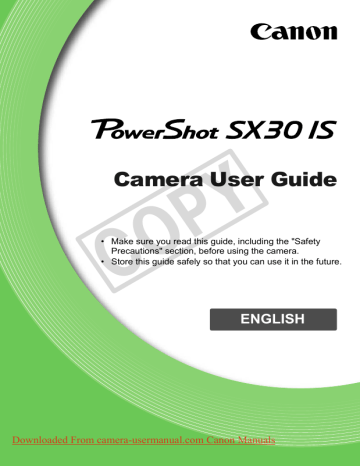

• Make sure you read this guide, including the "Safety
COP
ENGLISH
Downloaded From camera-usermanual.com Canon Manuals
Checking the Package Contents
Check if the following items are included in your camera package.
If anything is missing, contact the retailer from which you purchased the camera.
Camera
(includes hot shoe cap)
Battery Pack NB-7L
(with Terminal Cover)
Battery Charger
CB-2LZ/CB-2LZE
Lens Cap
Interface Cable
IFC-400PCU
Stereo AV Cable
AVC-DC400ST
Neck Strap
NS-DC11
Y
Case for Hot
Shoe Cap
Getting Started
DIGITAL CAMERA
COP
Using the PDF Manuals
Warranty
Card
“Canon Customer
Support” Leaflet
Also refer to the PDF manuals on the CD-ROM. After installation, shortcut icons appear on the desktop. If the software installation fails, you can find the manuals in the Readme folder on the CD-ROM.
• Camera User Guide (This Guide)
Once you have mastered the basics, use the camera’s many features to shoot more challenging photos.
• Personal Printing Guide
Read when you want to connect the camera to a printer (sold separately) and print.
• Software Guide
Read when you want to use the included software.
• A memory card is not included.
• Adobe Reader is required to view the PDF manuals.
Downloaded From camera-usermanual.com Canon Manuals
2
Read This First
Test Shots and Disclaimer
Take some initial test shots and play them back to make sure the images were recorded correctly. Please note that Canon Inc., its subsidiaries and affiliates, and its distributors are not liable for any consequential damages arising from any malfunction of a camera or accessory, including memory cards, that results in the failure of an image to be recorded or to be recorded in a way that is machine readable.
Warning Against Copyright Infringement
The images recorded with this camera are intended for personal use. Do not record images that infringe upon copyright laws without the prior permission of the copyright holder. Please be advised that in certain cases the copying of images from performances, exhibitions, or commercial properties by means of a camera or other device may contravene copyright or other legal rights even if the image was shot for personal use.
Warranty Limitations
Y
This camera’s warranty is only effective in the country of sale. If there is a problem with the camera while abroad, please return it to the country of sale
COP
LCD Monitor (Screen) and Electronic Viewfinder
•
The LCD monitor and viewfinder are produced with extremely highprecision manufacturing techniques. More than 99.99% of the pixels operate to specification, but occasionally non-performing pixels may appear as bright or dark dots. This is not a malfunction and has no effect on the recorded image.
•
The LCD monitor may be covered with a thin plastic film for protection against scratches during shipment. If so, remove the film before using the camera.
Camera Body Temperature
Please take care when operating the camera for an extended period as the camera body may become warm. This is not a malfunction.
Downloaded From camera-usermanual.com Canon Manuals
3
What Do You Want to Do?
Shoot
●
4
Take good people shots
I
w
P
Shoot various other scenes
J
Landscape
Sports
Low Light
t
Fireworks
Shoot with special effects
Super vivid colors
COP
Fish-eye Effect
Miniature Effect
●
Focus on faces ............................................................25, 64, 84, 88
●
Shoot in places where I cannot use the flash (turn off the flash) ......26
●
Take pictures with me in them too (self-timer)...................61, 80, 81
●
Insert the date and time into my shots .........................................60
Downloaded From camera-usermanual.com Canon Manuals
4
What Do You Want to Do?
●
View
1
●
Automatically play back pictures (slideshow).............................123
●
Look at my pictures on a TV ......................................................127
●
Look at my pictures on a computer. .............................................33
●
Quickly search pictures ......................................................120, 121
●
Erase pictures ......................................................................29, 132
Shoot/View Movies
●
Y
E
●
View movies .................................................................................32
●
COP
2
Save
●
Save images to a computer .........................................................33
●
Other
3
●
Use the camera abroad........................................................15, 156
●
Understand what is displayed on the screen .............................179
Downloaded From camera-usermanual.com Canon Manuals
5
Table of Contents
Chapters 1 – 3 explain the basic operations and frequently used functions of this camera. Chapters 4 onward explain the advanced functions, letting you learn more as you read each chapter.
Checking the Package Contents .......2
Read This First ..................................3
What Do You Want to Do? ................4
Table of Contents ..............................6
Safety Precautions.............................9
Conventions Used in This Guide .....12
1 Getting Started................... 13
MENU – Basic Operations .............. 49
Changing the Sound Settings ......... 50
Changing the Screen Brightness .... 51
Adjusting the Viewfinder.................. 52
Power Down)................................... 52
Returning the Camera to Default
Settings ........................................... 53
Charging the Battery........................14
Separately) ......................................16
Inserting the Battery and Memory
Card .................................................16
Using the Screen .............................19
Setting the Date and Time ...............20
Setting the Display Language..........22
Taking Pictures (Smart Auto)...........25
Viewing Images ...............................28
Subjects (Digital Zoom)................... 58
Inserting the Date and Time............ 60
Using the Self-Timer ....................... 61
Shooting in Various Conditions ....... 62
Shooting in Special Scenes ............ 63
Detecting a Smile and Shooting...... 66
Erasing Images................................29
Formatting ....................................... 54
Y
Used Functions ..................57
Using the Wink Self-Timer .............. 67
Shooting Movies ..............................30
Using the Face Self-Timer .............. 68
Viewing Movies................................32
Transferring Images to a Computer
Fish-Eye Lens (Fish-eye Effect)...... 69
for Viewing .......................................33
Accessories .....................................38
Miniature Model (Miniature Effect) .. 70
Separately Sold Accessories ...........39
Yourself...............................71
2 Learning More.................... 43
Components Guide..........................44
Shooting in Program AE.................. 72
Screen Display.................................46
Turning the Flash On ...................... 72
Indicator ...........................................47
FUNC. Menu – Basic Operations ....48
Adjusting the Brightness (Exposure
Compensation)................................ 73
Downloaded From camera-usermanual.com Canon Manuals
6
Table of Contents
Shooting Close-ups (Macro) ........... 73
Setting (Image Size) ....................... 74
Changing the Compression Ratio
(Image Quality) ............................... 74
Changing the ISO Speed ................ 76
Adjusting the White Balance ........... 77
Continuous Shooting....................... 78
(My Colors) ..................................... 79
Setting the Aperture Value .............. 96
Aperture Value ................................ 97
Shooting (i-Contrast) ....................... 98
Red-Eye Correction......................... 98
Shooting with Slow Synchro............ 99
Compensation ............................... 100
Adjusting the Flash Output ............ 100
Checking for Shut Eyes................. 101
Using the Self-Timer to Prevent
Camera Shake ................................ 80
Registering Shooting Settings ....... 102
Customizing the Self-Timer............. 81
Shooting Using a TV Monitor .......... 82
Changing the Composition with the
Focus Lock...................................... 82
Camera................................83
Changing the Color and Shooting . 103
Shooting Stitch Assist Images....... 106
Changing the Movie Mode ............ 108
Changing the AF Frame Mode........ 84
Shooting with Servo AF .................. 86
Shooting with the AF Lock .............. 87
Miniature Model (Miniature Effect) 109
Changing the Image Quality.......... 111
Taking Still Images while Shooting a Movie.......................................... 112
AE Lock/Exposure Shift................. 113
Choosing the Person to Focus On
(Face Select)................................... 88
Sound Settings .............................. 114
Other Shooting Functions.............. 115
Shooting in Manual Focus Mode .... 89
Playback Functions ....................... 116
(Focus-BKT Mode).......................... 90
Editing ........................................... 117
Editing Functions............ 119
Reacquiring Zoomed In Subjects
(Frame Assist)................................. 91
Changing the Metering Method....... 92
Quickly Searching Images............. 120
Shooting with the AE Lock .............. 93
Shooting with the FE Lock .............. 93
Playback........................................ 121
Viewing Slideshows....................... 123
(AEB Mode) .................................... 94
Checking the Focus....................... 124
Setting the Shutter Speed............... 95
Magnifying Images ........................ 125
Downloaded From camera-usermanual.com Canon Manuals
7
Table of Contents
(Smart Shuffle)...............................125
...........................................151
Changing Image Transitions..........126
Changing Camera Settings ........... 152
Viewing Images on a TV................127
Settings ......................................... 158
High-Definition TV..........................128
Protecting Images..........................129
Shooting Menus (My Menu) .......... 163
Erasing Images..............................132
Tagging Images as Favorites ........134
Settings ......................................... 164
(My Category) ................................135
10Useful Information ...........165
Rotating Images.............................137
Resizing Images ............................138
Trimming........................................139
Adding Effects with the My Colors
Function .........................................140
Using Household Power................ 166
(Sold Separately) .......................... 167
Using an Eye-Fi Card.................... 172
(i-Contrast).....................................141
Correcting the Red-Eye Effect .......142
8 Printing ............................. 143
Printing from the Print List (DPOF) 146
(DPOF) ..........................................147
Troubleshooting ............................ 174
List of Messages That Appear on the Screen..................................... 177
Shooting Mode .............................. 182
Menus ........................................... 184
Print Added Images .......................150
Handling Precautions .................... 188
Specifications ................................ 189
Index ............................................. 192
Downloaded From camera-usermanual.com Canon Manuals
8
Safety Precautions
•
Before using the product, please ensure that you read the safety precautions described below. Always ensure that the product is used correctly.
•
The safety precautions noted on the following pages are intended to prevent injuries to yourself and other persons, or damage to the equipment.
•
Be sure to also check the guides included with any separately sold accessories you use.
Warning
Denotes the possibility of serious injury or death.
• Do not trigger the flash in close proximity to human eyes.
Exposure to the intense light produced by the flash could damage eyesight. In particular, remain at least one meter (39 inches) away from infants when using the flash.
•
•
• Store this equipment out of the reach of children and infants.
Strap: Putting the strap around a child’s neck could result in asphyxiation.
• Use only recommended power sources.
Y
• To avoid the risk of injury, do not touch the interior of the product if it has been dropped or otherwise damaged.
•
•
• Stop using the product immediately if it emits smoke, a strange smell, or otherwise behaves abnormally.
equipment.
COP
liquids.
• Do not allow liquids or foreign objects to enter the camera.
This could result in electrical shock or fire.
If liquids or foreign objects come into contact with the camera interior, immediately turn the camera power off and remove the battery.
If the battery charger becomes wet, unplug it from the outlet and consult your camera distributor or the closest Canon Customer Support Help Desk.
• Do not play the supplied CD-ROM(s) in any CD player that does not support data
CD-ROMs.
Playing the CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD player.
Downloaded From camera-usermanual.com Canon Manuals
9
Safety Precautions
• Use only the recommended battery.
• Do not place the battery near or in direct flame.
• Unplug the power cord periodically and wipe away any dust and dirt that has collected on the plug, the exterior of the power outlet, and the surrounding area.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of the electrical outlet or wiring accessories. Do not use if the power cord or plug are damaged, or not fully plugged into the outlet.
• Do not allow dirt or metal objects (such as pins or keys) to contact the terminals or plug.
The battery may explode or leak, resulting in electrical shock or fire. This could cause injury and damage the surroundings. In the event that a battery leaks and the battery acid contacts eyes, mouth, skin or clothing, immediately flush with water.
Caution
Denotes the possibility of injury.
Y
• Be careful not to bang the camera or subject it to strong impacts or shocks when
• hanging it by the strap.
• Be careful not to bump or push strongly on the lens.
This could lead to injury or damage the camera.
COP
• Avoid using, placing or storing the product in the following places.
- Places subject to strong sunlight.
- Places subject to temperatures above 40 °C (104 °F).
- Humid or dusty areas.
These could cause leakage, overheating or an explosion of the battery, resulting in electrical shock, fire, burns or other injuries.
High temperatures may cause deformation of the camera or battery charger casing.
• The slideshow transition effects may cause discomfort when viewed for prolonged periods.
Caution
Denotes the possibility of damage to the equipment.
• Do not aim the camera at bright light sources (the sun, etc.).
Doing so may damage the image sensor.
Downloaded From camera-usermanual.com Canon Manuals
10
Safety Precautions
• When using the camera on a beach or at a windy location, be careful not to allow dust or sand to enter the camera.
This may cause the camera to malfunction.
• In regular use, small amounts of smoke may be emitted from the flash.
This is due to the high intensity of the flash burning dust and foreign materials stuck to the front of the unit. Please use a cotton swab to remove dirt, dust or other foreign matter from the flash to prevent heat build-up and damage to the unit.
• Remove and store the battery when you are not using the camera.
If the battery is left inside the camera, damage caused by leakage may occur.
• Before you discard the battery, cover the terminals with tape or other insulators.
Contacting other metal materials may lead to fire or explosions.
• Unplug the battery charger from the power outlet after charging is complete, or when you are not using it.
• Do not place anything, such as cloth on top of the battery charger while it is charging.
Leaving the unit plugged in for a long period of time may cause it to overheat and distort, resulting in fire.
• Do not place the battery near pets.
Y
•
•
Pets biting the battery could cause leakage, overheating or explosion, resulting in fire or damage.
COP
Doing so may cause malfunctions or damage the screen.
Downloaded From camera-usermanual.com Canon Manuals
11
Conventions Used in This Guide
•
Icons are used in the text to represent the camera buttons and control dial.
•
Language that displays on the screen appears inside [ ] (square brackets).
•
The directional buttons, control dial, and FUNC./SET button are represented by the following icons.
Up button
Left button
Control dial
Â
FUNC./SET button
Right button
Down button
•
•
•
•
: Things you should be careful about
: Troubleshooting tips
: Hints for getting more out of your camera
: Supplemental information
Y
•
(p. xx): Reference pages (“xx” stands for a page number)
•
This guide assumes all functions are at their default settings.
•
The various types of memory cards that can be used in this camera are collectively referred to as memory cards in this guide.
COP
Downloaded From camera-usermanual.com Canon Manuals
12
1
Getting Started
This chapter explains preparations before shooting, how to shoot in
A mode, and then how to view and erase the images you take. The transfer images to a computer.
latter part of this chapter explains how to shoot and view movies and
Y
•
Attach the included strap and place it around your neck to avoid dropping
•
Attach the included lens cap cord to the strap.
•
the camera during use.
COP
•
When not in use, store the camera with the lens cap attached.
•
Refer to p. 168 for details on the included case for the hot shoe cap.
Keep your arms tight against your body while holding the camera firmly by the sides.
Downloaded From camera-usermanual.com Canon Manuals
13
Charging the Battery
Use the included charger to charge the battery. Be sure to charge the battery as it is not charged at the time of purchase.
Remove the cover.
Insert the battery.
●
Align the o marks on the battery and charger, then insert the battery by sliding it
● in ( ) and down ( ).
Charge the battery.
Y
) and plug the charger into a power outlet ( ).
CB-2LZ
CB-2LZE
●
For CB-2LZE: Plug the power cord into
X the charger, then plug the other end into a
COP charging starts.
X
The charge lamp will light green when charging has finished. Charging takes approx. 2 hours and 20 minutes.
Remove the battery.
●
Unplug the battery charger from the power outlet, then remove the battery by sliding it in ( ) and up ( ).
To protect the battery and prolong its life, do not charge it for longer than
24 hours continuously.
Downloaded From camera-usermanual.com Canon Manuals
14
Charging the Battery
Approximate Number of Shots That Can Be Taken
Number of Shots
LCD Monitor On*
Viewfinder On
Playback Time
Approx. 370
Approx. 400
Approx. 10 hrs.
* The number of shots that can be taken is based on the Camera & Imaging Products
Association (CIPA) measurement standard.
• Under some shooting conditions, the number of shots that can be taken may be less than mentioned above.
Battery Charge Indicator
An icon or message will appear on the screen indicating the battery’s charge state.
Display
Sufficient charge.
Y
Summary
Slightly depleted, but sufficient.
(Blinking red) Nearly depleted. Charge the battery.
Depleted. Recharge the battery.
“Change the battery pack.”
•
Using the battery and charger effectively
COP
Attach the cover to a charged battery so that the o mark is visible.
•
How to store the battery for long periods:
Deplete and remove the battery from the camera. Attach the terminal cover and store the battery. Storing a battery for long periods of time (about a year) without depleting it may shorten its life span or affect its performance.
•
The battery charger can also be used when abroad.
The charger can be used in regions that have 100 – 240 V (50/60 Hz) AC power.
If the plug does not fit the outlet, use a commercially available plug adapter. Do not use electrical transformers for foreign travel as they will cause damage.
•
The battery may develop a bulge.
This is a normal characteristic of the battery and does not indicate a problem.
However, if the battery bulges to the point where it will no longer fit into the camera, please contact a Canon Customer Support Help Desk.
•
If the battery is quickly depleted even after charging, it has reached the end of its life span. Purchase a new battery.
Downloaded From camera-usermanual.com Canon Manuals
15
Compatible Memory Cards (Sold Separately)
•
SD memory cards (2 GB and less)*
•
SDHC memory cards (more than 2 GB, up to and including 32 GB)*
•
SDXC memory cards
(more than 32 GB)*
•
MultiMediaCards
•
MMCplus memory cards
•
HC MMCplus memory cards
•
Eye-Fi Cards
* This memory card complies with the SD standards. Some cards may not operate properly depending on the brand of card used.
Depending on your computer’s OS version, SDXC memory cards may not be recognized when using a commercially available card reader. Check to make sure that your OS supports this function beforehand.
About Eye-Fi Cards
Y
This product is not guaranteed to support Eye-Fi card functions (including wireless transfer). In case of an issue with an Eye-Fi card, please check with the card manufacturer.
whether the card has been approved for use in the area, please check with the card manufacturer.
COP
Inserting the Battery and Memory Card
Insert the included battery and a memory card (sold separately).
Check the card’s write-protect tab.
●
If the memory card has a write-protect tab, you will not be able to record images if the tab is in the locked position. Slide the tab up until you hear a click.
Downloaded From camera-usermanual.com Canon Manuals
16
Inserting the Battery and Memory Card
Open the cover.
●
Slide the cover ( ) and open it ( ).
Insert the battery.
●
Insert the battery as shown until it locks into place with a click.
●
Be sure to insert the battery in the correct direction or it will not properly lock into
Terminals
Label
● place.
Y locks into place with a click.
●
Be sure the memory card is oriented correctly. Inserting the memory card in the
COP
Close the cover.
●
Close the cover ( ), and press downward as you slide it until it clicks into place ( ).
What if [Memory card locked] appears on the screen?
SD, SDHC and SDXC memory cards, and Eye-Fi cards have a write-protect tab.
If this tab is in the locked position, [Memory card locked] will appear on the screen and you will not be able to take or erase images.
Downloaded From camera-usermanual.com Canon Manuals
17
Inserting the Battery and Memory Card
Removing the Battery and Memory Card
Remove the battery.
●
Open the cover and press the battery lock in the direction of the arrow.
X
The battery will pop up.
Remove the memory card.
●
Push the memory card in until you hear a click, then slowly release it.
Memory Card
X
The memory card will pop up.
4 GB
Y
Number of Shots
1058
16 GB
4334
• Values are based on the default settings.
• The number of shots that can be taken will vary depending on camera settings, the subject and the memory card used.
COP
You can check the number of shots that can be taken when the camera is in a
Number of shots that can be taken
Downloaded From camera-usermanual.com Canon Manuals
18
Using the Screen
Open the screen.
●
Open the screen ( ), and rotate it forward
180°( ).
●
Close the screen ( ).
Adjusting the position of the screen
Approx. 180°
•
You can freely adjust the angle and orientation of
Approx. 90°
Approx.
175° the screen as you like for the shooting conditions.
•
Always keep the screen closed with it facing the camera body when the camera is not in use.
Y
•
When the camera is on, opening the screen will turn the screen on and the viewfinder off. Closing the screen with it facing the camera body will turn the screen off and the viewfinder on.
•
In a Shooting mode, if the screen is opened and rotated toward the lens,
COP
[Reverse Disp.], then press the qr buttons to choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
19
Setting the Date and Time
The Date/Time settings screen will appear the first time the camera is turned on. Since the dates and times recorded into your images are based on these settings, be sure to set them.
Turn on the camera.
●
Press the power button.
X
The Date/Time screen will appear.
Set the date and time.
●
Press the qr buttons to choose an option.
to set a value.
●
Press the op buttons or turn the  dial
Y
●
Press the m button.
X
Once the date and time have been set, the
Date/Time screen will close.
●
Pressing the power button will turn off the camera.
Reappearing Date/Time screen
Set the correct date and time. If you have not set the date and time, the Date/Time screen will appear each time you turn on the camera.
Daylight saving time settings
If you choose in Step 2 and press the op buttons or turn the  dial and choose , you will set the time to daylight saving (1 hour ahead).
Downloaded From camera-usermanual.com Canon Manuals
20
Changing the Date and Time
You can change the current date and time settings.
Setting the Date and Time
Display the menus.
●
Press the n button.
Choose [Date/Time] in the
3 tab.
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial button.
Y m
●
Follow Steps 2 and 3 on p. 20 to adjust the
setting.
●
Pressing the n button will close the menu.
Date/Time battery
•
The camera has a built-in date/time battery (backup battery) that allows the date/time settings to be retained for about three weeks after the battery pack has been removed.
•
By inserting a charged battery or connecting an AC adapter kit (sold separately,
p. 39) the date/time battery can be charged in about 4 hours even if the camera
is not turned on.
•
If the date/time battery is depleted, the [Date/Time] menu will appear when you
turn the camera on. Follow the steps on p. 20 to set the date and time.
Downloaded From camera-usermanual.com Canon Manuals
21
Setting the Display Language
You can change the language that displays on the screen.
Enter Playback mode.
●
Press the
1 button.
Display the settings screen.
●
Press and hold the m button, then immediately press the n button.
Set the display language.
●
Press the
Y m button.
X
Once the display language has been set, the settings screen will close.
COP
What if the clock appears when the
m button is pressed?
The clock will appear if too much time passes between pressing the m button and the n button in Step 2. If the clock appears, press the m button to remove the clock and repeat Step 2.
You can also change the display language by pressing the n button, choosing the
3 tab, and choosing the [Language] menu item.
Downloaded From camera-usermanual.com Canon Manuals
22
Formatting Memory Cards
Before you use a new memory card or one that has been formatted in other devices, you should format the card with this camera.
Formatting (initializing) a memory card erases all data on the memory card.
As you cannot retrieve the erased data, exercise adequate caution before formatting the memory card.
Before formatting an Eye-Fi card (p. 172), be sure to install the software
contained on the card to a computer.
Display the menu.
●
Press the n button.
Choose [Format].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [Format], then press the m button.
Y
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
Format the memory card.
●
Press the op buttons or turn the  dial to choose [OK], then press the m button.
X
The memory card will be formatted.
Complete formatting.
X
When formatting ends, [Memory card formatting complete] will appear on the screen.
●
Press the m button.
Downloaded From camera-usermanual.com Canon Manuals
23
Pressing the Shutter Button
Formatting or erasing data on a memory card merely changes the file management information on the card and does not ensure its contents are completely erased. Be careful when transferring or disposing of a memory card. When disposing of a memory card, take precautions such as physically destroying the card to prevent personal information leaks.
The total capacity of the memory card displayed in the formatting screen may be less than indicated on the memory card.
Pressing the Shutter Button
To take images that are in focus, be sure to first press the shutter button lightly (halfway) to focus, then press fully to shoot.
Press halfway
Y
●
Press lightly until the camera beeps twice
X and AF frames appear where the camera focused.
COP
(Press fully to shoot).
The camera plays the shutter sound and takes the shot.
●
Since the shot is being taken while the shutter sound plays, be careful not to move the camera.
Does the length of the shutter sound change?
•
Since the time required to shoot differs according to the scene you want to take, the length of the shutter sound may change.
•
If the camera or subject moves while the shutter sound is playing, the recorded image may be blurry.
If you shoot without pressing the shutter button halfway, the image may not be in focus.
Downloaded From camera-usermanual.com Canon Manuals
24
Taking Pictures (Smart Auto)
Since the camera can determine the subject and shooting conditions, you can let it automatically select the best settings for the scene and just shoot. The camera can also detect and focus on faces, setting the color and brightness to optimal levels.
Turn on the camera.
●
Press the power button.
X
The start-up screen will appear.
Focus range (approx.)
Zoom bar
Choose
A mode.
●
Set the mode dial to
A.
●
When you point the camera toward the subject, the camera will make a slight noise as it determines the scene.
X
The icon for the determined scene will appear in the upper right of the screen.
X
The camera will focus on detected faces and display frames on them.
COP
Y
Compose the shot.
●
Moving the zoom lever toward i
(telephoto) will zoom in on your subject, making it appear larger. Moving the lever toward j (wide angle) will zoom out from your subject, making it appear smaller.
(The zoom bar showing the zoom position appears on the screen.)
●
If you move the zoom lever all the way toward j (wide angle) or i (telephoto), you will zoom quickly. If you move it slightly, you will zoom slowly.
Focus.
●
Press the shutter button halfway to focus.
Downloaded From camera-usermanual.com Canon Manuals
25
Taking Pictures (Smart Auto)
AF Frame
X
When the camera focuses, it will beep twice and AF frames will appear where the camera focused.
Several AF frames will appear when the camera focuses on more than one point.
●
If [Raise the flash] appears on the screen, you should use the flash to shoot. Raise the flash manually. When you are not using the flash, manually lower it until it closes (the flash will turn off).
Shoot.
●
Y
X
The camera will play the shutter sound and shoot. The flash will automatically fire in
● low light conditions if it has been raised.
X
The image will appear on the screen for
COP an image is displayed by pressing the shutter button again.
What if an icon appears in the upper right of the screen?
The icon for the determined scene will appear in the upper right of the screen. For
details on the icons that appear, see “Scene Icons” (p. 180).
What is the rectangular gray frame?
This is the area that will be recorded in a movie. Movies can be shot simply by
pressing the movie button, no matter what position the mode dial is in (p. 107). To
hide the frame, choose [Custom Display], then [Shooting Info] and remove the
Downloaded From camera-usermanual.com Canon Manuals
26
Taking Pictures (Smart Auto)
What if...
• What if the color and brightness of the images do not turn out as expected?
The scene icon (p. 180) that appears on the screen may not match the actual
scene. If this happens, try shooting in
• What if the screen is off even the camera is turned on?
The display is set to the viewfinder. Press the l button several times to restore the display to the screen.
• What if white and gray frames appear when you point the camera toward a subject?
When faces are detected, a white frame appears on the face of the main subject, while gray frames appear on other detected faces. The frames will
follow the subjects within a certain range (p. 84). If the main subject moves,
however, the gray frames will disappear, leaving only the white frame.
• What if a blue frame appears when you press the shutter button halfway?
A blue frame appears when a moving subject is detected; the focus and
•
exposure will continuously adjust (Servo AF).
flashes on the screen?
button to choose [Mute] in the
Y
Attach the camera to a tripod so that the camera does not move and blur the image.
• What if the camera does not play any sounds?
Pressing the l button while turning on the camera power will turn off all
COP n
• What if the image comes out dark even if the flash fired when shooting?
The subject is too far away for the flash to reach. The effective flash range is approximately 50 cm – 5.8 m (1.6 – 19 ft.) at maximum wide angle ( j), and approximately 1.4 – 2.8 m (4.6 – 6.6 ft.) at maximum telephoto ( i).
• What if the camera beeps once when the shutter button is pressed halfway?
Your subject may be too close. Move the zoom lever toward i and hold it until the lens stops moving. The camera will be at its maximum telephoto setting and you will be able to focus on subjects that are about 1.4 m (4.6 ft.) or more away from the end of the lens.
• What if the lamp lights when the shutter button is pressed halfway?
To reduce red-eye and to assist in focusing, the lamp may light when shooting in dark areas.
• What if the
h icon blinks when you try to shoot?
The flash is charging. You can shoot when recharging ends.
Downloaded From camera-usermanual.com Canon Manuals
27
Viewing Images
You can view the images you have taken on the screen.
Enter Playback mode.
●
Press the
1 button.
X
The last image you took will appear.
Choose an image.
●
Pressing q or turning the  dial counterclockwise will cycle through the images in the reverse order they were taken, from the newest image to the oldest.
●
Pressing r or turning the  dial
Y newest.
●
The images change more quickly if you keep the qr buttons pressed, but they will
●
The lens will retract after approximately 1 minute elapses.
●
Pressing the
1 button again while the lens is retracted will turn off the power.
Switching to Shooting mode
•
Pressing the shutter button halfway while in Playback mode switches the camera to Shooting mode.
Downloaded From camera-usermanual.com Canon Manuals
28
Erasing Images
You can choose and erase images one at a time. Please note that erased images cannot be recovered. Exercise adequate caution before erasing an image.
Enter Playback mode.
●
Press the
1 button.
X
The last image you took will appear.
Choose an image to erase.
●
Press the qr buttons or turn the  dial to display an image to erase.
Y
●
Press the a button.
●
Press the qr buttons or turn the  dial to choose [Erase], then press the m button.
X
The displayed image will be erased.
●
To exit instead of erasing, press the qr buttons or turn the
 dial to choose
[Cancel], then press the m button.
Downloaded From camera-usermanual.com Canon Manuals
29
Shooting Movies
The camera can automatically select all settings so that you can shoot movies just by pressing the movie button. The audio will record in stereo.
Choose
A mode.
●
Set the mode dial to
A.
Remaining Time
Compose the shot.
Y
●
Moving the zoom lever toward i will zoom in on your subject, making it appear larger.
COP j will zoom out from your subject, making it appear smaller.
Shoot.
●
Press the movie button.
Elapsed Time
X
The camera will beep once, recording will start, and [ Rec] and the elapsed time will appear on the screen.
●
Once shooting begins, take your finger off the movie button.
●
If you change the composition of your shot during shooting, the focus, brightness and tone will automatically adjust.
Downloaded From camera-usermanual.com Canon Manuals
30
Shooting Movies
Microphone
●
Do not touch the microphone while shooting.
●
Do not press any buttons other than the movie button while shooting. The sound the buttons make will be recorded in the movie.
Stop shooting.
●
Press the movie button again.
X
The camera will beep twice and stop shooting the movie.
X
The movie will record to the memory card.
X
Shooting will automatically stop when the memory card fills.
Magnifying the subject while shooting
Y
Pressing the zoom lever while shooting will zoom in on or out from the subject.
However, operation sounds will be recorded.
•
When the mode dial is set to
A, the icon for the determined scene will
icon that appears may not match the actual scene.
•
Movies can be shot by pressing the movie button even when the mode dial is in positions other than
•
When the mode dial is set to
E, you can set each setting for shooting
Estimated Shooting Times
Memory Card
Shooting Time
4 GB
20 min. 43 sec.
16 GB
1 hr. 24 min. 54 sec.
• Shooting times are based on default settings.
• Maximum clip length is approx. 29 min. 59 sec.
• Recording may stop even if the maximum clip length has not been reached on some memory cards. SD Speed Class 4 or higher memory cards are recommended.
Downloaded From camera-usermanual.com Canon Manuals
31
Viewing Movies
You can view the movies you have shot on the screen.
Enter Playback mode.
●
Press the
1 button.
X
The last image you took will appear.
X
appears on movies.
Choose a movie.
●
Press the qr buttons or turn the  dial to choose a movie, then press the m button.
X
The movie control panel will appear on the screen.
Y
COP choose (Play), then press the m button.
X
The movie will play.
●
If you press the m button, you can pause or resume playback.
●
Press the op buttons to adjust the volume.
X
After the movie finishes, appears.
Downloaded From camera-usermanual.com Canon Manuals
32
Transferring Images to a Computer for Viewing
What if you can’t play back movies on a computer?
•
Install the included software (p. 34).
•
When watching a movie on a computer, frames may drop, it may not play smoothly, and the audio may stop suddenly depending on the computer’s capabilities.
•
If you use the supplied software to copy the movie back onto the memory card, you can play back the movie smoothly with the camera. For enhanced playback you can also connect the camera to a TV.
Transferring Images to a Computer for Viewing
You can use the included software to transfer images you have shot with the camera to a computer for viewing. If you are already using software included with another Canon-brand compact digital camera, install the software from
System Requirements
Y
Windows
OS
Computer model
CPU
RAM
Interface
Free Hard Disk
Space
Windows Vista Service Pack 1 and 2
Windows XP Service Pack 3
The above OS should be pre-installed on computers with built-in
USB ports.
Pentium 1.3 GHz or higher (still images), Core2 Duo 1.66 GHz or higher (movies)
Windows 7 (64 bit): 2 GB or more
Windows 7 (32 bit), Windows Vista (64 bit, 32 bit): 1 GB or more
Windows XP: 512 MB or more (still images), 1 GB or more (movies)
USB
ZoomBrowser EX: 200 MB or more
CameraWindow: 150 MB or more*
PhotoStitch: 40 MB or more
1,024 x 768 pixels or higher Display
* For Windows XP, Microsoft .NET Framework 3.0 or later (max. 500 MB) must be installed. Installation may take some time depending on your computer’s capabilities.
Downloaded From camera-usermanual.com Canon Manuals
33
Transferring Images to a Computer for Viewing
Macintosh
OS
Computer model
CPU
RAM
Mac OS X (v10.4 – v10.6)
The above OS should be pre-installed on computers with built-in
USB ports.
PowerPC G4/G5 or Intel Processor (still images), Core Duo 1.66
GHz or higher (movies)
Mac OS X v10.4 – v10.5: 512 MB or more (still images), 1 GB or more (movies)
Mac OS X v10.6: 1 GB or more
Interface
USB
Free Hard Disk
Space
ImageBrowser: 250 MB or more
CameraWindow: 150 MB or more
Display
PhotoStitch: 50 MB or more
1,024 x 768 pixels or higher
Preparations
Y
Windows Vista and Mac OS X (v10.5) are used for these explanations.
Install the Software.
COP
ROM drive.
●
Place the supplied CD-ROM (DIGITAL
CAMERA Solution Disk) (p. 2) into the
computer’s CD-ROM drive.
Begin installation.
●
Click [Easy Installation] and follow the on-screen instructions to proceed with the installation.
●
If the [User Account Control] window appears, follow the on-screen instructions to proceed.
Downloaded From camera-usermanual.com Canon Manuals
34
Transferring Images to a Computer for Viewing
When the installation finishes, click
[Restart] or [Finish].
Remove the CD-ROM.
●
Remove the CD-ROM when your desktop screen appears.
Macintosh
Place the CD in the computer’s CD-
ROM drive.
●
Place the supplied CD-ROM (DIGITAL
●
CAMERA Solution Disk) (p. 2) into the
computer’s CD-ROM drive.
Begin installation.
Double-click the
Y
on the CD.
●
Click [Install], and follow the on-screen instructions to proceed with the installation.
COP
Connect the camera to the computer.
●
Turn off the camera.
●
Open the cover and insert the small plug of
the included interface cable (p. 2) firmly
into the camera terminal in the direction shown.
●
Insert the interface cable’s larger plug into the computer. For connection details, refer to the user guide provided with the computer.
Downloaded From camera-usermanual.com Canon Manuals
35
Transferring Images to a Computer for Viewing
Turn on the camera.
●
Press the
1 button to turn on the camera.
Open CameraWindow.
Windows
●
Click [Downloads Images From Canon
Camera using Canon CameraWindow].
X CameraWindow will appear.
●
If CameraWindow does not appear, click
Y
[CameraWindow] and [CameraWindow].
Macintosh
COP camera and computer.
●
If CameraWindow does not appear, click the CameraWindow icon on the Dock (the bar which appears at the bottom of the desktop).
For Windows 7, use the following steps to display CameraWindow.
Click on the task bar.
In the screen that appears, click the link to modify the program.
Choose [Downloads Images From Canon Camera using Canon
CameraWindow] and click [OK].
Double click .
Downloaded From camera-usermanual.com Canon Manuals
36
Transferring Images to a Computer for Viewing
Transfer and View Images
●
Click [Import Images from Camera], and then click [Import Untransferred Images].
X
All images not previously transferred will transfer to the computer. Transferred images will be sorted by date and saved in separate folders in the Pictures folder.
●
When [Image import complete.] appears, click [OK], then click [X] to close
CameraWindow.
●
Turn off the camera and unplug the cable.
●
For details on how to view images using a
Y
You can transfer images even without using the image transfer function in the included software by simply connecting your camera to a computer.
There are, however, the following limitations.
•
It may take a few minutes from when you connect the camera to the
•
COP
•
Protection settings for images may be lost when transferred to a computer.
•
There may be problems transferring images or image information correctly depending on the version of the operating system in use, the file size, or the software in use.
•
Some functions in the included software may not be available, such as editing movies, and transferring images to the camera.
Downloaded From camera-usermanual.com Canon Manuals
37
Accessories
Supplied with
Camera
DIGITAL CAMERA
Solution Disk
Battery Pack NB-7L with Terminal Cover*
Battery Charger
CB-2LZ/CB-2LZE*
Stereo AV Cable
AVC-DC400ST*
Interface Cable
IFC-400PCU*
Neck Strap
NS-DC11
Lens Cap
Case for Hot
Shoe Cap
(includes hot shoe cap)
Y
*Also available for purchase separately.
Memory Card
Windows/Macintosh
Canon-Brand PictBridge Compliant Printers
TV
HDMI Cable HTC-100
High-Definition TV
Downloaded From camera-usermanual.com Canon Manuals
38
Separately Sold Accessories
The following camera accessories are sold separately. Some accessories are not sold in some regions, or may no longer be available.
Power Supplies
Battery Charger CB-2LZ/CB-2LZE
●
An adapter for charging Battery Pack
NB-7L.
Battery Pack NB-7L
●
Rechargeable lithium-ion battery.
●
This kit lets you power the camera using household power. Recommended for powering the camera for an extended period of time or when connecting to a
COP
Using Accessories Abroad
The battery charger and the AC adapter kit can be used in regions that have 100 –
240 V (50/60 Hz) AC power.
If the plug does not fit the outlet, use a commercially available plug adapter. Do not use electrical transformers for foreign travel as they will cause damage.
Downloaded From camera-usermanual.com Canon Manuals
39
Separately Sold Accessories
Flash
Speedlite 270EX/430EX II/580EX II
●
A shoe-mounted flash that allows for a wide range of flash photography.
Speedlite 430EX and 580EX may also be used.
Speedlite Bracket SB-E2
●
Prevents unnatural shadows from appearing on the sides of objects when shooting from a vertical position, and is
Y this bracket.
Speedlite Transmitter ST-E2
●
This allows the wireless control of slave
(remote) Speedlite flashes (except the
Other Accessories
HDMI Cable HTC-100
●
Use this cable to connect the camera to the HDMI™ terminal on a high-definition
TV set.
Lens Hood LH-DC60
●
Prevents extraneous light from entering the lens and causing flares or ghosting, which reduce image quality.
Downloaded From camera-usermanual.com Canon Manuals
40
Separately Sold Accessories
Filter Adapter FA-DC67A
●
This adapter is required for attaching a
67mm filter.
Canon-brand Lens Filter (67 mm dia.)
●
Protects the lens and allows you to shoot with various effects.
Printers
SELPHY series
Canon-Brand PictBridge Compliant
Printers
●
By connecting your camera to a Canonbrand PictBridge compliant printer, you can print your images without having to use a computer.
Y
Canon retailer.
PIXMA series
This product is designed to achieve excellent performance when used with genuine
Canon accessories. Canon shall not be liable for any damage to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack). Please note that this warranty does not apply to repairs arising out of the malfunction of non-genuine Canon accessories, although you may request such repairs on a chargeable basis.
Downloaded From camera-usermanual.com Canon Manuals
41
COP
Y
Downloaded From camera-usermanual.com Canon Manuals
42
2
Learning More
This chapter explains the parts of the camera and what appears on the screen, as well as the basic operating instructions.
Y
COP
Downloaded From camera-usermanual.com Canon Manuals
43
Components Guide
Zoom Lever
Shooting: i (Telephoto) / j (Wide
Playback: k (Magnify) / g (Index)
Speaker
Y
Focal Length (approx.)
Mode Dial
Mode Dial
Lens
Lens Hood / Lens Filter Mount (p. 167)
Tripod Socket
COP
Use the mode dial to change the Shooting mode.
P, Tv, Av, M, C1, C2 Mode
Choose settings yourself to take
various types of pictures (p. 72).
Movie Mode
Choose settings yourself
Even if the mode dial is set to a position other than Movie mode, movies can be shot by pressing
Auto Mode
You can leave it to the camera to select settings for fully automatic shooting
Scene Mode
You can shoot with the best settings for the scene or add
various effects and shoot (pp. 62, 63).
Downloaded From camera-usermanual.com Canon Manuals
44
Components Guide
Screen (LCD Monitor) (pp. 19, 46, 179,
c (Direct Print) (p. 144) Button
Diopter Adjustment Dial (p. 52)
A/V OUT (Audio/Video Output) /
DIGITAL Terminal (pp. 35, 127, 144)
Y
COP
1 (Playback) Button (pp. 28, 119)
f (Manual Focus) (p. 89) / q Button
b (Exposure Compensation) (p. 73) /
o Button
Q (Self-Timer) (pp. 61, 80, 81) /
p Button
Control Dial
Control Dial
Turning the control dial allows you to perform operations such as choosing items or switching images. Except for a few operations, the same operations are possible with the opqr buttons.
Downloaded From camera-usermanual.com Canon Manuals
45
Screen Display
Switching the Display
You can change the screen display using the
for details on information that appears on the screen.
Opening the screen with the power on will turn the screen on, and turn the viewfinder off. Closing the screen so that it faces inward will turn the screen
off, and turn the viewfinder on (p. 19).
Shooting
LCD Monitor (Screen) Viewfinder
Display 1
Playback
Display 2
COP
Display 1
Y
Display 2
No Information
Display
Simple Information
Display
Detailed Information
Display
Focus Check
You can also switch the display by pressing the l button while the image displays right after shooting. However, Simple Information Display is not available. You can change the display that appears first by pressing the
n button, then choosing [Review info] in the 4 tab (p. 160).
Downloaded From camera-usermanual.com Canon Manuals
46
Indicator
Screen Display in Dark Shooting Conditions
The display automatically brightens when shooting in dark conditions, allowing you to check the composition (Night Display function). However, the brightness of the image on the screen, and the brightness of the actual image recorded may be different. Screen noise may appear and the movement of the subject may appear somewhat jagged on the screen. This has no effect on the recorded image.
Overexposure Warning during Playback
In “Detailed Information Display” (p. 46), overexposed areas of the image
flash on the screen.
Histogram during Playback
Dark
Indicator
Bright
High
Low
●
The graph that appears in “Detailed
Information Display” (p. 46) is called the
histogram. The histogram shows the distribution of brightness in an image
●
Y vertically. When the graph approaches the right side, the image is bright, but when it approaches the left side, the image is dark, and in this way you can judge the
COP
The indicator on the back of the camera (p. 45) will light or blink depending
on the camera’s status.
Colors
Green
Status
Lights
Blinks
Operation Status
When the camera is on.
Recording/reading/transmitting image data.
When the indicator blinks green, data is being recorded/read or various information is being transmitted.
Do not turn off the power, open the memory card slot/battery cover, shake or jolt the camera. These actions may corrupt the image data or cause the camera or memory card to malfunction.
Downloaded From camera-usermanual.com Canon Manuals
47
FUNC. Menu – Basic Operations
You can set commonly used functions using the
ø menu.
The menu items and options differ depending on the Shooting mode (pp. 182
Choose a Shooting mode.
●
Set the mode dial to the desired shooting mode.
Display the
ø menu.
●
Press the m button.
Menu Items
Available Options
●
Press the op buttons to choose a menu item.
X
The available options for the menu item appear in the lower part of the screen.
COP
●
Press the qr buttons or turn the  dial to choose an option.
Y
●
You can also choose settings by pressing the l button on options that display
.
Complete the setting.
●
Press the m button.
X
The shooting screen will reappear and the setting you chose will display on the screen.
Downloaded From camera-usermanual.com Canon Manuals
48
MENU – Basic Operations
Various functions can be set from the menus. The menu items are organized under tabs, such as for shooting (
4) and playback (1). The options differ
depending on the Shooting mode and the Playback mode (pp. 184 – 187).
Display the menu.
●
Press the n button.
Choose a tab.
●
Press the qr buttons, or move the zoom
● lever left or right to choose a tab.
Choose an item.
Press the
Y to choose an item.
●
Some items require you to press the m or r button to display a submenu in which you change the setting.
COP
●
Press the qr buttons to choose an option.
Complete the setting.
●
Press the n button to restore the normal screen.
Downloaded From camera-usermanual.com Canon Manuals
49
Changing the Sound Settings
You can silence or adjust the volume of camera sounds.
Muting Sounds
Display the menu.
●
Press the n button.
Choose [Mute].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [Mute], then press the qr buttons to choose [On].
●
Press the n button to restore the normal screen.
Y
You can also mute camera sounds by holding down the l button and turning on the power.
Adjusting the Volume
COP
●
Press the n button.
Choose [Volume].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [Volume], then press the m button.
Change the volume.
●
Press the op buttons or turn the  dial to choose an item, then press the qr buttons to adjust the volume.
●
Press the n button twice to restore the normal screen.
Downloaded From camera-usermanual.com Canon Manuals
50
Changing the Screen Brightness
The screen brightness can be changed in two ways.
You can set the brightness of the screen and the viewfinder separately.
(Press the l button to switch to the desired display before making settings).
Using the Menu
Display the menu.
●
Press the n button.
Choose [LCD Brightness].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [LCD Brightness].
Y
●
Press the qr buttons to change the
Using the l Button
brightness.
●
Press the n button twice to restore
COP
●
Press the l button for more than one second.
X
The screen increases to maximum brightness regardless of the setting in the
3 tab.
●
Pressing the l button again for more than one second will return the screen to the original brightness.
•
The next time you turn on the camera, the screen will be at the brightness setting chosen in the
3 tab.
•
When you have set the brightness to its highest setting in the
3 tab, you cannot change the brightness with the l button.
Downloaded From camera-usermanual.com Canon Manuals
51
Adjusting the Viewfinder
You can adjust the viewfinder so that the display is clearly visible (Dioptric adjustment).
Set the viewfinder display.
●
Press the l button several times until
the viewfinder turns on (p. 46).
Adjust the diopter.
●
Adjust the dial while looking through the viewfinder.
be made.
●
Adjustments of -4.0 to +1.0 m
-1
(dpt) can
Y
To save battery power, the screen turns off, and the camera shuts down automatically when it is not operated for a certain time.
COP operated. After about 2 more minutes, the lens will retract and the power will turn off. When the screen has turned off but the lens has not yet retracted,
pressing the shutter button halfway (p. 24) turns on the screen and shooting
can continue.
Power Saving during Playback
The power will turn off approximately 5 minutes after the camera is last operated.
•
You can turn off the power saving function (p. 155).
•
You can adjust the time before the screen turns off (p. 156).
Downloaded From camera-usermanual.com Canon Manuals
52
Returning the Camera to Default Settings
When you have mistakenly changed a setting, you can reset the camera to the default settings.
Display the menu.
●
Press the n button.
Choose [Reset All].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [Reset All], then press the m button.
Y
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
X
The camera will reset to the default
COP
Are there functions that cannot be reset?
•
The [Date/Time] (p. 21) in the
3 tab, [Language] (p. 22), [Video System]
(p. 127), [Time Zone] (p. 156), and the image registered in [Start-up Image]
•
The saved data for custom white balance (p. 77).
•
Colors that were chosen in Color Accent (p. 103) or Color Swap (p. 104).
•
The scene mode chosen in
•
Downloaded From camera-usermanual.com Canon Manuals
53
Low Level Memory Card Formatting
Perform low level formatting when [Memory card error] appears, the camera does not operate properly, or you think that the recording/reading speed of a memory card has dropped. As you cannot retrieve the erased data, exercise adequate caution before formatting the memory card.
Display the menu.
●
Press the n button.
Choose [Format].
●
Press the qr buttons to choose the 3 tab.
●
Press the op buttons or turn the  dial to choose [Format], then press the m button.
Y
●
Press the op buttons or turn the  dial to choose [Low Level Format], then press the qr buttons to display
.
●
Press the opqr buttons or turn the  dial to choose [OK], then press the m button.
Start the low level format.
●
Press the op buttons or turn the  dial to choose [OK], then press the m button.
X
Low level formatting starts.
X
When low level formatting ends, [Memory card formatting complete] will appear.
Downloaded From camera-usermanual.com Canon Manuals
54
Clock Functions
Complete the low level format.
●
Press the m button.
•
Low level formatting may take longer than standard formatting (p. 23),
since all recorded data is erased.
•
You can stop a low level format of a memory card by choosing [Stop].
When stopping low level formatting, the data will be erased but the memory card can be used without problem.
Clock Functions
You can check the current time.
●
X
Y m button.
The current time appears.
●
If you hold the camera vertically while using the clock function, it will switch to vertical display. Press the qr buttons or
COP
 dial to change the display
●
Press the m button again to cancel the clock display.
When the camera power is off, press and hold the m button, then press the power button to display the clock.
Downloaded From camera-usermanual.com Canon Manuals
55
COP
Y
Downloaded From camera-usermanual.com Canon Manuals
56
3
Shooting with Commonly
Used Functions
This chapter explains how to shoot in different conditions, as well as
Y
COP
•
This chapter assumes the camera is set to
A mode for “Zooming in
More Closely on Subjects (Digital Zoom)” (p. 58) to “Using the Self-Timer”
(p. 61). When shooting in a mode other than
A, check which functions
are available in that mode (pp. 182 – 185).
•
“Shooting in Various Conditions” (p. 62) to “Shooting in “Take Shots That
Look Like a Miniature Model (Miniature Effect)” (p. 70) assumes that the
corresponding mode has been chosen.
Downloaded From camera-usermanual.com Canon Manuals
57
Zooming in More Closely on Subjects
(Digital Zoom)
You can use the digital zoom to zoom up to approximately 140x and capture subjects that are too far away for the optical zoom to enlarge. The images
may appear coarse, however, depending on the recording pixel setting (p. 74)
and the zoom factor used.
Move the zoom lever toward
i.
●
Hold the lever until zooming stops.
X
The zoom will stop when the largest possible zoom factor without image
Zoom Factor deterioration has been reached, and the the zoom lever.
zoom factor will appear when you release
Move it toward
Y
X
The digital zoom will zoom in even further on the subject.
COP
What if the zoom factor appears in blue?
Images shot at zoom factors that appear in blue will be coarse.
Turning off the digital zoom
To turn off the digital zoom, press the n button to choose [Digital Zoom] in the
4 tab, then choose [Off].
The focal length when using the optical zoom and digital zoom together is
24 – 3360 mm, and 24 – 840 mm when using the optical zoom alone (all focal lengths are 35mm film equivalent).
Downloaded From camera-usermanual.com Canon Manuals
58
Zooming in More Closely on Subjects (Digital Zoom)
Digital Tele-Converter
The focal length of the lens can be increased by approx. 1.7x or approx. 2.1x.
This enables a faster shutter speed and less chance of camera shake than the zoom (including digital zoom) used by itself at the same zoom factor. The images may appear coarse, however, depending on the combination of
recording pixel (p. 74) and digital tele-converter settings used.
Choose [Digital Zoom].
●
Press the n button.
●
Press the qr buttons to choose the 4 tab.
●
Press the op buttons or turn the  dial to choose [Digital Zoom].
Y
●
Press the qr buttons to choose a
X magnification.
●
Pressing the n button will restore the
COP factor will appear on the screen.
●
To return to standard digital zoom, choose
[Digital Zoom] and the [Standard] option.
What if the zoom factor appears in blue?
Using this function at a recording pixel setting of , or will cause image deterioration (the zoom factor will appear in blue).
•
The respective focal lengths when using [1.7x] and [2.1x] are 40.8 –
1428 mm and 50.4 – 1764 mm (35mm film equivalent).
•
The digital tele-converter cannot be used together with the digital zoom.
Downloaded From camera-usermanual.com Canon Manuals
59
Inserting the Date and Time
You can insert the shooting date and time in the lower right corner of an image. Once inserted, however, they cannot be deleted. Be sure to check
beforehand that the date and time are correctly set (p. 20).
Choose [Date Stamp].
●
Press the n button.
●
Press the qr buttons to choose the 4 tab.
●
Press the op buttons or turn the  dial to choose [Date Stamp].
Accept the setting.
●
Press the qr buttons to choose [Date] or
●
[Date & Time].
Pressing the shooting screen.
Y
X
Once set, [DATE] will appear on the screen.
Shoot.
COP
To restore to the original setting, choose
[Off] in Step 2.
You can insert and print the shooting date in images which do not have an embedded date and time as follows. However, if you do this for images with an embedded date and time, the date and time may be printed twice.
•
Use the DPOF print settings (p. 147) to print.
• Use the included software to print.
Refer to the Software Guide for details.
• Print using printer functions.
Refer to the Personal Printing Guide for details.
Downloaded From camera-usermanual.com Canon Manuals
60
Using the Self-Timer
The self-timer can be used to shoot a group photo that includes the photographer. The camera will shoot approximately 10 seconds after the shutter button is pressed.
Press the
p button.
Choose
Ò.
●
Press the op buttons or turn the  dial to choose
Ò, then press the m button.
X
Once set,
Ò will appear on the screen.
Y
●
Press the shutter button halfway to focus on the subject, then press it fully.
X
When the self-timer starts, the lamp blinks and the self-timer sound plays.
X
Two seconds before the shutter releases, the lamp and sound speed up (the lamp remains lit when the flash will fire).
●
To cancel shooting with the timer after countdown has started, press the p button.
●
To restore the original setting, choose in Step 2.
You can change the delay time and number of shots (p. 81).
Downloaded From camera-usermanual.com Canon Manuals
61
Shooting in Various Conditions
The camera will select the necessary settings for the conditions in which you wish to shoot when you choose the matching mode.
Choose a Shooting mode.
●
Set the mode dial to the desired Shooting mode.
Shoot.
I Take portraits (Portrait)
●
Produces a soft effect when photographing people.
Y
JTake landscapes (Landscape)
●
Lets you shoot majestic landscapes with a real sense of depth.
COP
Take shots of moving subjects
(Sports)
●
Shoots continuous images while focusing automatically.
●
At maximum wide angle setting you will be able to focus on subjects that are about
1 m (3.3 ft.) or more away from the end of the lens, and at maximum telephoto setting you will be able to focus on subjects that are about 10 m (33.8 ft.) or more away from the end of the lens.
In
mode, images may appear coarse because the ISO speed (p. 76)
is increased to match the shooting conditions.
Downloaded From camera-usermanual.com Canon Manuals
62
Shooting in Special Scenes
The camera will select the necessary settings for the conditions in which you wish to shoot when you choose the matching mode.
Enter
K mode.
●
Set the mode dial to
K.
Choose the Shooting mode.
●
After pressing the m button, press the op buttons to choose
.
●
Press the qr buttons or turn the  dial to choose a Shooting mode, then press the m button.
Y
Take shots in low light conditions
(Low Light)
●
Lets you can shoot in dark places with reduced camera shake and subject blur.
●
A recording pixel setting of will display, and the image will be fixed at 1600 x 1200 pixels.
Downloaded From camera-usermanual.com Canon Manuals
63
Shooting in Special Scenes
w
Take shots of people at the beach
(Beach)
●
Lets you take shots of brightly lit people on sandy beaches where the reflected sunlight is strong.
O
Take shots of foliage (Foliage)
●
Lets you shoot trees and leaves, such as new growth, autumn leaves or blossoms, in vivid colors.
P
(Snow)
Y
●
Lets you take bright, natural-colored shots of people against snowy backgrounds.
t
Take shots of fireworks (Fireworks)
colors.
In t mode, attach the camera to a tripod to prevent the camera from moving and blurring the image. Additionally, you should set the [IS Mode]
to [Off] when shooting with a tripod (p. 161).
Downloaded From camera-usermanual.com Canon Manuals
64
Shooting in Special Scenes
Adding Effects and Shooting
Shoot images with vivid colors
(Super Vivid)
●
Lets you take shots with vivid, intense colors.
Take posterized shots
(Poster Effect)
●
Lets you take shots that look like an old poster or illustration.
Y and , try taking some test shots first.
COP
Downloaded From camera-usermanual.com Canon Manuals
65
Detecting a Smile and Shooting
The camera will shoot, even without pressing the shutter button, when it detects a smile.
Choose .
●
Follow Steps 1 – 2 on p. 63 to choose
, then press the l button.
●
Press the qr buttons or turn the  dial to choose , then press the l button.
X
The camera will enter shooting stand-by, and [Smile Detection on] will appear on the screen.
Point the camera at a person.
●
Y
●
Pressing the p button will pause smile detection. Press the p button again to resume smile detection.
COP
Smiles are easier to detect if the subject faces the camera, and opens their mouth enough to show some teeth when smiling.
Changing the number of shots
After choosing in Step 1, press the op buttons.
•
You should switch to another mode when you finish shooting, or the camera will continue taking shots each time the camera detects a smile.
•
You can also shoot by pressing the shutter button.
Downloaded From camera-usermanual.com Canon Manuals
66
Using the Wink Self-Timer
Point the camera at a person and press the shutter button fully. The camera will shoot approximately two seconds after it detects a wink.
Choose .
●
Follow Steps 1 – 2 on p. 63 to choose
, then press the l button.
●
Press the qr buttons or turn the  dial to choose , then press the l button.
Compose the shot and press the shutter button halfway.
●
Confirm that a green frame appears around the face of the person who will wink.
Y
X
The camera will enter shooting stand-by, and [Wink to take picture] will appear on the screen.
X
The lamp will blink and the self-timer sound
COP
Face the camera and wink.
X
The shutter will release approximately 2 seconds after a wink is detected from the person with a frame around the person’s face.
●
To cancel the countdown, press the p button.
What if a wink is not detected?
•
Wink a bit slowly.
•
A wink may not be detected if eyes are covered by hair or a hat, or when wearing glasses.
Changing the number of shots
After choosing in Step 1, press the op buttons.
Downloaded From camera-usermanual.com Canon Manuals
67
Using the Face Self-Timer
•
Shutting both eyes will also be detected as a wink.
•
If a wink is not detected, the shutter will release approximately 15 seconds later.
•
If there are no people in the shot when the shutter button is pressed fully, the camera will shoot after a person enters the shot and winks.
Using the Face Self-Timer
The shutter will release approximately two seconds after the camera detects
a new face (p. 84). You can use this when the photographer wants to be in
the image, such as a group photo.
Choose .
●
Follow Steps 1 – 2 on p. 63 to choose
,
● then press the
Press the
Y choose , then press the l button.
Compose the shot and press the shutter button halfway.
COP on other faces.
Press the shutter button fully.
X
The camera will enter shooting stand-by, and [Look straight at camera to start count down] will appear on the screen.
X
The lamp will blink and the self-timer sound will play.
Join the subjects and look at the camera.
X
When the camera detects a new face, the lamp and sound will speed up (the lamp remains lit when the flash will fire), and two seconds later the shutter will release.
●
To cancel shooting with the timer after countdown has started, press the p button.
Downloaded From camera-usermanual.com Canon Manuals
68
Shoot with the Effects of a Fish-Eye Lens (Fish-eye Effect)
Changing the number of shots
After choosing in Step 1, press the op buttons.
Even if your face is not detected after joining the subjects, the shutter will release approximately 15 seconds later.
Shoot with the Effects of a Fish-Eye Lens
(Fish-eye Effect)
Lets you shoot with the distorting effect of a fish-eye lens.
Choose .
●
Y
.
Choose an effect level.
●
Press the l button.
X
[Effect Level] will appear on the screen.
COP qr buttons or turn the  dial to choose an effect level, then press the l button.
X
You can check the effect on the screen.
Shoot.
Since you may not achieve the expected results depending on the shooting conditions, try taking some test shots first.
Downloaded From camera-usermanual.com Canon Manuals
69
Take Shots That Look Like a Miniature
Model (Miniature Effect)
Blurs chosen portions in the top and bottom of an image to produce the effect of a miniature model.
Choose .
●
Follow Steps 1 – 2 on p. 63 to choose
.
X
A white frame (the area that will not be blurred) appears on the screen.
Choose the area to keep in focus.
●
Press the l button.
●
Move the zoom lever to change the frame size, and press the op buttons to change
● the frame position.
Pressing the
Y shooting screen.
•
If you press the
Shoot.
COP the frame will switch, and you can use the qr buttons to change the frame position when it is displayed vertically.
•
Holding the camera vertically will change the orientation of the frame.
•
Since you may not achieve the expected results depending on the shooting conditions, try taking some test shots first.
Modes for other scenes
In addition to the modes explained here, the following scene modes are also available:
•
•
•
Downloaded From camera-usermanual.com Canon Manuals
70
4
Choosing Settings Yourself
In this chapter you will learn how to use the various functions in
G mode to progressively advance your shooting skills.
Y
•
COP
G.
•
G stands for Program AE.
•
Before attempting to shoot using a function explained in this chapter in modes other than
G mode, check if the function is available in those modes
Downloaded From camera-usermanual.com Canon Manuals
71
Shooting in Program AE
You can choose the settings for various functions to suit your preferences.
AE stands for Auto Exposure.
The focusing range is approximately 5 cm (2.0 in.) – infinity at maximum wide angle ( j), and approximately 1.4 m (4.6 ft.) – infinity at maximum telephoto
( i).
Enter
G mode.
●
Set the mode dial to
G.
Adjust the settings according to
your purposes (pp. 72 – 81).
Shoot.
If a correct exposure cannot be obtained when pressing the shutter button halfway, the shutter speed and aperture value are shown in orange. Try the following settings to obtain the correct exposure.
•
Turn on the flash
•
Choose a higher ISO speed (p. 76)
You can make the flash fire every time you shoot. The effective flash range is approximately 50 cm – 5.8 m (1.6 – 19 ft.) at maximum wide angle ( j), and approximately 1.4 – 2.8 m ( 4.6
– 6.6 ft.) at maximum telephoto ( i).
Raise the flash.
Choose
h.
●
After pressing the h button, press the qr buttons or turn the
 dial to choose h, then press the m button.
X
Once set, h will appear on the screen.
What if the setting screen does not appear even when you press the
h button?
The flash is lowered. Raise the flash manually.
Downloaded From camera-usermanual.com Canon Manuals
72
Adjusting the Brightness (Exposure Compensation)
You can adjust the standard exposure set by the camera in 1/3-stop increments in the range of -2 to +2.
Enter Exposure Compensation mode.
●
Press the o button.
Adjust the brightness.
●
While watching the screen, turn the
 dial to adjust the brightness, then press the o button. maximum wide angle j.
X
The exposure compensation amount will appear on the screen.
Shooting Close-ups (Macro)
You can shoot an object at a close distance or even shoot extreme close-ups of it. The focusing range is approximately 0 cm – 50 cm (0 – 1.6 ft.) at
Choose
e.
COP
Y q button, press the qr
 dial to choose e, then press the m button.
X
Once set, e will appear on the screen.
•
In macro shooting, the edges of the image may darken if the flash fires.
•
Be careful to avoid damaging the lens.
How can I take better close-ups?
Try attaching the camera to a tripod and shooting in
Î to prevent the camera from
moving and blurring the image (p. 80).
For macro shooting, e will turn gray in the area that displays in the yellow bar underneath the zoom bar, and the camera will not focus.
Downloaded From camera-usermanual.com Canon Manuals
73
Changing the Recording Pixel Setting
(Image Size)
You can choose from five recording pixel (image size) settings.
Choose the recording pixel setting.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
Changing the Compression Ratio
(Image Quality)
X
The setting will appear on the screen.
Y
You can choose from the following two compression ratios (image quality):
(Fine), (Normal).
COP
setting.
●
After pressing the m button, press the op buttons to choose
, then press the l button.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
X
The setting will appear on the screen.
Downloaded From camera-usermanual.com Canon Manuals
74
Changing the Compression Ratio (Image Quality)
Approximate Values for Recording Pixels and Compression
Ratio
Recording Pixels
(Large)
14M/4320x3240
(Medium 1)
7M/3072x2304
Compression
Ratio
Single Image Data
Size (Approx. KB)
3597
1719
1897
902
Number of Shots per
Memory Card
4 GB 16 GB
1058 4334
2194
1978
4022
8985
8101
16473
558 6352 26010
(Medium 2)
2M/1600x1200
(Small)
0.3M/640x480
(Widescreen)
3744x2104
278
150
84
2024
968
Y
12069
20116
30174
1856
3771
49420
82367
123550
7602
15443
• The values in the table are measured according to Canon standards and may change depending on the subject, memory card and camera settings.
A2
A3 – A5
5" x 7"
Postcard size
3.5" x 5"
●
Suitable for sending images as e-mail attachments.
●
For printing on wide size paper.
Downloaded From camera-usermanual.com Canon Manuals
75
Changing the ISO Speed
Choose the ISO speed.
●
After pressing the m button, press the qr buttons or turn the
 dial to choose an option, then press the m button.
X
The setting will appear on the screen.
Automatically adjusts the ISO speed to the Shooting mode and shooting conditions.
Fine weather conditions, outdoor shooting.
Low
Cloudy, twilight
High
Nightscapes, dark interiors
Changing the ISO speed
Y
•
Lowering the ISO speed results in sharper images, but there may be an increased chance of subject or image blurring in certain shooting conditions.
•
Raising the ISO speed results in a faster shutter speed, reducing image blurring and letting the flash reach greater distances to the subject. The images, however, will appear coarse.
COP
When the camera is set to , you can press the shutter button halfway to display the automatically set ISO speed.
Downloaded From camera-usermanual.com Canon Manuals
76
Adjusting the White Balance
The white balance (WB) function sets the optimal white balance for natural looking colors to match the shooting conditions.
Choose the white balance function.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
X
The setting will appear on the screen.
h
Auto
Day Light
Cloudy
Tungsten
Automatically sets the optimal white balance for the shooting conditions.
Fine weather conditions, outdoor shooting
Cloudy, shady, twilight conditions
Y
Tungsten, bulb-type (3-wavelength) fluorescent lighting
Warm-white fluorescent, cool-white fluorescent, warm-white-type
(3-wavelength) fluorescent lighting
Fluorescent
Fluorescent H Daylight fluorescent, daylight-type (3-wavelength) fluorescent lighting
Flash
Custom
COP
Custom White Balance
You can adjust the white balance to the light source at the shooting location.
Make sure that you set the white balance under the light source of the actual scene you will shoot.
●
In Step 2 above, choose .
●
Make sure the entire screen is filled with a plain, white colored subject, then press the l button.
X
The tint on the screen will change when a white balance data is set.
If you change camera settings after recording white balance data, the tone may not turn out properly.
Downloaded From camera-usermanual.com Canon Manuals
77
Continuous Shooting
As long as you hold the shutter button down, the camera will shoot continuously.
Choose a Drive mode.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose
W or
, then press the m button.
Mode
W
Continuous
Continuous
Shooting AF
Continuous
Shooting LV*
Maximum
Speed
(Approx.
Shoot.
X
As long as you hold the shutter button down,
Y
Description
0.6
images/sec.)
1.3
0.6
The camera shoots continuously with the focus and exposure set when the shutter button is pressed halfway.
COP
The camera shoots continuously with the focus fixed to the position set in manual focus. In t mode, the focus is locked on the first shot.
* When in
t (p. 64), AF lock (p. 87) or manual focus modes (p. 89),
will change to
.
•
Cannot be used with the self-timer (pp. 61, 80, 81).
•
Continuous shooting speed increases in
•
Depending on the shooting conditions, the camera settings and the zoom position, the camera may stop shooting momentarily, or the shooting speed may slow down.
•
As the number of images increases, the shooting speed may slow down.
•
If the flash fires, the shooting speed may slow down.
Downloaded From camera-usermanual.com Canon Manuals
78
Changing the Tone of an Image (My Colors)
You can change the tone of an image to sepia or black and white when shooting.
Choose My Colors.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m
X
The setting will appear on the screen.
My Colors Off
Vivid
Neutral hues.
impression.
—
Y
Sepia
B/W
Positive Film
Lighter Skin Tone
Darker Skin Tone
Sepia tones.
Black and white.
COP
Makes skin tones lighter.
Makes skin tones darker.
Vivid Blue
Vivid Green
Vivid Red
Emphasizes blue tints. Makes the sky, ocean and other blue subjects more vivid.
Emphasizes green tints. Makes mountains, foliage and other green subjects more vivid.
Emphasizes red tints. Makes red subjects more vivid.
You can adjust contrast, sharpness, and color saturation
etc. to your preference (p. 80).
Custom Color
•
The white balance cannot be set in the and
•
In and modes, colors other than people’s skin color may change.
You may not obtain the expected results with some skin colors.
Downloaded From camera-usermanual.com Canon Manuals
79
Using the Self-Timer to Prevent Camera Shake
Custom Color
The contrast, sharpness, color saturation, red, green, blue, and skin tones in an image can be chosen and set at 5 different levels.
●
Follow Step 2 on p. 79 to choose
, then press the l button.
●
Press the op buttons to choose an option, then press the qr buttons or turn the
 dial to choose a value.
●
The more to the right, the stronger/darker
(skin tone) the effect gets, the more to the
● left, the weaker/lighter (skin tone) the effect gets.
Press the setting.
Y
Using the Self-Timer to Prevent Camera Shake
pressed, preventing any camera shake that occurs when pressing the shutter button.
Choose
Î.
●
After pressing the p button, press the op buttons or turn the  dial to choose
Î, then press the m button.
X
Once set,
Î will appear on the screen.
●
Follow Step 3 on p. 61 to shoot.
Downloaded From camera-usermanual.com Canon Manuals
80
Customizing the Self-Timer
You can set the time delay (0 – 30 seconds) and the number of shots (1 – 10 shots).
Choose
$.
●
After pressing the p button, press the op buttons or turn the  dial to choose
$, then press the n button immediately.
Choose the settings.
●
Press the op buttons to choose [Delay]
● or [Shots].
Press the
Y
●
Follow Step 3 on p. 61 to shoot.
m button.
•
•
What if the number of shots is set to two or more shots?
COP longer than usual.
•
If the memory card becomes full, shooting stops automatically.
When you set the time delay for more than 2 seconds, the self-timer lamp and sound speed up 2 seconds before the shutter releases (when the flash will fire, the lamp lights).
Downloaded From camera-usermanual.com Canon Manuals
81
Shooting Using a TV Monitor
You can use a TV to display the camera screen content while shooting.
•
To connect the camera to a TV, follow the Steps in “Viewing Images on a
•
Shooting procedures are the same as when using the camera screen.
TV display is not available when using HDMI Cable HTC-100 (sold separately) to connect the camera to a high-definition TV.
Changing the Composition with the
Focus Lock
While you keep the shutter button pressed halfway, the focus and exposure
Y
Focus.
●
Center the subject you want in focus, and
● press the shutter button halfway.
COP
Recompose.
●
Keep the shutter button pressed halfway and move the camera to recompose the scene.
Shoot.
●
Press the shutter button fully.
Downloaded From camera-usermanual.com Canon Manuals
82
5
Getting More Out of Your
Camera
This chapter serves as the advanced version of Chapter 4 and explains how to take pictures using various functions.
Y
COP
•
This chapter assumes that you have set the mode dial to
G.
•
The sections “Setting the Shutter Speed” (p. 95), “Setting the Aperture
Value” (p. 96), “Setting the Shutter Speed and Aperture Value” (p. 97),
assume that you have set the mode dial to the corresponding mode.
•
The section “Adjusting the Flash Output” (p. 100) assumes that you have
set the mode dial to
D.
•
The sections “Changing the Color and Shooting” (p. 103) and “Shooting
Stitch Assist Images” (p. 106) assume that you have set the mode dial to
K and chosen the corresponding mode.
•
Before attempting to shoot using a function explained in this chapter in modes other than
G mode, check if the function is available in those modes
Downloaded From camera-usermanual.com Canon Manuals
83
Changing the AF Frame Mode
You can change the AF (Auto Focus) frame mode to match the scene you want to shoot.
Choose [AF Frame].
●
After pressing the n button, choose
[AF Frame] in the
4 tab, then press the qr buttons to choose an option.
FlexiZone/Center
The AF frame is locked to the center. This is effective for focusing on a specific point.
In [FlexiZone], you can change the position and size of the AF frame (p. 85).
AF frame will turn yellow and will appear.
Face Detect
Y
•
Detects people’s faces and sets the focus, exposure (evaluative metering only) and white balance ( only).
•
When the camera is pointed at subjects, a white frame appears on the face the camera judges to be the main subject, and gray frames (max. 2) will appear on other faces.
COP
•
A frame will follow a moving subject within a certain range.
•
When the shutter button is pressed halfway, up to 9 green frames will appear on faces that the camera focuses on.
•
If a face is not detected and only gray frames (no white frame) appear, an AF Frame will appear in the center of the screen when you press the shutter button halfway.
•
The AF frame will appear in the center of the screen if you press the
shutter button halfway when Servo AF (p. 86) is set to [On] and a face is
not detected.
•
Examples of faces that cannot be detected:
• Subjects that are far away or extremely close.
• Subjects that are dark or light.
• Faces turned to the side or at a diagonal, or faces with a portion hidden.
•
The camera may mistakenly identify non-human subjects as a face.
•
If the camera cannot focus when you press the shutter button halfway, the AF frame will not appear.
Downloaded From camera-usermanual.com Canon Manuals
84
Changing the AF Frame Position and Size
When the AF frame mode is set to [FlexiZone] (p. 84) you can change the
position and size of the AF frame.
Press the button.
X
The AF frame will turn orange.
Move the AF frame.
●
Turn the
 dial to move the AF frame.
●
Press the opqr buttons to make fine adjustments.
●
If you keep the button pressed, the AF
(center).
Y
●
Press the l button.
X
The AF frame will become small.
●
Pressing the l button again will restore the AF frame to normal size.
Complete the settings.
●
Press the button.
•
The Spot AE Point frame can be linked with the AF frame (p. 92).
•
The AF frame will be set to normal size when using Digital Zoom (p. 58)
or Digital Tele-converter (p. 59).
Downloaded From camera-usermanual.com Canon Manuals
85
Magnifying the Focal Point
If you press the shutter button halfway, the AF frame will magnify and you can check the focus.
Choose [AF-Point Zoom].
●
Press the n button to choose [AF-
Point Zoom] in the
4 tab, then press the qr buttons to choose [On].
Check the focus.
●
Press the shutter button halfway.
X
In [Face Detect] (p. 84), the face detected
X as the main subject will appear magnified.
contents of the AF frame will appear magnified.
Y
What if the display does not magnify?
The display will not appear magnified in [Face Detect] if a face cannot be detected
COP
The magnified display will not appear when using Digital Zoom (p. 58), Digital
Tele-converter (p. 59), Servo AF or when connected to a TV (p. 82).
Shooting with Servo AF
While the shutter button is pressed halfway, the focus and exposure will continue to adjust, allowing you to take pictures of moving subjects without missing a shot.
Choose [Servo AF].
●
Press the n button to choose [Servo
AF] in the
4 tab, then press the qr buttons to choose [On].
Downloaded From camera-usermanual.com Canon Manuals
86
Shooting with the AF Lock
Focus.
●
The focus and exposure will be maintained where the blue AF frame appears while you press the shutter button halfway.
•
The camera may not be able to focus in some conditions.
•
In low light conditions, AF frames may not turn blue even after pressing the shutter button halfway. In this case, you can set the focus and exposure with the AF frame setting.
•
If a correct exposure cannot be obtained, the shutter speed and aperture value appear in orange. Release your finger from the shutter button, then press it again halfway.
•
You cannot shoot with the AF lock in this mode.
•
The [AF-Point Zoom] option in the
4 tab is not available in Servo AF mode.
•
Y
Shooting with the AF Lock
COP
Lock the focus.
●
Keep the shutter button pressed halfway and press the q button.
X
The focus locks, and and the MF indicator appear on the screen.
●
After you release your finger from the shutter button, press the q button again, then press the qr buttons or turn the  dial to choose . The focus will unlock.
Compose the scene and shoot.
Downloaded From camera-usermanual.com Canon Manuals
87
Choosing the Person to Focus On (Face Select)
You can choose a specific person’s face to focus on and then shoot.
Set the AF frame to [Face Detect]
(p. 84).
Enter Face Select mode.
●
Point the camera toward the face of the subject and press the button.
X
After [Face Select: On] appears, a face frame will appear around the face detected as the main subject.
●
Even if the subject moves, the face frame
●
will follow the subject within a certain range.
Y
will not appear.
Choose the face to focus on.
COP
button, the face frame
will move to another face detected by the camera.
●
When the frame has made a full circuit of all detected faces, [Face Select: Off] will appear, and the AF frame mode screen will reappear.
Shoot.
●
Press the shutter button halfway. When the camera focuses, will change into
.
●
Press the shutter button fully to shoot.
Downloaded From camera-usermanual.com Canon Manuals
88
Shooting in Manual Focus Mode
You can use manual focus when auto focus is not possible. If you press the shutter button halfway after roughly focusing manually, you can fine tune the focus.
Choose .
●
After pressing the q button, press the qr buttons or turn the
 dial to choose
, then press the m button.
X
and the MF indicator appear.
Focusing roughly.
●
The side bar shows your focal point and an
Y
 dial to find an approximate focus.
MF Distance Indicator
Fine tuning the focus.
●
If you press the shutter button halfway or
COP
button, you can fine tune the focus (Safety MF).
•
You cannot change the AF mode setting or size while focusing manually
(p. 84). If you want to change the AF frame mode or size, cancel Manual
focus mode first.
•
In order to focus accurately, try attaching the camera to a tripod.
•
When using the Digital Zoom (p. 58), Digital Tele-converter (p. 59), or
when using a television as a display (p. 82), you will be able to focus but
the magnified area will not display.
•
If you press the n button and [MF-Point Zoom] is set to [Off] in the
4 tab, the magnified display will not be available.
•
If you press the n button to display the 4 tab and set [Safety MF] to [Off], you will not be able to fine tune the focus even if you press the shutter button halfway.
Downloaded From camera-usermanual.com Canon Manuals
89
Focus Bracketing (Focus-BKT Mode)
The camera automatically takes three continuous shots in the following order: one at the position set in manual focus, and one each with focus positions preset farther and nearer. The focus adjustment can be set in 3 levels.
Choose .
●
After pressing the m button, press the op buttons to choose
, then press the qr buttons or turn the  dial to choose
.
Set the focus.
●
Press the l button.
●
Press the make the setting.
Y
•
In flash settings other than
! (p. 26), Focus Bracketing is not available.
•
•
Only three shots will be taken, even if you use number of shots.
•
If you follow Step 1 on p. 89 to choose
and immediately press the l button, the focus bracketing screen will appear.
Downloaded From camera-usermanual.com Canon Manuals
90
Reacquiring Zoomed In Subjects
(Frame Assist)
If you lose track of your subject while zoomed in, zooming out will make it easier to find.
Look for the subject.
●
Press and hold the button.
X
The camera will zoom out, and the area that appeared on the screen before pressing the button will appear as a white frame on the screen.
Y
Reacquire the subject.
●
Place the subject inside the white frame
X and release the button.
position.
•
While the camera is zoomed out, shooting information will not appear on the screen.
•
If you press the shutter button halfway while in the screen of Step 1, you can shoot at that zoom factor.
•
The white frame will not appear even if you press the button while shooting a movie. The sound of the camera zooming out and any operation sounds will be recorded.
•
Zoom Framing Assist is not available after fully pressing the shutter
button when using the self-timer (pp. 61, 80, 81),
or . In addition, automatic shooting in [Smile] mode is not available while pressing the
button.
Changing the Displayed Area when Pressing the Button
Press the n button to choose [
Display Area] in the
4 tab, then choose from three effect levels.
Downloaded From camera-usermanual.com Canon Manuals
91
Changing the Metering Method
You can change the metering method (brightness measuring function) to match the shooting conditions.
Choose the metering method.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
X
The setting will appear on the screen.
Evaluative
Center
Weighted Avg.
Suitable for standard shooting conditions, including back lit shots.
Automatically adjusts the exposure to match the shooting conditions.
Y weight to the center.
Only meters within the (Spot AE Point frame). The Spot AE
Spot
Linking the Spot AE Point Frame to the AF
Frame
Point frame can be linked to the AF frame.
COP
Choose .
●
Follow Step 2 above and choose .
Choose [Spot AE Point].
●
Press the n button to choose [Spot
AE Point] in the
4 tab, then press the qr buttons to choose [AF Point].
X
The Spot AE Point frame will be linked to the AF frame that was moved.
Cannot be used when [AF Frame] is set to [Face Detect] (p. 84).
Downloaded From camera-usermanual.com Canon Manuals
92
Shooting with the AE Lock
You can lock the exposure and shoot, or set the focus and exposure separately to shoot. AE stands for “Auto Exposure”.
Lock the exposure.
●
Point the camera toward the subject and press the o button while pressing the shutter button halfway.
X
When appears, the exposure will be locked.
●
If you release your finger from the shutter button and press the o button again, will disappear and AE will unlock.
Program Shift
Compose the scene and shoot.
Y
If you lock the exposure and turn the
 dial, you can change the shutter speed and aperture value combination.
Just as with the AE lock, you can lock the exposure for shooting with the flash.
FE stands for “Flash Exposure”.
Raise the flash and choose
h
(p. 72).
Lock the flash exposure.
●
Point the camera toward the subject and press the o button while pressing the shutter button halfway.
X
The flash will fire and when appears, the flash output will be retained.
●
If you release your finger from the shutter button and press the o button again, will disappear and FE will unlock.
Downloaded From camera-usermanual.com Canon Manuals
93
Auto Exposure Bracketing (AEB Mode)
Compose the scene and shoot.
Auto Exposure Bracketing (AEB Mode)
The camera takes 3 continuous shots while automatically adjusting the exposure to standard exposure, underexposure and overexposure, in that order.
Choose .
●
After pressing the m button, press the op buttons to choose
, then press the
.
qr buttons or turn the  dial to choose
Y
Set the exposure compensation amount.
●
Press the l button.
COP
●
From the exposure set by the camera, you can adjust the amount of compensation ±2 stops in 1/3-stop increments. If exposure
compensation (p. 73) is already being
used, settings are made with the compensated value as the base.
•
In flash settings other than
! (p. 26), AEB is not available.
•
Continuous shooting (p. 78) cannot be used in this mode.
•
If you press the l button while in the exposure compensation screen
(p. 73), the compensation amount setting screen will appear.
•
Only three shot will be taken, even if you use
number of shots.
Downloaded From camera-usermanual.com Canon Manuals
94
Setting the Shutter Speed
You can set the shutter to the speed at which you want to shoot. The camera will set the appropriate aperture value for the shutter speed you set.
M stands for “Time value”.
Set the mode dial to
M
.
Make the setting.
●
Turn the
 dial to set the shutter speed.
Shoot.
Available Shutter Speeds
15", 13", 10", 8", 6", 5", 4", 3"2, 2"5, 2", 1"6, 1"3, 1", 0"8, 0"6, 0"5, 0"4, 0"3, 1/4, 1/5, 1/6,
1/2500, 1/3200
Y
•
2" indicates 2 seconds, 0"3 indicates 0.3 second and 1/160 indicates 1/160 second.
•
The fastest shutter speed when using the flash is 1/2000 second. The camera automatically resets the shutter speed to 1/2000 second if a faster shutter speed is chosen.
COP
•
Depending on the zoom position, some shutter speeds may not be available.
•
When shutter speeds of 1.3 seconds or slower are used, images are processed to eliminate noise after being taken. A certain amount of processing time may be needed before you can take the next shot.
•
You should set the [IS Mode] to [Off] when lowering the shutter speed
and shoot with a tripod (p. 161).
What if the aperture value appears in orange?
If the aperture value appears in orange when the shutter button is pressed halfway, the scene has exceeded the correct exposure limits. Adjust the shutter speed until the aperture value appears in white. Safety shift can also be used
Downloaded From camera-usermanual.com Canon Manuals
95
Setting the Aperture Value
You can set the aperture to a value at which you want to shoot. The camera will set the appropriate shutter speed for the aperture value you set.
B stands for “Aperture value”, which refers to the size of the aperture opening inside the lens.
Set the mode dial to
B.
Make the setting.
●
Turn the
 dial to set the aperture value.
Shoot.
•
Available Aperture Values
F2.7, F3.2, F3.5, F4.0, F4.5, F5.0, F5.6, F5.8, F6.3, F7.1, F8.0
Y
What if the shutter speed appears in orange?
If the shutter speed appears in orange when the shutter button is pressed halfway, the scene has exceeded the correct exposure limits. Adjust the aperture value until the shutter speed appears in white. Safety shift can also be used.
Safety Shift
COP
With
M and B modes, if you press the n button and [Safety Shift] is set to [On] in the
4 tab, the shutter speed or aperture value is automatically adjusted for the correct exposure when it cannot otherwise be obtained.
Safety Shift is disabled when the flash is enabled.
Downloaded From camera-usermanual.com Canon Manuals
96
Setting the Shutter Speed and Aperture Value
You can manually set the shutter speed and aperture to shoot images.
D stands for “Manual”.
Set the mode dial to
D.
Make the setting.
●
Press the o button to choose the shutter speed or aperture value.
●
Turn the
 dial to set a value.
X
The set exposure level appears on the indicator. You can check the difference
Standard
Aperture Value
Shutter Speed
Exposure Level against the standard exposure level.
X
When the difference is more than ±2 stops,
Y
“-2” or “+2” appears in orange.
Exposure Level
Exposure Level
Indicator
COP
•
The standard exposure is calculated according to the metering method
•
If you use the zoom after making settings or changing the composition, the exposure level may change.
•
Depending on the shutter speed or aperture value set, the screen brightness may change. If the flash is raised and the mode set to h, the screen brightness will not change.
•
If you press the o button while holding down the shutter button halfway, the shutter speed or aperture value (whichever is not set in Step 2), will automatically adjust to obtain the correct exposure (the correct exposure may not be obtained depending on the settings).
Downloaded From camera-usermanual.com Canon Manuals
97
Correcting the Brightness and Shooting
(i-Contrast)
The camera can detect areas in the scene, such as faces or backgrounds, that are too bright or dark and automatically adjust them to the optimum brightness when shooting. Also, when the overall image is lacking in contrast, the camera will automatically correct the image for a sharper impression when shooting.
Choose [i-Contrast].
●
Press the n button, choose the 4 tab, and then choose the [i-Contrast] menu item. Press the qr buttons to choose
[Auto].
X
Once set,
@ will appear on the screen.
Under some conditions, the image may appear coarse or may not be corrected properly.
You can correct recorded images (p. 141).
Y
COP
You can automatically correct red-eye that occurs in images taken with the flash.
Choose [Flash Control].
●
Press the n button to choose [Flash
Control] in the
4 tab, then press the m button.
Adjust the setting.
●
Press the op buttons or turn the  dial to choose [Red-Eye Corr.], then press the qr buttons to choose [On].
X Once set,
Œ will appear on the screen.
Downloaded From camera-usermanual.com Canon Manuals
98
Shooting with Slow Synchro
Red-eye correction may be applied to areas other than red eyes. For example, when red make-up has been used around eyes.
•
You can correct recorded images (p. 142).
•
If you hold down the h button for more than one second, the screen in
Step 2 will appear.
•
With the flash raised, if you press the h button and immediately press the n button, the screen in Step 2 will appear.
Shooting with Slow Synchro
You can make the main subject, such as people, appear bright by having the camera provide the appropriate illumination with the flash. At the same time, you can use a slow shutter speed to brighten the background that the light from the flash cannot reach.
Raise the flash.
Y
Choose
….
COP h button, press the qr
 dial to choose …, then press the m button.
X
Once set,
… will appear on the screen.
Shoot.
●
Even if the flash fires, ensure that the subject does not move until the shutter sound ends.
Attach the camera to a tripod to prevent the camera from moving and blurring the image. Additionally, you should set the [IS Mode] to [Off] when
shooting with a tripod (p. 161).
Downloaded From camera-usermanual.com Canon Manuals
99
Adjusting the Flash Exposure Compensation
Just like with Exposure Compensation (p. 73), you can adjust the exposure
±2 stops in 1/3-stop increments when using the flash.
Choose
~.
●
After pressing the m button, press the op buttons to choose ~.
Make the setting.
●
Press the qr buttons or turn the  dial to choose the amount of flash exposure compensation, then press the m button.
X
Once set,
~ will appear on the screen.
Safety FE
Y
However, if you press the n button to display the 4 tab and set [Safety FE] to [Off] in [Flash Settings], the shutter speed and aperture value will not automatically adjust.
•
You can also set the flash exposure compensation. Press the n
COP
•
When you press and hold the h button for 1 sec. or more, or with the flash raised, if you press the h button and immediately press the n button, the settings screen will appear.
4 tab. Then choose qr buttons to choose a setting.
Adjusting the Flash Output
In
D mode, you can choose 3 levels of flash output.
Set the mode dial to
D.
Choose Flash Output.
●
After pressing the m button, press the op buttons to choose ~.
Downloaded From camera-usermanual.com Canon Manuals
100
Checking for Shut Eyes
Make the setting.
●
Press the qr buttons or turn the  dial to choose the amount of flash output, then press the m button.
X
Once set,
~ will appear on the screen.
•
You can also set the flash output. Press the n button and choose
[Flash Control] (p. 98) from the
4 tab. Then choose [Flash Output] and press the qr buttons to choose a setting.
•
In
M and B modes, you can set the flash output if you press the n button and choose the 4 tab, then [Flash Control] and set the
[Flash Mode] option to [Manual].
•
When you press and hold the h button for 1 sec. or more, or with the flash raised, if you press the h button and immediately press the n button, the settings screen will appear.
Y
Checking for Shut Eyes
When the camera detects the possibility that people have their eyes shut, appears.
COP
Choose [Blink Detection].
●
Press the n button, then choose
[Blink Detection] in the
4 tab. Press the qr buttons to choose [On].
Shoot.
X
When a person with shut eyes is detected, a frame and appear.
•
In
$ mode, when the number of shots is set to two or more, this function is only available for the last image shot.
•
In and modes, this function is only available for the last image shot.
•
Not available in
W, , mode.
Downloaded From camera-usermanual.com Canon Manuals
101
Registering Shooting Settings
You can register commonly used shooting modes and settings to your preference. To switch between registered settings, simply turn the mode dial to or . Even if you switch shooting modes or turn off the power, settings that usually cancel (self timer, etc.) will be saved.
Settings that Can be Registered
•
Shooting modes (
G, M, B and D)
•
Items set in
•
Items in the shooting menu
•
Zoom position
•
•
to register and make the settings.
COP
Y
Choose [Save Settings].
●
Press the n button, choose [Save
Settings] in the
4 tab, then press the m
Register the settings.
●
Press the qr buttons or turn the  dial to choose the destination, then press the m button.
•
To change part of the pre-registered settings (except the shooting mode), choose or and change the settings, then repeat Steps 2–
3. These settings will not be reflected in other Shooting modes.
•
To return contents registered to or to the default settings, turn the mode dial to or
, then choose [Reset All] (p. 53).
Downloaded From camera-usermanual.com Canon Manuals
102
Changing the Color and Shooting
You can change the look of an image when shooting. However, depending on shooting conditions the image may become coarse, or the colors may not come out as expected.
Color Accent
You can choose to retain a single color and change the rest to black and white in a composition.
Choose
T.
●
Follow Steps 1 – 2 on p. 63 to choose
T.
Press the
l button.
X
The unchanged image and the Color Swap
●
Y
Specify the color.
●
Position the center frame so it is filled with the color you want and press the q button.
Recorded color
Specify the range of colors.
●
Press the op buttons or turn the  dial to change the range of colors to be retained.
●
Choose a negative value to limit the range of colors. Choose a positive value to extend the range of colors to similar colors.
●
Pressing the l button restores the shooting screen.
Using the flash may cause unexpected results in this mode.
Downloaded From camera-usermanual.com Canon Manuals
103
Changing the Color and Shooting
Color Swap
You can swap one color in an image for another when recording it. You can only swap one color.
Choose
Y.
●
Follow Steps 1 – 2 on p. 63 to choose
Y.
Press the
l button.
X
The unchanged image and the Color Swap
●
Y gray.
Specify the color to be swapped.
COP q button.
X
The specified color will be recorded.
Specify the target color.
●
Position the center frame so it is filled with the color you want and press the r button.
X
The specified color will be recorded.
Downloaded From camera-usermanual.com Canon Manuals
104
Changing the Color and Shooting
Specify the range of colors to be swapped.
●
Press the op buttons or turn the  dial to adjust the range of colors to be changed.
●
Choose a negative value to limit the range of colors. Choose a positive value to extend the range of colors to similar colors.
●
Press the l button to restore the shooting screen.
•
Using the flash may cause unexpected results in this mode.
•
Y
COP
Downloaded From camera-usermanual.com Canon Manuals
105
Shooting Stitch Assist Images
Large subjects can be split into several shots that can later be merged together using the included software on a computer to create a panoramic image.
Choose
x or v.
●
Follow Steps 1 – 2 on p. 63 to choose
x or v
.
Take the first shot.
X
The exposure and white balance will be set with the first shot.
●
Overlap part of the first shot when taking the second shot.
●
Minor discrepancies in the overlapping
COP
●
Up to 26 shots can be recorded with the same procedures.
Finish shooting.
●
Press the m button.
Merge the images on a computer.
●
For details on how to merge the images, refer to the Software Guide.
•
This function is not available when a TV is used as the monitor (p. 82).
•
To use AF lock, register AFL to the
Downloaded From camera-usermanual.com Canon Manuals
106
6
Using Various Functions for
Shooting Movies
This chapter serves as a more advanced version of the “Shooting
Y
COP
•
This chapter assumes that the mode dial has been set to
E mode. You
can use various functions for shooting movies (pp. 108 – 115), which
differs from shooting movies by pressing the movie button (p. 30).
•
Press the
1 button to enter Playback mode before playing back or editing movies.
Shooting Movies in Modes Other than
E
•
You can shoot movies by pressing the movie button, however, certain settings made in the
ø and Shooting menus will automatically change to match settings for shooting movies.
•
When the mode dial is set to
A, the camera can automatically select all
settings so that you can shoot movies (p. 30).
•
When you finish shooting a movie, the settings will return to those before the movie was shot.
Downloaded From camera-usermanual.com Canon Manuals
107
Shooting Movies in E Mode
Enter
E mode.
●
Set the mode switch to
E.
Adjust the settings according to
your purposes (pp. 108 – 115).
Shoot.
●
Press the movie button.
●
To stop shooting the movie, press the movie button again.
Changing the Movie Mode
You can choose between four Movie modes.
Y
Choose a Movie mode.
●
After pressing the m button, press the op buttons to choose E.
COP
Normal mode.
qr buttons or turn the  dial to choose a mode, then press the m button.
E Standard
Miniature Effect
> Color Accent
You can shoot movies that look like a miniature model (p. 109).
These Shooting modes let you change all colors except the chosen color to black and white, or exchange the chosen color for another color, when shooting. See “Changing the Color and
Shooting” (p. 103) for details. You need to choose the color
you wish to leave in or change before shooting the movie.
z Color Swap
Under some conditions, colors may not turn out as expected in
> and z modes.
•
Pressing the movie button in mode will record a movie in
E.
•
Even if you press the movie button when in
T or Y, you can shoot
movies with Color Accent (p. 103) or Color Swap (p. 104).
Downloaded From camera-usermanual.com Canon Manuals
108
Shoot Movies That Look Like a Miniature
Model (Miniature Effect)
You can shoot movies that look like moving miniature models.
You create the miniature model effect by choosing the upper and lower portions of the scene that will be blurred and the playback speed, which makes people and objects in the scene move quickly during playback.
Audio will not be recorded.
Choose .
●
Follow the steps for "Changing the Movie
.
X
A white frame (the area that will not be blurred) appears on the screen.
Choose the area to keep in focus.
●
●
Press the l button.
Move the zoom lever to change the frame size, and press the the frame position.
Y op buttons to change
●
Press the n button.
●
Press the qr buttons or turn the  dial to choose a playback speed.
●
Pressing the m button restores the shooting screen.
Shoot.
●
Press the movie button.
●
To stop shooting the movie, press the movie button again.
Downloaded From camera-usermanual.com Canon Manuals
109
Shoot Movies That Look Like a Miniature Model (Miniature Effect)
Playback Speeds and Estimated Playback Times (for 1 Min.
Clips)
Speed Playback Time
12 sec.
6 sec.
3 sec.
•
If you press the m button in Step 2, the horizontal/vertical orientation of the frame will switch, and you can use the qr buttons to change the frame position when it is displayed vertically.
•
Holding the camera vertically will change the orientation of the frame.
•
Since you may not achieve the expected results depending on the shooting conditions, try taking some test shots first.
Y
COP
Downloaded From camera-usermanual.com Canon Manuals
110
Changing the Image Quality
You can choose between three image quality settings.
Choose the image quality setting.
●
After pressing the m button, press the op buttons to choose
.
Choose an option.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
X
The option you set will appear on the screen.
Image Quality Table
Image Quality
(Recording Pixels/Frame Rate)
Y
Content
1280 x 720 pixels, 30 frames/sec. For shooting high-definition movies.
640 x 480 pixels, 30 frames/sec. For shooting standard quality movies.
Since the number of recording pixels is smaller than in , the image quality will appear coarse, but you can record approximately three times the length.
320 x 240 pixels, 30 frames/sec.
Image Quality
Memory Card
Capacity
4 GB 16 GB
20 min. 43 sec.
43 min. 43 sec.
1 hr. 58 min. 19 sec.
1 hr. 24 min. 54 sec.
2 hrs. 59 min. 3 sec.
8 hrs. 4 min. 30 sec.
• Based on Canon’s testing standards.
• Recording will automatically stop when the clip file size reaches 4 GB, or when the recording time reaches 29 minutes and 59 seconds when shooting in , and approximately 1 hour when shooting in or .
• Recording may stop even if the maximum clip length has not been reached on some memory cards. SD Speed Class 4 or higher memory cards are recommended.
In and when the recording pixel setting for still images is set to , a gray frame will appear around the area that can be shot as a still image.
Downloaded From camera-usermanual.com Canon Manuals
111
Taking Still Images while Shooting a Movie
You can shoot still images while shooting a movie.
Focus while shooting a movie.
●
Make sure that
4 appears on the screen and press the shutter button halfway.
X
The focus and exposure will readjust (the camera will not beep).
X
The movie will continue shooting.
Shoot.
•
While shooting in
●
Press the shutter button fully.
X
The still image will be recorded.
Y
•
While shooting a movie in or , you can take a still image at the
•
recording pixel setting you set for still images (p. 74). However, if the
recording pixel setting is and you shoot a still image in , the image will be recorded at a setting of .
COP
•
The flash will not fire.
•
The shooting date and time cannot be recorded in the lower right corner of the image.
•
The ISO speed will switch to .
•
i-Contrast (p. 98) is not available.
•
If shooting still images fills the internal memory, the movie may stop recording.
•
You cannot take a still image while shooting a movie in .
•
In
> or z, you can shoot movies with Color Accent (p. 103) or Color
Downloaded From camera-usermanual.com Canon Manuals
112
AE Lock/Exposure Shift
What if
4 changes and you can’t take a still image?
You may not be able to take still images when the writing speed to the memory card is slow, or when there is insufficient internal memory.
•
4 (blinking): Processing recorded image. You can shoot when the icon stops blinking.
•
: Still images cannot be taken due to insufficient internal memory.
AE Lock/Exposure Shift
You can lock the exposure or change it in 1/3 steps within a range of ±2 before or during shooting.
●
Press the
Y
The exposure shift bar appears.
●
Press the o button again to release the lock.
●
While watching the screen, turn the
 dial to adjust the exposure.
Shoot.
●
Press the movie button.
●
To stop shooting the movie, press the movie button again.
Downloaded From camera-usermanual.com Canon Manuals
113
Sound Settings
Adjusting the Recording Volume
You can manually set the recording volume for shooting movies.
●
Press the n button to choose [Movie
Audio] from the
4 tab, then press the m button.
●
Press the op buttons or turn the  dial to choose [Mic Level], then press the qr buttons to choose [Manual].
The recording volume is
Auto
Manual automatically adjusted to reduce sound distortion.
After pressing the p button, press the
Y
Using the Wind Filter
Wind Filter suppresses noise when the wind is strong. However, unnatural sound may result when used to record in locations with no wind.
COP
Audio] from the
4 tab, then press the m button.
n button to choose [Movie
●
Press the op buttons or turn the  dial to choose [Wind Filter], then press the qr buttons to choose [On].
Downloaded From camera-usermanual.com Canon Manuals
114
Other Shooting Functions
The following functions can be used in the same way as for still images.
Functions marked with a * can be used in the same way as for still images when in ,
> or z.
• Zooming in More Closely On Subjects
- The optical and digital zooms (p. 58) are available in
E.
- Only the optical zoom is available in
> and z.
- Neither the optical nor digital zooms are available while shooting in . Be sure to set the optical zoom before shooting.
- The sound of the zoom will be recorded.
•
•
Shooting Close-ups (Macro) (p. 73)*
Macro shooting is not available in .
•
Adjusting the White Balance (p. 77)
•
Changing the Tone of an Image (My Colors) (p. 79)
•
Using the Self-Timer to Prevent Camera Shake (p. 80)*
•
Customizing the Self-Timer (p. 81)*
The number of shots cannot be changed.
Y
•
Shooting Using a TV Monitor (p. 82)*
•
Shooting with the AF Lock (p. 87)*
•
Shooting in Manual Focus Mode (p. 89)*
•
Turning Off the AF Assist Beam (p. 158)*
•
•
• Registering Functions to the
Downloaded From camera-usermanual.com Canon Manuals
115
Playback Functions
The following functions can be used in the same way as for still images.
•
•
Quickly Searching Images (p. 120)
•
Viewing Images in Filtered Playback (p. 121)
•
•
Changing Image Transitions (p. 126)
•
Viewing Images on a TV (p. 127)
•
Viewing Images on a High-Definition TV (p. 128)
•
•
•
Tagging Images as Favorites (p. 134)
•
Organizing Images by Category (My Category) (p. 135)
•
Summary of Movie Control Panel in “Viewing Movies”
(p. 32)
Y
Exit
Playback
Slow motion playback (you can use the qr buttons or turn the  dial to adjust the speed. Sound will not play back.)
Display the first frame
COP
Previous frame (Rewind if you hold down the m button.)
Next frame (Fast forward if you hold down the m button.)
Display the last frame
*
Appears when connected to a PictBridge compliant printer (p. 144).
Refer to the Personal Printing Guide for details.
Downloaded From camera-usermanual.com Canon Manuals
116
Editing
You can trim the beginnings and ends of recorded movies.
Choose
*.
●
Follow Steps 1 – 3 on p. 32 to choose
*, then press the m button.
X
The movie editing panel and the movie editing bar will appear.
Movie Editing Panel
Movie Editing Bar
Set the editing range.
●
Press the op buttons and choose
or
.
●
Press the qr buttons or turn the  dial to move .
Y
, you can trim the beginning of the movie
X from . If you choose , you can trim the end of the movie from .
, only the portion from the nearest to the left will be trimmed when is chosen.
Only the portion from the nearest to the right will be trimmed when is chosen.
X
The section indicated with will be the section of the movie that remains after editing.
Check the edited movie.
●
Press the op buttons to choose
(Play), then press the m button. The edited movie will play.
●
To edit the movie again, repeat Step 2.
Downloaded From camera-usermanual.com Canon Manuals
117
Editing
●
To cancel editing, press the op buttons, and choose . After pressing the m button, press the qr buttons or turn the
 dial to choose [OK], then press the m button again.
Save the edited movie.
●
Press the op buttons to choose
, then press the m button.
●
Press the opqr buttons, or turn the  dial to choose [New File], then press the m button.
•
X
The movie will be saved as a new file.
Y with the edited movie, erasing the original.
•
When there is not enough space left on the memory card, only
[Overwrite] can be chosen.
•
If the battery is depleted partway through editing, the edited movie clips
•
may not be saved.
COP
adapter kit (sold separately) (p. 39).
Downloaded From camera-usermanual.com Canon Manuals
118
7
Using Various Playback and
Editing Functions
•
This chapter explains various ways to play back and edit images.
Press the
Y
•
It may not be possible to play back or edit images that have been edited
•
on a computer, had their file name changed, or have been taken on a different camera.
Downloaded From camera-usermanual.com Canon Manuals
119
Quickly Searching Images
Searching Images Using Index Display
Displaying multiple images at the same time lets you quickly find the image you want.
Move the zoom lever toward
g.
X
Images will display in an index.
●
The number of images increases each time you move the lever toward g.
●
The number of images decreases each time you move the lever toward k.
Choose an image.
●
Turn the
 dial to switch images.
●
Press the opqr buttons to choose an image.
Y
X
An orange frame appears on the chosen image.
●
Press the m button to display the chosen image by itself.
Turning the control dial will display images in a line letting you quickly search them. You can also jump by the shooting date (Scroll Display).
Choose an image.
●
If you set the camera to single image playback and turn the
 dial quickly, the images will display as shown on the left.
Turn the
 dial to choose an image.
●
Pressing the m button restores single image playback.
●
If you press the op buttons during Scroll
Display, you can search images by the shooting date.
To turn off this effect, press the n button to choose [Scroll Display] in the
1 tab, then choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
120
Viewing Images in Filtered Playback
When there are many images on the memory card, you can filter and display
them by a specified filter. You can also protect (p. 129) or delete (p. 132) all
images at once while filtered.
Jump to Favorites
Jump Shot Date
Jump to My Category
Jump to Still/Movie
Jump 10 Images
Jump 100 Images
Displays images tagged as favorites (p. 134).
Displays the images shot on a specified date.
Displays the images of a specified category (p. 135).
Displays only still images or movies.
Jumps over 10 images at a time.
Jumps over 100 images at a time.
Target Filters
Choose a target filter.
●
Y choose a jump method.
d op buttons to
●
In , or , press the qr buttons to choose a filter. Turning the
 dial will display only images that match the filter of
COP l button to switch between
Information Display and No Information
Display.
●
Pressing the n button restores single image playback.
View the filtered images.
●
Pressing the m button will start filtered playback, and the jump method and a yellow frame will appear.
●
If you press the qr buttons or turn the  dial, the chosen target images will display.
●
If you press the d button, [Filtered playback settings cleared] appears.
Pressing the m button cancels filtered playback.
Downloaded From camera-usermanual.com Canon Manuals
121
Viewing Images in Filtered Playback
What if you can’t choose a filter?
Filters that do not have any corresponding images cannot be chosen.
Filtered playback
In filtered playback (Step 2), you can view filtered images with “Quickly Searching
Images” (p. 120), “Viewing Slideshows” (p. 123), and “Magnifying Images”
(p. 125). You can process all filtered images at once while performing operations
in “Protecting Images” (p. 129), “Erasing Images” (p. 132), or “Printing from the
Print List (DPOF)” (p. 147), by choosing all of the filtered images.
However, if you change the category (p. 135), or edit an image and save it as a
new image (p. 138), a message will appear, and filtered playback will cancel.
Jump by and Images
●
Y button, then press the op buttons to choose a jump method.
d
●
If you press the qr buttons, the display
● will advance to the image that is the
COP n button restores single image playback.
Downloaded From camera-usermanual.com Canon Manuals
122
Viewing Slideshows
You can automatically play back images recorded to a memory card.
Choose [Slideshow].
●
Press the n button to choose
[Slideshow] from the
1 tab, then press the m button.
Make the setting.
●
Press the op buttons or turn the  dial to choose an item, then press the qr buttons to adjust the setting.
Repeat
Y
Transition effects when switching
Effect
COP between images
Choose [Start].
●
Press the op buttons or turn the  dial to choose [Start], then press the m button.
X
The slideshow will start a few seconds after [Loading image...] displays.
●
You can pause/restart a slideshow by pressing the m button again.
●
Press the n button to stop the slideshow.
•
If you press the qr buttons or turn the  dial during playback, the image will switch. If you keep the qr buttons pressed, you can fastforward through images.
•
The power saving function (p. 52) does not work during slideshows.
•
You cannot change [Play Time] if [Bubble] is chosen in [Effect].
•
You can also start a slideshow in single image playback by pressing and holding the m button and immediately pressing the
button.
Downloaded From camera-usermanual.com Canon Manuals
123
Checking the Focus
You can magnify the area of a recorded image that was inside the AF Frame, or the area of a face that was detected, to check the focus.
Press the
l button to switch to
the focus check display (p. 47).
X
A white frame will appear where the AF frame or face was when the focus was set.
X
A gray frame will appear on a face detected during playback.
X
The area within the orange frame appears
●
X magnified.
Switch frames.
Y k once.
The screen shown to the left will appear.
●
Press the m button to move to a different frame when multiple frames appear.
COP
●
Use the zoom lever to change the display size, and the opqr buttons to change the display position while checking the focus.
●
Pressing the n button resets the display to Step 1.
Downloaded From camera-usermanual.com Canon Manuals
124
Magnifying Images
Move the zoom lever toward
k.
●
The display will zoom in on the image. If you continue to hold the zoom lever, it will zoom in up to a maximum factor of 10x.
●
If you press the opqr buttons, you can move the location of the displayed area.
●
Move the zoom lever toward g to zoom out, or continue to hold it to return to single image playback.
●
If you turn the
 dial, you can switch
Approximate Location of
Displayed Area images while zoomed.
You can return to single image playback immediately by pressing the n button while the image is magnified.
Y
Displaying Various Images (Smart Shuffle)
If you choose one of those images, the camera will choose four more images letting you enjoy the playing back of images in an unexpected order.
This will work best if you take many shots of various scenes.
Choose [Smart Shuffle].
●
Press the n button to choose [Smart
Shuffle] from the
1 tab, then press the m button.
X
Four images will appear as possibilities.
Downloaded From camera-usermanual.com Canon Manuals
125
Changing Image Transitions
Choose an image.
●
Press the opqr buttons to choose the image you want to view next.
X
The chosen image will be displayed in the middle, and the next four possibilities will appear.
●
Pressing the m button will display the middle image at full size. Press the m button again to restore the original display.
You can also use the zoom lever.
•
●
Pressing the n button restores single image playback.
Y
•
[Smart Shuffle] is not available in the following situations:
-
If there are less than 50 images taken with this camera on the memory card.
-
If you play back images not supported by Smart Shuffle.
-
During filtered playback.
COP
You can choose from three transition effects when switching between images in single image playback.
Choose [Transition].
●
Press the n button to choose
[Transition] in the
1 tab, then press the qr buttons to choose a transition effect.
Downloaded From camera-usermanual.com Canon Manuals
126
Viewing Images on a TV
Using the supplied stereo AV cable (p. 2), you can connect the camera to a
TV to view images you have shot.
Yellow
Yellow
Turn off the camera and TV.
Connect the camera to the TV.
●
Open the camera’s terminal cover and fully insert the cable plug into the camera’s terminal.
White
●
Insert the cable plug fully into the video
Red
Red
White input terminals as shown in the illustration.
Y
Turn on the TV and switch it to the input the cable is connected to.
COP
●
Press the
1 button to turn on the camera.
X The image will appear on the TV (nothing will appear on the screen of the camera).
●
After you finish, turn off the camera and
TV, and unplug the cable.
What if the images don’t display correctly on the TV?
Images will not display correctly if the camera’s video output setting (NTSC/PAL) does not match the TV system. Press the n button, choose the 3 tab and
[Video System] to switch to the correct video system.
Downloaded From camera-usermanual.com Canon Manuals
127
Viewing Images on a High-Definition TV
Use the separately sold HDMI Cable HTC-100 to connect the camera to a high-definition TV for an enhanced viewing experience.
Turn off the camera and TV.
Connect the camera to the TV.
●
Open the camera’s terminal cover and fully insert the cable plug into the camera’s terminal.
●
Fully insert the cable plug into the TV’s
HDMI terminal.
Y
Display images.
●
Follow Steps 3 and 4 on p. 127 to display
COP
Operation sounds will not play when connected to a high-definition TV.
Downloaded From camera-usermanual.com Canon Manuals
128
Protecting Images
You can protect important images so that they cannot be accidentally erased
with the camera (pp. 29, 132).
Choose a selection method
Choose [Protect].
●
Press the n button to choose
[Protect] in the
1 tab, then press the m button.
Choose a selection method.
●
Press the op buttons or turn the  dial to choose a selection method, then press the m button.
●
Pressing the n button will restore the menu screen.
Y
If you format the memory card (pp. 23, 54), protected images will also be
erased.
Choosing Images Individually
Choose [Select].
●
Follow Step 2 above to choose [Select], then press the m button.
Choose images.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
X
will appear on the screen.
●
Pressing the m button again deselects the image and will disappear.
●
To choose additional images, repeat the above procedure.
Downloaded From camera-usermanual.com Canon Manuals
129
Protecting Images
Protect the image.
●
If you press the n button, a confirmation screen will appear.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
If you switch shooting modes or turn off the power before performing the operations in Step 3, images will not be protected.
Select Range
Choose [Select Range].
●
Y m button.
Choose a starting image.
●
Press the m button.
COP
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
Choose an ending image.
●
Press the r button to choose [Last image], then press the m button.
Downloaded From camera-usermanual.com Canon Manuals
130
Protecting Images
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
●
You cannot choose images before the first image.
Protect images.
●
Press the p button to choose [Protect], then press the m button.
Choose images with the
 dial
COP
Y
You can also choose the first or last image by turning the
 dial when the upper screen in Steps 2 and 3 is displayed.
Choose [All Images].
●
Follow Step 2 on p. 129 to choose [All
Images], then press the m button.
Protect images.
●
Press the op buttons or turn the  dial to choose [Protect], then press the m button.
You can unlock groups of protected images if you choose [Unlock] in Step
4, while in [Select Range] or Step 2 while in [All Images].
Downloaded From camera-usermanual.com Canon Manuals
131
Erasing Images
You can choose images and then erase them in groups. Since erased images cannot be recovered, exercise adequate caution before erasing. Protected
images (p. 129) cannot be erased.
Choose a selection method
Choose [Erase].
●
Press the n button to choose [Erase] in the
1 tab, then press the m button.
Choose a selection method.
●
Press the op buttons or turn the  dial the m button.
Y
●
Pressing the n button will restore the menu screen.
COP
●
Follow Step 2 above to choose [Select] and press the m button.
Choose an image.
X
If you follow Step 2 on p. 129 to choose
images, will appear on the screen.
●
Pressing the m button again deselects the image and will disappear.
●
To choose additional images, repeat the above procedure.
Downloaded From camera-usermanual.com Canon Manuals
132
Erasing Images
Erase.
●
If you press the n button, a confirmation screen will appear.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
Select Range
Choose [Select Range].
●
Follow Step 2 on p. 132 to choose [Select
Range], then press the m button.
Choose images.
●
Follow Steps 2 and 3 on p. 130 to choose
images.
Y
Erase.
●
Press the p button to choose [Erase],
COP m button.
Choose All Images
Choose [All Images].
●
Follow Step 2 on p. 132 to choose [All
Images], then press the m button.
Erase.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
Downloaded From camera-usermanual.com Canon Manuals
133
Tagging Images as Favorites
When you tag images as favorites, you can easily categorize just those images. You can also filter out just those images for viewing, protecting or
Choose [Favorites].
●
Press the n button to choose
[Favorites] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
Y
X
will appear on the screen.
●
Pressing the m button again untags the
● image and disappears.
To choose additional images, repeat the above procedure.
Make the setting.
●
If you press the n button, a confirmation screen will appear.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
If you switch Shooting modes or turn off the power before making the setting in Step 3, images will not be tagged as favorites.
If you use Windows 7 or Windows Vista and transfer tagged images to the computer, they will be given a star rating of 3 ( ) (except for movies).
Downloaded From camera-usermanual.com Canon Manuals
134
Organizing Images by Category
(My Category)
You can organize images into categories. You can display the images in a
category in Filtered Playback (p. 121) and process all images at once by
using the functions below.
•
Viewing Slideshows (p. 123), Protecting Images (p. 129), Erasing All
Images (p. 132), Choosing Images for Printing (DPOF) (p. 147)
Images are automatically categorized by shooting condition as they are shot.
: Images with detected faces, or images shot in
I mode.
: Images detected as , or in
A mode, or images shot in
J or O mode.
: Images shot in , w, Por t mode.
Choosing a Selection Method
Y
Choose [My Category].
●
Press the n button to choose [My
Category] in the
1 tab, then press the m button.
COP
Choose a selection method.
●
Press the op buttons or turn the  dial to choose a selection method, then press the m button.
●
Pressing the n button will restore the menu screen.
Choosing Images Individually
Choose [Select].
●
Follow Step 2 above to choose [Select], then press the m button.
Downloaded From camera-usermanual.com Canon Manuals
135
Organizing Images by Category (My Category)
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image.
Choose a category.
●
Press the op buttons to choose a category, then press the m button.
X
will appear on the screen.
●
Pressing the m button again deselects the image and will disappear.
●
To choose additional images, repeat the
● above procedure.
Make the setting.
If you press the
Y confirmation screen will appear.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
COP
If you switch Shooting modes or turn off the power before making the setting in Step 4, images will not be tagged as My Category.
Select Range
Choose [Select Range].
●
Follow Step 2 on p. 135, choose [Select
Range], then press the m button.
Choose images.
●
Follow Steps 2 and 3 on p. 130 to choose
images.
Downloaded From camera-usermanual.com Canon Manuals
136
Rotating Images
Choose a category.
●
Press the p button to choose an item, then press the qr buttons or turn the  dial to choose a category.
Choose the setting.
●
Press the p button to choose [Select], then press the m button.
If you choose [Deselect] in Step 4, you can deselect all of the images in the [Select Range] category.
Rotating Images
Y
You can change the orientation of an image and save it.
Choose [Rotate].
●
Press the n button to choose [Rotate]
COP
Rotate the image.
●
Press the qr buttons or turn the  dial to choose an image.
X
The image will rotate 90° with each press of the m button.
●
Pressing the n button will restore the menu screen.
Movies with a resolution of cannot be rotated.
Downloaded From camera-usermanual.com Canon Manuals
137
Resizing Images
You can resize images to a lower pixel setting and save the resized image as a separate file.
Choose [Resize].
●
Press the n button to choose
[Resize] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
Choose an image size.
●
Press the qr buttons or turn the  dial to choose an option, then press the m button.
appear.
Y
X
The [Save new image?] screen will
●
Press the qr buttons or turn the  dial to choose [OK] and press the m button.
X
The image will be saved as a new file.
Display the new image.
●
When you press the n button, the
[Display new image?] screen will appear.
●
Press the qr buttons or turn the  dial to choose [Yes], then press the m button.
X
The saved image will be displayed.
•
You cannot resize an image to a larger size.
•
Images recorded at a pixel setting of
in Step
3 cannot be edited.
Downloaded From camera-usermanual.com Canon Manuals
138
Trimming
You can cut out a portion of a recorded image and save it as a new image file.
Choose [Trimming].
●
Press the n button to choose
[Trimming] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
Trimming Area
Adjust the trimming area.
X
A frame will appear around the portion of
X the image to be trimmed.
Y the lower right.
Trimming Area Display trimming
●
If you move the zoom lever to the left or right, you can change the frame size.
●
If you press the opqr buttons, you can
COP l button, you can change the frame orientation.
●
In an image with detected faces, gray frames appear around the faces located in the upper left image. The frames can be used for trimming. You can switch between frames by turning the
 dial.
●
Press the m button.
Save as a new image and display.
●
Follow Steps 4 and 5 on p. 138.
•
Images recorded at a pixel setting of or
resized to
•
The width and height ratio of an image that can be trimmed is fixed at 4:3.
•
The number of recorded pixels in a trimmed image will be smaller than before trimming.
Downloaded From camera-usermanual.com Canon Manuals
139
Adding Effects with the My Colors Function
You can change the color of an image and save it as a separate image. Refer
to p. 79 for details on each menu item.
Choose [My Colors].
●
Press the n button to choose [My
Colors] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
●
Press the
Y choose an option, then press the m button.
X
The image will appear with the chosen effect.
COP
●
Follow Steps 4 and 5 on p. 138.
If you repeatedly change the color of the same image, the quality will gradually deteriorate and you may not achieve the expected color.
The color of images changed with this function may vary from those
recorded with the My Colors function (p. 79).
Downloaded From camera-usermanual.com Canon Manuals
140
Correcting the Brightness (i-Contrast)
The camera can detect areas in an image, such as faces or backgrounds, that are too dark and automatically adjust them to the optimum brightness. Also, when the overall image is lacking in contrast, the camera will automatically correct the image for a sharper impression. You can choose from four levels of correction, and save the image as a new file.
Choose [i-Contrast].
●
Press the n button to choose [i-
Contrast] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
Y
Choose a menu item.
●
Press the qr buttons or turn the  dial to choose an option, then press the m
Save as a new image and display.
●
Follow Steps 4 and 5 on p. 138.
•
Under some conditions, the image may appear coarse or not be corrected properly.
•
Repeatedly adjusting the same image may cause it to become coarse.
What if the image wasn’t corrected by the [Auto] option as well as you would like?
Choose [Low], [Medium] or [High] and adjust the image.
Downloaded From camera-usermanual.com Canon Manuals
141
Correcting the Red-Eye Effect
You can automatically correct red eyes in images and save them as new files.
Choose [Red-Eye Correction].
●
Press the n button to choose [Red-
Eye Correction] in the
1 tab, then press the m button.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image.
Correct the image.
●
Press the m button.
X
Y the corrected portion.
●
You can magnify or reduce the size of the image using the procedures in “Magnifying
COP
●
Press the opqr buttons or turn the  dial to choose [New File], then press the m button.
X
The image will be saved as a new file.
●
•
Some images may not be corrected properly.
•
When [Overwrite] in Step 4 is chosen, the uncorrected image is overwritten with the corrected data, erasing the original image.
•
Protected images cannot be overwritten.
Downloaded From camera-usermanual.com Canon Manuals
142
8
Printing
This chapter explains how to choose images for printing, and print
using a Canon-brand PictBridge compliant printer (sold separately)
Y
Canon-Brand PictBridge Compliant Printers
COP
Downloaded From camera-usermanual.com Canon Manuals
143
Printing Images
You can easily print the pictures you take by connecting the camera to a
PictBridge compliant printer (sold separately) using the supplied interface
Turn off the camera and printer.
Connect the camera to the printer.
●
Open the cover and insert the small plug of
the included interface cable (p. 2) firmly
into the camera terminal in the direction shown.
●
Insert the interface cable’s large plug into the printer. For connection details, refer to
Y
Turn on the printer.
COP
X
will appear on the screen.
Downloaded From camera-usermanual.com Canon Manuals
144
Printing Images
Choose an image to print.
●
Press the qr buttons or turn the  dial to choose an image.
Print images.
●
Press the c button.
X
Printing will start.
●
If you want to print additional images, repeat Steps 5 and 6 after printing has completed.
●
After printing has completed, turn off the interface cable.
Y
•
Refer to the Personal Printing Guide for details on printing.
•
Refer to p. 41 for Canon-brand Pictbridge compliant printers.
•
Index printing (p. 147) is not available on certain Canon-brand
COP
Downloaded From camera-usermanual.com Canon Manuals
145
Printing from the Print List (DPOF)
You can add images to the print list (DPOF) directly after shooting or during playback by pressing the c button.
These selection methods comply with the DPOF (Digital Print Order Format) standards.
Choose an image.
●
Press the qr buttons or turn the  dial to choose an image.
Press the
c button (movies will be
excluded).
Add images to the print list.
●
Press the op buttons to choose the number of prints, then press the qr buttons or turn the
Y and press the m button.
●
To cancel adding images, repeat Steps 1 and 2, and press the qr buttons or turn
COP
You cannot add images when the camera is connected to the printer.
Downloaded From camera-usermanual.com Canon Manuals
146
Choosing Images for Printing (DPOF)
You can choose up to 998 images on a memory card for printing and specify settings such as the number of copies so that they can be printed together
(p. 150) or processed at a photo developer service. These selection methods
comply with the DPOF (Digital Print Order Format) standards.
Print Settings
You can set the print type, date and file number. These settings apply to all images chosen for printing.
Print Type
Date
File No.
Clear DPOF data
On
Off
On
Off
On
Off
Choose [Print Settings].
●
Press the n button to choose [Print
Settings] in the
2 tab, then press the m
Both
Index button.
●
Press the
Y to choose a menu item, then press the qr
Standard buttons to choose an option.
●
Pressing the n button accepts the
COP
Prints several reduced size images per page.
Prints both standard and index formats.
Prints the shooting date.
—
Prints the file number.
—
Removes all print settings after printing.
—
•
Some printers or photo developer services may not be able to reflect all of the settings in the prints.
•
may appear when using a memory card with print settings set by a different camera. These settings will be overwritten with those set by your camera.
•
If [Date] is set to [On], some printers may print the date twice.
Downloaded From camera-usermanual.com Canon Manuals
147
Choosing Images for Printing (DPOF)
•
With [Index] chosen, the [Date] and [File No.] options cannot be set to
[On] at the same time.
•
The date will be printed in the style set in the [Date/Time] function in the
•
Movies cannot be chosen.
Choosing the Number of Copies
Choose [Select Images & Qty.].
●
Press the n button to choose [Select
Images & Qty.] in the
2 tab, then press
● the m button.
Choose an image.
Press the
Y choose an image, then press the m
● button.
X
You will be able to set the number of print
COP appears on the screen. Pressing the m button again will deselect the image and
will disappear.
Set the number of prints.
●
Press the op buttons or turn the  dial to set the number of prints (maximum 99).
●
Repeat Steps 2 and 3 to choose other images and the number of prints for each.
●
You cannot set the number of copies for index prints. You can only choose which images to print (as shown in Step 2).
●
Pressing the n button accepts the settings and restores the menu screen.
Downloaded From camera-usermanual.com Canon Manuals
148
Choosing Images for Printing (DPOF)
Select Range
Choose [Select Range].
●
In Step 1 on p. 148, choose [Select
Range], then press the m button.
●
Follow Steps 2 and 3 on p. 130 to choose
images.
Make print settings.
●
Press the op buttons to choose [Order], then press the m button.
Set All Images to Print Once
COP
Y
Choose [Select All Images].
●
In Step 1 on p. 148, choose [Select All
Images], then press the m button.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
Clearing All Selections
Choose [Clear All Selections].
●
In Step 1 on p. 148, choose [Clear All
Selections], then press the m button.
Downloaded From camera-usermanual.com Canon Manuals
149
Print Added Images
All selections will be cleared.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button.
Print Added Images
You can print images added to the print list by connecting the camera to a
PictBridge compliant printer (pp. 146 – 149).
Number of copies to print
●
Follow Steps 1 to 4 on p. 144.
Print.
●
Press the op buttons to choose [Print now], then press the m button.
COP start again, it will start from the next print.
Downloaded From camera-usermanual.com Canon Manuals
150
9
Customizing Camera Settings
You can customize various settings to suit your shooting preferences.
The first part of this chapter explains convenient and commonly used functions.
to suit your purposes.
Y
COP
Downloaded From camera-usermanual.com Canon Manuals
151
Changing Camera Settings
You can customize convenient and commonly used functions from the
3 tab
Changing Sounds
You can change each of the camera’s operation sounds.
●
Choose [Sound Options], then press the m button.
●
Press the op buttons or turn the  dial to choose an option.
●
Press the qr buttons to choose an option.
1
2
Preset sounds
(cannot be modified)
Preset sounds
Y
Turning Off Hints & Tips
When you choose an item in the
ø menu (p. 48) or MENU (p. 49), a
description of the function (hints and tips) is displayed. You can turn off this function.
COP
●
Choose [Hints & Tips], then press the qr buttons to choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
152
Changing Camera Settings
Changing the Start-up Screen
You can change the start-up screen that appears when you turn on the camera.
●
Choose [Start-up Image], then press the m button.
●
Press the qr buttons or turn the  dial to choose an option.
No start-up image
1
Preset images
(cannot be modified)
2
Registering Recorded Images as the Start-up
Screen
Preset images
You can set recorded images, and use the included software to change the images.
Y
When you press the
1 button and set the camera to Playback mode, you can register an image.
COP
●
Press the qr buttons or turn the  dial to choose [2], then press the m button.
●
Press the qr buttons or turn the  dial to choose an image, then press the m button.
●
Press the qr buttons or turn the  dial to choose [OK], then press the m button to complete registration.
Any previously registered start-up image will be overwritten when registering a new start-up image.
Downloaded From camera-usermanual.com Canon Manuals
153
Changing Camera Settings
Register the start-up image or sounds with the included software
The dedicated operation sounds and start-up images on the included software can be registered to the camera. Refer to the Software Guide for details.
Changing the File Number Assignment
Images you shoot are automatically assigned file numbers in the order they were taken, from 0001 – 9999, and saved to folders of up to 2,000 images.
You can change the file number assignment.
●
Choose [File Numbering], then press the qr buttons to choose an option.
Continuous
Even if you shoot using a new
Y is taken/saved.
Auto Reset
COP
If you replace the memory card with a new one, or a new folder is created, file numbering begins with 0001 again.
•
If you use a memory card already containing images, the newly assigned file numbers may continue the existing numbering for both [Continuous] and [Auto Reset]. If you want to start over with file number 0001, format
the memory card before use (p. 23).
•
Refer to the Software Guide for information regarding folder structure or image types.
Downloaded From camera-usermanual.com Canon Manuals
154
Changing Camera Settings
Creating Folders by Shooting Date
Images are saved into folders created each month, however, you can also create folders by shooting date.
●
Choose [Create Folder], then press the qr buttons to choose [Daily].
●
Images will be saved into folders created on each shooting date.
Changing the Lens Retract Time
For safety reasons, the lens retracts about 1 minute after pressing the
1
button when in a Shooting mode (p. 28). If you want the lens to retract
immediately when you press the
Y
●
Choose [Lens Retract], then press the qr buttons to choose [0 sec.].
COP
Turning Off the Power Saving Function
You can set the power saving function (p. 52) to [Off]. Setting it to [On] is
recommended to save battery power.
●
Choose [Power Saving], then press the m button.
●
Press the op buttons or turn the  dial to choose [Auto Power Down], then press the qr buttons to choose [Off].
●
If you set the power saving function to
[Off], be sure to turn the camera off after use.
Downloaded From camera-usermanual.com Canon Manuals
155
Changing Camera Settings
Setting the Screen Shut-Off Time
You can adjust the time the screen takes to shut off automatically (p. 52). This
also works when [Auto Power Down] is set to [Off].
●
Choose [Power Saving], then press the m button.
●
Press the op buttons or turn the  dial to choose [Display Off], then press the qr buttons to choose a time.
●
In order to save battery power, you should choose less than [1 min.].
Using the World Clock
COP
Y time zones, you can enjoy the convenience of not having to switch the Date/
Time settings.
●
Choose [Time Zone], then press the m button.
●
When setting this for the first time, check the information that displays on the screen at the left, then press the m button.
●
Press the qr buttons or turn the  dial to choose the home time zone.
●
To set daylight saving time (adds 1 hour), press the op buttons to choose
.
●
Press the m button.
Downloaded From camera-usermanual.com Canon Manuals
156
Changing Camera Settings
Set the world time zone.
●
Press the op buttons or turn the  dial to choose [ World], then press the m button.
●
Press the qr buttons or turn the  dial to choose the destination time zone.
●
You can also set the daylight saving time as in Step 1.
●
Press the m button.
Choose the world time zone.
●
Press the op buttons or turn the  dial to choose , then press the n button.
Y
X will appear on the shooting screen
If you change the date or time in the
Home] time and date will automatically change.
You can change the distance units that display in the zoom bar (p. 25) and
the MF indicator (p. 89) from m/cm to ft/in.
●
Choose [Distance Units], then press the qr buttons to choose [ft/in].
Downloaded From camera-usermanual.com Canon Manuals
157
Changing Shooting Function Settings
If you set the mode dial to
G, you can change the settings in the 4 tab
Before attempting to shoot using a function explained in this chapter in modes other than
G mode, check if the function is available in those
Switching the Focus Setting
The camera focuses on whatever it is aimed at even when the shutter button is not pressed. However, you can set it so that the camera only focuses when the shutter button is pressed halfway.
Off
●
Choose [Continuous AF], then press the qr buttons to choose [Off].
On
Y halfway, it allows you to shoot without missing photo opportunities.
The camera does not focus continuously, thereby conserving battery power.
The lamp will automatically light to assist focusing in low light conditions when you press the shutter button halfway. You can turn off the lamp.
●
Choose [AF-assist Beam], then press the qr buttons to choose [Off].
Downloaded From camera-usermanual.com Canon Manuals
158
Changing Shooting Function Settings
Changing the Flash Timing
You can change the timing of the flash and shutter.
●
Choose [Flash Control], then press the m button.
●
Press the op buttons or turn the  dial to choose [Shutter Sync.], then press the qr buttons to choose a setting.
1stcurtain
The flash fires right after the shutter opens.
2ndThe flash fires right before the shutter
Y occurs when shooting in dark conditions with the flash. You can turn off this function.
curtain closes.
●
Choose [Flash Control], then press the m
COP op buttons or turn the  dial to choose [Red-Eye Lamp], then press the qr buttons to choose [Off].
Changing the Image Display Time Right After
Shooting
You can change the length of time the images display right after shooting.
●
Choose [Review], then press the qr buttons to choose an option.
2 – 10 sec.
Displays images for the set time.
Hold
Off
The image displays until you press the shutter button halfway.
Images will not display.
Downloaded From camera-usermanual.com Canon Manuals
159
Changing Shooting Function Settings
Changing the Way the Image Displays Right After
Shooting
You can change the way the image displays right after shooting.
●
Choose [Review Info], then press the qr buttons to choose an option.
Displays the image only.
Off
Detailed
Displays detailed information
The area inside the AF frame is magnified, allowing you to check
Focus Check the focus. The procedure is the same as in “Checking the Focus”
Customizing Display Information
Y
You can change which information is displayed by switching between custom displays with each press of the l button.
COP
●
Press the opqr buttons or turn the  dial to choose an item, then press the m button. will appear on items that display.
●
Press the opqr buttons or turn the  dial to choose , , , or , then press the m button, and the l button to change the custom display settings.
Custom display items with will not display when the l button is pressed.
Also, cannot be set for the current custom display while making settings.
X
Items with will display.
Downloaded From camera-usermanual.com Canon Manuals
160
Changing Shooting Function Settings
Shooting Info
Grid Lines
3:2 Guide
Histogram
Displays shooting information
A grid overlays the screen.
Gray bars will appear on the top and bottom of the screen.
This area will not print when printing on paper with a 3:2 aspect ratio.
A histogram (p. 47) appears in
Shooting modes
G, M, B,
D.
If you press the shutter button halfway and return to the shooting screen from the custom display settings screen, the settings will not be saved.
•
Gray items can also be set, however, they may not appear depending on the Shooting mode.
•
Grid lines will not be recorded on the image.
Y
•
[3:2 Guide] is not available in .
•
The gray areas displayed with [3:2 Guide] are the areas that will not be printed. The actual image recorded will include the portion in the gray areas.
●
Choose [IS Mode], then press the qr buttons to choose an option.
Continuous
Image stabilization is always on.
You can confirm the effects directly on the display, which makes it easier to check the composition or focus. When shooting movies, the camera also reduces strong camera shake, for example when walking (Dynamic mode).
Shoot Only*
Image stabilization is only active at the moment of shooting.
Panning*
Image stabilization only counters up and down motion. This option is recommended for shooting objects moving horizontally.
* Setting changes to [Continuous] when shooting movies.
Downloaded From camera-usermanual.com Canon Manuals
161
Changing Shooting Function Settings
•
If camera shake is too strong, attach the camera to a tripod. You should also set the IS Mode to [Off] when the camera is attached to a tripod.
•
When using [Panning], hold the camera horizontally to shoot. Image stabilization does not work when the camera is held vertically.
When shooting movies, if you press the zoom lever toward j and zoom out, the effect increases.
Registering Functions to the Button
●
Choose [Set Shortcut button], then press the m button.
●
Press the opqr buttons or turn the  then press the
Y
●
Pressing the button will call up the registered function.
•
Choose if you want to return the button to default settings.
•
When this
COP
•
In , each press of the
button records white balance data (p. 77),
and the white balance settings change to .
•
In
%, each press of the
% will appear on the screen.
button will adjust and lock the focus, and
•
If you press the button in , both the screen and viewfinder displays will turn off. Try one of the following to restore the displays:
• Press any button other than the power button
• Change the camera’s vertical or horizontal orientation
• Open and close the screen
• Raise and lower the flash
Downloaded From camera-usermanual.com Canon Manuals
162
Registering Commonly Used Shooting
Menus (My Menu)
You can register up to 5 items from commonly used shooting menus to the
tab, letting you quickly access these items from a single screen.
Choose [My Menu settings].
●
Choose [My Menu settings] in the tab, then press the m button.
Choose the menu items to register.
●
Press the op buttons or turn the  dial m button.
Y
●
Press the op buttons or turn the  dial
X to choose a menu to register (up to 5), then press the m button.
●
To cancel registration, press the m button, and will disappear.
●
Press the n button.
Change the order in which menu items are displayed.
●
Press the op buttons or turn the  dial to choose [Sort], then press the m button.
●
Press the op buttons or turn the  dial to choose the menu item you want to move, then press the m button.
●
Press the op buttons or turn the  dial to change the order, then press the m button.
●
Press the n button.
Downloaded From camera-usermanual.com Canon Manuals
163
Changing Playback Function Settings
•
Gray items in Step 2 can also be set, however, they may not be available depending on the Shooting mode.
•
Choose [Set default view] and press the qr buttons to choose [Yes]. My
Menu can now be displayed by pressing the n button when in a
Shooting mode.
Changing Playback Function Settings
You can adjust the settings in the
1 tab by pressing the 1 button (p. 49).
Choosing the Image that First Displays in
Playback
●
Y qr
Resumes with the image last
Last seen
Last shot
COP viewed.
Resumes with the most recently shot image.
Downloaded From camera-usermanual.com Canon Manuals
164
10
Useful Information
This chapter introduces how to use separately sold accessories that appear on the screen.
(p. 39), troubleshooting tips, and contains lists of functions and items
Y
COP
Downloaded From camera-usermanual.com Canon Manuals
165
Using Household Power
If you use AC Adapter Kit ACK-DC50 (sold separately), you can use the camera without worrying about how much charge is left in the battery.
Turn off the camera.
Plug the cord into the coupler.
●
Fully insert the plug into the coupler.
Terminals
Insert the coupler.
●
Y locks into place with a click.
COP
), and press downward as ( ) you slide it until it clicks into place
( ).
Cord
Connect the power cord.
●
Connect the power cord to the compact power adapter, then plug the other end into a power outlet.
●
Turn the camera on to use it.
●
After you finish, turn off the camera and unplug the power cord from the power outlet.
Downloaded From camera-usermanual.com Canon Manuals
166
Using the Lens Hood (Sold Separately)
Do not unplug the plug or power cord with the camera turned on. This could erase images you have taken or damage the camera.
Using the Lens Hood (Sold Separately)
When shooting a wide-angle photo that is backlit without using a flash, we recommend attaching Lens Hood LH-DC60 to reduce the amount of extraneous light entering the lens.
Attach the hood.
●
Align the notch ( ) on the lens hood with the mark on the camera ( ), and turn the locked.
Y
●
To remove the lens hood, turn it in the opposite direction.
COP
●
When not in use, align the notch ( ) on the hood with the mark on the camera
( ), and turn the hood in the direction of the arrow until locked as shown.
If you use the built-in flash with the hood attached, portions of the image may appear darker.
Downloaded From camera-usermanual.com Canon Manuals
167
Using an Externally Mounted Flash (Sold Separately)
You can make your flash photography even better with the use of a Speedlite
EX series flash (sold separately).
•
You should set the white balance to h.
•
Please also read the Speedlite series manual included with the flash.
•
When a Speedlite EX series flash is mounted, you cannot set the built-in flash.
•
Some functions on Speedlite 270EX, 430EX II, and 580EX II cannot be used with this camera.
•
When using Canon brand flashes other than Speedlite EX series models, the flash may not fire correctly, or may not fire at all. Flashes with a manual firing function can be used in manual mode, however redeye correction is not available.
•
Using a non-Canon brand flash (particularly a high-voltage flash) or flash accessories may inhibit normal operation or damage the camera.
Y
cap to the strap.
●
Remove the strap from the camera.
●
Pass the strap through the back of the
COP
Remove the hot shoe cap.
●
Push ( ) and lift ( ) the cap to remove it.
●
To avoid losing the cap when you remove it, place it in the case you attached to the strap.
Attach the flash to the hot shoe.
Downloaded From camera-usermanual.com Canon Manuals
168
Using an Externally Mounted Flash (Sold Separately)
Turn the flash on, then turn the camera on.
X
A red h appears on the screen (or the viewfinder).
X
When the flash is charged, its pilot lamp will light.
Display the flash settings screen.
●
Press the n button to choose [Flash
Control] from the
4 tab, then press the m button.
X
The options set on the flash will appear.
Make the setting.
●
Press the
Y to choose an item, then press the qr buttons to adjust the setting.
●
The available settings differ depending on
COP
G, M, B, and D, flash adjusts and fires automatically.
If you hold down the h button for more than one second, you can also display the settings screen.
Attaching the Hot Shoe Cap
●
Attach the hot shoe cap when you are not using an externally mounted flash.
Downloaded From camera-usermanual.com Canon Manuals
169
Using an Externally Mounted Flash (Sold Separately)
Configuring the Externally Mounted Flash
(Sold Separately)
Speedlite 270EX, 430EX II, and 580EX II
•
The maximum flash synchro shutter speed is 1/250 second.
•
The flash output will automatically adjust when [Flash Mode] is set to
[Auto]. Flash exposure compensation and safety FE can also be set.
However, when setting flash exposure compensation on the camera, make sure to set the flash exposure compensation amount on the flash to [+0] beforehand.
•
The flash output can be adjusted on the camera or the flash* if [Flash
•
Mode] is set to [Manual].
* With Speedlite 270EX, settings cannot be made on the flash.
In
Y the flash, but the flash will fire at the flash output set on the camera. The flash compensation amount set on the flash will also change.
•
Settings available on the camera are as follows.
Item
Flash Mode
COP
Flash Exp.Comp
-3 to +3
1/128* 2 to 1/1 (in 1/3 steps)
G
{
Shooting mode
M B D
{ {
Flash Output
{
{
{
{
{
{
*
1
–
{
Shutter Sync.
Slow Synchro
Wireless Func.*
4
Red-Eye Corr.
Red-Eye Lamp
1st-curtain/2nd-curtain/Hi-Speed
{
On/Off
{
On/Off
{
On/Off
{
On/Off
{
On/Off
{
Resets settings to their default values. {
{
*
3
{
{
{
{
{
{
{
{
{
{
{
{
{
*
3
{
{
{
*
5
{
Safety FE
Clear Flash Settings*
6
Downloaded From camera-usermanual.com Canon Manuals
170
Using an Externally Mounted Flash (Sold Separately)
*1 Fixed to [Manual].
*2 1/64 for Speedlite 270EX and 430EX II.
*3 Fixed to [On].
*4 Settings aside from On/Off are set on the flash. Not available with Speedlite 430EX II.
When set to [On], [Shutter Sync.] cannot be set to [2nd-curtain]. Even if you set [Shutter Sync.] to
[2nd-curtain] on the camera, it will change to [1st-curtain].
*5 Fixed to [Off].
*6 [Slow Synchro], [Safety FE], [Red-Eye Corr.] and [Red-Eye Lamp] can also be returned to their default values using [Reset All] in the camera’s
• The settings from the flash are applied to the flash mode, flash exposure compensation, flash output, shutter synchro, and wireless function when you turn on the camera.
• The following functions can also be used:
- Auto Exposure (Set the camera to E-TTL mode)
- FE Lock (When [Flash Mode] is set to [Auto])
- Auto Zoom (Not available with the 270EX))
•
For continuous shooting, the flash can be used in quick flash mode (pilot
(pilot lamp lit red) (580EX II only).
Y
•
If the external flash has been set to stroboscopic flash, the flash’s set-up menu cannot be chosen (580EXII only).
same way.
•
Speedlite 380EX, 420EX, 430EX, 550EX, and 580EX can be used in the
COP
Using the separately sold Speedlite Bracket SB-E2 prevents unnatural shadows from appearing on the sides of objects when shooting from a vertical position. However, depending on the angle, the bracket may interfere with opening the LCD monitor. Please use the camera with the LCD monitor closed and the screen facing outward.
Other Canon Flashes
Canon flashes other than the Speedlite EX series will fire at their full strength.
For the optimal aperture values and ISO speeds for the distance to the subject, refer to the guide number listed in the flash’s user guide.
Downloaded From camera-usermanual.com Canon Manuals
171
Using an Eye-Fi Card
Before using an Eye-Fi card, be sure to check whether Eye-Fi card use is
authorized in the country or territory of use (p. 16).
When you put a prepared Eye-Fi card into the camera, you can automatically transfer your images wirelessly to a computer, or upload them to a web service.
Image transfer is a function of the Eye-Fi card. For details on how to setup and use the card, and concerning problems transferring images, please refer to the Eye-Fi card user guide, or contact the manufacturer.
Please keep the following things in mind when using an Eye-Fi card.
•
Even if you set [Eye-Fi trans.] to [Disable] (p. 173), the Eye-Fi card may
transmit radio waves. Be sure to remove the Eye-Fi card from the camera
• before entering areas that prevent unauthorized transmission of radio waves, such as hospitals and airplanes.
• If you have trouble transferring images, check the card or computer settings.
Y to transfer images, or image transfer may be interrupted.
• Due to its transfer function, the Eye-Fi card may become hot.
• Battery consumption will be quicker than in normal use.
• Camera operations will be slower than in normal use. This may be resolved by setting [Eye-Fi trans.] to [Disable].
If you put an Eye-Fi card into the camera, the connection status can be checked in the shooting screen (Information Display) and playback screen
(Simple Information Display).
COP
(Gray) Not connected
(Flashing white)
(White)
Connecting
Transfer standby
(Animated) Transferring
Interrupted
Error retrieving Eye-Fi card info (Turn the camera off and on again. If this continues to appear, there may be a problem with the card.)
will appear on transferred images.
The power saving function does not work while transferring images (p. 52).
Downloaded From camera-usermanual.com Canon Manuals
172
Using an Eye-Fi Card
Checking Connection Information
You can check the Eye-Fi card’s access point SSID, or connection status.
Choose [Connection info].
●
Press the n button, then choose
[Eye-Fi Settings] from the
3 tab, and press the m button.
●
Press the op buttons or turn the  dial to choose [Connection info], then press the m button.
X
The Connection info screen will appear.
Disabling Eye-Fi Transfer
You can set the card to disable Eye-Fi transfer.
Y
Choose [Disable] in [Eye-Fi trans.].
●
Press the n button to choose [Eye-Fi
Settings] from the
3 tab, then press the
●
Press the op buttons or turn the  dial to choose [Eye-Fi trans.], then press the qr buttons to choose [Disable].
What if [Eye-Fi Settings] does not appear?
[Eye-Fi Settings] will only appear when an Eye-Fi card is inserted in the camera.
If the Eye-Fi card has a write-protect tab, you will not be able to check the card's connection status, or set [Eye-Fi trans.] to [Disable] when the tab is in the locked position.
Downloaded From camera-usermanual.com Canon Manuals
173
Troubleshooting
If you think there is a problem with the camera, first check the following. If the items below do not solve your problem, contact a Canon Customer Support
Help Desk as listed on the included customer support list.
Power
You pressed the power button, but nothing happened.
•
Confirm that the battery is the correct type, and is not depleted (p. 15).
•
Confirm that the battery is properly inserted (p. 17).
•
Confirm that the memory card/battery cover is securely closed (p. 17).
•
If the battery terminals are dirty, battery performance will decrease. Clean the terminals with a cotton swab and re-insert the battery several times.
Battery is consumed quickly.
•
Battery performance decreases at low temperatures. Warm the battery, for example,
•
by placing it in your pocket with the terminal cover on.
Lens will not retract.
TV output
Image is distorted or not showing on TV (p. 127).
•
Shooting
Cannot shoot.
Screen does not display properly in dark places (p. 47).
Screen does not display properly while shooting.
Please note, the following will not be recorded in still images, but will be recorded in movies.
•
When the camera is subjected to powerful light sources, the display may darken.
•
When shooting under fluorescent or LED lighting, the screen may flicker.
•
When shooting bright light sources, a bar of light (purplish red) may appear on the screen.
A flashing
h appears on the screen and the shot cannot be taken even
though the shutter button was pressed fully (p. 27).
appears when the shutter button is pressed halfway (p. 27).
•
Set the [IS mode] to [Continuous] (p. 161).
•
Raise the flash and set it to
•
Increase the ISO speed (p. 76).
•
Attach the camera to a tripod. Additionally, you should set the [IS Mode] to [Off] when
shooting with a tripod (p. 161).
Downloaded From camera-usermanual.com Canon Manuals
174
Troubleshooting
Image is blurred.
•
Press the shutter button halfway to focus on the subject, then press fully to shoot (p. 24).
•
Shoot the subject within the focusing distance (p. 189).
•
Set the [AF-assist Beam] to [On] (p. 158).
•
Confirm that functions which you do not intend to use (macro, etc.) are not set.
•
Shoot using the focus lock or AF lock (pp. 82, 87).
Even when you press the shutter button halfway, the AF frame does not appear, and the camera does not focus.
•
If you center on the light and dark contrasting area of the subject and push the shutter button halfway, or repeatedly push the shutter button halfway, the AF frame will appear and the camera will focus.
Subject is too dark.
•
Raise the flash and set it to h
•
Correct the brightness with exposure compensation (p. 73).
•
Adjust the image with i-Contrast (pp. 98, 141).
•
Use AE Lock, or spot metering to shoot (pp. 92, 93).
Subject is too bright (overexposed).
•
Lower the flash and set it to
Y
•
Correct the brightness with exposure compensation (p. 73).
•
Use AE Lock, or spot metering to shoot (pp. 92, 93).
•
•
•
Reduce the light illuminating the subject.
Image is dark even though the flash fired (p. 27).
COP
•
Increase the ISO speed (p. 76).
Image taken using the flash is too bright (overexposed).
•
Shoot within an appropriate distance for flash photography (p. 72).
•
Lower the flash and set it to
•
Correct the flash exposure compensation amount or flash output (p. 100).
White dots appear on the image when shooting with the flash.
•
Light from the flash has reflected off dust particles or other objects in the air.
Image appears rough or grainy.
•
Shoot with the ISO speed on a lower setting (p. 76).
•
Depending on the Shooting mode, when shooting in a high ISO speed the image may
appear rough or grainy (p. 62).
•
Set the [Red-Eye Lamp] to [On] (p. 159). When shooting with the flash, the lamp (on
the front of the camera) lights (p. 44), and for approximately 1 second while the camera
is reducing red-eye, it is not possible to shoot. It is more effective if the subject is looking directly at the lamp. Even better results can be obtained by increasing the lighting in indoor settings or approaching closer to the subject.
Downloaded From camera-usermanual.com Canon Manuals
175
Troubleshooting
Recording images to the memory card takes a long time, or continuous shooting slows down.
•
Perform a low-level format of the memory card in the camera (p. 54).
Cannot make settings for shooting functions or
ø menu.
•
The items in which settings can be made differ depending on the shooting mode. Refer
to “Functions Available in Each Shooting Mode” and “Shooting Menu” (pp. 182 – 185).
Shooting movies
Correct shooting time does not display, or stops.
•
Format the memory card in the camera, or use a memory card capable of recording at high speeds. Even when the shooting time does not display properly, the recorded
video will be the length that it was actually shot (pp. 23, 31).
The full buffer warning (p. 179) appeared on the screen and shooting ended
automatically.
•
The camera’s internal memory was insufficient. Try one of the following:
•
Perform a low-level format of the memory card in the camera (p. 54).
•
Change the image quality setting (p. 111).
Y
Playback
Cannot play back images or movies.
•
If the file name or folder structure is changed on a computer, you may not be able to play back images or movies. Refer to the Software Guide for information regarding folder structure or file names.
COP
•
Use a memory card that has had a low-level format performed on it with this camera
•
If you copy a movie to a memory card that reads slowly, playback may interrupt momentarily.
•
Depending on its capabilities, when playing movies on a computer, frames may drop or the audio may cut out.
Computer
Cannot transfer images to a computer.
It may be possible to solve the problem when the camera is connected to a computer via cable by reducing the transfer speed.
•
Press the
1 button to enter Playback mode. Then press and hold the n button and press the o and m buttons together. In the screen that appears, press the qr buttons to choose [B] and press the m button.
Eye-Fi Card
Cannot transfer images (p. 172).
Downloaded From camera-usermanual.com Canon Manuals
176
List of Messages That Appear on the Screen
If error messages appear on the screen, try one of the following solutions.
No memory card
•
The memory card is not installed in the correct direction. Install the memory card in the
Memory card locked
•
The SD memory card, SDHC memory card or SDXC memory card’s, or the Eye-Fi
card's write protect tab is set to “LOCK”. Unlock the write protect tab (pp. 16, 17).
Cannot record!
•
You attempted to shoot an image without a memory card. Install the memory card in
the correct direction to shoot (p. 17).
•
If the same message appears even when a formatted memory card is installed in the
correct direction, contact a Canon Customer Support Help Desk (p. 17).
Insufficient space on card
•
There is not enough free space on the memory card to shoot (pp. 25, 30, 57, 71, 107)
images, or insert an empty memory card (p. 17).
Change the battery pack. (p. 15)
Y
No Image.
•
•
There are no images recorded on the memory card that can be displayed.
RAW
COP
•
Images manipulated on a computer, that have had their file name changed, or have been taken with a different camera may not display.
Cannot magnify!/Cannot play back this content in Smart Shuffle/Cannot rotate/Cannot modify image/Cannot register this image!/Cannot modify/
Cannot assign to category/Unselectable image.
•
Incompatible images cannot be magnified (p. 125), played back in Smart Shuffle
(p. 125), tagged as favorites (p. 134), rotated (p. 137), edited (pp. 138 – 142),
registered to the start-up screen (p. 153), categorized (p. 135), or added to a print list
•
Images manipulated on a computer, that have had their file name changed, or have been taken with a different camera may not be magnified, played back in Smart
Shuffle, tagged as favorites, rotated, edited, registered to the start-up screen, categorized, or added to a print list.
•
Movies cannot be magnified (p. 125), played back in Smart Shuffle (p. 125), edited
(pp. 138 – 142), added to a print list (pp. 146, 147), or registered to the start-up screen
Downloaded From camera-usermanual.com Canon Manuals
177
List of Messages That Appear on the Screen
Invalid selection range
•
When choosing the selection range (pp. 130, 133, 136, 147), you tried to choose a
starting image that was after the last image or you tried to choose an ending image that was before the starting image.
Exceeded selection limit
•
You chose more than 998 images in print settings. Choose less than 998 images
•
Print settings could not be saved correctly. Reduce the number of selected images and
•
You chose 501 or more images in Protect (p. 129), Erase (p. 132), Favorites (p. 134),
My Category (p. 135) or Print Settings (DPOF) (p. 147).
Communication error
•
Images could not be transferred to the computer or printed due to the large amount of
•
images (approx. 1000) stored on the memory card. Use a commercially available USB card reader to transfer the images. Insert the memory card into the printer’s card slot to print.
Naming error!
Y name as the folder or image that the camera is attempting to create, or the highest possible file number has already been reached. In the
3 menu, change [File
•
•
Numbering] to [Auto Reset] (p. 154) or format the memory card (p. 23).
Lens Error
COP
Desk as there may be a problem with the lens.
A camera error was detected (Error number)
•
If an error code appears directly after taking a picture, the shot may not have been recorded. Check the image in Playback mode.
•
If this error code reappears, note the Error number (Exx) and contact a Canon
Customer Support Help Desk as there may be a problem with the camera.
Downloaded From camera-usermanual.com Canon Manuals
178
Information Displayed on the Screen
Shooting (Information Display)
The same information will display on the viewfinder.
Battery Charge Indicator
Digital Zoom Magnification
Y
Estimated Display Area before Pressing the
Camera Orientation*
Eye-Fi Connection
Flash Mode
Aperture Value
Exposure Compensation
Image Area: Movies
Red-Eye Correction
Flash Exposure
Still images: Recordable
Self-Timer
Movies: Recording Pixels
Compensation / Flash
Spot AE Point Frame
Camera shake warning
Exposure Shift Bar
Movies: Remaining Time
Buffer Warning
Shutter Speed
Downloaded From camera-usermanual.com Canon Manuals
179
Information Displayed on the Screen
* : Standard, : Held vertically
When shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing.
This function may not operate correctly when the camera is pointed straight up or down.
Scene Icons
In
A mode, the camera displays an icon for the scene it has determined and then automatically focuses and selects the optimum settings for subject brightness and color.
Subject
Back ground
Bright
Backlit
Including
Blue Skies
Backlit
Sunsets
—
People
When
Moving
With
Strong
Facial
Shadows
—
COP
—
Nones
Human
Subjects/
Landscap
Y
Close
Subjects
—
Icon
Backgrou nd Color
Gray
Light Blue
Orange
Spotlights
Dark
When
Using
Tripod
*
—
*
—
* Appears when the scene is dark and the camera is attached to a tripod.
Dark Blue
Downloaded From camera-usermanual.com Canon Manuals
180
Information Displayed on the Screen
Playback (Detailed Information Display)
Eye-Fi Transfer
Battery Charge Indicator
Y
Focusing Range
Still Images: Recording
Playback Speed
Exposure Compensation
Folder Number – File
COP
/ Total number of images
Shutter Speed
Movies: Movie Length
Red-Eye Correction
Image Editing
Compression (Image
MOV (Movies)
Shooting Date and Time
Exposure Compensation
Downloaded From camera-usermanual.com Canon Manuals
181
Functions Available in Each Shooting Mode
Shooting modes
D B M G
A
Function
1
Change AF Frame Position and Size (p. 85)
AE Lock (p. 93)/FE Lock (p. 93)/Program Shift (p. 93)
AE Lock/Exposure Shift (p. 113)
AF Lock (when registered to the
Flash Exposure Compensation
FUNC. Menu
h
COP
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
W
*
*
2
*
2
-2 to +2
*
2
Flash Output Settings (p. 100)
*
2
*
2
*
2
*
2
Recording Pixels (Still Images)/Compression Ratio (p. 74)
Image Quality (Movies) (p. 111)
h
…
!
e
Î Ò $
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
— — —
{ {
{ { { { —
*
2
*
2
*
2
*
2
—
{
—
{
*
3
— — — — —
*
2
*
2
*
2
*
2
*
2
*
2 { { { { {
*
2
*
2
*
2
*
2
*
2
*
2
{ { { { —
{ { { { {
—
{ { {
—
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
*
2
— { { { —
*
6
*
6
*
6
*
6
—
{ { { {
—
Y
{ { { { {
{ { { {
—
{ { { {
—
— { { { {
{ { { { —
{ { { { {
{ { { { {
{ { { { {
{ { { {
—
{ { { { {
{ { { { —
{ { { { {
—
{ { {
—
{ { { {
—
{ { { { {
{ { { { —
{ { { {
—
— { { { —
{ { { — —
{ { { { {
{ { { {
—
{ { { { {
{ { { { {
*1 Fixed to
! when the flash is lowered, otherwise selectable when the flash is raised. *2 The available settings depend on the registered shooting modes. *3 Not selectable but switches to
… depending on the circumstances. *4 Not selectable but switches to
… when the flash fires. *5 Not available while shooting movies. *6 Only available while shooting movies.
*7 The number of shots cannot be specified, and the time delay cannot be set to 0 seconds. *8 White balance data not recordable.
Downloaded From camera-usermanual.com Canon Manuals
182
Functions Available in Each Shooting Mode
I J
K
TY w O P t xv E
E
>z
{ { — { { { { { { { { { { { { —
— — — —
{ { — { { { — { { { { { { { { — { — — —
— *
4
— — — — — — — — — — — — — —
{
— — —
— — { — — — — — — — — — — — — { — — — —
{ { { { { { { { { { { { { { { { — {
*
5 {
— — — — — — — — — — — — — — — — — — — —
{ { — { { { { { { {
— — { { { — —
{
—
{
{ { { { { { { { — — { { { { { { { — — —
— — — — — — — — — — — — — — — — — — — —
*
6
*
6
*
6
*
6
*
6
*
6
*
6
*
6
*
6
—
*
6
*
6
*
6
*
6
*
6
*
6
*
6 {
— —
— — — — — — — — —
{
— — — — — —
{ {
—
{
{ { { { { { { { { { { { { { { { { { { {
{ { — — — — { { { { { { { { { —
—
{ { {
{ { — — — — — { { { { { { { { — { { { {
{ { { { { { { { {
— — — — — — — — —
{
—
Y
{
—
{
—
{
—
{
—
{ { { { { { { { { { { { { { { { { { { {
{ { — — — — { { {
*
7
*
7
*
7 { { { {
*
7
*
7
— — — — — — { — —
FUNC. Menu
{ { { { { { { { { { { { { { { { { { { {
{ { { { { { { { { { { { { { { { { { { {
— — — — — — — — —
— — — — — — —
*
8
{
*
9
{
—
—
—
—
{ { { { { { { { { { { { { { { { { { { {
— — — — — — — — — — — — — — — — — — — —
*
7
*
7
— — — — — — — — — — — — — — — — — — — —
{ { { { { { { { { { { { { { { { { — — —
{ { — — — — { { { { { { { { { {
— — — —
{ { { — — — { { { { { { { { { * 10
— — — —
— — — — — — — — — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — —
{ { { { { { { { { { { { { { { { { { { {
— — — — — — — — — — — — — — — — — — — —
{ { { { { { *
11
{ { { { { { { { {
*
12
{ {
{ { { { { { { { { { { { { { { { { { * 13
{
{
*9 h not available. *10
*11 will appear as the recording pixel setting, and the image will be fixed at 1600 x
1200 pixels. It will be possible to select a compression ratio (image quality) setting.
*12 Recording pixel setting not selectable. *13 Recording pixel setting not selectable.
{ Selectable, or set automatically. – Not selectable.
Downloaded From camera-usermanual.com Canon Manuals
183
Menus
4 Shooting Menu
Shooting Modes
D B M G
A
Function
FlexiZone
Center
Face Detect
Standard
Off
Digital Tele-converter (1.7x/2.1x)
On/Off
On/Off
On/Off
AF-assist Beam (p. 158) On/Off
On/Off
On/Off
Flash Mode
Auto
Manual
Flash Exp.Comp -2 to +2
Minimum/Medium/
Flash Control
Flash Output
Maximum
Shutter Sync.
1st-curtain/2nd-curtain
Red-Eye Corr. On/Off
Red-Eye Lamp On/Off
Level
Wind Filter
Off/2 – 10 sec./Hold
Off
On/Off
Safety FE
Auto/Off
Center/AF Point
On/Off
Mic Level
On/Off
COP
Shooting Info
Grid Lines
3:2 Guide
Histogram
Off/Continuous
On/Off
Detailed/Focus Check
On/Off
Shoot Only/Panning
Display Area (p. 91) Small/Medium/Large
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
{
{
{
—
{
{
{
{
{
{
—
{
{ { { {
*
5
{ { { {
—
— { { — —
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
{
*
4
{
{
{
{
{
{
{
{
{
{
*
6
{ { { { {
{ { { {
*
{ { { {
7
—
{
{
{ { { { {
{ { { { { {
—
Off/Date/Date & Time
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
*
1
Y
{ { { {
—
— — — — —
{ { { {
*
2
{ { { { {
{ { { { {
{ { { { {
{ { { { {
{ { { {
*
3
{ { { {
*
4
{ { { { {
{ { { {
—
{ { { {
—
— { { { {
{ { {
— —
—
{ { {
—
{ { { — —
*1 The available settings depend on the registered shooting modes.
*2 9 points when a face is not detected.
*3 [On] when movement of people is detected.
Downloaded From camera-usermanual.com Canon Manuals
184
Menus
I J
K
TY w O P t xv E
E
>z
— — — — — — — — — — — — — — — — — — — —
{ { { — — — { { { { { — { { { { { { — {
{ { — { { {
*
2 { { {
— — { { { — —
{ — {
{ { { { { { — { {
— — — { { { { —
{ —
—
{ { { { { { { { { { { { { { { { { { { {
{ { { { { { — { {
— — — { { { { — — — —
{ { — { { { { { { { — — { { { — — — — —
{ {
*
4
{ {
*
4
{ { —
*
— — — { { {
{
— — { { { — — — — —
*
4
4
*
4
*
4 — { {
{ { { { {
{
{
{ { { { { —
{ { { { { —
{
{
*
4
{
*
4
{
*
4
{
{ { — — — — { { { {
— — { { { — — — — —
{ { — — — — { { { { { { { { { —
—
{ { {
{ { — { { { { { { { { { { { { — { — — —
— — — — — — — — — — — — — — — — — — — —
— — — — — — — — —
— — — — — — — — —
—
—
Y
—
—
— —
— —
—
—
— — — — — — — — — — — — — — — — — — — —
{ { — { { { { { {
— — — { { { — — — — —
{ { — { { { { { { { { { { { { — {
— — —
*
4
*
4 —
*
4
*
4
*
4
*
4
*
4
*
4
*
4
*
4
*
4
*
4
*
4
*
4 —
*
4 — — —
— — — — — —
*
5
— — — — — — — — — — — — —
— — — — — — — — — — — — — — — — — — — —
COP
— — — —
{ { { { { { { { { { { { { { { { { { — {
{ { { { { { { { { { { { { { { { { { — {
{ { { { { { { { { { { { { { { { { { — {
{ { { { { { { { { { { { { { { { {
— — —
{ { { { { { { { { { { { { { { { { — — —
{ { { { { { { { { { { { { { { {
— — — —
{ { — { { { { { { {
— — { { { — — — — —
{ { { { { { { { { { { { { { { { { { { {
{ { { { { { { { { { { { { { { {
*
6
{ { { { { { { { {
*
6 6
*
6
*
6
*
6
*
6
*
6
*
6 6
{
*
6
{ { { { { {
*
6
*
6
*
6 6
*
6
*
6
*
6
*
6
{ { {
*
6
*
6
*
6
*
6
* * * *
6
*
6
{ { { { { { { { { { { { { { { {
—
{ { {
{ { { { { { { { { { { { { { { { { { { {
{ { { { { { { { { { { { { { { { {
— — —
{ { { { { { { { { { { { { { { {
—
{ { {
{ { { { { { — { { { { { { { { { — — — —
{ { { { { { { { { { { { { { { { { { { {
— — — — — — — — — — — — — — — — — — — —
*4 Fixed to [On].
*5 Fixed to [Auto].
*6 Selectable only, no settings available.
*7 Fixed to [Continuous].
{ Selectable, or set automatically. – Not selectable.
Downloaded From camera-usermanual.com Canon Manuals
185
Menus
3 Set up Menu
Item
Mute
Volume
Sound Options
Hints & Tips
LCD Brightness
Start-up Image
Format
File Numbering
Create Folder
Lens Retract
Power Saving
Time Zone
Date/Time
Distance Units
Video System
Eye-Fi Settings
Language
Reset All
* Default setting
Content
On/Off*
Set all operation sounds (5 levels).
Set the sounds for each camera operation.
On*/Off
Set within a range of ±2.
Add an image as a start-up image.
Formats memory card, erasing all data
Continuous*/Auto Reset
Monthly*/Daily
1 min.*/0 sec.
Auto Power Down: On*/Off
Home*/World
Date and time settings m/cm* / ft/in
NTSC/PAL
Eye-Fi connection settings (only appears when
COP
Returns camera to default settings.
Ref. Page
My Menu Menu
Item
My Menu settings
Content
Sets the items registered to My Menu.
Ref. Page
Downloaded From camera-usermanual.com Canon Manuals
186
1 Playback Menu
Item
Smart Shuffle
Slideshow
Erase
Protect
Rotate
Favorites
Content
Starts Smart Shuffle.
Plays back images automatically.
Erases images (Select, Select Range, All
Images).
Protects images (Select, Select Range, All
Images).
Rotates images.
Tags or untags images as favorites.
My Category Categorizes images (Select, Select Range) i-Contrast
Red-Eye Correction
Trimming
Resize
My Colors
Corrects dark portions and contrast in still images.
On*/Off
Corrects red eyes in still images.
Trims portions of still images.
Resizes and saves still images.
Adjusts colors in still images.
Y
Scroll Display
Resume
Transition
* Default setting
2 Print Menu
Last seen*/Last shot
Fade*/Scroll/Slide/Off
COP
Content Item
Select Images & Qty.
Select Range
Select All Images
Clear All Selections
Print Settings
Displays printing screen (When connected to a printer).
Chooses individual images for printing.
Chooses starting and ending images for printing.
Chooses all images for printing.
Cancels all settings for printing.
Sets the printing style.
Ref. Page
Ref. Page
—
Menus
Downloaded From camera-usermanual.com Canon Manuals
187
Handling Precautions
•
This camera is a high-precision electronic device. Do not drop it or subject it to strong impacts.
•
Never place the camera close to magnets, motors or other devices that generate strong electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt image data.
•
If water droplets or dirt become stuck on the camera or screen, wipe with a dry soft cloth or eyeglass wiper. Do not rub or apply force.
•
Never use cleaners containing organic solvents to wipe the camera or screen.
•
Use a commercially available blower brush to remove dust from the lens.
For stubborn dirt contact a Canon Customer Support Help Desk as listed on the customer support leaflet supplied with your camera.
•
When you move the camera rapidly from cold to hot temperatures,
Y and let it adjust to temperature changes slowly before removing it from the bag.
•
If condensation has formed on the camera, stop using it immediately, as continued use may damage the camera. Remove the battery and memory resuming use.
COP
Downloaded From camera-usermanual.com Canon Manuals
188
Specifications
Image Sensor
Camera Effective Pixels ..... Approx. 14.1 million pixels
Lens
Focal Length....................... 35x zoom: 4.3 (W) – 150.5 (T) mm (35mm film equivalent:
24 (W) – 840 (T) mm)
Focusing Range ................. 0 cm (0 in.) – infinity (W), 1.4 m (4.6 ft.) – infinity (T)
• Macro: 0 – 50 cm (W) (0 in. – 1.6 ft. (W))
Image Stabilizer System..... Lens-shift type
Imaging Processor................... DIGIC4
Electronic Viewfinder ............... Effective pixels: approx. 202,000 dots (67,000 x 3)
• Brightness adjustment (5 levels), dioptric adjustment
LCD Monitor
Type ................................... TFT color (wide viewing angle type)
Size .................................... 2.7 type
Effective Pixels ................... Approx. 230,000 dots
Aspect Ratio ....................... 4:3
Features ............................. Brightness adjustment (5 levels), Quick-bright LCD
Variangle type (opening angle approx. 175°, rotational angle
Focus approx. 270°)
Control System................... Autofocus: Single (Continuous in Auto mode), Continuous AF,
Servo AF (Servo AE)
Manual Focus
Y
AF Frame ........................... Face Detect, Center, FlexiZone
Metering System...................... Evaluative, Center-weighted average, Spot
Exposure Compensation
(Still Images)/Exposure Shift
ISO Speed
COP
(Standard Output Sensitivity,
Recommended Exposure
Index)....................................... Auto, ISO 80/100/200/400/800/1600
White Balance ......................... Auto, Day Light, Cloudy, Tungsten, Fluorescent, Fluorescent H,
Flash, Custom
Shutter Speeds........................ 1 – 1/3200 sec.
15 – 1/3200 sec. (Total shutter speed range)
Aperture
Type ................................... Iris f/number ............................. f/2.7 – f/8.0 (W), f/5.8 – f/8.0 (T)
Flash
Modes................................. Auto, On, Slow Synchro, Off
Hot Shoe ............................ Available
Range................................. 50 cm – 5.8 m (W), 1.4 – 2.8 m (T)
(1.6 – 19 ft. (W), 4.6 – 9.2 ft. (T))
Downloaded From camera-usermanual.com Canon Manuals
189
Specifications
Shooting Mode ........................ C2, C1, M, Av, Tv, P, Auto, Portrait, Landscape, Sports, SCN*
1
,
Movie*
2
*
3
*1 Smart Shutter*
4
,Low Light, Super Vivid, Poster Effect, Color
Accent, Color Swap, Fish-eye Effect, Miniature Effect,
Beach, Foliage, Snow, Fireworks, Stitch Assist
*2 Smart Auto available
*3 Standard, Miniature Effect, Color Accent, Color Swap
*4 Smile, Wink Self-timer, Face Self-timer
Digital Zoom ............................ Still images/Movies: Approx. 4.0x (up to approx. 140x in combination with the optical zoom) Safety Zoom, Digital teleconverter
Continuous Shooting
Mode .................................. Normal, AF, LV
Speed (Normal).................. Approx. 1.3 shots/sec. (In P mode)
Approx. 3.6 shots/sec. (In Low Light mode)
Number of Shots (Approximate)
(CIPA compliant) ..................... Approx. 400 shots (Viewfinder)
Approx. 370 shots (LCD Monitor)
Recording Media ..................... SD memory card, SDHC memory card, SDXC memory card
MultiMediaCard, MMCplus card, HC MMCplus card
Data Type compliant
Y
Still Images......................... Exif 2.3 (JPEG)
Movies................................ MOV (Image data: H.264; Audio data: Linear PCM (stereo))
Recording Pixels
COP
Movies................................ Smart Auto, Standard, Color Accent, Color Swap: 1280 x 720
(30 fps*), 640 x 480 (30 fps*), 320 x 240 (30 fps*)
Miniature Effect: 1280 x 720 (Shooting: 6 fps/3 fps/1.5 fps,
Playback: 30 fps*
2
Playback: 30 fps*
2
)
), 640 x 480 (Shooting: 6 fps/3 fps/1.5 fps,
* Actual frame rate is 29.97 fps.
Interface .................................. Hi-Speed USB
HDMI output
Analog audio output (stereo)
Analog video output (NTSC/PAL)
Direct Print Standard ............... PictBridge
Power Source.......................... Battery Pack NB-7L
AC Adapter Kit ACK-DC50
Dimensions.............................. 122.9 x 92.4 x 107.7 mm ( 4.84 x 3.64 x 4.24 in.)
• CIPA compliant
Weight (CIPA compliant) ......... Approx. 601 g (21.2 oz.) (Including the battery and memory card)
Approx. 552 g (19.5 oz.) (camera body only)
Downloaded From camera-usermanual.com Canon Manuals
190
Specifications
Battery Pack NB-7L
Type......................................... Rechargeable lithium-ion battery
Voltage .................................... 7.4 V DC
Capacity................................... 1050 mAh
Charging cycles....................... Approx. 300 times
Operating temperature ............ 0 – 40 °C (32 – 104 °F)
Dimensions.............................. 32.5 x 46.4 x 17.7 mm (1.28 x 1.83 x 0.70 in.)
Weight ..................................... Approx. 47 g (1.66 oz.)
Battery Charger CB-2LZ/CB-2LZE
Rated input .............................. AC 100 - 240 V (50/60Hz)
14 VA (100 V) – 19.2 VA (240 V), 0.14 A (100 V) – 0.08 A (240 V)
Rated output............................ DC 8.4 V, 0.7 A
Charge time ............................. Approx. 2 hr. 20 min.
Operating temperature ............ 0 – 40 °C (32 – 104 °F)
Dimensions.............................. 92.4 x 27.0 x 62.0 mm (3.64 x 1.06 x 2.44 in.)
Weight ..................................... Approx. 92 g (3.25 oz.) (CB-2LZ)
Approx. 85 g (3.00 oz.) (CB-2LZE) (excluding power cord)
Lens Hood LH-DC60 (Sold Separately)
Largest Diameter x Length ...... 69.6 x 27.0 mm (2.74 x 1.06 in.)
Y
Weight ..................................... Approx. 10 g (0.35 oz.)
•
All data is based on tests by Canon.
•
COP
Downloaded From camera-usermanual.com Canon Manuals
191
Index
A
AC Adapter Kit................................... 39, 166
Accessories............................................... 39
AE Lock............................................. 93, 113
AEB Mode ................................................. 94
AF Frames.............................. 26, 84, 85
AF Lock ...................................... 87, 179
AFB Mode ......................................... 90, 179
AF-Point Zoom .......................................... 86
AUTO Mode (Shooting Mode)....... 25, 30, 44
Date/Time Battery............................... 21
Setting ................................................ 20
World Clock ...................................... 156
Default Settings ......................................... 53
DIGITAL CAMERA Solution Disk ................ 2
Digital Tele-Converter ............................... 59
Digital Zoom .............................................. 58
Display Language...................................... 22
DPOF .............................................. 146, 147
Drive Mode ................................................ 78
Dynamic mode ........................................ 161
Av (Shooting Mode)................................... 96
E
AV Cable ................................................. 127
Battery
B
Battery Charger .................................. 14
Charge Indicator................................. 15
Date/Time Battery............................... 21
Editing
i-Contrast .......................................... 141
My Colors ......................................... 140
Y
Erasing All Images .................................. 132
Power Saving ............................. 52, 155
Recharge ............................................ 14
Battery Charger ..................................... 2, 39
Beach (Shooting Mode)............................. 64
Bracketing ................................................. 90
C
Erasing Images ................................. 29, 132
Error Messages ....................................... 177
Exposure
AE Lock ...................................... 93, 113
Correction ........................................... 73
FE Lock .............................................. 93
Shift .................................................. 113
Eye-Fi Card ....................................... 16, 172
C1/C2 (Shooting Mode)........................... 102
Camera
Default Settings .................................. 53
Camera Shake .................................. 27, 161
Clock Functions......................................... 55
Color Accent (Shooting Mode) ........ 103, 108
Color Swap (Shooting Mode) .......... 104, 108
Components Guide ................................... 44
Compression (Image Quality).................... 74
Continuous Shooting ................................. 78
D
Date/Time
Adding to Image ................................. 60
Changing ............................................ 21
F
Face Detect (AF Frame Mode).................. 84
Face Select ............................................... 88
Face Self-Timer (Shooting Mode) ............. 68
Factory Settings J Default Settings
FE Lock ............................................. 93, 179
File Numbering ........................................ 154
Filtered Playback..................................... 121
Fireworks (Shooting Mode) ....................... 64
Fish-eye Effect (Shooting Mode)............... 69
Flash
Flash Exposure Compensation ........ 100
On....................................................... 72
Slow Synchro...................................... 99
Focus
Downloaded From camera-usermanual.com Canon Manuals
192
AF Frame...................................... 26, 84
AF Lock............................................... 87
AF-Point Zoom.................................... 86
Face Select......................................... 88
Servo AF............................................. 86
Focus Check............................................ 124
Focus Lock ................................................ 82
Focusing Range ........................................ 73
Manual Focus ..................................... 89
Foliage (Shooting Mode) ........................... 64
Format J Memory Cards, Formatting
Formatting (Memory Card) .................. 23, 54
FUNC. Menu
Menu................................................... 48
Manual Focus (Focus Mode).....................89
Manual White Balance...............................77
Memory Cards ...........................................16
Available Shots .............................18, 75
Formatting.....................................23, 54
Shooting Time.............................31, 111
Menu
Basic Operations ................................49
List ....................................................184
Metering Method........................................92
Miniature Effect (Shooting Mode) ......70, 109
Movies
Editing...............................................117
G
Grid Lines ................................................ 179
H
Household Power .................................... 166
Image Quality (Recording Pixels/
Frame Rate)......................................111
Modes ...............................................108
Y
MultiMediaCard/MMCplus J Memory Cards
i-Contrast ........................................... 98, 179
Image Quality J Compression Ratio
Images
I
Erasing Images........................... 29, 132
My Category ............................................135
My Colors ..................................................79
P
P (Shooting mode).....................................72
Personal Printing Guide...............................2
PictBridge ..........................................41, 144
Playback With Transition Effects .............126
Protect .............................................. 129
Indicator..................................................... 45
Interface Cable .............................. 2, 35, 144
ISO Speed......................................... 76, 179
Portrait (Shooting Mode) ...........................62
Poster Effect (Shooting Mode) ..................65
Power JBattery and Charger Kit, AC Adapter
Kit
Power Saving ....................................52, 155
Printing ....................................................144
Program AE ...............................................72
Protect .....................................................129
L
Lamp.................................... 44, 47, 158, 159
Landscape (Shooting Mode) ..................... 62
Low Light (Shooting Mode)........................ 63
R
Recording Pixels (Image Size) ..................74
Red-Eye Correction ...........................98, 142
Resizing (Making Images Smaller)..........138
Rotate ......................................................137
M
M (Shooting Mode).................................... 97
Macro (Focus Mode) ................................. 73
Magnified Display .................................... 125
Downloaded From camera-usermanual.com Canon Manuals
193
Index
Index
S
SCN (Shooting Mode) ............................... 63
Screen
Display Language............................... 22
Information Display................... 179, 181
Switching the Display ......................... 46
SD/SDHC/SDXC Memory Card J Memory
Cards
Self-Timer
10 Second Self-Timer......................... 61
Changing Delay and Number of
Shots .................................................. 81
Face Self-Timer (Shooting Mode) ...... 68
Troubleshooting....................................... 174
Tv (Shooting Mode)................................... 95
V
Viewing
Filtered Playback .............................. 121
Images on a TV ........................ 127, 128
Index Display .................................... 120
Magnified Display ............................. 125
Single Image Playback ....................... 28
Slideshow ......................................... 123
Smart Shuffle.................................... 125
Viewing Images on a TV ................. 127, 128
Two Second Self-Timer ...................... 80
Wink Self-Timer (Shooting Mode) ...... 67
Sepia Tones .............................................. 79
Servo AF ................................................... 86
Shooting
Number of Shots..................... 15, 18, 75
Shooting Date and Time J Date/Time
Y
W
White Balance ........................................... 77
Wide (Recording Pixels)............................ 75
Wink Self-Timer (Shooting Mode) ............. 67
World Clock ............................................. 156
Z
Shooting Info ............................ 160, 179
Shooting Time ............................ 31, 111
Shooting Using a TV ................................. 82
Smile (Shooting Mode).............................. 66
Snow (Shooting Mode).............................. 64
Software
Zoom ............................................. 25, 30, 58
DIGITAL CAMERA Solution Disk ......... 2
Installation .......................................... 34
Software Guide..................................... 2
Transferring Images to a Computer for
Viewing............................................... 33
Sound Settings.......................................... 50
Sports (Shooting Mode) ............................ 62
Stereo AV Cable.................................. 2, 127
Stitch Assist (Shooting Mode) ................. 106
Super Vivid (Shooting Mode) .................... 65
T
Tag Images as Favorites......................... 134
Terminal .................... 35, 127, 128, 144, 166
Travel Abroad.............................. 15, 39, 156
Trimming ................................................. 139
Downloaded From camera-usermanual.com Canon Manuals
194
MEMO
COP
Y
Downloaded From camera-usermanual.com Canon Manuals
195
Disclaimer
• Reprinting, transmitting, or storing in a retrieval system any part of this guide without the permission of Canon is prohibited.
• Canon reserves the right to change the contents of this guide at any time without prior notice.
• Illustrations and screenshots in this guide may differ slightly from the actual equipment.
Y
• The above items notwithstanding, Canon accepts no liability for damages due to mistaken operation of the products.
COP
© CANON INC. 2010
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
