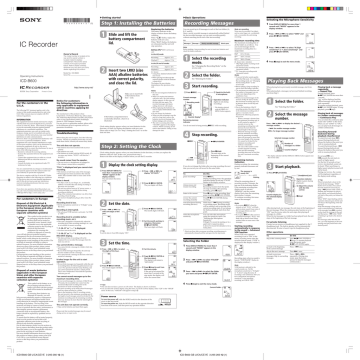

Sony ICD-B600 User manual

IC Recorder

Operating Instructions

ICD-B600

2008 Sony Corporation Printed in China

Owner’s Record

The model number is located at the rear and the serial number is located inside the battery compartment. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ICD-B600

Serial No._______________________

For customers in Europe

Disposal of Old Electrical &

Electronic Equipment (Applicable in the European Union and other

European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Cinappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries

(applicable in the European

Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local

Civic Offi ce, your household waste disposal service or the shop where you purchased the product.

For the customers in the

U.S.A.

The following FCC statement applies only to the version of this model manufactured for sale in the

USA. Other versions may not comply with FCC technical regulations.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

If you have any questions about this product, you may call: Sony Customer Information Services Center

1-800-222-7669 or http://www.sony.com/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives

The manufacturer of this product is Sony

Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger

Strasse 61, 70327 Stuttgart, Germany.

For any service or guarantee matters, please refer to the addresses given in separate service or guarantee documents.

Troubleshooting

Before taking the unit for repair, check the following sections. Should any problem persist after you have made these checks, consult your nearest Sony dealer.

The unit does not operate.

• The batteries have been inserted with incorrect polarity.

• The batteries are weak.

• The buttons are locked with the HOLD switch. (If you press any button, “HOLD” will flash for 3 seconds.)

No sound comes from the speaker.

• The ear receiver or headphones are plugged in.

• The volume is turned down completely.

“FULL” is displayed and you cannot start recording.

• The memory is full. Erase some of the messages.

• 99 messages have been recorded in the selected folder. Select another folder or erase some of the messages.

Noise is heard.

• An object, such as your finger, etc., accidentally rubbed or scratched the unit during recording so that noise was recorded.

• The unit was placed near an AC power source, a fluorescent lamp or a mobile phone during recording or playback.

• Plug of the connected microphone was dirty when recording. Clean the plug.

• Ear receiver/headphones plug is dirty. Clean the plug.

Recording level is low.

• Set the microphone sensitivity to “H (high)” using the menu.

Recording is interrupted.

• The advanced VOR function is activated. Set VOR to “OFF.”

Recording level is unstable (when recording music, etc.).

• This unit is designed to automatically adjust the recording level when recording meetings, etc., and is not suitable for music recording.

“--Y--M--D” or “--:--” is displayed.

• You have not set the clock.

“--Y--M--D” or “--:--” is displayed on the

REC DATE display.

• The date and time of recording will not be displayed if you recorded the message when the clock was not set.

You cannot divide a message.

• You cannot divide a message in a folder which has

99 messages.

• If you divide messages frequently, the unit may become unable to divide a message.

• You cannot divide a message in the first or the last 1 second of a message.

It takes longer for the unit to start operation.

• If you divide messages too frequently while the unit is recording them, the following phenomenon may occur: The operation indicator keeps flashing, and you cannot operate the unit for a certain period.

This is not a malfunction. Wait until the operation indicator goes off.

You cannot record messages up to the maximum recording time.

• If you record messages in a mixture of HQ, SP and

LP modes, the recordable time varies from the maximum HQ mode recording time to the maximum LP mode recording time.

• No more recording can be made when 99 messages each have been recorded in a folder.

• Due to the limitation of the IC recording system, this unit records in the minimum recording unit. If the length of each message cannot be divided by the minimum recording unit, the remaining recording time may decrease by more than the total length of the messages.

The unit does not operate correctly.

• Take out the batteries and insert them again.

Please note that recorded messages may be erased during service or repair work.

B

Getting started

Step 1: Installing the Batteries

1

Slide and lift the battery compartment lid.

2

Insert two LR03 (size

AAA) alkaline batteries with correct polarity, and close the lid.

Make sure to insert both of the batteries from their – ends.

If the battery compartment lid is accidentally detached, attach it as illustrated.

Clock setting display appears when you insert batteries for the first time, or when you replace the batteries with new ones.

Please refer to Steps 2 to 3 in “Step 2: Setting the Clock” to set the date and time.

Replacing the batteries

The battery indicator in the display window shows the battery condition.

When “ “ flashes, replace the batteries with new ones.

When “ “ flashes, the batteries are exhausted and the unit will stop operation.

Battery life*(With continuous use)

In the HQ mode

Recording:

Playback**:

Approx. 11 h.

Approx. 7.5 h.

In the SP and LP modes

Recording: Approx. 22 h.

Playback**: Approx. 11 h.

(h.: hours)

* Using Sony alkaline batteries LR03

(size AAA)

**When playing back through the internal speaker with the medium volume level

The battery life may shorten depending on the operation of the unit.

Notes

• Do not use manganese batteries for this unit.

• When you replace the batteries with new ones, the clock setting display appears. In this case, set the date and time again. The recorded messages and alarm setting, however, will remain.

• When replacing the batteries, be sure to replace both batteries with new ones.

• Do not charge dry batteries.

• When you are not going to use the unit for a long time, remove the batteries to prevent damage from battery leakage and corrosion.

• The unit is accessing data while

“ACCESS“ appears in the display window. While accessing, do not remove the batteries. Doing so may damage the data.

Step 2: Setting the Clock

Clock setting display appears when you insert batteries for the first time, or when you replace the batteries with new ones. In this case, proceed from step 2.

Remove the film on the display window before you use the IC recorder.

1

Display the clock setting display.

1

Press DISPLAY/MENU for more than 1 second until

“MODE” appears in the display window.

The unit enters the menu mode.

2 Press – . or >+ to display “SET DATE.”

3

Press NxPLAY/ENTER.

The year digits will flash.

2

Set the date.

1

Press – . or >+ to select the digits of the year.

2 Press NxPLAY/ENTER.

The month digits will flash.

3

Set the month and day in sequence, then press

Nx PLAY/ENTER.

The hour digits will flash.

1 Tip

To set the date to Year 2008, display “08Y.”

3

Set the time.

1 Press – . or >+ to select the digits of the hour.


The minute digits will flash.

3

Set the minute.

4

Press NxPLAY/ENTER at the time signal.

The display will return to

“SET DATE.”

5 Press x(stop) to exit from the menu mode.

If the unit is left unused for more than 3 seconds in the stop mode, the display will show the current time.

1 Tips

• This unit does not have a power on/off switch. The display is shown at all times.

• You can select the 12-hour display using the menu. To set the 12-hour display, select “12H” in the “HOUR” menu. In that case, “AM12:00” will appear in step 2-3.

Power source

To turn the power off, slide the HOLD switch in the direction of the arrow in the stop mode.

To turn the power on, slide the HOLD switch in the opposite direction from that of the arrow, and then press any operation button.

B

Basic Operations

Recording Messages

You can record up to 99 messages in each of the four folders (A,

B, C, and D).

Since a newly recorded message is automatically added behind the last recorded message, you can start recording quickly without searching for the end of the last recording.

e.g.

Message 1 Message 2 Newly recorded message Blank space

Note

Before making a long recording, be sure to insert new batteries and check the battery indicator.

1

Select the recording

2

mode.

See “Changing the Recording Mode” on the reverse side.

Select the folder.

See “Selecting the Folder.”

3

Start recording.

1

Press zXREC.

2

Speak to the builtin microphone.

Current message number

Recording mode

– .

(Review)

Operation indicator

(lights in red during recording.)

* The display selected with the DISPLAY/

MENU button appears.

Counter display*

Remaining memory indicator

You do not need to keep pressing zXREC while recording.

4

Stop recording.

zX REC

Nx PLAY/ENTER

Press x(stop).

The unit stops at the beginning of the current recording.

If you do not change the folder after you stop recording, the next time you record you will record in the same folder.

To Do this

pause recording* release pause and resume recording listen to the current

Press zXREC.

During recording pause, the operation indicator flashes in red and “PAUSE” flashes in the display window.

Press zXREC.

Recording resumes from that point.

(To stop recording after pausing recording, press x(stop).)

Press x(stop) to stop recording, then press recording NxPLAY/ENTER.

Press NxPLAY/ENTER during recording.

review the current recording instantly search backward during Hold down – . during recording recording (Review) or recording pause. Recording mode will be released, and reviewing of the current recording starts. If you release the button, playback starts from that point.

select the microphone sensitivity

You can select the microphone using the sensitivity menu. See

“Selecting the Microphone

Sensitivity.”

H (high): To record at meeting or in a quiet and/or spacious place.

L (low): To record for dictation or in a noisy place.

* About one hour after you pause recording, recording pause is automatically released and the unit goes into the stop mode.

Selecting the Folder

1

Press DISPLAY/MENU for more than 1 second until “MODE” appears in the display window.

Note on recording

Noise may be recorded if an object, such as your finger, etc., accidentally rubs or scratches the unit during recording.

Maximum recording time

The maximum recording time of all the folders is as follows. You can record messages for the maximum recording time in a single folder.

HQ* 61 h. 10 min.

SP** 163 h. 10 min.

LP*** 301 h. 35 min.

(h.: hours/min.: minutes)

* HQ: High quality recording mode

(monaural sound)

** SP: Standard play recording mode

(monaural sound)

***LP: Long play recording mode

(monaural sound)

Notes

• To record in better sound quality, select the HQ mode. For switching the recording mode, see “Changing the Recording Mode” on the reverse side.

• Before making a long recording, be sure to check the battery indicator.

• The maximum recording time and the number of messages you can make vary depending on the conditions of use.

• When you record messages in the mixture of HQ, SP and LP mode, the maximum recording time will be between those for the HQ and

LP modes.

• Due to the limitation of the IC recording system, this unit records in the minimum recording unit of approx. 2 seconds at most, therefore the following symptoms may occur:

– When a message is shorter than the minimum recording unit, it is still counted as approx. 2 seconds at most so the remaining recording time will decrease by more than the actual length of the message.

– When the message is longer than the minimum recording unit, the remaining recording time will decrease by more than the actual length of the message if it cannot be divided by the minimum recording unit without a remainder.

– The sum of the number on the counter (elapsed recording time) and the remaining recording time may be less than the unit’s maximum recording time.

Remaining memory indication

During recording, the remaining memory indicator decreases one by one.

The memory is nearly full.

Flashing

When the remaining time of recording reaches 5 minutes, the last one of the indication flashes.

If the remaining recording time display mode is selected,

“REMAIN” and the counter display flash when the remaining time reaches 1 minute.

To continue recording, first erase some of the messages.

Notes

• If you press zXREC when the memory is full, “FULL” will flash with an alarm sound. Erase some of the messages before you start recording again.

• If you press zXREC after you have recorded 99 messages, “FULL” will flash with an alarm sound. Select another folder or erase some of the messages.

Starting recording automatically in response to the sound — Advanced

VOR function

When VOR (voice operated recording) is set to “ON” in the menu, recording starts when the recorder detects sound. (“VOR” is displayed in the display window.)

2

Press – . or >+ to select “FOLDER”

and press NxPLAY/ENTER.

3

Press – . or >+ to select the folder

you want and press NxPLAY/ENTER.

Recording stops when no sound is heard. (“VOR PAUSE” flashes in the display window.)

Note

VOR function is affected by the sound around you. Set the microphone sensitivity to “H (high)” or “L (low)” using the menu. If recording is not satisfactory after you have changed the microphone sensitivity, or for important recording, set VOR to “OFF.”

4

Press x(stop) to exit the menu mode.

Current folder

Selecting the Microphone Sensitivity

1

Press DISPLAY/MENU for more than 1 second until “MODE” appears in the display window.

2

Press – . or >+ to select “SENS” and

press NxPLAY/ENTER.

3

Press – . or >+ to select “H (high sensitivity)” or “L (low sensitivity)” and


4


Playing Back Messages

When playing back a previously recorded message, start from

Step 1.

When playing back a message you have just finished recording, start from Step 3.

1

Select the folder.

See “Selecting the Folder.”

2

Select the message number.

Press – . or >+ to display the desired message number.

– .: for smaller message number

> +: for larger message number

Selected message number

Counter display (or the selected display mode)

Number of messages in a folder

Counter display*

* The display selected with the DISPLAY/MENU button appears (see the reverse side).

3

Start playback.

1 Press NxPLAY/ENTER. i (headphone) jack

Operation indicator

(lights in green during playback.)

2 Adjust the volume with the VOL control.

x (stop)

After playing back one message, the unit stops at the beginning of the next message. When the continuous play function is set to

“ON” (see the reverse side), the unit stops after playing all messages in a folder.

When the last message in a folder has been played back, the unit stops at the beginning of the last message.

For private listening

Connect an ear receiver or headphones (not supplied) to the i

(headphone) jack. The built-in speaker will be automatically disconnected. If noise is heard, wipe the headphones plug.

Other operations

To Do this

stop at the current position Press NxPLAY/ENTER or x (stop). To resume playback from that point, press

Nx PLAY/ENTER again.

Press – . once.

go back to the beginning of the current message skip to the next message Press >+ once.

go back to previous Press – . or >+ messages/skip to succeeding repeatedly. (During stop messages mode, keep the button pressed to skip the messages continuously.)

Playing back a message repeatedly

— Repeat Play

During playback, press

Nx PLAY/ENTER for more than

1 second.

“ “ will be displayed and the selected message will be played back repeatedly.

To resume normal playback, press

Nx PLAY/ENTER again. To stop playback, press x(stop).

Playing back all messages in a folder continuously

— Continuous Play

You can select the continuous play mode with “CONT“ in the menu.

When you set “CONT” to “ON,“ you can play back all messages in a folder continuously.

Searching forward/ backward during playback (Cue/Review)

To search forward, keep >+ pressed during playback and release the button at the point you wish to resume playback.

To search backward, keep – .

pressed during playback and release the button at the point you wish to resume playback.

If you keep >+ or –

.

pressed, the unit starts to search at higher speed.

For the first 10 seconds of cue/ review, fast playback sound can be heard. When searching at a higher speed, playback sound will not be heard.

During cue/review, the counter will be displayed, regardless of the display mode setting.

1 Tip

When fast playback is done to the end of the last message, “END” flashes for 5 seconds. (You cannot hear the playback sound.) If you keep – . pressed while “END” is flashing, the messages are played back rapidly, and normal playback will start at the point you release the button.

When “END” stops flashing and the operation indicator goes off, the unit will stop at the beginning of the last message.

If the last message is long and you wish to start playback at a later part of the message, keep >+ pressed to play back the message to the end and then press – . while “END” is flashing to go back to the desired point.

(For messages other than the last one, go to the beginning of the next message and play backward to the desired point.)

ICD-B600 GB U/CA/CE7/E 3-295-266-12 (1) ICD-B600 GB U/CA/CE7/E 3-295-266-12 (1)

Erasing Messages

You can erase the recorded messages one by one or all messages in a folder at a time.

Note that once a recording has been erased, you cannot retrieve it.

Erasing messages one by one

When a message is erased, the remaining messages will advance and renumbered so that there will be no space between messages.

Before erasing

After erasing

Message 1 Message 2 Message 3 Message 4

Erase Message 3


Message 5

Remaining messages are renumbered.

1 Press ERASE while playing back the message you want to erase or press ERASE for more than 1 second during stop mode.

A beep will sound and the message number and “ERASE” will flash while the whole message is played back 10 times.

2

Press ERASE while the message is being played back.

The message is erased and the remaining messages will be renumbered. (For example, if you erase Message 3, Message 4 will be renumbered as Message 3. When erasing is completed, the unit will stop at the beginning of the following message.)

To cancel erasing

Press x(stop) before step 2.

To erase other messages

Repeat steps 1 and 2.

To erase a message partially

First divide the message and then follow the steps to erase the message.

Erasing all messages in a folder

e.g.

Folder A

Message 1 Message 2 Message 3 Blank space

Folder B

Message 1 Message 2 Message 3

Blank space Message 1 Message 2 Message 3

1 Select the folder you want to erase using

DISPLAY/MENU.

(See “Selecting the Folder” on the front side.)

2 While pressing x(stop), press

ERASE for more than 1 second.

“ALL ERASE” will flash for 10 seconds.

3 While the display is flashing, press ERASE.

To cancel erasing


Index to Parts and Controls

Main unit

Built-in microphone

(microphone) jack

Display window

DISPLAY/MENU

DIVIDE x (stop) zX REC (record)

– .(review/fast backward)/

> + (cue/fast forward)

Speaker

Rear

i (headphone) jack

Operation indicator

ERASE

VOL (volume) control*

HOLD

Nx PLAY/ENTER**

* There is a tactile dot beside the control to show the direction to turn up the volume.

**The button has a tactile dot.

Battery compartment

Hook for handstrap

(not supplied)

Display window

Folder indication

Microphone sensitivity

Alarm indicator

Selected message number

REC DATE (recorded date) indication

REMAIN indicator

Remaining memory indicator

Remaining battery indicator

Recording mode indication

REC (recording) indicator

Repeat play indicator

Number of messages in a folder/Menu indication/

Counter /Remaining time indication /Recording date indication /Current time indication /Messages

B

Various Ways of Recording

Adding a Recording to a

Previously Recorded

Message

You can add a recording to the message being played back.

The added recording will be placed after the current message and counted as a part of the message.

During playback of Message 3

Message 3 Message 4

After adding a recording

Message 3 Message 4

Added recording

Meeting at 2 o’clock on December 1.

at Conference room A

1

During playback, press zX REC for more than 1 second.

The “REC” indicator appears and “ADD” will flash for 3 seconds in the display window.

The operation indicator will turn red.

The new recording will be added at the end of the current message.

2

Press x(stop) to stop the recording.

Notes

• You cannot add a recording if the remaining memory is not long enough.

• The added portion of a message will be recorded in the same recording mode (HQ, SP, or LP).

Recording with an External

Microphone or from Other

Equipment

1

Connect a plug-in-power type microphone or other equipment to the (microphone) jack.

When recording with an external microphone

mini-plug

(monaural)

(microphone)

External microphone

(not supplied)

When you connect an external microphone, the built-in microphone is automatically cut off.

When a plug in power type microphone is connected, power is automatically supplied to the microphone from the IC recorder.

When recording from other equipment

Audio connecting cable with attenuator (not supplied) mini-plug

(monaural)

(microphone)

EAR, EARPHONE, v or REC OUT mini-plug (stereo or monaural)

Tape recorder, TV, radio, etc.

2

Follow the steps in “Recording

Messages” on the front side to record messages.

Notes

• Make sure that the plugs are connected securely.

• We recommend you make a trial recording to check the connections and volume control.

• When connecting equipment other than Sony’s, refer to the instruction manual of the equipment.

Starting Recording

Automatically in Response to the Sound — Advanced

VOR function

VOR ON: The VOR (Voice Operated

Recording) function is activated.

Recording starts when the unit detects sound and stops when no sound is heard, eliminating recording from soundless period.

VOR OFF: The VOR function is disabled.

Normal recording operation is selected.

1



2

Press – . or >+ to display “VOR” and press

Nx PLAY/ENTER.

“OFF (or ON)” will flash.

3

Press – . or >+ to select “ON” or “OFF” and


Now the setting is completed.

4


B

Other Functions

Dividing a Message

You can divide a message during recording or playback, so that the message is divided into two and the new message number is added to the divided message. By dividing a message, you can easily find the point you want to play back when you make a long recording such as a meeting.

You can divide messages until the total number of messages in the folder becomes 99.

While recording or playing back a message, press DIVIDE at the point you want to divide.

• When you press DIVIDE during recording:

The new message number is added at the point you pressed the button, and the new message number and

“DIVIDE“ flash for 3 seconds.

The message will be divided into two; however, the messages will be recorded without a break.


A message is divided.

Recording continues

1 Tip

You can divide a message during recording pause.

• When you press DIVIDE during playback:

The message is divided into two at the point you pressed the button, and the new message number and

“DIVIDE“ flash for 3 seconds.

The message numbers of the following messages will increase by one.


A message is divided.


The message numbers increase.

To play the divided message

Press –. or >+ to display the message number as the divided messages each have message numbers.

1 To play the divided messages continuously

Select “ON“ for “CONT“ in the menu as described in “Playing Back All Messages in a Folder

Continuously”.

Notes

• If 99 messages have been recorded in a folder, you cannot divide a message. In that case, reduce the number of messages to 98 or less by erasing unnecessary messages or by moving some of the messages to another folder before dividing a message.

• If you divide a message with an alarm setting, the alarm setting remains only with the former message divided.

• You cannot divide a message in the first or the last 1 second.

• If you divide a message frequently, the unit may become unable to divide a message.

• Once a message is divided, you cannot combine the divided messages with the IC recorder.

• If you divide messages too frequently while the unit is recording them, the following phenomenon may occur: The operation indicator keeps flashing, and you cannot operate the unit for a certain period. This is not a malfunction.

Wait until the operation indicator goes off.

Moving Messages to a

Different Folder — Move

Function

You can move the recorded messages to another folder.

Example: Moving Message 3 in Folder A to

Folder C

1

While the unit is stopped, select the message you want to move.

2



3

Press – . or >+ to select “MOVE” and press

Nx PLAY/ENTER.

The destination folder indication flashes.

4

Press – . or >+ to select the folder to which you want to move the message (C in this case).

5


The message is moved in the destination folder.

6


To cancel moving the message(s)


Note

The move function does not duplicate a message in another folder. When you move a message to another folder, the one in the previous folder will be deleted.

Playing Back a Message at a Desired Time with an

Alarm

You can sound an alarm and start playback of a selected message at a desired time. If you select

“B-ONLY” in Step 6, an alarm sounds only and playback will not start.

1

Select the folder (See

“Selecting the Folder” on the front side) and display the message you want to play back with an alarm.

2

Enter the alarm setting mode.

1 Press DISPLAY/MENU for more than 1 second until


2 Press – . or >+ to select “ALARM OFF”

(If the alarm has already set to the selected message, “ALARM ON” is displayed. If you do not wish to change the setting, press x(stop) and exit the menu mode.)

Note

“ALARM OFF (or ON)” will not appear and the alarm cannot be set if the clock has not been set or no message has been recorded in the selected folder.

3


“OFF” starts to flash.

4 Press – . or >+ to select “ON”.

“ON” starts to flash.


“DATE” will flash in the display window.

3

Set the alarm date.

To play back on a desired date

(the message will be played back at the same time on the same date every year until you erase the message)

1 Press NxPLAY/ENTER while “DATE” is flashing.

The year digits will flash.

2 Press – . or > + to select the year digits and


The month digits will flash.

3 Press – . or >+ to select the month digits

and press NxPLAY/

ENTER.

The day digits will flash.

4

Press – . or >+ to select the day digits.

To play back once a week

Press – . or >+ to select the day of the week.

To play back at the same time every day

Press – . or >+ to select “DAILY.”

4


The hour digits will flash.

5

Set the alarm time.

1 Press – . or >+ to select the hour digits and


The minute digits will flash.

2

Press – . or >+ to select the minute digits


ENTER.

“B-PLAY” will be displayed.

6

Set the alarm sound.

1 Press – . or >+ to select the alarm sound either from “B-PLAY”

(playing back the message after the alarm) or “B-ONLY” (alarm only)

2


“ALARM ON” will be displayed.

7


“,” is displayed when the number of the message with alarm setting is selected.

At the set time, the alarm will sound for about

10 seconds and the selected message will be played back.

During playback, “ALARM” will flash in the display window.

When the playback ends, the unit will stop automatically at the beginning of that message.

To listen to the same message again

Press NxPLAY/ENTER. The same message will be played back from the beginning.

* If the clock has not been set, “--Y--M--D” will be displayed.

**If the clock has not been set, “--:--” will be displayed.

To cancel the HOLD function

Slide the HOLD switch to OFF.

Note

When the HOLD function is activated during recording, cancel the HOLD function first to stop recording.

1 Tip

Even if the HOLD function is activated, you can stop the alarm playback. To stop the alarm or playback, press x(stop).

Selecting the Display

Mode

You can select the display mode for the stop, recording and playback modes.

Each time you press DISPLAY/MENU, the display mode will change as shown below:

1 On the current time display

If the unit is left unoperated for more than 3 seconds in the stop mode, the display will show the current time, regardless of the display mode setting.

Counter:

B Elapsed playback/ recording time in one message m

Remaining time

(REMAIN):

In the playback mode:

The remaining time of one message indication.

In the stop and recording mode: The remaining recording time indication.

m

Recorded date (REC

DATE)*:

The date the current message was recorded.

m

Recorded time (REC

DATE)**:

The time the current message was recorded.

To cancel the alarm setting before the playback starts

Press x(stop) while the alarm sound is heard.

You can stop even when the HOLD function is activated.

Notes

• You cannot set the alarm if you have not set the clock or there is no message in the selected folder

(the unit will not enter the alarm setting mode when you press DISPLAY/MENU in Step 2).

• If you try to set the alarm to play back a message at a previously set time on another message,

“PRE SET” will be displayed, preventing new settings.

• If you try to set the alarm to the time before the current time, “BACK-D” appears in the display window and you cannot set the alarm.

• If the alarm time comes while another message is being played back with an alarm, the playback stops and the new message will be played back.

• If the alarm time comes during recording, alarm will sound for 10 seconds after the recording is finished and playback begins. “,” will flash when the alarm time comes.

• If more than one alarm time comes during recording, only the first message will be played back.

• When the alarm time comes when the unit is in the menu mode, alarm will sound and the menu mode will be cancelled.

• If you erase the message you set the alarm to play back, the alarm setting will be cancelled.

• If you divide a message with the playback alarm, playback will stop at the point you divided a message.

• You can adjust the playback volume with the

VOL control.

• If the alarm time comes during erasing, alarm will sound for 10 seconds after the erasing is finished and playback begins.

• Alarm setting will not be cancelled when the alarm playback finishes. To cancel alarm setting, see below.

To cancel or change the alarm setting

1 Select the message you set the alarm to play back, and press DISPLAY/MENU for more than 1 second to enter the menu mode.

2 Press – . or > + to select “ALARM

ON.”

3 Press NxPLAY/ENTER to flash “ON.”

4 To cancel the alarm setting: Press – . or

> + to flash “OFF” and press NxPLAY/

ENTER.

To change the alarm setting: Press

Nx PLAY/ENTER. When the alarm date is displayed, follow the Steps 3 to 6 of “Playing

Back a Message at a Desired Time with an

Alarm” to change the alarm setting.

5 Press x(stop) to exit the menu mode.

Preventing Accidental

Operation — HOLD function

Slide the HOLD switch to ON. “HOLD” will appear for 3 seconds, indicating that all the functions of the buttons are locked.

When the HOLD function is activated during stop, all the display will be turned off after

“HOLD” is displayed.

HOLD

Turning off the Beep

Sound

BEEP ON: A beep will sound to indicate that operation has been accepted.

BEEP OFF: No beep sound will be heard except for the alarm and timer.

1



2

Press – . or >+ to display “BEEP ON (or OFF)”


ENTER.

“ON (or OFF)” will flash.

3



The setting is completed.

4


Changing the Recording

Mode

HQ: You can record with the high quality sound (monaural sound).

SP: You can record with better sound

(monaural sound).

LP: You can record for longer time (monaural sound).

1



2

Make sure that “MODE” is displayed and press

Nx PLAY/ENTER.

“HQ (or SP, LP)” will flash.

3

Press – . or >+ to select “HQ”, “SP” or “LP”


ENTER.


4


The setting becomes effective and the normal screen will be displayed.

If the unit is left unoperated for more than 3 seconds, the display will show the current time and the selected recording mode will be displayed.

Playing Back All Messages in a Folder Continuously

CONT ON: You can play back all messages in a folder continuously.

CONT OFF: Playback stops at the end of each message.

1



2

Press – . or >+ to display “CONT” and press

Nx PLAY/ENTER.

“OFF (or ON)” will flash.

3




4


Precautions

On power

• Operate the unit only on 3 V DC. Use two

LR03 (size AAA) alkaline batteries.

On safety

• Do not operate the unit while driving, cycling or operating any motorized vehicle.

On handling

• Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.

• Should any solid object or liquid fall into the unit, remove the batteries and have the unit checked by qualified personnel before operating it any further.

On noise

• Noise may be heard when the unit is placed near an AC power source, a fluorescent lamp or a mobile phone during recording or playback.

• Noise may be recorded when an object, such as your finger, etc., rubs or scratches the unit during recording.

On maintenance

• To clean the exterior, use a soft cloth slightly moistened in water. Do not use alcohol, benzine or thinner.

If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.

Backup recommendations

To avoid potential risk of data loss caused by accidental operation or malfunction of the IC recorder, we recommend that you save a backup copy of your recorded messages on a tape recorder, etc.

Specifications

Recording media

Built-in flash memory 512 MB,

Monaural recording

A part of the menory capacity is used as a management area.

Recording time

HQ: 61 hours 10 minutes

SP: 163 hours 10 minutes

LP: 301 hours 35 minutes

Frequency range

HQ: 260 Hz - 6,800 Hz

SP: 220 Hz - 3,400 Hz

LP: 220 Hz - 3,100 Hz

Speaker approx. 2.8 cm (1 1 /

8

in.) dia.

Power output

250 mW

Input/Output

•Headphone jack (minijack) for 8 - 300 ohms ear receiver/headphones

•Microphone jack (minijack, monaural)

Plug in power

Minimum input level 0.6 mV

Power requirements

Two LR03 (size AAA) alkaline batteries: 3 V DC

Dimensions (w/h/d) (not incl. projecting parts and controls)

34.6 × 109.2 × 18.4 mm

(1 3 /

8

× 4 3 /

8

Mass (incl. batteries)

× 3 /

4 in.)

65 g (2.3 oz)

Supplied accessories

Operating instructions (1)

LR03 (size AAA) alkaline batteries (2)

Headphone (1) (excluding the U.S.A.,

Canada and Europe)

Carrying pouch (1) (excluding the

U.S.A., Canada and Europe)

Optional accessories

Electret Condenser Microphone ECM-

DM5P, ECM-CZ10, ECM-TL1 (for telephone recording)

Audio connecting cable RK-G64HG /

RK-G69HG (excluding Europe)

Active speaker SRS-T88, SRS-T80

Your dealer may not handle some of the above listed optional accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

ICD-B600 GB U/CA/CE7/E 3-295-266-12 (1) ICD-B600 GB U/CA/CE7/E 3-295-266-12 (1)

No results
