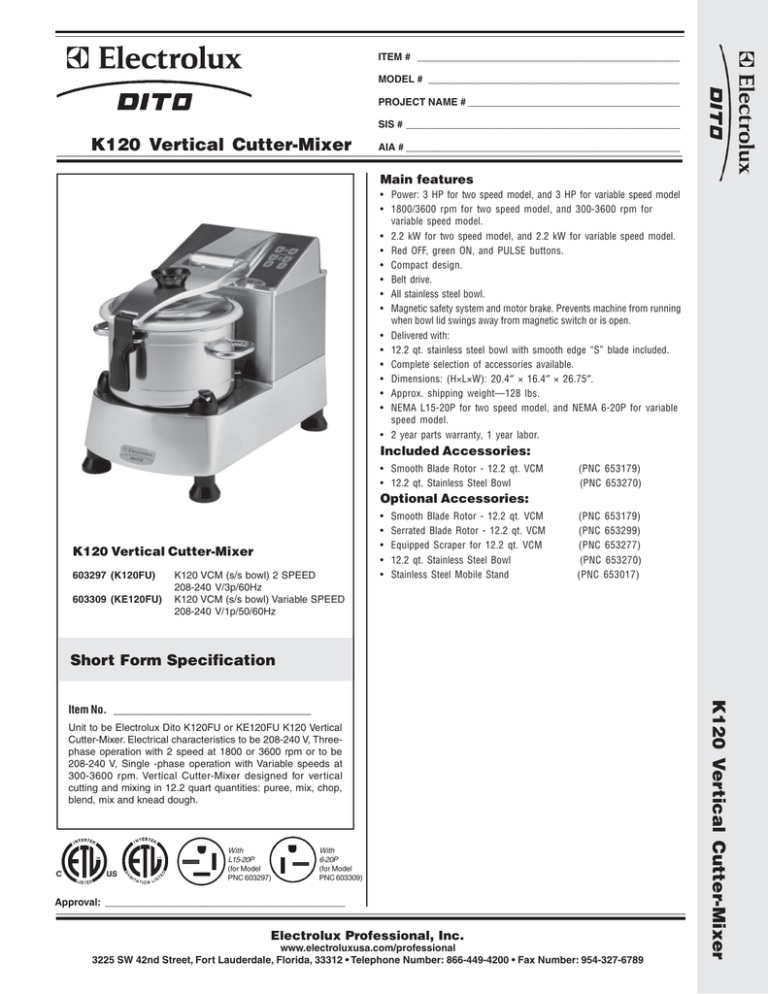

Electrolux Dito 603309 User's Manual

K120 Vertical Cutter-Mixer

K120 Vertical Cutter-Mixer

603297 (K120FU) K120 VCM (s/s bowl) 2 SPEED

208-240 V/3p/60Hz

603309 (KE120FU) K120 VCM (s/s bowl) Variable SPEED

208-240 V/1p/50/60Hz

ITEM # _______________________________________________

MODEL # _____________________________________________

PROJECT NAME # ______________________________________

SIS # _________________________________________________

AIA # _________________________________________________

Main features

• Power: 3 HP for two speed model, and 3 HP for variable speed model

• 1800/3600 rpm for two speed model, and 300-3600 rpm for variable speed model.

• 2.2 kW for two speed model, and 2.2 kW for variable speed model.

• Red OFF, green ON, and PULSE buttons.

• Compact design.

• Belt drive.

• All stainless steel bowl.

• Magnetic safety system and motor brake. Prevents machine from running when bowl lid swings away from magnetic switch or is open.

• Delivered with:

• 12.2 qt. stainless steel bowl with smooth edge “S” blade included.

• Complete selection of accessories available.

• Dimensions: (H×L×W): 20.4

″ × 16.4″ × 26.75″.

• Approx. shipping weight—128 lbs

.

• NEMA L15-20P for two speed model, and NEMA 6-20P for variable speed model.

• 2 year parts warranty, 1 year labor.

Included Accessories:

• Smooth Blade Rotor - 12.2 qt. VCM (PNC 653179)

• 12.2 qt. Stainless Steel Bowl (PNC 653270)

Optional Accessories:

• Smooth Blade Rotor - 12.2 qt. VCM

• Serrated Blade Rotor - 12.2 qt. VCM

• Equipped Scraper for 12.2 qt. VCM

(PNC 653179)

(PNC 653299)

(PNC 653277)

• 12.2 qt. Stainless Steel Bowl (PNC 653270)

• Stainless Steel Mobile Stand (PNC 653017)

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux Dito K120FU or KE120FU K120 Vertical

Cutter-Mixer. Electrical characteristics to be 208-240 V, Threephase operation with 2 speed at 1800 or 3600 rpm or to be

208-240 V, Single -phase operation with Variable speeds at

300-3600 rpm. Vertical Cutter-Mixer designed for vertical cutting and mixing in 12.2 quart quantities: puree, mix, chop, blend, mix and knead dough.

With

L15-20P

(for Model

PNC 603297)

With

6-20P

(for Model

PNC 603309)

Approval: ___________________________________________

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

EC

EC

16.38

416 mm

26.77

680 mm

19.88

505 mm

Front View

Side View

16.93

430 mm

Top View

(Shown with optional trolley.)

K120 Vertical Cutter-Mixer

Electric

Supply voltage:

603297 (K120FU)

603309 (KE120FU)

208-240 V/3p/60Hz – 15A

208-240 V/1p/50/60Hz – 15A

Key Information

Uses of Food Processor

MEAT

Rough mincing

Pates

Small sausages

Large sausages

Minced meat

Shellfish

Fine mincing

Stuffing

Mousses

PASTRY

Shortcrust

Cold water paste

Flan

POWDER

Almonds

Hazelnuts

FRUITS AND VEGETABLES

Purees

Mousses

Syrups

CHOPPING

Parsley

Onions

45.95

1167 mm

32.28

820 mm 28.58

726 mm

K120 Vertical Cutter-Mixer
