Electrolux K120F4 User's Manual


Add to my manuals
4 Pages

advertisement

Electrolux K120F4 User's Manual | Manualzz

Item

Model

ProjectName

K120

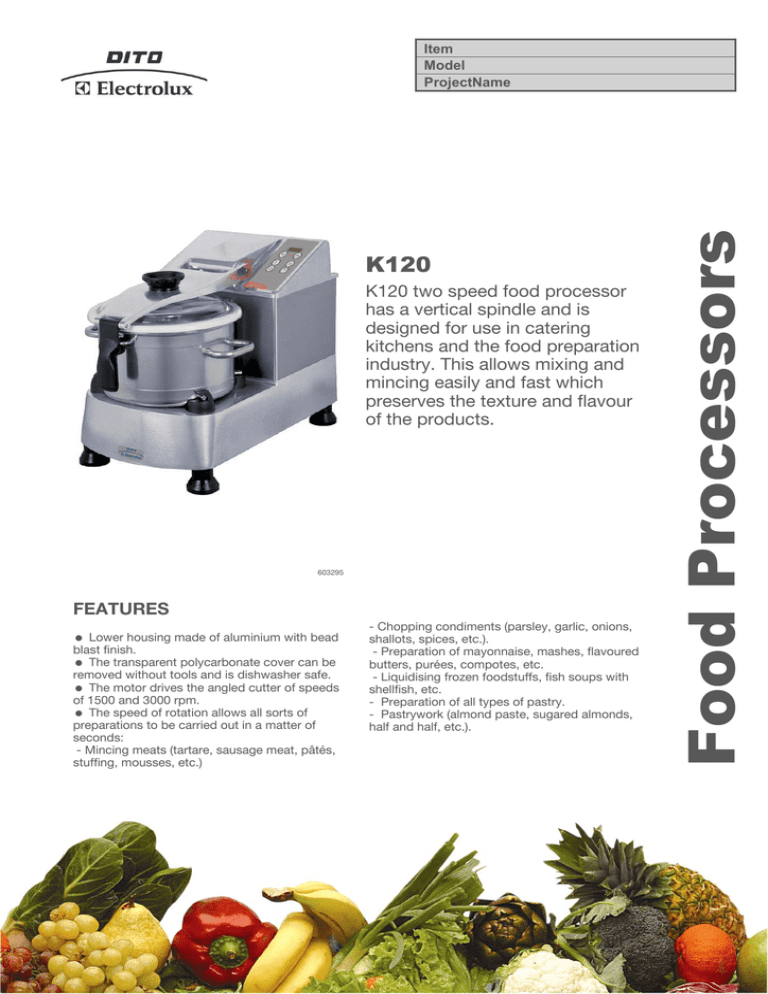

K120 two speed food processor has a vertical spindle and is designed for use in catering kitchens and the food preparation industry. This allows mixing and mincing easily and fast which preserves the texture and flavour of the products.

603295

FEATURES

V Lower housing made of aluminium with bead blast finish.

V The transparent polycarbonate cover can be removed without tools and is dishwasher safe.

V The motor drives the angled cutter of speeds of 1500 and 3000 rpm.

V The speed of rotation allows all sorts of preparations to be carried out in a matter of seconds:

- Mincing meats (tartare, sausage meat, pâtés, stuffing, mousses, etc.)

- Chopping condiments (parsley, garlic, onions, shallots, spices, etc.).

- Preparation of mayonnaise, mashes, flavoured butters, purées, compotes, etc.

- Liquidising frozen foodstuffs, fish soups with shellfish, etc.

- Preparation of all types of pastry.

- Pastrywork (almond paste, sugared almonds, half and half, etc.).

V The stainless steel bowl is supplied complete with a leak resistant spout and has a transparent lid with a watertight seal and a large central rotating shaft that allows liquids to be mixed without overflowing.

V The spout allows products to be added in mid-cycle without stopping the machine.

V The blades are angled and the base of the bowl is conical to ensure consistent mixing every time.

V Operator safety is guaranteed by the presence of a magnetic microswitch which stops the machine whenever the lid or the bowl are not correctly positioned.

V A safety device stops the machine from restarting after a power cut until the operator presses the start button.

V The touch control panel allows the entire machine to be cleaned with a jet of water (IP66 water protection).

Specifications

MODEL

External dimensions - mm

width

depth

height

Mincing capacity - kg/cycle

meats

Preparation mayonnaise/sauces - kg/cycle

mayonnaise

Power - kW

installed-electric

Net weight - kg.

Supply voltage

K120F4

603295

K120F4SR

603296

416

680

517

5

6

416

680

517

5

6

2.2

2.2

58 58

400...415 V, 3, 50 400...415 V, 3, 50

Included accessories

CODE

653270

653299

653179

DESCRIPTION

11.5 LITRE S/S BOWL FOR CUTTER-MIXER

SERRATED BLADE ROTOR -11.5L CUTTER-MIXER

SMOOTH BLADE ROTOR FOR 11.5 CUTTER-MIXER

Optional accessories

CODE

653270

653277

653017

653299

653538

653179

DESCRIPTION

11.5 LITRE S/S BOWL FOR CUTTER-MIXER

EQUIPPED SCRAPER FOR 11.5L CUTTER-MIXER

S/S MOBILE STAND

SERRATED BLADE ROTOR -11.5L CUTTER-MIXER

SERRATED ROTOR-MEAT-11.5L CUTTER-MIXER

SMOOTH BLADE ROTOR FOR 11.5 CUTTER-MIXER

K120F4

603295

1

1

K120F4

603295

K120F4SR

603296

1

1

K120F4SR

603296

Installation drawings

XXX

603295, 603296

416

I

680

I

MODEL

I - Electrical connection

K120F4

603295

K120F4SR

603296

400...415 V, 3, 50 400...415 V, 3, 50

The manufacturer reserves the right to modify and make improvements to the products without giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an indication only.

www.dito-electrolux.com
