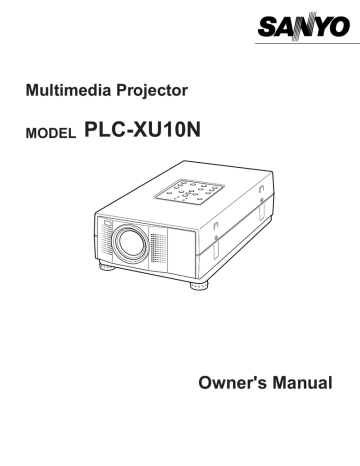

Fisher PLC-XU10N Owner's Manual

Multimedia Projector

MODEL

PLC-XU10N

Owner's Manual

2

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

TO THE OWNER

As the owner of a new Multimedia Projector, you are probably eager to try out your new projector. Before you do, we suggest that your spend a little time reading this manual to familiarize yourself with the operating procedures, so that you will receive maximum satisfaction from the many features included in your new projector.

This owner's manual will acquaint you with your projector's features. Reading it will help us too. Through the years, we have found that many service requests were not caused by problems with our projectors. They were caused by problems that could have been prevented, if the owner had followed the instructions in the manual.

You can often correct operating problems yourself. If your projector fails to work properly, see

"TROUBLESHOOTING" section on pages 44 ~ 45 and try the solution marked for each problem.

SAFETY PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible eye damage could result. Be especially careful that children do not stare directly into the beam.

The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button. Do not look into the Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

This projector should be set in the way indicated. If not, It may result in fire hazard.

If the projector will not be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE CONSTITUTING

A RISK OF ELECTRIC SHOCK IS

PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT

.

IMPORTANT SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall of shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth of other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

GROUND

This projector is equipped with a grounding type AC line plug.

Should you be unable to insert the plug into the outlet, contact your electrician. Do not defeat the safety purpose of this grounding type plug.

Follow all warnings and instructions marked on the projectors.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained.

Do not cover the ventilation slot on the projector.

Heat build-up can reduce the service life of your projector, and can also be dangerous.

20cm

PROJECTOR

(FRONT)

PROJECTOR

(SIDE)

WALL

50cm 50cm 50cm

3

TABLE OF CONTENTS

FEATURES AND DESIGN 5

PREPARATION 6

NAME OF EACH PART OF THE PROJECTOR 6

SETTING UP THE PROJECTOR 7

CONNECTING THE AC POWER CORD

VENTILATION

MOVING THE PROJECTOR 9

8

8

BEFORE OPERATION 16

OPERATION OF THE REMOTE CONTROLS 16

TOP CONTROLS AND INDICATORS 18

OPERATING ON-SCREEN MENU 19

COMPUTER MODE

CONNECTING THE PROJECTOR 10

TERMINALS OF THE PROJECTOR 10

CONNECTING TO THE VIDEO EQUIPMENT 11

CONNECTING TO THE COMPUTER 12

VIDEO MODE

SELECTING VIDEO MODE

SELECTING COLOR SYSTEM

PICTURE IMAGE ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

25

SELECTING COMPUTER MODE

SELECTING COMPUTER SYSTEM

25

25

PC ADJUSTMENT 26

COMPATIBLE COMPUTER SPECIFICATIONS 27


PICTURE POSITION ADJUSTMENT


28

30

30

MCI MODE

OPERATING THE PC CARD SLOT

SHOW THE DATA IN THE MEMORY CARD


PICTURE POSITION ADJUSTMENT


WRITE DATA INTO THE MEMORY CARD

SMART MEDIA AND PC CARD ADAPTER

33

33

34

35

36

36

37

38

31

31

31

32

32

BASIC OPERATION

TURNING ON / OFF THE PROJECTOR

ADJUSTING THE PICTURE

PICTURE FREEZE / NO SHOW FUNCTION

CURSOR FUNCTION

SOUND ADJUSTMENT

22

22

23

23

23

24

SETTING

SETTING MENU

SETTING LANGUAGE

APPENDIX

OPERATING WIRELESS MOUSE

MAINTENANCE

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

40

40

40

41

41

42

44

46

4

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with most advance technology for portability, durability, and ease for use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆

Compatibility

This projector is compatible with many different types of personal computers and video devices, including;

● IBM-compatible computers, including laptops, up to 1280 x 1024 resolution.

● Apple Macintosh and PowerBook computers up to 1280 x 1024 resolution.

● Various video equipments using any of the world wide video standards, including NTSC,

NTSC4.43, SECAM, PAL, and PAL-M.

◆

Image Resolution

Picture Image is projected in the resolution of 1024 x 768. The projector provides computer images just as they appear on your computer's monitor. Screen resolutions between 1024 x 768 and 1280 x 1024 are compressed to 1024 x 768. The projector cannot display screen resolutions above 1280 x

1024. If your computer's screen resolution is higher than 1280 x 1024, reset it to a lower resolution before you connect the projector.

◆

Portability

This projector is extremely compact in size and weight. Having a sophisticated shape like an attaché case with a retractable carrying handle, the projector will help you make powerful presentation wherever you go.

◆

Automatic Multiscanning System

This projector can detect output signals from most personal computers currently distributed. It is free from complicated adjustments to project picture images from PC.

◆

Multilanguage

MENU DISPLAY is displayed with; English,

Deutsch, Français, Italiano, Español, or Japanese

◆

PC CARD SLOT

This projector has a PC CARD SLOT for easier presentation. Pictures can be projected just by inserting a memory card including image data and the presentation data can be edited by the software

"Media Card Imager" (supplied) easily. Refer to the pages 33 ~ 39 and the Owner's Manual for Media

Card imager for operations.

◆

Laser Pointer and Cursor Function

The Laser Pointer and Cursor functions are provided on this projector and the Remote Control

Unit. These functions are easily controlled with the

Remote Control. Refer to the pages 16 and 23 for operations.

◆

Other Features

This projector has Picture Freeze and Mute functions, and Air Pad Remote Control.

◆

Accessories

This projector comes with the parts listed below.

Check to make sure all are included. If any parts are missing, contact to a sales dealer.

● Owner's Manual.

● AC Power Cord.

● Wireless Remote Control Unit.

● Batteries for Remote Control Unit.

● VGA Cable.

● VGA/MAC Adapter.

● Mouse Cable for PS/2 port.

● Mouse Cable for serial port.

● Mouse Cable for ADB port.

● MCI Cable (RS-232C Cable).

● Media Card Imager for Windows 95 (CD-ROM) and Owner's Manual for this software.

● SmartMedia (Memory Card).

● PC Card Adapter for SmartMedia.

● Lens Cover.

● Carrying Bag.

5

6

PREPARATION

NAME OF EACH PART OF THE PROJECTOR

PREPARATION

SETTING-UP THE PROJECTOR

Positioning the Projector

● This projector is basically designed to project on a flat projection surface.

● The projector can be focused from 4.6'(1.4m) ~ 35.4'(10.8m).

● Refer to the figure below to adjust the screen size.

35.4' (10.8m)

300"

H1

230"

H2

24.0' (7.3m)

200"

154"

18.0' (5.5m)

11.8' (3.6m)

150"

115"

100"

77"

4.6' (1.4m)

40"

30"

Screen Size

(W x H) mm

Height (H1)

Height (H2)

30”

609 x 457

17.1”(435mm)

0.9”(22mm)

60”

1219 x 914

34.3”(870mm)

1.7”(44mm)

100”

2032 x 1524

57.1”(1451mm)

2.9”(73mm)

150” 200” 300”

3048 x 2286 4064 x 3048 6096 x 4572

85.7”(2177mm) 114.3”(2903mm) 171.4”(4354mm)

4.3”(109mm) 5.7”(145mm) 8.6”(218mm)

ROOM LIGHT

The brightness in the room has a great influence on the quality of a picture. Adjust the light little darker, and fine pictures are provided.

Adjustable Feet

Picture tilt and projection angle can be adjusted by twisting ADJUSTABLE FEET. Projection angle can be adjusted 0 to 2 degrees by rotating Adjustable Feet.

UP

DOWN

ADJUSTABLE FEET

UP

DOWN

7

8

PREPARATION

CONNECTING THE AC POWER CORD

This projector uses nominal input voltages of 100-120 V

AC. The projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor.

To reduce the risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if your are not sure of the type of power supply being in use.

Connect the projector with the peripheral equipment before turning the projector on. (Refer to pages 10 ~15 for connection.)

Connect the AC power supply cord (provided) to the projector.

The socket-outlet must be near this equipment and must be easily accessible.

CAUTION

For the safety, unplug the AC Power Cord when the appliance is not used.

When this projector is connected to the outlet with the AC Power Cord, the appliance is in Stand-by

Mode and consumes a little electric power.

Projector side (Female) AC outlet side (Male)

Ventilation

This projector is equipped cooling fans for protection from overheating. Pay attention to the following to ensure the ventilation and avoid a possible risk of fire and malfunction.

● Do not cover the vent slot.

● Keep the rear grill at least one meter away from any object.

● Make sure that there is no object under the projector. An obstacle under the projector may prevent the projector from taking the cooling air through the bottom vent slot.

EXHAUST VENT

(REAR SIDE)

AIR INTAKE VENT

(BOTTOM SIDE)

PREPARATION

Moving the Projector

Use the Carry Handle when moving the Projector.

● Replace the lens cover and rotate the feet fully clockwise (to shorten the feet) when moving the projector to prevent damage to the cabinet.

NOTE

The carrying bag (supplied) is intended for protection from dust and scratches on the surface of the cabinet, and it is not designed to protect the LCD projector from external shock.

Do not drop the projector, subject it to strong forces, or put other things on the cabinet when carrying the projector with this bag. Do not transport the projector through a courier or transport services with this bag.

The projector can be damaged.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or give a shock to the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a carrying case recommended by Sanyo.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, use a case recommended by Sanyo.

● For carrying or transportation cases, contact a Sanyo authorized dealer.

9

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR

COMPUTER INPUT TERMINAL

Connect the computer output to this terminal.

(Refer to P12 ~15.)

MONITOR OUTPUT TERMINAL

Connect to the monitor to this terminal.

(Refer to P12 ~15.)

CONTROL PORT CONNECTOR

When controlling the computer with the Remote Control of this projector, connect the mouse port to this terminal.

(Refer to P12 ~15.)

COMPUTER IN MONITOR OUT

MCI SERIAL TERMINAL

This terminal is used to connect a computer to edit

(write and read) the data of PC card with "Media Card Imager."

(Refer to P12 ~15, 37.)

CONTROL PORT

AUDIO IN

MCI SERIAL

AUDIO OUT

COMPUTER AUDIO INPUT JACK

Connect the audio output from the computer to this terminal.

(Refer to P12 ~15.)

AUDIO INPUT JACKS

Connect the audio outputs from the video equipment to these terminals.

(Refer to P11.)

● When the audio output is monaural, connect it to he Left jack.

R-AUDIO-L

(MONO)

VIDEO

¥ S-VIDEO

VIDEO INPUT JACK

Connect the S-VIDEO output from the video equipment to this terminal.

(Refer to P11.)

S-VIDEO INPUT JACK

Connect the S-VIDEO output from the video equipment to this terminal.

(Refer to P11.)

AUDIO OUTPUT JACK

Connect the audio amplifier to this terminal.

(Refer to P12 ~15.)

RESET BUTTON

This projector adopts micro computer to control the appliance. The micro computer rarely work incorrectly and may not control the projector properly. In that case, press

RESET button with sharpened tool (like pen) to shut down the appliance. The projector is switched off.

D o not use RESET button unreasonably.

COMPUTER INPUT / MONITOR OUTPUT TERMINAL

Terminal : HDB15-PIN

Connect the display output terminal of the computer to COMPUTER INPUT with the

VGA Cable (supplied). And connect the monitor to MONITOR OUTPUT with the monitor cable (not supplied). When connecting the Macintosh computer, the

MAC/VGA Adapter is required.

Pin Configuration

5 4 3

10 9

15 14 13

8

2

12

7

1

11

6

CONTROL PORT CONNECTOR

Terminal : MULTI-POLE 12-PIN

When controlling the computer with the projector's Wireless Remote Control Unit, connect control port (PS/2, Serial or ADB port) on your computer to this terminal.

(Three types of cables are supplied.)

Pin Configuration

6

10 9

12

2

5

1

4

8

11

3

7

6

7

4

5

8

1

2

3

Red Input

Green Input

Blue Input

Sense 2

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

12

13

14

15

9

10

11

Non Connect

Ground (Vert.sync.)

Sense 0

Sense 1

Horiz. sync.

Vert. sync.

Reserved

7

8

9

10

3

4

5

6

1

2

11

12

PS/2 Serial ADB

-----

CLK

DATA

-----

T X D

-----

-----

-----

-----

ADB

-----

-----

-----

-----

-----

-----

R X D

-----

READY

-----

-----

-----

-----

-----

GND

-----

-----

-----

GND

-----

-----

-----

GND

-----

-----

-----

10


CONNECTING TO THE VIDEO EQUIPMENTS

Satellite

TV Turner

Video Cassette Recorder Video Disc Player

Video / Audio Output

Use Cables and Adapter indicated below.

· VIDEO CABLE (not supplied)

· S-VIDEO CABLE (not supplied)

· AUDIO CABLE (not supplied)

Video Audio Cable

(Not supplied)

S-VIDEO Cable

(Not supplied)

S-VIDEO Output

Use the either of VIDEO jack or S-VIDEO jack. When the both jacks are connected, the

S-VIDEO jack has priority over the VIDEO jack.


CONTROL PORT

AUDIO IN

MCI SERIAL

AUDIO OUT

¥ S-VIDEO

R-AUDIO-L VIDEO

(MONO)

Terminals of the Projector

Audio Cable

(Stereo / Not supplied)

Audio Input

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

External Audio Equipment

Audio Speaker

(stereo) Audio Amplifier

11


CONNECTING TO THE IBM-COMPATIBLE COMPUTER

To connect with the IBM-compatible computer, refer to the figure below.


· VGA CABLE (supplied)

· MOUSE CABLE FOR PS/2 PORT or SERIAL PORT (supplied)

· MCI SERIAL CABLE (supplied)

· MONITOR CABLE (not supplied)

· AUDIO CABLE (stereo /not supplied)

◆ Be sure to connect the MOUSE CABLE corresponding with the terminal of your computer.

NOTE :


IBM-COMPATIBLE COMPUTERS (VGA / SVGA / XGA / SXGA)

Desktop type Laptop type

Monitor

Audio Speaker

(stereo)

Audio Amplifier

To the Monitor

Monitor Output Serial port

To each terminal of your computer

Serial port PS/2 port Audio Output Audio Input

Terminal Terminal

Audio Cable

(stereo / not supplied)

Mouse Cable for PS/2 Port (supplied)

Mouse Cable for Serial Port (supplied)

MCI Serial Cable (supplied)

Monitor Cable (not supplied)

VGA Cable (supplied)

12


A

B

To disconnect MOUSE CABLE,

1. Hold the portion (B) of the connector with one hand.

2. Pull the portion (A) to the arrow direction and remove connector.

CONTROL PORT


CONTROL PORT

AUDIO IN

MCI SERIAL

AUDIO OUT

¥ S-VIDEO

R-AUDIO-L VIDEO

(MONO)

AUDIO IN AUDIO OUT

MCI SERIAL

MONITOR OUT

COMPUTER IN

Use either of these Mouse Cables corresponding with your terminal of your computer.

13


CONNECTION TO THE MACINTOSH COMPUTER

To connect with the Macintosh computer, refer to the figure below.


· VGA CABLE (supplied)

· VGA/MAC ADAPTER (supplied)

· MOUSE CABLE FOR ADB PORT (supplied)

· MONITOR CABLE (not supplied)

· PC AUDIO CABLE (stereo / not supplied)

NOTE :


MACINTOSH COMPUTERS (VGA / SVGA / XGA / SXGA)

Desktop type Laptop type

Monitor

Audio Speaker

(stereo)

Audio Amplifier

To the Monitor To each terminal of your computer

ADB port Audio Output Monitor Output

ON DIP

1 2 3 4 5 6

MAC Adapter (supplied)

Set the switches depending on the RESOLUTION MODE that you want to use before your turn on the projector and computer

Terminal

Audio Input

Audio Cable

(stereo / not supplied)

Mouse Cable for PS/2 Port (supplied)

Monitor Cable (not supplied)

VGA Cable (supplied)

14


◆ MAC/VGA ADAPTER

Set the switches as shown in the table below depending on the RESOLUTION MODE that you want to use before your turn on the projector and computer.

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

21" MODE (1152 x 870)

1

ON

OFF

OFF

ON

2

ON

ON

ON

ON

3

OFF

OFF

ON

ON

4 5 6

OFF OFF OFF

ON OFF OFF

OFF OFF OFF

ON OFF OFF

ON

OFF

ON DIP

1 2 3 4 5 6

A

B

To disconnect MOUSE CABLE,

1. Hold the portion (B) of the connector with one hand.

2. Pull the portion (A) to the arrow direction and remove connector.

CONTROL PORT


CONTROL PORT

AUDIO IN

MCI SERIAL

AUDIO OUT

¥ S-VIDEO

R-AUDIO-L VIDEO

(MONO)

AUDIO IN AUDIO OUT

MONITOR OUT

COMPUTER IN

15

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

This remote control unit is not only able to operate the projector but also usable as a wireless mouse for a PC.

POINT button and two CLICK buttons are used for wireless mouse operation. (Refer to page 41.)

Wireless mouse is usable when PC mouse pointer is displayed on the screen, the wireless mouse cannot be used when the On-Screen Menu is displayed.

VIDEO BUTTON

Used to select VIDEO source. (P31)

ZOOM BUTTON

Used to adjust zoom. (P23)

COMPUTER / MCI BUTTON

Used to select source either

COMPUTER or MCI mode.

(P25)

VOLUME BUTTONS

Used to adjust volume. (P24)

FOCUS BUTTON

Used to adjust focus. (P23)

MUTE BUTTON

Used to mute sound. (P24)

VOLUME

VIDEO ON-OFF

ZOOM

FOCUS

PAGE

MUTE

CURSOR FREEZE

/

W

AUTO IM

AGE

MENU

NORMAL

POWER ON-OFF BUTTON

Used to turn the projector on or off. (P22)

PAGE BUTTON

Used to move to next / previous page of the data in memory card. This buttons are activated in MCI mode only. (P34)

FREEZE / NO SHOW BUTTON

Used to stop the picture or to turn the picture into black image. (P23)

AUTO IMAGE BUTTON

Use to operate AUTO IMAGE function. (P 29)

CURSOR BUTTON

Used to display CURSOR on the screen. (P23)

POINT BUTTON

Used to select an item on the

MENU. It is also used to pan the image in DIGITAL ZOOM mode. (P30, 36)

LASER BUTTON

Used to operate laser pointer function. The laser beam is emitted while pressing this button.

LASER

D. ZOO

M

NORMAL BUTTON

Used to reset to normal picture adjustment preset by the factory. (P29, 32)

MENU BUTTON

Used to call MENU operation.

(P19)

D.ZOOM BUTTON

Used to turn the projector into

DIGITAL ZOOM mode.

(P30, 36.)

FRONT CLICK BUTTON

Used as right button of PC mouse in wireless mouse operation. It is also used to compress the image in

DIGITAL ZOOM mode. (P30, 36)

SELECT BUTTON

Used to execute the item selected, or to increase or decrease the values in certain items such as CONTRAST or

BRIGHTNESS. It is also used to expand the image in DIGITAL ZOOM mode.

(P30, 36)

LASER POINTER button

This remote control emits a laser beam as the Laser Pointer from the Laser Light Window. When the LASER button is pressed, the laser light goes on: When the button is released, light goes off. Laser light is emitted with the RED light which tells the laser beam being emitted.

The laser emitted is a class II laser; therefore, do not look into the Laser Light Window or shine the laser beam on yourself or other people. The three marks to the right are the caution labels for the laser beam.

CAUTION : Use of controls or adjustments or performance of procedures other than those specified herein may result hazardous radiation exposure.

CAUTION

LASER RADIATION–

DO NOT STARE INTO BEAM

MAX OUTPUT : 1mW

WAVE LENGTH : 660

±

20nm

CLASS II LASER PRODUCT

This product is complied with 21 CFR

part 1040.10

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

LASER-STRAHLING

NICHT IN DEN STRAHL BLICKEN

LASR KLASSE 2

[ U œ ¸ N X Q [ U » r [ … « ¨ ¢ – ˘

IEC60825-1, Am.1 1997

MAX OUTPUT ( ¯ o ˝) : 1mW

WAVE LENGTH ( g •) : 660

±

20nm

AVOID EXPOSURE-LASER

RADIATION IS EMITTED

FROM THIS APERTURE

[ U [ ı o ß r [ … « ¨ ¢ Laser Light Window

53 m159.5018 c-810 1 ks473BT1 mF7[149.2530 0 56.38

16


1

Remote Control Batteries Installation

Remove the battery compartment lid.

Press the lid downward and slide it.

2 Slide the batteries into the compartment.

3 Replace the compartment lid.

Slide the lid upward.

For correct polarity (+ and –), be sure the battery terminals are in contact with the pins in the compartment.

To insure safe operation, please observe the following precautions :

● Use (2) AA type alkaline batteries.

● Replace two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control, carefully wipe the case clean and load new batteries.

Operating Range of the Remote Control

Point the remote control toward the projector (Receiver Window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5m) and 60° front and rear of the projector

60°

16.4'

(5 m)

60°

16.4'

(5 m)

17


TOP CONTROLS AND INDICATORS

LAMP INDICATOR

This indicator is lit in dim when the projector is turned on.

And the light is brightened when the projector is in standby mode.

LAMP REPLACE INDICATOR

This indicator turns to yellow when the life of the projection lamp draws to an end.

(Refer to P43.)

WARNING TEMP. INDICATOR

This indicator flashes red when internal projector temperature is too high.

(Refer to P42.)

READY INDICATOR

This indicator is lit in green when the projector is ready to be turned on.

POWER ON–OFF BUTTON

Used to turn the projector on or off. (Refer to P22.) MENU BUTTON

Used to active or terminate the

MENU operation.

(Refer to P19.)

LAMP REPLACE

LAMP

MENU

WARNING TEMP.

READY

ON–OFF

AUTO IMAGE BUTTON

Used to operate AUTO IMAGE function.

(Refer to P29.)

FOCUS BUTTON

Used to select focus adjust.

(Refer to P23.)

AUTO IMAGE

FOCUS

SELECT

NORMAL

POINT BUTTONS

Used to move the pointer.

(Refer to P19.)

SELECT BUTTON

Used to execute the item selected or to adjust the values in certain items on the MAIN

MENU DISPLAY.

PAGE BUTTONS

Used to move next/previous page of the data in the memory card plugged into PC CARD

SLOT. These buttons are used to stop or resume AUTO-PLAY function. Page buttons are activated in MCI mode.

(Refer to P34.)

PAGE ZOOM MODE

+

VOLUME

–

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory.

(Refer to P29 and 32.)

ZOOM BUTTON

Used to select zoom adjust.

(Refer to P23.)

MODE BUTTON

Used to select input source.

(Computer, Video and MCI)

(Refer to P25 and 31.)

VOLUME BUTTONS

Used to adjust volume.

(Refer to P24.)

18


MENU BAR

MENU BAR IN COMPUTER MODE

Press MENU BUTTON while being in Computer mode.

MODE MENU

Used to select the Computer input mode.

(Refer to P25)

AUTO IMAGE MENU

Used to adjust Fine sync., Total dots, and Picture Position automatically.

(Refer to P29)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format.

(Refer to P26)

SETTING MENU

Used to set the Display

Menu and to reset

Lamp Replacement

Monitor Timer.

(Refer to P40)

LANGUAGE MENU

Used to select the language used in the Menu.

(Refer to P40)

SYSTEM MENU

Used to select a computer system.

(Refer to P25)

IMAGE MENU

Used to adjust the computer image. [Fine sync. / Total dots /

White Balance /

Contrast / Brightness]

(Refer to P28)

POSITION MENU

Used to adjust the position of the image.

(Refer to P30)

SCREEN MENU

Used to adjust the size of the image.

(Refer to P30)

SOUND MENU

Used to adjust the Sound

Volume, or to select Mute.

(Refer to P24)

MENU BAR IN VIDEO MODE Press MENU BUTTON while being in Video mode.

MODE MENU

Used to select the Video input.

(Refer to P31)

IMAGE MENU

Used to adjust the picture image. [Color /

Tint / Contrast /

Brightness/ Sharpness]

(Refer to P32)

These icons have the same function as the

Computer Mode.

SYSTEM MENU

Used to select a color system among [ PAL,

SECAM, NTSC, NTSC

4.43, PAL-M ].

(Refer to P31)

SCREEN MENU

Used to set the size of the image among

Regular, Wide,

Extend or Zoom.

(Refer to P32)

20

BASIC OPERATIONS

TURNING ON / OFF THE PROJECTOR

Turning on the Projector

1 Complete the peripheral connections (with Computer, VCR, and etc.) before turning on the projector. (Refer to "CONNECTING TO

THE PROJECTOR" on Pages 10~15 for connecting those equipment.

2 Connect the projector's AC power cord into a wall outlet. The

LAMP POWER indicator lights RED, and the READY indicator lights GREEN.

3 Press the power ON-OFF button on the Remote Control Unit or on the Top Control to ON. The LAMP POWER indicator dims, and the Cooling Fans start to operate. The Preparation Display appears on the screen and the count-down starts. The signal from the source appears after 30 seconds.

30

The Preparation Display disappears after 30 seconds.

1

2

3

Turning off the Projector

Press the power ON-OFF button on the Remote Control Unit or on the Top Control, and the message "Power off?" appears on the screen.

Press again the power ON-OFF button to turn off the projector.

The LAMP POWER indicator lights bright and the READY indicator turns off. The Cooling Fans operate for 90 seconds after the projector is turned off. (During this "Cooling Down" period, this appliance cannot be turned on.)

When the cooling the projector has finished, the READY indicator turns to green again and you can turn the projector on. To power down completely, disconnect the AC power cord.

Power off?

The message disappears after 4 seconds.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN IT ON, WAIT AT LEAST 5 MINUTES

BEFORE TURNING IT OFF.

When the TEMPERATURE WARNING indicator flashes red, the projector is automatically turned off.

Wait at least 5 minutes before turning the projector on again.

If the TEMPERATURE WARNING indicator continues to flash, follow procedures below:

1. Press the power ON-OFF button to OFF.

2. Check the air filters for dust accumulation.

3. Remove dust with vacuum cleaner. (See "AIR FILTER CARE AND CLEANING" section on page 46.)

4. Press the power ON-OFF button to ON.

If the TEMPERATURE WARNING indicator still continues to flash, call your authorized dealer or service station.

NOTE : The Cooling Fan may work for cooling while the projector is turned off. When the Cooling Fan is working, TEMPERATURE WARNING INDICATOR flashes red.

22

BASIC OPERATION

ADJUSTING THE IMAGE

ZOOM Adjustment

1 Press ZOOM button on the Top Control or the Remote Control to turn into the ZOOM mode.

2 Adjust the size of the image by pressing POINT UP/DOWN button.

Press UP button to have the image larger, and press DOWN button to have the smaller.

ZOOM


FOCUS Adjustment

1 Press FOCUS button on the Top Control or the Remote Control to turn into the FOCUS mode.

2 Adjust the focus of the image by pressing POINT UP or DOWN button.

FOCUS


PICTURE FREEZE / NO SHOW FUNCTION

Press the FREEZE / NO SHOW button on the Remote Control Unit to turn the picture remained on-screen or turn the picture into black image.

These function is cancelled when the FREEZE / NO SHOW button is pressed again or any other function button is pressed.

NORMAL mode

FREEZE mode

NO SHOW mode

CURSOR FUNCTION

This projector can display a cursor by pressing cursor button on the

Remote Control. The cursor can be controlled with the POINT buttons.

To terminate the Cursor Function, press CURSOR button again.

NOTE : The cursor settings set with the “Media Card Imager” is not available in this projector.

Cursor

23

BASIC OPERATION

SOUND ADJUSTMENT

Direct Operation

Sound Volume Adjustment

Press the VOLUME (+/–) buttons (located on the Top Control or on the

Remote Control Units) to adjust the volume. The Volume dialog box appears on the screen for a few seconds.

(+) button to increase the volume, and (–) button decreasing.

Sound Mute Setting

Press the MUTE button on the Remote Control Units to cut off the sound. To restore the sound to its previous level, press again or press

Volume buttons.

It indicates the roughly level of the volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

1

2

Menu Operation

Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select SOUND and press the SELECT button. Another dialog box SOUND

ADJUST Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear.

Move the arrow to the item that you want to select by pressing the

POINT UP/DOWN buttons.

Volume

Move the arrow to ▲ or ▼ of "Volume" by pressing the

POINT UP/ DOWN buttons. To increase the volume, point the arrow to ▲ and then press the SELECT button.

To decrease the volume point the arrow to ▼ and then press the SELECT button.

Mute

To cut off the audio sound, point the arrow to "Mute" and then press the SELECT button. The Mute display is changed On from Off and the sound is cut off. To restore the sound to its previous volume level, set the Mute to

Off.

Move the arrow to the item and then press the SELECT button.

It indicates the roughly level of the item.

Move the arrow to ▲ or ▼ and press the

SELECT button.

It closes the

Sound Menu.

24

COMPUTER MODE

SELECTING COMPUTER MODE


Press the MODE button on the Top Control or the COMPUTER / MCI button on Remote Control Unit. Select the Mode among COMPUTER,

VIDEO, or MCI mode.

MODE button

COMPUTER

MCI

VIDEO

Menu Operation


Press the POINT LEFT/RIGHT buttons to select Computer press the SELECT button. and

CURRENT MODE DISPLAY

When selecting the Computer Mode, the Current Mode display appears.

It shows the information of the computer of the mode selected.

COMPUTER / MCI button

COMPUTER

MCI

Providing the information of the computer detected by the projector.

SELECTING COMPUTER SYSTEM

Automatic Multiscanning system

This projector automatically adapt to most different types of computer based on VGA, SVGA or XGA (refer to "COMPATIBLE COMPUTER

SPECIFICATION" on page 27). When selecting Computer, this projector become automatically suited to the incoming signal and projectors the proper image without any special setting. (Setting of the

Computer System may be required when connecting some computers.)

Note : The projector may provides the messages below.

Go PC adj.

The projector cannot discriminate or detect the input signal from the computer. Adjust and set the computer system manually. (Refer to page 26.)

No signal

There is no signal input from the computer. Make sure the connection of the computer and the projector is set correctly. (Refer to TROUBLESHOOTING on page 44.)

Selecting Computer System Manually

To set the Computer system manually, select the mode on the ON-

SCREEN MENU.

1 Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT button. Another dialog box COMPUTER

MODE Menu will appear. (The COMPUTER MODE Menu also appears by pressing the SYSTEM button on the Top Control or the Remote Control Units.)

2 Press the POINT DOWN button and a red-arrow icon will appear.

Move the arrow to the system that you want to set, and then press

SELECT button.

SYSTEM BOX

It displays the SYSTEM being selected.

The system being selected.

The systems on this dialog box can be selected.

When this mark is displayed as black, more computer system modes will be available. Move the arrow to this mark and then press the SELECT button, and another mode will be displayed.

It closes the

SYSTEM Menu.

25

COMPUTER MODE

PC ADJUSTMENT

This Projector can automatically detect display signals from most personal computers currently distributed.

However, some computers employ special signal formats which are different from the standard ones and may not be detected by this projector. If this happens, the projector cannot reproduce a proper image and the image is recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has PC ADJUSTMENT function, to enable you to precisely adjust several parameters to match with the input signal format. The projector has eight independent memory areas where you can store the parameter you have set. This enables you to recall the setting for a specific computer whenever you need it.

1

2

3


Press the POINT LEFT/RIGHT buttons to select PC ADJUST and press the SELECT button. Another dialog box "Where to reserve" Menu will appear.

In this dialog box, you can store the parameter into the area from

"Mode 1" to "Mode 8." When memorizing the new computer parameter, select the Mode with the message of "Free" by pressing the POINT UP/DOWN buttons and SELECT button. To change the parameters of the Mode previously set, select the

Mode with "Stored."

When the Mode is selected, Parameter adjustment dialog box appears. Adjust the each item to match with your computer.

Total lines

The number of the total vertical lines. Adjust the number to match your PC image.

Total dots

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

Horizontal

Adjustment of the horizontal picture position. When the image is not centered on the screen, adjust this item.

Vertical

Clamp

Height

Adjustment of the vertical picture position. When the image is not centered on the screen, adjust this item.

Adjustment of the clamp level. When the image has a dark bar(s), try this adjustment.

Adjusting the vertical height of the picture image.

Width

Adjusting the horizontal width of the picture image.

Stored

Stored

When the Mode is selected, below dialog box appears.

This Mode has parameters being stored.

The Vacant Mode.

Manual set Computer

Mode (1 to 8).

It closes the PC

ADJUSTMENT

Menu.

Move the arrow to

▲ or ▼ and press

SELECT button.

4 When the parameter data adjustment finishes to be set, select

"Stored" and press the SELECT button. "OK?" dialog box is displayed for confirmation.

Each of the keys operates as follow.

Press SELECT button at this item to adjust “Clamp,”

“Display area,”

“Horiz. scale,” or

“Vert. scale.”

Reset It recall the parameter data that previously adjusted.

Mode free It clear the parameter data previously set the selected

Mode.

5

Stored

Quit

It stores the parameters in the memory.

It closes the PC ADJUST Menu.

To select the Mode manually adjusted in PC ADJUSTMENT

Menu, select the mode at the SYSTEM SELECT Menu. (Refer to page 25.)

26

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 160 MHz of Dot Clock.

ON-SCREEN

DISPLAY

RESOLUTION

VGA 1 640 x 480

VGA 2

VGA 3

720 x 400

640 x 400

VGA 4

VGA 5

VGA 6

VGA 7 640 x 480

MAC LC13 640 x 480

MAC 13

MAC1 6

MAC 19

MAC21

MAC

MAC

RGB

RGB

640 x 480

640 x 480

640 x 480

640 x 480

832 x 624

1024 x 768

1152 x 870

1280 x 960

1280 x 1024

768 x 576

(Interlace)

640 x 480

(Interlace)

35.00

49.72

60.24

68.68

75.00

80.00

15.625

15.734

H-Freq.

(kHz)

31.47

31.47

31.47

37.86

37.86

37.50

43.269

34.97

SVGA 1

SVGA 2

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

SVGA 8

SVGA 9

800 x 600

800 x 600

SVGA 10 800 x 600

SVGA 11 800 x 600

XGA 1

XGA 2

XGA 3

XGA 4

1024 x 768

1024 x 768

1024 x 768

1024 x 768

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

32.70

38.00

48.36

68.677

60.023

56.47

NOTE : Specifications are subject to change without notice.

60.51

60.31

51.09

60.51

60.00

84.997

75.03

70.07

56.25

60.32

75.00

85.06

72.19

61.03

55.38

66.67

74.55

75.08

75.06

75.08

75.08

25

30

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

85.00

66.60

ON-SCREEN

DISPLAY

RESOLUTION

XGA 5 1024 x 768

XGA 6

XGA 7

1024 x 768

1024 x 768

XGA 8

XGA 9

1024 x 768

1024 x 768

(Interlace)

1024 x 768 XGA 10

XGA 11

XGA 12

XGA 13

XGA 14

1024 x 768

1024 x 768

(Interlace)

1024 x 768

1024 x 768

XGA15 1024 x 768

SXGA 1 1152 x 864

SXGA 2 1280 x 1024

SXGA 3 1280 x 1024

SXGA 4 1280 x 1024

SXGA 5 1280 x 1024

SXGA 6 1280 x 1024

SXGA 7 1280 x 1024

SXGA 8 1280 x 1024

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

SXGA 11 1152 x 900

SXGA 12 1152 x 900

SXGA 13

SXGA 14

1280 x 1024

(Interlace)

1280 x 1024

(Interlace)

SXGA 15 1280 x 1024

SXGA 16 1280 x 1024

SXGA 17 1152 x 900

SXGA 18

1280 x 1024

(Interlace)

SXGA 19 1280 x 1024

SXGA 20 1280 x 1024

60.00

61.20

71.40

50.00

50.00

63.37

76.97

61.85

62.50

63.90

63.34

63.74

71.69

81.13

63.98

79.976

46.43

63.79

91.146

H-Freq.

(kHz)

60.31

48.50

44.00

63.48

36.00

62.04

61.00

35.522

46.90

47.00

58.03

64.20

60.00

65.20

75.60

43.00

47.00

60.01

72.00

66.00

58.60

60.00

59.98

60.01

67.19

76.107

60.02

75.025

43.35

60.18

85.024

77.07

75.70

43.48

58.20

58.30

72.0

70.40

V-Freq.

(Hz)

74.92

60.02

54.58

79.35

43.59

27

COMPUTER MODE

PICTURE IMAGE ADJUSTMENT

1

2

Adjust Picture Image Manually


Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT button. Another dialog box PICTURE IMAGE

ADJUSTMENT Menu will appear.


Move the arrow to ▲ or ▼ of the item that you want to change by pressing the POINT UP/DOWN buttons. To increase the value, point the arrow to ▲ and then press the SELECT button. To decrease the value point the arrow to ▼ and then press the

SELECT button.

Fine sync

Adjust the picture as necessary to eliminate flicker from the display.

(From 0 to 127.) This item can be adjusted by pressing the FINE

SYNC. button on the Top Control or the Remote Control Units.

Total dots


White Balance (Red / Green / Blue)

Point to ▼ to adjust the color of image lighter, and select ▲ to adjust the image deeper. (From 0 to 63.)

Contrast

Point to ▼ to adjust the image lighter, and select ▲ to adjust the image deeper. (From 0 to 63.)

Brightness

Point to ▼ to adjust the image darker, and select ▲ to adjust the image brighter. (From 0 to 63.)


Reset It recalls the data previously adjusted.

Stored

Quit

It stores the adjusted data in the memory.

It closes the PICTURE IMAGE ADJUSTMENT Menu.


Move the arrow to

▲ or ▼ and press the SELECT button.

It closes the PICTURE

IMAGE ADJUSTMENT

Menu.

28

COMPUTER MODE

Auto Image Function

The Auto Image function is provided to automatically adjust Fine sync.,

Total dots, and Picture Position for most computers.

1

2


Press the POINT LEFT/RIGHT buttons to select AUTO IMAGE and press the SELECT button.

Another dialog box AUTO IMAGE Menu will appear.

Move the arrow to an item that you want to adjust by pressing the

POINT UP/DOWN button. Change the setting On or Off by pressing the SELECT button.

Fine sync Adjust the picture as necessary to eliminate flicker from the display. This item can be adjusted manually. (Refer to page 28.)

Total Dots The number of the total dots in one horizontal period.

This item can be adjusted manually. (Refer to page 28.)

Position Adjustment of the position of the image. This item can be adjusted manually. (Refer to page 30.)

3 Move the arrow to "Go!" and press the SELECT button to start the

Auto Image function.

This adjustment can be executed by pressing AUTO IMAGE button on the Top Control and the Remote Control.

NOTE : The Fine sync., Total dots, and Picture Position of some computers may not be fully adjusted with the Auto Image

Function. In that case, manually adjustments is required to make fine image. (Refer to PICTURE IMAGE ADJUSTMENT on page 28 to adjust "Fine sync." or "Total dots" and PICTURE

POSITION ADJUSTMENT on page 30 to adjust Picture

Position.)

Normal Function

The normal picture level is preset on this projector by the factory and can be restored anytime by pressing the NORMAL button (located on the Top Control or on the Remote Control Units). The "Normal" display will be displayed on the screen for a few seconds.

Normal

Move the arrow to the item and then press the

SELECT button.

It starts the adjustment on the item set to "On".

It terminates the PIC-

TURE IMAGE

ADJUSTMENT Menu.

29

COMPUTER MODE

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION

ADJUSTMENT.

1

2


Press the POINT LEFT/RIGHT buttons to select POSITION and press the SELECT button. Another dialog box PICTURE

POSITION Menu will appear.

Select the arrow to the direction (described as , , or ) that you want to adjust by pressing the POINT UP/DOWN buttons, and then press the SELECT button.


Reset It recalls the setting data previously set.

Stored It stores the setting data in the memory.

Quit It closes the PICTURE POSITION Menu.

Select the arrow to the direction (described as

, , or ),and then press the SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the image in desirable size.

1

2

3

4


Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT button. Another dialog box PICTURE

SCREEN Menu will appear.

To adjust the image size or pan the image, move the arrow to

Digital zoom by pressing POINT UP/DOWN buttons and then press SELECT button. The ON-SCREEN menu and SCREEN

ADJUST menu will disappear. The magnifying-glass icon and the message “D. Zoom” is displayed to indicate Digital Zoom mode.

Move the arrow to

“Digital zoom” or “True” and then press the

SELECT button.

To cancel Digital Zoom mode, press the other buttons except

SELECT / FRONT CLICK / POINT / LASER / CURSOR buttons.

To adjust the image to the screen size (1024 x 768), press

NORMAL button.

To turn the image into its original size select True in the dialog box. When the original image size is larger than the screen size

(1024 x 768), this projector becomes Digital Zoom mode automatically.

Expand function

To expand the image size, press SELECT button. The image is magnified by degrees. The maximum size of the projected image in expand mode is 4 times as large as the screen size (1024 x 768).

Compress function

To compress the image size, press FRONT CLICK button. The size of image is reduced by degrees. The minimum size of the projected image in compress mode is 640 x 480 in VGA, 800 x 600 in SVGA, or 1024 x 768 in XGA /

SXGA.

Panning function

To pan the image, press POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

● This projector cannot display in the resolution more than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting the projector.

● The image data in other than XGA (1024 x 768) is modified to fit the screen size in the initial mode.

● The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is used.

30

VIDEO MODE

SELECTING VIDEO MODE


Press the MODE button on the Top Control or the VIDEO button on the

Remote Control Units. Select the Mode among COMPUTER, VIDEO, or

MCI mode.

MODE button

COMPUTER

MCI

VIDEO

Menu Operation


Press the POINT LEFT/RIGHT buttons to select Video the SELECT button. and press

SELECTING COLOR SYSTEM

1

2


Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT button. Another dialog box VIDEO SYSTEM

Menu will appear. (The display also appears by pressing the

SYSTEM button on the Top Control or the Remote Control Units.)


Move the arrow to "Auto", and then press the SELECT button.

This box indicates the system being selected.

Auto

The projector automatically detects the incoming Video system, and adjusts itself to optimize its performance.

When the Video System is PAL-M select the system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M

If the projector cannot reproduce the proper video image, it is required to select a specific broadcast signal format among PAL,

SECAM, NTSC, NTSC 4.43, or PAL-M.

31

VIDEO MODE


Adjusting the Picture Image

1

2






SELECT button.

Colour


Tint

Contrast

Brightness sharpness

Point to ▼ to adjust the colour more purple, and select

▲ to adjust more green. (From 0 to 63.)



Point to ▼ to adjust the image softer, and select ▲ to adjust the image sharper. (From 0 to 63.)



Stored

Quit

It stores the data in the memory.


Normal Function

The normal picture level is preset on this projector by the factory and can be restored anytime by pressing the NORMAL button (located on the Top Control or on the Remote Control). The "Normal" display will be displayed on the screen for a few seconds.

Normal


Move the arrow to



IMAGE ADJUSTMENT

Menu.

32



1

2



SCREEN ADJUSTMENT DISPLAY will appear.


Move the arrow to the screen size that you want to set, and then press the SELECT button.

Regular

Normal Video Image size with 4 x 3 aspect ratio.

Wide

It compresses the image vertically to Wider Video Image size with 16 x 9 aspect ratio.

Move the pointer to the item that you want to set, and then press the

SELECT button.

MCI MODE

OPERATING THE PC CARD SLOT

This projector has PC CARD SLOT on its side. Pictures in a memory card (SmartMedia with PC Card Adapter or

PC card) can be displayed just by inserting the card into PC CARD SLOT. It is unnecessary to connect with other input equipment. Media Card Imager (supplied with CD-ROM) can edit the image data and record it into a memory card for projecting with the projector.

PC with Windows 95

Media Card Imager

(CD-ROM)

PC Card or

SmartMedia

(with Adapter)

Digital Camera

SmartMedia (with Adapter) PC CARD SLOT

Available Data

This projector can project the image data as follow through PC CARD SLOT.

● The data edited by “Media Card Imager.”

● The data of the resolution between VGA (640 X 480) and SXGA (1280 X 1024) in Bit Map type (BMP) or JPEG type

(JPG), such as Digital Camera data, can be also displayed.

(Some image data in SXGA size may not be displayed properly. In that case, reset the resolution to the lower.)

Refer to “SHOW THE DATA IN THE MEMORY CARD” on page 34 to display the image data.

Available Card

SmartMedia (with PC Card Adapter) or Type || PCMCIA-ATA Card can be used with this projector. (Those memory cards are supplied with this projector.)

Refer to SMARTMEDIA AND PC CARD ADAPTER on pages 38 and 39 for operation.

NOTE : Some PCMCIA Adapter or PC Card is not available for this projector and cannot provide the image data. In that case, use our SmartMedia and PC Card Adapter.

How to Load a PC Card Into the Projector

LOAD

Insert PC Card Adapter (with SmartMedia) or PC card into PC

CARD SLOT. Make sure EJECT button pops out.

NOTE : Do not insert the card in the reverse. The card can be damaged.

PC CARD SLOT

PC Card or PC Card Adapter

(with SmartMedia)

FRONT SIDE UP

UNLOAD

Press EJECT button, and the memory card pops out.

NOTE : Do not take the card out while the PC CARD SLOT loading. Data and the card can be damaged.

EJECT BUTTON

Media Card Imager

Media Card Imager (CD-ROM) is attached to this projector to edit the image data for projecting. Installation of Media

Card Imager is recommended. Refer to Owner’s Manual of

Media Card Imager for installation and operation.

PC CARD INDICATOR

DO NOT REMOVE THE

MEMORY CARD WHILE THIS

INDICATOR IS LIT. THE DATA

IN THE MEMORY CARD CAN

BE DAMAGED.

33

MCI MODE

SHOW THE DATA IN THE MEMORY CARD

Display Data on Screen

● This projector can project only the image data edited with Media Card Imager or the data in Bit Map type or in JPEG type through PC CARD SLOT. Other data is not available and should be edited and written in a memory card with

Media Card Imager before loading PC CARD SLOT.

(The data in Bit Map type or in JPEG type, such as the data captured with a digital camera, can be projected directly through PC CARD SLOT.)

● If there are the data edited with Media Card Imager and other data (such as in Bit Map type or JPEG type) together in a memory card, the data edited by Media Card Imager has a priority to be projected with the LCD projector. The other image data in Bit Map type or JPEG type are not projected. In that case, edit those data and record in the memory card with Media Card Imager.

Index and Page

The data edited with Media Card Imager is a Index consisting of several Pages. To project the Page, select the Index and then select the Page in the Index.

Index Selection

Page Selection

Pages in the Index

34

MCI MODE


1

2

Adjust Picture Image Manually






SELECT button.

Fine sync

Adjust the picture as necessary to eliminate flicker from the display.

(From 0 to 127.) This item can be adjusted by pressing the FINE

SYNC. button on the Top Control or the Remote Control Units.

Total dots


White Balance (Red / Green / Blue)

Point to ▼ to adjust the color of image lighter, and select ▲ to adjust the image deeper. (From 0 to 63.)

Contrast


Brightness




Stored

Quit

It stores the adjusted data in the memory.



Move the arrow to



IMAGE ADJUSTMENT

Menu.

Normal Function

The normal picture level is preset on this projector by the factory and can be restored anytime by pressing the NORMAL button (located on the Top Control or on the Remote Control Units). The "Normal" display will be displayed on the screen for a few seconds.

Normal

35

MCI MODE

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION

ADJUSTMENT.

1

2


Press the POINT LEFT/RIGHT buttons to select POSITION and press the SELECT button. Another dialog box PICTURE

POSITION Menu will appear.

Select the arrow to the direction (described as , , or ) that you want to adjust by pressing the POINT UP/DOWN buttons, and then press the SELECT button.


Reset It recalls the setting data previously set.

Stored It stores the setting data in the memory.

Quit It terminates the PICTURE POSITION Menu.

Select the arrow to the direction (described as

, , or ),and then press the SELECT button.



1

2

3

4



SCREEN Menu will appear.

To adjust the image size or pan the image, move the arrow to

Digital zoom by pressing POINT UP/DOWN buttons and then press SELECT button. The ON-SCREEN menu and SCREEN

ADJUST menu will disappear. The magnifying-glass icon and the message “D. Zoom” is displayed to indicate Digital Zoom mode.

To cancel Digital Zoom mode, press the other buttons except

SELECT / FRONT CLICK / POINT / LASER / CURSOR buttons.

To adjust the image to the screen size (1024 x 768), press

NORMAL button.

To turn the image into the screen size, select True in the dialog box.

Move the arrow to

“Digital zoom” or “True” and then press the

SELECT button.

Expand function

To expand the image size, press SELECT button. The image is magnified by degrees. The maximum size of the projected image in expand mode is 4 times as large as the screen size (1024 x 768).

Compress function

To compress the image size, press FRONT CLICK button. The size of image is reduced by degrees. The minimum size of the projected image in compress mode is 640 x 48o in VGA, 800 x 600 in SVGA, or 1024 x 768 in XGA /

SXGA.

Panning function

To pan the image, press POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

● This projector cannot display in the resolution more than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting the projector.

● The image data in other than XGA (1024 x 768) is modified to fit the screen size in the initial mode.

36

MCI MODE

WRITE DATA INTO MEMORY CARD

The data edited by Media Card Imager in the computer can be written in or read from the memory card with the

PC or this projector.

The data edited by Media Card Imager is written in Bit Map type (BMP) or JPEG type (JPG).

Access to the Card with the Projector

If your computer doesn't have the PC card write equipment, the data can be written or read by connecting with this projector.

NOTE : This operation can be made only by Media Card Imager in PC.

Connect the computer and the projector with MCI cable

(supplied) (refer to page 12, 13).

1 Connect the projector with your computer by the MCI cable

(supplied). (Refer to “CONNECTING COMPUTER” on Page 12.)

Insert the memory card into PC CARD SLOT of the projector.

And then, turn on the projector and the computer.

2 Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select View and press the SELECT button. Another dialog box VIEW SETTING Menu will appear.

3 Press POINT DOWN button and a red arrow appear. Move the arrow to Card access by pressing POINT UP/DOWN button. And then press SELECT button. “Ready to access” is displayed.

Operate Media Card Imager of PC to write/read the data in the PC card. (Refer to Owner's Manual of Media Card Imager for operation.)

NOTE : Connect the projector to the computer with MCI Cable before turning those appliances on.

Do not press any button while read/write the data through MCI

Cable. Those operations are canceled and the data in the memory card may be damaged.

Move the arrow to


37

MCI MODE

SMARTMEDIA AND PC CARD ADAPTER

SmartMedia and PC Card Adapter are provided with this LCD projector. SmartMedia can be used as a PC card conforming to the PC Card Standard-ATA by combining with PC Card Adapter.

Install / Remove the SmartMedia

INSTALL

Insert SmartMedia fully into PC Card Adapter. Make sure EJECT button pops out.

NOTE

● The front side of SmartMedia has Contact Area on its surface.

The front side of PC Card Adapter has Eject button on the left side of the slot.

● Do not insert SmartMedia in the reverse. The card and the data can be damaged.

REMOVE

To remove SmartMedia, fully press in the EJECT button.

The card pops out, then take out the card.

NOTE

● Do not pull SmartMedia by force. It may damage SmartMedia or PC Card Adapter.

PC Card Adapter

(supplied)

SmartMedia

(supplied)

① Contact Area

Data is written in Contact Area. Never scratch or stain this area.

➁ Write Protect Area

Affix Write Protect Sticker onto Write

Protect Area to prevent from accidental erasure.

➂ Index Area

Affix Index Label onto Index Area.

EJECT button

CAUTION

Write Protect Sticker is not available for PC. When PC attempts to read the data from SmartMedia with Write

Protect Sticker, it provides the error messages or the control of PC becomes insecure because of the property of the interface. When the error messages are displayed, press any key to return to the normal display. It is recommended, however, SmartMedia should be used on PC without Write Protect Sticker.

IMPORTANT NOTE

THE DATA STORED ON THE MEMORY CARD (SMARTMEDIA OR PC CARD) MAY BE DAMAGED OR

LOST BECAUSE OF THE DAMAGE OF THE MEMORY CARD OR THE ACCIDENTAL ERASURE. IT IS

RECOMMENDED THAT ANY IMPORTANT DATA SHOULD BE COPIED ONTO SEPARATE MEDIA,

SUCH AS A FLOPPY DISK, A HARD DISK, OR A MO DISK. WE SHALL NOT BE LIABLE FOR ANY DAM-

AGE OR LOSS OF PROFITS ARISING FROM THE LOSS OF DATA BECAUSE OF THE ACCIDENTAL

OPERATION AND THE DAMAGE OF A MEMORY CARD OR APPLIANCES. REFER TO OWNER’S MAN-

UAL OF MEDIA CARD IMAGER FOR OPERATING THE SOFTWARE.

38

MCI MODE

Precautions and Specifications of the appliance.

SmartMedia

● SmartMedia is a precision device. Do not bend it, drop it, subject it to strong forces or shocks or place where strong static electrical charge can be generated.

● Do not touch the surface of the Contact Area with fingers or allow it to be stained with foreign materials. Store SmartMedia inside its protective case when it is not used.

● SmartMedia is a consumable item. The data may not be written in or read from SmartMedia by using for a long time. In that case, replace

SmartMedia with new one.

Memory capacity : 8MB

Operating voltage : 3.3 V DC

Usage environment

Temperature : 0~55 °C (during use)

-20~65 °C (during storage)

Humidity : less than 95%

(during use, during storage)

PC Card Adapter

● Do not bend it, drop it, subject it to strong forces or shocks or place where strong static electrical charge can be generated.

● Do not insert materials other than SmartMedia. The adapter may be damaged. Store PC Card Adapter inside its protective case when it is not used.

● Do not shake the adapter, turn off the appliances, or remove SmartMedia from the PC Card Adapter during writing or reading data. It may damage the data in

SmartMedia.

Operating voltage : 5 V DC

Usage environment

Temperature : 0~55 °C (during use)

-20~65 °C (during storage)

Humidity : less than 95%

(during use, during storage)

This adapter can be adapted to only our

SmartMedia indicated below.

Available SmartMedia

: 3.3V / 5V, 2MB / 4MB / 8MB /16MB

39

SETTING

SETTING MENU

1

2


Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT button. Another dialog box

SETTING Menu will appear.


Move the arrow to the item that you want to set, and then press the SELECT button to set it "On" or "Off".

Blue back

When this function is in the "On" position, this projector will produce a blue image without video noise on the screen when the video source is unplugged or turned off.

Display

When this function is in the "On" position, the On-Screen

Displays always appear when adjustments are made.

(The following displays disappear by switching this function "Off.")

● Preparation Display

(The Number-counting down Display)

●

●

●

●

Mode Display

Volume Display

Mute Display

Normal Display

Ceiling

Rear

Split wipe

Lamp age

When this function is in the “On” position, the top / bottom and the left / right reversed picture is provided to project the image from a ceiling mounted projector.

When this function is in the “On” position, the left / right reversed picture is provided to project the image to a rear projection screen.

Turn this function “On” position in the SETTING menu.

The picture will change into next one by sliding black image side ways like drawing the black curtains when the input source is turned into another one.

The Lamp age function is designed to reset the lamp replacement monitor timer. When replacing the lamp, reset the lamp replacement monitor timer by using this function. (Refer to page 43.)

T B

L R

SETTING LANGUAGE

The language used in the ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish and

Japanese.

1

2


Press POINT LEFT/RIGHT buttons to select LANGUAGE and press the SELECT button. Another dialog box LANGUAGE Menu will appear.


Move the arrow to the language that you want to set, and then press the SELECT button.

40

B T

R L

Set the Pointer to the item, and then press the

SELECT button.

Move the Pointer to the language that you want to set, and then press the SELECT button.

APPENDIX

MAINTENANCE

TEMPERATURE WARNING INDICATOR

The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops to flash when the temperature of the projector become normal.

When the TEMPERATURE WARNING Indicator continues to flash, make sure the matters below.

1

2

3

The Ventilation slots of the projector are blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed.

Air filter is clogged with dust particles. Remove dust from the air filter by following instruction in the AIR FILTER

CARE AND CLEANING section below.

If the TEMPERATURE WARNING Indicator remains on after performing the above checks, the Cooling Fans or the

Internal Circuits may be malfunctioning. Request service from an authorized dealer or service station.

AIR FILTER CARE AND CLEANING

The Removable Air Filters prevent dust from accumulating on the surface of the Projection Lens and the

Projection Mirror. Should the Air Filters become clogged with dust particles, they will reduce the Cooling Fans' effectiveness and may result in internal heat build up and effect on the life of the projector.

To clean the Air Filters, follow the cleaning procedures below:

1

2

Turn the power off, and disconnect the AC power cord from the

AC outlet.

Remove the air filter cover. Press the cover latch sideway and lift the cover.

Remove the air filter from the filter cover.

3

4 Clean the air filter with a vacuum cleaner.

5 Replace the air filter. Make sure that air filter cover is fully inserted.

CAUTION

Do not operate the projector with the Air Filter removed. The dust is stuck on the LCD Panel and the Mirror, and it may spoil the fine picture image.

42

APPENDIX

LAMP REPLACEMENT Indicator

When the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow. When the image become dark or the color of the image become unnatural, replacement of the Lamp is required.

Lamp Replacement

CAUTION

● For continued safety, replace with a lamp assembly of the same type.

● Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot.

● Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Follow these steps to replace the lamp assembly.

1 Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

2

3

Remove a screw with a screwdriver and remove the lamp cover.

Remove 2 screws with a screwdriver and pull out the lamp assembly by grasping the handle.

Replace the lamp assembly.

4

5 Replace the Lamp Assembly and tighten 2 screws. Make sure that the Lamp Assembly is set properly. And replace the Lamp

Cover and tighten a screw.

6

7

Connect the AC Power Cord to the projector and turn the projector on.

Reset the Lamp Replacement Monitor Timer (refer to the section

“Lamp Replacement Monitor Timer” below.)

NOTE : Do not reset the LAMP REPLACEMENT

MONITOR TIMER, when the lamp is not replaced.

LAMP COVER

HANDLE

LAMP

ASSEMBLY

Lamp Replacement Monitor Timer

Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the Lamp

Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops to lighting.

1

2

Turn the projector on, and press the MENU button and the ON-SCREEN MENU will appear. Press the POINT

LEFT/RIGHT buttons to select SETTING dialog box SETTING MENU Menu will appear. and press the SELECT button (refer to the page 40). Another

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to Lamp age, and then press the

SELECT button. The message of "Lamp replace monitor Reset?" is displayed.

3 Select [Yes] to reset the Timer.

Do not reset the Lamp Replacement Monitor Timer, except after the lamp is replaced.

Cleaning the Projection Lens

43

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service station for assistance, check the matters below once again.

1. Make sure you have connected the projector to your equipment a s described in section "CONNECTING

THE PROJECTOR" on pages 10 ~ 15.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If the projector still does not produce the image, re-start the computer.

5. If the image sill does not appear, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before your power up the projector.

Power the equipment back in order of : Projector and computer.)

6. If the problem still exists, check with following chart.

Problem:

No power.

Image is out of focus.

Try these Solution

● Plug the projector into the AC outlet.

● Be sure READY Indicator light is On.

● Wait one minute after the projector is turned OFF before turning the projector back on.

NOTE : After pressing the power ON-OFF switch to OFF, make sure the projector works as follow.

1. The LAMP indicator will light and the READY indicator will turn off.

2. after one minute, the READY indicator will light green again and the projector may be turned on by pressing the power ON-OFF button.

● Check the TEMPERATURE WARNING indicator. If the indicator flashes red, the projector cannot be turned on.

(See "TURNING ON/OFF THE PROJECTOR" section on page 22.)

● Check the Projection Lamp. (Refer to the page 43.)

● Adjust the focus

● Make sure the projection screen is at least 4.6’ (1.4m) from the projector.

● Check the projection lens to see if it needs cleaning.

NOTE : Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on the lens. In such an event, leave the projector OFF an d wait until condensation disappears.

● Check Ceiling / Rear feature. (See “SETTING” section on page 40.)

Picture is L/R reversed.

Picture is T/B reversed.

Some displays are not seen during the

Operation.

No image.

No sound.

● Check Ceiling feature. (See “SETTING” section on page 40.)

● Check Display feature.(See “SETTING” section on page 40.)

● Check the connection between the computer or video equipment and the projector.

● When turning the projector on, it is about 30 seconds to display the image.

● Check the system that you select is corresponding with the computer or the video equipment.

● Make sure the temperature is not out of the Operating Temperature (5° ~ 35°).

● Check audio cable connection from audio input source.

● Adjust the audio source.

● Press VOLUME (+) button.

● Press MUTE button.

44

APPENDIX

Problem:

Remote Control

Units dose not work.

Wireless Mouse function does not work.

The image data in memory card isn’t displayed.

The image data can’t be written in, read from the memory card.

Try these Solution

● Check the batteries.

● Make sure anything is blocking between the Remote Receiver and the Remote

Control Units.

● Make sure you are not too far from the projector when using the Remote Control

Units. Maximum operating range is 16.4 feet (5m).

● Check the cable connection between the projector and the computer.

● Check the mouse setting on your computer.

● Turn the projector before your turn on the computer.

● Check the memory card is inserted properly into PC CARD SLOT.

● Check SmartMedia or PC Card Adapter is set properly.

● Check MCI mode is selected.

● Check the image data is recorded in the memory card properly.

● Start the projector again.

● Check the projector is turned on.

● Check “Card access” in VIEW menu is selected.

● Check MCI Cable is connected properly.

● Check the memory card is inserted properly into PC CARD SLOT.

● Check Media Card Imager (supplied) is installed in your computer properly.

● Check the setting in Media Card Imager (like Serial Port Setting) is set properly.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

Sanyo Service is easily obtained. If after following all operating instructions, you find that service is necessary, contact the SFS Corporation in Los Angeles, or the store where you purchased the unit. Give the model number and explain the difficulty. We will advise you how to obtain service.

45

46

TECHNICAL SPECIFICATIONS

Projector Type

Dimensions (W x H x D)

Net Weight

LCD Panel System

Panel Resolution

Number of Pixels

Color System

Scanning Frequency

Projection Image size (Diagonal)

Horizontal Resolution

Projection Lens

Throw Distance

Projection Lamp

AV Input Jacks

Computer Input Jacks

Control Port Jack

MCI Serial Port

Monitor Output Jack

Computer Audio Input Jack

Audio Output Jack

Internal Audio Amp

Built-in Speaker

Feet Adjustment

Voltage

Power Consumption

Operating Temperature

Storage Temperature

Remote Control Transmitter

Accessories

Multi-media Projector

8.46" x 4.88" x 12.85" (215mm x 124mm x 326.5mm)

9.48 lbs (4.3 kg)

0.9" TFT Active Matrix type, 3 panels

1,024 x 768 dots

2,359,296 (1,024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43 and PAL-M

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 30” to 300”

800 TV lines

F 1.7 ~ 2.0 lens with f 33.2mm ~ 43.1mm Motor zoom and focus

1.4m ~ 10.8m

120 W

RCA Type x 1 (Video, Audio R and L) and DIN 4 pin (S-Video) x 1

(VGA) HDB 15 Terminal x 1

Multi-pole 12 pin (Control Port) x 1

Serial Port DIN 8 pin

(VGA) HDB 15 Terminal x 1

Mini Jack (stereo)

Mini Jack (stereo)

1W RMS (Monaural)

1 speaker, 1.57" x 1.18" (40mm x 30mm)

0˚ to 2˚

AC 100 ~ 120 V, 50 / 60 Hz

2.2 A (Max. Ampere)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Power Source : AA Type x 2

Operating Range : 16.4' (5m) / ±30˚

Dimensions : 2.2" x 1.4" x 7.6" (56mm x 35mm x 193mm)

Net Weight

Laser Pointer

: 0.23 lbs (105 g) (including batteries)

: Class II Laser (Max. Output : 1mW / Wave length : 660±20nm)

Owner’s Manual

AC Power Cord

Remote Control Transmitter and Batteries

VGA Cable

VGA / MAC Adapter

Mouse Cable (for PS/2 port x 1, for Serial port x 1, and for ADB port x 1)

MCI Cable (RS-232C)

Media Card Imager for Windows 95 (CD-ROM) and Owner's Manual for this software

SmartMedia and PC Card Adapter

Lens Cover

Carrying Bag

● The specifications are subject to change without notice.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

SANYO INDUSTRIAL VIDEO

LCD PROJECTOR LIMITED WARRANTY

OBLIGATIONS

In order to obtain warranty service, the product must be delivered to and picked up from and Authorized Sanyo Factory

Service Center at the user's expense, unless specifically stated otherwise in this warranty. the names and addresses of authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.

For product operation, authorized service center referral, service assistance or problem resolution, call

CUSTOMER INFORMATION 1-800-421-5013

Weekdays 8:00 AM - 5:00 PM Pacific Time

For accessories and/or parts not available form an authorized dealer, call

PARTS ORDER INFORMATION 1-800-726-9662

Weekdays 8:00 AM - 5:00 PM Pacific Time

THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED OR RENTED AND USED IN THE UNITED STATES OF

AMERICA, EXCLUDING ALL U.S. TERRITORIES AND PROTECTORATES, FOR INDUSTRIAL PROFESSIONAL OR

COMMERCIAL PURPOSES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER. THE ORIGINAL DATED BILL

OF SALE, SALES SLIP OR RENTAL AGREEMENT MUST BE SUBMITTED TO THE AUTHORIZED SANYO SERVICE CENTER AT

THE TIME WARRANTY SERVICE IS REQUESTED.

Subject to the OBLIGATIONS above and EXCLUSIONS below, SANYO FISHER COMPANY (SFC) warrants this

SANYO product against defects in materials and workmanship for the periods of LABOR and PARTS specified below.

SFC will repair or replace (at its option) the product and any of its parts which fall to conform to this warranty. The warranty period commences on the date the product was first purchased or rented at retail.

LABOR

1YEAR

PARTS

1YEAR

LAMP

90DAYS

EXCLUSIONS

This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model's instruction manual, or (B) the repair of any product whose serial number has been altered, defaced or removed.

This warranty shall not apply to the cabinet or cosmetic parts, knobs or batteries or routine maintenance.

This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.

This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, incorrect power line voltage, fire, flood or other Acts of God, or normal wear and tear.

The foregoing is in lieu of all other expressed warranties and SFC does not assume or authorize any party to assume for it any other obligation or liability.

SFC DISCLAIMS ALL WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY

AND FITNESS), SFC'S LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER,

INCLUDING WARRANTOR'S NEGLIGENCE, ALLEGED DAMAGED OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE

DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE EQUIPMENT.

ATTENTION

For your protection in the event of theft or loss of this product, please fill in the information below for your own personal records.

Model No.

Serial No.

(Located on back or bottom side of unit.)

Date of Purchase Purchase Price

Where Purchased

21605 Plummer Street,

Chatsworth, California 91311

Printed in Japan

Part No. 610 278 3605 (1AA6P1P1809-- M6WA)

No results
