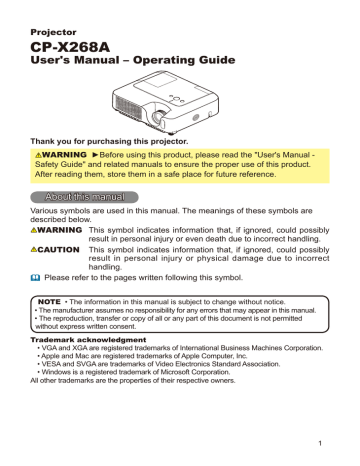

Hitachi CP-X268A User's Manual

Projector
CP-X268A
User's Manual – Operating Guide
Thank you for purchasing this projector.
WARNING ►Before using this product, please read the "User's Manual Safety Guide" and related manuals to ensure the proper use of this product.
After reading them, store them in a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
 Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted
without express written consent.
Trademark acknowledgment
• VGA and XGA are registered trademarks of International Business Machines Corporation.
• Apple and Mac are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective owners.
Content
Content

About this manual. . . . . . . . . . . 1
Content. . . . . . . . . . . . . . . . . . . 2
Contents of package . . . . . . . . 3
How to use the Slot cover lock . . . . . 3
Projector features. . . . . . . . . . . 4
Preparations. . . . . . . . . . . . . . . 4
Fastening the lens cover. . . . . . . . . . 4
Part names. . . . . . . . . . . . . . . . 5
Projector . . . . . . . . . . . . . . . . . . . . . . 5
Control buttons . . . . . . . . . . . . . . . . . 7
Remote control . . . . . . . . . . . . . . . . . 7
Setting up. . . . . . . . . . . . . . . . . 8
Arrangement. . . . . . . . . . . . . . . . . . . 9
Adjusting the projector's elevator . . 10
Using the Security Bar. . . . . . . . . . . 11
Connecting your devices. . . . . . . . . 12
Connecting power supply . . . . . . . . 15
Inserting an SD Card and USB Memory. . 16
Remote control. . . . . . . . . . . . 17
Putting batteries . . . . . . . . . . . . . . . 17
Using the remote control. . . . . . . . . 18
Power on/off . . . . . . . . . . . . . . 19
Turning on the power. . . . . . . . . . . . 19
Turning off the power. . . . . . . . . . . . 19
Operating . . . . . . . . . . . . . . . . 20
Adjusting the volume. . . . . . . . . . . . 20
Temporarily muting the sound. . . . . 20
Selecting an input signal. . . . . . . . . 20
Searching an input signal . . . . . . . . 21
Selecting an aspect ratio. . . . . . . . . 21
Adjusting the zoom and focus. . . . . 21
Using the automatic adjustment feature. . 22
Adjusting the position . . . . . . . . . . . 22
Correcting the keystone distortions. 23
Using the magnify feature. . . . . . . . 23
Freezing the screen. . . . . . . . . . . . . 24
Temporarily blanking the screen. . . 24
Operating the computer screen. . . . 25
Multifunctional settings. . . . . 26
Using the menu function . . . . . . . . . 26

EASY Menu. . . . . . . . . . . . . . . . . . . 27
Aspect, Auto keystone Execute,
Keystone, Picture mode, Brightness,
Contrast, Color, Tint, Sharpness,
Whisper, Mirror, Reset, Filter time,
Language, Go to advanced menu
PICTURE Menu. . . . . . . . . . . . . . . . 29
Brightness, Contrast, Gamma,
Color temp, Color, Tint, Sharpness,
My memory
IMAGE Menu. . . . . . . . . . . . . . . . . . 32
Aspect, Over scan, V. position, H. position,
H. phase, H. size, Auto adjust execute
INPUT Menu. . . . . . . . . . . . . . . . . . 34
Progressive, Video NR, Color space,
Component, Video format, Frame lock,
RGB in, Resolution
SETUP Menu. . . . . . . . . . . . . . . . . . 37
Auto keystone Execute, Keystone,
Whisper, Mirror, Volume, Audio
SCREEN Menu. . . . . . . . . . . . . . . . 39
Language, Menu position, Blank,
Start up, MyScreen, MyScreen lock,
Message, Source name
OPTION Menu. . . . . . . . . . . . . . . . . 42
Auto search, Auto keystone, Auto on,
Auto off, Lamp time, Filter time,
My button, Service, Security
MIU Menu. . . . . . . . . . . . . . . . . . . . 52
Live Mode, PC-LESS Presentation,
Setup, e-SHOT, Information, Service
Maintenance. . . . . . . . . . . . . . 57
Lamp. . . . . . . . . . . . . . . . . . . . . . . . 57
Air filter . . . . . . . . . . . . . . . . . . . . . . 59
Replacing Internal Clock battery. . . 61
Other care. . . . . . . . . . . . . . . . . . . . 62
Troubleshooting . . . . . . . . . . . 63
Related messages. . . . . . . . . . . . . . 63
Regarding the indicator lamps. . . . . 64
Phenomena that may be easy to be
mistaken for machine defects. . . . . 66
Warranty and after-service. . . . 69
Specifications. . . . . . . . . . . . . 69
Contents of package
Contents of package
VIDEO
RGB
ASPECT
MAGNIFY
(1) Projector
(2) Remote control
with two AA batteries
(3) Power cord
(4) RGB cable
(5) Audio/Video cable
(6) Soft case
(7) User’s manuals
(8) Lens cover, Rivet and Strap
(9) Wireless Network Card
(10) Slot cover lock
(11) Application CD
ON
OFF
FREEZE
SEARCH
BLANK
AUTO
HOME
PAGE UP
END
PAGE DOWN
MY BUTTON
1
VOLUME
MUTE
KEYSTONE
2
MENU
POSITION
ENTER
RESET
ESC
(1)
(2)
(4)
(6)
(9)
(3)
(5)
(7)
(10)
(8)
(11)
NOTE • Keep the original packing materials for future reshipment. For
moving the projector, be sure to use the original packing materials. Use special
caution for the lens part.
How to use the Slot cover lock
Open the Slot cover lock, and
insert it into the Locking slot.
Close the Slot cover lock slowly,
and attach the Pad lock or
Combination lock to the Slot cover
lock.
Projector features / Preparations
Projector features
This projector is used to project various computer signals as well as NTSC/PAL/
SECAM, Component (SD, HD) video signals onto a screen. It requires just a little
space for installation and gets a large image from short distance.
 High Brightness
Newly developed 200W UHB (Ultra High Brightness) lamp gives you a higher
brightness image on a screen. The image can be still kept as bright and clean
enough for use in bright rooms.
 Low Noise
WHISPER mode is available for reducing acoustic noise to realize quieter
operation. It is perfect for use in low luminance rooms where low noise is more
important than brightness.
 Rich Connectivity
This projector has a variety of I/O ports. It can be easily connected to many
signal sources like PC, DVD and so on. The rich connectivity provides you
more options to make your presentation impressive.
 Compact Body
Even with its many features, this projector is extremely compact and slim,
which gives you more flexibility and usability to use it where you want.
Preparations
Fastening the lens cover
To avoid losing the lens cover, please fasten it the lens cap to the projector using
the strap.
Strap ring
Strap
1. Fix the strap to the strap ring of the lens cover.
2. Put the strap into the groove on the rivet.
3. Push the rivet into the strap hole.
Bottom side
Strap hole
Part names
Part names
Projector
ê
Control buttons (7)
Lamp cover (58)
(Lamp unit is inside.)
Remote sensor (18)
Speaker
Zoom ring (21)
Security bar (11)
(Use for attaching a
commercial anti-theft
chain or wire.)
Focus ring (21)
Vent
Elevator button (10)
Lens (19)
Front-Right side
Elevator foot (10)
Lens cover (4)
Filter cover (59)
(Air filter and intake vent
are inside.)
ê
EN
E
OS
CL
OP
B
US
L
RO
NT
T
CO
VID
EO
S-VID
EO
CR
/PR
CB
/PB
N
LA
DC I/O
5V
0.5A
AU
X
RD
DIO
Y
T
OU
DIO
AU
B OU
RG
B IN
2
RG
RG
B
AU AUDI IN1
DIO O
IN2 IN1
IN3
SD
CA
AU
Bottom side
WARNING ►During use or immediately after use, do not touch around the
lamp and vents of the projector. (ê) It could cause a burn.
Part names
Power switch (19)
AC inlet (15)
CB/P
SD
B
CA
RD
CR/P
R
RG
B
AU
DIO IN1
AU
DIO
IN1
IN2
VID
EO
S-V
IDE
AU
X
DC I/O
5V
0.5A
RG
O
LAN
B IN2
RG
B OU
CO
NT
T
RO
L
Ports (See below.)
AC
AU
DIO
Elevator button (10)
IN
OU
T
US
B
Elevator foot (10)
Rear-Left side
Vent
AUDIO IN1 port (13)
(In the default setting, the AUDIO IN1 port is the audio
port for the RGB IN1 port, however, it is possible to
AUDIO IN3 L/R port (14)
change the settings. 38)
(In the default setting, the
SD CARD slot (13)
AUDIO IN3 L/R port is the audio
This slot is used when
RGB
IN1
port
(13)
port for the VIDEO, S-VIDEO
utilizing SD CARD.
and COMPONENT VIDEO
Restart switch (*) (66)
ports, however it is possible to
AUX I /O port (13)
change the settings. 38)
RGB IN2 port (13)
This port is used when
utilizing USB Memory.
SD CARD
LAN
COMPONENT
AUX I/O
LAN port (13)
AUDIO IN3
Y
R
VIDEO ports (14)
Used for Ethernet
Y
RGB IN1
RGB IN2
RGB OUT AUDIO OUT
input/output.
AUDIO IN1
CB/PB
C P
L
This port is used
AUDIO IN2
CR/PR
C P
CONTROL
when utilizing network
USB
VIDEO
functions.
S-VIDEO
VIDEO port (14)
B/ B
R/ R
S-VIDEO port (14)
K
Ports
AUDIO IN2 port (13)
USB port (13)
(In the default setting, the AUDIO
IN2 port is the audio port for
CONTROL port (13)
the RGB IN2 port, however, it is
possible to change the settings.
Kensington lock slot
38)
AUDIO OUT port
(13)
RGB OUT port (13)
NOTE (*) About Restart switch: This projector is controlled by an internal
microprocessor. Under certain exceptional circumstances, the projector may not
operate correctly and the microprocessor will need to be reset. In such a case,
please push the Restart switch by using a cocktail stick or similar, and before
turning on again, make the projector cool down at least 10 minutes without
operating. Only push the Restart switch in these exceptional instances.
Part names
Control buttons
LAMP indicator (64, 65)
TEMP indicator (64, 65)
Cursor buttons
▲,▼,◄,► (26)
POWER indicator (19)
STANDBY/ON button
(19)
INPUT button (20)
NOTE • INPUT button is function as ENTER key when the projector is in the
PC-LESS presentation mode. Use the RGB button or VIDEO button on remote
control to change the input port. When the projector menu is displayed, you can
change the input port by INPUT button.
Remote control
SEARCH button (21)
STANDBY/ON button (19)
RGB button (20)
VIDEO
RGB
AUTO button (22)
SEARCH
VIDEO button (21)
AUTO
BLANK
HOME
PAGE UP
VOLUME
END
PAGE DOWN
MUTE
ASPECT
ASPECT button (21)
HOME button (25)
MAGNIFY
ON button (23)
OFF button (23)
MAGNIFY
ON
MUTE button (20)
FREEZE
MY BUTTON
1
2
KEYSTONE
PAGE DOWN button (25)
KEYSTONE button (23)
MENU
POSITION
POSITION button (22)
ESC button (25)
PAGE UP button (25)
VOLUME button (20)
OFF
END button (25)
FREEZE button (24)
BLANK button (24)
MENU button (26)
ENTER
ESC
MY BUTTON button (43)
RESET
Cursor buttons
▲,▼,◄,► (26)
ENTER button (26)
RESET button (26)
Battery cover (17)
(on the back)
Setting up
Setting up
WARNING ►Place the projector in a stable position horizontally. A fall or
a turnover could cause an injury and/or damage to the projector. Then using
damaged projector could result in a fire and/or an electric shock.
• Do not place the projector on an unstable, slant or vibrant surface such as a
wobbly or inclined stand.
• Do not place the projector in the side/front/rear-up position, except cleaning
the air filter.
►Place the projector in a cool place, and pay attention enough to ventilation.
The high temperature of the projector could cause a fire, a burn and/or
malfunction to the projector.
• Do not stop up, block and cover the projector's vents.
• Keep a space of 30 cm or more between the sides and other objects such as
walls.
• Do not place the projector on a metallic thing or anything weak in heat.
• Do not place the projector on a carpet, cushion or bedding.
• Do not place the projector in direct sunlight or near a hot object such as a
heater.
• Put nothing about lens and vents of the projector. Put nothing on the projector.
• Put nothing that is sucked or sticks to the bottom of projector. This projector
has some intake vents also on the bottom.
►Do not place the projector on the place that gets wet. Damping the projector
or inserting liquid in the projector could cause a fire, an electric shock and/or
malfunction to the projector.
• Do not place the projector in a bathroom or the outdoors.
• Put nothing containing the liquid near the projector.
CAUTION ►Avoid a smoky, humid or dusty place. Placing the projector
in such place could cause a fire, an electric shock and/or malfunction to the
projector.
• Do not place the projector near a humidifier, a smoking space or a kitchen.
►Adjust the position of the projector to prevent any strong light, like direct
sunlight or inverter fluorescent lamp light, from hitting the projector’s remote
sensor.
Setting up
Arrangement
Refer to the illustrations and tables below to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen: 1024×768
(a) The screen size (diagonal)
(b) Distance from the projector to the screen (±10%)
(c) The height of the screen (±10%)
(b)
4:3
(a)
(c) up
16:9
(a)
(c) down
(a) Screen
size
[inch (m)]
4 : 3 screen
(b) Projection distance
(c) Screen height
[m (inch)]
[cm (inch)]
min.
up
max.
down
16 : 9 screen
(b) Projection distance
(c) Screen height
[m (inch)]
[cm (inch)]
min.
max.
down
up
30
40
50
60
70
80
90
100
120
150
200
250
300
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.0
3.6
4.5
6.0
7.5
9.0
1.0
1.3
1.6
1.9
2.3
2.6
2.9
3.2
3.9
4.9
6.5
8.1
9.8
(0.8)
(1.0)
(1.3)
(1.5)
(1.8)
(2.0)
(2.3)
(2.5)
(3.0)
(3.8)
(5.1)
(6.4)
(7.6)
(34)
(46)
(58)
(70)
(81)
(93)
(105)
(117)
(140)
(176)
(235)
(294)
(352)
1.1
1.4
1.8
2.1
2.5
2.8
3.2
3.6
4.3
5.4
7.2
9.0
10.8
(41)
(56)
(70)
(84)
(98)
(112)
(126)
(140)
(169)
(211)
(282)
(353)
(423)
5
6
8
9
11
12
14
15
18
23
30
38
46
(2)
(2)
(3)
(4)
(4)
(5)
(5)
(6)
(7)
(9)
(12)
(15)
(18)
41
55
69
82
96
110
123
137
165
206
274
343
411
(16)
(22)
(27)
(32)
(38)
(43)
(49)
(54)
(65)
(81)
(108)
(135)
(162)
(38)
(50)
(63)
(76)
(89)
(102)
(115)
(127)
(153)
(192)
(256)
(320)
(384)
1.1
1.5
1.9
2.3
2.7
3.1
3.5
3.9
4.7
5.8
7.8
9.8
11.7
(45) -1
(61) -2
(76) -2
(91) -2
(107) -3
(122) -3
(138) -4
(153) -4
(184) -5
(230) -6
(307) -8
(384) -10
(461) -12
(0)
(-1)
(-1)
(-1)
(-1)
(-1)
(-1)
(-2)
(-2)
(-2)
(-3)
(-4)
(-5)
39
51
64
77
90
103
116
129
154
193
257
322
386
(15)
(20)
(25)
(30)
(35)
(41)
(46)
(51)
(61)
(76)
(101)
(127)
(152)
Setting up
Adjusting the projector's elevator
CAUTION ►If you press the elevator button without holding the projector,
the projector might crash down, overturn, smash your fingers and possibly
result in malfunction. To prevent damaging the projector and injuring yourself,
always hold the projector whenever using the elevator buttons to adjust the
elevator feet.
►Do not incline the projector rightward or leftward. Also do not incline it
backward or forward exceeding 30 degrees. Exceeding these range could
cause malfunction, and could shorten the lifetime of the consumables.
►Except for inclining by the elevator feet adjustment, place the projector
horizontally.
You can use the elevator feet to make adjustments if the surface on which you
need to set the projector is uneven or if you otherwise need to adjust the angle of
projection. The adjustment range of the elevator feet is 0 to 9 degrees.
Elevator feet
Elevator button
making sure that the projector is cool adequately, press and hold in the
1. After
elevator buttons while holding the projector.
2.
3.
10
The elevator buttons and the elevator feet are on the both sides.
Raise or lower the projector to the desired height and release the elevator
buttons.
When you release the elevator buttons, the elevator feet will lock into position.
If necessary, you can also finely adjust the height of the projector by twisting
the elevator feet by hand.
Setting up
Using the Security Bar
WARNING ►Do not use the security bar to prevent the projector from
falling. Dropping or knocking over the projector may cause damage or injury.
CAUTION ►The security bar is not a comprehensive theft prevention
measure. It is intended to be used as an extra theft prevention measure.
A commercial anti-theft chain or wire can be attached to the security bar on the
projector.
to attach
1. How
An anti-theft chain or wire can be
attached as shown in the illustration.
(Anti-theft chains or wires of up to
10mm in diameter can be used)
N
LA
X
AUDC
RD
SD
I/O
5V
DIO
A
0.5
UT
BO
OUT
AU
RG
CA
2
B IN
RG
1
B IN
1
RG
IN
DIO
AU
IN2
R
Y
L
RO
NT
CO
B
US
DIO
AU
C
B
B/P
L
/PR
CR
O
VIDE
O
DE
S-VI
Security Bar
Anti-theft chain or wire
[sold separately]
11
Setting up
Connecting your devices
CAUTION ►Turn off all devices prior to connecting them to the projector.
Attempting to connect a live device to the projector may generate extremely
loud noises or other abnormalities that may result in malfunction and/or damage
to the device and/or projector.
►Use the accessory cable or a designated-type cable for the connection.
Some cables have to be used with core set. A too long cable may cause a
certain picture degradation. Please consult with your dealer for details. For
cables that have a core only at one end, connect the core to the projector.
►Make sure that you connect devices to the correct port. Incorrect connection
may result in malfunction and/or damage to the device and/or projector.
NOTE • Whenever attempting to connect a laptop computer to the projector, be sure
to activate the laptop’s RGB external image output (set the laptop to CRT display or to
simultaneous LCD and CRT display). For details on how this is done, please refer to the
instruction manual of the corresponding laptop computer.
• Secure the screws on the connectors and tighten.
• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• For some RGB signal modes, the optional Mac adapter is necessary.
• When the image resolution is changed on a computer, depending on an input,
automatic adjustment function may take some time and may not be completed. In this
case, you may not be able to see a check box to select “Yes/No” for the new resolution
on Windows. Then the resolution will go back to the original. It might be recommended
to use other CRT or LCD monitors to change the resolution.
About Plug-and-Play capability
Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices). This projector is compatible with VESA DDC
2B. Plug-and-Play can be achieved by connecting this projector to a computer is VESA
DDC (display data channel) compatible.
• Please take advantage of this function by connecting the accessory RGB cable to the
RGB IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other
type of connection is attempted.
• Please use the standard drivers in your computer as this projector is a Plug-and-Play
monitor.
12
Setting up
Examples of connection with a computer
* In the default setting, the AUDIO IN1 port is the audio port for the RGB IN1, and the AUDIO IN2 port is the audio
port for the RGB IN2 ports. To change the settings, refer to the AUDIO item in the SETUP menu. (38)
USB cable
RGB cable
SD CARD
LAN
AUX I/O
AUDIO IN3
R
Y
RGB IN1
RGB out Audio out RS-232C USB
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
CB/PB
L
AUDIO IN2
CR/PR
CONTROL
K
VIDEO
USB
S-VIDEO
Stereo mini
audio cable
RS-232C cable
Stereo mini audio cable
SD CARD
LAN
AUX I/O
RGB out
AUDIO IN3
R
Y
RGB IN1
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
CB/PB
L
AUDIO IN2
CR/PR
RGB cable
CONTROL
K
VIDEO
USB
S-VIDEO
Connecting to a monitor (output) and a speaker with amplitier (output)
SD CARD
LAN
AUX I/O
AUDIO IN3
R
Y
Audio in
RGB in
RGB IN1
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
CB/PB
L
AUDIO IN2
CR/PR
RGB cable
CONTROL
K
VIDEO
USB
S-VIDEO
Stereo mini audio cable
Connecting to a Network and USB Memory
: Wireless Communication
Insert the Wireless Network Card (included)
SD CARD
LAN
USB
MEMORY
LAN
AUX I/O
Y
AUDIO IN3
R
RGB IN1
CB/PB
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
L
AUDIO IN2
CR/PR
LAN cable
(CAT-5 cable)
VIDEO
K
CONTROL
USB
S-VIDEO
CAUTION ►For safety, do not connect LAN port to any network that
might have the excessive voltage.
13
Setting up
Examples of connection with a VCR/DVD player
* In the default setting, the AUDIO IN3 L/R port is the audio port for the VIDEO, S-VIDEO
and COMPONENT VIDEO ports. To change the settings, refer to the AUDIO item in the
SETUP menu. (38)
Audio/Video cable
AUDIO IN3
R
Y
Audio (R) out
RGB IN1
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
CB/PB
L
AUDIO IN2
CR/PR
Audio (L) out
K
VIDEO
CONTROL
USB
S-VIDEO
Video out
Audio cable
AUDIO IN3
R
Y
Audio (R) out
RGB IN1
RGB IN2
RGB OUT
AUDIO OUT
AUDIO IN1
CB/PB
L
AUDIO IN2
Audio (L) out
CR/PR
K
VIDEO
CONTROL
USB
S-VIDEO
S-Video out
S-Video cable
Component video out
Component video cable
Y
AUDIO IN3
Y
R
CB/PB
RGB IN1
CR/PR
K
VIDEO
CONTROL
USB
Audio cable
Audio (L) out
G
B
R
Y
AUDIO IN3
R
RGB IN1
CB/PB
RGB OUT
AUDIO IN2
VIDEO
Video
RGB IN2
AUDIO IN1
L
CR/PR
14
AUDIO OUT
S-VIDEO
Audio (R) out
SCART
out
RGB OUT
L
AUDIO IN2
CR/PR
SCART cable
RGB IN2
AUDIO IN1
CB/PB
S-VIDEO
K
CONTROL
USB
AUDIO OUT
Setting up
Connecting power supply
WARNING ►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in fire and/or electrical shock.
• Only use the power cord that came with the projector. If it is damaged, contact
your dealer to newly get correct one.
• Only plug the power cord into an outlet rated for use with the power cord's
specified voltage range.
• Never modify the power cord. Never attempt to defeat the ground connection
of the three-pronged plug.
CB/P
SD
B
AC inlet
CA
RD
CR/P
R
RG
B
AU
DIO IN1
DIO
IN1
IN2
VID
AU
EO
S-V
IDE
O
AUX
DC I/O
5V
0.5A
RG
LAN
B IN2
RG
B OU
CO
NT
T
RO
L
AC
AU
DIO
IN
OU
T
US
B
Connector
of the power cord
1. Connect the connector of the power cord to the AC inlet of the projector.
2. Firmly plug the power cord's plug into the outlet.
15
Setting up
Inserting an SD Card and USB Memory
When using the projector with a wireless LAN please insert the included Wireless
Network Card.
When using a commercial SD Memory card in order to view images insert the SD
Memory card in the same manner.
And when using a commercial USB MEMORY in order to view images insert the
USB MEMORY to the AUX I/O port. (13)
See User's Manual - Network Function for information on using either type of card.
1. Make sure the projector’s power switch is OFF.
Indentation
AUX I/O Port
2.
Remove the SD card slot cover.
 Lift the cover slightly by the small
indentation in the middle of the front of the
cover using a finger nail or other means.
 Pull the cover forward and remove it
completely from the projector.
the SD card.
3. Insert
Slowly insert the SD card completely into
SD Card Slot
the SD card slot.
Make sure the angled corner of the SD card is
facing the right side (AUX I/O port side) of the
projector while inserting.
Angled corner
the SD card slot cover.
4. Replace
Replace the cover by reversing the procedure used when removing the cover.
NOTE • When using the projector with a wired LAN, please remove the
Wireless Network card.
• Select the "REMOVE MEDIA" on MIU menu before SD card or USB memory
is removed.
NOTE • The LED becomes downward in some USB Memory. Remove the
USB Memory after the accessing is completely finished.
IMPORTANT NOTE • To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide
a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.
16
Remote control
Remote control
Putting batteries
WARNING ►Always handle the batteries with care and use them only as
directed. Battery may explode if mistreated. Do not recharge, disassemble or
dispose of in fire.
And also improper use may result in cracking or leakage, which could result in
fire, injury and/or pollution of the surrounding environment.
• Be sure to use only the batteries specified. Do not use batteries of different
types at the same time. Do not mix a new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets. If swallowed consult a physician
immediately for emergency treatment.
• Do not short circuit or solder a battery.
• Do not allow a battery in a fire or water. Keep batteries in a dark, cool and dry place.
• If you observe a leakage of a battery, wipe out the flower and then replace a battery.
If the liquid adheres to your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.
the battery cover.
1. Remove
Slide back and remove the battery cover in the direction of the arrow.
the batteries.
2. AInsert
lign and insert the two AA batteries according to their plus and minus
3.
terminals as indicated in the remote control.
Close the battery cover.
Replace the battery cover in the direction of the arrow and snap it back into place.
17
Remote control
Using the remote control
CAUTION ►Be careful in handling the remote control.
• Do not drop or expose the remote control to physical impact.
• Do not get the remote control wet or place it on wet objects. It may result in
malfunction.
• Remove the batteries from the remote control and store them in a safe place if
you won’t be using the remote control for an extended period.
• Replace the batteries whenever the remote control starts malfunctioning.
• When strong lights (such as direct sunlight) or light from an extremely close
range (such as from an inverter fluorescent lamp), hit the projector’s remote
sensor, the remote control may cause to function. Adjust the direction of the
projector to keep the light from directly hitting the projector’s remote sensor.
The signal settings for the remote control transmitter and the projector's remote sensor can be changed.
If the remote control does not function properly try changing the signal setting.
Changing the signal setting for the remote control transmitter
(1)Setting 1 (FREQ. : NORMAL)
Simultaneously press and hold the MUTE and RESET buttons for about 3 seconds.
(2)Setting 2 (FREQ. : HIGH)
Simultaneously press and hold the MAGNIFY OFF and ESC buttons for about 3 seconds.
• Setting 1 is the factory default setting.
• When the batteries are removed from the remote control, user-specified settings are
saved for about half a day. If the batteries are removed from the remote control for longer
than half a day, the remote will reset to Setting 1.
Changing the signal setting for the projector's remote sensor
Switch between Setting 1 and 2 using the SERVICE/REMOTE FREQ. item found in
OPTION MENU. (45)
If the remote control does not seem to function properly, try changing the settings for the
remote control and the projector's remote sensor.
The remote control will not function properly if the remote control transmitter settings and
the projector's remote sensor settings are not the same.
The remote control works with the projector’s remote sensor.
approx. 3 meters
30º
30º
• The range of the remote sensor is 3 meters with a 60 degree range (30 degrees to the left
and right of the remote sensor).
• Also a remote signal reflected in the screen etc. may be available. If it is difficult to send a
remote signal to the sensor directly, please try to use the reflected signal.
• Since the remote control uses infrared light to send signals to the projector (Class1
LED), be sure to use the remote control in an area free from obstacles that could block the
remote control’s output signal to the projector.
18
Power on/off
Power on/off
WARNING ►When the power is on, a strong light is emitted. Do not look into
the lens of projector. Also do not peep at the inside of projector through a hole.
NOTE • Turn the power on/off in right order. Please power on the projector prior
to the connected devices. Power off the projector later than the connected devices.
Turning on the power
sure that the power cord is firmly and
1. Make
correctly connected to the projector and the outlet.
Remove the lens cover, and set the power switch to
2. the
ON position.
The power indicator will light up in steady orange. Then
wait several seconds because the buttons may not
function for these several seconds.
(1) When AUTO ON in the OPTION menu is set to TURN ON:(42)
The lamp will only be automatically turned on when the
Power switch is turned on after the power was turned off by
Power switch last time. Afterwards the POWER indicator
will begin blinking in green. When the power is completely
on, the indicator will stop blinking and light in green.
(2) When AUTO ON in the OPTION menu is set to TURN OFF
please see step 3.
Press the STANDBY/ON button on the projector or the
remote control.
To display the picture, select an input signal according to the
section "Selecting an input signal" (20).
3.
POWER
indicator
STANDBY/ON
button
VIDEO
RGB
ASPECT
MAGNIFY
ON
OFF
FREEZE
SEARCH
BLANK
AUTO
HOME
PAGE UP
END
PAGE DOWN
MY BUTTON
1
VOLUME
2
MUTE
KEYSTONE
MENU
POSITION
ENTER
ESC
RESET
CB/P
SD
B
R
VIDE
O
S-VID
EO
CAR
D
CR/P
RGB
AUDI
IN1
O
O IN2 IN1
AUDI
AUX
DC I/O
5V
RGB
0.5A
LAN
IN2
RGB
CON
TROL
AC
OUT
IN
AUDI
O OUT
USB
POWER
(Steady orange)
POWER
(Blinking in green)
POWER
(Steady green)
Turning off the power
Please pay special attention to below two points when you do:
(1) Please do not turn the projector on again for at least 10 minute in this case. Neglect
could shorten the lifetime of the lamp.
(2) During use or immediately after use, do not touch around the lamp and vents of the
projector (5 ê) It could cause a burn.
(3) Remove the SD memory or USB memory before turn off the power switch.
Press the STANDBY/ON button on the projector or the remote
Power off?
control.
The message "Power off?" will appear on the screen for about 5
seconds.
POWER
Press the STANDBY/ON button on the projector or the remote
(Blinking in orange)
control again while the message appears.
The projector lamp will go off, and the POWER indicator will begin
POWER
blinking in orange.
(Steady orange)
Then the POWER indicator will stop blinking and light in steady
orange when the lamp cooling is complete.
Make sure that the power indicator lights in steady orange, and set
the power switch to the OFF position. The POWER indicator will go
19
off. Attach the lens cover.
1.
2.
3.
Operating
Operating
Adjusting the volume
the VOLUME button on the remote control.
1. Press
A dialog will appear on the screen to aid you in adjusting the volume.
the cursor buttons ▲/▼ to adjust the volume.
2. Use
To close the dialog and complete the operation, press the
VOLUME button again. Even if you don’t do anything, the
dialog will automatically disappear after a few seconds.
VIDEO
AUTO
BLANK
MAGNIFY
ON
HOME
PAGE UP
VOLUME
END
PAGE DOWN
OFF
FREEZE
MY BUTTON
1
VIDEO
Temporarily muting the sound
1.
Press the MUTE button on the remote control.
A dialog will appear on the screen indicating that you have muted the sound.
To restore the sound, press the MUTE or VOLUME button.
Even if you don’t do anything, the dialog will automatically
disappear after a few seconds.
SEARCH
RGB
ASPECT
2
MUTE
KEYSTONE
SEARCH
RGB
ASPECT
AUTO
BLANK
PAGE UP
VOLUME
MENU
POSITION
MAGNIFY
HOME
ON
ENTER
PAGE DOWN
END
OFF
MUTE
RESET
ESC
FREEZE
MY BUTTON
1
2
KEYSTONE
MENU
POSITION
Selecting an input signal
ENTER
the INPUT button on the projector.
1. Press
Each time you press the button, the projector switches its
RESET
ESC
input port as below.
RGB IN1  RGB IN2  MIU
VIDEO S-VIDEO COMPONENT VIDEO


CB/P
SD
B
CAR
D
CR/P
R
VIDEO
S-VID
EO
RGB
AUDIO IN1
AUDIO
IN1
