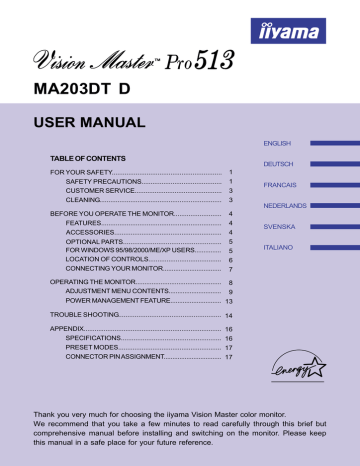

MA203DT D

USER MANUAL

TABLE OF CONTENTS

FOR YOUR SAFETY............................................................

SAFETY PRECAUTIONS............................................

CUSTOMER SERVICE................................................

CLEANING...................................................................

3

3

1

1

BEFORE YOU OPERATE THE MONITOR..........................

FEATURES..................................................................

ACCESSORIES...........................................................

OPTIONAL PARTS.....................................................

FOR WINDOWS 95/98/2000/ME/XP USERS...............

LOCATION OF CONTROLS........................................

CONNECTING YOUR MONITOR.................................

OPERATING THE MONITOR................................................

ADJUSTMENT MENU CONTENTS..............................

POWER MANAGEMENT FEATURE.............................

8

9

13

4

5

4

4

5

6

7

TROUBLE SHOOTING........................................................

14

APPENDIX............................................................................

SPECIFICATIONS.......................................................

PRESET MODES.........................................................

CONNECTOR PIN ASSIGNMENT.................................

16

16

17

17

ENGLISH

DEUTSCH

FRANCAIS

NEDERLANDS

SVENSKA

ITALIANO

Thank you very much for choosing the iiyama Vision Master color monitor.

We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

Congratulations!

The display you have just purchased carries the TCO’03

Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic fields

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001

• Restrictions on o chlorinated and brominated flame retardants and polymers o heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the

1980s TCO has been involved in influencing the development of IT equipment in a more userfriendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

FCC DECLARATION OF CONFORMITY

Model Number:

Trade Name:

Responsible party:

Address:

Telephone number:

MA203DT D iiyama

IIYAMA North America, Inc.

65 West Street Road, Suite 101B, Warminster, PA 18974 U.S.A.

215-682-9050

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This equipment may not cause harmful interference, and (2) this equipment must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If you determine the equipment does cause harmful interference to radio or television reception (this may be determined by monitoring the interference while turning the equipment off and on), you are encouraged to try to correct the interference by one of the following measures: n Reorient or relocate the receiving antenna.

n Increase the separation between the equipment and receiver.

n Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

n Consult the dealer or an experienced radio or TV technician for help.

To meet the FCC requirements, the specified signal cables below should be used.

Signal Cable MB38 (Enclosed): 242Z050-01

Signal Cable MB31 (Optional): 242Z017-01

CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the equipment under FCC compliance regulations.

CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE

STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulation of the Canadian department of communications.

CE MARKING DECLARATION OF CONFORMITY

This Color Data Monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive”,

73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC and 93/42/EEC “Medical Devices

Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterized by their connection to the public low voltage power supply system.

n We reserve the right to change specifications without notice.

n All trademarks used in this user manual are the property of their respective owners.

n As an E NERGY

S

TAR ® Partner, iiyama has determined that this product meets the E

NERGY

S

TAR ® guidelines for energy efficiency.

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use the monitor where water may be splashed or spilt on the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, or dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

1 FOR YOUR SAFETY

CAUTION

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.

Do not remove the tilt stand when operating the monitor. Ventilation slots on the cabinet bottom will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage.

Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cables are disconnected. If you do not disconnect them, it may cause fire or electric shock.

It is recommended that two people are used when moving the monitor.

UNPLUG THE MONITOR

The power cable is the disconnect device. If the monitor is not in use for a long period of time it is recommended that the power cable it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

DO NOT PUT FLOPPY DISKS NEAR THE MONITOR

Magnetic data recordings such as on a floppy disk may disappear if they are placed on or near the monitor as the degauss circuit causes a strong momentary magnetic field.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.

For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

MAGNETIC FIELD INFLUENCE

Place the monitor away from TV, speaker systems or any other source of strong magnetic fields.

The monitor may be noisy or the screen's output may be distorted as a result of interference from other appliances.

INTENDED APPLICATION

The monitor can be also used in a medical environment to display video signal from computer or other system. The monitor is not suitable for use in areas that patients are cared for.

FOR YOUR SAFETY 2

OTHERS

UNSUITABLE LOCATION FOR USING THE MONITOR

The monitor is not suitable for use in the presence of a FLAMMABLE ANAESTHETIC MIXTURE WITH

AIR or WITH OXYGEN OR NITROUS OXIDE.

The monitor is not suitable for use in areas that patients are cared for. This encloses a space within the room 1.83 m (6 feet) beyond the perimeter of the bed (examination table, dental chair, treatment booth, and the like) in its intended location, and extending vertically 2.29 m (7-1/2 feet) above the floor.

CUSTOMER SERVICE

NOTE If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING n If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION n For safety reasons, turn off the power switch and unplug the monitor before you clean it.

NOTE

CABINET

CRT n The CRT screen is protected by an anti-reflection & anti-static coating. Do not scratch or rub the screen with a hard object, as this could damage the coating.

n Never use any of the following strong solvents. These will damage the cabinet and the CRT.

Thinner

Benzine

Abrasive cleaner

Solvent for cleaning glass

Solvent with anti-static agent

Spray-type cleaner

Wax

Acid or Alkaline solvent

Alcohol solvent

Stains can be removed with a cloth lightly moistened with a mild detergent solvent.

Then wipe the cabinet with a soft dry cloth.

Wipe the CRT with an enclosed cleaning cloth to remove smudges (such as fingerprints). Tough stains can be removed with a cloth lightly moistened with water or mild detergent diluted by 10%. Make sure to wipe the CRT surface using a sideling movement.

3 FOR YOUR SAFETY

BEFORE YOU OPERATE THE MONITOR

FEATURES

u u

Crisp, Clear Display for Windows

®

or Macintosh

Supports Resolutions up to 1920×1440

u u

Supports Refresh Rate up to 85Hz at 1600×1200

Plug & Play VESA DDC2B Compliant (D-Sub Input only)

Windows

®

95/98/2000/Me/XP Compliant

u u

Supports sRGB International Standard

Power Management (E

NERGY

S

TAR ®

and VESA DPMS Compliant)

u u

Space Saving, Compact Case Design

u

Medical Standard Compliant

ACCESSORIES

The following accessories should be included in the Vision Master packaging. Please ensure that all of them are enclosed.

n Power Cable * n Signal Cable MB38 (For D-Sub connection) n Cleaning Cloth n User Manual

CAUTION * TO USERS IN 120V AREA

The rating of the Power Cable enclosed in 120V area is 10A / 125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A /

250V must be used.

BEFORE YOU OPERATE THE MONITOR 4

FOR WINDOWS 95/98/2000/ME/XP USERS

Windows 95/98/2000/Me/XP Monitor Information File for iiyama monitors may be obtained via the

Internet, using the address: http://www.iiyama.com (U.S.A.) http://www.iiyama.co.uk (U.K.)

NOTE n n

For additional information on how to download the driver for your monitor, please access one of the internet sites noted above.

Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

5 BEFORE YOU OPERATE THE MONITOR

LOCATION OF CONTROLS

A Power Indicator

B Stand-by Switch

( : Stand-by Symbol)

C OPQ Button (OPQ) = Optimize Picture Quality

Switch OPQ function between ON and OFF whenever pressing the OPQ Button. Turn

ON the OPQ function to get the optimum picture quality when displaying DVD or other moving pictures.

[On screen display] OPQ ON:

OPQ OFF:

NOTE The OPQ setting is not saved.

The OPQ function is turned OFF when turning OFF the Power

Switch. Color temperature is fixed to the factory preset 9300K while the OPQ function is active.

D + Button

E – Button

F Menu Button

G Input Select Button (VIDEO 1/2)

Select either VIDEO IN 1 or 2 for the signal input when both of the signal inputs are connected to a signal source. Switch VIDEO

IN 1 and 2 whenever pressing Input Select

Button for 2-3 seconds.

NOTE When only one of the two signal inputs is connected to the signal source, automatic signal input selection occurs only with the initial turning ON of the Power Switch.

H AC Connector (AC IN)

I D-Sub mini 15pin Connector (VIDEO IN 1)

J D-Sub mini 15pin Connector (VIDEO IN 2)

BEFORE YOU OPERATE THE MONITOR 6

CONNECTING YOUR MONITOR

A Ensure that both the computer and the monitor are switched off.

B Connect the computer to the monitor with the signal cable. (See page 17 for CONNECTOR

PIN ASSIGNMENT.)

C Connect the Power Cable to the monitor first and then to the power supply.

NOTE n The signal cables used for the connection vary by the type of computers you use. An incorrect connection may cause serious damage to both the monitor and the computer.

The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.

n For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.

n Make sure you tighten the finger screws at each end of the signal cable.

7 BEFORE YOU OPERATE THE MONITOR

OPERATING THE MONITOR

To create the best picture, your iiyama Vision Master has been preset at the factory with the signal timings listed on page 17 in PRESET MODES. If an incorrect picture appears during the operation, adjust the image by following the procedure shown below to get the desired picture.

After selecting an item in the Main Menu, the adjustments and settings are made in the Sub-Menu.

(

Main Menu appears on the screen when you press the Menu

Button.

B

For example, to adjust the horizontal screen size, select

(Screen Control) on the Main Menu by using the +/– Buttons. The

Sub-Menu appears when you press the Menu Button.

Menu

RB

Adjustment icon FUNC

Adjustment menu presently selected

Screen Control

C

Select (H-Size) on the Sub-Menu by using the +/– Buttons. An adjustment scale will turn white when you press the Menu Button.

Use the +/– Buttons to adjust the horizontal screen size. See

ADJUSTMENT MENU CONTENTS on next pages for further information.

Screen Control

Adjustment icon

Adjustment menu presently selected

The line shows the p r o g r e s s o f t h e adjustment being made.

H-Size

| | | | | | | | | | | | | | | | | | | | | | | | | · · · · · · · · · · · · · · · · · · · · · · · · ·

+

NOTE n The On Screen Display disappears in optional setting seconds after you stop pressing the buttons while performing an adjustment. (See page 11 for OSD Off Timer.) n Adjustments for Size, Position, Pin-Cushion and Trapezoid are saved for each signal timing.

Except for these adjustments, all other adjustments such as Color, Parallelogram, Convergence,

Moire and Landing have only one setting which applies to all signal timings.

OPERATING THE MONITOR 8

ADJUSTMENT MENU CONTENTS

Main Menu

Color

Control

Sub-Menu

Contrast

Brightness

Direct

Direct

Problem / Option Button to Press

Too dull

Too intense

Too dark

Too bright

COLOR

Color Temp.

Reddish white

Bluish white

NOTE n Color temperature is adjustable sRGB and between approximately

10000K and 4500K. The factory preset is 9300K.

n Color temperature is fixed to the factory preset 9300K while the OPQ function is active.

sRGB

Procedure n To access the sRGB mode, select the Color Temp. function and select 10000K by pushing the + button. Hold down the + button and sRGB function will be activated.

When this mode is activated the color temperature is approximately 6500K.

n To deactivate the sRGB mode, push the – button while the Color Temp. is selected.

NOTE n sRGB is an international standard which defines and unifies the difference of color appearance between equipment.

n You can not adjust the Contrast and Brightness during sRGB mode because those settings are locked.

Return to Menu Return to Main Menu.

Direct

You can skip the Menu pages and display an adjustment scale directly by using the following button operations.

l Contrast: Press the +/– Buttons when the Menu is not displayed.

l Brightness: Press the +/– Buttons and then the Menu Button continuously when the

Menu is not displayed.

NOTE n SWITCHING CONTRAST / BRIGHTNESS ADJUSTMENT

To switch between Contrast and Brightness adjustments, press the Menu Button within 2 seconds after pressing the +/– Buttons during the direct adjustments above.

n The On Screen Display disappears approx. 3 seconds after you stop pressing the buttons while performing the direct adjustment, irrespective of OSD Off Timer setting.

(See page 11 for OSD Off Timer.)

9 OPERATING THE MONITOR

Main Menu

Screen

Control

Shape

Sub-Menu

Zoom

H-Size

H-Position

V-Size

V-Position

Return to Menu

Pin-Cushion

Trapezoid

Parallelogram

Pin-Balance

Tilt

Return to Menu

Problem / Option Button to Press

Too small

Too large

Too small

Too large

Too far to the left

Too far to the right

Too small

Too large

Too low

Too high

Return to Main Menu.

To correct distortion

To correct distortion

To correct distortion

To correct distortion

To correct tilt

Return to Main Menu.

OPERATING THE MONITOR 10

Main Menu


Quality

Sub-Menu

H-Convergence

V-Convergence

H-Moire

Problem / Option Button to Press

To correct misconvergence for vertical lines

To correct misconvergence for horizontal lines

To correct vertical wavy lines

NOTE

Moiré is the result of interference between the phosphor layout and the video signal. By changing the horizontal and vertical size, the moiré can be reduced. You may find the moiré more noticeable depending on the Desktop

Pattern you select. In this case, change the desktop pattern. If moiré is still noticeable, use this function to reduce the effect. The picture may shake if extreme moiré correction is performed.

NOTE

Degauss

Degauss should not be repeated continuously. Wait at least

30 minutes between degaussing operations. While degaussing, the picture shakes and a low sound occurs but this does not indicate a problem, it is normal.

Every time the monitor is switched on, the monitor is automatically degaussed.

But occasionally the colors change when moving or swiveling the monitor. In this case, first try the “Raster Rotation” adjustment. If the problem persists, select

Degauss.

Return to Menu Return to Main Menu.

Landing

Top-Left

Top-Right

Bottom-Left

Bottom-Right

Raster Rotation

To correct discoloration

To correct discoloration

To correct discoloration

To correct discoloration

To correct discoloration

Return to Menu Return to Main Menu.

11 OPERATING THE MONITOR

Main Menu

Function

Sub-Menu Problem / Option Button to Press

OSD H-Position

OSD V-Position

OSD Off Timer

Language

English

Deutsch

Français

Nederlands

Svenska

Japanese

On

Lockout

Save Recall

O f f

Auto

Too far to the left

Too far to the right

Too low

Too high

3 5 15 30 45 sec

You can set the OSD display time to any one of the above 5 settings.

English

German

French

Dutch

Swedish

Japanese

All adjustment items except this function are locked out.

Lockout is canceled.

Any changes are automatically saved in the memory when the On Screen Display disappears.

NOTE

Manual

Reset

Turning off the power should be avoided while using the Menu.

Every time the adjustment is performed,

“Save the changes?” appears on the screen. Select “Yes” to save the adjustment data. Select “No” to cancel the adjustment data so that the screen returns to the former condition.

Factory-preset data is restored.

NOTE Performing this operation resets any adjustment data made by the user to the factory-preset frequencies. The following settings made by the user for signals other than the factory-preset timings remain unchanged.

H-Size V-Size Pin-Cushion

H-Position V-Position Trapezoid

Return to Menu Return to Main Menu.

OPERATING THE MONITOR 12

Main Menu

Help

Help

Sub-Menu

On

Information

Return to Menu

Off

Option

Every time you select the sub-menu icon, the online balloon help appears to indicate the menu contents or adjustment procedure.

The online balloon help is off.

The model name, serial number, current signal input, and scan rates are displayed in the function.

Return to Main Menu.

POWER MANAGEMENT FEATURE

The power management feature of this product complies with every power saving requirement of

E NERGY S TAR ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

n Power Management Mode

When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 5W. The screen becomes dark, and the power indicator turns to orange. From Power

Management Mode, the image reappears in 10 seconds when either the keyboard or the mouse are touched again.

NORMAL MODE

POWER MANAGEMENT MODE

Power Indicator

Green

Orange

POWER 0

CONSUMPTION

5 W 100%

NOTE Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not used, during the night and weekends, to avoid unnecessary power consumption.

13 OPERATING THE MONITOR

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have.

2. Consult the following charts if you cannot find an appropriate adjustment item in OPERATING

THE MONITOR or if the problem persists.

3.

If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Check Problem

A The picture does not appear.

(Power indicator does not light up.)

B

(Power indicator is green.)

(Power indicator is orange.)

The screen is not synchronized.

o o o

The Power Cable is firmly seated in the socket.

The Power Switch is turned ON.

The AC socket is live. Please check with another piece of equipment.

o o o o o

If the blank screen saver is in active mode, touch the keyboard or the mouse.

Increase the Contrast and/or Brightness.

The computer is ON.

The Signal Cable is properly connected.

The signal timing of the computer is within the specification of the monitor.

o o o o o

If the monitor is in power management mode, touch the keyboard or the mouse.

The computer is ON.

The Signal Cable is properly connected.

The signal timing of the computer is within the specification of the monitor.

The monitor selects the correct signal input. Press the Input Select

Button once to check.

o o o

The Signal Cable is properly connected.

The signal timing of the computer is within the specification of the monitor.

The video output level of the computer is within the specification of the monitor.

o The signal timing of the computer is within the specification of the monitor.

C The screen position is not in the center.

D The screen is too bright or too dark.

E The screen is shaking.

o The video output level of the computer is within the specification of the monitor.

The screen may be too bright due to the video output level difference of the computer. In this case, adjust the Contrast.

o o o o

Check if there are any sources of strong magnetic fields such as TV, speakers, etc. nearby.

If yes, remove them from the area of the monitor or change the position/ direction of the monitor to avoid magnetic field interference.

The power voltage is within the specification of the monitor.

The signal timing of the computer is within the specification of the monitor.

Moiré correction is working properly.

TROUBLE SHOOTING 14

Normal phenomenon on ‘Diamondtron NF-CRT’ monitors

Misalignment of Aperture Grille

Due to the nature of the Diamondtron NF-CRT, in rare cases, a misalignment of the aperture grille may happen by the shock or vibration caused during transportation. If a black vertical line appears on the screen, apply a light shock to the side of the monitor with your hand. If the problem persists, follow the procedure below.

A

B

Display a full white picture and inspect the problem area.

Display a high-white picture that covers the problem area to shoot a strong electron beam.

Leave it for a while, until the problem disappears.

Damper Wires

The two faint horizontal lines that may be visible on the screen are actually the shadows of steel wires called Damper Wires. All Diamondtron NF-CRT based monitors have these wires for structural reasons.

15 TROUBLE SHOOTING

APPENDIX

SPECIFICATIONS

CRT

Sync Frequency

Video Bandwidth

Recommended Resolution

Input Connector

Plug & Play

Input Sync Signal

Input Video Signal

Number of Signal

Storage

Standard Screen Size

Power Source

Power Consumption

Dimensions, Net Weight

Tilt-Swivel Angle

Environmental

Considerations

22" (20.0" / 51cm viewable), Aperture Grille pitch: 0.24mm,

Diamondtron NF-CRT, 90 degree deflection,

Short persistence phosphor, Anti-reflection & Anti-static coating

Horizontal: 30.0-117.0kHz, Vertical: 50-180Hz

300MHz dot clock

1280 × 1024 at 85Hz

D-Sub mini 15pin × 2

VESA DDC2B™

Separate sync:

Composite sync:

Sync on green:

TTL, Positive or Negative

TTL, Positive or Negative

0.3Vp-p, Negative

Analog: 0.7Vp-p (Standard), 75 W, Positive

Factory-presets: 7

User defined settings: 10 maximum

395mm W × 295mm H / 15.6" W × 11.6" H

100-230V , 50/60Hz, 1.85-0.8A ( : Alternating Current Symbol)

140W maximum in normal use

Power management mode: 5W maximum

493 × 487 × 479mm / 19.4 × 19.2 × 18.9" (W × H × D), 28kg / 61.7lbs

Right / Left: 45 degrees each, Up: 15 degrees, Forward: 5 degrees

Operating: Temperature

Humidity

0 to 35°C / 32 to 95°F

10 to 80% (No condensation)

Altitude limitations Not more than 3,000m

Storage/Transport: Temperature

Humidity

-20 to 60°C / -4 to 140°F

5 to 90% (No condensation)

Altitude limitations Not more than 12,000m

Approvals TCO ’03, CE, TÜV-GS (EN60950*) / TÜV-GM (EN60601-1*) /

MPR3(prEN50279) / ISO 9241-3/ISO 9241-7/ISO 9241-8, PTB, FCC-B,

UL/C-UL (UL60950, UL2601-1), DHHS, Department of Health (Canada)

* Protection Class: Class 1, EMC Class: Class B, Group 1

493mm/19.4"

406mm/16.0"

479mm/18.9"

APPENDIX 16

PRESET MODES

The following chart indicates the Factory Preset Modes.

1

2

5

6

7

3

4

VESA Timing Name

640×400 @70Hz

640×480 @60Hz

640×480 @85Hz

800×600 @85Hz

1024×768 @85Hz

1280×1024 @85Hz

1600×1200 @85Hz

Horizontal

Frequency

31.47kHz

31.47kHz

43.27kHz

53.67kHz

68.68kHz

91.15kHz

106.25kHz

Vertical

Frequency

70.0Hz

59.9Hz

85.0Hz

85.1Hz

85.0Hz

85.0Hz

85.0Hz

Sync Polarity

H

Negative

Negative

Negative

Positive

Positive

Positive

Positive

V

Positive

Negative

Negative

Positive

Positive

Positive

Positive

NOTE Additional adjustments may be required to the factory-presets, because the signal timings vary depending on the type of graphics board you use.

CONNECTOR PIN ASSIGNMENT

n D-Sub mini 15pin

Connector

5

6

3

4

Pin

1

2

7

8

Input Signal

Red video

Green video / Sync on green

Blue video

Red video ground

Green video ground

Blue video ground

Pin

9

10

11

Input Signal

Ground

Ground

12 Data line (SDA) *

13 H-Sync / HV-Sync

14

15

V-Sync

Clock line (SCL) *

* Compliant to VESA DDC.

CLASSIFICATION MARK

WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY

IN ACCORDANCE WITH UL 2601-1 <43RB>

WITH RESPECT TO ELECTRIC SHOCK, FIRE MECHANICAL

AND OTHER SPECIFIED HAZARDS ONLY

IN ACCORDANCE WITH CAN/CSA C22.2 NO. 601.1,

MEDICAL EQUIPMENT CERTIFIED FOR CANADA <43RB>

17 APPENDIX

IIYAMA CORPORATION

710-1 Kitaowaribe, Nagano-shi 381-0014 Japan

This manual is printed on recycled paper.

Dieses Handbuch ist auf Recyclingpapier gedruckt.

Ce manuel est imprimé sur du papier recyclé.

Deze handleiding is op kringlooppapier gedrukt.

Handboken har tryckts på returpapper.

Questo manuale è stampato su carta riciclata.

Part No. 870Z257A01

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
