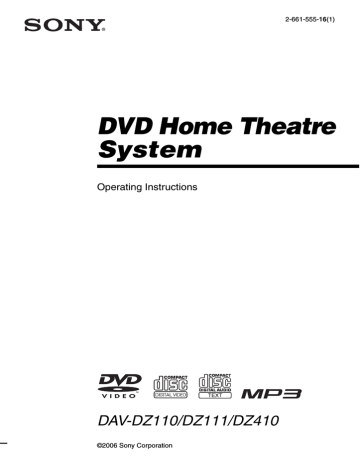

2-661-555-16(1)
DVD Home Theatre
System
Operating Instructions
DAV-DZ110/DZ111/DZ410
©2006 Sony Corporation
2
GB
3
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste.
This appliance is classified as a CLASS 1
LASER product. This marking is located on the rear or bottom exterior.
NOTICE FOR THE CUSTOMERS IN THE
UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS1362, (i.e., marked with mark or mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover.
If you should lose the fuse cover, please contact your nearest Sony service station.
Precautions
Safety
• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (mains), even if the unit itself has been turned off.
• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.
Installing
• Allow adequate air circulation to prevent internal heat buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.
• Do not install the unit near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.
• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the unit and discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a warm location, moisture may condense inside the DVD
Home Theatre System and cause damage to the lenses. When you first install the unit, or when you move it from a cold to a warm location, wait for about
30 minutes before operating the unit.
Disposal of Old
Electrical & Electronic
Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Welcome!
Thank you for purchasing Sony DVD Home
Theatre System. Before operating this system, please read this manual thoroughly and retain it for future reference.
Table of Contents
Welcome! ................................................ 2
About This Manual ................................. 5
This System Can Play the Following
Discs ................................................. 6
Getting Started – BASIC –
Step 1: Assembling the Speakers ............................. 9
Step 2: Connecting the System and
TV ............................................. 12
Step 3: Positioning the System... 18
Step 4: Performing the Quick
Setup........................................ 19
Getting Started – ADVANCED –
Turning off the Demonstration ............. 22
Installing the Speakers on a Wall.......... 23
TV Hookup (Advanced) ....................... 24
Other Component Hookup .................... 27
Basic Operations
Playing Discs ................................ 29
Enjoying the Radio or Other
Components............................ 30
Enjoying TV or VCR Sound from All
Speakers.................................. 31
Selecting the Movie or Music
Mode ........................................ 32
Sound Adjustments
Enjoying Surround Sound by Using Sound
Field ................................................ 33
Various Functions for Playing
Discs
Searching for a Particular Point on a Disc ......................................... 35
(Scan, Slow-motion Play, Freeze
Searching for a Title/Chapter/Track/
Scene, etc. ....................................... 36
Searching by Scene ............................... 37
Resuming Playback from the Point Where
You Stopped the Disc ..................... 37
Creating Your Own Program................ 38
Playing in Random Order ..................... 40
Playing Repeatedly ............................... 41
Using the DVD’s Menu ........................ 42
Changing the Sound.............................. 42
Selecting [ORIGINAL] or [PLAY LIST] on a DVD-R/DVD-RW .................. 44
Viewing Information About the Disc........................................... 45
Changing the Angles ............................ 47
Displaying the Subtitles........................ 48
Adjusting the Delay Between the Picture and Sound ....................................... 48
About MP3 Audio Tracks and JPEG
Image Files ..................................... 49
Playing DATA CDs or DATA DVDs with
MP3 Audio Tracks and JPEG Image
Files ................................................ 50
Playing Audio Tracks and Images as a
Slide Show with Sound .................. 52
Enjoying DivX® Videos ...................... 54
Playing VIDEO CDs with PBC Functions
(Ver.2.0) ......................................... 56
Tuner Functions
Presetting Radio Stations...................... 57
Listening to the Radio........................... 57
Using the Radio Data System (RDS) ... 59
Other Operations
Controlling the TV with the Supplied
Remote ........................................... 60
Function.......................................... 60
Using the Sound Effect......................... 61
Using the Sleep Timer .......................... 62
Changing the Brightness of the Front
Panel Display.................................. 62
3
GB
4
GB
Advanced Settings and
Adjustments
Locking Discs ....................................... 63
Getting Optimal Surround Sound for a
Room .............................................. 66
Calibrating the Appropriate Settings
Automatically ................................. 68
Using the Setup Display........................ 70
Setting the Display or Sound Track
Language ........................................ 72
Settings for the Display......................... 72
Custom Settings .................................... 74
Settings for the Speakers....................... 75
Returning to the Default Settings.......... 77
Additional Information
Precautions............................................ 78
Notes about the Discs............................ 79
Troubleshooting .................................... 79
Self-diagnosis Function ........................ 82
(When letters/numbers appear in the display)
Specifications........................................ 83
Glossary ................................................ 85
Language Code List .............................. 88
Index to Parts and Controls................... 89
Guide to the Control Menu Display...... 91
DVD Setup Display List ....................... 94
AMP Menu List .................................... 95
Index ..................................................... 96
About This Manual
• The instructions in this manual describe the controls on the remote. You can also use the controls on the system if they have the same or similar names as those on the remote.
• The instructions in this manual are for DAV-
DZ110, DAV-DZ111, and DAV-DZ410.
DAV-DZ110 is the model used for illustration purposes only. Any difference in operation is clearly indicated in the text, for example,
“DAV-DZ110 only.”
• The Control Menu items may be different depending on the area.
• “DVD” may be used as a general term for
DVD VIDEOs, DVD+RWs/DVD+Rs, and
DVD-RWs/DVD-Rs.
• Measurements are expressed in feet (ft) for
North American models.
• The following symbols are used in this manual.
Symbol Meaning
Functions available for DVD
VIDEOs, DVD-Rs/DVD-RWs in video mode, and DVD+Rs/
DVD+RWs
Functions available for DVD-Rs/
DVD-RWs in VR (Video
Recording) mode
Functions available for VIDEO
CDs (including Super VCDs or CD-
Rs/CD-RWs in video CD format or
Super VCD format)
Functions available for music CDs or CD-Rs/CD-RWs in music CD format
Functions available for DATA CDs
(CD-ROMs/CD-Rs/CD-RWs) containing MP3
1)
audio tracks,
JPEG image files, and DivX
2)3)4) video files
Functions available for DATA
DVDs (DVD-ROMs/DVD-Rs/
DVD-RWs/DVD+Rs/DVD+RWs) containing MP3
1)
audio tracks,
JPEG image files, and DivX
2)3)4) video files
1)
MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data.
2)
DAV-DZ110/DZ410 only.
3)
DivX
®
is a video file compression technology, developed by DivX, Inc.
4)
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
5
GB
6
GB
This System Can Play the
Following Discs
Format of discs
DVD VIDEO
DVD-RW/
DVD-R
DVD+RW/
DVD+R
VIDEO CD
(Ver. 1.1 and
2.0 discs)/
Audio CD
CD-RW/CD-R
(audio data)
(MP3 files)
(JPEG files)
Disc logo
“DVD+RW,” “DVD-RW,” “DVD+R,”
“DVD VIDEO,” and the “CD” logos are trademarks.
Note about CDs/DVDs
The system can play CD-ROMs/CD-Rs/CD-
RWs recorded in the following formats:
– audio CD format
– video CD format
– MP3 audio tracks, JPEG image files, and
DivX video files* of format conforming to
ISO 9660 Level 1/Level 2, or its extended format, Joliet
The system can play DVD-ROMs/DVD+RWs/
DVD-RWs/DVD+Rs/DVD-Rs recorded in the following formats:
– MP3 audio tracks, JPEG image files and
DivX video files* of format conforming to
UDF (Universal Disc Format)
* DAV-DZ110/DZ410 only
Example of discs that the system cannot play
The system cannot play the following discs:
• CD-ROMs/CD-Rs/CD-RWs other than those
recorded in the formats listed on page 6
• CD-ROMs recorded in PHOTO CD format
• Data part of CD-Extras
• DVD Audios
• Super Audio CD
• DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files*.
* DAV-DZ110/DZ410 only
• DVD-RAMs
Also, the system cannot play the following discs:
• A DVD VIDEO with a different region code
• A disc that has a non-standard shape (e.g., card, heart)
• A disc with paper or stickers on it
• A disc that has the adhesive of cellophane tape or a sticker still left on it
Notes about CD-R/CD-RW/DVD-R/
DVD-RW/DVD+R/DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-
RW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device.
Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some
DATA CDs/DATA DVDs created in Packet
Write format cannot be played.
Music discs encoded with copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
Note on DualDisc
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side.
However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.
About Multi Session CD
• This system can play Multi Session CDs when an MP3 audio track is contained in the first session. Any subsequent MP3 audio tracks recorded in later sessions can also be played back.
• This system can play Multi Session CDs when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back.
• If audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.
Region code
Your system has a region code printed on the bottom exterior and will only play DVDs labeled with the same region code.
DVD VIDEOs labeled ALL will also play on this system.
If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen.
Depending on the DVD VIDEO, no region code indication may be given even though playing the
DVD VIDEO is prohibited by area restrictions.
Note on playback operations of DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO
CDs may be intentionally set by software producers. Since this system plays DVDs and
VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO
CDs.
Copyrights
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license from Digital Theater
Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.
7
GB
Getting Started – BASIC –
See Unpacking in Specifications, page 83.
Inserting batteries into the remote
You can control the system using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the system.
Note
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
Attaching the foot pads to the subwoofer
Attach the supplied foot pads to the bottom of the subwoofer to stabilize the subwoofer and prevent it from slipping.
8
GB
Step 1: Assembling the Speakers
Before connecting the speakers, attach the speaker stand to the speaker.
(For the speakers of DAV-DZ410 only.)
Note
• Spread a cloth on the floor to avoid damaging the floor.
Tip
• You can use the speaker without the speaker stand by installing it on the wall (page 23).
1
Secure the post to the base.
The long post is for floor use, the short post is for tabletop use.
or
Post (long) Post (short)
Base
2
Draw the speaker cord through the hole on the base, then stand it up.
Bottom of the base
,
Speaker cord continued
9
GB
3
Secure the pedestal to the post.
Note
• If it is hard to secure the pedestal, remove and secure it again. Securing the pedestal forcibly may ruin the screw threads.
4
Connect the speaker cords to the speaker, then run them through the slots (A, B, C,
and D) all the way.
A
C
B
D
10
GB
5
Slide the speaker down slowly onto the pedestal.
Adjust the length of the speaker cord.
Note
• Do not catch the speaker cord between the speaker and the pedestal.
• Do not drop the speaker when mounting.
6
Secure the speaker with the screws in order 1 to 2.
1
2
Screws (2)
(supplied)
11
GB
Step 2: Connecting the System and TV
This hookup is the basic connection of the system to the speakers and TV. For other TV connections,
see page 24. For other component connection, see page 27.
To accept progressive signals, see page 25.
Refer to the connection diagram below, and read the additional information from 1 to 4 on the following pages.
DAV-DZ110
Front speaker (R)
Center speaker
Front speaker (L)
AC power cord (mains lead)
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
AM loop antenna (aerial)
COMPONENT VIDEO OUT
Y P
B
/C
B
/C
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
COAXIAL
FM 75
AM
FM wire antenna
(aerial)
Subwoofer
TV
Surround speaker (L)
12
GB
Surround speaker (R)
DAV-DZ111
Front speaker (R) Front speaker (L)
Center speaker
AC power cord (mains lead)
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
AM loop antenna (aerial)
COMPONENT VIDEO OUT
Y P
B
/C
B
/C
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
COAXIAL
FM 75
AM
FM wire antenna
(aerial)
Subwoofer
TV
Surround speaker (R) Surround speaker (L) continued
13
GB
DAV-DZ410
Front speaker (R) Front speaker (L)
Center speaker
AC power cord (mains lead)
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
AM loop antenna (aerial)
COMPONENT VIDEO OUT
Y P
B
/C
B
/C
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
COAXIAL
FM 75
AM
FM wire antenna
(aerial)
Subwoofer
TV
Surround speaker (L) Surround speaker (R)
14
GB
1
Connecting the Speakers
Required cords
The connector and color tube of the speaker cords are the same color as the label of the jacks to be connected.
Color tube
(+)
(–)
Note
• Do not catch the speaker cord insulation in the SPEAKER jack.
To avoid short-circuiting the speakers
Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch another speaker terminal or the bare wire of another speaker cord, such as shown below.
Stripped speaker cord is touching another speaker terminal.
Stripped cords are touching each other due to excessive removal of insulation.
After connecting all the components, speakers, and AC power cord (mains lead), output a test tone to
If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a speaker other than the one currently displayed on the Setup Display, the speaker may be short-circuited. If this happens, check the speaker connection again.
Note
• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords are reversed, the sound will lack bass and may be distorted.
2
Connecting the TV
Required cords
.
SCART (EURO AV) cord (not supplied)
Be sure to connect the SCART (EURO AV) cord to the EURO AV T OUTPUT (TO TV) jack on the system.
continued
15
GB
When you connect using the SCART (EURO AV) cord, check that the TV conforms to S video or RGB signals. If the TV conforms to S video, change the input mode of the TV to RGB signals. Refer to the operating instructions supplied with the TV to be connected.
Tip
• When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select the “Dolby
Pro Logic,” “Dolby Pro Logic II MOVIE,” or “Dolby Pro Logic II MUSIC” sound field (page 33).
3
Connecting the Antenna (Aerial)
To connect the AM antenna (aerial)
Plastic stand (supplied)
Antenna (aerial)
The shape and the length of the antenna (aerial) is designed to receive AM signals. Do not dismantle or roll up the antenna (aerial).
1
Remove only the loop part from the plastic stand.
2
Set up the AM loop antenna (aerial).
3
Connect the cords to the AM antenna (aerial) terminals.
Cord (A) or cord (B) can be connected to either terminal.
Insert until this part.
A
AM
Insert the cords pushing down the terminal clamp.
B
Note
• Do not place the AM loop antenna (aerial) near the system or other AV equipment, as noise may result.
Tip
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
16
GB
4
Make sure the AM loop antenna (aerial) is connected firmly by pulling softly.
To connect the FM wire antenna (aerial)
Connect the FM wire antenna (aerial) to the COAXIAL FM 75
Ω jack.
FM wire antenna (aerial)
(supplied)
FM wire antenna (aerial)
(supplied) or
COAXIAL FM 75 Ω jack COAXIAL FM 75 Ω jack
Note
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the system to an outdoor FM antenna (aerial) as shown below.
System
Outdoor FM antenna (aerial)
4
Connecting the AC power cord (mains lead)
Before connecting the AC power cord (mains lead) of this system to a wall outlet (mains), connect the speakers to the system.
Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
17
GB
Step 3: Positioning the
System
Positioning the speakers
For the best possible surround sound, all the speakers other than the subwoofer should be the same distance from the listening position (A).
However, this system allows you to place the center speaker up to 1.6 meters (5 ft) closer (B) and the surround speakers up to 5.0 meters (16 ft) closer (C) to the listening position.
The front speakers can be placed from 1.0 to
7.0 meters (3 to 23 ft) (A) from the listening position.
Place speakers as illustrated below.
• Do not lean or hang on the speaker, as the speaker may fall down.
Tip
• When you change the positions of the speakers, it is recommended that you change the settings. For
details, see “Getting Optimal Surround Sound for a
Room” (page 66) and “Calibrating the Appropriate
Settings Automatically” (page 68).
Note
• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight
• Use caution when placing the speakers and/or speaker stands (not supplied) that are attached with the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.
• When cleaning, use a soft cloth such as a cleaning cloth for glasses.
• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.
18
GB
Step 4: Performing the
Quick Setup
Follow the steps below to make the minimum number of basic adjustments for using the system.
"/1
C/X/x/c
ENTER
DISPLAY
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
FRENCH
SPANISH
PORTUGUESE
5
Press X/x to select a language.
The system displays the menu and subtitles in the selected language.
6
Press ENTER.
The Setup Display for selecting the aspect ratio of the TV to be connected appears.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
LINE:
4:3 OUTPUT:
16:9
16:9
4:3 LETTER BOX
4:3 PAN SCAN
FULL
1
Turn on the TV.
2
Press [/1.
Note
• Disconnect the headphones when you perform the Quick Setup. You cannot operate steps after
11 with the headphones connected.
• Make sure that the function is set to “DVD.”
3
Switch the input selector on your TV so that the signal from the system appears on the TV screen.
[Press [ ENTER ] to run QUICK SETUP.] appears at the bottom of the screen. If this message does not appear, display the Quick
Setup and perform again (page 21).
4
Press ENTER without inserting a disc.
The Setup Display for selecting the language used in the on-screen display appears.
7
Press X/x to select the setting that matches your TV type.
x If you have a 4:3 standard TV
[4:3 LETTER BOX] or [4:3 PAN SCAN]
x If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode
8
Press ENTER.
The Setup Display for selecting the output method for video signals from the EURO
AV T OUTPUT (TO TV) jack on the rear panel of the system appears.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
LINE:
4:3 OUTPUT:
16:9
ON
JACKET PICTURE
VIDEO
VIDEO
RGB
9
Press X/x to select the output method for video signals.
continued
19
GB
• [VIDEO]: outputs video signals.
• [RGB]: outputs RGB signals.
Note
• If your TV does not accept RGB signals, no picture appears on the TV screen even if you select [RGB]. Refer to the instructions supplied with your TV.
10
Press ENTER.
The Setup Display for selecting the speaker formation appears.
11
Press C/c to select the speaker formation image as the speakers are actually positioned, then press ENTER.
For details, see “Getting Optimal Surround
SPEAKER FORMATION
A.CAL MIC
Calibration mic
STANDARD
12
Connect the calibration mic to the
A.CAL MIC jack on the front panel and press X/x to select [YES], then press
ENTER.
Set up the calibration mic at the ear level using a tripod, etc. (not supplied). The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic. Be quiet during the measurement.
AUTO CALIBRATION
Connect calibration mic. Start measurement?
YES
NO
Auto Calibration starts.
Note
• Loud test sound is output when [AUTO
CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbor.
• Avoid being in the measurement area and making noise during the measurement (which takes about 3 minutes), as it may interfere with measurement.
13
Unplug the calibration mic and press C/ c to select [YES].
Quick Setup is finished. All connections and setup operations are complete.
20
GB
Measurement complete.
FRONT L :
FRONT R :
YES
YES
CENTER :
SUBWOOFER :
SURROUND L :
SURROUND R :
NONE
YES
NONE
NONE
If OK, unplug calibration mic and select
YES.
YES NO
Note
• If measurement fails, follow the message then retry [AUTO CALIBRATION].
To quit the Quick Setup
Press DISPLAY in any Step.
Tip
• If you change the position of the speakers, reset the
speaker settings. See “Getting Optimal Surround
Sound for a Room” (page 66) and “Calibrating the
Appropriate Settings Automatically” (page 68).
• If you want to change any of the settings, see “Using the Setup Display” (page 70).
To recall the Quick Setup display
1
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
2
Press X/x to select press ENTER.
[SETUP], then
The options for [SETUP] appear.
1 2 ( 2 7 )
1 8 ( 3 4 )
: :
DVD VIDEO
QUICK
QUICK
CUSTOM
BNR
RESET
3
Press X/x to select [QUICK], then press
ENTER.
The Quick Setup display appears.
21
GB
Getting Started – ADVANCED –
Turning off the
Demonstration
"/1
• DEMO OFF: sets the demonstration mode off.
4
Press ENTER.
The setting is reflected.
5
Press AMP MENU.
The AMP menu turns off.
AMP MENU
X/x/c
ENTER
22
GB
After connecting the AC power cord (mains lead), the demonstration appears in the front panel display. When you press "/1 on the remote, the demonstration turns off.
Note
• When you press "/1 on the system, the demonstration does not turn off.
• When you set the demonstration mode in the AMP menu to on, the demonstration does not turn off even though you press "/1 on the remote. To turn off the demonstration, set the demonstration mode to off, then press "/1 on the remote. When the demonstration mode is set to off, the system saves power in standby mode.
Setting the demonstration mode on/off
1
Press AMP MENU.
2
Press X/x repeatedly until “DEMO” appears in the front panel display, then press ENTER or c.
3
Press X/x to select the setting.
• DEMO ON: sets the demonstration mode on.
For the other speakers (DAV-DZ410)
Installing the Speakers on a Wall
1
Prepare screws (not supplied) that are suitable for the hole on the back of each speaker. See the illustrations below.
4 mm (
5
/
32
inch)
30 mm (1
3
/
16
inch)
(
4.6 mm
3
/
16
inch)
(
10 mm
13
/
32
inch)
Hole on the back of the speaker
2
Fasten the screws to the wall.
For the center speaker
160 mm
(6
3
/
8
inch)
(
8 to 10 mm
11
/
32
to
13
/
32
inch)
400 mm
(15
3
/
4
inch)
3
Hang the speakers on the screws.
(
4.6 mm
3
/
16
inch)
(
10 mm
13
/
32
inch)
(
8 to 10 mm
11
/
32
to
13
/
32
inch)
For the other speakers (DAV-DZ110/
DZ111)
Note
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.
(
8 to 10 mm
11
/
32
to
13
/
32
inch)
23
GB
24
GB
TV Hookup (Advanced)
Select a hookup suitable for the jacks on your TV.
Connecting the video cords
Sends a played back DVD image to a TV.
Check the jacks of your TV, and choose connection method A or B. Picture quality improves in order from A (standard) to B (component).
To COMPONENT
VIDEO OUT
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
COMPONENT VIDEO OUT
Y P
B
/C
B
P
R
/C
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
AM
COAXIAL
FM 75
To EURO AV
T OUTPUT
(TO TV)
B
To COMPONENT VIDEO IN
Y
P B /C B
P
R
/C
R
A
To EURO AV INPUT
TV with COMPONENT
VIDEO IN jacks
TV
.
A
To connect to a TV with the SCART (EURO AV) cord (not supplied)
Be sure to connect the SCART (EURO AV) cord to the EURO AV T OUTPUT (TO TV) jack on the system.
When you connect using the SCART (EURO AV) cord, check that the TV conforms to S video or RGB signals. If the TV conforms to S video, change the input mode of the TV to RGB signals. Refer to the operating instructions supplied with the TV to be connected.
B
To connect to a TV with the COMPONENT VIDEO IN jacks
Connect a component video cord (not supplied). To use the COMPONENT VIDEO OUT jacks (Y, P
B
/
C B , P R /C R ), your TV monitor must be equipped with via COMPONENT VIDEO IN jacks (Y,P B /C B ,
P R /C R ). If your TV accepts progressive format signals, you must use this connection and set the output
channel of the system to progressive format (page 25).
Green
Blue
Red
When connecting to a standard 4:3 screen TV
Depending on the disc, the image may not fit your TV screen.
To change the aspect ratio, see page 72.
Does your TV accept progressive signals?
Progressive is the method for displaying TV images which reduces flickering, and sharpens the image.
To display using this method, you need to connect to a TV that accepts progressive signals.
PROGRESSIVE FUNCTION
“PROGRE” lights up in the front panel display when the system outputs progressive signals.
1
Press FUNCTION repeatedly to select “DVD.”
2
Press PROGRESSIVE.
Each time you press PROGRESSIVE, the display changes as follows: t P AUTO (PROGRESSIVE AUTO) r
P VIDEO (PROGRESSIVE VIDEO) r
INTERLACE continued
25
GB
26
GB x P AUTO (PROGRESSIVE AUTO)
Select this setting when:
– your TV accepts progressive signals, and,
– the TV is connected to the COMPONENT VIDEO OUT jacks.
Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method.
Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions are not met.
x P VIDEO (PROGRESSIVE VIDEO)
Select this setting when:
– your TV accepts progressive signals, and,
– the TV is connected to the COMPONENT VIDEO OUT jacks, and,
– you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software.
Select this if the image is not clear when you select PROGRESSIVE AUTO.
Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions are not met.
x INTERLACE
Select this setting when:
– your TV does not accept progressive signals, or,
– your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (EURO AV
T OUTPUT (TO TV)).
About DVD software types and the conversion method
DVD software can be divided into 2 types: film-based software and video-based software.
Video-based software is derived from TV, such as dramas and sit-coms, and displays images at 30 frames/60 fields per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film.
In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching.
Note
• When you play video-based software in progressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Even though you set to “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO,” images from the EURO AV T OUTPUT (TO
TV) jack are unaffected as they are output in the interlace format.
happen even though you select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO.”
Other Component Hookup
You can enjoy sound using the speakers of this system by connecting the AUDIO OUT jacks of another component. For video connection of other components, connect directly to the TV.
Connecting the system and the other component
Outputs the other component through the speakers of this system.
VCR, digital satellite receiver or PlayStation 2, etc.
L
R
AUDIO
OUT
To LINE (AUDIO IN)
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
COMPONENT VIDEO OUT
Y P
B
/C
B
P
R
/C
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
AM
COAXIAL
FM
75
To connect the AUDIO OUT jacks of other component to the LINE
(AUDIO IN) jacks of this system
Connect the VCR or other components to the LINE (AUDIO IN) jacks using the audio cord (not supplied). When connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks on the components.
White (L/audio)
Red (R/audio)
To listen to the portable audio source sound through the system
Connect the audio output jacks of the portable audio source to the AUDIO IN jack on the front panel of the system with the stereo mini-plug cord (not supplied).
continued
27
GB
28
GB
Tip
• When listening to MP3 format recordings using a portable audio source, you can enhance the sound.
Press FUNCTION to select “AUDIO.” Connect the portable audio source. Press SOUND FIELD repeatedly until
“A.F.D. STD” appears in the front panel display.
To cancel, select other than “A.F.D. STD.”
Note
• Be sure to make connections securely to avoid hum and noise.
Place one disc on the tray, and then press A.
Basic Operations
Playing Discs
"/1
Disc tray
A H FUNCTION
Adjust the volume
Connect headphones
"/1
FUNCTION
MUTING
VOLUME +/–
./>
/
H x
X
Depending on the DVD VIDEO or VIDEO CD, some operations may be different or restricted.
Refer to the operation details supplied with your disc.
1
Turn on your TV.
2
Switch the input selector on the TV to this system.
3
Press "/1.
The system turns on.
Unless the system is set to “DVD,” press
FUNCTION to select “DVD.”
4
Press A.
5
Load a disc.
When you play an 8 cm disc, place it on the inner circle of the tray. Be careful that the disc is not skewed on the inner circle of the tray.
Note
• Do not forcibly press the disc tray closed with your finger, as this may cause malfunction.
• Do not place more than one disc on the tray.
6
Press H.
The system starts playback (continuous play).
Adjust the volume on the system.
The volume level appears on the TV screen and in the front panel display.
Note
• Depending on the system status, the volume level may not appear on the TV screen.
To save the power in standby mode
Press "/1 while the system turns on. To cancel standby mode, press "/1 once.
Additional operations
To
Stop
Pause
Resume play after pause
Go to the next chapter, track, or scene
Go back to the preceding chapter, track, or scene
Mute the sound
Press x
X
X or H
> (except for JPEG)
. (except for JPEG)
Stop play and remove the disc
MUTING. To cancel muting, press it again or VOLUME + to adjust the sound volume.
A continued
29
GB
To
Replay the previous scene*
Briefly fast forward the current scene**
Press
(instant replay) during playback.
(instant advance) during playback.
* DVD VIDEOs/DVD-RWs/DVD-Rs only. The button can be used except for DivX video files
(DAV-DZ110/DZ410 only).
** DVD VIDEOs/DVD-RWs/DVD-Rs/DVD+RWs/
DVD+Rs only. The button can be used except for
DivX video files (DAV-DZ110/DZ410 only).
Note
• You may not be able to use the Instant Replay or
Instant Advance function with some scenes.
Enjoying the Radio or
Other Components
X/x/c
ENTER
FUNCTION
AMP MENU
Selecting the connected component
You can use a VCR or other components connected to the LINE jacks on the rear panel.
Refer to the operation manual supplied with the components for further information on the operation.
Press FUNCTION repeatedly until “LINE” appears in the front panel display.
Each time you press FUNCTION, the mode of the system changes in the following sequence.
DVD t TUNER FM t TUNER AM t
LINE t TV t AUDIO t …
Changing the input level of the sound from connected components
Distortion may occur when listening to a component connected to the LINE jacks on the rear of the unit or to the AUDIO IN jack on the front panel. This is not a malfunction and will depend on the component connected.
To prevent this, you can change the input level from the sound of the other components.
30
GB
1
Press FUNCTION repeatedly until
“LINE” or “AUDIO” appears in the front panel display.
2
Press AMP MENU.
3
Press X/x repeatedly until
“ATTENUATE” appears in the front panel display, then press ENTER or c.
4
Press X/x to select a setting.
• ATT ON: attenuates the input level. The output level is changed.
• ATT OFF: normal input level.
5
Press ENTER.
The setting is reflected.
6
Press AMP MENU.
The AMP menu turns off.
Enjoying TV or VCR Sound from All Speakers
You can enjoy TV or VCR sound from all the speakers in this system.
For details, see “TV Hookup (Advanced)”
(page 24) and “Other Component Hookup”
SOUND
FIELD
FUNCTION
1
Press FUNCTION repeatedly until “TV” or “LINE” appears in the front panel display.
2
Press SOUND FIELD repeatedly until the sound field you want appears in the front panel display.
When you want to output the TV sound or stereo sound of a 2 channel source from the
6 speakers, select the “PRO LOGIC,” “PLII
MOVIE,” or “PLII MUSIC” sound field.
For details of sound field, see page 33.
31
GB
Selecting the Movie or
Music Mode
You can choose a suitable sound mode for movies or music.
MOVIE/
MUSIC
Press MOVIE/MUSIC during playback.
Press MOVIE/MUSIC repeatedly until the mode you want lights up in the front panel display. The default setting is underlined.
• AUTO: selects the mode automatically to produce the sound effect depending on the disc.
• MOVIE: provides the sound for movies.
• MUSIC: provides the sound for music.
Tip
• When the movie or music mode is selected,
“MOVIE” or “MUSIC” is displayed in the front panel display.
Note
• You cannot operate these setup items when you connect headphones to the system.
32
GB
Sound Adjustments
Enjoying Surround Sound by Using Sound Field
You can take advantage of surround sound simply by selecting one of system’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters into your home.
SOUND
FIELD
Press SOUND FIELD.
Press SOUND FIELD repeatedly until the sound field you want appears in the front panel display.
All sound field
Sound field
AUTO FORMAT DIRECT
STANDARD
Display
A.F.D. STD
AUTO FORMAT DIRECT
MULTI
A.F.D. MULTI
Dolby Pro Logic PRO LOGIC
Dolby Pro Logic II MOVIE PLII MOVIE
Dolby Pro Logic II MUSIC PLII MUSIC
2 CHANNEL STEREO 2CH STEREO
HEADPHONE
2 CHANNEL STEREO
HP 2CH
HEADPHONE VIRTUAL HP VIRTUAL
Automatic outputting of the original sound
x AUTO FORMAT DIRECT STANDARD
The auto decoding function automatically detects the type of audio signal being input
(Dolby Digital, DTS, or standard 2 channel stereo) and performs the proper decoding if necessary. This mode presents the sound as it was recorded/encoded, without adding any effects (e.g. reverberation).
However, if there are no low frequency signals
(Dolby Digital LFE, etc.), it will generate a low frequency signal for output to the subwoofer.
Outputting the sound from multiple speakers
x AUTO FORMAT DIRECT MULTI
This mode lets you enjoy audio playback of all types of discs from multiple speakers.
Outputting 2 channel sources like CDs by 5.1channel
x Dolby Pro Logic
Dolby Pro Logic produces five output channels from 2 channel sources. This mode performs Pro
Logic decoding to the input signal and output to front, center, and surround speakers.
Meanwhile, the surround channel becomes monaural.
x Dolby Pro Logic II MOVIE/MUSIC
Dolby Pro Logic II produces five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.
Note
• When the input signal is multi channel source, Dolby
Pro Logic and Dolby Pro Logic II MOVIE/MUSIC are canceled and the multi channel source is output directly.
• When the bilingual broadcast sound is input, Dolby
Pro Logic and Dolby Pro Logic II MOVIE/MUSIC are not effective.
continued
33
GB
34
GB
Using only the front speaker and subwoofer
x 2 CHANNEL STEREO
This mode outputs the sound from the front left and right speakers and subwoofer. Standard 2 channel (stereo) sources completely bypass the sound field processing. Multi channel surround formats are downmixed to two channels.
This allows you to play any source using only the front left and right speakers and subwoofer.
Enjoying the surround sound by headphones
x HEADPHONE 2 CHANNEL STEREO
This mode outputs the sound from headphone L/
R. Standard 2 channel (stereo) sources completely bypass the sound field processing.
Multi channel surround formats are downmixed to two channels.
x HEADPHONE VIRTUAL
This mode outputs the sound as surround from headphone L/R. This mode is effective only when a multi channel source is played.
To turn the surround effect off
Press SOUND FIELD repeatedly until “A.F.D.
STD” or “2CH STEREO” appears in the front panel display.
Various Functions for Playing Discs
Searching for a Particular
Point on a Disc
(Scan, Slow-motion Play, Freeze
Frame)
You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.
Note
• Depending on the DVD/DivX video*/VIDEO CD, you may not be able to do some of the operations described.
* DAV-DZ110/DZ410 only.
Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)
(except for JPEG)
Press /m or M/ while playing a disc.
When you find the point you want, press H to return to normal speed. Each time you press / m or M/ during scan, the playback speed changes. With each press the indication changes as shown below. Actual speeds may differ with some discs.
Playback direction
× 2B t 1M t 2M t 3M
3 M (DVD VIDEO/DVD-VR mode/DivX video*/
VIDEO CD only)
× 2 B (DVD VIDEO/CD only)
* DAV-DZ110/DZ410 only.
Opposite direction
× 2 b t 1m t 2m t 3m
3 m (DVD VIDEO/DVD-VR mode/DivX video*/
VIDEO CD only)
× 2b (DVD VIDEO only)
* DAV-DZ110/DZ410 only.
With each press, playback speed becomes faster.
Watching frame by frame
(Slow-motion Play)
(DVD VIDEO, DVD-R, DVD-RW, DivX
video*, VIDEO CD only)
* DAV-DZ110/DZ410 only.
Press /m or M/ when the system is in pause mode. To return to the normal playback speed, press H. Each time you press /m or
M/ during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows:
Playback direction
2 y 1
Opposite direction (DVD VIDEO only)
2 y 1
Playing one frame at a time
(Freeze Frame)
(except for CD, MP3, and JPEG)
When the system is in the pause mode, press
(step) to go to the next frame. Press
(step) to go to the preceding frame
(DVD VIDEO/DVD-R/DVD-RW only). To return to normal playback, press H.
Note
• You cannot search for a still picture on a DVD-R/
DVD-RW in VR mode.
• For DATA CDs/DATA DVDs, this function works only for DivX video files. (DAV-DZ110/DZ410 only)
35
GB
36
GB
Searching for a Title/
Chapter/Track/Scene, etc.
3
Press ENTER.
[** (**)] changes to [– – (**)].
1 2 ( 2 7 )
( 3 4 )
T 1 : 3 2 : 5 5
DVD VIDEO
You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD/
DATA DVD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. Or, you can search for a scene using the time code.
1
Press DISPLAY. (When playing a
DATA CD/DATA DVD with JPEG image files, press DISPLAY twice.)
The Control Menu appears.
2
Press X/x to select the search method.
The display will show different items depending on the disc.
[TITLE], [TRACK], [SCENE]
[CHAPTER], [INDEX]
[TIME/TEXT]
Select [TIME/TEXT] to search for a starting point by inputting the time code.
[TRACK]
[ALBUM]
[FILE]
Example: when you select
[CHAPTER]
[** (**)] is selected (** refers to a number).
The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, albums or files.
1 2 ( 2 7 )
1 8 ( 3 4 )
T 1 : 3 2 : 5 5
DVD VIDEO
4
Press X/x or the number buttons to select the title, chapter, track, index, scene, etc., number you want to search for.
If you make a mistake
Cancel the number by pressing CLEAR, then select another number.
5
Press ENTER.
The system starts playback from the selected number.
To search for a scene using the time code (DVD VIDEO and
DVD-VR mode only)
1
In Step 2, select [TIME/TEXT].
[T **:**:**] (playing time of the current title) is selected.
2
Press ENTER.
[T **:**:**] changes to [T --:--:--].
3
Input the time code using the number buttons, then press ENTER.
For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter [2:10:20].
Tip
• When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-R/DVD-
RW), track (VIDEO CD/CD), or file* (DATA CD/
DATA DVD (DivX video)) by pressing the number buttons and ENTER.
* DAV-DZ110/DZ410 only.
Note
• You cannot search for a scene on a DVD+RW/
DVD+R using the time code.
Selected row
Searching by Scene
(Picture Navigation)
You can divide the screen into 9 subscreens and find the desired scene quickly.
1
Press PICTURE NAVI during playback.
The following display appears.
CHAPTER VIEWER ENTER
2
Press PICTURE NAVI repeatedly to select an item.
• [TITLE VIEWER] (DVD VIDEO only)
• [CHAPTER VIEWER] (DVD VIDEO only)
• [TRACK VIEWER] (VIDEO CD/
Super VCD only)
3
Press ENTER.
The first scene of each title, chapter, or track appears as follows.
1
4
7
2
5
8
3
6
9
4
Press C/X/x/c to select a title, chapter, or track, and press ENTER.
Playback starts from the selected scene.
To return to normal play during setting
Press O RETURN or DISPLAY.
Note
• Depending on the disc, you may not be able to select some items.
Resuming Playback from the Point Where You
Stopped the Disc
(Resume Play)
When you stop the disc, the system remembers the point where you pressed x and “RESUME” appears in the front panel display. As long as you do not remove the disc, Resume Play will work even if the system enters standby mode by pressing "/1.
1
While playing a disc, press x to stop playback.
“RESUME” appears in the front panel display.
If “RESUME” does not appear, Resume
Play is not available.
2
Press H.
The system starts playback from the point where you stopped the disc in Step 1.
Note
• Depending on where you stop the disc, the system may not resume playback from exactly the same point.
• The point where you stopped playing may be cleared when:
– you eject the disc.
– the system enters standby mode (DATA CD/
DATA DVD only).
– you change or reset the settings on the Setup
Display.
– you change the function by pressing FUNCTION.
– you disconnect the AC power cord (mains lead).
• For DVD-Rs/DVD-RWs in VR mode, VIDEO CDs,
CDs, DATA CDs, and DATA DVDs, the system remembers the resume playback point for the current disc.
• Resume Play does not work during Program Play and
Shuffle Play.
• This function may not work properly with some discs.
Tip
• To play from the beginning of the disc, press x twice, then press H.
continued
37
GB
38
GB
To enjoy a disc that is played before by resume playback
(Multi-disc Resume)
(DVD VIDEO, VIDEO CD only)
This system stores the point where you stopped the disc for up to 40 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the 41st disc, the resume playback point for the first disc is deleted.
To activate this function, set [MULTI-DISC
RESUME] in [CUSTOM SETUP] to [ON]. For
details, see “[MULTI-DISC RESUME] (DVD
VIDEO/VIDEO CD only)” (page 74).
Tip
• To play from the beginning of the disc, press x twice, then press H.
Note
• If [MULTI-DISC RESUME] in [CUSTOM SETUP]
is set to [OFF] (page 74), the resume point is cleared
when you change the function by pressing
FUNCTION.
Creating Your Own
Program
(Program Play)
You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 99 tracks.
1
Press
The Control Menu appears.
2
Press X/x to select
[PROGRAM], then press ENTER.
The options for [PROGRAM] appear.
6 (14)
T 2 : 5 0
OFF
OFF
SET
ON
PLAY
CD
3
Press X/x to select [SET t ], then press ENTER.
[TRACK] is displayed when you play a
VIDEO CD or CD.
PROGRAM
ALL CLEAR
1. TRACK
2. TRACK – –
3. TRACK – –
4. TRACK – –
5. TRACK – –
6. TRACK – –
7. TRACK – –
0:00:00
T
– –
01
02
03
04
05
06
Tracks recorded on a disc
Total time of the programmed tracks
4
Press c.
The cursor moves to the track row [T] (in this case, [01]).
PROGRAM
ALL CLEAR
1. TRACK – –
2. TRACK – –
3. TRACK – –
4. TRACK – –
5. TRACK – –
6. TRACK – –
7. TRACK – –
0:00:00
T
– –
01
02
03
04
05
06
5
Select the track you want to program.
For example, select track [02].
Press X/x to select [02] under [T], then press ENTER.
Selected track
PROGRAM
ALL CLEAR
1. TRACK 0 2
2. TRACK – –
3. TRACK – –
4. TRACK – –
5. TRACK – –
6. TRACK – –
7. TRACK – –
0:15:30
T
– –
01
02
03
04
05
06
Total time of the programmed tracks
6
To program other tracks, repeat steps 4 to 5.
The programmed tracks are displayed in the selected order.
7
Press H to start Program Play.
Program Play starts.
When the program ends, you can restart the same program again by pressing H.
To return to normal play
Press CLEAR, or select [OFF] in Step 3. To play the same program again, select [ON] in Step 3 and press ENTER.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
To change or cancel a program
1
Follow steps 1 to 3 of “Creating Your Own
2
Select the program number of the track you want to change or cancel using X/x. If you want to delete the track from the program, press CLEAR.
3
Follow Step 5 for new programming. To cancel a program, select [--] under [T], then press ENTER.
To cancel all of the tracks in the programmed order
1
Follow steps 1 to 3 of “Creating Your Own
2
Press X and select [ALL CLEAR].
3
Press ENTER.
39
GB
40
GB
Playing in Random Order
(Shuffle Play)
You can have the system “shuffle” tracks.
Subsequent “shuffling” may produce a different playing order.
Note
• Same song may be played repeatedly during MP3 playback.
1
Press DISPLAY during playback.
The Control Menu appears.
2
Press X/x to select then press ENTER.
[SHUFFLE],
The options for [SHUFFLE] appear.
6 (14)
T 2 : 5 0
OFF
OFF
TRACK
PLAY
CD
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
Note
• You cannot use this function with VIDEO CDs and
Super VCDs with PBC playback.
3
Press X/x to select the item to be shuffled.
x When playing a VIDEO CD or CD
• [TRACK]: shuffles tracks on the disc.
x When Program Play is activated
• [ON]: shuffles tracks selected in Program
Play.
x When playing a DATA CD (except for
DivX*) or DATA DVD (except for DivX*)
• [ON]: shuffles MP3 audio tracks in the album on the current disc. When no album is selected, the first album will play in random order.
* DAV-DZ110/DZ410 only.
Note
• A track already played is also selected in random order.
4
Press ENTER.
Shuffle Play starts.
Playing Repeatedly
(Repeat Play)
You can play all the titles, tracks or albums on a disc or a single title, chapter, track, or album repeatedly.
You can use a combination of Shuffle or
Program Play modes.
1
Press DISPLAY during playback.
The Control Menu appears.
2
Press X/x to select then press ENTER.
[REPEAT],
The options for [REPEAT] appear.
6 (14)
T 2 : 5 0
PLAY
CD
OFF
OFF
DISC
TRACK
• [TRACK] (MP3 audio tracks only): repeats the current track.
• [FILE] (DivX video files only): repeats the current file.*
* DAV-DZ110/DZ410 only.
4
Press ENTER.
The item is selected.
To return to normal play, press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
Note
• You cannot use this function with VIDEO CDs and
Super VCDs with PBC playback.
• When playing a DATA CD/DATA DVD which contains MP3 audio track and JPEG image files, and their playing time are not the same, the audio sound will not match the image.
• When [MODE (MP3, JPEG)] is set to [IMAGE
(JPEG)] (page 52), you cannot select [TRACK].
3
Press X/x to select the item to be repeated.
The default setting is underlined.
x When playing a DVD VIDEO or DVD-
VR
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the titles on the disc.
• [TITLE]: repeats the current title on a disc.
• [CHAPTER]: repeats the current chapter.
x When playing a VIDEO CD or CD
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the tracks on the disc.
• [TRACK]: repeats the current track.
x When playing a DATA CD or DATA
DVD
• [OFF]: does not play repeatedly.
• [DISC]: repeats all of the albums on the disc.
• [ALBUM]: repeats the current album.
41
GB
42
GB
Using the DVD’s Menu Changing the Sound
A DVD is divided into a lot of sections, which make up a picture or music feature. These sections are called “titles.” When you play a
DVD which contains several titles, you can select the title you want using TOP MENU.
When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using MENU.
1
Press TOP MENU or MENU.
The disc’s menu appears on the TV screen.
The contents of the menu vary from disc to disc.
2
Press C/X/x/c or the number buttons to select the item you want to play or change.
3
Press ENTER.
When playing a DVD VIDEO or DATA CD/
DATA DVD (DivX video files*) recorded in multiple audio formats (PCM, Dolby Digital,
MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language.
With VIDEO CDs, CDs, DATA CDs, or DATA
DVDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers.
* DAV-DZ110/DZ410 only.
1
Press AUDIO during playback.
The following display appears.
1:ENGLISH DOLBY DIGITAL 3/2.1
2
Press AUDIO repeatedly to select the desired audio signal.
x When playing a DVD VIDEO
Depending on the DVD VIDEO, the choice of language varies.
When 4 digits are displayed, they indicate a
language code. Refer to “Language Code
List” (page 88) to see which language the
code represents. When the same language is displayed two or more times, the DVD
VIDEO is recorded in multiple audio formats.
x When playing a DVD-VR
The types of sound tracks recorded on a disc are displayed. The default setting is underlined.
Example:
• [1: MAIN] (main sound)
• [1: SUB] (sub sound)
• [1: MAIN+SUB] (main and sub sound)
• [2: MAIN]
• [2: SUB]
• [2: MAIN+SUB]
Note
• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do not appear when one audio stream is recorded on the disc.
x When playing a VIDEO CD, CD, DATA
CD (MP3 audio), or DATA DVD (MP3 audio)
The default setting is underlined.
• [STEREO]: the standard stereo sound
• [1/L]: the sound of the left channel
(monaural)
• [2/R]: the sound of the right channel
(monaural) x When playing a DATA CD (DivX video) or DATA DVD (DivX video)
(DAV-DZ110/DZ410 only)
The choice of DATA CD or DATA DVD audio signal formats differ, depending on the DivX video file contained on the disc.
The format is shown in the display.
x When playing a Super VCD
The default setting is underlined.
• [1:STEREO]: the stereo sound of the audio track 1
• [1:1/L]: the sound of the left channel of the audio track 1 (monaural)
• [1:2/R]: the sound of the right channel of the audio track 1 (monaural)
• [2:STEREO]: the stereo sound of the audio track 2
• [2:1/L]: the sound of the left channel of the audio track 2 (monaural)
• [2:2/R]: the sound of the right channel of the audio track 2 (monaural)
Note
• While playing a Super VCD on which the audio track
2 is not recorded, no sound will come out when you select [2:STEREO], [2:1/L], or [2:2/R].
Checking the audio signal format
(DVD, DivX video* only)
* DAV-DZ110/DZ410 only.
If you press AUDIO repeatedly during playback, the format of the current audio signal
(PCM, Dolby Digital, DTS, etc.) appears as shown below.
x When playing a DVD
Example:
Dolby Digital 5.1 ch
Surround (L/R)
LFE (Low
Frequency Effect)
1:ENGLISH DOLBY DIGITAL 3 / 2 .1
Front (L/R) +
Center
L C
LFE
R
LS
Currently playing program format
RS
Example:
Dolby Digital 3 ch
Front (L/R)
Surround
(Monaural)
2:SPANISH DOLBY DIGITAL 2 / 1
L R
S
Currently playing program format x When playing a DATA CD (DivX video) or
DATA DVD (DivX video) (DAV-DZ110/DZ410 only)
Example:
MP3 audio
1: MP3 128k
Bit rate continued
43
GB
44
GB
About audio signals
Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker.
• Front (L)
• Front (R)
• Center
• Surround (L)
• Surround (R)
• Surround (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural
Surround audio signals.
• LFE (Low Frequency Effect) signal
Selecting [ORIGINAL] or
[PLAY LIST] on a DVD-R/
DVD-RW
Some DVD-Rs/DVD-RWs in VR (Video
Recording) mode have two types of titles for playback: originally recorded titles
([ORIGINAL]) and titles that can be created on recordable DVD players for editing ([PLAY
LIST]). You can select the type of title to be played.
1
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
2
Press X/x to select [ORIGINAL/
PLAY LIST], then press ENTER.
The options for [ORIGINAL/PLAY LIST] appear.
1 ( 4 4 )
3 ( 2 8 )
T 1 : 3 0 : 5 0
PLAY LIST
PLAY LIST
ORIGINAL
DVD-VR
3
Press X/x to select a setting.
The default setting is underlined.
• [PLAY LIST]: plays the titles created from [ORIGINAL] for editing.
• [ORIGINAL]: plays the titles originally recorded.
4
Press ENTER.
Viewing Information About the Disc
Viewing the playing time and remaining time in the front panel display
You can check disc information, such as the remaining time, total number of titles in a DVD, tracks in a VIDEO CD, CD, or MP3, file name of a DivX video* using the front panel display
* DAV-DZ110/DZ410 only.
Press DISPLAY.
Each time you press DISPLAY while playing the disc, the display changes 1 t 2 t ... t 1 t ...
Some displayed items may disappear after a few seconds.
When playing a DVD VIDEO or
DVD-R/DVD-RW
1 Playing time and number of the current title
2 Remaining time of the current title
3 Playing time and number of the current chapter
4 Remaining time of the current chapter
5 Disc name
6 Title and chapter
When playing a DATA CD (DivX video) or DATA DVD (DivX video)
(DAV-DZ110/DZ410 only)
1 Playing time of the current file
2 Current file name
3 Current album and file number
When playing a VIDEO CD
(without PBC functions) or CD
1 Playing time of the current track
2 Remaining time of the current track
3 Playing time of the disc
4 Remaining time of the disc
5 Disc name
6 Track and index*
* VIDEO CD only.
When playing a DATA CD (MP3 audio) or DATA DVD (MP3 audio)
1 Playing time and current track number
2 Track (file) name
Tip
• When playing VIDEO CDs with PBC functions, the playing time is displayed.
Note
• The system can only display the first level of the
DVD/CD text, such as the Disc name or title.
• If an MP3 file name cannot be displayed, “*” will appear in the front panel display instead.
• The disc name or track name may not be displayed depending on the text.
• Playing time of MP3 audio tracks and DivX video files* may not be displayed correctly.
* DAV-DZ110/DZ410 only.
Checking the playing time and remaining time
You can check the playing time and remaining time of the current title, chapter, or track, and the total playing time or remaining time of the disc.
You can also check the DVD text and MP3 folder name/file name recorded on the disc.
1
Press DISPLAY during playback.
The following display appears.
T 1:01:57
Time information
2
Press DISPLAY repeatedly to change the time information.
The display and the kinds of time that you can check depend on the disc you are playing.
x When playing a DVD VIDEO or DVD-
RW
• T **:**:**
Playing time of the current title
• T–**:**:**
Remaining time of the current title continued
45
GB
46
GB
• C **:**:**
Playing time of the current chapter
• C–**:**:**
Remaining time of the current chapter x When playing a VIDEO CD (with PBC functions)
• **:**
Playing time of the current scene x When playing a VIDEO CD (without
PBC functions) or CD
• T **:**
Playing time of the current track
• T–**:**
Remaining time of the current track
• D **:**
Playing time of the current disc
• D–**:**
Remaining time of the current disc x When playing a DATA CD (MP3 audio) or DATA DVD (MP3 audio)
• T **:**
Playing time of the current track x When playing a DATA CD (DivX video) or DATA DVD (DivX video) (DAV-
DZ110/DZ410 only)
• **:**:**
Playing time of the current file
Note
• Only alphabetical letters and numbers can be displayed.
• Depending on the type of disc being played, the system can only display a limited number of characters. Also, depending on the disc, not all text characters will be displayed.
Checking the play information of the disc
To check DVD/CD text
Press DISPLAY repeatedly in Step 2 to display text recorded on the DVD/CD.
The DVD/CD text appears only when text is recorded in the disc. You cannot change the text.
If the disc does not contain text, “NO TEXT” appears.
BRAHMS SYMPHONY
To check DATA CD/DATA DVD
(MP3 audio/DivX video*) text
By pressing DISPLAY while playing MP3 audio tracks on a DATA CD/DATA DVD or
DivX video files* on a DATA CD/DATA DVD, you can display the name of the album/track/file, and the audio bit rate (the amount of data per second of the current audio) on your TV screen.
Bit rate**
T 17:30 128k
JAZZ
RIVER SIDE
Album name Track/file* name
* DAV-DZ110/DZ410 only.
** Appears when:
– playing an MP3 audio track on DATA CDs/DATA
DVDs.
– playing a DivX video file that contains MP3 audio signals on DATA CDs/DATA DVDs (DAV-
DZ110/DZ410 only).
Checking the date information
(JPEG only)
You can check the date information during playback when the Exif* tag is recorded in the
JPEG image data.
Press DISPLAY twice during playback.
The Control Menu appears.
1 ( 8 )
1 ( 2 0 )
01/ 01/ 2006
Date information
DATA CD
JPEG
Changing the Angles
If various angles (multi-angles) for a scene are recorded on a DVD VIDEO, you can change the viewing angle.
Press ANGLE during playback.
Each time you press ANGLE, the angle changes.
Note
• Depending on the DVD VIDEO, you may not be able to change the angle even if multi-angles are recorded on the DVD VIDEO.
* “Exchangeable Image File Format” is a digital camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Tip
• Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
47
GB
48
GB
Displaying the Subtitles
* DAV-DZ110/DZ410 only.
* *
If subtitles are recorded on a disc, you can turn the subtitles on or off while playing. If multilingual subtitles are recorded on the disc, you can change the subtitle language while playing, or turn the subtitles on or off whenever you want.
Press SUBTITLE during playback.
Each time you press SUBTITLE, the subtitle language changes.
Note
• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.
• You can change the subtitles if the DivX video file has an “.AVI” or “.DIVX” extension and contains subtitle information within the same file. (DAV-
DZ110/DZ410 only)
Adjusting the Delay
Between the Picture and
Sound
(A/V SYNC)
* DAV-DZ110/DZ410 only.
* *
When the sound does not match the pictures on the screen, you can adjust the delay between the picture and sound.
1
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
2
Press X/x to select [A/V SYNC], then press ENTER.
The options for [A/V SYNC] appear.
1 ( 1 2 )
1 ( 2 8 )
T 0 : 0 0 : 0 2
DVD VIDEO
OFF
OFF
ON
3
Press X/x to select the setting you want and press ENTER.
The default setting is underlined.
• [OFF]: does not adjust.
• [ON]: adjusts the difference between picture and sound.
The selected setting takes effect.
Note
• Depending on the input stream, this function may not be effective.
About MP3 Audio Tracks and JPEG Image Files
What is MP3/JPEG?
MP3 is audio compression technology that satisfies the ISO/MPEG regulations. JPEG is image compression technology.
Discs that the system can play
You can play back DATA CDs (CD-ROMs/CD-
Rs/CD-RWs) or DATA DVDs (DVD-Rs/DVD-
RWs/DVD+Rs/DVD+RWs/DVD-ROMs) recorded in MP3 (MPEG1 Audio Layer 3) or
JPEG format. However, the DATA CDs must be recorded according to ISO 9660 Level 1, Level
2 or Joliet format and DATA DVDs of Universal
Disk Format (UDF) for the system to recognize the tracks (or files). You can also play discs recorded in Multi Session.
See the instructions supplied with the CD-R/
CD-RW or DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format.
About the Multi-Session disc
If MP3 audio tracks or JPEG image files are recorded in the first session, the system will also play MP3 audio tracks or JPEG image files in other sessions. If audio tracks and images in audio CD format or video CD format are recorded in the first session, only the first session will be played back.
Note
• The system may not be able to play some DATA
CDs/DATA DVDs created in the Packet Write format.
MP3 audio track or JPEG image file that the system can play
The system can play the MP3 audio tracks or
JPEG image files:
• which have the extension “.MP3” (MP3 audio track) or “.JPG”/“.JPEG” (JPEG image file)
• which conform to the DCF* image file format
* “Design rule for Camera File system”: Image standards for digital cameras regulated by Japan
Electronics and Information Technology Industries
Association (JEITA).
Note
• The system will play any data with the extension “.MP3,” “.JPG,” or “.JPEG” even if they are not in MP3 or JPEG format. Playing this data may generate a loud noise which could damage your speaker system.
• The system does not conform to audio in
MP3PRO format.
Playback order of MP3 audio tracks or JPEG image files
The playback order of MP3 audio tracks or
JPEG image files recorded on a DATA CD or
DATA DVD is as follows: x Structure of disc contents
Tree 2 Tree 3 Tree 4 Tree 5 Tree 1
ROOT
Album
Track (MP3 audio) or
File (JPEG image) continued
49
GB
50
GB
When you insert a DATA CD or DATA DVD and press H, the numbered tracks (or files) are played sequentially, from 1 through 7. Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.)
When you press MENU and the list of album
names appears (page 50), the album names are
arranged in the following order:
A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.
Tip
• If you add numbers (01, 02, 03, etc.) to the front of the track (or file) names when you store the tracks (or files) in a disc, the tracks (or files) will be played in that order.
• A disc with many trees takes longer to start playback.
Note
• Playback order may differ from the illustration depending on the software you use to create the
DATA CD or DATA DVD, or if there are more than
200 albums and 300 files in each album.
• The system can recognize up to 200 albums, and will not play any albums beyond the 200th.
• The system may take longer time to playback, when progressing to the following album or jump to other album.
• Some type of JPEG files cannot be played.
Playing DATA CDs or
DATA DVDs with MP3
Audio Tracks and JPEG
Image Files
Selecting an MP3 audio track or album
1
Load a DATA CD or DATA DVD.
The albums recorded on the DATA CD or
DATA DVD appear. When an album is being played, its title is shaded.
3 ( 3 0 )
R O C K B E S T H I T
K A R A O K E
M Y F A V O U R I T E S O N G
R & B
J A Z Z
C L A S S I C
S A L S A O F C U B A
B O S S A N O V A
2
Press X/x to select an album. x When selecting an album
Press H to start playing the selected album.
x When selecting a track
Press ENTER.
The list of tracks contained in the album appears.
M Y F A V O U R I T E S O N G
1 ( 2 5 6 )
W A L T Z F O R D E B B Y
M Y R O M A N C E
M I L E S T O N E S
M Y F U N N Y V A L E N T I N E
A U T U M L E A V E S
A L L B L U E S
S O M E D A Y M Y P R I N C E W ...
Press X/x to select a track and press
ENTER.
The selected track starts playing. You can turn the track list off by pressing MENU.
Pressing MENU again will display the album list.
To stop playback
Press x.
To play the next or previous MP3 audio track
Press ./>. Note that you can select the next album by continuing to press > after the last track on the current album, but that you cannot return to the previous album by pressing
.. To return to the previous album, select the album from the album list.
To return to the previous display
Press O RETURN.
To turn off the display
Press MENU.
Selecting a JPEG image file or album
1
Load a DATA CD or DATA DVD.
The albums recorded on the DATA CD or
DATA DVD appear. When an album is being played, its title is shaded.
3 ( 3 0 )
R O C K B E S T H I T
K A R A O K E
M Y F A V O U R I T E S O N G
R & B
J A Z Z
C L A S S I C
S A L S A O F C U B A
B O S S A N O V A
2
Press X/x to select an album. x When selecting an album
Press H to start playing the selected album.
x When selecting an image
Press PICTURE NAVI.
Images of files in the album appear in 16 subscreens.
1 2 3 4
5
9
6
10
7
11
8
12
13 14 15 16
Press C/X/x/c to select the image you want to view and press ENTER.
To play the next or previous JPEG image file
Press C/c when the Control Menu is not displayed. Note that you can select the next album by continuing to press c after the last image on the current album, but that you cannot return to the previous album by pressing C. To return to the previous album, select the album from the album list.
To rotate a JPEG image
When a JPEG image file is displayed on the screen, you can rotate the image by 90 degrees.
Press X/x while viewing an image. Each time you press X, the image rotates counterclockwise by 90 degrees.
Example of when you press X once:
Rotating direction continued
51
GB
52
GB
Press CLEAR to return to normal view.
To stop playback
Press x.
Tip
• A scroll box is displayed at the right side of the screen. To display the additional image files, select the bottom image and press x. To return to the previous image, select the top image and press X.
Playing Audio Tracks and
Images as a Slide Show with Sound
You can play a slide show with sound by first placing both MP3 and JPEG files in the same album on a DATA CD or DATA DVD. When you play back the DATA CD or DATA DVD, select [AUTO] mode as explained below.
1
Load a DATA CD or DATA DVD.
2
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
3
Press X/x to select [MODE
(MP3, JPEG)], then press ENTER.
The options for [MODE (MP3, JPEG)] appear.
1 2 ( 2 7 )
1 8 ( 3 4 )
T 1 : 3 2 : 5 5
AUTO
AUTO
AUDIO (MP3)
IMAGE (JPEG)
DATA CD
MP3
4
Press X/x to select the setting you want and press ENTER.
The default setting is underlined.
• [AUTO]: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show.
• [AUDIO (MP3)]: plays only MP3 audio tracks continuously.
• [IMAGE (JPEG)]: plays only JPEG image files as a slide show.
5
Press MENU.
The list of albums recorded on the DATA
CD or DATA DVD appears.
6
Press X/x to select the album you want
and press H.
The system starts playing the selected album.
You can turn the album list on and off by pressing MENU repeatedly.
Tip
• When you select [AUTO], the system can recognize up to 300 MP3 tracks and 300 JPEG files in a single album. When you select [AUDIO (MP3)] or [IMAGE
(JPEG)], the system can recognize up to 600 MP3 and
600 JPEG files in a single album. A maximum of 200 albums can be recognized regardless of the selected mode.
Note
• If you set [MODE (MP3, JPEG)] to [IMAGE
(JPEG)] on a disc that contains MP3 tracks only or
[AUDIO (MP3)] on a disc that contains JPEG files only, you may not be able to change the [MODE
(MP3, JPEG)] setting.
• PICTURE NAVI does not work when [AUDIO
(MP3)] is selected.
• If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file.
Specifying the slide show duration
(JPEG only)
When you play JPEG image files using slide show, you can specify the duration for slides to appear on the screen.
1
Press DISPLAY twice.
The Control Menu for JPEG appears.
2
Press X/x to select
[INTERVAL], then press ENTER.
The options for [INTERVAL] appear.
3 ( 12)
1( 4)
10 / 29 / 2 004
NORMAL
NORMAL
FAST
SLOW1
SLOW2
DATA CD
JPEG
3
Press X/x to select the setting you want.
The default setting is underlined.
• [NORMAL]: sets the duration to about 6 to 9 seconds. (Images that are four million pixels or more will lengthen the duration.)
• [FAST]: sets the duration shorter than
[NORMAL].
• [SLOW1]: Sets the duration longer than
[NORMAL].
• [SLOW2]: Sets the duration longer than
[SLOW1].
4
Press ENTER.
The selected setting takes effect.
Note
• Some JPEG files may take longer to display than others, which may make the duration seems longer than the option you selected. Especially progressive
JPEG files or JPEG files of 3,000,000 pixels or more.
Selecting an effect for image files in the slide show
(JPEG only)
When you play a JPEG image file, you can select the effect to be used when viewing the slide show.
1
Press DISPLAY twice.
The Control Menu for JPEG appears.
2
Press X/x to select then press ENTER.
[EFFECT],
The options for [EFFECT] appear.
3 ( 12)
1( 4)
1 0 / 2 3 / 2 0 0 4
MODE1
MODE1
MODE2
MODE3
MODE4
MODE5
OFF
DATA CD
JPEG
3
Press X/x to select the setting you want.
The default setting is underlined.
• [MODE1]: The image sweeps in from top to bottom.
• [MODE2]: The image stretches out from left to right of the screen.
• [MODE3]: The image stretches out from the center of the screen.
continued
53
GB
54
GB
• [MODE4]: The images randomly cycle through the effects.
• [MODE5]: The next image slides over the previous image.
• [OFF]: Turns off this function.
4
Press ENTER.
The selected setting takes effect.
Enjoying DivX
®
Videos
(DAV-DZ110/DZ410 only)
About DivX Video Files
DivX
®
is a video file compression technology, developed by DivX, Inc. This product is an official DivX
®
Certified product.
You can play DATA CDs and DATA DVDs that contain DivX
®
video files.
DATA CDs and DATA DVDs that the system can play
Playback of DATA CDs (CD-ROMs/CD-Rs/
CD-RWs) and DATA DVDs (DVD-ROMs/
DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs) on this system is subject to certain conditions:
– With DATA CDs/DATA DVDs that contain
DivX video files in addition to MP3 audio tracks or JPEG image files, the system plays only the DivX video files.
However, this system only plays DATA CDs whose logical format is ISO 9660 Level 1/Level
2 or Joliet, and DATA DVDs of Universal Disk
Format (UDF).
Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.
About playback order of data on
DATA CDs or DATA DVDs
See “Playback order of MP3 audio tracks or
JPEG image files” (page 49). Note that the
playback order may not be applicable, depending on the software used for creating the
DivX video file, or if there are more than 200 albums and 600 DivX video files in each album.
Note
• The system may not be able to play some DATA
CDs/DATA DVDs created in the Packet Write format.
DivX video files that the system can play
The system can play data that is recorded in
DivX format, and which has the extension
“.AVI,” or “.DIVX.” The system will not play
files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video.
Tip
• For details about playable MP3 audio tracks or JPEG image files on DATA CDs or DATA DVDs, see
“Discs that the system can play” (page 49).
Note
• The system may not play a DivX video file when the file has been combined from two or more DivX video files.
• The system cannot play a DivX video file of size more than 720 (width) × 576 (height) or 2GB.
• Depending on the DivX video file, sound may skip or not match the pictures on the screen.
• The system cannot play some DivX video files that are longer than 3 hours.
• Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format.
Note, however, this system does not conform to
WMA (Windows Media Audio) format.
• Because of the compression technology used for
DivX video files, it may take some time after you press H for the picture to appear.
Selecting an album
1
Press MENU.
A list of albums on the disc appears. Only albums that contain DivX video files are listed.
3 ( 3 )
S U M M E R 2 0 0 3
N E W Y E A R ' S D A Y
M Y F A V O U R I T E S
2
Press X/x to select the album you want to play.
3
Press H.
The system starts playing the selected album.
To select DivX video files, see “Selecting a
To go to the next or previous page
Press C/c.
To turn off the display
Press MENU repeatedly.
To stop playback
Press x.
Selecting a DivX video file
1
After Step 2 of “Selecting an album,”
press ENTER.
The list of files in the album appears.
M Y F A V O U R I T E S
1 ( 2 )
H A W A I I 2 0 0 4
V E N U S
2
Press X/x to select a file and press
ENTER.
The selected file starts playing.
To go to the next or previous page
Press C/c.
To return to the previous display
Press O RETURN.
To stop playback
Press x.
To play the next or previous DivX video file without turning on the above file list
You can select the next or previous DivX video file in the same album by pressing ./>.
You can also select the first file of the next album by pressing > during playback of the last file of the current album. Note that you cannot return to the previous album by pressing
.. To return to the previous album, select it from the album list. continued
55
GB
56
GB
Tip
• If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted:
– when the system is turned off.
– when another file is played.
– when the disc tray is opened.
Playing VIDEO CDs with
PBC Functions (Ver.2.0)
(PBC Playback)
With PBC (Playback Control) functions, you can enjoy simple interactive operations, search functions, and other such operations.
PBC playback allows you to play VIDEO CDs interactively by following the menu on the TV screen.
1
Start playing a VIDEO CD with PBC functions.
The menu for your selection appears.
2
Select the item number you want by the number buttons.
3
Press ENTER.
4
Follow the instructions in the menu for interactive operations.
Refer to the operation details supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.
To go back to the menu
Press O RETURN.
Note
• Depending on the VIDEO CD, [Press ENTER] in
Step 3 may appear as [Press SELECT] in the instructions supplied with the disc. In this case, press
H.
Tip
• To play without using PBC, press ./> or the number buttons while the system is stopped to select a track, then press H or ENTER. The system starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice, then press H.
Tuner Functions
Presetting Radio Stations
You can preset 20 FM stations, and 10 AM stations. Before tuning, make sure to turn down the volume to minimum.
1
Press FUNCTION repeatedly until
“TUNER FM” or “TUNER AM” appears in the front panel display.
2
Press and hold TUNING + or – until the auto scanning starts.
Scanning stops when the system tunes in a station. “TUNED” and “ST” (for stereo program) appear in the front panel display.
3
Press MENU.
4
Press X/x repeatedly until “MEMORY” appears in the front panel display.
5
Press ENTER.
A preset number appears in the front panel display.
6
7
8
Press X/x to select the preset number you want.
Press ENTER.
The station is stored.
Repeat 1 to 7 to store other stations.
To change the preset number
Restart from Step 1.
Listening to the Radio
Preset radio stations in the system’s memory
first (see “Presetting Radio Stations” (page 57)).
1
Press FUNCTION repeatedly until
“TUNER FM” or “TUNER AM” appears in the front panel display.
The last received station is tuned in.
2
Press PRESET + or – repeatedly to select the preset station you want.
Each time you press the button, the system tunes in one preset station.
3
Adjust the volume by pressing
VOLUME +/–.
To turn off the radio
Press "/1.
To listen to non-preset radio stations
Use manual or automatic tuning in Step 2.
For manual tuning, press TUNING + or – repeatedly.
For automatic tuning, press and hold TUNING + or –. The automatic tuning stops automatically when the system receives the radio station. To stop the automatic tuning manually, press
TUNING + or –.
To listen to radio stations when you know the frequencies
Use direct tuning in Step 2.
1
Press D.TUNING.
2
Press the number buttons to select the frequency number you want to listen to.
3
Press ENTER.
Tip
• If an FM program is noisy, press MENU, and select
“FM MODE” by pressing X/x, then press ENTER.
Press X/x to select “MONO,” then press ENTER.
There will be no stereo effect, but the reception will improve. To restore the stereo effect, select
“STEREO.”
• To improve reception, reorient the supplied antennas
(aerials).
continued
57
GB
58
GB
Naming preset stations
You can enter a name for preset stations. These names (for example, “XYZ”) appear in the system’s front panel display when a station is selected.
Note that no more than one name can be entered for each preset station.
Note
• You cannot enter a name for preset stations of the
Radio Data System (RDS) (page 59).
1
Press FUNCTION repeatedly until
“TUNER FM” or “TUNER AM” appears in the front panel display.
The last received station is tuned in.
2
Press PRESET + or – repeatedly to select the preset station you want to create an index name for.
3
Press MENU.
4
Press X/x repeatedly until “NAME IN” appears in the front panel display.
Viewing the station name or frequency in the front panel display
When the system is set to “TUNER AM” or
“TUNER FM,” you can check the frequency using the front panel display.
Press DISPLAY.
Each time you press DISPLAY, the display changes as shown.
1 Station name*
2 Frequency**
* This is displayed if you have entered a name for a preset station.
** Returns to the original display when several seconds has elapsed.
5
Press ENTER.
6
Create a name by using the cursor buttons.
Press X/x to select a character, then press c to move the cursor to the next position.
Letters, numbers, and other symbols can be input for a radio station name.
If you make a mistake
Press C/c repeatedly until the character to be changed flashes, then press X/x to select the desired character.
To erase the character, press C/c repeatedly until the character to be erased flashes, then press CLEAR.
7
Press ENTER.
“COMPLETE” appears in the front panel display, and the station name is stored.
Tip
• You can check the frequency by pressing DISPLAY
Using the Radio Data
System (RDS)
What is the Radio Data
System?
The Radio Data System (RDS) is a broadcasting service that allows radio stations to send additional information along with the regular program signal. This tuner offers convenient
RDS features, such as station name display.
RDS is available only for FM stations.*
Note
• RDS may not work properly if the station you are tuned to is not transmitting the RDS signal properly, or if the signal strength is weak.
* Not all FM stations provide RDS service, nor do they provide the same type of services. If you are not familiar with the RDS system, check with your local radio stations for details on RDS services in your area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS services, the station name* appears in the front panel display.
* If an RDS broadcast is not received, the station name may not appear in the front panel display.
59
GB
60
GB
Other Operations
Controlling the TV with the
Supplied Remote
You can control your TV (SONY only) with the supplied remote.
Controlling TVs with the remote
To control the TV
You can control the TV by using following buttons.
By pressing
TV [/1
TV/VIDEO
TV VOL +/–
TV CH +/–
Number buttons while pressing the TV button
You can
Turn the TV on or off.
Switch the TV’s input source between the TV and other input sources.
Adjust the TV volume.
Select the TV channel.
Select the TV channel.
- is for selecting a channel number greater than
10. (For example, for channel 25, press -, then
2 and 5.)
Note
• Depending on the TV, you may not be able to control your TV or to use some of the buttons above.
Using the THEATRE SYNC
Function
THEATRE SYNC allows you to turn on your
SONY TV and this system, changes the system mode to “DVD,” and then switches the TV’s input source you set with one button push.
Preparing for the THEATRE
SYNC function
Register the TV’s input source connected to this system.
Press and hold TV/VIDEO while entering the code for the TV’s input source connected to this system (see the table) using the number buttons.
The TV’s input source is selected.
Set your TV’s input to the input you used to connect the system. For details, see the instructions of your TV.
By pressing Number
TV/VIDEO 0
7
8
5
6
3
4
1
2
9*
CLEAR*
AMP
MENU*
NAVI*
TV’s input source
No input source
(Default)
VIDEO1
VIDEO2
VIDEO3
VIDEO4
VIDEO5
VIDEO6
VIDEO7
VIDEO8
COMPONENT 1
COMPONENT 2
COMPONENT 3
COMPONENT 4
* Except for North American models.
Operating for the THEATRE
SYNC function
Point the remote to the direction of TV and this system, then press THEATRE SYNC once.
If this function does not work, change the transmit time. The transmit time varies depending on the TV.
To change the transmit time
Press and hold TV CH + while entering the code for transmit time (see the table) using the number buttons.
The transmit time from the remote is selected.
By pressing Number
TV CH + 1
2
3
6
7
4
5
8
2
2.5
3
3.5
4
Transmit time
0.5 (Default)
1
1.5
Note
• This function is only for SONY TVs. (This function may not work on some SONY TVs.)
• If distance between TV and this system is too far, this function may not work. Install the system near the
TV.
• Keep the remote pointed in the direction of the TV and this system while entering the code.
Using the Sound Effect
Reinforcing bass frequencies
You can reinforce bass frequencies.
Press DYNAMIC BASS.
Bass frequencies are effectively reinforced.
To turn off the sound effect
Press DYNAMIC BASS again.
61
GB
62
GB
Using the Sleep Timer
You can set the system to turn off at a preset time, so you can fall asleep listening to music.
You can preset the time in 10 minutes decrements.
Press SLEEP.
Each time you press this button, the minutes display (the remaining time) changes as follows:
SLEEP 90M t SLEEP 80M t SLEEP 70M
R r
SLEEP OFF T SLEEP 10M ..... SLEEP 60M
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired time.
To cancel the Sleep Timer function
Press SLEEP repeatedly until “SLEEP OFF” appears in the front panel display.
Changing the Brightness of the Front Panel Display
The brightness of the front panel display can be set to either of 2 levels.
1
Press AMP MENU.
2
Press X/x repeatedly until “DIMMER” appears in the front panel display, then press ENTER or c.
3
Press X/x to select the brightness of the front panel display.
• DIMMER ON: The front panel display becomes dark.
• DIMMER OFF: Bright.
4
Press ENTER.
The setting is reflected.
5
Press AMP MENU.
The AMP menu turns off.
Advanced Settings and Adjustments
Locking Discs
(CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL)
You can set 2 kinds of playback restrictions for the desired disc.
• Custom Parental Control
You can set playback restrictions so that the system will not play inappropriate discs.
• Parental Control
Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes.
The same password is used for both Custom
Parental Control and Parental Control.
Preventing playback of specific discs [CUSTOM
PARENTAL CONTROL]
You can set the same Custom Parental Control password for up to 40 discs. When you set the
41st-disc, the first disc is canceled.
1
Insert the disc you want to lock.
If the disc is playing, press x to stop playback.
2
Press DISPLAY while the system is in stop mode.
The Control Menu appears.
3
Press X/x to select
[PARENTAL CONTROL], then press
ENTER.
The options for [PARENTAL CONTROL] appear.
1 2 ( 2 7 )
1 8 ( 3 4 )
T 1 : 3 2 : 5 5
DVD VIDEO
4
Press X/x to select [ON t], then press
ENTER.
x If you have not entered a password
The display for registering a new password appears.
PARENTAL CONTROL
Enter a new 4-digit password, then press .
Enter a 4-digit password using the number buttons, then press ENTER.
The display for confirming the password appears.
x When you have already registered a password
The display for entering the password appears.
PARENTAL CONTROL
Enter password, then press .
5
Enter or re-enter your 4-digit password using the number buttons, then press
ENTER.
[Custom parental control is set.] appears and the screen returns to the Control Menu.
To turn off the Custom Parental
Control function
1
Follow steps 1 through 3 of “Preventing playback of specific discs [CUSTOM
2
Press X/x to select [OFF t], then press
ENTER.
3
Enter your 4-digit password using the number buttons, then press ENTER.
OFF
ON
PLAYER
PASSWORD continued
63
GB
64
GB
To play a disc for which Custom
Parental Control is set
1
Insert the disc for which Custom Parental
Control is set.
The [CUSTOM PARENTAL CONTROL] display appears.
CUSTOM PARENTAL CONTROL
Custom parental control is already set. To play, enter your password and press .
1 2 ( 2 7 )
1 8 ( 3 4 )
T 1 : 3 2 : 5 5
DVD VIDEO
OFF
ON
PLAYER
PASSWORD
3
Press X/x to select [PLAYER t], then press ENTER.
x If you have not entered a password
The display for registering a new password appears.
2
Enter your 4-digit password using the number buttons, then press ENTER.
The system is ready for playback.
Tip
• If you forget your password, enter the 6-digit number
“199703” using the number buttons when the
[CUSTOM PARENTAL CONTROL] display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.
Limiting playback for children
[PARENTAL CONTROL]
(DVD only)
Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The [PARENTAL CONTROL] function allows you to set a playback limitation level.
1
Press DISPLAY while the system is in stop mode.
The Control Menu appears.
2
Press X/x to select
[PARENTAL CONTROL], then press
ENTER.
The options for [PARENTAL CONTROL] appear.
PARENTAL CONTROL
Enter a new 4-digit password, then press .
Enter a 4-digit password using the number buttons, then press ENTER.
The display for confirming the password appears.
x When you have already registered a password
The display for entering the password appears.
PARENTAL CONTROL
Enter password, then press .
4
Enter or re-enter your 4-digit password using the number buttons, then press
ENTER.
The display for setting the playback limitation level appears.
PARENTAL CONTROL
LEVEL:
STANDARD:
OFF
USA
PARENTAL CONTROL
LEVEL:
STANDARD: USA
5
Press X/x to select [STANDARD], then press ENTER.
The selection items for [STANDARD] are displayed.
PARENTAL CONTROL
LEVEL:
STANDARD:
OFF
USA
USA
OTHERS
6
Press X/x to select a geographic area as the playback limitation level, then press ENTER.
The area is selected.
When you select [OTHERS t], select and enter a standard code in the table of
“Parental Control Area Code List”
(page 88) using the number buttons.
7
Press X/x to select [LEVEL], then press
ENTER.
The selection items for [LEVEL] are displayed.
PARENTAL CONTROL
LEVEL:
STANDARD:
OFF
OFF
8:
7:
6:
5:
8
Press X/x to select the level you want, then press ENTER.
Parental Control setting is complete.
The lower the value, the stricter the limitation.
To turn off the Parental Control function
Set [LEVEL] to [OFF] in Step 8.
To play a disc for which Parental
Control is set
1
Insert the disc and press H.
The display for entering your password appears.
2
Enter your 4-digit password using the number buttons, then press ENTER.
The system starts playback.
Tip
• If you forget your password, remove the disc and
repeat steps 1 to 3 of “Preventing playback of specific discs [CUSTOM PARENTAL CONTROL].” When
you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password.
After you enter a new 4-digit password, replace the disc in the system and press H. When the display for entering your password appears, enter your new password.
Note
• When you play discs which do not have the Parental
Control function, playback cannot be limited on this system.
• Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level.
If the Resume Play mode is canceled, the level returns to the previous level.
continued
65
GB
66
GB
Changing the password
1
Press DISPLAY while the system is in stop mode.
The Control Menu appears.
2
Press X/x to select
[PARENTAL CONTROL], then press
ENTER.
The options for [PARENTAL CONTROL] appear.
3
Press X/x to select [PASSWORD t], then press ENTER.
The display for entering the password appears.
4
Enter your 4-digit password using the number buttons, then press ENTER.
5
Enter a new 4-digit password using the number buttons, then press ENTER.
6
To confirm your password, re-enter it using the number buttons, then press
ENTER.
If you make a mistake entering your password
Press C before you press ENTER and input the correct number.
Getting Optimal Surround
Sound for a Room
(SPEAKER FORMATION)
Depending on the shape of the room, there will be some speakers you cannot install. For the better surround sound, it is recommended that first you decide the position of the speakers.
1
Press FUNCTION repeatedly until
“DVD” appears in the front panel display.
2
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
3
Press X/x to select [SPEAKER
FORMATION], then press ENTER.
1 ( 4 4 )
3 ( 2 8 )
T 0 : 0 3 : 0 4
SPEAKER FORMATION
SPEAKER FORMATION
AUTO CALIBRATION
DVD VIDEO
4
Press X/x to select [SPEAKER
FORMATION], then press ENTER.
The options for [SPEAKER
FORMATION] appear.
SPEAKER FORMATION
STANDARD
5
Press C/c to select a setting.
• [STANDARD]: when installing all the speakers normally.
• [ALL FRONT - NO CENTER]: when installing the front and surround speakers in front of the listening position.
• [NO CENTER]: when installing the front and surround speakers.
• [SECOND ROOM]: when installing the front speakers in one room and surround speakers in another.
• [NO SURROUND]: when installing the center and front speakers.
• [FRONT ONLY]: when installing the front speakers.
• [ALL FRONT]: when installing all the speakers in front of the listening position.
6
Press ENTER.
The selected setting takes effect.
7
Press X/x to select [YES] or [NO], then press ENTER.
• [YES]: continue with [AUTO
CALIBRATION], see Step 5 of
“Calibrating the Appropriate Settings
• [NO]: exit [SPEAKER FORMATION].
SPEAKER FORMATION
Continue with AUTO CALIBRATION?
YES
NO
Note
• In order to enjoy the surround sound after you change the position of the speakers, it is recommended you set [SPEAKER FORMATION], and then set [AUTO
CALIBRATION].
• To set [AUTO CALIBRATION], you need to connect the supplied calibration mic.
continued
67
GB
68
GB
• The front panel display indicates the selected
[SPEAKER FORMATION]. It does not indicate the speakers which output sound.
• When you change the [SIZE] setting in [SPEAKER
SETUP], the [SPEAKER FORMATION] setting returns to [STANDARD].
Calibrating the
Appropriate Settings
Automatically
(AUTO CALIBRATION)
D. C. A. C. (Digital Cinema Auto Calibration) can set the appropriate surround sound automatically.
Note
• Loud test sound is output when [AUTO
CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbor.
1
Press FUNCTION repeatedly until
“DVD” appears in the front panel display.
2
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
3
Press X/x to select [SPEAKER
FORMATION], then press ENTER.
1 ( 4 4 )
3 ( 2 8 )
T 0 : 0 3 : 0 4
SPEAKER FORMATION
SPEAKER FORMATION
AUTO CALIBRATION
DVD VIDEO
4
Press X/x to select [AUTO
CALIBRATION], then press ENTER.
The options for [AUTO CALIBRATION] appear.
AUTO CALIBRATION
Connect calibration mic. Start measurement?
YES
NO
Connect the calibration mic to the A.CAL
MIC jack on the front panel, and set it up at the ear level using a tripod, etc. (not supplied). The front of each speaker should
face the calibration mic, and there should be no obstruction between the speakers and the calibration mic. Be quiet during the measurement.
A.CAL MIC
Calibration mic
5
Press X/x to select [YES], then press
ENTER.
Calibration starts.
Measuring. Please wait a moment.
• Reflections from walls or the floor may affect measurements.
• If an error message appears, follow the message, then select [YES].
An error message appears when:
–the headphones are connected.
–the calibration mic is not connected.
–front speakers are not correctly connected.
–surround speakers are not correctly connected.
–front and surround speakers are not correctly connected.
–there is excessive noise around the calibration mic.
–the calibration mic is overloaded.
6
Press C/X/x/c to select [YES] or [NO], then press ENTER.
x The measurement is OK.
Disconnect the calibration mic, then select
[YES]. The result is implemented.
Measurement complete.
FRONT L :
FRONT R :
YES
YES
CENTER :
SUBWOOFER :
SURROUND L :
SURROUND R :
NONE
YES
NONE
NONE
If OK, unplug calibration mic and select
YES.
YES NO x The measurement is not OK.
Follow the message, then select [YES] to retry.
Measurement failure.
Check speaker connection.
Retry?
YES
NO
Note
• Avoid being in the measurement area and making noise during the measurement (about 3 minutes), to avoid measurement failure. During the measurement, test signals are output from the speakers.
Tip
• You can check the distance between the listening
position and each speaker. See page 75.
Note
• While the Auto Calibration function works:
– do not turn off the power.
– do not press any button.
– do not change the volume.
– do not change the function.
continued
69
GB
70
GB
– do not change the disc.
– do not insert or eject a disc.
– do not connect the headphones.
– do not disconnect the calibration mic.
Using the Setup Display
By using the Setup Display, you can make various adjustments to items such as picture and sound.
For an overall list of Setup Display items, see
Displayed items differ depending on the country model.
Note
• Playback settings stored in the disc take priority over the Setup Display settings and not all the functions described may work.
1
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
2
Press X/x to select then press ENTER.
[SETUP],
The options for [SETUP] appear.
1 2 ( 2 7 )
1 8 ( 3 4 )
: :
DVD VIDEO
QUICK
BNR
QUICK
CUSTOM
RESET
3
Press X/x to select [CUSTOM], then press ENTER.
The Setup Display appears.
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
4
Press X/x to select the setup item from the displayed list: [LANGUAGE
SETUP], [SCREEN SETUP], [CUSTOM
SETUP], or [SPEAKER SETUP]. Then press ENTER.
The Setup item is selected.
Example: [SCREEN SETUP]
Selected item
SCREEN SETUP
TV TYPE:
COLOR SYSTEM (VIDEO CD):
SCREEN SAVER:
BACKGROUND:
4:3 OUTPUT:
16:9
AUTO
ON
JACKET PICTURE
FULL
Setup items
5
Select an item using X/x, then press
ENTER.
The options for the selected item appear.
Example: [TV TYPE]
SCREEN SETUP
TV TYPE: 16:9
COLOR SYSTEM (VIDEO CD):
SCREEN SAVER:
16:9
4:3 LETTER BOX
BACKGROUND:
4:3 OUTPUT:
4:3 PAN SCAN
FULL
Options
6
Select a setting using X/x, then press
ENTER.
The setting is selected and setup is complete.
SCREEN SETUP
TV TYPE: 4:3 LETTER BOX
COLOR SYSTEM (VIDEO CD):
SCREEN SAVER:
AUTO
ON
BACKGROUND:
4:3 OUTPUT:
JACKET PICTURE
FULL
Selected setting
To reset all of the [SETUP] settings
1
Select [RESET] in Step 3 and press ENTER.
2
Select [YES] using X/x.
You can also quit the process and return to the Control Menu by selecting [NO] here.
3
Press ENTER.
All the settings explained on pages 72 to 77
return to the default settings. Do not press [/
1 while resetting the system as it takes a few seconds to complete.
Note
• When you turn the system on after resetting and no disc is in the system, the guide message appears on the TV screen. To perform the Quick Setup
(page 19), press ENTER, to return to normal screen,
press CLEAR.
71
GB
72
GB
Setting the Display or
Sound Track Language
[LANGUAGE SETUP]
[LANGUAGE SETUP] allows you to set various languages for the on-screen display or sound track.
Select [LANGUAGE SETUP] in the Setup
Display. To use the display, see “Using the
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
Settings for the Display
[SCREEN SETUP]
Choose settings according to the TV to be connected.
Select [SCREEN SETUP] in the Setup Display.
To use the display, see “Using the Setup
The default settings are underlined.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
LINE:
4:3 OUTPUT:
16:9
ON
JACKET PICTURE
VIDEO
FULL x [OSD] (On-Screen Display)
Switches the display language on the screen.
x [MENU] (DVD VIDEO only)
You can select the desired language for the disc’s menu.
x [AUDIO] (DVD VIDEO only)
Switches the language of the sound track.
When you select [ORIGINAL], the language given priority in the disc is selected.
x [SUBTITLE] (DVD VIDEO only)
Switches the language of the subtitle recorded on the DVD VIDEO.
When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.
Tip
• If you select [OTHERS t] in [MENU], [AUDIO], and [SUBTITLE], select and enter a language code
from “Language Code List” (page 88) using the
number buttons.
Note
• When you select a language in [MENU], [AUDIO], or [SUBTITLE] that is not recorded on the DVD
VIDEO, one of the recorded languages will be automatically selected (depending on the disc, the language may not be selected automatically).
x [TV TYPE]
Selects the aspect ratio of the connected TV (4:3 standard or wide).
The default setting varies, depending on the country model.
[4:3 LETTER
BOX]
Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.
[4:3 PAN SCAN] Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.
[16:9] Select this when you connect a wide-screen TV or a TV with a wide mode function.
[4:3 LETTER BOX]
[4:3 PAN SCAN]
[16:9]
Note
• Depending on the DVD, [4:3 LETTER BOX] may be selected automatically instead of [4:3 PAN SCAN] or vice versa.
x [SCREEN SAVER]
The screen saver image appears when you leave the system in pause or stop mode for 15 minutes, or when you play back a CD, DATA CD (MP3 audio), or DATA DVD for more than 15 minutes.
The screen saver will help prevent your display device from becoming damaged (ghosting). Press any button (e.g., H button) to cancel the screen saver.
[ON]
[OFF]
Turns on the screen saver.
Turns off the screen saver.
x [BACKGROUND]
Selects the background color or picture on the
TV screen in stop mode or while playing a CD,
DATA CD (MP3 audio), or DATA DVD.
[JACKET
PICTURE]
[GRAPHICS]
[BLUE]
[BLACK]
The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD-EXTRA, etc.). If the disc does not contain a jacket picture, the [GRAPHICS] picture appears.
A preset picture stored in the system appears.
The background color is blue.
The background color is black.
x [LINE]
Selects the output method for video signals from the EURO AV T OUTPUT (TO TV) jack on the rear panel of the system.
[VIDEO]
[RGB]
Outputs video signals.
Outputs RGB signals.
Note
• If your TV does not accept RGB signals, no picture appears on the TV screen even if you select [RGB].
Refer to the instructions supplied with your TV.
x [4:3 OUTPUT]
This setting is effective only when you set [TV
TYPE] in [SCREEN SETUP] to [16:9]
(page 72). Adjust this to watch 4:3 aspect ratio
progressive signals. If you can change the aspect ratio on your progressive format (525p/625p) compatible TV, change the setting on your TV, not the system.
Note
• This setting is effective only when “P AUTO
(PROGRESSIVE AUTO)” or “P VIDEO
(PROGRESSIVE VIDEO)” is selected by using
[FULL]
[NORMAL]
Select this when you can change the aspect ratio on your TV.
Select this when you cannot change the aspect ratio on your
TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.
16:9 aspect ratio TV
73
GB
74
GB
Custom Settings
[CUSTOM SETUP]
Use this to set up playback related and other settings.
Select [CUSTOM SETUP] in the Setup Display.
To use the display, see “Using the Setup
The default settings are underlined.
CUSTOM SETUP
PAUSE MODE:
TRACK SELECTION:
AUTO
OFF
MULTI-DISC RESUME:
AUDIO DRC:
DivX:
ON
OFF
Registration Code x [PAUSE MODE] (DVD VIDEO/DVD-R/
DVD-RW only)
Selects the picture in pause mode.
[AUTO]
[FRAME]
The picture, including subjects that move dynamically, is output with no jitter. Normally select this position.
The picture, including subjects that do not move dynamically, is output in high resolution.
x [TRACK SELECTION] (DVD VIDEO only)
Gives the sound track which contains the highest number of channels priority when you play a
DVD VIDEO on which multiple audio formats
(PCM, DTS, MPEG audio, or Dolby Digital format) are recorded.
[OFF]
[AUTO]
No priority given.
Priority given.
Note
• When you set the item to [AUTO], the language may change. The [TRACK SELECTION] setting has higher priority than the [AUDIO] settings in
[LANGUAGE SETUP] (page 72). (Depending on
the disc, this function may not work.)
• If PCM, DTS, Dolby Digital sound, and MPEG audio tracks have the same number of channels, the system selects PCM, DTS, Dolby Digital sound, and MPEG audio tracks in this order.
x [MULTI-DISC RESUME] (DVD VIDEO/
VIDEO CD only)
Switches the Multi-disc Resume setting on or off.
[ON]
[OFF]
Stores the resume settings in memory for up to 40 discs.
Does not store the resume settings in memory. Playback restarts at the resume point only for the current disc in the system.
x [AUDIO DRC] (DVD VIDEO only)
Narrows the dynamic range of the sound track.
Useful for watching movies at low volume late at night.
[OFF]
[STANDARD]
[MAX]
No compression of dynamic range.
Reproduces the sound track with the kind of dynamic range that the recording engineer intended.
Compresses dynamic range fully.
x [DivX] (DAV-DZ110/DZ410 only)
Displays the registration code for this system.
For more information, go to http://www.divx.com on the Internet.
Settings for the Speakers
[SPEAKER SETUP]
To obtain the best possible surround sound, set for the size of the speakers you have connected and their distance from your listening position.
Then use the test tone to adjust the level and the balance of the speakers to the same level.
Select [SPEAKER SETUP] in the Setup
Display. For details, see “Using the Setup
The default settings are underlined.
Note
• You cannot operate these setup items when you connect headphones to the system.
SPEAKER SETUP
SIZE:
DISTANCE(FRONT):
DISTANCE(SURROUND):
LEVEL(FRONT):
LEVEL(SURROUND):
TEST TONE: OFF
FRONT:
CENTER:
SURROUND:
SUBWOOFER:
YES
YES
YES
YES
To return to the default setting when changing a setting
Select the item, then press CLEAR. Note that only the [SIZE] setting does not return to the default setting.
x [SIZE]
If you do not connect center or surround speakers, or move the surround speakers, set the parameters for [CENTER] and [SURROUND] and specify the surround speaker position. Since the front speaker and subwoofer setting is fixed, you cannot change them.
[FRONT]
[CENTER]
[YES]
[YES]: Normally select this.
[NONE]: Select this if no center speaker is used.
[SURROUND] [YES]: Normally select this.
[NONE]: Select this if no surround speaker is used.
[SUBWOOFER] [YES]
Note
• When you select an item, the sound cuts off for a moment.
• When you change the [SIZE] setting, the [SPEAKER
FORMATION] setting returns to [STANDARD].
x [DISTANCE (FRONT)]
The default distance setting for the speakers in relation to the listening position is shown below.
When you set the distance using the Quick Setup
(page 19), the settings is automatically
displayed.
1.0 - 7.0 m
3)
3 - 23 ft
/
0.0 - 7.0 m 2)
0 - 23 ft
/
Be sure to change the value in the Setup Display when you move the speakers.
[L/R]
3.0 m/10 ft
1)
Front speaker distance from the listening position can be set in
0.2 meter (1 ft) increments from
1.0 to 7.0 meters
3)
(3 to 23 ft).
[CENTER]
3.0 m/10 ft
1)
(appears when you set [CENTER] to
[YES] in the [SIZE] setting.)
Center speaker distance can be moved up to 1.6 meters (5 ft) closer to the listening position from the front speaker distance, in 0.2 meter (1 ft) increments.
1)
When you perform the Quick Setup (page 19), the
default settings are changed.
2)
0.0 to 6.9 meters for North American models.
3)
0.9 to 6.9 meters for North American models.
x [DISTANCE (SURROUND)]
The default distance setting for the speakers in relation to the listening position is shown below.
When you set the distance using the Quick Setup
(page 19), the settings is automatically
displayed.
continued
75
GB
76
GB
0.0 - 7.0 m**/
0 - 23 ft
Be sure to change the value in the Setup Display when you move the speakers.
[L/R]
3.0 m/10 ft *
(appears except when you set
[SURROUND] to
[NONE] in the
[SIZE] setting.)
Surround speaker distance from the listening position can be set in
0.2 meter (1 ft) increments from
0.0 to 7.0 meters** (0 to 23 ft).
* When you perform the Quick Setup (page 19), the
default settings are changed.
** 0.0 to 6.9 meters for North American models.
Note
• When you set the distance, the sound cuts off for a moment.
• If all front and surround speakers are not placed at an equal distance from your listening position, set the distance according to the closest speaker.
• Do not place the surround speakers farther away from your listening position than the front speakers.
• Depending on the input stream, the [DISTANCE] setting may not be effective.
x [LEVEL (FRONT)]
You can vary the level of front speakers as follows. Be sure to set [TEST TONE] to [ON] for easy adjustment.
[L/R]
0.0 dB
Set this between –6.0 dB and 0.0 dB in 1.0 dB increments.
[CENTER]
0.0 dB
(appears when you set [CENTER] to
[YES] in the [SIZE] setting.)
Set this between –6.0 dB and +6.0 dB in 1.0 dB increments.
[SUBWOOFER]
0.0 dB
Set this between –6.0 dB and +6.0 dB in 1.0 dB increments.
x [LEVEL (SURROUND)]
You can vary the level of surround speakers as follows. Be sure to set [TEST TONE] to [ON] for easy adjustment.
(This settings appear except when you set
[SURROUND] to [NONE] in the [SIZE] setting.)
[L/R]
0.0 dB
Set this between –6.0 dB and +6.0 dB in 1.0 dB increments.
To adjust the volume of all the speakers at one time
Turn the VOLUME control on the system, or press VOLUME +/– on the remote.
x [TEST TONE]
The speakers will emit a test tone to adjust
[LEVEL (FRONT)] and [LEVEL
(SURROUND)].
[OFF]
[ON]
The test tone is not emitted from the speakers.
The test tone is emitted from each speaker in sequence while adjusting level. When you select one of the [SPEAKER SETUP] items, the test tone is emitted from each speaker in sequence.
Adjusting the speaker level by using the test tone
1
Press DISPLAY when the system is in stop mode.
The Control Menu appears.
2
Press X/x to select then press ENTER.
[SETUP],
The options for [SETUP] appear.
3
Press X/x to select [CUSTOM], then press ENTER.
The Setup Display appears.
4
Press X/x repeatedly to select
[SPEAKER SETUP], then press ENTER or c.
5
Press X/x repeatedly to select [TEST
TONE], then press ENTER or c.
6
Press X/x repeatedly to select [ON], then press ENTER.
You will hear the test tone from each speaker in sequence.
7
From your listening position, adjust the value of [LEVEL (FRONT)] or [LEVEL
(SURROUND)] using C/X/x/c.
The test tone is emitted from only the speaker which you are adjusting.
8
Press ENTER when you have finished making adjustments.
9
Press X/x repeatedly to select [TEST
TONE], then press ENTER.
10
Press X/x repeatedly to select [OFF], then press ENTER.
Note
• When you adjust the speaker settings, the sound cuts off for a moment.
Returning to the Default
Settings
You can return the system parameters, such as preset stations, to the default settings.
"/1 A x
1
Press "/1 to turn on the system.
2
Press x, A, and "/1 on the system at the same time.
“COLD RESET” appears in the front panel display and the default settings are returned.
77
GB
78
GB
Additional Information
Precautions
On power sources
• AC power cord (mains lead) must be changed only at the qualified service shop.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (mains), even if the unit itself has been turned off.
On placement
• Place the system in a location with adequate ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do not place the unit in a confined space where ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots are blocked, the unit can overheat and malfunction.
• Do not place the system on a soft surface such as a rug and do not block the ventilation holes.
• Do not place the system in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
On operation
• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the system. Should this occur, the system may not operate properly. In this case, remove the disc and leave the system turned on for about half an hour until the moisture evaporates.
• When you move the system, take out any disc. If you don’t, the disc may be damaged.
On adjusting volume
• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any questions or problems concerning your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens cleaner
• Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause apparatus to malfunction.
On your TV’s color
• If the speakers should cause the TV screen to have color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist, place the speakers farther away from the set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen.
Projection televisions are especially susceptible to this.
The nameplate is located on the bottom exterior.
On moving the system
Before moving the system, make sure that there is no disc inserted, and remove the AC power cord (mains lead) from the wall outlet (mains).
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.
This system can only play back a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star shape) may cause a malfunction.
Do not use a disc that has a commercially available accessory attached, such as a label or ring.
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
Power
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
If “PROTECTOR” and “PUSH POWER” appears alternately in the front panel display.
Press "/1 to turn off the system, and check the following items after “STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
After checking the above items and fixing any problems, turn on the system. If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.
There is no picture.
• The SCART (EURO AV) cord is not connected securely.
• The SCART (EURO AV) cord is damaged.
• The system is not connected to the correct
EURO AV t INPUT jack (page 12, 24).
• The video input on the TV is not set so that you can view pictures from the system.
• Check the output method on your system
• You have set progressive format but your TV cannot accept the signal in progressive format. In this case, return the setting to interlace format (the
• Even if your TV is compatible with progressive format (525p/625p) signals, the image may be affected when you set progressive format. In this case, return the setting to interlace format (the
Picture noise appears.
• The disc is dirty or flawed.
continued
79
GB
80
GB
Even though you set the aspect ratio in [TV
TYPE] of [SCREEN SETUP], the picture does not fill the screen.
• The aspect ratio on the disc is fixed.
Color irregularity occurs on the TV screen.
The subwoofer and the front speakers in this system are magnetically shielded to prevent magnetic leakage. However, some leakage may occur, as a high-strength magnet is employed. If this happens, check the following items:
• If the speakers are used with a CRT-based TV or projector, install the speakers at least 0.3 m (1.0 ft) from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15 to 30 minutes.
• If howling occurs, reposition the speakers farther away from the TV set.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care device, toy, etc.) is placed near the speakers.
Sound
There is no sound.
• The speaker cord is not connected securely.
• Press MUTING on the remote if “MUTING ON” is displayed in the front panel display.
• The system is in pause mode or in Slow-motion
Play mode. Press H to return to normal play mode.
• Fast forward or fast reverse is performed. Press
H to return to normal play mode.
• Check the speaker settings (page 75).
The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
There is no sound from the subwoofer.
• Check the speaker connections and settings (page
• Set the sound field to “A.F.D. STD
Severe hum or noise is heard.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least 3 meters (10 ft) away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
• Clean the disc.
The sound loses stereo effect when you play a
VIDEO CD, a CD, or an MP3.
• Set [AUDIO] to [STEREO] by pressing AUDIO
• Make sure the system is connected properly.
The surround effect is difficult to hear when you are playing a Dolby Digital, DTS, or MPEG audio sound track.
• Make sure the sound field function is on
.
• Check the speaker connections and settings (page
• Depending on the DVD, the output signal may not be the entire 5.1 channel. It may be monaural or stereo even if the sound track is recorded in Dolby
Digital or MPEG audio format.
The sound comes from the center speaker only.
• Depending on the disc, the sound may come from the center speaker only.
No sound is heard from the center speaker.
• Check the speaker connections and settings.
• Make sure the sound field function is on
.
• Depending on the source, the effect of the center speaker may be less noticeable.
No sound or only a very low-level sound is heard from the surround speakers.
• Check the speaker connections and settings.
• Make sure the sound field function is on
.
• Depending on the source, the effect of the surround speakers may be less noticeable.
There is no sound from the speakers that are indicated in the front panel display.
• The front panel display indicates the selected
[SPEAKER FORMATION]. It does not indicate
the speakers which output sound (page 33, 66).
Operation
Radio stations cannot be tuned in.
• Check that the antenna (aerial) is connected securely. Adjust the antenna (aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct tuning.
• No stations have been preset or the preset stations have been cleared (when tuning by scanning
preset stations). Preset the stations (page 57).
• Press DISPLAY so that the frequency appears in the front panel display.
The remote does not function.
• There are obstacles between the remote and the system.
• The distance between the remote and the system is too far.
• The remote is not pointed at the remote sensor on the system.
• The batteries in the remote are weak.
The disc does not play.
• There is no disc inserted.
• The disc is upside down.
Insert the disc with the playback side facing down.
• The disc is skewed on the disc tray.
• The system cannot play CD-ROMs, etc. (page 6).
• The region code on the DVD does not match the system.
• Moisture has condensed inside the system and may cause damage to the lenses. Remove the disc and leave the system turned on for about half an hour.
The MP3 audio track cannot be played.
• The DATA CD is not recorded in the MP3 format that conforms to ISO 9660 Level 1/Level 2, or
Joliet.
• The DATA DVD is not recorded in an MP3 format that conforms to UDF (Universal Disk
Format).
• The MP3 audio track does not have the extension
“.MP3.”
• The data is not formatted in MP3 even though it has the extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The system cannot play audio tracks in MP3PRO format.
• The [MODE (MP3, JPEG)] setting has been set to
• If you cannot change the [MODE (MP3, JPEG)] setting, re-load the disc or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file. (DAV-DZ110/DZ410 only)
The JPEG image file cannot be played.
• The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/Level 2, or
Joliet.
• The DATA DVD is not recorded in a JPEG format that conforms to UDF (Universal Disk Format).
• It has an extension other than “.JPEG” or “.JPG.”
• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than 2,000,000 pixels in
Progressive JPEG which is mainly used on the
Internet WEB site.
• It does not fit the screen (those images are reduced).
• The [MODE (MP3, JPEG)] setting has been set to
• If you cannot change the [MODE (MP3, JPEG)] setting, re-load the disc or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file. (DAV-DZ110/DZ410 only)
The MP3 audio tracks and JPEG image file starts playing simultaneously.
• [AUTO] has been selected in [MODE (MP3,
The DivX video file cannot be played. (DAV-
DZ110/DZ410 only)
• The file is not created in DivX format.
• The file has an extension other than “.AVI” or
“.DIVX.”
• The DATA CD/DATA DVD is not created in a
DivX format that conforms to ISO 9660 Level 1/
Level 2 or, Joliet/UDF.
• The DivX video file is larger than 720 (width)
×
576 (height).
The titles of album/track/file name are not displayed correctly.
• The system can only display numbers and letters of the alphabets. Other characters are displayed as
[*].
A disc does not start playing from the beginning.
• Program Play, Shuffle Play, or Repeat Play has been selected.
Press CLEAR to cancel these functions before playing a disc.
• Resume Play has been selected.
During stop, press x on the system or the remote
and then start playback (page 37).
• The title, DVD or PBC menu automatically appears on the TV screen.
The system starts playing the disc automatically.
• The DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal.
While playing such a disc, the system stops playback at the auto pause signal.
continued
81
GB
82
GB
You cannot perform some functions such as
Stop, Search, Slow-motion Play, or Repeat
Play.
• Depending on the disc, you may not be able to perform some of the operations above. See the operating manual that came with the disc.
Messages do not appear on the screen in the language you want.
• In the Setup Display, select the desired language for the on-screen display in [OSD] under
The language for the sound track cannot be changed.
• Multilingual tracks are not recorded on the DVD being played.
• The DVD prohibits changing the language for the sound track.
The subtitle language cannot be changed.
• Multilingual subtitles are not recorded on the
DVD being played.
• The DVD prohibits changing the subtitles.
The subtitle cannot be turned off.
• The DVD prohibits turning off subtitles.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD being
• The DVD prohibits changing the angles.
A disc cannot be ejected and “LOCKED” appears in the front panel display.
• Contact your Sony dealer or local authorized Sony service facility.
[Data error] appears on the TV screen when playing a DATA CD or DATA DVD.
• The MP3 audio track/JPEG image file/DivX video file* you want to play is broken.
• The data is not MPEG1 Audio Layer 3 data.
• The JPEG image file format does not conform to
DCF.
• The JPEG image file has the extension “.JPG” or
“.JPEG,” but is not in JPEG format.
• The file you want to play has the extension “.AVI” or “.DIVX” but is not in DivX format, or is in
DivX format but does not conform to a DivX
Certified profiles.*
* DAV-DZ110/DZ410 only
The system does not work normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.
Self-diagnosis Function
(When letters/numbers appear in the display)
When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the screen and the front panel display. In this case, check the following table.
C:13:50
First 3 characters of the service number
C 13
Cause and/or corrective action
C 31
The disc is dirty.
,Clean the disc with a soft cloth
The disc is not inserted correctly.
,Restart the system, then re-insert the disc correctly.
E XX
(xx is a number)
To prevent a malfunction, the system has performed the selfdiagnosis function.
,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5character service number.
Example: E 61 10
When displaying the version number on the screen
When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible.
Turn off the system, and then turn on the system again to operate.
VER.X.XX
Specifications
Amplifier section
DAV-DZ110
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference) RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS51)
Center*: 142 W
(with SS-CT51)
Surround*: 142 W + 142 W
(with SS-TS51)
Subwoofer*: 140 W
(with SS-WS51)
DAV-DZ111
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference) RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS31A)
Center*: 142 W
(with SS-CT31A)
Surround*: 142 W + 142 W
(with SS-TS31A)
Subwoofer*: 140 W
(with SS-WS33)
DAV-DZ410
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference) RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS53)
Center*: 142 W
(with SS-CT51)
Surround*: 142 W + 142 W
(with SS-TS53)
Subwoofer*: 140 W
(with SS-WS51)
* Depending on the sound field settings and the source, there may be no sound output.
Inputs (Analog)
LINE (AUDIO IN)
AUDIO IN
Outputs (Analog)
Phones
Sensitivity: 450/250 mV
Sensitivity: 250/125 mV
Accepts low-and highimpedance headphones.
DVD system
Signal format system
Harmonic distortion
(DVD: λ = 650 nm)
(CD:
λ = 790 nm)
Emission duration: continuous
PAL
Less than 0.03 %
Tuner section
System PLL quartz-locked digital synthesizer system
FM tuner section
Tuning range 87.5 – 108.0 MHz (50 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range 531 – 1,602 kHz (with the interval set at 9 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Outputs VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
P
B
/C
B
, P
R
/C
R
: 0.7 Vp-p
75 ohms
Speakers (DAV-DZ110)
Front/Surround
Speaker system
Speaker unit
Rated impedance
Bass reflex, magnetically shielded
65 mm dia. cone type
3.0 ohms
Dimensions (approx.)
Mass (approx.)
92 × 151 × 83 mm
(w/h/d)
0.6 kg
Center
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Bass reflex, magnetically shielded
65 mm dia. cone type
3.0 ohms
260 × 94.5 × 86 mm (w/h/ d)
0.7 kg Mass (approx.)
Subwoofer
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Bass reflex, magnetically shielded
160 mm cone type
3.0 ohms
200 × 312 × 355 mm
(w/h/d) continued
83
GB
84
GB
Mass (approx.) 5.6 kg
Speakers (DAV-DZ111)
Front/Surround
Speaker system Bass reflex, magnetically
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.) shielded
65 mm dia. cone type
3.0 ohms
90 × 132 × 107 mm
(w/h/d)
0.5 kg
Center
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Bass reflex, magnetically shielded
65 mm dia. cone type
3.0 ohms
200 × 92 × 107 mm
(w/h/d)
0.7 kg Mass (approx.)
Subwoofer
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex, magnetically shielded
160 mm cone type
3.0 ohms
200 × 312 × 321 mm
(w/h/d)
5.0 kg
Speakers (DAV-DZ410)
Front/Surround
Speaker system
Speaker unit
Two-Way Bass reflex
Woofer: 70 × 100 mm cone type
Tweeter: 50 mm cone type
Rated impedance
Dimensions (approx.)
Mass (approx.)
3.0 ohms
92 × 602 × 83 mm
(w/h/d)
275 × 1,200 × 275 mm
(w/h/d) with stand (long)
275 × 800 × 275 mm
(w/h/d) with stand (short)
1.4 kg
3.6 kg with stand (long)
3.2 kg with stand (short)
Center
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Bass reflex, magnetically shielded
65 mm dia. cone type
3.0 ohms
260 × 94.5 × 86 mm
(w/h/d)
0.7 kg Mass (approx.)
Subwoofer
Speaker system Bass reflex, magnetically shielded
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
General
Power requirements
Power consumption
160 mm dia. cone type
3.0 ohms
200 × 312 × 355 mm
(w/h/d)
5.6 kg
Dimensions (approx.)
Mass (approx.)
220 – 240 V AC, 50/60 Hz
On: 150 W
Standby: 0.3 W (at the
Power Saving mode)
430 × 55 × 360 mm (w/h/d) incl. projecting parts
3.8 kg
Design and specifications are subject to change without notice.
Unpacking
• Speakers (5)
• Subwoofer (1)
• AM loop antenna (aerial) (1)
• FM wire antenna (aerial) (1)
• Speaker cords (5 m
× 4, 15 m × 2)
• Remote Commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• Foot pads (1 set)
• Posts (long × 4, short × 4)*
• Bases (4)*
• Pedestal (4)*
• Screws (8)*
• Operating Instructions
• Speaker and TV connections (card) (1)
* DAV-DZ410 only
Glossary
Album
Section of a music piece or an image on a data
CD containing MP3 audio tracks or JPEG files.
Chapter
Subdivision of a title on a DVD. A title is composed of several chapters.
Digital Cinema Auto Calibration
Digital Cinema Auto Calibration was developed by Sony to automatically measure and adjusts the speaker settings to your listening environment in a short period of time.
DivX
®
Digital video technology created by DivX, Inc.
Videos encoded with DivX technology are among the highest quality with a relatively small file size.
Dolby Digital
This movie theater sound format is more advanced than Dolby Surround Pro Logic. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This format is also called “5.1” with the subwoofer channel designed as the 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately for superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.
x Movie mode
The Movie mode is for use with stereo television shows and all programs encoded in Dolby
Surround. The result is enhanced soundfield directionality that approaches the quality of discrete 5.1-channel sound.
x Music mode
The Music mode is for use with any stereo music recordings, and provides a wide and deep sound space.
Dolby Surround Pro Logic
As one method of decoding Dolby Surround,
Dolby Surround Pro Logic produces four channels from 2 channel sound. Compared with the former Dolby Surround system, Dolby
Surround Pro Logic reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby
Surround Pro Logic, you should have one pair of surround speakers and a center speaker. The surround speakers output monaural sound.
DTS
Digital audio compression technology developed by Digital Theater Systems, Inc. This technology conforms to 5.1-channel surround.
This format comprises of stereo rear channel and there is discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. The good channel separation is realized due to the all channel data being recorded discretely and processed in digitally.
DVD
A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.
The data capacity of a single-layer and singlesided DVD, at 4.7 GB (Giga Byte), is 7 times that of a CD. Furthermore, the data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 GB.
The picture data uses the MPEG 2 format, one of a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses the variable rate coding technology that processes allocated data according to the status of the picture.
The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more realistic audio presence.
Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental continued
85
GB
86
GB
Control functions are provided with the DVD.
DVD-RW
A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The
DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.
DVD+RW
A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.
File
A JPEG image recorded or a DivX video* on a
DATA CD/DATA DVD. (“File” is an exclusive definition for this system.) A single file consists of a single image or movie.
* DAV-DZ110/DZ410 only.
Film based software, Video based software
DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames (or 60 fields) per second.
Multi-angle function
Various angles of a scene, or viewpoints of the video camera are recorded on some DVDs.
Multilingual function
Several languages for the sound or subtitles in a picture are recorded on some DVDs.
Parental Control
A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version 2.0) to control playback.
By using menu screens recorded on VIDEO
CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the progressive format can reproduce 50 - 60 frames per second by reproducing all scanning lines
(525 lines for the NTSC system, 625 lines for the
PAL system). The overall picture quality increases and still images, text and horizontal lines appear sharper. This format is compatible with the 525 or 625 progressive format.
Region Code
This system is used to protect copyrights. A region number is allocated on each DVD system or DVD disc according to the sales region. Each region code is shown on the system as well as on the disc packaging. The system can play discs that match its region code. The system can also play discs with the “
ALL
” mark. Even when the region code is not shown on the DVD, the region limit may still apply.
Scene
On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called
“scenes.”
Title
The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.
Track
Section of a picture or a music piece on a
VIDEO CD, CD, or MP3. An album is composed of several tracks (MP3 only).
VIDEO CD
A compact disc that contains moving pictures.
The picture data uses the MPEG 1 format, one of a worldwide standard of digital compression technology. The picture data is compressed to about 1/140 of its original size. Consequently, a
12 cm VIDEO CD can contain up to 74 minutes of moving pictures.
VIDEO CDs also contain compact audio data.
Sounds outside the range of human hearing are
compressed while sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio information of conventional audio CDs.
There are 2 versions of VIDEO CDs.
• Version 1.1: You can play only moving pictures and sounds.
• Version 2.0: You can play high-resolution still pictures and enjoy PBC functions.
This system conforms to both versions.
87
GB
88
GB
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
1027 Afar
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1066 Bengali;
Bangla
1067 Tibetan
1070 Breton
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151 Basque
1157 Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian
Code Language
1183 Irish
1186 Scots Gaelic
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1235 Interlingua
1239 Interlingue
1245 Inupiak
1248 Indonesian
1253 Icelandic
1254 Italian
1257 Hebrew
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1327 Laothian
1332 Lithuanian
1334 Latvian;
Lettish
1345 Malagasy
Code Language
1347 Maori
1349 Macedonian
1350 Malayalam
1352 Mongolian
1353 Moldavian
1356 Marathi
1357 Malay
1358 Maltese
1363 Burmese
1365 Nauru
1369 Nepali
1376 Dutch
1379 Norwegian
1393 Occitan
1403 (Afan)Oromo
1408 Oriya
1417 Punjabi
1428 Polish
1435 Pashto;
Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-
Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-
Croatian
1503 Singhalese
1505 Slovak
1506 Slovenian
Code Language
1507 Samoan
1508 Shona
1509 Somali
1511 Albanian
1512 Serbian
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1534 Setswana
1535 Tonga
1538 Turkish
1539 Tsonga
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu
1703 Not specified
Parental Control Area Code List
Code Area
2044 Argentina
2047 Australia
2046 Austria
2057 Belgium
2070 Brazil
2079 Canada
2090 Chile
2092 China
2115 Denmark
Code Area
2165 Finland
2174 France
2109 Germany
2248 India
2238 Indonesia
2254 Italy
2276 Japan
2304 Korea
2363 Malaysia
Code Area
2362 Mexico
2376 Netherlands
2390 New Zealand
2379 Norway
2427 Pakistan
2424 Philippines
2436 Portugal
2489 Russia
2501 Singapore
Code Area
2149 Spain
2499 Sweden
2086 Switzerland
2528 Thailand
2184 United
Kingdom
Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Front panel
Rear panel
F
I AUDIO IN/A.CAL MIC jack (19, 30)
SPEAKER
FRONT R FRONT L CENTER WOOFER SUR R SUR L
Y
COMPONENT VIDEO OUT
P
B
P
R
R AUDIO IN L
LINE
(DVD ONLY)
EURO AV
OUTPUT(TO TV)
COAXIAL
FM
75
AM
B COMPONENT VIDEO OUT jacks (24)
C EURO AV T OUTPUT (TO TV) jack (12,
E COAXIAL FM 75
F LINE (AUDIO IN R/L) jacks (27)
continued
89
GB
90
GB
Front panel display
About the indications in the front panel display
A Lights up when the time information of a title or chapter appears in the front
panel display. (DVD only) (45)
B Lights up when a station is received.
C Monaural/Stereo effect (Radio only)
D Lights up when the sleep timer is set.
E Lights up when the music or movie
F Playing status (DVD function only)
G Lights up when the DYNAMIC BASS is
H Lights up when CD is loaded.
I Lights up when the system outputs progressive signals (DVD function
J Indicates the selected [SPEAKER
K Current surround format (Except for
JPEG)
L Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, sound field, etc.
Guide to the Control Menu Display
DISPLAY
Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows:
, Control Menu display 1 m
Control Menu display 2 (appears for certain discs only) m
Control Menu display off
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses.
Example: Control Menu display 1 when playing a DVD VIDEO.
continued
91
GB
92
GB
Control Menu items
Selected item
1 2 ( 2 7 )
1 8 ( 3 4 )
T 1 : 3 2 : 5 5
OFF
OFF
DISC
TITLE
CHAPTER
Currently playing title number
1)
Currently playing chapter number
2)
Total number of titles
1)
Total number of chapters
2)
Playback status
(N Playback,
X Pause, x Stop, etc.)
DVD VIDEO
Type of disc being played
3)
Playing time
4)
Current setting
Options
Function name of selected Control
Menu item
Operation message
REPEAT
ENTER Quit: DISPLAY
1)
Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/CDs, album number for
DATA CDs/DATA DVDs. DivX video album number for DATA CDs/DATA DVDs (DAV-DZ110/DZ410 only).
2)
Displays the index number for VIDEO CDs, MP3 audio track number, or JPEG image file number for DATA CDs/
DATA DVDs. DivX video file number for DATA CDs/DATA DVDs (DAV-DZ110/DZ410 only).
3)
Displays Super VCD as “SVCD.” Displays “MP3” in the Control Menu display 1 or “JPEG” in the Control Menu
2 for DATA CDs/DATA DVDs.
4)
Displays the date for JPEG files.
To turn off the display
List of Control Menu items
Item Item Name, Function, Relevant Disc Type
[TITLE] (page 36)/[SCENE] (page 36)/[TRACK] (page 36)
Selects the title, scene, or track to be played.
[CHAPTER] (page 36)/[INDEX] (page 36)
Selects the chapter or index to be played.
Selects the track to be played.
[ORIGINAL/PLAY LIST] (page 44)
Selects the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or an edited
[PLAY LIST].
Checks the elapsed time and the remaining playback time.
Input the time code for picture and music searching.
Displays the DVD/CD text or the MP3 track name.
[SPEAKER FORMATION] (pages 66, 68)
Sets the speaker formation./Adjust the level of each speaker automatically.
Selects the track to play in the order you want.
Plays the track in random order.
Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/album repeatedly.
Adjusts the delay between the picture and sound.
* *
Sets to prohibit playback on this system.
Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV, and the size of the speakers you are using.
[CUSTOM] Setup
In addition to the Quick Setup setting, you can adjust various other settings.
[RESET]
Returns the settings in [SETUP] to the default setting.
Selects the album to be played.
Selects the JPEG image file or DivX video file* to be played.
**
Displays the date the picture was taken by a digital camera.
**
Specifies the duration for which the slides are displayed on the screen.
**
Selects the effects to be used for changing slides during a slide show.
**
Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both
(AUTO) to be played when playing a DATA CD/DATA DVD.
* DAV-DZ110/DZ410 only.
** These items are not displayed when playing a DATA CD/DATA DVD with DivX video file. (DAV-DZ110/
DZ410 only)
Tip
• The Control Menu icon indicator lights up in green t when you select any item except [OFF]
([PROGRAM], [SHUFFLE], [REPEAT], and [A/V SYNC] only). The [ORIGINAL/PLAY LIST] indicator lights up in green when you select [PLAY LIST] (default setting).
93
GB
94
GB
DVD Setup Display List
You can set the following items with the DVD Setup Display.
The order of the displayed items may be different from the actual display.
LANGUAGE SETUP
OSD*
MENU*
AUDIO*
SUBTITLE*
CUSTOM SETUP
PAUSE
MODE
AUTO
FRAME
TRACK OFF
SELECTION AUTO
MULTI-DISC
RESUME
ON
OFF
AUDIO DRC OFF
STANDARD
MAX
DivX**
SCREEN SETUP
TV TYPE
SCREEN SAVER
BACKGROUND
LINE
4:3 OUTPUT
16:9
4:3 LETTER
BOX
4:3 PAN SCAN
ON
OFF
JACKET
GRAPHICS
BLUE
BLACK
VIDEO
RGB
FULL
NORMAL
SPEAKER SETUP
SIZE
DISTANCE
(FRONT)
DISTANCE
(SURROUND)
FRONT
CENTER
SURROUND
YES
YES
NONE
YES
NONE
SUBWOOFER YES
L
R
CENTER
1.0 m – 7.0 m
1.0 m – 7.0 m
0.0 m – 7.0 m
L
R
0.0 m – 7.0 m
0.0 m – 7.0 m
LEVEL
(FRONT)
LEVEL
(SURROUND)
TEST TONE
L
R
CENTER
–6.0 dB – 0.0 dB
–6.0 dB – 0.0 dB
–6.0 dB – +6.0 dB
SUBWOOFER –6.0 dB – +6.0 dB
L
R
–6.0 dB – +6.0 dB
–6.0 dB – +6.0 dB
OFF
ON
* Select the language you want to use from the displayed language list.
** DAV-DZ110/DZ410 only.
AMP Menu List
You can set the following items with AMP MENU on the remote.
AMP menu
DIMMER
DEMO
ATTENUATE
DIMMER ON
DIMMER OFF
DEMO ON
DEMO OFF
ATT ON
ATT OFF
95
GB
96
GB
Index
Numerics
A
B
C
D
E
F
H
I
Installing the speakers on a wall
J
L
Locating a specific point by watching the TV screen 35
M
MUTING 29
N
O
P
Q
R
S
T
U
V
97
GB
Remote control
ALPHABETICAL ORDER
A – O
DISC SKIP* qk
Number buttons** qg (36, 57, 60,
P – Z
BUTTON DESCRIPTIONS
[/1 (on/standby) 1 (19, 22, 29,
C/X/x/c qd(19, 22, 30, 36, 57,
REPLAY/
/
* The DISC SKIP button is not available for this model.
** The H, number 5, and
VOLUME + buttons have tactile dots. Use the tactile dots as references when operating the system.
Sony Corporation Printed in China
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- DVD player
- 850 W 5.1 channels
- Radio Data System (RDS)
Related manuals
advertisement
Table of contents
- 2 WARNING
- 2 Welcome!
- 5 About This Manual
- 6 This System Can Play the Following Discs
- 6 Note about CDs/DVDs
- 6 Example of discs that the system cannot play
- 7 About Multi Session CD
- 7 Region code
- 7 Note on playback operations of DVDs and VIDEO CDs
- 7 Copyrights
- 8 Getting Started - BASIC -
- 9 Step 1: Assembling the Speakers
- 12 Step 2: Connecting the System and TV
- 15 1 Connecting the Speakers
- 15 2 Connecting the TV
- 16 3 Connecting the Antenna (Aerial)
- 17 4 Connecting the AC power cord (mains lead)
- 18 Step 3: Positioning the System
- 18 Positioning the speakers
- 19 Step 4: Performing the Quick Setup
- 22 Getting Started - ADVANCED -
- 22 Turning off the Demonstration
- 22 Setting the demonstration mode on/off
- 23 Installing the Speakers on a Wall
- 24 TV Hookup (Advanced)
- 24 Connecting the video cords
- 25 Does your TV accept progressive signals?
- 27 Other Component Hookup
- 27 Connecting the system and the other component
- 29 Basic Operations
- 29 Playing Discs
- 30 Enjoying the Radio or Other Components
- 30 Selecting the connected component
- 30 Changing the input level of the sound from connected components
- 31 Enjoying TV or VCR Sound from All Speakers
- 32 Selecting the Movie or Music Mode
- 33 Sound Adjustments
- 33 Enjoying Surround Sound by Using Sound Field
- 33 Automatic outputting of the original sound
- 33 Outputting the sound from multiple speakers
- 33 Outputting 2 channel sources like CDs by 5.1channel
- 34 Using only the front speaker and subwoofer
- 34 Enjoying the surround sound by headphones
- 35 Various Functions for Playing Discs
- 35 Searching for a Particular Point on a Disc
- 35 Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)
- 35 Watching frame by frame (Slow-motion Play)
- 35 Playing one frame at a time (Freeze Frame)
- 36 Searching for a Title/ Chapter/Track/Scene, etc.
- 37 Searching by Scene
- 37 Resuming Playback from the Point Where You Stopped the Disc
- 38 Creating Your Own Program
- 40 Playing in Random Order
- 41 Playing Repeatedly
- 42 Using the DVD’s Menu
- 42 Changing the Sound
- 43 Checking the audio signal format
- 44 Selecting [ORIGINAL] or [PLAY LIST] on a DVD-R/ DVD-RW
- 45 Viewing Information About the Disc
- 45 Viewing the playing time and remaining time in the front panel display
- 45 Checking the playing time and remaining time
- 46 Checking the play information of the disc
- 47 Checking the date information
- 47 Changing the Angles
- 48 Displaying the Subtitles
- 48 Adjusting the Delay Between the Picture and Sound
- 49 About MP3 Audio Tracks and JPEG Image Files
- 49 What is MP3/JPEG?
- 49 Discs that the system can play
- 49 MP3 audio track or JPEG image file that the system can play
- 49 Playback order of MP3 audio tracks or JPEG image files
- 50 Playing DATA CDs or DATA DVDs with MP3 Audio Tracks and JPEG Image Files
- 50 Selecting an MP3 audio track or album
- 51 Selecting a JPEG image file or album
- 52 Playing Audio Tracks and Images as a Slide Show with Sound
- 53 Specifying the slide show duration
- 53 Selecting an effect for image files in the slide show
- 54 Enjoying DivX® Videos
- 54 About DivX Video Files
- 55 Selecting a DivX video file
- 56 Playing VIDEO CDs with PBC Functions (Ver.2.0)
- 57 Tuner Functions
- 57 Presetting Radio Stations
- 57 Listening to the Radio
- 58 Viewing the station name or frequency in the front panel display
- 59 Using the Radio Data System (RDS)
- 59 What is the Radio Data System?
- 59 Receiving RDS broadcasts
- 60 Other Operations
- 60 Controlling the TV with the Supplied Remote
- 60 Controlling TVs with the remote
- 60 Using the THEATRE SYNC Function
- 60 Preparing for the THEATRE SYNC function
- 61 Operating for the THEATRE SYNC function
- 61 Using the Sound Effect
- 61 Reinforcing bass frequencies
- 62 Using the Sleep Timer
- 62 Changing the Brightness of the Front Panel Display
- 63 Advanced Settings and Adjustments
- 63 Locking Discs
- 63 Preventing playback of specific discs [CUSTOM PARENTAL CONTROL]
- 64 Limiting playback for children [PARENTAL CONTROL]
- 66 Changing the password
- 66 Getting Optimal Surround Sound for a Room
- 68 Calibrating the Appropriate Settings Automatically
- 70 Using the Setup Display
- 72 Setting the Display or Sound Track Language
- 72 Settings for the Display
- 74 Custom Settings
- 75 Settings for the Speakers
- 76 Adjusting the speaker level by using the test tone
- 77 Returning to the Default Settings
- 78 Additional Information
- 78 Precautions
- 79 Notes about the Discs
- 79 Troubleshooting
- 82 Self-diagnosis Function
- 83 Specifications
- 85 Glossary
- 88 Language Code List
- 88 Parental Control Area Code List
- 89 Index to Parts and Controls
- 89 Front panel
- 89 Rear panel
- 90 Front panel display
- 91 Guide to the Control Menu Display
- 91 Control Menu display
- 94 DVD Setup Display List
- 95 AMP Menu List
- 96 Index
- 100 Remote control
