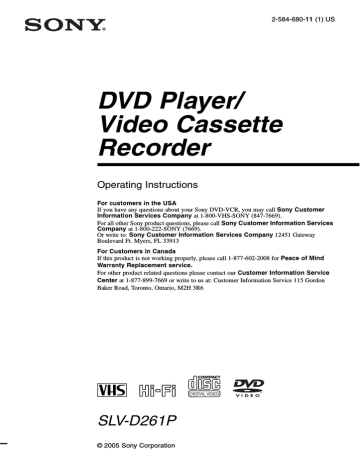

2-584-680-11 (1) US
DVD Player/
Video Cassette
Recorder
Operating Instructions
For customers in the USA
If you have any questions about your Sony DVD-VCR, you may call Sony Customer
Information Services Company at 1-800-VHS-SONY (847-7669).
For all other Sony product questions, please call Sony Customer Information Services
Company at 1-800-222-SONY (7669).
Or write to: Sony Customer Information Services Company 12451 Gateway
Boulevard Ft. Myers, FL 33913
For Customers in Canada
If this product is not working properly, please call 1-877-602-2008 for Peace of Mind
Warranty Replacement service.
For other product related questions please contact our Customer Information Service
Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon
Baker Road, Toronto, Ontario, M2H 3R6
SLV-D261P
© 2005 Sony Corporation
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
CAUTION
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
USE OF ANY CONTROLS,
ADJUSTMENTS, OR
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT,
FULLY INSERT.
For customers in the U.S.A
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided below. Refer to them whenever you call upon your
Sony dealer regarding this product.
Model No. ______________
Serial No.______________
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
2 WARNING
Welcome!
Thank you for purchasing this
Sony DVD Player/Video Cassette
Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference.
General
Precautions
• Operate the unit only on
120 V AC, 60 Hz.
• This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time.
To disconnect the cord, pull it out by the plug, never by the cord.
• If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape.
When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.
• Do not install the unit in a confined space such as a bookshelf or similar unit.
• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers.
• Do not place heavy objects on the unit.
Important Safety
Instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DVD Precautions
On safety
• Caution – The use of optical instruments with this product will increase eye hazard.
• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.
On operation
• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.
• When you move the player, take out any discs.
If you don’t, the disc may be damaged.
On adjusting volume when playing
DVD
Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.
On cleaning discs
Do not use a commercially available cleaning disc.
It may cause a malfunction.
IMPORTANT NOTICE
Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.
Important Safety Instructions 3
Table of contents
2 WARNING
2 Welcome!
2 General Precautions
3 Important Safety Instructions
3 DVD Precautions
6 About this manual
6 This player can play the following discs
8 Notes about discs
Getting Started
9 Step 1 : Unpacking
10 Step 2 : Setting up the remote commander
11 Step 3 : Basic hookups
18 Step 4 : Selecting a language
20 Step 5 : Setting the clock
24 Step 6 : Presetting channels
Basic Operations
28 Playing discs
33 Guide to the on-screen display
36 Locking the disc tray (Child Lock)
37 Playing a tape
40 Recording TV programs
43 Recording TV programs using the
timer
46 Checking/changing/canceling timer
settings
48 Locking the DVD-VCR (Child Lock)
Advanced Hookups
49 A/V Receiver hookup
51 S-Video/Component Video hookup
DVD Settings and
Adjustments
53 Audio Setup
55 Screen Setup
59 Setting the display or sound track
language
61 Parental Control (limiting playback
by children)
4 Table of contents
DVD Additional Operations
64 Using the DVD’s menu
66 Zooming into a scene
67 Changing the angles
68 Displaying the subtitle
69 Various play mode functions
(Program play, Shuffle play, Repeat play)
74 Changing the sound
75 Virtual surround setting
77 Playing an MP3 audio track
82 Playing JPEG image files
86 Playing VIDEO CDs with “PBC ON/
OFF” Functions
VCR Additional Operations
88 Quick Timer Recording
89 Recording stereo and bilingual
programs
90 Searching using various functions
92 Adjusting the picture (tracking)
93 Changing menu options
95 Editing with another VCR
Additional Information
97 General setup information
100 Troubleshooting
105 Glossary
107 Specifications
108 Index to parts and controls
113 DVD Audio/Subtitle Language
114 Index
Caution
For use of the VCR
Television programs, films, video tapes and other materials may be copyrighted.
Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or program owner.
For use of the DVD player
This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
Table of contents 5
About this manual
• This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the
DVD-VCR having the same or similar names.
• “DVD” may be used as a general term for DVD
VIDEOs, DVD-RWs/DVD-Rs, and DVD+RWs/
DVD+Rs.
• The meaning of the icons used in this manual is described below:
Icon Meaning
Functions available for DVD
VIDEOs and DVD-RWs/DVD-
Rs in video mode or DVD+RWs/
DVD+Rs
Functions available for DVD-
RWs in VR (Video Recording) mode
Functions available for VIDEO
CDs, Super VCDs or CD-Rs/CD-
RWs in video CD format or Super
VCD format
Functions available for music
CDs or CD-Rs/CD-RWs in music
CD format
Functions available for DATA
CDs (CD-ROMs/CD-Rs/CD-
RWs containing MP3* audio tracks or JPEG files)
Functions available for DATA
DVDs (DVD-ROMs/DVD+RWs/
DVD+Rs/DVD-RWs/DVD-Rs containing MP3* audio tracks or
JPEG files)
Functions available for VHS
VIDEOs
* MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data.
This player can play the following discs
Format of discs
DVD VIDEO
DVD-RW/-R
DVD+RW/+R
VIDEO CD/
Music CD
CD-RW/-R
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R
DL,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.
Note about CDs/DVDs
The player can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats:
– music CD format
– video CD format
– MP3 audio tracks and JPEG image files of format conforming to ISO 9660* Level 1/
Level 2, or its extended format, Joliet
– KODAK Picture CD format
* A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for
Standardization).
The player can play DVD-ROMs/DVD+RWs/
DVD+Rs/DVD-RWs/DVD-Rs recorded in the following formats:
– MP3 audio tracks and JPEG image files of format conforming to UDF (Universal Disk
Format).
6 About this manual
Region code
Your player has a region code printed on the back of the unit and only will play DVD VIDEO discs
(playback only) labeled with identical region codes.
This system is used to protect copyrights.
DVDs labeled ALL will also play on this player.
If you try to play any other DVD VIDEO, a message will appear on the TV screen to indicate that the disc is not playable. Depending on the
DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions.
NO.
SLV-DXXXX
X
Region code
Example of discs that the player cannot play
The player cannot play the following discs:
• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on the previous page
• CD-ROMs recorded in PHOTO CD format.
• Data part of CD-Extras
• DVD Audios
• HD layer on Super Audio CDs
Also, the player cannot play the following discs:
• A DVD VIDEO with a different region code.
• A disc recorded in a color system other than
NTSC, such as PAL or SECAM (this player conforms to the NTSC color system).
• A disc that has a non-standard shape (e.g., card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape or a sticker still left on it.
Notes about DVD+RWs/DVD+Rs,
DVD-RWs/DVD-Rs or CD-Rs/CD-
RWs
Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-
Rs or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device.
Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some
DATA CDs/DATA DVDs created in Packet
Write format cannot be played.
continued
This player can play the following discs 7
Note on playback operations of
DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO
CDs may be intentionally set by software producers. Since this player plays DVDs and
VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO
CDs.
Music discs encoded with copyright protection technologies
This product is designed to playback discs that conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
Note on DualDiscs
This product is designed to playback discs that conform to the Compact Disc (CD) standard. A
DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side of a DualDisc may not play on this product because these discs do not conform to the CD standard.
“DualDisc” is a trademark of the Recording
Industry Association of America (RIAA).
Notes about discs
• To keep the disc clean, handle the disc by its edge. Do not touch the surface.
• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.
• After playing, store the disc in its case.
• Clean the disc with a cleaning cloth.
Wipe the disc from the center out.
Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.
8 Notes about discs
Getting Started
Step 1 : Unpacking
Check that you have received the following items with the DVD-VCR:
• Remote commander • 75-ohm coaxial cable with F-type connectors
• Size AA (R6) batteries
Note
• The supplied remote commander is for the exclusive use of this DVD-VCR.
Unpacking 9
Step 2 : Setting up the remote commander
Inserting the batteries
Insert two size AA (R6) batteries by matching the + and – on the batteries to the diagram inside the battery compartment.
Insert the negative (–) end first, then push in and down until the positive
(+) end clicks into position.
Using the remote commander
You can use this remote commander to operate this DVD-VCR and a Sony
TV. Buttons on the remote commander marked with an orange dot (•) (?/1, VOL +/–, CH +/–,
MUTING, TV/VIDEO, ENTER and the number buttons) can be used to
TV /
DVD·VIDEO operate your Sony TV.
SELECT
VIDEO
If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.
SELECT
DVD
Remote sensor
To operate Set TV / DVD·VIDEO to the DVD player DVD·VIDEO, then press SELECT DVD and point at the remote sensor at the DVD-VCR the VCR your TV
DVD·VIDEO, then press SELECT VIDEO and point at the remote sensor at the DVD-VCR
TV and point at the remote sensor at your TV
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
• Do not leave the remote commander in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.
10 Setting up the remote commander
Step 3 : Basic hookups
Before you get started
• Be sure to disconnect the AC power cord of each component before connecting.
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are completed. If you connect the AC power cord before the connections are completed, you may not be able to use the Plug and Play function.
• Be sure you make connections firmly. Loose connections may cause picture distortion.
• If your TV does not match any of the examples provided, see your nearest Sony dealer or qualified technician.
Selecting the best hookup option
There are many ways in which your DVD-VCR can be hooked up. To hook up your
DVD-VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your
DVD-VCR.
If your TV has audio/video inputs, refer to page 12 for audio/video (A/V) hookup.
Then follow one of the hookups below. If your TV does not have A/V inputs, go directly to one of the hookups below.
If you have
Antenna only, no cable TV
No cable box or cable box with only a few scrambled channels
Cable box with many scrambled channels
Use
Hookup 1
(Plug and Play)
Hookup 2
(Plug and Play)
Hookup 3
Refer to
After you have completed the connections, follow the instructions for setup.
After you have completed the setup, you are ready to use your DVD-VCR.
Procedures differ depending on the hookup you used.
Caution
Connections between the DVD-VCR’s VHF/UHF connector and the antenna terminals of the
TV receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the DVD-VCR to an antenna or make simultaneous (parallel) antenna and DVD-VCR connections at the antenna terminals of your receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
continued
Basic hookups 11
Audio/video (A/V) hookup
If your TV has audio/video (A/V) input jacks, you will get better picture and sound if you hook up your DVD-VCR using these connections. If your TV does not have A/V
inputs, see the following pages for antenna or cable hookups. Note that “Advanced
Hookups” (page 49) explains additional hookup methods that will optimize the
picture and sound for a true “hometheater” experience.
If you are not planning to use your DVD-VCR to record programs, you only need to make the connections shown on this page. If you want to record regular or cable TV programs, complete these connections first, and then go to the following pages for antenna or cable hookups.
A Use this hookup if your TV has stereo jacks
DVD-VCR Stereo receiver
TV
Audio/video cord
(not supplied)
Audio cord (not supplied)
B Use this hookup if your TV does not have stereo jacks
DVD-VCR Stereo receiver
TV
Video cord
(not supplied)
Audio cord (not supplied)
Notes
• To play a tape/disc in stereo, you must use the A/V connection.
• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the
AUDIO IN jack on your TV.
12 Basic hookups
Hookup 1 (Plug and Play)
Antenna hookup
Make the following connections if you are using an antenna (if you do not have cable
TV).
A Use this hookup if you are using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
DVD-VCR or
Rear of TV
VHF/UHF
A Match the type of connector on your
TV: A, B, or C.
VHF
UHF
B or
VHF
C
UHF
B Use this hookup if you are using a VHF-only antenna (you get channels 2–13 only)
DVD-VCR or or
Rear of TV
VHF/UHF
A Match the type of connector on your
TV: A, B, or C.
VHF
B
UHF
VHF
For connector types B and C, no
UHF connection is required.
C
UHF
If you cannot connect your antenna cable to the DVD-VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cable to the IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band
mixer (not supplied) (page 99).
continued
Basic hookups 13
Hookup 1 : DVD-VCR setup
Plug the DVD-VCR into an AC outlet.
The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels when the DVD-VCR is plugged into the AC outlet.
to AC outlet
AC power cord
The DVD-VCR starts presetting the clock and channels.
When Auto preset is completed, the current time appears in the display window.
You have now completed DVD-VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 18.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “–:–” appears in the display window, see “Using Manual Clock
To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.
• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the DVD-VCR.
• Auto preset can be performed by pressing x on the unit continuously for 5 seconds or more with the DVD-VCR power turned off.
14 Basic hookups
Hookup 2 (Plug and Play)
You have no cable box, or a cable box with only a few scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if your cable system scrambles only a few channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you cannot do
• Record scrambled channels that require a cable box
DVD-VCR
Wall
Connect this cable directly to your TV if you do not have a cable box.
Cable box or or
Rear of TV
VHF/UHF
A
VHF
Match the type of connector on your TV: A,
B, or C.
UHF
VHF
B
For connector types B and C, no UHF connection is required.
C
UHF continued
Basic hookups 15
Hookup 2 : DVD-VCR setup
Plug the DVD-VCR into an AC outlet.
The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels when the DVD-VCR is plugged into the AC outlet.
to AC outlet
AC power cord
The DVD-VCR starts presetting the clock and channels.
When Auto preset is completed, the current time appears in the display window.
You have now completed DVD-VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 18.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “–:–” appears in the display window, see “Using Manual Clock
To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.
• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the DVD-VCR.
• Auto preset can be performed by pressing x on the unit continuously for 5 seconds or more with the DVD-VCR power turned off.
16 Basic hookups
Hookup 3
Connecting a cable box with many scrambled channels
Recommended use
Use this hookup if your cable system scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you cannot do
• Record with the cable box turned off
• Record one channel while watching another channel
Cable box
Wall
DVD-VCR or or
Rear of TV
VHF/UHF
A Match the type of connector on your
TV: A, B, or C.
VHF
B
UHF
VHF
For connector types B and C, no
UHF connection is required.
C
UHF
After you have completed hookup…
After you have completed hookup, plug the DVD-VCR into an AC outlet and see
“Step 4 : Selecting a language” on page 18.
to AC outlet
AC power cord
Basic hookups 17
Step 4 : Selecting a language
You can change the on-screen display language.
Before you start…
• Turn on the DVD-VCR and your TV.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 97). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
SET UP
V/v
ENTER
1
2
3
Press SET UP, then press V/v to select
(OPTION) and press ENTER.
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
Press V/v to select “Language”, then press
ENTER.
The “LANGUAGE/IDIOMA/LANGUE” menu appears.
LANGUAGE/IDIOMA/LANGUE
B English
Español
Français
V v
ENTER RETURN SET UP
Press V/v to select the desired language, English, Spanish or French, then press ENTER.
18 Selecting a language
4 Press SET UP to exit the menu.
Selecting a language 19
Step 5 : Setting the clock
Using the Auto Clock Set feature
Some TV and cable channels transmit time signals with their broadcasts. Your DVD-
VCR can pick up this time signal to automatically set the clock.
The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are not yet sending time signals, set the time
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 97). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
1 Press SET UP, then press V/v to select
(OPTION) and press ENTER.
SET UP
V/v/B/b
ENTER
O RETURN
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
2 Press V/v to select “Clock Set/Adjust”, then press ENTER.
The “CLOCK SET/ADJUST” menu appears.
CLOCK SET/ADJUST
Auto
Manual
V v
ENTER RETURN SET UP
20 Setting the clock
5
6
3
4
Press V/v to select “Auto”, then press
ENTER.
CLOCK SET/ADJUST
Clock data CH
Time zone
Daylight saving
[ Auto ]
[ Auto ]
[ Auto ]
V v B b
RETURN SET UP
Press V/v to select the item you want, then press B/b to make the setting.
• For “Clock data CH”
Leave the setting to “Auto” to have the
DVD-VCR automatically search for a channel that carries a time signal. Press B/b to select a channel that carries a time signal.
Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station.
• For “Time zone”
Select the time zone of your area, or select
“Auto” to have the DVD-VCR automatically set your time zone.
The options are:
Auto y Atl. (Atlantic) y East (Eastern) y Cen. (Central) y Mtn. (Mountain) y
Pac. (Pacific) y Alas (Alaska) y
Haw. (Hawaii) y Auto
• For “Daylight saving”
Select “Yes” or “No” (standard time), or
“Auto” to have the DVD-VCR automatically set the daylight saving time.
V v B b
CLOCK SET/ADJUST
Clock data CH
Time zone
Daylight saving
V v B b
Clock data CH
Time zone
Daylight saving
[ 123 ]
[ Auto ]
[ Auto ]
RETURN SET UP
CLOCK SET/ADJUST
RETURN SET UP
CLOCK SET/ADJUST
Clock data CH
Time zone
Daylight saving
[ Auto ]
[ Pac. ]
[ Auto ]
[ Auto ]
[ Auto ]
[ No ]
V v B b
RETURN SET UP
Press O RETURN, then press SET UP to exit the menu.
To activate the Auto Clock Set function, turn off the DVD-VCR.
continued
Setting the clock 21
Notes
• The clock cannot be set automatically if you do not receive a channel that carries a time
signal in your area. If so, set the clock manually (page 22).
• If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes. If nothing happens even after you wait about
20 minutes, set the clock manually (page 22).
• If you made Hookup 3, make sure you leave the cable box on.
• To record TV programs using the timer, you must set the clock accurately.
• The clock display appears when VIDEO mode is selected with no tape inserted or when the
DVD-VCR is turned off.
Using Manual Clock Set
Before you start…
• Turn on the DVD-VCR and your TV.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 97). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
SET UP
V/v/B/b
ENTER
1
2
22 Setting the clock
Press SET UP, then press V/v to select
(OPTION) and press ENTER.
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
Press V/v to select “Clock Set/Adjust”, then press ENTER.
The “CLOCK SET/ADJUST” menu appears.
CLOCK SET/ADJUST
Auto
Manual
V v
ENTER RETURN SET UP
3
4
5
6
Press
ENTER.
Press
Press
V/v to select “ Manual
V/v to set the hour.
b to select the minutes and set the minutes by pressing V/v.
” , then press
Set the month, day, and year in sequence by pressing b to select the item to be set, and press V/v to select the digits, then press b.
The day of the week is set automatically.
CLOCK SET/ADJUST
Time Date Year
12:00 AM 1/01 2005 Sat
V v B b
ENTER RETURN SET UP
CLOCK SET/ADJUST
Time Date Year
12:00 AM 1/01 2005 Sat
V v B b
ENTER RETURN SET UP
CLOCK SET/ADJUST
Time Date Year
12:00 AM 1/01 2005 Sat
V v B b
ENTER RETURN SET UP
CLOCK SET/ADJUST
Time Date Year
12:00 AM 10/06 2005 Thu
V v B b
ENTER RETURN SET UP
Press ENTER to confirm the setting.
7
8 Press SET UP to exit the menu.
Tip
• To change the digits while setting, press B to return to the item to be changed, and select the digits by pressing V/v.
Notes
• To record TV programs using the timer, you must set the clock accurately.
• The clock display appears when VIDEO mode is selected with no tape inserted or when the
DVD-VCR is turned off.
Setting the clock 23
Step 6 : Presetting channels
This DVD-VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods. Then, if there are any unwanted channels, disable them manually.
If you have already decided which channels you wish to preset, set them directly using
manual presetting methods (page 26).
Presetting all receivable channels automatically
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 97). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
1 Press SET UP, then press V/v to select
(OPTION) and press ENTER.
SET UP
V/v/B/b
ENTER
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
24 Presetting channels
2
3
4
5
Press V/v to select “Channel Setup”, then press ENTER.
The “CHANNEL SETUP” menu appears.
V v B b
CHANNEL SETUP
Ant/Cable [ Cable TV ]
Auto Channel Memory
Channel Add/Delete
RETURN SET UP
Press V/v to select “Ant/Cable.”
• To preset cable TV channels:
Press B / b to select “Cable TV.”
• To preset VHF and UHF channels:
Press B / b to select “Antenna.”
CHANNEL SETUP
Ant/Cable [ Cable TV ]
Auto Channel Memory
Channel Add/Delete
V v B b
RETURN SET UP
CHANNEL SETUP
Ant/Cable [ Antenna ]
Auto Channel Memory
Channel Add/Delete
V v B b
RETURN SET UP
Press V/v to select “Auto Channel Memory,” then press ENTER.
All receivable channels are preset in numerical sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen.
AUTO CH MEMORY
Memorizing
Please Wait
RETURN SET UP continued
Presetting channels 25
Presetting/disabling channels manually
Before you start…
• Turn on the DVD-VCR and your TV.
When using a cable box, turn it on.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
• Set the “RF Output Channel” to “3CH” or
“4CH” in “OPTION SETUP” menu
(page 97). If your TV is connected to the
DVD-VCR using A/V connections, set the
TV to video input.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
CH +/–
Number buttons
SET UP
1
2
3
26 Presetting channels
V/v/B/b
ENTER
O RETURN
Press SET UP, then press V/v to select
(OPTION) and press ENTER.
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
Press V/v to select “Channel Setup”, then press ENTER.
The “CHANNEL SETUP” menu appears.
CHANNEL SETUP
Ant/Cable [ Cable TV ]
Auto Channel Memory
Channel Add/Delete
V v B b
Press V/v to select “Channel Add/Delete,” then press ENTER.
RETURN SET UP
4
5
6
To preset/disable a channel:
1
Press CH +/– or number buttons to enter the channel number.
2
Press B/b to select “ADD” (in memory) or “DELETE” (deleted).
3
Press ENTER.
Channel to be preset
CHANNEL ADD/DELETE
Select channel:
(in memory) and press press to ADD to DELETE
Channel to be disabled
CHANNEL ADD/DELETE
Select channel:
(deleted) and press press to ADD to DELETE
Press O RETURN to confirm the setting.
Press SET UP to exit the menu.
Note
• If you have not preset channels automatically, you cannot preset/disable channels manually.
Presetting channels 27
Basic Operations
Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so that the signal from the player appears on the TV screen.
• Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT DVD to control the
?/1
Z
/
m/M y
./ >
X PAUSE x STOP
H PLAY
1 Press Z to open the disc tray and place a disc on the disc tray.
with the playback side facing down
28 Playing discs
2 Press H PLAY.
The disc tray closes and the
DVD player starts playback.
The display window shows the playback time * .
Depending on the disc, a menu
Hour Minute may appear on the TV screen.
For DVDs, see page 64. For VIDEO CDs, see page 86.
* “– – – – –” appears when no disc is loaded.
Second
Tip
• To make a video timer reservation during DVD playback, we recommend performing the
operations under “Quick Timer Recording” (page 88).
Notes
• You can change the screen type using the “SCREEN SETUP” menu (see “Screen Setup” on page 55).
• Stop VIDEO playback while playing back a disc.
• If you play a DVD or VIDEO CD that has scratches, the player may stop playback at the point of the scratch.
• Playback of play lists longer than 10 hours recorded in VR mode is not guaranteed.
Additional tasks
To
Stop play
Pause play* 1
Resume play after pause
Press x STOP
X PAUSE
Go to the next frame in pause mode
Go to the previous frame in pause mode
H PLAY
SKIP
REPLAY
Go to the next chapter, track, or scene in continuous play mode
Go back to the previous chapter, track, or scene in continuous play mode
> NEXT on the remote or M on the unit
. PREV on the remote or m on the unit continued
Playing discs 29
To
Locate a point quickly
Press m or M on the remote (or hold down m or M on the unit)
The playback speed changes as follows each time you press the button on the remote (or depending on how long you press the button on the unit):
• DVD fast forward: PLAY t ×1.4 ••N•* 2 t 1M t
2M t 3M t 4M t 5M t 6M fast reverse: PLAY t 1m t 2m t 3m t
4m t 5m t 6m
• CD, MP3 and VIDEO CD fast forward: PLAY t 1M t 2M t 3M fast reverse: PLAY t 1m t 2m t 3m
When you find the point you want, press H PLAY.
Watch slow motion in continuous play mode
(DVD and VIDEO CD only)
Replay the previous scene for 10 seconds in continuous play mode* 3 (Instant Replay)
Briefly fast forward the current scene for 30 seconds in continuous play mode* 3 * 4
(Instant Advance)
Stop play and remove the disc
X PAUSE during playback, then press or y
The playback speed changes as follows each time you press or y:
• DVD forward slow motion: ×0.6
••N•* 2 t 2 y t 3 y reverse slow motion (except for DVD-RW in VR mode): 1 t 2 t 3
• VIDEO CD forward slow motion only: 1 y t 2 y t 3 y
To resume normal playback, press H PLAY.
REPLAY
Z
SKIP
* 1 If you pause the DVD player for more than 5 minutes, the DVD player will automatically stop.
* 2
* 3 For DVD VIDEOs and DVD-RWs/DVD-Rs or DVD+RWs/DVD+Rs only
* 4 You can press SKIP up to 4 times. This allows you to fast foward up to 2 minutes in total.
Tips
• The Instant Replay function is useful when you want to review a scene or dialog that you missed.
• The Instant Advance function is useful when you want to pass over a scene that you do not want to watch.
30 Playing discs
Notes
• No sound is output except for:
– during normal play
– during playback quickly or slowly with sound
• You cannot perform playback quickly or slowly with sound when a virtual surround effect is set.
• The fast reverse operation may not be possible for CD, MP3 and VIDEO CD depending on the recording method.
• You may not be able to use the Instant Replay or Instant Advance function with some scenes.
• Switching between original (ORG) and play list (PL) within a disc recorded in VR mode is possible only while the disc is stopped. Press TOP MENU to switch between ORG and PL.
To playback quickly or slowly with sound (DVD only)
You can listen to dialog or sound while playing the current scene quickly or slowly.
To playback quickly, press M during playback.
To playback slowly, press X PAUSE, then press y during playback.
Press H PLAY t o return to normal playback.
Notes
• You cannot set virtual surround effects while performing playback quickly or slowly with sound. In addition, you cannot perform playback quickly or slowly with sound when a virtual surround effect is set.
• You cannot perform DTS audio output during playback quickly or slowly with sound.
To Resume playback for the current disc (Resume Play)
The DVD player remembers the point where you stopped the disc even if the DVD player enters standby mode by pressing ?/1.
1 While playing a disc, press x STOP to stop playback.
2 Press H PLAY.
The DVD player starts playback from the point where you stopped the disc in
Step 1.
Tip
To begin playback from the top of the disc, press x STOP twice then press H PLAY .
continued
Playing discs 31
Notes on playing DTS* sound tracks on a CD
• When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks.
To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jack of the DVD player.
• Set the sound to “Stereo” using the AUDIO button when you play DTS sound tracks on a CD
• Do not play DTS sound tracks without first connecting the DVD player to an audio component having a built-in DTS decoder. The DVD player outputs the DTS signal via the
DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack even if “DTS” is set to “Off” in
“AUDIO SETUP” menu (page 53), and may affect your ears or cause your speakers to be
damaged.
Notes on playing DVDs with a DTS sound track
• DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or
OPTICAL) jack.
• When you play a DVD with DTS sound tracks, set “DTS” to “On” in “AUDIO SETUP”
• If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to
“On” in “AUDIO SETUP” menu (page 53). A loud noise may come out from the speakers,
affecting your ears or causing the speakers to be damaged.
* “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
32 Playing discs
Guide to the on-screen display
You can check disc information during playback.
The displayed contents differ according to the type of disc being played.
Number buttons
V/v/B/b
ENTER
O RETURN
DISPLAY
Press DISPLAY during playback. The following information appears; type of disc, current title/track, chapter, counter position, voice language, subtitle language and
Custom AV Mode setting. Refer to “DVD Audio/Subtitle Language” on page 113 for
the abbreviation of the language.
Type of disc
Current title/track number
Current chapter number
Counter position
Voice language
Subtitle language
Custom AV Mode
1/3
1/36
T 0:01:09
ENG 5.1CH
ENG (3/5)
Standard
V v B b
0 ~ 9 ENTER
Note
• You cannot select disc information items when the disc is stopped.
continued
Guide to the on-screen display 33
To playback the desired title/track or chapter
You can playback the desired title/track or chapter using this menu.
1 Press V/v during playback to select the desired item.
2 Press B/b to change the item.
3 Press ENTER to start playback.
4 Press DISPLAY or O RETURN to turn off the menu.
1/3
1/36
T 0:01:09
ENG 5.1CH
ENG (3/5)
Standard
V v B b
0 ~ 9 ENTER
The title/track or chapter icon will appear on the DVD playback screen followed by the current title/track or chapter number and the counter position.
To playback from the desired title/track counter position
You can playback from the desired title/track counter position using this menu.
1 Press V/v during playback to select the counter position icon.
2 Enter the desired elapsed playing time of the current title/track using the number buttons.
3 Press ENTER to start playback.
4 Press DISPLAY or O RETURN to turn off the menu.
1/3
1/36
T 0:01:09
ENG 5.1CH
ENG (3/5)
Standard
V v B b
0 ~ 9 ENTER
Tip
• You can change the counter position information (playing time or remaining time) using
B/b (DVD and CD only).
DVD
Indication
T
∗ : ∗∗ : ∗∗
T–
∗ : ∗∗ : ∗∗
C
∗ : ∗∗ : ∗∗
C–
∗ : ∗∗ : ∗∗
Counter information
Elapsed playing time of the current title
Remaining time of the current title
Elapsed playing time of the current chapter
Remaining time of the current chapter
CD
Indication
T
∗ : ∗∗ : ∗∗
T–
∗ : ∗∗ : ∗∗
D
∗ : ∗∗ : ∗∗
D–
∗ : ∗∗ : ∗∗
Counter information
Elapsed playing time of the current track
Remaining time of the current track
Elapsed playing time of the disc
Remaining time of the disc
34 Guide to the on-screen display
Notes
• The display may not change as operated depending on the disc.
• The display window continue indicating the playing time even when the counter position information on the on-screen display is being changed.
To adjust the playback picture (Custom AV Mode)
You can adjust the video signal of the DVD or VIDEO CD (with PBC function off) from the player to obtain the picture quality you want. Choose the setting that best suits the program you are watching.
1 Press V/v during playback to select the Custom AV
Mode icon.
1/3
1/36
T 0:01:09
ENG 5.1CH
ENG (3/5)
Standard
V v B b
2 Press B/b to change the setting.
Setting Video Setting
Dynamic 1
Dynamic 2
Produces a bold dynamic picture by increasing the picture contrast and the color intensity.
Produces a more dynamic picture than Dynamic 1 by further increasing the picture contrast and the color intensity.
Audio Setting
Full (modulated) sound with clear treble and bass.
Full (modulated) sound with even clearer treble and bass than
Dynamic 1.
Standard
Cinema 2
Cinema 1
Off (Default setting)
Displays a standard picture.
Enhances details in dark areas by increasing the black level.
White colors become brighter and black colors become richer, and the color contrast is increased.
Standard sound.
Powerful sound with even stronger bass than Cinema 1.
Powerful sound with strong bass.
Tip
• When you watch a movie, “Cinema 1” or “Cinema 2” is recommended.
Guide to the on-screen display 35
Locking the disc tray (Child Lock)
You can lock the disc tray so that the disc tray is not opened by mistake.
SELECT DVD
To lock the disc tray X x
When the DVD-VCR is turned on, press x, X and SELECT DVD on the unit at the same time. “LOCK” appears in the display window. The disc tray is locked.
To unlock the disc tray
Press x, X and SELECT DVD on the unit at the same time. The disc tray is unlocked.
Notes
• If you lock the disc tray while open, the disc tray will be locked after closing.
• You cannot lock the disc tray when the DVD-VCR is turned off. If the DVD-VCR is turned on, you can lock the disc tray either in play mode or stop mode.
36 Locking the disc tray (Child Lock)
1
2
Playing a tape
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so that the signal from the player appears on the TV screen.
• Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the
?/1
Z
TRACKING +/–
CLEAR
/ m/M y
./>
X PAUSE x STOP
H PLAY
DISPLAY
Insert a tape.
The VCR starts playing automatically if you insert a tape with its safety tab removed.
Press H PLAY.
The display window shows the playback time.
When the tape reaches the end, it will rewind automatically.
Hour Minute Second continued
Playing a tape 37
Additional tasks
To
Stop play
Pause play*
Resume play after pause
Fast-forward the tape
Rewind the tape
Eject the tape
Press x STOP
X PAUSE
X PAUSE or H PLAY
M during stop m during stop
Z
* If you pause the VCR for more than 5 minutes, the VCR will automatically resume play.
To turn off the power while rewinding (Rewind Shut Off)
Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.
To play/search at various speeds
Playback options Operation
View the picture during fastforward or rewind
Play at high speed
Play in slow motion
Play frame by frame
During fast-forward, hold down M. During rewind, hold down m.
• During playback, briefly press M or m. The tape continues to play at 5 times normal speed.
• During playback, hold down M or m. The tape continues to play at 5 times normal speed. When you release the button, normal playback resumes.
During pause, press y.
During pause, press SKIP.
During playback, press REPLAY.
Replay the previous scene in continuous play mode* 1
(Instant Replay)
Fast forward the current scene for 30 seconds in continuous play mode* 2 (Instant Skip)
Play at various speeds
(Shuttle play)
During playback, press SKIP.
During playback, press .or >. You can change the playback speed as follows.
–
× 7 y –× 5 y –× 3 y STILL y SLOW y PLAY y × 2 y × 3 y × 5 y × 7
* 1 For 10 seconds in SP or LP mode/for 15 seconds in EP mode
* 2 You can press SKIP up to 4 times. This allows you to fast forward up to 2 minutes in total.
38 Playing a tape
To resume normal playback
Press H PLAY.
To use the time counter
Press CLEAR at the point on the tape that you want to find later. The counter in the display window resets to “0:00:00.” To search for the counter 0:00:00 point
automatically, see “To search for the counter 0:00:00 point” on page 91.
To display the counter on the TV screen, press DISPLAY during normal playback.
Tip
• Adjust the picture using the TRACKING +/– buttons if:
– Streaks appear while playing in slow motion.
– Bands appear at the top or bottom while pausing.
– The picture shakes during pause.
Notes
• Tapes recorded in LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.
• The counter resets to “0:00:00” whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.
• When 10 hours have passed, the counter in the display window returns to “0:00:00” and the count starts over again.
• No sound is output during playback at various speeds.
• The picture may show noise when playing at high speed in reverse.
• While playing a tape, you can display the setup menu, but the remote commander’s function switches to DVD automatically. Press O RETURN repeatedly to exit the menu.
• When playback does not start even if you insert a tape with its safety tab removed, set “Auto
Play” to “On” in the “VIDEO FUNCTION SETUP” menu (page 93).
• Stop disc playback while playing back a video.
• The VCR can also play S-VHS tapes recorded by S-VHS mode. The VCR will automatically identify the type of tape inserted in the VCR (either VHS or S-VHS). When S-VHS tapes are played in the VCR, the enhanced resolution will not be visible on screen; there may also be picture distortion while playing the S-VHS tape in slow motion or while utilizing other special playback modes. The VCR will not record in S-VHS mode on an S-VHS tape.
• The playback of S-VHS tapes recorded in EP/LP mode cannot be guaranteed.
Playing a tape 39
Recording TV programs
Before you start ...
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so that the signal from the player appears on the TV screen.
• Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the
• To record from a cable box, turn it on.
• Make sure the tape is longer than the total recording time.
?/1
Z
CH +/–
Number buttons
TV/VIDEO
INPUT
SELECT z REC
SP/EP x STOP
H PLAY
ENTER
DISPLAY
1
2
Insert a tape with its safety tab in place.
Press CH +/– to select the channel or line input video source you want to record.
40 Recording TV programs
3 Press SP/EP to select the tape speed, SP or EP.
EP (Extended Play) provides recording time three times as long as SP
(Standard Play). However, SP produces better picture and audio quality.
4 Press z REC to start recording.
“ REC ” appears in the display window.
To stop recording
Press x STOP.
To check the remaining tape length
Press DISPLAY to display the time counter. With the display on, press DISPLAY again to check the remaining time. The white bar indicates the current location in relation to the entire tape length. The remaining time also appears. Press DISPLAY to turn off the indicators.
Time counter Remaining tape length
To check the remaining tape length of a tape, set “ Tape Length ” in the “ VIDEO
FUNCTION SETUP ”
Maximum Recording Time
Tape Length
T-120
T-160
T-180
SP
2 hrs
2 hrs 40 mins
3 hrs
EP
6 hrs
8 hrs
9 hrs continued
Recording TV programs 41
To watch another TV program while recording
1 Press TV/VIDEO to display “TV” in the display window.
2 If your TV is connected to the VCR using A/V connections, set the TV to the
TV’s antenna input; if not, skip this step.
3 Select another channel on the TV.
To watch a DVD while recording
1 Press SELECT DVD to control the DVD player.
2 Press Z and place the disc on the disc tray.
3 Press H PLAY.
The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen.
To save a recording
To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.
Safety tab
Tips
• To select a channel, you can use the number buttons on the remote commander. Enter the channel number, then press ENTER.
• You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT
SELECT button.
• The display appears on the TV screen indicating information about the tape, but the information will not be recorded on the tape.
• If you do not want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on.
Notes
• The remaining tape length may not be indicated accurately for short tapes such as T-20 or
T-30, or tapes recorded in LP mode.
• It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY.
• You cannot record a DVD to a VCR tape.
• To watch a TV program during video recording, stop disc playback.
42 Recording TV programs
Recording TV programs using the timer
You can preset up to eight programs at a time.
Before you start…
• Check that the DVD-VCR clock is set to the correct time.
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so that the signal from the player appears on the TV screen.
• Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the
• When using a cable box, turn it on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total recording time.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
Z
CLEAR
SET UP
TV/VIDEO
TIMER
INPUT
SELECT x STOP
H PLAY
V/v/B/b
ENTER
O RETURN
1 Press SET UP, then press V/v to select
(PROGRAM) and press ENTER. You can also display the timer programming menu by pressing TIMER.
The timer programming menu appears.
CH START END DATE SPEED
V v B b
RETURN continued
Recording TV programs using the timer 43
2
3
Set the channel number, start and stop times, date, and tape speed:
1
Press b to select each item in turn.
2
Press V/v to set each item.
To correct a setting, press B to return to that setting and reset.
CH START
35
V v B b
END DATE SPEED
RETURN CLEAR
• To record from a source connected to the
LINE IN 1 or LINE-2 IN jacks, press INPUT SELECT or V/v to display
“L1 ” or “L2” in the “CH” position.
• To record the same program every day or the same day every week, press
v while the date is flashing. For details, see “Daily/weekly recording” on page 44.
• To use the Auto Tape Speed function, press v to display “Auto” in the
“SPEED” position. For details, see “To use the Auto Tape Speed function” on page 45.
Press b to confirm the setting.
To enter another setting, press V/v to select the next row and repeat step 2.
Press CLEAR to cancel the setting.
4 Press O RETURN to exit the menu.
5 The indicator appears in the display window and the VCR stands by for recording. Timer recording will operate properly regardless if the DVD-
VCR power is on or off.
To record from a decoder or other source, leave the connected equipment switched on.
To stop recording
To stop the DVD-VCR while recording, press SELECT VIDEO and then press x STOP.
Daily/weekly recording
In step 2 above, press v to select the recording pattern. Each time you press v, the indication changes as shown below. Press V to change the indication in reverse order.
the current date t Daily t Mo~Sa t Mo~Fr tSun’s t Mon’s t ..... t Sat’s t 1 month later t (dates count down) t the current date
44 Recording TV programs using the timer
To use the Auto Tape Speed function
When you are recording a program in the Auto mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to EP mode.
Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed, select SP. To operate this function, set “Tape
Length” in “VIDEO FUNCTION SETUP” menu correctly (page 93).
To watch another TV program after setting the timer
1 Press TV/VIDEO to display “TV” in the display window.
2 If your TV is connected to the VCR using A/V connections, set the TV to the
TV’s antenna input; if not, skip this step.
3 Select another channel on the TV.
To watch a DVD after setting the timer
1 Press SELECT DVD to control the DVD player.
2 Press Z and place the disc on the disc tray.
3 Press H PLAY.
The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen.
Tips
• If the indicator appears, the timer settings overlap. To check, change or cancel the timer
setting, see “Checking/changing/canceling timer settings” on page 46.
• If the indicator appears, this means that the VCR is currently recording this program.
• You can also do the following tasks while the VCR is recording:
– Reset the counter (page 39).
– Display tape information on the TV screen (page 41).
Note
• The indicator flashes in the display window when you complete the timer setting with no tape inserted.
Recording TV programs using the timer 45
Checking/changing/canceling timer settings
Before you start…
• Check that the DVD-VCR clock is set to the correct time.
• Turn on the DVD-VCR and your TV.
• Switch the input selector on your TV so that the signal from the player appears on the TV screen.
• Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the
• When using a decoder, turn it on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total recording time.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the
DVD playback.
CLEAR
SET UP
TIMER
V/v/B/b
ENTER
O RETURN
1 Press SET UP, then press V/v to select
(PROGRAM) and press ENTER. You can also display the timer programming menu by pressing TIMER.
The timer programming menu appears.
CH START END DATE SPEED
0 1 0 5 3 1 PM 0 7 3 1 PM 1 / 2 0
0 3 0 1 3 1 AM 0 3 3 2
0 6 0 6 3 2 PM 0 8 3 2
AM
PM
1 / 2 1
SP
Auto
1 / 2 1 EP
V v B b
RETURN
2 Press V/v to select setting you want to change or cancel.
• To change the setting, press B/b to select the item you want to change, and press V/v to change it.
• To cancel the setting, press CLEAR.
CH START END DATE SPEED
0 1 0 5 3 1
0 3 0 1 3 1
0 6 0 6 3 2
PM
AM
PM
0 7 3 1
0 3 3 2
0 8 3 2
PM
AM
PM
1 / 2 0 SP
1 / 2 1 Auto
1 / 2 1 EP
V v B b RETURN CLEAR
46 Checking/changing/canceling timer settings
3 Press O RETURN to confirm the setting.
Press O RETURN again to exit the menu.
When the timer settings overlap
The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority.
Program 1 about 20 seconds
Program 2 will be cut off
Program 1
Program 2 about 20 seconds will be cut off
Tip
• If the indicator appears, the timer settings overlap.
Checking/changing/canceling timer settings 47
Locking the DVD-VCR (Child Lock)
After you have set the timer, you can lock all of the buttons on the DVD-VCR so that the settings are not canceled by mistake.
?/1 POWER
To lock the DVD-VCR
When the DVD-VCR is turned on, hold down ?/1 POWER on the unit until “LOCK” appears in the display window. The DVD-VCR turns off and the indicator remains lit if there is a timer setting. The DVD-VCR will not work except for timer recordings.
To unlock the DVD-VCR
Hold down ?/1 POWER on the unit until “LOCK” disappears from the display window. The DVD-VCR is unlocked and turns on.
To stop timer recording while the DVD-VCR is locked, press x. The recording stops and the DVD-VCR is unlocked.
Note
• The DVD-VCR will be unlocked when:
– You stop timer recording by pressing x .
– You insert a tape.
– The AC power cord is disconnected or power supply stops.
48 Locking the DVD-VCR (Child Lock)
Advanced Hookups
A/V Receiver hookup
A Use this hookup if your A/V receiver has a Dolby* Surround (Pro
Logic) decoder and 3 to 6 speakers
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-channel audio (Dolby Digital) discs.
∗ Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.
DVD-VCR
(red) Stereo audio cord
(not supplied)
(white) to LINE OUT L/R (AUDIO)
(white) l : Signal flow to audio input
[Speakers]
(red)
Amplifier (receiver) with Dolby
Surround decoder
Rear (L) Rear (R)
[Speakers]
Front (L) Front (R)
Subwoofer Center Rear (mono)
Note
• When connecting 6 speakers, replace the monaural rear speaker with a center speaker, 2 rear speakers and a subwoofer.
continued
A/V Receiver hookup 49
B Use this hookup if your A/V receiver has a Dolby Digital or DTS* decoder, a digital input jack and 6 speakers
This connection will allow you to use the Dolby Digital or DTS decoder function of your AV amplifier (receiver). You are not able to enjoy the surround sound effects of this player. You must make connections using B-1 and B-2 .
∗ “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
DVD-VCR
1
(red)
Stereo audio cord (not supplied)
Coaxial digital cord (not supplied)
(white) and or to DIGITAL AUDIO OUT
(COAXIAL or OPTICAL) to LINE OUT L/R (AUDIO)
Optical digital cord
(not supplied)
Remove jack cap before connecting
(white) (red) l : Signal flow to audio input
[Speakers]
AV amplifier (receiver) having a decoder to coaxial or optical digital input
[Speakers]
Rear (L) Subwoofer Front (L) Center
Rear (R) Front (R)
Note
• After you have completed the connection, be sure to set “Dolby Digital” to “Dolby Digital”
and “DTS” to “On” in “AUDIO SETUP” menu (page 53). Otherwise, no sound or a loud
noise will come from the speakers.
50 A/V Receiver hookup
S-Video/Component Video hookup
Make audio connections using the LINE OUT AUDIO L/R jacks or DIGITAL AUDIO OUT
(OPTICAL or COAXIAL) jacks on the right side of the DVD-VCR when you use S-VIDEO/
Component Video hookup.
A Use this hookup if your TV has an S-VIDEO input jack
Connect an S-VIDEO cord (not supplied). You will enjoy high quality images.
DVD-VCR
Audio cord
(not supplied) l : Signal flow
(DVD only) or
Coaxial digital cord
(not supplied) or to audio input
Optical digital cord (not supplied)
S-VIDEO cord
(not supplied)
Remove jack cap before connecting to coaxial or optical digital input
TV
TV or AV amplifier
Notes
• The connection using S-VIDEO OUT jack is only for the DVD player.
• If you set “Progressive” to “On” in the “SCREEN SETUP” menu, S-Video playback may be distorted.
continued
S-Video/Component Video hookup 51
B Use this hookup if your TV has component video input jacks
Connect your TV via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images.
See page 49 for audio connections.
DVD-VCR
Component video cord
(not supplied)
(blue) (red) (green)
TV
(green)
(blue)
(red) l : Signal flow
(DVD only)
If your TV accepts progressive (480p) format signals, you must use this connection
and then set “Progressive” to “On” in the “SCREEN SETUP” menu (page 57). The
PROGRESSIVE indicator lights up in orange when the DVD player outputs progressive signals.
PROGRESSIVE indicator
Notes
• The connection using COMPONENT VIDEO OUT jack is only for the DVD player.
• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 480 progressive scan picture problems, it is recommended that the user switch the connection to the
“ standard definition ” output. If there are questions regarding our TV set compatibility with this model 480p DVD player, please contact our customer service center.
52 S-Video/Component Video hookup
DVD Settings and Adjustments
Audio Setup
“Audio Setup” allows you to set the sound according to the playback and connection conditions.
SET UP
V/v/B/b
ENTER
1
2
3
Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD), then press ENTER.
DVD SETUP
Language Setup
Audio Setup
Screen Setup
Parental Setup:
V v
ENTER RETURN SET UP
Press V/v to select “Audio Setup,” then press
ENTER.
Dolby Digital
DTS
Audio DRC
AUDIO SETUP
[ D-PCM ]
[ Off ]
[ Standard ]
V v B b
Press V/v to select the setup item from the displayed list:
“Dolby Digital,” “DTS” or “Audio DRC.”
RETURN SET UP continued
Audio Setup 53
4 Press B/b to select an item.
5 Press SET UP to exit the menu.
54 Audio Setup
Menu choices
• Dolby Digital
Selects the type of Dolby Digital signal.
The default setting is indicated in bold print.
D-PCM
Dolby Digital
Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder.
Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.
• DTS
Selects whether or not to output DTS signals.
The default setting is indicated in bold print.
Off
On
Select this when the player is connected to an audio component lacking a built-in DTS decoder.
Select this when the player is connected to an audio component with a built-in DTS decoder.
• Audio DRC (Dynamic Range Control)
Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks:
– LINE OUT AUDIO L/R jacks
– DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack only when “Dolby
Digital” is set to “D-PCM”.
The default setting is indicated in bold print.
Standard
Wide Range
Normally select this positon.
Gives you the feeling of being at alive performance.
Notes
• If you select the surround setting while playing a DVD, the player does not output Dolby
Digital signals from the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack (when you set “Dolby Digital” to “D-PCM” in “AUDIO SETUP” menu).
• If you connect a component that does not conform to the selected audio signal, a loud noise
(or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged.
• Noise may occur in the LinearPCM double-speed audio. This is not a malfunction.
• If you set “DTS” to “On,” you cannot select surround setting (page 75).
• You cannot perform DTS audio output during playback quickly or slowly with sound (page 31).
Screen Setup
“Screen Setup” allows you to set the screen according to the playback and connection conditions.
SET UP
V/v/B/b
ENTER
O RETURN
1
2
3
Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD), then press ENTER.
DVD SETUP
Language Setup
Audio Setup
Screen Setup
Parental Setup:
V v
ENTER RETURN SET UP
Press V/v to select “Screen Setup,” then press
ENTER.
TV Type
Black Level
Progressive
SCREEN SETUP
[ 4:3 Letter Box ]
[ Off ]
[ Off ]
V v B b
Press V/v to select the setup item from the displayed list:
“TV Type,” or “Black Level.”
To set the “Progressive” setting, see page 57.
RETURN SET UP continued
Screen Setup 55
4 Press B/b to select an item.
5 Press SET UP to exit the menu.
Menu choices
• TV Type
Selects the aspect ratio of the connected TV (4:3 standard or wide).
The default setting is indicated in bold print.
4:3 Letter Box
4:3 Pan Scan
16:9
Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.
Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.
Select this when you connect a wide-screen TV or a TV with a wide mode function.
4:3 Letter Box 4:3 Pan Scan 16:9
• Black Level
You can enhance the black level by increasing the brightness and contrast when viewing DVD VIDEOs with the PROGRESSIVE indicator turned off.
The default setting is indicated in bold print.
Off
On
Stops the increase of the contrast.
Increases the contrast.
Notes
• Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and not all the functions described may work.
• Depending on the DVD VIDEO, “4:3 Letter Box” may be selected automatically instead of
“4:3 Pan Scan” or vice versa.
56 Screen Setup
To set the “Progressive” setting
If your TV accepts progressive (480p) format signals, you will enjoy accurate color reproduction and high quality image.
1
Follow step 1 and 2 on page 55, then press
V/v to select “Progressive.”
TV Type
Black Level
Progressive
SCREEN SETUP
[ 4:3 Letter Box ]
[ Off ]
[ Off ]
2 Press B/b to select “On,” then press ENTER.
V v B b
TV Type
Black Level
Progressive
RETURN SET UP
SCREEN SETUP
[ 4:3 Letter Box ]
[ Off ]
[ On ]
3 Follow the instructions appearing on the screen.
1
Ensure your TV is (480p) Progressive Scan capable.
2
Connect with Component Video Output jacks
(red/green/blue connections).
See “Use this hookup if your TV has component video input jacks” on page 52.
3
Press B/b to select [OK] to test your video signal.
V v B b
ENTER RETURN SET UP
SCREEN SETUP
Progressive Scan Output
1) Ensure your TV is (480P) Progressive
Scan capable.
2) Connect with Component Video Output
jacks. (red/green/blue connections)
3) Select [OK] to test your video signal.
4) If video signal appears OK,
video connection is complete.
OK CANCEL
B b
ENTER RETURN SET UP
SCREEN SETUP
TEST SCREEN
4 If video signal appears OK, video connection is complete. Press ENTER.
The PROGRESSIVE indicator on the unit lights up in orange.
If picture is distorted, press O RETURN.
Check the connection (page 52).
5 Press SET UP to exit the menu.
SCREEN SETUP
If picture is OK, press [ENTER] key.
If picture is distorted, press [RETURN] key.
To Deactivate
Press [PAUSE] on the unit for 5 seconds.
ENTER RETURN
TV Type
Black Level
Progressive
SCREEN SETUP
[ 4:3 Letter Box ]
[ Off ]
[ On ]
V v B b
RETURN SET UP continued
Screen Setup 57
Tip
• The “Progressive” setting can be canceled by pressing X on the unit continuously for 5 seconds or more, or selecting “Off” in step 2.
Note
• If you select progressive signal when you connect the DVD player to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, set
“Progressive” to “Off”.
58 Screen Setup
Setting the display or sound track language
You can set various languages for the disc’s menu, sound track or subtitle.
SET UP
V/v/B/b
ENTER
1
2
Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER .
DVD SETUP
Language Setup
Audio Setup
Screen Setup
Parental Setup:
V v
ENTER RETURN SET UP
Press V/v to select “Language Setup,” then press ENTER.
The “LANGUAGE SET UP” menu appears.
DVD Menu
Audio
Subtitle
LANGUAGE SETUP
: English
: Original
: Audio Follow
V v
ENTER RETURN SET UP continued
Setting the display or sound track language 59
3
4
5
Press V/v to select the language setup item from the displayed list:
“DVD Menu,” “Audio,” or “Subtitle.”
Then press ENTER.
Press V/v to select the desired language, then press ENTER.
• DVD MENU LANGUAGE
You can select the desired language for the disc’s menu.
DVD MENU LANGUAGE
DVD Menu
B English
Français
Deutsch
Español
Italiano
Nederlands
Others
V v
ENTER RETURN SET UP
• AUDIO LANGUAGE
Switches the language of the sound track.
When you select “Original,” the language given priority in the disc is selected.
Audio
V v
AUDIO LANGUAGE
B
English
Français
Deutsch
Español
Italiano
Nederlands
Original
Others
ENTER RETURN SET UP
• SUBTITLE LANGUAGE
Switches the language of the subtitle recorded on the DVD VIDEO.
When you select “Audio Follow,” the language for the subtitle changes according to the language you selected for the sound track.
Press SET UP to exit the menu.
Subtitle
V v
SUBTITLE LANGUAGE
B Audio Follow
English
Français
Deutsch
Español
Italiano
Nederlands
Others
ENTER RETURN SET UP
Tip
• If you select “Others” in step 4, an additional language menu appears. Press V/v/B/b to select the desired language, then press ENTER.
Cesky
Dansk
Magyar
Svenska
Norsk
Polski
DVD MENU LANGUAGE
Português
Suomi
Afrikaans
Arabic
Chinese
Greek
Hindi
Japanese
Russian
Turkish
Thai
Korean
V v B b
ENTER RETURN SET UP
Notes
• When you select a language that is not recorded on the DVD
VIDEO in step 4, one of the recorded languages will be automatically selected.
• Playback settings stored in the disc take priority over the DVD SETUP settings and not all the functions described may work.
60 Setting the display or sound track language
Parental Control (limiting playback by children)
Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “Parental
Control” function allows you to set a playback limitation level.
Number buttons
SET UP
1
2
H PLAY
V/v/B/b
ENTER
Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER.
DVD SETUP
Language Setup
Audio Setup
Screen Setup
Parental Setup:
V v
ENTER RETURN SET UP
Press V/v to select “Parental Setup,” then press ENTER.
Use Password
PARENTAL SETUP
[ No ]
B b
RETURN SET UP continued
Parental Control (limiting playback by children) 61
3
4
5
Press b to set the parental control.
• If you have not entered a password
The display for registering a new password appears.
Enter a 4-digit password using the number buttons.
CREATE PASSWORD
Enter Password
– – – –
The display for confirming the password appears.
Re-enter the password.
-~9 RETURN
CREATE PASSWORD
Re-enter Password
– – – –
• When you have already registered a password
The display for entering the password appears.
Enter a 4-digit password using the number buttons.
After registering a password, if you set “ Use
Password ” to “ No ,” “ PASSWORD CHECK ” screen will not appear.
-~9
RETURN
PASSWORD CHECK
Enter Password
– – – –
-~9
RETURN
Use Password
Rating Level
Change Password
PARENTAL SETUP
[ Yes ]
:1
V v B b
RETURN SET UP
Press V/v to select “Rating Level,” then press
ENTER.
RATING LEVEL
Level 8 Adult
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1 Kids Safe
V v
ENTER RETURN SET UP
Press V/v to select the level you want, then press ENTER.
The options are as follows.
Level 8 (Adult) y Level 7 y Level 6 y
Level 5 y Level 4 y Level 3 y Level 2 y Level 1 (Kids Safe)
The lower the value, the stricter the limitation.
RATING LEVEL
Level 8 Adult
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1 Kids Safe
V v
ENTER RETURN SET UP
62 Parental Control (limiting playback by children)
6 Press SET UP to exit the menu.
To change the password
1
Select “Change Password” in step 4 on page 62.
The display for entering a new password appears.
2 Enter a new 4-digit password using the number buttons.
The display for confirming the password appears.
3 Re-enter the new password.
To turn off the Parental Control function
Set “Use Password” to “No” in step 3 on page 62.
To play a disc for which Parental Control is set
1 Insert the disc, then press H PLAY.
The display for entering your password appears.
2 Enter your 4-digit password using the number buttons.
The player starts playback.
If you forget your password
1 Turn on the DVD-VCR.
2 Remove the disc and close the disc tray.
3 Hold down m and M on the front panel simultaneously for 5 seconds.
“Reset OK” appears on the screen.
4 Turn off the DVD-VCR.
The password is cleared.
5
To create a new password, follow step 3 on page 62.
Notes
• When you play DVD VIDEOs which do not have the Parental Control function, playback cannot be limited on this player.
• All the ratings higher than the level you select will be blocked.
• Write your password down and keep it in a safe place in case you forget it.
Parental Control (limiting playback by children) 63
DVD Additional Operations
Using the DVD’s menu
A DVD is divided into long sections of a picture or a music feature called “titles.”
When you play a DVD VIDEO which contains several titles, you can select the title you want using the TOP MENU button.
When you play DVD VIDEOs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button.
Number buttons
1 Press TOP MENU or MENU .
The disc’s menu appears on the TV screen.
The contents of the menu vary from disc to disc.
x STOP
V/v/B/b
ENTER
MENU
TOP
MENU
64 Using the DVD’s menu
2 Press V/v/B/b to select the item you want to play or change, then press
ENTER.
You can also use the number buttons to select the item.
Note
• Depending on the DVD VIDEO, you may not be able to use the TOP MENU button or search a point by setting the time.
Using the DVD’s menu 65
Zooming into a scene
You can zoom into a scene during playback or still mode. To zoom into a JPEG image,
see “Playing JPEG image files” on page 82.
ZOOM
V/v/B/b
ENTER
1 Press ZOOM.
“ ” appears.
2 Press V/v/B/b to move “ ” to the position where you want to zoom in.
3 Press ENTER repeatedly to change the magnification.
Each time you press the button, the magnification changes as shown below.
2
× t 4× t 2× t normal magnification
Notes
• You cannot use 4
× magnification when you play VIDEO CDs.
• The zoom function may not work depending on the DVD.
66 Zooming into a scene
Changing the angles
If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears in the display window. This means that you can change the viewing angle.
ANGLE
B/b
1
2
Press ANGLE during playback.
The angle number appears on the display.
The number after the slash indicates the total number of angles.
Press B/b repeatedly to select the angle number.
The scene changes to the selected angle.
B b
Note
• Depending on the DVD VIDEO, you may not be able to change the angles even if multiangles are recorded on the DVD VIDEO.
Changing the angles 67
Displaying the subtitle
If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD.
SUBTITLE
V/v/B/b
1 Press SUBTITLE during playback.
B b V v
2
3
Press B/b repeatedly to select the language.
Depending on the DVD, the choice of language varies.
Refer to “DVD Audio/Subtitle Language” on page 113 for the abbreviation
of the language.
Press V/v repeatedly to select “On.”
To turn off the subtitles
Select “Off” in step 3.
Note
• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.
68 Displaying the subtitle
Various play mode functions (Program play,
Shuffle play, Repeat play)
You can set the following play modes:
• Program play (page 69), Program play MP3 audio tracks (page 79)
• Shuffle play (page 71), Shuffle play MP3 audio tracks (page 80)
Note
• The play mode is canceled when:
– you open the disc tray
– the player enters standby mode by pressing [/1.
Creating your own program (Program play)
You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 20 tracks.
To program MP3 audio tracks, see page 79.
CLEAR
REPEAT
H PLAY
V/v/B/b
ENTER
1 Press REPEAT when the DVD player is in stop mode. PROGRAM
SHUFFLE continued
Various play mode functions (Program play, Shuffle play, Repeat play) 69
2
3
4
5
Press B/b to select “PROGRAM”, then press
ENTER.
PROGRAM
Track
01
05
09
02
06
10
03
07
11
04
08
12
13
17
14
18
15
19
16
20 B
Clear last track
V v B b
Program Order
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– – – – – – – –
Clear all tracks
ENTER RETURN CLEAR
Press V/v/B/b to select the track number you want to program, then press ENTER.
PROGRAM
Track
01
05
09
02
06
10
03
07
11
04
08
12
13
17
14
18
15
19
16
20 B
Clear last track
V v B b
Program Order
0 1
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– – – – – – – –
Clear all tracks
ENTER RETURN CLEAR
To program other tracks, repeat step 3.
The programmed track numbers are displayed in the selected order.
Press H PLAY to start program play.
Program play starts.
When the program ends, you can restart the same program again by pressing H PLAY.
To stop program play
Press CLEAR until “Off” appears at the upper left top of the TV screen during programme play.
To change or cancel a program
1
Follow steps 1 and 2 of “Creating your own program (Program play).”
2 Press v repeatedly to select “Clear last track,” then press ENTER. Each time you press the button, the last programmed number is canceled. You can also cancel the last programmed number by pressing CLEAR.
3 Follow step 3 for new programming.
To cancel all the programmed numbers
1
Follow steps 1 and 2 of “Creating your own program (Program play).”
2 Press v repeatedly to select “Clear last track,” then press b to select “Clear all tracks” and press ENTER.
All the programmed numbers are canceled.
Notes
• Up to 99 tracks can be displayed.
• Up to 20 tracks can be programmed at one time.
70 Various play mode functions (Program play, Shuffle play, Repeat play)
Playing in random order (Shuffle play)
You can shuffle the playback order of tracks.
Subsequent “shuffling” may produce a different playing order.
To shuffle MP3 audio tracks, see page 80.
CLEAR
REPEAT
B/b
ENTER
1
2
Press REPEAT when the DVD player is in stop mode.
PROGRAM
SHUFFLE
Press B/b to select “SHUFFLE”, then press
ENTER.
PROGRAM
SHUFFLE
To return to normal play
Press CLEAR until “Off” appears at the upper left top of the TV screen during shuffle play.
Tips
• Shuffle play will stop when all the tracks are played back.
• You cannot repeat play while in shuffle play.
continued
Various play mode functions (Program play, Shuffle play, Repeat play) 71
Playing repeatedly (Repeat play)
You can play all of the titles or tracks on a disc or a single title, chapter, or track repeatedly.
CLEAR
REPEAT
B/b
1 Press REPEAT during playback.
Off
2 Press REPEAT or B/b repeatedly to select the item to be repeated.
When playing a DVD
• Chapter: repeats the current chapter.
• Title: repeats the current title on a disc.
When playing a VIDEO CD (with PBC function off) or CD
• Track: repeats the current track.
• Disc: repeats all of the tracks.
When playing a DATA CD/DATA DVD (MP3 audio)
• FILE: repeats the current track (file).
• DIR: repeats the current album (directory).
• DISC: repeats the current disc.
72 Various play mode functions (Program play, Shuffle play, Repeat play)
To return to normal play
Select “Off” in step 2 or press CLEAR during repeat play.
Tip
• When you press x STOP during repeat play, repeat play is canceled.
Notes
• You cannot repeat play with DVD-RW in VR mode.
• You cannot repeat play VIDEO CDs with PBC function on. See “Playing VIDEO CDs with
“PBC ON/OFF” Functions” on page 86.
• You cannot repeat play while in program play.
Various play mode functions (Program play, Shuffle play, Repeat play) 73
Changing the sound
When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, or
DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also select the language.
With CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a Karaoke VIDEO
CD containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.
Disc type
Playback instruments only
Karaoke VIDEO CD Yes
Karaoke DVD No
To enjoy Dolby Digital or DTS effect from a
LinearPCM format disc, you have to make the B-2
connection as shown on page 50.
1 Press AUDIO during playback.
AUDIO
B/b
ENG DOLBY DIGITAL 3/2.1CH 1/2 B b
2
74 Changing the sound
Press B/b repeatedly to select the desired language/audio setting.
• When playing a DVD
Depending on the DVD, the choice of language varies.
Refer to “DVD Audio/Subtitle Language” on page 113 for the
abbreviation of the language.
• When playing a VIDEO CD or CD
The default setting is indicated in bold print.
Stereo The standard stereo sound
Left
Right
The sound of the left channel (monaural)
The sound of the right channel (monaural)
Virtual surround setting
When you connect a stereo TV or 2 front speakers, SURROUND lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. SURROUND
B/b
1 Press SURROUND during playback.
Off
2 Press B/b repeatedly to select “Surround1,” “Surround2,” “Surround3.”
Surround effect increases as shown below.
Surround1 Surround2 Surround3
TV TV TV
: Virtual speaker continued
Virtual surround setting 75
To cancel the setting
Select “Off” in step 2.
Notes
• When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear.
• When you activate the surround effect, turn off the surround setting of the connected TV or amplifier (receiver).
• Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.
• If you use the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and set “Dolby
Digital” to “Dolby Digital” or “DTS” to “On” in “AUDIO SETUP” menu (page 53), sound
will come from your speakers but it will not have the surround effect.
• You cannot perform playback quickly or slowly with sound when a virtual surround effect is
76 Virtual surround setting
Playing an MP3 audio track
You can play back DATA CDs (CD-ROMs/
CD-Rs/CD-RWs) or DATA DVDs (DVD-
ROMs/DVD+RWs/DVD+Rs/DVD-RWs/
DVD-Rs) recorded in MP3 (MPEG1 Audio
Layer 3) format.
Z
REPEAT
H PLAY x STOP
V/v/B/b
ENTER
O RETURN
TOP MENU
1 Press Z and place a DATA CD or DATA DVD on the disc tray, then press Z to close the tray.
Select a Media Type
When you load a DATA CD or DATA DVD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.
1 MP3
2 JPEG
V v
ENTER
If you load a DATA CD or DATA DVD which contains only MP3 audio files, the MP3 display appears. Then you can skip step 2.
continued
Playing an MP3 audio track 77
2
3
4
Press V/v to select “MP3”, then press
ENTER.
The first track starts playing. Press x STOP if necessary.
Repeat mode
Elapsed playing time
MP3 track 1
DIRECTORY:007
album 1
album 2
album 3
album 4
album 5
album 6
album 7
V v B b
ENTER
00:00
FILES:014 mp
3
track 1 mp 3 track 2 mp
3
track 3 mp
3
track 4 mp
3
track 5 mp 3 track 6 mp
3
track 7 mp
3
track 8 mp
3
track 9 mp 3 track 10
RETURN
STOP
OFF
SET UP
Press O RETURN, then press V/v to select the desired directory in the left column, then press ENTER.
MP3 track 1
DIRECTORY:007
album 1
album 2
album 3
album 4
album 5
album 6
album 7
V v B b
ENTER
00:00
FILES:014 mp
3
track 1 mp
3
track 2 mp 3 track 3 mp
3
track 4 mp
3
track 5 mp
3
track 6 mp 3 track 7 mp
3
track 8 mp
3
track 9 mp
3
track 10
RETURN
STOP
OFF
SET UP
Press V/v to select the desired track in the right column, then press ENTER.
The selected track starts playing.
When a track or album is being played, the title is shown in a box. The playing track number appears on the display window.
MP3 track 5
DIRECTORY:007
album 1
album 2
album 3
album 4
album 5
album 6
album 7
V v B b
ENTER
00:01
FILES:014 mp
3
track 1 mp 3 track 2 mp
3
track 3 mp
3
track 4 mp
3
track 5 mp 3 track 6 mp
3
track 7 mp
3
track 8 mp
3
track 9 mp 3 track 10
RETURN
PLAY
OFF
To stop play
Press x STOP.
To repeat play
Press REPEAT repeatedly during playback to change the repeat mode.
• FILE: repeats the current track (file).
• DIR: repeats the current album (directory).
• DISC: repeats the current disc.
To go to the next or previous page
Press b or B.
To return to the previous display
Press O RETURN.
To return to the “Select a Media Type” menu
Press x STOP twice, then press TOP MENU.
To turn off the display
Press x STOP twice, then press O RETURN repeatedly.
78 Playing an MP3 audio track
Notes
• Only the letters in the alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk.
• Up to 12 alphanumeric characters can be displayed for album or track names.
• ID3 tags cannot be displayed.
To program MP3 audio tracks
1 Press x STOP twice, then press REPEAT.
PROGRAM
SHUFFLE
2 Press B/b to select “PROGRAM,” then press
ENTER.
3 Press V/v to select the desired directory in the left column, then press ENTER.
PROGRAM
DIRECTORY:007
album 1
album 2
album 3
album 4
album 5
album 6
album 7
V v
00:00
ORDER:000
OFF
ENTER RETURN CLEAR
PROGRAM
DIRECTORY:003 mp
3
track 1 mp
3
track 2 mp
3
track 3 mp
3
track 4 mp
3
track 5
00:00
ORDER:000
OFF
4 Press V/v to select the track you want to program, then press ENTER.
V v
PROGRAM
DIRECTORY:003 mp 3 track 1 mp
3
track 2 mp
3
track 3 mp
3
track 4 mp 3 track 5
ENTER RETURN CLEAR
00:00
ORDER:001 mp
3
track 3
OFF
V v
ENTER RETURN CLEAR
5 To program other tracks, repeat step 4.
The programmed tracks are displayed in the selected order. Press CLEAR to cancel the last programmed track.
6 Press H PLAY to start program play.
Program play starts. When the program ends, you can restart the same program again by pressing
H PLAY.
To stop program play
Press x STOP during program play.
Note
• Up to 20 tracks can be programmed at one time. continued
Playing an MP3 audio track 79
To return to normal play
Press CLEAR during program play.
Tip
• You cannot repeat play while in program play.
To shuffle MP3 audio tracks
1 Press x STOP twice, then press REPEAT.
2 Press B/b to select “SHUFFLE,” then press ENTER.
PROGRAM
SHUFFLE
To return to normal play
Press CLEAR during shuffle play.
Tips
• Shuffle play will stop when all the tracks are played back.
• You cannot repeat play while in shuffle play.
About MP3 audio tracks
You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs
(DVD-ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) recorded in MP3 (MPEG-
1 Audio Layer III) format. However, the discs must be recorded according to
ISO9660 Level 1/Level 2 or Joliet format and DATA DVDs of Universal Disk Format
(UDF) for the player to recognize the tracks (or files). You can also play DATA CDs
or DATA DVDs recorded in Multi Session or Multi Border (see “Note on Multi
Session/Border discs” on page 80).
Refer to the instructions supplied with the CD-R/CD-RW/DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format.
Note on Multi Session/Border discs
If MP3 audio tracks are recorded in the first session/border, the player will also play
MP3 audio tracks in other session/border. If audio tracks and images in Music CD format or Video CD format are recorded in the first session/border, only the first session/border will be played back.
Notes
• If you put the extension “.MP3” to data not in MP3 format, the player cannot recognize the data properly and will generate a loud noise which could damage your speaker system.
• The player cannot play audio tracks in MP3PRO format.
• The player may not be able to play some DATA CDs/DATA DVDs created in the Packet
Write format.
• If both video data and MP3 audio tracks exist on a DATA DVD, the player recognizes only the video data.
• This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different specifications may result in loud noise, sound skipping or speaker damage.
• Depending on the disc contents, playback may take some time to start.
80 Playing an MP3 audio track
The Playback order of MP3 audio tracks
The playback order of albums and tracks recorded on a DATA CD or DATA DVD is as follows.
• Structure of disc contents
Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 album track
When you insert a DATA CD or DATA DVD and press H PLAY, the numbered tracks are played sequentially, from
1
through
7
. Any sub-albums/tracks contained within a currently selected album does not take priority over the next album in the same tree. (Example: E contains G but 6 is played before 7 .)
When you press O RETURN and the list of MP3 albums appears (page 78), the
albums are arranged in the following order: A t B t D t E t F t G.
Albums that do not contain tracks (such as album C) do not appear in the list.
Tips
• If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order.
• A disc with many trees takes longer to start playback. Some discs with many trees cannot be played back.
Notes
• Depending on the software you use to create the DATA CD or DATA DVD, the playback order may differ from the illustration above.
• The playback order above may not be applicable if there are more than a total of 1000 albums and tracks in the DATA CD or DATA DVD.
• A total of up to 999 files can be recognized for discs that contain both MP3 and JPEG files.
Files are recognized in the order that they were recorded. For example, if 990 JPEG files are recorded then 100 MP3 files are recorded, the 990 JPEG files recorded first and only the first
9 MP3 files can be recognized.
• Depending on the disc contents, playback may take some time to start.
Playing an MP3 audio track 81
Playing JPEG image files
You can play JPEG image files on DATA CDs
(CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs
(DVD-ROMs/DVD+RWs/DVD+Rs/DVD-
RWs/DVD-Rs). Z
./ >
H PLAY x STOP
V/v/B/b
ENTER
MENU
TOP MENU
DISPLAY
1 Press Z and place a DATA CD or DATA DVD on the disc tray, then press Z to close the tray.
When you load a DATA CD or DATA DVD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.
Select a Media Type
1 MP3
2 JPEG
V v
ENTER
If you load a DATA CD or DATA DVD which contains only JPEG image files, the “Album” display appears. Then you can skip step 2.
82 Playing JPEG image files
2
3
Press V/v to select “JPEG”, then press
ENTER.
The “Album” display will appears.
If you do not press ENTER after selecting a media type, the selected media will be automatically played.
Album
SLIDE SHOW
Photo:
Press ./> to select the next/previous album page, then press V/v/
B/b to select an image in the “Album” display.
To display the selected image
1
Press ENTER.
The selected image number appears in the display window.
2
To display the next/previous image, press
./>.
To play the Slide show
1
Press H PLAY.
You can also play the Slide show using the menu on the selected image.
For details, see “To enjoy the Slide show” on page 84.
2
Press B/b to select the desired playing speed on the “Interval” menu, then press
ENTER.
Slide show starts from the selected image.
Interval
: Fast
: Normal
: Slow
To rotate the selected image
1 Press V/v/B/b to select an image in the “Album” display, then press ENTER.
2 Press B/b to select “ ”, then press ENTER.
Each time you press ENTER, the image turns clockwise by 90°.
IMAGE continued
Playing JPEG image files 83
To zoom in an image
1 Press V/v/B/b to select an image in the “Album” display, then press ENTER.
2 Press B/b to select “ ”, then press ENTER.
3
Press V/v/B/b to move “ ” to the position where you want to zoom in.
4 Press ENTER repeatedly to change the magnification. Each time you press ENTER, the magnification changes as shown below.
2 × t normal magnification
Note
• You cannot use ZOOM on the remote in JPEG image files on DATA CD/DATA DVD.
To enjoy the Slide show
1 Press V/v/B/b to select an image in the “Album” display, then press ENTER.
2
Press B/b to select “ ”, then press ENTER.
The “Interval” menu appears.
3 Press B/b to select the desired play speed, then press
ENTER.
Slide show starts.
Interval
To turn on/off the menu in the single image display
Press CLEAR to turn off the menu. Press B or b to turn on the menu.
To return to the “Album” display
Press MENU to return to the “Album” display. Press . repeatedly to return to the first “Album” page.
To return to the “Select a Media Type” menu
Press x STOP twice, then press TOP MENU.
Notes
• Slide show can play in only one direction.
• You cannot rotate or zoom in the image during Slide show.
• If you select ” in the rotated image display, the images in the “Album” display will not be rotated. But if you start the slide show, the images will be rotated. Correct the rotation in the ” menu.
84 Playing JPEG image files
About JPEG image files
You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-
ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) recorded in JPEG format.
However, the discs must be recorded according to ISO9660 Level 1/Level 2 or Joliet format and DATA DVDs of Universal Disk Format (UDF) for the player to recognize the tracks (or files). You can also play DATA CDs or DATA DVDs recorded in Multi
Session or Multi Border (see “Note on Multi Session/Border discs” on page 85).
Refer to the instructions supplied with the CD-R/CD-RW/DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format.
Notes
• If both video data and JPEG image files exist on a DATA DVD, the player recognizes only the video data.
• A total of up to 999 files can be recognized for discs that contain both MP3 and JPEG files.
Files are recognized in the order that they were recorded. For example, if 990 JPEG files are recorded then 100 MP3 files are recorded, the 990 JPEG files recorded first and only the first
9 MP3 files can be recognized.
Note on Multi Session/Border discs
If JPEG image files are recorded in the first session/border, the player will also play
JPEG image files in other session/border. If audio tracks and images in Music CD format or Video CD format are recorded in the first session/border, only the first session/border will be played back.
Tip
• If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.
Notes
• This player can play JPEG image files with the extension “.JPEG” or “.JPG.”
• Some DATA CDs or DATA DVDs cannot be played on this system depending on file format.
• The player may not be able to play some DATA CDs/DATA DVDs created in the Packet
Write format.
• If you add the extension “.JPG” or “.JPEG” to data not in JPEG format, “Can not Display” will appear.
• Depending on the disc or the size of image files, playback may take some time to start.
• Progressive and lossless compression JPEG image files are not supported.
• The image size that can be displayed is limited. You can display the following images; width 32 - 7680 pixels by height 32 - 8192 pixels.
Playing JPEG image files 85
Playing VIDEO CDs with “PBC ON/OFF”
Functions
The PBC (Playback control) function allows you to search and perform other operations interactively. PBC playback follows a selection menu displayed on your TV screen.
Number buttons
V/v
ENTER
O RETURN
MENU
1
2
Press MENU to select “PBC ON.”
The menu for your selection appears.
Press V/v to select the item number you want.
You can also use the number buttons to select the item number and track.
86 Playing VIDEO CDs with “PBC ON/OFF” Functions
3 Press ENTER.
4 Follow the instructions in the menu for interactive operations.
Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.
To return to the menu
Press O RETURN.
To play using “PBC OFF”
Press MENU to select “PBC OFF.”
When “PBC OFF” is selected, the DVD player starts continuous play. You cannot play still pictures such as a menu.
To return to “PBC ON,” press MENU to select “PBC ON.”
Note
• Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H PLAY.
Playing VIDEO CDs with “PBC ON/OFF” Functions 87
VCR Additional Operations
Quick Timer Recording
After you have started recording, you can have the VCR stop recording automatically after a specified duration.
z REC x STOP
1 While recording, press z REC.
2 Press z REC repeatedly to set the duration time.
Each press advances the time as follows.
0:30 1:00 1:30 4:00 Normal recording
The tape counter decreases minute by minute to 0:00, then the VCR stops recording.
To extend the duration
Press z REC repeatedly to set a new duration time.
To cancel the duration
Press z REC repeatedly until the indicator disappears and the VCR returns to normal recording mode.
To stop while recording
Press x STOP.
Note
• You cannot display the current tape time in the display window when setting the recording duration time.
88 Quick Timer Recording
Recording stereo and bilingual programs
Recording stereo programs
When you receive a program broadcast in stereo, press AUDIO to display “Hi-Fi” on the TV screen. You can also select “Left,” “Right,” or “Mono.” If there is noise in the stereo program, select “Mono.” The sound will be recorded in monaural (on both hifi and normal audio tracks) but with less noise.
Recording bilingual programs
Press AUDIO to display “SAP” on the TV screen. When a SAP (Second Audio
Program) is received, “SAP” appears on the TV screen. When “MAIN” is selected, the VCR records only the main sound.
Selecting the sound during playback
During playback, press AUDIO to select the sound you want.
To listen to
Stereo
Left channel
Right channel
Monaural sound on the normal audio track
On-screen display
Hi-Fi
Left
Right
Mono
Display window
STEREO indicator
STEREO indicator
STEREO indicator
No indicator
How sound is recorded on a video tape
The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.
Monaural sound
Normal audio track
Hi-fi audio track
(main track)
Stereo sound
(left/right channels)
Notes
• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the
AUDIO setting.
Recording stereo and bilingual programs 89
Searching using various functions
The VCR automatically marks the tape with an index signal at the point where each recording begins.
You can easily find a specific point using various search functions.
SEARCH
H PLAY
V/v/B/b
To search using the index function (Scan and Play)
The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.
1 Insert an indexed tape into the VCR.
2 Press SEARCH.
Scan and play:
Press
Go to
Press
End search:
Press or
3 Press b to scan ahead, or B to scan backwards.
The VCR searches and then plays back for about five seconds.
Scan and play
4 Press H PLAY to view that program.
If you do not press H PLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.
90 Searching using various functions
To search for the counter 0:00:00 point
To mark a point on the tape that you want to find later, reset the tape counter to
“0:00:00.”
The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape counter.
1 Press SEARCH.
2 Press V.
The VCR starts searching and automatically stops at the 0:00:00 point.
Go to
To search for a blank portion of the tape
The VCR automatically searches for the beginning of a blank portion. You can easily find a point you can start recording from.
1 Press SEARCH.
2 Press v.
The VCR starts searching and automatically stops at the beginning of a blank space. If no blank space is found, the VCR reaches the end.
End search
Note
• Once in recording mode, if the VCR is put in pause and then released to start the recording, no index mark will be inserted. An index mark will be inserted if the channel is changed while VCR is put in pause.
Searching using various functions 91
Adjusting the picture (tracking)
Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.
Press TRACKING +/– to display the tracking meter.
The distortion should disappear as you press one of the two tracking buttons.
To resume automatic tracking adjustment, eject the tape and reinsert it.
Tracking
Tracking meter
Note
• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP mode on other VCRs.
92 Adjusting the picture (tracking)
Changing menu options
You can change the tape length, auto play and auto repeat settings. Normally the default settings are used. Change these settings if necessary.
SET UP
H PLAY
V/v/B/b
ENTER
1
2
3
Press SET UP when the DVD player is in stop mode.
Press V/v to select
ENTER.
(VIDEO) and press
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
VIDEO FUNCTION SETUP
Tape Length
Auto Play
Auto Repeat
[ T120 ]
[ On ]
[ Off ]
Press V/v to select the option to change.
V v B b
RETURN SET UP
VIDEO FUNCTION SETUP
Tape Length
Auto Play
Auto Repeat
[ T120 ]
[ On ]
[ Off ]
V v B b
RETURN SET UP continued
Changing menu options 93
4 Press B/b to change the setting.
5 Press SET UP to exit the menu.
Menu choices
The default settings are indicated in bold print.
Menu option
Tape Length
Auto Play
Auto Repeat
Set this option to
• T-120 when using a T-120 or shorter length tape.
• T-160 when using a T-160 length tape.
• T-180 when using a T-180 or longer length tape.
• On to start playback automatically, when you insert a tape with its safety tab removed.
• Off to turn off Auto play. You need to press H PLAY to start playback, even if you insert a tape with its safety tab removed.
• On to play back a tape repeatedly. The VCR rewinds a tape to the beginning and restarts playback automatically.
• Off to turn off Auto repeat.
94 Changing menu options
Editing with another VCR
How to connect to record on this VCR
This VCR (Recorder)
TV
LINE-2 IN
LINE OUT
Other VCR (Player)
Audio/video cord
(not supplied) : Signal flow
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise.
• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO L/R jacks using an audio/video cord (not supplied).
continued
Editing with another VCR 95
Operation (when recording on this VCR)
Before you start editing
• Turn on the VCR and the TV and set it to the video channel.
• Press INPUT SELECT to display
“L1” or “L2” in the display window.
• Press SP/EP to select the tape speed,
SP or EP.
x
X z REC
1 Insert a source tape with its safety tab removed into the other (playback) VCR.
Search for the point to start playback and set it to playback pause.
2 Insert a tape into this (recording) VCR. Search for the point to start recording and press X.
3 Press z REC on this VCR to set it to recording pause.
4 To start editing, press the X (pause) buttons on both VCRs at the same time.
To stop editing
Press the x (stop) buttons on both VCRs.
Tip
• To cut out unwanted scenes while editing, press X on this VCR when an unwanted scene begins. When it ends, press X again to resume recording.
96 Editing with another VCR
Additional Information
General setup information
SET UP
V/v/B/b
ENTER
1
2
3
Press SET UP when the DVD player is in stop mode, then press V/v to select
(OPTION), then press ENTER.
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
V v
ENTER RETURN SET UP
Press V/v to select the option to change.
V v B b
OPTION SETUP
Language
Clock Set/Adjust
Channel Setup
Auto Power Off
RF Output Channel
:English
[ Off ]
[ 3CH ]
RETURN SET UP
Press B/b to change the setting.
When changing the “RF Output Channel,” confirmation messages will appear. Press ENTER to confirm the messages.
continued
General setup information 97
4 Press SET UP to exit the menu.
Menu choices
The default settings are indicated in bold print.
Menu option
Auto Power Off
RF Output Channel
Set this option to
• “Off” to deactivate the Auto Power Off function.
• “1Hr”/“2Hr” to turn the DVD-VCR off automatically if no signal is received and you do not press any of the buttons during this time.
• “3CH” when using channel 3 to receive the VCR signal.
• “4CH” when using channel 4 to receive the VCR signal.
Setting the RF Output channel
When connecting the DVD-VCR to the TV using only the antenna cable, you must set the RF Output channel in the “OPTION
SETUP” menu so that the TV can receive the correct signal from the DVD-VCR.
TV
?/1
CH +/–
TV/VIDEO
?/1 CHANNEL +/–
1
Set the RF Output channel to “3CH” or “4CH” (see page 97 to set the channel),
whichever channel is not used in your area. If both are used, set the switch to either channel.
2 Press ?/1 to turn on the DVD-VCR.
3 Press TV/VIDEO to turn on “VIDEO” in the DVD-VCR’s display window.
4 Press CH +/– to display a channel number in the display window.
Select an active channel number in your area.
98 General setup information
5 Turn on your TV and set it to the channel you selected in step 1 (3CH or 4CH).
The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting.
Whenever you use the DVD-VCR, set the TV to the channel selected in step 1.
Attaching the external antenna connector
When using a 300-ohm twin lead cable for a
VHF/UHF antenna, use an antenna connector
(not supplied) to connect the antenna to the
DVD-VCR.
300-ohm twin lead cable
Antenna connector
(not supplied)
1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.
Attaching a VHF/UHF band mixer
When using both a 75-ohm coaxial cable and a 300-ohm twin lead cable for a VHF/UHF antenna, use a VHF/UHF band separator/ mixer (not supplied) to connect the antenna to the DVD-VCR.
300-ohm twin lead cable
VHF/UHF band separator/ mixer (not supplied)
75-ohm coaxial cable
1 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.
General setup information 99
Troubleshooting
If you have any questions or problems not covered below, please consult your nearest Sony dealer. (For customers in USA)
General Troubleshooting
Symptom
The ?/1 switch does not function.
The power is turned on but the DVD-
VCR does not operate.
The clock has stopped and “--:--” appears in the display window.
Remedy
• Connect the AC power cord securely.
• Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the DVD-VCR to dry for over three hours.
• The clock stops if the DVD-VCR is disconnected from the wall outlet. Reset the clock (and timer).
The remote commander does not function.
The tracking meter does not appear on the screen.
• Make sure you are pointing the remote commander at the remote sensor on the DVD-VCR.
• Replace all the batteries in the remote commander with new ones if they are weak.
• Make sure the TV / DVD·VIDEO switch is set correctly.
• Select correctly VIDEO or DVD with the SELECT DVD/
VIDEO button.
• The recording condition of the tape is very poor and tracking cannot be adjusted.
100 Troubleshooting
DVD Troubleshooting
Symptom
There is no picture/picture noise appears.
Remedy
• Re-connect the connecting cord securely.
• The connecting cords are damaged.
• Check the connection to your TV (page 11) and switch
the input selector on your TV so that the signal from the player appears on the TV screen.
• The disc is dirty or flawed.
• If the picture output from your player goes through your
VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try connecting your player to your TV’s S-VIDEO input
• You have set the player to progressive format (the
PROGRESSIVE indicator lights up in orange) even though your TV cannot accept the progressive signal. In
this case, set “Progressive” to “Off” (page 57).
• Even if your TV is compatible with progressive format
(480p) signals, the image may be affected when you set the player to progressive format. In this case, set
“Progressive” to “Off” and the player is set to normal
• COMPONENT VIDEO OUT jack is not used or
“Progressive” of the “SCREEN SETUP” menu is not set correctly while the PROGRESSIVE indicator lights up in
orange. Check the setting (page 55) and connection
• The aspect ratio of the disc is fixed on your DVD.
Even though you set the aspect ratio in “TV Type” of the “SCREEN
SETUP” menu the picture does not fill the screen.
There is no picture from your VCR connected to the LINE IN jacks.
There is no sound.
Sound is noisy.
The sound volume is low.
• The DVD player must be in standby mode to view pictures from your VCR.
• Re-connect the connecting cord securely.
• The connecting cord is damaged.
• The player is connected to the wrong input jack on the
amplifier (receiver) (page 12).
• The amplifier (receiver) input is not correctly set.
• The player is in pause mode or in Slow-motion Play mode.
• The player is in fast forward or fast reverse mode.
• If the audio signal does not come through the DIGITAL
AUDIO OUT (OPTICAL or COAXIAL) jack, check the
• When playing a CD with DTS sound tracks, noise will
come from the LINE OUT L/R (AUDIO) jacks (page 32)
or DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack.
• The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” to “Wide
continued
Troubleshooting 101
Symptom
The disc does not play.
The MP3 audio track cannot be
The JPEG image file cannot be played.
The title of the MP3 audio album/ track or JPEG image album/file is not correctly displayed.
The disc does not start playing from the beginning.
Remedy
• The disc is turned over.
• Insert the disc with the playback side facing down on the disc tray.
• The disc is skewed.
• The player cannot play certain discs (page 6).
• The region code on the DVD does not match the player.
• Moisture has condensed inside the player (page 3).
• The player cannot play a recorded disc that is not
• Make sure the TV / DVD·VIDEO switch is set correctly.
• Select correctly VIDEO or DVD with SELECT DVD/
VIDEO button.
• The DATA CD or DATA DVD is not recorded in the MP3 format that conforms to ISO9660 Level 1/Level 2 or
UDF.
• The MP3 audio track does not have the extension “.MP3.”
• The data is not formatted in MP3 even though it has the extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The player cannot play audio tracks in MP3PRO format.
• The DATA CD or DATA DVD is not recorded in JPEG format that conforms to ISO9660 Level 1/Level 2 or
UDF.
• The JPEG image file does not have the extension “.JPG” or “.JPEG.”
• The data is not formatted in JPEG even though it has the extension “.JPG” or “JPEG.”
• Length or width of the image is more than 4720 dots.
• The player can only display numbers and alphabet. Other characters are displayed as asterisks.
• Program play, shuffle play, or repeat play, has been
• Resume play has taken effect (page 31).
• The disc features an auto playback function.
The player starts playing the disc automatically.
Playback stops automatically.
You cannot perform some functions such as stop, search, slow-motion play, repeat play, shuffle play, or program play.
The language for the sound track cannot be changed.
• While playing discs with an auto pause signal, the player stops playback at the auto pause signal.
• Depending on the disc, you may not be able to do some operations. See the operating manual that comes with the disc.
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 64).
• Multilingual tracks are not recorded on the DVD being played.
• The DVD prohibits the changing of the language for the sound track.
102 Troubleshooting
Symptom
The subtitle language cannot be changed or turned off.
Remedy
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 64).
• Multilingual subtitles are not recorded on the DVD being played.
• The DVD prohibits the changing of the subtitles.
The angles cannot be changed.
• Try using the DVD’s menu instead of the direct selection
button on the remote (page 64).
• Multi-angles are not recorded on the DVD being played.
• The DVD prohibits changing of the angles.
The player does not operate properly.
• When static electricity, etc., causes the player to operate abnormally, unplug the player.
VCR Troubleshooting
Symptom
The playback picture does not appear on the TV screen.
The picture is not clear.
Remedy
• Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.
• Adjust the tracking with the TRACKING +/– buttons.
• The video heads are dirty (see the last page of
“Troubleshooting”). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads.
• The video heads may have to be replaced. Consult your local Sony dealer for more information.
• Adjust the vertical hold control on the TV or monitor.
The picture rolls vertically during picture search.
The picture has no sound.
A TV program does not appear on the TV screen.
TV reception is poor.
The tape starts playing as soon as it is inserted.
The tape is ejected when you press z REC.
Nothing happens when you press z REC.
• The tape is defective.
• If you made A/V connections, check the audio cord connection.
• Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.
• Select the correct source with the INPUT SELECT or
CH +/– buttons. Select a channel number when recording
TV programs; select “L1” or “L2” when recording from other equipment.
• Adjust the TV antenna.
• The safety tab has been removed. To record on this tape, cover the tab hole.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
continued
Troubleshooting 103
Symptom
The timer does not operate.
Remedy
• Check that the clock is set.
• Make sure a tape has been inserted.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Make sure a program has been set for timer recording.
• Make sure your timer settings are past the current time.
• Check that the cable box is turned on.
• The clock stops if the DVD-VCR is disconnected from the wall outlet for more than one minute. Reset the clock and timer.
• Turn the power off and unplug the AC power cord.
• Check that a tape is not already in the tape compartment.
A tape cannot be inserted.
The VCR mechanism needs to be cleaned.
• Clean the cabinet, panel and controls with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.
Control by AV mouse is not possible.
• The unit is not compatible with satellite TV receiver AV mouse, etc.
Symptoms caused by contaminated video heads
• Normal picture • Rough picture • Unclear picture • No picture (or black & white screen appears) initial contamination terminal
104 Troubleshooting
Glossary
Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.
Dolby Digital (pages 49 and 54)
Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same
5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital.
Dolby Surround (Pro Logic) (page 49)
Audio signal processing technology that
Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals.
The rear channel is monaural.
Digital audio compression technology that
Digital Theater Systems, Inc. developed.
This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.
Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.
A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.
The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided
DVD is 8.5 GB, a single-layer and doublesided DVD is 9.4 GB, and double-layer and double-sided DVD is 17GB.
The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.
Furthermore, various advanced functions such as the multi-angle, multilingual, and
Parental Control functions are provided with the DVD.
A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO.
The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a
DVD VIDEO, while discs created in VR
(Video Recording) mode allow the contents to be programmed or edited.
A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD
VIDEO format. continued
Glossary 105
Interlace format
Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television.
The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.
Progressive format (pages 52 and 57)
Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the
Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the
Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 480 progressive format.
The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.
Sections of a picture or a music feature on a
CD or VIDEO CD (the length of a song).
106 Glossary
Specifications
System
Laser
Semiconductor laser
Format
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
SP: 33.35 mm/s (1 3
8 inches/s)
EP: 11.12 mm/s ( 7
16 inches/s)
LP: 16.67 mm/s ( 11
16 inches/s), playback only
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Rewind time
Approx. 1 min (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Inputs and outputs
LINE IN 1 and LINE-2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
DIGITAL OUT
OPTICAL, Optical output jack
–18 dBm (wave length: 660 nm)
COAXIAL, phono jack
Output signal: 0.5 Vp-p, 75 ohms
COMPONENT VIDEO OUT (Y, Pb, Pr)
Phono jack
Y: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohms
S-VIDEO OUT
4-pin, mini-DIN jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs (max.)
General
Power requirements
120 V AC, 60 Hz
Power consumption
25 W
Power back-up
Back-up duration: 0 min
Operating temperature
0°C to 45°C (32°F to 113°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Operating humidity
25% to 80%
Dimensions including projecting parts and controls
(w/h/d)
Approx. 430 × 85 × 287 mm
(Approx. 17 × 3
3
8
× 11
3
8
inches)
Mass
Approx. 3.6 kg (Approx. 7.9 lbs)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type connectors (1)
Design and specifications are subject to change without notice.
Specifications 107
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
A ?/1 POWER (on/standby) switch (31)
B PROGRESSIVE indicator (52) (57)
D A (open/close) button (28) (30)
H m (rewind)/M (fast-forward) button
K H (play) button*
1
L
M CHANNEL/TRACKING +/– buttons*
1
N SELECT DVD/VIDEO buttons (10)
O LINE-2 IN VIDEO/AUDIO L/R jacks*
2
* 1 H and CHANNEL/TRACKING + buttons have a tactile dot. Use the tactile dot as a reference.
* 2 Covered
108 Index to parts and controls
Display window
H Playing time/clock/current status
I SURR (surround) indicator (75)
continued
Index to parts and controls 109
Rear panel
DVD player and VCR
B LINE IN 1 VIDEO/AUDIO L/R jacks
C LINE OUT VIDEO/AUDIO L/R jacks
D IN (FROM ANT.) connector (13)
DVD player only
F LINE OUT AUDIO L/R jacks (51)
G COMPONENT VIDEO OUT Pr/Pb/Y
I DIGITAL AUDIO OUT/OPTICAL jack
J DIGITAL AUDIO OUT/COAXIAL jack
110 Index to parts and controls
Remote commander for DVD
A Z (open/close) button (28) (30)
D Number buttons*
I AUDIO button*
J
K REPLAY
M H PLAY button* 1
ENTER button*
Q ?/1 (on/standby) switch (31)
R VOL (volume) +/– buttons
T ENTER button*
W m/M y
X .PREV (previous)/> NEXT
* 1 Number 5, AUDIO and H PLAY buttons have a tactile dot. Use the tactile dot as a reference.
* 2 The ENTER buttons 14 and 20 can be used interchangeably.
continued
Index to parts and controls 111
Remote commander for VIDEO
D Number buttons* 1
H AUDIO button*
I
J
K SP (Standard Play)/EP (Extended Play)
N H PLAY button*
ENTER button* 2
Q ?/1 (on/standby) switch (38)
R CH (channel)/TRACKING +/– buttons*
S VOL (volume) +/– buttons
T ENTER button*
2
Y m (rewind)/ M (fast-forward)/ y (slow)
Z ./> SHUTTLE button (38) wj x STOP button (38)
* 1 Number 5, AUDIO, H PLAY and
CH/TRACKING + buttons have a tactile dot.
Use the tactile dot as a reference.
* 2 The ENTER buttons 15 and 21 can be used interchangeably.
112 Index to parts and controls
Hindi
Icelandic
Italian
Hebrew
Japanese
Korean
Malay
Dutch
Norwegian
Polish
Portuguese
Russian
Swedish
Thai
Turkish
Vietnamese
Afrikaans
Language
Arabic
Bulgarian
Chinese
Croatian
Czech
Danish
German
English
Spanish
Finish
French
Greek
Hungarian
Indonesian
DVD Audio/Subtitle Language
NOR
POL
POR
RUS
SVE
THA
TUR
VIE
ZAF
IND
ISL
ITA
IWR
JPN
KOR
MAL
NLD
DEU
ENG
ESP
FIN
FRA
GRE
HUN
IDN
Abbreviation
ARA
BUL
CHI
CRO
CZE
DAN
DVD Audio/Subtitle Language 113
Index
Numerics
16:9
4:3 Letter Box
4:3 Pan Scan
A
Adjusting picture
tracking
Angle
Antenna hookup
Audio track
Audio/video (A/V) hookup
Auto Clock Set
C
Cable hookup
Cleaning the video heads
Clock setting
Connecting
Cable TV
external antenna connector
VHF/UHF band mixer
Counter
Custom AV Mode
D
DATA CD
,
,
DATA DVD
,
Disabling channels
DOLBY DIGITAL
DTS
DVD
E
Editing
EP mode
H
Handling discs
Hi-fi audio track
I
Instant Advance
Instant Replay
Instant Skip
J
JPEG
,
L
Language selecting
LP mode
M
Monaural
Monitoring audio during playback
MP3
,
N
Normal audio track
P
Parental Control
PBC (Playback control)
Picture adjustment
Playback at various speeds
frame by frame
MP3 audio track
program play
repeat play
selecting the sound
shuffle play
shuttle play
slow motion
VIDEO CDs
Playback quickly or slowly with sound
Presetting channels
Program play
Progressive
R
Recording bilingual programs
SAP broadcasts
saving
stereo broadcasts
while watching another program
Repeat play
Resume Play
RF channel
S
Safety tab
SAP (Second Audio Program)
Searching at various speeds
for a blank portion
for the counter 0 point
Scan and Play
Shuffle play
Shuttle play
SP mode
STEREO
Stereo
Subtitle
T
Timer setting daily/weekly recording
Adjusting
U
Usable discs
V
VIDEO CD
Z
Zoom
114 Index
Sony Corporation Printed in China AK68-00585A
