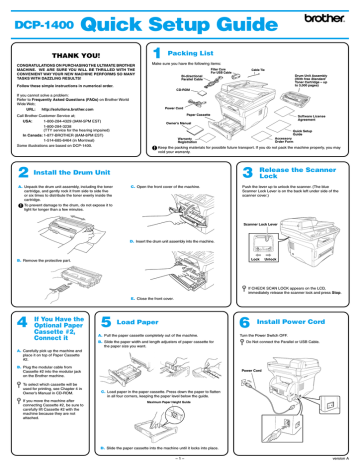

DCP-1400
Quick Setup Guide
THANK YOU!
CONGRATULATIONS ON PURCHASING THE ULTIMATE BROTHER
MACHINE. WE ARE SURE YOU WILL BE THRILLED WITH THE
CONVENIENT WAY YOUR NEW MACHINE PERFORMS SO MANY
TASKS WITH DAZZLING RESULTS!
Follow these simple instructions in numerical order.
If you cannot solve a problem:
Refer to Frequently Asked Questions (FAQs) on Brother World
Wide Web;
URL: http://solutions.brother.com
Call Brother Customer Service at;
USA: 1-800-284-4329 (9AM-5PM EST)
1-800-284-3238
(TTY service for the hearing impaired)
In Canada: 1-877-BROTHER (8AM-8PM EST)
1-514-685-6464 (in Montreal)
Some illustrations are based on DCP-1400.
1
Packing List
Make sure you have the following items:
Filter Core
For USB Cable
Bi-directional
Parallel Cable
CD-ROM
Cable Tie
Drum Unit Assembly
(With free Standard
Toner Cartridge – up to 3,000 pages)
Power Cord
Paper Cassette
Software License
Agreement
Owner’s Manual
Warranty
Registration
Accessory
Order Form
Quick Setup
Guide
Keep the packing materials for possible future transport. If you do not pack the machine properly, you may void your warranty.
2
Install the Drum Unit
A.
Unpack the drum unit assembly, including the toner cartridge, and gently rock it from side to side five or six times to distribute the toner evenly inside the cartridge.
To prevent damage to the drum, do not expose it to light for longer than a few minutes.
C.
Open the front cover of the machine.
3
Release the Scanner
Lock
Push the lever up to unlock the scanner. (The blue
Scanner Lock Lever is on the back left under side of the scanner cover.)
Scanner Lock Lever
D.
Insert the drum unit assembly into the machine.
Lock Unlock
B.
Remove the protective part.
If CHECK SCAN LOCK appears on the LCD, immediately release the scanner lock and press Stop.
E.
Close the front cover.
4
If You Have the
Optional Paper
Cassette #2,
Connect it
A.
Carefully pick up the machine and place it on top of Paper Cassette
#2.
B.
Plug the modular cable from
Cassette #2 into the modular jack on the Brother machine.
To select which cassette will be used for printing, see Chapter 4 in
Owner’s Manual in CD-ROM.
If you move the machine after connecting Cassette #2, be sure to carefully lift Cassette #2 with the machine because they are not attached.
5
Load Paper
A.
Pull the paper cassette completely out of the machine.
B.
Slide the paper width and length adjusters of paper cassette for the paper size you want.
C.
Load paper in the paper cassette. Press down the paper to flatten in all four corners, keeping the paper level below the guide.
Maximum Paper Height Guide
6
Install Power Cord
Turn the Power Switch OFF.
Do Not connect the Parallel or USB Cable.
Power Cord
D.
Slide the paper cassette into the machine until it locks into place.
– 1 – version A
Setting Up the DCP and PC to Work Together
•
•
•
•
Before You begin
You must set up the hardware and install the driver before you can use your DCP as a printer and scanner with your applications.
Please see the README.WRI file in the root directory of the CD-ROM for last-minute important installation and troubleshooting information.
A bi-directional parallel cable is included. If you plan to use the USB connection instead, you must purchase a USB cable before beginning setup.
If you have any problem for installation, visit us at http://solutions.brother.com
Use only a shielded parallel interface cable that is IEEE 1284-compliant and/or a USB cable that is no more than 6 feet long (1.8 meters).
Follow the instructions in this guide for your operating system and interface.
For Windows
®
95/98/98SE/Me/2000 Users
Step 1.
Unplug the DCP from the AC outlet and disconnect your DCP from your computer if you already connected an interface cable.
Step 2.
Turn on your computer.
For Windows ® 2000 Professional, you must be logged on as the Administrator.
Step 3.
Insert the CD-ROM into the CD-ROM drive. If the model name screen appears, click on your model name. The CD-ROM main menu will appear.
If the CD-ROM does NOT start automatically, open the executible program file on the CD-ROM from the root directory of your computer.
1.
Click Install Software.
2.
Click Multi-Function Link ® Pro Suite in Main Application. *1
3.
Click Install.
4.
The InstallShield Wizard Setup window will appear briefly, followed by the PaperPort ® Setup window. Click
Yes.
5.
When the PaperPort ® Setup window displays your Name and Company, either change or accept them, and then click Next.
6.
When the Choose Destination Location window displays the path where the
PaperPort ® files will be installed, either change or accept, and then click Next.
7.
When Register Today screen appears, click Next. This is registration for Paper
Port ® . Follow the instructions.
For Parallel
8.
When the Brother MFL Pro Suite
Installation window appears, click
Next to begin installing the Multi-
Function Link ® Pro Suite. *2
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
Please see NEXT PAGE
For USB
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
123456789012345678901
9.
When the Setup Type window appears, select Standard, and then click Next.
The application files will be copied to your computer.
10.
The Connect Cable window will appear.
*1 Multi-Function Link ® Pro Suite includes Printer Driver, Scanner Driver,
ScanSoft ™ PaperPort ® , ScanSoft ™ Text Bridge ® , and True Type fonts.
PaperPort ® is a document management application for viewing scanned documents. ScanSoft ™ TextBridge ® , which is integrated into PaperPort ® , is an OCR application that converts an image into text and inserts it into your default word processor.
*2 If an error message appears during the installation process, or you have previously installed MFL Pro
Suite, you will first have to uninstall it. From the
Start menu, select Programs, Brother, Brother
MFL Pro Suite, Uninstall, and then follow the instructions on the screen.
*3 Even if you select NO, later you will be able to launch the Brother Control Center to use the
Scan keys. See AutoLoad the Brother Control
Center, Chapter 9 in the On-Line
Documentation (Owner’s Manual) on the CD-
ROM.
– 2 –
