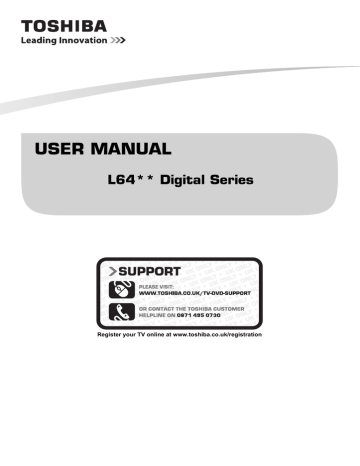

USER MANUAL
L64** Digital Series
Register your TV online at www.toshiba.co.uk/registration
Contents
INSTALLING YOUR TV
Safety Precautions .......................................................4
Installation and important information ..........................5
The remote control .......................................................7
Inserting batteries and effective range ..................7
CONNECTING YOUR TV
Connecting external equipment....................................8
Connecting an HDMI ® device.......................................9
To connect an HDMI device..................................9
HDMI’s ARC (Audio Return Channel) feature.......9
Connecting a computer ..............................................11
To connect a PC to the HDMI terminal ...............11
To connect a PC to the RGB/PC terminal...........11
Connecting a home network.......................................12
To connect the TV to a home network - Wired....12
To connect the TV to the Device with
WiDi / wireless display............................13
Controls and input connections ..................................14
Switching on........................................................14
Using the TV controls and connections...............14
Using the menu system.......................................15
SETTING UP YOUR TV
Startup Application .....................................................16
Quick Setup.........................................................16
Ant/Cable (if available) ........................................19
Auto Tuning.........................................................20
ATV Manual Tuning....................................................21
Tuning .................................................................21
Skip .....................................................................22
Sorting positions..................................................23
DTV Manual Tuning ...................................................23
Manual Tuning ....................................................23
Manual Tuning for DVB-C ...................................24
Antenna Amplifier................................................24
DTV Settings ..............................................................24
Channels (Antenna/Cable)..................................24
Standby Channel Update ....................................25
Location setting ...................................................25
Analogue switch-off.............................................25
Data Transfer ......................................................25
CONTROLS AND FEATURES
General controls .........................................................26
Quick Menu .........................................................26
Selecting channels ..............................................26
The Time Display – analogue only.....................27
Stereo and Bilingual transmissions .....................27
Sound controls ...........................................................27
Volume controls and sound mute........................27
Sound Navi..........................................................27
2
Sound Mode........................................................ 27
Graphic Equaliser ............................................... 27
TruDialog™......................................................... 27
Surround ............................................................. 28
Sound Separation Effect ..................................... 28
TruVolume™....................................................... 28
Dynamic Range Control...................................... 28
Balance ............................................................... 28
Dual..................................................................... 28
Audio Level Offset............................................... 29
TV Speakers ....................................................... 29
Headphone Level................................................ 29
Audio Description................................................ 29
Widescreen viewing ................................................... 30
Picture controls .......................................................... 32
Picture Mode....................................................... 32
Reset................................................................... 32
Picture preferences............................................. 32
ColourMaster ...................................................... 32
Base Colour Adjustment ..................................... 33
Colour Temperature............................................ 33
Auto Brightness Sensor ...................................... 33
Active Backlight Control ...................................... 33
Black/White Level ............................................... 33
MPEG NR – Noise Reduction............................. 34
DNR – Digital Noise Reduction........................... 34
Resolution +........................................................ 34
Cinema Mode...................................................... 34
Resetting the advanced picture settings ............. 34
Expert Picture Settings ....................................... 35
Automatic Format (Widescreen) ......................... 36
4:3 Stretch........................................................... 36
Picture Position ................................................... 37
Picture still........................................................... 37
HDMI Information Display ................................... 37
Wireless LAN Information .......................................... 37
Setting up the Network............................................... 39
Wireless Setup.................................................... 39
Advanced Network Setup ................................... 42
DNS Setup .......................................................... 43
Network Connection Test.................................... 43
Using the software keyboard .............................. 44
Network Device Setup................................................ 44
Apps Control Profile ............................................ 44
External Record Control...................................... 45
Companion Device Control ................................. 45
Media Renderer Setup........................................ 45
Device Name Setup ............................................ 46
USB HDD Record Function........................................ 46
Setting up the USB HDD for recording ............... 47
(One Touch Recording) ................................... 47
Auto Recording ................................................... 47
How to set recordings via the Programme
Guide ............................................................... 48
To view a recorded programme .......................... 51
Operations from the My TV Library screen .........51
Recording Setup .................................................52
Scheduling priority...............................................53
Using the Smart TV Cloud services ...........................54
Using Web Browser ............................................54
Using Hybrid TV Standard (if available) .....................55
WiDi / wireless display............................56
Intel ® WiDi / wireless display Device Name........56
Device List...........................................................57
Using My Contents .....................................................57
Basic operation ...................................................58
(on a media server or USB device) ..................59
(on a media server or USB device) ..................61
(on a media server or USB device) ..................63
Other features ............................................................64
Panel Lock ..........................................................64
Blue Screen.........................................................64
................................................................65
The timers ..................................................................65
My TV Timer List – digital only...........................65
On Timer .............................................................65
Sleep Timer.........................................................66
Energy Saving Settings ..............................................66
Automatic Power Down.......................................66
No Signal Power Down .......................................66
Digital on-screen information......................................67
Information ..........................................................67
Using EPG (Electronic Programme Guide) ................68
Using Broadcast Guide .......................................68
Genre selection/searching ..................................68
Digital settings – parental control ...............................69
Parental PIN Setup .............................................69
Parental Setup ....................................................69
Digital settings – Channel Options .............................70
Selecting favourite channels ...............................70
Favourite Channel List ........................................70
Skip channels......................................................70
Locking channels ................................................70
Digital settings – other settings ..................................71
Subtitles ..............................................................71
DVB Character Set..............................................71
Audio languages .................................................71
Common Interface...............................................71
Stored CICAM PIN ..............................................71
Software Upgrade and Licences ................................72
Searching for New Software ............................... 72
Network Upgrade ................................................ 72
Software Licences............................................... 72
System Information and Reset TV ............................. 73
System Information ............................................. 73
Reset TV ............................................................. 73
PC Settings ................................................................ 73
Horizontal and Vertical Position .......................... 73
Clock Phase........................................................ 73
Sampling Clock ................................................... 74
Reset................................................................... 74
Input selection and AV connections ........................... 74
Input selection..................................................... 74
Labelling video input sources.............................. 75
Digital Audio Output ............................................ 75
Using HDMI CEC Control........................................... 76
Enable HDMI CEC Control ................................. 76
TV Auto Power.................................................... 76
Auto Standby ...................................................... 77
Amplifier Control ................................................. 77
Initial Speaker Setting ......................................... 77
HDMI CEC Control input source selection.......... 77
HDMI CEC Control one touch play ..................... 78
HDMI CEC Control system standby.................... 78
Using MHL TV function .............................................. 78
Connecting an MHL-compatible device .............. 78
Operating an MHL-compatible device................. 78
MHL Setup .......................................................... 78
TEXT SERVICES
Text services .............................................................. 79
Selecting modes ................................................. 79
Text information .................................................. 79
Navigating pages using Auto .............................. 79
Navigating pages using LIST .............................. 79
Control buttons.................................................... 80
PROBLEM SOLVING
Questions and Answers .......................................... 81
INFORMATION
Information ................................................................. 84
Licence information .................................................... 88
Specifications and accessories .................................. 90
During the life of your TV firmware updates will be made available to ensure that your TV maintains optimum performance:
If your TV is connected to the internet, firmware will be automatically made available.
If your TV is not connected to the internet, you can download the latest version of firmware from
www.toshiba-om.net/firmware.php
*Some features are limited due to local legislation and may not be available in all countries.
3
INSTALLING YOUR TV
Safety Precautions
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.
Air Circulation
Leave more than 10 cm clearance around all the edges when wall mounting the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided. For wall mounted positions at least 2.5 cm gap was retained from the wall and the 10 cm was kept clear around all edges of the TV.
Heat Damage
Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5 °C min. and 35 °C max.
DO
be careful with glass panels or stands on equipment.
DO
use a soft, dry cloth to clean the unit.
DO NOT REMOVE ANY FIXED COVERS AS THIS
WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS.
THE MAINS PLUG IS USED AS THE
DISCONNECTING DEVICE AND THEREFORE
SHOULD BE READILY OPERABLE.
Do not
DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.
DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.
DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment.
High temperatures can melt plastic and lead to fires.
WARNING:
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
Mains Supply
The mains supply required for this equipment is 220-240 V
AC 50 Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead.
DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.
In the UK, the fuse fitted in the plug is approved by ASTA or BSI to BS1362. It should only be replaced by a correctly rated and approved type and the fuse cover must be refitted.
IF IN DOUBT, PLEASE CONSULT A COMPETENT
ELECTRICIAN.
Do
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
WARNING:
To prevent injury, this apparatus must be securely attached in accordance with the installation
4
DO NOT use makeshift stands and NEVER fix legs with wood screws.
DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.
DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.
DO NOT push/pull CI CAM at a tilt to prevent breakdown of COMMON INTERFACE.
WARNING:
Excessive sound pressure from earphones or headphones can cause hearing loss.
ABOVE ALL - NEVER let anyone, especially children, push or hit the screen and cabinet back, or push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts.
NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.
INSTALLING YOUR TV
Installation and important information
Where to install
Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.
Stand style is dependent on model
Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, it is recommended to secure the TV using the fixings on the stand strap or “P” clips.
The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.
Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or near the TV pedestal.
Studies indicate that plastics may weaken and crack over time from the combination effects of chemical agents and mechanical stress (such as weight of TV). Failure to follow these instructions could result in serious injury and/or permanent damage to TV and TV pedestal.
When using a Wall Bracket
Use a wall bracket appropriate for the size and weight of the LCD TV.
• Two people are required for installation.
• Install a wall-mount from another manufacturer.
1 Unplug and remove any cables and/or other component connectors from the rear of the TV.
2 Carefully lay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket.
3 Follow the instructions provided with your wall bracket.
Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the
TV as described in the instructions provided with the wall bracket.
4 Always use the screws supplied or recommended by the wall mount manufacturer.
Removing the Pedestal Stand:
1 Carefully lay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.
NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the
LCD panel.
2 Remove the cover and screws.
Screws
3 Once you have removed all screws holding the pedestal stand in place, remove the pedestal stand from the TV by sliding the pedestal stand away from the TV.
When using MHL (Mobile High-definition Link)
• Interoperability with MHL devices of other manufacturers is not guaranteed.
• Toshiba does not provide any guarantee, therefore, against operational failure such as that described below when an MHL source is connected to the TV.
- No picture or sound
- Some of the functions do not work by remote operation from the TV
• If the MHL does not work properly, also contact the manufacturer of the source device for advice on its use.
5
INSTALLING YOUR TV
Please take note
The digital reception function of this television is only effective in the countries listed in the “Country” section of the “Installation” menu. Depending on country/area, some of this television’s functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.
If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.
Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty.
Regular use of other size modes (e.g. Super Live) will prevent permanent retention.
EXCLUSION CLAUSE
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) Fire; ii) Earthquake; iii) Accidental damage; iv) Intentional misuse of the product; v) Use of the product in improper conditions; vi) Loss and/or damage caused to the product whilst in the possession of a third party; vii) Any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; viii) Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.
When Using a USB Hard Drive (HDD)
• The recording function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties.
• Before recording to a device connected to the
TV, make a test recording and check the recording performance.
• Programmes that are prohibited from copying due to copyright protection cannot be recorded.
• Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost.
• If you connect a USB HDD that has been used with a PC or another TV, only programmes which are recorded using this TV can be playback.
• Switch the TV to standby before you disconnect the USB HDD.
Not doing so may result in loss of the recorded data or malfunction of the USB HDD.
• Please note that recording on the USB HDD is no longer playable after the TV’s main-board is exchanged during service.
• To ensure protection of your personal data
Toshiba recommends that you reset all TV settings when you recycle your TV or transfer to others. To reset your TV please access via menu settings, selecting ‘Reset TV’. See
owner’s manual page 73 for further details.
• Toshiba shall not be liable for damages of any kind whatsoever (breakdown of the recording device, modification or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combining with another connected device.
6
INSTALLING YOUR TV
The remote control
Simple at-a-glance reference of your remote control.
4
5
1
2
7
10
3
6
9
11
13
14
16
18
19
21
23
25
12
15
17
20
22
24
26
27
28
30
1 For On/Standby mode
2 To select input sources
3 To select TV Mode
4 Selectable Picture
5 Widescreen viewing
6 Picture still
7 Digital Subtitles or Analogue TEXT Subtitle pages if available
8 s Stereo/bilingual transmissions
9 To access the sleep timer
10 Number buttons
11 Switch the Audio Description On/Off
12 To return to previous channel
13 To display on-screen information
To access the index page in Text mode
14 To alter the TV volume
15 To change programme positions
To change TEXT pages
16 To mute the TV sound
17 To access Quick Menu
18 - Accesses the Search Portal
7
19
20
- Accesses the Smart TV Cloud Home
- Accesses to premium content available online
21 To access the on-screen Menu
22 To display the digital on-screen Programme Guide
23 To page up, down, left or right
24 When using menus, the arrows move the cursor on the screen up, down, left or right. Press OK to confirm your selection
25 To return to previous Menu
26 To exit menus and applications
27 When in TV mode:
D Analogue time display
When in Text mode:
A
B
C
To reveal concealed text
To hold a wanted page
To enlarge text display size
D To erase Text pages temporarily when you are viewing in teletext mode.
During Playback: c To PLAY v
W
Z
CC cc z
To STOP
To PAUSE
To SKIP-BACK
To REWIND
To FAST FORWARD
To SKIP FORWARD
28 To access the analogue or digital Channel List
29 To call up text services
30 To record DTV programmes
31 Colour buttons: Text and interactive service control buttons
Inserting batteries and effective range
Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote control are AAA, IEC R03 1.5 V.
Do not combine a used, old battery with a new one or mix battery types. Remove exhausted batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in
accordance with instructions on page 89 of this manual.
Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.
CONNECTING YOUR TV
Connecting external equipment
Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.
ILLUSTRATION SHOWS 32L.
DVB Common Interface
(for Conditional Access
Module (CAM))
USB 2
HDMI 3 (MHL)
HDMI 2
HDMI 1 (ARC)
Headphones
USB 1
COMPONENT VIDEO/AUDIO INPUT
VIDEO/AUDIO INPUT (Y/L/R) (EXT 2)
Aerial
SCART (EXT 1)
HDMI 4 INPUT
LAN port
DIGITAL AUDIO OUTPUT (OPTICAL)
RGB/PC INPUT
Aerial Cable
Decoder*
* A Decoder can be digital Satellite, free to air or any other compatible decoder / recorder.
Aerial cables: . . . . . . . . . . . . . . . . . . . . . . . .
Connect the aerial to the socket on the rear of the TV.
If you use a decoder and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the TV.
SCART leads: . . . . . . . . . . . . . . . . . . . . . . . .
Connect the media recorder IN/OUT socket to the television.
Connect the decoder TV socket to the television.
Before running Auto Tuning, put your decoder and media recorder to Standby.
The RCA sockets alongside the COMPONENT VIDEO
INPUT sockets will accept L and R audio signals.
When connecting the VIDEO/AUDIO devices, connect those cables to Y/L/R sockets.
The Digital Audio Output socket enables the connection of a suitable surround sound system.
NOTE: This output is always active.
HDMI ® (High-Definition Multimedia Interface) is for use with electrical equipment with digital audio and video output. It is designed for best performance with 1080i and
1080p high-definition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals.
PC format signals will also be displayed.
NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.
LAN port is used to connect the TV to your home network.
A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner’s manuals for all additional equipment must be referred to for exact instructions.
If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press o to select between TV,
EXT 1, EXT 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC.
When the external input mode is selected while viewing
DTV mode, the SCART socket does not output video/ audio signals.
As for SCART output, audio signal may mute or other video signal may output depending on the DTV mode.
8
CONNECTING YOUR TV
Connecting an HDMI
®
device
The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device.
This input is designed to accept HDCP (High-Bandwidth
Digital Content Protection) programme material in digital form from EIA/CEA-861-D–compliant consumer electronic devices (such as a set-top box or DVD player with HDMI
output). For acceptable video signal formats, see page 85.
NOTE: Supported Audio format: Linear PCM, Dolby
Digital (AC-3), DTS, sampling rate 32/44.1/48 kHz.
To connect an HDMI device
Connect an HDMI cable (type A connector) to the HDMI terminal.
For proper operation, it is recommended that you use an
HDMI cable with the HDMI Logo ( ).
• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50 Hz, you will need a Category 2 cable. Conventional HDMI/
DVI cable may not work properly with this model.
• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).
the back and side of your television
ILLUSTRATION SHOWS 32L.
HDMI’s ARC (Audio Return Channel) feature
This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output of the
TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.
the side of your television
HDMI cable
AV amplifier that supports ARC
HDMI device
HDMI cable
To view the HDMI device video, press o to select
HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.
9
CONNECTING YOUR TV
Connecting an HDMI CEC Control compatible device
You can control the basic functions of connected audio/video devices using the television’s remote control if you connect an HDMI CEC compatible AV amplifier or playback device. For an explanation
of setup and operations, see pages 76–78.
the side of your television
ILLUSTRATION SHOWS 32L.
AV amplifier
Playback device
Playback device
For the setup shown above, you will need three HDMI cables.
NOTE:
• If several devices are connected, the HDMI CEC Control feature may not operate properly.
• For proper operation, it is recommended that you use
HDMI cables with the HDMI Logo ( ).
• This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.
Before controlling the device(s):
• After completing the above connections, set the HDMI
CEC Control Setup menu as you desire (see page 76).
• The connected devices must also be set. For details, see the operation manual for each device.
• The HDMI CEC Control feature uses CEC technology as regulated by the HDMI standard.
• This feature is limited to models incorporating Toshiba’s
HDMI CEC Control. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.
10
CONNECTING YOUR TV
Connecting a computer
With either an HDMI or an RGB/PC connection, you can watch your computer’s display on the television.
To connect a PC to the HDMI terminal
When connecting a PC to the HDMI terminal on the television, use an HDMI cable (type A connector).
the side of your television
To connect a PC to the RGB/PC terminal
When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable.
the back of your television
Computer
Mini D-sub
15 pin connector
RGB PC cable
(not supplied)
Computer
HDMI cable
If connecting a PC with DVI terminal, use an HDMI-to-DVI adaptor cable.
Computer the side of your television
HDMI-to-DVI adaptor cable
For acceptable PC and video signal formats, see page 85.
NOTE:
• The edges of the images may be hidden.
• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.
Conversion adaptor if required
(not supplied)
To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC
To display the optimum picture, use the PC setting feature
NOTE:
• Some PC models cannot be connected to this television.
• An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.
• Depending on the DVD’s title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.
• A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.
• When PC input mode is selected, some of the television’s features will be unavailable e.g. Colour
System in the AV connection menu.
• Some PC models may output unique signals that the
television may be unable to detect (see page 84).
• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.
11
CONNECTING YOUR TV
Connecting a home network
The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a media server and play/ display them on your TV.
NOTE:
• If you connect to a shared network outside your home, it is advisable to use a router. Always use network media products in private network environments. Connect this
TV to the same router as other network media products
(server).
• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network
• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.
• If you connect the TV and PC directly, use a crossover
LAN cable.
• Please consult your PC manufacturer about details of
PC settings.
• Wireless appliances may interfere with Intel
® wireless display.
WiDi /
To connect the TV to a home network
- Wired
the back of your television
Modem (if available)
[1]
Router with Hub
[2]
Server PC
[2] [3]
To connect the TV to a home network with an internet connection -
Wireless
Please refer to “Wireless Setup” section on page 39.
Access point (AP)
Wireless LAN router
Modem
Computer
NOTE:
• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.
• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to
2.4835 GHz in France, it is restricted to indoor use.
• A general authorization is required for using this device outdoors or in public places in Italy.
• This device is NOT ALLOWED to be used in the geographical area within a radius of 20 km from the centre of Ny-Alesund in Norway.
• Make the wireless LAN appropriate security setting at the time of wireless LAN use to prevent the illegal use, spoofing and interception of communications.
• Don’t connect wireless LAN to an outside network directly.
Apply the wireless LAN access point with router function or broadband router. Make the router appropriate security setting to prevent the illegal use.
Refer to the manual of router for a security setting.
Cable or Phone jack
[2]
[1] Coaxial or telephone cable (depending on your modem type)
[2] Standard LAN cable
[3] Do not connect a phone jack directly to the TV’s LAN port.
Warning: This TV complies with the EMC directive only when you use a shielded Cat5 ethernet cable.
12
To connect the TV to the Device with
Intel
®
WiDi / wireless display
Available wireless channel is restricted in the following range in case that you use the Intel ® WiDi / wireless display.
2.4 GHz: 1~11 ch
5 GHz: 36~48 ch
PC with Intel
®
WiDi
/ wireless display
Intel
®
WiDi
/ wireless display
CONNECTING YOUR TV
13
CONNECTING YOUR TV
Controls and input connections
A wide variety of external equipment can be connected to the input sockets on the side of the television.
While all the necessary adjustments and controls for the television are made using the remote
control, the buttons on the television may be used for some functions.
ILLUSTRATION SHOWS 32L.
DVB COMMON INTERFACE
The Common Interface is for a
Conditional Access Module (CAM).
Contact a service provider.
The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be cancelled.
USB port
My Contents/USB HDD connection port
Control panel
Light sensor
Remote sensor Power LED
On = Green
Standby = Red
Switching on
If the RED LED is not lit, check that the mains plug is connected to the power supply and press be lit.
1 on the remote control; it may take a few moments. The GREEN LED will
To put the television into Standby, press 1 on the remote control. To view the television, press may take a few seconds to appear.
1 again. The picture
For energy saving:
We recommend that you use the television with the factory settings. The factory settings are for energy saving.
Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday.
Reducing the brightness of the screen will reduce energy use.
Energy efficiency cuts energy consumption and can save money.
NOTE: Putting the television into Standby will reduce energy consumption, but will still draw some power.
Using the TV controls and connections
• To turn on or off the TV, press !
.
• To alter the volume, press + or –.
+ and – buttons operate as volume up/down as default.
• Press p / o repeatedly to switch the function of
– button as below.
Channel→Input→Volume
2 +/
The My Contents feature provides access to photo, movie and music files stored on a USB storage device that is connected via the USB 1 or USB 2 port or on a network device.
Please always refer to the owner’s manual of the equipment to be connected for full details.
NOTE:
• The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.
• Interactive video games that involve shooting a “gun” at an on-screen target may not work with this TV.
14
Using the menu system
Press on the remote control to display the menu.
The menu appears as a list of seven topics. As each icon is selected by pressing B / b on the remote control, its respective options will appear on the right.
NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear greyed out.
Press B / b
Sound
Press B / b and OK or c
Picture Mode
Reset
Backlight
Contrast
Brightness
Colour
Tint
Sharpness
Advanced Picture Settings
Expert Picture Settings
Display Settings
Press B / b and OK or c
Sound Navi
Sound Mode
Advanced Sound Settings
Sound Separation Effect
TruVolume
Dynamic Range Control
Balance
Dual
Audio Level Offset
TV Speakers
Headphone Level
Audio Description
Digital Audio Output
CONNECTING YOUR TV
Press B / b
Options
Press B / b
Installation
Press B / b
Network
Press B / b
Timers
Press B / b
Get Help
Press B / b and OK or c
Recording Setup
My Contents Setup
MHL Setup
HDMI CEC Control Setup
Hybrid TV Standard
Teletext
Panel Lock
AV Connection
Power Management
Blue Screen
HDMI Information Display
Press B / b and OK or c
Menu Language
Country
Location
Channel Tuning
DTV Settings
Quick Setup
Reset TV
Press B / b and OK or c
Network Setup
Network Device Setup
Smart Apps Setup
Press B / b and OK or c
On Timer
Sleep Timer
Press B / b and OK or c
Software Licences
Software Upgrade
System Information
Store Demo
15
SETTING UP YOUR TV
Startup Application
Before switching on the TV make sure that your aerial is connected and any decoder / media recorder, if applicable is connected and in
Standby.
Quick Setup
a
Press the 1 button, Toshiba logo will appear. After that, The Menu Language screen will appear.
This screen will appear the first time that the television is switched on and each time Reset TV is executed.
b
Press BbC c to select the menu language and press OK. The Country/Language screen will appear.
Menu Language
Please press [OK] to proceed.
English Français Deutsch Español
Italiano
Dansk
Türkçe
Pусский
Português
Norsk
Magyar
Română
Nederlands
Suomi
Slovensky
Български
Svenska
Polski
Český
Srpski
Ελληνικά Hrvatski Укpaϊнcькa Slovenščina c
Press B / b to highlight Country and press c and
B / b to select your country.
The country will be changed, and all existing channels (ATV and DTV) will be cleared even though tuning has not been executed ever.
Quick Setup
Country
Country/Language
Welcome
Thank you for choosing Toshiba TV
1/3
Location
Network
Smart TV
Channel Tuning
Country
Primary Subtitle Language
Secondary Subtitle Language
Primary Audio Language
Secondary Audio Language
Previous
Germany
German
Turkish
German
English
Next
German
Greek
Greenlandic
Hungarian
Icelandic
Irish
Italian
Kurdish
NOTE:
• The following display menus will differ slightly according to the country you selected.
• If there is not a country that you want to select in the list, select Others.
d
Press BbC c to highlight Next and press OK.
The Location screen will appear.
Location 1/2 Quick Setup
Country
Location
Network
Smart TV
Channel Tuning
To set up the TV for use within a showroom, please select
[Store] from the menu below.
[Home] is recommended for normal use.
* Power requirement for Store mode will be higher due to automatic store demos.
Home
Store
Previous Next e
Press B / b to select Home or Store and press
OK. For normal home use, select Home.
f
Press BbC c to highlight Next and press OK.
The Auto View screen will appear.
Press C / c to select Yes or No and Press OK.
g
Press B / b to select Stand or Wall and press
OK.
Press BbC c to highlight Next and press OK.
The Network Type screen will appear.
h
Press B to highlight Network Type and then press c and B / b to select Wireless. Press OK.
Network Type 1/5 Quick Setup
Country
Location
Network
Smart TV
Channel Tuning
Network setup allows you to access content on your home network and the Internet. Enjoy online video, music, games, news and more provided by Smart TV portal* and keep your
TV up to date with new software.
* Availability is dependant on country selection
Please select from Wired or Wireless
Network Type
Previous Next
Wired
Skip
Wired
Wireless
• When you select Wired (LAN cable connection), skip to step 15.
i
Press BbC c to highlight Next and press OK.
The Wireless Setup screen will appear.
j
Press B to highlight Wireless Setup and then press c and B type. Press OK.
/ b to select the Wireless Setup
Quick Setup
Country
Location
Wireless Setup
Please select a wireless network setup option. Assisted Setup is recommended.
2/5
Network
Wireless Setup Easy Setup Easy Setup
Assisted Setup
Manual Setup
Smart TV
Channel Tuning
Previous Next
16
SETTING UP YOUR TV
There are 3 methods for Wireless Setup:
• Easy Setup - If the AP supports Wi-Fi Protected
Setup, this method can be used. Wi-Fi Protected
Setup is an industry standard designed to make connection of wireless LAN equipment and security setup easy. Wi-Fi Protected Setup will automatically configure all wireless settings.
NOTE: WEP or TKIP encryption may not be able to configured by easy setup.
• Assisted Setup - follow step 12.
Input the Security Key only.
• Manual Setup, skip to step 13.
Input the all settings.
NOTE: EXIT is available during settings.
k
In step 10, when you select Easy Setup;
Press BbC c to highlight Next and press OK.
The Easy Setup screen will appear.
Press c and B / b to select PBC (Push Button
Configuration) or PIN (Personal Identification
Number) and press OK.
Press b to highlight Start Scan and press OK.
PBC - Following the on-screen instructions, push the appropriate button on your AP. When a window reporting that the setup is complete appears, press
OK.
PIN - When the PIN code window appears, enter the displayed PIN into your AP, and then press OK to continue the PIN Setup. When a message displays to report that the setup is complete, press
OK.
To cancel searching for the AP:
Press BACK while searching for the AP. A message will appear, and then press C / c to select Yes and press OK.
l
In step 10, when you select Assisted Setup;
Press BbC c to highlight Next and press OK.
The Assisted Setup screen will appear.
Press B / b to select the desired AP and press
OK.
NOTE: Check the MAC address on the label of the
AP or in the manual, and select your AP.
Press B / b to select Security Key and press OK.
The Software Keyboard window will appear (page
Input the Security Key by using the Software
Keyboard. To save your setting, press the GREEN button.
NOTE:
• The Security Key must adhere to these conditions:
17
- AES, AES/TKIP: 8-63 ASCII or 64 Hex characters
- WEP: 5 or 13 ASCII or 10 or 26 Hex characters
• There is only one key ID to set for WEP encryption.
Press B / b to highlight Done and press OK.
NOTE:
• If Network Name is not displayed, see Manual
Setup below to set Network Name before Done is selected.
• If BACK is pressed before Done is selected, settings are not saved.
When the message “Wireless configuration is complete.” appears on screen, press OK.
The screen will skip to step 14.
m
In step 10, when you select Manual Setup;
Press BbC c to highlight Next and press OK.
The Manual Setup screen will appear. Press B / b to select Network Name and press OK.
The Software Keyboard window will appear (page
Input the Network Name by using the Software
Keyboard. To save your setting, press the GREEN button.
Press B / b to select Authentication and then press c and B / b to select Open System,
Shared Key, WPA2/WPA-PSK (mixed mode
WPA2/WPA) or WPA2-PSK. Press OK.
Press B / b to select Encryption, and then press c and B / b to select None, WEP, AES/TKIP or
AES. Press OK.
NOTE:
• Certain encryption types are only compatible with specific authentication types.
- When Authentication is Open System, only
WEP or None is compatible.
- When Authentication is Shared Key, only
WEP or None is compatible.
- When Authentication is WPA2/WPA-PSK
(mixed mode WPA2/WPA), only AES/TKIP is compatible.
- When Authentication is WPA2-PSK, only AES is compatible.
• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.
• There is only one key ID to set for WEP encryption.
Press B / b to select Security Key and press OK.
Input the Security Key by using the Software
SETTING UP YOUR TV
To save your setting, press the GREEN button.
This item is greyed out when Encryption is None.
When Encryption is WEP, Key ID setting is available. Press B / b to select Key ID and press c and B / b to select 1 (default), 2, 3 or 4.
Press B / b to highlight Done and press OK.
When the message “Wireless configuration is complete.” appears on screen, press OK.
NOTE: Settings are not saved if BACK is pressed before Done is selected.
n
The Advanced Network Setup screen will appear.
When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.)
When the DHCP function of the router is Off, set
Auto Setup to Off, and set the IP Address DNS address(es) manually.
3/5 Quick Setup
Country
Location
Network
Smart TV
Channel Tuning
Advanced Network Setup
Auto Setup
IP Address
Subnet Mask
Default Gateway
Auto Setup
Primary DNS Address
Secondary DNS Address
On
.
.
.
On
.
.
.
.
.
.
.
Previous Next
You can view the fixed MAC address for the TV, if one is installed.
Press B / b to highlight Next.
o
Press OK, and Network Connection Test will start.
A message will appear to indicate if the connection was successful or if could not be completed.
Network Connection Test
Network connection was completed successfully.
OK
5/5
NOTE: The result of Network Connection Test does not always guarantee the connection.
To cancel the Network Connection Test:
Press EXIT while testing.
When the network can be accessed, Software
Upgrade starts automatically. When Software
Upgrade is completed, proceed to the next step.
p
Press OK, and Power Management screen will appear. Press B / b to highlight the External
Record Control. Press c and B / b to select Off or On and press OK. q
Press B / b to highlight the Companion Device
Control. Press c and B / b to select Off or On and highlight Next.
r
Press OK. If the Ant/Cable screen appears, press
B / b to select Antenna or Cable, and then press
OK to check ( ).
Antenna
Cable
Previous Next s
Press BbC c to highlight Next and press OK.
The Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Press c and B / b to select the appropriate mode and press OK.
T
Press b to highlight Start Scan, and press OK.
The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.
You must allow the television to complete the search.
Auto Tuning - Antenna
DTV Tune
ATV Tune
Progress
4 %
Waiting...
Channel: 23
Found
0
0
When the search is complete, the television will automatically select channel one.
The Auto Tuning screen will display the total number of services found.
u
Press C / c to view the DTV (digital channel) or
ATV (analogue channel) lists.
18
SETTING UP YOUR TV v
Press B / b to move through the list to select a channel, and then press OK to view.
In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.
REMEMBER: Press TV at any time to select between ATV and DTV modes.
NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.
PLEASE NOTE
The Quick Setup menu can also be accessed at any time from the Installation menu.
Ant/Cable (if available)
From this menu, you can set the RF input configuration.
a
Press / b to highlight Installation icon.
b
Press c and B / b to select Channel Tuning and press OK.
c
Press B / b to select Ant/Cable and press OK. d
Press B / b to select Antenna or Cable.
e
Press B / b to highlight Next and press OK.
NOTE: When you attempt to change the Ant/
Cable setting, a warning message will appear followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.
f
When Ant/Cable is set to Cable, the following setting options will be provided in the Auto Tuning screen.
Press B / b to select an item and press c and B / b to select your desired option.
Auto Tuning - Cable
Tuning Mode
DTV
Operator Selection
Scan Type
Start Frequency
End Frequency
Modulation
Symbol Rate
Network ID
Start Scan
DTV and ATV
Others
Quick Scan
Auto
Auto
Auto
Auto
Auto
With the exception of DTV Scan Type and DTV
Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an
Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.
19
SETTING UP YOUR TV
Operator Selection:
You can choose the Cable operator depending on the
Country you set.
DTV Scan Type:
This item determines whether a Quick Scan or a Full
Scan will be executed.
The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.
DTV Start Frequency:
This sets the frequency from which the scan will begin.
DTV End Frequency:
This sets the frequency at which the scan will end.
DTV Modulation:
You can choose from six QAM modulation settings.
DTV Symbol Rate:
This is the baud rate (KS/s) of the scan.
DTV Network ID:
This is the Network ID to be utilized for the scan. This item is greyed out when DTV Scan Type is set to “Full Scan”.
Auto Tuning
NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.
Auto Tuning will completely re-tune the television and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to
ensure that all new services are added. All current channels and settings, i.e. locked channels, will be lost.
a
Press / b to highlight Installation icon.
b
Press c and B / b to select Channel Tuning and press OK.
c
Press B / b to select Auto Tuning and press OK.
< Channel Tuning
Ant/Cable
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
Antenna Amplifier
A message will appear, and then press C / c to select Yes and press OK.
d
Press c and B / b to select DTV, ATV or DTV
and ATV, if available, then highlight Start Scan and press OK to continue with the Auto Tuning.
Auto Tuning - Antenna
Tuning Mode DTV DTV
ATV
DTV and ATV
Start Scan
NOTE: If you have selected Others for the
Country field in the Installation menu, and selected a tuning mode other than DTV, choose the optimum ATV broadcasting system (B/G, I, D/
K or L).
The television will start to search for all available
DTV and/or ATV services.
You must allow the television to complete the search.
When the search is complete, the Auto Tuning screen will display the services found.
e
Press B / b to move through the list to select a channel and press OK to view.
20
SETTING UP YOUR TV
ATV Manual Tuning
Tuning
The television can be tuned-in manually using ATV
Manual Tuning. For example, you might use the feature if the television cannot be connected to a media recorder/ decoder with a SCART lead or when you want to tune-in a
station on another System.
Use C /
ATV Manual Tuning options. Then use settings. c to move across the screen and select any of the
B / b to adjust the
ATV Manual Tuning
System
1 I A C 2 0 V C R
1 2 3 4 5 6 7 8 9
1 Position
The number to be pressed on the remote control to tune the channel.
2 System
Specific to certain areas.
3 Colour System
Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.
4 Skip
Set Skip to On ( 8 ) or Off (
( ) for the selected
5 Signal Class
The channel classification.
6 Channel
The channel number on which a station is being broadcast.
7 Search
Search up and down for a signal.
8 Manual Fine Tuning
Only used if interference/weak signal is experienced.
9 Station
Station identification. Use the enter up to seven characters.
Bb and C c buttons to
To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY and manually tune.
a
In the Channel Tuning menu, press b to select
ATV Manual Tuning and press OK.
< Channel Tuning
Ant/Cable
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
Antenna Amplifier b
Press B / b to select the desired position. We suggest Pos. 0 for a media recorder.
ATV Manual Tuning
Pos.
4
5
2
3
6
7
0
1
Channel
C2
S10
C7
S40
C22
C25
C28
C30
Station
Different Channel numbers may be displayed.
c
Press OK to select. If the channel chosen for the media recorder is set to skip, Skip should be removed before storing.
d
Press c to select System and press B / b to change if required.
ATV Manual Tuning
System
1 I A C 2 0 e
Then press c to select Search.
f
Press B / b to begin the search. The search symbol will flash.
ATV Manual Tuning
Search
1 I A C 2 0
21
SETTING UP YOUR TV g
Each signal will show on the television. If it is not your media recorder, press B / b again to restart the search.
h
When your media recorder signal is found, press c to move along to Station. Use BbC c the required characters, e.g. VCR.
to put in
ATV Manual Tuning
Station
1 I A C 2 0 V C R i j k
Press OK to save.
Repeat for each position you want to tune.
Press EXIT when you have finished.
Skip
To prevent certain channels from being viewed, positions can be skipped.
a
Select ATV Manual Tuning from the Channel
Tuning menu.
b
Press B / b to highlight the position to be skipped and press OK.
ATV Manual Tuning
Pos.
5
6
3
4
7
0
1
2
Channel
C2
S10
C7
S40
C22
C25
C28
C30
Station
PLEASE NOTE
This television has direct channel entry if the channel numbers are known.
Select the ATV Manual Tuning screen in Step
3. Enter the Position number, the System, then
C for standard (terrestrial) channels or S for cable channels and the Channel number. Press
OK to save.
c
Press c to select Skip.
d
Press B / b to turn Skip on and press OK.
8 on the screen indicates a skipped position.
ATV Manual Tuning
Skip: On
1 I A C 2 0 e
Press BACK and repeat from Step 2 or press
EXIT.
Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.
Skipped positions cannot be selected by P U and
P u or by the controls on the television but can still be accessed by the number buttons on the remote control.
22
SETTING UP YOUR TV
Sorting positions
Channels may be moved and saved to the position of your choice.
a
Select ATV Manual Tuning from the Channel
Tuning menu.
b
With the list of channels showing, press B / b to highlight the position to be moved and press c .
ATV Manual Tuning
Pos.
0
1
2
3
4
5
6
7
Channel
C - 69
C - 31
C - 43
C - 7
C - 9
C - 12
C - 23
C - 2
Station
BBC1
BBC1 c
Press B / b to move through the list to your preferred position. As you do so, the other channels will move to make room.
d
Press C to save your move.
Repeat as necessary and press EXIT.
DTV Manual Tuning
NOTE: This feature varies depending on the Ant/Cable setting.
Manual Tuning
This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.
a
Select DTV Manual Tuning from the Channel
Tuning menu and press OK.
DTV Manual Tuning - Antenna
Signal Strength
WEAK
Quality
AVERAGE STRONG
GOOD
Channel
Frequency
Bandwidth
67
842.00 MHz
8 MHz
Start Scan b
Press B / b to select Channel and press c to display the Channel Number list. Use the number buttons to enter the number.
c
Press B / b to select Frequency and press C / c to adjust the value. When there is no Channel corresponding to the Frequency, “--” is displayed to the Channel.
d
Highlight Start Scan and press OK. The television will automatically search for that multiplex.
DTV Manual Tuning - Antenna
0 New Channels - Total 6
New Pos.
1
2
7
40
51
Name
ABC ONE
ABC TWO
ABC THREE
ABC NEWS 24
ABCi
Type
When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.
e
Repeat as necessary. Press EXIT to finish.
23
SETTING UP YOUR TV
Manual Tuning for DVB-C
When Ant/Cable is set to Cable, DTV Manual Tuning items are as follows:
Frequency: Input a specific frequency to be scanned
Modulation: Choose from one of five QAM modulation options
Symbol Rate: Input a specific baud rate (KS/s) to be used for the manual scan
Highlight Start Scan and press OK.
Antenna Amplifier
a
Select Antenna Amplifier from the Channel
Tuning menu and press OK.
b
Press B / b to select DTV and press OK. Press
B / b to select On or Off.
c
Press B / b to select ATV and press OK. Press
B / b to select On or Off.
DTV Settings
Channels (Antenna/Cable)
The channel order may be changed to suit your personal preference.
a
Select DTV Settings from the Installation menu and press OK.
b
Press B / b to select Channels and press OK.
< DTV Settings
Channels
Subtitle and Audio
Parental PIN Setup
Parental Control
Local Time Setting
DVB Character Set
Standby Channel Update
Dynamic Scan
Data Transfer
Common Interface
Stored CICAM PIN c
For your convenience, you can jump to specific places in the list by one of two methods.
Channels
Line No.
Pos.
1
2
7
30
40
51
822
823
1/10
Name
ABC ONE
ABC TWO
ABC THREE
CABC Channel
ABC NEWS 24
ABCi
AA
AC
Antenna TV
Line Number Jump
— Use the number
buttons (0-9) to input the line number you want to select and press OK.
It is also possible to change the Position number of a particular channel.
Renumber
— Press the RED button to renumber the highlighted channel. Edit the channel number using the number buttons and press OK. If the position number you input already exists, a confirmation window will appear.
Pos.
Name
ABC ONE
24
SETTING UP YOUR TV
Move
— Press the GREEN button to activate the
Move feature. Press B / b to select the channel you wish to move and press OK to check.
If you wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary.
Once all desired channels have been checked, press B / b to place the focus at the position to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.
Channels
Line No.
Pos.
1
2
7
30
40
51
822
823
1/10
Name
ABC ONE
ABC TWO
ABC THREE
CABC Channel
ABC NEWS 24
ABCi
AA
AC
Antenna TV
Delete
— Press the BLUE button to activate the
Delete feature. Press B / b to select the channel you wish to delete and press OK. Press the BLUE button and select “Yes” on Confirmation Message to execute the Delete.
Sort
— Press the YELLOW button.
A confirmation window message will appear. In the window, if you select Yes, it will transit to “Sort
Type Selection” window.
In the “Sort Type Selection” window, there are 3 kinds of sort type.
- Number (default)
- A - Z Sort
- Z - A Sort
Your existing channel order will be lost. Do you wish to continue?
Yes
Renumber, Move, Sort and Delete functions are not available for Antenna channels. Renumber,
Move, Sort and Delete functions are available only for the DVB-C in Germany.
Standby Channel Update
If the Standby Channel Update is set to On, when the TV is in Standby, Digital Tuning is automatically executed.
a
Select DTV Settings from the Installation menu and press OK.
b
Press b to select Standby Channel Update and press c and B / b to select On or Off.
Location setting
You can select either Home or Store mode. Home is
recommended for normal home use. Select Store when using the television for displaying in a shop, etc.
a
Select Location from the Installation menu.
b
Press c or OK to edit Location and press B / b to select Home or Store.
Analogue switch-off
This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.
This ‘switch-off’ will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is retuned to ensure that existing and new digital services can be viewed without disruption.
Data Transfer
You can copy channel information from TV to USB memory and edit the channel information by using your
PC and updates channel information to your TV.
a
Select DTV Settings from the Installation menu and press OK.
b
Press B / b to select Data Transfer and press c and B / b to select Channel List, Transponder
Table (if available) or Preset Order.
c
In case of Channel List and Transponder Table, press c to select USB to TV or TV to USB. In case of Preset Order, select USB to TV.
25
CONTROLS AND FEATURES
General controls
Quick Menu
Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep
Timer etc.
Press QUICK to open the Quick Menu and use select the option.
B / b to
Quick Menu
Intel® WiDi / wireless display
Picture Mode
Picture Size
More Information
Channel Options
Sleep Timer
HDMI CEC Device Control
Speakers
Headphone Level
Wireless Information
My TV Library
Recording Information
Standard
Wide
TV Speakers
30
NOTE: Quick Menu items are different depending on the current mode.
Quick menu item example
Mode
When viewing a TV programme or pictures from the external input
Single Window
When using EPG
My Contents
Quick menu item Description
Intel ® WiDi / wireless display
Picture Mode
Picture Size
More Information
Channel Options
Sleep Timer
HDMI CEC Device
Control
Speakers
Headphone Level
Wireless Information
My TV library
Recording
Information
Genre Colour
EPG Update / Cancel
EPG Update
Sound
Interval Time
Repeat
Device Information
Background Music
Play List
Sleep Timer
Speakers
Headphone Level
Wireless Information
Selecting channels
To select a channel, use the numbered buttons on the remote control.
Channels can also be selected using P U and P u .
To display on-screen information such as channel, input mode or stereo/mono signal, press . Press again to cancel.
26
CONTROLS AND FEATURES
The Time Display – analogue only
The time display facility allows the current (text service) time to be seen on the television screen.
Press D whilst watching a normal television broadcast to see the time display from the broadcaster. It will remain on screen for about 5 seconds.
NOTE: This display may not be available in some cases.
Stereo and Bilingual transmissions
For DTV programmes
For stereo or dual mono broadcasts, press s and use
C / c to select settings.
Mode Display
Stereo
Dual mono
Mono
Multichannel
Pressing c
Stereo S Left S Right
Dual 1 S Dual 2
–
–
For multi-audio track broadcasts, press
s repeatedly to
change the audio language (see “Audio languages” on page
For ATV programmes
If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time channels are changed, disappearing after a few seconds.
If the broadcast is not in stereo, the word Mono will appear.
Stereo… Press s to select Stereo or Mono.
Bilingual… Bilingual transmissions are rare. If they are transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press s to select Dual 1, Dual 2 or Mono.
Sound controls
Volume controls and sound mute
Volume
Press 2 + or 2 – to adjust the volume.
Sound Mute
Press once to turn the sound off and again to cancel.
Sound Navi
To set the frequency characteristics in the equaliser function corresponding to the environment.
a
Press / b to highlight Sound icon.
b
Press c and B / b to select Sound Navi to select
Stand or Wall.
Sound Mode
This feature adjusts the Advanced Sound Setting depend on the content.
a
In the Sound menu, press B / b to select Sound
Mode and press c and B / b to select Standard,
Music, Movie, Clear Voice or Sound Separation and press OK.
Graphic Equaliser
This feature adjusts the frequency of output. This feature
is effective only the selection of Standard in Sound
Mode. a
In the Advanced Sound Settings menu, press
B / b to select Graphic Equaliser and press OK.
Graphic Equaliser screen will be displayed. Press
C / c to select frequency and press B / b to select level. To close the window, press EXIT.
TruDialog™
Dialog enhancement for clear and intelligible vocals.
a
In the Advanced Sound Settings menu, press
B / b to select TruDialog and press c and B / b to select On or Off.
27
CONTROLS AND FEATURES
Surround
This feature is effective only the selection of Standard in
Sound Mode. a
In the Advanced Sound Settings menu, press
B / b to select Surround and press c and B / b to select Off, TruSurround or Depth Rendering.
TruSurround: High quality surround sound and expanded sound field over two speakers.
Depth Rendering: Near and far depth sound field for a greater sense of immersion.
Sound Separation Effect
When the note box appears, press OK to enable Sound
Separation. When activated, this feature allows you to emphasize either the dialogue or the background sound.
You can do so by adjusting the value on the slider bar.
The closer the value is to the position, the more the dialogue is emphasized and the lower the background sound level.
a
In the Sound menu, press B / b to select Sound
Separation Effect and press OK. The selection bar will be displayed.
Press C / c to select value.
NOTE:
• This setting is temporary. When you switch the TV to standby, or change the channel or external input, the value is restored to the previous setting.
• Sound Separation has been designed for private use and entertainment in your home environment. Please note that any unlawful use, including public and/or commercial use, could lead to copyright infringement of the holder's rights. Toshiba asks you to respect the intellectual property rights of third parties.
• The effect of Sound Separation depends on the content used.
• If the content is mono, there may be little effect.
• Sound Separation may amplify the noise that is included in the content.
• The volume may wobble when you enable Sound
Separation.
• Sound Separation takes a few seconds to exert after enabling it, changing content and changing volume.
• Sound Separation may not work with some applications.
TruVolume™
Consistent volume, despite volume spikes or changes in content sources.
When TV Speaker is On, you can set TruVolume to On
or Off. a
In the Sound menu, press B / b to select
TruVolume.
b
Press c and B / b to select On or Off.
Dynamic Range Control
This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported).
a
In the Sound menu, press B / b to select
Dynamic Range Control.
b
Press c and B / b to select On or Off.
Balance
a
In the Sound menu, press B / b to select
Balance and press C / c to emphasize left and right speaker balance.
Dual
If a programme or film is being broadcast with a
soundtrack in more than one language, the Dual feature allows selection between them.
a
Press / b to highlight Sound icon.
b
Press c and B / b to select Dual and press c and
B / b to choose between Dual 1 or Dual 2.
< Sound
Sound Navi
Sound Mode
Advanced Sound Settings
Sound Separation Effect
TruVolume
Dynamic Range Control
Balance
Dual
Audio Level Offset
TV Speakers
Headphone Level
Audio Description
Stand
Standard
1
Off
On
0
Dual 1
On
28
CONTROLS AND FEATURES
Audio Level Offset
Sometimes there can be large changes in volume when switching from a DTV 5.1ch to a DTV 2ch, an ATV
channel, or an external input. Using the Audio Level
Offset feature reduces these volume differences. a
Set the volume level usually used when watching a DTV 5.1ch programme.
b
Tune to a channel which is DTV 2ch, ATV or an external input.
c
In the Sound menu, press B / b to select Audio
Level Offset and press OK.
d
Press B / b to select an option.
< Audio Level Offset
DTV 2ch
ATV
External Input
0
0
0 e
Press C / c to adjust the volume level.
DTV 2ch 0
NOTE:
• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are greyed out in the menu. This allows you to easily adjust according to each condition.
• When watching a DTV 5.1ch programme, this feature is not available.
TV Speakers
This feature allows you to turn the TV speakers off when connecting the audio system.
a
In the Sound menu, press B / b to select TV
Speakers. b
Press c and B / b to select Off.
To turn on the built-in speakers:
Select On in step 2.
Headphone Level
This setting is used to set the sound output when headphones are connected.
Speaker
Link
On
Off
Headphone Speakers
(
Sound is output
2 ± is available.)
Sound is output
(Headphone level menu is available.)
No sound
(
Sound is output
2 ± is available.) a
In the Sound menu, press B / b to select
Headphone Level and press OK.
b
Press B / b to select Speaker Link and press c and B / b to select On or Off.
< Headphone Level
Speaker Link
Headphone Level
On
30
On
Off c
If you select Off, then highlight Headphone Level and use C / c to adjust the headphone sound.
Audio Description
Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. The letters AD will be displayed in the channel banner when programmes contain AD content.
a
In the Sound menu, press B / b to select Audio
Description and press OK. b
Press B / b to select Audio Description and press c and B / b to select On.
The AD button on the remote control can also be used to toggle the Audio Description feature between On and Off.
< Audio Description
Audio Description
Mixing Level
On
50 c
To adjust the level of the audio description sound to the main sound, highlight Mixing Level and press C / c .
Mixing Level 50
29
CONTROLS AND FEATURES
Widescreen viewing
Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.
WIDE
Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of widescreen formats (16:9, 14:9,
20:9 etc.) black bars may be visible on the top and bottom of the screen.
4:3
SUPER LIVE
Use this setting to view a true 4:3 broadcast.
This setting will enlarge a 4:3 image to fit the screen by stretching the image horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur.
CINEMA
When watching ‘all sides panel format’ films/video tapes, this setting will eliminate or reduce the black bars at all sides of the screen by zooming in and selecting the image without distortion.
SUBTITLE
When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed.
14:9
Use this setting when watching a 14:9 broadcast.
SUBTITLE
30
CONTROLS AND FEATURES
NATIVE
This setting will show the picture without overscan, i.e. WYSIWYG.
PC NORMAL
This setting will show the picture without overscan, i.e. WYSIWYG.
This option is only available when watching a PC signal source via
HDMI or PC terminal.
PC WIDE
This setting will show the picture without overscan or side panels.
This option is only available when watching a PC signal source via
HDMI or PC terminal.
Dot by Dot
“Dot by Dot” is a non-scaling display.
Depending on the input signal format, the picture is displayed with side panels and/or bars at the top and bottom (e.g. VGA input source).
Press the button on the remote control to display the list of available widescreen formats.
Press the button repeatedly to highlight the required format.
The Quick Menu feature can also be used to select Picture Size.
AV format PC format
Picture Size
Wide
4:3
Super Live
Cinema
Subtitle
14:9
Native
Picture Size
PC Normal
PC Wide
Dot by Dot
Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.
31
CONTROLS AND FEATURES
Picture controls
Most of the picture controls and functions are available in both digital and analogue modes.
PLEASE NOTE: Features not available will be
greyed out.
Picture Mode
This television offers the choice of personalising the picture style.
AutoView, Dynamic, Standard, Hollywood Night,
Hollywood Day, Hollywood Pro, Store, Game and PC are preset options and affect many features/settings within the television.
NOTE:
• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and
Expert Picture Setting is greyed out when it is selected.
• Store mode is only available when Location is set to
Store.
• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.
• PC mode is available in RGB/PC input mode or HDMI input mode.
a
Press / b to highlight Picture icon and press OK.
b
Press c and B / b to select Picture Mode and press OK.
< Picture
Picture Mode
Reset
Backlight
Contrast
Brightness
Colour
Tint
Sharpness
Advanced Picture Setting
Expert Picture Setting
Display Setting
Standard
0
100
0
0
0
0
NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input.
Reset
This feature resets all picture settings to the factory
settings except Picture Mode. a
In the Picture menu, press B / b to select Reset and press OK.
b
A confirmation message will appear. Press C / c to select Yes and press OK.
Picture preferences
You can customize current picture mode settings as
desired. For example, while selecting “Dynamic”, if you
change the following items, such as Backlight, Contrast,
Brightness, Colour, Tint, Sharpness and the Advanced
Picture Settings items, your new settings are saved for
“Dynamic” picture mode. a
In the Picture menu, press B / b to select either
Backlight, Contrast, Brightness, Colour, Tint or
Sharpness and press OK.
b
Press C / c to adjust the settings and press OK.
ColourMaster
When ColourMaster is set to On, it allows the ‘Base
Colour Adjustment’ feature to become available.
a
In the Picture menu, press B / b to select
Advanced Picture Settings and press OK.
b
Press B / b to select ColourMaster and press c and B / b to select On or Off.
< Advanced Picture Settings
ColourMaster
Base Colour Adjustment
Colour Temperature
Auto Brightness Sensor
Active Backlight Control
Black/White Level
Noise Reduction
Resolution+
Cinema Mode
Reset
Off
On
High
Middle
On
On
32
CONTROLS AND FEATURES
Base Colour Adjustment
The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.
a
In the Advanced Picture Settings menu, press
B / b to select Base Colour Adjustment and press OK.
b
Press B / b to select an option and press c to move to the adjustment window.
Auto Brightness Sensor
When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions.
a
In the Advanced Picture Settings menu, press
B / b to select Auto Brightness Sensor and press OK.
b
Press B / b to select On or Off and press OK.
Base Colour Adjustment
Red
Green
Blue
Yellow
Magenta
Cyan
0
0
0
0
Hue
0
0
Reset
Edit
Saturation
0
0
0
0
0
0
Brightness
0
0
0
0
0
0 c
Press C / c to select Hue, Saturation or
Brightness and press B / b to adjust the settings as required.
Active Backlight Control
When the Active Backlight Control feature is activated, it will control the backlighting levels depending on various scenes such as picture motion, bright scene or dark scene.
a
In the Advanced Picture Settings menu, press
B / b to select Active Backlight Control and press OK.
b
Press B / b to select High, Low or Off and press
OK.
High: To control the backlighting levels depending on various scenes such as picture motion, bright scene or dark scene
Low: To control the backlighting levels for dark scene Hue
0
Saturation Brightness
0 0 Red d
Press BACK to return to the previous menu.
To return to the factory settings, select Reset and press OK.
Colour Temperature
Colour Temperature increases the “warmth” or
“coolness” of the picture by increasing the red or blue tint.
a
In the Advanced Picture Settings menu, press
B / b to select Colour Temperature and press
OK.
b
Press B / b to select Colour Temperature and press OK.
c
Press B / b to select Cool, Natural or Warm to suit your preference and press OK.
d
Press B / b to select Red Level, Green Level or
Blue Level and press C / c to adjust the level.
NOTE: To return the adjustments to the factory defaults, select Reset and press OK.
33
Black/White Level
Black/White Level increases the strength of dark areas of the picture to improve the definition.
a
In the Advanced Picture Settings menu, press
B / b to select Black/White Level and press OK.
b
Press B / b to select High, Middle, Low or Off and press OK.
CONTROLS AND FEATURES
MPEG NR – Noise Reduction
When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated.
Using the MPEG NR feature reduces this effect by smoothing out the edges.
a
In the Advanced Picture Settings menu, press
B / b to select Noise Reduction and press OK.
b
Press B / b to select MPEG NR and press OK.
< Noise Reduction
MPEG NR
DNR
Low
Auto c
Press B / b to select Off, Low, Middle or High to suit your preference and press OK.
NOTE: If the picture mode is set to Game or PC, this feature is not available.
DNR – Digital Noise Reduction
DNR allows you to “soften” the screen representation of a weak signal to reduce the noise effect.
a
Select DNR from the Noise Reduction menu. b
Press B / b to select Off, Low, Middle, High or
Auto and press OK. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).
NOTE: If the picture mode is set to Game or PC, this feature is not available.
Resolution +
The Resolution + feature allows you to adjust the clarity levels for your desired picture settings.
a
In the Advanced Picture Settings menu, press
B / b to select Resolution + and press OK.
b
Press B / b to select On or Off.
NOTE:
• This feature may not work properly depending on the content.
• Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).
Cinema Mode
Cinema Mode provides smoother motion and a crisper image.
a
In the Advanced Picture Settings menu, press
B / b to select Cinema Mode and press OK.
b
Press B / b to select On.
NOTE: When Picture Mode is set to Game or PC, this feature will be greyed out and automatically set to Off.
Resetting the advanced picture settings
This feature allows you to reset the current Advanced
Picture Settings to the default values. a
In the Advanced Picture Settings menu, press
B / b to select Reset.
b
Press OK.
34
CONTROLS AND FEATURES
Expert Picture Settings
This feature is available when the Picture Mode option is
Standard, Hollywood Day, Hollywood Night, and
Hollywood Pro.
Test Pattern
When the test pattern is on screen, you can navigate in the
Picture submenus and adjust picture settings without removing the image.
When you move to a non-Picture menu, or close the menus, regular video will be restored.
a
In the Picture menu, press B / b to select Expert
Picture Settings and press OK.
b
Press B / b to select Test Pattern and press OK.
c
Press B / b to select On and press OK.
RGB Filter
This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour.
a
In the Expert Picture Settings menu, press B / b to select RGB Filter and press OK.
b
Press B / b to select Red, Green or Blue to adjust and press OK.
c
Press B / b to select On and press OK.
d
Press B / b to select Colour or Tint and press C / c to adjust.
e
Press OK.
NOTE: It is not possible to turn off all three colours simultaneously.
Colour Decoding
If you view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction.
NOTE: The modes excluding Auto (BT.709 and BT.601) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. If BT.709 or
BT.601 is selected with a normal signal received, the colour may not be correctly displayed. This feature should normally be set to Auto.
a
In the Expert Picture Settings menu, press B / b to select Colour Decoding and press OK.
b
Press B / b to select Auto, BT.709 or BT.601 and press OK.
White Balance-Window Display
This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device.
a
In the Expert Picture Settings menu, press B / b to select White Balance and press OK.
b
Press B / b to select Window Display and press c and B / b to select On and press OK.
White Balance-Setting Type
You can choose from two types of White Balance adjustment.
a
In the Expert Picture Settings menu, press B / b to select White Balance and press OK.
b
Press B / b to select Setting Type and press OK.
c
Press B / b to select 2P or 10P and press OK.
35
CONTROLS AND FEATURES
White Balance-2P White Balance
a
Press b to select 2P White Balance and press
OK.
b
Press B / b to select Red-Offset, Green-Offset,
Blue-Offset, Red-Gain, Green-Gain, or Blue-
Gain.
A white square will appear on the screen.
c
Press C / c to adjust and press OK.
White Balance-10P White Balance
a
Press b to select 10P White Balance. b
Press B / b to select IRE, Red, Green, or Blue.
c
Press C / c to adjust and press OK.
NOTE: The adjustments made for Red / Green / Blue are stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.)
Automatic Format (Widescreen)
When this television receives a true Widescreen picture
and Auto Format is On, it will automatically be displayed in Widescreen format irrespective of the television’s previous setting.
a
Press / b to highlight Picture icon.
b
Press c and B / b to select Display Settings and press OK.
c
Press B / b to select Auto Format and press OK.
d
Press B / b to select On or Off and press OK.
< Display Settings
Auto Format
4:3 Stretch
Picture Position
PC Settings
On
Off
4:3 Stretch
When 4:3 Stretch is activated, the size switching system changes 4:3 programmes into full screen picture.
a
In the Display Settings menu, press B / b to select 4:3 Stretch and press OK.
b
Press B / b to select On or Off and press OK.
36
CONTROLS AND FEATURES
Picture Position
The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.
NOTE: The Picture Position feature cannot be selected on DTV or PC Inputs.
a
In the Display Settings menu, press B / b to select Picture Position and press OK.
b
Press B / b to select an option and press C / c to adjust the settings and press OK.
The options differ depending on the currently selected widescreen format and the input signal.
< Picture Position
Horizontal Position
Vertical Position
Reset
0
0
To return to the original factory settings, select
Reset in the Picture Position menu and press
OK.
Picture still
This feature is used to hold a still image on the screen.
a
Press r to hold an image on the screen, and press r again to cancel.
HDMI Information Display
When the HDMI Information Display feature is On and you are watching an HDMI input source, pressing displays the HDMI signal information banner.
a
In the Options menu, press B / b to select HDMI
Information Display and press OK.
b
Press B / b to select On.
HDMI signal information is as follows:
Resolution, Scan Type, Frame Rate, Aspect, Bit
Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (if available).
37
Wireless LAN Information
Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.
If you should experience any such problem, immediately turn off either your Bluetooth™ or Wireless LAN device.
Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.
Wireless LAN and your Health
Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.
Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safely used by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
In some situations or environments, the use of Wireless
LAN may be restricted by the proprietor of the building or responsible representatives of the organisation. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies to the use of wireless devices in a specific organisation or environment, you are encouraged to ask for authorization to use the
Wireless LAN device prior to turning on the equipment.
When using the TV under wireless LAN environment:
NOTE:
• When Encryption is set to “None”, data transmitted over a wireless LAN is not securely protected. Unauthorized users may access your data and network without appropriate security measures. Selecting an encryption setting from your Toshiba TV and using a secure network for wireless LAN transmissions may help avoid unauthorized access to your important data and/or TV.
Toshiba disclaims any and all responsibility or liability resulting from any wireless transmissions over the
Internet through your Toshiba TV.
• The function of all IEEE802.11 is not supported.
• The ad-hoc mode is not supported.
• It is recommended to use IEEE 802.11a or IEEE
802.11n on 5 GHz for audio and SD video streaming.
CONTROLS AND FEATURES
• It is recommended to use IEEE 802.11n on 5 GHz for
HD video streaming.
• It is recommended that the encoding rate for streaming video content is 20 Mbps or less.
• It is not recommended to use 2.4 GHz for audio and video streaming.
• Content playback may be interrupted by various surrounding interference.
Europe Statement
This Built-in WLAN Module may be operated in below country:
GR
EE
HU
IT
IE
ES
FI
FR
GB
AT
BE
CH
CY
CZ
DE
DK
Austria
Belgium
Switzerland
Cyprus
Czech Republic
Germany
Denmark
Spain
Finland
France
United Kingdom
Greece
Estonia
Hungary
Italy
Ireland
IS
LI
LT
LU
LV
MT
NL
NO
PL
PT
SE
SI
SK
BG
RO
TR
Iceland
Liechtenstein
Lithuania
Luxembourg
Latvia
Malta
Netherlands
Norway
Poland
Portugal
Sweden
Slovenia
Slovakia
Bulgaria
Romania
Turkey
• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.
• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835
GHz in France, it is restricted to indoor use.
• A general authorization is required for using this device outdoors or in public places in Italy.
• This device is NOT ALLOWED to be used in the geographical area within a radius of 20 km from the centre of Ny-Alesund in Norway.
• Make the wireless LAN appropriate security setting at the time of wireless LAN use to prevent the illegal use, spoofing and interception of communications.
• Don’t connect wireless LAN to an outside network directly.
Apply the wireless LAN access point with router function or broadband router. Make the router appropriate security setting to prevent the illegal use.
Refer to the manual of router for a security setting.
TOSHIBA hereby declares that this product with an integrated wireless function is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC..
38
CONTROLS AND FEATURES
Setting up the Network
You can select the Network Type.
a
Press / b to highlight Network icon.
b
Press c and B / b to select Network Setup and press OK.
< Network
Network Setup
Network Device Setup
Smart Apps Setup c
Press B / b to select Connection Type and press c and B / b to select Wired or Wireless.
< Network Setup
Connection Type
Wireless Setup
Advanced Network Setup
Network Connection Test
Wireless Wired
Wireless
Easy Setup using PBC (Push Button
Configuration)
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Wireless Setup and press
OK.
c
Press B / b to select Easy Setup and press OK.
< Wireless Setup
Easy Setup
Assisted Setup
Manual Setup d
If you selected Wired, see “Advanced Network
NOTE: After you change between Wireless and Wired, switch off and on AC power supply to reset your TV.
Communication may be impossible after the change of
Wireless / Wired.
Wireless Setup
NOTE: Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV.
There are 3 methods for Wireless Setup
Easy Setup
If the AP supports Wi-Fi Protected Setup, this method can be used.
• Wi-Fi Protected Setup is an industry standard designed to make connection of wireless LAN equipment and security setup easy. Wi-Fi Protected Setup will automatically configure all wireless settings.
NOTE: WEP or TKIP encryption may not be able to configured by easy setup.
Assisted Setup (setup by using the AP’s notification information)
Network Name, Authentication, and Encryption are decided based on information from the AP. You will manually set the Security Key.
Manual Setup (manual input of all settings) d
Press c and B / b to select PBC.
e
Press b to highlight Start Scan and press OK.
f
Following the on-screen instructions, push the appropriate button on your AP.
g
When a window reporting that the setup is complete appears, press OK.
Easy Setup using PIN (Personal Identification
Number)
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Wireless Setup and press
OK.
c
Press B / b to select Easy Setup and press OK.
d
Press c and B / b to select PIN.
e
Press b to select Start Scan and press OK.
f
Press B / b to select the desired AP and press
OK.
NOTE: Check the Network Name and/or MAC address on the label of the AP or in the manual, and select your AP.
g
When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report that the setup is complete, press OK.
39
CONTROLS AND FEATURES
To cancel searching for the AP:
Press BACK while searching for the AP. A message will appear, and then press C / c to select
Yes and press
OK .
Assisted Setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Wireless Setup and press
OK.
c
Press B / b to select Assisted Setup and press
OK.
< Wireless Setup
Easy Setup
Assisted Setup
Manual Setup d
Press B / b to select the desired AP and press
OK.
NOTE: Check the MAC address on the label of the
AP or in the manual, and select your AP.
e
Highlight Security Key and press OK. The
Software Keyboard window will appear.
f
Input the Security Key by using the Software
Keyboard (see page 44). To save your setting,
press the GREEN button.
NOTE:
• The Security Key must adhere to these conditions:
- AES, AES/TKIP: 8-63 ASCII or 64 Hex characters
- WEP: 5 or 13 ASCII or 10 or 26 Hex characters
• There is only one key ID to set for WEP encryption.
g
Highlight Done and press OK.
NOTE: If Network Name is not displayed, see step 3 and 4 in Manual Setup to set Network
Name before pressing Done.
NOTE: Settings are not saved if BACK is pressed before
Done is selected.
Manual Setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Wireless Setup and press
OK.
c
Press B / b to select Manual Setup and press
OK.
d
Press B / b to select Network Name and press
OK. The Software Keyboard window will appear.
e
Input the Network Name by using the Software
Keyboard (see page 44). To save your setting,
press the GREEN button.
f
Press B / b to select Authentication and press c and B / b to select Open System, Shared Key,
WPA2/WPA-PSK (mixed mode WPA2/WPA) or
WPA2-PSK.
g
Press B / b to select Encryption and press c and B / b to select None, WEP, AES/TKIP or
AES.
NOTE:
• Certain encryption types are only compatible with specific authentication types.
- When Authentication is Open System, only
WEP or None is compatible.
- When Authentication is Shared Key, only
None and WEP can be selected for
Encryption.
- When Authentication is WPA2/WPA-PSK
(mixed mode WPA2/WPA), only AES/TKIP can be selected for Encryption.
- When Authentication is WPA2-PSK, only
AES is compatible.
• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.
• There is only one key ID to set for WEP encryption.
h
Press B / b to select Security Key and press OK.
i
Input the Security Key by using the Software
Keyboard (see page 44). To save your setting,
press the GREEN button.
NOTE: This item is greyed out when Encryption is
None.
40
CONTROLS AND FEATURES j
Highlight Done and press OK.
NOTE: When Encryption is None, a message will appear. Press C / c to select Yes and press OK.
NOTE: Settings are not saved if BACK is pressed before
Done is selected.
Wireless Information
The settings configured in Wireless Setup can be confirmed.
a
Press QUICK to open the Quick Menu.
b
Press B / b to select Wireless Information and press OK.
Quick Menu
Intel® WiDi / wireless display
Picture Mode
Picture Size
More Information
Channel Options
Sleep Timer
HDMI CEC Device Control
Speakers
Headphone Level
Wireless Information
My TV Library
Recording Information
Standard
Wide
TV Speakers
30 c
When the Network Type is Wireless, a Wireless
Information window will appear.
NOTE: Press the RED button to scan for all APs.
Item
Status
Signal
Description
Connected is displayed when the TV is connected with the AP.
Disconnected is displayed when the
TV is not connected with the AP.
Connection signal strength with AP
(STRONG/MEDIUM/WEAK)
Speed
Mode
Channel
Network
Name
Link with AP
Working mode (11a, 11b, 11g, 11n)
Used channel
SSID set
Authentication Authentication set
Encryption Encryption set
Security Key Security Key set
AP MAC
Address
The AP’s MAC address is displayed when the TV is connected with the AP.
TV MAC
Address
DHCP
The MAC address of the TV(Wireless) is displayed.
Enabled is displayed when using
DHCP.
Disabled is displayed when not using
DHCP.
IP Address The TV’s IP address
Subnet Mask Value of the Subnet Mask
Address of the Default GATEWAY Default
Gateway
DNS Address of the DNS
NOTE: Even if an AP for IEEE 802.11n is used when
Encryption is set to WEP or TKIP, the Speed value might be low. It is recommended that Encryption be changed to
AES (see “Manual Setup” on page 40).
Notes on wireless LAN environment
• The function of all IEEE802.11 is not supported.
• The ad-hoc mode is not supported.
• It is recommended to use IEEE 802.11a or IEEE
802.11n on 5 GHz for audio and SD video streaming.
• It is recommended to use IEEE 802.11n on 5 GHz for
HD video streaming.
• It is recommended that the encoding rate for streaming video content is 20 Mbps or less.
• It is not recommended to use 2.4 GHz for audio and video streaming.
• Content playback may be interrupted by various surrounding interference.
41
CONTROLS AND FEATURES
Advanced Network Setup
NOTE:
• When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off.
(This should usually be set to On.)
• When the DHCP function of the router is Off, set Auto
Setup to Off, and set the IP Address manually.
IP Address Setup
Auto Setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Advanced Network Setup and press OK.
< Network Setup
Connection Type
Wireless Setup
Advanced Network Setup
Network Connection Test
Wireless c
Press B / b to select IP Address Setup and press OK.
< Advanced Network Setup
IP Address Setup
DNS Setup
MAC Address d
Highlight Auto Setup and press c and B / b to select On.
IP Address Setup
Auto Setup
IP Address
Subnet Mask
Default Gateway
On On
. . .
Off
. . .
. . .
Done
NOTE: Other items will be greyed out when Auto Setup is set to On.
Manual Setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Advanced Network Setup and press OK.
c
Press B / b to select IP Address Setup and press OK.
d
Highlight Auto Setup and press c and B / b to select Off.
IP Address Setup
Auto Setup
IP Address
Subnet Mask
Default Gateway
Done
Off xxx
.
.
xxx
.
.
xxx
.
.
.
xxx
.
xxx
.
xxx
On
Off e
Press B / b to select IP Address.
f
Press C / c to highlight the field you want to change, and then use the number buttons to input the IP address. To save the setting, press Done.
NOTE: IP address field numbers must be between
0 and 255. After each field number has been set, press OK on the Done button to store the entire address. If the entire IP Address is invalid, a warning message will appear after OK is pressed on the Done button.
g
Press B / b to select Subnet Mask, and edit in the same way as IP Address.
IP Address Setup
Auto Setup
IP Address
Subnet Mask
Default Gateway xxx xxx xxx
.
.
.
Off
.
.
xxx
.
.
xxx
.
.
xxx
Done h
Press B / b to select Default Gateway, and edit in the same way as IP Address.
NOTE: If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.
42
CONTROLS AND FEATURES
DNS Setup
NOTE: When the DHCP function of the router connected to this TV is Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.
Auto setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Advanced Network Setup and press OK.
c
Press B / b to select DNS Setup and press OK.
d
Press B / b to highlight Auto Setup and press c and B / b to select On.
NOTE: Other items will be greyed out when Auto Setup is set to On.
Manual setup
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Advanced Network Setup and press OK.
c
Press B / b to select DNS Setup and press OK.
d
Press B / b to select Auto Setup and press c and B / b to select Off.
DNS Setup
Auto Setup
Primary DNS Address
Secondary DNS Address
Off xxx
.
.
.
xxx xxx
.
.
.
xxx
On
Off
MAC Address
You can view the fixed MAC address for the TV (Wired and Wireless).
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Advanced Network Setup and press OK.
c
Press B / b to select MAC Address and press
OK.
Network Connection Test
This function checks the Internet connectivity.
a
In the Network menu, press B / b to select
Network Setup and press OK.
b
Press B / b to select Network Connection Test and press OK.
A message will appear to indicate if the connection was successful or if it could not be completed.
NOTE: The result of Network Connection Test does not always guarantee the connection.
To cancel the Network Connection Test:
a
Press EXIT while testing.
e
Press B / b to select Primary DNS Address.
f
Press C / c to highlight the field you want to change, and then use the number buttons to input the Primary DNS Address. To save the setting, press OK.
NOTE: DNS address field numbers must be between 0 and 255. If you input an incompatible number and press OK, the field number will reset to the maximum value(255).
g
Press B / b to select Secondary DNS Address, and edit in the same way as Primary DNS Address.
43
CONTROLS AND FEATURES
Using the software keyboard
You can enter text by using the Software Keyboard. The
Software Keyboard window will appear when you press
OK on a field that accepts character input.
To enter text using the software keyboard:
a
Highlight the desired character on the on-screen software keyboard.
b
Press OK.
c
Repeat steps 1 and 2 until you have entered all desired text.
d
Press the GREEN button to save your settings and return to the previous screen.
NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.
Network Device Setup
Apps Control Profile
Toshiba Apps allow you to control the TV from a network connected tablet or smartphone (availability is dependent on country).
In order to use this function, the Setting up the Network
(see page 39) and Device Name Setup (see page 46) are
required. The Device Name will display on the screen of
Apps (tablet or smartphone) application.
New Device Detection
a
In the Network menu, press B / b to select
Network Device Setup and press OK.
b
Press B / b to select External Control Setup and press OK.
< Network Device Setup
External Control Setup
Media Renderer
Device Name Setup
Intel® WiDi / wireless display Setup
Off
History q a w s z
?&# x e d c f r v t g b y h u j n m i k
, o l
.
p
’
@
-
_
;
Clear All Open Done
1
@./
4 ghi
7 pqrs
2 abc
5 jkl
8 tuv
0
3 def
6 mno
9 wxyz
Input operation on the remote control:
Button
OK
0-9
BbC c
RED
GREEN
YELLOW
BACK
Clear All
History
Description
Inputs the selected character.
Selects a character for entry.
Moves the character highlight.
Deletes 1 character to the left of the cursor.
Functions as “Done”.
Functions as “Shift” key.
Closes the Software Keyboard window without saving changes.
Delete all character which inputted in the Text entry field.
Show history of Cloud.
c
Press B / b to select Apps Control Profile and press OK.
d
Press B / b to select New Device Detection and press c and B / b to select Enabled.
< Apps Control Profile
Device Registration Setup
New Device Detection Disabled
Enabled
Disabled
Pairing
To use Apps, it is necessary to connect a compatible tablet or smartphone and this TV to your home network, and carry out pairing (using a 4 or 8 digit password to authenticate the device).
Refer to the Apps manual for more details about pairing.
NOTE:
• Pairing with external devices cannot be carried out when the TV is connected to an unencrypted wireless LAN access point. Activate the encryption settings for the wireless LAN access point before carrying out Pairing.
• When the Enable Control is not set to ON in External
Control Setup, Apps functions including Pairing cannot be used.
44
CONTROLS AND FEATURES
Device Registration Setup
Once a User Name has completed authentication, it is stored in the TV along with the password. The upper limit for the number of Use Names that can be remembered is
20. You can delete User Names that are stored in the TV.
a
In the Network menu, press B / b to select
Network Device Setup and press OK.
b
Press B / b to select External Control Setup and press OK.
c
Press B / b to select Apps Control Profile and press OK.
d
Press B / b to select Device Registration Setup and press OK.
The Device Registration Setup screen will appear and the list of Companion Device ID managed by the TV will be displayed.
e
Press B / b to highlight the Companion Device
ID.
f
Press B / b to select the Cancel, All, or Delete buttons and press OK.
NOTE: When re-registering a device which has been deleted from the list, registration must be carried out again.
External Record Control
This feature allows user to power on TV from external device, and they can set a timer (Recording or Reminder) from the outside of the room.
a
In the Options menu, press C / c to select Power
Management and press OK.
b
Press B / b to select External Record Control and press c and B / b to select On or Off.
NOTE: Greyed out and set to On when Location is set to
Store.
Companion Device Control
When the TV is connected to the home network via
Wireless LAN, with the Companion Device Control in
Enabled, your TV can be turned on by control from Apps. a
In the Options menu, press B / b to select Power
Management and press OK.
b
Press B / b to select Companion Device
Control and press c and B / b to select On.
NOTE:
• Depending on the device connected to the home network, it may take a while for the TV to turn on.
• Depending on the device connected to the home network, this feature may not work.
• If the unencrypted Wireless Setup is done, this feature can not be used.
• The power consumption during Active Standby is more than it during Normal Standby.
• After the change from Power On state to Active Standby, there may be a period of several ten seconds which does not receive the operation from a remote control or external apparatus.
Media Renderer Setup
The TV can be configured as a media renderer.
When operating as a media renderer, the TV displays content provided by a media server.
The selection of the media is done by media controller.
The TV can play photo, movie, or audio files when operating as a media renderer.
a
In the Network menu, press B / b to select
Network Device Setup and press OK.
b
Press B / b to select Media Renderer and press c and B / b to select On.
If request comes from media controller, prompt will appear and the Media Renderer function will start.
To exit the Media Renderer:
Press EXIT.
45
CONTROLS AND FEATURES
Device Name Setup
The TV’s device name can be changed.
a
In the Network menu, press B / b to select
Network Device Setup and press OK.
b
Press B / b to select Device Name Setup and press OK.
The Device Name Setup screen will appear.
c
Press B / b to select Device Name and press
OK. The Software Keyboard window will appear.
d
Input the Device Name by using the software
keyboard (see page 44). To save your setting,
press the GREEN button.
NOTE:
• The Device Name can be up to 15 characters long.
• Only the 0-9, - and A-Z (uppercase only) characters may be used for the device name.
e
Press b to highlight Done and press OK to save your setting.
46
USB HDD Record Function
This function can be used to record and play digital broadcast programmes (function is dependant on country selection). Read the precautions below before recording or viewing programmes using the USB HDD record function.
NOTE:
• In order to use this function, a USB HDD needs to be connected to the TV. Do not use USB Hub.
• After recording operation, time may take to a recording start.
• Recorded programmes saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of
TV), a PC, or other device.
• You cannot watch other channel while recording one channel.
• If the recording time to the USB HDD is too short, no data may be saved.
• You cannot record video input signals on the USB HDD.
• Not all types of broadcast may be recordable.
• After programming the TV to record digital broadcasting, do not disconnect the power plug before recording starts.
• If there is a power failure or the power plug is disconnected after programmed recording, recording does not start unless the power returns and you press the 1 button to set On the TV.
• Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation would be paid.
• If there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected.
• Do not disconnect the power plug when the indicator
LED is lit.
• Any changes implemented by the broadcasting station may affect programme scheduling.
• Start delay may occur while the plural continuous programmed recording.
• Accurate start / finish time for recording is reliant on broadcasters maintaining correct time stamp if this not the case the recording will fail.
• Some broadcasters can control whether a programme can be recorded or how long you may be able to view it for after recording. The on screen message “Retention limit expired” means that the time limit for viewing the program has lapsed.
• Programmed recording cannot take place if the power plug is not connected.
• Disconnecting the power plug during recording may result in failure to save the recorded programme.
• USB HDD recording feature is not available in all countries.
CONTROLS AND FEATURES
• When the USB HDD is formatted, all the data stored on the HDD will be erased.
• Locked channel cannot record (One Touch Recording,
TimeShift), even if you watch the programme.
• Do not connect 2 or more USB HDD for recording at the same time.
Setting up the USB HDD for recording
To connect a USB HDD (not supplied):
USB1 or USB2 on the TV
USB cable
(not supplied)
USB HDD
When you connect a USB HDD to the USB port on the TV, a prompt will appear.
a
Press C / c to select No and press OK.
NOTE:
• Not guaranteed to work with all USB HDD.
• After connecting the USB HDD, select the connected
USB HDD from Select Device in Recording Setup.
To record DTV programmes
(One Touch Recording)
To record the programme currently being viewed.
a
Press the REC button on the remote control.
The currently viewed programme will start to be recorded.
To stop recording:
a
Press the v (stop) button.
A confirmation window “Do you want to stop
Recording?” will appear.
b
Press C / c to select Yes and press OK.
Recording will stop.
Auto Recording
The auto recording function automatically records, based on TV viewing history and other cloud service information
(function is dependant on country selection).
* Auto Recording provides no guarantee of recording. To ensure recording of a particular programme, you will need to set the recording from a listing of TV programmes.
Preparations for Auto Recording
To use Auto Recording, the following connections and settings are required.
• Connections for using the Internet (Page 54)
• Settings for using the Internet (Page 12)
• Set External Record Control to On (Page 45)
• Setting the USB HDD for recording (Page 47)
• Set Auto Recording to On
About Auto Recording
<Auto Recording Settings>
Press to display the cloud service screen, and make the settings in the cloud service screen.
About Recording
A maximum of 64 programmes can be scheduled for auto recording.
- When Auto Recording is set to On, the maximum number of timer for manual recording changes to 64 from 128.
- When the number of the timers for manual recording is set over 64, auto recording cannot be set On.
USB Hard Disk Recording Region
• For auto recording, a USB hard disk with a capacity of at least 160 GB, and not more than 2 TB can be used.
(For manual recording there is no lower limit on capacity.)
• Auto recordings is allocated a recording region of 40 % of the USB hard disk, separate from manual recordings.
- Note that the manual recording region together with the auto recording region occupies the entire capacity of the USB hard disk.
• You can record up to 2000 programmes by manual recording and auto recording combined.
Recording Schedule and Recorded
Programmes with Auto Recording Enabled
When Auto Recording is enabled, the scheduled auto recording items in My TV Timer List are shown with an
, and “Auto Rec” is added to the My TV Library tab.
47
CONTROLS AND FEATURES
About Automatic Deletion of Auto Recordings
• For auto recordings, when the auto recording region is full, auto recordings are automatically deleted from the oldest programme.
- Automatic deletion of auto recordings cannot be disabled.
• Auto recording schedule items and auto recordings can be changed to manual recording schedule items or manual recordings by the following operations.
- For auto recording schedule items, change to manual recording schedule with the Edit Timer.
- For auto recordings, Quick Menu in the My TV
Library, use Change to Manual Rec to change to manual recording.
Notes on Auto Recording
• If you switch off Auto Recording, or set External
Recording Control to Off, then all Auto Recording schedules are deleted.
- Auto recordings are not deleted.
• When Auto Recording is set to On, if you replace the hard disk, then Auto Recording may fail.
How to set recordings via the
Programme Guide
Programmed recording can be scheduled easily using the
Programme Guide or by specifying the date and time.
PLEASE NOTE
When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. Other channels will not be available during the timed programme unless the programme timer is cancelled.
It will only be possible to create or edit programme timers for the currently tuned DTV input.
Using the Programme Guide to set future recordings
a
Press GUIDE on the remote control to display the
Electronic Programme Guide (EPG).
b
Press BbC c to highlight the programme you want to record and press OK.
c
The Edit Timer screen will appear.
Press B / b to select Timer Type.
Edit Timer
Working Lunch
2 BBC TWO
12:30 - 13:00 Tue, 26 Apr
Timer Type
Set Timer
OK
10:50 Tue, 26 Apr
Recording
Delete Timer
Enter d
Press c and B / b to select Recording and press
OK.
e
Press B / b to highlight Set Timer and press OK.
48
CONTROLS AND FEATURES
To search for and record a programme using
Genre Search:
a
Press the YELLOW button on the remote control to access the Genre Search screen.
Genre Search
Movie
5:48 Tue, 22 Apr
34 AB1
31 PARIS PREMIERE
11 NT1
9 W9
34 AB1
11 NT1
31 PARIS PREMIERE
9 W9
11 NT1
31 PARIS PREMIERE
11 NT1
11 NT1
34 AB1
Hard Rain
Red Corner
The Lawnmower Man
A Vow to Kill
Parenthood
Body and Soul
The Nun’s Story
Red Corner
Wed,27 Apr 0:15-1:45
Wed,27 Apr 22:15-23:55
Thu,28 Apr 1:20-3:00
Fri,29 Apr
Sat,30 Apr
Sat,30 Apr
Sat,30 Apr
Sat,30 Apr
1:30-3:00
0:45-2:40
1:15-3:00
15:00-17:30
23:20-1:15
The Real Blonde
Critters
Indiana Jones and the Temple of Doom Sun,1 May
The jackal Sun,1 May
Coup De Ville
Sun,1 May
Sun,1 May
0:40-2:00
0:40-2:20
21:10-23:20
23:20-1:15
Mon,2 May 1:10-3:00 b
Press C / c to select the genre. Programmes listed will change for the new genre. Press B / b to select the programme for which you want to schedule recording.
c
Press OK. The Edit Timer screen will appear.
Press B / b to select Timer Type.
Edit Timer
Working Lunch
2 BBC TWO
12:30 - 13:00 Tue, 26 Apr
Timer Type
10:50 Tue, 26 Apr
Recording
Set Timer
OK
Delete Timer
Enter d
Press c and B / b to select Recording and press
OK.
e
Press B / b to highlight Set Timer and press OK.
To programme the timer:
a
Press the BLUE button on the remote control.
b
Select the unprogrammed column (blank column) and press OK.
The Edit Timer screen will appear.
Press B / b to select Timer Type.
Edit Timer
Timer Type
Channel
Date
Start Time
End Time
Repeat
3:51 Tue, 22 Apr
Reminder
1 ABC HDTV
Tue, 22 Apr 2008
03:50
04:50
Once
Set Timer Delete Timer c
Press c and B / b to select Recording and press
OK.
d
Press B / b to go through the list adding the details of the programme by using the number buttons and C / c to make selections.
• Channel
Select the channel you wish to record.
• Date
Select the date that you wish recording to start.
• Start Time
Select the time to start recording.
• End Time
Select the time to end recording.
• Repeat
Select “Once”, “Daily” or “Weekly”.
Once
Daily
The selected content is recorded once.
The same time slot on the same channel is recorded every day on and after the selected day.
Weekly The same time slot on the same channel on the same day of the week is recorded on and after the selected day.
e
Press B / b to highlight Set Timer and press OK.
49
CONTROLS AND FEATURES
To schedule a programme using the information screen:
a
Press , the information screen will appear giving details of the channel and programme currently being viewed.
4 CHANNEL Z
English
6:00 Thu, 11 Oct
Now MLB Young’s two-run triple leads AL over NL 6:00- 8:00
HD 16:9
Next
Also
AD 18
World News and Sports
News
MLB Young’s two-run triple leads AL over NL
Change
15 min left
8:00- 9:00 b
Press B / b to select Next and press OK. The Edit
Timer menu will appear.
Press B / b to select Timer Type.
10:50 Tue, 26 Apr Edit Timer
Working Lunch
2 BBC TWO
12:30 - 13:00 Tue, 26 Apr
Timer Type Recording
Set Timer
OK
Delete Timer
Enter c
Press c and B / b to select Recording and press
OK.
d
Press B / b to highlight Set Timer and press OK.
To check, edit or delete scheduling information
You can check, edit or delete scheduling information.
a
Press GUIDE and then press the BLUE button. My
TV Timer List screen will appear.
My TV Timer List
• Depending on the transmitter information, the programme broadcast time or other information may not be correctly displayed in the recording list.
• The recording programme does not appear in the My TV Timer list.
• Up to 128 programmes can be displayed in the recording list.
• If the channel settings are changed, the digital channel number, or other information may not appear correctly in the recording list.
• As the displayed programme time is calculated from the actual recording information, it may not match the recording time on the USB HDD.
To check a schedule:
a
Press B / b on the My TV Timer List screen to check the schedule.
To edit a schedule:
a
Press B / b on the My TV Timer List screen to select the title whose schedule you want to edit and press OK.
The Edit Timer screen will appear. Change the settings as required, following the same procedure as for setting the schedule.
b
Press B / b to highlight Set Timer and press OK.
To delete a schedule:
a
Press B / b on the My TV Timer List screen to select the title whose schedule you want to delete.
b
Press the RED button.
Press C / c in the displayed confirmation window to select Yes and press OK. The selected schedule will be deleted.
NOTE: You can also delete a schedule by selecting
Delete Timer from the Edit Timer menu for each programming method.
50
CONTROLS AND FEATURES
To view a recorded programme
To view the recorded My TV Library screen and select a title from the recorded programme list.
a
Press and highlight My TV Library icon or select My TV Library from Quick Menu and press
OK. The My TV Library screen will appear.
My TV Library / All
All
Sort : New
WWWWWW
WWWWWWWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
14:15 Wed, 16 Feb
3 / 5
Wed, 16 Feb 10:00
Wed, 16 Feb 10:00
Thu, 17 Feb 10:00
Thu, 17 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Sat, 19 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Mon, 21 Feb 10:00
1235 ITV London
ASTRA 19.2°E
10 July 2011 14:30(01:30)
USB HDD3
Remaining Capacity:
86% (912.0GB) b
Press B / b to select the title you want to view.
A preview of the content selected can be seen on the preview screen.
To change the order in which the titles are listed, press the BLUE button.
c
Press OK.
Viewing starts.
● icon appears next to the title currently being recorded.
When the title currently being recorded is selected and OK is pressed, playback will start from the beginning of the programme currently being recorded.
Operations during viewing
The following operations can be performed using the remote control buttons.
c v
W
To PLAY
To STOP
To PAUSE cc z
C c
To FAST
FORWARD
To SKIP-
FORWARD
To shift playback position
Z
CC
To SKIP-BACK
To REWIND
Operations from the My TV Library screen
As well as viewing the list of recorded titles on the My TV
Library screen, you can protect or delete titles and register titles to Personal Mode.
To display the My TV Library screen:
a
Press press OK. The My TV Library screen will appear.
My TV Library / All
All
Sort : New
WWWWWW
WWWWWWWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
3 / 5
Wed, 16 Feb 10:00
Wed, 16 Feb 10:00
Thu, 17 Feb 10:00
Thu, 17 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Sat, 19 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Mon, 21 Feb 10:00
14:15 Wed, 16 Feb
1235 ITV London
ASTRA 19.2°E
10 July 2011 14:30(01:30)
USB HDD3
Remaining Capacity:
86% (912.0GB)
To protect or unprotect a recorded programme:
Protecting a programme prevents it from being accidentally deleted.
Select the title of the programme you want to protect and press the GREEN button. icon appears next to the title and the programme is protected.
If Protect is set to On when the programme is recorded, icon appears next to the title of the recorded programme.
When a title with icon is selected and the GREEN button is pressed, icon disappears and the programme is unprotected.
To group the recorded programmes
a
Press the YELLOW button. A grouping mode window will appear.
Week: Grouping the recorded programme by the day (Sunday - Saturday)
Genre: Grouping the recorded programme by the genre.
To change the title of recorded programme
a
Press QUICK when the My TV Library screen is displayed.
b
Press B / b to select Title Edit and press OK.
The Software Keyboard window will appear.
51
CONTROLS AND FEATURES c
Input your desired title by using the software
keyboard (see page 44). Press the GREEN button
to save your settings.
To delete a recorded programme:
a
Press the RED button. Check boxes will appear next to the titles.
b
Press B / b to select the title you want to delete and press OK. A check mark will be inserted in the check box.
My TV Library / All
All
Sort : New
WWWWWW Wed, 16 Feb 10:00
WWWWWWWWWWWW Wed, 16 Feb 10:00
WWWWWWW Thu, 17 Feb 10:00
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
WWWWWWW
Thu, 17 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Sat, 19 Feb 10:00
To insert a check mark against all the titles, press the YELLOW button.
To uncheck all the check boxes, press the BLUE button.
NOTE:
• A check mark will not be inserted against protected titles.
• Note that once deleted, a title cannot be restored.
c
Press the RED button.
Select Yes in the confirmation window and press
OK.
All the titles with check marks will be deleted.
USB HDD capacity
You can check the remaining capacity of the USB HDD using Remaining Capacity.
Thu, 17 Feb 10:00
Thu, 17 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Fri, 18 Feb 10:00
Sat, 19 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Sun, 20 Feb 10:00
Mon, 21 Feb 10:00
1235 ITV London
ASTRA 19.2°E
10 July 2011 14:30(01:30)
USB HDD3
Remaining Capacity:
86% (912.0GB)
NOTE: The remaining capacity displayed is only a guide; it is not guaranteed.
Recording Setup
You can set your preferences for recording.
To select USB HDD and Partition for
Recording:
a
Press / b to highlight Options icon.
b
Press c and B / b to select Recording Setup and press OK.
c
Press B / b to select Select Device and press
OK. USB HDD and Partition list will be appear.
If USB HDD is partitioned by PC, several partitions will be displayed.
< Recording Setup
Select Device
One Touch Recording Time
TimeShift Size
Start Padding Time
End Padding Time
Device Test
Format Device
120 Minutes
4GB
None
None d
Select USB HDD and Partition you want to recording.
To set the recording time for One Touch
Recording:
a
Press / b to highlight Options icon.
b
Press c and B / b to select Recording Setup and press OK.
c
Press B / b to select One Touch Recording
Time and press recording time.
c and B / b to select the
< Recording Setup
Select Device
One Touch Recording Time
TimeShift Size
Start Padding Time
End Padding Time
Device Test
Format Device
120 Minutes
4GB
None
None
Programme End Time
30 Minutes
60 Minutes
90 Minutes
120 Minutes
150 Minutes
180 Minutes
210 Minutes
240 Minutes
270 Minutes
300 Minutes
330 Minutes
For the recording time, you can select the
Programme End Time, or you can set the time in
30 minute increments in the range of 30 minutes to
360 minutes.
52
CONTROLS AND FEATURES
To select the TimeShift Size:
a
In the Recording Setup screen, press B / b to select TimeShift Size.
b
Press c and B / b to select 512 MB, 1 GB, 2 GB or 4 GB and press OK.
To use TimeShift recording:
Time Shift recording allows you to pause live TV for a fixed period of time.
For Example: If you move away from the TV for a short period, such as when the phone rings while you are watching TV, you can easily pause live TV and then continue to view from the same point in the programme when you return.
a
Press W on the remote control while viewing the
DTV programme.
The screen will switch to a still image and recording will start automatically.
The recording time is decided by TimeShift Size.
If the TimeShift file size reaches the limit set, then the TV will continue to be paused, but the oldest recorded data will be disappeared up to a maximum of the TimeShift Size.
b
Press c (play).
Catch-up viewing will start from where the programme was paused.
c
Press v (stop) to stop the recording.
To set the padding time for programmed recording start time and end time:
a
In the Recording Setup screen, press B / b to select Start Padding Time.
b
Press B / b to select a time.
You can select from None, 3 Minutes, 5 Minutes,
10 Minutes, 15 Minutes, 30 Minutes, and 45
Minutes.
Recording will start at the selected number of minutes prior to the recording start time.
c
Press B / b to select End Padding Time.
d
Press B / b to select a time.
You can select from None, 3 Minutes, 5 Minutes,
10 Minutes, 15 Minutes, 30 Minutes, and 45
Minutes.
Recording will end at the recording end time plus the selected number of minutes.
To perform a USB HDD operation test:
a
In the Recording Setup screen, press B / b to select Device Test and press OK.
USB HDD operation test will start.
Wait until the test ends.
NOTE: The results of the device test are only a guide. The device may not function as shown in the results.
To format a USB HDD:
a
In the Recording Setup screen, press B / b to select Format Device and press OK.
b
Press C / c to select Yes in the confirmation window that will appear and press OK. Formatting will start.
Wait until formatting ends.
NOTE:
• If the USB HDD is separated several partitions by PC and multiple Partition appear on the Device List screen, press B / b to select the Partition you want to format.
• When the USB HDD (or Partition) is formatted, all the data stored on the USB HDD (or Partition) will be deleted.
Scheduling priority
If scheduled time slots are next to each other and there is more than one minute between the end time of the first schedule and the start time of the next schedule, programmed recording will be performed correctly.
• When Start Padding Time and End Padding Time are
set (see page 53), the start time and end time will be the
time plus the additional minutes.
If scheduling times overlap, priority will be given to the programmed recording which starts first. When the programmed recording that started first ends, recording will switch to the next scheduled programme. At this time, depending on how far the scheduling times overlap, the beginning section of the next scheduled programme may not be recorded.
53
CONTROLS AND FEATURES
Using the Smart TV Cloud services
Toshiba’s universal portal for internet content and services (services are dependent on country), offering you a multitude of smart features. For detailed information on how to access and use those features, please refer to our website http://www.toshiba.eu/smarttv
NOTE:
• You need to configure a home network before using this
• This service may not be available or the contents may change depending on the service side.
a
Press .
The menu screen of the Smart TV Cloud services will appear.
b
Press BbC c to select a Smart TV Cloud services, and press OK.
For the operations of the Smart TV Cloud services, refer to Cloud Guide.
Using Web Browser
The web browser on this TV lets you explore everything the web has to offer. Along with access to popular places, you’ll be able to search for and browse your favourite sites.
NOTE:
• Certain services may not be currently available in your area.
• Your registration or login may be required to use some services.
• Third party internet services are not provided by
Toshiba, may change or be discontinued at any time and may be subject to Internet service provider restrictions.
Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party Internet services may require the creation of a separate account through a computer with Internet access and/or payment of one-time and/or recurring charges and membership.
Not all third party services may be available on or compatible with this product. In order to experience the full suggested capabilities of this product, fullycompatible devices may be required.
- does not support platform-dependent technologies such as Active X.
- only supports preinstalled plug-ins.
- may not support media formats other than the following: JPEG/PNG/GIF.
- uses a single built-in font. Some text may not be displayed as intended.
- does not support downloading of files or fonts.
54
- is a TV browser. It may work differently than PC browsers.
- does not support parental control or locks in the content, and it is the responsibility of the you to monitor browser usage by minors.
• Some pages may not be displayed correctly or may display differently on different devices.
• Certain services may not be available in your area.
To use the web browser
NOTE: You can change the mouse mode (Mouse
Emulation or Navigation) by pressing the GREEN button on the remote control when the web contents screen is open.
a
Press on the remote control and select
Internet icon to open the web browser.
b
Press BbC c to select the URL address bar and press OK.
c
Enter the desired URL address by using the
Press the GREEN button on the remote control.
d
You can now browse websites on your TV using
BbC c buttons on the remote control.
To Add Favourites Websites
By adding frequently visited websites to Favourites, you can browse them easily. You can view the addresses of the websites you visited previously.
a
Press on the remote control and select
Internet icon to open the web browser.
b
Enter the desired URL address by using the
c
Press BbC c to scroll Favourites STAR on the
Toolbar and press OK.
d
Press OK to save the desired website to your
Favourites.
You can press the GREEN button on the remote for thumbnail view of all your Favourites.
e
Press BACK on the remote to return to browsing your website.
NOTE: The desired website is highlighted and displayed on the top row with the + icon. The + icon will change to a page icon after the website has been saved to Favourites.
CONTROLS AND FEATURES
To browse favourite websites
a
Press on the remote control and select
Internet icon to open the web browser.
b
Use BbC c to select Favourites STAR and press
OK.
c
Select the item or folders to move to the desired
URL address and press OK.
d
You can now browse websites on your TV using
BbC c on the remote control.
PIP (Picture-in-picture) function
When viewing the web browser page, currently airing programmes or images from external inputs can be displayed in a PIP window (sub-screen).
a
Press the RED button while viewing the web browser page.
The currently airing programme or images from external inputs are displayed in a PIP window.
NOTE:
• The position of the PIP window, and whether it is displayed or not can be changed by pressing the RED button.
• P U and P u buttons cannot be used when the PIP window is displayed.
To stop displaying the PIP window:
After the PIP window is displayed on the upper right, if you press the RED button, the PIP window will disappear.
Using Hybrid TV Standard
(if available)
Hybrid TV Standard enables the TV to receive
HbbTV services. TV services which support this feature often show “press RED” on the screen.
NOTE:
• You need to configure a home network before using this
• For selected countries, factory default setting HbbTV is enabled. Once you establish a network connection TV broadcasters may monitor your TV user behaviour.
Please disable HbbTV if you do not agree with this option.
a
Press / b to highlight Options icon.
b
Press c and B / b to select Hybrid TV Standard.
c
Press c and B / b to change from Disabled to
Enabled and press OK.
When “press RED” is indicated on the screen, press the RED button to access HbbTV service site, and then press BbC c to select the desired contents.
NOTE:
• The HbbTV service indication or required key operations may not be possible depending on the service contents.
In this case set the Hybrid TV Standard setting to
Disabled.
• Once Hybrid TV Standard is enabled TV stations may receive information about your particular user behaviour. For further details please refer to the HbbTV conditions of use displayed on the station you are watching.
• Toshiba makes no warranties, representations, or assurances about the content.
55
CONTROLS AND FEATURES
Using Intel
®
WiDi / wireless display
Intel
®
WiDi / wireless display is supported on this TV. You can use your TV as second display for PC with Intel
®
WiDi or other device.
a
Press QUICK to open the Quick Menu. b
Press B / b to select Intel
®
WiDi / wireless
display and press OK.
A prompt will appear on the screen. Select Yes.
c
Operate your PC or other device to display the screen on the TV.
d
Connecting your PC or other device to your TV the first time
When selecting the Toshiba TV for the first time, a
8-digit code will appear on your TV screen. This code needs to be inputted into your computer to authenticate the connection.
If authentication has already taken place
“Connected to Intel
®
WiDi. Please Wait” will appear on screen.
Some devices can connect to your TV without the initial 8-digit code input.
Some devices connect without 8-digit code for the first time.
e
After the Intel ® WiDi / wireless display connection is complete, the TV screen will mirror the content shown on the device screen.
NOTE:
• When connecting Intel
• When the Intel
®
WiDi / wireless display is active, and the
Connection Type is set to Wireless, other applications may not be usable.
®
WiDi / wireless display, PC or other device must have power turned on.
• Intel
® WiDi / wireless display device name of the TV can be changed from the Intel ® WiDi software.
To exit Intel
® WiDi / wireless display:
Exit Intel ® WiDi / wireless display by disconnecting from the connected device or by pressing EXIT on the TV remote control.
NOTE: If the PC or other device has been inactive for some time, the Intel
® WiDi / wireless display connection will be disconnected automatically.
Intel
®
WiDi / wireless display Device
Name
The TV’s Intel ® WiDi / wireless display device name can be changed.
a
In the Network menu, press B / b to select
Network Device Setup and press OK.
b
Press B / b to select Intel
®
WiDi / wireless
display Setup and press OK.
c
Press B / b to select Intel ® WiDi / wireless
display Device Name and press OK.
d
Select Device Name and press OK.
The Software Keyboard window will appear.
e
Input the Intel ® WiDi / wireless display device name by using the software keyboard (see page
44). Press the GREEN button.
56
CONTROLS AND FEATURES
Device List
Device List displays a list of MAC addresses for previously connected device that have been connected before. The maximum number that can be stored is 20.
If the list runs out of space, the least-recently-used MAC address will be deleted and the new MAC address added automatically.
a
In the Intel ® WiDi / wireless display Setup screen, highlight the Device List and press OK.
Device List will appear.
The registered MAC Address can be deleted one by one by pressing RED key in the List.
When doing so a prompt will appear on the screen. Select
Yes.
Using My Contents
This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port.
Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network.
NOTE:
• Do not insert/remove USB device while in use.
• MENU is not available during playback.
• When you want to use your TV as a media renderer, set
Media Renderer to On (see “Media Renderer Setup” on page 45).
My Contents Specifications
Device
USB device
Interface version: USB2.0 HS
USB Mass Storage Class devices (MSC)
NOTE:
•Connectivity is not guaranteed for all devices.
•Incorrect behaviour may occur with a USB hub connection.
File system: FAT16 and FAT32
Maximum memory size: Depend on file system
You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.
57
CONTROLS AND FEATURES
Basic operation
Using My Contents with USB
When Auto Start is enabled, you will be asked if you want to start the My Contents whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a media server on the network), you must manually start the My Contents from the menu.
To change the Auto Start setting:
a
Press / b to highlight Options icon.
b
Press c and B / b to select My Contents Setup and press OK.
c
Press B / b to select USB Auto Start and press
OK.
d
Press B / b to select On or Off.
To set the List Mode
a
In the My Contents Setup menu, press B / b to select List Mode and press OK.
b
Press B / b to select Videos, Music or Photos.
c
Press B / b to select Preview Mode or Icon
Mode and press OK.
In Icon Mode where response is faster, previews, thumbnails, and some information (total time, etc.) are not shown.
In Preview Mode also, depending on the server or the content, there may be no thumbnails for
Photos.
Auto Start
a
Insert a USB device into the USB port. A prompt will appear.
b
Press C / c to select Yes and press OK.
c
Press B / b to select Videos, Music or Photos and press OK.
NOTE: If Auto Start is set to Off, you can start the My
Contents manually.
Manual Start
a
Insert a USB device into the USB port.
b
Press
My Music icon and press OK.
Files are displayed in the List View according to the category (Videos, Music or Photos) and device you last selected.
To select a file in the list of contents:
a
Press BbC c to select a file or folder.
b
Press OK to move to the next layer, or press
BACK to return to the previous layer.
When you select a file, press OK to play or view.
To move to the tab selection:
a
Press the BLUE button.
To close the My Contents:
a
Press EXIT and select Yes and press OK on the popup window.
Using the My Contents with a media server
You need to configure a home network before
using this feature (see page 12).
a
Press
My Music icon and press OK.
b
Press BbC c to select Devices icon and press
OK.
c
Press B / b to select a device and press OK.
Videos Music
Devices: CTV-5
Video
Music
Photos
User Files
List of Contents
Photos
Sort: Title
Total time/Date
23:59, Wed, 31 Dec 1969
23:59, Wed, 31 Dec 1969
23:59, Wed, 31 Dec 1969
23:59, Wed, 31 Dec 1969
Search
Videos, Music and Photos files and folders are displayed in the list of contents.
58
CONTROLS AND FEATURES
To select a file in the list of contents:
a
Press BbC c to select a file or folder.
b
Press OK to move to the next layer, or press
BACK to return to the previous layer.
When you select a file, press OK to play or view.
To sort files (if available):
You can sort files by file name (title) or date accordingly.
a
Press BbC c to highlight Sort and press OK.
b
Press B / b to select File Name (Title), New or
Old and press OK.
To Search for content (if available):
a
Press BbC c to highlight Search and press OK.
b
Select the text box and press OK, the Software
Keyboard window will appear (page 44). Input
keyword by using the Software Keyboard and the search will search for:
Network
Videos: Title name
Music: Title name/Artist name/ Album name
Photos: Title name
USB
Videos/Music/Photos: File name.
c
Select Devices and Category and press OK.
The list of search result will appear.
To display the Device Information or Wireless
Information:
a
Press QUICK to open the QUICK Menu.
b
Press B / b to select any of the following item.
Using with Network device: Device Information
Using with Wireless: Wireless Information
To close the My Contents:
a
Press EXIT and select Yes and press OK on the popup window.
Viewing photo files (on a media server or USB device)
There are two types of viewing modes.
Photos List (USB and Network Player Photo)
This view allows you to search for photos in a grid format.
The pictures are displayed using thumbnail data in each image file depending on the setting of the List Mode and the server.
Search Videos Music
Devices: /usb/sda1
/DCIM
Photos
Sort: File Name
01:00, Fri, 28 Dec 1984
The initial highlighted position will be on the top left thumbnail in the Photos List.
a
Press BbC c to move the highlight in one window.
or buttons can be used to page up/down the
Photos List when there are more photos than will fit onto one screen. When the or buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next Photos List.
NOTE: The page down function on the last page and page up function on the first page are not available.
b
When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
c
Press OK to view the selected photo in Single
View mode.
59
CONTROLS AND FEATURES
Single View (USB and Network Player Photo)
In this mode, only files located in the selected directory will be displayed. This view allows you to change the photo content manually. When moving from Photos List to Single
View, the currently selected photo will be displayed.
a
Press c to view the next photo. Press C to view the previous photo.
b
Press to display file status information (file number, photo title, resolution etc.).
NOTE: The information may not be correctly displayed depending on the contents or the devices.
Slide Show (USB and Network Player Photo)
This view allows you to watch a slide show of your photos.
In this mode, only files located in the selected directory will be played. a
To start Slide Show, press OK in the Single View mode.
b
Press C / c to view the previous/next photo.
c
Press to display file status information.
Press OK to return to Single View.
To set Interval Time and Repeat settings:
a
Press QUICK to open the Quick Menu.
b
Press B / b to select either Interval Time or
Repeat.
c
Press c and B / b to adjust the setting and press
OK.
To rotate the image:
While viewing the image in Single View or Slide Show mode, the image can be rotated 90°.
B button: Clockwise rotation b button: Counterclockwise rotation
To set Background Music (USB only):
a
Press QUICK to open the Quick Menu.
b
Press B / b to select Background Music and press c and B / b to select On.
The music file in the same folder as the displayed photo will start playing.
NOTE:
• All the music files in the same folder as the photo will be played repeatedly.
• To stop music file playback, select Off in Background
Music.
To zoom in/out photos (USB and Network
Player Photo):
During the Single View mode or Slide Show mode, the zoom function can be used.
RED button (Zoom in) x1 S x2 S x4 S x8 zoom in
GREEN button (Zoom out) x8 S x4 S x2 S x1 zoom out
BbC c buttons: Vertical or Horizontal scrolling
NOTE: Using the zoom function while in the Slide Show mode will stop the slideshow and zoom in/out the photo.
To select a photo from Play List (USB and
Network Player Photo):
While in the Single View mode or Slide Show mode, you can select a different photo from the Play List.
a
Press QUICK to open the Quick Menu from
Single View mode or Slide Show mode.
b
Press B / b to select Play List and press OK.
The Photos List will appear.
c
Press B / b to select a file name.
To close the Photo Viewer:
a
Press EXIT and select Yes and press OK on the popup window. The television will return to the last viewed channel or external input.
File Compatibility
60
CONTROLS AND FEATURES
Viewing movie files (on a media server or USB device)
You can select movies from a Videos List of available files.
Videos List (USB and Network Player Movie)
Videos Music Photos
Devices: /usb/sdb Sort: File Name
/12334567891123456789212345678931...
VTS_01_1.mpg
/usb/sdb
Total time/Date
16:40, Wed, 09 Jan 2013
00:00:33 00:01:59
VTS_01_1.mpg
16:40, Wed, 09 Jan 2013 a
Press BbC c to select a file or folder. or buttons can be used to page up/down the Videos
List when there are more files than will fit onto one screen.
NOTE: The page down function on the last page and page up function on the first page are not available.
b
When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
c
With the desired file selected, press OK or c
(play) to start playback.
NOTE:
• On preview screen, if you highlight the file without pressing OK, the content is played on a preview screen. When OK is pressed, it is played in full screen mode. Preview is displayed only on the Preview Mode.
• Depending on the file size, it may take some time to start playback.
d
Press v to stop playback.
NOTE:
• If playback finishes before return to the Videos List.
v is pressed, the screen will
During playback:
• Press W to pause.
PAUSE may not be available depending on the contents or media server.
• To resume normal playback, press c (play).
• To play in fast reverse or fast forward directions, press
CC / cc during playback. Each time you press the CC / cc , the playback speed will change.
• Press Z to playback from the beginning of currently selected file. Press z to locate subsequent files.
Fast reverse and fast forward may not be available depending on the contents or media server.
• Press to display the file status information (content number, movie title, progress time etc.).
NOTE:
• The information may not be correctly displayed depending on the contents or the devices.
• During playback, you can adjust the Picture and
Sound menu functions from the Quick Menu.
• The playback speed ( CC depending on the stream.
/ cc ) may not change
To select subtitle and audio languages (USB only):
• Press SUBTITLE repeatedly to select your preferred subtitle language.
• Press s language.
repeatedly to select your preferred audio
NOTE: This feature is not available depending on the contents.
To set the repeat mode:
a
Press QUICK to open the Quick Menu. b
Press B / b to select Repeat and press c and
B / b to select Off, All or 1.
Off
All
Mode
1
Description
The file is played back only once.
Files in the same folder are repeatedly played back.
The same file is repeatedly played back.
c
Press BACK.
NOTE:
• The setting is effective until the TV is turned off.
• This setting is ignored in the network media renderer.
61
CONTROLS AND FEATURES
Resume Play
You can resume playback from where it was last stopped.
Press v position.
while playing the movie to memorize the stopped
NOTE:
• The memorized stopped position will be deleted in any of the following cases.
- Play different content
- Exit My Contents
- Press v in the Videos List
• This function may not be available depending on the content or the device.
To select a movie from Play List (USB and
Network Player Movie):
While playing a movie, you can select a different movie from the Play List.
a
Press QUICK to open the Quick Menu.
b
Press B / b to select Play List and press OK.
The Movie List will appear.
c
Press B / b to select a file name.
To close the Movie Viewer:
a
Press EXIT and select Yes and press OK on the popup window.
File Compatibility
To register your TV to a DivX
®
account:
This TV allows you to play back files purchased or rented from DivX ® Video-On Demand (VOD) services. When you purchase or rent DivX ® VOD files on the internet, you will be asked to enter a registration code.
a
In the My Contents Setup menu, press B / b to select DivX ® VOD and press OK.
b
Press B / b to select DivX ® VOD Registration and press OK.
< DivX® VOD
DivX® VOD Registration
DivX® VOD Deregistration c
The DivX
®
VOD window will appear and you will see the registration code. For details on registration, please visit the DivX
®
website at
http://vod.divx.com d
Copy the activation file to a memory device and play it on the TV.
To deregistration your device:
a
In step 2 above, select DivX ® VOD
Deregistration, and then press OK.
b
A confirmation message will appear. Select Yes and press OK.
c
The DivX ® VOD window will appear and you will see the deregistration code. For details on registration, please visit the DivX ® website at
http://vod.divx.com
ABOUT DIVX VIDEO: DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation.
This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ® device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
DivX Certified ® to play DivX ® and DivX Plus ® HD (H.264/
MKV) video up to HD 1080p, including premium content.
This device supports DivX Plus Streaming™ for enjoying
HD movies and TV shows with advanced features (multilanguage subtitles, multiple audio tracks, chapters, smooth FF/RW, etc.) streamed to your device.
62
CONTROLS AND FEATURES
To playback DivX Plus HD content:
• To play in fast reverse or fast forward directions, press
CC / cc during playback. Each time you press the CC / cc , the playback speed will change.
• This TV generates original chapter point in 10 % increments for 10 chapters in total, that are accessible by using the number buttons on the remote control.
During playback, press next chapter. When z z to skip to the beginning of the
is pressed twice in succession, it will repeat two times of above. If z is pressed at the last chapter, the confirmation message will appear. If you select Yes, playback will skip to the beginning of the next content.
Press
When
Z
Z
to skip to the beginning of the current chapter.
is pressed twice in succession, it will skip to the beginning of the previous chapter. If Z is pressed twice in succession at the first chapter, stop playing the current content and the confirmation message will appear. If you select Yes, playback will skip to the beginning of the previous content.
Press
Press
B to skip to the beginning of the previous file.
b to skip to the beginning of the next file.
The Number button is used for direct jump. If the 3 button and OK button is pressed, playback will jump to the beginning of 3rd chapter.
NOTE:
• Depending on the content data will not be operated.
• The playback speed ( CC depending on the stream.
/ cc ) may not change
Using Multi Title and Alternative Timelines
Multi Title
DivX Plus HD files may contain up to 100 titles.
You can change the title (It contains same video file) by pressing the RED button.
When the RED button is pressed, it will display the title change window at the bottom on the screen (same as
Subtitle or Audio change window).
The title is changed cyclically each time the RED button is pressed. Playback will start from start time of selected title every B
Pressing
/ b
C /
.
c also changes the multi title.
NOTE: Depending on the content data will not be operated.
Playing music files (on a media server or USB device)
You can listen to music from a Music List of available files.
Music List (USB and Network Player Music)
Videos Music
Devices: /usb/sda1 xxxxxxxxxxx xxxxxxxxxxx xxxxxxxxxxx
Photos
Sort: File Name
Total time/Date
08:22, Web, 31 Oct 2012
13:00, Mon, 23 Jan 2012
14:24, Tue, 01 Mar 2011
Search a
Press BbC c to select a file or folder. or buttons can be used to page up/down the Music
List when there are more files than will fit onto one screen.
NOTE: The page down function on the last page and page up function on the first page are not available.
b
When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
c
With the desired file selected, press OK or c
(play) to start playback.
NOTE: If you highlight the file without pressing OK, the content is played on a Music List. When OK is pressed, it is played in full screen mode.
d
Press v to stop playback.
NOTE:
• Depending on the file size, it may take some time for playback to begin.
• During playback, you can adjust the Sound menu functions from the Quick Menu.
During playback
• Press W to pause.
PAUSE may not be available depending on the contents or media server.
• To resume normal playback, press c (play).
• To play in fast reverse or fast forward directions, press
CC / cc . Each time you press CC / cc , the playback speed will change.
• Press Z to playback from the beginning of currently selected file. Press z to locate subsequent files.
63
CONTROLS AND FEATURES
To set the repeat mode:
a
Press QUICK to open the Quick Menu.
b
Press B / b to select Repeat.
c
Press c and B / b to select Off, All or 1.
Off
Mode
All
1
Description
Files in the same folder are played back once.
Files in the same folder are repeatedly played back.
The same file is repeatedly played back.
d
Press BACK.
NOTE:
• The setting is effective until the TV is turned off.
• When the TV is used as a media renderer, this feature cannot be used.
To select a music file from Play List (USB and
Network Player Music):
While playing a music file, you can select a different music file from the Play List.
a
Press QUICK to open the Quick Menu.
b
Press B / b to select Play List and press OK.
The Music List will appear.
c
Press B / b to select a file name.
To display the file status information:
a
Press during playback. The information will be displayed on the bottom of the screen.
b
Press again to remove the information.
NOTE: The information may not be correctly displayed depending on the contents or the devices.
To close the Music Player:
a
Press EXIT.
File Compatibility
Other features
Panel Lock
Panel Lock disables the buttons on the television. All buttons on the remote control can still be used.
a
Press / b to highlight Options icon.
b
Press c and B / b to select Panel Lock and press OK.
c
Press B / b to select On.
< Options
Recording Setup
My Contents Setup
MHL Setup
HDMI CEC Control Setup
Hybrid TV Standard
Teletext
Panel Lock
AV Connection
Power Management
Blue Screen
HDMI Information Display
Disabled
Auto
Off
Off
On
On
Off
When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby
button is pressed, the television will switch off and can only be brought out of standby by using the remote control.
Blue Screen
When Blue Screen is selected, the screen will turn blue and the sound will be muted on analogue channels and external input modes when no signal is received.
NOTE: Some external input sounds may not be muted.
a
In the Options menu, press B / b to select Blue
Screen.
b
Press c and B / b to select On or Off.
64
CONTROLS AND FEATURES
Netflix
®
To confirm the Netflix ESN (Electronic Serial
Number)
a
In the Network menu, press B / b to select Smart
Apps Setup and press OK.
b
In Smart Apps Setup menu, select Netflix Setup and press OK.
c
Press B / b to select ESN and press OK. Netflix
ESN screen will appear.
To deactivate your TV
a
In the Network menu, press B / b to select Smart
Apps Setup and press OK.
b
In Smart Apps Setup menu, select Netflix Setup and press OK.
c
Press B / b to select Deactivation and press OK.
d
Press C / c to select Yes and press OK.
NOTE:
• This service may not be available or the service contents may change depending on the service side.
• This menu is displayed even if this service is not available in the area.
The timers
My TV Timer List – digital only
This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.
a
Press GUIDE and then press the BLUE button on the remote control b
Press b if necessary to select an open timer position, then press OK. The Edit Timer menu will now appear on screen.
c
Press B / b to go through the list adding the details of the programme by using the number buttons and C / c to make selections.
Edit Timer
Timer Type
Channel
Date
Start Time
End Time
Repeat
3:51 Tue, 22 Apr
Reminder
1 ABC HDTV
Tue, 22 Apr 2008
03:50
04:50
Once
Set Timer Delete Timer d
When all of the details have been entered, highlight Set Timer and press OK to save the timer.
65
On Timer
The feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length of time.
a
Press / b to highlight Timers icon.
b
Press c and B / b to select On Timer and press
OK.
c
Press B / b to select Enable On Timer and press
C / c to select On.
On Timer
Enable On Timer
Enable DTV Clock
Power On Time
Repeat
Input
Channel
Volume
Time Until Power On
On
Off
00:00
Sat-Sun
ATV
11 BBC11 ONE TV
30
12:00
Done d
Press b to select Enable DTV Clock, and then press C / c to select On or Off.
CONTROLS AND FEATURES e
Press B / b to go through the list adding the details of the On Timer by using the number buttons and C / c to make selections.
Power On Time (only for DTV Clock On mode):
Set the time you prefer with the number buttons.
Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Every Day,
Mon-Fri, Mon-Sat, Sat-Sun).
Input: Select a video input source (ATV, DTV Ant,
EXT 1, EXT 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC).
Channel: Set the channel that will be tuned when the television turns on.
NOTE: When an external input is selected in the
Input field, a channel cannot be selected.
Volume: Set the volume that will be applied when the television turns on.
Time until Power On (only for DTV Clock Off mode): Set the amount of time from now until the
TV turns on using the number buttons (maximum of 12 hours).
f
Press B / b to highlight Done and press OK.
To cancel the On Timer:
a
In the On Timer menu, select Enable On Timer.
b
Press C / c to select Off.
c
Press B / b to highlight Done and press OK.
Sleep Timer
The television can be set to turn itself Off after a certain length of time.
a
Press SLEEP and go to step3, or press and
B / b to highlight Timers icon.
b
Press c and B / b to highlight Sleep Timer and press OK.
c
Press SLEEP to increase in step of 10 minutes, or use the number buttons to set the desired time. For example, to switch the television off in one and a half hours enter 01:30, or press B / b to increase/ decrease in steps of 10 minutes. (Maximum time setting is 12 hours) d
Press EXIT to finish.
e
To cancel the Sleep Timer, enter all zeros for the above setting.
Energy Saving Settings
Automatic Power Down
The TV will automatically turn itself off (Standby) after your selection Time, if you do not operate the TV either from the remote control or the TV control panel.
a
Press / b to highlight Options icon.
b
Press c and B / b to select Power Management and press OK.
c
Press B / b to select Automatic Power Down.
d
Press c and B / b to select 4 Hours, 6 Hours,
8 Hours or Off and press OK.
NOTE:
• This feature is set to On when Location is set to Home.
• Before 15 min, a message will be displayed on TV.
Before 10 min, TV will power off.
• When the following features are set, the feature that is set for the nearest time will function.
- Automatic Power Down
- Sleep Timer
- Auto shutdown after 1 hour of inactivity (after power on by On Timer)
- No signal auto power off (after 15 minute of no signal)
No Signal Power Down
The TV will automatically turn itself off after 15 minutes when no signal is detected. You can change the setting to
Off for the following purposes:
• Low signal strength of analogue channel (no signal detection)
• Only Audio L/R is connected to external input to listen to music through the TV speakers.
a
In the Power Management menu, press B / b to select No Signal Power Down.
b
Press c and B / b to select the item you want to change and press c and B / b to select On or
Off.
NOTE:
• Default setting is all On.
• A warning message will appear 1 minute before turning off.
66
CONTROLS AND FEATURES
Digital on-screen information
When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels.
4
English
Information
a
Press , the information screen will appear giving details of the channel and programme currently being viewed.
Display Example
4 CHANNEL Z 6:00 Thu, 11 Oct
REC
Now MLB Young’s two-run triple leads AL over NL 6:00- 8:00
HD 16:9 AD 18 News
Next
Also
World News and Sports
MLB Young’s two-run triple leads AL over NL
Change
15 min left
8:00- 9:00 b
Press B / b to select the “Now”, “Next” or “Also” information guide.
The selected information content will appear.
c
To record the next scheduled programme, select
Next and press OK. The Edit Timer screen will appear.
Edit Timer
Working Lunch
2 BBC TWO
12:30 - 13:00 Tue, 26 Apr
Timer Type
10:50 Tue, 26 Apr
Recording
Set Timer
OK
Delete Timer
Enter d
The details of the programme will already have been added to the timer. Highlight Set Timer and press OK to save.
To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next fields of the information screen. A check mark will appear if the timer is a Reminder Timer.
To display More Information:
a
Press QUICK to open the Quick Menu.
b
Press b to highlight More Information and press
OK.
On-screen Information icons
Service info
Audio info
Audio/Subtitle info
Recording info
Event info
Timer info
Icon
AD
Description
Service type
(TV, Radio, Text)
Skip
Mono
Stereo
Dual mono
Multichannel
Audio Description
For Hard of Hearing
●REC
HD, SD
16:9, 4:3
Recording + Service info
Video format (HD,
SD)
Video Aspect
Teletext
(Single,
Multi) track
(Mono, Multi)
0, 4 – 18 Parental rating
Encrypted
Recording
Reminder
Auto Recording
67
CONTROLS AND FEATURES
Using EPG (Electronic
Programme Guide)
Using Broadcast Guide
a
Select the on-screen Guide by pressing GUIDE, and the Guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.
Tue
TV
22
6:00 6:30 7:00
5:48 Tue, 22 Apr
7:30 8:00
1 ABC HDTV
2 ABC1
3 ABC2
4 ABC1
5 ABC3
6 BBC ONE
7 BBC TWO
8 BBC THREE
9 BBC NEWS 24
10 BBCi
11 CBBC Channel
12 TF1 HD
13 FRANCE 2 HD
More Info
World Business Today
Seven Wonders of Anclent Rome
ITV Morning News
Balairiory
Seven Wonders of Anclent Rome
BBC News 24
Kickstart Natural Born Dealers
World News Today
Big Brother Live vets in Hong Kong
Go, Diego, Go!
Worldʼs Toughest
Zoo Story Firnbles
Good Morning Sports Fan
Big Brotherʼs Little Brother
45 Battlefield Detectives
World Business...
Hope & Faith
ITV Morning News
ITV Morning...
Seven Wonders of Anclent Rome
Hope & Faith
BBC News 24
Zoo Story
Hope & Faith
BBC News 24
Animal Cops...
World News Today Go, Diego, Go!
vets in Hong Kong Hope & Faith
45 vets in Hong Kong epsode 12
Worldʼs Toughest
Zoo Story vets in Hong Kong
Worldʼs Toughest
Zoo Story
Animal Cops Houston
Page Now View Genre Timers
QUICK
Features
You can switch the time scale to 1.5 or 3 hours by pressing the GREEN button.
b
Press C / c for information on other programmes scheduled for the channel selected. To highlight the first programme in the genre grid, press the
RED button.
c
For details of other programmes currently available, press B / b to scroll up and down the channel list. As channels are selected, details of the programme currently being broadcast will appear. Press C / c to view information for future programmes.
d
For information on a highlighted programme, press
. e
To set the timer for that programme, press the
BLUE button to bring up the My TV Timer List menu.
f
Press to view another page.
Updating EPG:
a
In the Guide screen press QUICK.
b
Press B / b to select EPG Update.
Genre selection/searching
From the Guide screen, you can use the genre selection and search features.
a
In the Guide screen, press QUICK.
b
Press B / b to highlight Genre Colour in the
Quick Menu and press OK.
Genre Colour Setup
Movie
Colour Setup c
With the focus on a particular genre, press the desired coloured button to assign. Four colours will be available to set. Press BACK to go back to the
Quick Menu.
68
CONTROLS AND FEATURES
Digital settings – parental control
In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN.
Parental PIN Setup
a
Press / b to highlight Installation icon.
b
Press c and B / b to select DTV Settings and press OK.
c
Press B / b to select Parental PIN Setup and press OK.
< DTV Settings
Channels
Subtitle and Audio
Parental PIN Setup
Parental Control
Local Time Setting
DVB Character Set
Standby Channel Update
Dynamic Scan
Favourite Region
Data Transfer
Common Interface
Stored CICAM PIN
Off
Off d
Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again.
Parental PIN Setup
New PIN:
Confirm PIN:
The PIN number is now set.
If the PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary. “0000” is not acceptable.
Parental Setup
The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level.
a
In the DTV Settings menu, press B / b to select
Parental Control and press OK.
b
Press B / b to select Parental Setup and press
OK.
Parental Setup: Select when you want to set viewing restrictions on broadcast programmes.
c
Press B / b to select an option.
< Parental Control
Parental Setup None
11
12
13
14
7
8
9
10
None
4
5
6
To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.
69
CONTROLS AND FEATURES
Digital settings – Channel
Options
Selecting favourite channels
From the Quick Menu / Channel Options menu, it is possible to create a list of the digital channels that are
watched most. Press LIST / C c to select the Favourite
Channel list.
a
Select the channel you want to add to your favourite list.
b
Press QUICK to open the Quick Menu.
c
Press b to select Channel Options and press
OK.
d
Press c to highlight the favourite ( ✩) box.
e
Press OK to select the ones required. A tick will appear in the box as they are selected.
f
Repeat steps 1 through 5 for other channels.
g
When all favourites have been selected, press
EXIT.
Favourite Channel List
a
Press LIST to display Channel List.
Each time you press C / c , All Channels, TV
Channels, Radio Channels, Text Channels,
Free To Air, Pay Channels, HD Channels or
Favourites is selected in order.
b
Press C / c to select Favourites. The number of favourites available depends on how many lists have been created.
Channel List
6
9
11
31
34
51
Favourite
M6
W9
NT1
PARIS PREMIERE
AB1
ITV1
Skip channels
This feature allows you to set channels that will be skipped
when P u or P U are used to tune. a
Select the channel you want to skip in your channel list.
b
In the Quick Menu, press b to select Channel
Options and press OK.
c
Press c repeatedly to highlight the skip ( 8 ) box.
d
Press OK to select. A tick will appear in the box.
e
Repeat steps 1 through 4 for other channels.
f
Press EXIT.
NOTE: Skipped channels cannot be selected by
P u or P U but still be accessed by direct number entry (when tuned a 8 icon will be displayed in the banner to indicate as a skipped channel).
Locking channels
Locking Channels stops the viewing of digital channels, and they can only be accessed by entering the PIN.
a
Select the channel you want to lock in your channel list.
b
In the Quick Menu, press b to select Channel
Options and press OK.
c
Press c repeatedly to highlight the lock ( ) box.
d
Press OK and PIN entry will be required to set the locked channels. Enter PIN Code and a tick will appear in the box.
NOTE: A Parental PIN should be set in advance. If not, a warning message will display to reminder you to set a PIN first.
e
Repeat steps 1 through 4 for other channels.
f
Press EXIT.
g
From this point on, when any of the Locked
Channel list is selected, the PIN must be entered before they can be accessed.
c
Press B / b to highlight a channel and press OK to watch.
70
CONTROLS AND FEATURES
Digital settings – other settings
Subtitles
In DTV mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.
a
In the DTV Settings menu, press B / b to select
Subtitle and Audio and press OK.
b
Press B / b to select Subtitle Display and press c and B / b to select On or Off.
< Subtitle and Audio
Subtitle Display
Subtitle Type
Primary Subtitle Language
Secondary Subtitle Language
Audio Type
Primary Audio Language
Secondary Audio Language
Off
Normal
English
English
Normal
English
English
Common Interface
The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional
Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider.
a
Insert the CAM and card into the Common
Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.
b
Press / b to highlight Installation icon.
c
Press c and B / b to select DTV Settings and press OK.
d
Press B / b to select Common Interface and press OK.
e
Details of the CAM should now be available.
NOTE:
• Software update of a CI Plus CAM may execute automatically if it is instigated by the broadcaster. This could cause the cancellation of any Reminders/
Recordings during this process.
• Some CI or CI+ CAM may not be supported.
c
Press B / b to select Primary Subtitle Language or Secondary Subtitle Language and press c and B / b to select an option.
The SUBTITLE button can be used to select subtitle on or off for the current channel only and to select the subtitle language if more than one subtitle is available.
DVB Character Set
a
In the DTV Settings menu, press B / b to select
DVB Character Set and press OK.
b
Press c and B / b to select Standard, Latin
alphabet 2, West or Latin alphabet 9.
Audio languages
This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language tracks are being broadcast.
a
In the Subtitle and Audio menu, press B / b to select Audio Type and press c and B / b to select Normal, For Hard of Hearing or Audio
Description and press OK.
b
Press B / b to select Primary Audio Language or Secondary Audio Language and press c and
B / b to select an option.
If more than one soundtrack is available, use the s button to select between them.
71
Stored CICAM PIN
Stored the CICAM PIN is used for recording.
a
Press / b to highlight Installation icon.
b
Press c and B / b to select DTV Settings and press OK.
c
Press B / b to select Stored CICAM PIN and press OK.
d
Input PIN code on the Stored CICAM PIN dialog window and press Done.
NOTE: Note relating to cards for which the CAM PIN can be changed through the Common Interface: If you change the PIN through the Common Interface after setting the stored PIN, it invalidates the stored PIN, which you must change in a separate operation.
CONTROLS AND FEATURES
Software Upgrade and
Licences
Searching for New Software
If preferred, software upgrades can be searched for
manually using Search for New Software. a
In the Get Help menu, press B / b to select
Software Upgrade and press OK.
b
Press B / b to select Over-the-air Upgrade and press OK.
c
Press B / b to select Auto Upgrade and press c to select On, then press B / b to select Search
for new Software and press OK.
SEARCH FOR NEW SOFTWARE
Searching for a new software upgrade for this TV.
4 %
CH 855
If an upgrade is found, a message will be displayed to decide downloading the new software or not. If not, a screen will appear stating that an upgrade is unavailable.
d
After searching software, message will be displayed and press C / c to select Yes or No. If you select No, then TV will be power off once the
Software update has completed.
NOTE: When Auto Upgrade is set to Off, this feature is not available.
Network Upgrade
TOSHIBA may offer upgrades for the TV’s software in the future. The TV’s software is upgraded via the Network.
Before downloading software:
Configure your TV to connect to the Internet.
NOTE: While the upgrade is being performed, you will not be able to watch the TV.
a
In the Get Help menu, press B / b to select
Software Upgrade and press OK.
b
Press B / b to select Network Upgrade and press
OK.
NOTE: If the network is not available, a warning message will appear.
c
The TV software upgrade will start when download succeeds.
Software Licences
The licences for the software used in this television are available for viewing.
a
In the Get Help menu, press B / b to select
Software Licences and press OK.
A screen will appear displaying all the licensing information required for the televisions software.
72
CONTROLS AND FEATURES
System Information and Reset
TV
System Information
This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc.
a
In the Get Help menu, press B / b to select
System Information.
b
Press OK to display the System Information.
System Information
Ch67
Ch37
Ch33
Ch48
TOSHIBA
2014 - 048
Oct 27 2014
Software Version : xxxxxxxx
MBOOT Version : xxxxxxxx
Shipout : B
Country : UK
AVERAGE
WEAK STRONG
AVERAGE
WEAK STRONG
AVERAGE
WEAK STRONG
AVERAGE
WEAK STRONG
POOR c
For information about the signal quality of a particular multiplex, press B / b to select that multiplex.
d
Press OK for a screen showing detailed technical information about the selected multiplex.
Reset TV
Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values.
a
In the Installation menu, press B / b to select
Reset TV.
b
Press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue.
When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup
and perform an auto tune. (See “Quick Setup” section on page 16.)
PC Settings
Horizontal and Vertical Position
Connect the PC (as shown in the ‘Connecting a computer’ section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.
a
Press / b to highlight Picture icon.
b
Press c and B / b to select Display Settings and press OK.
c
Press B / b to select PC Setting and press OK.
< Display Settings
Auto Format
4:3 Stretch
Picture Position
PC Settings
On
Off d
Press B / b to select an option and press C / c to adjust the settings.
< PC Settings
Horizontal Position
Vertical Position
Clock Phase
Sampling Clock
Reset
0
0
0
0
Clock Phase
The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.
a
In the Display Settings menu, press B / b to select PC Settings and press OK.
b
Press B / b to select Clock Phase.
c
Press C / c to adjust until the picture clears and press OK.
73
CONTROLS AND FEATURES
Sampling Clock
Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen.
a
In the Display Settings menu, press B / b to select PC Settings and press OK.
b
Press B / b to select Sampling Clock.
c
Press C / c to adjust until the picture clears.
Reset
Use Reset to return all items to the original factory settings.
a
In the Display Settings menu, press B / b to select PC Settings and press OK.
b
Press B / b to select Reset and press OK.
NOTE: When a PC is connected using HDMI, none of these functions will be available.
The screen is disrupted momentarily when adjusting PC
Settings. This is not a sign of malfunction.
The default settings and adjustment ranges may vary depending on the input signal format.
Input selection and AV connections
See page 8 for a detailed image showing
recommended connections.
Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct
Input socket.
Alternatively, press the external source selection button o until the picture from connected equipment is shown.
Input selection
Use the Input Selection window if the television does not switch over automatically.
a
By pressing o on the remote control or TV, a list will appear on screen showing all inputs and external equipment.
Press o on the remote control
Inputs
TV o 1 o 2
HDMI 1
HDMI 2
HDMI 3
HDMI 4
PC
Press and hold p / o on the TV
Inputs
DTV Ant
DTV Sat o 1 o 2
HDMI 1
HDMI 2
HDMI 3
HDMI 4
PC
ATV
HDMI ® displays equipment connected to Input
HDMI on the back or side of the television.
PC displays a computer connected to Input RGB/
PC on the back of the television.
74
CONTROLS AND FEATURES
Labelling video input sources
These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the TV.
a
Press / b to highlight Options icon.
b
Press B / b to select AV Connection and press
OK.
< Options
Recording Setup
My Contents Setup
MHL Setup
HDMI CEC Control Setup
Hybrid TV Standard
Teletext
Panel Lock
AV Connection
Power Management
Blue Screen
HDMI Information Display
Disabled
Auto
Off
Off
On
Digital Audio Output
When connecting a surround sound amplifier to the digital audio output (Sony/Philips Digital Interface Format [S/
PDIF]), the following options can be selected or adjusted.
a
In the Sound menu, press B / b to select Digital
Audio Output and press OK.
< Sound
Sound Mode
Advanced Sound Settings
Sound Separation Effect
TruVolume
Dynamic Range Control
Balance
Dual
Audio Level Offset
TV Speakers
Headphone Level
Audio Description
Digital Audio Output
Standard
1
Off
On
0
Dual 1
On c
Press B / b to highlight Input Labelling and press OK.
< AV Connection
Input Labelling
Colour System d
Press B / b to select the item you want to label, and press OK, then press B / b to select --,
Amplifier, Cable, DVD, Game, PC, Recorder,
Satellite, VCR or Blu-ray.
Input Labelling
Input
EXT 1
EXT 2
HDMI 1
HDMI 2
HDMI 3
HDMI 4
PC
Label
--
--
--
DVD
--
--
-b
Press B / b to select an option.
Audio Format
Press OK and B / b to select PCM or Auto.
PCM: This mode outputs PCM format to the digital audio output socket.
Auto: This mode outputs Dolby Digital (if available) or PCM to the digital audio output socket.
Dolby Digital S Dolby Digital
Dolby Digital Plus S Dolby Digital
MPEG S PCM
HE-AAC S Dolby Digital
DTS S DTS
Audio Delay
Press OK and B / b to select Auto or Manual.
Auto: This mode automatically adjusts the audio timing to meet the video timing.
NOTE: The time lag might be large between the image and sound depending on the connected equipment (amplifier etc.). In that case, select Manual.
Manual:You can manually adjust the audio signal timing to meet the video signal timing.
Delay Adjustment
Press OK and C / c to adjust the audio signal timing (0 – 250 ms) to meet the video signal timing.
e
Repeat step 4 for other video inputs.
75
CONTROLS AND FEATURES
NOTE:
• This feature is greyed out when Audio Delay is in Auto.
• A time lag will occur when the video signal or audio signal is changed. Adjust the timing accordingly.
• When adjusting the timing, turn down the volume of the AV equipment used as far as possible.
Depending on the equipment, noise etc. may occur when the signal is changed.
• Depending on the connected equipment
(amplifier, etc.), adjustment may not be possible.
• When the optical digital output setting
(Auto t PCM) is changed, it may be necessary to adjust the timing again.
• Do not use other than for audio output from the
AV amplifier, etc. (Malfunction may occur)
Using HDMI CEC Control
This is a new feature that uses CEC technology and allows you to control Toshiba HDMI CEC
Control compatible devices from the television
remote control via HDMI connection (page 10).
When the Enable HDMI CEC Control item in the HDMI
CEC Control Setup menu is set to On, individual functions also set to On will be activated.
Enable HDMI CEC Control
a
Press / b to highlight Options icon.
b
Press c and B / b to select HDMI CEC Control
Setup and press OK.
c
Press B / b to select Enable HDMI CEC Control and press OK.
Press B / b and OK to select On.
< HDMI CEC Control Setup
Enable HDMI CEC Control
TV Auto Power
Auto Standby
Amplifier Control
Initial Speaker Setting
On
On
On
On
TV Speakers
On
Off
NOTE: If you set Enable HDMI CEC Control to
Off, all other items will be greyed out.
TV Auto Power
The TV Auto Power setting allows the television to be automatically switched on if an HDMI CEC Control device is turned on.
a
In the HDMI CEC Control Setup menu, press b to highlight TV Auto Power.
b
Press c and B / b to select On or Off.
76
CONTROLS AND FEATURES
Auto Standby
When Auto Standby is enabled, the television, when switched off, will automatically switch off (Standby) all connected HDMI CEC Control equipment.
a
In the HDMI CEC Control Setup menu, press b to highlight Auto Standby.
b
Press c and B / b to select On or Off.
Amplifier Control
When Amplifier Control is set to On the connected amplifier can be controlled by TV remote.
a
In the HDMI CEC Control Setup menu, press b to select Amplifier Control.
b
Press c and B / b to select On or Off.
Initial Speaker Setting
The Initial Speaker Setting allows to select TV speakers or
Amplifier speakers.
a
In the HDMI CEC Control Setup menu, press b to select Initial Speaker Setting.
b
Press c and B / b to select TV Speakers or
Amplifier.
HDMI CEC Control input source selection
If an HDMI CEC Control device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can select another HDMI CEC Control device that is connected to the master HDMI device on the input source list.
a
Press o and a list will appear on screen showing available input sources.
b
Press b to select the input source that the HDMI
CEC Control devices are connected.
c
Press c and a second selection screen will appear showing all connected HDMI CEC Control equipment.
Inputs
TV o 1 o 2
HDMI 1
HDMI 2
HDMI 3
HDMI 4
PC
1 DVD
2 VCR/DVR
3 CBL/SAT
4 GAME/TV
5 AUX d
Press B / b to select the desired input source, and then press OK.
NOTE:
• These functions depend on the device connected.
If you select the HDMI CEC Control input source from the popup window, some HDMI CEC Control devices may automatically turn on.
• If the HDMI cable from connected equipment is changed, Enable in the HDMI CEC Control Setup menu may need to be reset to On.
• If you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable HDMI
CEC Control item on the HDMI CEC Control Setup menu from Off to On.
77
CONTROLS AND FEATURES
HDMI CEC Control one touch play
When connected equipment is switched on, HDMI CEC
Control will automatically detect the television through the input selection. If the television is in Standby, it will be switched on automatically.
These functions can be enabled or disabled from the
HDMI CEC Control Setup (see page 76).
NOTE:
• Even if the equipment is showing a menu, the television may automatically show the input source.
• This feature depends on the connected equipment and television state.
• Even if the HDMI cable is connected during PVR playback, the television does not automatically display the HDMI input signal.
HDMI CEC Control system standby
If the television is turned off (Standby), the television will send a message to turn off (Standby) all of the HDMI CEC
Control devices connected to the television.
These functions can be enabled or disabled from the
HDMI CEC Control Setup (see page 76).
NOTE: This feature depends on the connected equipment and television state.
Using MHL TV function
You can use the following functions by connecting between the TV HDMI 3 port and a USB port of mobile phones etc. with an MHL cable.
• Charge with mobile phone from TV
• Two-way remote operation between TV and mobile phone
• Video/Audio output from mobile phone
NOTE: These functions may not be available depending on the connected device.
Connecting an MHL-compatible device
Connect the device to the HDMI 3 port on the TV with an
MHL cable (not supplied).
ILLUSTRATION SHOWS 32L.
HDMI 3
MHL cable
(not supplied)
• When you connect an MHL-compatible device to the
HDMI 3 port on the TV with the MHL cable, charging starts automatically.
NOTE: Do not connect an MHL-compatible device to any port other than the HDMI 3 port.
Operating an MHL-compatible device
When an MHL-compatible device is connected to the
HDMI 3 port on the TV, input automatically switches to the
HDMI 3 port.
Operate the device using the remote control for the TV. To display photos, select the photos using press OK. To play a video, press c
BbC c
(play).
and
Depending on the connected MHL-compatible device, it may be possible to perform operations from the device.
MHL Setup
Select whether or not input automatically switches to the
HDMI 3 port when an MHL-compatible device is connected.
a
In the Options menu, press B / b to select MHL
Setup.
b
Press c to select TV Auto Input Switch and press
OK.
c
Press B / b to select On or Off and press OK.
78
TEXT SERVICES
Text services
This television has a multi-page text memory, which takes a few moments to load. It offers two
Modes of viewing text – Auto will display
Fastext, if available. List will save your four favourite pages.
Navigating pages using Auto
If Fastext is available, four coloured titles will appear at the base of the screen.
To access one of the four given subjects, press the relevant coloured button on the remote control.
For further information on your particular text system(s), see the broadcast text index page or consult your local
Toshiba dealer.
Selecting modes
The text character set will be automatically chosen by the
language setting in the Options menu. a
Press / b to highlight Options icon.
b
Press c and B / b to select Teletext, and then press B / b to select Auto or List.
< Options
Recording Setup
My Contents Setup
MHL Setup
HDMI CEC Control Setup
Hybrid TV Standard
Teletext
Panel Lock
AV Connection
Power Management
Blue Screen
HDMI Information Display
Disabled
Auto
Off
Off
On
Auto
List
Text information
The TEXT button
To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.
The first text page shown will be the initial page.
Any text page can be accessed by entering the 3-digit page number using the numbered buttons, pressing the coloured buttons or pressing P page and P u
U to advance to the next
to go back to the previous page.
Sub-pages
The pages on the screen will dynamically update as subpages are received.
If you open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic sub-page change, press C / c .
Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional subpages, the colour of the numbers will change, indicating that these pages have been loaded.
These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.
79
Navigating pages using LIST
The four coloured choices at the bottom of the screen are numbers – 100, 101, 102 and 103, which have been programmed into the television’s memory. To view these pages, press the relevant coloured buttons.
To change these saved pages, press the relevant coloured button and enter the 3-digit number. This number will change in the top left of the screen and in the coloured highlight.
Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost.
NOTE: The video signal from the external inputs (EXT-1 and EXT-2) is not saved.
If OK is not pressed, the selection will be forgotten when the channel is changed.
Other pages may be viewed by entering the 3-digit page number – but DO NOT press OK or these pages will be saved.
TEXT SERVICES
Control buttons
Below is a guide to the functions of the remote control text buttons.
k To display the index/initial page:
Press k to access the index/initial page. The one displayed is dependant on the broadcaster.
TEXT To display a page of text:
Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done.
A To reveal concealed text:
To discover the solutions on quiz and joke pages press the
A button.
B To hold a wanted page:
At times it is convenient to hold a page of text. Press and B
B
will appear in the top left of the screen. The page will be held on screen until the button is pressed again.
C To enlarge the text display size:
Press C once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.
D To temporarily erase the text screen:
Press D once to erase the text screen temporarily.
To recall the text screen, press the button again.
To display news flashes:
Select the news flash page for the chosen text service
(see the index page of text service). The news flashes will be displayed as and when they are broadcast.
Remember to cancel text before changing channels - press the TEXT button twice.
80
PROBLEM SOLVING
Questions and Answers
Below are the answers to some of the most common queries.
Question Answer
Why is there no sound or picture?
Check the television is not in Standby mode. Check the mains plug and all mains connections.
Why is there a picture but no sound? Check all lead connections.
No sound or unacceptable format sound may be received.
Check the volume has not been turned down or that sound mute has not been selected.
Check shared audio settings.
Why is the soundtrack in English when a different audio language has been selected?
Why is there incorrect or no sound
when in DTV mode?
There is a picture, but why is there little or no colour?
The programme is currently being broadcast with an English soundtrack only.
Press s to ensure the hard of hearing option has not been selected.
When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved.
The colour is factory set to Auto to automatically display the best colour system.
To check that you have the best colour: a
With the external source playing, select Colour System from the Options menu.
< AV Connection
Input Labelling
Colour System Auto
PAL
SECAM
NTSC 4.43
NTSC 3.58
b
With C / c choose between Auto, PAL, SECAM, NTSC 4.43 or
NTSC 3.58.
What else can cause a poor picture? Interference or a weak signal. Try a different television station. Manual
Fine Tuning may help.
a
Select the ATV Manual Tuning menu. Highlight the station and press OK. Then press c to select Manual Fine Tuning.
b
Using B / b adjust to get the best picture and sound. Press OK and then press EXIT.
ATV Manual Tuning
Manual Fine Tuning
1 I A C 2 0
Why doesn’t the video/DVD being played show on screen?
Make sure the media recorder or DVD player is connected to the
television as shown on page 8, and then select the correct input by
pressing o .
Why are there vertical stripes on the screen when in PC mode?
The Sampling Clock may need adjustment. Select PC Settings from the Display Settings menu, highlight Sampling Clock and adjust until the lines clear.
81
PROBLEM SOLVING
Question Answer
Why are there horizontal stripes and/ or blurred images on the screen when in PC mode?
The Clock Phase may need adjustment. Select PC Settings from the
Display Settings menu, highlight Clock Phase and adjust until the picture clears.
Why are the colours wrong when an
NTSC source is played?
Connect the source via a SCART lead and play.
Select Colour System from the Options menu.
a
Set the Colour to Auto and exit.
b
Go to the Picture menu and adjust the tint.
Why don’t the controls of the television work?
Why doesn’t the remote control work?
Why is the digital channel locked?
Check that Panel Lock is not On.
Check that batteries aren’t exhausted or inserted incorrectly.
The channel has been locked in Channel Options (see ‘Digital settings
Why are some of the digital subscription channels unavailable?
What is DVB-T?
Your subscription needs upgrading. Contact your service provider.
Digital Video Broadcast via an aerial/antenna.
What is DVB-C?
Digital Video Broadcast via a cable connection.
How are DTV radio channels selected?
What can be done if the PIN number has been forgotten?
Select from All Channel List (LIST button).
Use the Master PIN code of 1276, then change to a number of your choice. Select Parental PIN Setup from the DTV Settings menu to enter PIN. Ensure that no-one else can use the Master PIN by removing the Owner’s Manual.
Why when digital subtitles have been selected are they not showing on screen?
Why are there problems with analogue text?
Subtitles are not currently being transmitted by the broadcaster.
Good performance of text depends on a good strong broadcast signal.
This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see
the text section.
Why is a page number visible at the top of the screen but no text?
Text has been selected but Teletext information is currently unavailable on the current source.
Why don’t the devices connected via
HDMI operate properly?
Make sure to use cables with the HDMI logo
Some early HDMI equipment may not work properly with the latest
HDMI TV products, due to new standard adoption.
Why don’t the devices connected via
MHL operate properly?
Turn off your TV and unplug the power cord, and then plug and turn on again.
Turn the MHL Source Power Off and On again.
Try to reconnect a MHL cable.
Why don’t the HDMI CEC Control devices work?
When the connected HDMI CEC Control device does not work correctly after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again.
Unplug the HDMI cable of the HDMI CEC Control device and lead again.
Why is the HDMI CEC logo still showing when the equipment has been disconnected?
If the HDMI CEC Control device is disconnected, the logo will disappear after approximately one minute.
82
PROBLEM SOLVING
Question Answer
Why don’t the networked devices work?
The LAN cables are not connected properly or at all. Connect all cables
Make sure your network address is set up correctly (see page 42).
Why doesn’t the wireless network work?
Why doesn’t the My Contents feature operate?
Check that the AP is powered on.
Make sure that devices are connected correctly.
Incorrect behaviour may occur with a USB Hub connection.
Check your network setup if using a network media server.
Why doesn’t the USB HDD work?
Your country/area may not support the USB HDD function.
What do the LEDs on the front of the television indicate?
Check the table below.
ILLUSTRATION SHOWS 32L.
LED indication
Green
Red
Condition
Power ON
Power OFF
(Standby or Active Standby)
Light sensor
Remote sensor Power LED
On = Green
Standby = Red
Other problems
If your TV’s problem is not addressed in this Questions and Answers section or the recommended solution has not worked, do one of the following:
1 Turn off your TV. After 30 seconds, turn it on.
2 Turn off the TV and unplug the power cord. After 1 minute, plug the power cord in and turn on the TV.
3 Perform the Reset TV function in the Installation menu.
83
INFORMATION
Information
Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.
Signal information for Mini D-sub 15 pin connector
Pin No.
1
2
3
4
5
* NC = not connected
Signal name
R
G
B
NC*
Ground
Pin No.
6
7
8
9
10
Signal name
Ground
Ground
Ground
+5V
Ground
Pin No.
11
12
13
14
15
Signal name
NC
DDC Data
H-sync
V-sync
DDC Clock
Acceptable PC signals through the PC terminal
The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a signal in the table below.
VESA Standard
(DMT)
Format
VGA
SVGA
XGA
WXGA
WXGA+
SXGA
1080p
Resolution
640 × 480
800 × 600
1024 × 768
1280 × 768
1280 × 800
1360 × 768
1440 × 900
1280 × 1024
1920 × 1080p
V. Frequency
59.940 Hz
60.317 Hz
60.004 Hz
59.870 Hz
59.810 Hz
60.015 Hz
59.887 Hz
60.020 Hz
60.000 Hz
H. Frequency Pixel Clock Frequency
31.469 kHz
37.879 kHz
48.363 kHz
47.776 kHz
49.702 kHz
47.712 kHz
55.935 kHz
63.981 kHz
67.500 kHz
25.175 MHz
40.000 MHz
65.000 MHz
79.500 MHz
83.500 MHz
85.500 MHz
106.500 MHz
108.000 MHz
148.500 MHz
84
INFORMATION
Acceptable video or PC signals through the HDMI terminals
The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur: incorrect display, false format detection, picture position failure, blur, or judder.
In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.
Format
480i
576i
480p
576p
1080i
1080i
720p
720p
1080p
1080p
1080p
1080p
VGA
SVGA
XGA
WXGA
SXGA
Resolution
720 × 480i
720 × 576i
720 × 480p
720 × 576p
1920 × 1080i
1920 × 1080i
1280 × 720p
1280 × 720p
1920 × 1080p
1920 × 1080p
1920 × 1080p
1920 × 1080p
640 × 480
800 × 600
1024 × 768
1280 × 768
1360 × 768
1280 × 1024
V. Frequency
59.940/60.000 Hz
50.000 Hz
59.940/60.000 Hz
50.000 Hz
59.940/60.000 Hz
50.000 Hz
59.940/60.000 Hz
50.000 Hz
59.940/60.000 Hz
50.000 Hz
24.000 Hz
29.970/30.000 Hz
59.940/60.000 Hz
60.317 Hz
60.004 Hz
59.870 Hz
60.015 Hz
60.020 Hz
H. Frequency
15.734/15.750 kHz
15.625 kHz
31.469/31.500 kHz
31.250 kHz
33.716/33.750 kHz
Pixel Clock
Frequency
27.000/27.027 MHz
27.000 MHz
27.000/27.027 MHz
27.000 MHz
74.176/74.250 MHz
28.125 kHz
44.955/45.000 kHz
74.250 MHz
74.176/74.250 MHz
37.500 kHz 74.250 MHz
67.433/67.500 kHz 148.352/148.500 MHz
56.250 kHz
27.000 kHz
33.720/33.750 kHz
31.469/31.500 kHz
37.879 kHz
48.363 kHz
47.776 kHz
47.712 kHz
63.981 kHz
148.500 MHz
74.250 MHz
74.176/74.250 MHz
25.175/25.200 MHz
40.000 MHz
65.000 MHz
79.500 MHz
85.500 MHz
108.000 MHz
VESA
Standard
85
INFORMATION
My Contents Supported Format
My
Contents
Media
Format
Photo JPEG
MPO
BMP
Movie AVI
MPEG-2
PS
MPEG-2
TS
MPEG-2
VOB
File
Extension
.jpg
.jpeg
.mpo
.bmp
.avi
.mpg
.mpeg
.ts
.trp
.tp
.vob
Video codec
JPEG
MPO
BMP
MPEG-2
MPEG-4 part2
H.264 (MPEG-4 AVC)
DivX
Xvid
MPEG-1 Video
MPEG-2 Video
MPEG-2 Video
H.264(MPEG-4 AVC)
VC-1(WMV9)
MPEG-1 Video
MPEG-2 Video
Audio codec
–
–
–
MPEG-1/2 Layer2
MPEG-1/2 Layer3
Dolby Digital (AC-3)
L-PCM
ADPCM
MPEG-2/4 LC-AAC
MPEG-4 HE-AAC
MPEG-1/2 Layer3
MPEG-1/2 Layer2
Dolby Digital (AC-3)
L-PCM
MPEG-1/2 Layer2 yes yes yes yes
MPEG-1/2 Layer3
Dolby Digital (AC-3)
L-PCM
MPEG-4 LC-AAC
MPEG-4 HE-AAC
MPEG-1/2 Layer2
MPEG-1/2 Layer3
Dolby Digital (AC-3)
L-PCM yes yes
USB Network yes yes yes yes no no no no yes yes no no
Note
USB
Data compatibility:
JPEG Exif ver 2.2
Maximum viewable resolution:
•JPEG
15360 × 8640 (Baseline)
1024 × 768
(Progressive)
•BMP
9600 × 6400
Maximum number of files: 1000 / folder
Network
Data compatibility:
JPEG Exif ver 2.2
Maximum viewable resolution:
4096 × 4096
Maximum number of files: 1000/folder
NOTE: Some files may not be played.
USB
Maximum number of files: 1000 / folder
Maximum viewable resolution:
• Motion-JPEG:640 ×
480
• Other:1920 × 1080
Maximum video size:
Unlimited
Network
Maximum video resolution:
1920 × 1080
Maximum number of file:1000 / folder
Maximum video size:
Unlimited
NOTE: Some files may not be played.
86
INFORMATION
My
Contents
Media
Format
Movie MOV
Music
MP4
ASF
DivX
Xvid
MKV
Flash
Video
(FLV1)
3GPP
Motion
JPEG
MP3
MP4
WMA
WAV
LPCM
.avi
.mp4
.mkv
.mp3
.m4a
.mp4
.wma
File
Extension
.mov
.mp4
.m4v
.asf
.wmv
.divx
.div
.xvid
.mkv
.flv
.swf
.3gp
Video codec Audio codec USB Network
H.264 (MPEG-4 AVC)
MPEG-4 part2
H.264 (MPEG-4 AVC)
MPEG-4 part12,14
Sorenson H.263
(FLV1)
H.264 (MPEG-4 AVC)
MPEG-1/2 Layer3
MPEG-2/4 LC-AAC
MPEG-4 HE-AAC
MPEG-1/2 Layer3
MPEG-4 HE-AAC
DTS
H.264 (MPEG-4 AVC) MPEG-2/4 LC-AAC yes
VC-1 (WMV9) WMA9 Std yes yes
DivX 3,4,5,6
Xvid
WMA7/8
WMA9 Pro
MPEG-1/2 Layer2
MPEG-1/2 Layer3
Dolby Digital (AC-3)
PCM
ADPCM yes
MPEG-1 Video
MPEG-2 Video
MPEG-4 part2
H.264 (MPEG-4 AVC)
MPEG-1/2 Layer2
MPEG-1/2 Layer3
Dolby Digital (AC-3)
L-PCM
MPEG-2/4 LC-AAC
MPEG-4 HE-AAC
DTS
MPEG-1/2 Layer3
MPEG-2/4 LC-AAC
L-PCM
ADPCM yes yes yes yes
MPEG-2/4 LC-AAC yes MPEG-4 part2
H.264 (MPEG-4 AVC)
JPEG L-PCM
ADPCM yes no no yes yes no no no no no no
–
–
–
MPEG-1/2 Layer-3
MPEG-2/4 LC-AAC yes yes yes yes yes yes yes no
.wav
–
WMA9 Std
WMA7/8 Std
WMA9 Pro
LPCM
ADPCM
MPEG-1/2 Layer-3
WMA7/8/9/ Std
WMA9 Pro
DTS yes no
– no yes
Note
USB
Maximum number of files: 1000 / folder
Maximum music size:
Unlimited
Network
Sampling rate: 32,
44.1 and 48 KHz
Bit rate: 32 to
320 kbps
Maximum number of files: 1000 / folder
Maximum music size:
Unlimited
NOTE: Some files may not be played.
87
INFORMATION
Licence information
• Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
• The terms HDMI and HDMI High-
Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• This product contains Adobe ® Flash
Player software under license from
®
Adobe Systems Incorporated.
Copyright© 1995-2009 Adobe Systems
Incorporated.
All rights reserved. Adobe and Flash are trademarks of Adobe Systems
Incorporated.
• DivX
®
, DivX Certified
®
, DivX Plus
®
HD and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.
Covered by one or more of the following
U.S. patents:
7,295,673; 7,460,668; 7,515,710;
7,519,274
• DVB is a registered trademark of the
DVB Project.
• Hybrid TV Standard is implemented according to ETSI TS 102 796 v1.1.1.
• Intel and the Intel logo are trademarks of
Intel Corporation in the U.S. and/or other countries.
• MHL, Mobile High-Definition Link and the
MHL Logo are trademarks or registered trademarks of the MHL, LLC.
• For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited.
• DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS Premium Sound is a trademark of
DTS, Inc. © DTS, Inc. All Rights
Reserved.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NONCOMMERCIAL USE OF A
CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE
WITH THE AVC STANDARD (AVC VIDEO) AND/OR (ii)
DECODE AVC VIDEO THAT WAS ENCODED BY A
CONSUMER ENGAGED IN A PERSONAL AND
NONCOMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED
TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED
OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4
VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NONCOMMERCIAL USE OF A
CONSUMER FOR (i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL
STANDARD ("MPEG-4 VIDEO") AND/OR (ii)
DECODING MPEG-4 VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED
BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO
LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND
LICENSING MAY BE OBTAINED FROM MPEG
LA,L.L.C.
SEE HTTP://WWW.MPEGLA.COM
• MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
• You can check the software components and obtain a copy of the source codes including GPL and LGPL subject to such EULA requirements on the following
Home Page: http://tesc.toshiba.co.uk/Web/Website.nsf/
ContentFrameSet?OpenFrameset
There will be a charge to cover the costs of providing the source code.
88
INFORMATION
EU Conformity Statement (EU Only)
This product is carrying the CE-Mark in accordance with the related European Directives.
Responsible for CE-Marking is TOSHIBA, 23 Davy Road, Plymouth, PL6 8BY, UK
This product is labeled with the CE Mark in accordance with the related European Directives, notably Low Voltage
Directive 2006/95/EC, Electromagnetic Compatibility Directive 2004/108/EC and RoHS Directive 2011/65/EU.
Furthermore the product complies with the Ecodesign Directive 2005/32/EC (EuP) and 2009/125/EC (ErP) and its related implementing measures.
If this product has an integrated Wireless LAN feature, the Radio Equipment and Telecommunications Terminal
Equipment Directive 1999/5/EC is also applicable.
Cleaning the screen and cabinet…
Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.
Disposal…
The following information is only for EU-member states:
Disposal of products
The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.
The black bar indicates that the product was placed on the market after August 13, 2005.
By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling programmes available in your country, please visit our website www.toshiba.eu/recycling or contact your local city office or the shop where you purchased the product.
Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/ or cadmium (Cd) defined in the European Battery Directive, then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling programmes available in your country, please visit our website www.toshiba.eu/recycling or contact your local city office or the shop where you purchased the product.
REACH information
The European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorization and Restriction of
Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018.
Toshiba will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
Please consult the following website www.toshiba.eu/reach for information about the presence in our articles of substances included on the candidate list according to REACH in a concentration above 0.1 % weight by weight.
89
INFORMATION
Specifications and accessories
Receiving systems
DVB-T Broadcast systems/ channels
UK
France
UHF 21-68
VHF 05-10
(VHF 01-05)
UHF 21-69
Broadcast systems/channels
PAL-I
PAL-B/G
Germany
Austria
VHF 05-12
UHF 21-69
VHF 05-12
UHF 21-69
Switzerland VHF 05-12
UHF 21-69
Italy VHF 05-12 (D,E,F,G,H,H1,H2)
UHF 21-69
Spain
Greece
UHF 21-69
Netherlands VHF 05-12
UHF 21-69
VHF 05-12
UHF 21-69
UHF UK21-UK69
UHF E21-E69
VHF E2-E12,
S1-S41
SECAM-L UHF F21-F69
VHF F1-F10, B-Q
SECAM-D/K UHF R21-R69
VHF R1-R12
DVB-C Broadcast systems
DVB-T2 Broadcast systems
Video Input PAL, SECAM, NTSC 3.58/4.43
External connections
EXT 1 Input/Output
EXT 2
HDMI 1/2/3/4 Input
PC
Input
Input
21-pin SCART RGB, A/V input
AV out, TV out
RCA jacks
RCA jack
Y, P
B
/C
B
, P
R
Video
(Y is shared)
/C
R
RCA jacks Audio L + R
(shared)
HDMI
®
compliant HDCP compliant
HDMI 1 is compatible with ARC
HDMI 3 is compatible with MHL
Mini D-sub 15-pin
Analogue
Optical Digital Audio Output
(S/PDIF)
LAN port
USB 1/USB 2 port
Headphone socket
Stereo
Visible Screen Size
(approx.)
Screen resolution
(H × V pixels)
Display
Sound output
(at 10 % distortion)
32L64
42L64
47L64
16:9
Main:
32L64
42L64
47L64
RJ-45
My Contents (Media Player)
Interface version: USB 2.0
USB class: Mass Storage
File system: FAT16 and FAT32
3.5 mm stereo
A2, Nicam
2 carrier system
32L64
42L64
47L64
80 cm
106 cm
119 cm
1920 × 1080
1920 × 1080
1920 × 1080
7 W + 7 W
7 W + 7 W
10 W + 10 W
Power consumption
(approx.)
32L64
42L64
47L64
Standby power consumption
(approx.)
Energy Efficiency Class
On-mode power consumption*
(approx.)
32L64
42L64
47L64
Average annual energy
consumption** (approx.)
32L64
42L64
47L64
Networked standby power
consumption (approx.)
32L64
42L64
47L64
32L64
42L64
47L64
85.0 W
93.0 W
127.0 W
0.50 W
A+
A+
A+
33.6 W
45.0 W
64.2 W
46.6 kWh/y
62.4 kWh/y
89.0 kWh/y
2.20 W
2.20 W
2.20 W
* Tested in accordance with IEC 62087-BD in default settings.
** Operating 4 hours a day and 365 days a year.
Dimensions
(approx.)
Weight
(approx.)
Operating condition
Wireless connection
Supplied accessories
32L64
42L64
47L64
48.9 cm (H) 73.4 cm (W) 18.0 cm (D)
60.4 cm (H) 96.4 cm (W) 23.0 cm (D)
65.7 cm (H) 107.2 cm (W) 21.7 cm (D)
(Height dimension includes foot stand)
32L64
42L64
47L64
6.5 kg
10.0 kg
12.5 kg
Temperature 5 °C - 35 °C (41 °F - 94 °F)
Humidity 20 - 80 % (non-condensing)
• Standard: IEEE 802.11a/b/g/n
• Frequency Range: 5.15-5.35 GHz,
5.47-5.725 GHz, 5.725-5.850 GHz,
2.400-2.4835 GHz
• Remote control CT-90429
2 batteries (AAA, IEC R03 1.5 V)
• Screw (for TV mounting) See page 5.
Specification is subject to change without notice.
90
Register your TV online at www.toshiba.co.uk/registration
© TOSHIBA
All rights reserved.
Reproduction in whole or part without written permission is strictly prohibited.
TOSHIBA
23 Davy Road, Plymouth, PL6 8BY, UK
T 3
advertisement
Related manuals
advertisement
Table of contents
- 2 Contents
- 4 INSTALLING YOUR TV
- 4 Safety Precautions
- 5 Installation and important information
- 7 The remote control
- 7 Inserting batteries and effective range
- 8 CONNECTING YOUR TV
- 8 Connecting external equipment
- 9 Connecting an HDMI® device
- 9 To connect an HDMI device
- 9 HDMI’s ARC (Audio Return Channel) feature
- 10 Connecting an HDMI CEC Control compatible device
- 11 Connecting a computer
- 11 To connect a PC to the HDMI terminal
- 11 To connect a PC to the RGB/PC terminal
- 12 Connecting a home network
- 12 To connect the TV to a home network - Wired
- 12 To connect the TV to a home network with an internet connection - Wireless
- 13 To connect the TV to the Device with Intel® WiDi / wireless display
- 14 Controls and input connections
- 14 Switching on
- 14 Using the TV controls and connections
- 15 Using the menu system
- 16 SETTING UP YOUR TV
- 16 Startup Application
- 16 Quick Setup
- 19 Ant/Cable (if available)
- 20 Auto Tuning
- 21 ATV Manual Tuning
- 21 Tuning
- 22 Skip
- 23 Sorting positions
- 23 DTV Manual Tuning
- 23 Manual Tuning
- 24 Manual Tuning for DVB-C
- 24 Antenna Amplifier
- 24 DTV Settings
- 24 Channels (Antenna/Cable)
- 25 Standby Channel Update
- 25 Location setting
- 25 Analogue switch-off
- 25 Data Transfer
- 26 CONTROLS AND FEATURES
- 26 General controls
- 26 Quick Menu
- 26 Selecting channels
- 27 The Time Display – analogue only
- 27 Stereo and Bilingual transmissions
- 27 Sound controls
- 27 Volume controls and sound mute
- 27 Sound Navi
- 27 Sound Mode
- 27 Graphic Equaliser
- 27 TruDialog™
- 28 Surround
- 28 Sound Separation Effect
- 28 TruVolume™
- 28 Dynamic Range Control
- 28 Balance
- 28 Dual
- 29 Audio Level Offset
- 29 TV Speakers
- 29 Headphone Level
- 29 Audio Description
- 30 Widescreen viewing
- 32 Picture controls
- 32 Picture Mode
- 32 Reset
- 32 Picture preferences
- 32 ColourMaster
- 33 Base Colour Adjustment
- 33 Colour Temperature
- 33 Auto Brightness Sensor
- 33 Active Backlight Control
- 33 Black/White Level
- 34 MPEG NR – Noise Reduction
- 34 DNR – Digital Noise Reduction
- 34 Resolution +
- 34 Cinema Mode
- 34 Resetting the advanced picture settings
- 35 Expert Picture Settings
- 36 Automatic Format (Widescreen)
- 36 4:3 Stretch
- 37 Picture Position
- 37 Picture still
- 37 HDMI Information Display
- 37 Wireless LAN Information
- 39 Setting up the Network
- 39 Wireless Setup
- 42 Advanced Network Setup
- 43 DNS Setup
- 43 Network Connection Test
- 44 Using the software keyboard
- 44 Network Device Setup
- 44 Apps Control Profile
- 45 External Record Control
- 45 Companion Device Control
- 45 Media Renderer Setup
- 46 Device Name Setup
- 46 USB HDD Record Function
- 47 Setting up the USB HDD for recording
- 47 To record DTV programmes (One Touch Recording)
- 47 Auto Recording
- 48 How to set recordings via the Programme Guide
- 50 To check, edit or delete scheduling information
- 51 To view a recorded programme
- 51 Operations from the My TV Library screen
- 52 Recording Setup
- 53 Scheduling priority
- 54 Using the Smart TV Cloud services
- 54 Using Web Browser
- 55 Using Hybrid TV Standard (if available)
- 56 Using Intel® WiDi / wireless display
- 56 Intel® WiDi / wireless display Device Name
- 57 Device List
- 57 Using My Contents
- 58 Basic operation
- 59 Viewing photo files (on a media server or USB device)
- 61 Viewing movie files (on a media server or USB device)
- 63 Playing music files (on a media server or USB device)
- 64 Other features
- 64 Panel Lock
- 64 Blue Screen
- 65 Netflix®
- 65 The timers
- 65 My TV Timer List – digital only
- 65 On Timer
- 66 Sleep Timer
- 66 Energy Saving Settings
- 66 Automatic Power Down
- 66 No Signal Power Down
- 67 Digital on-screen information
- 67 Information
- 68 Using EPG (Electronic Programme Guide)
- 68 Using Broadcast Guide
- 68 Genre selection/searching
- 69 Digital settings – parental control
- 69 Parental PIN Setup
- 69 Parental Setup
- 70 Digital settings – Channel Options
- 70 Selecting favourite channels
- 70 Favourite Channel List
- 70 Skip channels
- 70 Locking channels
- 71 Digital settings – other settings
- 71 Subtitles
- 71 DVB Character Set
- 71 Audio languages
- 71 Common Interface
- 71 Stored CICAM PIN
- 72 Software Upgrade and Licences
- 72 Searching for New Software
- 72 Network Upgrade
- 72 Software Licences
- 73 System Information and Reset TV
- 73 System Information
- 73 Reset TV
- 73 PC Settings
- 73 Horizontal and Vertical Position
- 73 Clock Phase
- 74 Sampling Clock
- 74 Reset
- 74 Input selection and AV connections
- 74 Input selection
- 75 Labelling video input sources
- 75 Digital Audio Output
- 76 Using HDMI CEC Control
- 76 Enable HDMI CEC Control
- 76 TV Auto Power
- 77 Auto Standby
- 77 Amplifier Control
- 77 Initial Speaker Setting
- 77 HDMI CEC Control input source selection
- 78 HDMI CEC Control one touch play
- 78 HDMI CEC Control system standby
- 78 Using MHL TV function
- 78 Connecting an MHL-compatible device
- 78 Operating an MHL-compatible device
- 78 MHL Setup
- 79 TEXT SERVICES
- 79 Text services
- 79 Selecting modes
- 79 Text information
- 79 Navigating pages using Auto
- 79 Navigating pages using LIST
- 80 Control buttons
- 81 PROBLEM SOLVING
- 81 Questions and Answers
- 84 INFORMATION
- 84 Information
- 88 Licence information
- 90 Specifications and accessories
