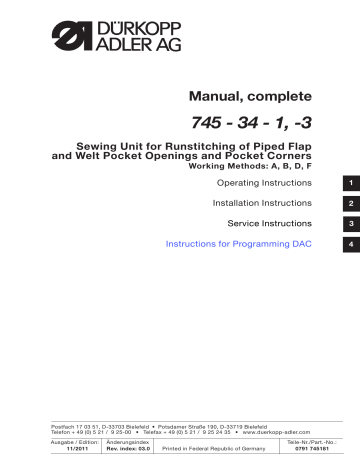

Manual, complete
745 - 34 - 1, -3
Sewing Unit for Runstitching of Piped Flap and Welt Pocket Openings and Pocket Corners
Working Methods: A, B, D, F
Operating Instructions
Installation Instructions
Service Instructions
Instructions for Programming DAC
1
2
3
4
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon + 49 (0) 5 21 / 9 25-00 • Telefax + 49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com
Ausgabe / Edition: Änderungsindex
11/2011 Rev. index: 03.0
Printed in Federal Republic of Germany
Teile-Nr./Part.-No.:
0791 745181
745 - 34 - 1, -3
Manual, complete
Content
Operating Instructions
Installation Instructions
Service Instructions
Instructions for Programming DAC
Interconnection Diagram
9870 745154 B
9890 745002 B
Pneumatic Circuit Plan
9770 745005
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner, even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright © Dürkopp Adler AG - 2011
Foreword
This instruction manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.
The instruction manual contains important information on how to operate the machine securely, properly and economically. Observation of the instructions eliminates danger, reduces costs for repair and down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing unit.
The instruction manual must be read and applied by any person that is authorized to work on the machine/sewing unit. This means:
– Operation, including equipping, troubleshooting during the work cycle, removing of fabric waste,
– Service (maintenance, inspection, repair) and/or
– Transport.
The user also has to assure that only authorized personnel work on the machine.
The user is obliged to check the machine at least once per shift for apparent damages and to immediatly report any changes (including the performance in service), which impair the safety.
The user company must ensure that the machine is only operated in perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or maintaining, the safety devices must be remounted directly after completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe the general safety and accident prevention regulations!
General safety instructions
The non-observance of the following safety instructions can cause bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of the machine without the safety devices is not permitted. Observe all the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle plate, feed dog and bobbin) when threading, when the workplace is left, and during service work, the machine must be disconnected from the mains by switching off the master switch or disconnecting the mains plug.
5. Daily servicing work must be carried out only by appropriately trained persons.
6. Repairs, conversion and special maintenance work must only be carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted, except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains plug. This work must be carried out by appropriately trained technicians (see paragraph 8).
It is absolutely necessary to respect the safety instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.
Contents page:
Part 4: Instructions for Programming DACIII, class 745-34-1 and 745-34-3
Program version A 01
1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
4
4.1
4.2
5
5.1
5.2
2
3
Operating terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory dongle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transferring data from the memory dongle to the control . . . . . . . . . . . . . . . . . . . . .
Transferring data from the control to the memory dongle . . . . . . . . . . . . . . . . . . . . .
Main operating screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sewing and test programs: menu structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing parameter values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6.1
6.2
6.3
6.4
6.5
6.6
Sewing programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calling sewing-program parameter screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running a machine program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pocket programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Blower mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pocket sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7.1
7.2
7.3
7.3.1
7.3.2
7.3.3
Setting and test programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calling setting and test programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Machine parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Machine-specific setting and test programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the looper-thread monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initializing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the smoother function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.4
Aligning the light barriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.4.1
Preparing the sewing unit and feed clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.4.2
Sewing unit with two light barriers for automatic angle recognition . . . . . . . . . . . . . . .
7.3.4.3
Sewing unit with two light barriers, left or right flap positioning . . . . . . . . . . . . . . . . .
7.3.4.4
Sewing unit with one light barrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.4.5
Error Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5
Checking the corner-blade settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5.1
Checking the corner-blade station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5.2
Checking the front left corner blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5.3
Checking the rear left corner blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5.4
Checking corner-blade motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.5.5
Corner-blade machine parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
8
9
6
6
6
4
5
49
50
51
52
53
55
57
38
38
40
48
59
60
61
62
62
62
63
64
10
10
11
12
14
34
36 4
Contents page:
8
8.1
8.2
8.3
7.5
7.6
7.7
7.8
7.4.2
7.4.3
7.4.4
7.4.5
7.4.6
7.4.7
7.4.8
7.3.6
7.3.7
7.3.8
Testing needle and center-blade activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the tape feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the gripper folder without feed clamp (versions B and F only) . . . . . . . . . . . .
7.3.9
Checking the insertion process with feed clamp . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.10
Checking and adjusting the piping knives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.10.1 Checking the piping knife motion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.10.2 Setting the piping knife reference position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.11
Step-by-step mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.12
Determining the cycle time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.13
Dongle Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.14
Testing the incremental encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4
Multitest system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.1
Displaying the program version and checksum . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting input elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking input elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting output elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CAN test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the sewing drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Terminal self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display contrast value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sewing motor controller error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stepping motor error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating indicator error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
88
89
90
91
78
79
81
82
85
86
87
71
72
73
74
75
76
77
66
67
68
69
70
70
92
92
93
93
1 General
This manual contains important information on the safe and correct use of the “DACIII” (Dürkopp Adler Control) new-generation controller.
Screen images in this brief description
The symbol display on the various screens depends on the sewing machine’s equipment and settings. The screen images illustrated in this brief description may therefore not always correspond exactly with the screens appearing in the controller display.
Operating terminal with graphic user guide
The operating terminal is fitted with an LCD display and a keyboard.
The user guide employs only internationally intelligible symbols, supplemented with textual information in the selected language. The various symbols are arranged in groups in the menu structure of the sewing and test programs.
Simplicity of operation ensures rapid familiarization.
Ease of programming
99 freely programmable pocket programs are available to the user, which can be combined with any number of seam patterns.
20 pocket sequences.
Each pocket sequence can be composed of a maximum of 8 pocket programs in any order.
On the “slanting-pocket version” of the class 745-34-3 all practical angles can be programmed by the operator, who can thus dispense with the need to spend time and effort readjusting the corner blades and programming seam displacements.
Setting and test programs
The MULTITEST comprehensive testing and monitoring system is integral to the DACIII control.
A microcomputer carries out the control functions, monitors the sewing process and displays incorrect operations and faults.
Errors and test results are shown in the LCD display.
If the machine is operating normally the display shows information relating to operation and sewing.
In the event of an operating error or fault the function sequence is interrupted. The display indicates the cause by means of the appropriate error symbol.
In most cases the error symbol disappears once the error has been rectified.
In some cases the main switch must be switched off for safety reasons when the error is rectified.
Special programs facilitate mechanical settings and enable receiver and transmitter elements to be rapidly tested without additional measuring devices.
Memory dongle
The dongle is used to memorize sewing programs and machine parameters and to transfer these data to other sewing units.
4
3
2 Operating terminal
Data input and output is done via an operating terminal with a colour
LCD display and a multipurpose keyboard.
RST (reset) key
Colour display
Decimal keypad
Cursor keys
ESC key
Key/key group
Function keys
Cursor keys
Decimal keypad
Escape key
OK key
RST key
Function keys
Function
Call sewing-program parameter screens
(from the main screen).
Call test programs (after pressing the RST key)
Switch functions on and off.
Leave test programs and parameter screens.
Change parameter values.
Change parameter values.
ï, ð : select the symbol of the required parameter
ñ, ò : switch the parameter function on and off, select the previous/next parameter-value stage, activate the test program
Enter parameter values.
: change the parameter-value sign
Display the old parameter value again.
Open window to set the selected parameter.
Accept the set parameter value.
Leave machine program.
Halt current program.
OK key
4
3 Selecting the language
– Switch on the main switch and keep pressing the “ ñ” key or
– Press the keys “RST” and “
ñ” in order to activate the language selection
– The different languages are memorized in the control.
– By pressing the cursor keys “ ñ“ or ”ò” the desired language can be selected (it will appear white on black).
– With the “F5” key the language that will be activated when switching on the automat the next time is marked with an asterisk.
4
5
4 Memory dongle
The dongle is used to memorize sewing programs and machine parameters and to transfer these data to other sewing units.
The transfer direction is selected with the keys ”F2” and “F4”. The data transfer is started with the “F5” key.
4.1
Transferring data from the memory dongle to the control
– Use the “
ð ” or “ï” cursor keys, to select the required parameter
(machine parameter, sequences or seam program).
– The pictogram representing the required parameter will then appear white on black.
– Start the data transfer by pressing the “F5” key.
F1 F2 F3 F4 F5
4.2
Transferring data from the control to the memory dongle
– When saving data on the dongle, all parameters, machine parameters, sequences and seam programs are memorized.
– After pressing the “F5” key, appears the question whether the dongle is to be overwritten.
F1 F2 F3 F4 F5
– The current type of the dongle being plugged in is determined and indicated on the display.
– Data transfer can be started by pressing the “F5” key and stopped with the “ESC” key.
– If no data dongle 745-34-3 is indicated but e. g. Boot 745-34-3, the dongle will first be formatted after pressing the “F5” key before the data are saved on the dongle.
6
– The dongle is formatted
– The data is saved onto the dongle
7
4
5 Main operating screen
5.1
Sewing and test programs: menu structure
The user interface exclusively employs internationally intelligible symbols.
In addition each function is briefly explained in an information line.
The individual parameters and setting and test programs are arranged in various groups.
Turn on main switch
Main screen
8
Sewing programs Setting and test programs
Calling sewing programs
– Turn on the main switch.
The controller is initialized.
The DÜRKOPP-ADLER logo briefly appears in the display.
– The display switches to the main screen.
Sewing-program parameter menus are called by pressing one of the function keys F1 and F2.
Calling setting and test programs
– Turn on the main switch.
The controller is initialized.
The DÜRKOPP-ADLER logo briefly appears in the display.
– While the logo is displayed press one of the function keys F1 to
F5 or cursor up, cursor down.
or with the machine switched on:
– press the RST key, then hold down one of the function keys F1 to
F5 or cursor up, cursor down.
The display switches to the corresponding group of setting or test programs.
5.2
Changing parameter values
Parameter values are changed in the individual parameter screens.
– Select the required parameter with the “ ï” or “ð” cursor keys.
A black background appears behind the symbol of the selected parameter.
– Press the OK key.
The settings window appears with the current values or to enable values to be entered.
– Change the parameters as described under 1 to 4 below.
– Press the OK key.
The new parameter settings are saved.
When changing parameter values we must distinguish among four groups of parameters:
1. Functions that are switched on and off
– Switch the parameter function on and off with the “
ð” or “ï” cursor keys.
4
(on) (off)
2. Parameters with various functions
– Set the required parameter function with the “ ð” or “ï” cursor keys.
20
Entry:
10, 12, 14, 16, 18, 20, 22, 24, 26, 30
3. Parameters whose values are changed in stages
– Select the previous or next parameter-value stage with the “
ñ” or
“
ò” cursor keys.
[-20 ...+20]
4. Parameters whose values are entered with the decimal keypad
– Enter the required parameter value on the decimal keypad.
CAUTION:
The value must be within the set limits.
If the value entered is too large or too small, the upper or lower limit is displayed when the Enter key is pressed.
– If a plus or minus sign appears in front of the parameter value, it can be changed with the “ ” key.
9
6 Sewing programs
With Class 745-34-3 you can program up to 99 different sewing programs.
The individual sewing programs (pocket programs) are freely programmable.
20 independent pocket sequences are available. Each pocket sequence can be composed of a maximum of 8 pocket programs in any order.
6.1
Calling sewing-program parameter screens
You can switch from the main screen to the various sewing-program parameter screens with function keys F1 and F2. Function key F5 resets the piece counter to “0". Press F4 for the tape feed (if present).
10
Piece counter
Pocket Program
PP
Sequence
Seq
Parameters and sewing-program parameter screens
Pocket Program
Sequence
Piece counter
(PP) : parameters for programming the seam and the associated additional functions.
(Seq) : programming pocket sequences
: daily piece counter
6.2 Running a machine program
– Turn on the main switch.
The controller is initialized.
– The Dürkopp Adler Logo briefly appears in the display.
– The controller checks the position of the transport carriage.
The following display appears:
Info line:
Reference run
– Start the reference run by pushing the left pedal back.
– The display switches to the main screen of the sewing unit.
You can switch from the main screen to the various parameter screens with function keys F1 or F2.
– Press the RST key to leave the machine program.
The controller is re-initialized.
4
11
6.3 Main screen
The main screen displays the seam pattern, sewing program, selected pocket sequence and important parameters.
Parameters can be individually selected by the user.
12
Info line
Seam pattern
The left half of the display shows the seam pattern of the selected pocket program.
Sequence
A box indicating the sequence appears in the top right-hand corner.
Selecting program number and pocket sequence
The selected pocket sequence is displayed in the top right-hand corner.
If automatic pocket-program switching is on, arrows are displayed between the individual pocket programs of the sequence.
– Select a pocket sequence with cursor keys “ ñ” or “ò”.
“ ò” : select next pocket sequence
“ ñ” : select previous pocket sequence.
Selecting a pocket program in the current pocket sequence
In the pocket sequence the selected pocket program is shown in reverse video.
– Select a pocket program with cursor keys “
ð” or “ï”.
“
ð” : select next pocket program
“
ï” : select previous pocket program.
Parameters
The symbols in the center of the right half of the display give rapid access to important parameters.
Up to ten parameters can be selected by the operator for display on the main screen (see also section 6.7).
Parameters can be changed directly on the decimal keypad.
The number of the key to be pressed is displayed to the right of the parameter symbol.
Example:
0: carriage-return to stand-by position
1: slide-in velocity
2: flap sequence
3: holder
4: vacuum
5: breast welt
6: pocket-program name
7: save pocket program
8: smoother
9: smoother time
4
The functions and settings of individual parameters are described in more detail in section 5.4: Pocket programs.
The selection of the parameter symbols is described in section 6.7.
Info line
Text explaining the selected function is displayed in the information line.
Piece counter
The current piece count is displayed at bottom right
(e.g.
).
The piece counter shows the number of pieces completed since the counter was last reset.
The piece counter can be reset to “0" by pressing function key F5.
13
6.4
Pocket programs ( )
This menu item contains the parameters for programming the various pocket programs.
They are used to program the seam and its associated additional functions.
Pocket-program number
Info line:
Select pocket program
– While the main screen is displayed press function key F1.
The display switches to the pocket-program screen.
– The pocket program currently selected is shown in the upper part of the display (e.g. “PP : 01”).
The program name, if any, appears behind it (e.g. “<SAKKO>”).
– Select the required parameter with cursor keys “ ï” or “ð”.
A black box appears under the symbol of the selected parameter.
– Change the selected parameter as described in section 4.2.
– Press function key F1 to switch back to the main screen.
This parameter selects the pocket program that is to be changed.
On completion of the entry the new pocket program and its program name appear in the top left-hand corner of the display.
Entry: 1 .. 99
14
Programming the seam pattern
The actual pocket form is programmed under this menu item. The programmed pocket is shown with the corresponding information in the left half of the display.
The corresponding parameter symbols appear in the right half.
Seam-start flap shape
– Select the required parameter with cursor keys “ ï”, “ð”, “ñ” or
“ ò”.
The symbol of the parameter selected appears in reverse video.
– Press the OK key.
The corresponding submenu is called.
This parameter is used to select the shape of the flap at the seam start. Three variants are available:
Straight flap
4
Slanting flap (left)
Slanting flap (right)
– Select the required flap shape with cursor keys “ ï”or “ð”.
– Press the “OK” key.
The flap-angle entry window appears.
Flap angle
Entry: 01 … 13 [mm]
15
Seam-start pattern
This parameter selects the form of the seam pattern at the seam start.
Straight seam pattern
Slanting seam pattern (left)
Slanting seam pattern (right)
– Select the required seam form with cursor keys “
ï”or “ð”.
– Press the “OK” key.
The seam-angle entry window appears:
Seam angle
Entry: 01 … 13 [mm]
Seam-end flap shape
This parameter selects the form of the flap at the seam end. Three variants are available:
Straight flap
Slanting flap (left)
Slanting flap (right)
– Select the required flap shape with cursor keys “ ï”or “ð”.
– Press the “OK” key.
The flap-angle entry window appears:
Flap angle
Entry: 01 … 13 [mm]
16
Seam-end pattern
This parameter selects the form of the seam pattern at the seam end.
Straight seam pattern
Slanting seam pattern (left)
Slanting seam pattern (right)
– Select the required seam form with cursor keys “ ï”or “ð”.
– Press the “OK” key.
The seam-angle entry window appears:
Seam angle
Entry: 01 … 13 [mm]
NB:
The seam-angle entry is checked.
If the fixed sewing length and the values entered cannot be sewn on the machine, an automatic adjustment of the seam angle is carried out for the seam end.
Sewing-length measurement
Three different possibilities can be selected.
Distance measurement, automatic recognition by light barrier and automatic recognition of the flap angle.
An interlock system prevents more than one possibility from being selected. The other are blocked.
Distance measurement
In distance measurement the sewing length is displayed on the main screen.
Automatic recognition of flap beginning and flap end
In this setting the reflecting light barrier for the recognition of the flap beginning and flap end is switched on for sewing with flaps.
Maximum flap length
Entry: 020 … 180 [mm] optional 220 mm
4
Automatic flap-angle recognition
Sewing with two light barriers for automatic flap-angle recognition.
Maximum flap length
Entry: 020 … 180 [mm] optional 220 mm
Stitch length
Entry: 2.0 … 3.0 [mm]
17
18
Select flap side
The sewing length is equipped with a reflecting light barrier for the recognition of the seam start and end when sewing with flaps.
The parameter indicates which side the flap is attached.
When the parameter is changed the flap side of the seam pattern automatically switches in the display.
Flap left
Flap right
Seam-start mode left/right needle
Four different seam locks are available for the seam start. They can be set separately for the right and left needles.
Single bartack
Stitch compaction
Number of bartack stitches
Entry: 01 … 05 [stitches]
Number of stitch-compaction stitches
Entry: 01 … 10 [stitches]
Stitch-compaction stitch length / or bartack
Entry: 0.5 … 3.0 [mm]
Seam-end mode left/ right needle
Four different seam locks are available for the seam end. They can be set separately for the right and left needles.
Single bartack
Stitch compaction
Number of bartack stitches
Entry: 01 … 05 [stitches]
NB:
In zip-fastener mode the bartack length at the seam end is limited to a maximum of 3 mm.
Number of stitch-compaction stitches
Entry: 01 … 10 [stitches]
Stitch-compaction stitch length/ bartack
Entry: 0.5 … 3.0 [mm]
NB:
In a straight seam pattern only the left seam lock needs to be changed.
4
19
20
Selecting the positioning point
Depending on the type of piece being sewn, positioning takes place at the rear, center or front positioning point.
Rear positioning point (with respect to the operator)
Center positioning point head)
Front positioning point (with respect to the machine)
Distance from the center positioning point to the rear positioning point
Entry: 10 … 170 [mm]
NB:
The entry is checked.
If the fixed sewing length and the value entered cannot be sewn on the machine, suitable values are automatically used.
Initializing program memory
The program function is to load standardized factory setting for the seam-pattern parameters.
– Press function key F3.
“Initialize sewing program?” appears in the display.
– Press function key F5.
The parameters are reset to the factory-set values.
Light-barrier adjustment
This parameter is used to adjust the light barrier for the seam start and seam end.
Seam-start adjustment
Entry:
Seam-end adjustment
-20.0 … + 20.0 mm
Selecting laser markings
A maximum of 16 lasers can be assigned to each pocket program.
With the number keys 1 to 8 on the numerical display the respective laser (1-8) can be switched on (with asterisk) or off (no asterisk).
With the “+” key and the number keys 1 to 8 on the number keypad the respective laser (+1-+8) can be switched on (with asterisk) or off
(no asterisk).
1 = *
2 = *
3 =
4 =
5 =
6 = *
7 =
8 =
+ 1 = *
+ 2 = *
+ 3 =
+ 4 =
+ 5 =
+ 6 =
+ 7 =
+ 8 =
4
21
22
Sewing head
This parameter is used to change values affecting the sewing head.
Sewing speed
Entry: 2000 … 3000 [rpm]
Soft start
Entry: on/off
Soft-start speed
Entry: 0500 … 900 [rpm]
Number of soft-start stitches
Entry: 01 … 20 [stitches]
Reselect icon
Thread-clamp release stitches
Entry: 01 - 99
Sewing mode
Intermittent sewing
Continuous sewing
+
-
Center blade
Center blade
Entry: on/off
CAUTION:
Switching off the center blade automatically switches off the corner blades too.
However, switching the center blade back on does not automatically switch the corner blades back on again.
They must be switched on separately.
+
Center-blade rpm
Entry: 1700...3000 [rpm]
Select with the “ ñ” or “ò” keys.
Adjusting the center-blade incision at the seam start
Changing this value carries out the fine adjustment of the center-blade incision at the seam start.
Entry: - 9.9 … + 9.9
0 = no adjustment
+ = switch on center blade sooner
- = switch on center blade later
Adjusting the center-blade incision at the seam end
Entry: - 9.9 … + 9.9
0 = no adjustment
+ = switch off center blade sooner
- = switch off center blade later
4
23
24
Corner blades
Manual corner-blade station
Info line:
Switching corner blades on/off
Entry: on/off
Corner blades on/off
All four corner blades on/off
Left corner-blade incision at seam start on/off
Right corner-blade incision at seam start on/off
Left corner-blade incision at seam end on/off
Right corner-blade incision at seam start on/off
Adjusting the corner-blade incision at the seam start
Changing this value carries out the fine adjustment of the corner-blade incision at the seam start.
Entry: -20,0 … +20,0 0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Adjusting the corner-blade incision at the seam end
Changing this value carries out the fine adjustment of the corner-blade incision at the seam end.
Entry: -20,0 … +20,0 0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Automatic corner-blade station
Info line:
Switching corner blades on/off
Entry: on/off
Corner blades on/off
All four corner-blades on/off
Left corner-blade incision at seam start on/off
Right corner-blade incision at seam start on/off
Left corner-blade incision at seam end on/off
Right corner-blade incision at seam end on/off
4
25
26
+
+
+
+
Adjusting the left-corner-blade incision at the seam start
Changing this value carries out the fine adjustment of the left-corner-blade incision at the seam start.
Entry: - 20.0 … + 20.0
0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Adjusting the right-corner-blade incision at the seam start
Changing this value carries out the fine adjustment of the right-corner-blade incision at the seam start.
Entry: - 20.0 … + 20.0
0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Adjusting the left-corner-blade incision at the seam end
Changing this value carries out the fine adjustment of the left-corner-blade incision at the seam end.
Entry: - 20.0 … + 20.0
0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Adjusting the right-corner-blade incision at the seam end
Changing this value carries out the fine adjustment of the right-corner-blade incision at the seam end.
Entry: - 20.0 … + 20.0
0 = no adjustment
+ = corner-blade position sooner
- = corner-blade position later
Tape feed
Switching the tape feed on/off
Entry: on/off
Seam-start tape-length
Entry: 00.0 … 99.9 mm
Seam-end tape-length
Entry: 00.0 … 99.9 mm
Flap sequence
No flap clamps
Close left flap clamp first, then right
Close right flap clamp first, then left
Close both flap clamps simultaneously
Only right flap clamp present
Only left flap clamp present
Switching the holder on/off
Entry: on/off
Switching the vacuum on/off
Entry: on/off
Smoother
Switching the smoother on/off
Entry: on/off
Smoother time
Entry: 010 … 1000 [strokes]
1 stroke = 0.001 s
Smoother velocity
Entry: 1 … 15
1 = minimum
15 = maximum
4
27
28
Transport-carriage settings
Info line: station
Return velocity
Return velocity (after sewing)
The return velocity from the needles to the insertion can be reduced.
Entry:
NB:
010 … 100 %]
Even if work is interrupted the carriage moves backwards at the same velocity.
Slide-in velocity
The slide-in velocity from the insertion station to the needle and corner station can be reduced.
Entry: 010 … 100 %]
Carriage return with material feed
After the return of the workpiece, make sure that the operator removes the material and make free the safety area before actuating the left pedal releasing and returning the transport unit.
Info line:
Carriage return to insertion position
No material feed after corner incision
Material feed/ Stacker position
After the corner incision the feed clamps transport the material to the set position.
Entry: 001 - 100 [mm]
Hint:
The smaller the entry, the further the carriage moves to the rear.
1 = rear position
100 = cutting position
Carriage return with material feed
After the corner incision the feed clamps automatically transport the material back to the positioning area.
Hint:
The icon is only active when the stacker/smoother is switched off.
Info line:
Return to insertion position
Carriage return to stand-by position measured from the rear reference switch
Entry: 001 - 515 [mm]
No carriage return
4
29
30
Switching the flap feed on/off (versions B and F only)
Entry: on/off
Mode 1
Flap feeders swivel out.
Mode 2
Flap feeders remain swivelled in.
Sewing patterned or plain material (versions “D” and “F” only)
Patterned material
Plain material
Switching the piping blade on/off (versions B and F only)
Entry: on/off
Cutting depth at the seam beginning
Cutting depth at the seam end
Selecting pedal mode
Two different variants of the insertion process with vacuum and / or holder can be selected.
Pedal mode 1
In this mode the insertion process is carried out by pressing and holding down the left pedal while operating the right pedal.
Pedal mode 2
For insertion, the pedal must be brought to its initial position, between the steps.
Pedal mode 3
The clamp goes in sewing position after actuating the pedal.
Breast-welt mode
Entry: on/off
Rapid clamp adjustment
Info line:
Rapid clamp adjustment
Rapid clamp adjustment
Clamp left outer, right outer
Clamp left outer, right inner
Clamp left inner, right outer
Clamp left inner, right inner
CAUTION: danger of breakage
If the single-piping folder is fitted do not select a double-piping program, i.e. do not select clamp left inner and right inner.
31
4
32
Feed-clamp sequence right/left
Both clamps descend simultaneously
Lower left clamp first
Lower right clamp first
Entering the program name
This parameter assigns a name to any pocket program.
The program name is limited to 18 letters.
– Select the parameter with cursor keys “
ð” or “ï”.
– Function keys F2 and F3 browse the alphabet.
F2: forwards
F3: backwards
0 .. 9: digit entry
– Pressing cursor keys “
ï” or “ð” moves the cursor one place to the left or right.
– Press the “OK” key to terminate entry.
The program name entered is assigned.
Press the “ESC” key to use the old program name again.
Press F5 to delete the name.
Copying pocket programs
This parameter is used to copy the selected pocket program into another program.
The number that must be entered is that of the sewing program into which the selected pocket program is to be copied.
On completion of the entry the number and name of the pocket program appear in the display.
Entry: 1 … 99
Switching the zip-fastener scissors on/off
Entry: on/off
Initializing program memory
The program loads a standardized factory setting, including seam pattern, for the sewing-program parameters.
– Press function key F3.
“Initialize sewing program?” appears in the display.
– Press function key F5.
The parameters are restored to the factory settings.
Switching the waistband clamp on/off
Entry: on/off
Fabric holder mode (versions A and B only)
The choice of fabric holder, vacuum and waistband clamp sequence is selected when loading the fabric holder mode.
4
7
8
5
6
2
3
4
Mode Fabric Holder
1 1
1
1
1
2
2
1
2
Vacuum
2
1
2
1
1
2
3
3
Waistband clamp
1
2
3
0
2
1
2
1
33
6.5
Blower mode
Entry:
0, 1, 2, 3, 4. 5. 6, 7
Mode 0
Valve YC108 Valve YC109
Position blowing on blowing off Position blowing on blowing off
Application
active active function off
Mode 1 blower pipe in flap clamps flap clamps closed needles on blower pipe in the folding sheet folding sheet closed needles on Blow pocket bag and/or piping to the seam beginning simultaneously
Mode 2 blower pipe in flap clamps flap clamps closed
Mode 3 blower pipe in flap clamps flap clamps closed
Mode 4 blower pipe in flap clamps flap clamps closed
Mode 5 Short blower pipe in left flap clamp
5 mm after the loading position
Mode 6 blower pipe in flap clamps flap clamps closed
Mode 7 blower pipe in flap clamps
10 mm after the loading position needles on blower pipe in the folding sheet
10 mm after the loading position blower pipe in the folding sheet folding sheet closed
Stamp sink up flap clamp closed
10 mm after
Feedingposition
Blow pocket bag and piping to the seam beginning alternately
Shortly blow pocket bag and/or piping simultaneously.
Blow piping during the lowering of the stamp already needles on blower pipe in the folding sheet
Stamp sink up needles on blower pipe in right flap clamp flap clamp closed flap clamp closed
Blow pocket bag and piping to the seam beginning alternately. Blow piping during the lowering of the stamp already needles on Blow pocket bag on flap needles on blower pipe in the folding sheet folding sheet closed
180 mm after
Feedingposition
180 mm after the loading position blower pipe in the folding sheet
20 mm after the loading position
180 mm after
Feedingposition
Blow pocket bag and/or piping simultaneously.
Blow piping after path.
Blow pocket bag and/or piping after paths.
34
Notes:
35
4
6.6
Pocket sequence ( )
This menu item is used to assemble individual pocket programs into callable sequences.
A total of 20 independent pocket sequences are available.
Each pocket sequence can consist of up to 8 pocket programs in any order.
36
Info line:
Sequence programming
Programming a pocket sequence
– When the main screen is displayed press function key F2.
The display switches to the pocket-sequence screen.
– Move the cursor to the required pocket sequence with the “
ñ” or
“
ò” keys.
The number of the selected pocket sequence appears in reverse video.
– Programming a pocket sequence.
Enter the numbers (01 ...99) of the required pocket programs one after another using the decimal keypad.
Single-digit pocket-program numbers must be preceded by a zero.
Once the eighth pocket program has been entered the programmed pocket sequence is automatically stored.
– Press the “OK” key to store the pocket sequence.
Pressing the “ESC” key during programming restores the old pocket sequence.
– Press function key F1.
The display switches back to the main screen.
Switching automatic pocket-program sequencing on/off
If this function is switched on, when one pocket program has been completed the controller automatically moves to the next pocket program in the sequence.
– Automatic pocket-program sequencing is switched on and off by pressing function key F5.
Automatic sequencing is indicated in the display by arrows between the individual pocket programs of the sequence.
Entering a sequence name
– While the sequence screen is displayed press function key “F2”.
The display switches to the sequence-name screen.
Info line:
Entering sequence name
– Press function key “F2” or “F3” to enter the first letter.
– Press the “
ð” key to move to the next position.
– Press function key “F2” or “F3” to enter the next letter.
– Press “OK” to store the name.
Pressing function key “F5” erases the whole name.
4
37
7 Setting and test programs
The machine software includes various machine-specific setting and test programs, together with the well-known MULTITEST system.
A terminal self-test checks the individual components of the operating terminal.
7.1
Calling setting and test programs
Once the machine has been switched on, pressing certain keys opens the various groups of setting and test programs.
Turn on the main switch
Main screen
Functions when keys are pressed and held down:
“F1”
“F2”
“F3”
“F4”
“F5”
“Cursor-up”
“Cursor-down”
Machine parameters
Machine test and setting programs
MULTITEST
Terminal self-test
Contrast value of the display
Language selection
Edit menu
38
– The key for the required setting or test program should be pressed and held down.
– Turn on the main switch.
The controller is initialized.
The DÜRKOPP-ADLER logo briefly appears in the display.
The display switches to the corresponding group of setting and test programs.
or
– Press the “RST” key.
– Press and hold down the key for the required setting or test program.
4
39
7.2
Machine parameters ( + or main switch on + )
The machine parameters describe the machine’s technical configuration as well as its settings and their adjustment values.
CAUTION:
Changes to machine settings usually entail mechanical conversion.
For this reason this program section is only accessible after the entry of code number “25483”.
Code
Info line: with/without automatic corner blade
– Press the “RST” key or turn the main switch on and press function key “F1”.
The code-number entry box appears in the display.
– Enter code number “25483” on the decimal keypad.
Once the correct code number has been entered the display switches to the machine-parameter screen.
If an incorrect code number is entered the display switches to the main screen.
– Select the required parameter with cursor keys “
ð”, “ï”, “ò” or
“ ñ”.
A black background appears behind the symbol.
– Activate the selected parameter with the “OK” key.
– Change the selected parameter as described in section 4.2.
– To leave machine parameters press the “RST” key or turn off the main switch.
40
Corner-blade settings for angles
This parameter indicates to the control unit whether the corner blades are to be set manually or automatically.
Manual corner-blade positioning
Automatic corner-blade positioning
Maximum sewing length
Entry: 180, 200, 200 , 220 [mm]
Select with the “ ò” or “ñ” keys.
Folder unit
Entry: A, B, D, F
A: piped pockets, manual positioning of piping strip, flaps and other items
B: piped pockets, automatic piping-strip feed with incision of the ends
D: breast-welt pockets, automatic breast-welt feed and alignment
F: piped pockets, automatic piping-strip feed, automatic flap feed and alignment, incision of piping ends
Needle distance
Entry: 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 [mm]
Switching the thread monitor on/off
This parameter switches the needle-thread and looper-thread monitor on and off.
Entry: on/off
4
41
42
Selecting the flap feed mode (versions B and F only)
Tape Feed
Info line: without flap feed without Flap Feed
Flap Feed switched off
Flap Feed Mode 1
Step forward on the right pedal, left flap feed opens.
Step back on the right pedal, right flap feed opens.
Flap Feed Mode 2
Step forward on the right pedal, flap feed on both sides open.
Step back on the right pedal, right flap feed opens.
Info line: with/without tape feed
without Tape Feed
Tape feeding switched off
Tape Feed with Step Motor
Equipment: electromotor driven tape feeder
Electro-pneumatic Tape Feeding
Equipment: electro-pneumatic driven tape feeder
Switching the vacuum system on/off
This parameter indicates to the control unit whether the machine is fitted with a vacuum system.
The vacuum system is switched on and off in the pocket-program menu item (F1) on the main screen.
Entry: on/off
Switching the holder on/off
This parameter indicates to the control unit whether the machine is fitted with a holder.
The holder is switched on and off in the pocket-program menu item
(F1) on the main screen.
Entry: on/off
4
Switching the stacker/blower pipe on/off
This parameter indicates to the control unit whether the machine is fitted with a stacker/ blower pipe.
The stacker/ blower pipe is switched on and off in the pocket-program menu item (F1) on the main screen.
Entry: on/off
43
44
Switch waistband clamp on/off
This parameter indicates to the control unit whether the sewing unit is equipped with a waistband clamp or not.
Pocket bag over flap mode
Any change concerning the pocket bag over flap mode should be done here i.e. in which position the raised feed clamp goes for the inserting position.
Info line:
Pocket bag over flap
Switch piping cutter on/off
This parameter indicates to the control unit whether the sewing unit is equipped with a piping incision device.
Entry: on/off left piping cutter, with motor right piping cutter, with motor
Equipment sewing machine head
This parameter indicates to the control unit whether the sewing machine head is equipped with separate needle switching.
without separate needle switching (only straight pockets) with separate needle switching (straight and slanted pockets)
Pedalconfiguration
This parameter indicates to the control unit whether the sewing unit is equipped with one or two pedals.
Sewing unit has two pedals
Sewing unit has only one pedal
Sewing unit has two pedals and their mode of functioning has been inversed
4
45
46
Activating the smoother
This parameter tells the controller whether the machine is fitted with a smoother.
The smoother is switched on and off in the pocket-program menu item
(F1) on the main screen.
Entry: on/off
Selecting light barriers for flap scanning
Info line: distance measurement… mm
No light barrier present
Flap scanning with one light barrier
Two light barriers for flap side left/right
NB:
Flap side left/right is determined by the seam program.
Automatic angle recognition
4
Tape cutter present
Entry: on/off
47
7.3
Machine-specific setting and test programs
( + or main switch on + )
The machine-specific test programs test and adjust individual machine components.
Info line:
Adjusting the looper-thread monitor
– Press the “RST” key or turn the main switch on and press function key “F2”.
The display switches to the machine-specific test-program screen.
– Select the required test program with cursor keys “
ð”, “ï”, “ò” or
“
ñ”.
A black background appears behind the symbol.
– Press “OK” to run the selected test program.
– Change the selected parameter as described in section 4.2.
– To leave machine parameters press the “RST” key or turn off the main switch.
48
7.3.1
Adjusting the looper-thread monitor
This program aligns the reflecting light barriers of the looper-thread monitor.
Info line:
Adjusting the looper-thread monitor
– Press OK to run the test program.
Two looper-thread bobbins and the light-barrier reflecting heads appear in the display.
When the light barriers are correctly aligned a reflection occurs when an empty bobbin turns.
The black bar and a figure between 1 and 15 will show the intensity of the reflection.
If the minimal value (=8) is shown, an arrow will be displayed between the reflecting head and the looper-thread bobbin. You will hear a beep at the same time.
Hint:
If the light-barrier is set properly, the maximal value of 15 must be attained when the infrared beam reaches the bobbin (black bar in the green zone).
– To leave test programs press function key F1.
4
49
7.3.2
Initializing memory
The program loads a standardized factory setting for the sewing-program parameters, e.g. for a new controller:
50
Code
Info line:
Initializing memory
CAUTION:
Once one of these three programs has been run the parameters set are overwritten with a standardized factory setting.
For this reason this program section can only be run after the entry of code number “25483”.
– Press OK to run the test program.
The code-number entry box appears in the display.
– Enter code number “25483” on the decimal keypad.
Once the correct code number has been entered the display switches to the four parameters listed below.
If an incorrect code number is entered, the display switches to the machine-specific parameter screen.
Initializing the machine parameters
Initializing pocket programs
Initializing pocket sequences
Initializing all programs and parameters
Hint:
After initialization, the machine parameters (RST + F1) must be rechecked.
– Select the required test program with cursor keys “ ï” or “ð”.
A black background appears behind the symbol.
– Press OK to run the selected program.
– To leave machine parameters press the “RST” key or turn off the main switch.
7.3.3
Checking the smoother function
This program tests the function of the smoother.
Info line:
Testing smoother
– Press OK to run the test program.
The symbol appears with the entry fields.
smoother time (t) smoother velocity (v)
– Enter the required values for “t” and “v”.
Entry:
Active period:
Velocity stage: t = 10...1000
Increment: 1 stroke = 0.001 s v = 1...15
– Press the “F5“ key.
The smoother runs for the selected period at the set velocity.
– To leave the test program press function key F1.
4
51
7.3.4
Aligning the light barriers
This program aligns the reflecting light barriers for recognition of the seam start and end.
First light barrier
Second light barrier for flap scanning
Info line:
Aligning the light barriers
The light barriers are adjusted with two templates.
Left template = for straight pockets.
Right template = for slanting pockets.
52
7.3.4.1
Preparing the sewing unit and feed clamps
1 3 2
Caution: danger of injury
The light barriers are adjusted with the machine switched on.
The utmost care must be taken when carrying out adjustments and function-testing.
CAUTION: danger of breakage
It is essential for the folder station to be swivelled out for the light barriers to be adjusted.
– Swivel out the folder station 1.
– Lay material under the feed clamps.
– Run the test program.
Close the flap clamp and folding plates, the feed clamps descend.
– Pull the feed clamps forwards.
– Align the light barriers to the center of the reflecting foils 2.
The area from seam start to seam end must be checked on the clamp.
Orange LED: on = reflection available off = no reflection
Green LED: on = stable switching signal
If the green LED does not shine, the light-barrier should be cleaned, readjusted, replaced or a new reflecting foil should be fitted.
Proceed as follows:
- Attach a reflecting strip 2 on the left and on the right over the whole length so that a strip of approx. 2 mm remains uncovered in the middle.
- Push the feeding clamps to the back until they are centrally underneath the light barriers.
- Loosen screws 3 and align the light barriers to the strip of the reflecting foils 2. Tighten screws 3.
- Push the feeding clamps in the rear and front position and check the alignment of the light barriers.
4
53
54
1
Check of the light barrier position with swung-in folder
– When the feeding clamps are in the rear position, swing the folding station 1 in.
– Press key “7“.
Folder (A) or pick-up folder (B/F) are made pressureless.
– Press the folder on the sliding sheet manually and pull the feeding clamps to the front.
Make sure that the folder sole is guided under the folding sheets.
– Check switching of the light barriers with swung-in folder.
– Swing the folding station out again.
Hint:
If the light barriers do not switch at the seam beginning and seam end, the parallel position of the feeding clamps has to be checked
(see Service Instructions).
– Remove adhesive tapes from the reflecting strips.
Danger of breakage !
When the light barrier adjustment has been finished, the folding station has to be swung out again in any case.
7.3.4.2
Sewing unit with two light barriers for automatic angle recognition
3 2 1 6 5 4
Caution: danger of injury
During the reference run the feed clamps move forwards or back and forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
– Press function key “F3”.
The reference run is carried out.
– Press “8” and select clamp position (see page 33).
Hint:
The light barriers must be aligned to the clamp position.
– Press “9”.
The flap clamp opens.
– Press function key “F4”.
The needles are switched on.
– Turn the hand-wheel in the direction of rotation to lower the needles to about 2 mm above the material.
– Insert the straight-pocket template 1 so that line 2 points to the left needle and is parallel to the right feed clamp.
– Press “9” to close the flap clamp.
– Stick the left, proud side of the template to the clamp with a strip of adhesive tape 3.
– Press function key “F4”.
The needles are switched off.
– Turn the handwheel in the opposite direction to the direction of rotation to bring the needle back to top dead center.
4
55
56
Caution: danger of injury
During template scanning the feed clamps move back and forth several times.
Do not reach into the path of the feed clamps.
– Press function key “F5”.
The straight-pocket template is scanned.
The scanned parameters appear in the display. They are automatically passed to the controller.
7 8 9
Info line:
Aligning light barriers
– Press “9”.
The flap clamp opens.
– Remove the straight-pocket template.
Insert the slanting-pocket template 4 so that line 5 points to the left needle and is parallel to the right feed clamp.
– Press “9”.
The flap clamp closes.
– Stick the left, proud side of the template to the clamp with a strip of adhesive tape 3.
– Press function key “F2”.
The slanting-pocket template is scanned.
The scanned parameters appear in the display. They are automatically passed to the controller.
– Press “9”.
The flap clamp opens.
– Remove the slanting-pocket template.
– Press function key “F1” to terminate the test program.
– Push feed clamps backwards by hand.
– Swivel folding station back and lock in place.
– Press the “RST” key or switch the machine off and on again.
7.3.4.3
Sewing unit with two light barriers, left or right flap positioning
3 2 1
Caution: danger of injury
During the reference run the feed clamps move forwards or back and forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
– Press function key “F3”.
The reference run is carried out.
– Press “8” and select the clamp position (see page 33).
Hint:
The light barriers must be aligned to the clamp position
– Press “9”.
The flap clamp opens.
– Press function key “F4”.
The needles are switched on.
– Turn the hand-wheel in the direction of rotation to lower the needles to about 2 mm above the material.
– Insert the straight-pocket template 1 so that line 2 points to the left needle and is parallel to the right feed clamp. Both reflecting foils must be covered.
– Press “9” to close the flap clamp.
– Stick the left, proud side of the template to the clamp with a strip of adhesive tape 3.
– Press function key “F4”.
The needles are switched off.
– Turn the hand-wheel in the opposite direction to the direction of rotation to bring the needle back to upper dead center.
4
57
58
Caution: danger of injury
During template scanning the feed clamps move back and forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
– Press function key “F5”.
The template is scanned.
The scanned parameters appear in the display. They are automatically passed to the controller.
7 8 9
Info line:
Aligning light barriers
– Press “9”.
The flap clamp opens.
– Remove the template.
– Press function key “F1” to terminate the test program.
– Push feed clamps backwards by hand.
– Swivel folding station back.
– Press the “RST” key or switch the machine off and on again.
Hint:
Light barrier S1 for left clamp
Light barrier S2 for right clamp
7.3.4.4
Sewing unit with one light barrier
3 2 1
Caution: danger of injury
During the reference run the feed clamps move forwards or back and forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
– Press function key “F3”.
The reference run is carried out.
– Press “8” and select the clamp position (see page 33).
Hint:
The light barriers must be aligned to the clamp position
– Press “9”.
The flap clamp opens.
– Press function key “F4”.
The needles are switched on.
– Turn the hand-wheel in the direction of rotation to lower the needles to about 2 mm above the material.
– Insert the straight-pocket template 1 so that line 2 points to the left needle and is parallel to the right feed clamp. Both reflecting foils must be covered.
Hint:
Place the template under the clamp on which the light barrier is mounted, left or right.
– Press “9” to close the flap clamp.
– Stick the left, proud side of the template to the clamp with a strip of adhesive tape 3.
– Press function key “F4”.
The needles are switched off.
– Turn the hand-wheel in the opposite direction to the direction of rotation to bring the needle back to upper dead center.
4
59
Caution: danger of injury
During template scanning the feed clamps move back and forth several times.
Do not reach into the path of the feed clamps.
Folding station must be swung out
– Press function key “F5”.
The template is scanned.
The scanned parameters appear in the display. They are automatically passed to the controller.
7 8 9
7.3.4.5
Error Display
Info line:
Aligning light barriers
– Press “9”.
The flap clamp opens.
– Remove the template.
– Press function key “F1” to terminate the test program.
– Push feed clamps backwards by hand.
– Swivel folding station back.
– Press the “RST” key or switch the machine off and on again.
Error 1:
– Incorrect alignment of the light barrier.
– Incorrect sensitivity setting.
– Template inserted in a wrong way.
Error 2:
– Wrong / Damaged template for “straight pockets”.
Error 3:
– Wrong / Damaged template for “slanting pockets”.
60
7.3.5
Checking the corner-blade settings
This program checks the corner-blade distances.
Info line:
Adjusting corner blades
– Select the required parameter with cursor keys “
ï” or “ð” .
A black background appears behind the symbol.
– Press OK to run the selected program.
Corner-blade machine parameters
Corner-blade distance
Seam-start corner-blade adjustment
(automatic corner-blade station only)
Seam-end corner-blade adjustment
(automatic corner-blade station only)
Corner-blade frames reference run
4
61
7.3.5.1
Checking the corner-blade station
1 5 4 3 2
Caution: danger of injury
Serious cuts may result from reaching into the vicinity of the corner blades.
The utmost care must be taken when carrying out tests on the machine when it is running.
– Press function key “F3”.
The corner-blade frames carry out a reference run.
– Select the “corner-blade distance” symbol with cursor keys “ ï” or “ ð” .
– Enter a corner-blade distance and press the “OK” key to move the corner blade.
Example: corner-blade distance entry = 100 mm.
– Check the distance between the corner-blade frames 1 and 6.
7.3.5.2
Checking the front left corner blade (automatic corner-blade station only)
– Select the “seam-start corner-blade correction” symbol with cursor keys “
ï” or “ð”.
– Enter a correction value (+ or -) and press the “OK” key to move the corner blades.
– Check the distance between corner blades 2 and 3.
7.3.5.3
Checking the rear left corner blade (automatic corner-blade station only)
– Select the “seam-end corner-blade correction” symbol with cursor keys “
ï” or “ð”.
– Enter a correction value (+ or -) and press the “OK” key to move the corner blades.
– Check the distance between corner blades 4 and 5.
62
7.3.5.4
Checking corner-blade motion
Caution: danger of injury
Do not reach into the vicinity of the corner blades.
When rising they can inflict serious cuts.
The utmost care must be taken when testing the corner blades when the machine is in operation.
The individual corner blades are tested in sequence.
The test sequence is commenced by pressing function key “F5” and then continued by pressing it again.
Pressing function key “F4” moves back one step in the test sequence.
– Press function key “F5”.
The following steps are carried out:
· step 1 = front corner blades rise and stay up
· step 2 = rear corner blades rise and stay up
· step 3 = only front left corner blade rises and stays up
· step 4 = front right corner blade rises and stays up
· step 5 = rear left corner blade rises and stays up
· step 6 = rear right corner blade rises and stays up
· step 7 = complete cut with all four blades
4
63
7.3.5.5
Corner-blade machine parameters
Basic positioning of the corner blades to the seam is carried out in the machine-parameter program.
Code
– Select “corner-blade machine parameters ” with cursor keys
“ ï” or “ð”.
A black background appears behind the symbol.
– Press OK to start the program.
The code-number entry box appears in the display.
– Enter code number “25483” on the decimal keypad.
The corner-blade correction screen appears.
Info line:
Seam-end corner-blade correction value
To correct the corner incisions and the center-blade cut a sewing piece should first be prepared and sewn. The procedure is as follows:
– Set up a test program on the controller and set all corner- and center-blade corrections to “0".
– Iron a piece of Vlieseline
â onto the sewing piece.
This shows up the corner incisions better.
– Sew a test seam.
– Check the seam and cut pattern.
– To leave the test program press function key F1.
64
4
Seam-end corner-blade correction value
Entry: -99.9 … 99.9
Seam-start corner-blade correction value
Entry: -99.9 … 99.9
Hint:
The value entered is valid for all pocket programs.
If the seam-end value is changed, the seam-start value is automatically corrected.
Distance from the center-blade incision to the seam ends (x)
(see the illustration at the foot of page 62)
Entry: - 99.9 … 99.9
Hint:
This value depends on the needle distance and the relevant corner blade.
Left-corner-blade seam-start zero-point correction
(automatic corner-blade station only)
Entry: -13 … 13
Hint:
The blade brackets 1 and 2 must be parallel.
Left corner blade seam-end zero-point correction
(automatic corner-blade station only)
Entry: - 13 … 13
Hint:
The blade brackets 3 and 4 must be parallel.
4
1
3
2
65
7.3.6
Testing needle and center-blade activation
This program tests the activation of the needles and the center blade with the machine running.
Info line:
Activating needle, center blade
– Press OK to start the program.
– Press function key F3: once to start the sewing drive at 1000 rpm, a second time to increase the sewing-drive speed to 3000 rpm and a third time to stop in position 2 (thread lever up)
– The center blade is switched on and off with function key F4.
– The needles are switched on and off with function key F5.
– Press function key F1 to leave the test program.
CAUTION:
Before leaving the program the machine head must be run for a short time with the needles and center blade switched off otherwise the next seam will not be properly executed.
66
7.3.7
Checking the tape feed
This program tests the feed and trimming function of the tape feed
Info line:
Checking tape feed
– Press OK to run the test program.
– Press function key F4.
The tape feed starts.
The tape is fed and the brake released.
The key is blocked.
– Press function key F5.
The tape is automatically cut, advanced and clamped.
– Press function key F1 to leave the test program.
4
67
7.3.8
Checking the gripper folder without feed clamp (versions B and F only)
This program tests the function of the gripper folder.
The feed clamps remain in their rear end position.
F3
Info line:
Testing gripper folder
F5
– Press OK to run the test program.
– Press function key F3.
The gripper folder swivels to the vertical position.
– Press function key F5.
The gripper folder swivels to the vertical position and descends onto the material slide plate.
– For setting purposes, the gripper folder can be swayed to the vertical position, pivoted and unpressurized above the piping support table, through the key 9.
– Press function key F1 to leave the test program.
68
7.3.9
Checking the insertion process with feed clamp
This program tests the insertion process.
Info line:
Testing insertion process
– Press OK to run the test program.
A reference run must be executed.
The following appears in the display:
– Push the left pedal down.
The feed carriage moves to the insertion station.
The insertion process is executed as in a sewing program.
After the last pedal stage has been completed an arrow appears in the display.
4
– Push down the right pedal in inching mode.
The feed carriage moves to its rear position.
The feed carriage waits in this position until the pedal is in its rest position.
The feed clamps rise, the flap clamps open.
– Push the left pedal down.
The program restarts.
– To leave the test program press the RST key or switch the machine off.
69
7.3.10.
Checking and adjusting the piping knives
In the test program “Checking and adjusting the piping knives” you can check the knife and step motor motion and adjust the reference position of the piping knives.
– Press key “F3“ :
Make reference run.
The reference run has to be made before the further functions are accessible.
– Press key “F1“ :
Quit the test program for piping knives.
7.3.10.1 Checking the piping knife motion
Caution: Danger of injury !
Danger of cuts !
Do not reach in the piping knife zone.
Exercise utmost caution when making tests with the machine running.
Check the knife motion
– Press key “F2“ :
Switch both piping knives on and off again.
– Press key “F4“:
Switch the piping knife for the seam beginning on and off again.
– Press key “F5“:
Switch the piping knife for the seam end on and off again
Check the step motor
– Press key “F3“:
The reference run is carried out.
Select the symbol with the cursor keys “
ï” and “ð”
Enter the path (max. 120 mm) via the numeric keyboard and confirm with the “OK” key.
The cutting unit moves to the entered position.
70
7.3.10.2 Setting the piping knife reference position
Code
– Select the symbol with the cursor keys “
ï” and “ð”
– Start the program with the “OK” key.
The display shows the input prompt for the code number.
Enter the code number “25483" via the numeric keyboard.
The screen menu for the piping knife reference position appears.
1 2
– Loosen 4 screws and remove the lower cover at the piping cutter.
Select icon , enter the correction value “Piping knife reference” via the numeric keyboard and confirm with the “OK” key. The cutting unit moves to the entered reference position.
Set the reference position in such a way that the distance between roller guide 1 and plate 2 is 0.7 +/- 0.2 mm (measure with feeler gauge).
– Quit the menu (key F1), move the cutting unit by 120 mm (see chapter 6.3.12.1 “Checking the step motor”) and check the distance between the roller guide and the plate at the opposite.
– Fasten the lower cover at the piping cutter again.
4
71
7.3.11
Step-by-step mode
In the step-by-step mode the sewing cycle is halted at important positions so that individual processes can be checked.
– Press OK to run the test program.
The main screen appears with a reminder to execute a reference run.
Info line:
Reference run
– Push the left pedal down.
The feed carriage moves to the insertion position.
– The insertion process is completed as in the set program. After the final stage of the insertion process the following screen appears.
– Press the right pedal to call the next step. After the final step in inching mode the program can be restarted with the left pedal.
– To leave the test program press the RST key or switch the machine off.
72
7.3.12
Determining the cycle time
This program determines the machine’s cycle time.
– Press OK to run the test program.
The cycle time appears on the main screen.
Info line:
Reference run
Cycle time
– Execute a reference run.
– When the set sewing program has been completed the cycle time appears in the display.
– To leave the test program press the RST key or switch the machine off.
4
73
7.3.13
Dongle-Menu
The dongle is used to memorize sewing programs, sequences and automat parameters and to transfer these data to other sewing automats.
The transfer direction is selected with the keys ”F2” and “F4”.
The data transfer is started with the “F5” key.
The exact procedure is described in chapter 4 “Memory dongle”.
74
7.3.14
Testing the incremental encoder
This program checks the proper functioning of the incremental encoder.
– Start the test program with the OK key.
– Press the “F3" key.
A reference run will be executed
– Press the “F5" key.
The feed clamp drives to the 2nd position. After the run the target position (Position (mm): __) and the effective value of the incremental encoder (Encoder (mm): __) are displayed.
– Press the “F4" key.
The feed clamp goes to the first position.
– In order to leave the test program press the “F1" key.
4
By pressing the “F2" key the motor is switched off and feed clamp can be moved manually (the effective value of the incremental encoder is displayed).
The feed clamps are lifted or lowered by effectuating the key “9".
The position of the feed clamps can be altered after effectuating the key “8".
The speed of the feed clamp can be altered.
The positions 1. and 2. of the feed clamp can be altered.
75
7.4
MULTITEST system ( + or main switch on + )
The MULTITEST system programs enable input and output elements to be tested quickly.
No additional instruments are required.
– Press and hold down key “F3”.
– Press the “RST” key.
The controller is re-initialized and the MULTITEST system screen is loaded.
– Select the required test program with cursor keys “
ï” or “ð”.
A black background appears behind the symbol.
– Press “OK” to run the selected test program.
76
7.4.1
Displaying the program version and checksum
This program tests the microcomputer’s read-only memory (ROM).
Program version
Where program versions are of the same class and have the same code letter the higher version replaces all lower versions.
Checksum
The checksum is only intended for factory servicing.
It enables our specialists to establish whether the controller’s program memory (EPROM) contains the whole program with no errors.
– To leave the test program press function key F1.
4
Hint:
Verifying the checksum takes some considerable time.
77
7.4.2
Testing RAM (Random-Access Memory)
This program tests the microcomputer’s working memory (RAM).
– Press OK to run the test program.
The test result appears in the display.
Display
RAM OK
RAM ERROR
Explanation random-access memory is operating perfectly error in random-access memory
Hint:
If the message RAM ERROR occurs during the RAM test, the control must be replaced.
78
7.4.3
Selecting input elements
This program adjusts the input elements.
CAUTION:
The input elements are factory-set with great care.
Adjustment and correction may only be undertaken by trained service personnel.
– Press OK to run the test program.
– Use the key
CAN node.
to select between the basic module and the
– Enter the code number of the required input element on the decimal keypad.
The code numbers are the abbreviations used in the circuit diagram (see table below).
– The display shows the circuit-diagram designation and the switching status of the input element selected (e.g. “+S17").
The display changes if the switching status of the input element is altered.
A switching status of ”-" means: proximity switch = metal in front of the switch reflecting light barrier = reflection
4
– Move the input element until the display shows the required switching status.
– To leave the test program press function key F1.
79
Input elements DACIII
Function Input element
S01
S02
S05
S06
S07
S08
S09
S10
S11
S12
S14
S15
S16
S17
S20
S21
S24
S111
S101
S102
S110
S100
Needle-thread monitor left
Needle-thread monitor right
Folder down
Folding station swung in
Simple piping right
Simple piping left
Knife bracket monitoring
Remove material/ cover monitoring
Pressure monitor
Right pedal forward
Left pedal forward
Left pedal back
Right pedal back
Flap scanning 1
Flap scanning 2
Tape control
Piping knife adjustment reference
Residual-thread monitor right
Feed-device reference
Seam-start corner-blade reference
Residual-thread monitor left
Sewing motor reference
Function
Folder on top
Folder on piping table
Folder vertical
Folder inclined
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Insertion method
A B D F
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
*) Input elements can only be tested by means of the test program 6.3.1 “Adjusting the looper-thread monitor”
Input elements CAN node 0
Input element
SC001
SC003
Function Insertion method
A B D F
Seam-start blade-adjustment reference X
Seam-end blade-adjustment reference X
X
X
X
X
X
X
Input elements CAN node 1
Input element
SC001
SC002
SC003
SC004
Insertion method
A B
X
X
X
X
D F
X
X
X
X
80
7.4.4
Checking input elements
This program tests automatically the input elements.
– Press OK to run the test program.
– Select the input element to be tested.
– The display shows the circuit diagram designation and the switching status of the input element selected (e.g. “+s17”).
The display changes if the switching status is altered or another input element is changed. A change in the switching status is indicated by an audible signal.
– To leave the test program press the function key F1.
4
81
7.4.5
Selecting output elements
This program checks the function of the output elements.
One (single mode) or several (multi-mode) output elements can be tested simultaneously.
82
Caution: danger of injury !
Do not reach into the machine while it is running and the function of the output elements is under test.
– Press Enter to run the test program.
– Use the decimal keypad to select between single mode and multi-mode .
1 = single mode:
2 = multi-mode: only one output element is tested.
a group of output elements is tested.
– Press the “F5” key to switch from DACIII control to the output elements of the CAN node.
DACIII
CAN 1
DACIII = maximum of 16 outputs from YC001 to YC016
CAN 1 = maximum of 56 outputs from YC101 to YC156
– Enter the code number of the required output element with “F3”
(forwards) or “F2” (backwards).
The code numbers are the abbreviations used in the circuit diagram (see tables below).
– The display shows the switching status (ON/OFF) of the output element selected.
– Switch the selected output element on (ON) and off (OFF) by pressing function key “F4”.
– To leave the test program press function key F1.
Output elements head unit (DACIII)
Output element
Y1
Y6
Y7
Y8
Y2
Y3
Y4
Y5
Function
Upper thread cutter on/
Close thread clamp
Center blade on
Blow away fluff/advance thread
Open thread clamp
Lower thread cutter on
Thread tension on
Needle left on
Needle right on
Output elements transport unit (DACIII)
Output element
Y 9
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Function
Folder lowered
Folder lift off
Empty
Empty
Knife bracket seam-start left
Knife bracket seam-start right
Knife bracket seam-end left
Knife bracket seam-end right
Output elements method module system (CAN-node1)
Output element
YC101
YC102
YC103
YC104
YC105
YC106
YC107
YC108
YC109
YC110
YC111
YC112
YC113
YC114
Function
Open left flap clamp
Open right flap clamp
Close folding plate
Lower left feed clamp
Lower right feed clamp
Turn left feed clamp inside
Turn right feed clamp inside
Blow on (flap clamp)
Blow on (folding plate)
Vacuum on
Stacker on
Lower smoother
R (only cable harness)
R (only cable harness)
X
X
X
X
X
X
X
Insertion method
A B D F
X X X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Insertion method
A B D
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
F
Insertion method
A B D F
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
4
83
YC126
YC127
YC128
YC129
YC130
YC131
YC132
YC133
YC134
YC135
YC136
YC137
YC138
YC139
YC140
Output element
YC119
YC120
YC121
YC122
YC123
YC124
YC125
Function
Close tape cutter
Pull tape to the front
Loosen tape
Zip-fastener scissors forward
Piping knife forward
Open zip-fastener scissors
Piping knife forward
Swivel positioning device
Lift stop motion device
Swivel positioning device
Drive out waistband-clamp needles
Lift pocket bag
Swivel flap-turning device
Open waistband-clamp
Feed pocket bag
Lower flap-turning device
Close waistband-clamp
Clamp breast welt
Close flap-turning clamp
Close fabric holder
Lateral shift on
Spread needles
Lift folder
Swivel folder
Blow tube
Swivel in flap feed
Open left flap feed
Open right flap feed
Close left flap feed
Close right flap feed
Lift flap feed
R (only cable harness)
Lift right flap feed
R (only cable harness)
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Insertion method
A B D F
X
X
X
X
X
X
X
X
X
X X
X
X X
X
X X
X
X X
X
X
X X
X
X
X X
X
X
X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Output elements laser lamp
Output element
YC141 to
YC142
Function
Laser lamp
Insertion method
A
X
B
X
D
X
F
X
84
7.4.6
CAN test
Press “OK” to run the test program.
Hint:
Displaying the OK message takes some considerable time.
CAN modules work with no errors.
4
85
7.4.7
Checking the sewing drive
This program tests the needle position and the various speed stages of the sewing drive.
– Press OK to run the test program.
– Select the required parameter with cursor keys “ ï” or “ð”.
A black background appears behind the symbol.
– Set the parameter with cursor keys “
ñ” or “ò”.
Show sewing-drive program version.
Select needle position
Needle in down position
Needle in up position
Needle in any position
86
Set sewing-drive speed
7.4.8
Error list minimum = 70 rpm maximum = 3000 rpm
Checking the sewing drive key F2 = start key F3 = stop
– To leave the test program press function key F1.
The program shows the 10 last error messages.
4
– Press OK to run the test program.
– To leave the test program press function key F1.
87
7.5
Terminal self-test ( + or turn on main switch + )
Service personnel use the terminal self-test to check the individual components of the operating terminal.
– RAM test
The RAM test checks the operating terminal’s working memory
(“video RAM”).
On completion of the RAM test the self-test automatically switches to the EPROM test.
– EPROM test
The EPROM test checks the controller’s program memory.
– RAM-card test
RAM-cards are no longer used with the present machine.
– Keyboard test
The keyboard test checks the operating terminal’s keyboard.
Press any key, and if it is working properly a tick appears beside it in the display.
Pressing the “ESC” key terminates the keyboard test.
The display switches to the interface test.
– Interface test
The interface test checks the operating terminal’s interface (a special cable is required!)
On completion of this test the self-test automatically switches to the display test.
– Display test
The display test shows the available character set and graphics.
Pressing function key F2 switches the display to the main screen of the terminal self-test (see illustration above).
– Main screen
When the main screen is displayed pressing function key F2 generates a full test report.
To leave the terminal self-test press the “RST” key.
88
7.6
Display contrast value ( + or turn on main switch +
This program sets the contrast value of the display.
)
– Set the contrast value with cursor keys “
ñ” or “ò”.
– Press the “ESC” key to store the value and leave the program.
4
89
7.7
Editing menus ( + or turn on main switch + )
This determines which parameters can be directly edited on the main screen with keys 0 to 9.
– Pressing function key F5 switches to the next screen with other parameters.
– Select the required parameter with cursor keys
“ ï”, “ð”, “ñ” or “ò”.
A black background appears behind the symbol.
– Select the required position by pressing keys 0 to 9.
– Select the next parameter.
– To leave the menus press function key F1.
Hint:
Do not define a symbol twice with the numeric keys.
90
7.8
Adjusting the serial interface ( + )
This test program sets the correct transfer speed (baud rate) for the serial interface.
The correct baud rate for the serial interface is:
Com 0 = n, 8, WA, 1 - 125 K Baud
CAUTION:
If the machine is switched on with one of the following keys pressed, baud rates incompatible with the operating panel of the controller will be set: key “0" key ”1" key “2" key ”3" key “4" key ”5" key “6" key ”7" key “8" key ”9".
4
91
8.
Error messages
In the event of an error in the control system or the machine program the error number appears in the display.
The following tables will enable the cause of the error to be identified and remedied.
8.1
Sewing motor controller error messages
Error number
Error 1051
Error 1052
Error 1053
Error 1055
Error 1056
Error 1058
Error 1062
Error 1302
Error 1342
-
Error 1344
Meaning
Sewing motor timeout
- Faulty cable to the sewing motor reference switch
- Faulty reference switch
Sewing motor excess current
- Faulty sewing motor cable
- Faulty sewing motor
- Faulty control
Too high mains voltage
Sewing motor overload
- Sewing motor blocked / seized up
- Faulty sewing motor
- Control faulty
Sewing motor overheat
- Sewing motor seized up
- Faulty sewing motor
- Faulty control
- Sewing motor speed
- Faulty sewing motor
- Failure sewing motor IDMA
Autoincrement
Sewing motor error
- Control receives no impulse from the impulse transmitter in the motor
Sewing motor error
Internal error
Remedy
- Replace the cable
- Replace the reference switch
- Replace the sewing motor cable
- Replace the sewing motor
- Replace the control
Check the mains voltage
- Eliminate the blocking / seizing
- Replace the sewing motor
- Replace the control
- Eliminate seizing
- Replace sewing motor
Replace control
- Replace sewing motor
- Switch the machine off/on again
- Check the cable from the impulse transmitter in the motor to the control
- Switch the machine off/on again
- Software update
- Inform the DA-Service
92
8.2
Stepping motors error messages
Error number
Error 2101
Error 2103
Error 2152
Error 2153
Error 2156
Error 2201
Error 2253
Error 2256
Error 2353
Error 2356
Error 2401
Error 2501
Error 2601
Meaning Remedy
Step motor feed clamp timeout reference
- Faulty cable to the reference switch
- Faulty reference switch
- Replace cable
- Replace reference switch
Step motor feed clamp has step loss - Check seizing of the feed clamp
Step motor feed clamp excess current
Step motor feed clamp excess voltage
- Too high mains voltage
Step motor feed clamp overheat
- Step motor feed clamp seized up
- Faulty step motor feed clamp
- Faulty control
Step motor corner-blade frames timeout reference
- Faulty cable to the reference switch
- Faulty reference switch
Step motor corner-blade frames excess voltage
- Too high mains voltage
Step motor corner-blade frames overheat
- Step motor corner-blade frames seized up
- Faulty step motor corner-blade frames
- Faulty control
Step motor tape feeder excess voltage
- Too high mains voltage
Step motor tape feeder overheat
- Step motor tape feeder seized up
- Faulty step motor tape feeder
- Faulty control
- Failure step motor seam-start corner-blade
- Failure step motor seam-end corner-blade
- Failure step motor piping cutter
- Replace step motor feed clamp
- Replace control
Check the mains voltage
- Eliminate seizing
- Replace step motor feed clamp
- Replace control
- Replace cable
- Replace reference switch
Check the mains voltage
- Eliminate seizing
- Replace step motor corner-blade frames
- Replace control
Check the mains voltage
- Eliminate seizing
- Replace step motor tape feeder
- Replace control
Faulty cable to the reference switch
Faulty reference switch
Faulty step motor, seized up.
Faulty cable to the reference switch
Faulty reference switch
Faulty step motor, seized up.
Faulty cable to the reference switch
Faulty reference switch
Faulty step motor, seized up.
4
8.3
Operating indicator error messages
Error number
Error 3100
Error 3101
Error 3102
Error 3103
Error 3107
Meaning
Machine Control Voltage
- Temporary mains voltage drop
Machine Power Voltage
- Temporary mains voltage drop
Machine Voltage Sewing Motor
- Temporary mains voltage drop
Machine Voltage Step Motors
- Temporary mains voltage drop
Machine Temperature
- Vent holes closed
- Ventilation grid soiled
Remedy
- Check the mains voltage
- Check the mains voltage
- Check the mains voltage
- Check the mains voltage
- Check the vent holes
- Clean the ventilation grid
93
Error 7201
Error 7202
Error 7209
Error 7210
Error 7211
Error 7215
Error 7219
Error 7260
Error 7551
-
7555
7558
7559
94
Error number
Error 3121
Error 3210
Error 3220
Error 3500
-
3507
3520
-
3530
3540
3545
3721
3722
Info 4301
Info 4304
Error 6551
-
6554
6651
-
6653
6751
-
6761
Error 6952
Error 7200
Meaning
Insufficient or missing compressed air pressure
Thread breakage
Empty bobbin
Error Command Interpreter /
Motor synchronization
Internal error
Remedy
Increase the flow or stabilize the air pressure
Re-thread the machine again
Insert full bobbin
- Switch the machine off/on again
- Software update
- Inform the DA-Service
No dongle plugged in
Wrong dongle type
Error machine head position /
AD-Converter / Processor error
Internal error
- Switch the machine off/on again
- Software update
- Inform the DA-Service
Error step motor driver
Internal error
Error in the CAN - Module
Knife-bracket unit (AC001).
No module has been recognized at the address.
Error in the CAN - Module
Knife-bracket unit (AC001).
Power-fail.
Error in the CAN - Module
Knife-bracket unit (AC001).
Power amplifier overheating.
Error in the CAN - Module
Knife-bracket unit (AC001).
Wrong module has been recognized at the address.
Error in the CAN - Module
Transport unit (AC101).
No module has been recognized at the address.
Error in the CAN - Module
Transport unit (AC101).
Power-fail.
Error in the CAN - Module
Transport unit (AC101).
Output: Overload / Short circuit
Error in the CAN - Module
Transport unit (AC101).
Wrong module has been recognized at the address.
General error in the CAN - Modules
- Switch the machine off/on again
- Software update
- Inform the DA-Service
Check cable, jumper setting, power supply
Check cable, jumper setting, power supply
Check cable, jumper setting, power supply, motors and power amplifier.
Check jumper setting/DIP switches
Check cable, jumper setting, power supply
Check cable, jumper setting, power supply
Check the output cable / plug.
Check jumper setting/DIP switches
Check cable
Communication Control Panel interface
- Internal error
- Switch the machine off/on again
- Software update
- Inform the DA-Service
Error number
Error 7556
7557
Error 8151
8156
-
8159
Error 8152
-
8154
Error 8151
8155
Error 8252
8257
/
8258
8253
8254
8256
Error 8351
8801
-
8805
8806
8890
8891
Meaning
Communication Control Panel interface
- Interference
- Faulty control panel interface cable
IDMA error
- Failure
- Faulty control
Remedy
- Switch off the source of interference
- Replace the cable
- Switch the machine off/on again
- Replace the control
IDMA error
- Internal error
Error booting ADSP / Booting Xilinx /
Booting
- Switch the machine off/on again
- Software update
- Inform the DA-Service
- Switch the machine off/on again
- Software update
- Inform the DA-Service
Booting ADSP / Booting Xilinx /
Booting
Failure - Switch the machine off/on again
Error Testpins / Signals / Event processing / Memory Wrapper / List of functions
Internal error
- Switch the machine off/on again
- Software update
- Inform the DA-Service
4
95
Error number
Info 9000
Info 9001
Error 9001
Info 9002
Error 9002
Info 9013
Info 9014
Info 9015
Error 9601
Error 9604
Error 9700
Error 9701
Error 9702
Error 9703
Error 9704
Meaning
Reminder to execute the reference run after switching on
Corner-blade station is swivelled out
Corner-blade station swivelled out during sewing.
Push the left pedal backwards: the feed carriages moves backwards and a reference run is executed.
Folder station is swivelled out
Folder station swivelled out during sewing.
Push the left pedal backwards: the feed carriage moves backwards and a reference run is executed.
Tape missing
The adjusted position for the feed clamp does not fit the built-in stamp.
Remedy
Push left pedal backwards
Swivel corner-blade station in
Check/adjust the fastening of the corner-blade station.
Swivel folder station in
Check/adjust the fastening of the folder station.
Insert tape
Adjust the position of the feed clamp to match the one displayed in the pocket parameters.
Incorrect setting of the flap scanning in the pocket program
Correct the pocket program
Left pedal pushed backwards during sewing
Light barrier (s10) for material removal not active
To clear this error, operate the pedal again; the feed clamp then moves to its rear position
Adjust the light barrier (s10) for material removal
Folder not up
Folder not down
Folder not vertical
Folder not slanted
Folder not on piping table
Correct the folder setting (mechanical collision; check switch)
Correct the folder setting (mechanical collision; check switch)
Correct the folder setting (mechanical collision; check switch)
Correct the folder setting (mechanical collision; check switch)
Correct the folder setting (mechanical collision; check switch)
96
Error number
Info 9720
Info 9721
Info 9722
Info 9723
Info 9725
Info 9726
Info 9727
Error 9800
Error 9810
Error 9900
Error 9901
Error 9902
Meaning
Error at the light barrier for flap scanning
Flap has been positioned in front of the front positioning point
Flap protrudes from the maximum sewing area (behind the rear positioning point)
Fluff at the flap beginning
Flap angle is too great / Flap minimum size
Flap too large or reflecting foil dirty or faulty
Stop section insufficient for the flap angle
Center blade not ready for use
Smoother not ready for use
Remedy
Check the reflecting foil; Check the alignment of the light barriers
Position the flap correctly
Check the flap size; Position the flap correctly
Feed flaps with smooth edges; Check the reflecting foil
Check flap angle; Check light barrier alignment; Adjust the seam parameters
(eventually the seam protection too long for small flaps).
Check the flap size and reflecting foil
Reduce the slide-in speed
Check cable
Check cable
Defective Machine Parameters
(Checksum error)
Defective Pocket Sequences
(Checksum error)
Defective Pocket Programs
(Checksum error)
Re-initialize machine parameters (test program); Set machine parameters or read them from the RAM-Card / Dongle.
Re-initialize pocket sequences (test program); Set pocket sequences or read them from the RAM-Card / Dongle.
Re-initialize the defective pocket programs
(test program); Set pocket programs or read them from the RAM-Card / Dongle.
4
97
advertisement
Related manuals
advertisement
