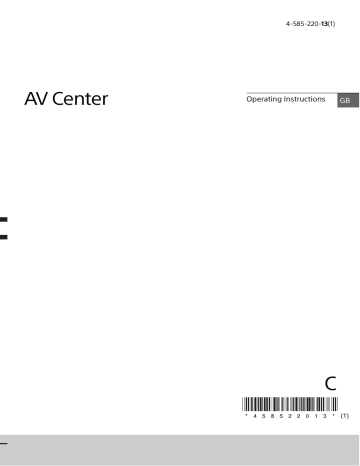

Sony XAV-W650BT 15.7cm (6.2”) LCD DVD Receiver Operating Instructions

4-585-220-13(1)
AV Center
Operating Instructions
C
GB
Laser Diode Properties
 Emission Duration: Continuous
 Laser Output: Less than 390 μW
(This output is the value measurement at a distance
of 70 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.)
The nameplate indicating operating voltage, etc., is
located on the bottom of the chassis.
Warning
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
CAUTION
The use of optical instruments with this product will
increase eye hazard. As the laser beam used in this
CD/DVD player is harmful to eyes, do not attempt
to disassemble the cabinet. Refer servicing to
qualified personnel only.
Warning if your car’s ignition has no ACC
position
After turning the ignition off, be sure to press
and hold HOME on the unit until the display
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
Disclaimer regarding services offered by third
parties
Services offered by third parties may be changed,
suspended, or terminated without prior notice. We
do not bear any responsibility in these sorts of
situations.
2GB
Important notice
Caution
IN NO EVENT SHALL WE BE LIABLE FOR ANY
INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR OTHER DAMAGES INCLUDING,
WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF THE
PRODUCT OR ANY ASSOCIATED EQUIPMENT,
DOWNTIME, AND PURCHASER’S TIME RELATED TO
OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS
HARDWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio
transmitter.
Please check your vehicle operation manual or
contact the manufacturer of your vehicle or your
vehicle dealer, before you install this product into
your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic
device connected to the handsfree operate using
radio signals, cellular, and landline networks as well
as user-programmed function, which cannot
guarantee connection under all conditions.
Therefore do not rely solely upon any electronic
device for essential communications (such as
medical emergencies).
On BLUETOOTH communication
 Microwaves emitting from a BLUETOOTH device
may affect the operation of electronic medical
devices. Turn off this unit and other BLUETOOTH
devices in the following locations, as it may cause
an accident.
 where inflammable gas is present, in a hospital,
train, airplane, or petrol station
 near automatic doors or a fire alarm
 This unit supports security capabilities that
comply with the BLUETOOTH standard to provide
a secure connection when the BLUETOOTH
wireless technology is used, but security may not
be enough depending on the setting. Be careful
when communicating using BLUETOOTH wireless
technology.
 We do not take any responsibility for the leakage
of information during BLUETOOTH
communication.
3GB
Table of Contents
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . 5
Getting Started
Resetting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing a BLUETOOTH Device. . . . . . . . . . . . . . . .
Connecting a USB Device . . . . . . . . . . . . . . . . . . . . .
Connecting Other Portable Audio/Video
Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
8
9
9
Listening to the Radio
Listening to the Radio. . . . . . . . . . . . . . . . . . . . . . . 10
Using Radio Data System (RDS) . . . . . . . . . . . . . . . 11
Playback
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing a USB Device . . . . . . . . . . . . . . . . . . . . . . .
Playing a BLUETOOTH Device. . . . . . . . . . . . . . . . .
Searching and Playing Tracks. . . . . . . . . . . . . . . . .
Other Settings During Playback. . . . . . . . . . . . . . .
11
12
13
13
14
Handsfree Calling (via BLUETOOTH
only)
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Available Operations During a Call . . . . . . . . . . . . 15
Useful Functions
SongPal with Android Phone . . . . . . . . . . . . . . . . . 16
Using Siri Eyes Free . . . . . . . . . . . . . . . . . . . . . . . . . 17
Settings
Basic Setting Operation . . . . . . . . . . . . . . . . . . . . .
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visual Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
18
19
19
19
Additional Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .
Language Code List . . . . . . . . . . . . . . . . . . . . . . . .
4GB
20
23
26
30
Guide to Parts and Controls
Main unit
 SOURCE
Change the source. Each time it is pressed, it
displays a selectable source in a popup on the
current display.
VOICE
Press and hold to activate the voice command
function.
To assign the DSPL function to this button,
select [DSPL] in [SOURCE Key Func.] (page 18).
Volume control dial
Rotate to adjust the volume.
N-Mark
Makes a BLUETOOTH connection when touched
with an Android™ phone.
 HOME
Turn on the power.
Open the HOME menu.
Press to pause playback when Disc, iPod/USB or
BT Audio source is selected.
To resume playback, touch
.
Press and hold for more than 2 seconds to turn
off the unit. When the unit is turned off, steering
wheel remote control operation is not available.
ATT (attenuate)
Press and hold for a second, but less than 2
seconds, then rotate the volume control dial to
attenuate the sound.
 Receptor for the remote commander
 Disc slot
  (disc eject)
 USB port
 AUX input jack
 Reset button
 Display/touch panel
5GB
Steering wheel remote control
Screen displays
Playback screen:
 /
Radio:
Tune in preset radio stations. Press and hold to
tune automatically.
CD/USB/BLUETOOTH audio:
Skip a track. Press and hold to fast-reverse/fastforward a track.

(volume) /
Adjust the volume. Press and hold to continue
adjusting the volume.
 MODE*
Turn on the power. Change the source.
If the unit is turned off and the display
disappears, operation by the steering wheel
remote control is not available.
* Selecting the radio band/activating the passenger
control/transferring a call are not available with
this button.

(speech)
Make/cancel a call by voice tags. (Available only
when a cellular phone with a voice dialing
function is connected via BLUETOOTH.)

(on hook)
End a call/reject an incoming call.

(off hook)
Answer a call.
6GB
Home screen:
 Status indication
Lights up when the sound is attenuated.
Lights up when the “SongPal”
connection is established between this
unit and your Android phone.
Lights up when the BLUETOOTH signal is
on. Flashes when the connection is in
progress.
Getting Started
Resetting the Unit
You must reset the unit before operating the unit
for the first time, after replacing the car battery, or
changing connections.
Lights up when the audio device is
playable by enabling the A2DP
(Advanced Audio Distribution Profile).
Lights up when handsfree calling is
available by enabling HFP (Handsfree
Profile).
Indicates the signal strength status of
the connected cellular phone.
Indicates the remaining battery status of
the connected cellular phone.

(Mega Bass)
Touch to select the Mega Bass setting; [1], [2],
[off].
(sound setting menu)
Access the sound setting menu directly
(page 19).
(option)
Open the option menu. The available items
differ depending on the source.
 Clock (page 7)
When the AUX or Rear Camera source is
selected, the clock is not displayed.
Note
Pressing the reset button will erase the clock setting
and some stored contents.
Setting the Clock
1
2
Press HOME, then touch [Settings].
Touch
, then touch [Clock Adjust].
The setting display appears.
3
4
Touch / to set the hour and minute.
After setting the hour and minute, touch
[Set].
The setting is complete and the clock starts.
 Application specific area
Display playback controls/indications or show
the unit’s status. Displayed items differ
depending on the source.

(return to the playback screen)
Switch from the HOME screen to the playback
screen.

/
Move to the next/previous page (This does not
necessarily appear on the screen).
 Sources and Settings select keys
Change the source or make various settings.
7GB
Preparing a BLUETOOTH Device
You can enjoy music or perform handsfree calling
depending on the BLUETOOTH compatible device
such as smartphones, cellular phones, and audio
devices (hereafter “BLUETOOTH device” if not
otherwise specified). For details on connecting,
refer to the operating instructions supplied with the
device.
Before connecting the device, turn down the
volume of this unit; otherwise, a loud sound may
result.
Connecting with a smartphone by One
touch (NFC)
By touching the N-Mark on the unit with an NFC*
compatible smartphone, the unit is paired and
connected with the smartphone automatically.
* NFC (Near Field Communication) is a technology
enabling short-range wireless communication
between various devices, such as mobile phones and
IC tags. Thanks to the NFC function, data
communication can be achieved easily just by
touching the relevant symbol or designated location
on NFC compatible devices.
For a smartphone with Android OS 4.0 or lower
installed, downloading of the app “NFC Easy
Connect” available at Google Play™ is required. The
app may not be downloadable in some countries/
regions.
1
Activate the NFC function on the
smartphone.
For details, refer to the operating instructions
supplied with the smartphone.
2
Touch the N-Mark part of the unit with
the N-Mark part of the smartphone.
Notes
 When making the connection, handle the
smartphone carefully to prevent scratches.
 One touch connection is not possible when the unit is
already connected to another NFC compatible device.
In this case, disconnect the other device, and make a
connection with the smartphone again.
Pairing and connecting with a
BLUETOOTH device
When connecting a BLUETOOTH device for the first
time, mutual registration (called “pairing”) is
required. Pairing enables this unit and other devices
to recognize each other.
1
Place the BLUETOOTH device within 1 m
(3 ft) of this unit.
2
3
4
Press HOME, then touch [Settings].
Touch
.
Touch [Bluetooth Connection], then set
the signal to [ON].
The BLUETOOTH signal is turned on and
lights up on the status bar of the unit.
5
Touch [Pairing].
flashes while the unit is in pairing standby
mode.
6
Perform pairing on the BLUETOOTH
device so it detects this unit.
7
Select [XAV-xxxx] (your model name)
shown in the display of the BLUETOOTH
device.
If your model name does not appear, repeat
from step 5.
Make sure that
the unit.
lights up on the status bar of
To disconnect by One touch
Touch the N-Mark part of the unit with the N-Mark
part of the smartphone again.
8GB
8
If passkey* input is required on the
BLUETOOTH device, input [0000].
* Passkey may be called “passcode,” “PIN code,”
“PIN number,” “password,” etc., depending on the
BLUETOOTH device.
Input passkey
9
stays lit.
Select this unit on the BLUETOOTH device
to establish the BLUETOOTH connection.
or
When the ignition is turned to on with the
BLUETOOTH signal activated, this unit searches for
the last-connected BLUETOOTH device, and
connection is made automatically.
If it does not work, touch [Reconnect] to search for
the last-paired device again. If the problem is not
solved, follow the pairing procedure.
Note
While streaming BLUETOOTH audio, you cannot
connect from this unit to the cellular phone. Connect
from the cellular phone to this unit instead.
[0000]
When pairing is made,
To connect the last-connected device from
this unit
lights up when the connection is made.
Note
While connecting to a BLUETOOTH device, this unit
cannot be detected by another device. To enable
detection, enter the pairing mode and search for this
unit from another device.
Connecting a USB Device
1
2
Turn down the volume on the unit.
Connect the USB device to the unit.
To connect an iPod/iPhone, use the USB
connection cable for iPod (not supplied).
To start playback
For details, see “Playing a BLUETOOTH Device”
(page 13).
To cancel pairing
Perform step 5 to cancel the pairing mode after this
unit and the BLUETOOTH devices are paired.
Connecting with a paired BLUETOOTH
device
To use a paired device, connection with this unit is
required. Some paired devices will connect
automatically.
Connecting Other Portable
Audio/Video Devices
1
2
3
Turn off the portable audio/video device.
4
Press HOME, then touch [AUX].
Turn down the volume on the unit.
Connect the portable audio/video device
to the AUX input jack on the unit with a
connecting cord (not supplied).
To match the volume level of the connected
device to other sources
1
2
Press HOME, then touch [Settings].
Touch [Bluetooth Connection], then
touch [ON].
Make sure that
the unit.
lights up on the status bar of
3
Activate the BLUETOOTH function on the
BLUETOOTH device.
4
Operate the BLUETOOTH device to
connect to this unit.
or
Start playback of the portable audio/video device
at a moderate volume and set your usual listening
volume on the unit:
Touch
, then set [Input Level] between –10 and
+15.
To set to the device type manually
Touch
, then set [AUX Input] to [Audio], [Video],
or [Auto].
lights up on the status bar.
9GB
Storing automatically (BTM)
Listening to the Radio
Listening to the Radio
To listen to the radio, press HOME then touch
[Tuner].
1
Select the desired band (FM1, FM2, FM3,
AM1, or AM2).
2
3
Touch
.
Touch [BTM], then [Search].
The unit stores stations in order of frequency on
the preset numbers (1 to 6).
Reception controls/indications
Tuning
1
Touch the current band.
The band list appears.
2
Touch the desired band (FM1, FM2, FM3,
AM1, or AM2).
3
Perform tuning.
To tune automatically
Touch –SEEK/SEEK+.
Scanning stops when the unit receives a station.
To tune manually
Touch and hold / to locate the approximate
frequency, then touch / repeatedly to fine
adjust to the desired frequency.
 Current band
Opens the band list.
 Current frequency, program service name*,
RDS indication*
* During RDS reception.
 PTY (program types) (FM only)
Opens the PTY list (page 11).
Storing manually
1
 ZAP (ZAPPIN)
Helps to find a desired station by listening to
preset stations for a few seconds.

(option)
Opens the option menu.
 –SEEK/SEEK+
Tunes in automatically.
 /
Tunes in manually.
Touch and hold to continuously skip
frequencies.
 Preset numbers (1 to 6)
Selects a preset station.
Touch and hold to store the current frequency in
that preset.
While receiving the station that you want
to store, press and hold the desired
preset number (1 to 6).
Receiving stored stations
1
Select the band, then touch the desired
preset number (1 to 6).
Searching for the desired station from
preset stations (Tuner Preset ZAPPIN)
Tuner Preset ZAPPIN helps you to find a desired
station by listening to preset stations for a few
seconds.
1
During radio reception, touch [ZAP].
Tuner Preset ZAPPIN starts, and subsequent
stations are received in sequence.
2
10GB
Touch [ZAP] again when the desired
station is received.
Using Radio Data System (RDS)
Selecting program types (PTY)
1
2
During FM reception, touch [PTY].
Playback
Playing a Disc
To scroll the list, touch /.
Depending on the disc type, some operations may
be different or restricted.
Touch the desired program type.
1
Insert the disc (label side up).
The unit searches for a station broadcasting the
selected program type.
To close the PTY list
Touch
.
Type of programs
News (News), Current Affairs (Current Affairs),
Information (Information), Sport (Sports),
Education (Education), Drama (Drama), Cultures
(Culture), Science (Science), Varied Speech
(Varied), Pop Music (Pop Music), Rock Music (Rock
Music), Easy Listening (M.O.R. Music), Light
Classics M (Light classical), Serious Classics
(Serious classical), Other Music (Other Music),
Weather & Metr (Weather), Finance (Finance),
Children’s Progs (Children’s program), Social
Affairs (Social Affairs), Religion (Religion), Phone
In (Phone In), Travel & Touring (Travel), Leisure &
Hobby (Leisure), Jazz Music (Jazz Music), Country
Music (Country Music), National Music (National
Music), Oldies Music (Oldies Music), Folk Music
(Folk Music), Documentary (Documentary)
Playback starts automatically.
If a DVD menu appears
Touch the desired item in the DVD menu.
You can also use the menu control panel, which can
be displayed by touching the screen anywhere
except the DVD menu items. Touch /// to
move the cursor, then touch [ENTER] to confirm.
Example of playback indications (DVD)

Setting clock time (CT)
The CT data from the RDS transmission sets the
clock.
1
Set [Clock Time] to [ON] in [General
Settings] (page 18).


 Current source icon, format
 Playback status, elapsed playback time
 Chapter/title number, audio format
Touch the display if the indications are not
displayed.
For audio discs, some indications are always
displayed during playback.
11GB
Using PBC (playback control) functions
The PBC menu interactively assists with operations
while a PBC-compatible VCD is played.
1
Start playing a PBC-compatible VCD.
The PBC menu appears.
2
Touch
.
The menu control panel appears.
3
Touch the number keys to select the
desired item, then touch [ENTER].
4
Follow the instructions in the menu for
interactive operations.
To return to the previous display
Touch .
To deactivate PBC functions
Set [Video CD PBC] to [OFF] (page 19).
Notes
 During PBC playback, the track number, playback
item, etc., do not appear on the playback display.
 Resume playback is unavailable during playback with
PBC.
Configuring audio settings
Changing the audio language/format
When playing a DVD video, the audio language can
be changed if the disc is recorded with multilingual
tracks. You can also change the audio format when
playing a disc recorded in multiple audio formats
(e.g., Dolby Digital).
During playback, touch the screen, then .
Touch repeatedly until the desired audio
language/format appears.
Example: Dolby Digital 5.1 ch
Changing the audio channel
When playing a VCD, you can listen to both left and
right channels, right channel only or left channel
only, via both right and left speakers.
During playback, touch
repeatedly until the
desired audio channel appears.
The options are indicated below.
[Stereo]: Standard stereo sound (default)
[Left]: Left channel sound (monaural)
[Right]: Right channel sound (monaural)
Playing a USB Device
In these Operating Instructions, “iPod” is used as a
general reference for the iPod functions on the iPod
and iPhone, unless otherwise specified by the text
or illustrations.
For details on the compatibility of your iPod, see
“About iPod” (page 23) or visit the support site on
the back cover.
MSC (Mass Storage Class) and MTP (Media Transfer
Protocol) type USB devices (such as a USB flash
drive, digital media player, Android phone)
compliant with the USB standard can be used.
Depending on the digital media player or Android
phone, setting the USB connection mode to MTP is
required.
Notes
 For details on the compatibility of your USB device,
visit the support site on the back cover.
 Playback of the following files is not supported.
MP3/WMA/AAC/FLAC:
 copyright-protected files
 DRM (Digital Rights Management) files
 Multi-channel audio files
MP3/WMA/AAC:
 lossless compression files
WAV:
 Multi-channel audio files
1
Connect the USB device to the USB port.
Playback starts.
If a device is already connected, press HOME
then touch [iPod/USB] to start playback.


 Audio language
2
 Audio format/channel numbers
To stop playback
If the same language is displayed two or more
times, the disc is recorded in multiple audio
formats.
Press SOURCE repeatedly until [OFF] appears.
Adjust the volume on this unit.
To remove the device
Stop playback, then remove the device.
Caution for iPhone
When you connect an iPhone via USB, the phone
call volume is controlled by the iPhone, not the unit.
Do not inadvertently increase the volume on the
unit during a call, as a sudden loud sound may
result when the call ends.
12GB
Playing a BLUETOOTH Device
You can play contents on a connected device that
supports BLUETOOTH A2DP (Advanced Audio
Distribution Profile).
Searching and Playing Tracks
Repeat play and shuffle play
1
During playback, touch
(repeat) or
(shuffle) repeatedly until the desired play
mode appears.
Playback in the selected play mode may take
time to start.
1
Make a BLUETOOTH connection with the
audio device (page 9).
Available play modes differ depending on the
selected sound source.
2
3
Press HOME, then touch [BT Audio].
Note
Repeat play and shuffle play are not available for
version 2.0 VCD with the PBC function.
4
Adjust the volume on this unit.
Operate the audio device to start
playback.
Notes
 Depending on the audio device, information such as
title, track number/time, and playback status may not
be displayed on this unit.
 Even if the source is changed on this unit, playback of
the audio device does not stop.
Searching for a file from the list screen
1
During disc or USB playback, touch
.
The list screen from the currently played item
appears.
To match the volume level of the BLUETOOTH
device to other sources
You can reduce the volume level differences
between this unit and the BLUETOOTH device:
During playback, touch
, then set [Input Level]
between –10 and +15.
Furthermore, touch
(audio),
(video), or
(photo) to list up by file type.
2
Touch the desired item.
Playback starts.
13GB
Other Settings During Playback
Further settings are available in each source by
touching
. The available items differ depending
on the source.
Picture EQ
Adjusts the picture quality to suit the interior
brightness of the car: [Dynamic], [Standard],
[Theater], [Sepia].
(Available only when the parking brake is
applied, and iPod/USB, Disc, or AUX source is
selected).
Aspect
Selects an aspect ratio for the screen of the unit.
(Available only when the parking brake is
applied, and iPod/USB, Disc, or AUX source is
selected).
Normal
Displays a picture in the 4:3 aspect ratio (regular
picture).
Wide
Displays a picture in the 4:3 aspect ratio
enlarged to the left and right edges of the
screen with overflowing parts of the top and
bottom cut off to fill the screen.
Full
Displays a picture in the 16:9 aspect ratio.
Zoom
Displays a picture in the 4:3 aspect ratio
enlarged to the left and right edges of the
screen.
DVD Audio Level
Adjust the audio output level between –10 and
+10 for a DVD recorded in Dolby Digital format to
balance the volume level between discs.
(Available only when Disc source is selected.)
14GB
Handsfree Calling (via BLUETOOTH
only)
To use a cellular phone, connect it with this unit. For
details, see “Preparing a BLUETOOTH Device”
(page 8).
Receiving a Call
1
Touch
when a call is received.
The phone call starts.
Note
The ringtone and talker’s voice are output only from the
front speakers.
To reject/end a call
Touch
.
Making a Call
1
2
Press HOME, then touch [Phone].
Touch one of the call icons on the
BLUETOOTH phone display.

(call history)*1
Select a contact from the call history list. The
unit stores the last 20 calls.

(redial)
Make a call automatically to the last contact
you made.

(phonebook)*1
Select a contact from the name list/number
list in the phonebook. To search the desired
contact in alphabetical order from the name
list, touch
.

(voice command)*2*3
Say a voice tag stored on the cellular phone.

(phone number input)
Enter the phone number.
 Preset numbers (1 to 6)
Select the stored contact.
To store the contact, see “Presetting phone
numbers” (page 15).
*1 The cellular phone needs to support PBAP
(Phone Book Access Profile).
*2 Do not use the voice command function on the
cellular phone while it is connected to this unit.
*3 Voice command may not work depending on the
recognition specification of the cellular phone.
For details, visit the support site on the back
cover.
3
Touch
.
The phone call starts.
Available Operations During a
Call
To adjust the ringtone volume
Rotate the volume control dial while receiving a call.
To adjust the talker’s voice volume
Rotate the volume control dial during a call.
To adjust the volume for the other party (Mic
gain adjustment)
During a handsfree call, touch
, then set [MIC
Gain] to [Low], [Middle], or [High].
To switch between handsfree mode and
handheld mode
During a call, touch
to switch the
phone call audio between the unit and cellular
phone.
Note
Depending on the cellular phone, this operation may
not be available.
To answer an incoming call automatically
Presetting phone numbers
Touch
, then set [Auto Answer] to [ON].
You can store up to 6 contacts in the preset list.
1
In the phone screen, select a phone
number that you want to store in the
preset dial from the phonebook.
The confirmation display appears.
2
Touch [Preset], then the desired preset
number (1 to 6).
The contact is stored to the selected preset
number.
15GB
Selecting the source or application
Useful Functions
SongPal with Android Phone
You can select a source or application not only on
your Android phone but also on this unit by
operating the Android phone.
1
Show the source list of this unit on your Android
phone.
For details, refer to the operating instructions
supplied with the Android phone.
2
Touch the desired source.
Downloading the “SongPal”
application (version 3.0 or later)
is required from Google Play.
Notes
 For your safety, follow your local
traffic laws and regulations, and
do not operate the application
while driving.
 Connecting an Android phone
while “SongPal” is installed to
this unit allows you to receive
notifications of your SMS or
calendar, etc. through the car speakers and control
the unit by voice command.
 What you can control with “SongPal” varies
depending on the connected device.
 To make use of “SongPal” features, see the details on
your Android phone.
 Display images of the “SongPal” application used in
this Operating Instruction may differ with the actual
ones.
 Messages of the “SongPal” application that appear on
this unit and your Android phone may differ.
 For further details on “SongPal,” visit the following
URL:
http://rd1.sony.net/help/speaker/songpal/
 Visit the website below and check the compatible
Android smartphone models.
For Android smartphone: visit Google Play
Announcement of various information by
voice guide
When SMS, Twitter/Facebook/Calendar
notifications, etc., are received, they are
automatically announced through the car speakers.
Establishing the SongPal connection
1
Make the BLUETOOTH connection with
Android phone (page 9).
2
3
4
Launch the “SongPal” application.
Press HOME, then touch [Settings].
Touch , then set [SongPal] to
[Connect].
Connection to Android phone starts.
For details on the operations on an Android
phone, see the help section of the application.
If the device number appears
Make sure that the number is displayed (e.g.,
123456), then select “Yes” on the Android phone.
To terminate connection
Set [SongPal] to [Disconnect] in [General Settings].
16GB
For details on settings, refer to the help section of
the application.
Activating voice recognition
By registering applications, you can control an
application by voice command. For details, refer to
the help section of the application.
To activate voice recognition
1
2
Press and hold VOICE to activate voice
recognition.
Say the desired voice command into the
microphone when [Say Source or App] appears on
the Android phone.
Using Siri Eyes Free
Siri Eyes Free allows you to use an iPhone
handsfree by simply speaking into the microphone.
This function requires you to connect an iPhone to
the unit via BLUETOOTH. Availability is limited to
iPhone 4s or later. Make sure that your iPhone is
running the latest iOS version.
You must complete BLUETOOTH registration and
connection configurations for the iPhone with the
unit in advance. For details, see “Preparing a
BLUETOOTH Device” (page 8).
1
Activate the Siri function on the iPhone.
For details, refer to the operating instructions
supplied with the iPhone.
2
Press and hold SOURCE.
The voice command display appears.
3
Notes
 To use this function, VOICE need to be assigned the
voice command function by selecting [Voice] in
[SOURCE Key Func.] (page 18).
 Voice recognition may not be available in some cases.
 Voice recognition may not work properly depending
on the performance of the connected Android phone.
 Operate under conditions where noise such as engine
sound is minimized during voice recognition.
Replying a message of SMS
You can reply a message by voice recognition.
1
2
3
Activate voice recognition, then input “Reply
(Reply).”
The message input display appears on the “SongPal”
application.
Input a reply message by voice recognition.
The list of message candidates appears on the
“SongPal” application.
Touch / to select the desired message, then
touch [Enter].
The message is sent out.
After the iPhone beeps, speak into the
microphone.
The iPhone beeps again, then Siri starts
responding.
To deactivate Siri Eyes Free
Touch [Close].
Notes
 The iPhone may not recognize your voice depending
on usage conditions. (For example, if you are in a
moving car.)
 Siri Eyes Free may not function properly, or the
response time may lag in locations where iPhone
signals are difficult to receive.
 Depending on the iPhone’s operating condition, Siri
Eyes Free may not function properly, or may quit.
 If you play a track with an iPhone using the
BLUETOOTH audio connection, when the track starts
playback via BLUETOOTH, Siri Eyes Free automatically
quits and the unit switches to the BLUETOOTH audio
source.
 When Siri Eyes Free is activated during audio
playback, the unit may switch to the BLUETOOTH
audio source even if you do not specify a track to play.
 When connecting the iPhone to the USB port, Siri Eyes
Free may not function properly, or may quit.
 When connecting the iPhone to the unit via USB, do
not activate Siri with the iPhone. Siri Eyes Free may
not function properly, or may quit.
 There is no audio sound while Siri Eyes Free is
activated.
17GB
Settings
Basic Setting Operation
You can set items in the following setup categories:
General Settings
Sound Settings
Screen Settings
Visual Settings
1
2
Press HOME, then touch [Settings].
Touch one of the setup category icons.
The items that can be set differ depending on
the source and settings.
3
Touch / to select the desired item.
To return to the previous display
Touch
.
To switch to the playback screen
Touch
.
General Settings
Time Format
Changes the time format: [12-hour], [24-hour].
Clock Time
Sets the clock time by the RDS data: [OFF], [ON].
Clock Adjust
Sets the clock time manually.
(Available only when [Clock Time] is set to [OFF].)
Beep
Activates the operation sound: [OFF], [ON].
Dimmer
Dims the display: [OFF], [ON], [Auto].
([Auto] is available only when the illumination
control lead is connected, and works when the
head light is turned on.)
Dimmer Level
Adjusts the brightness level when the dimmer is
activated: –5 to +5.
Touch Panel Adjust
Adjusts the touch panel calibration if the
touching position does not correspond with the
proper item.
Output Color System
Changes the color system according to the
connected monitor (SECAM is not supported):
[NTSC], [PAL].
(Available only when no source is selected.)
18GB
Camera Input
Selects the image from the rear view camera:
[Normal], [Reverse] (mirror image), [OFF].
Bluetooth Connection
Activates the BLUETOOTH signal: [OFF], [ON],
[Pairing] (enters into pairing standby mode).
Bluetooth Device Info
Displays the information of the device
connected to the unit by touching [Open].
(Available only when [Bluetooth Connection] is
set to [ON])
Bluetooth Reset
Initializes all BLUETOOTH-related settings such
as pairing information, call history, preset dial,
history of connected BLUETOOTH devices, etc.
SongPal
Establishes or terminates the “SongPal” function
(connection): [Connect], [Disconnect].
SOURCE Key Func.
Assigns the voice command function or the
display menu to the SOURCE button: [Voice],
[DSPL].
Rear View Camera
Adjusts the length and/or position of the marker
lines on the picture from the rear view camera
by touching [Line Edit].
Sound Settings
Mega Bass
Reinforces bass sound in synchronization with
the volume level: [1], [2], [OFF].
EQ5/Subwoofer
Selects an equalizer curve and adjusts the
subwoofer level.
EQ5
[Natural], [OFF], [Electronica], [Country], [R&B],
[Pop], [Rock], [Hip-Hop], [Jazz], [Dance],
[Custom].
[Custom] adjusts the equalizer curve: –8 to +8.
Subwoofer
Adjusts the volume level of the subwoofer:
[OFF], –10 to +10.
Balance/Fader
Adjusts the balance/fader level.
Balance:
Adjusts the sound balance between the left and
right speakers: L15 to R15.
Fader:
Adjusts the sound balance between the front
and rear speakers: Front 15 to Rear 15.
Crossover
Adjusts the cut-off frequency and subwoofer
phase.
High Pass Filter
Selects the cut-off frequency of the front/rear
speakers: [63Hz], [100Hz], [120Hz], [150Hz],
[180Hz], [OFF].
Low Pass Filter
Selects the cut-off frequency of the subwoofer:
[OFF], [55Hz], [85Hz], [120Hz], [160Hz].
Subwoofer Phase
Selects the subwoofer phase: [Normal],
[Reverse].
Screen Settings
Visual Settings
Available only when no source is selected.
DVD Menu Language
Selects the default language for the disc’s
menu: [English], [Chinese], [German], [French],
[Italian], [Spanish], [Portuguese], [Dutch],
[Danish], [Swedish], [Finnish], [Norwegian],
[Russian], [Other].
DVD Audio Language
Selects the default language for the soundtrack:
[English], [Chinese], [German], [French], [Italian],
[Spanish], [Portuguese], [Dutch], [Danish],
[Swedish], [Finnish], [Norwegian], [Russian],
[Other].
DVD Subtitle Language
Selects the default subtitle language for DVD:
[English], [Chinese], [German], [French], [Italian],
[Spanish], [Portuguese], [Dutch], [Danish],
[Swedish], [Finnish], [Norwegian], [Russian],
[Other].
Monitor Type
Selects an aspect ratio suitable for the unit and
connected monitor.
(Available only while the source is off and the
clock is displayed.)
16:9
Displays a wide picture. Suitable when
connecting to a wide-screen monitor or a
monitor with a wide mode function.
Letterbox
Displays a wide picture with bands on the upper
and lower positions of the screen. Suitable when
connecting to a 4:3 screen monitor.
Pan Scan
Displays a wide picture on the entire screen and
automatically cuts off the portions that do not
fit.
Video CD PBC
Activates PBC functions when playing back a
VCD: [OFF], [ON].
Wallpaper
Changes the basis color of the background by
touching the desired color.
19GB
Notes on LCD panel
Additional Information
 Do not get the LCD panel wet or expose it to
liquids. This may cause a malfunction.
Precautions
 Cool off the unit beforehand if your car has been
parked in direct sunlight.
 Power antenna (aerial) extends automatically.
Moisture condensation
Should moisture condensation occur inside the
unit, remove the disc, and wait for about an hour
for it to dry out; otherwise the unit will not operate
properly.
To maintain high sound quality
Do not splash liquid onto the unit or discs.
Notes on safety
 Comply with your local traffic rules, laws, and
regulations.
 While driving
 Do not watch or operate the unit, as it may lead
to distraction and cause an accident. Park your
car in a safe place to watch or operate the unit.
 Do not use the setup feature or any other
function which could divert your attention from
the road.
 When backing up your car, be sure to look back
and watch the surroundings carefully for your
safety, even if the rear view camera is
connected. Do not depend on the rear view
camera exclusively.
 While operating
 Do not insert your hands, fingers, or foreign
objects into the unit, as it may cause injury or
damage to the unit.
 Keep small articles out of the reach of children.
 Be sure to fasten seatbelts to avoid injury in the
event of sudden movement of the car.
Preventing an accident
Pictures appear only after you park the car and
set the parking brake.
If the car starts moving during video playback,
the following caution is displayed and you
cannot watch the video.
 Do not press down hard on the LCD panel as
doing so can distort the picture or cause a
malfunction (i.e., the picture may become
unclear, or the LCD panel may be damaged).
 Do not touch the panel with objects other than
with your finger, as it may damage or break the
LCD panel.
 Clean the LCD panel with a dry soft cloth. Do not
use solvents such as benzine, thinner,
commercially available cleaners, or antistatic
spray.
 Do not use this unit outside the temperature
range 0 – 40 ºC (32 – 104 ºF).
 If your car was parked in a cold or hot place, the
picture may not be clear. However, the monitor is
not damaged, and the picture will become clear
after the temperature in your car becomes
normal.
 Some stationary blue, red, or green dots may
appear on the monitor. These are called “bright
spots,” and can happen with any LCD. The LCD
panel is precision-manufactured with more than
99.99% of its segments functional. However, it is
possible that a small percentage (typically 0.01%)
of the segments may not light up properly. This
will not, however, interfere with your viewing.
Playable discs and file types
Discs
DVD*
[Video blocked for your safety.]
The monitor connected to the REAR VIDEO OUT is
active while the car is in motion.
You cannot watch the video, but you can hear
audio.
Do not operate the unit or watch the monitor
while driving.
20GB
DVD VIDEO
DVD-R/DVD-R DL/DVD-RW
(Video mode)
DVD+R/DVD+R DL/DVD+RW
VCD
Video CD (Ver. 1.0/1.1/2.0)
CD
Audio CD
CD-ROM/CD-R/CD-RW
* “DVD” may be used in these Operating Instructions as
a general term for DVD VIDEOs, DVD-Rs/DVD-RWs,
and DVD+Rs/DVD+RWs.
File types
For details on compression formats, see page 21.
Audio
MP3 file, WMA file, AAC file,
FLAC file, WAV file
Video
Xvid file, MPEG-4 file
jpeg file (.jpg)
Note
To play back those types of files, it is recommended to
store them on DVD discs or USB devices that are
supported by this unit.
Notes on discs
 Do not expose discs to direct sunlight or heat
sources such as hot air ducts, nor leave it in a car
parked in direct sunlight.
 Before playing, wipe the discs
with a cleaning cloth from the
center out. Do not use
solvents such as benzine,
thinner, or commercially
available cleaners.
 This unit is designed to play
discs that conform to the
Compact Disc (CD) standard.
DualDiscs and some music discs encoded with
copyright protection technologies do not conform
to the Compact Disc (CD) standard, therefore,
these discs may not be playable by this unit.
 Discs that this unit CANNOT play
 Discs with labels, stickers, or sticky tape or
paper attached. Doing so may cause a
malfunction, or may ruin the disc.
 Discs with non-standard shapes (e.g., heart,
square, star). Attempting to do so may damage
the unit.
 8 cm (3 1/4 in) discs.
For DATA DVDs
 UDF Bridge format (combined UDF and ISO
9660)
 The maximum number of:
 folders (albums): 256 (including root and empty
folders).
 files (tracks/videos/photos) and folders
contained in a disc: 2,000 (if folder/file names
contain many characters, this number may
become less than 2,000).
 displayable characters for a folder/file name:
32.
 Compatible codecs are MP3 (.mp3), WMA (.wma),
JPEG (.jpg), Xvid (.avi), and MPEG-4 (.mp4).
 DRM (Digital Rights Management) files may not be
played.
Notes on finalizing discs
The following discs are required to be finalized to
play on this unit.
 DVD-R/DVD-R DL (in video mode)
 DVD-RW in video mode
 DVD+R/DVD+R DL
 CD-R
 CD-RW
DVD+RW can be played without finalization. The
disc is automatically finalized.
For details, refer to the manual supplied with the
disc.
Playback order of audio/video files
Folder (album)
Audio/video
(track/video)
Note on playback operations of DVDs and
VCDs
Some playback operations of DVDs and VCDs may
be intentionally set by software producers. Since
this unit plays DVDs and VCDs according to the disc
contents the software producers designed, some
playback features may not be available. Also, refer
to the instructions supplied with the DVDs or VCDs.
About WMA files
Notes on DATA CDs, DATA DVDs, and USB
playback
WMA*1 files meeting the following requirements
can be played. Playback is not guaranteed for all
WMA files meeting the requirements.
 Some DATA CDs/DATA DVDs (depending on the
equipment used for its recording or the disc
condition) may not play on this unit.
 Finalization is required for some discs (page 21).
 The unit is compatible with the following
standards.
For DATA CDs
 ISO 9660 level 1/level 2 format, Joliet/Romeo in
the expansion format
Codec
 Media File format: ASF file format
 File extension: .wma
 Bit rate: 48 to 192 kbps (Supports variable bit rate
(VBR))*2
 Sampling frequency*3: 44.1 kHz
21GB
About MP3 files
MP3 files meeting the following requirements can
be played. Playback is not guaranteed for all MP3
files meeting the requirements.
Codec
 Media File format: MP3 (MPEG-1 Layer3) file
format
 File extension: .mp3
 Bit rate: 48 to 192 kbps (Supports variable bit rate
(VBR))*2
 Sampling frequency*3: 32, 44.1, 48 kHz
About AAC files
AAC files meeting the following requirements can
be played. Playback is not guaranteed for all AAC
files meeting the requirements.
Codec
 Media File format: AAC-LC supporting ADTS/
RAW/ADIF
 File extension: .m4a
 Bit rate: 40 to 320 kbps (Supports variable bit rate
(VBR)/constant bit rate (CBR))*2
 Sampling frequency*3: 8 to 48 kHz
 Bit per sample (Quantization bit): 16 bits
 Channel: Mono, Stereo
About FLAC files
FLAC files meeting the following requirements can
be played. Playback is not guaranteed for all FLAC
files meeting the requirements.
Codec
 File extension: .flac
 Sampling frequency*3*4: 8 to 96 kHz
 Bit per sample (Quantization bit)*4: 8, 12, 16, 20,
24 bits
 Channel: Mono, Stereo (excluding 5.1 ch file)
About WAV files
WAV files meeting the following requirements can
be played. Playback is not guaranteed for all WAV
files meeting the requirements.
Codec
 File extension: .wav
 Bit rate: 16 kbps to 1.536 Mbps (Supports variable
bit rate (VBR)/constant bit rate (CBR))*2
 Sampling frequency*3: 8 to 48 kHz
 Bit per sample (Quantization bit): 16, 24 bits
 Channel: Mono, Stereo
About Xvid files
Xvid files meeting the following requirements can
be played. Playback is not guaranteed for all Xvid
files meeting the requirements.
Codec
 Media File format: Xvid file format
 File extension: .avi
 Video codec: MPEG-4 Advanced Simple Profile
 Audio codec: MP3 (MPEG-1 Layer3)
 Bit rate: Max. 4 Mbps
22GB
 Frame rate: Max. 30 fps (30p/60i)
 Resolution: Max. 720 × 576*5
About MPEG-4 files
MPEG-4 files meeting the following requirements
can be played. Playback is not guaranteed for all
MPEG-4 files meeting the requirements.
Codec
 Media File format: MP4 file format
 File extension: .mp4
 Video codec: MPEG-4 Simple Profile
 Audio codec: AAC
 Bit rate: Max. 4 Mbps
 Frame rate: Max. 30 fps (30p/60i)
 Resolution: Max. 720 × 576*5
About JPEG files
JPEG*6 files meeting the following requirements
can be played. Playback is not guaranteed for all
JPEG files meeting the requirements.
Codec
 Media File format: Compatible with DCF 2.0/Exif
2.21 file format
 File extension: .jpg
 Profile: Baseline Profile
 Number of pixels: Max. 6,048 × 4,032 pixels
(24,000,000 pixels)
*1 Copyright protected WMA files cannot be played
back.
*2 Non-standard bit rates or non-guaranteed bit rates
are included depending on the sampling frequency.
*3 Sampling frequency may not correspond to all
encoders.
*4 High-resolution audio contents will be downconverted during playback.
*5 These numbers indicate the maximum resolution of
playable video and do not indicate the player’s
display resolution. The display resolution is 800 ×
480.
*6 Some photo files cannot be played back depending
on their file formats.
About iPod
Specifications
 You can connect to the following iPod models.
Update your iPod devices to the latest software
before use.
Compatible iPhone/iPod models
Compatible Model
Bluetooth®
USB
iPhone 6 Plus


iPhone 6


iPhone 5s


iPhone 5c


iPhone 5


iPhone 4s


iPhone 4


iPhone 3GS


iPod touch
(5th generation)


iPod touch
(4th generation)


iPod touch
(3rd generation)

iPod classic

iPod nano
(7th generation)

iPod nano
(6th generation)

iPod nano
(5th generation)

Monitor section
Display type: Wide LCD color monitor
Dimensions: 6.2 in
System: TFT active matrix
Number of pixels:
1,152,000 pixels (800 × 3 (RGB) × 480)
Color system:
PAL/NTSC/SECAM/PAL-M automatic select
Tuner section
FM
Tuning range: 87.5 – 108.0 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150 kHz
Usable sensitivity: 10 dBf
Selectivity: 70 dB at 400 kHz
Signal-to-noise ratio: 70 dB (mono)
Separation at 1 kHz: 30 dB
Frequency response: 20 – 15,000 Hz
AM
Tuning range: 531 – 1,602 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
9,267 kHz or 9,258 kHz/4.5 kHz
Sensitivity: 44 μV
DVD/CD Player section
 “Made for iPod,” and “Made for iPhone,” mean
that an electronic accessory has been designed to
connect specifically to iPod or iPhone,
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards. Please note that the use of
this accessory with iPod or iPhone may affect
wireless performance.
If you have any questions or problems concerning
your unit that are not covered in this Operating
Instructions, visit the support site on the back
cover.
Signal-to-noise ratio: 80 dB
Frequency response: 20 – 20,000 Hz
Wow and flutter: Below measurable limit
Harmonic distortion: 0.05%
Region code: Labeled on the bottom of the unit
USB Player section
Interface: USB (Full-speed)
Maximum current: 1 A
Wireless Communication
Communication System:
BLUETOOTH Standard version 3.0
Output:
BLUETOOTH Standard Power Class 2
(Max. +4 dBm)
Maximum communication range:
Line of sight approx. 10 m (33 ft)*1
Frequency band:
2.4 GHz band (2.4000 – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.4
HFP (Handsfree Profile) 1.6
23GB
PBAP (Phone Book Access Profile)
OPP (Object Push Profile)
SPP (Serial Port Profile)
Corresponding codec: SBC (.sbc)
*1 The actual range will vary depending on factors such
as obstacles between devices, magnetic fields
around a microwave oven, static electricity,
reception sensitivity, antenna (aerial)’s performance,
operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose
of BLUETOOTH communication between devices.
on the monitor screen. Depending on the DVD, no
region code may be labeled even though playing
the DVD is prohibited by area restrictions.
Copyrights
US and foreign patents licensed from Dolby
Laboratories.
MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
Power amplifier section
Outputs: Speaker outputs
Speaker impedance: 4 – 8 ohms
Maximum power output: 55 W × 4 (at 4 ohms)
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
General
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Sony corporation is under
license. Other trademarks and trade names are
those of their respective owners.
Outputs:
Video output terminal (rear)
Audio output terminals (front, rear, sub)
Power antenna (aerial)/Power amplifier control
terminal (REM OUT)
Inputs:
Illumination control terminal
Steering control input terminal
Antenna (aerial) input terminal
Microphone input terminal
Parking brake control terminal
Reverse input terminal
Camera input terminal
AUX audio input terminal (Front)
AUX Audio/Video input terminal (Rear)
USB port
Power requirements: 12 V DC car battery
(negative ground (earth))
Rated current consumption: 10 A
Dimensions: Approx. 214 mm × 107 mm × 173 mm
Mass: 1.7 kg
Package contents:
Main unit (1)
Your dealer may not handle some of the above
listed accessories. Please ask the dealer for detailed
information.
Design and specifications are subject to change
without notice.
Region code
The region system is used to protect software
copyrights.
The region code is located on the bottom of the
unit, and only DVDs labeled with an identical region
code can be played on this unit.
DVDs labeled
can also be played.
If you try to play any other DVD, the message
[Playback prohibited by region code.] will appear
24GB
The N-Mark is a trademark or registered trademark
of NFC Forum, Inc. in the United States and in other
countries.
Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft Corporation. Use or
distribution of such technology outside of this
product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
“DVD VIDEO,” “DVD-R,” “DVD-RW,” “DVD+R,” and
“DVD+RW” are trademarks.
iPhone, iPod, iPod classic, iPod nano, iPod touch,
and Siri are trademarks of Apple Inc., registered in
the U.S. and other countries. App Store is a service
mark of Apple Inc.
THIS PRODUCT IS LICENSED UNDER THE MPEG-4
VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER FOR DECODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4
VIDEO”) THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NONCOMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING MAY BE
OBTAINED FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM
Google, Google Play and Android are trademarks of
Google Inc.
libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
 Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
 Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
 Neither the name of the Xiph.org Foundation nor
the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE FOUNDATION OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
documentation (the "Software") to deal in the Data
Files or Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, and/or sell copies of the
Data Files or Software, and to permit persons to
whom the Data Files or Software are furnished to
do so, provided that
(a) the above copyright notice(s) and this
permission notice appear with all copies of the Data
Files or Software,
(b) both the above copyright notice(s) and this
permission notice appear in associated
documentation, and
(c) there is clear notice in each modified Data File or
in the Software as well as in the documentation
associated with the Data File(s) or Software that the
data or software has been modified.
THE DATA FILES AND SOFTWARE ARE PROVIDED "AS
IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR HOLDERS INCLUDED IN
THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY
SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES,
OR ANY DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER IN AN
ACTION OF CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF
THE DATA FILES OR SOFTWARE.
Except as contained in this notice, the name of a
copyright holder shall not be used in advertising or
otherwise to promote the sale, use or other
dealings in these Data Files or Software without
prior written authorization of the copyright holder.
This product uses font data which is licensed by
Monotype Imaging Inc.
Such font data shall be used solely in connection
with this product.
All other trademarks are trademarks of their
respective owners.
COPYRIGHT AND PERMISSION NOTICE
Copyright © 1991-2012 Unicode, Inc. All rights
reserved.
Distributed under the Terms of Use in
http://www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to any
person obtaining a copy of the Unicode data files
and any associated documentation (the "Data
Files") or Unicode software and any associated
25GB
Troubleshooting
The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below, check
the connection and operating procedures.
If the problem is not solved, visit the support site on
the back cover.
General
No power is being supplied to the unit.
 Check the fuse.
 The connection is not correct.
 Connect the yellow and red power supply
leads.
There is no beep sound.
 An optional power amplifier is connected and
you are not using the built-in amplifier.
Stored stations and correct time are erased.
The fuse has blown.
The unit makes noise when the position of the
ignition is switched.
 The leads are not matched correctly with the car’s
accessory power connector.
The display disappears from/does not appear on
the monitor.
 The dimmer is set to [ON] (page 18).
 The display disappears if you press and hold
HOME.
 Press HOME on the unit until the display
appears.
 The monitor off function is activated (page 18).
 Touch anywhere on the display to turn the
display back on.
The display does not respond to your touch
correctly.
 Touch one part of the display at a time. If two or
more parts are touched simultaneously, the
display will not operate correctly.
 Calibrate the touch panel of the display (page 18).
 Touch the pressure sensitive panel firmly.
 The rear monitor cannot be operated. Icons
displayed on the rear monitor are disabled.
Menu items cannot be selected.
 Unavailable menu items are displayed in gray.
26GB
Radio reception
The stations cannot be received.
The sound is hampered by noise.
 The connection is not correct.
 Connect the REM OUT lead (blue/white striped)
or accessory power supply lead (red) to the
power supply lead of a car’s antenna (aerial)
booster (only when your car has built-in radio
antenna (aerial) in the rear/side glass).
 Check the connection of the car antenna
(aerial).
 If the auto antenna (aerial) will not extend,
check the connection of the power antenna
(aerial) control lead.
Preset tuning is not possible.
 The broadcast signal is too weak.
RDS
PTY displays [PTY not found.].
 The current station is not RDS station.
 RDS data has not been received.
 The station does not specify the program type.
There is no picture/picture noise occurs.
 A connection has not been made correctly.
 Check the connection between this unit and
other equipment and set the input selector of the
equipment to the source corresponding to this
unit.
 The disc is defective or dirty.
 Installation is not correct.
 Install the unit at an angle of less than 45° in a
sturdy part of the car.
 The parking cord (light green) is not connected to
the parking brake switch cord, or the parking
brake is not applied.
The picture does not fit in the screen.
 The aspect ratio is fixed on the playback source.
There is no picture/picture noise occurs in the
rear monitor.
 A source/mode which is not connected is
selected. If there is no input, no picture appears
in the rear monitor.
 The color system setting is incorrect.
 Set the color system to [PAL] or [NTSC]
according to the connected monitor (page 18).
 The picture of the rear view camera is displayed
on this unit.
 No picture appears in the rear monitor if the
picture of the rear view camera is displayed on
this unit.
Sound
There is no sound/sound skips/sound cracks.
 A connection has not been made correctly.
 Check the connection between this unit and the
connected equipment and set the input selector
of the equipment to the source corresponding to
this unit.
 The disc is defective or dirty.
 Installation is not correct.
 Install the unit at an angle of less than 45° in a
sturdy part of the car.
 The MP3 file sampling rate is not 32, 44.1, or 48
kHz.
 The WMA file sampling rate is not 44.1 kHz.
 The MP3 file bit rate is not 48 to 192 kbps.
 The WMA file bit rate is not 48 to 192 kbps.
 The unit is in pause/reverse/fast-forward mode.
 The settings for the outputs are not made
correctly.
 The DVD output level is too low (page 14).
 The volume is too low.
 The ATT function is activated.
 The format is not supported.
 Check if the format is supported by this unit
(page 21).
Sound is noisy.
 Keep cords and cables away from each other.
Disc operation
The disc does not play.
 The disc is defective or dirty.
 The disc is not playable.
 The DVD is not playable due to the region code.
 The disc is not finalized (page 21).
 The disc format and file version are incompatible
with this unit (page 20).
 Press  to remove the disc.
MP3/WMA/Xvid/MPEG-4 files do not play.
 Recording was not performed according to the
ISO 9660 level 1 or level 2 format or the Joliet or
Romeo expansion format (DATA CD), or the UDF
Bridge format (DATA DVD) (page 21).
 The file extension is incorrect (page 21).
 Files are not stored in MP3/WMA/Xvid/MPEG-4
format.
 If the disc contains multiple file types, only the
selected file type can be played.
 Select the appropriate file type using the list
(page 20).
MP3/WMA/Xvid/MPEG-4 files take longer to play
than others.
 The following discs take a longer time to start
playback.
 a disc recorded with a complicated tree
structure.
 a disc to which data can be added.
Certain functions cannot be performed.
 Depending on the disc, you may not be able to
perform operations such as stop, search, or
repeat/shuffle play. For details, refer to the
manual supplied with the disc.
The soundtrack/subtitle language or angle
cannot be changed.
 Multilingual tracks, multilingual subtitles, or
multi-angles are not recorded on the DVD.
 The DVD prohibits changing.
The operation buttons do not function.
 Press the reset button (page 7).
The disc will not eject.
The disc will not insert.
 Press and hold the disc eject button.
USB playback
Items cannot be played via a USB hub.
 Connect iPod/USB devices to this unit without
USB hub.
Items cannot be played.
 Reconnect the USB device.
The USB device takes longer to play.
 The USB device contains large-sized files or files
with a complicated tree structure.
The sound is intermittent.
 The sound may be intermittent at a high bit rate
of more than 320 kbps.
Audio file cannot be played.
 USB device formatted with file systems other
than FAT16, FAT32, or exFAT are unsupported.*
* This unit supports FAT16, FAT32, and exFAT, but some
USB device may not support all of these. For details,
refer to the operating instructions of each USB device
or contact the manufacturer.
NFC function
One touch connection (NFC) is not possible.
 If the smartphone does not respond to the touch.
 Check that the NFC function of the smartphone
is turned on.
 Move the N-Mark part of the smartphone
closer to the N-Mark part on this unit.
 If the smartphone is in a case, remove it.
 NFC receiving sensitivity depends on the device.
If One touch connection with the smartphone
fails several times, make the BLUETOOTH
connection manually.
27GB
BLUETOOTH function
Connection is not possible.
 Check the pairing and connection procedures in
the manual of the other device, etc., and perform
the operation again.
The sound skips during audio streaming or the
BLUETOOTH connection fails.
 Reduce the distance between the unit and the
BLUETOOTH device.
 If the BLUETOOTH device is stored in a case which
interrupts the signal, remove the case while
using the device.
 Several BLUETOOTH devices or other devices (e.g.
ham radio devices) which emit radio waves are
used nearby.
 Turn off the other devices.
 Increase the distance between the unit and
other devices.
 Playback sound stops momentarily when this
unit is connecting to a cellular phone. This is not
a malfunction.
The name of the detected device does not
appear.
 Depending on the status of the other device, it
may not be possible to obtain the name.
You cannot control the connected BLUETOOTH
device during audio streaming.
 Check that the connected BLUETOOTH device
supports AVRCP.
There is no ringtone.
 Raise the volume while receiving a call.
Some functions do not work.
 Check that the connecting device supports the
functions in question.
The other BLUETOOTH device cannot detect this
unit.
 Set [Bluetooth Connection] to [ON] (page 18).
 While connecting to a BLUETOOTH device, this
unit cannot be detected by another device.
Terminate the current connection and search for
this unit from the other device. The disconnected
device can be reconnected by selecting from the
list of registered devices.
The talker’s voice volume is low.
 Raise the volume during a call.
The other party says that the volume is too low
or high.
 Adjust the [MIC Gain] level (page 15).
Echo or noise occurs during call conversations.
 Reduce the volume.
 If ambient noise other than the phone call sound
is loud, try reducing this noise.
 Shut the window if road noise is loud.
 Lower the air conditioner if the air conditioner
is loud.
The phone sound quality is poor.
 Phone sound quality depends on reception
conditions of the cellular phone.
 Move your car to a place where you can
enhance the cellular phone’s signal if the
reception is poor.
The volume of the connected BLUETOOTH device
is low or high.
 Volume level will differ depending on the
BLUETOOTH device.
 Reduce the volume level differences between
this unit and the BLUETOOTH device (page 13).
A call is answered unintentionally.
 The connecting phone is set to start a call
automatically.
 [Auto Answer] of this unit is set to [ON] (page 15).
Pairing failed due to time out.
 Depending on the connecting device, the time
limit for pairing may be short. Try completing the
pairing within the time by setting a single digit
passkey.
The BLUETOOTH function cannot be operated.
 Exit the source by pressing and holding SOURCE
for 1 second, then turn on the unit.
No sound is output from the car speakers during
a handsfree call.
 If the sound is output from the cellular phone, set
the cellular phone to output the sound from the
car speakers.
Siri Eyes Free is not activated.
 Perform the handsfree registration for an iPhone
that supports Siri Eyes Free.
 Set the Siri function on the iPhone to on.
 Cancel the BLUETOOTH connection with the
iPhone and the unit, and reconnect.
SongPal operation
Application name is mismatched with the actual
application in “SongPal.”
 Launch the application again from the “SongPal”
application.
28GB
Error displays/messages
Hubs not supported.
 USB hubs are not supported on this unit.
No Playable Data
 The disc does not contain playable data.
 The iPod has no playable data.
 Load music data/files into the iPod.
 The USB device has no playable data.
 Load music data/files into the USB device.
Cannot play this content.
 The currently selected content cannot be played
back.
 Playback content will be skipped to the next
one.
Overcurrent Caution on USB
 The USB device is overloaded.
 Disconnect the USB device, then change the
source by pressing the SOURCE button.
 Indicates that the USB device is out of order, or
an unsupported device is connected.
USB device not supported
 For details on the compatibility of your USB
device, visit the support site on the back cover.
Device no response
 The unit does not recognize the connected USB
device.
 Reconnect the USB device.
 Check that the USB device is supported by the
unit.
 The character cannot be displayed with the unit.
For BLUETOOTH function
Bluetooth Connection Error
 An error has occurred between this unit and the
BLUETOOTH phone.
 Check that the BLUETOOTH signal is set to on
for this unit or the BLUETOOTH phone.
 Try pairing again.
 Reconnect the BLUETOOTH phone.
Call Data Error
 An error has occurred while accessing
phonebook data via PBAP or call history from the
BLUETOOTH phone.
 Reconnect the BLUETOOTH phone.
Data Listing Error
 An error has occurred while displaying
phonebook data via PBAP or call history from the
BLUETOOTH phone.
 Reconnect the BLUETOOTH phone.
Handsfree device is not available.
 A cellular phone is not connected.
 Connect a cellular phone (page 8).
For disc operation
Disc Error
 The unit cannot read the data due to some
problem.
 The data is damaged or corrupted.
 The disc is corrupted.
 The disc is incompatible with this unit.
 The disc is not finalized.
 The disc is dirty or inserted upside down.
 Clean or insert the disc correctly.
 A blank disc has been inserted.
 The disc cannot play due to a problem.
 Insert another disc.
 The disc is not compatible with this unit.
 Insert a compatible disc.
 Press  to remove the disc.
Playback prohibited by region code.
 The DVD’s region code differs from the unit’s
region code.
The sound in DTS format is not audible.
 Discs in DTS format are not supported. Sound is
not output if the DTS format is selected.
 DTS formatted discs are not playable on this
unit. Use a compatible disc format (page 20).
Bluetooth device is not found.
 The unit cannot detect a connectable
BLUETOOTH device.
 Check the BLUETOOTH setting of the
connecting device.
 No device is in the list of registered BLUETOOTH
devices.
 Perform pairing with a BLUETOOTH device
(page 8).
29GB
Language Code List
Language code list
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code
Language
Code
Language
Code
Language
Code
1027
Afar
1183
Irish
1347
Maori
1507
Samoan
1028
Abkhazian
1186
Scots Gaelic
1349
Macedonian
1508
Shona
1032
Afrikaans
1194
Galician
1350
Malayalam
1509
Somali
1039
Amharic
1196
Guarani
1352
Mongolian
1511
Albanian
1044
Arabic
1203
Gujarati
1353
Moldavian
1512
Serbian
1045
Assamese
1209
Hausa
1356
Marathi
1513
Siswati
1051
Aymara
1217
Hindi
1357
Malay
1514
Sesotho
1052
Azerbaijani
1226
Croatian
1358
Maltese
1515
Sundanese
1053
Bashkir
1229
Hungarian
1363
Burmese
1516
Swedish
1057
Byelorussian
1233
Armenian
1365
Nauru
1517
Swahili
1059
Bulgarian
1235
Interlingua
1369
Nepali
1521
Tamil
1060
Bihari
1239
Interlingue
1376
Dutch
1525
Telugu
1061
Bislama
1245
Inupiak
1379
Norwegian
1527
Tajik
1066
Bengali;
1248
Indonesian
1393
Occitan
1528
Thai
Bangla
1253
Icelandic
1403
(Afan)Oromo
1529
Tigrinya
Tibetan
1254
Italian
1408
Oriya
1531
Turkmen
1070
Breton
1257
Hebrew
1417
Punjabi
1532
Tagalog
1079
Catalan
1261
Japanese
1428
Polish
1534
Setswana
1093
Corsican
1269
Yiddish
1435
1097
Czech
1283
Javanese
1103
Welsh
1287
Georgian
1105
Danish
1297
1109
German
1130
Bhutani
1142
Greek
1300
Kannada
1144
English
1301
Korean
1145
Esperanto
1305
1149
Spanish
1150
1151
1067
Language
Pashto;
1535
Tonga
Pushto
1538
Turkish
1436
Portuguese
1539
Tsonga
Kazakh
1463
Quechua
1540
Tatar
1298
Greenlandic
1481
1299
Cambodian
Rhaeto-
1543
Twi
Romance
1557
Ukrainian
1482
Kirundi
1564
Urdu
1483
Romanian
1572
Uzbek
Kashmiri
1489
Russian
1581
Vietnamese
1307
Kurdish
1491
Kinyarwanda
1587
Volapük
Estonian
1311
Kirghiz
1495
Sanskrit
1613
Wolof
Basque
1313
Latin
1498
Sindhi
1632
Xhosa
1157
Persian
1326
Lingala
1501
Sangho
1665
Yoruba
1165
Finnish
1327
Laothian
1502
Serbo-
1684
Chinese
1166
Fiji
1332
Lithuanian
Croatian
1697
Zulu
1171
Faroese
1334
Latvian;
1503
Singhalese
Lettish
1505
Slovak
Malagasy
1506
Slovenian
1703
Not specified
1174
French
1181
Frisian
30GB
1345
http://www.sony-asia.com/section/support
http://www.sony-asia.com/caraudio/
For more information on this model, refer to XAV-W650BT on the support sites.
©2015
Printed in Thailand
