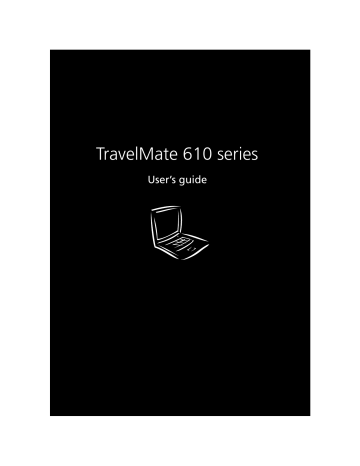

TravelMate 610 series

User’s guide

Copyright © 2001. Acer Incorporated.

All Rights Reserved.

TravelMate 610 series User’s guide

Original Issue: March 2001

Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondense concerning your unit should include the serial number, model number, and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated.

TravelMate 610 series Notebook Computer

Model Number : _________________________________

Serial Number: ___________________________________

Purchase Date: ___________________________________

Place of Purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other company's product names or trademarks are used herein for identification purposes only and belong to their respective companies.

First things first

We would like to thank you for making the TravelMate series of notebook computers your choice for your mobile computing needs.

We hope you will be happy with your TravelMate as much as we enjoyed making it for you.

iii

Your guides

To help you use your TravelMate, we have designed a set of guides:

First off, the Just for Starters...

poster helps you get started with setting up your computer.

This User’s guide introduces you to the many ways your computer can help you be more productive. This guide provides clear and concise information about the computer, so read it thoroughly.

If you ever need to print out a copy, this User’s guide is also available in PDF (Portable Document Format). Follow these steps:

1 Click on Start , Programs , TravelMate .

2 Click on TravelMate User’s guide .

Note: Viewing the file requires Adobe Acrobat Reader installed. If Adobe Acrobat Reader is not installed on your computer, clicking on TravelMate User’s guide will run the

Acrobat Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Acrobat Reader, access the Help menu.

A handy Hot key pocket reference card is useful for quick glances at functional key combinations.

iv

An Online guide is your helping hand on-the-go, with easy to access, detailed and linked information about your computer.

To access the online guide:

1 Click on Start , Programs , TravelMate .

2 Click on TravelMate Online guide .

Lastly, there may be a Read me first sheet included with your package which contains important reminders and updates. So, please read through it.

For more information about our products, services, and support information, please visit our web site (www.acer.com).

Startup reminders

Email checking function

When you first start up your computer, a Mail Checking dialog box will be displayed.

In this dialog box, you have the option of:

v

• launching this program at startup or not

• setting time intervals for email checking

If you already have an email account, please fill in the Mail Properties section of the dialog box.

Aside from the email checking function, there is a mail button that is used to launch the email application. It is located above the keyboard.

The mail button flashes when the user has received an incoming email.

You can also access the Mail Checking dialog box by clicking on Start ,

Programs , Launch Manager , then E-Mail checking setting . For more information on the Launch Manager, see “Launch Manager” on page 54 or see its online help.

Installing the SmartCard software

The installation is fast, easy and user-friendly. Follow these steps to install:

1 Run the setup.exe installer provided by the software and the program installation screen appears.

2 Fill in the user information and password to register the

SmartCard.

3 Select Yes (the default) to register as the Primary user, so ONLY you can add/remove other users. If you select No, your information will be saved as a regular user's information and other registered users could add/remove you.

4 The installer will prompt you to create an Emergency Card, a temporary replacement of your SmartCard, in case your SmartCard is unavailable (lost/stolen).

vi

Note : To use the Emergency Card to regain access to Windows, press Alt+Ctrl+E while the PlatinumSecure screensaver is running and then insert the Emergency Card. If you lose both your

SmartCard and the Emergency Card, bring your computer to the nearest service center and ask them to reissue you another

SmartCard.

5 After making the Emergency Card, you must restart the system before using the program.

You should be able to see the software program group in the

Windows Start -> Programs menu.

If you would like to uninstall the software, you can locate the software's program group, and run the Uninstall program. Only the

Primary user can uninstall the software after providing the password.

Basic care and tips for using your computer

Turning your computer on and off

To turn on the computer, simply slide and then release the power switch on the left side of your TravelMate.

To turn the power off, do any of the following:

• Use the Windows Shut Down...

command

Click on Start , Shut Down...

, and select Shut down; then click on

OK .

• Use the power switch

Note: You can also use the power switch to perform power management functions. See “Power management” on page 26.

• Use the customized functions for power management

You can also shut down the computer by closing the display cover, or by pressing the sleep hot key ( Fn-F4 ). See “Power management” on page 26.

vii

Note: If you cannot power off the computer normally, press and hold the power switch for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator.

• Do not expose the computer to temperatures below 0°C (32°F) or above 50°C (122°F).

• Do not subject the computer to magnetic fields.

• Do not expose the computer to rain or moisture.

• Do not spill water or any liquid on the computer.

• Do not subject the computer to heavy shock and vibration.

• Do not expose the computer to dust and dirt.

• Never place objects on top of the computer to avoid damaging the computer.

• Do not slam the computer display when you close it.

• Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from personal traffic.

• When unplugging the power cord, do not pull on the cord itself but pull on the plug.

• The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

viii

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if at all possible.

Cleaning and servicing

When cleaning the computer, follow these steps:

1 Power off the computer and remove the battery pack.

2 Disconnect the AC adapter.

3 Use a soft cloth moistened with water. Do not use liquid or aerosol cleaners.

If any of the following occurs:

• The computer has been dropped or the body has been damaged.

• Liquid has been spilled into the product.

• The computer does not operate normally.

Please refer to "Troubleshooting my computer" on page 57.

First things first

Your guides

Startup reminders

Basic care and tips for using your computer

1 Getting to know your TravelMate

A TravelMate tour

Front view

Left view

Right view

Rear view

Bottom view

Features

Indicators

Using the keyboard

Special keys

Touchpad

Touchpad basics

Storage

Hard disk

Floppy drive

AcerMedia bay drive

Audio

Adjusting the volume

Power management

Moving around with your TravelMate

Disconnecting from the desktop

Moving around

Taking the computer home

Traveling with the computer

Traveling internationally with the computer

Securing your computer

Using a computer security lock

Using the SmartCard

Using passwords

2 Customizing your computer

Expanding through options

Connectivity options

Upgrade options

Using system utilities

PhDISK

1

27

27

28

30

25

25

26

27

30

32

32

32

39

22

22

22

22

13

13

20

20

9

11

6

7

4

5

3

3

41

43

43

48

53

53

iii iii

iv

vi

Notebook Manager

Launch Manager

BIOS Utility

3 Troubleshooting your computer

Frequently-asked questions

Troubleshooting tips

Using PC-Doctor

Error messages

Requesting service

International Traveler’s Warranty (ITW)

Before you call

Appendix A Specifications

Appendix B Notices

FCC notice

Modem notices

Wireless notice

Important safety instructions

Laser compliance statement

Lithium battery statement

LCD pixel statement

Year 2000 compliance statement

Macrovision copyright protection notice

Index

73

75

76

77

77

78

79

80

80

80

81

53

54

55

57

59

62

62

63

65

65

65

67

1 Getting to know your

TravelMate

Your TravelMate computer combines highperformance, versatility, power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner.

A TravelMate tour

After setting up your computer as illustrated in the Just for

Starters...

poster, let us show you around your new TravelMate computer.

Front view

3

#

1

2

Item

Display screen

Status indicators

3

4

Launch keys

Touchpad

Description

Also called LCD (liquid-crystal display), displays computer output.

LEDs (light-emitting diodes) that turn on and off to show the status of the computer and its functions and components.

Buttons for launching frequently used programs. See “Launch Keys” on page 18 for more details.

Touch-sensitive pointing device which functions like a computer mouse.

4 1 Getting to know your TravelMate

6

7

#

5

8

Item

Click buttons (left, center and right)

Power switch

Infrared port

Description

The left and right buttons function like the left and right mouse buttons; the center button serves as a scroll up/down button.

Turns on the computer power.

Interfaces with Infrared devices (e.g., infrared printer, IR-aware computers).

Microphone Inputs sounds and voices into your computer.

9

10

Speaker

Palmrest

11 Keyboard

Left view

Outputs sound.

Comfortable support area for your hands when you use the computer.

Inputs data into your computer.

#

1

Item

PC Card slot

Description

Connects to one Type II 16-bit PC Card or 32bit CardBus PC Card.

2 PC Card eject button Ejects PC Card from the card slot.

#

3

4

Item

Hard disk bay

SmartCard slot

5 Video capture kit slot

Description

Houses the computer’s removable hard disk

(secured by a screw).

Slot for SmartCard interface with pre-boot authentication systems.

Accepts the video capture kit option on the left side of the computer.

Right view

5

# Item

1 Video capture kit slot

2 Battery bay

3 AcerMedia drive bay

4 AcerMedia drive activity light

5 AcerMedia drive eject button

6 AcerMedia drive emergency eject hole

7 Security keylock

Description

Accepts the video capture kit option on the right side of the computer.

Houses the computer's battery pack.

Houses the computer’s removable media drive

(CD-RW, DVD-ROM, 2nd hard disk, or 2nd battery)

Lights up when media drive is being accessed.

Press to eject the media drive tray.

When the media drive tray cannot be ejected (i.e., using the AcerMedia drive eject button), insert a paperclip to manually eject the tray.

Connects to a Kensington-compatible key-based computer security lock.

6

Rear view


#

1

Item

Power jack

Description

Connects to an AC adapter.

2 PS/2 port Connects to any PS/2-compatible device (e.g.,

PS/2 keyboard/mouse/keypad).

3

4

5

USB ports (two)

Line-in/mic-in jack

Connect to any Universal Serial Bus devices

(e.g., USB mouse, USB camera).

Accepts audio line-in devices (e.g., audio CD player, stereo walkman). Selection is through the OS Windows mixer.

Speaker/

Headphone-out jack

Connects to audio line-out devices (e.g., speakers, headphones).

6 Expansion port I/O replicator or EasyPort expansion devices.

7 Modem jack Connects to a phone line.

#

8

Item

Network jack

Description

Connects to an Ethernet (10BaseT)- or Fast

Ethernet (100BaseT)-based network

7

9 External display port Connects to a display device (e.g., external monitor, LCD projector) and displays up to

64K colors at 1280x1024 resolution.

Bottom view

#

1

2

3

Item

Serial number label

AcerMedia drive bay release latch

AcerMedia drive

Description

Your computer’s unique serial number.

Unlatches to release the AcerMedia drive from its bay.

Your computer’s removable media storage.


7

8

5

6

9

#

4

Item

Personal identification slot

Description

Insert a business card or similar-sized identification card to personalize your computer.

Battery bay

Battery release latch

Hard disk bay

Houses the computer's battery pack.

Unlatches the battery to remove the battery pack.

Houses the computer’s hard disk. A screw secures your hard disk in this bay.

Protects your hard disk against shocks.

Hard disk anti-shock protection

Memory compartment

Houses the computer's main memory.

Features

Below is a brief summary of the computer’s many features:

Performance

• Intel Mobile Pentium® III processor featuring Intel® SpeedStep™ technology

• Integrated 256 KB level 2 cache

• 64-bit memory bus

• Removable high-capacity, Enhanced-IDE hard disk

• Removable optical drive (CD-RW or DVD-ROM is standard)

• External USB floppy drive

• Li-ion main battery pack

• Power management system with ACPI (Advanced Configuration

Power Interface)

• SmartCard interface with pre-boot authentication systems as security feature.

Display

• 14.1"Thin-Film Transistor (TFT) liquid-crystal display (LCD) displaying 24-bit true-color at 1024x768 eXtended Graphics Array

(XGA) resolution

• 12 MB video memory

• Simultaneous LCD and CRT display support

• Supports other output display devices such as LCD projection panels for large-audience presentations

• "Automatic LCD dim" feature that automatically decides the best settings for your display and conserves power

Multimedia

• 16-bit high-fidelity stereo audio with wavetable synthesizer

• Built-in speakers and microphone

• Optical drive

• USB video capture kit option

9


Connectivity

• High-speed V.90 56Kbps fax/data modem port

• Fast infrared wireless communication

• USB (Universal Serial Bus) ports

• Ethernet/Fast Ethernet port

• Optional 802.11b wireless LAN feature

Human-centric design and ergonomics

• Sleek, smooth and stylish design

• Full-sized keyboard

• Ergonomically-centered touchpad pointing device

• Internet scroll key

Expansion

• Type II CardBus PC card (formerly PCMCIA) slot

• Upgradeable memory

• Removable drives (hard disk and optical drive)

• EasyPort port replicator

Indicators

The computer has seven easy-to-read status icons below the display screen.

11

Power and Sleep status are visible even when you close the display.

Icon Function

Wireless

Communication

Description

Lights when the optional wireless LAN feature is enabled.

Power Lights when the computer is on.

Sleep Lights when the computer enters Sleep mode.

Media Activity

Battery Charge

Lights when the hard disk or AcerMedia drive is active.

Lights when the battery is being charged.

Caps Lock Lights when Caps Lock is activated.

12

Icon Function

Num Lock


Description

Lights when Num Lock is activated.

Using the keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

13

Special keys

Lock keys

The keyboard has three lock keys which you can toggle on and off.

Lock key

Caps Lock

Num Lock

(Fn-F11)

Scroll Lock

(Fn-F12)

Description

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively.

Scroll Lock does not work with some applications.

Note: To access the Num Lock and Scroll Lock functions, hold the

Fn key down while pressing the F11 and F12 keys respectively.


Embedded numeric keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num lock on

Type numbers in a normal manner.

Hold Shift while using cursor-control keys.

Num lock off

Hold Fn while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Type the letters in a normal manner.

Note: If an external keyboard or keypad is connected to the computer, the Num Lock feature automatically shifts from the internal keyboard to the external keyboard or keypad.

15

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key

Windows logo key

á

Application key

Description

Start button. Combinations with this key perform shortcut functions. Below are a few examples:

á + Tab (Activates next taskbar button)

á + E (Explores My Computer)

á + F (Finds Document)

á + M (Minimizes All)

Shift + á + M (Undoes Minimize All)

á + R (Displays the Run... dialog box)

Opens a context menu (same as a right-click).

Hot keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen brightness, volume output and the

BIOS Utility.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.


Hot key Icon

Fn-F1

Function Description

Hot Key Help Displays help on hot keys.

Fn-F2

Fn-F3

Fn-F4

Fn-F5

Fn-F6

Fn-F7

Setup Accesses the computer’s configuration utility.

Power

Management

Scheme

Toggle

Switches the power management scheme used by the computer

(function available if supported by operating system).

See “Power management” on page

26.

Sleep Puts the computer in Sleep mode.

See “Power management” on page

26.

Display

Toggle

Screen Blank

Touchpad

Toggle

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power. Press any key to return.

Turns the internal touchpad on and off.

17

Hot key Icon

Fn-F8

Fn↑

Function

Speaker

Toggle

Volume up

Fn↓

Fn→

Description

Turns the speakers on and off.

Increases the speaker volume.

Volume down

Decreases the speaker volume.

Brightness up Increases the screen brightness.

Fn← Brightness down

Euro

Decreases the screen brightness.

Alt Gr-

Euro

Types the Euro symbol (available on some models).

The Euro symbol

If your keyboard layout is set to United States-International or United

Kingdom or if you have a keyboard with a European layout, you can type the Euro symbol on your keyboard.

Note for US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type:

1 Click on Start , Settings , Control Panel .

2 Double-click on Keyboard .

3 Click on the Language tab.

4 Verify that the keyboard layout used for "En English (United

States)" is set to United States-International.

If not, select and click on Properties ; then select United States-

International and click on OK .

5 Click on OK .


To type the Euro symbol:

1 Locate the Euro symbol on your keyboard.

2 Open a text editor or word processor.

3 Hold Alt Gr and press the Euro symbol.

Note: Some fonts and software do not support the Euro symbol.

Please refer to http://www.microsoft.com/typography/faq/ faq12.htm for more information.

Launch Keys

Located at the top of the keyboard are five buttons. These buttons are called launch keys. They are designated as the P1, P2, P3, mail button and Web browser button.

Note: To the left of these five launch keys is the wireless communication button. For more information on this feature, please refer to the wireless communication manual.

Launch key

P1

P2

Default application

User-progammable

User-progammable

Launch key Default application

Multimedia application P3

Mail Email application. The LED of the mail button will flash when the user has received an incoming email.

Web browser Internet browser application

19


Touchpad

The built-in touchpad is a PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Note: When using an external USB or serial mouse, you can press

Fn-F7 to disable the touchpad. If you are using an external PS/2 mouse, the touchpad is automatically disabled.

Touchpad basics

The following items teach you how to use the touchpad:

• Move your finger across the touchpad to move the cursor.

21

• Press the left (1) and right (3) buttons located on the edge of the touchpad to do selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad produces similar results.

• Use the center (2) button (top and bottom) to scroll up or down a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Function

Execute

Select

Drag

Access context menu

Scroll

Left button

Click twice quickly

Right button

Click once

Click and hold, then use finger to drag the cursor on the touchpad

Center buttons

Tap

Tap twice (at the same speed as doubleclicking a mouse button)

Tap once

Tap twice (at the same speed as doubleclicking a mouse button) then hold finger to the touchpad on the second tap and drag the cursor

Click once

Click and hold the up/ down button

Note: Keep your fingers dry and clean when using the touchpad.

Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad’s responsiveness.


Storage

This computer supplies you the following media storage:

• High-capacity Enhanced-IDE hard disk


• High-speed AcerMedia bay drive

Hard disk

The removable, high-capacity hard disk is the answer to your storage needs. The hard disk bay houses a standard 2.5-inch, 9.5mm hard disk.

Floppy drive

The external USB floppy drive accepts standard 3.5-inch, 1.44 MB floppy disks. Connect the floppy drive to any available USB port.

AcerMedia bay drive

The AcerMedia bay comes installed with a high-speed CD-RW or DVD-

ROM drive. The CD-RW drive allows you to burn CDs on your notebook computer. The DVD-ROM drive lets you watch DVD movies on the go.

23

You can also swap other bay modules into the AcerMedia bay. For more information, see “Swapping AcerMedia bay drive modules” on page 50.

Ejecting the CD or DVD tray

To eject the CD or DVD tray when the computer is turned on, press the drive eject button. When the power is off, you can eject the drive tray using the emergency eject hole. See page 60 for more details.

Playing DVD movies

When the DVD-ROM drive module is installed in the AcerMedia drive bay, you can play DVD movies on your computer.

1 Eject the DVD tray and insert a DVD movie disc; then close the DVD tray.

Important!

When you launch the DVD player for the first time, the program asks you to input the region code. DVD discs are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD discs of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent.

Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table later in this section for DVD movie region code information.

2 The DVD movie will automatically play after a few seconds.

4

5

6

2

3

Region Code Country or Region

1 U.S.A., Canada

Europe, Middle East, South Africa,Japan

Southeast Asia, Taiwan, Korea (South)

Latin America, Australia, New Zealand

Former U.S.S.R., parts of Africa, India

People's Republic of China


Note: To change the region code, insert a DVD movie of a different region into the DVD-ROM drive. Please refer to the online help for more information.

Recording CDs

With the CD-RW drive installed in the AcerMedia bay, you can record

CD-R (CD-Recordable) or CD-RW (CD-ReWritable) discs. Easy-to-use CD recording software is included with the CD-R/W drive.

Refer to the application’s online help or read the quick guide included with the CD-RW package for more information.

Audio

The computer comes with 16-bit high-fidelity stereo audio. The builtin sensitive microphone and stereo speakers are easy to access.

25

There are audio ports on the rear of the computer. See “Rear view” on page 6 for more information on external audio devices.

Adjusting the volume

Press Fn↑ and Fn↓ to increase and decrease the volume respectively.

See “Hot keys” on page 15 for more informations on adjusting the speaker volume.


Power management

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, pointing device, floppy drive, hard disk, peripherals connected to the serial and parallel ports, video memory, and other ports and devices. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports

ACPI (Advanced Configuration and Power Interface) which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Refer to your online guide for more information.

27

Moving around with your TravelMate

This section gives you tips and hints on things to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save your work in progress.

2 Remove any media, diskette or compact disc, from the drive(s).

3 Shut down the operating system.

4 Turn off the computer.

5 Close the display cover.

6 Disconnect the computer from the port or dock option, if necessary.

7 Disconnect the cord from the AC adapter.

8 Disconnect the keyboard, pointing device, printer, external monitor, and other external devices.

9 Disconnect the Kensington lock if you are using one to secure the computer.

Moving around

“when you are just moving within short distances, for example, from your office desk to a meeting room”

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

1 Click on Start , Shut Down...

.


2 Select Shut down and click on OK .

- or - you can put the computer in Sleep mode by pressing Fn-F4 . Then close and latch the display.

When you are ready to use the computer again, unlatch and open the display, and press any key. If the power indicator is off, the computer has entered Hibernation mode and turned off. Press, slide and release the power switch to turn the computer back on. Note that the computer may enter Hibernation mode after it is in Sleep mode for a period of time. Turn the power on to wake up the computer from

Hibernation mode.

What to bring to short meetings

A fully charged battery runs the computer for about 2.5 hours under most circumstances. If your meeting is shorter than that, you probably do not need to bring anything with you other than the computer.

What to bring to long meetings

If your meeting will last longer than 2.5 hours or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sleep mode. Press Fn-

F4 or close the display cover whenever you are not actively using the computer. Then tap any key or open the display to resume.

Taking the computer home

“when you are moving from your office to your home or vice versa”


After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Make sure that you have removed any media, diskette and compact disc, in the drive(s). Failure to remove the media can damage the drive head.

29

• Pack the computer in a protective case that can prevent the computer from sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen.

What to bring with you

Unless you already have some items at home, bring the following items with you:

• AC adapter and power cord

• The printed user’s manual

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effect of temperature changes by keeping the computer with you.

• If you need to stop for an extended period of time and cannot bring the computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat.

• Changes in temperature and humidity can cause condensation.

Allow the computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 18°F (10°C), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

Setting up a home office

If you frequently work on your computer at home, it may be worthwhile to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid transporting the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor, or mouse.


Traveling with the computer

“when you are moving within a larger distance, for instance, from your office building to a client’s office building or traveling locally”


Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when bringing it into the gate area.


Bring the following items with you:

• AC adapter

• Spare, fully-charged battery pack(s)

• Additional printer driver files if you plan to use another printer


In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.

• If possible, have the computer inspected by hand. Airport security

X-ray machines are safe, but do not put the computer through a metal detector.

• Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

“when you are moving from country to country”


Prepare the computer as you would normally prepare it for traveling.

31


Bring the following items with you:

• AC adapter

• Power cords that are appropriate to the country to which you are traveling

• Spare, fully-charged battery packs

• Additional printer driver files if you plan to use another printer

• Proof of purchase, in case you need to show it to customs officials

• International Traveler’s Warranty passport


Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When traveling in another country, check that the local AC voltage and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.

• If you are using the modem, check if the modem and connector is compatible with the telecommunications system of the country you are traveling in.


Securing your computer

Your computer is a valuable investment that you need to take care of.

Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch, SmartCard and passwords.

Using a computer security lock

A security keylock notch located on the right panel of the computer lets you connect a Kensington-compatible key-based computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. Insert the lock into the notch and turn the key to secure the lock.

Using the SmartCard

This software includes the following components: PlatinumPAS™,

PlatinumSecure™ and PlatinumKey™. Together, they provide you with multiple levels of security.

• PlatinumPAS implements the first security measure at the BIOS level and runs during the BIOS routine check when a computer is powered up or rebooting. If no SmartCard or Emergency Card is

33 detected, the computer will stop booting up to prevent any illegal access to the system.

• PlatinumSecure enhances the secure logon procedure for Windows

Millenium Edition (Me) or 2000 at the Windows operating system level. It provides user authentication through its encryption/ decryption function using the SmartCard. If your SmartCard is unavailable, you can use the Emergency Card as a temporary replacement card.

• PlatinumKey auto-authenticate and auto cache with one-click logons to all password-required websites (patent pending), eliminates the overhead costs associated with memorizing and typing user IDs and passwords when surfing the Internet with

Microsoft or Netscape web browsers.

A card slot for your SmartCard is located on the left panel of the computer right above the hard disk bay. This new security feature helps you boot up your computer with all your settings built right into your SmartCard. You don’t have to remember your password to access your computer.


To remove the SmartCard press the SmartCard (a) and remove the

SmartCard (b) as shown in the illustration below.

Running PlatinumSecure

PlatinumSecure enhances the secure logon procedure for Windows Me or 2000 at the operating system level. It provides user authentication with an encryption/decryption function using the SmartCard. If your

SmartCard is unavailable, the Emergency Card can serve as a temporary replacement of the SmartCard. After installation, the PlatinumSecure icon appears on the Windows desktop. Double-click on it or click the right mouse button, then select Open from the pop-up menu (or launch it from the PlatinumSecret program group). From the menu

35 that appears, you can directly access three operations: PlatinumSecure

Options, SmartCard Manager, and Change Password.

PlatinumSecure Options

Click on the PlatinumSecure Options button to open the SmartCard

Options window. It provides great flexibility to meet the various privacy protection needs of many different users.


• Disable SmartCard Authentication

When Disable PlatinumPAS is selected, the PlatinumPAS Preboot

Authentication System will be disabled.

When Disable PlatinumSecure is selected, the PlatinumSecure

Windows Logon Authentication with the SmartCard will be disabled, which means that the protection of your PC as well as other options under System Lock Option and Password Option will be disabled, too. The SmartCard password is required for this selection.

• System Lock Option

When Lock system when the SmartCard is not in use

(default) is selected, if the SmartCard is removed, the

PlatinumSecure screensaver comes up and access to the system is locked. When Never lock the system after bootup is selected, there is no protection for the PC after boot up, and Password

Option is disabled.

• Password Option

When Always enter password when the SmartCard is in use

(default) is selected, the password is required whenever you need to regain access to the system while the SmartCard is inserted.

When Auto authenticate when SmartCard is in use is selected, no password is required. All that you need to do is insert the SmartCard.

SmartCard Manager

The Multiple user support is implemented and managed in SmartCard

Manager. Please note that five users can be registered on one PC. If you registered as the Primary User, ONLY you can add/remove other users. If you registered as a regular user, other registered users could add/remove you. All registered users will be able to use the View

SmartCard users option.

Change Password

Click the Change Password button, fill in the three fields in the

Change Password dialog box, and then close the dialog box by clicking the OK button to change the SmartCard password.

37

Encrypt/Decrypt

PlatinumSecure can also be used to encrypt/decrypt files except for system files or files that are already encrypted with other applications.

Double-click on a file to automatically encrypt/decrypt it. However, if the file is associated with an application, it will be opened with that application instead of being encrypted. Note that the encryption is not recursive. That is, when you encrypt a folder, only the files immediately under that folder are encrypted, other files under subfolders are not.

To find the Encrypt/Decrypt commands:

• Right-click on the Start menu,

• Right-click on a folder or icon on your Windows desktop, or

• In Windows Explorer, right-click on a selected folder, file, or group of files

Running PlatinumKey

PlatinumKey provides one-click logon to all password-required websites. With its unique SmartCard caching technology, you can greatly extend the limited card memory size to unlimited use by

38 1 Getting to know your TravelMate storing your private data in an encrypted file either on the SmartCard, or on the 360 Degree Web secure website server.

Information in PlatinumKey, such as that in My Info and Credit Cards, can be transferred to other applications using the "drag-and-drop" method: Simply point the cursor to the field containing the information, press and hold the left mouse button, then drag the cursor to the application and drop the information there.

PlatinumKey also makes it convenient to change your password. There is always a PWD button available, which is equivalent to the Change

Password button in PlatinumSecure.

Follow these steps to use PlatinumKey:

1 Open your browser to connect to the Internet.

2 Double-click on the PlatinumKey icon on your Windows desktop.

3 Enter your SmartCard password and click OK .

4 If PlatinumKey is being used for the very first time, it will ask

"Would you like to link to 360 Degree Web secure website server to backup the information on your SmartCard?" The default answer is Yes, and it will enable you to store your information

(excluding the Credit Cards) on the 360 Degree Web secure website server for backup purposes in case the card is lost/stolen. If you choose No, you will only be able to save My Info, Credit Cards and 5 Websites on your SmartCard.

5 Log in to a website where you are already registered.

6 PlatinumKey automatically stores your login data and asks for your confirmation to automatically log you in the next time you access the site. Click Yes and continue browsing.

7 To close PlatinumKey when you are finished browsing, right-click on the PlatinumKey icon on your Windows taskbar and select

Close PlatinumKey.

PlatinumKey provides a list of all the logon pages that you have stored.

To go directly to any site on the list either double-click it or select it and click the Go button. Also, you can click the View button to view the selected website information including Web Name, User Name,

Password, and Web URL. Similarly, type the first letter(s) of a site on the list, and the site will be searched and selected.

You can Edit and Delete the sites as well as other information, and

Save or Cancel the changes you made, by selecting the button corresponding to each command.

Using passwords

Three password types protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

• Supervisor Password prevents unauthorized entry into the BIOS

Utility. Once set, you must key-in this password to gain access to the BIOS Utility. See “BIOS Utility” on page 55 and your online guide for more details.

• User Password secures your computer against unauthorized use.

Combine the use of this password with password checkpoints on boot-up and resume from hibernation for maximum security.

• Hard Disk Password protects your data by preventing unauthorized access to your hard disk. Even if the hard disk is removed from the computer and moved to another computer, it cannot be accessed without the Hard Disk Password.

39

Important! Do not forget your Supervisor and Hard Disk

Password! If you forget your password, please get in touch with your dealer or an authorized service center.

Entering passwords

When a password is set, a password prompt appears in the left-hand corner of the display screen.

• When the Supervisor Password is set, a prompt appears when you press F2 to enter the BIOS Utility at boot-up.

Type the Supervisor Password and press Enter to access the BIOS

Utility. If you enter the password incorrectly, an x symbol appears.

Try again and press Enter .

• When the User Password is set and the Password on boot parameter is enabled, a prompt appears at boot-up.

Type the User Password and press Enter to use the computer. If you enter the password incorrectly, an x symbol appears. Try again and press Enter .

• When the Hard Disk Password is set, a prompt appears at boot-up.

Type the Hard Disk Password and press Enter to use the computer.

If you enter the password incorrectly, an x symbol appears. Try again and press Enter .


Important! You have three chances to enter a password. If you fail to enter the password correctly after three tries, the system halts. Slide and hold the power switch for four seconds to shut down the computer. Then turn on the computer again, and try again. If you fail to enter the Hard Disk Password, please contact your dealer or an authorized service center.

Setting passwords

You can set passwords using the BIOS Utility or the Notebook Manager.

See your online guide for more details.

2 Customizing your computer

After learning the basics of your TravelMate computer, let’s get acquainted with the advanced features of your computer. In this chapter, you will learn how to add options, upgrade components for better performance, and customize your computer.

key link: accessories.acer.com

Expanding through options

Your TravelMate offers you a complete mobile computing experience.

43

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, see your online guide for more details.

Fax/data modem

All models have a built-in V.90 56Kbps software modem.

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

Start your communications software program. See your communications manual for instructions.

44 2 Customizing your computer

Built-in network feature

The built-in network feature allows you to connect your computer to an Ethernet-based (10/100 Mbps) network.

To use the network feature, connect an Ethernet cable from the network jack on the rear of the computer to a network jack or hub on your network.

Fast infrared

The computer’s fast infrared (FIR) port allows you to do wireless data transfer with other IR-aware computers and peripherals such as infrared printers. The infrared port can transfer data at speeds of up to four megabits per second (Mbps) at a distance of up to one meter.

45

To use FIR, position two IR-aware devices such that their IR ports are no more than one meter apart and offset no more than 15 degrees.

When the two computers are in position, simply begin the data transfer as you normally would. See your file transfer software for details.

You can purchase the InviLink remote unit to control your presentations.


Universal Serial Bus

The Universal Serial Bus (USB) port is a high-speed serial bus which allows you to connect and daisy-chain USB peripherals without taking up precious system resources. Your computer has two ports available.

PC Card slots

There is a type II CardBus PC Card slot found on the left side of the computer. This slot accepts a credit-card-sized card that enhances the usability and expandability of the computer. These cards should have a

PC Card or CardBus logo on them.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs.

Popular type II cards include flash memory, SRAM, fax/data modem,

LAN and SCSI cards. CardBus improves on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

Note: Refer to your card’s manual for details on how to install and use the card and its functions.

Inserting a PC Card

Insert the card into the slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

47

Ejecting a PC Card

Before ejecting a PC Card:

1 Exit the application using the card.

2 Left-click on the PC Card icon on the taskbar and stop the card operation.

3 Press the slot eject button (a) to pop out the eject button; then press it again (a) to eject the card (b).


Port expansion devices

Two types of expansion devices are available for your computer:

• I/O replicator - adds serial port and parallel port connections to your computer.

• EasyPort - adds a host of ports for your computer, and allows you to connect and disconnect peripherals from your computer in one quick step without the need for TV-out support.

See your dealer for more information.

Upgrade options

Your computer delivers superior power and performance. However, some users and the applications they use may demand more. This computer allows you to upgrade key components when you need increased performance.

Note: Contact your authorized dealer if you decide to perform a key component upgrade.

Memory upgrade

Memory is expandable to 512 MB, employing 64-/128-/256-MB 64-bit industry standard soDIMMs (Small Outline Dual Inline Memory

Modules). The computer supports PC-100 SDRAM (Synchronous

Dynamic Random Access Memory) modules.

There are two memory slots on your computer, one of which is occupied by standard memory. You can upgrade memory by installing a memory module into the available slot, or replacing the standard memory with a higher-capacity memory module.

Installing memory

Follow these steps to install memory:

1 Turn off the computer, unplug the AC adapter (if connected) and remove the battery pack. Then turn the computer over to access its base.

2 Remove the screws (a) from the memory cover; then lift up and remove the memory cover (b).

49

3 Insert the memory module diagonally into the slot (a), then gently press it down (b) until it clicks into place.

Caution: Be careful not to touch the modem module found next to the memory slots.

4 Replace the memory cover and secure it with the screw.


The computer automatically detects and reconfigures the total memory size.

Note for Windows 98 users: If you change the memory size, the

PhDISK Utility (if installed and active, true by default) automatically reallocates the hard disk space necessary for hibernation mode to work.

Swapping AcerMedia bay drive modules

The AcerMedia bay accepts a wide variety of media drive options for use with your computer. These include:

• CD-RW drive

• DVD-ROM drive

• 2nd hard disk

• 2nd battery

To swap drive modules in and out of the AcerMedia drive bay, follow these steps:

1 Click on the HotIDE icon ( ) on the Windows taskbar.

2 Select the stop operation.

A message appears to confirm the stop operation.

3 Click on OK .

4 Close the display cover.

5 Turn the computer over and rest it gently on a flat surface.

51

6 Slide and hold the AcerMedia bay release latch (a); then pull out the drive module from the AcerMedia bay (b).

7 Insert a drive module into the AcerMedia bay. The bay release latch locks in place.

8 Turn the computer over.

9 Open the display cover.

Replacing the hard disk

You can upgrade your hard disk with a higher capacity drive when you need more storage space. The computer uses a 9.5 mm, 2.5-inch,

Enhanced-IDE hard disk.

Note: You can upgrade the hard disk using a new hard disk module kit, or you can also use the old hard disk bracket with a new hard disk. Consult your dealer for more information.

Follow these steps:

1 Turn off the computer, unplug the AC adapter (if connected), and remove the battery pack. Then turn the computer over to access its base.


2 Locate the hard disk bay. Remove the hard disk bay screw (a); then pull out and remove the hard disk bay cover.

3 Pull on the tab to remove the hard disk.

4 Insert a new hard disk module into the hard disk bay and tighten the hard disk bay screw.

53

Using system utilities

PhDISK

The PhDISK utility allows your computer to enter hibernation mode.

Before entering hibernation mode, your computer saves all necessary computer information into a file or partition created by PhDISK, then shuts off power to all system components. On the next startup, the computer reloads all information from the PhDISK file or partition and resumes from where you have left off.

Note: By default, this program is automatically loaded and set up on your computer so you need not run this program by yourself.

You only need to run this program if you are to upgrade the system’s memory. The PhDISK utility is designed for Windows 98 only.

You can access the PhDISK from the C:\DMSinfo\PhDISK\ directory.

See your online guide for more information.

Notebook Manager

The computer has a built-in system setup program called Notebook

Manager. The Windows-based Notebook Manager allows you to set passwords, the startup sequence of the drives, and power management settings. It also shows current hardware configurations.

To start the Notebook Manager, press Fn-F2 or follow these steps:

1 Click on Start , Programs , then Notebook Manager .


2 Select the Notebook Manager application to run the program.


Launch Manager

Launch Manager allows you to set the five launch keys located above the keyboard. See “Launch Keys” on page 18 for the location of the launch key.

You can access the Launch Manager by clicking on Start , Programs , and then Launch Manager to start the application.

55

BIOS Utility

The BIOS Utility is a hardware configuration program built into your computer’s BIOS (basic input/ouput system).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.


To activate the BIOS Utility, press F2 during the POST (power-on selftest) while the TravelMate logo is being displayed.


3 Troubleshooting your computer

This chapter instructs you on how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer.

Do not attempt to open the computer by yourself.

Contact your dealer or an authorized service center for assistance.

key link: www.acersupport.com

59

Frequently-asked questions

The following is a list of possible situations that may arise during the use of your computer. Easy answers and solutions are provided for each one.

I pressed the power switch and opened the display, but the computer does not start or boot-up.

Look at the Power indicator (refer to “Indicators” on page 11):

• If it is not lit, no power is being applied to the computer. Check the following:

• If you are running on battery power, it may be low and unable to power the computer. Connect the AC adapter to recharge the battery pack.

• Make sure that the AC adapter is properly plugged into both the computer and the power outlet.

• If it is lit, check the following:

• If the Sleep indicator is lit, the computer is in Sleep mode.

Press any key or tap on the touchpad to resume.

• Is a non-bootable (non-system) diskette in the floppy drive?

Remove or replace it with a system diskette and press Ctrl-Alt-

Del to restart the system.

• The operating system files may be damaged or missing. Connect the external floppy drive and insert the startup disk you created during Windows setup into the drive, then press Ctrl-Alt-Del to restart the system to begin diagnostics and make necessary fixes.

Nothing appears on the screen.

The computer’s power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, two things might be the cause:

• The brightness level might be too low. Press Fn→ (increase) and

Fn← (decrease) to adjust the brightness level.

• The display device might be set to an external monitor. Press the display toggle hot key Fn-F5 to toggle the display back to the computer.

60 3 Troubleshooting your computer

Image is not full-screen.

Make sure that the resolution is set to 1024x768 which the system supports. Right-click on your Windows desktop and select Properties to bring up the Display Properties dialog box. Then click on the

Settings tab to make sure the resolution is set to the appropriate resolution. Resolutions lower than the specified resolution are not full-screen on the computer or on an external monitor.

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control (speaker) icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option.

• The speakers may be turned off. Press Fn-F8 to turn the speakers on (this hot key also turns the speakers off).

• The volume level may be too low. In Windows, look at the volume control icon on the taskbar. You can also use the volume control buttons to adjust the volume. See “Hot keys” on page 15.

• If headphones, earphones or external speakers are connected to the line-out port on the computer’s right panel, the internal speakers automatically turn off.

I want to eject the CD or DVD tray without turning on the power. I cannot eject the CD or DVD tray.

There is a mechanical eject button on the DVD-ROM or CD-RW drive.

Simply insert the tip of a pen or paperclip and push to eject the tray.

61

The keyboard does not respond.

Try attaching an external keyboard to the PS/2 connector on the computer’s rear. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

I prefer using an external keyboard and mouse, but both have PS/2 connectors and there is only one PS/2 port on the computer.

To connect two PS/2-type devices to the computer, you need to use an optional PS/2 Y-bridge connector.

The infrared port does not work.

Check the following:

• Make sure that the infrared ports of the two devices are facing each other (+/- 15 degrees) a maximum of 1 meter apart.

• Make sure that there is a clear path between the two infrared ports. Nothing should be blocking the ports.

• Make sure that you have the appropriate software running on both devices (for file transfers) or that you have the appropriate drivers (for printing to an infrared printer).

• During the POST, press F2 to access the BIOS Utility and verify that the infrared port is enabled.

• Make sure that both devices are IrDA-compliant.

I want to set up my location to use the internal modem.

To properly use your communications software (e.g., HyperTerminal), you need to set up your location:


2 Double-click on Modems .

3 Click on Dialing Properties and begin setting up your location.

Refer to the Windows manual.


Troubleshooting tips

This notebook computer incorporates an advanced design that delivers onscreen error message reports to help you solve problems. In addition, this series of notebook computers ship with PC-Doctor, a powerful diagnostic tool, that helps you determine hardware configuration and clarify hardware or software problems.

• If the system reports an error message or an error symptom occurs, see “Error messages” on page 63.

• If you suspect the system has a problem, run PC-Doctor to diagnose it. See the following section.

Using PC-Doctor

Before running the program, take note of the following actions you may need to take:

1 Disconnect any external devices (i.e., PC Cards, external mouse).

2 Open System Properties to check and make sure that the components you diagnose are enabled.

To open the System Properties window: a Click on Start , Settings , Control Panel .

b Double-click on System .

c Click on the Device Manager tab.

3 Close all application programs (i.e., fax or communication programs) if you plan to diagnose the modem.

To run PC-Doctor, simply double-click on the PC-Doctor icon located on the Windows desktop. You can also access PC-Doctor by following these steps:

1 Click on Start , Programs , PC-Doctor .

2 Click on the PC-Doctor program.

If PC-Doctor does not report a system error, reinstall the software driver from the Recovery CD for the component you suspect has a problem. If you still have problems, you can access our online and

Internet technical support services. Please see the following section for details.

Error messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

63

Error Messages

CMOS Battery Bad

CMOS Checksum Error

Disk Boot Failure

Corrective Action

Contact your dealer or an authorized service center.


Insert a system (bootable) diskette into the floppy drive (A:), then press Enter to reboot.

Diskette Drive Controller Error or

No Controller Present


Diskette Drive Error Contact your dealer or an authorized service center.

Diskette Drive Type Mismatch

Equipment Configuration Error

Hard Disk 0 Error

Hard Disk 0 Extended Type Error

I/O Parity Error

Insert system diskette and press

<Enter> key to reboot

Press F2 (during POST) to enter the BIOS

Utility; then press Esc to exit and reconfigure the computer.








Error Messages

Keyboard Error or No Keyboard

Connected

Keyboard Interface Error

Memory Size Mismatch

Missing operating system

Non-system disk or disk error.

Replace and strike any key when ready.

Pointing Device Error





Pointing Device Interface Error

Corrective Action





Protected Mode Test Fail

RAM BIOS Bad

RAM Parity Error

Real-Time Clock Error

Video RAM BIOS Bad








If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS Utility.

65

Requesting service

International Traveler’s Warranty (ITW)

Your computer is backed by an International Traveler’s Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers are in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel to receive the benefits from our support centers. Place your proof-ofpurchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized

ITW service site, you can still get in contact with our offices worldwide.

There are three ways to access Acer for technical support and information:

• Internet service worldwide, visit www.acersupport.com

• Telephone support in the United States and Canada, call 1-800-

816-2237

• Technical support numbers in various countries

You can view a list of technical support numbers by following these steps:


2 Double-click on System .

3 Click on the Support Information button.

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently.


If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

If you are able to run the PC-Doctor diagnostic tests, locate the log file by selecting Windows, Test Log in the PC-Doctor menu bar.

If you haven’t registered your notebook computer, you will be required to register during your first call to Acer.

You are required to provide the following information:

Name:_________________________________________

Address:_______________________________________

_______________________________________________

Telephone number:____________________________

Machine and model type:_______________________

Serial number:__________________________________

Date of purchase:_______________________________

Appendix A

Specifications

This appendix lists the general specifications of your computer.

69

Microprocessor

• Intel Mobile Pentium® III processor featuring Intel® SpeedStep™ technology

• Integrated 256 KB level 2 cache

Memory

• Main memory expandable to 512MB Synchronous Dynamic

Random Access Memory (SDRAM)

• Dual 144-pin industry standard soDIMM sockets (PC-100)

• 512 KB Flash ROM BIOS

Data storage

• One removable, high-capacity, Enhanced-IDE hard disk (2.5-inch,

9.5 mm, UltraDMA-66)

• One removable, high-speed AcerMedia drive (CD-RW or DVD-ROM is standard)

• One external USB floppy drive

Display and video

• 14.1" Thin-Film Transistor (TFT) liquid-crystal display (LCD) displaying 24-bit true-color at 1024x768 eXtended Graphics Array

(XGA) resolution

• 12 MB VRAM

• 3D capabilities

• Simultaneous LCD and CRT display support

• External CRT display supports up to 1600x1200 high color mode

Audio

• 16-bit stereo audio with built-in wavetable synthesizer

• Built-in speakers and microphone

• Sound Blaster Pro and Windows Sound System-compatible

• Separate audio ports for headphone-out, and line-in devices

70 Appendix A Specifications

Keyboard and pointing device

• Full-sized keyboard

• Ergonomically-centered touchpad pointing device with scroll function

I/O ports

• Built-in:

• One type II/I PC Card socket (PCMCIA CardBus)

• One SmartCard interface socket

• One 6-pin keyboard/mouse port (PS/2)

• One RJ-11 modem jack (V.90 56Kbps)

• One RJ-45 network jack (Ethernet 10BaseT/Fast Ethernet

100BaseT)

• One power jack (DC-in)

• One 15-pin external monitor port

• One 3.5mm audio microphone/line-in minijack

• One 3.5mm speaker/headphone-out minijack

• One FIR wireless communications port (IrDA)

• Two USB ports

• One 100-pin docking connector

• I/O replicator:

• One 9-pin RS-232 serial port (UART16550)

• One 25-pin parallel port (ECP)

Weight and dimensions

• 5.2 lbs (2.36 kg)

• 308 (W) x 247.5 (D) x 29 (H)mm

Temperature

• Operating: 10°C ~ 35°C

• Non-operating: -20°C ~ 60°C

71

Humidity (non-condensing)

• Operating: 20% ~ 80% RH

• Non-operating: 20% ~ 80% RH

System

• Microsoft Windows Millenium Edition (Me), or Microsoft Windows

2000 operating system

• ACPI support

• DMI 2.0-compliant

• LDCM support

Battery pack

• 37 WH Li-Ion main battery pack

• Smart battery management technology

• 2-hour rapid charge/3.5-hour charge-in-use

AC adapter

• 60-Watt

• Auto sensing 100~240Vac, 50~60Hz

Options

• 64-/128-/256-MB memory upgrade module

• Higher-capacity hard disk drive

• AcerMedia drive modules

• DVD-ROM drive

• CD-RW drive

• 2nd hard disk

• 2nd battery

• Weight saver

• EasyPort expansion device

• PS/2 Y-bridge cable

• Additional AC adapter and battery pack

• USB video capture kit

• File transfer cable

72

• Infrared (IR) remote control

• External battery charger


• SmartCard

• I/O replicator

• External numeric keypad

• Power cord

• InviLink 802.11b wireless LAN PC card

• Lucent AP-100 802.11b access point

Appendix A Specifications

Appendix B

Notices

This appendix lists the general notices of your computer.

75

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

•

•

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

•

Increase the separation between the device and receiver

Connect the device into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications

Commission, to operate this computer.

Use conditions

This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

76 Appendix B Notices

Notice: Canadian users

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numérique de la classe B respected toutes les exigences du

Règlement sur le matériel brouilleur du Canada.

Modem notices

FCC

This equipment complies with Part 68 of the FCC rules. Located on the bottom side of the modem is a label that contains, among other information, the FCC

Registration Number and Ringer Equivalence Number (REN) for this equipment.

Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

CTR 21

This equipment has been approved [Council Decision 98/482/EC - “CTR 21”] for pan-European single terminal connection to the Public Switched Telephone

Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

77

Wireless notice

FCC

The transmitter and the antenna are permanently installed insdie the notebook, and are specific for this model (not for generic computer). The antenna of this device is installed on the corner of the bottom of the LCD. For compliance with FCC radiation exposure limits, it should be operated with a separation distance of 20cm or more between the antenna and the body of the user, and the antenna should not be operated next to a nearby person.

Important safety instructions

Read these instructions carefully. Save these instructions for future reference.

1 Follow all warnings and instructions marked on the product.

2 Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3 Do not use this product near water.

4 Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

5 Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6 This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

7 Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

8 If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

9 Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.


10 Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

11 Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a When the power cord or plug is damaged or frayed b If liquid has been spilled into the product c If the product has been exposed to rain or water d If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

e If the product has been dropped or the cabinet has been damaged f If the product exhibits a distinct change in performance, indicating a need for service.

12 Replace the battery with the same type as the product's battery we recommend. Use of another battery may present a risk of fire or explosion.

Refer battery replacement to a qualified serviceman.

13 Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly.

14 Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Laser compliance statement

The CD-RW or DVD-ROM drive used with this computer is a laser product. The

CD-RW or DVD-ROM drive’s classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO

BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS

D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET

NICHT DEM STRAHLL AUSSETZEN

79

PRODUCTO LÁSER DE LA CLASE I

ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE

EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.

VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.

VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA

SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I

STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN

Lithium battery statement

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt fabrikantens instruktion.

VAROITUS

Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

VORSICHT!

Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.


LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques.

Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

Year 2000 compliance statement

The TravelMate 610 series notebook computer carries the "Hardware NSTL

Tested Year 2000 Compliant" logo, which certifies that this model has been tested by NSTL using the YMark2000 test, and has been found to meet NSTL's standards for Year 2000 hardware compliance.

For more details, check the Acer Year 2000 Resource Center Web site

(global.acer.com/service/pcy2000.html)

Macrovision copyright protection notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and

4,907,093 licensed for limited viewing uses only.

Index

A

AC adapter caring for vii

AcerMedia bay drive 22 audio 25 adjusting the volume 25 troubleshooting 60

B battery pack caring for viii charging indicator 11

BIOS utility 55 brightness hotkeys 17

C caps lock 13 on indicator 11 care

AC adapter vii battery pack viii computer vii

CD or DVD tray ejecting 23

CD-RW ejecting manually 60 troubleshooting 60 cleaning computer viii computer bringing to meetings 28 caring for vii cleaning viii disconnecting 27 features 3, 9 indicators 11 keyboards 13 moving around 27 on indicator 11 performance 9 security 32 setting up a home office 29 taking home 28

81 traveling internationally 30 traveling on local trips 30 troubleshooting 58 turning off vi

Wireless Communication indicator 11 connections network 44 connectivity options port expansion devices 48 contrast hotkeys 17

D diagnostics 62 display hotkeys 16 troubleshooting 59, 60

DVD 23

DVD movies playing 23

E email iv error messages 63

Euro 17

F

FAQ 59 floppy drive 22 front view 3

G guide iii

H hard disk 22 installing 51 – 52 upgrading 51 help iii online manual iv online services 65

Hibernation mode hotkey 16 hotkeys 15

I indicator lights 11 infrared 44 troubleshooting 61

82

InviLink 45

ITW. See warranty

K keyboard 13 embedded numeric keypad 14 hotkeys 15 lock keys 13 troubleshooting 61

Windows keys 15

L

LEDs 11

M media access on indicator 11 memory installing 48 – 50 upgrading 48 messages error 63 modem 43

N network 44

Notebook Manager 53 hotkey 16 notice

DVD copyright protection 80 year 2000 compliance 80 num lock 13 on indicator 12 numeric keypad embedded 14 num lock 14

O online services 65 options hard disk upgrade 51 memory upgrade 48

P password 39 types 39

PC Card 46 ejecting 47 inserting 47

PhDISK

Hibernation mode utility 53

PhDisk 53 ports 43

POST (power-on self-test) 56 problems

CD-RW 60 display 59, 60 infrared 61 keyboard 61 startup 59 troubleshooting 58

Q questions multiple PS/2 devices 61 setting location for modem use

61

S safety

CD-RW or DVD-ROM 78

FCC notice 75 general instructions 77 lithium battery 79 modem notices 76 scroll lock 13 security keylock 32 passwords 39

SmartCard 32 service when to call viii

SmartCard 32 installing the software v

PlatinumKey 33

PlatinumPAS 32

PlatinumSecure 33

PlatinumSecure options 35 running PlatinumKey 37 running PlatinumSecure 34 speakers hotkey 17 troubleshooting 60 specifications 68

Standby mode hotkey 16 status indicator 11 status indicators 11

storage 22

AcerMedia bay 22 floppy drive 22 hard disk 22 support information 65

T touchpad 20 hotkey 16 using 20 – 21 travel international flights 30 local trips 30 troubleshooting 58 tips 62

U universal serial bus (USB) 46

83 utility

PhDISK 53

V view front 4 left 4 rear 6 right 5 volume adjusting 25

W warranty

International Traveler’s Warranty 65

Windows keys 15

84

No results
