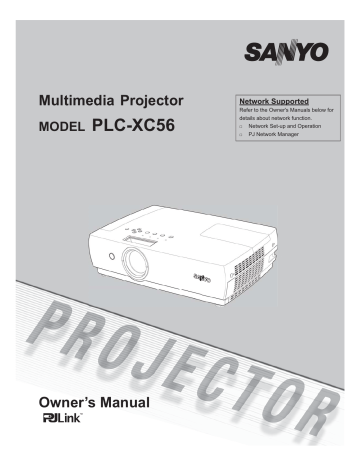

Multimedia Projector
MODEL
PLC-XC56
Network Supported
Refer to the Owner's Manuals below for details about network function.
Ƒ
Ƒ
Network Set-up and Operation
PJ Network Manager
Owner’s Manual
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.
This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display
(LCD) technology.
Ƈ
Compatibility
The projector widely accepts various video and computer input signals including: Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N), Component video, S-video and RGB scart.
Ƈ
Security Function
The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control
(p.54). PIN code lock function prevents unauthorized use of the projector (pp.19, 54–55).
Ƈ Simple Computer System Setting
The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.29). Up to
WUXGA resolution can be accepted.
Ƈ
LAN Network Function
Ƈ
Useful Functions for Presentations
Ƈ Helpful Maintenance Functions
Lamp and filter maintenance functions provide for better and proper maintenance of the projector.
- The digital zoom function allows you to focus on the crucial information during a presentation (p.36).
This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network. For details, refer to the owner’s manual
“Network Set-up and Operation.”
- Blackboards* can be used as a projection screen.
*The board color is limited to Green (pp.33, 40).
Ƈ Auto Setup Function
Ƈ
Lamp Control
Brightness of the projection lamp can be selected
(pp.25, 52).
This function enables Input search, Auto Keystone correction and Auto PC adjustment by simple pressing the AUTO SETUP button on the top control (p.45).
Ƈ
Quick Termination
Ƈ Colorboard Function
The AC power cord can be unplugged immediately after turning off the projector without waiting for the
At the time of simple projection on the colored wall, you can get the close color image to the color image termination of the cooling fan rotation (p.20).
projected on a white screen by selecting the similar color to the wall color from the preset four colors.
Ƈ Logo Function
The Logo function allows you to customize the screen logo (pp.47-49). You can capture an image for the
Ƈ
Power Management
The Power management function reduces power consumption and maintains the lamp life (p.51).
screen logo and use it for the starting-up display or between presentations.
Ƈ
Closed Caption
Ƈ
Multilanguage Menu Display
Operation menu is available in 18 languages: English,
This is a printed version of the program sound or other
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Finnish, Polish, Hungarian, Romanian, Ƈ
Automatic Filter Replacement Function
Russian, Chinese, Korean, Japanese, Turkish and Thai information displayed on the screen. You can turn on the feature and switch the channels. (p.50)
The projector monitors the condition of the filter and
(p.44).
replaces a filter automatically when it detects the clogging.
2
3 Note:
• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.
Table of Contents
Features and Design . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner. . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . . .5
Air Circulation 6
Installing the Projector in Proper Position
Moving the Projector
6
6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . . . . . . . .8
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Remote Control Operating Range
Remote Control Code
12
12
12
9
10
11
8
8
8
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . .13
Positioning the Projector 13
Adjustable Feet
Connecting to a Computer
Connecting to Video Equipment
Connecting to Component Video Equipment 16
Connecting the AC Power Cord 17
13
14
15
Basic Operation . . . . . . . . . . . . . . . . . . . . . .18
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Zoom and Focus Adjustment
Auto Setup Function
Keystone Correction
Sound Adjustment
Remote Control Operation
23
23
24
25
18
20
21
22
23
Computer Input . . . . . . . . . . . . . . . . . . . . . .27
Input Source Selection (RGB: Computer 1/
Computer 2(Analog))
Input Source Selection (RGB(PC digital),
RGB(AV HDCP))
27
28
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Mode Selection
Image Adjustment
Screen Size Adjustment
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .37
Input Source Selection (Video, S-video)
Input Source Selection (Component, RGB
Scart 21-pin)
Video System Selection
Image Mode Selection
Image Adjustment
Screen Size Adjustment
37
38
39
40
41
43
29
30
31
33
34
35
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Setting 44
Information . . . . . . . . . . . . . . . . . . . . . . . . . .58
Input Source Information Display 58
Maintenance and Cleaning . . . . . . . . . . . . .59
WARNING TEMP. indicator
Filter Instructions
Replacing the Filter Cartridge
Resetting the Filter Counter
Resetting the Scroll Counter
Cleaning the Lens Cover
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Counter
62
62
63
59
60
61
63
64
65
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Troubleshooting 66
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
PJ Link Notice
Configurations of Terminals
PIN Code Number Memo
Dimensions
76
77
78
70
72
74
79
80
81
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.
3
To the Owner
Before installing and operating this projector, read this manual thoroughly.
This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
Safety Precaution
Ɣ THIS APPARATUS MUST BE EARTHED.
Ɣ TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
–This projector produces intense light from the projection
lens. Do not stare directly into the lens, otherwise eye
damage could result. Be especially careful that children
do not stare directly into the beam.
–Install the projector in a proper position. Otherwise it may
result in fire hazard.
–Allowing the proper amount of space on the top, sides,
and rear of the projector cabinet is critical for proper
air circulation and cooling of the unit. The dimension
shown here indicate the minimum space required.
If the projector is to be built into a compartment or
similarly enclosed, these minimum distances must be
maintained.
–Do not cover the ventilation slot on the projector. Heat
build-up can reduce the service life of your projector, and
can also be dangerous.
SIDE and TOP REAR
0.7’(20cm)
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL
WITH THIS UNIT.
FOR EU USERS
The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.
Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead
In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.
Please, dispose of them correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
1.5’(50cm) 3’(1m)
–If the projector is unused for an extended time, unplug
the projector from the power outlet.
–Do not project the same image for a long time. The
afterimage may remain on the LCD panels by the
characteristic of panel.
CAUTION
3’(1m)
DO NOT SET THE PROJECTOR IN GREASY, WET, OR
SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT
A BREAKDOWN OR A DISASTER. IF THE PROJECTOR
COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY
BECOME DETERIORATED.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
READ AND KEEP THIS OWNER'S MANUAL FOR
LATER USE.
4
Safety Instructions
All the safety and operating instructions should be read before the product is operated.
Do not install the projector near the ventilation duct of air-conditioning equipment.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners.
Use a damp cloth for cleaning.
This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or removing Covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector.
Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, a n d s h o u l d u s e a m o u n t i n g k i t a p p r o v e d b y t h e manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been damaged.
f. When the projector exhibits a distinct change in performance-this indicates a need for service.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.
This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN
MERCURY AND MUST BE RECYCLED OR DISPOSED
OF ACCORDING TO LOCAL, STATE OR FEDERAL
LAWS.
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.
– Do not put any flammable object or spray can near the projector, hot air is exhausted from the air vents.
– Keep the exhaust vent at least 3’ (1 m) away from any objects.
– Do not touch a peripheral part of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the temperature inside the projector.
Exhaust Vent
(Hot air exhaust)
Air flow
Do not point the projector up to project an image.
Do not point the projector down to project an image.
Do not put the projector on either side to project an image.
Moving the Projector
When moving the projector, close the slide shutter and retract adjustable feet to prevent damage to the lens and cabinet.
When the projector is not in use for an extended period, put it into the supplied carrying case with the lens side up.
CAUTION IN CARRYING OR TRANSPORTING
THE PROJECTOR
– Do not drop or bump the projector, otherwise damages or malfunctions may result.
– When carrying the projector, use a suitable carrying case.
– Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector.
For information about transporting the projector by courier or any other transport service, consult your dealer.
– Do not put the projector in a case before the projector is cooled enough.
Air Intake Vent
Installing the Projector in Proper Position
Install the projector properly. Improper Installation may reduce the lamp life and cause a fire hazard.
Do not roll the projector more than 20 degrees from side to side.
Do not pitch the projector more than 20 degrees from above and below.
6
Compliance
Federal Communications Commission Notice
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number : PLC-XC56
Trade Name
Responsible party
: Sanyo
: SANYO NORTH AMERICA CORPORATION
Address
Telephone No.
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus
ASA
. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug
(i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow Earth
Blue . . . . . . . . . . . Neutral
Brown . . . . . . . . . Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
7
Part Names and Functions
Front
① Air Intake Vent
② Power Cord Connector
③ Infrared Remote Receiver
④ Focus Ring (front)
⑤ Lens and Lens cover
⑥ Zoom Ring (rear)
⑦ Slide Shutter
① ② ③ ④ ⑤ ⑥ ⑦
Back
⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ¼
⑧ Exhaust Vent
CAUTION
Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.
⑨ Lamp Cover
⑩ Speaker
⑪ Top Controls and Indicators
⑫ Terminals and Connectors
⑬ Filter Cover
⑭ Adjustable feet
¼¼
Bottom
¼ Kensington Security Slot
This slot is for a Kensington lock used to deter theft of the projector.
¼ Kensington is a registered trademark of ACCO Brands
Corporation.
¼¼ Security Bar
A commercially available anti-theft chain or wire can be attached to the security bar on the projector.
⑧ ⑭
8
Rear Terminal
① ② ③ ④
Part Names and Functions
⑤ ⑥
⑩ ⑨ ⑧ ⑦
①
CONTROL PORT
When the projector is controlled by a computer, connect to this jack with serial control cable.
②
COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to this terminal (pp.14,16).
③ MONITOR OUT
This terminal can be used to output the incoming analog RGB signal and component signal from
COMPUTER IN 2 / DVI-I terminal or COMPUTER
IN 1/COMPONENT IN terminal to the other monitor
(pp.14,16).
④ COMPUTER IN 2 / DVI-I
Connect computer output (Digital/Analog DVI-I type) to this terminal (p.14).
⑤
LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
“Network Set-up and Operation”).
⑥
AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.14-16).
This terminal outputs sound from AUDIO IN terminal ( ⑦ or ⑧ ).
⑦
COMPUTER1 COMPONENT/ COMPUTER2
AUDIO IN
Connect the audio output (stereo) from a computer or video equipment connected to ② or
④
to this jack. (pp.14, 16)
⑧ AUDIO IN
Connect the audio output signal from video equipment connected to ⑨ or ⑩ to this jack.
For a mono audio signal (a single audio jack), connect it to the L (MONO) jack (p.15).
⑨ VIDEO IN
Connect the composite video output signal to this jack (p.15).
⑩ S-VIDEO IN
Connect the S-VIDEO output signal from video equipment to this jack (p.15).
9
Part Names and Functions
Top Control
① ② ③ ④ ⑤
⑪ ⑩ ⑨ ⑧ ⑦ ⑥
10
①
POWER indicator
–Lights red when the projector is in stand-by mode.
–Lights green during operations.
–Blinks green in the Power management mode
(p.51).
– Blink red during cooling down.
② LAMP REPLACE indicator
Turn yellow when the life of the projection lamp draws to an end. (pp.64, 72-73)
③ WARNING TEMP. indicator
–Lights red when the projector detects an abnormal condition.
–Blinks red when the internal temperature of the projector exceeds the operating range (pp.59, 72-73).
④ WARNING FILTER indicator
– Blink slow when the filter is being scrolled.
(pp.60, 72)
– Blink fast when the filter cartridge is not installed.
(pp.60, 73)
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time set
in the timer setting, urging immediate filter/filter
cartridge replacement. (pp.56, 60, 73)
⑤ 32,17ŸźEXWWRQV
– Select an item or adjust the value in the
On-Screen Menu. (p.21)
– Pan the image in Digital zoom + mode. (p.36)
⑥ SELECT button
–Execute the selected item (p.21).
–Expand or compress the image in the Digital zoom mode (p.36).
⑦ POINT ŻŹ (VOLUME +/–) buttons
–Select an item or adjust the value in the On-Screen
Menu (p.21).
–Pan the image in the Digital zoom +/- mode (p.36).
–Adjust the volume level (Point ŻŹ buttons) (p.24).
⑧
MENU button
Open or close the On-Screen Menu (p.21).
⑨ INPUT button
Select an input source (pp.27-28, 37-38).
⑩ AUTO SETUP button search, Auto PC adj. and Auto Keystone functions)
⑪
ON/STAND–BY button
Turn the projector on or off (pp.18, 20).
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
Remote Control
Part Names and Functions
⑱
⑰
⑯
⑮
⑭
⑬
①
⑳
⑲
① ON/STAND-BY button
Turn the projector on or off. (pp.18, 20)
② AUTO SET button
Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu.
(pp.23, 45)
③ COMPUTER 1/2 buttons
Select the COMPUTER 1 or COMPUTER 2 input source.
(pp.27-28, 38)
④ VIDEO button
Select the VIDEO input source. (p.37)
⑤ S-VIDEO button
Select the S-VIDEO input source. (p.37)
⑥ Point ŸźŻŹ buttons
– Select an item or adjust the value in the On-Screen Menu. (p.21)
– Pan the image in the Digital zoom +/- mode. (p.36)
⑦ SCREEN button
Select a screen mode. (pp.26, 35-36, 43)
⑧ MENU button
Open or close the On-Screen Menu. (p.21)
⑨ FREEZE button
Freeze the picture on the screen. (p.25)
⑩ NO SHOW button
Temporarily turn off the image on the screen. (p.26)
⑪ D.ZOOM
Ÿź buttons
Zoom in and out the images. (pp.25, 36)
⑫ VOLUME +/- buttons
Adjust the volume level. (p.24)
⑬ MUTE button
Mute the sound. (p.24)
⑭ IMAGE button
Select the image mode. (pp.26, 33, 40)
⑮ P-TIMER button
Operate the P-timer function. (p.26)
⑯ LAMP button
Select a lamp mode. (pp.25, 52)
⑰ INFO. button
Operate the information function. (p.58)
⑱ KEYSTONE button
Correct keystone distortion. (pp.23, 46)
⑲ SELECT button
– Execute the selected item. (p.21)
– Expand or compress the image in Digital zoom mode. (p.36)
⑳ COMPONENT button
Select the COMPONENT input source. (p.38)
3 Note:
To ensure safe operation, please observe the following precautions:
– Do not bend, drop, or expose the remote control to moisture or heat.
– For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any chemical material.
11
Part Names and Functions
Remote Control Battery Installation
1
Open the battery compartment lid.
2
Install new batteries into the compartment.
3
Two AAA size batteries
For correct polarity
(+ and –), be sure battery terminals are in contact with pins in compartment.
Replace the compartment lid.
To ensure safe operation, please observe the following precautions :
Ɣ Use two (2) AAA or LR03 type alkaline batteries.
Ɣ Always replace batteries in sets.
Ɣ Do not use a new battery with a used battery.
Ɣ Avoid contact with water or liquid.
Ɣ Do not expose the remote control to moisture or heat.
Ɣ Do not drop the remote control.
Ɣ If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
Ɣ Risk of an explosion if battery is replaced by an incorrect type.
Ɣ Dispose of used batteries according to the instructions or your local disposal rule or guidelines.
Remote Control Operating Range
Point the remote control toward the projector (Infrared
Remote Receiver) when pressing the buttons. Maximum operating range for the remote control is about 16.4'(5 m) and 60 degrees in front of the projector.
16.4'
(5 m)
Remote control
Remote Control Code
The 2 different remote control codes (Code 1–Code 2) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See "Remote control" in the Setting Menu on page 53.
Press and hold the MENU and IMAGE buttons for more than five seconds to switch between the Code 1 and Code
2 . The initial code is set to Code 1 .
MENU button
IMAGE button
12
Installation
Positioning the Projector
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.
3 Note:
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
41.8' (12.7 m)
34.8' (10.6 m)
23.2' (7.1 m)
17.4' (5.3 m)
11.6' (3.5 m)
4.6' (1.4 m)
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (max)
Zoom (min)
40"
813 x 610
4.6' (1.4 m)
5.5' (1.7 m)
100"
2032 x 1524
11.6' (3.5 m)
13.9' (4.2 m)
150"
3048 x 2286
17.4' (5.3 m)
20.9' (6.4 m)
200"
4064 x 3048
23.2' (7.1 m)
27.8' (8.5 m)
300"
6096 x 4572
34.8' (10.6 m)
41.8' (12.7 m)
Adjustable Feet
Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.
1 Lift the front of the projector and press the feet lock latches on both side of the projector.
2 Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to a proper height and tilt.
3 To retract the adjustable feet, lift the front of the projector and push and undo the feet lock latches.
Keystone distortion of the projected image can be corrected with the remote control or menu operation.
(pp.23, 45-46)
Adjustable Feet Feet Lock Latches
13
Installation
Connecting to a Computer
Cables used for connection
• VGA Cable (Mini D-sub 15 pin) *
• DVI-VGA Cable
• DVI Cable
• Audio Cables
(*One cable is supplied; other cables are not supplied with the projector.)
Audio Output
Monitor Output Monitor Input Monitor Output
VGA cable
VGA cable
DVI cable
DVI -VGA cable
Audio cable
(stereo)
COMPUTER IN 1
/COMPONENT IN
MONITOR
OUT
COMPUTER
IN 2/ DVI-I
External Audio Equipment
Audio Input
AUDIO OUT
(stereo)
Audio cable
(stereo)
COMPUTER 1
/COMPONENT
/COMPUTER 2
AUDIO IN
14
3 Note:
• Input sound to the COMPUTER1 /COMPONENT AUDIO IN terminals when using the COMPUTER IN 1/ COMPONENT IN
and the COMPUTER IN 2/DVI-Iterminals as input.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• When input RGB(PC digital) source to the MONITOR OUT terminal, the MONITOR OUT terminal is not available.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
Installation
Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-Video Cable
• Audio Cable
(Cables are not supplied with the projector. )
S-Video Output
Video and Audio Output
(R) (L) (Video)
S-Video cable Video and audio cable
S-VIDEO AUDIO VIDEO IN
External Audio Equipment
Audio Input
AUDIO OUT
(stereo)
Audio cable
(stereo)
3
Note:
When the AUDIO OUT is plugged-in, the projector's builtin speaker is not available.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
15
Installation
Connecting to Component Video Equipment
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with this projector.)
External Audio Equipment
Audio Output Audio Input RGB Scart 21pin Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Monitor Input
Component cable
Scart-VGA cable VGA cable
Component-
VGA cable
COMPUTER IN 1/ COMPONENT IN MONITOR OUTPUT
Audio cable
(stereo)
Audio cable
(stereo)
COMPUTER 1/ COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
16
3 Note:
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 77 for ordering optional cables.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.
Installation
Connecting the AC Power Cord
This projector uses nominal input voltages of 100-120 V or
200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.
If you are not sure of the type of power being supplied, consult your authorized dealer or service station.
Connect the projector with all peripheral equipment before turning the projector on. (See pages 14-16 for connection)
CAUTION
The AC outlet must be near this equipment and must be easily accessible.
3 Note :
Unplug the AC power cord when the projector is not
in use. When this projector is connected to an outlet
with the AC power cord, it is in Stand-by mode and
consumes a little electric power.
Connect the AC power cord
(supplied) to the projector.
NOTE ON THE POWER CORD
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side
For the U.S.A. and Canada
AC outlet side
For Continental Europe For the U.K.
Ground
To power cord connector on your projector.
To the AC outlet.
(120 V AC)
To the AC outlet.
(200 - 240 V AC)
To the AC outlet.
(200 - 240 V AC)
17
Basic Operation
Turning On the Projector
1 Complete peripheral connections (with a computer,
VCR, etc.) before turning on the projector.
2 Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red.
3 Press the ON/STAND-BY button on the top control or on the remote control. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.
4 After the countdown, the input source that was selected the last time and the lamp control status icon (see page
52) appear on the screen.
5 If there is no signal input when start on the projector, or the current signal is missed while operating the projector, the Video/PC selection window will be displayed on the screen, please move the pointer to input source desired by pressing the Point Ÿź buttons and press the SELECT button. And then follow the input signal guidance window to correct the signal and connection.
If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.
16
The preparation display will disappear after 30 seconds.
Selected Input Source and Lamp Control
Video
Lamp control status
(See page 52 for Lamp control status.)
3 Note:
The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.
Video / PC selection window
Project Video
Project Computer
Cancel
Input signal guidance window
No signal
Current Input setting: Video
Is signal processed correctly?
Is cable connected properly?
Video / PC selection window
Project Video
18
3 Note:
• When the Logo select function is set to Off , the logo will not be shown on the screen (p.47).
• When Countdown off or Off is selected in the Display function, the countdown will not be shown on the screen
(p.46).
• When the Input Search function is set to On2 , the input signal will be searched automatically (p.45).
• When Off is selected in the Display function, the Video/
PC selection window and the input signal guidance window are not shown on the screen. (p.46)
Cancel
Input signal guidance window
No signal
Current Input setting: RGB
Is signal processed correctly?
Is cable connected properly?
Basic Operation
Enter a PIN code
Use the Point Ÿź buttons to enter a number. Press the
Point Ź button to fix the number and move the red frame pointer to the next box. The number changes to “ ¼ ”. If you fixed an incorrect number, use the Point Ż button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to Set .
Press the SELECT button so that you can start to operate the projector.
If you entered an incorrect PIN code, PIN code and the number ( ¼¼¼¼ ) will turn red for a moment. Enter the correct PIN code all over again.
PIN Code Input Dialog Box
After the OK icon disappears, you can operate the projector.
What is PIN code?
PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.
A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 54-55 for locking operation of the projector with your PIN code.
3 Note:
• If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.
• The “1234” is set as the initial PIN code at the factory.
CAUTION ON HANDLING PIN CODE
If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 80 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.
19
Basic Operation
Turning Off the Projector
1
2
Press the ON/STAND-BY button on the top control or on the remote control, and Power off? appears on the screen.
Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans’ quietness and speed. See “Fan” on page 56.)
At this time, you can unplug the AC power cord even if the fans are still running.
3 When the projector has cooled down enough, the
POWER indicator stops blinking and you can turn on the projector.
Power off?
disappears after 4 seconds.
TO MAINTAIN THE LIFE OF THE LAMP, ONCE
YOU TURN THE PROJECTOR ON, WAIT AT
LEAST FIVE MINUTES BEFORE TURNING IT
OFF.
DO NOT OPERATE THE PROJECTOR
CONTINUOUSLY WITHOUT REST.
CONTINUOUS USE MAY RESULT IN
SHORTENING THE LAMP LIFE. TURN OFF THE
PROJECTOR AND LET STAND FOR ABOUT AN
HOUR IN EVERY 24 HOURS.
20
3 Note:
• When the On start function is set to On , the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.51).
• The running speed of cooling fans is changed according to the temperature inside the projector.
• Do not put the projector in a case before the projector is cooled enough.
• If the WARNING TEMP. indicator blinks or lights red, see
“WARNING TEMP. indicator” on page 59.
• While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.
• The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.
• The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan
cooling is completed, compared with the time the AC power cord is immediately unplugged after the poweroff.
Basic Operation
How to Operate the On-Screen Menu
The projector can be adjusted or set via the On-Screen
Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.
Top Control
1 Press the MENU button on the top control or the remote control to display the On-Screen Menu.
2 Use the Point Ÿź buttons to highlight or select a main menu item. Press the Point Ź or the SELECT button to access the submenu items. (The selected item is highlighted in orange.)
MENU button POINT buttons
(arrowhead)
Remote Control
SELECT button
POINT buttons
(arrowhead)
SELECT button 3 Use the Point Ÿź buttons to select the desired submenu item and press the SELECT button to set or access the selected item.
4 Use the Point ŸźŻŹ buttons to adjust the setting or switch between each option and press the SELECT button to activate it and return to the submenu.
5 Press the Point Ż button to return to the main menu.
Press the MENU button to exit the On-Screen Menu.
MENU button
On-Screen Menu
Point
Ź or SELECT button
The currently set item is check marked.
The selected item is highlighted in orange.
21
Basic Operation
Menu Bar
For detailed functions of each menu, see “Menu Tree” on pages 70-71.
Main Menu Sub-Menu
③
④
⑤
⑥
⑦
⑧
①
②
⑨
⑩
22
① Input
Used to select an input source from Computer 1 , Computer 2 , Video or S-video .
(pp.27-28,37-38).
② PC adjust
Select Auto PC adj.
, Fine sync , Total dots , Horizontal , Vertical , Clamp , Display area-H and Display area-V to adjust the parameters to match with the PC input signal format (pp.30-32).
③ Image select
For computer source, used to select an image mode from among Dynamic , Standard , Real , Blackboard(Green) ,
Colorboard and Image 1 - 4 (p.33).
For Video source, used to select an image mode among Dynamic , Standard , Cinema , Blackboard(Green) , Colorboard and Image 1- 4 (p.40).
④ Image adjust
For computer source, used to adjust computer image [ Contrast , Brightness , Color temp.
, White balance (R/G/B) ,
Sharpness and Gamma ] (pp.34-35).
For Video source, used to adjust picture image [ Contrast , Brightness , Color , Tint , Color temp.
, White balance (R/G/B) ,
Sharpness , Gamma , Noise reduction and Progressive ] (pp.41-42).
⑤ Screen
For computer source, used to adjust size of the image [ Normal , True , Wide , Full , Custom and Digital zoom +/– ]
(pp.35-36).
For Video source, used to set size of image [ Normal , Wide and Custom ] (p.43).
⑥ Sound
Used to adjust the volume or mute the sound (p.24).
⑦ Setting
Used to set the projector’s operating configurations (pp.44-57).
⑧ Information
Display the input source information: Input , H-sync freq.
, V-sync freq.
, Screen , Language , Lamp status , Lamp counter , Power management , Key lock , PIN code lock and Remote control (p.58).
⑨
⑩
Network
See the owner’s manual of “Network Set-up and Operation”.
Guide
The key operation is displayed.
Basic Operation
Zoom and Focus Adjustment
Open the slide shutter.
Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the projected picture focus.
Close the slide shutter.
3 Note:
Close the slide shutter of lens operation part to keep out
dust just after zoom and focus adjustments.
Focus Ring
(Front)
Zoom Ring
(Rear)
Slide Shutter
Auto Setup Function
Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu by just pressing the AUTO SETUP button on the top control or the
AUTO SET button on the remote control. Refer to page 45 for the setting of the Auto setup function.
3 Note:
• Auto Keystone corrects vertical distortion only; it does not correct horizontal distortion.
• Auto Keystone cannot work when Ceiling feature is set to On in the Setting menu (p.50).
• Perfect correction of the image distortion cannot be ensured with the Auto setup function. If the distortion cannot be corrected properly by pressing the AUTO
SETUP or AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the Setting menu (p.46).
• Fine sync , Total dots , Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.31-32).
Top Control
AUTO SETUP button
Remote Control
POINT Ÿź buttons
AUTO SET button
POINT Ÿź buttons
KEYSTONE button
Keystone Correction
If a projected picture still has keystone distortion after pressing the AUTO SETUP button on the top control or the
AUTO SET button on the remote control, correct the image manually as follows:
Press the KEYSTONE button on the remote control. The
Keystone dialog box appears. Use the Point Ÿź buttons to correct keystone distortion. The keystone adjustment can be stored (see page 46).
Reduce the upper width with the Point Ÿ button.
Reduce the lower width with the Point ź button.
• The white arrows indicate that there is no correction.
• A red arrow indicates the direction of correction.
• An arrow disappears at the maximum correction.
• If you press the KEYSTONE button on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.
• The adjustable range is limited depending on the input signal.
23
Basic Operation
Sound Adjustment
Top Control
Direct Operation
Volume
Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds.
Mute
Press the MUTE button on the remote control to select On to temporarily turn off the sound. To turn the sound back on, press the MUTE button again to select Off or press the
VOLUME +/– buttons. The Mute function is also effective for the AUDIO OUT jack.
Remote Control
VOLUME+/- buttons
VOLUME+ button
MUTE button
VOLUME- button
Menu Operation
1
2
Press the MENU button to display the On-Screen Menu.
Use the Point Ÿź buttons to select Sound . Press the
Point Ź or the SELECT button to access the submenu items.
Use the Point Ÿź buttons to select the desired submenu item and press the SELECT button to access the selected item.
Volume Dialog Box
Approximate level of the volume.
Volume
3UHVV WKH 3RLQW Ÿ EXWWRQ WR WXUQ XS WKH YROXPH SUHVV WKH
3RLQWźEXWWRQWRWXUQGRZQWKHYROXPH
Press the MUTE button to set the
Mute function On or Off . The dialog box disappears after 4 seconds.
Sound Menu
Mute
Press the SELECT button to switch the mute function On/
Off . When the sound is turned off, On is displayed. Press the VOLUME +/– buttons again to turn the sound back on.
24
Basic Operation
Remote Control Operation
Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.
COMPUTER 1/2, VIDEO, S-VIDEO and COMPONENT buttons
Press the COMPUTER 1/2, VIDEO, S-VIDEO and
COMPONENT buttons on the remote control to select the input source. See pages 27-28,37-38 for details.
Remote Control
COMPUTER 1/2 buttons
S-VIDEO button
FREEZE button
Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button.
VIDEO button
COMPONENT button
INFO. button
Display the input source information: Input , H-sync freq.
,
V-sync freq.
, Screen , Language , Lamp status , Lamp counter , Power management , Keylock , PIN code lock and Remote control (p.58).
FREEZE button
D.ZOOM
buttons
INFO.
button
LAMP button
D.ZOOM buttons
Press the D.ZOOM buttons on the remote control to enter to the Digital zoom +/– mode. See page 36 for details.
3 Note:
See the next page for the description of other buttons.
LAMP button
Press the LAMP button on the remote control to select the lamp mode for changing the brightness on the screen.
Normal....... Normal brightness
Eco ............ Lower brightness reduces the lamp power consumption and extends the lamp life.
25
Basic Operation
NO SHOW button
Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. The screen changes each time you press the NO SHOW button as follows.
black out ĺ normal ĺ black out ĺ normal
• • • • •
No show disappears after 4 seconds.
P-TIMER button
Press the P-TIMER button on the remote control. The P-Timer display 00:00 appears on the screen and the countdown starts
(00:00–59:59).
To stop the countdown, press the P-TIMER button. To cancel the P-Timer function, press the P-TIMER button again.
IMAGE button
Press the IMAGE button on the remote control to select a desired image mode of the screen. See pages 33, 40 for details.
SCREEN button
Select the screen size (See pages 35-36, 43 for details).
P-Timer display
SCREEN button
P-TIMER button
NO SHOW button
IMAGE button
3 Note:
See the previous page for the description of other buttons.
26
Computer Input
Input Source Selection (RGB: Computer 1/Computer 2(Analog))
Direct Operation
Choose either Computer 1(RGB) or Computer 1(Scart) or Computer 2(Analog) by pressing the INPUT button on the top control or press the COMPUTER 1 button or Computer 2 on the remote control.
Before using INPUT button, correct input source should be selected through Menu operation as described below.
Remote Control Top Control
COMPUTER 1 button Computer 1 ( RGB)
/(Component) / (Scart)
Computer 1(RGB)
Computer 1(Scart)
INPUT button
Computer 2 (PC digital) /
(AV HDCP) /
(Analog)
COMPUTER 2 button
Computer 2 (PC digital)
Video
Computer 2 (AV HDCP)
S-video
Input Menu
Computer 2 (Analog)
RGB(PC digital)
Menu Operation
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons to select Computer 1 .
NTSC
3 When Computer 1 is selected, press the Point Ź button to access the submenu items. Use the Point Ÿ ź buttons to select the RGB input source and then press the SELECT button.
RGB(PC digital)
Computer
1
3 Note:
When the Input Search function is set to On1 or On2 in the Auto setup function, the input signal will be searched automatically (p.45).
27
Computer Input
Input Source Selection (RGB(PC digital), RGB(AV HDCP))
Direct Operation
Choose Computer 2 (PC digital) or Computer 2 (AV HDCP) by pressing the INPUT button on the top control or press the COMPUTER 2 button on the remote control.
Before using INPUT button, correct input source should be selected through Menu operation as described below.
Remote Control Top Control
COMPUTER 2 button Computer 1 ( RGB)
/(Component) / (Scart)
Computer 2 (PC digital)
Computer 2 (AV HDCP)
Computer 2 (PC digital) /
(AV HDCP) /
(Analog)
Computer 2 (Analog)
INPUT button
Video
S-video
Menu Operation
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button.
Input Menu
RGB(PC digital)
2 Use the Point Ÿź buttons to select Computer 2 and then press the Point Ź button.
3 8VHWKH3RLQWŸźEXWWRQVWRVHOHFW RGB(PC digital) or RGB(AV HDCP) and then press the SELECT button.
NTSC
28
3 Note:
• When the Input Search function is set to On1 or On2 , the
input signal will be searched automatically (p.45).
• HDCP (High-bandwidth Digital Content Protection) is a system for protecting digital entertainment content delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.
Computer
2
Computer Input
Computer System Selection
This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC
Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 74-75.)
One of the following messages may appear when:
Auto
-----
Mode 1
SVGA 1
The projector cannot recognize the connected signal conforming to the provided PC Systems.
Auto is displayed on the System Menu box and the Auto PC Adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp.31-32).
There is no signal input from the computer.
Check the connection between your computer and the projector. (See “Troubleshooting” on pages 66-68.)
The preset system is manually adjusted in the
PC adjust Menu. The adjusted data can be stored in Mode 1–5 (pp.31-32).
PC Systems provided in this projector is chosen.
The projector chooses a proper system provided in the projector and displays it.
*Mode 1 and SVGA 1 are examples.
PC System Menu
The PC System Menu
Selected system is displayed.
RGB(PC digital)
Selecting Computer System Manually
PC system can also be selected manually.
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons to select System and then press the Point Ź or the SELECT button.
3 Use the Point Ÿź buttons to select the desired system and then press the SELECT button.
PC System Menu
Customized Mode
(1–5) set in the
PC adjust Menu
(pp.31-32).
RGB(Computer 1)
Systems in this dialog box can be selected.
29
Computer Input
Auto PC Adjustment
Auto PC Adjustment function is provided to automatically adjust Fine sync.
, Total dots , Horizontal , Vertical ,
Clamp , Display area H and Display area V positions to conform to your computer.
Menu Operation
PC adjust Menu
1
Auto PC adj.
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select PC adjust and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons to select Auto PC adj.
and then press the SELECT button.
To store adjustment parameters
The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–5) in the PC System Menu (see page 29). See also “Store” on page 32.
Use Point Ÿź buttons to select Auto PC adj.
and press the SELECT button.
Please wait...
appears while the Auto PC adjustment is in process.
3 Note:
• Fine sync , Total dots , Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.31-32).
• The Auto PC Adjustment cannot be operated when 480i ,
575i , 480p , 575p , 720p , 1035i or 1080i is selected in the
PC System Menu (p.29).
30
Computer Input
Manual PC Adjustment
Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector.
Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
PC adjust Menu 1
2
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select PC adjust and then press the Point Ź or the SELECT button.
Use the Point Ÿź buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ŻŹ buttons to adjust the setting value.
Fine sync
Use the Point ŻŹ buttons to adjust the value, eliminating a flicker from the image displayed (from 0 to 31).
Total dots
Use the Point ŻŹ buttons to adjust the number of total dots in one horizontal period to match your PC image.
Horizontal
Use the Point ŻŹ buttons to adjust the horizontal picture position.
Vertical
Use the Point ŻŹ buttons to adjust the vertical picture position.
Clamp
Use the Point ŻŹ buttons to adjust the clamp level. When the image has dark bars, try this adjustment.
Display area H
Use the Point ŻŹ buttons to adjust the horizontal area displayed by this projector.
Display area V
Use the Point ŻŹ buttons to adjust the vertical area displayed by this projector.
31
Computer Input
Reset
To reset the adjusted data, select Reset and press the
SELECT button. A confirmation box appears and then select
Yes . All adjustments will return to their previous figures.
Mode free
Mode free
To clear the stored data, select Mode free and then press the Point Ź or the SELECT button. Move the highlight to the
Mode that you want to clear and then press the SELECT button.
Store
To store the adjusted data, select Store and then press the
Point Ź or the SELECT button. Move the highlight to one of the Modes 1 to 5 in which you want to store, and then press the SELECT button.
This Mode has stored parameters.
Values of Total dots , Horizontal ,
Vertical , Display area H , and
Display area V .
Press SELECT button to clear the stored data.
Store
Store
Vacant store?
Press MENU button to close this dialog box.
Press SELECT button to store the data.
32
3 Note:
• Display area (H/V) cannot be selected when 480i , 575i , 480p , 575p , 720p , 1035i or 1080i is selected in the
PC System Menu (p.29).
• PC adjust Menu cannot be selected when Computer 2(PC digital) and Computer 2(AV HDCP) are selected in the Input Menu (p.28).
• When input computer signal to the projector, PC adjust will become available.
Computer Input
Image Mode Selection
Direct Operation
Select the desired image mode among Dynamic , Standard ,
Real , Blackboard (Green) , Colorboard , Image 1 , Image 2 ,
Image 3 and Image 4 by pressing the IMAGE button on the remote control.
Remote Control
IMAGE button
Menu Operation
1
2
Press the MENU button to display the On-Screen Menu.
Use the Point Ÿź buttons to select Image select and then press the Point Ź or the SELECT button.
Use the Point Ÿź buttons to select the desired item and then press the SELECT button.
Dynamic
For viewing pictures in a bright room.
Standard
Normal picture mode preset on the projector.
Real
Picture mode with improved halftone for graphics.
Blackboard (Green)
For the image projected on a blackboard.
This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.
Colorboard
At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.
Image 1–4
For viewing with the user preset image mode in the Image
Adjust Menu (see pages 34-35).
Image select Menu
IMAGE button
Dynamic
Standard
Real
Blackboard(Green)
Colorboard
Image 1
Image 2
Image 3
Image 4
33
Computer Input
Image Adjustment
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Image adjust and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ŻŹ buttons to adjust the setting value.
Image Adjust Menu
Contrast
Press the Point Ż button to decrease the contrast; press the
Point Ź button to increase the contrast (from 0 to 63).
Brightness
Press the Point Ż button to decrease the brightness; press the Point Ź button to increase the brightness (from 0 to 63).
Color temp.
Use the Point ŻŹ buttons to select the desired Color temp. level (XLow, Low, Mid, or High).
White balance (Red)
Press the Point Ż button to lighten red tone; press the Point
Ź button to deepen red tone (from 0 to 63).
White balance (Green)
Press the Point Ż button to lighten green tone; press the
Point Ź button to deepen green tone (from 0 to 63).
White balance (Blue)
Press the Point Ż button to lighten blue tone; press the
Point Ź button to deepen blue tone (from 0 to 63).
Sharpness
Press the Point Ż button to decrease the sharpness of the image; press the Point Ź button to increase the sharpness of the image (from 0 to 15).
Gamma
Use the Point ŻŹ buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).
Reset
To reset the adjusted data, select Reset and press the
SELECT button. A confirmation box appears and then select
Yes . All adjustments will return to their previous figures.
Selected Image mode
Use the Point ŻŹ buttons to adjust the setting value.
3 Note:
• When White balance Red , Green or Blue is
adjusted, Color temp.
will change to User .
• When Blackboard(Green) or Colorboard
is selected in Image select, Color temp.
will
change to Blackboard or Colorboard .
34
Computer Input
Store
To store the adjusted data, select Store and press the Point
ŹRUWKH6(/(&7EXWWRQ8VHWKH3RLQW Ÿź buttons to select one from Image 1 to 4 and press the SELECT button.
A confirmation box appears and then select Yes . Stored data can be called up by selecting an Image (1–4) in the
Image Mode Selection on page 33.
A confirmation box appears and then select Yes .
Screen Size Adjustment
This projector has the picture screen resize function, which enables you to customize the image size.
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Screen and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons select the desired item and then press the SELECT button .
Screen Menu
Normal
Provide the image to fit the screen size.
True
Provide the image in its original size. When the original image size is larger or smaller than the screen size
(1024 x 768), the projector enters to the panning mode automatically. Use the Point ŸźŻŹ buttons to pan the image. When adjusted, the arrows will turn red. When reached to the correction limits, the arrows will disappear.
Wide
Provide the image to fit the wide video aspect ratio (16:9) by expanding the image width uniformly. This function can be used for providing a squeezed video signal at 16:9.
Full
Provide the full screen image.
3 Note:
• The Screen Menu, except for Normal and Custom , cannot be operated when 720p(HDTV) , 1035i (HDTV) , or 1080i (HDTV) is selected in the PC System Menu (p.29).
• This projector cannot display any resolution higher than 1920 x 1200. If your computer’s screen resolution is higher than it, reset the resolution to the lower before connecting to the projector.
• The image data in other than 1024 x 768 is modified to fit the screen size in initial mode.
• True , Full , and Digital zoom +/– cannot be selected when 480i , 575i , 480p or 575p is selected in the PC
System Menu (p.29).
35
Computer Input
36
Custom
Adjust the screen scale and position manually with this function.
Press the Point Ź button at Custom and the Custom is displayed on the screen, you can use the Point Ÿź buttons to choose the item you want to adjust.
Scale H/V .......... Adjust the Horizontal/Vertical screen scale.
H&V ................... When set to On , the aspect ratio is fixed. The Scale V appears dimmed and becomes unavailable. Adjust Scale H , then the screen scale is automatically modified based on the aspect ratio.
Position H/V ..... Adjust the Horizontal/Vertical screen position.
Common ........... Save the adjusted scale or position to all the inputs. Press the SELECT button at
Common to display a confirmation box.
To save the scale or position, press the
SELECT button at Yes . When Custom is selected, the saved scale or position is used.
Reset ................. Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the
SELECT button at Yes .
For zooming in and out the images
Digital zoom +
Select Digital zoom + . The On-Screen Menu disappears and D. zoom + appears. Press the SELECT button to expand the image size. Use the Point ŸźŻŹ buttons to pan the image. The Panning function can work only when the image is larger than the screen size.
A projected image can be also expanded by pressing the
D.ZOOM
Ÿ or the SELECT button on the remote control.
Digital zoom –
Select Digital zoom – . The On-Screen Menu disappears and
D. zoom – appears. Press the SELECT button to compress image size.
The projected image can be also compressed by pressing the
D.ZOOM
ź or the SELECT button on the remote control.
To exit the Digital zoom +/– mode, press any button except the D.ZOOM
Ÿź buttons, SELECT and Point buttons.
To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (see pages
27-28) again, or adjust the screen size with the D.ZOOM
Ÿź buttons.
3 Note:
• When no signal is detected, Normal is set automatically and the Aspect dialog box disappears.
• The adjustable range for Scale H/V and
Position H/V is limited depending on the input signal.
Remote Control
POINT buttons
SELECT button
D.ZOOM + button
D.ZOOM - button
3 Note:
• The panning function may not operate properly if the stored Mode in the PC adjust Menu is used (p.32).
• The minimum compression ratio is limited depending on the input signal, when the
Keystone function is working or when the custom is selected for the screen size.
• True , Full , and Digital zoom +/– cannot be selected when 480i , 575i , 480p or
575p is selected in the PC System Menu
(p.29).
• Digital zoom +/ cannot be selected when Full or True is selected.
• When Custom is selected, the Digital zoom - function is disabled.
Video Input
Input Source Selection (Video, S-video)
Direct Operation
Choose Video or S-video by pressing the INPUT button on the top control or the VIDEO button or the S-video button on the remote control.
Top Control
INPUT button
Computer 1 ( RGB)
/(Component) / (Scart)
Computer 2 (PC digital) /
(AV HDCP) /
(Analog)
Video
S-video
Remote Control
VIDEO button
Video
S-VIDEO button
S-video
Menu Operation
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons to select either Video or
S-video and then press the SELECT button.
Input Menu
RGB(PC digital)
Video
When video input signal is connected to the
VIDEO jack, select Video .
S-video
When video input signal is connected to the S-
VIDEO jack, select S-video .
3 Note:
When the Input Search function is set to On1 or On2 in the Auto setup function, the input signal will be searched automatically (p.45).
37
Video Input
Input Source Selection (Component, RGB Scart 21-pin)
Direct Operation
Choose Computer 1(Component) or Computer 1(Scart) by pressing the INPUT button on the top control or press the COMPONENT button or the COMPUTER 1 on the remote control.
Before using INPUT button, correct input source should be selected through Menu operation as described below.
Remote Control Top Control
COMPUTER 1 button
Computer 1 ( RGB)
/(Component) / (Scart)
Computer 1(RGB)
Computer 1(Scart)
INPUT button
Computer 2 (PC digital) /
(AV HDCP) /
(Analog)
COMPONENT button
Component
Video
S-video
Menu Operation
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons to select Computer 1 and then press the Point Ź button.
3 Use the Point Ÿź buttons to select Component or
RGB(Scart) and then press the SELECT button.
Input Menu
RGB(PC digital)
Component
When the input source is coming from video equipment connected to the COMPUTER
IN 1/COMPONENT IN terminal with a
Component-VGA Cable, select Component .
RGB (Scart)
When the input source is coming from video equipment connected to the COMPUTER
IN 1/COMPONENT IN terminal with a Scart-
VGA Cable, select RGB (Scart) .
RGB(PC digital)
38
3 Note:
When the Input Search function is set to On1 or On2 , the input signal will be searched automatically (p.45).
Video Input
1
Video System Selection
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Input and then press the Point Ź or the SELECT buttons.
2
3
Use the Point Ÿź buttons to select Video or S-video or Computer 1(Component) and then press the
SELECT button.
Use the Point Ÿź buttons to select System and then press the Point Ź or the SELECT button. Use the Point
Ÿź buttons to select the desired system and then press the SELECT button.
AV System Menu (Video or S-video)
RGB(PC digital)
Video or S-video
Auto
The projector automatically detects an incoming video system, and adjusts itself to optimize its performance.
When Video System is PAL-M or PAL-N , select the system manually.
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL ,
SECAM , NTSC , NTSC 4.43
, PAL-M , and PAL-N .
System Video
Component
Auto
The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.
COMPONENT VIDEO SIGNAL FORMAT
If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i ,
575i , 480p , 575p , 720p , 1035i , and 1080i .
AV System Menu (Component)
Component
RGB(PC digital)
Component
3 Note:
The AV System Menu cannot be selected when selecting
RGB (Scart) .
39
Video Input
Image Mode Selection
Direct Operation
Select the desired image mode among Dynamic , Standard ,
Cinema , Blackboard (Green) , Colorboard , Image 1 ,
Image 2 , Image 3 and Image 4 by pressing the IMAGE button on the remote control.
Remote Control
Menu Operation
1
2
Press the MENU button to display the On-Screen Menu.
Use the Point Ÿź buttons to select Image select and then press the Point Ź or the SELECT button.
Use the Point Ÿź buttons to select the desired item and then press the SELECT button .
IMAGE button
IMAGE button
Dynamic
Standard
Cinema
Blackboard(Green)
Colorboard
Image 1
Image 2
Image 3
Image 4
Dynamic
For viewing pictures in a bright room.
Standard
Normal picture mode preset on the projector.
Cinema
Picture mode adjusted with fine tone.
Blackboard (Green)
For the image projected on a blackboard.
This mode help enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.
Colorboard
At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.
Image 1–4
For viewing with the user preset image mode in the Image
Adjust Menu (see pages 41-42).
Image select Menu
40
Video Input
Image Adjustment
1
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Image adjust and then press the Point Ź or the SELECT button.
2 Use the Point Ÿź buttons select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ŻŹ buttons to adjust the setting value.
Image Adjust Menu
Reset
Store Contrast
Press the Point Ż button to decrease the contrast; press the
Point Ź button to increase the contrast (from 0 to 63).
Selected Image mode
Brightness
Press the Point Ż button to decrease the brightness; press the Point Ź button to increase the brightness (from 0 to 63).
Color
Press the Point Ż button decrease the intensity of the color; press the Point Ź button increase the intensity of the color
(from 0 to 63).
Tint
Press the Point ŻŹ buttons to adjust the tint value to get a proper color balance (from 0 to 63).
Color temp.
Use the Point ŻŹ buttons to select the desired Color temp. level (High, Mid, Low or XLow).
White balance (Red)
Press the Point Ż button to lighten red tone; press the Point
Ź button to deepen red tone (from 0 to 63).
White balance (Green)
Press the Point Ż button to lighten green tone; press the
Point Ź button to deepen green tone (from 0 to 63).
White balance (Blue)
Press the Point Ż button to lighten blue tone; press the
Point Ź button to deepen blue tone (from 0 to 63).
Reset
Store
Use the Point ŻŹ buttons to adjust the setting value.
3 Note:
• When the White balance Red , Green or Blue is adjusted, the Color temp. level will change to User .
• Tint cannot be selected when the video system is PAL , SECAM , PAL-M or PAL-N (p.39).
• When Blackboard(Green) or Colorboard is selected in Image select, Color temp.
will change to
Blackboard or Colorboard .
41
Video Input
Sharpness
Press the Point Ż button to decrease the sharpness of the image; press the Point Ź button to increase the sharpness of the image (from 0 to 15).
Gamma
Use the Point ŻŹ buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).
Noise reduction
Noise interference on the screen can be reduced. Select one of the following options to get smoother images.
Off.......... Disabled.
L1 .......... Lower reduction
L2 .......... Higher reduction
Progressive
An interlaced video signal can be displayed in progressive mode. Select one of the following options.
Off.......... Disabled.
L1 .......... For an active picture.
L2 .......... For a still picture.
Film........ For watching a film. With this function, the projector reproduces pictures faithful to the original film quality.
Reset
To reset the adjusted data, select Reset and press the
SELECT button. A confirmation box appears and then select
Yes . All adjustments will return to their previous figures.
Store
To store the adjusted data, select Store and press the the
Point Ź or the SELECT button. Use the Point Ÿź buttons to select one from Image 1 to 4 and press the SELECT button.
A confirmation box appears and then select Yes . Stored data can be called up by selecting an Image (1–4) in the
Image Mode Selection on page 40.
Store Menu
A confirmation box appears and then select Yes .
42
3 Note:
Noise reduction and Progressive cannot be selected when 480p , 575p , 720p , 1035i or 1080i is selected
(p.39).
Screen Size Adjustment
This projector has the picture screen resize function, which enables you to customize the image size.
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select Screen and then press the Point Ź or the SELECT button.
Screen Menu
2 Use the Point Ÿź buttons select the desired item and then press the SELECT button.
Normal
Provide the image at the 4:3 normal video aspect ratio.
Video Input
Wide
Provide the image at the 16:9 wide screen ratio.
Custom
Adjust the screen scale and position manually with this function.
Press the Point Ź button at Custom and the Custom is displayed on the screen, you can use the Point Ÿź buttons to choose the item you want to adjust.
Scale H/V .......... Adjust the Horizontal/Vertical screen scale.
H&V ................... When set to On , the aspect ratio is fixed. The Scale V appears dimmed and becomes unavailable. Adjust Scale H , then the screen scale is automatically modified based on the aspect ratio.
Position H/V ..... Adjust the Horizontal/Vertical screen position.
Common ........... Save the adjusted scale or position to all the inputs. Press the SELECT button at
Common to display a confirmation box.
To save the scale or position, press the
SELECT button at Yes . When Custom is selected, the saved scale or position is used.
Reset ................. Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the
SELECT button at Yes .
3 Note:
• When no signal is detected, Normal is set automatically and the Aspect dialog box disappears.
• The adjustable range for Scale H/V and
Position H/V is limited depending on the input signal.
• Wide cannot be operated when 720p ,
1035i or 1080i is selected in the AV
System Menu (p.39).
43
Setting
Setting
This projector has a Setting menu that allows you to set up the other various functions described below.
1
Press the MENU button to display the On-Screen
Menu. Press the Point Ÿź buttons to select Setting and press the Point Ź or the SELECT button to access the submenu items.
2
Use the Point Ÿź buttons to select the desired item and then press the Point Ź or the SELECT button to access the selected item.
3
Use the Point Ÿź buttons select the desired item and then press the SELECT button.
Setting Menu
Closed caption
Language
The language used in the On-Screen Menu is available in
English , German , French , Italian , Spanish , Portuguese ,
Dutch , Swedish , Finnish , Polish , Hungarian , Romanian ,
Russian , Chinese , Korean , Japanese , Turkish and Thai .
Language
Closed caption
Menu position
This function is used to change the position of the
On-Screen Menu. Select Menu position and press the
SELECT button. The Menu position screen appears.
The Menu position changes each time you press SELECT button as follows.
the top left ĺ the top right ĺ the center ĺ the bottom left ĺ the bottom right ĺ the top left ĺ .....
44
Setting
Auto setup
This function enables Input search, Auto Keystone correction and Auto PC adjustment by pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Settings for those functions can be altered as follows:
Input search
This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point Ÿź buttons to select one of the following options.
Off ........... Input search will not work.
On1 .......... Input search works under the following situation.
– When pressing the AUTO SETUP button on the top control.
– When pressing the AUTO SET button on the remote control.
On2 .......... Input search works under the following situation.
– When turning on the projector by pressing the
ON/STAND-BY button on the top control or the remote control.
– When pressing the AUTO SET button on the remote control.
– When pressing the AUTO SETUP button on the top control.
– When the current input signal is cut off.*
* If the No show or Freeze function is active, cancel it to activate the Input search. It is also unavailable when On-
Screen menu is displayed.
Auto PC adj.
On . . . . . . . . Enables Auto PC Adjustment when pressing the AUTO SET button on the remote control or the AUTO SETUP button on the top control.
Off . . . . . . . Disables Auto PC Adjustment.
Auto Keystone
Auto . . . . . Always works and corrects keystone distortion according to the projector's tilt.
Manual . . . . Works only when pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control.
Off . . . . . . . Disables Auto Keystone.
3 Note:
• While Input search is set to On1 or On2 , the status of Input and Lamp are displayed every time the signal is switched.
• Only the last selected input source can be detected.
• During Input search is in progress, if the INPUT button on the top control, the COMPUTER1/2 button, the S-VIDEO button, the COMPONENT button or the VIDEO button on the remote control, the MENU button or the ON/STAND-BY button is pressed, Input search will stop. If the INPUT button is pressed, the Input search will go back to the current seach signal. If the COMPUTER 1/2 button or VIDEO or S-VIDEO or
COMPONENT button is pressed, Input search will go back to the button's input signal.
• Input search , Auto PC adj.
and Auto Keystone cannot be set Off at the same time.
Auto setup
Closed caption
3 Note:
• Auto Keystone corrects vertical distortion only, not correct horizontal distortion.
• The Auto Keystone function cannot work when the Ceiling feature is set On in the Setting menu
(p.50).
• Perfect correction of the image distortion cannot be ensured with the Auto setup function. If the distortion is not corrected properly by pressing the
AUTO SETUP or the AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the
Setting menu (pp.23, 46).
• Fine sync , Total dots , Horizontal and Vertical position of some computers cannot be fully adjusted with the Auto PC Adjustment function.
When the image is not provided properly with this operation, manual adjustments are required
(pp.31-32).
45
Setting
Keystone
This function is used to store or reset the keystone correction when the AC power cord is unplugged.
Store ....... Keep the keystone correction even when the
AC power cord is unplugged.
Reset ....... Release the keystone correction when the AC power cord is unplugged.
To correct keystone distortion, press the SELECT button.
Keystone appears on the screen. Use the Point Ÿź buttons to correct keystone distortion (p.23).
Keystone
Background
Select the background screen for when no input signal is detected. Press the Point Ÿź buttons to switch between each option.
Blue . . . Project a blue background
User . . . Project an image selected in the Logo setting.
It is invalid when there is no image.
Black . . Project a black background
Closed caption
46
Display
This function decides whether to display On-Screen
Displays.
On ........................... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option.
Countdown Off ....... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.
Off ........................... Hide the On-Screen Displays except;
Ɣ On-Screen Menu
Ɣ Power off?
(p.20)
Ɣ No signal for Power management
(p.51)
Ɣ Please wait ...
Ɣ Arrows for the True function in the
Screen Menu (p.35)
Ɣ P-Timer
Setting
Logo
Logo (Logo and Logo PIN code lock settings)
This function allows you to customize the screen logo with
Logo select , capture , Logo PIN code lock and Logo PIN code change functions.
3 Note:
When On is selected in the Logo PIN code lock function,
Logo select and Capture functions cannot be selected.
Logo select
Closed caption
Logo select
This function decides on the starting-up display from among following options.
User ........ Show the image you captured.
Default .... Show the factory-set logo.
Off ........... Show the countdown display only.
Off
Off
47
Setting
48
Capture
This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations.
Select Capture and press the SELECT button.
A confirmation box appears and select Yes to capture the projected image.
After capturing the projected image, go to the Logo select function and set it to User . Then the captured image will be displayed the next time you turn on the projector.
To cancel the capture function, select Yes in the "Quit?" confirmation box.
3 Note:
• Before capturing an image, select Standard in the
Image select Menu to capture a proper image (pp.33,
40).
• A signal from a computer can be captured up to XGA
(1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.
• When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.
• When Logo PIN code lock is set to On , capture cannot be selected.
• When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.
• When there is no captured image or it is interrupted while capturing an image, User cannot be selected, you can only switch between Default and Off .
Capture
Quit?
Logo PIN code lock
This function prevents an unauthorized person from changing the screen logo.
Off............ The screen logo can be changed freely from the Logo Menu (p.47).
On............ The screen logo cannot be changed without a
Logo PIN code.
If you want to change the Logo PIN code lock setting, press the SELECT button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to “4321” at the factory.
Logo PIN code lock
Off
Off
Setting
Enter a Logo PIN code
Use the Point Ÿź buttons to enter a number. Press the
Point Ź button to fix the number and move the red frame pointer to the next box. The number changes to ¼ . If you fixed an incorrect number, use the Point Ż button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to
Set . Press the SELECT button so that you can start to operate the projector.
If you entered an incorrect Logo PIN code, Logo PIN code and the number ( ¼¼¼¼ ) will turn red for a moment. Enter the correct Logo PIN code all over again.
Enter a Logo PIN code
After a correct Logo PIN code is entered, the following dialog box appears.
Change the Logo PIN code lock setting
Off
Change the Logo PIN code lock setting
Use the Point Ÿź buttons to switch On or Off , and then press the SELECT button to make a chioce.
Change the Logo PIN code
Select
Logo PIN code change
Logo PIN code can be changed to your desired four-digit number. Press the SELECT button to select Logo PIN code change .
Logo PIN code dialog box appears, use the Point Ÿź buttons to enter the correct code. The New
Logo PIN code input dialog box appears. Set a new Logo
PIN code, confirmation box appears, choose Yes to set the new Logo PIN code.
Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO PIN CODE,
WRITE DOWN THE NEW PIN CODE IN COLUMN OF
THE LOGO PIN CODE NO. MEMO ON PAGE 80, AND
KEEP IT SECURELY. SHOULD THE LOGO PIN CODE
BE LOST OR FORGOTTEN, THE LOGO PIN CODE
SETTING CAN NO LONGER BE CHANGED.
49
Setting
Ceiling
When this function is set to On , the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.
Ceiling
Rear
When this function is set to On , the picture will be left/right reversed. This function is used to project the image from rear of the screen.
Rear
Closed Caption
Closed Caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point Ÿź buttons to select
Off , CC1 , CC2 , CC3 or CC4 .
If the closed caption is not clear, you can change the text from Color to White .
3 Note:
The Closed Caption is available only under the situation below..
• When the input signal is NTSC of composite and
S-video, and the system is set according to the signal
or set on Auto .
• The system must be set on NTSC or Auto in Video
System Selection. (p.39)
• The item of Closed Caption is displayed in gray while it
is not available.
• The Closed caption is unavailable when On-Screen
menu and P-Timer are displayed.
Closed Caption
Closed caption more...
Press the Point Ÿź buttons to select
Off , CC1 , CC2 , CC3 or CC4 , and then
Press SELECT button.
50
Setting
Power management
For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period.
Select one of the following options:
Ready ...............
When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed.
Shut down .......
When the lamp has been fully cooled down, the power will be turned off.
Off ....................
Power management function is off.
Timer ................
If the input signal is interrupted and no button is pressed for more than
30 seconds, the timer display with
No signal appears. It starts the countdown until the lamp is turned off.
Use the Point Ÿź buttons to set the
Timer(1~30min).
3 Note:
Factory default is Ready: 5 min .
On start
When this function is set to On , the projector will be automatically turned on just by connecting the AC power cord to a wall outlet.
3 Note:
Be sure to turn off the projector properly (see “Turning
Off the Projector” on page 20). If the projector is turned off in the incorrect sequence, the On start function does not work properly.
Standby mode
This function is available when operating the projector via network.
Network .... Supply the power to the network function even after turning off the projector. You can turn on/ off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off.
Eco ............ Select Eco when you do not use the projector via network. The projector’s network function will stop when turning off the projector.
Refer to the owner’s manual “Network Set-up and Operation”.
Power management
Time left before Lamp is off.
Closed caption
Ready
3 Note:
• Factory default is Network .
• When selecting Network , the cooling fans may
be running depending on the temperature
inside the projector even if the projector is
turned off.
51
Setting
Lamp control
Lamp control
This function allows you to change brightness of the screen.
Normal ...... Normal brightness
Eco ............ Lower brightness reduces the lamp power consumption and extends the lamp life.
Lamp life control
Select the lamp operation when the total lighting time of a lamp exceeds the recommended total hours of use.
Mode 1 .............. The lamp can be turned on even after exceeding the recommended total hours of use.
Mode 2 .............. The lamp can be turned on even after exceeding the recommended total hours of use. But the projector turns off automatically after 3 minutes.
3 Note:
• Lamp mode cannot be changed for a while after turning
on the projector. Lamp needs some time to stabilize
after the power is turned on. Stored lamp mode will be
active after the lamp is stabilized.
• If Mode 2 has been selected and the projection lamp
exceedes the recommended total hours of use, the
replacement icon will be displayed at the time of power-
on. Then the projector will turn off after 3 minutes.
Lamp replacement icon
Lamp life control
• The Lamp replacement icon will not appear when the
Display function is set to Off (p.46), during Freeze
(p.25), or No show (p.26).
52
Filter control
You can replace the filter with this function. Press the
SELECT button at Filter control to display a confirmation box. To replace, press the SELECT button at “YES” and the electrically operated filter starts to scroll.
Filter control
3 Note:
• Filter replacement icon and “Please wait . . . ” message
appear on the screen when the filter is being scrolled.
• The filter cannot be rewound.
• When the filter is replaced, the total accumulated time of
the filter use is automatically set to 0.
Remote control
This projector provides two different remote control codes: the factory-set initial code ( Code 1 ) and the secondary code
( Code 2 ). This switching function prevents remote control interference when operating several projectors or video equipment at the same time.
When operating the projector in Code 2 , both the projector and the remote control must be switched to Code 2 .
To change the code for the projector:
Select either Code 1 or Code 2 in this Setting Menu.
To change the code for the remote control:
Press and hold both the MENU and IMAGE buttons together for 5 seconds or more. After changing the code, make sure the remote control operates properly.
3 Note:
• When different codes are set on the projector and on the
remote control, any operation cannot be made. In that
case, switch the code on the remote control to fit the code
on the projector.
• If the batteries are removed from the remote control for a
long period of time, the remote control code will be reset.
Remote control
Setting
53
Setting
Security
Security (Key lock and PIN code lock)
This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation.
Key lock
This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
Select Key lock and then press the SELECT button,
DQGVHOHFWWKHGHVLUHGLWHPE\SUHVVLQJWKH3RLQWŸź buttons.
..... Unlocked.
..... Lock the operation of the top control. To unlock, use the remote control.
..... Lock the operation of the remote control.
To unlock, use the top control.
If the top control accidentally becomes locked and you do not have the remote control nearby or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center.
Key lock
PIN code lock
This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.
Off ........... Unlocked.
On1 ......... Enter the PIN code every time turning on the projector.
On2 ......... Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.
Whenever you change the PIN code lock setting or the
PIN code (the four-digit number), you are required to enter the PIN code. The “1234” is set as the initial PIN code at the factory.
If you want to change the PIN code lock setting, Press the SELECT button and the PIN code dialog box appears.
When the projector is locked with the PIN code, the
Security icon appears on the guide.
PIN code lock
54
Enter a PIN code
Use the Point Ÿź buttons to enter a number. Press the
Point Ź button to fix the number and move the red frame pointer to the next box. The number changes to ¼ . If you fixed an incorrect number, use the Point Ż button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer to
Set . Press the SELECT button so that you can change the following PIN code lock setting.
If you entered an incorrect PIN code, PIN code and the number ( ¼¼¼¼ ) will turn red for a moment. Enter the correct PIN code all over again.
Change the PIN code lock setting
Use the Point Ÿź buttons to select Off 、 On1 or On2 , and then press the SELECT button to make a choice.
Change PIN code
The PIN code can be changed to your desired four-digit number. Press the SELECT button to select PIN code change . Pin code dialog box appears, use the Point Ÿź buttons to enter the correct code. The New PIN code input dialog box appears. Set a new PIN code.
Enter a PIN code
Change the PIN code
Setting
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE, WRITE
DOWN THE NEW PIN CODE IN COLUMN OF THE
PIN CODE NO. MEMO ON PAGE 80, AND KEEP IT
SECURELY. IF YOU FORGET YOUR PIN CODE, THE
PROJECTOR CAN NO LONGER BE STARTED.
55
Setting
Fan
This function provides the following options in the cooling fans’ operation when the projector is turned off (p.20).
L1 ...... Normal operation
L2 ...... Slower and lower-sound than the normal operation
( L1 ), but it takes more time to cool the projector down.
Lamp counter
This function is used to display the cumulative lamp operating time and reset the lamp counter.
When the lamp life is left 0 hour, the Lamp replacement icon
(Fig.1) will appear on the screen, indicating that the end of lamp life is reached.
When replacing the projection lamp, reset lamp counter.
See "Resetting the Lamp Counter" on page 65.
3 Note:
The Lamp replacement icon (Fig.1) will not appear when the Display function is set to Off (p.46), during “Freeze”
(p.25) or “No show” (p.26).
56
Filter counter
This function is used to set a frequency for the filter replacement.
8VHWKH3RLQWŸźEXWWRQVWRVHOHFW)LOWHUFRXQWHUDQGWKHQ press the Point Ź or the SELECT button to accese the submenu items.
Filter counter ......Show the total accumulated time of the filter use timer setting.
Timer ...................To set a timer, when the projector reaches the time, the Filter replacement icon (Fig. 1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary. If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig.
2 appears on the screen, indicating that the filter cartridge replacement is necessary.
Filter counter reset ..When replacing the Filter cartridge, reset the
Filter counter and the Scroll counter (p.62).
Scrolls remaining ...When the filter scroll is counted down to 1 , Scroll counter on the screen is showing “0 scroll(s)” , the last scroll icon (Fig. 3) appears on the screen.
When the filter scroll is counted down to 0 , the Filter cartridge replacement icon (Fig. 4) appears on the screen and the WARNING FILTER indicator lights orange, indicating that the filter cartridge replacement is necessary.
Scroll counter Reset ..When replacing the Filter cartridge, reset the
Filter counter and the Scroll counter (p.62).
3 Note:
• Do not reset the counter(s) when the filter or the filter cartridge are not replaced.
• Timer setting notifies that the filter needs replacement. To replace the filter, use the filter control function (p.53).
Fig.1
Lamp replacement icon
This icon appears on the screen when the end of lamp life is reached.
3 Note:
At turning on, the icon (Fig.1) will appear.
Filter counter
Press the SELECT button to select Timer , and then use the Point Ÿź buttons to set the timer. Select from ( Off /
400H / 700H / 1000H ) depending on the use environment.
Fig.1 Filter replacement icon
Filter replacement icon appears on the screen at a set time.
Fig.2
Fig.3 Last scroll icon
Last scroll icon appears on the screen when the filter is down to the last scroll.
Fig.4 Filter cartridge replacement icon
Filter cartridge replacement icon appears on the screen when the filter scroll is counted down to 0 scroll.
3 Note:
• Fig.1, Fig.2, Fig.3 and Fig.4 appear at turning on and selecting input source.
• Fig.1, Fig.2, Fig.3 and Fig.4 will not appear when the Display function is set to “Off” (p.46), during “Freeze” (p.25), or “No show” (p.26).
Warning log
This function records anomalous operations while the projector is in operation and use it when diagnosing faults.
Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.
3 Note:
When the Factory default function is executed, all the warning log records will be deleted.
Factory default
This function returns all setting values except for the User logo , PIN code lock , Logo PIN code lock , Lamp counter and Filter counter to the factory default settings.
Factory default
Setting
57
Information
Input Source Information Display
The Information Menu is used for checking the status of the image signal being projected and the operation of the projector.
Direct Operation
Press the INFO. button on the remote control to display the
Information Menu.
Remote Control
INFO. button
Menu Operation
Press the Point Ÿź buttons to select the Information. The
Information Menu is displayed.
See below for displayed information.
58
Input
The selected input source is displayed.
H-sync freq.
The horizontal frequency of the input signal is displayed in
KHz , or - - - - when no signal.
V-sync freq.
The vertical frequency of the input signal is displayed in Hz , or - - - - when no signal. Numbers of Hz doubles when during Interlace.
Screen
The selected screen size is displayed.
Language
The selected language is displayed.
Lamp status
The selected lamp mode is displayed.
Lamp counter
The cumulative lamp operating time is displayed.
Power management
Off , Ready , Shut down or Timer is displayed.
Key lock
The selected Key lock icon is displayed.
PIN code lock
Off or On 1 or On 2 is displayed.
Remote control
The selected remote code is displayed.
Information Menu
Maintenance and Cleaning
WARNING TEMP. indicator
The WARNING TEMP. indicator shows the state of the function which protects the projector. Check the state of the WARNING TEMP. indicator and the POWER indicator to take proper maintenance.
The projector is shut down and the WARNING TEMP.
indicator is blinking red.
When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/
STAND-BY button.
Top Control
WARNING TEMP. blinking red
3 Note:
The WARNING TEMP. indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the
WARNING TEMP. indicator stops blinking.
Then check the matters below:
– Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked.
– Has the projector been installed near an Air-Conditioning/
Heating Duct or Vent? Move the installation of the projector away from the duct or vent.
– Is the filter clean? Clean the filter periodically.
The projector is shut down and the WARNING TEMP.
indicator lights red.
When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the WARNING TEMP. indicator lights red. In this case, unplug the AC power cord and reconnect it, and then turn the projector on once again to verify operation. If the projector cannot be turned on and the WARNING TEMP. indicator still lights red, unplug the AC power cord and contact the service station.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE
AC POWER CORD CONNECTED UNDER AN
ABNORMAL CONDITION. IT MAY RESULT IN
FIRE OR ELECTRIC SHOCK.
Top Control
WARNING TEMP. emit a red light
59
Maintenance and Cleaning
Filter Instructions
Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to replace the filter easily. The projector monitors the condition of the filter at all time and replaces a filter with a new one automatically when it detects the clogging.
If the projector reaches a time set in the timer setting (p.56), a Filter replacement icon (Fig.1) appears on the screen and the WARNING FILTER indicator on the top control lights up. When you see this icon, replace the filter as soon as possible (p.53). If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig.2 appears on the screen, indicating that the filter cartridge replacement is necessary.
Fig.1 Filter replacement icon
Fig.2
When the scroll counter is counted down to 0, the Last scroll icon (Fig.3) appears on the screen, indicating that there is no scroll left in the filter cartridge (p.56).
If the projector detects that the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig.4) appears on the screen and the WARNING
FILTER indicator on the top control lights up. When you see this icon, replace the filter cartridge (p.61) and reset the
Filter counter (p.62) and the Scroll counter (p.62).
When the filter is being scrolled using the Filter control function in the setting menu (p.53), a Filter replacement icon and “Please wait...” message (Fig.5) appear on the screen and the WARNING FILTER indicator blinks slow (approx. 2 seconds ON, 2 seconds OFF). (p.72)
Fig.3 Last scroll icon
Fig.4 Filter cartridge replacement icon
Fig.5 Filter replacement icon and “Please
wait...” message.
The WARNING FILTER indicator blinks fast when the projector detects an abnormal condition, the filter cartridge is not installed properly, or the filter scroll is not working properly. (p.73)
60
3 Note:
• Fig.1, Fig.2, Fig.3, Fig. 4 and Fig.5 will not appear when the
Display function is set to “Off” (p.46), during “Freeze” (p.25)
or “No show” (p.26).
• The filter cannot be rewound.
• The filter can be scrolled 9 times since the filter cartridge has
10 scrolls.
• The filter cartridge is disposable. Do not clean and reuse the
filter cartridge.
• Do not expose the filter cartridge to water or liquid, or it may
cause a breakdown.
• Replace the filter cartridge after all the scroll is used up. If you
replace the filter cartridge when there are some scrolls left in
the filter cartridge, the filter counter and the scroll counter do not recognize the correct number of remaining scrolls and the reset function cannot work properly. It may cause a breakdown.
• Do not use the filter cartridge with other projector. The filter
counter and the scroll counter do not recognize the correct number of remaining scrolls of the used filter cartridge and the reset function cannot work properly. It may cause a breakdown.
• Make sure that the projection lamp is turn off
when you are replacing the filter cartridge.
If you replace the filter cartridge when the
projection lamp is turn on, the projector will be
shut down automatically for safety purpose.
• Do not forget to reset the filter counter and the
scroll counter in the setting menu after replacing
the filter cartridge. If you forget to reset the filter
counter and the scroll counter, the projector cannot
recognize the correct number of remaining
scrolls and may cause a breakdown.
• When the projector is kept used for 3 minutes
without getting the filter cartridge replaced after
the Fig.4 appears on the screen, the projector is
turned off automatically to prevent the damage
of optical components.
Maintenance and Cleaning
1
2
3
4
5
6
7
Replacing the Filter Cartridge
Turn off the projector, and unplug the AC power cord from the AC outlet.
First, clean up the dust on the projector and around the air vents.
Loosen 2 screws of the filter cover with a screwdriver and open the filter cover.
Rotate the handle of the filter and pull out the filter cartridge.
Put the new one back into the position and rotate back the handle. Make sure that the filter cartridge is properly and fully inserted. Close the filter cover and tighten the 2 screws back into position.
Connect the AC power cord to the projector and turn on the projector.
Reset the filter counter and the scroll counter (p.62).
Filter cover
CAUTION
Make sure the filter cartridge is inserted in the projector. If the filter cartridge is not inserted, the projector cannot be turned on.
Do not put anything into the air vents. Doing so may result in malfunction of the projector.
CLOSE handle
RECOMMENDATION
We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause a poor image quality.
When using the projector under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. Such condition may degrade the quality of the projected image.
When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.
OPEN handle
Screws
ORDER REPLACEMENT FILTER CARTRIDGE
Replacement filter cartridge can be ordered through your dealer. When ordering, give the following information to the dealer.
Ɣ 0RGHO1RRI\RXUSURMHFWRU
PLC-XC56
Ɣ 5HSODFHPHQW)LOWHU&DUWULGJH7\SH1R
POA-FIL-063
(Service Parts No. 610 339 7665)
Filter cartridge
61
Maintenance and Cleaning
Resetting the Filter Counter
Be sure to reset the Filter counter after replacing the filter cartridge.
1 Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select the Setting and then press the Point Ź or SELECT buttons.
2
3
Use the Point Ÿź buttons select Filter counter and then press the Point Ź or SELECT button. Use the
Point Ÿź buttons to select Filter counter reset and then press SELECT button. The Filter counter Reset?
appears. Select Yes to continue.
Another confirmation dialog box appears, select Yes to reset the Filter counter.
Filter counter
The Filter counter
Reset?
appears.
Select Yes , then another confirmation box appears.
Select Yes again to reset the Filter counter.
Resetting the Scroll Counter
Be sure to reset the Scroll counter after replacing the filter cartridge.
Scroll counter
1
2
3
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select the Setting and then press the Point Ź or SELECT buttons.
Use the Point Ÿź buttons select Filter counter and then press the Point Ź or SELECT button. Use the
Point Ÿź buttons to select Scroll counter Reset and then press SELECT button. The Scroll counter Reset?
appears. Select Yes to continue.
Another confirmation dialog box appears, select Yes to reset the Scroll counter.
The Scroll counter
Reset?
appears.
Select Yes , then another confirmation box appears.
Select Yes again to reset the Scroll counter.
62
Cleaning the Lens Cover
Unplug the AC power cord before cleaning.
Gently wipe the lens cover with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens cover.
Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.
Cleaning the Projector Cabinet
Unplug the AC power cord before cleaning.
Gently wipe the projector body with a soft dry cleaning cloth.
When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.
When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.
CAUTION
Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air.
Maintenance and Cleaning
63
Maintenance and Cleaning
64
Lamp Replacement
When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and
LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.
3 Note:
• When Mode 2 is selected in the Lamp life control menu,
if the projection lamp of the projector reaches its end of
life, the lamp replacement icon appears on the screen, and the projector is turned off automatically after 3 minutes.
• The Lamp replacement icon will not appear when the
Display function is set to Off (p.46), during Freeze (p.25), or No show (p.26).
Top Control
Lamp replacement icon
LAMP REPLACE indicator
CAUTION
Allow a projector to cool for at least 45 minutes before you open the Lamp Cover. The inside of the projector can become very hot.
CAUTION
For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.
CAUTION
When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken.
If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.
Follow these steps to replace the lamp.
1
2
Turn off the projector and disconnect the AC power cord. Allow the projector to cool for at least 45 minutes.
Loosen the screw with a screwdriver, slide and open the lamp cover.
3
4
5
6
Loosen 2 screws of the lamp with a screwdriver and pull out the lamp upwards vertically by grasping the handle.
Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is set properly.
Replace the lamp cover and tighten the screw.
Connect the AC power cord to the projector and turn on the projector.
Reset the lamp replacement counter.
See "Resetting the Lamp Counter" on the next page.
Screw Handle
Screw
Lamp Cover
Screw
Lamp
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.
Ɣ
Ɣ Model No. of your projector
Replacement Lamp Type No.
: PLC-XC56
: POA-LMP127
(Service Parts No. 610 339 8600)
Maintenance and Cleaning
Resetting the Lamp Counter
Be sure to reset the Lamp replacement counter after the lamp is replaced. When the Lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting.
Lamp counter
1
2
3
Press the MENU button to display the On-Screen
Menu. Use the Point Ÿź buttons to select the Setting and then press the Point Ź or SELECT buttons.
Use the Point Ÿź buttons select Lamp counter and then press the Point Ź or SELECT button. Use the
Point Ÿź buttons to select Lamp counter reset and then press SELECT button. The Lamp replacement counter Reset?
appears. Select Yes to continue.
Another confirmation dialog box appears, select Yes to reset the Lamp counter.
The Lamp replacement counter Reset ?
appears.
Select Yes , then another confirmation box appears.
Select Yes again to reset the Lamp counter.
LAMP HANDLING PRECAUTIONS
This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a fire hazard.
of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.
up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
(Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion. lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.
65
Appendix
Troubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
–Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16.
–Make sure all equipment is connected to AC outlet and the power is turned on.
–When the projector does not project an image from the connected computer, restart the computer.
Problem: – Solutions
No power – Plug the power cord of the projector into the AC outlet.
– See if the POWER indicator lights red.
again. The projector can be turned on after the POWER indicator turns red. See page 18.
– Check the WARNING TEMP. indicator. If the WARNING TEMP.
indicator lights red, projector cannot be turned on. See page 59.
– Check the projection lamp. See page 64.
– Unlock the Key lock function for the projector. See page 54.
– See if the filter cartridge is inserted.
The initial display is not shown.
– Make sure Off or Countdown off are not chosen at display
function. See page 46.
The initial display is not same as the default set.
– Make sure User
See page 47.
or Off are not chosen at Logo (select) function.
Input signal switches automatically.
– Make sure Input search function is adjusted properly. See page 45.
(or does not switch automatically)
Image is out of focus.
– Adjust focus of the projector. See page 23.
– Provide proper distance between the projector and the projection screen. See page 13.
– Check the lens cover to see if it needs cleaning. See page 63.
– Moving the projector from a cool to warm place may result in moisture condensation on the projection lens. In such cases, leave the projector off and wait until condensation evaporates.
Image is Left/Right reversed.
Image is Top/Bottom reversed.
Picture is not bright enough.
– Check the Ceiling/Rear function. See page 50.
– Check the Ceiling function. See page 50.
– Check if the Contrast or Brightness is adjusted properly. See pages 34, 41.
– Check if Image mode is selected properly. See pages 33, 40.
– Check the lamp control function. See pages 25, 52.
– Check the LAMP REPLACE indicator. If it lights, the end of lamp life is approaching. Replace the lamp with a new one promptly. See page
64.
66
Appendix
No image
No sound
– Check the connection between your computer or video equipment and the projector. See pages 14-16.
– See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output
when connecting to a projector. See your computer’s instruction manual for the setting.
– It takes about 30 seconds to display an image after turning on the projector. See page 18.
system mode.
– Make sure the temperature is not out of the specified Operating
Temperature ( Û)±Û)>Û&±Û&@ .
– When No Show is operating, the image cannot be displayed. Press the NO SHOW button or any other button on the remote control.
– Check the audio cable connection from audio input source.
– Adjust the audio source.
– Press the Volume + button. See page 24.
– Press the Mute button. See page 24.
– When the AUDIO OUT is plugged-in, the projector's built-in speaker
– Is the image projected? You will hear the sound only when the image is projected.
– Check the Input signal, color system,video system or computer
– Make sure the Blackboard is not selected on Image select menu.See pages 33, 40.
– Check the Display function. See page 46.
The color is strange.
Some displays are not seen during the operation.
Auto PC adjustment function does not work.
– Check the Input signal. Auto PC adjustment function can not work when 480p , 575p .
720p , 480i , 575i , 1035i or 1080i is selected. See
page 30.
– The icon is not available in grayout when the digital signal is input.
The setting does not remain after turning off power.
Power management does not work.
Capture function does not work.
– Make sure you selected Store after adjusting setting. Some settings can not be stored if not registered with Store . See pages 35,42.
– Power management function can not work while
Show function is running. See page 51.
Freeze or No
– Check the connection and the input signal to see if there is signal.
Auto setup does not work properly.
– Make sure Off is not selected at any function of Auto setup . See page
45.
– Make sure On is not selected at the Ceiling function. See page 50.
Auto keystone function does not – Make sure the Auto keystone function is not set to Manual . Press work even when the projector is the AUTO SETUP button on the top control. See pages 23,45. tipped.
67
Appendix
The image is distorted or runs off.
– Check PC adjust menu or Screen menu and adjust them.
See pages 31-32, 35-36.
PIN code dialog box appears at start-up.
– PIN code lock is being set. Enter a PIN code (the “1234” or numbers you have set). See pages 19, 54-55.
The Remote Control does not work.
– Check the batteries.
– Make sure no obstruction is between the projector and remote
control.
– Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4'(5 m).
– Make sure the code of the remote control is conformed to the
projector’s code. See page 53.
– Unlock the Key lock function for the remote control function. See page 54.
Indicator blinks or lights.
The exclamation mark appears on the screen.
Top control does not work.
– Check the status of the projector with referring to "Indicators and projector Condition". See pages 72-73.
– Your operation is invalid. Operate correctly.
– The top control is not available if the top control is locked at Key lock under Security of SETTING section. See page 54.
Unable to unlock the Logo PIN – Contact the dealer where you purchased the projector or the service code lock, Security key lock center. or Security PIN code lock.
68
Appendix
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.
The CE Mark is a Directive conformity mark of the European Community (EC).
Pixelworks ICs used.
This symbol on the nameplate means the product is Listed by Underwriters Laboratories
I n c . I t i s d e s i g n e d a n d manufactured to meet rigid
U.L. safety standards against r i s k o f f i r e , c a s u a l t y a n d electrical hazards.
69
Appendix
Menu Tree
Input
Input: Computer / Video
Computer 1
Computer 2
Video
S-Video
Sound
Sound Volume
Mute
Computer Input
System
(1)
SVGA 1
Mode 1
Mode 2
- - - -
* Systems displayed in the System Menu vary depending on an input signal.
0–63
On/Off
RGB
Component
RGB (Scart)
RGB (PC digital)
RGB(AV HDCP)
RGB (Analog)
Image select
PC adjust Auto PC adj.
Fine sync
Total dots
Horizontal
Vertical
Clamp
Display area H
Display area V
Reset
Mode free
Store
0–31
Yes/No
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Image Adjust
Screen
Dynamic
Standard
Real
Blackboard (Green)
Colorboard
Image 1
Red/Blue/Yellow/Green
Image 2
Image 3
Image 4
Contrast
Brightness
Color temp.
Red
Green
Blue
Sharpness
Gamma
Reset
Store
Normal
True
Wide
Full
Custom
Digital zoom +
Digital zoom –
Scale
H&V
Position
Common
Reset
0–63
0–63
XLow
Low
Mid
High
User
0–63
0–63
0–63
0–15
0–15
Yes/No
Image 1
Image 2
Image 3
Image 4
H/V
On/Off
H/V
Yes/No
Yes/No
70
Appendix
Video Input
System
(2)
Screen
System
(3)
Image select
Image Adjust Contrast
Brightness
Color
Tint
Color temp.
Reset
Store
Normal
Wide
Custom
Auto
1080i
1035i
720p
575p
480p
575i
480i
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
Dynamic
Standard
Cinema
Blackboard (Green)
Colorboard
Red/Blue/Yellow/Green
Image 1
Image 2
Image 3
Image 4
Red
Green
Blue
Sharpness
Gamma
Noise reduction
Progressive
0–63
0–63
0–63
0–63
XLow
Low
Mid
High
User
0–63
0–63
0–63
0–15
0–15
Off
L1
L2
Off
L1
L2
Film
Yes/No
Image 1
Image 2
Image 3
Image 4
Scale
H&V
Position
Common
Reset
H/V
On/Off
H/V
Yes/No
Yes/No
Setting
Setting Language
Menu position
Auto setup
18 languages provided.
Keystone
Background
Display
Logo
Input search Off/On1/On2
Auto PC adj.
On/Off
Auto keystone
Auto
Manual
Off
Store/Reset
Blue/User/Black
Off /On/Countdown off
Logo select
User
Default
Off
Capture
Yes/No
Logo PIN code lock
Off/On
Logo PIN code change
Ceiling
Rear
On/Off
On/Off
Closed Caption Closed Caption
Color
Off/CC1/CC2/CC3/CC4
Color/White
Power management
On start On/Off
Ready
Shut down
Off
Timer (1–30 Min)
Standby mode
Lamp control
Eco/Network
Filter control
Remote control
Security
Fan
Lamp counter
Filter counter
Lamp control
Normal
Eco
Lamp life control
Yes/No
Mode 1/Mode 2
Code 1–Code 2
Key lock
Off
Projector
Remote control
PIN code lock
Off/On1/On2
PIN code change
L1/L2
Lamp counter
Lamp counter reset Yes/No
Filter counter Hour(s)
Timer Off/400H/700H/1000H
Filter counter reset Yes/No
Scrolls remaining
Scroll counter reset
Scroll(s)
Yes/No
Warning log
Factory default Yes/No
Information
Information Input Source Information Display
71
Appendix
Indicators and Projector Condition
Check the indicators for projector condition.
The projector is operating normally.
Indicators
POWER red/green
WARNING
TEMP. red
WARNING
FILTER orange
LAMP
REPLACE yellow
Projector Condition
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the POWER
ON/STAND-BY button to turn on the projector.
green blinking fast red blinking fast green green
À
À
À
À
The projector is operating normally.
The projector is preparing for stand-by or the projection lamp is being cooling down. The projector cannot be turned on until cooling is completed.
The projector is in the Power management mode.
The filter is scrolled using the Filter control function in the setting menu.
When the filter is being scrolled, the Filter replacement icon and “Please wait...” message (Fig. 1) appear on the screen for about 30 seconds.
Fig.1 Filter replacement icon and “Please wait...”
The projector is detecting abnormal condition.
Indicators
POWER red/green
WARNING
TEMP. red
WARNING
FILTER orange
LAMP
REPLACE yellow
Projector Condition
green blinking fast red blinking fast red
À
À
The temperature inside the projector is elevated close to the abnormally high level.
The temperature inside the projector is abnormally high.
The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator lights red and the projector can be turned on. (The WARNING TEMP. indicator keeps blinking.) Check and replace the filter.
• • • green / orange / yellow • • • off
• • • blinking fast
(approx. 0.5 seconds ON, 0.5 seconds OFF)
• • • red
• • • blinking slow
(approx. 2 seconds ON, 2 seconds OFF)
72
Appendix
Indicators
POWER red/green
WARNING
TEMP. red
WARNING
FILTER orange
LAMP
REPLACE yellow
red
Any
À
À
Projector Condition
yellow
The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops blinking.
Check and replace the filter.
The lamp has been used overtime. Replace the lamp immediately and then reset the lamp counter. The indicator will be turned off after resetting the counter.
Any
Fig.2 Filter replacement icon orange
Fig.3 Filter cartridge replacement icon
If the Filter counter reached a time set in the timer setting, a Filter replacement icon (Fig.2) appears on the screen and the WARNING FILTER indicator on the top control lights up. Replace the filter as soon as possible. If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig. 3 appears on the screen and the WARNING FILTER indicator lights up. Replace the filter cartridge as soon as possible.If the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig.4) appears on the screen and the
WARNING FILTER indicator lights up. Replace the filter cartridge as soon as possible.
3 Note:
Fig.2, Fig.3 and Fig.4 icon will not appear when the
Display function is set to “Off” (p.46), during “Freeze”
(p.25), or “No show” (p.26).
Fig.4 Filter cartridge replacement icon blinking fast orange blinking fast yellow
The filter cartridge is not installed in the projector.
Check the filter compartment to see if the filter cartridge is installed in the projector. When the filter cartridge is installed and the indicators continue to light and blink, read the column below.
À
The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center. Do not leave the projector on. It may cause an electric shock or a fire hazard.
À
When the filter detects clogging, reaches a time set in the timer setting or runs out of the filter scroll, the WARNING
FILTER indicator lights orange. When this indicator lights orange, replace the filter or the filter cartridge with a new one promptly. Reset the Filter counter and Scroll counter after replacing the filter cartridge (p.62).
When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp counter after replacing the lamp (p.65).
73
Appendix
Compatible Computer Specifications
Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock.
When selecting these modes, PC adjustment can be limited.
RESOLUTION
640 x 480
720 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
768 x 575
640 x 480
768 x 576
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1280 x 1024
ON-SCREEN
DISPLAY
VGA 1
VGA 2
VGA 3
VGA 4
VGA 5
VGA 6
VGA 7
MAC LC13
MAC 13
480p
575p
480i
575i
SVGA 1
SVGA 2
SVGA 3
SVGA 4
SVGA 5
SVGA 6
SVGA 7
SVGA 8
SVGA 9
SVGA 10
SVGA 11
MAC 16
MAC 19
XGA 1
XGA 2
XGA 3
XGA 4
XGA 5
XGA 6
XGA 7
XGA 8
XGA 9
XGA 10
XGA 11
XGA 12
XGA 13
XGA 14
XGA 15
SXGA 1
SXGA 2
SXGA 3
SXGA 4
H-Freq.
(KHz)
31.47
31.47
31.47
37.86
37.86
37.50
43.269
34.97
35.00
31.47
31.25
15.734
15.625
35.156
37.88
46.875
53.674
48.08
37.90
34.50
38.00
38.60
32.70
38.00
49.72
60.24
48.36
68.677
60.023
56.476
60.31
48.50
44.00
63.48
36.00
62.04
61.00
35.522
46.90
47.00
58.03
64.20
62.50
63.90
63.34
RESOLUTION
1280 x 1024
1400 x 1050
1400 x 1050
1400 x 1050
1152 x 870
1280 x 960
1280 x 1024
1366 x 768
1360 x 768
1376 x 768
1360 x 768
1280 x 768
1280 x 768
1280 x 768
1280 x 800
1280 x 800
1280 x 800
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 960
1152 x 900
1152 x 900
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1152 x 900
1280 x 1024
1280 x 1024
1920 x 1200
1920 x 1200
1680 x 1050
1440 x 900
1440 x 900
1600 x 1200
1600 x 1200
1600 x 1200
1600 x 1200
1280 x 720
1280 x 720
1920 x 1035
1920 x 1080
1920 x 1080
SXGA 20
SXGA+ 1
SXGA+ 2
SXGA+ 3
MAC21
MAC
MAC
WXGA 1
WXGA 2
WXGA 3
WXGA 4
WXGA 6
WXGA 7
WXGA 8
WXGA 9
WXGA 10
WXGA 11
ON-SCREEN
DISPLAY
SXGA 5
SXGA 6
SXGA 7
SXGA 8
SXGA 9
SXGA 10
SXGA 11
SXGA 12
SXGA 13
SXGA 14
SXGA 15
SXGA 16
SXGA 17
SXGA 18
SXGA 19
WUXGA 1
WUXGA 2
WSXGA+ 1
WXGA+ 1
WXGA+ 2
UXGA 1
UXGA 2
UXGA 3
UXGA 4
720p
720p
1035i
1080i
1080i
75.03
70.07
74.92
60.02
54.58
79.35
87.17
(Interlace)
77.07
75.70
86.96
(Interlace)
58.20
58.30
72.00
70.40
58.60
60.00
59.98
V-Freq.
(Hz)
59.88
70.09
70.09
74.38
72.81
75.00
85.00
66.60
66.67
59.88
50.00
60.00
(Interlace)
50.00
(Interlace)
56.25
60.32
75.00
85.06
72.19
61.03
55.38
60.51
60.31
51.09
60.51
74.55
75.08
60.00
84.997
91.146
63.97
65.35
65.12
68.68
75.00
80.00
48.36
47.70
48.36
56.16
47.776
60.289
68.633
49.600
41.200
49.702
61.20
71.40
50.00
50.00
63.37
76.97
61.85
46.43
63.79
H-Freq.
(KHz)
63.74
71.69
81.13
63.98
79.976
60.00
74.556
74.038
65.290
55.935
74.918
75.00
81.25
87.5
93.75
45.00
37.50
33.75
33.75
28.125
72.00
59.87
74.893
84.837
60.050
50.000
59.810
59.885
59.950
59.954
59.887
60.000
60.00
65.00
70.00
75.00
60.00
50.00
60.00
(Interlace)
60.00
(Interlace)
50.00
(Interlace)
60.01
72.00
66.00
86.70
(Interlace)
60.18
85.024
60.19
60.12
59.90
75.06
75.08
75.08
60.00
60.00
60.00
V-Freq.
(Hz)
60.01
67.19
76.107
60.02
75.025
60.00
65.20
75.60
86.00
(Interlace)
94.00
(Interlace)
74
When the input signal is digital from DVI terminal, refer to the chart below.
ON-SCREEN
DISPLAY
D-VGA
D-480p
D-575p
D-SVGA
D-XGA
D-WXGA 1
D-WXGA 2
D-WXGA 3
D-WXGA 4
D-WXGA 5
D-WXGA 6
D-WXGA 7
D-WXGA 8
D-WXGA 9
D-WXGA 10
D-WXGA 11
RESOLUTION
640 x 480
640 x 480
768 x 575
800 x 600
1024 x 768
1366 x 768
1360 x 768
1376 x 768
1360 x 768
1366 x 768
1280 x 768
1280 x 768
1280 x 768
1280 x 800
1280 x 800
1280 x 800
H-Freq.
(KHz)
31.47
31.47
31.25
37.879
43.363
48.36
47.7
48.36
56.160
46.500
47.776
60.289
68.633
49.572
41.200
49.702
V-Freq.
(Hz)
59.94
59.88
50.00
60.32
60.00
60.00
60.00
60.00
72.000
50.000
59.870
74.893
84.837
59.870
50.000
59.810
ON-SCREEN
DISPLAY
D-SXGA1
D-SXGA2
D-SXGA3
D-720p
D-720p
D-1035i
D-1080i
D-1080i
D-WXGA +1
D-SXGA+ 1
D-SXGA+ 2
D-SXGA+ 3
D-WSXGA+1
D-WUXGA 2
RESOLUTION
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 720
1280 x 720
1920 x 1035
1920 x 1080
1920 x 1080
1440 x 900
1400 x 1050
1400 x 1050
1400 x 1050
1680 x 1050
1920 x 1200
H-Freq.
(KHz)
63.98
60.276
31.65
37.50
45.00
33.75
33.75
28.125
55.935
63.97
65.350
65.120
65.290
74.038
V-Freq.
(Hz)
60.02
58.069
29.80
50.00
60.00
60.00
(Interlace)
60.00
(Interlace)
50.00
(Interlace)
59.887
60.19
60.120
59.900
59.954
59.950
3 Note:
The specifications are subject to change without notice.
Appendix
75
Appendix
Technical Specifications
Mechanical Information
Projector Type
Dimensions (W x H x D)
Net Weight
)HHW$GMXVWPHQW
Panel Resolution
LCD Panel System
Panel Resolution
Number of Pixels
Signal Compatibility
Color System
SD/HD TV signal
Scanning Frequency
Optical Information
Projection Image Size (Diagonal)
Throw Distance
Projection Lens
Multi-media Projector
16.1" x 3.3" x 10.3" (410 mm x 85 mm x 262.8 mm) (Not including protrusions)
9.0 lbs (4.1 kg)
ÛWRÛ
0.63" TFT Active Matrix type, 3 panels
1,024 x 768 dots
2,359,296 (1,024 x 768 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
480i, 480p, 575i, 575p, 720p, 1035i and 1080i
H-sync. 15 kHz ~ 100 kHz, V-sync. 50 ~100 Hz
Interface
Video Input Jack
S-video Input Jack
Audio Input Jacks
Computer 1/Component Audio Input Jack
RCA Type x 1
Mini DIN 4 pin x 1
RCA Type x 2
Mini Jack x 1
Computer 2 Audio Input Jack Mini Jack x 1
Computer In 1/Component Input Terminal Mini D-sub 15 pin x 1
Computer In 2/DVI-I Input DVI-I Terminal x 1
Monitor Output Terminal Mini D-sub 15 pin x 1
Control port
Audio Output Jack
D-sub 9 pin x 1
Mini Jack (stereo) x 1 (variable)
LAN Connection Terminal RJ45
Audio
Internal Audio Amp
Built-in Speaker
7.0 W RMS
1 speaker, ø1.46" (37mm)
Power
Voltage and Power Consumption
Adjustable from 40” to 300”
4.6' ~ 41.3' (1.4 m ~ 12.7 m)
F 1.60-1.76 lens with f =22.33 mm ~ 26.80 mm with manual zoom and focus
AC 100–120 V (3.4A Max. Ampere), 50/60 Hz (The U.S.A and Canada)
AC 200–240 V (1.7A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)
Operating Environment
2SHUDWLQJ7HPSHUDWXUH
6WRUDJH7HPSHUDWXUH
Remote Control
Û)±Û)Û&±Û&
Û)±Û)Û&±Û&
76
Appendix
Accessories
Owner’s Manual (CD-ROM)
Quick Reference Guide & Safety Manual
AC Power Cord
VGA Cable
PIN Code Label
Network Application (CD-ROM)
Ɣ
The specifications are subject to change without notice.
Ɣ LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are
effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD
panels.
Optional Parts
The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer.
Model No.
COMPONENT~VGA Cable :
SCART~VGA Cable :
VGA-Cable (10 m) :
POA-CA-COMPVGA
POA-CA-SCART
KA-MC-DB10
77
Appendix
PJ Link Notice
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information
System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.
For PJ Link password, see the owner’s manual of “Network Set-up and Operation.”
Projector Input
Computer 2
Computer 1
Video
RGB (Analog)
RGB (Digital)
RGB (AV HDCP)
RGB
Component
RGB (Scart)
Video
S-video
PJLink Input
RGB 1
DIGITAL 1
DIGITAL 2
RGB 2
RGB 3
RGB 4
VIDEO 2
VIDEO 3
Parameter
11
31
32
12
13
14
22
23
PJLink is a registered trademark of JBMIA and pending trademark in some countries.
78
Configurations of Terminals
COMPUTER IN 1 /COMPONENT IN /MONITOR OUT (ANALOG)
Terminal: Analog RGB (Mini D-sub 15 pin)
5
10
4
15 14
9
3
13
8
2
12
7
1
11
6
5
6
3
4
7
8
1
2
Red (R/Cr) Input/Output
Green (G/Y) Input/Output
Blue (B/Cb) Input/Output
-----
Ground (Horiz.sync.)
Ground (Red)
Ground (Green)
Ground (Blue)
9
10
11
12
13
14
15
+5V Power/-----
Ground (Vert.sync.)
Ground/-----
DDC Data/-----
Horiz. sync. Input/Output (Composite H/V sync.)
Vert. sync.
DDC Clock/-----
Appendix
COMPUTER 2 / DVI-I TERMINAL (DIGITAL/ANALOG)
1
9
17
2
10
18
3
11
19
4
12
20
5
13
6
14
21 22
7
15
23
8
16
24
C1 C2
C1
C2
C3
C4
C5
Analog Red Input
Analog Green Input
Analog Blue Input
Analog Horiz. sync
Analog Ground (R/G/B)
C3
C5
C4
4
5
6
7
8
1
2
3
T.M.D.S. Data2–
T.M.D.S. Data2+
T.M.D.S. Data2 Shield
No Connect
No Connect
DDC Clock
DDC Data
Analog Vert. sync
12
13
14
15
16
9
10
11
T.M.D.S. Data1–
T.M.D.S. Data1+
T.M.D.S. Data1 Shield
No Connect
No Connect
+5V Power
Ground (for +5V)
Hot Plug Detect
20
21
22
23
24
17
18
19
T.M.D.S. Data0–
T.M.D.S. Data0+
T.M.D.S. Data0 Shield
No Connect
No Connect
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
CONTROL PORT CONNECTOR (D-sub 9 pin)
7
8
5
6
9
1
2
3
4
Serial
-----
R X D
T X D
-----
SG
-----
RTS
CTS
-----
LAN TERMINAL
1
2
3
4
TX +
TX –
RX +
-----
5
6
7
8
-----
RX –
-----
-----
8 7 6 5 4 3 2 1
79
Appendix
PIN Code Number Memo
Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.
PIN Code Lock No.
Logo PIN Code Lock No.
Factory default set No: 1 2 3 4*
Factory default set No: 4 3 2 1*
*Should the four-digit number be changed, the factory set number will be invalid.
While the projector is locked with the PIN code.
Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.
80
Dimensions
Appendix
Unit: mm(inch)
Screw Holes for Ceiling Mount
Screw: M4
Depth: 12.0(0.472)
1.97
(50.7)
2.81(71.5)
16.14
(410.0)
5.91(150.2)
2.17(55.0)
(50.8)
(102.0)
3.35(85.0)
4.04(102.7)
4.38(111.2)
(230.0)
(50.0)
81
KL5AC
Owner’s Manual
Network Set-up and Operation
Wired Setting
Projector Set-up and Operation
This is the manual for the Network function.
Read this manual thoroughly to operate the Network function.
First, read the owner's manual of the projector to understand the basic operation of the projector and the safety instructions.
The safety instructions in the owner's manuals should be followed strictly.
2
Compliance
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of
FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Numbers
Trade Name
Responsible party
Address
Telephone No.
: PLC-XC56
: Sanyo
: SANYO NORTH AMERICA CORPORATION
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
Safety instructions
CAUTION IN USING THE PROJECTOR VIA NETWORKS
L When you find a problem with the projector, remove the power cable immediately and inspect the unit. Using the projector with failure may cause fire or other accidents.
L If you remotely use the projector via networks, carry out a safety check regularly and take particular care to its environment. Incorrect installation may cause fire or other accidents.
CAUTION IN USING NETWORK FUNCTION
L SANYO Electric Co., Ltd. assumes no responsibility for the loss or damage of data, or damage of the computer caused by using this projector. Making backup copies of valuable data in your computer is recommended.
3
4
Table of contents
Compliance ..........................................................................................................................................................................2
Federal Communications Commission Notice ....................................................................................2
Safety instructions ...........................................................................................................................................................3
Table of contents ..............................................................................................................................................................4
Chapter 1 Preparation ................................................................................................5
Features...................................................................................................................................................................................6
Required operating environment for computers ........................................................................................7
Network specifications of the projector............................................................................................................7
Flow of installation...........................................................................................................................................................9
Notice about installing Software CD-ROM.............................................................................................9
Chapter 2 Setup Procedures.................................................................................. 11
Connecting to the LAN line.................................................................................................................................... 12
Network configuration............................................................................................................................................... 12
Network PIN code ......................................................................................................................................................... 14
Network information................................................................................................................................................... 14
Network factory default............................................................................................................................................ 15
Wired LAN factory default settings.................................................................................................................... 16
Chapter 3 Basic Setting and Operation............................................................. 17
Login the setting page of the projector......................................................................................................... 18
[1] Enter the IP address...................................................................................................................................... 18
[2] Login ..................................................................................................................................................................... 18
[3] Display of main setting page ................................................................................................................ 19
How to use the setting page .................................................................................................................................20
Initial setting .....................................................................................................................................................................22
Network PIN code setting ..............................................................................................................................23
PJLink and password setting.........................................................................................................................23
Network configuration............................................................................................................................................... 24
E-mail setting ...................................................................................................................................................................25
Examples: Type and contents of alert mail..........................................................................................27
SNMP setting....................................................................................................................................................................29
Chapter 4 Controlling the Projector ................................................................... 31
Power control and status check...........................................................................................................................32
Control..................................................................................................................................................................................34
Input.............................................................................................................................................................................34
System.........................................................................................................................................................................35
Sound .........................................................................................................................................................................36
Image adjustment.............................................................................................................................................. 37
PC adjustment .................................................................................................................................................................38
Setting up the projector ...........................................................................................................................................39
Screen setting .......................................................................................................................................................39
Setting 1.....................................................................................................................................................................40
Setting 2.....................................................................................................................................................................40
Setting 3..................................................................................................................................................................... 41
Information........................................................................................................................................................................42
Chapter 5 Appendix ................................................................................................ 45
Examples of connection ...........................................................................................................................................46
Use of telnet......................................................................................................................................................................48
Web browser setting...................................................................................................................................................50
Examples: OS/Browsers ............................................................................................................................................. 51
Q&A ........................................................................................................................................................................................55
Chapter 1
Preparation
Describes features and operating environment of this projector.
1
5
6
Chapter 1 Preparation
Features
Web Management function ( p.31)
With this func tion, you can monitor projector functions such as power status, lamp s t a t u s , i n p u t m o d e, s i g n a l condition, lamp-use time, etc. through the network by using the web browser installed on your computer.
PC1
PC3
PC2
PC4
E-Mail Alert function ( p.25)
T h e p r o j e c t o r s e n d s m e s sages to the registered e-mail addresses when a lamp abnormality or power failure occurs with the projector. This message describes how to solve the cause of the problems. You can take efficient action for quick recovery.
PC1
PC3
PC2
PC4
PJ2
PC5
Turn ON PJ2
PC6
PJ2
PC5
You’ve got
Mail.
PC6
PJ1
PJ1
SNMP Agent function ( p.29)
To send the information of the projector to the SNMP manager. Enables you to manage the projector condition with the supplied SNMP manager software.
SNMP Manager function
A function to manage the condition of projectors in the network by using the
SNMP protocol. The managing computer needs to provide an SNMP managing software. Refer to the owner's manual of the "PJ
Net work Manager" sup plied separately for further details.
PJ1
PC6
PJ2 PJ3
Trap
PC5
Trap
SNMP Manager
You received a Trap.
PJ4
PC4
Features
Required operating environment for computers
When operating the projector via networks, computers should meet the operating environment below.
Operating System
Recommended CPU
Memory
HDD free area
Drive equipment
Display setting of computer
Network card
Web Browser*
Internet Mailer*
Windows 98, Windows Me, Windows NT4.0
Windows 2000, Windows XP, Windows Vista (32bit version)
Mac OS X v 10.4 or later
Windows: Higher than Pentium III 900MHz
Macintosh : 800 MHz PowerPC G4 or faster,or 1.8 GHz Intel Core
Processor or faster
Windows : 64MB (Minimum)/ 128MB or more (Recommended)
128MB or more for Windows XP
1GB or more for Windows Vista
Macintosh : 256MB or more (512MB is recommended)
100MB or more
CD-ROM drive
Support one of following resolutions;
VGA (640 x 480), SVGA(800 x 600), XGA(1,024 x 768) Number of colors: Either of 16 bit (65,536 color 24/32 bit (16.77 million colors))
The computer must provide a 10Base-T or 100Base-TX network card.
Internet Explorer version 5.0, 5.5, 6.0 or 7.0
Netscape Navigator version 7.1 or 9.0
Safari 3.0 or later
* Used to control and set up the projector. The layout of pages in the browser may slightly differ from each type of application or operating system you use.
- Microsoft Outlook
- Netscape Mail
- Microsoft Outlook Express
* Required the internet e-mail application software to receive an e-mail alert sent from this projector. If you do not use the function E-mail Alert, this application is not required.
Network specifications of the projector
LAN Terminal
Data communication standards 100Base-TX (100Mbps)/10Base-T (10Mbps)
Protocol TCP/IP
7
8
Chapter 1 Preparation
The limitation
*1
of connection between the projector and hub or computer
Suitable LAN cables are limited by length and type as follows;
Connection
Projector - Hub
Projector - Computer
Type of usable LAN cable
UTP Straight Cable with category 3 or 5 * 2
UTP Cross Cable with category 3 or 5* 2
Maximum length
100m
100m
*1 There may be other limitations depending on your network environment or LAN specification.
Please consult your network administrator for further details.
*2 Category of LAN cable indicates the cable quality. Normally, a cable with category 3 or 5 is used for 10Base-T network, and a cable with category 5 is used for 100Base-TX network.
Notice
Expression/Abbreviation
The OS of the computer and the Web browser described in this manual is Windows XP
Professional and Internet Explorer 6.0. In case of another OS or Web browser, some instruction procedures may differ from the actual operation depending on your computer environment.
Use of this manual
This manual does not provide the description of basic operation and functions for computer, web browser, projector and network. For instructions about each piece of equipment or application software, please refer to the respective booklet.
Trademarks
Ethernet is a registered trademark of Xerox Corporation. Microsoft, Windows, Windows
NT, Windows XP and Windows Vista are registered trademarks of Microsoft Corporation.
Internet Explorer is a registered trademark of Microsoft Corporation. Netscape Navigator and Netscape Communicator are trademarks or registered trademarks of Netscape
Communications Corporation. JavaScript is a registered trademark of Sun Microsystems,
Inc.
Macintosh is a registered trademark of Apple, Inc. in the USA and other countries. PowerPC is a registered trademark of IBM Corporation. Intel Core is a registered trademark of Intel
Corporation in the USA and other countries.
Other product or brand names in this manual are registered trademarks or trademarks of their respective owners.
* Unauthorized use of a part or whole of the contents in this manual is prohibited.
* The contents of this manual are subject to change without notice.
Flow of installation
To use the projector via the networks, follow the setup procedures below.
Flow of installation
STEP 1
Connect the LAN and set the configuration.
Decide depending on the LAN environment.
“2. Setup Procedures” (pp.11–16).
Detailed LAN configurations need to be done with a browser later.
First, complete the Wired LAN connection between computers and projectors, then start browser configurations.
“3. Basic setting and operation” (pp.17–30).
STEP 2
Network Configuration has completed.
Follow each chapter to operate the projector.
N Operate and manage the projector “4. Controlling the projector”(pp.31-44)
“Power Control and status check”(p.32)
“Control”(p.34)
“PC adjustment”(p.38)
“Setting up the projector”(p.39)
“Projector information”(pp.42-43)
STEP 3
Install the Software on computers.
Install the software recorded in CD-ROM on each computer which will be operated. Refer to the owner's manual of PJ Network Manager.
Notice about installing Software CD-ROM
It is available for controlling and setting of the projector by using the web browser without installing any software. So it is not required to install the software into your computer.
For PJ Network Manager function, it is required to install the software. Please see the owner's manual of "PJ Network Manager Function".
9
10
Chapter 1 Preparation
Chapter 2
Setup Procedures
Describes how to configure the network.
2
11
12
Chapter 2 Setup Procedures
Setting procedures and contents differ depending on the LAN installation location.
When installing, consult your system administrator to set up the LAN appropriately.
Connecting to the LAN line
Connect the LAN cable to the LAN connection terminal of the projector.
LAN Connection Terminal ACT Lamp (Orange)
Blink orange when the projector is sending or receiving the data.
LINK Lamp (Green)
Light green when the projector is connected to the network correctly.
LAN Cable
Network configuration
Set the Wired LAN network through the projector menu. Detailed network settings will be made with browser. Refer to “3. Basic setting and operation” (p.17-30). First, complete the settings described in this chapter before performing steps in “3. Basic setting and operation.”
Setting Procedure
1. Select “LAN mode select” in the Network menu, and press Point or SELECT button.
2. Select similar LAN environment among LAN1, LAN2 and LAN3 with the Point ! buttons. Then the Menu will disappear, the “Please wait...” message will appear, and switching operation will start. Switching will take a while and the projector’s LINK/ACT Lamp will be on or blink, and after completing the operation, the “Please wait...” message will disappear.
Network configuration
3. Select "Network setting" in the Network menu and press SELECT button, and then the
LAN setting screen will appear and selected LAN settings will be displayed. Adjust each item to the setting environment. Consult your system administrator about the detailed settings.
Press SELECT button in a row where you want to adjust, and adjust the figures with the
Point ! buttons and move among the items with the Point buttons, and then press SELECT button to fix. Move to the next row with the Point ! buttons to adjust.
4. After completing all the settings, select “Set” and press SELECT button. Now, all procedures have been done. To cancel the adjusted settings, select "Cancel" and press
SELECT button.
You can confirm the LAN settings you have made from “Network information” (p.14). In such cases that the LAN cannot be connected, see this screen.
Network setting
DHCP: On DHCP: Off
Item Description
DHCP....................
Sets DHCP function On or Off. When you setup the network setting manually, select
"Off". When it is set On, IP address, Subnet, Gateway and DNS are automatically set according to your network environment * 1 .
IP address .............Sets IP address of the projector
Subnet ....................Sets Subnet mask. Normally sets 255.255.255.0
Gateway* 2 .............Sets IP address of the default gateway (Router)
DNS* 3 .......................Sets IP address of the DNS server.
*1 Set "On" only when the DHCP server is available on your network environment.
*2 Set [255.255.255.255] if the network does not provide the gateway (router).
*3 Set [255.255.255.255] if you do not use the function E-mail alert.
13
14
Chapter 2 Setup Procedures
Network PIN code
The Network PIN code is to restrict the access from the networks to the projector.
After setting the Network PIN code, you need to enter it to operate the projector via the networks.
1. Select "Network PIN code" in the Network menu, and press SELECT button.
The Network PIN code screen will appear.
2. Set the Network PIN code.
Set the figures with the Point ! buttons and move to the next items with the Point buttons. Select “Set” and press SELECT button to set. To cancel the preset Network PIN code, select “Cancel”. When you do not want to set the Network PIN code, set "0000".
It is recommended to set the Network PIN code if you use the projector via the networks.
The Network PIN code can be set also through the networks. See “3. Basic setting and operation” “Initial setting” “Network PIN code setting” (p.23).
Network PIN code
Network PIN code screen
Network information
Select "Network information" in the Network menu and press Point or SELECT button to show LAN setting environment of the currently selected projector. (The description below is an example and different from what will be shown.)
Network factory default
Network factory default
1. Select “Network factory default” in the Network menu and press SELECT button.
2. A confirmation box appears and select "Yes" and then press SELECT button.
3. Another confirmation box appears and select "Yes" and then press SELECT button.
4. All the wired LAN settings will go back to the factory default settings. For details, refer to
“Wired LAN factory default settings” (p.16).
15
16
Chapter 2 Setup Procedures
Wired LAN factory default settings
Parameter
IP CONFIGURATION
IP ADDRESS
SUBNET MASK
GATEWAY ADDRESS
DNS ADDRESS
LAN 1
MANUAL
SELECTED LAN
LAN 2
DHCP
LAN 3
MANUAL
169.254.100.100
192.168.100.100
192.168.100.100
255.255.0.0
255.255.255.0
255.255.255.0
255.255.255.255
255.255.255.255
255.255.255.255
255.255.255.255
255.255.255.255
255.255.255.255
Chapter 3
Basic Setting and Operation
Describes basic operations and settings for controlling the projector by using the web browser. It is required that computer and projector is connected to the network and the network address is properly configured.
3
17
18
Chapter 3 Basic Setting and Operation
Login the setting page of the projector
[1] Enter the IP address
Launch the web browser installed in your computer, enter the IP address into the
"Address" on the browser and then press
"Enter" key.
Enter the address that you configured in item "Network configuration" ( p.12).
[2] Login
If the setting page has set the password, the authentication window will appear. In this case type "user" onto the User Name text area and the login Network PIN code onto the Password text area and then click OK (Log in) button.
* The entering User Name must be "user" and it can not be changed.
[Note]
When accessing the projector for the first time or the Network
PIN code "0000" is set, the auto-login will be performed and the next main setting page is displayed.
Login the setting page of the projector
[3] Display of main setting page
The following main setting page will be displayed according to your display mode selection. Perform various kinds of settings through this page. Click on the menus to display the control and setting pages.
Main setting page in the display
Sub menu tab
Switches the sub menu tab.
Main menu
For selection of control and setting items of the projector.
Setting page
Displays the control and setting items according to the selected menu.
19
Chapter 3 Basic Setting and Operation
How to use the setting page
To control and set up the projector, use the setting menus on the web browser. Describes the basic operation and procedures commonly used on this manual.
Example of the setting page
The setting menu appears when clicking the sub menu tab.
* Each item has a valid setting range respectively.
Types of setting
Text box setting
Enter a number or text and then click
Set button.
or
Change a value with – or + button.
Pull-down menu setting
Select an item with pull-down menu button and then click Set button.
20
The value in the text box indicates current value.
Each item has a valid setting range. The setting value exceeding this becomes invalid. Some control items can not be used depending on the selecting input mode or functions of the projector you use. In this case, the values of those items are indicated with "---".
Radio button setting
Select an item by selecting a radio button.
Check box setting
Select items by ticking on check boxes.
How to use the setting page
21
Chapter 3 Basic Setting and Operation
Initial setting
After installing the projector, perform the following basic initial setting.
Click Initial Setting on the main menu to display the initial setting page.
22
Item Description
Language ..............Switches display language on the setting page. English or Japanese.
Model name .......Indicates the model name of the projector
Network PIN code ......Sets the Network PIN code to login the setting page ( p.23)
PJLink .......................Switches PJLink password authentication on or off ( p.23)
Password ...............Password for PJLink function ( p.23)
Initial setting
Network PIN code setting
This is to set the Network PIN code to restrict the access from an unauthorized person through the network.
Enter a 4-digit number as the Network PIN code onto the text box and click Set button.
The projector begins restarting and it takes about 10 seconds. Close (Quit) the web browser and access to the login page again in 10 seconds. This is to perform the login authentication firmly.
The default Network PIN code [0000] means no Network PIN code is set.
When you connect the projector to the network, it is recommended to set a new Network PIN code. Only a four-digit number is valid for the Network PIN code.
PJLink and password setting
This is to set the PJLink password authentication on or off. If set "On" with the PJLink pulldown menu, the password must be required.
Enter a password * onto the text box and click Set button.
1 to 32 alphanumeric characters can be used for the password.
What's PJLink?
The projectors equipped with PJLink function can be used together on the same network, regardless of model or brand, for centralized control and monitoring. This standard was established by the Japan Business Machine and Information System Industries Association
(JBMIA). Please visit the Website at http://pjlink.jbmia.or.jp/english/.
PJLink Notice
The projector is compliant with PJLink Standard Class 1 of JBMIA, and it supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.
Projector Input
Computer 2
Computer 1
Video
PJLink Input
RGB (PC analog) RGB 1
RGB (PC digital) DIGITAL 1
RGB (AV HDCP)
RGB
Component
RGB (Scart)
Video
S-video
DIGITAL 2
RGB 2
RGB 3
RGB 4
VIDEO 2
VIDEO 3
Parameter
11
31
32
12
13
14
22
23
23
Chapter 3 Basic Setting and Operation
Network configuration
Click Network on the main menu. The following setting page is displayed.
The IP Address, Subnet Mask, Default Gateway, DNS (Domain Name Server) and projector name are set up on this menu.
The IP address and Subnet Mask have been configured already in chapter "Installation".
If you want to change them or configure default gateway or DNS, perform them in this page. If you change them, the projector begins restarting and it takes about 10 seconds.
Close (Quit) the web browser and access to the login page again in 10 seconds.
Item Description
LAN mode ............Displays the selected LAN mode
DHCP .........................Sets DHCP configuration (ON/OFF).
IP address .............Sets IP address of the projector
Subnet mask .......Sets Subnet mask. Normally sets 255.255.255.0
Default gateway* 1 .....Sets IP address of the default gateway (Router)
DNS* 2 .......................Sets IP address of the DNS server. Must be set when using the e-mail function
Projector name* 3 .Sets name of the projector. (64 characters maximum)
You must use the number specified by your administrator. The address must be entered as a group with four numbers split by a dot like [192.168.001.101].
24
*1 Set [0.0.0.0] if the network does not provide the gateway (router).
*2 Set [0.0.0.0] if you do not use the function E-Mail alert.
*3 If you use the DNS server, register the host name registered to the DNS server as a projector name. You can access with this projector name from any computers in your network. If you do not use the DNS server, access with the assigned IP address to the projector.
* All the network setting will reset to the default when setting [0.0.0.0] of the IP Address.
* If you make incorrect settings, you cannot find out the new network settings. Be careful to set up them correctly, otherwise you cannot connect to the projector. It is recommended to make a note of them.
E-mail setting
E-mail setting
This projector has an E-mail function which can send an alert message to users or an administrator if it detects an abnormality on the projector or run out of the life span of the lamp. Click E-mail Setting on the main menu and follow the below steps.
Item ................................. Description
SMTP server* 1 ........................Sets server name or IP address of the SMTP server
Administrator address ....Sets e-mail address of administrator
Add address ...........................Sets e-mail address of the user to send mail when the projector has an abnormality.
1
Setting SMTP server and administrator address
Set the server name or IP address of the SMTP server* 1 and administrator address. The administrator address is set to "Reply-To" address of the message sent from the projector.
*1 The SMTP server is a server for sending E-Mail. Please contact your network administrator to have this SMTP server address.
If the projector sends an alert message due to the abnormality on the projector but the SMTP server is down in some other reason, the message will not be sent. In this case, the message
"Unable to connect to server." will be displayed on the setting page. To clear this message, set up
SMTP server address again.
To use the E-Mail function, it must be set the DNS address on the Network setting page correctly.
You cannot use this E-mail function if the DNS server and SMTP server cannot be used in your network environment.
The projector does not send message to the address set in "Administrator address" text box. If you want to send e-mails to the administrator address, enter the administrator address into "Add address" text box.
25
Chapter 3 Basic Setting and Operation
2
Registering and deleting E-mail addresses
Click "Add address" and type the e-mail address onto the text box and click Set button. To check the registered addresses, click Check/Delete sub menu tab. The addresses are listed as the figure on the right.
Up to 10 E-mail addresses can be registered.
To delete the registered addresses, check the address you want to delete and click Delete button.
Check / Delete
3
Option selection for sending alert mail
Click Option sub menu tab. Check the condition items under which alert mail will be sent and click Set button.
Please refer to item "Examples :Type and contents of alert mail" described on the next page.
Option
26
"When PJ lamp is off" signifies the lamp goes out without user operation. "When PJ is turned into
Standby in proper user operation" signifies that the projector is turned on by using the web browser and then it is turned into standby with ON/STANDBY button on the top control or the remote control.
Up to 99,999 hours can be set for use time.
E-mail setting
Examples: Type and contents of alert mail
When the projector has an abnormality, the following alert messages are sent to the registered E-mail address according to your selected condition. Administrator or user can take an efficient action quickly by receiving this message. This is very useful to maintain and service the projector.
The following are examples of received messages.
L
When internal PJ temperature is too high:
TITLE: Message from projector
Projector Model Name: model name
TCP/IP: 192.168.1.201 Projector Name: Proj05
It sends you following message.
*The Projector lamp is turned off, because internal projector temperature is too high.
Wait for the completion of the cooling process and make sure the projector has been turned into Standby. Then turn the projector on again.
If the Indicator continues flashing, check the air filter for dust accumulation.
L
When PJ needs service:
TITLE: Message from projector
Projector Model Name: model name
TCP/IP: 192.168.1.201 Projector Name: Proj05
It sends you following message.
*Maintenance requirement from Projector is detected.
Check up LED status of projector and consult with the dealer.
MAIN ALL NG
Error information
The projector lamp was turned off, because the projector power circuit failed.
Unplug the AC power cord and plug it, and then turn on the projector once again to verify operation. If the problem still persists, unplug the AC power cord and ask servicing to a qualified service personnel with the error information.
27
28
Chapter 3 Basic Setting and Operation
L
When PJ lamp replacement time is reached:
TITLE: Message from projector
Projector Model Name: model name
TCP/IP: 192.168.1.201 Projector Name: Proj05
It sends you following message.
*The projector lamp has reached replacement time.
Lamp ON 2000 h
Replace it with a new lamp immediately and reset the lamp counter. If the projector is used without resetting the lamp counter, the alert mail is sent to users in every poweron of the projector. This alert mail will not be sent when unchecking the mail sending condition "When PJ lamp replacement time is reached".
L
When lamp corres. value reaches preselect use time:
TITLE: Message from projector
Projector Model Name: model name
TCP/IP: 192.168.1.201 Projector Name: Proj05
It sends you following message.
*The accumulated lamp use time has reached 2000 hours.
SNMP setting
SNMP setting
This projector provides a SNMP (Simple Network Management Protocol) agent function. The SNMP consists of a manager and agents. The group which communicates information each other with SNMP is called
"Community". There are two access modes in a community, Refer (read only) and Set (read- write). This projector allows to use Refer (read only) only. The SNMP message informs the projector status called "Trap" to an administrator. Click SNMP Setting on the main menu and set up each item.
PJ information
Item ........................................ Description
Contact ...............................................Enter user name of the projector etc. (optional)
Place .....................................................Enter place of the projector (optional)
Community name(refer) .......Enter community name (read only). Default name is "public".
Trap
Item ........................................ Description
Community name ......................Enter community name to send "Trap". Default name is "public".
Add address ....................................Enter IP address of the SNMP manager computer to receive "Trap".
The SNMP agent provided with this projector is based upon MIB-2 defined by RFC1213. For private
MIB information, refer to file "Mibinfo/XUPjNet.mib" in the CD-ROM.
29
Chapter 3 Basic Setting and Operation
Trap check/delete
Check and delete the trap address
Checking the registered trap address and deleting the address.
To delete the address, tick check box in front of the IP address and click Delete button.
Up to 10 trap addresses can be registered.
Trap option
Trap option setting
Tick check boxes in front of the condition item to send the trap.
Click Set button if you tick or un-tick the check box on a page.
30
"When PJ lamp is off" signifies the lamp goes out without user operation. "When PJ is turned into
Standby in proper user operation" signifies that the projector is turned on by using the web browser and then it is turned into standby with ON/STANDBY button on the top control or the remote control.
Up to 99,999 hours can be set for the time setting.
Chapter 4
Controlling the Projector
Describes controlling and setting of the projector by using the web browser.
4
31
Chapter 4 Controlling the Projector
Power control and status check
Click Power & Status on the main menu. The control page will be displayed.
By clicking ON or Standby button on the page, the power of the projector can be controlled.
Confirmation window as shown in the below appears when the Standby button is pressed.
Popup confirmation window
PJ status
Power .........................Displays the status of the lamp. (ON, OFF, On starting up, On cooling down)
Status ..........................Displays the status of the projector's power. (Refer to next page.)
Power control ........Controls the projector power by clicking the "ON" or "Standby" button.
32
The projector cannot be turned on while the projector is on cooling down.
The web browser checks and updates the projector's condition every 30 seconds automatically.
Power control and status check
About projector condition
Status Description
Normal ............................................................... Projector is operating normally.
Power management in operation ........... Power management is operating
Lamp failure ................................................... Lamp failure is occurring
Abnormal Temperature ......................... The temperature of the projector became too high
Standby after Abnormal Temp.
........ Projector detects abnormal temp. and sets into standby mode.
Power failure ................................................ Power failure has occurred inside the projector. Projector is turned off. Unplug the AC cord and ask servicing to a qualified service personnel.
Service in need ............................................ Projector detects maintenance requirement. Check up LED status of the projector.
When a security (PIN code lock) has been set on the projector, you also cannot control it through the network. To control the projector through the network, unlock the security on the projector using with the projector's menu control.
Caution about turning on/off the projector via the networks
When turning on/off the projector via the networks, preset the projector as follows:
1. Select “Setting” from the Projector menu.
2. Select “Standby mode” from the Setting menu and set it as “Network”.
If you set this function as Network, the network part of the projector is constantly provided with power even if the projector is turned off. If you set this as
Eco, then the network part will be turned off when you turn off the projector.
Consequently, you cannot turn on/off the projector via the networks.
33
Chapter 4 Controlling the Projector
Control
Click Control on the main menu. The setting method differs depending on the contents of the page. Click on the page number to change pages and select desired setting items.
Please see the owner's manual of the projector to have the further information of each control item.
Input
This function is to select the input mode and source mode of the projector. Click Set button after selecting the input and source mode.
Item Description
Input .........................Selects input mode of the projector.
Source .....................Selects signal source of the input.
Computer1 : RGB
Component
RGB(Scart)
Computer2 : RGB(PC analog)
RGB(PC digital)
RGB(AV HDCP)
Video
S-video
34
The control page displays valid control items depending on the selected input mode, signal or functions of the projector you use, therefore, there may be different controls between the described items and actual control items on the page display. For further information , refer to the projector's owner's manual.
When the projector is in standby, all the controlling items are inactive.
System
This function is to select the system of signal input to the projector. The available system mode are listed on the pull-down menu button according to the input signal. Select a system and then click Set button.
Available selection at the RGB(PC analog) input
Item Description
XGA1 ........................It automatically switches to the proper computer system of the input signal.
* The computer system modes (VGA, SVGA, XGA. SXGA,
UXGA, WXGA...) which meet the input signal are listed.
Available selection at the RGB(PC digital) input
Item Description
D-XGA ......................It automatically switches to the proper computer system of the input signal.
* The computer system modes (D-VGA, D-SVGA, D-XGA.
D-SXGA1...) which meet the input signal are listed.
Available selection at the RGB(AV HDCP) input
Item Description
D-480p ....................It automatically switches to the proper scanning system of the input signal.
* The selectable scanning systems are D-480p, D-575p,
D-720p, D-1035i and D-1080i.
Available selection at the Video/S-video/Scart input
Item Description
AUTO ........................It automatically switches to the proper color system of the input signal.
* The selectable color systems are PAL, SECAM, NTSC,
NTSC4.43, PAL-M and PAL-N.
* AUTO is fixed at the Scart input.
Available selection at the Component input
Item Description
AUTO ........................It automatically switches to the proper scanning system of the input signal.
* The selectable scanning systems are 480i, 575i, 480p,
575p, 720p, 1035i and 1080i.
If the mode (Mode1 to Mode5, ExMode6 to ExMode50) which is stored in the item "PC
Adjustment" ( p.38) is available, they are also listed together with the above mode.
Control
35
36
Chapter 4 Controlling the Projector
Sound
This function is to adjust the sound of the projector. The values in the text box represent the current control value or status.
Item Description
Volume ...................Adjusts the sound volume from the speaker. (0 ~ 63)
Mute .........................Suppresses the sound. (ON, OFF)
Control
Image adjustment
This function is to adjust the projected picture image and save the image mode. To store the adjusted value, click Store button, and to load the adjusted value, click Load button.
Item Description
Contrast .............................. Adjusts picture contrast (0~ 63)
Brightness ......................... Adjusts picture brightness (0~ 63)
Color ...................................... Adjusts picture color saturation (0~ 63)
Tint ......................................... Adjusts picture hue
(0~ 63)
Color temp.
....................... Sets a color temperature mode. {High, Mid, Low,
XLow, User, Colorboard,
Blackboard(Green)}
White Balance
Red, Green, Blue ..... Adjusts each white balance respectively.
(0~ 63)
* When changing the value of the white balance, the color temp. indicates "Adj."
Sharpness ................................Adjusts picture sharpness. (0~ 15)
Gamma .......................................... Adjusts brightness of darker part of the picture. (0~ 15)
Noise reduction ................ Switches noise reduction mode (OFF, L1, L2)
Progressive............................
Switches progressive mode (OFF, L1, L2, Film)
Reset ............................................Resets the Image adjustment to previous levels.
Store ............................................Stores the Image adjustment values. Select an item [Image1 - Image4] from the pull-down menu and click Store button.
Load .............................................Loads the Image mode. Select an image mode from the pull-down menu and click Load button. There may not be available mode depending on the input mode as shown in the table left.
Input source
Image mode Video Computer
Dynamic
Standard
Cinema
Real
Blackboard(Green)
Colorboard
Image1 - 4
*
*
The mark " " means that the available image mode in the selected input source. The error message appears when selecting the disabled image mode indicated with "*".
37
Chapter 4 Controlling the Projector
PC adjustment
Click PC Adj.
on the main menu. This function is to adjust the signal from the computer connected to the projector to obtain the proper picture image on the screen.
38
Item Description
Current mode ......Displays a current mode like VGA, SVGA, XGA. SXGA, UXGA, WXGA, etc. or Mode1 - Mode5 which are the customized mode created by using the "Mode Store" function described below.
Auto PC adj.
.........Performs automatic adjustment.
Fine sync.
..............Performs Fine Sync adjustment. (0 ~ 31)
Total dots ..............Adjust the number of total dots in the horizontal period.
Clamp .........................
Adjusts the phase of the clamp. (1 ~ 127)
Display area
Horizontal ..........Adjusts the image area horizontally.
Vertical ..............Adjusts the image area vertically.
Position
Horizontal .......Adjusts the horizontal position of the screen.
Vertical ..............Adjusts the vertical position of the screen.
Reset .........................Resets the PC adjustments to the previous levels.
Mode Store ..........Stores the PC adjustment values. Select a mode no. [Mode1 - Mode5] from the pulldown menu.
Mode Free ............Clear the PC adjustment values. Select a mode no. [Mode1 - Mode5] from the pulldown menu.
Setting up the projector
Setting up the projector
Click Setting on the main menu. This function is to set up the projector.
Select the sub menu [Screen setting] or [Setting] and then set up each setting.
Screen setting
This function is to adjust the screen mode of the projector. The values in the text box represent the current screen status.
Item Description
Screen .....................Switches the screen mode. (Normal, True, Wide, Full, Custom) There may not be available mode depending on the input mode as shown in the table below.
Input source
Screen mode Video Computer
Normal
True
Wide
Full
Custom
*
*
The mark " " means that the available screen mode in the selected input source system. The error message appears when selecting the disabled screen mode indicated with "*".
39
40
Chapter 4 Controlling the Projector
Setting 1
Item Description
Language ..............Sets the language display of projector's on-screen display menu.
Auto setup ...........Executes the Auto PC Adj, and Input
Search function below according to the each setting after clicking Start button.
Auto PC Adj. .....Sets Auto PC Adjustment mode. (ON,
OFF)
Input search .....Sets the auto-input signal detection mode. (ON1, ON2, OFF)
Auto keystone .... Sets Auto Keystone mode. (Auto, Manual,
OFF)
Background .........Sets the screen background when no signal input. (Blue, User, Black)
Display ....................Switches on or off the on-screen menu display on the screen. (OFF, Countdown Off,
ON)
Countdown off .......Displays image during the starting up.
Logo .........................Sets on or off the logo display on the screen during the startup. (OFF, Default, User)
Setting 2
Item Description
Ceiling .....................Sets the image top/bottom and left/ right reversed. (ON, OFF)
Rear ...........................Sets the image left/right reversed. (ON,
OFF)
Power management .....Sets into the selected power management mode (Ready, Shutdown, OFF) if the input signal is interrupted and no control key is pressed for the specified period of time.
*The specified time can be set 1 to 30 min.
On start ..................Sets the power-on mode when the AC cord is connected to the outlet.
Lamp control ......Selects lamp control mode. (Normal, Eco)
Lamp life control ....................Selects lamp life control mode (Mode1, Mode2) when the total use time exceeds the recommended total hours of use.
Setting up the projector
Setting 3
Item Description
Key lock ..................Sets the prohibition of controls either
Projector or Remote control. (OFF,
Projector keys, Remote control)
Lamp Corres.
Value(h) ..................Displays the lamp use time
(Corresponding value) . Reset the time after lamp replacement. Click "Reset", a confirmation display appears, and then click "OK", the time will be reset.
Filter counter(h) ............Displays the filter counter. Reset the time after filter cartridge replacement. Click
"Reset", a confirmation display appears, and then click "OK", the time will be reset.
Scrolls remaining .............Displays the scrolls remaining of the filter. Reset the scroll counter after filter cartridge replacement. Click "Reset", a confirmation display appears, and then click "OK", the time will be reset.
Filter control .......Scroll the filter. Click "Roll-up", a confirmation display appears, and then click "OK", the filter will be scrolled.
Filter warning .....Sets the time to indicate the filter warning message on the screen. (OFF, 400H, 700H,
1000H)
Factory default..........
Sets all of the projector control items to the factory default setting except the following items.
Lamp Corres. Value, PJ time, Network PIN code, Network setting
* This function is not effective for the settings of Network address settings, e-mail settings, etc.
No show .................Sets the black out image temporarily. (ON, OFF)
Freeze ......................Sets the image to freeze mode. (ON, OFF)
Closed caption ..Sets the closed caption function.
Closed caption...Sets the closed caption mode. (OFF, CC1, CC2, CC3, CC4)
Color .....................Sets the color of the contents. (Color, White)
41
Chapter 4 Controlling the Projector
Information
This page is to display the basic information of the projector status. Click
Information on the main menu.
42
Click this button to update the information.
Items Description
Input
System
Signal
Screen
Lamp status
Displays selected input and source.
Displays selected signal system.
Input signal status (Yes, No)
Displays screen mode.
Displays lamp status with an animation. Refer to the table as shown in the next page.
Security
PJ time(h)
Displays the security (PIN code lock) status (Yes, No)
Displays the accumulated use time of the projector.
Lamp Corres. Value(h) Displays the use time (Corresponding value) of the lamp.
Filter time(h) Displays the accumulated use time of the filter.
Filter condition Displays filter status with an animation. Refer to the table as shown in the next page.
Information
Indication of the lamp status
Icon display/background Status
White-Yellow/Blue
Lamp on (Normal)
White-Yellow/Red
Gray/Blue
Gray/Red
Red/Blue with X
Red/Red with X
Lamp on (Lamp is being used over a specified use time, replace lamp immediately)
Lamp off (Normal)
Lamp off (Lamp is being used over a specified use time, replace lamp immediately)
Lamp failure (Lamp failure, check lamp condition)
Lamp failure (Lamp failure and lamp is being used over a specified use time, replace lamp immediately)
Indication of the filter status
Icon display/background Status
Blue
Good condition.
Yellow/Gray
Filter is almost clogged.
Red/Gray
Filter is clogged. Replace a filter with new one.
43
44
Chapter 4 Controlling the Projector
Chapter 5
Appendix
Connection examples
Use of telnet
Web browser setting
Technical data
Q & A
5
45
Chapter 5 Appendix
Examples of connection
Peer-To-Peer connection
Connecting the projector (PJ01) to the control computer (PC05) directly.
* UTP cross cable
Computer Name: PC05
IP Address : 192.168.0.5
Subnet Mask
Default Gateway :
: 255.255.255.0
DNS :
Projector Name: PJ01
IP Address : 192.168.0.2
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
DNS : 0.0.0.0
Connecting the projector (PJ01) to the control computer (PC05) via the hub.
Hub
To another network
Computer Name: PC05
IP Address : 192.168.0.5
Subnet Mask
Default Gateway :
: 255.255.255.0
DNS :
Projector Name: PJ01
IP Address : 192.168.0.2
Subnet Mask : 255.255.255.0
Default Gateway : 0.0.0.0
DNS : 0.0.0.0
Computer Name: PC10
IP Address : 192.168.0.10
Subnet Mask
Default Gateway :
: 255.255.255.0
DNS :
46
When the projector is connected to the computer directly without hub, the UTP cross cable should be used.
Examples of connection
The gateway (Router) installed in the network
Connecting the projector (PJ01) to the control computer (PC05) via the gateway.
Entrance hall
Computer Name : PC205
IP Address : 192.168.200.5
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.200.1
DNS : 192.168.201.1
Projector Name: PJ01
IP Address
Subnet Mask
: 192.168.200.15
: 255.255.255.0
Default Gateway : 192.168.200.1
DNS : 192.168.201.1
Network Group: 192.168.200.x
Office
Hub
To another network
Hub
Gateway (Router)
IP Address : 192.168.200.1
IP Address : 192.168.100.1
IP Address : 192.168.10.1
Hub
Computer Name: PC05
IP Address
Subnet Mask
: 192.168.10.5
: 255.255.255.0
Default Gateway : 192.168.10.1
DNS : 192.168.201.1
Computer Name : PC10
IP Address : 192.168.10.10
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.10.1
DNS : 192.168.201.1
Network Group: 192.168.10.x
Computer Name : PC51
IP Address : 192.168.10.51
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.10.1
DNS : 192.168.201.1
Computer Name : PC61
IP Address : 192.168.10.61
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.10.1
DNS : 192.168.201.1
47
Chapter 5 Appendix
Use of telnet
You can control the projector by using the telnet application *1 installed on your computer.
Normally, the telnet application is available on your computer.
* The telnet 10000 port is used to control the projector.
Control
(For example, in case of using the telnet application of Windows XP Professional .)
1. Select Run...
submenu from Start menu on the computer. Type "telnet" onto the
Open text area on the displayed window and press OK button.
(For example, in case of using the telnet application of Mac OS X v 10.4
)
1. Select Terminal from Applications
--> Utilities .
Type as below on the displayed window.
> telnet [return]
2. The telnet application will start and the following window will be displayed. Type as below to connect the projector.
> open 192.168.1.201 10000 [return]
48
* Use the IP address assigned to the projector.
Use of telnet
3. When communication is established correctly, the word "PASSWORD:" appears on the window. Type the login password (Network PIN code *2 ) for the projector and then press
"Enter" key on the keyboard. If you do not set up the Network PIN code, just press "Enter" key.
When the word "Hello" is replied, login has been succeeded.
* The password "1234" is used for the example.
4. Type the commands, refer to below table, to control the projector and then press "Enter" key for termination. For example, type "C00" which is a command to turn on the projector, and press "Enter" key. Confirm the projector is turning on.
* Enter with ASCII 64-byte capital characters and one-byte characters.
To disconnect the communication, press "Ctrl" key and "]" key at the same time, type
"close" and then press "Enter" key on the Keyboard.
> close [return]
The table below shows the typical command lists for controlling this projector and please consult your local dealer for further information of another commands.
Command list table
Command Function
C00 on
C02 Power off
C09
C0A
C0B
C0C
C1C
C1D
Volume up
Volume down
Audio Mute on
Audio Mute off
Menu display on menu display off
*1 Further instructions about the telnet application, please see the on-line guide on your computer.
*2 The password is a Network PIN code decided item "Network PIN code setting" ( pp.14, 23). If the authentication of the entered password is failed 4 times continuously, the communication will be disconnected automatically. Please try again for the connection.
If the password or any command is not entered for more than 30 seconds, the communication will be disconnected automatically. Please try again for the connection.
49
Chapter 5 Appendix
Web browser setting
This projector is designed to be set up and controlled from an Internet web browser.
Depending on the preference settings of the web browser, some control functions may not be available. Please make sure that the following functions are set up properly in the web browser.
Active Script/JavaScript enable
There are some control items used with the JavaScript function in the setting pages. If the web browser is set not to use this JavaScript function, it may not control the projector properly. In this case, the warning message "Make sure JavaScript is ON." will be displayed on the top of the page. To enable the JavaScript, please see further instructions on the next page.
Proxy setting
In some cases, your web browser is set up to use the proxy server for the internet or intranet connection. In this case, when you install this projector into the local network, you should set up the proxy setting of web browser preference correctly. Especially when connecting the projector and computer with a UTP cross cable directly, or when the network does not provide the proxy server, make sure that "not use proxy server" is set up in your web browser preference. Please see item "Examples: OS/Browsers" in the next page for further setting up procedure.
50
There are various ways to change your browser preferences depending on the version or applications. Please see the setting instructions on next page for example and also refer to on-line help of your web browser.
Web browser setting
Examples: OS/Browsers
Windows XP Professional
Internet Explorer v.6.0
ActiveScript setting
Select Internet Options from Tools menu on the web browser and then select Security tab and click Customize Level… button. On the security setting window, scroll down and find the Scripting item, make sure that "Enable" is selected in item Active Scripting .
51
Chapter 5 Appendix
Proxy setting
Select Internet Options from Tools menu on the web browser and then select
Connection tab and click LAN Settings button. Properly set up your web browser's the proxy server settings according to the local area network environment to which the projector is connected.
- Using proxy server
To use an external internet connection from the local area network, check the item Use a proxy server and enter the proxy server address and port correctly in the proxy settings window. For further instruction please consult your network administrator.
- Not using proxy server
Uncheck the item Use a proxy server .
If you connect the projector to the computer directly with UTP cross cable, this must be unchecked.
52
To designate proxy settings that will not use the proxy server when accessing the projector installed in the local area network, enter the IP address or domain name here.
Web browser setting
Netscape Navigator v.7.1
JavaScript Setting
Select Preference from Edit m enu o n t h e we b b row s er a n d t h e n s e l e c t t h e i t e m
Advanced/Scripts & Plugins in the Category column. Make sure that the Enable JavaScript for Navigator is checked.
Proxy setting
Select Preference from Edit menu on the web browser and then select the item Advanced/
Proxies in the Category column. Properly set up your web browser's the proxy server settings according to the local area network environment to which the projector is connected.
- Using proxy server
When you use an external internet connection from the local area network, select the item
Manual proxy configuration . Enter the proxy server address and port number correctly on
HTTP Proxy item. For further instruction please consult your network administrator.
- Not using proxy server
Selec t the item Direc t con nection to the Internet in the proxy setting window.
If you connect the projector to the computer directly with
UTP cross cable, this must be selected.
To designate proxy settings that will not use the proxy server when accessing the projector installed in the local area network, enter the IP address or domain name here.
53
Chapter 5 Appendix
MAC OS X v 10.4
Safari v.3.2.1
JavaScript enable setting
Selec t Preferences...
from Safari on the web browser and then select
S e c u r i t y t a b a n d c h e c k E n a b l e
JavaScript .
Proxy setting
1
Open Preferences...
from Safari menu on the web browser Safari . The preference menu appears.
2
Select Advanced icon and then click Proxies: Change Settings ...
.
3
Select Proxies tab and properly set up your web browser Safari 's the proxy server settings according to the local area network environment to which the projector is connected.
- Using proxy server
To use an external internet connection from the local area network, check the items Web
Proxy (HTTP) and Secure Web Proxy (HTTPS) of Select a proxy server to configure window and enter the proxy server address and port correctly in Web Proxy Server window. For further instruction please consult your network administrator.
- Not using proxy server
Uncheck the items Web Proxy (HTTP) and Secure Web Proxy (HTTPS) of Select a proxy server to configure .
If you connect the projector to the computer directly with UTP cross cable, they must be unchecked.
54
To designate proxy settings that will not use the proxy server when accessing the projector installed in the local area network, enter the IP address or domain name here.
Q&A
Q&A
Installation/Access
Q
Why doesn’t the setting page appear in my web browser?
A
Following causes are possible. Please check them.
1. The projector does not connect to the network.
Check LED indicators status ( p.12).
- Check the connection of LAN cable if the LINK Lamp does not light green.
- Check the network configuration of the projector if the ACT Lamp does not blink orange.
2. Wrong network configuration of the computer.
Check the network configuration of the computer.
3. The proxy setting of the web browser is not set correctly ( p.52).
4. The computer does not provide TCP/IP protocol.
Q
How can I restrict access from the computer.
A
1. Please use the password authentication function on the login page ( p.23).
2. Please use the IP filtering function provided with the gateway (router) to restrict the accessing from the computer. For further information please consult your network administrator.
Q
Can I access the projector installed on the company’s local area network from a remote location?
A
There are some ways to access to the projector in the LAN, but you must consult your network administrator for security reason.
Use of modem
(Connect to the company’s network from your home or some other places by using modem.)
Use of private line
(Connect to the company’s network from the branch office or maintenance office by using private line.)
Use of internet
(Connect to the company’s network from your home, branch office or some other places by using the internet.)
55
56
Chapter 5 Appendix
Q
We use the DHCP/BOOTP server to assign the IP address. Is it possible to use the projector in this network environment?
A
Possible. This projector supports the DHCP/BOOTP server. To use this projector in this network environment, set it up so that the DHCP/BOOTP server does not assign the IP address configured to this projector for another device on the network.
Please consult your network administrator ( pp.13, 24).
Q
How can I install several projectors?
A
Install and configure network one by one to avoid the IP address collision each other. To configure the IP address please see item "Network configuration" ( pp.12-13, 24).
Password/Login
Q
What should I do when I forget the IP address of the projector?
A
You can check the IP address in the "Network information" menu.
Q
What should I do when I forget the password (Network PIN code)?
A
Please set the new network PIN code in the "Network PIN code" menu.
Q
Can I register the setting page as a web browser "Favorites" or
"Bookmarks"?
A
Please add "Login" page to your "Favorites" or "Bookmarks". Do not add the specified setting page because it will not be able to perform the password authentication correctly.
Q&A
Operation
Q
Why can't be turned on/off with web browser?
A
Please make sure the settings of the projector are correct to use the projector.
Please set the Standby mode of the projector's Setting menu to " Normal ". Refer to
"4. Controlling the Projector" "Power control and status check" ( pp.32 - 33).
Q
Why can't I change the controls in the setting page with web browser?
A
Please make sure the projector is turned on. If it is in the standby mode, the setting is not effective to the projector. To control the projector with a web browser, the projector must be in the powered-on condition.
Q
Why does it sometimes take a lot of time to complete the page display?
A
The display speed of the page depends on the network environment in which both the projector and computer are placed. It may take much time to complete the page display if network traffic is heavy. Please consult your network administrator.
Q
How many numbers of the E-mail address can I register in the E-mail setting page.
A
You can register up to 10 addresses.
Q
Why am I not receiving E-mail alert messages?
A
Make sure that the registered E-mail address and SMTP server address are correct. If the SMTP server is located in your LAN (Local Area Network), the address should be set to the SMTP server in your LAN. The SMTP server located outside of your LAN may not be available for security reason. For further information please contact your network administrator ( p.25).
It may be required for the authentication depending on the SMTP server. This projector does not support this kind of SMTP server.
57
58
Chapter 5 Appendix
Others
Q
What are the rules for IP address assignment?
A
If the network is constructed with TCP/IP protocol, a unique IP address is required for each piece of network equipment. The following are basic rules of the assignment.
Rule1
Do not configure the same IP address to the network equipment in the same network group. Each piece of equipment must be assigned a unique IP address.
If the IP address is set [192.168.x.x], the Subnet Mask should be set
[255.255.255.0] for example.
Rule2
The start address [xxx.xxx.xxx.0] and the last address [xxx.xxx.xxx.255] of the IP address must not be assigned to any other equipment. These address numbers are reserved.
Rule3
The IP address must correlate to a network number. If network numbers are different between the equipment, they cannot establish communications each other. In this case, the router is placed in the networks to make the routing.
Q
Can I control the projector by using the telnet application?
A
Possible. Please refer to the item "Use of telnet" ( p.48 - 49).
Q
What is the MAC address assigned to the projector?
A
The MAC address is displayed in "Network information" menu ( p.14).
Q&A
Q
Can I update the firmware of the projector.
A
It is possible to update the firmware through the network. It is required to have a special tool for the updating. For further information please consult your local dealer. The version number of the firmware is indicated on the lower part of the "Initial setting" page.
Version of the firmware
59
NETWORK OWNER'S MANUAL
SO-KL5AC SANYO Electric Co., Ltd.
Owner's Manual
PJ Network Manager for Windows
This is the manual for the PJ Network Manager software.
This software is Windows-compliant, but non-Mac-compliant.
Read this manual thoroughly to operate the PJ Network Manager software.
First, read the owner's manual of the projector to understand the basic operation of the projector and the safety instructions.
The safety instructions in the owner's manuals should be followed strictly.
SNMP Manager Software
2
Contents
Contents .................................................................................. 2
Chapter 1 Introducing .......................................................... 3
Introducing......................................................................................................................................................3
SNMP ...................................................................................................................................................................3
Trademarks.......................................................................................................................................................3
Operating Environment...........................................................................................................................4
Chapter 2 Set up .................................................................... 5
PJ Network Manager installation........................................................................................................6
PJ Network Manager un-installation................................................................................................6
Chapter 3 Basic Operation ................................................... 7
Launching and quitting PJ Network Manager...........................................................................8
Name of status window...........................................................................................................................8
Quitting PJ Network Manager..............................................................................................................9
Menu tree .........................................................................................................................................................9
What's Target ..................................................................................................................................................9
Name of the button on the tool bar.............................................................................................10
Icon display for the target....................................................................................................................10
Addition of the target ............................................................................................................................11
Editing the target......................................................................................................................................11
Deletion of the target.............................................................................................................................11
Setting up the warning value ...........................................................................................................12
Starting target monitoring..................................................................................................................12
When happens the alert on the target .......................................................................................13
When happens the trap event on the target..........................................................................13
What's Trap....................................................................................................................................................13
Stopping monitoring the target......................................................................................................14
Displaying all the status information of the target ..............................................................14
Setting the target group ......................................................................................................................14
Setting up the password of Telnet .................................................................................................15
Setting commands batch processing for multiple targets.............................................15
Setting timer for targets........................................................................................................................16
Setting up default setting....................................................................................................................17
Customizing the status list..................................................................................................................19
Viewing the alert information...........................................................................................................22
Viewing the event log............................................................................................................................23
Description of Event, Type, Warning column, Warning value ......................................24
About event treatment .........................................................................................................................26
Viewing the command history.........................................................................................................27
Storing the management file............................................................................................................28
Information saved to the registry ..................................................................................................28
Registering the target information from the defined file at once..............................29
Format of the defined file....................................................................................................................30
Example of the defined file.................................................................................................................30
Login to the target equipment ........................................................................................................31
Chapter 1 Introducing
Introducing
This PJ Network Manager is a SNMP manager software for the network equipment which supports the private MIB (Management Information Base).
By installing the PJ Network Manager to the computer, you can monitor the equipment simply such as the projector, the projection monitor and the flat display monitor connected to the network.
* The PJ Network Manager can handle our products which has a SNMP agent function.
SNMP
SNMP is an abbreviation for Simple Network Management Protocol.
On the TCP/IP network, it is the protocol to monitor and control the equipment connected to the network.
SNMP realizes the management function by reading and changing the management information called MIB with SNMP protocol between the manager (management equipment) and agent (controlled equipment) which are connected with TCP/IP network.
PJ4
PJ1 PJ2 PJ3
PC6
Trap
PC5 PC4
You received a trap.
Trap
SNMP Manager
Trademarks
Microsoft, Windows, Windows 2000, Windows XP, Windows Vista are registered trademarks of Microsoft Corporation. Macintosh is a registered trademark of Apple, Inc. in the USA and other countries. Other products or brand names in this manual are registered trademarks or trademarks of their respective owners.
* Unauthorized use of a part or whole of the contents in this manual is prohibited.
* The contents of this manual are subject to change without notice.
PJ NETWORK MANAGER
OWNER'S MANUAL
3
Chapter 1 Introducing
Operating Environment
CPU
Item Minimum
Pentium III 400MHz or higher
Memory 128MB or higher
Recommended
Pentium 4 2.0GHz or higher for Windows XP
Pentium 4 3.0GHz or higher for Windows Vista
256MB or higher for Windows XP
1GB or higher for Windows Vista
HDD
Screen resolution
LAN
More than 20MB of free disk space
SVGA (16 colors or more)
10Mbps or more
OS
Windows 2000
Windows XP
XGA True color or more
100Mbps or more
Windows XP Professional
Windows Vista (32bit version)
Limited condition
The number of agents monitored is up to 200.
4
Expression/Abbreviation
The OS of the computer and the Web browser described in this manual is Windows XP
Professional and Internet Explorer 6.0. In case of another OS or Web browser, some instruction procedures may differ from the actual operation depending on your computer environment.
Use of this manual
This manual does not provide the description of basic operation and functions for computer, web browser, projector and network. For instructions about each piece of equipment or application software, please refer to the respective manual.
Chapter 2
Set up
2
PJ NETWORK MANAGER
OWNER'S MANUAL
5
Chapter 2 Set up
PJ Network Manager installation
1
Set the supplied CD-ROM into the CD-ROM drive of your computer. Double click SetupTool.
exe icon in the "PJ Network Manager" folder in the CD-ROM.
2
Select "[English [United States]" from the pulldown menu on the "Choose Setup Language" window and click OK button to start installing and then follow the installation wizards.
As the "Software License Agreement" will appear, read contents carefully and click Yes button if you agree with the license agreement to proceed with installing.
Note:
To install the software into the computer with Windows 2000, Windows XP or
Windows Vista you should logon as administrator. Before installation, make sure that the other applications are closed, otherwise proper installation cannot be made.
6
PJ Network Manager un-installation
To remove the PJ Network Manager software from your computer, perform it with "Add &
Remove Programs" on the control panel.
Chapter 3
Basic Operation
3
PJ NETWORK MANAGER
OWNER'S MANUAL
7
Chapter 3 Basic Operation
Launching and quitting PJ Network Manager
To launch PJ Network Manager, take one of the following.
- Select "PJ Network Manager" from the menu "Start" - "All programs".
- Double click a management file* 1 .
Name of status window
Tool bar Menu Status column
Target
Status bar Polling times indication
Event indication
Status list
* With double clicking the target name, the web browser is launching and displays login window of the target.( p.31)
Items Description
Menu ..................................... Executes a command with menu selection
Tool bar ............................... Executes a command assigned to a button.
Target ................................... Network equipment for monitoring.
Status bar ........................... Indicates the status of PJ Network Manager and explaining the command selected with cursor.
Status list ............................ Indicates the status of targets monitoring.
When some errors are detected, the target name, icon and error items are indicated with red.
Status column ................ Column of status list.
Polling times indication ......... Indicates the times of polling during the monitoring.
Event indication ............ Indicates the event (ALERT, TRAP, SYSERR) when the event happened.
8
*1 The file in which the Monitor target information and event log information are stored. Refer to item
"Storing the management file" ( p.28) for further details.
Quitting PJ Network Manager
[Note]
* The PJ Network Manager cannot open multiple status windows at the same time.
Quitting PJ Network Manager
To quit the PJ Network Manager, click the close box on top right of the status window, or select "Exit" from the "File" menu
Menu tree
Menu
File
Target
System
Display
Sub menu
New
Open
Save
Save As
Exit
Operation
Creates a new management file.
Opens an existing management file.
Saves the active management file.
Saves the active management file with a new file name.
Quits the application.
Target monitoring
Target addition
Target editing
Starts or stops target monitoring.
Adds a new target. Target information window will appear.
Edits selected target information.
Target deletion
Group setting
Deletes the selected target.
Groups the selected targets.
Warning value setting Sets up the warning value of the selected target.
Telnet setting Sets up the password of telnet.
Commands batch processing Sets commands batch processing for multiple selected targets.
Timer setting Sets up the timer for the selected target.
Target batch registration
System default setting
Column selection
Font setting
Imports target information defined with the external file.
Sets up the default setting (monitoring information, e-mail information).
Selects display items on the status list.
Sets up display font type and size on the status list.
Update
Target display
Alert display
Updates the information on the status list display.
Displays selected target information.
Displays all of alert information on the status list.
Event log display Displays all the event logs.
Command history display Displays all of command history.
Tool bar Switches tool bar on or off.
Version information Displays version of software.
Help
What's Target
Target indicates the network equipment which provides an SNMP agent function .
PJ NETWORK MANAGER
OWNER'S MANUAL
9
Chapter 3 Basic Operation
Name of the button on the tool bar
The following commands are assigned to the buttons on the tool bar.
New Save Target display Event log display
Open Target monitoring
Start/Stop
Alert display
Command history display
Button Operation
New .................................................. Creates a new management file.
Open ............................................... Opens an existing management file.
Save ................................................. Saves the active management file.
Target monitoring ................. Starts or stops target monitoring.
Target display ........................... Displays selected target information.
Alert display ............................... Displays all of alert information on the status list.
Event log display .................... Displays all the event logs.
Command history display .. Displays all of the command history.
To switch the tool bar display on or off, select "Tool bar" from "Display" menu.
10
Icon display for the target
Displays icon according to the target condition.
Icon
Flat display type Projector type
Condition
Normal
Abnormal condition (One of the abnormalities, Alert, Trap or System error is happening on the target.)
Connection error (Target has been disconnected from the network)
Acquisition error (Target has been disconnected from the network, or does not provide SNMP function.)
Unknown (Target monitoring is not operating)
Addition of the target
Addition of the target
1
Select Target Addition from Target menu. The target information registering window appears.
Items Description
Name ......................... Enter a management name of the target equipment.
IP address ............... Enter IP address of the target equipment.
Community ........... Enter a community name in the network.
Default name is "public".
System information ..... Displays information set on the network equipment
2
Enter target setup information and click Update button.
The information set on the target equipment are displayed on the system information items.
When the target equipment is not operating, or it is not the monitoring equipment, the error dialog "Cannot obtain information" will appear.
3
Click OK to close the window. Repeat the above steps to register for other equipment which is to be managed.
Editing the target
1
Select a target name to edit on the status list with right click.
2
Select Target editing on the popup menu. The target information window will appear and edit the contents, then click OK button.
The system information cannot be edited.
Target editing can be executed by selecting Target editing from Target menu.
Deletion of the target
1
Select a target name to delete on the status list with right click.
2
Select Target deletion on the popup menu. The confirmation dialog will appear and click Yes button to execute deleting.
Target deletion can be executed by selecting Target deletion from Target menu.
It cannot perform the target addition, editing and deletion during the target monitoring.
Up to 200 targets can be registered.
Up to 255 characters can be used for target name and community.
PJ NETWORK MANAGER
OWNER'S MANUAL
11
12
Chapter 3 Basic Operation
Setting up the warning value
PJ Network Manager provides a function to display the alert when the use time of the setting item reaches a specified setting time. The available setting items (use time) are depending on the target equipment.
1
Select a target on the status list with right click.
When setting multiple targets together, select targets with pressing "Shift" or "Control" key.
2
Select Warning value setting on the popup menu. The setting window will appear as the right figure.
3
Check Warning time check box. The setting items are activated. Select a setting item and click
Edit button. Another setting window appears.
4
Enter the threshold value of selected item and then click OK button. The setting window will disappear.
5
Set up warning value for remaining items if available and then click OK button. The setting window will disappear.
(Example of the set up window)
To disable the warning value, clear Warning time check box.
When selecting multiple targets, the value set to the lowest target on the status list is displayed as the current setting time. Up to 99,999 hours can be set for the use time. The warning value is stored in the management file.
Starting target monitoring
1
Click button on the tool bar to start monitoring the target.
2
PJ Network Manager starts polling the target in a sequential from the top of the status list and displays the results on the status list.
When happens the alert on the target
When happens the alert on the target
If the abnormality or connection error happens on the target, PJ Network Manager indicates target name, icon and status column item with red color to let you know the abnormality.
When PJ Network Manager cannot acquire the MIB information of the target equipment, it indicates as Connection Error.
The interval of target monitoring is according to the setting of Monitoring interval on System default setting from System menu. ( p.17)
When happens the trap event on the target
During the target monitoring, if the predefined event (trap) happens on the target equipment, the target sends the trap information to PJ Network Manager. This trap information is displayed on the status list immediately.
The notification of the trap information is set up in the SNMP setting items of the target equipment. Projector has items such as "When PJ lamp is off", "When the life span of lamp is reached", "When internal PJ power circuit is failed" etc. For further trap information, refer to SNMP trap information in the separated network owner's manual.
What's Trap
Trap is the event predefined by the SNMP agent. If the predefined event ( "When PJ lamp is off", "When internal PJ power circuit is failed" etc. ) happens, target sends trap information to the SNMP manager.
PJ NETWORK MANAGER
OWNER'S MANUAL
13
Chapter 3 Basic Operation
Stopping monitoring the target
To stop monitoring the target, click button again on the tool bar.
Displaying all the status information of the target
Select a target and click button on the tool bar. The following status window appears and displays all the available status information of the target.
The target name and item which have an abnormality or connection error happening are indicated with red.
When PJ Net wor k M anager cannot acquire the value of column information,
"---" is displayed.
The above procedure can perform by selecting Target display from Display menu.
Setting the target group
The target group can be set up by the procedure below. When you set a command in the same group, you set it.
1
Select targets which you want to set from the status list. Select Group setting from
Target menu, the dialog box will appear as the below figure.
2
Select a group, and then click OK button.
" --" will not set the group.
14
The projectors setting different network passwords cannot be set to the same group. It is necessary for the projectors in the same group to set to the same password.
Setting up the password of Telnet
Setting up the password of Telnet
The password of telnet can be set up by the procedure below. It is necessary to make a password, same as the network password.
1
Select a target which you want to set up the password of telnet from the status list. You can select multiple targets.
2
Select Telnet setting from Target menu, Telnet setting dialog box will appear as the below figure. Set a password and click OK button. When multiple targets are selected, all the selected targets are set as the same password.
The initial setting is "0000".
Setting commands batch processing for multiple targets
The commands batch processing for multiple targets can be set up by the procedure below.
1
Select a target belonging to the batch processing group which you want to set, and select Commands batch processing from Target menu. Commands batch processing dialog box will appear as the below figure.
2
Select a command which you want to set, click Edit button. Parameter editing dialog box will appear. Select a parameter, and then click OK button. The check box of
Commands batch processing dialog box will be checked.
3
Click OK button. The commands are carried out to all the targets of the same group.
The commands also work for the target which is not set to a group.
PJ NETWORK MANAGER
OWNER'S MANUAL
15
Chapter 3 Basic Operation
Commands batch processing : Available Command
Items Description
Power ON/OFF .........................Sets up the Power ON or Power OFF.
Input,Source ..............................
Sets up the Input and Source. Selects Input and Source.
Screen .......................................Sets up the screen size. Resizes the picture screen.
Background ...............................
Sets up the background. Selects the background screen for when no input signal is detected.
Display ........................................
Sets up the Display. Decides whether to display On-Screen Displays or not.
Shutter(No show) ....................
Sets up the Shutter (No show). Sets black out the image.
Lamp control .............................
Sets up the Lamp control. Changes brightness of the screen.
Fan control .................................
Sets up the Fan control. Chooses the running speed of cooling fans.
Setting timer for targets
The timer information for targets can be set up by the procedure below.
1
Choose a target which you want to set the timer.
2
Select Timer setting from Target menu. Timer selection dialog box will appear as the below figure. Check in a check box of an event to carry out.
3
When you want to add events , click Add button. Input timer informations in Timer setting dialog box, and click OK button.
4
Click OK button of Timer selection dialog box, timers are set to the selected target.
When selecting multiple targets, timers are set to all the selected targets.
16
Timer
Items Description
Execution date .........................Sets up the Timer execution date. (everyday or a day)
Execution time ..........................
Sets up the Timer execution time. (hh:mm:ss)
Action .......................................Sets up the events.
Setting up default setting
Setting up default setting
The monitoring information and e-mail information can be set up by the procedure below.
2
Select System default setting
Switch by clicking
from System
Monitoring information
menu. The setting window will appear.
or E-mail information tab for each setting.
Monitoring information
Monitoring information
Items Description
Monitoring interval ................Sets up the interval of the polling in minute unit. (1 to 99 minutes can be set)
Temperature unit .....................
Sets up the display temperature unit Centigrade or Fahrenheit.
Event reception process ..........Sets up the treatment when the event (ALERT, TRAP, SYSERR) happens on the target.
For further information, refer to the item "About event treatment" ( p.26).
P Sound warning alarm
P Send e-mail
P Display warning dialog
PJ NETWORK MANAGER
OWNER'S MANUAL
17
Chapter 3 Basic Operation
E-mail information
E-mail information
Items Description
SMTP server .....................Sets up the IP address of SMTP mail server or server host name.
Administrator's mail address ......................
Sets up the e-mail address of administrator
Destination mail address ................................Sets up the destination mail address when the event (ALERT, TRAP, SYSERR) happens on the target. The mail address entering window appears when clicking Add button.
18
If Send e-mail check box of Event reception process on Monitoring information is un-checked, the alert e-mail will not be sent even if you set up the e-mail address.
Up to 10 addresses can be set up for the destination mail address.
For the contents of the mail, refer to item "About event treatment" ( p.26).
Customizing the status list
Customizing the status list
Changing the status column indication
1
Select Column selection from System menu. The column selection window will appear.
2
On the window, check the column name to be indicated on the status list.
The mark [*] next to the column name indicates alert item.
3
To change the order of the display column on the status list, select a column you intend to change the order and click To up or To down button.
4
Click OK to close setting.
When specifying the column width by numeric value, enter number (0 to 9999) onto "Column width" text box.
Specifies column width
Column Description
*Target name ............................Name of the network equipment
*Group ...........................................Group name
*Connect ......................................Status of connection to the network (Connected, Un-connected)
*Drive time .................................Accumulated use time of the equipment
*Power status ............................Power status of the equipment (Normal(Power-on), Normal(Standby), Power
Management, Power failure, lamp failure, etc.)
*Input status ..............................Input signal status (Signal, No signal, Signal interrupted)
*Inside Temperature
A status ....................................Status of inside temperature A (Normal, Warning, Error)
*Inside Temperature
B status ....................................Status of inside temperature B (Normal, Warning, Error)
*Inside Temperature
C status ....................................Status of inside temperature C (Normal, Error)
*External Temperature status .........................................Status of external temperature (Normal, Warning, Error)
*Lamp1 status ..........................Status of Lamp1 (Off, On, Error, Replace)
*Lamp2 status ..........................Status of Lamp2 (Off, On, Error, Replace)
*Lamp3 status ..........................Status of Lamp3 (Off, On, Error, Replace)
*Lamp4 status ..........................Status of Lamp4 (Off, On, Error, Replace)
*Lamp1 time ..............................Used time of Lamp1
*Lamp2 time ..............................Used time of Lamp2
*Lamp3 time ..............................Used time of Lamp3
*Lamp4 time ..............................Used time of Lamp4
*Filter status ...............................Status of airfilter (Normal, Clogged)
*Option Box filter status ............................Status of option box filter (Normal, Error, Clogged)
*Filter time ..................................Use time of airfilter
*Option Box filter time ................................Use time of option box filter
The values in parentheses are typical value and they differ depending on the connected equipment.
The [*] next to the column name indicates alert items.
PJ NETWORK MANAGER
OWNER'S MANUAL
19
Chapter 3 Basic Operation
Column Description
*Error info.
...................................Error information (Not available for the projector)
IP address ....................................IP address of the network equipment
Community ................................Community name of the network equipment (public)
Introduction date* 1 ...............Date of the network equipment installed
Timer ...............................................Timer information
Product info.
..............................Name of the network equipment
System name ............................System name of the network equipment (Proj_05)
Contact ..........................................Contact information of the network equipment
Location ........................................Installed location of the network equipment
Input signal ................................Information of the input mode (Input1, Input2, etc.)
Input select ................................Information of the input source (RGB, VIDEO, S-VIDEO, NETWORK, etc.)
Network status .........................Condition of the network mode (Off line, Network Viewer, Network Capture)
Audio system ............................Displays audio system mode (NORMAL, PERSONAL, MUSIC, TALK)
Volume ..........................................Sound Volume of the network equipment
Treble ..............................................Sound treble of the network equipment
Bass ..................................................Sound bass of the network equipment
Balance ..........................................Sound balance of the network equipment
Mute ................................................Sound mute status of the network equipment (ON, OFF)
Power management ............Power management status of the network equipment (OFF, READY, SHUTDOWN)
Monitor out ................................Monitor out status of the network equipment (ON, OFF)
Shutter ...........................................Shutter status of the network equipment (OFF, High-Contrast, Normal)
Shutter management .........Shutter management status of the network equipment (Shutdown)
Fan control ..................................Fan control status of the network equipment (Normal, Maximum, OFF, On1, etc. )
Inside Temperature A ..........Displays inside temperature A of the equipment (in Centigrade or Fahrenheit)
Inside Temperature B ..........Displays inside temperature B of the equipment (in Centigrade or Fahrenheit)
Inside Temperature C ..........Displays inside temperature C of the equipment (in Centigrade or Fahrenheit)
External Temperature .........Displays external temperature of the equipment (in Centigrade or Fahrenheit)
Lamp mode ................................Displays lamp mode (1: 1-lamp mode, 2: 2-lamp mode, 4: 4-lamp mode, etc.)
Lamp control .............................Displays lamp control mode (Auto, Normal, Eco, etc.)
Model name ..............................Model name of the network equipment
20
*1 Set up the installed date when the PJ Network Manager is newly introduced.
There are some un-available columns depending on the products. The value of un-available column is displayed in blank or with "---".
Customizing the status list
To change order or width of the column
Drag the status column name you want to change the order and move it on a new place and drop it. To change column width, set a mouse cursor onto the right edge of the column to change, drag the mouse on it and adjust the column width.
Sorting the status list
The order of the targets on the status list can be changed by clicking the column name which you want to sort. It switches ascending or descending order by clicking the column name each time.
Sort by clicking
Drag to move column
Drag to change column width
Changing font
Select Font setting from System menu. The font setup window will appear. Select your desired type face, style and size on the window.
Customized font property is applied to all the windows of the setting.
PJ NETWORK MANAGER
OWNER'S MANUAL
21
Chapter 3 Basic Operation
Viewing the alert information
1
Click button on the tool bar. The alert display window appears and the alert information of all the targets which are having an alert is listed on this window as the below.
2
To export the alert information as text file (CSV file), click Export button.
22
Column width can be changed with dragging the right edge of the column. The column order can be changed with drag and drop the column. Column can not be deleted.
Viewing the event log
Viewing the event log
1
Click button on the tool bar. The event log display window appears and the events which have been happened on the targets are listed on this window as the below.
2
To export these events as text file (CSV file), click Export button.
3
To delete the event log, select the accrual date item you intend to delete by clicking and then click Delete button. On the confirmation dialog, click Yes to execute deletion.
Event log information items
Items Description
Accrual date ......... Accrual date of the event
Target name ......... Name of the network equipment
IP address ............... IP address of the network equipment
Event ......................... Type of the Event (ALERT, TRAP, SYSERR ) (See table on the next page)
Type ........................... Type of the Event (See table on the next page)
Warning column .......... Warning column of the Event (See table on the next page)
Warning value .... Warning value of the Event (See table on the next page)
Unit ............................. Displays unit of the warning value.
The listed items are fixed.
The order of the event log list can be changed temporarily by clicking the column name which you want to sort. It switches ascending or descending order by clicking the column name each time.
Column width can be changed by dragging the right edge of the column. The column order can be changed with drag and drop the column. Column cannot be deleted.
PJ NETWORK MANAGER
OWNER'S MANUAL
23
Chapter 3 Basic Operation
Description of Event, Type, Warning column, Warning value
Event Type
ALERT
ON : Abnormality has happened
OFF : Abnormality has been cleared
LampFailure
LampReplace
PowerOFF
PowreFailure
PowerManagement
ShutterManagement
TRAP
TemperatureError
SignalIsInterrupted
LampReplacementTime
FilterReplacementTime
CloggedFilterWarning
AutoPlayError
SYSERR
*Mail Transfer
*MemoryError
Warning Column
Connect
Warning Value
Un-connected
Connected
Acquisition error
Description
Power status
PowerFailure
TemperatureError
Normal (AfterTempError)
RS232CFailure
Power management
Shutter management
LampFailure
Input status
Lamp status (1 to 4)
SignalsInterrupted
SignalsInputted
Inside Temperature status (A to
C)
External Temperature status
Abnormal
Failure
Replace
Lamp time (1 to 4) (setting time)
Filter status
Filter time
Clogged
(setting time)
Failure
Lamp status (1 to 4)
Replace
Power status
Normal(Standby)
Normal(OnCoolingDown)
PowerFailure
Power management
ShutterManagement
ShutterManagement(OnCoolingDown)
Inside Temperature status (A to
C)
External Temperature status
Abnormal
Input status SignalIsInterrupted
Lamp time (1-4) (lamp time)
Filter time
Filter status n/a
(filter time)
Clogged
Error
* Refer to the next page n/a
* 1 n/a
* 1
24
*1 When PJ Network Manager could not send mail or acquire the memory, no message is displayed in
"Warning column" and "Warning value".
For further details of each warning column and value, refer to the next page.
Description of warning value
Description of Event, Type, Warning column, Warning value
Warning Column Warning Value
Connect
Power status
Un-connected
Connected *
Acquisition error
Power failure
TemperatureError
Normal (AfterTempError)
RS232CFailure
Power management
Shutter management
LampFailure
Normal(Standby) *
Normal(OnCoolingDown) *
Input signal status
SignalsInterrupted
SignalsInputted *
Inside Temperature status (A to
C)
External Temperature status
Abnormal
Lamp status
Lamp time
Filter status
Filter time
(Auto play error)
ON *
Failure
Replace
(lamp time)
Clogged
(filter time)
Error
Description
Projector has been disconnected from the network
Projector has been connected to the network
PJ Network Manager could not acquire the MIB information from the equipment
Projector turned off due to the power failure of the projector
The projector turned off due to temperature error occurred
Normal after temperature error occurred
The RS-232C communication error occurred
The power management function turned projector lamp off
The shutter management function turned projector lamp off
The lamp failure occurred
Projector turned into standby normally
On cooling down normally due to projector turned off
The signal was interrupted
The signal was inputted again
The projector turned off when the temperature was abnormally high
When the lamp is on
When the lamp failed to ignite.
It reached lamp replacing time.
It reached user setting lamp replacing time
Filter has been clogged
It reached user setting filter time
The error occurred during the auto image display
The warning value with "*" in the above table shows the event when the alert has cleared, alert type is "OFF".
The column order and width of the event log window are saved to the registry of the computer.
Up to 1000 of events can be stored. If it exceeds 1000 events, the oldest event is deleted and the latest event is added. The event log can be saved to the management file.
This Warning column is not available for some projector's model types.
PJ NETWORK MANAGER
OWNER'S MANUAL
25
Chapter 3 Basic Operation
About event treatment
If the PJ Network Manager receives an event, it executes following event treatment items which are selected in the system default setting.
P Sound warning alarm
P Send e-mail
P Display warning dialog
Sound warning alarm
If the PJ Network Manager receives an event, the computer beeps an alarm sound. The alarm sound is depending on your computer sound setting.
The alarm sound is not made when your computer does not provide any speaker or the sound volume is muted.
Send e-mail
Following example message is sent to the e-mail address you set up as the destination mail address.
From: Test1<[email protected]> (management file name)
Date : 2004/10/29 21:30
To : [email protected]
Subject : Alert message
----------------------------------------------------------
Alert has occurred
* Accrual date : 2004/10/29 21:13:42
* Target name : Proj_10
* IP address : 192.168.1.101
* Event : ALERT
* Type : ON
* Warning column : Power status
* Warning value : Power failure
For the further information of event, type, warning column and warning value, see the item
"Viewing the event log" ( p.23).
The setting of event treatment, refer to item "Setting up default setting" ( p.17).
26
Notes on using Windows XP Service Pack 2 (SP2) / Windows Vista
Windows Firewall is turned on by default in Windows XP SP2 and Windows Vista. Due to this
Windows Firewall, the send e-mail function is not available. When using this mail function, you need to cancel the block for PJ Network Manager application. For the further details of Windows Firewall, see Windows help on your computer.
Display warning dialog
Following dialog window appears on the screen if event occurs.
About event treatment
Viewing the command history
1
Click button on the tool bar. Command history window appears and the command history is listed on the window as shown below.
2
To export the command history as text file (CSV file), click Export button.
3
To delete the command history, select the item of Executed date/time which you want to delete, and then click Delete button. On the confirmation dialog box, click Yes button to execute deletion.
Command history
Items Description
Executed date/time .... Exrcuted date and time of the command
Target name ......... Name of the network equipment
IP address ............... IP address of the network equipment
Command .............. Type of the Command
Detailed data ....... Contents of the Command
Result ........................ Results of the Command
The listed items are fixed.
Column width can be changed by dragging the right edge of the column. The column order can be changed with drag and drop the column. Column cannot be deleted.
Up to 1000 of events can be stored. If it exceeds 1000 events, the oldest event is deleted and the latest event is added.
PJ NETWORK MANAGER
OWNER'S MANUAL
27
28
Chapter 3 Basic Operation
Storing the management file
When you monitor the network equipment with the PJ Network Manager, you can save the registered target information, system setting and event log information into the management file with a free file name. It is useful if you manage multiple equipment in the network.
Click button on the tool bar and save it with free file name. The extension is ".pnm".
The management file contains following information.
Items Description
Header ................................................. Management file section, file version
System default setting .............Default value of the system setting
- Monitoring interval
- Event reception process
- Temperature unit
- E-mail information
Target information ..................... Information of the registered target
- Target information (target name, IP address, Community, Introduction date)
- target MIB information
- Warning value set up
Event log information ...............Event log information (ALERT, TRAP, SYSERR)
The maximum volume of a management file is required about 1MB. (Number of registrable targets is 200, number of events is 1000)
Information saved to the registry
Following application setting information is saved to the registry of your computer. So the setting condition is memorized even after quitting the application.
Items Description
Status window information ................. Display position and size of the status list window
Status list information ............ Display status column, column width and column order
Event log list information ..... Column width and order of the event log list
Font set up ...................................... Font setting value (Type face, size and style)
Registering the target information from the defined file at once
Registering the target information from the defined file at once
The PJ Network Manager provides a function to import the target information from the defined file at once. Prepare the defined file (CSV data format) in which the target information is written along the format shown below.
1
Select Target batch registration from System menu. The target batch registration window appears.
2
Click Reference button and select a defined file to import the target information. The imported target information will be listed on the target batch registration window.
* If there is an error in the imported defined file, the error information will be indicated on the
Result column. Retry importing after correcting the defined file.
3
Click OK button to execute the registration.
Target batch registration is not available during Target monitoring.
PJ NETWORK MANAGER
OWNER'S MANUAL
29
30
Chapter 3 Basic Operation
Format of the defined file
The defined file is a CSV data file created by the spreadsheet application and is defined as follows;
Column Description (example)
Target name .......... Name of target equipment (Proj_01, Proj_03, PDP_01, etc.)
IP address ............... IP address (192.168.0.1, etc.)
Community ........... Name of SNMP community. Default value of our network products is "public"
Example of the defined file
The table below shows the example of the defined file provided with the target information. Save this file as the CSV file.
Target name
Proj_01
Proj_02
Proj_03
Proj_04
Proj_05
PDP_01
FPD_10
IP address
192.168.0.1
192.168.0.2
192.168.0.3
192.168.0.6
192.168.0.7
192.168.0.8
192.168.0.9
Community public public public public public public public
Login to the target equipment
Login to the target equipment
After double clicking the target name on the status list, the computer launches web browser and displays the login window of the target equipment.
You can control and set up the projector remotely by using the web browser. For the further information of instruction, see the separated network owner's manual.
Login by double clicking
An example of the login page.
PJ NETWORK MANAGER
OWNER'S MANUAL
31
PM-KL5AC
PJ NETWORK MANAGER OWNER'S MANUAL
FOR WINDOWS SANYO Electric Co., Ltd.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 2 Features and Design
- 3 Table of Contents
- 4 To the Owner
- 5 Safety Instructions
- 7 Compliance
- 8 Part Names and Functions
- 13 Installation
- 18 Basic Operation
- 27 Computer Input
- 37 Video Input
- 44 Setting
- 58 Information
- 59 Maintenance and Cleaning
- 66 Appendix
- 84 Compliance
- 84 Federal Communications Commission Notice
- 85 Safety instructions
- 86 Table of contents
- 87 Chapter 1 Preparation
- 88 Features
- 89 Required operating environment for computers
- 89 Network specifications of the projector
- 91 Flow of installation
- 91 Notice about installing Software CD-ROM
- 93 Chapter 2 Setup Procedures
- 94 Connecting to the LAN line
- 94 Network configuration
- 96 Network PIN code
- 96 Network information
- 97 Network factory default
- 98 Wired LAN factory default settings
- 99 Chapter 3 Basic Setting and Operation
- 100 Login the setting page of the projector
- 100 [1] Enter the IP address
- 100 [2] Login
- 101 [3] Display of main setting page
- 102 How to use the setting page
- 104 Initial setting
- 105 Network PIN code setting
- 105 PJLink and password setting
- 106 Network configuration
- 107 E-mail setting
- 109 Examples: Type and contents of alert mail
- 111 SNMP setting
- 113 Chapter 4 Controlling the Projector
- 114 Power control and status check
- 116 Control
- 116 Input
- 117 System
- 118 Sound
- 119 Image adjustment
- 120 PC adjustment
- 121 Setting up the projector
- 121 Screen setting
- 122 Setting
- 124 Information
- 127 Chapter 5 Appendix
- 128 Examples of connection
- 130 Use of telnet
- 132 Web browser setting
- 133 Examples: OS/Browsers
- 144 Contents
- 145 Chapter 1 Introducing
- 145 Introducing
- 145 Trademarks
- 146 Operating Environment
- 147 Chapter 2 Set up
- 148 PJ Network Manager installation
- 148 PJ Network Manager un-installation
- 149 Chapter 3 Basic Operation
- 150 Launching and quitting PJ Network Manager
- 150 Name of status window
- 151 Quitting PJ Network Manager
- 151 Menu tree
- 151 What's Target
- 152 Name of the button on the tool bar
- 152 Icon display for the target
- 153 Addition of the target
- 153 Editing the target
- 153 Deletion of the target
- 154 Setting up the warning value
- 154 Starting target monitoring
- 155 When happens the alert on the target
- 155 When happens the trap event on the target
- 155 What's Trap
- 156 Stopping monitoring the target
- 156 Displaying all the status information of the target
- 156 Setting the target group
- 157 Setting up the password of Telnet
- 157 Setting commands batch processing for multiple targets
- 158 Setting timer for targets
- 159 Setting up default setting
- 161 Customizing the status list
- 164 Viewing the alert information
- 165 Viewing the event log
- 166 Description of Event, Type, Warning column, Warning value
- 168 About event treatment
- 169 Viewing the command history
- 170 Storing the management file
- 170 Information saved to the registry
- 171 Registering the target information from the defined file at once
- 172 Format of the defined file
- 172 Example of the defined file
- 173 Login to the target equipment
