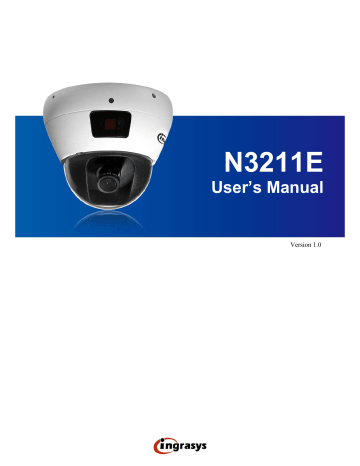

N3211E

User’s Manual

Version 1.0

Table of Contents

Important Notices – Read Before Use ............................................................................ 2

Overview ......................................................................................................................... 2

Package Contents ............................................................................................................ 3

Installation ....................................................................................................................... 4

Hardware Installation ....................................................................................................................................................... 4

Software Installation ........................................................................................................................................................ 4

Discover IP Cameras ........................................................................................................................................................ 4

Assigning IP Address to the device ................................................................................................................................. 5

Discovering devices in Windows Network ...................................................................................................................... 7

ActiveX add-on Installation ............................................................................................................................................. 8

Accessing the camera .................................................................................................... 10

Viewing the live video ................................................................................................................................................... 10

The Live view page ........................................................................................................................................................ 12

Video & Audio .............................................................................................................. 14

Network Configuration ................................................................................................. 21

Recording ...................................................................................................................... 25

Event Management ........................................................................................................ 27

Configuration of Event Handling ................................................................................................................................... 27

Examples of Event Handling ......................................................................................................................................... 32

System Options ............................................................................................................. 34

Connectors & LED ........................................................................................................ 38

Physical appearance and connectors .............................................................................................................................. 38

LED Indicators ............................................................................................................................................................... 39

Troubleshooting ............................................................................................................ 40

Check firmware version ................................................................................................................................................. 40

Upgrade device firmware ............................................................................................................................................... 40

Recover device settings .................................................................................................................................................. 42

Technical Specifications ............................................................................................... 43

1

Important Notices

– Read Before Use

This instruction manual is intended for administrators and users of the Ingrasys N3211E IP Camera, including instructions for using and managing the camera on your network. The use of video surveillance devices can be prohibited by laws that vary from country to country. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for surveillance purposes.

Heed all warnings

Before installing the IP Camera, please read and follow all the safety and operating instructions to avoid any damages caused by faulty assembly and installation. The user must adhere to all the warnings on the product and in this manual.

Liability

Every reasonable care has been taken in the preparation of this instruction manual. Ingrasys cannot be held responsible for any technical or typographical errors and reserves the right to make alterations to the product and manuals without prior notice. Ingrasys makes no warranty of any kind with regard to the material contained within this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The user should verify the relevant information is current and complete before placing orders. All products are sold subject to Ingrasys’ terms and conditions of sale at the time of order acknowledgement.

Ingrasys shall not be liable nor responsible for the applications and resale of its products or bundled software with statements different from or beyond the specification/parameters stated by Ingrasys. Ingrasys is under no obligation to provide any further technical support service or product/software alteration beyond Ingrasys’ representation.

Trademarks

All names used in this manual and products are probably registered trademarks of respective companies.

CE/FCC Statement (EMC)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. If the equipment is not installed and used in accordance with the instruction, it generates, uses, and can radiate radio frequency energy which may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

Overview

Ingrasys N3211E is an Ultra-Mini done camera embedded with PoE module and unique IR lighting board that is more that what you expect from an IP surveillance camera. Measuring only 82.2 mm in diameter, this mini dome camera is specially designed with gorgeous white housing for recessed ceiling mounting and the design makes it almost invisible to see.

N3211E is equipped with 4mm board type lens for wide viewing angle that allows users to recognize much broader range at the single sight.

2

Package Contents

N3211E Power Adapter (Optional)

Quick Installation Guide Hardware Pack

Product CD

Warranty Card VIP Card (Optional)

3

Installation

Hardware Installation

1. Define the type of network device.

2. If the network device supports PoE (Power over Ethernet) function, simply connect the camera to it via

Ethernet cable.

3. If not, the connections to the network device (via Ethernet cable), and DC 12V adapter are required.

Software Installation

Discover IP Cameras

Discovery Tool is a utility provided for not only searching and displaying the available IP cameras information in a network but also managing the multiple networking settings such as static IP address assignment. The steps of applying this search tool are described as below.

After completing the hardware installation, run ingrasysDiscovery.exe to search for the IP camera installed.

4

Assigning IP Address to the device

The steps of applying this search tool are described as below.

1. Launch Discovery Tool (ingrasysDiscovery.exe)

2. Assign IP address

The selection is based on a single or multiple camera devices.

[Set IP]

This is applied to one specific camera selected from the Device List.

Step1: Select one specific camera device

Step2: Input desired IP information

The default settings of account /password are Admin / Admin. If that were been changed, please enter the set values.

5

[Auto Set IP]

This is applied to a group of specific cameras selected from the Device List.

Step1: Select specific cameras

Step 2: Input Account / Password

The Ingrasys default account information is Admin / Admin. If the values have been re-set, please enter the set values.

Step 3: Input IP information

6

Discovering devices in Windows Network

If the IP camera is installed in a network with DHCP and UPnP services, after obtaining an IP address from

DHCP server, it can then be discovered in “Windows Network” of a client PC, see figure below. The reason for being automatically discovered is that the IP camera’s UPnP is default enabled (see Network



Network

Connectivity ).

NOTE

The term “ Windows Network ” in given figure above is used in Windows Vista / 7. It can be referred to Windows XP “ My

Network Places ” which possesses the same capability of discovering UPnP devices.

Right-click on the device and select “Properties”, the pop-up window shows all the information related to the device, including the web access info . Use the web address to connect to the IP camera. Or simply doubleclick on the selected device, which gets immediately access to the camera webpage.

To identify the camera from the listed devices in “Network”, utilize the UPnP name and the device’s MAC address. This MAC address can be found on the label.

7

ActiveX add-on Installation

It is recommended to use Internet Explorer 8 or later as the primary browser to access the IP cameras website.

The first-time access to the camera webpage will be prompted to install the ActiveX. To allow the installation, click “Install” on the message bar and follow the instructions to complete ActiveX installation.

When the installation is completed, IE browser can display the live video of the IP camera as the below figure.

NOTE

8

If, however, there is not any prompted message or ActiveX cannot be installed at all, it is needed to change the IE security level and settings.

<Example>

Internet Explorer 9: Internet Options  Security  Custom level

Ensure the “Download signed ActiveX controls” setting is either “ Enable ” or “ Prompt ” selected.

9

Accessing the camera

Viewing the live video

With the correct installation and IP settings, the camera device can be approached via network. There are three ways to view the live video from the camera.

1. Internet Explorer

- Launch IE browser and input the IP address of the camera or,

- Click on “Browse” button on the selected IP camera address from Ingrasys Discovery Tool

OR

10

NOTE

I IP cameras also support the other web browsers for viewing the live video such as Firefox, Google

Chrome or Safari. The default settings of account /password are Admin / Admin.

2. RTSP Player

The live video of the camera can be played with RTSP players, such as VLC or QuickTime.

The camera supports two simultaneous video streaming (see Video & Audio



Video Setting ). To gain access to the camera for each video stream, the RTSP URL will be required. The default paths for the 2 streams are “stream1” and “stream2”. The URL format should be input as below.

Stream1: rtsp://Camera_IP/stream1

Stream2: rtsp://Camera_IP/stream2

The example given below is the live video displayed with QuickTime player.

3. NVR / CMS Software

Ingrasys IP cameras are ONVIF conformant products. Most of ONVIF conformant NVR / CMS software can retrieve the video from the cameras for both live view and recording. For more details about the support information and operation, please contact the software vendors.

11

The Live view page

The following illustration shows you the front page of Ingrasys IP camera website.

Quick Index

Video Stream Operations

Live Video Window

Live Window

Quick Functional Buttons

OSD

12

Snapshot: Press the button to capture an image photo

Record: Press the button to start recording. Press again to stop it.

Record Path: set up a file path that video clips and snapshots can be stored.

Full screen: Press the button to enter the full screen mode. Press ESC key to return.

Manual trigger: Press the button as triggering an event. See Event Management for detail.

Listen: Enable / Disable to receive video from camera

Digital Zoom: toggle the digital zoom function.

Video Stream Operations

Language selection for the WEB UI

Select video stream for displaying on live video window

Display the video in actual (configured) size or digital (scaled)

Select the preferred streaming protocol on the client

13

Video & Audio

This section describes how to configure the video streaming of the device and the related camera image configurations. Users with Administrator or Operator authority (see System



User Management ) are able to do these configurations.

Click on “Setup” of Quick Index to enter the “Video & Audio” page shown as below.

There are 3 sub-settings under “Video & Audio” :

−

Camera Setting

−

Video Setting

−

Audio Setting

14

Camera Setting

Image Setting

Brightness: the luminance of image view. Default value is 8; adjustable from 0 to 16.

Contrast: the ratio of luminance of white to black. Default value is 8; adjustable from 0 to 16.

Saturation: colorfulness of a color related to its own brightness. Default value is 8, adjustable from 0 to 16.

Sharpness: refer to image acutance, which presents in the edges contrast of an image. Default value is 8, adjustable from 0 to 16.

The 4 correlates are referring image appearance in terms of color/vision that is adjustable according to user preferences.

Video Orientation: change the image orientation.

•

Mirror: rotate the image horizontally.

•

Flip : rotate the image vertically.

Note : These operations are usually applied when camera must be installed in an exceptional position. For the example of ceiling installation, camera must be installed upside-down.

15

Day/Night

Day/Night Mode:

Switch the video images for Day (plenty of light) or Night (Low light) scene. In default “Auto” mode, camera will switch to Day or Night vision according to the light intensity. The Day / Night modes contain 2 actions: switching IR Filter On / Off , and image hue Color / Mono .

In day mode, the IR filter is switched in to avoid the image sensor from receiving the infrared, thus the true color image is provided. When camera enters night mode, IR filter is switched off to allow IR illuminations going into the sensor, thus increasing the images light level. The image color is switched to B/W (Mono mode).

Nightmode Enhancement

With this function enabled, the better night vision will be obtained. However, the number of FPS may drop depends on the actual environmental illuminations.

Night to Day Threshold

The value reflects the timing switching from night to day.

Day to Night Threshold

The value reflects the timing switching from day to night.

Switch Time

The value reflects the delay time for both ways of day and night switch.

Advanced Setting

AC Frequency: Anti-flicker setting for environment with fluorescent light sources, image sensor needs to fit the frequency of light (power) source. For instance, the power frequency is 50Hz for most

European countries, while 60Hz is typically for US. This setting is therefore regionally different.

White Balance: the selections for different lightening condition, which is refereeing to color temperature. The default value is set to AUTO.

Flickerless Mode: flickering can also present in various exposure level. Set “Flickerless” Mode “On” to fix the maximum shutter speed (auto exposure control). Thus, the flickers can be eliminated. The default value is set to ON.

Exposure & Gain Mode: Select auto / manual Exposure & Gain control mode. The selection defines the controlling in a range of or fixed value, according to the following two items ( Shutter Speed and

Gain Value ). The configurations will be limited at selected maximum rates when AUTO mode is on.

Max. Shutter Speed: Also refer to the exposure time. Higher shutter speed is normally applied under strong light circumstance, so the image won’t be overexposure. Lower shutter speed, on the other hand keeps image luminance in low light environment.

Max. Gain Value: Also refer to the amplification factor for the incoming light. Increasing the gain value provides a brighter image, but the noises may also be increased.

WDR: Enable this function for image objects under backlight circumstances.

Exposure Level: Adjust Exposure level for a target exposure time that is the amount of light allowed for the image sensor.

NOTE

The “ Shutter Speed ”, “ Gain Value ” and “ WDR ” can be configured for daytime and nighttime. The configurations will be applied according to the current status of “ Day/Night Mode “.

16

: represents the Day mode

: represents the Night mode

The setting items with the Day or Night mode symbol will be altered along with the setting of

Day/Night mode. The examples are illustrated as below.

17

Video Setting

Video Stream

This tab provides detailed stream configurations. These settings can affect video size, quality. The maximum transmission performance can be expected under the condition of full network bandwidth.

The camera supports up to 2 video streams. Each stream can be configured with following items.

18

Video Format: H.264, MPEG4 and MJPEG are available for the selection. The demand of bandwidth and storage requirement differs from the selection of video format. In the request of same video quality, H.264 contributes to less bandwidth and storage requirement, which can be more efficient than MPEG4 or MJPEG.

Resolution: The resolution here describes an image size counted in width by height, e.g. 1280x720, referring to pixel resolution .

The available resolutions for Stream 1 and Stream 2 are listed in the following table.

Resolution Stream 1 Stream 2

1920 x 1080

1280 x 720

800 x 450

640 x 360

320 x 180

“V”: available

“-“: not available

V

V

V

V

V

-

-

V

V

V

Frame Rate: It represents the number of frames that are displayed per second. The higher the frame rate is the better/smoother the video stream can be obtained. However, it would be the tradeoffs for the higher network bandwidth and storage requirement.

Intra Frame Period: This is applied only in MPEG4 / H.264 which the video stream is composed of I frames (full image information) and P -frames (motion-compensated difference information).

This setting configures the time period between 2 I -frames. The shorter period means the higher frequency of I-frame. Video can then be well handled whereas the bit rate may increase.

Video Quality: There are two types of bit rate controls for video quality adjustment, Constant Bit Rate

(CBR) and Variable Bit Rate (VBR).

CBR mode concerns about the circumstances of fixed data rate transferring. However, VBR is utilized when network bandwidth is less concerned.

Note: CBR is not applicable in MJPEG video mode .

Video Overlay

The camera supports stamping text information on the video images. The options of the date/time string or/and a line of text message (e.g. camera name or location) are available for displaying on the images.

19

Privacy Mask

Privacy Mask can block out the specific areas from view. The blocked areas will not be seen in both live view and recorded video clips and the total of 8 profiles can be created to the list.

To create Privacy Mask, simply input Privacy Mask Name and click “ Add New ” button and then apply it to complete the addition.

Audio Setting

Check the “Enable Audio” checkbox to enable the video streaming with audio. The audio encoding supports

G.711 ulaw. For Audio Input Setting, the input source can only be Internal Microphone.

20

Network Configuration

The IP Camera acts as one of the network devices. It allows user to configure the network functionalities based on applications. This section will describe the network configurations. Fundamentally, for instance, the IP assignment of the device can be done via DHCP server , static IP option or PPPoE to obtain IP from the service provider.

There are 5 subdirectories in “Network”:

−

Network Type

−

Network Connectivity

−

Quality Service

−

Access Port

−

Access IP Filter

Network Type

Network Type

There are 3 ways to configure IP address for the IP camera device, including DHCP , Static IP and PPPoE .

Enable DHCP Service: The default setting is DHCP, which camera will be automatically given an IP address in a network with DHCP server.

Use Static IP: Camera may also be manually assigned with a static IP address. Subnet mask,

Gateway and DNS server(s) will also need to be specified for certain network function properly executed.

Enable PPPoE Service: This service is usually provided by an ISP (Internet Service Provider). IP

Camera can establish a dial-up connection to the ISP and then get connected to Internet.

21

Network Connectivity

This page provides the connectivity configuration, so that IP camera can be accessed without necessarily providing the numerical IP address.

Enable UPnP Service: With UPnP enabled, IP camera device can be easily discovered in Windows Network

(My Network Places). See “Discover devices in Windows Network” in previous section.

Enable DDNS Service: By registering this sort of service, camera can be assigned and accessed over

Internet with a hostname instead of IP address. To enable the services, visiting the website of the service provider and registering an account are required.

Dyndns.org: http://www.dyndns.com/

Quality Service

Quality Service provides network traffic management to guarantee the quality of services in higher priority, especially when network is insufficient. DSCP (Different Service Code Point) is a 6-bit IP header which defines the service level of the packet. According to the DSCP value, routers with PHB (Per-Hop Behavior) will define a specific class of traffic for the packet, in terms of bandwidth, latency, or loss rate, etc. Enable QoS and set

DSCP value for the service to ensure its quality to be maintained.

NOTE

To make the QoS function work, all the switches and routers in the network must support QoS.

22

Access Port

The Web access port can be changed in this page. Default HTTP and HTTPs port numbers are 80 and 443 respectively. The configuration of these port numbers provides the simple security.

HTTP port / HTTPS port: By default, the HTTP and HTTPs ports are set to 80 and 443 respectively. They can also be assigned to another port number between 1025 and 65535.

The HTTP port is basically provided for device’s webpage access. When the video format is set to MJPEG, user is able to retrieve the live video via HTTP URL, e.g.

Http://<ip_address>/operator/get_video.cgi?channel=[1, 2]

, where channel is to specify stream1 or stream2

RTSP port: RTSP (Real-Time Streaming Protocol) is used to control the live media streaming. This port is provided to request the streaming service. By default, the port number is set to 554. It can also be assigned to another port number between 1025 and 65535.

Multicast: Multicast is a streaming method with bandwidth conserving technology. By delivering a single video stream to multiple network clients, the bandwidth utilization can be reduced.

Select the Always multicast option to enable multicast for stream 1 ~ 2.

Multicast Group Address – Set the IP address for multicast streaming. The Multicast IP address must be in the range from 224.0.1.0 to 239.255.255.255.

Multicast Ports – Set the port for multicast streaming.

Multicast TTL – The multicast Time-To-Live (TTL) gives the range of routers that multicast traffic can pass through in the networks.

23

NOTE

The multicast stream can be triggered by a network client (e.g. choosing “Multicast” from the live view page) whereas “Always Multicast” option is not enabled. This mechanism is known as “Multicast On Demand”. In this mode, multicast stream starts when one or more clients request. It stops automatically when the last client leaves the multicast group. “Always Multicast”, on the other hand, starts or stops multicast stream by enabling/disabling this function. It doesn’t matter whether there is client request or not.

Access IP Filter

This setting also provides a basic security by filtering the accesses from other hosts. Enable this function and choose “Allow / Deny” of the listed IP addresses. Up to 15 IP addrss can be added in the list.

24

Recording

This section provides the recording configuration on the camera. Unlike the recording function (Quick Functional Button) on the live view page, video can also be recorded to the local network storage (Samba) according to a time based schedule.

There are 2 subdirectories in the “Recording” category:

−

Recording Plan

−

Samba

Recording Plan

Recording Plan List

It lists the created/scheduled recording plan(s). The details of a recoding plan include:

Plan Name: Identifier of the recording plan

Status: Enable or Disable the recording plan

Mon ~ Sun: Displays the hours in days of a week that recording is effective

Src. (Source): The video source selected to be recorded

Dest. (Destination): The stored path for the recording file

Remove: click to delete this recording plan.

25

Add / Edit Recording Plan

Plan Name: Identifier of the recording plan

Video Source: The selection of the video source to be recorded. Options: None or Stream 2.

NOTE: Stream 2 should be enabled prior to recording plan.

Maximum File Size: This option defines the maximum file size of each video clip.

Destination: The stored path for the recording file

Select All: 24/7 continuous recording

Scheduled Pattern: User-defined time frame

Samba

This page allows user to configure the file storage via Samba. To begin with it, click Enable Samba and then input the related information.

NOTE

Samba can only support mounting a shared folder located in the root directory. For example, to mount a folder called “Shared” can be input the path as below.

26

Event Management

Event management describes the handling of events with the corresponding actions.

A common case can be exampled is storing a captured image to a local network storage (Actions), when there is a Motion Event (Trigger Condition). This chapter gives the configurations of Triggers (what to detect?) and Actions (“what to send” and

“where to send”). A time based schedule can also be applied.

Configuration of Event Handling

There are 3 subdirectories in the “Event” category. The 3 configuration groups are correlated. A completed event setting may need to configure each part in sequence.

−

Event Server & Media

−

Motion Configuration

−

Event List

Event Server & Media

The “Event Server” is the configuration of “where to send”, e.g. FTP server, while Media is the sending file type. The combination of file type and the remote servers will then be applied as an event action.

Event Server List

Click on “Add New” button to add the remote severs. These are email recipients and FTP server.

27

Server Name: Identifier of the event server

Server Type

Email: Send the media file via email when an event is triggered.

•

Mail Server Address: Enter a host name or IP address of the email server.

•

User Name: Enter the user name of the email account.

•

Password: Enter the password of the email account.

•

Server Port Number: Enter the server port of the mail server. The default is 25.

•

Sender’s E-mail Address: Enter the email address of the sender

•

Mail Subject Prefix: Enter the subject description for the mail.

•

Receiver Table: Enter the recipients’ email address. The mail can be sent to up to 5 recipients.

FTP: Send the media file to a FTP server when an event is triggered.

•

FTP Server address: Enter the FTP server’s address.

•

User Name: Enter the user name of the FTP login account.

•

Password: Enter the user name of the FTP login password.

•

Server Port Number: Enter the server port of the FTP server. The default is 21.

•

Upload Path: Enter the file path that files will be sent to..

Media Type

There are 2 types of media (file) available, snapshot (.jpg image) and video clip (.avi).

Video Source: Select the video source to be captured

Pre-alarm / Post-alarm image(s): Enter the numbers of images that will be captured before and after trigger is activated.

Pre-alarm / Post-alarm record: Enter the numbers of seconds that video will be recorded before and after trigger is activated.

Maximum file size: Define the maximum file size that a video clip is generated.

28

Motion Configuration

There are 3 MD (Motion Detection) areas can be enabled. Each MD can be individually enabled/disabled, defined the covering range and trigger sensitivity.

To enable and verified the MD, follow the steps provided below.

1. Check the box to enable the motion area

2. Drag and drop to move the motion window

3. Hold and drag any corner of the rectangle to resize the window.

4. By dragging the pin of the slider bars, adjust the detection “Sensitivity” and “Object Size” of the rectangle covered area.

NOTE

By name implying, the “ Sensitivity ” setting means the sensitivity level to the motion detection; the higher value given makes the motion window more sensitive to the moving object. “ Object Size ” indicates the trigger threshold. A lower “Object Size” value means it is easier to exceed the value, and thus trigger the motion event.

5. The status chart shows the motion activities. When the motion vector exceeds a threshold (the Object

Size), the motion trigger is activated. The index number of “Show in chart” reflects the number of

Motion Area.

6. To enable other motion area, repeat above steps.

7. Click on “Apply” button to save the settings.

29

Status Chart

Event List

List a summary of configured events. That is the selection of trigger condition(s) and the corresponding actions, as well as the scheduling. Up to 10 event objects can be configured.

To begin with it, click on “Add New” button to extend for the detailed configurations.

Event Name: Enter an event name, e.g. Motion Detection, to identify this configured event.

Select All: 24/7 continuous recording

Schedule Pattern: User-defined time frame

Triggered by: This describes the selection of trigger conditions which include:

•

Motion Detection: Select the motion detection area(s) used for trigger condition. To enable and configure the motion detection areas, go to Motion Configuration .

•

Manual Trigger: Enable system to detect the user input action (press the alarm button, on the live view page).

•

Network Fail: Enable system to detect the network connection status.

30

•

Periodically: Enable the system to perform the set Action periodically by entering number of minute(s) in the field as below.

Action: Selection of responding actions

•

Upload files to a server: There are two drag-down selections, Event Server and Media Type .

The Event Server indicates the file destination such as the FTP and Samba, and the file type includes snapshot image and video clip. For the snapshot / video clip configurations, go to

Event Server & Media.

NOTE

-

The dependency of Event Server and Media Type is described as below.

- When Event Server is either Samba or SD card, the selection of either Image or Video

Media Type will be

When Event Server is either Mail or FTP, the selection of Media Type will only be


31

Examples of Event Handling

The following cases are provided as the examples of Event Handling .

Scenario

While viewing live video, user can manually trigger an event anytime simply by pressing the button,

on the web page. It will send email to the specified email accounts with the captured pictures.

The configurations are illustrated as below:

Step 1: Add Event Server

•

Go to Event



Event Server & Media



Event Server List

•

Click on “Add New” button

•

Choose “Email” and fill in the email server and recipients’ information.

Step 2: Configure Media Type

•

On the same web page, configure the Media Type. For the following example, the system is configured to capture 1 picture before (pre-alarm) the event and 2 pictures for the event and after (post-alarm).

•

Click on “Apply” button to save the email server and media settings.

32

Step 3: Configure Event List

•

On Event List page, click on “Add New” button.

•

Enable and configure this event a b c

- Event of manual triggering - a. Check the box to enable this event. It can be deselected later with all the following settings remained. b. Give a name of this event setting; e.g. MTrigger

(stands for Manual Trigger). This is an identity of an object of event handling. c. Choose “Select All” for 24/7, as this event is required for that it can be triggered anytime. d. Select “Manual Trigger” for this event’s trigger source. This will activate the manual trigger button in the live view that user can manually trigger an alarm anytime . e. Check the box to enable and select “Mail” for

Event Server and “Image” for the media type d e

•

Click on “Apply” button to save the settings of this page.

33

System Options

System Options provide users to obtain and configure the system settings of the IP camera system. It contains the page of System Information , Date and Time , User

Management , Maintenance and Log Service . The details about each subcategory will be described as below.

System Information

The page gives details of the IP camera system.

In System Status , Firmware Version and MAC Address are listed. The Camera Name and Location fields are revisable to identify a unit among multiple cameras installed.

The IP address info of this IP camera is listed in Network Status . The RTSP Status field shows the video stream(s) being requested by the listed client(s).

34

Date and Time

This section describes the date/time adjustment for the IP camera system. The ways to adjust the IP camera’s date/time can be automatic (Synchronize with NTP Server / PC) or manual settings.

Current Date & Time

Display current system date/time of the IP camera. The date format can be changed from the drop-down list in

Configure Date & Time .

Configure Date & Time

Keep Current Date & Time: The option of keeping current date and time, not to be adjusted.

Synchronize with NTP Server: automatic method for date/time adjustment. The IP Camera must be able to gain access to the given NTP server (e.g. time.windows.com), which is usually the ability of

Internet access. The IP camera system can therefore get updated with the time server.

NOTE: To apply “synchronize with NTP Server”, a Time Zone must be selected for referencing to the local time.

Synchronize with PC: The PC connected to the IP camera can also be a date/time synchronizer.

However, if the PC is connecting from a time zone different from where camera is installed, the system will pop up a warning message for time zone differential.

Set Manually: Manually adjust the date / time for the system

Date Display Format: The system date can be displayed in the format of DD/MM/YYYY,

MM/DD/YYYY or YYYY/MM/DD.

Time Zone: Select an appropriate time zone for local where IP camera is installed. The automatic adjustments will be applied based on the selected time zone. Check the “ Daylight Saving Time” checkbox for areas that are observing DST.

35

User Management

By default, the access to the camera is not user authenticated. For security, the IP camera should be restricted to account only accesses. It is able to enable user accounts, as well as to manage the added users in this page. The number of user accounts can be created is up to 8.

Initially, there is a default account, Admin in the “User List” . To enable this account, click on “Enable

Authentication” and then apply. To edit password for the default account, click “Edit” to enter the configuration window.

To create a new account, click “Create User” button. Enter Account / Password for this account with the group type on the “Create account” window.

36

The user account with “ Administrator ” authentication can do all the configurations. “ Operator ” has the same rights as Administrator, except for User Management . “ Viewer ” is allowed only the access to live view page.

Up to 8 user accounts can be added in the User List.

Maintenance

This page provides tools for camera system maintenances.

Reboot: Restart the camera system

Restore to Factory Default: Restore camera factory default settings. The network setting can be kept by checking the “ Except Network Type ” checkbox.

Backup Configurations: The system settings can be backed up and exported to a file. The file can be applied to upload the previous user settings to the camera, or other cameras.

NOTE

The backup file can be applied to other Ingrasys IP cameras, so users won’t need to configure each device. It is recommended to switch the IP setting to DHCP mode before exporting the backup file. Otherwise, all IP cameras will have the same IP address.

Firmware Upgrade: There may be new released firmware for features update or issues fixed. To upgrade the firmware for the system, retrieve the firmware image file, import to the system and then do the upgrade process.

LOG service

The system operations and / or process will be recorded in the log system. The link provides the review of these records.

System Log: It contains records of system changes such as login failed or link on/off.

Event Log: It records the log message of triggered event, for instance, motion detection is asserted.

Parameter List: It lists all the system parameters with the current value.

37

Connectors & LED

Physical appearance and connectors

Product Front View

Product Rear View

38

LED Indicators

There are 2 type of LED indicators; RJ45 LEDs (back panel) and System LED (front, bicolor). These LEDs can help to recognize the current device status.

RJ45 LEDs for Network Status:

10 Link / Traffic

100 Link / Traffic

LED1 (Green)

Steady ON / Flashing

Steady ON / Flashing

Bicolor LED indicator for Power & System Status:

LED2 (Amber)

OFF

Steady ON

Power On / System Reboot

Initial Process Ready

Normal Operation

Firmware Upgrade

Internal (Hardware) Failure

Green

Steady ON with Amber LED

3 Flashing then ON with Green LED

Steady ON with Green LED

Flashing per second with Red LED

Steady ON with Red LED

39

Troubleshooting

Check firmware version

Firmware version may imply the functionalities’ updates or availability in the camera system. Therefore, in the first step of troubleshooting and then reporting, it helps to locate the found issues. Newer version firmware may have these issues corrected.

The version code can be found in Setup -> System -> System Information , see figure below.

Upgrade device firmware

Firmware upgrade process should be done via the web configuration: Setup -> System -> Maintenance ->

Firmware Upgrade . Before the process, read the instructions and release notes coming with each new released version.

[Read Before Upgrade]

1. The latest firmware image is available on our official website.

2. Make sure all other client connections are disconnected and current jobs such as recording are required to terminate.

3. During the upgrading period, DO NOT disconnects the power of the camera. Otherwise the system unit might be damaged.

4. The front LED indicator will be slow flashing in red during the upgrading process. When it becomes steady green, the upgrading process is completed.

[Steps of Firmware Upgrade]

1. Go to firmware upgrade page on the web. Figure 1

2. Click “Firmware” button to load the firmware image. Figure 1

3. Click “Upgrade” to begin (the upgrade progress bar will pop up).

Figure 2

4. Once it is done, the system will reboot automatically.

5. Go back to firmware upgrade page and confirm if the “current version” is up-to-dated. Figure 3

40

Figure 1

Figure 2

Figure 3

41

Recover device settings

In some cases, camera system does not respond to any operation. A certain recovering processes would help to get the unit back to initial status, so that it can resume operable / configurable. This will be the operations on the “Reset Button”.

Reset button

Before executing hardware reset, please make sure the system booting process is completed by checking the

LED (steady green) on the front panel.

1. Restart / Reboot the device

Press and release the Reset Button within 5 second, the system will be restarted (the LED Indicator will be steady amber during rebooting process). Upon successful reboot, the LED will be steady green during normal operation.

2. Reset account/password to factory default

Press and hold the Reset Button over 5 seconds, the LED will change from steady green to flashing green. During LED flashing as green, then release reset button, ONLY account/password will be reset as factory default, which is Admin/Admin . Please notice that, all configured accounts/passwords will be cleared and only the default one will been reserved.

3. Reset to factory default settings

Press and hold the Reset button over 10 seconds, the LED will change as flashing red. During LED flashing as green, then release the reset button, ALL settings will be reset as factory default.

The system will enter the restoring process automatically and complete it in 30 seconds after reset button released.

The following illustrates the LED behavior during the restoring process for reference.

42

Types of camera

Camera

Video

Network

Event

Management &

I/O

Event Triggers

Event Actions

Audio

General

Built-in microphone

Power Supply

Power Consumption

Weight

Dimension(WxHxD)

Operating Temp

Humidity

Support

Certifications

OS

Viewing

System

Browser

Software

Other Valueadded Features

WDR

Model No.

Description

Image Sensor

Image Pixel

Lens type

ICR

IR Distance

IR Wavelength

Min illumination/ light sensitivity (Color):

Min illumination/ light sensitivity (Mono):

Video Compression

Resolution

Frame Rate

Video Stream

Interface

Supported protocols

Technical Specifications

* Design and specifications are subject to change without notice.

N3211E

Ultra Mini 2MP Full HD IR Dome IP Camera

1/2.7” progressive CMOS sensor

2.0 Megapixel

Board mount, 4.0mm, Fixed IRIS

Yes

7meters/22.96 ft

850 nm

1Lux/F=1.5

0.5Lux/F1.5

0 Lux (When IR On)

H.264/MPEG4/MJPEG

Up to 1920x1080

30fps@1920x1080

Dual streams

10/100 Mbps Ethernet

IPv4,HTTP,HTTPS,SMTP,FTP,DHCP,NTP,TCP/IP,UPnP,RTSP/RTCP/RTP,

DNS,DDNS, PPPoE, IGMP,QoS,Bonjour,Multicast,Samba

Motion detection, Manual Trigger, Network Fail, Periodically Trigger.

File upload via FTP, SMTP and SAMBA;

Notification via FTP, and email;

Video and audio recording to SAMBA

Yes

12VDC / PoE (IEEE 802.3af)

7W

Net: 300g (0.663 lb)

2.2” x 3.26” x 2.92”/ 56.2mmx83.0mmx73.3mm

0°C ~ 50°C (32°F~122°F)

20%~90% RH

ONVIF

CE, FCC

Microsoft Windows XP/Vista/7/2K

Microsoft IE 8.0 or above

SmartVIEW(Free bundled 32CH software)

Yes

43
