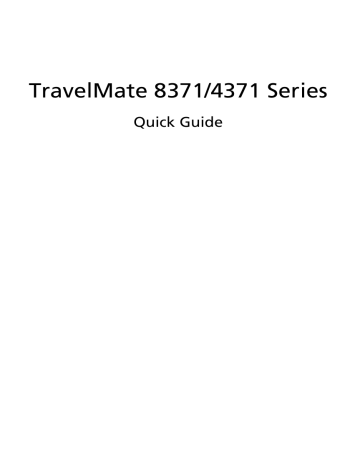

TravelMate 8371/4371 Series
Quick Guide
Copyright © 2009. Acer Incorporated.
All Rights Reserved.
TravelMate 8371/4371 Series Quick Guide
Original Issue: 05/2009
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications.
Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.
This booklet has been reviewed for accuracy. Although Acer makes all reasonable attempts for this booklet to be printed in an accurate manner, Acer takes no responsibility for any inadvertent errors or misprints. Acer's liability with respect to this booklet is subject to any limitation of liability set out in the applicable product warranty.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,without the prior written permission of Acer Incorporated.
TravelMate 8371/4371 Series Notebook PC
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
First things first
We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your computer.
The TravelMate Series Generic User Guide contains useful information applying to all models in the TravelMate product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the
Generic User Guide as well as the AcerSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".
The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User Guide.
3
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the
Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.
4
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new Acer notebook.
Top view
#
1
Icon Item
Acer Crystal Eye webcam
Description
Web camera for video communication.
#
2
3
4
5
6
7
8
9
10
11
12
Icon Item
Microphone
Description
Internal microphone for sound recording.
Display screen
Speakers
Also called Liquid-Crystal Display (LCD), displays computer output
(Configuration may vary by models).
Left and right speakers deliver stereo audio output.
For entering data into your computer.
Keyboard
Touchpad
Click buttons (left, center* and right)
Touch-sensitive pointing device which functions like a computer mouse.
The left and right buttons function like the left and right mouse buttons. *The center button serves as Acer Bio-
Protection fingerprint reader supporting
Acer FingerNav 4-way control function
(only for certain models).
Palmrest Comfortable support area for your hands when you use the computer.
Touchpad toggle Turns the internal touchpad on and off.
HDD
Num Lock
Indicates when the hard disk drive is active.
Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
Communication key
Backup key
Acer PowerSmart key
Power button / indicator
Enables / disables the WLAN / 3G functions.
Launches Acer Backup Management for three-step data backup.
Puts your computer into power-saving mode.
Turns the computer on and off. /
Indicates the computer's power status.
5
6
Hotkeys
The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Hotkey
<Fn> + <F2>
Icon
<Fn> + <F3>
<Fn> + <F4>
Function
System property
Bluetooth
Sleep
Description
Starts System Property for displaying system information.
Enables/disables the Bluetooth function. (only for certain models)
Puts the computer in Sleep mode.
<Fn> + <F5>
<Fn> + <F6>
<Fn> + <F8>
<Fn> + < >
<Fn> + < >
<Fn> + < >
<Fn> + < >
Display toggle Switches display output between the display screen, external monitor (if connected) and both.
Screen blank Turns the display screen backlight off to save power. Press any key to return.
Speaker toggle
Turns the speakers on and off.
Brightness up Increases the screen brightness.
Brightness down
Volume up
Decreases the screen brightness.
Increases the sound volume.
Volume down Decreases the sound volume.
Closed front view
#
1
Icon Item
Battery
Rear view
Description
Indicates the computer's battery status.
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows blue when in AC mode.
#
1
Icon Item
Battery bay
Description
Houses the computer's battery pack.
7
8
Left view
2
3
4
5
# Icon
1
Item Description
Kensington lock slot Connects to a Kensington-compatible computer security lock.
Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer.
Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.
External display
(VGA) port
Connects to a display device (e.g., external monitor, LCD projector).
Ventilation slots
USB 2.0 port
Microphone-in jack
Enable the computer to stay cool, even after prolonged use.
Connect to USB 2.0 devices (e.g., USB mouse, USB camera).
Accepts inputs from external microphones.
Headphones/speaker/ line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
Right view
4
5
2
3
#
1
Icon Item
5-in-1 card reader
USB 2.0 port
Ethernet (RJ-45) port
Acer EasyPort IV connector
DC-in jack
Description
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory
Stick (MS), Memory Stick PRO (MS
PRO), xD-Picture Card (xD).
Note: Push to remove/install the card.
Only one card can operate at any given time.
Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
Connects to an Ethernet 10/100/1000based network.
Connects to Acer EasyPort IV.
Connects to an AC adapter.
9
10
Base view
2
3
4
5
# Icon Item
1 Battery bay
6
Description
Houses the computer's battery pack.
Battery lock Locks the battery in position.
Memory compartment Houses the computer's main memory.
Hard disk bay
Ventilation slots and cooling fan
Battery release latch
Houses the computer's hard disk
(secured with screws).
Enable the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of the fan.
Releases the battery for removal.
Specifications
Operating system
Platform
• Genuine Windows Vista
®
System memory
Display
Graphics
Communication
Audio
Storage subsystem
Privacy control
• Intel
®
Core
™
2 Duo processor*
• Intel
®
Core
™
2 Solo processor*
• Intel ® Celeron ® mobile processor*
• Mobile Intel
®
GS45 Express Chipset
• Intel
®
Wireless WiFi Link 5100*
• Acer InviLink ™ Nplify ™ 802.11b/g/Draft-N*
• Acer InviLink ™ 802.11b/g*
• Dual-Channel SDRAM support
• Up to 2 GB of DDR3 1066 MHz memory, upgradeable to 4 GB using two soDIMM modules*
• Up to 4 GB of DDR3 1066 MHz memory, upgradeable to 8 GB using two soDIMM modules*
• 16:9 aspect ratio
• 13.3" HD 1366 x 768
• Mobile Intel ® GS45 Express Chipset*
• ATI Mobility Radeon™ HD 4330*
• Integrated Acer Crystal Eye webcam
• WLAN:
• Intel
®
Wireless WiFi Link 5100*
• Acer InviLink ™ Nplify ™ 802.11b/g/Draft-N*
• Acer InviLink ™ 802.11b/g*
• WPAN: Bluetooth
®
2.1+Enhanced Data Rate (EDR)*
• WWAN: UMTS/HSPA at 850/900/1900/2100 MHz and quad-band GSM/GPRS/EDGE (850/900/1800/1900 MHz)
• LAN: Gigabit Ethernet; Wake-on-LAN ready
• High-definition audio support
• MS-Sound compatible
• Built-in microphone
• 2.5" hard disk drive, with enhanced Acer DASP
(Disk Anti-Shock Protection)*
• Solid state drive*
• 5-in-1 card reader
• Enhanced Acer DASP (Disk Anti-Shock Protection)
• Acer Bio-Protection fingerprint solution*
• BIOS user, supervisor, HDD passwords
• Kensington lock slot
11
12
Dimensions and weight
Power subsystem
Special keys and controls
I/O interface
Environment
• 323.6 (W) x 228 (D) x 26/29.4 (H) mm
(12.74 x 8.97 x 1.02/1.10 inches)
• 1.65 kg (3.583 lbs.) with 6-cell battery pack
• ACPI 3.0
• 62.16 W 5600 mAh
• 3-pin 65 W AC adapter
• ENERGY STAR ® *
• 88-/89-/93- key keyboard
• Touchpad pointing device
• Acer EasyPort IV connector
• Acer Bio-Protection fingerprint reader
• 5-in-1 card reader (SD/MMC/MS/MS PRO/xD)
• USB 2.0 port
• External display (VGA) port
• Headphones/speaker/line-out jack
• Microphone-in jack
• Ethernet (RJ-45) port
• DC-in jack for AC adapter
• Temperature:
• Operating: 5 °C to 35 °C
• Non-operating: -20 °C to 65 °C
• Humidity (non-condensing):
• Operating: 20% to 80%
• Non-operating: 20% to 80%
Note: * Only for certain models
Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.
