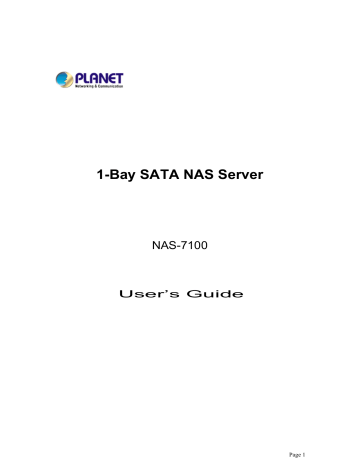

1-Bay SATA NAS Server
NAS-7100
User’s Guide
Page 1
Copyright (C) 2007 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET
Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form by any means by electronic or mechanical. Including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without the prior express written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.
CE mark Warning
There are class A and class B device, In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Page 2
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 1-Bay SATA NAS Server
Model: NAS-7100
Rev: 1.0 (October. 2007)
Page 3
Table of Contents
Page 4
Page 5
Introduction
The NAS Server
Congratulations on the purchase of an NAS Server, the PLANET NAS-7100. The NAS inserts
Gigabytes of storage space into your network without the cost, space, and maintenance hassles of a full-fl edged file server. The NAS provides solid data transfer performance for multiple client connections. And you can add as many NAS Servers to your network as you like. Compared to using a standard PC as a File Server, the NAS offers lower cost, easier management, and increased reliability.
Windows utility software is provided for the NAS Administrator. Also, the Web-based
Administration interface offers a wide array of management options.
Web-based file system
WEB-based file sharing allows access and downloading of files from any PC on the network, including non-Windows PCs.
Windows users can also use Microsoft networking features to make NAS folders appear as drive letters on their PC.
NAS Features
•
Provides Gigabytes of external hard disk space.
•
Supports standard USB 2.0 port that can connect to Hard Disk Drives or USB flash Drive
(USB key).
•
Support NTFS (Read only) and FAT file format for USB HDD.
•
Built-in Printer Server (via USB port) gives your network a fully shareable network printer.
•
Provided with a Windows utility program for speedy configuration.
•
WEB-based configuration and diagnostic interface is accessible from any PC on the network.
•
The LAN Administrator can limit the amount of available disk space available to individual users.
•
High performance file system automatically maintains itself to provide file system integrity.
•
Additional NAS Servers can be added to the network at any time.
•
Download function (BT, FTP and HTTP)
Page 6
Package Contents
The following items should be included in the NAS packaging.
If any of these items are damaged or missing, please contact your dealer for replacements.
•
NAS-7100
•
Quick Installation Guide
•
Setup
•
Ethernet Cable
•
Power
System Requirements
•
Windows
•
Ethernet Network employing 10/100/1000Base-TX.
•
TCP/IP
Disclaimer
We highly recommend that you regularly backup the files on your NAS.
Page 7
Getting Familiar with your NAS
LEDs
LED
Ready/Status
LAN
Disk
Disk Full
USB 1
USB 2
Function
Ready (Green)
•
ON – Normal operation.
•
OFF – No power.
•
Blinking – This LED blinking during startup and shutdown.
Status (Amber)
•
ON – This LED will be On during the Startup self-test; it will turn
Off once the self-test is completed. If it stays ON, there is a hardware error.
•
OFF – Normal operation.
•
Blinking – During a software upgrade, both the Status and Ready
LEDs will blink.
•
ON – Link established.
•
OFF – No LAN connection.
•
Blinking – Data is transmitted or received via the LAN.
•
OFF - Idle.
•
Blinking – Hard disk is being accessed.
•
ON - Disk is completely full. No more data can be stored on this disk
•
OFF -Normal operation, disk is not full.
•
Blinking - Disk is 98% full (The Buzzer will also beep 3 times.)
•
ON - USB device connected to the USB port
•
OFF - No USB device installed
•
Fast Blinking - Data being transferred to or from the USB device
•
ON - USB device connected to the USB port
•
OFF - No USB device installed
•
Fast Blinking - Data being transferred to or from the USB device
Page 8
Rear Panel
Power Switch
Power Input
Reset Button
(IP/Password)
USB Eject Button 1
USB Port 1 & 2
(Up/Down)
USB Eject Button 2
LAN connector
Read Panel
This is a spring-loaded "Soft Switch".
If power is Off, press once to turn On.
If power is On, press once to start the Shutdown sequence.
During Shutdown, the Ready LED will blink. When Shutdown is completed, all LEDs will turn off.
Connect the supplied power adapter here.
This button has 2 functions:
•
If the NAS's IP Address is lost, press and hold this button for
2 seconds. The IP Address will be set to the default (DHCP client) and it will beep once to indicate the reset has occurred
•
If the NAS administrator’s password is lost, press and hold this button for 10 seconds. The password will then be cleared
(no password), and the NAS will beep twice.
For USB port 1 device eject. Press and release to prepare the
USB device for removal. When the USB LED turns off, it is safe to remove the USB device.
•
Connect your USB Hard Disk Drive or USB Flash Drive here.
The USB HDD support FAT and NTFS (Read only) file format
•
Connect USB printer
For USB port 2 device eject. Press and release to prepare the
USB device for removal. When the USB LED turns off, it is safe to remove the USB device.
Use this to connect the NAS to your 10/100/1000Base-TX switch or device.
Audible Warnings
Audible warnings are given by the following signals.
1 Beep
2 Beeps
Repeated every 5
Reset button or power switch is pressed or system is ready to use
NAS is a DHCP client, but no DHCP Server responded to the
DHCP client request. This means that the NAS could not
Page 9
seconds for 1 minute.
3 Beeps
Repeated every 5 seconds for 3 minute. obtain a valid IP address.
Hard disk usage exceeds 98%
Page 10
Basic Installation & Setup
The following section instructs you on how to physically connect the NAS to the network, and how to configure the NAS for basic operation in your Windows environment. Everything you need to do to get your NAS up and running is covered here.
Installation
Requirements
•
Windows 95, 98, ME, NT 4.0, 2000, XP or Vista.
•
Ethernet Network employing 10/100/1000Base
•
TCP/IP
Procedure
Installation
1. Connect the network cable to the NAS.
Connect the network cable to the LAN port on the rear of the NAS. Connect the other end to your hub or switch.
2. Connect the USB device to USB port
3. Connect the supplied power adapter to a power outlet and plug the power cord into the
NAS's Power input on the rear panel.
Page 11
4. Power on.
Locate the NAS's power switch on the NAS's rear panel. Press it once to power on the
NAS.
5.
The NAS's self-test.
The NAS will run a brief self-test (2 or 3 seconds). During the self-test, all of the NAS's
LEDs will be illuminated or flashing.
When the self-test is complete, boot up will start. The Ready LED will blink continuously, and the LAN LED will blink occasionally. Boot up should take approximately 1-3 minutes.
7.
Boot up completed.
When the Ready LED stops blinking, and remains on, boot up is complete. If the Status
(Orange) LED stays on, or if the NAS repeatedly beeps, there is a hardware problem.
Consult the Troubleshooting section of this User Guide for possible solutions
Shutdown
To shutdown the NAS, press the power switch to start the shutdown sequence. Wait for all
LEDs to turn off.
Page 12
USB Devices
You can insert either USB HDD or USB Memory Disk (Flash Memory Disk) to USB port at any time. Once the “USB 1” or “USB 2” LED on the front panel comes on and stays on, the USB device is available for use.
For USB HDD, the NAS can recognize FAT and NTFS (Read only) file format.
Removing a USB device - Method A
1. Press the USB Eject button on the rear panel (Eject 1 for USB 1, Eject 2 for USB 2). The
NAS will beep.
2. Wait for the "USB" LED turn off.
3.
Remove the USB device.
Removing a USB device - Method B
1. Run the Windows utility
2. Select "Safely Remove Drive"
3. Select the desired NAS
4. Click the "Eject" button.
5. Wait for the "USB" LED turn off. (The Windows program will also display a message when it is safe to physically detach the USB device.)
6. Remove the USB device.
Note : If the USB device is not removed, it will not be re-connected. You must remove and reinsert the USB device to have it re-connected.
To share a printer, connect USB printer to this USB port.
Page 13
Configuring Your NAS
Now that everything is connected and powered on, you are ready to configure your NAS so that it is accessible to the users on your network.
•
This procedure only needs to be done ONCE, by the NAS Server's Administrator.
•
Other LAN users should follow the Client PC Setup procedure described in the following chapter.
Quick Setup with the NAS Wizard
1. Please insert User’s Manual and Utility CD into the CD-ROM drive to initiate the autorun program.
Once completed a menu screen will appear.
2. Click on “Initial Utility” hyper link to initiate the installation. If the autorun program is not process in your PC, you can click the “Start” button and choose “Run”. (Suppose “E” is your CD-ROM drive).
When the dialog box appears, enter “E:\Utility\Setup.exe” and press enter key. You will see the dialog box as below. Please click the “Setup” button.
3. After click, you will see the screen as below. The utility will auto search your network and find out your NAS-7100.
4. A list of all the NAS-7100s on your network will show on the left side. The right side displays details of the currently selected NAS-7100.
If the desired NAS-7100 is not listed, check the following:
Page 14
•
The NAS-7100 has finished the start up and boot process.
•
Your PC and the NAS-7100 are on the same IP segment.
•
Click “Refresh” button to search again.
Otherwise, select the desired NAS-7100, and click the "Next" button.
5. You can set the IP settings in this screen. Please click “Next” after the configured.
Obtain an IP address automatically (DHCP
Client)
Fixed IP Address
Select this only if your LAN has a DHCP Server.
This option is recommended. You need to enter the following data.
•
IP address - The utility will suggest a unused IP address within the address range used on your LAN. If you wish, you can change this, but you must ensure the address is unused.
•
Network Mask - This must match the value used by PCs on your
LAN.
•
Gateway - This must match the value used by PCs on your LAN.
6. You can configure the time settings in this screen. Please click “Next” after the configured.
Server Name The Default Name is shown. You may change this if you wish.
Workgroup
Name
Normally, this name should match the Workgroup name used by PCs on your LAN.
Time Zone Select your time zone from the list.
Local Date/Time Enter the local date (mm/dd/yyyy format) and time.
7. Please check the configured settings of this screen, if all the configure are correct. Please click
“Save” button.
Page 15
8. After click "Save", you will see the dialog box to prompt you again. Please click “OK” to save or click
“Cancel to check the settings.
9. You can install the Flash Map utility into your PC to helps to map the NAS-7100 as your network disk. Please click “Yes” and follow the steps to install this utility, then check the next step.
Otherwise, please click “No” to finish the configuration, then close the initial utility.
10.
After Flash Map utility installed , you will see this dialog box. This utility will auto search your NAS-7100. Select "Share Folder Mapping", and a screen like the following will be displayed.
Page 16
11. A list of all the NAS’s on your network will show on the left side. The right side displays share folders of the currently selected NAS
12. Select which share folder you want to map and select a drive letter for this share folder then click “Map” button. Then you will need to enter the user name and password for network disk mapping.
13.
This drive will now be available in Windows Explorer , and from the File- Open or File-
Save As dialog in all Windows applications.
Other Configuration
After the configuration above, all Windows users can access the NAS with "guest" access rights. This allows access to the public shares (by default, DISK and FLASH or USB HDD ).
However, we recommend creating an NAS "User" for each person on your LAN. This will provide each person on your LAN with their own login (name and password) as well as their own personal folder on the NAS.
See the Administration chapter for details on creating users via the Web-based interface.
Page 17
Client PC Setup
Overview
Supported versions of Windows are:
•
Windows 95/98/ME or later
•
Windows NT 4.0, Windows 2000, Windows XP and Windows Vista
The following items need to be checked or configured:
•
Network Logon (Windows 95/98/ME only)
•
Locating the NAS on your LAN.
•
Mapping to the NAS Server's storage.
Page 18
Network Logon (Windows 95/98/ME only)
If using Windows 95, Windows 98, or Windows ME, you must Logon to the Network correctly in order to use the NAS.
To check your Network Logon, following this procedure:
14.
Check your Window logon using Start - Settings - Control Panel - Network .
Ensure the Primary Network Logon is set to "Client for Microsoft Networks", as shown below.
Window Logon
Windows will prompt you to Logon to the Network when it starts (boots).
You must logon!
If you press ESC, or click Cancel , no network resources will be available.
When you logon, you need to use a valid User Name and Password . If the NAS Administrator has defined users on the NAS, use the User Name and password they supply.
Page 19
Using the NAS Server's Storage
To use the NAS Server's storage, you should "Map" a drive letter to each folder on the NAS folder which you wish to access. The "Network Drive" will then be available to all Windows programs. The procedure is as follows:
1. Open Network Neighborhood (or My Network Places).
On the "View" menu, select Details . The Comment column will now be visible.
2.
Locate the NAS, as shown below.
If it is not listed, double-click Entire Network . Then double-click the Workgroup that the
NAS is in. (By default, the NAS is in Workgroup .)
Network Browse
3. Double click on the NAS icon. You will then see a list of shares (shared folders). You can read and write files to these shares, unless the NAS administrator has blocked access.
4.
To create a shortcut to an NAS folder, drag its icon to the desktop, and accept Windows offer to create a shortcut.
Mapping a Network Drive
You can give a share (shared folder) on the NAS a drive letter on your PC, such as "F:"
This is called "mapping" the drive letter. To do this, follow this procedure:
1. Right-click on the desired share on the NAS.
2.
On the pop-up menu, select "Map Network Drive..."
Map Network Drive
Page 20
3. Select a drive letter for this folder, check the Reconnect at Logon checkbox, then click
"OK".
4. This drive will now be available in Windows Explorer , and from the File- Open or File-
Save As dialog in all Windows applications.
Notes:
When you try to access a folder, you may be prompted for a password, as shown below:
Network Resource Password Dialog
•
If your Windows logon name is the same as your user name on the NAS, but the passwords are different, you can enter your NAS password here.
•
But if your Windows logon name does not exist on the NAS, you will have only guest access rights, and there is no password which you can enter in this dialog. You must ask the NAS administrator to create a username and password for you on the NAS.
•
Even if your username and password are correct, you can't gain access if the NAS administrator has not allowed access.
You can also use the Windows utility “Flash Map” installed from the bundle CD-ROM disk:
1. Suppose the CD-ROM drive is disk “E” in your PC. You can find the Flash Map in
“E:\utility\Flash Map”. Please double click the “Setup.exe” and then follow the steps to install. After installed, the utility will autorun and search your NAS-7100 on the network.
2.
Select "Share Folder Mapping", and a screen like the following will be displayed.
Page 21
5. A list of all the NAS’s on your network will show on the left side. The right side displays share folders of the currently selected NAS
6. Select which share folder you want to map and select a drive letter for this share folder then click “Map” button. Then you will need to enter the user name and password for network disk mapping.
7.
This drive will now be available in Windows Explorer , and from the File- Open or File-
Save As dialog in all Windows applications.
8.
If you would like to map to NAS-7100 again when you have finish some configuration.
You can right click the Flash Map icon on the system tray. Then select “Shared
Folder Mapping” then follow the steps above to mapping the network disk.
Page 22
Tips for Storing Data on the NAS
•
Change your Windows logon so it matches the user name & password assigned to you on the NAS. This will allow you to login only once.
•
You can "map" multiple folders to drive letters on your PC, as described above.
•
You can backup your data to the NAS by copying files from your PC to the NAS.
•
If you have Windows ME, 2000, XP or Vista, there is a backup program supplied with
Windows. You can use this backup program to automate the process of backing up your data to the NAS. Please read the instructions and help file supplied with this program for details of correct usage.
Page 23
Using the NAS Server’s Printer
1. Find out what printer is connected to the printer port on the NAS.
Use Network Neighborhood (or My Network Places ) to locate the NAS, as shown in Network
Browse earlier.
Double-click the NAS icon. A printer icon should be shown.
Install Printer
Right-click the printer icon, and select Install , as shown above. The Add Printer wizard will start.
Select the Manufacturer and Printer matching the printer connected to the NAS.
Follow the prompts to complete the installation.
If prompted about sharing this printer, do NOT enable sharing.
The new printer will then appear in your Printer list, and can be used from any Windows application.
•
Use to list all your printers.
•
Double-click the printer to view or delete the documents in the print queue.
•
Use to make the selected printer the default printer.
•
Use to view or modify the properties of the selected printer.
Page 24
Using the Web File Sharing
You can access and download files on the NAS using your Web Browser, even from non-
Windows platforms.
To access data stored on the NAS using your Web Browser:
1. Start your WEB browser.
In the Address box, enter "HTTP://" and the NAS Server's IP Address. The default IP address is 192.168.0.100
.
Note : If the port number used by the NAS has been changed (on the System screen) from the default (80), you must specify the correct port number when you connect.
For example, if the current port is 8080:
HTTP://192.168.0.100:8080
The following screen will be displayed.
NAS Home Page
To browse the files and folders on the NAS, click DISK (Public data) or FLASH/USB HDD on the home screen above.
•
Shares (Folders) to which everyone has access are listed. You can access these folders, and files by clicking on the folder name or filename.
•
If your Browser displays the file when you prefer it to be downloaded, right-click on the file and choose "Save Target as…"
To access data which is password-protected, click the User Login link.
Page 25
•
You will then be prompted for your user name and password.
Enter the user name and password assigned to you by the Administrator of the NAS.
•
The screen will then update, and list all Shares (folders) to which you have access.
You can now navigate through these folders by clicking on the folder name, and download any file by right-clicking in and choosing "Save Target as …".
Changing your Password
Although the Administrator of the NAS must create your User Name and initial password, you can then change your own password whenever you wish, as follows:
1.
To change your password, click on the "Change Password" link on home page.
The following screen will be displayed.
Change User Password
Enter the required data:
•
User name - your login name on the NAS, created by the NAS Server's administrator.
•
Existing password - your current password
•
New password - the password you now wish to use.
•
Confirm new password - reenter the new value to ensure it is correct.
Click "Save" to save your changes.
Click "Home" to return to the main screen.
Page 26
Administration
Overview
This Chapter describes using the Web-based Administration interface.
For details on using the Windows utility, see the Basic Installation & Setup Chapter.
The Web-based Administrative Interface
To access the Administration interface, click the "Administration" link on the home page.
You will then be prompted for a password, as shown below.
Password Dialog
Enter “ admin ” for the name, and leave the password blank.
•
To gain access, you must enter the User Name and Password of a user in the
"Administrators" User Group.
•
By default, the only user in the "Administrators" User Group is "admin". (You can add other users as you wish.)
•
The default password for the "admin" user is blank (no password).
This should be changed. Click the User Password link on the Home Page to change the password.
The " Users " screen will be displayed, as described in the following section.
Use the menu tabs to select the other screens as desired.
Page 27
Users Screen
This is the first screen that appears after selecting "Administration". This screen allows you to manage the Users which exist on the NAS Server.
•
The "guest," and "admin" users are pre-defined, and cannot be deleted.
•
Users can be members of many user Groups.
•
When a user is created, a Share (folder) is created for them, with the same name. Only the user and the Administrator group can access this new Share.
Users Screen
This screen allows you to manage the Users which exist on the NAS Server.
•
The "admin" and "guest" users are pre-defined, and cannot be deleted.
•
Users can be members of many user Groups.
Existing Users
User List
Comment
(Optional)
This list shows all existing users. As you scroll through the list of users, details of the selected user are displayed in the "Properties" area.
Groups
Button
Delete
Button
Click this to view and/or modify the Groups which the selected user is in.
Use this to delete the selected user. When deleting a user, you have the option of deleting the Group and Share with the same name as the user (if they exist).
User Properties
Name User Name. Note that punctuation and other special characters (e.g. * / | \ ) cannot be used in the name.
Enter a comment if you wish.
Page 28
Password
Verify password
Create
Private Folder
(Share)
Enter the user's password in these fields.
These fields are also used to change an existing user's password, as follows:
1. Select the desired user
2. Clear the existing values in the password fields.
3. Enter the desired password in both the "Password" and "Verify
Password" fields. If no password is required, leave both fields blank.
4. Click the "Update" button.
When creating a new user, enter the desired password in both of these fields.
If creating a new user:
•
Checking this option will create a Group and a Private Folder (Share) with the same name as the user.
•
Read/Write access will be granted to the Share.
If changing an existing user:
•
The checkbox has no effect - it will neither create nor delete. This option is only available when creating a new user.
Enable Disk
Quota
Enable the checkbox if you want to set the disk usage for the user, then enter the maximum amount of disk space this user is allowed to use.
Note ! Unless the checbox is checked, the Disk Quota field has no effect.
Buttons
Groups
Delete
Clear
Clicking this button will display the Groups of which the selected user is a member. You can then add this user to other Groups, or remove existing membership.
Click this button to delete the selected user.
Use this button to clear the form, preparing the form for the entry of a new user.
Save as
New User
Use this Button to create a new user, after entering their data in the "User
Properties" fields.
Save Use this Button to save any changes you have made to the "User Properties" for an existing user.
Modifying an existing user
To modify the properties for an existing User.
•
Select the desired user from the list. Their details will be displayed in the "User Properties" fields.
•
Edit the "User Properties" fields as required. Note that you cannot change the "Create Private
Folder (Share)" option when modifying a user.
•
Click the "Save" button to save your changes.
Group button
To click Group button, it will pop up following screen:
Page 29
This screen allo ws you to check which Groups this user is a member of, and to add or revoke membe rship.
Data
User Name
Member of
Other Groups
The name of the User being modified is shown at the top of the screen.
The "Member of:" column on the left shows the Groups that this user is in.
The "Other Groups" column on the right shows all other Groups. The current User is not a member of these Groups.
Operation
To Add Membership of a Group
Select the Group or Groups in the right-hand column, then click the "<<"
Button. Multiple Groups can be selected by holding down the CTRL Key while selecting.
To Revoke Membership of a Group
Select the Group or Groups in the left-hand column, then click the ">>"
Button. Multiple Groups can be selected by holding down the CTRL Key while selecting .
When finished, click the "Close" Button.
Page 30
Status Screen
This screen used to check the details and status of NAS
Status Screen
This screen displays the status of the NAS.
Data
System •
Server Name - Current name of the NAS. This name will be shown in "Network Neighborhood" or "My Network Places".
The NAS has one default server name. Server Name is restored to default one after configuration restore.
•
Firmware Version - Current version of the firmware in the NAS.
•
IP Address - IP Address currently used by the NAS.
•
Date - Current date of the NAS.
•
Time - Current time of the NAS.
•
Current Status - Indicates the current status of the NAS. This will usually state "Available".
If the Server is not available, the message will say why the
Page 31
Printer Server
Disk
NAS is not available (e.g. Scandisk in Progress)
The NAS supports USB printer, and it can share the printer after you connect one printer into one USB port.
•
Current Status - Possible states are On-line, Off-line, and Out of Paper
•
No of Print Jobs - The total number of print jobs in the Print
Queue, waiting to be printed.
Display the status of Internal and USB Disks.
•
Model - Model name of the disk, it's provided by the manufacturer.
•
Total Space - Total amount of the disk space .
•
Free Space - Amount of the disk space still available to users.
•
Partition - Partition number of USB disk.
•
File System - Filesystem used in the partition.
•
Share - Corresponding share of the partition.
•
Total Size - Total size of the partition.
•
Free Size - Free size of the partition.
E-Mail Alerts
Send ...
E-Mail Address
Check this to enable the sending of E-Mail alerts by the NAS Server.
Alerts will be sent when there is some problem requiring the
Administrator's attention.
Enter the E-Mail Addresses. The messages generated by the NAS
Server will be sent to this destination.
Subject (Optional) Enter the text you wish to appear in the "Subject" field of E-Mail generated by the NAS Server.
Buttons
Shutdown Now
Restart Now
Shutdown the Server immediately. This will break all existing connections, including this one.
Clicking this button does NOT save any data you have entered.
Restart (reboot) the Server. This will break all existing connections, including this one. The NAS Server will immediately restart, but could take a few minutes before it is available again.
Clicking this button does NOT save any data you have entered.
Delete Current Job Clicking this button will delete the Print Job currently being printed. Use this if the document is not printing correctly.
Delete All Jobs
View Log
Clicking this button will delete all Print Jobs in the Print Queue. Use this to clear the Print Queue.
Click this button to view the log file in separate window. The log file is a record of activity on the NAS Server, which can help in management
Page 32
Refresh and troubleshooting.
Click this to update the data shown on screen.
Page 33
Network Screen
This screen allows you to set the IP Address and related information required for TCP/IP networks.
LAN (TCP/IP) Screen
This screen allows you to set the IP Address and related information required for TCP/IP networks.
IP Address
Obtain IP Address automatically
(DHCP Client)
Do NOT select this unless you have a DHCP Server on your LAN. A
DHCP Server can provide an IP Address to PCs and other devices when they boot.
Fixed IP Address Select this if your LAN does not have a DHCP Server, and enter the following data.
IP Address The IP Address must be unused, and compatible with the PCs on your
LAN.
Network Mask Enter the same Network Mask (Subnet Mask) used by PCs on your
LAN.
Gateway If your LAN has a Router or Gateway, enter its IP Address here.
Otherwise, leave this blank.
DHCP Server
The Network Attached Storage can act as a DHCP (Dynamic Host Configuration Protocol)
Server, providing IP Addresses and related data to PCs and other devices.
Page 34
Enable
Start Address
Finish Address
Use this to Enable/Disable the DHCP Server. If you already have a
DHCP Sever, do not enable this feature.
Enter the beginning of the range of IP Addresses to be allocated by the
DHCP Server.
Enter the last address of range of IP Addresses to be allocated by the
DHCP Server.
DNS
A DNS (Domain Name Server) translates Internet addresses (e.g. microsoft.com) to IP
Addresses. Use the same values as on your PC, or recommended by your ISP (Internet
Service Provider).
At least one (1) DNS entry is required if using either the "E-Mail Alert" feature.
Otherwise, the DNS entries may be left blank.
Obtain DNS Server
Addresses from
DHCP Server
Select this if you want to obtain DNS Server Addresses from DHCP server when DHCP Client is enabled.
Use Fixed DNS
Server Addresses
Select this if you want to specify some DNS Server Addresses.
Primary
Backup 1
Backup 2
IP Address of the first DNS Server.
IP Address of the DNS Server to be tried if the first server is busy.
IP Address of the DNS Server to be tried if the second server is busy.
Jumbo Frame
Frame Size The NAS support large frame, you select different frame size for your need.
Page 35
System Screen
System Screen
Page 36
Identification
Name
Comment
If you wish, you can change the name of the NAS Server.Note that punctuation and other special characters (e.g. * " / \ [ ] : ; | = , + ? < > ' `
( ) # $ %) cannot be used in the name.
Enter a comment if you wish (e.g. the location of the NAS Server).
Note that special characters (e.g. | \ , ' : ") cannot be used in it.
Workgroup Name This should match the "Workgroup Name" on your PCs. If the
Workgroup name does not match, access to the NAS Server is still possible, but the NAS Server will not appear when you click the
"Browse Network" button (for example, when adding a Network
Printer). Note that punctuation and other special characters (e.g. / ] \
[ : ; | = , + * ? " > < ' ` ) cannot be used in the name.
Printer Name Specify one name for the Printer Server. After you plug one printer into one USB port, the Printer Name will occur in Network Neighborhood and you can click it to install the Printer Server.
Date & Time
Time Zone Select the correct time zone for your location.
Change System Date and Time as Following Check this box for data and time update. The date and time setting is not sent to the server without check this box.
Local Date Enter the local date. The NAS Server will set it own calendar according to the date you provide.
Local Time Enter the local time at your location. The NAS
Server will set its own clock according to the time you provide. Remember that this is not sent to the Server until you click "OK".
NTP (Network Time Protocol)
Enable NTP
NTP Server
NTP Status
Synchronize ...
Sync Now
If enabled, the NAS Server will synchronize its clock with a NTP
(Network Time Protocol) Server.
Enter the domain name or IP address of the NTP server you wish to use. The NTP server can be a public server (on the Internet) or a local server (on your own network). Note that special characters (e.g. " / \
[ ] : ; | = , + * ? < > ' `) cannot be used in it.
This shows the status of the NTP update procedure.
Select how often you want the NAS Server to synchronize its clock with the specified NTP server. You can also specify the time of the next synchronization. This allows you to specify that the synchronization should be performed (for example) at 11.00 pm each day.
Use this button to synchronize with the NTP server immediately.
WINS
Page 37
Enable WINS
WINS Server
Enable this if your LAN has a WINS Server.
If enabled, this device will register with the WINS Server. This will allow users on the LAN to locate this device through a Router. (Without
WINS, "Network Neighborhood" or "My Network Places" only scans the local LAN segment.)
If WINS is enabled, enter the IP Address of your WINS Server.
Normally, this will be a Windows NT/2000/XP Server.
Language
Language
Environment
Specify the language environment for FTP clients and Download
Manager.
Download Manager
Enable Download
Manager
If enabled, you can use Download Manager function on homepage to download files with FTP and HTTP URLs. If special languages exists in the URLs, you must make sure the Language Environment above is correct, or they possibly fail to be downloaded.
Maximum Running
Tasks
Specify maximum number of tasks that can run at same time. It's up to
10 tasks.
Enable Schedule If enabled, Download Manager only runs on the specified time period. If disabled, Download Manager always runs. The option only takes effect when Download Manager is enabled.
Day
Time
Day of the schedule. If you want Download Manager to run in specified period every day, you need select "Every Day", or you can select others to limit Download Manager to run on one specified day.
Time of the schedule. If selection of Day is not "Every Day", the End
Time cannot be after Start Time.
Options
Enable Guest Logins If enabled, then the user can use "guest" as user ID to login to the
NAS. If disabled, then "guest" will not be accepted as a login.
Convert failed logins to "guest" logins
If enabled, then all Windows users will be able to access the NAS via
Network Neighborhood/My Network Places, with "guest" access rights. By default, the "guest" user has Read/Write permission to the
"Disk" folder on the USB HDD, and all folders on the Flash Drive.
Enable NFS Server If enabled, then it will be possible for users to access files using a
NFS (Network File System) client .
Enable FTP Server If enabled, then it will be possible for users to upload and download files using a FTP client program on their PC. The FTP server supports
UTF-8. If the FTP clients don't support UTF-8, please specify right
Language Environment above.
Allow anonymous
FTP login
The FTP server will prompt for a Username and Password when clients attempt to connect. If this option is Enabled, users will be able to enter "anonymous" as the Username, and any string as the
Password. If this option is Disabled, users must provide their correct
Name and Password.
Enable SSL Enable SSL encryption support for the FTP server. To use this
Page 38
Enable UPnP
Support
Enable HTTPS
Port Number function, you must use FTP clients with SSL supported also.
If enabled, the NAS will broadcast it's availability. For LAN users with systems which support UPnP (e.g. Windows ME, Windows XP), an icon for the NAS will be automatically generated.
If enabled, you can access the NAS's web pages with HTTPS (HTTP over SSL). This function can make sure all connections are encrypted and secure.
This port number is used for HTTP (Web Browser) connections to this
Server. The default is 80, as used by Web Servers. If this is changed, you should use a number greater than 1024 (8080 is often used).
Also, if the port is not 80, you must specify the port in your Web browser, in order to connect. To do this, add a ":" and the port number after the address: e.g.
HTTP://192.168.0.100:8080
This example assumes the NAS IP Address is 192.168.0.100, and the port number is 8080.
Page 39
Media Screen
This screen allows you to configure the settings for media functions.
Media Screen iTunes Server
Enable iTunes
Server
If enabled, then the user can listen music that stored in the NAS via iTunes client.
Server Name Specify the name of the iTunes Server.
Content Directory Specify the location in which music need be served iTunes Server.
MP3 Broadcast
Enable MP3
Broadcast
Server Name
Port
If enabled, then the NAS will broadcast MP3 in specifed folder, and user can listen to them by music players such as WinAMP etc.
Specify the name of the MP3 Broadcast.
This port number is used for HTTP connections to MP3 Broadcast.. The default is 1234.. If this is changed, you should use a number greater than 1024. In order to connect to the music broadcast via WinAMP etc, need add a ":" and the port number after the address: e.g.
HTTP://192.168.0.100:1234
This example assumes the NAS's IP Address is 192.168.0.100, and the port number is 1234.
Page 40
Play by Specify the order that MP3 should be broadcasted.
Content Directory Specify the location in which MP3 need be broadcasted.
Media Server
Enable Media
Server
If enabled, the Network Storage System can be located by compatible
Media Adapters, using the UPnP AV standard developed by Intel and its partners. Media content on the NAS (in the Content Directories specified below) can then be accessed and played by the Media Adapters.
Name of the Media Server that is displayed on client devices. Server Name
Content Directory Directories where the Media Server shall scan for media content. You can specify four Content Directories at most. You should click the
"Browse" button to select the desired folder. Each directory can be limited to a certain media type. The default setting will scan for all content types.
Content Scan This option specifies the scan behaviour of the server. Content Scan be one of following methods:
•
Continuous Scan - When media files on the specified Content
Directory change, the Media Server can rescan them automatically.
•
Scheduled Scan - The Media Server scan the media files once at intervals of specified minutes.
Buttons
Browse
Scan Now
Save
Cancel
Click this button to select Content Directory.
Click this button to scan media files in the specified Content Directories.
Click this button to save the settings on the page.
Click this button to cancel the modifications on the page.
Page 41
Advanced Menu
Groups Screen
This screen allows you to manage the User Groups which exist on the NAS Server.
Groups Screen
Data
New Group Use this area to create a new group.
Existing Groups This shows the list of all Groups.
Two groups - "everyone" and "administrators" - always exist. These groups can not be deleted.
Buttons
Create
Access Rights
Members
Delete
Use this Button to create a new Group. Enter the desired name for the new Group in the "Name" field, then click this button.
Clicking this will display the shares which members of the current Group are able to access. You can then assign, remove or modify access rights for this Group.
Note: The "administrators" Group ALWAYS has Read/Write access to
ALL Shares.
Clicking this will display the users who are members of the selected
Group. You can then add or delete members.
Note: The "everyone" Group ALWAYS contains all users. You cannot add or remove members.
Click this Button to Delete the selected Group.
Note: The "administrators" and "everyone" Groups can not be deleted.
Page 42
Access Rights Screen
This screen allows you to view and modify the Groups which can access this Share.
Note: The administrators group ALWAYS has Read/Write (R/W) access to ALL shares.
Groups Access Rights Screen
Data
Group Name
Accessible Shares
Other Shares
The name of the Group being modified is shown above the 2 lists of shares.
The "Accessible Shares" column on the left shows which Shares this
Group can currently access. The type of access is shown in brackets. (R = Read Only, R/W = Read-Write).
Note: The "administrators" Group has R/W access to ALL shares.
The "Other Shares" column on the right shows all other Shares. The current Group has no access to these Shares.
Operation
To Add
Access Rights:
Select the Share or Share in the right-hand column, then click the "<<
Read Access" to provide Read-Only access, or the "<< R/W Access"
Button to provide Read-Write access. Multiple Shares can be selected by holding down the CTRL Key while selecting.
To Remove
Access Rights:
Select the Share or Shares in the left-hand column, then click the "No
Access >>" Button. Multiple Shares can be selected by holding down the CTRL Key while selecting.
When finished, click the "Close" Button.
Page 43
Group Members
This screen allows you to check which users are members of the group, and to add or revoke membership of this group.
Note: The "everyone" Group ALWAYS contains all users. You cannot add or remove members.
Group Members Screen
Data
Group Name
Members
(users)
Other Users
The name of the Group being modified is shown at the top of the screen.
The "Members" column on the left shows the users who are currently members of this Group.
The "Other Users" column on the right shows users who are not currently members of this Group.
Operation
To Add a Member: Select the User or Users in the right-hand column, then click the
"<<" Button. Multiple Users can be selected by holding down the
CTRL Key while selecting.
To Delete a Member: Select the User or Users in the left-hand column, then click the
">>" Button. Multiple Users can be selected by holding down the
CTRL Key while selecting.
When finished, click the "Close" Button.
Page 44
Shares Screen
This screen allows you to manage the Shares which exist on the NAS Server. A "Share" is a folder (directory) on the NAS Server which a User Group can access.
•
Only the NAS Server Administrators can create Shares. However, within a Share, users who have access to that Share can create other folders (directories) as well as files.
•
A Share can be accessed by many User Groups, and a User Group can access many
Shares.
•
If you have a Share within a Share, then all users with access to the outer share will
ALWAYS have the same access rights to the inner share.
Shares Screen
Existing Shares
Share List
Access Rights button
Browse button
Delete button
All existing shares are listed. When an existing Share is selected in the list of Shares, its details are displayed in the "Share Properties" area.
Click this Button to view the Groups which have access to the selected
Share, and change these access rights as required.
Use this to view the files and folders in the selected Share. If using
Internet Explorer, you will be able to right-click a file and perform standard Explorer operations.
Click this Button to Delete the selected Share. Deleting a Share does
NOT delete its folder or any data. The folder and its data is still accessible by the "Administrator" group.
Properties
Page 45
Name The current name will be displayed. The Share Name can be changed if you wish. This does not change the name of the folder (directory) associated with the Share. Note that punctuation and other special characters (e.g. " / \ [ ] : ; | = , + * ? < > ' ` $ % @ #) cannot be used in the name.
Comment (Optional) Change or enter a comment if you wish. Note that special characters
(e.g. " \ : , | ' ) cannot be used in it.
Location The Location associated with the Share. Note that once a Share is created, its location can not be changed.
Option regarding location:
•
Folder - If "Default Folder" is selected, the share is creared in the root folder (directory).
If "Specify" is selected, you can Specify the folder (directory) where you want the share. If the folder does not exist, it will be created. Note that special characters (e.g. " : ; | = , + * ? < > '
`) cannot be used in it.
Operations
Browse
Delete
Access Rights
Use this to view the files and folders in the selected Share. If using
Internet Explorer, you will be able to right-click a file and perform standard Explorer operations.
Click this Button to Delete the selected Share.
Click this Button to view the Groups which have access to the selected
Share, and change these access rights as required.
Save as new Share After entering the required data in the "Share Properties" area, use this
Button to create a new Share.
Clear the form, preparing it for the creation of a new Share. Clear Form
Save Use this Button change the properties of a Share, as follows:
1. Select the desired Share in the Share list. Its details will be displayed in the "Share Properties" area.
2. Change the Share properties as required. Note that you can
NOT change the location.
3. Click the "Save" button to save your changes.
Page 46
Share Access
The screen is displayed when you click the “Access” button on the Shares screen. It allows you to determine which users can access the selected share.
Share Access Rights
Data
Share Name
Groups with
Access
The name of the Share being modified is shown above the 2 lists of
Groups.
The "Groups with Access" column on the left shows which group can currently access this Share. The type of access is shown in brackets. (R =
Read Only, R/W = Read-Write).
Note: The "administrators" Group has R/W access to ALL shares.
Other Groups The "Other Groups" column on the right shows all other Groups on the current Disk Drive. The current Share can not be accessed by these
Groups.
Operation
To Add
Access Rights
Select the Group or Groups in the right-hand column, then click the "<<
Read Access" to provide Read-Only access, or the "<< R/W Access"
Button to provide Read-Write access. Multiple Groups can be selected by holding down the CTRL Key while selecting.
To Remove
Access Rights
Select the Group or Groups in the left-hand column, then click the "No
Access >>" Button. Multiple Groups can be selected by holding down the
CTRL Key while selecting.
When finished, click the "Close" Button.
Page 47
Backup Screen
Backup Screen
There are 2 types of backup:
•
Config Backup - This facility allows you to Backup (Download) and Restore (Upload) the NAS's configuration file. The configuration file contains all network information, as well as the User, Group, and Share information. It does NOT include any information about the files stored on the NAS
NOTE: Using this feature will overwrite (destroy) any existing configuration information.
•
Data Backup - Data files can be backed up from the NAS to another network device, or from another network device to the NAS
Config Backup
Download Button Click this to download the configuration file and save it on your PC.
Upload Button Use this to restore a previously-saved configuration file from your PC to the NAS
Data Backup
Backup Jobs This lists any Backup jobs you have defined. If you have not defined any jobs, the list will be empty. For each job which has been defined, the following data is shown:
•
Name - the name you assigned to this backup job.
•
Source & Destination - The name of the source and destination devices are shown in the form Source => Destination.
•
Date/Time - The date and time of the last backup are shown.
Page 48
Backup Now
Status
Modify
Delete
Add New Job
Run the selected backup job immediately.
This button will open a sub-window that shows the status of all Backup jobs.
This button will open a sub-window where you can change the settings of the selected backup job.
Delete the selected backup job.
This button will open a sub-window where you can define a new backup job.
View the log of completed backup jobs in a sub-window. View Log
Add Backup Job
From this screen, you can add new backup jobs, which be displayed on the Backup screen.
Add Backup Job Screen
Data
Name
Backup Type
Direction
Local Location
Enter a suitable name for this job.
Select the desired backup type.
•
Full - all files will be backed up.
•
Incremental - only changed files will be backed up.
•
Synchronize - all files are backed up, then any files on the destination which do not exist on the source are deleted.
Select the desired option:
•
From this NAS to another device.
•
From another device to this NAS
Select the desired folder in this NAS..
Page 49
Remote Location Enter the details of the remote device.
•
Name - enter the name of the other device, as seen on the network.
•
Shared Folder - Enter the name of the shared folder.
Depending on the direction of the backup, this is either the share to be backed up, or the destination for the backed-up data.
•
The Server Requires Authentication - If the share is passwordprotected, enable this checkbox and enter the User Name and
Password required to gain access to the share.
Schedule
•
If backing up from this NAS, select the folder you wish to backup.
•
If backing up from another device to this NAS, select the folder where you want the backed-up data to be stored.
Select the desired option from the list:
•
Never - This will disable this backup job.
•
Every Day - Select this to have the backup job performed each day, at the specified time.
•
Every Monday, Every Tuesday, ... Select this to have the backup performed once per week, on the specified day.
Use the time fields ( hour, minute, am/pm ) to specify when the backup job should be performed.
Buttons
Browse
Save
Close
Click it to select one folder in this NAS.
Click it to apply modifications in this window.
Close the window.
Page 50
Disk Screen
This screen allows you to maintain the disks in this NAS
•
Format Disk - use this after installing a new disk. The disk will be partitioned and quick-formatted. Any data on the disk will be lost!
•
S.M.A.R.T.
- S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) can warn of impending problems with the Hard Disk, before it actually fails. This test should be performed regularly.
Scandisk - running the Scandisk (Disk Check) program will check the file system, and correct any errors found. This program should be run regularly. The Scandisk program will also run automatically if an error condition is detected, such as an abnormal shutdown due to loss of power.
Disk Screen
Data
Format Disk This includes status of Internal Disk and USB Disks.
Internal Disk:
•
No Installed - No disk is inserted, or connection or disk has failed.
•
Not Formatted - Disk has been detected, but it is not ready for use. Use the "Format" button to prepare the disk for use.
•
Formatting - This message will only be displayed after you have clicked the "Format" button. (See below for details of this button.)
•
Prepared - Disk is ready for use.
Page 51
S.M.A.R.T.
Scandisk
USB Disks:
•
No Installed - No disk is inserted into this USB port.
•
Not Formatted - This USB disk hasn't been formatted into FAT or NTFS file system. You can click "Format" button to format it.
This can have any of the following values:
•
Not Installed - No disk is available.
•
Not Checked - No S.M.A.R.T. check has been performed on this drive since system boots up.
•
OK - No errors were found in the last test.
•
Going to fail - The S.M.A.R.T. check found errors on the drive and the disk is going to fail.
Schedule
Use these fields to set up a schedule to run S.M.A.R.T. check regularly, if desired. The available options are:
•
Never - S.M.A.R.T. check will not be scheduled to run.
•
Every Day - Select this to have S.M.A.R.T. check to run each day, at the specified time.
•
Every Monday, Every Tuesday, ... - Select this to have the scandisk run once per week, on the specified day.
Use the time fields ( hour, minute, am/pm ) to specify when the
S.M.A.R.T. check should be performed.
This can have any of the following values:
•
N/A - No disk is available.
•
No Scanned - No Scandisk has been performed recently on this drive.
•
Scanning - Scandisk operation is in progress. The disk cannot be used while a Scandisk is in progress. If required, use the
"Stop" button to terminate the Scandisk operation and gain access to data on the disk. (To see the results of the Scandisk operation, use the "View Disk Log" button.)
•
Completed - The last Scandisk operation has been completed.
You can use the "View Disk Log" button to view the results.
•
Terminated - The last Scandisk operation was cancelled by the
Administrator before it was completed.
Schedule
Use these fields to set up a schedule to run Scandisk regularly, if desired. The available options are:
•
Never - Scandisk will not be scheduled to run.
•
Every Day - select this to have scandisk run each day, at the
Page 52
S.M.A.R.T.
Scandisk
Save
Cancel specified time.
•
Every Monday, Every Tuesday, ... - Select this to have the scandisk run once per week, on the specified day.
Use the time fields (hour, minute, am/pm) to specify when the scandisk operation should be performed.
Use the "Set Hard Disk to standby mode.. " setting to determine if and when the hard disk drives should be switched to "Standby" mode.
Standby
Buttons
Format Disk Use this button to format the disk. This will partition and quick-format the new disk.
WARNING!
This will destroy any data on the disk. Once started, this process can NOT be halted or reversed.
•
Check - Click this button to run the S.M.A.R.T. check immediately.
•
Start - Click the button to start the Scandisk. The Scandisk could take long time, and the disk is unavailable to users while the
Scandisk is in progress.
•
Stop - If a Scandisk is in progress, click this button to terminate the Scandisk immediately.
Click it to save the modifications in this window.
Restore the settings on the screen to their values after the last "Save" operation. Clicking "Cancel" has NO EFFECT on any operations in progress.
View the log messages of disk maintenance. View Log
Page 53
Upgrade Screen
The Upgrade facility allows you to upgrade the NAS Server's software. You need to obtain the upgrade file from your dealer or supplier.
Note that the NAS Server is unavailable during the upgrade process, and all connections will be lost, including this one.
The NAS Server will reboot once the upgrade installation is completed. The procedure may take from 5 to 10 minutes.
Upgrade Screen
Data
Current Firmware
Version
Firmware File
This displays the version number of the NAS Server's current firmware.
Click the "Browse" button to browse the folders on your PC and select the Firmware file (e.g. C:\downloads\NS65_V36R01.bin).
Note: Implementation of this feature is Browser-dependent.
Buttons
Start Upgrade
Button
Click this button to start upgrading the firmware.
Page 54
Download Manager
Overview
Download manager allow you to download file via FTP, HTTP or BT without PC. Just set on
NAS and will base on your setting to download file automatically.
The Web-base Download Management Interface
To access the Download Manager interface, click the " Download Manager " link on the home page.
You will then be prompted for a password, as shown below.
Password Dialog
Enter “admin” for the name, and leave the password blank or user ID and password who registered on this NAS
Download Management Screen
This screen allows you manage your download tasks.
Page 55
Upgrade Screen
Data
Manager Status Status of the Download Manager, it can be 'Enabled' or 'Disabled'.
Owner Name of the user that logins the Download Manager.
File Name
File Size
Name of the saved file in the NAS for the task.
Total size of the downloaded file for the task.
Speed
Percent
Status
Admin
Download speed of the task.
Completed percentage of the downloaded file from the URL.
Download status of the URL, it can be "Waiting", "Connecting", "Failed",
"Stopped", "Transferring" or "Done".
Select the operation on the task.
Action
Task Details
Run Task
Stop Task
Delete Task
View the detailed information of the task.
Start to run the selected task.
Stop the selected task.
Delete selected tasks.
Move Up
Move Down
Increase the priority of the task.
Decrease the priority of the task.
Logout Leave the screen of Download Manager.
Add New Task Open the window to add new task.
Refresh Refresh the status of tasks.
Page 56
Help Click it to view on-line help.
Add New Task Screen
This screen allows you define download task of Download Manager.
Add New Task Screen
Source
Type Specify type of the file to be downloaded. It can be HTTP/FTP or BT
(Bit-Torrent).
URL (HTTP/FTP) Specify the URL if type is HTTP/FTP.
Torrent File Specify the torrent file with which you need download files. You can upload it from local PC or provide one HTTP/FTP URL for it.
File Name Specify name of the downloaded file on NAS. If not spedified, use default one.
Authentication
Page 57
Authentication
Required
(Optional)
Account
Password
If authentication is needed to access the URL, need enable it and input the account and password.
Account name that is used to access the URL if necessary.
Password that is used to access the URL if necessary.
Destination
Share Folder Select name of the share where downloaded file will be saved.
Subdirectory Select the subdirectory under the selected share where downloaded file will be saved.
Action
Save
Cancel
Close
Save the new task.
Cancel the modifications on the web page.
Close the window.
Page 58
NAS via the Internet
Overview
If your LAN is connected to the Internet, typically by a Broadband Gateway/Router and
Broadband modem, you can make the NAS available via the Internet. Features available to
Internet users include:
•
Using a Web browser to view and download files.
•
Remote management
Making the NAS available via the Internet
If your LAN is connected to the Internet via a Router or Gateway, you can make the NAS available from the Internet.
No changes to the NAS configuration are required, unless you wish to use a port number other than the default value of 80 for Web connections.
Your Router or Gateway must be configured to pass incoming HTTP connections (and optionally, IPP connections) to the NAS. This feature is normally called Port Forwarding or
Virtual Servers , and is illustrated below.
Connecting via the Internet
Page 59
•
The default port number for Web browser connections is 80. If you prefer to use a different port number, you can specify the port number on the NAS System screen. The
"Web" entry for /Port Forwarding / Virtual Server must then use the port number specified on the NAS System screen.
•
To connect to the NAS, Internet users need to know and use the Internet IP address of your Router/Gateway. (If the port number is not 80, they also need to know the port number.)
•
If you have a domain name, users can connect using the domain name instead of the IP address.
If your Router/Gateway supports Dynamic DNS , you can use a domain name even if you get a different IP address every time you connect to your ISP. Check the documentation of your Router/Gateway for further information.
Using your Web Browser from the Internet
This is identical to using your Web browser from the LAN. See “ Using the Web File Sharing ” for details.
But remember:
•
You must use the Internet IP address to connect to the NAS, NOT the LAN IP address.
•
If the port number used by the NAS has been changed from the default (80), you must specify the correct port number when you connect.
For example, if the port is 8080, and the Internet IP address is 203.70.212.52, enter the following as your browser's Address or Location :
HTTP://203.70.212.52:8080
Page 60
Printing via IPP (Internet Printing Protocol)
To print to the NAS via the Internet, the port used for IPP (TCP port 631) must be associated with the NAS. See
Making the NAS available via the Internet earlier in this chapter for details.
The NAS is an IPP Server . To use IPP, your PC must be an IPP client . Windows 2000 and
XP have built-in support for IPP, so there is no need to use the provided IPP client program.
IPP Setup - Windows 2000/XP
the wizard.
2. Select , and click "Next" to see the Locate your Printer screen, as shown below.
Windows 2000 - Locate your Printer
3. Select , and enter the URL of the
NAS as follows. http:// ip_address :631/printers/ printer_name
Where:
• ip_address represents the IP Address used to access the NAS. (As explained earlier, this may be the Internet address of a Gateway, rather than the NAS itself.)
• printer_name is the name of the printer, as set on the NAS System screen.
•
The other text is fixed, and can NOT be changed. It must be entered exactly as shown, including the same case. (The path is case sensitive.)
Example: http://203.70.212.52:631/printers/LKLKG974163_p1
Page 61
If the connection can be established, and the printer on that port is on-line, the following dialog will be displayed.
Windows 2000: No printer driver
5. Click "OK", and then select the printer manufacturer and model to match the printer connected to the port on the IPP Server.
6. Click "Next", and complete the Wizard.
The IPP printer is now ready for use.
IPP Client Setup (Windows 9x, ME)
You need to install the supplied IPP client program, as follows:
1. Insert the NAS CD-ROM in your drive. If the program does not start automatically, run the
NAS_Setup.exe program in the top-level folder.
2. On the first screen, click the icon for IPP Client .
3. Follow the prompts to complete the installation.
IPP Client Configuration
1. Click the "Add IPP Port" icon. (In future, you can use the program entry created in the
Start Menu )
2. A screen like the following will be displayed.
IPP Port
Page 62
3. Configure this screen as follows:
IPP Server Enter the Internet IP address used to connect to the NAS, as follows.
http:// ip_address :631/printers/ printer_name
Where:
• ip_address represents the IP Address used to access the NAS.
(As explained earlier, this may be the Internet address of a
Gateway, rather than the NAS itself.)
• printer_name is the name of the printer, as set on the NAS
System screen.
•
The other text is fixed, and can NOT be changed. It must be entered exactly as shown.
Example: http://203.70.212.52:631/printers/LKLKG974163_p1
Proxy Server If Internet access from your PC is via a Proxy Server, check Access
IPP Server via Proxy Server , and enter details of your Proxy Server.
(These will be the same as your Browser configuration, so check your Browser settings.)
4. Click to create the IPP port on your system. You will see the following dialog:
Select Printer for IPP Port
5. Either selects an existing printer to use the new port, and click OK.
OR a) Click the "Add New Printer" button to start the Add Printer wizard. b) Complete the Wizard, installing the desired printer as a local printer on your PC. c) When returned to this screen, select the new printer and click OK.
6. The selected printer is now associated with the remote NAS, and installation is complete.
Page 63
Changing the IPP Port Settings
After the IPP port is created, you can reach the IPP Port screen via the Windows Port
Settings button:
1. Open the Printers folder (Start - Settings - Printers)
2. Right-click the IPP Printer, and select Properties .
3. Locate and click the Port Settings button (on the Details or Port tab, depending on your version of Windows).
Using the IPP Printer
The IPP Printer can be selected and used like any other Windows printer, but your Internet connection needs to be active.
An NAS may be unavailable for IPP printing for any of the following reasons:
•
It is powered off.
•
The IP Address of the Router/Gateway for the remote LAN has changed.
•
The Internet connection used by the IPP Server is down.
•
Network congestion causes the connection attempt to time out.
Page 64
Remote Management
Connection via your Web browser from the Internet is the same as connecting via the LAN.
But remember:
•
You must use the Internet IP address to connect to the NAS, NOT the LAN IP address.
•
If the port number used by the NAS has been changed from the default (80), you must specify the correct port number when you connect.
For example, if the port is 8080, and the Internet IP address is 203.70.212.52, enter the following as your browser's Address or Location :
HTTP://203.70.212.52:8080
Once connected to the NAS via the Internet, all the Web-based management features are available.
However, the "Browse" button on the Shares screen only allows Web-based file browsing. (If using Internet Explorer on Windows, LAN users can Browse shares using Windows Explorer.)
Page 65
Troubleshooting
This chapter lists some common problems, and the solution to them.
Problem 1: The NAS Utility doesn't list any NAS Servers.
Solution 1: Check the following:
•
The NAS is installed, LAN connections are OK, and it is powered ON and startup is complete.
•
Ensure that your PC and the NAS are on the same network segment. (If you don't have a router, this must be the case.)
•
Ensure that your PC has the TCP/IP network protocol loaded. In Windows, this is done by using Control Panel-Network . If an entry for TCP/IP ->
Network card is not listed, use Add - Protocol - Microsoft - TCP/IP to add it.
You then need to select the new entry (TCP/IP -> Network card), click
Properties , and configure the IP Address tab.
•
If your LAN has a DHCP Server, you can select "Obtain an IP Address automatically".
•
Otherwise, you must select "Specify an IP Address", and enter values for IP Address and Subnet Mask . The IP Address range commonly used is 192.168.0.1 to 192.168.0.254, with a Subnet Mask of
255.255.255.0. (The NAS Server's default IP Address is 192.168.0.2, with a Subnet Mask of 255.255.255.0). Remember that each device needs a unique IP Address, and the same Subnet Mask.
Problem 2: The NAS is configured, but I can't find it in Network Neighborhood.
Solution 2 Try using Start - Find - Computer , and enter the NAS Server's name. If this does not work, use Control Panel - Network to check the following:
•
TCP/IP protocol is installed. If not, use Add - Protocol - Microsoft - TCP/IP to install it.
•
Check the network Bindings:
•
Ensure the TCP/IP protocol is bound to your Network card (NIC).
Select your Network card, click Properties , and then the Bindings tab.
If TCP/IP is not bound (checked), check it.
•
Ensure TCP/IP -> Network card entry is bound to the Client for
Microsoft Networks service.
Select the TCP/IP entry for your Network Card, click Properties , and then the Bindings tab. If Client for Microsoft Networks is not bound
(checked), check it.
•
If you don't have a router, check that your IP Address is compatible with the NAS Server's. This means it needs to be from the same address range
(e.g. 192.168.0.1 to 192.168.0.254) and using the same Subnet Mask (e.g.
255.255.255.0)
•
If you DO have a router, check that your Gateway IP Address is set correctly. Ask your LAN administrator for the correct value.
Problem 3 When I click on an NAS folder icon in Network Neighborhood , I get prompted for a password.
Solution 3 This can happen in the following situations:
•
The Logon name you used on your PC is recognized by the NAS, but the password is not. Simply enter your NAS password, or make your Windows password the same as the NAS password.
Page 66
•
The logon name you used on your PC is NOT recognized by the NAS, and was converted to guest , with guest access rights. Ask the NAS
Administrator to create a user name for you. (Use the same name as on your PC.)
•
You do NOT have access permission for this share.
Ask the NAS Administrator to grant you access.
Note : Windows uses the Computer name , as shown on Control Panel -
Network - Identification , as the default Logon Name . But you can create a new
Windows logon name by merely entering a new name and password at the
Logon prompt.
Page 67
Appendix A - Licenses
Overview
Many software components are covered by the GNU GPL (General Public License). Some are covered by the BSD License.
•
The following table provides details of the various components.
•
The text of both Licenses is below.
Package Name License bash GPL bftpd GPL
BusyBox GPL
CUPS GPL e2fsprogs GPL gawk GPL gdbm GPL glibc LGPL hdparm BSD
Kernel GPL libtermcap LGPL
Lilo BSD
LPRng GPL mod-utils GPL net-tools GPL openssl BSD quota BSD
Samba server GPL sh-util GPL smtpclient GPL sysVinit GPL telnet-server BSD textutils GPL thttpd BSD
Tinylogin GPL
Page 68
Ucsc-smartsuite GPL udhcp GPL upnpsdk BSD util-linux GPL vixie-cron Distributable
XFS patch GPL xfsdump GPL xfsprogs GPL xinetd Distributable
BSD License
BSD License Information
Copyright (c) 2002. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
•
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
•
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
•
Neither the name of the BSD organization nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Page 69
GNU General Public License
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General
Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the
Page 70
program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
Terms And Conditions For Copying, Distribution And Modification
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the
Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
Page 71
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus
Page 72
any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the
Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by
Page 73
all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make
Page 74
exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT
WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH
YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING,
Page 75
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER
OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 76
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
