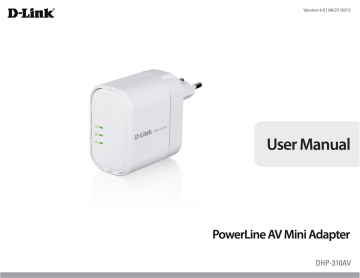

D-Link DHP-310AV User manual
Add to my manuals
21 Pages
D-Link DHP-310AV is a PowerLine AV Mini Adapter that uses your home's electrical wiring to create a high-speed network. It provides Ethernet to PowerLine connection with up to 200Mbps data transfer rate. With its plug-and-play installation and push button security, you can easily connect your home computers, gaming devices, and more to your network.
advertisement
Version 4.0 | 08/27/2012
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.
Revision
1.2
Manual Revisions
Date
August 27, 2012 • Text Modification
Description
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2012 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
D-Link DHP-310AV User Manual 2
Table of Contents
Table of Contents
Preface .........................................................................................2
Manual Revisions .......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview ......................................................................4
Package Contents ......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Hardware Overview ..................................................................... 6
LEDs ........................................................................................... 6
Connection ............................................................................. 7
Simple Connect Button ...................................................... 8
Hardware Installation ...............................................................9
Push Button Security .................................................................10
Configuration .......................................................................... 13
Using the Setup Wizard ............................................................13
Configuration ...............................................................................14
Installation Considerations .................................................. 18
PowerLine Installation Considerations ...............................18
Troubleshooting ..................................................................... 20
Technical Specifications ........................................................ 21
D-Link DHP-310AV User Manual 3
Section 1 - Product Overview
DHP- 310AV
• D-Link DHP-310AV PowerLine AV Mini Adapter
• Ethernet Cable
• CD-ROM with User Manual and Utility
• Quick Install Guide
DHP-311AV
• D-Link DHP-310AV PowerLine AV Mini Adapter X2
• Ethernet Cable X2
• CD-ROM with User Manual and Utility
• Quick Install Guide
System Requirements
• Windows ® 7, Windows Vista ® , XP (with Service Pack 3)
• Ethernet interface (10/100/1000 Mbps)
• PC with 1.5GHz Processor
• 1 GB Memory
D-Link DHP-310AV User Manual 4
Section 1 - Product Overview
Introduction
D-Link announces a fast, 200Mbps* PowerLine AV Mini Adapter which allows you to connect your home computers, networking devices and gaming devices through the most pervasive medium in your house - the electric powerLines - and share Internet connections, printers, transfer files, play games, and more.
Features
• Provides Ethernet to PowerLine Connection
• Fast Data Transfer Rate of Up to 200Mbps*
• One Ethernet port
• Plug & Play, Easy Installation
• Push Button Security
* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerLine devices that do not follow the HomePlug AV and IEEE1901 standard.
D-Link DHP-310AV User Manual 5
Section 1 - Product Overview
PowerLine LED
• Solid. The device is connected to a
PowerLine network.
• Blinking. The device is transmitting data.
• Off. The device has not found any other compatible PowerLine devices using the same encryption key.
The color indicates the PowerLine link rate:
• Green. The PowerLine link rate is best.
• Amber.The PowerLine link rate is better.
• Red. The PowerLine link rate is good.
Hardware Overview
LEDs
Power LED
• Solid. Indicates that the device is receiving electrical power.
• Blinking. Indicates that the device is setting itself up after reset or when the security button was pressed
• Off. The device is not receiving electrical power.
Ethernet LED
• Solid. The Ethernet port is linked but there is no data traffic.
• Blinking. The device is transmitting data.
• Off. There is no Ethernet connection.
D-Link DHP-310AV User Manual 6
Section 1 - Product Overview
Hardware Overview
Connection
D-Link DHP-310AV User Manual
Reset Button
Press and hold the button for 1 second to reset to factory default.
Ethernet Port
Connect the CAT5 Ethernet cable to the DHP-310AV Ethernet port.
7
Section 1 - Product Overview
Hardware Overview
Simple Connect Button
Simple Connect Button
Press to secure your network. Refer to page 10 for more information.
D-Link DHP-310AV User Manual 8
Section 2 - Installation
Hardware Installation
Power
Plug in the DHP-310AV into an AC wall outlet or power strip.
Note: Power source is confirmed when the Power LED on the DHP-310AV is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on the DHP-310AV and attach the other end of the Ethernet cable to the network or PC.
Network Connectivity is confirmed when the Ethernet
LED on the DHP-310AV are illuminated.
1 ROOM A
DHP-310AV
Internet Router
3 ROOM A
DHP-310AV
2 ROOM B
DHP-310AV
ROOM B
DHP-310AV
NB
NB
Internet Router
D-Link DHP-310AV User Manual 9
Section 2 - Installation
Push Button Security
Understanding PowerLine AV Mini Adapter Security
The PowerLine AV Mini Adapters on the same network must use an identical encryption key. The default encryption key of each
PowerLine AV Mini Adapter is HomePlug AV. All PowerLine AV Mini Adapters with default encryption key can communicate with each other.
It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to protect your network from unauthorized access via the PowerLine network. To create a private encryption key instead of the default encryption key, please follow below steps:
1. All Adapters
Plug in all the adapters to be configured and make sure each device’s encryption key is set to HomePlug AV (default value). If the encryption key is not set to the default value, press the reset button for 1 second for resetting it to the default value.
2. First Adapter
Press Simple connect button of the first adapter for no more than three seconds.
The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption key that each PowerLine AV Mini Adapter will use.
3. Second Adapter
D-Link DHP-310AV User Manual 10
Section 2 - Installation
Within two minutes of pushing the Simple connect button of the first adapter, press Simple connect button of second adapter in your PowerLine network for no more than three seconds. The Power LED will start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your PowerLine network will be securely configured with the same network encryption key. The adapters will memorize the security settings even if they are unplugged.
Note: To change the private encryption key, please reset the adapter back to its default value by pressing the reset button for
1 second and then follow the security setup procedure above.
4. Adding More Adapters
If you would like to add more than two adapters, press the button of the additional adapter for no more than three seconds.
The Power LED will start blinking after you release the button.
Then press the button of any adapter in your existing PowerLine network for no more than three seconds. The Power LED will start blinking after you release the button.
Note: Both Simple connect buttons must be pressed within two minutes.
After above network security setup steps, your PowerLine network will be securely configured with the same network encryption key.
D-Link DHP-310AV User Manual 11
Section 2 - Installation
D-Link DHP-310AV User Manual
1 ROOM C
DHP-310AV
NB
2 ROOM A
DHP-310AV
ROOM B
DHP-310AV
Internet Router
EXISTING PLC NETWORK
NB
ROOM C
DHP-310AV
NB
12
Section 3 - Configuration
Using the Setup Wizard
Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. Insert the D-Link
DHP-310AV CD into your CD-ROM drive. If the CD Autorun function does not automatically start on your computer, click Start
> Run. In the Run command box type “D:\autorun.exe”, where D: represents the drive letter of your CD-ROM. If it does start, proceed to the next screen.
Click on Install Utility to begin.
Note: In order to properly install the PowerLine AV utility, you will first need to install WinPcap.
D-Link DHP-310AV User Manual 13
Section 3 - Configuration
Configuration
After you have completed the D-Link PowerLine AV Utility installation wizard, double-click the D-Link PowerLine AV Utility icon on your desktop to start the configuration of the DHP-310AV.
D o u b l e - c l i c k t h e
D-Link PowerLine AV
Utility icon
The D-Link PowerLine AV Utility provides you the option of setting your own PowerLine network and the network information of connected PowerLine devices.
D-Link DHP-310AV User Manual 14
Section 3 - Configuration
Device
Name:
Shows the name of the devices that have been discovered. The device’s name is initially set by the utility itself.
Location: Shows if the device is local or remote
Quality: Shows the network connection quality of the connected device.
• Three squares - Suitable for HD video stream connection.
• Two squares - Suitable for SD video stream connection.
• One square - Suitable for data and Internet activity connection.
Link Rate: Shows the link rate of the connected to the
PowerLine device.
MAC
Address:
Shows the MAC address of the connected
PowerLine device.
Firmware
Version:
Shows the firmware version of the connected
PowerLine device.
Factory
Reset:
Click Factory Reset to reset the device back to factory default settings.
Firmware
Upgrade:
Click Firmware Upgrade to improve the functionality of your powerLine device.
After you have downloaded the new firmware, click
Browse to locate the firmware update on your hard drive. Click OK to proceed to firmware upgrade.
D-Link DHP-310AV User Manual 15
Section 3 - Configuration
Security
Understanding the Encryption Key setting:
The PowerLine devices on the same network must use an identical encryption key. The default encryption key for each PowerLine device is HomePlugAV. All devices with a default encryption key can communicate with each other. It is recommended to create a private encryption key for network security purpose. The private encryption key allows you to protect your network from unauthorized access via the PowerLine network.
Setting your private Encryption Key
1. Enter the device’s password before changing the encryption key:
• Local Device: You do not need to enter the device’s password before changing the encryption key.
• Remote Device: You must enter the device’s password before changing the encryption key.
Note: Each device has a unique device password on the device label.
2. Select the remote device and then enter the device’s password into the Set Device Password window. Then click OK.
3. Select the PowerLine devices that you would like to apply the encryption key setting. Then, type your private encryption key into the Encryption
Key Setting field and click Set Selected Devices. The utility will show a message once the setting has been completed.
D-Link DHP-310AV User Manual 16
Section 3 - Configuration
Adding a Device to your PowerLine network
If you use the default encryption key within the existing PowerLine network and the new device retains the default encryption key, you can plug the new device into a power outlet. Then, all devices can communicate with each other.
If the encryption key within the existing PowerLine network has been customized, you have two ways to add the new device to your PowerLine network.
1. You can use the PowerLine AV Utility to apply the customized encryption key in your record to the new device. Then, all devices can communicate with each other by using the customized encryption key.
2. You can use the PowerLine AV Utility to set all devices within the existing PowerLine network and the new device back to the first default encryption key. Then follow the 1 to 3 steps of “Setting your private Encryption Key”. Your PowerLine network will securely be configured with a customized encryption key and all of the devices will be able to communicate with each other after your setting.
D-Link DHP-310AV User Manual 17
Section 4 - Installation Considerations
PowerLine Installation Considerations
Plan the location of your PowerLine devices:
1. Connect PowerLine devices to electrical outlets that are not controlled by a wall switch to avoid accidentally turning off power to the device.
2. Do not connect the PowerLine devices to an extension cord, surge protector, or power strip as this might prevent it from working correctly, or reduce the network performance.
3. Avoid using the PowerLine devices in an electrical outlet that is located near an appliance that uses a lot of power, such as a washer or dryer, or a refrigerator. This may prevent the adapter from working correctly, or negatively impact network performance.
4. Verify that your PowerLine devices are electrically rated to operate with the power available in your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets.
6. The PowerLine device is equipped with a three-pronged plug to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from the cable.
D-Link DHP-310AV User Manual 18
Section 4 - Installation Considerations
7. Important safety instructions
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
2. Only use the included power adapter to power your device.
3. Ensure that the device is plugged into the wall in a vertical position, with the ports facing down.
4. Use the device in a dry location, and avoid placing it in humid environments.
5. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it from the power outlet and use a damp towel.
6. Keep the device out of direct sunlight.
7. Do not cover or block the vents on the device.
8. Make sure that the device has adequate room for ventilation.
9. Avoid placing the device near a heater or radiator.
10. The device should be located only where sufficient ventilation can be ensured.
11. The purpose of this product is to create a constant network connection for your devices. If you wish to power down this product, please simply unplug it from the power outlet.
D-Link DHP-310AV User Manual 19
Section 5 - Troubleshooting
• PowerLine AV utility does not start correctly:
Reinstall the utility.
Troubleshooting
• PowerLine AV utility does not detect the PowerLine AV Mini Adapter:
Please make sure your PowerLine AV Mini Adapter is correctly plugged and connected to the computer or network device.
• I can’t configure any parameter of the PowerLine AV Mini Adapter, an error is shown when I try to configure it:
Please make sure you have not unplugged the PowerLine AV Mini Adapter while configuring it.
• I changed the connection cable to another Mini Adapter and now the utility does not work correctly:
Please restart the utility each time you disconnect the connection cable.
• I’m having a lot of problems configuring my network:
If you are having problems configuring your network with two or more PowerLine AV Mini Adapters, please make a reset to all of the Mini Adapters and start configuring the adapters again. To test whether the electrical wiring is contributing to the problem, plug the PowerLine adapters in the same room.
D-Link DHP-310AV User Manual 20
Appendix A - Technical Specifications
Network Ports
• One 10/100 Ethernet port
Technical Specifications
Encryption
• 128-bit AES
EMC
• FCC Part 15 Class B
• CE Class B
• C-Tick
Operation Temperature
• 0°C ~ 40°C
Storage Temperature
• -10°C ~ 70°C
AC Input
• 100 ~ 240VAC, 50/60Hz
Safety
• UL, CE LVD
Humidity
• Operation: 10% ~ 90% RH
• Storage: 5% ~ 90% RH
D-Link DHP-310AV User Manual 21
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Wired
- PowerPlug Ethernet
- 200 Mbit/s 10/100BaseT(X)
Related manuals
Frequently Answers and Questions
What is the maximum throughput of the D-Link DHP-310AV?
What is the default encryption key for the D-Link DHP-310AV?
How do I create a private encryption key for the D-Link DHP-310AV?
How do I reset the D-Link DHP-310AV to its factory default settings?
What are the system requirements for using the D-Link DHP-310AV?
advertisement
