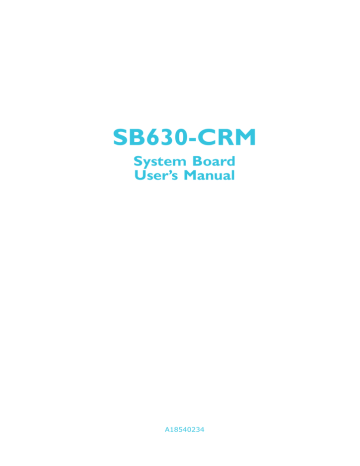

SB630-CRM
System Board
User’s Manual
A18540234
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
© 2012. All Rights Reserved.
Trademarks
All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
4
1
Introduction
Table of Contents
Copyright
........................................................................................... 2
Trademarks ........................................................................................ 2
FCC and DOC Statement on Class B
.............................................. 3
About this Manual ............................................................................. 7
Warranty
.......................................................................................... 7
Static Electricity Precautions ............................................................. 8
Safety Measures
................................................................................. 8
About the Package ............................................................................ 9
Before Using the System Board
........................................................ 9
Chapter 1 - Introduction ................................................................ 10
Specifications
................................................................................ 10
Features
...................................................................................... 13
Chapter 2 - Hardware Installation .................................................. 16
System Board Layout
.................................................................... 16
System Memory
........................................................................... 17
Installing the DIM Module ......................................................... 19
CPU
............................................................................................ 21
Installing the CPU .................................................................... 22
Installing the Fan and Heat Sink ................................................ 26
Jumper Settings
............................................................................. 28
Clear CMOS Data ..................................................................... 28
PS/2 Power Select .................................................................... 29
USB Power Select ..................................................................... 30
Power-on Select ....................................................................... 31
COM1/COM2 RS232/RS422/RS485 Select.................................... 32
COM1/COM2 RS232/Power Select............................................... 33
PCIe x1/ Mini PCIe Select ......................................................... 34
Rear Panel I/O Ports
..................................................................... 35
PS/2 Keyboard/ Mouse Port ....................................................... 36
COM (Serial) Ports ................................................................... 38
VGA Port ................................................................................. 39
DVI-I Port ............................................................................... 40
RJ45 LAN Ports ........................................................................ 41
USB Ports................................................................................ 42
Audio ...................................................................................... 44
Introduction
1
I/O Connectors
............................................................................ 46
CD-in Internal Audio Connector ................................................. 46
S/PDIF Connector ..................................................................... 47
Digital I/O Connectors .............................................................. 48
SATA (Serial ATA) Connectors .................................................... 49
Cooling Fan Connectors ............................................................. 50
Chassis Instrusion Connector .................................................... 51
Power Connectors .................................................................... 52
Standby Power LED .................................................................. 53
Front Panel Connectors ............................................................. 54
Expansion Slots ....................................................................... 55
IDE Connector ......................................................................... 56
Battery ................................................................................... 58
SDVO Connector ...................................................................... 59
SDVO-LVDS Daughterboard (optional)
........................................... 60
Features .................................................................................. 60
Dimensions ............................................................................. 60
Jumper Settings ....................................................................... 61
Panel Power Select ............................................................. 61
I/O Connectors ........................................................................ 62
LVDS LCD Panel Connector and LCD/Inverter Power Connector 62
Installing the SDVO-LVDS Daughterboard onto the Motherboard .... 63
Chapter 3 - BIOS Setup
.................................................................. 67
Overview ..............................................................................................................
67
AMI BIOS Setup Utility
................................................................. 69
Main ....................................................................................... 69
Advanced ................................................................................ 70
Chipset ................................................................................... 88
Boot ....................................................................................... 98
Security ................................................................................ 100
Save & Exit ........................................................................... 101
Updating the BIOS
...................................................................... 102
Chapter 4 - Supported Software
................................................. 103
Chapter 5 - RAID ........................................................................ 131
RAID Levels .......................................................................................................
131
Settings ................................................................................................................
132
5
6
1
Introduction
Chapter 6 - Intel AMT Settings ................................................... 137
Overview ............................................................................................................
137
Enable Intel
®
AMT in the AMI BIOS ............................................................
138
Enable Intel
®
AMT in the Intel
®
Management Engine BIOS
Extension (MEBX) Screen ..............................................................................
140
Appendix A - NLITE and AHCI Installation Guide
....................... 165
Appendix B - Watchdog Sample Code ......................................... 177
Appendix C - System Error Message
............................................ 178
Appendix D - Troubleshooting ...................................................... 180
Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board
Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.
1
7
8
1
Introduction
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Introduction
About the Package
The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.
1
Two USB port cables (with bracket)
One IDE cable
Two COM port cables (with bracket)
Two Serial ATA data cables
One I/O shield
One QR (Quick Reference)
Optional Items
PS/2 Keyboard/ Mouse cable
USB port cable
COM port cable
Serial ATA data cable
Serial ATA power cable
The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following internal components.
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.
9
10
1
Introduction
Chapter 1 - Introduction
Specifications
Processor
Chipset
System Memory
Expansion Slots
Graphics
Audio
LAN
• LGA 1155 socket for: rd
generation Intel
®
Core
TM
processors (22nm process technology)
: Intel
®
Core
TM
i7-3770 (8M Cache, up to 3.9GHz); 77W
:
®
Core
TM
i5-3550S (6M Cache, up to 3.7GHz); 65W
:
®
Core
TM
i3-3220 (3M Cache, 3.3GHz); 55W
:
®
Pentium
®
G2120 (3M Cache, 3.1 GHz); 65W
- 2 nd
generation Intel
®
Core
TM
processors (32nm process technology)
: Intel
®
Core
TM
i7-2600 (8M Cache, up to 3.8 GHz); 95W
Intel
:
®
Core
TM
i5-2400 (6M Cache, up to 3.4 GHz); 95W
Intel
®
Core
TM
i3-2120 (3M Cache, 3.3 GHz); 65W
:
®
Pentium
®
G850 (3M Cache, 2.9 GHz); 65W
• Intel
®
Q67 PCH (Platform Controller Hub)
• Four 240-pin DDR3 DIMM sockets
•Supports DDR3 1333/1600MHz (3rd generation processors)
Supports DDR3 1066/1333MHz (2nd generation processors)
• Supports dual channel memory interface
• Supports up to 32GB system memory
• DRAM device technologies: 1Gb, 2GB and 4Gb DDR3 DRAM technologies are supported for x8 and x16 devices, unbuffered, non-ECC
• 1 PCIe x16 slot
- Supports Gen 3.0 (3rd generation processors)
- Supports Gen 2.0 (2nd generation processors)
• 1 PCIe x4 slot (PCIe 2.0)
• 1 PCIe x1 slot (PCIe 2.0) or 1 Mini PCIe x1 slot (PCIe 2.0)
• 4 PCI slots (PCI 2.3)
• Intel
®
HD Graphics
• Display ports: DVI-I (DVI-D signal) and VGA
• DVI-I supports up to 1920x1200 @ 60Hz resolution
• VGA supports up to 2048x1536 @ 75Hz resolution
• Supports 6 Graphics Execution Units (EUs)
• Intel
®
Clear Video Technology
• DirectX Video Acceleration (DXVA) support for accelerating video processing
• Realtek ALC886 5.1-channel High Definition Audio
• Audio outputs: Mic-in/Center+subwoofer, line-in/surround and line-out
• S/PDIF audio interface
• Intel
®
WG82579LM with iAMT8.0 Gigabit Ethernet Phy
• Intel
®
WG82574L PCI Express Gigabit Ethernet controller
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports wire management
Introduction
Serial ATA
Intel Active
Management
Technology
(AMT)
TPM (optional)
Rear Panel I/O
Ports
I/O Connectors
BIOS
Energy Efficient
Design
• 6 Serial ATA ports
- 4 SATA 2.0 ports with data transfer rate up to 3Gb/s
(SATA port 4 provides adequate space for SATA DOM)
- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
• Integrated Advanced Host Controller Interface (AHCI) con-
troller
• Supports RAID 0/1/5/10
• Supports iAMT8.0
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking
• TPM - Trusted Platform Module
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
• 1 mini-DIN-6 port for PS/2 mouse/keyboard
• 2 DB-9 serial ports
- Supports RS232/422/485 (RS232 and/or Power)
• 1 DB-15 VGA port
• 1 DVI-I port (DVI-D signal)
• 2 RJ45 LAN ports
• 6 USB 2.0/1.1 ports
• Line-in/Surround, Line-out, Mic-in/Center+Subwoofer jacks
• 3 connectors for 6 external USB 2.0/1.1 ports
• 4 connectors for 4 external RS232 serial ports
• 1 SDVO connector for the optional SDVO-LVDS daughterboard
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in connector
• 1 S/PDIF connector
• 6 Serial ATA ports
• 1 IDE connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis intrusion connector
• 1 front panel connector
• 3 fan connectors
• AMI BIOS
• 64Mbit SPI BIOS
• Supports ErP Lot6 power saving (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery
1
11
12
1
Introduction
Damage Free
Intelligence
Temperature
Humidity
PCB
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
• Operating: 0 o
C to 60 o
C
• Storage: -20 o
C to 85 o
C
• 10% to 90%
• ATX form factor
• 305mm (12”) x 244mm (9.6”)
Introduction
Features
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
DDR3
DDR3 delivers increased system bandwidth and improved performance. It offers peak data transfer rate of up to 21 Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than
DDR2.
Graphics
The integrated Intel HD graphics for graphics intensive applications delivers exceptional 3D, 2D and video capabilities. It supports VGA and DVI interfaces.
DVI
DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 1 Gigabyte per second. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI
Express lane to provide 8 Gigabytes per second transfer rate.
Intel Active Management Technology (AMT)
Intel Active Management Technology (Intel
®
AMT) allows remote access and management of networked systems even while PCs are powered off, remotely repair systems after OS failures and has the capability to remotely update all systems with the latest security software.
Audio
The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.
1
13
14
1
Introduction
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. SATA 3.0 supports speed up to 6Gb/s while SATA 2.0 supports speed up to
3Gb/s. This improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The board supports RAID 0/1/5/10.
Gigabit LAN
The Intel WG82579LM PHY and WG82574L PCI Express Gigabit controllers support up to 1Gbps data transmission.
USB
The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/ second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-
Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the
Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.
Important:
The +5V_standby power source of your power supply must support
≥720mA.
Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The +5V_standby power source of your power supply must support
≥720mA.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
Introduction
RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the set date and time.
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and
Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down
Windows
®
without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.
Important:
The +5V_standby power source of your power supply must support
720mA.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either poweron the system manually or let the system power-on automatically.
1
15
16
2
Hardware Installation
Chapter 2 - Hardware Installation
System Board Layout
PS/2
KB/MS
USB 3
USB 2
COM 2
COM 1
2
1
2
1
USB 2-3 power select (JP5)
PS/2 power select (J
1
P3 )
1
1 2
COM 1 RS232/
Power select (JP9)
5 6
1 2
COM 2 RS232/
Power select (JP10)
5 6
JP1
6
5
6
5
JP2
8 4
5
1
+12V power
COM1 RS232/422/485 select ( JP1 )
COM2 RS232/422/485 select ( JP2 )
LGA 1155
1
CPU fan
VGA
DVI -I
ASMedia
1442
DDR3_2
DDR3_1
DDR3_4
DDR3_3
1
Chassis intrusion
DIO
19
Standby
Power LED
2 1
ATX power
12 24
LAN 1
USB 1
USB 0
Intel
WG82579LM
LAN 2
USB 9
USB 8
1
USB 0-1/8-9 power select
(JP4)
1
CD-in
Line-in/ Surround
Line-out
Mic-in/ Center+Subwoofer
Intel
WG82574L
Realtek
ALC886
PCIe x1
1
S/PDIF
2
1
10
9
Front audio
PCIe x4
PCIe x16
SDVO
2
1
3
A B C D
1
PCIe x1/ Mini PCIe
Select (JP20)
PCI1
Fintek
F81217U
2
1
COM3
9
2
1
COM4
9
2
1
COM5
9
PCI2
PCI3
PCI4
2
1
COM6
9
30
29
Battery
1
Power-on select ( JP8 )
1
1
13
2
11
Front panel
Mini PCIe
SPI Flash
BIOS
1
System
SATA 3.0
SATA 1
1
SATA 0 fan 2
1
Intel
Q67
Clear CMOS (J
1
P7 )
SATA 2.0
SATA 3 SATA 2
1
1
1
System fan 1
1
USB 4-5 USB 12-13
1
USB 10-11
1
JMB368
1
USB 10-11/12-13 power select (J P6 )
2
1
IDE
SATA 5
1
SATA 4
1
40
39
Hardware Installation
Important:
Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.
System Memory
Important:
When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
2
Standby
Power LED
Channel A
Channel B
DDR3-1
DDR3-2
DDR3-3
DDR3-4
Features
• The four DIMM sockets are divided into 2 channels:
Channel A - DDR3_1 and DDR3_2
Channel B - DDR3_3 and DDR3_4
• Dual channel memory interface
• Maximum of 32GB system memory
17
18
2
Hardware Installation
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.
Single Channel
Dual Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.
Not all slots need to be populated.
DIMMs of the same memory confi guration are on different channels.
Important:
1. You can populate either Channel A or Channel B fi rst.
2. When installing a DIMM in Channel A or Channel B, always populate the socket that is farthest the CPU. In this case, it will mean populating DDR3-2 and/or DDR3-4 fi rst.
3. If you intend to use dual channel, the same rule applies - always the socket farthest the CPU. Populate DDR3-2 and/or DDR3-4 fi rst; not DDR3-2 and DDR3-3 and not DDR3-1 and DDR3-4.
Hardware Installation
Installing the DIM Module
Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to the side.
2
Ejector tab
Ejector tab
5. Note how the module is keyed to the socket.
Key
Notch
19
20
2
Hardware Installation
6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.
7. Seat the module vertically, pressing it down fi rmly until it is completely seated in the socket.
8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.
Hardware Installation
CPU
The system board is equipped with a surface mount LGA 1155 socket. This socket is exclusively designed for installing a LGA 1155 packaged Intel CPU.
Important:
1. Before you proceed, make sure (1) the LGA 1155 socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins are damaged, contact your dealer immediately.
2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1155 socket comes with the protective cap.
2
Protective cap
Note:
The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.
21
22
2
Hardware Installation
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the LGA 1155 CPU socket on the system board.
Important:
The CPU socket must not come in contact with anything other than the CPU.
Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.
4. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.
Load lever
Retention tab
5. Lifting the load lever will at the same time lift the load plate.
Load lever
Lift the load lever up to the angle shown on the photo.
Load plate
Hardware Installation
2
6. Remove the protective cap from the CPU socket. The cap is used to protect the
CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.
Protective cap
23
24
2
Hardware Installation
7. Insert the CPU into the socket. The gold triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.
The CPU’s notch will at the same time fi t into the socket’s alignment key.
Important:
The CPU will fi t in only one orientation and can easily be inserted without exerting any force.
Alignment key
Alignment key
Gold triangular mark
8. Close the load plate then push the load lever down.
While closing the load plate, make sure the front edge of the load plate slides under the retention knob.
9. Hook the load lever under the retention tab.
Load lever
Hardware Installation
2
Retention knob
Retention tab
25
26
2
Hardware Installation
Installing the Fan and Heat Sink
The CPU must be kept cool by using a CPU fan with heat sink. Without suffi cient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.
Note:
A boxed Intel
®
processor already includes the CPU fan and heat sink assembly. If your CPU was purchased separately, make sure to only use
Intel
®
-certifi ed fan and heat sink.
1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the fan / heat sink assembly. Do not spread the paste all over the surface.
When you later place the heat sink on top of the CPU, the compound will disperse evenly.
Some heat sinks come with a patch of pre-applied thermal paste. Do not apply thermal paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan
/ heat sink on top of the CPU.
2. Place the heat sink on top of the CPU. The 4 pushpins around the heat sink, which are used to secure the heat sink onto the system board, must match the
4 mounting holes around the socket.
Mounting hole
CPU fan connector
3. Orient the heat sink such that the CPU fan’s cable is nearest the CPU fan connector.
4. Rotate each push-pin according to the direction of the arrow shown on top of the pin.
Push down two pushpins that are diagonally across the heat sink. Perform the same procedure for the other two push-pins.
Heat sink
Hardware Installation
2
5. Connect the CPU fan’s cable to the CPU fan connector on the system board.
“Locked” position of push-pin
“Unlocked” position of push-pin
CPU fan connector
27
28
2
Hardware Installation
Jumper Settings
Clear CMOS Data
1 2 3
2-3 On:
Clear CMOS Data
JP7
1 2 3
1-2 On: Normal
(default)
If you encounter the following, a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfi gure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting, pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
PS/2 Power Select
Hardware Installation
2
JP3
3
2
1
1-2 On: +5V
(default)
3
2
1
2-3 On: +5V_standby and supports PS/2 keyboard/ mouse auto swap function
JP3 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
Important:
The +5V_standy power source of your power supply must support
≥720mA.
Note:
The auto swap function is applicable only when the PS/2 port is connected with the provided PS/2 cable.
29
30
2
Hardware Installation
USB Power Select
USB 2-3 (JP5)
3 2 1
1-2 On: +5V
(default)
3 2 1
2-3 On:
+5V_standby
USB 0-1/8-9
(JP4)
3
2
1
1-2 On: +5V
(default)
3
2
1
2-3 On:
+5V_standby
1 2 3
USB 10-13 (JP6)
1-2 On: +5V
(default)
1 2 3
2-3 On:
+5V_standby
These jumpers are used to select the power of the USB ports. Selecting
+5V_standby will allow you to use a USB device to wake up the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
Note:
USB 4-5 power select only support +5V.
Hardware Installation
2
Power-on Select
JP8
1 2 3
1-2 On:
Power-on via power button
(default)
1 2 3
2-3 On:
Power-on via AC power; or
Power-on via WOL after G3
To power-on via WOL after G3:
1. Set JP8 pins 2 and 3 to On.
2. Set the “After G3” fi eld to Power Off/WOL.
3. Set the “GbE Wake Up From S5” to Enabled.
The BIOS fi elds are in the “South Bridge Confi guration” submenu (Chipset menu) of the AMI BIOS utility.
To power-on via AC Power:
1. Set JP8 pins 2 and 3 to On.
2. Set the “After G3” fi eld to Power On.
31
2
Hardware Installation
COM1/COM2 RS232/RS422/RS485 Select
JP1 JP2
COM 2
COM 1
32
JP1 (for COM1) and JP2 (for COM2) are used to confi gure the COM ports to
RS232, RS422 (Full Duplex) or RS485.
The pin function of the COM ports will vary according to the jumper’s setting.
2 4 6
JP1/JP2
2 4 6 2 4 6
1 3 5
1-2 On: RS232
(default)
1 2 3 4 5
1 3 5
3-4 On: RS422
Full Duplex
COM 1 / COM 2
TXD- N.C.
1 2 3 4 5
1 3 5
5-6 On: RS485
N.C. N.C.
1 2 3 4 5
6 7 8 9
RS232
6 7 8 9
RS422
Full Duplex
6 7 8 9
RS485
COM1/COM2 RS232/Power Select
JP9 JP10
Hardware Installation
2
1
3
5
1
3
5
2
4
6
1-3 (RI), 2-4 (DCD) On:
RS232 (default)
2
4
6
3-5 (+5V), 4-6 (+12V) On:
RS232 with power
33
34
2
Hardware Installation
PCIe x1/ Mini PCIe Select
JP20 is used to select PCIe x1 or Mini PCIe.
JP20
3
2
1
A B C D
Mini PCIe
2-3 On: A
2-3 On: B
2-3 On: C
2-3 On: D
3
2
1
A B C D
PCIe x1
1-2 On: A
1-2 On: B
1-2 On: C
1-2 On: D
Hardware Installation
2
Rear Panel I/O Ports
PS/2
KB/MS
COM 2
VGA
LAN 1
LAN 2
Line-in/
Surround
Line-out
USB 2-3 COM 1 DVI-I
(DVI-D signal only)
USB 0-1 USB 8-9 Mic-in/
Center+Subwoofer
The rear panel I/O ports consist of the following:
• PS/2 mouse/ keyboard port
• 2 COM ports
• DVI-I port (DVI-D signal only)
• 2 LAN ports
• 6 USB ports
• Mic-in/ Center+subwoofer jack
• Line-in/ Surround jack
35
2
Hardware Installation
PS/2 Keyboard/ Mouse Port
PS/2 Keyboard/
Mouse
36
The PS/2 port is used to connect a PS/2 keyboard and a PS/2 mouse by means of the provided cable.
Wake-On-PS/2 Keyboard/ Mouse
The Wake-On-PS/2 Keyboard/ Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:
JP3 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in this chapter for more information.
Confi gure the PS/2 keyboard/mouse wake up function in the Advanced menu
(“ACPI Power Management Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Important:
The +5V_standby power source of your power supply must support
≥720mA.
Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.
By default, the PS/2 port supports PS/2 keyboard only and/or to support
PS/2 mouse, you must set JP3 accordingly. Refer to “PS/2 Power Select“ on page 28.
PS/2 keyboard port
PS/2 mouse port
Hardware Installation
2
Connect to the board’s PS/2 port
37
38
2
Hardware Installation
COM (Serial) Ports
COM 2
COM 1
COM 1 and COM 2:
RS232/422/485
COM 3
2
1
COM 3 to COM 6:
RS232
9
COM 4
COM 6
COM 5
COM 3 to COM 6 are fi xed at RS232.
The pin function of COM 1 and COM 2 ports will vary according to JP1/JP2’s setting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.
The serial ports are asynchronous communication ports with 16C550A-compatible
UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.
Connecting External Serial Ports
Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.
BIOS Setting
Confi gure the serial ports in the Advanced menu (“Super IO Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Hardware Installation
2
VGA Port
VGA
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin
D-shell cable connector to the VGA port .
After you plug the monitor’s cable connector into the VGA port, gently tighten the cable screws to hold the connector in place.
BIOS Setting
Confi gure VGA in the Chipset menu (“North Bridge Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
39
40
2
Hardware Installation
DVI-I Port
DVI-I
(DVI-D signal only)
The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only.
Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.
BIOS Setting
Confi gure the display device in the Chipset menu (“North Bridge Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Hardware Installation
2
RJ45 LAN Ports
LAN 1
LAN 2
Features
• Intel WG82579LM with iAMT7.0 Gigabit Ethernet Phy
• Intel WG82574L PCI Express Gigabit Ethernet controller
The LAN ports allow the system board to connect to a local area network by means of a network hub.
BIOS Setting
Confi gure the onboard LAN in the Chipset menu (“South Bridge Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
41
42
2
Hardware Installation
USB Ports
USB 3
USB 2
USB 1
USB 0
USB 9
USB 8
USB 4-5 USB 12-13
USB 10-11
2
1
10
9
USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.
The system board is equipped with four onboard USB 2.0/1.1 ports. The four
10-pin connectors allow you to connect 8 additional USB 2.0/1.1 ports. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the
USB port cables to a connector.
BIOS Setting
Confi gure the onboard USB in the Advanced menu (“USB Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating system to use the
USB device. Refer to your operating system’s manual or documentation for more information.
Hardware Installation
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or
USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
2
JP4, JP5 and/or JP6 must be set to “2-3 On: +5V_standby”. Refer to “USB
Power Select” in this chapter for more information.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.
Note:
USB 4-5 power select only support +5V.
43
44
2
Hardware Installation
Audio
Line-in/ Surround
Rear audio
Line-out
Mic-in/
Center+Subwoofer
2
1
10
9
Front audio
Rear Audio
The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.
• Mic-in/ Center+Subwoofer Jack (Pink)
This jack is used to connect an external microphone or to the center and subwoofer speakers of the audio system.
• Line-in/ Surround Jack (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner, synthesizer, etc.
• Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
Front Audio
The front audio connector allows you to connect to the second line-out and micin jacks that are at the front panel of your system.
Hardware Installation
BIOS Setting
Confi gure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the audio driver. Refer to chapter 4 for more information.
2
45
46
2
Hardware Installation
I/O Connectors
CD-in Internal Audio Connector
Right audio channel
Ground
Ground
Left audio channel
4
1
The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or
MPEG card.
Hardware Installation
2
S/PDIF Connector
1
SPDIF out
Key
Ground
+5V
SPDIF in
5
The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.
47
48
2
Hardware Installation
Digital I/O Connectors
19
2 1
The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.
13
15
17
19
7
9
11
1
3
5
GND
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
GND
2
4
6
8
10
12
14
16
18
+12V
+12V
GND
VCC
VCC
GND
V_5P0_STBY
V_5P0_STBY
GND
Hardware Installation
2
SATA (Serial ATA) Connectors
7
RXN GND
SATA 3.0 6Gb/s
SATA 1 SATA 0
1
SATA 3 SATA 2
SATA 5 SATA 4
SATA 2.0 3Gb/s
SATA 4 provides adequate space for SATA DOM
Features
• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s
• SATA 2 to SATA 5 support data transfer rate up to 3Gb/s
SATA 4 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0, RAID 1, RAID 5 and RAID 10
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial
ATA device.
BIOS Setting
Confi gure the Serial ATA drives in the Advanced menu (“IDE Confi guration” submenu) of the BIOS. Refer to chapter 3 for more information.
49
50
2
Hardware Installation
Cooling Fan Connectors
1
4
Ground
Power
Speed
Control
Sense
CPU fan
1
3
Ground
Power
Sense
System fan 2
3 1
Sense Ground
Power
System fan 1
The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airfl ow throughout the chassis to prevent overheating the CPU and system board components.
BIOS Setting
The Advanced menu (“Hardware Health Confi guration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.
Chassis Intrusion Connector
Hardware Installation
2
1 2
Chassis signal
Ground
The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.
MyGuard Hardware Monitor
Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be confi gured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware
Monitor” section in chapter 4 for more information.
51
52
2
Hardware Installation
Power Connectors
12 24
+3.3VDC
+12VDC
+12VDC
+5VSB
PWR_OK
Ground
+5VDC
Ground
+5VDC
+5VDC
+5VDC
NC
Ground
Ground
Ground
+5VDC
Ground
+3.3VDC
+3.3VDC
1 13
ATX power
Ground
PS_ON#
Ground
-12VDC
+3.3VDC
8
4
12V
Ground
5 1
12V power
Use a power supply that complies with the ATX12V Power Supply Design Guide
Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).
The power connectors from the power supply unit are designed to fi t the 24-pin and 8-pin connectors in only one orientation. Make sure to fi nd the proper orientation before plugging the connectors.
The system board requires a minimum of 300 Watt power supply to operate. Your system confi guration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt
(or greater) power supply.
Important:
Insuffi cient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.
Standby Power LED
Hardware Installation
2
Standby
Power LED
This LED will light red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
53
54
2
Hardware Installation
Front Panel Connectors
HDD-LED
RESET-SW
1 2
PWR-LED
PWR-BTN
11
12
HDD-LED - HDD LED
This LED will light when the hard drive is being accessed.
RESET SW - Reset Switch
This switch allows you to reboot without having to power off the system.
PWR-BTN - Power Switch
This switch is used to power on or off the system.
PWR-LED - Power/Standby LED
When the system’s power is on, this LED will light. When the system is in the S1
(POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.
HDD-LED
RESET SW
Pin Pin Assignment
3 HDD Power
5 Signal
7
9
Ground
RST Signal
11 N.C.
PWR-LED
PWR-BTN
Pin Pin Assignment
2 LED Power
4 LED Power
6
8
Signal
Ground
10 Signal
Hardware Installation
2
Expansion Slots
PCI Express x16
PCI Express x1
PCI Express x4
PCI 1
PCI 2
PCI 3
PCI 4
Mini PCI Express
PCI Express x16 Slot
Install PCI Express x16 graphics card, that comply to the PCI Express specifi cations, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down fi rmly until it is completely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.
PCI Express x1 Slot
Install PCI Express cards such as network cards or other cards that comply to the PCI Express specifi cations into the PCI Express x1 slot.
PCI Express x4 Slot
Install PCI Express cards such as network cards or other cards that comply to the
PCI Express specifi cations into the PCI Express x4 slot.
PCI Slots
The PCI slot supports expansion cards that comply with PCI specifi cations.
Mini PCIe Slot
The Mini PCIe socket is used to install a Mini PCIe card. Mini PCIe card is a small form factor PCI card with the same signal protocol, electrical defi nitions, and confi guration defi nitions as the conventional PCI.
55
2
Hardware Installation
IDE Connector
56
2
1
40
39
The IDE connector is used to connect hard drives. The connector on the IDE cable can be inserted into this connector only if pin 1 of the cable is aligned with pin 1 of this connector.
The IDE connector supports 2 devices, a Master and a Slave. Use an IDE ribbon cable to connect the drives to the system board. An IDE ribbon cable has 3 connectors on them, one that plugs into the IDE connector on the system board and the other 2 connects to IDE devices. The connector at the end of the cable is for the Master drive and the connector in the middle of the cable is for the Slave drive.
Note:
Refer to your disk drive user’s manual for information about selecting proper drive switch settings.
Adding a Second IDE Disk Drive
When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.
The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66, ATA/100 and ATA/133 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.
Hardware Installation
Important:
If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.
BIOS Setting
Confi gure the onboard IDE in the Integrated Peripherals submenu (“OnChip IDE
Device” section) of the BIOS. Refer to chapter 3 for more information.
2
57
58
2
Hardware Installation
Battery
Battery
The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.
Safety Measures
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Hardware Installation
2
SDVO Connector
2
1
30
29
The SDVO connector is used to connect the optional SDVO-LVDS daughterboard.
15
17
19
9
11
13
21
23
1
3
5
7
25
27
29
Ground
DPB_LANE0_P
DPB_LANE0_N
Ground
DPB_LANE1_P
DPB_LANE1_N
Ground
DPB_LANE2_P
DPB_LANE2_N
Ground
DPB_LANE3_P
DPB_LANE3_N
+3V3
+5V
+12V
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
DPB_AUXP
DPB_AUXN
SDVO_STALLP
SDVO_STALLN
SDVO_INTP
SDVO_INTN
PCIE_RST
DPB_CTRLCLK
DPB_CTRLDATA
DPB_HPD
GPIO15/SMBCLK
GPIO27/SMBDATA/L_
BKLTCTL
+3V3
+5V
+12V
59
60
2
Hardware Installation
SDVO-LVDS Daughterboard (optional)
Features
• Chrontel CH7308B
• Supports 18/24-bit 1600x1200 LVDS panel (default 1024x768)
• 1 LVDS LCD panel connector
• 1 LCD/Inverter power connector
• SDVO interface
• Supports dimming control via hot keys
Dimensions
• 45mm (1.77") x 38mm (1.49")
Hardware Installation
2
Jumper Settings
Panel Power Select
1
2
3
5
4
6
1-2 On: +12V
JP8
1
3
5
2
4
6
3-4 On: +5V
1
2
3
4
5
6
5-6 On: +3.3V
(default)
JP8 is used to select the power supplied to the LCD panel.
Important:
Before powering-on the system, make sure JP8’s setting matches the
LCD panel’s specifi cation. Selecting the incorrect voltage will seriously damage the LCD panel.
61
62
2
Hardware Installation
I/O Connectors
LVDS LCD Panel Connector
LCD/Inverter Power Connector
1
LCD/Inverter power
8
1
2
LVDS LCD panel
39
40
The system board allows you to connect a LCD Display Panel by means of the
LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display
Panel.
Hardware Installation
19
21
23
25
27
11
13
15
17
Pins
1
3
5
7
9
29
31
33
35
37
39
Function
GND
N. C.
N. C.
GND
LVDS_Out2+
LVDS_Out2-
GND
LVDS_Out1+
LVDS_Out1-
GND
LVDS_Out0+
LVDS_Out0-
GND
LVDS_CLK1+
LVDS_CLK1-
GND
LVDS_DDCCLK
LVDS_DDCDAA
Panel Power
Panel Power
LVDS LCD Panel Connector
20
22
24
26
28
12
14
16
18
Pins
2
4
6
8
10
30
32
34
36
38
40
Function
GND
N. C.
N. C.
GND
LVDS_Out6+
LVDS_Out6-
GND
LVDS_Out5+
LVDS_Out5-
GND
LVDS_Out4+
LVDS_Out4-
GND
LVDS_CLK2+
LVDS_CLK2-
GND
N. C.
N. C.
Panel Power
Panel Power
LCD/Inverter Power Connector
5
6
3
4
7
8
Pins
1
2
Function
GND
GND
Panel Inverter Brightness Voltage Control
Panel Power
+3.3V
Panel Backlight On/Off Control
+12V
+12V
2
63
64
2
Hardware Installation
Installing the SDVO-LVDS Daughterboard onto the
Motherboard (optional)
Important:
The motherboard used in this section is for reference purpose only and may not resemble your motherboard. These illustrations are mainly to guide you on how to install SDVO-LVDS onto the motherboard of your choice.
1. The photo below shows the location of the mounting hole on the motherboard.
Mounting hole
2. Insert the provided mounting screws into the mounting hole - from the bottom through the top of the motherboard.
Mounting screws
Hardware Installation
3. While supporting the mounting screw at the bottom, from the top side of the board, fasten a bolt into the screw.
2
Bolt
4. The SDVO connector is located at the bottom of the daughterboard. Grasping SDVO-LVDS by its edges, position it on top of the motherboard’s SDVO connector with its mounting holes aligned with the bolts on the motherboard.
This will also align the SDVO connector of the two boards to each other.
SDVO connector on the daughterboard
65
2
Hardware Installation
SDVO connector on the motherboard
66
5. Press SDVO-LVDS down fi rmly until it is completely seated on the SDVO connector of the motherboard.
SDVO-LVDS
Motherboard
6. Use the provided mounting screws to secure SDVO-LVDS to the motherboard.
Mounting screw
BIOS Setup
Chapter 3 - BIOS Setup
Overview
The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to confi gure the system and save the confi guration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a confi guration change has been made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconfi gure the BIOS settings.
Note:
The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.
Default Configuration
Most of the confi guration settings are either predefi ned according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and confi gured without requiring any actions. There are a few settings that you may need to change depending on your system confi guration.
Entering the BIOS Setup Utility
The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
3
67
68
3
BIOS Setup
Legends
Keys
Right and Left arrows
Up and Down arrows
<Esc>
+ (plus key)
- (minus key)
<F1>
<F2>
<F3>
<F4>
<Enter>
Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between submenus or fi elds.
Exits to the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted fi eld.
Scrolls backward through the values or options of the highlighted fi eld.
Displays General Help.
Previous Values.
Optimized Defaults.
Saves and exits the Setup program.
Press <Enter> to enter the highlighted submenu.
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fi elds not shown on the screen. Use the up and down arrow keys to scroll through all the available fi elds.
Submenu
When “
“ appears on the left of a particular fi eld, it indicates that a submenu which contains additional options are available for that fi eld. To display the submenu, move the highlight to that fi eld and press <Enter>.
BIOS Setup
AMI BIOS Setup Utility
Main
The Main menu is the fi rst screen that you will see when you enter the BIOS
Setup Utility.
3
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
BIOS Information
BIOS Vendor
Core Version
Compliency
Project Version
Build Date and Time
Chipset Boot Security Save & Exit
American Megatrends
4.6.5.3
UEFI 2.3; PI 1.2
1APTC 0.20 x64
07/26/2012 11:40:41
Choose the system default language.
System Language
System Date
System Time
Access Level
[English]
[Thu 08/16/2012]
[14:33:32]
Administrator
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
System Language
Choose the system default language.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from
Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
69
70
3
BIOS Setup
Advanced
The Advanced menu allows you to confi gure your system for basic operation.
Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Important:
Setting incorrect fi eld values may cause the system to malfunction.
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot Security Save & Exit
ACPI Power Management Confi guration
PC Health Status
Trusted Computing
CPU Confi guration
SATA Confi guration
Intel TXT(LT) Confi guration
AMT Confi guration
USB Confi guration
F71879 Super IO Confi guration
F81217 Second Super IO Confi guration
Onboard ATA Controller Confi guration
Network Stack
ACPI Power Management
Confi guration.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Setup
ACPI Power Management Confi guration
This section is used to confi gure the ACPI Power Management.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
ACPI Power Management Confi guration
ACPI Sleep State
Resume by PME
Resume by Ring
Resume by RTC Alarm
[S1 (CPU Stop Clock) ]
[Disabled]
[Disabled]
[Disabled]
Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
ACPI Sleep State
Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.
S1(POS)
S3(STR)
Enables the Power On Suspend function.
Enables the Suspend to RAM function.
Resume by PME
Enable this fi eld to use the PME signal to wake up the system.
Resume by Ring
Set this fi eld to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem.
Resume by RTC Alarm
When Enabled, the system uses the RTC to generate a wakeup event.
71
72
3
BIOS Setup
PC Health Status
This section displays the SIO hardware health monitor.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Smart Fan Function
System Hardware Monitor
Smart Fan Function
Case Open Beep
CPU FAN Speed
System FAN Speed
System FAN2 Speed
Vcore
+5.0V
+12V
VDIMM
+3.3V
VS5V
[Disabled]
: +48 C
: +26 C
: 1535 RPM
: N/A
: N/A
: +0.928 V
: +4.992 V
: +12.144 V
: +1.520 V
: +3.328 V
: +4.992V
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Smart Fan Function
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Smart Fan Control Enable CPU SmartFan
Speed Count 1
Speed Count 2
Speed Count 3
Speed Count 4
Speed Count 5
System Smart Fan(1) Control
Speed Count 1
Speed Count 2
Speed Count 3
Speed Count 4
Speed Count 5
[Automatic]
60
50
40
30
100
75
50
40
30
[Automatic]
60
50
40
30
100
75
50
40
30
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Speed Count 1
Speed Count 2
Speed Count 3
Speed Count 4
Speed Count 5
Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc.
60
50
40
30
100
75
50
40
30
BIOS Setup
CPU Smart Fan Control
When this feature is set to Automatic, the CPU’s fan speed will rotate according to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.
Boundary 1 to Boundary 4
The range is from 0-127.
Speed Count 1 to Speed Count 5
The range is from 1-100.
Case Open Beep
Set this fi eld to Enabled to allow the system to alert you of a chassis intrusion event.
3
73
74
3
BIOS Setup
Trusted Computing (optional)
This section confi gures settings relevant to Trusted Computing innovations.
Confi guration
TPM State
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Security Device Support
Pending Operation
[Enable]
[Enabled]
[None]
Enables or Disables
BIOS support for security device. O.S. will not show
Security Device. TCG
EFI protocol and INT1A interface will not be available.
Current Status Information
TPM Enabled Status:
TPM Active Status:
TPM Owner Status:
[Enabled]
[Activated]
[Unowned]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
TPM Support
Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.
Pending Operation
Enable or Disable security device.
Note:
Your computer will reboot during restart in order to change state of the device.
BIOS Setup
CPU Confi guration
This section is used to confi gure the CPU. It will also display the detected CPU information.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Confi guration Number of cores to enable in each precessor package.
Intel (R) Core (TM) i5-3550S CPU @ 3.00GHz
CPU Signature
306a8
Microcode Patch
Max CPU Speed
Min CPU Speed
10
3000 MHz
1600 MHz
CPU Speed
3000 MHz
Processor Cores
Intel HT Technology
Intel VT-x Technology
4
Not Supported
Supported
Intel SMX Technology
Supported
64-bit
Supported
L1 Data Cache
L1 Code Cache
L2 Cache
L3 Cache
32 kB x 4
32 kB x 4
256 kB x 4
6144 kB
Active Processor Cores
Intel Virtualization Technology
[All]
[Disabled]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Intel Virtualization Technology
When this fi eld is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
3
75
76
3
BIOS Setup
SATA Confi guration
This section is used to confi gure SATA functions.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Controller(s)
SATA Mode Selection
Serial ATA Port 0
Software Preserve
Serial ATA Port 1
Software Preserve
Serial ATA Port 2
Software Preserve
Serial ATA Port 3
Software Preserve
Serial ATA Port 4
Software Preserve
Serial ATA Port 5
Software Preserve
[Enabled]
[IDE]
Empty
Unknown
Empty
Unknown
Empty
Unknown
Empty
Unknown
Empty
Unknown
Empty
Unknown
Enable or disable SATA device.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
SATA Mode
IDE Mode
This option confi gures the Serial ATA drives as Parallel ATA storage devices.
AHCI Mode
This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface).
RAID Mode
This option allows you to create RAID or Intel Matrix Storage confi guration on
Serial ATA devices.
SATA Mode Selection
Determines how SATA controller(s) operate.
BIOS Setup
If AHCI or RAID is selected in the SATA Mode fi eld, it will display the following information:
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Controller(s)
SATA Mode Selection
Aggressive LPM Support
SATA Controller Speed
[Enabled]
[AHCI]
[Enabled]
[Gen3]
Determines how SATA controller(s) operate.
Serial ATA Port 0
Software preserve
Port 0
Hot Plug
External SATA
SATA device type
Spin up device
Empty
Unknown
[Enabled]
[Disabled]
[Disabled]
[Hard Disk Driver]
[Disabled]
Serial ATA Port 1
Software preserve
Empty
Unknown
Select Screen
Select Item
Port 1
Hot Plug
External SATA
SATA device type
Spin up device
Serial ATA Port 2
Software preserve
Port 2
[Enabled]
[Disabled]
[Disabled]
[Hard Disk Driver]
[Disabled]
Empty
Unknown
[Enabled]
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Hot Plug
External SATA
Spin up device
Serial ATA Port 3
Software preserve
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Disabled]
[Disabled]
Empty
Unknown
Port 3
Hot Plug
External SATA
Spin up device
Serial ATA Port 4
Software preserve
[Enabled]
[Disabled]
[Disabled]
[Disabled]
Empty
Unknown
[Enabled] Port 4
Hot Plug
External SATA
Spin up device
Serial ATA Port 5
[Disabled]
[Disabled]
[Disabled]
Empty
Software preserve
Port 5
Hot Plug
External SATA
Spin up device
Unknown
[Enabled]
[Disabled]
[Disabled]
[Disabled]
3
Aggressive LPM Support
Enable PCH to aggressively enter link power state.
SATA Controller Speed
Indicates the maximum speed the SATA controller can support.
Serial ATA Port 0 to Serial ATA Port 5
These fi elds are used to confi gure the connected SATA devices.
77
78
3
BIOS Setup
Intel TXT (LT) Confi guration
This section is used to confi gure the Intel Trusted Execution technology.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel Trusted Execution Technology Confi guration
Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.
Secure Mode Extension (SMX) Enabled
Intel TXT(LT) Support [Disabled]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Intel TXT(LT) Support
The options are Enabled and Disabled.
BIOS Setup
AMT Confi guration
This section is used to confi gure the AMT function.
Intel AMT
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
MEBx Selection Screen
Un-confi gure ME
[Enabled]
[Disabled]
[Disabled]
Enable or disable Intel (R)
Active Management Technology. Note: iAMT H/W is always enabled. This option just controls the
BIOS extension execution.
If enabled, this requires additional fi rmware in the
SPI device.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
MEBx Selection Screen
OEMFLag Bit 2: enable or disable MEBx selection screen.
Un-confi gure ME
OEMFLag Bit 15: Un-confi gure ME without password.
3
79
80
3
BIOS Setup
USB Confi guration
This section is used to confi gure USB.
USB Confi guration
USB Devices:
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support
EHCI Hand-off
[Enabled]
[Disabled]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for
EFI applications.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Legacy USB Support
Enabled
Enables legacy USB.
Auto
Disables support for legacy when no USB devices are connected.
Disabled
Keeps USB devices available only for EFI applications.
EHCI Hand-off
This is a workaround for OSes that does not support EHCI hand-off. The
EHCI ownership change should be claimed by the EHCI driver.
BIOS Setup
F71879 Super IO Confi guration
This section is used to confi gure the I/O functions supported by the onboard
Super I/O chip.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
F71879 Super IO Confi guration Restore AC Power Loss help.
F71879
F71879 Super IO Chip
Restore AC Power Loss
Super IO WatchDog Timer
Serial Port 1 Confi guration
Serial Port 2 Confi guration
[Power Off]
[Disabled]
10
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Restore AC Power Loss
Off
When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.
On
When power returns after an AC power failure, the system will automatically power-on.
Last State
When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns.
If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
WatchDog Timer
This fi eld is used to select the time interval of the Watchdog timer. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.
3
81
82
3
BIOS Setup
Serial Port 1 Confi guration to Serial Port 2 Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 1 Confi guration
Serial Port
Device Settings
Change Settings
[Enabled]
IO=3F8h; IRQ=4;
[Auto]
Enable or Disable Serial
Port (COM)
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 2 Confi guration
Serial Port
Device Settings
Change Settings
[Enabled]
IO=2F8h; IRQ=3;
[Auto]
Enable or Disable Serial
Port (COM)
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Serial Port
Enables or disables the serial port.
Change Settings
Selects the IO/IRQ setting of the I/O device.
BIOS Setup
F81217 Second Super IO Confi guration
This section is used to confi gure the serial port functions.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
F81217 Second Super IO Confi guration
F81217 Second Super IO Chip
Serial Port 3 Confi guration
Serial Port 4 Confi guration
Serial Port 5 Confi guration
Serial Port 6 Confi guration
F81217 SecondIO
Set Parameters of Serial
Port 3 (COMA)
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Serial Port 3 Confi guration to Serial Port 6 Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 3 Confi guration
Enable or Disable Serial
Port (COM)
Serial Port
Device Settings
Change Settings
Device Mode
[Enabled]
IO=220h; IRQ=11;
[Auto]
[Serial Port Fucti...]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
83
84
3
BIOS Setup
Change Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 4 Confi guration
Serial Port
Device Settings
[Enabled]
IO=228h; IRQ=11;
[Auto]
Enable or Disable Serial
Port (COM)
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 5 Confi guration
Serial Port
Device Settings
Change Settings
[Enabled]
IO=238h; IRQ=11;
[Auto]
Enable or Disable Serial
Port (COM)
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Setup
Change Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 6 Confi guration
Serial Port
Device Settings
[Enabled]
IO=338h; IRQ=11;
[Auto]
Enable or Disable Serial
Port (COM)
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Serial Port
Enables or disables the serial port.
Change Settings
Selects the IO/IRQ setting of the I/O device.
85
86
3
BIOS Setup
Onboard ATA Controller Confi guration
This section confi gures settings relevant to the onboard ATA Controller Confi guration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
PATA Primary Master
PATA Primary Slave
Not Present
Not Present
ATA Controller [IDE Mode]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Setup
Network Stack
This section confi gures settings relevant to the network stack Confi guration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Network Stack
Ipv4 PXE Support
Ipv6 PXE Support
[Enabled]
[Enabled]
[Enabled]
Enable or disable UEFI network stack.
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Ipv4 PXE Support
Enable Ipv4 PXE Boot Support. If disabled Ipv4 PXE boot option will not be created.
Ipv6 PXE Support
Enable Ipv6 PXE Boot Support. If disabled Ipv6 PXE boot option will not be created.
87
88
3
BIOS Setup
Chipset
Confi gures relevant chipset functions.
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Chipset Boot Security Save & Exit
South Bridge Parameters
South Bridge
North Bridge
ME Subsystem
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Setup
South Bridge
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Intel PCH RC Version
Intel PCH SKU name
Intel pCH Rev ID
PCI Express Confi guration
USB Confi guration
PCH 82579 LAN Controller
Wake on LAN
High Precision Event Timer Confi guration
High Precision Timer
1.5.0.0
Q67
05/B3
[Enabled]
[Enabled]
PCI Express Confi guration
Settings.
After G3
[Enabled]
[Power on]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
PCH 82579 LAN Controller
Enables or disables LAN.
Wake on Lan
Enabled or disable intergrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)
High Precision Timer
Enables or disables the high precision event timer.
After G3
Power Off / WOL
Power-on the system via WOL after G3.
Power On
Power-on the system after G3.
3
89
90
3
BIOS Setup
PCI Express Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
PCI Express Confi guration PCIE 2 Slot setting.
PCIE 2 Slot Setting [Gen 1]
PCIE 3 Slot Setting [Gen 1]
Onboard 82574 LAN Controller [Enabled]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Onboard 82574 LAN Controller
Enables or disables the LAN port.
BIOS Setup
USB Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
USB Confi guration
EHCI 1 [Enabled]
[Enabled]
Control the USB EHCI
(USB 2.0) functions. One
EHCI controller must always be enabled.
EHCI 2
USB Ports Per-Port Disable Control
USB Port #0 Disable
USB Port #1 Disable
USB Port #2 Disable
USB Port #3 Disable
USB Port #4 Disable
USB Port #5 Disable
USB Port #8 Disable
USB Port #9 Disable
USB Port #10 Disable
USB Port #11 Disable
USB Port #12 Disable
USB Port #13 Disable
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
EHCI Controller 1 and EHCI Controller 2
These fi elds are used to enable or disable Enhanced Host Controller Interface
(USB 2.0).
USB Ports Per-Port Disable Control
Control each of the USB ports (0-13) disabling.
USB Port 0 to USB Port 13
Enables or disables the selected USB port.
3
91
92
3
BIOS Setup
North Bridge
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
System Agent Bridge Name
System Agent RC Version
VT-d Capability
VT-d
Graphics Confi guration
NB PCIe Confi guration
Memory Confi guration
Ivy Bridge
1.5.0.0
Supported
[Enabled]
Check to enable VT-d function on MCH
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
VT-d
Check to enable VT-d function on MCH.
BIOS Setup
Graphics Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Graphics Confi guration
IGFX VBIOS Version
IGfx Frequency
Primary Display
Internal Graphics
DVMT Pre-Allocated
DVMT Total Gfx Mem
LCD Control
2137
350 MHz
[Auto]
[Auto]
[64M]
[256M]
Select which of IGFX/
PEG/PCI graphics device should be primary display or select SG for switchable Gfx.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Internal Graphics
Keep IGD enabled based on the setup options.
DVMT Pre-Allocated
Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the internal graphics device.
DVMT Total Gfx Memory
Select DVMT 5.0 Total Graphics Memory size used by the internal graphics device.
3
93
94
3
BIOS Setup
LCD Control
LCD Control
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Primary IGFX Boot Display [VBIOS Default]
Select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary dispay.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Setup
NB PCIe Confi guration
NB PCIe Confi guration
PEG
PEG- Gen x
Enable PEG
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Confi gure PEG B0:D1:F0
Gen1-Gen3.
Not Present
[Gen1]
[Enabled]
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enable PEG
To enable or disable the PEG.
95
96
3
BIOS Setup
Memory Confi guration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Memory Information
Memory RC Version
Memory Frequency
Total Memory
DIMM#0
DIMM#1
DIMM#2
DIMM#3
CAS Latency (tCL)
Minimum delay time
CAS to RAS (tRCDmin)
ROW Precharge (tRPmin)
Active to Precharge (tRASmin)
XMP Profi le 1
XMP Profi le 2
1.2.2.0
1067 Mhz
1024 MB (DDR3)
Not Present
Not Present
Not Present
1024 MB (DDR3)
7
7
7
20
Not Supported
Not Supported
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
ME Subsystem
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Intel ME Subsystem Confi guration
ME FW Version 8.0.4.1441
BIOS Setup
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
97
98
3
BIOS Setup
Boot
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Chipset Boot Security Save & Exit
Boot Confi guration
Setup Prompt Timeout
Bootup NumLock State
Quiet Boot
1
[On]
[Disabled]
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefi nite waiting.
CSM16 Module Version 07.69
Boot Option Priorities
CSM parameters
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Setup Prompt Timeout
Selects the number of seconds to wait for the setup activation key.
65535(0xFFFF) denotes indefi nite waiting.
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Quiet Boot
Enables or disables the quiet boot function.
BIOS Setup
CSM Parameters
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Boot
Launch CSM
Boot option fi lter
Launch PXE OpROM policy
Launch Storage OpROM policy
[Enabled]
[UEFI and Legacy]
[Do not launch]
[Legacy only]
This option controls if
CSM will be launched.
Other PCI device ROM priority [UEFI OpROM]
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Boot option fi lter
This option controls what devices system can boot to.
Launch PXE OpROM policy
Controls the execution of UEFI and Legacy PXE OpROM.
Launch Storage OpROM policy
Controls the execution of UEFI and Legacy Storage OpROM.
Other PCI device ROM priority
For PCI devices other than Network, Mass storage or video defi nes which
OpROM to launch.
99
3
BIOS Setup
Security
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Chipset Boot Security Save & Exit
Password Description Set Setup Administrator
Password
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights.
The password lenth must be in the following range:
Minimum lenth 3
Maximum lenth 20
Administrator Password
User Password
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
UEFI Secure Boot Management
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Administrator Password
Sets the administrator password.
User Password
Sets the user password.
100
BIOS Setup
Save & Exit
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Chipset Boot Security Save & Exit
Save Changes and Reset
Discard Changes and Reset
Reset the system after saving the changes.
Restore Defaults
Boot Override
Launch EFI Shell from fi le system device
3
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Save Changes and Reset
To save the changes, select this fi eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.
Discard Changes and Reset
To discard the changes, select this fi eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.
Restore Defaults
To restore and load the optimized default values, select this fi eld and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.
Launch EFI Shell from fi le system device
Attempts to launch EFI shell application (Shellx64.efi ) from one of the available fi lesystem devices.
101
3
BIOS Setup
Updating the BIOS
To update the BIOS, you will need the new BIOS fi le and a fl ash utility, AFUDOS.
EXE. Please contact technical support or your sales representative for the fi les.
To execute the utility, type:
A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.
C:\AFU\AFUDOS>afudos fi lename /B /P /N
+--------------------------------------------------------------------------------------------------------+
|
|
AMI Firmware Update Utility(APTIO) v2.25
Copyright (C)2008 American Megatrends Inc. All Rights Reserved.
+--------------------------------------------------------------------------------------------------------+
Erasing BootBlock ....................
Writing BootBlock ....................
Verifying BootBlock .................
done done done done done done done
C:\AFU\AFUDOS>
|
|
102
Supported Software
Chapter 4 - Supported Software
The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.
Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.
4
103
4
Supported Software
Microsoft .NET Framework 3.5
(for Windows XP only)
Note:
Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3.
To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.
1. Read the license agreement carefully.
Click “I have read and accept the terms of the
License Agreement” then click Install.
2. Setup is now installing the driver.
104
3. Click Exit.
Supported Software
4
105
4
Supported Software
Intel Chipset Software Installation Utility
The Intel Chipset Software Installation Utility is used for updating Windows
®
INF fi les so that the Intel chipset can be recognized and confi gured properly in the system.
To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.
1. Setup is now ready to install the utility. Click Next.
2. Read the license agreement then click Yes.
106
3. Go through the readme document for system requirements and installation tips then click Next.
Supported Software
4
4. Setup is now installing the driver. Click Next to continue.
5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
107
4
Supported Software
Microsoft DirectX 9.0C
(for Windows XP only)
To install the utility, click “Microsoft DirectX 9.0C” on the main menu.
1. C l i c k “ I a c c e p t t h e agreement” then click Next.
2. To start installation, click
Next.
108
3. Click Finish. Reboot the system for DirectX to take effect.
Supported Software
Intel Graphics Drivers (for Windows Vista)
To install the driver, click “Intel Graphics Drivers” on the main menu.
1. Setup is now ready to install the graphics driver.
Click Next.
4
By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes
(while WinSAT is running) before the Windows Vista desktop appears. The
“blank screen” period is the time Windows is testing the graphics performance.
We recommend that you skip this process by disabling this function then click Next.
109
4
Supported Software
2. Read the license agreement then click Yes.
3. Go through the readme document for system requirements and installation tips then click Next.
4. Setup is currently installing the driver. After installation has completed, click Next.
110
5. Click “Yes, I want to restart this computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
Supported Software
4
111
4
Supported Software
Intel Graphics Drivers (for Windows XP)
To install the driver, click “Intel Graphics Drivers” on the main menu.
1. Setup is ready to install the graphics driver. Click Next.
2. Read the license agreement then click Yes.
3. Go through the readme document for more installation tips then click Next.
112
4. Setup is currently installing the driver. After installation has completed, click Next.
Supported Software
4
5. Click “Yes, I want to restart this computer now.” then click Finish.
Restarting the system will allow the new software installlation to take effect.
113
4
Supported Software
Audio Drivers
To install the driver, click “Audio Drivers” on the main menu.
1. Setup is now ready to install the audio driver. Click
Next.
2. Follow the remainder of the steps on the screen; clicking “Next” each time you fi nish a step.
3. Click “Yes, I want to restart my computer now” then click Finish.
Restarting the system will allow the new software installation to take effect.
114
Supported Software
Intel LAN Drivers
To install the driver, click “Intel LAN Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
4
2. Click “I accept the terms in the license agreement” then click “Next”.
3. Select the program featuers you want installed then click Next.
115
4
Supported Software
4. Click Install to begin the installation.
5. After completing installation, click Finish.
116
Supported Software
Intel Management Engine Interface
To install the driver, click “Intel Management Engine Interface” on the main menu.
1. Setup is ready to install the driver. Click Next.
4
2. Read the license agreement then click Yes.
3. Go through the readme document for more installation tips then click Next.
117
4
Supported Software
4. Setup is currently installing the driver. After installation has completed, click Next.
5. After completing installation, click Finish.
118
MyGuard Hardware Monitor
1. Locate for the MyGuard folder in the provided disc.
2. In the MyGuard folder, right-click on the “setup” fi le.
3. Select Run As Administrator.
4. Double-click Setup.
Important:
Perform steps 1-3 only when using Windows 7 or Windows
Vista.
5. Setup is ready to install the utility. Click Next.
Supported Software
4
6. Click Install to begin installation.
119
4
Supported Software
7. Setup is currently installing the utility.
8. After completing installation, click Finish to exit setup.
120
Supported Software
Intel Rapid Storage Drivers
To install the driver, click “Intel Rapid Storage Drivers” on the main menu.
1. Setup is ready to install the driver. Click Next.
4
2. Read the license agreement then click Yes.
121
4
Supported Software
3. Go through the readme document for more installation tips then click Next.
4. Setup is currently installing the driver. After installation has completed, click Next.
5. Click “Yes, I want to restart this computer now.” then click Finish.
Restarting the system will allow the new software installlation to take effect.
122
Supported Software
F6 Floppy
This is used to create a fl oppy driver diskette needed when you install Windows
®
XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.
1. Insert a blank fl oppy diskette.
2. Locate for the drivers in the CD then copy them to the fl oppy diskette. The
CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.
32-bit
4
64-bit
123
4
Supported Software
Adobe Acrobat Reader 9.3
To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.
1. Click Next to install or click
Change Destination Folder to select another folder.
2. Click Install to begin installation.
3. Click Finish to exit installation.
124
Supported Software
Infineon TPM Driver and Tool (optional)
To install the driver, click “Infi neon TPM driver and tool (option)” on the main menu.
1. TPM requires installing the
Microsoft Visual C++ package prior to installing the driver. Click Install.
4
2. The setup program is preparing to install the driver.
3. The setup program is ready to install the driver. Click
Next.
125
4
Supported Software
4. Click “I accept the terms in the license agreement” and then click “Next”.
5. Enter the necessary information and then click Next.
6. Select a setup type and then click Next.
126
7. Click Install.
8. The setup program is currently installing the driver.
9. Click Finish.
Supported Software
4
127
4
Supported Software
10. Click Yes to restart the system.
Restarting the system will allow the new software installation to take effect.
128
Supported Software
4
Intel Turbo Boost
To install the driver, click “Intel Turbo Boost” on the main menu.
1. The setup program is confi guring the new software installation.
2. Click Next.
3. Read the license agreement and then click “I accept the terms in the license agreement”. Click Next.
129
4
Supported Software
4. Click Install.
5. The setup program is currently installing the software.
6. Click Finish.
130
RAID
Chapter 5 - RAID
The system board allows confi guring RAID on Serial ATA drives. It supports RAID
0, RAID 1, RAID 5 and RAID 10.
RAID Levels
RAID 0 (Striped Disk Array without Fault Tolerance)
RAID 0 uses two new identical hard disk drives to read and write data in parallel, interleaved stacks. Data is divided into stripes and each stripe is written alternately between two disk drives. This improves the I/O performance of the drives at different channel; however it is not fault tolerant. A failed disk will result in data loss in the disk array.
RAID 1 (Mirroring Disk Array with Fault Tolerance)
RAID 1 copies and maintains an identical image of the data from one drive to the other drive. If a drive fails to function, the disk array management software directs all applications to the other drive since it contains a complete copy of the drive’s data. This enhances data protection and increases fault tolerance to the entire system. Use two new drives or an existing drive and a new drive but the size of the new drive must be the same or larger than the existing drive.
RAID 5
RAID 5 stripes data and parity information across hard drives. It is fault tolerant and provides better hard drive performance and more storage capacity.
RAID 10 (Mirroring and Striping)
RAID 10 is a combination of data striping and data mirroring providing the benefi ts of both RAID 0 and RAID 1. Use four new drives or an existing drive and three new drives for this confi guration.
5
131
5
RAID
Settings
To enable the RAID function, the following settings are required.
1. Connect the Serial ATA drives.
2. Confi gure Serial ATA in the AMI BIOS.
3. Confi gure RAID in the RAID BIOS.
4. Install the RAID driver during OS installation.
5. Install the Intel Rapid Storage Drivers.
Step 1: Connect the Serial ATA Drives
Refer to chapter 2 for details on connecting the Serial ATA drives.
Important:
1. Make sure you have installed the Serial ATA drives and connected the data cables otherwise you won’t be able to enter the RAID BIOS utility.
2. Treat the cables with extreme caution especially while creating RAID.
A damaged cable will ruin the entire installation process and operating system. The system will not boot and you will lost all data in the hard drives. Please give special attention to this warning because there is no way of recovering back the data.
Step 2: Configure Serial ATA in the AMI BIOS
1. Power-on the system then press <Del> to enter the main menu of the AMI
BIOS.
2. Confi gure Serial ATA in the appropriate fi elds.
3. Save the changes in the Save & Exit menu.
4. Reboot the system.
Step 3: Configure RAID in the RAID BIOS
When the system powers-up and all drives have been detected, the Intel RAID
BIOS status message screen will appear. Press the <Ctrl> and <I> keys simultaneously to enter the utility. The utility allows you to build a RAID system on
Serial ATA drives.
132
RAID
Step 4: Install the RAID Driver During OS Installation
The RAID driver must be installed during the Windows
®
XP or Windows
®
2000 installation using the F6 installation method. This is required in order to install the operating system onto a hard drive or RAID volume when in RAID mode or onto a hard drive when in AHCI mode.
1. Start Windows Setup by booting from the installation CD.
2. Press <F6> when prompted in the status line with the ‘Press F6 if you need to install a third party SCSI or RAID driver’ message.
3. Press <S> to “Specify Additional Device”.
4. At this point you will be prompted to insert a fl oppy disk containing the RAID driver. Insert the RAID driver diskette.
5. Locate for the drive where you inserted the diskette then select RAID or AHCI controller that corresponds to your BIOS setup. Press <Enter> to confi rm.
You have successfully installed the driver. However you must continue installing the OS. Leave the fl oppy disk in the fl oppy drive until the system reboots itself because Windows setup will need to copy the fi les again from the fl oppy disk to the Windows installation folders. After Windows setup has copied these fi les again, remove the fl oppy diskette so that Windows setup can reboot as needed.
5
133
5
RAID
Step 5: Install the Intel Rapid Storage Drivers
The Intel Rapid Storage Drivers can be installed from within Windows. It allows
RAID volume management (create, delete, migrate) from within the operating system. It will also display useful SATA device and RAID volume information. The user interface, tray icon service and monitor service allow you to monitor the current status of the RAID volume and/or SATA drives. It enables enhanced performance and power management for the storage subsystem.
1. Insert the provided CD into an optical drive.
2. Click “Intel Rapid Storage Technology for Raid/AHCI” on the main menu.
3. Setup is ready to install the utility. Click Next.
4. Read the warning carefully then click Next.
134
5. Read the license agreement then click Yes.
6. Go through the readme document to view system requirements and installation information then click
Next.
7. Setup is currently installing the driver. After installation has completed, click Next.
RAID
5
135
5
RAID
8. Click “Yes, I want to restart my computer now” then click Finish.
136
Intel AMT Settings
Chapter 6 - Intel AMT Settings
Overview
Intel Active Management Technology (Intel ® AMT) combines hardware and software solution to provide maximum system defense and protection to networked systems.
The hardware and software information are stored in non-volatile memory. With its built-in manageability and latest security applications, Intel
®
AMT provides the following functions.
• Discover
Allows remote access and management of networked systems even while PCs are powered off; signifi cantly reducing desk-side visits.
• Repair
Remotely repair systems after OS failures. Alerting and event logging help detect problems quickly to reduce downtime.
• Protect
Intel AMT’s System Defense capability remotely updates all systems with the latest security software. It protects the network from threats at the source by proactively blocking incoming threats, reactively containing infected clients before they impact the network, and proactively alerting when critical software agents are removed.
6
137
6
Intel AMT Settings
Enable Intel
®
AMT in the AMI BIOS
1. Power-on the system then press <Del> to enter the main menu of the AMI
BIOS.
2. In the Advanced menu, select AMT Confi guration.
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot Security Save & Exit
ACPI Power Management Confi guration
PC Health Status
Trusted Computing
CPU Confi guration
SATA Confi guration
Intel TXT(LT) Confi guration
AMT Confi guration
USB Confi guration
F71879 Super IO Confi guration
F81217 Second Super IO Confi guration
JMB36x ATA Controller Confi guration
System ACPI parameters
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
3. In the Advanced menu, select Enable in the AMT fi eld.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Intel AMT
Un-Confi gure ME
[Enabled]
[Disabled]
Enable/ Disable Intel
(R) Active Management
Technology BIOS
Extension. Note: iAMT
H/W is always enabled.
This option just controls the BIOS extension execution. If enabled, this requires addition fi rmware in the SPI device.
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
138
Intel AMT Settings
4. In the Save & Exit menu, select Save Changes and Reset then select OK.
Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Chipset Boot Security Save & Exit
Save Changes and Reset
Discard Changes and Reset
Reset the system after saving the changes.
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
Launch EFI Shell from fi lesystem device
Select Screen
Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
6
139
6
Intel AMT Settings
Enable Intel
®
AMT in the Intel
®
Management
Engine BIOS Extension (MEBX) Screen
1. When the system reboots, the following message will be displayed. Press
<Ctrl-P> as soon as the message is displayed; as this message will be displayed for only a few seconds.
American
Megatrends
Version 2. 14. 1219. Copyright (C) 2011 American Megatrends, Inc.
BIOS Date: 02/17/2012 18:13:29 Ver: 1APTJ
Press <Ctrl+P> to enter MEBS setup menu
Press <Del> or <F2> to enter setup
2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Password then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
Main Menu
MEBx Login
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
Intel (R) ME Password
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
140
Intel AMT Settings
3. Enter a new password in the space provided under Intel(R) ME New Password then press Enter. The password must include:
• 8-32 characters
• Strong 7-bit ASCII characters excluding : , and ” characters
• At least one digit character (0, 1, ...9)
• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !,
$, ;)
• Both lower case and upper case characters
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
Main Menu
MEBx Login
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
Intel (R) ME Password
6
Intel (R) ME Password
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
141
6
Intel AMT Settings
4. You will be asked to verify the password. Enter the same new password in the space provided under Verify Password then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
Main Menu
MEBx Login
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
Verify Password
Intel (R) ME Password
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
5. Select Intel(R) ME General Settings then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
Main Menu
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
142
Intel AMT Settings
6. Select Change Intel(R) ME Password then press Enter.
You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME New Password then press Enter.
• 8-32 characters
• Strong 7-bit ASCII characters excluding : , and ” characters
• At least one digit character (0, 1, ...9)
• At least one 7-bit ASCII non alpha-numeric character, above 0x20, (e.g. !,
$, ;)
• Both lower case and upper case characters
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME PLATFORM CONFIGURATION
> Change ME Password
Local FW Updtate <Enabled>
> Power Control
6
Intel (R) ME New Password
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
143
6
Intel AMT Settings
7. Select Local FW Update then press Enter. Select Enabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME PLATFORM CONFIGURATION
> Change ME Password
Local FW Updtate <Enabled>
> Power Control
Disabled
Enabled
Password Protected
<ENTER> = Complete Entry [ESC]= Discard Changes
8. In the Intel(R) ME Platform Confi guration menu, select Power Control then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME PLATFORM CONFIGURATION
> Change ME Password
Local FW Updtate <Enabled>
> Power Control
Intel (R) ME New Password
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
144
Intel AMT Settings
9. In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host
Sleep States then press Enter. Select an option then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME POWER CONTROL
Intel (R) ME ON in Host Sleep States <Desktop: ON in S0>
Idle Timeout 1
6
Desktop: ON in S0
Desktop: ON in S0, ME Wake in S3, S4-5
[
] = Move highlight [ENTER] = Select Entry [ESC]= Discard changes
10. In the Intel(R) ME Power Control menu, select Idle Timeout then press
Enter. Enter the timeout value.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME POWER CONTROL
Intel (R) ME ON in Host Sleep States <Desttop ON in S0>
Idle Timeout 1
1_
Timeout Value (1-65535)
<ENTER> = Complete Entry [ESC]= Discard Changes
145
6
Intel AMT Settings
11. Select Previous Menu until you return to the Main Menu. Select Intel(R)
AMT Confi guration then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Unconfi gure Network Access <Full Unprovision>
> Remote Setup And Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
12. In the Intel(R) AMT Confi guration menu, select Manageability Feature
Selection then press Enter. Select disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Disabled
> Remote Setup And Confi guration
<ENTER> = Complete Entry [ESC]= Discard Changes
146
Intel AMT Settings
13. In the Intel(R) AMT Confi guration menu, select SOL/IDER/KVM then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
6
Menu for FW Redirection Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
14. In the SOL/IDER/KVM menu, select Username and Password then press Enter. Select disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
147
6
Intel AMT Settings
15. In the SOL/IDER/KVM menu, select SOL then press Enter. Select disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
16. In the SOL/IDER/KVM menu, select IDER then press Enter. Select disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
148
Intel AMT Settings
17. In the SOL/IDER/KVM menu, select KVM then press Enter. Select disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Disabled
Enabled
6
<ENTER> = Complete Entry [ESC]= Discard Changes
18. In the SOL/IDER/KVM menu, select Legacy Redirection Mode then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Menu for FW Redirection Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
149
6
Intel AMT Settings
19. Select Enabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
SOL/ IDER/ KVM
Username and password < Enabled>
SOL <Enabled>
IDER <Enabled>
KVM Feature Selection <Enabled>
Legacy Redirection Mode <Disabled>
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
20. Select Previous Menu until you return to the Intel(R) AMT Confi guration menu. Select User Consent then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM>
Opt-in Confi guration from Remote IT < Enabled>
Confi gure when user consent should be required.
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
150
Intel AMT Settings
21. In the User Consent Confi guration menu, select User Opt-in then press
Enter. Select None then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM>
Opt-in Confi guration from Remote IT < Enabled>
6
NONE
KVM
ALL
<ENTER> = Complete Entry [ESC]= Discard Changes
22. In the User Consent Confi guration menu, select Opt-in Confi gurable
from Remote IT then press Enter. Select Disable Remote Control of
KVM Opt-in Policy then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
USER CONSENT
User Opt-in < KVM>
Opt-in Confi guration from Remote IT < Enabled>
Disabled
Enabled
[ENTER] = Access
<ENTER> = Complete Entry [ESC]= Discard Changes
151
6
Intel AMT Settings
23. Select Previous Menu until you return to the Intel(R) AMT Confi guration menu. Select Password Policy then press Enter.
You may choose to use a password only during setup and confi guration or to use a password anytime the system is being accessed.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Anytime
[ENTER] = Select Entry [ESC]= Exit
24. In the Intel(R) AMT Confi guration menu, select Network Setup then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Unconfi gure Network Access <Full Unprovision>
> Remote Setup And Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
152
Intel AMT Settings
25. In the Intel(R) Network Setup menu, select Intel(R) ME Network
Name Settings then press Enter.
6
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK SETUP
> Intel (R) ME Network Name Settings
> TCP/ IP Settings
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
26. In the Intel(R) ME Network Name Settings menu, select Host Name then press Enter. Enter the computer’s host name then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _
Shared/ Dedicated FQDN <Shared>
Dynamic DNS Update <Disabled>
Computer Host Name
<ENTER> = Complete Entry [ESC]= Discard Changes
153
6
Intel AMT Settings
27. Select Domain Name then press Enter. Enter the computer’s domain name then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _
Shared/ Dedicated FQDN <Shared>
Dynamic DNS Update <Disabled>
Computer Domain Name
<ENTER> = Complete Entry [ESC]= Discard Changes
28. Select Shared/Dedicated FQDN then press Enter. Select Shared or Dedicated then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _
Shared/ Dedicated FQDN <Shared>
Dynamic DNS Update <Disabled>
Dedicated shared
<ENTER> = Complete Entry [ESC]= Discard Changes
154
Intel AMT Settings
29. Select Dynamic DNS Update then press Enter. Select Enabled or Disabled then press Enter.
6
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) ME NETWORK NAME SETTINGS
Host Name _
Domain Name _
Shared/ Dedicated FQDN <Shared>
Dynamic DNS Update <Disabled>
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
30. Select Previous Menu until you return to the Intel(R) ME Network Setup menu. Select TCP/IP Settings then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
TCP/ IP SETTINGS
> Wired LAN IPV4 Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
155
6
Intel AMT Settings
31. In the TCP/IP Settings menu, select Wired LAN IPV4 Confi guration then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
WIRED LAN IPV4 CONFIGURATION
DHCP Mode <Enabled>
Disabled
Enabled
156
<ENTER> = Complete Entry [ESC]= Discard Changes
32. Select Previous Menu until you return to the Intel(R) AMT Confi guration menu. Select Activate Network Access then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Unconfi gure Network Access <Full Unprovision>
> Remote Setup And Confi guration and opens the ME netwotk interface
Continue: (Y/N)
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
Intel AMT Settings
33. In the Intel(R) AMT Confi guration menu, select Unconfi gure Network
Access then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Unconfi gure Network Access <Full Unprovision>
> Remote Setup And Confi guration
Full Unprovision
Partial Unprovision
6
<ENTER> = Complete Entry [ESC]= Discard Changes
34. In the Intel(R) AMT Confi guration menu, select Remote Setup And
Confi guration then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AMT CONFIGURATION
Manageability Feature Selection < Enabled>
> SOL/ IDER/ KVM
> User Consent
Password Policy <Anytime>
> Network Setup
Activate Netwok Access
Unconfi gure Network Access <Full Unprovision>
> Remote Setup And Confi guration
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
157
6
Intel AMT Settings
35. In the Intel(R) Automated Setup And Confi guration menu, select Cur-
rent Provisioning Mode then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Server IPV4/IPV6 _
Provisioning Server FQDN _
> RCFG
> TLS PSK
> TLS PKI
Provisioning Mode:PKI
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
36. In the Intel(R) Automated Setup And Confi guration menu, select Pro-
visioning Record then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Server IPV4/IPV6 _
Provisioning Server FQDN _
> RCFG
> TLS PSK
> TLS PKI
Provision Record is not present
[ESC] = Exit
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
158
Intel AMT Settings
37. Select Previous Menu until you return to the Intel(R) Automated Setup
And Confi guration menu. Select Provisioning Server IPV4/IPV6 then press Enter. Type server address then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Server IPV4/IPV6 _
Provisioning Server FQDN _
> RCFG
> TLS PSK
> TLS PKI
Provisioning server address
6
<ENTER> = Complete Entry [ESC]= Discard Changes
38. In the Intel(R) Automated Setup And Confi guration menu, select
Provisioning Server FQDN then press Enter. Type FQDN of provisioning server then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Server IPV4/IPV6 _
Provisioning Server FQDN _
> RCFG
> TLS PSK
Enter FQDN of provisioning server
> TLS PKI
<ENTER> = Complete Entry [ESC]= Discard Changes
159
6
Intel AMT Settings
39. In the Intel(R) Remote Confi guration menu, select Start Confi guration then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE CONFIGURATION
Start Confi guration
This will activate Remote Confi guration.
Continue: (Y/N)
[ESC] = Exit
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
40. In the Intel(R) Automated Setup And Confi guration menu, select TLS
PSK then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) TLS PSK CONFIGURATION
Set PID and PPS ** _
Delete PID and PPS **
Enter PID (e.g. ABCD-1234)
<ENTER> = Complete Entry [ESC]= Exit
160
Intel AMT Settings
41. In the Intel(R) Remote Confi guration menu, select Set PID and PPS
** then press Enter. Type PID code then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) TLS PSK CONFIGURATION
Set PID and PPS ** _
Delete PID and PPS **
6
Enter PID (e.g. ABCD-1234)
<ENTER> = Complete Entry [ESC]= Exit
42. In the Intel(R) Remote Confi guration menu, select Delete PID and
PPS ** then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Set PID and PPS **
Delete PID and PPS **
CAUTION:
This will delete the PID and PPS entries.
Continue: (Y/N)
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
161
6
Intel AMT Settings
43. Select Previous Menu until you return to the Intel(R) Automated Setup
And Confi guration menu. Select TLS PKI then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) AUTOMATED SETUP AND CONFIGURATION
Current Provisioning Mode
Provisioning Record
Provisioning Server IPV4/IPV6 _
Provisioning Server FQDN _
> RCFG
> TLS PSK
> TLS PKI
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
44. In the Intel(R) Remote Confi guration menu, select Remote Confi gura-
tion ** then press Enter. Select Disabled then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE CONFIGURATION
Remote Confi guration ** <Enabled>
PKI DNS Suffi x _
> Manage Hashes
Disabled
Enabled
<ENTER> = Complete Entry [ESC]= Discard Changes
162
Intel AMT Settings
45. In the Intel(R) Remote Confi guration menu, select PKI DNS Suffi x then press Enter. Type PKI DNS Suffi x then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE CONFIGURATION
Remote Confi guration ** <Enabled>
PKI DNS Suffi x _
> Manage Hashes
6
Enter PKI DNS Suffi x
<ENTER> = Complete Entry [ESC]= Discard Changes
46. In the Intel(R) Remote Confi guration menu, select Manage Hashes then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
INTEL (R) REMOTE CONFIGURATION
Hash Name Active Default Algorithm
VeriSign Class 3 Active: [*] Default: [*] SHA1
VeriSign Class 3 Active: [*] Default: [*] SHA1
Go Daddy Class 2 Active: [*] Default: [*] SHA1
Comodo AAA CA Active: [*] Default: [*] SHA1
Starfi eld Class 2 Active: [*] Default: [*] SHA1
VeriSign Class 3 Active: [*] Default: [*] SHA1
VeriSign Class 3 Active: [*] Default: [*] SHA1
VeriSign Class 3 Active: [*] Default: [*] SHA1
GTE CyberTrust G1 Active: [*] Default: [*] SHA1
Baltimore Cyber Tr Active: [*] Default: [*] SHA1
Cyber Trust Global Active: [*] Default: [*] SHA1
Verizon Global Ro Active: [*] Default: [*] SHA1
Entrust. net CA (2 Active: [*] Default: [*] SHA1
[Ins]= Add New ash [Delete] = Delete Hash [+] = Activate Hash
[
] =Move highlight [ENTER] = View Hash [Esc]= Exit
163
6
Intel AMT Settings
47. Select Previous Menu until you return to the Main Menu. Select Exit then press Enter. Type Y then press Enter.
Intel(R) Management Engine BIOS Extension v8.0.0.0061/Intel(R) ME v8.0.4.1441
Copyright(C) 2003-12 Intel Corporation. All Rights Reserved.
Main Menu
> Intel (R) ME General Settings
> Intel (R) AMT Confi guration
MEBx Exit
Are you sure you want to exit? (Y/N)
Exit
[
] = Move highlight [ENTER] = Select Entry [ESC]= Exit
164
NLITE and AHCI Installation Guide
Appendix A - NLITE and AHCI Installation Guide
nLite
nLite is an application program that allows you to customize your XP installation disc by integrating the RAID/AHCI drivers into the disc. By using nLite, the F6 function key usually required during installation is no longer needed.
Note:
The installation steps below are based on nLite version 1.4.9. Installation procedures may slightly vary if you’re using another version of the program.
1. Download the program from nLite’s offi cal website.
http://www.nliteos.com/download.html
2. Install nLite.
Important:
Due to it’s coding with Visual.Net, you may need to fi rst install .NET
Framework prior to installing nLite.
3. Download relevant RAID/AHCI driver fi les from Intel’s website. The drivers you choose will depend on the operating system and chipset used by your computer.
should include iaahci.cat, iaAHCI.inf, iastor.cat, iaStor.
inf, IaStor.sys, license.txt and TXTSETUP.OEM.
A
165
A
NLITE and AHCI Installation Guide
4. Insert the XP installation disc into an optical drive.
5. Launch nLite. The Welcome screen will appear. Click
Next.
6. Click Next to temporarily save the Windows installation fi les to the designated default folder.
If you want to save them in another folder, click
Browse, select the folder and then click Next.
166
7. Click Next.
NLITE and AHCI Installation Guide
A
8. In the Task Selection dialog box, click Drivers and
Bootable ISO. Click Next.
167
A
NLITE and AHCI Installation Guide lect Multiple driver folder to select the drivers you will integrate. Click Next.
10. Select only the drivers appropriate for the Windows version that you are using and then click OK.
Integrating 64-bit drivers into 32-bit Windows or vice versa will cause fi le load errors and failed installation.
168
11. If you are uncertain of the southbridge chip used on your motherboard, select all RAID/AHCI controllers and then click
OK.
NLITE and AHCI Installation Guide
A
12. Click Next.
169
A
NLITE and AHCI Installation Guide
13. The program is currently integrating the drivers and applying changes to the installation.
14. When the program is fi nished applying the changes, click Next.
170
15. To create an image, select the Create Image mode under the General section and then click
Next.
NLITE and AHCI Installation Guide
A
16. Or you can choose to burn it directly to a disc by selecting the Direct
Burn mode under the
General section.
Select the optical device and all other necessary settings and then click
Next.
171
A
NLITE and AHCI Installation Guide
17. You have finished customizing the Windows
XP installation disc. Click
Finish.
Enter the BIOS utility to confi gure the SATA controller to RAID/AHCI. You can now install Windows
XP.
172
NLITE and AHCI Installation Guide
AHCI
The installation steps below will guide you in confi guring your SATA drive to AHCI mode.
1. Enter the BIOS utility and confi gure the SATA controller to IDE mode.
2. Install Windows XP but do not press F6.
3. Download relevant RAID/AHCI driver fi les supported by the motherboard chipset from Intel’s website.
Transfer the downloaded driver fi les to C:\AHCI.
A
4. Open Device Manager and right click on one of the
Intel Serial ATA Storage
Controllers, then select
Update Driver.
If the controller you selected did not work, try selecting another one.
173
A
NLITE and AHCI Installation Guide
5. In the Hardware Update
Wizard dialog box, select
“No, not this time” then click Next.
6. Select “Install from a list
or specifi c location (Ad-
vanced)” and then click
Next.
7. Select “Don’t search. I
will choose the driver
to install” and then click
Next.
174
8. Click “Have Disk”.
NLITE and AHCI Installation Guide
A
9. Select C:\AHCI\iaAHCI.inf and then click Open.
10. Select the appropriate
AHCI Controller of your hardware device and then click Next.
175
A
NLITE and AHCI Installation Guide
11. A warning message appeared because the selected SATA controller did not match your hardware device.
Ignore the warning and click Yes to proceed.
12. Click Finish.
13. The system’s settings have been changed. Windows XP requires that you restart the computer.
Click Yes.
14. Enter the BIOS utility and modify the SATA controller from IDE to AHCI. By doing so, Windows will work normally with the
SATA controller that is in
AHCI mode.
176
Appendix B - Watchdog Sample Code
Watchdog Timer
;Software programming example:
;---------------------------------------------
;(1) Enter Super IO Confi guration mode
;---------------------------------------------
MOV DX,2EH
MOV AL,87H
OUT DX,AL
OUT DX,AL
;-------------------------------------------------------------------------------------------
;(2) Confi guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer)
;-------------------------------------------------------------------------------------------
MOV DX,2EH
MOV AL,07H
OUT DX,AL
;Ready to Program Logical Device
MOV DX,2FH
MOV AL,07H
OUT DX,AL
;Select Logical Device 7
MOV DX,2EH
MOV AL, F6H
OUT DX,AL
MOV DX,2FH
MOV AL,10H
OUT DX,AL
MOV DX,2EH
MOV AL, F5H
OUT DX,AL
MOV DX,2FH
MOV AL,61H
OUT DX,AL
;Select watchdog timer register
;Set watchdog timer value
;Select watchdog Control Register
;Set Watchdog Control Value
;----------------------------------------------------------------
;(1) Exit extended function mode
;----------------------------------------------------------------
MOV DX,2EH
MOV AL,AAH
OUT DX,AL
B
177
C
System Error Message
Appendix C - System Error Message
When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or
DEL TO ENTER SETUP, will be shown in the information box at the bottom. Enter
Setup to correct the error.
Error Messages
One or more of the following messages may be displayed if the BIOS detects an error during the POST. This list indicates the error messages for all Awards BIO-
Ses:
CMOS BATTERY HAS FAILED
The CMOS battery is no longer functional. It should be replaced.
Important
Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.
CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may have been caused by a weak battery. Check the battery and replace if necessary.
DISPLAY SWITCH IS SET INCORRECTLY
The display switch on the motherboard can be set to either monochrome or color.
This indicates the switch is set to a different setting than indicated in Setup.
Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection.
FLOPPY DISK(S) fail (80)
Unable to reset fl oppy subsystem.
FLOPPY DISK(S) fail (40)
Floppy type mismatch.
Hard Disk(s) fail (80)
HDD reset failed.
Hard Disk(s) fail (40)
HDD controller diagnostics failed.
178
System Error Message
Hard Disk(s) fail (20)
HDD initialization error.
Hard Disk(s) fail (10)
Unable to recalibrate fi xed disk.
Hard Disk(s) fail (08)
Sector Verify failed.
Keyboard is locked out - Unlock the key
The BIOS detects that the keyboard is locked. Keyboard controller is pulled low.
Keyboard error or no keyboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being pressed during the boot.
Manufacturing POST loop
System will repeat POST procedure infi nitely while the keyboard controller is pull low. This is also used for the M/B burn in test at the factory.
BIOS ROM checksum error - System halted
The checksum of ROM address F0000H-FFFFFH is bad.
Memory test fail
The BIOS reports memory test fail if the memory has error(s).
C
179
D
Troubleshooting
Appendix D - Troubleshooting
Troubleshooting Checklist
This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To effi ciently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.
Some of the most common things to check when you encounter problems while using your system are listed below.
1. The power switch of each peripheral device is turned on.
2. All cables and power cords are tightly connected.
3. The electrical outlet to which your peripheral devices are connected is working. Test the outlet by plugging in a lamp or other electrical device.
4. The monitor is turned on.
5. The display’s brightness and contrast controls are adjusted properly.
6. All add-in boards in the expansion slots are seated securely.
7. Any add-in board you have installed is designed for your system and is set up correctly.
Monitor/Display
If the display screen remains dark after the system is turned on:
1. Make sure that the monitor’s power switch is on.
2. Check that one end of the monitor’s power cord is properly attached to the monitor and the other end is plugged into a working AC outlet. If necessary, try another outlet.
3. Check that the video input cable is properly attached to the monitor and the system’s display adapter.
4. Adjust the brightness of the display by turning the monitor’s brightness control knob.
180
Troubleshooting
The picture seems to be constantly moving.
1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync.
2. Move away any objects, such as another monitor or fan, that may be creating a magnetic fi eld around the display.
3. Make sure your video card’s output frequencies are supported by this monitor.
The screen seems to be constantly wavering.
1. If the monitor is close to another monitor, the adjacent monitor may need to be turned off. Fluorescent lights adjacent to the monitor may also cause screen wavering.
Power Supply
When the computer is turned on, nothing happens.
1. Check that one end of the AC power cord is plugged into a live outlet and the other end properly plugged into the back of the system.
2. Make sure that the voltage selection switch on the back panel is set for the correct type of voltage you are using.
3. The power cord may have a “short” or “open”. Inspect the cord and install a new one if necessary.
Floppy Drive
The computer cannot access the floppy drive.
1. The fl oppy diskette may not be formatted. Format the diskette and try again.
2. The diskette may be write-protected. Use a diskette that is not write-protected.
3. You may be writing to the wrong drive. Check the path statement to make sure you are writing to the targeted drive.
4. There is not enough space left on the diskette. Use another diskette with adequate storage space.
D
181
D
Troubleshooting
Hard Drive
Hard disk failure.
1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS.
2. If the system is confi gured with two hard drives, make sure the bootable
(fi rst) hard drive is confi gured as Master and the second hard drive is confi gured as Slave. The master hard drive must have an active/bootable partition.
Excessively long formatting period.
If your hard drive takes an excessively long period of time to format, it is likely a cable connection problem. However, if your hard drive has a large capacity, it will take a longer time to format.
Serial Port
The serial device (modem, printer) doesn’t output anything or is outputting garbled characters.
1. Make sure that the serial device’s power is turned on and that the device is on-line.
2. Verify that the device is plugged into the correct serial port on the rear of the computer.
3. Verify that the attached serial device works by attaching it to a serial port that is working and confi gured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.
4. Make sure the COM settings and I/O address are confi gured correctly.
Keyboard
Nothing happens when a key on the keyboard was pressed.
1. Make sure the keyboard is properly connected.
2. Make sure there are no objects resting on the keyboard and that no keys are pressed during the booting process.
182
Troubleshooting
System Board
1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is loose, power off the system, re-install the card and power up the system.
2. Check the jumper settings to ensure that the jumpers are properly set.
3. Verify that all memory modules are seated securely into the memory sockets.
4. Make sure the memory modules are in the correct locations.
5. If the board fails to function, place the board on a fl at surface and seat all socketed components. Gently press each component into the socket.
6. If you made changes to the BIOS settings, re-enter setup and load the BIOS defaults.
D
183
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 10 Specifications
- 13 Features
- 16 System Board Layout
- 17 System Memory
- 21 CPU
- 28 Jumper Settings
- 35 Rear Panel I/O Ports
- 46 I/O Connectors
- 60 SDVO-LVDS Daughterboard (optional )
- 67 Overview
- 67 Entering the BIOS Setup Utility
- 102 Updating the BIOS
- 131 RAID Levels
- 132 Settings
- 137 Overview
- 138 Enable Intel® AMT in the AMI BIOS
- 140 Enable Intel® AMT in the Intel® Management Engine BIOS Extension (MEBX) Screen
