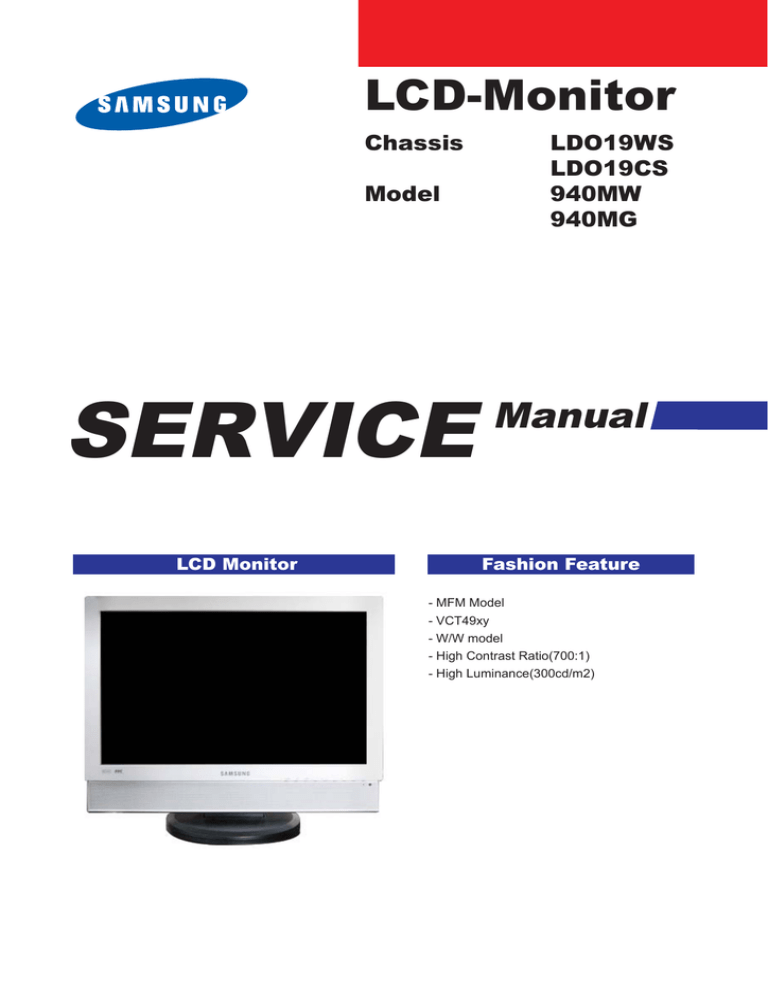

LCD-Monitor
Chassis
Model
SERVICE
LCD Monitor
LDO19WS
LDO19CS
940MW
940MG
Manual
Fashion Feature
- MFM Model
- VCT49xy
- W/W model
- High Contrast Ratio(700:1)
- High Luminance(300cd/m2)
Copyright
Trademarks
©2005 by Samsung Electronics Co., Ltd.
Samsung is the registered trademark of Samsung
Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,
photocopied, reproduced, translated, or converted to
any electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.
LDO19WS Service Manual
First edition September 2005.
Printed in Korea.
ii
LDO19WS and MacMaster Cable Adapter are
trademarks of Samsung Electronics Co., Ltd.
Macintosh, Power Macintosh are trademarks of Apple
Computer, Inc.
All other trademarks are the property of their respective
owners.
Contents
1. Precautions ………………………………………………………………………………………………………………………………………1
1-1
1-1. Safety Precautions ………………………………………………………………………………………………………………………1-1
1-2. Servicing Precautions ……………………………………………………………………………………………………………………1-2
1-3. Static Electricity Precautions ……………………………………………………………………………………………………………1-2
1-4. Install Precautions …………………………………………………………………………………………………………………………1-3
2-1
2. Product specifications …………………………………………………………………………………………………………………………2
2-1. Fashion Feature ………………………………………………………………………………………………………………………… 2-1
2-2. Specifications Comparison to the Old Model …………………………………………………………………………………………2-1
2-3. Specifications ………………………………………………………………………………………………………………………………2-2
2-4. Option Specification ………………………………………………………………………………………………………………………2-3
3-1
3. Alignments and Adjustments …………………………………………………………………………………………………………………3
3-1. Program Upgrade …………………………………………………………………………………………………………………………3-1
3-2. DDC JIG Installation
……………………………………………………………………………………………………………………3-2
3-3. EDID Installation with Windows Program ………………………………………………………………………………………………3-3
3-4. Factory Mode Adjustments ………………………………………………………………………………………………………………3-4
4. Troubleshooting
4-1
………………………………………………………………………………………………………………………………4
4-1. No Power ………………………………………………………………………………………………………………………………… 4-1
4-2. No Picture (PC Signal)
………………………………………………………………………………………………………………… 4-2
4-3. No Picture (TV) …………………………………………………………………………………………………………………………… 4-4
4-4. No Picture (Video/S-Video/Scart) ……………………………………………………………………………………………………… 4-6
4-5. No Picture (Component) ………………………………………………………………………………………………………………… 4-8
4-6. No Sound (TV) ………………………………………………………………………………………………………………………… 4-10
4-7. No Sound (Component) ……………………………………………………………………………………………………………… 4-12
5-1
5. Exploded View and Parts List …………………………………………………………………………………………………………………5
6. Electrical Parts List ……………………………………………………………………………………………………………………………6
6-1
7. Block Diagram …………………………………………………………………………………………………………………………………7
7-1
8. Wiring Diagram …………………………………………………………………………………………………………………………………8
8-1
9. Schematic Diagrams ……………………………………………………………………………………………………………………………9
9-1
Contents
10. Operating Instructions and Installation
10-1
……………………………………………………………………………………………………1
10-1. Front …………………………………………………………………………………………………………………………………… 10-1
10-2. Rear …………………………………………………………………………………………………………………………………… 10-2
10-3. Remote Control ……………………………………………………………………………………………………………………… 10-5
11-1
11. Disassembly and Reassembly ………………………………………………………………………………………………………………1
11-1. Disassembly …………………………………………………………………………………………………………………………… 11-1
11-3. Reassembly …………………………………………………………………………………………………………………………… 11-3
12-1
12. PCB Diagram …………………………………………………………………………………………………………………………………1
13. Circuit Descriptions ……………………………………………………………………………………………………………………………1
13-1
13-1. Block description ……………………………………………………………………………………………………………………… 13-1
14-1
14. Reference Infomation …………………………………………………………………………………………………………………………1
14-1. Technical Terms ……………………………………………………………………………………………………………………… 14-1
14-2. Connecting Your Monitor …………………………………………………………………………………………………………… 14-4
14-3. Connecting to Others devices ……………………………………………………………………………………………………… 14-5
14-4. Pin Assignment
……………………………………………………………………………………………………………………… 14-8
14-5. Timing Chart …………………………………………………………………………………………………………………………… 14-9
14-6. Preset Timing Modes ……………………………………………………………………………………………………………… 14-10
14-7. Panel Description …………………………………………………………………………………………………………………… 14-11
-This Service Manual is a property of Samsung
Electronics Co., Ltd.
Any unauthorized use of Manual can be punished
under applicable International and/or domestic
law.
Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00125C-01
URL : http://itself.sec.samsung.co.kr/
10 Operating Instructions and Installation
10 Operating Instructions and Installation
10-1 Front
1. SOURCE
Switches from PC Mode to Video mode.
Changing the source is allowed only in external
devices that are connected to the monitor at the
time.
To switch Screen modes:
[PC] - [DVI] - [TV] - [Ext.] - [AV] - [S-Video] [Component]
2. PIP ( Available in PC/DVI/Component Mode )
In PC Mode, turns on Video or TV screens in PIP
mode.
3. MENU
Use this button for open the on-screen menu and
exits from the menu screen or closes screen
adjustment menu.
4.
CH
Moves from one menu item to another vertically or
adjusts selected menu values.
In TV mode, selects TV channels.
5.
VOL
Moves from one menu item to another horizontally
or adjusts selected menu values.
Adjusts the audio volume.
6. [
] Enter button
Activates a highlighted menu item.
7. [
] Power button
Use this button to turn the monitor on and off.
8. Power indicator
Power Indicator shows PowerSaver mode by
green blinking.
9. Remote Control Sensor
Aim the remote control towards this spot on the
monitor.
10. Speaker
You can hear sound by connecting the soundcard
of your PC to the monitor.
10-1
10 Operating Instructions and Installation
10-2 Rear
1. POWER
Power terminal
Connect the power cord for your monitor to the
POWER on the back of the monitor.
This product may be used with 100 ~ 240VAC
(+/- 10%).
2.DVI/PC IN
1) DVI(HDCP)
: Connect the DVI cable to the DVI(HDCP) port
on the back of your monitor.
2) RGB
: Connect the signal cable to the RGB port on
the back of your monitor.
3) AUDIO
: PC sound terminal (input)
10-2
10 Operating Instructions and Installation
3. EXT(RGB)
External device terminal
EXT(RGB) is mainly used in Europe.
As for EXT(RGB) port of the monitor, it makes TV
or Video signal input and output.
4. COMPONENT IN
1) R - AUDIO - L
: DVD/DTV sound input terminal (left/right)
2) PR, PB,Y
: DVD/DTV video input terminal(PR, PB,Y)
5. ANT IN
TV antenna terminal
10-3
10 Operating Instructions and Installation
6. AV connection terminal
1)
: Headphone sound output terminal
2) S-VIDEO
: External device (S-video) input terminal
3) VIDEO
: External device (video) input terminal
4) R - AUDIO - L
: External device sound input terminal
7. Kensington Lock
The Kensington lock is a device used to physically
fix the system when using it in a public place.
(The locking device has to be purchased separately.)
For using a locking device, contact where you
purchase it.
10-4
10 Operating Instructions and Installation
10-3 Remote Control
1. POWER
2. Number button
3. +100, -/-4. -
+
5. MUTE
6. TTX/MIX
7. MENU
8. ENTER
9. CH/P
10. SOURCE
11. INFO
12. EXIT
13. Up-Down Left-Right buttons
14. AUTO
15. P.MODE, M/B (MagicBright¢â)
16. P.SIZE
17. STILL
18. PIP
19. S.MODE
20. DUAL/MTS
21. PRE-CH
22. SOURCE
23. SIZE
24. POSITION
25. MAGIC-CH
10-5
10 Operating Instructions and Installation
1. POWER
Use this button to turn the monitor on and off.
14. AUTO - Available in PC Mode Only
Adjusts the screen display automatically.
2. Number button
Selects TV channels in the TV mode.
You may use this button in PIP mode as well.
15. P.MODE, M/B (MagicBright¢â)
When you press this button, current mode is
displayed on the lower center of the screen.
3. +100
Press to select channels over 100.
For example, to select channel 121, press "+100",
then press "2" and "1".
-/-- (One/Two-Digit channel selection )
TV / AV / Ext. / S-Video /Component Mode :
P.MODE( Picture Mode )
The monitor has four automatic picture settings
that are preset at the factory.
Then push button again to circle through available
preconfigured modes.
( Dynamic ¡æ Standard ¡æ Movie ¡æ Custom )
Use to select a channel numbered ten or over.
Press this button, and the "--" symbol is displayed.
Enter the two-digit channel number.
This function is available only in Europe.
4. +
Adjusts the audio volume.
5. MUTE
Pauses (mutes) the audio output temporarily.
Displays on the lower left corner of the screen.
The audio resumes if mute or + is pressed
in the Mute mode.
6. TTX/MIX
TV channels provide written information services
via teletext.
This function is available only in Europe.
7. MENU
Use this button to open the on-screen menu and
exit from the menu screen or close screen
adjustment menu.
8. ENTER
Activates a highlighted menu item.
9. CH/P
In TV mode, selects TV channels.
10. SOURCE
Switches from PC Mode to Video mode.
Changing the source is allowed only in external
devices that are connected to the monitor at the
time.
11. INFO
Current picture information is displayed on the
upper left corner of the screen.
12. EXIT
Exits from the menu screen.
13. Up-Down Left-Right buttons
Moves from one menu item to another horizontally,
vertically or adjusts selected menu values.
10-6
PC / DVI Mode : M/B ( MagicBright¢â )
MagicBright¢â is a new feature providing the
optimum viewing environment depending on the
contents of the image you are watching.
Then push button again to circle through available
preconfigured modes.
( Entertain¡æ Internet ¡æ Text ¡æ Custom )
16. P.SIZE - Not available in PC/DVI Mode
Press to change the screen size.
(Auto Wide ¡æ Wide ¡æ Panorama ¡æ Zoom1 ¡æ
Zoom2 ¡æ 4:3)
Panorama, Zoom1, Zoom2 are not available in
1080i(or over 720p) of DTV.
17. STILL - Not available in PC/DVI/Component
Mode
Press the button once to freeze the screen. Press
it again to unfreeze.
18. PIP - Available in PC/DVI/Component Mode
Push the PIP button to turn PIP screen On/Off.
19. S.MODE ( Sound Mode )
When you press this button, current mode is
displayed on the lower center of the screen.
The monitor has a built-in high fidelity stereo
amplifier.
Then push button again to circle through available
preconfigured modes.
(Standard ¡æ Music ¡æ Movie ¡æ Speech ¡æ Custom)
20. DUAL / MTS
DUAL : STEREO/MONO, DUAL l / DUAL ll and
MONO/NICAM MONO/NICAM STEREO can be
operated depending on broadcasting type by using
DUAL button on the remote control while watching
TV.
MTS : You can select the MTS (Multichannel
Television Stereo) mode.
- Mono, Stereo, SAP (Separate Audio Program)
Set 'MTS' to ON to choose Mono, Stereo or SAP.
10 Operating Instructions and Installation
21. PRE-CH
This button is used to return to the immediately
previous channel.
22. SOURCE - Available in PIP Mode
Selects the Video source.
23. SIZE - Available in PIP Mode
You can switch the PIP picture size.
24. POSITION - Available in PIP Mode
Changes the Position of the PIP window.
25. MAGIC-CH
MagicChannel enables you to watch only certain
channels.
This function is available only in Korea.
10-7
10 Operating Instructions and Installation
Memo
10-8
11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
LDO19WS TFT-LCD monitors.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
11-1 Disassembly
Cautions:
1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
1. Place monitor face down on cushioned table. Remove 4 screws from the stand.
2. Remove 3 screws from the rear-cover. Lift up the rear-cover.
11-1
11 Disassembly and Reassembly
3. Remove 4 screws from the shield-cover.
4. Remove 2 screws from the side connector. Lift up the shield-cover.
5. Remove 9 screws from the boards. Remove 9 screws from the BRKT.
11-2
11 Disassembly and Reassembly
6. Lift up the Panel-BRKT.
11-2 Reassembly
-Reassembly procedures are in the reverse order of disassembly procedures.
11-3
11 Disassembly and Reassembly
Memo
11-4
12 PCB Layout
12 PCB Diagram
12-1
12 PCB Layout
12-2
13 Circuit Descriptions
13 Circuit Descriptions
13-1 Block description
13-1
13 Circuit Descriptions
13-1-1 VCT49XYI (IC700)
13-1-2 VSP Block
: CVBS, S-Video, RF(IF), SCART
(RGB) Convert 656 format to video
input and transfer to MST51510
13-2
13 Circuit Descriptions
13-1-3 MSP Block
: PC, Sound L/R, SCART,
Receive audio input and send
out to AMP.
13-1-4 SE6181(IC301)
- Scaler(MFM)
- Support Digital Video Input
- Internal LVDS IC
- Support PIP
- OSD controller engine
13-3
13 Circuit Descriptions
13-1-5 Connect a Function Board to a Main Board
13-4
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
- TFT-LCD
(Thin film Transistor Liquid Crystal Display)
ADC(Analog to Digital Converter)
This is a circuit that converts from analog signal to
digital signals.
- PLL(Phase Locked Loop)
During progressing ADC, Device makes clock synchronizing HSYNC with Video clock
- Inverter
Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V.
- AC Adapter
Device that converts AC(90V~240V) to DC(+12V
or 14V)
- SMPS(Switching Mode Power Supply)
Switching Mode Power supply. This design technology is used to step up/down the input power by
switching on/off
- FRC(Frame Rate Controller)
Technology that change image frame quantity displayed on screen for one second.
Actually TFT-LCD panel require 60 pcs of frame
for one second.
so,this technology is needed to convert input
image to 60 pcs regardless input frame quantity.
- Image Scaler
Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768)
- Auto Configuration(Auto adjustment)
This is an algorithm to adjust monitor to optimum
condition by pushing one key.
- OSD(On Screen Display)
On screen display. customer can control the
screen easily with this.
- Image Lock
This means "Fineness adjustment " in LCD
Monitor, the features are "Fine" and "Coarse"
- FINE
"Fine" adjustment is used to adjust visibility by
control phase difference.
- COARSE
This is a adjustment by tuning with Video colck
and PLL clock.
- DVI (Digital Visual Interface)
This provides a high speed digital connection for
visual data types that is display technology independent. this interface is primarily forcused at providing a connection between a computer and
its display device.
- L.V.D.S.(Low Voltage Differential Signaling)
a kind of transmission method for Digital.It can be
used from Main PBA to Panel.
- T.M.D.S
(Transition minimized Differential Signaling)
a kind of transmission method for Digital.
It can be used from Video card to Main PBA.
- DDC(Display data channel)
It is a communication method between Host
Computer and related equipment.
It can make it Plug and Play between PC and
Monitor.
- EDID
Extended Display Identification Data PC can recognize the monitor information as Product data,
Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicating with PC and Monitor.
14-1
14 Reference Infomation
- Dot Pitch
The image on a monitor is composed of red, green
and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the
same color is called the 'Dot Pitch'. Unit: mm
- Vertical Frequency
The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times
per second, this is regarded as 60 Hz.
- Horizontal Frequency
The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the
Horizontal Cycle is called Horizontal Frequency.
Unit: kHz
- Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the
top to the bottom in order is called the NonInterlace method while showing odd lines and then
even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.
- Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and
the monitor to exchange information automatically.
This monitor follows the international standard
VESA DDC for the Plug & Play function.
- Resolution
The number of horizontal and vertical dots used to
compose the screen image is called 'resolution'.
This number shows the accuracy of the display.
High resolution is good for performing multiple
tasks as more image information can be shown on
the screen.
Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
(vertical resolution).
- DVD
A type of digital disk technology that takes up only
the benefits of CD and LD, to implement a high
resolution/quality, which enables the user to enjoy
clearer images.
- DTV
Broadcasting (Digital TV Broadcasting)
An enhanced broadcasting technology to process
digital video signals using a set-top box, which
implements a high resolution and clearer digital
images on the screen.
- A2
This system uses two carriers to transmit voice
data. Countries such as South Korea and
Germany use this system.
- BTSC
Broadcast Television System Committee
The stereo broadcasting system that is used in
most of the countries that have adopted the NTSC
system, including the United States, Canada,
Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote
its development and management.
- EIAJ
Electronic Industries Association of Japan.
- RF Cable
A round signal cable generally used for TV antennas.
- Satellite Broadcasting
Broadcasting service provided via satellite.
Enables high picture quality and clear sound
throughout the country regardless of the location of
the viewer.
- Sound Balance
Balances the levels of the sound coming from
each speaker in televisions with two speakers.
- Cable TV
Whereas the terrestrial broadcasting is delivered
via frequency signals through the air, cable broadcasting is transmitted via a cable network. In order
to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
- CATV
"CATV" refers to the broadcasting service offered
at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF
broadcasting by terrestrial broadcasters. The
CATV programs may include movies, entertainment and educational programs. (Different from
cable TV.)
CATV can be viewed only within the area in which
the CATV service is offered.
- S-Video
Short for "Super Video." S-Video allows up to 800
lines of horizontal resolution, enabling high-quality
video.
14-2
14 Reference Infomation
- VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels 14 through 69.
- Channel Fine Tuning
This feature allows the viewer to fine-tune the TV
channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual
channel fine-tuning features to enable the viewer
to adjust their desired settings.
- External Device Input
External device input refers to video input from
such external video device as VCR, camcorder
and DVD player, separate from a TV broadcast.
- LNA (Low Noise Amplifier)
This derives from artificial satellite technology that
amplifies weak signals even in poor reception
areas for sharper images.
- Antenna Converter
A connection part that is used to link a wide
antenna cable (feeder cable) to the TV.
- English Caption (= Caption Setting)
A kind of language selection feature that provides
English subtitles (caption) or character information
services from broadcasting services (ex: AFKN) or
video tapes (marked CC), and which are especially
useful for studying English.
14-3
14 Reference Infomation
14-2 Connecting the Monitor
- Connecting to a monitor
1.
Connect the power cord for your monitor to the POWER on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the 15-pin, RGB port on the back of your monitor.
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
3.
4.
Connect the audio cable for your monitor to the audio port on the back of your computer.
Turn on both your computer and the monitor.
-Connecting to a Macintosh
1.
Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the D-SUB port on the Macintosh computer.
2.
For older model Macintoshes, you need to adjust the resolution control DIP switch on the Macintosh
adapter (optional) referring to the switch configuration table shown on its rear.
3.
Turn on the monitor and Macintosh.
14-4
14 Reference Infomation
14-3 Connecting to Other devices
- Connecting AV Devices
1.
Input devices such as DVD, VCR or Camcorder are connected to the VIDEO or S-VIDEO terminal of
the monitor using the Video or S-Video cable.
* S-Video, Video cable and EXT(RGB) cable is optional.
2.
Connect the Audio (R) and Audio (L) terminals of a DVD, VCR or Camcorders to the monitor's R and L
audio input terminals using audio cables.
3.
Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
4.
Select AV or S-Video using the SOURCE.
- Connecting EXT.(RGB) - It only applies to AV DEVICE that supports SCART.
1.
Connect a video cable between the EXT(RGB) jacks on the monitor and the EXT(RGB) jacks on the
DVD Player.
2.
Select Ext. using the SOURCE.
14-5
14 Reference Infomation
- Connecting TV
1.
Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor.
You need to use a coaxial antenna cable.
- When using an interior antenna terminal:
Check the antenna terminal on the wall first and connect the antenna cable.
- When using an outdoor antenna:
If you are using an outdoor antenna, use a professional for installation if possible.
- To connect the RF cable to the antenna input terminal:
Keep the copper wire portion of the RF cable straight.
2.
Turn on the monitor.
3.
Select TV using SOURCE button among the external signal adjustment buttons.
4.
Select a desired TV channel.
- Connecting DVD/DTV Set Top Box
1.
Connect the Audio (R) and Audio (L) outputs on the DVD / DTV set top box to the Audio (R) and Audio
(L) inputs on the monitor using audio cables.
2.
Connect a video cable between the component( PR, PB,Y) jacks on the monitor and the PR, PB,Y
jacks on the DVD / DTV set top box.
3.
Select Component using the SOURCE.
14-6
14 Reference Infomation
- Connecting Headphone
1.
Connect your headphones to the Headphone connection terminal.
-Attaching a Base
* This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
A. Monitor
B. Mounting interface pad (Sold separately)
1.
Turn off your monitor and unplug its power cord.
2.
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3.
Remove four screws and then remove the Stand from the LCD monitor.
4.
Align the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
14-7
14 Reference Infomation
14-4 Pin Assignments
Sync
Type
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
14-8
15-Pin Signal Cable Connector
Separate
Red
Green
Blue
GND
GND (DDC Return)
GND-Red
GND-Green
GND-Blue
DDC +5V
CHK D_SUB
GND
DDC Data
Horizontal sync
Vertical sync
DDC Clock
Composite
Red
Green
Blue
GND
GND (DDC Return)
GND-Red
GND-Green
GND-Blue
DDC +5V
CHK D_SUB
GND
DDC Data
H/V-Sync
Not Used
DDC Clock
14 Reference Infomation
14-5 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computergenerated video signals.
Mode
IBM
VGA2/
70 Hz
VESA
VGA3/
60 Hz
Timing 720 x 400 640 x 480
640/75 Hz 800/60 Hz 800/75 Hz 1024/60Hz 1024/75Hz 1280/60Hz 1280/75Hz 1440/60Hz 1440/75Hz
640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1280x1024 1280x1024 1440x900
1440x900
(Analog Only)
fH (kHz) 31.469
31.469
37.500
35.879
46.875
48.363
60.023
63.981
79.976
55.935
75.000
A μsec
31.777
31.778
26.667
26.400
21.333
20.677
16.660
11.852
12.504
17.878
14.157
B μsec
3.813
3.813
2.032
3.200
1.616
2.092
1.219
1.037
1.067
1.427
1.112
C μsec
1.589
1.589
3.810
2.200
3.232
2.462
2.235
2.296
1.837
2.178
1.814
D μsec 26.058
26.058
20.317
20.000
16.162
15.754
13.003
9.259
9.481
13.521
10.530
0.318
0.318
0.508
1.000
0.323
0.369
0.203
0.444
0.119
0.751
0.702
fV (Hz) 70.087
59.940
75.000
60.317
75.000
60.004
75.029
60.020
75.025
59.887
75.000
O msec 14.268
16.683
13.333
16.579
13.333
16.666
13.328
60.020
13.329
16.698
13.336
P msec
0.064
0.064
0.080
0.106
0.064
0.124
0.050
0.047
0.038
0.107
0.085
Q msec
0.858
0.794
0.427
0.607
0.448
0.600
0.466
0.594
0.475
0.447
0.467
R msec 13.155
15.761
12.800
15.840
12.800
15.880
12.795
15.630
12.804
16.090
12.741
S msec
0.191
0.064
0.027
0.026
0.021
0.062
0.017
0.016
0.013
0.054
0.042
Clock
Freq.
(MHz)
28.322
25.175
31.500
40.000 49.500
75.000
78.750
E μsec
108.000 135.000 106.500 136.750
Polarity
H.Sync Negative Negative Negative Positive Positive Negative Positive Positive Positive Negative Negative
Positive Negative Negative Positive Positive Negative Positive Positive Positive Positive
V.Sync
Positive
Remark Separate Separate Separate Separate Separate Separate Separate Separate Separate Separate Separate
H/V Composite Sync
Separate Sync
Video
Video
C
D
E
Q
R
S
Sync-on-Green
Sync
Sync
B
P
A
O
A : Line time total
B : Horizontal sync width
O : Frame time total
P : Vertical sync width
C : Back porch
D : Active time
Q : Back porch
R : Active time
E : Front porch
S : Front porch
14-9
14 Reference Infomation
14-6 Preset Timing Modes
-If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen
will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED
is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing
Display Mode
Horizontal
Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC,1152 x870
68.681
75.062
100.000
-/-
IBM, 640 x 350
31.469
70.086
25.175
+/-
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+,-/+,-
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1280 X 960
60.000
60.000
108.00
+/+
VESA, 1280 X1024
63.981
60.020
108.00
+/+
VESA, 1280X1024
79.976
75.025
135.00
+/+
VESA, 1440 x 900
55.935
59.887
106.5
-/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an
image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz
14-10
14 Reference Infomation
14-7 Panel Description
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
BN68-00239H
Remarks
SEC
LT140X1-002
BN07-00004A
SA
-
SEC
LT150XS-L01
BN07-00009A
SB
-
SEC
LT150XS-L01-B
BN07-00022A
SC
-
SEC
LTM150XS-L02
BN07-00005A
SD
-
SEC
LT181E2-132
BN07-00001A
SE
-
SEC
LT150XS-T01
BN07-00010A
SF
-
SEC
LTM181E3-132
BN07-00019A
SG
-
SEC
LT170E2-131
BN07-10001D
SH
-
SEC
LT181E2-131
BN07-10001E
SJ
-
SEC
LTM170E4-L01
BN07-00018A
SK
-
SEC
LTM240W1-L01
BN07-00015A
SL
-
SEC
LTM213U3-L01
BN07-00016A
SM
-
SEC
LTM150XH-L01
BN07-00026A
SN
SEC
LTM150XH-L03
BN07-00027A
SP
SEC
LTM150XS-L01
BN07-00032A
SQ
DELL(ZPD)
SEC
LTM181E4-L01
BN07-00034A
SR
PVA
SEC
LTM170EH-L01
BN07-00036A
SS
TN
SEC
LTM170E5-L01
BN07-00037A
SU
PVA
SEC
LTM150XH-L11
BN07-00041A
SV
-
SEC
LTM213U4-L01
BN07-00039A
SW
PVA
SEC
LTM150XH-L01(ZPD)
BN07-00045A
SX
ZPD
SEC
LTM150XH-L04
BN07-00046A
SY
New panel with high brightness
SEC
LTM170W1-L01
BN07-00047A
SZ
Panel for TV
SEC
LTM150XH-L06
BN07-00053A
EA
Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC
LTM153W1-L01
BN07-00054A
EB
Use NIKE MODEL
SEC
LTM170EH-L05
BN07-00055A
EC
Panel EOS proj. for high brightness of 17" EH-L05
SEC
LTM170E5-L03
BN07-00056A
ED
Dell 1702FP pro. E4. EH mechanical Compatible
SEC
LTM190E1-L01
BN07-00057A
EE
DELL 1900 FP
SEC
LTM181E5-L01
BN07-00061A
EF
18" narrow bezel GH18PS
SEC
LTM150XP-L01
BN07-00065A
EG
AMLCD PVA PANEL
SEC
LTM240W1-L02
BN07-00062A
EH
Panel for 15" Wide TV
SEC
LTM170EU-L01
BN07-00071A
EJ
Slim design, TN
SEC
LTM170E5-L04
BN07-00072A
EK
E5-L04 6 bits FRC... for IBM
SEC
LTA220W1-L01
BN07-00074A
EL
Panel for 22" TV
SEC
LTM170E6-L02
BN07-00075A
EM
AMLCD Narrow & slim design 17" PVA mode
SEC
LTM170W1-L01
BN07-00082A
EN
LTM170W1-L01 ZPD panel
SEC
LTM170EH-L01
BN07-00080A
EP
LTM170EH-L01 ZPD panel
SEC
LTM170E5-L01
BN07-00081A
EQ
LTM170E5-L01 ZPD panel
SEC
LTM170EH-L05
BN07-00083A
ER
LTM170EH-L05 ZPD panel
SEC
LTM170E5-L03
BN07-00084A
ES
LTM170E5-L03 ZPD panel
SEC
LTM170EU-L01
BN07-00085A
ET
LTM170EU-L01 ZPD panel
SEC
LTM170E5-L04
BN07-00086A
EU
LTM170E5-L04 ZPD panel
SEC
LTM170E6-L02
BN07-00087A
EV
LTM170E6-L02 ZPD panel
SEC
LTM150XH-L06
BN07-00091A
EW
Color coordinates change for LCD TV
SEC
LTM153W1-L01
BN07-00092A
EX
AMLCD WIDE 15",9/10
SEC
LTM170W1-L01
BN07-00100A
EY
Color Coordinates change code management
SEC
LTM170EH-L05
BN07-00097A
EZ
LTM170E5-L05 Color Coordinates Change Panel Code
-
14-11
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
SEC
LTA400W1-L01
BN07-00109A
S1
PANEL of AMLCD 40" TV
SEC
LTM153W1-L01
BN07-00110A
S2
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM150XH-L06
BN07-00111A
S3
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM170W1-L01
BN07-00112A
S4
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM170EH-L05
BN07-00113A
S5
Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC
LTM220W1-L01
BN07-00114A
S6
ZPD Panel for AMLCD 22" TV
SEC
LTM150XH-L06
BN07-00117A
S7
ZPD Panel code
SEC
LTM153W1-L01
BN07-00118A
S8
ZPD Panel code
SEC
LTM170WP-L01
BN07-00119A
S9
PVA Panel for NIKE
SEC
LTM213U4-L01
BN07-00039A
E1
21.3" NARROW
SEC
LTA260W1-L01
BN07-00121A
E2
VENUS
SEC
LTA220W1-L01
BN07-00074B
E3
"Panel B-level panel code for 22"" TV Panel "
SEC
LTA320W1-L01
BN07-00108A
E4
"Panel for AMLCD 32"" TV"
SEC
LTM213U4-L01
BN07-00124A
E5
NARROW BEZEL 21 " PANEL
SEC
LTM170E6-L04
BN07-00129A
E6
"HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC
LTM190E1-L01
BN07-00088A
E7
LTM190E1-L01 ZPD panel
SEC
M150X4-L06
BN07-00137A
E8
15" Narrow & Slim panel
SEC
LTA170V1
BN07-00139A
E9
"17"" Panel for Muse 4:3 VGA TV"
SEC
LTM190E1-L02
BN07-00128A
E10
"New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC
LTM170EX-L01
BN07-00143A
E11
"Development new Panel from AMLCD"
SEC
LTM170E8-L01
BN07-00144A
E12
"Development new Panel from AMLCD"
SEC
LTM170E6-L04
BN07-00129B
E13
"ZPD panel for AMLCD (Panel only for TCO03)"
SEC
LTA320W1-L02
BN07-00108B
E14
"Creat B-level Panel code for AMLCD 32"" TV"
SEC
LTM190E1-L03
BN07-00151A
E15
"Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC
LTM240W1-L03
BN07-00134A
E16
"AMLCD 24"" panel development"
SEC
LTM190E1-L02
BN07-00128B
E17
"New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC
LTM190E4-L01
BN07-00145A
E18
"AMLCD 24"" new panel development"
SEC
LTM170E8-L01
BN07-00158A
E19
"ZPD code derivation"
SEC
LTM170EX-L01
BN07-00159A
E20
"ZPD code derivation"
SEC
LTM190E1-L03
BN07-00151B
E21
"Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC
LTA460H1-L01
BN07-00157A
E22
"creat panel code for AMLCD 46"" TV "
SEC
LTM170EU-L11
BN07-00160A
E23
"creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC
LTM240W1-L03
BN07-00134B
E24
"24"" panel ZPD code derivation"
SEC
LTM190E4-L01
BN07-00145B
E25
"AMLCD 19"" ZPD Panel code derivation"
SEC
LTM240W1-L03
BN07-00134B
E26
"24"" panel ZPD code derivation"
SEC
LTM150XO-L01
BN07-00164A
E27
"AMLCD 15"" XO-L01 new panel development"
SEC
LTM150XO-L01
BN07-00164B
E28
"AMLCD 15"" XO-L01 ZPD code derivation"
SEC
LTM170EU-L11
BN07-00160B
E29
"AMLCD 17"" NEW panel code derivation"
SEC
LTA320W2-L01
BN07-00172A
SPZ
AMLCD 32" NEW panel
SEC
LTM213U4-L01
BN07-00124B
SPZ
21.3" Narrow PANEL ZPD Panel derivation
SEC
LTM170EU-L11
BN07-00189A
STH
AMLCD EU-L11 Pb free panel code derivation
SEC
LTM170EU-L11
BN07-00189B
STZ
AMLCD EU-L11 Pb free panel ZPD code derivation
SEC
LTM240W1-L04
BN07-00188A
SPH
24" A-DCC new panel development
SEC
LTM240W1-L04
BN07-00188B
SPZ
24" A-DCC panel ZPD code derivation
SEC
LTM190EX-L01
BN07-00191A
STH
AMLCD 19" TN new Panel
SEC
LTM190EX-L02
BN07-00191B
STZ
AMLCD 19" TN new Panel ZPD derivation
SEC
LTA230W1-L02
BN07-00184A
SPZ
AMLCD 23" 16:9 new Panel
14-12
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
SEC
LTA260W2-L01
BN07-00185A
SPZ
AMLCD 26" 16:9 new Panel
SEC
LTM240M1-L01
BN07-00195A
SPH
24" panel with high brightness deveiopment
SEC
LTA400W2-L01
BN07-00186A
SPZ
AMLCD 40" 16:9 new Panel
SEC
LTM150XO-L01
BN07-00197A
STH
AMLCD 15" XO-L01 Pb free panel code
SEC
LTM150XO-L01
BN07-00197B
STZ
AMLCD 15" XO-L01 Pb free panel ZPD code
SEC
LTM170EU-L21
BN07-00202A
STZ
AMLCD EU-L21 ZPD new code derivation
SEC
LTA460W2-L03
BN07-00187A
SPZ
BEETOVEN 46"ZPD new panel
SEC
LTM240M1-L01
BN07-00195B
SPZ
24" igh brightness panel ZPD code derivation
SEC
M170EX-L21
BN07-00206A
STZ
AMLCD LTM170EX-L21 ZPD new code derivation
SEC
LTA460H3-L01
BN07-00200A
SPZ
AMLCD 46" LED BLU panel
SEC
LTM170EU-L15
BN07-00214A
STZ
AMLCD EU-L15 TV high brightness ZPD new code derivation
SEC
LTM170E8-L21
BN07-00218A
SPZ
AMLCD LTM170E8-L21 PVA ZPD new code derivation
SEC
LTM190EX-L21
BN07-00222A
STZ
DISPLAY LCD
SEC
LTM201U1-L01
BN07-00190B
SPZ
AMLCD 20.1" Normal panel ZPD code derivation
SEC
LTM190E4-L21
BN07-00223A
SPZ
HAYDN 17" PZD code PANEL derivation
SEC
LTA570H1-L01
BN07-00196A
SPZ
AMLCD 57" new panel development
SEC
LTM150XO-L21
BN07-00229A
STZ
AMLCD 15" XO-L21 8ms panel code
SEC
LTA260W2-L11
BN07-00239A
SPZ
AMLCD 26" 16:9 7Line new Panel
SEC
LTA400WS-LH1
BN07-00245A
SPZ
AMLCD 40" 16:9 SPVA 90% new Panel
SEC
LTM213U6-L01
BN07-00231A
SPZ
AMLCD 21.3" PVA new Panel Code
SEC
LTA320WS-LH2
BN07-00244A
SPZ
AMLCD 32" 16:9 SPVA 90% new Panel
SEC
LTA400WS-LH1
BN07-00245A
SPZ
AMLCD 40" 16:9 SPVA 90% new Panel
CPT
CLAA150XG09
BN07-00141A
PA
"CPT 15"" Monitor new panel development"
CPT
CLAA170EA02
BN07-00148A
PB
"17"" CPT NEW development panel"
CPT
CLAA170EA02
BN07-00148B
PC
"17"" CPT ZPD panel code derivation"
CPT
CLAA150XG09
BN07-00141B
PTZ
"CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT
CLAA150XP01
BN07-00173A
PTH
CPT 15" PSWG code derivation
CPT
CLAA150XP01
BN07-00173B
PTZ
CPT 15" PSWG panel ZPD code
CPT
CLAA170EA07
BN07-00174A
PTH
"CPT 17"" PSWG panel code derivation
CPT
CLAA170EA07
BN07-00174B
PTZ
CPT 17"""" PSWG type new Panel code"""
CPT
CLAA170EA07
BN07-00174B
PTZ
CPT 17" PSWG type new Panel code
CPT
CLAA170EA07Q
BN07-00220A
PTZ
CPT 17" PSWG R/T 8msec code derivation
CPT
CLAA170EA07Q
BN07-00220B
PTH
CPT 17" PSWG R/T 8msec HPD code derivation
CPT
CLAA150XP01F
BN07-00236A
PTZ
CPT 15" PSWG panel ZPD & Lead free code derivation
TOSHIBA
LTM15C419(A)
BN07-00002A
TA
-
TOSHIBA
LTM15C423(B)
BN07-00006A
TB
-
TOSHIBA
LTM18C161
BN07-00008A
TC
-
TOSHIBA
LTM15C443
BN07-00031A
TD
-
TOSHIBA
LTM15C458
BN07-00043A
TE
-
TOSHIBA
LTM15C458S
BN07-00077A
TF
"TSB 15"" high brightness Panel"
TOSHIBA
LTM15C458
BN07-00078A
TG
Toshiba ZPD panel
TOSHIBA
LTM15C458S
BN07-00099A
TH
TSB LTM15C458S ( ZPD )
HANNSTAR
HSD150MX41A(A)
BN07-00020A
NA
"TTL type"
HANNSTAR
HSD150MX12
BN07-00030A
NB
"TTL type"
HANNSTAR
HSD170ME13
BN07-00180A
NTH
Hannstar 17" TN new panel development
HANNSTAR
HSD170ME13
BN07-00180B
NTZ
Hannstar 17" TN new panel development ZPD code derivation
HANNSTAR
HSD190ME12
BN07-00210A
NTZ
Hannstar 19" TN new panel development
14-13
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
HANNSTAR
HSD150MX17-A
BN07-00226A
NTZ
Hannstar 15" slim panel ZPD code derivation
TORISAN
TM150XG-22L03(A)
BN07-00021A
RA
-
TORISAN
TM150XG-26L06
BN07-00042A
RB
-
TORISAN
TM181SX-76N01
BN07-00048A
RC
-
TORISAN
TM150XG-26L06
BN07-00059A
RD
15" XGA TN MODE(ZPD)
TORISAN
TM290WX-71N31
BN07-00063A
RE
"RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN
TM396WX-71N31
BN07-00064A
RF
"RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN
TM150XG-26L09
BN07-00073A
RG
"Panel for 15"" TV"
TORISAN
TM150XG-26L10
BN07-00089A
RH
"L10(change except D/IC) ZPD"
TORISAN
TM150XG-26L10
BN07-00090A
RJ
L10 NORMAL
TORISAN
TM190SX-70N01
BN07-00098A
RK
Torisan 19" Panel
TORISAN
TM181SX-76N01
BN07-00106A
RL
ZPD Panel code
TORISAN
TM190SX-70N01
BN07-00107A
RM
ZPD Panel code
TORISAN
TM290WX-71N31
BN07-00115A
RN
"Color Coordinates change panel for TORISAN 29"" TV"
TORISAN
TM396WX-71N31
BN07-00116A
RP,Q
"Color Coordinates change panel for TORISAN 40"" TV"
TORISAN
TM22OWX-71N31
BN07-00125A
RR
"Development TORISAN 22"" TV PANEL (ZPD)"
TORISAN
TM22OWX-71N31
BN07-00127A
RS
"Development TORISAN 22"" TV PANEL (HPD)"
TORISAN
TM396WX-71N32A
BN07-00150A
RT
120V inverter Exclusive panel
TORISAN
TM190SX-70N02
BN07-00154A
RMH
Torisan 6bit panel code Derivation
TORISAN
TM190SX-70N02
BN07-00154B
RMZ
Torisan 6bit panel code Derivation
TORISAN
TM150XG-A01
BN07-00162A
RTH
Torisan 15" Narrow & Slim panel development
TORISAN
TM150XG-A01
BN07-00162B
RTZ
Torisan 15" N&S panel ZPD code Derivation
SHARP
LQ181E1DG11(A)
BN07-10001C
PA
-
SHARP
LQ150X1LW71
BN07-00067A
PB
SHARP 15" PVA PANEL
SHARP
LQ370T3LZ41
BN07-00216A
FAZ
Rome2
HITACHI
TX38D12VC0CAA(A)
BN07-00003A
HA
-
HITACHI
TX43DVCOCAB
BN07-00060A
HB
17" SXGA PVA MODE
HITACHI
TX43D15VC0CAB
BN07-00101A
HC
ZPD Panel
HITACHI
TX51D11VC0CAB
BN07-00122A
HD
20.1" NARROW
HITACHI
TX54D11VC0CAB
BN07-00123A
HE
21.3" NARROW
HITACHI
TX80D12VC0CAB
BN07-00169A
HIZ
"Development new panel for Hitachi 32"" TV (ZPD)"
HITACHI
TX54D11VC0CAB
BN07-00123B
HIZ
Hitachi 21.3"ZPD panel
IBM
ITSX94S
BN07-00017A
IA
-
UNIPAC
UM170E0
BN07-00028A
UA
Loaded by cisdba
HYUNDAI
HT15X13
BN07-00035A
DA
-
HYUNDAI
HT17E11-200
BN07-00049A
DB
TN MODE
HYUNDAI
HT17E11-300
BN07-00093A
DC
HT17E11-300 ZPD panel
HYUNDAI
HT17E11-400
BN07-00094A
DD
HT17E11-400 normal panel
HYUNDAI
HT17E11-400
BN07-00095A
DE
HT17E11-400 ZPD panel code
HYUNDAI
HT17E12
BN07-00096A
DF
HT17E12 ( Narow & slim Design )
HYUNDAI
HT17E12
BN07-00105A
DG
ZPD Panel code
HYUNDAI
HT15X15-D00
BN07-00146A
DH
"Development for Ares 15"" Hydis TV"
HYUNDAI
HT15X15-D01
BN07-00146B
DJ
"Derivation panel HPD for Ares 15"" Hydis TV "
HYUNDAI
HT17E13-100
BN07-00167A
DTH
"PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
HYUNDAI
HT17E13-100
BN07-00167B
DTZ
"PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
ACER
L170E3
BN07-00044A
AA
TN(ADT)
ACER
M170EN05
BN07-00076A
AB
AU 17" Panel ( Narrow & slim design )
14-14
14 Reference Infomation
Maker
VENDOR P/N
PANEL_CODE
PANEL_ABB
STICKER_CODE
Remarks
ACER
M170EN05
BN07-00102A
AC
ZPD Panel code
ACER
M190EN02
BN07-00170A
AMH
"AU Monitor 19"" new panel development (P19-1S)"
ACER
M190EN02
BN07-00170B
AMZ
"AU 19"" ZPD code derivation (ZPD)"
ACER
M170EN06
BN07-00171A
ATH
"AU Monitor 17"" New panel development "
ACER
T260XW01
BN07-00163A
AMZ
"AU 26"" new panel development (NF26EO)"
ACER
A201SN01
BN07-00177A
ATZ
"AU TV panel 20.1"" TN SVGA new panel development"
ACER
M170EN06
BN07-00171B
ATZ
AU Monitor 17" ZPD code derivation
ACER
T315XW01
BN07-00194A
AMZ
AU 32" new
ACER
M170EG01
BN07-00192A
ATH
AU TN PSWG type new Panel code
ACER
M170EG01
BN07-00192B
ATZ
AU TN PSWG type NEW panel code derivation
ACER
M190EN04
BN07-00203A
ATH
AU Monitor 19" ZPD new Panel code
ACER
T260XW02
BN07-00208A
AMZ
AUO 26" ZPD panel
ACER
M170EG01 V8
BN07-00221A
ATZ
AU TN PSWG type new Panel (8msec) ZPD code derivation
ACER
T260XW02
BN07-00233A
AMZ
AUO 26" Panel new (Cosmetic spec down grade)
ACER
T315XW01
BN07-00234A
AMZ
AUO 32" Grade new (Cosmetic spec down grade)
ACER
M190EN03
BN07-00224A
AMZ
AU Monitor 19" MVA new code derivation
ACER
T315XW01
BN07-00237A
AMZ
LCD TV VE project new
ACER
T315XW01
BN07-00238A
AMZ
LCD TV VE project new
ACER
M201UN02 V3
BN07-00168A
AMZ
CHIMEI
M170E3-LO1
BN07-00050A
CA
TN PANEL
CHIMEI
M150X3-L01
BN07-00051A
CB
COMPATIBLE
CHIMEI
M170E4-L01
BN07-00052A
CC
MVA PANEL
CHIMEI
M150X2-L01
BN07-00066A
CD
CHIME 15"I PVA PANEL
CHIMEI
M150X3-L01
BN07-00079A
CE
Chimei ZPD panel
CHIMEI
M170E3-L01
BN07-00103A
CF
ZPD Panel code
CHIMEI
M170E4-L01
BN07-00104A
CG
ZPD Panel code
CHIMEI
V296W1-L01
BN07-00120A
CH
MVA
CHIMEI
M170E6-L02
BN07-00126A
CJ
HIGHLAND 17" LOW PANEL
CHIMEI
M190E2-L01
BN07-00131A
CK
GH19AS,BS CHIMEI PANEL
CHIMEI
M150X4-L06
BN07-00137A
CL
15" Narrow & Slim panel
CHIMEI
M170E6-L01
BN07-00133A
CM
"2003-03-11 vendor change"
CHIMEI
M170E6-L01
BN07-00133B
CN
ZPD derivation panel
CHIMEI
V201V1-T01
BN07-00135A
CP
CHIMEI 20.1" panel development
CHIMEI
M170E6-L02
BN07-00126B
CQ
"HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI
M170E6-L05
BN07-00152A
CR
"CMO 17"" new panel development code"
CHIMEI
M170E6-L05
BN07-00152B
CS
"CMO 17"" ZPD panel code derivation"
CHIMEI
M150X4-L06
BN07-00137B
CT
Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI
M170E5-L05
BN07-00165A
CTH
CMO 17" new panel development code (GOYA2-PJT)
CHIMEI
M170E5-L05
BN07-00165B
CTZ
CMO 17" ZPD panel(GOYA2-PJT)
CHIMEI
V230W1-L02
BN07-00209A
CMZ
CMO 23" development
CHIMEI
V320B1-L01
BN07-00207A
CMZ
CMO 32" development
CHIMEI
V270W1-L01
BN07-00136A
CMZ
CHI MEI 27" panel development
NEC
SVA150XG04TB
BN07-00225A
BTZ
SVA NEC 15" panel ZPD code
14-15
14 Reference Infomation
Memo
14-16
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LS19DOCSS/EDC Parts List
Level
Loc. No.
Code No.
Description & Specification
LS19DOCSS/EDC
940MW,SGN4/S19AV-LDO,19,LCD-MO,NETHERLAN
Q'ty
SA/SNA
0.1
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
M0001
M0081
T0003
M0081
M0081
M0112
M0007
T0059
M0145
T0175
T0069
T0175
BN90-00803L
6003-000275
BN96-03793A
6003-000275
6006-001096
BN63-02613A
BN64-00408A
BN64-00409A
BN96-02793A
BN96-03734A
AA63-60001Q
BN96-03733B
ASSY COVER FRONT;LS19DOCSS/EDC,940MW,TCO
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
ASSY COVER P-FRONT;LS19DOC,ABS HB,GR70(S
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK
COVER-FRONT;LS19DOW,ABS,T2.5,HB,GR70,AML
KNOB-FUNCTION;DV19WS,ABS,T2.0,HB
INDICATOR LED;DV19WS,ACRYL HB,CLEAR
ASSY BOARD P-FUNCTION;DVORAK,CT5000-3880
ASSY SPEAKER P;16¥Ø,Dvorak, 19, VE Type,
SPACER-FELT;-,FELT,-,-,-,BLK,T0.35,-,150
ASSY SPEAKER P;16ohm,Dvorak 19",3W,2pin,
1
3
1
3
4
1
1
1
1
1
6
1
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.A
0.1
..2
...3
...3
...3
M0002
M0013
M0113
M0279
M0006
BN90-00813A
BN96-02503A
BN61-00377A
BN63-01140A
BN63-02127A
ASSY COVER REAR;LS19DOWSS/XAA,DO19WS
ASSY COVER P-REAR;LS19DOW,HIPS HB,BK24
BRACKET-VESA;GOYA19"(193V),SECC,T1.0
FELT;MUSE20",FELT,1.0,122,122
COVER-REAR;LS19DOW,HIPS,T2.5,HB,BK24
1
1
1
1
1
S.N.A
S.A
S.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
M0216
STD
M0081
T0054
BN90-00814A
BN96-02966A
6003-000275
BN63-02128A
BN63-02129A
BN96-02967A
ASSY STAND;LS19DOWSS/XAA,DO19WS
ASSY STAND P-BODY;LS19DOW,HIPS HB,BK24,Z
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
COVER-STAND FRONT;LS19DOW,HIPS,T2.5,HB,B
COVER-STAND REAR;LS19DOW,HIPS,T2.5,HB,BK
ASSY HINGE P;LS19DOW,ZNDC
1
1
4
1
1
1
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
M0017
M0014
T0245
IC012
FT702
CN104
CN101
CN330
JA330
CN110
JA333
JA333
CN107
JA333
CN105
JA333
CIS3
CIS7
T0376
T0174
D100
D101
D113
D114
D115
D119
D120
D121
D122
D123
BN91-00957F
BN94-00763F
0202-001522
1203-000165
2904-001179
3701-001173
3701-001219
3711-004712
3722-000143
3722-000183
3722-001782
3722-001784
3722-002081
3722-002267
3722-002275
3722-002389
BN40-00035A
BN63-02133A
BN63-02134A
BN97-00674B
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
ASSY CHASSIS-STB;LS19DOWSS/EDC,DO19WS
ASSY PCB MAIN;LS19DOWSS/EDC,DO19WS
SOLDER-WIRE FLUX;LFA3-107,-,D1.2,96.5Sn/
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
FILTER-SAW;36.125MHz,-,32.65-39.6MHz/0.5
CONNECTOR-DVI;24P,3R,FEMALE,ANGLE,AUF
CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AUF
HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA
JACK-PHONE;1P(VER),AG,BLK,ANGLE
JACK-SCART;21P,SN,BLK
JACK-PIN;1P,SN,WHT,ANGLE
JACK-PIN;1P,SN,RED,ANGLE
JACK-EAR PHONE;5P/2C,-,SnPb,L-BLU,JACK-PIN;3P,AU,RED/WHT/YEL,ANGLE
JACK-DIN;4P,-,SN,BLK,JACK-PIN;3P,AU,RED/BLU/GRN,ANGLE
TUNER;TDQ-6FL/W125S,TDQ-6FL/W125S,PAL Hy
SHIELD-JACK;DV19WS,SECC,T0.8
SHIELD-VIDEO;LS19DOW,SPTE,T0.2
ASSY SMD;LS19DOWSS/XAA,DO19WS
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-1
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D124
D125
D126
D130
D700
D701
D702
D400
D102
D108
D109
D110
D111
D112
D116
D117
D118
D145
ZD700
D131
D146
D147
D103
D104
D105
D106
D107
D127
D128
D129
D132
D133
D134
D135
D136
D137
D138
D139
D140
D141
D142
D143
D144
Q102
Q700
Q100
Q103
Q300
Q400
Q401
Q402
Q403
Q404
Q405
Q406
Q407
Q408
Q409
Q410
Q409
Q409
IC104
IC104
6-2
Code No.
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0402-000553
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-001382
0403-001435
0403-001435
0403-001435
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0501-000280
0501-000344
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0505-001170
0505-001170
0801-002404
0801-002709
Description & Specification
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;UDZ33B,32.15-33.79V,200mW,SO
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
IC-CMOS LOGIC;74VHC4066,ANALOG SWITCH,SO
IC-CMOS LOGIC;74HC373,D FLIP-FLOP,TSSOP,
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
IC104
IC104
IC112
IC112
IC112
IC113
IC113
T0085
T0085
IC705
IC704
T0087
IC406
T0087
T0087
IC109
R107
R109
R159
R164
R165
R415
R720
R138
R140
R141
R143
R144
R145
R146
R147
R412
R413
R102
R103
R111
R112
R113
R114
R115
R117
R118
R122
R126
R127
R128
R129
R130
R131
R137
R150
R151
R152
R156
R157
R158
R160
R161
R174
R175
R176
R304
R419
Code No.
0801-002899
0802-001025
1103-000129
1103-000129
1103-001279
1105-001284
1105-001284
1201-001980
1201-002136
1203-001212
1203-001559
1203-001816
1203-002796
1203-002844
1203-002844
1205-002738
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
Description & Specification
IC-CMOS LOGIC;CD4069UBC,INVERTER,SOIC,14
IC-CMOS LOGIC;74LCX374,D FILP-FLOP,TSSOP
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x
IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50
IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50
IC-AUDIO AMP;TDA7266D,SO,20P,16X11.1MM,IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA
IC-DC/DC CONVERTER;AP1501-33K5A,TO-263-5
IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L
IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L
IC-LCD CONTROLLER;SE6181LA-LF,LQFP,256P,
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-3
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R430
R431
R432
R433
R434
R435
R436
R437
R438
R439
R440
R441
R442
R443
R445
R446
R704
R705
R717
R719
R723
R724
R725
R726
R728
R732
R733
R734
R735
R750
R751
R424
R425
R116
R166
R727
R307
R450
R454
R459
R716
R738
R739
R748
R749
R105
R177
R133
R134
R135
R300
R302
R303
R306
R308
R417
R420
R448
R449
R452
R453
R457
R703
6-4
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
Description & Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
R729
R730
R740
R741
R742
R743
R744
R745
R746
R747
R713
R714
R715
R100
R101
R104
R106
R132
R148
R149
R154
R155
R172
R173
R310
R311
R314
R315
R316
R317
R318
R320
R405
R406
R407
R410
R411
R418
R421
R422
R423
R444
R447
R455
R458
R460
R706
R737
R408
R409
R451
R426
R427
R402
R403
R404
R414
R416
R707
R791
R305
R701
R169
Code No.
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000087
2007-000087
2007-000087
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000097
2007-000097
2007-000097
2007-000098
2007-000098
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000118
2007-000234
2007-000402
Description & Specification
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;1.3Kohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-5
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R702
R167
R711
R136
R428
R429
R721
R722
R712
R153
R710
R708
R119
R120
R121
R123
R124
R125
R163
R168
R752
R753
R754
R755
R756
R757
R758
R171
RA300
RA301
RA302
RA303
RA304
C116
C117
C120
C125
C126
C127
C452
C453
C455
C456
C457
C458
C459
C460
C463
C464
C728
C737
C739
C745
C754
C757
C760
C765
C103
C104
C105
C106
C107
C110
6-6
Code No.
2007-000402
2007-000458
2007-000659
2007-000869
2007-000869
2007-000869
2007-000869
2007-000869
2007-000882
2007-001002
2007-001002
2007-001134
2007-001164
2007-001164
2007-001164
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-007852
2011-000881
2011-000881
2011-000881
2011-000881
2011-000881
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
Description & Specification
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;27ohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7ohm,5%,1/10W,TP,1608
R-CHIP;510ohm,5%,1/10W,TP,1608
R-CHIP;510ohm,5%,1/10W,TP,1608
R-CHIP;68ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;140ohm,1%,1/10W,TP,1608
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
C320
C329
C351
C403
C406
C407
C413
C414
C416
C422
C423
C426
C441
C702
C703
C704
C706
C712
C713
C714
C731
C740
C741
C747
C762
C767
C768
C769
C771
C772
C773
C774
C775
C777
C102
C115
C308
C427
C701
C710
C711
C715
C720
C790
C325
C709
C723
C730
C733
C735
C766
C717
C718
C101
C309
C310
C748
C751
C108
C109
C111
C323
C324
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000552
2203-000552
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000972
2203-000972
2203-000972
2203-000972
2203-000972
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-7
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C326
C122
C727
C729
C736
C738
C744
C753
C756
C759
C764
C402
C440
C100
C319
C322
C327
C328
C400
C401
C404
C431
C465
C722
C750
C112
C113
C114
C118
C121
C123
C124
C300
C301
C302
C303
C304
C305
C306
C312
C313
C314
C315
C316
C317
C318
C321
C330
C331
C332
C333
C334
C335
C336
C337
C338
C339
C340
C341
C342
C343
C344
C345
6-8
Code No.
2203-000972
2203-001071
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-002793
2203-002793
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
Description & Specification
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;0.056nF,5%,50V,C0G,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012
C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
Loc. No.
C346
C347
C348
C349
C350
C411
C417
C418
C424
C425
C461
C700
C742
C763
C770
C779
C311
C415
C428
C436
C721
C724
C726
C732
C734
C743
C749
C752
C755
C758
C761
C776
C705
C412
C707
C708
C408
C451
C490
C491
C307
C405
C409
C433
C437
C716
C119
C410
C419
C420
C429
C430
C432
C480
C421
C438
C439
C442
C443
C444
C445
C446
C447
Code No.
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005249
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2402-000176
2402-001044
2402-001080
2402-001080
2402-001081
2402-001081
2402-001081
2402-001081
2402-001086
2402-001086
2402-001086
2402-001086
2402-001086
2402-001086
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001158
2402-001159
2402-001159
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
Description & Specification
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
C-AL,SMD;47uF,20%,50V,WT,TP,8x10mm
C-AL,SMD;47uF,20%,50V,WT,TP,8x10mm
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;1UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-9
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C448
C449
C450
C454
C746
C462
C434
C435
C725
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
X300
X700
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
IC706_SOCK
CN330
CN330
CN330
CN330
CN330
IC702
L402
L701
R790
T0568
CN330
T0087
CIS5
6-10
Code No.
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001178
2402-001183
2402-001183
2402-001222
2703-000222
2703-001334
2703-001334
2703-001334
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2801-003667
2801-004004
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001236
3301-001236
3301-001236
3704-000249
3711-005292
3711-005292
3711-005470
3711-005477
3711-005498
BN09-00016A
BN27-00002A
BN27-00017A
2007-001179
3301-001288
3711-003057
1203-001488
0202-001477
Description & Specification
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;3.3UF,20%,50V,HR,TP,4.3X4.3X5.8
INDUCTOR-SMD;560nH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16,
CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,SOCKET-IC;32P,PLCC,SN,1.27mm
HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,30P,1R,1.25mm,
HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,SMDHEADER-BOARD TO CABLE;BOX,10P,1R,1.25mm,
IC MICOM MTP;VCT4977,VCT49X7R-XX,F2,POLL
COIL-CHOKE(SMD);47uH,47uH,20%,12*12*8mm,
COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
BEAD-SMD;30ohm,1608,TP,-,HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
IC-POSI.FIXED REG.;7805,T0-252,3P,-,PLAS
SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
...3
....4
T0077
M0018
IC902
BN41-00656D
BN97-00675D
1102-001129
PCB MAIN;DVORAK,FR-4,4L,1.3,1.6,275*105,
ASSY MICOM;LS19DOWSS/XAA,DO19WS,AMLCD
IC-EPROM;M27W401,512KX8BIT,PLCC,32P,11.3
1
1
1
S.N.A
S.A
S.N.A
0.1
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
..2
..2
..2
M0112
M0081
M0081
M0081
M0081
M0081
M2893
CIS
M0107
CIS
T0514
M0125
T0081
CCMM1
CCMM1
M0174
BN91-00958A
6003-000115
6003-000115
6003-000115
6003-000275
6003-001439
BN39-00666C
BN61-01997A
BN63-02132A
BN96-02505A
BN61-01998A
BN63-02131A
6002-001294
BN73-00122A
BN73-00122B
BN44-00116B
ASSY SHIELD;LS19DOWSS*,DO19WS, STZ TN ZP
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL)
LEAD CONNECTOR-LVDS;DVORAK,UL1571#30,30P
HOLDER-JACK;DV19WS,ABS HB,T2.0
SHIELD-COVER;DV19WS,SECC,T0.8
ASSY SHIELD P-PANEL;LS19DOW,SECC,T0.8,AM
BRACKET-SUPPORT;LS19DOW,SECC,T1.2
SHIELD-PANEL;LS19DOW,SECC,T0.8,AMLCD
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SILICON/RUBBER;Dvorak 19,SILICON+ALUMINA
SILICON/RUBBER;Dvorak 19,SILICON+ALUMINA
IP BOARD;48135T(WN),DVORAK 19",3.2 ~4.8m
1
2
8
6
9
1
1
1
1
1
1
1
4
1
1
1
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
0.1
..2
M0019
M0215
BN91-00963C
BN07-00280A
ASSY LCD;LS19DOWSS/EDC
LCD-PANEL;LTM190M2-L01-D016,Dvorak,6BIT
1
1
S.N.A
S.A
0.1
..2
..2
..2
..2
..2
M0113
T0376
T0376
T0524
T0081
M0081
BN92-01583A
6902-000061
6902-000379
6902-000520
6902-000604
6902-000609
ASSY P/MATERIAL;LS19DOWSS/XAA,DO19WS
BAG AIR;T0.2,W500,L1000,TRP,-,-,BAG AIR;T0.2,W1000,L1800,TRP,-,-,BAG PE;T0.015/T0.5(DOUBLE),W700,L700,TRP
BAG WRAPPING;T0.02,W500,L10000,TRP,-,-,BAG ROLL;T0.05,W2400,L1000,TRP,-,-,-
1
0.005
0.002
1
1.31
0.032
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
..2
..2
M0045
M0013
M0081
T0524
BN92-01584B
BN96-02332D
6003-000282
6902-000389
BN61-01235A
CIS4
BN61-01717A
T0004
BN63-01991B
BN63-01992D
BN68-00786F
T0132
BN73-00077A
M0045
BN96-02763B
CN906
3705-001191
CN906
3705-001361
T0268
3903-000042
T0524
6902-000110
ACCESSORY BH68-70448A
T0128
BN39-00061B
T0059
BN68-00907A
M0215
BN96-02318D
I/B
BN59-00480D
QUICK_SETU BN68-00952A
T0238
BH68-00633A
M0114
BN39-00244B
T0074
BN59-00434C
ASSY ACCESSORY;LS19DOWSS/EDC,DO19WS
ASSY STAND P-BASE;HA19AS/BS,HIPS,GR70 &
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
BAG PE;T0.015/T0.5/T0.015,W350,L300,TRP,
SUPPORT-BRKT BASE;MJ19AS/BS,SECC,T1.6
HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5)
COVER-STAND BASE;HA19AS/BS,HIPS,T2.5,BK2
COVER-STAND TOP;HA19AS/BS,HIPS,T2.5,GR70
MANUAL FLYER-02,QSG;Bizet Stand Manual,S
RUBBER FOOT;MATISSE,BUMPON,¨ª13.5,T2.0,6
ASSY ACCESSORY;LS19DOWSS/EDC,DO19WS
CONNECTOR-COAXIAL;PAL,ADAPTER(J/P),-,-,CONNECTOR-COAXIAL;RCAP-DINP,ADAPTER(P/P)
CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/
BAG PE;T0.05,W250,L400,TRP,28,2,CARD-01;TFT LCD,SRC,RUSSIA,S/W,120,W210*
CBF SIGNAL-STEREO;MH15NS,1P,UL2851#26,20
MANUAL FLYER-CARD;COMM,SAMSUNG,18 LANG,E
ASSY MANUAL P-IB+QSG;LS19DOF, 940MW,Sync
S/W DRIVER-03,IB;COMM,W/W,SYNCMASTER,W/W
MANUAL FLYER-01,QSG;Dvorak 940MW W/W QSG
MANUAL FLYER-WARRANTY CARD;comm,Samsung,
CBF SIGNAL;MO15PS,15P/15P,20276-N,1830mm
REMOCON;Manet_Multi,TM79,17.5 * 4.3 * 2,
1
1
4
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
0.1
M0019
BN92-01585B
ASSY LABEL;LS19DOWSS/EDC,TCO99,DO19WS
1
S.N.A
0.1
..2
..2
M0003
BOX
M0103
BN92-01586B
BN69-01157A
BN72-60001A
ASSY BOX;LS19DOWSS/EDC,TCO99,DO19WS
BOX-02,MONITOR;S/M940MW(LS19DOW),A-1,-,LEVER-TOP;LSD210TL,PE-LD,WHITE,TFT_LCD
1
1.02
1
S.N.A
S.N.A
S.N.A
6-11
6 Electrical Parts List
6-2 LS19DOCSS/XAA Parts List
Level
Loc. No.
Code No.
Description & Specification
LS19DOCSS/XAA
940MW,SGN4/S19AV-LDO,19,LCD-MO,UNITED ST
Q'ty
SA/SNA
0.1
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
M0001
M0081
T0003
M0081
M0081
M0112
M0007
T0059
M0145
T0175
T0069
T0175
BN90-00803L
6003-000275
BN96-03793A
6003-000275
6006-001096
BN63-02613A
BN64-00408A
BN64-00409A
BN96-02793A
BN96-03734A
AA63-60001Q
BN96-03733B
ASSY COVER FRONT;LS19DOCSS/EDC,940MW,TCO
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
ASSY COVER P-FRONT;LS19DOC,ABS HB,GR70(S
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK
COVER-FRONT;LS19DOW,ABS,T2.5,HB,GR70,AML
KNOB-FUNCTION;DV19WS,ABS,T2.0,HB
INDICATOR LED;DV19WS,ACRYL HB,CLEAR
ASSY BOARD P-FUNCTION;DVORAK,CT5000-3880
ASSY SPEAKER P;16¥Ø,Dvorak, 19, VE Type,
SPACER-FELT;-,FELT,-,-,-,BLK,T0.35,-,150
ASSY SPEAKER P;16ohm,Dvorak 19",3W,2pin,
1
3
1
3
4
1
1
1
1
1
6
1
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.N.A
S.A
0.1
..2
...3
...3
...3
M0002
M0013
M0113
M0279
M0006
BN90-00813A
BN96-02503A
BN61-00377A
BN63-01140A
BN63-02127A
ASSY COVER REAR;LS19DOWSS/XAA,DO19WS
ASSY COVER P-REAR;LS19DOW,HIPS HB,BK24
BRACKET-VESA;GOYA19"(193V),SECC,T1.0
FELT;MUSE20",FELT,1.0,122,122
COVER-REAR;LS19DOW,HIPS,T2.5,HB,BK24
1
1
1
1
1
S.N.A
S.A
S.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
M0216
STD
M0081
T0054
BN90-00814A
BN96-02966A
6003-000275
BN63-02128A
BN63-02129A
BN96-02967A
ASSY STAND;LS19DOWSS/XAA,DO19WS
ASSY STAND P-BODY;LS19DOW,HIPS HB,BK24,Z
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
COVER-STAND FRONT;LS19DOW,HIPS,T2.5,HB,B
COVER-STAND REAR;LS19DOW,HIPS,T2.5,HB,BK
ASSY HINGE P;LS19DOW,ZNDC
1
1
4
1
1
1
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
M0017
M0014
T0245
IC012
FT702
CN104
CN101
CN330
JA330
CN110
JA333
JA333
CN107
JA333
CN105
JA333
CIS3
CIS7
T0376
T0174
D100
D101
D113
D114
D115
D119
D120
D121
D122
D123
D124
D125
D126
D130
D700
BN91-00957F
BN94-00763F
0202-001522
1203-000165
2904-001179
3701-001173
3701-001219
3711-004712
3722-000143
3722-000183
3722-001782
3722-001784
3722-002081
3722-002267
3722-002275
3722-002389
BN40-00035A
BN63-02133A
BN63-02134A
BN97-00674B
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
0401-001056
ASSY CHASSIS-STB;LS19DOWSS/EDC,DO19WS
ASSY PCB MAIN;LS19DOWSS/EDC,DO19WS
SOLDER-WIRE FLUX;LFA3-107,-,D1.2,96.5Sn/
IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
FILTER-SAW;36.125MHz,-,32.65-39.6MHz/0.5
CONNECTOR-DVI;24P,3R,FEMALE,ANGLE,AUF
CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AUF
HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA
JACK-PHONE;1P(VER),AG,BLK,ANGLE
JACK-SCART;21P,SN,BLK
JACK-PIN;1P,SN,WHT,ANGLE
JACK-PIN;1P,SN,RED,ANGLE
JACK-EAR PHONE;5P/2C,-,SnPb,L-BLU,JACK-PIN;3P,AU,RED/WHT/YEL,ANGLE
JACK-DIN;4P,-,SN,BLK,JACK-PIN;3P,AU,RED/BLU/GRN,ANGLE
TUNER;TDQ-6FL/W125S,TDQ-6FL/W125S,PAL Hy
SHIELD-JACK;DV19WS,SECC,T0.8
SHIELD-VIDEO;LS19DOW,SPTE,T0.2
ASSY SMD;LS19DOWSS/XAA,DO19WS
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-12
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D701
D702
D400
D102
D108
D109
D110
D111
D112
D116
D117
D118
D145
ZD700
D131
D146
D147
D103
D104
D105
D106
D107
D127
D128
D129
D132
D133
D134
D135
D136
D137
D138
D139
D140
D141
D142
D143
D144
Q102
Q700
Q100
Q103
Q300
Q400
Q401
Q402
Q403
Q404
Q405
Q406
Q407
Q408
Q409
Q410
Q409
Q409
IC104
IC104
IC104
IC104
IC112
IC112
IC112
Code No.
0401-001056
0401-001056
0402-000553
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-000579
0403-001382
0403-001435
0403-001435
0403-001435
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0406-001163
0501-000280
0501-000344
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0501-002080
0505-001170
0505-001170
0801-002404
0801-002709
0801-002899
0802-001025
1103-000129
1103-000129
1103-001279
Description & Specification
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO
DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT
DIODE-ZENER;UDZ33B,32.15-33.79V,200mW,SO
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW,
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
DIODE-TVS;CDS3C05GTA,6.4V/-/-,-,SMD
TR-SMALL SIGNAL;KSA1182,PNP,150MW,SOT-23
TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOTTR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0
IC-CMOS LOGIC;74VHC4066,ANALOG SWITCH,SO
IC-CMOS LOGIC;74HC373,D FLIP-FLOP,TSSOP,
IC-CMOS LOGIC;CD4069UBC,INVERTER,SOIC,14
IC-CMOS LOGIC;74LCX374,D FILP-FLOP,TSSOP
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x
IC-EEPROM;24C32,32Kbit,4Kx8Bit,SOP,8P,5x
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-13
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-14
Loc. No.
IC113
IC113
T0085
T0085
IC705
IC704
T0087
IC406
T0087
T0087
IC109
R107
R109
R159
R164
R165
R415
R720
R138
R140
R141
R143
R144
R145
R146
R147
R412
R413
R102
R103
R111
R112
R113
R114
R115
R117
R118
R122
R126
R127
R128
R129
R130
R131
R137
R150
R151
R152
R156
R157
R158
R160
R161
R174
R175
R176
R304
R419
R430
R431
R432
R433
R434
Code No.
1105-001284
1105-001284
1201-001980
1201-002136
1203-001212
1203-001559
1203-001816
1203-002796
1203-002844
1203-002844
1205-002738
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000043
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000072
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
Description & Specification
IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50
IC-DRAM;636165,-,16Mbit,1Mx16Bit,TSOP,50
IC-AUDIO AMP;TDA7266D,SO,20P,16X11.1MM,IC-AUDIO AMP;LM4810,MSOP,8P,3x3mm,DUAL,IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI
IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC,
IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA
IC-DC/DC CONVERTER;AP1501-33K5A,TO-263-5
IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L
IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L
IC-LCD CONTROLLER;SE6181LA-LF,LQFP,256P,
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;1Kohm,1%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;47ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R435
R436
R437
R438
R439
R440
R441
R442
R443
R445
R446
R704
R705
R717
R719
R723
R724
R725
R726
R728
R732
R733
R734
R735
R750
R751
R424
R425
R116
R166
R727
R307
R450
R454
R459
R716
R738
R739
R748
R749
R105
R177
R133
R134
R135
R300
R302
R303
R306
R308
R417
R420
R448
R449
R452
R453
R457
R703
R729
R730
R740
R741
R742
Code No.
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000076
2007-000076
2007-000077
2007-000077
2007-000077
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000078
2007-000081
2007-000082
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
Description & Specification
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;100ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;330ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;470ohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;1Kohm,5%,1/10W,TP,1608
R-CHIP;2.7Kohm,5%,1/10W,TP,1608
R-CHIP;3.3Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-15
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-16
Loc. No.
R743
R744
R745
R746
R747
R713
R714
R715
R100
R101
R104
R106
R132
R148
R149
R154
R155
R172
R173
R310
R311
R314
R315
R316
R317
R318
R320
R405
R406
R407
R410
R411
R418
R421
R422
R423
R444
R447
R455
R458
R460
R706
R737
R408
R409
R451
R426
R427
R402
R403
R404
R414
R416
R707
R791
R305
R701
R169
R702
R167
R711
R136
R428
Code No.
2007-000084
2007-000084
2007-000084
2007-000084
2007-000084
2007-000087
2007-000087
2007-000087
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000090
2007-000097
2007-000097
2007-000097
2007-000098
2007-000098
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000102
2007-000118
2007-000234
2007-000402
2007-000402
2007-000458
2007-000659
2007-000869
2007-000869
Description & Specification
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;6.8Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;10Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;47Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;56Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;100Kohm,5%,1/10W,TP,1608
R-CHIP;390ohm,5%,1/10W,TP,1608
R-CHIP;1.3Kohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;150ohm,5%,1/10W,TP,1608
R-CHIP;18Kohm,5%,1/10W,TP,1608
R-CHIP;27ohm,5%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R429
R721
R722
R712
R153
R710
R708
R119
R120
R121
R123
R124
R125
R163
R168
R752
R753
R754
R755
R756
R757
R758
R171
RA300
RA301
RA302
RA303
RA304
C116
C117
C120
C125
C126
C127
C452
C453
C455
C456
C457
C458
C459
C460
C463
C464
C728
C737
C739
C745
C754
C757
C760
C765
C103
C104
C105
C106
C107
C110
C320
C329
C351
C403
C406
Code No.
2007-000869
2007-000869
2007-000869
2007-000882
2007-001002
2007-001002
2007-001134
2007-001164
2007-001164
2007-001164
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-001167
2007-007852
2011-000881
2011-000881
2011-000881
2011-000881
2011-000881
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000140
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
Description & Specification
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7Kohm,1%,1/10W,TP,1608
R-CHIP;4.7ohm,5%,1/10W,TP,1608
R-CHIP;510ohm,5%,1/10W,TP,1608
R-CHIP;510ohm,5%,1/10W,TP,1608
R-CHIP;68ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,1%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;75ohm,5%,1/10W,TP,1608
R-CHIP;140ohm,1%,1/10W,TP,1608
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;1.5nF,10%,50V,X7R,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-17
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-18
Loc. No.
C407
C413
C414
C416
C422
C423
C426
C441
C702
C703
C704
C706
C712
C713
C714
C731
C740
C741
C747
C762
C767
C768
C769
C771
C772
C773
C774
C775
C777
C102
C115
C308
C427
C701
C710
C711
C715
C720
C790
C325
C709
C723
C730
C733
C735
C766
C717
C718
C101
C309
C310
C748
C751
C108
C109
C111
C323
C324
C326
C122
C727
C729
C736
Code No.
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000189
2203-000236
2203-000236
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000257
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000440
2203-000552
2203-000552
2203-000626
2203-000626
2203-000626
2203-000626
2203-000626
2203-000972
2203-000972
2203-000972
2203-000972
2203-000972
2203-000972
2203-001071
2203-001656
2203-001656
2203-001656
Description & Specification
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;10nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;1nF,10%,50V,X7R,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.02nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;47nF,10%,16V,X7R,1608
C-CER,CHIP;0.056nF,5%,50V,C0G,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C738
C744
C753
C756
C759
C764
C402
C440
C100
C319
C322
C327
C328
C400
C401
C404
C431
C465
C722
C750
C112
C113
C114
C118
C121
C123
C124
C300
C301
C302
C303
C304
C305
C306
C312
C313
C314
C315
C316
C317
C318
C321
C330
C331
C332
C333
C334
C335
C336
C337
C338
C339
C340
C341
C342
C343
C344
C345
C346
C347
C348
C349
C350
Code No.
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-001656
2203-002793
2203-002793
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005005
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
Description & Specification
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;0.47nF,5%,50V,NP0,1608
C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012
C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;100nF,10%,16V,X7R,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6-19
6 Electrical Parts List
Level
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
6-20
Loc. No.
C411
C417
C418
C424
C425
C461
C700
C742
C763
C770
C779
C311
C415
C428
C436
C721
C724
C726
C732
C734
C743
C749
C752
C755
C758
C761
C776
C705
C412
C707
C708
C408
C451
C490
C491
C307
C405
C409
C433
C437
C716
C119
C410
C419
C420
C429
C430
C432
C480
C421
C438
C439
C442
C443
C444
C445
C446
C447
C448
C449
C450
C454
C746
Code No.
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005065
2203-005249
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2203-005437
2402-000176
2402-001044
2402-001080
2402-001080
2402-001081
2402-001081
2402-001081
2402-001081
2402-001086
2402-001086
2402-001086
2402-001086
2402-001086
2402-001086
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001128
2402-001158
2402-001159
2402-001159
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
2402-001165
Description & Specification
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
C-CER,CHIP;100nF,10%,50V,X7R,1608
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216
C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
C-AL,SMD;100UF,20%,25V,GP,TP,8.3X8.3X6.3
C-AL,SMD;47uF,20%,50V,WT,TP,8x10mm
C-AL,SMD;47uF,20%,50V,WT,TP,8x10mm
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100uF,20%,25V,WT,TP,8.3x8.3x10
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM
C-AL,SMD;1UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.2MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
C-AL,SMD;4.7UF,20%,35V,WT,TP,4X5.8MM
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SA/SNA
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
...3
....4
C462
C434
C435
C725
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
T0052
X300
X700
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
T0568
IC706_SOCK
CN330
CN330
CN330
CN330
CN330
IC702
L402
L701
R790
T0568
CN330
T0087
CIS5
T0077
M0018
IC902
2402-001178
2402-001183
2402-001183
2402-001222
2703-000222
2703-001334
2703-001334
2703-001334
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2703-001778
2801-003667
2801-004004
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001145
3301-001236
3301-001236
3301-001236
3704-000249
3711-005292
3711-005292
3711-005470
3711-005477
3711-005498
BN09-00016A
BN27-00002A
BN27-00017A
2007-001179
3301-001288
3711-003057
1203-001488
0202-001477
BN41-00656D
BN97-00675D
1102-001129
C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.8m
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM
C-AL,SMD;3.3UF,20%,50V,HR,TP,4.3X4.3X5.8
INDUCTOR-SMD;560nH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;1.5uH,10%,2012
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
INDUCTOR-SMD;3.3uH,20%,3225
CRYSTAL-SMD;14.31818MHz,30ppm,28-AAN,16,
CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm
BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,BEAD-SMD;60ohm,1608,-,-,SOCKET-IC;32P,PLCC,SN,1.27mm
HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMDHEADER-BOARD TO CABLE;BOX,30P,1R,1.25mm,
HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,SMDHEADER-BOARD TO CABLE;BOX,10P,1R,1.25mm,
IC MICOM MTP;VCT4977,VCT49X7R-XX,F2,POLL
COIL-CHOKE(SMD);47uH,47uH,20%,12*12*8mm,
COIL CHOKE-SMD;PO5845-330,LT17N2,33uH,10
R-CHIP;8.2Kohm,5%,1/10W,TP,1608
BEAD-SMD;30ohm,1608,TP,-,HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
IC-POSI.FIXED REG.;7805,T0-252,3P,-,PLAS
SOLDER-CREAM;LST309-M,-,D20~45§-,96.5Sn/
PCB MAIN;DVORAK,FR-4,4L,1.3,1.6,275*105,
ASSY MICOM;LS19DOWSS/XAA,DO19WS,AMLCD
IC-EPROM;M27W401,512KX8BIT,PLCC,32P,11.3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.A
S.N.A
S.N.A
S.A
S.N.A
0.1
M0112
BN91-00958A
ASSY SHIELD;LS19DOWSS*,DO19WS, STZ TN ZP
1
S.N.A
6-21
6 Electrical Parts List
Level
Loc. No.
Code No.
Description & Specification
Q'ty
SA/SNA
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
..2
..2
..2
..2
M0081
M0081
M0081
M0081
M0081
M2893
CIS
M0107
CIS
T0514
M0125
T0081
CCMM1
CCMM1
M0174
6003-000115
6003-000115
6003-000115
6003-000275
6003-001439
BN39-00666C
BN61-01997A
BN63-02132A
BN96-02505A
BN61-01998A
BN63-02131A
6002-001294
BN73-00122A
BN73-00122B
BN44-00116B
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC
SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S
SCREW-TAPTITE;BH,+,S,M4,L8,ZPC(YEL)
LEAD CONNECTOR-LVDS;DVORAK,UL1571#30,30P
HOLDER-JACK;DV19WS,ABS HB,T2.0
SHIELD-COVER;DV19WS,SECC,T0.8
ASSY SHIELD P-PANEL;LS19DOW,SECC,T0.8,AM
BRACKET-SUPPORT;LS19DOW,SECC,T1.2
SHIELD-PANEL;LS19DOW,SECC,T0.8,AMLCD
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
SILICON/RUBBER;Dvorak 19,SILICON+ALUMINA
SILICON/RUBBER;Dvorak 19,SILICON+ALUMINA
IP BOARD;48135T(WN),DVORAK 19",3.2 ~4.8m
2
8
6
9
1
1
1
1
1
1
1
4
1
1
1
S.A
S.A
S.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
0.1
..2
M0019
M0215
BN91-00963C
BN07-00280A
ASSY LCD;LS19DOWSS/EDC
LCD-PANEL;LTM190M2-L01-D016,Dvorak,6BIT
1
1
S.N.A
S.A
0.1
..2
..2
..2
..2
..2
M0113
T0376
T0376
T0524
T0081
M0081
BN92-01583A
6902-000061
6902-000379
6902-000520
6902-000604
6902-000609
ASSY P/MATERIAL;LS19DOWSS/XAA,DO19WS
BAG AIR;T0.2,W500,L1000,TRP,-,-,BAG AIR;T0.2,W1000,L1800,TRP,-,-,BAG PE;T0.015/T0.5(DOUBLE),W700,L700,TRP
BAG WRAPPING;T0.02,W500,L10000,TRP,-,-,BAG ROLL;T0.05,W2400,L1000,TRP,-,-,-
1
0.005
0.002
1
1.31
0.032
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
0.1
..2
...3
...3
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
...3
..2
..2
M0045
M0013
M0081
T0524
BN92-01584A
BN96-02332D
6003-000282
6902-000389
BN61-01235A
CIS4
BN61-01717A
T0004
BN63-01991B
BN63-01992D
BN68-00786F
T0132
BN73-00077A
M0045
BN96-02763A
CN906
3705-001191
T0268
3903-000085
T0524
6902-000110
ACCESSORY BH68-00261F
ACCESSORY BH68-00344C
T0128
BN39-00061B
T0238
BN68-00832C
T0238
BN68-00832D
M0215
BN96-02318D
I/B
BN59-00480D
QUICK_SETU BN68-00952A
T0238
AA68-03870A
M0114
BN39-00244B
T0074
BN59-00434C
ASSY ACCESSORY;LS19DOWSS/XAA,DO19WS
ASSY STAND P-BASE;HA19AS/BS,HIPS,GR70 &
SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW
BAG PE;T0.015/T0.5/T0.015,W350,L300,TRP,
SUPPORT-BRKT BASE;MJ19AS/BS,SECC,T1.6
HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5)
COVER-STAND BASE;HA19AS/BS,HIPS,T2.5,BK2
COVER-STAND TOP;HA19AS/BS,HIPS,T2.5,GR70
MANUAL FLYER-02,QSG;Bizet Stand Manual,S
RUBBER FOOT;MATISSE,BUMPON,¨ª13.5,T2.0,6
ASSY ACCESSORY;LS19DOWSS/XAA,DO19WS
CONNECTOR-COAXIAL;PAL,ADAPTER(J/P),-,-,CBF-POWER CORD;DT,US,BP3/YES,I(IEC C13/C
BAG PE;T0.05,W250,L400,TRP,28,2,CARD WARRANTY-04;SyncMaster14-1,ADC,MOJO
CARD WARRANTY-02;SECA W'TY & CRM CARD,SE
CBF SIGNAL-STEREO;MH15NS,1P,UL2851#26,20
MANUAL FLYER-REGISTRATION CARD;SECA all,
MANUAL FLYER-REGISTRATION CARD;SECA all,
ASSY MANUAL P-IB+QSG;LS19DOF, 940MW,Sync
S/W DRIVER-03,IB;COMM,W/W,SYNCMASTER,W/W
MANUAL FLYER-01,QSG;Dvorak 940MW W/W QSG
MANUAL FLYER-REGISTRATION CARD;comm,Sams
CBF SIGNAL;MO15PS,15P/15P,20276-N,1830mm
REMOCON;Manet_Multi,TM79,17.5 * 4.3 * 2,
1
1
4
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
S.A
S.N.A
S.N.A
S.N.A
S.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.A
S.A
0.1
M0019
BN92-01585A
ASSY LABEL;LS19DOWSS/XAA,TCO99,DO19WS
1
S.N.A
0.1
..2
..2
M0003
BOX
M0103
BN92-01881A
BN69-01157A
BN72-60001A
ASSY BOX;LS19DOCSS/XAA
BOX-02,MONITOR;S/M940MW(LS19DOW),A-1,-,LEVER-TOP;LSD210TL,PE-LD,WHITE,TFT_LCD
1
1.02
1
S.N.A
S.N.A
S.N.A
6-22
2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
- MFM Model
- VCT49xy
- W/W model
- High Contrast Ratio(700:1)
- High Luminance(300cd/m2)
2-2 Specifications Comparison to the Old Model
Model
LDO19WS / LDO19CS
MH17ES
Area
World Wide
China / East-South
Asia
Panel
LTM190M2-L01
EU-L21
Response Time
8ms
8ms
Scart Jack
O
X
Micom
VCT49xy (Embeded MCU)
TDA15021H
Scaler
SE6181
TSU396AWJ-LF
PBA
2-1
2 Product Specifications
2-3 Specifications
Item
Description
LCD Panel
TFT-LCD panel, RGB vertical stripe, normaly white, 19-Inch viewable, 0.2835mm pixel pitch
Scanning Frequency
30 kHz ~ 81 kHz(Automatic)
Display Colors
16.7 Million colors
Maximum Resolution
Horizontal:1440 Pixels
Vertical: 900 Pixels
Input Video Signal
Analog, 0.7 Vp-p ± 1% positive at 75 Ω, internally terminated, DVI
Input Sync Signal
Type: Seperate H/V automatic synchronization
without external switch of sync type, Composite
Level: TTL level
Maximum Pixel Clock rate
140 MHz
Active Display
Horizontal/Vertical
408.24(H) x 255.15(V)
AC power voltage & Frequency AC 100 ~ 240 Volts (± 10%), 60/ 50 Hz ± 3 Hz
Power Consumption
55 W (max)
Dimensions
Set (W x H x D)
18.3 x 16.0 x 8.5 Inches (466 X 406 X 217 mm)
Weight (Set/Package)
6.2 kg (14 Ibs)
TV / Video
Color system : NTSC, PAL, SAM, PAL-M/N, NT43, PAL60
Sound system : B/G, I, D/K
Antena Input
Environmental Considerations
75Ω, Coaxial Cable
Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Storage Humidity : 5 % ~ 95 %
• Designs and specifications are subject to change without prior notice.
2-2
2 Product Specifications
2-4 Option Specification
Item
Item Name
CODE.NO
Quick Setup Guide
BH68-00376L
Warranty Card
(Not available in all locations)
Remark
BH68-70438A
User's Guide, Monitor
Driver, Natural Color
software
BN59-00480D (940MW)
BN59-00480W (940MG)
D-Sub(15 Pin)
Cable
BN39-00244B
Audio Cable
BN39-00061B
Power Cord
3903-000042
Remote Control
BN59-00434C
Batteries (AAA X 2)
4301-000121
Connecter
3705-001191
2-3
2 Product Specifications
Memo
2-4
5 Exploded View & Parts List
5 Exploded View and Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself. sec. samsung.co.kr
5-1 LS19DOCSS/EDC, LS19DOCSS/XAA Exploded View
M0013
M0107
M0174
M0017
CIS
M0215
T0003
STD
M0013
5-1
5 Exploded View & Parts List
5-2 LS19DOCSS/EDC Parts List
Location.No
CODE-NO
SPECIFICATION & DESCRIPTION
Q'TY
SA/SNA
T0003
BN96-03793A
ASSY COVER P-FRONT;LS19DOC,ABS HB,GR70(S
1
S.A
M0215
CIS
BN07-00280A
LCD-PANEL;LTM190M2-L01-D016,Dvorak,6BIT
1
S.A
BN96-02505A
ASSY SHIELD P-PANEL;LS19DOW,SECC,T0.8,AM
1
S.N.A
M0017
BN91-00957F
ASSY CHASSIS-STB;LS19DOWSS/EDC,DO19WS
1
S.A
M0174
BN44-00116B
IP BOARD;48135T(WN),DVORAK 19",3.2 ~4.8m
1
S.N.A
M0107
BN63-02132A
SHIELD-COVER;DV19WS,SECC,T0.8
1
S.N.A
M0013
BN96-02503A
ASSY COVER P-REAR;LS19DOW,HIPS HB,BK24
1
S.A
STD
BN96-02966A
ASSY STAND P-BODY;LS19DOW,HIPS HB,BK24,Z
1
S.A
M0013
BN96-02332D
ASSY STAND P-BASE;HA19AS/BS,HIPS,GR70 &
1
S.A
REMARK
5-2 LS19DOCSS/XAA Parts List
Location.No
CODE-NO
SPECIFICATION & DESCRIPTION
Q'TY
SA/SNA
T0003
BN96-03793A
ASSY COVER P-FRONT;LS19DOC,ABS HB,GR70(S
1
S.A
M0215
BN07-00280A
LCD-PANEL;LTM190M2-L01-D016,Dvorak,6BIT
1
S.A
CIS
BN96-02505A
ASSY SHIELD P-PANEL;LS19DOW,SECC,T0.8,AM
1
S.N.A
M0017
BN91-00957F
ASSY CHASSIS-STB;LS19DOWSS/EDC,DO19WS
1
S.A
M0174
BN44-00116B
IP BOARD;48135T(WN),DVORAK 19",3.2 ~4.8m
1
S.N.A
M0107
BN63-02132A
SHIELD-COVER;DV19WS,SECC,T0.8
1
S.N.A
M0013
BN96-02503A
ASSY COVER P-REAR;LS19DOW,HIPS HB,BK24
1
S.A
STD
BN96-02966A
ASSY STAND P-BODY;LS19DOW,HIPS HB,BK24,Z
1
S.A
M0013
BN96-02332D
ASSY STAND P-BASE;HA19AS/BS,HIPS,GR70 &
1
S.A
5-2
REMARK
7 Block Diagrams
7 Block Diagram
7-1
7 Block Diagrams
7-2
3 Alignments and Adjustments
3 Alignments and Adjustments
This section describes to adjust LCD monitor after replacing EEPROM, Main PBA or Panel.
3-1 Program Upgrade
Change MICOM
: If the similer happenings occur, EEPROM can be changed
-. EX1) When screen appears but remote control and function key aren't working
-. EX2) When LED is on but the screen doesn't appear
-. EX3) After mass production, when the micom program version is up-graded
* MICOM replacement can be done when Service Bulletin issue is in practice.
The process of working need to be prepare on Service Bulletin.
As the visual sample shown, after disassembling the set (refer to SET disassemble), remove the Micom in
the exist IC202 Socket and replace new Micom.
- Use appropriate JIG or any sharp tool and place in the both corners to assist in removing.
(Be aware! If the socket cause any damage after replacement the monitor will not function properly.)
- When inserting, attend to IC No.1 direction and press with suitable amount of strength.
- After replacement, in case of EEPROM Clear, enter to Factory mode and perform into action.
3-1
3 Alignments and Adjustments
3-2 DDC JIG installation
Connect DDC JIG.
PC parallel port
-----
DDC JIG
JIG cable
3-2
-----
Monitor
D_sub cable
3 Alignments and Adjustments
3-3 EDID Installation with Windows Program
1. Execute "WinDDC.exe"
2. Click "Sys Config"
Select "Station : Write station"
Check "Serial No and Week : Don't change"
Click "Save"
3. Click "Open" icon.
Select "Connected Port #1" and Next "OK".
* File Name - SM940MWA.DDC : Analog
- SM940MWD.DDC : Digital
Press enter key on your keyboard.
4. Confirm the "DDC OK".
- After Replacing the Main Board
- EDID Installation (Analog and Digital)
3-3
3 Alignments and Adjustments
3-4 Factory Mode Adjustments
3-4-1 Factory Mode Admission
- PAL :
Power off
Info
- NTC :
Power off
MUTE
3-4-2 Service Mode Menu
-. DDP Part
3-4
Menu
1
Power on
8
2
Power on
3 Alignments and Adjustments
-. MSTAR Part
-. Adjust , PC/DTV Auto Color
3-5
3 Alignments and Adjustments
-. Pre-Setting, Options , Checksum
-. Panel Information , Reset
3-6
4 Troubleshooting
4 Troubleshooting
4-1 No Power
Does DC 13V, 5V
appear at CN400?
No
Check Inverter/Adaptor Board
Yes
Does DC 3.3V
Appear at FT412?
No
Check circuits related
to IC405.
No
Check circuits related to
IC407.
Yes
Does DC 3.3V
Appear at FT414?
Yes
Check IC702(VCTI-F2), IC704,
and IC301(SE6181LA).
4-1
4 Troubleshooting
4-2 No Video (PC Signal)
Power Indicator is green
Does a signal appear at
1 C103,C104 and C105
(R,G,B input?)
No
Check circutis relatedCN101.
Yes
Does a signal appear at
2
3
R108 and R110(H/V Sync)?
No
Check circuits related CN101.
Yes
Does a signal appear at
4
1~30 of CN300(LVDS out)?
Yes
Replace LCD PANEL.
4-2
No
Check circuits related IC031.
4 Troubleshooting
WAVEFORMS
1
2
3
4
4-3
4 Troubleshooting
4-3 No Picture (TV)
Does a signal appear at
No
5 PIN 2 of FT702 (X6966)?
Check TU700(TUNER).
Yes
Does a signal appear at
PIN71,72,73,74,75,78,79,80
of IC702? 6
No
Check the circuits related to
IC702.
Yes
Does a signal appear at
4 PIN 1~30 of CN300?
Yes
Replace LCD Panel.
4-4
No
Check IC301.
4 Troubleshooting
WAVEFORMS
4
5
6
4-5
4 Troubleshooting
4-4 No Picture (Video/S-VIDEO/SCART )
Power Indicator is off.
Lamp on, no picture.
Dose the signal appear at
R732,R733,R734
No
Check a A/V cable and
video signal.
Yes
Does the signal appear at
No
5 PIN(71:80) of IC703?
Check a connection harness.
Yes
Does the digital data
appear at output of LVDS
No
Check a IC703.
Change a main PCB ass'y.
No
Check a IC301.
Change a main PCB ass'y.
4 (RA301~RA303)?
Yes
Check a LVDS cable?
Replace lcd panel?
4-6
4 Troubleshooting
WAVEFORMS
4
5
4-7
4 Troubleshooting
4-5 No Picture (COMPONENT)
Power Indicator is off.
Lamp on, no picture.
Does the signal appear at
No
5 PIN(31:37) of IC301?
Check a A/V cable and
video signal.
Yes
Does the digital data
appear at output of LVDS
4 (RA301~RA303)?
No
Check a connection harness.
Yes
Check a LVDS cable?
Replace lcd panel?
4-8
No
Check a IC301.
Change a main PCB ass'y.
4 Troubleshooting
WAVEFORMS
4
5
4-9
4 Troubleshooting
4-6 No Sound (TV)
Does a signal appear at
5 PIN 1,2 of FT702
(X6966M)?
No
Check Tuner.
Yes
Does a signal appear at
7
No
Check the circuits relevant
to IC702.
No
Check the circuits relevant
to IC409.
R454 and R458?
Yes
Does a signal appear at
PIN 2,5,9,16 of IC409
(SL/SR OUT)?
Yes
Check the Speaker L/R.
4-10
4 Troubleshooting
WAVEFORMS
5
7
4-11
4 Troubleshooting
4-7 No Sound (COMPONENT)
Does a signal appear at
No
5 R442 and R445?
Check a connection harness.
Yes
Does a signal appear at PIN
123,124of IC702.
No
Check the circuits relevant
to IC702.
No
Check the circuits relevant
to IC409.
Yes
Does a signal appear at
PIN 2,5,9,16 of IC409
(SL/SR OUT)?
Yes
Check the Speaker L/R.
4-12
4 Troubleshooting
WAVEFORMS
5
4-13
4 Troubleshooting
Memo
4-14
8 Wiring Diagram
8 Wiring Diagram
8-1
8 Wiring Diagram
Memo
8-2
1 Precautions
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1 Safety Precautions
1-1-1 Warnings
1.
For continued safety, do not attempt to modify the circuit
board.
2.
Disconnect the AC power and DC power jack before
servicing.
1-1-2 Servicing the LCD Monitor
1.
When servicing the LCD Monitor, Disconnect the AC
line cord from the AC outlet.
2.
It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the
following safety checks:
1.
Inspect each lead dress to make certain that the leads are
not pinched or that hardware is not lodged between the
chassis and other metal parts in the monitor.
2.
Inspect all protective devices such as nonmetallic control
knobs, insulating materials, cabinet backs, adjustment
and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.
Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation
transformer during this test.
Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,
59.7).
Figure 1-1. Leakage Current Test Circuit
4.
With the unit completely reassembled, plug the AC line
cord directly into a 120V AC outlet. With the unit’s AC
switch first in the ON position and then OFF, measure
the current between a known earth ground (metal water
pipe, conduit, etc.) and all exposed metal parts,
including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and
repeat the test.
1-1-4 Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by
replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are
identified by
on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics
as the recommended replacement part might create shock, fire
and/or other hazards. Product safety is under review
continuously and new instructions are issued whenever
appropriate.
1-1
1 Precautions
1-2 Servicing Precautions
WARNING:
An electrolytic capacitor installed with the wrong polarity might explode.
Caution:
Before servicing units covered by this service manual, read and follow the Safety Precautions section
of this manual.
Note:
If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.
1-2-1 General Servicing
Precautions
1.
2.
3.
Always unplug the unit’s AC power cord from the AC
power source and disconnect the DC Power Jack before
attempting to:
(a) remove or reinstall any component or assembly, (b)
disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit
board for safety. An insulation tube or tape is sometimes
used. The internal wiring is sometimes clamped to
prevent contact with thermally hot components. Reinstall
all such elements to their original position.
4.
Check the insulation between the blades of the AC plug
and accessible conductive parts (examples: metal panels,
input terminals and earphone jacks).
5.
Insulation Checking Procedure: Disconnect the power
cord from the AC source and turn the power switch ON.
Connect an insulation resistance meter (500 V) to the
blades of the AC plug.
The insulation resistance between each blade of the AC
plug and accessible conductive parts (see above) should
be greater than 1 megohm.
6.
After servicing, always check that the screws,
components and wiring have been correctly reinstalled.
Make sure that the area around the serviced part has not
been damaged.
Always connect a test instrument’s ground lead to the
instrument chassis ground before connecting the positive
lead; always remove the instrument’s ground lead last.
1-3 Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.
1.
Immediately before handling any semiconductor
components or assemblies, drain the electrostatic charge
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist-strap device. To
avoid a shock hazard, be sure to remove the wrist strap
before applying power to the monitor.
2.
After removing an ESD-equipped assembly, place it on a
conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3.
Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.
4.
Use only a grounded-tip soldering iron to solder or
desolder ESDs.
5.
Use only an anti-static solder removal device. Some
solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.
1-2
6.
Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are packaged with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
7.
Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.
Caution: Be sure no power is applied to the
chassis or circuit and observe all
other safety precautions.
8.
Minimize body motions when handling unpackaged
replacement ESDs. Motions such as brushing clothes
together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.
1 Precautions
1-4 Installation Precautions
1. For safety reasons, more than two people are
required for carrying the product.
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or
electric shock.
3. Do not place the product in areas with poor
ventilation such as a bookshelf or closet. The
increased internal temperature may cause fire.
6. Keep the antenna far away from any high-voltage
cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may
cause fire or electric shock.
7. When installing the product, leave enough space
(10cm) between the product and the wall for
ventilation purposes.
A rise in temperature within the product may
cause fire.
4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.
1-3
1 Precautions
Memo
1-4
9 Schematic Diagrams
9 Schematic Diagrams
- This Document can not be used without Samsung s authorization.
9-1
9 Schematic Diagrams
9-2
9 Schematic Diagrams
9-3
9 Schematic Diagrams
9-4
