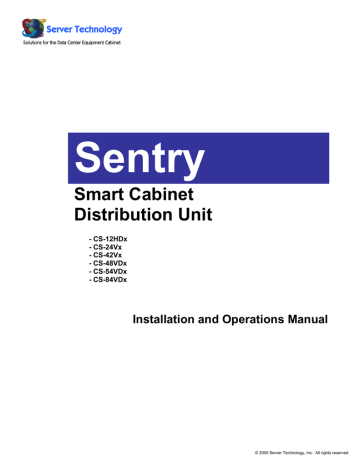

Server Technology
Solutions for the Data Center Equipment Cabinet
Sentry
Smart Cabinet
Distribution Unit
- CS-12HDx
- CS-24Vx
- CS-42Vx
- CS-48VDx
- CS-54VDx
- CS-84VDx
Installation and Operations Manual
© 2005 Server Technology, Inc. All rights reserved.
Instructions
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Dangerous Voltage
This symbol is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Protective Grounding Terminal
This symbol indicates a terminal that must be connected to earth ground prior to making any other connections to the equipment.
Life-Support Policy
As a general policy, Server Technology does not recommend the use of any of its products in the following situations:
• life-support applications where failure or malfunction of the Server Technology product can be reasonably expected to cause failure of the life-support device or to significantly affect its safety or effectiveness.
• direct patient care.
Server Technology will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Server Technology that:
• the risks of injury or damage have been minimized,
• the customer assumes all such risks, and
• the liability of Server Technology is adequately protected under the circumstances.
The term life-support device includes but is not limited to neonatal oxygen analyzers, nerve stimulators
(whether used for anesthesia, pain relief or other purposes), auto-transfusion devices, blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems, peritoneal dialysis systems, neonatal ventilator incubators, ventilators (for adults or infants), anesthesia ventilators, infusion pumps, and any other devices designated as “critical” by the U.S. FDA.
Please Recycle
Shipping materials are recyclable. Please save them for later use or dispose of them appropriately.
Notices
Copyright © 2005 Server Technology, Inc. All rights reserved.
1040 Sandhill Drive
Reno, Nevada 89521 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Server
Technology.
The information in this document has been carefully checked and is believed to be accurate.
However, changes are made periodically. These changes are incorporated in newer publication editions. Server Technology may improve and/or change products described in this publication at any time. Due to continuing system improvements, Server Technology is not responsible for inaccurate information which may appear in this manual. For the latest product updates, consult the
Server Technology web site at www.servertech.com
. In no event will Server Technology be liable for direct, indirect, special, exemplary, incidental or consequential damages resulting from any defect or omission in this document, even if advised of the possibility of such damages.
In the interest of continued product development, Server Technology reserves the right to make improvements in this document and the products it describes at any time, without notices or obligation.
Table of Contents
C
1: I
C
2: I
2
4
C
3: O
7
C
4: A
O
31
C
5: A
51
Chapter 1: Introduction
Quick Start Guide
The following instructions will help you quickly install and configure your Smart CDU for use in your data center equipment cabinet. For detailed information on each step, go to the page number listed to the right.
7. Connect the Smart CDU to the network.
Technical Support
Server Technology understands that there are often questions when installing and/or using a new product. Free Technical Support is provided from 8:30 AM to 5:00 PM, Monday-Friday, Pacific Time.
Server Technology, Inc.
Sandhill
Reno, Nevada 89521 USA
Tel: 775.284.2000
Fax: 775.284.2065
Web: www.servertech.com
Email: [email protected]
2
• Introduction
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Equipment Overview
1. The power inlet/cord(s) connects the CDU to the electrical power source.
2. The Input Current LED(s) displays the current load for each infeed or electrical phase per infeed.
3. Two RJ45 connectors for Serial (RS-232) and Ethernet connection
4. Two mini RJ11 connectors for Temperature/Humidity sensors.
5. Each Branch Circuit / electrical phase is color-coded for easy identification.
4
3
2
4
3
2
5
3
4
1
2
2
1
Figure 1.1 Cabinet Distribution Unit Views
1 1
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Introduction
• 3
Chapter 2: Installation
Before installing your Sentry Smart Cabinet Distribution Unit (CDU), refer to the following lists to ensure that you have all the items shipped with the unit as well as all other items required for proper installation.
Standard Accessories
• Mounting hardware:
Vertical models - two removable flanges with four M4 screws and two mounting L-brackets with nut plates, four sets of screws and washers and optional button mounts.
Horizontal models – two removable flanges with M4 screws.
• RJ45 to RJ45 crossover cable.
• RJ45 to DB9F serial port adapter (for connection to standard DB9M DTE serial port).
• Outlet retention clips (208-240V models).
Additional items for Cx-xxx-C20 models:
• Separate power input cord.
• Power input retention bracket hardware.
Two removable T-brackets with two 40mm screws.
Optional Accessories
• Temperature/Humidity sensors.
Additional Required Items
• Flathead and Phillip screwdrivers.
• Screws, washers and nuts to attach the CDU to your rack.
Safety Precautions
This section contains important safety and regulatory information that should be reviewed before installing and using the Sentry Smart Cabinet Distribution Unit. For input and output current ratings,
see Power Ratings in Appendix C: Technical Specifications.
Only for installation and use in a
Restricted Access Location in accordance with the following installation and use instructions.
This equipment is designed to be installed on a dedicated circuit.
Dedicated branch circuit must have circuit breaker or fuse protection; 3-phase/multi-pole dedicated branch circuits must have circuit breaker or fuse protection for each phase/pole located together. CDUs have been designed without a master circuit breaker or fuse to avoid becoming a single point of failure. It is the customer’s responsibility to provide adequate protection for the dedicated branch power circuit.
Protection should not exceed the
Total Input Rating of the CDU and must meet all applicable local, state and federal codes and regulations.
Seulement pour l’installation et l’utilisation dans une Zone Interdite conformément aux installations et l’utilisation des indications suivants.
Cet équipement est conçu à être installé sur un circuit spécialisé.
Le circuit de dérivation spécialisé doit
être équipé de disjoncteurs ou de fusibles ;
Lorsqu'ils sont triphasés ou multipolaires, ils doivent être équipés de disjoncteurs ou de fusibles sur chaque phase ou pôle. Les CDU ont
été conçus sans disjoncteur ou fusible principal afin de ne pas constituer le seul point de rupture. Le client est seul responsable de la protection des circuits électriques de dérivation spécialisés. Cette protection ne doit pas excéder la consommation totale en entrée du CDU et doit être conforme aux normes et à la réglementation locales, d'état et fédérales.
La prise sur le cordon d’alimentation sera installée près de l’équipement et sera facilement disponible.
Nur zur Installation und Verwendung in einem
Sicherheitsbereich gemäß den folgenden
Installations- und Verwendungsanleitungen.
Diese Ausrüstung ist zur Installation in einem festen Stromkreis vorgesehen.
Der als Standleitung verwendete
Zweigstromkreis muss mit einem
Überlastschalter bzw. einer Sicherung ausgestattet sein; bei Standleitungs-
Zweigstromkreisen mit 3 Phasen/mehreren
Polen müssen zusammengehörige
Phasen/Pole individuell durch einen
Überlastschalter bzw. eine Sicherung geschützt sein. In CDUs ist kein Haupt-
Überlastschalter bzw. keine Hauptsicherung installiert. Dadurch wird ausgeschlossen, dass die CDU als alleinige Schwachstelle in Frage kommt. Es liegt in der Verantwortung des
Kunden, den als Standleitung verwendeten
Zweigstromkreis durch entsprechende
Schutzmaßnahmen vor Überlastung zu schützen. Der Wert für den Überlastschutz darf nicht über dem Wert für die
Eingangsstromstärke der CDU liegen und muss geltenden örtlichen und staatlichen
Bestimmungen entsprechen.
Der Stecker des Netzkabels muss in der Nähe der Ausrüstung installiert werden und leicht zugänglich sein.
The plug on the power supply cord shall be installed near the equipment and shall be easily accessible.
Always disconnect the power supply cord before opening to avoid electrical shock.
WARNING! High leakage current! Earth connection is essential before connecting supply!
4
• Installation
Toujours déconnecter le cordon d’alimentation avant d’ouvrir pour
éviter un choque électrique.
ATTENTION ! Haut fuite très possible ! Une connection de masse est essentielle avant de connecter l’alimentation !
Ziehen Sie vor dem Öffnen immer das
Netzkabel heraus, um die Gefahr eines elektrischen Schlags zu vermeiden.
ACHTUNG! Hoher Ableitstrom! Ein
Erdungsanschluss ist vor dem Einschalten der
Stromzufuhr erforderlich!
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Installing the Power Input Retention Bracket
For units with a total maximum output <30A, it may be necessary to install the power input retention bracket prior to mounting the unit within the rack.
To install the power input retention bracket:
1. Remove the two screws attaching the IEC 60320 C19 inlet to the enclosure.
2. Assemble and attach the retention bracket to the enclosure as shown.
Mounting
Figure 2.1 Retention Bracket assembly
Figure 2.2 Mounting
Horizontal/Rack
1. Select the appropriate bracket mounting points for proper mounting depth within the rack.
2. Attach the brackets to these mounting points with two screws for each bracket.
3. Install the enclosure into your rack, using the slots in each bracket. The slots allow about ¼ inch of horizontal adaptability to align with the mounting holes of your rack.
NOTE: A mounting bracket kit for 23” wide racks or cabinets is available. Contact your Server Technology Sales
Representative for more information.
Vertical
1. Attach the removable flanges to the mount points on the rear of the enclosure using M4 screws.
2. Attach the mounting L-brackets to the flanges with the supplied screws, washers and nut plates.
The slots allow about 1½ inches of vertical adaptability.
3. Repeat with the other mounting bracket on the bottom flange.
4. Attach the top and bottom brackets to your rack.
NOTE: Contact your Server Technology Sales Representative for information regarding custom bracket design and fabrication services if you are unable to find a suitable manner for utilizing the included mounting brackets.
Optionally, the supplied button mounts may be used for mounting the CDU into cabinets supporting this method of equipment mounting.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Installation
• 5
Connecting to the Power Source
On 30A units, the input power cord is attached to the base of the unit. On units with a total maximum output <30A, you must first attach the power cord to the unit before connecting the unit to the power source.
To attach a power cord to the unit:
1. Plug the female end of the power cord firmly into its connector at the base.
2. Use a screwdriver to tighten the two screws on the retention bracket.
To connect to the power source:
Plug the male end of the power cord into the AC power source.
Connecting Devices
To avoid the possibility of noise due to arcing:
1. Keep the device’s on/off switch in the off position until after it is plugged into the outlet.
2. Connect devices to the CDU outlets.
NOTE: Server Technology recommends even distribution of attached devices across all available outlets to avoid
Always disconnect both power supply cords before opening to avoid electrical shock.
Afin d’éviter les chocs électriques, débranchez les cables électrique avant d’ouvrir.
Immer beiden Netzleitungen auskuppeln vor den Aufmachen um elektrischen Schlag zu vermeiden.
Connecting the Sensors
The Smart CDU is equipped with two mini RJ11 T/H ports for attachment of Temperature/Humidity sensors. Attach the mini RJ11 plug of the sensor(s) to the appropriate T/H port.
Connecting to the Unit
Serial (RS232) port
The Smart Cabinet Distribution Unit is equipped with an RJ45 Serial RS-232 port for attachment to a
PC or networked terminal server using the supplied RJ45 to RJ45 crossover cable and RJ45 to DB9F
serial port adapter as required. See Data Connections in Appendix C: Technical Specifications for
more information on the Serial RS-232 port.
Ethernet port
The Smart Cabinet Distribution Unit is equipped with an RJ45 10/100Base-T Ethernet port for attachment to an existing network. This connection allows access to the Smart CDU via Telnet or HTML.
The Smart Cabinet Distribution Unit is configured with the following network defaults to allow unit configuration out-of-the-box through either Telnet or HTML:
• IP address:
192.168.1.254
• Subnet Mask:
255.255.255.0
• Gateway:
192.168.1.1
The local PC network connection must be configured as noted below:
NOTE: Contact your system administrator for instructions in reconfiguring the network connection. Reconfiguration of your network connection may require a restart to take effect.
• IP address:
192.168.1.x (where x is 2-253)
• Subnet Mask:
255.255.255.0
6
• Installation
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Chapter 3: Operations
I
8
HTML I
8
C
L
I
16
Interfaces
The Smart Cabinet Distribution Unit has two interfaces: the HTML interface accessed via the HTTP enabled Ethernet connections and the command line for serial and Telnet connections.
Usernames and Passwords
The Smart Cabinet Distribution Unit has one predefined administrative user account (username/password: admn/admn) and supports a maximum of 128 defined user accounts
NOTE: For security, Server Technology recommends removal of the predefined administrative user account after a new account with administrative rights has been created.
Only an administrative-level user may perform operations such as creating/removing user accounts and command privileges, changing passwords and displaying user information. An administrator may also view the status of all sensors and power inputs.
Usernames may contain from 1-16 characters and are not case sensitive; spaces are not allowed.
Passwords may contain up to 16 characters, and are case sensitive.
HTML Interface
The HTML interface is constructed of three major components: the System Location bar, the
User/Navigation bar and the Control Screen. The System Location bar displays the Sentry’s location and IP address as well as the current Control Screen title. The User/Navigation bar displays the current user and privilege level and provides access to all HTML pages. And the Control Screen is used to display current data and allow changes to outlet states or system configuration.
The following sections describe each interface section/page and their use.
User/Navigation System Location Control Screen
Figure 3.1 Example HTML page
8
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Logging In
Logging in through HTML requires directing the HTML client to the configured IP address of the unit.
To log in by HTML:
In the login window, enter a valid username and password and press OK.
If you enter an invalid username or password, you will be prompted again.
You are given three attempts to enter a valid username and password combination. If all three fail, the session ends and a protected page will be displayed.
NOTE: The default Sentry username/password is admn/admn.
Environmental Monitoring
Input Feeds
The Input Load page displays the tower(s) absolute and descriptive name and the cumulative input load in amperes of all devices attached to the Sentry at the time the page was loaded. This page will refresh automatically every 10 seconds
Sensors
The Sensors page displays:
• Temperature/humidity sensor’s absolute and descriptive names
• Temperature/humidity sensor readings in degrees Celsius and percent relative humidity
Configuration
The Configuration section offers access to all unit configuration options including Network,
Telnet/SSH, HTTP/SSL, Serial Ports, Users, FTP, Proxy/SNTP and SNMP. This section is available to administrative level users only.
System
The System configuration page is used for reference of system information such as Ethernet NIC Serial
Number, Ethernet MAC address and system firmware and hardware revisions as well as assignment and maintenance of the system location and tower descriptive names.
For description names, up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal – spaces and colon characters are not allowed) are allowed.
NOTE: Spaces may be used for the location description only.
Creating a descriptive system location name:
Enter a descriptive name and press Apply.
Configuring the Input Current LED display orientation:
Select Normal or Inverted from the drop-down menu and press Apply.
Creating a descriptive unit name:
Click on the Tower Names link.
On the subsequent Tower Names page, enter a descriptive name and press Apply.
Creating a descriptive input feed name:
Click on the Input Feed Names link.
On the subsequent Input Feed Names page, enter a descriptive name and press Apply.
Creating a descriptive Serial port name:
Click on the Serial Port Names link which will open the Serial Ports configuration page. See Serial
Ports on page 11 for additional information on creating descriptive Serial port names.
Creating a descriptive Environmental Monitor name:
Click on the Environmental Monitor Names link.
On the subsequent Environmental Monitor Names page, enter a descriptive name and press Apply.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 9
Creating descriptive sensor names:
Click on the Sensor Names link.
On the subsequent Sensor Names page, enter a descriptive name and press Apply.
Network
The Network configuration page is used for maintenance of the network interface. From this page an administrator may configure the IP address, subnet mask and gateway address as well as view the link status, speed and duplex value.
The Sentry is configured with the following network defaults to allow unit configuration out-of-the-box through either Telnet or HTML:
• IP address:
192.168.1.254
• Subnet Mask:
255.255.255.0
• Gateway:
192.168.1.1
The initial local PC network connection must be configured as noted below:
NOTE: Contact your system administrator for instructions in reconfiguring the network connection. Reconfiguration of your network connection may require a restart to take effect.
• IP address:
192.168.1.x (where x is 2-253)
• Subnet Mask:
255.255.255.0
Setting the IP address, subnet mask, gateway or DNS address:
In the appropriate field, enter the IP address, subnet mask, gateway address or DNS address and press
Apply.
Telnet/SSH
The Telnet/SSH configuration page used to enable or disable Telnet and SSH support and configure the
port number that the Telnet or SSH server watches. For more information on SSH see page 33 in
Chapter 4: Advanced Operations.
Enabling or disabling Telnet or SSH support:
Select Enabled or Disabled from the appropriate Server drop-down menu and press Apply.
Changing the Telnet or SSH server port number:
In the appropriate Port field, enter the port number and press Apply.
HTTP/SSL
The HTTP/SSL configuration page used to enable or disable HTTP and SSL support, configure the port number that the HTTP server watches and responds to, selection of the method of authentication used
and SSL access level. For more information on SSL see page 31 in Chapter 4: Advanced Operations.
Enabling or disabling HTTP or SSL support:
Select Enabled or Disabled from the appropriate Server drop-down menu and press Apply.
Changing the HTTP server port number:
In the HTTP Port field, enter the port number and press Apply.
10
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting the HTTP authentication method:
The Sentry HTTP server supports two authentication methods for security and validation of the username-password – Basic and MD5 digest.
The Basic method utilizes Base64 encoding to encode and deliver the username-password over the network to the HTTP server for decoding and authentication. This basic method is supported by all web browsers and offers a minimum level of security.
NOTE: The Base64 algorithm is widely-known and susceptible to packet-sniffer attack for acquisition of the encoded username-password string.
The MD5 digest method provides stronger protection utilizing one-way encoded hash numbers, never placing the username-password on the network. Instead, the sending browser creates a challenge code based on the hash algorithm, provided username-password and unique items such as the device IP address and timestamp, which is compared against the HTTP server internal user database of valid challenge codes. The MD5 digest method offers a higher level of security than the Basic method but at present is not supported by all browsers.
NOTE: MD5 is known to be fully supported by Internet Explorer 5.0+
Select Basic or MD5 from the Authentication drop-down menu and press Apply.
Setting SSL access level
Sentry SSL supports configuration of SSL connections as being either optional or required. The default access level is set to optional.
• Optional –Both non-secure (HTTP) and SSL encrypted connections (HTTPS) are allowed access.
• Required – ONLY SSL encrypted connections (HTTPS) are allowed access.
Select Optional or Required from the Secure Access drop-down menu and press Apply.
Serial Ports
The Serial Ports configuration page is used for maintenance of the serial port.
NOTE: Pass-Thru connections may only be initiated from the command line interface via a Telnet/SSH session.
Setting the data-rate for all serial ports:
Select the serial port data-rate from the drop-down menu and press Apply.
Setting the serial port timeout value:
Enter the timeout value (in minutes) in the Connection Timeout field and press Apply.
Creating a descriptive serial port name:
Click on the Edit link in the Action column next to the port to be configured.
On the subsequent Serial Port Edit page, enter the descriptive name. Up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal, spaces are not allowed) are allowed. Press Apply.
Enabling or disabling serial port active signal checking:
Click on the Edit link in the Action column next to the port to be configured.
On the subsequent Serial Port Edit page, select On or Off from the DSR Check drop-down menu and press Apply.
Users
The Users configuration page is used for creation and removal of usernames, assignment of accessible outlets and group, assignment of privilege levels and the changing of user passwords.
Creating a new user:
Enter a user name in the Username field. Up to 24 alphanumeric and other typeable characters (ASCII
33 to 126 decimal, spaces and colon characters are not allowed) are allowed.
Enter a password for the new user and verify in the Password and Verify Password fields. For security, password characters are not displayed. Press Apply.
Removing a user:
Click on the Remove link in the Action column for the user to be removed and press Yes on the subsequent confirmation window.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 11
Changing a user password:
Click on the Edit link in the Action column for the associated user.
On the subsequent User Edit page, enter a password and verify the new password for the new user in the
Password and Verify Password fields. For security, password characters are not displayed. Press Apply.
Changing a user’s access privilege level:
The Sentry has two defined access privilege levels; Admin and User:
• Admin:
• User:
Full-access for all configuration, control (On, Off, Reboot), status and Pass-Thru.
Partial-access for control (On, Off, Reboot), status and Pass-Thru of assigned outlets, groups and serial ports.
The administrator may also grant administrative privileges to other user accounts allowing the Sentry to have more than one administrative-level user.
NOTE: You cannot remove administrative privileges from the Admn user unless another user has already been given administrative access level privileges created.
Click on the Edit link in the Action column for the associated user.
On the subsequent User Edit page, select Admin or User from the Access Level drop-down menu and press Apply.
FTP
The FTP configuration page is used for setup and maintenance of all settings required to perform an
FTP firmware upload. See Appendix B: Uploading Firmware for more information on uploading
firmware.
Setting the FTP Host IP Address:
Enter the IP address in the Host IP Address field and press Apply.
Setting the FTP username:
Enter the FTP server username in the Username field, and press Apply.
Setting the FTP password:
Enter the FTP server password in the Password field, and press Apply.
Setting the filepath:
Enter the path of the file to be uploaded in the Directory field, and press Apply.
Setting the filename for upload:
Enter the filename of the file to be uploaded in the Filename field, and press Apply.
Testing the FTP upload configuration:
This test validates that the unit is able to contact and log onto the specified FTP server, download the firmware file and verify that the firmware file is valid for this unit.
Press Test.
SNTP
The SNTP configuration page is used for setup and maintenance of SNTP support.
Setting the SNTP Server Address:
Enter the IP address in the primary and/or secondary address field and press Apply.
SNMP
The SNMP configuration page is used for setup and maintenance of all settings required to enable
SNMP support as well as access to the trap configuration pages. For additional information on SNMP
support and detailed descriptions of available traps, see SNMP on page34.
NOTE: Traps are generated according to a hierarchical architecture; i.e. if a Tower Status enters a trap condition, only the
Tower Status trap is generated. Infeed and Outlet Status traps are suppressed until the Tower Status returns to Normal.
Enabling or disabling SNMP support:
Select Enabled or Disabled from the drop-down menu and press Apply.
12
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting the community strings:
Enter the community string in the appropriate field and press Apply.
Community strings may be 1 to 24 characters
Setting the trap timer:
Enter a trap timer value in the Error Trap Repeat Time field and press Apply.
The Error Trap Repeat Time value may be 1 to 65535 (in seconds).
Setting trap destinations:
Enter an IP address in the appropriate Trap Destination field and press Apply.
Enabling or disabling tower traps:
Click on the Tower Traps link.
On the subsequent Tower Traps page, select or deselect the desired traps and press Apply.
Configuring input feed traps:
Click on the Input Feed Traps link.
On the subsequent Input Feed Traps page, select or deselect the desired traps and press Apply.
For Load traps, enter a maximum load value for the infeed in the High Load Threshold field and press Apply.
The High Load Threshold value may be 0 to 255 (in amperes).
Enabling or disabling Environmental Monitor traps:
Click on the Environmental Monitor Traps link.
On the subsequent page, select or deselect the desired traps and press Apply.
Configuring the Temperature-Humidity sensor traps:
Click on the Sensor Traps link.
On the subsequent page, select or deselect the desired traps and press Apply.
For Temp traps, enter a minimum and maximum threshold value for the sensor in the appropriate field and press Apply.
The threshold value may be 0 to 127 (in degrees Celsius).
For Humid traps, enter a minimum and maximum threshold value for the sensor in the appropriate field and press Apply.
The threshold value may be 0 to 100 (in percent relative humidity).
LDAP
The LDAP configuration page is used for setup and maintenance of all settings required to enable
LDAP support. For additional information and configuration requirements, see LDAP on page 40.
Enabling or disabling LDAP support:
Select Enabled or Disabled from the LDAP drop-down menu and press Apply.
Setting the LDAP server IP address:
Enter the IP address in the Host IP1 and/or Host IP2 address field and press Apply.
Changing the LDAP server port:
Enter the port number in the LDAP Port field and press Apply.
Setting the LDAP bind password type:
Select Simple or MD5 from the drop-down menu and press Apply.
Setting the search bind Distinguished Name (DN):
Enter the fully-qualified distinguished name (FQDN) in the Search Bind field and press Apply.
Setting the search bind password for Distinguished Name (DN):
Enter the Search Bind Password in the Search Bind Password field and press Apply.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 13
Setting the group membership attribute:
Enter the group membership attribute in the Group Membership Attribute Field and press Apply.
Setting the group membership value type:
Select the appropriate value from the drop-down menu and press Apply.
Setting the user search base Distinguished Name (DN):
Enter the User Search Base DN in the User Search Base DN field and press Apply.
Setting the user search filter:
Enter the User Search Filter in the User Search Filter field and press Apply.
Setting the DNS IP address:
See Setting the IP address, on page 10 for information on how to set the DNS IP address.
Configuring the authentication order:
Select Remote -> Local or Remote Only from the drop-down menu and press Apply.
NOTE: Server Technology recommends NOT setting the authentication order to Remote Only until the LDAP has been fully configured and tested.
Configuring LDAP groups:
Click on the LDAP Groups link at the bottom of the page.
Creating an LDAP group:
Enter a descriptive group name in the LDAP Group Name field. Up to 24 alphanumeric and other typeable character (ASCII 33 to 126 decimal, spaces are not allowed) are allowed. Press Apply.
Removing an LDAP group:
Click on the Remove link in the Action column for the group to be removed and press OK on the subsequent confirmation window.
Changing an LDAP group’s access privilege level:
Click on the Edit link in the Action column for the associated LDAP Group.
On the subsequent LDAP Group - Edit page, select Admin or User from the Access Level drop-down menu and press Apply.
Adding and Deleting serial port access:
Click on the Ports link in the Access column for the associated LDAP Group.
On the subsequent LDAP Group - Ports page, select or deselect ports to be accessed by the LDAP Group and press Apply.
TACACS+
The TACACS+ configuration page is used for setup and maintenance of all settings required to enable
TACACS+ support. For additional information and configuration requirements, see TACACS+ on page 47.
Enabling or disabling TACACS+ support:
Select Enabled or Disabled from the TACACS+ drop-down menu and press Apply.
Setting the TACACS+ server IP address:
Enter the IP address in the Host IP1 and/or Host IP2 address field and press Apply.
Setting the TACACS+ encryption key:
Enter a key and verify the new key the Encryption Key and Verify Encryption Key fields. Press Apply.
For security, key characters are not displayed.
14
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Configuring the authentication order:
Select Remote -> Local or Remote Only from the drop-down menu and press Apply.
NOTE: Server Technology recommends NOT setting the authentication order to Remote Only until the LDAP has been fully configured and tested.
Configuring TACACS+ privilege levels:
Click on the TACACS+ Privilege Levels link at the bottom of the page.
Changing an TACACS+ Privilege Level’s access privilege level:
Click on the Edit link in the Action column for the associated TACACS+ Privilege Level.
On the subsequent TACACS+ Privilege Level - Edit page, select Admin or User from the Access
Level drop-down menu and press Apply.
For more information on access levels, see Changing a user’s access privilege level: on page 12.
Adding and Deleting serial port access:
Click on the Ports link in the Access column for the associated TACACS+ Privilege Level.
On the subsequent LDAP Group - Ports page, select or deselect ports to be accessed by the TACACS+
Privilege Level and press Apply.
Tools
The Tools section contains access to rebooting the unit, uploading new firmware as well as resetting the unit to factory defaults. This section is available to administrative level users only.
Restart
Performing a warm boot:
Select the Restart from the Action drop-down menu and press Apply.
Note: System user/outlet/group configuration or outlet states are NOT changed or reset with this command.
Resetting to factory defaults:
Uploading new firmware:
See Appendix B: for more information on uploading new firmware from the HTML interface
Ping
The Ping feature may be used to test the Sentry’s ability to contact another Ethernet enabled device’s IP address. For LDAP support, it may also be used to test the configuration of the Domain Name server
IP address by testing for proper name resolution.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 15
Command Line Interface
Logging In
Logging in through Telnet requires directing the Telnet client to the configured IP address of the unit.
Logging in through the Console (RS232) port requires the use of a terminal or terminal emulation software configured to support ANSI or VT100 and a supported data rate (300, 1200, 2400, 4800, 9600,
19200, 38400, 57600, or 115200 BPS) - 8 data bits-no parity-one stop bit and Device Ready output signal (DTR or DSR).
To log in by RS-232 or Telnet:
1. Press Enter. The following appears, where x.xx is the firmware version:
Sentry Version x.xx
Username:
NOTE: Logging in by Telnet will automatically open a session. It is not necessary to press Enter.
2. At the Username: and Password: prompts, enter a valid username and password. And press Enter.
You are given three attempts to enter a valid username and password combination. If all three fail, the session ends.
NOTE: The default Sentry username/password is admn/admn.
When you enter a valid username and password, the command prompt (Smart CDU:) appears. If a
location identifier was defined, it will be displayed before the Smart CDU: prompt. See Creating a
on page 24 for more information.
You may enter commands in any combination of uppercase and lowercase. You must enter all command characters correctly; there are no command abbreviations. There are two types of commands: operations and administration. A user must have administrative privileges to use the administration commands. The following tables list and briefly describe each command.
Operations Command Summary
Command Description
Connect
Envmon
ILoad
Istat
List Ports
Login
Logout
Quit
Connects to a serial port
Displays the status of Environmental Monitor sensors
Displays the total cumulative input load
Displays the status of the infeeds
Lists all accessible serial ports for the current user
Ends the current session and brings up the Username: prompt
Ends a session
Ends a session
Administrative Command Summary
Add Porttouser
Create User
Delete Portfromuser
List User
List Users
Remove User
Restart
Set DNS
Grants a user access to one or all serial ports
Adds a user account
Removes access to one or all serial ports
Displays all accessible outlets/groups/ports for a user
Displays privilege levels for all users
Deletes a user account
Performs a warm boot
Sets the IP address of the Domain Name server
Set Display
Set Envmon Name
Sets the LED orientation for external Current displays
Specifies a descriptive field for the integrated Environmental Monitor
Set Envmon THS Name Specifies a descriptive field for a temperature-humidity sensor
Set FTP Filename Specifies the file to be uploaded via FTP
Set FTP Filepath
Set FTP Host
Set FTP Password
Specifies the filepath for the file to be uploaded
Sets the FTP Host IP address
Sets the password for the FTP Host
16
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Administrative Command Summary (continued)
Set FTP Username
Set Gateway
Set Infeed Name
Sets the username for the FTP Host
Sets the Gateway
Specifies a descriptive field for the infeed
Set Ipaddress
Set Location
Set SNTP
Set Subnet Mask
Set Telnet Port
Set Telnet
Set Tower Name
Set User Access
Set User Envmon
Set User Password
Set Port Name
Set Port Dsrchk
Set Port Speed
Set Port Timeout
Show FTP
Show Infeeds
Show Network
Show Ports
Show System
Show Towers
Version
Sets the IP address
Specifies a descriptive field for the HTML control screen and login banner
Sets the IP address of the primary and secondary SNTP servers
Sets the Subnet Mask
Sets the Telnet server port number
Enables or disables Telnet access
Specifies a descriptive field for the Sentry
Sets the access level for a user
Grants or removes privileges to view input and environmental monitoring status
Changes the password for a user
Specifies a descriptive field for a serial port
Sets the DSR active signal checking for a serial port
Set the connection speed for all serial ports
Sets the inactivity timer for Pass-Thru sessions
Displays FTP configuration information
Displays infeed configuration information
Display network configuration information
Displays serial port configuration information
Displays system configuration information
Displays tower configuration information
Displays the Sentry firmware version
To display the names of commands that you may execute:
At the command prompt, press Enter. A list of valid commands for the current user appears.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 17
Operations Commands
Operations commands manage outlet states, provide information about the
Sentry
environment and control session operations.
Displaying accessible serial ports
The List Ports command displays accessible serial ports for the current user.
To display accessible serial ports:
At the Smart CDU: prompt, type list ports and press Enter.
Example
The follow command displays all accessible serial ports for the current user:
Smart CDU: list ports<Enter>
Port Port
ID Name
Console Console
Displaying infeed status
The Istat or Iload command displays the status of one or more infeed.
This display includes the infeed absolute and descriptive names and the Input Status and current Load reported to the Sentry by the infeed.
To display status of one or more infeeds:
Type istat and press Enter, or
Type iload and press Enter.
Examples
The following command displays the infeed status:
Smart CDU: istat
Input Input Input Input
Feed ID Feed Name Status Load
.AA HQ_1_Infeed_A On 10.5 Amps
Connecting to a serial device
The Connect command allows Pass-Thru serial connection to devices attached to the standard serial port (Console).
To connect to a serial device:
At the Smart CDU: prompt, type connect console and press Enter.
To disconnect from a serial device:
Type !*break and press Enter.
18
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Displaying the status of the Environmental Monitor
The Envmon command displays the status of the integrated Environmental Monitor.
By default, only administrative user accounts are allowed access to the Envmon command. An administrator may user the Set User Envmon command to enable and disable access for other user accounts.
To display the status of the Environmental Monitor:
At the Smart CDU: prompt, type envmon and press Enter.
Example
The following command displays the status of the Environmental Monitor.
Smart CDU: envmon<Enter>
Environmental Monitor .A
Name: Florida_HQ_1 Status: Normal
Temperature/Humidity Sensors
ID Name Temperature Humidity
.A1 Temp_Humid_Sensor_A1 Not Found Not Found
.A2 T/H2_Florida_HQ_1 23.5 Deg. C 22 % RH
Starting a new session
The Login command activates the Username: prompt. The current session ends, allowing a user to log in and start a new session under a different username.
To start a new session:
At the Smart CDU: prompt, type login and press Enter. The Username: prompt appears.
Ending a session
The Quit or Logout commands ends a session. A session ends automatically when no activity is detected for five minutes, or upon loss of connection.
To end a session:
At the Smart CDU: prompt, type quit and press Enter, or
Type logout and press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 19
Administration Commands
Administration commands may only be issued by a user with administrative privileges, such as the predefined Admn user or another user who has been granted administrative privileges with the Set User
Admnpriv command.
User Administration
Creating a user account
The Create User command creates a user account with the specified username and password. See
Usernames and Passwords in this chapter for more information.
To create a user account:
At the Smart CDU: prompt, type create user, optionally followed by a 1-16 character username
(Spaces are not allowed, and usernames are not case sensitive). Press Enter.
At the Password: prompt, type a password of 1-16 alphanumeric and other typeable characters (ASCII
32 to 126 decimal). Passwords are case sensitive. Press Enter.
At the Verify Password: prompt, retype the password. Press Enter.
Example
The following command creates the user account JaneDoe:
Smart CDU: create user JaneDoe<Enter>
Password: <Enter>
Verify New Password: <Enter>
For security, password characters are not displayed.
Removing a user account
The Remove User command removes a user account.
NOTE: You may remove the predefined user account Admn only if another user account has been granted administrative privileges using the Set User Admnpriv command.
To remove a user account:
At the Smart CDU: prompt, type remove user, optionally followed by a username. Press Enter.
Changing a password
The Set User Password command changes a user’s password. For security, when you type a password,
the characters are not displayed on the screen. See Usernames and Passwords for more information.
To change a password:
At the Smart CDU: prompt, type set user password, followed by a username and press Enter.
At the Password: prompt, type the new password and press Enter. Passwords may contain 1-16 characters.
At the Verify Password: prompt, retype the new password and press Enter.
Example
The following command changes the password for the user JohnDoe:
Smart CDU: set user password johndoe<Enter>
Password: <Enter>
Verify Password: <Enter>
For security, password characters are not displayed.
20
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting user access level privileges
The Set User Access command sets the access level privileges for a user. The Sentry has four defined access privilege levels; Admin, User, On-Only and View-Only. For more information on user access
levels, see Changing a user’s access privilege level: on page 12.
The administrator may also grant administrative privileges to other user accounts allowing the Sentry to have more than one administrative-level user.
NOTE: You cannot remove administrative privileges from the Admn user unless another user has already been given administrative access level privileges created.
To set the access level privilege for a user:
At the Smart CDU: prompt, type set user access, followed by admin or user, optionally followed by a username and press Enter.
Examples
The following command sets the user access level for JohnDoe to Admin:
Smart CDU: set user access admin johndoe<Enter>
The following command sets the user access level for JaneDoe to User:
Smart CDU: set user access user janedoe<Enter>
Displaying the access privilege levels
The List Users command displays all defined users with their access privilege level.
To display user access privilege levels:
At the Smart CDU: prompt, type list users and press Enter.
Example
The following command displays all users with their access privilege level:
Smart CDU: list users<Enter>
User Privilege Environmental
Name Level Monitoring
JOHNDOE Admin Allowed
JANEDOE User Allowed
Adding serial port access to a user
The Add PortToUser command grants a user access to the serial port.
To grant serial port access to a user:
At the Smart CDU: prompt, type add porttouser console and a username. Press Enter.
Deleting serial port access for a user
The Delete PortFromUser command removes a user’s access to the serial port. You cannot remove access to the serial port for an administrative level user.
To delete serial port access for a user:
At the Smart CDU: prompt, type delete portfromuser console and a username. Press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 21
Displaying user serial port access
The List User command displays all accessible serial ports for a user.
To display user serial port access:
At the Smart CDU: prompt, type list user, optionally followed by a username. Press Enter.
Example
The following command displays information about the user JaneDoe:
Smart CDU: list user janedoe<Enter>
Username: JANEDOE
Ports:
Port Port
ID Name
Console Console
Environmental Monitor Administration
Creating a descriptive Environmental Monitor name
The Set Envmon Name command assigns a descriptive name to the integrated Environmental Monitor.
This descriptive name is displayed when the Evnmon command is issued.
To create an Environmental Monitor name:
At the Smart CDU: prompt, type set envmon name, followed by the absolute Environmental Monitor name, then the descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 33 to
126 decimal – spaces are not allowed). Press Enter.
Example
The following command adds the descriptive name Florida_HQ_1to the Environmental Monitor:
Smart CDU: set envmon name .a Florida_HQ_1<Enter>
Creating a descriptive temperature/humidity sensor name
The Set Envmon THS Name command assigns a descriptive name to a temperature/humidity sensor.
This descriptive name is displayed when the Evnmon command is issued.
To create an temperature/humidity sensor name:
At the Smart CDU: prompt, type set envmon ths name, followed by the absolute name of the temperature/humidity sensor, then the descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal – spaces are not allowed). Press Enter.
Example
The following command adds the descriptive name T/H2_Florida_HQ_1 to the second temperature/humidity sensor:
Smart CDU: set envmon ths name .a2 T/H2_Florida_HQ_1<Enter>
Serial Port Administration
Creating a descriptive serial port name
The Set Port Name command assigns a descriptive name to a serial port. You may use this name in commands that require a port name as an alternative to using the port’s absolute name.
To create an port name:
At the Smart CDU: prompt, type set port name, followed by the absolute outlet name and a descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal - spaces are not allowed). Port names are not case sensitive. Press Enter.
Example
The following command adds the descriptive name Rack1 to Console port:
Smart CDU: set port name console Rack1<Enter>
22
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting the serial ports data-rate
The Set Port Speed command sets the default data-rate for the serial port.
Valid data-rates are 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200.
To set the serial port data-rate:
At the Smart CDU: prompt, type set port speed, follow by the data-rate and press Enter.
Example
The following command sets the serial ports data-rate to 38400 BPS:
Smart CDU: set port speed 38400<Enter>
Enabling or disabling active signal checking for serial connections
The Set Port Dsrchk command enables or disables active signal checking for serial connections to devices attached to any of the available serial ports.
To enable or disable active signal checking for serial connections:
At the Smart CDU: prompt, type set port dsrchk console, on or off, and press Enter.
Setting the serial port timeout value
The Set Port Timeout command is used to set the serial port inactivity timeout period. The timeout period defines the maximum period of inactivity before automatically closing the Pass-Thru session.
The valid range for the period parameter is 0 to 5 (in minutes). The default period is 5.
NOTE: Setting the timeout to ‘0’ disables the timer.
To set the serial port timeout value:
At the Smart CDU: prompt, type set port timeout, followed by a value from 0 to 5 (in minutes) and press Enter.
Displaying serial port information
The Show Ports command displays information about all serial ports. This information includes:
• Serial port data rate
• Descriptive port name, if applicable
• DSR signal checking settings
To display serial port information:
At the Smart CDU: prompt, type show ports and press Enter.
Example
The following command displays all serial port information:
Smart CDU: show ports<Enter>
Serial Port Configuration
ALL Ports:
Baud Rate: 38400 Connection Timeout: 5 minutes
Port ID: Console Port Name: CONSOLE
DSR Check: ON
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 23
System Administration
Creating a location description
The Set Location command specifies text that appears in the HTML control screen’s Location field.
The text is also appended to a Welcome to banner that appears when a user successfully logs in serially or through a Telnet session.
If you do not issue this command, or if you issue this command without specifying any text, the control screen ’s Location field will be blank and no Welcome to banner will be displayed.
To create a location description:
At the Smart CDU: prompt, type set location, followed by a descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 32 to 126 decimal - spaces are allowed). Press Enter.
Omitting any characters after typing ‘set location’ deletes any previously specified text.
Examples
The following command specifies Florida HQ as the descriptive location for the control screen and the login banner:
Smart CDU: set location Florida HQ<Enter>
The following command deletes any previously specified location description:
Smart CDU: set location<Enter>
In this case, the control screen’s Location field will be blank, and no welcome banner will be displayed after a successful login.
Setting the LED display orientation
The Set Display command is used to configure the Current LED(s) display orientation.
To set the LED display orientation:
At the Smart CDU: prompt, type set display, followed by normal or inverted and press Enter.
Example
The following set the LED display orientation to Inverted:
Smart CDU: set display inverted<Enter>
NOTE: When set to Inverted, the load will be reported in whole ampere increments
Displaying system configuration information
The Show System command displays all system configuration information.
• Firmware version
• NIC module serial number and MAC address
• Hardware revision code and Flash size
• Uptime since last system restart
• System location description
See Chapter 4: Advanced Operations on page 31 for more information on SNMP.
To display system configuration information:
At the Smart CDU: prompt, type show system and press Enter.
Example
System Information
F/W Version: Sentry Version 5.2b
NIC S/N: 1600001
MAC Address: 00-0a-9c-10-00-01
H/W Rev Code: 0
Flash Size: 1 MB
Uptime: 0 days 6 hours 14 minutes 1 second
Location: Florida HQ
24
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Creating a descriptive tower name
The Set Tower Name command assigns a descriptive name to a tower. This descriptive name is
displayed when the Show Traps command is issued. See Displaying trap configuration information
on page 25 for more information on the Show Traps command.
To create a tower name:
At the Smart CDU: prompt, type set tower name, followed by the absolute tower name, then the descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal - spaces are not allowed). Press Enter.
Examples
The following command adds the descriptive name Florida_HQ_1 to tower .a:
Smart CDU: set tower name .a Florida_HQ_1<Enter>
Displaying tower information
The Show Towers command displays information about the Sentry. This information includes the absolute and descriptive Sentry names.
To display tower information:
At the Smart CDU: prompt, type show towers and press Enter.
Example
Smart CDU: show towers<Enter>
Tower Tower
ID Name
.A Florida_HQ_1
Creating a descriptive infeed name
The Set Infeed Name command assigns a descriptive name to an infeed. This descriptive name is
displayed when the Show Traps command is issued. See Displaying trap configuration information
on page 25 for more information on the Show Traps command.
To create a infeed name:
At the Smart CDU: prompt, type set infeed name, followed by the absolute infeed name, then the descriptive name of up to 24 alphanumeric and other typeable characters (ASCII 33 to 126 decimal - spaces are not allowed). Press Enter.
Example
The following command adds the descriptive name HQ_1_Infeed_A to the infeed on the Smart CDU:
Smart CDU: set infeed name .aa HQ_1_Infeed_A<Enter>
Displaying Infeed information
The Show Infeeds command displays information about all infeeds. This information includes the absolute and descriptive infeed names.
To display tower information:
At the Smart CDU: prompt, type show infeeds and press Enter.
Example
Smart CDU: show infeeds<Enter>
Input Input
Feed ID Feed Name
.AA HQ_1_Infeed_A
.AB HQ_1_Infeed_B
.BA HQ_2_Infeed_A
.BB HQ_2_Infeed_B
Displaying the Sentry firmware version
The Version command displays the Sentry firmware version.
To display the firmware version:
At the Smart CDU: prompt, type version and press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 25
Performing a warm boot
The Restart command performs a warm boot of the Sentry.
NOTE: System user/outlet/group/port configuration or outlet states are NOT changed or reset with this command.
To perform a warm boot:
At the Smart CDU: prompt, type restart and press Enter.
TCP/IP Administration
boot on page 26 for more information.
Setting the IP address
The Set Ipaddress command sets the TCP/IP address of the network interface controller.
To set the IP address:
At the Smart CDU: prompt, type set ipaddress, followed by the IP address and press Enter.
Example
The following command sets the IP address to 12.34.56.78:
Smart CDU: set ipaddress 12.34.56.78<Enter>
Setting the subnet mask
The Set Subnet command sets the subnet mask for the network the PT40 will be attached to.
To set the subnet mask:
At the Smart CDU: prompt, type set subnet, followed by the subnet mask and press Enter.
Example
The following command sets the subnet mask to 255.0.0.0
Smart CDU: set subnet 255.0.0.0<Enter>
Setting the gateway
The Set Gateway command sets the IP address of the default gateway the Sentry uses to access external networks.
To set the gateway IP address:
At the Smart CDU: prompt, type set gateway, followed by the gateway IP address and press Enter.
Example
The following command set the gateway IP address to 12.34.56.1:
Smart CDU: set gateway 12.34.56.1<Enter>
Setting the DNS IP address
The Set DNS command sets the TCP/IP address of the Domain Name server (DNS).
To set the DNS IP address:
At the Smart CDU: prompt, type set, followed by dns1 or dns2 and the Domain Name server’s IP address. Press Enter.
Example
The following command sets the primary Domain Name server IP address to 98.76.54.254:
Smart CDU: set dns1 98.76.54.254<Enter>
26
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Displaying network configuration information
The Show Network command displays TCP/IP, Telnet, SSH, Web, SSL and SNMP configuration information.
• IP address, subnet mask, gateway and DNS IP addresses
• Enabled-disabled status and port numbers for Telnet, SSH, HTTP,SSL and SNMP support
• HTTP authentication method and SSL access setting
• Network status
See Chapter 4: Advanced Operations on page 31 for more information on SNMP and Remote
Authentication
To display network configuration information:
At the Smart CDU: prompt, type show network and press Enter.
Example
The following command displays the network configuration information:
Smart CDU: show network<Enter>
Network Configuration
IP Address: 12.34.56.78 DNS1: 98.76.54.254
Subnet Mask: 255.0.0.0 DNS2: 0.0.0.0
Gateway: 12.34.56.1
Telnet: Enabled Port: 23
SSH: Enabled Port: 65535
HTTP: Enabled Port: 80 Security: BASIC
SSL: Enabled Access: Required
SNMP: Enabled
Network Status
Link: Up
Speed: 100 Mbps
Duplex: Full
Negotiation: Auto
HTTP Administration
Enabling and disabling HTTP support
The Set HTTP command is used to enable or disable HTTP support.
To enable or disable HTTP support:
At the Smart CDU: prompt, type set http, followed by enabled or disabled and press Enter.
Changing the HTTP server port
With HTTP support enabled, the HTTP server watches and responds to requests on the default HTTP port number 80. This port number may be changed using the Set HTTP Port command.
To change the HTTP port:
At the Smart CDU: prompt, type set http port, followed by the port number and press Enter.
Example
The following changes the HTTP port number to 2048:
Smart CDU: set HTTP port 2048<Enter>
Setting the HTTP authentication method
The Set HTTP Security command is used to set the method of authentication. The Sentry HTTP server supports two authentication methods for security and validation of the username-password – Basic and MD5 digest.
To set the HTTP authentication method:
At the Smart CDU: prompt, type set http security, followed by basic or md5 and press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 27
Telnet Administration
warm boot on page 26 for more information.
Enabling and disabling Telnet support
The Set Telnet command is used to enable or disable Telnet support.
To enable or disable Telnet support:
At the Smart CDU: prompt, type set telnet, followed by enabled or disabled and press Enter.
Changing the Telnet port
With Telnet support enabled, the Telnet server watches and responds to requests on the default Telnet port number 23. This port number may be changed using the Set Telnet Port command.
To change the Telnet socket:
At the Smart CDU: prompt, type set telnet port, followed by the port number and press Enter.
Example
The following changes the Telnet port number to 7001:
Smart CDU: set telnet port 7001<Enter>
FTP Administration
You may upload new versions of firmware into the Sentry using File Transfer Protocol (FTP). This allows access to new firmware releases for firmware improvements and new features additions. The following commands are used to configure the Sentry for an FTP firmware upload. See Appendix B:
Uploading Firmware for more information on initiating a FTP firmware upload.
Setting the FTP Host IP address
The Set FTP Host command sets the FTP host IP address allowing for firmware file uploads.
To set the FTP Host IP address:
At the Smart CDU: prompt, type set ftp host, followed by the Host IP address and press Enter.
Example
The following command sets the FTP Host IP address to 12.34.56.99:
Smart CDU: set ftp host 12.34.56.99<Enter>
Setting the FTP username
The FTP Username command sets the username as required by the FTP Host.
To set the FTP username:
At the Smart CDU: prompt, type set ftp username, followed by the FTP username and press Enter.
Example
The following command sets the FTP username to Guest:
Smart CDU: set ftp username guest<Enter>
Setting the FTP Password
The FTP Password command sets the password as required by the FTP Host.
To set the FTP password:
At the Smart CDU: prompt, type set ftp password, followed by the FTP password and press Enter.
Example
The following command sets the FTP password to OpenSesame:
Smart CDU: set ftp password OpenSesame<Enter>
28
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting the filename to be uploaded
The FTP Filename command sets the filename of the firmware file to be uploaded.
To set the FTP filename:
At the Smart CDU: prompt, type set ftp filename, followed by the firmware filename and press Enter.
Example
The following command sets the FTP filename to snb_s50a.bin:
Smart CDU: set ftp filename snb_s50a.bin<Enter>
Setting the filepath for the file to be uploaded
The FTP Filepath command sets the filepath for the firmware file to be uploaded.
To set the FTP filepath:
At the Smart CDU: prompt, type set ftp filepath, followed by the filepath and press Enter.
Example
The following command sets the FTP filepath to ftp://Smart CDU:
Smart CDU: set ftp filepath ftp://sentry<Enter>
Displaying FTP configuration information
The Show FTP command displays all FTP configuration information.
• FTP Host IP address
• FTP Host username and password
• Firmware filepath and filename
To display FTP configuration information:
At the Smart CDU: prompt, type show ftp and press Enter.
Example
The following command displays the FTP configuration information:
Smart CDU: show ftp<Enter>
FTP Configuration
Host IP Address: 12.34.56.99
Username: guest
Password: OpenSesame
Directory: ftp://sentry
Filename: snb_s52a.bin
SNTP Administration
Sentry supports the use of a network time service to provide a synchronized time reference.
Setting the SNTP server address
The Set SNTP command is used to set the primary and secondary SNTP server addresses.
To set the SNTP server address:
At the Smart CDU: prompt, type set sntp, followed by primary or secondary, and the SNTP server IP address. Press Enter.
Example
The following command set the primary SNTP server address to 204.152.184.72:
Smart CDU: set sntp primary 204.152.184.72<Enter>
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Operations
• 29
Displaying SNTP configuration information
The Show SNTP command displays all SNTP configuration information.
To display SNTP configuration information
At the Smart CDU: prompt, type show sntp and press Enter.
Example
The following command displays the SNTP configuration information:
Smart CDU: show sntp <Enter>
SNTP Date/Time (GMT): 2003-02-21 21:32:48
SNTP Primary IP Address: 204.152.184.72
SNTP Secondary IP Address: 0.0.0.0
30
• Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Chapter 4: Advanced Operations
SSL
Enabling and Setting up SSL Support 32
SSL Technical Specifications 32
SSH
32
33
Enabling and Setting up SSH Support 33
SSH Technical Specifications 33
SNMP 34
LDAP 40
Enabling and Setting up LDAP Support 41
LDAP Technical Specifications 46
TACACS+ 47
Enabling and Setting up TACACS+ Support 47
Configuring TACACS+ Privilege Levels 49
TACACS+ Technical Specifications 50
SSL
Secure Socket Layers (SSL) version 3 enables secure HTML sessions between a Sentry Remote Power
Manager and a remote user. SSL provides two chief features designed to make TCP/IP (Internet) transmitted data more secure:
• Authentication – The connecting client is assured of the identity of the server.
• Encryption – All data transmitted between the client and the server is encrypted rendering any intercepted data unintelligible to any third party.
SSL uses the public-and-private key encryption system by RSA, which also requires the use of digital certificates. An SSL Certificate is an electronic file uniquely identifying individuals or websites and enables encrypted communication; SSL Certificates serve as a kind of digital passport or credential.
The Sentry product’s SSL Certificate enables the client to verify the Sentry’s authenticity and to communicate with the Sentry securely via an encrypted session, protecting confidential information from interception and hacking.
SSL Command Summary
Command Description
Set SSL Enables/disables SSL support
Set SSL access Sets SSL access as optional or required
Enabling and Setting up SSL Support
boot on page 26 for more information.
Enabling or disabling SSL support
The Set SSL command is used to enable or disable SSL support.
To enable or disable SSL support:
At the Smart CDU: prompt, type set ssl, followed by enabled or disabled and press Enter.
Setting SSL access level
The Set SSL Access command is used to assign use of SSL as optional or required. The default access level is set to optional.
To change the access level:
At the Smart CDU: prompt, type set ssl access, followed optional or required, and press Enter.
Example
The following changes the access level to required:
Smart CDU: set ssl access required<Enter>
SSL Technical Specifications
Secure Socket Layer (SSL) version 3
Transport Layer Security (TLS) version 1 (RFC 2246)
SSL/TLS-enabled HTTPS server (RFC 2818)
Self-Signed X.509 Certificate version 3 (RFC 2459)
Asymmetric Cryptography:
1024-bit RSA Key Exchange
Symmetric Cryptography Ciphers:
TLS_RSA_WITH_AES_256_CBC_SHA
TLS_RSA_WITH_AES_128_CBC_SHA
TLS_RSA_WITH_3DES_EDE_CBC_SHA
TLS_RSA_WITH_DES_CBC_SHA
32
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
SSH
Secure Shell (SSH) version 2 enables secure network terminal sessions between a Sentry Remote
Power Manager and a remote user over insecure network. SSH provides encrypted terminal sessions with strong authentication of both the server and client, using public-key cryptography and is typically used as a replacement for unencrypted Telnet. In addition to enabling secure network terminal sessions to the Sentry for configuration and power management, the SSH session may be used for secure Pass-
Thru connections to attached devices.
SSH requires the configuration and use of a client agent on the client PC. There are many freeware, shareware or for-purchase SSH clients available. Two examples are the freeware client PuTTY and the for-purchase client SecureCRT
® by VanDyke® Software. For configuration and use of these clients, please refer to the applicable software documentation.
SSH Command Summary
Command Description
Set SSH Enables/disables SSH support
Set SSH port Sets the SSH server port number
Enabling and Setting up SSH Support
boot on page 26 for more information.
Enabling or disabling SSH support
The Set SSH command is used to enable or disable SSH support.
To enable or disable SSH support:
At the Smart CDU: prompt, type set ssh, followed by enabled or disabled and press Enter.
Changing the SSH server port
With SSH support enabled, the SSH server watches and responds to requests on the default SSH port number 22. This port number may be changed using the Set SSH Port command.
To change the SSH port:
At the Smart CDU: prompt, type set ssh port, followed by the port number and press Enter.
Example
The following changes the SSH port number to 65535:
Smart CDU: set ssh port 65535<Enter>
SSH Technical Specifications
Secure Shell (SSH) version 2
Asymmetric Cryptography:
Diffie-Hellman DSA/DSS 512-1024 (random) bits per NIST specification
Symmetric Cryptography:
AES256-CBC
AES192-CBC
AES128-CBC
BLOWFISH-128-CBC
RIJNDAEL128-CBC ARCFOUR-128
Message Integrity:
HMAC-SHA1-160 HMAC-SHA1-96
HMAC-MD5-128 HMAC-MD5-96
Authentication:
Username/Password
Session Channel Break Extension (for RS232 Break)
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 33
SNMP
The Sentry family of products supports the Simple Network Management Protocol (SNMP). This allows network management systems to use SNMP requests to retrieve information and control power for the individual outlets.
The Sentry includes an SNMP v2c agent supporting standard MIB I and MIB II objects. A private enterprise MIB extension (Sentry3 MIB) is also supported to provide remote power control.
See SNMP on page 12, for information on enabling and configuring SNMP.
NOTE: For security, SNMP support is disabled by default.
SNMP Command Summary
Command Description
Set snmp Enables or disables SNMP support
Set snmp getcomm
Set snmp setcomm
Sets the ‘get’ community string
Sets the ‘set’ community string
Set snmp trapdest1
Set snmp trapdest2
Set snmp traptime
Show snmp
Sets a destination IP addresses for traps
Sets a destination IP addresses for traps
Sets the delay for steady state condition traps
Displays all SNMP configuration information
MIB, OID and Support
The Sentry SNMP MIB and OID are available on the Server Technology website: ftp://ftp.servertech.com/pub/SNMP/sentry3
Technical support is available 8:30AM to 5:00 PM Pacific Time, Monday-Friday.
For SNMP Support, email: [email protected]
SNMP Traps
The Smart CDU supports four types of SNMP traps. Traps are enabled at the Tower (T), Infeed (I),
Environmental Monitor (E) or sensor (S) level.
Trap Summary
Name Level(s) Description
Status T, I, E, S Operational status change
Load
Temp
Humid
I, S
S
S
Input load out of limit
Temperature is out of range
Relative Humidity is out of range
All traps include the Location of the Sentry as defined with the Set Location command.
Status trap
A Status trap is generated when an error condition occurs on a tower, infeed, Environmental Monitor or individual sensor. Status traps include the reported Status, the Location of the Sentry and identifier and name of the affected tower, infeed, outlet, environmental monitor or sensor.
Any error state generates a Status trap and triggers the trap timer. A new trap is generated at the end of every timer period until the Status returns to a non-error status. All status traps are enabled by default.
Tower Status traps
Status Error Description
Normal Tower is working correctly
NoComm x Communication to the tower has been lost
34
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Infeed Status traps
Status Error Description
On Infeed is on
OffError x Infeed should be on but no current is sensed at the infeed
NoComm x Communication to the infeed has been lost
Environmental Monitor Status traps
Status Error Description
Normal Environmental Monitor is working correctly
NoComm x Communication to the Environmental Monitor has been lost
Temperature/Humidity Sensor Status traps
Status Error Description
Found The sensor has been detected
NotFound
Lost x
No sensor has been detected
Sensor initially detected but communication to the sensor has been lost
NoComm x Communication to the sensor has been lost
NOTE: Traps are generated according to a hierarchical architecture; i.e. if a Tower Status enters a trap condition, only the
Tower Status trap will be generated. Infeed, Environmental Monitor or Sensor Status and Temp and Humid traps will be suppressed until the Tower Status returns to Normal.
Load Trap
The Load trap is generated whenever the total input load on an infeed exceeds a preset threshold. Load traps include the reported input load, load status, Location of the Sentry, and identifier and name of the affected infeed.
Any error state generates a Load trap and triggers the trap timer. A new trap is generated at the end of every timer period until the Load returns to a non-error status.
Load traps
Status Error Description
Normal Infeed is on and within preset thresholds
NotOn
Reading
LoadHigh x
Infeed is off
Non-error state – Load status currently being read
Infeed current load exceeds preset threshold
OverLoad x
ReadError x
NoComm x
Infeed current load exceeds the measurable range for the infeed
Unable to read Load status
Communication to the infeed has been lost
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 35
Temp Trap
The Temp trap is generated whenever the temperature on a temperature/humidity sensor is beyond preset thresholds. Temp traps include the reported temperature, temp status, Location of the Sentry, and identifier and name of the affected sensor.
Any error state generates a Temp trap and triggers the trap timer. A new trap is generated at the end of every timer period until the Temp returns to a non-error status.
Temp traps
Status Error Description
Normal The sensor is working correctly and the temperature is within preset thresholds
NotFound
Reading
No sensor has been detected
Temp status currently being read
TempLow
TempHigh
ReadError
Lost
NoComm x x x x x
Temperature at the sensor below preset low threshold
Temperature at the sensor exceeds preset high threshold
Unable to read Temp status
Sensor initially detected but communication to the sensor has been lost
Communication to the sensor has been lost
Humidity Trap
The Humidity trap is generated whenever the humidity on a temperature/humidity sensor is beyond preset thresholds. Humidity traps include the reported relative humidity, humidity status, Location of the Sentry, and identifier and name of the affected sensor.
Any error state generates a Humidity trap and triggers the trap timer. A new trap is generated at the end of every timer period until the Humidity returns to a non-error status.
Humidity traps
Status Error Description
Normal The sensor is working correctly and the relative humidity is within preset thresholds
NotFound
Reading
No sensor has been detected
Humidity status currently being read
HumidLow x
HumidHigh x
Relative humidity at the sensor below preset low threshold
Relative humidity at the sensor exceeds preset high threshold
ReadError x
Lost x
NoComm x
Unable to read Humidity status
Sensor initially detected but communication to the sensor has been lost
Communication to the sensor has been lost
Configuring Traps
SNMP Trap Command Summary
Command Description
Set Trap Tower Status Enables or disables the Tower Status trap
Set Trap Infeed Status
Set Trap Infeed Load
Enables or disables the Infeed Status trap off
Enables or disables the Infeed Load trap
Set Trap Infeed HighThresh
Set Trap EM Status
Set Trap THS Status
Set Trap THS Temp
Set Trap THS Temphigh
Set Trap THS Templow
Sets the Infeed Load trap high limit
Enables or disables the Environmental Monitor Status trap
Enables or disables a temperature/humidity sensor Status trap
Enables or disables a temperature/humidity sensor Temp trap
Sets a temperature/humidity sensor Temp trap high limit
Sets a temperature/humidity sensor Temp trap low limit
Set Trap THS Humid
Set Trap THS Humidhigh
Set Trap THS Humidlow
Show Traps
Enables or disables a temperature/humidity sensor Humid trap
Sets a temperature/humidity sensor Humid trap high limit
Sets a temperature/humidity sensor Humid trap low limit
Displays trap configurations
36
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Enabling or Disabling a Status trap
The Set Trap … Status command is used to enable or disable Status traps for a Tower, Infeed or Outlet.
To Enable or Disable a Status trap:
At the Smart CDU: prompt, type set trap (tower, infeed, outlet, em or ths) status, followed by the tower, infeed or outlet name, and on or off. Press Enter, or\
Type set trap (tower, infeed, outlet, em or ths) Status all, followed by on or off and press Enter.
Examples
The following command enables the Status trap for the first tower, using the tower’s absolute name:
Smart CDU: set trap tower status .a on<Enter>
The following command enables the Status trap for the tower named Florida_HQ_1:
Smart CDU: set trap tower status Florida_HQ_1 on<Enter>
NOTE: Enabling lower hierarchical traps automatically enables traps of higher hierarchical value: i.e. enabling an Outlet
Status trap automatically enables the Infeed and Tower Status traps for that outlet. Conversely, if a Tower Status trap is disabled, all associated Infeed Status & Load and Outlet Status traps will be disabled.
Enabling or Disabling a Load trap
The Set Trap Infeed Load command is used to enable or disable an Infeed Load trap.
To Enable or Disable a Load trap:
At the Smart CDU: prompt, type set trap infeed load, followed by the infeed name, and on or off. Press
Enter, or
Type set trap infeed load all, followed by on or off and press Enter.
Examples
The following command enables the Load trap for second infeed on the first tower, using the infeed’s absolute name:
Smart CDU: set trap infeed load .AB on<Enter>
The following command disables the Load trap for all infeeds:
Smart CDU: set trap infeed load all off<Enter>
NOTE: Enabling lower hierarchical traps automatically enables traps of higher hierarchical value: i.e. enabling an Infeed
Load trap automatically enables the Infeed and Tower Status traps for that infeed.
Setting the Infeed Load limit
The Set Trap Infeed Loadhigh command is used to set the upper load limits for an input feed.
To set the infeed load limit:
At the Smart CDU: prompt, type set trap infeed loadhigh, followed by the infeed name, and a value from 0 to 255 in amperes. Press Enter.
Example
The following command sets the infeed load limit for the second infeed on the first tower to 25 amperes, using the infeed’s absolute name:
Smart CDU: set trap infeed loadhigh .ab 25<Enter>
Enabling or Disabling the Temp trap
The Set Trap THS Temp command is used to enable or disable the Temp trap.
To Enable or Disable the Temp trap:
At the Smart CDU: prompt, type set trap ths temp, followed by the sensor name and on or off. Press
Enter.
Example
The following command enables the Temp trap for the first temperature-humidity sensor:
Smart CDU: set trap ths temp .a1 on<Enter>
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 37
Setting the Temperature sensor threshold limits
The Set Trap THS Templow and Set Trap THS Temphigh commands are used to set the lower and upper threshold limits for the Temperature sensor.
To set the Temperature threshold limits:
At the Smart CDU: prompt, type set trap ths, templow or temphigh, followed by the sensor name and a value from 0 to 127 in degrees Celsius. Press Enter.
Example
The following command sets the second temperature high threshold limit to 95:
Smart CDU: set trap ths temphigh .a2 95<Enter>
Enabling or Disabling the Humid trap
The Set Trap THS Humid command is used to enable or disable the Humid trap.
To Enable or Disable the Humid trap:
At the Smart CDU: prompt, type set trap ths humid, followed by the sensor name and on or off. Press
Enter.
Example
The following command enables the Humid trap for the first temperature-humidity sensor:
Smart CDU: set traps ths humid .a1 on<Enter>
Setting the Humidity sensor threshold limits
The Set Trap THS Humidlow and Set Trap THS Humidhigh commands are used to set the lower and upper threshold limits for the Humidity sensor.
To set the Humidity threshold limits:
At the Smart CDU: prompt, type set trap ths, humidlow or humidhigh, followed by the sensor name and a value from 0 to 100 in percent relative humidity. Press Enter.
Example
The following command sets the first humidity sensor low threshold limit to 5:
Smart CDU: set trap ths humidlow .a1 5<Enter>
38
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Displaying trap configuration information
The Show Traps command displays information about all traps.
To display trap information:
At the Smart CDU: prompt, type show traps and press Enter.
Example
The following command requests trap configuration information:
Smart CDU: show traps <Enter>
Tower trap configuration:
Tower Tower Status
ID Name Trap
.A Florida_HQ_1 ON
.B Florida_HQ_2 ON
More (Y/es N/o): y
Input feed trap configuration:
Input Input Status Load High
Feed ID Feed Name Trap Trap Thresh
.AA HQ_1_Infeed_A ON ON 255 A
.BA HQ_2_Infeed_A ON ON 255 A
More (Y/es N/o): y
Environmental Monitor .A trap configuration:
Name: Florida_HQ_1
Status Trap: ON
Temperature/Humidity Sensor .A1 Temperature/Humidity Sensor .A2
Name: Temp_Humid_Sensor_A1 Name: T/H2_Florida_HQ_1
Status Trap: ON Status Trap: ON
Temp Trap: ON Temp Trap: ON
Low: 0 Deg.C Low: 0 Deg.C
High: 127 Deg.C High: 95 Deg.C
Humid Trap: ON Humid Trap: ON
Low: 5 % RH Low: 0 % RH
High: 100 % RH High: 100 % RH
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 39
LDAP
The Sentry family of products supports Lightweight Directory Access Protocol (LDAP) Version 3. This support enables authentication with Active Directory, a network Directory Service; user accounts do not need to be individually created locally on each Sentry device.
This allows administrators to pre-define and configure (in each Sentry product, and in the LDAP server) a set of necessary LDAP Groups, and access rights for each. User’s access rights can then be assigned or revoked simply by making the user a member of one-or-more pre-defined Sentry LDAP
Groups. User accounts can be added, deleted, or changed in the LDAP server without any changes needed on individual Sentry products.
Sentry 5.3b LDAP support has been tested in the following environments:
• Microsoft Active Directory (MSAD)
• Novell eDirectory (eDir)
• OpenLDAP
LDAP Command Summary
Command Description
Set Authorder Specifies the authentication order for each new session attempt
Set LDAP
Set LDAP HostIP
Enables/disables LDAP support
Sets the IP address of the Directory Services server
Set LDAP Port
Set LDAP Bind
Set LDAP BindDN
Set LDAP BindPW
Set LDAP GroupAttr
Sets the LDAP server port number
Specifies the LDAP bind request password type
Specifies the user account Fully-Qualified Distinquished Name (FQDN) for binds
Specifies the user account password for binds
Specifies the user class distinguished name (DN) or names of groups a user is a member of
Set LDAP GroupType
Set LDAP UserBaseDN
Set LDAP UserFilter
Show LDAP
Set DNS
Ping
Show Network
Create LDAPGroup
Remove LDAPGroup
Add PorttoLDAP
Delete PortfromLDAP
Specifies the data type for the Set LDAP GroupAttr command
Sets the base distinguished name (DN) for the username search at login
Sets the filter used for the username search at login
Displays LDAP configurations
Sets the IP address of the Domain Name server
Verifies proper DNS configuration by name resolution
Displays network configuration information
Adds an LDAP group name
Deletes an LDAP group name
Grants an LDAP group access to one or serial ports
Removes access to one or more serial ports for an LDAP group
Set LDAPGroup Access
List LDAPGroup
List LDAPGroups
Sets the access level for an LDAP group
Displays all accessible outlet/groups/ports for an LDAP group
Displays privilege levels for all LDAP groups
40
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Enabling and Setting up LDAP Support
There are a few configuration requirements for properly enabling and setting up LDAP support. Below is an overview of the minimum requirements.
Directory Services server configuration requirements:
1. Define at least one LDAP group.
2. Assign users to that LDAP group.
Sentry configuration requirements:
1. Enable LDAP support.
2. Define the IP address and domain component of at least one Directory Services server.
3. Set the LDAP bind request method being utilized by the Directory Services server.
4. Define the IP address of at least one DNS server.
5. Test DNS server configuration using Sentry ‘ping’ support.
6. Define at least one LDAP group and assign access rights for that group.
NOTE: LDAP group names on the Directory Service server and the Sentry must match.
Enabling and disabling LDAP support
The Set LDAP command is used to enable or disable LDAP support.
To enable or disable LDAP support:
At the Smart CDU: prompt, type set ldap, followed by enabled or disabled and press Enter.
Setting the LDAP host IP address
The Set LDAP HostIP command sets the TCP/IP address of the Directory Services server.
To set the LDAP host IP address:
At the Smart CDU: prompt, type set ldap, followed by hostip1 or hostip2 and the Directory Services server’s IP address. Press Enter.
Example
The following command sets the primary Directory Services server IP address to 98.76.54.32:
Smart CDU: set ldap hostip1 98.76.54.32<Enter>
Changing the LDAP server port
The Set LDAP port command sets the port to which the Sentry sends LDAP requests to on the previously defined LDAP server. The default port is 389.
To change the LDAP server port:
At the Smart CDU: prompt, type set ldap port, followed by the port number and press Enter.
Example
The following command sets the LDAP server port number to 8888:
Smart CDU: set ldap port 8888<Enter>
Setting the LDAP bind password type
The Set LDAP Bind command sets the password type used in the bind requests. The Sentry supports two LDAP bind methods – Simple and MD5.
The Simple method utilizes unencrypted delivery of a username-password over the network to the
Active Directory server for authentication.
The MD5 digest method provides much stronger protection utilizing one-way encoded hash numbers,
never placing the username-password on the network. For more information on MD5, see Setting the
HTTP authentication method: on page 11.
NOTE: Windows 2000 is known only to support Simple binding. Windows 2003 supports both Simple and MD5 binding.
To set the bind password type:
At the Smart CDU: prompt, type set ldap bind, followed by simple or md5 and press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 41
Setting the search bind Distinguished Name (DN)
The Set LDAP BindDN command is used to set the fully-qualified distinguished name (FQDN) for user accounts to bind with. This is required for directory services that do not support anonymous binds.
This field is used ONLY with Simple Binds.
Maximum string length is 124 characters.
NOTE: If left blank, then an anonymous bind will be attempted. This field is used ONLY with Simple binds.
To set the search bind DN:
At the Smart CDU: prompt, type set ldap binddn, and press Enter. At the following prompt, type the
FQDN and press Enter.
Example
The following sets the FQDN for MSAD to ‘cn=guest,cn=Users,dc=servertech,dc=com’:
Smart CDU: set ldap binddn<Enter>
Enter Search Bind DN (Max characters 124): cn=guest,cn=Users,dc=servertech,dc=com<Enter>
Setting the search bind Distinguished Name (DN) password
The Set LDAP BindPW command is used to set the password for the user account specified in the
Search Bind DN.
Maximum password size is 20 characters.
To set the Bind Password DN:
At the Smart CDU: prompt, type set ldap bindpw and press Enter. At the following prompt, type the bind password and press Enter.
Setting the group membership attribute.
The Set LDAP GroupAttr command is used to specify the name of user class attributes that lists distinguished names (DN), or names of groups that a user is a member of. Maximum string length is 30 characters.
To set Group Membership Attribute:
At the Smart CDU: promp, type set ldap groupattr and press Enter. At the following prompt, type the group membership attribute and press Enter.
Example
The following sets the group membership attribute for MSAD to ‘memberof’:
Smart CDU: set ldap groupattr<Enter>
Enter Group Member Attr (Max character 30): memberof<Enter>
Setting the group membership value type:
The Set LDAP GroupType command is used to specify whether the values of Group Membership
Attribute represent the Distinguished Name (DN) of a group or just the name of the group.
To set group membership value type:
At the Smart CDU: prompt, type set ldap grouptype followed by DN or Name and press Enter.
Example
The following sets group membership value to DN
Smart CDU: set ldap grouptype DN<Enter>
42
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Setting the user search base Distinguished Name (DN)
The Set LDAP UserBaseDN command is used to set the base (DN) for the login username search. This is where the search will start, and will include all subtrees. Maximum size is 100 characters.
To set the user search base DN:
At the Smart CDU: prompt, type set ldap userbasedn and press Enter. At the following prompt, type the search base DN and press Enter.
Example
The following sets the DN user search base for MSAD to ‘cn=Users,dc=servertech,dc=com’:
Smart CDU: set ldap userbasedn<Enter>
Enter User Search Base DN (Max characters 100): cn=Users,dc=servertech,dc=com<Enter>
Setting the user search filter
The Set LDAP UserFilter command is used to set the search filter for the username entered at the login prompt.
The search filter must be entered within parenthesis and adhere to the following format:
(searchfilter=%s) where ‘searchfilter’ is the name of the attribute in the user class which has a value that represents the user’s login name. In this string, the ‘%s’ will be replaced by the entered username. Maximum string length is 100 characters.
To set the user search filter:
At the Smart CDU: prompt, type set ldap userfilter and press Enter. At the following prompt, type the User Search Filter and press Enter.
Example
The following sets the user search filter for MSAD to ‘samaccountname’:
Smart CDU: set ldap userfilter<Enter>
Enter User Search Filter (Max characters 100):
(samaccountname=%s)<Enter>
Setting the authentication order
The Set Authorder command sets the authentication order for remote authentication sessions. The
Sentry supports two methods for authentication order - Remote -> Local and Remote Only.
The Remote -> Local method first attempts authentication with the Active Directory server and if unsuccessful with the local user database on the Sentry device.
The Remote Only method attempts authentication only with the Active Directory server and if unsuccessful, access is denied.
NOTE: With the Remote Only method, if authentication fails due to a communication failure with the Active Directory server automatic authentication fallback will occur to authenticate with the local user data base on the Sentry device.
To set the authentication order:
At the Smart CDU: prompt, type set authorder, followed by remotelocal or remoteonly and press
Enter.
NOTE: Server Technology recommends NOT setting the authentication order to Remote Only until the LDAP has been fully configured and tested.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 43
Displaying LDAP configuration information
The Show LDAP command displays LDAP configuration information.
• Enabled-disabled status of LDAP support
• Directory Services server IP address and port
• Bind request password type and remote authentication order
• Search bind distinguished name and password
• User search base distinguished name and filter
• Group membership attribute and type
To display the LDAP configuration information:
At the Smart CDU: prompt, type show ldap and press Enter.
Example
The following command displays the LDAP configuration information:
Smart CDU: show ldap
LDAP Configuration
LDAP: Enabled
Host IP1: 98.76.54.32
Host IP2: 0.0.0.0
Port: 8888
Bind Type: MD5
Auth Order: Remote->Local
Search Bind
DN: cd=guest,cn=Users,dc=servertech,dc=com
Password: OpenSesame
User Search
Base DN: cn=Users,dc=servertech,dc=com
Filter: (samaccountname=%s)
Group Membership
Attribute: memberof
Value Type: DN
Setting the DNS IP address
The Set DNS command sets the TCP/IP address of the Domain Name server (DNS).
NOTE: LDAP requires the definition of at least one Domain Name server.
To display the DNS configuration information, use the Show Network command as described on page 26.
To set the DNS IP address:
At the Smart CDU: prompt, type set, followed by dns1 or dns2 and the Domain Name server’s IP address. Press Enter.
Example
The following command sets the primary Domain Name server IP address to 98.76.54.254:
Smart CDU: set dns1 98.76.54.254<Enter>
Verifying the DNS configuration
The Ping command may be used to verify the configuration of the DNS IP address.
To verify the DNS configuration:
At the Smart CDU: prompt, type ping, followed by the domain component of the Directory Services server previously configured and press Enter.
Example
The following command verifies the DNS configuration:
Smart CDU: ping servertech.com
Pinging servertech.com [98.76.54.32] with 64 bytes of data:
Reply from 98.76.54.32: bytes=64 pseq=0 triptime=0
Reply from 98.76.54.32: bytes=64 pseq=1 triptime=0
Reply from 98.76.54.32: bytes=64 pseq=2 triptime=0
Reply from 98.76.54.32: bytes=64 pseq=3 triptime=0
Reply from 98.76.54.32: bytes=64 pseq=4 triptime=0
44
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Configuring LDAP Groups
Creating an LDAP group
The Create LDAPGroup command creates an LDAP group.
To create an LDAP group:
At the Smart CDU: prompt, type create ldapgroup, optionally followed by a 1-16 character group name (Spaces are not allowed, and LDAP group names are not case sensitive). Press Enter.
Example
The following command creates the LDAP group PowerUser:
Smart CDU: create ldapgroup PowerUser<Enter>
Removing an LDAP group
The Remove LDAPGroup command removes an LDAP group.
To remove an LDAP group:
At the Smart CDU: prompt, type remove ldapgroup, optionally followed by a group name. Press Enter.
Setting LDAP group access level privileges
The Set LDAPGroup Access command sets the access level privileges for an LDAP group. The Sentry has four defined access privilege levels; Admin, User, On-Only and View-Only. For more information
on user access levels, see Changing a user’s access privilege level: on page 12.
To set the access level privilege for an LDAP group:
At the Smart CDU: prompt, type set ldapgroup access, followed by admin, user, ononly or viewonly, optionally followed by a LDAP group name and press Enter.
Examples
The following command sets the LDAP group access level for LDAPAdmin to Admin:
Smart CDU: set ldapgroup access admin ldapadmin<Enter>
The following command sets the LDAP group access level for PowerUser to User:
Smart CDU: set ldapgroup access user poweruser<Enter>
Displaying the LDAP access privilege levels
The List LDAPGroups command displays all defined LDAP group with their access privilege level.
To display LDAP group access privilege levels:
At the Smart CDU: prompt, type list ldapgroups and press Enter.
Example
The following command displays all LDAP groups with their access privilege level:
Smart CDU: list ldapgroups<Enter>
LDAP Access Environmental
Group Name Level Monitoring
LDAPAdmin Admin Allowed
PowerUser User Allowed
User On-Only Not Allowed
Guest View-Only Not Allowed
Adding serial port access to an LDAP group
The Add PortToLDAP command grants an LDAP group access to the serial port.
To grant serial port access to an LDAP group:
At the Smart CDU: prompt, type add porttoldap console and a group name. Press Enter.
Deleting serial port access for an LDAP group
The Delete PortFromLDAP command removes an LDAP group’s access to the serial port. You cannot remove access to the serial port for an administrative level group.
To delete serial port access for a user:
At the Smart CDU: prompt, type delete portfromldap console and a group name. Press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 45
Displaying LDAP Group access
The List LDAPGroup command displays all accessible serial ports for an LDAP group.
To display LDAP Group access:
At the Smart CDU: prompt, type list ldapgroup, optionally followed by a group name. Press Enter.
Example
The following command displays information about the LDAP group PowerUser:
Smart CDU: list ldapgroup poweruser<Enter>
Username: PowerUser
Ports:
Port Port
ID Name
Console Console
Members of the PowerUser LDAP group may access the Console serial port.
LDAP Technical Specifications
Simple Bind Authentication Process MD5 Bind Authentication Process
Client LDAP Server Sentry Client LDAP Server Sentry
Initiate Sentry session
Prompt for login credentials
Initiate Sentry session
Prompt for login credentials
Authentication request with
Usename/
Password
Access Denied
Successful
Bind?
Username found?
Successful
Bind?
Username found?
Attribute match?
Simple bind using
Search Bind
DN & Password
Subtree search starting from
User Search Base
DN with User
Search Filter
Simple Bind using
User FQDN and login password
Subtree search starting from
User Search Base
DN with User
Search Filter
Attribute name compared to
Group
Membership
Attribute
Username groups access rights compared against
Sentry LDAP groups
Authentication request with
Usename/
Password
Access Denied
Access Granted
Successful
Bind?
Username found?
Attribute match?
Group
match?
SASL Digest-MD5 bind using uppercase username & entered password
Subtree search starting from
User Search Base
DN with User
Search Filter
Attribute name compared to
Group
Membership
Attribute
Username groups access rights compared against
Sentry LDAP groups
Group
match?
Access Granted
46
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
TACACS+
The Sentry family of products supports the Terminal Access Controller Access Control System
(TACACS+) protocol. This enables authentication and authorization with a central TACACS+ server; user accounts do not need to be individually created locally on each Sentry device.
This allows administrators to pre-define and configure (in each Sentry product, and in the TACACS+ server) a set of necessary TACACS+ privilege levels, and user’s access rights for each. User’s access rights can then be assigned or revoked simply by making the user a member of one-or-more pre-defined
Sentry TACACS+ privilege levels. User account rights can be added, deleted, or changed within
TACACS+ without any changes needed on individual Sentry products.
The Sentry supports 16 different TACACS+ privilege levels; 15 are entirely configurable by the system administrator (1 is reserved for default Admin level access to all Sentry resources).
TACAC+ Command Summary
Command Description
Set Authorder Specifies the authentication order for each new session attempt
Set TACACS
Set TACACS HostIP
Enables/disables SSL support
Sets the IP address of the TACACS server
Set TACACS Key
Show TACACS
Add PorttoTACACS
Delete PortfromTACACS
Set TacPriv Access
List TacPrivs
Sets the TACACS encryption key
Displays TACACS configurations
Grants a TACACS account access to one or serial ports
Removes access to one or more serial ports for a TACACS account
Sets the access level for a TACACS account
Displays access levels for all TACACS accounts
List TacPriv Displays all accessible outlet/groups/ports for a TACACS account
Enabling and Setting up TACACS+ Support
There are a few configuration requirements for properly enabling and setting up TACACS+ support.
Below is an overview of the minimum requirements:
1. Enable TACACS+ support.
2. Define the IP address and domain component of at least one TACACS+ server.
3. Set the TACACS+ key configured on the supporting TACACS+ server.
Enabling and disabling TACACS+ support
The Set TACACS command is used to enable or disable TACACS+ support.
To enable or disable TACACS+ support:
At the Smart CDU: prompt, type set tacacs, followed by enabled or disabled and press Enter.
Setting the TACACS+ server IP address
The Set TACACS HostIP command sets the TCP/IP address of the TACACS+ server.
To set the TACACS+ server IP address:
At the Smart CDU: prompt, type set tacacs, followed by hostip1 or hostip2 and the TACACS+ server’s IP address. Press Enter.
Example
The following command sets the primary TACACS+ server IP address to 98.76.54.32:
Smart CDU: set tacacs hostip1 98.76.54.32<Enter>
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 47
Setting the TACACS+ encryption key
The Set TACACS Key command sets the encryption key used to encrypt all data packets between the
Sentry and the TACACS+ server. This key must match the key configured on the TACACS+ server.
To set the encryption key:
At the Smart CDU: prompt, type set tacacs key and press Enter.
At the TACACS+ Key: prompt, type a key of up to 60 alphanumeric and other typeable characters
(ASCII 32 to 126 decimal). Keys are case sensitive. Press Enter. To specify no password, press Enter at the prompt.
At the Verify TACACS+ Key: prompt, retype the key. Press Enter. To verify no password, press
Enter at the prompt.
Example
Smart CDU: set tacacs key<Enter>
TACACS+ Key: <Enter>
Verify TACACS+ Key: <Enter>
For security, key characters are not displayed.
NOTE: A key size of zero results in no encryption being applied which may not be supported by the TACACS+ server and is not recommended for a production environment.
Setting the authentication order
The Set Authorder command sets the authentication order for remote authentication sessions. The
Sentry supports two methods for authentication order - Remote -> Local and Remote Only.
The Remote -> Local method first attempts authentication with the TACACS+ server and if unsuccessful with the local user database on the Sentry device.
The Remote Only method attempts authentication only with the TACACS+ server and if unsuccessful, access is denied.
NOTE: With the Remote Only method, if authentication fails due to a communication failure with the TACACS+ server automatic authentication fallback will occur to authenticate with the local user data base on the Sentry device.
To set the authentication order:
At the Smart CDU: prompt, type set authorder, followed by remotelocal or remoteonly and press
Enter.
NOTE: Server Technology recommends NOT setting the authentication order to Remote Only until the TACACS+ has been fully configured and tested.
Displaying TACACS+ configuration information
The Show TACACS command displays TACACS+ configuration information.
• Remote authentication order
• Enabled-disabled status of LDAP support
• Directory Services server IP address and domain components
• Bind request password type
To display the LDAP configuration information:
At the Smart CDU: prompt, type show ldap and press Enter.
Example
The following command displays the LDAP configuration information:
TACACS+ Configuration
TACACS+: Disabled
Host IP1: 98.76.54.32
Host IP2: 0.0.0.0
TACACS+ Key: (Set)
Auth Order: Remote->Local
48
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Configuring TACACS+ Privilege Levels
Setting TACACS+ account access level privileges
The Set TacPriv Access command sets the access level privileges for a TACACS+ account. The Sentry has four defined access privilege levels; Admin, User, On-Only and View-Only. For more information
on user access levels, see Changing a user’s access privilege level: on page 12.
To set the access level privilege for a TACACS+ account:
At the Smart CDU: prompt, type set tacpriv access, followed by admin or user, optionally followed by a TACACS+ account number and press Enter.
Examples
The following command sets the TACACS+ account access level for account 14 to Admin:
Smart CDU: set tacpriv access admin 14<Enter>
The following command sets the TACACS+ account access level for account 5 to User:
Smart CDU: set tacpriv access user 5<Enter>
Displaying the TACACS+ access privilege levels
The List TacPrivs command displays all TACACS+ accounts with their access privilege levels.
To display TACACS+ account access privilege levels:
At the Smart CDU: prompt, type list tacprivs and press Enter.
Example
The following command displays all TACACS+ account with their access privilege level:
Smart CDU: list tacprivs<Enter>
TACACS Access Environmental
Account Name Level Monitoring
TACAdmin Admin Allowed
PowerUser User Allowed
Adding serial port access to a TACACS+ account
The Add PortToTACACS command grants a TACACS+ account access to the serial port.
To grant serial port access to a TACACS+ account:
At the Smart CDU: prompt, type add porttotacacs console and a TACACS+ account number. Press
Enter.
Deleting serial port access for a TACACS+ account
The Delete PortFromTACACS command removes a TACACS+ account’s access to the serial port.
You cannot remove access to the serial port for an administrative level account.
To delete serial port access for a TACACS+ account:
At the Smart CDU: prompt, type delete portfromtacacs console and a TACACS+ account number.
Press Enter.
Displaying TACACS+ privilege level access
The List TacPriv command displays assigned access for a TACACS+ privilege level.
To display TACACS+ privilege level access:
At the Smart CDU: prompt, type list tacpriv, optionally followed by a TACACS+ account. Press
Enter.
Example
The following command displays information about the TACACS+ account 1:
Smart CDU: list tacpriv 1<Enter>
TACACS+ Privilege Level: 1
Ports:
Port ID Port Name
Console Console
Members of PowerUser TACACS+ account members may access the Console serial port.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Advanced Operations
• 49
TACACS+ Technical Specifications
Authentication START Packet includes: action = 1 (TAC_PLUS_AUTHEN_LOGIN) priv_lvl = 0 (TAC_PLUS_PRIV_LVL_MIN) authen_type = 1 (TAC_PLUS_AUTHEN_TYPE_ASCII) service = 1 (TAC_PLUS_AUTHEN_SVC_LOGIN) user = (entered username) port = (access path into the Sentry) rem_addr = ‘Sentry3_xxxxxx’ (xxxxxx is last six digits of MAC address) data = ‘‘ (null)
NOTE: The password is sent in a CONTINUE packet.
Authorization REQUEST Packet includes: authen_method = 6 (TAC_PLUS_AUTHEN_METH_TACACSPLUS) priv_lvl = 0 (TAC_PLUS_PRIV_LVL_MIN) authen_type = 1 (TAC_PLUS_AUTHEN_TYPE_ASCII) authen_service = 1 (TAC_PLUS_AUTHEN_SVC_LOGIN) user = (entered username) port = (access path into the Sentry) rem_addr = ‘Sentry3_xxxxxx’ (xxxxxx is last six digits of Ethernet MAC address) service = ‘shell’ (for exec) cmd = ‘‘ (null)
NOTE: The access paths into the Sentry which support TACACS+ are ‘Console’, ‘Telnet’, ‘SSH’, ‘HTTP’ and
‘HTTPS’. In the case of ‘Console’ and ‘Modem’, an administrator is allowed to rename these ports in which case the assigned name is used.
50
• Advanced Operations
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Chapter 5: Appendices
Appendix A: Resetting to Factory Defaults
You may reset the non-volatile RAM that stores all configurable options. This clears all administratoreditable fields and resets all command line configurable options to their default values, including all user accounts.
You may reset the unit to factory defaults from the command line or the HTML interface, or by pressing the reset button. You must have administrator-level privileges to issue the command. Using the reset button may be necessary when a forgotten password prevents administrator login. Each of the methods updates the current working configuration to the factory defaults.
NOTE: Resetting the unit resets all TCP/IP and Telnet/Web configurations. Reconfiguring the TCP/IP and Telnet/web settings will be required.
To reset to factory defaults from the HTML interface
On the Restart page in the Tools section of the HTML interface, select Restart and reset to factory
defaults from the drop-down menu and press Apply.
To reset to factory defaults from the command line
At the Smart CDU: prompt, type restart factory and press Enter.
To reset to factory defaults using the reset button
Locate the recessed reset button directly beside the Serial & Ethernet ports. You will need a nonconductive, non-metallic tool that fits inside the recess.
Insert the tool in the recess, then depress and hold the reset button for at least ten seconds.
NOTE: If the reset button is depressed and held for more than 15 seconds, the reset will abort.
Appendix B: Uploading Firmware
You may upload new versions of firmware using File Transfer Protocol (FTP). This allows access to new firmware releases for firmware improvements and new features additions.
NOTE: To begin an FTP upload session, you must first configure the FTP Host address, username/password, filename and
You may initiate an FTP upload session by issuing a command or from the HTML interface. You must have administrator-level privileges to initiate an upload.
To initiate an FTP upload session from the HTML interface
On the Restart page in the Tools section of the HTML interface, select Restart and upload firmware
via FTP from the drop-down menu and press Apply.
Upon issuing this command the unit will restart and upload the firmware file specified with the FTP
Filename command from the previously configured FTP Host. See FTP Administration in Chapter 3:
for more information.
To initiate an FTP upload session from the command line
The Restart FTPLoad command initiates an upload of firmware. Upon issuing this command the unit will restart and upload the firmware file specified with the FTP Filename command from the previously
configured FTP Host. See FTP Administration in Chapter 3: for more information.
To initiate an FTP firmware upload session:
At the Smart CDU: prompt, type restart ftpload and press Enter.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Appendices
• 51
Appendix C: Technical Specifications
Domestic Models
Model Rated Voltage Input Cordset and Plug (10’)
CS-12HD2-L630
CS-12HDD-L1530
CS-12HDY-L2130
CS-24V1-C20
CS-24V1-L530
CS-24V2-C20
CS-24V2-L630
CS-24VD-L1520
CS-24VD-L1530
CS-24VY-L2120
CS-24VY-L2130
CS-42V1-L520/1
CS-42V1-L530/1
CS-42V2-L620
CS-42V2-L630
CS-42VD-L1520
CS-42VD-L1530
CS-42VY-L2120
CS-42VY-L2130
CS-48V1-C20
CS-48V1-L530
CS-48V2-C20
CS-48V2-L630
CS-48VDD-L1520
CS-48VDD-L1530
CS-48VDY-L2120
CS-48VDY-L2130
CS-54VDY-L2120
CS-54VDY-L2130
CS-84V1-L520/1
CS-84V1-L530/1
208-240V 60Hz
3/PE 240V 60Hz
3/N/PE 208V 60Hz
100-120V 50/60Hz
100-120V 50/60Hz
208-240V 60Hz
208-240V 60Hz
3/PE 240V 60Hz
3/PE 240V 60Hz
3/N/PE 208V 60Hz
3/N/PE 208V 60Hz
100-120V 50/60Hz
100-120V 50/60Hz
208-240V 60Hz
208-240V 60Hz
3/PE 240V 60Hz
3/PE 240V 60Hz
3/N/PE 208V 60Hz
3/N/PE 208V 60Hz
100-120V 50/60Hz
100-120V 50/60Hz
208-240V 60Hz
208-240V 60Hz
3/PE 240V 60Hz
3/PE 240V 60Hz
3/N/PE 208V 60Hz
3/N/PE 208V 60Hz
3/N/PE 208V 60Hz
3/N/PE 208V 60Hz
CS-54VDY-30916A 3/N/PE 208V 60Hz
CS-54VDY-30916A 3/N/PE 208V 60Hz
100-120V 50/60Hz
100-120V 50/60Hz
NEMA L6-30P, 30A/208V locking
NEMA L15-30P, 30A/240V locking
NEMA L21-30P, 30A/208V locking
IEC 60320 C20
1
NEMA L5-30P, 30A/120V locking
IEC 60320 C20
1
NEMA L6-30P, 30A/230V locking
NEMA L1520, 20A/240V locking
NEMA L1530, 30A/240V locking
NEMA L2120, 20A/208V locking
NEMA L2130, 30A/208V locking
NEMA L5-20P, 20A/120V locking
NEMA L5-30P, 30A/120V locking
NEMA L6-20P, 20A/230V locking
NEMA L6-30P, 30A/230V locking
NEMA L1520, 20A/240V locking
NEMA L1530, 30A/240V locking
NEMA L2120, 20A/208V locking
NEMA L2130, 30A/208V locking
IEC 60320 C20
1
NEMA L5-30P, 30A/120V locking
IEC 60320 C20
1
NEMA L6-30P, 30A/230V locking
NEMA L1520, 20A/240V locking
NEMA L1530, 30A/240V locking
NEMA L2120, 20A/208V locking
NEMA L2130, 30A/208V locking
NEMA L2120, 20A/208V locking
NEMA L2130, 23A/208V locking
IEC 60309, 16A 3-pin 6Hr Blue
IEC 60309, 32A 3-pin 6Hr Blue
NEMA L5-20P, 20A/120V locking
NEMA L5-30P, 30A/120V locking
CS-84V2-L620
CS-84V2-L630
CS-84VDD-L1520
CS-84VDD-L1530
CS-84VDY-L2120
208-240V 60Hz
208-240V 60Hz
3/PE 240V 60Hz
3/PE 240V 60Hz
3/N/PE 208V 60Hz
NEMA L6-20P, 20A/230V locking
NEMA L6-30P, 30A/230V locking
NEMA L1520, 20A/240V locking
NEMA L1530, 30A/240V locking
NEMA L2120, 20A/208V locking
CS-84VDY-L2130 3/N/PE 208V 60Hz
1
Input cordset selected at time of purchase
NEMA L2130, 30A/208V locking
2
120V / 208V, 120V outlets are NEMA 5-20R and 208V outlets are IEC 60320 C13
International Models
Model Rated Voltage
CS-12HDE-30932E 230V 50/60Hz
CS-12V2-C20
CS-24VE-30932E
CS-42VE-30916E
230V 50/60Hz
230V 50/60Hz
230V 50/60Hz
CS-42VE-30932E
CS-48VD2-C20
230V 50/60Hz
230V 50/60Hz
CS-48VDE-30932E 230V 50/60Hz
CS-84VDE-30916E 230V 50/60Hz
CS-84VDE-30932E 230V 50/60Hz
1
Input cordset selected at time of purchase
Input Cordset and Plug (10’)
IEC 60309, 32A 3-pin 6Hr Blue
IEC 60320 C20
1
IEC 60309, 32A 3-pin 6Hr Blue
IEC 60309, 16A 3-pin 6Hr Blue
IEC 60309, 32A 3-pin 6Hr Blue
IEC 60320 C20
1
IEC 60309, 32A 3-pin 6Hr Blue
IEC 60309, 16A 3-pin 6Hr Blue
IEC 60309, 32A 3-pin 6Hr Blue
Outlets
12 IEC 60320 C19
12 IEC 60320 C19
12 IEC 60320 C19
24 NEMA 5-20R
24 NEMA 5-20R
24 IEC 60320 C13
24 IEC 60320 C13
24 IEC 60320 C13
24 IEC 60320 C13
24 IEC 60320 C13
24 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
48 NEMA 5-20R
48 NEMA 5-20R
48 IEC 60320 C13
48 IEC 60320 C13
48 IEC 60320 C13
48 IEC 60320 C13
48 IEC 60320 C13
48 IEC 60320 C13
12 / 42
2
12 / 42
2
12 / 42
2
12 / 42
2
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
Outlets
12 IEC 60320 C19
12 IEC 60320 C13
24 IEC 60320 C13
42 IEC 60320 C13
42 IEC 60320 C13
48 IEC 60320 C13
48 IEC 60320 C13
84 IEC 60320 C13
84 IEC 60320 C13
52
• Appendices
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Power Ratings
Domestic Models
M o de l
M odele
M odell
10 0 - 12 0 V 5 0 / 6 0 H z
Input C urre nt R a t ings
L’indice du courant d’entrée
Eingangsstromstärke
1
V o lt a ge
Tension
Spannung
C urre nt
Courrant
Strom
CS-24V1-C20
CS-24V1-L630
CS-42V1-L520/1
CS-42V1-L530/1
CS-48VD1-C20
CS-48VD1-L630
CS-84V1-L520/1
CS-84V1-L530/1
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
16
24
16
24
A : 16
B : 16
A : 24
B : 24
A : 16
B : 16
A : 24
B : 24
2 0 8 - 2 4 0 6 0 H z
V o lt a ge
Tension
Spannung
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
100-120V
50/60Hz
O ut le t
Prise
16
16
16
16
16
16
16
16
O ut put C urre nt R a t ings
L’indice du courant de sortie
A nschlussstelle
A usgangsstromstärke
B ra nc h C irc uit
Circuit de la B ranche
Zweigstromkreis
16
16
16
16
16
16
16
16
P ha s e
2
T o t a l
Total
Insgesamt
16
24
16
24
A : 16
B : 16
A : 24
B : 24
A : 16
B : 16
A : 24
B : 24
CS-12HD2-L630
208-240V
60Hz
A : 24
B : 24
208-240V
60Hz
16
16
A : 24
B : 24
CS-24V2-C20
CS-24V2-L630
CS-42V2-L620
CS-42V2-L630
208-240V
60Hz
208-240V
60Hz
208-240V
60Hz
208-240V
60Hz
16
24
16
24
208-240V
60Hz
208-240V
60Hz
208-240V
60Hz
208-240V
60Hz
12
12
12
12
16
16
16
16
16
24
16
24
CS-48VD2-C20
CS-48VD2-L630
208-240V
60Hz
208-240V
60Hz
A : 16
B : 16
A : 24
B : 24
208-240V
60Hz
208-240V
60Hz
12
12
16
16
A : 16
B : 16
A : 24
B : 24
CS-84VD2-L620
208-240V
60Hz
A : 16
B : 16
208-240V
60Hz
12
16
A : 16
B : 16
CS-84VD2-L630 12
16
1
All current ratings are in am peres. Tous les indices de courant sont en ampères. Alle Angaben der Stromstärke erfolgen in Ampere.
2
Each branch circuit or phas e consists of: Chaque circuit de la branche comporte: Jeder Zweigstromkreis besteht aus:
12HDx - 2 outlets, prises, Anschlüsse. Input, Entrée, Eingang A, B: 1+2, 3+4, 5+6
24Vx, 48VDx
208-240V
60Hz
A : 24
B : 24
208-240V
60Hz
A : 24
B : 24
42Vx, 84VDx
Two 6-outlet modules; 12 outlets. 2 série de 6 prises de courants, soit au total 12 prises.
2 gekuppelten Modulen mit je 6 Anschlüssen: 12 Anschlüsse. Input, Entr ée, Eingang A, B: 1a+1b, 2a+2b, 3a+3b
Three 7-outlet modules; 21 outlets. 3 série de 7 prises de courants, soit au total 21 prises.
3 gekuppelten Modulen mit je 7 Anschlüssen: 21 Anschlüsse. Input, Entrée, Eingang A, B: 1a+1b+1c, 2a+2b+2c
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Appendices
• 53
Domestic Models (continued)
Model
Modele
Modell
3/PE 240V 60Hz
Input Current Ratings
1
L’indice du courant d’entrée
Eingangsstromstärke
Voltage
Tension
Spannung
Current
Courrant
Strom
Voltage
Tension
Spannung
Outlet
Prise
Anschlussstelle
Output Current Ratings
L’indice du courant de sortie
Ausgangsstromstärke
Branch Circuit
Circuit de la Branche
Zweigstromkreis
Phase
2
Total
Total
Insgesamt
CS-12HDD-L1530
CS-24VD-L1520
CS-24VD-L1530
CS-42VD-L1520
CS-42VD-L1530
CS-48VDD-L1520
CS-48VDD-L1530
CS-84VDD-L1520
CS-84VDD-L1530
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
3/PE 240V
60 Hz
A: 24
B: 24
16
24
16
24
A: 16
B: 16
A: 24
B: 24
A: 16
B: 16
A: 24
B: 24
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
240V
60Hz
13.9
9.2
12
9.2
12
9.2
12
9.2
12
12
12
9.2
9.2
9.2
12
12
12
12
9.2
9.2
9.2
12
12
12
9.2
9.2
9.2
12
13.9
13.9
13.9
9.2
9.2
9.2
12
12 xz xy yz yz xz xy yz yz xz xy yz xz xy yz xz xy yz xz xy xy yz xz xy yz xz xy xz
A: 41.6
B: 41.6
27.6
41.6
27.6
41.6
A: 27.6
B: 27.6
A: 41.6
B: 41.6
A: 27.6
B: 27.6
A: 41.6
B: 41.6
3/N/PE 240V 60Hz
CS-12HDY-L3230
3/N/PE 208V
60 Hz
A: 24
B: 24
208V
60Hz
13.9
13.9
13.9
13.9
9.2
xy yz xz xy
13.9
13.9
13.9
9.2
CS-24VY-L2120
3/N/PE 208V
60 Hz
16
208V
60Hz
9.2
9.2
9.2
12 yz xz xy
9.2
9.2
13.9
CS-24VY-L2130
3/N/PE 208V
60 Hz
24
208V
60Hz
12 12
12
9.2
yz xz xy
13.9
13.9
9.2
CS-42VY-L2120
3/N/PE 208V
60 Hz
16
208V
60Hz
9.2
9.2
9.2
12 yz xz xy
9.2
9.2
13.9
CS-42VY-L2130
3/N/PE 208V
60 Hz
24
208V
60Hz
12 12
12
9.2
yz xz xy
13.9
13.9
9.2
CS-48VDY-L2120
3/N/PE 208V
60 Hz
A: 16
B: 16
208V
60Hz
9.2
9.2
9.2
12 yz xz xy
9.2
9.2
13.9
CS-48VDY-L2130
3/N/PE 208V
60 Hz
A: 24
B: 24
208V
60Hz
12 12
12 yz xz
13.9
13.9
1
All current ratings are in amperes. Tous les indices de courant sont en ampères. Alle Angaben der Stromstärke erfolgen in Ampere.
2
Each branch circuit or phase consists of: Chaque circuit de la branche comporte: Jeder Zweigstromkreis besteht aus:
12HDx -
24Vx, 48VDx
42Vx, 84VDx
2 outlets, prises, Anschlüsse. Input, Entrée, Eingang A, B: 1+2, 3+4, 5+6
Two 6-outlet modules; 12 outlets. 2 série de 6 prises de courants, soit au total 12 prises.
A: 41.6
B: 41.6
27.6
41.6
27.6
41.6
A: 27.6
B: 27.6
A: 41.6
B: 41.6
2 gekuppelten Modulen mit je 6 Anschlüssen: 12 Anschlüsse. Input, Entrée, Eingang A, B: 1a+1b, 2a+2b, 3a+3b
Three 7-outlet modules; 21 outlets. 3 série de 7 prises de courants, soit au total 21 prises.
3 gekuppelten Modulen mit je 7 Anschlüssen: 21 Anschlüsse. Input, Entrée, Eingang A, B: 1a+1b+1c, 2a+2b+2c
13.9
13.9
9.2
9.2
9.2
13.9
13.9
13.9
13.9
9.2
9.2
9.2
13.9
13.9
13.9
9.2
9.2
9.2
13.9
13.9
13.9
13.9
9.2
9.2
9.2
13.9
13.9
54
• Appendices
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Domestic Models (continued)
Model
Modele
Modell
Input Current Ratings
1
L’indice du courant d’entrée
Eingangsstromstärke
Voltage
Tension
Spannung
3/N/PE 240V 60Hz (continued)
Current
Courrant
Strom
Voltage
Tension
Spannung
Outlet
Prise
Anschlussstelle
Output Current Ratings
L’indice du courant de sortie
Ausgangsstromstärke
Branch Circuit
Circuit de la Branche
Zweigstromkreis
Phase
2
Total
Total
Insgesamt
CS-54VDY-L2120
CS-54VDY-L2130
CS-54VDY-30916A
CS-54VDY-30932A
CS-84VDY-L2120
CS-84VDY-L2130
3/N/PE 208V
60 Hz
3/N/PE 208V
60 Hz
3/N/PE 208V
60 Hz
3/N/PE 208V
60 Hz
3/N/PE 208V
60 Hz
3/N/PE 208V
60 Hz
A: 16
B: 16
A: 24
B: 24
A: 16
B: 16
A: 24
B: 24
A: 16
B: 16
A: 24
B: 24
100-120V
50/60Hz
208V
60Hz
100-120V
50/60Hz
208V
60Hz
100-120V
50/60Hz
208V
60Hz
100-120V
50/60Hz
208V
60Hz
208V
60Hz
208V
60Hz
9.2
12
9.2
12
9.2
12
9.2
9.2
9.2
12
12
12
9.2
9.2
9.2
9.2
9.2
9.2
12
12
12
12
12
12 xy yz xz xy yz xz xy yz xz xy yz xz xy yz xz xy yz xz
9.2
9.2
9.2
9.2
9.2
9.2
13.9
13.9
13.9
13.9
13.9
13.9
9.2
9.2
9.2
13.9
13.9
13.9
A: 27.6
B: 27.6
A: 41.6
B: 41.6
A: 27.6
B: 27.6
A: 41.6
B: 41.6
A: 27.6
B: 27.6
A: 41.6
B: 41.6
International Models
M o de l
M odele
M odell
2 3 0 V 5 0 / 6 0 H z
Input C urre nt R a t ings
L’indice du courant d’entrée
Eingangsstromst ärke
1
V o lt a ge
Tension
Spannung
C urre nt
Courrant
St rom
V o lt a ge
Tension
Spannung
O ut le t
Prise
O ut put C urre nt R a t ings
A nschlussst elle
L’indice du courant de sortie
A usgangsst romstärke
B ra nc h C irc uit
Circuit de la B ranche
Zweigstromkreis
P ha s e
2
T o t a l
Total
Insgesamt
CS-12HD2-30932E
CS-24V2-C20
230V
50/60Hz
230V
50/60Hz
A : 32
B : 32
16
230V
50/60Hz
230V
50/60Hz
10
10
20
16
A : 32
B : 32
16
CS-24V2-30932E
230V
50/60Hz
32
230V
50/60Hz
10
20 32
CS-42V2-30916E
CS-42V2-30932E
CS-48VD2-C20
CS-84VD2-30916E
230V
50/60Hz
230V
50/60Hz
230V
50/60Hz
230V
50/60Hz
16
32
A : 16
B : 16
A : 16
B : 16
230V
50/60Hz
230V
50/60Hz
230V
50/60Hz
230V
50/60Hz
10
10
10
10
16
20
16
16
16
32
A : 16
B : 16
A : 16
B : 16
CS-84VD2-30932E
230V
50/60Hz
A : 32
B : 32
230V
50/60Hz
10
20
A : 32
B : 32
1
All current ratings are in amperes. Tous les indices de courant sont en ampères. Alle Angaben der Stromstärke erfolgen in Ampere.
2
Each branch circuit or phase con sists of: Chaque circuit de la branche comporte: Jeder Zweigstromkreis besteht aus:
12HDx -
24Vx, 48VDx
2 outlets, prises, Anschlüsse. Input, Entrée, Eingang A, B: 1+2, 3+4, 5+6
54VDx
Two 6-outlet modules; 12 outlets. 2 série de 6 prises de courants, soit au total 12 prises.
2 gekuppelten Modulen mit je 6 Anschlüssen: 12 Anschlüsse. Input, Entrée, Eingang A, B: 1 a+1b, 2a+2b, 3a+3b
Two 120V outlets and one 7-outlet gang module; 9 outlets. 2 120V prises de courants y 1 s
érie de 7 prises de
courants, soit au total 9 prises. 120V Anschlüsse und eine gekuppelten Modulen mit je 7 Anschlüssen: 9
Anschlüsse. Input, Entrée, Eingang A, B: xy, yz, xz
42Vx, 84 VDx Three 7-outlet modules; 21 outlets. 3 série de 7 prises de courants, soit au total 21 prises.
3 gekuppelten Modulen mit je 7 Anschlüssen: 21 Anschlüsse. Input, Entrée, Eingang A, B: 1a+1b+1c, 2 a+2b+2c
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Appendices
• 55
Physical Specifications
Operating
Temperature
CS-12HDx
CS-24Vx
CS-42Vx
CS-48VDx
CS-54VDx
CS-84VDx
32° to 122° F (0° to 50° C)
Elevation
(above MSL)
0 to 10,000 ft (0 to 3000m)
Relative Humidity
10 to 90%, non-condensing
3.5 x 17.0 x 10.0 in. (89 x 437 x 178 mm)
63.5 x 1.75 x 2.25 in. (1617 x 45 x 57 mm)
66.0 x 1.75 x 2.25 in. (1678 x 45 x 57 mm)
63.5 x 3.5 x 2.25 in.
66.0 x 3.5 x 2.25 in.
66.0 x 3.5 x 2.25 in.
(1617 x 89 x 57 mm)
(1678 x 89 x 57 mm)
(1678 x 89 x 57 mm)
Storage
-40° to 185° F (-40° to 85° C)
0 to 50,000 ft (0 to 15000m)
10 to 90%, non-condensing
Weight
17.1 lbs (7.8 kg)
10.1 lbs (4.6 kg)
14 lbs (6.4 kg)
17.5 lbs (8 kg)
24 lbs (10.9 kg)
24 lbs (10.9 kg)
Branch Circuit Protection
Always disconnect both power supply cords before opening to avoid electrical shock.
Afin d’éviter les chocs électriques, débranchez les cables électrique avant d’ouvrir.
Immer beiden Netzleitungen auskuppeln vor den Aufmachen um elektrischen Schlag zu vermeiden.
Smart CDUs feature Branch Circuit protection on all outlets in the form of internal fuses. These fuses meet the strict safety requirements of UL/CSA 60950-1 for Branch Circuit Protection.
Time-Delay Fuses – Class G
20 SC-20
CooperBussman product data-sheet #1024
Data Connections
RS-232 port
Smart CDUs are equipped standard with an RJ45 DTE RS-232c serial port. This connector may be used for direct local access or from other serial devices such as a terminal server. An RJ45 crossover cable is provided for connection to an RJ45 DCE serial port.
Pin DTE Signal Name
1 Request to Send RTS
2
3
Data Terminal Ready DTR
Transmit Data TD
Input/Output
Output
Output
Output
7
8
5
6
Signal Ground
Receive Data
Data Set Ready
Clear to Send
RD
DSR
CTS
Input
Input
Input
8 7 54321
RJ45 to DB9F serial port adapter
Additionally, an RJ45 to DB9F serial port adapter is provided for use in conjunction with the RJ45 crossover cable to connect to a PC DB9M DCE serial port. The adapter pinouts below reflect use of the adapter with the provided RJ45 crossover cable.
6
7
8
Pin DCE Signal Name
1
Input/Output
2 Receive RD Output
3 Transmit Input
4
5
Data Terminal Ready DTR
Signal Ground
Input
Data Set Ready
Request to Send
Clear to Send
DSR
RTS
CTS
Output
Input
Output
5
9
4
8
3
7
2
6
1
56
• Appendices
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Regulatory Compliance
Product Safety
Units have been safety tested and certified to the following standards:
• USA/Canada
UL 60950:2003 and CAN/CSA 22.2 No. 60950-1-03
• European Union EN60950-1:2001
This product is also designed for Norwegian IT power system with phase-to phase voltage 230V
USA Notification
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.
Canadian Notification
This Class A digital apparatus complies meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigencies du Règlement sur le matériel brouilleur du Canada.
European Union Notification
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms:
Interference
Immunity
Safety
• EN61000-3 Harmonics and Flicker
Japanese Notification
この装置は、情報処理装置等電波障害自主規制協議会(VCCI)の基準に基づくクラ
スA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことが
あります。この場合には使用者が適切な対策を講ずるよう要求されることがあります。
Recycling
Server Technology Inc. encourages the recycling of its products. Disposal facilities, environmental conditions and regulations vary across local, state and country jurisdictions, so
Server Technology encourages consultation with qualified professional and applicable regulations and authorities within your region to ensure proper disposal.
Waste Electrical and Electronic Equipment (WEEE)
In the European Union, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.
For information on how to recycle this product responsibly in your country, please visit: www.servertech.com/support/recycling .
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Appendices
• 57
Appendix D: Warranty, Product Registration and Support
Warranty and Limitation of Liability
Server Technology, Inc. agrees to repair or replace Products that fail due to a defect within twelve (12) months after the shipment date of each Product unit to Buyer (“Warranty Period”). For purposes of this
Agreement the term “defect” shall mean the Product fails to operate or fails to conform to its applicable specifications. Any claim made pursuant to this Agreement shall be asserted or made in writing only by Buyer. Buyer shall comply with Server Technology’s Standard Return Merchandise Authorization
(“RMA”) procedure for all warranty claims as set forth in Server Technology’s operation manual.
Buyer must return Products in original packaging and in good condition. This limited warranty does not include labor, transportation, or other expenses to repair or reinstall warranted Products on site or at Buyer’s premises.
Server Technology reserves the right to investigate any warranty claims to promptly resolve the problem or to determine whether such claims are proper. In the event that after repeated efforts Server
Technology is unable to repair or replace a defective Product, then Buyer’s exclusive remedy and
Server Technology’s entire liability in contract, tort, or otherwise shall be the payment by Server
Technology of Buyer’s actual damages after mitigation, but shall not exceed the purchase price actually paid by Buyer for the defective Product.
Server Technology shall have no responsibility or liability for any Product, or part thereof, that (a) has had the Serial Number, Model Number, or other identification markings altered, removed or rendered illegible; (b) has been damaged by or subject to improper installation or operation, misuse, accident, neglect and/or has been used in any way other than in strict compliance with Server Technology’s operation and installation manual; (c) has become defective or inoperative due to its integration or assembly with any equipment or products not supplied by Server Technology; (d) has been repaired, modified or otherwise altered by anyone other than Server Technology and/or has been subject to the opening of any sealed cabinet boxes without Server Technology’s prior written consent. If any warranty claim by Buyer falls within any of the foregoing exceptions, Buyer shall pay Server
Technology its then current rates and charges for such services.
THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. SERVER SHALL NOT BE
LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL, OR EXEMPLARY DAMAGES;
EVEN OF IT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
For warranty issues, contact the Product Support Department at the number listed above. All repair and return shipments must be approved by Server and must be accompanied by a RMA (Return
Merchandise Authorization) number and dated proof of purchase.
Product Registration
Registration is your key to special offers and services reserved for Registered Users.
• Excellent Technical Support Services
• Special Update and Upgrade Programs
• Warranty Protection
• Extended Warranty Service
• New Product Information
Register your products online today! www.servertech.com
58
• Appendices
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Technical Support
Server Technology understands that there are often questions when installing and/or using a new product. Free Technical Support is provided from 8:30 AM to 5:00 PM, Monday-Friday, Pacific Time.
Server Technology, Inc.
1040 Drive
Reno, Nevada 89521 USA
Tel: 775.284.2000
Fax: 775.284.2065
Web: www.servertech.com
Email: [email protected]
Return Merchandise Authorization
If you have a unit that is not functioning properly and is in need of technical assistance or repair:
Submit a request for support by phone at the above number, or via the web at www.servertech.com/support
Be ready to provide: Company Name
Contact Name, Phone Number, and Email address
Model or Part Number (from the label on the equipment)
Server Technology Serial Number
Version of firmware
Description of problem
1. Technical Support will work to diagnose/resolve the problem remotely, if possible. If the problem cannot be resolved, Technical Support will then issue an RMA# for the return/repair of the equipment in question. RMA#’s are valid for 30 days only from the issue date.
2. Shipping charges for the return of the equipment to Server Technology shall be the responsibility of the customer. For warranty repairs, Server Technology shall assume return shipping charges but for non-warranty repairs, the shipping charges shall be billed.
3. The RMA# shall be placed conspicuously on all shipping documentation, associated correspondence, and the shipping container.
4. Equipment must be returned in proper/original packaging to protect the equipment in transit. The customer shall be financially responsible for any damage/destruction of the equipment due to improper packaging.
5. Equipment shall typically be turned around within 48-72 hours of receipt at Server Technology.
Equipment under warranty shall be repaired at no cost. Equipment NOT under warranty shall be repaired at the standard labor rate plus parts. Upon diagnosis of the equipment, the customer shall be notified of estimated charges prior to repair.
6. For non-warranty repairs, return of the equipment will be expedited with the inclusion of a
Purchase Order or credit card number for incurred charges.
Sentry Smart Cabinet Distribution Unit
Installation and Operations Manual
Appendices
• 59
Server Technology
Solutions for the Data Center Equipment Cabinet
Server Technology, Inc.
1040 Sandhill Drive
Reno, NV 89521
+1.800.835.1515 TF
+1.775.284.2000 Tel
+1.775.284.2065 Fax
www.servertech.com
Sentry, Cabinet Distribution Unit, CDU, Smart CDU and Environmental Monitor are trademarks of Server Technology, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Server Technology, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
301-0125-4 Rev. B (080105) - © 2005 Server Technology, Inc. All rights reserved.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 4 Introduction
- 4 Quick Start Guide
- 4 Technical Support
- 5 Equipment Overview
- 6 Installation
- 6 Standard Accessories
- 6 Optional Accessories
- 6 Additional Required Items
- 6 Safety Precautions
- 7 Installing the Power Input Retention Bracket
- 7 To install the power input retention bracket:
- 7 Mounting
- 7 Horizontal/Rack
- 7 Vertical
- 8 Connecting to the Power Source
- 8 Connecting Devices
- 8 Connecting the Sensors
- 8 Connecting to the Unit
- 8 Serial (RS232) port
- 8 Ethernet port
- 9 Operations
- 10 Interfaces
- 10 Usernames and Passwords
- 10 HTML Interface
- 11 Logging In
- 11 To log in by HTML:
- 11 Environmental Monitoring
- 11 Input Feeds
- 11 Sensors
- 11 Configuration
- 11 System
- 11 Creating a descriptive system location name:
- 11 Configuring the Input Current LED display orientation:
- 11 Creating a descriptive unit name:
- 11 Creating a descriptive input feed name:
- 11 Creating a descriptive Serial port name:
- 11 Creating a descriptive Environmental Monitor name:
- 12 Creating descriptive sensor names:
- 12 Network
- 12 Setting the IP address, subnet mask, gateway or DNS address:
- 12 Telnet/SSH
- 12 Enabling or disabling Telnet or SSH support:
- 12 Changing the Telnet or SSH server port number:
- 12 HTTP/SSL
- 12 Enabling or disabling HTTP or SSL support:
- 12 Changing the HTTP server port number:
- 13 Setting the HTTP authentication method:
- 13 Setting SSL access level
- 13 Serial Ports
- 13 Setting the data-rate for all serial ports:
- 13 Setting the serial port timeout value:
- 13 Creating a descriptive serial port name:
- 13 Enabling or disabling serial port active signal checking:
- 13 Users
- 13 Creating a new user:
- 13 Removing a user:
- 14 Changing a user password:
- 14 Changing a user’s access privilege level:
- 14 FTP
- 14 Setting the FTP Host IP Address:
- 14 Setting the FTP username:
- 14 Setting the FTP password:
- 14 Setting the filepath:
- 14 Setting the filename for upload:
- 14 Testing the FTP upload configuration:
- 14 SNTP
- 14 Setting the SNTP Server Address:
- 14 SNMP
- 14 Enabling or disabling SNMP support:
- 15 Setting the community strings:
- 15 Setting the trap timer:
- 15 Setting trap destinations:
- 15 Enabling or disabling tower traps:
- 15 Configuring input feed traps:
- 15 Enabling or disabling Environmental Monitor traps:
- 15 Configuring the Temperature-Humidity sensor traps:
- 15 LDAP
- 15 Enabling or disabling LDAP support:
- 15 Setting the LDAP server IP address:
- 15 Changing the LDAP server port:
- 15 Setting the LDAP bind password type:
- 15 Setting the search bind Distinguished Name (DN):
- 15 Setting the search bind password for Distinguished Name (DN)
- 16 Setting the group membership attribute:
- 16 Setting the group membership value type:
- 16 Setting the user search base Distinguished Name (DN):
- 16 Setting the user search filter:
- 16 Setting the DNS IP address:
- 16 Configuring the authentication order:
- 16 Configuring LDAP groups:
- 16 TACACS+
- 16 Enabling or disabling TACACS+ support:
- 16 Setting the TACACS+ server IP address:
- 16 Setting the TACACS+ encryption key:
- 17 Configuring the authentication order:
- 17 Configuring TACACS+ privilege levels:
- 17 Tools
- 17 Restart
- 17 Performing a warm boot:
- 17 Resetting to factory defaults:
- 17 Uploading new firmware:
- 17 Ping
- 18 Command Line Interface
- 18 Logging In
- 18 To log in by RS-232 or Telnet:
- 20 Operations Commands
- 20 Displaying accessible serial ports
- 20 Displaying infeed status
- 20 Connecting to a serial device
- 21 Displaying the status of the Environmental Monitor
- 21 Starting a new session
- 21 Ending a session
- 22 Administration Commands
- 22 User Administration
- 22 Creating a user account
- 22 Removing a user account
- 22 Changing a password
- 23 Setting user access level privileges
- 23 Displaying the access privilege levels
- 23 Adding serial port access to a user
- 23 Deleting serial port access for a user
- 24 Displaying user serial port access
- 24 Environmental Monitor Administration
- 24 Creating a descriptive Environmental Monitor name
- 24 Creating a descriptive temperature/humidity sensor name
- 24 Serial Port Administration
- 24 Creating a descriptive serial port name
- 25 Setting the serial ports data-rate
- 25 Enabling or disabling active signal checking for serial conn
- 25 Setting the serial port timeout value
- 25 Displaying serial port information
- 26 System Administration
- 26 Creating a location description
- 26 Setting the LED display orientation
- 26 Displaying system configuration information
- 27 Creating a descriptive tower name
- 27 Displaying tower information
- 27 Creating a descriptive infeed name
- 27 Displaying Infeed information
- 27 Displaying the Sentry firmware version
- 28 Performing a warm boot
- 28 TCP/IP Administration
- 28 Setting the IP address
- 28 Setting the subnet mask
- 28 Setting the gateway
- 28 Setting the DNS IP address
- 29 Displaying network configuration information
- 29 HTTP Administration
- 29 Enabling and disabling HTTP support
- 29 Changing the HTTP server port
- 29 Setting the HTTP authentication method
- 30 Telnet Administration
- 30 Enabling and disabling Telnet support
- 30 Changing the Telnet port
- 30 FTP Administration
- 30 Setting the FTP Host IP address
- 30 Setting the FTP username
- 30 Setting the FTP Password
- 31 Setting the filename to be uploaded
- 31 Setting the filepath for the file to be uploaded
- 31 Displaying FTP configuration information
- 31 SNTP Administration
- 31 Setting the SNTP server address
- 32 Displaying SNTP configuration information
- 33 Advanced Operations
- 34 SSL
- 34 Enabling and Setting up SSL Support
- 34 Enabling or disabling SSL support
- 34 Setting SSL access level
- 34 SSL Technical Specifications
- 35 SSH
- 35 Enabling and Setting up SSH Support
- 35 Enabling or disabling SSH support
- 35 Changing the SSH server port
- 35 SSH Technical Specifications
- 36 SNMP
- 36 MIB, OID and Support
- 36 SNMP Traps
- 36 Status trap
- 37 Load Trap
- 38 Temp Trap
- 38 Humidity Trap
- 38 Configuring Traps
- 39 Enabling or Disabling a Status trap
- 39 Enabling or Disabling a Load trap
- 39 Setting the Infeed Load limit
- 39 Enabling or Disabling the Temp trap
- 40 Setting the Temperature sensor threshold limits
- 40 Enabling or Disabling the Humid trap
- 40 Setting the Humidity sensor threshold limits
- 41 Displaying trap configuration information
- 42 LDAP
- 43 Enabling and Setting up LDAP Support
- 43 Enabling and disabling LDAP support
- 43 Setting the LDAP host IP address
- 43 Changing the LDAP server port
- 43 Setting the LDAP bind password type
- 44 Setting the search bind Distinguished Name (DN)
- 44 Setting the search bind Distinguished Name (DN) password
- 44 Setting the group membership attribute.
- 44 Setting the group membership value type:
- 45 Setting the user search base Distinguished Name (DN)
- 45 Setting the user search filter
- 45 Setting the authentication order
- 46 Displaying LDAP configuration information
- 46 Setting the DNS IP address
- 46 Verifying the DNS configuration
- 47 Configuring LDAP Groups
- 47 Creating an LDAP group
- 47 Removing an LDAP group
- 47 Setting LDAP group access level privileges
- 47 Displaying the LDAP access privilege levels
- 47 Adding serial port access to an LDAP group
- 47 Deleting serial port access for an LDAP group
- 48 Displaying LDAP Group access
- 48 LDAP Technical Specifications
- 49 TACACS+
- 49 Enabling and Setting up TACACS+ Support
- 49 Enabling and disabling TACACS+ support
- 49 Setting the TACACS+ server IP address
- 50 Setting the TACACS+ encryption key
- 50 Setting the authentication order
- 50 Displaying TACACS+ configuration information
- 51 Configuring TACACS+ Privilege Levels
- 51 Setting TACACS+ account access level privileges
- 51 Displaying the TACACS+ access privilege levels
- 51 Adding serial port access to a TACACS+ account
- 51 Deleting serial port access for a TACACS+ account
- 51 Displaying TACACS+ privilege level access
- 52 TACACS+ Technical Specifications
- 53 Appendices
- 53 Resetting to Factory Defaults
- 53 To reset to factory defaults from the HTML interface
- 53 To reset to factory defaults from the command line
- 53 To reset to factory defaults using the reset button
- 53 Uploading Firmware
- 53 To initiate an FTP upload session from the HTML interface
- 53 To initiate an FTP upload session from the command line
- 54 Technical Specifications
- 54 Domestic Models
- 54 International Models
- 55 Power Ratings
- 55 Domestic Models
- 57 International Models
- 58 Physical Specifications
- 58 Branch Circuit Protection
- 58 Time-Delay Fuses – Class G
- 58 Data Connections
- 58 RS-232 port
- 58 RJ45 to DB9F serial port adapter
- 59 Regulatory Compliance
- 59 Product Safety
- 59 USA Notification
- 59 Canadian Notification
- 59 European Union Notification
- 59 Japanese Notification
- 59 Recycling
- 59 Waste Electrical and Electronic Equipment (WEEE)
- 60 Warranty, Product Registration and Support
- 60 Warranty and Limitation of Liability
- 60 Product Registration
- 61 Technical Support
- 61 Return Merchandise Authorization
