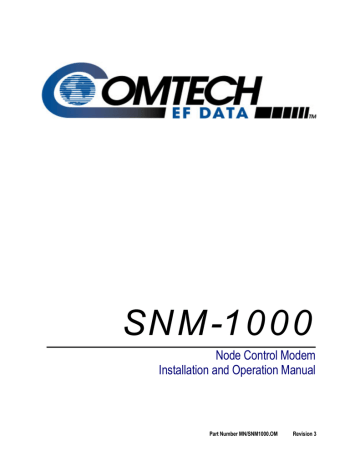

SNM-1000 Node Control Modem Installation and Operation Manual Part Number MN/SNM1000.OM Revision 3 SNM-1000 Node Control Modem Installation and Operation Manual Comtech EF Data is an ISO 9001 Registered Company. Part Number MN/SNM1000.OM Revision 3 March 31, 2002 Copyright © Comtech EF Data, 2000. All rights reserved. Printed in the USA. Comtech EF Data, 2114 West 7th Street, Tempe, Arizona 85281 USA, 480.333.2200, FAX: 480.333.2161 . Network Customer Support The Network Customer Support Plan identifies the steps to be followed in resolving the Customer’s concern. The resolution efforts will follow these levels of contact: • • • Level One Contact – Factory Authorized Service Center. Level Two Contact – Comtech EF Data Customer Support. Level Three Contact – Network Test and Field Support Procedural Steps Step 1 Procedure The Customer raises a concern with the Level One Contact. 2 The Level One Contact will perform Hardware repairs and Network Operations troubleshooting in accordance with the Comtech EF Data Service Center agreement. 3 If the Level One Contact is unable to resolve the concern, then the Level One Contact will inform the Level Two Contact of the concern in accordance with the instructions found within the attached Comtech EF Data Customer Support Department’s document. 4 The Level Two Contact will enter the concern into the Comtech EF Data database and determine whether the concern is a Hardware concern or a Network Operations concern 5 The Level Two Contact will interface with the Level One Contact and provide the appropriate hardware support and enter all correspondence into the Comtech EF Data database. 6 If the Level Two Contact determines that the concern is a Network Operations concern, then the Level Two Contact will inform the Level Three Contact. 7 The Level Three Contact will interface with the Level One Contact and provide the appropriate support and enter all correspondence into the Comtech EF Data database. 8 If the Level Three Contact determines that there is a Hardware failure then the Level Three Contact will inform the Level Two Contact. Go to Step 5. ii Network Support Customer Plan SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Customer Yes Midas Network is functioning properly? *Note: If equipment was purchased directly from Comtech EFData (not through a Factory Authorized Service Center), then CEFD Customer Support will be the initial point of contact. No Level One Contact is notified Authorized Factory Service Center Yes Resolved by Hardware repair or Network Operations troubleshooting? No Level Two Contact is notified CEFD Customer Support Hardware or Network Operations issue? Hardware CEFD Customer Support provides HW support Hardware Network Operations Level Three Contact is notified CEFD Network Test and Field Support CEFD Network Test and Field Support provides Network Operations support Hardware or Network Operations issue? iii iii SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM See the Comtech EF Data website at http://www.comtechefdata.com for contact information for a Factory Authorized Service Center. Contact the Factory Authorized Service Center for: • • Product support Information on upgrading or returning a product Contact the Comtech EF Data Customer Support Department for: • • Product support or training Information on upgrading or returning a product A Customer Support representative may be reached at: Comtech EF Data Attention: Customer Support Department 2114 West 7th Street Tempe, Arizona 85281 USA 480.333.2200 (Main Comtech EF Data Number) 480.333.4357 (Customer Support Desk) 480.333.2500 FAX or, E-Mail can be sent to the Customer Support Department at: [email protected] 1. To return a Comtech EF Data product (in-warranty and out-of-warranty) for repair or replacement: 2. Request a Return Material Authorization (RMA) number from the Comtech EF Data Customer Support Department. 3. Be prepared to supply the Customer Support representative with the model number, serial number, and a description of the problem. 4. To ensure that the product is not damaged during shipping, pack the product in its original shipping carton/packaging. 5. Ship the product back to Comtech EF Data. (Shipping charges should be prepaid.) iv SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Table of Contents CHAPTER 1. INTRODUCTION...................................................................................... 1–1 1.1 Overview............................................................................................................................................................1–2 1.1.1 Additional Features....................................................................................................................................1–2 1.1.2 Mode of Operation.....................................................................................................................................1–3 1.2 Description ........................................................................................................................................................1–4 1.3 Options ..............................................................................................................................................................1–4 1.4 General Specifications......................................................................................................................................1–5 1.4.1 Environmental and Physical ......................................................................................................................1–6 1.4.2 DAC Specifications ...................................................................................................................................1–6 1.4.3 Burst Mode Specifications.........................................................................................................................1–7 1.4.4 Continuous Mode Specifications ...............................................................................................................1–7 1.5 Viterbi Performance with Noise, Closed Network.........................................................................................1–7 1.6 Typical Spectral Occupancy ............................................................................................................................1–8 1.7 Dimensional Envelope ......................................................................................................................................1–9 CHAPTER 2. INSTALLATION......................................................................................... 2–1 2.1 Unpacking .........................................................................................................................................................2–1 2.2 Installation ........................................................................................................................................................2–2 2.3 Rear Panel Connections ...................................................................................................................................2–4 2.3.1 EFBUS1/2 Port (J6)...................................................................................................................................2–5 2.3.2 Fault Connector and Pinouts (J7)...............................................................................................................2–6 2.3.3 User Port ....................................................................................................................................................2–7 2.3.4 Auxiliary 1 Connector and Pinouts (J9).....................................................................................................2–8 2.3.5 Alarms Connector and Pinouts (J10) .........................................................................................................2–9 2.3.6 AC Power ..................................................................................................................................................2–10 2.3.7 DC Power ..................................................................................................................................................2–10 2.3.8 TX IF Output Connector (CP1) .................................................................................................................2–11 2.3.9 RX IF Output Connector (CP2) .................................................................................................................2–11 2.3.10 External Reference (CP3)......................................................................................................................2–11 2.3.11 Ground Connector (GND).....................................................................................................................2–11 v SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM CHAPTER 3. OPERATION.............................................................................................. 3–1 3.1 Front Panel........................................................................................................................................................3–1 3.1.1 LED Indicators...........................................................................................................................................3–2 3.1.2 Front Panel Keypad ...................................................................................................................................3–3 3.2 Menu System.....................................................................................................................................................3–4 3.3 Front Panel Menu.............................................................................................................................................3–5 3.4 OPENING SCREEN ........................................................................................................................................3–6 3.4.1 FUNCTIONAL SELECT:CONFIGURATION ........................................................................................3–6 3.4.1.1 CONFIGURATION:MODULATOR ...............................................................................................3–6 3.4.1.1.1 MODULATOR:TX-X ..................................................................................................................3–6 3.4.1.1.2 MODULATOR:TX-IF FREQUENCY.........................................................................................3–7 3.4.1.1.3 MODULATOR:TX-IF OUTPUT.................................................................................................3–7 3.4.1.1.4 MODULATOR:TX POWER LEVEL..........................................................................................3–7 3.4.1.1.5 MODULATOR:SCRAMBLER....................................................................................................3–8 3.4.1.1.6 MODULATOR:DIFF.ENCODER ...............................................................................................3–8 3.4.1.1.7 MODULATOR:CARRIER MODE..............................................................................................3–8 3.4.1.1.8 MODULATOR:MODEM REFERENCE.....................................................................................3–9 3.4.1.1.9 MODULATOR:RS ENCODER ...................................................................................................3–9 3.4.1.2 FUNCTIONAL SELECT:DEMODULATOR..................................................................................3–10 3.4.1.2.1 DEMODULATOR:ASSIGNED FILTERS ..................................................................................3–10 3.4.1.2.2 DEMODULATOR:RX-IF FREQUENCY ...................................................................................3–10 3.4.1.2.3 DEMODULATOR:DESCRAMBLER.........................................................................................3–11 3.4.1.2.4 DEMODULATOR:DIFF. DECODER.........................................................................................3–11 3.4.1.2.5 DEMODULATOR:RF LOOP BACK ..........................................................................................3–11 3.4.1.2.6 DEMODULATOR:IF LOOP BACK ...........................................................................................3–11 3.4.1.2.7 DEMODULATOR:BER THRESHOLD ......................................................................................3–12 3.4.1.2.8 DEMODULATOR:SWEEP CENTER.........................................................................................3–12 3.4.1.2.9 DEMODULATOR:SWEEP RANGE...........................................................................................3–12 3.4.1.2.10 DEMODULATOR:REACQUISITION........................................................................................3–13 3.4.1.2.11 DEMODULATOR:RS DECODER..............................................................................................3–13 3.4.1.3 CONFIGURATION:INTERFACE...................................................................................................3–14 3.4.1.3.1 INTERFACE:TX CLOCK SOURCE...........................................................................................3–14 3.4.1.3.2 INTERFACE:TX CLOCK PHASE..............................................................................................3–14 3.4.1.3.3 INTERFACE:EXT-CLK FREQ ...................................................................................................3–15 3.4.1.3.4 INTERFACE:BUFFER CLOCK..................................................................................................3–16 3.4.1.3.5 INTERFACE:RX CLOCK PHASE..............................................................................................3–16 3.4.1.3.6 INTERFACE:B-BAND LOOP BACK.........................................................................................3–17 3.4.1.3.7 INTERFACE:BUFFER SIZE.......................................................................................................3–18 3.4.1.3.8 INTERFACE:BUFFER CENTER................................................................................................3–18 3.4.1.3.9 INTERFACE:LOOP TIMING .....................................................................................................3–19 3.4.1.4 CONFIGURATION:SAVE ..............................................................................................................3–19 3.4.1.5 CONFIGURATION:RECALL .........................................................................................................3–19 vi SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM 3.4.2 FUNCTIONAL SELECT:MONITOR.......................................................................................................3–20 3.4.2.1 MONITOR:RAW BER.....................................................................................................................3–20 3.4.2.2 MONITOR:CORRECTED BER ......................................................................................................3–20 3.4.2.3 MONITOR:EB/NO...........................................................................................................................3–21 3.4.2.4 MONITOR:RECEIVE SIGNAL ......................................................................................................3–21 3.4.2.5 MONITOR:SWEEP FREQUENCY .................................................................................................3–21 3.4.2.6 MONITOR:BUFFER FILL ..............................................................................................................3–21 3.4.3 FUNCTIONAL SELECT:FAULTS AND ALARMS ...............................................................................3–22 3.4.3.1 FAULTS AND ALARMS:MODULATOR......................................................................................3–23 3.4.3.2 FAULTS AND ALARMS:DEMODULATOR.................................................................................3–23 3.4.3.3 FAULTS AND ALARMS:TX INTERFACE ...................................................................................3–24 3.4.3.4 FAULTS AND ALARMS:RX INTERFACE...................................................................................3–25 3.4.3.5 FAULTS AND ALARMS:COMMON.............................................................................................3–26 3.4.4 FUNCTIONAL SELECT:STORED FAULTS AND ALARMS...............................................................3–27 3.4.4.1 STORED FAULTS AND ALARMS:MODULATOR .....................................................................3–28 3.4.4.2 STORED FAULTS AND ALARMS:DEMODULATOR ................................................................3–28 3.4.4.3 STORED FAULTS AND ALARMS:TX INTERFACE...................................................................3–29 3.4.4.4 STORED FAULTS AND ALARMS:RX INTERFACE ..................................................................3–29 3.4.4.5 STORED FAULTS AND ALARMS:COMMON ............................................................................3–30 3.4.4.6 STORED FAULTS AND ALARMS:UNAVAL SECONDS ...........................................................3–30 3.4.4.7 STORED FAULTS AND ALARMS:CLEAR..................................................................................3–30 3.4.5 FUNCTIONAL SELECT:UTILITY .........................................................................................................3–31 3.4.5.1 UTILITY:MODULATOR ................................................................................................................3–32 3.4.5.1.1 MODULATOR:ASSIGN TRANSMIT FILTERS .......................................................................3–32 3.4.5.1.2 MODULATOR:MOD POWER OFFSET ....................................................................................3–32 3.4.5.1.3 MODULATOR:MODULATOR TYPE .......................................................................................3–33 3.4.5.1.4 MODULATOR:ENCODER TYPE..............................................................................................3–33 3.4.5.1.5 MODULATOR:TX BPSK ORDERING......................................................................................3–34 3.4.5.1.6 MODULATOR:MOD SPECTRUM ............................................................................................3–34 3.4.5.1.7 MODULATOR:TX-RS INTERLEAVE ......................................................................................3–34 3.4.5.1.8 MODULATOR:TX MODE..........................................................................................................3–34 3.4.5.1.9 MODULATOR:TX SYMBOL RATE .........................................................................................3–35 3.4.5.2 UTILITY:DEMODULATOR ...........................................................................................................3–35 3.4.5.2.1 DEMODULATOR:ASSIGN TRANSMIT FILTERS ..................................................................3–35 3.4.5.2.2 DEMODULATOR:DEMODULATOR TYPE.............................................................................3–36 3.4.5.2.3 DEMODULATOR:DECODER TYPE.........................................................................................3–36 3.4.5.2.4 DEMODULATOR:RX BPSK ORDERING ................................................................................3–37 3.4.5.2.5 DEMODULATOR:DEMOD SPECTRUM..................................................................................3–37 3.4.5.2.6 DEMODULATOR:RX-RS INTERLEAVE.................................................................................3–37 3.4.5.2.7 DEMODULATOR:RX MODE ....................................................................................................3–37 3.4.5.2.8 DEMODULATOR:RX SYMBOL RATE....................................................................................3–37 3.4.5.3 UTILITY:INTERFACE....................................................................................................................3–37 3.4.5.3.1 INTERFACE:TX OVERHEAD TYPE ........................................................................................3–37 3.4.5.3.2 INTERFACE:RX OVERHEAD TYPE........................................................................................3–38 3.4.5.3.3 INTERFACE:TX TERR INTERFACE........................................................................................3–38 3.4.5.3.4 INTERFACE:RX TERR INTERFACE........................................................................................3–38 3.4.5.3.5 INTERFACE:BUFFER PROGRAM ...........................................................................................3–38 3.4.5.3.6 INTERFACE:FRAMING STRUCTURE.....................................................................................3–40 3.4.5.3.7 INTERFACE:RTS TX-IF CNTRL...............................................................................................3–40 3.4.5.3.8 INTERFACE:TX DATA PHASE ................................................................................................3–40 3.4.5.3.9 INTERFACE:RX DATA PHASE ................................................................................................3–41 3.4.5.3.10 INTERFACE:CTS DELAY .........................................................................................................3–41 vii SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM 3.4.5.4 UTILITY:NETWORK......................................................................................................................3–41 3.4.5.4.1 NETWORK:RELEASE................................................................................................................3–41 3.4.5.4.2 NETWORK:CHANNELS 1 - 15..................................................................................................3–42 3.4.5.4.3 NETWORK:CHANNELS 16 - 31................................................................................................3–42 3.4.5.5 UTILITY:SYSTEM ..........................................................................................................................3–42 3.4.5.5.1 SYSTEM:TIME/DATE................................................................................................................3–42 3.4.5.5.2 SYSTEM:REMOTE BAUD RATE .............................................................................................3–43 3.4.5.5.3 SYSTEM:REMOTE ADDRESS..................................................................................................3–43 3.4.5.5.4 SYSTEM:REMOTE TYPE ..........................................................................................................3–43 3.4.5.5.5 SYSTEM:OPERATION MODE ..................................................................................................3–44 3.4.5.5.6 SYSTEM:YEAR DISPLAY.........................................................................................................3–44 3.4.5.5.7 SYSTEM:TEST MODE STATUS ...............................................................................................3–44 3.4.5.5.8 SYSTEM:LAMP TEST................................................................................................................3–45 3.4.5.5.9 SYSTEM:SELF TEST..................................................................................................................3–45 3.4.5.5.10 SYSTEM:DISPLAY CONTRAST...............................................................................................3–45 3.4.5.5.11 SYSTEM:M&C FIRMWARE......................................................................................................3–45 3.4.5.5.12 SYSTEM:BOOT FIRMWARE ....................................................................................................3–46 3.4.5.5.13 SYSTEM:FPGA FIRMWARE.....................................................................................................3–46 3.4.5.5.14 SYSTEM:EXT AGC:MAX PWR ................................................................................................3–46 3.4.5.5.15 SYSTEM:EXT AGC:MIN PWR..................................................................................................3–47 3.4.5.5.16 SYSTEM:MASTER .....................................................................................................................3–47 3.4.5.6 UTILITY:MODEM TYPE................................................................................................................3–48 3.4.5.6.1 MODEM TYPE: MODEM TYPE................................................................................................3–48 3.4.5.6.2 MODEM TYPE: MODEM EMULATION ..................................................................................3–49 3.4.5.6.3 MODEM TYPE:REVISION EMULATION................................................................................3–49 3.4.5.6.4 MODEM TYPE:MODEM OPTIONS..........................................................................................3–50 3.4.5.6.5 MODEM TYPE:CARD #1 TYPE................................................................................................3–51 3.4.5.6.6 MODEM TYPE:CARD #2 TYPE................................................................................................3–51 3.4.5.6.7 MODEM TYPE:CARD #3 TYPE................................................................................................3–51 3.4.5.6.8 MODEM TYPE:LOCAL MODEM AUPC..................................................................................3–51 3.4.5.6.9 MODEM TYPE:MODEM SERIAL.............................................................................................3–51 3.4.5.6.10 MODEM TYPE:CONFIGURATION CODE - MODEM............................................................3–52 3.4.5.7 3.5 UTILITY:FACTORY SETUP ..........................................................................................................3–52 User Port Operation .........................................................................................................................................3–53 3.6 Remote Dial-Up Capability..............................................................................................................................3–54 3.6.1 User Port Modem.......................................................................................................................................3–54 3.6.2 Remote Site Modem ..................................................................................................................................3–54 3.7 SNM-1000 Commands .....................................................................................................................................3–55 3.7.1 Character Set..............................................................................................................................................3–55 3.7.2 Status Lines and Flow Control...................................................................................................................3–55 3.7.3 Message Structure......................................................................................................................................3–55 3.7.4 Node Address (NA) ...................................................................................................................................3–57 3.7.5 Receive Control Channel Frequency (ICF) ...............................................................................................3–58 3.7.6 Transmit Control Channel Frequency (OFC) ............................................................................................3–58 3.7.7 Transmitter On (RF_ON)...........................................................................................................................3–59 3.7.8 Transmitter Off (RF_OFF) ........................................................................................................................3–59 3.7.9 Transmit Power (TX).................................................................................................................................3–59 3.7.10 Current SNM-1000 DAC Software Revision (VER).................................................................................3–60 3.7.11 Node to NMS Service Messages (NMS_MSG).........................................................................................3–60 viii SNM-1000 Node Control Modem Preface 3.7.12 3.7.13 3.7.14 3.7.15 3.7.16 3.7.17 3.7.18 3.7.19 3.7.20 3.7.21 3.7.22 3.7.23 3.7.24 3.7.25 3.7.26 3.7.27 3.7.28 Revision 3 MN/SNM1000.IOM SNM-1000 Mode (MD) .............................................................................................................................3–61 Built-In Diagnostic Tests (EFD_DIAG) ....................................................................................................3–61 Echo (ECHO).............................................................................................................................................3–64 Setup Override (SETUP) ...........................................................................................................................3–64 Channel Type (CT) ....................................................................................................................................3–65 Modem Command Sequence (MC) ...........................................................................................................3–66 Data Call ....................................................................................................................................................3–67 Terminate (TE) ..........................................................................................................................................3–69 Initiate Multipoint Data Call (MI) .............................................................................................................3–70 Add Multipoint Data Circuit (MA)............................................................................................................3–72 Drop Multipoint Data Circuit (MT)...........................................................................................................3–73 Change Forward Channel for Multipoint Data Circuit (MF).....................................................................3–74 Change Return Channel for Multipoint Data Circuit (MR) .......................................................................3–75 Send Message to Multipoint Data Circuit Originator (MO) ......................................................................3–76 Send Message to Multipoint Data Circuit Listeners (ML).........................................................................3–77 Port Redirection .........................................................................................................................................3–77 Debugging with the User Port....................................................................................................................3–78 CHAPTER 4. THEORY OF OPERATION........................................................................ 4–1 4.1 Demand Assignment Controller (DAC)..........................................................................................................4–1 4.1.1 Specifications.............................................................................................................................................4–3 4.1.2 Theory of Operation ..................................................................................................................................4–3 4.1.3 EFBUS1/2 Port (External) .........................................................................................................................4–4 4.1.4 Monitor and Control ..................................................................................................................................4–4 4.1.5 Non-Volatile Memory................................................................................................................................4–5 4.1.6 User Port ....................................................................................................................................................4–5 4.1.7 M&C Theory of Operation ........................................................................................................................4–5 4.2 Modulator..........................................................................................................................................................4–6 4.2.1 Theory of Operation ..................................................................................................................................4–8 4.2.2 Theory of Modulation Types .....................................................................................................................4–9 4.2.3 Modulator Specifications...........................................................................................................................4–10 4.3 Demodulator .....................................................................................................................................................4–11 4.3.1 Theory of Operation ..................................................................................................................................4–12 4.3.2 Demodulator Specifications.......................................................................................................................4–12 CHAPTER 5. MAINTENANCE ........................................................................................ 5–1 5.1 Fault Isolation ...................................................................................................................................................5–1 5.1.1 System Faults/Alarms ................................................................................................................................5–2 5.1.2 Faults/Alarms Display ...............................................................................................................................5–6 5.1.3 Faults/Alarms Analysis..............................................................................................................................5–6 APPENDIX A. REMOTE CONTROL OPERATION .......................................................... A–1 ix SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Figures Figure 1-1. Figure 1-2. Figure 1-3. Figure 1-4. Figure 2-1. Figure 2-2. Figure 3-1. Figure 3-2. Figure 3-3. Figure 3-4. Figure 4-1. Figure 4-2. Figure 4-3. Figure 5-1. Figure 5-2. Figure 5-3. SNM-1000 Block Diagram .................................................................................................................1–2 Typical Installation..............................................................................................................................1–3 Typical Spectral Occupancy................................................................................................................1–9 SNM-1000 Dimensional Envelope .....................................................................................................1–10 Installation of the Mounting Bracket...................................................................................................2–3 SNM-1000 Rear Panel ........................................................................................................................2–5 SNM-1000 Front Panel View..............................................................................................................3–1 Keypad ................................................................................................................................................3–3 Main Menu ..........................................................................................................................................3–5 Baseband Loopback ............................................................................................................................3–17 DAC Block Diagram...........................................................................................................................4–2 Modulator Block Diagram ..................................................................................................................4–7 Demodulator Block Diagram ..............................................................................................................4–11 Typical Output Spectrum (with Noise) ...............................................................................................5–10 Typical Output Spectrum (Without Noise) .........................................................................................5–10 Typical Eye Constellations..................................................................................................................5–13 Tables Table 1-1. Table 1-2. Table 1-3. Table 1-4. Table 1-5. Table 2-1. Table 2-2. Table 2-3. Table 2-4. Table 2-5. Table 3-1. Table 4-1. Table 4-2. Table 5-1. Table 5-2. System Specifications...........................................................................................................................1–5 Environmental and Physical .................................................................................................................1–6 Burst Mode Operating Specifications...................................................................................................1–7 Continuous Mode Operating Specifications .........................................................................................1–7 Viterbi Performance .............................................................................................................................1–7 Rear Panel Connectors..........................................................................................................................2–4 Fault Connector and Pinouts (J7) .........................................................................................................2–6 SNM-1000 User Port Pinout and Signals .............................................................................................2–7 AUX 1 Connector and Pinouts (J9) ......................................................................................................2–8 Alarms Connector and Pinouts (J10) .....................................................................................................2–9 SNM-1000 Front Panel Indicators........................................................................................................3–2 Modulator Specifications......................................................................................................................4–10 Demodulator Specification ...................................................................................................................4–13 SNM-1000 Faul Tree............................................................................................................................5–3 Conversion to S/N and Eb/N0 ................................................................................................................5–9 x SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM About this Manual This manual describes the operation and maintenance of the Comtech EF Data SNM-1000 Node Control Modem. This is a technical document intended for earth station engineers, technicians, and operators responsible for the operation and maintenance of the Comtech EF Data SNM-1000 Node Control Modem. Related Documents The following document is referenced in this manual: • Comtech EF Data Specification, SP/5747 DAMA Control Channel Messaging Conventions and References Cautions and Warnings CAUTION CAUTION indicates a hazardous situation that, if not avoided, may result in minor or moderate injury. CAUTION may also be used to indicate other unsafe practices or risks of property damage. WARNING indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. WARNING IMPORTANT indicates a statement that is associated with the task being performed. . IMPORTANT xi SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Metric Conversion Metric conversion information is located on the inside back cover of this manual. This information is provided to assist the operator in cross-referencing English to Metric conversions. Recommended Standard Designations Recommended Standard (RS) Designations have been superseded by the new designation of the Electronic Industries Association (EIA). References to the old designations are shown only when depicting actual text displayed on the screen of the unit (RS-232, RS485, etc.). All other references in the manual will be shown with the EIA designations (EIA-232, EIA-485, etc.) only. Trademarks Intel is a registered trademark of the Intel Corporation. Sportster is a registered trademark of US Robotics Incorporated. Product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Reporting Comments or Suggestions Concerning this Manual Comments and suggestions regarding the content and design of this manual will be appreciated. To submit comments, please contact the: Comtech EF Data Technical Publications Department: [email protected] Overview of Changes to Previous Revisions xii SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Electrical Safety The SNM-1000 Modem has been shown to comply with the following safety standard: • EN 60950: Safety of Information Technology Equipment, including electrical business machines The equipment is rated for operation over the range 100 - 240 volts AC. It has a maximum power consumption of 40 watts, and draws a maximum of 400 mA. The user should observe the following instructions: Fuses The SNM-1000 is fitted with two fuses - one each for line and neutral connections. These are contained within the body of the IEC power inlet connector, behind a small plastic flap. • • For 230 volt AC operation, use T0.75A, 20mm fuses. For 115 volt AC operation, use T1.25A fuses, 20mm fuses. FOR CONTINUED OPERATOR SAFETY, ALWAYS REPLACE THE FUSES WITH THE CORRECT TYPE AND RATING. Environmental The SNM-1000 must not be operated in an environment where the unit is exposed to extremes of temperature outside the ambient range 0 to 50°C (32 to 122°F), precipitation, condensation, or humid atmospheres above 95% RH, altitudes (un-pressurised) greater than 2000 metres, excessive dust or vibration, flammable gases, corrosive or explosive atmospheres. Operation in vehicles or other transportable installations that are equipped to provide a stable environment is permitted. If such vehicles do not provide a stable environment, safety of the equipment to EN60950 may not be guaranteed. xiii SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Installation The installation and connection to the line supply must be made in compliance to local or national wiring codes and regulations. The SNM-1000 is designed for connection to a power system that has separate ground, line and neutral conductors. The equipment is not designed for connection to power system that has no direct connection to ground. The SNM-1000 is shipped with a line inlet cable suitable for use in the country of operation. If it is necessary to replace this cable, ensure the replacement has an equivalent specification. Examples of acceptable ratings for the cable include HAR, BASEC and HOXXX-X. Examples of acceptable connector ratings include VDE, NF-USE, UL, CSA, OVE, CEBEC, NEMKO, DEMKO, BS1636A, BSI, SETI, IMQ, KEMA-KEUR and SEV. International Symbols: Symbol Definition Symbol Definition ~ Alternating Current Protective Earth Fuse Chassis Ground Telecommunications Terminal Equipment Directive In accordance with the Telecommunications Terminal Equipment Directive 91/263/EEC, this equipment should not be directly connected to the Public Telecommunications Network. xiv SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM EMC (Electromagnetic Compatibility) In accordance with European Directive 89/336/EEC, the SNM-1000 Modem has been shown, by independent testing, to comply with the following standards: Emissions: EN 55022 Class B - Limits and methods of measurement of radio interference characteristics of Information Technology Equipment. (Also tested to FCC Part 15 Class B) Immunity: EN 50082 Part 1 - Generic immunity standard, Part 1: Domestic, commercial and light industrial environment. Additionally, the SNM-1000 has been shown to comply with the following standards: EN 61000-3-2 EN 61000-3-3 EN 61000-4-2 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-9 EN 61000-4-11 EN 61000-4-13 Harmonic Currents Emission Voltage Fluctuations and Flicker ESD Immunity EFT Burst Immunity Surge Immunity RF Conducted Immunity Power frequency Magnetic Field Immunity Pulse Magnetic Field Immunity Voltage Dips, Interruptions, and Variations Immunity Immunity to Harmonics In order that the Modem continues to comply with these standards, observe the following instructions: IMPORTANT • Connections to the transmit and receive IF ports (BNC female connectors) should be made using a good quality coaxial cable - for example RG58/U (50 Ω or RG59/U (75 Ω). • All 'D' type connectors attached to the rear panel must have back-shells that provide continuous metallic shielding. Cable with a continuous outer shield (either foil or braid, or both) must be used, and the shield must be bonded to the back-shell. • The equipment must be operated with its cover on at all times. If it becomes necessary to remove the cover, the user should ensure that the cover is correctly re-fitted before normal operation commences xv SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM European EMC Directive In order to meet the European Electro-Magnetic Compatibility (EMC) Directive (EN55022, EN50082-1), properly shielded cables for DATA I/O are required. More specifically, these cables must be shielded from end-to-end, ensuring a continuous ground shield. The following information is applicable for the European Low Voltage Directive (EN60950): <HAR> ! Type of power cord required for use in the European Community. CAUTION: Double-pole/Neutral Fusing ACHTUNG: Zweipolige bzw. Neutralleiter-Sicherung International Symbols: Alternating Current. Fuse. Safety Ground. Chassis Ground. Note: For additional symbols, refer to “Cautions and Warnings” listed earlier in this preface. xvi SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM Warranty Policy This Comtech EF Data product is warranted against defects in material and workmanship for a period of two year from the date of shipment. During the warranty period, Comtech EF Data will, at its option, repair or replace products that prove to be defective. For equipment under warranty, the customer is responsible for freight to Comtech EF Data and all related custom, taxes, tariffs, insurance, etc. Comtech EF Data is responsible for the freight charges only for return of the equipment from the factory to the customer. Comtech EF Data will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to Comtech EF Data. Limitations of Warranty The foregoing warranty shall not apply to defects resulting from improper installation or maintenance, abuse, unauthorized modification, or operation outside of environmental specifications for the product, or, for damages that occur due to improper repackaging of equipment for return to Comtech EF Data. No other warranty is expressed or implied. Comtech EF Data specifically disclaims the implied warranties of merchantability and fitness for particular purpose. Exclusive Remedies The remedies provided herein are the buyer's sole and exclusive remedies. Comtech EF Data shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory. Disclaimer Comtech EF Data has reviewed this manual thoroughly in order that it will be an easy-touse guide to your equipment. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described. Further, Comtech EF Data reserves the right to make changes in the specifications of the products described in this manual at any time without notice and without obligation to notify any person of such changes. If you have any questions regarding your equipment or the information in this manual, please contact the Comtech EF Data Customer Support Department. xvii SNM-1000 Node Control Modem Preface Revision 3 MN/SNM1000.IOM This page is intentionally left blank. xviii Chapter 1. INTRODUCTION This chapter provides an overview of the SNM-1000 Node Control modem, referred to in this manual as “the node control modem” and “node controller.” SNM-1000 Node Control Modem The node controller contains the following components: Modem The modem is a fully digital. Integrated satellite modem and Demand Assigned Multiple Access (DAMA) controller. The modem is designed to function as the traffic node controller within Comtech EF Data’s Bandwidth On-Demand (BOD) Multimedia Integrated Digital Access System (MIDAS). DAMA DAMA control is provided by a DAMA Assignment Controller (DAC) daughter board. 1-1 SNM-1000 Node Control Modem Introduction 1.1 Revision 3 MN/SNM1000.IOM Overview The SNM-1000 Node Control Modem is a fully integrated digital satellite modem and DAMA controller. Utilizing the latest digital signal processing techniques, it is designed to function as a self-contained indoor unit that operates within Comtech EF Data's Bandwidth-on-Demand (BOD) Multimedia Integrated Digital Access System (MIDAS). 1.1.1 Additional Features The modem contains the following additional features: • Integrated DAMA controller in a 1RU package • Burst mode modulator • Continuous mode demodulator • Fast acquisition • Operational parameters stored in EEPROM • 50/180 MHz operation • Software stored in flash for easy update 1-2 SNM-1000 Node Control Modem Introduction 1.1.2 Revision 3 MN/SNM1000.IOM Mode of Operation The SNM-1000 operates as a dedicated node controller at the HUB and REMOTE sites, receiving the continuous outbound control channel from the hub station and transmitting to the hub station on the inbound control channel in burst mode. The node control modem manages traffic modems utilizing EFBUS1 connecting to the M&C port of the traffic modems (Figure 1-1). Figure 1-1. Typical Installation 1-3 SNM-1000 Node Control Modem Introduction 1.2 Revision 3 MN/SNM1000.IOM Description The SNM-1000 is housed in a 1-Rack Unit (1RU) rack-mountable chassis. Cooling is provided by a fan mounted on the rear panel. The SNM-1000 operates in burst transmit with continuous receive mode. • Burst mode is used by the SNM-1000 to transmit to the NMS over the inbound control channel. The burst mode data rate is shown below. Burst Mode Data Rates 19.2 kbit/s at FEC rate 1/2 QPSK • Continuous mode is used to receive the outbound control channel at the remote. The continuous mode data rate is shown below. Continuous Mode Data Rates 19.2 kbit/s Viterbi rate 1/2 QPSK Figure 1-2. SNM-1000 Block Diagram 1-4 SNM-1000 Node Control Modem Introduction 1.3 Revision 3 MN/SNM1000.IOM Options The following options are available for the SNM-1000: Option Part No. 90-264 VAC KT/8000-3 -48 VDC KT/8000-4 50Ω PL/6093-3 75Ω PL/6093-1 1-5 SNM-1000 Node Control Modem Introduction 1.4 Revision 3 MN/SNM1000.IOM Specifications This section includes the following specifications: • • • • • • 1.4.1 General Specifications Environmental and Physical Specifications DAC Burst mode operating specifications Continuous mode operating specifications Bit Error Rate (BER) specifications General Specifications Table 1-1. General Specifications Parameter Operating IF Range Digital Data: Burst Mode Transmit (Slotted Aloha) TX Data Rate Continuous Mode Receive RX Data Rate Symbol Rate Modulation Forward Error Correction Data Scrambling External Reference Plesiochronous Buffer Specification 50 to 180 MHz, in 1 Hz steps TDMA 19.2 kbps TDM 19.2 kbps 19.2 kHz QPSK Viterbi, K=7, 1/2 rate IESS-308 (V.35), IESS-309, or None 1, 5, 10, 20 MHz 16 bits to 256 kbps, in 16 bit steps 2 to 98 ms, in 2 ms steps Modulator Output Power Output Spurious Output Harmonics Output Spectrum Output Return Loss Output Impedance Output Frequency Stability Data Clock Source -5 to –30 dBm, adjustable in 0.1 dB steps < -55 dBc, 0 to 500 MHz (4 kHz in-band) < -55 dBc, 0 to 500 MHz (4 kHz out-of-band) Meets IESS-308/309 power spectral mask > 20 dB 75 Ω (Optional: 50 Ω) ± 10 PPM Internal or External External Clock: ± 100 PPM and < 5% jitter Internal Clock: ± 10 PPM ± 1 x 10-5 Internal Stability 1-6 SNM-1000 Node Control Modem Introduction Revision 3 MN/SNM1000.IOM Table 1-1. General Specifications (Continued) Demodulator Input Power: Desired Carrier Maximum Composite Input Impedance Input Return Loss Carrier Acquisition Range Acquisition Time: 19.2 bps, R=1/2 Sweep Reacquisition Data Clock Outbound (from NMS) -30 to –55 dBm -5 dBm or +40 dBc 75Ω (Optional: 50Ω) > 20 dB ± 35 kHz from 100 Hz to 35 kHz, in 1 Hz steps < 2 seconds 0 to 999 seconds, in 1 second steps Internal, External, Transmit, Recovered RX Continuous transmission, Time Division Multiplex (TDM), 19.2 kbps, QPSK, R=1/2 Burst transmission, (TDMA) Slotted Aloha, 19.2 kbps, QPSK, R=1/2 Inbound (to NMS) Processor M&C Processor Single processor for node control EEPROM variable storage Memory life without power for 10 years. User Port Interface Interface Type Data Rate Data Bits Parity Stop Bits Application EIA-232 19.2 kbps 8 None 1 Remote circuit initiation and termination via command interface; Transmits and receives service terminal messages. Control Interface EFBUS1: Interface Type Data Rate Application EIA-485 9.6 or 19.2 kbps Multi-drop bus used to control external data traffic modems Standard Comtech EF Data remote commands SDM-100, SDM-300/300A, SDM-2020M/D, SDM-6000, SDM-8000, SDM-9000, CDM-550/550T, CDM-600, CiM-550 Compatibility Modems Supported (Not limited to-) 1-7 SNM-1000 Node Control Modem Introduction 1.4.2 Revision 3 MN/SNM1000.IOM Environmental and Physical Table 1-2. Environmental and Physical Parameter Specification 90 to 264 VAC, 47 to 63 Hz Optional: 38 to 64 VDC 30 Watt 1.75H x 19.0W x 14.0D inch (1 RU) (4.4H x 48W x 36D cm) < 11 lbs (< 5 kg) Prime Power Power Dissipation Size Weight Temperature: Operating Storage Humidity Shipping Container Dimensions 0 to 50°C (32 to 122°F) -55 to 70°C (-67 to 158°F) Up to 95%, non-condensing 22W x 20D x 12H inches (56W x 51D x 31H cm) 15 lbs (7 kg) Shipping Weight 1.4.3 DAC Specification The DAC performs all of the DAMA control functions. The DAC provides a set of interface for communicating with an operator, controlling external traffic modems, etc. The DAC communicates with the NMS for call control and M&C. 1.4.4 Burst Mode Specification Table 1-3. Burst Mode Operating Specifications Modulator Specifications Operating Frequency Range Type of Modulation Operating Channel Spacing Phase Noise Digital Data Rate: QPSK, 1/2 Rate Forward Error Correction Data Scrambling 50 to 180 MHz QPSK Less than 0.5 dB degradation operating with 2 adjacent-like channels, each 10 dB higher at 1.3 times the symbol rate, or a minimum of 1.2 times the specified acquisition range In accordance with IESS-308 19.2 kbit/s Convolution encoding, soft-decision K=7 Viterbi decoding Selectable or none, 215-1, synchronous 1-8 SNM-1000 Node Control Modem Introduction 1.4.5 Revision 3 MN/SNM1000.IOM Continuous Mode Specifications Table 1-4. Continuous Mode Operating Specifications Input Power (Desired Carrier) Carrier Acquisition Range Clock Acquisition Range Acquisition Time Directed Sweep: Sweep Range Sweep Center 1.4.6 Demodulator Specifications -30 to -55 dBm (composite) +30 dB power within 2 MHz from desired carrier +40 dB power outside of 2 MHz from desired carrier -5 dBm maximum composite ± 35 kHz ± 100 PPM < 1 second at all data rates 0 to 70000 Hz -35000 to +35000 Hz Viterbi Performance with Noise, Closed Network Table 1-5 lists the Viterbi decoder specifications with noise, closed network, for the Eb/N0 required to achieve 10-5 to 10-8 BER. Table 1-5. Viterbi Performance Eb/N0 (dB) Specification BER 1/2 Rate 10-5 4.6 10-6 5.3 10-7 5.9 -8 10 6.4 1-9 SNM-1000 Node Control Modem Introduction 1.5 Revision 3 MN/SNM1000.IOM Typical Spectral Occupancy Figure 1-3. Typical Spectral Occupancy 1-10 SNM-1000 Node Control Modem Introduction 1.6 Revision 3 MN/SNM1000.IOM Dimensional Envelope 14.0 (36) Figure 1-4. SNM-1000 Dimensional Envelope 1-11 SNM-1000 Node Control Modem Introduction Revision 3 MN/SNM1000.IOM This page is intentionally left blank. 1-12 Chapter 2. INSTALLATION This chapter provides unpacking and installation instructions, and a description of external connections information. CAUTION 2.1 The equipment contains parts and assemblies sensitive to damage by Electrostatic Discharge (ESD). Use ESD precautionary procedures when touching, removing, or inserting PCBs. Unpacking The modem and manual are packaged in pre-formed, reusable, cardboard cartons containing foam spacing for maximum shipping protection. Do not use any cutting tool that will extend more than 1 inch (2.54 cm) into the container. This can cause damage to the modem. CAUTION Unpack the modem as follows: 1. 2. 3. 4. 5. 6. 7. Cut the tape at the top of the carton indicated by OPEN THIS END. Remove the cardboard/foam space covering the modem. Remove the modem, manual, and power cord from the carton. Save the packing material for storage or reshipment purposes. Inspect the equipment for any possible damage incurred during shipment. Check the equipment against the packing list to ensure the shipment is correct. Refer to Section 2.2 for installation instructions. 2–1 SNM-1000 Node Control Modem Installation 2.2 Revision 3 MN/SNM1000.IOM Installation The modem arrives fully assembled from the factory. After unpacking the modem, install the modem as follows: 1. If required, install the mounting bracket in equipment rack (Figure 2-1). Install and tighten the bracket bolts. 2. Loosen the screw with flat washer located on the left side of modem chassis. Mount the modem chassis into the equipment rack and slide the screw with flat washer through the slot of the mounting bracket. Tighten the screw sufficiently to allow the modem chassis to slide in the bracket. 3. Connect the cables to the proper locations on the rear panel. Refer to Section 2.4 for connector pinouts, placement, and function. 4. Connect the primary power cable to the power source. Before turning on the power switch, become familiar with the front panel operation in Chapter 3. 5. If problems exist with the installation, refer to Chapter 5 for troubleshooting information. 2–2 SNM-1000 Node Control Modem Installation Revision 3 MN/SNM1000.IOM Figure 2-1. Installation of the Mounting Bracket 2–3 SNM-1000 Node Control Modem Installation 2.3 Revision 3 MN/SNM1000.IOM Rear Panel Connections The rear panel connectors provide all necessary external connections between the node control modem and other equipment. Figure 2-1 provides a layout of the SNM-1000 rear panel, and Table 2-1 lists these connectors. USER PORT J6 EF BUS 1/2 RX/IF INPUT EX REF J9 AUX 1 FAULT J7 ALARMS J10 CP3 CP2 TX/IF OUTPUT CP1 Figure 2-2. SNM-1000 Rear Panel Table 2-1. Rear Panel Connectors Connection GROUND CONNECTOR AC POWER USER PORT EFBUS1/2 AUXILIARY 1 FAULT ALARM OUTPUT EXTERNAL REFERENCE RX IF INPUT CONNECTOR TX IF OUTPUT CONNECTOR Description The GROUND CONNECTOR (GRN), provides a common chassis ground connection among all of the equipment, via a #10-32 stud. The AC POWER accepts input power for the SNM-1000. (+48 VDC optional) The USER PORT allows the user to configure setup parameters, and to initiate/terminate remotely initiated calls. The EFBUS1/2 in used by the Node Control Modem to control up to 30 Comtech EF Data/MIDAS modems. The AUXILIARY 1 connector (J9), provides MOD and DEMOD (TTL) faults, satellite clock, satellite I&Q, and Automatic Gain Control (AGC) output voltage. The FAULT connector (J7), provides Form C contact closures for fault reporting. Not currently used. The ALARM OUTPUT (J10), provides FORM C contact closures for the purpose of fault reporting. The EXTERNAL REFERENCE (CP3), is a BNC connector for an external reference. The input impedance is 75Ω The RX IF INPUT CONNECTOR (CP2), is a BNC jack that provides a connection for the receive IF signal. The TX IF OUTPUT CONNECTOR (CP1), is a BNC jack that provides a connection for the transmit IF signal. Note: The European EMC Directive (EN55022, EN50082-1) requires using properly shielded cables for DATA I/O. These cables must be double-shielded from end-to-end, ensuring a continuous ground shield. 2–4 SNM-1000 Node Control Modem Installation 2.3.1 Revision 3 MN/SNM1000.IOM EFBUS1/2 Port (J6) The EFBUS port provides two separate 2-wire EIA-485 interfaces wired to a common 9-pin D female connector located on the rear of the MIDAS Node Control Modem. The IF Modulator and IF Demodulator status is also presented for external use. The Modem Control serial port, EFBUS1, is used for control of other Comtech EF Data traffic modems. The signals are described in the following table, with signal names having the MC prefix. The interface is ASYNC, EIA-485/2 wire, and 19.2 kbps. The EFBUS2 port is reserved for communication with future MIDAS traffic modems. Signal Function Ground Demodulator fault Modulator fault Receive/Transmit + Receive/Transmit Receive/Transmit+ Receive/TransmitGround Not used Not used Name MCGND BP_DF BP_MF MS_RD/SD+(EFBUS2) MS_RD/SD-(EFBUS2) MC_RD/SD+(EFBUS1) MC_RD/SD-(EFBUS1) MSGND - 2–5 I/O I/O I/O I/O I/O I/O I/O - MIDAS Conn Pin # 1 2 3 4 5 6 7 8 9 - Signal Level TTL TTL EIA-485 EIA-485 EIA-485 EIA-485 - SNM-1000 Node Control Modem Installation 2.3.2 Revision 3 MN/SNM1000.IOM Fault Connector and Pinouts (J7) The fault connector provides Form C contact closures for fault reporting. The three Form C summary fault contacts, ratings 1A maximum at 24 VDC, 0.5A at 120 VAC, are Modulator, Demodulator, and Common Equipment. The fault interface connection is a 9-pin subminiature female D connector (J7) located on the rear panel of the modem. Screw locks are provided for mechanical security on the mating connector. Refer to Table 2-2 for pinout information. Table 2-2. Fault Connector and Pinouts (J7) Pin # 1 2 3 4 5 6 7 8 9 Signal Function Common equipment is not faulted Common equipment is faulted Modulator is not faulted Modulator is faulted Demodulator is not faulted Demodulator is faulted Name NO COM NC NO COM NC NO COM NC Note: A connection between the common (COM) and normally open (NO) contacts indicates no fault. Refer to Chapter 5 for a discussion of monitored faults. To obtain a system summary fault, connect all the Form C contacts in parallel. 2–6 SNM-1000 Node Control Modem Installation 2.3.3 Revision 3 MN/SNM1000.IOM User Port The User Port provides for serial communications with the modem to allow configuration of setup parameters and user requests for traffic channel assignments. The interface is provided on a 9-pin MINI-DIN female connector (DCE) located on the rear panel of the SNM-1000. Refer to the following listing for User Port specifications. Connector Type Signal Type Rate 9-pin MINI-DIN EIA-232 19.2 kbit/s, 8 bits-no parity-1stop Note: Refer to Appendix A for a description of the software communications parameters and for detailed message format information. Pinout and signal levels are described in Table 2-3. Table 2-3. SNM-1000 User Port Pinout and Signals Signal Function Receiver Ready Receive Data Send Data Terminal Ready Signal Ground Data Mode Request to Send Clear to Send Incoming Call Name RR RD SD TR SG DM RS CS IC Pin # 1 2 3 4 5 6 7 8 9 2–7 I/O O O I I Signal Level EIA-232 EIA-232 EIA-232 EIA-232 O I O O EIA-232 EIA-232 EIA-232 EIA-232 SNM-1000 Node Control Modem Installation 2.3.4 Revision 3 MN/SNM1000.IOM Auxiliary 1 Connector and Pinouts (J9) The auxiliary 1 (AUX 1) connector provides: • • • • MOD and DEMOD (TTL) faults Satellite clock Satellite I&Q Automatic Gain Control (AGC) output voltage The faults are open collector levels that indicate a modulator or demodulator failure. A logic “1” indicates the faulted condition. AGC_OUT is a programmable voltage, 0 to 10V, for a receive signal level between -25 and -60 dBm. AUX 1 connection is a 9-pin female D connector (J9) located on the rear panel of the modem. Screw locks are provided for mechanical security on the mating connector. Refer to Table 2-4 for pinout information Table 2-4. AUX 1 Connector and Pinouts (J9) Pin # 1 2 3 4 5 6 7 8 9 Signal Function Satellite Clock No Connection Satellite Clock + MODULATOR TTL Fault Ground RX Q Channel Eye DEMODULATOR TTL Fault RX 1 Channel Eye Agc Output 2–8 Name SAT_CLKNC SAT_CLK+ MDFLTTTL GRN RX_Q DFFLTTTL Rx_1 AGC SNM-1000 Node Control Modem Installation 2.3.5 Revision 3 MN/SNM1000.IOM Alarms Connector and Pinouts (J10) The alarms connector provides Form C contact closures for alarm reporting. The two Form C summary fault contacts are Modulator and Demodulator. The alarms connection is a 9-pin female D connector (J10) located on the rear panel of the modem. Screw locks are provided for mechanical security on the mating connector. Refer to Table 2-5 for pinout information. Table 2-5. Alarms Connector and Pinouts (J10) Pin # 1 2 3 4 5 6 7 8 9 • • • Signal Function Alarm 1 is faulted Alarm 1 is not faulted Alarm 2 is faulted Alarm 2 is not faulted Alarm 3 is faulted Alarm 3 is not faulted Alarm 1 = Not used Alarm 2 = TX Alarm 3 = RX 2–9 Name NO COM NC NO COM NC NO COM NC SNM-1000 Node Control Modem Installation 2.3.6 Revision 3 MN/SNM1000.IOM AC Power The AC power is supplied to the SNM-1000 by a standard, detachable, non-locking, 3-prong power cord. Refer to the following listing for AC power specifications. 2.3.7 Input power Input voltage 50W max. 90 to 264 VAC, 47 to 63Hz. Connector type Fuse protection Note: Unit switches ranges automatically. IEC 1A slo-blo line and neutral fusing 5 mm type fuses. DC Power For DC supplied units, the DC Power is supplied by terminal lugs installed on the back panel. Refer to the following table for specifications Input power Input voltage Connector type Fuse protection 2.3.8 50W max. 38 to 64 VDC. Terminal Lug 1A slo-blo 5 mm type fuses. TX IF Output Connector (CP1) CP1 is a BNC connector for the transmit IF signal. The standard output impedance is 75Ω (50 Ω optional ), and the output power level is -5 to -30 dBm. In normal operation, the output will be a 8PSK, QPSK/OQPSK, or BPSK-modulated result of the data connector between 50 and 180 MHz, in 1 Hz steps. 2.3.9 RX IF Input Connector (CP2) CP2 is a BNC connector for the RX-IF signal. The standard input impedance is 75Ω (50Ω optional). For normal operation, the desired carrier signal level should be between -30 and -55 dBm. Signals between 50 and 180 MHz are selected and demodulated to produce clock and data. 2.3.10 External Reference (CP3) CP3 is a BNC connector for an EX REF. The input impedance is 75Ω.For normal operation, the reference signal is ≥ 0 dBm. 2.3.11 Ground Connector (GND) A #10-32 stud on the rear panel of the modem is used for connecting a common chassis ground among all equipment. The AC power connector provides the safety ground. 2–10 Chapter 3. OPERATION This chapter describes the operation of the SNM-1000. 3.1 Front Panel The front panel of the SNM-1000 (Figure 3-1) provides for monitoring modem configuration and status. EF BUS 1 S M N NMS POWER P OWER ON EF BUS 2 E D O N NODE TRANSMITTER T RANSMITTER ON H C L E N A CHANNEL CARRIER C ARRIER DETECT ENTER CLEAR SNM-1010 Data SNM-1000 Data Control ControlModem Modem FAULT T L U A F EST MODE TEST Figure 3-1. SNM-1000 Front Panel View The front panel features include: • • • 32- character, two-line LCD display Six-button keypad for local control Eight LED's to provide overall status at a glance These functions are accessible at the front panel by entering on of five pre-defined function select categories or levels: • • • • • Configuration Monitor Faults/Alarms Stored Faults/Alarms Utility 3–1 SNM-1000 Node Control Modem Operation 3.1.1 Revision 3 MN/SNM1000.IOM LED Indicators In addition to the LCD, the LED’s provides the modem status. The DAC board controls LEDs 6 through 10. The LED’s support three states: • • • ON OFF Flashing Table 3-1. SNM-1000 Front Panel Indicators LED POWER ON FAULT TEST MODE TRANSMITTER ON Color Green Red Yellow Green CARRIER DETECT NODE Green Green NMS Green CHANNEL EFBUS1 Green Green EFBUS2 Green Description Power is applied to the modem. A fault condition exists. Flashes when the unit is in a test configuration. Transmitter is currently ON. Indicates the actual condition of the transmitter, as opposed to the programmed condition. In control mode, the indicator blinks since the transmitter is operating in the burst mode. In traffic mode, the indicator is solid green. Decoder is locked. Indicates the node has been enabled or disabled by the NMS. It is ON if the node is enabled, OFF if the node is disabled. (OFF) Node did not receive timing or ACKNOWLEDGE messages from the NMS. (FLASHING) Node received timing message from the NMS, but no ACKNOWLEDGE message was received. (ON) Node received timing and ACKNOWLEDGE from the NMS. (OFF) Not used on SNM-1000. (OFF) Indicates operational status of externally connected traffic modems. (ON) OK (FLASHING) Fault indication. (OFF) Indicates operational status of externally connected traffic modems. (ON) OK (FLASHING) Fault indication. 3–2 SNM-1000 Node Control Modem Operation 3.1.2 Revision 3 MN/SNM1000.IOM Front Panel Keypad The front panel keypad operates in monitor mode only, and permits local operation of the modem. The keypad consists of six keys (Figure 3-2). ENTER CLEAR Figure 3-2. Keypad Each key provides one or more logical functions. These functions are defined in the following table. ENTER Left and Right Diamond Keys This key is used to select a displayed function or to execute a modem configuration change. This key is used to back out of a selection or to cancel a configuration change which has not been executed using [ENTER]. Pressing [CLEAR] generally returns the display to the previous selection. These keys are used to move to the next selection or to move the cursor for certain functions. Top and Bottom Diamond Keys Note: Throughout this chapter, [←] and [→] are used to indicate left and right diamond keys. These keys are used primarily to change configuration data (numbers). At times, they are also used to move from one section to another. CLEAR Note: Throughout this chapter, [↑] and [↓] are used to indicate top and bottom diamond keys. The modem responds by beeping whenever a key is pressed: • A single beep indicates a valid entry and the appropriate action was taken. • A double beep indicates an invalid entry or a parameter is not available for operation. 3–3 SNM-1000 Node Control Modem Operation 3.2 Revision 3 MN/SNM1000.IOM Menu System Use the Main menu in Figure 3-3 as a quick reference for accessing the modem functions. When the modem power is applied, the base level of the menu system displays the sign-on message: • • Line 1 of the sign-on message is the modem type. Line 2 is the node address. The main level of the menu system is Function Select. To access this level from the sign-on message, press the [←] or [→] keys. From the Function Select menu, select one of the functional categories: • • • • • Configuration Monitor Faults/Alarms Stored Faults/Alarms Utility Press [←] or [→] to move from one selection to another. When line 2 displays the desired function, select that level by pressing [ENTER]. After entering the appropriate functional level, press [←] or [→] to move to the desired function. To view the modem’s configuration, enter the Configuration level from the Function Select menu. Once in the Configuration menu, press [←] or [→] to scroll through the Configuration menu selection: • • • • • Modulator Demodulator Interface Save Recall Press [ENTER] to select the desired Configuration menu option. To view the options for the selected configuration parameters, press [←] or [→]. Notes: 1. Menus or commands that are specific to certain modem configurations are only accessible after selecting the appropriate modem configuration. This prevents incompatible parameters from accidentally being selected. 3. All of the windows are accessible in the Custom mode. Take caution not to select incompatible parameters, as the modem does not shut out incompatible command choices in the Custom mode. 3–4 SNM-1000 Node Control Modem Operation 3.3 Revision 3 MN/SNM1000.IOM Front Panel Menu SELECT CONFIGURATION MONITOR FAULTS/ALARMS STORED FLTS/ALMS UTILITY ASSIGNED TRANSMIT FILTERS TX-IF FREQUENCY TX-IF OUTPUT TX POWER LEVEL SCRAMBLER DIFF ENCODER CARRIER MODE MODEM REFERENCE MODULATOR DEMODULATOR INTERFACE SAVE RECALL RAW BER CORRECTED BER EB/NO RECEIVE SIGNAL SWEEP FREQUENCY BUFFER FILL ASSIGNED RECEIVE FREQUENCY RX-IF FREQUENCY DESCRAMBLER DIFF DECODER RF LOOP BACK IF LOOP BACK BER THRESHOLD SWEEP CENTER SWEEP RANGE REACQUISITION MODULATOR DEMODULATOR TX INTERFACE RX INTERFACE COMMON MODULATOR DEMODULATOR TX INTERFACE RX INTERFACE COMMON UNAVAILABLE SECONDS CLEAR TX CLOCK SOURCE TX CLOCK PHASE EXT-CLK FREQ BUFFER CLOCK RX CLOCK PHASE B-BAND LOOP BACK BUFFER SIZE BUFFER CENTER LOOP TIMING MODULATOR DEMODULATOR INTERFACE NETWORK SYSTEM MODEM TYPE ASSIGNED TRANSMIT FILTERS MOD POWER OFFSET MODULATOR TYPE ENCODER TYPE TX BPSK OREDERING MOD SPECTRUM TX MODE TX SYMBOL RATE FACTORY SETUP (NOT APPLICABLE) ASSIGNED RECEIVE FILTERS DEMODULATOR TYPE DECODER TYPE RX BPSK ORDERING DEMOD SPECTRUM RX MODE RX SYMBOL RATE TX OVERHEAD TYPE RX OVERHEAD TYPE TX TERR INTERFACE RX TERR INTERFACE BUFFER PROGRAM FRAMING STRUCTURE RTS TX-IF CNTRL TX DATA PHASE RX DATA PHASE CTS DELAY RELEASE CHANNELS 1-15 CHANNELS 16-31 TIME/DATE REMOTE BAUD RATE REMOTE ADDRESS REMOTE TYPE OPERATION MODE YEAR DISPLAY TEST MODE STATUS LAMP TEST SELF TEST DISPLAY CONTRAST M&C FIRMWARE BOOT FIRMWARE FPGA FIRMWARE EXT AGC: MAX PWR EXT AGC: MIN PWR MASTER RESET MODEM TYPE MODEM EMULATION REV EMULATION MODEM OPTIONS CARD #1 CARD #2 CARD #3 LOCAL MODEM AUPC MODEM SERIAL CONFIGURATION Figure 3-3. Main Menu 3–5 (NOT APPLICABLE) (NOT APPLICABLE) (NOT APPLICABLE) SNM-1000 Node Control Modem Operation Revision 3 MN/SNM1000.IOM Note: The following menus show the modem functions that are available operating as a DAMA Controller (DAC). The default settings for the DAMA Controller are shown underlined. 3.4 OPENING SCREEN SNM 1000 NA 2000 3.4.1 FUNCTION SELECT:CONFIGURATION FUNCTION SELECT CONFIGURATION 3.4.1.1 CONFIGURATION:MODULATOR CONFIGURATION MODULATOR 3.4.1.1.1 MODULATOR: CODE RATE/TYPE TX-X QPSK 1/2 19.200 kbps Transmit code rate/type as follows: TX-A QPSK 1/2 19.200 kbps TX-B QPSK 1/2 19.200 kbps TX-C QPSK 1/2 19.200 kbps TX-D QPSK 1/2 19.200 kbps TX-V QPSK 1/2 19.200 kbps Upon entry, the current transmitter rate is displayed. 3–6 SNM-1000 Node Control Modem Operation 3.4.1.1.2 Revision 3 MN/SNM1000.IOM MODULATOR:TX-IF FREQENCY TX-IF FREQUENCY 70.000000 MHz Displays the modulator TX IF frequency between 50 and 180 MHz, in 1 Hz steps. Upon entry, the current transmitter frequency is displayed with the flashing cursor on the first character. Press [← ] or [→] to move the flashing cursor, and [↑ ] or [↓ ] to increase or decrease the digit at the flashing cursor. Press <ENTER> to execute the change. 3.4.1.1.3 MODULATOR:TX-IF OUTPUT TX-IF OUTPUT ON Displays the modulator output status, either On or Off. 3.4.1.1.4 MODULATOR:TX POWER LEVEL TX POWER LEVEL -20.0 dBm Displays the modulator output level from: • -5.0 to –30.0 dBm (Normal Range) Upon entry, the current output power level is displayed with the flashing cursor on the first character. Press [← ] or [→] to move the flashing cursor, and [↑ ] or [↓ ] to increase or decrease the digit at the flashing cursor. Press <ENTER> to execute the change. 3–7 SNM-1000 Node Control Modem Operation 3.4.1.1.5 Revision 3 MN/SNM1000.IOM MODULATOR:SCRAMBLER SCRAMBLER ON Displays the scrambler status, either On or Off. 3.4.1.1.6 MODULATOR:DIFF. ENCODER DIFF. ENCODER OFF Displays the differential encoder status, either On or Off. 3.4.1.1.7 MODULATOR:CARRIER MODE CARRIER MODE NORMAL-MODULATED Displays the carrier mode of operation as follows: Normal-Modulated Center-CW Offset-CW Dual-CW The carrier mode in normally in this Off position. Generates a carrier at the current modulator frequency. This can be used to measure the output frequency. Generates a single, upper, side-band-suppressed carrier signal. The upper sideband is at one-quarter of the symbol rate from the carrier. When inverted spectrum is selected, this generates a single, lower, side-band-suppressed carrier. Generates a dual side-band suppressed carrier signal. Side-bands are at one-half of the symbol rate from the carrier. This is used to check the channel balance and carrier null. Upon entry, the current carrier mode is displayed with the flashing cursor on the first character. Press [↑ ] or [↓ ] to change the carrier mode. Press <ENTER> to execute the change. 3–8 SNM-1000 Node Control Modem Operation 3.4.1.1.8 Revision 3 MN/SNM1000.IOM MODULATOR:MODEM REFERENCE MODEM REFERENCE INTERNAL Displays the following references to the modulator: • • INTERNAL EXT1, EXT5, EXT10 and EXT20 MHz EXT REF (CP3) Note: If any EXT REF is selected for the modem reference and there is no input to CP3, the modem will detect an alarm and switch to the INTERNAL clock. Upon entry, the current modem reference is displayed with the flashing cursor on the first character. Press [↑ ] or [↓ ] change the modem reference. Press <ENTER> to execute the change. 3.4.1.2 CONFIGURATION:DEMODULATOR CONFIGURATION DEMODULATOR 3.4.1.2.1 DEMODULATOR:CODE RATE/TYPE RX-X QPSK 1/2 19.200 kbps Receive code rate/type as follows: RX-A QPSK 1/2 19.200 kbps RX-B QPSK 1/2 19.200 kbps RX-C QPSK 1/2 19.200 kbps RX-D QPSK 1/2 19.200 kbps RX-V QPSK 1/2 19.200 kbps Upon entry, the current transmitter rate is displayed. Press [↑ ] or [↓ ] change the assigned filter. Press <ENTER> to execute the change. 3–9 SNM-1000 Node Control Modem Operation 3.4.1.2.2 Revision 3 MN/SNM1000.IOM DEMODULATOR:RX-IF FREQUENCY RX-IF FREQUENCY 70.000000 MHZ Displays the demodulator receive frequency, between 50 and 180 MHz, in 1 Hz steps. 3.4.1.2.3 DEMODULATOR:DESCRAMBLER DESCRAMBLER ON Displays the descrambler status, either On or Off. 3.4.1.2.4 DEMODULATOR:DIFF.DECODER DIFF. DECODER ON Displays the differential decoder status, either On or Off. 3.4.1.2.5 DEMODULATOR:RF LOOP BACK RF LOOP BACK OFF Displays the RF loop back status, either On or Off. 3.4.1.2.6 DEMODULATOR:IF LOOP BACK IF LOOP BACK OFF Displays the IF loop back status, either On or Off. 3–10 SNM-1000 Node Control Modem Operation 3.4.1.2.7 Revision 3 MN/SNM1000.IOM DEMODULATOR:BER THRESHOLD BER THRESHOLD NONE Displays the BER threshold . If the BER threshold set is exceeded, a receive fault will be indicated by the modem status indicators. BER threshold may be set from 1.0 E-3 to 1.0 E-8, or may be disabled by specifying NONE. 3.4.1.2.8 DEMODULATOR:SWEEP CENTER SWEEP CENTER + 0 HZ Displays the sweep center frequency for the directed sweep function. When in directed sweep, the value from the sweep monitor screen (when the modem was last locked) should be entered for the sweep center frequency. The sweep center frequency can be set in the range from –35000 to +35000 Hz. Default: 0 Hz. Upon entry, the current sweep center frequency is displayed with the flashing cursor on the first character. Press [← ] or [→] to move the flashing cursor, and [↑ ] or [↓ ] to increase or decrease the digit at the flashing cursor. Press <ENTER> to execute the change. 3.4.1.2.9 DEMODULATOR:SWEEP RANGE SWEEP RANGE 30000 HZ Displays the overall travel of the sweep width range during acquisition in the directed sweep mode. The sweep width may be set from 0 to 70000 Hz. Default: 30000 Hz. When set at 70000 Hz, the modem is in Normal acquisition mode. The smaller the range, the faster the modem will lock, provided the receive carrier center frequency is within the RX-IF frequency sweep range. 3–11 SNM-1000 Node Control Modem Operation 3.4.1.2.10 Revision 3 MN/SNM1000.IOM DEMODULATOR:REACQUISITION REACQUISITION 0 SECONDS Displays the sweep reacquisition mode time duration. This is the time that the modem will remain in a narrow sweep after loss of acquisition. After this timer runs out, the modem will return to the normal acquisition sweep. The reacquisition time is 0 to 999 seconds. Default: 0 seconds. 3.4.1.3 CONFIGURATION:INTERFACE CONFIGURATION INTERFACE 3.4.1.3.1 INTERFACE:TX CLOCK SOURCE TX CLOCK SOURCE SCT (INTERNAL) Programs the clock source for the modem transmitter clock to the following configurations: TX Terrestrial Sets the TX clock to recover timing from the incoming clock/data. SCT (INTERNAL) Sets the TX clock to operate from the modem internal clock (this also is the fallback clock). Note: When loop timing is enabled, SCT (LOOP) is displayed instead of SCT (INTERNAL). EXT CLOCK Sets the TX clock to operate from the EXT-CLK clock. Transmit clock source must be phase/frequency locked to the data that is being transmitted. The correct frequency must be programmed into EXT-CLK FREQ. Upon entry, the current TX clock source is displayed. Press [↑ ] or [↓ ] to make the selection. Press <ENTER> to execute the change. 3–12 SNM-1000 Node Control Modem Operation 3.4.1.3.2 Revision 3 MN/SNM1000.IOM INTERFACE:TX CLOCK PHASE TX CLOCK PHASE NORMAL Programs the TX clock phase to AUTO, NORMAL, INVERT. Upon entry, the current TX clock phase is displayed. Press [↑ ] or [↓ ] to make the selection. When AUTO is s elected, the modem will automatically select NORMAL or INVERT to properly phase the TX clock with the TX data. Press <ENTER> to execute the change. 3.4.1.3.3 INTERFACE:EXT-CLK FREQ EXT-CLK FREQ 1544.000 KHZ Programs the external reference clock input frequency between 8.0 kHz and 10.0 MHz. Default: 1544 kHz. Note: The clock rate must be equal to the data rate unless the asymmetrical loop timing option is present. This clock frequency can be any multiple of 600 Hz from 2.4 to 64 kHz, and can be any multiple of 8 kHz from 64 kHz to 4.376 MHz. This can be used for the Doppler/plesiochronous buffer reference. It can be a reference to SCT. Use the master clock input on J8 for the external master reference. The EXT REF on CP3 only allows for 1, 5, 10, and 20 MHz external reference input. Upon entry, the current setting for the external reference is displayed. Press [←] or [→] to increment or decrement the digit at the flashing cursor. Press [ENTER] to execute the change. 3–13 SNM-1000 Node Control Modem Operation 3.4.1.3.4 Revision 3 MN/SNM1000.IOM INTERFACE:BUFFER CLOCK BUFFER CLOCK RX (SATELLITE) Programs the interface buffer output clock to one of the following modes: RX (SATELLITE) Sets the output buffer clock to the satellite clock. (This is a Bypass.) SCT (INTERNAL) Sets the buffer clock to operate from the modem internal clock. This is also the fallback clock. EXT. CLOCK Sets this clock source to the external clock. TX TERRESTRIAL Sets the buffer output clock to recover timing from the incoming TX data clock. INSERT CLOCK Selects the recovered clock from the insert send data input received from the terrestrial equipment. Upon entry, the current setting of the plesiochronous buffer clock is displayed. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. 3.4.1.3.5 INTERFACE:RX CLOCK PHASE RX CLOCK PHASE NORMAL Programs the RX clock phase to Normal or Inverted. Upon entry, the status of the RX Clock is displayed. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. 3–14 SNM-1000 Node Control Modem Operation 3.4.1.3.6 Revision 3 MN/SNM1000.IOM INTERFACE:B-BAND LOOP BACK B-BAND LOOP BACK OFF Programs the modem for baseband loopback operation, On or Off. When baseband loopback is turned on, the data and timing signals are switched from the demodulator to the modulator on the modem side of the interface. The DTE baseband signals are also looped back from the transmitter data and clock to receiver data and clock on the customer side of the interface. This is a bi-directional loopback of the baseband data. Refer to figure 3-4 for a block diagram of baseband loopback operation. Upon entry, the status is displayed. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. CUSTOMER DATA IBS OR IDR ENCODER/ MODULATOR TRANSMIT RF EQUIPMENT INTERFACE ANTENNA REMOTE SERIAL INTERFACE MICROCOMPUTER POWER SUPPLY AC POWER FAULT INDICATORS DEMODULATOR/ DECODER RECEIVE RF EQUIPMENT SATELLITE MODEM Figure 3-4. Baseband Loopback Note: When baseband loopback is turned on, data is looped back on the customer side of the interface. This is a bi-directional loopback of the baseband data. This test mode will verify the customer equipment and cabling between the modem and the customer equipment. The baseband loopback is not bi-directional in D&I. 3–15 SNM-1000 Node Control Modem Operation 3.4.1.3.7 Revision 3 MN/SNM1000.IOM INTERFACE:BUFFER SIZE BUFFER SIZE 384 BITS Sets the size of the buffer, 32 to 262144 bits, 1 to 99 mS , or 0 (Bypass) Upon entry, the current buffer length is displayed. Press [↑] or [↓] to select the desired buffer size. The buffer size is displayed in seconds or bits. Enter the Utility Interface menu to change the buffer units to seconds or bits. • • • If selecting seconds, choose from 1 to 99 ms, in increments of 1 ms, or 0 (Bypass). If selecting bits, choose from 32 to 262144 bits, in increments of 16 bits. Press [ENTER] to execute the change. Note: To have the modem calculate the plesiochronous shift, set the buffer units to ms. When a specific buffer depth is desired, set the buffer units to bits. Select bits or ms from the Utility Interface menu. 3.4.1.3.8 INTERFACE:BUFFER CENTER BUFFER CENTER YES/NO This configuration function is used to center the buffer. Choosing YES centers the buffer. Press <ENTER> twice to center the buffer. 3–16 SNM-1000 Node Control Modem Operation 3.4.1.3.9 Revision 3 MN/SNM1000.IOM INTERFACE:LOOP TIMING LOOP TIMING OFF The SCT output will become phase-locked to the RX satellite clock. TX and RX data rates must be equal unless the asymmetrical loop timing option is On or Off. 3.4.1.4 • Upon entry, the status is displayed. • Press [↑] or [↓] to make the selection. • Press [ENTER] to execute the change. CONFIGURATION:SAVE CONFIGURATION SAVE The Configuration Save menu allows programming of configuration parameters into memory on the M&C. There are five memory locations that may be used to store specific configuration setups that are used frequently. After changing the configuration parameters to the desired settings, enter the Configuration Save menu and select memory location 1 through 5. Press [ENTER] to execute the save. 3.4.1.5 CONFIGURATION:RECALL CONFIGURATION RECALL The Configuration Recall menu allows the user to recall a previously saved configuration setup. Upon entry, select memory location 1 through 5 by pressing [↑] or [↓]. Press [ENTER] to execute the recall. 3–17 SNM-1000 Node Control Modem Operation 3.4.2 Revision 3 MN/SNM1000.IOM FUNCTION SELECT:MONITOR FUNCTION SELECT MONITOR 3.4.2.1 MONITOR:RAW BER RAW BER NO DATA Displays the current BER or “No Data” (if carrier is not locked). Range: < m.m E-e to > m.m E-e. Note: Low limit is based on performance. High limit is based on data/code rate. 3.4.2.2 MONITOR:CORRECTED BER CORRECTED BER NO DATA Displays the current corrected BER or “No Data” (if carrier is not locked). Range: 1.0 E-3 to 1.0 E-12. Note: Low limit is based on performance. High limit is 1.0 E-12. 3–18 SNM-1000 Node Control Modem Operation 3.4.2.3 Revision 3 MN/SNM1000.IOM MONITOR:EB/NO EB/NO 16.0 Displays the current Eb/N0 or “No Data” (if carrier is not locked). Range: 2.0 to 16.0 dB. Note: Low limit is based on the data rate. High limit is 16.0 dB. 3.4.2.4 MONITOR:RECEIVE SIGNAL RECEIVE SIGNAL -60.0 DBM Displays the current receive signal level. Range: -25.0 to -60.0 dBm. 3.4.2.5 MONITOR:SWEEP FREQUENCY SWEEP FREQUENCY + 0 HZ Displays the current offset frequency or “No Data” (if carrier is not locked). Range: -35,000 to +35,000 Hz. 3.4.2.6 MONITOR:BUFFER FILL BUFFER FILL 50% Displays the current plesiochronous buffer fill status percent. Range: 1 to 99%. 3–19 SNM-1000 Node Control Modem Operation 3.4.3 Revision 3 MN/SNM1000.IOM FUNCTION SELECT:FAULTS/ALARMS FUNCTION SELECT FAULTS/ALARMS The Faults/Alarms menu is accessible from the Function Select menu. The Faults/Alarms are similar to monitor functions, as they display the current fault status of the group being displayed. Press [←] or [→] to move between the following Faults/Alarms groups: • • • • • Modulator Demodulator Transmit Interface Receive Interface Common Equipment Line 2 of the display shows the current Faults/Alarms status in real time. For each parameter monitored, fault status is displayed as one of the following: • • • “–” indicates that no fault or alarm exists. “+” indicates that a fault exists, and will cause switching in a redundant system. Reversed contrast “+” indicates an active alarm. Unlike faults, alarms do not cause switching to occur. To display labels for individual faults or alarms, press [ENTER]. Press [←] or [→] to move the flashing cursor to make the selection. The label for that Fault/Alarm is then displayed on line 1 of the display. Press [CLEAR] to exit this level of operation and return to the previous level. The following sections outline the faults and alarms monitored and displayed in each group. 3–20 SNM-1000 Node Control Modem Operation 3.4.3.1 Revision 3 MN/SNM1000.IOM FAULTS AND ALARMS:MODULATOR MODULATOR +-------- 3.4.3.2 IF SYNTHESIZER Modulator IF synthesizer fault. DATA CLOCK SYN Transmit clock synthesizer fault. Indicates the internal Voltage Controlled Oscillator (VCO) has not locked to the incoming data clock. I CHANNEL I channel data activity fault. Q CHANNEL Q channel data activity fault. AGC LEVEL TX IF AGC level fault. MODEM REF ACT MODEM REF activity alarm. MODEM REF PLL MODEM REF PLL not locked. MODULE Modulator module fault. CONFIGURATION Modulator configuration fault. FAULTS AND ALARMS:DEMODULATOR DEMODULATOR +-++----CARRIER DETECT IF SYNTHESIZER Carrier detect fault. Indicates the decoder is not locked. Demodulator IF synthesizer fault. Indicates the IF synthesizer is not locked. I CHANNEL I channel activity fault. Indicates a loss of activity in the I channel of the quadrature demodulator. Q CHANNEL Q channel activity fault. Indicates a loss of activity in the Q channel of the quadrature demodulator. BER THRESHOLD Secondary alarm result of the BER threshold set in the DEMOD Configuration menu. MODULE Demodulator/decoder module fault. CONFIGURATION Demodulator/decoder configuration fault. 3–21 SNM-1000 Node Control Modem Operation 3.4.3.3 Revision 3 MN/SNM1000.IOM FAULTS AND ALARMS:TX INTERFACE TX INTERFACE --------TX DROP Not Applicable. TX DATA/AIS Data or AIS. When data fault is selected in the Interface Configuration menu, the fault indicates a data stable condition. This indicates the data is all 1s or 0s (i.e., data is not transitioning). When AIS is selected, the alarm indicates the data is all 1s from customer data input to the modem. When None is selected in the Interface Configuration menu, the TX Data/AIS Fault/Alarm is not activated. Note: AIS is an alarm, not a switching fault. TX CLK PLL Transmitter phase-locked loop fault. Indicates the transmitter Phase-Locked Loop (PLL) is not locked. TX CLK ACTIVITY Activity detector alarm of the selected interface transmit clock. The interface will fall back to the internal clock when this alarm is active. TX AUDIO 1 CLIP Not Applicable. TX AUDIO 2 CLIP Not Applicable. CONFIGURATION TX interface configuration fault. Indicates the TX interface cannot execute a programmed configuration parameter. 3–22 SNM-1000 Node Control Modem Operation 3.4.3.4 Revision 3 MN/SNM1000.IOM FAULTS AND ALARMS:RX INTERFACE RX INTERFACE --------BUFFER UNDERFLOW Buffer underflow alarm. Indicates that a buffer underflow has occurred. BUFFER OVERFLOW Buffer overflow alarm. Indicates that a buffer overflow has occurred. RX DATA/AIS Data or AIS. When data fault is selected in the Configuration Interface menu, the fault indicates a data stable condition. This indicates the data coming from the satellite is all 1s or 0s (i.e., data is not transitioning). When AIS is selected, the Alarm indicates the data is all 1s from the satellite. When None is selected in the Configuration Interface menu, the RX Data/AIS Fault/Alarm is not activated. Note: AIS is an alarm, not a switching fault. FRAME BER Frame BER fault. Indicates that the frame BER exceeds 1-3. BACKWARD ALARM Not Applicable. BUFFER CLK PLL Buffer clock phase-locked loop fault. Indicates the buffer clock PLL is not locked. BUFFER CLK ACT Activity detector alarm of the selected interface receive clock. The interface will fall back to the satellite clock when this fault is active. DEMUX LOCK DEMUX lock fault. Indicates that the DEMUX is not locked. RX 2047 LOCK RX 2047 lock alarm. Indicates the RX 2047 data pattern is not locked. Note: This alarm is only active if RX 2047 is ON. BUFFER FULL Buffer full alarm. Indicates the buffer is less than 10% or greater than 90% full. RX INSERT Not Applicable. RX AUDIO 1 CLIP Not Applicable. RX AUDIO 2 CLIP Not Applicable. CONFIGURATION Configuration alarm. 3–23 SNM-1000 Node Control Modem Operation 3.4.3.5 Revision 3 MN/SNM1000.IOM FAULTS AND ALARMS:COMMON COMMON --------- BATTERY/CLOCK Battery or clock fault. -12V SUPPLY -12V power supply fault. +12V SUPPLY +12V power supply fault. +5V SUPPLY +5V power supply fault. SELF TEST Not Applicable. CONTROLLER Controller fault. Typically indicates the controller has gone through a power on/off cycle. INTERFACE MODULE Interface module fault. Typically indicates that the interface module is missing or will not program. 3–24 SNM-1000 Node Control Modem Operation 3.4.4 Revision 3 MN/SNM1000.IOM FUNCTION SELECT:STORED FLTS/ALMS FUNCTION SELECT STORED FLTS/ALAMS The modem stores the first 10 (Flt0 through Flt9) occurrences of fault status changes in each of the following major fault categories: • • • • • Modulator Demodulator Transmit Interface Receive Interface Common Equipment Each fault status change is stored with the time and date of the occurrence of the fault. Stored faults may be viewed by entering the stored faults level from the Select menu. Stored faults are not maintained through controller power-on reset cycle. However, the last known time is maintained in nonvolatile Random Access Memory (RAM). On power-up, a common equipment fault is logged (Flt0) with that last known time and date. In addition, on power-up, an additional common equipment fault is logged (Flt1) to indicate the power-up time and date. The power-down and power-up times are logged as common equipment fault 0 and common equipment fault 1, respectively. On entering the stored faults level, press [←] or [→] to move between the fault groups and the “Clear Stored Faults ?” selections. The time and date of the first stored fault status (Flt0) for the selected group will be displayed alternately on line 2 of the display. Press [↑] or [↓] to cycle through the selected group has stored fault status (Flt0 through Flt9). To display the fault status associated with the displayed time and date, press [ENTER]. To identify the fault, press [←] or [→] to move the flashing cursor. To clear the currently logged stored faults, press [ENTER] when the “Clear Stored Faults/Yes?” selection is displayed. Note: Faults are stored in time sequence, with the oldest fault status change stored in Flt0, and the most recent in Flt9. Only the first 10 fault status changes are stored. All stored faults, which have not been used, indicate “No Fault” on the display. 3–25 SNM-1000 Node Control Modem Operation 3.4.4.1 Revision 3 MN/SNM1000.IOM STORED FLTS/ALMS:MODULATOR MODULATOR STORED TIME/DATE X (FAULT LABEL) --------IF Synthesizer DATA CLOCK SYN I CHANNEL Q CHANNEL AGC LEVEL MODEM REF ACT MODEM REF PLL MODULE CONFIGURATION 3.4.4.2 STORED FLTS/ALMS:DEMODULATOR DEMODULATOR STORED TIME/DATE X (FAULT LABEL) --------CARRIER DETECT IF SYNTHESIZER I CHANNEL Q CHANNEL BER THRESHOLD MODEL CONFIGURATION 3–26 SNM-1000 Node Control Modem Operation 3.4.4.3 Revision 3 MN/SNM1000.IOM STORED FLTS/ALMS:TX INTERFACE TX INTERFACE STORED TIME/DATE X (FAULT LABEL) --------TX DROP TX DATA/AIS TX CLK PLL TX CLK ACTIVITY TX AUDIO 1 CLIP TX AUDIO 2 CLIP CONFIGURATION 3.4.4.4 (Not Applicable) (Not Applicable) (Not Applicable) STORED FLTS/ALMS:RX INTERFACE RX INTERFACE STORED TIME/DATE X (FAULT LABEL) --------BUFFER UNDERFLOW BUFFER OVERFLOW RX DATA/AIS FRAME BER BACKWARE ALARM BUFFER CLK PLL BUFER CLK ACT DEMUX LOCK RX 2047 LOCK BUFFER FULL RX INSERT RX AUDIO 1 CLIP RX AUDIO 2 CLIP CONFIGURATION (Not Applicable) (Not Applicable) (Not Applicable) (Not Applicable) 3–27 SNM-1000 Node Control Modem Operation 3.4.4.5 Revision 3 MN/SNM1000.IOM STORED FLTS/ALMS:COMMON COMMON STORED TIME/DATE X (FAULT LABEL) --------BATTERY/CLOCK -12 VOLT SUPPLY +12 VOLT SUPPLY +5 VOLT SUPPLY SELF TEST CONTROLLER INTERFACE MODULE 3.4.4.6 (Not Applicable) STORED FLTS/ALMS:UNAVL SECONDS UNAVAL SECONDS STORED TIME/DATE X Note: Reed-Solomon option only. A fault is indicated if the Reed-Solomon Codec could not correct bit errors in one block of serialized data in any given second. 3.4.4.7 STORED FLTS/ALMS:CLEAR CLEAR ?? STORED FAULTS 3–28 SNM-1000 Node Control Modem Operation 3.4.5 Revision 3 MN/SNM1000.IOM FUNCTION SELECT:UTILITY FUNCTION SELECT UTILITY The Function Select Utility menu is divided into the following categories: • • • • • • • Modulator Demodulator Interface Network System Modem Type Factory Setup The menu information includes: • • • • • • • • • • • Filter Types Terrestrial Interface Types Mod/Demod Types Time/Date Encoder/Decoder Types Modem Types Current Firmware Test Mode Status Overhead Type Revision Emulation Lamp Test Provisions are also made for assigning data and code rates to the modulator and demodulator. After entering the Utility menu, press [←] or [→] to select the desired sub-menu, and press [ENTER]. Notes: 1. The Utility Factory Setup menu is for Comtech EF Data service personnel only. Entering this menu without authorization may cause the modem to operate incorrectly. 2. Changes in the Utility menu may cause changes in other front panel menus. 3–29 SNM-1000 Node Control Modem Operation 3.4.5.1 Revision 3 MN/SNM1000.IOM UTILITY:MODULATOR UTILITY MODULATOR 3.4.5.1.1 MODULATOR: ASSIGN TRANSMIT FILTERS ASSIGN TRANSMIT FILTERS Transmit code rate/type as follows: TX-A QPSK 1/2 19.200 kbps TX-B QPSK 1/2 19.200 kbps TX-C QPSK 1/2 19.200 kbps TX-D QPSK 1/2 19.200 kbps TX-V QPSK 1/2 19.200 kbps Upon entry, the current transmitter rate is displayed. 3.4.5.1.2 MODULATOR:MOD POWER OFFSET MODEM POWER OFFSET + 0.0 DB Modulator power offset adjust. Offsets the modulator output power readout in the Configuration menu. This feature does not actually change the modulator power level, but displays an offset value in the monitor. The modulator power offset range is -99.9 to +99.9 dB, in 0.1 dB steps. Note: Anything except 0.0 dB will cause ADJ to be displayed for the TX power level. 3–30 SNM-1000 Node Control Modem Operation 3.4.5.1.3 Revision 3 MN/SNM1000.IOM MODULATOR:MODULATOR TYPE MODULATOR TYPE INTELSAT OPEN Transmit filter type select. Select one of the following for network filtering: Note: Change in EFD, ASYNC, or Custom modem types only. INTELSAT OPEN EFD CLOSED CSC CLOSED FDC CLOSED SDM-51 COMPATIBLE Notes: 1. TX filter type is selectable only when CUSTOM is selected for the modem type in the Utility Modem Type menu. 2. Code Rate 3/4 is not compatible with a combination of a CSC CLOSED Modulator Type and Sequential Encoder. 3.4.5.1.4 MODULATOR:ENCODER TYPE ENCODER TYPE VITERBI Encoder type selection. Select VITERBI or SEQUENTIAL encoder type. Notes: 1. Change in EFD, ASYNC, or Custom modem types only. 2. A Sequential Encoder Type and a 3/4 Code Rate combination is not compatible with a CSC CLOSED Modulator Type. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3–31 SNM-1000 Node Control Modem Operation 3.4.5.1.5 Revision 3 MN/SNM1000.IOM MODULATOR:TX BPSK ORDERING TX BPSK ORDERING STANDARD Transmit BPSK bit ordering selection. Select STANDARD or NON-STANDARD Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3.4.5.1.6 MODULATOR:MOD SPECTRUM MOD SPECTRUM NORMAL Programmable vector rotation allows the operator to select NORMAL or INVERT for spectrum reversal of the I and Q baseband channels. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change 3.4.5.1.7 MODULATOR:TX MODE TX MODE BURST Selection of BURST or CONTINUOUS. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3.4.5.1.8 MODULATOR:TX SYMBOL RATE TX SYMBOL RATE 19.200 KSPS Status only. Selects TX Symbol Data rate. 3–32 SNM-1000 Node Control Modem Operation 3.4.5.2 Revision 3 MN/SNM1000.IOM UTILITY:DEMODULATOR UTILITY DEMODULATOR 3.4.5.2.1 DEMODULATOR:ASSIGN TRANSMIT FILTERS ASSIGN TRANSMIT FILTERS Receive code rate/type as follows: RX-A QPSK 1/2 19.200 kbps RX-B QPSK 1/2 19.200 kbps RX-C QPSK 1/2 19.200 kbps RX-D QPSK 1/2 19.200 kbps RX-V QPSK 1/2 19.200 kbps Upon entry, the current transmitter rate is displayed. 3.4.5.2.2 DEMODULATOR: DEMODULATOR TYPE DEMODULATOR TYPE INTELSAT OPEN Transmit filter type select. Select one of the following for network filtering: Note: Change in EFD, ASYNC, or Custom modem types only. INTELSAT OPEN EFD CLOSED CSC CLOSED FDC CLOSED SDM-51 COMPATIBLE Notes: 1. TX filter type is selectable only when CUSTOM is selected for the modem type in the Utility Modem Type menu. 2. Code Rate 3/4 is not compatible with a combination of a CSC CLOSED Modulator Type and Sequential Encoder. 3–33 SNM-1000 Node Control Modem Operation 3.4.5.2.3 Revision 3 MN/SNM1000.IOM DEMODULATOR:DECODER TYPE DECODER TYPE VITERBI Decoder type selection. Select VITERBI or SEQUENTIAL decoder type. Notes: 1. Change in EFD, ASYNC, or Custom modem types only. 2. A Sequential Decoder Type and a 3/4 Code Rate combination is not compatible with a CSC CLOSED Modulator Type. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3.4.5.2.4 DEMODULATOR:RX BPSK ORDERING RX BPSK ORDERING STANDARD Receive BPSK bit ordering selection. Select STANDARD or NON-STANDARD Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3.4.5.2.5 DEMODULATOR:DEMOD SPECTRUM DEMOD SPECTRUM NORMAL Programmable vector rotation allows the operator to select NORMAL or INVERT for spectrum reversal of the I and Q baseband channels. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3–34 SNM-1000 Node Control Modem Operation 3.4.5.2.6 Revision 3 MN/SNM1000.IOM DEMODULATOR:RX MODE RX MODE CONTINUOUS Selection of BURST or CONTINUOUS. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change.. 3.4.5.2.7 DEMODULATOR:RX SYMBOL RATE RX SYMBOL RATE 19.200 KSPS Status only. Selects RX Symbol Data rate, with 4.800 to 2500.000 ksps. 3.4.5.3 UTILITY:INTERFACE UTILITY INTERFACE 3.4.5.3.1 INTERFACE:TX OVERHEAD TYPE TX OVERHEAD TYPE NONE Select None for TX overhead type. Note: Overhead types are selectable only when Custom is selected for modem type in the Utility Modem Type menu. 3–35 SNM-1000 Node Control Modem Operation 3.4.5.3.2 Revision 3 MN/SNM1000.IOM INTERFACE:RX OVERHEAD TYPE RX OVERHEAD TYPE NONE Select None RX overhead type. Note: Overhead types are selectable only when Custom is selected for modem type in the Utility Modem Type menu. 3.4.5.3.3 INTERFACE:TX TERR INTERFACE TX TERR INTERFACE RS422 Displays the TX interface type RS-232, RS-422, or V.35. Note: Not applicable since SNM-1000 is not used for User Data Traffic. 3.4.5.3.4 INTERFACE:RX TERR INTERFACE RX TERR INTERFACE RS422 Displays the RX interface type RS-232, RS-422, or V.35. Note: Not applicable since SNM-1000 is not used for User Data Traffic. 3.4.5.3.5 INTERFACE:BUFFER PROGRAM BUFFER PROGRAM BITS Buffer unit program function. Select MILLI-SECONDS or BITS. Note: To have the modem calculate the plesiochronous shift, set the buffer units to MILLISECONDS. For a specific buffer depth, set the buffer units to BITS. 3–36 SNM-1000 Node Control Modem Operation 3.4.5.3.6 Revision 3 MN/SNM1000.IOM INTERFACE:FRAMING STRUCTURE FRAMING STRUCTURE T1 FRAMING STRUCTURE: G.704 E1 FRAMING STRUCTURE: G.704 Displays the currently selected framing type and structure of the data. This function is used with the buffer program in ms for plesiochronous buffer slips. Upon entry, the framing type (T1 or E1) is displayed on Line 1. The framing structure of each type (None or G.704) is displayed on Line 2. Press [←] or [→] and [↑] or [↓] to select framing structure and type. Press [ENTER] to execute the change. 3.4.5.3.7 INTERFACE:RTS TX-IF CNTRL RTS TX-IF CNTRL OFF Programs the modem to allow a Request To Send (RTS) signal to On or Off the output when data is ready for transmission. Press[←], [→], [↑], or [↓] to move the flashing cursor. Press [ENTER] to execute the change. 3.4.5.3.8 INTERFACE:TX DATA PHASE TX DATA PHASE NORMAL TX data phase relationship. Use this option to select NORMAL or INVERT for the TX data relationship to the selected TX clock. Upon entry, press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. 3–37 SNM-1000 Node Control Modem Operation 3.4.5.3.9 Revision 3 MN/SNM1000.IOM INTERFACE:RX DATA PHASE RX DATA PHASE NORMAL RX data phase relationship. Use this option to select NORMAL or INVERT for the RX data relationship to the selected RX clock. Upon entry, press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. 3.4.5.3.10 INTERFACE:CTS DELAY CTS DELAY X SECONDS Sets the delay in seconds (0 to 60) for the Clear To Send (CTS) signal. Default: 0 Seconds. 3.4.5.4 UTILITY:NETWORK SNM 1000 NA 2000 3.4.5.4.1 NETWORK:RELEASE SNM 1000 REL 4.X.X Status only. Shows installed version of DAC code and code’s CRC in hexadecimal. e.g. rel 4.3.0 p cc14 3–38 SNM-1000 Node Control Modem Operation 3.4.5.4.2 Revision 3 MN/SNM1000.IOM NETWORK:CHANNELS 1 -15 CHANNELS 1 – 15 --------------- 3.4.5.4.3 Status only. NETWORK:CHANNELS 16 - 31 CHANNELS 16 – 31 --------------- 3.4.5.5 I O C S D = Traffic Modem Not Installed = Traffic Modem Idle = Traffic Modem Offline = Call in Progress = Connecting Call = Disconnecting Call UTILITY:SYSTEM UTILITY SYSTEM 3.4.5.5.1 SYSTEM:TIME/DATE TIME: 12:00:00AM DATE: 7/04/1976 Time of day and date display/set function. The current time and date in the modem’s memory are displayed when selected. To change the modem time and/or date, press [ENTER]. • • • Press [←] or [→] to position the cursor over the parameter to be changed. Press [↑] or [↓] to change the parameter. Once the parameters are displayed as desired, press [ENTER] to set the time and date. 3–39 SNM-1000 Node Control Modem Operation 3.4.5.5.2 Revision 3 MN/SNM1000.IOM SYSTEM:REMOTE BAUD RATE REMOTE BAUD RATE 19.200 BPS NONE The parity and baud rate settings of the modem are displayed. To change the modem parity, press [ENTER]. • Press [←] or [→] to position the cursor over the parameter to be changed. • Press [↑] or [↓] to change the parameter. • Once the parameters are displayed as desired, press [ENTER] to set the baud rate and parity. • The parity can be set to EVEN, ODD, or NONE. The baud rate is 19200 bit/s. 3.4.5.5.3 SYSTEM:REMOTE ADDRESS REMOTE ADDRESS 1 The current modem address is displayed (1 to 255). Note: 0 is reserved as a global address. To change the remote address, press [ENTER]. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. 3.4.5.5.4 SYSTEM:REMOTE TYPE REMOTE TYPE RS485 (2-WIRE) Select RS-485 (2-Wire), RS-485 (4-Wire), or RS-232. 3–40 SNM-1000 Node Control Modem Operation 3.4.5.5.5 Revision 3 MN/SNM1000.IOM SYSTEM:OPERATION MODE OPERATION MODE DUPLEX Programs the modem for DUPLEX, TRANSMIT ONLY, or RECEIVE ONLY operation. Upon entry, the operational status may be changed. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change. Note: When TRANSMIT ONLY or RECEIVE ONLY are selected, the appropriate faults are masked from the Faults and Stored Faults menus. 3.4.5.5.6 SYSTEM:YEAR DISPLAY YEAR DISPLAY 2 - DIGIT Selects the display for the year in either 2-digit or 4-digit format. Upon entry, the year display may be changed. Press [↑] or [↓] to make the selection. Press [ENTER] to execute the change 3.4.5.5.7 SYSTEM:TEST MODE STATUS TEST MODE STATUS --------Test mode status indicator. The following modem test points are listed and display a “+” when a test mode is active: ! ! ! ! ! ! • • RS CORR OFF INTRFC LOOP BACK B-BAND LOOP BACK RF LOOP BACK IF LOOP BACK CARRIER MODE RX 2047 Pattern TX 2047 Pattern To view the test modes, press [ENTER]. Press [↑] or [↓] to make the selection. 3–41 SNM-1000 Node Control Modem Operation 3.4.5.5.8 Revision 3 MN/SNM1000.IOM SYSTEM:LAMP TEST ?? LAMP TEST ?? PRESS ENTER Lamp test function. Press [ENTER] to turn the front panel indicators on for 3 seconds. 3.4.5.5.9 SYSTEM:SELF TEST (NOT APPLICABLE) 3.4.5.5.10 SYSTEM:DISPLAY CONTRAST DISPLAY CONTRAST LEVEL: 64 Sets the contrast setting of the Front Panel menu. Press [ENTER] to begin. Press [↑] or [↓] to increment or decrement the number at the flashing cursor, from 0 to 100. Press [ENTER] to execute the change. 3.4.5.5.11 SYSTEM:M&C FIRMWARE M&C FIRWARE FW/NNNNNN-DDR Displays the M&C module firmware version. The display includes the month, day, and year. 3.4.5.5.12 SYSTEM:BOOT FIRMWARE BOOT FIRWARE FW/NNNNNN-DDR Displays the boot module firmware version. The display includes the month, day, and year 3–42 SNM-1000 Node Control Modem Operation 3.4.5.5.13 Revision 3 MN/SNM1000.IOM SYSTEM:FPGA FIRMWARE FPGA FIRWARE FW/NNNNNN-DDR Displays the FPGA module firmware version. The display includes the month, day, and year 3.4.5.5.14 SYSTEM:EXT AGC: MAX PWR EXT AGC: MAX PWR 0.0 VOLTS Sets the AGC voltage for a receive signal level of -60.0 dBm. The voltage range is 0.0 to 10.0V, in 0.5V steps. Upon entry, the current external AGC voltage level is displayed. Press [↑] or [↓] to increment or decrement the AGC voltage level in 0.5V steps. Press [ENTER] to execute the change. Note: For any receive signal level between -25.0 and -60.0 dBm, the software will interpolate the required AGC voltage. 3.4.5.5.15 SYSTEM:EXT AGC: MIN PWR EXT AGC: MIN PWR 10.0 VOLTS Sets the AGC voltage for a receive signal level of -25.0 dBm. The voltage range is 0.0 to 10.0V, in 0.5V steps. Upon entry, the current external AGC voltage level is displayed. Press [↑] or [↓] to increment or decrement the AGC voltage level in 0.5V steps. Press [ENTER] to execute the change. Note: For any receive signal level between -25.0 and -60.0 dBm, the software will interpolate the required AGC voltage. 3–43 SNM-1000 Node Control Modem Operation 3.4.5.5.16 Revision 3 MN/SNM1000.IOM SYSTEM:MASTER RESET MASTER RESET HARD/SOFT Initiating a hard reset will reset the modem and place the default configuration settings in ROM. Initiating a soft reset will reset the modem hardware, but saves the current configuration settings. CAUTION Select [ENTER] once to access HARD or SOFT. Press [←] or [→] to make the selection. Press [ENTER]. Press [→] five times to move the cursor to YES. Select YES and press [ENTER] again. Note: The following parameters do not revert to default settings after a hard reset: • • • • • • • Address Parity Baud Rate Remote Type Ext AGC: Min Pwr Ext AGC: Max Pwr Display Contrast 3–44 SNM-1000 Node Control Modem Operation 3.4.5.6 Revision 3 MN/SNM1000.IOM UTILITY:MODEM TYPE UTILITY MODEM TYPE 3.4.5.6.1 MODEM TYPE:MODEM TYPE MODEM TYPE CUSTOM Selects the following types of modem operation: • • CUSTOM EFD Selections are made from the Front Panel menu Closed Network Operation When the modem is changed from one type of operation to another, the modem will be reset to the default configurations of the new modem type. The RF-IF Output must be turned on to get the modem to lock. • • • • If the existing modem type is the same as the type entered, the modem will not change any parameters. If the modem type is changed to Custom, no parameters will be changed. If the modem will not allow the modem type selection, that type of operation may not be an available option. Select MODEM OPTIONS and OVERHEAD OPTIONS to see which modem operations are allowed. Note: D&I is designed to work with the G.703 interface only. 3–45 SNM-1000 Node Control Modem Operation 3.4.5.6.2 Revision 3 MN/SNM1000.IOM MODEM TYPE:MODEM EMULATION MODEM EMULATION DISABLED Selects the following types of modem emulation: SDM-100 SDM-300 SDM-308-4 SDM-308-4 SDM-308-4 SDM-308-4 SDM-309 SDM-650 SDM-650 SDM-6000 VER: 15.7.1 6.2.2 4.03 6.05 6.08 7.03 6.04 4.12A 4.16 5.1.1 or Disabled Upon entry, the current modem emulation is displayed. Press [↑] or [↓] to change the display. Press [ENTER] to execute the change. 3.4.5.6.3 MODEM TYPE:REVISION EMULATION REV EMULATION CURRENT VERSION Programs an emulation mode of a previous functional revision. This allows the user to select the CURRENT VERSION or FUNCTIONAL X. Note: The number displayed in the CURRENT VERSION position increases with each software version change. Upon entry, the CURRENT VERSION is displayed. Press [↑] or [↓] to select the FUNCTIONAL version. Press [ENTER] to execute the change. 3–46 SNM-1000 Node Control Modem Operation Revision 3 MN/SNM1000.IOM Notes: 1. Programming a current version (default) allows all features and options (if installed) to operate normally. 2. Programming a FUNCTIONAL version (X) eliminates any changes that affect the later version. Only functional changes are affected by the revision emulation feature. 3. A correction change (e.g., VER 3.1.2) remains fixed in accordance with the latest version. Since the revision emulation default is the current version, program the functional version at the start of each operation. 4. The revision emulation feature does not affect some interface changes for the direct operation of the modem (Configuration save/recall, test mode screen in the Utility/System, all factory setup modes, etc.). 3.4.5.6.4 MODEM TYPE:MODEM OPTIONS MODEM OPTIONS -------------- Displays the installed modem options. If the option is installed, a “+” symbol is displayed. To view the available options press [ENTER]. Observe for the flashing cursor. Press the [←] [→] arrows to move from one symbol to the next. The first line will display the option. The second line will display the status: HIGH POWER HIGH STABILITY ASLT VITERBI SEQUENTIAL SINGLE RATE LOW RATE VAR FULL RATE VAR CARD #1 PCB CARD #2 PCB CARD #3 PCB 8PSK 2/3 TX ONLY RX ONLY (0) (0) (-) (+) (-) (-) (-) (+) (+) (x) (x) (-) (-) (-) 3–47 0 = Not Installed, Not Upgradeable - = Not Installed + = Installed X = Not Installed, Field Upgradeable SNM-1000 Node Control Modem Operation 3.4.5.6.5 Revision 3 MN/SNM1000.IOM MODEM TYPE:CARD #1 TYPE CARD #1 TYPE DAC 01 Status Only. Displays either of the following: • • DAC 01 NOT INSTALLED 3.4.5.6.6 MODEM TYPE:CARD #2 TYPE (NOT INSTALLED) 3.4.5.6.7 MODEM TYPE:CARD #3 TYPE (NOT INSTALLED) 3.4.5.6.8 MODEM TYPE:LOCAL MODEM AUPC LOCAL MODEM AUPC OFF Configures the modem for the self-monitoring Local Modem AUPC mode and for local TX power control (self-monitoring) due to severe rain fade. Notes: 1. The self-monitoring Local Modem AUPC mode is not used when the ASYNC/AUPC is selected as the Modem Type. 2. Used for local control (self-monitoring) due to severe rain fade. 3.4.5.6.9 MODEM TYPE:MODEM SERIAL MODEM SERIAL 123456789 Status Only 3–48 SNM-1000 Node Control Modem Operation 3.4.5.6.10 Revision 3 MN/SNM1000.IOM MODEM TYPE:CONFIGURATION CODE - MODEM CONFIGURATION CODE - MODEM 1) 2) AAAAAAAAAA AAAAAAAAAA If installed, Status Only Comtech EF Data supplied code. . 3.4.5.7 UTILITY:FACTORY SETUP (NOT APPLICABLE) 3–49 SNM-1000 Node Control Modem Operation 3.5 Revision 3 MN/SNM1000.IOM User Port Operation The User Port allows the user at the remote site to communicate with the remote control SNM-1000 to request the setup and termination of circuits, send and receive service messages, and configure the SNM-1000. The commands configure and control the SNM-1000 and the traffic modems that have addresses within the range of 1 through 30. The remote control SNM-1000 modem always utilizes address zero. The User Port uses a 9-pin mini-DIN female connector on the rear of the SNM-1000. The port is configured as a DCE with the pin definitions as shown in the following listing. Signal Function Receiver Ready Receive Data Send Data Terminal Ready Signal Ground Data Mode Request to Send Clear to Send Incoming Call Name RR RD SD TR SG DM RS CS IC Pin # 1 2 3 4 5 6 7 8 9 I/O O O I I Signal Level EIA-232 EIA-232 EIA-232 EIA-232 O I O O EIA-232 EIA-232 EIA-232 EIA-232 The interface operates at 19.2 kbps, 8 data bits, No Parity, and 1 Stop Bit. Levels are in accordance with EIA-232. The User Port can also be accessed using an optional Public Switched Telephone Network (PSTN) dial-up modem. 3–50 SNM-1000 Node Control Modem Operation 3.6 Revision 3 MN/SNM1000.IOM Remote Dial-Up Capability The SNM-1000 User Port can be accessed via an external PC modem. A user dials into an SNM-1000 from a remote location using the following items: • • • 3.6.1 Personal computer Auto-interface speed-detect modem Modem terminal software capable of emulating an ANSI terminal User Port Modem The remote dial-up was tested using a US Robotics, Inc. external Sportster™ 28.8 modem with V.34 and V.32bis at the User Port. Recommended dip switch settings for this modem are described in the following listing. Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Down Up Up Down Up Up Up Up Data Terminal Override Verbal Result Codes Suppress Result Codes No Echo, Off-line Commands Auto Answer On Carrier Detect Normal Load NOVRAM Defaults Dumb Mode The US Robotics, Inc. external Sportster™ 28.8 modem or a similar modem should be used at the User Port. 3.6.2 Remote Site Modem The remote dial-up was tested using a US Robotics, Inc. external or internal Sportster™ 28.8 modem with V.34 and V.32bis at the remote site. Recommended dipswitch settings for this modem are the factory default settings. The US Robotics, Inc. external or internal Sportster™ 28.8 modem or a similar modem should be used at the remote site. On the PC, modem setting requirements include the following: ANSI emulation 19.2, 8, N, 1 Software flow control XON/XOFF 1 ms character pacing for ASCII uploads 3–51 SNM-1000 Node Control Modem Operation 3.7 Revision 3 MN/SNM1000.IOM SNM-1000 Commands The commands described in this section are used to set SNM-1000 functional parameters within a DAMA environment. Refer to Appendix A for commands used to communicate with external modems attached to an SNM-1000. 3.7.1 Character Set The interface responds to ASCII characters in the range of 0x00 to 0x7F. The 8th bit (most significant) is not generated on the transmit side and is ignored on the receive side. 3.7.2 Status Lines and Flow Control The interface ignores all status inputs. 3.7.3 Message Structure A message is either a command or a response. Each message is made up of three elements: • • • 3.7.3.1 Prefix Message body End character Prefix The prefix consists of the channel number in ASCII decimal, with a valid range of 0 through 30. Leading zeros are ignored. Prefix 0 is valid for an SNM-1000 Node Control modem and prefixes 1 through 30 are valid for external traffic modems attached to the SNM-1000 such as SDM-300s, SDM-6000s, etc. 3–52 SNM-1000 Node Control Modem Operation 3.7.3.2 Revision 3 MN/SNM1000.IOM Message Body The message body is made up of individual commands and fields. Certain conventions are used to improve the readability of the commands presented in this document. These conventions do not appear in the commands themselves. Conventions used in the command names and descriptions include the following characters. 3.7.3.3 [...] Square brackets are used to indicate that the enclosed items are optional. (The square brackets themselves do not appear in the message.) <...> Angle brackets are used to enclose the names of other syntactical elements. (When those elements appear in an actual message, the actual element is used and the angle brackets are omitted.) ‘...’ Single quotes are used to enclose an ASCII character for illustration of syntax elements. (The single quotes themselves do not appear in the message.) End Character The end character for both command and response messages is a carriage return (represented by “cr”). 3.7.3.4 Case Sensitivity Messages are not case sensitive. However, the DCE generates responses and results in uppercase text. 3.7.3.5 Delimiters Commas and semicolons are valid delimiters that may be used interchangeably with no difference in behavior. 3.7.3.6 End Character Each message is ended with a single character which signals the end of the message: “]” End bracket for responses. 3–53 SNM-1000 Node Control Modem Operation 3.7.3.7 Revision 3 MN/SNM1000.IOM Queries The interface can be queried by issuing a valid command without a value at the end. This will result in the return of the currently set value. Example (assume a previously sent command as shown): ICF 70.4567'cr' — sets inbound control IF frequency to 70.4567 MHz. Now a query: ICF'cr' Response from interface: ICF 70.4567 3.7.4 — inbound control IF frequency is 70.4567 MHz. Node Address (NA) This command sets the node number for the remote control channel mode SNM-1000 controller. 3.7.4.1 Command Format NA <node_number>'cr' <node_number> Range of 1 to 9999 and must be unique in the network. Unpredictable results will occur if two nodes are online and both have been assigned the same node number. The node number will generally be defined by the provisioning documents that establish remote sites and circuits. 3.7.4.2 Local Command Responses node address = <node_number> 3–54 SNM-1000 Node Control Modem Operation 3.7.5 Revision 3 MN/SNM1000.IOM Receive Control Channel Frequency (ICF) This command sets the receive (NMS to remote) control channel IF frequency at the remote node. 3.7.5.1 Command Format ICF <frequency>'cr' <frequency> Entered in MHz. Range of 50 to 90 MHz, or 100 to 180 MHz Resolution of 100 Hz. Formatting is pseudo-floating point. Example: ICF 70.4567 sets receive control IF frequency to 70.4567 MHz. 3.7.5.2 Local Command Responses ICF= <frequency>, <control channel offset>, <traffic channel offset> 3.7.6 Transmit Control Channel Frequency (OCF) This command sets the transmit (remote to NMS) control channel IF frequency at the remote node. 3.7.6.1 Command Format OCF <frequency>'cr' <frequency> Entered in MHz. Range of 50 to 90 MHz, or 100 to 180 MHz. Resolution of 100 Hz. Formatting is pseudo-floating point. Example: OCF 70.1234 sets transmit control IF frequency to 70.1234 MHz. 3.7.6.2 Local Command Responses OCF= <frequency>, <control channel offset>, <traffic channel offset> 3–55 SNM-1000 Node Control Modem Operation 3.7.7 Revision 3 MN/SNM1000.IOM Transmitter On (RF_ON) This command enables the SNM-1000 transmitter. 3.7.7.1 Command Format RF_ON'cr' 3.7.7.2 Local Command Responses None. 3.7.8 Transmitter Off (RF_OFF) This command disables the SNM-1000 transmitter. 3.7.8.1 Command Format RF_OFF'cr' 3.7.8.2 Local Command Responses None. 3.7.9 Transmit Power (TX) This command sets the SNM-1000 transmit power. 3.7.9.1 Command Format TX <tx_power>'cr' <tx_power> In the range of +5 to -30 dBm, in 0.1 dBm steps. The format for TX_power is [+] XX.X with an implied minus sign. 3.7.9.2 Local Command Responses transmit power = <tx_power> 3–56 SNM-1000 Node Control Modem Operation 3.7.10 Revision 3 MN/SNM1000.IOM Current SNM-1000 DAC Software Revision (VER) This command queries the SNM-1000 DAC board for its current software revision number. 3.7.10.1 Command Format VERSION'cr' or VER’cr’ 3.7.10.2 Local Command Responses DAC VERSION: X.Y.ZZZ.CCCC Where: X.Y = SNM-1000 DAC software release number. ZZZ = Revision level for the release. CCCC = Checksum 3.7.11 Node to NMS Service Messages (NMS_MSG) This command permits the transmission of up to 28 ASCII text characters to the NMS. 3.7.11.1 Command Format NMS_MSG 'text string to be transmitted to the NMS''cr' 3.7.11.2 Local Command Responses None. 3–57 SNM-1000 Node Control Modem Operation 3.7.12 Revision 3 MN/SNM1000.IOM SNM-1000 Mode (MD) This command sets the SNM-1000 mode. 3.7.12.1 Command Format MD <mode>'cr' <mode> EXT Remote Control Channel-External Traffic Remote Control Channel-External Traffic mode — the modem performs control functions to control external traffic modems.. 3.7.12.2 Local Command Responses mode = <mode> 3.7.13 Built-In Diagnostic Tests (EFD_DIAG) Note: Qualified personnel shall perform these tests only. This command starts the SNM-1000 DAC Diagnostic software: EFD_DIAG'cr' Wait several seconds. The User Port will display: Diagnostic Test, Press F1 for Help. > Enter an ANSI F1 function key character sequence to display the diagnostic main menu: F1: Help Screen F2: Transfer Control to Flash Loader F3: Transfer Control to PDREM Ram F4: Restore Area 1 Defaults F5: Restore Area 2 Defaults 1: 2: 3: 4: 5: 6: 7: Run Ram test Run NOVRAM cycle power test Run Chip Select test Run EFBUS1 to EFBUS2 loopback test Run EFBUS2 to EFBUS1 loopback test Run Service Terminal loopback test Alarm Input Test To leave the diagnostic tests and return to SNM-1000 operational code, enter an ANSI F4 function key character sequence. 3–58 SNM-1000 Node Control Modem Operation Revision 3 MN/SNM1000.IOM Selecting any menu selection other than “F4” may cause unpredictable operation of the SNM-1000. CAUTION 3.7.13.1 Help Screen To display the menu selection for the Comtech EF Data diagnostics, select menu option “F1” by entering an ANSI F1. 3.7.13.2 Flash Updates Select menu option “F2” by entering an ANSI F2. This will begin the flash update procedure, causing the User Port to display: > > Xfer Control to Flash Loader READY FOR FLASH CODE. START ASCII UPLOAD WITH S/W FLOW CONTROL USE ctrl z KEY TO COMPLETE THE DOWNLOAD OR ctrl c TO ABORT The SNM-1000 then waits for an Intel hex format software download properly terminated with an end of record marker. Using the ASCII file upload utility on the PC terminal emulation program, upload the appropriate Intel hex file. The User Port will display the following progress messages as the update proceeds: Sending Flash Setup Commands ... Erasing sector Sending Flash Setup Commands ... ............................................................................................. When the file transfer to the SNM-1000 has completed, enter ‘CTRL Z’ from the PC terminal program. Note: Making any entry other than ‘CTRL Z’ will cause a failure of the file transfer. If the SNM-1000 FLASH update is successful, the User Port will display: Flash programming complete The SNM-1000 will reset and begin to execute SNM-1000 operational code. 3–59 SNM-1000 Node Control Modem Operation Revision 3 MN/SNM1000.IOM The User port will display an error message for any errors that occur during the programming sequence. Possible error message are listed in the following listing. DAC FLASH WRITE FAILURE DAC FLASH ERASE FAILURE DAC FLASH TIME OUT DAC FLASH PROGRAMMING FAILURE Failure in flash programming. Failure in erasing a Flash sector. Flash part not responding with the correct programming status. An error was found in the upload data. The download process can be terminated with a ‘CTRL C’. 3.7.13.3 PDREM Ram To load a RAM-based version of a remote debugger, select menu option “F3” by entering an ANSI F3. 3.7.13.4 Area1 Defaults To cause the SNM-1000 to execute SNM-1000 code stored in FLASH AREA 1, select menu option “F4” by entering an ANSI F4. 3.7.13.5 Area2 Defaults To cause the SNM-1000 to execute SNM-1000 code stored in FLASH AREA 2, select menu option “F5” by entering an ANSI F5. 3.7.13.6 Ram Test To perform a write/read/compare operation on locations 70000H to 7FFFFH of SNM-1000 DRAM with a 55AA pattern, select menu option “1”. 3.7.13.7 NOVRAM Cycle Power Test “2” To test the SNM-1000 NOVRAM, perform the following steps. 1. Power up the SNM-1000. 2. Select menu option “2” (NOVRAM test). This test will fail due to the unknown content of NOVRAM, and will store a pre-set pattern into NOVRAM. 3. Cycle the power and select menu option “2” again. If the test does not pass, the SNM-1000 NOVRAM has failed. 3–60 SNM-1000 Node Control Modem Operation 3.7.13.8 Revision 3 MN/SNM1000.IOM Chip Select Test To test the SNM-1000 Quad Pack A-D and the 1550 UART, select menu option “3”. Verify that the User Port displays “Chip Select Test Pass”. 3.7.13.9 Service Terminal Loopback Test To perform a loopback test of the Service Terminal port using a PC terminal emulation program, select menu option “6”. 3.7.13.10 EFBUS Loopback Test Same as above, except select option "4 or "5". 3.7.14 Echo (ECHO) This command enables/disables echo of characters sent to the SNM-1000 user port. 3.7.14.1 Command Format ECHO <state> 3.7.14.2 ‘ON’ enables character echo ‘OFF’ disables character echo Local Command Responses ECHO <state> 3.7.15 Setup Override (SETUP) This command enables/disables the modem default setup capability on a specified <channel_no>. When SETUP is enabled, the SNM-1000 remote control channel sends default modem settings before a data call is configured. If SETUP is disabled, no default settings are sent to the modem before a data call is configured. 3–61 SNM-1000 Node Control Modem Operation 3.7.15.1 Revision 3 MN/SNM1000.IOM Command Format <channel_no> SETUP <feature_status>'cr' <channel_no> <channel_no> is the channel number for the command. Range: 1 to 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. <feature_status> 'ENABLE' enables the SETUP capability for the selected <channel_no>. 'DISABLE disables the SETUP capability for the selected <channel _no>. 3.7.15.2 Local Command Responses <channel_no> SETUP<feature_status> 3.7.16 Channel Type (CT) This command determines the type of channel connected to a given control SNM-1000. It does not have the capability of determining the modem type of a channel at another node. 3.7.16.1 Command Format <channel_no> CT'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. CT Channel type. 3–62 SNM-1000 Node Control Modem Operation 3.7.16.2 Revision 3 MN/SNM1000.IOM Local Command Responses <channel_no> NOT PRESENT The local channel number does not exist or is disconnected. <channel_no> DATA <modem_model> <modem_model> can have the following values: Modem Model CiM-550 CiM-300L CDM-550 CDM-600 SDM-300 SDM-300L2 SDM-300L3 SDM-2020D SDM-2020M Code CiM-550 CiM-300L CDM-550 CDM-600 SDM-300 SDM-300L2 SDM-300L3 SDM-2020D SDM-2020M Modem Model *SDM-100 *SDM-150 *SDM-6000 *SDM-8000 *SDM-9000 *SDM-140 *SDM-155 Code SDM-100 SDM-150 SDM-6000 SDM-8000 SDM-9000 SDM-140 SDM-155 *Legacy Modem 3.7.17 Modem Command Sequence (MC) This command permits the use of the User Port to directly communicate with the specified external traffic modem being controlled by the SNM-1000. Communication with the control channel modem is through channel 0 and with traffic modems using the defined channel number. Refer to Appendix A for some of the M&C remote commands that can be used with this command. 3.7.17.1 Command Format <channel_no> MC 'modem command string''cr' <channel_no> Prefix channel number. Valid range: 0 through 30. 0 for SNM1000 MC 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. The command string following the 'MC' command is issued directly to the specified modem. It has the format as shown in the appropriate modem manuals, except that the leading string through the slash mark (<add/) is eliminated. 3–63 SNM-1000 Node Control Modem Operation 3.7.17.2 Revision 3 MN/SNM1000.IOM Local Command Responses >add/’response’’cr’ Where: ‘add’ = <channel_no> If the local channel number does not exist or is disconnected, the SNM-1000 returns the following message: CHANNEL <channel_no> INVALID 3.7.18 Data Call The user can initiate a data call by either specifying the destination data channel address and grade of service information or by specifying a pre-defined circuit id. 3.7.18.1 “Dialed” Data Call (DD) The user initiates the data call by specifying the destination data channel address and the desired grade of service. 3.7.18.1.1 Command Format <channel_no> DD <phone_number> <tx_data> <tx_code> <tx_mod> <origin_clock> <rx_data> <rx_code><rx_mod> <dest_clock> [<grade_of_service>]'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. DD Dialed data call. <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. <tx_data> and <rx_data> Data rates, defined in kbps. Step size: 1 bit/s. Maximum value: 8192.000 kbps. Examples: 64 is 64 kbps, 64.001 is 64.001 kbps, 1024.1 is 1.0241 Mbit/s, etc. Note: The decimal point is not required and the entered number is rounded to the nearest 1 bit/s value. 3–64 SNM-1000 Node Control Modem Operation <tx_code> and <rx_code> Revision 3 MN/SNM1000.IOM Codes. Values: Code Rates 1/2 2/3 3/4 5/6 7/8 8/9 5/16 21/44 <tx_mod> and <rx_mod> Modulation. Values: Modulation Type BPSK QPSK OQPSK 8PSK 16QAM <origin_clock> and <dest_clock> 3.7.18.2 Code T I S Optional coding method indicator. Values: Coding Method Viterbi Sequential Turbo 3.7.18.1.2 Code B Q O 8 16 Clock Source. Values: Clock Source Terrestrial (TT) Internal (ST) Satellite (RT) <grade_of_service> Code 1 2 3 5 7 8 A B Code V (default) S T Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code> : <description> Code 9 20 Description Channel <Channel No.> Invalid Not enough parameters. Pre-defined Data Circuit Call (DC) The user initiates a data call by specifying a pre-defined circuit. The circuit must be pre-defined at the NMS. 3–65 SNM-1000 Node Control Modem Operation 3.7.18.2.1 Revision 3 MN/SNM1000.IOM Command Format <channel_no> DC <circuit_id>’cr’ <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. DC Pre-defined data circuit call. <circuit_id> Pre-defined circuit id at the NMS. Valid range: 1 through 9999. 3.7.18.2.2 3.7.19 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code> : <description> Code 9 20 Description Channel <channel No.> Invalid Not enough parameters Terminate (TE) The terminate command terminates an active call. 3.7.19.1 Command Format <channel_no> TE'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. TE 3.7.19.2 Terminate active call. Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code> : <description> Code 9 24 3–66 Description Channel Invalid Channel not active SNM-1000 Node Control Modem Operation 3.7.20 Revision 3 MN/SNM1000.IOM Initiate Multipoint Data Call (MI) This command initiates a multipoint data call on the specified channel. The NMS reports call status using the CS unsolicited response. 3.7.20.1 Command Format <channel_no> MI <phone_number> <tx_data> <tx_code> <tx_mod> <origin_clock> <rx_data> <rx_code><rx_mod> <dest_clock> <encoder_type>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MI Initiate MultiPoint Data Call <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. <tx_data> and <rx_data> Data rates, defined in kbps. Step size: 1 bit/s. Maximum value: 8192.000 kbps. Examples: 64 is 64 kbps, 64.001 is 64.001 kbps, 1024.1 is 1.0241 Mbit/s, etc. Note: The decimal point is not required and the entered number is rounded to the nearest 1 bit/s value. 3–67 SNM-1000 Node Control Modem Operation <tx_code> and <rx_code> Revision 3 MN/SNM1000.IOM Codes. Values: Code Rate 1/2 2/3 3/4 5/6 7/8 8/9 5/16 21/44 <tx_mod> and <rx_mod> Modulation. Values: Modulation Type BPSK QPSK OQPSK 8PSK 16QAM <origin_clock> and <dest_clock> Code T I S Optional coding method indicator. Values: Coding Method Viterbi Sequential Turbo 3.7.20.2 Code B Q O 8 16 Clock Source. Values: Clock Source Terrestrial (TT) Internal (ST) Satellite (RT) <encoder_type> Code 1 2 3 5 7 8 A B Code V (default) S T Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 2 9 20 3.7.20.3 Description Bad code rate. Channel <channel_no> Invalid. Not enought parameters. Example 2 MI 12345 19.2 3 q I 19.2 3 q I v 3–68 SNM-1000 Node Control Modem Operation 3.7.21 Revision 3 MN/SNM1000.IOM Add Multipoint Data Circuit (MA) Adds another circuit to multipoint data call, NMS reports results of call using CS unsolicited response. 3.7.21.1 Command Format <channel_no> MA<phone_number>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MA Add MultiPoint Data Call <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. 3.7.21.2 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 21 Description Channel <channel_no> Invalid. Not enought parameters. Bad circuit number. 3–69 SNM-1000 Node Control Modem Operation 3.7.22 Revision 3 MN/SNM1000.IOM Drop Multipoint Data Circuit (MT) Drops circuit from multipoint data call, NMS will respond with a CS response to both the called and the calling nodes. 3.7.22.1 Command Format <channel_no> MT<phone_number>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MT Drop MultiPoint Data Call <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. 3.7.22.2 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 21 Description Channel <channel_no> Invalid. Not enought parameters. Bad circuit number. 3–70 SNM-1000 Node Control Modem Operation 3.7.23 Revision 3 MN/SNM1000.IOM Change Forward Channel for Multipoint Data Circuit (MF) Changes the forward channel for a data call in progress. 3.7.23.1 Command Format <channel_no> MF<phone_number>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MF Change forward channel <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. 3.7.23.2 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 21 Description Channel <channel_no> Invalid. Not enought parameters. Bad circuit number. 3–71 SNM-1000 Node Control Modem Operation 3.7.24 Revision 3 MN/SNM1000.IOM Change Return Channel for Multipoint Data Circuit (MR) Changes return channel for a multipoint data call. 3.7.24.1 Command Format <channel_no> MR <option><phone_number>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MR Change Return Channel <option> Option 0 1 <phone_number> Destination data channel address (phone number). Description Turn return channel off. Return channel request, phone number follows. Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. 3.7.24.2 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 21 44 Description Channel <channel_no> Invalid. Not enough parameters. Bad circuit number. Bad fields or number of parameters, invalid option. 3–72 SNM-1000 Node Control Modem Operation 3.7.25 Revision 3 MN/SNM1000.IOM Send Message to Multipoint Data Circuit Originator (MO) Sends a message to the originator of a multipoint data circuit. 3.7.25.1 Command Format <channel_no> MO <message>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. MO Send message to originator <message> Message Max. length: 28 characters.. 3.7.25.2 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 Description Channel <channel_no> Invalid. Not enough parameters. 3–73 SNM-1000 Node Control Modem Operation 3.7.26 Revision 3 MN/SNM1000.IOM Send message to Multipoint Data Circuit Listener (ML) Changes the return channel for a multipoint data call. 3.7.26.1 Command Format <channel_no> ML<phone_number> <message>'cr' <channel_no> Prefix channel number. Valid range: 1 through 30. 1 through 30 are for traffic modems attached to an SNM-1000, operating in external traffic mode. ML Send message to specified listener <phone_number> Destination data channel address (phone number). Max. length: 32 characters. Valid characters: '1', '2', '3', '4', '5', '6', '7', '8', '9', '0', '*', '#', 'A', 'B', 'C', 'D', '-', '(' or ')' Note: The '-' and '('or')' characters are not part of the number and are used to increase readability. They are stripped out and not passed to the NMS. <message> Message Max. length: 13 characters.. 3.7.26.2 3.7.27 Local Command Responses <none> Command received OK, will be sent to the NMS. Error <code>: <description> <cr><lf> Code 9 20 Description Channel <channel_no> Invalid. Not enought parameters. Port Redirection The operation of the User Port may be switched to the Service Port mode. The Service Port operation contains information to be used for debugging purposes. To redirect the User Port to the Service Port type: '!<cr>' 3–74 SNM-1000 Node Control Modem Operation 3.7.28 Revision 3 MN/SNM1000.IOM Debugging with the User Port Debug messages at the user/service port can be enabled and disabled. 3.7.28.1 Command Format DEB Example: User Port > DEB DAC debug commands: 1: SYS debug 2: MSG debug 4: HDLC debug 5: C/SDAC debug 7: DICA debug 8: VFDU debug User Port > 3.7.28.2 3: ROUTER debug 6: MODEM debug 9: DTCP debug Initiate Modem Command Debug Enter “DEB 6” to display the Modem debug submenus: User Port > DEB 6 MODEM debug: 1:sdmMsg=0, 2:mcpMsg=0, User Port > To enable l:sdmMsg, enter “DEB 6 1 1.” User Port > DEB 6 1 1 MODEM debug: 1:sdmMsg=1, 2:mcpMsg=0, User Port > IMPORTANT Notice that sdmMsg=1 (enabled). The redirection command described in Section 3.2.27 can be used to toggle the display of messages On or Off. 3–75 SNM-1000 Node Control Modem Operation Revision 3 MN/SNM1000.IOM This page is intentionally left blank. 3–76 Chapter 4. THEORY OF OPERATION This chapter describes the theory of operation for the following printed circuit boards (PCBs) contained in the SNM-1000. • • • • 4.1 DAC Monitor & Control (M&C) Board Modulator Demodulator Demand Assignment Controller (DAC) The DAC performs DAMA control inbound/outbound functions within the SNM-1000. The DAC is capable of remotely controlling in-circuit reconfiguration of the DAMA microcontroller code. The DAC performs the following functions: • • • • • • • Decodes a network control HDLC encoded data stream from the demodulator Encodes a burst signal using HDLC encoding Synchronizes transmit burst to control slot time Controls the data interface Controls the modem M&C board via a serial link Supports two EIA-232 user interface ports Supports two EIA-485 interface ports The SNM-1000 interfaces with the DAC through an interface bus connector. Eleven external and internal interfaces are provided as permanent installations on the DAC board. A block diagram of the DAC is shown in Figure 4-1. 4–1 Jb 10 PIN HEADER CABLED TO / FROM J6 DB9 REAR PANEL USER/DATA PORT 9PIN Mini DIN CONNECTOR 4–2 EF BUS1 2 wire RS485, up to 115Kbit/S EF BUS1 2 wire RS485, up to 115Kbit/S USER DATA/ CONTROL USER DATA/CONTROL DCE, RS 232, 19.2Kbit/s RS485 LEVEL TRANSLATION QUAD UART (one half of 16C554) PERSONALITY MODULE USER PORT 80386 RS232 LEVEL TRANSLATION QUAD UART (one half of 16C554) DRAM 512K bytes 50MHZ CPU CLK USER DATA/CONTROL DCE, RS 232, 19.2Kbit/s NONVOLATILE RAM 2K x 8 J8 Figure 4-1. DAC Block Diagram SEGMENTED FLASH 512kBYTES INTERNAL UARTS HDLC CONTROLLER (on half of Z85230 M & C serial interface 19.2Kbit/s J2 (part of J1) 96 PIN CONNECTOR to / from modem RS232 LEVEL TRANSLATION HDLC CONTROLLER (one half of Z85230) RX DATA TX CONTROL HDLC RS232 RX CONTROL TX CONTROL TX DATA J5 J1 10 PIN HEADER DEBUGGER TEST PORT (part of J1) 96 PIN CONNECTOR TO / FROM MODEM SNM-1000 Node Control Modem Theory of Operation Revision 3 MN/SNM1000.IOM SNM-1000 Node Control Modem Theory of Operation 4.1.1 Revision 3 MN/SNM1000.IOM Specifications Refer to the following listing for specifications. Physical Size Power Requirements Operating Temperature 4.1.2 5.3 x 7 inches (13.46 x 17.78 cm) The DAC board fits into the SNM-1000 1RU chassis. +5 VDC 0 to +50° C (32 to 122° F) Theory of Operation To ensure a high level of integration, the DAC uses the Intel 80386EX embedded microcontroller. This 16/32 bit microcontroller performs DAMA controller functions (and other functions) under control of a real time, multi-tasking operating system. The DAC uses non-volatile configuration memory with unlimited read/write access to satisfy memory reconfiguration requirements. Flash ROM is used for program storage. NVRAM storage maintains the configuration parameters during power-down conditions. HDLC synchronous serial ports are implemented with a Z85230 serial communications controller device. This device supports the SNM-1000 control channel satellite channel interface and the HDLC external serial port. The 80386EX DMA channels are used for the satellite channel interface receive functions. Additional asynchronous ports are implemented with 16C450/16C550 compatible UART devices, to provide monitor and control of modems under SNM-1000 control, via either the SNM-1000 microcontroller or a PC. 4.1.2.1 User Port The User port serial interface is a 9-pin mini-DIN female connector (DCE) on the rear panel of the SNM-1000. The interface operates at 19.2 kbit/s, 8 data bits, no parity, 1 stop bit. The interface levels are EIA-232. The interface allows the user to configure the SNM-1000 and to request the establishment and termination of data circuits. Note: Refer to the following sections for a description of the software communications parameters and detailed message format information. Paragraph No. 3.5 Appendix A Nomenclature User Port Operation Remote Control Operation 4–3 Description Functional parameters for DAMA enviroment. External traffic modem communications. SNM-1000 Node Control Modem Theory of Operation 4.1.3 Revision 3 MN/SNM1000.IOM EFBUS1/2 Port (External) The EFBUS 1/2 port combines EFBUS1 and EFBUS2 onto a common connector at J6, a 10-pin header. The EFBUS port provides two separate 2-wire EIA-485 interfaces wired to a common 9-pin D female connector located on the rear of the MIDAS modem. The IF Modulator and IF Demodulator status is also presented for external use. The Modem Control serial port, EFBUS1, is used for control of other Comtech EF Data traffic modems. The signals are described in the following table with signal names having the MC prefix. The interface is ASYNC, EIA-485/2-wire, and 19.2 kbps. The EFBUS2 port is reserved for communication with future MIDAS traffic modems. Signal Function Ground Demodulator fault Modulator fault Receive/Transmit + Receive/Transmit Receive/Transmit+ Receive/TransmitGround Not used Not used 4.1.4 Name MCGND BP_DF BP_MF MS_RD/SD+(EFBUS2) MS_RD/SD-(EFBUS2) MC_RD/SD+(EFBUS1) MC_RD/SD-(EFBUS1) MSGND - I/O I/O I/O I/O I/O I/O I/O - J6 EFBUS 10-Pin Header 1 3 5 7 9 2 4 6 8 10 J2 VFDU Interface 96-Pin NC NC NC B14 C14 NC NC MIDAS Conn Pin # 1 2 3 4 5 6 7 8 9 - Signal Level TTL TTL EIA-485 EIA-485 EIA-485 EIA-485 - Monitor and Control The modem uses a sophisticated microcontroller module to perform M&C functions. This module is located on the demodulator board. The M&C monitors the modem and provides configuration updates to other modules within the modem as required. The modem configuration parameters are maintained in battery-backed RAM. The RAM provides for total recovery after a power-down situation. Notes: 1. Extensive fault monitoring and status gathering are provided. 2. Modem functions are accessible through a user port interface. 4–4 SNM-1000 Node Control Modem Theory of Operation 4.1.5 Revision 3 MN/SNM1000.IOM Non-Volatile Memory Non-volatile memory on the M&C module allows it to retain configuration information without prime power for at least one year. Should the modem be powered down, the following sequence is carried out when power is reapplied to the M&C: 1. The microcontroller checks the non-volatile memory RAM to see if data has been retained. If data has been retained, the modem is reconfigured to that information. 2. If non-volatile memory fails the data test, a default configuration from ROM is loaded into the system. 4.1.6 User Port Modem functions can be remotely controlled and monitored via the User port on the back panel. Refer to Section 3.5 and Appendix A. 4.1.7 M&C Theory of Operation The M&C module is built around the Intel 80C32 microcontroller, operating at 11.0592 MHz. The microsystem is designed to support up to 512 kilobytes (Kb) of read-only code memory, and up to 32 Kb of non-volatile, random-access data memory. 4–5 SNM-1000 Node Control Modem Theory of Operation 4.2 Revision 3 MN/SNM1000.IOM Modulator The SNM-1000 modulator performs filtered Quadrature Phase Shift Keying (QPSK) modulation onto a variable frequency/amplitude carrier. The modulator also provides the following functions: • • • • • Encodes data for the appropriate decoder Scrambles data Monitors and displays the modulator status without interrupting service Provides source control timing Appends a burst preamble for detection by the demodulator (burst mode) The SNM-1000 creates a QPSK modulated carrier within the 50 through 180 MHz range from the digital data stream provided by the interface section. The following subsections make up the modulator: • • • • • • • Scrambler Convolutional encoder Preamble and postamble generator (burst mode only) Modulator Output amplifier RF synthesizer SCT synthesizer A block diagram of the modulator is shown in Figure 4-2. 4–6 SNM-1000 Node Control Modem Theory of Operation DATA CLK Revision 3 MN/SNM1000.IOM INTERFACE SCT PLL OPTIONAL SCT MONITOR & CONTROL CONVOLUTIONAL ENCODER REFERENCE LO BPF DIGITAL SIGNAL PROCESSING BPF POWER LEVEL CONTROL LPF RF OUTPUT RF LOOPBACK OUTPUT Figure 4-2. Modulator Block Diagram 4–7 SNM-1000 Node Control Modem Theory of Operation 4.2.1 Revision 3 MN/SNM1000.IOM Theory of Operation The modulator is composed of two basic sections: the baseband processing section, and the RF section. The modem M&C controls all programmable functions in both sections. 4.2.1.1 Burst Mode When a transmission is initiated, the modulator issues a pure carrier for 96 clock cycles, followed by a clock training sequence for 352 clock cycles. A 31-bit unique word is then transmitted. The user data is transmitted into the modem. When the modulator detects the end of the user data stream, the modulator flushes the convolutional encoder (6 bits), then transmits the unique word prime twice (62 bits). The packet is complete and the modulator is ready for the next packet. Data to be transmitted comes from the DAC. At this point, the data signal is clean and free of jitter. The data signal goes to the scrambler, which provides energy dispersal. There is no need for a differential encoder in burst mode, as the ambiguities are resolved using the unique word. The data signal passes to the 1/2 rate Viterbi K=7 convolutional encoder. The output of the encoder generates two separate data streams to drive the in-phase and quadrature channels of the modulator. The data signal passes through a set of variablerate digital Nyquist filters. There are activity detectors on both the In-phase and Quadrature (I&Q) channel Nyquist filters. The digital Nyquist filters are followed by Digital-to-Analog converters and reconstruction filters. These filters provide proper spectral shaping and equalization. The filters are under control of the M&C. The I&Q filtered data signals are applied to the RF modulator, which converts them to a modulated carrier. The spectral shape is identical to that of the input data streams, but is double-sided about the carrier frequency. The RF synthesizer provides the proper frequencies to convert the modulator IF to the desired output frequency in the 50 through 180 MHz range. The synthesizer has multiple loops, and incorporates a Direct Digital Synthesis (DDS) chip to accommodate 100 Hz steps over a range of 130 MHz. The RF section has a frequency stability of ± 1 x 10-5. The signal from the power combiner is sent to the output amplifier, which amplifies the low-level signal from the modulator section to the proper level for output from the module. The amplifier contains circuitry which provides programmable control of the output level over a range of -5.0 to -30.0 dBm, in 0.1 dB graduated steps. Power leveling is provided at ± 1.0 dB to maintain the stability of the output level over time and temperature. 4–8 SNM-1000 Node Control Modem Theory of Operation 4.2.2 Revision 3 MN/SNM1000.IOM Theory of Modulation Types The modulation type for the modem is QPSK. The PSK data transmission encoding method uses the phase modulation technique. This method varies the phase angle of the carrier wave to represent a different bit value for the receiver. • 4.2.2.1 QPSK represents: 4 discrete phase angles represent the 4 possible states of a symbol. QPSK Encoding The modulator converts transmitted baseband data into a modulated QPSK carrier at the following parameters: • 19.2 kbit/s (1/2 rate) Using vector analysis of the constellation pattern, QPSK represents a symbol with the carrier phase angle at 45°, 135°, 225°, or 315°. The 1/2 rate encoded at the convolutional encoder provide the desired input/output bit rates. Code Rate 1/2 4.2.3 Symbols/Bit 2 Modulator Specifications Refer to Chapter 1 for specifications. 4–9 Bits/Hz 1 SNM-1000 Node Control Modem Theory of Operation 4.3 Revision 3 MN/SNM1000.IOM Demodulator The demodulator converts PSK modulated carriers within the 50 to 180 MHz range to a demodulated baseband data stream. The converted modulation type is QPSK, (refer to Section 4.2.3 for a description of modulation type). The demodulator then performs FEC on the data stream using the Viterbi decoding algorithm. A block diagram of the demodulator is shown in Figure 4-3. LOOPBACK RF INPUT SWITCH AGC LPF BPF LO #1 LO #2 BPF RF INPUT 50 TO 180 MHz REF VCXO OC XO OPT HIGH STABILITY A TO D CONVERTER REFERENCE REF PLL DIGITAL SIGNAL PROCESSING VITERBI DECODER DIGITAL CLOCK RECOVERYLOOP EXT REFERENCE DOPPLER/ PLESIOCHRONOUS BUFFER Figure 4-3. Demodulator Block Diagram 4–10 INTERFACE SNM-1000 Node Control Modem Theory of Operation 4.3.1 Revision 3 MN/SNM1000.IOM Theory of Operation The demodulator card functions as an advanced, fully digital, coherent phase-lock receiver, and a Viterbi decoder. 4.3.1.1 Continuous Mode The demodulator consists of the following subsections: • • • • • • • • • • • • • • RF synthesizer IF amplifier Quadrature demodulator Identical anti-aliasing filters Analog-to-Digital converters Digital Nyquist filters Costas loop Clock loop AGC AOC Ambiguity resolver Soft-decision decoder V.35 descrambler BER monitor The modulated signal enters the RF module, where it is converted from an IF signal at 50 through 180 MHz to I&Q baseband channels. The synthesizer has multiple loops, and incorporates a DDS chip to accommodate 100 Hz steps over a range of 130 MHz. The RF section has a frequency stability of ± 1 x 10-5. The two channels are then passed through identical anti-aliasing filters Analog-to-Digital converters, and digital Nyquist filters. The result is a filtered, digital representation of the received signal. A Costas loop maintains the phase lock during the message. A phaselock loop maintains the data clock. The soft-decision mapper converts the I&Q samples to soft-decision values. The soft-decision values are then fed to the Viterbi decoder where error detection and correction are performed. The I&Q channels also are used to calculate the AGC and AOC voltages. The AGC and AOC are fed back to the RF module. The data from the output of the Viterbi decoder is descrambled with a V.35 descrambler, and routed to the interface card. Additionally, a summary fault relay provides a FORM C output located on the demodulator board. During acquisition, the demodulator sweeps the range around the nominal IF frequency. These parameters (sweep width and offset) can be set by the user. As the demodulator sweeps through a carrier, the data is fed to the selected decoder, which resolves the 4–11 SNM-1000 Node Control Modem Theory of Operation Revision 3 MN/SNM1000.IOM ambiguities of the incoming data. When the decoder generates a lock signal, the demodulator stops sweeping. If the signal level is within the operating range of the demodulator, the modem declares lock. Notes: 1. After the demodulator is locked, BER and frequency offset monitoring are available via the remote interface. 2. For QPSK applications, the demodulator has the ability to lock to a carrier that has gone through a spectral inversion. 4.3.2 Demodulator Specifications Refer to Chapter 1 for specifications. 4–12 Chapter 5. MAINTENANCE This chapter provides the following information: • 5.1 Fault isolation Fault Isolation CAUTION This equipment contains parts and assemblies sensitive to damage by ESD. Use ESD precautionary procedures when touching, removing, or inserting PCBs. The fault isolation procedure lists the following categories of faults or alarms. • • • • • Modulator Demodulator Transmit Interface Receive Interface Common Equipment Note: Each fault or alarm category includes possible problems and the appropriate action required to repair the modem. 5–1 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM If any of the troubleshooting procedures mentioned earlier in this chapter do not isolate the problem, and Comtech EF Data Customer Support assistance is necessary, have the following information available for the representative: 5.1.1 • Modem configuration. Modem configuration includes the modulator, demodulator, and interface. • Faults (active or stored). System Faults/Alarms System faults are reported in the “Faults/Alarms” menu, and stored faults are reported in the “Stored Flts/Alms” menu. Refer to Chapter 3 for more information. 5–2 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM Table 5-1. SNM-1000 Fault Tree T X T X R X I F F A U L T F A U L T R E L A Y R E L A Y O U T P U T O F F F A U L T L E D C O M E Q F A U L T R E L A Y T X R X A L A R M A L A R M R E L A Y R E L A Y # 2 # 3 S P A R E R E L A Y A L A R M # 1 (1) MODULATOR FAULTS IF SYNTHESIZER DATA CLOCK SYN I CHANNEL Q CHANNEL AGC MODEM REF ACT MODEM REF PLL MODULE CONFIGURATION DEMODULATOR FAULTS CARRIER DETECT IF SYNTHESIZER I CHANNEL Q CHANNEL BER THRESHOLD MODULE CONFIGURATION * ** X X X X X X X X X X X X X X X X (2) (3) X X X X X X X X X X X X X X X X X X X X X X (4) (5) P R I M A R Y A L A R M R E L A Y (6) S E C O N D A R Y A L A R M R E L A Y I B S B A C K W A R D A L A R M (7) M A I N A L A R M (8) X X X X X X X X X X X X X X X X X X X X X X Legend Note Fault/Alarm Relay Test Points Connector/Pins 1 TX FAULT Pin 4 (NO), 5 (COM), 6 (NC) * 2 RX FAULT Pin 7 (NO), 8 (COM), 9 (NC) * 3 COM EQ FAULT Pin 1 (NO), 2 (COM), 3 (NC) * 4 TX ALARM #2 Pin 4 (NO), 5 (COM), 6 (NC) * 5 RX ALARM #3 Pin 7 (NO), 8 (COM), 9 (NC) * 6 PRIMARY ALARM Pin 43 (NO), 10 (COM), 27 (NC) * 7 SECONDARY ALARM Pin 44 (NO), 11 (COM), 28 (NC) * 8 DEF MAINT ALARM Pin 17 ** A connection between the common and N.O. contacts indicate no fault/alarm. Signal is open collector high impedance if faulted. 5–3 D E F E R R E D SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM Table 5-1. SNM-1000 Fault Tree (Continued) T X T X R X I F F A U L T F A U L T R E L A Y R E L A Y O U T P U T O F F F A U L T L E D C O M E Q F A U L T R E L A Y T X R X A L A R M A L A R M R E L A Y R E L A Y # 2 # 3 S P A R E R E L A Y A L A R M # 1 (1) TX INTERFACE FAULTS TX DROP TX DATA/AIS TX CLK PLL TX CLK ACTIVITY TX AUDIO 1 CLIP TX AUDIO 2 CLIP CONFIGURATION RX INTERFACE FAULTS BUFFER UNDERFLOW BUFFER OVERFLOW RX DATA/AIS FRAME BER BACKWARD ALARM BUFFER CLK PLL BUFFER CLK ACT DEMUX LOCK RX 2047 LOCK BUFFER FULL RX INSERT RX AUDIO 1 CLIP RX AUDIO 2 CLIP CONFIGURATION (2) (3) (4) (5) P R I M A R Y A L A R M R E L A Y (6) S E C O N D A R Y A L A R M R E L A Y I B S B A C K W A R D A L A R M D E F E R R E D M A I N A L A R M (7) (8) X X Not Applicable X X X X X Not Applicable Not Applicable X X X X X X X X X X X Not Applicable X X Not Applicable Not Applicable Not Applicable X X X X X X X X X X X X X X X X X Legend Test Note Fault/Alarm Relay Test Points Connector/Pins 1 TX FAULT Pin 4 (NO), 5 (COM), 6 (NC) * 2 RX FAULT Pin 7 (NO), 8 (COM), 9 (NC) * 3 COM EQ FAULT Pin 1 (NO), 2 (COM), 3 (NC) * 4 TX ALARM #2 Pin 4 (NO), 5 (COM), 6 (NC) * 5 RX ALARM #3 Pin 7 (NO), 8 (COM), 9 (NC) * 6 PRIMARY ALARM Pin 43 (NO), 10 (COM), 27 (NC) * 7 SECONDARY ALARM Pin 44 (NO), 11 (COM), 28 (NC) * 8 DEF MAINT ALARM Pin 17 ** * A connection between the common and N.O. contacts indicate no fault/alarm. ** Signal is open collector high impedance if faulted. 5–4 X X SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM Table 5-1. SNM-1000 Fault Tree (Continued) T X T X R X I F F A U L T F A U L T R E L A Y R E L A Y O U T P U T O F F F A U L T L E D C O M E Q F A U L T R E L A Y T X R X A L A R M A L A R M R E L A Y R E L A Y # 2 # 3 S P A R E R E L A Y A L A R M # 1 (1) COMMON EQUIP FAULTS BATTERY/CLOCK -12V POWER SUPPLY +12V POWER SUPPLY +5V SUPPLY SELF TEST CONTROLLER INTERFACE MODULE (2) (3) (4) (5) P R I M A R Y A L A R M R E L A Y (6) X X X X X X X X X X X X X X X X S E C O N D A R Y A L A R M R E L A Y B A C K W A R D A L A R M D E F E R R E D M A I N A L A R M (7) (8) X X Not Applicable Legend Test Note Fault/Alarm Relay Test Points Connector/Pins 1 TX FAULT Pin 4 (NO), 5 (COM), 6 (NC) * 2 RX FAULT Pin 7 (NO), 8 (COM), 9 (NC) * 3 COM EQ FAULT Pin 1 (NO), 2 (COM), 3 (NC) * 4 TX ALARM #2 Pin 4 (NO), 5 (COM), 6 (NC) * 5 RX ALARM #3 Pin 7 (NO), 8 (COM), 9 (NC) * 6 PRIMARY ALARM Pin 43 (NO), 10 (COM), 27 (NC) * 7 SECONDARY ALARM Pin 44 (NO), 11 (COM), 28 (NC) * 8 DEF MAINT ALARM Pin 17 ** * A connection between the common and N.O. contacts indicate no fault/alarm. ** Signal is open collector high impedance if faulted. 5–5 I B S SNM-1000 Node Control Modem Maintenance 5.1.2 Revision 3 MN/SNM1000.IOM Faults/Alarms Display General fault, status, and alarm information are indicated by 8 LEDs located on the modem’s front panel. • A fault (red LED) indicates a fault that currently exists in the modem. • When a fault occurs, it is stored in the stored fault memory, and indicated by the single red LED. • The LED is turned off when the fault clears. If the fault clears, the occurrence is also stored. A total of 10 occurrences of any fault can be stored. Each fault or stored fault indicated by a front panel LED could be one of many faults. To determine which fault has occurred, use the Fault or Stored Fault front panel menu. Refer to Chapter 3 for information on the Fault or Stored Fault front panel menu. Alarms are considered minor faults which will not switch the modem offline in a redundant system. Alarms are shown in the Fault or Stored Fault front panel menu by a reversed contrast (white on black) character that appears at the display panel. 5.1.3 Faults/Alarms Analysis This section describes the possible problems and actions to take for the following faults: • • • • • Modulator Demodulator Transmit interface Receive interface Common equipment 5–6 SNM-1000 Node Control Modem Maintenance 5.1.3.1 Revision 3 MN/SNM1000.IOM Modulator Faults Fault/Alarm IF SYNTHESIZER Possible Problem and Action Modulator IF synthesizer fault. DATA CLOCK SYN This is considered a major alarm, and will turn off the modulator output. Return the modem for repair. Transmit data clock synthesizer fault. I CHANNEL This fault indicates that the internal clock VCO has not locked to the incoming data clock, or the internal clock synthesizer has not locked to the internal reference. This is considered a major alarm, and will turn off the modulator output. Ensure the proper data rate has been set up and selected, and the incoming data rate matches the modem selections. Activity alarm for the I channel digital filter. Q CHANNEL This alarm is considered a major alarm, and will turn off the modulator IF output. An alarm in this position indicates either a fault in the scrambler, or if the scrambler is disabled, the alarm indicates a loss of incoming data. If the fault is active with the scrambler turned off, check for input data at the DATA I/O connector. Activity alarm for the Q channel digital filter. AGC LEVEL Use the I channel procedure. Output power AGC level fault. INTERNAL SCT SYN Indicates the level at the modulator output is not the programmed level. Internal TX data clock synthesizer fault. EXT REF ACT The SCT has failed to lock to the internal reference. External reference activity fault. MODULE Indicates clock reference not detected. Modulator module fault. Typically indicates that the modulator module is missing or will not program. 5–7 SNM-1000 Node Control Modem Maintenance 5.1.3.1.1 Revision 3 MN/SNM1000.IOM Modulator Checkout Use the following procedure to check out the modulator: 1. Set up the equipment. Refer to Chapter 4 for modulator specifications. 2. Set up the modem for operation by using the Configuration Modulator and Demodulator front panel menus. 3. Clear all TX faults by correct use of data and clock selection (Chapter 4). 4. Measure the Eb/N0 with a receiver that is known to be properly operating. Refer to Table 5-2. 5. Check for proper Eb/N0 level. The (S+N)/N is measured by taking the average level of the noise and the average level of the modem spectrum top. Use this measurement for the first column. 6. Read across the page to find the S/N and Eb/N0 for the specific code rate. Once the demodulator has locked to the incoming signal, the Monitor menu will display signal level, raw BER, corrected BER, and Eb/N0. Refer to Chapter 1 for examples of BER performance curves. 7. Connect a spectrum analyzer to the modem. Ensure the IF output meets the appropriate mask and spurious specifications. Measure the power output at different levels and frequencies. A typical output spectrum is shown in Figure 5-1 and Figure 5-2. 8. To check the frequency and phase modulation accuracy: a. Set the modem to the continuous wave Normal mode by using the Carrier Mode front panel menu (Chapter 3). This sets the Carrier mode in the off condition. A pure carrier should now be present at the IF output. This should only be used for frequency measurements. In this mode, spurious and power measurements will be inaccurate. b. Set the modem to the continuous wave Offset mode by using the Carrier Mode front panel menu (Chapter 3). This generates a single, upper side-band-suppressed carrier signal. Ensure the carrier and side-band suppression is < -35 dBc. 5–8 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM Table 5-2. Conversion to S/N and Eb/N0 Chart (dB) (S+N)/N 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 20.0 Code S/N 1.8 2.6 3.3 4.1 4.7 5.4 6.0 6.6 7.3 7.8 8.4 9.0 9.5 10.1 10.6 11.2 11.7 12.2 12.8 13.3 13.8 14.3 14.9 15.4 15.9 16.4 16.9 17.4 17.9 18.4 18.9 19.5 20.0 5–9 Rate 1/2 Eb/N0 1.8 2.6 3.3 4.1 4.7 5.4 6.0 6.6 7.3 7.8 8.4 9.0 9.5 10.1 10.6 11.2 11.7 12.2 12.8 13.3 13.8 14.3 14.9 15.4 15.9 16.4 16.9 17.4 17.9 18.4 18.9 19.5 20.0 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM RL -49.00 dBm ATTEN 10 dB 2.00 dB/DIV RES BANDWIDTH 10.0 kHz Modem Rate = 2144 kbit/s, 3/4 Rate Coding with 7.7 dB Eb/No (S + N)/N = 10 dB CENTER 70.000 MHz *RB 10.0 kHz *VB 10.0 Hz SPAN 1.000 MHz ST 30.00 sec Figure 5-1. Typical Output Spectrum (with Noise) RL -20.29 dBm ATTEN 10 dB 5.00 dB/DIV PASS CENTER FREQUENCY 140.000 MHz CENTER 140.000 MHz *RB 30.0 kHz *VB 3.00 Hz SPAN 5.000 MHz ST 166.7 sec Figure 5-2. Typical Output Spectrum (without Noise) 5–10 SNM-1000 Node Control Modem Maintenance 5.1.3.2 Revision 3 MN/SNM1000.IOM Demodulator Faults Fault/Alarm CARRIER DETECT Possible Problem and Action Carrier detect fault. Indicates the decoder is not locked. This is the most common fault displayed in the modem. Any problem from the input data on the modulator end of the circuit to the output of the decoder can cause this alarm. IF SYNTHESIZER First, ensure the demodulator has an RF input at the proper frequency and power level. Ensure the demodulator data rate is properly programmed. Refer to the fault isolation procedure for Data Clock Syn in the modulator section. Verify the frequency of the data transmitted from the modulator is within 100 PPM. Demodulator IF synthesizer fault. Indicates the demodulator IF synthesizer is faulted. I CHANNEL Q CHANNEL This fault is a hardware failure. Contact the Comtech EF Data Customer Support Department. Indicates a loss of activity in the I channel of the quadrature demodulator. Typically indicates a problem in the modulator side of the circuit. Check for proper RF input to the demodulator. If the input to the demodulator is correct, then the problem is in the baseband processing. Indicates a loss of activity in the Q channel of the quadrature demodulator. BER THRESHOLD Follow the same procedure for the I channel fault. Indicates the preset BER threshold has been exceeded. MODULE Setting of this alarm is done in the Utility menu. This is an alarm based on the corrected BER reading on the front panel. Demodulator module fault. Typically indicates that the demodulator module is missing or will not program. Contact the Comtech EF Data Customer Support Department. 5–11 SNM-1000 Node Control Modem Maintenance 5.1.3.2.1 Revision 3 MN/SNM1000.IOM Demodulator Checkout Use the following procedure to test the demodulator. 1. Set up the equipment. Refer to Chapter 4 for the demodulator specifications. 2. Set up the modem with an external IF loop and level. Use a properly operating modulator, and ensure that power levels, data rates, code rates, etc., are compatible. 3. Allow the modem to lock up. Depending on the data rate and overhead type, lock up may take several seconds. When the green carrier detect LED is on and the DEMUX lock fault has been cleared (where applicable), the modem will run at the specified error rate. Run the TX power level (input amplitude) over the full range, and offset the TX frequency from the RX frequency by 35 kHz. Ensure the modem still runs within the specified error rate. 4. Set up the modem to check the constellation patterns with an oscilloscope that is set in the X-Y mode. Typical constellation patterns with noise and without noise. These test points are available on the auxiliary connector (J9, pins 6 and 8). It is not necessary to open the modem to look at these test points. 5–12 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM WITH NOISE WITHOUT NOISE Figure 5-3. Typical Eye Constellations 5–13 SNM-1000 Node Control Modem Maintenance 5.1.3.3 Revision 3 MN/SNM1000.IOM Transmit Interface Faults Fault/Alarm TX DROP TX DATA/AIS Possible Problem and Action Not Applicable Data or incoming AIS. TX CLOCK PLL When the AIS is selected in the Interface Utility menu for TX data fault, the transmit interface fault TX data/AIS is monitoring a fault condition of all 1s from customer data input to the modem. When data is selected in the Interface Utility menu for TX data fault, the TX interface fault TX data/AIS is monitoring a fault condition of all 1s or 0s. This is referred to as a data-stable condition (data is not transitioning). This fault indicates there is trouble in the chain sending data to the modem. The modem passes this signal transparently, and takes no other action. This indication is a monitor function only, and aids in isolating the trouble source in a system. Transmitter phase-locked loop fault. TX CLOCK ACT Indicates the transmitter PLL is not locked to the reference of the interface transmit clock recovery oscillator. Contact the Comtech EF Data Customer Support Department. Activity detector alarm of the selected interface transmit clock. TX AUDIO 1 CLIP TX AUDIO 2 CLIP CONFIGURATION Indicates the selected TX clock is not being detected. Check the signal of the selected TX clock source to verify the signal is present. The interface will fall back to the internal clock when this alarm is active. Not Applicable Not Applicable Configuration fault. Indicates the selected TX Output , Fault Relay, or Fault LED is not functioning. Check the signal of the selected TX source to verify the signal is present. The configuration will fall back to the default when this alarm is active. 5–14 SNM-1000 Node Control Modem Maintenance 5.1.3.4 Revision 3 MN/SNM1000.IOM Receive Interface Faults Fault/Alarm BUFFER UNDERFLOW Possible Problem and Action Buffer underflow alarm. BUFFER OVERFLOW Indicates the plesiochronous buffer has underflowed. Buffer underflow is normally a momentary fault (there are clock problems if this alarm is continuously present). This alarm is included in this section to be consistent with the fault reporting system and to be correctly registered in the stored fault memory. The time and date of the first 10 receive buffer underflow faults are stored in battery-backed memory as an aid to troubleshooting. The interval between stored overflow/underflow events can be used to determine relative clock accuracies. Buffer overflow alarm. Indicates the plesiochronous buffer has overflowed. RX DATA/AIS FRAME BER BACKWARD ALARM The problems and actions in the buffer underflow section apply to this alarm. Data or incoming AIS. The data monitored for RX data is coming from the satellite. When the AIS is selected for RX data fault in the Interface Utility menu, the RX data/AIS is monitoring an alarm condition of all 1s from the satellite. When data is selected for RX data fault in the Interface Utility menu, the RX data/AIS is monitoring a fault condition of all 1s or 0s. This is referred to as a data-stable condition (data is not transitioning). The fault indicates trouble in receiving data from the satellite. The modem passes this signal transparently, and can close a FORM C contact. The indication is a monitor function only to help isolate the source of trouble in a system. The receive decoded error rate has exceeded 10-3 over a 60-second period measured on the framing bits. This is defined as a major (prompt) receive alarm by INTELSAT specifications IESS-308. In a redundant system, a switch-over will be attempted. Since some data must be correctly received to indicate this fault, receive AIS will not be substituted. This fault is to be sent as a backward alarm to the distant end. This must be wired externally, as faults other than from the modem may need to enter the fault tree. Not Applicable 5–15 SNM-1000 Node Control Modem Maintenance Fault/Alarm BUFFER CLK PLL BUFFER CLK ACT DEMUX_LOCK Revision 3 MN/SNM1000.IOM Possible Problem and Action Buffer clock phase-locked loop fault. The buffer synthesizer is the wrong frequency or will not lock. Ensure the selected buffer clock source is at the proper frequency and level. If the fault continues, contact the Comtech EF Data Customer Support Department. Activity detector alarm of the selected interface receive clock. The interface will fall back to the satellite clock when this fault is active. Demultiplexer synchronization lock fault. This fault means that the demultiplexer is unable to maintain valid frame and multiframe alignment. RX 2047 LOCK The usual cause is invalid or absent receive data. This is a major (prompt) alarm. The alarm will cause insertion of receive AIS (all 1s) and the switch-over will be attempted. This fault is to be sent as a backward alarm to the distant end. This fault will occur when no carrier is present, but will probably never occur with a correct signal. RX 2047 lock alarm. BUFFER FULL Indicates the RX 2047 data test pattern is not being received by the decoder. The alarm probably indicates the transmitter is not set correctly. Buffer full alarm. RX INSERT RX AUDIO 1 CLIP RX AUDIO 2 CLIP CONFIGURATION Indicates the buffer is < 10% or > 90% full. Not Applicable Not Applicable Not Applicable Configuration fault. Indicates the selected, Fault Relay or Fault LED is not functioning. Check the signal of the selected RX source to verify the signal is present. The configuration will fall back to the default when this alarm is active. 5–16 SNM-1000 Node Control Modem Maintenance 5.1.3.5 Revision 3 MN/SNM1000.IOM Common Equipment Faults Fault/Alarm BATTERY/CLOCK Possible Problem and Action M&C battery voltage or clock fault. -12 VOLT SUPPLY Indicates a low voltage in the memory battery. Typically, this fault will be active when a modem has been hard reset or the firmware has been changed. When a hard reset has been executed or the firmware has been changed, this fault will typically be active when the modem is first turned on. -12V power supply fault. Indicates a high or low voltage condition. Level is ± 5%. +5 VOLT SUPPLY Check for a short on the –12V line from the power supply or on any of the plug-in boards. +12 VDC power supply fault. Use the same procedure as with –12V fault. +5V power supply fault. Use the same procedure as with a –12V fault. SELF TEST CONTROLLER The +5V supply requires a minimum load of 1A. Not Applicable Controller fault. INTERFACE MODULE Indicates a loss of power in the M&C card. Typically indicates the controller has gone through a power on/off cycle. Interface module fault. +12 VOLT SUPPLY Indicates a problem in programming the interface card. 5–17 SNM-1000 Node Control Modem Maintenance Revision 3 MN/SNM1000.IOM This page is intentionally left blank. 5–18 Appendix A. REMOTE CONTROL OPERATION The commands listed in this appendix are M&C remote commands used with other modems in the network. WARNING • • Status queries are always safe. However, exercise caution when issuing an SDM-300A M&C command. Some commands can produce an undesirable result if executed on an active/installed SNM-1000 MIDAS node. For example; the IF Loopback command “MC IFL_ON” will cause the SNM-1000 to disengage from the MIDAS control channel. Reconnecting the control channel would only be possible by taking the modem out of IF Loopback via the front panel or a local M&C command. Firmware number: Software version: FW/6535-3G 4.1.5 Note: The firmware referenced in this manual may be an earlier version of the actual firmware supplied with the unit. A.1 Channel Number Channel number <channel_no> has a valid range of 0 through 30. Leading zeros are ignored. Channel 0 is valid for an SNM-1000 Node Control modem and channels 1 through 30 are valid for external traffic modems attached to the SNM-1000 such as SDM-300s, SDM-6000s, etc. A–1 SNM-1000 Node Control Modem Remote Control Operation A.2 Revision 3 MN/SNM1000.IOM Abnormal Condition Responses If a satellite modem receives a message which does not match the established protocol or cannot be implemented, a negative acknowledgment message is sent in response. The possible message formats are: • <channel_no> ?ER1_PARITY ERROR'cr''lf'] (Error message for received parity errors.) • <channel_no> ?ER2_INVALID PARAMETER'cr''lf'] (Error message for a recognized command which cannot be implemented or has parameters which are out-of-range.) • <channel_no> ?ER3_UNRECOGNIZABLE COMMAND'cr''lf'] (Error message for unrecognizable command or bad command syntax.) • <channel_no> ?ER4_MODEM IN LOCAL MODE'cr''lf'] (Modem in local error, use the REM command to go to remote mode.) • <channel_no> ?ER5_HARD CODED PARAMETER'cr''lf'] (Error message indicating that the parameter is hardware dependent and may not be changed remotely.) A.2.1 Character Set The interface responds to ASCII characters in the range of 0x00 to 0x7F. The 8th bit (most significant) is not generated on the transmit side and is ignored on the receive side. A.2.2 Status Lines and Flow Control The interface ignores all status inputs. A.2.3 Message Structure A message is either a command or a response. Each message is made up of three elements: • • Prefix Message body End character A–2 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM A.3 Configuration Commands/Responses A.3.1 Modulator Configuration Commands Modulator Frequency Command: Response: Status: Response: RF Output (IF Output) Modulator Rate Preset Assignment <channel_no> MC MF_nnn.nnnn'cr' <channel_no> MF_nnn.nnnn'cr' RF_OFF'cr''lf'] <channel_no> MC MF_'cr' <channel_no> MF_nnn.nnnn'cr''lf'] Command: Response: <channel_no> MC RF_xxx'cr' <channel_no> RF_xxx'cr''lf'] Status: Response: <channel_no> MC RF_'cr' <channel_no> RF_xxx'cr''lf'] Command: <channel_no> MC AMRx_nnnn_mmm.mmm'cr' <channel_no> AMRx_nnnn_mmm.mmm'cr''lf'] Response: Status: Response: <channel_no> MC AMRx_'cr' <channel_no> AMRx_nnnn_mmm.mmm'cr''lf'] Where: nnn.nnnn = Frequency in MHz, 50.0000 to 180.0000, in 1 Hz steps. Note: When the modulator frequency is programmed, the RF output is switched OFF. Where: xxx = ON or OFF. Where: x = A, B, C, D or V (Preset designator). In TX Burst mode, nnnn = 1/2, or 3/4 (Coder rate). In TX continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). mmm.mmm = Data rate in kHz. Modulator Rate Preset Selection Modulator Rate Variable Assignment and Selection Command: Response: <channel_no> MC SMRx_'cr' <channel_no> SMRx_'cr' RF_OFF'cr''lf'] Status: (See MR command.) Command: Response: Status: <channel_no> MC SMRV_nnnn_mmm.mmm'cr' <channel_no> SMRV_nnnn_mmm.mmm'cr' <channel_no> RF_OFF'cr''lf'] Where: x = A, B, C, D, or V (Preset designator). Note: Setting the modulator rate turns the RF transmitter OFF. Where: In TX Burst mode, nnnn = 1/2 or 3/4 (Coder rate). In TX Continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). (See MR command.) mmm.mmm = Data rate in kHz. Note: Setting the modulator turns the RF transmitter OFF. A–3 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Set Modulator Power Offset Command: Response: <channel_no> MC MPO_snn.n'cr' <channel_no> MPO_snn.n'cr''lf'] Set Modulator Output Power Level Status: Response: Command: Response: <channel_no> MC MPO_'cr' <channel_no> MPO_snn.n'cr''lf'] <channel_no> MC MOP_snnn.n'cr' <channel_no> MOP_snnn.n'cr''lf'] Status: Response: <channel_no> MC MOP_'cr' <channel_no> MOP_snnn.n'cr''lf'] Note: The nominal power range is modified relative to the value specified by the modulator power offset (MPO_). Command: Response: <channel_no> MC SE_xxx'cr' <channel_no> SE_xxx'cr''lf'] Where: xxx = ON or OFF. Status: Response: <channel_no> MC SE_'cr' <channel_no> SE_xxx'cr''lf'] Command: Response: <channel_no> MC DENC_xxx'cr' <channel_no> DENC_xxx'cr''lf'] Status: Response: <channel_no> MC DENC_'cr' <channel_no> DENC_xxx'cr''lf'] Command: Response: <channel_no> MC MT_xxxx'cr' <channel_no> MT_xxxx'cr''lf'] Status: Response: <channel_no> MC MT_'cr' <channel_no> MT_xxxx'cr''lf'] Scrambler Enable Differential Encoder Enable Modulator Type Where: snn.n = +99.0 to -99.0, in 0.1 dB increments. Note: The modulator power offset is added to the nominal power level to adjust the transmit power range. Where: snnn.n = -30.0 to +5.0, in 0.1 steps (nominal range in dBm). Where: In TX Burst mode, xxx = OFF. In TX Continuous mode, xxx = ON or OFF. Where: In TX Burst mode, xxxx = INTL (INTELSAT Open Network). In TX Continuous mode, xxxx = INTL (INTELSAT Open Network), EFD (Comtech EF Data Closed Network), CSC (Comstream Closed Network), FDC (Fairchild Closed Network), or SDM51 (SDM51 Compatible). Modulator Encoder Type Command: Response: <channel_no> MC MET_xxx'cr' <channel_no> MET_xxx'cr''lf'] Status: Response: <channel_no> MC MET_'cr' <channel_no> MET_xxx'cr''lf'] Where: In TX Burst mode, xxx = VIT (K-7 Viterbi Encoder). In TX Continuous mode, xxx = VIT (K-7 Viterbi Encoder) SEQ (Sequential Encoder) TUR (Turbo) Modem Reference Clock Modulator Spectrum Rotation Reed-Solomon Encoder Enable Command: Response: <channel_no> MC MRC_xxxxx'cr' <channel_no> MRC_xxxxx'cr''lf'] Status: Response: <channel_no> MC MRC_'cr' <channel_no> MRC_xxxxx'cr''lf'] Command: Response: <channel_no> MC MSR_xxx'cr' <channel_no> MSR_xxx'cr''lf'] Status: Response: <channel_no> MC MSR_'cr' <channel_no> MSR_xxx'cr''lf'] Command: Response: <channel_no> MC RSEN_xxx'cr' <channel_no> RSEN_xxx'cr'lf'] Status: Response: <channel_no> MC RSEN_'cr' <channel_no> RSEN_xxx'cr'lf'] A–4 Where: xxxxx = INT (INTERNAL), EXT1 (EXTERNAL 1 MHz), EXT5 (EXTERNAL 5 MHz), EXT10 (EXTERNAL 10 MHz), EXT20 (EXTERNAL 20 MHz), OUT10 (OUTPUT 10 MHz). Where: xxx = NRM (normal spectrum), INV (inverted spectrum). Where: xxx = ON or OFF. SNM-1000 Node Control Modem Remote Control Operation Transmit BPSK Data Ordering for Continuous Mode Carrier Only Mode Modulator Preamble for Burst Mode Reed-Solomon Interleave Value TX 8PSK 2/3 IESS-310 Operation Bulk Modulator Configuration Revision 3 MN/SNM1000.IOM Command: Response: <channel_no> MC TDA_xxx'cr' <channel_no> TDA_xxx'cr''lf'] Status: Response: <channel_no> MC TDA_'cr' <channel_no> TDA_xxx'cr''lf'] Command: Response: <channel_no> MC COM_xxxxxx'cr' <channel_no> COM_xxxxxx'cr''lf'] Status: Response: <channel_no> MC COM_xxxxxx'cr' <channel_no> COM_xxxxxx'cr''lf'] Command: Response: <channel_no> MC MPRE_n'cr' <channel_no> MPRE_n'cr''lf'] Status: Response: <channel_no> MC MPRE_'cr' <channel_no> MPRE_n'cr''lf'] Command: Response: <channel_no> MC TRSI_xx'cr' <channel_no> TRSI_xx'cr''lf'] Status: Response: <channel_no> MC TRSI_'cr' <channel_no> TRSI_xx'cr''lf'] Command: Response: <channel_no> MC T310_xxx'cr' <channel_no> T310_xxx'cr''lf'] Status: Response: <channel_no> MC T310_'cr' <channel_no> T310_xxx'cr''lf'] Command: <channel_no> BMC_BMNOP,xxx.x,yyy.yyyy,DDDD,zzz z.zzz'cr' <channel_no> BMC_BMNOP,xxx.x,yyy.yyyy,DDDD,zzz z.zzz'cr''lf'] Response: Where: xxx = NRM (Standard) or INV (Non-Standard). Where: xxxxxx = OFF (NORMAL-MODULATED), DUAL (DUAL-CW), OFFSET (OFFSET-CW), CENTER (CENTER-CW). Where: n = 1 (Preamble 1) or 2 (Preamble 2). Where: xx = 4, 8, or 16. Where: xxx = ON or OFF. Where: B = Modulator set to Burst (B) or Continuous (C). M = Scrambler status set to OFF (1) or ON (0). N = Differential Encoder status set to 0 or 1. O = Reed-Solomon Encoder status set to 0 or 1 (always 0). P = IF Output 0 (off) or 1 (on). xxx.x = Output power setting: -5.0 to -30.0 dBm, in 0.1 steps. yyy.yyyy = Output IF frequency: 50.0 to 180.0 MHz. DDDD = Code Rate: '1/2', '3/4' ,'7/8', or 'BP12'. zzzz.zzz = Data Rate: 4.800 to 2000.0 kbps (limited by Code Rate). A–5 SNM-1000 Node Control Modem Remote Control Operation A.4 Revision 3 MN/SNM1000.IOM Demodulator Configuration Commands Set Demodulator Frequency Demodulator Rate Preset Assignment Command: Response: <channel_no> MC DF_nnn.nnnn'cr' <channel_no> DF_nnn.nnnn'cr''lf'] Status: Response: <channel_no> MC DF_'cr' <channel_no> DF_nn.nnnn'cr''lf'] Command: <channel_no> MC ADRx_nnnn_mmm.mmm'cr' <channel_no> ADRx_nnnn_mmm.mmm'cr''lf'] Response: Status: Response: <channel_no> MC ADRx_'cr' <channel_no> ADRx_nnnn_mmm.mmm'cr''lf'] Where: nnn.nnnn = Frequency in MHz, 50.0000 to 180.0000, in 1 Hz steps. Where: x = A, B, C, D, or V (Preset designator). In RX Continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). mmm.mmm = Data rate in kHz. Demodulator Rate Preset Selection Demodulator Rate Variable Assignment and Selection Command: Response: <channel_no> MC SDRx_'cr' <channel_no> SDRx_'cr''lf'] Status: (See DR command.) Command: <channel_no> MC SDRV_nnnn_mmm.mmm'cr' <channel_no> SDRV_nnnn_mmm.mmm'cr''lf'] Response: Status: (See DR command.) Where: x = A, B, C, D, or V (Preset designator). Where: In RX Continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). mmm.mmm = Data rate in kHz. Descrambler Enable Differential Decoder Enable RF Loopback Command: Response: <channel_no> MC DE_xxx'cr' <channel_no> DE_xxx'cr''lf'] Status: Response: <channel_no> MC DE_'cr' <channel_no> DE_xxx'cr''lf'] Command: Response: <channel_no> MC DDEC_xxx'cr' <channel_no> DDEC_xxx'cr''lf'] Status: Response: <channel_no> MC DDEC_'cr' <channel_no> DDEC_xxx'cr''lf'] Command: Response: <channel_no> MC RFL_xxx'cr' <channel_no> RFL_xxx'cr''lf'] Status: Response: <channel_no> MC RFL_'cr' <channel_no> RFL_xxx'cr''lf'] A–6 Where: xxx = ON or OFF. Where: In RX Continuous mode, xxx = ON or OFF. Where: xxx = ON or OFF. SNM-1000 Node Control Modem Remote Control Operation IF Loopback Sweep Center Frequency Sweep Width Range Revision 3 MN/SNM1000.IOM Command: Response: <channel_no> MC IFL_xxx'cr' <channel_no> IFL_xxx'cr''lf'] Status: Response: <channel_no> MC IFL_'cr' <channel_no> IFL_xxx'cr''lf'] Command: Response: <channel_no> MC SCF_snnnnn'cr' <channel_no> SCF_snnnnn'cr''lf'] Where: snnnnn = -35000 to +35000, in 1 Hz steps. Status: Response: <channel_no> MC SCF_'cr' <channel_no> SCF_snnnnn'cr''lf'] Note: In RX Continuous mode only. Command: Response: <channel_no> MC SWR_nnnnn'cr' <channel_no> SWR_nnnnn'cr''lf'] Where: nnnnn = 0 to 70000, in 1 Hz steps. Status: Response: <channel_no> MC SWR_'cr' <channel_no> SWR_nnnnn'cr''lf'] Command: Response: <channel_no> MC SR_xxx'cr' <channel_no> SR_xxx'cr''lf'] Status: Response: <channel_no> MC SR_'cr' <channel_no> SR_xxx'cr''lf'] Command: Response: <channel_no> MC DSR_xxx'cr' <channel_no> DSR_xxx'cr''lf'] Status: Response: <channel_no> MC DSR_'cr' <channel_no> DSR_xxx'cr''lf'] Command: Response: <channel_no> MC RSDE_xxx'cr' <channel_no> RSDE_xxx'cr'lf'] Status: Response: <channel_no> MC RSDE_'cr' <channel_no> RSDE_xxx'cr'lf'] Command: Response: <channel_no> MC BERT_xxxx'cr' <channel_no> BERT_xxxx'cr''lf'] Status: Response: <channel_no> MC BERT_'cr' <channel_no> BERT_xxxx'cr''lf'] Command: Response: <channel_no> MC DT_xxxx'cr' <channel_no> DT_xxxx'cr''lf'] Status: Response: <channel_no> MC DT_'cr' <channel_no> DT_xxxx'cr''lf'] Command: Response: <channel_no> MC DDT_xxx'cr' <channel_no> DDT_xxx'cr''lf'] Status: Response: <channel_no> MC DDT_'cr' <channel_no> DDT_xxx'cr''lf'] Command: Response: <channel_no> MC RRSI_xx'cr' <channel_no> RRSI_xx'cr''lf'] Status: Response: <channel_no> MC RRSI_'cr' <channel_no> RRSI_xx'cr''lf'] Command: Response: <channel_no> MC R310_xxx'cr' <channel_no> R310_xxx'cr''lf'] Status: Response: <channel_no> MC R310_'cr' <channel_no> R310_xxx'cr''lf'] Where: xxx = ON or OFF. Note: In RX Continuous mode only. Sweep Reacquisition Demodulator Spectrum Rotation Reed-Solomon Decoder Enable Bit Error Rate Threshold Demodulator Type Demodulator Decoder Type Reed-Solomon Interleave Value RX 8PSK 2/3 IESS-310 Operation A–7 Where: xxx = 0 to 999 (number of seconds). Where: xxx = NRM (normal spectrum), INV (inverted spectrum). Where: xxx = ON, OFF, or CORR_OFF. Where: xxxx = None or 1E-n (where n = 3, 4, 5, 6, 7, or 8 [exponent of threshold]). Where: In RX Continuous mode, xxxx = INTL (INTELSAT Open Network), EFD (Comtech EF Data Closed Network), CSC (Comstream Closed Network), or FDC (Fairchild Closed Network). Where: In RX Continuous mode, xxx = VIT (K-7 Viterbi Encoder) SEQ (Sequential Encoder) TUR (Turbo) Where: xx = 4, 8, or 16. Where: xxx = ON or OFF. SNM-1000 Node Control Modem Remote Control Operation Receive BPSK Data Ordering Bulk Demodulator Configuration Revision 3 MN/SNM1000.IOM Command: Response: <channel_no> MC RDA_xxx'cr' <channel_no> RDA_xxx'cr''lf'] Where: xxx = NRM (Standard) or INV (NonStandard). Status: Response: <channel_no> MC RDA_'cr' <channel_no> RDA_xxx'cr''lf'] Note: In RX Continuous mode only. Command: <channel_no> BDC_BMNO,yyy.yyyy,ttttt,uuuuu,DDDD, zzzz.zzz'cr' <channel_no> BDC_BMNO,yyy.yyyy,ttttt,uuuuu,DDDD, zzzz.zzz 'cr''lf'] Where: Response: B = Modulator set to Burst (B) or Continuous (C). M = Descrambler status OFF (0) or ON (1). N = Differential Decoder status 0 or 1. O = Reed Solomon Decoder status 0 or 1 (always 0). yyy.yyyy = Input IF frequency 50.0 to 180.0 MHz. ttttt = Sweep Center Frequency -35000 to +35000. uuuuu = Sweep Frequency Range 0 to 70000. DDDD = Code Rate '1/2','3/4','7/8' ‘8/9’, ‘5/16’ (B516), ‘21/44’ (2144), or 'BP12'. zzzz.zzz = Data Rate 4.800 to 2000.0 kbps (limited by Code Rate). Maximum Packet Size Command: Response: <channel_no> BPS,xxxxxxxx'cr' <channel_no> BPS,xxxxxxxx'cr''lf'] Where: xxxxxxxx = user length in bits, range of 2 to 16777216 bits (QPSK 1/2, Burst mode). This command specifies the maximum user data packet length that the SNM-1000 will accept in Burst mode. If the received packet is longer that the specified length, the modem assumes that the packet has been corrupted and enters the acquisition mode. A–8 SNM-1000 Node Control Modem Remote Control Operation A.5 Revision 3 MN/SNM1000.IOM Interface Configuration Commands Transmit Clock Transmit Clock Phase Command: Response: <channel_no> MC TC_xxx'cr' <channel_no> TC_xxx'cr''lf'] Status: Response: <channel_no> MC TC_'cr' <channel_no> TC_xxx'cr''lf'] Command: Response: <channel_no> MC TCP_xxxx'cr' <channel_no> TCP_xxxx'cr''lf'] Status: Response: <channel_no> MC TCP_'cr' <channel_no> TCP_xxxx'cr''lf'] Where: xxx = INT (Internal SCT Clock), EXT (External TX Terrestrial Clock), or SAT (Receive Satellite Clock). Where: In TX Burst mode, xxxx = NRM (Normal Clock Phasing) or INV (Inverted Clock Phasing). In TX Continuous mode, xxxx = NRM (Normal Clock Phasing), INV (Inverted Clock Phasing), or AUTO (Automatic Clock Phasing). Buffer Clock Receive Clock Phase Baseband Loopback Command: Response: <channel_no> MC BC_xxx'cr' <channel_no> BC_xxx'cr''lf'] Status: Response: <channel_no> MC BC_'cr' <channel_no> BC_xxx'cr''lf'] Note: In RX Continuous mode only. Command: Response: <channel_no> MC RCP_xxxx'cr' <channel_no> RCP_xxxx'cr''lf'] Where: xxxx = NRM (normal clock phasing) or INV (inverted clock phasing). Status: Response: <channel_no> MC RCP_'cr' <channel_no> RCP_xxxx'cr''lf'] Command: Response: <channel_no> MC BBL_xxx'cr' <channel_no> BBL_xxx'cr''lf'] Status: Response: <channel_no> MC BBL_'cr' <channel_no> BBL_xxx'cr''lf'] A–9 Where: xxx = INT (Internal SCT Clock), EXT (External TX Terrestrial Clock), SAT (Receive Satellite Clock), or REF (External Reference Clock). Where: xxx = ON or OFF. SNM-1000 Node Control Modem Remote Control Operation A.5.1 Revision 3 MN/SNM1000.IOM Interface Buffer Size Buffer size programming is supported in two formats: bits or ms. The selected format shall be chosen using the buffer programming command (IBP_), shown in the following listing. Interface Buffer Size (bit format) Command: Response: <channel_no> MC IBS_nnnnn'cr' <channel_no> IBS_nnnnn'cr''lf'] Where: nnnnn = 64 to 65536, in 16-bit increments. Status: Response: <channel_no> MC IBS_'cr' <channel_no> IBS_nnnnn'cr''lf'] Note: In RX Continuous mode only. Command: Response: <channel_no> MC IBS_nn'cr' <channel_no> IBS_nn'cr''lf'] Where: nn = 0 to 50 (buffer size in ms). Status: Response: <channel_no> MC IBS_'cr' <channel_no> IBS_nn'cr''lf'] Interface Buffer Center Command: Response: <channel_no> MC IBC_'cr' <channel_no> IBC_'cr''lf'] Note: In RX Continuous mode only. Interface Buffer Programming Command: Response: <channel_no> MC IBP_xxx'cr' <channel_no> IBP_xxx'cr''lf'] Where: xxx = bits or ms. Status: Response: <channel_no> MC IBP_'cr' <channel_no> IBP_xxx'cr''lf'] Interface Buffer Size (ms format) Note: In RX Continuous mode only. Note: In RX Continuous mode only. A–10 SNM-1000 Node Control Modem Remote Control Operation A.6 Revision 3 MN/SNM1000.IOM System Configuration Commands Refer to the following listing for system commands. Time of Day Command: Response: Date <channel_no> MC TIME_hh:mmxx'cr' <channel_no> TIME_hh:mmxx'cr''lf'] Status: Response: <channel_no> MC TIME_'cr' <channel_no> TIME_hh:mmxx'cr''lf'] Command: <channel_no> MC DATE_mm/dd/yy'cr' <channel_no> DATE_mm/dd/yy'cr''lf'] Response: Where: hh = 1 to 12 (hours). mm = 00 to 59 (minutes). xx = AM or PM. Where: mm = 1 to 12 (month). dd = 1 to 31 (day). yy = 00 to 99 (year). Status: Response: <channel_no> MC DATE_'cr' <channel_no> DATE_mm/dd/yy'cr''lf'] Remote Operation Command: Response: <channel_no> MC REM_'cr' <channel_no> REM_'cr''lf'] The modem will respond to any status request at any time. However, the modem must be in Remote mode to change configuration parameters. Clear Stored Faults Command: Response: <channel_no> MC CLSF_'cr' <channel_no> CLSF_'cr''lf'] This command is used to clear all stored faults logged by the modem. Modem Operation Mode Command: <channel_no> MC MOM_xxxxxxx'cr' <channel_no> MOM_xxxxxxx'cr''lf'] Where: xxxxxxx = TX_only, RX_only, or duplex. Response: Status: Response: RTS TX-IF Control Mode Command: Response: <channel_no> MC MOM_'cr' <channel_no> MOM_xxxxxxx'cr''lf'] <channel_no> MC RTSM_xxx'cr' <channel_no> RTSM_xxx'cr''lf'] Status: Response: <channel_no> MC RTSM_'cr' <channel_no> RTSM_xxx'cr''lf'] This command configures the modem for simplex or duplex operation modes. When transmit only mode is selected, receive faults are inhibited. When receive only mode is selected, transmit faults are inhibited. Where: xxx = ON or OFF. Note: In TX Continuous mode only. This command configures the modem for the RTS TX-IF control mode. If ON is selected, the TX-IF output will only be turned ON if the incoming RTS signal is asserted. The TX-IF output has to be programmed ON. There should be no major modulator faults present. If OFF is selected, the TX-IF output will operate normally, ignoring the RTS signal. Online LED Display Command: Response: <channel_no> LED,AAAAA'cr' <channel_no> LED,AAAAA'cr''lf'] A–11 Where: AAAAA = OFF, ON, or FLASH SNM-1000 Node Control Modem Remote Control Operation A.6.1 Revision 3 MN/SNM1000.IOM Modem Type Commands Refer to the following listing for modem type commands. Transmit Mode Selection Command: Response: Receive Mode Selection Status: Response: <channel_no> MC TXM_'cr' <channel_no> MC TXM_xxxxx'cr''lf'] Command: Response: <channel_no> MC RXM_xxxxx'cr' <channel_no> MC RXM_xxxxx'cr''lf'] Status: Response: A.7 <channel_no> MC TXM_xxxxx'cr' <channel_no> MC TXM_xxxxx'cr''lf'] <channel_no> MC RXM_'cr' <channel_no> MC RXM_xxxxx'cr''lf'] Where: xxxxx = BURST or CONT (Continuous). This command configures the modem transmit side to operate in Burst or Continuous mode. The <channel_no> is 0 for the remote control mode SNM-1000. Where: xxxxx = CONT (Continuous). This command configures the modem receive side to operate in Burst or Continuous mode. The <channel_no> is 0 for the remote control mode SNM-1000. Configuration Status Refer to the following listing for configuration status data. Modulator Configuration Status Status: Response: <channel_no> MC MCS_'cr' <channel_no> MCS_'cr' RF_xxx'cr' MF_nnn.nnnn'cr' MR_nnnn_mmm.mmm'cr' AMRA_nnnn_mmm.mmm'cr' AMRB_nnnn_mmm.mmm'cr' AMRC_nnnn_mmm.mmm'cr' AMRD_nnnn_mmm.mmm'cr' AMRV_nnnn.mmm.mmm'cr' MPO_snn.n'cr'Modulator MOP_snnn.n'cr' SE_xxx'cr' DENC_xxx'cr' MT_xxxx'cr' MET_xxx'cr' TDA_xxx'cr' COM_xxx'cr' TXM_xxxxx'cr' MPRE_n'cr' RSEN_xxx'cr''lf'] (Note 1) (Note 2) (Note 1) RF Output (ON/OFF) Modulator Frequency Modulator Rate Preset A Assignment Preset B Assignment Preset C Assignment Preset D Assignment Preset V Assignment Power Offset Modulator Output Power Scrambler Enable (ON/OFF) Differential Encoder (ON/OFF) Modulator Type Modulator Encoder Type Transmit BPSK Data Ordering Carrier Only Mode (ON/OFF) Transmit Mode Modulator Preamble Reed-Solomon Encoder The modulator configuration status command causes a block of data to be returned by the addressed modem. The block of data reflects the current configuration status of the modulator module. Notes: 1. Status only returned in Transmit Burst mode. 2. Status only returned in Transmit Continuous mode. A–12 SNM-1000 Node Control Modem Remote Control Operation Modulator/ Coder Configuration Program Status Status: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC MCP_'cr' <channel_no> MCP_'cr' MOM_xxxxxxx'cr' MT_xxxx'cr' MET_xxx'cr' MF_nnn.nnnn'cr' MR_nnnn_mmm.mmm'cr' MPO_snn.n'cr' MOP_snnn.n'cr' SE_xxx'cr' DENC_xxx'cr' TDA_xxx'cr' TC_xxx'cr' TCP_xxxx'cr' BBL_xxx'cr' RTSM_xxx'cr' TXM_xxxxx'cr' MPRE_n'cr' RSEN_xxx'cr' RF_xxx'cr''lf'] (Note 1) (Note 2) (Note 2) (Note 2) (Note 1) Modem Operation Mode Modulator Type Modulator Encoder Type Modulator Frequency Modulator Rate Modulator Power Offset Modulator Output Power Scrambler Enable (ON/OFF) Differential Encoder (ON/OFF) Transmit BPSK Data Ordering Transmit Clock (Source) Transmit Clock Phase Baseband Loopback RTS TX-IF Control Mode Transmit Mode Modulator Preamble Reed-Solomon Encoder RF Output (ON/OFF) This command is used by the Comtech EF Data M:N protection switch to collect information necessary for configuring backup modems. Notes: 1. Status only returned in Transmit Continuous mode. 2. Status only returned in Transmit Burst mode. Demodulator Configuration Status Status: Response: <channel_no> MC DCS_'cr' <channel_no> DCS_'cr' DF_nnn.nnnn'cr' DR_nnnn_mmm.mmm'cr' ADRA_nnnn_mmm.mmm'cr' ADRB_nnnn_mmm.mmm'cr' ADRC_nnnn_mmm.mmm'cr' ADRD_nnnn_mmm.mmm'cr' ADRV_nnnn.mmm.mmm'cr' DE_xxx'cr' DDEC_xxx'cr' RFL_xxx'cr' IFL_xxx'cr' SCF_snnnnn'cr' SWR_nnnnn'cr' BERT_xxxx'cr' DT_xxxx'cr' DDT_xxx'cr' RDA_xxx'cr' RXM_xxxxx'cr' RSDE_xxx'cr''lf'] (Note 1) (Note 1) (Note 1) (Note 1) Demodulator Frequency Demodulator Rate Preset A Assignment Preset B Assignment Preset C Assignment Preset D Assignment Preset V Assignment Descrambler Enable (ON/OFF) Differential Decoder (ON/OFF) RF Loopback (ON/OFF) IF Loopback (ON/OFF) Sweep Center Frequency Sweep Width Range BER Threshold Demodulator Type Demodulator Decoder Type Receive BPSK Data Ordering Receive Mode Reed-Solomon Decoder The demodulator configuration status command causes a block of data to be returned by the addressed modem. The block of data reflects the current configuration of the demodulator. Notes: 1. Status only returned in Receive Continuous mode. A–13 SNM-1000 Node Control Modem Remote Control Operation Demodulator/Decoder Configuration Program Status Status: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC DCP_'cr' <channel_no> DCP_'cr' MOM_xxxxxxx'cr' BERT_xxxx'cr' DT_xxxx'cr' DDT_xxx'cr' DF_nnn.nnnn'cr' DR_nnnn_mmm.mmm'cr' DE_xxx'cr' DDEC_xxx'cr' RFL_xxx'cr' IFL_xxx'cr' SCF_snnnnn'cr' SWR_nnnnn'cr' RDA_xxx'cr' BC_xxx'cr' RCP_xxxx'cr' BBL_xxx'cr' IBP_xxx'cr' IBS_nnnnn'cr' RXM_xxxxx'cr' RSDE_xxx'cr''lf'] (Note 1) (Note 1) (Note 1) (Note 1) (Note 1) (Note 1) Modem Operation Mode BER Threshold Demodulator Type Demodulator Decoder Type Demodulator Frequency Demodulator Rate Descrambler Enable (ON/OFF) Differential Decoder (ON/OFF) RF Loopback (ON/OFF) IF Loopback (ON/OFF) Sweep Center Frequency Sweep Width Range Receive BPSK Data Ordering Buffer Clock (Source) Receive Clock Phase Baseband Loopback Interface Buffer Programming Interface Buffer Size Receive Mode Reed-Solomon Decoder This command is used by the M:N protection switch to collect information necessary for configuring backup modems. Notes: 1. Status only returned in Receive Continuous mode. Interface Configuration Status Status: Response: <channel_no> MC ICS_'cr' <channel_no> ICS_'cr' TC_xxx'cr' TCP_xxxx'cr' RCP_xxxx'cr' BBL_xxx'cr' BC_xxx'cr' IBP_xxx'cr' IBS_nnnnn'cr' RTSM_xxx'cr''lf'] (Note 1) (Note 1) (Note 1) (Note 2) Transmit Clock (Source) Transmit Clock Phase Receive Clock Phase Baseband Loopback Buffer Clock (Source) Interface Buffer Programming Interface Buffer Size RTS TX-IF Control Mode The interface configuration status command causes a block of data to be returned by the addressed modem. The block reflects the current configuration of the interface. Notes: 1. Status only returned in Receive Continuous mode. 2. Status only returned in Transmit Continuous mode. A–14 SNM-1000 Node Control Modem Remote Control Operation A.7.1 Modem Faults Status Modem Faults Status (Summary) Modulator Status Revision 3 MN/SNM1000.IOM Status: <channel_no> MC MFS_'cr' Response: <channel_no> MFS_'cr' DMD_xxx'cr' MOD_xxx'cr' ITX_xxx'cr' IRX_xxx'cr' CEQ_xxx'cr''lf'] Status: Response: <channel_no> MC MS_'cr' <channel_no> MS_'cr' RF_xxx'cr' MOD_xxx'cr' SYN_xxx'cr' DCS_xxx'cr' AGC_xxx'cr' SFLT_xx'cr''lf'] TX Burst Mode: RF Output (ON/OFF) Actual Status, Not Configured Module (OK/FLT) IF Synthesizer (OK/FLT) Data Clock Synthesizer (OK/FLT) AGC Level (OK/FLT) Number of Stored Faults Logged (0 through 10) Response: <channel_no> MS_'cr' RF_xxx'cr' TX Continuous Mode: RF Output (ON/OFF) Actual Status, Not Configured Module (OK/FLT) IF Synthesizer (OK/FLT) Data Clock Synthesizer (OK/FLT) I Channel (OK/FLT) Q Channel (OK/FLT) AGC Level (OK/FLT) Number of Stored Faults Logged (0 through 10) MOD_xxx'cr' SYN_xxx'cr' DCS_xxx'cr' ICH_xxx'cr' QCH_xxx'cr' AGC_xxx'cr' SFLT_xx'cr''lf'] Demodulator Status Status: <channel_no> MC DS_'cr' Response: <channel_no> DS_'cr' MOD_xxx'cr' CD_xxx'cr' SYN_xxx'cr' ICH_xxx'cr' QCH_xxx'cr' DSCR_xxx'cr' BERT_xxx'cr' SFLT_xx'cr''lf'] A–15 RX Continuous Mode: Demodulator (FLT/OK) Modulator (FLT/OK) Interface Transmit Side (FLT/OK) Interface Receive Side (FLT/OK) Common Equipment (FLT/OK) RX Continuous Mode: Demod Module (OK/FLT) Carrier Detect (OK/FLT) IF Synthesizer Lock (OK/FLT) I Channel (OK/FLT) Q Channel (OK/FLT) Descrambler (OK/FLT) BER Threshold (OK/FLT) Number of Stored Faults Logged (0 through 10) SNM-1000 Node Control Modem Remote Control Operation Interface Transmit Side Status Status: Response: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC ITXS_'cr' <channel_no> ITXS_'cr' CLK_xxx'cr' SFLT_xx'cr''lf'] TX Burst Mode: <channel_no> ITXS_'cr' CLK_xxx'cr' TX Continuous Mode: Selected Transmit Clock Activity (OK/FLT) Number of Stored Faults Logged (0 through 10) SFLT_xx'cr''lf'] Interface Receive Side Status Common Equipment Status Status: Response: Status: Response: <channel_no> MC IRXS_'cr' <channel_no> IRXS_'cr' CLK_xxx'cr' UNFL_xxx'cr' OVFL_xxx'cr' SFLT_xx'cr''lf'] <channel_no> MC CES_'cr' <channel_no> CES_'cr' M&C_xxx'cr' INT_xxx'cr' BAT_xxx'cr' +5_xxx'cr' +12_xxx'cr' -12_xxx'cr' MODE_xxxxxx'cr' SFLT_xx'cr''lf'] Selected Transmit Clock Activity (OK/FLT) Number of Stored Faults Logged (0 through 10) Selected Buffer Clock Activity (OK/FLT) Buffer Underflow (OK/FLT) Buffer Overflow (OK/FLT) Number of Stored Faults Logged (0 through 10) M&C Module (OK/FLT) Data Interface Module (OK/FLT) Battery/Clock (OK/FLT) +5V Power Supply (OK/FLT) +12V Power Supply (OK/FLT) -12V Power Supply (OK/FLT) Mode (LOCAL or REMOTE) Number of Stored Faults Logged (0 through 10) The common equipment status command causes the return of a block of data indicating the common equipment status. A–16 SNM-1000 Node Control Modem Remote Control Operation A.7.2 Raw BER Revision 3 MN/SNM1000.IOM Error Performance Status Status: Response: <channel_no> MC RBER_'cr' <channel_no> RBER_xm.mE-ee'cr''lf'] Where: x = < or > (data modifier to indicate that the error rate is less than or greater than the returned value). m.m = 1.0 to 9.9 (error rate mantissa). ee = 1 to 99 (error rate exponent). Corrected BER Status: Response: <channel_no> MC CBER_'cr' <channel_no> CBER_xm.mE-ee'cr''lf'] Notes: 1. The 'x' (< or >) parameter is only returned if the error rate has exceeded the computational resolution of the system. 2. 'No Data' is returned if the error rate cannot be calculated. 3. 'Sampling' is returned if not enough data is currently available to calculate the error rate. Where: x = < or > (data modifier to indicate that the error rate is less than or greater than the returned value). m.m = 1.0 to 9.9 (error rate mantissa). ee = 1 to 99 (error rate exponent). Notes: 1. The 'x' (< or >) parameter is only returned if the error rate has exceeded the computational resolution of the system. 2. 'No Data' is returned if the error rate cannot be calculated. 3. 'Sampling' is returned if not enough data is currently available to calculate the error rate. A–17 SNM-1000 Node Control Modem Remote Control Operation Eb/N0 Status Status: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC EBN0_'cr' <channel_no> EBN0_xnn.ndB'cr''lf'] Where: x = < or > (data modifier to indicate that the Eb/N0 is less than or greater than the returned value). nn.n = 1.0 to 99.9 (Eb/N0 value). Notes: 1. The 'x' (< or >) parameter is only returned if the Eb/N0 has exceeded the computational resolution of the system. 2. 'No Data' returned if the Eb/N0 cannot be calculated. 3. 'Sampling' returned if not enough data available to calculate the Eb/N0. Modulator Rate Status Status: Response: <channel_no> MC MR_'cr' <channel_no> MR_nnnn_mmm.mmm'cr''lf'] Where: In TX Burst mode, nnnn = 1/2 or 3/4 (Coder rate). In TX Continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). mmm.mmm = Data rate in kHz. Demodulator Rate Status Status: Response: <channel_no> MC DR_'cr' <channel_no> DR_nnnn_mmm.mmm'cr''lf'] Where: In RX Continuous mode, nnnn = 1/2 (QPSK 1/2), [coder rate], 3/4 (QPSK 3/4), 7/8 (QPSK 7/8), BP12 (BPSK 1/2), 8P23 (8PSK 2/3), OQ12 (OQPSK 1/2), OQ34 (OQPSK 3/4), OQ78 (OQPSK 7/8), OQSK (OQPSK 1/1), BPSK (BPSK 1/1) (QPSK (QPSK 1/1), 2144 (BPSK 21/44), B516 (BPSK 5/16), 8P34 (8PSK 3/4). mmm.mmm = Data rate in kHz. A–18 SNM-1000 Node Control Modem Remote Control Operation Receive Signal Level Status Status: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC RSL_'cr' <channel_no> RSL_xsnn.ndBm'cr''lf'] Where: x = < or > (data modifier to indicate that the receive signal level is less than or greater than the returned value). s = + or - (receive signal level sign). nn.n = 0.0 to 99.9 (receive signal level magnitude). Notes: 1. The 'x' (< or >) parameter is only returned if the level has exceeded the computational resolution of the system. 2. 'No Data' is returned if the level cannot be calculated. 3. 'Sampling' is returned if not enough data is currently available to calculate the level. Current Sweep Value Status: Response: <channel_no> MC CSV_'cr' <channel_no> CSV_snnnnn'cr''lf'] Where: x = < or > (data modifier to indicate that the sweep offset value is less than or greater than the returned value). s = + or - (sweep offset from center). nnnnn = 0 to 35000. This command returns the current sweep offset value. Notes: 1. The 'x' (< or >) parameter is only returned if the level has exceeded the computational resolution of the system. 2. 'No Data' is returned if the level cannot be calculated. 3. 'Sampling' is returned if not enough data is currently available to calculate the level. 4. In RX Continuous mode only. A–19 SNM-1000 Node Control Modem Remote Control Operation A.8 Revision 3 MN/SNM1000.IOM Stored Faults Information on stored faults is returned when requested. If no stored fault exists for a given fault number, the words ‘NO FAULT’ will be returned instead of the normal time/date and status information. The following symbols are used to define the stored faults status commands. • • • • • • • Modulator Stored Faults Command: Response: Response: Demodulator Stored Faults # hh mm ss MM DD YY Fault number (0 through 9), '0' is the first fault stored. Hours in 24-hour format. Minutes. Seconds. Month. Day. Year. <channel_no> MC MSF_#'cr' <channel_no> MSF_# hh:mm:ss MM/DD/YY'cr' MOD_xxx'cr' SYN_xxx'cr' DCS_xxx'cr' AGC_xxx'cr''lf'] <channel_no> MSF_# hh:mm:ss MM/DD/YY'cr' MOD_xxx'cr' SYN_xxx'cr' DCS_xxx'cr' ICH_xxx'cr' QCH_xxx'cr' AGC_xxx'cr''lf'] Command: <channel_no> MC DSF_#'cr' Response: <channel_no> DSF_# hh:mm:ss MM/DD/YY'cr' MOD_xxx'cr' CD_xxx'cr' SYN_xxx'cr' ICH_xxx'cr' QCH_xxx'cr' DSCR_xxx'cr' BERT_xxx'cr''lf'] A–20 TX Burst Mode: Module (OK/FLT). IF Synthesizer (OK/FLT). Data Clock Synthesizer (OK/FLT). AGC Level (OK/FLT). TX Continuous Mode: Module (OK/FLT). IF Synthesizer (OK/FLT). Data Clock Synthesizer (OK/FLT). I Channel (OK/FLT). Q Channel (OK/FLT). AGC Level (OK/FLT). RX Continuous Mode: Demod module (OK/FLT). Carrier Detect (OK/FLT). IF Synthesizer Lock (OK/FLT). I Channel (OK/FLT). Q Channel (OK/FLT). Descrambler (OK/FLT). BER Threshold (OK/FLT). SNM-1000 Node Control Modem Remote Control Operation Common Equipment Stored Faults Command: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC CSF_#'cr' <channel_no> CSF_# hh:mm:ss MM/DD/YY'cr' M&C_xxx'cr' INT_xxx'cr' BAT_xxx'cr' +5_xxx'cr' +12_xxx'cr' -12_xxx'cr''lf'] Bulk Command: <channel_no> MC BCAS_'cr' Consolidated Response: <channel_no> Analog BCAS_p1,p2,p3, . . . pn'cr''lf'] Status Where: 'pn' is the last parameter returned. Parameter Number 1 (Note 1) Monitor and Control Module (OK/FLT). Data Interface Module (OK/FLT). Battery/Clock (OK/FLT). +5V Power Supply (OK/FLT). +12V Power Supply (OK/FLT). -12V Power Supply (OK/FLT). This command is similar to the 'BCS_' command, but returns modem analog parameters. Parameter Name (Command Reference) Receive Signal Level (ref. 'RSL_' command). Description p1 = xsnn.n, receive signal level in dBm. 2 Raw BER (ref. 'RBER_' command). p2 = xm.mE-ee. 3 Corrected BER (ref. 'CBER_' command). p3 = xm.mE-ee. 4 Eb/N0 (ref. ' EBN0 _' command). p4 = xnn.n, Eb/N0 in dB. 5 Current Sweep Value (ref. 'CSV_' command). p5 = snnnnn, sweep offset value in Hz. Notes: 1. Status only returned in Continuous mode. 2. Parameters 2 through 5 are dependent on carrier acquisition. If the decoder is not locked, empty data blocks are returned (,,,,). A–21 SNM-1000 Node Control Modem Remote Control Operation Bulk Consolidated Status Command: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC BCS_'cr' <channel_no> BCS_p1,p2,p3, . . . pn'cr''lf'] This command causes bulk modem status to be returned. To reduce the length of the response, message parameter data are returned without identifiers. However, parameter identification can be determined by order of return. Each status parameter (except for the last parameter) is terminated with a comma (','). The last parameter has the standard message termination sequence ('cr''lf']). Most of the data returned is formatted the same way as that returned by any single command status request (refer to Section A.3.2 for examples). Where: 'pn' is the last parameter returned. Parameter Number 1 (Note 1) Parameter Name (Command Reference) Modulator RF Output (ref. 'RF_' command). Description p1 = n, where 'n' is '0' (OFF) or '1' (ON). 2 Modulator IF Frequency (ref. 'MF_' command). p2 = nnn.nnnn, IF frequency in MHz. 3 Modulator Rate (ref. 'MR_' command). p3 = nnnn_mmm.mmm, code rate/data rate in kbps. 4 Modulator Preset A assignment (ref. 'ARMA_' command). p4 = nnnn_mmm.mmm, code rate/data rate in kbps. 5 Modulator Preset B assignment (ref. 'ARMB_' command). p5 = nnnn_mmm.mmm, code rate/data rate in kbps. 6 Modulator Preset C assignment (ref. 'ARMC_' command). p6 = nnnn_mmm.mmm, code rate/data rate in kbps. 7 Modulator Preset D assignment (ref. 'ARMD_' command). p7 = nnnn_mmm.mmm, code rate/data rate in kbps. 8 Modulator Preset V assignment (ref. 'ARMV_' command). p8 = nnnn_mmm.mmm, code rate/data rate in kbps. 9 Modulator Power Offset (ref. 'MPO_' command). p9 = snn.n, modulator power offset in dB. 10 Modulator Output Power Level (ref. 'MOP_' command). p10 = snn.n, transmitter output power level in dBm. 11 Scrambler Enable (ref. 'SE_' command). p11 = n, where 'n' is '0' (OFF) or '1' (ON). 12 Differential Encoder Enable (ref. 'DENC_' command). p12 = n, where 'n' is '0' (OFF) or '1' (ON). 13 Modulator Type (ref. 'MT_' command). p13 = n, where 'n' is '0' (EFD), '1' (INTL), '2'(CSC), '3' (FDC), or '4' (SDM51). 14 Modulator Encoder Type (ref. 'MET_' command). p14 = n, where 'n' is '0' (SEQ) or '1' (VIT). 15 Transmit BPSK Data Ordering (ref. 'TDA_' command). p15 = n, where 'n' is '0' (NRM), '1' (INV). 16 Carrier Only Mode ON/OFF. p16 = n, where 'n' is '0' (OFF) or '1' (ON). A–22 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Bulk Consolidated Status (continued Where: 'pn' is the last parameter returned. Parameter Number 17 Parameter Name (Command Reference) Demodulator IF Frequency (ref. 'DF_' command). Description p17 = nnn.nnnn, demodulator IF frequency in MHz. 18 Demodulator Rate (ref. 'DR_' command). p18 = nnnn_mmm.mmm, code rate/data rate in kbps. 19 Demodulator Preset A Assignment (ref. 'ADRA_' command). p19 = nnnn_mmm.mmm, code rate/data rate in kbps. 20 Demodulator Preset B Assignment (ref. 'ADRB_' command). p20 = nnnn_mmm.mmm, code rate/data rate in kbps. 21 Demodulator Preset C Assignment (ref. 'ADRC_' command). p21 = nnnn_mmm.mmm, code rate/data rate in kbps. 22 Demodulator Preset D Assignment (ref. 'ADRD_' command). p22 = nnnn_mmm.mmm, code rate/data rate in kbps. 23 Demodulator Preset V Assignment (ref. 'ADRV_' command). p23 = nnnn_mmm.mmm, code rate/data rate in kbps. 24 Descrambler Enable (ref. 'DE_' command). p24 = n, where 'n' is '0' (OFF) or '1' (ON). 25 Differential Decoder Enable (ref. 'DDEC_' command). p25 = n, where 'n' is '0' (OFF) or '1' (ON). 26 RF Loopback (ref. 'RFL_' command). p26 = n, where 'n' is '0' (OFF) or '1' (ON). 27 IF Loopback (ref. 'IFL_' command). p27 = n, where 'n' is '0' (OFF) or '1' (ON). (Note 1) 28 Sweep Center Frequency (ref. 'SCF_' command). p28 = snnnnn, sweep center frequency in Hz. (Note 1) 29 Sweep Width Range (ref. 'SWR_' command). p29 = nnnnn, sweep range in Hz. 30 BER Threshold (ref. 'BERT_' command). p30 = xxxx, BER threshold. 31 Demodulator Type (ref. 'DT_' command). p31 = n, where 'n' is '0' (EFD), '1' (INTL), '2' (CSC), or '3' (FDC). 32 Demodulator Decoder Type (ref. 'DDT_' command). p32 = n, where 'n' is '0' (SEQ) or '1' (VIT). 33 Receive BPSK Data (ref. 'RDA_' command). p33 = n, where 'n' is '0' (NRM),or '1' (INV). 34 Transmit Clock Source (ref. 'TC_' command). p34 = n, where 'n' is '0' (INT), '1' (REF), or '2' ( EXT). (Note 1) A–23 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Bulk Consolidated Status (continued Where: 'pn' is the last parameter returned. Paramete r Number 35 Parameter Name (Command Reference) Transmit Clock Phase (ref. 'TCP_' command). p35 = n, where 'n' is '0' (NRM), '1' (INV), or '2' (AUTO). 36 Buffer Clock Source (ref. 'BC_' command). p36 = n, where 'n' is '0' (INT), '1' (REF), '2' (EXT), or '3' (SAT). 37 Receive Clock Phase (ref. 'RCP_' command). p37 = n, where 'n' is '0' (NRM) or '1' (INV). 38 Baseband Loopback (ref. 'BBL_' command). p38 = n, where 'n' is '0' (OFF) or '1' (ON). (Note 1) 39 Interface Buffer Programming (ref. 'IBP_' command). p39 = n, where 'n' is '0' (BITS) or '1' (MS). (Note 1) 40 Interface Buffer Size (ref. 'IBS_' command). p40 = nnnnnn, buffer size in bits or milliseconds. 41 Modem Operation Mode (ref. 'MOM_' command). p41 = n, where 'n' is '1' (TX_ONLY), '2' (RX_ONLY), or '3' (DUPLEX). 42 Modem Remote/Local Mode. p42 = n, where 'n' is '0' (LOCAL) or '1' (REMOTE). 43 Not valid. 44 Not valid. 45 Not valid. 46 Not valid. 47 Not valid. 48 Not valid. 49 Not valid. 50 Not valid. 51 Not valid. 52 Not valid. 53 Not valid. 54 Not valid. 55 Not valid. 56 Transmit Mode Selection (ref. 'TXM_' command). p56 = n, where 'n' is '1' (BURST) or '2' (CONTINUOUS). 57 Modulator Preamble Selection (ref. 'MPRE_' command). p57 = n, where 'n' is '1' (PREAMBLE) or '2' (PREAMBLE 2). (Note 1) (Note 3) (Note 2) Description A–24 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Bulk Consolidated Status (continued Where: 'pn' is the last parameter returned. Paramete r Number 58 Parameter Name (Command Reference) Description Receive Mode Selection (ref. 'RXM_' command). p58 = n, where 'n' is '2' (CONTINUOUS) (Note 1) 60 Reed-Solomon Encoder Enable (ref. 'RSEN_' command). p60 = n, where 'n' is '0' (OFF,) or '1' (ON). (Note 1) 61 Reed-Solomon Decoder Enable (ref. 'RSDE_' command). p61 = n, where 'n' is '0' (OFF), '1' (ON), or '2' (CORR_OFF). Notes: 1. Parameters only valid in Transmit and Receive Continuous mode. 2. Parameters only valid in Transmit Continuous mode. 3. For any parameter other than the last parameter that is not returned, a comma (',') will be returned. A–25 SNM-1000 Node Control Modem Remote Control Operation Bulk Consolidated Status Faults Command: Response: Revision 3 MN/SNM1000.IOM <channel_no> MC BCSF_'cr' <channel_no> BCSF_abcdefghijkl'cr''lf'] This command causes all modem fault status information to be returned. To reduce the length of the response, fault status is embedded into the bit structure of the characters that are returned. Faults are indicated by a binary 1 in the designated bit position. Where: Character a: Modulator fault status character 1. Bit 6 = 1 always. Bit 5 = Modulator module fault. Bit 4 = RF output status. Actual not programmed status (1 = ON, 0 = OFF). Bit 3 through Bit 0 = Binary representation (0 to 10) of the number of modulator stored faults. Character b: Modulator fault status character 2. Bit 6 = 1 always. Bit 5 = IF Synthesizer. Bit 4 = Data Clock Synthesizer. Bit 3 = reserved. Bit 2 = reserved. Bit 1 = AGC Level. Bit 0 = reserved. Note: In TX Burst mode only. Character b: Modulator fault status character 2. Bit 6 = 1 always. Bit 5 = IF Synthesizer. Bit 4 = Data Clock Synthesizer. Bit 3 = I Channel. Bit 2 = Q Channel. Bit 1 = AGC Level. Bit 0 = reserved. Note: In TX Continuous mode only. Character c: Modulator fault status character 3. Bit 6 = 1 always. Bit 5 = reserved. Bit 4 = reserved. Bit 3 = reserved. Bit 2 = reserved. Bit 1 = reserved. Bit 0 = reserved. Character d: Demodulator fault status character 1. Bit 6 = 1 always. Bit 5 = Demod module fault. Bit 4 = Carrier detect status (0 for decoder lock). Bit 3 through Bit 0 = Binary representation (0 to 10) of the number of demodulator stored faults. Note: In RX Continuous mode only. Character e: Demodulator fault status character 2. Bit 6 = 1 always. Bit 5 = IF Synthesizer Lock. Bit 4 = I Channel. Bit 3 = Q Channel. Bit 2 = Descrambler. Bit 1 = BER threshold. Bit 0 = reserved. Note: In RX Continuous mode only. A–26 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Character f: Demodulator fault status character 3. Bit 6 = 1 always. Bit 5 = reserved. Bit 4 = reserved. Bit 3 = reserved. Bit 2 = reserved. Bit 1 = reserved. Bit 0 = reserved. Character g: Interface transmit side faults character 1. Bit 6 = 1 always. Bit 5 = reserved. Bit 4 = reserved. Bit 3 through Bit 0 = Binary representation (0 to 10) of the number of interface transmit side stored faults. Character h: Interface transmit side faults character 2. Bit 6 = 1 always. Bit 5 = Selected Transmit Clock Activity. Bit 4 = reserved. Bit 3 = reserved. Bit 2 = reserved. Bit 1 = reserved. Bit 0 = reserved. Note: In TX Burst mode only. Character i: Interface receive side faults character 1. Bit 6 = 1 always. Bit 5 = reserved. Bit 4 = reserved. Bit 3 through Bit 0 = Binary representation (0 to 10) of the number of interface receive side stored faults. Character j: Interface receive side faults character 2. Bit 6 = 1 always. Bit 5 = Selected Buffer Clock Activity. Bit 4 = Buffer Underflow. Bit 3 = Buffer Overflow. Bit 2 = reserved. Bit 1 = reserved. Bit 0 = reserved. Note: In RX Continuous mode only. Character k: Common equipment fault status character 1. Bit 6 = 1 always. Bit 5 = Monitor and Control Module. Bit 4 = Interface Module. Bit 3 through Bit 0 = Binary representation (0 to 10) of the number of common equipment stored faults. Character l: Common equipment fault status character 2. Bit 6 = 1 always. Bit 5 = Battery/Clock. Bit 4 = +5V power supply. Bit 3 = +12V power supply. Bit 2 = -12V power supply. Bit 1 = reserved. Bit 0 = reserved. Change Status Command: Response: Character m: Interface Reed-Solomon unavailable seconds. Bit 6 = 1 always. Bit 5 = not used. Bit 4 = not used. Bit 3 through Bit 0 = reserved. This command indicates that a change has or has not occurred on either the BCS_ or the BCSF_ response since the last BCS_ <channel_no> MC CS_'cr' <channel_no> CS_x'cr''lf'] A–27 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM or BCSF_ poll. Where: the x character is defined as follows: @ = no change since last BCS_ and BCSF_ polls. A = BCS_ response has changed since last BCS_ poll. B = BCSF_ response has changed since last BCSF_ poll. C = Both responses have changed since last BCS_ and BCSF_ polls. Equipment Type Command: Response: <channel_no> MC ET_'cr' <channel_no> ET_tttttttt_xxx.yyy.zzz'cr''lf'] This command returns the equipment type and the software version of the addressed device. Where: tttttttt = Equipment type. xxx.yyy.zzz = Software version. Modem Monitor and Contro Firmware Information Command: Response: <channel_no> MC MCFI_'cr' <channel_no> MCFI_'cr' VER_xxx.yyy.zzz'cr' FW/nnnnnn-ddr'cr' mm/dd/yy'cr''lf'] Where: xxx.yyy.zzz = Software version number (0.0.0 to 999.999.999). nnnnnn = Firmware number (0 to 999999). dd = Firmware dash number (0 to 99). r = Firmware revision (-, or A to Z). Modem Data ROM Firmware Information Command: Response: <channel_no> MC DFI_'cr' <channel_no> DFI_'cr' DSP_FW/nnnnnn-ddr'cr' DSP_mm/dd/yy'cr' FPGA_FW/nnnnnn-ddr'cr' FPGA_mm/dd/yy'cr''lf'] Where: nnnnnn = Firmware number (0 to 999999). dd = Firmware dash number (0 to 99). r = Firmware revision (-, or A to Z). A–28 SNM-1000 Node Control Modem Remote Control Operation A.9 Revision 3 MN/SNM1000.IOM Unsolicited Responses The following strings are generated by the DCE to reflect events which are not directly related to commands typed from the DTE. They generally reflect the results of an earlier command. To ensure that a response is never inserted in the midst of another string, the following strings will not start until any transmission in progress has been completed. However, if a partial line has been entered from the DTE to the DCE, this strict sequence control causes indefinite waiting by the response string. The response string shall wait until the partial line is completed. A.9.1 Messages from NMS <channel_no> CONGESTION Channel cannot be assigned because there is no satellite spectrum space available. <channel_no> BUSY Destination end is busy. <channel_no> NO CONNECT <error code> NMS was not able to complete the connection. Error Type Failure Terminate. Invalid Request. <channel_no> CONNECT Received when a connection is made. <channel_no> DISCONNECT <result code> Received when a connection is broken. Result Type Path Ok. Code 0 Calling Party Busy. 1 Failure Terminate. 2 Invalid Request. 3 Normal Termination. 4 Network Busy. 5 Critical Fault. 6 A–29 SNM-1000 Node Control Modem Remote Control Operation <channel no> CS <calling phone number> <called phone number> <status> <cause> <subcause> <channel_no> MM <phone_no> <message> A.9.2 Revision 3 MN/SNM1000.IOM Call Status <phone number> Calling phone number <dest node> Destination Node Id <dest channel> Destination Channel No. <status> 0 1 2 3 4 5 6 Description Path Ok Channel busy Failure Invalid phone number Normal Termination Network Busy Critical Fault <cause> and Information only <subcause> Multipoint Message <phone_no> Source connection phone number or zero. <message> Message from source node. List of Cause Codes The complete list of Cause codes is given below. These are primarily used to determine what description of the call termination is included in the completed call log. The NMS and Node columns define whether the cause code is generated by the NMS or the Node, or whether both may generate it. A–30 SNM-1000 Node Control Modem Remote Control Operation Value 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F 0x10 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x1F A.9.3 Name cause_Unknown cause_NodeChanBusy cause_HuntGrpBusy cause_NoAnsTimer cause_NoCarrier cause_CarrierLost cause_ISDNFault cause_ModemProg cause_IncompType cause_NotInCircuit cause_InvalidNum cause_DoesNotExist cause_NotOnline cause_NotEnabled cause_UserHangUp cause_NodeHangUp cause_RTSDrop cause_NMSOperator cause_CallTimer cause_NoBandwidth cause_NoPower cause_SequenceError cause_PreEmption cause_NoPowerNoBW cause_IncompVoiceCap cause_IncompPhNum cause_InvalidVfduCmd cause_NotInCall cause_InvalidMember cause_RequestInProg cause_AlreadyInCall cause_NoReturn Revision 3 MN/SNM1000.IOM NMS x x x Node x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x Description No more detail available Calling or called Node/Ch is busy All numbers in hunt group are busy No answer timer expired before going offhook Carrier lock was never achieved Carrier lock was achieved, but then lost ISDN faults to be defined General Modem Programming failure Incompatible modem types: voice/data, voice/ISDN The specified node is not online Number has invalid length, characters or is not defined The specified node/channel/circuit is not in database The specified node is not online The specified node or channel is not enabled User went on hook Call terminated from user port on remote node Call terminated when RTS went inactive Call terminated by NMS Call term by the maximum call duration timer No bandwidth available No power is available Commands sent out of sequence Pre-empted to free resources for high-priority call No power and no bandwidth available Attempt to mix G.728 + G.729 voice circuit Calling side PPTREQ # not equal PTTASSIGN # VFDU Card rejected DAC Command MPDRequest, target node/chan not a member MPDRequest, action not allowed for this member MPDRequest, call member is busy with a request MPDRequest, cannot add node/chan already in call MPDRequest, return off attempt with no return active Cause and Subcause Codes Generated By NMS The list of Cause and corresponding Subcause codes, which are generated by the NMS, is given below. These are used to give the maximum level of detail possible in describing why a call terminated. It is used primarily for diagnostic purposes. Note that each Cause code has its own list of Subcause definitions; a Subcause from one Cause cannot be used with another, unless it is also defined under that Cause. Some Cause values have no Subcause list; these would always use subcause_Unknown, which is defined with a value of 0. Even where sub causes are listed, subcause_Unknown is still valid. A–31 SNM-1000 Node Control Modem Remote Control Operation Revision 3 MN/SNM1000.IOM Example Name Status cause_NodeChanBusy term_Busy subcause_CannotCallSelf cause_HuntGrpBusy term_Busy Description Calling or called node/Ch is busy Calling party attempted to call themselves All numbers in hunt group are busy cause_IncompType subcause_VoiceDataConf term_Invalid Incompatible modem types; voice/data, voice/ISDN Attempt to connect voice and data modems 0x09 cause_NotInCircuit term_Invalid The specified node/chan is not part of the circuit 0x0A cause_InvalidNum term_Invalid Number has invalid length, characters or is not defined A node/channel cannot call itself The number is not in the database Cause 0x01 Subcause 0x07 0x02 0x08 0x05 0x07 0x0F subcause_CannotCallSelf subcause_NotDefined cause_DoesNotExist subcause_ChanError subcause_NodeError subcause_CircuitError term_Invalid 0x01 0x02 0x03 The specified node/channel/circuit is not in database Channel is not in database Node is not in database Circuit is not in database cause_NotOnLine subcause_ChanError subcause_NodeError term_Invalid 0x01 0x02 Node is not responding to the NMS Channel is not online Node is not online cause_NotEnabled subcause_ChanError subcause_NodeError subcause_AccessTime term_Invalid 0x01 0x02 0x04 The specified node/channel/circuit is not enabled Channel is not enabled Node is not enabled Channel is not available, outside its access time 0x11 cause_NMSOperator term_Normal Call terminated by NMS 0x13 cause_NoBandwidth term_NetworkBusy No bandwidth available cause_NoPower subcause_NoPowerAtSite subcause_NoPowerAtSat term_NetworkBusy 0x03 0x04 No power is available No power at the site No power at the site cause_SequenceError subcause_NoPathStatus subcause_InvalidMsg term_Invalid 0x0D 0x0E Messages sent out of sequence by node Path status not received from one or both nodes An invalid message received during call sequence cause_PreEmption term_FailureRetry Pre-empted to free resources for high-priority call cause_NoPowerNoBW subcause_NoPowerAtSite subcause_NoPowerAtSat term_NetworkBusy No power and no bandwidth available No power at the site No power at satellite cause_NotInCall term_FailureRetry The specified node/chan is not part of the call cause_InvalidMember subcause_Chairman subcause_Forward subcause_Return term_FailureRetry Request not legal for this call member Request not legal for the call Chairman Request not legal for the forward transmitter Request not legal for the return transmitter 0x1D cause_RequestInProg term_FailureRetry This member already has a request pending 0x1E cause_AlreadyInCall term_FailureRetry Attempt to add a member already in the call 0x1F cause_NoReturn term_FailureRetry Attempt to turn off return, with no return active 0x0B 0x0C 0x0D 0x14 0x15 0x16 0x17 0x03 0x04 0x1B 0x1C 0x20 0x21 0x22 A–32 SNM-1000 Node Control Modem Remote Control Operation A.9.4 Cause 0x00 0x01 0x04 0x05 0x06 Subcause 0x00-0x0D 0x0E 0x0F-0xFF 0x07 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F 0x10 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x1F 0x20 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x30 0x31 0x18 0x19 0x1A 0x03 Revision 3 MN/SNM1000.IOM Cause and Subcause Codes Generated By Node Name cause_Unknown cause_NodeChanBusy cause_NoCarrier cause_CarrierLost cause_ISDNFault reserved subcause_InvalidRate reserved cause_ModemProg subcause_Unknown subcause_InvalidOpCode subcause_OpCodeFault subcause_InvalidResponseBuffer subcause_InvalidParm subcause_InvalidChan subcause_AccessDenied subcause_ChannelOffline subcause_InvalidRequestBuffer subcause_InvalidNodeStartupCode subcause_InvalidNodeDisableOption subcause_InvalidNodeStatusOption subcause_InvalidTxFreq subcause_InvalidRxFreq subcause_InvalidRate subcause_InvalidPower subcause_InvalidTxClock subcause_ChannelLocked subcause_ModemFault subcause_NoCarrier subcause_InvalidParmBuffer subcause_CallNotActive subcause_ModemNotPresent subcause_ModemFaultDetected subcause_InvalidEncoderType subcause_InvalidDecoderType subcause_InvalidBus subcause_InvalidSweep subcause_NoBufferAvail subcause_InvalidDEncoder subcause_InvalidDDecoder subcause_ChannelNotInitialized subcause_ InvalidTransmitMode subcause_ InvalidBuffersize subcause_ InvalidAupcOption subcause_ InvalidAupcNominalPower subcause_ InvalidAupcMax subcause_ InvalidAupcMin subcause_ InvalidAupcSP subcause_ InvalidAupcMaxRate subcause_ InvalidLocalAction subcause_ InvalidRemoteAction subcause_ InvalidModemType subcause_ InvalidFramingType cause_IncompVoiceCap cause_IncompPhNum cause_InvalidVfduCmd cause_NoAnsTimer Example Status term_PathOk term_Busy term_FailureRet term_FailureRet term_FailureRet Description Called node/channel is busy Carrier lock was never achieved Carrier lock was achieved, but then lost ISDN faults to be defined Invalid data rate for ISDN call term_FailureRet term_FailureRet term_FailureRet term_FailureRet term_Normal A–33 General Modem Programming failure Generic subcause code Internal error code Internal error code Internal error code Internal error code Channel number out of range Channel access denied Channel went offline Internal error code Internal error code Internal error code Internal error code Invalid transmit frequency Invalid receive frequency Invalid Modulation ,code rate, data rate selection Invalid power level Invalid transmit clock selection Channel already processing call Channel not responding to periodic status request Carrier Not Detected Internal error code Call not in progress Internal error code Modem offline Invalid Encoder Selection Invalid Decoder Selection Channel not defined on specific bus Invalid demodulator sweep rate range Internal error code Invalid differential encoder selection Invalid differential decoder selection Internal error code Invalid Transmit Mode selection Invalid Modem buffer size Invalid Aupc Option Invalid Aupc Nominal Power Invalid Aupc Max Power Invalid Aupc Min Power Invalid Aupc Set Point Invalid Aupc Max Rate Invalid Aupc Local Action Invalid Aupc Remote Action Internal error code Invalid Framing Selection Attempt to mix G.728 + G.729 voice circuit Calling side PPTREQ # not equal PTTASSIGN # VFDU Card rejected DAC Command No answer timer expired without going offhook SNM-1000 Node Control Modem Remote Control Operation Cause 0x0E 0x0F 0x10 0x12 Subcause Revision 3 MN/SNM1000.IOM Name cause_UserHangUp cause_NodeHangUp cause_RTSDrop cause_CallTimer Example Status term_Normal term_Normal term_Normal term_Normal A–34 Description User went on hook Call terminated from user port on remote node Call terminated when RTS went inactive Call term by the maximum call duration timer METRIC CONVERSIONS Units of Length Unit Centimeter Inch Foot Yard Mile Meter Kilometer Millimeter 1 centimeter — 0.3937 0.03281 0.01094 6.214 x 10-6 0.01 — — 1 inch 2.540 — 0.08333 0.2778 1.578 x 10-5 0.254 — 25.4 1 foot 30.480 12.0 — 0.3333 1.893 x 10-4 0.3048 — — 1 yard 91.44 36.0 3.0 — 5.679 x 10-4 0.9144 — — 1 meter 100.0 39.37 3.281 1.094 6.214 x 10-4 — — — 1 mile 1.609 x 105 6.336 x 104 5.280 x 103 1.760 x 103 — 1.609 x 103 1.609 — 1 mm — 0.03937 — — — — — — 1 kilometer — — — — 0.621 — — — Temperature Conversions ° Fahrenheit Unit ° Centigrade Formulas 0 — C = (F - 32) * 0.555 (water freezes) 32° Fahrenheit 100 — F = (C * 1.8) + 32 (water boils) 212° Fahrenheit 273.1 — (absolute 0) -459.6° Fahrenheit Units of Weight Gram Ounce Avoirdupois Ounce Troy Pound Avoir. Pound Troy Kilogram — 0.03527 0.03215 0.002205 0.002679 0.001 1 oz. avoir. 28.35 — 0.9115 0.0625 0.07595 0.02835 1 oz. troy 31.10 1.097 — 0.06857 0.08333 0.03110 1 lb. avoir. 453.6 16.0 14.58 — 1.215 0.4536 1 lb. Troy 373.2 13.17 12.0 0.8229 — 0.3732 1 kilogram 1.0 x 103 35.27 32.15 2.205 2.679 — Unit 1 gram 2114 WEST 7TH STREET TEMPE ARIZONA 85281 USA 480 • 333 • 2200 PHONE 480 • 333 • 2161 FAX
advertisement
