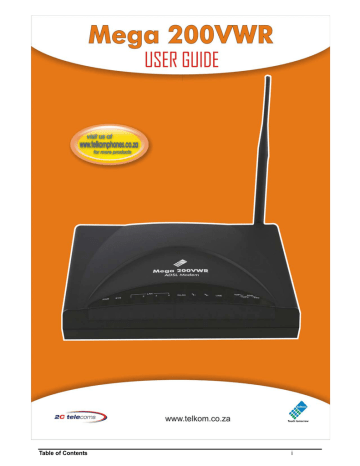

Mega 200VWR User manual

Table of Contents i

T a b l l e o f f C o n t t e n t t s

CHAPTER 1: INTRODUCTION ............................................................................................................. 5

INTRODUCTION TO YOUR ROUTER................................................................................................. 5

FEATURES .............................................................................................................................................. 5

CHAPTER 2: INSTALLING THE ROUTER ......................................................................................... 8

IMPORTANT NOTE FOR USING THIS ROUTER ............................................................................... 8

PACKAGE CONTENTS.......................................................................................................................... 8

THE FRONT LEDS ................................................................................................................................. 9

THE REAR PORTS................................................................................................................................ 10

CABLING ...............................................................................................................................................11

CHAPTER 3: BASIC INSTALLATION ................................................................................................ 12

CONNECTING YOUR ROUTER ......................................................................................................... 13

FACTORY DEFAULT SETTINGS ........................................................................................................ 18

Web Interface (Username and Password) .......................................................................................... 18

Device LAN IP settings....................................................................................................................... 18

ISP setting in WAN site ....................................................................................................................... 18

DHCP server ...................................................................................................................................... 18

LAN and WAN Port Addresses............................................................................................................ 18

INFORMATION FROM YOUR ISP ..................................................................................................... 19

CONFIGURING WITH YOUR WEB BROWSER ............................................................................... 20

CHAPTER 4: CONFIGURATION......................................................................................................... 21

STATUS.................................................................................................................................................. 22

ARP Table ........................................................................................................................................... 22

Wireless Association Table ................................................................................................................. 22

Routing Table...................................................................................................................................... 22

DHCP Table........................................................................................................................................ 23

PPTP Status ........................................................................................................................................ 24

IPSec Status ........................................................................................................................................ 24

L2TP Status......................................................................................................................................... 25

Email Status ........................................................................................................................................ 25

VoIP Status.......................................................................................................................................... 25

Event Log............................................................................................................................................ 26

Error Log ............................................................................................................................................ 26

NAT Sessions ...................................................................................................................................... 27

Diagnostic........................................................................................................................................... 27

UPnP Portmap ................................................................................................................................... 28

QUICK START ...................................................................................................................................... 29

CONFIGURATION................................................................................................................................ 31

LAN - Local Area Network ................................................................................................................. 31

Bridge Interface .............................................................................................................................. 31

Ethernet........................................................................................................................................... 32

IP Alias............................................................................................................................................ 32

Ethernet Client Filter ...................................................................................................................... 33

Wireless .......................................................................................................................................... 35

Wireless Security ............................................................................................................................ 37

Wireless Client / MAC Address Filter............................................................................................ 39

Port Setting ..................................................................................................................................... 41

DHCP Server .................................................................................................................................. 42

WAN - Wide Area Network.................................................................................................................. 43

ISP .................................................................................................................................................. 43

DNS ................................................................................................................................................ 53

ADSL.............................................................................................................................................. 54

System ................................................................................................................................................. 56

Time Zone....................................................................................................................................... 56

Remote Access................................................................................................................................ 57

Firmware Upgrade.......................................................................................................................... 58

Backup / Restore............................................................................................................................. 59

Restart Router ................................................................................................................................. 60

User Management........................................................................................................................... 61

Firewall and Access Control .............................................................................................................. 62

General Settings.............................................................................................................................. 63

Packet Filter.................................................................................................................................... 64

Intrusion Detection ......................................................................................................................... 72

URL Filter....................................................................................................................................... 74

IM / P2P Blocking .......................................................................................................................... 76

Firewall Log ................................................................................................................................... 77

VPN - Virtual Private Networks ......................................................................................................... 78

PPTP (Point-to-Point Tunneling Protocol) ..................................................................................... 78

IPSec (IP Security Protocol) ........................................................................................................... 88

L2TP (Layer Two Tunneling Protocol) .......................................................................................... 98

VoIP - Voice over Internet Protocol...................................................................................................110

Wizard............................................................................................................................................111

General Settings.............................................................................................................................113

Phone Port .....................................................................................................................................116

PSTN Dial Plan .............................................................................................................................118

VoIP Dial Plan .............................................................................................................................. 122

Ring & Tone ................................................................................................................................. 127

Special Dial Codes ....................................................................................................................... 128

QoS - Quality of Service ................................................................................................................... 129

Prioritization ................................................................................................................................. 129

Outbound IP Throttling (LAN to WAN)....................................................................................... 131

Inbound IP Throttling (WAN to LAN) ......................................................................................... 132

Virtual Server (known as Port Forwarding)..................................................................................... 136

Add Virtual Server........................................................................................................................ 137

Edit DMZ Host ............................................................................................................................. 138

Edit DMZ Host ............................................................................................................................. 139

Edit One-to-One NAT (Network Address Translation) ................................................................ 140

Time Schedule ................................................................................................................................... 143

Configuration of Time Schedule .................................................................................................. 144

Advanced .......................................................................................................................................... 145

Static Route................................................................................................................................... 145

Dynamic DNS .............................................................................................................................. 146

Check Email ................................................................................................................................. 147

Device Management ..................................................................................................................... 148

IGMP ............................................................................................................................................ 151

VLAN Bridge ............................................................................................................................... 151

SAVE CONFIGURATION TO FLASH ............................................................................................... 155

LOGOUT.............................................................................................................................................. 156

CHAPTER 5: TROUBLESHOOTING ................................................................................................ 157

PROBLEMS STARTING UP THE ROUTER ..................................................................................... 157

PROBLEMS WITH THE WAN INTERFACE .................................................................................... 157

PROBLEMS WITH THE LAN INTERFACE ..................................................................................... 157

APPENDIX A: WINDOWS 98 SETUP ................................................................................................ 158

Mega 200VWR Router

Chapter 1: Introduction

Introduction to your Router

Your Mega 200VWR router is an “all-in-one” VoIP ADSL router, combining an ADSL 2+ modem, ADSL router, Ethernet network switch and 2 telephone ports for Voice over IP functionality, providing everything you need to get the computers on your network connected to the Internet over your ADSL connection.

With features such as an ADSL Quick-Start wizard and DHCP Server, you can be online in no time at all and with a minimum of fuss and configuration, catering for first-time users as well as gurus requiring advanced features and control over their Internet connection and network.

Features

Voice over IP Compliance with SIP Standard

This router supports cost-effective, toll-quality voice calls over the Internet. It complies with the most popular industrial standard, SIP protocol, to ensure the interoperability with SIP devices and major

VoIP Gateways. This router supports call waiting, silence suppression, voice activity detection

(VAD), comfort noise generation (CNG), line echo cancellation, caller ID (Bell 202, V3) and so on.

Fixed-Line Support

The router integrates RJ-11 FXO port for inbound and outbound calls transmitted through PSTN.

Users can receive phone calls from PSTN while enjoying VoIP call service at the same time. In addition, the device has automatic fallback to the POTS line to enable making normal phone calls when there is a power outage, or when the Internet connection is down (lifeline function).

Internet

This router complies with ADSL worldwide standards. It supports downstream rate up to 12/24

Mbps with ADSL2/2+, 8Mbps with ADSL. Users can enjoy not only high-speed ADSL services but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever.

It is compliant with Multi-Mode standard (ANSI T1.413,

Issue 2; G.dmt (ITU G.992.1); G.lite (ITU G.992.2); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3);

G.dmt.bis.plus (ITU G.992.5)).

Virtual Private Network (VPN)

This function allows user to make a tunnel with a remote site directly to secure the data transmission among the connection. Users can use the embedded PPTP and L2TP client/server,

IKE and IPSec, which are supported by this router to make a VPN connection, or users can run a

PPTP client on a computer. if the user runs a PPTP client on his local computer, the router will provide a IPSec and PPTP pass through function to establish the VPN connection

802.11g Wireless AP with WPA Support

With the integrated 802.11g Wireless Access Point, the router offers quick and easy access between the wired network, wireless network and ADSL connection with single device simplicity, and as a result, mobility to the users. The wireless AP supports 54 Mbps 802.11g data connections, and is backward compatible with existing 802.11b equipment. The Wireless Protected Access

(WPA1 and WPA2) and Wireless Encryption Protocol (WEP) features enhance wireless security and provide access control..

Fast Ethernet Switch

A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and

MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or crossover cable can be used directly for auto detection.

5


Mega 200VWR Router

Multi-Protocol to Establish a Connection

This router supports PPPoA, RFC 1483 encapsulation over ATM (bridged or routed), PPP over

Ethernet and IPoA to establish a connection with the ISP. It also supports VC-based and

LLC-based multiplexing.

Quick Installation Wizard

The router has a WEB GUI page to allow quick installation of the router. With this wizard, end users can enter their ISP information easily and quickly, and surf the Internet immediately.

Universal Plug and Play (UPnP) and UPnP NAT Traversal

This protocol is used to enable simple and robust connectivity among stand-alone devices and computers from many different vendors. It makes networking simple and affordable for users. UPnP architecture leverages TCP/IP and the Web to enable seamless proximity networking in addition to control and data transfer among networked devices. With this feature enabled, users can now connect to applications such as Net Meeting or MSN Messenger seamlessly.

Network Address Translation (NAT)

This function allows multi-users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateways (ALG) are supported, such as web browsing, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting,

IP phone and others.

SOHO Firewall Security with DoS and SPI

Along with the built-in NAT natural firewall feature, the router also provides advanced hacker pattern-filtering protection. It can automatically detect and block Denial of Service (DoS) attacks.

The router is built with Stateful Packet Inspection (SPI) to determine if a data packet is allowed through the firewall to the LAN.

Domain Name System (DNS) Relay

This provides an easy way to map the domain name (a friendly name for users such as www.yahoo.com) to an IP address. When a local computer has its DNS server IP address configured to the router’s IP address, every DNS conversion request packet from the Computer to this router will be forwarded to the real DNS in the outside network.

Dynamic Domain Name System (DDNS)

The Dynamic DNS service allows you to alias a dynamic WAN IP address to a static hostname.

To use the service, you must first apply for an account from a DDNS service like http://www.dyndns.org/. More than 5 different DDNS servers are supported.

Quality of Service (QoS) QoS gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring important data like gaming packets, customer information, or management information move through the router at lightning speed, even under heavy load. The QoS features are configurable by source IP address, destination IP address, protocol, or port. You can throttle the speed at which different types of outgoing data pass through the router, to ensure P2P users don’t saturate upload bandwidth, or office browsing doesn’t bring client web serving to a halt. In addition, or alternatively, you can simply change the priority of different types of upload data and let the router sort out the actual speeds.

Virtual Server (“port forwarding”)

Users can specify some services to be visible from outside users. The router can detect incoming service requests and forward either a single port or a range of ports to the specific local computer to handle it. For example, a user can assign a PC in the LAN to act as a WEB server and expose it to

Internet users. Outside users can browse this web server directly, while it is still protected by NAT. A

DMZ host setting is also provided to completely expose a local computer the Internet.

Rich Packet Filtering

This not only filters the packet based on IP address, but also based on Port numbers. It will filter

6


Mega 200VWR Router packets to and from the Internet, and provides a higher level of security control.

Dynamic Host Configuration Protocol (DHCP) Client and Server

On the WAN interface, the DHCP client can get an IP address from the Internet Service Provider

(ISP) automatically. On the LAN interface, the DHCP server can allocate a range of client IP addresses and distribute them, including IP address, subnet mask as well as DNS IP address, to local computers. This provides an easy way to manage the local IP network.

Static and RIP1/2 Routing

It has routing capability and supports a static routing table or RIP1/2 routing protocol.

Simple Network Management Protocol (SNMP)

This is an easy way to remotely manage the router via SNMP.

Web based GUI

The routers’ web based GUI is used for configuration and management. It is user-friendly and comes with on-line help. It also supports remote management capability for remote users to configure and manage the router. .

Firmware Upgradeable

This router can be upgraded to the latest firmware through the WEB based GUI.

Rich Management Interfaces

This router supports flexible management interfaces using a local console, LAN or WAN port. Users can use terminal applications through the console port to configure and manage the device, or

Telnet, WEB GUI, and SNMP through LAN or WAN ports to configure and manage the device.


7

Mega 200VWR Router

Chapter 2: Installing the Router

Important note for using this router

Warning

9 Do not use this router in high humidity or high temperatures.

9 Do not use the same power source for this router and other equipment.

9 Do not open or repair the case yourself. If this router is too hot, turn off the power immediately and have it repaired at a qualified service center.

9 Avoid using this product and its accessories outdoors.

9 Place this router on a stable surface.

9 Only use the power adapter that comes with the package. Using a different voltage rating power adaptor may damage this router.

Attention

Package Contents

CD-ROM containing this online manual

Ethernet (CAT-5 LAN) Cable

Console tool kit

AC-DC power adapter (12VDC, 1.2A)

A detachable antenna

Two Micro filters

Chapter 2: Installing the router

8

The Front LEDs

Mega 200VWR Router

LED

1 PWR

2 SYS

3 – 6

LAN Port

1X — 4X

(RJ-45 connector)

7

WLAN

8 – 9

Phone

1X — 2X

(RJ-11 connector)

10

12

LINE

VoIP Port

1X — 2X

(RJ-11 connector)

13 ADSL/PPP

Meaning

Lit when power is ON.

Lit when the system is ready.

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

Green when the wireless connection is established.

Flashing when sending/receiving data.

Green when the phone is off-hook.

Lit when inbound and outbound calls are using the PSTN.

Lit when the SIP Registration is OK.

Green for Phone 1; Orange for Phone 2.

Note: Also orange when both Phone 1 and 2 are registered OK at the same time.

Green when successfully connected to an ADSL DSLAM,

(“line synch”).

Orange when there is a PPPoA / PPPoE connection.


9

The Rear Ports

6 5

Mega 200VWR Router

3 1

3 RESET

4

LAN

1X — 4X

(RJ-45 connector)

4

Console Port (LAN port 4)

(RJ-45 connector)

5

6

Phone

1X — 2X

(RJ-11 connector)

LINE

When using the VoIP functions, use a RJ-11cable to connect this port to the telephone wall jack..

Port

8 7 4 2

The Ethernet Port # 4 can be used as a console port. You need a special console tool which is included in the package, to connect between LAN port 4 and a PC’s RS-232 port (9-pin serial port).

1

Power Switch

Meaning

Power ON/OFF switch

2

PWR

Connect the supplied power adapter to this jack.

When the router is turned on Æ the reset button is used to:

Reset the router: press for 1-3 seconds:

Restore factory default settings: press for more than 6

seconds, and power cycle the router: (useful if you cannot login to the router or have forgotten your

Username/Password. ).

Caution: After pressing the RESET button for more than 6 seconds, to be sure you power cycle the device.

To connect your router to a PC or an office/home network of

10Mbps or 100Mbps use a UTP Ethernet cable (Cat-5 or

Cat-5e) and connect to one of the LAN ports.

Caution: Port 4 can be either a LAN or a Console port at any time but not simultaneously.

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to LAN Port 4 and connect to the computers RS-232 port via the supplied adaptor.

Caution: Port 4 can be either a LAN or a Console port at any time but not simultaneously

When using the VoIP functions, connect an analog phone to this port using a RJ-11 cable.


10

7

ADSL

Mega 200VWR Router

Use the supplied RJ-11 (“telephone”) cable to connect this port to the ADSL/telephone wall jack .

Connect the detachable antenna to this port.

8

Antenna

Cabling

One of the most common causes of ADSL problems is bad cabling or ADSL lines. Make sure that all devices connected to your telephone line are turned on, and that all telephones used on the line are connected via micro filters.. On the front of the product is a bank of LEDs. Once you have installed you router, verify that the LAN Link and ADSL line LEDs are lit. If they are not, check that you are using the proper/functional cables.

Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and the wall socket, and ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters installed the wrong way around can cause problems with your ADSL connection, including causing frequent disconnections.


11

Mega 200VWR Router

Chapter 3: Basic Installation

The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me, etc. The product provides an easy and user-friendly interface for configuration.

Please check your Computer’s network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your operating system manuals.

You can connect your computer to the router either through an external hub/switch or directly. However, please ensure that your computer has a properly installed Ethernet interface prior to connecting it to the router. You ought to configure your Computers to obtain an IP address through a DHCP server or you can set them up with a fixed IP address that must be in the same subnet as the router. The default IP address of the router is 10.0.0.2 and the subnet mask is 255.255.255.0 (i.e. any attached Computer must be in the same subnet, and have an IP address in the range of 10.0.0.1 to10.0.0.254). The best and easiest way is to configure the PC to get an IP address automatically from the router using DHCP. If you encounter any problem accessing the router’s web interface it may also be advisable to temporarily remove any kind of software firewall on your Computer’s as they can cause problems accessing the 10.0.0.2 IP address of the router. Users should always make their own decisions on how to best protect their network.

Please follow the steps below for your PC’s network environment installation.

Any TCP/IP capable workstation can be used to communicate with or through the router. To configure other types of workstations, please consult the manufacturer’s documentation.


12

Mega 200VWR Router

Connecting Your Router

1. Connect this router to a LAN (Local Area Network) and the ADSL/telephone (ADSL) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the LAN LED is lit.

4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.

5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack.

Switching/

HUB

ADSL Phone

ADSL filter

Line

Analog Phone

Connect more computers


13

Mega 200VWR Router

Configuring PCs in Window XP

1. Go to Start / Control Panel (in Classic View). In the Control

Panel, double-click Network Connections.

2. Double-click Local Area Connection. (See Figure 3.1)

3. In the LAN Area Connection Status window, click

Properties. (See Figure 3.2)

4. Select Internet Protocol (TCP/IP) and click Properties.

(See Figure 3.3)

5. Select the Obtain an IP address automatically and Obtain

DNS server address automatically radio buttons. (See

Figure 3.4)

6. Click OK to finish the configuration.

Figure 3.1: LAN Area Connection

Figure 3.2: LAN Connection Status

Figure 3.3: TCP / IP

Figure 3.4: IP Address & DNS

Configuration

14


Mega 200VWR Router

Configuring PCs in Windows 2000

1.

Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and Dial-up Connections.

2.

Double-click Local Area (“LAN”) Connection. (See Figure

3.5)

3.

In the LAN Area Connection Status window, click

Properties. (See Figure 3.6)

4.

Select Internet Protocol (TCP/IP) and click Properties.

(See Figure 3.7)

5.

Select the Obtain an IP address automatically and Obtain

DNS server address automatically radio buttons. (See

Figure 3.8)

6.

Click OK to finish the configuration.

Figure 3.5: LAN Area Connection

Figure 3.6: LAN Connection Status



Figure 3.8: IP Address & DNS

Configuration

15

Mega 200VWR Router

Configuring PC in Windows 95/98/ME

1. Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and choose the Configuration tab.

2. Select TCP / IP -> NE2000 Compatible, or the name of the

Network Interface Card (NIC) in your PC. (See Figure 3.9)

3. Click Properties.

4. Select the IP Address tab. In this page, click the Obtain an IP address automatically radio button. (See Figure 3.10)

5. Then select the DNS Configuration tab. (See Figure 3.11)

6. Select the Disable DNS radio button and click OK to finish the configuration.


Figure 3.10: IP Address


Figure 3.11: DNS Configuration

16

Configuring PC in Windows NT4.0

Mega 200VWR Router

1.

Go to Start / Settings / Control Panel. In the Control

Panel, double-click Network and choose the Protocols tab.

2.

Select TCP/IP Protocol and click Properties. (See Figure

3.12)

3.

Select the Obtain an IP address from a DHCP server radio button and click OK. (See Figure 3.13)


Figure 3.13: IP Address


17

Mega 200VWR Router

Factory Default Settings

Before configuring your, you need to know the following default settings.

Web Interface (Username and Password)

Username: admin

Password: admin

The default username and password are “admin” and “admin” respectively.

Attention

If you ever forget the username/password to login to the router, you may press the RESET button for more than 6 seconds to restore the factory default settings.

Caution: After pressing the RESET button for more than 6 seconds, be sure you power cycle the device again.

Device LAN IP settings

IP Address: 10.0.0.2

Subnet Mask: 255.255.255.0

ISP setting in WAN site

PPPoE

DHCP server

DHCP server is enabled.

Start IP Address:10.0.0.100

IP pool counts: 100

LAN and WAN Port Addresses

The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below.

LAN Port WAN Port

IP address

Subnet Mask

DHCP server function

10.0.0.2

255.255.255.0

Enabled

The PPPoE function is enabled to automatically get the WAN port configuration from the ISP.

distribution to PCs 10.0.0.100 through 10.0.0.199


18

Mega 200VWR Router

Information from your ISP

Telkom ADSL connections use PPPoE, and automatically assign a WAN IP address to your router; The following information is provided should you wish to connect to an alternative ISP. .

Gather the information as illustrated in the following table and keep it for reference.

PPPoE

VPI/VCI, VC / LLC-based multiplexing, Username, Password, Service Name, and Domain Name System (DNS) IP address (this is automatically set by the

Telkom network but be set manually should this be required).

VPI/VCI, VC / LLC-based multiplexing, Username, Password, Service Name,

PPPoE / PPPoE and Domain Name System (DNS) IP address (this is automatically set by the with Pass-through Telkom network but be set manually should this be required). In addition, additional WAN address can be assigned using PPPoE dialer.

PPPoA

VPI/VCI, VC / LLC-based multiplexing, Username, Password and Domain

Name System (DNS) IP address (it ca be automatically assigned by your ISP when you connect or be set manually).

RFC 1483 Bridged VPI/VCI, VC / LLC-based multiplexing to use Bridged Mode.

RFC 1483 Routed

IPoA Routed

(IP over ATM)

VPI/VCI, VC / LLC-based multiplexing, IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is a fixed IP address).

VPI/VCI, VC / LLC-based multiplexing, IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is a fixed IP address).


19

Configuring with your Web Browser

Mega 200VWR Router

Open your web browser, enter the IP address of your router, which by default is 10.0.0.2, and click “Go”, a user name and password window prompt will appear. The default username and password are

“admin” and “admin” respectively. (See Figure 3.14)

Figure 3.14: User name & Password Prompt Widonw

Congratulation! You are now successfully logged on to your Router!


20

Mega 200VWR Router

Chapter 4: Configuration

On the configuration homepage, the left navigation pane, where bookmarks are provided, links you directly to the various setup pages, including:

Status

- ARP Table

- Wireless Association

- Routing Table

- DHCP Table

- NAT Sessions

- Diagnostic

- UPnP Portmap

Quick Start

Configuration

- LAN

- WAN

- System

- Firewall

- VPN

- VoIP

- QoS

- Virtual Server

- Time Schedule

- Advanced

Save Config to FLASH

Logout

Please click the links to see the relevant sections of this manual for detailed instructions on how to configure this Router.


21

Mega 200VWR Router

Status

ARP Table

This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of

Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the

MAC address of the network interface of your PCs when you wish to use with the router’s Firewall –

MAC Address Filter function. See the Firewall section of this manual for more information on this feature.

IP Address: A list of IP addresses of devices on your LAN (Local Area Network).

MAC Address: The MAC (Media Access Control) addresses for each device on your LAN.

Interface: The interface name (on the router) that this IP Address connects to.

Static: Static status of the ARP table entry:

~ “no” for dynamically-generated ARP table entries.

~ “yes” for static ARP table entries added by the user.

Wireless Association Table

IP Address: It is IP address of wireless clients that join this network.

MAC: The MAC address of wireless client.

Routing Table

Routing Table

Valid: It indicates a successful routing status.

Destination: The IP address of the destination network.

Netmask: The destination IP networks ’ Netmask.

22


Mega 200VWR Router

Gateway/Interface: The IP address of the gateway, or existing interface, that this route will use.

Cost: The number of hops counted as the cost of the route.

RIP Routing Table

Destination: The IP address of the destination network.

Netmask: The destination IP networks ’ Netmask .

Gateway: The IP address of the gateway that this route will use.

Cost: The number of hops counted as the cost of the route.

DHCP Table

Leased: The DHCP assigned IP addresses information.

IP Address: A list of IP addresses of devices on your LAN (Local Area Network).

Expired: The expired IP addresses information.

Permanent: The fixed host mapping information

Leased Table

IP Address: The IP address that is assigned to a client.

MAC Address: The MAC address of the client.

Client Host Name: The Host Name (Computer Name) of the client.

Expiry: The current lease time of clients IP address.

Expired Table

Please refer the Leased Table.

Permanent Table

Name: The name you assigned to the Permanent configuration.

IP Address: The fixed IP address for the specific client.


23

Mega 200VWR Router

MAC Address: The MAC Address that you want to assign the fixed IP address.

Maximum Lease Time: The maximum lease time interval you allow to this client.

PPTP Status

This shows details of your configured PPTP VPN Connections.

Name: The name you assigned to the particular PPTP connection in your VPN configuration.

Type: The type of connection (dial-in/dial-out).

Enable: Whether the connection is currently enabled.

Active: Whether the connection is currently active.

Tunnel Connected: Whether the VPN Tunnel is currently connected.

Call Connected: If the Call for this VPN entry is currently connected.

Encryption: The encryption type used for this VPN connection.

IPSec Status

This shows details of your configured IPSec VPN Connections.

Name: The name you assigned to the particular VPN entry.

Active: Whether the VPN Connection is currently Active.

Connection State: Whether the VPN is Connected or Disconnected.

Statistics: Statistics for this VPN Connection.

Local Subnet: The local IP Address or Subnet used.

Remote Subnet: The Subnet of the remote site.

Remote Gateway: The Remote Gateway IP address.

SA: The Security Association for this VPN entry.


24

Mega 200VWR Router

L2TP Status

This shows details of your configured L2TP VPN Connections.

Name: The name you assigned to the particular L2TP connection in your VPN configuration.

Type: The type of connection (dial-in/dial-out).

Enable: Whether the connection is currently enabled.

Active: Whether the connection is currently active.

Tunnel Connected: Whether the VPN Tunnel is currently connected.

Call Connected: If the Call for this VPN entry is currently connected.

Encryption: The encryption type used for this VPN connection.

Email Status

Details and status for the Email Account you have configured the router to check. Please see the

Advanced section of this manual for details on this function.

VoIP Status

Here you can check details and status of VoIP Account you have configured. Please see the VoIP

Configuration section for more details.


25

Mega 200VWR Router

Event Log

This page displays the router’s Event Log entries. Major events are logged to this window, such as when the router’s ADSL connection is disconnected, as well as Firewall events when you have enabled

Intrusion or Blocking Logging in the Configuration – Firewall section of the interface. Please see the

Firewall section of this manual for more details on how to enable Firewall logging.

Error Log

Any errors encountered by the router (e.g. invalid names given to entries) are logged to this window.


26

Mega 200VWR Router

NAT Sessions

This section lists all current NAT sessions between interface of types external (WAN) and internal (LAN).

Diagnostic

It tests the connection to computer(s) which is connected to LAN ports and also the WAN Internet connection. If PING www.google.com

shows FAIL and the rest show PASS, you ought to check that your Computers’ DNS settings are correctly set.


27

Mega 200VWR Router

UPnP Portmap

The section lists all port-mappings established using UPnP (Universal Plug and Play). See the

Advanced section of this manual for more details on UPnP and the router’s UPnP configuration options.


28

Quick Start

Mega 200VWR Router

While it is recommended that you use the installation utility that was supplied with your router, It is also possible you use the built-in Quick Start function in order to configure your router.

For detailed instructions on configuring your WAN settings, please see the WAN section of this manual.

Usually, the only details you will need for the Quick Start wizard to get you online are your login (often in the form of username@ispname), your password and the encapsulation type. (For the Telkom network,

VCI and VPI are 8 and 35) In additional, you have the option to provide specific DNS if you desire, or select the Enable box to get an DNS automatically assigned by your ISP.

Your ISP will be able to supply all the details you need, alternatively, if you have deleted the current WAN

Connection in the WAN – ISP section of the interface, you can use the router’s PVC Scan feature to attempt to determine the Encapsulation types offered by your ISP.


29

Mega 200VWR Router

Click Start to begin scanning for encapsulation types offered by your ISP. If the scan is successful you will then be presented with a list of supported options:

Select the desired option from the list and click Apply to return to the Quick Start interface to continue configuring your ISP connection. Please note that the contents of this list will vary, depending on what is supported by your ISP.


30

Mega 200VWR Router

Configuration

When you click this item, you will be able to following sub-items to configure the ADSL router.

- LAN, Wan, System, Firewall, VPN, VoIP, QoS, Virtual Server, Time Schedule and Advanced

These functions are described below in the following sections.

LAN - Local Area Network

Here are the items within the LAN section: Bridge Interface, Ethernet, IP Alias, Ethernet Client Filter,

Wireless, Wireless Security, Wireless Client Filter, Port Settings and DHCP Server .

Bridge Interface

You can setup member ports for each VLAN group under Bridge Interface section. From the example, two

VLAN groups need to be created.

Ethernet: P1 (Port 1)

Ethernet1: P2, P3 and P4 (Port 2, 3, 4). Uncheck P2, P3, P4 from Ethernet VLAN port first.

Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in this order.


Ethernet

Ethernet1

VLAN Port (Always starts with)

P1 / P2 / P3 / P4

P2 / P3 / P4

Ethernet3 P4

Management Interface: To specify which VLAN group is allowed to do device management - i.e web management.

Note: NAT/NAPT can be applied to management interface only.

31


Mega 200VWR Router

Ethernet

Primary IP Address

IP Address: The default IP on this router.

SubNetmask: The default subnet mask on this router.

RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.

IP Alias

This function supports to create multiple virtual IP interfaces on this router. this helps if you wish to connect two or more local networks using different IP ranges to internet via the router. In this case, an additional internal router is not required.

IP Address: Specify an IP address on this virtual interface.

SubNetmask: Specify a subnet mask on this virtual interface.

Security Interface: Specify the firewall setting on this virtual interface.

Internal: The network is behind NAT. All traffic will do network address translation (NAT) when sending out to Internet (if NAT is enabled).

External: There is no NAT on this IP interface and it is connected to the Internet directly. This can be used when your ISP provides multiple public IP addresses.

DMZ: Specify this network as a DMZ area. There is no NAT on this interface.


32

Mega 200VWR Router

Ethernet Client Filter

The Ethernet Client Filter supports up to 16 Ethernet network machines and helps you to manage your network control, accepting traffic from specific authorized machines or restricting unwanted machine(s) from access your LAN.

There are no pre-define Ethernet MAC address filter rules; you can add the filter rules that meet your requirements.

Ethernet Client Filter: Default setting is Disable.

~ Allowed: check to authorize a specific device to access your LAN by insert the MAC Address in the space provided or click . Make sure your PC’s MAC is listed.

~ Blocked: To prevent unwanted device accessing your LAN, insert the MAC Address in the space provided or click . Make sure your PC’s MAC is not listed.

The maximum number of clients is 16. The MAC addresses are 6 bytes long; they should be presented only in hexadecimal characters. The number 0 - 9 and letters a - f are acceptable.

Note: Follow the MAC Address Format xx:xx:xx:xx:xx:xx. Semicolon ( : ) must be included.

Candidates: automatically detects devices connected to the router through the Ethernet. .

→ Active PC in LAN


33

Mega 200VWR Router

Active PC in LAN displays a list of individual Ethernet device’s IP Address & MAC Address which are connected to the router.

You can easily allow or block a computer by checking the box next to the IP address. Then click Add to insert to the Ethernet Client Filter table. The maximum number of Ethernet clients is 16.


34

Wireless

Mega 200VWR Router

Parameters

WLAN Service: Default setting is Enable. If you do not have any wireless devises (802.11g or 802.11b) on your network, select Disable.

Mode: The default setting is 802.11b+g (Mixed mode). If you do not know what type of wireless devises you have, or have both 11g and 11b devices on your network, then keep the default setting (mixed

mode). From the drop-down menu, you can select 802.11g if you have only 11g clients on your network or if you have only 11b clients on your network, then select 802.11b.

ESSID: The ESSID is the unique name of a wireless access point (AP) used to distinguish it from other

AP’s. For security purposes, change the default AP ID (wlan-ap) to a unique ID name. The ESSID is case sensitive and must not excess 32 characters. Make sure your wireless clients have exactly the same ESSID as the AP so that you will be able to connect to it .

Note: It is case sensitive and must not excess 32 characters.

ESSID Broadcast: ESSID Broadcast is the function that controls the Routes transmission of its ESSID.

This transmission enables wireless clients to detect the presence of the AP when they search for AP;s to connect to. The default setting is Enabled.

~ Disable: If you do not want broadcast your ESSID. Any client using “any” wireless setting cannot discover the Access Point (AP) of your router.

~ Enable: Any client using the “any” setting can discover the Access Point (AP).

Regulation Domain: There are seven Regulation Domains for you to choose from, including North

America (N.America), Europe, France, etc. The Channel ID will be different based on this setting.

Channel ID: Select the wireless connection ID channel that you would like to use. Use the Scan

Channel Usage to help to select non-occupied wireless channel.

~ Scan Channel Usage: Wireless channel scan takes up to 14 seconds to survey the wireless channels In the surrounding area. The result will show which of the wireless channels are already

35


Mega 200VWR Router being used , and wich are available for use.

Note: Wireless performance will be degraded if you select a channel that is already being occupied by other

AP(s).

TX PowerLevel: This function enhances the wireless transmitting signal strength. Users may adjust this power level from minimum 0 up to maximum 255.

Note: Maximum power Level is not necessarily the best choice in all cases. choose the most suitable level for your network and environment.

Connected: Shown as true or false. This is the connection status between the wireless card and the network.

AP MAC Address: this is the unique hardware address of the Access Point.

AP Firmware Version: The Access Point firmware version.

Wireless Distribution System (WDS)

This is a wireless access point mode that enables wireless linking and communication with other access points. It is easy to install - simply define the peer AP’s MAC address. The WDS system gives a cost saving and flexible method of extending wireless range, since no extra wireless client device is required to bridge between two access points. Using WDS, the user can extend an existing wired or wireless infrastructure network to create a larger network.

In addition, the WDS connection can provide network security in WEP mode. The WEP key encryption must be the same for both access points.

WDS Service: The default setting is Disabled. Check Enable radio button to activate this function.

Peer WDS MAC Address: this is the associated AP’s MAC Address. It is important that your peer’s AP must include your MAC address in order to allow the AP’s to acknowledge and communicate with each other.

Note: For MAC Address, Semicolon ( : ) must be included.


36

Mega 200VWR Router

Wireless Security

You can disable or enable WPA or WEP for protecting your wireless network.

The default mode of wireless security is Enabled. And the default security mode is WPA

WPA-PSK (TKIP) / WPA-PSK (AES) Pre-Shared Key

WPA Algorithms: There are two types of WPA-PSK security : WPA1 and WPA2. WPA1 adopts the

TKIP (Temporal Key Integrity Protocol) encrypted algorithm, which incorporates Message Integrity Code

(MIC), to provide protection against hackers. The WPA2 adopts the CCMP (Cipher Block Chaining

Message Authentication Code Protocol) of the AES (Advanced Encryption Security) algorithm.

WPA Shared Key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters. By default, your Router is provided with a unique

Key. This key is also given on a label on the underside of your router/

Group Key Renewal: The time interval for changing the security key automatically between wireless client and Access Point (AP). Default value is 3600 seconds.

Idle Timeout: The default idle timeout is 3600 seconds. The timeout value is for when no data traffic is send or received. If Router detects no traffic on the wireless interface, it will start a timer, and drop the session when the timer reaches the defined timeout value. A new session will be established when further data is sent.


37

WEP

Mega 200VWR Router

WEP Encryption: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers highly secure data encryption, known as WEP. If you require high security for transmissions, there are two alternatives to select from: WEP 64 and WEP 128. WEP 128 will offer increased security over WEP 64.

Passphrase: This is used to generate WEP keys automatically based upon the input string and a pre-defined algorithm in WEP64 or WEP128. Default Used WEP Key: Select the encryption key ID; please refer to Key (1~4) below.

Key (1-4): Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP

Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for WEP64 and

WEP128 respectively, the separator is “-“. For example, using WEP64, 11-22-33-44-55 is a valid key, whilst 1122334455 is invalid.


38

Mega 200VWR Router

Wireless Client / MAC Address Filter

The MAC Address supports up to 16 wireless network machines and helps you to manage your network control to accept traffic from specific authorized machines or to restrict unwanted machine(s) from accessing your LAN.

There are no pre-define MAC Address filter rules; you can add the filter rules that meet your requirements.

Wireless Client Filter: Default setting is Disable.

~ Allowed: To authorize a specific device accessing your LAN, insert the devises MAC Address in the space provided, or click . Make sure your computer’s MAC is listed.

~ Blocked: To prevent unwanted devices from accessing the LAN, insert the MAC Address of an unwanted computer into the space provided, or click

MAC is not listed.

. Make sure your computer’s

The maximum number of clients is 16. MAC addresses are 6 bytes long; they are presented only in hexadecimal format. The number 0 - 9 and letters a - f are acceptable. MAC addresses are 6 bytes long

Note: Follow the MAC Address Format xx:xx:xx:xx:xx:xx. Semicolon ( : ) must be included.

Candidates: This function automatically detects devices connected to the router through the Wireless

AP . .

→Associated Wireless Clients

Associate Wireless Client displays a list of individual wireless device’s MAC Address that are currently connected to the router.

You can easily add a particular client to the Allow or Block list by checking the box next to the MAC

39


Mega 200VWR Router address and selecting Add to insert to the client into the Wireless Client (MAC Address) Filter table.


40

Mega 200VWR Router

Port Setting

This section allows you to configure the settings for the router’s Ethernet ports to solve some of the compatibility problems that may be encountered while connecting to the Internet, as well as allowing users to tweak the performance of their network.

Port # Connection Type: this is where you can customize the connection type of each of the

routers Ethernet ports. There are Six options to choose from: Auto, disable, 10M half-duplex, 10M full-duplex, 100M half-duplex, 100M full-duplex and Disable. Sometimes, there are Ethernet compatibility problems with legacy Ethernet devices, and you can configure a particular Ethernet port to one of the different types to solve compatibility issues. The default is Auto, which users should keep unless there are specific problems with computers not being able to access your LAN.

IPv4 TOS priority Control (Advanced users): TOS, Type of Services, is the 2 nd octet of an IP packet.

Bits 6-7 of this octet are reserved and bit 0-5 are used to specify the priority of the packet.

This feature uses bits 0-5 to classify the packet’s priority. If the packet is high priority, it will flow first and will not be constrained by the Rate Limit. Therefore, when this feature is enabled, the router’s Ethernet switch will check the 2 nd octet of each IP packet. If the value in the TOS field matches the checked values in the table (0 to 63), this packet will be treated as high priority.


41

Mega 200VWR Router

DHCP Server

You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router’s

DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to computers on your network if they are configured to obtain IP addresses automatically.

To disable the router’s DHCP Server, check Disabled and click Next, then click Apply. When the DHCP

Server is disabled you will need to manually assign a fixed IP address to each Computer on your network, and set the default gateway for each computer to the IP address of the router (by default this is 10.0.0.2).

To configure the router’s DHCP Server, check DHCP Server and click Next. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to Computers on your network), lease time for each assigned IP address (the period of time the

IP address assigned will be valid), DNS IP address and the gateway IP address. These details are sent to the DHCP client (i.e. your PC) when it requests an IP address from the DHCP server. Click Apply to enable this function. If you check “Use Router as a DNS Server”, the ADSL Router will perform the domain name lookup, find the IP address from the outside network automatically and forward it back to the requesting PC in your LAN (your Local Area Network).

If you check DHCP Relay Agent and click Next, then you will have to enter the IP address of the DHCP server which will assign an IP address back to the DHCP client on your LAN. Use this function only if advised to do so by your network administrator or ISP.

Click Apply to enable this function.

42


Mega 200VWR Router

WAN - Wide Area Network

WAN refers to your Wide Area Network connection, i.e. your router’s connection to your ISP and the

Internet. Here are the items within the WAN section: ISP, DNS and ADSL.

ISP

The factory default is PPPoE. Telkom uses this access protocol. If you wish to change any of these parameters, click Edit. If your ISP does not use PPPoE, you can change the default WAN connection entry by clicking Change.

Some ISP may provide more services via different WAN connections. In this case, you can create more than 1 connection by clicking Create. The device can support maximum up to 8 WAN connections.

Note: The application of multiple WAN connections is depend on your Service Provider.

A simpler alternative is to select Quick Start from the main menu on the left. Please see the Quick Start section of the manual for more information.


43

RFC 1483 Routed Connections

Mega 200VWR Router

Description: User-definable name for the connection.

VPI and VCI: Enter the information provided by your ISP.

ATM Class: The Quality of Service for ATM layer.

NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

Encapsulation method: Selects the encapsulation format, the default is LLC Bridged. Select the option provided by your ISP.

IP Assignment

~ Obtain an IP address automatically via DHCP client: specify if the Router can get an IP address from the ISP (Internet Service Provider) automatically.

~ Use the following IP Address: Specify the IP address manually; the IP should be given to you by your ISP.


MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) that IP will attempt to send through the interface.


44

RFC 1483 Bridged Connections

Mega 200VWR Router




Encapsulation method: Select the encapsulation format, this is provided by your ISP.

Acceptable Frame Type: Specify what kind of traffic can through this connection, all traffic or only VLAN tagged traffic.

Filter Type: Specify the type of ethernet filtering performed by the named bridge interface.

All

Ip

Pppoe

Allows all types of ethernet packets through the port.

Allows only IP/ARP types of ethernet packets through the port.

Allows only PPPoE types of ethernet packets through the port.

PVID for Untagged Frames: PVID is known as Port VLAN Identifier. When an untagged packet is received by input port(s), this packet will be tagged with specified PVID. The valid value range for PVID is

1~4094.


45

PPPoA Routed Connections

Mega 200VWR Router


VPI/VCI: Enter the information provided by your ISP.



Username: Enter the username provided by your ISP. You can input up to 128 alphanumeric characters

(case sensitive). This will usually be in the format of “username@ispname” instead of simply “username”.

Password: Enter the password provided by your ISP. You can input up to 128 alphanumeric characters

(case sensitive).

IP Address: Specify IP addresses that are allowed to logon and access the router’s web server..

Note: IP 0.0.0.0 indicates all users who are connected to this router are allowed to logon to the device and modify data.

Authentication Protocol Type: Default is Chap (Auto). Your ISP will advise you whether to use Chap or

Pap.

Connection:

~ Always on: If you want the router to establish a PPPoA session when starting up and to automatically re-establish the PPPoA session when disconnected by the ISP.

~ Connect on Demand: If you want to establish a PPPoA session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the

Internet).

Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time.

46


~ Detail: You can define destination port and packet type (TCP/UDP) information that will not result in the router checking the timer. It allows you to set which outgoing traffic will not trigger and reset the idle timer.

Mega 200VWR Router



Advanced Options (PPPoA)

LLC Header: Selects encapsulation mode, select true for using LLC or false for using VC-Mux.

Create Route: This setting specifies whether a route is added to the system after IPCP (Internet Protocol

Control Protocol) negotiation is completed. If set to enabled, a route will be created which directs packets to the remote end of the PPP link.

Specific Route: This setting specifies whether the route created when a PPP link comes up is a specific or default route. If set to enabled, the route created will only apply to packets for the subnet at the remote end of the PPP link. The address of this subnet is obtained during IPCP negotiation.

Subnet Mask: This sets the subnet mask used for the local IP interface connected to the PPP transport.

If the value 0.0.0.0 is supplied, the netmask will be calculated from the class of the IP address obtained during IPCP negotiation.

Route Mask: This sets the subnet mask used by the route that is created when a PPP link comes up. If it is set to 0.0.0.0, the subnet mask is determined by the IP address of the remote end of the link. The class of the IP address is obtained during IPCP (Internet Protocol Control Protocol) negotiation.

MRU: Maximum Receive Unit. This is negotiated during the LCP protocol stage.

Discover Primary / Secondary DNS: This setting enables/disables whether the primary/secondary DNS server address is requested from a remote PPP peer using IPCP. The default setting for this command is enabled .

Give DNS to Relay: This controls whether the PPP Internet Protocol Control Protocol (IPCP) can request the DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS relay so that a connection can be established.

Give DNS to Client: Controls whether the PPP Internet Protocol Control Protocol (IPCP) can request a

DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS client so that a connection can be established.

Give DNS to DHCP Server: Similar to the above, but gives the DNS server address to the DHCP server.

Discover Primary NBNS / Discover Secondary NBNS: This setting enables/disables whether the primary/secondary NBNS server address is requested from a remote PPP peer using IPCP. The default setting for this command is disabled.

Discover Subnet Mask: This specifies if the subnet mask given by IPCP negotiation process is to be used.

Give Subnet Mask To DHCP Server: Enable to change your DHCP Server settings by using the given information in IPCP negotiation process.


47

IPoA Routed Connections

Mega 200VWR Router





IP Assignment

~ Obtain an IP address automatically via DHCP client: This specifies if the router is to get an

IP address from the ISP (Internet Service Provider) automatically.

~ Use the following IP Address: this is to specify the IP address manually; this IP should be given by your ISP.




48

PPPoE Connections

Mega 200VWR Router

Description: User-definable name for this connection.

VPI/VCI: Enter the information provided by your ISP. The Telkom standard settings are 8 and 35.


NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.




(case sensitive).

Service Name: This item is for identification purposes. If it is required, your ISP will provide you the information. Maximum input is 20 alphanumeric characters.

IP Address: This specifies if the router can get an IP address from the Internet Server Provider (ISP) automatically or not. Please click Obtain an IP address automatically via DHCP (default setting) client to enable the DHCP client function or click Specify an IP address to disable the DHCP client function, and specify the IP address manually. To connect to the Telkom network, please leave this at the default value .

Authentication Protocol: Default is Chap(Auto). Your ISP will advise you whether to use Chap or Pap.

Connection

~ Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP.

49


~ Connect on Demand: If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the

Internet).

Mega 200VWR Router

Idle Timeout: Auto-disconnect the router when there is no activity on the line for a predetermined period of time.

~ Detail: You can define destination port and packet type (TCP/UDP) information that will not result in the router checking the timer. It allows you to set which outgoing traffic will not trigger and reset the idle timer..



Advanced Options (PPPoE)

LLC Header: Selects encapsulation mode. Select true to use LLC or false to use VC-Mux.



Specific Route: This specifies whether the route created when a PPP link comes up is a specific or default route. If set to enabled, the route created will only apply to packets for the subnet at the remote end of the PPP link. The address of this subnet is obtained during IPCP negotiation.






Give DNS to Relay: This controls whether the PPP Internet Protocol Control Protocol (IPCP) can request the DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS relay so that a connection can be established.

Give DNS to Client: This controls whether the PPP Internet Protocol Control Protocol (IPCP) can request a DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS client so that a connection can be established.



Discover Subnet Mask: Specifies if the subnet mask given by IPCP negotiation process is to be used.


50


Mega 200VWR Router

PPPoE with Pass-through Connections

PPPoE with pass-through adopts the following method: PPPoE Routed mode + 1483 Bridge Mode. With pure PPPoE connection, the router can get one WAN address for the router. With the PPPoE and

PPPoE pass-through, concurrently, it allows users to have a WAN address assigned to the router but also able to get another WAN IP from their ISP using PPPoE dialer (e.g WinPoETor Windows XP PPPoE

Dialer) at the same time.

Description: User-definable name for this connection.



NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.




(case sensitive).

Service Name: This item is for identification purposes. If it is required, your ISP will provide you the information. Maximum input is 20 alphanumeric characters.

IP Address : This specifies if the router can get an IP address from the Internet Server Provider (ISP) automatically or not. Please click Obtain an IP address automatically via DHCP client to enable the

DHCP client functionality or click Specify an IP address to disable the DHCP client functionality, and specify the IP address manually. The setting of this item is specified by your ISP.

51


Mega 200VWR Router

Authentication Protocol: Default is Chap(Auto). Your ISP will advise you whether to use Chap or Pap.

Connection:

~ Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP.

~ Connect on Demand: If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the

Internet).

Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time.

~ Detail: You can define destination port and packet type (TCP/UDP) information that will not result in the router checking the timer. It allows you to set which outgoing traffic will not trigger and reset the idle timer.

~ RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.


Advanced Options (PPPoE)

LLC Header: Selects encapsulation mode. Select true to use LLC or false to use VC-Mux.



Specific Route: This specifies whether the route created when a PPP link comes up is a specific or default route. If set to enabled, the route created will only apply to packets for the subnet at the remote end of the PPP link. The address of this subnet is obtained during IPCP negotiation.






Give DNS to Relay: This controls whether the PPP Internet Protocol Control Protocol (IPCP) can request the DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS relay so that a connection can be established.

Give DNS to Client: This controls whether the PPP Internet Protocol Control Protocol (IPCP) can request a DNS server IP address for a remote PPP peer. Once IPCP has discovered the DNS server IP address, it automatically gives the address to the local DNS client so that a connection can be established.



Discover Subnet Mask: Specifies if the subnet mask given by IPCP negotiation process is to be used.

52


Mega 200VWR Router


DNS

A Domain Name System (DNS) contains a mapping table for mapping between Domain Names and IP addresses. On the Internet, every host has a unique and user-friendly name (domain name) such as www.helloworld.com as well as an IP address. An IP address is a 32-bit number in the form of xxx.xxx.xxx.xxx

, for example 10.0.0.2. You can think of an IP address as a telephone number for devices on the Internet, and the DNS will allow you to find the telephone number for any particular domain name.

As an IP Address is hard to remember, the DNS converts the friendly name into its equivalent IP Address.

You can obtain a Domain Name System (DNS) IP address automatically if your ISP provides it when you logon. To use this automatically supplied DNS check the Enable box. Usually when you choose PPPoE or PPPoA as your WAN - ISP protocol, the ISP will provide the DNS IP address automatically. You may leave the configuration field blank.

Alternatively, your ISP may provide you with an IP address of their DNS. If this is the case, you must enter the DNS IP address manually.

If you choose one of the other three protocols ─ RFC1483 Routed/Bridged or IPoA, please check with your ISP as it may provide you with an IP address for their DNS server. You will need to enter the DNS IP address if you set the DNS of your PC to the LAN IP address of this router.


53

ADSL

Mega 200VWR Router

Connect Mode: This mode will automatically detect your ADSL line mode, ADSL2+, ADSL2, G.dmt,

G.lite, T1.413, AnnexM2 or AnnexM2+. But in some areas, multimode cannot detect the ADSL line mode very well. If it is the case, please adjust the ADSL line code to G.dmt first. If it still fails, ,please check with your ISP for line connect information.

Activate Line: Select false and then select true to activate any new Connect Mode settings.

Coding Gain: This reduces the router’s transmit power and will effect to router’s downstream performance. General, the higher the gain, the higher the downstream rate, but sometimes a gain that is too high will cause an unstable ADSL connection. The configurable ADSL coding gain is from 0 dB to 7dB, or automatic.

Tx Attenuation: This is the ADSL transmission power that the modem is using. The lower the power the better performance in router’s upstream. Configurable value is between 0~12.

DSP Firmware Version: Current ADSL line code firmware version.

Connected: Display current ADSL line sync status.

Operational Mode: Display current ADSL mode standard (Operational Mode) that your Router is using when ADSL line has sync.

Annex Type: ADSL Annex A, which works over a standard telephone line. Annex B, which works over an

ISDN line. In South Africa, we always use Annex A

Upstream: Display current upstream rate of your ADSL line.

Downstream: Display current downstream rate of your ADSL line.

Advanced Options

ADSL Parameters help to interpret your ADSL line statistics.

54


Mega 200VWR Router

SNR Margin: This is known as Signal to Noise Ration Margin. It is the ratio between DSL strength and signal noise. This margin is measured in decibels (dB). Higher the dB figures better the DSL strength is relative to the noise, and better chance to get faster speed. THE HIGHER THE BETTER

Line Attenuation: This measures the signal loss in decibel (dB) between the DSLAM and the router. The lower the attenuation dB figures, the better the DSL strength/speed. THE LOWER THE BETTER.

CRC Errors: It is known as Cyclic Redundancy Check Error. It is the use of checksums to detect transmission errors.

Latency: This includes two channels, Fast and Interleaved. It displays the channel adopted by your ISP.

Capability: There are more combinational ADSL modulation modes to be selected.

~ GDMT: ADSL connection will be limited to ADSL1 (G.DMT / G.Lite) only.

~ BIS+: ADSL connection will be limited to ADSL2+ only. (If you are ADSL1 subscriber DO NOT select this option).

~ BIS+/T1413: ADSL connection will be limited to ADSL2+ and ADSL1 T1.413 only.

~ BIS+/BIS: ADSL connection will be limited to ADSL2+ and ADSL2 only.

~ BIS+/BIS/GDMT/T1413: ADSL connection will be limited to ADSL2+, ADSL2 and ADSL1

G.DMT & G.Lite & T1.413.

~ BIS+/BIS/T1413: ADSL connection will be limited to ADSL2+, ADSL2 and T1.413.

~ BIS+/BIS/GDMT: ADSL connection will be limited to ADSL2+, ADSL2 and ADS1 (G.DMT/G.Lite) only.

~ DISABLE: This disable function will disconnect your ADSL synch. Use it with caution.

S=1/2 Mode: This is a ADSL1 protocol that can increase the downstream speed up to 12Mpb. Please check further with your ISP if this option can be enabled or not.


55

Mega 200VWR Router

System

Here are the items within the System section: Time Zone, Remote Access, Firmware Upgrade,

Backup/Restore, Restart and User Management.

Time Zone

This router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol

(SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router will retrieve the correct local time from the SNTP server you have specified. If you prefer to specify an SNTP server other than those in the list, simply enter its IP address as shown above. Your ISP may provide an

SNTP server for you to use.

Daylight Saving is also known as Summer Time Period. Many places in the world adopt this during summer time to move one hour of daylight from morning to the evening in local standard time. Check

Automatic box to automatically set your local time.

Resync Period (in minutes) is the periodic interval the router will wait before it re-synchronizes the router’s time with that of the specified SNTP server. In order to avoid unnecessarily increasing the load on your specified SNTP server you should keep the poll interval as high as possible – at the absolute minimum every few hours or even days.

56


Mega 200VWR Router

Remote Access

To temporarily permit remote administration of the router (i.e. from outside your LAN), select a time period the router will permit remote access for and click Enable. You may change other configuration options for the web administration interface using Device Management options in the Advanced section of the GUI.

If you wish to permanently enable remote access, choose a time period of 0 minute.


57

Mega 200VWR Router

Firmware Upgrade

Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

Clicking on Browse will allow you to select the new firmware image file you have downloaded to your PC.

Once the correct file is selected, click Upgrade to update the firmware in your router.

DO NOT power down the router or interrupt the firmware upgrading while it is still in process. Improper operation could damage the router.


58

Backup / Restore

Mega 200VWR Router

These functions allow you to save and backup your router’s current settings to a file on your Computer, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router’s settings before making any significant changes to your router’s configuration, as well as before performing a firmware upgrade.

Press Backup to select where on your local computer to save the settings file. You may also change the name of the file when saving if you wish to keep multiple backups.

Press Browse to select a file from your computer to restore. You should only restore settings files that have been generated by the Backup function, and that were created when using the current version of the router’s firmware. Settings files saved to your computer should not be manually edited in any

way.

After selecting the settings file you wish to use, pressing Restore will load those settings into the router.


59

Mega 200VWR Router

Restart Router

Click Restart with option Current Settings to reboot your router (and restore your last saved configuration).

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

You may also reset your router to factory settings by holding the small RESET pinhole button on the back of your router in for more than 6 seconds whilst the router is turned on, and then power cycling your router.

60


Mega 200VWR Router

User Management

In order to prevent unauthorized access to your router’s configuration interface, it requires all users to login with a password. You can set up multiple user accounts, each with their own password.

You are able to Edit existing users and Create new users who are able to access the device’s configuration interface. Once you have clicked on Edit, you are shown the following options:

You can change the user’s password, whether their account is active and valid, as well as add a comment to each user account. These options are the same when creating a user account, with the exception that once created you cannot change the username. You cannot delete the default admin account; however, you can delete any other created accounts by clicking Delete when editing the user.

You are strongly advised to change the password on the default “admin” account when you receive your router, and any time you reset your configuration to Factory Defaults.

61


Mega 200VWR Router

Firewall and Access Control

Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT, the router acts as a “natural” Internet firewall, as all PCs on your LAN will use private IP addresses that cannot be directly accessed from the Internet.

Firewall: Prevents access from outside your network. The router provides three levels of security support:

NAT natural firewall: This masks LAN users’ IP addresses making them invisible to outside users on the

Internet, thus making it much more difficult for a hacker to target any machine on your network. This natural firewall is on when NAT function is enabled.

When using the Virtual Servers function, your PCs will be exposed to the degree specified in your Virtual Server settings, provided that the ports specified are opened in your firewall packet filter settings.

Firewall Security and Policy (General Settings): Inbound direction of Packet Filter rules to prevent unauthorized WAN computers or applications accessing your local network from the Internet.

Intrusion Detection: Enable Intrusion Detection to detect, prevent and log malicious attacks.

Access Control: Prevents access from computers on your local network:

Firewall Security and Policy (General Settings): Outbound direction of Packet Filter rules to prevent unauthorized LAN computers or applications accessing the Internet.

URL Filter: Blocks computers on your local network from unwanted websites.

Here are the items within the Firewall section: General Settings, Packet Filter, Intrusion Detection,

URL Filter, IM/P2P Blocking and Firewall Log.

62


General Settings

Mega 200VWR Router

You can choose not to enable the Firewall and still have access to URL Filter and IM/P2P Blocking, or you can enable the Firewall using preset filter rules and modify the port filter rules as required. The Packet

Filter is used to filter packets based-on Applications (Port) or IP addresses.

There are four options when you enable the Firewall, they are:

~ All blocked/User-defined: No pre-defined port or address filter rules by default, meaning that all inbound (Internet to LAN) and outbound (LAN to Internet) packets will be blocked. Users have to add their own filter rules for further access to the Internet.

~ High/Medium/Low security level: The predefined port filter rules for High, Medium and Low security are displayed in Port Filters of Packet Filter.

Select either High, Medium or Low security level to enable the Firewall. The only difference between these three security levels is the preset port filter rules in the Packet Filter. Firewall functionality is the same for all levels; it is only the list of preset port filters that changes between each setting. For more detailed on level of preset port filter information, refer to Table 1: Predefined Port Filter.

If you choose one of the preset security levels and add custom filters, this level of filter rules will be saved and you do not need to re-configure the rules again if you disable or switch to other firewall level.

The “Block WAN Request” is a stand-alone function and not related to whether security is enabled or disabled. Mostly this is used to preventing a hacker on the WAN from using any scan tools..

Attempting to perform this action remotely may result in blocking of all access to configuration and managment of the device from the Internet.

Use this with caution when connecting over the WAN

63


Mega 200VWR Router

Packet Filter

This function is only available when the firewall function is enabled and one of these four security levels is chosen (All blocked, High, Medium and Low). The preset port filter rules in the Packet Filter must be modified according to the level of Firewall which is selected. See Table1: Predefined Port Filter for more detail information.


64

Example: Predefined Port Filters Rules

Mega 200VWR Router

The predefined port filter rules for High, Medium and Low security levels are listed. See Table 1.

Note: Firewall – For Blocked/User-defined, you must define and create the port filter rules yourself. No predefined rules are configured for these modes.

Table 1: Predefined Port Filter

Port Number Firewall - Low

Application Protocol

Firewall - Medium Firewall – High

Start End Inbound Outbound Inbound Outbound Inbound Outbound

HTTP(80) TCP(6) 80 NO YES NO YES NO YES

DNS (53)

DNS (53)

UDP(17) 53

TCP(6) 53

53

53

FTP(21) TCP(6) 21

NO

NO

NO

YES NO YES NO

YES NO YES NO

YES NO YES NO

YES

YES

NO

YES NO YES NO

YES NO YES NO

YES NO YES NO

NO

YES

YES

Telnet(23) TCP(6)

SMTP(25) TCP(6)

23

25

NO

NO

POP3(110) TCP(6) 110 110

PING ICMP(1) N/A

NO

NEWS(NNTP)

(Network News

Transfer Protocol)

TCP(6) 119 119

RealAudio/

RealVideo

(7070)

UDP(17) 7070 7070

NO

YES

NO

H.323(1720) TCP(6) 1720 1720 YES

T.120(1503) TCP(6) 1503 1503 YES

SSH(22) TCP(6) 22 NO

NTP /SNTP UDP(17) 123 123

HTTP/HTTP

Proxy

(8080)

TCP(6) 8080 8080

HTTPS(443) TCP(6) 443 443

NO

NO

NO

ICQ (5190) TCP(6) 5190 5190 YES

MSN (1863) TCP(6) 1863 1863 YES

YES NO YES NO

YES YES YES NO

YES NO YES NO

YES NO YES NO

YES NO YES NO

YES NO YES NO

YES NO YES NO

YES NO NO NO

YES NO YES N/A

YES N/A N/A N/A

YES N/A N/A N/A

NO

NO

YES

NO

NO

NO

YES

NO

N/A

N/A

N/A

65


Mega 200VWR Router

YES N/A N/A N/A MSN (7001) UDP(17) 7001 7001 YES

MSN VEDIO

(9000)

TCP(6) 9000 9000 NO YES N/A N/A N/A

Inbound: Internet to LAN ; Outbound: LAN to Internet.

YES: Allowed ; NO: Blocked ; N/A: Not Applicable

N/A

N/A


66

Packet Filter – Add TCP/UDP Filter

Mega 200VWR Router

Rule Name: Specify a User-defined description identifying this entry or click existing predefined rules. The maximum name length is 32 characters.

to select

Time Schedule: This is the user-defined time period applicable to the rule. You may specify a time schedule for your prioritization policy. For setup and detail, refer to Time Schedule section

Source IP Address(es) / Destination IP Address(es): This is the Address-Filter used to allow or block traffic to/from particular IP address(es). Selecting the Subnet Mask of the IP address range you wish to allow/block the traffic to or form; set IP address and Subnet Mask to 0.0.0.0 to inactive the Address-Filter rule. (such as when you are setting up a port filter rule that is applicable to all hosts)

Tip: To block access, to/from a single IP address, enter that IP address as the Host IP Address and use a Host Subnet Mask of “255.255.255.255”.

Type: It is the packet protocol type used by the application, select TCP, UDP or both TCP/UDP.

Source Port: This Port or Port Range defines the port allowed to be used by the Remote/WAN to connect to the application. The default is 0 ~ 65535. It is recommended that this option only be configured by advanced users.

Destination Port: This is the Port (or Port Range) that is defined by the application.

Inbound / Outbound: Select Allow or Block to control access to the Internet (“Outbound”) or from the Internet (“Inbound”).

Click the Apply button to apply your changes.

67


Packet Filter – Add Raw IP Filter

Mega 200VWR Router

Rule Name: Specifies a user-defined description identifying this entry or click existing predefined rules.

to select

Time Schedule: this is the user-defined time period applicable to the rule. You may specify a time schedule for your prioritization policy. For setup and detail, refer to Time Schedule section

Protocol Number: Insert the port number, i.e. GRE 47.

Inbound / Outbound: Select Allow or Block to control access to the Internet (“Outbound”) or from the Internet (“Inbound”).

Click the Apply button to apply your changes.

68


Mega 200VWR Router

Example: Configuring your firewall to allow for a publicly accessible web server on your LAN

The predefined port filter rule for HTTP (TCP port 80) is the same no matter whether the firewall is set to a high, medium or low security level. To setup a web server located on the local network when the firewall is enabled, you have to configure the Port Filters setting for HTTP.

As you can see from the diagram below, when the firewall is enabled with one of the three presets

(Low/Medium/High), inbound HTTP access is not allowed which means remote access through HTTP to your router is not allowed.

Note: Inbound indicates accessing from Internet to LAN and Outbound is from LAN to the Internet.


69

Mega 200VWR Router

Configuring Packet Filter: for the low security level) shown below:

Note: You may edit the predefined rule instead of deleting it. This is an example showing to how you add a filter on your own.

Click Delete

Click Add TCP/UDP Filter

4. Input the Rule Name, Time Schedule, Source/Destination IP, Type, Source/Destination Port,

Inbound and Outbound.

Example :

Application: Cindy_HTTP

Time Schedule: Always On

Source / Destination IP Address(es): 0.0.0.0 (I do not wish to active the address-filter, instead I use the port-filter)

Type: TCP (Please refer to Table1: Predefined Port Filter)

Source Port: 0-65535 (I allow all ports to connect with the application))

Redirect Port: 80-80 (This is Port defined for HTTP)

Inbound / Outbound: Allow

70


Mega 200VWR Router

5. The new port filter rule for HTTP is shown below:

6. Configure your Virtual Server (“port forwarding”) settings so that incoming HTTP requests on port 80 will be forwarded to the PC running your web server:

Note: For how to configure the HTTP in Virtual Server mode , go to Add Virtual Server in the Virtual Server section for more details.

71


Intrusion Detection

Mega 200VWR Router

The router’s Intrusion Detection System (IDS) is used to detect hacker attacks and intrusion attempts from the Internet. If the IDS function of the firewall is enabled, inbound packets are filtered and blocked depending on whether they are detected as possible hacker attacks, intrusion attempts or other connections that the router determines to be suspicious.

Blacklist: If the router detects a possible attack, the source IP or destination IP address will be added to the Blacklist. Any further attempts using this IP address will be blocked for the time period specified as the

Block Duration. The default setting for this function is disable. Some attack types are denied immediately without using the Blacklist function, such as Land attack and Echo/CharGen scan.

Intrusion Detection: If enabled, IDS will block Smurf attack attempts. Default is disable.

Block Duration:

~ Victim Protection Block Duration: This is the duration for blocking Smurf attacks. Default value is 600 seconds.

~ Scan Attack Block Duration: This is the duration for blocking hosts that attempt a possible

Scan attack. Scan attack types include X’mas scan, IMAP SYN/FIN scan and similar attempts.

Default value is 86400 seconds.

~ DoS Attack Block Duration: This is the duration for blocking hosts that attempt a possible

Denial of Service (DoS) attack. Possible DoS attacks this attempts to block include Ascend Kill and

WinNuke . Default value is 1800 seconds.

Max TCP Open Handshaking Count: This is a threshold value to decide whether a SYN Flood attempt is occurring or not. Default value is 100 TCP SYN per seconds.

Max PING Count: This is a threshold value to decide whether an ICMP Echo Storm is occurring or not.

Default value is 15 ICMP Echo Requests (PING) per second.

Max ICMP Count: This is a threshold to decide whether an ICMP flood is occurring or not. Default value is 100 ICMP packets per seconds except ICMP Echo Requests (PING).

For SYN Flood, ICMP Echo Storm and ICMP flood, IDS will just warn the user in the Event Log. The router cannot protect against such attacks.

72


Intrusion Name

Ascend Kill

WinNuke

Smurf

Mega 200VWR Router

Table 2: Hacker attack types recognized by the IDS

Detect Parameter Blacklist

Ascend Kill data Src IP

Type of Block

Duration

Drop Packet Show Log

DoS Yes Yes

TCP

Port 135, 137~139, Src IP

Flag: URG

ICMP type 8

Des IP is broadcast

Dst IP

SrcIP = DstIP

DoS

Victim

Protection

Yes

Yes Yes

Yes

Yes

Yes Land attack

Echo/CharGen Scan

UDP Echo Port and

CharGen Port

Yes Yes

Echo Scan

CharGen Scan

X’mas Tree Scan

UDP Dst Port =

Echo(7)

Scan

UDP Dst Port =

CharGen(19)

Scan

TCP Flag: X’mas Src IP Scan

Yes

Yes

Yes

Yes

Yes

Yes

IMAP

SYN/FIN Scan

SYN/FIN/RST/ACK

Scan

Net Bus Scan

TCP Flag: SYN/FIN

DstPort: IMAP(143)

SrcPort: 0 or 65535

Src IP Scan

TCP,

No Existing session

And Scan Hosts

Scan more than five.

TCP

No Existing session

DstPort = Net Bus

12345,12346, 3456

SrcIP Scan

Yes

Yes

Yes

Yes

Yes

Yes

Back Orifice Scan

SYN Flood

ICMP Flood

ICMP Echo

Orifice Port (31337)

Max TCP Open

Handshaking Count

(Default 100 c/sec)

Max ICMP Count

(Default 100 c/sec)

Max PING Count

(Default 15 c/sec)

Dst Port: Destination Port Dst IP: Destination IP

Yes Yes

Yes

Yes

Yes

73


Mega 200VWR Router

URL Filter

URL (Uniform Resource Locator – e.g. an address in the form of http://www.abcde.com

or http://www.example.com

) filter rules allow you to prevent users on your network from accessing particular websites by their URL. There are no pre-defined URL filter rules; you can add filter rules to meet your requirements.

Enable/Disable: To enable or disable the URL Filter feature.

Block Mode: A list of the URL filter rule time modes from which you can choose .

The default is set to

Always On.

~ Disabled: No action will be performed by the Block Mode.

~ Always On: Action is enabled. URL filter rules will be monitoring and checking at all hours of the day.

~ TimeSlot1 ~ TimeSlot16: these are user-defined time periods. You may specify the time period during which the URL filter rules apply, i.e. during working hours. For setup and details, refer to Time Schedule section.

Keywords Filtering: Allows blocking by specific keywords within a particular URL rather than having to specify a complete URL (e.g. to block any image called “advertisement.gif”). When enabled, your specified keywords list will be checked to see if any keywords are present in URLs accessed to determine if the connection attempt should be blocked. Please note that the URL filter blocks web browser (HTTP) connection attempts using port 80 only.

For example , if the URL is http://www.abc.com/abcde.html

, it will be dropped if the keyword “abcde” occurs in the URL.

Domains Filtering: This function checks the whole URL (not the IP address) in URLs accessed against your list of domains to block or allow. If it is matched, the URL request will be sent (Trusted) or dropped

(Forbidden). For this function to be activated, both check-boxes must be checked. Here is the checking procedure:

1. The router checks the domain in the URL to determine if it is in the trusted list. If it is, the connection attempt is sent to correct the remote web server.

2. If not, the router checks if the domain is listed in the forbidden list. If it is, then the

74


Mega 200VWR Router connection attempt will be dropped.

3. If the packet does not match either of the above two items, it is sent to the remote web server.

4. Please note that the completed URL, “www” + domain name should be specified. For example to block traffic to www.google.com.au

, enter “ www.google

” or

“ www.google.com

”

In the example below, the URL request for www.abc.com

will be sent to the remote web server because it is listed in the trusted list, whilst the URL request for www.google

or www.google.com

will be dropped, because www.google

is in the forbidden list.

Example: Andy wishes to disable all WEB traffic except for ones listed in the trusted domain, which would prevent Bobby from accessing other web sites. Andy selects both check boxes in Domain

Filtering and thinks that this will stop Bobby. But Bobby knows this function, Domain Filtering, ONLY disables all WEB traffic except for Trusted Domain, BUT not connections using IP addresses. In this situation, the Block surfing by IP address function can be handy and helpful to Andy. Now, Andy can prevent Bobby from accessing sites, both by IP and by domain name.

Restrict URL Features: This function enhances your URL rules.

~ Block Java Applet: This function can block Web content that includes a Java Applet. This is to prevent someone who wants to damage your system via standard HTTP protocol.

~ Block surfing by IP address: This prevents someone who uses the IP address as URL from skipping the Domains Filtering function. This is only Activate if Domain Filtering is enabled.

75


Mega 200VWR Router

IM / P2P Blocking

IM, short for Instant Messaging, is required to use client program software that allows users to communicate, exchanging text message, with other IM users, in real time, over the Internet. A P2P application, known as Peer-to-Peer, is a group of computer users who share files to specific groups of people across the Internet. Both Instant Messaging and Peer-to-Peer applications make communication faster and easier, but your network can become increasingly insecure at the same time. This router’s IM and P2P blocking system helps users to restrict LAN computers from access to the commonly used IM,

Yahoo and MSN, and P2P, BitTorrent and eDonkey, applications over the Internet.

Instant Message Blocking: The default is Disabled.

~ Disabled: The Instant Messaging blocking function is not activated. No blocking will be

Performed.

~ Always On: The Instant Messaging blocking function is activated. Blocking is enabled.

~ TimeSlot1 ~ TimeSlot16: These are user-defined time periods. You may specify the time period during which the blocking is active, i.e. during working hours. For setup and details, refer to Time Schedule section.

Yahoo/MSN Messenger: Select this box to block either Yahoo and/or MSN Messenger. Be sure that you have enabled the Instant Message Blocking first.

Peer to Peer Blocking: The default is Disabled.

~ Disabled: The Instant Messaging blocking function is not active. No connections will be blocked

~ Always On The Instant Messaging blocking function is activated. Blocking is enabled.

~ TimeSlot1 ~ TimeSlot16: These are user-defined time periods. You may specify the time period during which the blocking is active, i.e. during working hours. For setup and details, refer to Time Schedule section.

BitTorrent / eDonkey: Select this box to block either Bit Torrent and/or eDonkey. To be sure you have first enabled the Peer to Peer Blocking function.

76


Mega 200VWR Router

Firewall Log

The Firewall Log displays log information of any unexpected action with your firewall settings.

Select the Enable box to activate the logging.

Log information can be seen in the Status – Event Log screen after enabling.


77

Mega 200VWR Router

VPN - Virtual Private Networks

Virtual Private Networks are a way to establish secured communication tunnels to an organization’s network via the Internet. Your router supports three main types of VPN (Virtual Private Network), PPTP,

IPSec and L2TP.

PPTP (Point-to-Point Tunneling Protocol)

There are two types of PPTP VPN’s supported; Remote Access and LAN-to-LAN (Please read below for more information.). Click Create to configure a new VPN connection.

After you have created PPTP connection, it’s account status will be displayed. (See example above).

~ Enable / Disable: This function activates or deactivates the PPTP connection. If you wish to disable the tunnel, select the Disable radio button and click on the Apply button to deactivate the connection.

Name: The user-defined name of the connection.

Type: This refers to your whether your router operates as a client or a server, select eather Dialout for client, or Dialin for server.

Status: This informs you of your PPTP tunnel connection condition.

78


PPTP Connection - Remote Access

Mega 200VWR Router

Connection Name: A user-defined name for the connection (e.g. “connection to office”).

Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g. your office server), select Dial In if you want your router to operate as a VPN server.

~ When configuring your router as a Client, enter the remote Server IP Address (or Domain

Name) you wish to connection to.

~ When configuring your router as a server, enter the Private IP Address Assigned to Dial in

User address.

Username: If you are a Dial-Out user (client), enter the username provided by your Host. If you are a

Dial-In user (server), enter your own username.

Password: If you are a Dial-Out user (client), enter the password provided by your Host. If you are a

Dial-In user (server), enter your own password.

PPP Authentication Type: Default is Auto. This is the correct setting if you want the router to determine which authentication type to use, or else you can manually specify CHAP (Challenge Handshake

Authentication Protocol) or PAP (Password Authentication Protocol) if you know which type the server is using (when acting as a client) When acting as a server, specify the authentication type you want clients connecting to your router to use. When using PAP, the password is sent unencrypted, whilst CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that an intruder has not replaced the original client.

Data Encryption: Data sent over the VPN connection can be encrypted by an MPPE algorithm. Default is Auto and this means that this setting is negotiated when establishing a connection. Alternativly, you can manually Enable or Disable encryption.

Key Length: The data can be encrypted by MPPE algorithm with 40 bits or 128 bits. Default is Auto which means that it is negotiated when establishing a connection. 128 bit keys provide stronger encryption than 40 bit keys.

Mode: You may select Stateful or Stateless mode. The key will be changed every 256 packets when you select Stateful mode. If you select Stateless mode, the key will be changed in each packet.

Idle Time: Auto-disconnect the VPN connection when there is no activity on the connection for a predetermined period of time. 0 means this connection is always on.

Active as default route: If you select this option while using Dial-out connection, all packets will route through the VPN tunnel to the Internet; therefore, activating the function may degrade Internet

79


performance.

Click Apply button to apply your changes.

Mega 200VWR Router


80

Mega 200VWR Router

Example: Configuring a Remote Access PPTP VPN Dial-out Connection

A company’s office establishes a PPTP VPN connection with a file server located at a separate location.

The router is installed in the office, and connected to a couple of PCs and Servers.

Dial-out


81

Mega 200VWR Router

Configuring the PPTP VPN in the Office

You can either input the IP address (69.1.121.33 in this case) or hostname to reach the server.

1

2

3

4

5

Item Function

1

2

3

Connection Name

Dial out

Server IP Address

(or Hostname)

VPN_PPTP

69.121.1.33

Username username

Password 123456

Your username & password to access the server

Description

Given name of PPTP connection

Select Dial out

The Dialed server’s IP

4

5

Auth.Type Chap(Auto)

Data Encryption Auto

Key Length Auto

Mode stateful

Idle Time 0

Keep as default value in most of the cases,

PPTP server & client will determine the value automatically. Refer to the relevant section of this manual for details if you want to change the setting.

The connection will be disconnected when there

Is no traffic in a predefined period of time. Idle time 0 means the connection is always on.


82

PPTP Connection - LAN to LAN

Mega 200VWR Router

Connection Name: User-defined description of the connection.

Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g. your office server) or select Dial In operates as a VPN server.

~ When configuring your router as a Client, enter the remote Server IP Address (or Hostname) you wish to connection to.


User address.

Peer Network IP: Enter Peer network IP address.

Netmask: Enter the subnet mask of peer network based on the Peer Network IP setting.

Username: If you are a Dial-Out user (client), enter the username provided by your Host. If you are a

Dial-In user (server), enter your own username.

Password: If you are a Dial-Out user (client), enter the password provided by your Host. If you are a

Dial-In user (server), enter your own password.

PPP Authentication Type: Default is Auto. Retain this setting if you want the router to determine the authentication type to use, or else manually specify CHAP (Challenge Handshake Authentication

Protocol) or PAP (Password Authentication Protocol) if you know which type the server is using (when acting as a client), When acting as a server, select the authentication type you want clients connecting to you to use. When using PAP, the password is sent unencrypted, whilst CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that the original client has not been replaced by an intruder.

Data Encryption: Data sent over the VPN connection can be encrypted by an MPPE algorithm. Default is Auto, so that this setting is negotiated when establishing a connection. Alternativly, you can manually

Enable or Disable encryption.

Key Length: The data can be encrypted by MPPE algorithm with 40 bits or 128 bits. Default is Auto, which negotiates the that is used when establishing a connection. 128 bit keys provide stronger encryption than 40 bit keys.

Mode: You may select Stateful or Stateless mode. The key will be changed every 256 packets when you select Stateful mode. If you select Stateless mode, the key will be changed in each packet.

Idle Time: Auto-disconnects the VPN connection when there is no activity on the connection for a predetermined period of time. 0 means this connection is always on.

83


Click Apply button to apply your changes.

Mega 200VWR Router


84

Mega 200VWR Router

Example: Configuring a PPTP LAN-to-LAN VPN Connection

The branch office establishes a PPTP VPN tunnel with head office to connect two private networks over the Internet. The routers are installed in the head office and branch office accordingly.

Attention

Both office LAN networks MUST in different subnet when using the LAN to LAN application.


85

Mega 200VWR Router

Configuring PPTP VPN in the Head Office

The IP address 192.168.1.200 will be assigned to the router located in the branch office. Please make sure this IP is not used in the head office LAN.

1

4

5

6

Item Function

1 Connection Name HeadOffice

Description

Given name of the PPTP connection

2

3

4

Dial in

Private IP Address

Assigned to

Dialing User

192.168.1.200

Select Dial in

IP address assigned to branch office network

Peer Network IP 192.168.0.0 Branch office network

Netmask 255.255.255.0

Username username Input username & password to authenticate branch

Password 123456 office network

5

Data Encryption

Key Length

Auto

Auto server & client will determine the value automatically.

Refer to this manual for details if you want to change

6 Idle Time 0

The connection will be disconnected when there Is no traffic in a predefined period of time. Idle time 0 means the connection is always on.

2

3

86


Mega 200VWR Router

Configuring PPTP VPN in the Branch Office

The IP address 69.1.121.30 is the Public IP address of the router located in head office. If you registered a DDNS account (please refer to the DDNS section of this manual), you can also use the domain name instead of the IP address to reach the router.

1

4

5

6

Item Function Description

1 Connection Name BranchOffice

Dial out

2 Server IP Address

(or Hostname)

69.121.1.33

3

4

Given name of the PPTP connection

Select Dial out

IP address of the head office router (in WAN side)

Peer Network IP 192.168.1.0

Head office network

Netmask 255.255.255.0

Username username Input username & password to authenticate branch

Password 123456 office network

5

Data Encryption

Key Length

Auto

Auto server & client will determine the value automatically.

Refer to this manual for details if you want to change the

6 Idle Time 0

The connection will be disconnected when there Is no traffic in a predefined period of time. Idle time 0 means the connection is always on.

2

3

87


IPSec (IP Security Protocol)

Mega 200VWR Router

Click Create to create a new IPSec VPN connection account.

After you have created the IPSec connection, account information will be displayed. (See example above).

Enable / Disable: This function activates or deactivates the IPSec connection. If you wish to disable the tunnel, select Disable and click Apply to deactivate the connection.

Name: This is the user-defined name of the connection.

Local Subnet: Displays the IP address and subnet of the local network.

Remote Subnet: Displays the IP address and subnet of the remote network.

Remote Gateway: This is the IP address or Domain Name of the remote VPN device that is to be connected and establish a VPN tunnel.

IPSec Proposal: This is selected IPSec security method.

88


IPSec VPN Connection

Mega 200VWR Router

Connection Name: The user-defined name for the connection (e.g. “connection to office”).

Local Network: Set the IP address, subnet or address range of the local network.

~ Single The IP address of the local host.

~ Subnet: The subnet of the local network. For example, IP: 192.168.1.0 with netmask

255.255.255.0 specifies one class C subnet starting from 192.168.1.1 (i.e. 192.168.1.1 through to

192.168.1.254).

~ IP

192.168.1.10.

The IP address range of the local network. For example, IP: 192.168.1.1, end IP:

Remote Secure Gateway Address (or Domain Name): The IP address or hostname of the remote VPN device that is to be connected to when establishing a VPN tunnel.

Remote Network: Set the IP address, subnet or address range of the remote network.

Proposal: Select the IPSec security method. There are two methods of checking the authentication information, AH (authentication header) and ESP (Encapsulating Security Payload). Use ESP for greater security so that data will be encrypted and authenticated. Using AH data will be authenticated but not encrypted.

Authentication: Authentication establishes the integrity of the datagram and ensures it is not tampered with during transmission. There are three options, Message Digest 5 (MD5), Secure Hash Algorithm

(SHA1) or NONE. SHA1 is more resistant to brute-force attacks than MD5, however it is slower.

~ MD5: A one-way hashing algorithm that produces a 128−bit hash.

~ SHA1: A one-way hashing algorithm that produces a 160−bit hash.

Encryption: Select the encryption method from the pull-down menu. There are several options, DES,

3DES, AES (128, 192 and 256) and NULL. NULL means it is a tunnel only with no encryption. 3DES and

AES are more powerful but increase latency.

~ DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method.

89


Mega 200VWR Router

~ 3DES: method.

~ AES: Stands for Advanced Encryption Standards, you can use 128, 192 or 256 bits as encryption method.

Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman public-key cryptography to change encryption keys during the second phase of VPN negotiation. This function will provide better security, but extends the VPN negotiation time. Diffie-Hellman is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the

Internet). There are three modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for

Modular Exponentiation Groups.

Pre-shared Key: This is for the Internet Key Exchange (IKE) protocol, a string from 4 to 128 characters.

Both sides should use the same key. IKE is used to establish a shared security policy and authenticated keys for services (such as IPSec) that require a key. Before any IPSec traffic can be passed, each router must be able to verify the identity of its peer. This can be done by manually entering the pre-shared key into both sides (router or hosts).

Select the Apply button to apply your changes.


90

Mega 200VWR Router

Advanced Option

This function is only available after completely creating an IPSec account. Click Advanced Option to change the following settings:

IKE (Internet key Exchange) Mode: Select IKE mode to Main mode or Aggressive mode. This IKE provides secured key generation and key management.

IKE Proposal:

Hash Function: This is a Message Digest algorithm which coverts any length of a message into a unique set of bits. You can use either MD5 (Message Digest) or SHA-1 (Secure Hash Algorithm) algorithms.

SHA1 is more resistant to brute-force attacks than MD5, however it is slower.


~ SHA1: A one-way hashing algorithm that produces a 160−bit hash

Encryption: Select the encryption method from the pull-down menu. There are several options, DES,

3DES and AES (128, 192 and 256). 3DES and AES are more powerful but increase latency.

~ DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method.

~ 3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an encryption method.

91


Mega 200VWR Router

~ AES: Stands for Advanced Encryption Standards, you can use 128, 192 or 256 bits as encryption method.

Diffie-Hellman Group: It is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the Internet). There are three modes,

MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for Modular Exponentiation Groups.

Local ID:

~ Type: Specify local ID type.

~ Content: Input ID’s information, like domain name www.ipsectest.com

.

Remote ID:

~ Type: Specify Remote ID type.

~ Identifier: Input remote ID’s information, like domain name www.ipsectest.com

.

SA Lifetime: Specify the number of minutes that a Security Association (SA) will stay active before new encryption and authentication key will be exchanged. There are two kinds of SAs, IKE and IPSec. IKE negotiates and establishes SA on behalf of IPSec, an IKE SA is used by IKE.

~ Phase 1 (IKE): Used to issue an initial connection request for a new VPN tunnel. Any value can be selected between 5 and 15,000 minutes. The default is 480 minutes.

~ Phase 2 (IPSec): Used to negotiate and establish secure authentication. Any value can be selected between 5 and 15,000 minutes. The default is 60 minutes.

A short SA time increases security by forcing the two parties to update the keys. However, every time the VPN tunnel re-negotiates, access through the tunnel will be temporarily disconnected.

Ping to Keep Alive:

PING to the IP: The router is able to IP Ping the remote PC with a specified IP address and alert the user when the connection fails. Once the alert message is received, the router will drop this tunnel connection. The connection will need to be re-established. Default setting is 0.0.0.0 which disables this function.

Interval: This sets the time interval between Pings to the IP function to monitor the connection status.

Default interval setting is 10 seconds. Time interval can be set to any value between 0 and 3600 seconds, 0 second disables this function.

Ping to the IP Interval (sec) Ping to the IP Action

0.0.0.0 xxx.xxx.xxx.xxx (Any valid IP Address)

2000

0

No

No xxx.xxx.xxx.xxx(Any valid IP Address) 2000 Yes, activate it in every 2000 second.

Disconnection Time after no traffic: This is the “NO Response” timer. When no traffic is received for more than the Disconnection time setting, the router will automatically halt the tunnel connection and re-establish it base after the Reconnection Time has elapsed. 180 seconds is minimum time interval for this function.

Reconnection Time: This is the reconnecting time interval after the NO TRAFFIC timeout has occurred.

3 minutes is minimum time interval for this function.

Select the Apply button to update the settings.

92


Mega 200VWR Router

Example: Configuring a IPSec LAN-to-LAN VPN Connection

Table 3: Network Configuration and Security Plan

Local Network ID

Local Router IP

Remote Network ID

Remote Router IP

IKE Pre-shared Key

VPN Connection Type

Security Algorithm

Branch Office

192.168.0.0/24

69.1.121.30

192.168.1.0/24

69.1.121.3

12345678

Tunnel mode

ESP:MD5 with AES

Head Office

192.168.1.0/24

69.1.121.3

192.168.0.0/24

69.1.121.30

12345678

Tunnel mode

ESP:MD5 with AES

Attention

Both office LAN networks MUST on different subnets when using the LAN to

LAN application.

The settings of Pre-shared Key, VPN Connection Type and Security Algorithm

MUST BE identically set up on both sides.


93

Configuring IPSec VPN in the Head Office

Mega 200VWR Router

1

2

3

4

5

Item Function

1 Connection Name

Description

IPSec_HeadOffice Given name of the IPSec connection

2

3

4

Subnet Select the Subnet button

IP Address 192.168.1.0

Head office network

Netmask 255.255.255.0

Secure Gateway Address

(or Hostname)

69.121.1.30

IP address of the head office router (WAN side)

Subnet

ESP

Authentication MD5

Select the Subnet button


Branch office network

Netmask 255.255.255.0

Select the ESP button

5

Prefer Forward Security

Pre-shared Key

None

12345678

94


Configuring IPSec VPN in the Branch Office

Mega 200VWR Router

1

2

3

4

5

Item Function

1 Connection Name

2

3

Subnet

IP Address

IPSec_Branch

Office

192.168.0.0

Netmask 255.255.255.0


(or Hostname)

69.121.1.3

4

Subnet


Netmask 255.255.255.0

ESP

Authentication MD5

Description

Given name of the IPSec connection


Branch office network



Head office network


5


Pre-shared Key

None

12345678

95


Mega 200VWR Router

Example: Configuring a IPSec Host-to-LAN VPN Connection


96

Configuring IPSec VPN in the Office

Mega 200VWR Router

1

2

3

4

5

Item

1 Connection Name

Subnet

2

3

4

Function

IPSec

Description

Given name of the IPSec connection



Head office network

Netmask 255.255.255.0


(or Hostname)

69.121.1.30


Single Address

IP Address

ESP

Authentication

69.121.1.30

MD5

Select the Single Address button

Remote computers IP address


5


Pre-shared Key

None

12345678


97

L2TP (Layer Two Tunneling Protocol)

Mega 200VWR Router

Two types of L2TP VPN are supported Remote Access and LAN-to-LAN (please refer below for more information.). Click Create to create a new VPN connection account.

After you have created L2TP connection, the account status will be displayed. (As shown above).

~ Enable / Disable: This function activates or deactivates the L2TP connection. If you wish to disable the tunnel, select the Disable button and click Apply to deactivate the connection.

Name: This is the user-defined name of this connection.

Type: This refers to whether your router operates as a client or a server, Dialout for client or Dialin for server.

Status: This indicates your L2TP tunnel connection status.


98

L2TP Connection - Remote Access

Mega 200VWR Router

L2TP VPN Connection

Connection Name: A User-defined name for the connection (e.g. “connection to office”).

Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g. your office server), select Dial In if you wish your router to operate as a VPN server.

~ When configuring your router as a Client, enter the remote Server IP Address (or Hostname) that you wish to connection to.


User (this is the IP address that the remote client will be assigned when it connects) .

Username: If you are a Dial-Out user (client), enter the username provided by your Host (Your username for the server that you are connecting to) . If you are a Dial-In user (server), enter the username that the connecting client will use to connect to your router.

Password: If you are a Dial-Out user (client), enter the password provided by your Host Your password for the server that you are connecting to). If you are a Dial-In user (server), enter the password that the connecting client will use to connect to your router

PPP Authentication Type: Default is Auto. This will allow the router to determine the best suited authentication type. Alternatively, you can manually specify CHAP (Challenge Handshake Authentication

Protocol) or PAP (Password Authentication Protocol) if you know which type the server is using (when acting as a client) If your router is acting as a server, specify the authentication type you want clients connecting to you to use. When using PAP, the password is sent unencrypted, whilst CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that the client has not been replaced by an intruder.

Idle Time: When there is no activity on the connection for this pre-determined Idle time, the VPN

99


Mega 200VWR Router connection is Auto-disconnected. 0 means this connection is always on.

Active as default route: Normally used when the mode is set to Dial-out. If this is selected, all packets, including internet packets, will route through the VPN tunnel; If this function is enabled, the performance of your Internet connection may be degraded Click Apply after changing the settings.

L2TP over IPSec (L2TP/IPSec) VPN Connection

IPSec: Enable to enhance your L2TP VPN security.


(SHA1) or NONE. SHA1 is more resistant to brute-force attacks than MD5, however it is slower.



Encryption: Select the encryption method from the pull-down menu. There are four options, DES, 3DES,

AES and NONE. NONE means that the connection is a tunnel only, with no encryption. 3DES and AES are more powerful but increase latency.

~ DES: Stands for Data Encryption Standard, it uses a 56 bit encryption method.

~ 3DES: Stands for Triple Data Encryption Standard, it uses a 168 (56*3) bit encryption method.

~ AES: Stands for Advanced Encryption Standards, it uses a 128 bit encryption method.

Perfect Forward Secrecy: Choose whether to enable PFS, using Diffie-Hellman public-key cryptography to change encryption keys during the second phase of VPN negotiation. This function provides better security, but extends the VPN negotiation time. Diffie-Hellman is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the


Modular Exponentiation Groups.

Pre-shared Key: This key is for Internet Key Exchange (IKE) protocol and is a string of between 4 and

128 characters. Both sides should use the same key. IKE is used to establish a shared security policy and it authenticates keys for services (such as IPSec) that require a key. Before any IPSec traffic can be passed, each router must be able to verify the identity of its peer. This can be done by manually entering the pre-shared key into both sides of the connection (router or hosts).

Remote Host Name (Optional): Enter hostname of the remote VPN device. This is a tunnel identifier and should match the Remote VPN device hostname. If it matches the tunnel will be connected; otherwise, it will be dropped.

Caution: This is only when the router acts as a VPN server. This option should be used by advanced users only.

Local Host Name (Optional): Enter the hostname of the Local VPN device that establishes the VPN tunnel. By default, the Router’s default Hostname is home.gateway.

Tunnel Authentication: This enables the router to authenticate both the L2TP remote client and L2TP host. This is only valid when the L2TP remote client supports this feature.

Secret: The secure password length should be 16 characters (This may include numbers and/or characters.)

Click Apply after changing settings.

100


Mega 200VWR Router

Example: Configuring a L2TP VPN - Remote Access Dial-in Connection

A remote worker establishes a L2TP VPN connection with the head office using Microsoft's VPN Adapter

(included with Windows XP/2000/ME, etc.). The router is installed in the head office and is connected to a couple of PCs and Servers.

Dial-in


101

Mega 200VWR Router

Configuring L2TP VPN in the Office

The LAN IP address 192.168.1.200 will be assigned to the remote computer (client). Please make sure this IP is not used on the Office LAN.

1

2

4

5

3

6

Item Function

1 Connection Name

Dial in

2

3

Private IP Address

Assigned to Dialing

User

Username

VPN_L2TP

192.168.1.200 username

Description

Given name of the L2TP connection select Dial in

The IP address to be assigned to the remote client

The username & password that the remote client

In most of the cases you should keep the default

4 Auth.Type Chap(Auto) connection security.

5 Idle Timeout 0

IPSec

The connection will be disconnected when there is no traffic over it for this predefined period of time. If Idle time is set to 0, it means that the connection will never time out.

Select Enable to enhance your L2TP VPN security.

6

Authentication MD5

Encryption 3DES

Perfect Forward

Secrecy

Pre-shared Key

None

12345678

Both sides of the tunnel should use the same settings for these options.

102


Mega 200VWR Router

Example: Configuring a Remote Access L2TP VPN Dial-out Connection

A company’s office establishes a L2TP VPN connection with a file server located at a separate location.

The router is installed in the office and is connected to a couple of computers and Servers.

Dial-out

Configuring the L2TP VPN in the Office

1

3

4

5

6


103

2

Mega 200VWR Router

Item Function Description

1 Connection Name VPN_L2TP G iven name of the L2TP connection

Dial out select Dial out

2

3

Server IP Address (or

Hostname)

69.121.1.33

Username username

Password 123456

4 Auth.Type Chap(Auto)

The Dialed server’s IP address.

The username & password that is required to connect to the VPN server.

5 Idle Timeout 0

IPSec

Keep this default value in most of the cases.


Select Enable to enhance your L2TP VPN security..

6

Authentication MD5

Encryption 3DES

Perfect Forward

Secrecy

Pre-shared Key

None

12345678

Both sides of the tunnel should use the same settings for these options


104

Mega 200VWR Router

Example: Configuring your Router to Dial-in to the Server

Currently, Microsoft Windows operation system does not support L2TP incoming service.

Additional software may be required to set up your L2TP incoming service.

L2TP Connection - LAN to LAN

L2TP VPN Connection

Connection Name: A User-define description of the connection.

Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g. your office server), Select Dial In if you want your router to operate as a VPN server.

~ When configuring your router to establish a connection to a remote LAN, enter the remote

Server IP Address (or Hostname) that you wish to connection to.

~ When configuring your router as a server, to accept incoming connections, enter the Private

IP Address Assigned to Dial in User.

Peer Network IP: Enter the Peer network’s IP address.

Netmask: Enter the subnet mask of the peer network, based on the Peer Network IP setting.

Username: If you set your router to act as a Dial-Out user (client), enter the username provided by your

Host (the user name to connect to the VPN server). If you are a Dial-In user (server), enter a username that clients will need to use to connect to the router.

Password: If you set your router to act as a Dial-Out user (client), enter the password provided by your

Host (the user name to connect to the VPN server). If you are a Dial-In user (server), enter a password that clients will need to use to connect to the router.

105


Mega 200VWR Router

PPP Authentication Type: Default is Auto. Use this setting if you want the router to determine which authentication type to use. You can manually specify CHAP (Challenge Handshake Authentication

Protocol) or PAP (Password Authentication Protocol) if you know which type the server is using (when acting as a client) If the router is acting as a server enter the authentication type you want clients connecting to you to use. When using PAP, the password is sent unencrypted, whilst CHAP encrypts the password before sending, and also allows for challenges at different periods to ensure that the client has not been replaced by an intruder.

Idle Time: When there is no activity on the connection for this pre-determined Idle time, the VPN connection is Auto-disconneced. 0 means this connection is always on.


L2TP over IPSec (L2TP/IPSec) VPN Connection

IPSec: Enable this setting to enhance your L2TP VPN security.


(SHA1) or NONE. SHA-1 is more resistant to brute-force attacks than MD5, however it is slower.



Encryption: Select your encryption method choice from the pull-down menu. There are four options,

DES, 3DES, AES and NONE. NONE means that the connection is a tunnel only, with no encryption.

3DES and AES are more powerful but increase latency.

~ DES: Stands for Data Encryption Standard, and uses a 56 bit encryption method.

~ Stands for Triple Data Encryption Standard, and uses a 168 (56*3) bit encryption method.

~ AES: Stands for Advanced Encryption Standards, and uses a 128 bit encryption method.

Perfect Forward Secrecy: Choose whether to enable PFS, using Diffie-Hellman public-key cryptography to change encryption keys during the second phase of VPN negotiation. This function provides better security, but extends the VPN negotiation time. Diffie-Hellman is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the


Modular Exponentiation Groups

Pre-shared Key: This key is for Internet Key Exchange (IKE) protocol and is a string of between 4 and

128 characters. Both sides should use the same key. IKE is used to establish a shared security policy and it authenticates keys for services (such as IPSec) that require a key. Before any IPSec traffic can be passed, each router must be able to verify the identity of its peer. This can be done by manually entering the pre-shared key into both sides of the connection (router or hosts).

Remote Host Name (Optional): Enter hostname of the remote VPN device. This is a tunnel identifier and should match the Remote VPN device hostname. If it matches the tunnel will be connected; otherwise, it will be dropped.

Caution: This setting is only for when the router functions as a VPN server. This option should be used by advanced users only.

Local Host Name (Optional): Enter the hostname of the Local VPN device that establishes the VPN tunnel. By default, the Router’s default Hostname is home.gateway.

Tunnel Authentication: This enables the router to authenticate both the L2TP remote client and L2TP host. This is only valid when the L2TP remote client supports this feature..

Secret: The secure password length should be 16 characters (This may include numbers and/or characters.)

106


Mega 200VWR Router


Example: Configuring L2TP LAN-to-LAN VPN Connection

The branch office establishes a L2TP VPN tunnel with head office, connecting the two private networks over the Internet. The routers are installed in both the head office and branch office.

Attention

Both LAN networks MUST be on different subnets when using the LAN to LAN application.

The settings of Pre-shared Key, VPN Connection Type and Security Algorithm

MUST BE identically set on both routers.

107


Mega 200VWR Router

Configuring L2TP VPN in the Head Office

The IP address 192.168.1.200 will be assigned to the router located in the branch office. Please make sure this IP is not used in the head office LAN.

1

2

3

4

5

6

7

Item Function

1 Connection Name HeadOffice

Description

Given name of the L2TP connection

2

3

4

Dial in

Private IP Address

Assigned to Dialing

User

192.168.1.200 select Dial in

The IP address that will get assigned to branch offices network.

Peer Network IP 192.168.0.0 Branch office network

Netmask 255.255.255.0

Username username username & password that are used to authenticate

5 cases.

6 Idle Timeout 0


Authentication MD5

7

Perfect Forward

Secrecy

Pre-shared Key

None

12345678 for these options.

108


Mega 200VWR Router

Configuring L2TP VPN in the Branch Office

The IP address 69.1.121.30 is the Public IP address of the router located in head office. If you registered a DDNS account, (please refer to the DDNS section of this manual), you can also use the DDNS domain name instead of the IP address to reach the router.

1

2

3

5

6

4

7

Item Function

1 Connection Name

Description

BranchOffice Given name of the L2TP connection

Dial out

2 Server IP Address (or

Hostname)

3

4

69.121.1.33 select Dial out

IP address of the head office router (WAN side)

Peer Network IP 192.168.1.0

Head office network

Netmask 255.255.255.0

Username username Username & password required to to authenticate

5 most cases..

6 Idle Timeout 0

The connection will be disconnected when there is no traffic over it for this predefined period of time.

If Idle time is set to 0, it means that the connection will never time out.

7

Authentication MD5

Perfect Forward Secrecy

Pre-shared Key

None

12345678 settings for these options.

109


Mega 200VWR Router

VoIP - Voice over Internet Protocol

The VoIP functionality enables telephone calls to be placed through your existing Internet connection instead of going through the PSTN (Public Switched Telephone Network). It is not only cost-effective, especially for long distance telephone calls, but also allows toll-quality voice calls to be placed over the

Internet.

Attention

After completing your VoIP configuration, remember to apply the changes,

SAVE CONFIG and restart to activate your VoIP functionality.

Here are the items within the VoIP section: Wizard , General Settings , Phone Port, PSTN Dial Plan,

VoIP Dial Plan and Ring &Tone .


110

Mega 200VWR Router

Wizard

This section provides an easy setup process for your VoIP service. Phone port 1 and 2 can be registered to different SIP Service Providers.

Voice QoS

DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP

Marking allows users to assign specific application traffic to be executed in priority by the next Router on the backbone network, based on the DSCP value.

Note: To make use of this functionality, ensure that all of the routers in the backbones network have the capability of executing and checking DSCP through-out the entire QoS network.

Setting for Phone Port 1

SIP Service Provider: This section allows you to select your service provider. When the selection is done, the parameters below are automatically displayed.

Select Profile: This allows you to select a desired VoIP provider whom is not already defined in the SIP

Service Provider list.

You may manually setup the SIP accounts by entering VoIP SIP information into a

User-defined Profile . See below for details.

Phone Number: This is the registration ID of the user as listed in the VoIP SIP registrar

Authentication Username: If the username is same as the Phone Number, leave it blank. Otherwise, fill in the space with your username given by your VoIP provider.

Authentication Password: This is the password used for authentication with the VoIP SIP registrar.

111


Mega 200VWR Router


Select the Same as Phone Port 1 box to set phone port 2 parameters to be identical to phone port 1.

Otherwise, please refer to descriptions in “Setting for Phone Port 1”.

User-defined Profiles

Note: A maximum of 8 user defined profiles are allowed.

Profile Name: A user-defined name to identify the profile.

Registrar Address(or Hostname): Indicate the VoIP SIP registrar’s IP address.

Registrar Port: Specify the port on which the VoIP SIP registrar will listen for register requests from VoIP devices.

Expire: Expire time for the registration message sending.

User Domain/Realm: Set different domain names for the VoIP SIP proxy server.

Outbound Proxy Address: Indicate the VoIP SIP outbound proxy server IP address. This parameter is very useful when your VoIP device is behind NAT.

Outbound Proxy Port: Specify the port on which the VoIP SIP outbound proxy will listen for messages.

Phone Number: This is the registration ID of the user as listed in the VoIP SIP registrar.

Authentication Username: Same as Phone Number.

Authentication Password: This is the password used for authentication to the VoIP SIP registrar.

Confirm Password: Re-enter the password for confirmation.

112


Mega 200VWR Router

Display Name: This is what will be displayed on a Caller ID system.

General Settings

This section contains the basic settings for the VoIP module from the selected provider in the Wizard section. If you do not provide correct information here, you will be unable to make calls over the

Internet.

SIP Device Parameters

SIP: Select whether you wish to use SIP as VoIP call signaling protocol. The default setting is Disable.

Silence Suppression (VAD): Voice Activation Detection (VAD) prevents the transmission of silence since it will unnecessarily consume your bandwidth. This function is also known as Silence Suppression, and it is a software application that ensures the bandwidth is used only when voice activity is activated.

The default setting is Enable.

Echo Cancellation: G.168 echo cancellation is an ITU-T standard. It is used for iremoving the echo while you are on the phone. If it is enabled, this will mean that you will not hear too much of your own voice on the phone while you talk. The default setting is Enable.

RTP Port: Provide the base value for the media (RTP) ports. These ports are assigned to various

113


Mega 200VWR Router endpoints and the different call sessions that may exist within an end-point. (Range from 5100 to 65535, default value is 5100)

Region: This selection is a drop-down box, which allows user to select the country for which the VoIP device must work. When a country is selected, the country parameters are automatically loaded.

Voice QoS,: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP

Marking allows users to assign specific application traffic to be executed in priority by backbone Routers, based on the DSCP value. See Table 4. The DSCP Mapping Table:

Note: To be sure that all the router(s) through-out the QoS network backbone have the capability of executing and checking the DSCP..


Registrar Address(or Hostname): Indicate the SIP registrar IP address.

Registrar Port: Specify the port on which the SIP registrar listens for register requests from VoIP devices.

Expire: Expiry time for registration message sending.

User Domain/Realm: Set a different domain name for the SIP proxy server.

Outbound Proxy Address: Indicate the SIP outbound proxy server IP address. This parameter is very useful when your VoIP device is behind NAT.

Outbound Proxy Port: Specify the port on which the VoIP SIP outbound proxy will listen for messages.


Please refer to the descriptions in “Setting for Phone Port 1”.

How to register with a SIP Server

1) On the Wizard Section page, select your VoIP Service Provider and provide information in the following fields: Phone Number, Authentication Username and Authentication Password.

2) On the Wizard Section page, click Apply to apply the settings.

3) On the General Settings page, make sure the general VoIP SIP information is correctly inserted.

4) On the General Settings page, click Apply to apply the settings.

5) On the General Settings page, click Synch Now to register the account(s) with your VoIP server.

Advanced – Parameters

VoIP through IP Interface: IP Interface decides where to send/receive the VoIP traffic. Options include: ipwan and iplan. An easy way to select the interface option is to check the location of the SIP server. If it is located somewhere on the Internet, then select ipwan. If the VoIP SIP server is on the local network then select iplan.

Voice Frame Size: Voice Frame size can be set anywhere between 10ms and 60ms. The function of

Voice Frame Size is how many milliseconds the Voice packets will be queued for, before being sent out.

114


Mega 200VWR Router

The ideal setting is to have the same frame size for both Caller and Receiver.

PSTN Auto-fallback: Whenever VoIP SIP response is an error code that matches the codes in the Edit section, the VoiP calls will automatically fall back to a PSTN.

Click Edit to add or remove codes. Be sure that the codes are separated by a comma(,).

For more information about SIP response codes, please click on to link to http://voip-info.org/wiki/view/sip+response+codes where you can find out the meaning of each error code.

Advanced – PSTN Environment Adjustment

The PSTN Environment Adjustment options will help you to adjust the on hook and off hook voltage detection values for your environment. The actual levels are determined by your environment including the number and type of telephones used. The default values provided are suitable for the South African

PSTN network, and there should not be modified. If, however, you are connecting the line port to a PABX, and you experience problems with placing calls, then you may wish to modify these parameters.

Note: ON HOOK means hung up.

To take your phone OFF HOOK, lift the receiver then press Hook/Flash until you hear your normal PSTN dial tone, not your VoIP dial tone. Wait several seconds and then press Check Level.

You should check the OFF HOOK value for each telephone you have connected to this device. Set the

OFFHOOK voltage to the lowest setting registered for all your telephones, e.g. if your telephones return values of 4, 5 and 7 then you should set your OFFHOOK voltage to 4.

Note: The detected values will not automatically be set by the Check Level function; you must enter the lowest level detected after testing all your telephones.

115


Mega 200VWR Router

Phone Port

This section displays status and allows you to edit the account information of your Phones. Click Edit to update your phone information.

Login Account Configuration

Phone Number: This parameter is the registration ID of the user as recorded in the VoIP SIP registrar.

Authentication Username: Same as Phone Number.

Authentication Password: This is the password used for authentication with the VoIP SIP registrar.

Confirm Password: Re-enter the password for confirmation.

116


Mega 200VWR Router

Display Name: This is what will be shown when using the Caller ID function .

Codec Preference

A codec is a Coder-Decoder and is used for data signal conversion. The priority position sets the priority of each codec; Priority 1 is the top priority.

G.729: This type of codec encodes and decodes the voice information into a single packet which reduces the bandwidth consumption. 8kbps of bandwidth is needed.

G.711μ-LAW: This codec uses a basic non-compressed encoder and decoder technique. μ-LAW uses a pulse code modulation (PCM) encoder and decoder to convert voice into a 14-bit linear sample. 64kbps of bandwidth is needed.

G.711A-LAW: This codec uses a basic non-compressed encoding and decoding technique. μ-LAW uses a pulse code modulation (PCM) encoder and decoder to convert voice into a 13-bit linear sample.

64kbps of bandwidth is needed.

Non-used: This option is only available for Priority 2 and 3. It should be selected if no codec is to be used in these priority settings .

Note: In the example screen shown above, the codec priority is assigned in the order as G.729 > G.711μ-LAW >

G.711A-LAW.

Speed Dial

The Speed Dial function is usefull for storing frequently used telephone numbers. You can press a number from 0 to 9 and the hash sign (#) on the phone keypad to call a speed dial number. For example, to phone a speed dial number listed under 9, press keypad 9 then #. Your router will automatically dial the number listed in entry 9.

For examples:

If your friend Tim gives you a SIP URL as sip: [email protected] then you can fill in

[email protected]

. as number 1 speed dial.

If your friend Felix gives you a SIP URL as sip: [email protected] then you can fill in [email protected]

. as number 2 speed dial.

If your friend Greg gives you an IP address "192.246.56.56" only, then you can fill in “192.246.56.56”.

In some cases, when a user makes use of DDNS, you will have to fill in their domain name as well.

Volume Control

The Volume control setting helps you to adjust the voice level of the telephone to the most comfortable listening level.

Press “-“, the minus sign, to reduce either the microphone and/or the speaker’s volume of your telephone.

Press “+“, the plus sign, to increase either the microphone and/or the speaker’s volume of your telephone.

117


Mega 200VWR Router

PSTN Dial Plan

This section enables you to configure “VoIP with PSTN switching” on your system. You can define a range of dial plans to select which calls are routed over VoIP and which are routed over the PSTN line.

Prefix numbers are the essential key to distinguish between VoIP and Regular (PSTN) phone calls. If the actual numbers dialed matches the prefix number defined in this dial plan, the dialed number will be routed to the PSTN to make a regular call. Otherwise, the number will be routed over the VoIP network.

Reminder! In order to utilize this feature, you must have registered and connected to your SIP Server first.

Prefix: Specify number(s) for switching to a PSTN call.

Number of Digits: Specify the total number of digits that you wish to dial out. Maximum digit number is

15.

Action: Specify a dialing method that you wish to use when making PSTN call(s).

~ Dial with Prefix: The complete number that you have dialed will be dialed on the PSTN

(including prefix)

Note: The actual number of valid digits dialed must match the number in the Number of Digits field.

~ Dial without Prefix: The number that you have dialed will be dialed on the PSTN after the prefix has been removed from it (excluding prefix).

Note: The actual number of valid digits dialed must match the number in the Number of Digits field

~ Dial at Timeout: The complete number that you have dialed will be dialed on the PSTN

(including prefix) once a certain time has elapsed since the last digit was dialed.

Note: The actual number of valid digits dialed must NOT EXCEDE the number in the Number of Digits field.

~ Dial at Timeout no prefix: The number that you have dialed will be dialed on the PSTN after the prefix has been removed, (excluding the prefix) once a certain time has elapsed since the last digit was dialed.

Note: The actual number of valid digits dialed must NOT EXCEDE the number in the Number of Digits field


118

Attention

Mega 200VWR Router

Phone port 1 and 2 will automatically default to the PSTN line when:

- The router is Powered Down

- Internet Service Fails, i.e., lost of WAN IP Address/connection

- The SIP option is disabled. See the VoIP General Setting section.

- Calls that are placed match the rule(s) defined in the PSTN Dial Plan.

- The SIP service is not accessible. This does not include when :

A User manually disables Registration.

A User inserts a wrong authentication username and/or password.

A User dials a wrong SIP number, only and if, the PSTN Auto-Fallback function is not enabled. See VoIP General Setting / Advanced for information.


119

PSTN Dial Plan Examples:

1) Dial with Prefix

Mega 200VWR Router

If you dial 01223 707070, the number 01223707070 will be dialed out via the FXO port, to make a regular

(PSTN) phone call.

2) Dial without Prefix

If you dial 9102, the number 102 will be dialed out via the FXO port, to make a regular (PSTN) phone call.

3) Dial at Timeout

If you only dial 01223 7070 and no more numbers, after the timeout occurs , 012237070 will be dialed to make a regular (PSTN) call via the FXO port.

Even though 7070 (only 4 digits) does not match the number of digits (6) defined in the Number of Digits field, 7070 is still a valid phone number since it has not exceed this Number.

120


4) Dial at Timeout no Prefix

Mega 200VWR Router

If you dial 97070 and no more numbers, after the timeout activates, 7070 will be dialed (without the prefix), to make a regular (PSTN) call via the FXO port.

Even though 7070 (only 4 digits) does not match the number of digits (6) defined in the Number of Digits field, 7070 is still a valid phone number since it has not exceed this Number.


121

Mega 200VWR Router

VoIP Dial Plan

This section helps you to make a VoIP call as easily as a regular call. You no longer need to memorize a long dial string of numbers in order to make a VoIP call.

Parameters

A list of special dial features comes handy when you have a miss call or need to transfer a call to a third party. For details, please refer to the section Special dial codes below.

*69 (Return Call): Dial *69 to return the last missed call. This is only available for VoIP call(s).

*20 (Turn Do Not Disturb on): Dial *20 to turn the Do Not Disturb mode on. Your phone will not ring if someone calls.

*80 (Turn Do not Disturb off): Dial *80 to turn the Do Not Disturb mode off. Your will ring when someone calls.

*90x (Blind Call Transfer): Dial *90 + phone-number to transfer a call to a third party. This feature is enabled by default.

x# Speed Dial (x = 2..9): Refer to the Phone Port section in the Web GUI. Set up your Speed Dial phone book first before accessing the Speed Dial feature. This feature is enabled by default.

## Redial: Press ## to redial the latest number you dialed. This feature is enabled by default.

*74<x><number>#: Use your phone key pad to insert a phone number into the Speed Dial phone book. you can also update your Speed Dial phone numbers manually. Refer to the Phone Port section in the

Web GUI for details.

Phone Number + #: This is the fast dial mode, and it will dial out a phone number immediately after the number is entered, without waiting.

Note: Refer to Special Dial Code section in this Manual for more details.

Test: this function is a tool to help you identify that the call number is being properly processed prior to making an actual call.

Click Apply to apply the settings.

122


Mega 200VWR Router

Dial Plan Rules List

Click Add to create and define VoIP dial-plan rule(s).

Prefix Processing:

Prepend xxx unconditionally: The entered number, xxx, is appended unconditionally to the front of the dialing number when making a call. This prefix can include any number and/or character such as +, *, #.

Note: For special services using +, *or #, you may need to check with your VoIP or Local Telephone Service

Provider for information pertaining to correct usage.

If Prefix is xxx, delete it: If the prefix is the same as the specified number, xxx, it will be removed from the dialed number before making a call.

If Prefix is xxx, replace with: If the prefix is the same as the specified number, xxx, it will be appended to the front of the dialed number before making a call.

No prefix: No prefix is appended to the front of the dialing numbers. This is the default setting.

Main Digit Sequence: The call(s) can be dialed out via SIP, PSTN or ENUM.

x: Any numeric number between 0 and 9.

. ( period ): Repeat numeric number(s) between 0 and 9.

* (asterisk sign): This is the normal character ‘*’ found on a phones keypad. Please check if this is used by your VoIP Service Provider or Local Telephone Service Provider for special services.

# (pound sign): This is the normal character ‘#’ found on a phone keypad. Please check if this is used by your VoIP Service Provider or Local Telephone Service Provider for special services.

<@ Current Profile>: This Referes to your VoIP account as registered using the VoIP Wizard for Port 1 /

123


Mega 200VWR Router

2.

<@ PSTN>: This referes to making calls via the PSTN line.

<@ENUM>: This referes to making a VoIP SIP call, via an E.164 number (“ENUM”), to an ENUM callee.

Electronic Number (ENUM) is a system that uses DNS (Domain Network System) based technology to map between a traditional phone number (PSTN) and an Internet address/ SIP URL. The ENUM number must be registered on a public ENUM site or with your VoIP Service Provider.

<@ SIPgateway>: This is used when using the Intelligent Call Routing feature. You will need to set up your SIP account on the VoIP User-defined Profiles link on the VoIP Wizard page. Go to the VoIP

Wizard in this manual for more information.

Dial-Plan Examples: Description x .

Any sequence of digits between 0 and 9. Maximum sequence length is 16. xxx xxxx

123x

[x…x]x.

For example: [124]x

[x-x]x .

For example: [1-3]x x[x-x]x.

.

.

For example: 9[4-6]8x .

Special Dial Plan Examples:

*

* xx xx

**

# xx

## xx

*

. xx x

*

.

*

.

.

x x

.

.

Any 3 digit (between 0 and 9) number. Total sequence length is 3.

Note: No period is needed (.)

Any sequence of digits (between 0 and 9 ) between 3 an 16 digets long .

Any number (0-9) starting with 123. Maximum length is 16.

Any number (0-9) starting with 1 or 2 or 4. Maximum length is 16.

Any number (0-9) starting with a number between 1 and 3. Maximum length is 16.

Any number (0-9) starting with 9, the second number being any number between 4-6, and the third number being 8. Maximum length is 16.

Description

Starting with an asterisk, then any two digit number, a

‘* sign’, and any number of additional digits. Maximum length is 16.

Starting with an asterisk, then any two digit number between 00 and 99. Total length including the * is 3 digits. Note: No period is needed (.)

Starting with two asterisks, then any two digit number, a ‘* sign’ and any number of additional digits.

Maximum length is 16..

Starting with ‘# sign’, followed by any number with a length of between 1 and 16 digits.

Starting with ‘## sign’ , and followed by any two digit number, a ‘* sign’ and ending in any number with a maximum length of 16.

<@SIPgateway> / Intelligent Call Routing Example:

The VoIP Gateway let you use 3 VoIP/SIP providers at the same time. Each provider has different prices for different type of calls so you can set you router make the best use of these different tariffs. Here are some examples of some rules you can set to make best use of each provider.

Imagine that there are 3 different VoIP providers by the name of localcheap.com, Longdischeap.com and

Mobilecheap.com

1) Phone 1: For Local calls: I use localcheap.com who charge $0.01 per minute to all local calls. I set a dial rule, <:03>[123]x.T, on my phone port 1.

124


Mega 200VWR Router

Localcheap.com is the default VoIP provider I set on phone port 1. When I dial any number starting with 1 or 2 or 3 , , 03 is always prepended in front of these number. If 23295 is dialed, 03-2-32935 is the actual phone number dialed using localcheap.com as a provider.

2) Phone 1: For International calls: I use longdischeap.com who charge $0.05 per minute for all

International long distance calls. I set a dial rule, 0[2456]x.T<@Long_dist_Cheap>, on my phone port 1.

Longislcheap.com is one of the VoIP providers I set in the User-defined profile. No prefix is attached to the dialed number when I dial any number beginning with 0 , followed by 2, 4, 5 or 6 and then the rest of the phone number. If 02016148513295 is dialed, 0-2-016148513295 is the actual phone number dialed using longdischeap.com as a provider.

3) Phone 2: For Mobile calls, I use mobilecheap.com who charge $0.25 per minute for all local mobile calls. I set a dial rule, <123:09>39x.T, on my phone port 2.

Mobilecheap.com is the default VoIP provider I set on phone port 2. When I call out 123-39-45678 for a

125


Mega 200VWR Router mobile call, 123 is replaced with 09 and 09-39-45678 is the actual phone number dialed using

Mobilecheap.com as a provider.

The Intelligent Call Gateway not only saves time when changing VoIP settings to different providers so as to ensure a call gets routed using a specific gateway automatically, but it allows you to take advantage of different call rate.


126

Mega 200VWR Router

Ring & Tone

This section allows advanced users to change the parameters for the various phone tones.

(dialtone, busy tone, answer tone and etc.)The default settings are the same as the South

African PSTN, but advanced users are welcome to customize these values to suit their requirements.

Country Specific Ring & Tone

Region: Select the country where you are located from the drop-down list,. This VoIP router provides default parameter of ring tones according to different countries. The ring-tone parameters are automatically displayed after entering a specific country. If your country is not in the list, or you wish to have a customised ring tone, you may manually create ring-tone parameters.

Ring Parameters

Ring Cadence (in ms): Ring cadence is defined by the following fields, Frequency: On Time1, Off Time1,

On Time2, Off Time2 and On Time3, Off Time3. Frequency is specified in Hertz. Time is given in milliseconds.

Tone Parameters

You may need to check with your local telephone service provider for such information. Also, it is recommended that this option be configured by an advanced user only , unless you are instructed to do so.

Click Apply to apply the settings.


127

Mega 200VWR Router

Special Dial Codes

The following table lists the special dial codes that are built into the router:

Option Description

Flash-hook

*69

##

*20

*80

*74<x><number>#

*90<phone-number>

Switch to PSTN line

Note: This is a quick press of the hook switch. On most phones, a button is provided which provides Flash-hook functionality. The button is marked "FLASH","RECALL" or sometimes “R”

Return the last missed call (for SIP service only)

Note: Entering this on a phone will call the last number that dialed the phone. For example A makes a call to B, but hangs up before

B answers. If B enters *69, A will be called back .

Last dialed number redial function

Turn the Do Not Disturb mode on

This mode enables a “Do Not Disturb” feature on a phone, such that any phone which calls it will receive an engaged tone and the called phone will not ring. For example, B enters *20 and hangs up. A makes a call to B, but receives the engaged tone. Phone B does not ring.

Set the Do Not Disturb mode off

Set the number for Speed dial code ‘x’, where ‘x’ is a number between 2 and 9.

Note: <x> is a number between 2 and 9, and <number> is the number to dial. To dial a speed dial number from a phone connected to the VoIP Router , dial :

<x>#, where <x> is a number between 2 and 9.

These settings will affect your setting on the Speed Dial page of the WEB GUI.

This is how to make a Blind Call Transfer. With this function, the specified <phone-number> is the number that you wish to transfer the call to. This function is for a SIP service only.

Note: You use Blind Call Transfer when you have a call in progress (incoming or outgoing) and decide you wish to transfer the call to another phone. To transfer the call, perform the following steps:

1. Hook-flash to get a dial tone.

2. Dial *90<phone-number> (e.g. *907401). After hearing the confirmation tone, you can hang up. The transferred call will hear a ringback tone, and the third-party phone (the one that the call has been forwarded to)_will be rung. When the third-party phone is picked up, the transferred call will be connected.

If the third-party phone does not answer, the caller being transferred must hang up to cancel the connect attempt.

128


Mega 200VWR Router

QoS - Quality of Service

The QoS function helps you to control your network traffic for each LAN (Ethernet and/or Wireless) application that accesses the WAN (Internet). It allows you to control the quality and speed of throughput for each application, when the system is running with a fully loaded upstream channel.

Here are the items within the QoS section: Prioritization and Outbound / Inbound IP Throttling

(bandwidth management).

Prioritization

There are three priority settings provided in the Router:

~ High

~ Normal (Normal priority is the default for all traffic without any setting)

~ Low

The ratio of utilization for each priority are: High (60%), Normal (30%) and Low (10%).

Click Clear

You can click Clear to delete the existing Application.

Application: A user-defined description identifying this new policy/application.

Time Schedule: The details of when this rule of your prioritization policy is active .

Priority: The priority given to this policy/application. The default setting is High; you may adjust this setting to fit your requirements.

Protocol: The name of the supported protocol.

Source Port: The source port of packets to be monitored.

Destination Port: The destination port of packets to be monitored.

129


Mega 200VWR Router

Source IP Address Range: The source IP address or range of packets to be monitored.

Destination IP address Range: The destination IP address or range of packets to be monitored.

DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP

Marking allows users to assign specific application traffic to be executed in priority by the backbone routers, based on the DSCP value. See Table 4. The DSCP Mapping Table:

Note: To be sure all the routers on the backbones network have the capability of executing and checking DSCP so as to provide a QoS network.

Table 4: DSCP Mapping Table

DSCP Mapping Table

ADSL Router

Disabled

Best Effort

Premium

Gold service (L)

Gold service (M)

Gold service (H)

Silver service (L)

Silver service (M)

Silver service (H)

Bronze service (L)

Bronze service (M)

Bronze service (H)

Standard DSCP

None

Best Effort (000000)

Express Forwarding (101110)

Class 1, Gold (001010)

Class 1, Silver (001100)

Class 1, Bronze (001110)








130

Mega 200VWR Router

Outbound IP Throttling (LAN to WAN)

IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the specified application to the specified value (Set in multiples of 32kbps.)

Click Clear


Application: A user-defined description to identify this policy/application.

Time Schedule: The details of when this rule of your prioritization policy is active. Refer to Time

Schedule for more information.




Source IP Address Range: The source IP address (or address range) of packets to be monitored.

Destination IP address Range: The destination IP address (or address range) of packets to be monitored.

Outbound Rate Limit: Used to limit the speed of outbound traffic (Set in multiples of 32kbps.)


131

Mega 200VWR Router

Inbound IP Throttling (WAN to LAN)

IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the specified application to the specified value (Set in multiples of 32kbps.)

Click Clear


Application: A user-defined description to identify this policy/application.

Time Schedule: The details of when this rule of your prioritization policy is active. Refer to Time

Schedule for more information.




Source IP Address Range: The source IP address (or address range) of packets to be monitored.

Destination IP address Range: The destination IP address (or address range) of packets to be monitored.

Inbound Rate Limit: Used to limit the speed of inbound traffic (Set in multiples of 32kbps.)


132

Example: QoS for your Network

Connection Diagram

VoIP

Mega 200VWR Router

Normal PCs

Restricted PC

Information and Settings

Upstream: 928 kbps

Downstream: 8 Mbps

VoIP User : 192.168.1.1

Normal Users : 192.168.1.2~192.168.1.5

Restricted User: 192.168.1.100

Throughput

500

400 kbps

300

200

100

0

VoIP/VPN

HIGH

Others

NORMAL

Restricted

LOW


VoIP/VPN

HIGH

Others

NORMAL

Restricted

LOW

133

Mega 200VWR Router

Mission-critical applications

Often, a VPN connection is a mission-critical application for exchanging data between Head and Branch offices.

This mission-critical application must be connected smoothly. without any dropping. To ensure this, you should set the priority to the high level to preventing any other applications from saturating the bandwidth.

Voice applications

Voice applications are latency-sensitive. Most VoIP devices use the SIP protocol, which automatically assigns a port number. . This means that it is better to use a fixed IP address to catch VoIP packets and rout them as high priority traffic.

The settings shown above will help to improve the quality of your VoIP service when the link is fully loaded.

Restricted Application

Some users will setup a FTP server for downloading of their files by means of FTP.

The above settings will help to limit utilization of upstream bandwidth by the FTP connections. A time schedule can be implemented to limit file downloads to non-busy times.

Advanced setting by using IP throttling

With IP throttling you can specify more detail for bandwidth allocation; even if applications are located on the same level.

Upstream: 928kbps (29*32kbps)

Mission-critical Application: 192kbps (6*32kbps)

Voice Application: 128kbps (4*32kbps)

Restricted Application: 160kbps (5*32kbps)

Other Applications: 448kbps (14*32kbps)

6+4+14+5=29, 29*32kbps=928kbps


134

Mega 200VWR Router

Sometime your customers or friends may upload their files to your FTP server and that will saturate your downstream bandwidth. The settings below will help you to limit bandwidth for such a application that needs restriction.


135

Mega 200VWR Router

Virtual Server (known as Port Forwarding)

In TCP/IP and UDP networks, a port is a 16-bit number used to identify which application program incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.

Servers follow the well-known port assignments so clients can locate them.

If you wish to run a server, or any application (e.g. Peer-to-peer/P2P software such as instant messaging applications and P2P file-sharing applications) on your network that can be accessed from the WAN (i.e. from machines on the Internet that are outside your local network, and you are using NAT (Network

Address Translation), then you will need to configure your router to forward these incoming connection attempts using specific ports to the computer on your network that is running the application/server. You will also need to use port forwarding if you want to host an online game server.

The reason for this is that when using NAT, your publicly accessible IP address will be used by and point to your router, which then needs to deliver all traffic to the private IP addresses used by your PCs. Please see the WAN configuration section of this manual for more information on NAT.

The device can be configured as a virtual server so that remote users accessing services such as Web or

FTP services on the routers public (WAN) IP address can be automatically redirected to local servers on the LAN network. Depending on the requested service (TCP/UDP port number), the router redirects the external service request to the appropriate server within the LAN network


136

Mega 200VWR Router

Add Virtual Server

Because NAT can act as a “natural” Internet firewall, your router protects your network from being accessed by outside users when NAT is enabled - all incoming connection attempts will point to your router unless you specifically created Virtual Server entries to forward those ports to a computer on your network.

When your router needs to allow outside users to access internal servers, e.g. a web server, FTP server,

Email server or game server, the router can act as a “virtual server”. You can set up a local server with a specific port number for the service to use, e.g. web/HTTP (port 80), FTP (port 21), Telnet (port 23),

SMTP (port 25), or POP3 (port 110), When an incoming access request for a specified port is received by the router, it will be forwarded to the corresponding internal server.

Time Schedule: The user-defined time period to enable your virtual server. You may specify a time schedule or Always on for the use of this Virtual Server Entry. For setup and detail, refer to Time

Schedule section

Application: A user-defined description used to identify this entry. You can click existing predefined rules.

to select

: 20 predefined rules are available. Click the Radio button to select the rule; Application,

Protocol and External/Redirect Ports will be automatically filled in after the selection.

Protocol: This is the protocol supported by the virtual server. In addition to specifying the port number to be used, you will also need to specify the protocol used. The protocol used is determined by the particular application. Most applications will use TCP or UDP.

External Port: The Port number on the Remote/WAN side used when accessing the virtual server.

Redirect Port: The Port number used by the Local server in the LAN network.

Internal IP Address: The private IP in the LAN network, which will be providing the virtual server application. List all existing computers currently connected to the network. You may assign a computer with an IP address or a MAC address from this list.

137


Mega 200VWR Router

Example:

If you would like to remotely access your routers’ Web/HTTP interface all the time, you would need to enable port number 80 (Web/HTTP) and map it to the Router’s LAN IP Address. All incoming HTTP requests on the WAN network will then be forwarded to the router’s IP address of 192.168.1.254. Since port number 80 is already a predefined rule, click Helper in the Application section. A predefined rules window will pop and you can select HTTP_Sever.

Application: HTTP_Sever

Time Schedule: Always On

Protocol: tcp

External Port: 80-80

Redirect Port: 80-80

IP Address: 192.168.1.254

Edit: Click on this to edit this virtual server application.

Delete: Click on this to delete this virtual server application.

Using port forwarding has security implications, since outside users will be able to connect to Computers on your network. For this reason you are advised to add specific Virtual Server entries only for the ports that your application actually requires, instead of using the DMZ function. Using the DMZ function will result in all connection attempts from the WAN network having access to the public IP specified in the DMZ config section.

Attention

If you have disabled the NAT option in the WAN-ISP section, the Virtual Server function will not work.

If the DHCP server option is enabled, you have to be very careful when assigning the IP addresses of virtual servers so that you avoid conflicting IP addresses. The easiest method of configuring Virtual Servers is to manually assign static IP address to each virtual server Computer, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. These manually configured IP addresses MUST still be in the same subnet as the router.


138

Mega 200VWR Router

Edit DMZ Host

A DMZ Host is a computer on the LAN that is completely exposed to the Internet. When you have configured a particular internal IP address as the DMZ Host, all incoming packets will be checked by the routers firewall and NAT algorithms, and if the packet does not use a port number that has been assigned by any Virtual Server entry, it will be passed to the DMZ host

Cautious: This local computer, which is exposed to the Internet, may face a variety of security risks.you should make quite sure that it is adequately protected.

~ Disabled: This option disables the DMZ function and is the default setting.

~ Enabled: this option enables the DMZ function.

Internal IP Address: When the DMZ function is enabled, supply the static IP address of the DMZ Host.

Be aware that this IP will be exposed to the WAN/Internet.

List all Computers currently connected to the network. You may assign a Compouter using its IP address and/or its MAC address from this list.



139

Mega 200VWR Router

Edit One-to-One NAT (Network Address Translation)

One-to-One NAT maps a specific private/local (LAN) IP address to a particular global/public (WAN) IP address.

If you have multiple public/WAN IP addresses provided by your ISP, you are will be able to use the

One-to-One NAT function to utilize these IP addresses.

NAT Type: Select the desired NAT type. By default, the One-to-One NAT function is disabled.

Global IP Address:

~ Subnet: The subnet of the public/WAN IP addresses given by your ISP. If your ISP has provided this information, you may insert it here. Otherwise, use the IP Range method to define your addresses.

~ IP Range: The IP address range of your public/WAN IP addresses. For example, IP:

192.168.1.1, end IP: 192.168.1.10


Click on to create a new One-to-One NAT rule:


140

Mega 200VWR Router

Time Schedule: The user-defined time period during which your virtual server is enabled. You may specify a time schedule or you can select Always on for this Virtual Server Entry. For setup and details, refer to the Time Schedule section

Application: This is a user-defined description to identify this entry. You can also click on to select existing predefined rules.

: 20 predefined rules are available. Click on the Radio button to select the rule; Application,

Protocol and External/Redirect Ports will be filled after you make a selection.

Protocol: This is the protocol to be supported by the virtual server. In addition to specifying the port number to be used, you will also need to specify the protocol used. The protocol used is determined by the particular application. Most applications will use TCP or UDP;

Global IP: Define a public/ WAN IP address for this Application to use.

External Port: The Port number on the Remote/WAN side that is used when accessing the virtual server.

Redirect Port: The Port number that the Local server on the LAN network will be listening on.

Internal IP Address: The private IP, on the LAN network, of the virtual server application.

Lists all existing Computer connections on the network. You may assign a Computer by

IP address or MAC address from this list.



141

Mega 200VWR Router

.

The Internet Assigned Numbers Authority (IANA) is the central coordinator for the assignment of unique parameter values for Internet protocols. Port numbers range from 0 to 65535, but only ports numbers 0 to

1023 are reserved for privileged services and are designated as “well-known ports” (Please refer to Table

5). Registered ports are numbered from 1024 through 49151. The remaining ports, referred to as dynamic or private ports, are numbered from 49152 through 65535.

For further information, please see IANA’s website at: http://www.iana.org/assignments/port-numbers

Table 5: Some Well-known and registered Ports

Port Number Protocol Description

22 TCP & UDP SSH Remote Login Protocol

23 TCP Telnet

25

53

TCP

TCP & UDP

SMTP (Simple Mail Transfer Protocol)

DNS (Domain Name Server)

69

80

110

119

UDP

TCP

TCP

TCP

TFTP (Trivial File Transfer Protocol)

World Wide Web HTTP

POP3 (Post Office Protocol Version 3)

NEWS (Network News Transfer Protocol)

123 UDP NTP (Network Time Protocol) / SNTP (Simple Network Time

Protocol)

161 TCP SNMP

443 TCP & UDP HTTPS

1503 TCP T.120

1720 TCP H.323

4000 TCP ICQ

7070 UDP RealAudio


142

Mega 200VWR Router

Time Schedule

The Time Schedule function supports up to 16 time slots, helping you to manage your Internet connection.

In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications.

This Time Schedule correlates closely to real time. Since router does not have a real time clock on board; it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server from the

Internet. Refer to Time Zone for details. Your router time should correspond with your local time. If the time settings on you router are not set correctly, the Time Schedule will not function properly.


143

Mega 200VWR Router

Configuration of Time Schedule

Edit a Time Slot

1. Choose any Time Slot (ID 1 to ID 16) to edit, click Edit.

Click Edit

Note: The days that you have selected will show as capital letters. Lower case letters show the day(s) that are not selected, and no rule will apply on these days.

2. The setting of this Time Slot will be shown in detail.

ID: This is the index of the time slot.

Name: A user-defined description identifying this time slot.

Day: The default setting is for Monday till Friday to be enabled. You should modify this according to your requirements.

Start Time: The default setting is 8:00 AM. You may specify any required start time for your schedule.

End Time: The default setting is 18:00 (6:00PM). You may specify any required end time for your schedule.


Delete a Time Slot

Click Clear to delete the existing Time profile, i.e. Erase the selected Days and return to the default settings of Start Time / End Time.


144

Mega 200VWR Router

Advanced

The Configuration options of the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.

Here are the items within the Advanced section: Static Route, Dynamic DNS, Check Email, Device

Management, IGMP and VLAN Bridge.

Static Route

Click on Routing Table and choose Create Route to add a routing table.

Destination: This is the destination subnet IP address.

Netmask: Subnet mask of the destination IP addresses given above.

Gateway: This is the gateway IP address to which packets sent to the network defined above are to be forwarded.

Interface: Select the interface through which packets are to be forwarded.

Cost: This is the same meaning as Hop. This should usually be left at 1 unless you know the actual path length.


145

Mega 200VWR Router

Dynamic DNS

The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your ISP.

You will first need to register and establish an account with the Dynamic DNS provider using their website, for example http://www.dyndns.org/

There are more than 5 DDNS services supported.

~ Disable: Select this option to disable the Dynamic DNS function.

~ Enable: Select this option to enable the Dynamic DNS function. The following fields will be activated and must be filled in:

Dynamic DNS Server: Select the DDNS service you have established an account with.

Domain Name, Username and Password: Enter your registered domain name and your username and password provided by your DDNS service.

Period: Set the time period between updates. This is the interval after which your router will exchange information with the DDNS server. In addition to updating periodically as per your settings, the router will perform an update when your dynamic IP address changes.


146

Mega 200VWR Router

Check Email

This function allows you to have the router check your POP3 mailbox for new Email messages You may view the status of this function using the Status – Email Checking section of the web interface, which also provides details on the number of new messages waiting. See the Status section of this manual for more information.

Check Email:

~ Disable: Select this option to disable the router’s Email checking function.

~ Enable: Select this option to enable the routers Email checking function. The following fields will be activated and must be filled in:

Account Name: Enter the name (login) of the POP3 account you wish to check. Normally, it is the text in your email address before the "@" symbol. If you have trouble with it, please contact your ISP.

Password: Enter the account’s password.

POP3 Mail Server: Enter your (POP) mail server name. Your Internet Service Provider (ISP) or network administrator will be able to supply you with this.

Period: Enter the value in minutes between periodic mail checks.

Automatically dial-out for checking emails: When this function is enabled and your Internet connection is dropped, your ADSL router will automatically connect to your ISP to check for emails.

Please be careful when using this feature if your ADSL service is charged by time online.


147

Mega 200VWR Router

Device Management

The Device Management configuration settings allow you to control your router’s security options and device monitoring features.

Embedded Web Server ( 2 Management IP Accounts)

HTTP Port: This is the port number of the router’s embedded web server. (for web-based configuration)

The default value is the standard HTTP port, 80. Users may specify an alternative if, for example, they are running a web server on a PC within their LAN.

Management IP Address: You may specify the IP addresses allowed to logon and access the router’s web server. Setting the IP address to 0.0.0.0 will disable IP address restrictions, allowing users to login from any IP address.

Expire to auto-logout: Specify a time frame for the system to auto-logout the user’s configuration session.

For Example: User A changes the routers HTTP port number to 100, specifies their own IP address of10.0.0.55, and sets the logout time to be 100 seconds. The router will only allow User A access from the IP address 10.0.0.55 to logon to the Web GUI by typing: http://10.0.0.2:100 in their web browser. After

148


Mega 200VWR Router

100 seconds, the device will automatically logout User A.

Universal Plug and Play (UPnP)

UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through

UPnP NAT Traversal. On supported systems, it makes tasks such as port forwarding much easier by letting the application control the required settings, thus removing the need for the user to control the advanced configuration of their router.

Both the user’s Operating System and the relevant application must support UPnP in addition to the router. Windows XP and Windows Me natively support UPnP (when the component is installed), and

Windows 98 users may install the Internet Connection Sharing client from Windows XP in order to support UPnP. Windows 2000 does not support UPnP.

~ Disable: Select this option to disable the router’s UPnP functionality.

~ Enable: Select this option to enable the router’s UPnP functionality.

UPnP Port: The default port setting is 2800. It is highly recommended that users use this port value. If this value conflicts with other ports that are already being used, you may wish to change it.

SNMP Access Control (Software on a PC within the LAN is required in order to utilize this function) –

Simple Network Management Protocol.

SNMP V1 and V2:

Read Community: Specify a name to be identified as the Read Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, the user on this IP address will be able to view the data.

Write Community: Specify a name to be identified as the Write Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, users on this IP address will be able to view and modify the data.

Trap Community: Specify a name to be identified as the Trap Community, and an IP address. This community string will be checked against the string entered in the configuration file. Once the string name is matched, users on this IP address will be sent SNMP Traps.

SNMP V3:

Specify a name and password for authentication. And define the access rights from identified IP address.

Once the authentication has succeeded, users from this IP address will be able to view and modify the data.

SNMP Version: SNMPv2c and SNMPv3

SNMPv2c is a combination of the enhanced protocol features of SNMPv2 without the SNMPv2 security.

The "c" comes from the fact that SNMPv2c uses the SNMPv1 community string paradigm for "security", but is widely accepted as the SNMPv2 standard.

SNMPv3 is a strong authentication mechanism, providing authorization with fine granularity for remote monitoring.

Traps supported: Cold Start, Authentication Failure.

The following MIBs are supported:

From RFC 1213 (MIB-II):

; System

; Interfaces

149


Mega 200VWR Router

; Address group

; IP

; ICMP

; TCP

; UDP

: EGP (not applicable)

; Transmission

; SNMP

From RFC1650 (EtherLike-MIB):

; dot3Stats

From RFC 1493 (Bridge MIB):

; dot1dBase

; dot1dTp

; dot1dStp group (if configured as spanning tree)

From RFC 1471 (PPP/LCP MIB):

; pppLink

: pppLqr group (not applicable)

From RFC 1472 (PPP/Security MIB):

; PPP Security Group)

From RFC 1473 (PPP/IP MIB):

; PPP IP Group

From RFC 1474 (PPP/Bridge MIB):

; PPP Bridge Group

From RFC1573 (IfMIB):

; ifMIBObjects

From RFC1695 (atmMIB):

; atmMIBObjects

From RFC 1907 (SNMPv2):

; only snmpSetSerialNo OID


150

Mega 200VWR Router

IGMP

IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group.

IGMP Forwarding: Accepting multicast packet. Default is Enable.

IGMP Snooping: Allowing switched Ethernet to check and make correct forwarding decisions. Default is Disable.

VLAN Bridge

This section allows you to create VLAN group and specify the members.

Edit: Edit your member ports in selected VLAN group.

Create VLAN: To create another VLAN group.

Advanced VLAN Setup Example (Triple Play)

VLAN_data:

Ethernet Port 1, Wireless and Wireless WDS are reserving for Internet

- On Ethernet port 1, VC 0/40 bridged mode is also required.

VLAN_Video

Ethernet ports: 2, 3 and 4:

- 0/33 Bi-directional IP

- 0/34 Video

- 0/35 Video

- 0/36 Video Subscriber Services (EPG, EAS, etc.)

- 0/37 Video

- 0/38 Video

- 0/39 Spare

Step 1: Setup Member Ports

Go to Configuration Æ LAN Æ Bridge Interface.

You can setup member ports for each VLAN group under Bridge Interface section. From the example, two

151


Mega 200VWR Router

VLAN groups need to be created.

Ethernet: P1 (Port 1)

Ethernet1: P2, P3 and P4 (Port 2, 3, 4) Please deselect P2, P3, P4 from Ethernet VLAN Port first.

Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in this order.


Ethernet

Ethernet1

Ethernet2

Ethernet3

VLAN Port (Always starts with)

P1 / P2 / P3 / P4

P2 / P3 / P4

P3 / P4

P4

Step 2: Create WAN Interface

Go to Configuration Æ WANÆ ISP

wanlink is the factory default WAN interface which is used for data/internet access. If your ISP uses this access protocol, click Edit to input other parameters if needed. If your ISP does not use PPPoE, you can change the default WAN connection entry by clicking Change.

From the example, 0/40 is used for data/internet and assumes PPPoE is used; click the Edit to change the VPI/VCI to 0/40. In South Africa, we use 8/35 for data by default.

Click Create to setup up additional WAN interface for video applications. Total of 8 VLAN’s are supported; therefore, only 8 WAN interfaces can be created in the table.

From the example, PVC 0/33 to 0/39 are assigned for video using 1483 Bridged mode. select RFC 1483

Bridged and click Next to continue the setup.


152

Mega 200VWR Router

Spaces next to VPI and VCI, type 0 and 33 in respectively. Select appropriate ATM Class, Encapsulation

Method, Acceptable Frame Type, Filter Type and PVID for Untagged Frames.



Encapsulation method: Select the encapsulation format, this is provided by your ISP.

Acceptable Frame Type: Specify what kind of traffic can use this connection, all traffic or only VLAN tagged.

Filter Type: Specify the type of ethernet filtering performed by the named bridge interface.

All

Ip

Pppoe

Allows all types of ethernet packets through the port.

Allows only IP/ARP types of ethernet packets through the port.

Allows only PPPoE types of ethernet packets through the port.

PVID for Untagged Frames: Port VLAN Identifier is known as PVID. When an untagged packet is received by input port(s), this packet will be tagged with specified PVID.

From the example, only the VPI and VCI section need to be filled-in, just leave the rest as is. Repeat the same procedure by clicking Create Æ select RFC1483 Bridged Æ fill-in the rest of PVC 0/34 to 0/39.


153

Mega 200VWR Router

Step 3: Setup VLAN Service

Go to Configuration Æ Advanced Æ VLAN Bridge

DefaultVlan lists all member ports. It is necessary to group specific member ports for each VLAN.

From the example, two VLAN groups are requested: Data and Video.

To create another VLAN group for Video, click on Create VLAN.

Give a name and ID (PVID) to identify the Video group. The valid value range for PVID is 1 ~ 4094.

From the example:

VLAN untagged ports for Data/Internet: Ethernet, wireless and wireless_wds.

VLAN untagged ports for Video: ethernet1, rfc-1483-0 ~ rfc-1483-6.

Click Apply to made change effective immediately.


154

Mega 200VWR Router

Having mapped the VLAN Bridge with the Bridge Interface created in Step1, you will see the comfortable relationship in these two screenshots.

Step 4: IGMP Snooping Enable

Select Configuration Æ Advanced Æ IGMP.

IGMP Snooping must be enabled in order to allow the video stream forwarding to correctly function.

Save Configuration to Flash

After changing the router’s configuration settings, you must save all of the configuration parameters to

FLASH to avoid them from being lost after turning off or resetting your router. Click Save to write your new configuration to FLASH.


155

Mega 200VWR Router

Logout

To exit the router’s web interface, choose Logout. Please ensure that you have saved the configuration settings before you logout.

Be aware that the router is restricted to only one PC accessing the configuration web pages at a time.

Once a PC has logged into the web interface, other PCs cannot get access until the current PC has logged out of the web interface. If the previous PC forgets to logout, the second PC can access the page after a user-defined period, by default 3 minutes. You can modify this value using the Advanced –

Device Management section of the web interface. Please see the Advanced section of this manual for more information.


156

Mega 200VWR Router

Chapter 5: Troubleshooting

If the router is not functioning properly, first check this chapter for simple troubleshooting before contacting the Help desk .

Problems starting up the router

Problem Corrective Action

None of the LEDs are on when you turn on the router.

Check the connection between the power adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support.

You have forgotten Try the default login and password, refer to Chapter 3. If this fails, you can and/or password. back of your router more than 6 seconds.

Problems with the WAN Interface


Initialization of the Ensure that the telephone cable is connected properly from the ADSL port

(“linesync”) failed. on. Check that your VPI, VCI, encapsulation type and type of multiplexing settings are the same as those provided by your ISP. Reboot the router. If you still have problems, you may need to verify these settings with your

ISP.

(disconnections). connected between them and the wall socket, and ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters installed the wrong way around can cause problems with your ADSL connection, including causing frequent disconnections.

Problems with the LAN Interface


Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC connected. If it is off, check the cables between your router and the PC. Make sure you have uninstalled any software firewall for troubleshooting.

Verify that the IP address and the subnet mask are consistent between the router and the workstations.

157

Chapter 5: Troubleshooting

Mega 200VWR Router

APPENDIX A: Windows 98 setup

Installation & Setup: (Windows 98, 98SE, ME or NT4)

Hardware Installation:

Follow the installation instructions below, referring to the images provided for each step. Also note the hardware overview diagram (Figure 1) and the corresponding letter indicators.

1. Power up the device

a) Plug the power adapter into the electrical wall-socket (A). b) Plug the power pin-connector (male) into the router’s power socket (B). c) Switch the router on. d) Wait approximately 1 minute, then confirm that the “PWR” and “SYS” LED’s

(front panel lights) are steadily lit.

A

B

2. Connect the ADSL line

a) Connect one of the included (grey) telephone cable between the Telkom wall-socket and one of the sockets on the integrated power and surge unit (C). b) Connect the other included (grey) telephone cable between the remaining unused socket on the integrated power and surge unit and the router’s “ADSL” port (D).

Appendix A: Product Support and Contact Information

158

C

D

Mega 200VWR Router c) Your router will now attempt to synchronize with the Telkom ADSL line. The

“ADSL/PPP” LED will start to blink green and after approximately 1-2 minutes be steadily lit orange. If the “ADSL/PPP” LED does not become lit, please refer to the troubleshooting section at the end of this guide. d) The Mega 200VWR router is, by default, distributed with a guest ISP username and password. This guest account allows you access to the www.telkom.co.za website only. Although this account only allows limited access, it serves as a tool to confirm that your hardware installation and your own PC’s network configuration has been completed successfully. This guest account will cause your router’s “ADSL/PPP” LED to be steadily lit orange now.

We will again refer to this guest account at a later stage of the installation process.

3. Connect the LAN (network) cable

a) Plug one end of the enclosed (yellow) Ethernet (CAT-5 LAN) cable into one of the router’s LAN ports, you may choose any of the 4 ports (E). b) Plug the other end of the Ethernet (CAT-5 LAN) cable into your computer’s network port or network hub/switch (F).

F

E


159

Mega 200VWR Router c) Confirm that the corresponding LAN LED is lit. If it is not lit, you may have plugged the cable into the wrong port on the back panel of your PC. d) You can connect up to 4 network devices directly to the Mega 200VWR.

4. Connect the ADSL micro filters

a) If you also intend to use traditional telephones (for normal voice calls) on the

ADSL line, you need to connect the included ADSL micro filters. (These units filter out any data noise on your voice lines.) Note that this setup is not for

VoIP calls, but traditional analog voice calls on your ADSL line. These

calls are charged separately.

b) Plug the micro filter into the remaining Telkom ADSL wall-socket. (G). c) Plug the telephone into the micro filter using the included (grey) telephone cable. (H)

G

H d) Important Note: Make sure that you do not connect any micro-filters between the Telkom wall socket used for the router and the router itself. Refer to the route indicated by (C) and (D) below.


160

Mega 200VWR Router

C

A

G G

D B

H

E

Figure 1

F

9

Step 4 above is used when you still want to be able to use your

ADSL line to make normal traditional analog calls.

9

Setting up your Mega 200VWR hardware to be able to make

VoIP calls will be covered later in the Quick Start Guide.

9

Please refer to the the VoIP section of this online manual for

further information pertaining to VoIP.


161

Mega 200VWR Router

Network Card Configuration:

Using Windows 98/ME:

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK.

6. Click OK again to finish the configuration.


162

Mega 200VWR Router

Using Windows NT4.0:

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network and choose the Protocols tab.

2. Select TCP/IP Protocol and click

Properties.

3. Select the Obtain an IP address from a

DHCP server radio button.

4. Now select the DNS tab and make sure that

no DNS is specified.

5. Click OK to close TCP/IP Properties.

6. Click OK again to close the Network

window.


163

Mega 200VWR Router

Router Setup and miscellaneous tasks:

In this section you will:

1) Verify that your computer meets the minimum requirements for Telkom ADSL

2) Verify your Telkom ADSL service on the Telkom website

3) Setup your own ISP account on your Mega 200VWR router

4) Test your Internet connection by opening a webpage

5) Setup E-Mail account in Outlook Express (optional)

6) Request VoIP account(s) on the Telkom VoIP website (optional)

7) Setup VoIP account(s) on your Mega 200VWR (optional)

8) Read this manual. (optional)

9

It is crucially important to read the supplementary information

supplied on the right side of the auto run menu. It supplies valuable information on how to use the menu and explains the function of each step and button.

If you have not already inserted the CD and launched the menu below, please do so now.

A menu screen will be displayed as shown in figure 2 below.


Figure 2

9

If nothing happens when you insert the CD, please refer to the

troubleshooting section at the end of this section.

164

Mega 200VWR Router

Please complete steps 1 through 8 as listed below:

1) Verify that your computer meets the minimum requirements for Telkom

ADSL:

Click the “PC Qualification Test” button on the menu screen. A diagnostic program will open to verify that your PC meets the minimum requirements. Just follow the instructions and when complete, close the program to return to the menu screen and proceed to the next step.

If you encounter any problems or have any questions, please contact the helpdesk for which the contact information is provided in the last section of this quick start booklet.

2) Verify your ADSL service on the Telkom website:

Click the ‘Verify Telkom ADSL service’ button. Your web-browser will now open and attempt to connect to the Telkom ADSL service verification page. Once the site is fully displayed, follow the on-screen instructions to complete your ADSL service verification. Once you have done this, close the web browser and return to the menu screen.

9

It is imperative that you verify your ADSL service on this webpage within seven days of line installation/conversion. If you do not, Telkom will cancel your ADSL service.

9

If you are using the Internet browser for the first time, it will

prompt you to complete a few simple setup tasks.

9

If you are unable to view the Telkom verification webpage,

please make sure that you have performed the previous steps (hardware setup and network card setup) of this quick setup guide correctly. If the problem persists, contact technical support.

3) Setup your own ISP account on your Mega 200VWR router:

9

Before you continue, make sure that you do not have

any active software firewalls running. These include programs like: Norton Internet Security, TrendMicro’s

PC-Cillin, Bit-Defender, McAfee, etc. Please disable these programs temporarily to perform the next step. It is also important to remember to re-activate your software firewall after you have completed this step.

Important

Information

Click the “Setup ISP account” button. The Mega 200VWR utility will now open and allow you to enter your ISP(Internet Service Provider) username and password in the fields indicated by the two arrows in Figure 3 and save it to the Mega

200VWR.


165

Mega 200VWR Router

9

Since you have not yet registered/received your VoIP number(s),

please leave the VoIP fields as is. You will be given the option to register VoIP account(s) and save them to the router in steps to follow.

Figure 3

After you have entered your ISP details, click the “Save” button. The router will now be updated with your own ISP account details. On successful completion, a message will be displayed reporting that the save process was a success. Click

“Ok” and close the utility , then proceed to the next step.

9

If the utility does not seem to respond or encounter errors,

please refer to error 3 in the troubleshooting section.

9

If you want to rerun this utility in future, insert the Mega

200VWR CD, then click on “Start”, “Run” and type “D:\

RouterUtil\setup.exe”. Where D is the drive letter representing your CD Rom drive.


166

Mega 200VWR Router

4) Test your Internet connection by opening a webpage:

Click the ‘Test your connection’ button. This will open the website www.aardvark.co.za and will serve as a test to determine whether you have performed the previous steps correctly.

If you are able to see aardvark.co.za, please proceed to the next step. If you cannot see the aardvark.co.za webpage, please confirm that you have entered your ISP account details correctly by repeating the previous step. If the problem persists, please contact support.

5) Setup E-Mail account in Outlook Express: (optional)

In the step 6 you will register/request a Telkom Internet Communicator VoIP account and on completion of that process the VoIP account details will be e-mailed to you. This step will now assist you in setting up an E-mail account in

Outlook Express in order to receive that e-mail.

These steps illustrate setting up an E-mail account in Outlook Express. If you prefer to use another mail client application such as Microsoft Office Outlook, please feel free to do so.

Before you continue, ensure that you know your E-mail address, names of the incoming and outgoing mail servers (e.g. pop.telkomsa.net) and your mail account details (usually a pop username and password). Your ISP should have given you this information on a welcome letter of fax. If you do not have this info, please request it from your ISP before you continue.

Please follow steps A - F in order to complete the E-mail account setup: a. Start Outlook Express by clicking the ‘Setup E-Mail account’ button on the menu screen or start it manually by selecting it in the programs menu (refer to the figure below). When Outlook Express has opened, click on the Tools menu, click Accounts. If the Account Setup Wizard starts up automatically, skip ahead to step c. b. Click Add, and then click Mail.


167

Mega 200VWR Router c. The “Your Name” page will be displayed, type your name as you want it to appear to everyone who gets e-mail from you, then click Next. d. Enter your E-mail address exactly as provided by your ISP and as you entered it in the Telkom VoIP registration webpage. Click next. e. Enter your incoming (POP) and outgoing (SMTP) mail server details in the spaces provided. Click next. f. Enter your account username and password in this form. You will also have the option for Outlook Express to remember your password so that you do not have to retype it every time you download E-mail. Click next and then click finish.

You have now setup your E-mail account and you are ready to receive the E-mail containing your VoIP account details.

6) Register/request VoIP account(s) on the Telkom VoIP website: (optional)

9

Only Telkom ISP customers qualify for Telkom Internet

Communicator VoIP accounts.

A VoIP account is needed for making cheap Internet voice calls using your Mega

200VWR, much like an ISP account is needed for connecting to the Internet. A

VoIP account has two parts, the phone number and password.

Click the ‘Register VoIP Account(s)’ button to open the Telkom VoIP webpage, which will give you the opportunity to register a Telkom Internet Communicator

VoIP account. Follow the on-screen instructions.

Once the registration process is complete, your VoIP account details will be e-mailed to the e-mail address specified. You will need these account details to setup VoIP on your Mega 200VWR in the following steps. Please close the VoIP registration page.

7) Setup VoIP account(s) on your Mega 200VWR: (optional)


168

Mega 200VWR Router a. Click the “Setup VoIP accounts” button. The Mega 200VWR Management utility will again open (see figure below).

Important

Information

9

Before you continue, make sure that you do not have any

active software firewalls running. These include programs like: Norton Internet Security, TrendMicro’s PC-Cillin,

Bit-Defender, McAfee, etc. Please disable these programs temporarily to perform the next step. It is also important to remember to re-activate your software firewall after you have completed this step. b. Insert the Telkom Internet Communicator VoIP account details you received per e-mail into the spaces provided – indicated by the arrows above. If you have only registered for & received one VoIP account, it is recommended to use the Phone port 1 fields. (More VoIP accounts can be obtained from the

Telkom VoIP website, but please be aware that the Mega 200VWR can only accommodate two VoIP accounts at a time.

9

Please also re-insert your ISP details in the top two fields

(username and password). This is needed to complete the save action successfully. c. Click the “Save” button. Your VoIP account and ISP account details will be saved to the router. On successful completion of the process, a message will be displayed. Click ‘Ok’ to close the confirmation message then close the utility by clicking the standard close button (Top-right on the form) returning you to the menu screen.


169

Mega 200VWR Router d. A router restart will be required to initialize your VoIP account(s). Power down the router manually, wait a few seconds and power it up again in order for the new settings to be applied. Once the “ADSL/PPP” LED is steadily lit orange and the VoIP LED is lit, you have successfully saved your VoIP details onto the router. e. In order to make cost-effective VoIP calls using your standard telephone, you will also need to perform some additional hardware setup tasks. Please follow the two steps below:

Plug a micro filter into the remaining Telkom ADSL wall-socket and connect the other end of the filter to the “LINE” port on the back panel of your Mega 200VWR, using an enclosed (grey) telephone cable. (I)

Connect the telephones that you intend to use for VoIP to the telephone ports on the back panel of the Mega 200VWR using a telephone cable. Please note that there are two telephone ports and that they correspond to the two VoIP accounts you have seen earlier in this step. If you have only one VoIP account, it is recommended to use telephone port 1. (J)

I

J

I

J

8) Read the router’s user manual:

The last button on the menu, “Read User Manual (.PDF)”, will open the User manual from the CD. It is recommended that you read this manual should you want to make use of some of the advanced features on the Mega 200VWR. The manual is in Adobe Acrobat PDF format and requires Acrobat reader to open the file. If you do not have Acrobat reader installed on your PC. Click on the “Install

Acrobat Reader….” hyperlink to the immediate right of the manual button, select your operating system and click install.

9

You have now completed the Mega 200VWR setup (for

Windows 98, 98SE, ME or NT4) and can close the menu screen by clicking the ‘Exit’ button. You should now be able to browse the Internet and make VoIP calls. If you encounter any problems, please refer to the troubleshooting section at the end of the quick start guide and manual or contact the helpdesk.

Mac OS is a registered Trademark of Apple Computer, Inc.

Windows 98, Windows NT, Windows 2000, Windows Me and Windows XP are registered Trademarks of Microsoft Corporation.


170

No results
