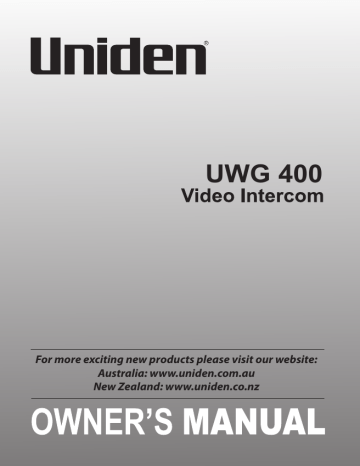

UWG 400
For more exciting new products please visit our website:
Australia: www.uniden.com.au
New Zealand: www.uniden.co.nz
1
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important information about this product’s operation.
If you are installing this product for others, you must leave this manual or a copy with the end user.
•
When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following:
•
This equipment is NOT waterproof. DO NOT expose it to rain or moisture (for the weatherproof Camera: DO NOT expose it to excessive water or moisture).
•
DO NOT immerse any part of the product in water. Do not use this product near water, e.g., near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except battery powered ones) during an electrical storm.
•
Use only the power cord and/or batteries indicated in this manual.
Never dispose of any batteries in a fire: they may explode. Check with local codes for possible special disposal instructions.
•
Never tug or pull on any power cord: be sure to leave some slack in the cord when placing your equipment, and always use the plug to unplug cord from the wall outlet.
•
Never leave power cords where they can become crushed, cut, or frayed; when running power cords, avoid letting them rub against any sharp edges or lie across any high traffic areas where people might trip over them.
•
Do not use the device if the adaptor cords or plugs have been damaged, the unit has been exposed to liquids, or the unit has been dropped or is damaged.
SAVE THESE INSTRUCTIONS!
2
whAT’S IN ThE bOx?
Charger
Receiver Camera
Rain Cover
Owner’s Manual
Batteries
(AAA Ni-MH)
Screws
AC Adaptor
•
If any item is missing or damaged, contact your place of purchase immediately. Never use damaged products!
• Need help? Get answers at our website:
www.uniden.com.au for Australian model
www.uniden.co.nz for New Zealand model.
3
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .............................................2
whAT’S IN ThE bOx? .......................................................................3
INSTAllINg YOUR UNIT ..................................................................5
Receiver .................................................................................................................................5
Camera ..................................................................................................................................6
gETTINg TO kNOw YOUR VIDEO INTERCOM ................................8
Receiver .................................................................................................................................8
Camera ................................................................................................................................10
OPERATIONS ..................................................................................11
Power On/Off .....................................................................................................................11
Registration ........................................................................................................................11
Make a Call ..........................................................................................................................12
Using the MENU ................................................................................................................13
Deregister the Camera ....................................................................................................15
Connecting the Camera (OPTIONAL) ..........................................................................16
Set Unlock Time ................................................................................................................17
TEChNICAl SPECIFICATION ..........................................................18
ONE-YEAR lIMITED wARRANTY ...................................................19
4
INSTAllINg YOUR UNIT
Receiver
The rechargeable Ni-MH batteries (AAA size, 1.2V, 800mAh) come with your Receiver. Install the batteries before use.
Remove the battery cover, slide it down and off and then insert new batteries as indicated, matching the correct polarity.
To replace the battery cover, slide the cover up until it snaps in place.
# Charge the Receiver, by placing it on the charger, completely (about
15 hours) before using.
Please note:
•
Reversing the orientation may damage the Receiver.
•
The batteries need to be replaced if they do not recover their full storage capacities after recharging.
•
When replacing the batteries, always use good quality Ni-MH rechargeable batteries. Never use other batteries or conventional alkaline batteries.
5
Installation
Connect the modular end of the AC power adaptor to the power jack of the charger, then plug the AC adaptor into a standard AC wall outlet.
Please note:
• Place the Receiver away from electrical appliances, such as TV or PC.
• Ensure that the Receiver is placed in a location where there is no obstruction such as walls, microwave ovens and WiFi.
•
Unlock the antenna (switch is located at the top of the
Receiver) to receive better signal.
Antenna
Lock Switch
Camera
# The Camera can use either batteries or external DC power (optional).
1. Install two C size batteries (not supplied) into the battery compartment.
2. Fit in the screws to secure the battery cover.
6
Installation
# Choose a proper location for the Camera. Be sure to consider the average height of visitors.
1. Align the rain cover and the screws with the drilled holes in the wall.
2. Place the Camera in the rain cover.
3. Drill the screw to fix and finish the installation.
7
gETTINg TO kNOw YOUR VIDEO INTERCOM
Receiver
LCD
MENU
Accept
Microphone
Antenna
Lock Switch
Charger
Speaker
Camera
Navigation Keys
Power/End
Unlock (Optional)
Charge Pins
8
Keys/Indicators
MENU
Accept
Unlock (optional)
Power/End
Camera
Navigations Keys
Speaker
Antenna
Lock Switch
What it does
•
In standby: open the menu.
• In the Menu or any list: select the highlighted item.
Accepts the incoming call.
Unlocks the door (see page 16).
•
Turn on/off the Receiver
•
End the call
• In standby: select the Camera for monitoring
(optional, see page 12)
•
In the Menu: Back to the previous screen or exit the menu
Navigate through the menu
Output sound received from Camera
Receives video and audio signals from the
Camera
Unlock the antenna
9
Camera
Speaker
Sensor light
Camera Lens
LED
Register button
Call button
Microphone
Indicators
Speaker
Sensor Light
LEDs
Call button
Microphone
Register button
Function
Transmits sound from the monitor (intercom).
Measures light intensity to activate IR LEDs for night vision.
Infrared LEDs provide viewing in no/low light conditions.
Press to make a call to the Receiver
Receives sounds from the area near the Camera
Press and hold to register the Camera to the
Receiver.
10
OPERATIONS
Power On/Off
To power on/off the Receiver, press and hold the Power button.
Registration
The UWG400 comes with the Camera registered to the Receiver. If you want to register another Camera to the Receiver, follow the steps below.
1. Press the Call button on the Camera.
2. Then press and hold the Register button on the Camera, until the LED starts flashing.
3. Next, press MENU on the Receiver and select the option Register.
4. Press MENU again to confirm the selection. A tone will be heard confirming that the registration has been successful.
If the tone is heard twice then the Registration has been unsuccessful.
Before you try again, switch off the Receiver and remove the batteries from the Camera.
Turn on the Receiver, reinstall the batteries of the Camera and try registering again.
Register button
Call button
# The Receiver can support up to 4 Cameras.
11
Make a Call
In the standby mode, press the Call button on the Camera. The corresponding Receiver will ring, and the image of the visitor appears on the LCD of the Receiver.
To answer the call, press the Accept button on the Receiver. The LCD will display Talk.
# The conversation can last upto 2 minutes, after that the call automatically disconnects.
To reject the call, press the END button.
Monitoring (Optional)
The Monitoring function enables you to view and listen to the Camera, through the Receiver.
# To be able to monitor the Camera from the Receiver, please ensure that the Camera is connected to DC power. Refer to page 16.
In the standby mode, press the Camera button on the Receiver
When one Camera is registered, the LCD on the Receiver will display 1#.
When more than one Camera is registered, the LCD on the Receiver, will display the registered Cameras as 1#Monitor, 2#Monitor, and so on.
Press Up or Down navigation arrows on the Receiver to select the desired
Camera and then press MENU to confirm the selection.
The image from the corresponding Camera will be displayed on the LCD.
12
Using the MENU
Volume
This MENU option allows you to adjust the volume during a call.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Volume and then press MENU to confirm the selection.
3. Press the relevant Right or Left navigation keys to increase or decrease the volume.
4. Press the Camera button to save the settings and return to the previous menu.
# Use the Left or Right navigation keys to adjust the volume in the standby mode.
brightness
This MENU option allows you to adjust the brightness of the LCD.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Brightness and then press MENU to confirm the selection.
3. Press the relevant Right or Left navigation keys to increase or decrease the level of brightness.
4. Press the Camera button to save the settings and return to the previous menu.
# Use the Up or Down navigation keys to adjust the volume in the standby mode.
Date & Time
This MENU option allows you to set the date and time.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Date & Time and then press MENU to confirm the selection.
3. Press the relevant Right or Left navigation keys to choose the hour or minute and then press the Up and Down button to change the timing.
4. Press the relevant Right or Left navigation keys to choose the Year,
Month, Day and then press the Up and Down button to change as required.
13
# The time is in 24-hour format and the date is in YYYY-MM-DD format.
# When you replace the batteries, you will need to set the time and date again.
key Tone
When you press a key on the Receiver, it is accompanied with a key tone.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Key Tone and then press MENU to confirm the selection.
3. Press the relevant Up or Down navigation keys to choose between On and Off to enable or disbale the function.
4. Press MENU to save the setting and return to the previous menu.
Snap Setting (Snapshot)
This option allows the Receiver to automatically take a photo when it receives a call.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Snap Set and then press MENU to confirm the selection.
3. Press the relevant Up or Down navigation keys to choose between On and Off to enable or disable the function.
4. Press MENU to save the setting and return to the previous menu.
# You can use the Camera button to manually take snaps.
# The Receiver takes a maximum of 50 photos, deleting the older snaps as the internal memory fills up.
Snap Show
The images (snap shots) will be stored in this menu. You can save or delete them. On the top left corner of the image, the number of the corresponding Camera will display.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Snap Show and then press MENU to confirm the selection.
3. Press the relevant Right or Left navigation keys to browse through the images.
14
4. If you want to delete the current images, press MENU. The display will show, ‘Delete?’. Press the Camera button to confirm.
5. Press the Camera button to save the settings and return to the previous menu.
Default Setting
This option allows you to reset the Receiver to the default factory settings.
1. Press MENU to display the menu.
2. Press the relevant Up and Down navigation keys to select Default
Setting and then press MENU to confirm the selection.
3. Press the relevant Up or Down navigation keys to choose Yes or No to enable or disable the function.
4. Press MENU to save the setting and return to the previous menu.
Deregister the Camera
Press and hold the Unlock button and the MENU button, on the Receiver, at the same time for 5 seconds in the standby mode, then the LCD display will show ‘Registration Cleared’.
15
Connecting the Camera (OPTIONAl)
To DC Power and Unlock System
# Either use the batteries or connect the Camera to the power supply.
Do not use the options together.
# You may need to connect to the DC Power/Door-Lock module to enable the Unlock system and the backlight on the Call button.
16
Set Unlock Time
Connect the Camera to an optional DC Power/Door-Lock Module to enable an electronic unlock system. You can set the unlock time (i.e., time limit set to unlock the door once the unlock key has been pressed), by following the steps below.
Press and hold the Accept button and Unlock button, on the Receiver, at the same time for 5 seconds in the standby mode, then the LCD display will show the time that has already been set.
1. Press and hold the Unlock button and the Accept button at the same time for 5 seconds in the standby mode, then the LCD display will show
‘Unlock Time’.
2. Press the left or right navigation buttons to select the respective
Camera.
3. Press the Up and Down navigation keys to select the unlock time (1-25 seconds).
4. Press the Camera button to save the settings. The display will show
Save OK.
17
TEChNICAl SPECIFICATION
Camera
Transmit Frequency Range
Modulation Type
Transmitting distance
Image sensor type
Image Resolution
Image processing
Frame rate
Lens
Viewing Angle (Diagonal)
LED
Power Requirement
Power Consumption
Operating temperature
Operating humidity
2.4GHz - 2.4835GHz
GFSK/FSK
Up to 150m (open space)
1/4” colour CMOS Image sensor
320x240
Motion JPEG
25fps
4.9mm/F2.8
50°
6 LEDs
9-12V DC or LR14(C) 1.5V batteries
500mA Max (batteries) 400mA (+12V DC)
-20°C-40°C
85% Relative Humidity
Receiver
Transmit Frequency Range
Monitor
Demodulation Type
Resolution
Power Requirement
Power Consumption
Operating temperature
Operating humidity
2.4GHz - 2.4835GHz
2.4” colour LCD
GFSK/FSK
320x240
3 Ni-MH 1.2V 800mAh batteries
450mA
-10°C-40°C
85% Relative Humidity
18
ONE-YEAR lIMITED wARRANTY
UWG400
Important:
Satisfactory evidence of the original purchase is required for warranty service. Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below.
Warrantor:
The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498
(“Uniden Aust”) or Uniden New Zealand Limited (“Uniden NZ”) as the case maybe.
Terms of Warranty: Uniden Aust/NZ warrants to the original retail purchaser only that the UWG400 (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.
Warranty Period: This warranty to the original retail purchaser is only valid in the original country of purchase for a Product first purchased either in Australia or New Zealand and will expire one (1) year from the date of the original retail sale. If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be:
A. Damaged or not maintained in a reasonable manner or as recommended in the relevant Uniden Owner’s Manual;
B. Modified, altered or used as part of any conversion kits, subassemblies or any configurations not sold by Uniden Aust or Uniden NZ;
C. Improperly installed contrary to instructions contained in the relevant
Owner’s Manual
D. Repaired by someone other than an authorized Uniden Repair Agent in relation to a defect or malfunction covered by this warranty; or
E. Used in conjunction with any equipment, parts or a system notmanufactured by Uniden.
Parts Covered: This warranty covers the Product and included accessories.
User-generated Data: This warranty does not cover any claimed loss of or damage to user-generated data (including but without limitation phone numbers, addresses and images) that may be stored on your Product.
19
Statement of Remedy: If the Product is found not to conform to this warranty as stated above, the Warrantor, at its discretion, will either repair the defect or replace the Product without any charge for parts or service. This warranty does not include any reimbursement or payment of any consequential damages claimed to arise from a Product’s failure to comply with the warranty.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is in addition to and sits alongside your rights under either the COMPETITION AND CONSUMER ACT 2010 (Australia) or the
CONSUMER GUARANTEES ACT (New Zealand) as the case may be, none of which can be excluded.
Procedure for Obtaining Warranty Service: Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below. You should contact
Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim. Prior to delivery, we recommend that you make a backup copy of any phone numbers, images or other data stored on your Product, in case it is lost or damaged during warranty service.
UNIDEN AUSTRAlIA PTY lTD
Service Division
345 Princes Highway,
Rockdale, NSW 2216
Phone number: 1300 366 895
Email: [email protected]
UNIDEN NEw ZEAlAND lTD
Service Division
150 Harris Road, East Tamaki
Auckland 2013
Phone number: (09) 273 8377
Email: [email protected]
20
21
22
23
24
©2013 Uniden Australia Pty Ltd/Uniden New Zealand Limited
advertisement
Related manuals
advertisement
Table of contents
- 2 IMPORTANT SAFETY INSTRUCTIONS
- 3 whAT’S IN ThE bOx?
- 5 INSTAllINg YOUR UNIT
- 5 Receiver
- 6 Camera
- 8 gETTINg TO kNOw YOUR VIDEO INTERCOM
- 8 Receiver
- 10 Camera
- 11 OPERATIONS
- 11 Power On/Off
- 11 Registration
- 12 Make a Call
- 13 Using the MENU
- 15 Deregister the Camera
- 16 Connecting the Camera (OPTIONAL)
- 17 Set Unlock Time
- 18 TEChNICAl SPECIFICATION
- 19 ONE-YEAR lIMITED wARRANTY
