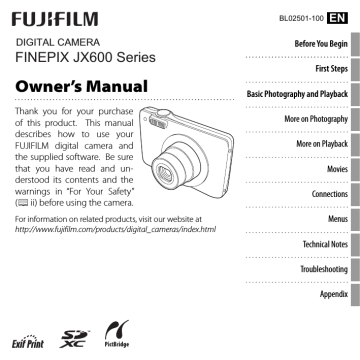

DIGITAL CAMERA

FINEPIX JX600 Series

Owner’s Manual

Thank you for your purchase of this product. This manual describes how to use your

FUJIFILM digital camera and the supplied software. Be sure that you have read and understood its contents and the warnings in “For Your Safety”

(

P ii) before using the camera.

For information on related products, visit our website at

http://www.fujifilm.com/products/digital_cameras/index.html

BL02501-100

EN

Before You Begin

First Steps

Basic Photography and Playback

More on Photography

More on Playback

Movies

Connections

Menus

Technical Notes

Troubleshooting

Appendix
