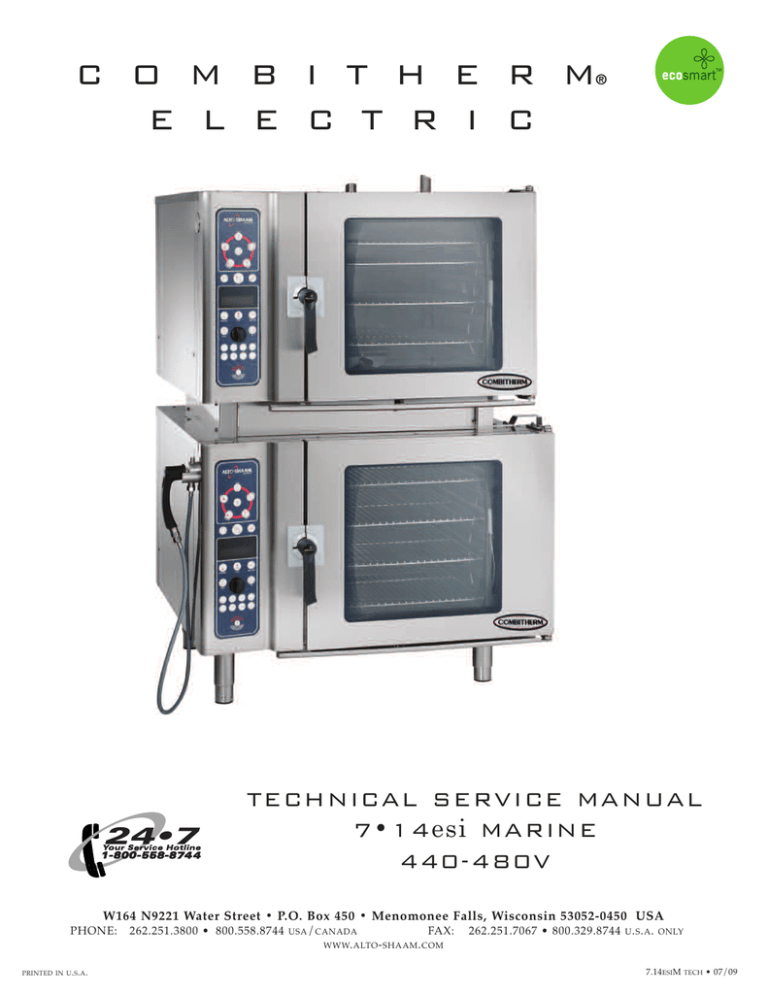

C O M B I T H E R M E L E C T R I C ® TECHNICAL SERVICE MANUAL 7•14esi MARINE 440-480V W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA PHONE: PRINTED IN U . S . A . 262.251.3800 • 800.558.8744 USA / CANADA FAX: WWW. ALTO - SHAAM . COM 262.251.7067 • 800.329.8744 U . S . A . ONLY 7.14ESIM TECH • 07/09 How to Use this Technical Service Manual This manual has been compiled as a complete resource for a technician working on Combitherm Electric models. It includes necessary product information and drawings, along with helpful troubleshooting procedures. Introduction gives a quick overview of the Combitherm Electric line. Sections 1 through 5: – CONTROL PANEL IDENTIFICATION includes information on using the controllers and operating instructions. It is the same material supplied to the customer. – PREVENTIVE MAINTENANCE includes procedures for cleaning, performing a generator flush and decalcifying. This information is also supplied to the customer. – SERVICE MODE AND ERROR CODES explains the special programming available to you as a technician to view status, make adjustments and test functions. Information is also included on the use of displayed error codes to resolve problems and on the functions that can be operated under fault conditions. – TROUBLESHOOTING TREES are provided for the most common conditions you will be required to address. – COMBITHERM PARTS has drawings and lists of available parts. Section 6 contains information that is specific to that model: – The model’s Technical Data Sheet – Parts Information that is unique to the model, including its door, condensation tank, directional panel and steam generator or pressure box – Wiring Diagrams – Ladder Diagrams 7.14ESi MARINE COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL TA B L E O F C O N T E N T S How to Use this Technical Service Manual...................................... 2 Introduction .................................................................................. 4 1 — Control Panel Identification.................................................. 5 2 — Preventive Maintenance....................................................... 42 3 — Service Mode and Error Codes............................................. 49 4 — Troubleshooting Trees ......................................................... 57 5 — Combitherm Parts............................................................... 67 6 — 7.14 ESi ............................................................................ 74 7.14ESi MARINE COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 3 INTRODUCTION MODEL NUMBERS This manual covers the following model: Steam Generator Models 7.14 ESi MARINE CONTROLLER • Deluxe is a touch key controller with programmable Rapid-Touch™ keys. FEATURES AND OPTIONS • Recessed Door is available on all models. • Core Temp Probe (single point) is standard on deluxe controllers. MODES The Combitherm combination oven/steamer is a multipurpose oven used for: STEAM MODE COMBINATION MODE CONVECTION MODE RETHERM MODE CORE TEMPERATURE MODE 7.14ESi MARINE COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 4 1 C O N T R O L PA N E L I D E N T I F I C AT I O N Deluxe Control ............................................................................. 6 Return to Main Table of Contents .................................................. 3 S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 5 C O N T R O L PA N E L I D E N T I F I C AT I O N PROGRAMMABLE DELUXE MODELS POWER ON/OFF KEY STEAM MODE KEY RETHERM MODE KEY CONVECTION MODE KEY PROGRAM INSTALL/EDIT KEY START / STOP KEY COMBINATION MODE KEY PROGRAMMED MENU KEY DELUXE MODELS ONLY CHEF FUNCTION KEY DELUXE MODELS ONLY FUNCTION & OPERATING INDICATORS COOKING TEMPERATURE KEY TIME KEY DOWN ARROW KEY CONTROL PANEL DISPLAY CORE TEMPERATURE KEY UP ARROW KEY RAPID-TOUCH KEYS ADJUSTMENT KNOB DELUXE MODELS ONLY MOISTURE VENT KEY ELECTRIC MODELS ONLY S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 6 D E L U X E C O N T R O L PA N E L B A S I C F U N C T I O N POWER ON/OFF KEY DOWN ARROW KEY Activates power to the oven and automatically fills the steam generator equipped models with water that will heat to a stand-by mode temperature of 150°F (65°C). The steam generator flush is also activated by pressing this key. • Quick steaming between 213°F and 248°F (101°C and 120°C). • Low Temperature Steaming between 86°F and 211°F (30°C and 99°C). ADJUSTMENT KNOB Displays oven functions. Serves the same function as the up and down arrow keys to increase or decrease the displayed cook temperature , time , or core temperature . MOISTURE VENT KEY ELECTRIC MODELS ONLY Immediately vents steam and condensate from the oven compartment while cooking in the Convection mode or in the Combination mode . RETHERM MODE KEY START/STOP KEY Food rethermalization or reheating mode will operate with automatic steam injection at a temperature range of 248°F and 320°F (120°C and 160°C). CONVECTION MODE KEY Selection key for convection cooking without COMBINATION MODE KEY Selection key for cooking with a combination of steam and convection heat that can be set within a temperature range of 212°F to 482°F (100°C and 250°C). scrolling key for programming functions. Initiates all cooking mode functions and programmed procedures stored in memory. Stops an activated cooking mode or programmed procedure currently in progress, and exits the Chef function key . , time , or core temperature and as a STEAM MODE KEY The oven will operate in the steam mode at a temperature range of 86°F to 248°F (30°C to 120°C). • Automatic steaming at 212°F (100°C) FACTORY - SET DEFAULT . Used to decrease displayed cook temperature steam at a temperature range of 86°F to 482°F (30°C and 250°C). PROGRAM INSTALL AND EDIT KEY Used to create, change, duplicate, and delete programmed menus. PROGRAMMED MENU KEY Used to access and exit a menu list of all stored cooking programs that can be reviewed •••••••CONTROL in display . DELUXE MODELS ONLY DELUXE MODELS ONLY . PANEL DISPLAY CORE TEMPERATURE KEY Used to set the required internal product CHEF FUNCTION KEY temperature, to recall the internal product Used to select programmed menu functions, various auxiliary functions, and several chef help instructions. temperature set by the operator, or to display the current internal temperature of the product in conjunction with the down arrow key , the Used to set the required cooking temperature, to recall the set cooking temperature, or to check the actual oven temperature in conjunction with the down arrow key , the up arrow key or the adjustment knob . up arrow key , or the adjustment knob . COOKING TEMPERATURE KEY TIME KEY Used to set the required cooking time or recall the set cooking time in conjunction with the down arrow key , the up arrow key , or the adjustment knob . UP ARROW KEY Used to increase displayed cook temperature , time , or core temperature and as a scrolling key for programming functions. •••••••RAPID-TOUCH KEYS DELUXE MODELS ONLY. One-touch cooking for immediate access to frequently used operator set programs including cooking modes, cleaning, and other oven functions. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 7 CONTINUED D E L U X E C O N T R O L PA N E L B A S I C F U N C T I O N S FUNCTION & OPERATING INDICATORS A. Gold-n-Brown™ FEATURE This indicator will illuminate when the browning function is set by the operator in a timed or programmed cooking cycle in either convection mode or combination mode. B. COMBI SMOKER (ON EQUIPPED MODELS) This indicator will illuminate when the smoking function is set by the operator in a timer, probe or programmed cooking cycle in either convection mode or combination mode. C. REDUCED FAN SPEED This indicator will illuminate whenever the operator sets a reduced fan speed to protect products affected by high-velocity air movement. D. CONFIRMATION OF OVEN OPERATION This indicator illuminates whenever the oven is operating in any mode. E. KEY LOCK This indicator will illuminate when operator has locked any mode key or function to prevent unauthorized or accidental changes. F. MOISTURE VENT This indicator will illuminate whenever the Moisture Vent Key is pressed by the operator to eliminate excessive moisture. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 8 SET-UP PROCEDURES SET UP MENU Following installation, the control should be set with the date and time. In addition to the date and time, the set-up function provides the operator with the ability to adjust a number of other Combither m operating conditions to confor m with the needs of the individual installation. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. SET UP ADJUSTMENT CHOICES PRESS THE CHEF FUNCTION KEY. SIGNAL TONE Rotate the adjustment knob until the set up symbol is VOLUME highlighted within the display. TIME PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate the adjustment knob to select DATE “ YES ” for the set up function. PROGRAM INDEX Set up DEFAULT/MEMO SETTINGS TEMPERATURE DISPLAY PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SET UP FUNCTION. Press the up and down arrow keys NETWORK ADDRESS or rotate the adjustment knob to highlight one of the following LANGUAGE adjustment functions: SIGNAL TONE Rotate the adjustment knob until the signal tone symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SIGNAL TONE SELECTION. Press the up and down arrow keys or rotate the adjustment knob to select each tone offered. Stop rotation at each individual setting to hear an audio playback. Select the tone desired. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTED SIGNAL TONE SETTING. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 9 SET-UP PROCEDURES A L W AY S B E G I N S E T U P A D J U S T M E N T S F R O M T H E S E T U P M E N U . VOLUME Rotate the adjustment knob until the volume symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE VOLUME SELECTION. Press the up and down arrow keys or rotate the adjustment knob to select each volume level offered. Stop rotation at each individual setting to hear an audio playback. Select the volume desired with consideration of the noise level within the kitchen during peak production periods. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE VOLUME SETTING. TIME Rotate the adjustment knob until the time symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE TIME SELECTION. Press the up and down arrow keys to alternate between hours and minutes and rotate the adjustment knob in each to adjust the numbers to the correct time. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SET TIME. D AT E Rotate the adjustment knob until the date symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE DATE SELECTION. Rotate the adjustment knob to select the preferred date format. Press the up and down arrow keys to alternate between day, month and year, and rotate the adjustment knob in each to adjust the numbers to the correct settings. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SET DATE. PROGRAM INDEX Rotate the adjustment knob until the program index symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE PROGRAM INDEX SELECTION. Press the up and down arrow keys or rotate the adjustment knob to select the preferred index format: “YES” for a listing of programs entered alphabetically with the program install/edit key. “NO” for a listing of programs entered numerically with the program install/edit key. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE PROGRAM INDEX SETTING. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 10 SET-UP PROCEDURES A L W AY S B E G I N S E T U P A D J U S T M E N T S F R O M T H E S E T U P M E N U . D E FA U LT / M E M O S E T T I N G The default/memo setting allows the operator to choose between a display showing the factory set defaults for time and temperature or the last operator set values for time and temperature in each cooking mode. This adjustment function also allows the operator to change the defaults from those set at the factory to settings that better meet the needs of the individual operation. Cooking product with operator set defaults for time and temperature can help reduce operator error. Cooking with the oven in the memo setting is particularly useful when several batches are cooked in succession. The memo setting eliminates the necessity to set time and temperature for each batch. Rotate the adjustment knob until the default/memo symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE DEFAULT/MEMO SELECTION. Rotate the adjustment knob to “NO” for memo. This setting will display the last operator set values for time and temperature in each cooking mode. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE MEMO SETTING. TO CHANGE THE DEFAULT SETTINGS Rotate the adjustment knob to select “YES”. A numbered list of default descriptions will appear in the display. Rotate the adjustment knob until the setting to be changed is highlighted. Press the up arrow key to highlight the time or temperature to be changed. Rotate the adjustment knob to change the default to the setting desired. Press the down arrow key to save the new default setting. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE NEW DEFAULT SETTINGS. COMBITHERM FACTORY SET DEFAULT SETTINGS COOKING MODE OVEN TEMPERATURE CORE TEMPERATURE STEAM 212°F 158°F MODE (100°C) (70°C) COMBINATION 302°F 158°F STEAM MODE (150°C) (70°C) CONVECTION MODE RETHERM MODE 338°F 158°F (170°C) (70°C) 275°F 158°F (135°C) (70°C) DELTA-T 122°F 172°F MODE (50°C) (77°C) 374°F FREE PREHEAT MODE COOKING TIME 25 MINUTES 70 MINUTES 30 MINUTES 5 MINUTES FREE — (140°C) S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 11 SET-UP PROCEDURES A L W AY S B E G I N S E T U P A D J U S T M E N T S F R O M T H E S E T U P M E N U . T E M P E R AT U R E D I S P L AY Rotate the adjustment knob until the temperature display symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE TEMPERATURE DISPLAY SELECTION. Press the up and down arrow keys or rotate the adjustment knob to select either Fahrenheit or Celsius. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE TEMPERATURE DISPLAY SETTING. NETWORK ADDRESS Press the up and down arrow keys or rotate the adjustment knob until the network address symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE NETWORK ADDRESS SELECTION. The current network address will appear in the display. Rotate the adjustment knob to select 1 through 99 and assign a different network number for each PC to be connected. PRESS THE CHEF FUNCTION KEY TO CONFIRM EACH NETWORK ADDRESS. LANGUAGE Press the up and down arrow keys or rotate the adjustment knob until the language symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE LANGUAGE PROGRAM SELECTION. Rotate the adjustment knob to select the required language. CHINESE DUTCH ENGLISH* FRENCH GERMAN *U.S. ITALIAN JAPANESE KOREAN POLISH PORTUGUESE RUSSIAN SPANISH SWEDISH FACTORY SETTING NOTE : SOME OF THE LANGUAGE SELECTIONS SHOWN ABOVE MAY NOT BE AVAILABLE ON ALL MODELS . PRESS THE CHEF FUNCTION KEY TO CONFIRM THE LANGUAGE SETTING. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 12 I M P O R TA N T S A F E T Y P R E C A U T I O N S NOTE: Automatic steam venting is a standard safety feature built into all Combitherm oven models. This feature vents all steam from the oven compartment IMMEDIATELY BEFORE COOKING TIME EXPIRES. This function is provided in all programmed and timed production when operating in any Steam, Combination, Convection, and Retherm cooking mode. Automatic steam venting does not function if the oven door is opened before time expires or when the oven has been set to continuous operation. AT NO TIME SHOULD THE INTERIOR OR EXTERIOR BE STEAM CLEANED, HOSED DOWN, OR FLOODED WITH WATER OR LIQUID SOLUTION OF ANY KIND. DO NOT USE WATER JET TO CLEAN. SEVERE DAMAGE OR ELECTRICAL HAZARD COULD RESU LT. WARRANTY BECOMES VOID IF APPLIANCE IS FLOODED. DO NOT HANDLE PANS CONTAINING LIQUID OR SEMILIQUID PRODUCTS POSITIONED ABOVE THE EYE LEVEL OF THE OPERATOR. SUCH PRODUCTS CAN SCALD AND CAUSE SERIOUS INJURY. HOT STEAM CAUSES BURNS ROTATE THE DOOR HANDLE TO THE FIRST OPEN ROTATION POSITION ONLY.. W AIT UN TIL TH E STE AM IS V EN TED B E F O R E F U L LY O P E N IN G T HE D O O R. DO N O T USE THE ATTACHED HANDHELD HOSE TO SPRAY ANYTHING OTHER THAN THE INTERIOR OF THE COMBITHERM OVEN COMPARTMENT. D O N O T U S E T H E S P R AY H O S E ON THE SURFACE OF A HOT COOKING COMPARTMENT. ALLOW THE OVEN TO COOL TO A MINIMUM OF 150°F (66°C). METAL PARTS OF THIS EQUIPMENT BECOME EXTREMELY HOT WHEN IN OPERATION. TO AVOID BURNS, ALWAYS USE HAND PROTECTION WHEN OPERATING THIS APPLIANCE. N O T E: U S E A U T H O R I Z E D C O M B I T H E R M O V E N C L E A N E R O N L Y . UNAUT HO RIZED CLEA NING AG E NT S MA Y D ISCOLO R OR HARM INT ERIO R S URF ACE S O F THE O VEN. READ AND UNDER STA ND LA BEL AND M A T ER IA L S A F E T Y DA T A S H EE T BEFOR E USING THE OVEN CLEANER . FOR OPERATOR SAFETY NOTE AND OBSERVE ALL SAFETY PRECAUTIONS LOCATED THROUGHOUT THIS GUIDE. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 13 STEAM MODE STEAM ● LOW TEMPERATURE STEAM ● QUICK STEAM The Steam mode provides the operator with the ability to steam, poach, or blanch. This mode will automatically steam at the boiling point of water; quick-steam above the boiling point for faster cooking results; or low temperature steam, below the boiling point, for more delicate products such as pâté, mousse, seafood, or custard. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE STEAM MODE KEY. Automatic Steam temperature of 212°F (100°C) will appear in the display. The last set time or oven control default setting for time will appear in the display. PRESS THE START KEY TO STEAM AT THE SETTINGS SHOWN. TO CHANGE THE SETTINGS SHOWN: PRESS THE TEMPERATURE KEY. The cooking temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the desired cooking temperature. • Automatic Steaming 212°F (100°C) • Quick-steaming 213°F to 248°F (101°C to 120°C) • Low Temperature Steaming 86°F to 211°F (30°C to 99°C) TO COOK BY TIME: PRESS THE TIME KEY. The cooking time will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the time desired… or Set control for continuous operation by rotating the adjustment knob to the right until appears in the display. TO COOK BY INTERNAL PRODUCT TEMPERATURE: PRESS THE CORE TEMP KEY. The previously set core temperature or oven control default setting will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the inter nal temperature desired and insert the product probe. PRESS THE START KEY TO BEGIN COOKING IN THE STEAM MODE. • The set cooking temperature will appear in the display. To adjust the set temperature, press the key once and make corrections as required. To display the actual oven temperature, press the key twice. • The remaining cooking time will appear in the display. To display the set time or to change the set values for time during operation, press the time key once and make corrections as required. • The actual internal product temperature will appear in the display. To display the set internal product temperature or to change the set values for core temperature during operation, press the key once and make corrections as required. When the cooking time has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 14 STEAM MODE C H E F O P E R AT I N G T I P S This mode will steam a full or partial load of a single product, or multiple products without transfer of flavors. When steaming multiple products, however, individual product cooking times must be taken into consideration. The non-pressurized atmosphere of the Combitherm also provides the ability to open the door during the steam mode in order to monitor products more closely throughout the steaming process. STEAM QUICK STEAMING LOW TEMP STEAM Perforated, 2-1/2" deep pans Quick steaming is suitable The low temperature steam mode (65mm) are particularly suitable for hearty, root-type vegetables will function whenever the oven for use in this program mode. such as potatoes, legumes, compartment temperature is These pans will provide a shorter and cabbage. below 212°F (100°C). product over-cooking at the Quick steaming provides a Proof yeast dough at a bottom of the pan. cooking time which is temperature setting of 90°F to approximately 10-percent shorter 110°F (32°C to 43°C). cooking time and will prevent Separate ice-encased vegetables than the regular steam mode before steaming to assure more temperature of 212°F (100°C). It will take longer to steam products using the low even cooking. Set the steam cooking temperature steam mode. A variety of products can be temperature between 221°F steamed at the same time but (105°C) and 230°F (110°C) for Steaming sausages in low attention must be paid to the small loads and between 230°F temperature steam prevents different cooking times required (110°C) and 248°F (120°C) for cracked or peeling skins. for each food product. full loads. Use low temperature steam for Butter and season vegetables delicate foods such as shrimp, after steaming. fish, seafood, and crème caramel. Steam long-grain rice using For best results, low temperature approximately 1-part rice to steam all delicate food items at a approximately 1-1/2-parts water temperature of 210°F (99°C) or seasoned liquid. or below. Steam durum wheat noodles in unperforated pans using 1-part noodles to 5-parts cold water. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 15 C O M B I N AT I O N M O D E The Combination mode will prove to be the most versatile and widely used mode the Combitherm oven has to offer. It will produce the best possible results on the widest variety of products — all within the shortest period of time. The unique control function of this mode enables the operator to roast or bake with a combination of steam and convection heat. In addition to shorter cooking times, this combination of steam and heat offers less product shrinkage and more moisture retention than obtained in a standard convection oven. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE COMBINATION MODE KEY. The last set values or oven control default setting for temperature will appear in the display. The last set time or oven control default setting for time will appear in the display. PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN. TO CHANGE THE SETTINGS SHOWN: PRESS THE TEMPERATURE KEY. The cooking temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the desired cooking temperature. • 212°F to 482°F (100°C to 250°C) TO COOK BY TIME: PRESS THE TIME KEY. The cooking time will appear highlighted within the oven display. P ress the up and down arrow keys or rotate the adjustment knob to select the time desired… or Set control for continuous operation by rotating the adjustment knob to the right until appears in the display. TO COOK BY INTERNAL PRODUCT TEMPERATURE: PRESS THE CORE TEMP KEY. The core temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the inter nal temperature desired and insert the product probe. PRESS THE START KEY TO BEGIN COOKING IN THE COMBINATION MODE. • The set cooking temperature will appear in the display. To adjust the set temperature, press the once and make corrections as required. To display the actual oven temperature, press the key key twice. • The remaining cooking time will appear in the display. To display the set time or to change the set values for time during operation, press the time key once and make corrections as required. • The actual internal product temperature will appear in the display. To display the set internal product temperature or to change the set values for core temperature during operation, press the key once and make corrections as required. When the cooking time has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 16 COMBINATION MODE CHEF OPERATING TIPS Th e C o m b i n a t i o n m o d e i n j e c t s t h e o p t i m u m a m o u n t o f s t e a m automatically. There is no need to select moisture levels. Foods do not dry out. Flavors are retained with no transfer of flavors when mixing product loads. Due to the automatic steam adjustment, the door can be opened at any time during a cooking operation. Be certain to observe the safety war ning when opening the oven door. The Combination mode is particularly efficient when used for baking, broiling, grilling, stewing, braising, and roasting. When using the Combination mode, cooking temperatures can be reduced 10- to 20-percent below the temperatures used for conventional cooking methods. Cooking time will be reduced approximately 40-percent when cooking at the same temperature used for convection oven cooking and up to 50- to 60-percent less time when cooking at the same temperature used for a conventional oven. Food browning in the Combither m begins at a cooking temperature of approximately 248°F (120°C). A higher cooking temperature results in heavier browning but also results in greater product weight loss. To achieve additional browning use the Moisture Vent Key or set Gold-n-Brown into the product procedure. Gold-n-Brown is particularly useful for adding color to high moisture products such as chicken and other poultry items or for additional browning of full loads and other moist products. The Combination mode provides even browning without the necessity to tur n the pans. For more even cooking, do not cook in pans deeper than 4-inches (100mm). S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 17 CONVECTION MODE The Convection mode operates with hot circulated air within a temperature range of 86° to 482°F (30° to 250°C). For many applications, better results may be achieved with the Combination mode; therefore, the operator may want to consider using the Convection mode on a more limited basis. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE CONVECTION MODE KEY. The last set values or oven control default setting for temperature will appear in the display. The last set time or oven control default setting for time will appear in the display. PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN. TO CHANGE THE SETTINGS SHOWN: PRESS THE TEMPERATURE KEY. The cooking temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the desired cooking temperature. • 86° to 482°F (30° to 250°C) TO COOK BY TIME: PRESS THE TIME KEY. The cooking time will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the time desired… or Set control for continuous operation by rotating the adjustment knob to the right until appears in the display. TO COOK BY INTERNAL PRODUCT TEMPERATURE: PRESS THE CORE TEMP KEY. The core temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the inter nal temperature desired and insert the product probe. PRESS THE START KEY TO BEGIN THE COOKING MODE. • The set cooking temperature will appear in the display. To adjust the set temperature, press the once and make corrections as required. To display the actual oven temperature, press the key key twice. • The remaining cooking time will appear in the display. To display the set time or to change the set values for time during operation, press the time key once and make corrections as required. • The actual internal product temperature will appear in the display. To display the set internal product temperature or to change the set values for core temperature during operation, press the key once and make corrections as required. When the cooking time has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. To check the length of time the product has been operating in the core temperature mode, press and hold the time key along with the core temperature key . The time period will appear at the top of the display. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 18 CONVECTION MODE CHEF OPERATING TIPS T h e C o n v e c t i o n M o d e c a n b e u s e d t o ro a s t o r b a k e p ro d u c t s n e e d i n g v e r y s h o r t c o o k i n g t i m e s o r f o r h i g h m o i s t u re p ro d u c t s s u c h a s mu f f i n s , c a k e s , a n d c o o k i e s , o r f o r b ro w n i n g t h e s u r f a c e o f t h e p ro d u c t . The Convection mode works best with foods containing little moisture or for very moist food which require a dryer finished product. For baking, preheat the Combither m at a temperature of 36°F to 54°F (20°C to 30°C) above the baking temperature required. Once preheated, reset the temperature as required. A higher cooking temperature results in heavier browning but also results in greater product weight loss. To achieve additional browning use the Moisture Vent Key or set the Browning Feature into the product procedure. To prevent the sur face of food from excessive drying, the fan will not engage if the inter nal oven temperature is above 212°F (100°C) and the set oven temperature is below 212°F (100°C). S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 19 RETHERM MODE The Retherm mode can be used to rethermalize (regenerate) portioned food on plates, trays, or platters within a short period of time. Steam is automatically injected into the oven compartment as required. Items are brought up to proper serving temperatures without dry edges or condensate forming on the plates. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE RETHERM MODE KEY. The last set values or the default settings will appear in the display. PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN. TO CHANGE THE SETTINGS SHOWN: PRESS THE TEMPERATURE KEY. The cooking temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the desired cooking temperature. • 248° to 320°F (120° to 180°C) TO COOK BY TIME: PRESS THE TIME KEY. The cooking time will appear highlighted within the oven display. P ress the up and down arrow keys or rotate the adjustment knob to select the time desired… or Set control for continuous operation by rotating the adjustment knob to the right until appears in the display. TO COOK BY INTERNAL PRODUCT TEMPERATURE: PRESS THE CORE TEMP KEY. The core temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the internal temperature desired and insert the product probe. PRESS THE START KEY TO BEGIN THE RETHERM MODE. • The set cooking temperature will appear in the display. To adjust the set temperature, press the key once and make corrections as required. To display the actual oven temperature, press the key twice. • The remaining cooking time will appear in the display. To display the set time or to change the set values for time during operation, press the time key once and make corrections as required. • The actual internal product temperature will appear in the display. To display the set internal product temperature or to change the set values for core temperature during operation, press the key once and make corrections as required. When the cooking time has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. To check the length of time the product has been operating in the core temperature mode, press and hold the time key along with the core temperature key . The time period will appear at the top of the display. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 20 RETHERM MODE CHEF OPERATING TIPS Since plated meals consist of dissimilar products, there are several important factors to consider in order to produce the finest results. Product density (compactness), thickness, quantity of product on each plate, and quantity of plates all relate to the length of time necessary to reheat. Again, experience is the best method to determine reheating time. Once the time has been determined and recorded for a specific meal, the results will be consistent for future reheating times. HELPFUL HINTS FOR REHEATING ON THE PLATE • ALL FOOD COMPONENTS ON THE PLATE SHOULD BE OF SIMILAR DENSITIES. • ALL FOOD COMPONENTS ON THE PLATE SHOULD BE SIMILAR IN THICKNESS. • ARRANGE ALL FOOD COMPONENTS EVENLY ON THE PLATE. • AVOID EXCESSIVE OVERLAPPING OF PRODUCT. • SAUCES MUST BE HEATED AND ADDED TO PRODUCT AFTER REHEATING. • A MIXED VARIETY OF MEALS CAN BE REHEATED AT THE SAME TIME. • À LA CARTE RETHERMALIZATION required. Follow internal temperature requirements À la carte rethermalization is designed to take a single plate from a refrigerated temperature to serving temperature for immediate service. Plates are prepared in advance, covered, and refrigerated. Preheat the Combitherm oven. Remove plate from refrigeration and place in the oven at 275°F (135°C) for an uncovered plate or 300°F (150°C) for a covered plate. Plates with meat components will take more time than plates containing all vegetable components. Follow internal temperature requirements for reheating and allow for override time. After reheating, remove the plate from the oven, add any sauces, garnish, and serve. This process can be repeated as required. for reheating and allow for override time. Remove For the most efficient continuous service, it is suggested that the Combitherm oven be dedicated to the rethermalization process during serving hours. • BANQUET RETHERMALIZATION Banquet rethermalization is designed for high volume, full or partial load (multiple plate) reheating. For maximum efficiency, it is essential that volume rethermalization be used in conjunction with the utilization of holding cabinets to keep rethermalized food at proper temperatures. Plates are assembled in advance, covered, and refrigerated or loaded on the roll-in cart and refrigerated. Preheat the Combitherm oven at 275°F (135°C) for uncovered plates or 300°F (150°C) for covered plates. Remove plates or the roll-in cart from refrigeration, load in the oven and set timer as the plates or roll-in cart from the Combitherm and roll into the companion holding cabinet. Relocate the holding cabinet to the banquet service area. • RETHERMALIZING PREFABRICATED AND VACUUM-PACKED FROZEN FOODS For bulk product rethermalization, completely defrost product bags in walk-in cooler. DO NOT REMOVE PRODUCT FROM THE BAG. Load thawed bags in preheated oven and rethermalize in the Low Temperature Steam mode until the required internal temperature is reached. Place rethermalized bags in a preheated holding cabinet set at 140° to 165°F (60° to 74°C) until ready for service. For large volume on-the-plate regeneration, defrost bags in walk-in cooler. Open bags and plate per menu requirements in a ( MAXIMUM ) 55°F (13°C) refrigerated room. Cover plates, place on Alto-Shaam roll-in cart (trolley), and roll into Combitherm oven preheated at 275°F (135°C). Regenerate in the Convection mode for 3 to 5 minutes. Switch to the Retherm mode for an additional 3 minutes or more if required. Transfer full trolley to a preheated holding cabinet set at 160°F (71°C) until ready for service. In the case of meat cooked to rare, set the cabinet at 140°F (60°C). PLATE COVERS MUST BE USED FOR ON-THE-PLATE REGENERATION. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 21 C O R E T E M P E R AT U R E P R O B E M O D E A s a n a l t e r n a t i v e t o t i m e r o p e r a t i o n , t h e C o r e Te m p e r a t u r e P r o b e m o d e c a n be used in conjunction with any program mode to cook by sensing internal product temperature. For a more accurate inter nal temperature, a specialized Combither m product probe senses temperature from four strategic points and displays a temperature average. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. INSERT THE PRODUCT PROBE. The probe must be inserted so that the tip is positioned in the center of the food mass. For liquid or semiliquid foods, suspend the probe in the center of the product and secure the probe wire to the container edge. SELECT AND PRESS THE REQUIRED COOKING PROGRAM. PRESS THE TEMPERATURE KEY. The cooking temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the desired cooking temperature within the temperature range of the cooking mode selected. PRESS THE CORE TEMP KEY. The core temperature will appear highlighted within the oven display. Press the up and down arrow keys or rotate the adjustment knob to select the internal product cutoff temperature. PRESS THE START KEY TO BEGIN THE COOKING MODE. • The actual internal product temperature will appear in the display. To display the set internal product temperature or to change the set values for core temperature during operation, press the key once and make corrections as required. When the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. To check the length of time the product has been operating in the core temperature mode, press and hold the time key along with the core temperature key . The time period will appear at the top of the display. CHEF OPERATING TIPS To pr event over-cooking, r emove pr oduct fr om the oven as soon as the r equir ed inter nal temperatur e is r eached in either the Cor e Temperatur e mode or the Cor e Temperatur e Delta-T mode. The Cor e Temperatur e mode should not be used for cooking thin pr oduct items. DO NOT USE THE PROBE WHEN COOKING THIN PRODUCTS. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 22 DELTA-T CORE TEMPERATURE COOKING This special program function cooks by internal product temperature with the use of the probe. Unlike the standard core temperature mode, however, the Delta-T oven temperature automatically increases in direct proportion to the internal temperature of the product. The Delta-T mode cooks with convection heat but provides a more gentle method of cooking. Browning occurs toward the end of the cooking cycle. PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate the adjustment knob until the Delta-T symbol is highlighted in the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate the Delta-T adjustment knob to select “ YES ” for the Delta-T function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. PRESS THE TEMPERATURE KEY. Press the up and down arrow keys or rotate the adjustment knob to select the desired Delta-T cooking temperature within the cooking temperature ranges shown below. PRESS THE CORE TEMP KEY. Press the up and down arrow keys or rotate the adjustment knob to select the inter nal product cutoff temperature within the temperature ranges shown below. PRODUCT DELTA-T TEMPERATURE CORE TEMPERATURE SETTING BEEF ROAST 122°F to 131°F (50°C to 55°C) 118°F to 136°F (48°C to 58°C) TENDERLOIN 122°F to 140°F (50°C to 60°C) 122°F to 140°F (50°C to 60°C) VEAL & LAMB 122°F to 158°F (50°C to 70°C) 172°F (78°C) PORK ROAST 122°F to 158°F (50°C to 70°C) 172°F (78°C) HAM 122°F to 140°F (50°C to 60°C) 172°F (78°C) THE OVEN WILL BEGIN THE DELTA-T CONVECTION COOKING MODE. The set Delta-T temperature will appear in the display. The actual internal product temperature will appear in the display. When the operator set inter nal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. DIFFERENCE BETWEEN COOKING COMPARTMENT TEMPERATURE AND INTERNAL PRODUCT TEMPERATURE. COOLING COMPARTMENT TEMPERATURE INTERNAL PRODUCT TEMPERATURE PRODUCT AND OVEN TEMPERATURE START INTERNAL PRDUCT TEMPERATURE REACHED S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 23 AUXILIARY FUNCTIONS CHEF FUNCTION KEY There are several auxiliary functions available through the use of the Chef Function Key. With the exception of the ability to add additional moisture to the oven compartment, that can only be used during the convection mode, all additional functions can be engaged at any time during any cooking mode. Chef Functions can also be programmed into a cooking procedure in oven models that include the deluxe programmable feature. At the end of a cooking mode or program, the oven automatically disengages all operator-set chef functions. These functions, however, do remain programmed and will reengage the next time the programmed procedure is used. P R E H E AT I N G THE PREHEATING FUNCTION IS ENGAGED IN THE CONVECTION MODE AT A FIXED TEMPERATURE AND TIME. BOTH THE TEMPERATURE AND TIME CAN BE ADJUSTED BY THE OPERATOR TO COMPLY WITH THE REQUIREMENTS OF THE INDIVIDUAL OPERATION. . SEE START UP PROCEDURES UNDER DEFAULT/MEMO SETTING PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the preheat symbol is highlighted in the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys Preheating or rotate the adjustment knob to select “ YES ” for the Preheat function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. THE OVEN WILL BEGIN THE PREHEAT FUNCTION. • The set preheat temperature will appear in the display. • The set preheat time will appear in the display. • The preheat symbol will appear in the display. When the set time and temperature has been reached, a buzzer will sound indicating the end of the preheat function. • To stop the buzzer, press the start/stop key or open the oven door. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 24 AUXILIARY FUNCTIONS CHEF FUNCTION KEY GOLD-n-BROWN The browning feature is an automatic function designed to regulate humidity for additional color to products as needed. This feature is particularly useful for adding color to high moisture products such as chicken and other poultry items or for additional browning of full loads and other moist products. In addition, this feature may be used to add texture to fried items such as French fries or breaded chicken. The browning feature can be used as required in both the Combination mode and Convection mode and can be programmed into a cooking procedure. Browning can be used for any product with a set cooking time more than 5-minutes. Depending on the type of product and product load, the browning feature may also slightly increase the set cooking time in order to fully complete the browning function. This is a standard operating condition of this feature. SELECT AND PRESS THE REQUIRED COOKING MODE AND SET MODE FUNCTIONS. PRESS THE CHEF FUNCTION KEY. R o t a t e t h e a d j u s t m e n t k n o b u n t i l t h e b ro w n i n g s y m b o l is highlighted within the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate the Brown adjustment knob to select “ YES ” for the browning function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. The browning indicator light will illuminate directly above the display. PRESS THE START KEY. The oven will engage the browning feature in the Combination or Convection mode set by the operator. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 25 AUXILIARY FUNCTIONS CHEF FUNCTION KEY C O O L - D O W N F E AT U R E The cool-down feature provides the operator with the ability to lower the temperature of the oven compartment at an accelerated pace. This function is useful when it is necessary to immediately change from a high temperature cooking function to a lower temperature function or to the steam program. This function is also useful to help cool the oven compartment in preparation for cleaning. CHEF OPERATING TIP When using the cool-down feature in preparation for cleaning, it is important to remember the temperature in the display indicates the air temperature inside the oven compartment and not the interior walls of the oven. Always make certain to allow the oven walls to cool to a minimum of 140°F (60°C) before spraying the compartment with oven cleaner. PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the cool-down symbol is highlighted in the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys Cool Down or rotate the adjustment knob to select “ YES ” for the cool-down function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. OPEN THE OVEN DOOR. The display will indicate the current temperature of the oven. ROTATE THE ADJUSTMENT KNOB TO SELECT A COOL-DOWN TEMPERATURE WITHIN A RANGE OF 212°F TO 68°F (100°C TO 20°C). THE FACTORY SET DEFAULT IS 122°F (50°C). The displayed temperature will continue to decline until it reaches the operator set temperature or factory default temperature if not selected by the operator. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 26 AUXILIARY FUNCTIONS CHEF FUNCTION KEY R E D U C E D FA N S P E E D The reduced fan speed function is useful for flow-sensitive products such as soufflês and meringues, or any products affected by a high velocity of air movement. SELECT AND PRESS THE REQUIRED COOKING MODE AND SET MODE FUNCTIONS. PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the fan symbol is highlighted in the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate Redc’d fan speed t h e a d j u s t m e n t k n o b t o s e l e c t “ YES ” f o r t h e r e d u c e d fan speed function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. The reduced fan speed indicator light will illuminate directly above the display. PRESS THE START KEY. The oven will start at a reduced fan speed in whatever cooking mode set by the operator. REDUCED POWER ELECTRIC MODELS ONLY The reduced power function can be used to reduce kitchen power peaks and energy consumption. SELECT AND PRESS THE REQUIRED COOKING MODE AND SET MODE FUNCTIONS. PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the reduced power symbol is highlighted in the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate Redc’d power t h e a d j u s t m e n t k n o b t o s e l e c t “ YES ” f o r t h e r e d u c e d power function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. PRESS THE START KEY. The oven will operate with reduced power in whatever cooking mode set by the operator. REDUCED POWER WILL RESULT IN LONGER COOKING TIMES. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 27 AUXILIARY FUNCTIONS CHEF FUNCTION KEY OPERATING ELEMENTS THAT CANNOT BE LOCKED KEY LOCK Except as noted, all of the mode keys and functions available on the Combitherm can be locked to prevent unauthorized or accidental changes to the settings. PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the key symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate the Key lock adjustment knob to select “ YES ” for the key lock function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING. The display will indicate PIN 000. ROTATE THE ADJUSTMENT KNOB TO PIN 000. ➯ PIN 000 is the factory set default to prevent an accidental lock or unlock of the control functions. PRESS THE CHEF FUNCTION KEY. THE DISPLAY WILL INDICATE “ALL KEYS UNLOCKED.” SELECT AND PRESS THE FIRST CONTROL FUNCTION TO BE LOCKED. The display will indicate “LOCK.” If the wrong key has been selected and locked in error, press the same control key again and “UNLOCK” will appear in the display. Continue in this manner until all desired control functions are locked. PRESS THE START KEY TO CONFIRM THE LOCKING FUNCTION. Whenever any control function has been locked, the key lock symbol will be illuminated within the display. Whenever any locked control function is pressed, the key lock symbol will flash and an audible signal will sound. KEY UNLOCK FOLLOW THE SAME PROCEDURE AS ABOVE UNTIL THE DISPLAY INDICATES “ALL KEYS UNLOCKED.” To u n l o c k t h e C h e f F u n c t i o n key. PRESS THE POWER KEY TO TURN THE OVEN OFF. PRESS THE CHEF FUNCTION KEY ROTATE THE ADJUSTMENT KNOB TO PIN 000 TO DISENGAGE ALL LOCK FUNCTIONS. PRESS THE CHEF FUNCTION KEY. THE DISPLAY WILL INDICATE “ALL KEYS UNLOCKED.” S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 28 AUXILIARY FUNCTIONS CHEF FUNCTION KEY STEAM INJECTION Additional steam can be added to the cooking compartment at any time when cooking in the convection mode. STEAM INJECTION CANNOT BE PROGRAMMED T H R O U G H T H E U S E O F T H E C O N T R O L K E Y PA D B U T CAN BE PROGRAMMED THROUGH OPTIONAL K I T C H E N M A N A G E M E N T S O F T WA R E . PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the steam injection symbol is highlighted within the display. PRESS THE CHEF FUNCTION KEY. Press the up and down arrow keys or rotate Add moisture the adjustment knob to select “ YES ” for the steam injection function. PRESS THE CHEF FUNCTION KEY TO ACTIVATE THE STEAM INJECTION FUNCTION. Additional steam is injected into the oven compartment for a time period of approximately 15 seconds. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 29 A D VA N C E F E AT U R E S MOISTURE VENT KEY This function provides the operator with the ability to eliminate excessive moisture from the oven compartment and the exterior surface of the foods being cooked. The moisture vent key is designed to operate in both the Combination mode and in the Convection cooking mode. On deluxe models, this function can also be made part of a cooking program. PRESS THE MOISTURE VENT KEY TO REDUCE STEAM AND MOISTURE LEVELS IN THE OVEN. The illuminated, blue portion of the Moisture Vent Key will go out. Open vent within the display. symbol will illuminate PRESS THE MOISTURE VENT KEY TO DISENGAGE THE MOISTURE VENT KEY FUNCTION. The blue portion of the Moisture Vent Key will illuminate. Open vent will extinguish. symbol within the display AT THE END OF A COOKING MODE, THE MOISTURE VENT KEY WILL AUTOMATICALLY DISENGAGE. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 30 A D VA N C E F E AT U R E S QUICK PROGRAMMING This quick programming function provides the operator with the ability to temporarily program a cooking procedure using multiple cooking modes, along with any auxiliary functions desired. Quick programming is particularly useful when cooking several batches of the same product back-to-back and will remain programmed until any new cooking mode key is pressed. PRESS AND HOLD THE FIRST REQUIRED COOKING MODE FOR A PERIOD OF 3-SECONDS. 01/01 will appear at the top of the display indicating STEP ONE. The temperature and time will appear directly below 01/01. PRESS THE TEMPERATURE KEY. The temperature will become highlighted within the display. ROTATE THE ADJUSTMENT KNOB TO SELECT THE REQUIRED TEMPERATURE. PRESS THE TIME KEY OR THE CORE TEMP KEY . The time or core temperature will become highlighted within the display. ROTATE THE ADJUSTMENT KNOB TO SELECT THE REQUIRED SETTING. PRESS AND HOLD THE SECOND REQUIRED COOKING MODE FOR A PERIOD OF 3-SECONDS. Follow the above directions until all steps have been entered. PRESS THE START KEY. The oven will begin cooking as programmed, automatically switching to each cooking mode entered. Each step entered will be indicated in the display as the oven cycles from mode to mode. E X A M P L E : 0 1 / 0 5 = S T E P O N E O F F I V E 02/05 = STEP TWO OF FIVE PRESS THE STOP KEY OR OPEN THE OVEN DOOR WHEN THE BUZZER SOUNDS AT THE END OF THE PROGRAM. THIS PROGRAM WILL REMAIN IN TEMPORARY MEMORY UNTIL ANY NEW COOKING MODE KEY IS PRESSED. QUICK PROGRAMMING CAN BE SAVED AND STORED IN MEMORY ON DELUXE MODELS ONLY. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 31 A D VA N C E F E AT U R E S Auxiliary Functions are made part of the control as an additional convenience to the operator, however, these functions are not necessary for the general operation of the Combitherm oven. START TIME PRESELECT Start time preselect provides the operator with the ability to program a fixed start time for oven operation. This function can be operated when cooking in any mode and is offered as a convenience to set an advanced start-up of the preheating function prior to the beginning of the production day. It can also be used for advance start-up for non-refrigerated items such as baked potatoes. To prevent food spoilage, this feature is not recommended for use with any raw product that requires temperature maintenance at or under 40°F (4°C). SELECT AND PRESS THE REQUIRED COOKING MODE. Set all mode functions such as temperature, time, core temperature, etc. The time entered in the initial operational mode setup will automatically be reflected on the start time preselect display. PRESS AND HOLD THE TIME KEY WHILE TURNING THE ADJUSTMENT KNOB. The display will indicate the current programmed settings in 24-hour (military) time. A.M. 01:00 00:48 OVEN START IN 48 MINUTES 10:23 11:23 STARTING TIME 10:23 A.M. ENDING TIME 11:23 A.M. 1-HOUR TOTAL COOKING TIME P.M. 1:00 1:00 1:00 13:00 2:00 2:00 2:00 14:00 3:00 3:00 3:00 15:00 4:00 4:00 4:00 16:00 5:00 5:00 5:00 17:00 6:00 6:00 6:00 18:00 7:00 7:00 7:00 19:00 8:00 8:00 8:00 20:00 9:00 9:00 9:00 21:00 10:00 10:00 10:00 22:00 11:00 11:00 11:00 23:00 12:00 12:00 12:00 24:00 The cooking time shown ( UPPER RIGHT ) indicates automatic oven operation for a period of one hour and appears only when cooking by time as entered in the initial operational mode setup. TO CHANGE THE STARTING TIME, PRESS AND HOLD THE TIME KEY AND TURN THE ADJUSTMENT KNOB. Rotate the adjustment knob to select the starting time desired. As the starting time is changed, the countdown for oven start ( LEFT ) and the ending time will automatically adjust accordingly. RELEASE THE TIME KEY AFTER THE REQUIRED STARTING TIME HAS BEEN SELECTED. The oven preselect start time display will immediately begin a countdown and will automatically start the oven when zero is reached. THIS FUNCTION CAN BE CANCELLED AT ANY TIME BY PRESSING THE START/STOP KEY S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 32 . PROGRAM FUNCTION COMBITHERM PROGRAMMING SYMBOLS RECORD COPY PROCEDURE INSERT STEP SAVE DELETE PROCEDURE APPEND STEP NEW PROCEDURE EDIT PROCEDURE DELETE STEP RECORDING A COOKING PROCEDURE Recording a cooking procedure provides the operator with the ability to test and verify all set operating parameters for the selected cooking modes and to make any necessary adjustments before saving and storing the procedure into memory. PRESS THE PROGRAM INSTALL AND EDIT KEY. Press the up and down arrow keys or ro t a t e t h e a d j u s t m e n t knob until the record symbol is highlighted in the display. PRESS THE PROGRAM INSTALL KEY TO CONFIRM THE SELECTION. The display will indicate “Recorder ON” and the record symbol will appear in the display. SELECT AND PRESS THE FIRST REQUIRED COOKING MODE. Set all cooking mode parameters for temperature, time, or internal product temperature plus auxiliary functions, and advanced features for the first step to be recorded. PRESS THE START KEY TO BEGIN THE FIRST RECORDED STEP. When the cooking time has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the end of the operating mode. • To stop the buzzer, press the start/stop key or open the oven door. SELECT AND PRESS THE SECOND REQUIRED COOKING MODE. Set all cooking mode parameters for temperature, time, or internal product temperature plus auxiliary functions, and advanced features for the second step to be recorded. PRESS THE START KEY TO BEGIN THE SECOND RECORDED STEP. Continue to record cooking modes as indicated for up to 20 steps. All cooking mode steps entered with “Recorder ON” will remain in memory, in the order entered, until the recorder is turned off. Recorded procedures will not be lost or affected by pressing the stop/start key . S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 33 PROGRAM FUNCTION TO CANCEL THE RECORDING FUNCTION WITH THE “Recorder ON” FUNCTION ACTIVATED, PRESS THE PROGRAM INSTALL AND EDIT KEY. Press the up and down arrow keys or r o t a t e t h e a d j u s t m e n t k n o b u n t i l t h e r e c o r d symbol is highlighted in the display. PRESS THE PROGRAM INSTALL KEY TO CONFIRM THE SELECTION. “Recorder OFF” will appear in the display and the oven can be operated normally. S AV I N G A R E C O R D E D C O O K I N G P R O C E D U R E When the previous cooking mode steps recorded produce satisfactory results, the recorded cooking procedure can be saved in memory for future use. PRESS THE PROGRAM INSTALL/EDIT KEY. Press the up and down arrow keys or rotate the adjustment knob until the save symbol is highlighted in the display. PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE SELECTION. Name the procedure. Rotate the adjustment knob to select the first letter of the procedure name. Press the up and down arrow key to select second letter position and rotate the adjustment knob to select the second A — — ————— letter. Continue this procedure for each subsequent alpha character, number, or symbol required. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE PROCEDURE NAME. The display will indicate the first unoccupied memory location within the programmed menu. If an alternate location is desired, rotate the adjustment knob to highlight another unoccupied, numbered memory location within the programmed menu. If an occupied location is selected, the existing procedure will be replaced by the new procedure. PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE PROCEDURE LOCATION. The display will indicate “please wait” and will return to the main menu display. The procedure has now been saved in the selected location and can be verified by rotating the adjustment knob to the saved procedure. To review the set operating parameters of any programmed procedure, press the programmed menu key and rotate the adjustment knob until the procedure to be reviewed is highlighted in the display. Press the chef function key. The cooking mode key for the first step will illuminate and the program mode, temperature, time, or core temperature will appear in the display. Rotate the adjustment knob to review each step. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 34 PROGRAM FUNCTION C R E AT I N G A N E W C O O K I N G P R O C E D U R E Cooking procedures for items prepared on a regular basis can be stored in memory. PRESS THE PROGRAM INSTALL/EDIT KEY. Press the up and down arrow keys or rotate the adjustment knob until the new procedure symbol is highlighted in the display. PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE SELECTION. All cooking mode keys will begin to flash and 01/01 will appear at the top of the display indicating the first cooking step. SELECT AND PRESS THE FIRST REQUIRED COOKING MODE. Set cooking mode functions for temperature and time, or internal core temperature. Add any auxiliary functions along with the moisture venting feature. Follow the basic operating instructions located in this booklet. Auxiliary functions can be added by pressing the chef function key after entering the operating mode parameters for each individual step and pressing the up and down arrow keys or rotating the adjustment knob to select the auxiliary function required. Press the chef function key to confirm the auxiliary function setting(s) for each step. PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE FIRST STEP. SELECT AND PRESS THE SECOND REQUIRED COOKING MODE. The display will indicate 02/02 indicating the second cooking mode step. Set all cooking mode functions as indicated above. PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE SECOND STEP. CONTINUE WITH THE ABOVE INSTRUCTIONS UNTIL ALL MODE STEPS AND FUNCTIONS ARE ENTERED. UP TO 20 COOKING MODE STEPS CAN BE SAVED IN A SINGLE PROCEDURE. AFTER ALL FUNCTIONS ARE ENTERED, PRESS THE PROGRAM INSTALL/EDIT KEY TO CONFIRM THE NEW PROCEDURE. Name the procedure. Rotate the adjustment knob to select the first letter of the procedure name. Press the up and down arrow key to select second letter position and rotate t h e a d j u s t m e n t k n o b t o s e l e c t t h e s e c o n d l e t t e r. C o n t i n u e f o r e a c h s u b s e q u e n t a l p h a c h a r a c t e r, n u m b e r, o r s y m b o l r e q u i r e d . A — — ————— PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE PROCEDURE NAME. Rotate the adjustment knob to highlight an unoccupied, numbered memory location within the programmed menu. If an occupied location is selected, the existing procedure will be replaced by the new procedure. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE PROGRAM INSTALLATION. The display will indicate “please wait” and will return to the main menu display. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 35 PROGRAM FUNCTION S TA R T A P R O G R A M M E D P R O C E D U R E PRESS THE PROGRAMMED MENU KEY. All stored procedures are listed alphabetically or numerically as selected by the operator in the initial oven start up procedures under the program index category. Rotate the adjustment knob until the required procedure is highlighted in the display. PRESS THE START KEY. To review the set pr ogrammed menu parameters of any programmed procedure, press the key and r otate the adjustment knob until the pr ocedur e to be r eviewed is highlighted in the display. Pr ess the chef function key. The cooking mode, temperatur e, time, or cor e temperatur e will appear in the display. COPY A PROGRAMMED PROCEDURE PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob until the procedure to be copied is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY. Press the up and down arrow keys or ro t a t e t h e a d j u s t m e n t k n o b u n t i l t h e procedure symbol is highlighted in the display. copy» PRESS THE PROGRAM INSTALL AND EDIT KEY. The display will select an empty, numbered location to insert the duplicate copy. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE DUPLICATION. The display will indicate “please wait” and will return to the main menu display. An exact duplicate of the selected procedure has been inserted in the new location under the same name as the original procedure. The duplicate can be renamed and edited as required. See additional editing instructions. DELETE A PROGRAMMED PROCEDURE PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob to highlight the procedure to be deleted. PRESS THE PROGRAM INSTALL/EDIT KEY. Press the up and down arrow keys or rotate the adjustment knob until the delete symbol is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SELECTION. The programmed procedure has been deleted from the menu. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 36 PROGRAM FUNCTION PROGRAM EDITING EDIT A PROGRAMMED PROCEDURE PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob until the procedure to be edited is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY. Press the up and down arrow keys or rotate the adjustment knob until the edit symbol is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SELECTION. The display will indicate the procedure name, cooking step number (EXAMPLE: “01/05” = STEP ONE OF FIVE), and operating parameters for temperature, time, or internal product temperature. To change the operating parameters for the first step: Press the cooking temperature key and rotate the adjustment knob. Press the time key and rotate the adjustment knob to change the cooking time. Press the core temperature key and rotate the adjustment knob to change the core temp. Auxiliary functions can be added by pressing the chef function key after entering the operating mode parameters for each individual step and pressing the up and down arrow keys or rotate the adjustment knob to select the auxiliary function required. Press the chef function key to confirm the auxiliary function setting. Press the down arrow key for each subsequent step of the procedure and make changes to each step as required. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SETTING. The display will indicate the same name as the original procedure, minus the last letter. Install the last letter by rotating the adjustment knob to the correct letter. Rename the procedure by pressing the down arrow key to clear the display. Press the up and down arrow key to select each individual alpha character, number, or symbol. Rotate the adjustment knob to select each subsequent letter. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE NAME. PRESS THE PROGRAM INSTALL AND EDIT KEY TO INSTALL THE PROGRAM. To review the set operating parameters of any programmed procedure, press the programmed menu key and rotate the adjustment knob until the procedure to be reviewed is highlighted in the display. Press the chef function key. The cooking mode key for the first step will illuminate and the program mode, temperature, time, or core temperature will appear in the display. Rotate the adjustment knob to review each step. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 37 PROGRAM FUNCTION PROGRAM EDITING INSERT A PROGRAMMED PROCEDURE STEP PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob until the procedure to add a new step is highlighted in the display. PRESS THE PROGRAM INSTALL KEY. Press the up and down arrow keys or rotate the adjustment knob until the edit procedure symbol is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SELECTION. The display will indicate the procedure name, cooking step number and operating parameters for temperature, time, or internal product temperature. Press the up or down arrow keys to select the step immediately following the position wanted for the new step. P R E S S T H E C H E F F U N C T I O N K E Y. A choice of editing symbols and auxiliary functions will appear in the display. Press the up and down arrow keys or rotate the adjustment knob to select the insert step symbol. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. Press the up and down arrow keys or rotate the Insert step ? adjustment knob to select “YES” for step insertion. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. All cooking modes will begin to flash. Select and press the cooking mode to be inserted. Press and set cooking temperature, time, or internal core temperature. Auxiliary functions can be added by pressing the chef function key after entering the operating mode parameters for each individual step and pressing the up and down arrow keys or rotating the adjustment knob to select the auxiliary function required. Press the chef function key to confirm the auxiliary function setting. Add the moisture vent key function if required. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E S E L E C T E D M O D E A N D F U N C T I O N S . T h e d i s p l a y w i l l i n d i c a t e t h e p r o c e d u r e n a m e m i n u s t h e l a s t l e t t e r. R e i n s e r t t h e l a s t letter with the adjustment knob or use t h e u p a n d d o w n a r r o w k e y s i n conjunction with the adjustment knob to rename the procedure. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E N A M E . P R E S S T H E I N S TA L L / E D I T K E Y T O I N S E R T T H E N E W S T E P I N T O T H E P R O C E D U R E . The display will indicate “please wait” and will return to the main menu display. T O V E R I F Y T H E I N S E R T E D S T E P, P R E S S T H E C H E F F U N C T I O N K E Y W H I L E T H E A LT E R E D P R O C E D U R E I S H I G H L I G H T E D . R O TAT E T H E A D J U S T M E N T K N O B T O R E V I E W A L L S E T PA R A M E T E R S . S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 38 PROGRAM FUNCTION PROGRAM EDITING APPEND A PROGRAMMED PROCEDURE STEP PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob until the procedure to include a final step is highlighted in the display. PRESS THE PROGRAM INSTALL KEY. Press the up and down arrow keys or rotate the adjustment knob until the edit procedure symbol is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SELECTION. The display will indicate the procedure name, cooking step number and operating parameters for temperature, time, or inter nal product temperature. Press the up or down arrow keys to select the last step of the procedure. P R E S S T H E C H E F F U N C T I O N K E Y. A choice of editing symbols and auxiliary functions will appear in the display. Press the up and down arrow keys or rotate the adjustment knob to select the append step symbol. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. Press the up and down arrow keys or rotate Append step ? the adjustment knob to select “YES” for append step. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. All cooking modes will begin to flash. Select and press the cooking mode to be appended. Press and set cooking temperature, time, or internal core temperature. Auxiliary functions can be added by pressing the chef function key after entering the operating mode parameters for each individual step and pressing the up and down arrow keys or rotating the adjustment knob to select the auxiliary function required. Press the chef function key to confirm the auxiliary function setting. Add the moisture vent key function if required. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E S E L E C T E D M O D E A N D F U N C T I O N S . T h e d i s p l a y w i l l i n d i c a t e t h e p r o c e d u r e n a m e m i n u s t h e l a s t l e t t e r. R e i n s e r t t h e l a s t letter with the adjustment knob or use t h e u p a n d d o w n a r r o w k e y s i n conjunction with the adjustment knob to rename the procedure. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E N A M E . P R E S S T H E I N S TA L L / E D I T K E Y T O I N S E R T T H E N E W S T E P I N T O T H E P R O C E D U R E . The display will indicate “please wait” and will return to the main menu display. TO VERIFY THE INSERTED STEP, PRESS THE CHEF FUNCTION KEY WHILE THE ALTERED PROCEDURE IS HIGHLIGHTED. ROTATE THE ADJUSTMENT KNOB TO REVIEW ALL SET PARAMETERS. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 39 PROGRAM FUNCTION PROGRAM EDITING DELETE A PROGRAMMED STEP PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob to highlight the procedure in which a step is to be deleted. PRESS THE PROGRAM INSTALL KEY. Press the up and down arrow keys or rotate the adjustment knob until the edit procedure symbol is highlighted in the display. PRESS THE PROGRAM INSTALL AND EDIT KEY TO CONFIRM THE SELECTION. The display will indicate the procedure name, cooking step number and operating parameters for temperature, time, or inter nal product temperature. Press the up or down arrow keys to select the step to be deleted. P R E S S T H E C H E F F U N C T I O N K E Y. A choice of editing symbols and auxiliary functions will appear in the display. Press the up and down arrow keys or rotate the adjustment knob to select the delete step symbol. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. Press the up and down arrow keys or rotate Delete step ? the adjustment knob to select “YES” for step deletion. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SELECTION. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E D E L E T I O N . The display will indicate the name of the procedure as originally programmed. P R E S S T H E I N S TA L L / E D I T K E Y T O C O N F I R M T H E N A M E . P R E S S T H E I N S TA L L / E D I T K E Y T O R E M O V E T H E D E L E T E D S T E P F R O M T H E P R O G R A M . The display will indicate “please wait” and will retur n to the main menu display. TO VERIFY THE STEP HAS BEEN DELETED, PRESS THE CHEF FUNCTION KEY WHILE THE DELETE STEP PROCEDURE IS HIGHLIGHTED. ROTATE THE ADJUSTMENT KNOB TO REVIEW ALL SET PARAMETERS. S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 40 PROGRAM FUNCTION RAPID-TOUCH™ KEYS Rapid-Touch programmed quick-keys provide the operator with the ability to assign procedures used on a regular basis to individual keys that can be identified with a picture graphic resembling the product. Various picture graphics are included with the Combitherm oven. TO ASSIGN A PROCEDURE TO A PROGRAM RAPID-TOUCH KEY PRESS THE PROGRAMMED MENU KEY. Rotate the adjustment knob to highlight the procedure to be assigned to Rapid-Touch operation. PRESS AND HOLD THE SELECTED RAPID TOUCH KEY FOR A PERIOD OF THREE SECONDS. When the buzzer sounds, the programmed procedure h a s b e e n a s s i g n e d t o t h e R a p i d - To u c h k e y s e l e c t e d . I d e n t i f y t h e R a p i d - To u c h k e y w i t h a c o r r e s p o n d i n g p i c t u r e g r a p h i c . T O O P E R AT E A P R O C E D U R E O N R A P I D - T O U C H K E Y PRESS AN ASSIGNED RAPID TOUCH KEY. The indicator light to the upper right of the selected Rapid-Touch key will illuminate. The oven will begin operating as programmed with the display indicating the name of the procedure, the step number, the total number of steps, and the temperature, time, or internal product temperature. 01/02 ROAST CHICKEN When the cooking time for all programmed modes has expired or the operator set internal temperature has been reached, a buzzer will sound indicating the completion of the program. • To stop the buzzer, press the start/stop key or open the oven door. O n c e a R a p i d - To u c h k e y i s p r o g r a m m e d w i t h a p r o c e d u r e , c a r e s h o u l d b e t a k e n n o t t o press and hold the programmed key with another procedure highlighted in the display by means of the programmed menu key. The highlighted procedure will override the R a p i d - To u c h k e y p r o g r a m a n d t h e p i c t u r e g r a p h i c w i l l n o l o n g e r m a t c h t h e p r o c e d u r e . S E C T I O N 1 – C O N T R O L PA N E L I D E N T I F I C AT I O N • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 41 PREVENTIVE MAINTENANCE PREVENTIVE MAINTENANCE Preventive Maintenance Cleaning ................................................... 43 AutoClean Procedures................................................................... 47 Return to Main Table of Contents .................................................. 3 SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 42 PREVENTIVE MAINTENANCE Preventive Maintenance In addition to the routine cleaning and maintenance procedures, there are several additional steps to be taken for both sanitation purposes and to keep the oven running at top operating efficiency. These additional safeguards will help prevent inconvenient down time and costly repairs. ● D O N O T D I S P O S E O F G R E A S E , FAT, O R S O L I D WA S T E D O W N T H E O V E N D R A I N . Fats and solids will eventually coagulate in the drain system, causing blockage. Consequently, water will back-up into the condenser and interior oven compartment, resulting in an oven that is inoperable. ● MAKE CERTAIN THE DRAIN SCREEN IS ALWAYS IN PLACE. REMOVE ANY SOLID WASTE MATERIAL FROM THE DRAIN SCREEN BEFORE IT ENTERS THE DRAIN SYSTEM. The routine removal of solids from the drain screen will help prevent blockage. ● U S E T H E A U T H O R I Z E D C O M B I T H E R M O V E N C L E A N E R O N LY . T h e u s e o f u n a u t h o r i z e d cleaning agents may discolor or har m the interior sur faces of the oven. ● TO PROLONG THE LIFE OF THE DOOR GASKET, CLEAN THIS ITEM DAILY. T h e a c i d s a n d related compounds found in fat, particularly chicken fat, will weaken the composition of the gasket unless cleaned on a daily basis. Wipe with a hot soapy cloth. ● T O A D D I T I O N A L LY P R O T E C T G A S K E T L I F E , A L L O W O V E N D O O R T O R E M A I N S L I G H T LY O P E N AT T H E E N D O F T H E P R O D U C T I O N D AY. A n o p e n d o o r w i l l r e l i e v e the pressure on the door gasket. ● ROUTINELY CLEAN DOOR HINGES. Open oven door to relieve tension. Clean all parts of the hinge. SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 43 PREVENTIVE MAINTENANCE P R O T E C T I N G S TA I N L E S S S T E E L S U R FA C E S CLEANING AGENTS It is important to guard against corrosion in the care of stainless steel surfaces. Harsh, corrosive, or inappropriate chemicals can completely destroy the protective surface layer of stainless steel. Abrasive pads, steel wool, or metal implements will abrade surfaces causing damage to this protective coating and will eventually result in areas of corrosion. Even water, particularly hard water that contains high to moderate concentrations of chloride, will cause oxidation and pitting that result in rust and corrosion. In addition, many acidic foods spilled and left to remain on metal surfaces are contributing factors that will corrode surfaces. Proper cleaning agents, materials, and methods are vital to maintaining the appearance and life of this appliance. Spilled foods should be removed and the area wiped as soon as possible but at the very least, a minimum of once a day. Always thoroughly rinse surfaces after using a cleaning agent and wipe standing water as quickly as possible after rinsing. USE AUTHORIZED COMBITHERM LIQUID OVEN CLEANER ONLY Cleaning agents must be chloride-free compounds and must not contain quaternary salts. Never use hydrochloric acid (muriatic acid) on stainless steel surfaces. Unauthorized cleaning agents may discolor or harm interior surfaces of the oven. Read and understand label and material safety data sheet before using the oven cleaner. C L E A N I N G M AT E R I A L S The cleaning function can usually be accomplished with the proper cleaning agent and a soft, clean cloth. When more aggressive methods must be employed, use a non-abrasive scouring pad on difficult areas and make certain to scrub with the visible grain of surface metal to avoid surface scratches. Never use wire brushes, metal scouring pads, or scrapers to remove food residue. TO PROTECT STAINLESS STEEL SURFACES, COMPLETELY AVOID THE USE OF ABRASIVE CLEANING COMPOUNDS, CHLORIDE BASED CLEANERS, OR CLEANERS CONTAINING QUATERNARY SALTS. NEVER USE HYDROCHLORIC ACID (MURIATIC ACID) ON STAINLESS STEEL. NEVER USE WIRE BRUSHES, METAL SCOURING PADS OR SCRAPERS. SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 44 PREVENTIVE MAINTENANCE Establishing a routine cleaning and maintenance schedule will help keep the Combitherm oven running at top operating efficiency and is an absolutely essential part of a comprehensive sanitation program. Good equipment maintained and kept clean works better and lasts longer. PROTECT YOUR INVESTMENT. D A I LY G A S K E T C L E A N I N G D A I LY O V E N C L E A N I N G It is important to prolong the life of the oven gasket by To be performed at the end of the production day or cleaning this item on a daily basis. Routine cleaning will help between production shifts. protect the composition of the gasket from deterioration caused by acidic foods. M O N T H LY C L E A N I N G • Water Intake Filter 1. After allowing the oven to cool, wipe the gasket and • Drain Pipe crevices with warm detergent solution and a clean cloth. • Spray Head 2. Remve detergent by wiping the gasket and crevices with clean rinse water and a cloth. Do not remove or place gasket in the dishwasher. PROBE USAGE AND CLEANING After each use of the CORE TEMP mode, wipe the probe tip with a clean paper towel to remove food debris. Follow by wiping the probe with a disposable alcohol pad. Return the probe to the proper door bracket position. PROBE CLEANING PROCEDURES 1. Remove all food soil from probe between loads and at the end of each production shift. Wipe the entire probe, probe cable assembly, and probe holding bracket with warm detergent solution and a clean cloth. 2. Remove detergent by wiping the probe, cable, and bracket with clean rinse water and a cloth. 3. Wipe probe and probe bracket with disposable alcohol pad or sanitizing solution recommended for food contact surfaces. 4. Allow probe and cable to air dry in the probe holding bracket. 5. Wipe the probe with a disposable alcohol pad prior to inserting in a new food product. ALLOW THE OVEN TO COOL BELOW 280°F (140°C) BEFORE STARTING THE AUTO-CLEAN FUNCTION. NOTE: The temperature in the display indicates the air temperature inside the oven compartment and not the interior walls of the oven. Always make certain to allow the oven walls to cool to a minimum of 280°F (140°C) before cleaning. SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 45 PREVENTIVE MAINTENANCE USE AUTHORIZED COMBITHERM LIQUID OVEN CLEANER ONLY. RUBBER GLOVES AND PROTECTIVE EYE WEAR MUST BE WORN WHEN USING THE OVEN CLEANER. Unauthorized cleaning agents may discolor or harm interior surfaces of the oven. Read and understand label and material safety data sheet before using the oven cleaner. Causes severe burns. Do not get in eyes, on skin, or on clothing. Do not wear contacts. Harmful or fatal if swallowed. Do not breathe mist. Use in well ventilated area. Keep out of reach of children. Do not use on aluminum. Do not mix with anything but water. THOROUGHLY RINSE EMPTY CONTAINER WITH WATER AND SAFELY DISCARD . WATER SUPPLY MUST BE OPEN WHEN CLEANING PROGRAM IS ACTIVATED. VERIFY WATER SUPPLY BEFORE STARTING CLEANING PROGRAM. STEAM BYPASS PORT OVEN LIGHT FAN FAN GUARD COVER PLATE OVEN DRAIN SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 46 PREVENTIVE MAINTENANCE A U T O C L E A N ™ A U T O M AT I C C L E A N I N G P R O G R A M Remove all food scraps and residue from the o v e n d r a i n . Remove shelves, side racks and pans Cleaning in Process and wash separately. Wi t h t h e o v e n p o w e r on PRESS THE CHEF FUNCTION KEY. Rotate the adjustment knob until the AutoClean symbol is highlighted in the display. After 10 minutes, a buzzer will sound and Display will show “Open Door/Spray Cleaner”. Open Door / Spray Cleaner PRESS THE CHEF FUNCTION KEY. THE CONTROL WILL ASK FOR VERIFICATION OF THE FOLLOWING ITEMS BEFORE THE FUNCTION CAN BE STARTED : Water turned on? Wearing safety glasses and rubber gloves, open door, remove the drain screen and spray Combitherm liquid oven cleaner diretly into the drain pipe. Generously spray the interior oven surfaces with an even coat of Combitherm Liquid Oven Cleaner. Spray all built-in components. Verify water is supplied to the oven and press the up L and down M arrow keys or rotate the adjustment knob to select “ YES ”. PRESS THE CHEF FUNCTION KEY. Start AutoClean? Insert the Combitherm liquid oven cleaner spray nozzle directly into the Steam Bypass Port and spray several times. ON A WEEKLY BASIS - Loosen the thumb screw(s) and swing Fan Guard Cover Plate toward the back of the oven. Spray the back of the Fan Guard Cover Plate, the oven fan, and the left-hand side of the oven. When oven door is closed again cleaning cycle will resume for the remaining 40 minutes. Cleaning Finished Press the up L and down M arrow keys or rotate the adjustment knob to select “ YES ” for the automatic cleaning function. PRESS THE CHEF FUNCTION KEY TO CONFIRM THE SETTING AND START THE CLEANING PROGRAM. THE OVEN WILL BEGIN A 50 MINUTE CLEANING AND RINSE CYCLE. At the end of the cleaning cycle, the oven will beep and the display will indicate the end of the cycle. Press the start / stop key to stop the buzzer and return the oven to normal operation. DISPLAY WILL COUNT DOWN INDICATING TIME REMAINING IN THE CLEANING CYCLE. L E AV E D O O R S L I G H T LY O P E N A F T E R C L E A N I N G SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 47 PREVENTIVE MAINTENANCE A U T O C L E A N ™ A U T O M AT I C C L E A N I N G P R O G R A M (CONTINUED) FORCED RINSING MODE: If the cleaning cycle is stopped during cleaning, the unit will immediately go into a Forced Rinsing mode for 5 minutes. If power is lost or the unit is turned off during cleaning, the unit will go into a Forced Rinsing mode when power is restored, or unit is turned back on. Forced Rinsing Once the Forced Rinsing is complete “Cleaning Interrupted” will appear on the display. Cleaning Interrupted Press the start/stop key to return the oven to normal operation. NOTE: IF THE DOOR IS OPENED DURING THE CLEANING PROCESS, “CLOSE THE DOOR!” W I L L A P P E A R I N T H E D I S P L AY. L E AV E D O O R S L I G H T LY O P E N A F T E R C L E A N I N G SECTION 2 – PREVENTIVE MAINTENANCE • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 48 3 SERVICE MODE AND ERROR CODES Service Mode Instructions .............................................................. 50 Reboot the Control ....................................................................... 51 Error Codes.................................................................................. 52 Emergency Operation ................................................................... 55 Return to Main Table of Contents .................................................. 3 SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 49 SERVICE MODE AND ERROR CODES SERVICE MODE INSTRUCTIONS The service mode is accessible on units with Standard or Deluxe controls only. TO ACCESS THE SERVICE MODE PRESS THE ON/OFF POWER KEY TO THE ON POSITION. PRESS THE COOK TEMP, TIME AND CORE TEMP KEYS SIMULTANEOUSLY. The service mode will appear in the display. or If the unit does not have a core temperature key, an additional black button is located on the back of the display board. Remove the left-hand side of the unit or the front control panel to access it. TO NAVIGATE IN THE SERVICE MODE R-Number Menu The service mode has three menus and will open in the R-Number Menu. This menu is read-only and displays the current temperature (in Celsius), the status of all other sensors and switches, and the most recent errors and their time of occurrence. Rotate the adjustment knob to view the status values. To view the last 10 errors that have occurred: • Rotate the adjustment knob until the parameter R38 shows in the display. • Press the up L arrow to display the last 10 errors. • Press the Chef Function it occurred. key to toggle between the error description and the date and time • Press the down M arrow to return to the parameter R38. • Rotate the adjustment knob to scroll to another parameter. C-Number Menu The second menu, the C-Number Menu, is where all sensor values are set. These values are changeable, but should only be changed under the direction of an Alto-Shaam factory representative. Unauthorized changes can cause damage. Rotate the adjustment knob to view these values. D-Number Menu The third menu, the D-Number Menu, is the diagnostic menu. Here all components can be activated for 10 seconds at a time to aid in troubleshooting the oven. To test a component: • Rotate the adjustment knob until the desired parameter (D07 Fan [0], D12 Oven Lamp [0], etc.) shows in the display. • Press the up L arrow to highlight the value [0]. • Rotate the adjustment knob to change [0] to [1]. The component will activate for 10 seconds and then the display will return to [0]. • Press the down M arrow to return to the parameter without the value highlighted. • Rotate the adjustment knob to scroll to another parameter. SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 50 SERVICE MODE AND ERROR CODES TO EXIT THE SERVICE MODE PRESS THE START KEY TO EXIT FROM THE SERVICE MODE TO THE NORMAL TIME DISPLAY. MOST COMMONLY USED PARAMETERS R-Numbers C-Numbers D-Numbers R01 CTC-1 Multi-Point Product Probe C01 Nom Standby Temp D01 Delete Errors R02 CTC-2 Multi-Point Product Probe C02 Nom Cond Temp D02 Key Lock R03 CTC-3 Multi-Point Product Probe C03 Fan on Cycle D03 Delete All Programs R04 CTC-4 Multi-Point Product Probe C04 Fan off Cycle D04 Self Test BM (Display Board) R05 Oven Temp Sensor (N-6) C05 Cont Steam D06 Red Fan Speed R06 Bypass Probe (B-5) C06 Init D07 Fan R07 Condensate Probe (B-3) C07 Humidity S D08 Steam Gen 1 R08 Steam Generator (B-4) C08 Humidity SS D09 Convection 1 R09 STB Probe (N-8 Immersion Safety Probe) C09 Humidity Quick D10 Steam Gen 2 R10 PT-100 Single-Point Product Probe C10 Humidity Reg D11 Convection 2 R13 Electronic Temp (Control Temperature) C11 Humidity Reg g D12 Oven Lamp R20 Lower Level-Water Level Probe * C12 Bitfield 1 D13 Cond Cooling R21 Upper Level-Water Level Probe * C13 Bitfield 2 D14 Steam Gen Fill R23 Door Switch * C19 PIN D28 Venting Motor R29 Software BM (Display Board) C23 Time Browning D30 Smoking Element R30 Software SM (Relay Board) C24 Door Venting D31 Solenoid Valve R31 Software KM (HACCP Board) R38 Errors (see R-Number instructions) * For these parameters, [0] = Not Satisfied, [1] = Satisfied. TO REBOOT THE CONTROL Rebooting the control can sometimes fix an error code or a control that is frozen or confused: PRESS AND HOLD THE ON/OFF POWER KEY FOR FIVE SECONDS. The display will flash and show ST5000 for 20 seconds, followed by “Please Wait”, and then will return to the time and date. PRESS THE ON/OFF POWER KEY MOMENTARILY. The unit will turn on and can be operated normally. SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 51 SERVICE MODE AND ERROR CODES ERROR CODES When the oven malfunctions, an error code will appear in the display. PRESS THE START KEY TO ACKNOWLEDGE THE ERROR. The keys that begin to flash represent operational modes that are still usable. Refer to Emergency Operation. When the oven fault is corrected, the Combitherm will return to normal Operation. ERROR CODES AND REASONS Error Code E01 Display Shows Low Water When does the error occur? Possible reason ES units only: • Activated if running in any mode and the water level drops below the low level sensor. • Water supply is shut off. • Activated if in Standby mode and the water level drops below the low level sensor for 3 minutes. • Drain pump is not sealing. • Low water pressure. • Steam generator drain cap is off or loose. • Faulty or scaled water level probe. • Faulty or plugged solenoid valve assembly. • Wiring or connection issue. E02 Control Temp High Activated if the temperature of the electrical control is higher than 176°F (80°C) for 20 seconds. • Cooling fan not operating. • Unit is next to a heat producing source (there is less than 20" clearance for the control side). • Exhaust hood is not operating (if applicable). E03 Fan Malfunction Activated if the motor protection switch is tripped. • Motor rotation is backwards. • Incorrect power to the unit. • Connection problem at X-7 plug on the relay board pins 3-4. E04 Aux Fan Fault Auxiliary fan malfunction. E11 Excess Oven Temp Activated if the oven cavity temperature is higher than 572°F (300°C) for 25 seconds. • Control setup programming error. • Contact factory. • Connection issue with oven temperature sensor. • Convection element contactor is stuck. • Faulty oven temperature sensor. E13 Excess Steam Gen Temp ES units only: Activated if the temperature of the steam generator probe (B-4) is higher than 248°F (120°C) for 26 seconds. • Problem with water level probe. • Scale build-up inside steam generator. • Steam element contactor is stuck. • Connection issue with B-4 probe. • Faulty B-4 probe. SECTION 3 – SERVICE MODE ESi units only: • Activated if the position of personality jumper on X-3 is incorrect. • Jumper on X-3 is improperly positioned. Should be between 2-8 or, if it is a smoker, between 2-9. • Activated if the position of B-4 jumper is incorrect. • Jumper on X-6a is improperly positioned. Should be between 13-14. AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 52 SERVICE MODE AND ERROR CODES ERROR CODES AND REASONS (continued) Error Code E15 Display Shows Excess Condensate Temp When does the error occur? Activated if the temperature of the condensate probe (B-3) is higher than 212°F (100°C) for 26 seconds. Possible reason • Water supply is shut off. • Faulty or plugged solenoid valve (Y-2). • Connection issue at B-3 probe. • Faulty B-3 probe. E21 E22 Oven Probe Fault Core Temp Probe Fault Activated if oven temperature probe (N-6) is interrupted. • Connection issue at N-6 probe. Activated if cooking in Core Temp mode and the CTC sensor measures an excessive temperature. • CTC sensor is damaged. • Faulty N-6 probe. • 4-point CTC sensor is activated, but 1-point CTC sensor is installed. • Cable connection of CTC sensor is damaged. • Hardware problem on control unit (SM). E23 E24 E25 E26 E27 Steam Gen Probe Fault ES units only: Activated if the steam generator probe (B-4) is interrupted. • Connection issue at B-4 probe. ESi units only: • Activated if the position of personality jumper on X-3 is incorrect. • Jumper on X-3 is improperly positioned. Should be between 2-8 or, if it is a smoker, between 2-9. • Activated if the position of B-4 jumper is incorrect. • Jumper on X-6a is improperly positioned. Should be between 13-14. Activated if the bypass probe (B-5) is interrupted. • Connection issue at B-5 probe. Activated if the condensate probe (B-3) is interrupted. • Connection issue at B-3 probe. Steam Gen Safety Probe Fault Activated if the steam generator safety probe (N-8) is interrupted. • Connection issue at N-8 probe. Excess Steam Gen Safety Temp ES units only: Activated if the steam generator safety probe (N-8) measures a temperature in excess of 266°F (130°C). • Problem with water level probe. Bypass Probe Fault Condensate Probe Fault • Faulty B-4 probe. • Faulty B-5 probe. • Faulty B-3 probe. • Faulty N-8 probe. • Scale build-up inside steam generator. • Steam element contactor is stuck. • Connection issue with N-8 probe. • Faulty N-8 probe. E29 Probe Short to Frame SECTION 3 – SERVICE MODE ESi units only: • Activated if the position of N-8 jumper is incorrect. • Jumper on X-6b is improperly positioned. Should be between 1-2. Activated if one or more of the temperature sensors were connected to GND for 5 seconds. • Connection issue at any of the temperature sensors. AND • Temperature sensor shorted to ground/faulty. ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 53 SERVICE MODE AND ERROR CODES ERROR CODES AND REASONS (continued) Error Code E34 Display Shows DE (Drain) Pump Failure When does the error occur? Possible reason Activated if water level did not drop below • Problem with water level probe. the low level sensor in the generator during a • Scale build-up inside steam generator. steam generator flush. • Scale plugging drain pump. • Faulty drain pump. E35 Venting Error Activated when vent switch reads open (vent closed) when it should be closed (vent open), or when it reads closed (vent open) when it should be open (vent closed). • Alignment issue between motor cam and micro switch. • Connection issue at micro switch. • Connection issue at control. • Faulty vent switch. • Faulty vent motor. E36 Steam Temp High Activated when oven temperature probe (N-6) • Water supply is shut off while unit is running measures a temperature in excess of 395°F in Steam or Combi mode. (202°C) when running in Steam or Combi • Plugged or faulty Y-1 solenoid. mode. • Obstruction between Y-01 solenoid and water inlet. E80 ID Error Control is unable to detect whether unit is gas or electric. E81 Program Memory Error • Connection issue at X-3 personality jumper. • Faulty control. Temperature value or time value of a program • Program was generated in °C and control step is not allowed. has been switched to °F. • Program was generated in °F and control has been switched to °C. E82 WP Error Temperature value or time value of current cooking algorithm is out of allowed array. • Delete program and reinstall. E83 Algo Error Cooking algorithm sent by operating module (BM) is unknown to control unit (SM). • Software versions of control unit and operating module are incompatible. • Software error in operating module. E96 Connection Error No or bad communication between control unit (SM) and operating module (BM). • Connection issue at ribbon cable on display or relay board. • Faulty ribbon cable. • Software versions of control unit and operating module are incompatible. SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 54 SERVICE MODE AND ERROR CODES E M E R G E N C Y O P E R AT I O N In the event of an error code, the Combitherm may be operated on a limited basis. Error conditions under which continued operation can be conducted are indicated by “Yes” in the chart shown below. When the oven malfunctions, an error code will appear in the display. PRESS THE START KEY TO ACKNOWLEDGE THE ERROR. The keys that begin to flash represent operational modes that are still usable. SELECT AND PRESS ONE OF THE COOKING MODES INDICATED. The oven control will only respond to the mode keys that are flashing. SET THE OVEN CONTROLS AS IF OPERATING UNDER NORMAL CIRCUMSTANCES. Depending on the error code involved, oven function, such as temperature range, may be limited. PRESS THE START KEY TO BEGIN THE COOKING PROCESS. PRESS THE START KEY WHEN THE TIMER EXPIRES. When the oven fault is corrected, the Combitherm will return to normal Operation. CONTINUED OPERATION UNDER ERROR CONDITIONS Error Code Display Shows ES ESi Steam Mode Combination Mode Convection Mode Retherm Mode E01 Low Water Yes N/A No No To 365°F No E02 Control Temp High Yes Yes Yes To 284°F To 284°F To 284°F E03 Fan Malfunction N/A N/A — — — — E04 Aux Fan Fault Yes Yes Yes To 284°F To 284°F To 284°F E11 Excess Oven Temp Yes Yes No No No No E13 Excess Steam Gen Temp Yes N/A No No No No E15 Excess Condensate Temp Yes Yes No No To 356°F No E21 Oven Probe Fault Yes Yes 212°F only No No No E22 Core Temp Probe Fault Yes Yes Yes Yes Yes Yes E23 Steam Gen Probe Fault Yes N/A Yes Yes Yes Yes E24 Bypass Probe Fault Yes Yes To 210°F No Yes No E25 Condensate Probe Fault Yes Yes Yes To 356°F To 356°F To 320°F E26 Steam Gen Safety Probe Fault Yes N/A Yes Yes Yes Yes E27 Excess Steam Gen Safety Temp Yes N/A No No No No E29 Probe Short to Frame Yes Yes No No No No E34 DE (Drain) Pump Failure Yes N/A Yes Yes Yes Yes E35 Venting Error Yes Yes Yes Yes Yes Yes E36 Steam Temp High N/A Yes No No Yes No E80 ID Error Yes Yes Yes Yes Yes Yes E81 Program Memory Error Yes Yes Yes Yes Yes Yes E82 WP Error Yes Yes Yes Yes Yes Yes E83 Algo Error Yes Yes Yes Yes Yes Yes E96 Connection Error Yes Yes No No No No SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 55 SERVICE MODE AND ERROR CODES NOTES SECTION 3 – SERVICE MODE AND ERROR CODES • COMBITHERM ELECTRIC TECHNICAL SERVICE MANUAL • 56 4 TROUBLESHOOTING TREES ESi Units: K-77 Safety Contactor Does Not Pull-In at Power-Up (380-415V Units Only) ............................................................. Unit Dead — No Display and No Operation ............................... Unit Does Not Run When Start Is Pressed .................................. No Steam Production in Steam Mode ........................................ No Heat in Convection Mode .................................................... No Steam Production in Combination Mode ............................... No Convection Heat in Combination Mode ................................ No Smoke Production When Smoke Is Selected in Convection .... No Motor Operation ................................................................. 58 59 60 61 62 63 64 65 66 Return to Main Table of Contents .................................................. 3 NOTE: Troubleshooting Guides reflect all counter top models. When working on a 20.20 there are additional elements, motors, and contactors. The following components are wired to operate together on a 20.20: • K-41 and K-43 Convection Element Contactors • K-42 and K-44 Convection Element Contactors • K-51 and K-71 High Speed Motor Contactors • K-52 and K-72 Low Speed Motor Contactors S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 57 TROUBLESHOOTING TREES ESi — K-77 Safety Contactor Does Not Pull-In at Power-Up (380-415V Units Only) NOTE: 380-145V units will not heat if K-77 is not pulled in. Is there coil voltage across A-1 and A-2 on K-77? 1. Determine which leg is missing and correct. No Yes Replace faulty contactor and test. -A-1 is L-1 supplied from the 131-2 terminal block. The 131-2 terminal block is fed from X-1 pin 3 on the relay board. -A-2 is L-2 supplied from the K-41-A-2 contact which is fed from K-42-A-2 which is supplied from the N-7 high limit. 2. Reset if tripped and test. S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 58 TROUBLESHOOTING TREES ESi — Unit Dead — No Display and No Operation Is power connected to the unit? Yes No Install power to unit/plug in. Is there correct voltage at the power source (outlet)? Yes No Check breaker, reset if necessary. Is there correct voltage at the main terminal block (L-1/2/3)? No Replace/Repair faulty cord/plug/wiring. Repair wiring issue between block and fuses. Yes Is there voltage at terminals 62/64/66 at the F-10 fuses? No Yes Is there voltage across terminals 34-36 at the F-1 and F-2 fuse block? No Repair wiring issue between fuses and block. Yes Is there voltage across terminals 33-35 at the F-1 and F-2 fuse block? Test F-1/2 for blown fuse(s). Replace if necessary. No Yes Is there voltage across terminals 310-311 at the power supply? No Repair wiring issue between fuses and terminal blocks. Yes Is there 12 VDC across terminals 312-313 at the power supply? No Yes Replace faulty power supply. Is there 12 VDC across pins 1-3 at the X-3 plug on the relay board? Correct wiring issue. Correct/Replace as needed. No Replace faulty board package. No Yes Is the ribbon cable secured at both the relay and display board? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 59 TROUBLESHOOTING TREES ESi — Unit Does Not Run When Start Is Pressed Does the cycle light appear in the display? Yes No Check start button for free movement, ensure no other control buttons are stuck. Is the door switch satisfied? No Close door. If closed check for faulty switch, magnet, or wiring. Yes Is the motor protection switch in the start position? No Reset and test operation. Yes Tighten or replace ribbon cable. No Is the ribbon cable secured between both boards? Yes Repair all loose connections. No Reboot control by pressing and holding on/off for 5 seconds. If unsuccessful call for service. Are all connections on relay board secure? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 60 TROUBLESHOOTING TREES ESi — No Steam Production in Steam Mode Does unit run when start is pressed? See “Unit Does Not Run When Start Is Pressed”. Yes No Is the B-5 probe below its set point? Check for a faulty B-5 probe. Yes No See “No Motor Operation.” Is the motor running? No Yes Replace faulty contactor. Voltage is present Determine which leg is missing and correct. Check for coil voltage across A-1 and A-2 on K-1. Is the K-1 contactor pulled in? No Voltage is not present Yes A-1 is L-1 supplied from X-1 pin 2 on the relay board. A-2 is L-2 supplied from the 130-2 terminal block. Check for coil voltage across A-1 and A-2 on K-41/42. Voltage is present Replace faulty contactor(s). Are the K-41/42 contactors pulled in? No Voltage is not present Yes Is there voltage at the T-1/2/3 side of K-41/42? Determine which leg is missing and correct. A-1 is L-1 and is supplied to K-41 from K-1-T-2. A-1 is L-1 and is supplied to K-42 from K-1-T-3. A-2 is L-2 and is supplied to K-42 from the N-7 high limit and then jumped to K-41. Check for a wiring issue between main power terminal block and K-41/42 T-1/2/3. Yes No Yes Replace faulty contactor(s). Repair wiring issue between K-41/42 and elements. No Is there voltage at the L-1/2/3 side of K-41/42? No Is there voltage at the convection elements? Yes Ohm out and replace faulty element if necessary. Is the element drawing current on all legs? No Yes Correct and test. Is the water connected to the oven and turned on? No Yes Replace solenoid assembly. Determine which leg is missing and correct. A-1 is L-1 and is supplied from K-1-T-1. A-2 is L-2 and is supplied from the 130-2 terminal block. Voltage is present Voltage is not present Check for coil voltage across A-1 and A-2 on Y-1. Check for obstruction in line to flow control valve or in orifice on outlet side of valve. Is the Y-1 solenoid opening? No Yes No Check for plugged pressure box or obstruction in hose. Is water flowing into and through the flow control valve? Yes No Is water flowing out of the pressure box and into the oven? The oven should begin producing steam in 3-5 minutes. Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 61 TROUBLESHOOTING TREES ESi — No Heat in Convection Mode Does the cycle light come on when pressed? Yes No See “Unit Does Not Run When Start Is Pressed.” Is the N-6 oven probe below set point? Check for a faulty N-6 probe. Replace if necessary. Yes No Is the K-51 contactor pulled in? Replace faulty contactor. Voltage is present No Check for coil voltage across K-51. Determine which leg is missing and correct. A-1 is L-1 supplied from X-1 pin 4 on the relay board. A-2 is L-2 supplied from A-2 on K-52, which is being fed from the 130-1 terminal block. Yes Voltage is not present Are the K-41/42 contactors pulling in? Check for coil voltage across A-1 and A-2 on K-41/42. Replace faulty contactor(s). 1. Determine which leg is missing and correct. No Voltage is present Yes Voltage is not present Is there voltage at the T-1/2/3 side of K-41/42? A-1 is L-1 and is supplied to K-41 from X-1 pin 1 on the relay board. A-1 is L-1 and is supplied to K-42 from X-1 pin 7 on the relay board. A-2 is L-2 and is supplied to K-42 from the N-7 high limit and then jumped to K-41. Check for wiring issue between main power terminal block and K-41/42 T-1/2/3. No Yes 2. Reset and test high limit if tripped. Is there voltage at L-1/2/3 side of K-41/42? Replace faulty contactor(s). Repair wiring issue between K-41/42 and elements. No Yes No Is there voltage at the convection elements? Yes Ohm out and replace faulty element. No The oven should begin producing heat in the cavity and cycle on/off on the N-6 oven probe. Is the element drawing current on all legs? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 62 TROUBLESHOOTING TREES ESi — No Steam Production in Combination Mode Does unit run when start is pressed? See “Unit Does Not Run When Start Is Pressed.” Yes No Is the B-5 probe below its set point? Check for a faulty B-5 probe and replace if necessary. Replace faulty contactor. A-1 is L-1 supplied from X-1 pin 2 on the relay board. A-2 is L-2 supplied from the 130-2 terminal block. Replace faulty contactor(s). Is the K-1 contactor pulled in? No Check for coil voltage across A-1 and A-2 on K-1. Voltage is present Determine which leg is missing and correct. Yes No Yes Voltage is not present Are the K-41/42 contactors pulled in? No Voltage is present Yes Check for coil voltage across A-1 and A-2 on K-41/42. Is there voltage at the T-1/2/3 side of K-41/42? No Voltage is not present Yes Determine which leg is missing and correct. A-1 is L-1 and is supplied to K-41 from K-1-T-2. A-1 is L-1 and is supplied to K-42 from K-1-T-3. A-2 is L-2 and is supplied to K-42 from the N-7 high limit and then jumped to K-41. Is there voltage at the L-1/2/3 side of K-41/42? Check for a wiring issue between main power terminal block and K-41/42 T-1/2/3. Yes No Is there voltage at the convection elements? No Replace faulty contactor(s). Yes Repair wiring issue between K-41/42 and elements. Is the element drawing current on all legs? Ohm out and replace faulty element. Yes No Correct and test. Replace solenoid assembly. Is the water connected to the oven and turned on? No Yes Voltage is present Check for coil voltage across A-1 and A-2 on Y-1. No Is the Y-1 solenoid opening? Voltage is not present Yes Is water flowing into and through the flow control valve? Determine which leg is missing and correct. A-1 is L-1 and is supplied from K-1-T-1. A-2 is L-2 and is supplied from the 130-2 terminal block. Check for obstruction in line to flow control valve or in orifice on outlet side of valve. No Yes Check for plugged pressure box or obstruction in hose. The oven should begin producing steam in 3-5 minutes. Satisfy B-5 and switch to convection heat. No Is water flowing out of the pressure box and into the oven? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 63 TROUBLESHOOTING TREES ESi — No Convection Heat in Combination Mode Does the cycle light come on when start is pressed? Yes No See “Unit Does Not Run When Start Is Pressed.” Is the B-5 probe satisfied? The unit needs to satisfy B-5 before switching to convection. See “No Steam Production in Combination Mode”. Yes No Is the N-6 oven probe below set point? No 1. Check for faulty N-6 probe. 2. Replace if necessary. Yes Replace faulty contactor. Voltage is present 1. Determine which leg is missing and correct. A-1 is L-1 supplied from X-1 pin 4 on the relay board. A-2 is L-2 supplied from A-2 on K-52, which is being fed from 130-1 terminal block. Check for coil voltage across K-51. Is the K-51 contactor pulled in? No Voltage is not present Yes Replace faulty contactor(s). Voltage is present 1. Determine which leg is missing and correct. A-1 is L-1 supplied to K-41 from X-1 pin 1 on the relay board. A-1 is L-1 and is supplied to K-42 from X-1 pin 7 on the relay board. A-2 is L-2 and is supplied to K-42 from the N-7 high limit and then jumped to K-41. 2. Reset and test high limit if tripped. Are the K-41/42 contactors pulling in? No Check for coil voltage across K-41/42. Voltage is not present Yes Is there voltage at the T-1/2/3 side of K-41/42? Yes No Check for a wiring issue between main power terminal block and K-41/42 T-1/2/3. Is there voltage at the L-1/2/3 side of K-41/42? No Replace faulty contactor(s). Yes Is there voltage at the convection elements? Repair wiring issue between K-41/42 and elements. No Yes NOTE: If at any time the B-5 bypass probe falls below set point, the unit will drop out of the convection mode and begin steam production based on the steam cycle. Steam always takes priority over convection based upon the reading at the B-5 probe. Ohm out and replace faulty element. No The oven should begin producing heat in the cavity and cycle on/off on the N-6 oven probe. Is the element drawing current all legs? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 64 TROUBLESHOOTING TREES ESi — No Smoke Production When Smoke Is Selected in Convection Is the smoke symbol displayed on the LCD? Go through mode set up procedures for smoke function. Yes No Is the chip tray installed with pre-soaked smoke chips? 1. Soak chips. 2. Load tray. 3. Install in oven. Yes No Does the cycle light come on when start is pressed? No See “Unit Does Not Run When Start Is Pressed”. Yes The smoke elements will not be energized when the vent is open. If it is closed, troubleshoot vent motor and switch. No Is the vent in the closed position? Yes Replace faulty relay. Determine which leg is missing and correct. Voltage is present Check for voltage across pins 7-8 on relay. No Is the smoke relay energized? Voltage is not present Pin 7 is L-1 and is supplied to relay 1 from X-9 pin 2 on the relay board. Pin 8 is L-2 and is being supplied from the 130-3 terminal block. Yes Determine which leg is missing and correct. L-1 power is supplied to each element directly from the F-10-L-1 fuse. L-2 is supplied from relay 1 pins 5 and 6. Pin 5 to SK element 2. Pin 6 to SK element 1. No Is there voltage at each element? Yes Replace faulty element(s). Smoke production should begin in the oven. No Are the elements drawing power (approximately. 1A)? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 65 TROUBLESHOOTING TREES ESi — No Motor Operation Is the K-51 contactor being energized? Yes No 1. Check for coil voltage across A-1 and A-2 at K-51. Is K-51 pulling in? 2. Determine which leg is missing and correct. A-1 is L-1 supplied from X-1 pin 4 on the relay board. A-2 is L-2 jumped from K-52 A-2 supplied from the 130-1 terminal. Replace faulty contactor. Yes No Is there voltage across terminals 62/64/66 on the bottom side of F-10 L-1/2/3 fuses? No Check for a wiring issue between main power terminal block and fuses. Yes Replace blown fuse(s) and test. Is there voltage across terminals 63/65/67 on top the top side of F-10 L-1/2/3 fuses? No Yes Repair wiring issue between fuses and motor protection switch. Is there voltage at terminals 2/4/6 at F-52 MP switch? No Yes Reset tripped switch (start button in) and test again. If still no voltage replace faulty MP switch. No Is there voltage at terminals 1/3/5 out of MP switch? Yes Is there voltage across L-1/2/3 on K-52 contactor? Repair wiring issue between F-51 and K-52. No Yes Repair wiring issue between K-51 and K-52. No Is there voltage across L-1/2/3 on K-51 contactor? Yes Replace faulty K-51 contactor and test. No Ensure wiring into and out of motor harness plug is correct and tight. Replace faulty motor and test. Is there voltage out of K-51 at T-1/2/3? Yes S E C T I O N 4 – T R O U B L E S H O O T I N G T R E E S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 66 5 C O M B I T H E R M PA R T S ESi Rear Service Parts................................................................... 68 ESi Left-Hand Side Service Parts.................................................... 69 ESi Condensation Tank ................................................................. 70 Sprayer Holder Assembly .............................................................. 71 Oven Light Assembly .................................................................... 71 Deluxe Control ............................................................................. 72 Combitherm Motor ....................................................................... 73 For model-specific parts, see Parts Information for: 7.14 ESi Marine ........................................................................... 74 Return to Main Table of Contents .................................................. 3 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 67 PA R T S I N F O R M AT I O N E S i R E A R S E R V I C E PA R T S 1 2 3 9 2 8 7 6 2 5 2 Item 4 Part Description Qty. 1 5005009 Pressure Box Assembly 1 2 FT-28124 Worm Gear, 1/2" 13 3 HO-27893 Hose, Injector 1 4 HO-22255 Hose, Pressure Box 1 5 HO-27890 Hose, Condenser Cooling 1 6 CL-22234 Clamp, Worm Gear, 40-60, Hose 8 7 HO-27891 Hose, Condenser 1 8 HO-27893 Hose, Bypass 1 9 FT-27406 Vent, Condensate Tank 2 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 68 PA R T S I N F O R M AT I O N E S i L E F T - H A N D S I D E S E R V I C E PA R T S 1 2 3 4 3 5 3 6 15 7 14 13 12 11 10 9 16 17 18 8 Item Part Description Qty. 1 SA-26890 Seal, Pressure Valve 1 2 VA-26838 Pressure Valve 1 3 CL-22234 Clamp, Worm Gear, 40-60, Hose 8 4 HO-27891 Hose, Air Intake 1 5 FT-27406 Vent, Condensate Tank 2 6 EB-27207 Washer Drain Support 2 7 HO-22255 Cleaning Hose 1 8 HO-27203 Hose, Hand Shower Connection 1 9 TE-27204 Connector 1 10 NP-27538 Valve Holder Assembly 2 11 SC-25128 Bottom Water Fitting Screws (marine) 4 12 VA-34045 Valve, Double Port 1 13 VA-34300 Valve, Single Port 1 14 HO-22255 Hose, Pressure Box 1 15 GS-26635 Gasket, 6.10 ESiN 1 15 GS-26636 Gasket, 6.10 ESi 1 15 GS-26637 Gasket, 10.10 ESiN 1 15 GS-26638 Gasket, 10.10/10.18 ESi 1 15 GS-26639 Gasket, 7.14 ESi 1 16 WH-26645 Fan Wheel, 6.10 ESi, 10.10 ESi, 7.14 ESi, 10.18 ESi 1 17 SC-23737 M5 X 10, Hex, HD Cap #18-8, No Slot 1 18 1001204 Disintegration Box 1 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 69 PA R T S I N F O R M AT I O N E S i C O N D E N S AT I O N TA N K 1 10 9 2 8 7 6 3 4 5 Item Part Description Qty. 1 5007092 Condensor Tank 1 2 SA-22212 CT, O-Ring, Red, Silicone 70 Dur., 225 C, 59.6 x 5.33 mm 1 3 WS-22207 CT, Seal, 3/4 x 2, Flat Vulcan Fiber 1 4 PB-26512 Measure Probe 1 5 PR-33751 CT, ML Combitherm, Thermocouple, 3050 mm Wire Length, ML Combitherm 2 6 CP-22758 Outlet, Steam Generator, 303-304 S/S 1 7 WS-22751 Silicone, Seal, 45 mm FDA, 500 F Temp. 1 8 5000284 Injection Nozzle 1 9 SA-25061 CT, T-Couple Probe, ML Combitherm 2 10 SA-22209 O-Ring, 8 x 3 mm V75 Vitan 75 Durometer 1 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 70 PA R T S I N F O R M AT I O N S P R AY E R H O L D E R A S S E M B LY Item 2 1 Part Description Qty. 1 PB-26960 Hand Shower Holder 1 2 WS-22295 Flat Washer 4 3 WS-22301 Locking Washer 4 4 SC-22766 Philips Screw 4 4 3 OVEN LIGHT Item 1 2 3 4 5 Part Description Qty. 1 SC-23664 Screw (Marine) 4 2 CV-26607 Oven Light Cover 1 3 GL-26608 Oven Light Glass 1 4 GS-26609 Oven Light Gasket 1 5 LP-34206 Light, 15W Bulb 1 6 LP-34161 Light, Snap-In 1 6 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 71 PA R T S I N F O R M AT I O N DELUXE CONTROL 1 2 3 4 5 6 7 11 8 7 9 10 Item Part Description Qty. 1 PE-27215 Panel, Overlay, Deluxe 2 5006868 Control Panel Spot 1 3 BU-25094 Bushing, CT, ML, Brass, Distance 12 4 BA-33991 Board, CT Alto-Shaam Name, MLG's 1 5 NU-25095 Knurled M3 High A2 S/S 12 6 BA-34313 Board, Operation 1 7 5007610 Control Knob Assembly 1 8 CR-33743 Connector 2 9 BA-33742 Board, Program 1 10 BA-33733 Board, LED, Closed System 1 11 CB-34033 Cable, Communication 1 12 HD-2910 Guard for Panel Knob (not shown) 1 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 72 1 PA R T S I N F O R M AT I O N COMBITHERM MOTOR Please Verify Correct Voltage Motor 6 Apply anti-seize on the motor shaft (fully) before and after installing part #5 (SL-22214). 4 3 1 5 2 7 Electric Motor Assembly ES/ML Combi's Item Part Description Qty. 1 WS-22217 1.25 OD Washer 1 2 BU-22213 Bushing, CT, 30D, Motor Shaft 1 3 SD-23939 Spring 1 4 1000716 Motor Baffle 1 5 SL-22214 Motor, Defle, Phosphor Bronze 1 6 5000276 Motor, 208/230/240V 1 6 5000602 Motor, 380/415/480V 1 7 MO-22191 Keyway, Motor 1 S E C T I O N 5 – C O M B I T H E R M P A R T S • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 73 6 – 7.14 ESi Marine SECTION CONTENTS Technical Data.............................................................................. 76 Parts Information: Recessed Door Assembly............................................................ Directional Panel Assembly......................................................... Pressure Box Assembly .............................................................. 77 78 79 Wiring Diagrams: 440-480V 3PH 50/60 Hz Wiring ............................................. 440-480V 3PH 50/60 Hz Ladder.............................................. 80 81 Return to Main Table of Contents .................................................. 3 S E C T I O N 6 – 7 . 1 4 E S I • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 75 T E C H N I C A L D ATA 2" (50mm) 6-1/4" (158mm) 34-1/4" (869mm) 7-9/16" (192mm) 71-11/16" (1821mm) 26-11/16" (677mm) Steam Vent (Top) 12-3/4" (323mm) 15-1/2" (393mm) 22-3/8" (568mm) 2-5/16" (58mm) 4-11/16" (120mm) 42-13/16" (1087mm) 40-3/16" (1019mm) 47-15/16" (1216mm) 45-15/16" (1166mm) Water Drain (Side Back) 7-5/16" (185mm) 33-1/8" (840mm) WATER DRAIN 25-5/8" (650mm) 8-11/16" (219mm) SIDE VIEW FRONT VIEW DIMENSIONS: H x W x D EXTERIOR WITH RETRACTABLE DOOR : 34-1/4" x 47-15/16" x 42-13/16" (869mm x 1216mm x 1087mm) 51-1/2" (1307mm) EXTERIOR WITH OPTIONAL ANTI - SWING DOOR : 34-1/4" x 43-7/8" x 42-13/16" (869mm x 1114mm x 1087mm) TOP VIEW INTERIOR : 20-5/16" x 23-1/2" x 28-7/16" (515mm x 596mm x 722mm) CLEARANCE REQUIREMENTS LEFT : 6" (152mm) PLUS SERVICE ACCESS : 18" (457mm) RECOMMENDED 20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T RIGHT : 4" (102mm) BACK : 4" (102mm) COUNTER - TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) TOP : MINIMUM CLEARANCE WAT E R R E Q U I R E M E N T S TWO (2) COLD WATER INLETS - DRINKING QUALITY ONE (1) TREATED WATER INLET: 3/4" NPT* ONE (1) UNTREATED WATER INLET: 3/4" NPT* LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar WATER DRA IN : 1-1/2" CONNECTION WITH AIR GAP * Can manifold off of one 3/4" line. I N S TA L L AT I O N R E Q U I R E M E N T S Oven must be installed level. Hood installation is required. Water supply shut-off valve and back-flow preventer. 440-480 380-415 208-240 208-240 ELECTRICAL 7•14ESi VOLTAGE at 208 at 240 PHASE CYCLE/HZ at 208 at 240 3 50/60 at 380 at 415 3 50/60 3* 50/60 at 440 at 480 1* * SHIP CRATE DIMENSIONS : AWG 50/60 2 Wire plus ground AWG 3 AMPS 4 Wire plus ground AWG 10 21.1/ph 25.6/ph 3 Wire plus ground AWG 6 3 Wire plus ground AWG 8 67.0 77.0 38.6/ph 44.3/ph 21.0/ph 23.0/ph 7•14ESi/sk kW 13.9 18.4 AMPS 13.9 18.4 22.0/ph 26.3/ph 13.9 18.4 15.9 18.9 69.2 79.0 40.0/ph 45.5/ph 22.4/ph 24.2/ph kW 14.4 18.9 14.4 18.9 14.4 18.9 16.4 19.4 ELECTRICAL SERVICE CHARGE APPLIES WEIGHT NET 20" (508mm) FOR AIR MOVEMENT 5-1/8" (130mm) FOR LEGS FROM THE COUNTER SURFACE . BOTTOM : C A PA C I T Y 436 lb 560 lb 42" (198 kg) X 50" (254 kg) X 46" EST . (1067 x 1270 x 1168mm) FULL-SIZE PANS: 20" x 12" x 2-1/2" GN 1/1: 530 x 325 x 65mm GN 2/1: 650 x 530 x 65mm FULL-SIZE SHEET PANS:* 18" x 26" x 1" ON WIRE SHELVES ONLY * ADDITIONAL Fourteen (14) Fourteen (14) Seven (7) Seven (7) 168 lb (76 kg) MAXIMUM 105 QUARTS (133 VOLUME MAXIMUM : WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY LITERS ) S E C T I O N 6 – 7 . 1 4 E S I • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 76 Twelve (12) Twelve (12) Five (5) Six (6) PA R T S I N F O R M AT I O N R E C E S S E D D O O R A S S E M B LY 1 2 3 4 34 2 33 5 32 6 A 31 7 30 29 8 9 28 10 27 24 26 23 Detail A 3 1 11 14 22 21 12 20 19 25 Item Part 16 15 13 Qty. Item 2 18 1008506 Front Bracket Recessed 1 WS-22297 Washer, Flat, M6, DIN 125 14 19 SC-22284 Screw, M6 x 16 Hex S/S HD 1 3 NU-22291 12 20 WS-22298 Washer, M8, 18-8 1 4 WS-22302 Washer, Lock, M6, DIN 127B 12 21 HG-28040 Hinge 1 5 5008015 Right Side Assembly 1 22 HG-25101 Hinge, Lower Ratchet 1 6 5007897 Channel Assembly 1 23 5008014 Front Corner Assembly 1 7 BK-27412 Recessed Door Block 4 24 SC-26060 M5 x 16 Hex Head 4 8 RA-28207 Rail, Top 1 25 5008004 Door Assembly Recessed 1 9 RA-28208 Rail, Bottom 1 26 WS-25124 Eccesntric Washer 1 10 SC-24388 Screw, SHC M8 x 35 S/S 6 27 LG-26867 Legs, Combi 4 11 5007893 Drip Pan Assembly 1 28 HG-28041 Hinge 1 12 1008869 Cover, Trolley 1 29 LT-26968 Latch, Door, Right 1 13 5008001 Trolley Assembly 1 30 WS-25127 Covering Washer, For Hinge 1 14 BK-22100 White Teflon, Cart Guide Block 1 31 PG-25132 M12, (Black or Natural) 1 15 1008505 Rear Bracket, Recessed 1 32 PE-27559 Front Panel Weld Assembly 1 16 SC-22281 Screw, M5 x 16 Flat Head CSink 2 33 5005065 Fill In Cover Assembly 1 17 BK-28252 Block, Guide 1 34 5007895 Outer Cover Assembly 1 1 SC-22924 2 Description 17 18 M6 x 20 Hex Trim HD M6-1.0 x Hex S/S Nut 18-8 Part Description S E C T I O N 6 – 7 . 1 4 E S I • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 77 Qty. PA R T S I N F O R M AT I O N D I R E C T I O N A L PA N E L A S S E M B LY 3 2 1 4 5 6 6 2 3 5 Item Part Description Qty. 1 1006361 Directional Panel, 7.14esi 1 2 1006601 Directional Panel Spacer, 16 GA 2 3 WS-24090 Holding (Lock Clip), All Combitherm’s ML 2 4 NU-22770 Nut, Threaded Insert, M6 2 5 5008524 Clip, CT, Marine, Lock, W/3 Washers 2 6 SC-22753 Screw, SS Round, Hanging Rack 2 S E C T I O N 6 – 7 . 1 4 E S I • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 78 PA R T S I N F O R M AT I O N P R E S S U R E B O X A S S E M B LY 90° 1 2 3 Item Part Description Qty. 1 5005009 Pressure Box 1 2 EB-25551 Elbow, Nylon, 1/2" x 3/8" 1 3 VA-25549 Valve, 3/8", Flow Control, 0.12 GPM 1 S E C T I O N 6 – 7 . 1 4 E S I • C O M B I T H E R M E L E C T R I C T E C H N I C A L S E R V I C E M A N U A L • 79
