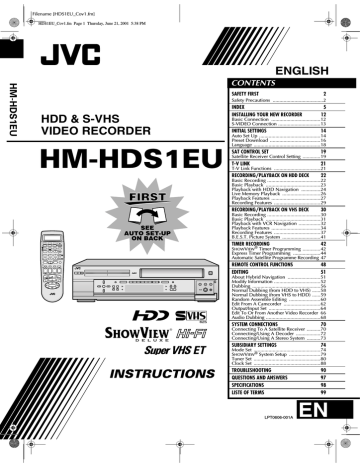

JVC HM-HDS1EU DVR User Manual

Filename [HDS1EU_Cov1.fm]

HDS1EU_Cov1.fm Page 1 Thursday, June 21, 2001 5:38 PM

HDD & S-VHS

VIDEO RECORDER

1

2

1

4

7

<

8

0

2

5

3

6

9

>

3

4

– +

F - 1

CONTENTS

ENGLISH

SAFETY FIRST 2

Safety Precautions .....................................2

INDEX 5

INSTALLING YOUR NEW RECORDER 12

Basic Connection ....................................12

S-VIDEO Connection ...............................13

INITIAL SETTINGS 14

Auto Set Up .............................................14

Preset Download .....................................16

Language .................................................18

SAT CONTROL SET 19

Satellite Receiver Control Setting .............19

T-V LINK 21

T-V Link Functions ..................................21

RECORDING/PLAYBACK ON HDD DECK 22

Basic Recording .......................................22

Basic Playback ........................................23

Playback with HDD Navigation ..............24

Live Memory Playback ............................26

Playback Features ....................................27

Recording Features ..................................29

RECORDING/PLAYBACK ON VHS DECK 30

Basic Recording .......................................30

Basic Playback ........................................31

Playback with VCR Navigation ................32

Playback Features ....................................34

Recording Features ..................................37

B.E.S.T. Picture System ............................41

TIMER RECORDING 42

S

HOW

V

IEW®

Timer Programming .............42

Express Timer Programming ....................44

Automatic Satellite Programme Recording 47

REMOTE CONTROL FUNCTIONS 48

EDITING 51

About Hybrid Navigation ........................51

Modify Information ..................................52

Dubbing ..................................................56

Normal Dubbing (from HDD to VHS) ......58

Normal Dubbing (from VHS to HDD) ......59

Random Assemble Editing .......................60

Edit From A Camcorder ...........................62

Output/Input Set ......................................64

Edit To Or From Another Video Recorder 66

Audio Dubbing ........................................68

SYSTEM CONNECTIONS 70

Connecting To A Satellite Receiver ..........70

Connecting/Using A Decoder ..................72

Connecting/Using A Stereo System ..........73

SUBSIDIARY SETTINGS 74

Mode Set .................................................74

S

HOW

V

IEW®

System Setup .......................79

Tuner Set .................................................80

Clock Set .................................................88

TROUBLESHOOTING 90

QUESTIONS AND ANSWERS 97

SPECIFICATIONS 98

LISTE OF TERMS 99

LPT0606-001A

EN

Filename [HDS1EU_0_Safety.fm]

HDS1EU_.book Page 2 Thursday, June 21, 2001 12:30 PM

Masterpage:Left-FullCol

2

EN

Safety Precautions

SAFETY FIRST

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

CAUTION

8

8

When you are not using the recorder for a long period of time, it is recommended that you disconnect the power cord from the mains outlet.

Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

WARNING

There are two different types of SECAM colour systems: SECAM-L, used in FRANCE (also called

SECAM-West), and SECAM-B, used in Eastern European countries (also called SECAM-East).

1. This recorder can also receive SECAM-B colour television signals for recording and playback.

2. Recordings made of SECAM-B television signals produce monochrome pictures if played back on a video recorder of SECAM-L standard, or do not produce normal colour pictures if played back on a

PAL video recorder with SECAM-B system incorporated (even if the TV set is SECAM-compatible).

3. SECAM-L prerecorded cassettes or recordings made with a SECAM-L video recorder produce monochrome pictures when played back with this recorder.

4. This recorder cannot be used for the SECAM-L standard. Use a SECAM-L recorder to record SECAM-L signals.

IMPORTANT

8

8

Please read the various precautions on pages 2 and 4 before installing or operating the recorder.

It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

● Cassettes marked “S-VHS” and “VHS” can be used with this video cassette recorder. However, S-VHS recordings are possible only with cassettes marked “S-VHS”.

By using the S-VHS ET function, it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

● S

HOW

V

IEW

is a registered trademark of Gemstar Development Corporation. The S

HOW

V

IEW

system is manufactured under licence from Gemstar Development Corporation.

● This product incorporates copyright protection technology that is protected by method claimes of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Page 2 June 21, 2001 12:29 pm



Masterpage:Right-Full-NoTitle0

For Italy:

“It is declared that this product, brand JVC, conforms to the Ministry Decree n. 548 of 28 Aug.’95 published in the Official Gazette of the Italian Republic n. 301 of 28 Dec.’95”

EN

3

The STANDBY/ON

1

button does not completely shut off mains power from the unit, but switches operating current on and off. “

`

” shows electrical power standby and “

!

” shows ON.

Video tapes recorded with this video recorder in the LP/EP (Long Play/Extended Play) mode cannot be played back on a single-speed video recorder.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear.)

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1. DO NOT place the recorder ...

... in an environment prone to extreme temperatures or humidity.

... in direct sunlight.

... in a dusty environment.

... in an environment where strong magnetic fields are generated.

... on a surface that is unstable or subject to vibration.

2. DO NOT block the recorder’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

3. DO NOT place heavy objects on the recorder or remote control.

4. DO NOT place anything which might spill on top of the recorder or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

5. DO NOT expose the apparatus to dripping or splashing.

6. DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.

7. DO NOT place any naked flame sources, such as lighted candles, on the apparatus.

8. AVOID violent shocks to the recorder during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

Page 3 June 21, 2001 12:29 pm


HDS1EU_0_Safety.fm Page 4 Thursday, June 21, 2001 7:56 PM


4

EN

SAFETY FIRST (cont.)

PRECAUTION FOR Hard Disk Drive

1. Before installing the recorder

This recorder has a built-in hard disk drive, which is a device to read minute magnetic changes.

The inside of the device is precision-built, which, when installing the recorder, requires you to note the following:

● DO NOT use the recorder in a location prone to vibration or dust.

● DO NOT place the recorder where difference in temperatures is large (condensation can occur), or where humidity is high.

– When condensation occurs

Water droplets form on the hard disc or head drums inside, possibly causing hard disc and heads to be damaged.

– About condensation

When well-cooled beer is poured into a glass, water droplets often form around its outside.

This phenomenon is called condensation.

● DO NOT install the recorder where the cooling fans in its back may be blocked, or where the recorder may be closed in.

● DO NOT use the recorder placed vertically.

NOTE:

The hard disk may produce mechanical noise, but it is not a malfunction.

2. Before using the recorder

When the power of the unit is on, the hard disc is constantly rotating at high speed.

This requires you to note the following:

● DO NOT impart vibration or shock.

If given a heavy shock, not only is the data recorded damaged but also the hard disk itself can be damaged.

● DO NOT allow anything having strong magnetism or emitting strong electromagnetic waves (cell phones, etc.) near the recorder.

● DO NOT disconnect the power plug from the wall outlet when the power of the recorder is on.

If the power supply is cut off while the hard disc is in operation, it can be damaged or the data stored on it may be damaged. Be sure to push the power button before turning off the power.

3. While using the recorder

When viewing a program by selecting HDD

(Hard Disk Drive), there occurs a slight time lag relative to the actual program being broadcast.

This is because pictures received are once stored on the hard disk, and then played back.

The time lag is about three seconds. If you turn the power on with the hard disk already selected, it will take about 30 seconds before the pictures received appear on the screen. Up until then, any operation is disabled. But it is not a malfunction.

Page 4 June 21, 2001 7:56 pm

Filename [HDS1EU_1.fm]


INDEX

FRONT VIEW

Masterpage:Right

EN

5

OK

SAT

MENU NAVIGATION

CH

HDD

S-VHS

S-VHS ET

A. DUB

VIDEO

(M) L – AUDIO – R

F - 1

S-VIDEO

PAUSE

A STANDBY/ON

1

Button

墌 pg. 14

B Infrared Beam Receiving Window

C Hard Disk Drive Illumination

D MENU Button

墌 pg. 18

E SAT

#

Button

墌 pg. 47

F HDD Button

墌 pg. 22

G Stop

8

Button

墌 pg. 22

H Play

4

Button

墌 pg. 23

I Pause

9

Button

墌 pg. 23

J Record

7

Button

墌 pg. 22

K S-VHS Button

墌 pg. 30

L Rewind

3

Button

墌 pg. 27

M S-VHS ET Button

墌 pg. 39

N Fast Forward

5

Button

墌 pg. 27

O Cassette Loading Slot

P Eject

Button

墌 pg. 30

Q

RTYU

and OK Buttons (same as r t w e buttons on the remote control)

墌 pg. 14

R PR +/– Buttons

墌 pg. 22

S NAVIGATION Button

墌 pg. 24

T HDD mode Indicators

墌 pg. 22

U Front Display Panel

墌 pg. 7

V VHS mode Indicators

墌 pg. 30

W Audio Dubbing (A.DUB) Button

墌 pg. 69

X S-VIDEO/VIDEO/AUDIO Input Connectors

墌 pg. 62

Y Remote PAUSE Connector

墌 pg. 62

PULL-OPEN

To access covered connectors, pull and open the connector cover.

Page 5 June 21, 2001 12:29 pm



6

EN

REAR VIEW

ANTENNA

ANTENNE

IN

ENTREE

AV1 (L-1) IN/OUT ENTREE/SORTIE

S

OUT

SORTIE

SAT CONTROL

CONTROLEUR SAT

OUT

SORTIE

AV2 (L-2)

IN/DECODER

ENTREE/DECODEUR

AUDIO

L

OUT

SORTIE

R

A ANTENNA IN Connector

墌 pg. 12

B AV1 (L-1) IN/OUT Connector

墌 pg. 12, 66, 70, 71, 72

C S OUT Connector

墌 pg. 13

D Mains Power Cord

墌 pg. 12

Masterpage:Left

INDEX (cont.)

E ANTENNA OUT Connector

墌 pg. 12

F AV2 (L-2) IN/DECODER Connector

墌 pg. 19, 66, 70, 71, 72

G SAT CONTROL Connector

墌 pg. 19

H AUDIO OUT (L/R) Connectors

墌 pg. 73

Page 6 June 21, 2001 12:29 pm


HDS1EU_1.fm Page 7 Thursday, June 21, 2001 7:05 PM

FRONT DISPLAY PANEL

SP

VCR

Masterpage:Right-NoTitle0

EN

7

A B.E.S.T. Picture System Display 墌 pg. 41

B Symbolic Mode Indicators

PLAY:

FF/REW VARIABLE

SEARCH:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

STILL:

SLOW:

RECORD:

RECORD PAUSE:

C Recording Speed Indicators 墌 pg. 22

D “Timer” Indicator 墌 pg. 43, 45

E Tape Remaining Time Indicator 墌 pg. 38

F VPS/PDC Indicator 墌 pg. 45

G S-VHS Indicator 墌 pg. 39, 75

H VCR Indicator

I “Cassette Loaded” Mark

J Counter/Channel/Clock/Remain Display

(The counter can display up to +/– “99:99:99”. If the playback or recording time exceeds this limit, the display starts to count from “0:00:00”.)

Page 7 June 21, 2001 7:05 pm



Masterpage:Left

8

EN

ON-SCREEN DISPLAY (for HDD deck)

When “O.S.D.” is set to “ON” (

墌 pg. 78), various operational indicators appear on the TV screen.

INDEX (cont.)

When playing back a recorded programme

1 2

PLAY

4

0:59:24

0:00

4

3

06/12 TUE 10:07

1:00 2:00

PR. 1 LP

5 6 7 8

When watching a programme on air

1

ON AIR

20:00

3

When pressing PAUSE

1

PAUSE

9

21:33

20:00

2

PRESENT TIME

T

21:32

21:00 22:00

4 5

PR. 1

6

PRESENT TIME

T

21:45

21:00 22:00

PR. 1

LP

2 3

A The beginning of the programme

B Playback mode and time

C Recording information

(Date, start time, channel and recording speed)

D Time scale of the current programme

(This programme has an hour and a half contents.)

E Current playback point

F The end of the programme

G Time scale

H Audio mode

A Time scale around the current time

B Current time

C The beginning point of this programme

(The recorder starts receiving this programme at about

20:30.)

D Length of the time available for Live Memory Playback

E Pointer for current time

(The recorder has been receiving this programme for an hour.)

F Current channel

A

9

(pause) is pressed at 21:33.

B Pointer for current picture

C The recorder is now capturing new pictures in this point.

When using Live Memory playback

A The time counter using actual time

B Pointer for current picture

C The recorder is now capturing new pictures in this point.

1

LIVE MEMORY

4

21:03

20:00 21:00

PRESENT TIME

T

21:46

22:00

PR. 1

LP

2

3

While recording

1

REC

7

20:00

2

5

3

PRESENT TIME

T

21:03

21:00 22:00

6 7

PR. 1

8 9

4

EP

A Recording indicator

B Time scale around the current time

C Current time

D Recording speed

E Start point of the recording

F Length of the time available for Live Memory Playback

G Current recording point

H Audio mode

I Recording channel

Page 8 June 21, 2001 12:29 pm



ON-SCREEN DISPLAY (for VHS deck)

When “O.S.D.” is set to “ON” (

墌 pg. 78), various operational indicators appear on the TV screen.


EN

9

A Operation Mode Indicators

B Tape Speed SP/LP/EP

C Tape Direction

D Counter Display

E Tape Remaining Time Indicator

墌 pg. 38

F Audio Mode Display

墌 pg. 36

G Tape Position Indicator

The tape position indicator appears on the TV screen when you press

3

or

5 from the Stop mode or perform an Index Search

(

墌 pg. 35). The position of

“ q

” in relation to “0”

(beginning) or “+” (end) shows you where you are on the tape.

Beginning

NOTE:

End

Depending on the type of tape being used, the tape position indicator may not appear correctly.

H Type of Broadcast

墌 pg. 40

I VHS Indicator

J Current Day/Month/Year

K Clock Display

L Channel Position Number and Station Name/

Auxiliary Input Indicator (L-1, L-2, F-1, DUB or

SAT*)

* When “L-2 SELECT” is set to “SAT” (

墌

pg. 65), “SAT” appears instead of “L-2”.

M “Cassette Loaded” Mark

Page 9 June 21, 2001 12:29 pm



Masterpage:Left

10

EN

REMOTE CONTROL

Buttons with a small dot on the left side of the name can also be used to operate your TV. (

墌 pg. 49)

INDEX (cont.)

A LCD Panel

墌 pg. 42

B HDD Button

墌 pg. 22

C TV/CABLE/SAT Button

墌 pg. 49, 50

D AUDIO Button

墌 pg. 28, 36

^ (TV Muting) Button

墌 pg. 49

E LCD PROG Button

墌 pg. 42

F Number Keys

墌 pg. 22, 42

G DAILY Button

墌 pg. 43, 45

H VPS/PDC Button

墌 pg. 43, 45

I Counter Reset 0000 Button

墌 pg. 38

Cancel & Button

墌 pg. 42

< Button

墌 pg. 53

J Programme Check " Button

墌 pg. 46

K PROG Button

墌 pg. 44

L START +/– Button

墌 pg. 44

M STOP +/– Button

墌 pg. 44

N Rewind 3 Button

墌 pg. 27

O Play

4

Button

墌 pg. 23

P Record 7 Button

墌 pg. 22

Q Stop

8

Button

墌 pg. 22, 23

OK Button

墌 pg. 15

R r t

Button

墌 pg. 14

TV PR +/– Button

墌 pg. 49

S S-VHS Button

墌 pg. 30

T STANDBY/ON 1 Button

墌 pg. 14

U Display – –:– – Button

墌 pg. 38

DEL Button

墌 pg. 53

V TV/VCR Button

W NAVIGATION Button

墌 pg. 24

Button

Y WEEKLY Button

墌 pg. 43, 45

Z Timer

#

Button

墌 pg. 43, 45 a AUX Button

墌 pg. 63 b MENU Button

墌 pg. 18 c Auto Tracking p Button

墌 pg. 36

MODE Button

墌 pg. 22

> Button

墌 pg. 53 d OK Button

墌 pg. 15

INDEX Button

墌 pg. 52 e MEMO Button

墌 pg. 25 f PR +/– Button

墌 pg. 22 g DATE +/– Button

墌 pg. 44 h Fast Forward 5 Button

墌 pg. 27 i Pause

9

Button

墌 pg. 27 j w e Button

墌 pg. 18, 27

TV

%

+/– Button

墌 pg. 49

Page 10 June 21, 2001 7:29 pm




EN

11

How To Use

The remote control can operate most of your video recorder’s functions, as well as basic functions of TV sets and satellite receivers of JVC and other brands. (

墌 pg. 49, 50)

● Point the remote control toward the receiving window.

● The maximum operating distance of the remote control is about 8 m.

NOTES:

● When inserting the batteries, be sure to insert in the correct directions as indicated under the battery cover.

● If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.

Remote Control LCD

The remote control can operate not only the video recorder but also some of your TV and satellite receiver’s functions. The LCD indicates which of these (VIDEO, TV or CABLE/SAT) the remote control can currently operate. When you first purchase the remote control, or after you have just replaced the batteries, VIDEO A (A code) is selected.

A To operate your video recorder, first press the HDD or S-VHS. To switch the remote control’s A/B/C/D code, refer to page 48.

B To operate your TV, first press TV/CABLE/SAT until “TV” appears on the LCD. (

墌 pg. 49)

C To operate your satellite receiver, first press TV/CABLE/SAT until

“CABLE SAT” appears on the LCD. (

墌 pg. 50)

NOTES:

Even if “TV” is displayed on the LCD, the following operations can be performed without switching the mode.

● Basic operations for the recorder

After an operation is completed, “TV” reappears on the LCD.

● Express timer programming and S

HOW

V

IEW

timer programming operations

To perform a TV operation again, switch to TV mode first.

● Accessing main menu

To perform a TV operation again, switch to TV mode first.

Page 11 June 21, 2001 12:29 pm



Masterpage:Left

12

EN

Basic Connection

TV aerial cable

RF cable

(provided)

AV1 (L-1)

IN/OUT

ANTENNA

IN

ANTENNA

OUT

21-pin SCART connector

Aerial connector

Back of TV

21-pin SCART cable

(provided)

Mains power cord

Mains outlet

Back of recorder

ATTENTION:

Your TV must have a 21-pin AV input connector

(SCART) for the connection to the recorder.

INSTALLING YOUR NEW RECORDER

It’s essential that your video recorder be properly connected.

THESE STEPS MUST BE COMPLETED BEFORE ANY

VIDEO OPERATION CAN BE PERFORMED.

A

Check the contents.

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” on page 98.

B

Situate the recorder.

Place the recorder on a stable, horizontal surface.

C

Connect the recorder to TV.

A Disconnect the TV aerial cable from the TV.

B Connect the TV aerial cable to the ANTENNA IN connector on the rear panel of the recorder.

C Connect the provided RF cable between the

ANTENNA OUT connector on the rear panel of the recorder and the TV’s aerial connector.

D Connect the provided 21-pin SCART cable between the AV1 (L-1) IN/OUT connector on the rear panel of the recorder and the TV’s 21-pin SCART connector.

● The AV1 (L-1) IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). If your TV’s 21-pin AV input connector (SCART) is compatible with the Y/C signal, set “L-1 OUTPUT” to

“S-VIDEO” after the connection and the initial settings are completed (

墌 pg. 64). You can obtain high-quality S-VHS pictures. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

● Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV’s SCART connector.

● For switching the TV’s mode, refer to the instruction manual of your television.

● To obtain high-quality S-VHS pictures, you can also use the

S-VIDEO connection described on page 13.

D

Connect the recorder to mains.

Plug the end of the mains power cord into a mains outlet.

After the connection is completed, perform “Auto Set

Up” on page 14.

Page 12 June 21, 2001 12:29 pm




EN

13

S-VIDEO Connection

TV aerial cable

S OUT

Aerial connector

Back of TV

S-VIDEO IN connector

AUDIO IN connectors

Audio cable

(not provided)

Mains power cord

ANTENNA IN

S-Video cable

(not provided)

ANTENNA

ANTENNE

IN

ENTREE


S

OUT

SORTIE

(DV/VHS)

SAT CONTROL

CONTROLEUR SAT

OUT

SORTIE

AV2 (L-2)

IN/DECODER

ENTREE/DECODEUR

AUDIO

(DV/VHS)

L

OUT

SORTIE

R

ANTENNA OUT

AUDIO OUT

RF cable (provided)

Mains outlet

8

To connect to a TV with S-VIDEO/AUDIO IN connectors . . .

A

Connect the recorder to TV.

A Connect the aerial, recorder and TV as per “Basic

Connection” (

墌 pg. 12).

B Connect the recorder’s S OUT connector to the TV’s

S-VIDEO IN connector.

C Connect the recorder’s AUDIO OUT connectors to the

TV’s AUDIO IN connectors.

B

Connect the recorder to mains.

Plug the end of the mains power cord into a mains outlet.


NOTES:

● You can obtain high-quality S-VHS pictures.

● If your TV is not stereo-capable, use the recorder’s AUDIO

OUT connectors to connect to an audio amplifier for Hi-Fi

墌

pg. 73) stereo sound reproduction. (

● To operate the recorder with your TV using the S-VIDEO

connection, set your TV to its AV mode.

● For switching the TV’s mode, refer to the instruction manual of

your television.

After the connection is completed, perform “Auto Set

Up” on page 14.

Page 13 June 21, 2001 12:29 pm



Masterpage:Left

14

EN

Auto Set Up

Auto Channel Set/Auto Clock Set/

Auto Guide Program Number Set

After the

1

button on the recorder or remote control is pressed for the first time to power on the recorder, by simply selecting your country*, the Auto Set Up function sets the tuner channels, clock** and Guide Program numbers automatically.

* If you live in Belgium (BELGIUM) or Switzerland (SUISSE), you also need to select your language.

* If you live in Hungary (MAGYARORSZÁG), Czech Republic (CESKÁ

REPUBLIKA), Poland (POLSKA) or other countries in Eastern Europe

(OTHER EASTERN EUROPE), set the clock manually.

INITIAL SETTINGS

Before starting, make sure of the following:

● The TV aerial cable should be connected to the recorder.

● The recorder’s mains power cord should be connected to a mains outlet.

● If you want to use the on-screen display, the TV should be set to its AV mode.

A

Turn on the recorder.

Press

1

on the recorder or remote control. The Country

Set display appears on the front display panel and/or on the TV screen.

NOTE:

For a few seconds after you pressed

1

, you can not stop

Auto Set Up, even if you press

MENU to cancel this procedure.

B

Select your country.

On the front display panel

Press rt

to select your international telephone country code of your country referring to the chart in the left column.

(Example) DEUTSCHLAND (49) is selected.

On the on-screen display

Press rt

to move the highlight bar (pointer) to your country’s name.

International Telephone Country Code

BELGIUM

CESKÁ REPUBLIKA

DANMARK

DEUTSCHLAND

ESPAÑA

GREECE

ITALIA

MAGYARORSZÁG

NEDERLAND

:

:

:

:

:

:

:

:

: 32

42

45

49

34

30

39

36

31

NORGE

ÖSTERREICH

POLSKA

PORTUGAL

SUISSE

SUOMI

SVERIGE

OTHER WESTERN EUROPE

OTHER EASTERN EUROPE

47

43

48

351

41

358

46

– –

EE

:

:

:

:

:

:

:

:

:

NOTES:

● If you have selected BELGIUM (32) or SUISSE (41), go to step

C.

● If you have selected MAGYARORSZÁG (36),

C

ESKÁ

REPUBLIKA (42), POLSKA (48) or OTHER EASTERN EUROPE

(EE), press OK. The Clock Set screen appears. Set the clock manually (

墌

pg. 88), then go to step and go to step

D.

D.

● If you have selected any other country name (code), press OK

Page 14 June 21, 2001 12:25 pm




C

Select the language.

Press OK. The Language Set display appears on the front display panel and/or on the TV screen.


Press rt

to select your language code.

Language Code

ENGLISH

DEUTSCH

FRANCAIS

ITALIANO

CASTELLANO

:

:

:

:

:

01

02

03

04

05

NEDERLANDS

SVENSKA

NORSK

SUOMI

DANSK

(Example) DEUTSCH (02) is selected for SUISSE (41).

International telephone country code

Language code

:

:

:

:

: 06

07

08

09

10


Press rt

to move the highlight bar (pointer) to the language of your choice.

D

Perform Auto Set Up.

Press OK. The AUTO SET/T-V LINK display appears on the front display panel and/or on the TV screen.


Press rt

to select “Auto” and press OK or e

.


Press rt

to move the highlight bar (pointer) to

“AUTO SET” and press OK or e

.

DANSK

SUOMI

NORSK

SVENSKA

NEDERLANDS

CASTELLANO

ITALIANO

FRANCAIS

DEUTSCH

ENGLISH

EN

15

● If you are using the on-screen display, the AUTO SET screen will appear. As Auto

Set Up progresses, the “ mark on the TV screen q

” moves from left to right.

When the Auto Set Up is completed, “SCAN

COMPLETED” appears for about 5 seconds, then the normal screen appears.

Beginning End

● If you have connected the recorder to a TV offering T-V Link via a 21-pin SCART cable (

墌 pg. 12) and the TV is turned on, the recorder automatically performs “Preset Download”

(

墌 pg. 16) even if you select “Auto” in step

D.

ATTENTION

Once you have performed Auto Set Up, even if the recorder’s memory backup has expired, all the stored stations and their

Guide Program numbers remain in the recorder’s memory and the recorder will not perform Auto Set Up again. You only need to set the clock. (

墌 pg. 88)

If you have moved to a different area, perform each setting as required.

● Tuner Set (

● Clock Set (

墌 pg. 80) pg. 88)

If a new station starts broadcasting in your area, perform tuner setting (

墌 pg. 80).

NOTES:

● In the area where no TV station transmits a PDC (Programme

Delivery Control) signal, the recorder can perform neither

Auto Clock Set nor Auto Guide Program Number Set.

● If there is a power cut, or if you press

1

or MENU while Auto

Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and try again from step

A.

● Auto Clock Set may not function properly depending on the

reception condition.

● If no sound accompanies the picture or the audio sounds

unnatural on some channels that have been stored by Auto Set

Up, the TV system setting for those channels may be incorrect.

(

Select the appropriate TV system for those channels

墌

pg. 86, “INFORMATION”).

“Auto” blinks on the front display panel; do NOT press any button on the recorder or remote control until the front display panel shows clock time, “(CH) 1” or

“– –:– –” as illustrated on page 17.

Page 15 June 21, 2001 12:25 pm



Masterpage:Left

16

EN

Preset Download

Auto Channel Set by Downloading from TV/Auto Clock Set/Auto Guide

Program Number Set

ATTENTION

You can use this function only with a TV offering T-V Link, etc.* Be sure to use a fully-wired 21-pin SCART cable.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

INITIAL SETTINGS (cont.)

If you have connected the recorder to your TV via a 21-pin

SCART cable (

墌 pg. 12), the recorder will automatically perform Preset Download instead of the Auto Set Up in step

D on page 15. After downloading, the recorder sets the clock and

Guide Program numbers automatically.

Perform steps

A to C of “Auto Set Up” on page 14 before continuing.

A

Perform Preset Download.

Press OK. The AUTO SET/T-V LINK display appears on the front display panel and/or on the TV screen.


Press rt

to select “CH – –” and press OK or e

.


Press rt


“T-V LINK” and press OK or e

.

NOTES:

● For details, refer to the instruction manual of your TV.

● In the area where no TV station transmits a PDC (Programme

Delivery Control) signal, the recorder can perform neither

Auto Clock Set nor Auto Guide Program Number Set.

● If there is a power cut, or if you press

1

or MENU while downloading or set up is in progress, it will be interrupted; be sure to turn off the recorder power once and try again from the beginning.

● Auto Clock Set may not function properly depending on the


● On this recorder, the characters available for station names

(ID) are A–Z, 0–9, –,

f

, + and

I

(space). Some names of downloaded stations may differ from those of your TV

(

墌

pg. 85).

Preset positions on the front display panel increase from

“CH1”; do NOT press any button on the recorder or remote control until the front display panel shows clock time,

“(CH) 1” or “– –:– –” as illustrated on page 17.

● If you are using the on-screen display, the T-V LINK screen will appear. Then the GUIDE

PROG SET screen will appear during Guide Program

Number Set. When Preset

Download is completed,

“COMPLETED” appears for about 5 seconds, then the normal screen appears.

● If you press any button on the recorder or remote control while downloading is in progress, it will be interrupted.

Page 16 June 21, 2001 12:25 pm




EN

17

Results of Auto Set Up/Preset Download appear on the front display panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the recorder’s memory by using the PR button(s).

● If station names (ID –

墌 pg. 87) have also been stored in the recorder’s memory, the station name will be displayed at the top left corner of the TV screen for about 5 seconds when the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 82 – 87.

If Auto Channel Set has succeeded but Auto Clock Set has not, “1” (channel position) is displayed.

A Turn on the TV and select its AV mode, then make sure that all necessary stations have been stored in the recorder’s memory by using the PR button(s).

● If station names (ID –

墌 pg. 87) have also been stored in the recorder’s memory, the station name will be displayed at the top left corner of the TV screen for about 5 seconds when the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 82 – 87.

B Perform “Clock Set” on page 88.

If both Auto Channel Set and Auto Clock Set have failed, “– –:– –” is displayed.

Make sure the cables are connected properly and turn off the recorder’s power once, then turn the recorder’s power back on again.

The Country Set display appears on the front display panel and/or on the TV screen; perform “Auto

Set Up” on page 14 or “Preset Download” on page 16 again.

IMPORTANT

● To check if the Guide Program numbers have been set correctly, perform the S

HOW

V

IEW

Timer Programming (

墌 pg. 42).

● In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly when you timer-record a TV programme using the S

HOW

V

IEW system, the recorder will record a TV programme of a different station. When programming the timer using the S

HOW

V

IEW system, be sure to check the desired channel is selected correctly (

墌 pg. 42, “S

HOW

V

IEW

® Timer Programming”).

● Your video recorder memorizes all detected stations even if reception of some of them is poor. You can delete those stations with an unacceptable picture (

墌 pg. 83, “Delete A Channel”).

INFORMATION

Language for the on-screen display

Auto Set Up also selects the language automatically for the on-screen display depending on the Country setting you have made in step

B on page 14 (unless you have selected BELGIUM or SUISSE), as shown below.

SUOMI

PORTUGAL

DEUTSCHLAND

POLSKA

NORGE

SVERIGE

]

]

]

]

]

]

SUOMI

ENGLISH

DEUTSCH

ENGLISH

NORSK

SVENSKA

DANMARK

ÖSTERREICH

CESKÁ REPUBLIKA

ITALIA

MAGYARORSZÁG

ESPAÑA

]

]

]

]

]

]

DANSK

DEUTSCH

ENGLISH

ITALIANO

ENGLISH

CASTELLANO

NEDERLAND

GREECE



]

]

]

]

NEDERLANDS

ENGLISH

ENGLISH

ENGLISH

If you want to change the language setting manually, see “Language” on page 18.

Just Clock

Your recorder is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at

( regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to “ON”

墌 pg. 88, “Just Clock”).

Page 17 June 21, 2001 12:25 pm



18

EN

Language

Turn on the TV and select the AV mode.

Masterpage:Left

INITIAL SETTINGS (cont.)

This recorder offers you the choice to view on-screen messages in 10 different languages. Though Auto Set Up selects the language automatically (

墌 pg. 17), you can change the language setting manually as required.

A

Access the Main Menu screen.

Press MENU.

B

Access the Tuner Set screen.

HDD/VCR SET UP

A Press w e

to move the arrow to “INITIAL SET

TUNER SET

FUNCTION SET UP

INITIAL SET

TUNER SET

UP”, then press t

or OK.

B Press w e

to move the arrow to “TUNER SET”,

AUTO CH SET

MANUAL CH SET

INITIAL SET UP

then press OK.

INDEX MENU

SELECT WITH

THEN PRESS [OK] SELECT OK EXIT

C

Access the Country Set screen.

Press rt


TUNER SET

AUTO CH SET

MANUAL CH SET

“AUTO CH SET”, then press

OK or

e

.

D


Press rt

to move the highlight bar (pointer) to your country’s name, then press OK or e

.

E


Press rt


● You do not have to press OK; pressing OK enters AUTO SET/

T-V LINK screen.

DANSK

SUOMI

NORSK

SVENSKA

NEDERLANDS

CASTELLANO

ITALIANO

FRANCAIS

DEUTSCH

ENGLISH

[MENU] : EXIT

F

Return to the normal screen.

Press MENU.

Page 18 June 21, 2001 12:25 pm



Masterpage:Right

SAT CONTROL SET

Satellite Receiver

Control Setting

Your recorder

Satellite Controller

(suggested locations)

Satellite Controller

Transmitter

Satellite receiver


EN

19

The following procedure is required if you receive satellite channels through a satellite receiver.

Approximately 20 seconds before the S

HOW

V

IEW

timer programming (

墌 pg. 42) or Express timer programming

(

墌 pg. 44) starts, the recorder sets its input mode to “L-2” and automatically switches the satellite receiver’s channels using the provided Satellite Controller.

Installing Satellite Controller

A

Situate the Satellite Controller.

Place the Satellite Controller so that the path between its transmitter and the satellite receiver’s remote sensor is unobstructed.

B

Attach the Satellite Controller.

Fix securely using the adhesive strip attached on the back of the Satellite Controller.

C

Make connections.

Be sure to connect the recorder’s AV2 (L-2) IN/DECODER connector to the satellite receiver’s 21-pin SCART connector.

NOTE:

When connecting your satellite receiver, refer to its instruction manual.

D

Connect the Satellite Controller to recorder.

Connect the Satellite Controller to the SAT CONTROL connector on the rear panel.

21-pin SCART cable

(provided)

SAT CONTROL

AV2 (L-2) IN/DECODER


Page 19 June 21, 2001 12:25 pm



20

EN

Masterpage:Left

SAT CONTROL SET (cont.)

C

Access the Initial Set screen.

HDD/VCR SET UP

A Press w e


TUNER SET

FUNCTION SET UP

INITIAL SET

INITIAL SET

UP”, then press t

or OK.

B Press w e

to move the arrow to “INITIAL SET”,

CLOCK SET

INITIAL SET UP

GUIDE PROG SET

SAT CONTROL SET then press OK.

INDEX MENU

SELECT WITH


D

Access the Sat Control Set screen.

Press rt


“SAT CONTROL SET”, then press OK or e

.

Setting satellite receiver's brand and channel

After installation, set the satellite receiver’s brand and channel correctly; otherwise, the Satellite Controller cannot work correctly.


A

Turn on the satellite receiver.

Turn on the satellite receiver’s power.

B

Access the Main Menu screen on the recorder.

Press MENU.

E

Enter the satellite receiver’s brand.

Press the appropriate number

keys to enter the brand code

from the list on page 21, then press OK.

● If the brand code you entered is invalid, the code field will be reset. Enter the correct brand code again.

● If the recorder is in playback or recording mode, you cannot set the brand code.

F

Select the satellite receiver’s channel for testing.

Press the appropriate number

keys to enter one of the

channel positions on the satellite receiver, then press

OK.

● You can select the channel position between 1 to 999.

● After pressing OK, the recorder enters the Test mode.

Page 20 June 21, 2001 12:25 pm



Masterpage:Right-2lineTitle0

SAT CONTROL SET (cont.)

T-V LINK

G

Check the result of the test.

If the satellite receiver’s channel number has been changed to the same one as you set in step

F ...

Press rt


“CHANGED TO ...”, then press OK or e

to finish the

Sat Control Set mode.

If the satellite receiver’s channel number has not been changed correctly ...

Press rt

to move the highlight bar (pointer) to “NOT

CHANGED”, then press OK or e

. Then perform the procedure again from step

E.

EN

21

T-V Link Functions

When you connect the recorder to your TV via a fully-wired

21-pin SCART cable (

墌 pg. 12), the following functions are available. You can use these functions only with a TV offering

T-V Link, etc.*

For details, refer to the instruction manual of your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link or DATA LOGIC via fully-wired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

TV Auto Power On

The TV will turn on and be set to its AV mode automatically whenever you play a tape.


BRAND NAME

JVC

AMSTRAD

CANAL SATELLITE

CANAL +

D-BOX

ECHOSTAR

ECHOSTAR (VIA DIGITAL)

FINLUX

FORCE

GALAXIS

GRUNDIG

HIRSCHMANN

ITT NOKIA

JERROLD

KATHREIN

LUXOR

MASCOM

MASPRO

NOKIA

PACE

PANASONIC

PHILIPS

RFT

SAGEM

SALORA

SIEMENS

SKYMASTER

TPS

TRIAX

WISI

CODE

73

60, 61, 62, 63, 92

81

81

85

78, 79, 80

82

68

89

88

64, 65

64, 78

68

75

69

83

91

64

69

83

68

64

70, 71

68

93

70

87

65, 67, 74, 86, 92

74

66, 84

NOTES:

● The Satellite Controller may not work with all types of satellite

receiver.

● For some satellite receivers, you need to set its channel input

mode to 2-digit.

● If your satellite receiver has more than two channel modes, be

sure to set to “All Channel Mode”. For details, refer to the instruction manual of the satellite receiver.

● When selecting the satellite receiver’s channel (

墌

step

F),

signals from the remote control may interfere with signals transmitted from the Satellite Controller. In this case, move the remote control as close to the recorder’s infrared beam receiving window as possible.

VCR Auto Standby

You can use your TV’s remote control to turn off the recorder.


Direct Rec

You can easily start recording the programme that you are watching on your TV. When you use this function, set “DIRECT

REC” to “ON” (

墌 pg. 78).

Page 21 June 21, 2001 12:25 pm



Masterpage:Left

22

EN

RECORDING/PLAYBACK ON HDD DECK

Basic Recording

A


Press

1

.

● The button corresponding to the previously selected deck lights on the recorder.

● Turn on the TV and select the AV mode.

● If the recorder is turned on with HDD deck selected, there may be about 30 seconds’ delay in starting to show pictures on the screen.

B

Select the HDD deck.

Press HDD.

● The HDD button lights on the recorder.

C

Choose a programme.

Press PR +/– or the number keys to select the channel you wish to record.

● When you switch channels on the HDD deck, the picture appears a few seconds behind. It is not a malfunction.

D

Set the recording speed.

Press MODE ( p

).

● For details on the recording speed, see page 23.

E

Start recording.

Press and hold

7

and press

4

on the remote control, or press

7

on the recorder.

● The HDD recording indicator lights on the recorder.

F

Stop recording.

Press

8

.

● The HDD recording indicator turns off.

● There may be a few seconds’ delay in resuming normal screen.

It is not a malfunction.

NOTES:

● It is not possible to record a TV programme on both the HDD

deck and the VHS deck simultaneously. In addition, it is not possible to record simultaneously from the same external input.

● It is not possible to pause recording on the HDD deck while

recording from the channels other than “L-1”, “F-1”, “DUB”.

墌

pg. 59, 63) (

● While recording a programme, you can play back the

previously recorded part by “Live Memory Playback”

(

墌

pg. 26).

Page 22 June 21, 2001 5:35 pm




Basic Playback



EN

23

A


Press 1.

● The button corresponding to the previously selected deck lights on the recorder.

B


Press HDD.

● The HDD button lights on the recorder.

C

Start playback.

Press

4

.

● The HDD playback indicator lights on the recorder.

One of the following screens will appear:

– the programme which has been recorded on the HDD deck at last time and has not been played back yet

– the programme which has been stopped during playback

– the HDD Navigation screen (

墌 pg. 24)

● There are some programmes for demonstration on the HDD deck when it is shipped from the factory.

D

Pause playback.

Press

9

.

● To resume normal playback, press

4

.

E

Stop playback.

Press 8.

● The HDD playback indicator turns off.

NOTE:

While recording a programme, you can play back the previously recorded part by “Live Memory Playback” (

墌

pg. 26).

Recording Speed on the HDD deck

This recorder has a 40 Gbyte hard disk drive. The pictures and sounds recorded on the HDD deck and other information are written down on the hard disk drive.

As recording format for the HDD deck, MPEG2 format, the same for DVD, is used. As a guide for picture quality, the “bps” unit is used to represent how much data can be recorded per second.

The larger this value, the better the picture quality is but the more capacity is required for recording. Select SP for programmes where quick movement occurs, such as sports programmes, and SEP for talk shows, etc. where relativity less movement.

The recording speeds of the recorder are set as follows:

Recording speed

Recording amount

(approx.)

Maximum recording time (approx.)

SP

LP

EP

SEP

6.4 Mbps

4.5 Mbps

3.2 Mbps

2.2 Mbps

14 hours

20 hours

28 hours

40 hours

Page 23 June 21, 2001 12:25 pm



Masterpage:Left

24

EN

RECORDING/PLAYBACK ON HDD DECK (cont.)

Playback with HDD

Navigation

The HDD Navigation enables you to seach and select the desired programmes recorded on the HDD deck very easily.

There is a 40 Gbyte hard disk drive on this recorder. You can record up to 60 programmes for the HDD deck.

Each time a programme is recorded on the HDD deck, the information of the programme are registered for the HDD

Navigation automatically.

So, you can confirm the information of the programmes recorded on the HDD with the HDD Navigation screen. And, you can also select one of the programmes recorded on the

HDD deck using the HDD Navigation.

The following screen appears as the HDD Navigation screen when you press NAVIGATION with the HDD deck selected. You can move the arrow to select the desired position on the screen by pressing w r e t

on the remote control (or

Y R U T

on the recorder).

1

2

3

HDD NAVIGATION

INDEX

EASY DUBBING EDITING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP)

D

3 / 6

W

4

5

6

12/06/01 TUE 12/06/01 TUE 11/06/01 MON 11/06/01 MON

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

PLAY MODIFY DELETE CANCEL

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

9

0

7

8

A Names of functions

INDEX (

墌 pg. 25)

EASY DUBBING (

EDITING (

墌

墌 pg. 56) pg. 60)

B Total time for the selected programme(s)

C Index

(Small still picture of the each programme)

D Recording information for the programme indicated by the arrow

E Operational commands

F Guidance for operations

G Remaining time

(Based on the recording speed currently selected)

H Current/Total number of programme(s)

(For example, there are 6 recorded programmes and the programme indicated by the arrow is the 3rd one.)

I This mark appears when there are over 4 registered programmes.

(By pressing w e

(or

Y U

), you can select the other programme.)

J Icons

(Indicate the recording situation for each programme.)

The Icons and their meanings

You cannot dub this programme from the

HDD deck to the VHS deck.

I

D

W

This programme was recorded with daily mode of timer recording.

This programme was recorded with weekly mode of timer recording.

This programme has stereo sounds.

This programme has bilingual sounds.

This programme was recorded with timer recording.

Page 24 June 21, 2001 3:22 pm




Scan for Beginning(s) of Programme(s)



You can scan the beginning of the programme easily with the

HDD Navigation.

A


Press

1.

B


Press HDD.

EN

25

C

Access the Index screen.

HDD NAVIGATION

A Press NAVIGATION. The

HDD Navigation screen

INDEX


TOTAL TIME 0H00M REMAIN TIME 11H07M (SP) appears.

B Confirm that “INDEX” screen appears. Then, press t

or OK.

12/06/01 TUE

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

PLAY

3 / 6

12/06/01 TUE 12/06/01 TUE 12/06/01 TUE

MODIFY DELETE CANCEL

INDEX NAVIGATION

SELECT WITH


D

Select the programme(s).

Press w e

to move the arrow on the index (small still pictures) of the desired programme.

● When you want the plural programmes to be played back continuously, press MEMO after selecting the desired programme. The numbers of the playback order appear on the index. You can select up to

HDD NAVIGATION

INDEX

EASY DUBBING

12/06/01 TUE

1

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

PLAY

12/06/01 TUE 12/06/01 TUE 12/06/01 TUE

MODIFY

EDITING


DELETE

3 / 6

CANCEL

8 programmes.

● When you want to correct the

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

order, move the arrow on the desired index and press MEMO.

The number disappears and the recorder re-numbers the other programmes automatically.

● When you want to cancel the order, move the arrow to

“CANCEL“ and press OK.

E

Start playback.

Press OK to move the arrow to “PLAY” on the Index screen, then press OK again. Or simply press

4

. The playback starts.

F

Pause playback.

Press

9.

● To resume normal playback, press 4.

G

Stop playback.

Press

8.

Page 25 June 21, 2001 7:58 pm



Masterpage:Left

26

EN

Live Memory

Playback


Equipped with a hard disk drive, this recorder allows information to be written to and read from the hard disk at high speeds. Taking advantage of this feature, you can temporarily record programmes received with the tuner or from an externally connected equipment, and can watch them only a few seconds behind actual air time.

In this recorder, viewing a programme through HDD (not a recorded programme) means you are always watching the programme temporarily recorded on it.

This feature enables you to reverse the programme back to view any previous part of it. This is called “Live Memory Playback”, which was impossible until now.

You can select the length of the time for temporary recording from off, 30 minutes, 1 hour, and 3 hours (

墌 pg. 75).

About “Live Memory Playback”

With a certain amount of space (for 30 minutes, 1 hour and 3 hours) reserved on the hard disk, the recorder records broadcasts being received or signals input from an externally connected equipment.

Even while you are reversing the programme to review any previous part, the recorder continues recording the same programme or externally-input signals.

NOTE:

When the reserved amount of time (or space) runs out, the recorder overwrites the previous recordings on the hard disk, starting with the oldest one, repeatedly if necessary. After having recorded a certain number of programmes, if you try to increase the amount of your reserved time on HDD, you may not be allowed to do so because of possible lack of available space, and the recorder will inform you of this by displaying a message on the screen.



A


Press 1.

B


Press HDD.

C



● The temporary recording begins.

D

Start Live Memory Playback.

Press w

or

3

to search for the previous part of the programme, then press

4

.

E

Stop Live Memory Playback.

Press

8

.

● The on-air screen resumes.

NOTES:

● You can use various playback features during Live Memory

Playback. (

墌

pg. 27)

● If you have started actual recording by pressing

in step

E only resumes the on-air screen. To stop actual

recording, press

8

again.

7

, pressing

8

About limitation on Live Memory Playback

The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.

● When channels are changed

● When the power is turned off

● When the thumbnails are changed

● When the setting for Live Memory playback is changed

● When recording is started via the HDD deck or the VHS deck

● When a recorded programme is played back or deleted

Page 26 June 21, 2001 12:25 pm




Playback Features



EN

27

High-Speed Search

During playback (or Live Memory Playback), press

5 for forward high-speed search, or

3

for reverse high-speed search.


4

.

NOTES:

● For short searches, press and hold

5

or

3

for over 2 seconds during playback or still picture. When released, normal playback resumes.

● If either end of the programme is reached during high-speed

search, normal playback will resume.

Still Picture/Frame-By-Frame

Playback

1

Pause during playback.

Press 9.

2

Activate frame-by-frame playback.

Press

9

or e

repeatedly to advance one frame at a time.

Press w

repeatedly to reverse one frame at a time.


Slow Motion

1


Press 9.

2

Activate slow motion playback.

Press and hold e

or w for over 2 seconds.

● The playback speed changes for each direction by pressing or w

repeatedly.


e

Page 27 June 21, 2001 12:25 pm



Masterpage:Left

28

EN

Variable Speed Search

During playback (or Live Memory Playback), press e

for forward variable-speed search, or w

for reverse variable-speed search.


repeatedly. Refer to the illustration below.


e


Quick Rewind a little


(START –). The recorder rewinds the picture a little

(about 7 seconds) and resumes playback.

● If the button is pressed repeatedly, the recorder rewinds the pictures continuously and resumes playback.

Quick Skip Forward


(START +). The recorder skips forward (about 30 seconds at a time) and resumes playback.

● If the button is pressed repeatedly, the recorder skips continuously and resumes playback.

Repeat Playback

Your recorder can automatically play back the whole programme

100 times repeatedly.

During playback, press

4

and hold for over 5 seconds, then release.

● The Play indicator ( u

) on the front display panel and the

HDD playback indicator blink slowly.


NOTE:

Repeat playback is not possible during Live Memory Playback.

Soundtrack Selection

The HDD deck can record 2 soundtracks (L and R).

During Playback

Pressing AUDIO changes the soundtrack as follows:

TRACK

On-Screen

Display

USE

N

I

.

I

N

I

.

I

NICAM

NICAM

NICAM

For stereo programme

For monaural programme

For main audio of bilingual programme

For sub audio of bilingual programme

For NICAM stereo programme

For NICAM monaural programme

For NICAM main audio of bilingual programme

For NICAM sub audio of bilingual programme

For NICAM FM programme

For AUX input sounds (L+R)

For AUX input sound (L)

For AUX input sound (R)

Page 28 June 21, 2001 12:25 pm




Recording Features

Record One Programme While

Watching Another

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you wish to view.

● The programme selected with the TV’s channel controls appears on the TV screen, while the one selected with the recorder’s PR buttons is recorded on the tape.

● If a decoder is connected to the recorder (

墌 pg. 72), you can select a scrambled channel as well with the TV channel controls.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours

(selectable in 30-min. increments), and shuts the recorder off after recording is finished.

1


Press

7

on the recorder.

2

Engage the ITR mode.

Press

7

again. “ o

” blinks and “0:30” appears on the front display panel.

3

Set the recording duration.

If you want to record for more than 30 minutes, press

7 to extend the time. Each press extends recording time by

30 minutes.

NOTE:

You can only perform ITR using the

7

button on the recorder’s front panel.

EN

29

Receiving Stereo and Bilingual

Programmes

Your recorder is equipped with a Sound-Multiplex decoder (A2) and a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible.

When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being

Received

On-screen Display

A2 Stereo

A2 Bilingual

Regular Monaural

NICAM Stereo

NICAM Bilingual

NICAM Monaural

NICAM FM Sound

I

NICAM

N

I

.

I N

I

.

NICAM

NICAM

NOTE:

“O.S.D.” must be set to “ON” or the on-screen displays will not appear (

墌

pg. 78).

To Record Stereo and Bilingual Programmes (A2)

Stereo programmes are automatically recorded in stereo.

● Bilingual programmes are automatically recorded in bilingual.

To Record NICAM Bilingual Programmes

Set “AUDIO REC” to “NICAM” to record the NICAM bilingual programme (

墌 pg. 75).

NOTES:

● If the quality of stereo sound being received is poor, the

broadcast will be received in monaural with better quality.

● Before playing back a programme recorded in stereo, or a

bilingual programme, refer to “Soundtrack Selection” on page 28.

Page 29 June 21, 2001 7:05 pm



Masterpage:Left

30

EN

Basic Recording



NOTE:

It is not possible to record a TV programme on both the HDD deck and the VHS deck simultaneously. In addition, it is not possible to record simultaneously from the same external input.

RECORDING/PLAYBACK ON VHS DECK

A

Load a cassette.

Insert a cassette with the record safety tab intact.

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the recorder.

● Do not apply too much pressure when inserting.

● The recorder’s power comes on automatically.

● While “– – – –“ is blinking on the front display panel, the tape will run for a few seconds to search for the tape number.

● If you want to use VCR Navigation to select the programme after recording with this recorder, set “NAVIGATION” to “ON”

(

墌 pg. 75).

B

Select the VHS deck.

Press S-VHS.

● The S-VHS button lights on the recorder.

C



D

Set the tape speed.

Press MODE ( p

). Check the SP/LP/EP indicator on the recorder’s front display panel to confirm the selected tape speed.

● In EP mode, the recording time is extended three times.

● If you record a programme in EP mode on this recorder, it is recommended to play back the EP-recorded tape on this recorder.

● It is not possible to select EP mode if “COLOUR SYSTEM” is set to “MESECAM”.

(

墌 pg. 76

)

E


Press and hold

7

and press

4


7

on the recorder.

● The VHS recording indicator lights on the recorder.

B.E.S.T. takes place at the beginning of both the first SP and

( the first LP (or EP) recording after inserting the cassette.

墌 pg. 41)

If “DIRECT REC” is set to “ON”, the programme that appears on the TV screen will be recorded (

墌 pg. 78).

F

Pause/Resume recording.

Press

9

. Press

4

to resume recording.

G

Stop recording.

Press

8

. Then press to remove the cassette.

Page 30 June 21, 2001 12:25 pm




Basic Playback



EN

31

A


Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the recorder.

● Do not apply too much pressure when inserting.

● The recorder’s power comes on automatically.

● While “– – – –“ is blinking on the front display panel, the tape will run for a few seconds to search for the tape number.

● If the record safety tab has been removed, playback begins automatically.

B


Press S-VHS.

● The S-VHS button lights on the recorder.

C

Find the programme start point.

If the tape is advanced past the start point, press 3. To go forward, press 5.

D

Start playback.

Press

4

. “BEST” appears blinking in the recorder’s front display panel during automatic tracking. (

墌 pg. 41)

● The VHS playback indicator lights on the recorder.

E

Stop playback.

Press

8

. Then press to remove the cassette.

Usable cassettes

● Compact VHS camcorder recordings can be played on this video recorder.

Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized

VHS cassette.

● This video recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes*, both

VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

* By using the S-VHS ET function, it is possible to record and play back with S-VHS picture quality on VHS cassettes with this recorder.

Page 31 June 21, 2001 12:25 pm



Masterpage:Left

32

EN

RECORDING/PLAYBACK ON VHS DECK (cont.)

Playback with VCR

Navigation

The VCR Navigation enables you to seach and select the desired programmes recorded on the VHS deck very easily.

When you record a programme with the VHS deck for more than

8 minutes in SP mode (for more than 15 minutes in LP mode or for more than 23 minutes in EP mode) with “NAVIGATION” set to “ON” (

墌 pg. 75), its information are registered for the VCR

Navigation automatically.

When the first programme is recorded on a cassette, the VCR

Navigation gives the register number to the cassette. The VCR

Navigation memorizes the cassette by the number. You can confirm the register number of the cassette when the cassette is loaded or ejected.

The VCR Navigation can register up to 2000 programmes or up to 680 cassettes.

The following screen appears as the VCR Navigation screen when you press NAVIGATION with the VHS deck selected.

You can move the arrow to select the desired position on the screen by pressing w r e t

on the remote control (or

Y

R U T

on the recorder).

1

2

3

VCR NAVIGATION

0001

DATE CATEGORY CASSETTE #

[12/06/01 TUE ] 120M BLANK 87M (SP)

4

BLANK

12/06/01 TUE 12/06/01 TUE 87min(SP)

[UNDECIDED]

12/06/01 TUE 12:00 – 12:30 PR. 8 SP 30min

PLAY STOP MODIFY DELETE

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

5

6

7

8

9

A Loaded cassette number

B Date when the loaded cassette registered

C Index

(Small still picture of the each programme)

D Operational commands

E 3 ways to navigate

(By the recording date, category and cassette number)

F Total time and blank time of the loaded cassette

(Based on the recording speed currently selected)

G Recording information for the programme indicated by the arrow

H Icons

(Indicate the recording situation for each programme.)

I Guidance for operations

The Icons and their meanings

This programme has a little gap at the beginning.

I

This programme has stereo sounds.

This programme has bilingual sounds.

This programme was recorded with Timer recording.

Page 32 June 21, 2001 3:37 pm




Scan for Beginning of Programme with

VCR Navigation

The VCR Navigation can take effect for the programme which has been recorded, and whose information has been registered with this recorder. Once the VHS (S-VHS) cassettes have been used for recording with this recorder, they have the register number given by this recorder.



A


Press

1.

B


Press S-VHS.

EN

33

C

Access the VCR Navigation screen.

Press NAVIGATION. The

VCR NAVIGATION

0001

DATE CATEGORY

VCR Navigation screen

[12/06/01 TUE ] 120M BLANK 87M (SP)

CASSETTE # appears.

● If a registered cassette has been loaded, the contents of the loaded cassette will

12/06/01 TUE

PLAY

12/06/01 TUE

STOP

BLANK

87min(SP)

MODIFY

[UNDECIDED]

DELETE

appear. To select the programme from the loaded cassette, go to step

F.

12/06/01 TUE 12:00 – 12:30 PR. 8 SP 30min

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

D

Search for the programme.

Press w e

to move the arrow to select one of the 3 search types, then press OK or t

.

A Select “DATE” if you want to search for the registered programme by the recording date.

B Select “CATEGORY” if you want to search for the registered programme by the category in which you have classified the programme.

C Select “CASSETTE #” if you want to search for the programme by each registered cassette.

E

Load the cassette.

After you have found the programme and checked its cassette number, insert the cassette.

F

Select the programme.

Press w e to move the arrow on the index (small still pictures) of the desired programme.

G

Start playback.

Press OK to move the arrow to “PLAY” on the Index screen, then press OK again. Or simply press

4

. The playback starts.

H

Pause playback.

Press

9.


I

Stop playback.

Press

8.

Page 33 June 21, 2001 7:58 pm



Masterpage:Left

34

EN

Playback Features


Still Picture/Frame-By-Frame

Playback

1


Press

9

.

2

Activate frame-by-frame playback.

Press

9

repeatedly to advance one frame at a time.

OR

Press

9

for over 2 seconds to start frame-by-frame playback.


ATTENTION

● Picture may not appear during high-speed search with an

LP/EP-recorded tape.

● Noise may appear or the picture may appear distorted with an EP-recorded tape during still, slow motion, frame-by-frame playback or variable speed search.

● In the high-speed search, still, slow motion or frame-by-frame playback mode, the picture will be distorted, and there will be a loss of colour.

● When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

Slow Motion

1


Press 9.

2

Activate slow motion playback.

Press and hold e

or w for over 2 seconds.


repeatedly.


e

Variable Speed Search

During playback, press e

for forward variable-speed search, or w

for reverse variable-speed search.


repeatedly. Refer to the illustration below.


e

Clean the video heads using a dry cleaning cassette — TCL-2UX — when:

● Rough, poor picture appears while a tape is played back.

● The picture is unclear or no picture appears.

● “USE CLEANING CASSETTE” appears on the screen (only with “O.S.D.” set to “ON” (

墌 pg. 78)).

High-Speed Search

During playback or still, press

5

for forward high-speed search, or

3

for reverse high-speed search.


4

.

NOTE:

For short searches, press and hold

5

or

3

for over 2 seconds during playback or still picture. When released, normal playback resumes.

Page 34 June 21, 2001 12:25 pm




EN

35

Index Search

Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the recorder is in the Stop mode.

Activate Index Search.

Press w

or e

(

2

or

6

). “

2

1” or “

6

1” is displayed on the TV screen and search begins in the corresponding direction.

● To access index codes 2 through 9, press w

or until the correct index number is displayed.

Example:

e

repeatedly

To locate the beginning of B from the current position, press w twice.

To locate the beginning of D from the current position, press e once.

Current position

Repeat Playback

Your recorder can automatically play back the whole tape 100 times repeatedly.

1

Start playback.

Press

4

.

2

Activate Repeat Playback.

Press

4

and hold for over 5 seconds, then release.

● The Play indicator ( u

) on the front display panel and the VHS play indicator blink slowly.

● After playing back a tape 100 times, the recorder stops automatically.

3

Stop Repeat Playback.

Press

8

at any time.

● Pressing

4

,

3

,

5

or

9

also stops Repeat Playback.

NOTE:

Repeat playback is not possible with a cassette recorded in EP mode.

Index number

● When the specified index code is located, playback begins automatically.

Next Function Memory

The Next Function Memory “tells” the recorder what to do after rewinding. Before continuing, make sure the recorder is in the

Stop mode.

a- For Automatic Start Of Playback

Press

3

, then press

4

within 2 seconds.

b- For Automatic Cassette Ejection After Tape Rewind

Press

3

, then press within 2 seconds.

Page 35 June 21, 2001 12:25 pm



Masterpage:Left

36

EN

Manual Tracking

Your recorder is equipped with automatic tracking control.

During playback, you can override this and adjust the tracking manually by pressing the PR buttons.


Soundtrack Selection

Your recorder is capable of recording three soundtracks (HI-FI L,

HI-FI R and NORM) and will play back the one you select.

During Playback

Pressing AUDIO changes the soundtrack as follows:

TRACK

USE

On-Screen

Display

HI FI

L j h

R

For Hi-Fi stereo tapes

HI FI

L j

HI FI h

R

NORM

For main audio of Bilingual tapes

For sub audio of Bilingual tapes

For audio-dubbed tapes

HI FI

NORM

For audio-dubbed tapes

NOTES:

● “HIFI L j h

R” should normally be selected. In this mode,

Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio.

● For instructions on recording stereo and bilingual

programmes, refer to page 40.

● “O.S.D.” must be set to “ON” or the on-screen displays will

not appear (

墌

pg. 78).

1

Override automatic tracking.

Press p

on the remote control.

2

Adjust the tracking manually.

Press PR + or –.

● Press p again to return to automatic tracking.

NOTE:

When a new tape is inserted, the recorder enters the automatic tracking mode automatically.

Page 36 June 21, 2001 12:25 pm




Recording Features

Recording Resume Function

If there is a power outage during recording, Instant Timer

(

Recording (in the right column) or timer recording

墌 pg. 42, 44), the recording will resume automatically when power is restored to the recorder unless the recorder’s memory backup has expired.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

EN

37

Record One Programme While

Watching Another

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you wish to view.

● The programme selected with the TV’s channel controls appears on the TV screen, while the one selected with the recorder’s PR buttons is recorded on the tape.

● If a decoder is connected to the recorder (

墌 pg. 72), you can select a scrambled channel as well with the TV channel controls.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours

(selectable in 30-min. increments), and shuts the recorder off after recording is finished.

1


Press

7

on the recorder.

2

Engage the ITR mode.

Press

7

again. “ o

” blinks and “0:30” appears on the front display panel.

3

Set the recording duration.

If you want to record for more than 30 minutes, press

7 to extend the time. Each press extends recording time by

30 minutes.

NOTE:

You can only perform ITR using the

7

button on the recorder’s front panel.

Page 37 June 21, 2001 12:25 pm



Masterpage:Left

38

EN

Elapsed Recording Time Indication

1

Set the counter display.

Press – –:– – until a counter reading appears on the front display panel.

2

Reset the counter.

Press 0000 before starting recording or playback.

● The counter is reset to “0:00:00” and shows the exact elapsed time as the tape runs. You can check the exact time of a recording or playback.


Retake

You can cut out unnecessary parts of a TV programme while you are recording it.

End of programme Beginning of programme

Programme

Unnecessary part

Unnecessary part

Programme

Recorded part

Go back to end of programme to cut out unnecessary part

1

Engage the Record-Pause mode.

Press

9

during recording.

2

Locate the start point.

Hold down

3

or

5

and release it when you reach the point where you want to resume recording.

● Your recorder returns to the Record-Pause mode.

3

Resume recording.

Press

4

when you wish to resume recording.

NOTES:

● Retake function does not work during Direct Rec (

78).

墌

pg. 21,

● Noise may appear when Retake function is used at the part

that is recorded in EP mode.

Tape Remaining Time

Press – –:– – until the time remaining on the tape appears.

● The front display panel shows the tape remaining time with

“ y

” displayed.

● By pressing the – –:– – button, you can change the display to show the counter reading, channel position*, clock time or tape remaining time.

* Channel position is not displayed during playback.

NOTE:

Depending on the type of tape being used, the tape remaining time reading may not appear right away, or is not correct.

“– –:– –” may sometimes appear, or the display may blink on occasion.

Page 38 June 21, 2001 12:25 pm




EN

39

Super VHS ET (S-VHS ET)

— Recording on VHS cassettes with

S-VHS quality

You can record in SP mode on VHS cassettes with S-VHS picture quality. Tapes recorded using this function can be played back on a recorder equipped with the S-VHS ET function.

● You can activate the S-VHS ET function only before you start

● Before recording, make sure that “B.E.S.T.” is set to “ON”.

( recording on a VHS cassette.

墌 pg. 77)

Engage the S-VHS ET mode.

Press S-VHS ET on the recorder.

● “S-VHS ET : ON“ appears on the TV screen, if “O.S.D.“ is set to “ON“.

● To disengage the S-VHS ET mode, press S-VHS ET.

NOTES:

● You cannot activate the S-VHS ET function ...

... while recording is in progress.

(

... while timer-recording or Instant Timer Recording

墌

pg. 37) is in progress.

... while B.E.S.T. (

墌

pg. 41) is in progress.

● The S-VHS ET function does not work ...

... with S-VHS cassettes.

... with recordings in LP/EP mode.

● To keep the highest quality recording and playback pictures

over a long period of time, S-VHS recording on S-VHS cassettes is recommended.

● Use of high grade tapes is recommended for S-VHS ET

recordings. On some tapes, picture quality will not improve even if the S-VHS ET function is used. Check the recording quality before you start important recordings.

● You can play back a tape recorded using the S-VHS ET

function on most of S-VHS recorders and of VHS recorders equipped with SQPB (S-VHS QUASI PLAYBACK) function.

(Notice some recorders are not compatible with the S-VHS ET function.)

● While playing back a tape recorded using the S-VHS ET

function on some recorders, noise may appear. (If playback picture becomes blurred or interrupted, use a cleaning cassette.)

● In the high-speed search, still, slow-motion or frame-by-frame

playback modes (

墌

pg. 34), noise may appear. If these modes are performed frequently on a tape recorded using the S-VHS

ET function, the tape may be damaged and the picture may be deteriorated.

Page 39 June 21, 2001 12:25 pm



40

EN

Masterpage:Left


Receiving Stereo and Bilingual

Programmes

Your recorder is equipped with a Sound-Multiplex decoder (A2) and a Digital stereo sound decoder (NICAM) making reception of stereo and bilingual broadcasts possible.

When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.

Type of Broadcast Being

Received

On-screen Display

A2 Stereo

A2 Bilingual

Regular Monaural

NICAM Stereo

NICAM Bilingual

NICAM Monaural

ST

BIL.

(none)

ST NICAM

BIL. NICAM

NICAM

● To listen to a stereo programme, press AUDIO until

“HIFI L j h

● To listen to a bilingual programme, press AUDIO until

“HIFI L

R” appears on the TV screen.

” or “HIFI R” appears on the TV screen (as j h required).

● To listen to the standard (Regular Monaural) audio while receiving a NICAM broadcast, press AUDIO until “NORM” appears on the TV screen.

NOTE:

“O.S.D.” must be set to “ON” or the on-screen displays will not appear (

墌

pg. 78).

To Record Stereo and Bilingual Programmes (A2)

Stereo programmes are automatically recorded in stereo on the

Hi-Fi audio track (with the normal audio track recording mixed L and R channel sound).

● Bilingual programmes are automatically recorded in bilingual on the Hi-Fi audio track. The main soundtrack will be recorded on the normal audio track.

To Record NICAM Stereo and Bilingual

Programmes

The NICAM audio programme will be recorded on the Hi-Fi audio track, and the standard audio programme will be recorded on the normal audio track.

NOTES:

● If the quality of stereo sound being received is poor, the

broadcast will be received in monaural with better quality.

● Before playing back a programme recorded in stereo, or a

bilingual programme, refer to “Soundtrack Selection” on page 36.

Page 40 June 21, 2001 12:25 pm




B.E.S.T. Picture

System

The B.E.S.T. (Biconditional Equalised Signal Tracking) system checks the condition of the tape in use during playback and recording, and compensates to provide the highest-possible playback and recording pictures. You

( can set “B.E.S.T.” to “ON” or “OFF” to your preference

墌 pg. 77).

EN

41

Recording

The recorder assesses the quality of the tape once you initiate recording.

DURING B.E.S.T.

B.E.S.T. COMPLETE

Playback

The recorder assesses the quality of the tape once you initiate playback.

● The recorder adjusts the playback picture quality based on the quality of the tape in use.

● B.E.S.T. is active during automatic tracking. “BEST” appears blinking on the recorder’s front display panel.

NOTES:

● When watching a tape recorded with “B.E.S.T.” set to “ON”, it

is recommended that you leave B.E.S.T. on during playback as well.

● When watching a rental tape or one recorded on another

video recorder, or when using this recorder as the player for editing, set B.E.S.T. to your preference (

墌

pg. 77).

● “BEST” only appears at the beginning of automatic tracking.

Even though it doesn’t appear after that, the B.E.S.T. function is operative.

● The recorder spends approximately 7 seconds assessing the condition of the tape, then begins recording.

NOTES:

● The B.E.S.T. system works for both SP and LP (or EP) modes

only after a tape has been inserted and the Record mode is first initiated. It does not work during recording.

● The B.E.S.T. system does not work while Automatic Satellite

Programme Recording is in progress (

墌

pg. 47).

● In the case of timer recordings, the B.E.S.T. system works

before recording is initiated.

● Once the cassette is ejected, the B.E.S.T. data is cancelled. The

next time the cassette is used for recording, B.E.S.T. is re-performed.

● Pressing the recorder’s

7

button while “BEST” is displayed does not start Instant Timer Recording (

墌

pg. 37).

ATTENTION

Since the B.E.S.T. system works before recording actually starts, there is a delay of approximately 7 seconds after

7 and

4

on the remote control are pressed, or

7

on the recorder is pressed. To make sure you record the desired scene or programme in its entirety, first perform the following steps:

A Press and hold

9

and press

7

to engage the Record

Pause mode.

● The recorder then automatically checks the condition of the tape and, after approximately 7 seconds, re-enters

Record Pause mode.

B Press

4

to start recording.

If you want to bypass the B.E.S.T. system and begin recording immediately, set “B.E.S.T.” to “OFF” (

墌 pg. 77).

Page 41 June 21, 2001 12:25 pm



Masterpage:Left

42

EN

S

HOW

V

IEW

®

Timer

Programming

You can programme this recorder to timer-record as many as 16 programmes.

With the S

HOW

V

IEW

system, timer programming is greatly simplified because each TV programme has a corresponding code number which your recorder is able to recognize.

You can use the remote control with LCD panel to enter the

S

HOW

V

IEW

number.

Before performing the S

HOW

V

IEW

Timer

Programming:

● Make sure that the recorder’s built-in clock is set properly.


TIMER RECORDING

A


Press

1

.

B

Select the deck.

Press HDD or S-VHS.

● For the VHS deck:


C

Access the S

HOW

V

IEW

display.

Press LCD PROG.

The LCD panel looks like this:

D

Enter the S

HOW

V

IEW

number.

Press the number keys to enter the S

HOW

V

IEW

number of a programme you wish to record.

● If you make a mistake, press

&

and input the correct number.

The S

HOW

V

IEW

number you enter appears on the LCD panel:

LCD panel

E

Transfer the S

HOW

V

IEW

number.

Press to transmit the S

HOW

V

IEW

number from the remote control to the recorder.

● If the number you entered is invalid, “SHOWVIEW NO.

ERROR CONFIRM SHOWVIEW NO. THEN RETRY” appears on the TV screen. Input a valid S

HOW

V

IEW

number.

● If “SET GUIDE PROG THEN RETRY” appears on the TV screen, set Guide Program Numbers (

墌 pg. 79) manually.

● When “PROGRAMME FULL DELETE UNWANTED TIMER

PROGRAMME” appears on the TV screen, you need to cancel some of the reserved programmes.

(

墌 pg. 46

)

F

Check the programme data.

The S

HOW

V

IEW

number you

PROGRAMME

SHOWVIEW NO.

1 2 3 4 5 6 7 8 entered and the matching

RECORD TO REC MODE WEEKLY/DAILY timer-recording information

HDD SEP WEEKLY are displayed on the TV screen. Check they are correct.

● To cancel this setting, press w e

to move the arrow to

“CANCEL”, then press OK.

Or, press

PROG

.

START

23:30 00:00

CONFIRM

+

–

START

+

–

STOP

+

–

DATE

+

–

PR

STOP

CANCEL

PROG.

EXIT

DATE

CATEGORY

CHANGE SETTINGS BY REMOTE

THEN CONFIRM

VPS/PDC

ON

TV PROG

UNDECIDED

IMPORTANT

Make sure the channel position number you wish to record is displayed; if not, see “S

HOW

V

IEW

® System Setup” on page 79 and set the Guide Program number correctly.

Page 42 June 21, 2001 12:29 pm




G


Press MODE ( p

).


It is not possible to select EP mode if “COLOUR SYSTEM” is set to “MESECAM”.

(

墌 pg. 76

)

H

Set the VPS/PDC mode.

Press VPS/PDC to select “ON” or “OFF”.

● If “VPS/PDC ON” is displayed on the TV screen, VPS/PDC is set to ON.

● If “VPS/PDC OFF” is displayed on the TV screen, VPS/PDC is set to OFF.

墌

“VPS/PDC Recording” on page 45.

I

Set the category.

A Press w e

to move the arrow to “CATEGORY“, then press OK. The category set screen appears.

B Press w r e t

to select the desired category, then press OK.

C Confirm the arrow is on

“RETURN”, then press

OK. The programme

screen resumes.

PROGRAMME

CHILDREN

EDUCATIONS

RELIGIOUS

SPECIAL

RETURN

INDEX

SELECT OK

CLASSICS

MOVIES

SERIES

SPORTS

COMEDY

MUSIC

SHOPPING

OTHERS

SELECT WITH

THEN PRESS [OK]

DRAMA

NEWS

SHOW

UNDECIDED

J


Press w r e t

to move the arrow to “CONFIRM”, then press OK. “PROGRAMME COMPLETED” appears on the

TV screen for about 5 seconds, then the normal screen appears.

● If “PROGRAMME OVERLAPPED” appears on the TV screen, see page 46.

K

Engage the recorder’s timer mode.

Press

#

(TIMER). The recorder turns off automatically and

“

#

” appears on the front display panel.

● To disengage the timer mode, press

#

(TIMER) again.

EN

43

NOTES:

● To Change The Stop Time . . .

. . . press STOP +/– in step

F. You can compensate for

anticipated programme schedule delays.

● To Timer-Record Weekly Or Daily Serials . . .

. . . in step

F, press WEEKLY (number key “9”) for weekly

serials or DAILY (number key “8”) for daily serials (Monday —

Friday). Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the button again makes the corresponding indication disappear.

● During timer recording . . .

. . .it is not possible to disengage the timer mode.

. . .it is not possible to change the recording deck (HDD or

VHS).

● It is not possible to timer-record a TV programme with a

S

HOW

V

IEW

number which starts with “0”.

Satellite Receiver Users

To timer-record a satellite broadcast using the S

HOW

V

IEW system:

A Perform “Automatic Satellite Programme Recording” on page 47.

B Perform steps A – K. In step F, the front display panel shows “L2” for the channel position. In step

H, you cannot set “VPS/PDC” to “ON”.

C Leave the satellite receiver’s power on.

Page 43 June 21, 2001 12:29 pm



Masterpage:Left

44

EN

Express Timer

Programming

You can programme this recorder to timer-record as many as 16 programmes.

If you do not know the S

HOW

V

IEW

number for the programme you wish to record, use the following procedure to set your recorder to timer-record the programme.

Before performing Express Timer Programming:

● Make sure that the recorder’s built-in clock is set properly.


TIMER RECORDING (cont.)

A


Press

1

.

B





C

Access the programme screen.

PROGRAMME

Press PROG.

● When “PROGRAMME FULL

DELETE UNWANTED TIMER

RECORD TO

HDD

REC MODE

SEP

PROGRAMME” appears on the TV screen, you need to cancel some of the reserved programmes. (

墌 pg. 46)

START

– – : – –

CONFIRM

STOP

– – : – –

CANCEL

PROG.

+

–

START

+

–

STOP

+

–

DATE

+

–

PR EXIT

WEEKLY/DAILY

DATE

– –/– –/– – – – –

CATEGORY


THEN CONFIRM

VPS/PDC

ON

TV PROG

– –

UNDECIDED

D

Enter the programme start time.

Press START+/– to enter the time you want recording to start.

● Press and hold START+/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

E

Enter the programme stop time.

Press STOP+/– to enter the time you want recording to stop.

● Press and hold STOP+/– to move in 30-minute increments, or press and release repeatedly to move 1 minute at a time.

F

Enter the programme date.

Press DATE+/–.

● The current date appears on the TV screen. The date you enter appears in its place.

G

Enter the channel position.

Press PR+/–.

H

Set the tape speed.

Press MODE ( p

).



(

墌 pg. 76

)

Page 44 June 21, 2001 12:29 pm




I

Set the VPS/PDC mode.

Press VPS/PDC to select “ON” or “OFF”.

● If “VPS/PDC ON” is displayed on the TV screen, VPS/PDC is set to ON.

● If “VPS/PDC OFF” is displayed on the TV screen, VPS/PDC is set to OFF.

墌

“VPS/PDC Recording” in the right column

J

Set the category.

A Press w e

to move the arrow to “CATEGORY”, then press OK. The category set screen appears.

B Press w r e t

to select the desired category, then press OK.

C Confirm the arrow is on

“RETURN”, then press

OK. The programme

screen resumes.

PROGRAMME

CHILDREN

EDUCATIONS

RELIGIOUS

SPECIAL

RETURN

INDEX

SELECT OK

CLASSICS

MOVIES

SERIES

SPORTS

COMEDY

MUSIC

SHOPPING

OTHERS

SELECT WITH

THEN PRESS [OK]

DRAMA

NEWS

SHOW

UNDECIDED

K


Press w r e t

to move the arrow to “CONFIRM”, then press OK. “PROGRAMME COMPLETED” appears on the

TV screen for about 5 seconds, then the normal screen appears.

● If “PROGRAMME OVERLAPPED” appears on the TV screen, see page 46.

L

Engage the recorder’s timer mode.

Press

#

(TIMER). The recorder turns off automatically and

“

#

” appears on the front display panel.

● To disengage the timer mode, press #

(TIMER) again.

NOTES:

● To Timer-Record Weekly Or Daily Serials . . .

. . . anytime during steps

D through I, press WEEKLY (number

key “9”) for weekly serials or DAILY (number key “8”) for daily serials (Monday – Friday). Either “WEEKLY” or “DAILY” appears on the TV screen. Pressing the button again makes the corresponding indication disappear.

● During timer recording . . .

. . .it is not possible to disengage the timer mode.

. . .it is not possible to change the recording deck (HDD or

VHS).

EN

45

Satellite Receiver Users

To timer-record a satellite broadcast using Express Timer

Programming:

A Perform “Automatic Satellite Programme Recording” on page 47.

B Perform steps A – L. In step G, press the number key “0” to change “TV PROG” to “SAT”. The front display panel shows “L2” for the channel position. Then press PR+/– to enter the channel position for the satellite broadcast. In step

I, you cannot set “VPS/PDC” to “ON”.

C Leave the satellite receiver’s power on.

VPS/PDC Recording

Now available from some TV stations, PDC (Programme

Delivery Control) and VPS (Video Programme System) are service designed to assure safe, accurate timer recording.

With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder and have precedence over the advertised times you may have preset into the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed.

NOTES:

● When you use Express Timer Programming, set the start

time (VPS or PDC time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.

● VPS/PDC recording is also possible when a satellite

receiver or a cable system is connected to AV2 (L-2) IN/

DECODER connector on your recorder.

● VPS/PDC recording is also possible via the AV1 (L-1) IN/

OUT connector.

How to check if the station being received transmits a

VPS/PDC signal (VHS deck only)

A Press – –:– – until the channel position appears on the front display panel.

B Hold down START+ for about 5 seconds.

“VPS/PDC” appears blinking on the front display panel.

If a VPS/PDC signal is detected from the station,

“VPS/PDC” will stop blinking.

If no VPS/PDC signal is detected from the station,

“VPS/PDC” will blink at a slower rate.

C Press – –:– – or START+ again to return to normal display.

Page 45 June 21, 2001 3:23 pm



Masterpage:Left

46

EN

TIMER RECORDING (cont.)

C

Access the Programme screen.

Press r t

to select the

PROGRAMME

programme, then press OK.

RECORD TO REC MODE

HDD SEP

START

23:30

STOP

00:00

WEEKLY/DAILY

WEEKLY

DATE

12/06/01 TUE

VPS/PDC

ON

TV PROG

5 CH

CONFIRM CANCEL

+

–

START

+

–

STOP

+

–

DATE

+

–

PR

PROG.

EXIT

CATEGORY


THEN CONFIRM

UNDECIDED

Check, cancel and change programmes

A

Disengage the timer mode. (VHS deck only)

Press

#

(TIMER), then press

1

.

B

Access the Programme Check screen.

Press

"

.

PROGRAMME CHECK

DATE START–STOP PROG. RECORD TO REC MODE VPS/PDC

12/06/01 TUE 15:40 – 16:00 PR. 1 HDD

12/06/01 TUE 15:40 – 16:00 PR. 2 S-VHS/VHS

SP

SP

ON

OFF

To cancel or change a programme...

D

Cancel or change a programme.

To cancel the programme, press w r e t

to move the arrow to “CANCEL“, then press OK.

To change programme settings, press the appropriate button: START+/–, STOP+/–, DATE+/–, PR+/–, VPS/PDC and/or MODE ( p

).

● You can change “TV PROG” to “SAT” for the channel position by pressing the number key “0”.

E


Press w r e t

to move the arrow to “CONFIRM“, then press OK.

F

Return to the timer mode.

Press

#

(TIMER).

INDEX

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

Page 46 June 21, 2001 3:23 pm




Automatic Satellite

Programme

Recording

EN

47

ATTENTION

● Be sure not to turn on the satellite receiver before the

programme is executed; otherwise, the recorder will start recording when the satellite receiver’s power is turned on.

● If you have connected another appliance other than a

satellite receiver to the AV2 (L-2) IN/DECODER connector, be sure not to engage the Automatic Satellite Programme

Recording mode; otherwise, the recorder will start recording when the connected appliance’s power is turned on.

● Automatic Satellite Programme Recording and

timer-recording cannot be done at the same time.

NOTE:

This function is available for the HDD deck only.

This function allows you to automatically record a satellite programme which is timer-programmed on your external satellite receiver. Connect a satellite receiver to the recorder’s AV2 (L-2) IN/DECODER connector and programme the timer on the satellite receiver. When the signals come into the recorder from the satellite receiver, the recorder automatically turns on and starts recording on HDD deck.

Before performing the following steps:

● Make sure the satellite receiver is connected to the recorder’s

AV2 (L-2) IN/DECODER connector. (

墌 pg. 70, 71)

● Programme the timer on the satellite receiver.

A

Select the L-2 SELECT mode.

Set “L-2 SELECT” to “A/V” or “SAT” (

墌 pg. 65).

● When you select “SAT”, refer to “IMPORTANT” on page 70.

B


Press MODE ( p

).

C

Engage the Automatic Satellite Programme

Recording mode.

Press and hold SAT

#

for about 2 seconds. The SAT

# button lights up.

NOTES:

● To disengage the Automatic Satellite Programme Recording mode, press SAT

● If the recorder’s power is off, it is not possible to engage the Automatic Satellite Programme Recording mode.

● In step C, if the SAT

#

#

.

button does not light but instead blinks quickly even though your satellite receiver’s power is off, Automatic

Satellite Programme Recording will not work properly with that satellite receiver*. If this is the case, perform “Express Timer

Programming” (

墌

pg. 44) to timer-record a satellite programme.

* Some satellite receivers output signals even if the power is off. Automatic Satellite Programme Recording is not possible with those satellite receivers.

● The SAT

#

button blinks while Automatic Satellite Programme Recording is in progress.

● For timer programming of the satellite receiver, refer to the instruction manual of the satellite receiver.

● Automatic Satellite Programme Recording is not possible if your satellite receiver does not have a timer.

● Pressing the recorder’s

disengages the Automatic Satellite Programme Recording mode.

● If there are more than one satellite programmes you wish to record with Automatic Satellite Programme Recording, it is not possible

to set different recording speeds for each programme.

● Depending on the type of satellite receiver, the recorder may not record a slight portion of the beginning of the programme or may

record slightly longer than the actual length of the programme.

● If you engage the Automatic Satellite Programme Recording mode when the satellite receiver’s power is on, the recorder will not

start Automatic Satellite Programme Recording even though the SAT button blinks. When the satellite receiver shuts off once and

● Just Clock (

1

button while Automatic Satellite Programme Recording is in progress turns off the recorder’s power and

#

is turned back on again, the recorder starts recording.

● You can also record a programme from your cable system in the same way if the system has a timer.

墌

pg. 88) does not work when the Automatic Satellite Programme Recording mode is engaged.

● When the Automatic Satellite Programme Recording mode is engaged, or the recorder’s power is turned off after Automatic Satellite

Programme Recording is finished, the recorder will not enter the Timer mode even though “AUTO TIMER” is set to “ON”

(

墌

pg. 78).

Page 47 June 21, 2001 12:29 pm



Masterpage:Left

48

EN

Remote A/B/C/D Code Switching

The remote control is capable of controlling four JVC video recorders independently. Each of recorders can respond to one of four codes (A, B, C or D). The remote control is preset to send

A code signals because your video recorder is initially set to respond to A code signals. You can easily modify your video recorder to respond to B, C or D code signals.

LCD panel

REMOTE CONTROL FUNCTIONS

On the remote control

A

Display the code.

Press and hold HDD on the remote control for over 2 seconds. The code currently set blinks on the LCD panel.

B

Change the remote control code.

Press the number key “1” for A, “2” for B, “3” for C or

“4” for D.

C

Set the remote control code.

Press OK to set the code.

On the recorder

D

Display the code.

Press

4

on the recorder for over 5 seconds while the recorder is turned off. The code currently set appears on the front display panel.

● If the code displayed on the front display panel is different from the code set on the remote control, go to step

E.

E

Change the recorder’s code.

Press

8

on the remote control. The code currently set on the remote control will be applied to the recorder.

Page 48 June 21, 2001 12:29 pm




TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled.


Turn off the TV using its remote control.

LCD panel

Control Your TV Using Additional Buttons

Use the number keys, and the p

button, button to select the TV’s channel.

● With televisions under Code 01, 02, 07, 10, 11, 14, 20, 23,

24, 25, 27, 33 or 35, the p

&

button or

#

button corresponds to the

1-digit/2-digit entry switching button (often labelled – /– –) of your TV’s remote control.

● With televisions under Code 01, 28, 29 or 34, the button corresponds to the 10 + button, and the

#

&

button corresponds to the 20 + button of your TV’s remote control.

NOTE:

The way these buttons are used is determined by your TV.

Use these buttons as instructed for your TV’s remote control.

BRAND NAME

JVC

BLAUPUNKT

BRANDT

FERGUSON

FINLUX

FUNAI

LG/GOLDSTAR

GRAETZ

GRUNDIG

HITACHI

ITT

LUXOR

MITSUBISHI

MIVAR

NEC

NOKIA

NORDMENDE

PANASONIC

PHILIPS

SABA

SALORA

SAMSUNG

SELECO

SHARP

SONY

TELEAVIA

TELEFUNKEN

THOMSON

TOSHIBA

EN

49

A

Set the TV brand code.

Press TV/CABLE/SAT to switch the display to “TV” and keep pressing the button down until “TV-_ _” appears.

Enter your TV’s brand code using the number keys, then press OK.

Press 1 on the recorder’s remote control to turn on the

TV and try operations (

墌

step

B).

● Once you have set the remote control to operate the TV, you do not have to repeat this step until you replace your remote control’s batteries.

● Some brands of TV have more than one code. If the TV does not function with one code, try entering another.

B

Operate the TV.

First, press TV/CABLE/SAT to switch the display to “TV”.

Then press the corresponding button: 1, TV/VCR,

TV PR +/–, TV %+/– (Volume), ^ (TV Muting),

number keys.

● For some brands of TV, you must press OK after having pressed the number keys.

IMPORTANT

Although the provided remote control unit is compatible with

JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

CODE

10

28

28

03

32

18

28

19

01, 23, 24, 25

19

26

27

30

11

02

26

28

29

20

31

26

26

26

26

14

02, 12, 33, 34, 35

28

06

07

Page 49 June 21, 2001 12:29 pm



Masterpage:Left

50

EN

Satellite Receiver Multi-Brand Remote

Control

Your remote control can operate the basic functions of your satellite receiver set. In addition to JVC satellite receivers, other manufacturer’s satellite receivers can also be controlled.


Turn off the satellite receiver using its remote control.

LCD panel

IMPORTANT

Although the provided remote control unit is compatible with

JVC satellite receivers, as well as many other models, it may not work with your satellite receiver, or in some instances, may have limited function capability.

REMOTE CONTROL FUNCTIONS (cont.)

A

Set the satellite receiver brand code.

Press TV/CABLE/SAT to switch the display to “CABLE

SAT” and keep pressing the button down until “SATCBL-

_ _” appears.

Enter your satellite receiver’s brand code using the

number keys, then press OK.

Press

1

on the recorder’s remote control to turn on the satellite receiver and try operations (

墌

step

B).

● Once you have set the remote control to operate the satellite receiver, you do not have to repeat this step until you replace your remote control’s batteries.

● Some brands of satellite receiver have more than one code. If the satellite receiver does not function with one code, try entering another.

B

Operate the satellite receiver.

First, press TV/CABLE/SAT to switch the display to

“CABLE SAT”.

Then press the corresponding button:

1

, TV PR +/–,

number keys.

● For some brands of satellite receiver, you must press having pressed the number keys.

p

● The number keys may not function with some satellite receivers.

after

BRAND NAME

JVC

AMSTRAD

CANAL SATELLITE

CANAL +

D-BOX

ECHOSTAR

ECHOSTAR (VIA DIGITAL)

FINLUX

FORCE

GALAXIS

GRUNDIG

HIRSCHMANN

ITT NOKIA

JERROLD

KATHREIN

LUXOR

MASCOM

MASPRO

NOKIA

PACE

PANASONIC

PHILIPS

RFT

SAGEM

SALORA

SIEMENS

SKYMASTER

TPS

TRIAX

WISI

CODE

73

60, 61, 62, 63, 92

81

81

85

78, 79, 80

82

68

89

88

64, 65

64, 78

68

75

70, 71

68

93

70

87

65, 67, 74, 86, 92

74

64

69

83

91

66, 84

69

83

68

64

Page 50 June 21, 2001 12:29 pm



Masterpage:Right

EDITING

About Hybrid

Navigation

In the sections “Playback with HDD Navigation” ( and “Playback with VCR Navigation” (

墌

墌 pg. 24) pg. 32), it is briefly described how to search for the beginning of each recorded programme using the Navigation functions. More detailed explanations are provided in this section using HDD Navigation by way of example.

This recorder has a built-in Hybrid Navigation system, which consists of two Navigation systems (HDD Navigation and VCR

Navigation). Using Navigation system, you can easily modify registered information or edit the programme when dubbing from the HDD deck to VHS deck, as well as search for the beginning of each programme.

About registration of information

The following information is automatically registered for each programme when ordinary recording or timer recording is performed, then stored in an area specified on the hard disk. For the VHS deck, set “NAVIGATION” to “ON” (

● index* (reduced still pictures to show programme titles)

● programme title*

● category*

墌 pg. 75).

● date and time

● channel

● recording speed

● length of recording time

The items marked with an asterisk (*) can be easily modified and registered again after recording by using Navigation system.

About editing of programmes

Navigation system has four functions for editing of programmes.

● “Modify Information” (

● “Delete Information” (

墌

墌 pg. 52) pg. 55)

● “Easy Dubbing from HDD deck to VHS deck” (

● “Random Assemble Editing” (

墌 pg. 60)

墌 pg. 56)

The limitations of registration

You can register information up to 60 programmes in HDD

Navigation. In VCR Navigation, you can register information up to 2000 programmes or up to 680 cassettes.

To register the information for VCR Navigation, you need to record a programme for more than 8 minutes in SP mode (for more than 15 minutes in LP mode or for more than 23 minutes in EP mode).

When the amount of information is at the limits of registration, you cannot record new programme any more. In this case, you need to delete old programmes to register new one (

墌 pg. 55).

The display for modification or deletion

HDD NAVIGATION

INDEX



3 / 6

12/06/01 TUE 12/06/01 TUE 12/06/01 TUE 12/06/01 TUE

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

PLAY MODIFY DELETE CANCEL

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

The display for easy dubbing

HDD NAVIGATION

INDEX

EASY DUBBING

EDITING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP) 3 / 6

12/06/01 TUE 12/06/01 TUE 11/06/01 MON 10/06/01 SUN

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

DUB START DUB/DEL CANCEL

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

AND [MEMO]

The display for editing

HDD NAVIGATION

R.A.EDIT

0:10:18

IN / OUT

EDIT START MODIFY

1 0:05:10 0:06:37

2 0:01:42 0:02:53

3 0:10:18

4 –:––:––

5 –:––:––

–:––:––

–:––:––

–:––:––

6 –:––:––

7 –:––:––

8 –:––:––

–:––:––

–:––:––

–:––:––

RETURN

TOTAL 0:01:50

INDEX NAVIGATION

SELECT OK EXIT

SEARCH IN/OUT POINT WITH [345 9]

THEN PRESS

"

IN/OUT

"

EN

51

Page 51 June 21, 2001 12:29 pm



Masterpage:Left

52

EN

Modify

Information

NOTE:

The Navigation systems cannot work during recording on the

HDD deck or in SAT

#

mode (

墌

pg. 47).

EDITING (cont.)

C

Access the Navigation screen.

Press NAVIGATION.

● The Navigation screen corresponding to the selected deck appears.


When “NAVIGATION” is set to “OFF” (

墌 pg. 75), the

Navigation screen does not appear.

D


Press w e

to move the arrow to select one programme you want to modify, then press t

or OK.

E

Access the modify screen.

A Press w e

to move the arrow to “MODIFY”, then press

OK.

B Press w e

to move the arrow to “MODIFY INDEX”, then press OK. The “MODIFY INDEX” screen appears.

F

Register new index.

A Search for the picture from the programme by

HDD NAVIGATION

MODIFY INDEX MODIFY TITLE MODIFY CATEGORY

pressing the appropriate buttons (

3

,

4

,

5

, or

9

). The pictures of the programme appear on the

0:10:30

0:10:30

[UNDECIDED]

12/06/01 TUE 12:25 – 12:55 PR. 2 SP 30min

RETURN

REPLACE

left window.

B Confirm the arrow is on

“REPLACE”, then press

OK to register new index.

New index appears on the

INDEX NAVIGATION

SELECT OK EXIT

SELECT PICTURE WITH

[34 5 9]

THEN PRESS "REPLACE"

right window.

● When you press OK with the arrow on “RETURN” you can return the previous screen.

G




Press

8

to cancel pause mode after pressing NAVIGATION.

Modify Index

A


Press

1

.

B





Page 52 June 21, 2001 12:29 pm




EN

53

Modify Programme Title

Perform steps

A to D of “Modify Index” ( continuing.

墌 pg. 52) before

A


A Press w e


OK.

B Press w e

to move the arrow to “MODIFY TITLE”, then press OK. The “MODIFY TITLE” screen appears.

B

Enter new title.

Press w r e t

to move the arrow to the desired letter or command, then press OK.

Repeat this process to complete the title.

HDD NAVIGATION

MODIFY INDEX MODIFY TITLE MODIFY CATEGORY

A B C

J K L

S T U

D E F

M N O

V W X

G H I

P Q R

Y Z

1 2 3 : – +

4 5 6 • / *

7 8 9 0 [ ]

ENTER DELETE

< >

DELETE ALL

[UNDECIDED]

12/06/01 TUE 12:25 – 12:55 PR. 2 SP 30min

RETURN

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

● To correct a letter, press w r e t to move the arrow to

“DELETE” or “DELETE ALL”, then press OK.

● You can enter the letters up to 15.

● You can also enter the new title with number keys. For example, when you press 2 repeatedly, “A”, ”B”, ”C”, ”2”, ”A” appears by turns. You can use the following buttons.

Number keys: for entering letters, numbers, marks (–, +, *) and blank space

< > buttons: for moving the entering or inserting point

DEL button: for correcting a letter

C

Register new title.

Press w r e t

to move the arrow to “ENTER“, then press

OK.

D

Return to the Navigation screen.

Press w r e t

to move the arrow to “RETURN“, then press OK. The Navigation screen appears again.

E



Page 53 June 21, 2001 7:47 pm



54

EN

Masterpage:Left


Modify Category

Perform steps

A to D of “Modify Index” ( continuing.

墌 pg. 52) before

A


A Press w e


OK.

B Press w e

to move the arrow to “MODIFY

CATEGORY”, then press OK. The “MODIFY

CATEGORY” screen appears.

B

Select new category.

Press w r e t

to move the arrow to the desired category, then press OK.

HDD NAVIGATION

MODIFY INDEX MODIFY TITLE

CHILDREN CLASSICS

MOVIES EDUCATIONS

RELIGIOUS SERIES

MODIFY CATEGORY

COMEDY

MUSIC

SHOPPING

DRAMA

NEWS

SHOW

SPECIAL SPORTS OTHERS UNDECIDED

[UNDECIDED]

12/06/01 TUE 12:25 – 12:55 PR. 2 SP 30min

RETURN

INDEX NAVIGATION

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

C

Register new category.

Press w r e t

to move the arrow to “RETURN“, then press OK. The Navigation screen appears again.

D



Page 54 June 21, 2001 7:08 pm




EN

55

Delete Information

For HDD Navigation:

When you delete the registered information of a programme, the recorder delete the programme itself on the hard disk drive. The deleted programme is never resumed.

For VCR Navigation:

When you delete the registered information of a programme, the recorder delete only the information on the hard disk drive. The programme itself cannot be deleted with VCR Navigation.

Perform steps

A to C of “Modify Index” ( continuing.

墌 pg. 52) before

A


Press w e

to move the arrow to select one programme whose information you want to delete, then press t

or

OK.


You can delete all the information of a cassette at the

“CASSETTE #”.

B

Access the delete screen.

Press w e

to move the arrow to “DELETE”, then press OK.

The message appears for your confirmation.

C

Confirm the deletion.

Press w e

to select “DELETE”, then press OK.

● When you cancel the deletion, select “CANCEL”, then press

OK.

D



Page 55 June 21, 2001 12:29 pm


HDS1EU_3.fm Page 56 Friday, June 22, 2001 8:01 AM

56

EN

Dubbing

Masterpage:Left


Easy Dubbing from HDD deck to VHS deck

Because this recorder includes both HDD deck and VHS deck, you can easily use it for dubbing without connecting any other equipment.

A

Access the HDD Navigation screen.

Press HDD, then press NAVIGATION. The HDD

Navigation screen appears.

B

Access the Easy Dubbing screen.

Press w e

to move the arrow to “EASY DUBBING”, then press OK. The Easy Dubbing screen appears.

C

Select the programme(s).

Press w e

to move the arrow

HDD NAVIGATION

INDEX to the desired programme,

EASY DUBBING

EDITING

TOTAL TIME 0H00M REMAIN TIME 11H07M (SP) then press OK.

● When you want to select the plural programmes, press

12/06/01 TUE 12/06/01 TUE 11/06/01 MON 10/06/01 SUN

3 / 6

MEMO after selecting the desired programme. The numbers of the playback order appear on the index. You can

[UNDECIDED]

12/06/01 TUE 10:30 – 12:55 PR. 2 SP 145min

DUB START DUB/DEL

INDEX NAVIGATION

SELECT OK EXIT

CANCEL

SELECT WITH

THEN PRESS [OK]

AND [MEMO]

select up to 8 programmes.

● When you want to correct the order, move the arrow on the desired index and press MEMO. The number disappears and the recorder re-numbers the other programmes automatically.

● When you want to cancel the order, move the arrow to

“CANCEL” and press OK.

D

Select the dubbing option.

Press w r e t

to move the arrow to “DUB START” or

“DUB/DEL”, then press OK. The message for preparing a cassette appears.

● When “DUB START” is selected, the programmes remains on the hard disk after dubbing.

● When “DUB/DEL” is selected, the recorder delete the programmes on the hard disk after dubbing automatically.

Page 56 June 22, 2001 8:01 am




EN

57

E


Press S-VHS.

F



G


Press MODE ( p

).



(

墌 pg. 76

)

H


A Search for the point where you want to start dubbing by pressing

4

,

5

or

3

then press

8

.

B Press

7

and

9

simultaneously to enter the Record-

Pause mode.

I


Press HDD. The Easy Dubbing screen appears again.

● To cancel dubbing, select “CANCEL”.

J

Start dubbing.

Press w e

to move the arrow to “DUB START”, then press

OK. When the dubbing completes successfully, the

message “DUBBING COMPLETED” appears on the TV screen.

● To stop dubbing, press

8

.

● Once the dubbing is stopped, it can not be resumed. In this case, the message appears on the TV screen, and the programmes on the hard disk drive are not deleted even though “DUB/DEL” is selected.

NOTE:

If you start dubbing without setting the VHS deck to Record

Pause mode in step

H, you can watch the preview.

Page 57 June 21, 2001 7:08 pm



58

EN

Normal Dubbing

(from HDD to VHS)

Masterpage:Left


You can dub selected scenes from the HDD deck to a cassette, starting and stopping wherever you wish.

A



B

Prepare the HDD deck for dubbing.

A Press HDD and select the programme to be dubbed.

You can select the programme by HDD Navigation.

(

墌 pg. 24)

B Press PR+/– to set the channel other than “DUB”.

C


A Search for the point where you want to start dubbing by pressing 4, 5 or 3 then press 8.

B Press point.

3

a little, then press

4

to start playback.

C Press

9

to pause playback a little before the start

D

Prepare the VHS deck for dubbing.

A Press S-VHS.

B Press PR+/– to set the channel “DUB”.

C Press MODE ( p

) to select tape speed.

D Search for the point where you want to start dubbing by pressing 4, 5 or 3 then press 8.

E

Start dubbing.

A Press HDD and

4

to start playback.

B Press S-VHS and

7

(

7

and

4

on the remote control) to start dubbing.

F

End dubbing.

Press

8

. Then press HDD and press

8

.

NOTES:

● There may be a discrepancy of several seconds between where

you intend editing to start, and where it actually starts.

● The superimposed indication during the operation or dubbing

is not recorded.

Page 58 June 21, 2001 12:29 pm



Normal Dubbing

(from VHS to HDD)


EN

59

You can dub selected scenes from a cassette to the HDD deck, starting and stopping wherever you wish.

A



B


A Press S-VHS and select the programme to be dubbed.

You can select the programme by VCR Navigation.

(

墌 pg. 32)

B Press PR+/– to set the channel other than “DUB”.

● Set “PICTURE CONTROL” to “EDIT” (

墌 pg. 77).

C


A Search for the point where you want to start dubbing by pressing 4, 5 or 3 then press 8.

B Press 3 a little, then press 4 to start playback.

C Press 9 to pause playback a little before the start point.

D

Prepare the HDD deck for dubbing.

A Press HDD.

B Press PR+/– to set the channel “DUB”.

C Press MODE ( p

) to select recording speed.

E

Start dubbing.

A Press S-VHS and

4

B Press HDD and

7

(

to start playback.

7

and

4

on the remote control) to start dubbing.

● To enter Record-Pause mode, press and hold

7

and press

9 on the remote control. To resume recording, press and hold

7 and press

4

on the remote control.

F

End dubbing.

Press

8

. Then press S-VHS and press

8

.

NOTES:

● There may be a discrepancy of several seconds between where

you intend editing to start, and where it actually starts.

● The superimposed indication during the operation or dubbing

is not recorded.

● For HDD deck, the recording pause takes effect only when the

recorder is recording on the HDD deck with the channel set to

“L-1”, “F-1”, or “DUB”. The recording pause is released in 5 minutes automatically. Picture and sound may be distorted at the point where the recording pause is released.

● Dubbing copyright guarded tape is not possible.

● When you select “EDIT” to dub tapes in step B, be sure to

select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes.

Page 59 June 21, 2001 12:29 pm



Masterpage:Left

60

EN

Random Assemble

Editing


8-programme Editing Memory

(1 programme x 8 scenes)

By using the Random Assemble Editing function, you can select up to 8 scenes from a previously recorded programme on the

HDD deck and automatically dub them onto a cassette on the

VHS deck.

Random Assemble Editing is possible only when dubbing from the HDD deck to the VHS deck.

A



B


Press HDD.

C

Access the HDD Navigation screen.

Press NAVIGATION. The HDD Navigation screen appears.

D

Access the edit screen.

Press w e

to move the arrow to “EDITING”, then press

OK.

E


Press w e

to move the arrow to select one programme you want to edit, then press t

or OK.

F

Access the R.A.Edit screen.

Press OK at the “R.A.EDIT”. The R.A.Edit screen appears.

G

Start playback of the source programme.

Press

4

to start playback. The playback pictures appear in the window of the R.A.Edit screen. The first edit-in time starts counting with the arrow to “IN/OUT”.

Page 60 June 21, 2001 12:29 pm



Masterpage:Right

H

Set edit-in and edit-out points.

HDD NAVIGATION

A Find the point where you want the edited scene to

R.A.EDIT

begin, then press OK with the arrow to “IN/OUT”.

The edit-in time is fixed and the edit-out time starts counting.

0:10:18

IN / OUT

EDIT START

INDEX

MODIFY

NAVIGATION

RETURN

TOTAL 0:01:50

SEARCH IN/OUT POINT WITH [

345 9]

THEN PRESS

"

IN/OUT

"

SELECT OK EXIT

1 0:05:10 0:06:37

2 0:01:42 0:02:53

3 0:10:18

4 –:––:––

5 –:––:––

–:––:––

–:––:––

–:––:––

6 –:––:––

7 –:––:––

8 –:––:––

–:––:––

–:––:––

–:––:––

B Find the point where you want the edited scene to end, then press OK with the arrow to “IN/OUT”. The edit-out time is fixed and the next edit-out time starts counting.

● Press

3 points.

,

4

,

5

or

9

to find the edit-in and edit-out

EN

61

I

Select other edit-in and edit-out points.

Repeat step

H. You can select up to 8 pairs of edit-in and edit-out points.

To modify the points

A Move the arrow to “MODIFY”, then press OK.

B Press w r e t

to select the desired point, then press

OK. The selected point starts couting.

C Repeat step H.

J

Access the Start Editing screen.

Press w r e t

to move the arrow to “EDIT START”, then press OK. The Start Editing screen with message appear.

K


A Press S-VHS.

B Search for the point where you want to start dubbing by pressing

4, 5 or 3 then press 8.

C Press 7 and 9 simultaneously to enter the Record-

Pause mode.

L

Access the Start Editing screen.

Press HDD. The Start Editing screen with message appear again.

M

Start editing.

Press w r e t

to move the arrow to “OK”, then press

OK. The editing starts. The message “EDITING

COMPLETED” appears when the editing is complete successfully.

N

Return to R.A.Edit screen.

Press OK.

● If you want to continue to edit, start from step G.

O

Stop editing.

Press NAVIGATION. The VHS deck stops recording and enters the Record-Pause mode. Press S-VHS, then press

8

.

Page 61 June 21, 2001 3:24 pm



62

EN

Edit From A

Camcorder

A

Recorder

AUDIO input

Audio cable

(not provided)

VIDEO input

Camcorder

AUDIO

OUT

Video cable

(not provided)

PAUSE connector

Player

B

Recorder

VIDEO OUT

EDIT

Mini-plug cable

(not provided)

(JVC camcorder only)

AUDIO input

Masterpage:Left


You can use a camcorder as the source player and your recorder as the recording deck.

A


A If the camcorder has no S-VIDEO output connector ...

... connect the camcorder’s AUDIO OUT and VIDEO

OUT connectors to the recorder’s front panel AUDIO and VIDEO input connectors.

B If the camcorder has an S-VIDEO output connector ...

... connect the camcorder’s AUDIO OUT and

S-VIDEO OUT connectors to the recorder’s front panel

AUDIO and S-VIDEO input connectors.

● When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO L input connector on your recorder.


When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder’s instruction manual for operating procedure.

Audio cable

(not provided)

S-VIDEO input

PAUSE connector

Camcorder

AUDIO

OUT

S-Video cable

(not provided)

Player

S-VIDEO OUT

EDIT

Mini-plug cable

(not provided)

(JVC camcorder only)

Page 62 June 21, 2001 12:29 pm




EN

63

B

Select the recording deck.


C

Set the recorder’s input mode.

Press AUX (number key “0”) and/or PR to select “F-1”.

● Set “F-1 INPUT” to “VIDEO” for the VIDEO input connector, or “S-VIDEO” for the S-VIDEO input connector, depending on the connector being used (

墌 pg. 65).

D

Set the edit mode. (VHS deck only)

See “PICTURE CONTROL” on page 77.

E

Start the camcorder.

Engage the Play mode of the camcorder.

F

Start the recorder.

Engage the Record mode of the recorder.

NOTES:

● All necessary cables can be obtained from your dealer.

● When you select “EDIT” to dub tapes in step D, be sure to

select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you finish dubbing the tapes.

● For HDD deck, the recording pause takes effect only when the

recorder is recording on the HDD deck with the channel set to

“L-1”, “F-1”, or “DUB”. The recording pause is released in 5 minutes automatically. Picture and sound may be distorted at the point where the recording pause is released.

Page 63 June 21, 2001 12:29 pm



Masterpage:Left

64

EN

Output/Input Set

L-1 OUTPUT and L-1 INPUT Setting

The AV1 (L-1) IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated).

Set “L-1 OUTPUT” and “L-1 INPUT” to the appropriate mode depending on the type of appliance connected to the recorder’s

AV1 (L-1) IN/OUT connector.

A


Press MENU.

B

Access the Input/Output Set screen.

A Press w e

to move the arrow to “FUNCTION SET UP”, then press t

or OK.

B Press w e

to move the arrow to “INPUT/OUTPUT”, then press OK.


C

Select the output or input mode for the AV1

(L-1) IN/OUT connector.

A Press rt

to move the arrow to “L-1 OUTPUT” or “L-1 INPUT”, then press OK.

B Press rt

to select the appropriate setting, then press OK.

* The default setting is bold in the table below.

HDD/VCR SET UP

FUNCTION

FUNCTION SET UP

INITIAL SET UP

INPUT/OUTPUT

L-1 OUTPUT

L-1 INPUT

L-2 SELECT

F-1 INPUT

INDEX MENU

SELECT OK EXIT

VIDEO

VIDEO

S-VIDEO

A/V

VIDEO

SELECT WITH

THEN PRESS [OK]

8

L-1 OUTPUT

VIDEO:

S-VIDEO:

If a connected appliance’s input is compatible only with regular video signals, set to “VIDEO”.

If a connected appliance’s input is compatible with Y/C signals, set to

“S-VIDEO”. You can obtain high-quality S-VHS picture. (For connection, be sure to use a 21-pin

SCART cable that is compatible with the Y/C signal.)

8

L-1 INPUT

VIDEO:

S-VIDEO:

If a connected appliance’s output is compatible only with regular video signals, set to “VIDEO”.

If a connected appliance’s output is compatible with Y/C signals, set to

“S-VIDEO”. You can obtain high-quality S-VHS picture. (For connection, be sure to use a 21-pin

SCART cable that is compatible with the Y/C signal.)

D


Press MENU.

NOTES:

● If “L-1 OUTPUT” is set to “S-VIDEO”, it is impossible to set

“L-1 INPUT” to “S-VIDEO”.

● If “L-2 SELECT” is set to “DECODER”, it is impossible to set

“L-1 INPUT” to “S-VIDEO”.

Page 64 June 21, 2001 12:29 pm




L-2 SELECT Setting

Set “L-2 SELECT” to the appropriate mode depending on the type of appliance connected to the recorder’s AV2 (L-2) IN/

DECODER connector.

Perform steps

A and B of “L-1 OUTPUT and L-1 INPUT

Setting” on page 64.

A

Select the input mode for the AV2 (L-2) IN/

DECODER connector.

A Press rt

to move the arrow to “L-2 SELECT”, then press OK.

B Press rt



HDD/VCR SET UP

FUNCTION

FUNCTION SET UP

INITIAL SET UP

INPUT/OUTPUT

L-1 OUTPUT

L-1 INPUT

L-2 SELECT

F-1 INPUT

INDEX MENU

SELECT OK EXIT

VIDEO

VIDEO

A/V

A/V

DECODER

SAT

SELECT WITH

THEN PRESS [OK]

8

L-2 SELECT

A/V:

To use this recorder as the recording deck with the player connected to the AV2 (L-2) IN/DECODER connector, or to use the satellite receiver connected to the AV2 (L-2)

IN/DECODER connector.

DECODER: To use a decoder connected to the

AV2 (L-2) IN/DECODER connector.

SAT: To view a satellite programme with the TV set while the recorder is turned off. (

墌 pg. 70)

B


Press MENU.

NOTES:

● If you have a satellite receiver or a decoder connected to the

AV2 (L-2) IN/DECODER connector, be sure to set “L-2

SELECT” back to appropriate mode after editing.

● If you are not connecting a satellite receiver or a decoder to

the AV2 (L-2) IN/DECODER connector, leave “L-2 SELECT” set to “A/V”.

● The default setting is “A/V”; if the recorder’s memory backup

has expired due to a power cut or because the AC was removed from the recorder, “A/V” will be automatically selected when the power is restored to the recorder. If you are using a satellite receiver or a decoder, be sure to set “L-2

SELECT” back to appropriate mode.

● When “L-2 SELECT” is set to “SAT”, “SAT” appears on TV

screen or front display panel instead of “L-2” or “L2”.

● If “L-1 OUTPUT” is set to “S-VIDEO”, it is impossible to set

“L-2 SELECT” to “DECODER”.

EN

65

F-1 INPUT Setting

Set “F-1 INPUT” to the appropriate mode depending on the connector (VIDEO or S-VIDEO) being used on the front panel.

Perform steps

A and B of “L-1 OUTPUT and L-1 INPUT

Setting” on page 64.

A

Select the input mode for the VIDEO/S-

VIDEO connector.

A Press rt

to move the arrow to “F-1 INPUT”, then press OK.

B Press rt



HDD/VCR SET UP

FUNCTION

FUNCTION SET UP

INITIAL SET UP

INPUT/OUTPUT

L-1 OUTPUT

L-1 INPUT

L-2 SELECT

F-1 INPUT

INDEX MENU

SELECT OK EXIT

VIDEO

VIDEO

A/V

VIDEO

VIDEO

S-VIDEO

SELECT WITH

THEN PRESS [OK]

8

F-1 INPUT

VIDEO:

S-VIDEO:

When connecting an appliance to the VIDEO input connector, set to

“VIDEO”.

When connecting an appliance to the S-VIDEO input connector, set to

“S-VIDEO”.

B


Press MENU.

Page 65 June 21, 2001 12:29 pm



Masterpage:Left

66

EN

Edit To Or From

Another Video

Recorder

Advantages of S-VHS video recorders

You can edit from VHS to S-VHS, S-VHS to VHS, or, from

S-VHS to S-VHS.

● From VHS to S-VHS: Record VHS playback signals in the

S-VHS mode. Although the picture quality is inherently limited by that of the original, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to VHS: Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.

● From S-VHS to S-VHS: All signals will be transferred with minimum degradation.


You can use your recorder as the source player or as the recording deck.

A


Connect the player’s 21-pin SCART connector to the recorder’s 21-pin SCART connector as illustrated on page 67.

A When using your recorder as the source player ...

... connect its AV1 (L-1) IN/OUT connector to the recording deck.

B When using your recorder as the recording deck ...

... connect its AV1 (L-1) IN/OUT or AV2 (L-2) IN/

DECODER connector to the source player.

C If another recorder is compatible with the Y/C signal ...

... connect your recorder’s AV1 (L-1) IN/OUT connector to another recorder.

With

C connection ...

● When using your recorder as the recording deck, set “L-1

INPUT” to “S-VIDEO” and “L-2 SELECT” to “A/V” (

墌 pg. 64).

墌 pg. 64,

65).

● When using your recorder as the source player, set “L-1

OUTPUT” to “S-VIDEO” (

B

Select the recording deck.


C

Set the input mode of recording deck.

With this video recorder, press AUX (number key “0”) and/or PR to select “L-1” for the AV1 (L-1) IN/OUT connector, or “L-2” for the AV2 (L-2) IN/DECODER connector, depending on the connector being used.

● When using another recorder as the recording deck, refer to its instruction manual.

● When using the AV2 (L-2) IN/DECODER connector, set “L-2

SELECT” to “A/V” (

墌 pg. 65).

D

Set the edit mode.

See “PICTURE CONTROL” on page 77.

E

Start the source player.

Engage the Play mode of the source player.

F

Start the recording deck.

Engage the Record mode of the recording deck.

Page 66 June 21, 2001 12:29 pm



A

TV receiver

Player

Your recorder

B

Recorder

Your recorder


EN

67

TV receiver

AV mode

C

TV receiver

21-pin SCART cable

(not provided)

21-pin SCART cable

(not provided)

AV mode

Recorder

Another recorder

Recorder

Your recorder

Player

Another recorder

S-Video cable

(provided)

21-pin SCART cable

(not provided)

Player

Another recorder

NOTES:

● All necessary cables can be obtained from your dealer.

● For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.

● When you select “EDIT” to dub tapes in step D, be sure to select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”) after you

finish dubbing the tapes.

● When you use this recorder as the source player for editing, be sure to set “O.S.D.” to “OFF” before starting (

recorder’s S-VIDEO and AUDIO input/output connectors.

墌

pg. 78).

● If you are using another recorder with S-Video and Audio input/output connectors, you can connect those connectors to this

When using your recorder as the source player ...

... connect its rear panel S OUT and AUDIO OUT connectors to the recording deck’s S-Video and Audio input connectors.

When using your recorder as the recording deck ...

... connect its front panel S-VIDEO and AUDIO input connectors to the source player’s S-Video and Audio output connectors. Then, set the recorder’s input mode to “F-1”, and set “F-1 INPUT” to “S-VIDEO” (

墌

pg. 65).

Page 67 June 21, 2001 12:29 pm



68

EN

Audio Dubbing

Audio Dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack.

ATTENTION:

● Audio dubbing is not possible on the HDD deck.

● Audio dubbing is not possible with a cassette recorded in

EP mode.

Normal audio track

Pre-recorded tape

Video/Hi-Fi audio track

Audio-dubbed tape

Your recorder

CD player, etc.

CD player, etc.

Audio mixer

Original sound

AUDIO OUT

Mixer output

Your recorder

Page 68

Masterpage:Left


June 21, 2001 12:29 pm




A


Connect an audio component to the AUDIO L + R input connectors on the recorder’s front panel.

● When connecting a monaural audio component, use only the recorder’s AUDIO L input connector.

B


Press S-VHS.

C

Set the recorder’s input mode.

Press AUX (number key “0”) and/or PR to select “F-1”.

D


Press

4

to start playback of the tape in your recorder, and press

9

when you reach the point where you want to start dubbing.

E

Engage the Audio Dubbing mode.

Press A.DUB.

● Your recorder enters the Audio Dubbing Pause mode. (“ blinks, “ u

” and “ ” light up on the front display panel.)

● To perform Audio Dubbing with audio mixing, press AUDIO to select “L j h i

R” at this point. o

”

* Audio Dubbing with audio mixing is not possible if you are using a monaural audio component, or if you don’t have an audio mixer.

EN

69

F

Start dubbing.

Engage the audio component’s Play mode, then press

4 to start the tape in your recorder; Audio Dubbing begins at this point.

● “ o

” blinks and “

● To stop dubbing temporarily, press dubbing.

u

” is displayed on the front display panel.

9

. Press

4

to resume

G

End Audio Dubbing.

Press

8

to stop the tape in your recorder, and engage the audio component’s Stop mode.

NOTES:

● When monitoring the sound during Audio Dubbing, the

normal soundtrack is automatically selected. If you wish to hear the mixed sound (Hi-Fi + Normal soundtracks), press

AUDIO to select “HI FI NORM” (

墌

pg. 36).

● Audio Dubbing stops automatically when the counter reaches

“0:00:00”, and the recorder enters the Play mode. Check the counter reading before dubbing.

● Audio Dubbing is also possible using the rear panel AV1 (L-1)

IN/OUT or AV2 (L-2) IN/DECODER connector. When using these 21-pin SCART connectors, be sure to select the correct input mode (“L-1” or “L-2”) in step

C.

● Audio Dubbing is not possible with cassettes whose record

safety tab has been removed.

● When playing back an audio-dubbed tape, press AUDIO to

select the soundtrack you wish to hear. (

墌

pg. 36)

Page 69 June 21, 2001 12:29 pm



Masterpage:Left

70

EN

SYSTEM CONNECTIONS

Connecting To A Satellite Receiver

Simple Connections

This is an example of simple connection if your TV has one 21-pin AV input (SCART) connector.

Connect the satellite receiver to the AV2 (L-2) IN/

DECODER connector, then connect the AV1 (L-1) IN/

OUT connector to the TV’s connector.

NOTES:

● Set “L-2 SELECT” to “A/V” (

function (

墌

墌

pg. 65).

pg. 47) with this connection.

● To record a programme via the satellite receiver, select L-2

mode by pressing AUX (number key “0”) and/or PR so that

“L-2” appears on the front display panel.

● For details, refer to the instruction manual of the satellite

receiver.

Aerial connector

Outdoor unit

Back of TV

Aerial

TV aerial cable

ANTENNA IN

ANTENNA OUT

Satellite cable

TV VCR


DECODER


Mains outlet

ANTENNA

ANTENNE

IN

ENTREE


S

OUT

SORTIE

SAT CONTROL

CONTROLEUR SAT

OUT

SORTIE

AV2 (L-2)

IN/DECODER

ENTREE/DECODEUR

AUDIO

L

OUT

SORTIE

R


IMPORTANT

When you set “L-2 SELECT” to “SAT” (

墌 pg. 65), it is possible to view a satellite broadcast with the TV set to its AV mode even if the recorder is turned off. When the recorder is in Stop mode or recording, press TV/VCR on the remote control to turn off the VCR indicator on the front display panel.

● If you turn on the recorder when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the

satellite receiver, or set the TV to its TV mode, or press TV/VCR on the remote control to set the recorder to the video mode.

Page 70 June 21, 2001 12:29 pm




Perfect Connections

This is an example of recommended connection if your

TV has two 21-pin AV input (SCART) connectors.

Connect the decoder to the satellite receiver’s connector if you have a decoder, AV1 (L-1) IN/OUT connector to

TV’s connector, and AV2 (L-2) IN/DECODER connector to the satellite receiver’s connector. Then connect the satellite receiver and TV.

EN

71

NOTES:

● Set “L-2 SELECT” to “A/V” (

function (

墌

墌

pg. 65).

pg. 47) with this connection.

● To record a programme via the satellite receiver, select L-2

mode by pressing AUX (number key “0”) and/or PR so that

“L-2” appears on the front display panel.

● To receive a scrambled broadcast, descramble the signal with

the satellite receiver.

● For details, refer to the instruction manual of the satellite

receiver and decoder.

Back of TV


Aerial

Outdoor unit

TV aerial cable

Satellite cable


ANTENNA IN

ANTENNA OUT

TV VCR DECODER

EXT.1

EXT.2

Aerial connector

ANTENNA

ANTENNE

IN

ENTREE


S

OUT

SORTIE

SAT CONTROL

CONTROLEUR SAT

OUT

SORTIE

AV2 (L-2)

IN/DECODER

ENTREE/DECODEUR

AUDIO

L

OUT

SORTIE

R

Decoder


Mains outlet

Page 71 June 21, 2001 12:29 pm



Masterpage:Left

72

EN

Connecting/Using

A Decoder

TV receiver

TV aerial cable

RF cable

(provided)

AV1 (L-1) IN/OUT

SYSTEM CONNECTIONS (cont.)

The AV2 (L-2) IN/DECODER connector can be used as an input connector for an external decoder (descrambler).

Simply connect a decoder and you can enjoy the variety of programming that is available through scrambled channels.

A

Select the input mode.

Set “L-2 SELECT” to “DECODER”. (

墌 pg. 65)

B

Connect the decoder.

Connect your recorder’s AV2 (L-2) IN/DECODER connector to the decoder’s 21-pin SCART connector using a 21-pin SCART cable.

C

Set the tuner.

Perform the procedure as described in “When Receiving

A Scrambled Broadcast” on page 86.

AV2 (L-2) IN/DECODER

Decoder

Page 72 June 21, 2001 12:29 pm




EN

73

Connecting/Using A Stereo System

These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to the soundtrack through the stereo.

FM tuner

CD player

Stereo amplifier

I I

I I I

I I I I

I I

AUX IN or TAPE MONITOR

Audio cable

(not provided)

Mains outlet

Speaker Television Speaker

ANTENNA

ANTENNE

IN

ENTREE

AV1 (L-1)

IN/OUT ENTREE/SORTIE

S

OUT

SORTIE

SAT CONTROL

CONTROLEUR SAT

OUT

SORTIE

AV2 (L-2)

IN/DECODER

ENTREE/DECODEUR

AUDIO

L

OUT

SORTIE

R


AUDIO OUT


Connect the AUDIO OUT L and R connectors on your video recorder to the AUX IN or TAPE MONITOR connectors on your stereo system’s receiver or amplifier.

NOTE:

When listening to sound through the connected stereo system, turn the TV’s volume down completely.

CAUTIONS:

● This recorder has a dynamic range of more than 80 dB with

regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the

Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.

● Some speakers and televisions are specially shielded to

prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.

Page 73 June 21, 2001 12:29 pm



74

EN

Mode Set


Masterpage:Left

SUBSIDIARY SETTINGS

You can change various mode settings on the TV screen by following the procedure described below.

The table below shows the structure of the menu system.

HDD/VCR SET UP

HDD SET UP (

墌 pg. 75)

VCR SET UP 1 (

VCR SET UP 2 (

墌 pg. 75) pg. 77)

FUNCTION SET UP

INITIAL SET UP

FUNCTION (

墌 pg. 78)

INPUT/OUTPUT (

墌 pg. 64)

TUNER SET (

INITIAL SET (

墌 pg. 80)

墌 pg. 20, 79, 88)

● For each mode setting, see pages 75 to 78.

● The procedure shows how to set “LIVE MEMORY” to

“3HR” on the “HDD SET UP” screen as an example.

A


Press MENU.

B

Access the HDD Set Up screen.

HDD/VCR SET UP

A Press w e

to move the arrow to “HDD/VCR SET

HDD SET UP

FUNCTION SET UP INITIAL SET UP

VCR SET UP 1

LIVE MEMORY

UP”, then press t

or OK.

B Press w e

to move the arrow to “HDD SET UP”,

AUDIO REC

1HR

VCR SET UP 2

NICAM then press OK.

INDEX MENU

SELECT WITH


C

Select the mode.

Press rt

to move the arrow to “LIVE MEMORY”, then press OK.

D

Select the mode setting.

HDD/VCR SET UP

Press rt

to select “3HR”, then press OK.

HDD SET UP

FUNCTION SET UP

VCR SET UP 1

LIVE MEMORY

INITIAL SET UP

1HR

VCR SET UP 2

AUDIO REC

1HR

3HR

INDEX MENU

SELECT OK EXIT

SELECT WITH

THEN PRESS [OK]

E


Press MENU.

Page 74 June 21, 2001 12:30 pm



HDD SET UP

8

LIVE MEMORY

OFF

30MIN

1HR

3HR

8

AUDIO REC

NICAM

MONO


EN

75


When this function is set to “30MIN”, “1HR” or “3HR”, you can enjoy the selected length of the time for “Live Memory Playback” (

墌 pg. 26).

VCR SET UP 1

8

NAVIGATION

ON

OFF

8

S-VHS

AUTO

OFF

When this function is set to “NICAM”, the NICAM audio programme will be recorded.

When this function is set to “MONO”, the Standard (monaural) audio programme will be recorded.

NOTE:

This function works only on the NICAM bilingual programme.


When a programme is recorded on the cassette with this function set to “ON”, you can use VCR Navigation (

墌 pg. 32, 51).

Your recorder can record in S-VHS (Super VHS), S-VHS ET or VHS.

● To record in S-VHS:

Set “S-VHS” to “AUTO”. Then, insert a cassette marked “S-VHS”. The S-VHS indicator lights up on the front display panel.

The S-VHS recording mode is selected.

● To record in S-VHS ET on a VHS cassette:

See “Super VHS ET (S-VHS ET)” on page 39.

● To record in VHS:

Insert a cassette marked “VHS”.

If the S-VHS ET mode is activated, press S-VHS ET. “S-VHS ET : OFF“ appears on the TV screen, if “O.S.D.“ is set to “ON“.

The VHS recording mode is automatically selected regardless of the “S-VHS” mode setting.

● To record in VHS on an S-VHS cassette:

Insert a cassette marked “S-VHS”. The S-VHS indicator lights up on the front display panel. Then, set “S-VHS” to “OFF”. The S-VHS indicator goes off.

The VHS recording mode is selected.

NOTE:

When playing back a tape that has been recorded in S-VHS or S-VHS ET, the S-VHS indicator lights up on the front display panel regardless of the “S-VHS” mode setting.

Page 75 June 21, 2001 7:15 pm




76

EN

VCR SET UP 1 (cont.)

8

AUTO SP

]

LP TIMER

ON

OFF

8

COLOUR SYSTEM

PAL/NTSC

MESECAM

SUBSIDIARY SETTINGS (cont.)


When this function is set to “ON”, the recorder automatically switches to LP mode to allow complete recording if there is not enough tape to record the entire programme while timer-recording in SP mode.

For Example . . .

Recording a programme of 210 minutes in length onto a 180-minute tape

Approximately 150 minutes

SP mode

Approximately 60 minutes

Total 210 minutes

LP mode

Make sure you set this function to “ON”, before the timer-recording starts.

NOTES:

● If you have programmed the recorder to timer-record 2 or more programmes, the

second programme and those thereafter may not fit on the tape if you set “AUTO

SP

]

LP TIMER” to “ON”. In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.

● In order to ensure that the recording fits on the tape, this feature may leave a slight

non-recorded section at the end of the tape.

● There may be some noise and sound disturbance at the point on the tape where the

recorder switches from SP to LP mode.

● The Auto SP

]

LP Timer feature is not available during ITR (Instant Timer Recording), and the feature will not work properly with any tapes longer than E-180, or with some tapes of shorter lengths.

● If you perform timer recording with both VPS/PDC and the Auto SP

]

LP Timer activated, and the programme goes beyond its originally scheduled length, there may be times when the programme cannot be recorded in its entirety.

You can play back PAL, NTSC and MESECAM tapes, or record PAL and SECAM* signals on this recorder. Select the appropriate colour system.

PAL/NTSC:

To record PAL signals, or play back a PAL or NTSC tape.

MESECAM: To record SECAM signals, or play back a MESECAM tape.

* SECAM signals will be recorded as MESECAM on this recorder; MESECAM is the designation for tapes with SECAM signals that have been recorded on a

MESECAM-compatible PAL video cassette recorder.

NOTES:

● It is not possible to record in S-VHS if “MESECAM” is selected. The recording mode is

forced to change to VHS.

● If “MESECAM” is selected when the tape speed is set to EP mode, the tape speed will be

forced to change to LP mode.

● It is not possible to select EP mode if “MESECAM” is selected.

About NTSC Playback

● Some TVs shrink the picture vertically and place black bars at the top and bottom of the

TV screen. This is not a malfunction on the part of either the video recorder or the TV.

● The picture may roll up and down. This can be corrected using the V-HOLD control

found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

● The counter and tape remaining time readings will be incorrect.

● During search, still, or frame-by-frame playback, the picture will be distorted, and there

may be a loss of colour.

● Depending on the type of TV, the top and bottom portions of superimposed displays

may be cut off during NTSC playback.

Page 76 June 21, 2001 12:30 pm



VCR SET UP 2

8

B.E.S.T.

ON

OFF

8

PICTURE CONTROL

AUTO

EDIT

SOFT

SHARP

8

DIGITAL 3R

ON

OFF

8

DIGITAL TBC/NR

ON

OFF


EN

77


You can set the B.E.S.T. (Biconditional Equalised Signal Tracking) system to

“ON” or “OFF” (

墌 pg. 41).

This feature helps you to adjust the playback picture quality according to your preference. Normally select “AUTO”.

AUTO:

EDIT:

SOFT:

SHARP:

Provides the optimised picture benefits of the B.E.S.T. Picture

System.

Minimizes picture degradation during editing (recording and playback).

Reduces image coarseness when viewing overplayed tapes containing a lot of noise.

Clearer, sharper-edged picture when viewing images with lots of flat, same-coloured surfaces such as cartoons.

NOTES:

● When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will not change until

you select another mode.

● When you select “EDIT” to dub tapes, be sure to select “AUTO” after you finish

dubbing the tapes.

● When “B.E.S.T.” is “OFF”, “PICTURE CONTROL” switches automatically from “AUTO”

to “NORM”.

When this function is set to “ON”, the Digital 3R picture system applies edge correction to the luminance signal to enhance detail.

NOTES:

● Normally it is recommended to keep “DIGITAL 3R” set to “ON”.

● Depending on the type of tape being used, picture quality may be better with “DIGITAL

3R” set to “OFF”.

● If you use the recorder as the source player for editing, be sure to set “DIGITAL 3R” to

“OFF” before starting.

Your recorder is equipped with the Digital TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes.

The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function.

We recommend that you set “DIGITAL TBC/NR” to “ON” when...

... playing back a tape recorded on a camcorder.

... playing back a tape repeatedly used.

... using this video recorder as the source player for editing.

NOTES:

● If you play back a tape recorded under poor TV reception condition, the picture may

become more stable with Digital TBC/NR set to off.

● When “DIGITAL TBC/NR” is set to “ON”, if you play back a tape where certain types of

signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, set “DIGITAL TBC/NR” to “OFF”.

● When playing back a MESECAM tape, Digital TBC/NR does not function even though

“DIGITAL TBC/NR” is set to “ON”.

Page 77 June 21, 2001 12:30 pm




78

EN

VCR SET UP 2 (cont.)

8

VIDEO STABILIZER

ON

OFF

FUNCTION

8

O.S.D.

ON

OFF

8

AUTO TIMER

ON

OFF

8

DIRECT REC

ON

OFF



When this function is set to “ON”, you can automatically correct vertical vibration in the picture when playing back unstable recordings made on another recorder.

NOTES:

● When you finish viewing a tape, be sure to set this function to “OFF”.

● Regardless of the setting, this function has no effect during recording and during special

effects playback.

● The on-screen display may jitter vertically when this function is set to “ON”.

● To watch recordings with close-caption, set this function to “OFF”.

● Video Stabilizer and Digital TBC/NR cannot be used at the same time. If you activate

Digital TBC/NR when “VIDEO STABILIZER” is set to “ON”, Video Stabilizer will be automatically turned “OFF”.


When this function is set to “ON”, various operational indicators appear on the

TV screen. Messages appear in the selected language (

墌 pg. 17, 18).

NOTES:

● When you use this recorder as the source player for editing, be sure to set “O.S.D.” to

“OFF” before starting.

● During playback, the operation mode indicators may be disturbed depending on the

type of tape being used.

When this function is set to “ON”, the timer is automatically engaged when the recorder power is turned off, and automatically disengaged when the recorder is powered back on.

NOTE:

For safety, when “AUTO TIMER” is set to “OFF”, all other recorder functions are disabled while the Timer mode is engaged. To disengage the timer, press

#

(TIMER).

When this function is set to “ON”, you can easily start recording the programme that you are watching on your TV. Press and hold

7

and press

4


7

on the recorder.

NOTES:

● When you use the Direct Rec function, be sure to use a TV offering T-V LINK, etc. and

connect a fully-wired 21-pin SCART cable between the recorder and the TV

(

墌

pg. 12).

● If “DIRECT REC” is set to “OFF”, the

Recording” (

墌

pg. 22, 30).

● During the Direct Rec, “– –” appears on the front display panel.

● If a programme is recorded with the Direct Rec, the station name will not be registered

for the Navigation. “– – – –” will be displayed for the station name.

● Retake function (

墌

7

button functions as described in “Basic pg. 38) does not work during Direct Rec.

● Even if there is no power supply for more than 60 minutes, the recorder keeps the

setting.

● If you use the remote control of your TV to record the programme with the Direct Rec,

the programme will be recorded on the HDD deck, even if you select the VHS deck. In this case, first few seconds of the programme will not be recorded.

Page 78 June 21, 2001 5:32 pm




EN

79

S

HOW

V

IEW

®

System Setup

IMPORTANT

Normally, Auto Set Up (

墌 pg. 14), Preset Download (

墌 pg. 16) or Auto Channel Set (

墌 pg. 80) sets the Guide Program numbers automatically. You need to set the Guide Program numbers manually only in the following cases.

● When timer-programming with the S

HOW

V

IEW

system, the channel position, where the station you wish to record is received on your recorder, is not selected,

OR

when you add a channel after Auto Set Up, Preset Download or Auto Channel Set has taken place,

—Set the Guide Program number for that station manually.

● When you wish to timer-record a satellite programme with the S

HOW

V

IEW

system,

—Set the Guide Program numbers for all satellite broadcasts received on your satellite receiver.


Guide Program Number Set

A


Press MENU.

B


HDD/VCR SET UP

A Press w e


TUNER SET

FUNCTION SET UP

INITIAL SET

INITIAL SET

UP”, then press t

or OK.

B Press w e


CLOCK SET

INITIAL SET UP

GUIDE PROG SET


INDEX MENU

SELECT WITH


C

Access the Guide Program Set screen.

Press rt

to move the highlight bar (pointer) to “GUIDE

PROG SET”, then press OK or e

.

D

Enter the Guide Program number.

Press rt

to enter the Guide

Program number for the desired station as shown in the TV listings. Then press OK or e

.

E

Enter the receiving channel position number.

Press the number key “0” to select “TV PROG” or “SAT”.

Then press rt

to input the number of the recorder’s channel position on which the

Guide Program number’s broadcast is received by the recorder or the satellite receiver. Then press OK or e

.

● To timer-record a satellite programme with the S

HOW

V

IEW

(Example) If ZDF is received on channel position 2.

system, you need to install the provided Satellite Controller and perform the procedure described in “Satellite Receiver Control

Setting” (

墌 necessary.

pg. 19).

● Repeat steps D and E as

F


Press MENU.

Guide Program Number

“Guide Program (GUIDE PROG) number” refers to the assigned TV station numbers, according to broadcast area, for the S

HOW

V

IEW

timer recording. The Guide Program numbers can be found in most TV listings.

(Example) When inputting the

Guide Program number 2 for ZDF.

Page 79 June 21, 2001 12:30 pm



80

EN

Tuner Set


Masterpage:Left


IMPORTANT

Perform the following steps only if —

— Auto Channel Set has not been set correctly by Auto Set

Up or by Preset Download (

墌 pg. 14, 16).

— you have moved to a different area or if a new station starts broadcasting in your area.

Your recorder needs to memorize all necessary stations in channel positions in order to record TV programmes. Auto

Channel Set automatically assigns all receivable stations in your area to call them up by using the PR buttons without going through any vacant channels.

Auto Channel Set

A


Press

1

.

B


Press MENU.

C


HDD/VCR SET UP

A Press w e


TUNER SET

FUNCTION SET UP

INITIAL SET

TUNER SET

UP”, then press t

or OK.

B Press w e


AUTO CH SET

MANUAL CH SET

INITIAL SET UP

then press OK.

INDEX MENU

SELECT WITH


D

Access the Auto Channel Set screen.

Press rt


TUNER SET

AUTO CH SET

“AUTO CH SET”, then press

MANUAL CH SET

OK or

e

.

E


Press rt

to move the highlight bar (pointer) to your country’s name, then press OK or e

.

F


Press rt


Page 80 June 21, 2001 12:30 pm




G

Perform Auto Channel Set.

Press OK twice.

● You can set up the recorder’s tuner also by Preset

Download. (

墌 pg. 16)

● The Auto Set screen appears, and remains on screen while the recorder searches for receivable stations. As Auto

Channel Set progresses, the

“ q

” mark on the TV screen moves from left to right. Wait until the TV screen as shown in step

H appears.

Beginning End

H

View the Confirmation screen.

After “SCAN COMPLETED” is displayed on the TV screen for about 5 seconds, the

Confirmation screen looking like the one to the right appears. The stations your recorder located appear on a

Confirmation screen — channel positions (PR), channels (CH) and station names (ID –

墌 pg. 87). The blueback screen and the programme currently being broadcast by the blinking station appear alternately for 8 seconds each. To view the next page, use the rt w e button on the remote control.

● The stations located in the selected country appear at the top of the list.

● The Guide Program numbers will also be set automatically during Auto Channel Set.

I


Press MENU.

● Using the Confirmation screen, you can skip or add channel positions, enter station names and perform other operations.

Refer to pages 82 – 86 for the procedures.

● Depending on reception conditions, the stations may not be stored in order, and the station names may not be stored correctly.

● For information on scrambled broadcasts, refer to page 86.

EN

81

IMPORTANT

● In certain reception conditions, station names may not be

stored correctly, and Auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly when you timer-record a TV programme using the S

HOW

V

IEW

system, the recorder will record a TV programme of a different station. When programming the timer using the S

HOW

V

IEW

system, be sure to check the desired channel is selected correctly (

墌

pg. 42,

“S

HOW

V

IEW

® Timer Programming”).

● Your video recorder memorizes all detected stations even if

reception of some of them is poor. You can delete those stations with an unacceptable picture (

墌

pg. 83, “Delete

A Channel”).

NOTES:

● Fine tuning is performed automatically during Auto Channel

Set. If you want to perform tuning manually, refer to page 86.

● If you perform Auto Channel Set when the aerial cable is not

connected properly, “SCAN COMPLETED –NO SIGNAL–” appears on the TV screen in step

H. When this happens, make

sure of the aerial connection and press OK; Auto Channel Set will take place again.

● If no sound accompanies the picture or the audio sounds

unnatural on some channels that have been stored by Auto Set

Up, the TV system setting for those channels may be incorrect.

(

Select the appropriate TV system for those channels

墌

pg. 86, “INFORMATION”).

Page 81 June 21, 2001 12:30 pm



82

EN

Masterpage:Left


Manual Channel Set

(

Store channels that were not stored during Auto Set Up

墌 pg. 14), Preset Download (

墌 pg. 16) or Auto Channel Set

(

墌 pg. 80).

A


Press MENU.

B


HDD/VCR SET UP

A Press w e


TUNER SET

FUNCTION SET UP

INITIAL SET

TUNER SET

UP”, then press t

or OK.

B Press w e


AUTO CH SET

MANUAL CH SET

INITIAL SET UP

then press OK.

INDEX MENU

SELECT WITH


C

Access the Confirmation screen.

Press rt


“MANUAL CH SET”, then press OK or e

. The

Confirmation screen appears.

D

Select the channel position.

Press rt w e

until an open position in which you want to store a channel begins blinking, then press OK. The

Manual Channel Set screen appears.

● The blueback screen and the programme currently being broadcast by the selected channel appear alternately for

8 seconds each.

(Example) To store in position 12.

E

Select the band.

Press rt

to change the band between CH (regular) and CC

(cable), then press e

.

Page 82 June 21, 2001 12:30 pm




F

Input the channel.

Press the number keys to input the channel number you want to store.

● Input “0” before any single number entries.

● To input the registered station name (ID – until “– – – –” (ID setting) begins blinking, then press

● For fine tuning adjustment, press then press rt e

● When storing a channel that sends scrambled broadcasts, press

墌

until “+/–” begins blinking, pg. 65).

墌 pg. 87), press

. While tuning, “+” or “–” appears.

rt

.

e e

until “OFF” (Decoder setting) blinks, then press rt to set “DECODER” to “ON” (“OFF” is the default setting).

● When “L-2 SELECT” is set to “A/V” or “SAT”, the “DECODER” setting cannot be changed (

G

Enter new channel information.

Press OK and the Confirmation screen appears.

● Repeat steps D – G as necessary.

H

Close the Confirmation screen.

Press MENU.

● To change positions, see “Change Station Channel Position”

( pg. 84).

● If you wish to set station names other than the ones registered in your recorder, see “Set Stations (B)” (

墌 pg. 85).

ATTENTION

Guide Program numbers are not set when channels are stored manually. If an attempt is made at timer programming with the S

HOW

V

IEW

system in this state, “SET GUIDE PROG

THEN RETRY” appears on the TV screen; set the Guide

Program Numbers (

墌 pg. 79) manually.

EN

83

Delete A Channel

Perform steps

A and C of “Manual Channel Set” on page 82 to access the Confirmation screen before continuing.

A

Select the item.

Press rt w e

until the item you want to delete begins blinking.

B

Delete a channel.

Press

&

.

● The item directly beneath the cancelled one moves up one line.

● Repeat steps A and B as necessary.

C


Press MENU.

Page 83 June 21, 2001 7:15 pm



84

EN

Masterpage:Left


Change Station Channel Position

Perform steps


A


Press rt w e

until the item you want to move begins blinking. Then press OK and the station name (ID) and its channel (CH) number begin blinking.

B

Select the new position.

Press rt w e

to move the station to the new channel position, then press OK.

Example: If you moved the station in position 4 to position 2, the stations originally in positions 2 and 3 each move down one space.

● Repeat steps A and B as necessary.

C


Press MENU.

Page 84 June 21, 2001 12:30 pm




Set Stations (A)

Set station names that are registered in your recorder.

Perform steps


A


Press rt w e

until the item you want begins blinking.

B

Access the Manual Channel Set screen.

Press OK twice.

C

Select the new station.

Press e

until the station name (ID) begins blinking, then press rt

until the new station’s name (ID) you want to store begins blinking.

(

Registered station names

墌 pg. 87) appear as you press rt

.

D

Switch the stations.

Press OK.

● The Confirmation screen appears.

● Repeat steps A – D as necessary.

E


Press MENU.

EN

85

Set Stations (B)

Set station names other than the ones registered in your recorder.

Perform steps

A and C of “Manual Channel Set” on page 82 to access the Confirmation screen and then perform steps

A and

B of “Set Stations (A)” in the left column before continuing.

A

Select the character for station name.

Press e

until the first letter of the station name begins blinking.

B

Enter the new character.

Press rt

to cycle through the characters (A–Z, 0–9, –, f

,

+,

I

(space) ) and stop when the desired character is indicated, then press e

to enter. Enter the remaining characters the same way (maximum of 4). After entering all characters, press OK.


● If you make a mistake, press w

until the incorrect character begins blinking. Then enter the correct character by pressing rt

.

C


Press MENU.

NOTE:

The characters available for the station name (ID) are A–Z, 0–9,

–,

f

, +,

I

(space) (maximum of 4).

Page 85 June 21, 2001 12:30 pm



Masterpage:Left

86

EN

Fine-Tuning Channels Already Stored

Perform steps


A

Select the channel to fine-tune.

Press rt w e

until the channel you want to tune begins blinking.

B

Access the Manual Channel Set screen.

Press OK twice. The Manual Channel Set screen appears.

C

Perform tuning.

Press e

until “+/–” begins blinking, then press rt

until the picture is its clearest. Then press OK.


● Repeat steps A – C as necessary.

D


Press MENU.


When Receiving A Scrambled

Broadcast

A

Select the decoder mode.

Set “L-2 SELECT” to “DECODER” (

墌 pg. 65).

B

Access the Confirmation screen.

Perform steps

A and

C

of “Manual Channel Set” on page 82.

C

Select the position.

Press rt w e

to select the channel position broadcasting scrambled programmes, then press OK twice.

D

Change the decoder setting.

Press e

until “OFF” (decoder setting) begins blinking, and set it to “ON” by pressing rt

.

E

Return to the Confirmation screen.

Press OK.

● Repeat steps C – E as necessary.

F


Press MENU.

INFORMATION

If you live in Eastern Europe, “TV SYSTEM” setting appears instead of “DECODER” setting on the Manual Channel Set screen. When you can see the picture but can hear no audio, select appropriate TV system (D/K or B/G). Normally, TV programmes are broadcasted as follows.

For Eastern Europe : D/K

For Western Europe : B/G

A Select a country in Eastern Europe in step E on page 80.

B Press e

until the TV system (D/K or B/G) blinking on the

Manual Channel Set screen in step

E on page 82.

C Press rt

to select appropriate TV System (D/K or B/G).

Page 86 June 21, 2001 12:30 pm



TV Station And ID List

MCM

MDR

MOVE

MTV

MTV3

N3

N-TV

NBC

NDR3

NED1

NED2

NED3

NEWS

NICK

NRK

NRK2

ODE

ORF1

ORF2

FNET

FR2

FR3

GALA

HR3

INFO

ITA1

ITA7

ITV

JSTV

KA2

KAB1

KAN2

LOCA

M6

MBC

CHLD

CINE

CLUB

CMT

CNN

CSUR

DISC

DR

DRS

DSF

ETB1

ETB2

EURO

EUSP

FEMM

FILM

1000

3SAT

ADLT

ANT3

ARD

ARTE

BBC

BBC1

BBC2

BR3

C+

C1

CAN5

CANV

CH4

CH5

FILMNET

France2

France3

GALAVISION

HESSEN3

INFO-KANAL

ITALIA1

ITALIA7

ITV

JSTV

KA2

KABEL1

KANAL2

LOCAL

M6

MBR

MCM

MDR

MOVIE

MTV

MTV3

NORD3

N-TV

NBC SUPER

NDR

NED1

NED2

NED3

TV1000

3SAT

ADULT

ANTENA3

ARD

ARTE

BBC GROUP

BBC1

BBC2

BAYERN3

CANAL PLUS

PORTUGUSES

CANALE5

KETNET CANVAS

CHANNEL4

CHANNEL5

CHILD

CINEMA

TELECLUB

CMT

CNN

ANDALUCIA

DISCOVERY

DR TV

DRS

DSF

ETB1

ETB2

EURONEWS

EUROSPORTS

FEMMAN

FILM

NICKELODEON

NRK

NRK2

ODEON

ORF1

ORF2


EN

87

TVN

VCR

VERO

VH-1

VIVA

VIV2

VMTV

VOX

VT4

VTM

WDR1

WDR3

YLE1

YLE2

ZDF

ZTV

TV3

TV4

TV5

TV6

TVE1

TVE2

TVG

TVI

TM3

TMC

TNT

TRT

TSI

TSR

TV1

TV2

STAR

SVT1

SVT2

SWR

TCC

TELE

TEL5

TF1

SAT1

SBS

SHOW

SIC

SKY

SKYN

SPRT

SRTL

21

RTBF

RTL

RTL2

RTL4

RTL5

RTP

S4

ORF3

OWL3

PREM

PRO7

RAI1

RAI2

RAI3

RET4

TM3

TELEMONTECARLO

TNT INT

TRT INT

TSI

TSR

BRTN TV1

TV2

TV3

TV4

TV5

TV6

TVE1

TVE2

TV GALICIA

TV INDEPENDENT

TV NORGE

VIDEO

VERONICA

VH-1

VIVA

VIVA2

VIDEO MUSIC

VOX

VT4

VTM

West1

West3

YLE1

YLE2

ZDF

ZTV

ORF3

OWL3

PREMIERE

PRO7

RAI1

RAI2

RAI3

RETE4

TELE21

RTBF1 or 2

RTL

RTL2

RTL4

RTL5

RTP

SCHWEIZ4

SAT1

SBS

SHOW

SOCIEDADE

SKY CHANNEL

SKY NEWS

SPORT

SUPER RTL

STAR-TV

SVT1

SVT2

SUEDWEST3

TCC

TELE

TELE5

TF1

* The “ID” abbreviation is what is shown on-screen in lieu of the station name. The “ID” abbreviation is listed in the

Confirmation screen and is displayed on the TV screen when the recorder is tuned to a different station.

Page 87 June 21, 2001 12:30 pm



88

EN

Clock Set


Masterpage:Left


IMPORTANT

(

If you performed Auto Set Up (

墌

墌 pg. 16) or Auto Channel Set ( pg. 14), Preset Download

墌 pg. 80), without ever having set the clock previously, the recorder’s built-in clock is also set automatically.

Perform the following steps only if —

—Auto Clock Set has not been performed correctly by Auto

Set Up, Preset Download or Auto Channel Set.

OR

—the recorder’s memory backup has expired.

OR

—you want to change Just Clock setting (

墌

“Just Clock” in the left column).

A


Press

1

.

B


Press MENU.

C


HDD/VCR SET UP

A Press w e


TUNER SET

FUNCTION SET UP

INITIAL SET

INITIAL SET

UP”, then press t

or OK.

B Press w e


CLOCK SET

INITIAL SET UP

GUIDE PROG SET


INDEX MENU

SELECT WITH


D

Access the Clock Set screen.

Press rt

to move the highlight bar (pointer) to “CLOCK

SET”, then press OK or e

. The Clock Set screen appears.

Just Clock

The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal.

The Just Clock option can be set “ON” or “OFF” at the Clock

Set screen (the default setting is “OFF”). Press OK until the

Just Clock setting begins blinking, then press rt

to change the setting.

IMPORTANT: If you turn off Just Clock, the accuracy of your recorder’s built-in clock may be reduced, which could adversely effect timer recording. We recommend you to keep

Just Clock on. In cases where the clock setting data from a

PDC signal is incorrect, however, you are advised to keep

Just Clock set to “OFF”.

NOTE:

When you have selected MAGYARORSZÁG (36),

C

ESKÁ

REPUBLIKA (42), POLSKA (48), or OTHER EASTERN EUROPE

(EE) for the country setting (

墌

pg. 14, 18), you cannot use Just

Clock function. Skip steps

F and G on page 89.

Page 88 June 21, 2001 12:30 pm




E

Set the date and time.

Press rt

to set the time, then press OK or e

. The

“DATE” display begins blinking. Repeat the same procedure to set the date and year.

● When you set the time, press and hold by 30 minutes.

● When you set the date, press and hold by 15 days.

rt rt

to change the time

to change the date

F

Set Just Clock.

The default setting is “OFF”. Set as desired by pressing rt

, then press OK or e

.

● For the Just clock function, refer to “Just Clock” on page 88.

● If you set to “OFF”, you can disregard the next step as you won’t be able to receive regular clock adjustments.

G

Set the source channel position for clock data.

The recorder is preset to receive clock setting and adjustment data from channel position 1.

Press rt

to set the channel position to the number representing the station transmitting clock setting data, then press OK or e

.

H

Start the clock operation.

Press MENU.

EN

89

NOTES:

● Just Clock (when set to “ON”) adjusts the recorder’s built-in

clock every hour, except for 23:00, 0:00, 1:00 and 2:00.

● Just Clock is not effective when ...

... the recorder’s power is on.

... the recorder is in the Timer mode.

... a difference of more than 3 minutes exists between the built-in clock’s time and the actual time.

... the recorder is in the Automatic Satellite Programme

Recording mode (

墌

pg. 47).

... “L-2 SELECT” is set to “SAT” (

墌

pg. 65).

● If Just Clock is set to “ON”, the recorder’s clock is

automatically adjusted at the start/end of Summer Time.

● Just Clock may not function properly depending on the


Page 89 June 21, 2001 12:30 pm



Masterpage:Left

90

EN

TROUBLESHOOTING

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your video recorder off for repair.

POWER

SYMPTOM POSSIBLE CAUSE

1. No power is supplied to the recorder.

2. The clock is functioning properly, but the recorder cannot be powered.

● The mains power cord is disconnected.

● “

#

” is displayed on the front display panel with “AUTO TIMER” set to “OFF”.

3. The remote control won’t function.

● The batteries are discharged.

CORRECTIVE ACTION

Connect the mains power cord.

Press the

#

button to turn the “

#

” indicator off.

Replace the dead batteries with new ones.

TAPE TRANSPORT

SYMPTOM

1. The tape does not run during recording.

2. The tape will not rewind or fast-forward.

POSSIBLE CAUSE

● “ i


● The tape is already fully rewound or fast-forwarded.


Press

4

to turn the “ i

” indicator off.

Check the cassette.

PLAYBACK

SYMPTOM

1. The playback picture does not appear while the tape is running.

2. Noise appears during visual search.

3. Noise appears during normal playback.

4. The playback picture is blurred or interrupted while TV broadcasts are clear or “USE CLEANING

CASSETTE” message appears on the screen.

5. Breaks are noticeable in Hi-Fi soundtrack.

POSSIBLE CAUSE

● The TV receiver is not set to the AV mode.

● This is normal.

● The automatic tracking mode is engaged.

● The video heads may be dirty.

● The automatic tracking mode is engaged.


Set the TV to its AV mode.

Try manual tracking. (

墌 pg. 36)

Use a dry cleaning cassette TCL-2UX or consult your JVC dealer.

Try manual tracking. (

墌 pg. 36)

Page 90 June 21, 2001 12:30 pm




EN

91

RECORDING

SYMPTOM

1. Recording cannot be started.

2. TV broadcasts cannot be recorded.

3. Tape-to-tape editing is not possible.

4. Camcorder recording is not possible.

POSSIBLE CAUSE

● There is no cassette loaded, or the cassette loaded has had its record safety tab removed.

● “L-1”, “L-2”, “F-1”, “DUB“ or

“SAT” has been selected as the input mode.

● The source (another video recorder, camcorder) has not been properly connected.

● All necessary power switches have not been turned on.

● The input mode is not correct.

● The camcorder has not been properly connected.

● The input mode is not correct.


Insert a cassette, or using adhesive tape, cover the hole where the tab was removed.

Set to the desired channel.

Confirm that the source is properly connected.

Confirm that all units’ power switches are turned on.

Set the input mode to “L-1”, “L-2” or

“F-1”.

Confirm that the camcorder is properly connected.

Set the input mode to “L-1”, “L-2” or

“F-1”.

Page 91 June 21, 2001 12:30 pm



Masterpage:Left

92

EN

TIMER RECORDING

SYMPTOM

1. Timer recording won’t work.

2. Timer programming is not possible.

3. “

#

” and “

[

” on the front display panel won’t stop blinking.

4. “

#

” blinks for 10 seconds and the

Timer mode is disengaged.

5. The S

HOW

V

IEW

system does not timer-record properly.

TROUBLESHOOTING (cont.)

POSSIBLE CAUSE

● The clock and/or the timer have been set incorrectly.

● The timer is not engaged.


Re-perform the clock and/or timer settings.

Press

#

and confirm that “

#


● Timer recording is in progress.

Timer programming can’t be performed while a timer recording is in progress. Wait until it finishes.

● The timer is engaged but there’s no cassette loaded.

Load a cassette with the record safety tab intact, or cover the hole using adhesive tape.

● The loaded cassette has had its record safety tab removed.

Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the record safety tab intact.

● The end of the tape was reached during timer recording.

The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.

●

#

has been pressed when there are no programs in memory.

Check the programmed data and reprogram as necessary, then press

# again.

● The recorder’s channel positions have been set incorrectly.

Refer to “Guide Program Number

Set” (

墌 pg. 79) and re-perform the procedure.

Page 92 June 21, 2001 12:30 pm




EN

93

OTHER PROBLEMS

SYMPTOM POSSIBLE CAUSE

1. Whistling or howling is heard from the TV during camcorder recording.

2. When scanning channels, some of them are skipped over.

● The camcorder’s microphone is too close to the TV.

● The TV’s volume is too high.

● Those channels have been designated to be skipped.

3. The channel cannot be changed.

● Recording is in progress.


Position the camcorder so its microphone is away from the TV.

Turn the TV’s volume down.

If you need the skipped channels, restore them (

墌 pg. 82).

Press

9

to pause the recording, change channels, then press

4

to resume recording.

Perform manual setting again.

4. Channel settings that were made manually seem to have changed or disappeared.

5. No channels are stored in the recorder’s memory.

● After the manual settings were made, Auto Channel Set was performed.

● The TV aerial cable was not connected to the recorder when

Auto Set Up was performed.

6. The remote control won’t operate the TV or satellite receiver.

● The fully-wired 21-pin SCART cable was not connected between TV and the recorder when Preset

Download was performed.

● The remote control brand setting is incorrect.

Turn off the recorder once and connect the TV aerial cable to the recorder properly, then turn on the recorder again. The recorder will try

Auto Set Up again (

墌 pg. 14).

Turn off the recorder once and connect the fully-wired 21-pin

SCART cable to the recorder properly, then turn on the recorder again. Then perform Preset Download again

(

墌 pg. 16).

Re-set the remote control to the correct brand. (

墌 pg. 49, 50)

ATTENTION

This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the recorder off and unplug the mains power cord. Then plug it in again and turn the recorder on. Take out the cassette. After checking the cassette, operate the unit as usual.

Page 93 June 21, 2001 12:30 pm



Masterpage:Left

94

EN

ON-SCREEN MESSAGES


MESSAGE DESCRIPTION

CAN NOT MODIFY LIVE MEMORY TIME, MORE

CAPACITY NEEDED

DELETE UNWANTED PROGRAMME THEN RETRY

DO YOU WANT TO DELETE SELECTED PROGRAMME?

Appears when you tried to delete the selected programme from the hard disk drive. Make sure you really want to delete the programme. (

墌 pg. 55)

DO YOU WANT TO DELETE SELECTED PROGRAMME

INFORMATION?

Appears when you tried to delete the selected programme information from the hard disk drive. Make sure you really want to delete the programme information.

(

墌 pg. 55)

DO YOU WANT TO DELETE SELECTED CASSETTE

INFORMATION?

There is not enough memory on the hard disk drive for

Live Memory Playback. To increase the free space, dub some programmes to cassettes or delete the unwanted programmmes. (

墌 pg. 26, 55)

INSERT #XXXX CASSETTE

CAN NOT MODIFY INDEX WHILE HDD IS

RECORDING

RETRY WHEN HDD RECORDING IS STOPPED

NO CASSETTE

NAVIGATION IS PRESENTLY OFF

CHANGE TO ON

Appears when you tried to delete the selected cassette’s all information from the hard disk drive. Make sure you

( really want to delete the cassette's information.

墌 pg. 55)

Appears when you tried to modify the information for

VCR Navigation, but the cassette is not loaded. To modify the information for VCR Navigation, the cassette must be loaded. (

墌 pg. 52)

It is not possible to modify the index of a programme while the hard disk drive is in recording. Wait until the

( recording finishes or stop recording to modify the index.

墌 pg. 52)

For VCR Navigation, load a cassette before pressing

NAVIGATION. (

墌 pg. 32)

For VCR Navigation, set “NAVIGATION” to “ON” on the

(

“VCR SET UP 1” screen, then press NAVIGATION.

墌 pg. 32, 75)

Page 94 June 21, 2001 12:30 pm



MESSAGE

UNABLE TO SET TIMER PROGRAMME

DUE TO SHORTAGE OF CAPACITY

DELETE UNWANTED PROGRAMME FROM HDD

PROGRAMME FULL

DELETE UNWANTED TIMER PROGRAMME

PLEASE ADJUST CLOCK BEFORE TIMER

PROGRAMMING

SET GUIDE PROG THEN RETRY

SHOWVIEW NO. ERROR

CONFIRM SHOWVIEW NO. THEN RETRY

PROGRAMME NOT COMPLETED

PROGRAMME OVERLAPPED

PLEASE CONFIRM AND MODIFY

TIMER PROGRAMMING STOPPED

PROGRAMME COMPLETED

PRESS “OK” THEN PRESS [

#

]

TIMER RECORDING WILL START SOON

INSERT CASSETTE AND PRESS [

#

]

Masterpage:Right

EN

95

DESCRIPTION

There is not enough memory on the hard disk drive for recording. To increase the free space, dub some programmes to cassettes or delete the unwanted programmmes. (

墌 pg. 55)

You can programme this recorder to timer-record as many as 16 programmes. To programme more, you need to cancel a timer programme already set. (

墌 pg. 46)

To set the timer programme, the clock must be set in advance. (

墌 pg. 88)

To set the timer programme using the S

HOW

V

IEW

system,

( the Guide Program number must be set in advance.

墌 pg. 79)

An invalid S

HOW

V

IEW

number is input. (

墌 pg. 42)

The timer programme you set is overlapping with another timer programme. (

墌 pg. 46)

Appears when you stop setting timer programme.

Timer programming is completed properly.

The recorder is not in the timer-standby mode. The timer recording will start in about 5 minutes.

Page 95 June 21, 2001 3:24 pm



Masterpage:Left

96

EN

ON-SCREEN MESSAGES (cont.)

MESSAGE

REMAINING CAPACITY IS SMALL


CAPACITY IS FULL, RECORDING STOPPED

CAPACITY IS FULL, UNABLE TO RECORD


TITLE MEMORY IS FULL, UNABLE TO RECORD


COPY PROHIBITED, UNABLE TO RECORD ON HDD

NO PROGRAMME TO PLAYBACK

UNABLE TO GO BACK ANYMORE

DUBBING COMPLETED

DUBBING STOPPED

TAPE ENDED, DUBBING STOPPED

EDITING COMPLETED

EDITING STOPPED

TAPE ENDED, EDITING STOPPED

COPY PROHIBITED


DESCRIPTION

The remaining capacity of the hard disk drive is in short for the current recording. (

墌 pg. 55)

The recording stopped due to the shortage of the free space on the hard disk drive.

The recording cannot be started due to the shortage of the free space on the hard disk drive. (

墌 pg. 55)

The remaining capacity is full for registration for the

Navigation system. The recording cannot be started even

( though the capacity for the recording is enough.

墌 pg. 55)

It is not possible to record a copy-protected programme.

There is no recorded programme on the hard disk drive.

It is not possible to go back beyond the start point of the recording for Live Memory Playback. (

墌 pg. 26)

Appears when Easy Dubbing is completed. (

墌 pg. 56)

Appears when Easy Dubbing is stopped. (

墌 pg. 56)

(

Appears when the tape ends during Easy Dubbing.

墌 pg. 56)

(

Appears when Random Assemble Editing is completed.

墌 pg. 60)

(

Appears when Random Assemble Editing is stopped.

墌 pg. 60)

Appears when the tape ends during Random Assemble

Editing. (

墌 pg. 60)

It is not possible to dub a copy-protected programme.

Page 96 June 21, 2001 12:30 pm



Masterpage:Right

QUESTIONS AND ANSWERS

PLAYBACK

Q. What happens if the end of the tape is reached during playback or search?

A. The tape is automatically rewound to the beginning.

Q. Can the video recorder indefinitely remain in the still mode?

A. No. It stops automatically after 5 minutes to protect the heads.

Q. When returning from variable-speed search to normal playback, the picture is disturbed.

Should I be concerned about this?

A. No, it is normal.

Q. Sometimes, during Index Search, the video recorder can’t find the programme I want to see. Why not?

A. There may be index codes too close together.

EN

97

TIMER RECORDING

Q. “

o

” and “

#

” remain lit on the front display panel. Is there a problem?

A. No. This is a normal condition for a timer recording in progress.

Q. Can I programme the timer while I’m watching a tape or a TV broadcast?

A. You won’t see the picture as it is replaced by the on-screen menu, but the audio from the programme or tape you’re viewing can be heard.

RECORDING

Q. When I pause and then resume a recording, the end of the recording before the pause is overlapped by the beginning of the continuation of recording. Why does this happen?

A. This is normal. It reduces distortion at the pause and resume points.

Q. Can the video recorder indefinitely remain in the Record-Pause mode?

A. No. The video recorder goes to its Stop mode automatically after 5 minutes to protect the heads.

Q. What happens if the tape runs out during recording?

A. The video recorder automatically rewinds it to the beginning.

Page 97 June 21, 2001 12:30 pm



Masterpage:Left

98

EN

GENERAL

Power requirement : AC 220 V – 240 V d

, 50 Hz/60 Hz

Power consumption

Power on : 41 W

Power off : 16 W

Temperature

Operating

Storage

: 5°C to 40°C

: –20°C to 60°C

Operating position : Horizontal only

Dimensions (WxHxD)

: 435 mm x 124 mm x 385 mm

Weight

Input/Output

: 7.3 kg

: 21-pin SCART connectors:

IN/OUT x 1, IN/DECODER x 1

RCA connectors:

VIDEO IN x 1, AUDIO IN x 1,

AUDIO OUT x 1

S-Video connectors:

IN x 1, OUT x 1

HDD DECK VIDEO/AUDIO

Video format

Audio format

: MPEG2 (VBR)

: MPEG1 Layer2

Maximum recording time (approx.)

(SP) : 14 hours

(LP)

(EP)

(SEP)

: 20 hours

: 28 hours

: 40 hours

VHS DECK VIDEO/AUDIO

Signal system : PAL-type colour signal and CCIR monochrome signal, 625 lines

50 fields

Recording system : DA4 (Double Azimuth) head helical

Format scan system

: S-VHS/VHS PAL standard

Signal-to-noise ratio: 45 dB

Horizontal resolution

(SP/LP) : 250 lines (VHS)

400 lines (S-VHS)

(EP) : 220 lines (VHS)

350 lines (S-VHS)

Frequency range : 70 Hz to 10,000 Hz (Normal audio)

20 Hz to 20,000 Hz (Hi-Fi audio)

Maximum recording time

(SP) : 240 min. with E-240 video cassette

(LP)

(EP)

: 480 min. with E-240 video cassette

: 720 min. with E-240 video cassette

SPECIFICATIONS

TUNER/TIMER

TV channel storage capacity

Tuning system

: 99 positions (+AUX position)

: Frequency synthesized tuner

Channel coverage : VHF 47 MHz – 89 MHz/

104 MHz – 300 MHz/

302 MHz – 470 MHz

UHF 470 MHz – 862 MHz

Aerial output : UHF channels 22 – 69 (Adjustable)

Memory backup time

: Approx. 60 min.

ACCESSORIES

Provided accessories

: RF cable,

21-pin SCART cable,

Satellite Controller,

Infrared remote control unit,

“R6” battery x 2

Specifications shown are for SP mode (VHS) unless otherwise specified.

E.& O.E. Design and specifications subject to change without notice.

Page 98 June 21, 2001 12:30 pm

Filename [HDS1EU_IX.fm]

HDS1EU_IX.fm Page 99 Thursday, June 21, 2001 7:15 PM

Masterpage:Right

LISTE OF TERMS

A

Audio Dubbing

...................................................... 68

Auto Channel Set

.................................................... 80

Auto Set Up

AUTO SP

.......................................................... 14

]

LP TIMER

.............................................. 76

AUTO TIMER

........................................................ 78

Automatic Satellite Programme Recording

..................... 47

B

B.E.S.T. Picture System

....................................... 41, 77

C

Change Station Channel Position

................................. 84

Check, cancel and change programmes

........................ 46

Clock Set

.............................................................. 88

COLOUR SYSTEM

.................................................. 76

Connecting To A Satellite Receiver

.............................. 70

D

Delete A Channel

................................................... 83

DIGITAL 3R

.......................................................... 77

DIGITAL TBC/NR

................................................... 77

DIRECT REC

.................................................... 21, 78

Dubbing

.............................................................. 56

E

EDITING

.............................................................. 51

Elapsed Recording Time Indication

.............................. 38

Express Timer Programming

....................................... 44

F

F-1 INPUT

............................................................ 65

Fine-Tuning Channels Already Stored

........................... 86

G

Guide Program Number Set

................................. 43, 79

H

High-Speed Search

............................................ 27, 34

I

Index Search

......................................................... 35

Instant Timer Recording (ITR)

............................... 29, 37

J

Just Clock

............................................................. 88

L

L-1 INPUT

............................................................ 64

L-1 OUTPUT

......................................................... 64

L-2 SELECT

........................................................... 65

Language

............................................................. 18

Live Memory Playback

............................................. 26

M

Manual Channel Set

................................................ 82

Manual Tracking

.................................................... 36

Mode Set

.............................................................. 74

N

Next Function Memory

............................................. 35

Normal Dubbing (from HDD to VHS)

........................... 58

Normal Dubbing (from VHS to HDD)

........................... 59

EN

99

O

O.S.D.

................................................................. 78

ON-SCREEN DISPLAY

............................................ 8, 9

Output/Input Set

..................................................... 64

P

PICTURE CONTROL

................................................ 77

Playback with HDD Navigation

.................................. 24

Playback with VCR Navigation

................................... 32

Preset Download

.................................................... 16

R

Random Assemble Editing

......................................... 60

Record One Programme While Watching Another

...... 29, 37

Recording Resume Function

....................................... 37

RECORDING/PLAYBACK ON HDD DECK

..................... 22

RECORDING/PLAYBACK ON VHS DECK

...................... 30

Repeat Playback

............................................... 28, 35

Retake

................................................................. 38

S

Satellite Controller

................................................... 19

Satellite Receiver Control Setting

................................. 19

Set Stations (A)

....................................................... 85

Set Stations (B)

....................................................... 85

S

HOW

V

IEW

® System Setup

.......................................... 79

S

HOW

V

IEW

® Timer Programming

.................................. 42

Slow Motion

.................................................... 27, 34

Soundtrack Selection

.......................................... 28, 36

Still Picture/Frame-By-Frame Playback

.................... 27, 34

Super VHS ET (S-VHS ET)

.................................... 39, 75

S-VHS

............................................................ 66, 75

T

Tape Position Indicator

............................................... 9

Tape Remaining Time

.............................................. 38

TIMER RECORDING

................................................ 42

Tuner Set

.............................................................. 80

T-V LINK

.............................................................. 21

TV Station And ID List

.............................................. 87

V

Variable Speed Search

........................................ 28, 34

VIDEO STABILIZER

................................................. 78

VPS/PDC Recording

................................................. 45

W

When Receiving A Scrambled Broadcast

........................ 86

Page 99 June 21, 2001 7:01 pm

Filename [HDS1EU_Cov4.fm]


EN

Auto Set Up — referring to the front display panel

The Auto Set Up function sets the tuner channels, clock and Guide Program numbers automatically.

BEFORE YOU START PLEASE MAKE SURE THAT:

8

8

8

8

The TV aerial cable is connected to the ANTENNA IN connector on the rear panel of the video recorder.

The video recorder’s mains power cord is connected to a mains outlet.

The video recorder is turned off.

Load batteries into the remote control.

1

Press

1

(recorder/remote).

International Telephone Country Code

2

Press rt

(remote) to select the international telephone country code.

(Example) DEUTSCHLAND (49) is selected.

BELGIUM

CESKÁ REPUBLIKA

DANMARK

DEUTSCHLAND

ESPAÑA

GREECE

ITALIA

MAGYARORSZÁG

NEDERLAND

:

:

:

:

:

:

:

:

:

34

30

39

36

31

32

42

45

49

NORGE

ÖSTERREICH

POLSKA

PORTUGAL

SUISSE

SUOMI

SVERIGE



:

:

:

:

:

:

:

:

: 47

43

48

351

41

358

46

– –

EE

● If you have selected 32 (BELGIUM) or 41 (SUISSE), press OK (remote) and select the language code by pressing then go to step 3.

rt

(remote),

.

(Example) FRANCAIS (03) is selected for BELGIUM (32)

International telephone country code

Language code

Language Code

ENGLISH

DEUTSCH

FRANCAIS

ITALIANO

CASTELLANO

:

:

:

:

: 01

02

03

04

05

NEDERLANDS

SVENSKA

NORSK

SUOMI

DANSK

:

:

:

:

: 06

07

08

09

10

● If you have selected 36 (MAGYARORSZÁG), 42 (CESKÁ REPUBLIKA), 48 (POLSKA) or EE (OTHER EASTERN EUROPE), press

OK. The Clock Set screen appears. Set the clock manually (

墌 pg. 88), then go to step 3.

● If you have selected any other country name (code), press OK and go to step 3.

3

Press OK (remote). “Auto” appears on the front display panel.

4

Press OK (remote) to start Auto Set Up. Do NOT press any button on the video recorder or remote control during

“Auto” is blinking.

● If you have connected the recorder to a TV offering T-V Link via a 21-pin SCART cable ( recorder automatically performs “Preset Download” (

墌

墌 pg. 12) and the TV is turned on, the pg. 16) even if you select “Auto” in step 4.

● If “– –:– –” appears on the front display panel, see page 17 of the instructions.

* Once you have performed Auto Set Up, even if the recorder’s memory backup has expired, the recorder will not perform Auto

Set Up again. Perform tuner setting (

墌

pg. 80) and/or clock setting (

墌

pg. 88) as required.

FOR MORE INFORMATION SEE

INSTRUCTIONS ON PAGE 14

1

2

1

4

7

<

Printed in Japan

0701MNV

*

ID

*

VP

June 21, 2001 12:29 pm Page 100

JVC HM-HDS1EU DVR User Manual

HDD & S-VHS

VIDEO RECORDER

CONTENTS

ENGLISH

SAFETY FIRST 2

INDEX 5

INSTALLING YOUR NEW RECORDER 12

INITIAL SETTINGS 14

SAT CONTROL SET 19

T-V LINK 21

RECORDING/PLAYBACK ON HDD DECK 22

RECORDING/PLAYBACK ON VHS DECK 30

TIMER RECORDING 42

REMOTE CONTROL FUNCTIONS 48

EDITING 51

SYSTEM CONNECTIONS 70

SUBSIDIARY SETTINGS 74

TROUBLESHOOTING 90

QUESTIONS AND ANSWERS 97

SPECIFICATIONS 98

LISTE OF TERMS 99

Safety Precautions

SAFETY FIRST

SAFETY FIRST (cont.)

INDEX

FRONT VIEW

REAR VIEW

INDEX (cont.)

FRONT DISPLAY PANEL

ON-SCREEN DISPLAY (for HDD deck)

INDEX (cont.)

ON-SCREEN DISPLAY (for VHS deck)

REMOTE CONTROL

INDEX (cont.)

How To Use

Remote Control LCD

Basic Connection

INSTALLING YOUR NEW RECORDER

S-VIDEO Connection

To connect to a TV with S-VIDEO/AUDIO IN connectors . . .

Auto Set Up

Auto Channel Set/Auto Clock Set/

Auto Guide Program Number Set

INITIAL SETTINGS

Before starting, make sure of the following:

On the front display panel

On the on-screen display

On the front display panel

On the on-screen display

On the front display panel

On the on-screen display

Preset Download

Auto Channel Set by Downloading from TV/Auto Clock Set/Auto Guide

Program Number Set

INITIAL SETTINGS (cont.)

On the front display panel

On the on-screen display

Results of Auto Set Up/Preset Download appear on the front display panel

If both Auto Channel Set and Auto Clock Set have been performed successfully, the correct current time is displayed.

If Auto Channel Set has succeeded but Auto Clock Set has not, “1” (channel position) is displayed.

If both Auto Channel Set and Auto Clock Set have failed, “– –:– –” is displayed.

Language for the on-screen display

Just Clock

Language

INITIAL SETTINGS (cont.)

OK or

SAT CONTROL SET

Satellite Receiver

Control Setting

Installing Satellite Controller

SAT CONTROL SET (cont.)

Setting satellite receiver's brand and channel

keys to enter the brand code

keys to enter one of the

OK.

SAT CONTROL SET (cont.)

T-V LINK

If the satellite receiver’s channel number has been changed to the same one as you set in step

If the satellite receiver’s channel number has not been changed correctly ...
