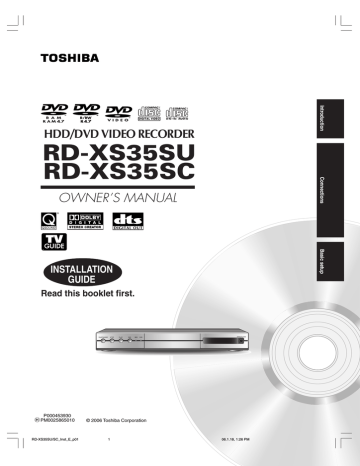

DIGITAL VIDEO
HDD/DVD VIDEO RECORDER
RD-XS35SU
RD-XS35SC
OWNER’S MANUAL
INSTALLATION
GUIDE
Read this booklet first.
H
P000453930
PM0025865010
© 2006 Toshiba Corporation
RD-XS35SU/SC_Inst_E_p01 1 06.1.18, 1:26 PM
Introduction
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE NE
PAS OUVRIR
WARNING : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The symbol for CLASS II (Double Insulation)
2
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE
ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL
ONLY.
CAUTION:
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
This HDD/DVD video recorder employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location see service procedure.
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible and invisible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM.
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.
RD-XS35SU/SC_Inst_E_p02-18 2 06.1.18, 1:26 PM
Note to cable system installer:
This reminder is provided to call the cable system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
The instructions shall state that an ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.
CAUTION:
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
In the spaces provided below, record the Model and Serial No. located on the rear panel of your recorder.
Model No.
Serial No.
Retain this information for future reference.
Location of the required label
PRODUCT IS CERTIFIED BY THE
MANUFACTURER TO COMPLY
WITH DHHS RULE 21 CFR
SUBCHAPTER J IN EFFECT AT
DATE OF MANUFACTURE.
1-1,SHIBAURA 1-CHOME,MINATO-KU,
TOKYO 105-8001,JAPAN
RD-XS35SU/SC_Inst_E_p02-18 3 06.1.18, 1:26 PM
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
3. Heed all warnings.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
4. Follow all instructions.
11. Only use attachments/accessories specified by the manufacturer.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
S3125A
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4
RD-XS35SU/SC_Inst_E_p02-18 4 06.1.18, 1:26 PM
Introduction
ADDITIONAL SAFETY INSTRUCTIONS
15. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
21. Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and apparatus malfunction.
16. Apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should not be placed on the apparatus.
22. I f t h e a p p a r a t u s s h o u l d s m o ke o r s m e l l , immediately disconnect the power cord from the wall outlet. Wait until the smoke or smell stops, then ask your dealer for a check and repair.
Neglecting to do so may cause fire.
17. Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.
23. D u r i n g t h u n d e r s t o r m s, d o n o t t o u c h t h e connecting cables or the apparatus.
18. Do not place anything on top of this unit.
24. The apparatus includes lead, an ingredient of solder used on the PCB, which is a harmful substance to human and the environment. When disposing of this apparatus, follow the rules and regulations in your area.
19. Do not place the apparatus on amplifiers or equipment that may produce heat.
20. Do not cover the ventilating holes for the inside cooling fan.
RD-XS35SU/SC_Inst_E_p02-18 5 06.1.18, 1:26 PM
5
Introduction
Precautions
Notes on handling
Never disconnect the power cord from a wall outlet while the recorder is not in standby mode, unless it is in an emergency. Doing so may cause malfunction.
When shipping the recorder, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory.
Do not use volatile liquids, such as insect spray, near the recorder. Do not leave rubber or plastic products in contact with the recorder for a long time. They will leave marks on the finish.
The top and rear panels of the recorder may become warm after a long period of use. This is not a malfunction.
Notes on cleaning
Use a soft, dry cloth for cleaning.
Do not use any type of solvent, such as thinner or benzine, as they may damage the surface of the recorder.
Notes on antennas
Image and sound quality depend very much on signal reception.
Reception may be poor in weak signal areas. In this event, consult your dealer, or purchase a commercially available antenna booster. Refer to the booster’s instruction manual for installation details.
When not in use
For usual absence
Be sure to remove the disc from the recorder and turn off the power.
Prolonged absence
Unplug the recorder from a wall outlet.
Notes on locating
Place the recorder on a level surface. Do not use it on a shaky or unstable surface such as a wobbly table or inclined stand. The loaded disc may dislodge from its proper position and cause damage to the recorder.
Before placing the recorder, make sure that the surface can stand the weight of the recorder. Never place the recorder in a high location to avoid damage to the product or person by an accidental fall of the recorder.
When you place this recorder near a TV, radio, or
VCR, the playback picture may become poor and the sound may be distorted depending on the condition and location of said equipment. In such an event, place the recorder as far away much as possible from the TV, radio, or VCR.
To avoid damage to this product, never place or store the unit in direct sunlight; hot, humid areas; or areas subject to excessive dust, oily smoke, cigarette smoke or vibration.
6
RD-XS35SU/SC_Inst_E_p02-18 6 06.1.18, 1:26 PM
Notes on recording and editing
When you record/edit important content, make trial operations beforehand to confirm the recorder can function properly.
Toshiba does not compensate for content which was not recorded/edited because of some malfunction of this product or discs during operation, and is not liable for incidental damages (such as profit loss or interruption of business, etc.) produced in such conditions.
When the power cord is disconnected or when a power failure occurs during any operation of this product, all contents recorded in this recorder may be erased.
Depending on the channel or program, an excessive sound input level may cause noise or cut of recorded sound. Adjust the initial setting of the recording level when necessary.
If a program you have set a timer recording includes copy restriction signals, it may not be recorded. When programming a recording, confirm that a program you want to record is not copy-restricted.
Exemptions
Toshiba is not liable for any damage caused by fires, natural disaster (such as thunder, earthquake, etc.), acts by third parties, accidents, owner’s intentional or unintentional misuse, or uses in other improper conditions.
Toshiba is not liable for incidental damages (such as profit loss or interruption in business, modification or erasure of recorded data, etc.) caused by use or inability to use of this product.
Toshiba is not liable for any damage caused by neglect of the instructions described in the owner’s manual.
Toshiba is not liable for any damage caused by misuse or malfunction through simultaneous use of this product and the connected equipment or software that Toshiba is not concerned with.
Toshiba does not compensate for contents which were not recorded/edited because of some malfunctions of this product or discs during operation, and is not liable for incidental damages (such as profit loss or interruption in business, etc.) produced by such conditions.
Power outage
After a power outage the clock display will flash. Set the clock to the correct time.
Notes on the unit and the HDD
Do not give a shock or shake (especially during operation).
Do not use in a shaky or unstable location.
Hold the unit horizontally.
Do not cover the ventilation holes for the cooling fan of the unit.
Do not use in a place where the temperature rises or changes rapidly.
Do not disconnect the power plug from a wall outlet while the unit is turned on.
Do not disconnect the power plug from the wall outlet or break the power supply to the unit during recording or playing. Before disconnecting the power plug, be sure to press the power button and make sure the unit ends the finishing process and power turns off
(standby mode). If the power plug is disconnected or power supply is disrupted while the unit is recording, all recorded content will be erased.
Toshiba is not liable for any damage or loss of recorded data caused by shock, shakes, misoperation or malfunction.
7
RD-XS35SU/SC_Inst_E_p02-18 7 06.1.18, 1:26 PM
Introduction
Precautions (Continued)
Notes on moisture condensation
Moisture condensation damages the unit. Please read the following carefully.
Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the unit.
Exam ple of moisture condensation!
Optical pick-up lens
Moisture condensation occurs during the following cases.
When you bring the unit directly from a cold place to a warm place.
When you use the unit in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.
In summer, when you use the unit in a hot and humid place just after you move the unit from an air conditioned room.
When you use the unit in a humid place.
It’s too warm!
Do not use the unit when moisture condensation may occur.
If you use the unit in such a situation, it may damage discs and internal parts. Connect the power cord of the unit to the wall outlet, turn on the unit, remove the disc, and leave it for two or three hours. After two or three hours, the unit will have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur.
Wait!
Wall outlet
8
RD-XS35SU/SC_Inst_E_p02-18 8 06.1.18, 1:26 PM
Program Recording Copy
Can be recorded
HDD
Can be copied
DVD-RAM disc
DVD-R/RW
Content is not copyright protected
Can be recorded
DVD-RAM disc
DVD-R/RW
Can be copied
HDD
Content is not copyright protected
Recording permitted once
Can be recorded
HDD
Cannot be copied
Can be recorded
DVD-RAM disc
Cannot be copied
DVD-RAM disc
DVD-R/RW
HDD
Recording permitted once
Recording permitted once
Cannot be recorded
DVD-R/RW
HDD
Cannot be recorded
Recording prohibited
DVD-RAM disc
Cannot be recorded
DVD-R/RW
Recording prohibited
HDD:Hard Disc Drive
Content that can be recorded once can only move from the HDD to a DVD-RAM disc. (The original one is deleted after moving to a DVD-RAM disc.)
In the United States, TV Guide and other related marks are registered marks of Gemstar-TV Guide International,
Inc. and/or one of its affiliates. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc.
The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide International, Inc. and/or one of its affiliates.
The TV Guide On Screen system is protected by one or more of the following issued United States patents
6,498,895, 6,418,556, 6,331,877; 6,239,794; 6,154,203;
5,940,073; 4,908,713; 4,751,578; 4,706,121.
Manufactured under license from QSound Labs, Inc.
U.S. patent Nos. 5,105,462, 5,208,860 and 5,440,638 and various foreign counterpart. Copyright QSound Labs,
Inc. 1998-2002. QXpander
TM is a trademark of QSound
Labs, Inc. All rights reserved.
RD-XS35SU/SC_Inst_E_p02-18 9 06.1.18, 1:26 PM
9
Introduction
Installation procedure
Read carefully “SAFETY PRECAUTIONS”,
“IMPORTANT SAFETY INSTRUCTIONS” and
“Precautions”.
( pages 2 to 9)
Check the supplied accessories.
(See right)
Accessories
Remote control
Batteries (AAA) x 2
Coaxial cable
Load the batteries in the remote control.
( page 18)
Connect an antenna to the recorder.
( page 20)
Connect a cable box or satellite system to the recorder.
( pages 22 to 25)
Video/Audio cable
G-LINK ® cable
Connect the recorder to a TV.
( pages 20 to 21, 26)
Connect optional equipment to the recorder.
( page 27)
Set up the TV Guide On Screen
®
interactive program guide. ( page 32)
Your recorder is ready. Read the separate volume “OPERATIONS GUIDE”.
10
RD-XS35SU/SC_Inst_E_p02-18 10 06.1.18, 1:26 PM
• Owner’s manual
(INSTALLATION GUIDE)
• Owner’s manual
(OPERATIONS GUIDE)
Introduction
About this product
Some differences
Because of its recording capacity and hard disc drive
(HDD), this DVD recorder operates more like a computer and differently than a standard DVD player. In addition to containing a microprocessor, it contains a
HDD, an operating system, random access memory
(RAM), and a DVD-RAM/R/RW drive. The operating system includes software stored on the HDD that is transferred to the RAM when the machine is turned on and at other times during operation. This transfer can take time. Therefore, when you turn the DVD recorder on, it may take a little while before it is ready to use.
Likewise, other functions may not be performed as quickly as they would on other AV equipment.
Additionally, because programs stored on the DVD-
RAM/R/RW drive cannot be accessed as quickly as those stored on the HDD, accessing those programs (or deleting a program from a DVD-RAM disc) may take more time. Please take these factors into consideration as you use the DVD recorder.
Playback Restrictions
This owner’s manual explains the basic instructions for this recorder. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the recorder may not respond to all operating commands. This is not a defect in the recorder. Please refer to the notes on compatible discs later in this Introduction and to the discussion of DVD playback and features later in this manual.
“ ” may appear on the TV screen during operation.
“ ” means that the operation is not permitted by the recorder or the disc.
About the hard disc drive (HDD)
Like any HDD, the HDD in the DVD recorder is a fragile device that is susceptible to partial or complete failure if it is jarred or as a result of use over time. It will not last forever. Therefore, do not use the HDD for longer term storage of programs you wish to retain. [If portions of the HDD become damaged, programs recorded on those portions may exhibit pixelization or block noise when played back. Repeated playback of the program may cause the problem to get worse and, eventually, the program may become unplayable. Accordingly, if you notice such noise in a program that you want to save, you should transfer to a recordable DVD disc as soon as possible.] Recordable DVD discs are also susceptible to damage if not handled and stored carefully and some or all of the programs on them may become unplayable.
You can reduce these risks by using high quality DVD recordable discs and checking their playability from time to time. If it becomes necessary to service your DVD recorder, it may be necessary to delete some or all of the programs on the HDD.
Recording Restrictions and Copyright
Copy-protected contents of DVD-Video discs, VIDEO
CDs or audio CDs on the market cannot be copied on this recorder. Contents without copy protection should be copied or edited only in accordance with applicable copyright laws, which may restrict copying or editing.
Contents that permit single copying (copy once contents) can be recorded onto DVD-RAM discs, with some dubbing and editing restrictions. DVD-R/RW discs cannot record these contents.
The unauthorized recording, use, distribution, or revision of copyrighted materials including, without limitation, television programs, videotapes, and DVDs, is prohibited under the Copyright Laws of the United
States and other countries, and may subject you to civil and criminal liability.
Compatibility
In isolated cases, a disc bearing the DVD or CD logo may not fully and properly play back all features or as intended by the creator of the disc. This can be due, among other reasons, to problems and errors that can occur during the creation or recording of DVD and other software and the manufacture of software discs
(including blank discs). Moreover, because of variations in the quality of discs, this recorder may not be able to record on all discs that bear a DVD-RAM,
DVD-R or DVD-RW logo, but you should not encounter difficulty if you use only high quality recordable DVD discs. Additionally, discs recorded in this device may not operate properly in other DVD players, recorders and/or personal computer drives. If you happen to encounter difficulties playing or recording a DVD disc or playing a
CD disc, please feel free to call our Customer Service
Hotline at 1-800-319-6684.
11
RD-XS35SU/SC_Inst_E_p02-18 11 06.1.18, 1:26 PM
Introduction
Choosing a disc
When you want to play DVD or CD software or copy programs from the HDD to a recordable DVD, load an appropriate disc into the recorder. There are many types and formats of discs. Please use the following information to select an appropriate disc.
Notes
• Handle the disc according to the disc instruction manual.
• Toshiba cannot guarantee that all discs bearing the DVD or CD logos will operate as expected. Additionally, Toshiba cannot guarantee that discs recorded in this device will operate properly in other DVD players, recorders and/or personal computer drives.
For recording / playback
Mark Disc
DVD-RAM
Specification
• Single sided 4.7GB (12cm (4
3
/
4
in.))
• Double sided 9.4GB (12cm (4
3
/
4
in.))
DVD-R
DVD-RW
• 4.7GB For General Ver.2.0
(12cm (4
3
/
4
in.))
• Ver. 1.1 or later (12cm
(4
3
/
4
in.))
Remarks
Read carefully the section “On DVD-RAM discs” ( page 14).
Select a DVD-RAM disc that shows a statement on its package such as “this disc can be used with video recorders and drives compatible with 4.7GB DVD-RAM discs” or
“this disc can copy images that permit single copying.”
Read carefully the section “On DVD-R discs”
( page 15).
Depending on the disc status or the recording equipment, playback of the disc may not be possible on this recorder.
Read carefully the section “On DVD-RW discs” ( page 15).
Depending on the disc status or the recording equipment, playback of the disc may not be possible on this recorder.
12
Using different disc types for different purposes
DVD-RAM discs for your personal library
DVD-RAM discs comply with the global standard DVD-VR (Video Recording) format, and are optimized for recording of
TV programs. You can rewrite repeatedly without deterioration of an image quality, erase unnecessary parts, divide a chapter, or specify playback area by frame. Its cartridge is suitable for a longer-term storage and family use, and its large capacity of 9.4 GB allows more recording space.
DVD-R/RW discs when creating your own original discs for distribution
DVD-R discs are designed to comply with the global standard DVD-Video format, and can be recorded only once. DVD-
R discs are convenient when you edit your original content (recorded personal events such as a wedding party) with this recorder, transfer them to the recorder and make copies to send to your friends or relatives. The discs can be played on other compatible DVD players. DVD-RW discs, which are rewritable, can be used as well.
* DVD-R and DVD-RW may not be the best suited format for recording TV programs. Because of the way the discs are formatted, it may not be possible to edit or divide the program as you may prefer, to record secondary languages, or programs that are copy protected in a way that allows only one copy. (NOTE: “Copy once” protected programs generally can be recorded to DVD-RAM discs.)
* This recorder records on a DVD-R/RW disc in DVD-Video format only.
* On DVD-R/RW discs, direct recording, copying or the method “Creating a DVD-Video using DVD-R/RW” ( page
112 in “OPERATIONS GUIDE”) are available.
We cannot guarantee that DVD-RAM/R/RW discs recorded on this recorder will be playable on all DVD recorders/ players. Similarly, there is no guarantee that all DVD-RAM/R/RW discs recorded on other recorders will be playable on this recorder.
RD-XS35SU/SC_Inst_E_p02-18 12 06.1.18, 1:26 PM
For playback only
Disc
DVD video disc
Mark Specification
• 12cm (4 3 /
4
in.) / 8cm (3 1 /
4
in.)
• Region number
1
or
ALL
• Color system: NTSC
Remarks
The region number of this DVD recorder is 1.
If region numbers, corresponding to a specific playable area, are printed on your
DVD video disc and you do not find
1
or
ALL
, or the disc is encoded to permit playback only in regions other than Region 1, disc playback will not be allowed by the recorder.
VIDEO CD
Audio CD
DIGITAL VIDEO
• 12cm (4 3 /
4
in.) / 8cm (3 1 /
4
in.)
• Color system: NTSC
• Version 1.1 and 2.0
• 12cm (4
3
/
4
in.) / 8cm (3
1
/
4
in.)
CD-R
CD-RW
• 12cm (4 3 /
4
in.)
• CD-DA (audio CD) format
Depending on the disc status, playback may not be possible.
• You cannot play discs other than those listed above.
• You cannot play non-standardized discs even if they may be labeled as above.
• You cannpË»play discs with specialized encoding (such as SACD discs) or the DVD audio
±êortions of DVD Audio discs.
• This recorder uses the NTSC color system, and cannot play DVD video discs recorded in any other color system
(PAL, SECAM, etc.), even if they have region marks
1
or
ALL
.
• Toshiba cannot guarantee that all discs bearing the DVD or CD logos will operate as expected. Please see the discussion of compatibility on page 11.
• Toshiba is not liable for any damage or loss caused directly or indirectly by the malfunction of this recorder, including, without limitation, any one of the following:
• Failure to record contents intended to be recorded by the consumer.
• Failure to edit contents as intended by the consumer.
• When a DVD-RAM disc or a DVD-R/RW disc created on this recorder is used (e.g., insertion, playback, recording or editing) in another DVD player, recorder or personal computer drive.
• When a DVD-RAM disc or a DVD-R/RW disc that is used in the manner described in the immediately preceding bullet point is used again in this recorder.
• When a DVD-RAM disc or a DVD-R/RW disc that was recorded in another DVD recorder, or in a personal computer drive is used in this recorder.
• Some functions such as Library may not work with personal computer discs.
• Discs recorded in this recorder may not operate as expected on other DVD players, recorders or personal computer drives.
13
RD-XS35SU/SC_Inst_E_p02-18 13 06.1.18, 1:26 PM
Introduction
Choosing a disc (Continued)
On DVD-RAM discs
Use only DVD-RAM discs that comply with
DVD-RAM standard Version 2.0, 2.1 or 2.2.
The recorder cannot record on a disc formatted in any other standard. When using such a disc, initialize it by using the disc-format function of this recorder.
The recorder may not record, dub, or edit some DVD-
RAM discs, because they are edited/recorded with another manufacturer’s equipment or PC, contain a large number of titles, or have little remaining capacity.
Also, a DVD-RAM disc may not be edited or recorded if its title contains still pictures.
DVD-RAM discs formatted in UDF2.0 on a PC are not compatible with this recorder. Before using these discs, initialize them on this recorder.
This recorder complies with current copyright protection technology and can copy a disc only when the disc permits copying once. When there is no indication on the disc, copying will not be allowed.
Such an indication on a disc is required also for the
Library Management database.
DVD-RAM discs with cartridges are recommended for recording.
Two types of DVD-RAM discs are available: ones with cartridges and ones without cartridges. You can use either of them with this recorder, but the former ones are recommended.
In order to record highly detailed data, make sure the disc is clean. DVD-RAM discs with cartridges are easier to handle in this regard.
Do not open the cartridge shutter. The disc may not play, or may not be recorded or edited once it becomes dirty.
There are two types of DVD-RAM cartridges; removable (TYPE 2/4) and not removable (TYPE 1). It is recommended you do not remove the disc even when you can.
Refer to the instruction manual that comes with the disc if it is absolutely necessary to remove the disc.
Some commercially available cartridge discs cannot be recorded or edited once the inside discs are removed.
To protect recorded contents
Slide the write-protect tab to
“PROTECT” with something small enough. The disc can play, but cannot be edited or erased. Refer to the instructions that come with the disc.
PROTECT
When using a disc without a cartridge (commercially available discs)
Discs without cartridges can easily attract fingerprints and dust, which is the reason they are not recommended. If you cannot avoid using them, handle with proper care.
When you write in a title column on a disc, use a pen with a soft tip. Do not use a pen with a hard tip, such as a ballpoint pen.
Recommended discs
The following discs have been tested with this recorder:
9.4 GB double-sided cartridge: Panasonic 2X, 3X, 5X
4.7 GB single-sided cartridge: Panasonic 2X, 3X, 5X
14
RD-XS35SU/SC_Inst_E_p02-18 14 06.1.18, 1:26 PM
On DVD-R discs
Standards
DVD-R for General Ver.2.0 discs can be used for recording and playback.
Discs compatible with the following recording speeds can also be used:
Ver. 2.0/2X
Ver. 2.0/4X
Ver. 2.0/8X
Ver. 2.0/16X
Select discs labeled “for video,” “for recording,” “120 min.” etc.
Recording conditions
Images for which copying is prohibited or restricted
(copy once or copy prohibited) cannot be recorded.
Even if the disc is labeled as CPRM compatible, this recorder can only be used to record copy-free material.
DVD-VR mode recording is not possible.
Recommended discs
That’s (Taiyo-Yuden) 4X, 8X, 16X
On DVD-RW discs
Standards
Discs labeled DVD-RW Ver.1.1 or 1.2 can be used.
Discs compatible with the following recording speeds can also be used:
Ver. 1.1/2X
Ver. 1.2/4X
Ver. 1.2/6X
Select discs labeled “for video,” “for recording,” “120 min.” etc.
Recording conditions
Images for which copying is prohibited or restricted
(copy once or copy prohibited) cannot be recorded.
Even if the disc is labeled as CPRM compatible, this recorder can only be used to record copy-free material.
DVD-VR mode recording is not possible.
Recommended discs*
JVC 2X, 4X, 6X
* Operation has been confirmed with recommended discs and tested disc, but some other discs may not be usable.
Marks on DVD video discs
The following are examples of marks and the meanings.
Mark
2
2
3
Meanings
Number of audio streams recorded in the disc.
(2 streams such as English and
Japanese in this example.)
Number of subtitle languages recorded in the disc.
(2 subtitle languages are recorded in this example.)
Number of camera angles recorded in the disc.
(3 camera angles are recorded in this example.)
4 : 3
L B
1 6 : 9 L B
1 6 : 9 P S
Pictures are recorded in the standard picture shape
(4:3 aspect ratio).
Pictures are recorded in the letter box picture shape (4:3 aspect ratio with horizontal black bars in the top and bottom of pictures).
Pictures are recorded in the 16:9 wide picture shape.
TVs with 4:3 aspect ratio will display them in the letter box style.
Pictures are recorded in the 16:9 wide picture shape.
TVs with 4:3 aspect ratio will display them in the pan scan style
(one or both sides of pictures are cut).
Actual picture shape may vary depending on the aspect ratio or mode selection of the TV.
15
RD-XS35SU/SC_Inst_E_p02-18 15 06.1.18, 1:26 PM
Introduction
Choosing a disc (Continued)
Structure of disc contents
Normally, DVD video discs are divided into titles, and the titles are subdivided into chapters.
VIDEO CDs/audio CDs are divided into tracks.
DVD video disc
Title 1
Chapter 1
Title 2
Chapter 2 Chapter 1 Chapter 2 Chapter 3
On handling discs
Do not touch the playback side of the disc.
Track 1
VIDEO CD / audio CD
Track 2 Track 3 Track 4 Track 5
Yes
Playback side
Do not stick paper or tape to discs.
No
Title: Divided contents of a DVD video disc.
Roughly corresponds to a story title in short stories.
Chapter: Divided contents of a title. This corresponds
Track: to a chapter in a story.
Divided contents of a VIDEO CD or an audio
CD.
Each title, chapter, or track is assigned a number, which is called “title number”, “chapter number”, or “track number” respectively.
Some discs may not have these numbers.
When you record on the HDD or a DVD-RAM disc, one recording will always equal one title. You can divide a title into several chapters by marking borders in it to facilitate scene search.
On cleaning discs
Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.
Yes No
Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.
On storing discs
Do not store discs in a place subject to direct sunlight or near heat sources.
Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.
16
RD-XS35SU/SC_Inst_E_p02-18 16 06.1.18, 1:26 PM
Introduction
Table of Contents
Introduction
SAFETY PRECAUTIONS ...................................................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ............................................................................... 4
Precautions ........................................................................................................................... 6
Installation procedure ........................................................................................................ 10
About this product ............................................................................................................. 11
Choosing a disc ................................................................................................................. 12
Preparation of the remote control .................................................................................... 18
Connections
Connecting an antenna and TV ......................................................................................... 20
Connecting to cable TV signal .......................................................................................... 22
Connecting to a satellite system ...................................................................................... 24
Connecting the G-LINK
®
cable .......................................................................................... 25
Connecting to a TV equipped with component video inputs ......................................... 26
Connecting to an audio system ........................................................................................ 27
Basic setup
Starting up the recorder .................................................................................................... 30
A: TV Guide On Screen
®
setup ......................................................................................... 32
Setting up TV Guide On Screen ® .......................................................................... 33
B: Language setting ........................................................................................................... 39
C: Satellite set top box setting .......................................................................................... 40
D: Output sound setting .................................................................................................... 44
E: TV shape setting ............................................................................................................ 46
F: Remote control settings ................................................................................................ 48
Operating a TV with the remote control of this recorder ........................................ 48
Operating the second and third TOSHIBA HDD/DVD video recorders with the remote control of this recorder .............................................................................. 50
Limited United States Warranty ........................................................................................ 52
CANADIAN WARRANTY INFORMATION .......................................................................... 54
06.1.18, 1:26 PM
17
RD-XS35SU/SC_Inst_E_p02-18 17
Introduction
Preparation of the remote control
1
2
Open the cover.
Insert batteries (AAA size).
Caution
• Never throw batteries into a fire.
Notes
• Dispose of batteries in a designated disposal area.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not mix different battery types or combine used batteries with new ones.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace both batteries with new ones.
• If the batteries are dead or if you will not be using the remote control for a long time, remove the batteries to prevent battery acid from leaking into the battery compartment.
Operating with the remote control
Point the remote control at the remote sensor and press the buttons.
Make sure to match the + and – on the batteries to the marks inside the battery compartment.
3
Close the cover.
30
°
30
°
Within about 7 m (23 ft)
Distance : About 7 m (23 ft) from the front of the remote sensor
Angle
: About 30
° in each direction of the front of the remote sensor
* Do not expose the remote sensor of the recorder to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the recorder via the remote control.
Notes
• Do not drop or give the remote control a shock.
• Do not leave the remote control near an extremely hot or humid place.
• Do not spill water or put anything wet on the remote control.
• Do not disassemble the remote control.
18
RD-XS35SU/SC_Inst_E_p02-18 18 06.1.18, 1:26 PM
Connection procedure
1
“Connecting an antenna and TV” ( page 20)
2
“Connecting an antenna and TV” ( page 20)
3
“Connecting to a TV equipped with audio/video inputs”
( page 21)
Connections
Connect your recorder to your TV or stereo system.
Connecting an antenna and TV
Connecting to cable TV signal
Connecting to a satellite system
Connecting the G-LINK
®
cable
Connecting to a TV equipped with component video inputs
Connecting to an audio system
4
“Connecting to an audio system” ( page 27)
AV amplifier
When you connect a TV equipped with audio/ video inputs
Perform steps 1, 2 and 3.
When you connect an audio system
Perform steps 1, 2, 3 and 4.
RD-XS35SU/SC_Inst_E_p19-28 19 06.1.18, 1:26 PM
Connections
Connecting an antenna and TV
Connect your TV and the antenna to this recorder for recording and to view broadcast signals on the TV.
1
2
Disconnect the antenna cable from your TV, and connect it to the RF IN
(FROM ANT.) terminal on the recorder.
Using the supplied coaxial cable of this recorder, connect the RF OUT (TO
TV) terminal to the TV.
VHF/UHF antenna
Antenna cable (not supplied)
To RF IN (FROM ANT.)
1
TV
To RF OUT (TO TV)
2
Coaxial cable (supplied)
2
To antenna input
Antenna splitter
(not supplied) e.g.
VHF/UHF
Types of an antenna terminal may vary depending on the TV.
Check the type on your TV, and connect properly using either method as shown.
For connecting to a cable box or a satellite system, see page 22 to 25.
20
Note
• This connection ensures broadcast signals to be passed through to your TV. Unlike a VCR, you cannot assign channel 3 or 4 to playback from this recorder. The antenna input only passes through the broadcast signals to your TV.
Therefore to playback video from this recorder you must connect it to a video input on your TV. (See the next page.)
RD-XS35SU/SC_Inst_E_p19-28 20 06.1.18, 1:26 PM
3
Connect to a TV equiped with audio/video inputs.
Connect as below for watching received channels or recorded contents. Watching via the RF OUT terminal is not available.
(red)
To OUTPUT
(R/L)
(white)
(yellow)
To OUTPUT
(VIDEO)
To OUTPUT
(S-VIDEO)
S-Video cable (not supplied)
If the TV has an S-video input, connect the recorder with an S-video cable. When using an S-video cable, do not connect the yellow video cable.
Video/audio cable (supplied)
To S-video input
TV or monitor with audio/video inputs
To video inputs (yellow)
(white)
To audio input
(red)
4
Connect the power cord of the recorder to a wall outlet.
Make sure that the powered recorder lights the ON/STANDBY indicator on the front panel.
To wall outlet
Notes
• Refer to the owner’s manual of the connected TV as well.
• When you connect the recorder to your TV, be sure to turn off the power and unplug both units from the wall outlet before any connections.
• If your television set has one audio input, connect the left and right audio outputs of the recorder to a Y cable adapter (not supplied) and then connect to your TV.
• Connect the recorder directly to your TV. If you connect the recorder to a VCR, TV/VCR combination, video selector or AV amplifier, the playback picture may be distorted due to copy protection.
21
RD-XS35SU/SC_Inst_E_p19-28 21 06.1.18, 1:26 PM
Connections
Connecting to cable TV signal
Choose one of the setup options below to connect the recorder to your cable signal.
Connect the recorder to the TV using the audio/video cable.
This set-up will allow you to:
– record an unscrambled channel.
– record an unscrambled channel while watching another (only when you connect a cable-compatible
TV).
You will need to:
• on your TV select a desired channel to watch while recording a different channel using the recorder.
Incoming cable
Incoming cable
IN
Cable box
3CH
4CH
OUT
This set-up will allow you to:
– record an unscrambled channel.
– record an unscrambled channel while watching another (scrambled or unscrambled).
You will need to:
• set TV channel to the output channel of the cable box.
• to record an unscrambled channel while watching a scrambled channel, select a desired cable channel via the cable box.
Cable box
3CH
4CH
IN
Incoming cable
OUT
This set-up will allow you to:
– record any channels through the cable box.
You will need to:
• select a desired cable channel via the cable box.
• while the recorder is turned off, set TV channel to the output channel of the cable box.
To download program listings the TV Guide On Screen ® system needs to be able to change channels on your cable box when the recorder is not in use. Please connect the supplied G-LINK ® cable to the G-LINK jack of the recorder. After you connect the G-LINK ® cable you will be able to control your cable box using the recorder’s remote control. page 25
22
RD-XS35SU/SC_Inst_E_p19-28 22 06.1.18, 1:26 PM
Cable box
IN
This set-up will allow you to:
– watch or record a channel through the cable box via the INPUT1 (VIDEO/L/R) jacks.
To download program listings the TV Guide On Screen
® system needs to be able to change channels on your cable box when the recorder is not in use. Please connect the supplied G-LINK
®
cable to the G-LINK jack of the recorder. After you connect the G-LINK
®
cable you will be able to control your cable box using the recorder’s remote control. page 25
RD-XS35SU/SC_Inst_E_p19-28 23 06.1.18, 1:26 PM
23
Connections
Connecting to a satellite system
Choose one of the following according to your type of satellite receiver.
When the satellite receiver does not have audio/ video outputs
1 Connect a satellite antenna to the satellite receiver.
2 Connect the RF IN (FROM ANT.) terminal on the recorder and the RF OUT terminal of the satellite receiver.
3 Connect the RF OUT (TO TV) terminal on the recorder and the antenna input connector of the TV.
IN
Satellite receiver
3CH
4CH
OUT
Satellite antenna
Satellite antenna
Audio outputs
Satellite receiver
Video output
When the satellite system has audio/video outputs
1 Connect a satellite antenna to the satellite system.
2 Connect the INPUT1 or INPUT3 (VIDEO/L/R) jacks on the recorder and the audio/video output jacks of the satellite system.
3 Connect the OUTPUT (VIDEO/L/R) jacks on the recorder and the audio/video input jacks of the TV.
4 Connect the RF OUT (TO TV) terminal on the recorder and the antenna input connector of the TV.
24
Note
• If you use the DSS set top box control function ( page 40), connect your satellite set top box to the INPUT3 jacks.
RD-XS35SU/SC_Inst_E_p19-28 24 06.1.18, 1:26 PM
Connections
Connecting the G-LINK
®
cable
To download program listings the TV Guide On Screen ® system needs to be able to change channels on your cable box when the recorder is not in use. Please connect the supplied G-LINK ® cable to the
G-LINK jack of the recorder. After you connect the G-LINK
®
cable you will be able to control your cable box using the recorder’s remote control. To connect the G-LINK ® cable follow the instructions below.
1
2
Connect the plug of the supplied G-LINK
®
cable to the G-LINK jack on the recorder.
Place the transmitter near the set top box connected to the recorder.
Cable box
(Keep the power on to receive commands from the recorder.)
1
Transmitter
2
Secure the G-LINK
®
wand underneath the cable box so that the wand’s IR lens faces the front of cable box.
Ensure the G-LINK
®
wand is at a distance of about one inch from the cable box IR sensor. If you cannot control your cable box, try to adjust the distance or put the
G-LINK
®
wand at another place.
After connecting, make the necessary settings ( page 32).
When you use the recorder for the first time, also make the settings.
Notes
• Do not connect an accessory other than the supplied G-LINK ® cable to the G-LINK jack.
• Do not cover the transmitter.
• The TV Guide On Screen
®
interactive program guide supports cable-ready and cable box as well as over-the-air broadcast. It does not provide listings for satellite services. TV Guide program data and schedules are updated daily through your antenna or cable system once you have completed the TV Guide On Screen ® setup.
• Refer to the owner’s manual of the connected set top box as well.
• Power off the recorder overnight or when not in use to allow the TV Guide On Screen
®
system to receive and update its listings. If a cable box is connected to this recorder, leave the cable box turned on at all times.
Program listings should start displaying within 24 hours after setting up the TV Guide On Screen ® system ( page 32).
25
RD-XS35SU/SC_Inst_E_p19-28 25 06.1.18, 1:26 PM
Connections
Connecting to a TV equipped with component video inputs
If your TV has component video inputs, you can obtain pictures in better quality.
To P
B
VIDEO OUT
To Y VIDEO OUT
To P
R
VIDEO OUT
Only video signals are output from the COMPONENT OUTPUT jacks.
(Audio signals are not output.)
To obtain the sound, connect an audio system to the audio output terminals.
TV or monitor equipped with component video (INTERLACED/
PROGRESSIVE) inputs
Video cable
(not supplied)
To P
R
video input
To P
B
video input
To Y video input
Component video outputs/inputs
Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy higher quality picture playback.
Actual labels for component video inputs may vary depending on the TV manufacturer. (ex.Y, R-Y, R-B or
Y, C
B
, C
R
)
In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.
• Make the following setting.
On-screen display
Select
“Audio out select” “Analog 2ch”
Page
page 39
To switch the output signal (Progressive/Interlaced)
PROGRESSIVE
Press PROGRESSIVE button to change the video output signals (progressive and interlace) from COMPONENT OUTPUT jacks.
26
Notes
• Refer to the owner’s manual for the TV to be connected to this recorder for more information concerning an audio system.
• If you place the recorder near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the recorder away from the tuner and radio.
• The output sound of the recorder has a wide dynamic range. Be sure to adjust the audio amplifier’s volume to a moderate listening level. Otherwise, the speakers and your hearing may be damaged by sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the recorder’s power cord. If you leave the amplifier power on, the speakers may be damaged.
• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the “Standard Definition” output. If there are questions regarding our TV set compatibility with this model 525p DVD player, please contact our Customer Service Center.
RD-XS35SU/SC_Inst_E_p19-28 26 06.1.18, 1:26 PM
Connections
Connecting to an audio system
You can enjoy multichannel surround-sound such as 5.1 channel by connecting to an amplifier compatible with Dolby ® Digital and DTS ® sound.
• For connection to your TV, see pages 20 to 21, 26.
• For details of output sound, see page 162 in “OPERATIONS GUIDE”.
Caution
• When you are connecting (via the DIGITAL AUDIO OUTPUT BITSTREAM/PCM jack) an AV decoder that does not have
Dolby Digital, Digital Theater Systems (DTS) or MPEG2 decoding function, be sure to set “Audio out select” to “PCM” from the on-screen displays (
page 39). Otherwise, high volume sound may damage your hearing as well as the speakers.
• When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the analog audio out (L/R) jacks of the recorder are connected to an amplification system. To enjoy DTS Digital Surround ® playback, an external 5.1 channel DTS Digital Surround ® decoder system must be connected to the DIGITAL AUDIO OUTPUT
BITSTREAM/PCM jack of the recorder.
Amplifier
To OPTICAL type digital audio input
To DIGITAL AUDIO
OUTPUT
BITSTREAM/PCM
Optical digital cable (not supplied)
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
• Make the setting on page 39, “Audio out select”.
Notes
• DO NOT connect the DIGITAL AUDIO OUTPUT BITSTREAM/PCM jack of the recorder to the AC-3 RF input of a Dolby
Digital Receiver. This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the DIGITAL
AUDIO OUTPUT BITSTREAM/PCM jack of the recorder.
• Connect the DIGITAL AUDIO OUTPUT BITSTREAM/PCM jack of the recorder to the “OPTICAL” input of a Receiver or
Processor.
• Refer to the owner’s manual for the TV to be connected to this recorder for more information concerning connecting an audio system.
• The output sound of the recorder has a wide dynamic range. Be sure to adjust the audio amplifier’s volume to a moderate listening level. Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the recorder’s power cord. If you leave the amplifier power on, the speakers may be damaged.
27
RD-XS35SU/SC_Inst_E_p19-28 27 06.1.18, 1:26 PM
RD-XS35SU/SC_Inst_E_p19-28 28 06.1.18, 1:26 PM
Basic setup
Read this chapter for necessary settings to get started.
When you use this recorder for the first time, be sure to perform A to C in this order.
Proceed to D if necessary.
Starting up the recorder
A:TV Guide On Screen
®
setup
Setting up TV Guide On
Screen
®
B: Language setting
C: Satellite set top box setting
D: Output sound setting
E: TV shape setting
F: Remote control settings
Operating a TV with the remote control of this recorder
Operating the second and third TOSHIBA HDD/DVD video recorders with the remote control of this recorder
RD-XS35SU/SC_Inst_E_p29-43 29 06.1.18, 1:26 PM
Basic setup
Starting up the recorder
30
After all the necessary connections,
• Turn on the equipment connected to the recorder.
• Select the corresponding video input on your television.
Perform these selections whenever you operate the recorder.
Turning the power on
Press ON/STANDBY button from the remote control or on the front panel of the recorder.
ON/STANDBY button/
ON/STANDBY indicator
While the icon is flashing, the recorder is checking the status and reading data of the HDD and the
DVD drive for startup. If the DVD drive does not contain a disc, the recorder consumes less time to startup, because it does not need to read data from the DVD drive.
While the “Loading” icon is flashing, the recorder cannot respond to any operations of buttons other than CH/Page and INPUT SELECT. Operate all other functions after the icon has disappeared.
Notes
• When the recorder is turned on for the first time, the
Welcome screen will be displayed after the “Loading” icon has disappeared. See “A: TV Guide On Screen setup”
( page 32).
• While displaying “WAIT” on the front panel, do not operate the recorder or unplug the power cord. Otherwise, this may result in malfunction of the recorder.
ON/STANDBY button
When the power turns on, ON/STANDBY indicator changes color from red (standby mode) to green
(operation).
After a few seconds, a startup screen appears.
The following icon will appear on the top right corner of the screen. The icon will continue flashing momentarily.
e.g.
Loading
Turning the power off
Press ON/STANDBY button from the remote control or on the front panel of the recorder.
The “Unloading” icon appears on the right corner of the top of the screen, and the ON/STANDBY indicator turns red. Then the power turns off.
Note
• If the recorder freezes for about 15 minutes and will not respond to any buttons, holding down ON/STANDBY button on the front panel for about 10 seconds can force the recorder to turn off. However, this is an emergency measure, which contains a risk of damage to data or discs.
Avoid casual use of this measure. If you try this while the recorder is operating properly, especially while the
“Loading” or “Unloading” icon is flashing, it may result in reinitialization of the HDD.
Startup/finishing (closing) icons
These icons are displayed on the right corner on the top of the screen. While they are flashing, the recorder is operating as follows:
Startup, reading a disc, finishing recording
Loading
Un loading
Unloading a disc, finishing the recorder’s operation
Opening a disc tray
Open
Close
Closing a disc tray
RD-XS35SU/SC_Inst_E_p29-43 30 06.1.18, 1:26 PM
If a message appears
The recorder may display a message. Each message varies according to operational status.
To respond, follow the examples below.
Message e.g.
message
OK
e.g.
message
No
2 selections
Set
Select either response (by highlighting in green) using
/ buttons, then press
ENTER button.
The message disappears.
e.g.
message
OK
1 selection
Read the message, then press
ENTER button.
The message disappears.
e.g.
message
No selection
The message disappears automatically in a few seconds.
RD-XS35SU/SC_Inst_E_p29-43 31 06.1.18, 1:26 PM
31
Basic setup
A: TV Guide On Screen
®
setup
This step sets the recorder’s clock and tuner to record broadcasting TV programs.
Once you complete this process there is generally no need to reset the clock. (However, if there are discrepancies in the recorder’s time display or changes made to receivable TV stations, you should make this setting again.)
To set up the recorder for the first time see the TV Guide
On Screen
®
setup instructions on page 33.
1
Press TV Guide.
TV Guide
Start
2
Press / to select “SETUP”.
ENTER
3
Press / to select “Change system settings”, then press ENTER.
ENTER
4
Press / to select “No, repeat setup process”, then press ENTER.
ENTER
32
RD-XS35SU/SC_Inst_E_p29-43 32 06.1.18, 1:26 PM
Setting up TV Guide On Screen
®
1
Setup selection
Your DVD Recorder is equipped with the TV Guide On Screen™
Interactive Program Guide, which provides program listings, one-touch recording, and more –– all subscription FREE!
Please follow the on-screen setup instructions to enable your TV
Guide On Screen system now. Or, press the GUIDE Key on your DVD
Recorder remote at any time.
ENTER
Reminder
What would you like to do now?
Set up TV Guide On Screen now
Remind me to set it up later
Don’t remind me again
Using your DVD Recorder remote, move up or down to highlight your answer. Press
Enter to choose.
Instructions are provided at the bottom for each screen.
Press / to select “Set up TV Guide On
Screen Now”, then press ENTER.
2
Country
STEP 1: Identifying Your Location
To supply your DVD Recorder with correct program listings, the TV Guide On
Screen system needs to know your DVD Recorder’s location.
ENTER
Which country is your DVD Recorder located in?
USA
Canada
Using your DVD Recorder remote, move up or down to highlight your answer. Press
Enter to choose.
Press / to select, then press ENTER.
(Continued)
33
RD-XS35SU/SC_Inst_E_p29-43 33 06.1.18, 1:26 PM
Basic setup
A: TV Guide On Screen
®
setup (Continued)
34
RD-XS35SU/SC_Inst_E_p29-43 34
3
ZIP or postal code
STEP 1: Identifying Your Location
To supply your DVD Recorder with the correct program listings, the TV Guide On
Screen system needs to know the town or city where your DVD Recorder is installed.
7
0
1
4
2
5
8
3
6
9
Please enter the 5-digit ZIP code where your DVD Recorder is located:
= = = = =
ENTER
Use one of the options below to enter your ZIP or Postal Code, then press ENTER:
• Number buttons
• / to select a number, then / to move to another field.
4
Cable service
STEP 2: Configuring for Cable
To supply your DVD Recorder with correct program listings, the TV Guide On
Screen system needs to know if your DVD Recorder receives its signal from a cable service.
ENTER
Do you have cable service connected to this DVD recorder?
Yes
No
Press / to select, then press ENTER.
If the answer is “No”, you will go to step 12.
5
Cable connection
STEP 2: Configuring for Cable
You have indicated that you have cable service. Now the TV Guide On Screen system needs some additional information.
ENTER
Is a cable box connected to this DVD Recorder?
Yes
No
Press / to select, then press ENTER.
06.1.18, 1:26 PM
RD-XS35SU/SC_Inst_E_p29-43 35
6
Cable input
STEP 2: Configuring for Cable
Your DVD Recorder has more than one input jack. To operate properly with your cable box, the TV Guide On Screen system needs to know which one your cable box is plugged into. You may have to look at the back of your DVD Recorder if you are unsure, as an incorrect selection will result in a blue or snowy screen while watching TV.
ENTER
Please indicate which DVD Recorder input the cable box is plugged into.
TUNER
Line 1
Press / to select, then press ENTER.
If you select “TUNER”, you will go to step 7.
If you select “Line 1”, you will go to step 8.
7
Tuning channel for the cable box
STEP 2: Configuring for Cable
To operate properly with your cable box, the TV Guide On Screen system needs to know the channel your DVD Recorder is on when using the cable box. The most commonly used output channel is 03. Please consult your cable box provider if you are unsure, as an incorrect selection will result in a blue or snowy screen while watching TV.
ENTER
What is your DVD Recorder tuned to when using the cable box?
Ch 2
Ch 3
Ch 4
Press / to select, then press ENTER.
8
Read the instructions and observe the diagram. Confirm that the G-LINK
®
cable and its wand is properly installed. ( page 25)
If OK, press ENTER.
ENTER
(Continued)
35
06.1.18, 1:26 PM
Basic setup
A: TV Guide On Screen ® setup (Continued)
36
RD-XS35SU/SC_Inst_E_p29-43 36
9
Cable box brand name
STEP 2: Configuring for Cable
Selecting the correct cable box brand from the list is needed to automatically receive program listings. If you do not know the cable box brand, please consult your cable provider.
ENTER
What brand of cable box is connected to this DVD Recorder?
Not listed
Archer
Cable Cinema
Cabletenna
Press / to view and select more brands, then press ENTER.
10
Cable box preparation
STEP 2: Configuring for Cable
The TV Guide On Screen will conduct a series of tests to find the correct code to control your cable box.
ENTER
Follow steps A and B below
A: Please tune your cable box to channel 02
B: Make sure to leave your cable box turned ON
Follow the instructions, then press ENTER.
11
Cable box code testing
STEP 2: Configuring for Cable
Cable testing in progress... please do not press any keys on any remote control.
Now testing code 036 (Toshiba)...
Press Enter to continue.
When testing is done, the following screen automatically appears.
06.1.18, 1:26 PM
RD-XS35SU/SC_Inst_E_p29-43 37
ENTER
STEP 2: Configuring for Cable
The TV Guide On Screen system needs to locate the correct code for yourcable box brand in order to work properly.
Is your cable box now tuned to channel 09?
Yes
No
Test the code again
Press / to select, then press ENTER.
If your answer is “Yes”, and:
• if you selected “TUNER” at step 6, you will go to step 13.
• if you selected “Line 1” at step 6, you will go to step 12.
12
Antenna connection
STEP 3: Configuring for Antenna
To supply your DVD Recorder with correct program listings, the TV Guide On Screen system needs to know if you have attached an antenna to your DVD Recorder to receive over-the-air stations.
ENTER
Do you have an antenna connected to your DVD Recorder?
Yes
No
Press / to select, then press ENTER.
13
Confirmation
STEP 4: Confirming Your Settings
You have entered the following TV Guide On Screen system settings. If any setting is marked INCOMPLETE, you will not be able to use the feature until you complete that portion of TV Guide On Screen system setup.
ZIP code - 46001 (USA)
Cable Box on input “TUNER” Ch. 3
Cable Box selected: code 036 (Toshiba)
ENTER
Are the above settings correct?
Yes, end setup
No, repeat setup process
Press / to select, then press ENTER.
(Continued)
37
06.1.18, 1:26 PM
Basic setup
A: TV Guide On Screen ® setup (Continued)
14
Confirmation
ENTER
Congratulations!
You have completed the setup of your TV Guide On Screen system.Up-to-date listings will begin loading over the next 24 hours when your DVD Recorder is powered off.
It may take more than one day for all eight days of listings to update. During this period feel free to use your DVD Recorder. The guide will automatically receive updates during the period when your DVD Recorder is turned off.
If you have changed the location or cable configuration settings, you will receive any changes to your local channel lineup within 24 hours.
You have successfully completed the setup!
Press ENTER.
15
Information
ENTER
Helpful information
1. To receive your channel lineup and program listings, leave your cable box ON.
Your DVD Recorder should be turned OFF overnight.
2. To view program listings, press the GUIDE key on your DVD Recorder remote.
3. You must redo TV Guide On Screen system setup if you:
Move your DVD Recorder to a new ZIP or postal code
Cancel cable service or change cable boxes
To enter the TV Guide On Screen system setup, press the GUIDE key, then go to the
Menu Bar and highlight Setup.
Read the information and press ENTER.
Notes
• When the clock data cannot be downloaded from the TV Guide On Screen
®
system, set the clock manually. ( page 157, in
“OPERATIONS GUIDE”)
• It may take about 24 hours for the TV Guide On Screen ® system to be fully available after the setup is finished.
• TV Guide On Screen ® system is not compatible with the DSS set top box control function ( page 40). If you select “Yes” at step 5 ( page 34) and complete the setup, the recorder sets itself to TV Guide On Screen
®
system and disables the setting on page 40.
“A: TV Guide On Screen ® setup” is complete. Go to “B: Language setting”. ( page 39)
38
RD-XS35SU/SC_Inst_E_p29-43 38 06.1.18, 4:55 PM
Basic setup
B: Language setting
Select a preferred language for on-screen displays.
1
Press SETUP.
The setup menu appears.
SETUP
Start
2
Press / to select “Initial settings”, then press ENTER.
e.g.
ENTER
Initial settings
Language
Time & Date setting
Guide and Clock reset
Set Top Box setting
English
Select Return Set Exit
Refer to the guide on the bottom on each GUI for further programming related information.
3
Press / to select “Language”, then press
ENTER.
e.g.
ENTER
Initial settings
Language
Time & Date setting
Guide and Clock reset
Set Top Box setting
English English
French
4
SETUP
Press / to select a language, then press
ENTER.
English: To view on-screen displays in English.
French: To view on-screen displays in French.
ENTER
“B: Language setting” is complete. Go to “C: Satellite set top box setting” ( page 40).
Note
• This setting is not available for TV Guide On Screen
®
displays.
RD-XS35SU/SC_Inst_E_p29-43 39 06.1.18, 1:26 PM
39
Basic setup
C: Satellite set top box setting
Set your recorder to control channels of a connected satellite set top box. (DSS set top box control function)
This setting is only for users who do not or can not control channels of a connected cable box by means of TV Guide On Screen
®
system.
If you selected “Yes” at step 5 on
page 34,
you do not need to do this setting. Skip to “D:
Output sound setting” (
page 44).
STEP 2: Configuring for Cable
You have indicated that you have cable service. Now the TV Guide On Screen system needs some additional information.
Is a cable box connected to this DVD Recorder?
Yes
No
Important
• Be sure to connect your satellite set top box to the INPUT3 jacks of the recorder.
• Make the G-LINK ® cable connection ( page 25) between your satellite set top box and the recorder.
1
Press SETUP to display the setup menu.
When it is already displayed, press button.
SETUP
Start
2
Press / to select “Initial settings”, then press ENTER.
e.g.
ENTER
Initial settings
Language
Time & Date setting
Guide and Clock reset
Set Top Box setting
English
SETUP
3
Press / to select “Set Top Box setting”, then press ENTER.
e.g.
ENTER
DBS
Input
Set Top Box setting
IR control
Not used
Line3
Off
Brand type
ENTER code
Channel digit
0 0 0
On
3 digits
40
RD-XS35SU/SC_Inst_E_p29-43 40 06.1.18, 4:55 PM
RD-XS35SU/SC_Inst_E_p29-43 41
4
Press ADJUST (or / ) to set “DBS” to “Not used” or “Use”.
FR
AM
E/A
DJU
ST
Not used:
When a satellite set top box is not connected to the
INPUT3 jacks of the recorder.
Skip to step 8.
Use:
When a satellite set top box is connected to the INPUT3 jacks of the recorder.
5
Press , then press ADJUST (or / ) to set
“IR control” to “On” or “Off”.
Off: Channels of the satellite set top box are selected by its own selector.
Skip to step 8.
ENTER
On: The recorder can change channels of the satellite set top box.
FR
AM
E/A
DJU
ST
6
Press , then press the number buttons to enter the 3 digits of a brand code of your satellite set top box obtained from the list
( page 43).
e.g. If you connect a TOSHIBA satellite set top box:
0 9 0
ENTER
1
4
7
0
2
5
8
3
6
9
7
Press , then press ADJUST (or / ) to set
“ENTER code” to “On” or “Off”.
Confirm whether the connected satellite set top box requires ENTER input after digits in channel selection or not.
ENTER
On: If ENTER input is required.
Off: If ENTER input is not required.
FR
AM
E/A
DJU
ST
(Continued)
41
06.1.18, 1:27 PM
Basic setup
C: Satellite set top box setting (Continued)
8
Press ENTER.
“Initial settings” menu returns.
To exit the setting menu, press SETUP button.
ENTER
If you have set “IR control” to “On” at step 5 ( page
41), turn on your satellite set top box and confirm its channels are selected by the number buttons or
CH/Page buttons of the recorder’s remote control. If not, shift the G-LINK ® wand of the G-LINK ® cable or try another brand code.
“C: Satellite set top box setting” is complete. Go to “D: Output sound setting” ( page 44).
Notes
• This setting will be reset to default if you redo the TV Guide On Screen ® setup and select “Yes” at the cable selection (step 5,
page 34).
• The recorder can control satellite set top box of 3 digit channel selection only. If the channel control does not work properly, set “IR control” to “Off” at step 5 on page 41.
42
RD-XS35SU/SC_Inst_E_p29-43 42 06.1.18, 1:27 PM
Satellite set top box brand code
Brands
DirecTV
Drake
Echostar
Hitachi
Hughes
Magnavox
Optimus
Panasonic
Philips
Primestar
ProScan
RCA
Samsung
Sony
Toshiba
Uniden
Zenith
Codes
106
093
092 100
091 099 102 105
091 099 102 105
094 095
094 095
096
091 099 102 105
092 100
097 103
097 103
097 103
098
090
094 095
101
Note
• Some models of satellite set top box may not be controlled with this recorder.
RD-XS35SU/SC_Inst_E_p29-43 43 06.1.18, 1:27 PM
43
Basic setup
D: Output sound setting
Select the output sound setting corresponding to the connected TV or audio system.
1
Press SETUP to display the setup menu.
When it is already displayed, press button.
SETUP
2
Press / to select “Picture/Audio settings”, then press ENTER.
e.g.
ENTER
Picture/Audio settings
Pause / Still
Output Black level
Custom picture select
Custom picture setting
Progressive conversion
Play DNR
Audio out select
Virtual surround
SAP
Auto
Standard
Normal
Auto
Bitstream
Off
Off
SETUP
3
Press / to select “Audio out select”, then press ENTER.
e.g.
ENTER
Picture/Audio settings
Pause / Still
Output Black level
Custom picture select
Custom picture setting
Progressive conversion
Play DNR
Audio out select
Virtual surround
SAP
Auto
Standard
Normal
Auto
Bitstream
Off
Off
Bitstream
Analog 2ch
PCM
SETUP
Start
44
RD-XS35SU/SC_Inst_E_p44-45 44 06.1.18, 1:27 PM
4
Press / to select the output sound format.
Bitstream:
Select when connected to an amplifier equipped with a
Dolby Digital, DTS, MPEG1 and MPEG2 decoder. ( page 27)
ENTER
OPTICAL
Amplifier
The recorder outputs digital audio signals in the bitstream format when you play a DVD video disc recorded on the Dolby Digital, DTS, MPEG1 and
MPEG2 recording system.
Analog 2ch:
Select when connected to a TV or audio system via the analog audio jacks. ( pages 21, 26)
AUDIO
INPUT
TV
L R
PCM:
Select when connected to a 2 channel digital stereo system. ( page 27)
OPTICAL
Amplifier
The recorder outputs sounds in the PCM 2ch format when you play a disc recorded on the Dolby Digital,
MPEG1 and MPEG2 recording system.
5
Once the proper setting is selected, press
ENTER.
The submenu disappears.
To exit the setting menu, press SETUP button.
ENTER
“D: Output sound setting” is complete. Go to “E: TV shape setting”. ( page 46)
RD-XS35SU/SC_Inst_E_p44-45 45 06.1.18, 1:27 PM
45
Basic setup
E: TV shape setting
Select the picture shape according to the aspect ratio of your TV.
1
Press SETUP to display the setup menu.
When it is already displayed, press button.
(To return to the previous menu)
SETUP
2
Press / to select “Display settings”, then press ENTER.
e.g.
ENTER
Display settings
TV shape
On screen display
Transparency
Startup screen
Screen protector
Background
Closed caption
4:3LB
On
On
On
Blue
TV
SETUP
3
Press / to select “TV shape”, then press
ENTER.
e.g.
ENTER
Display settings
TV shape
On screen display
Transparency
Startup screen
Screen protector
Background
Closed caption
4:3LB
On
On
On
Blue
TV
4:3LB
4:3 normal
16:9 wide
16:9 shrink
SETUP
Start
46
RD-XS35SU/SC_Inst_E_p46-47 46 06.1.18, 1:27 PM
4
Press / to select the picture shape.
ENTER
4:3LB:
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking bars above and below the picture.
4:3 normal:
Select when a standard 4:3 TV is connected.
Displays pictures cropped to fill your
TV screen. Either or both of the picture’s sides are cut off.
16:9 wide:
Select when a 16:9 wide TV is connected.
16:9 shrink:
Select when a 16:9 wide TV is connected.
When a 4:3 aspect ratio image has been elongated to 16:9 wide picture size, use this setting.
Masking bars to the right and left appears.
5
When the proper setting is selected, press
ENTER.
The submenu disappears.
To exit the setting menu, press SETUP button.
ENTER
Notes
• Actual picture shape may depend on signal types of broadcasts or input sources, or settings on the connected TV. Refer to the owner’s manual of your TV.
• When a DVD video disc has a particular available picture shape, the contents may not be compatible with other picture shapes.
“E: TV shape setting” is complete. Go to “F: Remote control settings”. ( page 48)
47
RD-XS35SU/SC_Inst_E_p46-47 47 06.1.18, 1:27 PM
Basic setup
F: Remote control settings
Take this step according to your preference and usage.
Operating a TV with the remote control of this recorder
The remote control of this recorder has a function to operate a TV.
Preparation: Please find the brand code on the next page for the TV you wish to control.
Info
INSTANT REPLAY INSTANT SKIP
EASY
NAVI
Menu TV Guide
CONTENT MENU
SK
IP
S
LO
W
1
While holding TV CODE, press the number buttons to enter a corresponding brand code
(see the next page) of your TV.
e.g. To enter 0071
TV CODE
TV CODE
0 0 7 1
Hold down.
ENTER
FR
AM
E/A
DJU
ST
PAUSE STOP
PIC
TU
RE
SE
AR
C
H
PLAY
7
0
1
4
2
5
8
3
6
9
REC
Exit
QUICK MENU
7
0
1
4
2
5
8
+
10
Start
DVD
TOP MENU
3
MENU
6
RETURN
9
T.SEARCH
TV CODE
2
Release TV CODE.
The brand code is memorized.
Operating your TV with the remote control
Point the remote control to your TV after you have entered the brand code. Operate your TV with the buttons below.
VOLUME
CH
ON/STANDBY
TV/VIDEO
ON/STANDBY: To turn on and off the TV
TV/VIDEO
CH
VOLUME
: To change the video input
: To select the TV channel
: To adjust the volume
48
RD-XS35SU/SC_Inst_E_p48-56 48 06.1.18, 1:27 PM
Brand code table
Brand name Brand code Brand name Brand code
Toshiba
Bell & Howell
Citizen
Curtis Mathes
Emerson
Fisher
GE
Goldstar
Hallmark
Hitachi
Infinity
JBL
JVC
LXI
Magnavox
Marantz
Memorex
MGA
Mitsubishi
MTC
NAD
Optonica
Panasonic
0001 0021 0071 0311 0411
0431 0831 0841 0851 1341
1611 1621 1681 1781 1951
2121 2461 2491
0081 0431
0051 0381 0471 0551 0621
0851 1561
0051 0391 0431 0531 0621
0851 1521 1561 2501
0051 0111 0121 0141 0151
0161 0201 0211 0351 0381
0431 0521 0561 0571 0621
0691 1241 1291 1371 1561
2481
0251 0401 0431 1151 2451
2481
0041 0051 0091 0181 0321
0371 0391 0591 0621 0711
0741 0881 1041 1471 1521
2481 2501
0051 0061 0161 0231 0451
0501 0621 0661 0771 0961
1431 1561 2481
0051 0621
2381 0031 0051 0161 0191
0301 0601 0621 0641 0671
0811 0821 0951 1011 1061
1241 1361 1651 1711 1731
1741 1751 1761 2041 2051
2131
0631
0631
0101 0161 0191 0241 0331
0511 0561 0601 0741 0991
1321 1421 2161 2171 2261
0001 0311 0391 0411 0431
0621 0631 1041 1171 1521
2491 2501
0051 0271 0291 0341 0361
0421 0551 0621 0631 0661
0971 0981 1131 2221 2351
0051 0481 0621 0631 0641
2491
0081 0431 0501 0621 2491
0051 0251 0261 0371 0501
0621 0661 0761
0051 0251 0261 0281 0371
0491 0501 0621 0661 0761
2231
0051
0001
0541
2301
1351
1801
2241
0501
0311
1101
0631
1401
2111
0621
0411
0711
1501
2151
0851
0621
0741
1701
1061
1271
1791
Philco
Philips
0051 0161 0271 0291 0361
0421 0501 0551 0621 0631
0661 0711
0051 0161 0271 0321 0361
Proton
Quasar
0421 0461 0551 0631 0661
0711 2141 2351
0051
0711
0161
0741
0621
0801
0651
1401
2491
2281
Radio Shack 0431 1521 2481
Radio Shack/Realistic 0051 0161 0381 0391 0431
RCA
0541 0621 1431 1561 2501
0051 0221 0391 0501 0621
0661 0711 0871 0881 0911
0921 0941 1001 1041 1071
1091 1181 1211 1241 1301
1461 1491 1521 1531 2291
2481 2501
0431 1521 Realistic
Runco
Samsung
Sanyo
0011
1811 0051 0161 0501 0531
0621 0661 0851 0931 1021
1141 1431 1561 1591 1601
1771 1821 1831 1841 1851
1861 1931 2081 2101 2311
0051 0261 0401 0431 0791
0901 1151 2461
Sears
Sharp
Sony
Soundesign
Sylvania
0001 0051 0151 0191 0251
0311 0331 0391 0401 0411
0431 0621 0661 1041 1081
1151 1481 1521 2461 2481
2501
2181 0051 0111 0161 0351
0541 0581 0611 0621 0731
0891 1101 1561 1721 1871
1881 1941 2341
1231 0441 1111 1511 2411
1891 1901 2061 2421 2431
2401
0051 0151 0381 0551 0621
2481
0051 0071 0271 0291 0341
0361 0421 0551 0621 0631
Tandy
Technics
Teknika
Wards
Zenith
0661 0861 1441 2191 2201
1101
0741
0051 0081 0151 0161 0191
0341 0381 0471 0501 0551
0621 0851 1271 1401 1561
2481
0051 0081 0141 0151 0181
0211 0271 0321 0341 0361
0391 0421 0501 0541 0621
0631 0661 1051 1521 2491
2501
0011 0051 0081 0781 1281
1571 2091 2211 2251 2391
2361 2441
Notes
• TOSHIBA code is already set when you operate this recorder for the first time.
• Some brands have several codes. Try one by one until the remote control can operate your TV.
• Even after the recorder's remote control is programmed, it may not operate some or all of the features on your other device.
If this happens and you wish to use those features, you will need to use the device's original remote control.
• When replacing the batteries of the remote control, re-enter the brand code of your TV.
49
RD-XS35SU/SC_Inst_E_p48-56 49 06.1.18, 1:27 PM
Basic setup
F: Remote control settings (Continued)
Operating the second and third TOSHIBA HDD/DVD video recorders with the remote control of this recorder
Switches the codes to operate the recorder.
If you use the second and third TOSHIBA HDD/DVD video recorders, set the different remote codes for each recorder to avoid confusion in the response of the recorders.
Example: Setting this recorder’s remote control mode to DR 2, after another HDD/DVD recorder has been set to DR 1.
(It is necessary to set the remote control mode on both the recorder and the remote control.)
Setting up the recorder
1
Press SETUP.
The setting menu appears.
SETUP
Start
2
Press / to select “Operational settings”, then press ENTER.
e.g.
ENTER
Operational settings
Operation beep
Completion beep
IR code
Instant skip interval
Instant replay interval
Title thumbnail point
HDD/RAM title play
Still group interval
Priority contents
Off
On
DR 1
30
10
35 sec.
sec.
sec.
Title resume
3 sec.
SETUP
3
Press / to select “IR code”, then press
ENTER.
e.g.
ENTER
Operational settings
Operation beep
Completion beep
IR code
Instant skip interval
Instant replay interval
Title thumbnail point
HDD/RAM title play
Still group interval
Priority contents
Off
On
DR 1
30
10
35 sec.
sec.
sec.
Title resume
3 sec.
DR 1
DR 2
DR 3
SETUP
4
Press / to select “DR 2” (example), then press ENTER.
ENTER
The submenu disappears.
Press ENTER button and the IR code you selected is activated. Operation may not be possible temporarily until you set the corresponding mode of the remote control.
Proceed to the next setting.
50
RD-XS35SU/SC_Inst_E_p48-56 50 06.1.18, 1:27 PM
Setting up the remote control
5
While pressing EASY NAVI, press 2.
The remote control mode is set to “DR 2”.
EASY
NAVI
2
Select the same mode that you have set to the recorder.
Recorder
Mode setting
Remote control
When using with DR 1 mode
D R 1
D R 2
D R 3
EASY
+
NAVI
1
When using with DR 2 mode
When using with DR 3 mode
D R 1
D R 2
D R 3
D R 1
D R 2
D R 3
EASY
+
NAVI
EASY
+
NAVI
2
3
Notes
• If the recorder’s mode and the remote control’s mode are different, the recorder’s mode (DR 1, DR 2 or DR 3) appears on the display of the front panel.
• When the batteries of the remote control are replaced or when the time indicator of the front panel flashes, check the remote control modes of both the recorder and the remote control, and re-program it if necessary.
Disabling the remote control for a temporary period
You can temporarily disable the reception of the remote control signals at the recorder, when the selection of DR 1,
DR 2 and DR 3 is not sufficient while you are using several Toshiba HDD/DVD video recorders.
Press HDD and DVD buttons on the recorder at the same time for three seconds or more.
The recorder display shows “DR - OFF”, indicating that the remote control is disabled.
To enable the remote control, perform the same step again. (The display shows “DR-1 , DR-2 or DR-3” depending on your setting.)
Notes
• This function is not available in Standby mode.
• You cannot use this feature when the power is turned off, if you have set “Front Display” to “Off”.
51
RD-XS35SU/SC_Inst_E_p48-56 51 06.1.18, 1:27 PM
Limited United States Warranty
Digital Audio Video (“DAV”) Product-Depot Repair Warranty
Toshiba America Consumer Products, L.L.C,. (“TACP”) makes the following limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY
PERSON RECEIVING THIS DAV PRODUCT AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO
NO OTHER PURCHASER OR TRANSFEREE.
DAV PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,
WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.
DAV PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION,
CANADA AND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.
Limited Ninety (90) Day Warranty on Labor*
TACP warrants this DAV Product and its parts against defects in materials or workmanship for a period of ninety
(90) days after the date of original retail purchase.
DURING THIS PERIOD, TACP WILL, AT TACP’s
OPTION, REPAIR OR REPLACE A DEFECTIVE PART
WITH A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU FOR PARTS OR LABOR.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE
FOLLOWING CONDITIONS:
(1) You must retain your bill of sale or provide other proof of purchase.
(2) All warranty servicing of this DAV Product must be made by the Depot Warranty Repair Center specified by the TACP Consumer Solutions Center.
Limited One (1) Year Warranty on Parts*
TACP further warrants the parts in this DAV Product against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase.
DURING THIS PERIOD, TACP WILL, AT TACP ’S
OPTION, REPAIR OR REPLACE A DEFECTIVE PART
WITH A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU FOR THE PART, PROVIDED THAT IF
A DEFECTIVE PART IS REPAIRED OR REPLACED
AFTER NINETY (90) DAYS FROM THE DATE OF
ORIGINAL RETAIL PURCHASE, THE CONSUMER
SHALL PAY ALL LABOR CHARGES INVOLVED IN THE
REPAIR OR REPLACEMENT THEREOF.
(3) The warranties from TACP are effective only if the
DAV Product is purchased and operated in the
Continental U.S.A. or Puerto Rico.
(4) Labor service charges for set installation, setup, adjustment of customer controls and installation or repair of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.
*Rental Units
The warranty for DAV Product rental units begins on the date of the first rental or thirty (30) days after the date of shipment to the rental firm, whichever comes first.
*Commercial Units
DAV Products sold and used for commercial purposes have a limited warranty for all parts and labor, which warranty begins on the date of original retail purchase and ends on the date that is ninety (90) days thereafter.
(5) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any DAV Product or parts that have been lost or discarded by you or to damage to DAV Product or parts caused by fires, misuse, accident, Acts of God, such as lightning or fluctuations in electric power, improper installation, improper maintenance or use in violation of instructions furnished by TACP; use or malfunction through simultaneous use of this DAV
Product and connected equipment; or to units that have been modified or had the serial number removed, altered, defaced, or rendered illegible.
Owner’s Manual and Product Registration Card
Read this owner’s manual thoroughly before operating this DAV Product.
52
Complete and mail the enclosed product registration card or register your DAV Product on-line at www.tacp.toshiba.com/service as soon as possible. By registering your DAV Product you will enable TACP to bring you new products specifically designed to meet your needs and help us to contact you in the unlikely event a safety notification is required under the
Consumer Product Safety Act. Failure to complete and return the product registration card does not diminish your warranty rights.
RD-XS35SU/SC_Inst_E_p48-56 52 06.1.18, 1:27 PM
How to Obtain Warranty Services
If, after following all of the operating instructions in this manual and checking the section “Before calling service personnel”, you find that service is needed:
(1) For instructions on how to obtain warranty service for your DAV Product, contact TACP’s Consumer
Solution Center toll-free at 1-800-631-3811.
(2) You must include a copy of original bill of sale or other proof of purchase along with the entire DAV
