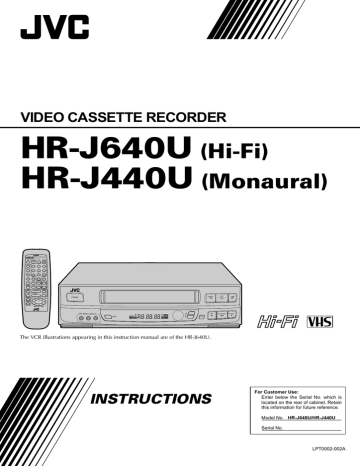

JVC HR-J640 VHS VCR

VIDEO CASSETTE RECORDER

HR-J640U

(Hi-Fi)

HR-J440U

(Monaural)

TV, CABLE / DBS operation – Press and hold

TV CABLE/DBS button, then press POWER,

CH

5

/

∞

TV CABLE/DBS A/B POWER

TV/VCR 1 2 3

MBR SET 4 5 6

DISPLAY 7 8 DAILY 9 WEEKLY

TIMER ENTER 0

AUX

CANCEL

OSD

C.MEMORY

C.RESET/CH.SKIP

ADD

SKIP SEARCH

TV

VOL

SP/EP

CH

1

REW

¶

REC

3

PLAY

7

STOP

MENU 4

OK

FF

¡

8

PAUSE

¢

SHUTTLE PLUS

POWER

VIDEO (MONO) L – AUDIO – R

MENU

SP AM

V C R

TIMER

PM

H M S

ST

SAP

M

R E C

PLAY

PAUSE

REW

2

PLAY

FF

2

CH

OK

REC q

STOP/EJECT

5

/ 8

PAUSE

6

The VCR illustrations appearing in this instruction manual are of the HR-J640U.

INSTRUCTIONS

For Customer Use:

Enter below the Serial No. which is located on the rear of cabinet. Retain this information for future reference.

Model No. HR-J640U/HR-J440U

Serial No.

LPT0002-002A

2

EN

Dear Customer,

Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.

CAUTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC

120V`, 60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any other power source.

Failure to heed the following precautions may result in damage to the VCR, remote control or video cassette.

1. DO NOT place the VCR . . .

... in an environment prone to extreme temperatures or humidity.

... in direct sunlight.

... in a dusty environment.

... in an environment where strong magnetic fields are generated.

... on a surface that is unstable or subject to vibration.

2. DO NOT block the VCR’s ventilation openings.

3. DO NOT place heavy objects on the VCR or remote control.

4. DO NOT place anything which might spill on top of the

VCR or remote control.

5. AVOID violent shocks to the VCR during transport.

**MOISTURE CONDENSATION

Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the VCR’s power turned on for a few hours to let the moisture dry before inserting a tape.

**ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE

LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER

JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

DSS TM is an official trademark of DIRECTV, Inc., a unit of GM

Hughes Electronics. PRIMESTAR is a registered service mark of

Primestar Partners, L.P. DISH Network TM

is a trademark of

Echostar Communications Corporation.

CAUTION:

Changes or modifications not approved by JVC could void user's authority to operate the equipment.

n Cassettes marked "VHS" (or "S-VHS") can be used with this video cassette recorder. However, only "VHS" recordings can be played back in this model.

n HQ VHS is compatible with existing VHS equipment.

IMPORTANT PRODUCT

SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

EN

3

5. Ventilation

Slots and openings in the cabinet are provided for ventilation.

To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way.

This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

ANTENNA INSTALLATION

INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA

LEAD IN WIRE

GROUND CLAMP

ANTENNA

DISCHARGE UNIT

(NEC SECTION

810-20)

ELECTRIC SERVICE

EQUIPMENT

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

4

EN

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

PORTABLE CART WARNING

(Symbol provided by RETAC)

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a.When the power supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the product.

c.If the product has been exposed to rain or water.

d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

HOW TO USE THIS INSTRUCTION

MANUAL

● All major sections and subsections are listed in the Table Of

Contents on page 5. Use this when searching for information on a specific procedure or feature.

● The Index on pages 41–44 lists frequently-used terms, and the number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.

● The

Z

mark signals a reference to another page for instructions or related information.

● Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW

VCR . . .

. . . please read the sections/literature listed below.

● ”Cautions” on page 2

● ”Important Products Safety Instructions” on the previous pages

CONTENTS

I

NSTALLING YOUR NEW VCR 6

Basic Connections ..................................6

I

NITIAL SETTINGS

Plug & Play .................................................. 7

Language ..................................................... 8

Clock ............................................................ 9

7

Preparation ................................................................9

Semi-Auto ................................................................10

Manual .................................................................... 11

Auto ........................................................................ 11

Tuner .......................................................... 12

Set Receivable Channels .......................................... 12

Add Or Delete A Channel ........................................ 14

S

IMPLE PLAYBACK AND

RECORDING 15

Simple Playback ......................................... 15

Simple Recording ........................................ 16

P

LAYBACK AND RECORDING

FEATURES 17

Playback Features ...................................... 17

Still Picture/Frame-By-Frame Playback ..................... 17

Slow Motion/Reverse Slow Motion .......................... 17

Variable-Speed Search/Reverse Motion Playback ..... 17

High-Speed Search ..................................................17

Manual Tracking ......................................................18

Tape Position Indicator ............................................18

Video Stabilizer .......................................................19

Superimpose ............................................................20

Select The Soundtrack (HR-J640U Only) .................. 21

Index Search ............................................................22

Instant ReView .........................................................22

Skip Search ..............................................................22

Repeat Playback ......................................................23

Counter Reset ..........................................................23

Counter Memory .....................................................23

Next-Function Memory ............................................23

Auto Picture ................................................ 24

Preparation ..............................................................24

Playback ..................................................................25

Recording Features ..................................... 26

Record One Program While

Watching Another ....................................................26

Display Elapsed Recording Time .............................. 26

Stereo And SAP (Second Audio Program)

(HR-J640U Only) .....................................................27

To Record SAP Programs (HR-J640U Only) .............. 27

EN

5

T

IMER RECORDING 28

On-Screen Timer Programming ........... 28

Check And Cancel Programs ................................... 30

Auto Timer ......................................................

31

Instant Timer Recording (ITR) ....................... 32

E

DITING 33

Edit To Another VCR .................................... 33

Edit From A Camcorder Or Another VCR ...... 34

S

PECIAL FEATURES 35

TV Multi-Brand Remote Control .............................. 35

DBS Receiver Multi-Brand Remote Control .............. 36

Cable Box Multi-Brand Remote Control ................... 36

Control Two JVC VCRs ............................................37

T

ROUBLESHOOTING 38

Power ........................................................ 38

Tape Transport ............................................ 38

Playback .................................................... 38

Recording ................................................... 38

Timer Recording .......................................... 39

Other Problems .......................................... 39

Q

UESTIONS AND ANSWERS 40

Playback .................................................... 40

Recording ................................................... 40

Timer Recording .......................................... 40

I

NDEX 41

List Of Terms ............................................... 41

Front View .................................................. 42

Rear View .................................................. 43

Front Display Panel ..................................... 43

Remote Control ........................................... 44

S

PECIFICATIONS 45

F

OR SERVICING (Only in U.S.A.) 46

W

ARRANTY (Only in U.S.A.) 47

6

EN

INSTALLING YOUR NEW VCR

Basic

Connections

Antenna or Cable

Coaxial Cable

ANT. IN

(Antenna or Cable input)

Flat Feeder

AC Power

Cord

Back of VCR

AC

Outlet

Audio Cable

(not supplied)

Video Cable

(not supplied)

TV

Matching Transformer

(Not supplied)

75 ohm terminal

RF OUT

RF Cable

(supplied)

Back of VCR

CH3 CH4

VIDEO

NOTES:

● The VCR channel is the channel on the TV which will display the audio and video signals from the VCR. The VCR's CH3-

CH4 switch, on the back of the VCR, sets the VCR channel to

CH3 or CH4.

● The CH3–CH4 switch is preset to the CH3 position.

Set to CH4 if CH3 is used for broadcasting in your area and set the channel on the TV to correspond to the VCR's CH3–

CH4 switch setting.

● If RF connection to TV is used, when switching from VCR to TV mode and from TV to VCR it may be necessary to issue a CH UP and then CH DOWN on TV to obtain a good quality picture.

● Even if you are using AV cables to connect your VCR to your

TV, you must also connect it using the RF cable. This will

( ensure that you can record one show while watching another

Z

pg. 26).

● For full identification of the VCR's rear panel, refer to the

Index (REAR VIEW

Z

pg. 43).

1

CHECK CONTENTS

Make sure the package contains all of the accessories listed in “SPECIFICATIONS” (

Z

pg. 45).

SITUATE VCR

Place the VCR on a stable, horizontal surface.

2

3

4

5

CONNECT VCR TO TV

The connection method you use depends on the type of

TV you have.

RF Connection

● To Connect To A TV With NO AV Input Terminals . . .

a– Disconnect the TV antenna from the TV.

b– Connect the TV antenna cable to the ANT. IN jack on the rear of the VCR.

c– Connect the supplied RF cable between the RF

OUT jack on the rear of the VCR and the TV’s antenna terminal. Set TV on CH3 or CH4 corresponding to the CH3 – CH4 switch setting on the back of the VCR.

AV Connection

● To Connect To A TV With AV Input Terminals . . .

a– Connect the antenna, VCR and TV as shown in the illustration.

b– Connect an Audio/Video Cable between the AUDIO

OUT and VIDEO OUT jacks on the rear of the VCR and the AV IN jacks on the TV. Set your TV in video input mode or A/V input mode. Refer to the TV

Instruction Manual.

For HR-J440U Owners:

If your TV has AUDIO IN L and R connectors, connect the VCR to the L connector.

CONNECT VCR TO

POWER SOURCE

Connect the power plug to an AC outlet.

● The clock and tuner channels will automatically be set when the antenna is connected and when the AC is first connected to the VCR (

Z

pg. 7).

(If "Auto" or "CH" is displayed on the front display panel before the VCR is powered on, the clock and tuner channels are being set automatically. Wait for the time to be displayed on the front display panel before powering on the VCR.)

FINAL PREPARATION FOR

USE

Power on the VCR and select the VCR channel (3 or 4) by setting the switch on the rear of the VCR as shown in the illustration.

You can now perform simple playback ( simple recording (

Z

pg. 16).

Z

pg. 15) or

INITIAL SETTINGS

Plug & Play

Auto Clock Set/Auto Tuner Set

2 q 5 6

2

IMPORTANT

● Don’t press any buttons on the VCR or remote while

Plug & Play is in progress.

● If you perform Plug & Play successfully, there’s no need to perform the Clock (

Z

pg. 9) and Tuner (

Z

pg. 12) procedures. If, however, you want to add or delete channels, refer to “Add Or Delete A Channel” on page 14.

ATTENTION CABLE BOX SUBSCRIBERS

If you perform the Plug & Play procedure . . .

● Select the PBS channel on your cable box before plugging your VCR’s power plug into the AC outlet. (If you have more than one PBS channel, you may have to select an alternative PBS channel if Plug & Play is not successful.)

● If there is no PBS channel in your area, perform the

Manual Clock Set procedure (

Z

pg. 11).

● For automatic clock adjustment to take place the VCR's power must be off and the cable box must be set to the

PBS channel at clock adjustment times.

● If you perform Plug & Play successfully, D.S.T. will be set to

“AUTO”. At the D.S.T. adjustment time (

Z

pg. 11), your

VCR's power must be off and your cable box must be set to the host PBS channel in your area for the D.S.T. adjustment to take place. If the clock is not set correctly, change the

D.S.T. setting to “ON” or “OFF. See step 9 of Semi-Auto procedure (

Z

pg. 10) or step 6 of Manual procedure (

Z pg. 11).

NOTE:

If the memory backup fails, because of a power outage or because the AC was removed from the VCR, Plug & Play will be performed when power is restored to the VCR.

EN

7

The Plug & Play function sets the clock and tuner channels automatically when power is first connected to the VCR. The antenna cable must be connected for the Plug & Play function.

The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the “Host Channel” and it is a PBS channel in your area.

1

PLUG & PLAY SETUP

Connect the antenna cable to the VCR (

Z

pg. 6). Then connect the VCR’s power plug to an AC outlet. Do not power on the VCR. The clock and tuner channels will automatically be set.

● Auto clock set is performed first. The auto clock set function scans all the channels received by your VCR to find the Host Channel and then sets the clock.

"Auto" blinks on the front display panel during Auto clock set.

● Auto channel set is performed next. The auto channel set function scans all the channels that are receivable by your VCR. It then automatically assigns each receivable channels to the CH▲▼ buttons. It skips non-receivable channels. During auto channel set the channel numbers are displayed as they are scanned and set.

● When Plug & Play has been completed successfully the correct time is displayed.

● If "AUTO CLOCK SET" or "SEMI-AUTO CLOCK SET" is selected at the Override Auto Clock Set screen on page 10, the clock will be adjusted automatically by the Host PBS every hour on the hour (except for

11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the VCR’s power is turned off. The clock will be adjusted on the hour based on the time displayed on the VCR, not on the actual real time.) The default setting is "AUTO CLOCK SET".

● If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto (

Z

pg. 10) or Manual

Clock Set (

Z

pg. 11) procedure. Auto channel set has already taken place and it need not be set again.

● If “- -:- -” appears on the display, your antenna cable may not be connected to the VCR, there may not be a

Host PBS signal available in your area, or your cable box may not be set to the PBS channel. Ensure that the antenna cable is connected correctly. If you use a cable box ensure that your local PBS is selected on your cable box (

Z

ATTENTION CABLE BOX SUBSCRIBERS). Then power on and power off the VCR; the Plug & Play function will be automatically reactivated and "Auto" will be displayed on the VCR's front panel. If everything is connected and set correctly, perform the Manual

Clock Set procedure (

Z

pg. 11). Auto channel set has not yet taken place, so please also perform the “Set

Receivable Channels” procedure (

Z

pg. 12).

During Initial Auto Clock Set

"Auto" blinks.

During Auto Channel Set

The channel numbers are displayed as they are scanned and set.

PM

Plug & Play Completed

The current time (including

AM/PM) is displayed.

8

EN

Language

Turn on the TV and select the VCR channel 3 or 4 (or AV mode).

CH

5∞

MENU

OK

POWER

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

5∞

8

¡

¢

SHUTTLE PLUS

%fi

2 q 5 / 8 6

2

INITIAL SETTINGS (cont.)

This VCR offers you the choice to view on-screen messages in

English, Spanish or French (not including messages superimposed on the TV picture). Select the desired language using this procedure. The default setting is "ENGLISH".

1

TURN ON THE VCR

Press POWER.

ACCESS ON-SCREEN

MENU

Press MENU.

2

3

ACCESS CUSTOM SET

SCREEN

At the Main Menu screen, move the highlight bar

(arrow) to “CUSTOM SET” by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

MAIN MENU

PROGRAM SET

FUNCTION SET

TUNER SET

= CUSTOM SET

AUTO PICTURE

VIDEO STABILIZER

PRESS (

5,∞), THEN (OK)

PRESS (MENU) TO END

4

ACCESS LANGUAGE

SELECT SCREEN

The messages are preset to appear in English. If you want to see them in Spanish or

French, move the highlight bar (arrow) to “LANGUAGE

SELECT” by pressing CH

5∞ or SHUTTLE PLUS

%fi, then press OK.

CUSTOM SET

OVERRIDE

AUTO CLOCK SET

=LANGUAGE SELECT

PRESS (

5,∞), THEN (OK)


5

SELECT LANGUAGE

At the Language Select screen, move the highlight bar (arrow) to the desired language by pressing

CH


%fi, then press MENU as many times as necessary to return to the normal screen.

LANGUAGE SELECT

=ENGLISH

ESPAÑOL

FRANCAIS

PRESS (

5,∞) TO SELECT


Clock


CH

MENU

OK

POWER

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

EN

9

Perform clock setting only if the clock has not been set correctly by the Plug & Play function. Access the Override Auto Clock

Set screen to choose the Auto, Semi-Auto or Manual clock setting procedure. Each procedure starts from step 5. *Auto need only be selected if Semi-Auto or Manual had previously been selected.

Preparation

TURN ON THE VCR

Press POWER.

1

ACCESS ON-SCREEN

MENU

Press MENU.

2

3

ACCESS CUSTOM SET

SCREEN

At the Main Menu screen, move the highlight bar

(arrow) to “CUSTOM SET” by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

MAIN MENU

PROGRAM SET

FUNCTION SET

TUNER SET

=CUSTOM SET

AUTO PICTURE


PRESS (

5,∞), THEN (OK)


4

ACCESS CLOCK SET MODE

SELECT SCREEN

Move the highlight bar

(arrow) at the Custom Set screen to “OVERRIDE

AUTO CLOCK SET” by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

CUSTOM SET

=OVERRIDE

AUTO CLOCK SET

LANGUAGE SELECT

PRESS (

5,∞), THEN (OK)


10

EN

CH

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2


Semi-Auto

5

SELECT MODE

At the Override Auto

Clock Set screen, move the highlight bar (arrow) to

“SEMI-AUTO CLOCK SET” by pressing CH▲▼ or

SHUTTLE PLUS

%fi, then press OK.

OVERRIDE AUTO CLOCK SET

AUTO CLOCK SET

=SEMI–AUTO CLOCK SET

MANUAL CLOCK SET

PRESS (

5,∞), THEN (OK)


6

7

ACCESS SELECT SCREENS

At the Semi-Auto Clock Set screen, move the highlight bar (arrow) to the desired mode by pressing CH▲▼ or SHUTTLE PLUS

%fi, then press OK.

SEMI–AUTO CLOCK SET

= HOST CHANNEL SELECT

TIME ZONE SELECT

D.S.T. SELECT

To select the Host Channel

— step 7

To select the Time Zone — step 8

PRESS (

5,∞), THEN (OK)


To select the D.S.T. mode — step 9

NOTE:

The time that has been set previously by the Plug &

Play function will be erased when any of the three settings mentioned above is changed.

SELECT HOST CHANNEL

You can either select

"AUTO", or enter a PBS channel number. For

HOST CHANNEL SELECT

(CATV)

CH AUTO

automatic selection, press

MENU if "AUTO" is highlighted on the Host

Channel Select screen. To manually select "AUTO" or

PRESS (



the PBS channel, press

CH▲▼ or SHUTTLE PLUS

%fi to cycle through

"AUTO" or the channel numbers (hold button down to speed through numbers) and stop when the desired number appears. Press MENU and the Semi-Auto Clock

Set screen reappears.

NOTES:

● For cable box users: Select "AUTO" or the channel on your VCR that receives the cable box channels, and set the cable box to the PBS channel.

● There are some PBS channels that do not transmit clock setting data.

8

9

SELECT TIME ZONE

You can select the zone automatically or manually by pressing CH▲▼ or

SHUTTLE PLUS

%fi. If an incorrect time is displayed you may be receiving the


=AUTO

MANUAL

clock setting data of a PBS channel from an adjacent

PRESS (



time zone or from an incorrect PBS channel from a cable TV system. If you selected "AUTO" in step 7 select "MANUAL" and select the correct time zone manually.

● If you selected "AUTO", press MENU to return to the

Semi-Auto Clock Set screen.

● If you selected

"MANUAL", press OK and the screen to the


=ATLANTIC

EASTERN

right appears. Move the highlight bar (arrow) to

CENTRAL

MOUNTAIN

your choice by pressing

CH▲▼ or SHUTTLE

PLUS

%fi, then press

MENU twice to return to

PACIFIC

ALASKA

HAWAII

PRESS (



the Semi-Auto Clock Set screen.

SELECT D.S.T. MODE

You have three choices:

a–Select “AUTO” and the adjustment to your VCR’s clock will be made according to the incoming signal from the host channel.

D.S.T. SELECT

=AUTO

ON

OFF

b–Select “ON” and the adjustment will be made

PRESS (



based on the clock itself.

c–Select “OFF” if Daylight Saving Time doesn’t apply to you.

Move the highlight bar (arrow) to your choice by pressing CH

5∞ or SHUTTLE PLUS %fi, then press

MENU and the Semi-Auto Clock Set screen reappears.

EN

11

Manual

5

6

SELECT MODE

At the Override Auto Clock Set screen (

Z

pg. 10), move the highlight bar (arrow) to “MANUAL CLOCK SET” by pressing CH▲▼ or SHUTTLE PLUS

%fi, then press OK.

SET DATE, TIME AND D.S.T.

The Manual Clock Set screen is displayed and the month digit begins blinking. Press the appropriate NUMBER keys

MANUAL CLOCK SET

DATE 1/ 1/97 WED

TIME – –:– – AM

D.S.T.

ON

to set the date and time (if only 1 digit, press "0" first).

Press CH▲▼ or SHUTTLE

PLUS

%fi to set AM/PM

PRESS NUMBER KEY (O–9)

OR (

5,∞), THEN (OK)


and D.S.T. (Daylight Saving Time). Press OK after AM/

PM and D.S.T. settings.

Set D.S.T. to "ON" to set the D.S.T. according to the

VCR's clock or to "OFF" if D.S.T. doesn't apply to you.

When you’re finished with this set-up procedure, press

MENU to start the clock.

7

NOTES:

● CH▲▼ and SHUTTLE PLUS %fi can be used to perform all operations. (In this case, press OK after each setting.)

● At the Manual Clock Set screen, the setting that can be set blinks. When setting of a highlighted item is completed, the highlight bar moves down by 1 line to the next item.

MAKE CORRECTIONS

To change any of the settings, press OK or SHUTTLE

PLUS until the item you want to change blinks, then set as in step 6.

IMPORTANT

Turn the VCR off after performing the Semi-Auto Clock Set procedure. "Auto" will appear on the front display panel when the clock is being set. The current time will appear automatically when the clock is set.

Auto

5

SELECT MODE

At the Override Auto Clock Set screen, move the highlight bar (arrow) to "AUTO CLOCK SET" by pressing CH▲▼ or SHUTTLE PLUS

%fi, then power off the VCR. Do not power it on again until the clock has been adjusted. The clock is automatically adjusted on the hour except at 11:00 PM, midnight, 1:00 AM and

2:00 AM. (The clock will be adjusted on the hour based on the time displayed on the VCR, not on the actual real time.)

**AUTO DAYLIGHT SAVING TIME

This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time.

With Auto DST activated, . . .

. . . on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM.

. . . on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.

12

EN

Tuner


CH

MENU

OK

POWER

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2


Set Receivable Channels

TURN ON THE VCR

Press POWER.

1

ACCESS MAIN MENU

SCREEN

Press MENU.

2

3

ACCESS TUNER SET

SCREEN


(arrow) to "TUNER SET" by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

MAIN MENU

PROGRAM SET

FUNCTION SET

=TUNER SET

CUSTOM SET

AUTO PICTURE


PRESS (

5,∞), THEN (OK)


4

5

PERFORM AUTO CHANNEL

SET


(arrow) to "AUTO

CHANNEL SET" by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

TUNER SET

BAND

AFC

=AUTO CHANNEL SET

MANUAL CHANNEL SET

● Receivable channels in your area are automatically assigned to the CH

5∞ buttons, and non-receivable channels are skipped.

PRESS (

5,∞), THEN (OK)


AUTO CHANNEL SET

SCANNING...

NOTES:

● At the end of Auto

Channel Set, “SCAN


COMPLETED” appears on screen.

● If the scan was unsuccessful, “SCAN COMPLETED–

NO SIGNAL” appears on screen. Check the connections and start again.

RETURN TO NORMAL

SCREEN

Press MENU as many times as necessary.

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

CH

2 q 5 / 8 6

2

EN

13

INFORMATION

The VCR detects the band (TV or CATV) and selects the correct band automatically during Auto Channel Set.

If necessary, you can check the setting at the Band screen.

● At the Tuner Set screen, move the highlight bar (arrow) to

"BAND" by pressing CH

5∞ or SHUTTLE PLUS %fi, then press OK.

BAND

TUNER SET

=BAND

AFC

AUTO CHANNEL SET


TV

=CATV

PRESS (

5,∞), THEN (OK)


PRESS (



● Press MENU as many times as necessary to return to the normal screen.

14

EN

CH

2 q 5 / 8 6

2

CH.SKIP

MENU

OK

ADD

1

4

7 8

2

5

9

3

6

0

1

¶

4

3

7

NUMBER

CH

8

¡

¢

SHUTTLE PLUS


Add Or Delete A Channel

1

2

ACCESS TUNER SET

SCREEN

Access by performing steps 2 and 3 of the Tuner procedure on page 12.

● To add a channel, go to step 2.

● To delete a channel, skip to step 4.

ACCESS AFC SCREEN

Move the highlight bar (arrow) to "AFC" by pressing

CH


3

MAKE SELECTION


(arrow) to "SPCL" by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press MENU to return to the Tuner Set screen.

AFC

NORM

=SPCL

● AFC set to SPCL (special) is necessary for tuning on certain CATV systems.

PRESS (



4

5

ACCESS MANUAL

CHANNEL SET SCREEN

Move the highlight bar (arrow) to "MANUAL CHANNEL

SET" by pressing CH


STORE OR SKIP DESIRED

CHANNEL

Input the channel number using the NUMBER keys or by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press ADD to add or

CH.SKIP to delete. Repeat for each channel you want to store or skip.


(CATV)

CH 125 ADD

SELECT CH NO. ADD

PRESS (ADD/SKIP)


6

RETURN TO NORMAL

SCREEN


SIMPLE PLAYBACK AND RECORDING

Simple

Playback


PLAY

1

2

EN

15

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Don’t apply too much pressure when inserting.

● The VCR’s power comes on automatically.

● The counter is automatically reset to "0H 00M 00S".

● If the cassette's record safety tab has been removed, playback begins automatically.

FIND PROGRAM START

POINT

Press REW or FF if you want to rewind or fast forward to a different section of the tape.

2 2

3

START PLAYBACK

(

Press PLAY. "AUTO PICTURE" appears on screen

Z

pg. 25).

REW

q 5

6

4

STOP PLAYBACK

Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.

REW (Rewind)

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

8

¡

¢

FF (Fast-Forward)

Usable cassettes

Full-Size VHS

T-30 (ST-30**)

T-60 (ST-60**)

T-90

T-120 (ST-120**)

T-160 (ST-160**)

ST-210**

Compact VHS*

TC-20 (ST-C20**)

TC-30 (ST-C30**)

TC-40 (ST-C40**)

* Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

** This video recorder can record on regular VHS and

Super VHS cassettes. However, it will record and play back regular VHS signals only. It is not possible to play back Super VHS recordings.

16

EN

Simple

Recording

1

4

7 8

2

5

9

3

6

0

SIMPLE PLAYBACK AND RECORDING (cont.)


TV/VCR

ENTER

CH

REC

2 q 5 / 8

6

STOP/EJECT

2

NUMBER

1

2

3

4

5

6

LOAD A CASSETTE

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.

SELECT RECORDING

CHANNEL

Press CH

5∞. Or press the appropriate NUMBER keys, then press ENTER. (The channel changes after a few seconds whether you press ENTER or not.)

● If you use the RF connection, by pressing the TV/VCR button, select VCR mode to view the program to be recorded.

SET TAPE SPEED

Press SP/EP to set the recording speed.

START RECORDING

Press and hold REC and press PLAY on the remote control, or press REC on the VCR's front panel.

PAUSE/RESUME

RECORDING

Press PAUSE. Press PLAY to resume recording.

● During record pause, you can change the recording channel by using the CH

5∞ buttons or NUMBER keys.

STOP RECORDING

Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.

SP/EP

CH

REC

PLAY

1

¶

4

3

7 8

¡

¢

PAUSE

Accidental erasure prevention

● To prevent accidental recording on a recorded cassette, remove its record safety tab.

To record on it later, cover the hole with adhesive tape.

Record safety tab

PLAYBACK AND RECORDING FEATURES

Playback

Features

CH

PLAY

2 q 5 / 8 6

2

Still Picture/Frame-By-

Frame Playback

1

PAUSE DURING PLAYBACK

Press PAUSE. If there is vertical jitter, use the

CH

5 or ∞ button to correct the picture.

2

ACTIVATE FRAME-BY-

FRAME PLAYBACK

Press PAUSE repeatedly to advance one frame at a time.

OR

Press SHUTTLE PLUS ™ or £ repeatedly to advance one frame at a time.

Press SHUTTLE PLUS £ for forward frame by frame playback or SHUTTLE PLUS ™ for reverse frame by frame.

To resume normal playback, press PLAY.

EN

17

REW

1

¶

4

1

4

7 8

2

5

9

3

6

0

3

7 8

¡

¢

CH

FF

PAUSE

SHUTTLE PLUS

Slow Motion/Reverse Slow

Motion

1

ACTIVATE SLOW-MOTION

PLAYBACK

During still picture, press and hold SHUTTLE PLUS

™ or £. Release to return to still picture.

OR

For hands-free slow-motion, press SHUTTLE PLUS ™ during playback to decrease speed in the forward direction. Continue to press ™ to select the various slow motion, reverse slow motion, reverse play and reverse search modes.


NOTE:

If noise bars appear during slow motion, press CH

5 or ∞ a few times to remove the noise bars from screen.

High-Speed Search

1

ACTIVATE HIGH-SPEED

SEARCH

During playback or still press FF for forward high-speed search, or REW for reverse high-speed search.


NOTE:

For short searches, during playback or still press and hold FF or

REW for over 2 seconds. When released, normal playback resumes.

Variable-Speed Search/

Reverse Motion Playback

1

ACTIVATE VARIABLE-SPEED

SEARCH

During playback, press SHUTTLE PLUS ™ or £.

● To increase the speed in the forward direction, press £ repeatedly to select the various forward search modes.

● To decrease the speed in the forward direction, press ™.

● To play in reverse slow motion, and in reverse play mode, continue to press ™ after selecting all the forward slow motion modes.


18

EN

REW

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

PLAYBACK AND RECORDING FEATURES (cont.)

CH

2 q 5 / 8 6

2

Manual Tracking

Once playback begins, the VCR’s automatic tracking function is engaged. If noise appears in the picture, you can override this and make the adjustment manually.

1

2

3

ENGAGE MANUAL

TRACKING MODE

During playback, press the CH

5 and ∞ buttons on the

VCR's front panel simultaneously to cancel the automatic tracking mode and enable manual tracking adjust.

ADJUST MANUAL

TRACKING

Press CH

5 or ∞ on the VCR's front panel or remote.

Press briefly for fine adjust, or press and hold for coarse adjust. Watch the screen and continue adjusting until optimum picture and sound quality are achieved.

RE-ENGAGE AUTOMATIC

TRACKING

Press the CH

5 and ∞ buttons on the VCR's front panel simultaneously.

● When automatic tracking is re-engaged, Auto Picture is automatically activated.

0

8

¡

¢

CH

FF

NOTES:

● To obtain a noiseless still picture it may be necessary to adjust tracking in slow playback and then engage Pause.

● Manual tracking is possible during hands-free slow-motion.

During hands-free slow-motion playback, simply press CH

5 or

∞ on the VCR's front panel or remote to adjust tracking.

Tape Position Indicator

The Tape position indicator appears on screen when, from the stop mode, you press FF, REW, or perform an Index Search or Instant

ReView. The position of " " in relation to "B" (Beginning) or "E"

(End) shows you where you are on the tape.

B

+ + +

COUNT

E

0:33:27

NOTE:

"SUPERIMPOSE" must be set to "ON", or the indicator will not appear (

Z

pg. 20).

CH

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

EN

19

Video Stabilizer

You can correct vertical vibration when playing back unstable

EP recordings that were made on another VCR. When this function is set to "ON", vertical vibration will be automatically corrected. *The default setting is "OFF".

ACCESS MAIN MENU

SCREEN

Press MENU.

1

2

ACCESS VIDEO STABILIZER

SCREEN


(arrow) to "VIDEO

STABILIZER" by pressing

CH


%fi, then press OK.

MAIN MENU

PROGRAM SET

FUNCTION SET

TUNER SET

CUSTOM SET

AUTO PICTURE

= VIDEO STABILIZER

PRESS (

5,∞), THEN (OK)


3

ACTIVATE VIDEO

STABILIZER


(arrow) to "ON" by pressing CH

5∞ or

SHUTTLE PLUS

%fi.


=ON

OFF

4

PRESS (



RETURN TO NORMAL

SCREEN

Press MENU.

NOTES:

● Regardless of the setting, this function has no effect with SP recordings, during recording and during special-effects playback.

● When you finish viewing the tape, be sure to set it back to

"OFF".

20

EN

MENU

OK

OSD

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0


CH

2

CH

q 5 / 8 6

8

¡

¢

SHUTTLE PLUS

2

Superimpose

This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.

ACCESS MAIN MENU

SCREEN

Press MENU.

1

2

ACCESS FUNCTION SET

SCREEN

Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH


3

4

ACCESS SUPERIMPOSE

SCREEN


(arrow) to "SUPERIMPOSE" by pressing CH

5∞ or

SHUTTLE PLUS

%fi, then press OK.

FUNCTION

AUTO TIMER

=SUPERIMPOSE

2ND AUDIO

AUDIO MONITOR

● "2ND AUDIO" and

"AUDIO MONITOR" will appear with HR-

J640U only.

PRESS (

5,∞), THEN (OK)


SELECT MODE


(arrow) to "ON" or "OFF" by pressing CH

5∞ or

SHUTTLE PLUS

%fi.

SUPERIMPOSE

=ON

OFF

PRESS (



To recall an indication

1

Press OSD.

n All indications corresponding to the current status are displayed for 5 seconds, leaving the counter information, and RECORD/PAUSE if in the Record Pause mode, on the screen. (No indication during still and search.)

2

Press OSD again to clear the display.

5

NOTE:

RETURN TO NORMAL

SCREEN

Press MENU as many times as necessary.

If you engage the Record Pause mode, RECORD/PAUSE is displayed whether "SUPERIMPOSE" is set to "ON" or "OFF".

The superimposed indication on the TV screen tells you what the VCR is doing.

Tuned-in channel or AUX(iliary) mode

When the channel is changed, the new channel is displayed on the screen for 5 seconds.

Clock time

Tape position indicator

"Cassette Loaded" mark

When a cassette is loaded, the mark is displayed for 5 seconds. It blinks when the

VCR's EJECT button is pushed.

CH 125

THU 12:00 AM

B

+ + +

E

NORM

HI–FI COUNT

INDEX-1

MEMORY OFF

–1:23:45

Audio mode indicators

(HR-J640U only)

RECORD

PAUSE

]

SP

Operation mode

When the operation mode is changed, the new mode is displayed — RECORD

(5 sec.), PLAY (5 sec.), FF/REW (5 sec.

when engaged from Stop mode),

RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).

Tape speed indicator

INDEX indication

Counter reading

Counter memory on/off

CH

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

EN

21

Select The Soundtrack

(HR-J640U Only)

Your VCR can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together.

1

ACCESS MAIN MENU

SCREEN

Press MENU during playback or when VCR is in stop mode.

2

ACCESS FUNCTION SET

SCREEN



3

4

ACCESS AUDIO MONITOR

SCREEN


(arrow) to "AUDIO

MONITOR" by pressing

CH


%fi, then press OK.

FUNCTION

AUTO TIMER

SUPERIMPOSE

2ND AUDIO

=AUDIO MONITOR

● "2ND AUDIO" and

"AUDIO MONITOR" will appear with HR-

J640U only.

PRESS (

5,∞), THEN (OK)


SELECT MODE

You have three choices:

a– Hi-Fi

b– Normal

c– Mix

AUDIO MONITOR

=HI–FI

NORM

MIX


(arrow) to your choice by pressing CH

5∞ or

SHUTTLE PLUS

%fi.

PRESS (



RETURN TO NORMAL

SCREEN


5

NOTES:

● If the tape being played back has no Hi-Fi soundtrack, the

Normal soundtrack will be heard no matter what choice you make at the Audio Monitor screen.

● If RF connection is used for TV, even if Hi-Fi audio monitor is selected the sound will be mono and will be reproduced in both loudspeakers.

22

EN

REVIEW

REW

SKIP SEARCH

1

¶

4

3

7

1

4

7 8

2

5

9

3

6


REW

PLAY

2 q 5 / 8 6

2

Index Search

Index codes are placed on the tape at the start of each recording. You can find and automatically play back from the start of any recording using the Index Search function.

1

START SEARCH

While the tape is stopped, press SHUTTLE PLUS ™ or £.

2

ACCESS DISTANT CODE

To access a recording 2–9 index codes away, press

SHUTTLE PLUS ™ or £ repeatedly until the correct number is displayed on screen (only if SUPER-

IMPOSE is set to ON (

Z

pg. 20). Playback begins automatically when the desired recording is located.

● If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.

NOTE:

An index code is not placed on the tape when recording is paused and then resumed.

0

PLAY

¡

8

¢

FF

SHUTTLE PLUS

Instant ReView

At the press of a button, you can power up your VCR, rewind the tape and begin viewing the most recent timer-recorded program.

1

ACTIVATE INSTANT REVIEW

After ensuring that the Timer mode is disengaged, press

REVIEW.

● The power comes on and the VCR searches for the index code indicating the start of the last timer-recorded program, then begins playback automatically.

● You can access a program 2–9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press REVIEW three times.

● If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.

● If the tape is already rewound when REVIEW is pressed, it will play the tape from the beginning. It will not fast forward to an index code.

● The Instant Review function will also operate if the

VCR's power is on.

Skip Search

1

SKIP OVER UNWANTED

SECTIONS

Press SKIP SEARCH 1 to 4 times during playback. Each press initiates a 30-second period of fast- motion playback. Normal playback resumes automatically.

NOTE:

To return to normal playback during a Skip Search, press PLAY.

REW

PLAY

STOP

2 q 5 / 8 6

2

EN

23

Repeat Playback

1

2

START REPEAT

Press and hold PLAY (until "PLAY" blinks on the front display panel) during playback, then release.

V C R

SP

PLAY

H M S

● The entire tape is played back 20 times.

STOP REPEAT

To stop, press STOP at any time.

NOTE:

Pressing PLAY, REW, FF, PAUSE or SHUTTLE PLUS

™

or £ also stops Repeat Playback.

Counter Reset

1

RESET COUNTER TO ZERO

Press C.RESET.

NOTE:

By pressing the DISPLAY button, you can change the display to show the counter reading, channel number or clock time. (Channel number is not displayed during playback.)

POWER

1

4

7 8

2

5

9

3

6

0

C. MEMORY

DISPLAY

TIMER

C.RESET

REW

1

¶

4

3

7

STOP

PLAY

¡

8

¢

FF

SHUTTLE PLUS

Next-Function Memory

The Next Function Memory “tells” the VCR what to do after rewinding. * Before continuing, ensure that the VCR is in stop mode.

a– For Automatic Start Of Playback After Tape Rewind . . .

. . . press REW, then press PLAY within 2 seconds.

b– For Automatic Power Off After Tape Rewind . . .

. . . press REW, then press POWER within 2 seconds.

c– For Automatic Timer Standby After Tape Rewind . . .

. . . press REW, then press TIMER within 2 seconds.

NOTE:

If you want the "next function" to automatically start when the counter reads "0H 00M 00S" (instead of at the beginning of the tape), press C. MEMORY so that the counter memory indicator appears on the front display panel before pressing REW.

Counter Memory

When REW or FF is pressed, with the Counter Memory activated, the tape will return to the counter position "zero".

1

2

ACTIVATE COUNTER

MEMORY

Press C.RESET during playback at a point you want to have quick access to later. The counter reads “0H 00M 00S”.

Then press C.MEMORY. The Counter Memory indicator

("M") in the front display panel lights.

RETURN TO COUNTER

POSITION ZERO

Press STOP (during playback), then press REW or FF.

The tape rewinds or fast-forwards and stops at approximately “0H 00M 00S” automatically.

● To cancel Counter Memory, press C.MEMORY.

24

EN


Auto Picture


CH

2 q 5 / 8 6

2

Auto Picture checks the condition of the tape and compensates accordingly, giving you the best-possible playback picture every time. The default setting is "ON".

Preparation

TURN ON THE VCR

Press POWER.

1

ACCESS MAIN MENU

SCREEN

Press MENU.

2

3

ACCESS AUTO PICTURE

SCREEN

Press CH

5∞ or SHUTTLE

PLUS

%fi to move the highlight bar (arrow) to

MAIN MENU

PROGRAM SET

FUNCTION SET

“AUTO PICTURE”, then

TUNER SET

press OK.

CUSTOM SET

=AUTO PICTURE


PRESS (

5,∞), THEN (OK)


MENU

OK

1

¶

4

1

4

7 8

2

5

9

3

6

0

3

7

POWER

CH

8

¡

¢

SHUTTLE PLUS

4

5

SELECT MODE


(arrow) to "ON" by pressing

CH


%fi.

AUTO PICTURE

=ON

OFF

NOTE:

When using rental tapes, or tapes recorded on other

PRESS (



VCRs, select "ON" or

"OFF" as desired to give the best picture.

RETURN TO NORMAL

SCREEN

Press MENU.

1

4

7 8

2

5

9

3

6

0

2 q 5 / 8 6

2

EN

25

Playback

The VCR assesses the quality of the tape once you start playback.

Before beginning, perform steps 1 and 2 on page 15 ("Simple

Playback") before continuing.

1

START PLAYBACK

Press PLAY.

● The VCR adjusts the playback picture quality based on the quality of the tape in use.

AUTO PICTURE

NOTE:

● The Auto Picture screen only appears at the beginning of automatic tracking. Even though the screen doesn't appear after that, the Auto Picture function is operative.

● SUPERIMPOSE must be set to "ON" or the Auto Picture screen will not appear (

Z

pg. 20).

1

¶

4

3

7 8

¡

¢

26

EN

Recording

Features


Record One Program While

Watching Another

TV/VCR

OSD

1

4

7 8

2

5

9

3

6

1

2

ENGAGE TV MODE

During recording...

● Press TV/VCR. The VCR's VCR indicator goes out. (If you are using the RF connection (

Z

pg. 6) to view the output from your VCR, the TV broadcast being recorded disappears.)

● If you are using the AV connection (

Z

pg. 6), to view the output from your VCR, change the TV's input mode from AV to TV.

SELECT CHANNEL FOR

VIEWING

Use the TV’s channel selector to set the channel you want to watch.

0

Display Elapsed Recording

Time

C.RESET

1

¶

3

7 8

¡

¢ 4

1

2

RESET COUNTER TO ZERO

Before recording starts, press C.RESET. The counter resets to zero and displays the exact elapsed time as the tape runs.

DISPLAY ELAPSED TIME ON

SCREEN

During recording, press OSD at any time to see the elapsed time. All indications corresponding to the current status of the VCR are displayed for 5 seconds.

The counter display remains on the screen indicating the elapsed time. Press OSD again to remove the display.

● Make sure "SUPERIMPOSE" is set to "ON" (

● The indications are not be recorded.

Z

pg. 20).

CH

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

EN

27

Stereo And SAP

(Second Audio Program)

(HR-J640U Only)

Your VCR’s built-in MTS decoder enables reception of Multichannel TV Sound broadcasts.

● The ST indicator on the front display panel lights during stereo broadcast reception, and SAP lights during SAP program reception.

● Both indicators light when a stereo program is accompanied by SAP audio.

To Record Stereo Programs . . .

. . . simply follow the basic recording procedure.

To Listen To Stereo Soundtrack During Recording . . .

. . . select "HI-FI" at the Audio Monitor screen (

Z

pg. 21).

To Record SAP Programs . . .

(HR-J640U Only)

ACCESS MAIN MENU

SCREEN

Press MENU.

1

2

ACCESS FUNCTION SET

SCREEN



3

ACCESS 2ND AUDIO

SCREEN

Move the highlight bar (arrow) to "2ND AUDIO" by pressing CH


4

SELECT MODE


(arrow) to "ON" by pressing CH

5∞ or

SHUTTLE PLUS

%fi.

2ND AUDIO

=ON

OFF

NOTES:

● If a SAP program is received, the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.

● If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.

5

PRESS (



RETURN TO NORMAL

SCREEN


28

EN

On-Screen

Timer

Programming


CH

2 q 5 / 8

6

2

MENU

OK

1

NUMBER "8"

3

¶ 7

4

1

2 3

4

7

8

5

9

6

0

NUMBER

NUMBER "9"

CH

8

¡

¢

SHUTTLE PLUS

TIMER RECORDING

You can directly program the VCR’s timer to record up to 8 shows, as far as a year in advance. Remember, the clock must be set before you can program the timer (

Z

pg. 7 or 9).

1

LOAD A CASSETTE

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load.

● The VCR comes on, and the counter is reset, automatically.

ACCESS ON-SCREEN

MENU

Press MENU.

2

3

ACCESS PROGRAM SET

SCREEN

Make sure the highlight bar (arrow) is on "PROGRAM

SET", then press OK.

4

5

SELECT PROGRAM NUMBER

Press the appropriate

NUMBER keys or CH

5∞ or

SHUTTLE PLUS

%fi to select a vacant program number, then press OK. The first time you set the timer programming function, all the program numbers will

DATE

PROGRAM 1

START

STOP

CHANNEL

– –/– –

– –:– – AM

– –:– – AM

– – SP


OR (

5,∞), THEN (OK)


be blank; in this case just press OK when the Program Set screen appears.

SET PROGRAM

INFORMATION

Press the appropriate NUMBER keys to set the date, start/stop time and channel number. Press CH

5∞ or

SHUTTLE PLUS

%fi to set AM/PM and tape speed (SP or EP). Press OK after AM/PM, channel number and tape speed settings.

● Any information comprised of 1 digit (except the channel number) should have a "0" entered before it.

● It is possible to set all information using the CH5∞ or

SHUTTLE PLUS

%fi button.

(In this case, press OK after each setting.) Do not use the CH

∞ or SHUTTLE PLUS fi button to set the date.

● At the Program Set screen, the setting that can be set blinks. When setting of a highlighted item is completed, the highlight bar moves down by 1 line to the next item.

NOTE:

If you are using a cable box, enter the cable box channel, not the channel to be recorded. The channel to be recorded must be selected on the cable box. (The cable box channel is the VCR's channel that displays the channels received by the cable box.)

** You can record selected programs at the same time every weekday, or once a week. Before entering the month, press NUMBER key “8” (DAILY) or “9”

(WEEKLY). Either "DAILY" or "WEEKLY" appears.

Press again and "DAILY" or "WEEKLY" disappears.

For weekly recording, the desired date for the day of the week must be entered.

CH

2 q 5 / 8 6

2

TIMER

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

EN

29

6

7

8

MAKE CORRECTIONS

To change any of the settings, press OK or SHUTTLE

PLUS until the item you want to change begins blinking. Then set as in step 5.

RETURN TO NORMAL

SCREEN


● Press just once to access the Auto Timer screen

(

Z

pg. 31).

ENGAGE TIMER MODE

Press TIMER. The VCR turns off automatically.

NOTES:

● To disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.

● In case of a power failure after programming, the VCR’s memory backup keeps your selections for approximately 10 minutes.

● If you select "PROGRAM SET" without having set the date and time, an error message appears. Follow its instructions.

● If you enter a start time that has already passed, "ERROR" appears on the screen and blinks.

● Programs that start after midnight must have the next day’s date.

● After timer recording is completed, the VCR’s power goes off automatically.

● You can program the timer while a regular recording is in progress; the on-screen menu will not be recorded.

● If the end of tape is reached during timer recording, the cassette is automatically ejected.

● When timer-recording cable or satellite channels through an external tuner, be sure to keep the cable box or satellite receiver's power ON.

EXAMPLE

If you program the VCR to timer record a show on December 24 on channel 40 from 12:00 noon to 1:00 PM in SP mode, the screen will look like this:

DATE

START

STOP

CHANNEL

PROGRAM 1

12/24 WED

12:00 PM

1:00 PM

40 SP


OR (

5,∞), THEN (OK)


30

EN

CH

TIMER

CANCEL

MENU

OK

POWER

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

TIMER RECORDING (cont.)

Check And Cancel Programs

1

DISENGAGE TIMER

Press TIMER, then press POWER.

ACCESS MAIN MENU

SCREEN

Press MENU.

2

3

4

ACCESS PROGRAM SET

SCREEN

Press CH

5∞ or SHUTTLE PLUS %fi to move the highlight bar (arrow) to "PROGRAM SET", then press

OK.

CHECK PROGRAM

INFORMATION

Press CH

5∞ or SHUTTLE PLUS %fi to check the programs in succession.

To Cancel A Program . . .

5

CANCEL A PROGRAM

Press CANCEL.

● Repeat steps 4 and 5 as many times as necessary.

6

RETURN TO NORMAL

SCREEN

Press MENU. If there are still programs remaining, go to step 7.

RE-ENGAGE TIMER

Press TIMER again.

7

CH

TIMER

MENU

OK

1

¶

4

3

7

1

4

7 8

2

5

9

3

6

0

CH

8

¡

¢

SHUTTLE PLUS

2 q 5 / 8 6

2

EN

31

Auto Timer

When the Auto Timer is set to ON the timer is automatically engaged when the VCR's power is turned off and automatically disengaged when the VCR is powered back on.

ACCESS MAIN MENU

SCREEN

Press MENU.

1

2

ACCESS FUNCTION SET

SCREEN



3

ACCESS AUTO TIMER

SCREEN

Move the highlight bar (arrow) to "AUTO TIMER" by pressing CH


Now skip to step 2 of the procedure below.

Or, during on-screen timer programming ...

1

ACCESS AUTO TIMER

SCREEN

In step 7 in the On-Screen Timer Programming procedure (

Z

pg. 29), press MENU.

2

SELECT MODE


(arrow) to your choice

("ON" or "OFF") by pressing CH

5∞ or

SHUTTLE PLUS

%fi.

AUTO TIMER

ON

=OFF

PRESS (



RETURN TO NORMAL

SCREEN


3

NOTE:

For safety, when AUTO TIMER is set to “OFF”, all other VCR functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.

32

EN

Instant Timer

Recording

(ITR)

V C R

SP

2 q 5 / 8 6

2

R E C

TIMER RECORDING (cont.)

This easy method lets you record for from 30 minutes to 6 hours

(selectable in 30-min. increments), and shuts the VCR off after recording is finished.

START RECORDING

Press REC on the front panel.

1

2

ENGAGE ITR MODE

Press REC again. REC blinks and 0:30 appears on the front display panel.

3

SET RECORDING

DURATION

If you want to record for more than 30 minutes, press

REC to extend the time. Each press extends recording time by 30 minutes.

NOTES:

● You can only perform ITR using the REC button on the VCR's front panel.

● After you set the ITR time, the previous display reappears.

● To check the remaining time, press REC once during recording and the remaining time will be displayed for about 5 seconds. Be careful not to press REC again within these 5 seconds, or you will round the recording time up to the next

30 minute increment.

EDITING

Edit To

Another VCR

Player

Your VCR

Recorder

AUDIO OUT

VIDEO IN

VIDEO

OUT

Audio/Video Cable

(not supplied)

AUDIO IN

Another VCR

EN

33

You can use your VCR as the player and another VCR as the recorder.

1

MAKE CONNECTIONS

Connect an AV cable between your VCR's VIDEO OUT and AUDIO OUT connectors and another VCR’s

VIDEO IN and AUDIO IN connectors.

2

For HR-J640U owners...

● When connecting to a monaural VCR, connect your

VCR's AUDIO OUT L connector to the AUDIO IN connector on the monaural VCR.


● When connecting to a Hi-Fi VCR, connect your

VCR's AUDIO OUT connector to the AUDIO IN L connector on the Hi-Fi VCR.

LOAD CASSETTES

Insert the playback cassette into your VCR and the cassette to be recorded on into the other VCR.

SET RECORDER’S INPUT

MODE

Set the other VCR's auxiliary (AV) input mode.

3

START PLAYER

Press PLAY on your VCR.

4

NOTE:

If you don't want to record the superimposed indication on the edited tape, be sure to set "SUPERIMPOSE" to

OFF before pressing PLAY (

Z

pg. 20).

START RECORDER

Set the other VCR to its record mode.

5

2 q 5 / 8 6

2

34

EN

Edit From A

Camcorder Or

Another VCR

VIDEO

IN

Recorder

Player

Camcorder

or

Another VCR

Player

AUDIO IN

VIDEO

OUT

Your VCR

AUDIO OUT

2 q 5 / 8 6

2

AV cable

(not supplied)

EDITING (cont.)

You can use a camcorder or another VCR as the player and your

VCR as the recorder.

1

2

MAKE CONNECTIONS

Connect an AV cable between the camcorder’s or the playback VCR's VIDEO OUT and AUDIO OUT connectors and your VCR’s VIDEO IN and AUDIO IN connectors.


● When using a monaural camcorder or a monaural

VCR, connect its AUDIO OUT connector to the

AUDIO IN L connector on your VCR.


● When using a Hi-Fi camcorder or a Hi-Fi VCR, connect its AUDIO OUT L connector to the AUDIO

IN connector on your VCR.

LOAD A CASSETTE

Insert the cassette to be recorded on into your VCR and the playback cassette into the camcorder or the playback VCR.

SET RECORDER’S INPUT

MODE

Press NUMBER key “0” to set your VCR to AUX.

3

4

START PLAYER

Set the camcorder or the playback VCR to its play mode.

NOTE:

If the camcorder or another VCR is equipped with a superimpose/OSD disable feature then set its superimpose or display feature to OFF before pressing play.

START RECORDER

Set your VCR to its record mode.

5

1

4

7 8

2

5

9

3

6

0

1

NUMBER "0"

¶

3

7 8

¡

SPECIAL FEATURES

TV

TV/VCR

MBR SET

ENTER

TV VOL +/–

1 3

¶ 7

4

1

2 3

4

7

8

5

9

6

0

8

¡

¢

POWER

NUMBER

CH

(Ex.) To set remote control to RCA 05:

TV MBR SET

0

AUX

5 7

STOP

Hold down

Press in succession

Release

TV Multi-Brand Remote

Control

EN

35

The VCR's remote control can control several functions on JVC remote control TVs and on the brands of remote control TVs listed below. *The default setting is JVC code 01.

TURN ON THE TV

Turn the power on using the TV's remote control.

1

2

3

SET TV BRAND CODE

Refer to the chart below. While holding down TV on the

VCR's remote control, press MBR SET and enter your TV’s brand code using the NUMBER keys, then press STOP.

Follow the example shown at bottom left.

● Once you have set the remote control to operate the

TV, you don’t have to repeat this step until you replace your remote control’s batteries.

● PANASONIC has two codes. If the TV does not function with one code, try entering the other.

OPERATE TV

First, while holding down TV, press POWER on the remote to see if the TV’s power goes off as it should. If it does, try other operations.

● The POWER, TV/VCR, CH5∞, TV VOL +/– and

NUMBER keys on the remote can all be used to operate the TV. *For some brands of TV, you must press ENTER after having pressed the NUMBER keys.

● To operate your TV, while holding down TV, press the corresponding button: POWER, TV/VCR, CH

5∞,

NUMBER keys (or ENTER). TV VOL +/– can be used without holding down TV.

NOTE:

Depending on the type of TV, there may be cases where some or all functions cannot be operated using the remote control.

TV BRAND NAME

JVC

MAGNAVOX

MITSUBISHI

PANASONIC

RCA

SHARP

SONY

TOSHIBA

ZENITH

HITACHI

SAMSUNG

SANYO

SEARS

12

13

13

06

07

08

09

10

BRAND CODE

01

02

03

04, 11

05

36

EN

CABLE/DBS

MBR SET

1

4

7 8

2

5

9

3

6

0

POWER

NUMBER

CH

ENTER

1 3 ¡

7 8 ¶

STOP

4 ¢

DBS Receiver Multi-Brand

Remote Control

The VCR's remote control can control functions on the brands of DBS (Direct Broadcast Satellite) receivers listed below.

1

TURN ON THE DBS RECEIVER

Turn the power on using the DBS receiver's remote control.

2

3

ENTER DBS RECEIVER BRAND

While holding down CABLE/DBS on the VCR’s remote control, press MBR SET and use the NUMBER keys to enter the DBS receiver brand number from the chart below and then press STOP.

Follow the example shown at bottom right.

● Once you have set the remote control to operate the

DBS receiver, you don't have to repeat this step until you replace the remote control's batteries.

OPERATE DBS RECEIVER

First, while hoding down CABLE/DBS, press POWER to see if the DBS receiver's power goes off as it should. If it does, try other functions.

● To operate your DBS Receiver, while holding down

CABLE/DBS, press the corresponding button:

POWER, CH

5∞, NUMBER keys (or ENTER).

● Depending on the DBS receiver you may have to press ENTER after having pressed the NUMBER keys.

NOTES:

● Depending on the type of DBS receiver, there may be cases where some or all functions cannot be operated using the remote control.

● Though ECHOSTAR has a number of different remote codes, this remote control is applicable only to one of those codes preset at the factory.

DBS BRAND NAME

RCA (DSS)

SONY (DSS)

PRIMESTAR

ECHOSTAR

BRAND CODE

80

81

90

91

SPECIAL FEATURES (cont.)

Cable Box Multi-Brand

Remote Control

The VCR's remote control can control functions on the brands of cable boxes listed below. Some cable box brands have more than one code. If your cable box does not function with a specified code, try other codes.

TURN ON THE CABLE BOX

Turn the power on using the cable box’s remote control.

1

2

3

ENTER CABLE BOX BRAND

While holding down CABLE/DBS on the VCR's remote control, press MBR SET and use the NUMBER keys to enter the cable box brand number from the chart below and then press STOP.

Follow the example shown below.

● Once you have set the remote control to operate the cable box, you don't have to repeat this step until you replace the remote control's batteries.

OPERATE CABLE BOX

First, while holding down CABLE/DBS, press POWER to see if the cable box’s power goes off as it should. If it does, try other functions.

● To operate your cable box, while holding down

CABLE/DBS, press the corresponding button:

POWER, CH

5∞, NUMBER keys (or ENTER).

● For some brands of cable box, you must press ENTER after having pressed the NUMBER keys.

NOTE:

Depending on the type of cable box, there may be cases where some or all functions cannot be operated using the remote control.

CABLE BOX BRAND NAME

CURTIS

GEMINI

GENERAL INSTRUMENTS

HAMLIN

JERROLD

OAK

PANASONIC

PIONEER

RCA

REGAL

SAMSUNG

SCIENTIFIC ATLANTA

SIGMA

SL MARX

SPRUCER

TELEVIEW

TOCOM

VIDEOWAY

ZENITH

BRAND CODE

09, 10

08

01, 02, 03, 04, 05, 06, 07, 08

15, 16, 17, 18

01, 02, 03, 04, 05, 06, 07, 08

19, 20, 21

24, 25, 26

13, 14

24, 25, 26

15, 16, 17, 18

08, 13

09, 10

19, 20, 21

08, 13

24, 25, 26

08, 13

22, 23

11, 12

11, 12

(Ex.) To set remote control to cable box brand RCA 24:

CABLE/DBS

MBR SET

2 4

7

STOP

Release

Hold down

Press in succession

NUMBER "1"

1

2 3

4

7 8

5

9

6

NUMBER "2"

POWER

0

1

¶

4

STOP

3

7 8

¡

¢

EN

37

Control Two JVC VCRs

The remote control is capable of controlling two JVC VCRs independently; one set to respond to your remote control's A code control signals and another set to respond to B code control signals. The remote control is preset to send A code signals because your VCR is initially set to respond to A code signals. You can easily modify your VCR to respond to B code signals.

UNPLUG VCR'S POWER

CORD

Unplug from the AC outlet.

1

2

SET REMOTE CONTROL

CODE

While holding down A/B on the remote control, press the NUMBER key "2" and then press STOP.

PLUG IN POWER CORD

Plug back in to the AC outlet.

3

TURN VCR POWER ON

Press POWER on the remote.

4

The VCR will now respond only to B-code commands.

To set the VCR back to respond to A code signals, repeat the same procedure as shown above except pressing NUMBER key

"1" instead of "2" in step 2.

You can control two VCRs with the same remote control by switching the remote's code between A and B.

38

EN

TROUBLESHOOTING

Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.

POWER

SYMPTOM

1. The power won’t come on.

2. The clock works, but the VCR’s power won’t come on.

3. The remote control won’t function.

TAPE TRANSPORT

SYMPTOM

1. The cassette gets stuck partway during loading, and is ejected.

2. The tape stops during rewind or fast forward.

POSSIBLE CAUSE

● The power cord is disconnected.

● The TIMER mode is engaged with

Auto Timer set to "OFF" (

Z

pg. 31).

● The batteries are discharged.

POSSIBLE CAUSE

● The cassette was inserted incorrectly.

● The Counter Memory indicator (“M”) is lit on the front display panel.

CORRECTIVE ACTION

Connect the power cord.

Press TIMER to disengage.

Replace the dead batteries with new ones.


Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette.

Press C.MEMORY to disengage the

Counter Memory mode and extinguish the indicator.

PLAYBACK

SYMPTOM

1. The tape is running but the picture won’t appear.

2. Noise appears during visual search.

3. (HR-J640U only) Breaks are noticeable in Hi-Fi soundtrack.

4. The playback picture is blurred or interrupted, even though TV broadcasts are clear.

5. (HR-J640U Only) The Hi-Fi soundtrack cannot be heard.

RECORDING

SYMPTOM

1. Recording won’t start.

POSSIBLE CAUSE

● If you’re using the RF OUT connection (

Z

pg. 6), the channel selector on the TV is set incorrectly.

● If you’re using the AV connection

(

Z

pg. 6), the TV receiver is set to the wrong mode.

● This is normal.

● Automatic tracking is engaged.

● The video heads may be dirty.

● The AUDIO MONITOR option at the

Function Set screen was set incorrectly.

POSSIBLE CAUSE

● There’s no cassette loaded.

● The loaded cassette has had its record safety tab removed.


Set the channel selector to channel 3 or 4.

Set the TV receiver to its AV mode.

(

Engage and adjust tracking manually

Z

pg. 18).

The heads must be cleaned. Consult your JVC dealer.

(

Set AUDIO MONITOR to "HI-FI"

Z

pg. 21).

2. TV broadcasts won’t record properly.

3. Tape-to-tape editing won’t work.

● The VCR has been set to its AUX mode by mistake.

●The VCRs or the camcorder and the

VCR have been incorrectly connected.

● The power to one or more of the units has not been turned on.

● The recorder has not been set to its

AUX mode.


Insert a cassette.

Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.

Set the VCR to the appropriate channel.

Refer to the directions and the illustration under “Edit To Another VCR” (

Z

pg. 33) or “Edit From A Camcorder Or Another

VCR” (

Z

pg. 34) and properly connect the units.

Make sure the power to all units is on.

Set the recorder to its AUX mode.

EN

39

TIMER RECORDING

SYMPTOM

1. Timer recording won’t work.

2. On-screen timer programming won’t work.

3. TIMER and ] on the front display panel won’t stop blinking.

4. TIMER blinks for 10 seconds and the timer mode is disengaged.

POSSIBLE CAUSE

● The clock and/or the timer have been set incorrectly.

● The timer is not engaged.

● The VCR has not been set up properly.

● Timer recording is in progress.

● The timer is engaged but there’s no cassette loaded.

● The loaded cassette has had its record safety tab removed.

● TIMER has been pressed when there are no programs in memory, or the timer record program information has not been programmed correctly.

● The end of tape was reached during timer recording.

5. The cassette is automatically ejected, the power shuts off and

TIMER and ] won’t stop blinking.

OTHER PROBLEMS

SYMPTOM

1. When scanning channels, some of them are skipped over.

2. The channel can’t be changed.

POSSIBLE CAUSE

● Those channels have been preset to be skipped.

● Recording is in progress.

3. The remote control won’t operate my TV or cable box or DBS receiver.

4. Even though Auto or Semi-Auto clock setting has been selected, the clock is incorrect.

● The remote control brand setting is incorrect.

● The clock setting data received from the Host Channel is incorrect.


Set the clock and/or timer correctly.

Press TIMER and check to make sure that TIMER appears on the front display panel.

Re-perform the set-up procedures.

Timer programming can’t be performed when timer recording is in progress.

Wait until it finishes.

Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.

Press TIMER so that TIMER on the display panel disappears, then eject the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.

Check the programmed data and reprogram as necessary, then press

TIMER again.

The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.


If you need the skipped channels, restore them (

Z

pg. 14).

Press PAUSE to pause the recording, change channels, then press PLAY to resume recording.

Re-set the remote control to the correct brand (

Z

pg. 35 or 36).

Select a different Host Channel during

( the Semi-Auto setting procedure

Z

pg. 10), or perform the Manual setting procedure (

Z

pg. 11).

ATTENTION:

This VCR contains microcomputers. External electronic noise or interference can cause microcomputer to malfunction. If the

VCR does not operate correctly switch its power off and unplug the power cord from the AC supply. Wait for a while and then plug the power back in. Eject and check the condition of the cassette. If everything appears normal resume operating the VCR as usual.

40

EN

PLAYBACK

Q. What happens if the end of the tape is reached during playback or search?

A. The tape is automatically rewound to the beginning.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Can the VCR indefinitely remain in the still mode?

A. No. It stops automatically after 5 minutes to protect the heads.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. During search, slow, still and frame-by-frame playback, I can’t hear any audio. What’s the problem?

A. This is normal.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. During search, still and frame-by-frame playback, the picture is intermittent. What’s the cause?

A. Picture loss occurs when these types of playback are attempted with a tape recorded in LP mode. Pressing

PLAY to return to normal playback will restore the picture.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. When returning from multi-speed search to normal playback, the picture is disturbed. Should I be concerned about this?

A. No, it is normal.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Noise bars appear during multi-speed search. What’s the problem?

A. This is normal.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. When playing back programs that have been timerrecorded with consecutive times (such one program from 8:00 to 9:00 and another one from 9:00 to

10:00), the picture becomes momentarily distorted at the point where the first program ends and the second program begins. Is this a malfunction?

A. No. This is normal.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Other than preventing further recording, what effect does removing the safety tab have?

A. It disables marking of index codes.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Sometimes, during Index Search, the VCR can’t find the program I want to see. Why not?

A. There may be index codes too close together.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. During playback, on-screen operational indicators sometimes jitter. Why does this happen?

A. If the condition of the tape being played back is not good, jittering of the video (including on-screen indicators) may occur.

QUESTIONS AND ANSWERS

RECORDING

Q. When I pause and then resume a recording, the end of the recording before the pause is overlapped by the new recording. Why does this happen?

A. This is normal. It reduces distortion at the pause and resume points.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Can the VCR indefinitely remain in the Record-Pause mode?

A. No. The VCR automatically goes to its Stop mode after 5 minutes to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after 5 minutes.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. What happens if the tape runs out during recording?

A. The VCR automatically rewinds it to the beginning.

TIMER RECORDING

Q. REC and TIMER remain lit on the front display panel.

Is there a problem?

A. No. This is a normal condition for a timer recording in progress.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Q. Can I program the timer while I’m watching a tape or a TV broadcast?

A. Yes, but while you are setting the timer you won't see the tape's or broadcast program's picture as it is replaced by the on-screen menu. The audio from the tape or broadcast program will be present during the setting of the timer.

INDEX

List Of Terms

This guide serves as a quick way to locate frequently used terms and on-screen display names.

A

A/B Code ....................................................................37

Add Channel ...............................................................14

AFC .............................................................................14

Audio Monitor ............................................................21

Auto Channel Setting ..................................................13

Auto Clock Setting ...................................................... 11

Auto Daylight Saving Time .......................................... 11

Auto Picture ................................................................24

Auto Timer ..................................................................31

Automatic Tracking .....................................................18

Aux Input ....................................................................34

AV Connection .............................................................6

B

Band ...........................................................................12

C

Cancel Program ..........................................................30

Cassette Adapter.................................... ...................... 15

Check Program ...........................................................30

Connection to TV ..........................................................6

Contents ........................................................................5

Counter Memory .........................................................23

Counter Reset ..............................................................23

D

Delete Channel ...........................................................14

E

Editing .........................................................................33

F

Frame-by-Frame Playback ........................................... 17

Function Setting ..........................................................20

I

H

Host Channel Selection ...............................................10

Index Search ...............................................................22

Insert Cassette .............................................................15

Instant ReView ............................................................22

ITR (Instant Timer Recording) ...................................... 32

L

Language Selection .......................................................8

M

Main Menu ...................................................................8

Manual Channel Setting ..............................................14

Manual Clock Setting .................................................. 11

Manual Tracking .........................................................18

MBR (Multi-Brand Remote) Code Setting ..................... 35

N

Next-Function Memory ...............................................23

EN

41

O

On-Screen Display ......................................................20

On-Screen Timer Programming ................................... 28

On-Screen Timer Recording ........................................28

Override Auto Clock Setting ..........................................9

P

PBS Channel .................................................................7

Playback .....................................................................15

Plug & Play ...................................................................7

R

Record Safety Tab .......................................................16

Recording ...................................................................16

Repeat Playback ..........................................................23

Reverse Motion Playback ............................................17

Reverse Slow Motion Playback ................................... 17

RF Connection ..............................................................6

S

SAP (Second Audio Program) ...................................... 27

Second Audio .............................................................27

Semi-Auto Clock Setting ..............................................10

Skip Search .................................................................22

Slow Motion Playback ................................................17

Specifications ..............................................................45

Still Picture Playback ...................................................17

Superimpose ...............................................................20

T

Tape Position Indicator ................................................18

Tape Speed Setting ......................................................16

Time Zone Selection ................................................... 11

Tuner Setting ...............................................................12

V

Variable-Speed Search ................................................17

Video Stabilizer ...........................................................19

42

EN

FRONT VIEW

1

INDEX (cont.)

2 3 4 5

POWER

VIDEO (MONO) L – AUDIO – R

MENU

SP

V C R

TIMER

AM

PM

H M S

ST

SAP

M

R E C

PLAY

PAUSE

REW

2

PLAY

FF

2

CH

OK

REC q

STOP/EJECT

5

/ 8

PAUSE

6

6 7

1 Power On/Off Button (

2 Cassette Loading Slot

Z

pg. 8)

3 Rewind [REW] Button (

4 PLAY Button (

Z

pg. 15)

Z

pg. 15)

5 Fast-Forward [FF] Button (

Z

pg. 15)

6 VIDEO/AUDIO Input Connectors (

Z

pg. 34)

* The HR-J440U has only one AUDIO input connector.

7 MENU Button (

Z

pg. 8)

8 9 0 !

@ # $

8 Front Display Panel (

Z

9 Remote Control Sensor

pg. 43)

0 Channel [CH]

5∞ Button (

! OK Button (

Z

pg. 16)

Z

pg. 8)

@ Record [REC] Button (

# STOP/EJECT Button (

Z

pg. 16)

Z

pg. 15)

$ PAUSE Button (

Z

pg. 17)

REAR VIEW

1

2 3

EN

43

AUDIO

R

OUT

L

CH3 CH4

VIDEO

ANT. IN

RF OUT

1 Power Cord (

Z

pg. 6)

2 VIDEO/AUDIO Output Connectors (

Z

pg. 33)

* The HR-J440U has only one AUDIO output connector.

4

3 ANT. IN Connector (

Z

pg. 6)

4 Channel 3/4 Switch (

5 RF OUT Connector (

Z

Z

pg. 6)

pg. 6)

5

FRONT DISPLAY PANEL

1

2 3 4

5

6 7

SP

V C R

TIMER

AM

PM

H

8 9 0

1 VCR Mode Indicator (

Z

2 Tape Speed Indicators (

pg. 26)

Z

pg. 16)

3 AM/PM Indicators (

4 Clock Display (

Z

pg. 7)

Z

pg. 7)

5 Multi-Channel TV Sound Indicators (

[HR-J640U Only]

Z

pg. 27)

6 Recording Mode Indicator (

Z

pg. 16)

Instant Timer Recording Indicator (

Z

pg. 32)

M S

ST

SAP

M

R E C

PLAY

PAUSE

!

@

7 Play Mode Indicator

8 “Cassette Loaded” Mark

9 Timer Mode Indicator

0 Channel Display [“AU” for AUX mode]

Counter Display (

Z

pg. 15)

! Counter Memory Mark (

Z

pg. 23)

@ Pause Mode Indicator

44

EN

REMOTE CONTROL

1

2

3

4

5

6

7

8

9

0

!

@

#

$

%

^

TV, CABLE / DBS operation – Press and hold

TV CABLE/DBS button, then press POWER,

CH

5

/

∞

, TV/VCR, 0 – 9, ENTER

TV CABLE/DBS A/B

POWER

TV/VCR

1

3

MBR SET 4

2

5 6

DISPLAY

7 8

DAILY

9

WEEKLY

TIMER ENTER

0

AUX

SP/EP

OSD

CANCEL C.MEMORY

C.RESET/CH.SKIP

ADD

SKIP SEARCH

TV

VOL

CH

1

REW

¶

REC

MENU 4

OK

3

PLAY

7

STOP

FF

¡

8

PAUSE

¢

SHUTTLE PLUS

&

*

)

( q w e r t y u i o

INDEX (cont.)

1 CABLE/DBS Button (

Z pg. 36)

2 TV Button (

Z pg. 35)

3 TV/VCR Button (

Z pg. 26)

4 MBR SET Button (

Z pg. 35)

5 DISPLAY Button (

Z pg. 23)

6 ENTER Button (

Z pg. 16)

On-Screen Display [OSD] Button (

Z pg. 20)

7 TIMER Button (

Z pg. 29)

8 Counter [C.] MEMORY Button (

Z pg. 23)

ADD Button (

Z pg. 14)

9 CANCEL Button (

Z pg. 30)

Channel [CH] SKIP Button (

Z pg. 14)

Counter [C.] RESET Button (

Z pg. 23)

0 Instant REVIEW Button (

Z pg. 22)

! SKIP SEARCH Button (

Z pg. 22)

@ Rewind [REW] Button (

Z pg. 15)

# PLAY Button (

Z pg. 15)

$ Record [REC] Button (

Z pg. 16)

% MENU Button (

Z pg. 8)

^ OK Button (

Z pg. 8)

& A/B Code Button (

Z pg. 37)

* POWER On/Off Button (

Z pg. 8)

( DAILY Timer Recording Button (

Z pg. 28)

) NUMBER Buttons (

Z pg. 16) q WEEKLY Timer Recording Button (

Z pg. 28) w "AUX" Mode Select Button (

Z pg. 34) e Recording Speed [SP/EP] Button (

Z pg. 16) r TV Volume [VOL] +/– Button (

Z pg. 35) t Channel [CH]

5∞ Button (Z pg. 16) y Fast-Foward [FF] Button (

Z pg. 15) u STOP Button (

Z pg. 15) i PAUSE Button (

Z pg. 17) o SHUTTLE PLUS Button (

Z pg. 8)

Installing Batteries

1

Open the battery compartment cover.

2

Insert 2 "AA"-size batteries (provided) in the direction indicated under the battery cover.

3

Replace the cover.

How To Use

The remote control can operate most of your VCR's functions.

1

Point the remote control toward the sensor window.

2

Press the appropriate operation button.

3

The maximum operating distance of the remote control is about 8 m.

NOTES:

● This remote control can also operate various brands of

TVs, Cable Boxes and DBS Receivers. For instructions,

Z pg. 35, 36.

● If the remote control doesn't work properly, remove its batteries, wait a short time, replace the batteries and then try again.

SPECIFICATIONS

GENERAL

Power requirement

Power consumption

: AC 120 V` , 60 Hz

: 21 W (HR-J640U)

: 19 W (HR-J440U)

Temperature

Operating

Storage

Operating position

: 5°C to 40°C (41°F to 104°F)

: –20°C to 60°C (–4°F to140°F)

: Horizontal only

Dimensions (W x H x D) : 360 x 94 x 276 mm

Weight

Format

Maximum recording time

(14-3/16" x 3-3/4" x 10 -7/8")

: 3.4 kg (7.5 lbs)

: VHS NTSC standard

SP : 210 min. with ST-210 video cassette

EP : 630 min. with ST-210 video cassette

VIDEO/AUDIO

Signal system : NTSC-type color signal and

EIA monochrome signal, 525 lines/60 fields

Recording/

Playback system : DA-4 (Double Azimuth) head helical scan system

Signal-to-noise ratio : 45 dB

Horizontal resolution : 240 lines

Frequency range

Normal audio

Input/Output

: 70 Hz to 10,000 Hz

Hi-Fi audio

(HR-J640U Only) : 20 Hz to 20,000 Hz

: RCA connectors (IN x 1,

OUT x 1)

TUNER

Tuning system

Channel coverage

VHF

UHF

CATV

RF output

: Frequency-synthesized tuner

: Channels 2–13

: Channels 14–69

: 113 Channels

: Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 ohms, unbalanced

EN

45

TIMER

Clock reference

Program capacity

: Quartz

: 1-year programmable timer/

8 programs

Memory backup time : Approx. 10 min.

ACCESSORIES

Provided accessories : RF cable (F-type),

Infrared remote control unit,

“AA” battery x 2

Specifications shown are for SP mode unless otherwise specified.

E. & O.E. Design and specifications subject to change without notice.

46

EN

FOR SERVICING (Only in U.S.A.)

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1-800-252-5722

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the

Continental United States, call 1-800-252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty

Service.

— JVC

107 Little Falls Road

Fairfield, NJ 07004-2105

(201) 808-9279

5665 Corporate Avenue

Cypress, CA 90630-4727

(714) 229-8011

230 Eliot Street

Ashland, MA 01721-2377

(508) 881-5923

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF US JVC CORP.

FACTORY SERVICE CENTER LOCATIONS

1500 Lakes Parkway

Lawrenceville, GA 30243-5857

(770) 339-2522

10700 Hammerly Boulevard, Suite 110

Houston, TX 77043-2310

(713) 935-9331

8192 W State Road 84

Davie, FL 33324-4611

(954) 472-1960

705 Enterprise Street

Aurora, IL 60504-8135

(630) 851-7855

2969 Mapunapuna Place, Suite 101

Honolulu, HI 96819-2000

(808) 833-5828

890 Dubuque Avenue

South San Francisco, CA 94080-1804

(415) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The

JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA


107 Little Falls Road

Fairfield, NJ 07004-2105

If you ship the product...

Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory

Service Center as listed above.

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer.

Or from the 48 Continental United States call toll free:

1-800-882-2345.

Don't service it yourself.

CAUTION

To prevent electrical shock, do not open the cabinet. No user serviceable parts inside.

Refer servicing to qualified service personnel.

WARRANTY (Only in U.S.A.)

EN

47

LIMITED WARRANTY

CONSUMER VIDEO 1-90

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL

PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

1

YR

90

DAYS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN

COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); from the date of purchase);

There are no other express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS

LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER

DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO

TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET

FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential dameges or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA


41 Slater Drive

Elmwood Park, New Jersey 07407

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.: Serial No.:

Purchase date: Name of dealer:

JVC COMPANY OF AMERICA


41 Slater Drive, Elmwood Park, N.J. 07407

JVC CANADA INC.

21 Finchdene Square, Scarborough Ontario M1X 1A7

COPYRIGHT © 1997 VICTOR COMPANY OF JAPAN, LTD.

U/U(C)

Printed in Malaysia

1296HOV * UN * PJ

No results
