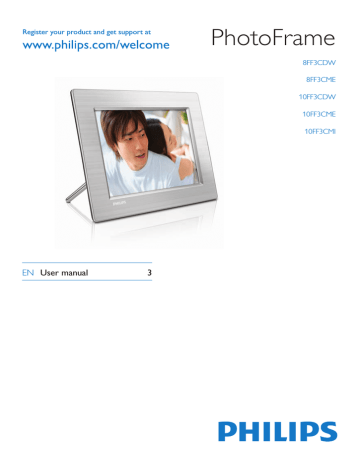

Register your product and get support at
PhotoFrame
8FF3CDW
8FF3CME
10FF3CDW
10FF3CME
10FF3CMI
EN User manual 3
Contents
1 Important
29
2 Your Digital PhotoFrame
7
What’s in the box 7
Overview of your Digital PhotoFrame 9
Install the stand
Connect power
Connect a storage device
Turn on the PhotoFrame
Select on-screen language
11
11
11
12
12
13
4 Use your Digital PhotoFrame
14
Display photos 14
Browse and edit photos in thumbnail mode 14
Copy photos 16
Create and manage photo albums 18
Create a slideshow album 19
5 Use more of your Digital
Select slideshow sequence
Select a transition effect
Select slideshow frequency
Display collage photos
21
21
21
21
Select background
Adjust Brightness
22
23
Protect/Unprotect content of memory card 24
Set time and date 24
Set an event reminder
Set display Auto on/off
Set Demo
Set Auto Orientation
Set button sound
View status of the PhotoFrame
25
27
28
28
28
28
4
7 Guarantee and service
8 Frequently asked questions
31
32
EN 3
1 Important
Safety
Safety precautions and maintenance
•
•
•
•
•
•
•
Never touch, push, rub or strike the screen with hard objects as this may damage the screen permanently.
When the PhotoFrame is not used for long periods, unplug it.
Before you clean the screen, turn off and unplug the power cord. Only clean the screen with a soft, water-damp cloth.
Never use substances such as alcohol, chemicals or household cleaners to clean the PhotoFrame.
Never place the PhotoFrame near naked fl ames or other heat sources, including direct sunlight.
Never expose the PhotoFrame to rain or water. Never place liquid containers, such as vases, near the PhotoFrame.
Never drop the PhotoFrame. When you drop the PhotoFrame, it will be damaged.
Keep the stand away from cables.
Notice
Any changes or modifi cations made to this device that are not expressly approved by
Philips Consumer Electronics may void the user’s authority to operate the equipment.
Warranty
No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips
Service Centres and offi cial repair shops. Failure to do so shall void any warranty, stated or implied.
Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorised in this manual shall void the warranty.
4 EN
CE Declaration of Conformity
Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards
• EN60950:2000 (Safety requirement of
Information Technology Equipment)
•
•
EN55022:1998 (Radio Disturbance requirement of Information Technology
Equipment)
EN55024:1998 (Immunity requirement of
•
•
Information Technology Equipment)
EN61000-3-2:2000 (Limits for Harmonic
Current Emission)
EN61000-3-3:1995 (Limitation of Voltage
Fluctuation and Flicker) following provisions of directives applicable
73/23/EEC (Low Voltage Directive)
89/336/EEC (EMC Directive)
•
•
• 93/68/EEC (Amendment of EMC and Low
Voltage Directive) and is produced by a manufacturing organization on ISO9000 level.
FCC Notice (For U.S. and Canada)
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
Modifi cations
The FCC requires the user to be notifi ed that any changes or modifi cations made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
Canadian notice
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
The set complies with the FCC-Rules, Part
15. Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired operation.
FCC Declaration of Conformity
Declaration of conformity
Model number: 8FF3CDW/8FF3CME/
10FF3CDW/10FF3CME/10FF3CMI
Trade Name: Philips
Responsible Party:
Philips Accessories and Computer Peripherals
1881 Route 46 West Ledgewood, NJ 07852
End of life disposal
Disposal of your old product
Your product is designed and manufactured with highly quality material and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
End-of-Life Disposal
• Your new product contains materials that can be recycled and reused. Specialized
• companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.
Please fi nd out about the local regulations on how to dispose of your old monitor from your local Philips dealer.
(For customers in Canada and U.S.A.) •
Dispose of in accordance to local-state and federal regulations.
For additional information on recycling contact www.eia.org (Consumer Education Initiative)
EN 5
Recycling Information for Customers
Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization’s product, service and activities.
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At
Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.
There is currently a system of recycling up and running in the European countries, such as The
Netherlands, Belgium, Norway, Sweden and
Denmark.
In U.S.A., Philips Consumer Electronics North
America has contributed funds for the
Electronic Industries Alliance (EIA) Electronics
Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast
Recycling Council (NERC) - a multi-state non-profi t organization focused on promoting recycling market development - plans to implement a recycling program.
In Asia Pacifi c, Taiwan, the products can be taken back by Environment Protection Administration
(EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw.For help and service, please read the section of Service and Warranty or the following team of Environmental specialist can help.
6 EN
What’s in the box
PhotoFrame
Congratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.Philips.com/welcome.
Introduction
With Philips Digital PhotoFrame, you can display digital photos in high quality. You can place it on a fl at surface or hang it on the wall for a
•
• continuous display in the following three modes:
• Slideshow
Browse
Calendar
Mounting the PhotoFrame on the wall
For wall mounting, please use a 7.0*25*3.0 mm screw. For best result, screw over seven turns.
• Philips Digital PhotoFrame
• Stand
• AC-DC power adaptor
EN 7
• CD-ROM (Digital User Manual, Philips
PhotoFrame Manager and its User Manual)
• USB cable to PC*
Quick Start Guide
8 EN
Overview of your Digital
PhotoFrame
a
• Turn on/off the PhotoFrame b
•
•
•
Display slideshow
Change display mode
Zoom in a photo c
/ / /
• Select the previous/next/right/left item
• Crop photo
• Adjust time/date d OK
• Confi rm a selection e
•
•
•
•
•
Enter the main menu
Exit keypad
Enter/Exit Photo Menu
Stop Slideshow mode
Zoom out a photo f RESET
• Reset settings to factory default
EN 9
g
• Slot for a USB fl ash drive h
• Slot for a USB cable to PC i
CF
• Slot for a CF card j
SD/MMC/xD/MS/MS Pro Duo
• Slot for an SD/MMC/xD/MS/MS Pro
Duo card k
SD
• Slot for an SD card l DC
• Socket for the AC-DC power adaptor m Stand hole n Key hole
10 EN
Caution
• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial numbers. Find the model number and serial number of this PhotoFrame at the back or the bottom of your PhotoFrame.
Write these numbers here:
Model No. __________________________
Serial No. ___________________________
Install the stand
To place the PhotoFrame on a fl at surface, attach the supplied stand to the back of the
PhotoFrame.
1
Insert the stand into the PhotoFrame.
Connect power
Note
• When you position the PhotoFrame, ensure that the power plug and outlet are easily accessible.
1
Connect the power cord to the DC socket of the PhotoFrame and to a power supply socket.
2
Turn the stand clockwise 45 degrees to attach it to the PhotoFrame.
EN 11
Connect a storage device
•
•
•
•
•
•
•
•
You can display photos in one of the following storage device:
Compact Flash type I
Secure Digital (SD)
Secure Digital (SDHC)
Multimedia Card xD card
Memory Stick
Memory Stick Pro
Memory Stick Duo
•
•
Memory Stick Pro Duo
USB fl ash drive
1
For the USB slot, the CF slot, or the
SD/MMC/xD/MS/MS Pro Duo slot, insert a USB fl ash drive or a memory card fi rmly.
• For the SD slot, insert a memory card until the memory card locks in place.
»
After a few seconds, photos on the memory card are displayed in slideshow mode consecutively.
Tip
• If the memory card is empty or damaged, “[Sorry,
Card/Device error!]” is displayed.
Remove a storage device
•
•
For the USB slot, the CF slot, or the
SD/MMC/xD/MS/MS Pro Duo slot, pull the memory card or USB fl ash drive out.
For the SD slot, push the memory card again to unlock and then pull out the memory card.
Tip
• If a 2G xD card is used with a USB drive, the system may be unstable. Remove the xD card or the USB fl ash drive.
Turn on the PhotoFrame
•
•
1
Press and hold for more than 1 second.
»
Photos are displayed in Slideshow mode in the following priority:
»
»
»
»
»
SD/MMC/xD/MS/MS Pro Duo slot
SD slot
CF slot
slot
PhotoFrame
To turn off the PhotoFrame, press and hold
for more than 2 seconds.
To access the main menu, press .
12 EN
Tip
•
•
You can only turn off the PhotoFrame after all copy and save actions are complete.
Before you remove a storage device, always wait until all photos appear on the display.
Select on-screen language
You can set up the on-screen language.
1
In the main menu, select [Setup] and press
OK to confi rm.
2
Select confi rm.
3
Select confi rm.
4
Select a language and press OK to confi rm.
Tip
• If you want to set up the language after every poweron, you can select [Power on Setting]>[On] in the
[Language Setting] menu.
EN 13
4 Use your Digital
PhotoFrame
Display photos
1
In the main menu, select [Photos], then press OK to confi rm.
»
Available photo sources are displayed.
Tip
•
•
•
In Slideshow mode, the PhotoFrame displays all photos automatically.
In Browse mode, the PhotoFrame displays the current photo and you can press / to display the next/ previous photo.
In Calendar mode, the PhotoFrame displays photos with the calendar. If you set the current time and a reminder, the PhotoFrame also displays the current time and reminder time.
Browse and edit photos in thumbnail mode
You can browse many photos in thumbnail mode.
1
In the main menu, select [Photos], then press OK to confi rm.
• In Slideshow or Browse mode, you can press OK to browse photos in thumbnail mode.
2
Select a photo source.
3
Select an album and press OK to confi rm.
»
Photos in the album are displayed in thumbnail mode.
2
Select a photo source and press OK to confi rm.
3
Select an album and press OK to confi rm.
»
Photos in the album are displayed in thumbnail mode.
•
•
4
Press mode.
In Slideshow mode, press / to display the next/previous photo.
In Slideshow mode, you can press to toggle between Slideshow, Browse, and
Calendar mode.
»
Press / / / to toggle between photos.
4
Press
»
A larger version of the selected photo is displayed on the right of the screen.
14 EN
»
To select all photos displayed on the screen, you can press OK for more than 1 second.
»
If the number of photos in the album is over 16, you can press / to move to the next/previous 16 photos.
5
Press manage the photo.
3
Press
Select a photo frame
1
In press OK to confi rm.
2
Select a frame.
Delete a photo
1
In
Slideshow], then press OK to confi rm.
2
Select
Select a photo effect
1
In then press OK to confi rm.
2
Select an effect.
3
Press
Rotate a photo
1
In
OK to confi rm.
2
Select an orientation.
EN 15
3
Press
Zoom and crop a photo
1
In then press OK to confi rm.
Tip
•
•
•
To retain image quality, zoom and crop the image before you store the image in the PhotoFrame.
For 8FF3CDW/8FF3CME: Zoom and crop is only applied to photos over 800*600 pixel.
For 10FF3CDW/10FF3CME/10FF3CMI: Zoom and crop is only applied to photos over 800*480 pixel.
Copy photos
Copy photos to and from the
PhotoFrame
1
Insert a storage device.
2
Press storage device.
2
Press
• Press to zoom out a photo.
3
Press
4
Press
5
Select
3
Press
4
Select an album and press OK to confi rm.
»
Photos in the album are displayed in thumbnail mode.
16 EN
5
Select
6
Press
7
Select
Tip
• When there is not enough memory to store more images, an error message appears.
Copy photos to and from a PC/Mac
Note
• Always leave the AC connected when you copy or transfer photos to and from a PC/Mac.
You can copy photos from Windows PC
(XP & Vista) or Mac System (OS X) to the PhotoFrame or a memory card on the
PhotoFrame.
1
Connect the supplied USB cable to the socket on the PhotoFrame and to the USB slot on a PC/Mac.
8
Select an album and press OK to start to copy.
2
Select photos in an album on a PC/Mac.
3
Copy the photos to an album of the
PhotoFrame or a memory card.
4
Disconnect the USB cable.
»
The PhotoFrame automatically restarts.
EN 17
Tip
•
•
You can also copy photos from the PhotoFrame or a memory card on the PhotoFrame to a PC/Mac.
All photos processed and copied to the PhotoFrame may be resized for optimal display on the PhotoFrame and to save storage space.
Create and manage photo albums
Create an album
You can create an album on the PhotoFrame and on a storage device available on the
PhotoFrame.
1
In the main menu, select [Photos], then press OK to confi rm.
2
Select a photo source and press OK to confi rm.
4
Enter the new album name (up to 24 characters).
•
•
Select an alphabet and press OK to confi rm.
When the album name is complete, select Enter and press OK to confi rm.
Rename an album
1
Select an album.
2
Press press OK to confi rm.
»
A keypad is displayed.
3
Select confi rm.
»
A keypad is displayed.
3
Enter the new album name (up to 24 characters).
•
•
Select an alphabet and press OK to confi rm.
When the album name is complete, select Enter and press OK to confi rm.
18 EN
Delete an album
1
Select an album.
2
Press
3
Select confi rm.
4
Select
Create a slideshow album
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select confi rm.
3
Select a photo source and press OK to select [New Slideshow].
4
Press
»
A keypad is displayed.
1
In the main menu, select [Slideshow]>[Sett ings]>[Slideshows]>a photo source.
2
Press
»
An album list is displayed.
3
Select an album in the list to be added.
4
Press
5
Select and press OK to confi rm.
6
Select an album and press OK to confi rm.
»
The album is added to/deleted from the slideshow.
5
Enter the new album name (up to 24 characters).
•
•
Select an alphabet and press OK to confi rm.
When the album name is complete, select Enter and press OK to confi rm.
Add/Remove an album to/from the slideshow
You can add an album to slideshow and you can also remove an album from slideshow.
EN 19
Rename a slideshow album
1
In
Slideshow], then press OK to confi rm.
»
A keypad is displayed.
2
Enter the new album name (up to 24 characters).
• Select an alphabet and press OK to
• confi rm.
When the album name is complete, select Enter and press OK to confi rm.
Delete a slideshow album
1
In
Slideshow], then press OK to confi rm.
2
Select
20 EN
5 Use more of your Digital
PhotoFrame
Select slideshow sequence
You can display the slideshow in sequence or randomly.
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select
OK to confi rm.
3
Select
• To display the slideshow randomly, select [Random].
4
Press
Select a transition effect
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select confi rm.
Tip
• If you select [Random] effect, all available transition effects randomly apply to all slideshow photos.
Select slideshow frequency
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select confi rm.
3
Select a transition time.
• [<5 Seconds] (default)
4
Press
Display collage photos
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select
3
Select a transition effect and press OK to confi rm.
EN 21
3
Select
4
Select a layout.
5
Press
6
Press options.
7
Select a photo from a photo source.
8
Repeat steps 5 to 7 until all photos are selected for the format.
Tip
•
•
If you select a collage layout, the PhotoFrame displays a static collage and the slideshow mode is deactivated.
If you select [Random] format, the PhotoFrame automatically does the random collage base on the optimal layout of photos and displays the collages in slideshow mode.
Select background
You can select the background border colour for photos that are smaller than the
PhotoFrame display.
1
In the main menu, select [Slideshow], then press OK to confi rm.
2
Select to confi rm.
9
Press
• To stop Collage display, select
[Slideshow]>[Collage]>[[Single]and press OK to confi rm.
3
Select a background colour/ [Auto fi t]/
[RadiantColor] and press OK to confi rm.
»
If you select a background colour, the
PhotoFrame displays a photo with a background colour or black bar.
22 EN
»
If you select [Auto fi t], the
PhotoFrame extends a photo to fi ll the screen with picture distortion.
Adjust Brightness
You can set the brightness of the PhotoFrame to achieve the best photo view.
1
In the main menu, select [Setup], then press OK to confi rm.
2
Select confi rm.
»
If you select [RadiantColor], the
PhotoFrame extends the colour on the edges of a photo that is smaller than the full screen to fi ll the screen without black bars or aspect ratio distortion.
3
Press
EN 23
Set time and date
1
In select [Set time].
4
Press
Protect/Unprotect content of memory card
You can enable the delete function on a storage device available on the PhotoFrame. To avoid deleting photos on a storage device, you can also disable the delete function on a storage device.
1
In the main menu, select [Setup], then press OK to confi rm.
2
Select confi rm.
3
Select and press OK to confi rm.
2
Press
3
Press current time of the PhotoFrame.
4
Press
5
Repeat steps 1 to 4 to set the current date of the PhotoFrame.
Set time and date format
You can set the time and date format of the
PhotoFrame.
1
In select [Set time format], then press OK to confi rm.
2
Press
• [12 Hour]
• [24 Hour]
3
Press
4
Repeat steps 1 to 3 to set the date format.
• [DD/MM/YY]
• [MM/DD/YY]
Set show clock
You can use the PhotoFrame as a clock.
24 EN
1
In select [Show clock], then press OK to confi rm.
2
Press
• [No clock]
• [In slideshow]
• [Both]
3
Press
Set an event reminder
You can create a reminder for a special event, and you can also select a photo to be displayed at a selected time.
Tip
• You should set the current time and date of the
PhotoFrame before you set an event reminder.
4
Enter the new album name (up to 24 characters).
• Select an alphabet and press OK to
• confi rm.
When the album name is complete, select Enter and press OK to confi rm.
Set event time and date
1
In select a reminder, then press OK to confi rm the selection.
Create an event reminder
1
In the main menu, select [Setup], then press OK to confi rm.
2
Select confi rm.
3
Select confi rmfi rm.
»
A keypad is displayed.
2
Select
3
Press and press OK to confi rm.
4
Repeat steps 2 to 3 to set the date.
EN 25
Tip
• When the reminder alerts, you can press any button once to stop the reminder. To stop the snooze function, press the same button twice.
Set on a reminder
1
In select a reminder, then press OK to confi rm.
2
Select
3
Select
• To set the reminder off, select [Off].
4
Press
Delete a reminder
1
In select a reminder, then press OK to confi rm.
2
Select confi rm.
3
Select
4
Press
Select a reminder photo
You can select a photo for a reminder. Each event reminder activates the latest defi ned photo only. If there is no defi ned photo, the reminder takes the default Philips start up photo.
1
Press
[Setup]>[Options]>[Event Reminder]>a reminder, then press OK to confi rm.
2
Select
3
Select a photo source and press OK to confi rm.
»
Photos in the album are displayed in thumbnail mode.
• Press / / / to toggle between photos.
26 EN
4
Press
Set snooze
•
1
Press
[Setup]>[Options]>[Event
Reminder]>[Snooze], then press OK to confi rm.
2
Select one of the following options and press OK to confi rm.
• [Off]
•
•
[10 Minutes]
[60 Minutes]
To cancel the snooze function, select [Off].
Set display Auto on/off
You can confi gure the time for the PhotoFrame to turn on or off the display automatically.
You can also adjust the brightness setting for the PhotoFrame to turn on or off the display according to the brightness of environment.
Tip
• You should set the current time and date of the
PhotoFrame before you set the Auto on/off functions.
6
Press
Tip
•
•
•
•
Weekday: Monday 00:00 to Friday 23:59
Weekend: Saturday 00:00 to Sunday 23:59
If [Time]>[Set On/Off]>[On] is selected, the lighting
Smart Power function is disabled.
If you press any button at the Event Reminder time, the PhotoFrame alerts the reminder and then returns to the Smart Power function 5 minutes later. The
PhotoFrame does not return to the Smart Power function when the sleep time has happened or the light is too strong.
Set the display auto on/off by lighting
You can use the default brightness of ambient lighting condition and you can also set the brightness of ambient lighting condition.
1
Press
[Setup]>[Options]>[Smart power]>[Lighting], then press OK to confi rm.
2
Select
Set display auto on/off by time
1
In the main menu, select [Setup]>[Smart power], then press OK to confi rm.
2
Select
3
Select confi rm.
• To enable the Smart Sleep function at weekends, select [Weekend].
4
Select to confi rm.
• To cancel [Auto on]/[Auto off], select
[Set On/Off]>[Off].
5
Press auto-on function.
• To use the default setting, select [Default] and press OK to confi rm.
3
Select confi rm.
»
The PhotoFrame wakes up when the brightness of environment reaches the
[On - Set current] brightness.
EN 27
• To have the PhotoFrame sleep at the set brightness of ambient lighting condition, select [Off - Set current].
Tip
• If the [On - Set current] brightness level is too close with the [Off - Set current] brightness level, the display
Auto on/off function may not work.
Disable Smart Power
1
In the main menu, select
[Setup]>[Options]>[Smart power]>[Off].
2
Press
Set Demo
1
In the main menu, select [Setup]>
[Options]>[DEMO].
2
Press
Set Auto Orientation
You can display photos in the correct orientation depending the horizontal/vertical orientation of the PhotoFrame.
1
In the main menu, select
[Setup]>[Options]>[Auto Orientation], then press OK to confi rm.
2
Select function.
• To set off Auto Orientation function, select [Disable].
3
Press
Set button sound
1
In the main menu, select
[Setup]>[Options]>[Set Beep], then press
OK to confi rm.
2
Select
• To turn off the button sound, select
[Off].
3
Press
View status of the
PhotoFrame
You can fi nd the free space, connected media, and the fi rmware version of the PhotoFrame.
1
In the main menu, select [Setup]>[Options
]>[Status], then press OK to confi rm.
»
The status of the PhotoFrame is displayed on the right of the screen.
28 EN
6 Product information
Note
• Product information is subject to change without prior notice.
10FF3CDW/10FF3CME/
10FF3CMI
•
•
•
•
Picture/Display
• Viewing angle: @ C/R > 10, 120º (H)/110º
(V)
Lifetime, to 50% brightness: 20000 hr
Aspect ratio: 16:9
Panel resolution: 800 x 480
Brightness: 250 cd/m²
• Contrast ratio (typical): 300:1
Connectivity
USB: USB 2.0 Host, USB 2.0 Slave
Storage Media
• Memory Card Types:
• Compact Flash type I
•
•
•
•
Secure Digital (SD)
Secure Digital (SDHC)
Multimedia Card xD card
•
•
•
•
•
•
Memory Stick
Memory Stick Pro
Memory Stick Duo
Memory Stick Pro Duo
USB: USB fl ash drive
Built-in memory capacity: 128MB (for
510-1020 photos, around 26MB used by system)
Dimensions
• Set dimensions with stand
•
(W x H x D): 284.6 x 195.1 x 35.4 mm/
11.20 x 7.68 x 1.39 inch
Weight (Main unit): 0.718 kg/1.58 lb
•
•
•
•
• Temperature range (operation): 0°C
- 40°C/32°F - 104°F
Temperature range (storage): -10°C - •
60°C/14°F - 140°F
Power
Input: 100 - 240 V 50/60 Hz 0.6 A
Output: 9 V 2.0 A
Effi ciency level: IV
Consumption: System on 5.43 W
•
•
•
•
•
• Power mode supported: AC powered
Accessaries
AC-DC Adaptor
USB cable to PC
Stand
Quick start guide
CD-ROM, including
• User Manual
• Philips PhotoFrame Manager
(software and manual)
Convenience
• Card Reader: Built-in (3x)
• Photo format supported: JPEG photo (Up to 10MB JPEG fi les, Up to 20 Megapixels)
•
•
Placement supported: Photo auto orientation, Landscape, Portrait
Buttons and controls: 3 buttons, 4-way navigation key and enter
•
•
•
•
Playback mode: Full screen browse,
Slideshow, Thumbnail browse
Album management: Create, Delete, Edit,
Rename
Photo edit: Copy, Delete, Rotate, Zoom & crop
Photo effects: Black and White, Frames,
Sepia, Radiant colour
•
•
•
•
Slideshow management: Create slideshow,
Delete slideshow, Rename slideshow
Slideshow setting: Random, Sequential,
Transition effect, Collage (multiple pictures)
Screen background: Black, White, Gray,
Auto-fi t
Setup function: Brightness adjustment,
Language, Status, Event reminder with snooze, Beep on/off, Set time and date,
Clock display enable/disable, Photo source,
Auto on/off, Slideshow
EN 29
•
•
•
•
•
•
System status: Firmware version, Remaining memory
Connected media status: Connected media,
Plug & Play Compatibility: Windows Vista,
Windows 2000/XP or later, Mac OS X
Regulatory Approvals: BSMI, C-Tick, CCC,
CE, FCC, GOST, PSB, Switzerland, UL/cUL
Other convenience: Kensington lock compatible
On-Screen Display languages: English,
Spanish, German, French, Italian, Dutch,
Danish, Russian, Simplifi ed Chinese,
Traditional Chinese, Portuguese
•
•
•
•
• Temperature range (operation): 0°C
- 40°C/32°F - 104°F
Temperature range (storage): -10°C - •
60°C/14°F - 140°F
Power
Input: 100 - 240V/ 50-60 Hz 0.6 A
Output: 9V 2.0 A
Effi ciency level: IV
Consumption: (System on) 4.63 W
•
•
•
•
•
• Power mode supported: AC powered
Accessaries
AC-DC Adaptor
USB cable to PC
Stand
Quick start guide
CD-ROM, including
• User Manual
• Philips PhotoFrame Manager
(software and manual)
8FF3CDW/8FF3CME
•
•
•
•
Picture/Display
• Viewing angle: @ C/R > 10, 130º (H) /
110º (V)
Lifetime, to 50% brightness: 20000 hr
Aspect ratio: 4:3
Panel resolution: 800 x 600
Brightness: 250 cd/m²
• Contrast ratio (typical): 300:1
Connectivity
• USB: USB 2.0 Host, USB 2.0 Slave
Storage Media
• Memory Card Types:
• Compact Flash type I
•
•
•
•
Secure Digital (SD)
Secure Digital (SDHC)
Multimedia Card xD card
•
•
Memory Stick
Memory Stick Pro
• Memory Stick Duo
USB: USB fl ash drive •
• Built-in memory capacity: 128MB (for
510-1020 photos, around 26MB used by system)
Dimensions
• Set dimensions with stand
(W x H x D): 222.6 x 182.2 x 33.2 mm/
•
8.76 x 7.17 x 1.31 inch
Weight (Main unit): 0.34 kg/0.75 lb
30 EN
service
One Year Limited Warranty (for US and
Canada only)
Philips warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifi cations and warnings, for a period of one year from the date of purchase. This warranty extends only to the original purchaser of the product, and is not transferable. To exercise your rights under this warranty, you must provide proof of purchase in the form of an original sales receipt that shows the product name and the date of purchase. For customer support or to obtain warranty service, please visit our website www.philips.com/welcome or
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477) IN U.S.A.,
Puerto Rico, or U.S. virgin islands. 1-800-
661-6162 (French speaking), 1-888-PHILIPS
(1-888-744-5477) (English or Spanish speaking) in Canada. THERE ARE NO OTHER EXPRESS
OR IMPLIED WARRANTIES. Philips liability is limited to repair or, at its sole option, replacement of the product. Incidental, special and consequential damages are disclaimed where permitted by law. This warranty gives you specifi c legal rights. You may also have other rights that vary from state to state.
Banned Substance Declaration
This product comply with RoHs and Philips
BSD (AR17-G04-5010-010) requirements.
EN 31
8 Frequently asked questions
Is the LCD screen touch-enabled?
The LCD screen is not touch-enabled. Use the buttons on the back to control the PhotoFrame.
Can I switch different slideshow photos by using different memory cards?
Yes. When a memory card is connected to the
PhotoFrame, it displays photos stored on that specifi c card in slideshow mode.
Will the LCD screen be damaged, if I keep showing the same photo for a long time?
No. The PhotoFrame can display the same photo continuously for 72 hours without any damage to the LCD screen.
Can I use the PhotoFrame to delete photos on a memory card?
Yes, it supports operations to delete photos on external devices such as a memory card.
Can I print photos from the PhotoFrame?
No, it does not support direct photo printing.
Can I use the PhotoFrame during its Auto-off periods?
Yes. Press any control button to bring the system back to ON status.
Why does not my PhotoFrame show some of my photos?
Digital cameras take photos and store them in JPEG format according to camera industry standards. The PhotoFrame is designed to show photos following the same industry standards.
Images, such as web images, scanned images, or photos in RAW format from professional cameras, are not stored according to camera industry standards and therefore cannot be correctly displayed on the PhotoFrame. Use
PC applications to convert such images into standard JPEG format for the PhotoFrame.
Why does not my PhotoFrame go into Autooff status after I set it?
First, make sure you set the current time,
Auto-off time, and Auto-on time correctly. The
PhotoFrame automatically turns off its display
32 EN exactly at the Auto-off time. If the time has already passed for the day, it starts to enter
Auto-off status at the specifi ed time from the next day.
I try to upload pictures from my PC to a memory card, which I then insert into the
PhotoFrame. However, the PhotoFrame does not show the photos. What can I do?
Load all photos you want to upload to the
PhotoFrame in the root directory of your memory card. Power off your PhotoFrame, insert the memory card, and then restart the
PhotoFrame. After a few seconds, all photos in the root directory of the memory card will be automatically added to the PhotoFrame.
The root directory on memory card will NOT be emptied after this operation. Note that this operation does not apply to photos in subdirectories.
Does the PhotoFrame support progressive
JPEG?
No, it does not support progressive JPEG. If you insert a memory with progressive JPEG fi le, the
PhotoFrame does not show.
Why I cannot delete one of the pre-load image (baby)?
The PhotoFrame actually has limited internal memory that only can save up to 4 photos
(after the PhotoFrame resizes the photos to fi t into internal memory).
The PhotoFrame gives users the fl exibility to delete 3 photos and upload another 3 photos but protects only 1 original Philips photo
(Philips brand with baby).
The PhotoFrame gives users more fl exibility to delete all pre-load images via updating fi rmware.
The new fi rmware is available in end of July
2008. You can go to www.philips.com/support for downloading new fi rmware to do so.
When I connect to PC, why I cannot see the internal memory but need to use other memory card to upload photos into internal memory?
The PhotoFrame actually has limited internal memory that only can save up to 4 photos
(after the PhotoFrame resizes the photos to fi t into internal memory).
This is done to prevent the PhotoFrame from being formatted by PC. You can still upload photos into internal memory via other memory cards.
Why the photos distort?
If the format of picture is different as the
PhotoFrame (for example,if you set “auto fi t” on the PhotoFrame, a 4x3 photo input into a (16x9) PhotoFrame may distort. You can set a background colour or set RadiantColor.
A background colour keeps the correct aspect ratio but may have black bar (or the background colour you select). we recommend you to select RadiantColor to keep the correct aspect ratio with the exterior of photo colour
RadiantColor does give you the best viewing experience. Users can go to: Main menu>
Slideshow>Background>RadiantColor/Auto fi t/black/red/gray.
What is the difference between background,
Auto fi t and RadiantColor?
If the picture format is different as the
PhotoFrame, the PhotoFrame provides several solutions for it.
1. Auto fi t: it is just like wide screen TV, the
PhotoFrame extends the photo to fi ll fully the screen with picture distortion.t
2. Background colour: the PhotoFrame displays a photo without distortion but with black bar or a selected background colour.
3. RadiantColor: the PhotoFrame displays a photo without distortion with RadiantColor.
RadiantColor is a new technology that the system analyses the colour of picture edge and extend the colour to fi ll the screen. This does improve the viewing experience. Users can go to: Main menu>Slideshow>Backgroun d>RadiantColor/Auto fi t/black/red/gray.
When I connect to both USB fl ash driver and
PC, why I cannot see USB fl ash in PC?
That is the limitation of the PhotoFrame. If you want to transfer photos from PC to USB fl ash driver, we recommand that you do copy actions on PC.
Does the PhotoFrame support CF II?
No, it does not support CF II.
Why Auto Dim does not work?
1. Set up the time fi rst.
2. Go to the main menu --> Auto dim -->
Auto dim start (this is the time you want the display start to work) and then click OK to confi rm.
3. Set Auto Dim end time (this is the time you want the display to turn off) and press OK to confi rm.
4. Auto dim timer select “ON” and press OK to confi rm.
Why when I insert photos I got from PC, the
PhotoFrame does not show them?
This may be because the fi le is progressive JPEG which mainly from internet. The PhotoFrame does support progressive JPEG.
EN 33
34
© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
advertisement
Key Features
- 8" LCD
- 4:3 frame ratio
Related manuals
advertisement
