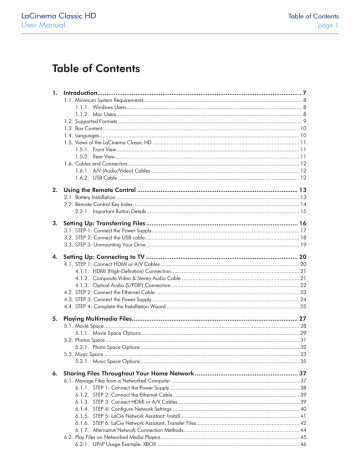

Table of Contents
page 1
Table of Contents
LaCinema Classic HD
User Manual
Table of Contents
page 2
LaCinema Classic HD
User Manual
Table of Contents
page 3
LaCinema Classic HD
User Manual
Foreword
page 4
Copyrights
Copyright © 2009 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.
Trademarks
Apple, Mac, and Macintosh are registered trademarks of Apple Inc. Microsoft, Windows XP, Windows Vista, and Windows 7 are registered trademarks of Microsoft Corporation. Other trademarks mentioned in this manual are the property of their respective owners.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Changes
The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
FCC Statement
LaCinema Classic HD
Tested to comply with FCC standards for home or office use
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following conditions:
1. The devices may not cause harmful interference
2. The devices must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by LaCie could void the FCC & Industry
Canada regulations and negate your authority to operate the product.
Canada Compliance Statement
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Manufacturer’s Declaration for CE Certification
We, LaCie, solemnly declare that this product conforms to the following European standards: Class B EN60950, EN55022,
EN55024, EN61000-3-2: 2000,
EN61000-3-3: 2001
With reference to the following conditions: 73/23/EEC Low Voltage Directive;
89/336/EEC EMC Directive
CAUTION: Modifications not authorized by the manufacturer may void the user’s authority to operate this device.
CAUTION: The LaCinema Classic HD’s warranty may be void as a result of the failure to respect the precautions listed above.
NOTE: The main cable must be in conformity with CEI 60227 or CEI 60245 and the type of plug must match the standards in the country of use.
LaCinema Classic HD
User Manual
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designed collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
CAUTION: The LaCinema Classic HD’s warranty may be void as a result of the failure to respect the precautions listed above.
Health and Safety
Precautions
■ Only qualified persons are authorized to carry out maintenance on this device.
■ Read this User Manual carefully and follow the correct procedure when setting up the device.
■ Do not open a disk drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, shortcircuiting or dangerous emissions. The disk drives shipped with your LaCinema
Classic HD contain no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified
LaCie Technical Support representative.
■ Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing liquids on the LaCinema Classic HD, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.
■ Make sure that the computer and
LaCinema Classic HD are electrically grounded. If the devices are not grounded, there is an increased risk of electrical shock. Power requirements
100-240 V~, 1.5 A, 60-50 Hz, (Supply voltage fluctuations not exceeding
± 10% of the nominal, transient overvoltages according to over-voltage category II).
General Use Precautions
■ Do not expose the LaCinema Classic
HD to temperatures outside the range of 5° C to 30° C (41° F to 86° F); or to operational humidity beyond 5-80%, non-condensing, or non-operating humidity beyond 10-90%, non-condensing. Doing so may damage the LaCinema Classic HD or disfigure its casing.
Avoid placing your LaCinema Classic
HD near a source of heat or exposing it to sunlight (even through a window). Inversely, placing your LaCinema Classic
HD in an environment that is too cold or humid may damage the unit.
■ Always unplug the LaCinema Classic
HD from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.
■ Use only the power supply shipped with the device.
■ Do not place objects on top of the
LaCinema Classic HD or use excessive force on it.
■ Never use excessive force on your
LaCinema Classic HD. If you detect a problem, see the Troubleshooting section in this manual.
CAUTION: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used.
Foreword
page 5
LaCinema Classic HD
User Manual
Operating Environment Temperatures
■ Do not expose the LaCinema Classic HD to temperatures outside the range of 5° C to 30° C (41° F to 86° F). As high end audio/video appliance, the LaCinema Classic HD has been designed with an efficient ventilation system. Allow 5 cm of clearance for airflow on all sides of the LaCinema Classic to prevent
■ Do not stack the LaCinema Classic HD on another audio/video appliance such as a TV, VCR or DVD player. Other audio/video appliances require sufficient airflow and carry the same precau-
tions of use. See Fig. 02 and Fig. 03 .
IMPORTANT INFO: Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help prevent the loss of your data, LaCie highly recommends that you keep TWO copies of your data; one copy on your external hard disk, for instance, and a second copy either on your internal hard disk, another external hard disk or some other form of removable storage media. LaCie offers a complete line of CD and DVD drives. If you would like more information on backup, please refer to our website.
IMPORTANT INFO: 1GB = 1,000,000,000 bytes. 1TB =
1,000,000,000,000 bytes. Once formatted, the actual available storage capacity varies depending on operating environment (typically 5-10% less).
Fig. 01
Fig. 02
5 cm
5 cm
5 cm
Foreword
page 6
Fig. 03
LaCinema Classic HD
User Manual
1. Introduction
Congratulations on the purchase of your new LaCinema Classic
HD! The LaCinema Classic HD plugs directly into a wide array of audio/visual equipment for instant playback of stored home movies, music or photos. And with high-quality video and quality audio, there’s no compromise on performance.
To get started, simply connect the LaCinema Classic HD to your TV and use the included remote to easily navigate through the menus, called Spaces , to listen to music, view photos or watch High definition movies.
The LaCinema Classic HD allows you to choose from MPG, AVI,
MP4, MKV, WMV, ISO, VOB, IFO, ASF, TS, TP, TRP, MTS, M2TS, and DAT video formats for easy playback.
Introduction
page 7
Quick Links
Click a topic:
■
Setting Up: Transferring Files
■
■
LaCinema Classic HD
User Manual
1.1. Minimum System Requirements
1.1.1. Windows Users
■ 500MHz Intel Pentium II processor or later
■ Windows XP, Vista, or Windows 7
■ 256MB RAM
■ USB interface port
■ Internet connection (for downloading updates)
1.1.2. Mac Users
■ G5 or later, or Intel Core Duo
■ Mac OS X 10.4.9
■ 256MB RAM
■ USB interface port
■ Internet connection (for downloading updates)
Introduction
page 8
LaCinema Classic HD
User Manual
1.2. Supported Formats
Video Codecs
■ MPEG-1
■ MPEG-2 / HD
■ MPEG4
■ DivX / HD
■ Xvid
■ H.264 HD
■ WMV9 HD
■ VC-1
Video File Types (Containers)
■ AVI
■ MP4
■ MKV
■ WMV
■ DivX
■ DAT
■ MOV
■ MPEG
■ VOB
■ ASF
■ TS
■ TP
■ TRP
■ M2TS
■ DVR-MS
■ ISO*
■ Video_TS*
External Hard Drive File Systems
■ NTFS ■ FAT32 ■ HFS+ (not
Journaled)
Subtitles
■ SRT ■ SSA ■ SUB
■ SMI
Playlists
■ M3U
■ PSB
Audio File Types (Containers)
■ MP3
■ WMA
■ WAV/PMC/
LPMC
■ AAC**
■ OGG
■ FLAC
■ AC3
■ MP4
■ MKA
■ PLS
■ ASS
■ WPL
Dolby Digital
■ Two channels only***
DTS
■ Multichannel decoding via optical S/PDIF and HDMI to home amplifier
Introduction
page 9
Photo File Types
■ PNG
■ GIF
■ BMP
■ JPEG (except
Progressive
JPEG)
Video Outputs
■ Composite (CVBS)
Audio Outputs
■ Optical
■ TIFF
■ HDMI 1.3
■ Stereo
* DVD Video function is supported via VOB / IFO (Video_TS folder).
If the drive is formatted in FAT32, DVD ISO file size cannot exceed
4GB due to file system format limitation.
** Supports iTunes encoded (m4a).
*** For audio with more than 2 channels, connect the product to a digital home receiver. The audio is passed through the coaxial connection (see section
4.1.3. Optical Audio (S/PDIF) Connection ).
TECHNICAL NOTE: A container, such as AVI or MOV, is a file format that defines how the data stream is stored. They contain data that has been compressed using a codec. For a file to play properly on your LaCinema Classic HD, both its codec and container type must be supported.
TECHNICAL NOTE: You can download third party applications that will help you to identify a file’s codec, container, and other information. LaCie suggests the free application Media Info.
LaCinema Classic HD
User Manual
1.3. Box Content
Your LaCinema Classic HD package contains the system tower and an accessories box containing the items listed below.
1. LaCinema Classic HD
2. Remote control
3. 2 x AAA batteries
4. Video composite + stereo cable
5. HDMI cable
6. USB cable
7. External power supply
8. Quick Install Guide
9. LaCie Utilities CD-ROM (with detailed User Manual and software)
IMPORTANT INFO: Please save your packaging. In the event that the drive should need to be repaired or serviced, it must be returned in its original packaging.
1.4. Languages
Supported Languages
❖ Chinese (Simplified)
❖ Dutch
❖ French
❖ Greek
❖ Japanese
❖ Polish
❖ Russian
❖ Swedish
❖ Chinese (Traditional)
❖ English
❖ German
❖ Italian
❖ Korean
❖ Portuguese
❖ Spanish
Please check the LaCie website for a complete list of supported languages.
Introduction
page 10
Quick Install Guide
LaCinema
C L A S S I C HD
Genie Backup Assistant for Windows XP, Vista
Intego Backup Assistant for Mac OS 10.4.9 or higher
PV TwonkyMedia Server 5.0
for Windows XP, Vista
Mac OS 10.3.9 or higher
User Manual
Manuel d’utilisation
Guida per l'utente
Benutzerhandbuch
Manual de Usuario
© 200
9 LaCie, a ll rights reserved. 7132
55 0
903
13
LaCinema Classic HD
User Manual
1.5. Views of the LaCinema
Classic HD
1.5.1. Front View
1. Infrared receiver – Receives the infrared signal from the remote control. Make sure the receiver is not obstructed.
2. Disk status LED – Flickering light indicates disk activity.
3. USB expansion port – Connect a USB flash disk, hard disk or card reader to access its multimedia files directly from your TV.
1.5.2. Rear View
1. Power connector – Connect the power supply
2. 10/100 Mbits Ethernet connector – Connect to your home network via an Ethernet cable to your router
3. USB 2.0 host – Connect a USB Camera, Hard Disk or USB flash key/drive
4. USB 2.0 device – Connect to your PC or Mac to copy files to the
LaCinema Classic HD’s internal storage
5. HDMI – Connect to a High Definition flatscreen TV or video projector
6. Video out (yellow) – Connect to any TV (CRT)
7. Optical audio out – Connect to digital home amplifier
8. Audio (white and red) – Connect to the audio input of a standard TV or stereo speakers
Fig. 04
Fig. 05
Introduction
page 11
LaCinema Classic HD
User Manual
Introduction
page 12
1.6. Cables and Connectors
1.6.1. A/V (Audio/Video) Cables
These cables provide the audio and video signals to your stereo and TV. The LaCinema Classic HD supports the following standards:
1. Composite video/stereo audio – This is the most standard video connection (yellow) as well as left (white) and right (red) stereo audio inputs. If your TV only has a SCART connector, you can purchase a SCART-Composite adapter from your local retailer.
2. HDMI (High-Definition Multimedia Interface) – This is the best audio/video method for connecting the LaCinema Classic to
HDTVs.
3. Optical Audio (S/PDIF) (not included) – This connection allows you to connect your LaCinema Classic HD to a digital amplifier.
1.6.2. USB Cable
USB is a serial input/output technology for connecting peripheral devices to a computer or to each other. Hi-Speed USB 2.0 is the latest implementation of this standard, and it provides the necessary bandwidth and data transfer rates to support high speed devices such as hard drives, CD/DVD drives and digital cameras.
NOTE: Your LaCinema Classic HD is shipped with a Hi-Speed USB
2.0 cable to be used to connect the product to a PC or Mac (this cable should be connected to the rear (device) port). If you want to connect a USB peripheral (digital camera, USB drive, etc.) to the
LaCinema Classic HD, use the USB cable that shipped with that product and connect it to the front (host) port.
TECHNICAL NOTE: The included (device) cable will also work when connected to a USB port, but drive performance will be limited to USB 1.1 transfer rates. To achieve Hi-Speed USB 2.0 data transfer rates you need to be connected to a Hi-Speed USB 2.0 host interface. Otherwise, transfer rates will be limited to USB 1.1 speeds.
Fig. 06
High
Definition
Standard
Definition
Fig. 07 - USB cable ends
Connection
HDMI
Composite
Maximum
Resolution
1080p
576p
LaCinema Classic HD
User Manual
2. Using the Remote Control
Some of the buttons of the remote control have different functions or no function at all depending on the type of file you are viewing. This chapter discusses the button functions for each type of file (movies, photos and music) and battery installation.
2.1. Battery Installation
The remote control uses two AAA batteries. The batteries are not pre-installed, so you will need to install them before you can use the remote control.
To install the batteries:
1. Remove the battery compartment cover ( Fig. 08 ).
2. Load the batteries onto the battery compartment. Position the batteries so that the “+” symbols on the batteries face the same direction as the “+” symbols on the battery compartment.
3. Slide the battery compartment cover back into the remote.
IMPORTANT INFO: If you will not be using the remote control for an extended period of time, LaCie recommends that you remove the batteries.
IMPORTANT INFO: The remote control must be pointed at the infrared receiver on the LaCinema Classic HD (
away than of 23 feet (7 meters).
Fig. 08
Fig. 09
Remote control receiver
Using the Remote Control
page 13
LaCinema Classic HD
User Manual
2.2. Remote Control Key Index
The LaCinema Classic HD’s remote control allows you to control the
LaCinema Classic HD while its connected to your TV or home theatre center.
Button
1. Infra-red emitter
2. Stand-by
3. Previous track
4. Next track
5. Back (previous screen)
6. Select
7. Home menu
8. Play
9. Menu up
10. Left/rewind
11. Right/fast forward
12. Menu down
13. Stop
14. Pause
15. Access search menu
16. Option/info menu
17. Safely eject USB disk
Fig. 10
Using the Remote Control
page 14
LaCinema Classic HD
User Manual
2.2.1. Important Button Details
1. OK: This button allows you to confirm a selection.
2. Return: Press this button to return to the previous menu.
3. Settings button: This button is used to display the available settings or actions in the different media spaces.
During playback, pressing this button will bring up a contextual menu with adjustable settings.
Using the Remote Control
page 15
Fig. 11
LaCinema Classic HD
User Manual
3. Setting Up: Transferring Files
This chapter explains how to transfer files to the LaCinema Classic
HD from your computer via the USB connection. If your files are located on external sources, such as a USB hard drive or a networked device, you can learn about how to play these files in chapter
Playing Files Located on USB Hard Drive .
Since the USB connection may offer faster transfer rates than the
Ethernet connection for some network configurations, LaCie suggests as a first step to transfer the bulk of your multimedia files to the
LaCinema Classic HD through the USB connection.
The USB connection consists of the following steps:
3.1. STEP 1: Connect the Power Supply
3.2. STEP 2: Connect the USB cable
3.3. STEP 3: Unmounting Your Drive
When you have finished transferring files, disconnect the USB connection and proceed to chapter
4. Setting Up: Connecting to TV .
Fig. 12
Setting Up: Transferring Files
page 16
LaCinema Classic HD
User Manual
3.1. STEP 1: Connect the Power
Supply
1. Plug one end of the power adapter cord into the back of LaCin-
ema Classic HD and the other end into a power outlet ( Fig. 13
).
2. Move on to the next step,
3.2. STEP 2: Connect the USB cable
.
CAUTION: Only use the AC adapter supplied with your specific
LaCie device. Do not use a power supply from another LaCie device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.
Always remove the AC adapter before transporting your LaCie drive.
Failure to remove the adapter may result in damage to your drive and will void your warranty.
TECHNICAL NOTE: You may use your LaCie drive when in a foreign country thanks to its 100-240 Volt power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord. LaCie accepts no responsibility for any damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other than one authorized by LaCie will void your warranty.
Fig. 13
Setting Up: Transferring Files
page 17
LaCinema Classic HD
User Manual
3.2. STEP 2: Connect the USB cable
1. Make sure the power cable is connected as described in section
3.1. STEP 1: Connect the Power Supply .
2. Connect one end of the USB cable to your computer ( Fig. 14
) and the other end to the small USB port on the rear of the
LaCinema Classic HD ( Fig. 15 ).
Windows Users
a. The drive will mount in My Computer/Computer (Windows users) (
).
b. Copy multimedia files to the mounted volume normally.
Mac Users
a. As the drive is preformatted in NTFS for immediate use with Windows, you will need to reformat the drive into
HFS+ in order for the drive to mount on your Mac. Follow the steps in section
9.2. Reformatting: Mac Users ,
then proceed to step b below.
b. The drive will mount on your Desktop.
c. Copy multimedia files to the mounted volume normally.
3. Unmount the drive and unplug the USB cable before connecting the drive to your television (see
).
TECHNICAL NOTE: The LaCinema Classic HD operating system features a file database that will detect the type of file (movie, music, etc.) and display it automatically on your TV in the correct media space. If you create folders on the mounted volume and want to browse the files according to this structure on your TV, your can choose to view files by Folder from within each media space.
IMPORTANT INFO: To avoid data corruption, make sure to unmount your drive before disconnecting the USB cable. See section
3.3. STEP 3: Unmounting Your Drive for details.
IMPORTANT INFO: The drive cannot be connected to your computer via USB and to the television simultaneously.
Fig. 14
Fig. 15
Fig. 16
Setting Up: Transferring Files
page 18
LaCinema Classic HD
User Manual
3.3. STEP 3: Unmounting Your Drive
As the LaCinema Classic HD behaves like an external USB device when it is connected to your computer via USB, you should unmount its volume before unplugging the USB cable.
Windows Users
From the System Tray (located in the lower right-hand side of your screen), click the Eject icon (a small green arrow over a hardware image) (
).
A message will appear, listing the devices the Eject icon controls
(it should say, “Safely remove...”). Click on the LaCie hard drive in this prompt.
This message will appear: “Safe to Remove Hardware” (or similar). It is now safe to disconnect the device.
Mac Users
Drag the LaCinema Classic drive icon to the trash (
icon pictured below is a generic USB device icon. Your drive may be represented by an icon that looks like the drive itself.)
When the icon disappears from the desktop, the drive can be disconnected.
Fig. 17 - Windows Users
Fig. 18 - Mac Users
Setting Up: Transferring Files
page 19
LaCinema Classic HD
User Manual
Setting Up: Connecting to TV
page 20
4. Setting Up: Connecting to TV
This chapter explains how to connect your LaCinema Classic HD to your television in order to browser and play files. Once the connection is established, move on to section
for information on playing files. Setup consists of these steps:
4.1. STEP 1: Connect HDMI or A/V Cables
4.2. STEP 2: Connect the Ethernet Cable
4.3. STEP 3: Connect the Power Supply
4.4. STEP 4: Complete the Installation Wizard
Television
4.1. STEP 1: Connect HDMI or A/V
Cables
IMPORTANT INFO: The LaCinema Classic HD cannot be connected to a TV and computer at the same time. Disconnect the USB cable before proceeding (see
3.3. STEP 3: Unmounting Your Drive
).
The LaCinema Classic HD supports different ways of connecting to televisions. From the following methods, choose the setup that matches the ports on your television or receiver:
■
HDMI (section 4.1.1. HDMI (High-Definition) Connection )
■ Composite (section
4.1.2. Composite Video & Stereo Audio
)
In each of the above connection methods, it is possible to connect the LaCinema Classic HD to home theater systems by plugging the
S/PDIF cable (not included) to your digital amplifier via the digital optical audio connector (see section
for details.
The chart at right illustrates the qualities made possible by the different connection methods.
TECHNICAL NOTE: The connectors on the rear of your TV may not appear exactly the same as shown below. Please read the labels next to the connectors carefully to ensure correct connections.
continued on the next page >>
Fig. 19
High
Definition
Standard
Definition
LaCinema
Classic HD
Network Router
Connection
HDMI
Composite
Maximum
Resolution
1080p
576p
LaCinema Classic HD
User Manual
4.1.1. HDMI (High-Definition) Connection
1. Connect the HDMI cable to your television’s HDMI port and to
the corresponding port on the LaCinema Classic HD ( Fig. 20
).
2. Move on to the next step,
4.2. STEP 2: Connect the Ethernet
4.1.2. Composite Video & Stereo Audio
Cable
1. Connect the three tips of the composite video and stereo cable to the proper ports on your television and to the corresponding
ports on the LaCinema Classic HD ( Fig. 21 ).
2. Move on to the next step,
4.2. STEP 2: Connect the Ethernet
IMPORTANT INFO: Before connecting either of these cables, make sure you TV is turned off.
Fig. 20 - HDMI connection
Setting Up: Connecting to TV
page 21
Fig. 21 - Composite connection
LaCinema Classic HD
User Manual
4.1.3. Optical Audio (S/PDIF) Connection
In each of the above connection methods, it is possible to connect the LaCinema Classic HD to home theater systems by plugging the
S/PDIF cable (not included) into your digital amplifier via the LaCinema Classic HD’s digital optical audio connector.
IMPORTANT INFO: Before connecting the cable, power off your digital amplifier.
1. Connect one end of a S/PDIF cable to your digital amplifier
(
).
2. Connect the other end of the cable to the back of the LaCinema
Classic HD.
3. Move on to the next step,
4.2. STEP 2: Connect the Ethernet
IMPORTANT INFO: Once you connect the cable and finish the rest of the steps in this section, you must enable digital audio in
Settings > Audio Output instead of the default stereo audio. See section
).
Fig. 22 - S/PDIF connection
Setting Up: Connecting to TV
page 22
Fig. 23
Fig. 24
LaCinema Classic HD
User Manual
4.2. STEP 2: Connect the Ethernet
Cable
1. Connect the Ethernet cable to the Ethernet port on the back of
the LaCinema Classic HD ( Fig. 25 ).
2. Connect the other end of the Ethernet cable into an available
Ethernet LAN (local area network) port on your router or hub
(refer to your router or hub’s documentation if necessary). Allow a few moments for your network to recognize the drive.
Now move on to the next step,
4.3. STEP 3: Connect the Power
.
NOTE: You can purchase a WiFi dongle from LaCie that will enable your LaCinema Classic HD to connect to the network wirelessly. For more information, refer to the LaCie website: www.lacie.com
.
Fig. 25
Setting Up: Connecting to TV
page 23
LaCinema Classic HD
User Manual
4.3. STEP 3: Connect the Power
Supply
IMPORTANT INFO: If your power supply cable is already connected, turn on your TV and then skip to
1. Plug one end of the power adapter cord into the back of LaCin-
ema Classic HD and the other end into a power outlet ( Fig. 26
).
2. Turn on your television.
TECHNICAL NOTE: If you don’t see the loading screen, adjust the video input on your TV to match the type of video cable you con-
nected above (either HDMI or composite) ( Fig. 27 ).
3. Move on to the next step, 4.4. STEP 4: Complete the Installation
.
Fig. 26
Setting Up: Connecting to TV
page 24
Fig. 27
LaCinema Classic HD
User Manual
4.4. STEP 4: Complete the
Installation Wizard
The first time you turn on the LaCinema Classic HD, a wizard appears to help you configure your settings. The wizard appears only the first time you turn on the LaCinema Classic HD unless you have reset drive.
1. Make sure the LaCinema Classic HD is connected to the TV, the power supply has been connected, and the TV is turned on.
2. A startup screen will appear during product initialization.
3. Select your language using the Up and Down buttons and pushing the Right or
button to confirm ( Fig. 28 ).
4. In the next screen, click Next (
).
5. Select your TV’s physical aspect ratio (4:3 or 16:9) and click
Next
continued on the next page >>
Fig. 28
Setting Up: Connecting to TV
page 25
Fig. 29
Fig. 30
LaCinema Classic HD
User Manual
6. Select the type of network connection (Wireless or Ethernet) and click Next , or click Skip (
IMPORTANT INFO: In order to connect the LaCinema Classic
HD to your network wirelessly, you can purchase a WiFi dongle from the LaCie website.
7. Select whether your network is DHCP-managed or requires a static IP and click Next
8. Setup is finished (
). For further details, move on to
.
Fig. 31
Setting Up: Connecting to TV
page 26
Fig. 32
Fig. 33
LaCinema Classic HD
User Manual
5. Playing Multimedia Files
This chapter explains how to use the interface and to play files you’ve transferred to the LaCinema Classic HD’s internal storage.
For information on accessing files located on external sources, refer to section
7. Playing Files Located on USB Hard Drive .
To access your files, use the remote control to browse through the different media spaces – Movie , Photo , or Music .
The following section outlines how to play files for each media space.
Related Section
■
7. Playing Files Located on USB Hard Drive
File Type
Movies
Photos
Music
Section
Fig. 34
Playing Multimedia Files
page 27
LaCinema Classic HD
User Manual
5.1. Movie Space
Navigate to the Movies Space using the Left and Right buttons. Then use the Up and Down buttons to browse within the
The Movie Space will display all of the supported video files that are accessible to the LaCinema Classic HD. Only files recognized as video files will be displayed. Music and Photo files will not be displayed.
The way files are organized will be based on their location, i.e. whether they are stored on the LaCinema Classic HD’s internal storage, on an external hard drive, or on a networked server. If you enable Content Aggregation in the Settings Space (see section
10.5.2. Content Aggregation and
and
organized according to the criteria below:
■ All Movies: Displays all available videos, sorted alphabetically
■ By Folder: Displays videos according to the volume’s folder structure, including files located on an external USB hard drive connected to the front USB port
■ Most recent: Displays the most recently played videos only
■ USB1: Displays movie files located on an external USB hard drive connected to the front USB port (for details, refer to section
7. Playing Files Located on USB Hard Drive
)
To load a movie, select the file you wish to play and press the button. A loading animation will appear while the it is being analyzed to ensure optimum playback experience.
NOTE: If you stop a film and then come back to it later, you will be asked if you want to play from where you left off or to start from the beginning.
Fig. 35
Fig. 36
Playing Multimedia Files
page 28
Fig. 37
LaCinema Classic HD
User Manual
5.1.1. Movie Space Options
While a movie is playing, you can adjust several playback parameters. Press the Setup button to display or exit the on-screen menu, and use the Left and Right buttons to navigate to a setting and to enter the setting menu (see
Once you’ve selected the option you want, click the button.
1. Audio Languages : Select this option to modify the audio language (if alternates are available)
2. Subtitle: Select this option to activate/change the subtitles (if are available)
3. Zoom In: This feature allows you to zoom into a video. Once the feature has been selected, use the Up button to zoom in
4. Zoom Out: To zoom out, select this icon and press the Up button.
5. Scroll: If you have zoomed into a video, select this icon to scroll around the video. Use the direction buttons on your remote
continued on the next page >>
Fig. 38
Fig. 39
Playing Multimedia Files
page 29
Fig. 40
LaCinema Classic HD
User Manual
6. Change play mode: By pressing the Setup button you can adjust the play mode as follows: a. Normal (
b. Repeat one: The currently playing file will repeat continuously
c. Repeat all: All files in the current folder will play in succession
7. Display info: Click this button to display information about the currently playing file such as time remaining and time elapsed.
To exit the on-screen menu, click the Setup button once again.
NOTE: You can pause the video while adjusting settings.
NOTE: If you stop a file, the settings will revert to the default when you reopen the file.
Fig. 41
Fig. 42
Playing Multimedia Files
page 30
Fig. 43
Fig. 44
LaCinema Classic HD
User Manual
5.2. Photos Space
Navigate to the Photo Space using the Left and Right buttons.
Then use the Up and Down buttons to browse within the Photo
Space (
).
The Photo Space will display all of the supported video files that are accessible to the LaCinema Classic HD. Only files recognized as photo files will be displayed. Music and video files will not be displayed.
The way files are organized will be based on their location, i.e. whether they are stored on the LaCinema Classic HD’s internal storage, on an external hard drive, or on a networked server. If you en-
able Content Aggregation in the Settings Space (see section 10.5.2.
and Fig. 46 and Fig. 47 ), files will be organized
according to the criteria below:
■ All Photos: Displays all available photos, sorted alphabetically by name
■ By Date: Displays photos according to when the picture was taken
■ By Folder: Displays photos according to the volume’s folder structure
■ Most Recent: Displays the most recently played pictures only
■ USB1: Displays photo files located on an external USB hard drive connected to the front USB port (for details, refer to section
Playing Files Located on USB Hard Drive
)
To load a picture, select the file you wish to display and press the
button.
NOTE: It is possible to play music while watching a photo slideshow. To do so, first start the music via the Music Space . Then press the Home button, navigate to the Music Space , then the track you wish to play, and press the button.
Fig. 45
Fig. 46
Playing Multimedia Files
page 31
Fig. 47
LaCinema Classic HD
User Manual
5.2.1. Photo Space Options
While a photo is being displayed, you can adjust several playback pa rameters. Press the Setup button to display or exit the onscreen menu, and use the Left and Right buttons to navigate to a setting and
for reference). Once you’ve selected the option you want, click the button.
1. Scroll : If you have zoomed into a video, select this icon to scroll around the video. Use the direction buttons on your remote control.
2. Rotate right : Rotate the photo 90 degrees clockwise.
3. Rotate left : Rotate the photo 90 degrees counter-clockwise.
4. Zoom in : This feature allows you to zoom into a video. Once the feature has been selected, use the Up button to zoom in
5. Zoom out : To zoom out, select this icon and press the Up button.
6. Change play mode : Choose from: a. Normal
c. Repeat one: The currently playing file will repeat continuously d. Repeat all: All files in the current folder will play in succession repeatedly.
7. Display info : Display info: Click this button to display information about the currently playing file.
NOTE: You can pause the slideshow while adjusting settings.
NOTE: If you stop a slideshow, the settings for a given photo and for the slideshow will revert to the default when you replay.
Fig. 48
Fig. 49
Fig. 50
Playing Multimedia Files
page 32
LaCinema Classic HD
User Manual
5.3. Music Space
Navigate to the Music Space using the Left and Right buttons.
Then use the Up and Down buttons to browse within the Music
Space (
).
The Music Space will display all of the supported video files that are accessible to the LaCinema Classic HD. Only files recognized as audio files will be displayed. Photoic and video files will not be displayed.
The way files are organized will be based on their location, i.e. whether they are stored on the LaCinema Classic HD’s internal storage, on an external hard drive, or on a networked server. If you enable Content Aggregation in the Settings Space (see section
10.5.2. Content Aggregation and
and
organized according to the criteria below:
■ All Music: Displays all available music files, sorted alphabetically by name
■ By artist: Displays music files according to artist
■ By genre: Displays music files according to genre
■ By album: Displays music files according to album
■ By folders: Displays music files according to the volume’s folder structure
■ Most recent: Displays the most recently added music files only
■ Playlist: Displays playlists (M3U, PLS, and WPL files)
■ USB1: Displays music files located on an external USB hard drive connected to the front USB port (for details, refer to section
Playing Files Located on USB Hard Drive
)
continued on the next page >>
Fig. 51
Fig. 52
Playing Multimedia Files
page 33
Fig. 53
LaCinema Classic HD
User Manual
■ Now playing: If a music file is playing, this icon will be present
(
). Clicking the button will take you to the Now Playing window. Click the button to stop music playback.
To load a music file, select the file you wish to display and press the
button.
NOTE: It is possible to watch a photo slideshow while listening to music. To do so, first start the music. Then press the Home button, navigate to the Photos Space , then the album you wish to display, and press the
Fig. 54
Playing Multimedia Files
page 34
Fig. 55
LaCinema Classic HD
User Manual
5.3.1. Music Space Options
During playback, you can adjust several pa rameters (
the Setup button to display or exit the on-screen menu and configure the following settings. Once you’ve selected the option you want, click the button.
1. Normal
: The currently playing file will repeat continuously ( Fig.
2. Repeat one : The currently playing file will repeat continuously
3. Repeat all: All files in the current folder will play in succession
continued on the next page >>
Fig. 56
Playing Multimedia Files
page 35
Fig. 57
Fig. 58
Fig. 59
LaCinema Classic HD
User Manual
4. Random: Files in the current folder or playlist will play in random
5. Random repeat all: Files in the current folder or playlist will play in random order and in succession repeatedly (
Fig. 60
Playing Multimedia Files
page 36
Fig. 61
LaCinema Classic HD
User Manual
Sharing Files Throughout Your Home Network
page 37
6. Sharing Files Throughout Your Home Network
Thanks to its support for the network protocols, your LaCinema
Classic HD can share files located on its internal storage and on an external USB connected to its device port to computers and digital media players on your network.
To manage files located on your LaCinema Classic HD from a net-
worked PC or Mac, see section 6.1. Manage Files from a Networked
To use a UPnP- or DLNA-compliant digital media player to play files
located on your LaCinema Classic HD, see section 6.2. Play Files on
.
6.1. Manage Files from a Networked
Computer
It is convenient to use the network connection to transfer, move, or delete files located on the LaCinema Classic HD once it has been connected to the TV. Follow these steps to manage (move, delete, or transfer) files located on the LaCinema Classic HD using your networked computer:
6.1.1. STEP 1: Connect the Power Supply
6.1.2. STEP 2: Connect the Ethernet Cable
6.1.3. STEP 3: Connect HDMI or A/V Cables
6.1.4. STEP 4: Configure Network Settings
6.1.5. STEP 5: LaCie Network Assistant: Install
6.1.6. STEP 6: LaCie Network Assistant: Transfer Files
LaCinema Classic HD
User Manual
6.1.1. STEP 1: Connect the Power Supply
1. Plug one end of the power adapter cord into the back of LaCin-
ema Classic HD and the other end into a power outlet ( Fig. 62
).
The LaCinema Classic HD may take a few seconds to boot.
Move on to the next step, 6.1.2. STEP 2: Connect the Ethernet Cable
.
CAUTION: Only use the AC adapter supplied with your specific
LaCie device. Do not use a power supply from another LaCie device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.
Always remove the AC adapter before transporting your LaCie drive.
Failure to remove the adapter may result in damage to your drive and will void your warranty.
TECHNICAL NOTE: You may use your LaCie drive when in a foreign country thanks to its 100-240 Volt power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord.
Fig. 62
Sharing Files Throughout Your Home Network
page 38
LaCinema Classic HD
User Manual
Sharing Files Throughout Your Home Network
page 39
6.1.2. STEP 2: Connect the Ethernet Cable
1. Connect the Ethernet cable to the Ethernet port on the back of
the LaCinema Classic HD ( Fig. 63 ).
2. Connect the other end of the Ethernet cable into an available
Ethernet LAN (local area network) port on your router or hub
(refer to your router or hub’s documentation if necessary). Allow a few moments for your network to recognize the drive.
Now move on to the next step,
6.1.3. STEP 3: Connect HDMI or
.
6.1.3. STEP 3: Connect HDMI or A/V Cables
1. Connect your LaCinema Classic HD to your television using either the HDMI cable or the composite video & audio cable.
For more details on this step, see section
(
).
2. Turn on the TV. The loading screen will appear.
TECHNICAL NOTE: If you don’t see the loading screen, adjust the video input on your TV to match the type of video cable you con-
nected above (either HDMI or composite) ( Fig. 65 ).
Now move on to the next step,
6.1.4. STEP 4: Configure Network
Fig. 63
Television
Fig. 64
LaCinema
Classic HD
Network Router
Fig. 65
LaCinema Classic HD
User Manual
6.1.4. STEP 4: Configure Network Settings
In order for your LaCinema Classic HD to be assigned an IP address, which will allow it to connect to the network, you must either follow the setup steps in the Installation Wizard or configure network settings in the Settings Space. In the Settings Space, follow these steps to request an IP address:
Use the remote control to navigate to Settings Space > Network >
Network Setup > Configure > DHCP and press the
,
and
Fig. 68 ). Your network router will assign an IP ad-
dress to the LaCinema Classic HD.
Move on to the next step,
6.1.5. STEP 5: LaCie Network Assistant:
.
Fig. 66
Sharing Files Throughout Your Home Network
page 40
Fig. 67
Fig. 68
LaCinema Classic HD
User Manual
6.1.5. STEP 5: LaCie Network Assistant: Install
LaCie Network Assistant software detects all LaCie network attached storage devices on your network and gives you easy ways to connect to or configure them.
Once installed and running, LaCie Network Assistant (LNA) will appear in your task bar (Windows users) or in the menu bar (Mac users) and automatically search for storage devices on your network.
When a new device is found, the icon will blink.
When the LNA finds your LaCinema Classic HD on the network, you can connect to the mounted volume or configure the LaCinema
Classic HD’s network settings.
TECHNICAL NOTE: As an alternative to using the LaCie Network
Assistant to access the drive, you can use its IP address to open a network (SMB) connection. See section
for more details. The IP address can be found by using the remote control to navigate to Settings > Network >
Network Setup .
Install LaCie Network Assistant:
1. Insert the CD-ROM into your computer’s CD-ROM drive.
2. Windows users, the CD should appear in My Computer. Mac users, the CD should appear on the desktop. Double-click the
CD icon, then double-click “LaCie Network Assistant Setup”.
3. Follow the Wizard to complete installation.
Now move on to the next step,
6.1.6. STEP 6: LaCie Network Assistant: Transfer Files .
Sharing Files Throughout Your Home Network
page 41
LaCinema Classic HD
User Manual
6.1.6. STEP 6: LaCie Network Assistant:
Transfer Files
Windows Users: a. Select LaCie Network Assistant in Start/Programs. A Network
Assistant icon will appear in the system tray ( Fig. 69
) and
Network Assistant will automatically detect your LaCinema
Classic HD.
b. From the system tray, click the LaCie Network Assistant icon then click LaCinema_HD
( Fig. 71 ). The volume will open in
an explorer window.
c. Drag files or folders onto this volume.
Mac Users: a. Select LaCie Network Assistant in your Applications folder. A
Network Assistant icon will appear in the menu bar ( Fig. 70 )
and Network Assistant will automatically detect your LaCinema Classic HD.
b. From the menu bar, click the LaCie Network Assistant icon then click LaCinema_HD
( Fig. 72 ). The volume will open in
a Finder window.
c. Drag files or folders onto this volume.
To remove files from their folders, simply drag them to the Trash or the Recycle Bin.
continued on the next page >>
Fig. 69
Fig. 70
Fig. 71
Sharing Files Throughout Your Home Network
page 42
Fig. 72
LaCinema Classic HD
User Manual
IMPORTANT INFO: Make sure that IPConf support is activated in the LaCie Network Assistant preferences (
, PC users, and
IMPORTANT INFO: If you want to remove files from the LaCinema Classic HD, you must empty the Trash or Recycle Bin after placing the files there. Otherwise, the files will still have a reference and occupy hard drive space.
TECHNICAL NOTE: The LaCinema HD is optimized for multimedia playback. If you want a network-attached hard drive for backing up your files, consider purchasing a LaCie Network Space, which offers features and performance more suited to this use.
Fig. 73
Sharing Files Throughout Your Home Network
page 43
Fig. 74
LaCinema Classic HD
User Manual
6.1.7. Alternative Network Connection
Methods
If your LaCinema Classic HD is connected to your home network, it is possible to access its volume without using the LaCie Network
Assistant.
Windows Users
To access the volume in Windows, look in My Network Places, and select Microsoft Windows Workgroup. By default, the volume will be named lacinema_hd * (
).
Alternatively, you can access the volume by typing the following in a Windows explorer address field: smb://lacinema_hd * or smb://[IP address] **
Mac Users
From the Finder, select Go and then Connect to Server... In the window that opens, type (
): smb://lacinema_hd * or smb://[IP address] **
[If your drive is connected to the TV, you can find the IP address using the remote control by navigating to Settings > Network.]
Click Connect.
Alternatively, you can find the drive listed in the Network folder.
* If you changed the machine name in the Settings Space, type this name instead.
** The IP address can be found by using the remote control to navigate to Settings > Network > Network Setup .
Fig. 75
Fig. 76
Sharing Files Throughout Your Home Network
page 44
Fig. 77
LaCinema Classic HD
User Manual
Sharing Files Throughout Your Home Network
page 45
6.2. Play Files on Networked Media
Players
LaCinema is both a network media player and server. It can play content located on a local network server and also share the content located on its internal storage to other UPnP- and DLNA-compatible digital media players on your network. Examples include Playstation, XBox, DLNA TV or mobile phones, Kodak Photoframe, and
Philips Streamium.
The media server function will allow you to view your content on a compatible media player in a different room in your home via your home network. Follow these steps:
1. Make sure your LaCinema Classic HD is connected to your net-
) and has been assigned an IP address (for details,
see 6.1.4. STEP 4: Configure Network Settings ).
2. Activate Media Servers service in the Settings Space (see section
3. Now you will be able to play files located on the LaCinema
Classic HD on any other UPnP/DLNA-certified player/adapter connected to your network.
For a typical configuration, see section 6.2.1. UPnP Usage Example:
NOTE: Content located on the LaCinema internal HDD or attached
USB disk will scanned and then shared in your home to other UPNP
DLNA media players.
TECHNICAL NOTE: Once the media server function is activated, it will take few seconds for the server to become available to the UPnP player. As the content needs to be analyzed (artist, genre, etc.), this process can take several minutes. When new content is added to the LaCinema Classic HD’s internal storage, it should appear few minutes following the completion of the transfer. The same delay should occur when adding or removing the a USB device containing multimedia content.
Fig. 78
Fig. 79
LaCinema
Classic HD
Network Router DLNA- compatible TV
LaCinema Classic HD
User Manual
6.2.1. UPnP Usage Example: XBOX
Here is a typical example using an XBOX:
1. Connect the LaCinema Classic HD to your computer using the
USB cable (see 3.1. STEP 1: Connect the Power Supply
STEP 2: Connect the USB cable ).
2. Load content on the LaCinema Classic HD’s internal storage.
3. If not already done, connect the LaCinema Classic HD to your
TV (see 4.1. STEP 1: Connect HDMI or A/V Cables ).
4. Using the remote control, navigate to Settings > Network >
Media Server > ON and press the button. The server is now activated and multimedia content is being scanned and added to the media server database.
You can now go the room where the XBOX is located and navigate to the XBOX media server section to select LaCinema_HD
(or, if you have modified the name, select the modified name).
You should be able to view and play content located on the
LaCinema Classic HD.
TECHNICAL NOTE: Some files might not be available on you media player for two reasons, either the file format is not compatible with your network player, or content has not yet been added to the database as the media server is still analyzing the content.
Sharing Files Throughout Your Home Network
page 46
LaCinema Classic HD
User Manual
Playing Files Located on USB Hard Drive
page 47
7. Playing Files Located on USB Hard Drive
Simply turn on and plug in external hard disks to the LaCinema
Classic HD’s front USB port ( Fig. 82
, left) or rear device USB port
(
, right) to be able to play multimedia files on your television.
See below for more details.
TECHNICAL NOTE: It is not possible to transfer files from an external source to the LaCinema Classic HD using the TV interface. In this case, transfer files first to your computer, then follow the steps in section
3. Setting Up: Transferring Files
.
7.1. USB Disk Connection
1. Connect the external USB hard drive to your computer and transfer multimedia files from your computer to the hard drive.
Unmount the drive safely from your computer (
).
2. Connect the LaCinema Classic HD’s power supply (see section
3.1. STEP 1: Connect the Power Supply
for details), then connect the LaCinema Classic HD to your TV (see section
Connect HDMI or A/V Cables for details) (
3. Next, power on the external hard disk and plug its USB cable into either the LaCinema Classic HD’s front or rear USB device slot (
).
continued on the next page >>
Fig. 80
Fig. 81
Fig. 82
LaCinema Classic HD
User Manual
4. Once connected, use the remote control to navigate to one of the Media Spaces (Movies, Photos, or Music). Files located on the external USB hard drive can be accessed under the USB1
7.2. Compatibility
In addition to hard disks, you can also connect card readers, digital cameras, or digital camcorders with USB Mass storage support.
Hard drives with the following file system formats are supported:
FAT32, NTFS, HFS+/Mac OS Extended (non-journaled), and Linux file systems.
IMPORTANT INFO: External USB hard drives formatted in HFS+
(journaled) are not compatible.
Fig. 83
7.3. Safe USB Disk Removal
Click the (Eject) button on the remote control, confirm (
), and then disconnect the drive.
IMPORTANT INFO: If the disk is not properly disconnected, the data located on that disk could be damaged. Make sure that you always safely eject disks in this way before disconnecting. This also applies when the disk is connected to a computer.
Fig. 84
Playing Files Located on USB Hard Drive
page 48
LaCinema Classic HD
User Manual
Playing Files From a Networked Media Server
page 49
8. Playing Files From a Networked Media Server
You can stream content to your LaCinema Classic HD via the network connection from a networked UPnP or DLNA server located on a host computer (Mac or PC) or a network-attached hard disk
(NAS). In addition, the LaCinema Classic HD can read files from any UPnP device connected your Ethernet or wireless network. Once connected, files located on these sources will appear in the LaCinema Classic HD interface. For details, see below.
TECHNICAL NOTE: If you have purchased a WiFi dongle from
LaCie and are streaming files wirelessly to the LaCinema Classic, the bandwidth might not be sufficient for HD movies. You will noticed movie lagging or dropped images. Photo slideshow could also show some delay on display, but streaming music should not be a problem.
LaCinema
Classic HD
Television
Network Router
NAS Media
Server
Fig. 85
8.1. Network-Attached Storage (NAS)
If you have a NAS running a media server, it is possible to stream this content to the LaCinema Classic HD. In order to view your
NAS content on LaCinema Classic HD, first make sure that both devices are connected to the network (
). Once connected, files located on the NAS will appear in the various Spaces on the
LaCinema Classic HD.
TECHNICAL NOTE: It is not possible to transfer files from a NAS to the LaCinema Classic HD using the TV interface. In this case,
transfer files first to your computer, then follow the steps in section 3.
Setting Up: Transferring Files
.
LaCinema Classic HD
User Manual
Playing Files From a Networked Media Server
page 50
8.2. From Windows or Mac Computers
You can install software on your computer which will enable it to act as a UPnP media server and stream files to the LaCinema Classic
HD via your Ethernet or wireless network. Once the software has been installed and configured, files located on the host computer will appear in the various Spaces on the LaCinema Classic HD (see
Fig. 86 ). Choose from two different software:
Software
8.2.1. Packet Video TwonkyVision
8.2.2. Windows Media Player (WMP)
Compatibility
PC/MAC
PC only
PC or Mac with TwonkyVision server software installed
8.2.1. Packet Video TwonkyVision
1. From the Utilities CD-ROM, install the Packet Video TwonkyVision software.
2. Once installed, launch the server from the Start Menu (Windows users) or the Applications folder (Mac users).
3. In the configuration page that opens in your web browser, click on the Sharing link and then select the folders on your computer that contain the multimedia content you wish to access from the
). Make sure to click the Save
Changes button when you finish.
4. It may be necessary to restart the server. To do so, select the
First Steps link and click Restart server .
5. You will now be able to access your computer’s multimedia content using the LaCinema Classic HD remote control. Files will appear in the various Spaces on the LaCinema Classic HD.
Fig. 86
Fig. 87
Television
Network Router
LaCinema
Classic HD
LaCinema Classic HD
User Manual
Playing Files From a Networked Media Server
page 51
8.2.2. Windows Media Player (WMP)
IMPORTANT INFO: This software is compatible with Windows only.
Install Windows Media Player (WMP) 11 to allow you to stream content to the LaCinema Classic HD via your Ethernet or wireless network. Follow these steps to configure the connection:
1. Make sure that the software is installed on your computer.
TECHNICAL NOTE: WMP is preinstalled on Vista, but XP users may have to download and install the software.
2. Make sure that your computer, the LaCinema Classic HD, and
any UPnP devices are properly connected to your network ( Fig.
).
3. In WMP, turn on Media Sharing by clicking on Library > Media
Sharing...
(
4. In the Media Sharing dialogue box, select Share My Media to...
You must then tell WMP to share content with the LaCinema
Classic HD. Below the Share My Media check box, select the
LaCinema Classic HD and click Allow (
).
5. Multimedia content imported into WMP will now be accessible in the various Spaces on the LaCinema Classic HD.
NOTE: Windows 7 users: As of this document’s publication date,
Windows 7 is bringing new features to network home entertainment that might not be compatible with the LaCinema Classic HD. Please visit the LaCie website for updates to the manual and firmware.
PC or Mac with Windows Media Player software installed
Fig. 88
Fig. 89
Television
Network Router
LaCinema
Classic HD
Fig. 90
LaCinema Classic HD
User Manual
8.2.3. Shared folders on your Computer
After you modify some settings in your operating system, you can make files located in certain folders on your computer available for playback on your LaCinema Classic HD in Network > Shared Folders (
). Follow the steps below according to your operating system.
Windows XP
1. Log on to your computer as an administrator.
2. Right-click the folder that you want to share, and then click
Sharing and Security (
).
3. If you see a message that reads, As a security measure, Windows has disabled remote access to this computer , click the
Network Setup Wizard link (
Fig. 93 ). Then follow the instructions
in How to set up your computer for home networking . On the
File and printer sharing page of the Network Setup Wizard, be sure to select Turn on file and printer sharing . If you do not see this message, skip this step and go to step 4.
4. In the Properties dialog box, select the Share this folder on the network check box (
).
5. Click OK . Windows Explorer will show a hand holding the folder icon, indicating that the folder is now shared.
The files contained in the folders you select will now be available to the LaCinema Classic HD in Network > Shared Folders .
Fig. 91
Fig. 92
Playing Files From a Networked Media Server
page 52
Fig. 93
Fig. 94
LaCinema Classic HD
User Manual
Windows Vista
1. Locate the folder with the files you want to share.
2. Right-click the folder that you want to share, and then click
Share (
).
3. In the File Sharing dialog box, click the arrow to the right of the text box and click Everyone to share the files with any device on your network (
, 1), and then click Add (
, 2).
4. Under Permission Level, click the arrow next to Everyone and select A Contributor
5. When you are finished, click Share
, 4). If you are prompted for an administrator password or confirmation, type the password or provide confirmation.
The files contained in the folders you select will now be available to the LaCinema Classic HD in Network > Shared Folders .
Playing Files From a Networked Media Server
page 53
Fig. 95
Fig. 96
LaCinema Classic HD
User Manual
Mac OS X 10.5.x
1. Open your System Preferences and select Sharing .
2. Click File Sharing in the left-hand column and check the box
(
, 1).
3. Click the + sign under the column Shared Folders (
and add the folders you would like to share with the LaCinema
Classic HD.
4. Select the first folder listed under Shared Folders. In the righthand column, click on the permissions type for Everyone and select Read & Write
5. Still in File Sharing preferences, click the Options button in the lower right-hand corner (
, 4). In the window that opens, select Share files and folders using SMB .
The files contained in the folders you select will now be available to the LaCinema Classic HD in Network > Shared Folders .
Mac OS X 10.4.x
1. Open your System Preferences and select Sharing in the Internet
& Network section.
2. Click the Services tab, then select the checkbox next to Personal
File Sharing .
The files contained in the folders you select will now be available to the LaCinema Classic HD in Network > Shared Folders .
Fig. 97
Playing Files From a Networked Media Server
page 54
Fig. 98
LaCinema Classic HD
User Manual
9. Reformatting the LaCinema Classic HD
Please read the following information on file system formats for Windows and Mac operating systems to determine if you need to reformat the LaCinema Classic HD.
The LaCinema Classic HD is formatted in NTFS for immediate use with Windows. If you would like to reformat the drive, follow the steps below for your operating system. The following chart will help you decide which file format is most appropriate for your use. Once you’ve chosen a file format, see sections
9.1. Reformatting: Windows Users
and
for instructions on reformatting.
Windows File System Formats
NTFS
NTFS is the ideal format if you will be using the drive only with
Windows machines (performance will generally be greater when compared to FAT 32 without the file size restriction).
MS-DOS (FAT32)
MS-DOS (FAT32) is a good file format if you will be using your drive with both Windows and Macs. MS-DOS (FAT32) has a maximum single file size restriction of 4GB. This means you cannot transfer files larger than 4GB to the drive.
Mac File System Formats
HFS+ (non-journaled)
HFS+ is the ideal file format if you will be using the drive on
Macs only; performance is generally superior to that offered by
FAT 32 without the file size restriction.
MS-DOS (FAT32)
MS-DOS (FAT32) is a good file format if you will be using your drive with both Windows and Macs. MS-DOS (FAT32) has a maximum single file size restriction of 4GB. This means you cannot transfer files larger than 4GB to the drive.
Reformatting the LaCinema Classic HD
page 55
LaCinema Classic HD
User Manual
9.1. Reformatting: Windows Users
The process of formatting a drive on a computer running Windows
XP, Windows Vista, or Windows 7 consists of two steps: (1) installing a signature on the drive, and (2) formatting the drive. These steps will erase anything that is on the disk.
CAUTION: Following these steps will erase everything from the
LaCinema Classic. If you have information that you want to protect or continue to use, back up this information before performing these steps.
1. Connect the drive to the computer via the interface port.
2. Right-click My Computer and select Manage.
3. From the “Computer Management” window, select Disk Man-
agement (located below the Storage group). See Fig. 99 .
4. If the “Initialize and Convert Disk Wizard” window appears, click Cancel.
5. Windows will list the Hard Disks that are installed on the system.
Locate the drive that is represented by the icon. Right-click the icon and select Initialize.
6. In the box to the right that says Unallocated, right-click and select New Partition…
7. On the first page of the “New Partition Wizard,” click Next. See
.
continued on next page
Fig. 99
Fig. 100
Reformatting the LaCinema Classic HD
page 56
LaCinema Classic HD
User Manual
8. Click Next.
9. Click Next.
10. Click Next.
11. Click Next.
12. On the Format Partition window, select Quick Format. Click
Next.
13. Click Finish to begin the formatting process.
14. Windows Disk Management will format and partition the disk
according to your settings ( Fig. 102
), and your drive will appear in My Computer, ready to use.
IMPORTANT INFO: If you choose to format the LaCinema Classic HD in MS-DOS (FAT32), which is compatible with almost all computers, keep in mind that you will not be able to transfer files larger than 4GB to the LaCinema Classic HD.
Fig. 101
Reformatting the LaCinema Classic HD
page 57
Fig. 102
LaCinema Classic HD
User Manual
9.2. Reformatting: Mac Users
TECHNICAL NOTE: The LaCinema Classic HD is formatted in
NTFS for immediate use with Windows. Mac users must reformat the drive into Mac OS Extended (NOT journaled).
IMPORTANT INFO: You can alternatively choose to format the
LaCinema Classic HD in MS-DOS (FAT32), which is compatible with almost all computers, keep in mind that you will not be able to transfer files larger than 4GB to the LaCinema Classic HD.
CAUTION: Following these steps will erase everything from the
LaCinema Classic HD. If you have information that you want to protect or continue to use, back up this information before performing these steps.
1. Connect the drive to the computer and turn on the drive.
2. Select Utilities from the Go menu in the Finder menu bar.
3. In the Utilities folder, double-click Disk Utility .
4. The Disk Utility window will open. Select the volume labeled
LaCie Hard Disk from the list of available hard disks on the left side of the window.
5. Select the Partition tab.
6. From the Volume Scheme: menu, choose the number of partitions you want to divide the drive into (Mac OS X gives you the option of dividing the drive into at most 16 partitions). You can adjust the size of each partition using the slide bar between the partitions in the Volume Scheme: area.
7. In the Volume Information section, enter a name for each volume (partition), and choose a file system (Mac OS Extended or
MS-DOS) from the drop-down menu (
8. Once you have finalized the volume options, click Partition .
Click Partition again when the alert message appears to continue.
9. Mac Disk Utility will format and partition the disk according to your settings, and your drive will be ready to use.
Fig. 103
Fig. 104
Reformatting the LaCinema Classic HD
page 58
LaCinema Classic HD
User Manual
10. Settings Menu
The LaCinema Classic HD Setup Space will help you to properly configure and customize your device. Access it at any time by clicking the Setup button. When the setup menu is shown, the playback will be automatically paused.
Scroll through the Setup menu using the Up and Down buttons (
To display the available options of a setup category, press the Right
or button. To confirm your choice, press the button. All changes are automatically saved.
To select another option, press the Return button to go back to an previous menu. Press the Setup button again to exit the setup menu from the screen.
10.1. Settings: Audio/Video
10.1.1. Video Output
Select Video Out
, then choose from the following options ( Fig. 107
) depending on your television capabilities and the method you used to connect the LaCinema Classic HD to your TV (note that HDMI is the default setting):
■ Composite
■ HDMI.
Fig. 105
Fig. 106
Settings Menu
page 59
Fig. 107
LaCinema Classic HD
User Manual
10.1.2. Display Resolution
Choose a display resolution to match your television (default is
Auto ).
10.1.3. Aspect Ratio
Depending on your television’s setup, choose either ( Fig. 108
) (note that Normal is the default setting):
■ Normal
■ Widescreen
10.1.4. Audio Ouput
) (note that Stereo is the default setting):
■ Stereo
■ Digital
IMPORTANT INFO: If you connected the SPDI/F cable, make sure to select the Stereo option.
Fig. 108
Fig. 109
Settings Menu
page 60
LaCinema Classic HD
User Manual
10.1.5. NTSC/PAL
Depending on your television’s configuration, choose either ( Fig.
PAL is the default setting):
■ NTSC
■ PAL
10.2. Settings: Video
10.2.1. Video Sequence
Choose from the following (
):
■ Normal
■ Repeat One: The currently playing file will repeat continuously
■ Repeat All: All files in the current folder will play in succession repeatedly
Fig. 110
Settings Menu
page 61
Fig. 111
Fig. 112
LaCinema Classic HD
User Manual
10.2.2. Subtitle Font Size
Choose from a range of 24pt to 40pt (
Fig. 113
Settings Menu
page 62
LaCinema Classic HD
User Manual
10.3. Settings: Music
10.3.1. Music Sequence
Choose from the following (
):
■ Repeat one : The currently playing file will repeat continuously.
■ Repeat all: All files in the current folder will play in succession repeatedly.
■ Random: Files in the current folder or playlist will play in random order.
10.3.2. Audio Track Display
The parameter affects how audio tracks are displayed (
).
Choose from:
■ File name
■ Title
Fig. 114
Settings Menu
page 63
Fig. 115
LaCinema Classic HD
User Manual
10.4. Settings: Photo
10.4.1. Slideshow
This parameter allows you to change the way pictures are played back (default is Normal
):
■ Normal
■ Shuffle
■ Repeat All
■ Repeat All and Shuffle
10.4.2. Picture Scaling
This parameter affects how the picture fits on screen (default is Keep as Original ) (
■ Keep as Original
■ Fit to Screen
■ Display in Full Screen
Fig. 116
Fig. 117
Settings Menu
page 64
Fig. 118
LaCinema Classic HD
User Manual
10.4.3. Transition Effect
This parameter allows you to modify the transition effects between photos (default is Normal
):
■ Normal
■ Fade
■ Random
10.4.4. Interval Time
This settings allows you to set the amount of time a photo is displayed (default is 3 Seconds ) (
■ 3
■ 10
■ 30
■ 5 Minutes
■ 5
■ 20
■ 1 Minute
Fig. 119
Settings Menu
page 65
Fig. 120
LaCinema Classic HD
User Manual
10.5. Settings: System
10.5.1. Language
Choose your language.
10.5.2. Content Aggregation
This setting activates or deactivates the file database, which allows you to browse files within each media type according to certain parameters (date, recent, etc.). If this feature is deactivated, you will be able to browse files in the different media spaces alphabetically only
(or, in the case of the Music Space, additionally according to artist, genre, and album) (
).
10.5.3. Screensaver Delay
This setting controls how long a period of inactivity will last before
the screensaver turns on ( Fig. 122
).
10.5.4. Standby Mode
This setting controls how long a period of inactivity will last before
the LaCinema Classic HD will switch to standby mode ( Fig. 123
).
Fig. 121
Fig. 122
Settings Menu
page 66
Fig. 123
LaCinema Classic HD
User Manual
10.5.5. Browse Mode
This setting allows you to change how files are displayed in a list
(default is Thumbnail
):
■ Thumbnail
■ List mode
10.5.6. Additional Encoding Support
Change this setting if you encounter incorrect text characters in file names in the drive operating system (default is Western Europe ) (
10.5.7. System Reset
This feature allows you to reset the product to its factory defaults, erasing all files and reverting all settings (
Fig. 124
Settings Menu
page 67
Fig. 125
Fig. 126
LaCinema Classic HD
User Manual
10.5.8. About
Clicking this feature will provide you with the firmware version of your LaCinema Classic HD (
10.5.9. Update Device
This feature allows you to update your LaCinema Classic HD’s operating system.
Update using USB Key
If the drive does not have internet access, you can download an update file from the LaCie website, copy it to a USB flash drive, and connect the drive to the front port of the LaCinema Classic HD. An icon will appear in the Settings Space when a valid update file is detected (
Fig. 128 ). Select this option and confirm ( Fig. 129 ). When
it has finished updating, the product will restart.
Update through Internet Access
If your drive is connected to the network and has access to the internet, click the button to check for updates (
). If updates are available, they will be listed. Click the button to download and install. When it has finished updating, the product will restart.
The device will also perform an automatic check when you restart the product.
Fig. 127
Fig. 128
Settings Menu
page 68
Fig. 129
LaCinema Classic HD
User Manual
10.6. Settings: Network
10.6.1. Network Setup
This page will display your LaCinema Classic HD’s network values,
such as IP address ( Fig. 131 ). To modify these values or request that
an IP address be assigned to the drive, click the Configure button.
Then, choose from the following and note that the default is DHCP
(
■ DHCP: Choose this option if your network is managed by a
DHCP-enabled router
■ Static IP: Choose this option if your network is NOT managed by a DHCP-enabled router. In this case, you will need to assign an
IP address to the LaCinema Classic HD.
Fig. 130
Settings Menu
page 69
Fig. 131
Fig. 132
LaCinema Classic HD
User Manual
10.6.2. Device Name
This page allows you to change the device name of you LaCinema
Classic HD. This is the name that will appear on your network. ( Fig.
133 ). Use the arrow keys and the
button to use the on-screen keyboard to type a new name.
10.6.3. Media Servers
Use this page to turn on or off the Media servers (default is OFF).
For details on configuring your LaCinema Classic HD as a UPnP multimedia server, see section
6.2. Play Files on Networked Media
. (
10.6.4. Shared Folders
Use this page to turn on or off shared folder (SMB/Samba) support
(default is ON). SMB is a network protocol that allows you to access the LaCinema Classic HD’s volume using your operating system’s file system (Windows - Explorer window; Mac - Finder window).
For details on accessing your drive using SMB, see
Throughout Your Home Network . (
)
Fig. 133
Fig. 134
Settings Menu
page 70
Fig. 135
LaCinema Classic HD
User Manual
10.6.5. Auto Login
This feature allows your LaCinema Classic HD to connect automatically to your wireless network (default is ON
). If auto login is turned off, you will need to type your network password each time your drive is turned on.
10.6.6. Clear Account Information
This function will delete your network login credentials from the
LaCinema Classic HD’s operating system. Press OK
10.7. Settings: Restart
Click this icon to restart the system and confirm (
Fig. 136
Settings Menu
page 71
Fig. 137
Fig. 138
LaCinema Classic HD
User Manual
11. Technical Information
11.1. HD File Format Compatibility
The LaCinema Classic HD is fully compatible with the hi-def formats below, and can play any video encoded with these compression formats:
MPEG-2 HD
MPEG-4.2
Xvid
WMV9
H.264 (MPEG-4 P10)
VC-1
11.2. Optimizing Data Transfers
Data transfers are the flow of data that accomplishes a task, usually related to moving data from storage to computer RAM, or between storage devices. With external drives, such as the LaCinema Classic
HD, the data is transferred from the drive to the computer via the
USB interface. The data is fed from the drive through the USB port on the drive, and passes to the computer through the USB host-bus adapter interface.
USB
To utilize the enhanced Hi-Speed USB 2.0 performance, your computer must be equipped with a Hi-Speed USB 2.0 host bus adapter card (either sold separately, or integrated by your computer’s manufacturer) and the appropriate drivers. These host bus adapter cards, which include one or more USB ports, are shipped with special Hi-
Speed USB 2.0 drivers that enable the computer to control the card.
These drivers must be installed in order for USB 2.0 devices connected to the port to work at their correct speeds.
Computers running Windows XP and Windows Vista automatically manage Hi-Speed USB 2.0 devices and drivers, while Windows 98
SE and Windows Me will require that drivers be installed before a
Hi-Speed USB 2.0 device is attached.
Mac OS 9.x does not support Hi-Speed USB 2.0 functionality, and all Hi-Speed USB 2.0 devices will only operate at the original USB specifications. Mac OS 10.2.7 and later supports Hi-Speed USB
2.0. Contact your LaCie reseller or LaCie Customer Support for information about Hi-Speed USB 2.0 PCI or PC Cards, or visit our
Web site: www.lacie.com
.
Technical Information
page 72
LaCinema Classic HD
User Manual
12. Troubleshooting
If your LaCinema Classic HD is not working correctly, please refer to the following checklist to determine the source of the problem. If you have gone through all of the points on the checklist and your
LaCinema Classic still does not work properly, please check the FAQs that are regularly published on our website – www.lacie.com. One of these FAQs may provide an answer to your specific question. You can also visit the downloads page, where the most recent software updates will be available.
If you need further assistance, please contact your LaCie reseller or LaCie Customer Support (see section
Manual Updates
LaCie strives to give you the most up-to-date, comprehensive user manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device.
If your user manual does not reflect the configuration of the product you purchased, please check our website for the most current version of the user manual.
www.lacie.com
Troubleshooting
page 73
LaCinema Classic HD
User Manual
Troubleshooting
page 74
12.1. Troubleshooting the Television/Stereo Connection
Problem
The drive is connected, but the TV doesn’t recognize it.
Checking the firmware version.
Question
Have you properly set the video out parameters in the Settings menu?
How do you know which firmware version your LaCinema Classic HD is using?
There is no picture being displayed.
The picture is in black and white or there is no picture being displayed.
How do you get new firmware, and how do you install it?
Are all of the cables connected correctly?
Is the LaCinema Classic HD’s
Video setting correctly set?
Optimizing video connections.
There is no sound when connecting the
LaCinema Classic HD to a digital stereo.
Slideshows are sluggish.
What connectivity method will produce the best quality?
Have the Audio Settings been adjusted?
Does it take several seconds to load a picture?
Answer
Using the remote control, click the Info button to change from HDMI (default) to Composite Video Out mode.
To check which firmware is currently installed on your LaCinema Classic
HD, attach it to your TV and use the remote control to navigate to the Settings menu. The firmware version is displayed in the bottom right corner of the Settings menu.
For a detailed explanation, please see section 10.5.9. Update Device or
go to www.lacie.com
.
Ensure that all of the cables are connected correctly. See section 4. Setting
.
In the event that there is an error with the Video setting, press the Info button on the remote control until the correct image is displayed. Once the picture is being displayed, go into the Settings menu and select Video . From there, you can select the correct settings. For more information, please see section
For optimal quality and performance, the best video connection is the
HDMI cable (included).
When using the A/V cable to connect the LaCinema Classic HD to a TV, go into the Settings menu and select Audio Settings . From this menu, you will need to select the Analog option instead of Digital .
Depending on file size, photos may take several seconds to load properly.
Reducing the photo’s resolution will reduce the file size, as well, and allow the file to load faster.
LaCinema Classic HD
User Manual
Troubleshooting
page 75
12.2. USB Connection (Mac Users)
Problem
The drive is not recognized by the computer.
Question
Does an icon for the drive appear on the desktop?
Answer
There should be an icon for the LaCie drive on the desktop (unless you’ve set the Finder preference not to show External disks on the desktop). If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.
See section
1.1. Minimum System Requirements
for more information.
Does your computer’s configuration meet the minimum system requirements for use with this drive?
Is the drive’s power supply connected?
Make sure that the power supply is properly connected (see section
STEP 2: Connect the Ethernet Cable
) and that the outlet the power supply is connected to is working.
Review the installation steps in section
4. Setting Up: Connecting to TV
.
The drive is not recognized by the computer.
Did you follow the correct installation steps for the specific interface and operating system?
Are both ends of the USB cable securely attached?
Error messages under
Mac OS 10.x.
Is there a conflict with other device drivers or extensions?
Does your computer’s operating system support the file system?
Did you get an “Error –50” message while copying to a FAT 32
(MSDOS) volume?
The drive is not running noticeably faster when connected via
Hi-Speed USB 2.0.
Are you operating in Mac OS 9.x?
Is the drive connected to a standard USB port on your computer?
Only use a USB cable provided by LaCie. Check both ends of the USB cable to make sure they are fully seated in their respective ports. Try disconnecting the cables, waiting 10 seconds, and then reconnecting them. If the drive is still not recognized, restart your computer and try again.
Contact LaCie Technical Support for help.
Check your computer’s documentation and see section 9. Reformatting the
LaCinema Classic HD for more information.
When copying files or folders from Mac OS 10.x to a FAT 32 volume, file names with certain characters cannot be copied. These characters include, but are not limited to:
? < > / \ :
Check your files and folders to ensure that these types of characters are not being used.
Apple does not support the Hi-Speed USB 2.0 standard under Mac OS
9.x. You will be limited to the slower transfer rates of the original USB standard. For more information, please see section
If your drive is connected to a standard USB port, this is normal. A Hi-
Speed USB 2.0 device can only operate at Hi-Speed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port. Otherwise, the Hi-Speed USB 2.0 device will operate at the slower USB transfer rates.
For more information, please see sections
11.2. Optimizing Data Transfers
and 1.6. Cables and Connectors
.
LaCinema Classic HD
User Manual
Troubleshooting
page 76
Problem
The drive is not running noticeably faster when connected via
Hi-Speed USB 2.0.
Question
Is the drive connected to a Hi-
Speed USB 2.0 port on your computer?
Does your computer or operating system support Hi-Speed USB 2.0?
Answer
Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them. Also, make sure that you are connected directly to a Hi-Speed USB 2.0 port on your computer.
See sections
1.1. Minimum System Requirements
and
for more information.
LaCinema Classic HD
User Manual
Troubleshooting
page 77
12.3. USB Connection (Windows Users)
Problem
The drive is not recognized by the computer.
The drive is not recognized by the computer.
Question
Has the drive been formatted?
Does your computer’s operating system support the file system?
Is there an icon for the drive in My
Computer?
Answer
Make sure that the drive has been formatted properly. Please see section
Reformatting the LaCinema Classic HD .
Check your computer’s documentation and see section 6. Reformatting the
LaCinema Classic.
Go into My Computer and look for an icon and drive letter assigned to the
LaCie drive. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem. Go into My Computer and look for an icon and drive letter assigned to the LaCie drive. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.
See section
1.1. Minimum System Requirements
for more information.
Does your computer’s configuration meet the minimum system requirements for use with this drive?
Is the drive’s power supply connected?
Make sure that the power supply is properly connected (see section
STEP 2: Connect the Ethernet Cable
) and that the outlet the power supply is connected to is working.
Review the installation steps in section
4. Setting Up: Connecting to TV
.
Did you follow the correct installation steps for the specific interface and operating system?
Are both ends of the USB cables firmly attached?
Is there a conflict with other device drivers or extensions?
Check both ends of the USB cable to make sure they are fully seated in their respective ports. Try disconnecting the cables, waiting 10 seconds, and then reconnecting them. If the drive is still not recognized, restart your computer and try again.
Contact LaCie Technical Support for help.
LaCinema Classic HD
User Manual
Troubleshooting
page 78
Problem
The drive is not running noticeably faster when connected via
Hi-Speed USB 2.0.
Question
Is the drive connected to a standard USB port on your computer?
Is the drive connected to a
Hi-Speed USB 2.0 port on your computer?
Does your computer or operating system support Hi-Speed USB 2.0?
Answer
If your drive is connected to a standard USB port, this is normal. A Hi-
Speed USB 2.0 device can only operate at Hi-Speed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port. Otherwise, the Hi-Speed USB 2.0 device will operate at the slower USB transfer rates.
For more information, please see sections
11.2. Optimizing Data Transfers
and 1.6. Cables and Connectors
.
Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them. Also, make sure that you are connected directly to a Hi-Speed USB 2.0 port on your computer. The LaCinema Classic HD will not work properly when connected to a hub.
See sections
1.1. Minimum System Requirements
and
for more information.
LaCinema Classic HD
User Manual
13. Contacting Customer Support
Before You Contact Technical Support
1. Read the manuals and review section 12. Troubleshooting .
2. Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are correctly and firmly attached.
If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t get your LaCie drive to work properly, contact us at www.lacie.com
. Before contacting us, make sure that you are in front of your computer and that you have the following information on hand:
Information
1. LaCie hard drive serial number
3. Macintosh/PC model
4. Operating system version
5. Processor speed
6. Computer memory
7. The brands and models of other internal and external peripherals installed on your computer
Location
Located on a sticker at the back of drive or on the original packaging
Mac users: Click on the
Apple icon in the menu bar and select About This Mac.
Windows users: Right click
My Computer and select
Properties > General.
Mac users: Click on the
Apple icon in the finder bar and select About This Mac.
Select More Info... The Apple System Profiler will launch and will list your internal and external peripherals.
Windows users: Right click
My Computer and select
Properties > Hardware.
Contacting Customer Support
page 79
LaCinema Classic HD
User Manual
Contacting Customer Support
page 80
13.1. LaCie Technical Support Contacts
LaCie Asia
Contact us at: http://www.lacie.com/asia/contact/
LaCie Belgium
Contact us at: http://www.lacie.com/be/contact/ (Français)
LaCie Denmark
Contact us at: http://www.lacie.com/dk/contact
LaCie France
Contact us at: http://www.lacie.com/fr/contact/
LaCie Italy
Contact us at: http://www.lacie.com/it/contact/
LaCie Netherlands
Contact us at: http://www.lacie.com/nl/contact/
LaCie Spain
Contact us at: http://www.lacie.com/es/contact/
LaCie Switzerland
Contact us at: http://www.lacie.com/chfr/contact/ (Français)
LaCie Ireland
Contact us at: http://www.lacie.com/ie/contact/
LaCie International
Contact us at: http://www.lacie.com/intl/contact/
LaCie Australia
Contact us at: http://www.lacie.com/au/contact/
LaCie Canada
Contact us at: http://www.lacie.com/caen/contact/ (English)
LaCie Finland
Contact us at: http://www.lacie.com/fi/contact/
LaCie Germany
Contact us at: http://www.lacie.com/de/contact/
LaCie Japan
Contact us at: http://www.lacie.com/jp/contact/
LaCie Norway
Contact us at: http://www.lacie.com/no/contact/
LaCie Sweden
Contact us at: http://www.lacie.com/se/contact
LaCie United Kingdom
Contact us at: http://www.lacie.com/uk/contact
LaCie USA
Contact us at: http://www.lacie.com/contact/
LaCinema Classic HD
User Manual
Warranty Information
page 81
14. Warranty Information
LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective drive.
This warranty is void if:
■ The drive was operated/stored in abnormal use or maintenance conditions;
■ The drive is repaired, modified or altered, unless such repair, modification or alteration is expressly authorized in writing by
LaCie;
■ The drive was subjected to abuse, neglect, lightning strike, electrical fault, improper packaging or accident;
■ The drive was installed improperly;
■ The serial number of the drive is defaced or missing;
■ The broken part is a replacement part such as a pickup tray, etc.
■ The tamper seal on the drive casing is broken.
LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result.
LaCie will not, under any circumstances, be liable for direct, special or consequential damages such as, but not limited to, damage or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconvenience caused by service interruptions.
Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data.
Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive.
To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty.
All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.
IMPORTANT INFO: Register online for free technical support: www.lacie.com/register
advertisement
Related manuals
advertisement
Table of contents
- 7 1. Introduction
- 8 1.1. Minimum System Requirements
- 8 1.1.1. Windows Users
- 8 1.1.2. Mac Users
- 9 1.2. Supported Formats
- 10 1.3. Box Content
- 10 1.4. Languages
- 11 1.5. Views of the LaCinema Classic HD
- 11 1.5.1. Front View
- 11 1.5.2. Rear View
- 12 1.6. Cables and Connectors
- 12 1.6.1. A/V (Audio/Video) Cables
- 12 1.6.2. USB Cable
- 13 2. Using the Remote Control
- 13 2.1. Battery Installation
- 14 2.2. Remote Control Key Index
- 15 2.2.1. Important Button Details
- 16 3. Setting Up: Transferring Files
- 17 3.1. STEP 1: Connect the Power Supply
- 18 3.2. STEP 2: Connect the USB cable
- 19 3.3. STEP 3: Unmounting Your Drive
- 20 4. Setting Up: Connecting to TV
- 20 4.1. STEP 1: Connect HDMI or A/V Cables
- 21 4.1.1. HDMI (High-Definition) Connection
- 21 4.1.2. Composite Video & Stereo Audio Cable
- 22 4.1.3. Optical Audio (S/PDIF) Connection
- 23 4.2. STEP 2: Connect the Ethernet Cable
- 24 4.3. STEP 3: Connect the Power Supply
- 25 4.4. STEP 4: Complete the Installation Wizard
- 27 5. Playing Multimedia Files
- 28 5.1. Movie Space
- 29 5.1.1. Movie Space Options
- 31 5.2. Photos Space
- 32 5.2.1. Photo Space Options
- 33 5.3. Music Space
- 35 5.3.1. Music Space Options
- 37 6. Sharing Files Throughout Your Home Network
- 37 6.1. Manage Files from a Networked Computer
- 38 6.1.1. STEP 1: Connect the Power Supply
- 39 6.1.2. STEP 2: Connect the Ethernet Cable
- 39 6.1.3. STEP 3: Connect HDMI or A/V Cables
- 40 6.1.4. STEP 4: Configure Network Settings
- 41 6.1.5. STEP 5: LaCie Network Assistant: Install
- 42 6.1.6. STEP 6: LaCie Network Assistant: Transfer Files
- 44 6.1.7. Alternative Network Connection Methods
- 45 6.2. Play Files on Networked Media Players
- 46 6.2.1. UPnP Usage Example: XBOX
- 47 7. Playing Files Located on USB Hard Drive
- 47 7.1. USB Disk Connection
- 48 7.2. Compatibility
- 48 7.3. Safe USB Disk Removal
- 49 8. Playing Files From a Networked Media Server
- 49 8.1. Network-Attached Storage (NAS)
- 50 8.2. From Windows or Mac Computers
- 50 8.2.1. Packet Video TwonkyVision
- 51 8.2.2. Windows Media Player (WMP)
- 52 8.2.3. Shared folders on your Computer
- 55 9. Reformatting the LaCinema Classic HD
- 56 9.1. Reformatting: Windows Users
- 58 9.2. Reformatting: Mac Users
- 59 10. Settings Menu
- 59 10.1. Settings: Audio/Video
- 59 10.1.1. Video Output
- 60 10.1.2. Display Resolution
- 60 10.1.3. Aspect Ratio
- 60 10.1.4. Audio Ouput
- 61 10.1.5. NTSC/PAL
- 61 10.2. Settings: Video
- 61 10.2.1. Video Sequence
- 62 10.2.2. Subtitle Font Size
- 63 10.3. Settings: Music
- 63 10.3.1. Music Sequence
- 63 10.3.2. Audio Track Display
- 64 10.4. Settings: Photo
- 64 10.4.1. Slideshow
- 64 10.4.2. Picture Scaling
- 65 10.4.3. Transition Effect
- 65 10.4.4. Interval Time
- 66 10.5. Settings: System
- 66 10.5.1. Language
- 66 10.5.2. Content Aggregation
- 66 10.5.3. Screensaver Delay
- 66 10.5.4. Standby Mode
- 67 10.5.5. Browse Mode
- 67 10.5.6. Additional Encoding Support
- 67 10.5.7. System Reset
- 68 10.5.8. About
- 68 10.5.9. Update Device
- 69 10.6. Settings: Network
- 69 10.6.1. Network Setup
- 70 10.6.2. Device Name
- 70 10.6.3. Media Servers
- 70 10.6.4. Shared Folders
- 71 10.6.5. Auto Login
- 71 10.6.6. Clear Account Information
- 71 10.7. Settings: Restart
- 72 11. Technical Information
- 72 11.1. HD File Format Compatibility
- 72 11.2. Optimizing Data Transfers
- 73 12. Troubleshooting
- 74 12.1. Troubleshooting the Television/Stereo Connection
- 75 12.2. USB Connection (Mac Users)
- 77 12.3. USB Connection (Windows Users)
- 79 13. Contacting Customer Support
- 80 13.1. LaCie Technical Support Contacts
- 81 14. Warranty Information
