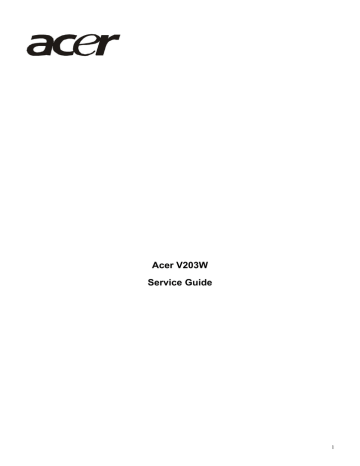

Acer V203W

Service Guide

1

Version

Service Guide Version and Revision

Release Date

Revision History TPV model

A00 Mar.-20-2008 Initial TA7ANCD8W7AYNN

2

Copyright

Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,

Transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer

Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Trademarks

Acer is a registered trademark of Acer Incorporated.

All other trademarks are property of their respective owners.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear on screen.

Note

Warning

Caution

Important

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Remind you to do specific actions relevant to the accomplishment of procedures.

3

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office may have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

Warning: (For FCC Certified Models)

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibility of the user to correct such interference.

As ENERGY STAR

®

Partner our company has determined that this product meets the ENERGY STAR

® guidelines for energy efficiency.

Warning:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

4

Precautions

z

Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. z Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the manufacturer and follow the kit instructions. z

Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.

Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided. z The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. z The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug. z

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges. z Do not overload power strips and extension cords. Overloading can result in fire or electric shock. z Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor. z

Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel z To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A. z The wall socket shall be installed near the equipment and shall be easily accessible.

Special Notes On LCD Monitors

The following symptoms are normal with LCD monitor and do not indicate a problem.

Notes

z Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. z You may find slightly uneven brightness on the screen depending on the desktop pattern you use. z

The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time. z Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.

5

Table Of Contents

Chapter 1 Monitor Features

Introduction

Electrical Requirements

LCD Monitor General Specification

LCD Panel Specification

Support Timing

Monitor Block Diagram

Main Board Diagram

Software Flow chart

Main Board Layout

Installation

Attaching/Removing the base

Chapter 2 Operating Instructions

External Controls

Front Panel Controls eColor Management (OSD)

How to Adjust a Setting

LOGO

Chapter 3 Machine Disassembly

Chapter 4 Troubleshooting

Chapter 5 Connector Information

Chapter 6 FRU (Field Replacement Unit) List

Exploded Diagram

Chapter 7 Schematic Diagram

…………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

………………………………………

31

37

38

38

41

21

21

21

22

23

27

7

13

14

15

9

10

7

8

16

18

19

20

28

6

Introduction

Scope

This specification defines the requirements for the 20” MICROPROCESSOR based Multi-mode supported high resolution color LCD monitor. This monitor can be directly connected to general 15-pin D-sub VGA connector, also supports VESA DPMS power management and plug & play function.

Description

The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF target is 50k hours or more.

Chart of V203W

Signal Interface D-Sub 15-pin

Sync Type

Color Temp User Adjust

Separate / Compatible

Support

DDC DDC2B

Speaker No

Headphone Jack

Microphone Jack

USB Hub

No

No

Not support

Tilt / Swivel Yes / No

7

Electrical Requirements

Standard Test Conditions

All tests shall be performed under the following conditions, unless otherwise specified.

Ambient light

Viewing distance

Warm up time

Analog Input signal

Control temperature

Brightness control

User contrast control

Picture position and size

Viewing angle

AC Supply voltage

Ambient temperature

Humidity

Display mode e-color mode

Dark room (< 1 cd/m2)

40 cm for LCD performance, 20 cm for LCD failures

＞

30 minutes

700 mVss

6500°K (e-Color set to “User” mode)

The value under user mode

Set to The value under user mode, which allows that the brightest two of 32 linear distributed gray-scales (0～ 700mv) can be distinguished.

Factory preset value

90 ° H and V

230V± 5％, 50±3Hz

20+5℃

65%

± 20%

1680x1050, 60 Hz, all white

Set to “User” mode

Measurement systems

The units of measure stated in this document are listed below:

1 gamma = 1 nano tesla

1 tesla = 10,000 gauss cm = in x 2.54

Lb = kg x 2.2

Degrees F = [°C x 1.8] + 32

Degrees C = [°F - 32]/1.8 u' = 4x/(-2x + 12y + 3) v' = 9y/(-2x + 12y + 3) x = (27u'/4)/[(9u'/2) - 12v' + 9] y = (3v')/[(9u'/2) - 12v' + 9] nits = cd/(m2) = Ft-L x 3.426 lux = foot-candle x 10.76

8

LCD Monitor General Specification

Driving system

Active Display Area

TFT Color LCD

433.41(H) x 270.90(V)

LCD Panel

Input

Viewing angle

Display Colors

Pixel pitch

Contrast Ratio

Response time

Luminance of White

Separate Sync.

H-Frequency

V-Frequency 56-75Hz

16.7M

Display mode

EPA ENERGY STAR®

1680 x 1050 @60Hz

ON Mode

OFF Mode

0.258(H) x 0.258(W)

1000 : 1

5ms

300(Typ.) cd/㎡

H/V TTL

30kHz – 83kHz

CR=10: H:170 / V:170 ( typ) ；CR=5: H:176 / V:176 ( typ)

< 49W

< 1W

Contrast control

Power Source

Set to The value under user mode, which allows that the brightest two of 32 linear distributed gray-scales (0～ 700mv) can be distinguished.

90 V ~ 240 V，50

± 3Hz, 60 ± 3Hz

Environmental

Considerations

Operating Temp: 0° to 40°C

Storage Temp: -30° to 65°C

Operating Humidity: 0% to 90%

Storage Humidity: 0% to 90%

Peak surge current

Power line surge

< 100 A peak at 230 VAC and cold starting&25℃ & DC Output at Full-load

No advance effects (no loss of information or defect) with a maximum of 1 half-wave missing per second

9

LCD Panel Specification

This specification applies to the 20.1 inch-wide Color TFT-LCD Module M201EW02.

The display supports the WSXGA+ (1680(H) x 1050(V)) screen format and 16.7M colors (RGB 6-bits+Hi-RFC data).

All input signals are 2 Channel LVDS interface compatible. This module does not contain an inverter card for backlight.

General Specifications

Functional Block Diagram

10

Electrical Characteristics

TFT LCD Module－Power Specification

Backlight Unit

11

Optical Specifications

12

Support Timing

Horizontal Vertical

Nominal

Frequency

Mode Resolution Total

+/- 0.5kHz

Sync

Polarity

Nominal

Freq.

+/- 1 Hz

Sync

Polarity

Nominal

Pixel

Clock

(MHz)

VGA

640x480@60Hz

640x480@72Hz

800 x 525

832 x 520

31.469

37.861

N

N

59.940

72.809

N

N

25.175

31.500

SVGA

XGA

640x480@75Hz

800x600@56Hz

800x600@60Hz

800x600@72Hz

840 x 500

1024 x 625

1056 x 628

1040 x 666

37.500

35.156

37.879

48.077

N

N/P

P

P

75.00

56.250

60.317

72.188

N

N/P

P

P

31.500

36.000

40.000

50.000

800x600@75Hz 1056x625 46.875 P 75.000 P 49.500

1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000

1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000

SXGA

1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750

67.5khz P 75 P 108.000

1280x1024@60Hz 1688x1066

1280x1024@75Hz 1688x1066

63.981

79.976

P

P

60.020

75.025

P

P

108.000

135.000

1440x900@60Hz 1904x934 55.93 P 60

1440x900@75Hz 1936x942 70.635 P 75

P 106.5

N 136.75

75 60 162

WSXGA+ 1680x1050@60Hz 2240x1089

13

Monitor Block Diagram

The LCD MONITOR will contain a main board, a power board, and key board which house the flat panel control logic, brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.

CCFL Drive.

Flat Panel and

CCFL backlight

Inverter Board

(include adapter)

Main Board

AC-IN

90V-264V

Key board

Input :

D-SUB Signal

14

Main Board Diagram

Crystal

(X401)

12MHz

LCD Interface

(CN101)

Key Board

Control

(CN701)

Scalar IC NT68625HMFG-128 JS

(Include MCU ,ADC, OSD)

(U401)

H sync

V sync

RGB

D-Sub

Connector

(CN403)

15

Software Flow Chart

1

Y

2

3

N

N

4

5

N

6

Y

7

N

8

18

N

N

9

10

Y

12

Y

14

19

Y

N

11

13

Y

15

Y

17

N

N

16

16

Remark:

1) MCU initializes.

2) Is the EEPROM blank?

3) Program the EEPROM by default values.

4) Get the PWM value of brightness from EEPROM.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEPROM.

Turn on the LED and set it to green color.

Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are there any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message disappears.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

17

Main Board Layout

Symbol Description Symbol Description

U402 AZ431AN-A-E1

CN702 WAFER 9P RIGHT ANELE PITCH

U702 AP1117E33LA

CN101 CONNECTOR X401 NXS12.000AC30F-BT-2

18

Installation

To install the monitor on your host system, please follow the steps below:

Steps

1 Connect the video cable

A：Make sure both the monitor and computer are switched off.

B：Connect the VGA video cable to the computer.

2 Connect the power cord

Connect the power cord to the monitor, then to a properly grounded AC outlet.

3 Turn on the monitor and computer

Turn on the monitor first, then the computer. This sequence is very important.

4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.

19

Attaching/Removing the Base

Attaching:

Align the release button on the bottom of the monitor with the corresponding slots on the bottom of the base.

Removing:

Press the release button as indicated, then pull in the direction of the arrow to remove the base.

20

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.

• Connect the video cable from the monitor to the video card.

• Press the power button to turn on the monitor position. The power indicator will light up.

External Controls

Front panel controls

1 Power LED: Lights up to indicate the power is turned on.

2 Power Switch: Turn the power on or off.

3.4 < / > : Press < or > to navigate to the desired function, press Enter to select the function. Press < or > to change the settings of the current function.

5 Menu/Enter: Activate the OSD menu when the OSD is off or activate deactivate the adjustment function when the

OSD is on.

6 Auto adjust button/Exit: a. When the OSD menu is active, this button will act as the exit key exit OSD menu). b. When the OSD menu is inactive, press this button for two seconds to activate the Auto Adjustment function. The

Auto Adjustment function s used to set the HPos, VPos, Clock and Focus.

7 Empowering Key/Exit: a. When the OSD menu is active, this button will act as the exit key exit OSD menu). b. When the OSD menu is inactive, press this button to select scenario mode.

21

eColor Management (OSD)

22

How to Adjust a Setting

23

Adjusting the picture

24

25

OSD Message a. Outline b. The Description For OSD Message

Item Description

Auto Config

Please Wait

When Analog signal input, if User Press Hot-Key “Auto”, will show this message, and the monitor do the auto config function.

Input Not

Supported

When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range, will show this message. This message will be flying.

Cable Not

Connected

Analog-Only Model: When the video cable is not connected, will show this message.

This message will be flying.

No Signal

Analog-Only Model: When the video cable is connected, but there is no active signal input, will show this message, then enter power saving.

26

Logo

When the monitor is power on, the LOGO will be showed in the center, and disappear slowly.

How To Optimize The DOS-Mode

Plug And Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

This monitor will appear to be non-functional if there is no video input signal. In order for this monitor to operate properly, there must be a video input signal.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees

(NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signals this monitor, following a time-out period, will automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. Pressing a key on the keyboard, or clicking the mouse restores the display.

Using The Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.

Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, and CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 female configuration.

Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

27

This chapter contains step-by-step procedures on how to disassemble the monitor for maintenance.

Disassembly Procedure

1. Remove the cover hinge as the following indicator. (Fig 1)

Fig 1

2. Remove the screws as following indicate to release base stand. (Fig 2)

Fig 2

28

3. Remove the back cover and bezel. (Fig 3)

Fig 3

4. Remove the lamp connectors and the screw. (Fig 4-5)

Fig 4

Fig 5

29

5. Remove the screws to remove the panel. Put attention to the LVDS cable.(Fig 6-7)

Fig 6

Fig 7

6. Remove the screws to remove the main board and power board.( Fig 8)

Fig 8

30

This chapter provides troubleshooting information for the V203W:

1. No Power

No power

Press power key and look if the picture is normal

NG

Please reinsert and make sure the

AC of 100-240 is normal

OK

NG

Reinsert or check the

Measure U702 Pin2=3.3V,

OK

NG power section

Measure CN702

OK

Replace X401

Check if X401 oscillate waveforms are normal

NG

OK

Replace U401

Replace U702

31

2. No Picture (LED is orange)

No picture

The button if under control

NG

X401 oscillate waveform is normal

NG

Replace X401

OK

Measure U702 Pin2=3.3V,

OK

X401 oscillate waveform is normal

OK

Check HS/VS from

CN403 is normal

NG

NG

NG

OK

Check reset circuit of

U401 is normal

OK

Replace U401

Replace U702

Replace X401

Check Correspondent component

OK

Replace U401

NG Check Correspondent component

32

3. Panel Power Circuit

White screen

Measure Q705 base is high level?

OK

Check CN101 is solder and Q704,Q705 is OK?

Check Correspondent component.

NG

OK

Replace PANEL

NG

X401 oscillate waveform is normal

OK NG

Replace X401

Check reset circuit of

U401 is normal

OK

NG

Check Correspondent component.

Replace U401

33

4. Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

Y

Is Button Switch normally?

Y

Is Key Pad Board normally?

Y

Check Main Board

NG

NG

NG

Connect Key Board

Replace Button Switch

Replace Key Board

34

5. Power Board

No power

No power

Check to CN902 Pin10,11 =14V and Pin6,7 = 5 V

OK

NG

Check AC line volt 120V or 220V

NG

OK

Check the voltage of C905(+)

NG

OK

Check start voltage for the Pin2 of IC901

NG

OK

Check Interface board

Change F901, Check BD901, L901, IC901

Check bridge retified circuit

Change IC901

Check the auxiliary voltage is smaller than 20V

NG

Check IC901

OK

Check T901,D906, D907, Q903,ZD921,ZD922,IC904,IC903

35

W/LED No Backlight

Check the 14V voltage input

OK

NG

Check ON/OFF signal

OK

NG

Check IC801 pin12=12V?

NG

OK

Check connecter & lamp

Check the adapter

Check Interface board

Change Q805.Q808 or Q810

Check the pin9&10 of IC801 have PWM wave

NG

OK

OK

Replace IC801

Check the resonant wave of pin3 & pin7 for T801

OK

NG

Check Q802/Q803

Change Q801/Q804/Q811/Q812

Check the output of T801,T802

NG

OK

Change T801,T802

36

The following figure shows the connector locations on the monitor:

37

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of V203W.Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel (http://aicsl.acer.com.tw/spl/). For whatever reasons a part number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED SERVICE

PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order

FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Exploded Diagram (Model: V203W)

38

Part List

Above picture show the description of the following component.

Item Picture Description

1 Base

2 Main Frame

3 Panel

39

5

4 Power Board

Main Board

40

Main Board

4 VGA_SCL

4 VGA_SDA move FB403 FB404 FB405 to CN403

+5V

R425 1K 1/16W 5%

R424

100R 1/16W 5%

VGA_VDD

R428

4K7 1/16W 5%

ZD403

UDZSNP5.6B

VS

HS

VGA_VDD

R437

R435

4K7 1/16W 5%

100R 1/16W 5%

ZD405

UDZSNP5.6B

HS

15

14

13

12

11

VS

ZD404

UDZSNP5.6B

FB406

0 OHM +-5% 1/10W

ZD406

UDZSNP5.6B

CN403

DB15

VGA_5V

ZD402

UDZSNP5.6B

ZD407

UDZSNP5.6B

D403

BAV99

B1 1

FB404

30 OHM

2

R427

75R 1/16W 5%

9

4

8

3

7

2

6

1

10

5

B1

G1

R1

R430

1K 1/16W 5%

VGA_DET 4

ZD401

UDZSNP5.6B

G1 1

FB403

30 OHM

2

D-SUB1

Add Zener for ESD

R436

100R 1/16W 5%

VSI 4

R438

2K2 1/16W 5%

C423

220pF FB405

R1 1

30 OHM

2

R441

100R 1/16W 5%

R443

2K2 1/16W 5%

C425

22pF

HSI 4 move C423 C425 to

R438 R443

D404

BAV99

R433

75R 1/16W 5%

D402

BAV99

R440

75R 1/16W 5%

R426

100R 1/16W 5%

R429

100R 1/16W 5%

C418

0.047uF

C419

0.047uF

BI1 4

BI14

R431

470R 1/16W 5%

R432

100R 1/16W 5%

R434

100R 1/16W 5%

C420

1N 50V

C421

0.047uF

C422

0.047uF

SOGI 4

GI1 4

GI1- 4

R439

100R 1/16W 5%

R442

100R 1/16W 5%

C417

0.047uF

C424

0.047uF

RI1 4

RI1- 4

41

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

T0P

T0M

T1P

T1M

T2P

4

4

4 T2M

TCLK1P

TCLK1M

T3P

T3M

T4P

T4M

T5P

T5M

T6P

T6M

TCLK2P

4

TCLK2M

T7P

4 T7M

T0M

T0P

T1M

T1P

T2M

T2P

TCLK1M

TCLK1P

T3M

T3P

T4M

T4P

T5M

T5P

T6M

T6P

TCLK2M

TCLK2P

T7M

T7P

LCD-VDD

LCD-VDD

LCD-VDD

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN101

CONN

LVDS

OUTPUT

4 PANEL_ON

R713

10K 1/16W 5%

R714

10K 1/16W 5%

C717

0.1uF 16V

+5V

R711

10K 1/16W 5%

R712

10K 1/16W 5%

FB703

120 OHM

C715

22uF/16V

+

Q704

AO3401

LCD-VDD

C714

0.1uF 16V

R710

220 OHM 1/4W

Q705

PMBS3904 C716

1uF 10V

+5V

42

DVDD

53

C402

0.1uF 16V

+1.8V

2

NC

FB402

1

C403

0.1uF 16V

52

CVDD18

115

C404

0.1uF 16V

119

C426

NC

ADC_VAA

26

C405

0.1uF 16V

6

7

8

4

5

2

3

NO.

1

PARTS

U401

R444

R445

C426

R422

R447

R448

C427

NONE OD

NT68665

0R

NC

NC

100R

0R

NC

NC

OD

NT68670

NC

0R

0.1u

NC

NC

0R

0.1u

MCU_VDD DVDD

R445

NC

R444

C401

0.1uF 16V

+5V

D401 BAV70

1

VGA_VDD

3

VGA_5V

2

R402

1K 1/16W 5%

Q401

PMBS3904

MCU_VDD

R403

3K OHM 1/16W

C406

C406 change type E-C to 0603 11/23/07

1uF 16V

U402

AZ431AN-AE1

Add AZ431 5V-->3.3V

R404

10K 1/10W 1%

R404 change type 0402 5%-->0603 1%

10/12/07

5

5

LED_A

LED_G

5

R415

R416

BL_EN

4K7 1/16W 5%

4K7 1/16W 5%

HSO

VSO

MCU_VDD

R410 R411

R407

10K 1/16W 5%

+5V

R408

CVDD18

R412

1K 1/16W 5%

5 BL_DIM

R446

1K 1/16W 5%

5 MUTE

5 PANEL_ID

5 VOLUME

C411

0.1uF 16V

R417

R418

10K 1/16W 5%

0R05 1/16W

5 PWR_KEY

C412

NC

5

5

KEY1

KEY0

To made the volume control smoothly change to 093G-2251B-J for crystal temp over spec 10/23/07

R419 1M 1/16W 5%

X401

12MHz

C413

47pF

C414

47pF

CVDD18

VSO

HSO

MCU_VDD

R420

100R 1/16W 5%

PC7

PD0

PD1

PD2

PD3

PD4

NC/(HSYNCI)

GPO1

AD0/GPO2

AD1/GPO3

INT_VSO/GPO4

INT_HSO/GPO5

CVDD

GPO6

PWMA/GPO7

PWMB/GPO8

NC/(VSYNCI)

PC0*

PC1*

PC3/PWM0

PC4/PWM1

PC5

PB1/ADC1

PB0/ADC0

OSCI

OSCO

125

126

127

128

121

122

123

124

117

118

119

120

114

115

116

108

109

110

111

112

113

103

104

105

106

107

REFCLKI R422 100R 1/16W 5%

C415

0.1uF 16V

+3.3V

U401

NT68625HMFG

2

2

2

2

2

2

2

BI1

BI1-

SOGI

GI1

GI1-

RI1

RI1-

NC

NC

3

4

1

2

+5V

TX

RX

NC

NC

For Debug Use

1

2

3

SCL

SDA

43

ADC_VAA

T0M

T0P

3

3

T1M

T1P

3

3

T2M

T2P

3

3

TCLK1M 3

TCLK1P 3

T3M 3

T3P

T4M

3

3

T4P

T5M

3

3

T5P

T6M

3

3

T6P 3

TCLK2M 3

TCLK2P 3

T7M 3

T7P 3

WP

PANEL_ON 3

MCU_VDD Cancel Eeprom(24C16), because the data can input Scaler.11/23/07

61

60

59

58

57

56

55

54

64

63

62

46

45

44

43

42

41

40

39

50

49

48

47

53

52

51

CGND/DGND

RSGA1M

RSGA1P/VCKI

RSCLKAM/V7

RSCLKAP/V6

RSBA3M/V5

RSBA3P/V4

RSBA2M/V3

RSBA2P/V2

RSBA1M/V1

RSBA1P/V0

DVDD

CVDD

IRQn

SCL/P34

SDA/P35

RSTn/PD5

PB4*/DDC_SCL0

PB5*/DDC_SDA0

PLL_VDD

TCLK

PLL_GND

TOUTP/VSYNCI1

HSYNCI1

PA7*/PWM9*

PA6*/PWM8*

3

4

1

2

U403

A0

A1

A2

GND

NC

VCC

WP

SCL

SDA

8

7

6

5

NC

R405

C407

NC

R406

NC

WP

SCL

SDA

DVDD

CVDD18

DVDD

R448

NC

IRQn

R401

R413

NC

NC

R449 NC

R450 NC

RSTn

REFCLKI

VSI

HSI

2

2

SCL

SDA

R414 NC

DPLL

C408

0.1uF 16V

C409

C427

NC

2

FB401

NC

+ C410

100uF/25V

1

+1.8V

NC(C1206)

R447

RX

TX

0R05 1/16W

5V_DETECT

VGA_DET 2

VGA_SCL 2

VGA_SDA 2

IRQn

R421

3.9K OHM 1% 1/16W

R423

3.9K OHM 1% 1/16W

+5V

5V_DETECT

C416

100pF

Detect 5V-->4V Reset

CN701

3

4

1

2

5

6

CONN

CN702

7

8

5

6

9

3

4

1

2

+5V

CONN

BL_DIM 4

PANEL_ID 4

VOLUME 4

MUTE 4

C701

0.1uF 16V

R702

10K 1/16W 5%

+3.3V

R703

1K 1/16W 5%

R704

NC

+5V

Q701

PMBS3904 R705

10K 1/16W 5%

C702

BL_EN 4

100uF/25V

+

C704

0.1uF 16V

U702

3

VIN

AP1117E33LA

VOUT

2

+3.3V

+

C703

100uF/25V

C705

0.1uF 16V

2

FB701 120OHM

DVDD

1

2 1

FB702 120OHM

ADC_VAA

+5V

D701

SM340A

NC

C707

U701

NC

3

Vin Vout

2

Cancel 5V to 1.8V LDO,because the Scaler can support it.

+1.8V

+

C706

NC

C708

NC

R706

R707

R708

R709

R701

100R 1/16W 5%

100R 1/16W 5%

1K 1/16W 5%

330R 1/16W 5%

100R 1/16W 5%

KEY0 4

KEY1 4

PWR_KEY 4

+3.3V

Q702

PMBS3906

LED_G 4

+3.3V

Q703

PMBS3906

LED_A 4

44

Power board

45

46

Key board

CN001

4

5

6

1

2

3

LBADC1

LBADC2

POWER_Key

LED_BLUE#

LED_RED#

CONN

LBADC1

LBADC2

MENU

VOL(GND)

VOL+

0 V

AUTO

ECOLOR (GND) 0 V

C001

NC

LED_BLUE#

LED_RED#

C002

NC

C003

NC

C004

NC

ZD001

2

UDZSNP5.6B

1

LED001 LED

4

3

2

1

2

ZD002

1

UDZSNP5.6B

C005

NC add ZD001 and ZD002 for ESD solution

R001

R002

2K OHM 1/16W

2K OHM 1/16W

R003

1K 1/16W 5%

SW001

JB41-03521

1

2

3

4

CN001

CONNECTOR ECOLOR AUTO MENU VOLVOL+ POWER LED

5

6

7 9 11

8 10 12

47
