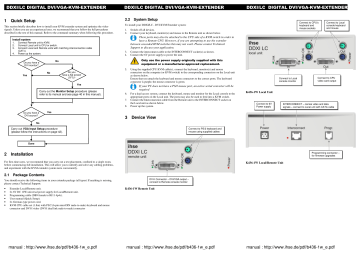

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

1 Quick Setup

This section briefly describes how to install your KVM extender system and optimize the video signals. Unless you are an experienced user, we recommend that you follow the full procedures described in the rest of this manual. Refer to the command summary when following this procedure.

Install system

1. Connect Remote unit to KVM.

2. Connect Local unit to CPU or switch.

3. Connect Local and Remote units with matching interconnection cable

(CATx).

4. Power up the system.

Do you have a

DVI monitor?

No

No

Yes

Do you have a flat screen

(TFT)?

Yes

Carry out the Monitor Setup procedure (please refer to its manual and see page 40 in this manual).

Do you have a

DVI source?

Carry out VGA Input Setup procedure

(please follow the instructions on page 42).

Done

No

Yes

2 Installation

For first-time users, we recommend that you carry out a test placement, confined to a single room, before commencing full installation. This will allow you to identify and solve any cabling problems, and experiment with the KVM extender system more conveniently.

2.1 Package Contents

You should receive the following items in your extender package (all types) If anything is missing, please contact Technical Support:

• Extender Local/Remote unit.

•

2x 6V DC 12W universal power supply for Local/Remote unit.

• Programming cable (DB9 female to RJ11 4p4c).

•

User manual (Quick Setup).

• 2x German-type power cord.

•

KVM CPU cable set (1.8m) with PS/2 (6-pin mini-DIN male-to-male) keyboard and mouse connector and DVI-I video (DVI-I dual link male-to-male) connector

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

2.2 System Setup

To install your DDXI/LC - DVI KVM Extender system:

1. Switch off all devices.

2. Connect your keyboard, monitor(s) and mouse to the Remote unit as shown below.

These ports may also be attached to the CPU side of a KVM switch in order to have a Remote CPU. However, if you are attempting to use the extender between cascaded KVM switches this may not work. Please contact Technical

Support to discuss your application.

3. Connect the interconnect cable to the INTERCONNECT socket(s) as shown.

4. Connect the 6V power supply to power the unit.

Only use the power supply originally supplied with this equipment or a manufacturer-approved replacement.

5. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s) and mouse connectors on the computer (or KVM switch) to the corresponding connectors on the Local unit as shown below.

Ensure that you attach the keyboard and mouse connectors to the correct ports. The keyboard connector is purple; the mouse connector is green.

If your PC does not have a PS/2 mouse port, an active serial converter will be required

6. For a dual access system, connect the keyboard, mouse and monitor for the Local console to the appropriate ports on the Local unit. The ports may also be used to feed into a KVM switch.

7. Connect the Interconnection cable from the Remote unit to the INTERCONNECT socket on the Local unit as shown below.

8. Power up the system.

3 Device View

Connect to PS/2 keyboard and mouse using supplied cables

DVI-I Connector – DVI/VGA output – connect to Remote console monitor

K436-1W Remote Unit

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

Connect to CPU’s keyboard and mouse sockets

Connect to Local console keyboard and mouse

K436-1W Local Unit

Connect to 6V

Power supply

Connect to Local console monitor

Connect to CPU video card output

INTERCONNECT – carries video and data signals – connect to Local unit with CATtx cable

K436-1W Local/Remote Unit

Programming connector – for firmware upgrades

manual : http://www.ihse.de/pdf/b436-1w_e.pdf manual : http://www.ihse.de/pdf/b436-1w_e.pdf manual : http://www.ihse.de/pdf/b436-1w_e.pdf

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

3.1 Diagnostic LEDs

Each Extender unit is fitted with four indicator LEDs: Communication Error, Link Status, Power and Video Signal.

The Communication Error is located at the back of the local and remote unit near the Interconnect sockets. The Link Status and the Video OK LED’s are located on the left and the right hand side of the DVI connector. The Power LED is next to the PS2 connector.

As an example, the location of the LEDs is shown below for K436-1W Remote and Local unit:

Communication

(Red)

Link Status

(Green)

Video Signal

(Green)

Figure 1 Diagnostic LEDs on Remote (left) and Local (right) units

Power

(Red)

LED Appearance Diagnostics

Communication

Error

(Red LED)

Off

Flashing slow medium fast

No communication error for >60 minutes

Indicates number of communication errors during previous 60 minutes:

10-100

100-1000

>1000

Error counter cleared automatically 60 minutes after previous communication error.

Link Status

(Green LED)

On

Flashing

Link connection is locked

Interconnection cable not connected or not functioning

Power

(Red LED)

Video Signal

(Green LED)

Off

On

Off

On

Device not ready

Device ready

No video signal or valid mode detected

Attached and valid mode detected

4 Device Control

If you are using the DVI output from your video card and the DVI input to a TFT monitor, no adjustment should be required. In other cases, when the video signal is converted between analog and digital formats, either by the Local unit and/or the monitor, you may need to optimize the video signal using the Extender’s on-screen display (OSD).

Version information

Screen resolution and refresh rate

Main menu icons

Submenu/command icons

Menu title

Figure 2 OSD Utility

manual : http://www.ihse.de/pdf/b436-1w_e.pdf

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

You can adjust the following properties using the OSD:

•

Adaptation to analog signal sources (VGA/RGB) – see also manual.

• Color temperature

• Brightness/contrast

• Saturation

• OSD operation, factory reset.

4.1 Opening the OSD

You can access the OSD in two ways:

•

Using the keyboard attached to the Remote Unit:

• Using our small WINDOWS™ program with a serial connection to the programming port.

While the OSD is active, the mouse is locked and only menu keystrokes are allowed at the keyboard.

To indicate that the OSD mode is active, the status LEDs (Num Lock, Caps Lock and Scroll Lock) are flashed. There is a summary of OSD commands on page Fehler! Textmarke nicht definiert..

4.1.1 Using the keyboard attached to the Remote Unit

Type the following key sequence at the Remote console keyboard:

<Ctrl> + <Shift> + < I >

Note. On some keyboards, <Ctrl> is replaced by <Strg>.

To navigate within the OSD:

• Use the left and right arrow keys to highlight a submenu and/or function.

•

Press the <ENTER> key to select the highlighted submenu or function.

• Select the Exit icon to go back to the previous menu level.

•

Press the <ESC> key to exit the OSD mode.

4.1.2 Using our WINDOWS™ program

On all devices, you can use our small WINDOWS™ program, running on a WINDOWS™ computer for OSD access:

•

Download the program from our server

•

Connect the programming cable to the programming port of the Remote unit.

• Connect the programming cable to the serial port of your computer, where the program is running.

• Start the program and follow the on-screen instructions.

•

Type in the following key sequence:

< O > + < S > + < D > followed by <ENTER>

When the OSD starts, it displays information about the attached device and firmware version, for example:

Modul Name : DVI-KVM-12lo

Version : Vers.1.3

Date : 03/05/15

To navigate within the OSD:

•

Use the <L> and <R> keys to highlight a submenu and/or function.

• Press the <S> key to select the highlighted submenu or function.

•

Select the Exit button to go back to the previous menu level.

Press the <X> key to exit the OSD mode.

DDXI/LC DIGITAL DVI/VGA-KVM-EXTENDER

DDXi/LC V1.00

DVI/VGA-

KVM-Extender

Type:

K436-1W

(Quick Setup)
