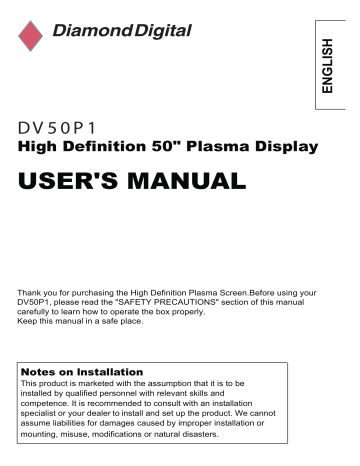

ENGLISH
DV 5 0 P 1
High Definition 50" Plasma Display
USER'S MANUAL
Thank you for purchasing the High Definition Plasma Screen.Before using your
DV50P1, please read the "SAFETY PRECAUTIONS" section of this manual
carefully to learn how to operate the box properly.
Keep this manual in a safe place.
Notes on lnstallation
This product is marketed with the assumption that it is to be
installed by qualified personnel with relevant skills and
competence. It is recommended to consult with an installation
specialist or your dealer to install and set up the product. We cannot
assume liabilities for damages caused by improper installation or
mounting, misuse, modifications or natural disasters.
Colour Plasma Display Panel
User’s Manual
Content
Safety Precautions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．１
Features and Functions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ２　Preparation
Preparation ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ３　Setup and Turn on Power ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ４　Turn on the Plasma Display ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ５　Remote Control Setup ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ５　Front Panel Controls ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ６　Connection to other equipment
Input Connection of Video Signal （DVD/VCD/VCR） ．．．．．．．．．．．．．． ７　Input Connection of PC Signal （PC/DVI-D） ．．．．．．．．．．．．．．．．．．．．． ８　Output Connection of Video Signal ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ９　Operation
Operation of Remote Control ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １０　Menu Function ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １１　Main Menu．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １１　Picture Menu ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １２　Sound Menu ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １３　Setup Menu ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １４　Display Menu ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １５　Layout Menu (MultiWindows) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １６　Timer Menu ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １７　Safety Notice ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． １８　Specifications．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ２０　Troubleshooting ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ２１　Service Contacts ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ２２　To obtain maximum benefit from your set, please read these Instructions
before making any adjustments, and retain them for future reference.　Safety Precautions
WARNING
1) To prevent damage which may result in fire or shock hazard, do not
expose this appliance to rain or moisture.
Do not place containers with water (flower vase, cups, cosmetics, etc.)
above the set. ( including on shelves above, etc.)
2) To prevent electric shock, do not remove cover. No user serviceable parts
inside. Refer servicing to qualified service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is
equipped with a three pin earthing-type power plug. This plug will only fit an
earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
CAUTION
This appliance is intended for use in environments which are relatively free
of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where
electrical noise may overlap with the input signals could cause the picture
and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources
of strong electromagnetic fields.
Symptoms
After-images appear
Welcome
Check
Do not allow a still picture to be displayed for
an extended period, as this can cause a
permanent after-image to remain on the
Plasma Display.
Examples of still pictures include logos, video
games, computer images, Teletext and images
displayed in 4:3 mode.
Note:
The permanent after-image on the Plasma
Display
resulting from fixed image use is not an
operating defect and as such is not covered by
the Warranty.
This product is not designed to display fixed
images for extended periods of time.
1
Features and Functions
50 inch（127cm）Large Screen Flat Panel Plasma Display
Panel Resolution: WXGA（1366 x 768 Pixels）
MAX Brightness of Panel: 1000 cd/m2
MAX Contrast Ratio of Panel: 3000:1
View Angle: Greater than 160° H&V
Dual Video, Dual S-Video, Single Y/Cb/Cr（480i, 576i）
Single Y Pb Pr （480P, 576P, 720P, 1080i, 1080P）HDTV Ready
Single Video, Audio（L/R）Output
PC D-SUB 15Pin Signal Receiver
DVI-D Signal（TMDS）Receiver, Support HDTV, SDTV
External 10W×2 Speaker
Intelligent Volume Control Function
PIP（Picture in Picture）
POP（Picture Out Picture, Split Plane）
High Effective 8 bits Digital Video Decoder
Digital 4H Comb Filter
3:2, 2:2 Pull Down
DLTI / DCTI Digital Brightness/ Chroma Adjust
Digital I / P Processor, Progressive Display
HDSPT（High Definition Scalar Processor Technology）
Timer to Turn ON / OFF TV Set
MTS, Stereo, Mono Sound, Surround Function
2
Preparation　1. Preparation
This picture is for reference only.
● Do not place the Plasma Display on sloped or unstable surfaces.
● Do not place any objects on top of the Plasma Display.
● This Plasma Display radiates infrared rays, therefore it may affect other infrared
communication equipment.
● Install your infrared sensor in a place away from direct or reflected light from your
Plasma Display.
● This Plasma Display is designed for use in standard atmosphere conditions under 2000m.
● Avoid installing this product near electronic equipment that is sensitive to
electromagnetic waves.
3
2. Setup and Turn on Power
This picture is for reference only.
Connect the AC cord plug to the Plasma Display Panel:
Connect the AC power cord plug to the ”AC IN” jack, Connect the other side
plug to the Wall Outlet. Press the Power switch“ ○”on the Plasma Display to turn
the set on.
View from back of the Panel
4
3. Turn on the Plasma Display Panel
When the Display Set is on, the Power Indicator LED will be lit as follows:
Power Indicator Green: Turned On
Power Indicator Red: Stand by
If the Power Indicator is red, press the “
” key on the Front panel controls or the
“POWER” key on the Remote Control, to turn on the unit.　4. Remote Control Setup
①　Slide off the battery cover
②　Insert batteries
Note correct polarity (+and -).
③　Replace the cover
• Make sure that the batteries are fitted the
correct way round.
• Do not mix different battery types or use
rechargeable
batteries.
5. Front panel
controls
5
5. Front Panel Controls
⑦
⑥
⑤
④　③
②　①　①　: Power Key. Press to toggle between Standby and On state.
②　Power Indicator:
Power Indicator: Green = Turned On
Power Indicator: Red = Standby mode
③　MODE: Signal Source selection.
Press repeatedly to select from the available Signal Inputs:
S-VIDEO2 → AV2 → YCbCr → D-SUB
AV1 ← S-VIDEO1 ← YPbPr ← DVI
④　MENU: Displays the On Screen Display to configure the Plasma Display.
● Press this key to open the Main Menu, press “- CH +” key select an item.
Press Volume Up (+) key “ VOL + ” to open a submenu.
● Press MENU key to return to main menu or exit menu.
⑤　- VOL +: Volume Down (-) / Up (+)
● Press - VOL + key to enter a menu or adjust a function.
⑥　- CH +: Programme Number Down (-) / Up (+)
● Press - CH + key to move up or down the list of menu items.
⑦　IR: Remote Control Receiver
6
Connection to other equipment
Please connect this Plasma Display Panel to other equipment as pictured below.
You may connect several types of equipment eg: DVD, VCD, VCR,
Set Top Box, X-Box and so on.
Video Signal Input Connections (DVD/VCD/VCR)
VIDEO1
VIDEO2
VIDEO INPUT
R
R
S-VIDEO INPUT
L
L
S-VIDEO1
S-VIDEO2
R
R
L
L
There are 2 Video inputs and 2 S-VIDEO inputs.
Each video source has its own set of R/L audio inputs.
Y Cb Cr
Y Pb Pr
COMPONENT INPUT
R/L(480i,576i)
R/L(480P,576P,720P,1080i)
There are 2 Component inputs: Y Cb Cr and Y Pb Pr.
Each Component source has its own set of R/L audio inputs.
If your DVD or Set Top Box has Y Cb Cr or Y Pb Pr outputs,
connect it to the appropriate component input jacks, then
select Y Cb Cr or Y Pb Pr source input on the Display Panel or remote control.
Notice: If the displayed picture appears corrupted, check the cable connection
and DVD output signal setup.
7
PC Signal Input Connection（VGA / DVI-D）
DVI-D
DVI INPUT
D-SUB
AUDIO
PC INPUT
AUDIO
▲　Notice: The highest Resolution input is 1280 X 1024 / 60Hz
If a higher resolution is selected, “signal out of range”
will be displayed on the screen.
Some PC models cannot be connected to the set.
8
● D-SUB 15 Pin:
Attach a VGA cable from your PC to the D-SUB input on the back of your
Plasma Display Panel.
Connect a 3.5mm line cable from your PC soundcard to the AUDIO input jack
beside the D-SUB input.
Change the source to “D-SUB” by pressing the “GRAPHIC”button on the
Remote Control, or by pressing the“MODE”button on the front panel
controls. Then turn on the PC.
● DVI-D:
Attach the DVI-D 24 pin signal cable (TMDS cable) from your equipment to the
DVI-D jack at the back of the Plasma Display Panel. Connect a 3.5mm line cable
from the headphone output on your equipment to the AUDIO input beside
the DVI-D jack.
Change the source to “DVI” by pressing the “GRAPHIC” button on the
Remote Control, or by pressing the “MODE” button on the front panel controls.
Then turn on the equipment.
Video Output Connection
VIDEO OUTPUT
The VIDEO output is analogue Video (CVBS).
L & R are left and right Audio out channels. They can be connected to analogue
Video (CVBS) and Audio inputs on other devices. See picture above.
9
Operation
Operation of Remote Control
“MUTE”
Press to cancel sound,
press again to continue
“POWER”
Display Panel turn
on/off key
“VIDEO”
S-Video2, AV2, YCbCr,
S-Video1, AV1 source
select input
“WIDE”
Select Aspect Ratio
“GRAPHIC”
D-SUB、DVI、Y，Pb，Pr
(HDTV) source select
input
“FREEZE”
Press to freeze the picture,
press again to continue
“TV”
TV1, TV2 source select
(Certain models only)
“SLEEP”
Select timer into Power
down state. off→30→60
→90→120→off
“CH+▲ / CH - ”
Press to select next or
previous program
number.
(Certain models only)
Move cursor up or down
on the Menu
“SOUND”
TV: Stereo, Mono
AV: Left, Right Stereo
“S-MODE”
Sound mode select:
cinema, music, news, User
“P-MODE”
Select Picture Mode:
Normal,User, Movie,Bright
“MENU”
Enter or exit MENU.
Exit other operation
“PIP”
Picture in Picture
On/Off key
“DISPLAY”
Display source state
“SWAP”
Toggle PIP / POP state
“W．SELECT”
Select Main picture PIP
10
“FAVOURITE”
Enter favourite channel Menu.
/ VOL+ and
CH+▲ / CH - key to adjust,
then Enter (certain models
only)
▲
“0~9 number”
Number key
“CHRTN”
TV channel return, see
last TV channel
(certain models only)
▲
▲
▲
“VOL/ VOL+ ”
Volume adjustment
or adjust item in Menu
Menu Function
Menu pictures are for reference only.
1. Press “ MENU” key on Remote Control or Front panel controls
2. Press “CH+▲ / CH - ” To move the cursor up and down to highlight sub menu items
3. Press “ VOL+ ” To enter a sub menu item, or to adjust the item.
Main Menu
Press “MENU” key to enter Main Menu, as below.
PICTURE: Picture Menu
SETUP: Setup Menu
LAYOUT: Lay out Menu
SOUND: Sound Menu
DISPLAY: Display Menu
TIMER: Timer Menu
Press “VOL+
” to enter sub Menu
11
1、 PICTURE
Picture adjustment menu
CONTRAST:
Contrast adjust
0 ~ 100 Adjust
BRIGHTNESS: Brightness adjust
0 ~ 100 Adjust
COLOUR:
Colour chroma adjust
0 ~ 100 Adjust
SHARPNESS: Sharpness adjust
TINT:
Tint adjust only in NTSC system Mode
H．PHASE:
Horizontal Phase adjust（only in D-SUB Mode）
COLOUR TEMP: Colour temperature selection, standard→Warm → Cool
Press “CH+▲ / CH Press “ VOL+
the item
”Move the cursor up and down to select a sub item
” to enter a sub menu item, then press “VOL -
12
/ VOL +
”adjust in
2、SOUND
To Sound adjust menu
BASS:
TREBLE:
BALANCE:
SURROUND:
Adjusts lower deeper sounds
0 ~ 100 Adjust
Adjusts higher sharper sounds
0 ~ 100 Adjust
Adjusts the sound level difference between left and right speakers
0 ~ 50 / 50~100 Adjust
Surround On / Off
INTER SPEAKER: Internal speaker
Press “CH+▲ / CH Press “ VOL+
item
On / Off
”Move the cursor up and down select sub item
” to enter sub menu item, then press “VOL -
13
/ VOL +
” to adjust the
3. SETUP
Setup menu
COLOUR SYSTEM: Select TV colour system. AUTO, PAL, NTSC, SECAM.
If unsure, select AUTO.
SOUND SYSTEM: Select local TV Sound system B/G
LANGUAGE: Select language in menu. English → 简体中文 → 繁体中文
MENU BKG: Menu background select Opaque → Translucent
OSD TIMER: OSD timeout. 5 sec → 15 sec → 60 sec
OSD POSITION: Set OSD position. 5 OSD MENU positions can be selected
Press“ VOL – ” key to select: Upper left →Upper Right → Middle Center
Press“ VOL + ” key to select: Lower left →Lower Right → Middle Center
Choose Auto config for the best display, available on D-SUB input only.
14
4、DISPLAY
Display menu
H．POSITION: Horizontal picture adjustment
V．POSITION: Vertical picture adjustment
H.RES: Horizontal resolution adjustment
V.RES: Vertical resolution adjustment
(H.RES And V.RES function is available on D-SUB input only,
It is normal for the Plasma Panel to display a black screen during adjustment. )　PAN AND ZOOM: Press “ VOL + ” to enter the zoom menu
Press “ CH+▲ / CH - ” to adjust zoom level
When scale is set larger than 1x, press the “DISPLAY/INFOR” key
to enter pan function.
Press the “ CH+▲ / CH - ” or “VOL – / VOL + ” keys up / down or left / right
to centre the selected area of the picture.　IMAGE SIZE: Press “ VOL + ” to cycle through the options below:
Fill all → Normal → Wide → Zoom → Fill all
PIP SIZE: Adjust Picture In Picture the sub picture size
PIP POSITION: Adjust Picture In Picture the sub picture location
15
5、LAYOUT（Multi Windows）
Layout menu
FULL SCREEN: Single Picture mode, press “VOL +
PIP: Picture In Picture mode, press “VOL+
”key to select.
” key to select.
SPLIT SCREEN: Two windows display mode, press “VOL+
●　PIP: Picture In Picture mode
After selecting it, the main picture is
source 2, sub picture is source 1, and
sound is from source 2.　User can press“W. SELECT”key to
select which one is the main picture. The
sound is determined by the main picture.
Press the“COMP”key to select the main
picture source: S-VIDEO2 , AV1, AV2 etc.
Press the“PIP-SWAP” key to toggle
between two pictures. These features can
be controlled via the Remote Control.
Transmitter,
see page
●　SPLIT
SCREEN:
Two10.
windows display
” key to select.
PIP
mode If selected, the main picture is source 2,
and sub picture is source 1, with sound from
source 2.
The user can press the“W．SELECT”key to
select which is the main picture. The sound is
determined by the main picture.
Press the“COMP”key to select the main
picture source: S-VIDEO2 , AV1, AV2 etc.
Press the“PIP-SWAP” key to toggle between
two pictures. These features can be
controlled via the Remote Control, see pg 10.
SPLIT SCREEN
▲ Some sources can’t be selected, and some sources may take a moment to display.
▲ If picture looks abnormal, power cycle the Plasma Display Panel.
16
6. TIMER Timer menu
CURRENT TIME: Set the current time.
POWER ON TIME: Set the power on time.
To enter Standby mode, current time and power off time must be set.
POWER OFF TIME: Set the power off time. Current time must be set first.
POWER SAVING TIMER: If no signal input is detected, the Panel will enter standby.
Power saving timer options: 5Min → 10Min → 15Min → 20Min → 25Min → 30Min
”key to enter time set sub menu. Press“
▲
Press“VOL+
▲
● How to set the time:
”or
▲
“ VOL+ ” key set Hours ：Minutes .
● All time settings are configured as above.
▲
▲
●　POWER ON CHANNEL: Once power is on, the Panel will display the
selected channel.
/ VOL+ ” keys to increase or decrease the channel
number.
17
Safety Notice
WARNING
Do not place the Plasma Display Panel on sloped or unstable surfaces.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display Panel.
• If water is spilt onto the Plasma Display or foreign objects get inside it, a short-circuit may occur
which could result in fire or electric shock. If any foreign objects get inside the Plasma Display,
please consult your local dealer.
If using the pedestal (optional accessory), leave a space of at least 10 cm at the top, left
and right, at least 6cm at the bottom, and at least 7 cm at the rear. If using some other
setting-up method, leave a space of at least 10 cm at the top, bottom, left and right, and
at least 10 cm at the rear.
Avoid installing near electronic equipment that is sensitive to electromagnetic radiation.
• It will cause interference in image, sound, etc. In particular, keep video equipment away from
this product.
When using the Plasma Display Panel
The Plasma Display Panel is designed to operate on 100-120/200-240V~, 60/50 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the
Plasma Display.
Do not stick any foreign objects into the Plasma Display Panel.
• Do not insert any metal or flammable objects into the ventilation holes or drop them onto the
Plasma Display, as doing so can cause fire or electric shock.
Do not remove the cover or modify it in any way.
• High voltage which can cause severe electric shocks are present inside the Plasma Display. For
any inspection, adjustment and repair work, please contact your local dealer.
Securely insert the power cord plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is
damaged or the wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power
cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it,
place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and
electric shock. If the power cable is damaged, have it repaired at your local dealer.
If the Plasma Display Panel is not going to be used for any prolonged length of time, unplug the
power cord plug from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour
starts to come out from the Plasma Display Panel, immediately unplug the power cord plug from
wall outlet.
• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After
checking that the smoke has stopped, contact your local dealer so that the necessary repairs
can be made. Repairing the Plasma Display yourself is extremely dangerous, and should not be
attempted.
18
If water or foreign objects get inside the Plasma Display Panel, if the Plasma Display Panel
is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.
• A short circuit may occur, which could cause fire. Contact your local dealer for any repairs that
need to be made.
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air that comes out from the ventilation holes at the top of Plasma Display will be hot. Do not
put your hands, face, or objects which cannot withst and heat close to this port, otherwise burns or
deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may
become damaged, and fire or electric shock could result. Disconnect the power cord plug from
the wall socket as a safety precaution before carrying out any cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust builds up on the power cord plug, the resulting humidity can damage the insulation,
which could result in fire.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication
equipment.
Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently
using only a cleaning cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure
water or water to which a small amount of mild detergent has been added, then wipe evenly
with a dry lint-free cloth until the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise
the surface may become damaged. Furthermore, avoid contact with volatile substances such as
insect sprays, solvents or thinner, otherwise the quality of the surface may be adversely
affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of mild
detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and
then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display.
If water droplets get inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents or thinner, otherwise the
quality of the cabinet surface may be adversely affected or the coating may peel off.
Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.
19
Specification
Item
Ｓｃｒｅｅｎ　ｓｉｚｅ　Ａｓｐｅｃｔ　Ｒａｔｉｏ　Ｄｉｓｐｌａｙ　ｐｉｘｅｌｓ　Ｅｆｆｅｃｔｉｖｅ　ｄｉｓｐｌａｙ　ｓｉｚｅ　Ｎｕｍｂｅｒ　ｏｆ　ｃｏｌｏｕｒｓ　Ｃｏｎｔｒａｓｔ　Ｒａｔｉｏ　Ｐｅａｋ　ｂｒｉｇｈｔｎｅｓｓ　COMPONENT　（Ｙ　Ｃｂ　Ｃｒ）　ＨＤＴＶ　Ｙ　Ｐｂ　Ｐｒ　Ｓｉｇｎａｌ　ｉｎｐｕｔ　Ｐｌｕｇ　ａｎｄ　ｐｌａｙ　Ｓｕｐｐｏｒｔｅｄ　Ｆｒｅｑｕｅｎｃｉｅｓ
Ｅｘｔｅｒｎａｌ：１０Ｗ　×　２（４ ）　Ａｕｄｉｏ　Ｏｕｔｐｕｔ　ＲＣＡ　（Ｌ　／　Ｒ）　Power input sources
Power consumption
100-120/200-240V~, 60/50Hz
470W (Typical)
ＤＶＩＭｏｄｅ　Ｄｉｍｅｎｓｉｏｎ　Ｎｅｔ　ｗｅｉｇｈｔ　Ａｃｃｅｓｓｏｒｙ　Ａｕｄｉｏ　Ｌ／Ｒ　ｘ　１　Ｓｐｅａｋｅｒ　Ａｍｐｌｉｆｉｅｒ　Ｄ－Ｓｕｂ　Ａｕｄｉｏ　Ｓｉｇｎａｌ　ｉｎｐｕｔ　Ｐｌｕｇ　ａｎｄ　ｐｌａｙ　Ｓｕｐｐｏｒｔ　Ｆｒｅｑｕｅｎｃｙ　Ａｕｄｉｏ：　Ｌ／Ｒ　ｘ　１　Ａｕｄｉｏ：　Ｌ／Ｒ　ｘ　１　Ａｕｄｉｏ：　Ｌ／Ｒ　ｘ　１　Ａｕｄｉｏ：　Ｌ／Ｒ　ｘ　１　Ａｕｄｉｏ：　Ｌ／Ｒ　ｘ　１　ＤＶＩ　Ａｕｄｉｏ　ＡＶ　Ｏｕｔｐｕｔ　Ｄ－Ｓｕｂ　Ｍｏｄｅ　５０　ｉｎｃｈ　ｐｌａｓｍａ　ｄｉｓｐｌａｙ　ｐａｎｅｌ　１６：９　１３６６　ｘ　７６８　（ＷＸＧＡ）　1106ｍｍ　ｘ　622ｍｍ　１６.７　ｍｉｌｌｉｏｎ　ｃｏｌｏｕｒｓ　３０００：１　（ｉｎ　ｄａｒｋ　ｒｏｏｍ）　１０００　ｃｄ／ ＲＣＡ　ｘ　１　ＰＡＬ，　ＮＴＳＣ，　ＳＥＣＡＭ　Ｓ－Ｖｉｄｅｏ１　ｘ　１ ＰＡＬ，　ＮＴＳＣ，　ＳＥＣＡＭ　ＲＣＡ　ｘ　１　ＰＡＬ，　ＮＴＳＣ，　ＳＥＣＡＭ　Ｓ－Ｖｉｄｅｏ２　ｘ　１ ＰＡＬ，　ＮＴＳＣ，　ＳＥＣＡＭ　Ｙ，Ｃｂ，Ｃｒ　ｘ　１　ＰＡＬ，　ＮＴＳＣ，　ＳＥＣＡＭ　１９２０Ｘ１０８０ｉ（６０Ｈｚ　５０Ｈｚ）　１９２０Ｘ１０８０Ｐ（３０Ｈｚ）　Ｙ　Ｐｂ　Ｐｒ　４８０Ｐ（６０Ｈｚ）　７２０Ｐ（６０Ｈｚ）　Ａｎａｌｏｇ：Ｄ－Ｓｕｂ　１５　ｐｉｎ　ＤＤＣ　／　２Ｂ　ＦＨ：３０ＫＨｚ　ｔｏ　６９ＫＨｚ　，　ＦＶ：５６Ｈｚ　ｔｏ　８５Ｈｚ　ＶＥＳＡ：　６４０　ｘ　４８０　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ／８５Ｈｚ）　ＶＥＳＡ：　８００　ｘ　６００　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ／８５Ｈｚ）　ＶＥＳＡ：　１０２４　ｘ　７６８　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ）　ＶＥＳＡ：　１２８０　ｘ　１０２４　（６０Ｈｚ）　Ｅａｒｐｈｏｎｅ　（３．５ø）　Ｄｉｇｉｔａｌ：ＤＶＩ－Ｄ　２４　ｐｉｎ　ＤＤＣ　／　２Ｂ　ＦＨ：３０ＫＨｚ　ｔｏ　８０ＫＨｚ　，　ＦＶ：５６Ｈｚ　ｔｏ　８５Ｈｚ　ＶＥＳＡ：　６４０　ｘ　４８０　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ／８５Ｈｚ）　ＶＥＳＡ：　８００　ｘ　６００　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ／８５Ｈｚ）　ＶＥＳＡ：　１０２４　ｘ　７６８　（６０Ｈｚ／７２Ｈｚ／７５Ｈｚ／８５Ｈｚ）　ＶＥＳＡ：　１２８０　ｘ　１０２４　（６０Ｈｚ）　Ｅａｒｐｈｏｎｅ　（３．５ø）　ＲＣＡ　×　１　Specification
Ｏｐｅｒａｔｉｏｎ　Ｔｅｍｐｅｒａｔｕｒｅ　＋　０　°Ｃ　~　＋　４０　°Ｃ　Ｓｔｏｒａｇｅ　Ｔｅｍｐｅｒａｔｕｒｅ　－　１０　°Ｃ　~　＋　５０　°Ｃ　Ｈｕｍｉｄｉｔｙ　１０％　－－　８５％　Ｗｉｄｔｈ　ｘ　Ｈｅｉｇｈｔ　ｘ　Ｔｈｉｃｋｎｅｓｓ １２２７　ｘ　８２５　ｘ　８５　（ｍｍ）　Ｎｏ　Ａｃｃｅｓｓｏｒｙ　４９．５　Ｋｇ　Remote Control Transmitter, Battery (AAA X 2), Power Cord, ＲＣＡ　Ｃａｂｌｅ，　Ｄ－ＳＵＢ　Ｃａｂｌｅ，　User’s Manual
Ｏｐｔｉｏｎａｌ　Ｗａｌｌ　Ｍｏｕｎｔｉｎｇ　Ｂｒａｃｋｅｔ，Ｓ－Ｖｉｄｅｏ　Ｃａｂｌｅ，　Ｓｐｅａｋｅｒｓ　Ａｃｃｅｓｓｏｒｉｅｓ　20
Troubleshooting
If there is a problem with your Plasma Display, please refer to the table below to determine the
symptoms, then carry out the suggested check. If this does not solve the problem,
please contact your local dealer, quoting the model number and serial number
(both found on the rear of this Display Panel).
Symptoms
Sound
Snowy Picture
Noisy Sound
Normal Sound
Multiple
Interference
Noisy Sound
Normal Picture
No Sound
No Picture
No Sound
No Colour
Normal Sound
Weak or
No Sound
Poor or
Distorted
Normal Picture
Some parts of the screen do not
light up
Aerial location, direction or
connection
Aerial location,
direction or connection
Electrical appliances
Cars/Motorcycles
Fluorescent lights
Volume level
Sound mute switched on
This set to AV mode
Not plugged into A.C. outlet
Not switched on Picture
/Sound controls set at
minimum levels Check if in
stand-by mode
Colour Controls set at
minimum levels
Check Source
Sound reception may have
deteriorated. Setting (Sound
menu: SOUND COMP) to high
precision until reception
improves.
The plasma display panel is manufactured using an extremely high
level of precision technology, however, sometimes some parts of
the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Weak or
Distorted
Sound
Notes:
• External surfaces of the unit may become hot during operation. But this is completely normal.
• See the label on the base of this Plasma Display Panel for ratings and other information.
21
Service Contacts
If problems remain after checking this manual, please contact your place of purchase, visit the
Customer Support section of Mitsubishi Electric Australia’s web site at
www.mitsubishielectric.com.au for details of your nearest Mitsubishi Electric Authorised
Service Center, or contact the Service Department for your state:
New South Wales and Australian Capital Territory
348 Victoria Road
Rydalmere, NSW, 2116
Telephone: (02) 1300 651-808
Fax:
(02) 9684-7684
Queensland
Unit 12 469 Nudgee Road
Hendra, QLD, 4011
(Airlink Business Park)
Telephone: (07) 3623-2000
Fax:
(07) 3630-1888
South Australia and Northern Territory
77 Port Road
Hindmarsh, SA, 5007
Telephone: (08) 8340-0444
Fax:
(08) 8340-0555
Victoria and Tasmania
4 / 303 Burwood Hwy
East Burwood, VIC, 3151
Telephone: (03) 9262-9899
Fax:
(03) 9262-9850
Western Australia
5 / 329 Collier Road
Bassendean, WA, 6054
Telephone: (08) 9377-3411
Fax:
(08) 9377-3499
22
