Toshiba LEDEUS00001C Datasheet

54

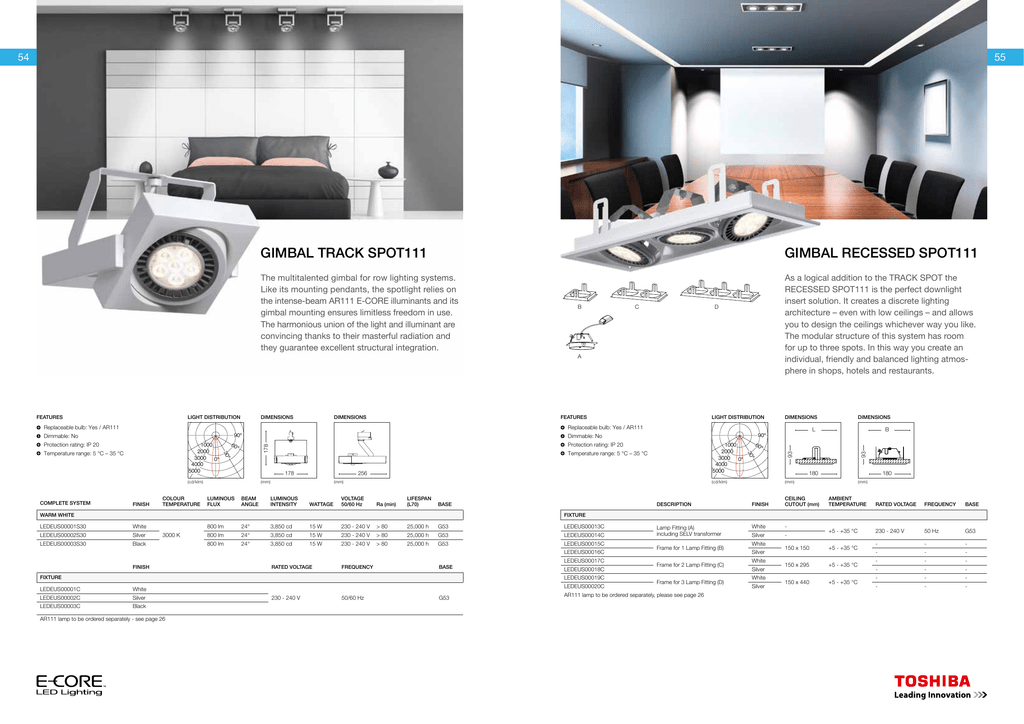

GIMBAL TRACK SPOT111

The multitalented gimbal for row lighting systems.

Like its mounting pendants, the spotlight relies on the intense-beam AR111 E-CORE illuminants and its gimbal mounting ensures limitless freedom in use.

The harmonious union of the light and illuminant are convincing thanks to their masterful radiation and they guarantee excellent structural integration.

FEATURES

Replaceable bulb: Yes / AR111

Dimmable: No

Protection rating: IP 20

Temperature range: 5 °C – 35 °C

FINISH

LIGHT DISTRIBUTION DIMENSIONS

1000

2000

3000

4000

5000

0°

30°

90°

60°

(cd/klm)

COLOUR

TEMPERATURE

LUMINOUS

FLUX

BEAM

ANGLE

178

(mm)

LUMINOUS

INTENSITY

DIMENSIONS

256

(mm)

WATTAGE

VOLTAGE

50/60 Hz Ra (min)

LIFESPAN

(L70) BASE COMPLETE SYSTEM

WARM WHITE

LEDEUS00001S30

LEDEUS00002S30

LEDEUS00003S30

White

Silver

Black

3000 K

800 lm

800 lm

800 lm

24°

24°

24°

3,850 cd

3,850 cd

3,850 cd

15 W

15 W

15 W

230 - 240 V > 80

230 - 240 V > 80

230 - 240 V > 80

25,000 h

25,000 h

25,000 h

G53

G53

G53

FINISH

FIXTURE

LEDEUS00001C

LEDEUS00002C

LEDEUS00003C

White

Silver

Black

AR111 lamp to be ordered separately - see page 26

RATED VOLTAGE

230 - 240 V

FREQUENCY

50/60 Hz

BASE

G53

B

A

C D

GIMBAL RECESSED SPOT111

As a logical addition to the TRACK SPOT the

RECESSED SPOT111 is the perfect downlight insert solution. It creates a discrete lighting architecture – even with low ceilings – and allows you to design the ceilings whichever way you like.

The modular structure of this system has room for up to three spots. In this way you create an individual, friendly and balanced lighting atmosphere in shops, hotels and restaurants.

FEATURES

Replaceable bulb: Yes / AR111

Dimmable: No

Protection rating: IP 20

Temperature range: 5 °C – 35 °C

DESCRIPTION

FIXTURE

LEDEUS00013C

LEDEUS00014C

LEDEUS00015C

LEDEUS00016C

LEDEUS00017C

LEDEUS00018C

Lamp Fitting (A) including SELV transformer

Frame for 1 Lamp Fitting (B)

Frame for 2 Lamp Fitting (C)

LEDEUS00019C

LEDEUS00020C

Frame for 3 Lamp Fitting (D)

AR111 lamp to be ordered separately, please see page 26

LIGHT DISTRIBUTION

1000

2000

3000

4000

5000

0°

30°

90°

60°

(cd/klm)

FINISH

White

Silver

White

Silver

White

Silver

White

Silver

DIMENSIONS

L

DIMENSIONS

B

180

(mm)

CEILING

CUTOUT (mm)

180

(mm)

AMBIENT

TEMPERATURE RATED VOLTAGE FREQUENCY BASE

-

-

150 x 150

150 x 295

150 x 440

+5 - +35 °C

+5 - +35 °C

+5 - +35 °C

+5 - +35 °C

-

-

-

-

-

-

230 - 240 V

-

-

-

-

-

-

50 Hz

-

-

-

-

-

-

G53

55
