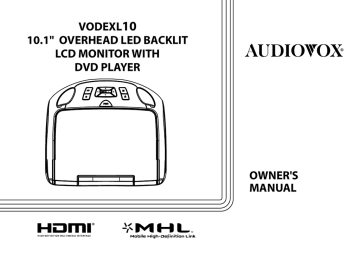

VODEXL

10

10.1" OVERHEAD LED BACKLIT

LCD MONITOR WITH

DVD PLAYER

PUSH

S

®

OWNER'S

MANUAL

TABLE OF CONTENTS

FCC Statement .......................................................................................3

Important Notice ................................................................................. 4

Warnings ................................................................................................. 4

Congratulations ................................................................................... 5

Safety Precaution ................................................................................ 5

Features .................................................................................................. 5

Controls and Indicators Diagram (Front View) ........................... 6

Controls and Indicators Diagram (Side Views) ........................... 7

Remote Control Operation ............................................................... 8

Remote Control Functions ................................................................ 8

Turning the Unit On or Off .............................................................. 13

Source Menu ........................................................................................ 14

System Menu Settings and Adjustments .................................. 16

Picture (Control) ................................................................................. 16

WFMM (FM Modulator) .................................................................... 17

Settings .................................................................................................. 18

Default DVD .......................................................................................... 18

Screen Mode ........................................................................................ 18

Monitor Mode ...................................................................................... 19

IR Transmitter ....................................................................................... 20

Language .............................................................................................. 20

Factory Setting .................................................................................... 20

DVD Setup Menu Settings and Adjustments ........................... 21

Using the Setup Menu ...................................................................... 21

Language Setup .................................................................................. 21

DVD Subtitle Setup ............................................................................ 22

DVD Audio Setup ............................................................................... 22

DVD TV Display .................................................................................... 23

DVD TV Type ......................................................................................... 23

DVD Rating Setup ............................................................................. 24

Change Password .............................................................................. 24

Load Factory ........................................................................................ 25

Screen Saver ........................................................................................ 25

Playing DVDs ....................................................................................... 26

Playing MP3 Discs ............................................................................. 26

DVD Basics ........................................................................................... 28

Overhead Dome Lights .................................................................... 29

Accessories ........................................................................................... 30

Wireless Headphones ....................................................................... 30

Wireless Game Package (MVGP1) ................................................ 30

HDMI/MHL and USB Port Information ........................................ 31

HDMI1 ..................................................................................................... 31

Smartphones and Tablets ................................................................ 31

USB Port ................................................................................................. 31

Troubleshooting ................................................................................. 32

Replacement Parts ............................................................................. 34

Specifications ...................................................................................... 34

Warranty ................................................................................................ 35

2

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

-Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Radiation Exposure Statement

This equipment complies with FCC radiation limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

3

Important Notice

Installation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side curtain air bags.

Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.

When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the vehicle

ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product.

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle's parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.

Warnings

• Do not use any solvents or cleaning materials when cleaning the video monitor.

• Do not use any abrasive cleaners, they may scratch the screen.

• Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

• Lock the LCD screen in the fully closed position when not in use.

• Before putting on headphones always adjust the volume setting to the lowest position.

• Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain the vehicle's battery.

• Do not put pressure on the screen.

• Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Patented: Refer to www.voxxintl.com/company/patents

4

Congratulations

Congratulations on your purchase of the AUDIOVOX VODEXL10 DVD Player with drop-down video / monitor. The VODEXL10 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.

Note: Installation options vary, see the individual owner's manuals for each component in your system to obtain a full understanding of each component's operation.

Safety Precaution

For safety reasons, when changing video media, it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat belts to change video media or make any adjustments to the system.

System adjustments can be accomplished using the remote control, while seat belts remain fastened. Enjoy your AUDIOVOX entertainment system but remember the safety of all passengers remains the number one priority.

FEATURES

• 10.1” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal

Display) Monitor

• LED Backlighting

• Built-in DVD Player

• Auto-On With Disc Insertion

• HDMI / MHL Inputs

• OSD (On Screen Display) for Control of Picture Quality and Functions

• Selectable (M1 and M2) IR Receive and Transmit Codes (See page 8)

• Switchable Dual Channel IR Infrared Transmitter (See page 8)

• Nine Source Input*

(DVD, USB, HDMI 1, HDMI 2, Media, AV, AUX, DTV, Game)

*Note: The DTV and Game modules are optional equipment and can be purchased separately.

• Dome Lights with Built-in Three Way Switch

• Built-in 100 Channel Wireless FM Modulator

• Last Position Memory for DVD

• Screen Mode Selection (4:3, 16:9)

• Full Function Remote Control

• Backlit Controls

• AV Output via RCA Jacks

• Plays DVD, CD and MP3 Discs

• Game Port Ready

• Mobile DTV Ready

5

CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)

2 3 4 5 6 7

1

8

9

10

11

12

13

S

PUSH

8

1. POWER ( ) Button

This button is used to turn the system on/off.

2. Play/Pause (u/II ) Button

This button is used to start playback of a disc or pause a disc.

3. UP / DOWN / LEFT / RIGHT (pqt u) Cursor Buttons

These cursor buttons are used to navigate menu selections on the screen.

6

4. HOME/MENU Select Button

This button is used to display and select options on the system menu.

Press and hold for 3 seconds to access the System Menu.

5. Source/Select (S) Button

Press this button to display the Source OSD screen. Use the cursor buttons to highlight the desired source. Press the Source/Select button to access the desired source.

6. STOP (n) Button

-Press the STOP button once: Stops playback.

- Pressing the PLAY button again will resume normal playback from where movie was stopped.

- Press the STOP button twice and then press the PLAY button to start playback from the beginning of the DVD.

7. EJECT ( ) Button

This button is used for ejecting a disc from the disc compartment.

8. Dome Lights

Provide additional interior illumination.

9. Infrared Transmitter/Remote Sensor

(Location)

10. Screen Release

Push this button to release the screen from the locked position.

11. Ventilation Openings

12. LCD Cut Off Switch

Used to turn off the LCD backlight when the LCD is in the closed position.

13. LCD Panel

CONTROLS AND INDICATORS DIAGRAM (SIDE VIEWS)

2 3 4 5

1

1. DVD Disc Insertion Slot

For loading and removing discs. When a disc is inserted, the unit will automatically turn ON and switch to DVD source. Insert a disc with label side facing up.

Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is empty.

2. AUX IN

These jacks are used to supply external audio and video inputs to the unit. (Yellow - Video, White - Left Audio, Red - Right Audio).

3. USB INPUT

For connection of a USB memory device. This input will also charge a USB device that contains a battery. See page 31 for more information.

Note: The USB input supplies up to 1 Amp of charging current. Devices such as tablets may require more than 1 Amp of charging current and it is recommended to connect the device to a vehicle power outlet for full charging capabilities. When the unit is in DVD/USB mode,

1 Amp charging is not available.

4. HDMI/MHL 1 INPUT

For connection of devices with HDMI/MHL outputs. See page 31 for more information.

5. THREE POSITION DOME LIGHT SWITCH

ON - Turns on the dome lights.

OFF - The dome lights will not turn on in this position.

AUTO - Automatically turns on the dome lights in conjunction with the vehicle's interior illumination.

7

REMOTE CONTROL OPERATION

Initial Use

When purchased, the remote control has a battery installed with a Pull Tab to prevent battery discharge. Remove the Pull Tab before attempting to use the remote control.

REMOTE CONTROL FUNCTIONS

CR2025

Battery Replacement

1. Remove the battery holder.

2. Insert one CR2025 battery into the battery holder. Be sure to observe the correct polarity.

3. Align the battery holder with the remote control and insert. Push it in until the holder clicks.

16

17

18

19

20

10

11

12

13

14

7

8

4

5

15

8

27

26

32

31

30

29

28

25

24

23

22

21

* Function control is available on the unit and the Remote Control.

** Function not available in this model.

1. POWER*

Press this button to turn the unit ON and OFF.

2. SOURCE*

Press to display the Source OSD for DVD, USB, HDMI 1, HDMI 2, Media, AV, AUX, DTV and Game.

3. MONITOR SELECT

M1 Button – Set the remote control code to allow control of the unit in M1 mode.

M2 Button – Set the remote control code to allow control of the unit in M2 mode.

4. SCAN BACKWARD ( )

Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times and normal speed.

5. SCAN FORWARD ( )

Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times and normal speed.

6. TV Mode Select

Switches certain function keys on the remote control for monitor functions.

7. PREVIOUS ( )

Press to return to the previous chapter or track.

8. NEXT ( )

Press to skip to the next chapter or track.

9. PLAY (u)*

Press to activate the play mode while a disc is loaded into the disc compartment.

9

10. SYSTEM MENU

Allows the user to access the system menu. Press the t or u cursor buttons to select PICTURE, WFMM (FM Modulator) and SETTING.

11. CURSOR (pqt u)

Use the cursor buttons to access menu selections on the screen.

12. DISPLAY

When in DVD mode, press to display the current disc information while the disc is playing. Use the t or u cursor buttons to select the Title or

Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title /Chapter selection. When in TV mode, press to display the monitor status (M1/M2), Source Mode, FMM On/Off, and IRT On/Off.

13. OK

Used to execute a selected setting or menu option.

14. SETUP

Allows the user to access the Setup Menu when the unit is in DVD mode. Use the pq t or u cursor buttons to select options such as language, video, rating, Misc.

15. REPEAT

Allows the user to repeat a selected title, chapter, or track.

16. A-B REPEAT

Allows user to repeat the playback from point A to point B.

Press A-B button On-Screen Display DVD player

Repeat

Twice A-B Mark

AB the

Off Cancel

17. SUBTITLE

Press to display and select the subtitle language in DVD mode. Each time this button is pressed, the subtitle language changes.

10

18. NUMBERS

Allows the user to enter the numbers 0-9 for selection of the tracks, titles, chapters or password setting.

19. ZOOM

Press this button to enlarge the picture when playing a DVD disc.

Press ZOOM button

Once

3 times

4 picture times original

Q3- Enlarges the picture 4 times the original size

Picture returned

20. AUDIO

Press to display and select audio language in DVD mode. Each time this button is pressed, the language changes.

21. FM MODULATOR CHANNEL SELECT (C)

The unit has a 100 channel built-in wireless FM Modulator. The FM Modulator can be set from 88.1 MHz to 107.9 MHz in 0.2 MHz steps, i.e. 88.1, 88.3,

88.5, 88.9, 90.1 etc. Pressing the C button will display the FM Modulator frequency setting OSD. Use the cursor buttons to select the frequency. Refer to the SYSTEM MENU SETTINGS AND ADJUSTMENTS for more details.

22. FMM ON/OFF

Turns the FM Modulator power on/off.

23. IRT ON/OFF

Turns the Infrared Transmitter on/off for IR wireless headphones.

11

24. PIX ( Picture Select )**

No function on this model.

25. VOLUME DOWN (-) or UP (+)**

No function on this model.

26. MUTE

Press this button to mute the audio for the wireless FM Modulator, IR headphones and audio output.

Pressing the button again restores the audio to the previously set level.

27. DISC MENU

Allows the user to access the disc’s menu mode.

28. STOP (n)*

Press to stop playback. (Playback will resume from the point it is stopped).

Press twice to stop playback fully. (Playback will resume from the beginning of the disc).

29. PAUSE (II)*

Press to pause playback.

30. DVD Source**

No function on this model.

31. DVD Mode Select Button

Switches certain function keys on the remote control for DVD function.

32. EJECT ( )*

Press this button to eject the disc.

12

TURNING THE UNIT ON OR OFF

1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down slightly.

2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.

3. Press the power button on the unit or the remote control to turn the system on and off. When in use, the internal backlighting will illuminate the controls.

4. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to optimize the picture quality.

5. Remember to turn the unit off and pivot the LCD screen to the locked position when not in use.

Power

ON/OFF

Button

PUSH

S

Screen Release

13

SOURCE MENU

The VODEXL10 System is capable of accessing nine source inputs. To select or change a source, press the source, S, button on the front panel or the SRC button on the remote control. The source OSD will appear on the screen as shown in the figure below. Use the p q t or u cursor buttons on the front panel or the p q t or u cursor buttons on the remote control to highlight a source. Press the Source, S, button on the front panel or the OK button on the remote control to select the desired source.

Note: If a source is grayed out, that source is not available or not installed such as DTV or Game.

DVD

The DVD source input is used to play DVDs, Audio CDs and MP3 discs.

USB

The USB source input is used to play MP3 files, JPEG files (Photos) and some AVI (Audio Video Interleaved) and XVID files. See page 31 for more information.

Note: Some AVI files may not be compatible with the system, maximum video resolution is 720 x 480.

HDMI 1 & HDMI 2

The HDMI inputs allow the user to enjoy high-definition digital images and high-quality sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output to the system. The HDMI inputs also allow the user to connect with a Mobile High-Definition Link (MHL) mobile phone.

Plug in the HDMI/MHL device with a special adapter available from your mobile phone provider. See page 31 for more information.

Notes:

• This source requires an HDMI/MHL enabled device and a special HDMI/MHL adapter. Contact your HDMI/MHL device supplier for the adapter.

• Phone functionality (phone calls, texting, etc.) may be limited while using the adapter.

• HDMI content is copy protected and is not available on the AV output of the VODEXL10 System.

APPLICABLE HDMI FEATURE

- Input audio signal: 2 channel.

- Input video signal: 480p, 576p, 720p, 1080i, and 1080p.

Note: MHL is only available on HDMI1.

14

MEDIA

The Media source allows for the user to connect an Apple device (e.g. iPod, iPhone, iPad) to the VODEXL10 System to play audio and video content. A special Apple adapter is required for this connection. See your Apple or electronics dealer for the specific adapter required. Connect the adapter to the

Apple device, and connect the Audio, Video, and USB connectors into the VODEXL10 System. With the Media source selected, the desired video and audio content can be displayed on the VODEXL10 System.

Notes:

• The USB input supplies up to 1 Amp of charging current. Devices such as tablets may require more than 1 Amp of charging current and it is recommended to connect the device to a vehicle power outlet for full charging capabilities.

• The Apple device will not display the desired audio and video content on the Apple device screen. The desired audio and video content will only be displayed on the VODEXL10 System.

AV

An external video source, video game system, or other audio/video devices can be connected to the AV input. This AV input connection is normally performed when the unit is installed. Turn the video source component on with its power button or remote control and it is now ready to play the audio and video signals from the source connected to the AV input.

Note: If a DTV module is installed, this input will not be available and the AV source will be grayed out.

AUX

An external video source, video game system or other audio/video devices may be connected to the system via the AUX input. Plug the RCA plugs from the external source into the RCA jacks on the side of the unit. Turn the external source component on with its power button or remote control and it is now ready to play the audio and video signal from the source connected to AUX.

DTV

The optional DTV (Digital TV) input is used for a digital TV module. If the digital TV module is not installed, the DTV Source will be grayed out on the source selection screen and cannot be selected. Check with your installer for availability.

GAME

The optional MVGP1 Wireless Game Package consists of 2 game controllers and a game module containing 54 games, 6 of which are two player games.

If the MVGP1 Wireless Game Package is not installed, the Game Source will be grayed out on the source selection screen and cannot be selected. Check with your installer for availability.

15

SYSTEM MENU SETTINGS AND ADJUSTMENTS

The System Menu contains features and options that let the user customize the system. For example, the user can change the Picture, FM Modulator, OSD language, source default, screen mode display, and the monitor mode.

Using the System Menu

1. Press the SYSTEM MENU button on the remote control. The system menu main page will appear on the screen.

2. Use the p q t or u cursor buttons to select an item in the sub menu, then press OK to select.

3. Press the System Menu button to exit the System Menu.

Note: The System Menu can be controlled via Remote Control or the Home button on the front panel of the unit (Items selected in the menu will have a yellow background).

PICTURE (CONTROL)

When watching a program, the picture quality can be adjusted to the user’s preferences.

1. Press the System Menu button on the remote control (or press and hold the Home/System menu button on the front panel for 3 seconds) and the

Picture Control Menu will be displayed. The menu contains the on screen picture “adjustment bar” for BRIGHTNESS, CONTRAST, COLOR, TINT (for

NTSC only) or RESET.


BRIGHTNESS

CONTRAST

COLOR

TINT

RESET

WFMM SETTING

EXIT

2. Use the p q t or u cursor buttons on the remote control or the front panel to adjust the selected adjustment bar for picture quality.

Note: The System Menu will time out after 5 seconds if no buttons are pressed.

16

WFMM (FM MODULATOR)

The FM Modulator allows the user to listen to audio through the vehicle’s radio.

ON - Turns the wireless FM Modulator on if audio playback through your vehicle’s radio is preferred.

OFF - Turns the wireless FM Modulator off.

FREQUENCY - Allows the user to select the wireless FM Modulator frequency. The unit has a 100 channel built-in wireless FM Modulator. The FM

Modulator can be set from 88.1 MHz to 107.9 MHz in 0.2 MHz steps, i.e. 88.1, 88.3, 88.5, 88.9, 90.1 etc.


ON

88.10

88.90

89.70

90.50

91.30

WFMM

OFF

FREQUENCY

88.30

89.10

89.90

90.70

91.50

88.50

89.30

90.10

90.90

91.70

SETTING

88.70

89.50

90.30

91.10

91.90

EXIT

To choose an FM frequency for audio playback through your vehicle’s radio:

1. Press the SYSTEM MENU button to access the System Menu. The System Menu screens appears.

2. Use the u cursor button to highlight wireless FM modulator (WFMM).

3. Use the q cursor button to highlight the FREQUENCY Submenu.

4. Use the p q t or u cursor buttons to select a frequency not used by a radio station in the area. Press OK to select the highlighted frequency.

There are a total of 5 FM CHANNEL pages containing frequencies from 88.1 MHz to 107.9 MHz in 0.2 MHz steps. To access the additional FM Channel pages, use the t or u cursor buttons to highlight the on screen left and right arrows and press OK. Once the frequency has been selected, tune the vehicle’s radio to the selected frequency.

5. Press the DVD button to restore the remote control to DVD functions.

Note: The wireless FM modulator will perform well in most applications. However, in certain geographical areas the quality of the wireless signal may be less than optimal, resulting in static or strong local station bleed through. If this is a consistent problem, an FMDIRB (hard wired FM connection) can be installed by your dealer.

17

SETTINGS

DEFAULT DVD

This allows the user to set the system default source to DVD on or off. If source default is set to ON, every time the unit is turned off then on, the unit will power up and automatically switch the source to DVD. If source default is set to OFF and the unit is turned off then on, the unit will power up in the source that was last selected.

1. Press the System Menu button.

2. Use the u cursor button to highlight SETTING.

3. Use the q cursor buttons to highlight DEFAULT DVD.

4. Use the t or u cursor buttons to select to select ON or OFF.

5. Press OK to confirm the setting.

Note: The unit is set to source default DVD on as the default mode of operation.

Selection of Source default can only be made from within the system menu.

SCREEN MODE

This allows the user to change the screen format (aspect ratio 16:9, 4:3).

To select the screen aspect ratio format:

1. Press the System Menu button.

2. Use the u cursor button to highlight SETTING.

3. Use the q cursor button to highlight SCREEN MODE.

4. Use the t or u cursor buttons to select 16:9, 4:3.

5. Press OK to confirm the setting.

Note: If the screen mode is set to 4:3, the unit it will default to 16:9 when power is cycled. HDMI 1, 2 and MHL can not be switched to 4:3 screen mode.


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON

SETTING

OFF

4:3

M2

OFF

EXIT


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON

SETTING

OFF

4:3

M2

OFF

EXIT

18

MONITOR MODE

MONITOR MODE SETTINGS

The VODEXL10 System has an option that allows the user to select from two IR transmit and receive codes (M1 or M2). This feature can be used when using two

VODEXL10 systems in the same installation or if the vehicle has RSA (Rear Seat Audio) that uses an “A” channel headset. The VODEXL10 system comes factory set to

M1. When in the M1 mode, the unit will respond to remote commands when M1 is selected on the remote control and will transmit audio on the A channel. When in the M2 mode, the unit will respond to remote commands when M2 is selected on the remote control and will transmit audio on the B channel.

Note: Use 2-channel IR headphones set to CH B when the monitor is set to M2 mode.

Selecting a Monitor Mode (M1 or M2)

1. Power ON the unit and wait until M1 or M2 appears on the OSD. M1 or M2 will appear on the screen for 4 ~ 5 seconds.

2. Press the System Menu button on the remote control to display the System Menu to change the monitor code from M1 to M2.


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON

SETTING

OFF

4:3

M2

OFF

EXIT

3. Use the t or u cursor buttons to select the Setting sub menu.

4. Use the p or q cursor buttons to select the Monitor Mode sub menu.

5. Use the t or u cursor buttons to select the desired Monitor Mode (M1 or M2).

6. Press OK to confirm the setting. The following screen will appear.

WARNING

SETTING THE MONITOR TO THE M2 MODE WILL

REQUIRE USING 2-CHANNEL HEADPHONES.

USE THE DOWN KEY ON THE REMOTE CONTROL

TO SELECT M2 AND PRESS OK TO SET THE

MONITOR TO M2 MODE

TO REMAIN IN THE M1 MODE PRESS OK

M1

M2

7. Use the p or q cursor buttons to select Monitor Mode (M1 or M2).

8. Press OK to confirm the setting.

9. Press the System Menu button on the remote control to exit the System Menu Mode.

19

IR TRANSMITTER

This allows the user to turn the IR Transmitter ON or OFF. The IR Transmitter must be set to ON for the wireless headphones to be operational.

1. Press the System Menu button.

2. Use the u cursor button to highlight SETTING.

3. Use the q cursor button to highlight IR TRANSMITTER.

4. Use the t or u cursor buttons to select ON or OFF.

5. Press OK to confirm the setting.

LANGUAGE

This allows the user to return the on-screen display language. The user can select English, Spanish, French, or German for the on-screen display language.

To select the screen aspect ratio format:

1. Press the System Menu button.

2. Use the u cursor button to highlight SETTING.

3. Use the q cursor button to highlight LANGUAGE.

4. Use the t or u cursor buttons to select the desired language.

5. Press OK to confirm the setting.

FACTORY SETTING

This allows the user to return the system to the factory default settings.

1. Press the System Menu button.

2. Use the u cursor button to highlight SETTING.

3. Use the q cursor button to highlight FACTORY SETTING.

4. Press OK to confirm the setting.

20


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON

SETTING

OFF

4:3

M2

OFF

EXIT

SETTING

OFF

4:3

M2

OFF


DEFAULT DVD

SCREEN MODE

MONITOR MODE

IR TRANSMITTER

LANGUAGE

FACTORY SETTING

WFMM

ON

16:9

M1

ON

EXIT

SETTING

OFF

4:3

M2

OFF

EXIT

DVD SETUP MENU SETTINGS AND ADJUSTMENTS

The DVD Setup Menu contains features and options that allow the user customize the DVD player. For example, the user can set a language for the onscreen display or prevent children from viewing DVD playback of adult DVD Titles.

Using the Setup Menu

Press the DVD button and then the SETUP button on the remote control. The Setup Menu appears on the screen as shown.

1. Use the p or q cursor buttons to highlight the settings to be changed. Use the u cursor button to highlight the sub-setttings. Use the u cursor button to open the submenu that contains the different options available. Press OK to set the desired option.

2. Use the t cursor button to position the highlight back on the icon side of the setup page to set the other options. Repeat steps 1-2.

3. Press the SETUP button again to exit the Setup Menu.

LANGUAGE SETUP

DVD Language for On-Screen Display

The Language Menu allows the user to select the language for the on-screen display.

The user can select English, French, Spanish, German or Italian for the OSD language.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Language menu option

3. Use the u cursor button to select language submenu.

4. Use the u cursor button to select language choices

5. Use the p or q cursor buttons to select the desired language, then press OK to confirm the setting.

6. Press the SETUP button on the remote to exit the Setup Menu.

Language

Video

Rating

Misc

Language

Subtitle

Audio

Language

Video

Rating

Misc

Language

Subtitle

Audio

: English

: Off

: English

English

French

Spanish

German

Italian

21

DVD SUBTITLE SETUP

The Subtitle Menu allows the user to select the language for the on-screen display subtitles.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Language menu option.

3. Use the u cursor button to select subtitle submenu.

4. Use the q cursor button to select the subtitle option.

5. Use the u cursor button to select subtitle submenu.

6. Use the p or q cursor buttons to select the desired subtitle language, then press OK to confirm the setting.

7. Press the SETUP button on the remote to exit the Setup Menu.

Note: The subtitle selection is only available for discs that are recorded in the languages listed in the diagram. If the selected language is not available, the player will play and display on the screen the original language contained in the disc.

DVD AUDIO SETUP

The Audio Menu allows the user to select the language for audio.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Language menu option.

3. Use the u cursor button to select audio submenu.

4. Use the q cursor button to select the audio option.

5. Use the u cursor button to select audio submenu.

6. Use the p or q cursor buttons to select the DVD language you desire, then press OK to confirm the setting.

7. Press the SETUP button on the remote to exit the Setup Menu.

Note: The audio language selection is only available for discs that are recorded in the listed languages.

If the selected language is not available, the player will play and display on the screen the original language contained in the disc.

Language

Video

Rating

Misc

Language

Subtitle

Audio

English

French

Spanish

German

Italian

Chinese

Japanese

Thai

Off

Language

Video

Rating

Misc

Language

Subtitle

Audio

English

French

Spanish

German

Italian

Chinese

Japanese

Thai

22

DVD TV DISPLAY

The TV display setup allows the user to set the screen aspect ratio.

4:3 - This displays the wide picture with black bands on the upper and lower portions of the screen.

16:9 - This displays a wide picture with black bands on the upper and lower portion of the screen.

The bandwidth will vary, depending on the aspect ratio of the disc.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Video menu option.

3. Use the u cursor button to select TV display submenu.

4. Use the u cursor button to select the desired TV display submenu.

5. Use the p or q cursor buttons to select the desired aspect ratio, then press OK to confirm the setting.

6. Press the SETUP button on the remote to exit the Setup Menu.

DVD TV Type

The TV Type setup allows the user to select the television standard which corresponds to your TV.

NTSC - Select this type for NTSC TV.

PAL - Select this type for PAL TV.

MULTI - Select this type for multi-system TV.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Video menu option.

3. Use the u cursor button to select TV type submenu.

4. Use the p or q cursor buttons to select the TV type menu option.

5. Use the u cursor button to select the desired TV type submenu.

6. Use the p or q cursor buttons to select the desired TV standard, then press OK to confirm the setting.

7. Press the SETUP button on the remote to exit the Setup Menu.

Language

Video

Rating

Misc

Language

Subtitle

Audio

Language

Video

Rating

Video

Rating

Misc

Language

Subtitle

Audio

Language

Subtitle

Audio

Language

Video

Rating

Language

Subtitle

Audio

TV display

TV type Video

Rating

Misc

Language

Video

Rating

Misc

TV display

TV type

German

Italian

Chinese

Japanese

Thai

English

French

Spanish

German

Japanese

Thai

English

French

Spanish

German

Italian

Chinese

Japanese

Thai

French

Spanish

German

Italian

Chinese

4:3

16:9

23

DVD RATING SETUP

Parental

This feature allows the user to limit the content of movie playback from G to Adult. The lower the value, the more strict the control.

1. G

2. PG

3. PG – 13

4. R

5. NC – 17

6. Adult

Language

Video

Rating

Misc

Parental : 6.Adult

Change Password

The rating level can only be changed when the correct password is provided.

To change the parental control level, perform the following:

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Rating menu option.

3. Use the u cursor button to select parental submenu.

4. Press OK to enter default password (3308) then press OK.

5. Press OK again to select parental submenu.

6. Use the p or q cursor buttons to select the desired rating option, then press OK to confirm the setting.

7. Press the SETUP button on the remote to exit the Setup Menu.

Change Password

To change the password to a unique password:

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Rating menu option.

3. Use the u cursor button to select parental submenu.

4. Use the p or q cursor buttons to select the change password menu option.

5. Press OK to enter default password (3308) then press OK.

6. Press OK again and key in a new 4 digit password, then press OK to confirm the setting.

7. Press the SETUP button on the remote to exit the Setup Menu.

Language

Video

Rating

Misc

Parental : 6.Adult

Change Password

Enter Password

Note: The Default Password is 3308. This password is always effective even after the user has selected their own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, record the default password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.

24

Load Factory

This option allows the user to reset all options to factory settings.

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Misc menu option.

3. Use the u cursor button to select the load factory option, then press OK to enter the submenu.

4. Use the t or u cursor buttons to select the load factory Yes or No, then press OK to confirm the setting.

5. Press the SETUP button on the remote to exit the Setup Menu.

Note: This function will not affect the Rating control settings.

Screen Saver

This option allows the user to set the Screen Saver mode.

ON - Screen saver will appear

OFF - Screen saver will not appear

1. Press the SETUP button on the remote to enter the Setup Menu.

2. Use the p or q cursor buttons to select the Misc menu option.

3. Use the u cursor button to select the screen saver submenu.

4. Use the q cursor button to select the screen saver option, then press OK to enter the submenu.

5. Use the p or q cursor buttons to select the screen saver on or off, then press OK to confirm the setting.

6. Press the SETUP button on the remote to exit the Setup Menu.

Note: The DVD player will enter Screen Saver mode if the unit is inactive for approximately 2 minutes.

Language

Video

Rating

Misc

Load Factory

Screen Saver : On

Language

Language

Video

Load Factory

Load Factory

Screen Saver

No

No

Rating

Misc

Misc

Language

Language

Video

Load Factory

Load Factory

Screen Saver Off

Screen Saver Off

On

On Rating

Misc

Misc

25

PLAYING DVDs

1. Press the DVD button and then the DISPLAY button on the remote control to display the status banner. The banner includes title, chapter, angle, audio, subtitle, and time.

2. Title Selection

Press the numeric (0~9) buttons to initiate a change of title selection. Then press OK to implement the selection.

3. Chapter Selection

Press the numeric (0~9) buttons to initiate a change of chapter selection. Then press OK to implement the selection.

PLAYING MP3 DISCS

MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on the DVD player. The DVD player plays the songs in the order they were burned onto the disc. When playback is started, the elapsed time of the track that is playing will be displayed.

Selecting Folders and Songs

When media MP3 files is loaded in the player, the navigation menu appears automatically.

1. Use the p or q cursor buttons to select the desired folder (if present) on the left side of the menu and press OK. The songs in the folder will be displayed on screen.

2. Use the p or q cursor buttons to select the desired track containing the song and press OK to begin track playback.

Skipping Songs

Use the Next ( ) button on the remote control to move to the next song. Use the Previous ( ) button to move to the previous song.

00:00:01

1/12 /

Selecting a Play Mode

Filter (For MP3 & JPEG only)

The Filter Mode enables or disables the display of files contained on the media based on their file extension.

The filter function applies to the following formats:

Audio - Audio data format (MP3, WMA)


Video - Video data format (MPEG I, II)

1/12

001

002

003

004

005

006

/

00:00:01

Flat Mode: play the entire disc

This mode is always on (default). During the Flat Mode, all the data folder with MP3, JPEG, and movies will be played in sequence. If the Flat Mode function is off, it will only play the selected folder; other folders are disabled.

001

002

003

004

005

006

Filter

Flat Mode

Repeat : off

Audio


Video

Music Playing

Flat Mode

Repeat : Off

Mode : Normal

Music Playing

26

Repeat: play repetitively

The Repeat function has four playing options: Off, Single, Folder, and All. Move the cursor to the Repeat function and press OK. Each time OK is pressed the unit will cycle through the available options. Off/Single/Folder/All are displayed in that order. The Repeat default is Off.

Off - Turns the repeat function off.

Single - Repeats the song being played until STOP is pressed.

Folder - Plays all songs in a folder repetitively.

All - Plays all songs on the disc repetitively.

Mode: play mode

The Mode function has 4 options: Normal, Shuffle, Random and Music Intro. Move cursor to the Mode function area and press OK repeatedly until the desired mode is displayed.

Normal/Shuffle/Random/Music Intro are displayed in that order. The Mode function default is Normal.

- Plays all songs in folder once.

Normal

Shuffle

Random

- Plays songs in a folder in a shuffle order. Each song in the folder is played only once.

Music Intro - Plays each song in order in the folder for 10 seconds.

Remark

- Plays songs in a folder in a random order. Each song in a folder is only be played once.

- The Music Intro function provides the user with a sample of each song for 10 seconds,thereby making it easy to select and listen to a favorite song.

Add to program

To add the selected songs into Browser view, make sure disc playback is off. Move the cursor to the Edit mode function and press OK. After Edit mode is selected, move cursor to songs list and select the songs which will be compiled. Press OK. A check mark appears to the left of the selected song.

To add the selected songs to the program, move cursor to the “Add to program” function and press OK. The selected songs are added into a new program list and the check mark will disappear on the playlist. Move the cursor to the “Program view” function and press OK to browse the songs in the program. Press the PLAY button to play the selected songs.

Clear program

To clear the selected song files, press the STOP button twice during playback mode. Move the cursor to the Edit mode function and press OK. After Edit mode is selected, move cursor to selected songs list and select the songs which you want to delete. Press OK. A check mark will appear to the left of the selected song. Move the cursor to clear program and press OK. The selected songs will be deleted from the play list.

1/12

001

002

003

004

005

006

/

00:00:01

Flat Mode

Repeat : Off

Mode : Normal

Music Playing

1/12

001

002

003

004

005

006

/

00:00:01

Flat Mode

Repeat : Off

Mode : Normal

Music Playing

1/12 /

00:00:01

001

002

003

004

005

006

Album:------------

Edit mode

Program view

Add to program

Music Playing

1/12 /

00:00:01

001

002

003

004

005

006

Album:------------

Edit mode

Broser view

Clear program

Music Playing

27

DVD BASICS

To get the optimum use out of the DVD Player, make sure this section is read completely.

DVD Region Code

The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”.

Region 1 - USA, Canada

Region 2 - Japan, Europe, South Africa, Middle East,

Greenland

Region 3 - S. Korea, Taiwan, Hong Kong, Parts of

South East Asia

Region 4 - Australia, New Zealand, Latin America

(including Mexico)

Region 5 - Eastern Europe, Russia, India, Africa

Region 6 - China

28

Types of Discs the DVD System will play

The VODEXL10 DVD system will play the following types of discs:

• DVD* disc - DVD discs which contain MPEG2 video.

• Audio disc - Audio CDs contain musical or sound content only.

• MP3 disc - A disc that contains audio files (for example, a CD-R with downloaded MP3 files).

• JPEG disc - A disc that contains JPEG files.

*Note: This system is capable of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software, playback cannot be guaranteed.

Loading and Playing Discs

Before a disc is loaded, make sure that it is compatible with the player. Insert the disc with the label facing the vehicle’s headliner.

Note: The following discs CANNOT be used with this player:

• MiniDiscs

• Laserdiscs

• CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio

• Blu-ray Discs

• Digital Copy Discs

To load and play a disc:

Insert a disc into the disc slot. The unit will turn on and start playing disc. The disc slot indicator is red when a disc is inserted and green when the disc slot is empty.

Note: If the unit is set to another source (e.g. HDMI, AV, AUX, Game etc.), inserting a disc in the disc slot will switch the unit to DVD mode and the DVD will begin to play.

OVERHEAD DOME LIGHTS

The Dome Lights integrated into the unit are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The

OFF position will prevent the lights from turning ON with the vehicle's interior lighting. The AUTO position will allow the lights to turn ON and OFF with the vehicle's interior lighting. Refer to the Installation Guide for wire connections. Do not leave the vehicle unattended with the dome light switch in the

ON position, as this could result in a discharged battery.

29

ACCESSORIES

WIRELESS HEADPHONES

The VODEXL10 includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light, travel only in a straight line.

Note: If the monitor is set to M2 mode, the headphones supplied with this unit will not work, as these headphones are single channel. Only two-channel wireless headphones will work with this unit when set to M2 mode. The only time it is necessary to set this unit to M2 mode is if there is an RSA (Rear

Seat Audio) installed in the vehicle or if two of these monitors are installed in one vehicle. Press the system menu and highlight monitor mode to change the M1 mode to M2 mode or M2 mode to M1 mode.

WIRELESS GAME PACKAGE (MVGP1)

The optional Wireless Game Package MVGP1 consists of 2 game controllers and a game module containing 54 games, 6 of which are two player games.

BACK

DIRECTION

BUTTONS

UP

DOWN

SELECT

P1

START

SELECT START

A

B

TB

TA

B

TB

TA

A

LED-POWER

INDICATOR

One-Player Games

Use the P1 controller to select and play games.

UP

DOWN

SELECT

P2

START

A

B

TB

TA

1. A Key: “A Function Key” activates the jump function and optional weapons.

2. B Key: “B Function Key” activates the fire and attack functions.

3. TA Key: TURBO “A” Function Key.

4. TB Key: TURBO “B” Function Key.

5. BACK Key: The Back key is used to return to the previous page. While playing a game pressing the

Back button will return to the games list. Pressing the

Back button again will return to the games main page

“54 Arcade Games”.

6. Press the START button to begin the game. Press the

START button again at any time to pause the game.

7. Use the SELECT button to exit to the game list.

8. Direction buttons move the arrow to the desired game.

Two-Player Games

When there are two players, the first player uses the P1 controller. Player 2 uses the P2 controller. The P1 controller is used for game selection. The P2 controller can select a game, but the game can only be started by pressing the START button on P1 controller.

30

HDMI/MHL AND USB PORT INFORMATION

HDMI1 (HDMI/MHL Input located on the side of the unit)

This input can be used for devices with HDMI or MHL output ports

(such as smartphones, tablets, HDMI/MHL devices) and may require the purchase of an HDMI cable and HDMI adapter which is available from your device manufacturer. Each device has unique requirements, please consult with your device or smartphone manufacturer to determine which type of output your device supports.

Note: Some adapters can be powered from the USB port on the side of the unit. Powering the adapter will charge the smartphone when using the smartphone as a media source.

MHL devices **:

Roku MHL streaming stick: http://www.roku.com/roku-ready/models *

Notes:

* Web links can change over time; if the above links do not function go to your device manufacturer’s or smartphone service provider’s web site for more information.

** These devices require connection to Wi-Fi or a hotspot in order to stream video content from providers such as Netflix, Hulu, Crackle, etc..

Smartphones and Tablets

Caution: Streaming video can consume large amounts of data when a smartphone is used as a hotspot. Data rates may apply. See your mobile phone service provider for details.

For Apple products, go to the Apple Store or enter the following link into your web browser to find the adapter required for your device.

Different models require different adapters.

• http://support.apple.com/kb/ht4108 *

Note: Go to www.audiovoxproducts.com/overheads/audiovox/ for more information on available adapters.

See the following links for other smartphone and tablet manufacturers:

• Samsung Multimedia adapter: http://www.samsung.com/us/mobile/ cell-phones-accessories/multimedia-adapters *

Note: Some Samsung smartphones may require an additional 5-pin micro

USB to 11-pin micro USB adapter in addition to the multimedia adapter.

For other smartphone makes and models check with your device service provider to find an adapter that will work with your device.

• www.amazon.com * is a good source for finding an adapter that will work with your smartphone.

HDMI devices **:

Chromecast media streaming device:

• www.google.com and search for Chromecast

Roku HDMI streaming device:

• http://www.roku.com/products/compare *

USB Port

The USB port provides two functions:

1. Media port for USB thumb drives

• The Media port allows for the playing of MP3 music files, jpeg files and some video file formats when the USB source is selected. Video formats supported are some Xvid and some AVI file types. Video resolution must be 720 x 480 or smaller.

31

2. Phone/Tablet charging:

• When a DVD is playing, the USB port can be used for charging a portable device, but it will be limited to 500 mA of charging current.

• When the unit is not in DVD mode or USB mode, the USB port can be used for charging a portable device with up to 1.0 Amp of charging current.

• The USB port will not charge a portable device when the

VODEXL10 is turned off.

TROUBLESHOOTING

Problem

IR remote is inoperative.

Disc won't play.

Play starts, but then stops immediately.

No sound or distorted sound.

Can’t advance through a movie.

( ) Not allowed at the moment.

Solution

• Verify that the batteries in the remote are fresh.

• Verify that the remote sensor eye is not obstructed.

• If the monitor is set to M1, press the M1 button on the remote control. If the monitor is set to M2, press the M2 button on the remote control. (See page 8.)

• Insert a disc with the label side facing upwards.

• Check the type of disc you put into disc tray. This DVD only plays DVD, audio CD and MP3. Blu-ray (BD) discs will not play in this player.

• Both the unit and the disc are coded by region. If the regional codes don’t match, the disc can’t be played.

• The disc is dirty. Clean it.

• The disc is damaged. Try another disc.

• Condensation has formed. Allow player to dry out.

• Make sure the DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks.

• If the 2-channel IR headphones are being used, turn on the IR headphone power, and make sure the correct channel (A-B) is selected.

• Make sure the FM Modulator is ON and the proper Frequency has been selected.

• Make sure that unit is set to M1 when using Single Channel Headphones

• You can’t advance through the opening credits and warning information that appears at the beginning of a movie because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1. The disc’s software restricts it.

2. The disc’s software doesn’t support the feature (for example, angles).

3. The feature is not available at the moment.

4. The requested title or chapter number is out of the range.

32

Problem

Picture is distorted.

Solution

• The disc might be damaged, try another disc.

• It is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan.

• Some discs have sections that prohibit rapid scanning or title and chapter skip.

• If you try to skip through the warning information and credits at the beginning of a movie, you won’t be able to. This part of the movie is often programmed to prohibit skipping through it.

HDMI/MHL input not working for the

HDMI/MHL enabled device.

• May require a special HDMI/MHL adapter. Contact your HDMI/MHL device supplier for the adapter.

• Some devices may need to boot up before showing picture.

Game source does not work • The Game source can not be selected (grayed out) if the MVGP1 Game Module is not installed. Make sure the MVGP1 Game Module is installed and plugged in.

DTV source does not work

AV source does not work

NO SIGNAL displayed on screen

• The DTV source can not be selected (grayed out) if the DTV Module is not installed. Make sure the DTV is installed and plugged in.

• The AV source cannot be selected (grayed out). The DTV module is installed. This input is shared with

DTV input.

• No source plugged into the A/V, AUX, MEDIA or HDMI input.

• Some devices may need to boot up before showing picture.

33

Remote Control

Wireless Headphones

MVGP1 Game Module

Game Controller P1

Game Controller P2

136-5326

136-5301

136-5319

136-5320

136-5321

34

LCD Backlighting

Resolution

LED

1024 (RGB) x 600

Operation Temperature

Storage Temperature

Back Light Life

Video Display System

32 ~131º F (0 ~ 55º C)

-4 ~ 158º F (-20 ~ 70º C)

20,000 Hours

NTSC / PAL

Video Output

Power Source

1.0 Vp-p @ 75 ohms

12 VDC

Dimensions L x W x H

10.67" x 12.0" x 2.12 Closed

271mm x 305mm x 54mm Closed

10.67" x 12.0" x 8.97 Open

271mm x 305mm x 228mm

Specifications are subject to change without notice.

Open

36 MONTH LIMITED WARRANTY

Applies to Audiovox Mobile Video Products

VOXX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product (excluding game controllers) under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. A game controller, if supplied, is similarly warranted for ninety (90) days.

T o o b t a i n r e p a i r o r r e p l a c e m e n t w ti h i n t h e t e r m s o f t h i s W a r r a n t y , t h e p r o d u c t i s t o b e d e il v e r e d w ti h p r o o

.

f o f w a r r a n t y c o v e r a g e ( e .

g .

d a t e d

This Warranty does not extend to the following: elimination of externally generated static or noise, correction of antenna problems, costs incurred for installation, removal or reinstallation of the product, or to damage to digital memory devices, media devices, gaming devices, discs, speakers, accessories, or vehicle electrical systems.

This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT

PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER

FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY

OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY

WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF

48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damrights which vary from state to state.

VOXX ELECTRONICS CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788



1-800-645-4994

128-9329

35

www.voxxelectronics.com

© 2014 VOXX ELECTRONICS CORP., 150 Marcus Blvd. Hauppauge, NY 11788 128-9229A
