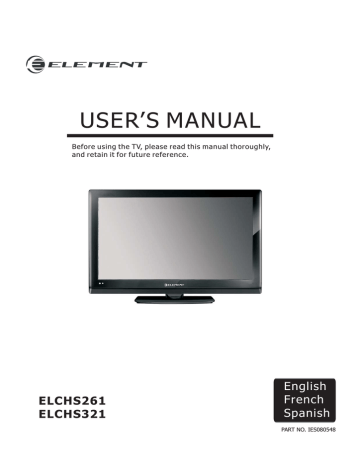

USER’S MANUAL
Before using the TV, please read this manual thoroughly, and retain it for future reference.
ELCHS261
ELCHS321
English
French
Spanish
PART NO. IES080548
CONTENTS
Important safety instructions
......................................................................................................2
Preparation for using your new TV
...........................................................................................4
Learning about your TV
..............................................................................................................4
View the f ront connection panel ...
..............................................................................................4
View the back connection panel .................................................................................................4
Selecting a location for the TV
.................................................................................................5
Connection to other devices
......................................................................................................5
The side panel connection ..........................................................................................................5
The back panel connection .........................................................................................................6
Connecting your TV ....................................................................................................................7
Connecting to an antenna ..........................................................................................................7
Connecting to A/V equipments ...................................................................................................7
Service jack .................................................................................................................................7
Connecting component devices (DVD/PVR) ...............................................................................7
Connecting HDMI ........................................................................................................................8
Connecting compute r..................................................................................................................8
Connecting audio ........................................................................................................................8
Connecting to a cable converter box ..........................................................................................9
Using the remote control
..............................................................................................................10
Preparing the remote control for use
...................................................................................
10
Learning about the remote control
.......................................................................................
11
Understanding the TV features
.................................................................................................
12
Basic operation
...................................................................................................................................
12
Menu operation
............................................................................................................................
12
Video mode adjustment
............................................................................................................
15
Audio mode adjustment
............................................................................................................
15
Setup
...............................................................................................................................................
16
Parental control
...........................................................................................................................
17
TV settings
....................................................................................................................................
19
Appendix
................................................................................................................................................
19
Cleaning and care
......................................................................................................................
19
Base installation instruction
..........................................................................................20
Troubleshooting
...........................................................................................................................
21
Specifications
................................................................................................................................
22
SAFETY CLASS :This is an IEC safety class I product and it must be grounded for safety.
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF AN ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. FOR ANY REQUIRED SERVICING,
PLEASE CONTACT QUALIFIED SERVICE
PERSONNEL.
The lightning flash symbol with an arrowhead inside a triangle alerts the user about an uninsulated dangerous voltage that may be of sufficient magnitude to constitute a risk of electric shock.
The flash with the symbol of an exclamation point inside a triangle alerts the user about important operating and maintenance instructions related to the product.
CAUTION:
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE WITH THE FCC RULES COULD VOID THE USERS
AUTHORITY TO OPERATE THIS EQUIPMENT.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
Important safety instructions
1.
2.
3.
4.
Read these instructions
Keep these instructions
Heed all warnings
Follow all instructions
5.
6.
7.
8.
Do not use this apparatus near water
Clean only with dry cloth
Do not block any ventilation openings
Do not install near any heat sources
9.
Do not defeat the safety purpose of the polarized or grounding-type plug
10.
Protect the power cord from being damaged particularly at plugs, convenience receptacles, and at points in which they exit from the apparatus.
11.
Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.
Unplug this apparatus during lightning storms or when unused for long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, when liquid has been spilled or when objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
S3126A
2
Important safety instructions
15.
POWER SOURCE : This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company . For TVs intended to operate from battery power, or other sources, refer to the operating instructions.
16. POWER CORD PROTECTION : Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
17. OUTDOOR ANTENNA GROUNDING : If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up
FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE static charges. Section 810 of the National Electrical
Code, ANSI/NFPA NO.70,provides information with
ANTENNA LEAD
IN WIRE respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna
GROUND
CLAMP discharge unit , size of grounding conductors, location of antenna discharge unit, connection to grounding
ANTENNA
DISCHARGE UNIT electrodes, and requirements for the grounding electrode. (Fig.A)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING WIRES
18. LIGHTNING: For added protection for this TV receiver
S2898A
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning and power line surges.
19. POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines, or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
20. OVERLOADING: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
21. OBJECT AND LIQUID ENTRY: Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind into the TV.
22. SERVICING: Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
23. REPLACEMENT PARTS: When replacement parts are required, be sure that the service technician uses replacement parts with the same characteristics as the original parts specified by the manufacturer.
Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.
24. SAFETY CHECK: Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.
25 . The apparatus should not be exposed to any dripping or splashing, and no objects filled with liquids (such as a vase) should be placed on the apparatus.
26. WARNING: Plug the power cord into a power outlet where access to a power cord connector is readily accessible, in case if the power needs to be immediately disconnected.
27.
ATTENTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
maintained.
To reduce the risk of electric shock, the grounding of the center pin of this plug must be
3
Preparation for using your new TV
Learning about your TV
You can operate your TV via the buttons in the front cabinet or the remote control. The terminals in the back cabinet provide all the connections from other equipments to your TV.
View the front connection panel
INPUT
Menu
Input selection
Volume Up
Volume Down
Channel Up
Channel Down
Power (Standby)
Power indicator
Remote receiver
View the back connection panel
Power Input
4
HDMI2
VIDEO L R
HDMI1
SERVICE
VGA AUDIO IN VGA
Y P
B
P
R
L
R
COMP1
Y P
B
P
R
COMP2
L R
Preparation for using your new TV
Selecting a location for the TV
1. Place the TV on an open bench in a location where light does not directly hit the screen.
2. Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.
NOTE: Please contact a local dealer for wall mounting.
Connection to other devices
The side panel connection
COAXIAL
VIDEO
L
IN
R
S-VIDEO HEADPHONE
The equipment with AV or S-Video output function ( such as VCD, DVD, set-top boxes, etc.).
5
Preparation for using your new TV
The back panel connection
The equipment with HDMI output jack
( such as DVD players, set-top boxes, etc.).
Update jack
Computer
OR
HDMI2
VIDEO L R
HDMI1
SERVICE
VGA AUDIO IN
VGA
Y P
B
P
R
L
R
COMP1
Y P
B
COMP2
P
R
L R
VIDEO RECORDER DVD With Component jacks
6
Preparation for using your new TV
Connecting your TV
Caution: Do not plug in the TV until you have finished connecting all of your equipments.
Connecting to an antenna
To enjoy the televison program transmitted by your local TV station, you need an indoor or outdoor antenna (not supplied). An outdoor antenna is necessary for a perfect picture quality. If you are a subscriber of your local CATV net, the outdoor or indoor antenna is not needed. Connect the equipments as shown below.
Side Panel
1 .
2 .
3 .
Connecting to A/V equipments
To enjoy the multimedia features, you can connect your TV to A/V equipments such as VCD, DVD, STB,
Satellite receiver, Camcorder, Audio amplifier etc., and select signal source using your remote control.
Connect RCA audio cables to “R -AUDIO - L” on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.
NOTE: 1. Headphones are not included.
2. No sound will be heard from the main unit speakers when a headphone mini-plug is connected into the headphone jack.
Service jack
Connector for service only (do not connect any equipment here).
Connecting component devices (DVD/PVR)
Connect Component video and audio cables to Component inputs (“PR/CR”, “PB/CB”, “Y”) on the rear of your set and the other ends to corresponding component video out connectors on the PVR or DVD.
The Y, PB/CB and PR/CR” connectors on your component devices (PVR or DVD) are sometimes labeled Y, B-Y and
R-Y or Y, CB and CR (Colors for inputs and cables must correspond to both devices).
NOTE : Some devices such as a PVR or DVD players require ’Component/YPBPR’ signal to be set via output in the devices settings. Please consult your device user manual for instructions .
7
Preparation for using your new TV
Connecting HDMI
Supports digital connections between HDMI - enabled AV devices such as (PVRs, DVD, BluRay, HDDVD, AV receivers and digital devices). No sound connection is needed for an HDMI to HDMI connection.
NOTE: Some devices such as a PVR or DVD players require a HDMI signal to be set via the output in the devices’ settings. Please consult your device user manual for instructions.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.
“Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio
(5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High
Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.
Use the HDMI terminal for HDMI connection to a compatible device.
If your external device has DVI only, you should use a DVI-to-HDMI cable( or adapter) for the connection, and the
“R -AUDIO - L” terminal on DVI for sound output.
Connecting Computer
Connect the D- Sub cable to “VGA (VGA IN)” on the rear of your set and the other end to the Video Card of your computer.
Connect the stereo audio cable to “VGA AUDIO IN” on the rear of your set and the other end to “Audio Out” of the sound card on your computer.
This device may not be compatible with all PC video/graphic cards .
Connecting AUDIO
Connect RCA audio cables to “R -AUDIO - L” on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater.
Connecting to a cable converter box
This television has an extended tuning range and can tune most cable channels without using a cable converter box.
Some cable companies offer premium pay channels in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.
8
Preparation for using your new TV
?
For subscribers to Basic Cable TV Service
For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly into the Antenna Jack on the back of the television.
?
For subscribers to Scrambled Cable TV Service
If you subscribe to a cable service which requires the use of a Converter/Descrambler box, connect the incoming cable to the Converter/Descrambler box and connect the output of the box to the Antenna Jack on the back of the television. Follow the connections as shown below. Set the television to the output of the
Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.
?
For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels
If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a Converter/Descrambled box, you may wish to use a two-set signal splitter (sometimes referred to as a two-set coupler) and an A/B Switch box from the cable installer or an electronics supply store. Follow the connections shown below. With the switch in the B position, you can directly tune any unscrambled channels on your TV. With the switch in the A position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.
Converter/Descrambler
Converter/Descrambler
Splitter A/B Switch
ANT 75 Ω
Note:
When you use a converter box with your TV, there may be features that you cannot program when using the remote control.
9
Using the remote control
Preparing the remote control for use
Installing the remote control batteries
1. Open the battery cover on the back of the remote control.
2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment.
3. Close the battery cover.
Note:
1.Dispose of your batteries in a designated disposal area. Do not throw batteries into fire.
2.Do not mix battery types or combine used batteries with new ones.
3.Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
4.If you do not use the remote control for a long time, remove the batteries.
5.The effective range of the remote control is demonstrated by the following figure:
6m
8m
15
15
6m
6m
30
8m
30
6m
10
Using the remote control
Learning about the remote control
Power ON/OFF
Mute: Mute the sound
PICTURE: Select the picture mode
Select TV channels
Select digital channels
OSD menu Up arrow
OSD menu Left arrow
OSD menu Down arrow
VOL+: Volume up
VOL-: Volume down
CCD: Closed caption decoder function
MTS/SAP: Multi-channel television sound selection
INPUT
AUDIO ZOOM MUTE
1
4
7
5
8
2 3
GUIDE
6
DISPLAY
9
EXIT
0
MENU
ENTER
Power indicator
INPUT: Switch among TV, Video, S-Video,
Component,HDMI and VGA
ZOOM: Select Screen Mode
AUDIO: Select the sound mode
GUIDE: ATSC tuners feature the Electronic
Program Guide (EPG) function
DISPLAY: Display current Status information
EXIT: On Screen Display (OSD) menu exit
MENU: Call up the main menu
LAST: Return to previous channel
ENTER: Confirm selected function or return to the previous menu
OSD menu Right arrow
VOL+
VOL-
CH
-
CH
+
CCD
/ / SLEEP TIME
CH+: Channel up
CH-: Channel down
TIME: Display the current time
SLEEP: Set the sleep timer
Electronic Program Guide (EPG) function:
After pressing the "GUIDE" button in the digital TV channel option, the 4 same color buttons will appear with explanations in the
OSD. Follow the steps illustrated in the OSD.
EN-21645E
11
Understanding the TV features l l l l l l l l
Multimedia - All in one TV receiver, Video Monitor and PC display.
Wider viewing angle for 16:9 and 4:3 display screens - over a 160 degree viewing angle and a
16:9 ergonomic display panel.
Digital display device - Irrespective of magnetic or geomagnetic effects, this device accurately reproduces images without any distortion or blur.
Closed caption decoder - You may view specially labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.
V-chip - Enables parents to prevent their children from watching inappropriate programs on TV.
ATSC/NTSC
Sleep timer
Multi-language OSD
Basic Operation
Menu operation
Power ON/OFF
1. Connect the TV to a power outlet. If the power indicator is red, it means that the TV is switched off. Press the
Power button on the front control or on the remote control to switch on the TV. Once the Power button is switched on, the power indicator will be displayed as blue. Several seconds later, the TV picture will be displayed on the screen.
2. Press the Power button on the front control or on the remote control to turn the TV off temporarily.
3. Always remove the AC power plug from the outlet when not using this TV for a long period of time.
Signal source selection
Press the [ INPUT ] button to select TV, AV, S-Video,Component,VGA and HDMI inputs. There are two ways to select the source: One is to press the [ INPUT ] button continuously, while the other is to use the [ARROW] and
[ENTER] buttons to confirm the source.
Select channels
Please use [
[ CH]
CH+/CH] button on the remote panel indicates channel number down. Press to select channels.
[CH p /Ch q ]
[ CH+ ] i ndicates channel number up; button on the side panel of the TV to select the channels. If you want to choose any of the skipped channels, press the number directly.
Use [Mute] button
Press the [ Mute ] button to mute the sound. Press the [Mute] button again to resume the sound.
Select picture modes
Press the [ PICTURE ] button to select the picture mode from four options: Standard, Movie, User and Vivid. You can adjust the picture mode based upon your personal preference.
Select sound modes
Press the [ AUDIO ] button to select sound modes from Standard, Speech, User, and Music.
Select zoom modes
Press the [ZOOM] button to select the aspect ratio between picture width and picture height (High Definition 16:9 pictures will be displayed in original format 16:9, named Wide).The options for SD (Standard Definition 4:3) are
Normal, Wide, Zoom and Cinema .
12
Basic operation
Normal
The original 4:3 aspect ratio (1.33:1 signal) is preserved, so black bars are added to the left and right of the image. Standard TV broadcasts are displayed with a 4:3 aspect ratio.
Wide
When watching a standard broadcast or full-frame movie in this mode, the display image is stretched proportionately to fill the TV screen.
When watching a widescreen (1.78:1 signal) program or movie, the display image fills the TV screen.
Zoom
Stretches the 4:3 aspect ratio image vertically and horizontally to fill the screen at 1:1.78 aspect ratio.
Cinema
Stretches the 4:3 aspect ratio image vertically and horizontally to fill the screen at 1:2.35 aspect ratio.
13
Basic Operation
Use [GUIDE] button
Press the [ GUIDE ] button to display features of the ATSC program and the EPG function.
Use [DISPLAY] button
Press the [ DISPLAY ] button to view current source information.
Use [EXIT] button
Press the [ EXIT ] button to exit the OSD menu.
Select channels by numbers
To select a channel: Press the channel number you would like to go to. For example, to select channel number 120, press buttons 1, 2 and 0, respectively.
Use [MENU] button
Press the [MENU] button to display the TV OSD menu.
Use [LAST] button
Press the [LAST] button to return to the previous channel.
Use [ENTER] button
Press the [ENTER] button to select a particular item.
Adjust Volume
Press [VOL+/VOL-] button to adjust the volume.
Use [CCD] button
Press the [ CCD ] button to change the CCD mode. Using this button will set the Closed Caption mode when viewing a DTV or TV channel.
Note : To set the default Closed Caption setting for all channels see Section 3.3.6, Closed Caption for DTV. For DTV the options are CC1, CC2, CC3, Cc4, Service1 or Service2. For TV and AV, the options are On or Off. Additionally, this button stops the CD, DVD or VCR when the component is activated with the remote control.
Use [MTS/SAP] button
Press the [ MTS/SAP ] button to change the sound mode (Mono, Stereo, SAP). This button will select the MTS options of Stereo, SAP, or Mono in TV mode, alternate audio channels, and when available, in DTV mode.
Use [SLEEP] button
Press the [ SLEEP ] button repeatedly to set the sleep time, which can be set to: 5 Mins, 10 Mins, 15 Mins, 30 Mins,
45 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240 Mins, and Off.
Use [TIME] button
Press the [ TIME ] button to obtain the current time.
14
Basic Operation
Video mode adjustment
1. Press MENU to open the OSD option
2. Press p or q to highlight Video, then press u to enter the Video menu.
Video
Picture Mode
Brightness
Contrast
Saturation
HUE
Sharpness
Color Temperature
Advanced Video
: Select
User
Adjust
Cool
50
0
6
50
50
: Back
3. Press p or q to highlight an option, then press t or u to adjust the option. You can adjust:
?
?
Picture Mode
Brightness
- Adjusts the Picture Mode. You can select Standard, Movie, User, or Vivid.
- You can increase or decrease the brightness of the picture. Increasing the brightness can add more light to dark areas of the picture, while decreasing the brightness can add more darkness to light
?
areas of the picture.
Contrast - You can increase or decrease the contrast of the picture. Increase the contrast to adjust the white areas of the picture or decrease the contrast to adjust the black areas of the picture.
Saturation - Adjusts the intensity of the colors.
?
?
?
HUE - Adjusts the overall color of the picture.
Sharpness - You can increase the sharpness level for clearer images or decrease the sharpness level for
?
smoother images.
Color temperature - Changes the color temperature. You can select the color temperature from three
?
options: Cool, Standard or Warm.
Advanced Video - Accesses advanced video settings such as DNR, Black Level, Extender, White Peak
Limiter and Flesh Tone.
Audio mode adjustment
1. Press MENU to open the OSD option
2. Press p or q to highlight Audio , then press u to enter the Audio menu.
Standard
Balance
Balance
Off
0
0
50
50
Parental
Sound Surround
Auto Volume Control
Off
PCM
On
PCM
On
Audio
: Select
ENTER Enter
Adjust
Select EXIT Exit
: Back
3. Press p or q to highlight an option, then press t or u to adjust the option. You can adjust:
15
Basic Operation
?
?
?
?
Balance - Adjusts the volume of the left and right speakers.
Equalizer-You can select the frequency you want to adjust and change its value.
Sound Surround -Turns the surround sound effect on or off.
Auto Volume Control - Turns automatic volume control on or off. The option keeps the audio in a
?
preset range to eliminate large spikes in volume.
SPDIF Type -Selects the SPDIF type. You can select PCM, Dolby Digital, or Off.
Note : Via SPDIF Type, you can choose the optical digital audio out type. If Audio Volume Control is On, that means audio out control is activated.
Setup
1. Press MENU to open the OSD option
2. Press p or q to highlight Setup , then press u to enter the Setup menu.
Setup
OSD Language
Screen Mode
DPMS
Time Setup
Caption
Reset Default
English
Wide
On
Sutup
: Select ENTER : Enter
ENTER Enter Select
EXIT: Exit
3. Press p or q to highlight an option, then press t or u to adjust the option. You can adjust:
?
OSD Language - Use the right or left arrow button to choose the OSD Language among English, Spanish and French.
?
Screen Mode Use the arrow button to choose the aspect ratio between picture width and picture height
(High Definition 16:9 pictures will be displayed in original format 16:9, named Wide). The options for SD
?
(Standard Definition 4:3) are Normal, Wide, Zoom and Cinema.
DPMS This is a good function for a computer monitor. When DPMS is on, the computer will control the screen on or off. For example, if the computer is in sleep mode, the screen will be switched off. If the computer is activated, the screen also is activated.
?
Time Setup You can set up the exact time by yourself. You can also set up Sleeper Time and Auto Sleep
Time.
Caption : There are three items in it - Analog Closed Caption, Digital Closed Caption and Digital Caption
?
Style.
Analog Closed Caption : CC1, CC2, CC3, CC4, TEXT1,TEXT2, TEXT3, TEXT4.
Digital Closed Caption : Service1, Service2, Service3, Service4, Service5, Service6.
Digital Caption Style : There are two Caption Styles. One is the automatic function set as the broadcaster, while the other is the custom style where you can adjust the font size, color, opacity, background color etc., accordingly.
Reset Default Every TV has its original setting before leaving the factory. So this function helps you restore these settings.
16
Basic Operation
Parental Control
1. Press MENU to open the OSD option
2. Press p or q to highlight Parental , then press u to enter the Parental menu.
Parental
Change Password
Channel Block
Input Block
Program Block
: Select ENTER : Enter EXIT: Exit
When you first use
3. Press p or q to highlight an option, then press t or u to adjust the option. You can adjust:
?
?
Channel Block - This function will let you block any channel you want.
Program Block - A. Rating Enable is on
B. U.S. TV Ratings: You can choose TV ratings according to the illustration on the screen.
C. The settings for U.S. Movie Ratings, Canada (English) Ratings and Canada (French)
Ratings follow Step B.
If you want to block the unrated program, please turn on this function.
Following is the description of these ratings.
About TV PG Rating:
The TV ratings are divided into two groups: age-based and content-based.
Age
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Defined as
All children
Directed to older children
General audience
Parental Guidance suggested
Parents Strongly cautioned
Mature Audience only
S
V
D
L
Contents
FV
Defined as
Fantasy Violence
Suggestive dialogue
Strong language
Sexual situations
Violence
17
Basic Operation
About MPAA Rating:
The Motion Picture Association of America(MPAA) uses a rating system to qualify motion picture content.
Television broadcasters employ a rating system to qualify the content of televison programs as well.
The MPAA and TV ratings work with the V-CHIP feature and allow you to block out programming above the rating limits you determine.
Rating
G
PG
PG-13
R
NC-17
X
Defined as
General audience
Parental Guidance suggested
Parents strongly cautioned
Restricted
No one 17 and under admitted
Adult audience only
About Canada (French)
Rating
G
8 ans+
13 ans+
16 ans+
18 ans+
Description
General
8+General; Not recommended for young children
Programming may not be suitable for children under the age of 13
Programming is not be suitable for children under the age of 16
Programming restricted to adults
About Canada (English)
Rating
C
C8+
G
PG
14+
18+
Description
Children
Children eight years and older
Parents Guidance
Viewers 14 years and older
Adult programming
NOTE: As you block rating, all rating higher than the ones you select are blocked as well. For example, if you choose to block the MPAA rating R, the higher ratings, NC-17 and X, are automatically blocked too
.
18
Basic Operation
?
Input Block - You can block the input source with this function. For example, if you want to block AV input, just highlight [ AV ] and press [ENTER ].The AV input will not be seen in the screen.
?
Change Password - The first time you use this function, use the default password. If you want to change it, first enter the new password then enter the same password again.
?
Clean All This function will let you clean all the channels stored on this TV.
Note : If you choose this function, all the programs you preset will be lost.
TV Settings
1. Press MENU to open the OSD option
2. Press p or q to highlight TV, then press u to enter the TV menu.
TV
Tuner Mode
Channel Scan
Channel Skip
MTS
Audio Language
Antenna
Stereo
English
TV
: Select
ENTER Enter
ENTER: Enter
Select EXIT Exit
EXIT: Exit
3. Press p or q to highlight an option, then press t or u to adjust the option. You can
?
?
?
?
adjust:
Tuner Mode - Select the TV signal source. You can select
Channel Scan
Antenna or Cable .
- Scans for channels that have signals and stores the channels information in memory.
When you press t or u , your TV skips any channels that do not have a signal.
?
Channel Skip Deletes a channel stored in memory. When you press CH+ or CH, your TV skips the channel you deleted. You can still tune to the channel using the number buttons on the remote control.
MTS - Selects the sound mode. You can select Mono, Stereo, or SAP (second audio program).
Audio Language -Selects the audio language for a program.
Appendix
Cleaning and Care
WARNING: Do not try to remove the cabinet from the back. Refer servicing to qualified service technicians.
To clean the TV screen:
1. Unplug the TV to avoid possible shock hazard.
2. Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water to clean the TV screen and trim. Do not use too much water as water spilled into the cabinet can cause damage to the TV.
3. Wipe off any excess moisture with a clean dry cloth.
4. Polish the cabinet with a quality furniture polish to maintain the finish and appearance of the cabinet.
Caution : Never use strong solvents such as thinner, benzene, or other chemicals on or near the cabinet.
These chemicals can damage the finish of the cabinet.
19
Appendix
Base installation instruction(for ELCHS321 only)
1. Lay a cloth or other soft material that can afford adequate weight on a flat table to avoid damage to the LCD screen.
2. Put the TV back upward and the LCD screen downward and keep it flat on the table-board.
3. Take out the base and insert it into the installing slot in the lower part of the TV in the arrow direction as illustrated in the figure.
4. Fasten the base and the TV set together with 4 screws.
20
Appendix
Troubleshooting
Before calling a service technician, please check the following table for a possible cause of the problem and some solutions.
Customer important notice : If the TV can not be operated, please unplug the power and restart .
Symptoms Possible Solutions
TV will not turn on
No picture, no sound
No sound, picture OK
Poor sound, picture OK
§
§
§
Make sure the power cord is plugged in, then press Power (Standby) .
The remote control batteries may be dead. Replace the batteries.
Unplug the VGA wire and plug the power wire again.
§
§
§
Check if you have set the timer off.
Check the antenna/cable connections.
Press [Display] to see if you have selected the right signal source.
§
§
§
The sound may be muted. Press [VOL+ ] on the remote control.
The station may have broadcast difficulties. Try another channel.
Check the speakers cable connections.
§
§
The station may have broadcast difficulties. Try another channel
Check the speakers cable connections.
Poor picture, sound OK
§ Check the antenna connections.
§
§
The station may have broadcast difficulties. Try another channel.
Adjust the picture from the menu.
Unable to select a certain channel
§ The channel may be skipped. Choose this channel by directly selecting the buttons from the remote control.
Poor colour or no colour
§
§
The station may have broadcast difficulties. Try another channel.
Adjust Saturation in the Video settings menu.
The remote control does not operate
§
§
§
There may be an obstruction between the remote control and the remote control sensor.
The batteries may be installed with a wrong polarity.
The remote control batteries may be dead. Replace the batteries.
Disorder display at power on
§
§
This may be caused because of a very short interval between POWER
OFF and ON.
Unplug the power and restart.
21
Appendix
Specifications
Model
Diagonal display size
Television system
Audio multiplex
Channel coverage
ELCHS261 ELCHS321
26 inches 31.5 inches
American TV standard ATSC /NTSC system
BTSC system
VHF: 2~13 UHF: 14 69 CATV:1 ~125
Digital Terrestrial Broadcast (8VSB): 2 ~6 9
Digital cable (64/256 QAM): 1 ~1 35
PC mode
YPbPr/YCbCr mode
Resolution
Power source
Power consumption
Audio power
RF input
480I/60Hz,480P/60Hz,720P/60Hz,1080I/60Hz
AC 120 V , 60 Hz
100W
5W+5W
170W
6W+6W
Video input
Connection interface
Video output
Graphic input
Audio input
Audio output
Dimensions
Length: 26.5 inches /
Width: 20.3 inches /
Height: 8.2 inches /
672mm
516mm
208mm
Length: 31.5 inches /
Width: 23.5 inches /
800mm
596mm
Height: 9.4 inches / 240 mm
Weight
23.1 lbs/ 10.5 kg 30.8 lbs / 14 kg
Environmental conditions
Temperature 5 C ~35 C (41F~95F)Humidity:20%-80%RH, Atmospheric pressure:86kPa-106kPa
Supplied accessories
Remote control, AC cord ( for ELCHS321 only ), Batteries,
Warranty Card, QSG, Remote Control Guide
User Manual,
Design and specifications are subject to change without notice.
CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen.
22
advertisement
Key Features
- Enjoy crystal-clear visuals with its high-definition display.
- Experience immersive audio with its built-in speakers.
- Connect effortlessly to external devices with its multiple input ports.
- Customize your viewing preferences with adjustable picture and sound settings.
- Access a wide range of entertainment options with its built-in tuner.
- Maximize your comfort with its ergonomic remote control.
Related manuals
Frequently Answers and Questions
How do I connect my TV to an external device?
Can I adjust the picture and sound settings?
What type of input ports does the TV have?
How do I use the remote control?
What are the energy-saving features of the TV?
advertisement
