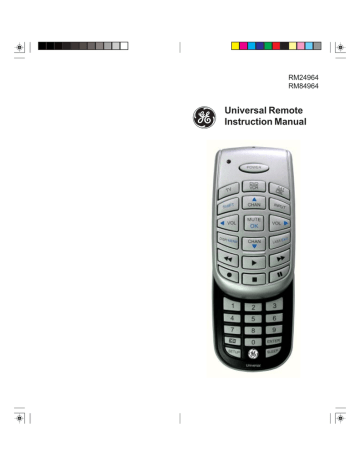

RM24964
RM84964
Universal Remote
Instruction Manual
Table of Contents
Setup .................................................................... 3
Battery Installation ........................................... 3
Battery Saver ................................................... 3
Code Setup ...................................................... 3
Button Functions .................................................. 4
Code Entry ........................................................... 6
Direct Code Entry ............................................ 6
Code Search .................................................... 7
Using Your Remote ............................................... 8
Code Identification ........................................... 8
Sleep Function................................................. 9
Controlling Devices with Power On and Off .... 10
Controlling Combo Devices ............................ 10
VCR/DVD/DVR Punch-Through ..................... 10
Volume/Mute Control and Punch-Through ....... 11
All Volume/Mute Control to any one Mode ...... 11
Setting any Mode for its own Volume/Mute .... 12
Troubleshooting .................................................. 13
Setup
Battery Installation
1. On the back of the remote, slide the battery cover off.
2. Remove and discard the plastic tab under the two
CR2032 Lithium batteries.
When replacing batteries insert with the + side up.
3. Slide the battery cover back into place.
Note: you will lose any programmed codes after changing the batteries. The remote defaults to the factory setting and you will need to reprogram the remote.
Battery Saver
Your remote automatically turns off if the buttons are depressed more than 30 seconds. This will save your batteries should your remote get stuck in a place where the buttons remain depressed (e.g., between the sofa cushions).
Congratulations on your purchase of this universal remote control. All GE brand universal remotes are easy to set up and use. We think you’ll enjoy the unique sliding case feature and compact design this remote offers. It controls up to three devices, including the most popular brands of TV, VCR, DVD,
CBL, SAT equipment.
Note: Some functions from your original remote may not be controlled by this remote. Use the original remote, if available, to control such functions.
Sometimes buttons other than described in these instructions may actually perform the function. For example, the CHAN and VOL buttons might be used to navigate through menu choices. We recommend you experiment with the remote to identify if such situations pertain to your equipment.
The Slider is easy to use, easy to program, and it gives you total control—at the touch of your fingertips!
2
Setup
SETUP
The SETUP button is used to setup the remote. You can either setup the remote using the code tables
(on separate sheet), or you can search through the library of codes until you find a code that works for your product.
Please refer to “Programming with
Code Search” page 7 for more information on using the code search feature to learn how to search through the library of codes for your products.
NOTE: You can store any kind of code under any mode (except TV). I.E. you can store a VCR code under the SAT/CABLE button, or a Cable code under the DVD/VCR button, etc. However, you can only store TV codes under the TV button.
3
Button Functions
Some buttons on the remote might have functions that are referred to by different names on the device you are controlling. E.G. LAST may be called RECALL, or
DISPLAY may be called INFO. These differences depend on the brand and model of your product. Also, this remote can only operate features that exist on your product. E.G., your product must have LAST ability for the LAST button to operate this feature.
Red Indicator
Lights when any button is pressed.
POWER Turns product On or Off.
TV, DVD/VCR,
SAT/CBL. Selects product to be operated.
MUTE Turns off the
TV sound while the picture remains.
OK Selects menu items for the device you are controlling.
NUMBERS
Enter numbers for direct channel selection. Some products require ENTER to be pressed after channel selection.
SETUP
ENTER
SLEEP
CC TV Closed
Caption (if your TV has this feature) or
DVD Subtitle toggle.
SETUP
For setup.
SLEEP enables the remote to turn off your
TV after a period of 1 to
99 minutes.
ENTER
For some TV models, used after direct channel number entry to immediately change to the selected channel.
4
Button Functions, cont.
The most commonly used buttons are accessible even with the remote “closed” as shown below. Just flip it open to gain access to less frequently used buttons.
SHIFT Press and release to access buttons labeled in blue (red indicator stays on).
Press again to exit Shift mode.
CHANNEL UP/DOWN
Changes the channels.
Also controls MENU navigation in TV, DVD or
SAT mode for many brands/models.
INPUT selects the video input of your TV.
VOLUME UP/DOWN
Changes the volume level of the product, normally the TV.
EXIT Exit On-Screen Menus and/or Return to previous
On-Screen selection.
LAST Returns to the previously selected channel.
RECORD, PLAY, STOP, REW, FF, PAUSE VCR control buttons operate your VCR even when the remote is set to operate the TV.
Also operates DVD Scan -/+. Note the VCR keys also control DVD when in DVD Mode.
Note: The REC button must be pressed
TWICE to record from your VCR. For some brands of VCRs, you might need to press the REC button once, then press it again for three seconds.
MENU Press and release SHIFT then MENU to display the menu on the TV. The red LED is on continuously to indicate the remote is in Menu mode, VOL UP/DOWN buttons operate as cursor right/left, CH+/- buttons operate as cursor up/down, and Mute operates as OK.
Press LAST/EXIT button to exit Menu.
DISP Display button shows date and time if your TV or
VCR has that feature.
5
Direct Code Entry
1. Press and hold the SETUP button until the red indicator stays on, then release the SETUP button.
2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.
3. Enter the 4 digit code from the code tables
(on separate sheet).
Note: after a valid code entry, the red indicator turns off. For an invalid code, the red indicator flashes.
4. With your device on, press
POWER. If the device turns off, no further programming is required.
Note: If some buttons do not operate your equipment, try one of the other codes for your brand.
Write your codes down here for easy reference later.
SETUP
Device Device stored Code
TV
DVD/VCR
CBL/SAT
TV
Code Search
If your device does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following these steps.
1. Manually turn on the device (TV, VCR, etc.) to be controlled.
2. Press and hold the SETUP button until the red indicator stays on, then release the SETUP button.
3. Press and quickly release the desired mode button (TV, VCR, etc.). The red indicator blinks off once.
4. Press the POWER button repeatedly (up to 300 times) until the device to be controlled turns off. The red indicator blinks off with each button press.
5. Press and release ENTER to install the code.
SETUP
ENTER
Most users will store VCR codes under the VCR button, Cable codes under CABLE, etc. If (for example) you want to store a VCR code under
CABLE, first follow the procedure for Direct Code
Entry (page 6) and press CABLE in step 2 of Direct
Code Entry, then enter ANY VCR code in step 3 of
Direct Code Entry. Then follow the steps above for
Code Search.
6 7
Using Your Remote
Code Identification
The Code Identification Feature allows you to identify the 4 digit library code stored under your device key. For example, if you want to find out what
4 digit code is stored under your TV device key, follow the six steps below:
1. Press and hold the SETUP button until the red indicator stays on. Release the
SETUP button.
SETUP
2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.
3. Press and release the SETUP button.
The red indicator blinks once and remains lit.
4. To find the first digit for the code stored under the mode key pressed in step 2, press each numeric key from 0-9 in turn. The number that causes the indicator light to blink is the first digit in your code.
SETUP
5. To find the second digit, repeat step 4, this time when the red indicator blinks off this is the second digit.
6. Repeat step 4 to find the third and fourth digits.
Using Your Remote, cont.
Sleep Function
The Sleep button enables the remote to turn off your TV after a period of 1 to 99 minutes as shown below. The remote must be in TV mode to set a
Sleep Timer. This feature works even if your TV does not have a sleep feature.
1. Press and release the TV mode button.
2. Press and hold the Sleep button until the LED remains lit (about 2-3 seconds).
3. Release the Sleep button.
SLEEP
4. Press and release the numeric keys (01-99) for the time required.
The LED will blink off to indicate button press acceptance.
5. TV Sleep Timer is set.
6. Leave the Remote pointing towards the TV with an unobstructed path.
To cancel the Sleep Timer, press and hold the
Sleep button until the LED blinks, or press and release the Power key in TV mode.
8 9
Using Your Remote, cont.
Controlling Devices with Separate
Power On and Off Buttons
Some GE, RCA and ProScan models require you to press the device button for more than one second to turn the device on and the POWER button to turn the device off.
Controlling Combo Devices
Some Combo devices (e.g. TV/VCR, TV/DVD,
DVD/VCR, etc.) will require you to set up two different Mode buttons to control both parts of the
Combo device. For example, if you have a TV/DVD
Combo, you might need to set up one code under the TV button to control the TV part AND a separate code (under any other Mode button) to control the DVD part.
VCR/DVD Punch-Through
This remote allows the 6 VCR transport buttons
(i.e. PLAY, PAUSE, STOP, FF, REWIND, and REC) to Punch-Through control from any Mode programmed with TV, SAT or Cable codes to the last VCR, or DVD programmed Mode you used.
This feature will not operate if the programmed TV,
SAT or Cable code has its own VCR transport button control e.g. a TV Combo, SAT/PVR, etc.
10
Using Your Remote, cont.
Volume/Mute Control and Punch-
Through
This remote lets you select which device Mode controls your Volume/Mute buttons. The remote is initially set for all device Modes to use their own
Volume/Mute control if present. If the programmed code has no Volume/Mute operation of its own then those buttons will punch-through control to the TV
Mode device without the need to change to TV
Mode.
Any Mode chosen for Volume/Mute control
MUST have its own Volume/Mute function or the Volume/Mute buttons will do nothing.
Setting ALL Volume/Mute Control to any one Mode
This routine can set all Modes to “punch-through” to any one chosen Mode for Volume/Mute button control without the needing to change to that Mode.
1. Press and hold the SETUP button until the red indicator turns on, then release the button.
2. Press and hold the MUTE button until the red indicator blinks off, then release the button.
3. Press and release the desired Mode button
(TV, VCR, etc.) for Volume/Mute control, the red indicator blinks then stays on.
SETUP
4. Press and release the MUTE button and the red indicator turns off. The red indicator will blink rapidly for three seconds if the Mode you have selected has no Volume/Mute control.
All other Modes will now punch-through to your chosen Mode for Volume/Mute control.
11
Using Your Remote, cont.
Setting any Mode to use its own
Volume/Mute Control
This routine can set any Mode to use only its own
Volume/Mute control. Note - If your chosen Mode has no Volume/Mute functions of its own then the
Volume/Mute buttons will do nothing.
1. Press and hold the SETUP button until the red indicator turns on, then release the button.
2. Press and hold the MUTE button until the red indicator blinks off, then release the button.
3. Press and release the desired Mode button (TV, VCR, etc.), the red indicator blinks then stays on.
4. Press and release the VOLUME-
(Down) button, the red indicator blinks then stays on.
5. Press and release the MUTE button and the red indicator turns off.
SETUP
Your chosen Mode will now use its own Volume/
Mute control.
12
Troubleshooting
Remote does not operate your product.
• Press the mode button of the product you want to control.
• Program the remote with a new code.
• Install new batteries. (You might have to reprogram your remote after installing new batteries.)
• Remote may not be compatible with your product.
Remote does not operate some features of your product.
• Sometimes a particular code might operate some features but not all. Try programing remote with a new code.
• Remote may not be able to operate all features of your device or button names might be different than your product. Try other buttons on the remote. E.G. controlling the MENU cursor may be performed by CHAN or VOL buttons.
Red Indicator blinks after you program a product code.
• Remote did not accept the code.
• Try to program the code again or try a different code.
Lost Your Codes?
Enclosed with this remote is a sticker on which you should write the codes for each device you programmed. Apply the sticker to the back of the remote or somewhere convenient for future reference.
Also on the sticker is our website address which, should you lose your codes or programming instructions, you can find available on our website: www.jascoproducts.com
13
Notes 90 Day Limited Warranty
Jasco Products Company warrants this product to be free from manufacturing defects for a period of ninety days from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. This warranty is in lieu of all other warranties express or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state. If unit should prove defective within the warranty period, return prepaid with dated proof of purchase to:
Jasco Products Company
311 N.W. 122nd
Oklahoma City, OK 73114
14 15
RM24964
RM84964
Universal Remote
Instruction Manual
Jasco Products Company
311 N.W. 122nd
Oklahoma City, OK 73114
Made in China
RM24964
RM84964-07/06
