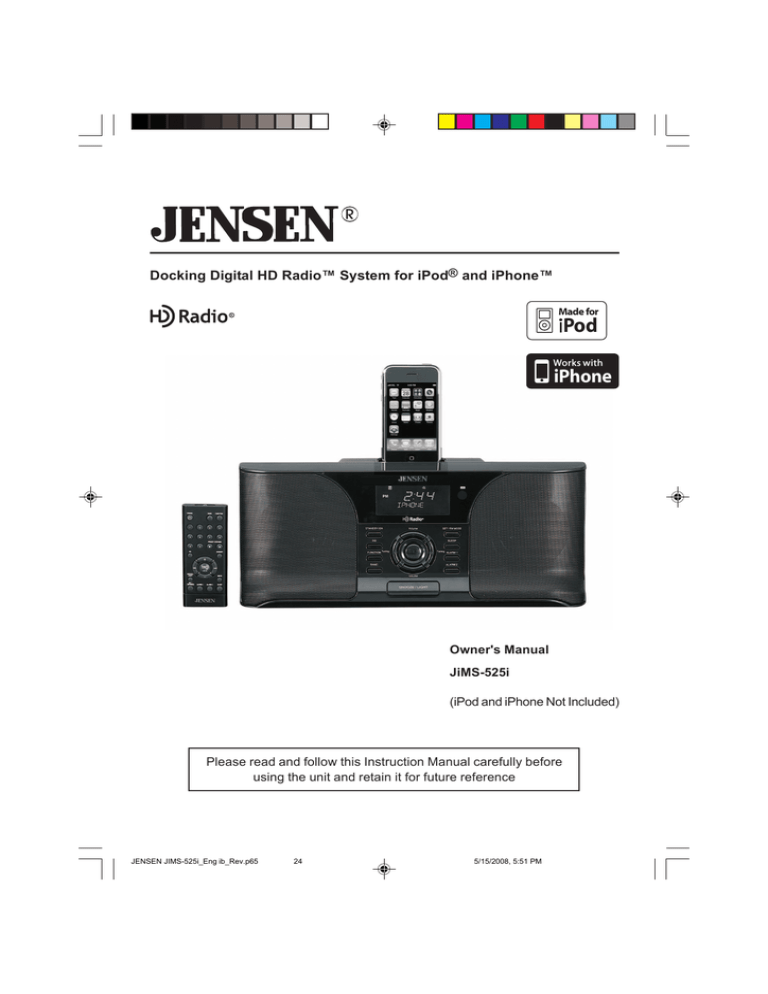

Docking Digital HD Radio™ System for iPod

®

and iPhone™

Made for

P o d

Works with

iPhone

Owner's Manual

JiMS-525i

(iPod and iPhone Not Included)

Please read and follow this Instruction Manual carefully before using the unit and retain it for future reference

- 24 -

JENSEN JIMS-525i_Eng ib_Rev.p65

24 5/15/2008, 5:51 PM

IMPORTANT SAFETY

INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH

VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE

CABINET REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

The lightning flash and arrow head within the triangle is a warning sign alerting you of

“dangerous voltage” inside the product

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT REMOVE

COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL

The exclamation point within the triangle is a warning sign alerting you of Important Instructions accompanying the product

The Caution marking is located at the bottom of the unit.

The rating plate is located at the bottom of the unit.

CAUTION:

PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS

OWNER'S MANUAL AND THOSE MARKED ON THE UNIT, KEEP THESE INSTRUCTIONS.

RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit does not contain any parts that can be repaired by the user.

The symbol for class II (Double insulation)

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS

VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- 1 -

JENSEN JIMS-525i_Eng ib_Rev.p65

1 5/15/2008, 5:51 PM

IMPORTANT SAFETY

INSTRUCTIONS

9. Do not defeat the safety purpose of the polarized or grounding – type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC NOTICE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.

– Consult the dealer or an experienced radio/TV technician for help.

Warning:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

– The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

– Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

– Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- 2 -

JENSEN JIMS-525i_Eng ib_Rev.p65

2 5/15/2008, 5:51 PM

TABLE OF CONTENTS

WELCOME ........................................................................................................................................................................ 4

PROTECT YOUR FURNITURE ......................................................................................................................................... 4

ABOUT THIS MANUAL ...................................................................................................................................................... 4

LOCATION OF CONTROLS .............................................................................................................................................. 4

FRONT VIEW .............................................................................................................................................................. 4

REAR VIEW ................................................................................................................................................................ 5

DISPLAY UNIT ............................................................................................................................................................ 5

REMOTE CONTROL SECTION ................................................................................................................................. 6

GETTING STARTED .......................................................................................................................................................... 6

UNPACKING THE HD RADIO

TM

RECEIVER ............................................................................................................ 6

CONNECTING THE FM ANTENNA WIRE ................................................................................................................. 6

CONNECTING THE HD RADIO

TM RECEIVER TO A CABLE RADIO SIGNAL .......................................................... 7

ANTENNA GROUNDING ............................................................................................................................................ 7

NOTICE FOR CABLE TV SYSTEM INSTALLER ........................................................................................................ 7

CONNECTING THE AM LOOP ANTENNA ................................................................................................................. 7

AUX LINE-IN CONNECTION ...................................................................................................................................... 7

CONNECTING AC POWER SUPPLY ........................................................................................................................ 8

ACTIVATING THE REMOTE CONTROL .................................................................................................................... 8

REPLACING THE REMOTE CONTROL BATTERY ................................................................................................... 8

BATTERY PRECAUTIONS ......................................................................................................................................... 8

RADIO OPERATION .......................................................................................................................................................... 9

LISTENING TO THE RADIO ...................................................................................................................................... 9

TO PRESET CHANNELS ........................................................................................................................................... 10

TO RECEIVE PRESET STATIONS ............................................................................................................................ 10

HD RADIO

TM

MULTICAST CHANNELS (FM ONLY) ................................................................................................ 10

SPECIAL INFORMATION ABOUT DELAY IN THE HD RADIO

TM

SYSTEM ............................................................. 11

RBDS (RADIO BROADCAST DATA SYSTEM) ......................................................................................................... 11 iTunes Tagging ............................................................................................................................................................. 12

TO STORE SONG TAG(S) ......................................................................................................................................... 12

PURCHASING SONG(S) WITH ITUNES ................................................................................................................... 12

AUX OPERATION .............................................................................................................................................................. 13 iPod ADAPTORS .............................................................................................................................................................. 13

DOCKING YOUR IPOD .............................................................................................................................................. 14

DOCKING YOUR IPHONE ......................................................................................................................................... 15

CONNECTING THE S-VIDEO (FOR IPOD VIDEO OUTPUT) ......................................................................................... 16

GENERAL SET UP ..................................................................................................................................................... 16

FOR PHOTO VIEW (FOR IPOD WITH COLOR DISPLAY ONLY – EXCLUDING IPOD NANO) ................................ 16

CONNECTING THE S-VIDEO (FOR IPHONE VIDEO OUTPUT) .................................................................................... 16

FOR VIDEO VIEW (FOR IPHONE WITH VIDEO ONLY) .......................................................................................... 16

USING HEADPHONES (NOT INCLUDED) ....................................................................................................................... 17

CLOCK SETTING ............................................................................................................................................................... 17

SETTING THE TIME ................................................................................................................................................... 17

SETTING THE ALARM (S) ......................................................................................................................................... 18

CLOCK LIGHT OPERATION ............................................................................................................................................. 18

ALARM OPERATION ......................................................................................................................................................... 19

WAKE TO RADIO, IPOD OR ALARM ........................................................................................................................ 19

SNOOZE OPERATION ...................................................................................................................................................... 19

SLEEP OPERATION .......................................................................................................................................................... 20

SETTING SLEEP TIMER ............................................................................................................................................ 20

ADJUSTING THE SLEEP PERIOD ............................................................................................................................ 20

SLEEP AND WAKE TO BUZZER/iPod/RADIO ............................................................................................................... 20

CARE AND MAINTENANCE .............................................................................................................................................. 21

CLEANING THE UNIT ................................................................................................................................................ 21

SPECIFICATIONS .............................................................................................................................................................. 21

TROUBLESHOOTING GUIDE ........................................................................................................................................... 22

SERVICE ............................................................................................................................................................................ 23

- 3 -

JENSEN JIMS-525i_Eng ib_Rev.p65

3 5/15/2008, 5:51 PM

WELCOME

Thank you for purchasing the JENSEN JiMS-525i HD Radio

TM

System.

Before operating the unit, please read this manual thoroughly and retain it for future reference.

PROTECT YOUR FURNITURE!!

This system is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture.

To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.

ABOUT THIS MANUAL

Instructions in this manual describe using the controls on the remote. You can also use the controls on the main unit if they have the same or similar names as those on the remote.

LOCATION OF CONTROLS

Front View

17

15

16

1

2

4

3

5

6

7

8

13

14

12

11

10

9

1. Volume + Button

2. STANDBY/ON Button

3. EQ Button

4. Skip 9 Backward/Tuning Down Button

5. FUNCTION Button

6. BAND Button

7. Volume – Button

8. SNOOZE/LIGHT Button

9. Play/Pause / iTunes

®

Tag Button

10. ALARM 2 Button

11. ALARM 1 Button

12. Skip : Forward/Tuning Up Button

13. SLEEP Button

14. SET/FM MODE Button

15. Remote Sensor

16. Display

17. iPod Connector and Docking Bay

- 4 -

JENSEN JIMS-525i_Eng ib_Rev.p65

4 5/15/2008, 5:51 PM

Rear View

LOCATION OF CONTROLS (Continued)

1 2 3 4 5 6 7

1. AC INPUT SOCKET

2. AM Antenna Connector

3. S-VIDEO Output (5 th

Gen iPod)

4. FM Antenna Connector

Display Unit

1 2 3

5. AUX LINE-IN Jack

6. HEADPHONE Jack

7. RESET Switch

4 5 6 7 8 9 10

F M

P M

A M

S T

MHz

KHz

1. Band/AM-PM Indicator

2. iPod Icon

3. HD Radio

TM

Icon

4. Time/Frequency Reading

5. ALARM 1 Indicator

JENSEN JIMS-525i_Eng ib_Rev.p65

5

- 5 -

6. ALARM 2 Indicator

7. SLEEP Indicator

8. FM STEREO Indicator

9. Frequency Unit

10. RBDS Messages/FUNCTION Indicator

5/15/2008, 5:51 PM

LOCATION OF CONTROLS (Continued)

Remote Control Section

POWER

BAND

FUNCTION

Turn the Radio On/Off

Select AM/FM Band

Selects Radio, iPod or Aux Modes

0 – 9 Numeric buttons

PRESET STATIONS

6

Memory Stations Down

PRESET STATIONS

5

Memory Stations Up

EQ Equalizer Options

MEMORY

+, –

Program Preset Stations

Volume Up and Down

Play/Pause/ iTunes

®

Tag

:

9

SNOOZE/LIGHT

MUTE

SET/FM MODE

ALARM 1

ALARM 2

SLEEP

Skip Forward/Tuning Up

Skip Backward/Tuning Down

Silences the Alarm Temporarily/

Switch Backlight On/Off

Mute the System Sound

Set Time/Select FM ST or MONO

Set Alarm 1

Set Alarm 2

Set Sleep Timer On

GETTING STARTED

Unpacking the HD Radio TM Receiver

Please save all the original packaging. It provides the safest way to transport your unit.

Note: This HD Radio

TM

Receiver is not designed for automotive use.

NOTE: The JiMS-525i is not magnetically shielded and may cause color distortion on the screen of some TVs or video monitors. To avoid this, you may need to move the unit further away from the TV or monitor if unnatural color shifts or image distortion occurs.

Connecting the FM Antenna Wire (included)

1. Push the connector plug on the end of the antenna wire onto the FM Antenna Connector at the rear of the radio.

2. Straighten out the Antenna to its full length and orient the wire for the best reception.

- 6 -

JENSEN JIMS-525i_Eng ib_Rev.p65

6 5/15/2008, 5:51 PM

GETTING STARTED (Continued)

Connecting FM / HD Radio TM Receiver Antenna / to a Cable Radio Signal

This Radio's FM Antenna Connector is a standard connector that will accept either the FM Antenna wire (included) or the cable FM feed from most cable systems that provide FM programming. To connect the included FM Antenna wire, slide the black plastic end of the antenna wire onto the center post of the antenna connector on the back of the unit. To connect your Radio to the

FM signal available from some cable TV providers, contact your cable TV provider for assistance and also to find out if HD Radio

TM

broadcast signals are available through the cable line. As of the writing of this manual, HD

Radio

TM

signals are not being rebroadcast via cable providers.

FM / HD RADIO

ANTENNA

CONNECTOR

AM RADIO

ANTENNA

CONNECTOR

FM / HD RADIO

ANTENNA WIRE

Be sure that the installation includes a splitter that will filter the signal to prevent any re-emission of the TV spectrum through the Radio, so that only the FM band, not the cable TV signal, is transmitted to the Radio.

Antenna Grounding

Example of antenna grounding, per the National Electrical

Code, ANSI/NFPA 70.

Notice for Cable TV System Installer

Please make note of Article 820-40 of the NEC

(of USA) that provides guidelines for proper grounding. In particular, this standard specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as is practical.

Antenna Lead In Wire

Ground Clamp

Antenna

Discharge Unit

(Nec Section 810-20)

Electric Service

Equipment

Nec-National

Electrical Code

Grounding Conductors

(Nec Section 810-21)

Ground Clamps

Power Service Grounding Electrode System

(Nec Art 250, Part H )

Connecting the AM Loop Antenna

If AM reception is weak for improvement connect the provided Loop

Antenna as describe below:

1. Push to open the 2 receptacles of the AM antenna terminals and insert 2 open-end wires of the AM loop antenna into them.

2. Release the 2 AM antenna terminal handles to hold the AM loop antenna wires in place.

3. Orient the AM loop antenna for the best reception.

AM loop antenna

AM outdoor antenna

AUX LINE-IN Connection

Connect one end of the Audio line cable (Included) to the AUX Input jack at the back of the Radio and the other end of the Audio line cable to your external audio player, such as a CD, MP3 etc.

- 7 -

JENSEN JIMS-525i_Eng ib_Rev.p65

7 5/15/2008, 5:51 PM

GETTING STARTED (Continued)

Connecting AC Power Supply

• This JiMS-525i HD Radio

TM

System operates from AC120V ~ 60Hz line power supply.

• The Remote Control operates on 1 Lithium battery, CR2025 (Included).

Insert the AC Cord Inlet into the AC cord socket on back of the Radio and the other end into a standard

120V AC outlet as shown in the diagram below.

The Radio will automatically go into standby mode.

RESET SWITCH

AC Outlet

AC Cord Inlet

Remark:

In the event of a malfunction due to electrostatic discharge (ESD), reset the unit by pressing the RESET switch located on the back of the main unit with a ballpoint pen or similar object.

Activating the Remote Control i. To activate the Remote Control, remove the protective film.

ii. Point remote control toward the front of the main unit. The effective range of the remote is about 19 ft from the remote sensor and within an angle of about 45° from the front of the unit.

Replacing the Remote Control Battery

Please replace your battery if the operating distance of the

Remote Control drops drastically.

1. Remove the battery cover.

2. Install one new CR2025 Lithium battery into the battery compartment as shown in the figure on the right.

3. Replace the cover.

Caution: The battery may leak or explode if incorrectly installed.

Battery Precautions

Follow these precautions when replacing the battery in this device.

1. Use only the size and type of battery specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment. Reversed battery may cause damage to the device.

3. If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage.

4. Do not try to recharge. The battery is not intended to be recharged and can overhead and rupture.

(Follow battery manufacturer's directions.)

5. Do not dispose of battery in fire, battery may explode or leak.

- 8 -

JENSEN JIMS-525i_Eng ib_Rev.p65

8 5/15/2008, 5:51 PM

RADIO OPERATION

The following procedures can be accomplished by using either the remote or the controls on the main unit.

Listening to the Radio

Note: When entering the Radio function mode, the words "PLEASE WAIT TO TURN ON RADIO" will appear first on the bottom row of the Display and then the Band and Frequency Reading will be shown in the Display after one or two seconds.

1. Press the Button to turn on the unit.

Radio iPod Aux

2. Press the FUNCTION Button to operate the unit in radio mode.

TO: PRESS:

Switch between AM/FM band

Select FM MONO or ST mode

Scan radio station automatically

Stop auto-tuning

Scan radio station manually

BAND Button repeatedly

SET Button repeatedly

:

or

9

Hold Buttons for 1 second

:

:

or

or

9

9

Buttons again

Buttons repeatedly

Control the volume

Adjust the EQ

Stop output from the speakers

VOLUME + or – Buttons

EQ Button repeatedly until the desired EQ shown in the Display

MUTE Button once

Resume output from the speakers MUTE Button again

Note:

1. Frequency reading will change to the time 1 minute after the system has entered the radio function mode. The FM Stereo Indicator will stay on in the Display in FM stereo mode.

2. To check the station frequency, press the SET/FM MODE Button once and again in order to keep the station in stereo mode. Station frequency will be displayed for about 1 minute and revert to current time again.

3. When listening to an FM station, fully extend the antenna to insure maximum tuner sensitivity.

4. Automatic tuning depends on the signal strength of the broadcasting station, so weak stations are sometimes skipped. Tune manually to find the weak stations. With stronger stations, the tuner may stop before it reaches optimum setting for that station. Adjust manually for the best reception if needed.

5. For FM reception, the Radio provides FM MONO/STEREO selection. In stereo mode, the unit will automatically switch to stereo when a strong FM stereo broadcast is received and will indicate "ST" in the Display.

6. To receive a weaker (noisy) FM station, press the SET/FM MODE Button to switch to MONO mode.

The reception may improve, but the sound heard is monaural (MONO).

7. The sound equalization can be adjusted for optimum sound reproduction depending on the style of music you are playing. By pressing the EQ button, you can switch between ROCK, POP, CLASSIC,

JAZZ, BASS or NORMAL equalization to suit your taste.

Rock Pop Classic Jazz Bass Normal

- 9 -

JENSEN JIMS-525i_Eng ib_Rev.p65

9 5/15/2008, 5:51 PM

RADIO OPERATION (Continued)

To Preset Channels

This Radio is equipped with 10 preset memories for AM and 20 preset memories for FM. Once they are preset, they can be instantly accessed by keying in the preset channel using the Numeric Buttons or pressing the 5 or 6 Buttons on the Remote Control.

1. Press Button to turn on the unit.

2. Press the FUNCTION Button to switch the unit into radio mode.

3. Press the BAND Button to select AM or FM band as desired.

4. Tune to a desired station.

5. Press the MEMORY Button. Channel Indicator "01" appears and blinks.

6. While the Channel Indicator is blinking, press the 5 or 6 Buttons to select the desired preset channel.

7. Press the MEMORY Button again to confirm when the desired preset channel appears in the Display.

8. Tune to another station and repeat steps 5 to 7 to store a new station in another preset channel.

To Receive Preset Stations

1. Press Button to turn on the unit.

2. Press the FUNCTION Button to operate the unit in the radio mode.

3. Press the BAND Button to select the AM or FM band as desired.

4. Press the 5 or 6 Buttons or key in the preset channels using the NUMERIC Buttons to select the preset channels.

Note: HD Radio

TM

Multicast Channels (HD2, HD3, etc) can be added to the preset memory locations for easy access, but there may be a delay before sound is heard when accessing the channels from memory. See the section below "Special Information about Delay in the HD Radio

TM System" for more information on why this delay occurs.

HD Radio TM Multicast Channels (FM Only)

Together with digital sound quality, HD Radio

TM

technology gives broadcasters the opportunity to offer more than one programming channel simultaneously using their existing frequency on the radio tuning buttons.

If the HD Radio

TM

Receiver recognizes an HD Radio channel, the HD logo starts blinking until the signal is tuned in. After the HD Radio

TM Receiver is tuned to an HD channel, CH1 will indicate the existence of multicast services. Use the

5

or

6

Buttons to select the multicast channels (i.e. CH2).

If you are listening to an HD Radio

TM

Multicast Channel (HD2, HD3, etc) and turn the radio power off or switch to either iPod or Aux modes, the radio will default back to the main non-HD radio station when the power is turned on again or if you switch back to the radio function. Example: You are listening to

"97.9FM HD2" and turn the power off or change to iPod or Aux mode. When you turn the power back on or switch back to the radio mode, the station will be the 97.9FM and not the HD2 multicast channel. If an HD signal is detected the station will automatically switch to 97.9FM HD1, but you will manually need to change to 97.9FM HD2 if this is the channel you want to listen to again.

JENSEN JIMS-525i_Eng ib_Rev.p65

10

- 10 -

5/15/2008, 5:51 PM

RADIO OPERATION (Continued)

Special Information about Delay in the HD Radio TM System

Digital systems inherently produce a delay in audio. To overcome such delay, HD Radio

TM broadcasting uses a station's current analog signal to ensure fast tuning of an AM or FM station. After an estimated

5 seconds, the audio will change from analog to digital HD Radio

TM broadcasting.

If the change is smooth, the radio station will implement the HD Radio

TM

broadcast correctly. But if the station has no smooth change, you will experience a jump in content of an estimated 5 seconds. The

HD Radio

TM

Receiver is not a problem. It is an HD Radio

TM

broadcaster's implementation problem which could be corrected by the station through time.

Today's analog is only present on the main channel. If you tune directly to a station's multicast channel

(CH2), there will have a delay of about 5 seconds before audio or content is heard. This operation is normal.

RBDS (Radio Broadcast Data System)

This Radio supports RBDS, Program Identification and Radio Text. This function allows a radio station to transmit free-form, static textual information. For example, station slogans are synchronized with the programming and the title and artist of currently–playing songs are displayed along with the radio program.

JENSEN JIMS-525i_Eng ib_Rev.p65

11

- 11 -

5/15/2008, 5:51 PM

iTunes Tagging

Note: iTunes Tagging® for iPod - Compatibility with iPod nano (3rd generation), iPod classic and iPod

(5th generation).

To Store Song Tag(s)

1. In Radio mode, "Tag Available" will appear on the display indicating that a song Tag is available for the song that is currently playing. Briefly press the / Tag Button either on the main unit or on the remote control to capture the song information Tag. Message "Storing Tag .........." will appear in the Display.

2. The Radio will check if its internal memory is full or not. If the internal memory is full, the Display will show "Storage Full", and return to the previous display.

3. If the internal memory is not full, then the Radio will check if the radio station that is playing contains a buying tag or not. If a buying tag is not available, the Display will show "Insufficient Data", and return. If a buying tag is available, storage of that song tag will begin.

4. If the tag fails to be stored in the internal memory, the Display will show "Storage Failed", and return to the previous display.

5. If storage of the tag is successful, the Display will show "Storage Success". The number of tags stored will then be displayed, "Tag Stored: X", and balance of internal memory, "Free Space: X", will also be displayed.

6. Docking your iPod: Whe you first dock your iPod, The JiMS-525i will check for the version iPod you are using. "Reading iPod, "Please wait..........." will be shown on the Display.

7. Authentication will begin. Display will show "iPod AUTHEN PLEASE WAIT.........." If Authentication fails, the Display will show "Authentication Failed", and return to the previous display.

8. If authentication is successfully, data transmission will start. The Display will show "Transfer Tags

Please wait.........."

9. If the internal memory of the iPod is not adequate for the Tags being transferred, the LCD will show

"Memory Not Enough", and return.

10. If internal memory is adequate to accept the Tags, the data transmitted to iPod will first be checked for correctness. If the data is not correct, the Display will show "XML Write Failed", and return to the previous display.

11. If data transmission is successful, the Display will show "X Tags Sent". X signifies the number of Tags.

12. The Tags are automatically erased from the internal memory of the JiMS-525i once they are transferred to the iPod.

Purchasing Song(s) with iTunes

1. Once the song Tags are stored on the iPod, you can now plug your iPod into your computer in the same manner as you normally would when accessing iTunes.

2. You will need to make sure you are using the latest software version for both your iPod and iTunes.

3. Once your iPod mounts and appears in the iTunes window, you click on the "Sync" button to sync your iPod with iTunes. IMPORTANT: Make sure you are working on the same computer you normally use for your iPod or make sure that iTunes is manually managing the content on your iPod otherwise you could wipe the content from your iPod and reload all the content from the iTunes library you are now sync'd with. See your iTunes Help section before pressing "Sync" if you have any doubts about working with Auto and Manual updating.

4. Once your iPod Syncs with iTunes, you will see a new tab on the left side of the screen called

"Tagged Songs". All the songs you Tagged will show in this tab when selected.

5. You can now select a Tagged song from the screen and you will automatically be taken to the iTunes

Store. Please note, you need an iTunes Store account in order to purchase Tagged songs, so see the information that came with your iPod for information on how to create an account for iTunes.

6. If the song cannot be found in iTunes, you can use the advanced search feature in iTunes to locate the songs manually.

7. Once a Tagged song is selected, you can now purchase the song through iTunes in the same way you would normally purchase songs.

- 12 -

JENSEN JIMS-525i_Eng ib_Rev.p65

12 5/15/2008, 5:51 PM

AUX OPERATION

You can play other music sources (iPod shuffle, MP3, CD or other digital audio player) through the speakers of this Radio by connecting the AUX LINE-IN Jack to your external player's audio out jack or headphone jack.

1. Set up the Radio and your external player as described in the section AUX IN Connection.

2. Power up the Radio and the external player.

3. Press the FUNCTION Button to operate the Radio in AUX mode.

4. Start playing your MP3, CD or other digital audio player.

5. Press the + or – Buttons to obtain the desired sound level.

6. Press EQ Button to choose the desired equalizer effect.

iPod ADAPTORS

Below are the iPod Adaptors included in the package.

It is always recommended you use the adaptor that comes with your iPod first. This will help maximize a custom fit for your iPod when docked.

iPod Models iPod Adaptor

5 Gen iPod with video 60GB & 80GB

Video 80G

Video 80G

5 Gen iPod & U2 iPod with video 30GB iTouch & iPhone iPod mini 4GB & 6GB

Video 30G

Video 30G

Mini

Mini

1 Gen iPod nano 1GB,

2GB & 4GB

Nano

Nano

2 Gen iPod nano 2GB,

4GB & 8GB

Nano 2nd

Nano 2nd

TABLE 1

- 13 -

JENSEN JIMS-525i_Eng ib_Rev.p65

13 5/15/2008, 5:51 PM

DOCKING YOUR iPod

1. Press the Button to turn on the unit.

2. Press the FUNCTION Button to select iPod mode.

3. According to TABLE 1, select a suitable adaptor for your iPod and insert it into the docking bay.

Your iPod can now be inserted onto the iPod connector by aligning the connector on the bottom of the iPod onto the connector in the docking bay.

Note: Please be careful when seating the iPod onto the dock to avoid damaging the 30-pin connector in the iPod or the docking system.

iPod

4. Authentication will begin once the iPod is docked.

The message "IPOD AUTHEN PLEASE WAIT......" will be shown on the Display for a few seconds and then the type of iPod will be shown on the Display.

5. The iPod will start playing automatically and will also charge.

6. Adjust the sound level by pressing the VOLUME +/– buttons on the JiMS-525i.

Note: The volume level cannot be adjusted using the volume control on your iPod after being docked.

7. Press EQ Button on the JiMS-525i to choose the desired equalizer effect.

Note: Set the EQ of your iPod to OFF so that it will not affect the correct operation of the EQ on this unit.

JENSEN JIMS-525i_Eng ib_Rev.p65

14

- 14 -

5/15/2008, 5:51 PM

DOCKING YOUR iPhone

1. Press the Button to turn on the unit.

2. Press the FUNCTION Button to select iPod mode.

3. According to TABLE 1, select the 30G adaptor and insert it into the docking area. Your iPhone can now be inserted into the docking port by aligning the connector on the bottom of the iPhone onto the connector in the docking.

Note: Please be careful when seating the iPhone onto the dock to avoid damaging the 30-pin connector in the iPhone or the docking system.

4. Authentication will begin once the iPhone is docked. The message "IPOD AUTHEN

PLEASE WAIT ........" will be shown on the

Display for a few seconds and then "iPhone" will be shown in the Display.

iPhone

5. The iPhone will start playing iPod music automatically and will charge.

6. Adjust the sound level by pressing the VOLUME +/– buttons on the JiMS-525i.

Note: The volume level cannot be adjusted using the volume control on your iPhone after being docked.

7. Press EQ Button on the JiMS-525i to choose the desired equalizer effect.

Note: Set the EQ of your iPhone to OFF so that it will not affect the correct operation of the EQ on this unit.

8. Playback will be suspended if there is an incoming call. The iPhone will ring.

9. Touch the Answer icon once to pick up the call.

10. Touch the Speaker button once to answer the call in handsfree mode.

11. Press the End Call Icon when you have finished answering the call. Music will resume.

Note: To enhance sound quality in handsfree mode, you should always use the 30G adaptor for docking the iPhone.

JENSEN JIMS-525i_Eng ib_Rev.p65

15

- 15 -

5/15/2008, 5:51 PM

CONNECTING THE S-VIDEO (for iPod Video Output)

You are able to view videos and photos stored in your 5th generation iPod, iPod classic, 3rd generation

IPod nano and iPod touch on a standard TV screen or video display using the S-Video OUT feature of this unit.

General Set Up

1. Connect one end of the S-Video cable into the rear S-Video OUT

Jack on this unit and the other end to the VIDEO IN of your TV or video display.

2. Switch on your TV or video display.

3. Press the FUNCTION button to select iPod mode.

4. Securely dock the iPod and select Videos mode.

5. Select Video Settings on your iPod and set TV Out options to "On".

6. Return to the Videos Menu and select your favorite movie or video clips.

7. Press the Play Button to start playing.

For Photo View (For iPod with color display ONLY – excluding iPod nano)

1. Press the FUNCTION Button to select iPod mode.

2. Securely dock the iPod with color display.

3. iPod: At TV Out section, make sure it is set to "ON".

4. iPod: Go to Photo Library and then press play. The slideshow will play on your device.

iPod

Music

Photos

Videos

Extras

Settings

Shuffle Songs

Videos

Video Playlists

Movies

Music Videos

TV Shows

Video Podcasts

Video Setting

Settings

TV Out

TV Signal

Wide Screen

On

NTSC

On

CONNECTING THE S-VIDEO (for iPhone Video Output)

You are able to view videos and photos stored in your iPhone on a standard TV or video display using the S-Video OUT feature of this unit.

For Video View (For iPhone with video ONLY)

You can connect this unit to a TV or other video display that has S-video input.

1. Connect the S-Video cable into the rear S-Video OUT Jack on the unit.

2. Connect the other end of the S-Video cable to the VIDEO IN of your TV or video display.

3. Press the FUNCTION button to select iPod mode.

4. Securely dock the iPhone with the iPhone in Video mode. Touch the Video Icon on the iPhone to enter Video mode if necessary.

5. Select a movie from your iPod menu.

6. To stop music playback, select your desired movie or video clip on the touch screen. The following screen will pop up in the iPhone Display.

7. To view the movie on your TV, touch "Yes".

Display on TV?

Yes No

8. Adjust VOLUME +/– for the desired sound level.

Note: When playing slideshows or videos on your TV, the audio will only playback through the

JiMS-525i speakers.

- 16 -

JENSEN JIMS-525i_Eng ib_Rev.p65

16 5/15/2008, 5:51 PM

USING HEADPHONES (NOT INCLUDED)

Inserting the plug of your headphones (not included) into the Headphone jack, on the back of the Radio, will enable you to listen in private. When using headphones, the speakers will be disconnected automatically.

NOTE: READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES

1. Avoid extended play at very high volume as it may impair your hearing.

2. If you experience ringing in your ears, reduce the volume or shut off your unit.

3. Keep the volume at a reasonable level even if your headset is an open-air type designed to allow you to hear outside sounds. Please note that excessively high volume may still block outside sounds.

CLOCK SETTING

The following procedures can be accomplished by using either the remote or the controls on the main unit.

Setting the Time

The Clock can only be set in POWER off mode.

1. Press and hold the SET Button for 2 seconds and the Hour digits of the clock will flash.

2. Press the : or 9 Buttons until the correct Hour digits appear in the LCD.

Note: Make sure the hour is set so that AM or PM is correctly displayed. It is important that the "AM" or

"PM" setting is correct for proper operation of the Alarm function.

3. Press the SET Button to confirm. Minute digits will appear and flash in the LCD.

4. Press the : or 9 Buttons to set the Minute digits.

5. Press the SET Button to exit and activate the new clock time to operate.

JENSEN JIMS-525i_Eng ib_Rev.p65

17

- 17 -

5/15/2008, 5:51 PM

CLOCK SETTING (Continued)

Setting the Alarm (s) i.

This Radio allows you to set two different wake-up times which can be used independently or simultaneously AL1 or AL2 or AL1 and AL2.

ii. The procedure for setting the alarm time for ALARM 1 and ALARM 2 are the same.

iii. The following procedure describes how to set ALARM 1 alarm time:

1. In POWER off mode, press the ALARM 1 Button briefly. The ALARM 1 Alarm Indicator appears.

2. Press and hold the ALARM 1 Button until the wakeup sound source appears and flashes in the display.

3. Press the : or 9 Buttons repeatedly to select the Alarm1 wakeup mode (HD Radio FM, HD Radio

AM, iPod or Buzzer).

HD Radio FM HD Radio AM iPod Buzzer

4. Press the ALARM1 Button to confirm when the desired wakeup mode appears in the Display. The

Display will then show the flashing Hour digits prompting for input.

5. Press the : or 9 Buttons to select the desired wakeup Hour.

Note: Make sure the hour is set so that AM or PM is correctly displayed. It is important that the "AM" or

"PM" setting is correct for proper operation of the Alarm function.

6. Press the ALARM 1 Button again to confirm the wakeup Hour. Minute digits will appear and flash in the Display.

7. Press the : or 9 Buttons to select the desired Minutes.

8. Press the ALARM 1 Button again to confirm the Minutes. The Alarm sound level will then be displayed and flash to prompt for input.

9. Press the VOLUME + or – Buttons to select the desired wakeup sound level.

10. Press the ALARM 1 Button to confirm and the alarm setting process is then completed.

CLOCK LIGHT OPERATION

1. For a bright LCD Display under normal room illumination, press the SNOOZE/LIGHT Button once.

The LCD backlight will turn on.

2. For a dim LCD Display in the dark press the SNOOZE/LIGHT Button again to turn the LCD backlight off.

JENSEN JIMS-525i_Eng ib_Rev.p65

18

- 18 -

5/15/2008, 5:51 PM

ALARM OPERATION

This unit provides wake to HD Radio FM, HD Radio AM, iPod or ALARM.

Wake to Radio, iPod or Alarm

1. Refer to "SETTING THE ALARMS" on page 18 to set the desired wake up time (s), wakeup mode, i.e. HD RADIO FM, HD Radio AM, iPod or ALARM and volume level.

HD Radio FM HD Radio AM iPod Buzzer

2. When the preset wake up time is reached the selected wakeup mode turns "On". The respective

ALARM Indicator flashes. The alarm will continue to sound and last for 60 minutes and then turn off automatically. The alarm remains set and will turn the radio on again at the same time on the following day.

3. To stop the alarm sound before it turns off automatically, briefly press the ALARM1 or ALARM 2

Button once. The alarm sound stops but the alarm remain set and will turn the radio on again at the same time on the following day.

4. To cancel the alarm function briefly press the ALARM1 and/or ALARM 2 Buttons again. The respective ALARM indicator(s) goes off.

Notes: i. If you have chosen "Wake to RADIO" alarm mode, make sure that you have tuned to a station and adjusted the volume to a comfortable level.

HD Radio

TM

Multicast Channels (HD2, HD3, etc) cannot be used when "Wake to Radio" is selected.

If the FM radio station you select for wake up is a Multicast Channel, the radio will turn on at the designated wake time, but the default main non-HD radio station will come on. Example: "97.9FM

HD2" is selected before going to sleep. When the wake time is reached the radio will turn on to

97.9FM and not to the HD2 multicast channel. If an HD signal is detected, the station will automatically switch to the default 97.9FM HD1, but you will manually need to change to 97.9FM HD2 if this is the channel you want to listen to.

ii. If "Wake to iPod" alarm mode is selected, make sure that there is an iPod in the Radio and the volume is set to a comfortable level.

iii. In "Wake to iPod" alarm mode, the ALARM will sound if no iPod is inserted in the Radio.

SNOOZE OPERATION

1. When the alarm sounds (alarm, radio or iPod), you can press the SNOOZE/LIGHT Button to extend the alarm time by 9 minutes. The alarm, radio or iPod will then turn on again.

2. The SNOOZE operation can be repeated several times within the 60 minutes alarm duration.

JENSEN JIMS-525i_Eng ib_Rev.p65

19

- 19 -

5/15/2008, 5:51 PM

SLEEP OPERATION

You can use the SLEEP Timer to fall asleep to Radio or iPod for a maximum duration of 90 minutes.

Setting Sleep Timer

Note: The default SLEEP duration is 90 minutes.

1. In Power On mode, operate the Radio or iPod as usual. Adjust the volume to the desired level.

2. Press the SLEEP Button. The Sleep Indicator appears in upper right corner of the Display. The display will show 90 minutes of playing time and then return to show the current time in a few seconds. The Sleep Indicator flashes in upper right corner of the Display.

P M

The Radio or iPod will automatically turn off after 90 minutes has elapsed. The SLEEP Indicator will disappear in the Display.

Adjusting the Sleep Period

1. With the unit In POWER ON mode, press the SLEEP Button. The display will show 60 minutes of playing time.

2. To adjust the sleep time for less than 90 minutes, press the 9 Button repeatedly. The sleep time will decrease in 5 minutes decrement every time the SLEEP Button is pressed. Stop pressing the 9

Button when your desired sleep time is displayed.

3. To adjust the sleep time for more than 5 minutes, press the

:

Button repeatedly. The sleep time will increase in 5 minutes increment every time the SLEEP Button is pressed. Stop pressing the :

Button when the desired sleep time is displayed.

4. The unit will automatically turn off after the preset sleep time has elapsed. However, if you want to turn the radio off before the preset sleep time has elapsed, press the Button once to switch the power off. The LCD Backlight turns off and the SLEEP Indicator disappears in the Display.

Note: Make sure the FUNCTION is set to the iPod or RADIO position before you press the SLEEP

Button. No sound will be heard if the FUNCTION is set to the ALARM position.

SLEEP AND WAKE TO BUZZER/iPod/RADIO

1. Refer "SETTING THE ALARMS" in page 18 to set the desired wake up time (s), wakeup mode, i.e.

RADIO, iPod or ALARM and volume level.

2. Follow step 1-3 (shown above) under the "ADJUSTING THE SLEEP PERIOD" section to set the desired SLEEP time.

The Radio is now programmed to turn off automatically at the Sleep Time you selected and then to turn on again at the preset "Alarm Time".

- 20 -

JENSEN JIMS-525i_Eng ib_Rev.p65

20 5/15/2008, 5:51 PM

CARE AND MAINTENANCE

1. Avoid operating your unit under direct sunlight or in hot, humid or dusty places.

2. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors.

3. For better Clock Display clarity, avoid operating the unit under direct sunlight or in strong room illumination.

4. Unplug the unit from the electrical power outlet immediately in case of malfunction.

Cleaning the Unit

• To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.

• The finish on the unit may be cleaned with a dust cloth and cared for as other furniture, Use caution when cleaning and wiping the plastic parts.

• If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax or polish sprays on the cabinet.

• If the front panel becomes dirty or smudged with fingerprints it may be cleaned with a soft cloth slightly dampened with a mild soap and water solution. Never use abrasive cloths or polishes as these will damage the finish of your unit.

CAUTION: Never allow any water or other liquids to get inside the unit while cleaning.

SPECIFICATIONS

General

Power FUNCTION:

Dimensions:

Weight:

AC 120V ~ 60Hz 20W

13.5 (L) x 6.6 (D) x 5.9 (H) Inch

4.9 lb

Radio Frequency Coverage

AM: 530 – 1710 kHz

FM:

Speakers:

Output Power:

87.5 – 108 MHz

2 x 8 ohms

2 x 2.5W

HD Radio

TM

is a trademark of iBiquity Digital Corp. HD Radio

TM

Technology Manufactured Under License

From iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio

TM

and the HD Radio logo are proprietary trademarks of iBiquity Digital Corp.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

"Works With iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

- 21 -

JENSEN JIMS-525i_Eng ib_Rev.p65

21 5/15/2008, 5:51 PM

TROUBLESHOOTING GUIDE

If you experience difficulties in the use of this product, please check the following or call 1-800-777-5331 for Customer Service.

Symptom Possible Cause Solution

The unit does not respond.

(no power)

AC cord is not plugged properly into a wall outlet or the connector is not plugged into the AC IN jack on the back of the unit.

Wall outlet is not functioning.

Plug the AC cord into a wall outlet and plug the connector into the AC IN jack on the unit.

Plug another device into the same out outlet to confirm the outlet is working.

iPod does not install properly.

Using no/wrong iPod Adaptor.

iPod does not dock properly.

iPod does not respond to the system.

iPod does not charge up.

AM band is too noisy.

FM band is too noisy.

iPod is not installed properly.

Your iPod is locked up.

iPod is not installed properly.

iPod is locked up/ frozen.

iPod battery has problem.

The reception at the set location is poor.

The reception at the set location is poor.

Make sure the dock insert is properly fit for your iPod.

Remove your iPod from the dock and check for obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.

Remove your iPod from the dock and check for obstruction on the connectors in the dock and on your iPod. Then reseat it on the dock.

Please make sure your iPod is working properly before docking into the unit. Please refer to your iPod manual for info on resetting the iPod.

Remove your iPod from the dock and check for obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.

Please make sure your iPod is working properly before docking into the unit. Please refer to your iPod manual for details on resetting.

Slightly rotate the AM loop antenna position for the best reception.

Move the AM loop antenna away from the unit to avoid interference.

Check that if the plug of the FM antenna wire connects properly with the FM antenna terminal at the rear of the unit.

Straighten the FM antenna wire away from the unit and stretch out the end point of the antenna wire into “T” shape and placed the “T” shape antenna rear the window for better reception.

JENSEN JIMS-525i_Eng ib_Rev.p65

22

- 22 -

5/15/2008, 5:51 PM

SERVICE

Please refer to the instructions on the enclosed warranty card for returning your unit for service. When returning the unit, please remove any batteries to prevent damage to the unit in transit and/or from possible battery leakage. We are not responsible for batteries returned with the product or for the cost of replacement.

Distributed by:

Spectra Merchandising International, Inc.

Chicago Industry Tech Park

4230 North Normandy Avenue

Chicago, IL 60634, U.S.A.

Please have model number ready, for Customer Service, call 1-800-777-5331

Printed in China

JENSEN JIMS-525i_Eng ib_Rev.p65

23

- 23 -

5/15/2008, 5:51 PM
