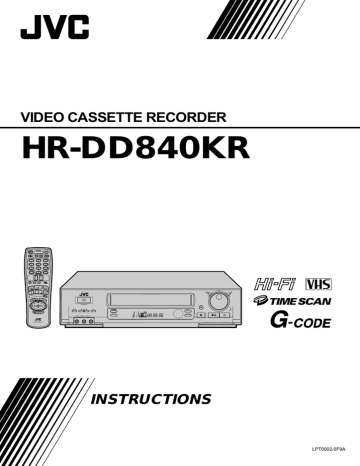

VIDEO CASSETTE RECORDER
HR-DD840KR
A B
1
4
7
C.RESET
CANCEL
CH SKIP
POWER
C.MEMORY
ENTER
2
ADD
5
DAILY (M–F)
8
AUX
0
OSD
3
6
WEEKLY
9
TIMER
TV
VOL.
CH
REW
DISPLAY TV/VCR CABLE
TV
PLAY
FF
VCR
REC
STOP
PAUSE
SKIP SEAR
CH
MEN
U OK
ILLUMI GUIDE
MULTI BRAND
REMOTE CONTROL UNIT
MENU
POWER
CH OK
VIDEO (MONO)L – AUDIO – R
SP/EP
L
+8
4
0
6
10
–20dB
NORM R
R E C
PLAY
PAUSE
M
V C R
SAP ST
SP
AM
TIMER
PM H M S
INSERT
A. DUB q
REW
SLO
W SLOW
FF
JOG
SHUTTLE
INSTRUCTIONS
LPT0002-0F9A
2
EN
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.
CAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC
110V – 220V`, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any other power source.
Failure to heed the following precautions may result in damage to the VCR, remote control or video cassette.
1. DO NOT place the VCR . . .
... in an environment prone to extreme temperatures or humidity.
... in direct sunlight.
... in a dusty environment.
... in an environment where strong magnetic fields are generated.
... on a surface that is unstable or subject to vibration.
2. DO NOT block the VCR’s ventilation openings.
3. DO NOT place heavy objects on the VCR or remote control.
4. DO NOT place anything which might spill on top of the
VCR or remote control.
5. AVOID violent shocks to the VCR during transport.
**MOISTURE CONDENSATION
Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the VCR’s power turned on for a few hours to let the moisture dry before inserting a tape.
**ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
G-C ODE is a trademark applied for by Gemstar Development
Corporation.
The G-C ODE system is manufactured under license from Gemstar
Development Corporation.
DSS TM is an official trademark of DIRECTV, Inc., a unit of GM
Hughes Electronics. PRIMESTAR is a registered service mark of
Primestar Partners, L.P. DISH Network TM
is a trademark of
Echostar Communications Corporation.
CAUTION:
Changes or modifications not approved by JVC could void user's authority to operate the equipment.
n Cassettes marked "VHS" (or "S-VHS") can be used with this video cassette recorder. However, only "VHS" recordings can be played back in this model.
n HQ VHS is compatible with existing VHS equipment.
CONTENTS
I
NSTALLING YOUR NEW VCR 4
Basic Connections ..................................4
I
NITIAL SETTINGS
Plug & Play .................................................. 5
Language ..................................................... 6
Clock ............................................................ 7
5
Preparation ................................................................7
Semi-Auto ..................................................................8
Manual ......................................................................9
Auto ..........................................................................9
Tuner .......................................................... 10
Set Receivable Channels .......................................... 10
Add Or Delete A Channel ........................................ 12
Cable Box Control ....................................... 13
Situate And Connect Controller ............................... 13
Set Cable Box Output Channel ................................ 14
Set Cable Box Brand ................................................15
G-CODE Setup ............................................. 16
DBS Receiver Control ................................... 18
Situate And Connect Controller ............................... 18
Set DBS Receiver Output Channel ........................... 19
Set DBS Receiver Brand ........................................... 20
S IMPLE PLAYBACK AND
RECORDING 21
Simple Playback ......................................... 21
Simple Recording ........................................ 22
P
LAYBACK AND RECORDING
FEATURES 23
Playback Features ...................................... 23
Still Picture/Frame-By-Frame Playback ..................... 23
Slow Motion/Reverse Slow Motion .......................... 23
High-Speed Search ..................................................23
Manual Tracking ......................................................24
Tape Position Indicator ............................................24
Video Stabilizer .......................................................25
Superimpose ............................................................26
Select The Soundtrack .............................................27
Index Search ............................................................28
Instant ReView .........................................................28
Repeat Playback ......................................................29
Counter Reset ..........................................................29
Counter Memory .....................................................29
Next-Function Memory ............................................29
AV COMPU LINK Playback ..................................... 30
Auto Picture ................................................ 32
Preparation ..............................................................32
Playback ..................................................................33
Time Scan ................................................... 34
Variable-Speed Search/Reverse Motion Playback ..... 34
Skip Search ..............................................................35
Time Scan Audio .....................................................36
EN
3
Recording Features ..................................... 37
Record One Program While
Watching Another ....................................................37
Display Elapsed Recording Time .............................. 37
Stereo And SAP (Second Audio Program) ................. 38
To Record SAP Programs ..........................................38
Hi-Fi Audio Recording Level Control ....................... 39
T
IMER RECORDING 40
G-CODE Timer Programming ....................... 40
On-Screen Timer Programming ...................42
Check And Cancel Programs ................................... 44
Auto Timer ...............................................................45
Instant Timer Recording (ITR) ....................... 46
E
DITING 47
Edit To Or From Another VCR ....................... 47
Edit From A Camcorder ............................... 48
Insert Editing .............................................. 50
Audio Dubbing ........................................... 52
S
PECIAL FEATURES 53
TV Multi-Brand Remote Control .............................. 53
Cable Box Multi-Brand Remote Control ................... 54
DBS Receiver Multi-Brand Remote Control .............. 55
Control Two JVC VCRs ............................................56
T
ROUBLESHOOTING 57
Power ........................................................ 57
Tape Transport ............................................ 57
Playback .................................................... 57
Recording ................................................... 58
Timer Recording .......................................... 58
Other Problems .......................................... 59
Q
UESTIONS AND ANSWERS 60
Playback .................................................... 60
Recording ................................................... 60
Timer Recording .......................................... 60
I
NDEX 61
List Of Terms ............................................... 61
Front View .................................................. 62
Rear View .................................................. 63
Front Display Panel ..................................... 63
Remote Control ........................................... 64
S
PECIFICATIONS 65
4
EN
Basic
Connections
Antenna or Cable
Coaxial Cable
ANTENNA IN
(Antenna or Cable input)
Flat Feeder
AC Power
Cord
Back of VCR
AC
Outlet
TV
Matching Transformer
(not supplied)
Audio/Video Cable
(supplied)
TV OUT
75 ohm terminal
RF Cable
(supplied)
Back of VCR
CH3 CH4
NOTES:
● The VCR channel is the channel on the TV which will display the audio and video signals from the VCR. The VCR's CH3-
CH4 switch, on the back of the VCR, sets the VCR channel to
CH3 or CH4.
● The CH3–CH4 switch is preset to the CH3 position.
Set to CH4 if CH3 is used for broadcasting in your area and set the channel on the TV to correspond to the VCR's CH3–
CH4 switch setting.
● If RF connection to TV is used, when switching from VCR to TV mode and from TV to VCR it may be necessary to issue a CH UP and then CH DOWN on TV to obtain a good quality picture.
● Even if you are using AV cables to connect your VCR to your
TV, you must also connect it using the RF cable. This will
( ensure that you can record one show while watching another
Z
pg. 37).
● For full identification of the VCR's rear panel, refer to the
Index (REAR VIEW
Z
pg. 63).
INSTALLING YOUR NEW VCR
1
CHECK CONTENTS
Make sure the package contains all of the accessories listed in “SPECIFICATIONS” (
Z
pg. 65).
SITUATE VCR
Place the VCR on a stable, horizontal surface.
2
3
4
5
CONNECT VCR TO TV
The connection method you use depends on the type of
TV you have.
RF Connection
● To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV antenna from the TV.
b– Connect the TV antenna cable to the ANTENNA
IN jack on the rear of the VCR.
c– Connect the supplied RF cable between the TV
OUT jack on the rear of the VCR and the TV’s antenna terminal. Set TV on CH3 or CH4 corresponding to the CH3 – CH4 switch setting on the back of the VCR.
AV Connection
● To Connect To A TV With AV Input Terminals . . .
a– Connect the antenna, VCR and TV as shown in the illustration.
b– Connect an Audio/Video Cable between the AUDIO
OUT and VIDEO OUT jacks on the rear of the VCR and the AV IN jacks on the TV. Set your TV in video input mode or A/V input mode. Refer to the TV
Instruction Manual.
CONNECT VCR TO
POWER SOURCE
Connect the power plug to an AC outlet.
● The clock and tuner channels will automatically be set when the antenna is connected and when the AC is first connected to the VCR (
Z
pg. 5).
(If "Auto" or "CH" is displayed on the front display panel before the VCR is powered on, the clock and tuner channels are being set automatically. Wait for the time to be displayed on the front display panel before powering on the VCR.)
FINAL PREPARATION FOR
USE
Power on the VCR and select the VCR channel (3 or 4) by setting the switch on the rear of the VCR as shown in the illustration.
You can now perform simple playback ( simple recording (
Z
pg. 22).
Z
pg. 21) or
INITIAL SETTINGS
Plug & Play
Auto Clock Set/Auto Tuner Set
q
IMPORTANT
● Don’t press any buttons on the VCR or remote while
Plug & Play is in progress.
● If you perform Plug & Play successfully, there’s no need to perform the Clock ( Z pg. 7) and Tuner ( Z pg. 10) procedures. If, however, you want to add or delete channels, refer to “Add Or Delete A Channel” on page 12.
ATTENTION CABLE BOX SUBSCRIBERS
If you perform the Plug & Play procedure . . .
● Select the PBS channel on your cable box before plugging your VCR’s power plug into the AC outlet. (If you have more than one PBS channel, you may have to select an alternative PBS channel if Plug & Play is not successful.)
● If there is no PBS channel in your area, perform the
Manual Clock Set procedure ( Z pg. 9).
● For automatic clock adjustment to take place the VCR's power must be off and the cable box must be set to the
PBS channel at clock adjustment times.
● If you perform Plug & Play successfully, D.S.T. will be set to “AUTO”. At the D.S.T. adjustment time (
Z
pg. 9), your VCR's power must be off and your cable box must be set to the host PBS channel in your area for the D.S.T.
adjustment to take place. If the clock is not set correctly, change the D.S.T. setting to “ON” or “OFF. See step 9 of
Semi-Auto procedure ( Z pg. 8) or step 6 of Manual procedure (
Z
pg. 9).
NOTE:
If the memory backup fails, because of a power outage or because the AC was removed from the VCR, Plug & Play will be performed when power is restored to the VCR.
EN
5
The Plug & Play function sets the clock and tuner channels automatically when power is first connected to the VCR. The antenna cable must be connected for the Plug & Play function.
The time and date can be set automatically from clock setting data that is transmitted by one of the regular TV broadcast channels. We call this TV channel the “Host Channel” and it is a PBS channel in your area.
1
PLUG & PLAY SETUP
Connect the antenna cable to the VCR (
Z
pg. 4). Then connect the VCR’s power plug to an AC outlet. Do not power on the VCR. The clock and tuner channels will automatically be set.
● Auto clock set is performed first. The auto clock set function scans all the channels received by your VCR to find the Host Channel and then sets the clock.
"Auto" blinks on the front display panel during Auto clock set.
● Auto channel set is performed next. The auto channel set function scans all the channels that are receivable by your VCR. It then automatically assigns each receivable channels to the CH ▲▼ buttons. It skips non-receivable channels. During auto channel set the channel numbers are displayed as they are scanned and set.
● When Plug & Play has been completed successfully the correct time is displayed.
● If "AUTO CLOCK SET" or "SEMI-AUTO CLOCK SET" is selected at the Override Auto Clock Set screen on page 8, the clock will be adjusted automatically by the Host PBS every hour on the hour (except for
11:00 PM, midnight, 1:00 AM and 2:00 AM) by the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the VCR’s power is turned off. The clock will be adjusted on the hour based on the time displayed on the VCR, not on the actual real time.) The default setting is "AUTO CLOCK SET".
● If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semi-Auto (
Z
pg. 8) or Manual
Clock Set (
Z
pg. 9) procedure. Auto channel set has already taken place and it need not be set again.
● If “- -:- -” appears on the display, your antenna cable may not be connected to the VCR, there may not be a
Host PBS signal available in your area, or your cable box may not be set to the PBS channel. Ensure that the antenna cable is connected correctly. If you use a cable box ensure that your local PBS channel is selected on your cable box (
Z
ATTENTION CABLE BOX SUB-
SCRIBERS). Then power on and power off the VCR; the
Plug & Play function will be automatically reactivated and "Auto" will be displayed on the VCR's front panel. If
Plug & Play is not performed but everything is connected and set correctly, perform the Manual Clock Set procedure (
Z
pg. 9). Auto channel set has not yet taken place, so please also perform the “Set Receivable
Channels” procedure (
Z
pg. 10).
During Initial Auto Clock Set
"Auto" blinks.
During Auto Channel Set
The channel numbers are displayed as they are scanned and set.
PM
Plug & Play Completed
The current time (including
AM/PM) is displayed.
6
EN
Language
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
CH
5∞
MENU
OK q
POWER
1
4
7
2
5
8
0
3
6
9
CH 5∞
OK
PUSH JOG 5∞
INITIAL SETTINGS (cont.)
This VCR offers you the choice to view on-screen messages in
English, Spanish or French (not including messages superimposed on the TV picture). Select the desired language using this procedure. The default setting is "ENGLISH".
1
TURN ON THE VCR
Press POWER.
ACCESS ON-SCREEN
MENU
Press MENU as many times as necessary.
2
3
ACCESS CUSTOM SET
SCREEN
At the Main Menu screen, move the highlight bar
(arrow) to “CUSTOM SET” by pressing CH 5∞ or
PUSH JOG
5∞, then press OK.
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
= CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
4
ACCESS LANGUAGE
SELECT SCREEN
The messages are preset to appear in English. If you want to see them in Spanish or
French, move the highlight bar (arrow) to “LANGUAGE
SELECT” by pressing CH
5∞ or PUSH JOG
5∞, then press OK.
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
=LANGUAGE SELECT
G-CODE SET-UP
DBS RECEIVER OUTPUT
DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
5
SELECT LANGUAGE
At the Language Select screen, move the highlight bar (arrow) to the desired language by pressing CH
5∞ or PUSH JOG 5∞, then press MENU as many times as necessary to return to the normal screen.
LANGUAGE SELECT
=ENGLISH
ESPAÑOL
FRANCAIS
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
Clock
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
POWER
EN
7
Perform clock setting only if the clock has not been set correctly by the Plug & Play function. Access the Override Auto Clock
Set screen to choose the Auto, Semi-Auto or Manual clock setting procedure. Each procedure starts from step 5. *Auto need only be selected if Semi-Auto or Manual had previously been selected.
Preparation
TURN ON THE VCR
Press POWER.
1
ACCESS ON-SCREEN
MENU
Press MENU as many times as necessary.
2
3
ACCESS CUSTOM SET
SCREEN
At the Main Menu screen, move the highlight bar
(arrow) to “CUSTOM SET” by pressing CH
5∞ or
PUSH JOG
5∞, then press
OK.
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
=CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
4
ACCESS CLOCK SET MODE
SELECT SCREEN
Move the highlight bar
(arrow) at the Custom Set screen to “OVERRIDE
AUTO CLOCK SET” by pressing CH 5∞ or PUSH
JOG
5∞, then press OK.
CUSTOM SET
=OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
G-CODE SET-UP
DBS RECEIVER OUTPUT
DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
MENU
OK
PUSH JOG
8
EN
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
OK
PUSH JOG
INITIAL SETTINGS (cont.)
Semi-Auto
5
SELECT MODE
At the Override Auto
Clock Set screen, move the highlight bar (arrow) to
“SEMI-AUTO CLOCK SET” by pressing CH ▲▼ or
PUSH JOG
5∞, then press
OK.
OVERRIDE AUTO CLOCK SET
AUTO CLOCK SET
=SEMI–AUTO CLOCK SET
MANUAL CLOCK SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
6
7
ACCESS SELECT SCREENS
At the Semi-Auto Clock Set screen, move the highlight bar (arrow) to the desired mode by pressing CH ▲▼ or PUSH JOG
5∞, then press OK.
SEMI–AUTO CLOCK SET
= HOST CHANNEL SELECT
TIME ZONE SELECT
D.S.T. SELECT
To select the Host Channel
— step 7
To select the Time Zone — step 8
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
To select the D.S.T. mode — step 9
NOTE:
The time that has been set previously by the Plug &
Play function will be erased when any of the three settings mentioned above is changed.
SELECT HOST CHANNEL
You can either select
"AUTO", or enter a PBS channel number. For
HOST CHANNEL SELECT
(CATV)
CH AUTO automatic selection, press
MENU if "AUTO" is highlighted on the Host
Channel Select screen. To manually select "AUTO" or
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END the PBS channel, press
CH ▲▼ or PUSH JOG
5∞ to cycle through "AUTO" or the channel numbers (hold button down to speed through numbers) and stop when the desired number appears. Press MENU and the Semi-Auto Clock Set screen reappears.
NOTES:
● For cable box users: Select "AUTO" or the channel on your VCR that receives the cable box channels, and set the cable box to the PBS channel.
● There are some PBS channels that do not transmit clock setting data.
8
9
SELECT TIME ZONE
You can select the zone automatically or manually by pressing CH ▲▼ or
PUSH JOG 5∞. If an incorrect time is displayed you may be receiving the
TIME ZONE SELECT
=AUTO
MANUAL clock setting data of a PBS channel from an adjacent
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END time zone or from an incorrect PBS channel from a cable TV system. If you selected "AUTO" in step 7 select "MANUAL" and select the correct time zone manually.
● If you selected "AUTO", press MENU to return to the
Semi-Auto Clock Set screen.
● If you selected
"MANUAL", press OK and the screen to the
TIME ZONE SELECT
=ATLANTIC
EASTERN right appears. Move the highlight bar (arrow) to
CENTRAL
MOUNTAIN your choice by pressing
CH ▲▼ or PUSH JOG
5∞, then press MENU twice to return to the
PACIFIC
ALASKA
HAWAII
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
Semi-Auto Clock Set screen.
SELECT D.S.T. MODE
You have three choices:
a–Select “AUTO” and the adjustment to your VCR’s clock will be made according to the incoming signal from the host channel.
D.S.T. SELECT
=AUTO
ON
OFF
b–Select “ON” and the adjustment will be made
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END based on the clock itself.
c–Select “OFF” if Daylight Saving Time doesn’t apply to you.
Move the highlight bar (arrow) to your choice by pressing CH
5∞ or PUSH JOG 5∞, then press MENU and the Semi-Auto Clock Set screen reappears.
EN
9
Manual
5
6
SELECT MODE
At the Override Auto Clock Set screen ( Z pg. 10), move the highlight bar (arrow) to “MANUAL CLOCK SET” by pressing CH ▲▼ or PUSH JOG
5∞, then press OK.
SET DATE, TIME AND D.S.T.
The Manual Clock Set screen is displayed and the month digit begins blinking. Press the appropriate NUMBER keys
MANUAL CLOCK SET
DATE 1/ 1/97 WED
TIME – –:– – AM
D.S.T.
ON to set the date and time (if only 1 digit, press "0" first).
Press CH ▲▼ or PUSH
JOG
5∞ to set AM/PM
PRESS NUMBER KEY (O–9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END and D.S.T. (Daylight Saving Time). Press OK after AM/
PM and D.S.T. settings.
Set D.S.T. to "ON" to set the D.S.T. according to the
VCR's clock or to "OFF" if D.S.T. doesn't apply to you.
When you’re finished with this set-up procedure, press
MENU to start the clock.
7
NOTES:
● CH ▲▼ and PUSH JOG 5∞ can be used to perform all operations. (In this case, press OK after each setting.)
● At the Manual Clock Set screen, the setting that can be set blinks. When setting of a highlighted item is completed, the highlight bar moves down by 1 line to the next item.
MAKE CORRECTIONS
To change any of the settings, press OK or PUSH JOG
until the item you want to change blinks, then set as in step 6.
IMPORTANT
Turn the VCR off after performing the Semi-Auto Clock Set procedure. "Auto" will appear on the front display panel when the clock is being set. The current time will appear automatically when the clock is set.
Auto
5
SELECT MODE
At the Override Auto Clock Set screen, move the highlight bar (arrow) to "AUTO CLOCK SET" by pressing CH ▲▼ or PUSH JOG 5∞, then power off the
VCR. Do not power it on again until the clock has been adjusted. The clock is automatically adjusted on the hour except at 11:00 PM, midnight, 1:00 AM and 2:00
AM. (The clock will be adjusted on the hour based on the time displayed on the VCR, not on the actual real time.)
**AUTO DAYLIGHT SAVING TIME
This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time.
With Auto DST activated, . . .
. . . on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM.
. . . on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.
10
EN
Tuner
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
CH
MENU
OK
1
4
7
2
5
8
0
3
6
9
CH q
POWER
OK
PUSH JOG
INITIAL SETTINGS (cont.)
Set Receivable Channels
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
2
3
ACCESS TUNER SET
SCREEN
Move the highlight bar
(arrow) to "TUNER SET" by pressing CH
5∞ or PUSH
JOG
5∞, then press OK.
MAIN MENU
PROGRAM SET
FUNCTION SET
=TUNER SET
CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
4
5
PERFORM AUTO CHANNEL
SET
Move the highlight bar
(arrow) to "AUTO
CHANNEL SET" by pressing CH
5∞ or PUSH
JOG 5∞, then press OK.
TUNER SET
BAND
AFC
=AUTO CHANNEL SET
MANUAL CHANNEL SET
● Receivable channels in your area are automatically assigned to the CH
5∞ buttons, and non-receivable channels are skipped.
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
AUTO CHANNEL SET
NOTES:
● At the end of Auto
Channel Set, “SCAN
SCANNING...
COMPLETED” appears
PRESS (MENU) TO END on screen.
● If the scan was unsuccessful, “SCAN COMPLETED–
NO SIGNAL” appears on screen. Check the connections and start again.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
EN
11
INFORMATION
The VCR detects the band (TV or CATV) and selects the correct band automatically during Auto Channel Set.
If necessary, you can check the setting at the Band screen after Auto Channel Set has set the channels.
● At the Tuner Set screen, move the highlight bar (arrow) to
"BAND" by pressing CH 5∞ or PUSH JOG 5∞, then press OK.
TUNER SET
=BAND
AFC
AUTO CHANNEL SET
MANUAL CHANNEL SET
BAND
TV
=CATV
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
● Press MENU as many times as necessary to return to the normal screen.
OK
PUSH JOG
12
EN
CH
OK
ADD
NUMBER
CH.SKIP
1
4
7
2
5
8
0
3
6
9
CH
MENU q
OK
PUSH JOG
INITIAL SETTINGS (cont.)
Add Or Delete A Channel
1
2
ACCESS TUNER SET
SCREEN
Access by performing steps 2 and 3 of the Tuner procedure on page 10.
● To add a channel, go to step 2.
● To delete a channel, skip to step 4.
ACCESS AFC SCREEN
Move the highlight bar (arrow) to "AFC" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
3
MAKE SELECTION
Move the highlight bar
(arrow) to "SPCL" by pressing CH
5∞ or PUSH
JOG
5∞, then press
MENU to return to the
Tuner Set screen.
AFC
NORM
=SPCL
● AFC set to SPCL (special) is necessary for tuning on certain CATV systems.
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
4
5
ACCESS MANUAL
CHANNEL SET SCREEN
Move the highlight bar (arrow) to "MANUAL CHANNEL
SET" by pressing CH 5∞ or PUSH JOG 5∞, then press
OK.
STORE OR SKIP DESIRED
CHANNEL
Input the channel number using the NUMBER keys or by pressing CH
5∞ or
PUSH JOG 5∞, then press
ADD to add or CH.SKIP to delete. Repeat for each channel you want to store or skip.
MANUAL CHANNEL SET
(CATV)
CH 125 ADD
SELECT CH NO. AND
PRESS (ADD/SKIP)
PRESS (MENU) TO END
6
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
Cable Box
Control
Suggested Location
Place the cable box on top of the VCR. Attach the VCR's
Controller to the top of the VCR with the Controller’s transmitter pointed towards the cable box’s remote sensor.
Attention:
The Controller can also control a DBS receiver. If both a cable box and a DBS receiver are used, position the controller so its signal reaches the remote control sensors of both the cable box and DBS receiver.
Cable box
Your VCR
Controller
Transmitter
Connected to
ANTENNA IN
Your VCR
Cable box
Controller
(suggested locations)
CABLE
BOX
Connected to VIDEO/
AUDIO IN
EN
13
This procedure is required if you receive your TV channels through a cable box (descrambler). The Controller allows the
VCR to automatically switch the cable box channel during timer-recording. The Controller is effective for recording shows that have been programmed using G-CODE (
Z
pg. 40) or On-
Screen Timer Programming ( Z pg. 42).
Situate And Connect
Controller
1
SITUATE CONTROLLER
Place the Controller so that the path between its transmitter and the cable box’s remote sensor is unobstructed.
ATTACH CONTROLLER
Fasten securely using the supplied adhesive strips.
2
3
CONNECT CABLE BOX TO
VCR
The connection method depends on the type of cable box you have.
If your cable box has AUDIO and VIDEO OUT connectors . . .
. . . connect them to the AUDIO and VIDEO IN connectors on your VCR; select the correct external input mode as described in step 4, 5, 9 – 11 on page
50. Set the VCR to channel "AU" to use the cable box.
If your cable box doesn’t have AUDIO and VIDEO
OUT connectors . . .
. . . connect the antenna output connector on the cable box to the ANTENNA IN connector on the rear of your
VCR.
Set the VCR tuner to the same channel as the cable box
RF output (see page 14 also).
NOTE:
When connecting your cable box refer to its instruction manual.
CONNECT CONTROLLER
TO VCR
Connect to the CABLE BOX connector on your VCR.
4
About Your Cable Box
This VCR has two separate methods to control your Cable Box.
● The VCR's Wireless Remote Control Unit can control your
Cable Box.
This eliminates the need for a separate Cable Box Remote
Control Unit.
● The VCR's Controller can also control your Cable Box.
This allows the VCR to change your Cable Box's channel number during timer recording.
Each method must be set up separately. To set up the VCR's
Remote Control unit, refer to page 54. To set up the Controller go to page 14.
14
EN
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
1
2
NUMBER
CH
OK
MENU
1
4
7
2
5
8
0
3
6
9
CH
Set Cable Box Output
Channel
TURN ON THE VCR
Press POWER.
q
POWER
OK
PUSH JOG
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
INITIAL SETTINGS (cont.)
3
4
ACCESS CUSTOM SET
SCREEN
Press CH 5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
MAIN MENU
PROGRAM SET
FUNCTION SET
“CUSTOM SET”, then press OK.
TUNER SET
=CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ACCESS G-CODE SET-UP
SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the
CUSTOM SET
OVERRIDE
AUTO CLOCK SET highlight bar (arrow) to
“G-CODE SET-UP”, then press OK.
LANGUAGE SELECT
=G-CODE SET-UP
DBS RECEIVER OUTPUT
DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
5
ACCESS CABLE BOX
OUTPUT SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
G-CODE SET-UP
GUIDE CHANNEL SET
“CABLE BOX OUTPUT”, then press OK.
GUIDE CHANNEL MAP
=CABLE BOX OUTPUT
CABLE BOX BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
6
7
SELECT CABLE BOX
OUTPUT CHANNEL
Your selection depends on how your cable box is connected to your VCR.
If your cable box is connected to your VCR
CABLE BOX OUTPUT
=OFF
ON CH2
ON CH3
ON CH4
ON CH5
ON CH6 using an RF connection . . .
. . . press CH
5∞ or PUSH
JOG
5∞ to move the
ON LINE
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END highlight bar (arrow) to the channel number representing the cable box’s output (2–6).
If your cable box is connected to your VCR’s AUDIO/
VIDEO IN connectors . . .
. . . press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “ON LINE”.
RETURN TO G-CODE SET-UP
SCREEN
Press MENU.
Set Cable Box Brand
1
TURN ON CABLE BOX
Select a channel other than channel 9 on your Cable
Box.
2
ACCESS CABLE BOX
BRAND SET SCREEN
At the G-C ODE Set-Up screen, press CH
5∞ or
PUSH JOG 5∞ to move the highlight bar (arrow) to
“CABLE BOX BRAND
SET”, then press OK.
G-CODE SET-UP
GUIDE CHANNEL SET
GUIDE CHANNEL MAP
CABLE BOX OUTPUT
=CABLE BOX BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
3
ENTER CABLE BOX BRAND
Press the appropriate
NUMBER keys to enter the
Cable Box Code from the
CABLE BOX BRAND LIST to the right, then press OK.
CABLE BOX BRAND SET
1
● If the cable box’s channel changes to 9,
PRESS NUMBER KEY (0-9)
THEN (OK)
PRESS (MENU) TO END setting is complete.
● If there are more than one code number listed for your brand of cable box, repeat step 3 until the cable box’s channel changes to 9.
● If the code numbers for your model of cable box is not listed the channel may not change even if you go through all the listed numbers. If this occurs try all other numbers between 1 and 69.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
4
You can now set up the G-C ODE feature (
Z
pg. 16).
NOTES:
● Although the supplied Controller is compatible with many different cable box brands, it is possible that it will not work with your cable box.
● If your cable box doesn’t respond to any code between 1 and 69, you can’t use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.
Please contact your cable company about the possibility of exchanging your current cable box with one that is compatible with your VCR.
● The VCR can only change the cable box channel through the
Controller during timer recording.
● If your cable box is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the
Controller to change its channels. Make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start of timer recording.
CABLE BOX BRAND LIST
BRAND
ZENITH
DEREUNG
CODE
11, 12, 60, 61
10
EN
15
16
EN
G-C
ODE
Setup
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
NUMBER
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
POWER
OK
PUSH JOG
INITIAL SETTINGS (cont.)
The G-C ODE timer programming system eliminates the need to input channel, date, start and stop time data when setting the timer record function. Simply key in the G-C ODE number for the
TV program you wish to record (found in most TV listings) and the VCR’s timer is automatically programmed.
Depending on the TV or cable stations that you receive and the channel numbers that they are received on in your area, you may have to make certain changes in your VCR’s “Guide Channel Set” menu to get proper results. Please read the following information carefully to find out which tasks you need to perform.
Before G-C ODE setup you must have performed the following procedures:
● Plug & Play (
● Clock setting ( cable box (
Z
Z
pg. 5)
Z
pg. 7) and Tuner setting (
pg. 13)
Z
pg. 10)
● Cable box setting if you receive your TV channels through a
Channel Number Matching
Most TV listings have a chart indicating the “Guide Channel” number assigned to each station for purposes of G-C ODE programming. Check the chart in your TV listings and see if the
Guide Channel numbers listed for the stations you receive are the same as the channel number on which each is received by your VCR or cable box.
**SPECIAL NOTES FOR CABLE SUBSCRIBERS**
● In many instances, cable TV stations have G-C
ODE Guide
Channel numbers that DO NOT match the number of the channel on which you receive the station. Check your TV listings, or contact your cable supplier for details.
● Many normal broadcast TV stations can be viewed on cable.
Check your TV listing, or contact your cable supplier for details.
If the numbers match, go directly to “G-C ODE Timer
Programming” ( Z pg. 40).
If the numbers are different, and you want to be able to timer record programs from those stations, you have to inform the
VCR of the mismatch. Go to step 1. If you will not want to timer record from those stations, you can go directly to “G-C ODE
Timer Programming” (
Z
pg. 40).
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
2
3
4
5
ACCESS CUSTOM SET
SCREEN
Press CH 5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
MAIN MENU
PROGRAM SET
FUNCTION SET
“CUSTOM SET”, then press OK.
TUNER SET
=CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ACCESS G-CODE SET-UP
SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the
CUSTOM SET
OVERRIDE
AUTO CLOCK SET highlight bar (arrow) to
“G-CODE SET-UP”, then press OK.
LANGUAGE SELECT
=G-CODE SET-UP
DBS RECEIVER OUTPUT
DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ACCESS GUIDE CHANNEL
SET SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
G-CODE SET-UP
=GUIDE CHANNEL SET
GUIDE CHANNEL MAP
“GUIDE CHANNEL SET”,
CABLE BOX OUTPUT then press OK.
CABLE BOX BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
6
INPUT GUIDE CHANNEL
NUMBER
Press CH 5∞, PUSH JOG
5∞ or the appropriate
NUMBER keys to input the
(Ex.) When inputting the
Guide Channel number
6 for WNJU(Ind.)
G-C ODE Guide Channel number as shown in the
TV listing. Then press OK.
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : 6
● If you receive your channels with a cable box and if you have properly set your
PRESS NUMBER KEY (0-9)
OR ( 5∞), THEN (OK)
PRESS (MENU) TO END
Controller, “CABLE CH” appears in place of “VCR CH”. If not, refer to pages
13–14 and re-perform the procedure.
EN
17
7
INPUT RECEIVING CHANNEL
NUMBER
Press CH 5∞, PUSH JOG
5∞ or the appropriate
NUMBER keys to input the
(Ex.) If WNJU(Ind.) is received on channel 47
GUIDE CHANNEL SET number of the channel on which the GuideChannel’s GUIDE CH : 6
VCR CH : 47 broadcasts are received.
Then press OK.
● If there is more than one mismatch, repeat steps 6 and 7 for each instance.
PRESS NUMBER KEY (0-9)
OR ( 5∞), THEN (OK)
PRESS (MENU) TO END
RETURN TO G-CODE SET-UP
SCREEN
Press MENU.
8
9
10
CHECK INPUT DATA
Press CH
5∞ or PUSH
JOG
5∞ to move the
G-CODE SET-UP highlight bar (arrow) to
“GUIDE CHANNEL MAP”,
GUIDE CHANNEL SET
=GUIDE CHANNEL MAP
CABLE BOX OUTPUT then press OK.
CABLE BOX BRAND SET
● The Guide Channel and
VCR or cable box channel numbers you
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END input appear on the screen in ascending
GUIDE CHANNEL MAP order. Check to ensure you’ve entered them correctly.
● If you entered more than
10 sets of numbers, press
GUIDE : VCR
6 : 47
12 : 41
33 : 28
GUIDE : VCR
10 : 55
15 : 38
67 : 49
OK to see the next set of
PRESS (OK) TO NEXT
PRESS (MENU) TO END numbers.
● Guide Channel Map contains only the Guide Channels and VCR or CABLE channels that you entered.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
You can now use G-C
ODE
for quick and simple timer programming (
Z
pg. 40).
18
EN
DBS Receiver
Control
Suggested Location
Place the DBS (Direct Broadcast DBS) receiver on top of the
VCR. Attach the VCR's Controller to the top of the VCR with the
Controller’s transmitter pointed towards the DBS receiver's remote sensor.
Attention:
The Controller can also control a cable box. If both a DBS receiver and a cable box are used, position the controller so its signal reaches the remote control sensors of both the DBS receiver and cable box.
DBS receiver
Your VCR
Controller
Transmitter
Your VCR
DBS receiver
Connected to
ANTENNA IN
CABLE
BOX
Controller
(suggested locations)
Connected to VIDEO/
AUDIO IN
About Your DBS Receiver
This VCR has two separate methods to control your DBS Receiver.
● The VCR's Wireless Remote Control Unit can control your
DBS Receiver.
This eliminates the need for a separate DBS Receiver Remote
Control Unit.
● The VCR's Controller can also control your DBS Receiver.
This allows the VCR to change your DBS receiver's channel number during timer recording.
Each method must be set up separately. To set up the VCR's
Remote Control unit, refer to page 55. To set up the Controller go to page 19.
INITIAL SETTINGS (cont.)
The following procedure is required if you receive DBS channels through a DBS (Direct Broadcast DBS) Receiver. The Controller allows the VCR to automatically switch the DBS Receiver's channels during timer recording.
The VCR can control the DBS Receiver during timer recording using its Controller.
NOTES:
● The Controller can automatically change the DBS Receiver channels when the VCR has been programmed using On-
Screen Timer Programming (
Z
pg. 42).
Because DBS programming does not use G-CODE; the
Controller can not change the DBS Receiver channels during
G-C
ODE
Timer Recording.
● If a cable box is also used it is recommended that you connect the DBS receiver to your VCR's A/V inputs and the cable box to your VCR's antenna input.
Situate And Connect Controller
1
SITUATE CONTROLLER
Place the Controller so that the path between its transmitter and the DBS receiver's remote sensor is unobstructed.
ATTACH CONTROLLER
Fasten securely using the supplied adhesive strips.
2
3
CONNECT DBS RECEIVER
TO VCR
The connection method depends on the type of DBS receiver you have.
If your DBS receiver has AUDIO and VIDEO OUT connectors . . .
. . . connect them to the AUDIO and VIDEO IN connectors on your VCR; select the correct external input mode as described in step 4, 5, 9 – 11 on page
48. Set the VCR to channel "AU" to use the DBS receiver.
If your DBS receiver doesn’t have AUDIO and VIDEO
OUT connectors . . .
. . . connect the antenna output connector on the DBS receiver to the ANTENNA IN connector on the rear of your VCR.
Set the VCR tuner to the same channel as DBS receiver
RF output. (See page 19 also.)
NOTE:
When connecting your DBS receiver refer to its instruction manual.
CONNECT CONTROLLER
TO VCR
Connect to the CABLE BOX connector on your VCR.
4
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
POWER
OK
PUSH JOG
EN
19
Set DBS Receiver Output
Channel
1
TURN ON THE VCR
Press POWER.
● Set the VCR to the channel (3 or 4 or AU) on which the signals from the DBS receiver are received.
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
2
3
ACCESS CUSTOM SET
SCREEN
Press CH
5∞ or PUSH
JOG 5∞ to move the highlight bar (arrow) to
MAIN MENU
PROGRAM SET
FUNCTION SET
“CUSTOM SET”, then press OK.
TUNER SET
= CUSTOM SET
AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
4
ACCESS DBS RECEIVER
OUTPUT SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
“DBS RECEIVER OUT-
PUT”, then press OK.
G-CODE SET-UP
=DBS RECEIVER OUTPUT
DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
5
6
SELECT DBS RECEIVER
OUTPUT CHANNEL
Your selection depends on how your DBS receiver is connected to your VCR.
If your DBS receiver is connected to your VCR
DBS RECEIVER OUTPUT
=OFF
ON CH3
ON CH4
ON LINE using an RF connection . . .
. . . press CH
5∞ or PUSH
JOG
5∞ to move the
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END highlight bar (arrow) to the channel number representing the DBS receiver's output (3–4).
If your DBS receiver is connected to your VCR’s
AUDIO/VIDEO IN connectors . . .
. . . press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “ON LINE”.
RETURN TO CUSTOM SET
SCREEN
Press MENU.
20
EN
NUMBER
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
OK
PUSH JOG
NOTES:
● It is possible that the Controller will not work with all types of
DBS receiver.
● If your DBS receiver doesn’t respond to the code, you can’t use the Controller to change DBS channels. In this case, make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.
● The VCR can only change the DBS channel through the
Controller during timer recording.
● If your DBS receiver is one that can’t be operated with a remote control (because it has no remote sensor), you can’t use the Controller to change its channels. Make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start of timer recording.
INITIAL SETTINGS (cont.)
Set DBS Receiver Brand
1
TURN ON DBS RECEIVER
Select a channel other than channel 55, 100 or 205 on your DBS receiver.
2
ACCESS DBS RECEIVER
BRAND SET SCREEN
At the Custom Set screen, press CH
5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
“DBS RECEIVER BRAND
SET”, then press OK.
CUSTOM SET
OVERRIDE
AUTO CLOCK SET
LANGUAGE SELECT
G-CODE SET-UP
DBS RECEIVER OUTPUT
=DBS RECEIVER BRAND SET
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
3
4
ENTER DBS RECEIVER
BRAND
Press the appropriate
NUMBER keys to enter the
DBS Receiver Code from the following list, then press OK.
The unit is pre-set to code
80 (RCA) when shipped.
DBS RECEIVER BRAND SET
80
PRESS NUMBER KEY (0-9)
THEN (OK)
PRESS (MENU) TO END
BRAND
RCA (DSS)
SONY (DSS)
PRIMESTAR
ECHOSTAR
CODE
80
81
90
91
● If the DBS receiver's channel changes as follows, setting is complete:
RCA or SONY [ 205
PRIMESTAR [ 55
ECHOSTAR [ 100
● After OK is pressed, the program currently received through the DBS receiver will appear for about 10 seconds.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
SIMPLE PLAYBACK AND RECORDING
Simple
Playback
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
q
STOP/EJECT
EN
21
1
2
3
LOAD A CASSETTE
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Don’t apply too much pressure when inserting.
● The VCR’s power comes on automatically.
● The counter is automatically reset to "0H 00M 00S".
● If the cassette's record safety tab has been removed, playback begins automatically.
FIND PROGRAM START
POINT
If the tape is advanced past the start point, press REW or turn the TIME SCAN SHUTTLE ring to the left. To go forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.
START PLAYBACK
(
Press PLAY. "AUTO PICTURE" appears on screen
Z
pg. 33).
4
STOP PLAYBACK
Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.
REW (Rewind)
1
4
7
2
5
8
0
3
6
9
FF (Fast-Forward)
Usable cassettes
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T-90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
** This video recorder can record on regular VHS and
Super VHS cassettes. However, it will record and play back regular VHS signals only. It is not possible to play back Super VHS recordings.
22
EN
Simple
Recording
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
NUMBER
1
4
7
TV/VCR
2
5
8
0
REC
PAUSE
3
6
9
SIMPLE PLAYBACK AND RECORDING (cont.)
q
STOP/EJECT
ENTER
1
2
3
4
5
6
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.
SELECT RECORDING
CHANNEL
Press CH
5∞. Or press the appropriate NUMBER keys, then press ENTER. (The channel changes after a few seconds whether you press ENTER or not.)
● If you use the RF connection, by pressing the TV/VCR button, select VCR mode to view the program to be recorded.
SET TAPE SPEED
Press SP/EP to set the recording speed.
START RECORDING
Press and hold REC and press PLAY on the remote control, or press REC on the VCR's front panel.
PAUSE/RESUME
RECORDING
Press PAUSE. Press PLAY to resume recording.
● During record pause, you can change the recording channel by using the CH 5∞ buttons or NUMBER keys.
STOP RECORDING
Press STOP or STOP/EJECT. Then press STOP/EJECT to remove the cassette.
CH
SP/EP
PLAY
Accidental erasure prevention
● To prevent accidental recording on a recorded cassette, remove its record safety tab.
To record on it later, cover the hole with adhesive tape.
PAUSE
REC
Record safety tab
PLAYBACK AND RECORDING FEATURES
Playback
Features
0
JOG
CH q
2
EN
23
Still Picture/Frame-By-
Frame Playback
1
PAUSE DURING PLAYBACK
Press PAUSE. If there is vertical jitter, use the CH
5 or ∞ button to correct the picture.
● During still picture, the normal (mono) sound from the previous 3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).
● "TIMESCAN AUDIO" must be set to "ON", or the sound will not be heard (
Z
pg. 36).
ACTIVATE FRAME-BY-
FRAME PLAYBACK
Turn the JOG dial to the right for forward frame-byframe playback, or to the left for reverse frame-by-frame playback.
OR
Press PAUSE repeatedly to advance one frame at a time.
OR
Press PUSH JOG £ repeatedly for forward frame-byframe playback or PUSH JOG ™ repeatedly for reverse frame-by-frame playback.
PLAY
To resume normal playback, press PLAY.
FF
REW
PUSH JOG ™/£
High-Speed Search
1
PAUSE
ACTIVATE HIGH-SPEED SEARCH
During playback or still, press FF for forward high-speed search, or REW for reverse high-speed search.
● The search speed is 7 times normal playback speed with
SP recordings, and 21 times normal with EP recordings.
● TimeScan will be automatically engaged during highspeed search with an SP-recorded tape.
● If during high-speed search the tape speed changes from
SP to EP the search mode will change to EP TimeScan.
● Press PUSH JOG for the opposite direction or turn the
TIME SCAN SHUTTLE ring to the opposite direction during high-speed search of an EP-recorded tape to change to 7x TimeScan search. (
Z
pg. 34)
Slow Motion/
Reverse Slow Motion
1
ACTIVATE SLOW-MOTION
PLAYBACK
For hands-free slow-motion, turn the TIME SCAN
SHUTTLE ring one or two positions to the left or press
PUSH JOG ™ during playback to decrease speed in the forward direction. Continue to turn the TIME SCAN
SHUTTLE ring to the left or press PUSH JOG ™ to select the two reverse slow motion, reverse play and reverse search modes.
OR
During still picture, turn the TIME SCAN SHUTTLE ring to the right for forward slow motion, or to the left for reverse slow motion.
OR
During still picture, press and hold PUSH JOG £ for forward slow motion, or press and hold PUSH JOG ™ for reverse slow motion. Release to return to still picture.
● Refer to the chart on pg. 35 for slow motion speeds.
To resume normal playback, press PLAY.
To resume normal playback, press PLAY.
NOTE:
For short searches, during playback or still, press and hold FF or
REW for over 2 seconds. When released, normal playback resumes.
24
EN
REW
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
q
Manual Tracking
Once playback begins, the VCR’s automatic tracking function is engaged. If noise appears in the picture, you can override this and make the adjustment manually.
1
2
3
ENGAGE MANUAL
TRACKING MODE
During playback, press the CH
5 and ∞ buttons on the
VCR's front panel simultaneously to cancel the automatic tracking mode and enable manual tracking adjust.
ADJUST MANUAL
TRACKING
Press CH
5 or ∞ on the VCR's front panel or remote.
Press briefly for fine adjust, or press and hold for coarse adjust. Watch the screen and continue adjusting until optimum picture and sound quality are achieved.
RE-ENGAGE AUTOMATIC
TRACKING
Press the CH 5 and ∞ buttons on the VCR's front panel simultaneously.
● When automatic tracking is re-engaged, Auto Picture is automatically activated.
CH
FF
NOTES:
● To obtain a noiseless still picture it may be necessary to adjust tracking in slow playback and then engage Pause.
● Manual tracking is possible during hands-free slow-motion.
During hands-free slow-motion playback, simply press CH 5 or ∞ on the VCR's front panel or remote to adjust tracking.
Tape Position Indicator
The Tape position indicator appears on screen when, from the stop mode, you press FF, REW, or use the TIME SCAN SHUTTLE ring, or perform an Index Search or Instant
ReView. The position of " " in relation to "B" (Beginning) or "E"
(End) shows you where you are on the tape.
B + +
COUNT
+ E
0:33:27
NOTES:
● "SUPERIMPOSE" must be set to "ON", or the indicator will not appear ( Z pg. 26).
● It may take a few seconds for the Tape Position Indicator to be displayed.
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
OK
PUSH JOG
EN
25
Video Stabilizer
By activating the Video Stabilizer you can correct vertical vibrations in the picture when playing back unstable EP recordings that were made on another VCR. When this function is set to "ON", vertical vibration will be automatically corrected.
*The default setting is "OFF".
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
1
2
ACCESS VIDEO STABILIZER
SCREEN
Move the highlight bar
(arrow) to "VIDEO
STABILIZER" by pressing
CH
5∞ or PUSH JOG
5∞, then press OK.
MAIN MENU
PROGRAM SET
FUNCTION SET
TUNER SET
CUSTOM SET
AUTO PICTURE
= VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
3
ACTIVATE VIDEO
STABILIZER
Move the highlight bar
(arrow) to "ON" by pressing CH 5∞ or PUSH
JOG
5∞.
VIDEO STABILIZER
=ON
OFF
4
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU.
NOTES:
● Regardless of the setting, this function has no effect with SP recordings, during recording and during special-effects playback.
● When you finish viewing the tape, be sure to set it back to
"OFF".
26
EN
CH
MENU
OK
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
q
OSD
Superimpose
This function, switchable between ON and OFF, determines whether or not operational indicators will appear on screen.
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
1
2
ACCESS FUNCTION SET
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
3
ACCESS SUPERIMPOSE
SCREEN
Move the highlight bar
(arrow) to "SUPERIMPOSE" by pressing CH
5∞ or
PUSH JOG
5∞, then press
OK.
FUNCTION
AUTO TIMER
=SUPERIMPOSE
AUDIO SELECT
AUX INPUT
SPECIAL FUNCTION
CH
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
OK
4
SELECT MODE
Move the highlight bar
(arrow) to "ON" or "OFF" by pressing CH 5∞ or PUSH
JOG
5∞.
SUPERIMPOSE
=ON
OFF
PUSH JOG
To recall an indication
1 Press OSD.
n All indications corresponding to the current status are displayed for 5 seconds, leaving the counter information, and RECORD/PAUSE if in the Record Pause mode, on the screen. (No indication during still and search.)
2 Press OSD again to clear the display.
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
5
NOTE:
If you engage the Record Pause mode, RECORD/PAUSE is displayed whether "SUPERIMPOSE" is set to "ON" or "OFF".
The superimposed indication on the TV screen tells you what the VCR is doing.
Tuned-in channel or AUX(iliary) mode
When the channel is changed, the new channel is displayed on the screen for 5 seconds.
Clock time
Tape position indicator
"Cassette Loaded" mark
When a cassette is loaded, the mark is displayed for 5 seconds. It blinks when the
VCR's EJECT button is pushed.
CH 125
THU 12:00 AM
RECORD
PAUSE
] SP
B + + + E
NORM
HI–FI COUNT
INDEX-1
MEMORY OFF
–1:23:45
Audio mode indicators
Operation mode
When the operation mode is changed, the new mode is displayed — RECORD
(5 sec.), PLAY (5 sec.), FF/REW (5 sec.
when engaged from Stop mode),
RECORD PAUSE (for as long as Pause is engaged), and ITR *:** (5 sec.).
Tape speed indicator
INDEX indication
Counter reading
Counter memory on/off
CH
MENU
OK
1
4
7
2
5
8
0
3
6
9
CH q
OK
PUSH JOG
NOTES:
● If the tape being played back has no Hi-Fi soundtrack, the
Normal soundtrack will be heard no matter what choice you make at the Audio Monitor screen.
● If you select "HI-FI" or "MIX", the L and R symbols near the audio level meters will be illuminated. L and R will be deactivated when playing back a normal (mono) tape.
● If RF connection is used for TV, even if Hi-Fi audio monitor is selected the sound will be mono and will be reproduced in both loudspeakers.
EN
27
Select The Soundtrack
Your VCR can record two soundtracks simultaneously (Normal and Hi-Fi) and play back the selected one, or both together.
1
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary during playback or when VCR is in stop mode.
2
ACCESS FUNCTION SET
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
3
ACCESS AUDIO SELECT
SCREEN
Move the highlight bar
(arrow) to "AUDIO
SELECT" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
FUNCTION
AUTO TIMER
SUPERIMPOSE
=AUDIO SELECT
AUX INPUT
SPECIAL FUNCTION
4
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ACCESS AUDIO MONITOR
SCREEN
Move the highlight bar
(arrow) to "AUDIO
MONITOR" by pressing
CH
5∞ or PUSH JOG
5∞, then press OK.
AUDIO SELECT
2ND AUDIO
=AUDIO MONITOR
TIMESCAN AUDIO
HI-FI REC LEVEL
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
5
6
SELECT MODE
You have three choices:
a– Hi-Fi
b– Normal
c– Mix
AUDIO MONITOR
=HI–FI
NORM
MIX
Move the highlight bar
(arrow) to your choice by pressing CH
5∞ or PUSH
JOG 5∞.
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
28
EN
REVIEW
REW
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
q
Index Search
Index codes are placed on the tape at the start of each recording. You can find and automatically play back from the start of any recording using the Index Search function.
1
START SEARCH
While the tape is stopped, press PUSH JOG ™ or
£ .
2
ACCESS DISTANT CODE
To access a recording 2–9 index codes away, press
PUSH JOG ™ or £ repeatedly until the correct number is displayed on screen (only if SUPERIMPOSE is set to ON (
Z
pg. 26). Playback begins automatically when the desired recording is located.
● If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.
NOTE:
An index code is not placed on the tape when recording is paused and then resumed.
FF
PUSH JOG
Instant ReView
At the press of a button, you can power up your VCR, rewind the tape and begin viewing the most recent timer-recorded program.
1
ACTIVATE INSTANT REVIEW
After ensuring that the Timer mode is disengaged, press
REVIEW.
● The power comes on and the VCR rewinds to the index code indicating the start of the last timer-recorded program, then begins playback automatically.
● You can access a program 2–9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press REVIEW three times.
● If necessary press REW or FF when play starts to search visually to find the very beginning of the desired program.
● If the tape is already rewound when REVIEW is pressed, it will play the tape from the beginning. It will not fast forward to an index code.
● The Instant Review function will also operate if the
VCR's power is on.
PAUSE
STOP q
EN
29
Repeat Playback
1
2
START REPEAT
Press and hold PLAY (until "PLAY" blinks on the front display panel) during playback, then release.
PLAY
V C R
SP
H M S
● The entire tape is played back 20 times.
STOP REPEAT
To stop, press STOP at any time.
NOTE:
Pressing PLAY, REW, FF, PAUSE or PUSH JOG ™ or
£ also stops Repeat Playback.
POWER
C.RESET
C.MEMORY
1
4
7
2
5
8
0
3
6
9
TIMER
Counter Reset
1
RESET COUNTER TO ZERO
Press C.RESET.
NOTE:
By pressing the DISPLAY button, you can change the display to show the counter reading, channel number or clock time. (Channel number is not displayed during playback.)
PLAY
DISPLAY
REW
FF
STOP
PUSH JOG
Next-Function Memory
The Next Function Memory “tells” the VCR what to do after rewinding. * Before continuing, ensure that the VCR is in stop mode.
a– For Automatic Start Of Playback After Tape Rewind . . .
. . . press REW, then press PLAY within 2 seconds.
b– For Automatic Power Off After Tape Rewind . . .
. . . press REW, then press POWER within 2 seconds.
c– For Automatic Timer Standby After Tape Rewind . . .
. . . press REW, then press TIMER within 2 seconds.
NOTE:
● If you want the "next function" to automatically start when the counter reads "0H 00M 00S" (instead of at the beginning of the tape), press C. MEMORY so that the counter memory indicator appears on the front display panel before pressing
REW.
● It is not possible to select the Automatic Timer functions if the cassette's record safety tab is removed.
Counter Memory
When REW or FF is pressed, with the Counter Memory activated, the tape will return to the counter position "zero".
1
2
ACTIVATE COUNTER
MEMORY
Press C.RESET during playback at a point you want to have quick access to later. The counter reads “0H 00M 00S”.
Then press C.MEMORY. The Counter Memory indicator
("M") in the front display panel lights.
RETURN TO COUNTER
POSITION ZERO
Press STOP (during playback), then press REW or FF.
The tape rewinds or fast-forwards and stops at approximately “0H 00M 00S” automatically.
● To cancel Counter Memory, press C.MEMORY.
30
EN
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
CH q
POWER
OK
PUSH JOG
AV COMPU LINK Playback
Your VCR is compatible with JVC’s AV COMPU LINK components, including amplifiers (or receivers) and televisions. AV COMPU
LINK provides one touch control of the audio and video components that are linked via their AV COMPU LINK connectors.
For example: simply load a cassette in the VCR and press PLAY and the AV COMPU LINK components automatically power on, the TV's AV mode is selected and the VCR goes into play mode.
(PLAY need not be pressed if the cassette's record safety tab is removed.)
1
MAKE CONNECTION
Connect your VCR to an AV COMPU LINK component as shown in the illustration on page 31.
● The mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
TURN ON THE VCR
Press POWER.
2
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
3
4
ACCESS FUNCTION SET
SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK.
5
ACCESS SPECIAL
FUNCTION SCREEN
Press CH
5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
FUNCTION
AUTO TIMER
SUPERIMPOSE
AUDIO SELECT
“SPECIAL FUNCTION”, then press OK.
AUX INPUT
=SPECIAL FUNCTION
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
CH
PLAY
1
4
7
2
5
8
0
3
6
9
CH q
MENU
PUSH JOG
Example
VIDEO
OUT
PAUSE/
SPECIAL FUNCTION
Your VCR
6
EN
31
ENABLE AV COMPU LINK
PLAYBACK
Press CH 5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
SPECIAL FUNCTION
PAUSE
=AV COMPU-LINK
“AV COMPU-LINK”.
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
7
8
PERFORM AV COMPU LINK
PLAYBACK
Simply insert a cassette and press PLAY (if the cassette’s record safety tab has been removed, playback begins automatically). Linked components are turned on, and the TV set to its AV mode, automatically!
NOTE:
Connection varies depending on the type of JVC TV you have.
Please refer to the TV’s instruction manual when making this connection.
AUDIO
OUT
VIDEO
IN
Audio/Video cable (supplied)
AUDIO IN
Mini-plug cable
(not supplied)
AV COMPU LINK
Television
AV COMPU
LINK II
(VCR ONLY)
32
EN
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
Auto Picture
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
CH
MENU
OK
CH q
POWER
OK
PUSH JOG
Auto Picture compensates for variations in tape characteristics to ensure the best possible playback picture. It checks and compensates for the condition of the tape at the beginning of automatic tracking when playback is selected.
Preparation
TURN ON THE VCR
Press POWER.
1
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
2
3
ACCESS AUTO PICTURE
SCREEN
Press CH
5∞ or PUSH
JOG 5∞ to move the highlight bar (arrow) to
MAIN MENU
PROGRAM SET
FUNCTION SET
“AUTO PICTURE”, then press OK.
TUNER SET
CUSTOM SET
=AUTO PICTURE
VIDEO STABILIZER
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
4
5
SELECT MODE
Move the highlight bar
(arrow) to "ON" by pressing
CH 5∞ or PUSH JOG
5∞.
AUTO PICTURE
=ON
OFF
NOTE:
When using rental tapes, or tapes recorded on other
VCRs, select "ON" or
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
"OFF" as desired to give the best picture.
RETURN TO NORMAL
SCREEN
Press MENU.
1
4
7
2
5
8
0
3
6
9 q
EN
33
Playback
When Auto Picture is activated the VCR will assess the quality of the tape the first time it is played back after the cassette is loaded.
To play a tape first perform steps 1 and 2 on page 21 ("Simple
Playback").
1
START PLAYBACK
Press PLAY.
● The VCR adjusts the playback picture quality based on the quality of the tape in use.
AUTO PICTURE
NOTES:
● The Auto Picture screen only appears at the beginning of automatic tracking. However even though the screen doesn't appear after that, the Auto Picture function is operative.
● To display the Auto Picture screen SUPERIMPOSE must be set to "ON" or the Auto Picture screen will not appear (
Z
pg.
26).
34
EN
PLAYBACK AND RECORDING FEATURES (cont.)
TimeScan
Your VCR is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during any of the TimeScan modes (
Z
pg. 35).
TimeScan allows you to view a program in search mode while listening to the audio.
NOTES:
● "TIMESCAN AUDIO" must be set to "ON", or the sound will not be heard in TimeScan mode (
Z
pg. 23)
Z
pg. 36).
● The audio will not synchronize with the video in TimeScan modes.
● In Pause mode 3 seconds (approx.) of audio will be played back repeatedly. (
● In TimeScan search modes some of the audio information will not be played so that the audio can keep up with the video.
q
Audio signal during TimeScan
Playback tape 1 2 3 4 5
Sound of 1, 3 and 5 is heard.
Sound of 2 and 4 is not heard.
Output audio signal is normal (monaural) sound.
1
4
7
2
5
8
0
3
6
9
PLAY
PUSH JOG
Variable-Speed Search/
Reverse Motion Playback
1
ACTIVATE VARIABLE-SPEED
SEARCH
During playback or still, turn the VCR's TIME SCAN
SHUTTLE ring. It remains at that position even after you release it. Each time it passes a click position, the playback speed changes.
(Refer to the chart on pg 35 for playback speeds).
OR
During playback, momentarily press PUSH JOG ™ or £.
● To increase the speed in the forward direction, press
£ repeatedly to select the various forward search modes.
● To decrease the speed in the forward direction, press
™ .
● To play in reverse slow motion, and in reverse play mode, continue to press ™ after selecting all the forward slow motion modes.
(Refer to the chart on pg 35 for playback speeds).
To resume normal playback, press PLAY.
EN
35
TimeScan
Names of special-effects playback
Speed
Audio output
Search
Reverse
Play Slow-Motion *Still Slow-Motion
-7x -5x -3x -1x -1/6x -1/18x
Audio is output.
0 1/18x 1/6x
Audio is Audio is Audio is not not output.
output.
output.
Forward
Play
1x
Search
2x 3x 5x 7x
Audio is output.
* Still mode cannot be engaged using the remote control's PUSH JOG button.
● The speed is shown in the upper right corner of the TV screen for approx. 5 seconds.
● The TimeScan search speed is the same for SP and EP recordings.
● To resume normal playback, press PLAY.
● When using the VCR's TIME SCAN SHUTTLE ring, the playback speed may not change depending on how far it is turned.
● When using the VCR's TIME SCAN SHUTTLE ring, the playback speed will change up to 7x and -7x search speeds. Turning the TIME SCAN SHUTTLE ring further will not increase the search speed.
● Picture may be distorted at the position where the recording speed is switched.
● The picture may be noisy for a moment when you change the playback speed.
● During high-speed search with a tape containing both SP and EP recordings, where the recording tape speed switches from EP to SP, the search speed will change automatically to 7x normal playback speed with TimeScan.
● Depending on the tape in use, noise may appear or the upper part of the picture may be distorted.
● Picture may appear distorted in comparison to normal playback.
● In TimeScan mode there will be a time lag between the video and the audio and noise may appear in the audio signal.
● TimeScan sound quality will differ in comparison to normal playback.
● When material such as music videos where there is non-stop sound (very few breaks in the soundtrack) are viewed at 2x normal speed, the audio playback may be faster than normal.
● When the playback direction is reversed, it takes approximately 6 seconds until sound is heard.
If you don't want to hear TimeScan audio, set "TIMESCAN AUDIO" to "OFF" (
Z
pg. 36).
1
4
7
2
5
8
0
3
6
9
Skip Search
1
SKIP OVER UNWANTED
SECTIONS
Press SKIP SEARCH 1 to 4 times during playback. Each press initiates a 30-second period of fast- motion playback. Normal playback resumes automatically.
NOTE:
To return to normal playback during a Skip Search, press PLAY.
PLAY
SKIP SEARCH
36
EN
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
q
TimeScan Audio
The audio output can be set ON/OFF during TimeScan. Select
ON/OFF as required.
*The default setting is "ON".
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
1
2
ACCESS FUNCTION SET
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressingCH 5∞ or PUSH JOG 5∞, then press OK.
3
ACCESS AUDIO SELECT
SCREEN
Move the highlight bar
(arrow) to "AUDIO
SELECT" by pressing
CH
5∞ or PUSH JOG
5∞, then press OK.
FUNCTION
AUTO TIMER
SUPERIMPOSE
=AUDIO SELECT
AUX INPUT
SPECIAL FUNCTION
CH
OK
4
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ACCESS TIMESCAN
AUDIO SCREEN
Move the highlight bar
(arrow) to "TIMESCAN
AUDIO" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
AUDIO SELECT
2ND AUDIO
AUDIO MONITOR
=TIMESCAN AUDIO
HI-FI REC LEVEL
PUSH JOG
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
5
SELECT MODE
Move the highlight bar
(arrow) to "ON" or "OFF" by pressing CH
5∞ or
PUSH JOG
5∞.
TIMESCAN AUDIO
=ON
OFF
6
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
Recording
Features
C.RESET
1
4
7
2
5
8
0
3
6
9
OSD
TV/VCR
EN
37
Record One Program While
Watching Another
1
2
ENGAGE TV MODE
During recording...
● Press TV/VCR. The VCR's VCR indicator goes out. (If you are using the RF connection (
Z
pg. 4) to view the output from your VCR, the TV broadcast being recorded disappears.)
● If you are using the AV connection ( Z
pg. 4), to view the output from your VCR, change the TV's input mode from AV to TV.
SELECT CHANNEL FOR
VIEWING
Use the TV’s channel selector to set the channel you want to watch.
Display Elapsed Recording
Time
1
2
RESET COUNTER TO ZERO
Before recording starts, press C.RESET. The counter resets to zero and displays the exact elapsed time as the tape runs.
DISPLAY ELAPSED TIME ON
SCREEN
During recording, press OSD at any time to see the elapsed time. All indications corresponding to the current status of the VCR are displayed for 5 seconds.
The counter display remains on the screen indicating the elapsed time. Press OSD again to remove the display.
● Make sure "SUPERIMPOSE" is set to "ON" (
● The indications are not be recorded.
Z
pg. 26).
38
EN
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
PLAYBACK AND RECORDING FEATURES (cont.)
q
Stereo And SAP
(Second Audio Program)
Your VCR’s built-in MTS decoder enables reception of Multichannel TV Sound broadcasts.
● The ST indicator on the front display panel lights during stereo broadcast reception, and SAP lights during SAP program reception.
● Both indicators light when a stereo program is accompanied by SAP audio.
To Record Stereo Programs . . .
. . . simply follow the basic recording procedure.
To Listen To Stereo Soundtrack During Recording . . .
. . . select "HI-FI" at the Audio Monitor screen (
Z
pg. 27).
CH
OK
PUSH JOG
To Record SAP Programs . . .
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
1
2
ACCESS FUNCTION SET
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
3
ACCESS AUDIO SELECT
SCREEN
Move the highlight bar (arrow) to "AUDIO SELECT" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
4
ACCESS 2ND AUDIO
SCREEN
Move the highlight bar (arrow) to "2ND AUDIO" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
5
SELECT MODE
Move the highlight bar
(arrow) to "ON" by pressing CH
5∞ or PUSH
JOG
5∞.
2ND AUDIO
=ON
OFF
NOTES:
● If a SAP program is received, the SAP audio is recorded on both the Normal and Hi-Fi tracks. The main audio program is not recorded.
● If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and Normal audio tracks.
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
6
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
CH
OK q
REW
1
4
7
2
5
8
0
3
6
9
CH
FF
MENU
OK
PUSH JOG
EN
39
Hi-Fi Audio Recording Level
Control
Your VCR allows manual adjustment of the Hi-Fi audio recording level. Although the preset audio recording level is satisfactory for normal recording, if the sound you are going to record is too loud or too low, adjust the audio recording level while referring to the VCR's audio level meters.
ACCESS MAIN MENU SCREEN
Press MENU as many times as necessary.
1
2
ACCESS FUNCTION SET SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK.
3
ACCESS AUDIO SELECT SCREEN
Move the highlight bar (arrow) to "AUDIO SELECT" by pressing CH 5∞ or PUSH JOG 5∞, then press OK.
4
ACCESS HI-FI REC LEVEL SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “HI-FI REC LEVEL”, then press OK.
5
6
SELECT MODE
Move the highlight bar
(arrow) to “MANUAL” by pressing CH
5∞ or PUSH
JOG
5∞.
HI-FI REC LEVEL CONTROL
PRESET
=MANUAL
PRESS PRESS
(REW) (FF)
MIN------*------MAX
PRESS ( 5, ∞) TO SELECT
PRESS (MENU) TO END
ADJUST AUDIO RECORDING
LEVEL
Press FF or REW.
● To move the on-screen's audio levels by one division of the scale, press FF or REW briefly for 5 times in succession. To move the audio levels faster, keep FF or REW presssed.
● Adjust the recording level while watching the VCR's audio level meters. Set the level so that maximum volume causes the meters to vary between 0dB to 4dB.
RETURN TO NORMAL SCREEN
Press MENU as many times as necessary to exit.
7
NOTE:
Noise will increase if the recording level is too low, while distortion will increase if the level is too high.
40
EN
G-C
ODE
Timer
Programming
● Before G-C
ODE Timer programming, see "G-C ODE Setup" on page 16.
● Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
NUMBER
CANCEL
MENU
1
4
7
2
5
8
0
3
6
9 q
TV/CABLE/VCR
OK
ILLUMI GUIDE
When Using The Illumi-Guide Feature
● Buttons light or blink on the remote control for approximately 10 seconds. If the button or buttons extinguish during timer programming, press ILLUMI GUIDE and the button or buttons previously lit or blinking come back on. If the button or buttons do not re-light or start blinking again, press MENU as many times as necessary to return to the normal screen and extinguish all illuminated buttons, and re-perform the timer programming procedure from the beginning.
● If for some reason the remote control's signal is not received by the VCR, press MENU as many times as necessary to return to the normal screen and extinguish all illuminated buttons, and re-perform the timer programming procedure from the beginning.
TIMER RECORDING
Timer recording allows you to program the VCR to automatically record a program which will be broadcast at some future time.
The timer record function can be programmed using G-CODE or On-Screen Timer Programming. (
Z
pg. 40 or 42)
During G-C ODE and on-screen programming, the Illumi-Guide feature tells you which button on the remote control must be pressed next by lighting the relevant buttons. The Illumi-Guide feature is activated by the ILLUMI GUIDE button on the remote control. The Illumi-Guide feature is only active when the remote control's TV/CABLE/VCR switch is set to "VCR". (Illumi-
Guide is an optional help feature which makes programming easier. It is not necessary to use Illumi-Guide to program the
VCR.)
1
LOAD A CASSETTE
Make sure the record safety tab is present.
● The VCR’s power comes on automatically.
2
3
ACCESS G-CODE SCREEN
To use the Illumi-Guide feature press ILLUMI
GUIDE. The MENU, REW,
PLAY and FF buttons will light.
Press MENU on the remote control.
G-CODE
● The clock must be set in order to access the G-
PRESS NUMBER KEY (0-9)
PRESS (MENU) TO MAIN MENU
C ODE screen. If you haven’t set the clock, the Main
Menu screen appears when you press MENU. Refer to page 5 for the Plug & Play procedure or page 7 for the clock setting procedure.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys (0 –
9), PUSH JOG, CANCEL and MENU.
ENTER G-CODE NUMBER
Press the appropriate NUMBER keys to enter the G-
C ODE number printed in the TV listings for the TV program you wish to record.
● To make corrections, press CANCEL and input the correct G-C ODE number.
● If the G-C
ODE number you input is incorrect,
"ERROR" may appear on the screen to advise you of the error. This happens when the G-C ODE number is for a program which has already passed. "ERROR" is displayed for about 4 seconds and the G-C ODE screen reappears (step 2).
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys
(0 – 9), PUSH JOG, CANCEL and MENU.
NUMBER
CANCEL
NUMBER "8"
1
4
7
2
5
8
0
3
6
9
CH
NUMBER "9"
TIMER
SP/EP
MENU
OK
PUSH JOG
EN
41
4
CHECK INPUT DATA
Press OK and the Program screen appears.
The G-C ODE number you entered and the matching
Timer-Recording information is displayed on the
Program screen. Check to make sure it’s accurate.
PROGRAM 1
DATE
(G-CODE 12345678)
12/24 WED
START
STOP
CHANNEL
12:00 PM
1:00 PM
40 SP
PRESS (8=DAILY, 9=WEEKLY
SP/EP=REC SPEED)
PRESS (MENU) TO END
● To timer-record daily or weekly serials, press DAILY (NUMBER “8”) or
WEEKLY (NUMBER “9”). “DAILY” or “WEEKLY” appears on the Program screen. Pressing the button again makes each corresponding display disappear.
● If you made a mistake, press CANCEL and, after pressing MENU as many times as necessary to access the G-C ODE screen, input the correct G-C ODE number.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys (0-9),
PUSH JOG, CANCEL and MENU.
SET TAPE SPEED
Press SP/EP.
5
6
7
CHECK/CORRECT INPUT
DATA
If the data is correct as it is, go to step 7. If not, press
OK or PUSH JOG ™ £ until the item you want to change begins to blink. Then press the appropriate
NUMBER keys, CH
5∞ or PUSH JOG 5∞ to obtain the desired setting.
● If you are using a DBS receiver, the BAND indication
(TV or CATV or DBS) appears at right of the channel number display when OK or PUSH JOG ™ £ is pressed. See "ATTENTION FOR DBS RECEIVER
USERS" on page 43.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
● Press just once to access the Auto Timer screen
(
Z
pg. 45).
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically.
8
NOTES:
● To disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
● In case of a power failure after programming, the VCR’s memory backup keeps your selections for approximately
10 minutes.
● When timer-recording cable channels received through a
Cable Box, be sure to keep the Cable Box set to ON.
42
EN
On-Screen
Timer
Programming
Turn on the TV and select the VCR channel 3 or 4 (or AV mode).
NUMBER
NUMBER "8"
7
1
4
2
5
8
0
3
6
9
NUMBER "9"
TIMER
CH
TV/CABLE/VCR
FF
REW
MENU
CH
OK q
OK
PUSH JOG
ILLUMI GUIDE
When Using The Illumi-Guide Feature
● Buttons light or blink on the remote control for approximately 10 seconds. If the button or buttons extinguish during timer programming, press ILLUMI GUIDE and the button or buttons previously lit or blinking come back on. If the button or buttons do not re-light or start blinking again, press MENU as many times as necessary to return to the normal screen and extinguish all illuminated buttons, and re-perform the timer programming procedure from the beginning.
● If for some reason the remote control's signal is not received by the VCR, press MENU as many times as necessary to return to the normal screen and extinguish all illuminated buttons, and re-perform the timer programming procedure from the beginning.
TIMER RECORDING (cont.)
You can directly program the VCR’s timer to record up to 8 shows, as far as a year in advance. Remember, the clock must be set before you can program the timer (
Z
pg. 5 or 7).You can also use the optional Illumi-Guide feature, where the relevant buttons on the remote control light to tell you which button to press next.
The Illumi-Guide feature is activated by the ILLUMI GUIDE button on the remote control. The Illumi-Guide feature is only active when the remote control's TV/CABLE/VCR switch is set to
"VCR". (Illumi-Guide is an optional help feature which makes programming easier. It is not necessary to use Illumi-Guide to program the VCR.)
1
2
3
4
LOAD A CASSETTE
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.
● The VCR comes on, and the counter is reset, automatically.
ACCESS ON-SCREEN
MENU
To use the Illumi-Guide feature press ILLUMI GUIDE.
The MENU, REW, PLAY and FF buttons will light.
Press MENU as many times as necessary to bring up the
Main Menu screen.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys (0-9),
PUSH JOG, CANCEL and MENU.
ACCESS PROGRAM SET
SCREEN
Make sure the highlight bar (arrow) is on "PROGRAM
SET", then press OK.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys (0
– 9), PUSH JOG, CANCEL and MENU.
SELECT PROGRAM NUMBER
Press the appropriate
NUMBER keys or CH
5∞ or PUSH JOG
5∞ to select a vacant program number, then press OK. The first time
PROGRAM 1
DATE
START
STOP
CHANNEL
– –/– –
– –:– – AM
– –:– – AM
– – SP you set the timer programming function, all the program numbers will be blank; in this case just press
PRESS NUMBER KEY (O–9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END
OK when the Program Set screen appears.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys
(0 – 9), PUSH JOG, CANCEL and MENU.
5
6
7
8
SET PROGRAM
INFORMATION
Press the appropriate NUMBER keys to set the date, start/stop time and channel number. Press CH
5∞ or
PUSH JOG 5∞ to set AM/PM and tape speed (SP or
EP). Press OK after AM/PM, channel number and tape speed settings.
* If you are using a DBS receiver, see "ATTENTION FOR
DBS RECEIVER USERS" in the right column.
● Any information comprised of 1 digit (except the channel number) should have a "0" entered before it.
● It is possible to set all information using the CH 5∞ or PUSH JOG
5∞ button.
(In this case, press OK after each setting.) Do not use the CH
∞ or PUSH JOG ∞ button to set the date.
● At the Program Set screen, the setting that can be set blinks. When setting of a highlighted item is completed, the highlight bar moves down by 1 line to the next item.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys
(0 – 9), PUSH JOG, CANCEL and MENU.
** You can record selected programs at the same time every weekday, or once a week. Before entering the month, press NUMBER key “8” (DAILY) or “9”
(WEEKLY). Either "DAILY" or "WEEKLY" appears.
Press again and "DAILY" or "WEEKLY" disappears.
For weekly recording, the desired date for the day of the week must be entered.
MAKE CORRECTIONS
To change any of the settings, press OK or PUSH JOG
™ £ until the item you want to change begins blinking. Then set as in step 5.
● If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys
(0 – 9), PUSH JOG, CANCEL and MENU.
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
● Press just once to access the Auto Timer screen
( Z pg. 45).
● If you are using the Illumi-Guide feature, all buttons go out.
ENGAGE TIMER MODE
Press TIMER. The VCR turns off automatically.
EN
43
EXAMPLE
If you program the VCR to timer record a show on December 24 on channel 40 from 12:00 noon to 1:00 PM in SP mode, the screen will look like this:
DATE
START
STOP
CHANNEL
PROGRAM 1
12/24 WED
12:00 PM
1:00 PM
40 SP
PRESS NUMBER KEY (O–9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END
ATTENTION FOR DBS RECEIVER USERS
If you are using a DBS receiver
(unless "DBS RECEIVER OUT-
PUT" is set to "OFF"
Z
pg. 19), the BAND indication (TV or
CATV or DBS) appears to the right of the channel number display. If the channel number that has been entered requires that the band be set, the BAND indication starts blinking:
DATE
START
STOP
CHANNEL
PROGRAM 1
12/24 WED
12:00 PM
1:00 PM
110 DBS SP
PRESS NUMBER KEY (O–9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END
a- TV : To timer-record a regular TV program received on the VCR.
b- CATV : To timer-record a cable TV program received on the VCR, or through a cable box (unless
"CABLE BOX OUTPUT" is set to "OFF"
Z
pg. 14).
c- DBS : To timer-record a DBS program received through a DBS receiver.
Press CH 5∞ or PUSH JOG 5∞ to select the appropriate band, then press OK.
● If "BAND" is set to "TV" at the Band screen ( Z pg. 11),
CATV will not be displayed on the Program screen; if it is set to "CATV", TV will not be displayed.
NOTES:
● To disengage the timer before recording starts, press TIMER again. Pressing once more re-engages it.
● In case of a power failure after programming, the VCR’s memory backup keeps your selections for approximately 10 minutes.
● If you select "PROGRAM SET" without having set the date and time, an error message appears. Follow its instructions.
● If you enter a start time that has already passed, "ERROR" appears on the screen and blinks.
● Programs that start after midnight must have the next day’s date.
● After timer recording is completed, the VCR’s power goes off automatically.
● You can program the timer while a regular recording is in progress; the on-screen menu will not be recorded.
● If the end of tape is reached during timer recording, the cassette is automatically ejected.
● When timer-recording cable or DBS channels through an external tuner, be sure to keep the cable box or DBS receiver's power ON.
44
EN
CH
OK
POWER
CANCEL
1
4
7
2
5
8
0
3
6
9
CH
TIMER
MENU q
OK
PUSH JOG
TIMER RECORDING (cont.)
Check And Cancel Programs
1
DISENGAGE TIMER
Press TIMER, then press POWER.
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
2
3
4
ACCESS PROGRAM SET
SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to "PROGRAM SET", then press OK.
CHECK PROGRAM
INFORMATION
Press CH
5∞ or PUSH JOG 5∞ to check the programs in succession.
To Cancel A Program . . .
5
CANCEL A PROGRAM
Press CANCEL.
● Repeat steps 4 and 5 as many times as necessary.
6
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary. If there are still programs remaining, go to step 7.
RE-ENGAGE TIMER
Press TIMER again.
7
MENU
CH
OK q
1
4
7
2
5
8
0
3
6
9
CH
TIMER
OK
PUSH JOG
EN
45
Auto Timer
When the Auto Timer is set to ON the timer is automatically engaged when the VCR's power is turned off and automatically disengaged when the VCR is powered back on.
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
1
2
ACCESS FUNCTION SET
SCREEN
Move the highlight bar (arrow) to "FUNCTION SET" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
3
ACCESS AUTO TIMER
SCREEN
Move the highlight bar (arrow) to "AUTO TIMER" by pressing CH
5∞ or PUSH JOG 5∞, then press OK.
Now skip to step 2 of the procedure below.
Or, during on-screen timer programming ...
1
2
ACCESS AUTO TIMER
SCREEN
In step 7 in the G-C
ODE
Timer Programming ( Z pg. 40) or
On-Screen Timer Programming procedure (
Z
pg. 42), press MENU.
SELECT MODE
Move the highlight bar
(arrow) to your choice
("ON" or "OFF") by pressing CH
5∞ or PUSH
JOG
5∞.
AUTO TIMER
ON
=OFF
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
3
NOTE:
For safety, when AUTO TIMER is set to “OFF”, all other VCR functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.
46
EN
Instant Timer
Recording
(ITR)
R E C
V C R
SP q
TIMER RECORDING (cont.)
This easy method lets you record for from 30 minutes to 6 hours
(selectable in 30-min. increments), and shuts the VCR off after recording is finished.
START RECORDING
Press REC on the front panel.
1
2
ENGAGE ITR MODE
Press REC again. REC blinks and 0:30 appears on the front display panel.
3
SET RECORDING
DURATION
If you want to record for more than 30 minutes, press
REC to extend the time. Each press extends recording time by 30 minutes.
NOTES:
● You can only perform ITR using the REC button on the VCR's front panel.
● After you set the ITR time, the previous display reappears.
● To check the remaining time, press REC once during recording and the remaining time will be displayed for about 5 seconds. Be careful not to press REC again within these 5 seconds, or you will round the recording time up to the next
30 minute increment.
EDITING
Edit To Or
From Another
VCR
VIDEO OUT
Player Your VCR
VIDEO IN
Recorder
1
4
7
2
5
8
0
3
6
9
AUDIO OUT
Audio/Video cable
(supplied)
AUDIO IN
Another VCR
You can use your VCR as the player or the recorder.
EN
47
1
2
MAKE CONNECTIONS
Connect an AV cable between the player’s VIDEO OUT and AUDIO OUT connectors and the recorder’s VIDEO
IN and AUDIO IN connectors.
● When using your VCR as the recorder and a monaural
VCR as the player, connect the player’s AUDIO OUT connector to the AUDIO IN L connector on the recorder.
LOAD CASSETTES
Insert the playback cassette into the player and the cassette to be recorded on into the recorder.
3
SET RECORDER’S INPUT
MODE
Set to AUX. With this VCR, press NUMBER key “0” (AU appears on the front display panel in place of a channel number).
NOTE:
When using this VCR as the recorder, make sure to select
"FRONT" or "REAR" (depending on which input connectors you use) at the Aux Input Screen. (To select the correct AUX input connector, follow steps 4, 5, 9 – 11 from the "Edit
From A Camcorder" section, Z pg. 48.)
START PLAYER
Set to its play mode.
4
NOTE:
If the player is equipped with a superimpose/OSD disable feature then set "SUPERIMPOSE" to OFF before pressing PLAY ( Z pg. 26).
START RECORDER
Set to its record mode.
5
NOTE:
If you use an auxiliary input to connect a cable box or DBS receiver and if you have used this VCR as the recording deck for editing, make sure that the correct input ("FRONT" or "REAR") is selected after you have finished editing (
Z step 3).
NUMBER "0"
48
EN
Edit From A
Camcorder
AUDIO IN
Recorder Your VCR
VIDEO
IN
Camcorder
Player
To rear panel PAUSE/
SPECIAL FUNCTION connector
Mini-plug cable (not supplied)
(JVC camcorder only)
Audio/Video cable
(supplied)
VIDEO OUT
AUDIO OUT
EDIT
NUMBER "0"
1
4
7
2
5
8
0
3
6
9
CH
MENU q
OK
PUSH JOG
EDITING (cont.)
You can use a camcorder as the player and your VCR as the recorder.
1
MAKE CONNECTIONS
Connect an AV cable between the camcorder’s VIDEO
OUT and AUDIO OUT connectors and your VCR’s
VIDEO IN and AUDIO IN connectors.
● When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling your VCR.
The mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
● If connecting to a camcorder with a monaural output, connect the audio output connector on the camcorder to AUDIO IN L of the VCR.
LOAD A CASSETTE
Insert the cassette to be recorded on into the recorder.
2
SET RECORDER’S INPUT
MODE
Press NUMBER key “0” to set to AUX.
3
ACCESS MAIN MENU
SCREEN
Press MENU as many times as necessary.
4
5
ACCESS FUNCTION SET
SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “FUNCTION SET”, then press OK.
6
If you’re using a JVC Master Edit Control-equipped camcorder — step 6
If not — step 9
ACCESS SPECIAL
FUNCTION SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “SPECIAL FUNCTION”, then press OK.
7
SELECT MODE
Press CH 5∞ or PUSH
JOG
5∞ to move the highlight bar (arrow) to
“PAUSE”.
SPECIAL FUNCTION
=PAUSE
AV COMPU-LINK
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END
MENU
CH
OK
1
4
7
2
5
8
0
3
6
9
CH q
OK
PUSH JOG
EN
49
RETURN TO FUNCTION
SET SCREEN
Press MENU.
8
9
10
11
SELECT INPUT
If you are connecting the
AV cable to the AV connectors on the front of the VCR, move the
AUX INPUT
= FRONT
REAR highlight bar (arrow) to
"FRONT" by pressing CH
5∞ or PUSH JOG 5∞ . If you are connecting the AV cable to the AV connectors
PRESS ( 5,∞) TO SELECT
PRESS (MENU) TO END on the back of the VCR, move the highlight bar (arrow) to "REAR" by pressing CH
5∞ or PUSH JOG 5∞ .
RETURN TO NORMAL
SCREEN
Press MENU as many times as necessary.
START PLAYER
Set the camcorder to its play mode.
12
ACCESS AUX INPUT
SCREEN
Press CH
5∞ or PUSH JOG 5∞ to move the highlight bar (arrow) to “AUX INPUT”, then press OK.
13
NOTE:
If the camcorder is equipped with a superimpose/OSD disable feature then set its superimpose or display feature to OFF before pressing play.
START RECORDER
Set your VCR to its record mode.
● If you are using a Master Edit Control-equipped JVC camcorder, it can put the recorder automatically into
Record mode. (Refer to camcorder's instruction manual.)
NOTE:
If you use an auxiliary input to connect a cable box or DBS receiver make sure that the correct input ("FRONT" or "REAR") is selected after you have finished editing ( Z step 10).
50
EN
Insert Editing
Recorder Your VCR
EDITING (cont.)
Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged. If you wish to change the normal audio track as well, use the audio dubbing function simultaneously.
Use your VCR as the recorder.
Source tape
TIME SCAN SHUTTLE q
Player
Audio/Video cable
(supplied)
Audio/Video signal
Another VCR
C.RESET
1
4
7
2
5
8
0
3
6
9
PAUSE
Recorded tape
Before insert editing
Normal audio track
After insert editing
Video/Hi-Fi audio track
1
2
3
MAKE CONNECTIONS
Connect the player's VIDEO OUT and AUDIO OUT connectors to your VCR's VIDEO IN and AUDIO IN on the front panel.
SET INPUT MODE
Press NUMBER key "0". "AU" appears in place of a channel number.
● Be sure to select the correct AUX input connector at the Aux Input screen. (To select the correct AUX input connector, follow steps 4, 5, 9 – 11 from the "Edit
From A Camcorder" section
Z
pg. 48).
LOCATE END POINT
Load the recording cassette into your VCR, and play it back to determine the edit-out point (the end of the segment to be replaced) using the JOG/TIME SCAN
SHUTTLE controls or PUSH JOG ™£ and PAUSE.
RESET THE COUNTER
Press C.RESET to change the counter display to
"0
H
00
M
00
S
".
4
5
LOCATE START POINT
Determine the edit-in point (the beginning of the segment to be replaced) using the JOG/TIME SCAN
SHUTTLE controls or PUSH JOG ™£ and PAUSE.
● Be sure to engage the Still mode at the edit-in point.
PUSH JOG
C.RESET
1
4
7
2
5
8
0
3
6
9
PLAY q
EN
51
6
7
8
ENGAGE INSERT EDITING
Press INSERT.
● Your VCR enters the Insert-Pause mode. (REC, PLAY and PAUSE light up on the front display panel.)
● The TV screen changes from the still picture to the input source you are going to record.
START EDITING
Load the source cassette and play back the segment that is to be inserted. When you reach the start of the section of the source tape that you wish to insert, press
PLAY to start the tape in your VCR; Insert Editing begins at this point.
● PLAY and REC are displayed on the front display panel.
END INSERT EDITING
At counter "0
H
00
M
00
S
", Insert Editing will stop automatically while the tape continues running in the Play mode. if you wish to stop Insert Editing before the specified edit-out point, press C.RESET.
FOR AV INSERT EDITING
If you want to replace the picture, Hi-Fi audio soundtrack and normal audio soundtrack all at the same time...
In step 6 above, after you press INSERT, press A. DUB. also.
(REC and PLAY blink and PAUSE lights up on the display panel.)
NOTES:
● Insert editing is not possible with cassettes whose safety tab has been removed.
● In insert editing, the recording speed (SP/EP) is determined by the previous recording to be replaced. If the previous recording's speed changes within a single edit, the inserted picture will be distorted at the switching point.
● A small portion of the recording which precedes an insert edit may become erased.
● Insert Editing is also possible using the rear connectors.
When using these connectors, be sure to select the correct
AUX input connector at the Aux Input screen. To select the correct AUX input connector, follow steps 4, 5, 9 – 11 from the "Edit From A Camcorder" section,
Z
pg. 48.
52
EN
Audio Dubbing
EDITING (cont.)
Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack. Use your VCR as the recorder.
Normal audio track Pre-recorded tape
Video/Hi-Fi audio track
Audio cable
A. DUB
Audio component
(CD player etc.)
STOP q
NOTES:
● When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the Hi-Fi or mixed sound (Hi-Fi + Normal soundtracks), refer to the "Select The Soundtrack" section (
Z
pg. 27) and select the soundtrack you wish to hear.
● Audio dubbing stops automatically when the counter reaches
"0
H
00
M
00
S
", and the VCR enters the Play mode. Check the counter reading before dubbing.
● Audio dubbing is also possible using the rear AUDIO IN connectors. When using these connectors, be sure to select the correct AUX input connector at the Aux Input screen. To select the correct Aux Input connector, follow steps 4, 5, 9 –
11 from the "Edit From A Camcorder" section
● Audio dubbing cannot be performed on a cassette that has
The Soundtrack" section ( Z
Z pg. 48.
had its record safety tab removed.
● When playing back an audio-dubbed tape, refer to the "Select
pg. 27) to select the soundtrack you wish to hear.
● Picture may be distorted during Audio Dubbing Pause.
● It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.
Audio-dubbed tape
1
2
3
4
5
6
MAKE CONNECTIONS
Connect an audio component to the AUDIO IN L + R connectors on the VCR's front panel. *When connecting monaural equipment, use only the VCR's AUDIO
IN L connector.
SET INPUT MODE
Press NUMBER key "0" on the remote control. "AU" appears in place of a channel number.
● Be sure to select the correct AUX input connector at the AUX Input Screen. (To select the correct AUX input connector, follow steps 4, 5, 9 – 11 from the "Edit From
A Camcorder" section,
Z
pg. 48.)
LOCATE START POINT
Press PLAY to start playback of the tape in your VCR, and press PAUSE when you find the point where you want to start dubbing.
ENGAGE AUDIO DUBBING
Press A. DUB.
● Your VCR enters the Audio Dubbing Pause mode.
(REC blinks, PLAY and PAUSE light up on the front display panel.)
START DUBBING
Engage the audio component's Play mode, then press
PLAY to start the tape in your VCR. Audio dubbing begins at this point.
● REC blinks and PLAY is displayed on the front display panel.
● To stop dubbing temporarily, press PAUSE. Press
PLAY to resume dubbing.
END AUDIO DUBBING
Press STOP to stop the tape in your VCR, and engage the audio component's Stop mode.
SPECIAL FEATURES
NUMBER
TV VOL. +/–
1
4
7
2
5
8
0
3
6
9
ENTER
CH
TV/CABLE/VCR
TV/VCR
POWER
TV BRAND NAME
JVC
GRADIENTE
PHILIPS
CCE
SANYO
PHILICO/HITACHI
SHARP
TOSHIBA
MITSUBISHI
PHILICO/DAEWOO
SAMSUNG
GOLDSTAR
RCA
PANASONIC
GRUNDIG
SONY
NEC
PHILICO
NOBLEX
BRAND CODE
15
16
17
18
10
11
12
13
14
05
06
07
08
09
01
02, 11, 12, 16
03
03
04
(Ex.) To set remote control to PHILIPS 03:
POWER
STOP
0 3 Release
TV Multi-Brand Remote
Control
EN
53
The VCR's remote control can control several functions on JVC remote control TVs and on the brands of remote control TVs listed below.
TURN ON THE TV
Turn the power on using the TV's remote control.
1
2
SET REMOTE CONTROL
MODE
Set the TV/CABLE/VCR switch on the VCR's remote control to TV.
3
4
SET TV BRAND CODE
Refer to the chart below. While holding down POWER on the VCR's remote control, enter your TV’s brand code using the NUMBER keys, then press STOP.
Follow the example shown at bottom left.
● Once you have set the remote control to operate the
TV, you don’t have to repeat this step until you replace your remote control’s batteries.
● GRADIENTE has four codes. If the TV does not function with one code, try entering another.
OPERATE TV
First, press POWER on the remote to see if the TV’s power goes off as it should. If it does, try other operations.
● The POWER, TV/VCR, CH5∞, TV VOL. +/– and
NUMBER keys on the remote can all be used to operate the TV. *For some brands of TV, you must press ENTER after having pressed the NUMBER keys.
● If you have a JVC TV equipped with Hyper Surround or Live Effex, the button may work to operate it.
● To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTE:
Depending on the kind of TV, there may be cases where some or all functions cannot be operated using the remote control.
Hold down
Press in succession
54
EN
NUMBER
Hold down
1
4
7
2
5
8
0
3
6
9
ENTER
CH
TV/CABLE/VCR
Press in succession
POWER
CABLE BOX BRAND NAME BRAND CODE
ZENITH
DEREUNG
06, 07
08, 09
(Ex.) To set remote control to ZENITH 06:
POWER
STOP
0 6 Release
SPECIAL FEATURES (cont.)
Cable Box Multi-Brand
Remote Control
The VCR's remote control can control functions on the brands of cable boxes listed below. Some cable box brands have more than one code. If your cable box does not function with a specified code, try other codes.
TURN ON THE CABLE BOX
Turn the power on using the cable box’s remote control.
1
2
SET REMOTE CONTROL
MODE
Set the TV/CABLE/VCR switch on the VCR’s remote control to CABLE.
3
4
ENTER CABLE BOX BRAND
While holding down POWER on the VCR's remote control, use the NUMBER keys to enter the cable box brand number from the chart at bottom left and then press STOP.
Follow the example shown below.
● Once you have set the remote control to operate the cable box, you don't have to repeat this step until you replace the remote control's batteries.
OPERATE CABLE BOX
First, press POWER to see if the cable box’s power goes off as it should. If it does, try other functions (CH
5∞ and the NUMBER keys can be used to operate the cable box).
● For some brands of cable box, you must press ENTER after having pressed the NUMBER keys.
● To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTES:
● Depending on the kind of cable box, there may be cases where some or all functions cannot be operated using the remote control.
● You must set the cable box brand for your remote control and the cable box brand for your Controller ( Z pg. 15) separately.
The list of cable box brands that can be controlled by your remote control is different from the list of brands that can be controlled by your controller.
● It is possible that the remote control will not operate your cable box even if the cable box’s channels automatically change during timer recording using the Controller.
● It's not possible to set the remote control for both your cable box and your DBS receiver at the same time; you can only set the remote control to the brand of either one.
● You have to subscribe to a cable service to receive cable channels.
NUMBER
Hold down
1
4
7
2
5
8
0
3
6
9
ENTER
CH
TV/CABLE/VCR
Press in succession
POWER
DBS BRAND NAME
RCA (DSS)
SONY (DSS)
PRIMESTAR
BRAND CODE
80
81
90
(Ex.) To set remote control to RCA 80:
POWER
8 0
STOP
Release
EN
55
DBS Receiver Multi-Brand
Remote Control
The VCR's remote control can control functions on the brands of DBS (Direct Broadcast Satellite) receivers listed below.
1
TURN ON THE DBS
RECEIVER
Turn the power on using the DBS receiver’s remote control.
2
SET REMOTE CONTROL
MODE
Set the TV/CABLE/VCR switch on the VCR’s remote control to CABLE.
3
4
ENTER DBS RECEIVER
BRAND
While holding down POWER on the VCR's remote control, use the NUMBER keys to enter the DBS receiver brand number from the chart below and then press STOP.
Follow the example shown at bottom left.
● Once you have set the remote control to operate the
DBS receiver, you don't have to repeat this step until you replace the remote control's batteries.
OPERATE DBS RECEIVER
First, press POWER to see if the DBS receiver’s power goes off as it should. If it does, try other functions (CH
5∞ and the NUMBER keys can be used to operate the
DBS receiver).
● For some brands of DBS receiver, you must press
ENTER after having pressed the NUMBER keys.
● To return the remote to VCR control, set the TV/
CABLE/VCR switch to VCR.
NOTES:
● Depending on the kind of DBS receiver, there may be cases where some or all functions cannot be operated using the remote control.
● You must set the DBS receiver brand for your remote control and the DBS receiver brand for your Controller (
Z
pg. 20) separately.
● It is possible that the remote control will not operate your DBS receiver even if the DBS receiver’s channels automatically change during timer recording using the Controller.
● It's not possible to set the remote control for both your cable box and your DBS receiver at the same time; you can only set the remote control to the brand of either one.
● You have to subscribe to a DBS broadcaster to receive DBS channels.
56
EN
A/B CODE
1
4
7
2
5
8
0
3
6
9
POWER
SPECIAL FEATURES (cont.)
Control Two JVC VCRs
The supplied remote control is capable of controlling two JVC
VCRs independently using the A/B CODE switch. You can set this
VCR so it responds to remote commands only when the switch is set to B, and another VCR so it responds to commands when the switch is set to A. The switch is preset to A because this VCR normally responds to A-code signals. Follow steps 1 – 4 to set this
VCR to respond to B-code commands.
UNPLUG VCR'S POWER
CORD
Unplug from the AC outlet.
1
SET A/B CODE SWITCH
Set the A/B CODE switch on the remote control to B.
2
PLUG IN POWER CORD
Plug back in to the AC outlet.
3
TURN VCR POWER ON
Press POWER on the remote.
4
The VCR will now respond only to B-code commands.
To set the VCR back to respond to A code signals, repeat the same procedure as shown above except setting the A/B CODE switch to A instead of B in step 2.
You can control two VCRs with the same remote control by switching the remote's code between A and B.
TROUBLESHOOTING
EN
57
Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.
POWER
SYMPTOM
1. The power won’t come on.
2. The clock works, but the VCR’s power won’t come on.
3. The remote control won’t function.
POSSIBLE CAUSE
● The power cord is disconnected.
● The TIMER mode is engaged with
Auto Timer set to "OFF" (
Z
pg. 45).
● The batteries are discharged.
● The A/B CODE switch is in the wrong position.
● The TV/CABLE/VCR switch is in the wrong position.
CORRECTIVE ACTION
Connect the power cord.
Press TIMER to disengage.
Replace the dead batteries with new ones.
(
Re-perform the A/B Code setting
Z
pg. 56).
Set the switch to the position corresponding with the unit you want to operate.
TAPE TRANSPORT
SYMPTOM
1. The cassette gets stuck partway during loading, and is ejected.
2. The tape stops during rewind or fast forward.
POSSIBLE CAUSE
● The cassette was inserted incorrectly.
● The Counter Memory indicator
(“M”) is lit on the front display panel.
CORRECTIVE ACTION
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR. Then insert the cassette
Press C.MEMORY to disengage the
Counter Memory mode and extinguish the indicator (
Z
pg. 29).
PLAYBACK
SYMPTOM
1. The tape is running but the picture won’t appear.
2. Breaks are noticeable in Hi-Fi soundtrack.
3. The playback picture is blurred or interrupted, even though TV broadcasts are clear.
4. The Hi-Fi soundtrack cannot be heard.
POSSIBLE CAUSE
● If you’re using the RF OUT connection (
Z
pg. 4), the channel selector on the TV is set incorrectly.
● If you’re using the AV connection
(
Z
pg. 4), the TV receiver is set to the wrong mode.
● Automatic tracking is engaged.
● The video heads may be dirty.
● The AUDIO MONITOR option at the Audio Select screen was set incorrectly.
CORRECTIVE ACTION
Set the channel selector to channel 3 or 4.
Set the TV receiver to its AV mode.
(
Engage and adjust tracking manually
Z
pg. 24).
The heads must be cleaned. Consult your JVC dealer.
(
Set AUDIO MONITOR to "HI-FI"
Z pg. 27).
CONTINUED ON NEXT PAGE.
58
EN
RECORDING
SYMPTOM
1. Recording won’t start.
TROUBLESHOOTING (cont.)
2. TV broadcasts won’t record properly.
3. Tape-to-tape editing won’t work.
POSSIBLE CAUSE
● There’s no cassette loaded.
● The loaded cassette has had its record safety tab removed.
● The VCR has been set to its AUX mode by mistake.
●The VCRs or the camcorder and the
VCR have been incorrectly connected.
● The power to one or more of the units has not been turned on.
● The recorder’s input mode has been set incorrectly.
CORRECTIVE ACTION
Insert a cassette.
Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.
Set the VCR to the appropriate channel.
Refer to the directions and the illustration under “Edit To Or From
Another VCR” (
Z
pg. 47) or “Edit
From A Camcorder” ( Z pg. 48) and properly connect the units.
Make sure the power to all units is on.
Select the recorder’s appropriate
( input mode at the Aux Input Screen
Z pg. 49).
TIMER RECORDING
SYMPTOM
1. Timer recording won’t work.
POSSIBLE CAUSE
● The clock and/or the timer have been set incorrectly.
● The timer is not engaged.
● The VCR has not been set up properly.
2. On-screen timer programming won’t work.
3. TIMER and ] on the front display panel won’t stop blinking.
4. The cassette is automatically ejected, and TIMER and ] on the front display panel won’t stop blinking.
5. TIMER blinks for 10 seconds and the timer mode is disengaged.
● Timer recording is in progress.
● The timer is engaged but there’s no cassette loaded.
● The loaded cassette has had its record safety tab removed.
6. The cassette is automatically ejected, the power shuts off and
TIMER and ] won’t stop blinking.
7. Cable channels are not automatically switched during timer recording.
● TIMER has been pressed when there are no programs in memory, or the timer record program information has not been programmed correctly.
● The end of tape was reached during timer recording.
● The Controller is not properly connected to the VCR.
● The output channel selected in the
Cable Box Output screen is incorrect.
● The cable box’s power is off.
CORRECTIVE ACTION
Set the clock and/or timer correctly.
Press TIMER and check to make sure that TIMER appears on the front display panel.
Re-perform the set-up procedures.
Make sure you have compensated for
Guide Channel and VCR or cable
( box channel number mismatches
Z
pg. 16).
Timer programming can’t be performed when timer recording is in progress.
Wait until it finishes.
Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.
Remove the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.
Check the programmed data and reprogram as necessary, then press
TIMER again.
The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.
(
Connect the Controller correctly
Z pg. 13).
After confirming your cable box’s output channel number, re-access the
Cable Box Output screen and select the correct number ( Z pg. 14).
Make sure the power is on before timer recording starts.
8. DBS channels are not automatically switched during timer recording.
9. Timer recording begins as scheduled, but the channel is always incorrect.
10.We moved, and now G-C
ODE doesn’t work properly.
11. “PROGRAM FULL” is displayed on the G-C ODE screen.
OTHER PROBLEMS
SYMPTOM
1. When scanning channels, some of them are skipped over.
2. The channel can’t be changed.
3. The remote control won’t operate my TV or cable box or DBS receiver.
4. Even though Auto or Semi-Auto clock setting has been selected, the clock is incorrect.
● The Controller is not properly connected to the VCR.
● The output channel selected in the
DBS Receiver Output screen is incorrect.
● The VCR is not set correctly to control the DBS Receiver
● The DBS receiver’s power is off.
● Even though you don't use an external Cable Box, "CABLE BOX
OUTPUT" is set to "ON".
● The receivable stations in the new area are received on different channels than those in the previous area.
● All 8 programs of the VCR’s timer memory are used.
POSSIBLE CAUSE
● Those channels have been preset to be skipped.
● Recording is in progress.
● The TV/CABLE/VCR switch is set to the wrong position.
● The remote control brand setting is incorrect.
● The clock setting data received from the Host Channel is incorrect.
EN
59
(
Connect the Controller correctly
Z pg. 18).
After confirming your DBS receiver’s output channel number, re-access the
DBS Receiver Output screen and select the correct number ( Z pg. 19).
Set the correct DBS Receiver brand code ( Z pg. 20).
Make sure the power is on before timer recording starts.
(
Set "CABLE BOX OUTPUT" to "OFF"
Z
pg. 14).
Re-perform the G-C
ODE
setup procedure (
Z
pg. 16).
Wait until a space in memory clears, or cancel unnecessary program information (
Z
pg. 44).
CORRECTIVE ACTION
If you need the skipped channels, restore them (
Z
pg. 12).
Press PAUSE to pause the recording, change channels, then press PLAY to resume recording.
Set the switch to the correct position.
Re-set the remote control to the correct brand (
Z
pg. 53 or 54 or 55).
Select a different Host Channel during
( the Semi-Auto setting procedure
Z
pg. 8), or perform the Manual setting procedure (
Z
pg. 9).
ATTENTION:
This VCR contains microcomputers. External electronic noise or interference can cause microcomputer to malfunction. If the
VCR does not operate correctly switch its power off and unplug the power cord from the AC supply. Wait for a while and then plug the power back in. Eject and check the condition of the cassette. If everything appears normal resume operating the VCR as usual.
60
EN
PLAYBACK
Q. What happens if the end of the tape is reached during playback or search?
A. The tape is automatically rewound to the beginning.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. Can the VCR indefinitely remain in the still mode?
A. No. It stops automatically after 5 minutes to protect the heads.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. During search, still and frame-by-frame playback, the picture is intermittent. What’s the cause?
A. Picture loss occurs when these types of playback are attempted with a tape recorded in LP mode. Pressing
PLAY to return to normal playback will restore the picture.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. When returning from multi-speed search to normal playback, the picture is disturbed. Should I be concerned about this?
A. No, it is normal.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. When playing back programs that have been timerrecorded with consecutive times (such one program from 8:00 to 9:00 and another one from 9:00 to
10:00), the picture becomes momentarily distorted at the point where the first program ends and the second program begins. Is this a malfunction?
A. No. This is normal.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. Other than preventing further recording, what effect does removing the safety tab have?
A. It disables marking of index codes.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. Sometimes, during Index Search, the VCR can’t find the program I want to see. Why not?
A. There may be index codes too close together.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. During playback, on-screen operational indicators sometimes jitter. Why does this happen?
A. If the condition of the tape being played back is not good, jittering of the video (including on-screen indicators) may occur.
QUESTIONS AND ANSWERS
RECORDING
Q. When I pause and then resume a recording, the end of the recording before the pause is overlapped by the new recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and resume points.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. Can the VCR indefinitely remain in the Record-Pause mode?
A. No. The VCR automatically goes to its Stop mode after 5 minutes to protect the heads. When paused during Instant Timer Recording (ITR), the VCR shuts off automatically after 5 minutes.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. What happens if the tape runs out during recording?
A. The VCR automatically rewinds it to the beginning.
TIMER RECORDING
Q. REC and TIMER remain lit on the front display panel.
Is there a problem?
A. No. This is a normal condition for a timer recording in progress.
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Q. Can I program the timer while I’m watching a tape or a TV broadcast?
A. Yes, but while you are setting the timer you won't see the tape's or broadcast program's picture as it is replaced by the on-screen menu. The audio from the tape or broadcast program will be present during the setting of the timer.
INDEX
List Of Terms
This guide serves as a quick way to locate frequently used terms and on-screen display names.
A
A/B Code ....................................................................56
Add Channel ...............................................................12
AFC .............................................................................12
Audio Dubbing ...........................................................52
Audio Monitor ............................................................27
Auto Channel Setting ..................................................10
Auto Clock Setting ........................................................9
Auto Daylight Saving Time ............................................9
Auto Picture ................................................................32
Auto Timer ..................................................................45
Automatic Tracking .....................................................24
Aux Input ....................................................................48
AV Compu Link Playback ........................................... 30
AV Connection .............................................................4
B
Band ........................................................................... 11
C
Cable Box ...................................................................13
Cable Box Brand Setting ..............................................15
Cable Box Controller ...................................................13
Cancel Program ..........................................................44
Cassette Adapter.................................... ...................... 21
Check Program ...........................................................44
Connection to TV ..........................................................4
Contents ........................................................................3
Counter Memory .........................................................29
Counter Reset ..............................................................29
D
DBS Receiver ..............................................................18
DBS Receiver Brand Setting ........................................ 20
DBS Receiver Controller .............................................18
Delete Channel ...........................................................12
E
Editing .........................................................................47
F
Frame-by-Frame Playback ........................................... 23
Function Setting ..........................................................26
G
Guide Channel Map ....................................................17
Guide Channel Setting ................................................17
G-C ODE ..........................................................................................
16
G-C ODE Timer Programming ....................................... 40
G-C ODE Timer Recording ............................................40
H
Host Channel Selection .................................................8
I
Illumi Guide ................................................................40
Index Search ...............................................................28
Insert Cassette .............................................................21
Insert Editing ...............................................................50
EN
61
Instant ReView ............................................................28
ITR (Instant Timer Recording) ...................................... 46
L
Language Selection .......................................................6
M
Main Menu ...................................................................6
Manual Channel Setting ..............................................12
Manual Clock Setting ....................................................9
Manual Tracking .........................................................24
MBR (Multi-Brand Remote) Code Setting ..................... 53
N
Next-Function Memory ...............................................29
O
On-Screen Display ......................................................26
On-Screen Timer Programming ................................... 42
On-Screen Timer Recording ........................................42
Override Auto Clock Setting ..........................................7
P
PBS Channel .................................................................5
Playback .....................................................................21
Plug & Play ...................................................................5
R
Record Safety Tab .......................................................22
Recording ...................................................................22
Repeat Playback ..........................................................29
Reverse Motion Playback ............................................34
Reverse Slow Motion Playback ................................... 23
RF Connection ..............................................................4
S
SAP (Second Audio Program) ...................................... 38
Second Audio .............................................................38
Select Cable Box Output Channel ............................... 14
Select DBS Receiver Output Channel .......................... 19
Semi-Auto Clock Setting ................................................8
Skip Search .................................................................35
Slow Motion Playback ................................................23
Specifications ..............................................................65
Still Picture Playback ...................................................23
Superimpose ...............................................................26
T
Tape Position Indicator ................................................24
Tape Speed Setting ......................................................22
TimeScan ....................................................................34
TIME SCAN SHUTTLE ring ..........................................34
Time Zone Selection .....................................................9
Tuner Setting ...............................................................10
V
Variable-Speed Search ................................................34
Video Stabilizer ...........................................................25
62
EN
FRONT VIEW
1 2 3 4 5
INDEX (cont.)
6 7 8
REW
SLO
W
SLOW
FF
INSERT
A. DUB q
JOG
SHUTTLE
MENU
POWER
CH OK
VIDEO (MONO)L – AUDIO – R
SP/EP
L
+8
4
0
6
10
–20dB
NORM R
R E C
PLAY
PAUSE
M
V C R
SAP ST
SP
AM
TIMER
PM
H M S
9 0 !
1 MENU Button (
Z
pg. 6)
2 Power Button (
3 Channel [CH] 5∞ Button (
4 OK Button (
Z
Z
pg. 6)
5 Cassette Loading Slot
pg. 6)
Z
pg. 22)
6 Record [REC] Button (
7 JOG Dial (
Z
pg. 23)
Z
pg. 22)
8 TIME SCAN SHUTTLE ring (
Z
pg. 34)
9 VIDEO/AUDIO Input Connectors (
Z
pg. 48)
@ # $ % ^ & *
0 Instant REVIEW Button (
Z
pg. 28)
! Recording Speed [SP/EP] Button (
@ Front Display Panel (
Z
pg. 63)
Z
pg. 22)
# Remote Control Sensor
$ INSERT Button (
Z
pg. 51)
% Audio Dubbing [A. DUB] Button (
^ PAUSE Button (
Z
pg. 23)
& STOP/EJECT Button (
* PLAY Button (
Z
Z
pg. 21)
pg. 21)
Z
pg. 52)
EN
63
REAR VIEW
1 2 3 4
VIDEO
L
AUDIO
R
OUT IN
(MONO) PAUSE/
SPECIAL
FUNCTION
CABLE
BOX
ANTENNA IN
CH3
TV
VHF/UHF
OUT
CH4
1 Power Cord (
Z
pg. 4)
2 VIDEO/AUDIO Output Connectors (
3 VIDEO/AUDIO Input Connectors (
4 ANTENNA IN Connector (
Z
5 PAUSE/SPECIAL FUNCTION Connector
● Remote PAUSE Connector (
pg. 4)
Z
● AV COMPU-LINK Connector (
Z
pg. 47)
Z
pg. 47)
pg. 48)
Z
pg. 30)
FRONT DISPLAY PANEL
1 2 3 4 5 6
5 6 7 8
6 CABLE BOX Connector (
Z
pg. 13, 18)
7 Channel 3/4 Switch (
8 TV OUT Connector (
Z
Z
pg. 4)
pg. 4)
7
L
+8
4
0
6
10
–20dB
NORM R
R E C
PLAY
PAUSE
M
V C R
SAP ST
SP
AM
TIMER
PM
H M S
8 9 0 !
@ #
1 Audio Level meter (
Z
pg. 39)
2 Play Mode Indicator
3 Recording Mode Indicator
Instant Timer Recording Indicator (
Z
pg. 46)
4 VCR Mode Indicator (
Z
pg. 37)
5 Multi-Channel TV Sound Indicators (
6 AM/PM Indicators (
Z
pg. 38)
7 Clock Display (
Z
pg. 5)
Z
pg. 5)
$
8 Audio Output mode indicator (
Z
pg. 27)
9 Pause Mode Indicator
0 “Cassette Loaded” Mark
! Counter Memory Mark (
@ Tape Speed Indicators (
Z
pg. 29)
Z
pg. 22)
# Timer Mode Indicator
$ Channel Display [“AU” for AUX mode]
Counter Display (
Z
pg. 21)
64
EN
REMOTE CONTROL (Provided)
1
2
3
$
%
^
&
4
5
6
7
8
9
0
!
@
POWER
A B
1
4
7
C.RESET
CANCEL
CH SKIP
2
5
DAILY (M–F)
8
C.MEMORY
ENTER
AUX
0
ADD OSD
3
6
WEEKLY
9
TIMER
TV
VOL.
CH
REW
DISPLAY TV/VCR CABLE
TV VCR
PLAY
FF
REC
STOP
PAUSE
SKIP SEAR
CH
MEN
U OK t y u w e r
*
(
) q
#
ILLUMI GUIDE
MULTI BRAND
REMOTE CONTROL UNIT i o
Buttons with a small dot on the left side of the name can also be used to operate your TV: POWER, TV VOL. +/–, CH
5∞, TV/VCR. Use these buttons with the TV/CABLE/VCR switch set to "TV".
INDEX (cont.)
1 Instant REVIEW Button (
Z
pg. 28)
2 Super Live Surround Button (
3 A/B Code Select Switch (
4 NUMBER Buttons (
5 “AUX” Mode Select Button (
6 CANCEL Button (
Z
Counter [C.] RESET (
Z
pg. 56)
Z
pg. 22, 40)
pg. 44)
Z
pg. 14)
Z
pg. 48)
Z
pg. 29)
Channel [CH.] SKIP Button (
Z
pg. 12)
7 Volume [TV VOL.] +/– Buttons (
Z
pg. 53)
8 DISPLAY Button (
Z
pg. 29)
9 Recording Speed [SP/EP] Button (
0 Rewind [REW] Button (
! PLAY Button (
Z
# MENU Button (
pg. 21)
@ Record [REC] Button (
Z
Z
pg. 21)
Z
pg. 22)
Z
pg. 22)
pg. 6)
$ POWER Button (
Z
pg. 6)
% Counter [C.] MEMORY Button (
Z
pg. 29)
ADD Button (
Z
pg. 12)
^ ENTER Button (
Z
pg. 22)
On-Screen Display [OSD] Button (
Z
pg. 26)
& DAILY Timer Recording Button (
Z
pg. 41)
* WEEKLY Timer Recording Button (
( TIMER Button (
Z
q TV/VCR Button (
pg. 41)
) Channel [CH]
5∞ Buttons (
Z
pg. 37) w TV/CABLE/VCR Switch (
Z
e Fast-Forward [FF] Button ( r PAUSE Button ( t STOP Button (
Z
pg. 23)
Z
pg. 21)
Z
pg. 41)
Z
pg. 22)
pg. 53)
Z
pg. 21) y SKIP SEARCH Button ( u OK Button (
Z
pg. 6) i PUSH JOG Button (
Z
Z
pg. 35)
pg. 6, 34) o ILLUMI GUIDE Button (
Z
pg. 40)
Installing Batteries
1 Open the battery compartment cover.
2 Insert 2 "AA"-size batteries (provided) in the direction indicated under the battery cover.
3 Replace the cover.
How To Use
The remote control can operate most of your VCR's functions.
1 Point the remote control toward the sensor window.
2 Press the appropriate operation button.
3 The maximum operating distance of the remote control is about 8 m.
NOTES:
● This remote control can also operate various brands of
TVs, Cable Boxes and DBS Receivers. For instructions,
Z pg. 53 – 55.
● If the remote control doesn't work properly, remove its batteries, wait a short time, replace the batteries and then try again.
SPECIFICATIONS
GENERAL
Power requirement
Power consumption
: AC 110 – 220 V`, 60 Hz
: 20 W
Temperature
Operating
Storage
Operating position
: 5°C to 40°C (41°F to 104°F)
: –20°C to 60°C (–4°F to140°F)
: Horizontal only
Dimensions (W x H x D) : 400 x 94 x 340 mm
Weight
Format
Maximum recording time
(15-3/4" x 3-3/4" x 13 -7/16")
: 4.3 kg (9.5 lbs)
: VHS NTSC standard
SP : 210 min. with ST-210 video cassette
EP : 630 min. with ST-210 video cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and
EIA monochrome signal, 525 lines/60 fields
Recording/
Playback system : DA-4 (Double Azimuth) head helical scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 240 lines
Frequency range
Normal audio
Hi-Fi audio
Input/Output
: 70 Hz to 10,000 Hz
: 20 Hz to 20,000 Hz
: RCA connectors (IN x 2,
OUT x 1)
TUNER
Tuning system
Channel coverage
VHF
UHF
CATV
RF output
: Voltage-synthesized tuner
: Channels 2–13
: Channels 14–69
: 113 Channels
: Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 ohms, unbalanced
EN
65
TIMER
Clock reference
Program capacity
: Quartz
: 1-year programmable timer/
8 programs
Memory backup time : Approx. 10 min.
ACCESSORIES
Provided accessories : RF cable (F-type),
Infrared remote control unit,
“AA” battery x 2,
Audio/Video Cable,
Controller
Specifications shown are for SP mode unless otherwise specified.
E. & O.E. Design and specifications subject to change without notice.
MEMO
MEMO
VICTOR COMPANY OF JAPAN, LIMITED
COPYRIGHT © 1997 VICTOR COMPANY OF JAPAN, LTD.
KR
Printed in Malaysia
0597YOV * UN * PJ
advertisement
Related manuals
advertisement
Table of contents
- 4 Basic Connections
- 5 Plug & Play
- 6 Language
- 7 Clock
- 7 Preparation
- 8 Semi-Auto
- 9 Manual
- 10 Tuner
- 10 Set Receivable Channels
- 12 Add Or Delete A Channel
- 13 Cable Box Control
- 13 Situate And Connect Controller
- 14 Set Cable Box Output Channel
- 15 Set Cable Box Brand
- 16 G-CODE Setup
- 18 DBS Receiver Control
- 18 Situate And Connect Controller
- 19 Set DBS Receiver Output Channel
- 20 Set DBS Receiver Brand
- 21 Simple Playback
- 22 Simple Recording
- 23 Playback Features
- 23 Still Picture/Frame-By-Frame Playback
- 23 Slow Motion/Reverse Slow Motion
- 23 High-Speed Search
- 24 Manual Tracking
- 24 Tape Position Indicator
- 25 Video Stabilizer
- 26 Superimpose
- 27 Select The Soundtrack
- 28 Index Search
- 28 Instant ReView
- 29 Repeat Playback
- 29 Counter Reset
- 29 Counter Memory
- 29 Next-Function Memory
- 30 AV COMPU LINK Playback
- 32 Auto Picture
- 32 Preparation
- 33 Playback
- 34 Time Scan
- 34 Variable-Speed Search/Reverse Motion Playback
- 35 Skip Search
- 36 Time Scan Audio
- 37 Recording Features
- 37 Watching Another
- 37 Display Elapsed Recording Time
- 38 Stereo And SAP (Second Audio Program)
- 38 To Record SAP Programs
- 39 Hi-Fi Audio Recording Level Control
- 40 G-CODE Timer Programming
- 42 On-Screen Timer Programming
- 44 Check And Cancel Programs
- 45 Auto Timer
- 46 Instant Timer Recording (ITR)
- 47 Edit To Or From Another VCR
- 48 Edit From A Camcorder
- 50 Insert Editing
- 52 Audio Dubbing
- 53 TV Multi-Brand Remote Control
- 54 Cable Box Multi-Brand Remote Control
- 55 DBS Receiver Multi-Brand Remote Control
- 56 Control Two JVC VCRs
- 57 Power
- 57 Tape Transport
- 57 Playback
- 58 Recording
- 58 Timer Recording
- 59 Other Problems
- 60 Playback
- 60 Recording
- 60 Timer Recording
- 61 List Of Terms
- 62 Front View
- 63 Rear View
- 63 Front Display Panel
- 64 Remote Control
