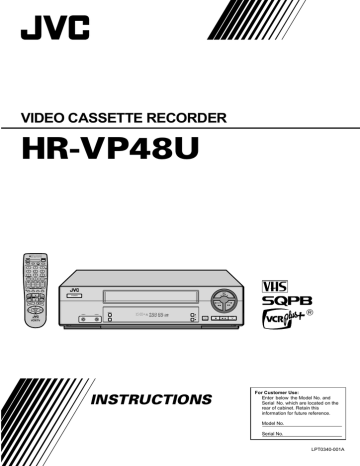

VIDEO CASSETTE RECORDER
HR-VP48U
TV
TV operation n Press and hold
TV button, then press POWER,
TV CH+s–, VOO+ / –VTV / VCR
POWER
TV/VCR A. MONITOR DISPLAY
1
4
7
C. RESET
CANCEL
2
5
DAILY(M-F)
8
AUX
0
3
2
6
WEEKLY
9
TIMER 4
START STOP DATE CH
1 PROG.
EXPRESS PROGRAMMING
PROG.
CHECK SP/EP
SKIP
SEARCH
PLAY
REW
FF
REC
STOP PAUS
E
MEN
U
TV CH +
ENTER/O
3
OK
SD
V
O
L
–
SHUTTLE
PLUS
T V
–
T
V
V
O
L
LP20878-001
VCR/TV
POWER
VIDEO AUDIO
MENU
OK
SP EP
VCR
PLAY
REW FF
CH
SP/EP
REC STOP/EJECT PAUSE
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and
Serial No. which are located on the rear of cabinet. Retain this information for future reference.
Model No.
Serial No.
LPT0340-001A
2
EN
Dear Customer,
Thank you for purchasing the JVC VHS video cassette recorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new VCR.
CAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION:
This video cassette recorder should be used with AC
120V`, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU'AU FOND.
Declaration of Conformity
Model Number :HR-VP48U
Trade Name :JVC
Responsible Party :JVC Americas Corp.
Address :1700 Valley Road Wayne,
N.J. 07470
Telephone Number :973-315-5000
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Failure to heed the following precautions may result in damage to the VCR, Remote or video cassette.
1. DO NOT place the VCR . . .
... in an environment prone to extreme temperatures or humidity.
... in direct sunlight.
... in a dusty environment.
... in an environment where strong magnetic fields are generated.
... on a surface that is unstable or subject to vibration.
2. DO NOT block the VCR’s ventilation openings.
3. DO NOT place heavy objects on the VCR or on the Remote.
4. DO NOT place anything which might spill on the top of the
VCR or on the Remote.
5. AVOID violent shocks to the VCR during transport.
VCR Plus+ and PlusCode are registered trademarks of Gemstar
Development Corporation.
The VCR Plus+ system is manufactured under license from
Gemstar Development Corporation.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void user’s authority to operate the equipment.
䡲 Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS recording is not possible with this model.
䡲 This model is equipped with SQPB (S-VHS QUASI
PLAYBACK) that makes it possible to play back S-VHS recordings with regular VHS resolution.
䡲 HQ VHS is compatible with existing VHS equipment.
䡲 As an E
NERGY S TAR
® Partner, JVC has determined that this product or product model meets the E
NERGY
S
TAR
® guidelines for energy efficiency.
IMPORTANT PRODUCT
SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.
ATTENTION:
Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.
EN
3
5. Ventilation
Slots and openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.
• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
INSTALLATION
1. Grounding or Polarization
(A) Your product may be equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way.
This is a safety feature.
If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
ANTENNA INSTALLATION
INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD IN WIRE
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION
810-20)
ELECTRIC SERVICE
EQUIPMENT
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
4
EN
USE
1. Accessories
To avoid personal injury:
• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
PORTABLE CART WARNING
(Symbol provided by RETAC)
3. Water and Moisture
Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION
MANUAL
● The Index on pages 39 – 42 lists frequently-used terms, and the number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the Remote.
● The
墌
mark signals a reference to another page for instructions or related information.
● Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.
BEFORE YOU INSTALL YOUR NEW
VCR . . .
. . . please read the sections/literature listed below.
● ”CAUTIONS” on page 2
● ”IMPORTANT PRODUCT SAFETY INSTRUCTIONS” on the previous pages
CONTENTS
I
NSTALLING YOUR NEW VCR 6
Basic Connections .................................. 6
I
NITIAL SETTINGS
Plug & Play Setting ....................................... 8
Language Setting .......................................... 9
Clock Setting ............................................... 10
8
Preparations ............................................................. 10
Setting clock semiautomatically
— Semiauto Clock Set .......................................... 11
Setting clock manually — Manual Clock Set ........... 12
Tuner Setting .............................................. 13
Setting channels automatically
— Auto Channel Set ............................................. 13
Setting channels manually
— Manual Channel Set ........................................ 14
B
ASIC PLAYBACK AND
RECORDING 15
Basic Playback ........................................... 15
Basic Playback Features ............................. 16
Changing display information .................................. 16
Checking tape position ............................................16
Playing back tape repeatedly — Repeat Play ........... 16
Adjusting tracking condition
— Tracking Adjustments ....................................... 17
Automatic operations after rewinding
— Next Function Memory .................................... 17
Locating beginning of recordings — Index Search ... 18
Locating beginning of timer recordings
— Instant Review ................................................. 18
Basic Recording .......................................... 19
Basic Recording Features ............................ 20
Changing display information .................................. 20
Specifying recording length
— Instant Timer Recording (ITR) ........................... 20
Watching one program while recording another ...... 20
Showing on-screen display ...................................... 21
S
PECIAL EFFECT PLAYBACK 22
Special Effect Playback ............................... 22
Locating particular scene rapidly — Picture Search .... 22
• High-Speed Picture Search ................................ 22
• Variable-Speed Picture Search ........................... 22
Viewing still picture — Still Picture Playback ........... 23
Skipping unwanted portions — Skip Search ............. 23
Viewing still picture frame by frame
— Frame-by-Frame Playback ............................... 23
Viewing slow motion picture
— Slow Motion Playback ..................................... 23
EN
5
T
IMER RECORDING 24
VCR Plus+ Timer Programing ...................... 24
VCR Plus+ Setup ......................................... 26
Express Timer Programing .......................... 28
Checking program settings ....................................... 30
Canceling or changing program settings .................. 30
When programs overlap each other ......................... 31
O
THER USEFUL FUNCTIONS 32
Useful Function Settings .............................. 32
7 AUTO PICTURE ...................................................33
7 PICTURE CONTROL............................................33
7 AUTO TIMER .......................................................33
7 SUPERIMPOSE.....................................................33
7 AUTO SP=EP TIMER ..........................................34
7 VIDEO STABILIZER ..............................................34
7 BLUE BACK .........................................................34
E
DITING 35
Edit To Or From Another VCR ...................... 35
T
ROUBLESHOOTING 36
Questions and answers ............................................38
I
NDEX 39
List of terms .............................................................39
Front panel ..............................................................40
Front display panel ..................................................40
Rear panel ...............................................................41
On-screen display .................................................... 41
Remote ....................................................................42
S
PECIFICATIONS 43
F
OR SERVICING (Only in U.S.A.) 44
W
ARRANTY (Only in U.S.A.) 45
6
EN
Basic Connections
INSTALLING YOUR NEW VCR
ANTENNA IN
(Antenna or cable input)
Antenna or cable
VIDEO OUT AUDIO OUT
Coaxial cable
Flat feeder
Matching transformer
(not supplied)
AC Power
Cord
AC Outlet
Back of VCR
ANT. IN
AUDIO
OUT
CH3 CH4
VIDEO
RF OUT
RF OUT
TV
To Audio/video input connectors
Audio/video cable
(not supplied)
RF cable (supplied)
To 75 ohm terminal
1
Check contents
Make sure the package contains all of the accessories listed in “SPECIFICATIONS” ( 墌 pg.
43).
2
Situate VCR
Place the VCR on a stable, horizontal surface.
3
Connect VCR to TV
The following connections are required.
RF Connection
1 Disconnect the TV antenna from the TV.
2 Connect the TV antenna cable to the ANT. IN terminal on the rear of the VCR.
3 Connect the supplied RF cable between the RF
OUT terminal on the rear of the VCR and the
TV’s antenna input terminal.
AV Connection (improves picture quality during tape playback.)
If your TV is equipped with audio/video input connectors
1 Connect the antenna, VCR and TV as shown in the illustration.
2 Connect an audio/video cable between the
AUDIO/VIDEO OUT connectors on the rear of the VCR and the audio/video input connectors on the TV.
4
Connect VCR to power source
Connect the AC power plug to an AC outlet.
● The clock and tuner channels will automatically be set when the antenna is connected and when the AC power cord is first connected to an AC power outlet ( 墌 pg. 8).
(If “Auto” or “CH” is displayed on the front display panel before the VCR is turned on, the clock and tuner channels are being set automatically. Wait until the clock time is displayed on the front display panel before turning on the VCR.)
EN
7
5
Final preparation for use
Turn on the VCR and set the CH3-CH4 switch on the rear (shown below) to either CH3 or CH4 correctly.
● The CH3–CH4 switch is preset to the CH3 position.
Set to CH4 if CH3 is used for broadcasting in your area. (To view the picture from this VCR through this channel, select the same channel on the TV with the CH3–CH4 switch setting on the VCR.)
● You can now perform basic playback (墌 pg.
15) or basic recording ( 墌 pg. 19).
ANT. IN
AUDIO
VIDEO
CH3 CH4
OUT
RF OUT
Back of VCR
NOTES:
● The VCR channel is the channel on which you can watch the picture from the VCR on the TV when only using the RF connection. The VCR’s CH3-CH4 switch, on the back of the
VCR, sets the VCR channel to CH3 or CH4.
● Even if you are using audio/video cables to connect your VCR to your TV, you must also connect it using the RF cable. This will ensure that you can record one show while watching another ( 墌 pg. 20).
● For full identification of the VCR’s rear panel, refer to the
Index ( 墌 pg. 41).
8
EN
Plug & Play
Setting
Auto Clock Set/Auto Tuner Set
ATTENTION
● If you use a cable box, Plug & Play will not function; set the clock and tuner channels separately. (
墌 pg.10 – 14)
● It takes several minutes for the VCR to complete the Plug
& Play setting.
● Do not press any buttons on the front panel or on the
Remote while Plug & Play is in progress.
SP EP
VCR
INITIAL SETTINGS
This VCR sets the clock and tuner channels automatically when AC power cord is first connected to an AC outlet. The antenna cable must be connected for the Plug & Play setting.
The time and date can be set automatically by the clock setting data transmitted from one of the regular TV broadcast channels. We call this TV channel the “host channel” and it is a PBS channel in your area.
1
Perform Plug & Play setup
Connect the antenna cable to the VCR ( 墌 pg.
6). Then connect the AC power cord to an AC outlet. Do not turn on the VCR.
The clock and tuner channels will be set automatically.
NOTES:
● Auto Clock Set is performed first.
“Auto” blinks on the front display panel during Auto
Clock Set.
● Auto Channel Set is performed next. Auto Channel
Set scans all the channels that are receivable by your
VCR. During Auto Channel Set, the channel numbers are displayed as they are scanned and set.
● When Plug & Play setting has been complete successfully, the correct clock time is displayed. If you perform Plug & Play setting successfully, there is no need to perform the clock ( 墌 pg. 10) and tuner (墌 pg.
13) settings. If, however, you want to add or delete channels, refer to Manual Channel Set on page 14.
During Initial Auto Clock Set
“Auto” blinks.
During Auto Channel Set
The channel numbers are displayed as they are scanned and set.
Plug & Play Completed
The current time (including
AM/PM) is displayed.
* If an incorrect clock time or “– –:– –” appears on the display panel, see “What to do if Plug & Play setting failed” below.
INFORMATION
● If “AUTO CLOCK” is set to “ON” on the Clock Set screen on page 11, the clock will be adjusted automatically by the host channel every hour (except 11:00 PM, midnight, 1:00 AM and 2:00 AM) using the incoming PBS channel clock setting data.
(This automatic clock adjustment can only be performed when the VCR is turned off. The clock will be adjusted just on these hours — on the time displayed on the front panel display, not on the actual real time.)
The default setting of “AUTO CLOCK” is “ON”.
● If the memory backup fails, because a power outage occurs or because the AC power cord is unplugged, Plug & Play will be performed when power is restored to the VCR.
● Poor antenna or cable signal may prevent the VCR from receiving the Auto clock setting data from the PBS channel. If this function is taking a considerable amount of time, it may be necessary to perform the Semiauto or Manual Clock Set procedure.
What to do if Plug & Play setting failed
● If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform the Semiauto (
墌 pg. 11) or
Manual Clock Set ( 墌 pg. 12) procedure.
● If “- -:- -” appears on the front display panel, your antenna cable may not be connected to the VCR or there may not be a Host
PBS signal available in your area. Ensure that the antenna cable is connected correctly. Then turn on and off the VCR; the Plug
& Play setting will be automatically reactivated.
If Plug & Play setting is not performed though the antenna cable is connected correctly, perform Manual Clock Set (
墌 pg. 12) and Auto Channel Set or Manual Channel Set ( 墌 pg. 13 or 14).
Language
Setting
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
1 4
2 3
SP EP
VCR
1
4
7
2
5
8
0
3
6
9
2
4
2 3
EN
9
This VCR offers you the language choice to view menus and some messages (excluding the on-screen display superimposed on the TV screen) — in English, Spanish or French.
Select the desired language using the following procedure.
The default setting is “ENGLISH”.
1
Access Main Menu screen
Press MENU.
2
Access Initial Set screen
On the front panel:
Press CH 5∞ to move
FUNCTION SET the highlight bar (arrow)
MAIN MENU
TUNER SET
= INITIAL SET to “INITIAL SET”, then press OK.
On the Remote: PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “INITIAL
SET”, then press OK or SHUTTLE PLUS 3.
3
Select language
On the front panel:
Press CH 5∞ to move the highlight bar (arrow) to “LANGUAGE”, then press OK repeatedly until the desired language is selected.
INITIAL SET
CLOCK SET
=LANGUAGE ENGLISH
GUIDE CHANNEL SET
SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar (arrow) to “LANGUAGE”, then press OK or
SHUTTLE PLUS 3 repeatedly until the desired language is selected.
4
Return to normal screen
Press MENU.
1
1 4
3 2 3
2 3
10
EN
Clock Setting
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
1 8
2 – 7
1
SP EP
VCR
1
4
7 8
0
2
5
3
6
9
2
4
2 – 7
INITIAL SETTINGS (cont.)
Perform clock setting only if the clock has not been set correctly by the Plug & Play setting or if you use a cable box.
Access the Clock Set screen to perform the Semiauto or
Manual Clock Set. Each procedure starts from step 4 after preparation steps below are finished.
If you use a cable box, set the clock manually. ( 墌 pg. 12)
Preparations
1
Access Main Menu screen
Press MENU.
2
Access Initial Set screen
On the front panel:
Press CH 5∞ to move
MAIN MENU
FUNCTION SET the highlight bar (arrow) TUNER SET
= INITIAL SET to “INITIAL SET”, then press OK.
On the Remote:
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “INITIAL
SET”, then press OK or SHUTTLE PLUS 3.
3
Select clock set
On the front panel:
Press CH 5∞ to move the highlight bar (arrow)
INITIAL SET
=CLOCK SET
LANGUAGE ENGLISH
GUIDE CHANNEL SET to “CLOCK SET”, then press OK.
On the Remote:
SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “CLOCK
SET”, then press OK or SHUTTLE PLUS 3.
● “CABLE BOX USERS SET CLOCK MANUALLY” appears on the screen for about 5 seconds, then the Clock Set screen appears.
1 8 3
2 – 7
2 – 7
Setting clock semiautomatically
— Semiauto Clock Set
You can change the host channel/D.S.T. /time zone setting manually.
First follow steps 1 to 3 on page 10, then go to the following steps.
4
Set Auto Clock to ON
On the front panel:
Press CH 5∞ to move
CLOCK SET
TIME DATE YEAR the highlight bar to
1:00PM 12/24 00 SAT
“AUTO CLOCK”, then press OK so that “ON” is selected.
AUTO CLOCK : ON
HOST CH
D.S.T.
: AUTO (CATV)
: AUTO
TIME ZONE : AUTO
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar to “AUTO CLOCK”, then press OK or
SHUTTLE PLUS 3 so that “ON” is selected.
Then;
To select the host channel — go to step 5.
To select the D.S.T. mode — go to step 6.
To select the time zone — go to step 7.
NOTE:
The time that has been set previously will be erased when “AUTO CLOCK”, “HOST CH”, “D.S.T.” or “TIME
ZONE” setting is changed.
5
Select host channel
You can either select “AUTO” or enter a PBS channel number.
On the front panel:
Press CH 5∞ to move the highlight bar to “HOST
CH”, then press OK repeatedly until “AUTO” or the desired PBS channel number is selected.
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar to “HOST CH”, then press OK or SHUTTLE
PLUS 3 until “AUTO” or the desired PBS channel number is selected.
NOTE:
Some PBS channels do not transmit clock setting data.
EN
11
6
Select D.S.T. mode
You have three choices:
AUTO– Select if you want to adjust your VCR’s clock automatically by the incoming signal from the host channel. (Auto
ON–
Daylight Saving Time*)
Adjustment will be made by the clock itself.
OFF– Select when Daylight Saving Time does not apply to you.
On the front panel:
Press CH 5∞ to move the highlight bar to “D.S.T.”, then press OK repeatedly until the desired setting is selected.
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar to “D.S.T.”, then press OK or SHUTTLE PLUS
3 repeatedly until the desired setting is selected.
7
Select time zone
You can select the time zone automatically or manually.
On the front panel:
Press CH 5∞ to move the highlight bar to “TIME
ZONE”, then press OK repeatedly until “AUTO” or the desired time zone is selected.
Each time you press the button, the time zone changes as follows:
= AUTO= ATLANTIC= HAWAII= EASTERN
= ALASKA = CENTRAL PACIFIC
= MOUNTAIN = (back to the beginning)
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar to “TIME ZONE”, press OK or SHUTTLE
PLUS 3 repeatedly until “AUTO” or the desired time zone is selected (see above).
NOTE:
If an incorrect clock time is displayed by the Plug &
Play setting, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system.
If you selected "AUTO" for the host channel in step 6 , be sure to select the correct time zone manually.
8
Return to normal screen
Press MENU.
* Auto Daylight Saving Time
This function enables automatic adjustment of the VCR’s clock at the start and end of Daylight Saving Time.
With Auto DST activated, . . .
. . .
on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM.
. . .
on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.
IMPORTANT
Turn off the VCR after performing Semiauto Clock Set.
”Auto” will appear on the front display panel while the clock is being set. The current clock time will appear automatically when the clock setting is complete.
12
8
EN
1
8
4 – 7
SP EP
VCR
3
4 – 7
2 – 7
2 – 7
Setting clock manually
— Manual Clock Set
First follow steps 1 to 3 on page 10, then go to the following steps.
4
Set time
On the front panel:
Press CH 5∞ until the
CLOCK SET desired time appears, then press OK.
TIME DATE YEAR
– –:– –AM 1/ 1 00
AUTO CLOCK : ON
HOST CH : AUTO (CATV)
On the Remote: D.S.T.
: AUTO
Press SHUTTLE PLUS
5∞ until the desired time
TIME ZONE : AUTO
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END appears, then press OK or SHUTTLE PLUS 3.
● Holding CH 5∞ or SHUTTLE PLUS 5∞ changes the time in 30-minute intervals.
● When the time is entered manually, “AUTO
CLOCK” is automatically set to “OFF”, and
“HOST CH” and “TIME ZONE” disappear.
INITIAL SETTINGS (cont.)
5
Set date
On the front panel:
Press CH 5∞ until the desired date appears, then press OK.
On the Remote:
Press SHUTTLE PLUS 5∞ until the desired date appears, then press OK or SHUTTLE PLUS 3.
● Holding CH 5∞ or SHUTTLE PLUS 5∞ changes the date in 15-day intervals.
6
Set year
On the front panel:
Press CH 5∞ until the desired year appears, then press OK twice.
On the Remote:
Press SHUTTLE PLUS 5∞ until the desired year appears, then press OK or SHUTTLE PLUS 3 twice.
7
Select D.S.T. mode
You can select either “ON” or “OFF”.
ON– Adjustment will be made by the built-in clock itself.
OFF– Select when Daylight Saving Time does not apply to you.
On the front panel:
Press CH 5∞ to select the desired setting.
On the Remote:
Press SHUTTLE PLUS 5∞ to select the desired setting.
8
Start clock
Press MENU and normal screen appears.
To make corrections any time during the process
Press OK or SHUTTLE PLUS 3 repeatedly until the item you want to change blinks, then press CH 5∞ or
SHUTTLE PLUS 5∞.
EN
13
Tuner Setting Setting channels automatically
— Auto Channel Set
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
Use Auto Channel Set only if channels have not been set correctly by the Plug & Play setting or if you use a cable box. If you want to add or delete channels, use Manual
Channel Set ( 墌 pg. 14).
1 4
2 3
1
Access Main Menu screen
Press MENU.
1 4
1
1
4
7
SP EP
VCR
8
0
2
5
3
3
6
9
2
4
2 3
2 3
2
Access Tuner Set screen
On the front panel:
Press CH 5∞ to move the highlight bar (arrow)
FUNCTION SET
= TUNER SET
INITIAL SET to “TUNER SET”, then
MAIN MENU press OK.
On the Remote: PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “TUNER
SET”, then press OK or SHUTTLE PLUS 3.
3
Perform Auto Channel Set
You can automatically set the receivable channels in your area in the order of their frequencies.
TUNER SET
BAND
=AUTO CHANNEL SET
MANUAL CHANNEL SET
CATV
On the front panel:
Press CH 5∞ to move the highlight bar (arrow) to “AUTO CHANNEL
SET”, then press OK.
SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
AUTO CHANNEL SET
On the Remote:
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to
SCANNING...
PRESS (MENU) TO END
“AUTO CHANNEL
SET”, then press OK or SHUTTLE PLUS 3.
NOTES:
● When Auto Channel Set is complete, “SCAN
COMPLETED” appears on screen.
● If the scan was unsuccessful, “SCAN COMPLETED–
NO SIGNAL” appears on screen. Check the connections and start again.
2 3 4
Return to normal screen
Press MENU.
INFORMATION
The VCR selects the correct band (TV or CATV) automatically during Auto Channel Set.
The selected band will be displayed on the right side of
“BAND” on the Tuner Set screen.
14
EN
1 5
1
1 5
2 – 4
SP EP
VCR
3
2 – 4
1
4
7
2
5
8
0
3
6
9
2
4
4
2 – 4
2 – 4
INITIAL SETTINGS (cont.)
2
Access Tuner Set screen
On the front panel:
Press CH 5∞ to move the highlight bar (arrow) to
“TUNER SET”, then press OK.
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar (arrow) to “TUNER SET”, then press OK or
SHUTTLE PLUS 3.
3
Access Manual Channel Set screen
On the front panel:
Press CH 5∞ move the
TUNER SET
BAND highlight bar (arrow) to AUTO CHANNEL SET
=MANUAL CHANNEL SET
“MANUAL CHANNEL
CATV
SET”, then press OK.
On the Remote: SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to
“MANUAL CHANNEL SET”, then press OK or
SHUTTLE PLUS 3.
4
Add or skip desired channels
To add channels
On the Remote ONLY:
MANUAL CHANNEL SET
1 Press the Number keys to input a (CATV)
CH 45 ADD channel number you want to add.
2 Press OK or
SHUTTLE PLUS 3 to set to “ADD”.
PRESS NUMBER KEY (0–9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END
3 Repeat 1 and 2 to add other channels.
To skip channels
On the front panel:
1 Press CH 5∞ to select a channel number you want to skip.
2 Press OK to set to “SKIP”.
3 Repeat 1 and 2 to skip other channels.
On the Remote:
1 Press the Number keys or SHUTTLE PLUS 5∞ to input a channel number you want to skip.
2 Press OK or SHUTTLE PLUS 3 to set to “SKIP”.
3 Repeat 1 and 2 to skip other channels.
5
Return to normal screen
Press MENU.
Setting channels manually
— Manual Channel Set
You can add the channels you want or delete the channels you do not want manually.
1
Access Main Menu screen
Press MENU.
BASIC PLAYBACK AND RECORDING
Basic
Playback
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
POWER
SP EP
VCR
2
FF ( ¡ )
REW ( 1 ) STOP/EJECT
( 7 / 0 )
POWER
EN
15
1
Load a cassette
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR.
Do not apply too much pressure when inserting.
● The VCR turns on automatically.
● The counter is automatically reset to “0:00:00”.
● If the cassette’s record safety tab has been removed, playback begins automatically.
2
Start playback
Press PLAY ( 3 ).
● Tape speed (SP or EP) is automatically detected.
To stop playback
Press STOP ( 7 ) on the Remote or STOP/EJECT ( 7 / 0 ) on the front panel.
To rewind the tape
Press REW ( 1 ).
To fast-forward the tape
Press FF ( ¡ ).
To eject the tape
Press STOP/EJECT ( 7 / 0 ) on the front panel when the tape is not running.
● You can also eject the cassette with the VCR turned off.
To turn off the VCR
Press POWER.
1
4
7 8
0
2
5
3
6
9
2
4
2
REW ( 1 )
1
3
FF ( ¡ )
STOP ( 7 )
Clean the video heads using a dry cleaning cassette — TCL-2UX — when:
• Rough, poor picture appears while a tape is played back.
• The picture is unclear or no picture appears.
• “USE CLEANING CASSETTE” appears on the screen
(only with “SUPERIMPOSE” set to “ON”:
墌 pg. 33.)
INFORMATION
This VCR is equipped with SQPB (S-VHS QUASI
PLAYBACK) that lets you watch tapes recorded in the S-
VHS format with regular VHS resolution.
● SQPB does not deliver Super VHS resolution.
● S-VHS recording is not possible with this VCR.
Usable cassettes
Full-Size VHS
T-30 (ST-30**)
T-60 (ST-60**)
T-90
T-120 (ST-120**)
T-160 (ST-160**)
ST-210**
Compact VHS*
TC-20 (ST-C20**)
TC-30 (ST-C30**)
TC-40 (ST-C40**)
* Compact VHS camcorder recordings can be played on this VCR. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
** This VCR can record on regular VHS and Super
VHS cassettes. However, it will record regular
VHS signals only.
16
EN
Basic
Playback
Features
STOP/EJECT
( 7 / 0 )
BASIC PLAYBACK AND RECORDING (cont.)
A
Changing display information
Press DISPLAY during playback.
Each time you press the button, the front panel display shows the time counter and the clock time alternately.
Time Counter Clock Time
● To display the VCR status including the time counter and the clock time on the TV screen, see “Showing onscreen display” ( 墌 pg. 21).
To reset the time counter, press C. RESET on the
Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.
SP EP
VCR
D
–
1, 2, 3
E
–
a, b, c
E
–
a
1
1
4
7
2
5
8
0
E
A
–
b
3
6
9
2
4
E
–
C
D
–
2
C
STOP ( 7 )
3
B
Checking tape position
The tape position indicator appears on screen in the following cases:
● When you change the VCR operation mode from the stop mode to fast forward or
B
+ + + rewind mode.
● When you perform an Index
COUNT
Search ( 墌 pg. 18) or Instant Review (墌 pg. 18).
E
0:33:27
The position of “ ” in relation to “B” (Beginning) or “E”
(End) shows you where you are on the tape.
NOTES:
● "SUPERIMPOSE" must be set to “ON”, or the indicator will not appear ( 墌 pg. 33).
● It may take a few seconds for the tape position indicator to be displayed.
C
Playing back tape repeatedly
—
Repeat Play
You can play back a tape repeatedly (100 times).
While playing back a tape, press and hold PLAY ( 3 ) for more than 5 seconds.
The play indicator ( # ) on the front display panel starts flashing slowly, and a tape will be played back 100 times.
To stop playback, press STOP ( 7 ) on the Remote or
STOP/EJECT ( 7 / 0 ) on the front panel.
D
Adjusting tracking condition
—
Tracking Adjustments
Automatic tracking adjustment
This VCR automatically adjusts the tracking condition.
Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.
Manual tracking adjustment
If automatic tracking cannot eliminate noises well during playback, use the manual tracking following the procedures below.
● You can also use the manual tracking during slow motion playback ( 墌 pg. 23).
1
Activate manual tracking
Press CH 5 and ∞ on the front panel at the same time during playback.
2
Eliminate the noises on the TV screen.
Press CH 5 and ∞ (or CH + and – on the Remote).
● Press it briefly for a fine adjustment, or press and hold for coarse adjustment. Watch the screen and continue adjustment until optimum picture and sound quality are achieved.
3
Reactivate automatic tracking
Press CH 5 and ∞ on the front panel at the same time. The automatic tracking becomes active again.
EN
17
E
Automatic operations after rewinding —
Next Function Memory
The Next Function Memory “tells” the VCR what to do after rewinding is complete.
● Ensure that the VCR is in stop mode.
a– For Automatic Playback Start
Press REW ( 1 ), then press PLAY ( 3 ) within 2 seconds.
b– For Automatic Power Off
Press REW ( 1 ), then press POWER within 2 seconds.
c– For Automatic Timer Standby
Press REW ( 1 ), then press TIMER within 2 seconds.
NOTE:
It is not possible to select the Automatic Timer Standby function if the cassette’s record safety tab is removed.
18
EN
G
REW ( 1 )
1
1
4
7
2
5
8
0
3
3
6
9
2
4
FF ( ¡ )
F
BASIC PLAYBACK AND RECORDING (cont.)
F
Locating beginning of recordings
— Index Search
Index codes are placed on the tape at the beginning of each recording when recording on this VCR. You can find and automatically play back from the beginning of any recording using the Index Search function.
1
Start search
While the tape is not running, press SHUTTLE PLUS
4 or ¢ on the Remote.
2
Access distant code
To access a recording of 2 to 9 index codes away, press SHUTTLE PLUS 4 or ¢ repeatedly until the correct number is displayed on screen (only if
“SUPERIMPOSE” is set to “ON” ; 墌 pg. 33).
Playback begins automatically when the desired recording is located.
Beginning of the current program recorded
Previous program recorded
–2 –1
4
Current position on the tape
Next program recorded
Beginning of the 2nd next program recorded
2nd next
1
¢
2 3
● If you want to find the very beginning of the desired program, press REW ( 1 ) or FF ( ¡ ) after playback starts.
NOTE:
An index code is not placed on the tape when recording is resumed from recording pause.
Other Useful functions for playback
You can also use the following functions for recording.
● Auto Picture (墌 pg. 33)
When this function is set to “ON”, this VCR checks the condition of the tape in use during playback, and compensates to provide the highest-possible playback pictures.
● Picture Control (墌 pg. 33)
This function helps you to adjust the playback picture quality according to your preference.
● Video Stabilizer (墌 pg. 34)
You can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.
● Blue Back (墌 pg. 34)
When this function is set to “ON”, the TV screen becomes all blue in the following cases:
– When receiving a channel not in use.
– When stopping playback.
G
Locating beginning of timer recordings
— Instant Review
At the press of a button, you can turn on the VCR, rewind the tape and begin to view the most recent timerrecorded program.
Press REVIEW on the Remote after ensuring that the
VCR is in the timer recording standby mode.
● The VCR turns on, and rewinds to the index code indicating the beginning of the last timer-recorded program, then begins playback automatically.
● You can access a program of 2 to 9 index codes away from the current position on the tape. If, for example, you have 5 programs recorded and you want to watch the third one, press REVIEW three times.
● If you want to find the very beginning of the desired program, press REW ( 1 ) or FF ( ¡ ) after playback starts.
● If the tape is already rewound when REVIEW is pressed, it will play the tape from the beginning. It will not fast-forward to an index code.
● The Instant Review function will also operate if the
VCR is turned on.
Basic
Recording
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
POWER
REW ( 1 )
4
1
1
4
7
SP EP
VCR
8
0
2
5
3
PLAY ( 3 )
REW ( 1 )
FF ( ¡ )
2 3
4
STOP/EJECT
( 7 / 0 )
PAUSE ( 8 )
3
6
9
2
4
POWER
2
–
b
2
–
a
3
FF ( ¡ )
PAUSE ( 8 )
2
–
b
STOP ( 7 )
EN
19
1
Load a cassette
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.
2
Select recording channel
On the front panel:
Press CH 5∞.
On the Remote:
a– Press CH + or –.
or
b– Press the Number keys then ENTER.
(The channel changes after a few seconds whether you press ENTER or not.)
● If you connect the TV and the VCR only using the RF connection, press TV/VCR on the Remote so that the VCR mode indicator lights on the front display panel, to view the program to be recorded.
3
Set tape speed
Press SP/EP to set the recording speed.
4
Start recording
On the front panel:
Press REC ( ¶ ).
On the Remote:
While holding REC ( ¶ ), press PLAY ( 3 ).
To pause recording
Press PAUSE ( 8 ). To resume recording, press PLAY ( 3 ).
To stop recording
Press STOP ( 7 ) on the Remote or STOP/EJECT ( 7 / 0 ) on the front panel.
To rewind the tape
Press REW ( 1 ).
To fast-forward the tape
Press FF ( ¡ ).
To eject the tape
Press STOP/EJECT ( 7 / 0 ) on the front panel when the tape is not running.
● You can also eject the cassette with the VCR turned off.
To turn off the VCR
Press POWER.
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its record safety tab.
To record on it later, cover the hole with adhesive tape.
Record safety tab
20
EN
Basic
Recording
Features
C
–
1
C. RESET
1
SP EP
VCR
1
4
7
2
5
8
0
3
6
9
2
4
A
3
B
D
BASIC PLAYBACK AND RECORDING (cont.)
A
Changing display information
Press DISPLAY during recording or recording pause.
Each time you press the button, the front panel display shows the time counter, channel number and the clock time in sequence.
Time Counter Channel No.
Clock Time
● To display the VCR status including the time counter, channel number, and the clock time on the TV screen, see “Showing on-screen display” ( 墌 pg. 21).
To reset the time counter, press C. RESET on the
Remote. The counter reading becomes “0:00:00”. It is also reset when a tape is inserted.
B
Specifying recording length
—
Instant Timer Recording (ITR)
You can easily specify the recording length from 30 minutes to 6 hours and shut off the VCR after recording is finished.
During recording, press REC ( ¶ ) on the front panel repeatedly until the recording length you want appears on the front display panel.
The (record) indicator starts flashing.
Each time you press the button, recording length increases in 30-minute intervals (up to 6 hours).
To cancel an ITR, press STOP ( 7 ) on the Remote or
STOP/EJECT ( 7 / 0 ) on the front panel.
C
Watching one program while recording another
1
Engage TV mode
During recording...
● If you connect the TV and the VCR only using the RF connection ( 墌 pg. 6) to view pictures from the VCR
Press TV/VCR on the Remote so that VCR mode indicator goes off from the front display panel.
The TV broadcast being recorded disappears.)
● If you are using the AV connection (墌 pg. 6) to
view pictures from the VCR, change the TV’s input mode from AV to TV.
2
Select channel for viewing
Select the channel, you want to watch, on the TV.
D
Showing on-screen display
When “SUPERIMPOSE” is set to “ON” ( 墌 pg. 33), you can see the current VCR status on the TV screen.
● For more detailed information about the on-screen display, see page 41.
1
Display VCR status on TV screen
During recording or
CH 125
THU 12:00 AM recording pause, press
OSD.
RECORD
PAUSE
] SP
All indications corresponding to the current VCR status are displayed for 5 seconds.
B
+ + +
E
INDEX-1
COUNT
The time counter remains on the screen indicating the elapsed time.
–1:23:45
● The indications are not recorded.
2
Erase on-screen display
Press OSD again.
NOTE:
● If the VCR is in recording pause mode, “RECORD/PAUSE” is always displayed.
● The VCR status can be also displayed during playback.
EN
21
Other useful function for recording
You can also use the following function for recording.
● Recording Resume Function
If there is a power outage during recording (or Instant
Timer Recording, or timer recording), the recording will resume automatically when the power is restored to the
VCR. (No setting is required for this function.)
22
EN
Special Effect
Playback
1
4
7
SP EP
VCR
8
0
2
5
3
6
9
2
4
F
PLAY ( 3 )
B D
–
1
SPECIAL EFFECT PLAYBACK
A
Locating particular scene rapidly
— Picture Search
7 High-Speed Picture Search:
Possible during normal playback or still picture playback.
You can rapidly locate a particular scene on the tape.
To do forward picture search, press FF ( ).
To do reverse picture search, press REW ( ).
● If you press and hold the button for more than 2 seconds, simply releasing it cancels the picture search, and normal playback resumes.
To resume normal playback, press PLAY ( 3 ).
7 Variable-Speed Picture Search:
You can change the speed of picture search.
How to use the SHUTTLE PLUS buttons on the Remote:
To do forward picture search, press SHUTTLE PLUS ¢ repeatedly.
Each time you press the button, the search speed increases.
● To decrease the speed while forward picture search
(toward normal playback, then reverse picture search), press SHUTTLE PLUS 4 repeatedly.
To do reverse picture search, press SHUTTLE PLUS 4 repeatedly.
Each time you press the button, the search speed increase while reverse picture search.
● To decrease the speed while reverse picture search
(toward normal playback, then forward picture search), press SHUTTLE PLUS ¢ repeatedly.
To resume normal playback, press PLAY ( 3 ).
A
PLAY ( 3 )
1
3
C
A
B
D
–
1
A
E
D
–
2
TV CH +
SHUTTLE
PLUS
T
V
V
O
L
–
TV CH –
Reverse
Reverse search
3 steps
Reverse play
Reverse slow motion
2 steps
Slow motion
2 steps
TV
V
O
L
+
Normal
Play
Forward
Forward search
4 steps
B
Viewing still picture
— Still Picture Playback
Press PAUSE ( 8 ) during normal playback.
Playback is freezed and a still picture appears.
To resume normal playback, press PLAY ( 3 ).
NOTE:
To obtain a noiseless still picture, it may be necessary to adjust tracking in slow motion playback before starting still picture playback.
C
Skipping unwanted portions
—Skip Search
You can skip over (view at high speed) unwanted portions of the tape.
Press SKIP SEARCH once to 4 times during playback.
Each press initiates a 30-second period of high speed playback (up to 2 minutes). When the specified portion of the tape is skipped, normal playback resumes automatically.
To return to normal playback during Skip Search, press
PLAY ( 3 ).
EN
23
E
Viewing slow motion picture
— Slow Motion Playback
On the front panel:
During normal playback or still picture playback:
Press and hold PAUSE ( 8 ) for more than 2 seconds.
On the Remote:
● During normal playback:
Press SHUTTLE PLUS 4 to decrease the playback speed.
Each time you press the button, the speed decreases
(toward reverse slow motion playback, then reverse picture search).
● Holding PAUSE ( 8 ) for more than 2 seconds also starts forward slow motion playback.
To resume normal playback, press PLAY ( 3 ).
● During still picture playback:
Press and hold SHUTTLE PLUS ¢ to start forward (or
SHUTTLE PLUS 4 to start reverse) slow motion playback. When you release the button, slow motion playback stops and a still picture appears.
● Holding PAUSE ( 8 ) for more than 2 seconds also starts forward slow motion playback.
To resume normal playback, press PLAY ( 3 ).
NOTE:
Manual tracking is possible during slow motion playback.
During slow motion playback, simply press CH 5 and ∞ on the front panel or CH + or – on the Remote to adjust tracking.
D
Viewing still picture frame by frame
— Frame-by-Frame Playback
1
Pause during playback
Press PAUSE ( 8 ).
Playback is freezed and a still picture appears.
2
Advance or reverse still picture
To advance a still picture, press SHUTTLE PLUS
¢ on the Remote (or PAUSE ( 8 )) repeatedly.
To reverse a still picture, press SHUTTLE PLUS
4 on the Remote repeatedly.
To resume normal playback, press PLAY ( 3 ).
24
EN
VCR Plus+
Timer
Programing
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
DAILY
CANCEL
STOP +/–
2 7
1
1
4
7 8
0
2
5
POWER
3
6
9
2
4
3 4
WEEKLY
8
4
6
3
3 4 7
TIMER RECORDING
Timer recording allows you to program the VCR to automatically record a broadcast at some future time.
Up to 8 timer recording programs can be made using
VCR Plus+ timer programing or Express timer programing method ( 墌 pg. 28) as far as a year in advance.
The VCR Plus+ timer programing system eliminates the need to input channel, date, start and stop time data when programing timer recording settings. Simply key in the PlusCode number for the TV broadcast you wish to record and the VCR’s timer will be automatically programed. (The PlusCode programing numbers are the numbers next to the program in most TV listing.)
1
Load a cassette
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.
● The VCR turns on, and the counter is reset, automatically.
2
Access VCR Plus+ screen
Press PROG. on the
Remote.
VCR PLUS+
● The clock must be set to access the VCR
Plus+ screen.
If you have not set the
PRESS NUMBER KEY (0–9)
PRESS (+/–) TO SET
EXPRESS PROGRAMMING
PRESS (PROG.) TO END clock, the Main Menu screen appears after an error message is displayed. Refer to page 8 for the Plug & Play setting or page 10 for the clock setting procedure.
3
Enter PlusCode number
Press the appropriate
Number keys to input the PlusCode number printed in the TV listings for the TV broadcast you wish to record, then press OK.
VCR PLUS+
123
PRESS NUMBER KEY (0–9)
THEN (OK)
PRESS (PROG.) TO END
Then;
If the Guide Channel Set screen appears
— go to step 4.
If the VCR Plus+ Program screen appears
— go to step 5.
● To make corrections, press CANCEL and input the correct PlusCode number.
4
Input receiving channel number
The guide channel
GUIDE CHANNEL SET number, which is
GUIDE CH: 12 assigned to the TV or
VCR CH : – – – cable station for the
PlusCode number that you entered in step 3, will appear
PRESS NUMBER KEY (0–9)
OR ( 5,∞), THEN (OK)
PRESS (PROG.) TO END automatically on the
Guide Channel Set screen.
Press the Number keys (or CH +/– or SHUTTLE
PLUS 5∞) to input the number of the channel on which the broadcast for the PlusCode number is received on the VCR, then press OK.
● The Guide Channel Set screen appears only when you input the PlusCode number of a station for which the guide channel number has not been set previously.
● If you receive your channels through a cable box, select the cable box output channel — the channel on which you view the cable box programs on the TV.
5
Check program date
The PlusCode number you entered and the corresponding timer recording program is displayed on the
Program screen. Check to make sure it is accurate.
PROGRAM 1
(VCR PLUS+ 12345678)
START STOP
8:00PM = 10:00PM
DATE CH
12/24/00 12 SP
SAT
PRESS (8=DAILY, 9=WEEKLY
STOP+/– = STOP TIME, SP/EP)
PRESS (PROG.) TO END
● To change the stop time, press STOP +/–.
● To timer-record daily (Monday–Friday) or weekly serials, press DAILY (M–F) (number “8”) or WEEKLY (number “9”). “DAILY” or
“WEEKLY” appears on the Program screen.
Pressing the button again makes each corresponding display disappear.
● If you made a mistake, press CANCEL to access the VCR Plus+ screen again and input the correct PlusCode number.
● If an incorrect PlusCode number or the one for a broadcast already finished has been inputted,
“ERROR” is displayed for about 5 seconds, then the VCR Plus+ screen reappears.
6
Set tape speed
Press SP/EP.
EN
25
7
Return to normal screen
Press PROG. or OK.
“PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.
• If “PROGRAM NOT COMPLETED PROGRAM
OVERLAP” appears, you have another program overlapping the program you have just made.
The Program Check screen appears and conflicting programs will start blinking.
You can now correct the conflicting programs.
See “When programs overlap each other” on page 31.
8
Engage timer recording standby mode
Press TIMER.
The VCR turns off automatically and “‰” is displayed on the front display panel.
To use the VCR while it is in timer recording standby mode
Press TIMER to cancel the timer recording standby mode, then press POWER to turn on the VCR.
DO NOT forget to put the VCR into timer recording standby mode again by pressing TIMER after you use the VCR; otherwise, you cannot record the broadcasts you want.
● When “AUTO TIMER” (墌 pg. 33) is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press
TIMER to engage or disengage the timer recording standby mode.
IMPORTANT
If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong
VCR CH number will be displayed on the Program screen in step 5. When this happens, set the correct guide channel number for that station. ( 墌 pg. 26, “VCR Plus+
Setup”)
NOTES:
● Even if a power failure occurs, the VCR keeps your timer programs. However, the clock time, channel settings, and other menu settings are lost if it lasts for more than 3 minutes.
As a result, when the power is supplied again to this VCR after the power failure, the following will take place.
1. This VCR starts the Plug & Play setting automatically to restore the clock time and channel setting.
2. If the clock time and channel setting are restored correctly, each timer program you have made will start unless its end time already passes.
● To timer-record cable channels received through a cable box, be sure to keep the cable box turned on with the correct channel selected.
26
EN
VCR Plus+
Setup
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
1 6
2 – 5
SP EP
VCR
2 – 5
1
4
7 8
0
2
5
3
6
9
2
4
4 5
TIMER RECORDING (cont.)
IMPORTANT
If you have moved to a different area or if a broadcasting station’s channel number has been changed, the wrong
VCR CH number will be displayed on the
Program screen ( 墌 step 5 on page 25). When this happens, perform the following steps to set the correct guide channel number for that station.
To ensure that VCR Plus+ timer recording operates correctly, it is necessary to set the VCR Plus+ “Guide
Channel Set” for each station. Read the following information carefully.
VCR Plus+ guide channel matching
The VCR Plus+ programing system assigns a VCR Plus+ guide channel to the TV channels and the cable channels. These guide channel numbers are also called the VCR Plus+ channel codes. Most TV listings have a section, usually a chart, indicating the guide channel numbers assigned to each station. For accurate VCR
Plus+ programing, the VCR Plus+ guide channel number for each station should match the channel number on which it is received in your area.
NOTES:
● In many instances, the VCR Plus+ guide channel numbers for cable and broadcast TV stations DO NOT match the channel number on which it is received by your VCR or cable box.
Check your TV listing, or contact your cable supplier for details.
● Many TV stations can be viewed on cable. Check your TV listing, or contact your cable supplier for details.
1
1 6
3 2 – 5
2 – 5
1
Access Main Menu screen
Press MENU.
2
Access Initial Set screen
On the front panel:
Press CH 5∞ to move
MAIN MENU
FUNCTION SET the highlight bar (arrow) TUNER SET
= INITIAL SET to “INITIAL SET”, then press OK.
On the Remote:
PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “INITIAL
SET”, then press OK or SHUTTLE PLUS 3.
3
Access Guide Channel Set screen
On the front panel:
Press CH 5∞ to move
INITIAL SET
CLOCK SET the highlight bar (arrow)
LANGUAGE ENGLISH
=GUIDE CHANNEL SET to “GUIDE CHANNEL
SET”, then press OK.
On the Remote: SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to “GUIDE
CHANNEL SET”, then press OK or SHUTTLE
PLUS 3.
4
Input guide channel number
On the front panel:
Press CH 5∞ to select
(Ex.) When inputting the guide channel number 6 for WNJU(Ind.) the VCR Plus+ guide channel number as shown in the TV listing, then press OK.
GUIDE CHANNEL SET
GUIDE CH : 6
VCR CH : – – –
On the Remote:
Press the Number keys or SHUTTLE PLUS 5∞ to input the VCR Plus+
PRESS NUMBER KEY (0-9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END guide channel number as shown in the TV listing, then press OK or SHUTTLE PLUS 3.
EN
27
5
Input receiving channel number
On the front panel:
Press CH 5∞ to select
(Ex.) If WNJU(Ind.) is received on channel 47 the number of the
GUIDE CHANNEL SET channel on which the guide channel’s broadcasts are received, then press OK.
GUIDE CH : 6
VCR CH : 47
On the Remote:
Press the Number keys or SHUTTLE PLUS 5∞
PRESS NUMBER KEY (0-9)
OR ( 5,∞), THEN (OK)
PRESS (MENU) TO END to input the number of the channel on which the guide channel’s broadcasts are received, then press OK or SHUTTLE PLUS 3.
● Repeat steps 4 and 5 for each instance.
● If you receive your channels through a cable box, select the cable box output channel — the channel on which you view the cable box programs on the TV.
6
Return to normal screen
Press MENU.
28
EN
Express Timer
Programing
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
DAILY
CANCEL
3 4
5
2 9
1
1
4
7 8
0
2
5
3
3
6
9
2
4
WEEKLY
0
7
6
8
9
TIMER RECORDING (cont.)
You can directly program the VCR’s timer to record up to
8 broadcasts, as far as a year in advance. Remember, the clock must be set before you can program the timer ( 墌 pg. 8 or 10).
1
Load a cassette
Make sure the record safety tab is intact. If not, cover the hole with adhesive tape, then load it into the VCR.
● The VCR turns on, and the counter is reset, automatically.
2
Access VCR PLUS+ screen
Press PROG..
3
Access Program screen
Press START +/– once.
(If no program is stored,
“PROGRAM 1” appears.)
PROGRAM 1
START STOP
– –:– –AM = – –:– –AM
DATE CH
– –/– –/– – – – – SP
PRESS (+/–, SP/EP, 8=DAILY,
9=WEEKLY), THEN (0K)
PRESS (PROG.) TO END
4
Set program start time
Press START +/– repeatedly to enter the time you want recording to start.
● Press and hold START
+/– to increase the time in 30-minute intervals.
PROGRAM 1
START STOP
8:00 AM = – –:– –AM
DATE CH
– –/– –/– – – – – SP
PRESS (+/–, SP/EP, 8=DAILY,
9=WEEKLY), THEN (0K)
PRESS (PROG.) TO END
5
Set program stop time
Press STOP +/– repeatedly to enter the time you want recording to stop.
● Press and hold STOP +/– to increase the time in
30-minute intervals.
6
Set program date
Press DATE +/–. (The current date is displayed on the screen. The date you enter appears in its place.)
7
Set channel number
Press CH +/–.
● Holding down CH +/– rapidly changes the channel numbers.
● If you receive your programs through a cable box, select the cable box output channel — the channel on which you view the cable box programs on the TV.
8
Set tape speed
Press SP/EP to set the tape speed.
9
Return to normal screen
Press PROG. or OK.
“PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.
• If “PROGRAM NOT COMPLETED PROGRAM
OVERLAP” appears, you have another program overlapping the program you have just made.
The Program Check screen appears and conflicting programs will start blinking.
You can now correct the conflicting programs.
See “When programs overlap each other” on page 31.
0
Engage timer recording standby mode
Press TIMER.
The VCR turns off automatically and “‰” is displayed on the front panel display.
To timer-record daily (Monday–Friday) or weekly serials
Press DAILY (M–F) (number “8”) or WEEKLY (number
“9”) anytime during steps 3 through 9.
“DAILY” or “WEEKLY” appears on the Program screen.
● Pressing the button again makes the corresponding indication disappear.
To use the VCR while it is in timer recording standby mode
Press TIMER to cancel the timer recording standby mode, then press POWER to turn on the VCR.
DO NOT forget to put the VCR into timer recording standby mode again by pressing TIMER after you use the
VCR; otherwise, you cannot record the broadcast you want.
● When “AUTO TIMER” (墌 pg. 33) is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER to engage or disengage the timer recording standby mode.
EN
29
NOTES:
● Even if a power failure occurs, the VCR keeps your timer programs. However, the clock time, channel settings, and other menu settings are lost if it lasts for more than 3 minutes.
As a result, when the power is supplied again to this VCR after the power failure, the following will take place.
1. This VCR starts the Plug & Play setting automatically to restore the clock time and channel setting.
2. If the clock time and channel setting are restored correctly, each timer program you have made will start unless its end time already passes.
● Programs that start after midnight must have the next day’s date.
● After timer recording is completed, the VCR turns off automatically.
● You can program the timer recording while a regular recording is in progress; the menu screens will not be recorded.
● If the tape reaches its end during timer recording, the cassette is automatically ejected.
● To timer-record cable channels, be sure to keep the cable box turned on with the correct channel selected.
30
EN
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
B
–
2
C
–
3
A
–
2, 3
B
–
3
1
1
4
7
2
5
8
0
3
3
6
9
2
4
A
–
1
B
–
4
B
–
2
C
–
3
Other Useful functions for timer recording
You can also use the following functions for timer recording.
● Auto Timer (墌 pg. 33)
When “AUTO TIMER” is set to “ON”, the timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER to engage or disengage the timer recording standby mode.
● Auto SP = EP Timer (墌 pg. 34)
If there is not enough tape to record the entire broadcast for recording in SP mode, the VCR automatically switches to EP mode to allow complete recording. This feature is especially handy when recording a broadcast of more than
2 hours in length.
A
–
1
B
–
2
C
–
3
C
–
3
C
–
2
C
–
2
TIMER RECORDING (cont.)
A
Checking program settings
1
Disengage timer
Press TIMER, then press POWER.
● When “AUTO TIMER” (墌 pg. 33) is set to “ON”, you do not have to press TIMER.
2
Access Program Check screen
Press PROG. CHECK.
7
8
5
6
PR START STOP CH DATE
1 8:00P 10:00 12 12/24
2 10:00A 10:45 40 12/25
3 11:30P 1:00 125 12/25
4
PRESS (CHECK) TO NEXT
3
Access Program screen
Press PROG. CHECK again to check more detailed information. Each time you press PROG. CHECK, the next program’s Program screen appears. When all Program screens are shown, normal screen resumes.
B
Canceling or changing program settings
1
Access Program screen
Repeat steps
1
to
3
above.
2
Cancel or change program setting
To cancel a program, press CANCEL when the
Program screen you do not want is shown.
To change a program, press the appropriate button:
START+/–, STOP+/–, DATE+/–, CH+/–, and/or SP/
EP when the Program screen on which you want to make changes is shown.
3
Return to normal screen
Press PROG. CHECK as many times as necessary until no Program screen is shown.
4
Reengage timer recording standby mode
Press TIMER.
● When “AUTO TIMER” (墌 pg. 33) is set to “ON”, the timer recording standby mode automatically resumes when you turn off the VCR.
C
When programs overlap each other
If “PROGRAM NOT COMPLETED PROGRAM
OVERLAP” appears, you have another program overlapping the program you have just made.
The Program Check screen appears and conflicting programs will start blinking.
PROGRAM NOT COMPLETED
PROGRAM OVERLAP
PR START STOP CH DATE
1 8:00P 11:00 12 12/24
2 10:00A 10:45 40 12/25
3 11:30P 1:00 125 12/25
4 9:00P 10:00 12 12/24
5
6
7
8
( 5,∞), THEN (>) (PROG.) : END
EX. Program 1 (you have just made) and Program 4 overlap each other
1
Confirm overlapping programs
Overlapping programs blink on the screen.
2
Select program to modify
Press SHUTTLE PLUS 5∞, then press SHUTTLE
PLUS 3.
• You can only select one of the overlapping programs.
NOTE:
If you do not mind this overlap, press PROG. to finish the timer program setting. See “ATTENTION” to the right.
Without doing anything for about 1 minutes, the VCR will finish the timer programing.
3
Cancel or change program setting
To cancel a program, press CANCEL when the
Program screen you do not want is shown.
“PROGRAM
COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.
PROGRAM 4
START STOP
9:00 PM = 10:00PM
DATE CH
12/24/00
SAT
12 SP
PRESS (CANCEL) TO CANCEL
PRESS (OK) TO CONFIRM
PRESS (PROG.) TO END
To change a program, press the appropriate button:
START+/–, STOP+/–, DATE+/–, CH+/–, and/or SP/
EP when the Program screen on which you want to make changes is shown, then press OK.
“PROGRAM COMPLETED” appears on the screen for about 5 seconds, then normal screen appears.
NOTE:
If the overlap is not yet solved or another overlap occurs with the timer program setting made last after making correction on a program, the conflicting programs will be shown on the Program Check screen again. Repeat the above steps again until the overlap is solved.
EN
31
ATTENTION
If there is a conflict in the timer schedule and one program overlaps with another, only the parts shown below in gray will be recorded.
Pattern 1: The program with the lower program number will be recorded.
10:00
Program 1
Program 2
11:00
CH10
CH40
12:00
Not recorded
Pattern 2: The program starting earlier will be recorded.
12:00 10:00
Program 1
Program 2
11:00
CH10
CH40 Not recorded
Pattern 3: The program starting earlier will be recorded, followed by the remaining portion of the other program.
10:00
Program 1
11:00
CH10
Program 2
12:00
CH40
Not recorded
32
EN
Useful Function
Settings
Turn on the VCR and the TV, and select the VCR channel 3 or 4 (or AV mode) on the TV.
1
1
4
7
1 5
2 – 4
2
5
8
0
SP EP
VCR
3
6
9
2
4
2 3
OTHER USEFUL FUNCTIONS
You can use the other useful function settings on the
Function Set screen by following the procedure described below.
● For the functions you can set on the Function Set screen, see pages 33 to 34.
1
Access Main Menu screen
Press MENU.
2
Access Function Set screen
On the front panel:
Press CH 5∞ to move
= FUNCTION SET
TUNER SET the highlight bar (arrow)
MAIN MENU
INITIAL SET to “FUNCTION SET”, then press OK.
On the Remote: PRESS ( 5,∞), THEN (OK)
PRESS (MENU) TO END
Press SHUTTLE PLUS
5∞ to move the highlight bar (arrow) to
“FUNCTION SET”, then press OK or SHUTTLE
PLUS 3.
3
Select Function.
On the front panel:
Press CH 5∞ to move
FUNCTION
= AUTO PICTURE ON
PICTURE CONTROL AUTO the highlight bar (arrow) to the function you
AUTO TIMER OFF
SUPERIMPOSE ON
AUTO SP =EP TIMER OFF
VIDEO STABILIZER OFF want to set, then press
OK.
BLUE BACK ON
SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
On the Remote:
Press SHUTTLE PLUS 5∞ to move the highlight bar (arrow) to the function you want to set, then press OK or SHUTTLE PLUS 3.
4
Change setting
On the front panel:
Press OK.
On the Remote:
Press OK or SHUTTLE PLUS 3.
5
Return to normal screen
Press MENU.
1 5
3 2 – 4
2 3
EN
33
䡵 AUTO PICTURE
ON
OFF
* The default setting is bold in the table below.
When this function is set to “ON”, this VCR checks the condition of the tape in use during playback, and compensates to provide the highestpossible playback pictures.
䡵 PICTURE CONTROL
AUTO (NORM): Normally select this. Picture quality is adjusted automatically.
When “AUTO PICTURE” is
“OFF”, “NORM” will appear instead of “AUTO”.
EDIT: Minimizes picture degradation during editing
(recording and playback).
SOFT: Reduces image coarseness when viewing overplayed tapes containing much noise.
SHARP: Clearer, sharper-edged picture when viewing images with much flat, same-colored surfaces such as cartoons.
䡵 AUTO TIMER
ON
OFF
This function helps you to adjust the playback picture quality according to your preference.
NOTES:
● When you select “EDIT”, “SOFT” or “SHARP”, the selected mode will not change until you select again.
● Select "EDIT" when you are dubbing tapes (墌 pg. 35). After you finish dubbing the tapes, select “AUTO” (“NORM” when “AUTO PICTURE” is “OFF”.)
䡵 SUPERIMPOSE
ON
OFF
● When this function is set to “ON”:
The timer recording standby mode is automatically engaged when the
VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER to engage or disengage the timer recording standby mode.
● When this function is set to “OFF”:
For safety, all buttons except TIMER are disabled while the VCR is in the timer recording standby mode. To use the VCR as usual, press
TIMER.
When this function is set to “ON”, various VCR status information (onscreen display) appears on the screen.
NOTES:
● When you use this VCR as the playback VCR for editing a tape, be sure to set this function to “OFF”; otherwise, the VCR status information (on-screen display) will be recorded on the edited tape.
● If you select a channel on which no signal is received, the channel number is displayed regardless of this function setting.
34
EN
䡵 AUTO SP = EP TIMER
ON
OFF
䡵 VIDEO STABILIZER
ON
OFF
䡵 BLUE BACK
ON
OFF
OTHER USEFUL FUNCTIONS (cont.)
* The default setting is bold in the table below.
When this function is set to “ON”, the VCR automatically switches to EP mode to allow complete recording if there is not enough tape to record the entire program while timer-recording in SP mode.
For Example . . .
Recording a program of 210 minutes in length onto a 180-minute tape
Approximately 110 minutes
SP mode
Approximately 30 minutes
EP mode
Make sure you set this function to “ON” before the timer-recording starts.
NOTES:
● If you have programed the VCR to timer-record 2 or more programs, the second program and those thereafter may not fit on the tape with this function set to
"ON". In this case, do not use this function, but change the tape speed manually during timer programing.
● In order to ensure that the recording fits on the tape, this function may leave a slight non-recorded portion at the end of the tape.
● There may be some noise and sound disturbance where the tape speed switches from SP to EP mode on the tape.
● This function is not available during ITR (Instant Timer Recording), and will not work properly on the following tapes: T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-
120.
When this function is set to “ON”, you can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.
NOTES:
● When you finish viewing a tape, be sure to set this function to “OFF”.
● Regardless of the setting, this function has no effect during recording and during special effects playback.
● The on-screen display may jitter vertically when this function is set to “ON”.
● To watch recordings with close-caption, set this function to “OFF”.
When this function is set to “ON”, the TV screen becomes all blue in the following cases:
● When receiving a channel not in use.
● When stopping playback.
NOTE:
When you want to receive an unstable channel with poor signals, set this function to “OFF”.
EDITING
Edit To Or
From Another
VCR
Connection
Ex. When using this VCR as the playback VCR
This VCR (for playback)
Another VCR
(for recording)
To AUDIO/
VIDEO OUT
ANT. IN
AUDIO
VIDEO
CH3 CH4
OUT
RF OUT
Audio/video cable
(not supplied)
To Audio/ video Input
EN
35
You can use your VCR as the playback or recording VCR.
● Refer also to the other VCR’s instruction manual for connection and its operations.
1
Make connections
Connect an audio/video cable between the playback VCR’s audio/video output connectors and the recording VCR’s audio/video input connectors.
● When using this VCR as the recording VCR, connect this VCR’s audio/video input connectors to the audio/video output connectors on the other VCR.
2
Load cassettes
Insert the playback cassette into the playback
VCR and the cassette to be recorded on into the recording VCR.
3
Select input mode on recording VCR
Select the correct external input on the other
VCR.
● On this VCR (when using this VCR as the recording VCR);
Select “F-1” — when connecting the camcorder to the audio/video input connectors on the front panel.
On the front panel:
Press CH 5∞.
On the Remote:
Press the Number key "0 (AUX)" or CH +/–.
4
Select EDIT function
Set the EDIT function to “ON”.
● On this VCR, follow the procedure described on pages 32 and 33.
5
Start playback
Press PLAY ( 3 ) on the playback VCR.
NOTE:
If the playback VCR is equipped with a superimpose/
OSD disable feature then set it to “OFF” before starting playback ( 墌 pg. 32 and 33).
6
Start recording
Press REC ( ¶ ) on the recording VCR.
NOTE:
Be sure to select “AUTO” for “PICTURE CONTROL” (or
“NORM” when “AUTO PICTURE” is set to “OFF”) after you finish dubbing the tapes (
墌 pg. 32 and 33).
36
EN
TROUBLESHOOTING
Before requesting service, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your VCR off for repair.
POWER
SYMPTOM
1. The power will not come on.
2. The clock works, but the VCR’s power will not come on.
3. The Remote will not function.
POSSIBLE CAUSE
● The AC power cord is disconnected.
● The VCR is in the timer recording standby mode with “AUTO TIMER” set to “OFF” ( 墌 pg. 33).
● The batteries are discharged.
CORRECTIVE ACTION
Connect the AC power cord.
Press TIMER to disengage.
Replace the dead batteries with new ones.
TAPE TRANSPORT
SYMPTOM
1. The cassette gets stuck partway during loading, and is ejected.
POSSIBLE CAUSE
● The cassette was inserted incorrectly.
CORRECTIVE ACTION
Make sure the cassette’s window is facing up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR.
Then insert the cassette.
PLAYBACK
SYMPTOM
1. The tape is running but the picture will not appear.
POSSIBLE CAUSE
● If the RF connection ( 墌
pg. 6) is used to view the picture, the channel on the TV is set incorrectly.
● If the AV connection ( 墌
pg. 6) is used to view the picture, the TV receiver is set to the wrong mode.
● The video heads may be dirty.
CORRECTIVE ACTION
Select channel 3 or 4 on the TV.
Select the AV mode on the TV.
The heads must be cleaned. Consult your JVC dealer.
2. The playback picture is blurred or interrupted, even though TV broadcasts are clear.
RECORDING
SYMPTOM
1. Recording will not start.
2. TV broadcasts will not be recorded properly.
3. Tape-to-tape editing will not work.
POSSIBLE CAUSE
● There is no cassette loaded.
● The loaded cassette has had its record safety tab removed.
● The VCR has been set to “F-1” input mode by mistake.
● The VCRs or the camcorder and the
VCR have been incorrectly connected.
● The power to one or more of the units has not been turned on.
● The recording VCR’s input mode has been set incorrectly.
CORRECTIVE ACTION
Insert a cassette.
Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.
Select the appropriate channel on the
VCR.
Refer to the directions and the illustration under “Edit To Or From
Another VCR” (
墌
pg. 35) and properly connect the units.
Make sure the power to all units is on.
Select the appropriate input mode on the recording VCR.
EN
37
TIMER RECORDING
SYMPTOM
1. Timer recording will not work.
2. Timer programing will not work.
3. ‰ and ] on the front display panel will not stop blinking.
4. The cassette is automatically ejected, and ‰ and ] on the front display panel will not stop blinking.
5. ‰ blinks for 10 seconds and the timer mode is disengaged.
6. The cassette is automatically ejected, the power shuts off and ‰ and ] will not stop blinking.
7. You moved, and now VCR Plus+ does not work properly.
3. Even though Auto or Semiauto
Clock Set has been performed, the clock is incorrect.
POSSIBLE CAUSE
● The clock and/or the timer have been set incorrectly.
● The timer is not engaged.
● The VCR has not been set up properly.
● Timer recording is in progress.
● The timer is engaged but there is no cassette loaded.
● The loaded cassette has had its record safety tab removed.
● TIMER has been pressed when there are no programs in memory, or the timer recording program has not been set correctly.
● The tape reaches its end during timer recording.
● The receivable stations in the new area are received on different channels than those in the previous area.
● All 8 programs of the VCR’s timer memory are used.
CORRECTIVE ACTION
Set the clock and/or timer correctly.
Press TIMER and check to make sure that ‰ appears on the front display panel.
Re-perform the set-up procedures.
Make sure you have compensated for guide channel and VCR or cable box
( channel number mismatches
墌
pg. 26).
Timer programing cannot be performed when timer recording is in progress.
Wait until it finishes.
Load a cassette with the record safety tab intact, or with the hole covered with adhesive tape.
Remove the cassette and cover its hole with adhesive tape, or replace it with a cassette on which the safety tab is intact.
Check the programed data and set again if necessary, then press TIMER again.
The program may not have been recorded in its entirety. Next time be sure you have enough time on the tape to record the entire broadcast.
Re-perform the VCR Plus+ setup procedure (
墌
pg. 26).
Wait until a space in memory clears, or cancel unnecessary program information (
墌
pg. 30).
8. “PROGRAM FULL” is displayed on the screen.
OTHER PROBLEMS
SYMPTOM
1. When scanning channels, some of them are skipped over.
2. The channel cannot be changed.
POSSIBLE CAUSE
● Those channels have been preset to be skipped.
● Recording is in progress.
● The clock setting data received from the host channel is incorrect.
CORRECTIVE ACTION
If you need the skipped channels, restore them (
墌
pg. 14).
Press PAUSE ( 8 ) to pause the recording, change channels, then press PLAY ( 3 ) to resume recording.
Select a different host channel during
Semiauto Clock Set (
墌
pg. 11), or perform Manual Clock Set (
墌
pg. 12).
38
EN
Questions and answers
PLAYBACK
Q. What happens if the tape reaches its end during playback or search?
Q. Can the VCR indefinitely remain in still mode?
A. No. It stops automatically after 5 minutes to protect
Q. During picture search, still picture playback and frame-by-frame playback, the picture is intermittent. What’s the cause?
A. Picture loss occurs when these types of playback are attempted with a tape recorded in LP mode. Pressing
PLAY
( 3 ) to return to normal playback will restore the
Q. When returning from variable-speed picture search to normal playback, the picture is disturbed. Should
I be concerned about this?
Q. When playing back programs that have been timerrecorded consecutively (such one program from
8:00 to 9:00 and another one from 9:00 to 10:00), the picture and sound become momentarily distorted where the first program ends and the second program begins. Is this a malfunction?
Q. Other than preventing further recording, what effect does removing the safety tab have?
Q. Sometimes, during index search, the VCR cannot find the program I want to see. Why not?
Q. During playback, on-screen display sometimes jitters. Why does this happen?
A. If the condition of the tape being played back is not good, jittering of the video (including on-screen display) may occur.
TROUBLESHOOTING (cont.)
RECORDING
Q. When I pause and then resume a recording, the end of the recording before the pause is overlapped by the new recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
Q. Can the VCR indefinitely remain in the recording pause mode?
A. No. The VCR automatically stops after 5 minutes to protect the heads. When paused during Instant Timer
Recording (ITR), the VCR shuts off automatically after
Q. What happens if the tape reaches its end during recording?
A. The VCR automatically rewinds it to the beginning.
TIMER RECORDING
Q. REC and ‰ remain lit on the front display panel. Is there a problem?
A. No. This is a normal condition for a timer recording
Q. Can I program the timer while I’m watching a tape or a TV broadcast?
A. Yes, but while you are setting the timer you will not see the tape’s or broadcast program’s picture as it is replaced by the on-screen menu. (The sound from the tape or broadcast program will be heard during the timer setting.)
MOISTURE CONDENSATION
Moisture in the air will condense on the VCR when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the
VCR turned on for a few hours to evaporate the moisture before inserting a tape.
ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.
ATTENTION
This VCR contains microcomputers. External electronic noise or interference can cause microcomputer to malfunction. If the VCR does not operate correctly switch its power off and unplug the AC power cord from the AC supply. Wait for a while and then plug the power back in. Eject and check the condition of the cassette. If everything appears normal, you can operate the VCR as usual.
INDEX
List of terms
This guide serves as a quick way to locate frequently used terms and on-screen display names.
A
Accidental erasure prevention 19
Auto Channel Set 13
Auto Daylight Saving Time 11
Auto Picture 33
Auto SP =EP Timer 34
Auto Timer 33
Automatic tracking 17
AV connection 6
B
Blue Back 34
C
Channel No. indication 20
Clock setting 10
Manual setting 12
Preparation 10
Semiauto setting 11
Clock time 16, 20
Connection to TV 6
Contents 5
Counter reset 16, 20
E
Editing 35
Express timer recording 28
F
Frame-by-Frame Playback 23
Function Set screen 32
G
Guide channel 26
H
High-Speed Picture Search 22
Host channel 8
I
Index Search 18
Instant Review 18
Instant Timer Recording (ITR) 20
L
Language setting 9
M
Manual tracking 17
N
Next Function Memory 17
O
On-screen display 21, 41
P
PBS channel 8
Picture Control 33
Picture Search 22
Playback 15
Plug & Play 8
R
Recording 19
Recording Resume function 21
Repeat play 16
RF connection 6
S
Slow Motion Playback 23
Special effect playback
Frame-by-Frame Playback 23
High-Speed Picture Search 22
How to use the SHUTTLE PLUS buttons 22
Picture Search 22
Skip Search 23
Slow Motion Playback 23
Still Picture Playback 23
Variable-Speed Picture Search 22
Specifications 43
Still Picture Playback 23
Superimpose 33
EN
39
T
Tape position indicator 16
Tape speed 19
Time counter 16, 20
Time zone selection 11
Timer recording
Canceling 30
Changing 30
Checking 30
Express 28
Guide channel setting 26
Overlap 31
VCR PLUS+ 24
VCR PLUS+ setup 26
Tracking 17
Troubleshooting 36
Tuner setting 13
Adding channels 14
Auto Channel Set 13
Manual Channel Set 14
Skipping channels 14
V
Variable-Speed Picture Search 22
VCR PLUS+ setup 26
VCR PLUS+ timer recording 24
Video Stabilizer 34
40
EN
Front panel
1
POWER
VIDEO AUDIO
MENU
OK
6 7 8
SP EP
VCR
2
9
INDEX (cont.)
3 4 5
PLAY
REW FF
CH
SP/EP
REC STOP/EJECT PAUSE
0 !
@ # $ %
1 POWER button : 墌 pg. 15, 19
2 Cassette loading slot
3 REW ( 1 ) button : 墌 pg. 15, 19
4 PLAY ( # ) button : 墌 pg. 15, 19
5 FF ( ¡ ) button : 墌 pg. 15, 19
6 AUDIO/VIDEO input connectors : 墌 pg. 35
7 OK button
8 MENU button
9 Front display panel : 墌 below
0 Remote sensor
! CH 5∞ buttons : 墌 pg. 19
@ SP/EP button : 墌 pg. 19
# REC ( ¶ ) button : 墌 pg. 19, 20
$ STOP/EJECT ( 7 / 0 ) button : 墌 pg. 15, 19
% PAUSE ( 8 ) button : 墌 pg. 19, 23
Front display panel
1 2 3
SP
VCR
4 5
1 Symbolic Mode Indicators
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
STILL:
SLOW:
RECORD:
RECORD PAUSE:
6
2 Tape speed indicators
3 Timer mode indicator : 墌 pg. 25, 29
4 VCR mode indicator : 墌 pg. 19, 20
5 Cassette mark
6 Channel and auxiliary input (“F-1”)
Counter reading : 墌 pg. 16, 20
Clock time : 墌 pg. 16, 20
Rear panel
1
2 3
ANT. IN
AUDIO
VIDEO
CH3 CH4
OUT
RF OUT
1 AC power cord : 墌 pg. 6
2 AUDIO/VIDEO OUT connectors : 墌 pg. 6, 35
3 ANT. (Antenna) IN terminal : 墌 pg. 6
4
4 CH3-CH4 switch : 墌 pg. 7
5 RF OUT terminal : 墌 pg. 6
5
On-screen display
1
2
CH 125 RECORD
THU 12:00 AM PAUSE
SP
B - - - - - + - - - - - + - - - - - + - - - - - E
INDEX-1
COUNT –1:23:45
6
7
8
3
4
5
1 Channel and auxiliary input (“F-1”)
2 Date and clock time : 墌 pg. 16, 20
3 VCR operation mode indication
4 Tape speed indication
5 Cassette indication
6 Tape position indicator : 墌 pg. 16
7 Index no. indication : 墌 pg. 18
8 Time counter : 墌 pg. 16, 20
EN
41
42
EN
Remote
5
6
7
8
9
0
!
@
#
$
1
2
3
4
TV
TV operation n Press and hold
TV button, then press POWER,
TV CH+s–, VOO+ / –VTV / VCR
POWER
TV/VCR A. MONITOR DISPLAY
1
4
7
C. RESET
CANCEL
2
5
DAILY(M-F)
8
AUX
0
3
6
WEEKLY
9
2
TIMER 4
START STOP DATE CH
1 PROG.
EXPRESS PROGRAMMING
PROG.
CHECK SP/EP
SKIP
SEARCH
PLAY
REW
FF
STOP PAUSE
REC
MENU
TV C H +
ENTER/O
SD
3
OK
V
V
O
L
–
SHUTTLE
PLUS
T V C H –
T
V
V
O
L
+
LP20878-001
VCR/TV
%
^
&
*
(
) q w e r t y u i o p
INDEX (cont.)
1 TV button : See below
2 TV/VCR button : 墌 pg. 19, 20
3 REVIEW button : 墌 pg. 18
4 Number buttons : 墌 pg. 19, 24, 27
5 CANCEL button : 墌 pg. 25, 30
C. (Counter) RESET button : 墌 pg. 16, 20
6 STOP +/– button : 墌 pg. 25, 28
7 START +/– button : 墌 pg. 28
8 PROG. (Program) button : 墌 pg. 24, 28
9 PROG. CHECK button : 墌 pg. 30
0 REW ( 1 ) button : 墌 pg. 15, 19, 22
! REC ( ¶ ) button : 墌 pg. 19
@ STOP ( 7 ) button : 墌 pg. 15, 19
# MENU button
$ SHUTTLE PLUS 5∞ buttons
TV CH +/– buttons
% POWER button : 墌 pg. 15, 19
^ A. (Audio) MONITOR button : Does not function on this VCR.
(TV Muting) button : See below.
& DISPLAY button : 墌 pg. 16, 20
* DAILY (M–F) button : 墌 pg. 25, 29
( WEEKLY button : 墌 pg. 25, 29
) AUX button : 墌 pg. 35 q TIMER button : 墌 pg. 25, 29, 30 w DATE +/– button : 墌 pg. 28 e CH +/– button : 墌 pg. 19, 28 r SKIP SEARCH button : 墌 pg. 23 t SP/EP button : 墌 pg. 19, 25, 29 y PLAY ( 3 ) button: 墌 pg. 15, 19 u FF ( ¡ ) button: 墌 pg. 15, 19, 22 i PAUSE ( 8 ) button: 墌 pg. 19, 23 o OK button
ENTER button : 墌 pg. 19
OSD button : 墌 pg. 21 p SHUTTLE PLUS 4 ¢ (2 3) button
: 墌 pg. 23
TV VOL.+/– button
You can operate JVC's TV
Buttons (2, $, %, ^, o, p) with a small dot on the left side of the name can also be used to operate a
JVC's TV while holding down TV (1) on the
Remote.
How to use the Remote
Before use, insert two AA size batteries into the Remote with the polarity ( ª and ·) matched correctly as indicated on the battery compartment or on the lid.
The Remote can operate most of your VCR’s functions, as well as basic functions of JVC's TV sets.
● Point the Remote toward the remote sensor on the target component.
● The maximum operating distance of the remote control is about 8 m.
NOTE:
If the Remote does not work properly, remove its batteries, wait for a few seconds, replace the batteries and then try again.
SPECIFICATIONS
GENERAL
Power requirement
Power consumption
Power on
: AC 120 V` , 60 Hz
Power off
Temperature
Operating
Storage
: 17 W
: 2.2 W
: 5°C to 40°C (41°F to 104°F)
: –20°C to 60°C (–4°F to140°F)
Operating position : Horizontal only
Dimensions (W x H x D) : 360 x 94 x 278 mm
Weight
(14-3/16" x 3-3/4" x 10-15/16")
: 3.1 kg (6.8 lbs)
Format
Maximum recording time
: VHS NTSC standard
SP : 210 min. with ST-210 video cassette
EP : 630 min. with ST-210 video cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and
EIA monochrome signal, 525 lines/60 fields
Recording/
Playback system
Signal-to-noise ratio
Horizontal resolution
Frequency range
Input/Output
: DA-4 (Double Azimuth) head helical scan system
: 45 dB
: 230 lines (VHS)
: 70 Hz to 10,000 Hz
: RCA connectors
(IN x 1, OUT x 1)
TUNER
Tuning system
Channel coverage
VHF
UHF
CATV
RF output
: Frequency-synthesized tuner
: Channels 2–13
: Channels 14–69
: 113 Channels
: Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 ohms, unbalanced
TIMER
Clock reference
Program capacity
: Quartz
: 1-year programmable timer/
8 programs
Memory backup time : Approx. 3 min.
ACCESSORIES
Provided accessories
EN
43
: RF cable (F-type),
Infrared remote control unit,
“AA” battery x 2
Specifications shown are for SP mode unless specified otherwise.
E. & O.E. Design and specifications subject to change without notice.
44
EN
FOR SERVICING (Only in U.S.A.)
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1-800-252-5722
Dear customer: http://www.jvcservice.com
In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit.
In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United States, call 1-800-252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.
— JVC
10 New Maple Avenue
Pine Brook, NJ 07058-9641
(973) 396-1000
5665 Corporate Avenue
Cypress, CA 90630-4727
(714) 229-8011
13 Cummings Park
Woburn, MA 01801-2105
(781) 376-9100
JVC SERVICE & ENGINEERING
COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
FACTORY SERVICE CENTER LOCATIONS
1500 Lakes Parkway
Lawrenceville, GA 30243-5857
(770) 339-2522
705 Enterprise Street
Aurora, IL 60504-8135
(630) 851-7855
10700 Hammerly Boulevard, Suite 110 2969 Mapunapuna Place, Suite 105
Houston, TX 77043-2310
(713) 935-9331
Honolulu, HI 96819-2000
(808) 833-5828
8192 W State Road 84
Davie, FL 33324-4611
(954) 472-1960
890 Dubuque Avenue
South San Francisco, CA 94080-1804
(650) 871-2666
Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.
NATIONAL HEADQUARTERS
JVC SERVICE & ENGINEERING COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
10 New Maple Avenue
Pine Brook, NJ 07058-9641
If you ship the product...
Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory Service
Center as listed above.
ACCESSORIES
To purchase accessories for your JVC product, you may contact your local JVC Dealer.
Or from the 48 Continental United States call toll free:
1-800-882-2345.
Don't service it yourself.
CAUTION
To prevent electrical shock, do not open the cabinet.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARRANTY (Only in U.S.A.)
EN
45
LIMITED WARRANTY
CONSUMER VIDEO 1-90
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL
PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")
PARTS LABOR
1
YR
90
DAYS
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase); from the date of purchase);
There are no other express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO
TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET
FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
JVC COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road
Wayne, New Jersey 07470
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No.:
Purchase date:
Serial No.:
Name of dealer:
46
EN
MEMO
EN
47
VICTOR COMPANY OF JAPAN, LIMITED
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN, LTD.
U/U(C)
Printed in China
1199 IYV * MW * BJ
advertisement
Related manuals
advertisement
Table of contents
- 6 Basic Connections
- 8 Plug & Play Setting
- 9 Language Setting
- 10 Clock Setting
- 10 Preparations
- 11 — Semiauto Clock Set
- 12 Setting clock manually — Manual Clock Set
- 13 Tuner Setting
- 13 — Auto Channel Set
- 14 — Manual Channel Set
- 15 Basic Playback
- 16 Basic Playback Features
- 16 Changing display information
- 16 Checking tape position
- 16 Playing back tape repeatedly — Repeat Play
- 17 — Tracking Adjustments
- 17 — Next Function Memory
- 18 Locating beginning of recordings — Index Search
- 18 — Instant Review
- 19 Basic Recording
- 20 Basic Recording Features
- 20 Changing display information
- 20 — Instant Timer Recording (ITR)
- 20 Watching one program while recording another
- 21 Showing on-screen display
- 22 Special Effect Playback
- 22 Locating particular scene rapidly — Picture Search
- 22 • High-Speed Picture Search
- 22 • Variable-Speed Picture Search
- 23 Viewing still picture — Still Picture Playback
- 23 Skipping unwanted portions — Skip Search
- 23 — Frame-by-Frame Playback
- 23 — Slow Motion Playback
- 24 VCR Plus+ Timer Programing
- 26 VCR Plus+ Setup
- 28 Express Timer Programing
- 30 Checking program settings
- 30 Canceling or changing program settings
- 31 When programs overlap each other
- 32 Useful Function Settings
- 33 7 AUTO PICTURE
- 33 7 PICTURE CONTROL
- 33 7 AUTO TIMER
- 33 7 SUPERIMPOSE
- 34 7 AUTO SP=EP TIMER
- 34 7 VIDEO STABILIZER
- 34 7 BLUE BACK
- 35 Edit To Or From Another VCR
- 38 Questions and answers
- 39 List of terms
- 40 Front panel
- 40 Front display panel
- 41 Rear panel
- 41 On-screen display
- 42 Remote
