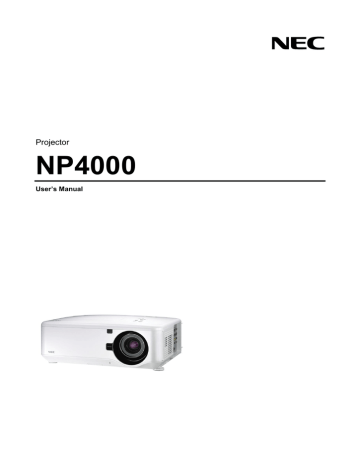

Projector
NP4000
User’s Manual
© NEC Display Solutions, Ltd. 2007
First edition April 2007
• DLP is a registered trademark of Texas Instruments. BrilliantColor and DynamicBlack are trademarks of Texas Instruments.
• IBM is a trademark or registered trademark of International Business Machines Corporation.
• Macintosh, Mac OS X and PowerBook are trademarks of Apple, Inc., registered in the
U.S. and other countries.
• Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks of Microsoft Corporation.
• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
Notes
(1) The contents of this user’s manual may not be reprinted in part or whole without permission.
(2) The contents of this user’s manual are subject to change without notice.
(3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.
Important Information
Safety Cautions
Precautions
Please read this manual carefully before using your NEC NP4000 projector and keep the manual handy for future reference. Your serial number is located on the bottom of your projector.
Record it here:
CAUTION:
To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
CAUTION:
• TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
• REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that un-insulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.
The information should be read carefully to avoid problems.
WARNING:
To prevent fire or shock, do NOT expose this unit to rain or moisture. Do NOT use this unit’s plug with an extension cord or in an outlet unless all the prongs can be fully inserted.
DOC Compliance Notice (for Canada only)
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Machine Noise Information Regulation - 3. GPSGV (for Germany only)
The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO
7779. i
Important Information
Laser Rating
This label is on the side of the remote control.
This mark is on the top of the remote control.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION
Do not look into the laser pointer while it is on and do not point the laser beam at a person. Serious injury could result.
Disposing of your used product
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product. After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. ii
Important Information
RF Interference (for USA only)
WARNING:
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio / TV technician for help.
For UK only: In UK, a BS approved power cable with molded plug has a Black (five
Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.
Installation
• Do not place the projector in the following conditions:
On an unstable cart, stand, or table.
Near water, baths or damp rooms.
In direct sunlight, near heaters or heat radiating appliances.
In a dusty, smoky or steamy environment.
On a sheet of paper or cloth, rugs or carpets. iii
Important Information
• If you wish to have the projector installed on the ceiling:
Do not attempt to install the projector yourself.
The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.
Please consult your dealer for more information.
CAUTION:
When shipping the projector, remove the optional lens beforehand. The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation.
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
CAUTION:
Do not drop the projector on your hand or fingers while lifting the projector to replace the filters. Doing so could injure your hand or fingers. iv
Important Information
Fire and Shock Precautions
• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 8 inches (20cm) of space between your projector and a wall.
• Do not try to touch the ventilation outlet on the rear as it can become heated while the projector is turned on and immediately after the projector is turned off.
• Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your project. If something should fall into your projector, disconnect it immediately and have the object removed by qualified service personnel.
• Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.
• The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz.
Ensure that your power supply fits this requirement before attempting to use your projector.
• Do not look into the lens while the projector is on. Serious damage to your eyes could result.
• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.
• Do not cover the lens with the black lens cap or equivalent while the projector is on.
Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projector lens or a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the light output and exhaust.
• Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.
Do not use any power cables other than the one supplied by NEC.
Do not bend or tug the power cable excessively.
Do not place the power cable under the projector, or any heavy object.
Do not cover the power cable with other soft materials such as rugs.
Do not heat the power cable
Do not handle the power plug with wet hands. v
Important Information
• Turn off the projector, unplug the power cable and have the projector serviced by qualified service personnel under the following conditions:
When the power cable or plug is damaged or frayed.
If liquid has been spilled into the projector, or if it has been exposed to rain or water.
If the projector does not operate normally when you follow the instructions described in this user's manual.
If the projector has been dropped or the cabinet has been damaged.
If the projector exhibits a distinct change in performance, indicating a need for service.
• Disconnect the power cable and any other cables before carrying the projector.
• Turn off the projector and unplug the power cable if the projector is not to be used for an extended period of time.
• When using a LAN cable:
For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.
• Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the lamp.
CAUTION:
• Always carry your projector by using the carrying handle.
• Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.
• Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.
• If heavy use for a number of consecutive days is expected, select the High setting in the Fan Mode window to reduce heat stress on the projector (see
• Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so can cause damage to the AC IN connector of the projector and (or) the prong plug of the power cable.
• To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.
• The projector can be unplugged during its cool down period after it is turned off.
• Do not try to touch the ventilation outlet on the rear as it can become heated while the projector is turned on and immediately after the projector is turned off.
• Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.
• Do not place your hands near the lens opening while shifting the lens. Shifting the lens could pinch your fingers or hands causing injury. vi
Important Information
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into fire.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries' polarity (+/–) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.
Lamp Replacement
To replace either of the lamps, follow all instructions provided on page
.
Be sure to replace the lamp when the following is displayed on the screen:
If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.
If this happens, contact your dealer for lamp replacement.
Important Lamp Characteristic
The projector has a high-pressure mercury lamp as a light source.
A characteristic of mercury lamps is that brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of reduced brightness.
CAUTION:
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out. vii
Table of Contents
viii
Table of Contents
Changing Lamp Mode by Using the Projector's OSD Control Panel...................................47
ix
Table of Contents
When operating a computer through the remote mouse receiver .....................................102
x
1. Introduction
n
What’s in the Box?
Carefully unpack the projector and check that the following items are included:
NP4000 Projector
Power cable
(3.6m/11.8 ft.)
For North America, Europe and
Japan
Remote Control
(with Two AA alkaline batteries)
Quick start guide
Important Information
(For North America Only)
Registration Card
Limited Warranty
(For Europe only)
Guarantee Policy
(For Japan Only)
User's manual
Warranty card
Remote Cable
(10m/33ft)
6 Segment Color
Wheel
Lens Hole Cap
(Installed)
Anti-Theft Screw for lens x 1
Security Sticker
CD-ROM
(This User’s manual)
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.
CAUTION
Avoid using the projector in dusty environments.
1
1. Introduction o
Introduction to the Projector
Features you’ll enjoy:
z z z z z z
DLP projector with high resolution
High brightness
High brightness output of 5000 lumens (4-segment color wheel).
Dual Lamp system
Two lamp system offers increased lamp life and energy savings along with redundancy.
Extensive optional lens with bayonet mount
Five types of optional lenses are available.
Powered Lens Shift, Zoom, and Focus offer installation flexibility
Powered Horizontal and Vertical lens shift provides the ability to project from off center screen installations. Powered zoom and focus provide quick and easy adjustment.
Direct Power Off & Auto Start
The projector has a feature called “Direct Power Off”. This feature allows the projector to be turned off (even when projecting an image) using a power strip equipped with a switch and a breaker.
Note:
Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector and starting to display an image.
Also, the power cable can be removed immediately after turning off the projector.
Auto Start eliminates the need to always use the POWER (ON/STANDBY) button on the remote control or projector cabinet. z z z z z
A variety of input ports and a comprehensive array of system control interfaces
This projector supports input signals including BNC, DVI-D, analog RGB, component,
S-video, and composite.
3W+3W Stereo speaker
Built in 3W x 2 speakers are provided.
Preventing unauthorized use of the projector
Enhanced smart security settings for password protection, cabinet control panel lock to help prevent unauthorized access, adjustments and theft deterrence.
Integrated RJ-45 connector for wired networking capability for property management.
Combination of BrilliantColor™ and 6-segment color wheel offers a more true color reproduction
2
p
Part Names of the Projector
Front-right view
1. Introduction
I TEM L ABEL
1. IR receiver
2. Lamp cover
3. Lens control panel
D ESCRIPTION
Receiver for IR signal from remote control
Remove cover to replace lamp or color wheel
4. OSD control panel
See OSD Controls and Status LEDS
5. I/O connector panel Connect various input devices
6. Intake vent Lamp cooling vent – do not obstruct
7. Speakers
8. Height adjuster
9. Lens
Built-in stereo speakers
Adjusts level of projector
Remove lens hole cap before use
10. Lens release button
Press the release button before removing the lens
11. Anti-Theft Screw Prevent theft of the lens
12.
Intake vent and front filter
Keeps the front fan free of dust
– clean regularly for optimum performance
– do not obstruct
S EE PAGE :
—
—
—
—
—
Important:
Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the grill openings.
3
1. Introduction
Top View
I TEM
1.
2.
L ABEL
Lens control panel
Right-hand speaker
3. Lamp cover
D ESCRIPTION
Right-hand speaker
Remove cover to replace lamp or color wheel
4. Exhaust vent
5.
6.
OSD control panel
Rear intake vent
Exhaust vent – do not obstruct
See OSD Controls and Status LEDS
Rear cooling intake – do not obstruct
7. Left intake vent Left-hand cooling intake – do not obstruct
S EE PAGE :
—
—
—
—
4
1. Introduction
Carrying the Projector
Always carry your projector by the handle.
Before moving or carrying the projector, disconnect the power cable and any other cables that may be attached to it.
When moving the projector or when the projector is not in use, cover the lens with the lens cap.
To extend the projector handle, refer to the following guide.
1. Stand the projector on its end with the control panels at the bottom.
Note:
Stand the projector on its end by lifting the cabinet. Do not use the handle to place the projector upright.
2. Lift the handle in the direction shown until it is fully extended.
5
1. Introduction
Bottom view
I TEM L ABEL
1. Height adjusters
2. Intake vent
D ESCRIPTION
Adjust projection height
S EE PAGE :
—
3.
4.
Front filter
Ceiling support holes
Color wheel cooling vent – do not obstruct
Keep the fan free of dust – clean regularly for optimum performance
Contact your dealer for information on mounting the projector on a ceiling
—
5.
Security chain opening
Attach anti-theft device – see u Using the
6. Rear filter
CAUTION
Keep the fans free of dust – clean regularly for optimum performance
7. Side filter
With ceiling installation, use approved mounting hardware & M4 screws; maximum depth of screw: 12mm; distance from ceiling/ wall: 50/50 cm,
20/20 inch for proper ventilation; distance from fluorescent lamps: at least
50 cm front and back of then projector. For permanent installations, follow local codes.
6
1. Introduction q
Top Features
Lens Controls
I
TEM
1. ZOOM
L
ABEL
2. UP CURSOR
3. RIGHT CURSOR
4. DOWN CURSOR
5. LEFT CURSOR
6. FOCUS
D
ESCRIPTION
Increase/decrease projected image size
Move image left, right, up, or down
Focus the projected image
S
EE PAGE
:
7
1. Introduction
OSD Controls and Status LEDS
I TEM L ABEL
1. MENU
2. SELECT PAD
3.
RIGHT CURSOR/
VOLUME
INCREASE
4. EXIT
5. SOURCE
6. AUTO ADJUST
D ESCRIPTION
Open / Close the OSD
Navigate and change settings in the OSD
Increase volume
Exit the On-Screen Display (OSD)
Change or select the input device
Optimize image size, position, and resolution
Green
7. LAMP 1
Flashing
S EE PAGE :
8
I
TEM
8.
9.
11.
L
ABEL
LAMP 2
POWER
POWER (LED)
10. STATUS (LED)
1. Introduction
D
ESCRIPTION
Green
Flashing
Green
Orange
Flashing
Green
Lamp ready—you can safely turn on or off the projector
Turn the projector on or off (main power switch must be turned on first)
S
EE PAGE
:
12. ENTER Select or change settings in the OSD
13.
LEFT
CURSOR/VOLUM
E DECREASE
Decrease volume
9
1. Introduction r
Terminal Panel Features
I TEM
1.
2.
L ABEL
COMPUTER 3 IN
AUDIO IN (3)
3. AUDIO OUT
D ESCRIPTION
Connect the DVI cable (not supplied) from a computer
Connect the audio cable (not supplied) from the input device
Audio loop-thru
4. MONITOR OUT Connect to a monitor
S EE PAGE :
—
—
—
5. REMOTE 2
6.
7.
AUDIO IN (2)
L/MONO, R
(COMPONENT)
8. PC CONTROL
Connect the remote to the projector
Connect the audio cable (not supplied) from the input device
Connect an RCA audio cables (not supplied) from the input device right and left channels
Installation control
—
—
9. REMOTE 1 For external control
10
1. Introduction
I TEM
10.
11.
L ABEL
S-VIDEO
SC TRIGGER
D ESCRIPTION
When connected to the screen through a commercially available cable, the screen deploys automatically on start up of the projector. The screen retracts when the projector is powered off (see notes below)
S EE PAGE :
Connect a commercially available S-video cable from a video device
12. POWER SWITCH Turn on/off the projector
13. AC IN Connect the supplied power cable
14.
15.
L/MONO, R
VIDEO IN
Connect RCA audio cables (not supplied) from the input device right and left channels. This audio jack is shared with S-Video input.
Connect a composite video cable (not supplied) from a video device to the yellow RCA jack
—
16.
17.
COMPONENT IN
(Y, Cb/Pb, Cr/Pr)
COMPUTER 2 IN
(R/Cr, G/Y, B/Cb,
H, V)
Connect a component video enabled device
Connect RGBHV or Component signal from computer or component video enabled device
18.
19.
20.
COMPUTER 1 IN
AUDIO IN (1)
LAN
Connect a VGA cable (not supplied) from a computer
Connect the audio cable (not supplied) from the input device
Connect a LAN cable (not supplied) from a computer
—
21. SERVICE
Connect the USB cable (not supplied) from a computer. For service personnel only.
—
Note: y To use this feature, you must turn on the Screen Trigger function on OSD. y Screen controllers are supplied and supported by screen manufacturers. y Do not use this jack for anything other than intended use. Connecting the wired remote control to the Trigger mini jack causes damage to the remote control.
11
1. Introduction s
Part Names of the Remote Control
The Remote Control unit supplied with the projector combines ergonomic design and utility and includes features such as Volume and Zoom Control, Freeze Frame and a useful pointing tool in the form of a laser. Refer to the following diagram and table for button location and functionality.
I TEM L ABEL L ABEL I TEM
1. Remote jack
2. Laser pointer
Exit button
Laser button
18.
19.
3. Infrared transmitter L-Click button 20.
4. 21.
5. Power OFF button*
6. Power ON button**
7. Computer 1 button
8. Computer 2 button
Focus/ Zoom button
Freeze button
Lens shift button
Aspect button
Lamp mode button
22.
23.
24.
25.
26. 9. Video button
10.
Viewer button
(The VIEWER and
PAGE buttons will work with the other models, which have a Viewer function.
NP4000 does not have this function.)
11. Component button
12. Computer 3 button
Auto ADJ. button
Volume buttons
Magnify buttons
27.
28.
29.
13. S-Video button
Page Up/Down buttons
(The VIEWER and
PAGE buttons will work with the other models, which have a
Viewer function.
NP4000 does not have this function.)
30.
14.
LAN button
(Not available on
NP4000)
Picture button 31.
Keystone button 32. 15. Menu button
16.
Select
▲▼◄►button
17. Enter button
PIC-Mute button
Help button
33.
34.
12
1. Introduction
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain highfrequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between remote and projector is obstructed, you can bounce the remote signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control.
Note:
*To turn off the projector, press the Power OFF button twice.
**To turn on the projector, press and hold the Power On button for a minimum of two seconds
13
1. Introduction
Battery Installation
The Remote Control unit included with the projector does not contain batteries, though batteries are supplied as part of the complete package. To insert (or replace) the batteries, refer to the following guide.
1.
Remove the battery compartment cover by squeezing the locking catch (A) and sliding the cover in the direction of the arrow (B).
2.
Insert the supplied batteries taking note of the polarity (+/-) as shown.
3.
Replace the cover locator (A), and then click locking catch into place (B).
14
1. Introduction
Operating Range for Wireless Remote Control
The infrared signal operates by line-of-sight up to a distance of about 22 feet (7m) and within a 60-degree angle of the remote sensor on the projector cabinet.
The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
Remote Control Precautions
The following precautions ensure that the remote operates correctly and safely.
Handle the remote control carefully.
If the remote control gets wet, wipe it dry immediately.
Avoid excessive heat and humidity.
Do not heat, take apart, or throw batteries into fire.
For extended periods of inactivity, remove the batteries.
Ensure that the batteries' polarity (+/–) aligned correctly.
Do not use new and old batteries together, or different types of batteries together.
Dispose of used batteries according to local regulations.
15
1. Introduction
Using the Remote Control in Wired Operation
) and the other end to the remote jack on the remote
control (see item 1, s Part Names of the Remote Control on page 12 ).
Note:
Connecting the remote cable to the REMOTE2 jack on the terminal panel will make the wireless operation unavailable.
16
2. Installation and Connections
n
Setting Up the Screen and the Projector
This section briefly describes how to set up your projector and how to connect video and audio sources.
Your projector is simple to set up and use. But before you get started, you must first:
• Set up a screen and the projector.
• Connect your computer or video equipment to the projector. See s Making Connections on page 28 .
• Connect the supplied power cable. See t Connecting the Supplied Power Cable
on page
Note:
Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.
17
2. Installation and Connections o
Selecting a Location
Locating the projector correctly ensures optimum performance and a longer parts life.
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Ensure cables do not cause a trip hazard.
18
2. Installation and Connections p
Installing or Removing the Optional Lens
CAUTION:
• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.
• When shipping the projector with the optional lens, remove the optional lens before shipping the projector. The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation.
• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.
• Do not touch the lens surface when removing or installing the lens.
• Keep fingerprints, dust or oil off the lens surface. Do not scratch the lens surface.
• Work on a level surface with a soft cloth under it to avoid scratching.
• If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.
Removing the Existing Lens From the Projector
1.
Pull out the lens cap.
19
2. Installation and Connections
2.
Push the LENS
RELEASE button all the way in and rotate the lens counterclockwise.
The existing lens will be disengaged.
Note:
If the lens cannot be removed even by using the LENS RELEASE button, the anti-theft screw for lens may be in use to secure the lens. If that is the case, remove the anti-theft screw first.
3.
Pull out the existing lens slowly.
Note:
When Installing the Lens into the Projector:
Be sure to remove the lens cap from the back of the optional lens before installing the optional lens into the projector. Failure to do so will cause damage to the projector.
20
2. Installation and Connections
CAUTION:
When Installing the lens into the projector, be sure to remove the lens cap from the back of the optional lens before installing the optional lens into the projector. Failure to do so will cause damage to the projector.
Installing the New Lens
1.
Insert the lens with the arrow mark on top.
2.
Rotate the lens clockwise until you feel it click into place.
21
2. Installation and Connections
Installing the New Lens Using the anti-theft screw
Using the anti-theft screw to prevent theft of the lens.
Tighten the supplied anti-theft screw on the front bottom.
A n t t i i t t h e f f t t s c r e w
22
2. Installation and Connections q
Throw Distance and Screen Size
Example of NP08ZL:
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 40 inches (1 m) measured diagonally when the projector is roughly 65 inches (1.7 m) from the wall or screen. The largest the image can be is 500 inches
(12.7 m) when the projector is about 843 inches (21.4 m) from the wall or screen.
Screen Size NP06FL
0.77
NP07ZL
1.33 - 1.79
NP08ZL
1.78 - 2.35
Diagonal Width Height (B)
Distance (A)
[inches] [m] [inches] [m] [inches] [m] [inches] [m]
40 1.02 32 0.81
50 1.27 40 1.02
60 1.52 48 1.22
67 1.70 54 1.36
72 1.83 58 1.46
80 2.03 64 1.63
84 2.13 67 1.71
90 2.29 72 1.83
100 2.54 80 2.03
120 3.05 96 2.44
150 3.81 120 3.05
180 4.57 144 3.66
200 5.08 160 4.06
210 5.33 168 4.27
240 6.10 192 4.88
261 6.63 209 5.30
270 6.86 216 5.49
300 7.62 240 6.10
350 8.89 280 7.11
400 10.16 320 8.13
450 11.43 360 9.14
500 12.70 400 10.16
[inches] [m] [inches] [m]
24 0.61
30 0.76 30.7
0.78
36 0.91 37.1
0.94
40 1.02 41.6
1.06
43 1.10 44.9
1.14
48 1.22 50.0
1.27
41.7 56.8 1.06 1.44
55.8 - 74.4 1.42 - 1.89
52.6 71.5 1.34 1.82
70.4 - 93.7 1.79 - 2.38
63.5 86.1 1.61 2.19
85.0 - 112.9 2.16 - 2.87
71.1 96.4 1.81 2.45
95.2 - 126.4 2.42 - 3.21
76.6 - 103.7 1.94 2.63 102.5 - 136.0 2.60 - 3.45
85.3 - 115.4 2.17 2.93 114.1 - 151.3 2.90 - 3.84
50 1.28 52.6
1.34
54 1.37 56.5
1.44
89.6 - 121.3 2.28 -
96.2 - 130.1 2.44 -
3.08 120.0 - 159.0 3.05 - 4.04
3.30 128.7 - 170.6 3.27 - 4.33
60 1.52 63.0
1.60 107.0 - 144.7 2.72 3.68 143.3 - 189.8 3.64 - 4.82
72 1.83 75.9
1.93 128.8 - 174.0 3.27 4.42 172.5 - 228.2 4.38 - 5.80
90 2.29 95.3
2.42 161.5 - 218.0 4.10 5.54 216.2 - 285.9 5.49 - 7.26
108 2.74 114.6
2.91 194.1 - 261.9 4.93 6.65 260.0 - 343.6 6.60 - 8.73
120 3.05 127.6
3.24 215.9 - 291.2 5.48 7.40 289.1 - 382.0 7.34 - 9.70
126 3.20 226.8 - 305.9 5.76 7.77 303.7 - 401.3 7.71 - 10.19
144 3.66
157 3.98
259.5 - 349.8 6.59 -
282.3 - 380.6 7.17 -
8.89 347.5 - 458.9 8.83 - 11.66
9.67 378.1 - 499.3 9.60 - 12.68
162 4.11
180 4.57
210 5.33
292.1 - 393.8 7.42 - 10.00 391.2 - 516.6 9.94 - 13.12
324.8 - 437.7 8.25 - 11.12 435.0 - 574.3 11.05 - 14.59
379.2 - 511.0 9.63 - 12.98 507.9 - 670.4 12.90 - 17.03
240 6.10
270 6.86
300 7.62
433.7 - 584.3 11.02 - 14.84 580.8 - 766.5 14.75 - 19.47
488.1 - 657.5 12.40 - 16.70 653.7 - 862.6 16.60 - 21.91
542.6 - 730.8 13.78 - 18.56 726.6 - 958.7 18.46 - 24.35
23
2. Installation and Connections
Screen Size NP09ZL
2.22 - 4.43
NP10ZL
4.43 - 8.3
Diagonal Width Height (B)
Distance (A)
[inches] [m] [inches] [m] [inches] [m]
40 1.02 32 0.81
50 1.27 40 1.02
60 1.52 48 1.22
67 1.70 54 1.36
72 1.83 58 1.46
80 2.03 64 1.63
84 2.13 67 1.71
90 2.29 72 1.83
100 2.54 80 2.03
120 3.05 96 2.44
150 3.81 120 3.05
180 4.57 144 3.66
200 5.08 160 4.06
210 5.33 168 4.27
240 6.10 192 4.88
261 6.63 209 5.30
270 6.86 216 5.49
300 7.62 240 6.10
350 8.89 280 7.11
400 10.16 320 8.13
450 11.43 360 9.14
500 12.70 400 10.16
CAUTION
[inches] [m] [inches] [m]
- 142.3 1.76 - 6.78
- 178.9 2.23 - 8.51
- 215.5 2.70 - 10.24
- 241.2 3.02 - 11.45
- 259.5 3.26 - 12.32
- 288.8 3.63 - 13.70
- 303.5 3.82 - 14.39
- 325.4 4.10 - 15.43
- 362.1 4.56 - 17.16
Ceiling installation must be done by a qualified professional. Contact your
NEC dealer for more information.
It is not recommended you install the projector yourself.
Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector falls to the ground.
Do not use the projector in an environment where extreme temperature occurs. The projector must be used at temperatures between 41 degrees
Fahrenheit (5 degrees Celsius) and 104 degrees Fahrenheit (40 degrees
Celsius).
Screen damage will occur if the projector is exposed to moisture, dust or smoke.
Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the projector will occur if the vents are covered.
24
2. Installation and Connections r
Replacing Color Wheel
The NP4000 projector comes with a four-segment color wheel installed. An additional six-segment color wheel comes included. To replace the color wheel (located under the lamp cover adjacent to lamp 1) refer to the following guide.
Note:
Wait until the lamp house and the color wheel cool off.
1.
Loosen the captive screw (A) on the lamp cover.
2.
Remove the lamp cover by sliding in the direction of the arrow (B).
3.
Remove the screws from the color wheel cover. Lift cover in the direction shown and place on a clean, dust free surface.
25
2. Installation and Connections
4.
Unscrew the retaining screws on the four-segment color wheel.
5.
Lift the unit in the direction shown.
6.
Insert the six-segment color wheel
26
2. Installation and Connections
7.
Secure the retaining screws as shown.
8.
Replace the wheel cover as shown and secure the screws to lock the cover in place.
9.
Align the lamp cover
(A) with the arrow mark on the cabinet and slide it into place.
10.
Secure the captive screw (B).
Storing Unused Color Wheel:
Keep the unused color wheel in the zipper bag in which the supplied 6-segment color wheel was packaged.
This bag prevents dust from falling or collecting on the color wheel.
27
2. Installation and Connections s
Making Connections
Connecting Your PC or Macintosh Computer
Enabling the computer’s external display
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the Fn-key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.
To connect a PC or Macintosh computer to the projector, refer to the following guide.
1. Connect a computer to the projector through one of the three available input data connections before turning on the PC or the projector. The best signal order
(from best to least suitable) is as follows:
Note:
The DVI(DIGITAL) connector (COMPUTER 3) accepts VGA(640 x
480), 1152 x 864, XGA(1024 x 768), SXGA(1280 x 1024@up to 60Hz) and SXGA+(1400 x 1050 @ up to 60Hz).
Computer 2 in (see item 17, r Terminal Panel Features on page 10 ) is an
analog signal; use a DSUB-15 cable-to-5BNC connection.
Computer 1 in (see item 18, r Terminal Panel Features on page 10 ) an
analog signal that uses a standard RGB computer cable.
28
2. Installation and Connections
2. Turn on the projector and select the chosen method of connection from the
source menu before turning on the PC (see o Selecting a Source on page 36
).
3. Turn on the PC.
Note:
Failure to follow the above steps may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC.
29
2. Installation and Connections
Connecting an External Monitor
Connect an external monitor to the projector through RGB out connections as shown be-
low (see item 4, r Terminal Panel Features on page 10
)
30
2. Installation and Connections
Connecting Your DVD Player with Component Output
To connect a DVD Player to the projector, refer to the following guide.
1. Connect the DVD Player to the projector as shown below before turning on the
Player or the projector.
2. Turn on the projector and select Component from the source menu before turn-
ing on the DVD Player (see o Selecting a Source on page 36
).
3. Turn on the DVD Player.
Note:
Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
31
2. Installation and Connections
Connecting Your VCR or Laser Disc Player
To connect you VCR or Laser Disc Player, refer to the following diagram.
Note:
Refer to your VCR or laser disc player owner’s manual for more information about your device’s requirements.
Images may not be displayed correctly when using an S-Video or Video connection to fast-forward or fast-rewind scanning.
The AUDIO IN RCA jack is shared between VIDEO IN and S-VIDEO IN.
32
2. Installation and Connections t
Connecting the Supplied Power Cable
Refer to the following guidelines to connect the power supply to the projector.
1. Locate the projector correctly. See o Selecting a Location on page 18
.
2. Ensure Main Power switch is in the off position (O).
3. Connect power cable to mains outlet.
4. Connect power cable to power inlet (AC IN) on the projector, see r Terminal
Note:
Make sure that the prongs are fully inserted into both the AC IN and the wall outlet.
Note:
Ensure that the cables do not create a trip hazard.
33
3. Projecting an Image (Basic Operation)
n
Turning on the Projector
Once the projector is correctly located and the power cable and other connections are in place, it is important that the projector is powered on correctly in order to avoid damage to components and unnecessary wear and tear. Refer to the following guide to power on the projector.
1.
Connect the power cable (A).
Press the main power switch ( I ) to the on position as shown (B).
The power LED lights orange. B
A
2.
Press the On/Standby button
). The power LED lights green and the internal cooling fan starts.
3.
After approximately 10 seconds, the power LED flashes intermittently green. POWER STATUS LAMP1 LAMP2
4.
The Lamp1 and Lamp2 LEDs light green and the Power LED flashes more rapidly.
5.
Once the power LED is lit solidly green, the projector is ready for use.
POWER STATUS LAMP1 LAMP2
Note:
If any of the LEDs remain flashing or blink there may be a problem with the startup.
Please refer to the
o Troubleshooting section on page 104
.
34
3. Projecting an Image (Basic Operation)
Note on Startup Screen (Menu Language Select screen)
In the first instance of powering on the projector, the language menu is displayed to select the default language.
Select the required default language using the ▲ or ▼ buttons on the OSD menu panel or the remote control unit and press Enter.
Note:
The language select screen only appears on the first instance of power on. All subsequent operations assume the selected default language. To change the default see page
.
35
3. Projecting an Image (Basic Operation) o
Selecting a Source
The Source can be selected from the projector's control panel or from the remote control unit.
Refer to the following guide to select Source.
1.
Press Menu on the OSD control panel or on the remote control unit to display the Main Menu.
Scroll to the Source menu using ▲or▼ and press
Enter.
Note:
Return to the projected image by pressing Exit twice.
2.
Select the required source using ▲or▼ and press
Enter.
36
3. Projecting an Image (Basic Operation) p
Adjusting the Picture Position and Picture Size
The Picture Position and Picture Size can be adjusted manually from the lens control panel or from the remote control unit. Refer to the following guides to adjust Picture Position manually.
Adjusting Picture Position Manually
1.
Press the Select keypad in any direction to bring up the Lens Shift window.
2.
Press the directional key as required to shift the image. Releasing the directional arrow will re-center the cursor.
3.
To alter the picture size, press Menu and select the
Adjust menu using
▲or▼. Press Enter to open the Adjust menu.
Press ◄or► to select Im-
age Options followed by
▲or▼ to select the
Aspect Ratio. Press
Enter.
37
3. Projecting an Image (Basic Operation)
4.
The Aspect Ratio window is displayed. Select the desired picture size using ▲or▼ and press
Enter.
5.
When finished, press Exit to return to the projected image.
Lens Shift Adjustable Range
The adjustable range for lens shift is tabulated below and subject to the conditions listed.
Note:
The drawings below are applied to the lenses for NP07ZL, NP08ZL, NP09ZL, and
NP10ZL. The lens for NP06FL does not have a lens shift feature.
38
3. Projecting an Image (Basic Operation)
From the Remote Control Unit
1.
Press the Lens Shift button to bring up the Lens
Shift window.
2.
Press the directional keys as required to shift the image. Releasing the directional arrow will recenter the cursor.
3.
To alter the picture size, press the Aspect button to display the Aspect Ratio window.
4.
Select the desired picture size using ▲or▼ and press Enter.
5.
When finished, press Exit to return to the projected image.
39
3. Projecting an Image (Basic Operation)
Adjusting the Projector Level
1.
To raise the level of the projector, twist the adjusters clockwise.
2.
To lower the level of the projector, lift the projector and twist the adjusters counter clockwise.
40
3. Projecting an Image (Basic Operation) q
Optimizing an RGB Image Automatically
Adjusting the Image Using Auto Adjust
To optimize an RGB image automatically refer to the following guide.
) to optimize an RGB image automatically.
This adjustment may be necessary when you connect your computer for the first time.
41
3. Projecting an Image (Basic Operation) r
Adjusting Volume Up and Down
The volume can be adjusted from the OSD Control Panel or with the Remote Control unit.
Refer to the following as a guide.
1.
Press the Volume +/- buttons on the remote control or the Select pad left and right keys on the
OSD control panel. The volume level is displayed on screen.
2.
Use the Volume +/- buttons or the Select pad left and right keys on the OSD control panel to adjust the level.
42
3. Projecting an Image (Basic Operation) s
Turning off the Projector
Once the projector is no longer required, it is important to shut it down correctly to avoid damage or unnecessary wear and tear to the projector.
CAUTION
• Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so can cause damage to the AC IN connector of the projector and (or) the prong plug of the power cable.
To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.
• Do not turn off the AC power supply within 10 seconds of making adjustment or setting changes and closing the menu. Doing so can cause loss of adjustments and settings and return to default.
Refer to the following guide to shut down the projector.
1.
Press the On/Standby button once. The OSD displays the message shown on the right.
2.
Press the On/Standby button again or Enter on the OSD control panel or the remote control to verify power off.
The cooling fans keep operating for a while (Cooling-off time).
The cooling fans stop operating when the projector turns off
3.
The projector enters Standby mode and the power LED lights orange.
4.
Press the Main Power switch to the off position (O) to turn off the projector.
43
3. Projecting an Image (Basic Operation)
About Direct Power Off
The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image) using a power strip equipped with a switch and a breaker.
Note:
Before using Direct Power Off, be sure to allow at least 20 minutes immediately after turning on the projector and starting to display an image.
After Use
Preparation: Make sure that the projector is turned off.
1. Unplug the power cable.
2. Disconnect any other cables.
3. Return the height adjusters to their original, minimum position.
4. Cover the lens with the lens cap.
44
4. Convenient Features
n
Turning Off the Image and Sound
The projected image and sound can be turned off for short periods of time with the remote control. This feature is useful for breaking up presentations or for other brief interruptions in projections. To turn off the picture and image, refer to the following guide. the
2. To resume projection, press the PIC-MUTE button once more.
Note:
For extended periods of time it is recommended that the projector be powered off. o
Freezing a Picture
The projected image can be frozen for short periods of time via the remote control. This feature is useful for capturing still images from movies or freezing an animation at a particular point. To freeze the projected image, refer to the following guide. the
2. The screen freezes.
3. To resume, press the Freeze button once more.
Note:
For extended periods of time it is recommended that the projector be powered off.
45
4. Convenient Features p
Adjusting the Focus/Zoom Manually
The focus and zoom can be adjusted manually from the projector focus/zoom panel or from the remote control unit. Refer to the following guides to adjust the focus and zoom manually.
Adjusting by Using the OSD Control Panel
1.
Press the Focus or Zoom button on the projector panel to display the appropriate window.
2.
Adjust the focus/zoom using the increase and decrease buttons as required.
3.
Press Exit to return to the projected image.
46
4. Convenient Features q
Changing Lamp Mode
The projector has two lamp modes available, Normal and Eco. The Normal mode is used for everyday standard projection, whereas the Eco mode is used for saving power and lamp life.
To change the Lamp Mode, refer to the following guides.
Changing Lamp Mode by Using the Projector's OSD Control Panel
1.
Press Menu on the projector's
OSD control panel to display the
Main Menu. Scroll to the Setup menu using ▲or▼ and press
Enter.
2.
Select the General tab using
◄or► and select Lamp Mode using ▲or▼. Press Enter.
3.
From the Lamp Mode window, select Normal or Eco using
▲or▼. Select OK and press
Enter.
47
4. Convenient Features
Changing Lamp Mode by Using the Remote Control
1.
Press the Lamp Mode button on the remote control to access the
Lamp Mode menu.
2.
From the Lamp Mode window, select Normal or Eco using
▲or▼. Move the cursor to OK and press Enter.
Note:
When the projector is in Eco mode, brightness may be affected.
Normal Mode: 100% Brightness
Eco Mode: approx. 85% Brightness
48
4. Convenient Features r
Getting Information
Press the HELP button on the remote control to display the "Information" screen. Use ◄ or
► to select a tab.
49
4. Convenient Features s
Adjusting Position/Clock
The Position/Clock/Phase and Keystone Correction can be adjusted manually from the projector's control panel or from the remote control unit. Refer to the following guides to adjust the Keystone Distortion manually.
Adjusting Position/Clock/Phase by Using the OSD Control Panel
1.
Press the Menu button to display the Main menu.
Select the Adjust menu using ▲or▼ and press
Enter to display the
Adjust menu.
2.
From the Adjust menu, press ◄or► to select Image Options and scroll using ▲or▼ to
Horizontal, Vertical,
Clock, or Phase.
3.
Adjust the Horizontal,
Vertical, Clock, or Phase sliding bars using the select ▲▼◄► buttons.
4.
Press Exit to return to the projected image.
50
4. Convenient Features
Correcting Keystone by Using the Remote Control
IMPORTANT:
When adjusting the keystone, place the projector in the following position.
• Horizontal: set to the lens center
• Vertical: set to the maximum top
1.
Press the Keystone button to display the Keystone window.
2.
Adjust the Horizontal and
Vertical sliding bars using the select ▲▼◄► buttons.
3.
Adjust the slide bars until the screen trapezoid is a regular shape (see diagram).
4.
Press Exit to return to the projected image.
Note:
Holding down the Keystone button 2 seconds resets the default keystone values.
51
4. Convenient Features
A
DJUSTMENT
H
ORIZONTAL
V
ERTICAL
Keystone Max. +/– 35° approx. Max. +/– 40° approx.
The following are conditions under which the maximum angle is achieved:
When the NP08ZL lens is used
When the lens shift is set to H for center and V for 0.5 shift.
When the lens shift is used and yet you do not get the above-mentioned condition (H for center and V for 0.5 shift), you cannot adjust the lens shift correctly.
Image is projected in Wide mode
Resolution XGA
Note:
Higher resolution than XGA narrows the adjustable range.
Menu items should be set as follows:
Aspect Ratio ........... 4:3
Horizontal and Vertical are adjusted separately.
A combination of both adjustments narrows the adjustable range.
52
4. Convenient Features t
Preventing the Unauthorized Use of the Projector
The projector has an inbuilt security feature to lock the OSD control panels and deny remote control operation. The security feature has no default keyword; in the first instance of enabling the security feature, the user must define a keyword.
Locking the Projector
To setup the security keyword, refer to the following guide.
1.
Press Menu on the OSD control panel on the projector or remote control to display the Main
Menu. Scroll to the Setup menu using ▲or▼ and press Enter.
2.
The Setup menu is displayed.
Select the Installation tab using
◄or► and select Security using
▲or▼. Press Enter.
53
4. Convenient Features
3.
You are prompted to enable the
Security Function. Select OK and press Enter.
Select On using the ▼ button.
4.
The keyword window is displayed. Enter a keyword between
4 and 10 characters using
▲▼◄►. Press Enter.
5.
Once a successful keyword is entered, a confirmation screen is displayed. Enter the same password as the previous step and write it down for later reference. Press Enter. A security activation message is displayed. Select Cancel to return to the Setup menu or select
OK to enable security.
54
Unlocking the Projector
To unlock the projector, refer to the following guide.
1.
When the projector is locked, either by request during operation or at start up, the locked message is displayed.
2.
To unlock the projector, press
Menu on the control panel or remote control. The keyword window is displayed. Enter the previously defined keyword to activate the projector.
4. Convenient Features
55
4. Convenient Features u
Using the Physical Lock
For security and authorized usage, the projector comes with two types of security features, the Kensington Lock and the Security Chain Lock.
Using the Kensington Lock
If you are concerned about security, attach the projector to a permanent object with the
Kensington slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo,
CA94403, U.S.A. Tel: 800-535-4242, http://www.Kensington.com.
Using the Security Chain Lock
In addition to the password protection function and the Kensington lock, the Security
Chain Opening helps protect the NP4000 from unauthorized use.
See the following picture.
56
5. Using On-Screen Display
n
Using the Menus
The projector has an On-Screen Display (OSD) that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.
1.
To open the OSD, press the
Menu button on the OSD control panel or remote unit. There are six initial menus. Press the cursor ▲or▼ buttons to move through the initial menus and
Enter to select the desired menu.
57
5. Using On-Screen Display
2.
Press the cursor ◄ or ► button to move through secondary menus.
3.
Press ▲or▼ to select menu items and ◄or► to change values for settings. Press Enter to confirm the new setting.
4.
Press Exit to close the OSD or leave a submenu.
58
5. Using On-Screen Display o
Menu Tree
The gray shaded area indicates factory default settings.
M ENU I TEM
Source Computer 1, Computer 2, Computer 3, Component, Video, S-Video
Adjust Picture Preset High-Bright/Presentation/Video/Movie/Graphic/sRGB
Gamma
Correction
Color
Temperature
Dynamic/Natural/Black Detail
5000K/6500K/7800K/
8500K/9300K/10500K
BrilliantColor
White
Balance
Brightness R
Color
Correction
Red, Green, Blue, Yellow,
Magenta, Cyan
Contrast
Brightness
Sharpness
Color
Hue
Reset
Options
Aspect Ratio 4:3/16:9/Crop/Native/Normal
Overscan 0%/5%/10%/15%
Vertical
Clock
Phase
Off/On
Deinterlace Off/Still/Normal/Movie
Telecine Off/2-2/2-3 Auto/2-2 On/2-3 On
Volume 0~61
Setup General Keystone
Horizontal
Vertical
Language English/Deutsch/Français/Italiano/Español/Svenska/ 日本語/中文
59
5. Using On-Screen Display
M ENU I TEM
Installation Orientation
Communication
Speed
Menu Color
Select
Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front
4800bps/9600bps/19200bps/38400bps
Color/Monochrome
Background Blue/Black/Logo
Security Off/On
Control Panel Lock Off/On
Gateway
Options Start Off/On
Power
Management
Off/0:05/0:10/0:20/0:30
Default Source
Select
Last/Auto/Computer1/Computer2/Computer3/
Component/Video/S-Video
Information
Usage
Time
Video Auto/NTSC/PAL/SECAM
S-Video Auto/NTSC/PAL/SECAM
Lamp 1 Life Remaining, Lamp 2 Life Remaining
Lamp 1 Hours Used, Lamp 2 Hours Used
Filter Hours Used
Reset
LAN
Version
IP Address, Subnet Mask, Gateway, MAC Address
Product, Serial Number, Firmware, Data
Current Signal, All Data, Clear Lamp 1 Hours, Clear Lamp 2 Hours, Clear Filter Hours
60
5. Using On-Screen Display p
Menu Elements
Some menus and windows contain large amounts of information in a small area. Refer to the following guide to navigate through options more easily.
Menu windows or dialog windows typically contain the following elements:
L
ABEL
I
TEM
D
ESCRIPTION
1. Title
2. Highlight
Indicates the menu title.
Indicates the selected menu or item.
3. Menu type
4. Radio button
Advanced Menu or Basic Menu.
Use this round button to select an option in a dialog box.
5. Slide bar
6. Exit
Indicates settings or the direction of adjustment.
Return to the previous menu.
61
5. Using On-Screen Display q
Source Menu Descriptions and Functions
The Source menu displays all supported image sources.
Select the required source from the menu using ▲ or ▼ and press Enter to confirm.
I
TEM
Computer 1
D
ESCRIPTION
Select the source connected to the Computer 1 input
(see Connecting Your PC or Macintosh Computer on page 28
).
Computer 2
Select the source connected to the Computer 2 input
(see Connecting Your PC or Macintosh Computer on page 28
).
Computer 3
Component
Video
S-Video
Select the source connected to the Computer 3 input
(see Connecting Your PC or Macintosh Computer on page 28
).
Select the source connected to the Component input
(see Connecting Your DVD Player with Component Output on page 31 ).
Select the source connected to the Video input
(see Connecting Your VCR or Laser Disc Player on page 32 ).
Select the source connected to the S-Video input
(see Connecting Your VCR or Laser Disc Player on page 32 ).
62
5. Using On-Screen Display r
Adjust Menu Descriptions and Functions
The Adjust menu contains overall projector settings for image output such as sharpness, overscan and color matrix.
Three tabs are accessible through the Adjust menu, Picture, Image Options and Video.
Picture menu
The picture menu is used to alter picture settings and can be accessed from the Adjust menu.
The following table lists all functions with a description and the default setting.
I
TEM
D
ESCRIPTION
Preset
Select a set of preset values using ◄or► from the list. Notice that the below values will change depending on the preset selected.
Detail
Setting
Sharpness
See s Detail Settings Menu Descriptions and Functions on page 69 .
Contrast
Adjust the Contrast value using ◄or► to highlight the differences between light and dark areas of the picture.
Brightness Adjust the Brightness value using ◄or► to lighten or darken the picture.
Adjust the Sharpness value using ◄or► to sharpen or blur the borders between colors and objects.
Color
Hue
Reset
Adjust the Color value using ◄or► to increase or decrease color input to the picture.
Adjust the Hue value using ◄or► to increase or decrease the color Hue of the picture.
The settings and adjustments for Picture will be returned to factory settings.
63
5. Using On-Screen Display
Image Options Menu
The Image Options menu is used to configure image options such as screen positioning and aspect ratio. Access the image options menu in the Adjust menu.
I
The following table lists all functions with a description and the default setting.
TEM
Aspect
Ratio
D ESCRIPTION
Select Aspect Ratio using ◄or► from the list (see page 65 ).
Overscan
Position/
Clock
Set the Overscan value using ◄or► (see page
).
Adjust the Position/Clock values using the slides.
Horizontal: Adjusts the image location horizontally using ◄or►.
Vertical: Adjusts the image location vertically using ◄or►.
Clock: Fine tune a computer image or remove any vertical banding that might appear.
Phase: Adjust the clock phase or reduce video noise, dot interference or cross talk.
Note:
Only use the Phase settings after the clock settings have been modified.
64
5. Using On-Screen Display
Aspect Ratio
Aspect Ratio alters the appearance or Ratio of the projected image.
4:3 – Standard TV screen (4:3), proportionally four units wide for every three units high, no matter the size of the screen.
16:9 – A wide-screen aspect ratio for video.
Crop – Crop the image.
Native – Displays the current image in its true resolution.
Normal – Displays the current image in its aspect ratio.
Overscan
Video images normally exceed the size of the display screen. The edge of the picture may or may not de displayed correctly. The border area that is cropped can be adjusted by using the Overscan menu.
Set the overscan percentage between 0 – 15% to compensate for different screen sizes.
65
5. Using On-Screen Display
Video Menu
The Video menu is used to configure image options such as deinterlace and telecine.
Access the Video menu in the Adjust menu.
The following table lists all functions with a description and the default setting. A detailed description follows the table.
I
TEM
D
ESCRIPTION
Noise
Reduction
Select Noise Reduction mode (see page 67 ).
3D Y/C
Separation
Select 3D Y/C Separation mode (see page
Deinterlace Select Deinterlace mode (see page
).
Color
Matrix
Telecine
Select Color Matrix mode (see page 68 ).
Select Telecine mode (see Telecine on page 68 ).
66
Noise Reduction
Select the level of noise reduction required.
5. Using On-Screen Display
Range: Off, Low, Medium, High.
3D Y/C Separation
3D Y/C Separation separates composite signal to Y (brightness) signal and C (color) signal, and can help to produce clearer and sharper images without overlapping colors
(rainbow effect).
Set 3D Y/C Separation On or Off.
Deinterlace
Deinterlace converts an interlaced image to a progressive scan image.
Select the form of Deinterlacing required from:
Still – Select for stills such as slide projections or screen shots.
Normal – Select Normal for non-specialized projection.
Movie – Select for movie projection.
67
5. Using On-Screen Display
Color Matrix
Color Matrices define the amount of the three-color components R (red), G (green), and
B (blue) in a single point in color space.
Select from the following:
Auto – Auto selects the color matrix.
RGB – Sets the color matrix to RGB, use for PC monitor or camera imaging.
SDTV – Sets the color matrix to SDTV, use for Standard Definition imaging.
HDTV – Sets the color matrix to HDTV, use for High Definition imaging.
Telecine
Telecine aids in converting motion picture film images into video. The process adds additional frames to the picture in order to increase the frame rate.
Note:
This feature is only available when deinterlace is turned on and SDTV signal is selected.
Select from the following:
Off – Telecine mode is turned off.
2-2/2-3 Auto – Detects pull-down correction method.
2-2 On – Uses 2-2 pull-down correction method.
2-3 On - Uses 2-3 pull-down correction method.
68
5. Using On-Screen Display s
Detail Settings Menu Descriptions and Functions
The Detail Settings menu contains basic and advanced color adjustment options such as gamma correction, color contrast and color correction.
General
The General tab contains general Detail Settings such as gamma correction and color temperature. Access to the General tab is through the Detail Settings menu.
The following table lists all functions with a brief description.
I TEM
Reference
D ESCRIPTION
Set Reference mode (see page
).
Gamma Correction
Color
Temperature
BrilliantColor TM
Select Gamma Correction mode (see page
).
Set the color temperature value in Kelvin (K). Compensate for the amount of light available. Daylight is approximately 5500K.
Set the BrilliantColor value. BrilliantColor extends the exposure range and sharpens detail for grain free images.
69
5. Using On-Screen Display
Reference
The Reference mode allows the projector to differentiate between source materials for example movies, PC images or video stills.
Select from the following:
High-Bright –Select for use in a brightly lit room.
Presentation – Select if the projector is to be used for presentation purposes.
Video – Select for video projection.
Movie – Select for Movie projection.
Graphic – Select Graphic for still images.
sRGB – Select for projecting PC or web page images.
Gamma Correction
Gamma Correction enables adjustment to the light intensity (brightness) of an image in order to match the source more closely.
Select from the following:
Dynamic – Allows the projector to dynamically alter the gamma correction automatically.
Natural – Attempts to emulate the original source as closely as possible.
Black Detail – Black Detail highlights boundaries between light and dark areas of the image more clearly.
70
5. Using On-Screen Display
White Balance
White Balance allows the projector to compensate for different colors of light being emitted by different light sources.
The following table lists all functions with a brief description.
I TEM D ESCRIPTION
Brightness R Set the Brightness R value to compensate for red light sources.
Brightness G Set the Brightness G value to compensate for green light sources.
Brightness B Set the Brightness B value to compensate for blue light sources.
Contrast R
Contrast G
Contrast B
Set the Contrast R value to compensate for red light sources.
Set the Contrast G value to compensate for green light sources.
Set the Contrast B value to compensate for blue light sources.
71
5. Using On-Screen Display
Color Correction
The Color Correction tab enables the adjustment of color values in an image to remove unwanted effects, improve color, characteristics or add more of a particular color.
The following table lists all functions with a brief description.
Red
I TEM D ESCRIPTION
Increase or decrease the amount of red in the projected output using
◄ and ►.
Green
Blue
Yellow
Magenta
Cyan
Increase or decrease the amount of green in the projected output using ◄ and ►.
Increase or decrease the amount of blue in the projected output using ◄ and ►.
Increase or decrease the amount of yellow in the projected output using ◄ and ►.
Increase or decrease the amount of magenta in the projected output using ◄ and ►.
Increase or decrease the amount of cyan in the projected output using ◄ and ►.
72
5. Using On-Screen Display t
Setup Menu Descriptions and Functions
The Setup menus contain the most often used settings during installation and options to customize the general output of the projector. Three tabs are accessible through the Setup menu, general, installation and option.
General
The General tab contains general setup options such as lamp mode and OSD language settings and can be accessed with the projector control panel or with the remote control unit.
The following table lists all functions with a brief description.
I
TEM
D
ESCRIPTION
Keystone Adjust the Keystone trapezoid (see page
).
Lamp Mode Select Lamp Mode. Range: Normal or Eco.
Lamp Select
Lamp Interval
Menu Mode
Language
Select Lamp configuration. Range: Dual, Lamp1 or Lamp2.
Select Lamp Interval. Range: Off, 1 week, 4 weeks or 2000 hours.
Select Menu Mode. Range: Advanced Menu or Basic Menu.
Select the OSD language (see Language on page
).
73
5. Using On-Screen Display
Keystone
The keystone trapezoid can be adjusted by selecting this option.
Select Horizontal or Vertical using ▲or▼ then, use ◄or► to adjust the projected image appearance as required.
Lamp Mode
Select Normal or Eco from the lamp mode window. The lamp life can be extended by using the Eco mode and the fan noise can be reduced.
Lamp Select
Select the lamps to be used for projection.
Select from the following:
Dual – Uses both lamps simultaneously.
Lamp1 – Uses Lamp1 only.
Lamp2 – Uses Lamp2 only.
74
5. Using On-Screen Display
Lamp Interval
Lamp Interval determines the period of time after which the lamp should be swap when lamp select is not Dual.
Select from the following:
Off, 1 week, 4 week and 2000H
Menu Mode
Select the Menu Mode to display.
Select from the following:
Basic Menu – Displays menus with minimum essential options. This setting is best suited to novices.
Advanced Menu – Displays menus with all available options. This setting is best suited to experienced operators.
75
5. Using On-Screen Display
Language
Select the OSD language to be used.
Select from the following:
English
German
French
Italian
Spanish
Swedish
Japanese
Simplified Chinese
76
5. Using On-Screen Display
Installation
The Installation tab contains menu options for various setup conditions such as orientation and remote sensor mode and is accessed through the Setup menu.
The following table lists all functions with a brief description.
I TEM
Orientation
D ESCRIPTION
Select from four projection methods depending on projection site
(see page
).
Communication
Speed
Menu Color
Select
Display Time
Background
Security
Select Communication Speed.
Range: 4800bps, 9600bps, 19200bps, 38400bps
Select the menu color from the list.
Range: color or monochrome.
Select Display Time.
Range: Manual, Auto 5s, Auto 15s, Auto 45s
Select Background appearance when there is no signal.
Range: blue, black or logo
Set Security On/Off (see Security on page 81
).
77
5. Using On-Screen Display
I
TEM
D
ESCRIPTION
Set Control Panel Lock On/Off.
Control Panel Lock
DynamicBlack
(TM)
Remote Sensor
Note: y This Control Panel Lock does not affect the remote control functions. y When the control panel is locked, pressing and holding the
Exit button on the projector cabinet for about 10 seconds.
The setting will change to Off.
DynamicBlack improves the black level of the projector. Black level is the darkest part of a picture and varies between viewing devices and environments.
Set DynamicBlack on/off.
Set Remote Sensor fields.
Range: Front/Back, Front, Back
LAN
Settings
Opens LAN preferences tab (see LAN Settings on page 84 ).
Standby Mode
PC Control
Select Standby Mode.
Range: Normal and Power-saving
Enables the path selection for PC control.
Select PC Control. Range: PC CONTROL or LAN.
Orientation
Orientation enables you to set how the projected image is displayed.
Select from the following:
Desktop Front – Standard forward facing projection (Default setting).
Desktop Rear – Standard rear projection. Enables the projector to produce the image from behind the screen by reversing the image.
Ceiling Front – Forward facing ceiling mounted projection. Enables ceiling mounted projection by inverting the image.
Ceiling Rear – Rear ceiling mounted projection. Enables ceiling mounted projection from behind the screen by inverting and reversing the image.
78
Desktop front
5. Using On-Screen Display
Ceiling rear
Desktop rear Ceiling front
Communication Speed
Select communication speed to set the baud rate of the connection.
Note:
Longer cable connections may require lower settings.
Select from the following options:
4800bps
9600bps
19200bps
38400bps
Menu Color Select
Select color modes to set the menu color.
Select from the following options:
79
5. Using On-Screen Display
Color
Monochrome
Display Time
Sets the amount of time a menu is displayed.
Select from the following:
Manual – Menus stay on screen until the Menu button is pressed again.
Auto 5 secs—Menu is displayed for 5 seconds.
Auto 15 secs – Menu is displayed for 15 seconds.
Auto 45 secs – Menu is displayed for 45 seconds.
80
5. Using On-Screen Display
Background
Background enables you to display a blue/black screen when there is no signal. The default background is blue.
Select from the following:
Blue
Black
Logo
Security
See t Preventing the Unauthorized Use of the Projector on page 53
.
Control Panel Lock
Turn On/Off the Key Lock function for cabinet buttons.
Note: y This Control Panel Lock does not affect the remote control functions. y When the control panel is locked, pressing and holding the Exit button on the projector cabinet for about 10 seconds. The setting will change to Off.
DynamicBlack
DynamicBlack enables you to improve the black level of the projector.
81
5. Using On-Screen Display
Remote Sensor
Set the operating range for the wireless remote control.
Select from the following:
Front/Back
Front
Back
LAN Settings
Standby Mode
There are two standby modes available: Normal and Power-Saving. Power-Saving mode allows you to put the projector in the standby condition to consume less power than Normal.
Note:
Be sure to connect the projector and computer while the projector is in standby mode and before turning on the computer.
Select from the following:
Normal
Power-saving
Note:
The HTTP server functions are not available during Power-saving mode.
The MONITOR OUT function is not available during Power-saving mode.
Control through the PC Control connector and LAN mode is not available during
Power-saving mode. For PC control and LAN mode of the projector it is recommended to leave the projector in the Normal mode.
Normal mode:
Power-saving mode:
Power indicator: Orange light
Status indicator: Green light
Power indicator: Orange light
Status indicator: Off
82
5. Using On-Screen Display
PC Control
Note:
In the LAN mode, Communication Speed function is not available.
Select from the following:
PC
LAN
83
5. Using On-Screen Display
LAN Settings
The LAN settings tab is accessed by using the Setup/Installation tab and contains general LAN settings.
The following table lists all functions with a description and the default setting.
I
TEM
D
ESCRIPTION
DHCP
Select either a static IP or DHCP IP setting by selecting the appropriate radio button.
IP Address Displays the IP address.
Subnet
Mask
Displays the subnet mask.
Gateway
Enable or disable the network gateway setting. Click on the radio button to change the setting.
DNS
Server
Apply
Settings
Enable or disable the DNS server settings. Click on the radio button to change the setting.
Apply and save settings.
84
5. Using On-Screen Display
Options
The Options tab contains miscellaneous setup menu settings such as Power Management and Default Source Select and can be accessed by using the Setup Menu.
The following table lists all functions with a description and the default setting.
I TEM
Auto Start
D ESCRIPTION
Set this item on to enable the projector to power up when AC plug in.
Range: on or off
Power
Management
Screen
Trigger
Fan Mode
Default
Source Select
Select the amount of time the projector remains idle before powering down.
Range: Off, 0:05, 0:10, 0:20, 0:30
Set this item to On to enable the projector to automatically lower the projection screen when powering on.
Range: on or off
Select Fan Mode.
Range: Auto or High (see page
)
Select the default source for projection.
Range: Last, Auto, Computer1, Computer2, Computer3, Component,
Video, S-Video
85
5. Using On-Screen Display
I
TEM
Color System
D
ESCRIPTION
Select the default Color System to use for Video or S-Video input.
Range: Auto, NTSC, PAL, SECAM
Filter Message
Set this item to on to have the projector display a message when the air filter needs servicing.
Range: Off, 100[H], 200[H], 500[H], 1000[H]
Auto Start
Auto Start enables the projector to start automatically when the power cable is connected to an active power outlet and the main power switch is on. This eliminates the need to always use the POWER (ON/STANDBY) button on the remote control or projector cabinet. To use the Auto Start function, you must first press the main power switch to
On before connecting the power cable.
Note: y When the projector is off by using the POWER button (or put in the standby mode) and the power cable is disconnected, Auto Start will not activate after power (AC) is applied. y When the projector is off by using the Direct Power Off function or after the power (AC) is removed (no standby mode), Auto Start will be activated after power (AC) is applied. y The Direct Power Off function means you can turn off the power (AC) to the
projector by using a power strip equipped with a switch and a breaker.
Power Management
Power Management enables the projector to automatically turn off if there is no signal received by any input.
86
5. Using On-Screen Display
Select from the following:
Off
5
10
20
30
Screen Trigger
Set Screen Trigger to On to enable the projector to automatically lower the projection screen when powering on. When powering off, Screen trigger stops sending a low voltage trigger to the screen controller and the screen goes up.
Fan Mode
Fan Mode is used to set the speed of the internal cooling fan. Set Fan Speed to High in altitudes over 1500 meters (5000 feet).
The Fan Mode option default is Auto, which enables the projector to automatically detect fan requirements. For higher temperature locations or prolonged use, the High option is available providing greater cooling capacity.
Default Source Select
The Default Source is the image source that the projector will search for automatically on startup.
87
5. Using On-Screen Display
Last – Uses the most recently used image source.
Auto – Auto detects the default image source.
Computer1/2/3 – Uses Computer1, 2 or 3 as the default image source.
Component – Uses last component as the default image source.
Video – Uses last video input as default image source.
S-Video – Uses last S-video input as default image source.
Color System
Color System enables you to select video standards manually. In the normal condition, select Auto and the projector will automatically detect the video standard. When the projector has difficulty detecting the video standard, you can select the appropriate video standard from the menu. This must be done for Video and S-Video Connector separately.
Filter Message
Set Filter Message to on to have the projector display a message when the air filter needs servicing.
The message below shows when this function is activated.
88
5. Using On-Screen Display u
Information Menu Descriptions and Functions
The information menu provides only screens to access details quickly. The Information menu contains four distinct tabs.
Usage Time
The Usage Time tab displays information about lamp usage and remaining lamp life.
The following table lists all items with a description.
I TEM
Lamp1 Life
Remaining
D ESCRIPTION
Displays the Lamp1 life remaining as a percentage.
Lamp2 Life
Remaining
Lamp1 Hours
Used
Lamp2 Hours
Used
Filter Hours
Used
Displays the Lamp2 life remaining as a percentage.
Displays the Lamp1 total usage in hours.
Displays the Lamp2 total usage in hours.
Displays the filter total usage in hours.
89
5. Using On-Screen Display
Source
The Source tab displays various source and frequency values at a glance.
The following table lists all items with a description.
I TEM
Input Terminal
D ESCRIPTION
Displays the Input Terminal that is presently being used
(see Default Source Select on page 87
).
Source Name
Displays the Source name of the signal presently being used
(see Options, Color System on page 85
).
Horizontal
Frequency
Vertical
Frequency
Video Type
Sync Type
Sync Polarity
Scan Type
Displays Horizontal Frequency in KHz.
Displays Vertical Frequency in Hz.
Displays Video type.
Displays Sync Type.
Displays Sync Polarity.
Displays Scan Type.
90
5. Using On-Screen Display
LAN
The LAN tab displays LAN settings as previously defined (see LAN Settings on page 84
).
91
5. Using On-Screen Display
Version
The Version tab displays all the version and product details of the projector and associated software.
The following table lists all items with a description.
I TEM D ESCRIPTION
Product Displays Product ID.
Serial Number Displays projector Serial Number.
Firmware
Data
Displays Firmware version and Color Wheel currently installed (4-seg or 6-seg).
Displays Data version.
92
5. Using On-Screen Display v
Reset Menu Descriptions and Functions
Occasionally, circumstances may require that factory defaults are reset, for demonstration purposes for example, or when components are replaced.
The Reset menu contains options for returning settings to the factory default and is accessed via the Main menu.
The following table lists all items with a description.
I
TEM
D
ESCRIPTION
Current Signal
Reset the adjustments for current signal to factory preset levels. All items in Adjust can be reset.
All Data
Resets all options to factory default regardless of when they were changed.
Reset all the adjustments and settings for all the signals to the factory preset except Language, Background, Control Panel Lock, Secu-
rity, LAN Mode, Communication Speed, Lamp Life Remaining,
Lamp Hours Used, and Filter Hours Used.
Clear Lamp1 Hours Reset lamp1 hours
Clear Lamp2 Hours
Clear Filter Hours
Reset lamp2 hours
Reset filter hours
These options should only be used when components are
)
93
6. Maintenance
n
Cleaning the projector
Cleaning the Cabinet
Refer to the following guide to clean the projector cabinet.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent and wipe the cabinet.
3. Rinse all detergent from the cloth and wipe the projector again.
CAUTION
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
Cleaning the Lens
Refer to the following guide to clean the projector lens.
1. Apply a little optic lens cleaner to a clean, lint free cloth (do not apply the cleaner directly to the lens).
2. Lightly wipe the lens in a circular motion.
CAUTION Do not use abrasive cleaners or solvents.
To prevent discoloration or fading, avoid getting cleaner on the projector case.
94
6. Maintenance
Cleaning the Filters
The projector uses three filters to keep the fans free of dust and other particles, and should be cleaned every 500 hours of operation. In dustier environments, it is recommended to clean the filters more frequently. If the filter is dirty or clogged, your projector may overheat. When the message below is displayed the filters must be cleaned.
Note:
When the Please clean filter message is displayed, please clean or replace all three filters at the same time to synchronize the hours used display.
The Filter Message item should be enabled in the Options menu. Refer to
Refer to the following guide to clean the filters.
1.
Lift the projector to expose the underside to locate the first filter.
See the drawing on the right.
Bottom view
Note: Only clean the outside of the exhaust vents with a vacuum cleaner.
2.
The left-hand filter can be accessed as shown.
95
6. Maintenance
3.
The rear filter can be accessed as shown.
Once the filters are cleaned, please reset the filter hours via the Clear Filter Hours op-
tion in the v Reset Menu Descriptions and Functions on page 93 .
Note:
Using the projector without the air filter fitted inside, dirt and dust are sucked into the projector, causing failure.
96
6. Maintenance o
Replacing Consumable Parts
During the course of normal usage, consumable parts become worn out resulting in reduced performance. The following guides detail how to replace the various consumable parts within the projector quickly and safely.
Before replacing any of the parts, please take note of the following:
• Ensure that the projector is turned off and disconnected from the power supply.
• Ensure that the projector is in a clean, stable position before replacing parts.
• Allow at least one hour after shutdown for the projector to cool before attempting to replace any consumable parts.
• Do not interchange Lamp 1 and Lamp 2 after the projector has been used once.
Doing so will not allow the projector to display the correct lamp usage hours.
• A minimum space is required for replacement. See page 25 and
for more details.
Replacing the Filters
When the lamps are replaced, the filters should also be replaced, not cleaned.
Refer to the following guide to replace the filters.
CAUTION:
Do not drop the projector on your hand or fingers while lifting the projector to replace the filters. Doing so could injure your hand or fingers.
Note:
The filters on the side and the rear are located on the bottom.
1.
Gently slide the filter covers in the direction shown.
2.
Lift the foam from all three filters in the direction shown. Remove completely from the filter cover and discard.
97
6. Maintenance
3.
Insert replacement foam and press down firmly.
4.
Replace the filter covers by pushing gently in the direction shown.
Once the filters are replaced, please reset the filter hours via the Clear Filter Hours op-
tion in the v Reset Menu Descriptions and Functions on page 93 .
98
6. Maintenance
Replacing the Lamps
When a lamp reaches the end of it’s usable life, the following message is displayed. Replace the lamp.
The projection lamps should be replaced when they burn out. They should only be replaced with a certified replacement part, contact your local dealer if unsure.
Note:
1. Lamps are positioned differently. Take care not to force the lamps when replacing.
2. Installation of both lamp modules (Lamp 1 and Lamp 2) is required to operate the projector in dual or single lamp mode. If only a single lamp module is installed, the projector's lamp will not turn on and will appear as a lamp failure
3. Lamps last approximately 2000-2100 hours (2500-2600 hours in Eco mode) and the End of lamp life message is displayed during the lamps' final 100 hours of operational life. Please replace during 2000-2100 hour.
Important:
1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
2. Avoid touching the glass surface of the new lamp: doing so may shorten its operation life.
3. The lamp’s useful life ends and projector could not turn on over 2100 hours.
Please have the projector serviced.
99
6. Maintenance
To replace the lamp, refer to the following guide.
1.
Loosen the screw on the lamp cover (A), and remove the lamp cover as shown (B).
2.
Loosen the two captive screws
(A) on the lamp module. Lift the module handle up (B) in the direction shown.
A
B
B
A
3.
Pull firmly on the module handle in the direction shown to remove the lamp.
4.
Reverse steps 1 to 3 to install the new lamp module and replace the lamp cover.
Note:
The filters should be replaced when replacing the lamp modules.
100
6. Maintenance
Resetting the Lamp Hours Counter
After replacing the lamp(s), the lamp hour counter(s) should be reset to zero. Refer to the following guide:
1.
Press the Menu button on the
OSD control panel or Remote Control to open the
Main menu.
2.
Press the ▲or▼ button to move to the Reset menu and press Enter.
3.
The Reset menu is displayed.
Select Clear Lamp 1 or
Clear Lamp 2 as required using ▲or▼ and press En-
ter.
4.
A confirmation box is displayed. Select OK using
◄ or ► and press Enter to reset the selected Lamp hours to zero.
101
7. Appendix
n
Using the Optional Remote Mouse Receiver (NP01MR)
The optional remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is a great convenience for clicking through your computergenerated presentations.
Connecting the remote mouse receiver to your computer
If you wish to use the remote mouse function, connect the mouse receiver and computer.
The mouse receiver can be connected directly to the computer’s USB port (type A).
Note:
Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change your computer settings.
When operating a computer through the remote mouse receiver
102
7. Appendix
When connecting using the USB terminal
The mouse receiver can only be used with a Microsoft Windows 98/Me/XP*/2000 PC system or a Mac OS X 10.0.0 or later operating system.
Note:
In Windows XP, if the mouse cursor will not move correctly, do the following: Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer Options tab].
Note:
Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.
Operating your computer’s mouse from the remote control
You can operate your computer's mouse from the remote control.
PAGE UP/DOWN Button – scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.
SELECT ▲▼◄► Buttons – moves the mouse cursor on your computer.
MOUSE L-CLICK Button – works as the mouse left button.
MOUSE R-CLICK Button – works as the mouse right button.
Note:
When you operate the computer using the SELECT ▲▼◄► buttons with the menu displayed, both the menu and the mouse pointer will be affected. Close the menu and perform the mouse operation.
About Drag Mode
By pressing the MOUSE L-CLICK or R-CLICK button for 2 or 3 seconds then releasing, the drag mode is set and the drag operation can be performed simply by pressing the
SELECT ▲▼◄►buttons. To drop the item, press the MOUSE L-CLICK (or R-CLICK) button. To cancel it, press the MOUSE R-CLICK (or L-CLICK) button.
Note:
You can change the Pointer speed on the Mouse Properties dialog box on the
Windows. For more information, see the user documentation or online help supplied with your computer.
103
7. Appendix o
Troubleshooting
Indicator Messages
Several indicator messages are used by the projector to alert users of problems with setup or internal parts. The LEDs on the top surface of the projector show the status of the power, lamps 1 and 2 as well as the general working order of the projector through
the status LED (see OSD Controls and Status LEDS on page 8 for location). The follow-
ing tables describe the various states of the 4 LEDs.
The Power LED
P
ROJECTOR
S
TATUS
AC off
LED
Off
C ONDITION LED
Off
S EQUENCE
Off
P
ROJECTOR
C
ONDITION
After power off
Power up sequence Green blink
0.5 secs on
0.5 secs off
Start up
Power on
The Status LED
P ROJECTOR
S TATUS
Normal condition
Green on
LED
Off
C
ONDITION
On
LED
Off
S
EQUENCE
Cover ERROR
Temperature
ERROR
Fan ERROR
Keylocked
(when push key)
Standby
(Power-saving)
Standby (Normal)
Standby
On
P ROJECTOR
C ONDITION
Power on
Red 1 time blink
(repeatedly)
0.5 secs on
2.5 secs off
Red 2 times blink
(repeatedly)
(0.5 secs ON > 0.5 secs OFF) * 2 > 2.0 secs OFF
Red 4 times blink
(repeatedly)
(0.5 secs ON > 0.5 secs OFF) * 4 > 2.0 secs OFF
ERROR
ERROR
ERROR
Orange light up On
Keylocked function enabled
Off Off
Standby
(Power-saving)
Green light On Standby (Normal)
104
7. Appendix
The Lamp LEDs
P ROJECTOR
S TATUS
Lamp off
LED
Off
C
ONDITION
LED
Off
S
EQUENCE
End of the lamp life Red blink
No lamp
Lamp ERROR
Cooling lamp
Red 1 time blink
(repeatedly)
Red 6 times blink
(repeatedly)
Orange blink
Green blink
0.5 secs on
0.5 secs off
0.5 secs on
2.5 secs off
(0.5 secs ON > 0.5 secs OFF) * 6 > 2.0 secs OFF
0.5 secs ON > 0.5 secs OFF
0.5 secs ON > 0.5 secs OFF
Re-light up sequence
Lamp life over
(cannot lamp on)
Eco mode
Normal mode
Red on
Orange on
Green on
On
On
On
P ROJECTOR
C ONDITION
Lamp off
Replace lamp (see notes below)
ERROR
ERROR
Switching lamp1 and 2
Start up
Replace lamp (see notes below)
Power on
Power on
105
7. Appendix
Common Problems and Solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.
Often the problem is something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspend mode.
• Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.
Try to pinpoint the problem to avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.
106
7. Appendix p
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto Adjust button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the specified range.
4. Check that the projector lens is clean.
5. Remove the lens cover.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed or upside down
Check the Orientation setting on the Setup menu of the OSD.
Problem: The image is streaked
1. Set the Clock and Phase settings on the Adjust menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another computer.
Problem: The image is flat with no contrast
1. Adjust the Contrast setting on the Adjust menu of the OSD.
2. Adjust the Brightness setting on the Adjust menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma Correction settings on the Detail
Settings menu of the OSD.
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
107
7. Appendix
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Remove the lens cover.
7. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Power LED is orange, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
108
7. Appendix q
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel. Return the projector to the place you purchased it.
109
8. Specifications
n
Projector Specifications
This section provides technical information about the projector's performance.
Optical Specifications
I
TEM
D
ESCRIPTION
Projection system Single DLP TM chip, 4 segment color wheel
Resolution
Lamp
Light Output
1024 x 768 pixels* (up to UXGA @ 60 Hz, up to SXGA+ @
60 Hz on DVI-D)
260 W AC (230 W in Eco mode), Dual lamp system
5200 lumens** on NP08ZL, Dual lamp (approx. 85% in Eco mode)
Contrast Ratio
(full white: full black)
1000:1, 2100:1 with DynamicBlack
Image Size (diagonal)
Lens Options
50" - 200" / 1.27m - 5.08m (NP06FL)
40" - 500" / 1.02m – 12.7m (NP07ZL, NP08ZL, NP09ZL,
NP10ZL)
NP06FL: Power focus, throw ratio 0.77:1, F2.0, f=11.4 mm
NP07ZL: Power zoom and focus, throw ratio 1.33-1.79:1, F1.8-
2.3, f=19.3-25.8 mm
NP08ZL: Power zoom and focus, throw ratio 1.78-2.35:1, F1.7-
1.9, f=26-34 mm
NP09ZL: Power zoom and focus, throw ratio 2.22-4.43:1, F2.1-
2.9, f=32-63 mm
NP10ZL: Power zoom and focus, throw ratio 4.43-8.3:1, F2.2-
3.1, f=63.5-117.4 mm
Lens Shift
Vertical + 0.5V, Horizontal +/- 0.1H (NP07ZL, NP08ZL,
NP09ZL, NP10ZL)
*Effective pixels are more than 99.99%
**This is the light output value (lumens) when the [Preset] mode is set to [High-Bright]. If any other mode is selected as the [Preset] mode, the light output value may drop slightly.
110
8. Specifications
Electrical Specifications
Inputs
I TEM D ESCRIPTION
1 Analog RGB (Mini D-Sub 15P), 1 Analog RGB R/Cr, G/Y,
B/Cb, H, V
(BNC x 5), 1 Digital RGB (DVI-D 24P), 1 Component Y, Cb/Pb,
Cr/Pr
(RCA x 3), 1 Component (Mini D-Sub 15P) shared with
COMPUTER 1
IN, 1 S-Video (Mini DIN 4P), 1 Video, 3 Stereo Mini Audio, 2
(L/R) RCA Audio, 1 Remote Control (Stereo Mini)
Outputs
1 RGB (Mini D-Sub 15P), 1 Stereo Mini Audio, 1 Screen
Trigger
Control 1 PC Control Port (D-Sub 9P), 1 GPIO (Mini D-sub 15P)
USB Port
LAN Port
Video Compatibility
Scan Rate
Video Bandwidth
Color Reproduction
Horizontal Resolution
External Control
Sync Compatibility
Built-in Speakers
Power Requirement
Input Current
1 B Type (for Service)
RJ-45
NTSC, NTSC4.43, PAL, PAL-60/N/M/B/G/H/I), SECAM,
HDTV: 1080i, 720p, SDTV: 576p, 576i, 480p, 480i
Horizontal: 15 kHz, 31 to 90 kHz (RGB: 31 kHz or over) Vertical: 50 Hz to 85 Hz
RGB: 100 MHz (-3dB)
16.7 million colors simultaneously, Full color
NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / PAL60: 540 TV lines
SECAM: 300 TV lines
RGB: 1024 dots (H) x 768 dots (V)
RS232, IR, LAN, GPIO
Separate Sync / Composite Sync / Sync on G
3W x 2
100 - 240V AC, 50/60Hz
6.5A
111
8. Specifications
I TEM
Power Consumption
D ESCRIPTION
655W in Dual Lamp Normal mode / 580W in Dual Lamp Eco mode
350W in Single Lamp Normal mode / 315W in Single Lamp Eco mode
< 30W in Standby mode Normal
< 5W in Standby mode Power saving
Mechanical Specifications
Installation
I TEM D ESCRIPTION
Orientation: Desktop/Front, Desktop/Rear, Ceiling/Front,
Ceiling/Rear
Dimensions
19.9" (W) x 7.8" (H) x 15.2" (D)
505 mm (W) x 197 mm (H) x 385 mm (D)
(not including protrusions)
Weight 36.4 lbs/16.5 kg
Environmental Considerations
I TEM
Operational Temperatures
D ESCRIPTION
41° to 104°F / 5° to 40°C, 20% to 80% humidity (noncondensing)
Storage Temperatures
14° to 122°F (-10° to 50°C), 20% to 80% humidity (noncondensing)
112
8. Specifications
Regulations
UL/C-UL Approved (UL 60950-1, CSA 60950-1)
Meets FCC Class B requirements
Meets DOC Canada Class B requirements
Meets AS/NZS CISPR.22 Class B
Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)
Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)
For additional information visit:
US : http://www.necdisplay.com
Europe : http://www.nec-display-solutions.com
Global : http://www.nec-pj.com/
For information on our optional accessories, visit our website or see our brochure.
The specifications are subject to change without notice.
113
8. Specifications o
Cabinet Dimensions
114
8. Specifications p
Pin Assignments of Mini D-Sub 15 Pin Input Connector
Signal Levels
Video signal: 0.7Vp-p (Analog)
Sync signal: TTL level
P IN N UMBER
1.
RGB S IGNAL (A NALOG ) YC B C R S IGNAL
Red Cr
2.
3.
Green or Sync on Green
Blue
Y
Cb
Ground 4.
5.
6.
7.
Ground
Red Ground
Green Ground
Cr Ground
Y Ground
Blue Ground Cb Ground 8.
9.
10.
11.
12.
13.
No Connection
Sync Signal Ground
No Connection
Bi-directional DATA (SDA)
14.
15.
Horizontal Sync or Composite
Sync
Vertical Sync
Data Clock
115
VESA
VESA
VESA
VESA
VESA
VESA
MAC
VESA
VESA
PAL
PAL60
SECAM
VESA
MAC
VESA
VESA
MAC
VESA
VESA
VESA
8. Specifications q
Compatible Input Signal List
The following table shows compatible signal types, their resolution and frequency refresh rates.
Horizontal: 15 kHz, 31kHz to 90 kHz
Vertical: 50 Hz to 85 Hz
S IGNAL
R
ESOLUTION
( DPI )
F REQUENCY
R EFRESH R ATE
(KH
Z
)
F REQUENCY
R EFRESH R ATE
(H
Z
)
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
–
–
–
640 x 480
640 x 480
640 x 480
640 x 480
1024 x 768
1024 x 768
1024 x 768
1152 x 864
116
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
–
–
–
75.00
85.06
74.55
60.00
70.07
85.01
56.25
60.32
72.19
74.93
75.03
85.00
75.00
50.00
60.00
50.00
59.94
66.67
72.81
75.00
46.88
53.67
49.72
48.36
56.48
43.27
35.16
37.88
48.08
60.24
60.02
68.68
67.50
15.63
15.73
15.63
31.47
35.00
37.86
37.50
8. Specifications
S IGNAL
R ESOLUTION
(
DPI
)
VESA
VESA
VESA
HDTV (1080i)(1125i)
DVD YCbCr
D
D
D
–
HDTV (1080i)(1125i)
HDTV (720p)(750p)
–
– 1280 x 720
HDTV (720p) –
SDTV(576p)(625p) –
1280 x 720
–
SDTV (480p)(525p)
DVD YCbCr
–
–
–
1280 x 960
1280 x 1024
1400 x 1050
–
–
–
F
REQUENCY
R EFRESH R ATE
(KH Z )
60.00
F
REQUENCY
R EFRESH R ATE
(H Z )
60.00
63.98
65.30
45.00
37.50
31.47
15.73
15.63
60.02
60.00
60.00 Progressive
50.00 Progressive
59.94 Progressive
59.94 Interlaced
50.00 Interlaced
Note:
Images above flagged with "D" are supported by digital signal.
An image with higher or lower resolution than the projector’s native resolution
(1024 x 768) will be compressed.
Some Composite and Sync on Green signals may not be displayed correctly.
Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC.
Refer to Display Properties help section of your PC for procedures.
117
8. Specifications r
PC Control Codes and Cable Connections
The following table shows PC functions and their associated code data.
F UNCTION
POWER ON
POWER OFF
INPUT SELECT COMPUTER 1
INPUT SELECT COMPUTER 2
INPUT SELECT COMPUTER 3
INPUT SELECT COMPONENT
INPUT SELECT VIDEO
INPUT SELECT S-VIDEO
PICTURE MUTE ON
PICTURE MUTE OFF
SOUND MUTE ON
SOUND MUTE OFF
ON-SCREEN MUTE ON
ON-SCREEN MUTE OFF
ASPECT RATIO
4:3
16:9
Crop
AUTO ADJUST
C ODE D ATA
02H 00H 00H 00H 00H 02H
02H 01H 00H 00H 00H 03H
02H 03H 00H 00H 02H 01H 01H 09H
02H 03H 00H 00H 02H 01H 02H 0AH
02H 03H 00H 00H 02H 01H 1AH 22H
02H 03H 00H 00H 02H 01H 10H 18H
02H 03H 00H 00H 02H 01H 06H 0EH
02H 03H 00H 00H 02H 01H 0BH 13H
02H 10H 00H 00H 00H 12H
02H 11H 00H 00H 00H 13H
02H 12H 00H 00H 00H 14H
02H 13H 00H 00H 00H 15H
02H 14H 00H 00H 00H 16H
02H 15H 00H 00H 00H 17H
03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H
03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H
03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H
02H 0FH 00H 00H 02H 05H 00H 18H
Note:
Contact your local dealer for a full list of the PC Control Codes if needed.
Communication Protocol
Baud rate ........................................ 38400 bps
Data length ..................................... 8 bits
Parity .............................................. No parity
Stop bit .......................................... One bit
X on/off .......................................... None
Communications procedure ........... Full duplex
Note:
Depending on the equipment, a lower baud rate may be recommended for long cable runs.
118
8. Specifications
PC Control Connector (DIN-9P)
Note:
1. Pin 1, 4, 6 and 9 are not used.
2. Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify the cable connection.
3. For long cables, it is recommended to set communication speed within projector menus to 9600 bps.
119
8. Specifications s
Screen Trigger
When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up.
Note:
To use this feature, you must turn on the Screen Trigger function. See Screen
for more information.
Note:
Screen controllers are supplied and supported by screen manufacturers.
Note:
Do not use this jack for anything other than intended use. Connecting the wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.
120
8. Specifications t
Operation Using HTTP Browser
Overview
The use of HTTP server functions will allow control of the projector from a web browser without the installation of special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This device uses “JavaScript” and
“Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software).
Access is gained to the HTTP server functions by specifying the following address in the entry column of the URL: http:// <the projector’s IP address> /index.html http:// <the projector's IP address> /lanconf.html
Note:
The display or button responses can be slowed down or operation may not be accepted depending the settings of your network. Should this happen, consult your network administrator. The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can’t get any response, turn off and back on the projector.
Preparation Before Use
Make network connections, set up the projector and confirm that it is complete before
engaging in browser operations (see LAN Settings on page 84 for more information).
Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.
Handling of the Address for Operation via a Browser
Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used.
Example 1:
When the host name of the projector has been set to pj.nec.co.jp,
http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL.
Example 2:
121
8. Specifications
When the IP address of the projector is 192.168.73.1, access is gained to the HTTP server functions by specifying http://192.168.73.1/index.html for the address or the entry column of the URL.
Configuring Network Settings
The Network Settings screen is displayed as follows: http:// <the projector's IP address> /lanconf.html
Domain
Host Name: Type in a hostname. Up to 60 alphanumeric characters can be used.
Domain Name: Type in domain name of the network connected to the projector. Up to
60 alphanumeric characters can be used.
Apply: Click to reflect the entries.
122
8. Specifications
Alert Mail: Click “Enable” to enable Alert Mail feature. This option notifies your computer of an error message via e-mail when using wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.
Sender's Address: Specify the sender’s address. Up to 60 alphanumeric and symbols characters can be used.
SMTP Server Name: Type in the SMTP server name to be connected to the projector.
Up to 60 alphanumeric characters can be used.
Recipient's Address 1 to 3: Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.
Apply: Click to apply the settings.
Test Mail
Send a test mail to check if your settings are correct. Click to “Execute” to enable this feature.
Test Mail Status Button: Click to display the test result.
Sample of a message sent from the projector:
Projector Name: X X X X
Lamp 1 or 2 Hours Used: xxxx [H]
The lamp is at the end of its usable life. Please replace the lamp.
Note:
If you entered an incorrect address in a test, you may not receive an Alert mail.
Should this happen, check if the Recipient's Address is correctly set.
Unless any one of the [Sender's Address], [SMTP Server's Name] or [Recipient's
Address 1-3] is selected, [Test Mail] is not available.
PJLink
This option allows you to set a password when you use the PJLink feature.
On/Off: Enable or disable the password.
Password: Enter a password (up to 32 characters)
Note:
PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005.
The projector supports all the commands of PJLink Class 1.
123
8. Specifications
Structure of the HTTP Server
Once the projector is connected to a network and configured correctly, the following screen is displayed through the web browser. http:// <the projector's IP address> /index.html
F UNCTION
Power Panel
Volume Panel
Mute Panel
Picture Panel
S ETTING
On
Off
▲ – Increases the volume adjustment value
▼ – Decreases the volume adjustment value
Picture On – Mutes the video
Picture Off – Cancels the video muting
Sound On – Mutes the audio
Sound Off – Cancels the audio muting
OSD On – Mutes the on-screen display
OSD Off – Cancels the muting of the on-screen display
All On – Mutes each of the video, audio, and onscreen display functions
All Off – Cancels the muting of each of the video, audio, and on-screen display functions
Brightness ▲▼ – Increases or decreases the brightness adjustment value
Contrast ▲▼ – Increases or decreases the contrast adjustment value
Color ▲▼ – Increases or decreases the color adjustment value
Hue ▲▼ – Increases or decreases the hue adjustment value
Sharpness ▲▼ – Increases or decreases the sharpness adjustment value
D ESCRIPTION
This controls the power to the projector
This controls the volume of the projector
This controls the mute functions of the projector
Controls the video adjustments of the projector
124
F
UNCTION
Source Select Panel
Projector Status Panel
S
ETTING
Computer1 – Switches to the COMPUTER 1 IN connector
Computer2 – Switches to the COMPUTER 2 IN connector
Computer3 – Switches to the COMPUTER 3 IN connector
Component – Switches to the COMPONENT IN connectors
Video – Switches to the VIDEO IN connector
S-Video – Switches to the S-VIDEO IN connector
Refresh – Updates the panel with the latest information available
Lamp 1 Life Remaining – Displays the remaining life of Lamp1 as a percentage
Lamp 1 Hours Used – Displays the number of hours Lamp1 has been used
Lamp 2 Life Remaining – Displays the remaining life of Lamp2 as a percentage
Lamp 2 Hours Used – Displays the number of hours Lamp2 has been used
Filter Hours Used – Displays the number of hours
Filter has been used.
Error Status – Displays the status of errors occurring within the projector
D
8. Specifications
ESCRIPTION
This switches the input connector of the projector
This displays the status of selected projector functions
Note:
The functions that can be controlled will vary depending on the signal being input to the projector (see information).
o Selecting a Source on page 36 for more
125
8. Specifications u
15 Pin GPIO Control
Type: 15Pin D-SUB black female type
P IN N O . S HORT /O PEN
14 SHORT
OPEN
F UNCTION
EXTERNAL CONTROL MODE ON
EXTERNAL CONTROL MODE OFF
5 SHORT
OPEN
POWER ON
POWER OFF
10 SHORT
OPEN
PICTURE MUTE ON
PICTURE MUTE OFF
3 SHORT
OPEN
SOUND MUTE ON
SOUND MUTE OFF
4, 8, 12, 11 11 12 8 4
OPEN OPEN OPEN OPEN COMPUTER1
SHORT AVAILABLE
SHORT SHORT
126
9. Troubleshooting Check List
Before contacting your dealer or service personnel, check the following list to be sure repairs
are needed also by referring to the o Troubleshooting section on page 104 of your user’s
manual. This checklist below will help us solve your problem more efficiently.
Frequency of Occurrence always sometimes (How often?________) other (________)
Power
No power (POWER indicator does not light green) See also “Status Indicator (STATUS)”.
Shut down during operation.
Power cable's plug is fully inserted into the wall outlet.
Power cable's plug is fully inserted into the wall outlet.
Lamp cover is installed correctly.
Main power switch is pressed to the ON position.
Lamp cover is installed correctly.
Power Management is turned off (only models with the Power Management function).
Lamp Hours Used (lamp operation hours) was cleared after lamp replacement.
No power even though you press and hold the
POWER button for a minimum of 2 seconds.
Off Timer is turned off (only models with the Off
Timer function).
Video and Audio
No image is displayed from your PC or video equipment to the projector.
Still no image even though you connect the projector to the PC first, then start the PC.
Enabling your notebook PC’s signal output to the projector.
• A combination of function keys will enable/disable the external display. Usually, the combination of the
“Fn” key along with one of the 12 function keys turns the external display on or off.
No image (blue background, logo, no display).
Still no image even though you press the AUTO
ADJUST button.
Still no image even though you carry out [Reset] in the projector’s menu.
Signal cable's plug is fully inserted into the input connector
A message appears on the screen.
( __________________________________ )
The source connected to the projector is active and available.
Still no image even though you adjust the brightness and/or the contrast.
Input source's resolution and frequency are supported by the projector.
Image is too dark.
Remains unchanged even though you adjust the brightness and/or the contrast.
Image is distorted.
Image appears to be trapezoidal (unchanged even though you carry out the [Keystone] or [3D Reform] adjustment).
Parts of the image are lost.
Still unchanged even though you press the AUTO
ADJUST button.
Still unchanged even though you carry out [Reset] in the projector’s menu.
Image is shifted in the vertical or horizontal direction.
Horizontal and vertical positions are correctly adjusted on a computer signal.
Input source's resolution and frequency are supported by the projector.
Some pixels are lost.
Image is flickering.
Still unchanged even though you press the AUTO
ADJUST button.
Still unchanged even though you carry out [Reset] in the projector’s menu.
Image shows flickering or color drift on a computer signal.
Image appears blurry or out of focus.
Still unchanged even though you checked the signal’s resolution on PC and changed it to projector’s native resolution.
Still unchanged even though you adjusted the focus.
No sound.
Audio cable is correctly connected to the audio input of the projector.
Still unchanged even though you adjusted the volume level.
AUDIO OUT is connected to your audio equipment
(only models with the AUDIO OUT connector).
127
9. Troubleshooting Check List
Other
Remote control does not work.
No obstacles between the sensor of the projector and the remote control.
Projector is placed near a fluorescent light that can disturb the infrared remote controls.
Batteries are new and are not reversed in installation.
If present on the remote control, projector selector switch is not used.
Buttons on the projector cabinet do not work (only models with the Control Panel Lock function).
Control Panel Lock is not turned on or is disabled in the menu.
Still unchanged even though you press and hold the
EXIT button for a minimum of 10 seconds.
In the space below please describe your problem in detail.
Information on application and environment where your projector is used
Projector
Model number:
Serial No:
Date of purchase:
Lamp operating time (hours): Lamp Mode: Normal Eco
Information on input signal:
Horizontal synch frequency [ ] kHz
Vertical synch frequency [ ] Hz
Synch polarity H (+) (–)
V (+) (–)
Synch type Separate Composite
Sync on Green
STATUS Indicator:
Steady light Orange Green
Flashing light [ ] cycles
Remote control model number:
Installation environment
Screen size: inch
Screen type: White matte Beads Polarization
Wide angle High contrast
Throw distance: feet/inch/m
Orientation: Ceiling mount Desktop
Power outlet connection:
Connected directly to wall outlet
Connected to power cord extender or other (the number of connected equipment______________)
Connected to a power cord reel or other (the number of connected equipment______________)
128
Signal cable
NEC standard or other manufacturer’s cable?
Model number: Length: inch/m
Distribution amplifier
Model number:
Switcher
Model number:
Adapter
Model number:
9. Troubleshooting Check List
Computer
Manufacturer:
Model number:
Notebook PC / Desktop
Native resolution:
Refresh rate:
Video adapter:
Other:
Video equipment
VCR, DVD player, Video camera, Video game or other
Manufacturer:
Model number:
129
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 14 Features you’ll enjoy:
- 15 Front-right view
- 16 Top View
- 17 Carrying the Projector
- 18 Bottom view
- 19 Lens Controls
- 20 OSD Controls and Status LEDS
- 26 Battery Installation
- 27 Operating Range for Wireless Remote Control
- 27 Remote Control Precautions
- 28 Using the Remote Control in Wired Operation
- 31 Removing the Existing Lens From the Projector
- 33 Installing the New Lens
- 34 Installing the New Lens Using the anti-theft screw
- 40 Connecting Your PC or Macintosh Computer
- 42 Connecting an External Monitor
- 43 Connecting Your DVD Player with Component Output
- 44 Connecting Your VCR or Laser Disc Player
- 47 Note on Startup Screen (Menu Language Select screen)
- 49 Adjusting Picture Position Manually
- 50 Lens Shift Adjustable Range
- 51 From the Remote Control Unit
- 52 Adjusting the Projector Level
- 53 Adjusting the Image Using Auto Adjust
- 56 About Direct Power Off
- 56 After Use
- 58 Adjusting by Using the OSD Control Panel
- 59 Changing Lamp Mode by Using the Projector's OSD Control Panel
- 60 Changing Lamp Mode by Using the Remote Control
- 62 Adjusting Position/Clock/Phase by Using the OSD Control Panel
- 63 Correcting Keystone by Using the Remote Control
- 65 Locking the Projector
- 67 Unlocking the Projector
- 68 Using the Kensington Lock
- 68 Using the Security Chain Lock
- 69 Navigating the OSD
- 75 Picture menu
- 76 Image Options Menu
- 78 Video Menu
- 81 General
- 83 White Balance
- 84 Color Correction
- 85 General
- 89 Installation
- 96 LAN Settings
- 97 Options
- 101 Usage Time
- 102 Source
- 103 LAN
- 104 Version
- 106 Cleaning the Cabinet
- 106 Cleaning the Lens
- 107 Cleaning the Filters
- 109 Replacing the Filters
- 111 Replacing the Lamps
- 113 Resetting the Lamp Hours Counter
- 114 Connecting the remote mouse receiver to your computer
- 114 When operating a computer through the remote mouse receiver
- 115 When connecting using the USB terminal
- 115 Operating your computer’s mouse from the remote control
- 115 About Drag Mode
- 116 Indicator Messages
- 118 Common Problems and Solutions
- 118 Tips for Troubleshooting
- 119 Lamp Problems
- 120 Remote Control Problems
- 120 Audio Problems
- 122 Optical Specifications
- 123 Electrical Specifications
- 124 Mechanical Specifications
- 124 Environmental Considerations
- 125 Regulations
- 133 Overview
- 133 Preparation Before Use
- 133 Handling of the Address for Operation via a Browser
- 134 Configuring Network Settings
- 136 Structure of the HTTP Server
