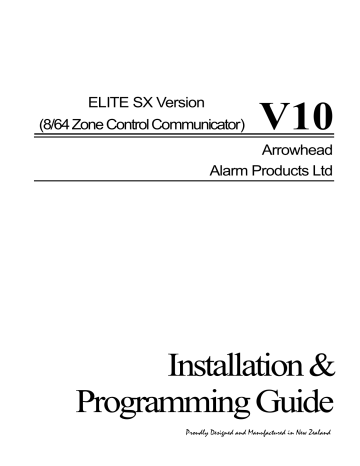

ELITE SX Version
(8/64 Zone Control Communicator)
V10
Arrowhead
Alarm Products Ltd
Installation &
Programming Guide
Proudly Designed and Manufactured in New Zealand
Arrowhead Alarm
Products Ltd
PHONE:
FAX:
FREEPHONE:
(09) 414 0085
(09) 414 0088
0800 700 123
344b Rosedale Road
Albany
AUCKLAND
PO Box 303-096
AUCKLAND 1330
NEW ZEALAND
This ELITE SX Version 10 alarm control panel has been designed to provide the most requested features for both the installer & the end-user. These features include ease of installation, ease of programming and user friendly operation all in a package which is reliable, functional and attractive.
Utilising many years of experience in the security industry and implementing valuable feedback, we are proud to provide you with a new generation of alarm controller. The ELITE SX V10 is a New Zealand designed and built product which brings you the quality and features which you deserve at an affordable price. In addition to the the advanced design, only the highest quality components have been used in the production of this Alert panel to ensure the highest degree of reliability.
This manual will guide you through the installation and programming of your Elite SX alarm panel. For additional information regarding the operating instructions and options, please refer to the “Elite S User’s
Guide”.
Copyright by Arrowhead Alarm Products Ltd
January 2015 ELITE SX V10.
This manual relates to the Arrowhead ELITE SX V10.0.115 software and above.
Disclaimer
Arrowhead Alarm Products Ltd make no warranties regarding the content of this document and assume no responsibility for any omissions or errors contained herein.
To the best of our knowledge the information contained in this manual is correct at the time of printing. Arrowhead Alarm Products Ltd reserve the right to make changes to the features and specifications at any time without notice in the course of product development.
Designed & Manufactured in New Zealand to Meet NZS:4301/93
CONTENTS
CONNECTION DIAGRAM
Wiring zone and output expanders to the Panel
ZONE EXPANDER DIP SWITCH SETTINGS
OUTPUT EXPANDER DIP SWITCH SETTINGS
WIEGAND EXPANDER DIP SWITCH SETTINGS
NIGHT MONITOR KEYPAD
INPUTS
Examples of Zone Wiring
Inputs
Outputs
Accessories
DTMF COMMAND CONTROL OVERVIEW
How to use DTMF Remote Control
MEMORY VIEW MODE
Current Alarms
Historical Memory Events
ICON AND FULL LCD KEYPAD INSTALLATION
Keypad Address Assignment
Keypad Zone or Listen-in Input
KEYPAD ADJUSTMENTS
Adjusting LCD Keypad Backlighting
Adjusting Keypad Buzzer
FULL LCD KEYPAD TEXT EDITING
Programming LCD User, Display, Output, Area, Keypad Zone Text
FULL LCD KEYPAD MENU OPERATION
OUTPUTS
ACCESSING PROGRAM MODE
USERS
User Codes
User Type
User Areas
User Arm/Disarm options
User Program Mode Access
Radio User Type & Panic options
User Time-zone Control
User Keypad assignment
User turns Output On or Off
Learn/Find and Delete Radio Key Codes
Learn/Find and Delete Radio Access Cards
MISCELLANEOUS PANEL & CLOCK SETTINGS
Installer Code
Duress Digit
Dial Delay
Supervised Detector Timer
Two Trigger Time
Mains Fail Report Delay
Receiver Fail Timer
Upload/download Site Code Number
Temporary Output Disable
Miscellaneous Installer & Panel Options
Hide User Codes
Setting Time, Date & Daylight Saving
Program LCD Output Name
Program Output 1 & 2 Volume
Miscellaneous Output Options
Output On Delay, Pulse, Reset & Chime Times
Output Voice Board Remote Control Start message
Un-Map an Output
Assigning a Time Zone to an Output
Page 3
5
Page No.
5
6
7
8
10
11
15
15
16
16
12
13
13
14
14
17
17
18
14
15
16
17
18
19
22
24
24
24
25
25
26
26
27
27
28
28
29
30
30
30
30
30
30
30
31
31
31
31
33
34
34
34
35
37
37
38
38
34
AREAS
KEYPADS
ZONES
Area Arm and Special Function Options
Area Arm/Stay Pulse & Chirps to Outputs
Area Exit Delay Beeps to Keypads
Arm & Stay Exit Delay Time
Monitoring Account Code Number
Remote Arm/Disarm DTMF Code & Start Voice Message
Area Delinquency Time
Auto-Arm/Disarm Time-zone
Program LCD Area Name
Keypad Area Assignment
Keypad Button Operations, Misc Beeps and LED Control
Keypad “ARM”, “STAY”, “A” & “B” Button Options
Keypad Number and “CONTROL” Button to Output Mask
Keypad “Panic” “Fire” & “Medical” Alarms to Outputs & KP Buzzer
Keypad Chime Timer
Full LCD Display Options
Program LCD Keypad name
Zone Key Switch Options
Zone Area Assignment
Zone Alarm Type Options
Zone EOL & Vibration Settings
Zone Radio Type
Zone Alarms to Output & Keypad Buzzer Mapping
Armed & Stay Mode Entry Delay Times
Zone Lockout Time
Various Zone CID Report Codes
Zone Inactivity Timer
Learn/Find & Delete Radio Zone Codes
Program LCD Zone Names
TIME-ZONES
Time-Zone Days
Time-Zone Start & Stop Times
DIALLER
Enable Dialler and Set Type of Dialling
Dialling Cycles, Auto-answer Ring Count
Time to First Test Call
Keypad Listen-in Options
Dialling Pre-fix Number
Keypad “Panic” “Fire” & “Medical” Alarms CID Report Code
Output, Microphone & Voice Kiss-off DTMF Remote Codes
Miscellaneous Voice Reporting Message Numbers
TELEPHONE NUMBERS
Programming Telephone Numbers
Reporting Formats
Dial Progress Options
Enable/Disable Miscellaneous Dialler Reports
IP REPORTING PORT NUMBER
SIA REPORTING CODES
DIAGNOSTIC & DEFAULT OPTIONS
Display Software Version, Keypad Number, Keypad Areas
Display Active Time-zones, battery Voltage
Start Walk-Test Mode
Read or Write to DTU
Restore Defaults
Clear Memory Buffer
PROGRAM SUMMARY GUIDE
SPECIAL KEYPAD OPERATING FEATURES
QUICK START PROGRAM GUIDE
CONTACT ID REPORTING CODE SUMMARY
SIA REPORTING CODE SUMMARY
Page 4
72
72
72
72
73
73
38
62
62
63
64
64
64
65
65
65
66
66
66
67
68
52
52
53
55
56
58
60
60
60
61
61
62
44
44
45
49
49
49
51
51
38
39
41
42
42
42
43
43
43
44
52
62
63
66
70
71
72
75
90
91
94
95
Line
In
Phone
Out
ELITE SX
V10.00
CONNECTION DIAGRAM
RST
230V
AC
Input
SERIAL
TCP/IP
RESETTING THE PANEL
Power-up the panel with the tamper input in alarm while shorting out “RST” pins for 5 seconds (you must short out the “RST” pins before the panel LED starts to flash).
This will default: User Codes, Telephone
Numbers, Installer Code & Account Codes.
It will also Disarm All Armed Areas.
The Reset feature is disabled if Installer Lock-
out is turned on.
Mains
Earth
17V AC
EXP 2
EXP 1
0V 12V 1 2 3
Outputs
POS
NEG
CLK
4 0V 12V 1
DAT
C 2 3 C 4 5 C 6 7 C 8 TM 0V 12V
C NC
RELAY
NO
Bat-
Zone Expander
DIP Switch
1 2 C 3 4
INPUT
0V 12V
OUT
5 6 C 7 8
INPUT
0V 12V
OUT
Plug-in Power supply
Zone Expander
- +
DIP Switch
13.8V
N/C
Output Expander
DIP Switch
NO C NC NO C NC NO C NC NO C NC
RELAY 1 RELAY 2 RELAY 3 RELAY 4
Plug-in Power supply
Output Expander
- +
DIP Switch
13.8V
N/C
1 2 C 3 4
INPUT
0V 12V
OUT
5 6 C 7 8
INPUT
0V 12V
OUT
NO C NC NO C NC NO C NC NO C NC
RELAY 1 RELAY 2 RELAY 3 RELAY 4
NOTE: If the Plug-in Power supply is fitted DO NOT CONNECT (N/C) the Panel POS to Expander 13.8V IN
If the Wiegand Interface board is used you must follow the same wiring as above.
Page 5
Zone Expander DIP Switch settings
Expanders - Zone Doubling Expanders - NO Zone Doubling
Not used
EXP # 1 (zones 9-16)
EXP # 2 (zones 17-32) EXP # 2 (zones 17-24)
1
ON
off
2
off
ON
3
off off
DIP Switch #
4 5 6 7 8
Not used
EXP # 4 (zones 33-48)
Not used
EXP # 6 (zones 49-64)
Not used
EXP # 3 (zones 25-32)
EXP # 4 (zones 33-40)
EXP # 5 (zones 41-48)
EXP # 6 (zones 49-56)
EXP # 7 (zones 57-64)
On Board Tamper Ignored
ON
off
ON
off
ON
ON
off off
ON
ON
off
ON
ON
ON
ON
ON
On Board Tamper Active
off
If the zones are set to a type 0-13 then every zone is set to a single zone per input and each zone can be set differently.
If the Global zone doubling option is turned on at P119E all zones on the panel are set to either a type 14 or 15
(depending on the selected option). When zone doubling is selected every second zone expander is used as per the above chart as there will be 16 zones per expander not 8.
DIP switch number 8 disables the on-board tamper input if not required.
DIP Switches 4, 5, 6, & 7 are currently unused.
There is an LED associated with every input. They are labelled IP1—IP8.
LED IP1 relates to zone input 1 through to LED IP8 relates to zone input 8.
At power up the LED’s will cycle back and forth until communications is established with the main control panel.
Under normal conditions the LED’s will be off when the zone is sealed and on when the zone is unsealed so the state of the zone can be displayed at the expander.
If the zone is monitored for a tamper condition (zone types 12, 13 or 14) the associated LED will flash to indicate a tamper condition.
The zone expander can be powered from the main control panel (as shown on the connection diagram on the previous page) or there is an optional plug in 1A power supply module that can be fitted to the zone expander.
When the optional power supply module is fitted the 13.8V (POS) from the panel must not be connected, only the 0V from the main control panel should be connected to the zone expander 0V.
NOTE: If there is an address clash (eg two zone expanders set to the same address number) the 8 LED’s will display the following pattern, LED’s 1 & 8 On, changing to LED’s 2 & 7 On, changing to LED’s 3 & 6 On, changing to LED’s 4 & 5 On, then all 8 LED’s will flash together twice then the pattern will repeat until the address clash is removed.
Page 6
Output Expander Number
O/P EXP # 1
O/P EXP # 2
O/P EXP # 3
O/P EXP # 4
O/P EXP # 5
O/P EXP # 6
O/P EXP # 7
O/P EXP # 8
On Board Tamper Ignored
On Board Tamper Active
Output Expander DIP Switch settings
1
off
ON
off
ON
off
ON
off
ON
2
off off
ON
ON
off off
ON
ON
3
off off off off
ON
ON
ON
ON
DIP Switch #
4 5
Follows Outputs 29-32
DIP switch number 8 disables the on-board tamper input if not required.
DIP Switches 4, 5, 6, & 7 are currently unused.
There is an LED associated with every output. They are labelled OUTPUT 1-4.
6
Follows Outputs 1-4
Follows Outputs 5-8
Follows Outputs 9-12
Follows Outputs 13-16
Follows Outputs 17-20
Follows Outputs 21-24
Follows Outputs 25-28
7 8
ON
off
LED 1 relates to output 1 through to LED 4 relates to output 4.
At power up the LED’s will cycle in numerical order back and forth until communications is established with the main control panel. If there is an address clash (eg two output expanders set to the same address number) they will continue to cycle until the clash is resolved by changing the switches on one of the expanders.
Under normal conditions the LED’s will be off when the output is off. When an LED is on that indicates the associated relay is on.
The output expander can be powered from the main control panel (as shown on the connection diagram on the previous page) or there is an optional plug in 1A power supply module that can be fitted to the output expander.
When the optional power supply module is fitted the 13.8V (POS) from the panel must not be connected, only the 0V from the main control panel should be connected to the output expander 0V.
Page 7
Wiegand Interface DIP Switch settings
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
off
ON
1
off
ON
off
ON
off
ON
off
ON
Wiegand Interface Address
Wiegand I/F # 1
Wiegand I/F # 2
Wiegand I/F # 3
Wiegand I/F # 4
Wiegand I/F # 5
Wiegand I/F # 6
Wiegand I/F # 7
Wiegand I/F # 8
Wiegand I/F # 9
Wiegand I/F # 10
Wiegand I/F # 11
Wiegand I/F # 12
Wiegand I/F # 13
Wiegand I/F # 14
Wiegand I/F # 15
Wiegand I/F # 16
Wiegand I/F # 17
Wiegand I/F # 18
Wiegand I/F # 19
Wiegand I/F # 20
Wiegand I/F # 21
Wiegand I/F # 22
Wiegand I/F # 23
Wiegand I/F # 24
Wiegand I/F # 25
Wiegand I/F # 26
Wiegand I/F # 27
Wiegand I/F # 28
Wiegand I/F # 29
Wiegand I/F # 30
Wiegand I/F # 31
Wiegand I/F # 32
off off off
ON
off off off off
ON
ON
ON
5
off off off off off off off off off
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
off off
ON
ON
off off
ON
ON
off off
ON
ON
ON
off off
ON
ON
ON
off off
ON
off
ON
ON
off off
ON
ON
off
2
off
DIP Switch #
3 4
off off
ON
ON
ON
ON
off off off off off
ON
off off off off off off off
ON
ON
ON
ON
ON
ON
off off off off
ON
off off
ON
off off off
ON
ON
ON
ON
ON
off off off off
ON
ON
ON
off
ON
ON
off
ON
ON
ON
off off off off
ON
ON
ON
ON
ON
ON
ON
OPTION
1 Door Cntrl
2 Door Cntrl
CPT-Wiegand
PW READER
Spare
Spare
-
-
-
-
6
off
ON
DIP Switch #
7 8
-
-
-
-
off
ON
off
ON
off off
ON
ON
Page 8
INSTALLING PROXIMITY READERS
The Wiegand Interface board allows various access control readers/keypads to be connected to the ELITE SX keypad bus.
The Wiegand Interface has an 8 way DIP switch that allows the keypad address to be set to a value between 1-32.
It also has two inputs and a relay output that are linked to the keypad address, eg if the Wiegand Interface board is set to keypad address number 15 (Switches 2, 3 & 4 ON) then input 1 can become zone 15 on the control panel
(provided option 4, “zone is a keypad zone”, is turned on at panel program address P122E15E) and relay 1 will follow output 15 from the control panel.
This allows the input to be used for door monitoring or as a REX (request to exit) input that is controlled by the main panel.
It also allows the door control relay (output 1 on the Wiegand Interface) to be controlled by the main panel.
There is also two LED outputs for each reader port labelled LD1 & LD2. LD1 is preset to follow the status of the associated relay on the board, eg LD1 on wiegand interface 1 will follow relay 1.
LD2 has two functions.
The first is it gives a single flash when any card is presented or a button on the keypad is pressed.
The second is LD2 can be programmed to follow an output on the panel at program address P98E so that when the output is on LD2 will also be on to drive the LED on the reader. This can be used to indicate an arm/disarm state, etc.
The Buzzer output on the Wiegand reader connections will follow the keypad beeps from the panel. If the Wiegand keypad has a built-in numeric keypad the Buzzer output (BUZ) will beep as a button is pressed as audible feedback that the button was received by the panel. The same Buzzer output can also follow other beeps from the panel such as entry or exit delay beeps, chime zone beeps, etc.
DIP switch 6 sets the Wiegand Interface to be a single door or two door controller. If DIP switch 6 is off the board is a single door controller and only Wiegand interface 1 is used for the reader input. Input 1 can be linked to the zone number that matches the keypad address of the board and output 1 is linked to the output number that matches the keypad address. Also when DIP switch 6 is off, input two is linked to relay 1. If input 2 is triggered the output reset time programmed for the output associated with relay 1 will operate relay 1 for that timed period. Input 2 can therefore be used as a request to exit button.
If DIP switch 6 is on then both reader interfaces are used and both inputs and outputs are active. The second reader will be the address set by switches 1-5 plus 1, eg if the board address is set to number 12 (DIP switches 1, 2 & 4
ON) then reader interface 1 will be keypad address 12 and reader interface 2 will be keypad address 13. In the same example input 1 on the Wiegand interface can be set to zone 12 and input 2 set to zone 13, output 1 on the
Wiegand interface will follow output 12 and output 2 will follow output 13.
NOTE: Always ensure DIP Switch 6 is OFF if the board is to only use one keypad address otherwise there
could be a keypad address clash, eg if one Wiegand IF board is addressed as keypad # 10 and another as keypad address # 11 but DIP switch 6 was turned ON on the board set as keypad # 10 there will be a clash due to there being two keypad # 11’s, one will be the second reader input on the board set as address # 10 and the other will be the board set as keypad address # 11.
NOTE 2: If there is an address clash (eg two Wiegand IF boards set to the same address number) the 8
LED’s will display the following pattern, LED’s 1 & 8 On, changing to LED’s 2 & 7 On, changing to LED’s 3 &
6 On, changing to LED’s 4 & 5 On, then all 8 LED’s will flash together twice then the pattern will repeat until the address clash is removed.
DIP switches 7-8 allow the type of access control technology to be selected (see chart on page 8).There are two proximity readers that can be connected to the control panel. They are;
1-CPT-Wiegand reader/keypad
2-PW READER Prox/PIN readers.
Each Wiegand Interface board must have a unique keypad address number from 1-32 to avoid data conflicts and to allow assigned program options to be directed to the correct unit.
Page 9
NIGHT MONITOR KEYPAD
The Night Monitor Keypad is designed to be a simple night arming station typically used in a bedroom situation. It can only be used in conjunction with Areas 1 & 2.
By pressing either of the <Night Monitor> buttons the alarm Stay Mode can be armed or disarmed. If both buttons are pressed simultaneously, a Panic Alarm can be generated. A 4 way DIP switch on the rear of the unit sets various options. The DIP switch functions and the programming requirements are detailed below.
READY ARMED
POS
NEG
CLK
PANIC
DAT
A B C
ON
1 2 3 4
Night
Monitor
Night
Monitor
Rear View Front View
The Night Monitor keypad can be set to keypad addresses 5-8 by using Switches 1 & 2. Refer to chart below.
DIP Switch
â
1 2
KP No: 5
KP No: 6
OFF
ON
OFF
OFF
KP No: 7 OFF ON
KP No: 8 ON ON
Switch 3 is unused on the ELITE SX. It is used to force the armed LED to follow area A or B on other control panels.
Switch 4 MUST be OFF (if Switch 4 is ON the unit will work with earlier version 4 & 5 control panels).
Night Monitor Panel Programming
The Night Monitor button is designed to arm or disarm Stay Mode. The Stay Mode Area is assigned to the keypad at location P76E. Only Areas 1 or 2 can be assigned to the Night Monitor Keypad.
The functions of the button are programmed at location P77E (eg for the button to Arm Stay Mode and be able to
Disarm Stay Mode at all times you must have options 2 & 4 ON).
The “ARMED” LED function is programmed at location P71E. For example if the Night Monitor keypad is only assigned to area 1 and you only want the Armed LED to show the status of area 1 you should turn on Option 01 (Area
1) at location P71E for the address assigned to the Night Monitor keypad.
If both Night Monitor buttons are pressed simultaneously, it is possible to generate a “PANIC” alarm. To enable the panic alarm function for the keypad number assigned you must have option 3 turned on at location P72E.
Page 10
INPUTS
The ELITE SX control board has 9 separate programmable monitored analogue inputs,
8 x
1 x
Programmable, multi-state zone inputs
Programmable tamper input
Each input must be terminated with the appropriate value or combination of end-of-line resistors,
even if the input is unused.
ZONE INPUTS - Each of the 8 zone inputs can be assigned one of the following End of Line (EOL) configuration options,
Zone EOL Type (P125E) Input Resistor Comments
0
(Short circuit) Loop EOL
1
1k (Brown, Black, Red) Single EOL
2
3
(P126E “Vibration Mode” only supports this EOL value)
4
5
6
7
8
9
10
11
12 (series)
13 (series)
14 (series)
15 (series)
16 (parallel)
1k5 (Brown, Green, Red)
2k2 (Red, Red, Red)
Single EOL
Single EOL
3k3 (Orange, Orange, Red)
3k9 (Orange, White, Red)
4k7 (Yellow, Violet, Red)
5k6 (Green, Blue, Red)
6k8 (Blue, Grey, Red)
10k (Brown, Black, Orange)
12k (Brown, Red, Orange)
22k (Red, Red, Orange)
2k2 Tamper, 4k7 Zone
Single EOL
Single EOL
Single EOL
Single EOL
Single EOL
Single EOL
Single EOL
Single EOL
Zone & Tamper
3k3 Tamper, 6k8 Zone Zone & Tamper
2k2 Tamper, 4k7 Low Zone, 8k2 High Zone Zone Doubling, with Tamper
4k7 Low Zone, 8k2 High Zone
4k7 Low Zone, 8k2 High Zone
Zone Doubling, No Tamper
Zone Doubling, No Tamper
Type 0 (Short/Loop Circuit) n/c
Type 1-11 (Single EOL no Tamper) n/c n/o
EOL Resistor
Type 12-13 (Single Zone with Tamper)
Alarm Contact n/c or n/o
Ta mper Resistor
2k2 or 3k3 4k7 or 6k8
Type 14 (Zone Doubling with Tamper)
Alarm or Key-sw itch 1 Contact Alarm or Key-sw itch 2 Contact
NC or NO
Ta mper
NC or NO
Ta mper
4k7 8k2
2k2
Page 11
Zone
EXAMPLES OF ZONE WIRING OPTIONS
Type 16 Configuration. Zone doubling no Tamper monitoring
High Zone
Low Zone
0V
NOTE: With Type 16 configuration NO contacts cannot be used
Short circuit loop, No EOL
Zone
0V
N/C
Zone
2k2 EOL, No Tamper
N/C
N/O
Zone
2k2
0V
Type 12 Configuration. Alarm & Tamper monitoring (contacts can be N/C or N/O)
N/C or N/O
2k2
Tamper Resistor
4k7
Zone Resistor
0V
Type 15 Configuration. Zone Doubling, NO Tamper (contacts can be N/C or N/O)
N/C or N/O
N/C or N/O
Zone
4k7
Lo-Zone Resistor
8k2
Hi-Zone Resistor
0V
Wiring a PIR Detector (N/C) for Alarm & Tamper Monitoring
Zone
0V
0V
12V
4k7
Alarm
Alarm
Alarm Contact (N/C)
Page 12
2k2
Tamp
Tamper Contact (N/C)
Tamp
0V
+12V
PIR Internal Connections
INPUTS cont.
TAMPER - A 24Hr tamper circuit is available for monitoring system tampers. This Tamper circuit is programmable as either normally closed loop or 2k2 EOL supervision (the default is normally closed loop). Any Tamper alarms on this input are mapped to alarm outputs in the same manner as for detection zones.
In addition to the Zone & Tamper inputs, you will find the following additional inputs on the control PCB;
AC - Connect the 17VAC yellow wires (no polarity) from the transformer to the terminals marked AC on the PCB.
The panel includes a mains transformer rated at 1.4 amps at 17 VAC.
EARTH - Connect the mains earth to the appropriate terminal on the mains terminal block in the control box cabinet. Also connect a lead from this earth point to the terminal marked with the Earth symbol (next to AC terminals) on the panel PCB.
BATTERY - Connect a sealed lead acid rechargeable 12VDC battery to the terminals labelled red and black on the control panel being careful to observe the correct polarity. The minimum recommended battery capacity is 7 amp hours. Battery charge current at these terminals is limited to 300mA maximum. The battery connection is protected against short circuits by a thermal fuse. The panel performs a dynamic load test on the battery every 15 seconds and if it fails the test at any time it will indicate a battery low condition.
LINE IN - These terminals are used to connect the panel to the incoming telephone line. The dialler uses this line for reporting alarm events. An ADSL filter will be required before the Line In terminals if ADSL is present in the building.
LINE OUT - These terminals are used to connect telephones and other communication equipment to the incoming phone line via the panel dialler circuit. The telephone line is passed through the controller to ensure that the line is available to the controller when it is required.
OUTPUTS
12 VOLT OUTPUTS - There are three 12VDC outputs on the panel PCB. These 12 volt outputs are regulated and
Thermal fuse protected against short circuits. The accessory outputs are marked 12V and 0V, while the keypad buss 12V supply is labelled “POS” & “NEG”. The 12V outputs are supplied by thermal fuses. The recommended maximum total load that should be drawn from all of the 12V outputs is 1A.
OUTPUTS 1 & 2 - These fully programmable, high current, open drain (high-going-low) type FET outputs capable of switching up to 1.5A @ 12VDC. These 2 outputs are normally set as switched outputs, providing power for 12V sirens or piezos. If required, these outputs can be programmed to be siren outputs designed to drive an 8 ohm 10 watt horn speaker on each output (see P37E option 1). If an inductive load is connected to these outputs a back
EMF diode should be fitted.
OUTPUT 3&4 - These are medium current, open drain (high-going-low) type FET outputs capable of switching up to 1A. Like Outputs 1 & 2 they are fully programmable. If an inductive load is connected to these outputs a back
EMF diode should be fitted.
NOTE: - Connecting devices that draw current in excess of 1A to outputs 3 or 4 will damage the output.
OUTPUT 4 Relay - This is a relay output (rated 1A@30VDC) that works in parallel with the FET on output 4. It has single pole changeover contacts. Like Outputs 1 & 2 it is fully programmable.
KEYPAD PORT - The terminals marked POS, NEG, CLOCK, & DATA make up the communications port which the keypads and other intelligent field devices use to talk to the controller. The terminals are connected to corresponding terminals on the remote devices. The "lin" terminal is only used by the keypads and utilises a fifth wire to provide a communicator “listen-in” facility. This feature is particularly useful when servicing monitoring faults. The keypad 12V supply (POS,NEG) is protected by a thermal fuse.
EXPANSION PORTS - There are two high speed expansion ports (labelled EXP1 & EXP2) plus one 9600 baud serial port (labelled SERIAL). The serial port has no function at present and is provided for possible future use. The two expansion ports allow optional devices such as the Cellular back-up module, CAN bus interface and other peripherals to come later.
ETHERNET PORT - The on-board Ethernet port allows upload/download via the built-in web page, IP monitoring and remote control via Smartphone and tablet apps.
Page 13
ACCESSORIES
INSTALLING RX-16 RADIO RECEIVER
The panel can have wireless capability via the Arrowhead RX-16 receiver module when connected to the keypad bus. The receiver will add wireless capability to your system in the form or wireless PIR detectors, Wireless Radiokey transmitters and wireless reed switch transmitters.
The RX-16 connects to the same communications port as the keypads. The RX-16 is available in 3 frequencies,
303.875Mhz, 433.92Mhz or 916.5Mhz. Multiple RX-16’s can be connected to the panel to increase the coverage range if desired.
The green LED fitted to the RX-16 receiver will flash at 1 second intervals when in "Learn" mode (see P18E &
P164E). The LED will also turn on when it is receiving an actual radio transmission (On Steady).
INSTALLING TRX RADIO TRANSCEIVER
The panel also supports the two way TRX wireless products via the Arrowhead TRX transceiver module when connected to the keypad bus. The TRX transceiver will add two way wireless capability to your system in the form of the
TRX KEYPAD, TRX PIR, TRX REED, TRX SMOKE, TRX HEAT, TRX PENDANT, TRX INTERNAL & TRX EXTER-
NAL devices.
DTMF COMMAND CONTROL SEQUENCE
If DTMF Command Control has been enabled the operation is performed as follows.
Call the control panel.
When the panel answers it will play the message “Enter your code followed by the # key”.
At that point enter in your DTMF Code (program location P63E for Area Arm/Disarm or P175E12E for Output control) followed by the # key on the phone.
DTMF Arming and Disarming
If for example the DTMF code to remotely arm and disarm Area 1 (P63E1E) was 1234 and Area 1 was disarmed, when you enter the Area 1 DTMF code;
1234 # - (you will hear the message “Area 1 Disarmed”)
If you then press the * key it will change the state or Area 1, eg
* - (you will hear the message “Area 1 Armed”)
DTMF Output Control
If for example the DTMF code to remotely control Outputs (P175E12E) was 9876 and you were controlling Output 1
(which was currently Off), when you enter the Output DTMF code followed by output 1 (01);
9876 01 # - (you will hear the message “Output 1 Off”)
If you then press the * key it will change the state of Output 1, eg
* - (you will hear the message “Output 1 On”)
Exiting DTMF Control Mode
When all DTMF remote control functions are completed you can either hang up the phone and the control panel will hang up automatically in 15 seconds or you can press;
00 # - (you will hear “Goodbye”) and the panel will hang up immediately.
Page 14
MEMORY VIEW MODE
CURRENT ALARMS
When viewing the memory event buffer at the keypad by pressing the “MEM
Ç” button, the first thing that will always be displayed are any Current Alarms that are still active. When all current system alarms have been displayed the keypad will then start to show the historical memory events.
The chart below lists the possible current alarms that could be shown in memory.
8
9
6
7
10
11
4
5
2
3
1
12
13
CURRENT ALARMS
None
Mains Failure
Battery Low
12V Fuse or Output Failure
Telephone Line Failure
Radio Detector Battery Low
Radio Pendant Battery Low
Zone Supervise Failure
SensorWatch Alarm
Delinquency Alarm
Keypad Missing/Fault
Dialler Kiss-off Failure
Icon LCD display
NONE
AC
BATT
OPFS
LINE
ZbAT
PbAT
ZSUP
ZSW dELQ
KPSA
CF
FULL LCD Display
No Faults
Power Failure
Battery Low
O/P or Fuse Fail
Phone Line Fail
Radio Batt Low
Pendant Batt Low
Supervised Fail
SensorWatch Fail
Area Delinquency
Keypad Missing
Dialer Failure
HISTORICAL MEMORY EVENTS
Following the “Current Alarms” the panel will display the historical memory events. The panel stores the most recent events, (up to approx 2000), including all alarm events, all system events such as mains failure etc as well as arming by Area. The memory events are displayed chronologically with the most recent event shown first and subsequent events following in descending order from newest to oldest.
To view events simply press the “MEM
Ç” button to move to the next event. If you wish to go back and look at an earlier event you can use the “
È” button to go back to an earlier event. Each time the Down arrow is pressed the memory will go back one event.
The keypad will beep and the display is advanced to the next event every time the “MEM
Ç” button is pressed.
When all events in memory have been displayed the keypad will exit memory mode and return to the normal idle state. To cancel the memory display just press “ENTER”. If no buttons are pressed for a period of 20 seconds the keypad will automatically exit memory display mode.
In memory mode the Icon LCD keypad will show 4 character symbols for the various alarm events where the full
LCD Keypad will display the events using plain text messages. Both will display the events with the Time & date that the event occurred. For a list of the 4 character symbols used by the Icon LCD keypad please refer to the keypad user guide.
Page 15
ICON & FULL LCD KEYPAD INSTALLATION
INSTALLATION
Connect the 4 wires from the keypad bus on the main control panel to the corresponding connections on the keypad
(DAT, CLK, POS & NEG) The 5th wire is an optional “Listen-in“ connection. It is connected from the "Input" terminal of the keypad to the "Lin" terminal of the panel keypad port. With the Listen-in wire connected the user can hear the call progress during dialling at the keypad (provided the desired program options at address P175E 6E are turned on). The keypad input must not be set as a zone (P122E option 4) for the listen-in feature to work.
The maximum recommended cable distance using standard 0.2mm security cable is 50m, or 100m using 0.5mm security cable. For longer cable runs there is a keypad bus extender module available.
ICON & FULL LCD KEYPAD ADDRESS ASSIGNMENT
A total of 32 devices (keypads or wiegand interface modules) can be connected to the panel. Each keypad must be addressed individually to avoid BUS conflicts when multiple users are operating different keypads simultaneously. By default, each keypad comes addressed as KP # 1.
Setting the LCD keypad address is done in “Local Program Mode”.
There are two types of LCD keypad that can be connected to the panel, the ICON LCD or FULL LCD keypad.
Changing the keypad address in “Local Program Mode” is different for each keypad.
To enter “Local Program Mode” on the ICON LCD Keypad you must press <PROGRAM> then <BYPASS> then
<ENTER> (sequential button entry). The display will show “LPGM” (Local program mode).
Next you enter <PROGRAM> <902> <ENTER>. The display will show “KP: #” where # = the current keypad address.
By pressing any number from 01-32 then pressing <ENTER> the keypad will change it’s address to the new entry and automatically exit Local program mode.
To enter “Local Program Mode” on the FULL LCD Keypad you must press <PROGRAM> then <BYPASS> then
<ENTER> (sequential button entry). The display will show “keypad number” and the currently assigned keypad address number will be shown.
By pressing any number from 01-32 then pressing <ENTER> the keypad will change it’s address to the new entry and automatically exit Local program mode.
If you do not assign a unique address to every keypad and reader connected to the keypad buss, a conflict will exist that will cause erratic operation. Each reader or keypad MUST have a different address.
ICON & FULL LCD KEYPAD ZONE INPUT
On both the ICON LCD and the FULL LCD keypads there is a spare terminal labelled “Input”.
This input can be used for listening in when the dialler is active or as a zone input linked back to the main panel.
The zone associated with the keypad input is linked to the keypad address, eg if the keypad address is set to 23 the input on the keypad will be linked to zone 23.
If the zone input at P122E has option 4 turned off the keypad input is used for the listen in function.
If option 4 is turned on the input will work as the associated zone input, eg if the keypad address is set to 23 and option 4 is turned on at P122E 23E the keypad input will work as zone 23 sending sealed and unsealed status back to the panel.
Page 16
ICON & FULL LCD KEYPAD ADJUSTMENTS
ADJUSTING THE LCD KEYPAD BACKLIGHTING
The installer can adjust the backlight level of each LCD display and the keypad button backlight levels (both the
ICON LCD and the FULL LCD) by programming the required value at P95E in the main control panel.
The value is a range from 0-100%.
If set to 0 both the LCD and the keypad button backlighting will be off.
If set to 100 both will be set to the maximum.
The program option is P95E 01-32E (for keypad # 1-32) 0-100E (0-100%)
ADJUSTING THE KEYPAD BUZZER TONE – ICON LCD
The user can adjust the frequency (tone) of the LCD keypad buzzer within a range of 16 steps. By adjusting the frequency the volume of the tone produced at the buzzer varies as well.
To change the buzzer frequency and hence volume on the ICON LCD Keypad you must press <PROGRAM>
<BYPASS> <ENTER>. The display will show “LPGM” (Local program mode).
Next you enter <PROGRAM> <906> <ENTER>.
The display will show “BUZ”. By pressing either the “MEM
Ç” or the “È” buttons you can cycle through the various frequencies until the desired operational sound, and volume, is achieved.
Then press <ENTER> to save the new settings.
Press <PROGRM> <ENTER> to exit Local program mode.
ADJUSTING THE KEYPAD BUZZER TONE – FULL LCD
To change the buzzer frequency and hence volume on the FULL LCD Keypad you must follow the instructions below;
Press and hold down the <CONTROL> button then within 2 seconds press the <1> button to increase the frequency or press the <2> button to decrease the frequency.
To move through the different frequencies you have to continue to hold down the <CONTROL> button and press and release either the <1> or <2> button to move through the different settings.
DISPLAY IP & MAC ADDRESS AT THE KEYPAD
When the panel is in normal mode (ie not in program mode) it is possible to display the currently assigned IP address for the panel and the MAC address. This feature is only available at the full LCD Keypad, it is not available on the
ICON LCD keypad.
To view the MAC Address
At the LCD keypad press and hold the <8> button for 4 seconds until the display shows the panels MAC address. To exit the display mode press the <ENTER> button.
To view the IP Address
At the LCD keypad press and hold the <9> button for 4 seconds until the display shows the panels IP address. To exit the display mode press the <ENTER> button.
Page 17
FULL LCD KEYPAD TEXT EDITING
The FUL LCD keypad has various text locations that allow for customising of names that will appear when viewing events in memory mode. For example all of the 2000 users can have a unique 20 character name. All LCD Text editing is done in the “Installer Program Mode” at the main control panel. A list of the text that can be customised when in
Installation Program mode is as follows;
Program LCD KP “User “Name
P16E 1-2000E Program LCD KP “User” Name Text
LCD KP “Idle” Display Name
P25E 14E This location is where the LCD KP “Idle” Display Name can be Programmed.
Program LCD KP “Output” Name
P31E 1-32E Program LCD KP “Output” Name Text
Program LCD KP “Area” Name
P69E 1-32E Program LCD KP “Area” Name Text
Program LCD KP “Keypad” Name
P100E 1-32E Program LCD KP “Keypad” Name Text
Program LCD KP ” Zone” Name
P169E 1-64E Program LCD KP “Zone” Name Text
When in Installer Program Mode and at one of the above program locations the arrow buttons can be used.
The “MEM
Ç” or the “È” buttons can be used to change between upper (Capital) and lower case letters. The “Å” or
“
Æ” buttons can be used to move the cursor left or right to the letter you wish to change.
In the chart below the main characters are those selected when set to Upper case (Capital) mode. The characters in brackets are those selected when in lower case mode.
▼Button #
1
2
3
4
5
6
7
8
9
0
1st Press
* (‘)
A (a)
D (d)
G (g)
J (j)
M (m)
P (p)
S (s)
V (v)
Blank
2nd Press
# (<)
B (b)
E (e)
H (h)
K (k)
N (n)
Q (q)
T (t)
W (w)
Y (y)
3rd Press
= (>)
C (c)
F (f)
I (i)
L (l)
O (o)
R (r)
U (u)
X (x)
Z (z)
4th Press
1
2
3
4
5
6
7
8
9
0
Page 18
FULL LCD KEYPAD MENU PROGRAMMING
The FULL LCD Keypad enables “Menu” programming of the ELITE SX panel. Easy to follow plain text Menus will be displayed on the keypad to enable selection of the desired programming options.
ENTER
<ENTER> key selects the Menu you wish to work in or the option in a Sub-Menu you wish
to use.
PROG
<PROG> key will step you back to the previous Menu level.
ÇÈ
<Up> or <Down> arrow keys will allow you to cycle through the Menu options (Main & Sub Menus).
ÅÆ
<Left> or <Right> arrow keys can be used when in the Data Entry-Menus to cycle through the
options (eg if in “USERS” Data Entry-Menu, the options would be Users 1-2000, if in “ZONES” the
options would Zones 1-64, etc).
SELECTING THE MAIN-MENU HEADINGS (“
Ç Up” or “È Down” Arrow Keys)
Enter “INSTALLER” Program Mode eg <PROG> - <INSTALLER CODE (000000)> - <ENTER>.
The LCD will display “INSTALLER:USERS”. This is the default Main-Menu heading.
To access a desired program location you first navigate to the desired Main-Menu by using the “
Ç Up” button to cycle forward through the menu headings (the “
È Down” button moves backwards through the menu headings). Each press of “
Ç Up” button will advance the display to the next Menu heading.
The Main-Menu headings are shown on the top line of the LCD display.
To access the Sub-Menu options from a Main-Menu press the <ENTER> button.
SELECTING THE SUB-MENU HEADINGS (“
Ç Up” or “È Down” Arrow Keys)
Having pressed the <ENTER> button at the selected Main-Menu heading the keypad will now show Sub-Menus for that heading.
The Main-Menu heading will remain on the top line of the LCD display and the Sub-Menus will appear on the bottom line.
Each press of “
Ç Up” or “È Down” arrow keys will advance the Sub-Menus displayed on the bottom line either up or down by one location.
To access the Data Entry-Menu options from the Sub-Menu press the <ENTER> button.
SELECTING THE DATA ENTRY-MENU HEADINGS
Having pressed the <ENTER> button at the desired Sub-Menu heading, the keypad will now be in the Data Entry-
Mode.
The Main-Menu heading on the top line of the display will be replaced with the actual data entry field description, eg if you had gone from “USERS” to “CODES” then to the data entry field of codes the display will show “USER CODE 1” on the top line of the display and the code “123” on the bottom line (“123” being the default User 1 code).
You can now change the code, eg to change Code # 1 to 4567 press <4567> <ENTER>. The bottom line will now show the new code of “4567”.
At this point you can use the “
Ç Up” or “È Down” arrow keys to cycle through the other Sub-Menu options for User
Code 1 to program all of the options for code 1, or;
You can use the “
Å Left” or “Æ Right” arrow keys to cycle through all of the User codes. This allows you to program all of the user codes from 1-2000. The “
Æ Right” arrow key when pressed will take you up one User at a time and the
“
Å Left” arrow key will take you down one User, eg if the display was currently showing “USER CODE 10”, pressing the “
Å Left” arrow key will take the display to “USER CODE 9”, pressing the “Æ Right” arrow key will take the display to “USER CODE 11”.
You can also use the “
Å Left” or “Æ Right” arrow keys to move through all of the User codes, and while at a particular
User, you can also use the “
Ç Up” or “È Down” arrow keys to program all options for that User.
Page 19
STEPPING BACK THROUGH THE MENUS
If you are in a Menu location, eg the “USER” Data Entry field, and you wish to step back one stage to the previous
Sub-Menu, you need to press the <PROG> button.
Each time the <PROG> button is pressed the display will step back to the previous stage (remembering where you were before) until you get back to the Main-Menu.
For example if you were in the “KEYPADS” Main-Menu, then pressed <ENTER> to get to the “AREAS” Sub-Menu for keypads, then pressed <ENTER> again to get to the “AREAS” Data Entry-Menu for keypads, you could now press the <PROG> button once and it would take you back to the “KEYPADS/AREAS” Sub-Menu. Pressing <PROG> again will take you back to the “KEYPADS” Main-Menu, and pressing <PROG> one more time will return you back to the default “USERS” Main-Menu.
If you get back to the “USERS” menu and press the <PROG> button once more the display will go to the program exit menu. If you press <ENTER> when at this point the panel will leave program mode. If you don’t wish to leave program mode you can press the <PROG> button again to return to the “USERS” menu.
The flowchart below indicates the program menu steps using the “ARROW” , “ENTER” & “PROG” Buttons on the keypad.
USERS
(Main-Menu Heading)
_
MAIN-MENU
Ç orÈ Arrows will Cycle through Main-Menus
ENTER Button
To access Sub-Menu
PROGRAM Button
Leaves Sub-Menu and goes back to Main-Menu
PROGRAM Button
Leaves Data-Mode and goes back to Sub-Menu
USER 2000 CODE
—
(Data)
ÅArrow
USERS
(Main-Menu Heading)
CODES
(Sub-Menu Heading)
SUB-MENU
Ç orÈ Arrows will Cycle through Sub-Menus
LEARN RADIO USER 1
-ENTER- TO LEARN
Ç Arrow
USER 1 CODE
123
(Data)
È Arrow
USER 1 ACCESS OPT
- - - - - - - -
(Data)
ENTER Button
To access Data-Menu
DATA ENTRY-MENU
ÇÈÅÆ Arrows can be used in the Data-
Menu fields. See below for details.
USER 2 CODE
—
(Data)
Arrow
Æ
Page 20
ICON LCD KEYPAD PROGRAM & MEMORY NAVIGATION
ICON LCD CLIENT AND INSTALLER MODE NAVIGATION
The Icon LCD Keypad enables Navigation within single program addresses using the
Å
<Left> or
Æ
<Right> arrow keys when in either Client or Installer Program modes.
ÅÆ
<Left> or <Right> arrow keys can be used when in the Data Entry-Menus to cycle through the
options (eg if in “USERS” Data Entry-Menu, the options would be Users 1-2000, if in “ZONES” the
options would Zones 1-64, etc).
For example, enter “INSTALLER” Program Mode eg <PROG> - <INSTALLER CODE (000000)> - <ENTER>.
The LCD will display “IPGM”.
Now when you select a Program address, eg <PROG> - <1> - <ENTER> - <1> - <ENTER>
(program location for User code number 1),
You can use the “
Å Left” or “Æ Right” arrow keys to cycle through all of the User codes. The “Æ Right” arrow key when pressed will take you up one User at a time and the “
Å Left” arrow key will take you down one User, eg if the display was currently showing “USER CODE # 0001”, pressing the “
Å Left” arrow key will take the display to
“USER CODE # 2000”, pressing the “
Æ Right” arrow key will take the display to “USER CODE # 0002”.
This feature can be used at all single program addresses to cycle quickly through the Data Entry locations.
ICON LCD MEMORY MODE NAVIGATION
The same
Å
<Left> or
Æ
<Right> arrow keys can be used when in memory display mode.
For example when in memory mode if the display showed “OPU” (Open by User)
Pressing the
Æ
<Right> arrow will show “USER”,
Pressing the
Æ
<Right> arrow a second time will show “0001”, (Open by User 1)
If the display showed “OPU” (Open by User)
Pressing the
Å
<Left> arrow will show “2014” (event happened in 2014)
Pressing the
Å
<Left> arrow a second time will show “FEB” (event happened in February)
Pressing the
Å
<Left> arrow a third time will show “19” (event happened in the 19th)
Pressing the
Å
<Left> arrow a fourth time will show “11:26” (event happened at 11:26 am)
The full display would then be;
USER-0001-OPU-2014-FEB-19-11:26
The user can move through the data by selecting either the
Å
<Left> or
Æ
<Right> arrow keys .
Once the “MEM
Ç” arrow key is pressed the memory display will move to the next oldest event.
If the “
È” arrow key is pressed the memory display will move to the last previous new event.
Page 21
ACCESSING PROGRAM MODE
ACCESS TO INSTALLER PROGRAMMING ON POWER UP (INSTALLER MODE)
When power is applied to the controller for the first time and with the panel tamper input open, the panel will inhibit tamper alarms and ready the panel to enter INSTALLER PROGRAM MODE (unless the Installer Lock-out at address P25E10E Option 8 has previously been enabled). At this point you can go to any keypad which is connected to the panel and press <PROGRAM> <ENTER> which will automatically put that keypad into full Program mode. The ICON LCD will display “IPGM” (Installer program mode) and the FULL LCD will display “Installer: US-
ERS” (NOTE: Only one keypad can be in Program mode at any time).
ACCESS TO INSTALLER PROGRAM MODE FROM RUN MODE
Before you can enter Installer program mode from normal operating mode, the panel must not be Armed or in Stay mode (eg completely disarmed). Program mode access is inhibited if any part of the system is Armed.
Press <PROGRAM> - <Installer Code> - <ENTER>
The ICON LCD will display “IPGM”, the FULL LCD will display “Installer: USERS”
Note: Default Installer Code (P25E1E) is 000000.
You are now in Installer Program Mode. Any program addresses may be viewed or changed in this mode.
ACCESS TO CLIENT PROGRAM MODE FROM RUN MODE
Press <PROGRAM> - <Master User Code> - <ENTER>
The ICON LCD will display “CPGM”, the FULL LCD will display “Client: USERS”
Note: Default Master User Code is code # 1 (P1E1E) which is 123.
You are now in Client Program Mode. Access to certain program locations is limited while in Client mode (see the options at address P5E). Each User can have different privileges based on the options assigned to the User at address P5E. If no options are set at address P5E for a user, they will not be allowed access to Client program Mode.
RESETTING BACK TO FACTORY DEFAULT SETTINGS (From Install Mode Only)
There are two addresses that allow you to reset the panel back to the factory defaults. The first resets just User
Codes, Installer Code & Telephone Numbers. The Second resets all programming back to the factory Defaults. e.g. To reset All System defaults:
Press <PROGRAM> - <P200E10E> - <ENTER>
3 short beeps if OK - 1 long beep if error
After the system configuration has been reset back to defaults, all values, options & Codes will be set to the values shown in the Program Summary as defaults. These values have been chosen as the most common set-up for the majority of systems.
To reset partial defaults:
Press <PROGRAM> - <P200E9E> - <ENTER>
3 short beeps if OK - 1 long beep if error
The partial reset to defaults will return all User Codes, the Installer Code and Telephone Numbers back to the values shown in the Program Summary as defaults. These values have been chosen as the most common set-up for the majority of systems.
TO EXIT PROGRAM MODES USING AN ICON LCD
To exit either program mode when you have finished programming from an ICON LCD keypad:
Press <PROGRAM> - <ENTER>
If no buttons are pressed for 30 minutes the panel will automatically exit program mode
Note: While in Program mode all Tampers and 24 hour alarms are disabled which allows quiet access to the panel,
Page 22
detectors and external siren units, etc. On exiting program mode, all inputs are scanned and if any tampers or
24Hr alarms are present an activation will occur.
TO EXIT PROGRAM MODES USING FULL LCD KEYPAD
There are two ways to exit Program Mode with an LCD keypad. To exit either program mode when you have finished programming:
Repeatedly press the <PROGRAM> button until the display shows
“<ENTER> TO EXIT”
Now press <ENTER> to exit Program Mode.,
OR
Press and hold the <PROGRAM> button for 2 seconds to exit program mode
If no buttons are pressed for 30 minutes the panel will automatically exit program mode
Note: While in Program Mode all Tampers and 24 hour alarms are disabled which allows quiet access to the panel, detectors and external siren units, etc. On exiting program mode, all inputs are scanned and if any tampers or 24Hr alarms are present an activation will occur.
TYPICAL PROGRAM SEQUENCE
The programming sequence follows this pattern;
<PROGRAM> - <1,2 or 3 digit program address> - <ENTER> (Program Address)
1 short beep if OK - 1 long beep if error, THEN
<PROGRAM> - <1,2, 3 or 4 digit sub-address> - <ENTER>
3 short beeps if OK - 1 long beep if error
The keypad will display current value or status
Enter the new value or option
<New Value> - <ENTER>
(Sub-Address)
3 short beeps if OK - 1 long beep if error
Throughout this manual you will see program instructions expressed as per the example below
P 1 E 1-2000 E
Using the above example the <P> represents the <PROGRAM> key and <E> represents the <ENTER> key.
<1> refers to the address for programming User Codes and <1-2000> refers to Users 1-2000.
Page 23
+++++USER Programming+++++
USER CODES
Note: Where there are up to 32 options at one address, the digits 0 & 9 have special functions. Entering a 0 at the address will turn all options off whereas entering a 9 will turn all options on. Also pressing and holding the 0 will delete data such as user codes, telephone numbers, account codes, etc.
USER CODES - P1E 1-2000E (NOTE: Users 101-2000 can be Radio Users)
Adding or changing a User Code
Up to 2000 codes can be programmed into the panel. The user codes are located in address P1E 1-2000E.
By default, Code 1 has Master Code permissions and must be used to enter Client program mode.
Codes 1-2000 may be varied in length from 1 to 6 digits (unless option 8 at P25E11E is on then the codes must be between 4-6 digits long).
To program a User Code you must first be in client or installer program mode, then select the address P1E followed by the User Number you wish to program eg 1-2000E (If there is already a code programmed at this address, it will be displayed back to you) Now enter the code then press the <ENTER> key. eg. P1E2E 2580 E
3 beeps
In the above example we have programmed Code 2 to be 2580. eg. P1E5E 9876 E
3 beeps
In the above example we have programmed code 5 to be 9876
To replace a code simply enter the new code in the same address as the old code. This will overwrite the previous code but maintain the user permissions as mapped to that user number.
Removing a User Code
To remove or delete a code you can press and hold the <Control> button then within 2 seconds press the <0> button (maintained for compatibility with the current ELITE S operation) or you can press and hold the <0> button for 3 seconds to delete the code. We recommend using the second option of holding the <0> button for 3 seconds. eg. To delete code 3 press P1E3E then hold <0> down for 3 seconds
3 beeps
User Code # 3 Erased
USER CODE TYPE
USER CODE TYPE - P2E 1-2000E (NOTE: only Users 101-2000 can be Radio Users)
Option 0 - Keypad Code User {PIN}
Option 1 - Radio user (User 101-2000 only)
Option 2 - Access Tag/Card User
Option 3 - Both Code and Access Tag/Card User {Tag + PIN}
Option 4 - Either Code or Access Tag/Card User {Tag or PIN}
Option 0 Keypad Code User {PIN} - All 2000 Users can be 1-6 digit code Users if required. Codes can be used to Arm/Disarm all or part of the alarm or they can be used to operate outputs for access control purposes. Users can be assigned to operate at multiple keypads and assigned to control multiple outputs. A keypad can also be assigned to control selected outputs so that a User assigned to multiple outputs (which can in turn be linked to doors) can only operate the door assigned to the keypad they are using.
Page 24
Option 1 Radio User - Users 101-2000 can be Radio keys (Pendant) if required. Radio keys can be used to Arm/
Disarm all or part of the alarm or they can operate outputs directly. Unlike user codes, a radio key cannot be assigned to a keypad so if a radio key is assigned to more than one output and the radio key is operated, all of the outputs assigned to the radio key will turn on.
Option 2 Access Tag/Card User - Users 1-2000 can be Access Tags or Cards if required. Access Tag or Card operation requires that the optional Proximity Reader is connected to the panel via a Wiegand Interface
Board. The Proximity Readers can be assigned to any one of the 32 possible keypad addresses. Access
Tag or Card Users can be assigned to operate at multiple keypads and assigned to control multiple outputs. A keypad can also be assigned to control selected outputs so that an Access Tag or Card User assigned to multiple outputs (which can in turn be linked to doors) can only operate the door assigned to the keypad they are using.
Option 3 Both Code and Access Tag/Card User {Tag + PIN} - Up to 2000 code Users and up 2000 tag or card
Users can be stored in the panel. If the Proximity Reader with the full keypad is installed on the panel, it is possible to arm/disarm the alarm or gain access through a door by presenting the tag/card at the reader then entering in the user code {PIN Number}. It MUST be in that order ie Tag then PIN. This option provides a more secure means of arming or disarming the alarm, or gaining access through a door, because it requires both the access tag/card plus the PIN number.
Option 4 Either Code or Access Tag/Card User {Tag or PIN} - Up to 2000 code Users and up 2000 tag or card
Users can be stored in the panel. If the Proximity Reader with the full keypad is installed on the panel, it is possible to arm/disarm the alarm or gain access through a door by entering in the user code at the reader or presenting the tag/card at the reader. This option gives two methods of controlling the alarm.
USER AREAS
USER AREAS - P3E 1-2000E
Option 01 - 32 Assigned to Area 1-32
Option 01 Assigned to Area 1 - If a User has option 1 on, they can Arm/Disarm all zones assigned to Area 1
Option 32 Assigned to Area 32 - If a User has option 32 on, they can Arm/Disarm all zones assigned to Area 32
Any combination of the above areas may be assigned to Users 1-2000.
USER ACCESS OPTIONS
USER ACCESS OPTIONS - P4E 1-2000E
Option 1 - User can Arm Area
Option 2 - User can Arm Stay Area
Option 3 - User can Disarm Area
Option 4 - User can Disarm Stay Area
Option 5 - User is a Security Guard User
Option 6 - User will Arm Latchkey Mode
Option 7 - Spare
Option 8 - User can View Event Memory
Option 1 User can Arm Area - If a User has option 1 on, they can Arm all Areas assigned at location P3E.
Option 2 User can Arm Stay Area - If a User has option 2 on, they can Arm Stay Mode for all Areas assigned at location P3E.
Option 3 User can Disarm Area - If a User has option 3 on, they can Disarm all Areas assigned at location P3E.
Option 4 User can Disarm Stay Area - If a User has option 4 on, they can Disarm Stay Mode for all Areas assigned at location P3E.
Option 5 User is a Security Guard User - If a User has option 5 on, they can Arm all Areas assigned at location
P3E, but they may only Disarm if the panel is currently Armed and in the alarm state.
Option 6 User will Arm Latchkey Mode - If this option is ON, the User will Arm the alarm in Latchkey Mode.
Page 25
Latchkey Mode can also be armed by using the <ARM>, <STAY>, <A> or <B> buttons, (see P75E,
P77E, P79E & P81E option 6) or the key-switch (see P120E option 6). If a User with this option ON
Disarms the alarm no Latchkey Disarm report will be sent via the dialler. If Latchkey Mode is Armed and a user with this option turned OFF Disarms the alarm a Latchkey disarm report will be sent to alert parents when their children have returned home. Reporting of Latchkey Disarm is enabled at location (P189E option 1). If a Voice report is desired the message is assigned at P176E10E.
Normally you would select a telephone number/s set for domestic or voice reporting to report the
Latchkey disarm signal.
Option 7 Spare
Option 8 User can View Event Memory - If access to memory mode is restricted by turning on option 8 at location P25E13E, this option allows the user to access memory mode by pressing <MEMORY>
<CODE #> <ENTER>. If this option is off and memory access is restricted, the user cannot view memory mode.
USER CODE PRIVILEGES
USER CODE PRIVILEGES - P5E 1-2000E (see chart on page 96 for the exact program locations)
Option 1 - User can Change Their Code
Option 2 - User can Change All Codes
Option 3 - User can Allow Access to Installer Mode/Edit All Codes
Option 4 - User can Change Telephone Numbers
Option 5 - User can Change Clock Settings
Option 6 - User can Change DTMF Codes
Option 7 - User can Learn New Radio Devices
Option 8 - Spare
Option 1 User can Change Their Code - If a User has option 1 on, they can access Client Program Mode and change their code number.
Option 2 User can Change All Codes - If a User has option 2 on, they can access Client Program Mode and change All User code numbers.
Option 3 User can Allow access to Installer Mode/Edit All Codes - If a User has option 3 on, they can access Client program Mode. From there an Installer with the correct Installer Code can access
Installer Program Mode. The User with this option can also edit all User Codes and associated parameters as shown in the chart on page 112.
Option 4 User can Change Telephone Numbers - If a User has option 4 on, they can access Client
Program Mode and change the telephone and call divert numbers.
Option 5 User can Change Clock Settings - If a User has option 5 on, they can access Client Program
Mode and change the Time & date settings as well as daylight saving sart and finish times.
Option 6 User can Change DTMF Codes - If a User has option 6 on, they can access Client Program Mode and change the DTMF Codes. A DTMF Code can be used to remotely Arm/Disarm an Area, turn
Output/s On/Off or Acknowledge a Voice/Domestic alarm.
Option 7 User can Learn New Radio Devices - If a User has option 7 on, they can access Client Program
Mode and Learn a new Radio Key or Wireless Zone Device. They can also remove radio devices or find what location number a device is stored at.
Option 8 Spare
RADIO USER TYPE
RADIO USER TYPE - P7E 101-2000E (NOTE: only Users 101-2000 can be Radio Users)
Option 0 - Generic (General Pendant Type)
Option 1 - Crow Freewave Pendant
Option 21 - Ness Pendant
Option 0 Generic Type - If a Radio Pendant has no special functions and does not send a battery low signal
Page 26
it is a Generic type 0.
Option 1 Crow Freewave Type - If a Crow Freewave Radio Pendant is being used set the type to 1. When the pendant detects a battery low it will send a signal to the panel.
Option 21 Ness Type - If a Ness Radio Pendant is being used set the type to 21. When the pendant detects a battery low it will send a signal to the panel.
RADIO USER PRIVILEGES
RADIO USER PRIVILEGES - P8E 101-2000E (NOTE: only Users 101-2000 can be Radio Users)
Option 1 - Pendant can Disarm at All Times
Option 2 - Pendant will cause an Immediate Panic Alarm
Option 3 - Pendant will cause a Delayed Panic Alarm (1.5 sec)
Option 4 - Pendant only works during entry delay
Option 5 - This User is a dedicated Duress Code
Option 6-8 - Spare
Option 1 Pendant can Disarm at All Times - If a Radio Pendant has option 1 on, they can Disarm the alarm at any time. If this option is off, the pendant cannot disarm if the panel is in alarm state.
Option 2 Pendant will cause an Immediate Panic Alarm - If a Radio Pendant has option 2 on, a Panic
Alarm will be generated immediately the button is pressed.
Option 3 Pendant will cause a Delayed Panic Alarm - If a Radio Pendant has option 3 on, a Panic Alarm will be generated if the button is pressed for longer that 1.5 seconds. If the button is released before the time expires, no Panic Alarm will be generated.
Option 4 Pendant only works during entry delay - If a Radio Pendant has option 4 on, the pendant can only disarm the alarm during the entry delay time. This means that authorised radio key users must enter the building and trigger the entry delay before they can disarm the alarm.
Option 5 This User is a dedicated Duress Code - If a User Code has option 5 on (restricted to Users 21-
100 only), this code should be used as a dedicated Duress code. It should not be used for daily disarming of the alarm but used when disarming under Duress.
TIMEZONE ASSIGNED to a USER
TIMEZONE ASSIGNED to a USER - P9E 1-2000E
Option 01 - 32 - User Controlled by Time Zone # 1-32
There are up to 32 Time Zones that can be programmed into the panel. A Time Zone consists of a Start and
Stop time plus the Days of the Week that the Time Zone is active. By turning on Options 01-32 (assigning any combination of Time Zones 1-32) to a particular User, that user will only operate if the Time Zone/s assigned is/ are active.
For example, if Time Zone #1 had a start time of 0800 and a stop time of 1700 and active days of 2-6 (Monday-
Friday), a User with Time Zone 1 assigned can only be used between the hours of 0800-1700 from Monday to
Friday. Outside these hours the User Code will not operate.
More than one Time Zone can be assigned to a User. Using the above example for TZ#1 and now assuming
Time Zone #2 is set to 0900-1200 on day 7 (Saturday), by assigning both TZ1 & 2 to a User will now mean their code is active during weekdays from 0800-1700 plus they are also able to use their code on Saturdays between the hours of 0900-1200.
If the time-zone has just been programmed and should currently be active you will have to wait until the next minute expires before the panel will update the time-zone status. You can see if the time-zone is active at location P200E4E.
USER to KEYPAD ASSIGNMENT
USER to KEYPAD ASSIGNMENT - P10E 1-2000E
Option 01 - 32 User will work at Keypad # 1-32
Page 27
Any user can be assigned to only operate at certain Keypads. This option controls whether a code or access tag
User can Arm/Disarm from certain keypads. This option does not restrict users from operating outputs from a particular keypad (this is done at locations P82E & P83E).
RADIO PENDANT PANIC BEEPS to KEYPAD
RADIO PENDANT PANIC BEEPS to KEYPAD - P11E 101-2000E (NOTE: only Users 101-2000 can be Radio
Users)
Option 01 - 32 A Pendant Panic Alarm will Beep at Keypad # 1-32
If a Radio Pendant is programmed to create a Panic Alarm (see P8E), when the Panic Alarm is activated it can be silent or it can sound the keypad buzzer. Each Radio Panic alarm created by a wireless User can be silent during the Panic Alarm (option turned off) or can give an audible indication of the Alarm at a keypad (option turned on).
USER can turn an OUTPUT ON
USER can turn an OUTPUT ON - P13E 1-2000E
Option 01 - 32 User can turn ON Output # 1-32
Any user can be allowed to turn an Output ON. This Function will allow Users (Code, Tag/Card or Radio Users) to turn ON an assigned Output. Once an Output is turned ON by a User, the Output can turn OFF again automatically if a reset time is assigned to the Output. If no reset time is assigned to the output (Address P40E) the output must then be turned off by a User with the same output assigned at P14E.
USER can turn an OUTPUT OFF
USER can turn an OUTPUT OFF - P14E 1-2000E
Option 01 - 32 User can turn OFF Output # 1-32
Any user can be allowed to turn an Output OFF. This Function will allow Users (Code, Tag/Card or Radio Users) to turn OFF an assigned Output that has previously been turned on by a user with option P13E assigned.
RADIO PENDANT PANIC ALARM to OUTPUT
RADIO PENDANT PANIC ALARM to OUTPUT - P15E 101-2000E (NOTE: only Users 101-2000 can be Radio
Users)
Option 01 - 32 A Pendant Panic Alarm will Operate Output # 1-32
If a Radio Pendant is programmed to create a Panic Alarm (see P8E), when the Panic Alarm is activated it can be silent or it can turn on an Output. This option would normally be used to turn on any internal and/or external audible alarms connected to Outputs during a Pendant Panic Alarm.
PROGRAM FULL LCD KP “USER” NAME
Program FULL LCD KP “User” Name Text - P16E 1-2000E
Each User can have a custom name that will be displayed when in Memory Mode. The FULL LCD KP “User” name text is programmed at this location.
BULK COPY A USER TO A RANGE OF USERS
Bulk COPY a User to a range of Users - P17E
It is possible to set up a single User and then copy the programmed data for that user to a range of users. For example if User 10 was set up as a template and that data was required to be copied to Users 11 to 100 inclusive then once user 10 has been fully programmed by entering in P17E 10E followed by 11E then 100E the panel will copy User 10’s settings to all users from 11 to 100. This process can be repeated many times with different Users set up as a template and a different range of user addresses.
LEARN RADIO PENDANT CODES
LEARN RADIO PENDANT CODES - P18E 101-2000E (NOTE: only Users 101-2000 can be Radio Pendants)
A Radio Pendant must be enrolled into the panel before it can be used.
Page 28
To learn a Radio Pendant you must first have a compatible receiver connected to the panel keypad buss. With the receiver connected and the panel in program mode, entering P18E then the pendant number you wish to enrol, eg
101E for pendant 101, the keypad will start to beep to indicate that learn mode has been started and the LED on the receiver will flash. Now operate the pendant you wish to learn into User slot 101. Once the transmitted code has been received by the panel and saved as pendant 101, the keypad will stop beeping and the LED on the receiver will stop flashing.
When learning a new radio code the panel checks all possible locations (including radio zones) before saving the new code to ensure that the code has not already been loaded into another slot. If the code already exists, the keypad will indicate which slot the code is already installed at. A number from 1-64 indicates a zone slot and a number from 101-2000 indicates a user slot.
DELETE a RADIO PENDANT CODE
DELETE a RADIO PENDANT CODE - P19E 101-2000E (NOTE: only Users 101-2000 can be Radio Pendants)
If you wish to delete a single Radio Pendant, pressing P19E then the Pendant User number while in Program
Mode will delete the stored code against that User, eg P19E 101E will remove the code stored for User 101.
FIND a RADIO PENDANT LOCATION
FIND a RADIO PENDANT LOCATION - P20E ENTER (NOTE: only Users 101-2000 can be Radio Pendants)
If you have a Radio Pendant loaded into the panel but are unsure which location (User #), pressing P20E then
ENTER while in Program Mode will start “Find” Mode. The keypad will start to beep to indicate that “Find” mode has been started and the LED on the Receiver will flash. Now press the Radio Pendant button that you wish to find. If the Radio Pendant is in memory the keypad will display the number (1-64 indicates a zone, and 101-2000 indicates a user). The keypad will stop beeping and the LED on the Receiver will stop flashing.
LEARN ACCESS TAG/CARD CODES
LEARN ACCESS TAG/CARD CODES - P21E 1-2000E
An Access Tag/Card must be enrolled into the panel before it can be used. Each tag can be learnt via a Prox reader connected to the panel (using this program address) or the Tag/Card codes can be manually entered at address P24E. The panel can have up to 2000 proximity tags (key-ring style card), or proximity cards loaded into the system. The tags or cards are stored separately to the User Codes but they follow the options of Users 1-2000 programmed at locations P2E, P3E, P4E, P9E, P10E, P13E & P14E. For example if user 11 is assigned to Area 1
(P3E Option 01), and can arm/disarm the alarm (P4E Options 1 & 3), then access Tag/Card number 11 will arm/ disarm Area 1 also.
To learn an Access Tag/Card you must first have a compatible proximity reader connected to the panel keypad buss. With the reader connected and the panel in program mode, entering P21E then the Access tag/card number you wish to enrol, eg 11E for Tag/Card number 11, the keypad will start to beep to indicate that learn mode has been started. Now present the Access Tag/Card to the reader. Once the Tag/Card number has been received by the panel and saved, the keypad will stop beeping to indicate learn mode has stopped.
When learning a new access Tag/Card the panel checks all possible locations before saving the new code to ensure that the code has not already been loaded. If the tag or card already exists, the panel will not terminate learn mode but instead it will continue looking for a new tag or card to be presented. This allows a new tag or card to be learnt while existing tags or cards may be in use on the system.
After learning the tag or card, before it will work you MUST select the appropriate option at location P2E (options
2, 3 or 4 must be selected for the tag to work).
DELETE an ACCESS TAG/CARD CODE
DELETE an ACCESS TAG/CARD CODE - P22E 1-2000E
If you wish to delete a single Access Tag or Card, pressing P22E then the User number while in Program Mode will delete the stored code against that User, eg P22E 11E will remove the tag or Card stored for User 11.
FIND an ACCESS TAG/CARD LOCATION
FIND an ACCESS TAG/CARD LOCATION - P23E ENTER
If you have an Access Tag or Card loaded into the panel but are unsure which location (User #), pressing P22E then ENTER while in Program Mode will start “Find” Mode. The keypad will start to beep to indicate that “Find” mode has been started. Now present the Access Tag or Card you wish to find to a proximity reader connected to
Page 29
the panel. If the Tag or Card is in memory the keypad will display the number where the Tag or Card is stored (a number from 1-2000). The keypad will stop beeping once the memory location has been found.
Manually enter in a Card/Tag Printed Number
P24E 1-2000E - Enter in the 10 digit printed card/tag number
The Access Tags/Cards come with a printed 10 digit decimal number. To eliminate the need to learn the Tag/card number via a Prox reader (address P21E) the printed number can be manually entered at this address.
Code/Tag/Radio User Usage Count
P1025E 1-2000E - A value of 1-254 equals the number of times it can be used. 255 = always
If an access Code, Tag/Card or Radio User has a value between 1-254 programmed at this address the user will only be able to be used that number of times before it stops working. Every time the User uses their Code, Tag or
Radio button the programmed count will reduce by 1 until it reaches a value of zero. When the value is zero the
User will stop working. If a value of 255 is programmed the user will always work.
Code/Tag/Radio User Start Date
P1026E 1-2000E - DD:MM:YY The date a Code/Tag will start to function.
If an access Code, Tag/Card or Radio User has a start date programmed at this address the user will only be able to be used when that start date has been reached. The start date begins at 00:00 on the date programmed. If a value of 00:00:00 is programmed the start date is ignored.
Code/Tag/Radio User End Date
P1027E 1-2000E - DD:MM:YY The date a Code/Tag will cease to function.
If an access Code, Tag/Card or Radio User has an end date programmed at this address the user will only be able to be used until midnight of the programmed date. If a value of 00:00:00 is programmed the end date is ignored.
Code/Tag/Radio User Start Time
P1028E 1-2000E - HH:MM The time a Code/Tag will start to function.
If an access Code, Tag/Card or Radio User has a start time programmed at this address the user will only be able to be used when that start time has been reached. If a value of 00:00 is programmed the start time is ignored.
Code/Tag/Radio User End Time
P1029E 1-2000E - HH:MM The time a Code/Tag will cease to function.
If an access Code, Tag/Card or Radio User has an end time programmed at this address the user will only be able to be used up to the end time at which time it will stop working. If an end time of 09:59 was programmed the user will work until the end of the 59th minute (eg the user will work up to 10:00). If a value of 00:00 is programmed the end time is ignored.
+++++Miscellaneous Panel & Clock Settings+++++
INSTALLER CODE
INSTALLER CODE - P25E 1E
This code is used to enter full Installer Program mode. The default installer code is 000000. This code can only be changed while in Installer Program Mode. To enter your new installer code press P25E1E. The existing code will be displayed at the keypad (either each digit flashed out sequentially on an ICON LCD keypad or shown on the bottom line of the FULL LCD keypad). To change the code simply enter the digits of the new code followed by
ENTER and it will replace the old one. The Installer Code must be between 4-6 digits in length.
\
Page 30
DURESS DIGIT
DURESS DIGIT - P25E 2E (Value can be 1-9, 0 = Duress Disabled)
The duress digit can be a number from 1-9 (a value of “0” means the duress function is disabled).
To create a duress alarm the duress digit must be entered before a valid user code (eg If the code was “123” and the duress number was “4”, then entering a code of <4123> <ENTER> would create a duress alarm).
DIAL REPORT DELAY
DIAL REPORT DELAY - P25E 3E (0-255 Seconds)
If this address is set to 0, there will be no report delay. If it is set to any value other than 0 then a delay equal to the programmed value will stop the panel from reporting an alarm until this delay time expires. If there is a delay programmed and the alarm is Disarmed before the delay expires no activations will be sent.
RADIO ZONE SUPERVISED TIMER
RADIO ZONE SUPERVISED TIMER - P25E 4E (Value 0-9999 Minutes)
If a radio detector is capable of sending regular supervisory signals to the panel and the zone type is set for
“Supervised Signal Active”, this timer sets how long a period has to elapse with no received transmissions before a supervisory failure alarm is generated.
TWO TRIGGER TIMER
TWO TRIGGER TIMER - P25E 5E (0-255 Seconds)
If a zone is set to two trigger, the zone has to cause an alarm twice within the two trigger time period to cause an alarm. If multiple zones are set to two trigger, an alarm will be generated if two zones trigger once each within the two trigger time period. If a two trigger zone goes into alarm but remains in alarm for longer than the two trigger time period (ie detector failure or cable cut) an alarm will be generated.
MAINS FAIL REPORTING DELAY
MAINS FAIL REPORTING DELAY - P25E 6E (0-9999 Seconds)
If a Mains Failure occurs this timer delays the reporting of Mains Failure to a Monitoring Station. If the mains power returns before the timer expires then no report is sent. If Mains Failure is assigned to an output, this delay must expire before the output will turn on.
RECEIVER FAIL DELAY
RECEIVER FAIL DELAY - P25E 7E (0-9999 Seconds)
If supervised radio detectors are used, the receiver will be seeing regular transmissions. Because of this, the panel can monitor receiver activity to check that the receiver is still working. If the panel does not receive any signals within this time period a receiver failure alarm will be generated. If set to 0, the receiver monitoring will be turned off.
UPLOAD/DOWNLOAD SITE CODE NUMBER
UPLOAD/DOWNLOAD SITE CODE NUMBER - P25E 8E (8 characters)
The upload/download site code number provides a security access level to the panel when accessed externally.
The number can be up to 8 characters in length. Valid characters for this number are 0-9,B-F. See chart on page
55 for details of how to program the characters B-F.
TEMPORARY OUTPUT DISABLE
TEMPORARY OUTPUT DISABLE - P25E 9E (Select output # 01-32)
This address allows a technician to select any output/s to be temporarily disabled for one alarm or armed cycle, eg by selecting P25E 01 02 03 04E (Outputs 1-4) at this location then leaving program mode, outputs 1-4 will not turn on following any alarms. The technician is now free to arm the system to test all monitoring signals without having any internal and/or external alarms activating. When the alarm is reset or disarmed all outputs will now work normally again.
Page 31
MISCELLANEOUS PANEL OPTIONS
MISCELLANEOUS PANEL OPTIONS - P25E 10E
Option 1 - Panel Tamper is 2k2 EOL
Option 2 - Direct access to program mode for the Installer Code
Option 3 - Disable Mains Fail Test
Option 4 - Spare
Option 5 - Cannot arm the alarm if Receiver fail mode is active
Option 6 - Enable iPSU AC and Battery Low monitoring
Option 7 - Cannot arm if the system battery is low.
Option 8 - Installer Lockout
Option 1 Panel Tamper is 2k2 EOL - The Tamper input (Tmp) on the control panel requires either a short circuit or a 2k2 End-of-Line resistor. If option 1 is on the panel must see a 2k2 resistor (EOL) across the Tmp & 0V terminals to ensure the tamper is sealed. If this option is turned off then a simple short circuit is all that is required to seal the panel tamper.
Option 2 Direct access to program mode for the Installer Code - If this option is on, the Installer Code can gain access to Installer Program Mode directly. If the option is turned off, the installer can only gain access to Installer Program Mode via Client Program Mode. This option allows the owner to control program mode access by the installer. The User must have option 3 at location P5E turned on for them to allow installer access.
Option 3 Disable Mains Fail Test - If the panel must be run off a DC supply or the Mains supply can fail regularly, this option disables the mains voltage monitoring to prevent mains fail alarms from occurring.
Option 4
Spare
Option 5 Cannot arm the alarm if Receiver fail mode is active - If the receiver fail delay (P25E7E) is set to a value other than 0 and the panel sees no activity from the receiver for the set period of time, a receiver fail alarm will be generated. If this option is turned on, the panel cannot be armed until the cause of the receiver failure has been resolved. Also if the receiver detects a continuous signal for longer than 60 seconds it will send an RF Jammed signal to the control panel. Under this alarm condition and if this option is turned on, the control panel cannot be armed until the interference has been removed.
Option 6 Enable iPSU AC and Battery Low monitoring - If an optional power supply (iPSU) is fitted to any of the zone or output expanders they can monitor the AC fail and battery low conditions. If this option is turned off the panel will ignore any AC fail of battery low signals from an iPSU. If turned on the fault conditions are displayed and reported by the control panel.
Option 7 Cannot arm if the system battery is low. - If this option is turned on, the panel cannot be armed if the panel battery is low. When the battery is fully charged the panel can then be armed. If this option is turned off the panel can be armed during these fault conditions.
Option 8 Installer Lockout - Normally if the panel is powered up with the panel tamper open (ie system tamper alarm active) and in the Disarm state, then the panel will go into installer program mode when the <PROGRAM> then <ENTER> buttons are pressed. If this option is on, the panel will not allow access to program mode on power-up and the only valid method of accessing program mode is via the installer code.
INSTALLER OPTIONS
INSTALLER OPTIONS - P25E 11E
Option 1 - Installer MUST enter program mode via Client mode to reset confirmed alarms
Option 2 - Installer MUST enter program mode via Client mode to reset tamper alarms
Option 3 - Installer MUST enter program mode via Client mode to reset low battery alarms
Option 4 - Installer MUST enter program mode via Client mode to reset supervisory alarms
Option 5 - Cannot Arm if there is a keypad Fault
Option 6 - Cannot Arm if there is a Telephone Line Failure or Comms Fault
Option 7 - 10 Incorrect Code Attempts locks out the keypad for 90 Seconds
Option 8 - User Codes Must be 4-6 digits long
Page 32
Option 1 Installer MUST enter program mode via Client mode to reset confirmed alarms - If this option is turned on and a Confirmed alarm has occurred, the alarm cannot be re-armed until the Installer has reset the alarm. The Installer must access Installer Program Mode via Client Mode to reset the system. The zones that caused the alarm will latch on (even when disarmed) until reset by the installer to indicate that lockout is in effect.
Option 2 Installer MUST enter program mode via Client mode to reset tamper alarms - If this option is turned on and a Tamper alarm has occurred (system or zone tampers), the alarm cannot be rearmed until the Installer has reset the alarm. The Installer must access Installer Program Mode via
Client Mode to reset the system. The Trouble indication will latch on (even if the tamper alarm has been cleared) until reset by the installer to indicate that lockout is in effect.
Option 3 Installer MUST enter program mode via Client mode to reset low battery alarms - If this option is turned on and a Low Battery alarm has occurred, the Installer must access Installer Program Mode via Client Mode to reset the battery low signal. If option 7 is turned on at location P25E10E the alarm cannot be re-armed until the Installer has reset the battery low signal.
Option 4 Installer MUST enter program mode via Client mode to reset supervisory alarms - If this option is turned on and a Detector Supervisory alarm has occurred, the alarm cannot be re-armed until the
Installer has reset the alarm. The Installer must access Installer Program Mode via Client Mode to reset the supervisory alarm.
Option 5 Cannot Arm if there is a keypad Fault - If this option is turned on and a missing keypad alarm is present the panel cannot be armed until the keypad has been re-instated.
Option 6 Cannot Arm if there is a Telephone Line Failure or Comms Fault - If this option is turned on and the control panel has detected a telephone line fault or the dialler failed to get kissed off (Comms
Fault) following an alarm report the panel cannot be armed. To reset the line failure the telephone line must be re-instated to allow arming again. To reset the Comms Fault alarm, a user must access the memory.
Option 7 10 Incorrect Code Attempts locks out the keypad for 90 Seconds - If this option is turned off the panel will create a keypad tamper alarm if more than 4 incorrect codes are entered at a keypad but the keypad will not be locked out. If this option is turned on the panel will create a keypad tamper alarm if more than 10 incorrect codes are entered at a keypad and that keypad will then be locked out for 90 seconds.
Option 8 User Codes Must be 4-6 Digits - If this option is turned on, all User Codes must be between 4-6 digits long. If it is turned off, the User Codes can be 1-6 digits long.
USER OPTIONS
USER OPTIONS - P25E 12E (NOTE: This Option can ONLY be accessed from Client Mode)
Option 1 - Hide User Codes from Installer
Option 1 Hide User Codes from Installer - This option is only accessible from Client Program Mode. It is designed to allow the User (owner) of the alarm to hide their User Codes from the Installer if desired.
If this option is turned On, codes can only be changed or viewed in Client program mode. Users
MUST have option 2 at location P5E assigned before they can hide the user codes.
MISCELLANEOUS USER OPTIONS - P25E 13E
Option 1 - Code Required to View Memory
Option 2 - Cancel Handover Zone Function in Stay Mode
Option 3 - Output Control from Keypad is Disabled when Armed
Option 4 - Keypad Codes are Disabled During Entry Delay
Option 5 - Spare
Option 6 - Spare
Option 7 - Enable Keypad Tamper Switch Alarms
Option 8 - Spare
Option 1 Code Required to View Memory - If this option is turned on, access to Memory Mode will only be
Page 33
allowed by using an authorised code. The user must press <MEMORY> <CODE #> <ENTER> to view memory events. Codes are authorised by turning on option 8 at location P4E. If this option is turned off anyone can access memory mode.
Option 2 Cancel Handover Zone Function in Stay Mode - If this option is turned on, any zone programmed with the handover feature will act as a normal delayed zone during Stay mode (ie the handover feature will be ignored). The zone will still have the normal handover feature during the full arm state.
Option 3 Output Control from Keypad is Disabled when Armed - If this option is turned on any User code programmed to operate an output for access control will be disabled when the area/s assigned (P3E) to the user code is/are armed. If the user code is assigned to area 1 but area 2 was armed the code can still operate the output. If no areas are assigned at P3E this option has no effect on the User code.
Option 4 Keypad Codes are Disabled During Entry Delay - If this option is turned on no codes will operate during the entry delay. This forces the user to disarm before entering the premises.
Option 5 Spare
Option 6 Spare
Option 7 Enable Keypad Tamper Switch Alarms - If this option is turned off the panel will ignore all alarms generated by keypad tamper switches. To enable the keypad tamper alarms this option must be turned on.
Option 8
Spare
LCD KP “Idle” Display Name
LCD KP “Idle” Display Name - P25E 14E
This location is where the LCD KP “Idle” Display Name can be Programmed. The Idle display name could be the installing alarm company name, or a 24 hour call out number or what ever is deemed the best use for the Idle message. The options that can be selected at P96E will affect whether this Idle display message is shown at the keypad or not so refer to P96E as well.
SETTING REAL TIME CLOCK
REAL TIME CLOCK HOUR/MINUTE -
REAL TIME CLOCK DAY of WEEK -
P26E 1E (Value 0-2359)
P26E 2E (Value 1-7) [where 1 = Sunday, 2 = Monday,
3 = Tuesday, etc]
REAL TIME CLOCK DATE/MONTH/YEAR - P26E 3E (Value DDMMYY)
(for example 090214 = 9th of February, 2014)
The Real Time Clock controls the Time-zones, the timing of automatic test calls and is used to Time & Date stamp the events in the Event Buffer. Ensure this is set correctly at the time of installation so that the all of the functions using the time will work correctly. The clock is programmed in 24 hour format (eg 00:00-23:59). The clock has a battery back-up that maintains the clock in the event of a power failure.
DAYLIGHT SAVING (DLS) SETTINGS
DAYLIGHT SAVING ACTIVE - P26E 4E (If option # 1 is On, Daylight Saving is currently active)
NOTE: If you are in Daylight Saving Time when the alarm system is installed the panel should work this out at power up and automatically turn option 1 at the above address but you should check that it is correct at the time of installation. Failure to check this bit may mean the clock will fail to automatically adjust to the correct time when
Daylight Saving Time Ends.
DAYLIGHT SAVING START SUNDAY - P27E 1E (Value 0-5, 0= DLS Disabled)
DAYLIGHT SAVING END SUNDAY - P27E 2E (Value 0-5, 0= DLS Disabled)
DAYLIGHT SAVING START MONTH - P28E 1E (Value 1-12)
DAYLIGHT SAVING END MONTH -
P28E 2E (Value 1-12)
DAYLIGHT SAVING START HOUR - P29E 1E (Value 0-23)
Page 34
DAYLIGHT SAVING END HOUR -
P29E 2E (Value 0-23)
If Daylight Saving (DLS) is used, the actual start and stop details can be entered here and the clock will automatically adjust for daylight saving.
NOTE: If the start and/or stop Sunday (P27E above) must be the last Sunday of the month (which can be Sunday number 4 or 5 depending on the year) then you must se the value to 5.
+++++Outputs+++++
NOTE: With all output programming options we refer to outputs 1-32. Only outputs 1-4 are available as standard, outputs 5-32 require the connection of the optional 4 way output expander boards.
BULK COPY AN OUTPUT TO A RANGE OF OUTPUTS
Bulk COPY an Output to a range of Outputs - P30E
It is possible to set up a single Output and then copy the programmed data for that output to a range of outputs.
For example if Output 2 was set up as a template and that data was required to be copied to Outputs 3 to 8 inclusive then once output 2 has been fully programmed by entering in P30E 2E followed by 3E then 8E the panel will copy Output 2’s settings to all outputs from 3 to 8. This process can be repeated many times with different
Outputs set up as a template and a different range of output addresses.
Program LCD KP “Output” Name
Program LCD KP “Output” Name Text - P31E 1-32E
Each output can have a custom name that will be displayed when in Memory Mode. The FULL LCD KP “Output” name text is programmed at this location.
Program Output Volume when Disarmed
O/P 1 & 2 Volume when the alarm is disarmed - P33E 1-2E Value = 1-8
If Outputs 1 or 2 are programmed as siren outputs (P37E option 1 on) and have an 8 ohm speaker connected to an output the speaker can produce quieter sounds when Disarmed but full volume sounds when armed. The
Volume of O/P 1 & 2 when the alarm is disarmed can be set to a value of 1-8, 1 being the quietest and 8 being the loudest. This is useful for things like 24 hour smoke alarms which can sound at a lower volume when disarmed but sound at full volume when armed. Also if a day zone triggers output 1 or 2 the output will produce a door bell sound and the volume of the door bell can be adjusted using this address.
OUTPUT OPTIONS “A”
OUTPUT OPTIONS “A” - P34E 01-32E
Option 1 - Invert Output
Option 2 - Flash Output
Option 3 - Single Pulse to Output
Option 4 - Lockout Output
Option 5 - DTMF Remote Control of Output
Option 6 - Keypad User can Operate Output
Option 7 - <CONTROL> button can Operate Output
Option 8 - Pulsed Chime Alarm (linked to pulse timer)
Option 1 Invert Output - This option is used to invert the normal state of the output. The panel uses open drain FET switches and the default state of all outputs is off (open). When in alarm the FET is turned on and the output goes low (0V). The invert option reverses this function.
Option 2 Flash Output - When the output is turned on this option causes the output to flash at a rate set by the pulse timer (P39E). One use is to flash a lamp during an alarm. DO NOT turn this option on if the
Output is to be manually controlled by a user or the “Control” button.
Option 3 Single Pulse to Output - This option produces a single pulse at the output when an alarm occurs
(the pulse time is the value programmed at the output pulse timer P39E).
Page 35
Option 4 Lockout Output - This option is used to limit the output to one operation per arming period.
Option 5 DTMF Remote Control of Output - If the panel is set-up so a User can dial in from a remote telephone to perform “DTMF Code Control” (P175E12E) of the Outputs, this option selects which
Outputs are able to be controlled by the remote user.
Option 6 Keypad User can Operate Output - If a DTMF Output control code is programmed into the panel
(P175E12E), the same code can be entered at the panel keypad to allow local control of the Outputs selected at this address.
Option 7 <Control> button can Operate Output - The <Control> button on the keypad can also be used to turn outputs on or off. For that to happen this option must be turned on for the output/s concerned. To turn an output on locally at the keypad the operator simply presses the <Control> button for 2 seconds at which time “CTRL” will be displayed on the Icon LCD or the word “Output Control” will be displayed on the FULL LCD to indicate that the Control mode is active. If any controllable outputs are currently on they will be indicated at the keypad. The operator can now press a button relating to the output/s they wish to control eg pressing “01” will turn output 1 on or off, Pressing “32” will turn output
32 on or off, etc. When finished the operator then presses the <ENTER> button to cancel the Control mode and return to normal.
Option 8 Pulsed Chime Mode Alarm - Chime Zones programmed to this output will turn the output on for the duration of the Chime to Output time period (P41E). If this option is on the output will pulse at the pulse timer rate (P39E) for the duration of the chime zone to output timer (P41E).
OUTPUT OPTIONS “B”
OUTPUT OPTIONS “B” - P35E 01-32E
Option 1 - Mains Fail to Output
Option 2 - Fuse Failure to Output
Option 3 - Battery Low to Output
Option 4 - Telephone Line Failure to Output
Option 5 - Supervisory Radio Failure to Output
Option 6 - Sensor-Watch Alarm to Output
Option 7 - System Tamper to Output
Option 8 - Receiver Fail to Output
Option 1 Mains Fail to Output - This option is used to assign a Mains Fail alarm to an Output.
Option 2 Fuse Failure to Output - This option is used to assign a Fuse Failure alarm to an Output. The onboard fuses are thermally activated. If excessive current is drawn from a fuse it will disconnect the power until the problem is resolved. There are three thermal fuses protecting the various 12V DC outputs.
Option 3 Battery Low to Output - This option is used to assign a Battery Low alarm to an Output.
Option 4 Telephone Line Failure to Output - This option is used to assign a Telephone Line Failure alarm to an Output.
Option 5 Supervisory Radio failure to Output - This option is used to assign a Radio Detector Supervisory
Fail alarm to an Output.
Option 6 Sensor-Watch Alarm to Output - This option is used to assign a Sensor-Watch alarm to an Output.
A Sensor-Watch alarm occurs when a detector has not operated within a set period of time.
Option 7 System Tamper to Output - This option is used to assign a panel or expander tamper alarm to an
Output.
Option 8 Receiver Fail to Output - If the receiver fail timer expires (see P25E7E) this option will assign the alarm to an Output.
OUTPUT OPTIONS “C”
OUTPUT OPTIONS “C” - P36E 01-32E
Option 1 - Walk-test Pulse to Output
Option 2 - Pulse Output every 5 seconds when Disarmed
Page 36
Option 3 - Pulse Output on Kiss-off Following Arming
Option 4 - Pulse Output on Kiss-off Following a Zone Alarm
Option 5 - Output Disabled when P25E3E timer is running
Option 6 - Output indicates In-coming phone call
Option 7 - Play Doorbell tone on a Chime zone trigger
Option 1 Walk-test Pulse to Output - When the panel is in Walk-test Mode, this option assigns a pulse to the
Output every time a zone is triggered. The pulse is linked to the Output Pulse time (P39E).
Option 2 Pulse Output every 5 seconds when Disarmed - This option will cause the Output to pulse every 5 seconds when the panel is disarmed. The pulse time is linked to the Output Pulse time (P39E).
Option 3 Pulse Output on Kiss-off Following Arming - This option will cause the Output to pulse for 2 seconds when the panel is armed and the message has been kissed off by the monitoring company. The pulse time is linked to the Output Pulse time (P39E) which is defaulted to 2 seconds.
Option 4 Pulse Output on Kiss-off Following a Zone Alarm - This option will cause the Output to pulse for 2 seconds when a zone has gone into alarm and has been kissed off by the monitoring company. The zone must have option 7 turned ON at P124E. The pulse time is linked to the Output Pulse time (P39E) which is defaulted to 2 seconds.
Option 5 Output Disabled when P25E3E timer is running - This option will cause the Output to be disabled when the dialler reporting delay is active. It is designed to keep external audible alarms silent when the dial delay is active (allowing internal alarms to warn that the alarm will be reported to monitoring if not unset) but if the alarm hasn’t been reset before the timer expires the external alarm will sound
Option 6 Output Indicates In-coming phone call - If this option is On it will cause the Output to pulse in time with an in-coming telephone call. It is designed to be used as a remote call (ring detect) indicator.
Option 7 Play Doorbell tone on a Chime Zone trigger - If this option is turned on and a Chime zone alarm is triggered on output 1 or 2 the panel will play a Doorbell tone to the output. If the option is turned off a
Chime zone alarm will play a single tone to output 1 or 2. The volume setting at P33E applies to these tones when played to output 1 or 2.
OUTPUT OPTIONS “D”
OUTPUT OPTIONS “D” - P37E 01-32E
Option 1 - Siren Driver to Output (applies to O/P 1&2 only, requires an 8
Ώ speaker)
Option 2 - Output Reset/Chime Timers are in Minutes
Option 3 - Output “Silenced” for 10 seconds on key-press
Option 4 - Turn Output OFF during Two Way Voice Mode
Option 5 - Spare
Option 6 - Spare
Option 7 - Spare
Option 8 - Output Monitored (applies to O/P 1&2 only)
Option 1 Siren Driver to Output - This option is used to assign a Modulated Siren tone to an Output. The option only applies to Outputs 1 and 2. For the modulated siren tone to work correctly, an 8
Ώ speaker must be connected to the output concerned. The siren tones will vary depending on the trigger. For example, if the trigger is a walk test pulse or wireless arm/disarm chirp the tone will be a single tone. If the trigger is a chime zone the tone will be a door bell chime. If the trigger is an alarm (normal or 24 hour) the tone will be a siren sound. The volume of the various tones can be adjusted at P33E. If this option is turned on for
Outputs 1 and/or 2 it will also inhibit the Output during two way voice mode (see option 4 below).
Option 2 Output Reset/Chime Timers are in Minutes - The default setting for the Output reset time (P40E) is in seconds and the Output Chime time (P41E) is in 1/10th seconds. If longer times are required, this option turns both the reset and chime times into minutes (eg 1-9999 minutes for the reset time and 1-255 minutes for the chime time).
Option 3 Output “Silenced” for 10 seconds on key-press - When the alarm is Armed and activated it can be difficult sometimes to turn the alarm off because you are unable to hear the beeps as you enter your code at the keypad. If this option is turned on the selected output/s will silence (turn off) for 10 seconds on the first button press at any keypad. This should allow easy Disarming of the alarm by a valid User. If the alarm is not turned off within the 10 seconds, the outputs will turn on again. This function will only work once during an Armed cycle and the panel must be Disarmed before it will work again.
Option 4 Turn Output OFF during Two Way Voice Mode - If the panel has a full duplex two way voice board
Page 37
fitted and the settings at P175E2E option 8 and P183E option 5 are set to allow full duplex mode, any outputs with this option turned on will be disabled while two way voice is operational. This is to ensure that local sirens do not interfere with the two way voice audio signal.
Option 8 Output Monitored - This option is used to allow Monitoring of the Output status (eg wire to siren has been cut). The option only applies to Outputs 1 and 2.
OUTPUT ON DELAY TIME
OUTPUT ON DELAY TIME - P38E 01-32E (0-9999 Seconds, 0 = no delay)
The “On” delay allows the operation of the Output to be delayed by the time programmed at this location. If set to
“0” there will be no on delay and the Output will operate the instant it is turned on.
OUTPUT PULSE TIME
OUTPUT PULSE TIME - P39E 01-32E (0-255 1/10th Seconds, eg 20 = 2 secs)
The Pulse time affects the time the output turns on when the pulse timer is used on the Output. The pulse time is in 1/10th second increments so that very quick timing can be achieved. Functions like radio key Arm/Disarm
Chirps to an Output or a flashing output (P34E option 2) all use the pulse timer. If access tags are assigned with the chirp function (P46E4E) and the LED on an access reader is set to follow an output with the chirps assigned
(P98E) then this timer must be set to a minimum value of 10 for the reader LED to display the chirps.
OUTPUT RESET TIME
OUTPUT RESET TIME - P40E 01-32E (0-9999 Seconds, 0 = latched output)
The Reset time affects the time the output turns on when an alarm is active. The default range is 0-9999 seconds but if option 2 at location P37E is on the range is 0-9999 minutes.
CHIME MODE TIME
CHIME MODE TIME - P41E 01-32E (0-255 1/10th Seconds, eg 20 = 2 secs)
The Chime Mode time affects the time the output turns on when a Chime Zone is activated. The Chime time is in
1/10th second increments so that very quick timing can be achieved.
START OF “DTMF OUTPUT CONTROL” STATUS MESSAGES
START OF “DTMF OUTPUT CONTROL” STATUS MESSAGES - P42E 01-32E (0-99)
Reserved for future use.
UN-MAP OUTPUTS
UN-MAP OUTPUTS - P43E 01-32E
If you are using an Output for a special purpose and do not need the standard defaults assigned to that output you can remove all defaults at this location. For example if you are using output number 4 to open a door via a
Radio Key and you don’t want any alarms to be assigned to the output press P43E4E and ALL defaults will be removed. This removes all options assigned to the output and makes the reset time “0” for latched operation.
ASSIGNING A TIME-ZONE to an OUTPUT
ASSIGN A TIME-ZONE TO OUTPUTS - P44E 01-32E (O/P#) Value = Time-zone 01-32
Any of the 32 Time-zones can be assigned to outputs 1-32. If a time-zone is assigned to an output it will turn the output on when the T/Z starts and turn the output off when the T/Z ends. You should un-map the output at P43E first before assigning the T/Z to ensure that only the T/Z will control the state of the output. This function can also be used to unlock a controlled door so the door will remain unlocked while the T/Z is on and relock it when the T/Z is off allowing normal timed access control through the door when the T/Z is inactive.
(NOTE: If a TZ has turned an
Output ON the TZ will override any reset time programmed for the Output. The reset, pulse or chime timers can resume controlling the Output once the TZ has ended and the output is OFF. The CONTROL to Output function is the only operation that can override the Output while the
TZ is active.)
Page 38
+++++Areas+++++
AREA OPTIONS “A”
AREA OPTIONS “A” - P45E 1-32E (1 = Area 1, 32 = Area 32)
Option 1 - <ARM> button Required Before Code to Arm
Option 2 - <STAY> button Required Before code to Arm Stay Mode
Option 3 - <CODE> Required to Arm
Option 4 - <CODE> Required to Bypass
Option 5 - Spare
Option 6 - Report Arm Signal at the end of the Exit Delay
Option 7 - Can Arm only if All Zones Sealed (Ready)
Option 8 - Can Arm Stay Mode only if All Zones Sealed (Ready)
Option 1 <ARM> button Required Before Code to Arm - This option determines if the <ARM> button must be pressed before a code is entered to Arm an Area. If a User has access to more than one Area and this option is turned on, the special keypad arming functions described on Page 98 will apply. This option does not apply to Prox/PIN readers or Stay mode keypads.
Option 2 <STAY> button Required Before Code to Arm Stay Mode - This option determines if the <STAY> button must be pressed before a code is entered to Arm Stay Mode. If a User has access to more than one Area and this option is turned on, the special keypad arming functions described on Page
98 will apply. This option does not apply to Prox/PIN readers or Stay mode keypads.
Option 3 <CODE> Required to Arm - If this option is turned on, the <ARM> button is disabled and the panel requires a code to Arm.
Option 4 <CODE> Required to Bypass - If this option is turned on, the <BYPASS> button cannot access
Bypass Mode directly. To enter Bypass mode the User must press <BYPASS> <CODE> <ENTER> before they can bypass zones.
Option 5
Spare
Option 6 Report Arm Signal at the end of the Exit Delay - If this option is on the panel will report the Arm signal to a monitoring station when the exit delay expires. If it is off, the panel will report the arm signal immediately the system has been armed.
Option 7 Can Arm only if All Zones Sealed (Ready) - If this option is on it stops the panel from arming an area with an unsealed zone (Not Ready). If off, the panel can be armed if the Ready LED is not on.
Option 8 Can Arm Stay Mode only if All Zones Sealed (Ready) - If this option is on it stops the panel from arming stay mode if an area has an unsealed zone (Not Ready). If off, the panel can be arm stay mode if the Ready LED is not on.
AREA OPTIONS “B”
AREA OPTIONS “B” - P46E 1-32E (1 = Area 1, 32 = Area 32)
Option 1 - Use Near and Verified Alarm reporting for All zones in this Area (CID ONLY)
Option 2 - Area will Arm at the end of Time-Zone
Option 3 - Area will Disarm at the start of Time-Zone
Option 4 - Assign Chirps to Access tags
Option 5 - Spare
Option 6 - Spare
Option 7 - Cannot Arm if Zone Unsealed at end of Exit Delay
Option 8 - Spare
Option 1 Use Near and Verified Alarm reporting for All zones in this Area - To reduce the possibility of false alarms the panel can require two alarms on different zones within a 45 minute period before a full alarm will be sent. If this option is turned on it applies to all zones assigned to that area. An alarm on a single zone will send a CID (Contact ID) Near Alarm report to the monitoring station. If no further alarms occur within 45 minutes (and the zone that activated is sealed) the near alarm timer is reset
Page 39
and a restore is sent for the zone that activated. If the zone that activated is still unsealed when the
45 minute timer expires, a zone bypass for that zone will be sent and the zone will remain bypassed until the area is disarmed. Any new alarms after the timer has expired will send another Near Alarm report. If a second alarm on a different zone occurs within 45 minutes of the Near alarm, an Intrusion
Verified alarm report will be sent. This format only applies to Contact ID and Pager reporting. Turning this option on will stop zone alarms from being reported in Domestic & Voice formats as there are no messages for near and confirmed alarms. You must turn this option off if using Domestic or Voice formats.
Option 2 Area will Arm at the end of Time-Zone - The panel is capable of automatically arming on a Time-
Zone. If this option is turned on and a Time-Zone is selected at P68E, the Area will automatically arm when the Time-Zone ends. If the panel cannot arm because it is not “Ready”, a fail to arm report will be sent.
Option 3 Area will Disarm at the start of Time-Zone - The panel is capable of automatically disarming on a
Time-Zone. If this option is turned on and a Time-Zone is selected at P68E, the Area will automatically disarm when the Time-Zone starts.
Option 4 Assign Chirps to Access Tags - If the panel is being Armed or Disarmed by an Access Tag/Card from a proximity reader it is possible to link the pendant chirps programming (P50E-P53E) to Arming or Disarming via the Access Tag or Card. If this option is On the chirps will apply to Access Tag/
Cards. If the chirps are required to be displayed at the reader LED, the minimum pulse timer for the output (P39E) must be a value of 10.
Option 7 Cannot Arm if Zone Unsealed at end of Exit Delay - If this option is turned on and a zone becomes unsealed as the exit delay expires the panel will fail to arm and report this via the dialler.
The unsealed zone must be corrected and the system re-armed again.
AREA ARM INDICATION to OUTPUT
AREA ARM INDICATION to OUTPUT - P47E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
For monitoring purposes an Arm indication can be assigned to an Output. Each Area can have a separate arm indication assigned to a different output if required.
AREA STAY ARM INDICATION to OUTPUT
AREA STAY ARM INDICATION to OUTPUT - P48E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
For monitoring purposes a Stay Arm indication can be assigned to an Output. Each Area can have a separate indication assigned to a different output if required.
AREA DISARM INDICATION to OUTPUT
AREA DISARM INDICATION to OUTPUT - P49E 1-32E (1 = Area 1, 32 = Area 32)
Option 01 = Output 1 - Option 32 = Output 32
Value = 01-32 for Outputs 1-32
For monitoring purposes a Disarm indication can be assigned to an Output. Each Area can have a separate disarm indication assigned to a different output if required. This function can also be used to unlock a controlled door so the door will remain unlocked while the alarm is disarmed and relock it when the alarm is armed allowing normal timed access control through the door afterhours.
(NOTE: If an Area Disarm has turned an Output ON this will override any reset time programmed for the Output. The reset, pulse or chime timers can resume controlling the Output once the Area is armed and the output is OFF. The CONTROL to Output function is the only operation that can override the Output while disarmed.)
PENDANT ARM CHIRP to OUTPUT
PENDANT ARM CHIRP to OUTPUT - P50E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Page 40
When Arming the alarm using a Radio Key it is necessary to have some form of Arm indication. This can done by pulsing an Output once when the area is armed (one chirp). The Chirp is linked to the pulse time (P39E) for the output concerned. If Output 1 or 2 are used for the chirp and a horn speaker is connected to the output (see P37E1 or 2E option 1), the siren on the output will give a single tone for the chirp instead of the swept tone used for alarms.
Also Arming via an Access Tag/Card can generate the Chirp if option 4 is On at P47E.
PENDANT STAY MODE ARM CHIRP to OUTPUT
PENDANT STAY MODE ARM CHIRP to OUTPUT - P51E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
When Arming Stay Mode using a Radio Key it is necessary to have some form of Arm indication. This can done by pulsing an Output once when the area is armed (one chirp). The Chirp is linked to the pulse time (P39E) for the output concerned. If Output 1 or 2 are used for the chirp and a horn speaker is connected to the output (see P37E1 or 2E option 1), the siren on the output will give a single tone for the chirp instead of the swept tone used for alarms.
Also Stay Arming via an Access Tag/Card can generate the Chirp if option 4 is On at P47E.
PENDANT DISARM CHIRP to OUTPUT
PENDANT DISARM CHIRP to OUTPUT - P52E 1-32E (1 = Area 1, 2 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
When Disarming the alarm using a Radio Key it is necessary to have some form of Disarm indication. This can done by pulsing an Output twice when the area is disarmed (two chirps). The Chirps are linked to the pulse time (P39E) for the output concerned. If Output 1 or 2 are used for the chirp and a horn speaker is connected to the output (see
P37E1 or 2E option 1), the siren on the output will give a single tone for the chirp instead of the swept tone used for alarms. Also Disarming via an Access Tag/Card can generate the Chirp if option 4 is On at P47E.
PENDANT STAY MODE DISARM CHIRP to OUTPUT
PENDANT STAY MODE DISARM CHIRP to OUTPUT - P53E 1-32E (1 = Area 1, 32 = Area 32)
Option 01 = Output 1 - Option 32 = Output 32
Value = 01-32 for Outputs 1-32
When Disarming Stay Mode using a Radio Key it is necessary to have some form of Disarm indication. This can done by pulsing an Output twice when the Stay Mode is disarmed (two chirps). The Chirps are linked to the pulse time (P39E) for the output concerned. If Output 1 or 2 are used for the chirp and a horn speaker is connected to the output (see P37E1 or 2E option 1), the siren on the output will give a single tone for the chirp instead of the swept tone used for alarms. Also Stay Mode Disarming via an Access Tag/Card can generate the Chirp if option 4 is On at
P47E.
ARM PULSE to OUTPUT
ARM PULSE to OUTPUT - P54E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Sometimes it is necessary to have a single pulse to indicate an Arm state. This could be used to start a video recorder or similar device. Each time an Area is armed, a single pulse will be applied to the output. The Pulse time
(P39E) sets the length of the pulse .
STAY MODE ARM PULSE to OUTPUT
STAY MODE ARM PULSE to OUTPUT - P55E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Sometimes it is necessary to have a single pulse to indicate that Stay Mode is Armed. This could be used to start a video recorder or similar device. Each time an Area Stay Mode is armed, a single pulse will be applied to the output.
The Pulse time (P39E) sets the length of the pulse .
Page 41
DISARM PULSE to OUTPUT
DISARM PULSE to OUTPUT - P56E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Sometimes it is necessary to have a single pulse to indicate a Disarm state. This could be used to stop a video recorder or similar device. Each time an Area is disarmed, a single pulse will be applied to the output. The Pulse time
(P39E) sets the length of the pulse.
STAY MODE DISARM PULSE to OUTPUT
STAY MODE DISARM PULSE to OUTPUT - P57E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Sometimes it is necessary to have a single pulse to indicate a Disarm of Stay Mode. This could be used to stop a video recorder or similar device. Each time an Area Stay Mode is disarmed, a single pulse will be applied to the output. The Pulse time (P39E) sets the length of the pulse.
ARMED EXIT DELAY BEEPS TO KEYPAD
ARMED EXIT DELAY BEEPS TO KEYPAD - P58E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
When an Area is Armed it is useful to have the exit delay beeps occurring at the keypad to warn the User to exit the premises without delay. If the option is on at this address, that keypad will beep out the exit delay. The exit beeps occur at one second intervals until the last 5 seconds at which time they change to 1/2 second intervals to act as a warning that the delay is about to expire.
STAY MODE EXIT DELAY BEEPS TO KEYPAD
STAY MODE EXIT DELAY BEEPS TO KEYPAD - P59E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
When an Area is Armed in Stay Mode it is useful to have the exit delay beeps occurring at the keypad to warn the
User to exit the premises without delay. If the option is on at this address, that keypad will beep out the exit delay.
This option may be turned off for Stay Mode to make the keypad silent when arming at night time. The exit beeps occur at one second intervals until the last 5 seconds at which time they change to 1/2 second intervals to act as a warning that the delay is about to expire. When arming Stay Mode the exit and entry delays can be cancelled by pressing the <ENTER> button following arming of Stay Mode. The next time Stay Mode is armed, if the <ENTER> button is not pressed, all programmed exit and entry delays will apply.
ARMED EXIT DELAY TIME
ARMED EXIT DELAY TIME - P60E 1-32E (1 = Area 1, 32 = Area 32) (Value 0-255 Seconds)
Each Area can have their own exit delay time. The delay can be programmed from 1-255 seconds in one second increments. If the exit delay is set to “0” the panel will be instantly armed.
STAY MODE EXIT DELAY TIME
STAY MODE EXIT DELAY TIME - P61E 1-32E (1 = Area 1, 32 = Area 32) (Value 0-255 Seconds)
Each Stay Mode Area can have their own exit delay time. The delay can be programmed from 1-255 seconds in one second increments. If the exit delay is set to “0” the panel will be instantly armed.
Page 42
MONITORING ACCOUNT CODE NUMBER
MONITORING ACCOUNT CODE NUMBER - P62E 1-32E (1 = Area 1, 32 = Area 32) (Value 0000-FFFF)
When the dialler is reporting to a monitoring station there must be a unique account code programmed to identify the panel. There is an account code for each area. The account code is 4 digits. Each digit can be a number from 0-9 as well as the special characters B,C,D,E & F. The chart below shows how the special characters are entered.
LCD KEYPAD BUTTON ACCOUNT CODE SPECIAL CHARACTERS
CONTROL & 0
CONTROL & 2
CONTROL & 3
CONTROL & 4
CONTROL & 5
CONTROL & 6
DELETE
“B”
“C”
“D”
“E”
“F”
DTMF REMOTE CONTROL CODE NUMBER
DTMF REMOTE CODE NUMBER - P63E 1-32E (1 = Area 1, 32 = Area 32) (Value 1-4 digit code 0-9999)
The panel can be configured to allow remote Arm/Disarm of each Area via a remote telephone. The codes programmed at this address are the DTMF code that must be used when performing this function. When dialling the panel and it has answered the call, after the audio prompt to enter your code enter in the 1-4 digit DTMF code followed by the # key and the current status will be given of the Area associated with the code entered. After that, if you press the “*” key on the telephone the status of the area will toggle eg if is was previously armed it will change to disarmed or vice versa. When finished you simply hang-up and 15 seconds later the panel will release the line.
START OF “DTMF ARM/DISARM” STATUS MESSAGES
START OF “DTMF ARM/DISARM” STATUS MESSAGES - P64E 1-32E (1 = Area 1, 32 = Area 32) (0-99)
Reserved for future use.
ARMED EXIT BEEPS to OUTPUT
ARMED EXIT BEEPS to OUTPUT - P65E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Sometimes it can be useful to extend the exit beeps, that occur at a keypad, to be present on an audible device on the exit path. This option allows the exit beeps during arming to be assigned to any of the 32 outputs. The Pulse time
(P39E) sets the length of each beep.
STAY MODE ARM EXIT BEEPS to OUTPUT
STAY MODE ARM EXIT BEEPS to OUTPUT - P66E 1-32E (1 = Area 1, 32 = Area 32)
Option 01 = Output 1 - Option 32 = Output 32
Value = 01-32 for Outputs 1-32
Sometimes it can be useful to extend the exit beeps, that occur at a keypad, to be present on an audible device on the exit path. This option allows the exit beeps during the arming of stay mode to be assigned to any of the 32 outputs. The Pulse time (P39E) sets the length of each beep.
Page 43
AREA DELINQUENCY DELAY
AREA DELINQUENCY DELAY - P67E 1-32E (1 = Area 1, 32 = Area 32) (Value 0-99 Days)
Each Area can have their own Delinquency time. The delinquency time monitors the arm/disarms of each Area. If an
Area has not been armed within the set number of days a delinquency report will be sent. Each time an Area is armed the delinquency timer is reset. A value of “0” disables the delinquency monitoring.
NOTE: If the default value of “0” is changed at this location (eg a value of 10 is entered meaning 10 days), the next time the area is armed a delinquency restore message will be sent via the dialler (Event type 454) as a test that the function is operating.
AUTOMATIC ARM/DISARM TIMEZONE
AUTOMATIC ARM/DISARM TIMEZONE - P68E 1-32E (1 = Area 1, 32 = Area 32)
Value = 01-32 for Time-Zone 1-32
Option 01 = Time-Zone 1 - Option 32 = Time-Zone 32
If Options 2 or 3 are turned on at location P46E then the Area can be automatically armed or disarmed by a timezone/s. You can assign more than one time-zone to each Area. If assigning multiple time-zones you should insure that they do not overlap as this could cause confusion. A Time-zone would typically be 0830-1700 Monday-Friday.
An area will turn on when the Time-zone ends (eg 1700) and turn off when a Time-zone starts (eg 0830).
Program LCD KP “Area” Name
Program LCD KP “Area” Name Text - P69E 1-32E
Each Area can have a custom name that will be displayed when in Memory Mode. The FULL LCD KP “Area” name text is programmed at this location.
BULK COPY AN AREA TO A RANGE OF AREAS
Bulk COPY an Area to a range of Areas - P70E
It is possible to set up a single Area and then copy the programmed data for that area to a range of areas. For example if Area 5 was set up as a template and that data was required to be copied to Areas 6 to 12 inclusive then once area 5 has been fully programmed by entering in P70E 5E followed by 6E then 12E the panel will copy Area 5’s settings to all areas from 6 to 12. This process can be repeated many times with different Areas set up as a template and a different range of area addresses.
+++++Keypads+++++
KEYPAD AREA ASSIGNMENT
KEYPAD AREA ASSIGNMENT - P71E 1-32E Value = 01-32 for Areas 1-32
Option 01 Area “1” - This option assigns Area 1 to keypads. If a keypad is assigned to only Area 1 it can only Arm or Disarm that area and will only display zones and area related events for Area 1.
Option 32 Area “32” - This option assigns Area 32 to keypads. If a keypad is assigned to only Area 32 it can only
Arm or Disarm that area and will only display zones and area related events for Area 32.
KEYPAD BUTTON OPTIONS
KEYPAD BUTTON OPTIONS - P72E 1-32E
Option 1 - <CHIME> button Enabled
Option 2 - <BYPASS> button Enabled
Option 3 - Spare
Option 4 - Spare
Option 5 - <CONTROL> + <CHIME> Panic Alarm Enabled
Option 6 - <A> + <B> Fire Alarm Enabled
Option 7 - <B> + <CHIME> Medical Alarm Enabled
Option 8 - Stay Armed Beep to Keypad
Page 44
Option 1 <CHIME> button Enabled - This option enables the <CHIME> button. Chime alarms to the keypad buzzer and outputs are disabled when “Chime” is off. If a zone is programmed as a Chime Zone, it can beep the buzzer on a keypad and/or turn on an output. A typical use of “Chime” Mode is as a door minder in a shop. Sometimes it may be desirable to disable Chime mode without the need to reprogram the panel. This can be achieved by allowing Chime Mode to be disabled with the <CHIME> button on a keypad. If you press the <CHIME> button on a keypad for 2 seconds (and this option is turned on for that keypad) the display will show “NOCH” on the ICON LCD or “Chime Mode OFF” on the FULL LCD keypad. This means that the buzzer will now not sound at the keypad concerned and any Chime Mode
Outputs will not activate. Pressing the <CHIME> button again for 2 seconds will toggle chime mode back to on again.
Option 2 <BYPASS> button Enabled - This option enables the <BYPASS> button (by keypad number) on any keypads connected to the panel .
Option 3 Code or Tag can ARM only at this keypad - If this option is turned on the user code or access tag can full arm and disarm the alarm from the keypad. If there is a second keypad connected to the system that keypad can have this option turned off and option 4 turned on so that the user can stay arm from the other keypad and fully arm from this keypad using the same code or access tag. For this feature to work the user must have options 1, 2, 3 & 4 assigned at P4E.
Option 4 Code or Tag can STAY ARM only at this keypad - If this option is turned on the user code or access tag can arm and disarm Stay Mode from the keypad. If there is a second keypad connected to the system that keypad can have this option turned off and option 3 turned on so that the user can perform a full arm from the other keypad and Stay arm from this keypad using the same code or access tag. For this feature to work the user must have options 1, 2, 3 & 4 assigned at P4E.
Option 5 <CONTROL> + <CHIME> Panic Alarm Enabled - This option enables a Panic Alarm to be created when the <CHIME> + <CONTROL> buttons are pressed simultaneously.
Option 6 <A> + <B> Fire Alarm Enabled - This option enables a Fire Alarm to be created when the <A> + <B> buttons are pressed simultaneously.
Option 7 <B> + <CHIME> Medical Alarm Enabled - This option enables a Medical Alarm to be created when the <B> + <CHIME> buttons are pressed simultaneously.
Option 8 Stay Armed Beep to Keypad - If this option is turned on the keypad will give three short beeps when
Stay Mode is armed. It is designed to be used when stay mode exit delay beeps (P59E) are turned off to provide an audible indication that Stay mode is now armed from the selected keypad.
KEYPAD SYSTEM BEEPS & LED OPTIONS
KEYPAD SYSTEM BEEPS & LED OPTIONS - P73E 1-32E
Option 1 - Mains Fail Beeps Keypad Buzzer
Option 2 - Fuse Fail Beeps Keypad Buzzer
Option 3 - Battery Low Beeps Keypad Buzzer
Option 4 - Telephone Line Fail Beeps Keypad Buzzer
Option 5 - System Tamper Beeps Keypad Buzzer
Option 6 - Receiver Fail Beeps Keypad Buzzer
Option 7 - Turn Off Keypad LED’s and Backlighting when Armed
Option 8 - Turn Off LCD & Keypad Backlighting on Mains Fail
Option 1 Mains Fail Beeps Keypad Buzzer - If this option is on a Mains Failure will cause the keypad buzzer to sound continuously. The continuous beep will automatically clear when the Mains returns to normal or it can be silenced by pressing the <ENTER> button on the keypad.
Option 2 Fuse Fail Beeps Keypad Buzzer - If this option is on a Fuse Failure (12v DC output short) will cause the keypad buzzer to sound continuously. The continuous beep will automatically clear when the short is removed and the fuse returns to normal or it can be silenced by pressing the <ENTER> button on the keypad.
Option 3 Battery Low Beeps Keypad Buzzer - If this option is on a Panel Battery Low will cause the keypad buzzer to sound continuously. The continuous beep will automatically clear when the battery returns to
Page 45
normal or it can be silenced by pressing the <ENTER> button on the keypad.
Option 4 Telephone Line Fail Beeps Keypad Buzzer - If this option is on a Telephone Line Failure will cause the keypad buzzer to sound continuously. The continuous beep will automatically clear when the
Telephone Line returns to normal or it can be silenced by pressing the <ENTER> button on the keypad.
Option 5 System Tamper Beeps Keypad Buzzer - If this option is on a Panel Tamper Alarm will cause the keypad buzzer to sound continuously. The Alarm must then be cleared by entering in a valid code at the keypad.
Option 6 Receiver Fail Beeps Keypad Buzzer - If this option is on a Receiver Failure will cause the keypad buzzer to sound continuously. The continuous beep will automatically clear when the Receiver starts to see transmissions again or it can be silenced by pressing the <ENTER> button on the keypad.
Option 7 Turn Off Keypad LED’s and Backlighting when Armed - This option allows the LED’s and all backlighting on a keypad to be turned off when the panel is in the Armed state. It is normally used to cut the illumination from a keypad at night time. The LED’s and backlighting will return to the normal state on disarming of the alarm. The LED’s and backlighting will turn off within 90 seconds of arming the system.
If this option is turned on and all areas assigned to a keypad are armed, the keypad display will be blank during the armed state. If any keypad is assigned to more than one Area at location P71E, all areas must be armed before the LED’s and Backlighting will go blank on arming.
Option 8 Turn Off LCD & Keypad Backlighting on Mains Fail - This option allows the backlighting on a keypad
(both the keypad buttons and the LCD module backlighting) to be turned off when there is a Mains
Failure. It is normally used to cut the power consumed by the keypad during a power failure. The LCD backlighting will turn off within 90 seconds of the mains failing. If a button is pressed at the keypad the backlighting will turn back on again. Following 90 seconds of no keypad activity the backlighting will turn off. The LCD and Keypad backlighting will return to the normal state when Mains is restored.
KEYPAD <ARM> BUTTON AREA ASSIGNMENT
KEYPAD <ARM> BUTTON AREA ASSIGNMENT - P74E 1-32E Value = 01-32 for Areas 1-32
Option 01 Area “1” - This option assigns the keypad <ARM> button to Area 1. If a keypad <ARM> button is assigned to only Area 1 it can only Arm or Disarm that area.
Option 32 Area “32” - This option assigns the keypad <ARM> button to Area 32. If a keypad <ARM> button is assigned to only Area 32 it can only Arm or Disarm that area.
KEYPAD <ARM> BUTTON AREA OPTIONS
KEYPAD <ARM> BUTTON AREA OPTIONS - P75E 1-32E
Option 1 - <ARM> button can Arm
Option 2 - <ARM> button can Arm Stay Mode
Option 3 - <ARM> button can Disarm at All Times
Option 4 - <ARM> button can Disarm Stay Mode at All Times
Option 5 - <ARM> button can Reset Alarms
Option 6 - <ARM> button can Arm Latchkey Mode
Option 7 - <ARM> button can Disarm During Exit Delay
Option 8 - <ARM> button can Disarm Stay Mode During Exit Delay
Option 1 <ARM> button can Arm - This option enables single button Arming using the <ARM> button. For single button operation to work options 1 & 3 must be off at location P45E.
Option 2 <ARM> button can Arm Stay Mode - This option enables single button Arming of Stay Mode using the
<ARM> button. For single button operation to work options 1 & 3 must be off at location P45E.
(NOTE: Following arming of Stay Mode, if the <ENTER> button is pressed, all entry & exit delays will be reset to zero for that armed period).
Option 3 <ARM> button can Disarm at All Times - This option enables single button Disarming using the
<ARM> button. For single button disarm operation to work options 1 & 3 must be off at location P45E
Option 4 <ARM> button can Disarm Stay Mode at All Times - This option enables single button Disarming of
Stay Mode using the <ARM> button. For single button disarm operation to work options 1 & 3 must be
Page 46
off at location P45E
Option 5 <ARM> button can Reset Alarms - If this option is On, Pressing the <ARM> button (provided Option 3 is also On) will reset an alarm condition without having to enter a user code.
Option 6 <ARM> button can Arm Latchkey Mode - This option enables single button Arming of the alarm in
Latchkey report mode using the <ARM> button. For single button disarm operation to work options 1 & 3 must be off at location P45E. When Latchkey Mode is set on Arming, any code without the Latchkey option (P4E Option 6) used to Disarm the Alarm will cause a Disarm report to be sent via the dialler.
Option 7 <ARM> button can Disarm During Exit Delay - This option allows single button Disarming using the
<ARM> button provided the Armed Mode exit delay is active. If the exit delay has expired the <ARM> button cannot be used to disarm the alarm. For single button disarm operation to work options 1 & 3 must be off at location P45E
Option 8 <ARM> button can Disarm Stay Mode During Exit Delay - This option allows single button Disarming of Stay Mode using the <ARM> button provided the Stay Mode exit delay is active. If the Stay Mode exit delay has expired the <ARM> button cannot be used to disarm Stay Mode. For single button disarm operation to work options 1 & 3 must be off at location P45E
KEYPAD <STAY> BUTTON AREA ASSIGNMENT
KEYPAD <STAY> BUTTON AREA ASSIGNMENT - P76E 1-32E Value = 01-32 for Areas 1-32
Option 01 Area “1” - This option assigns the keypad <STAY> button to Area 1. If a keypad <STAT> button is assigned to only Area 1 it can only Arm or Disarm that area.
Option 32 Area “32” - This option assigns the keypad <STAY> button to Area 32. If a keypad <STAY> button is assigned to only Area 32 it can only Arm or Disarm that area.
KEYPAD <STAY> BUTTON AREA OPTIONS
KEYPAD <STAY> BUTTON AREA OPTIONS - P77E 1-32E
Option 1 - <STAY> button can Arm
Option 2 - <STAY> button can Arm Stay Mode
Option 3 - <STAY> button can Disarm at All Times
Option 4 - <STAY> button can Disarm Stay Mode at All Times
Option 5 - <STAY> button can Reset Alarms
Option 6 - <STAY> button can Arm Latchkey Mode
Option 7 - <STAY> button can Disarm During Exit Delay
Option 8 - <STAY> button can Disarm Stay Mode During Exit Delay
Option 1 <STAY> button can Arm - This option enables single button Arming using the <STAY> button. For single button operation to work options 2 & 3 must be off at location P45E.
Option 2 <STAY> button can Arm Stay Mode - This option enables single button Arming of Stay Mode using the
<STAY> button. For single button operation to work options 2 & 3 must be off at location P45E.
(NOTE: Following arming of Stay Mode, if the <ENTER> button is pressed, all entry & exit delays
will be reset to zero for that armed period).
Option 3 <STAY> button can Disarm at All Times - This option enables single button Disarming using the
<STAY> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 4 <STAY> button can Disarm Stay Mode at All Times - This option enables single button Disarming of
Stay Mode using the <STAY> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 5 <STAY> button can Reset Alarms - If this option is On, Pressing the <STAY> button (provided Option
4 is also On) will reset an alarm condition without having to enter a user code.
Option 6 <STAY> button can Arm Latchkey Mode - This option enables single button Arming of the alarm in
Latchkey report mode using the <STAY> button. For single button disarm operation to work options 2 &
3 must be off at location P45E. When Latchkey Mode is set on Arming, any code without the Latchkey option (P4E Option 6) used to Disarm the Alarm will cause a Disarm report to be sent via the dialler.
Page 47
Option 7 <STAY> button can Disarm During Exit Delay - This option allows single button Disarming using the
<STAY> button provided the Armed Mode exit delay is active. If the exit delay has expired the <STAY> button cannot be used to disarm the alarm. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 8 <STAY> button can Disarm Stay Mode During Exit Delay - This option allows single button
Disarming of Stay Mode using the <STAY> button provided the Stay Mode exit delay is active. If the
Stay Mode exit delay has expired the <STAY> button cannot be used to disarm Stay Mode. For single button disarm operation to work options 2 & 3 must be off at location P45E
KEYPAD <A> BUTTON AREA ASSIGNMENT
KEYPAD <A> BUTTON AREA ASSIGNMENT - P78E 1-32E Value = 01-32 for Areas 1-32
Option 01 Area “1” - This option assigns the keypad <A> button to Area 1. If a keypad <A> button is assigned to only Area 1 it can only Arm or Disarm that area.
Option 32 Area “32” - This option assigns the keypad <A> button to Area 32. If a keypad <A> button is assigned to only Area 32 it can only Arm or Disarm that area.
KEYPAD <A> BUTTON AREA OPTIONS
KEYPAD <A> BUTTON AREA OPTIONS - P79E 1-32E
Option 1 - <A> button can Arm
Option 2 - <A> button can Arm Stay Mode
Option 3 - <A> button can Disarm at All Times
Option 4 - <A> button can Disarm Stay Mode at All Times
Option 5 - <A> button can Reset Alarms
Option 6 - <A> button can Arm Latchkey Mode
Option 7 - <A> button can Disarm During Exit Delay
Option 8 - <A> button can Disarm Stay Mode During Exit Delay
Option 1 <A> button can Arm - This option enables single button Arming using the <A> button. For single button operation to work options 2 & 3 must be off at location P45E.
Option 2 <A> button can Arm Stay Mode - This option enables single button Arming of Stay Mode using the
<A> button. For single button operation to work options 2 & 3 must be off at location P45E.
(NOTE: Following arming of Stay Mode, if the <ENTER> button is pressed, all entry & exit delays
will be reset to zero for that armed period).
Option 3 <A> button can Disarm at All Times - This option enables single button Disarming using the <A> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 4 <A> button can Disarm Stay Mode at All Times - This option enables single button Disarming of Stay
Mode using the <A> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 5 <A> button can Reset Alarms - If this option is On, Pressing the <A> button (provided Option 3 is also
On) will reset an alarm condition without having to enter a user code.
Option 6 <A> button can Arm Latchkey Mode - This option enables single button Arming of the alarm in
Latchkey report mode using the <A> button. For single button Arm operation to work options 2 & 3 must be off at location P45E. When Latchkey Mode is set on Arming, any code without the Latchkey option
(P4E Option 6) used to Disarm the Alarm will cause a Disarm report to be sent via the dialler.
Option 7 <A> button can Disarm During Exit Delay - This option allows single button Disarming using the <A> button provided the Armed Mode exit delay is active. If the exit delay has expired the <A> button cannot be used to disarm the alarm. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 8 <A> button can Disarm Stay Mode During Exit Delay - This option allows single button Disarming of
Stay Mode using the <A> button provided the Stay Mode exit delay is active. If the Stay Mode exit delay has expired the <A> button cannot be used to disarm Stay Mode. For single button disarm operation to
Page 48
work options 2 & 3 must be off at location P45E
KEYPAD <B> BUTTON AREA ASSIGNMENT
KEYPAD <B> BUTTON AREA ASSIGNMENT - P80E 1-32E Value = 01-32 for Areas 1-32
Option 01 Area “1” - This option assigns the keypad <B> button to Area 1. If a keypad <B> button is assigned to only Area 1 it can only Arm or Disarm that area.
Option 32 Area “32” - This option assigns the keypad <B> button to Area 32. If a keypad <B> button is assigned to only Area 32 it can only Arm or Disarm that area.
KEYPAD <B> BUTTON AREA OPTIONS
KEYPAD <B> BUTTON AREA OPTIONS - P81E 1-32E
Option 1 - <B> button can Arm
Option 2 - <B> button can Arm A Mode
Option 3 - <B> button can Disarm at All Times
Option 4 - <B> button can Disarm Stay Mode at All Times
Option 5 - <B> button can Reset Alarms
Option 6 - <B> button can Arm Latchkey Mode
Option 7 - <B> button can Disarm During Exit Delay
Option 8 - <B> button can Disarm Stay Mode During Exit Delay
Option 1 <B> button can Arm - This option enables single button Arming using the <B> button. For single button operation to work options 2 & 3 must be off at location P45E.
Option 2 <B> button can Arm Stay Mode - This option enables single button Arming of Stay Mode using the
<B> button. For single button operation to work options 2 & 3 must be off at location P45E.
(NOTE: Following arming of Stay Mode, if the <ENTER> button is pressed, all entry & exit delays
will be reset to zero for that armed period).
Option 3 <B> button can Disarm at All Times - This option enables single button Disarming using the <B> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 4 <B> button can Disarm Stay Mode at All Times - This option enables single button Disarming of Stay
Mode using the <B> button. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 5 <B> button can Reset Alarms - If this option is On, Pressing the <B> button (provided Option 3 is also
On) will reset an alarm condition without having to enter a user code.
Option 6 <B> button can Arm Latchkey Mode - This option enables single button Arming of the alarm in
Latchkey report mode using the <B> button. For single button Arm operation to work options 2 & 3 must be off at location P45E. When Latchkey Mode is set on Arming, any code without the Latchkey option
(P4E Option 6) used to Disarm the Alarm will cause a Disarm report to be sent via the dialler.
Option 7 <B> button can Disarm During Exit Delay - This option allows single button Disarming using the <B> button provided the Armed Mode exit delay is active. If the exit delay has expired the <B> button cannot be used to disarm the alarm. For single button disarm operation to work options 2 & 3 must be off at location P45E
Option 8 <B> button can Disarm Stay Mode During Exit Delay - This option allows single button Disarming of
Stay Mode using the <B> button provided the Stay Mode exit delay is active. If the Stay Mode exit delay has expired the <B> button cannot be used to disarm Stay Mode. For single button disarm operation to work options 2 & 3 must be off at location P45E
KEYPAD to OUTPUT MASK
KEYPAD to OUTPUT MASK - P82E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
A Keypad can be assigned to an Output or multiple Outputs. If a Keypad is not assigned to an Output a User cannot turn that Output On or Off from the Keypad. This feature is useful when using the access control features of the panel, eg a User may be allowed to operate more than one Output with their code but they will be limited to just the
Page 49
Output assigned to the Keypad they are using.
<CONTROL> BUTTON to OUTPUT MASK
<CONTROL> BUTTON to OUTPUT MASK - P83E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
The <CONTROL> button at a Keypad can be assigned to an Output or multiple Outputs. If the <CONTROL> button is not assigned to an Output a User cannot access Local Control Mode (by pressing the <CONTROL> button) and turn that Output On or Off from the Keypad. This feature is useful if Outputs are being used to control devices such as lights, etc and you wish to be able to turn them On or Off from a keypad. By limiting the access to Outputs via the
<CONTROL> button you can avoid conflict with alarm outputs (eg the User can be denied access to outputs that are being used for alarm functions).
KEYPAD PANIC ALARM to OUTPUT
KEYPAD PANIC ALARM (<CONTROL> & <CHIME>) to OUTPUT - P84E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
A Keypad generated Panic Alarm (pressing <CONTROL> & <CHIME> together) can be assigned to an Output or multiple Outputs. This can be used to operate an audible or visual alarm connected to the Output.
KEYPAD FIRE ALARM to OUTPUT
KEYPAD FIRE ALARM (<A> & <B>) to OUTPUT - P85E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
A Keypad generated Fire Alarm (pressing the <A> & <B> together) can be assigned to an Output or multiple Outputs.
This can be used to operate an audible or visual alarm connected to the Output.
KEYPAD MEDICAL ALARM to OUTPUT
KEYPAD MEDICAL ALARM (<B> & <CHIME>) to OUTPUT - P86E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
A Keypad generated Medical Alarm (pressing the <B> & <CHIME> together) can be assigned to an Output or multiple Outputs. This can be used to operate an audible or visual alarm connected to the Output.
KEYPAD DURESS ALARM to OUTPUT
KEYPAD DURESS ALARM to OUTPUT - P87E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
A Keypad generated Duress Alarm (see P25E2E) can be assigned to an Output or multiple Outputs. This can be used to operate an audible or visual alarm connected to the Output. A Duress alarm is created when the alarm is
Disarmed with the Duress digit preceding a valid User Code.
KEYPAD TAMPER SWITCH ALARM to OUTPUT
KEYPAD TAMPER SWITCH ALARM to OUTPUT - P88E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If the keypad has a Tamper Switch fitted and this switch is activated, the Tamper Alarm can be assigned to an Output or multiple Outputs. This can be used to operate an audible or visual alarm connected to the Output.
KEYPAD WRONG CODE ALARM to OUTPUT
KEYPAD WRONG CODE ALARM to OUTPUT - P89E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If someone is attempting disarm the alarm by trying various code combinations and they enter in 4 wrong codes the panel will go into a “Wrong Code” tamper alarm. The Alarm can be assigned to an Output or multiple Outputs. This
Page 50
can be used to operate an audible or visual alarm connected to the Output. A correct code entry will reset the tamper alarm.
MANUAL PANIC ALARM BEEPS TO KEYPAD
MANUAL PANIC ALARM BEEPS TO KEYPAD - P90E 1-32E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
When a keypad generated Panic Alarm is generated, the alarm can be silent or it can operate the buzzer in the keypad.
MANUAL FIRE ALARM BEEPS TO KEYPAD
MANUAL FIRE ALARM BEEPS TO KEYPAD - P91E 1-32E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
When a keypad generated Fire Alarm is generated, the alarm can be silent or it can operate the buzzer in the keypad.
MANUAL MEDICAL ALARM BEEPS TO KEYPAD
MANUAL MEDICAL ALARM BEEPS TO KEYPAD - P92E 1-32E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
When a keypad generated Medical Alarm is generated, the alarm can be silent or it can operate the buzzer in the keypad.
WRONG CODE or KEYPAD TAMPER BEEPS TO KEYPAD
WRONG CODE or KEYPAD TAMPER SWITCH ALARM BEEPS TO KEYPAD - P93E 1-32E
Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If someone enters in an incorrect code more than 4 times or a Keypad Tamper Switch Alarm is generated, the alarm can be silent or it can operate the buzzer in the keypad. The selected keypad, e.g. P93E1E for keypad number 1 is the one at which the alarm has occurred and the options 01-32 are the selected keypads that will beep in alarm.
CHIME ALARM KEYPAD BEEP TIME
CHIME ALARM KEYPAD BEEP TIME - P94E 1-32E (Value = 0-255 1/10th Second)
When a Chime Zone is activated it can operate an Output and/or beep the keypad buzzer. There is a separate
Chime timer for each of the 32 keypads. If the value is made “0” for a keypad the Chime Zone will not beep the keypad buzzer. The Keypad Chime Timer can be set to a value from 1-255. The units are in 1/10th second increments. This means that a value of 10 will beep the keypad buzzer for 1 second.
LCD KEYPAD BACK-LIGHT SETTINGS
LCD KEYPAD BACK-LIGHT SETTING - P95E1-32E Value = 0-100 = LCD B/L value 0-100%
The LCD and keypad backlight levels can be independently set for every keypad. A value of 0 means no backlight where a value of 100 is maximum backlight brightness.
FULL LCD KEYPAD DISPLAY OPTIONS
FULL LCD Keypad Display Options - P96E 1-32E Value = 1-8
Option 1 = 2 x 20 Display Mode or AAP Logo
Option 2 = Spare
Option 3 = Show LCD System Idle or Keypad Name
Option 4 = Display Armed Areas as numbers
Option 5 = Spare
Option 6 = Spare
Option 7 = Double badge to ARM keypad
Page 51
Option 8 = Control button operates assigned outputs directly
Option 1
2 x 20 Display Mode or AAP Logo - If this option is turned On the FULL LCD keypad will show the AAP Logo plus the current time. If the option is turned Off the display will show the standard 2 lines x 20 character display that includes the Idle or keypad name (see option 3) plus the time and date.
Option 3
Show LCD System Idle or Keypad Name - If this option is On the FULL LCD display will show the System Idle Name (P25E14E). If it is Off the FULL LCD will display the Keypad Name.
Option 4
Option 7
Display Armed Areas as numbers - If this option is On the FULL LCD keypad will show all
Armed Areas as an Area number. This makes checking to see if your Area is armed or disarmed very quick when there are many Areas associated with a keypad because up to 7 Area numbers can be displayed per line. If the option is turned Off the Armed Areas will be displayed with the full
Area name. This is useful if there are only a couple of Areas associated with a keypad.
Double Badge to ARM Keypad - If this option is turned on and an access card/tag with Arm/
Disarm capabilities is used at this reader/keypad, the access card/tag will always disarm the associated area from the arm state but when disarmed the first presentation of the card/tag will start a 10 second timer which will allow the same card/tag to be presented a second time within
10 seconds to arm the area.
Option 8
Control button operates output directly - If this option is turned on for the associated keypad then pressing the CONTROL button for 1 second will turn on all outputs assigned at addresses
P34E option 7 and P83E. If it is turned off pressing the CONTROL button for 1 second will take the user to the output control menu where individual output numbers can be entered to turn outputs on or off singularly.
BULK COPY A KEYPAD TO A RANGE OF KEYPADS
Bulk COPY a Keypad to a range of Keypads - P97E
It is possible to set up a single Keypad and then copy the programmed data for that keypad to a range of keypads.
For example if Keypad 15 was set up as a template and that data was required to be copied to Keypads 16 to 20 inclusive then once keypad 15 has been fully programmed by entering in P97E 15E followed by 16E then 20E the panel will copy Keypad 15’s settings to all keypads from 16 to 20. This process can be repeated many times with different Keypads set up as a template and a different range of keypad addresses.
PROXIMITY READER LED to OUTPUT MAPPING
PROXIMITY READER LED to OUTPUT MAPPING - P98E 1-32E Value = 01-32 for Outputs 1-32
Option 01 = Proximity Reader LED follows Output 1 - Option 32 = Proximity Reader LED follows Output 32
If a proximity reader is connected to the control panel via the Wiegand Interface it may be desirable to have the LED provide some form of indication such as Arm/Disarm state, etc. By using this location it is possible to link the LED at a reader number to follow the programming of an output. The LED can be used to indicate Arm/Disarm state, Stay
Mode Arm/disarm, output On/Off, etc. If chirps have been assigned to access tags/cards (P46E4E) and the output the reader LED is set to follow has the chirps assigned (P50E-P53E), then the output must have a minimum pulse time (P39E) of 10 for it to work correctly.
PROGRAM FULL LCD KP “KEYPAD” NAME
Program FULL LCD KP “Area” Name Text - P100E 1-32E
Each Keypad can have a custom name that will be displayed when in Memory Mode. The FULL LCD KP “Keypad” name text is programmed at this location. If option 3 is Off at P96E then this name will be the idle display name on the keypad.
Page 52
+++++Zones+++++
BULK COPY A ZONE TO A RANGE OF ZONES
Bulk COPY a Zone to a range of Zones - P118E
It is possible to set up a single Zone and then copy the programmed data for that zone to a range of zones. For example if Zone 20 was set up as a template and that data was required to be copied to Zones 21 to 30 inclusive then once zone 20 has been fully programmed by entering in P118E 20E followed by 21E then 30E the panel will copy Zone 20’s settings to all zones from 21 to 30. This process can be repeated many times with different Zones set up as a template and a different range of zone addresses.
GLOBAL ZONE EOL (End-of-Line) OPTIONS
There are 8 hardwired zone inputs on the panel with up to 64 zones in total via the input expanders. Each of these inputs can have different EOL (End-of-Line) configurations if desired. To do that the value at P119E 1E must be set to 0 so that address P125E can set individual values for each zone from type 0-13. If the value at P119E 1E is set to
1-16 this sets all zones to be that value and the value at P125E cannot be changed. See chart on page 11 for the resistor combinations and colour codes.
GLOBAL ZONE EOL (End-of-Line) OPTIONS - P119E 1E Value 1-16
(If the Value is set to 0 the individual options can be selected at program location P125E)
Option 1 - 1k
Option 2 - 1k5
Option 9 - 10k
Option 10 - 12k
Option 3 - 2k2
Option 4 - 3k3
Option 5 - 3k9
Option 6 - 4k7
Option 11 - 22k
Option 12 - 2k2 in series with 4k7 (Single Zone with tamper)
Option 13 - 3k3 in series with 6k8 (Single Zone with tamper)
Option 14 - 2k2 in series with 4k7 & 8k2 (Zone doubling with tamper)
Option 7 - 5k6
Option 8 - 6k8
Option 15 - 4k7 in series with 8k2 (Zone doubling no tamper)
Option 16 - 4k7 in parallel with 8k2 (Zone doubling no tamper)
ZONE KEYSWITCH PROGRAMMING
KEY-SWITCH ACCESS & OPERATIONAL OPTIONS - P120E 1-64E A zone can become a key-switch.
Option 1 - Key-Switch can Arm
Option 2 - Key-Switch can Arm Stay Mode
Option 3 - Key-Switch can Disarm
Option 4 - Key-Switch can Disarm Stay Mode
Option 5 - Key-Switch has Security Guard Options
Option 6 - Key-Switch will Arm Latchkey Mode
Option 7 - Key-Switch is NO (Normally Open)
Option 8 - Key-Switch is Momentary
Option 1 Key-Switch can Arm - This option enables Arming of the assigned Area via the Key-switch function assigned to the selected zone.
Option 2 Key-Switch can Arm Stay Mode - This option enables Stay Mode Arming of the assigned Area via the
Key-switch function assigned to the selected zone.
Option 3 Key-Switch can Disarm - This option enables Disarming of the assigned Area via the Key-switch function assigned to the selected zone.
Option 4 Key-Switch can Disarm Stay Mode - This option enables Stay Mode Disarming of the assigned Area via the Key-switch function assigned to the selected zone.
Option 5 Key-Switch has Security Guard Options - If the zone with the key-switch function assigned has option
5 on, they can Arm all Areas assigned, but they may only Disarm if the panel is currently Armed and in the alarm state.
Option 6 Key-Switch will Arm Latchkey Mode - If the panel is armed by a zone with the key-switch function assigned with this option on, then the panel will be armed in Latchkey mode. This means that when the alarm is disarmed by a key-switch with this option off, or a code with option 6 at P4E off, then a disarm report will be sent. The option is designed to alert the alarm owner when children have returned home
Page 53
and disarmed the alarm.
Option 7 Key-Switch is NO (Normally Open) - The key-switch can be a NO (Normally Open) or a NC (Normally
Closed) key-switch. The normal, or rest state, of the key-switch can be programmed at this location. If the key-switch contacts usually rest in the open state and close when the key-switch is operated you should turn on option 7.
Option 8 Key-Switch is Momentary - The operation of the key-switch can be momentary or latching. If option 8 is on, the key-switch operation is assumed to be momentary. This means that each time the key-switch is operated then released the area will toggle its current state (ie if armed it will become disarmed or vice versa). If this option is turned off it is assumed that the key-switch is a latching type. This means that when the key-switch is operated and the key removed the contacts remain in the same state. When a latching key-switch is used, turning on the switch will arm the area and turning it off will disarm the area.
ZONE AREA ASSIGNMENT
ZONE AREA ASSIGNMENT - P121E 1-64E Value = 01-32 for Areas 1-32
Option 01 = Zone is assigned to Area 1 - Option 32 = Zone is assigned to Area 32
Option 01 Area “1” - This option assigns the Zone to Area 1. If a Zone is assigned only to Area 1 it will activate if
Area 1 is armed. If the zone is in more than one Area and option 6 is OFF at address P123E then the zone will activate when any of the assigned areas are armed. If option 6 is ON at address P123E
(“Zones are shared between Areas”) then it will only activate when all assigned areas are armed.
Option 32 Area “32” - This option assigns the Zone to Area 32. If a Zone is assigned only to Area 32 it will activate if Area 32 is armed. If the zone is in more than one Area and option 6 is OFF at address P123E then the zone will activate when any of the assigned areas are armed. If option 6 is ON at address P123E
(“Zones are shared between Areas”) then it will only activate when all assigned areas are armed.
ZONE OPTIONS A
ZONE OPTIONS A - P122E 1-64E Value 1-8
Option 1 - Zone is Active
Option 2 - Zone is N/O
Option 3 - Not an Exit Delay Zone
Option 4 - Keypad Zone
Option 5 - Zone is a Radio Zone
Option 6 - Zone is a Stay Mode Zone
Option 7 - Zone can be Manually Bypassed
Option 8 - Zone can be Auto-Bypassed
Option 1 Zone is Active - If this option is on the zone is Active. If it is turned off the zone will not be monitored by the panel. The panel can provide up to 64 zones but is configured by default as an 8 zone panel with this option turned off for zones 9-64.
Option 2 Zone is N/O - This option only applies if the zone input is set to type 14 or 15 (zone doubling) at location
P125E. When configured as type 14 there are three resistors wired in series on the input, a 2k2 tamper resistor, a 4k7 low zone resistor and an 8k2 high zone resistor. When configured as type 15 there are two resistors wired in series on the input, a 4k7 low zone resistor and an 8k2 high zone resistor. At this point, the zone can be set as having a N/C (Normally closed) alarm contact where the EOL resistor is shorted out in the sealed state or it can be set as a N/O (Normally open) alarm contact where the EOL resistor is in circuit in the sealed state. If this option is turned on it assumes that the alarm contact is N/
O. If zone doubling is not being used (eg P125E for the zone is not set to type 14 or 15) then this function has no effect.
Option 3 Not an Exit Delay Zone - If this option is turned on the zone will not have any exit delay and will cause an instant alarm if triggered during the exit delay time. Also you MUST ensure that if this option is turned on for a zone, that same zone should not have any entry delay (P144E) programmed. If the zone does have an entry delay the zone can activate during the exit time thereby starting an entry delay on the same zone which means the user might not be aware of the pending alarm and leave the premises. If the zone has no entry delay and the zone is triggered during the exit time the alarm will then be instant alerting the user that they deviated off the exit route.
Option 4 Keypad Zone - If this option is on the Zone will follow the Input at the corresponding Keypad or
Page 54
Weigand Interface. For example if the Keypad or Wiegand Interface is set to Keypad address # 19 the input will become zone 19.
Option 5 Zone is a Radio Zone - If this option is on the panel does not scan the hardwired zone input terminal but instead is looking for a radio zone signal. The correct radio type should be set at location P127E to ensure that the radio zone works correctly.
Option 6 Zone is a Stay Mode Zone - If this option is on the zone will be active when Stay Mode is armed. This feature is normally used for arming just part of the alarm at night time.
Option 7 Zone can be Manually Bypassed - If this option is on the zone can be Manually Bypassed at the keypad using the <BYPASS> button. A zone must be Bypassed while in the disarmed state. A bypassed zone will also bypass any tampers associated with that zone. Once the area with the bypassed zone has been armed then disarmed, the manual bypass is removed and the zone must be manually bypassed again before arming if required. If a zone is configured as a 24 Hour zone (P123E Options 3, 4 & 5), they can also be Manually Bypassed but in this case the Bypass must be manually removed to re-instate the zone.
Option 8 Zone can be Auto-Bypassed - If this option is on the zone will be Auto-Bypassed if unsealed at the expiry of the exit delay. If a zone is unsealed at the time of arming and remains unsealed when the exit delay expires and this option is on for that zone it will be automatically bypassed by the panel. If the zone seals after that time it will be re-instated automatically and can then cause an alarm. On disarming of the alarm any auto-Bypasses are removed.
ZONE OPTIONS B
ZONE OPTIONS B - P123E 1-64E Value 1-8
Option 1 - Zone is a Handover Zone
Option 2 - Zone is a Two Trigger Zone
Option 3 - Zone is a 24 Hour Zone
Option 4 - Zone is a 24 Hour Auto-reset Zone
Option 5 - Zone is a 24 Hour Fire Zone
Option 6 - Zone is shared (Off = not shared)
Option 7 - Zone is a Chime Zone
Option 8 - Zone is a Permanent Chime Zone
Option 1 Zone is a Handover Zone - A Handover Zone is one that its entry delay will apply provided a Non-
Handover entry zone is triggered first. If no other entry delay zones are triggered before the handover zone the entry delay on that zone does not apply and the alarm will become instant (no entry delay).
Option 2 Zone is a Two Trigger Zone - If this option is on the zone will have to trigger twice within the two trigger time (P25E5E) before it will cause an alarm. If the zone does not trigger a second time before the two trigger time expires, the count is reset and it will take another two triggers to cause an alarm on this zone. If more than one zone is set-up as a two trigger zone, then a single trigger from two separate two trigger zones within the two trigger time can also cause an alarm. If the zone becomes faulty and stays in alarm once triggered it will also cause an alarm provided it remains in alarm for longer than the two trigger time.
Option 3 Zone is a 24 Hour Zone - If this option is on the zone will be constantly monitored regardless of the arm/disarm state of the panel. If the 24 Hour zone also has an entry delay programmed (P144E), this delay will apply. If the 24 Hour zone activates but then resets before the entry delay expires no alarm will be generated. This feature can be useful for monitoring plant type alarms such as freezer alarms. Once the alarm has been generated it must be cleared by entry of a valid User code.
Option 4 Zone is a 24 Hour Auto-reset Zone - If this option is on the zone will be constantly monitored regardless of the arm/disarm state of the panel. If the 24 Hour zone also has an entry delay programmed
(P144E), this delay will apply. If the 24 Hour zone activates but then resets before the entry delay expires no alarm will be generated. Once an alarm has been generated with a 24 Hour Auto-reset zone, the alarm will be removed automatically once the input reseals.
Option 5 Zone is a 24 Hour Fire Zone - If this option is on the zone will be constantly monitored regardless of the arm/disarm state of the panel. If the 24 Hour Fire zone also has an entry delay programmed (P144E), this delay will apply. If the 24 Hour Fire zone activates but then resets before the entry delay expires no alarm will be generated. Once the alarm has been generated it must be cleared by entry of a valid User code. The 24 Hour Fire Zone will also cause an alarm output to pulse the alarm to differentiate a fire
Page 55
alarm from a burglar alarm (ie a fire alarm will switch the output on and off at the pulse timer rate whereas a burglar alarm on the same output will sound continuously).
Option 6 Zone is Shared - If this option is On the zone is “Shared”. That means if the zone is in multiple Areas it will not go into alarm unless all assigned areas are armed. If the zone does go into alarm it will report to the lowest assigned area number (only one alarm will be sent). If the option is Off the zone is no longer shared. That means the zone will go into alarm if any of the assigned areas are armed. It also means that it will send an alarm for every area that is armed.
Option 7 Zone is a Chime Zone - If this option is on, the zone will operate Chime mode when disarmed. When the alarm is armed the Chime Mode is disabled for this zone. A Chime zone can sound the keypad buzzer or operate an output to indicate that the zone is unsealed. It is normally used to monitor areas during the daytime.
Option 8 Zone is a Permanent Chime Zone - If this option is on, the zone will operate Chime mode when armed or disarmed. When the alarm is armed the zone will continue to only be a Chime Mode Zone and will not cause a burglar alarm. A Chime zone can sound the keypad buzzer or operate an output to indicate that the zone is unsealed.
ZONE OPTIONS C
ZONE OPTIONS C - P124E 1-64E Value 1-8
Option 1 - Can Arm if Zone is not Ready
Option 2 - Will Send Multiple Reports to Dialler
Option 3 - Zone is Monitored for Inactivity
Option 4 - Zone is on Soak Test
Option 5 - Spare
Option 6 - Zone will Not Report 24 hour Alarms via Dialler
Option 7 - Pulse Output on Kiss-off Following a Zone Alarm
Option 8 - Exit Terminator Zone
Option 1 Can Arm if Zone is not Ready - If this option is turned on, plus Options 7 or 8 are on at P45E (cannot
Arm if zones not sealed/Ready), this zone can be unsealed and the panel can still be armed. This option allows the panel to still be armed if a low security zone is unsealed yet still stopping arming if a high security zone is unsealed.
Option 2 Will Send Multiple Reports to Dialler - If this option is turned on, a zone will send an alarm report to the monitoring station every time it is activated. If the option is turned off, the zone can only send one alarm report per armed cycle.
Option 3 Zone is Monitored for Inactivity - If this option is on the zone will be checked to see that it operates during the disarmed state. If it is not operated within the time set at P163E a “Sensor-watch” alarm will be generated. This feature is designed to detect a faulty zone that is not operating normally or one that has had it’s detection area blocked. If a detector has this option turned on and it doesn’t operate when disarmed, the timer at location P163E will start to count down. The timer is stopped when the area assigned to the zone is armed and resumes with the saved value when disarmed again. The timer is reset back to the original value every time the zone operates while disarmed.
Option 4 Zone is a Soak Test Zone - If a zone is suspected of being faulty and is causing false alarms, you can turn it into a Soak Test Zone and it will still be monitored for alarms when armed but it will not cause the sirens to sound or report to the dialler. The Soak Test zone will still be logged in the event memory however so it is possible to check the activity of the zone, via the memory, and after a suitable period of no alarms it can be re-instated as part of the alarm by removing the Soak Test option.
Option 5 Spare
Option 6 Zone will Not Report 24 Hour Alarms via Dialler - If this option is turned on and the zone is set as a
24 Hour type, when an alarm is generated, the alarm will not be transmitted to the monitoring station via the dialler.
Option 7 Pulse Output on Kiss-off Following a Zone Alarm - If this option is turned on, when an alarm is reported to monitoring and is kissed off, any Output with Option 4 ON at P36E will pulse for 2 seconds.
Option 8 Exit Terminator Zone - If this option is on, when the zone unseals during the exit delay time and then seals again the panel will cancel any remaining exit delay time and arm in 3 seconds from the time the zone was sealed. The zone can also be left unsealed at the time of arming and will terminate the exit
Page 56
delay 3 seconds after it is sealed. Once armed, the exit terminator zone will cause an alarm if unsealed again (the alarm will be delayed if an entry delay is programmed (P144E), otherwise it will be instant).
ZONE EOL (End-of-Line) OPTIONS
There are 8 hardwired zone inputs on the panel plus up to 64 zones in total via the input expanders. Each of these inputs can have different EOL (End-of-Line) configurations if desired. The input can be a short circuit wire loop (Type
0), one of 11 different single resistor values (Types 1-11) or can provide up to 64 zones with tamper (Types 12,13).
Because of the zone input expanders the zone doubling options (Type 14, 15 & 16) are a global option that when set affect all zones. See chart on page 11 for the resistor combinations and colour codes. NOTE: If using vibration
settings 1-8 (see P126E below) then this location can ONLY be set to type 3.
ZONE EOL (End-of-Line) OPTIONS - P125E 1-64E Value 0-11
Option 0 - Short Circuit Loop Option 8 - 6k8
Option 1 - 1k
Option 2 - 1k5
Option 3 - 2k2
Option 4 - 3k3
Option 5 - 3k9
Option 9 - 10k
Option 10 - 12k
Option 11 - 22k
Option 12 - 2k2 in series with 4k7 (Single zone with tamper)
Option 6 - 4k7
Option 7 - 5k6
Option 13 - 3k3 in series with 6k8 (Single zone with tamper)
ZONE RESPONSE TIME
There are 8 hardwired zone inputs on the panel plus up to 64 zones via the zone input expanders. The response time
(how quickly the input responds to an input trigger) can be varied for each zone. The first 8 settings are very fast response times normally used when vibration sensors are connected to a zone input. Response Settings 1-8
(vibration) can only be applied to zones 1-8 and the zone EOL setting (P125E) must be set to type 3 (2k2).
Zone doubling is not available when vibration settings are used.
The response settings 9-26 start at about 200 ms for setting 9 through to 1.05 sec for setting 26.
ZONE RESPONSE TIME - P126E 1-8E
Response Setting 1 - Highest Vibration setting Response Setting 5 - Middle Vibration setting
Response Setting 2 - Middle Vibration setting
Response Setting 3 - Middle Vibration setting
Response Setting 4 - Middle Vibration setting
Response Setting 9 - 200 ms
Response Setting 6 - Middle Vibration setting
Response Setting 7 - Middle Vibration setting
Response Setting 8 - Lowest Vibration setting
Response Setting 10 - 250 ms
Response Setting 11 - 300 ms
Response Setting 12 - 350 ms
Response Setting 13 - 400 ms
Response Setting 14 - 450 ms
Response Setting 15 - 500 ms
Response Setting 16 - 550 ms
Response Setting 17 - 600 ms
Response Setting 18 - 650 ms
Response Setting 19 - 700 ms
Response Setting 20 - 750 ms
Response Setting 21 - 800 ms
Response Setting 22 - 850 ms
Response Setting 23 - 900 ms
Response Setting 24 - 950 ms
Response Setting 25 - 1000 ms
Response Setting 26 - 1050 ms
ZONE RESPONSE TIME - P126E 9-64E
Response Setting 9 - 200 ms
Response Setting 10 - 250 ms
Response Setting 11 - 300 ms
Response Setting 12 - 350 ms
Response Setting 13 - 400 ms
Response Setting 14 - 450 ms
Response Setting 15 - 500 ms
Response Setting 16 - 550 ms
Response Setting 17 - 600 ms
Response Setting 18 - 650 ms
Response Setting 19 - 700 ms
Response Setting 20 - 750 ms
Response Setting 21 - 800 ms
Response Setting 22 - 850 ms
Response Setting 23 - 900 ms
Response Setting 24 - 950 ms
Response Setting 25 - 1000 ms
Response Setting 26 - 1050 ms
Page 57
RADIO ZONE DETECTOR TYPE
Any of the 64 zones can be made radio zones. There are multiple types of radio detectors that can be used on the panel. It is important to set the correct radio type for the detector being used so that all of the special functions such as battery low signals, tamper alarms, reed switch open/close signals and supervision signals can all be monitored correctly.
RADIO ZONE DETECTOR TYPE - P127E 1-64E Value 1-35
Radio Type 0 - Generic
Radio Type 1 - Crow Merlin PIR (supervised signal ignored)
Radio Type 2 - Crow Merlin PIR (supervised signal active)
Radio Type 3 - Freewave with checksum (supervised signal active)
Radio Type 4 - Freewave with checksum (Non-supervised)
Radio Type 5 - Crow AE series battery Low
Radio Type 6 - Crow AE series Radio Reed Switch
Radio Type 11 - Ness Radio devices Battery Low
Radio Type 12 - Ness Radio Reed Switch
Radio Type 31 - Visonic K900 Radio PIR
Radio Type 32 - Visonic Powercode (supervised signal ignored)
Radio Type 33 - Visonic Powercode (supervised signal active)
Type 0 Generic - If you wish to use a detector that is not on the above list then set the type a “0” and the panel will still respond to the radio detector every time the learnt code is received.
Type 1 Crow Merlin PIR (unsupervised) - If a Crow Merlin radio PIR is used on the panel select Type 1 so the panel correctly recognizes the alarm, tamper & battery low signal from the device. The automatic supervised signal sent every 40 minutes by the PIR is ignored in this mode.
Type 2 Crow Merlin PIR (supervised) - If a Crow Merlin radio PIR is used selecting Type 2 will allow the panel to correctly recognize the alarm, tamper & battery low signal from the device. Selecting this option also starts the supervise timer (P25E4E). The supervise timer is constantly being reset while valid supervisory signals are being received from the detector. If no supervise signals are received from the PIR within the supervise timer value a supervised alarm is generated.
Type 3 Freewave with checksum (supervised signal active) - If a Crow Freewave radio PIR is used selecting Type 3 will allow the panel to correctly recognize the alarm, tamper & battery low signal from the device. Selecting this option also starts the supervise timer (P25E4E). The supervise timer is constantly being reset while valid supervisory signals are being received from the detector. If no supervise signals are received from the PIR within the supervise timer value a supervised alarm is generated.
Type 4 Freewave with checksum (non-supervised) - If a Crow Freewave radio PIR is used selecting Type 4 will allow the panel to correctly recognize the alarm, tamper & battery low signal from the device. The automatic supervisory signal sent by the PIR is ignored in this mode.
Type 5 Crow AE Series Battery Low - If a Crow (AE) radio pendant or PIR is used on the panel selecting
Type 5 allows the panel to correctly recognize the battery low and tamper signals from Crow (AE) devices.
Type 6 Crow AE Series Radio Reed Switch - If a Crow (AE) radio reed switch is used on the panel selecting
Type 6 allows the panel to correctly recognize the open and closed signals from the reed switch so the zone LED can follow the correct state of the reed switch (ie open or closed). It also recognizes the battery low signal from the Crow (AE) device.
Type 11 Ness Battery Low - If a Ness radio pendant or PIR is used on the panel selecting Type 11 allows the panel to correctly recognize the battery low and tamper signals from Ness devices.
Type 12 Ness Radio Reed Switch - If a Ness radio reed switch is used on the panel selecting Type 12 allows the panel to correctly recognize the battery low and tamper signals from the Ness device. It also recognizes the open and closed signals from the reed switch so the zone LED can follow the correct state of the reed switch (ie open or closed)
Type 31 Visonic Radio PIR - If a Visonic K900 radio PIR is used on the panel selecting Type 31 allows the panel to correctly recognize the alarm, tamper & battery low signal from this device.
Page 58
Type 32 Visonic Powercode (unsupervised) - If a Visonic Powercode radio device is used on the panel selecting Type 32 allows the panel to correctly recognize the alarm, tamper and battery low signal from the device. The supervisory signal sent by the device is ignored in this mode.
Type 33 Visonic Powercode (supervised) - If the Visonic Powercode range of radio PIR or reed switch are used on the panel selecting Type 33 allows the panel to correctly recognize the alarm, tamper & battery low signals from the devices as well as the open/close signal from the reed switch. Selecting this option also starts the supervise timer (P25E4E). The supervise timer is constantly being reset while valid supervisory signals are being received from the detector. If no supervise signals are received from the PIR within the supervise timer value a supervised alarm is generated.
ARMED ZONE ALARMS to OUTPUT
ARMED ZONE ALARMS to OUTPUT - P128E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If an Area is Armed and a zone assigned to that Area activates, the zone can trigger selected Outputs for local alarm signalling. This location assigns Zones to Outputs for alarms that occur when in the Full Armed State.
STAY MODE ZONE ALARMS to OUTPUT
STAY MODE ZONE ALARMS to OUTPUT - P129E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If an Area has Stay Mode Armed and a zone assigned to that Area activates, the zone can trigger selected Outputs for local alarm signalling. This location assigns Zones to Outputs for alarms that occur when Stay Mode is Armed.
24 HOUR ZONE ALARMS to OUTPUT
24 HOUR ZONE ALARMS to OUTPUT - P130E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If a zone is programmed as a 24 Hour type and it activates, the zone can trigger selected Outputs for local alarm signalling. If the zone is a standard 24 hour type (P123E option 3 on) the output will turn for the full reset time, if it is an Auto-reset type (P123E option 4 on) the output will either turn off when the reset time expires or if the input clears and if it is a Fire type (P123E option 5 on) the output will pulse at a rate equal to the pulse time for that output.
CHIME ZONE ALARMS to OUTPUT
CHIME ZONE ALARMS to OUTPUT - P131E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If a zone is programmed as a Chime zone (P123E option 7 or 8 on) and it activates, the zone can trigger selected
Outputs for local alarm signalling. The output will operate for the Chime to Output time at location P41E. The zone must clear before the output can be activated again.
ZONE TAMPER ALARMS to OUTPUT
ZONE TAMPER ALARMS to OUTPUT - P132E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If a hardwired zone is programmed to allow tamper monitoring (P125E types 12,13 & 14), or the zone is a radio detector with tamper, the zone tamper can trigger selected Outputs for local alarm signalling.
ARMED ZONE ALARM BEEPS TO KEYPAD
ARMED ZONE ALARM BEEPS TO KEYPAD - P134E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If an Area is Armed and a zone assigned to that Area activates, the zone can sound the buzzer at selected keypad.
This location assigns zone alarm beep to a keypad for alarms that occur when in the Full Armed State.
Page 59
STAY MODE ZONE ALARM BEEPS TO KEYPAD
STAY MODE ZONE ALARM BEEPS TO KEYPAD - P135E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If an Area is Stay Mode Armed and a zone assigned to that Area activates, the zone can sound the buzzer at selected keypads for local alarm signalling. This location assigns zone alarm beep to a keypad for alarms that occur when in Stay Mode is Armed.
24 HOUR ZONE ALARM BEEPS TO KEYPAD
24 HOUR ZONE ALARM BEEPS TO KEYPAD - P136E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If a zone is programmed as a 24 Hour type and it activates, the zone can sound the buzzer at selected keypads for local alarm signalling. If the zone is a standard 24 hour type (P123E option 3 on) or Fire type (P123E option 5 on) the keypad buzzer will sound until reset by a User but if it is an Auto-reset type (P123E option 4 on) the keypad buzzer will reset when the input clears.
CHIME ZONE ALARM BEEPS TO KEYPAD
CHIME ZONE ALARM BEEPS TO KEYPAD - P137E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If a zone is programmed as a Chime zone and it activates, the zone can sound the buzzer at selected keypads for local alarm signalling. The duration of the Chime beep is programmed at location P94E. The Chime function can also be locally disabled at each keypad individually if not required (see P72E option 1 on Page 47 for details).
ZONE TAMPER ALARM BEEPS TO KEYPAD
ZONE TAMPER ALARM BEEPS TO KEYPAD - P139E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If a hardwired zone is programmed to allow tamper monitoring (P125E types 12,13 & 14), or the zone is a radio detector with tamper, the zone tamper can beep the keypad buzzer at individual keypads.
RADIO SUPERVISE FAIL BEEPS TO KEYPAD
RADIO SUPERVISE FAIL BEEPS TO KEYPAD - P140E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If a zone is programmed as a radio zone and that type is actively monitoring the supervision signal, a supervise signal failure from the detector alarm can sound the buzzer at selected Keypads for local alarm signalling.
ZONE INACTIVITY ALARM BEEPS TO KEYPAD
ZONE INACTIVITY ALARM BEEPS TO KEYPAD - P141E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If the zone is programmed for inactivity monitoring (P124E option 3 on) and it is not operated within the time set at
P163E a “Sensor-watch” alarm will be generated. A “Sensor-watch” failure from the detector can sound the buzzer at selected Keypads for local alarm signalling.
ARMED ZONE ENTRY DELAY BEEPS TO KEYPAD
ARMED ZONE ENTRY DELAY BEEPS TO KEYPAD - P142E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If the alarm is Armed and a delay zone triggers the entry delay it can also beep the keypad buzzer to warn that the entry delay is counting down and the alarm should be turned off.
Page 60
STAY MODE ENTRY DELAY BEEPS TO KEYPAD
STAY MODE ENTRY DELAY BEEPS TO KEYPAD - P143E 1-64E Value = 01-32 for Keypads 1-32
Option 01 = Keypad 1 - Option 32 = Keypad 32
If Stay Mode is Armed and a Stay Mode delay zone triggers the entry delay it can also beep the keypad buzzer to warn that the entry delay is counting down and the alarm should be turned off.
ARMED ZONE ENTRY DELAY TIME
ARMED ZONE ENTRY DELAY TIME - P144E 1-64E (Value 0-9999 Seconds)
Each Zone has it’s own Entry Delay time when in the Full Armed State. The delay can be programmed from 0-9999 seconds in one second increments. If the entry delay is set to “0” the zone will be an instant zone.
STAY MODE ZONE ENTRY DELAY TIME
STAY MODE ZONE ENTRY DELAY TIME - P145E 1-64E (Value 0-9999 Seconds)
Each Zone has it’s own Entry Delay time when in Stay Mode. The delay can be programmed from 0-9999 seconds in one second increments. If the entry delay is set to “0” the zone will be an instant zone.
ZONE RE-TRIGGER COUNT
ZONE RE-TRIGGER COUNT - P146E 1-64E (Value 0-15 Triggers)
Each Zone has it’s own alarm Re-trigger Count. A value of 0 programmed at this location results in unlimited alarms for that zone during an armed period but a count of 1-15 will shut down the zone once the programmed count has been reached. Disarming the alarm will reset this count.
Zone Reports using this Area
ZONE REPORTS USING THIS AREA - P147E 1-64E (Value 1-32 for areas 1-32)
When a zone is in multiple areas it can be forced to report to one area at this address.
ZONE ALARM CONTACT ID REPORT CODE
ZONE ALARM CONTACT ID REPORT CODE - P157E 1-64E (3 digit event code)
Normally a zone alarm would default to reporting a standard “Burglar Alarm” code of “130” when the zone activates. If the zone is not being used as a burglar alarm and you need to identify the correct type of alarm event you can change the event code at this location (eg if zone 5 was a fire sensor you could program a value of “110” at
P157E5E).
ZONE NEAR ALARM CONTACT ID REPORT CODE
ZONE NEAR ALARM CONTACT ID REPORT CODE - P158E 1-64E (3 digit event code)
If the Near & Confirmed zone alarm reporting option was active the default report code for a “Near Alarm” is “138” when the zone activates for the first time. There should be no reason to change this code but if some special event code was to be used it can be changed at this location.
ZONE CONFIRMED ALARM CONTACT ID REPORT CODE
ZONE CONFIRMED ALARM CONTACT ID REPORT CODE - P159E 1-64E (3 digit event code)
If the Near & Confirmed zone alarm reporting option was active the default report code for a “Confirmed Alarm” is
“139” when a second zone activates within 45 minutes of the near alarm. There should be no reason to change this code but if some special event code was to be used it can be changed at this location.
ZONE ALARM VOICE MESSAGE NUMBER
ZONE ALARM VOICE MESSAGE NUMBER - P160E 1-64E (Value 0-99)
If the reporting format is set to Voice (option 4 on at P182E), the panel will report using the canned voice messages
(eg a zone one activation will report as “Zone 1 Alarm”). The number programmed at this location is reserved for future use but to ensure the canned messages are reported in Voice mode it MUST be set to at least a value of 1. If
Page 61
set to a value of 0 the canned messages will not be reported. If Option 1 at P46E is turned on (use near and confirmed alarm reporting) the panel will not send an alarm in this format.
ARMED ENTRY DELAY to OUTPUT
ARMED ENTRY DELAY to OUTPUT - P161E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If the alarm is Armed and a delay zone triggers the entry delay it can also beep an Output to warn that the entry delay is counting down and the alarm should be turned off.
STAY MODE ENTRY DELAY to OUTPUT
STAY MODE ENTRY DELAY to OUTPUT - P162E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If Stay Mode is Armed and a delay zone triggers the entry delay it can also beep an Output to warn that the entry delay is counting down and the alarm should be turned off.
SENSOR-WATCH TIME
SENSOR-WATCH TIME - P163E 1-64E (Value 0-9999 Minutes)
If the zone is programmed as a “Sensor-Watch” zone (P124E option 3 on) and it is not operated within the time set at this location a “Sensor-watch” alarm will be generated. If a detector has this option turned on and it doesn’t operate when disarmed, this timer will start to count down for the zone/s concerned. The timer is stopped when the area assigned to the zone/s is armed and resumes with the saved value when disarmed again. The timer is reset back to the original value every time the zone operates while disarmed.
LEARN RADIO ZONE CODES
LEARN RADIO ZONE CODES - P164E 1-64E
A RADIO Zone must be enrolled into the panel before it can be used.
To learn a Radio Zone you must first have a compatible receiver connected to the panel keypad buss. With the receiver connected and the panel in program mode, entering P164E then the zone number you wish to enrol, eg 5E for zone 5, the keypad will start to beep to indicate that learn mode has been started and the LED on the receiver will flash. Now operate the detector you wish to learn into Zone 5 slot. Once the transmitted code has been received by the panel and saved, the keypad will stop beeping and the LED on the receiver will stop flashing.
When learning a new radio zone the panel checks all possible locations (including pendants) before saving the new code to ensure that the code has not already been loaded into another slot. If the code already exists, the keypad will indicate which slot the code is already installed at. A number from 1-64 indicates a zone slot and a number from 101-
2000 indicates a user slot.
DELETE a RADIO ZONE CODE
DELETE a RADIO ZONE CODE - P165E 1-64E
If you wish to delete a single Radio Zone, pressing P165E then the Zone number while in Program Mode will delete the stored code against that Zone, eg P165E 5E will remove the code stored for Zone 5.
FIND a ZONE LOCATION
FIND a RADIO ZONE LOCATION - P166E ENTER
If you have a Radio detector loaded into the panel but are unsure which location (Zone #), pressing P166E then
ENTER while in Program Mode will start “Find” Mode. The keypad will start to beep to indicate that “Find” mode has been started and the LED on the Receiver will flash. Now operate the Radio Detector you wish to find. If the Radio
Detector is in memory the keypad will display the number (1-64 indicates a zone, and 101-2000 indicates a user).
When a device is found the keypad will stop beeping and the LED on the Receiver will stop flashing.
ZONE NEAR ALARM to OUTPUT
ZONE NEAR ALARM to OUTPUT - P167E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
Page 62
If zones are programmed for near and confirmed alarms (P46E option 1 on), it is also possible to get an indication of a Near Alarm from any of the 32 Outputs using this program location. A Near Alarm is the first alarm during an armed period.
ZONE CONFIRMED ALARM to OUTPUTS
ZONE COMFIRMED ALARM to OUTPUT - P168E 1-64E Value = 01-32 for Outputs 1-32
Option 01 = Output 1 - Option 32 = Output 32
If zones are programmed for near and confirmed alarms (P46E option 1 on), it is also possible to get an indication of a Confirmed Alarm from any of the 32 Outputs using this program location. A Confirmed Alarm is the second alarm from a different zone to the one that caused the Near Alarm and must happen within 45 minutes of the near alarm.
PROGRAM FULL LCD KP “ZONE” NAME
Program FULL LCD KP “Zone” Name Text - P169E 1-64E
Each Keypad can have a custom name that will be displayed when in Idle and Memory Mode. The FULL LCD KP
“Zone” name text is programmed at this location.
+++++Time Zones+++++
HOLIDAYS
HOLIDAYS - P170E 1-32E (DDMMYY)
It is possible to pre-program up to 32 holidays. Holidays can override the time-zone function on the programmed day.
For example, if an output was automatically controlled by a time-zone, the pre-programmed holidays can stop the output from turning on or off on a holiday. A holiday consists of a single day programmed by Date/Month/Year
(DDMMYY). The holiday begins at the start of the day (00:00:00) and finishes immediately before midnight (23:59:59) on the programmed date. Holidays can be programmed in any order (although for simplicity it is recommended that they are programmed in chronological order) and the panel automatically removes them once the day ends. If you wish to manually remove a programmed holiday you must program in 000000 at the holiday location. If the holiday date you are attempting to enter is older than the current date the panel will not save the data eg if the current date was 120214 (12th of February 2014) and you tried to enter in 100214 (10th of February 2014) the panel will not save the programmed holiday as the day has already elapsed.
TIME ZONE DAYS
TIMEZONE DAYS - P171E 1-32E
Option 1 - Sunday
Option 2 - Monday
Option 3 - Tuesday
Option 4 - Wednesday
Option 5 - Thursday
Option 6 - Friday
Option 7 - Saturday
Option 8 - Invert
The Time-zone days are the days that the time-zone will be active. You can select any combination of the days, eg days 2,3,4,5,6 for Monday to Friday or 1&7 for Saturday & Sunday, etc. The invert function selects all times outside those selected. There are 8 Time-zones that can be programmed.
TIME ZONE START TIME
TIMEZONE START TIME - P172E 1-32E (HHMM)
The Time-zone start time is when the time-zone begins. It would normally be set to the beginning of the day, eg if you were automatically arming and disarming an area with a time-zone and you wanted it to disarm when the time-zone started you would set the start time to about 0830. The start time is programmed in 24 hour format (eg 0000-2359).
If you are setting up the time-zone during the active period (eg if the time-zone goes from 0830-1700 and the current time is 1200) you will have to wait until the next minute expires before the panel will update the time-zone status. You can see if the time-zone is active at location P200E4E.
Page 63
TIME ZONE END TIME
TIMEZONE END TIME - P173E 1-32E (HHMM)
The Time-zone end time is when the time-zone finishes. It would normally be set to the end of the day, eg if you were automatically arming and disarming an area with a time-zone and you wanted it to arm when the time-zone ended you would set the end time to about 1700. The Time-zone end is active at the end of the programmed minute eg if the time-zone end time was set to 1700, the actual time that the time-zone operates will be at 17:01. The end time is programmed in 24 hour format (eg 0000-2359)
TIME ZONE OPTIONS
TIMEZONE OPTIONS - P174E 1-32E
1 = Ignore Holidays
2-8 = Spare
If option 1 is turned on for a Time-zone, that time-zone will not be disabled when a holiday occurs. Normally when a holiday occurs all Time-zones will be disabled but if this option is turned on the Time-zone will not be affected when a holiday is active.
+++++Dialler+++++
DIALLER OPTIONS
DIALLER OPTIONS - P175E 1E
Option 1 - Dialler is Enabled
Option 2 - Fax Defeat
Option 3 - Disable Telephone Line Monitoring
Option 4 - Pulse Dialling (NOTE: For DTMF 4 & 5 must be OFF)
Option 5 - Reverse Pulse Dialling (NOTE: For DTMF 4 & 5 must be OFF)
Option 6 - Long DTMF Dialling Digits
Option 7 - Spare
Option 8 - Spare
Option 1 Dialler is Enabled - If this option is turned off the dialler will be disabled. The option must be on to allow the dialler to make calls.
Option 2 Fax Defeat - The panel can automatically answer an in-coming call in two ways. The first is to set the auto-answer ring count to a convenient number (P175E4E) and let the phone ring until this number is reached at which time the panel will answer the call. The second method is to use fax defeat which entails calling the panel and letting it ring no more than 3 times, hanging up, then ringing back within 45 seconds. The panel will now answer the call on the first ring. There is also a manual answer function described on page 36.
Option 3 Disable Telephone line Monitoring - If the panel is connected to a poor telephone line and the line failure alarm is appearing regularly, by turning this option on the panel will not do the line test.
Option 4 Pulse Dial - If this option is Off the panel will dial in DTMF format, if On then the panel will dial using
Pulse Dialling format
Option 5 Reverse Pulse Dial - If this option is On, and option 4 is On, then the panel will dial using Reverse
Pulse Dialling format (eg the number 9 = 1 pulse). If this option is Off and Option 4 is On, the panel will dial in normal Pulse format (eg the number 9 = 9 pulses).
Option 6 Long DTMF Dialling Digits - If this option is Off, the panel will dial using normal dialling (75ms on &
75ma off). If it is On, the panel will dial using the long tones (100ms on & 100ms off).
DIALLER OPTIONS 2
DIALLER OPTIONS 2 - P175E 2E
Option 1 - Step to next Number
Option 2 - Spare
Option 3 - Spare
Option 4 - Send Test Calls Only if Armed
Option 5 - Test Time Period is in days
Option 6 - Hold line open following Domestic/Voice report for DTMF control
Page 64
Option 7 - Ring Timeout.
Option 8 - Answer After 1 ring for Listen-in Mode
Option 1 Step to next Number - If more than one telephone number is programmed, this option will force the dialler to step through each number after a call. If this option is off the dialler will make all calls to the first number before moving on to the next number.
Option 2
Spare
Option 3
Spare
Option 4 Send Test Calls Only if Armed - If this option is On the panel will only send a daily test call if it is
Armed. This option assumes that the normal arm/disarm signals sent on a daily basis can serve as a test and that the connection only needs to be verified daily if the panel is left in the armed state for periods longer than 24 hours.
Option 5 Test Time Period is in days - If this option is turned off the test time period (P175E5E) will be set in hours. If this option is turned on the test time period will be in days.
Option 6 Hold line open following Domestic/Voice report for DTMF control - If this option is On the dialler will keep the telephone line open after being kissed-off following a Domestic or Voice alarm call so that the person at the phone can then use their DTMF codes to arm/disarm the system or turn on the optional microphone if required.
Option 7 Ring Timeout - If this option is turned OFF the Ring Timeout will be 3 seconds. If it is ON the Ring
Timeout will be 6.5 seconds. The Ring Timeout is the time the panel waits for the next ring signal before deciding that ringing has stopped. The value of 3 seconds will work for most countries and means the panel will only wait 3 seconds before sending a voice alarm report. If set to 6.5 seconds the panel will wait for 6.5 seconds before sending the alarm message.
Option 8 Answer After 1 ring for Listen-in Mode - If this option is turned ON and the optional microphone board is fitted, the panel will answer an in-coming call after 1 ring and automatically enter listen-in mode.
AUTO-ANSWER RING COUNT
AUTO-ANSWER RING COUNT - P175E 3E (Value 0-99)
If the dialler is set to answer an in-coming call for remote control or upload/download the number of rings before answering the call can be set at this location. There is also a manual answer function described on page 98.
TEST CALL START TIME
TEST CALL START TIME - P175E 4E (Value 0000-2359)
If the dialler is set to send Automatic Test Calls, the start time for the first call is set at this location. This allows the test call to be linked to a quiet period where the line would not normally be used (eg 2300)
TEST CALL TIME PERIOD
TEST CALL TIME PERIOD - P175E 5E (Value 0-255 Hours)
When reporting in Contact ID format the panel can send regular test calls to the monitoring company to check the integrity of the panel and the line. The regularity of the test calls is set at this location. It would normally be set to a value of 24 so that a test call is sent one a day. The start time for the first test should also be set at location
P175E4E.
KEYPAD LISTEN-IN OPTIONS
KEYPAD LISTEN-IN OPTIONS - P175E 6E
Option 1 - Listen-in Enabled when dialling only and in Disarmed State
Option 2 - Listen-in Enabled when dialling only and in Armed State
Option 3 - Listen-in Enabled when dialling only and in Monitor Mode
Page 65
Option 4 - Listen-in Enabled through the entire call only in Disarmed state
Option 5 - Listen-in Enabled through the entire call only in Armed State
Option 6 - Listen-in Enabled through the entire call only in Monitor Mode
Option 7 - Listen-in Enabled when the panel answers a call
Option 8 - Listen-in on at All Times
The panel provides the facilities to use the buzzer in the keypad as a speaker to listen to the call being made by the dialler. To use this feature a 5th wire must be connected between the panel “LIN” output and a keypad “INPUT” terminals. The options above allow many combinations of the listen-in to be used or it can be disabled by selecting no options. The listen in at a keypad will not work if the keypad input is set up as a zone input at address P122E option 4.
Dialler Fail Line Switch Output
P175E 7E
Dialler Fail Line Switch Output - Value = Output number 1 –32
If no value is entered here the dialler will work as normal. If an output number is programmed at this address and the dialler fails to get a kiss off after 3 attempts, the programmed output will turn on so it can be used to direct the dialler to another line source. The dialler will then attempt to connect to monitoring for the balance of the retries
(programmed at address P184E) and the output will remain on until the dialler is kissed off or the retry count has been reached, at which time the output will turn off again. When the dialler does get through to monitoring it will report the events that originally triggered the dialler plus a fail to communicate (event 354). If after being directed to another line source (the programmed output has energised) the dialler still doesn’t get kissed off the cycle will repeat.
Every time the output switches on a new fail to communicate event will be generated.
DIALLING PRE-FIX NUMBER
DIALLING PRE-FIX NUMBER - P175E 8E (Value 1-16 digits)
The panel can be programmed with a Pre-fix telephone number. The Pre-fix number can be up 16 digits long. The
Pre-fix number can be dialled before any of the 8 Telephone numbers if required (P183E Option 7).
“PANIC” ALARM CONTACT ID REPORT CODE
“PANIC” ALARM CONTACT ID REPORT CODE - P175E 9E (3 digit event code)
Normally a keypad initiated Panic alarm would default to reporting a standard “Panic Alarm” code of “120”. If the panic alarm is being used for some other purpose and you need to identify the correct type of alarm event you can change the event code at this location.
“FIRE” ALARM CONTACT ID REPORT CODE
“FIRE” ALARM CONTACT ID REPORT CODE - P175E 10E (3 digit event code)
Normally a keypad initiated Fire alarm would default to reporting a standard “Fire Alarm” code of “110”. If the fire alarm is being used for some other purpose and you need to identify the correct type of alarm event you can change the event code at this location.
“MEDICAL” ALARM CONTACT ID REPORT CODE
“MEDICAL” ALARM CONTACT ID REPORT CODE - P175E 11E (3 digit event code)
Normally a keypad initiated Medical alarm would default to reporting a standard “Medical Alarm” code of “100”. If the medical alarm is being used for some other purpose and you need to identify the correct type of alarm event you can change the event code at this location.
OUTPUT DTMF CONTROL CODE NUMBER
OUTPUT DTMF CONTROL CODE NUMBER - P175E 12E (Value 1-4 digit code 0-9999)
The panel can be configured to allow remote operation of the Outputs via a remote telephone. The code programmed at this address is the DTMF code that must be used when performing this function. When dialling the panel and it has answered the call, after waiting for the voice prompt you can enter in the 1-4 digit DTMF code plus the two digit
Output number you wish to control, eg <01> for Output # 1, followed by the # key. The current status of the output will be given. After that, if you press the “*” button on the telephone the status of the output will toggle eg if is was
Page 66
previously On it will change to Off or vice versa and a voice message will announce the current state. When finished you simply hang-up and 15 seconds later the panel will release the line.
MICROPHONE ON/OFF DTMF CODE NUMBER
MICROPHONE ON/OFF DTMF CODE NUMBER - P175E 13E (Value 1-4 digit code 0-9999)
Reserved for future use.
DIALLER ACKNOWLEDGE DTMF CODE NUMBER
DIALLER ACKNOWLEDGE DTMF CODE NUMBER - P175E 14E (Value 1-4 digit code 0-9999)
If the panel is set to report in Domestic or Voice reporting formats, you can simply kiss-off (acknowledge) the alarm by pressing the <#> button on the remote telephone. Alternatively if you require a more secure kiss-off method to ensure that the alarm is only kissed off by the correct person you can program a 1-4 digit code at this location. If a code is programmed at this location you must enter in the code followed by the <#> button to kiss-off the alarm event.
FORCE TEST CALL DTMF CODE NUMBER
FORCE TEST CALL DTMF CODE NUMBER - P175E 15E (Value 1-4 digit code 0-9999)
If a user wishes to remotely force a test call from the panel to a monitoring company using the Contact ID test message, you can dial the panel and when it answers enter the code programmed at this location on the telephone.
A voice message will announce that the test has been sent. Once you hang-up the phone the panel will then make a call to the monitoring company and send a manual test call message. If no code is programmed at this location (ie
“0”) the function will be disabled. The code can be a 1-4 digit number as required.
NOTE: If using this remote test code and any of the other remote DTMF codes at locations (P63E, P175E12E,
P175E13E & P175E14E) you should make this code different to any other codes so the panel knows what function is being operated.
It is also possible to force a locally generated test call from the panel keypad by pressing and holding the
<CONTROL> button then <0> within two seconds of pressing control. This will force a test call to the monitoring company.
MISCELLANEOUS VOICE BOARD REPORT MESSAGES
KEYPAD or RADIO PANIC ALARM VOICE MESSAGE NUMBER -
FIRE ALARM VOICE MESSAGE NUMBER -
MEDICAL ALARM VOICE MESSAGE NUMBER -
MAINS FAIL ALARM VOICE MESSAGE NUMBER -
MAINS RESTORE VOICE MESSAGE NUMBER -
BATTERY LOW ALARM VOICE MESSAGE NUMBER -
BATTERY RESTORE VOICE MESSAGE NUMBER -
TAMPER ALARMS VOICE MESSAGE NUMBER -
DURESS ALARM VOICE MESSAGE NUMBER -
LATCHKEY DISARM VOICE MESSAGE NUMBER -
MANUAL TEST CALL INITIATED VOICE MESSAGE NUMBER -
P176E 1E (Value 0-99)
P176E 2E (Value 0-99)
P176E 3E (Value 0-99)
P176E 4E (Value 0-99)
P176E 5E (Value 0-99)
P176E 6E (Value 0-99)
P176E 7E (Value 0-99)
P176E 8E (Value 0-99)
P176E 9E (Value 0-99)
P176E 10E (Value 0-99)
P176E 11E (Value 0-99)
The panel has default canned messages that are used to annunciate the above alarm events. The Voice Message number is reserved for future use but to ensure that the canned messages are reported it must be set to a value of 1.
If set to a value of 0 the canned message will not be reported for thje selected option.
Page 67
+++++Telephone Numbers+++++
TELEPHONE NUMBERS
TELEPHONE NUMBERS - P181E 1-8E (Value 1-16 digit number)
The Telephone Numbers can be up to 16 digits long. They can also include some special functions or characters as per the chart below.
LCD KEYPAD
BUTTON
SPECIAL CHARACTERS DISPLAYED ON
LCD KP AS;
TELEPHONE NUMBER SPECIAL FUNCTION
CONTROL & 0
CONTROL & 2
CONTROL & 3
CONTROL & 4
CONTROL & 5
CONTROL & 6
DELETE Number
#
*
- w
=
DELETE Number
“#”
“*”
“2.5 sec Pause”
“Wait for 2nd Dial-tone”
“5 sec Pause”
TELEPHONE NUMBER REPORT FORMATS
TELEPHONE NUMBER REPORT FORMATS - P182E 1-8E
Option 0 - No reporting
Option 1 - Contact ID
Option 2 - Spare
Option 3 - Pager
Option 4 - Voice Dialler
Option 5 - CSV IP Extended (sends 4 digit zone/user field)
Option 6 - Patriot IP
Option 7 - XML IP
Option 8 - CSV IP Normal
Option 9 - Spare
Option 10 - SIA
Option 11 - SIA Slow
Option 0 No Reporting - If the option is programmed as “0”, the panel will not report in any format for the selected telephone number. If the number is to be used as a Call-back number this option should be programmed as a “0”.
Option 1 Contact ID - If this option is set for the telephone number, the panel will send a Contact ID message to a
Monitoring Station.
Option 2 Spare
Option 3 Pager - Report alarm events using "Pager" format. This format utilizes Telecom’s 026 pager network or other public subscriber networks, etc, to send numeric messages to a compatible pager. The panel sends a 12 digit numeric number to the pager consisting of the account code (P62E) the 3 digit CID event code for the alarm event and a 3 digit zone number to identify the zone in alarm.
Option 4 Voice Dialler - The panel has built-in canned messages that are used to report alarms in Voice mode.
Option 5 CSV IP Extended - If this option is turned on the panel will send an IP signal in CSV format to the central monitoring stations IP address. The extended format increases the zone or user field from a 3 digit number to a 4 digit number.
Page 68
Option 6 Patriot IP -
Option 7 XML IP -
Option 8 CSV IP Normal - If this option is turned on the panel will send an IP signal in CSV format to the central monitoring stations IP address. The normal format sends the usual 3 digit number for the zone or user field.
Option 9 Spare -
Option 10 SIA - This option selects FSK SIA format. If using SIA format, ensure that the monitoring receiver does not generate a 4+2 2300hz acknowledge tone before the SIA acknowledge tone because the 4+2 tone accuracy is +/– 5% which can make it the same as the SIA acknowledge tone. Also when reporting alarms on different areas (01 =Area 1 and 02 = Area 2) the panel will send the area number associated with each event (ri01 or ri02) but it will also send different account codes if programmed that way. To avoid using two account numbers when reporting alarms on different areas you should program all account codes (P62E) to be the same number and identifying the two areas by the area number sent.
Option 11 SIA Slow - This option selects FSK SIA Slow format. This format is similar to option 10 except every signal will be sent separately with a kissoff after each signal whereas option 10 will send all signals in one continuous burst with one kissoff at the end. In SIA slow the area number is not sent (see option 10 above) so each account code must be different when identifying alarms for both areas.
TELEPHONE NUMBER REPORT OPTIONS
TELEPHONE NUMBER REPORT OPTIONS - P183E 1-8E
Option 1 - Stop Dialling if Kissed Off
Option 2 - Monitor Call Progress
Option 3 - Blind Dial
Option 4 - Use Group Numbers for Contact ID Reporting
Option 5 - Stay On-line after Alarm report for Audio Listen-in
Option 6 - Spare
Option 7 - Use the Dial Pre-fix Number
Option 8 - Spare
Option 1 Stop if Kissed Off - If this option is turned on for the telephone number, the dialler will stop sending the alarm if the signal is kissed off and will not proceed with any other telephone numbers for that event. If not kissed off the dialler will start dialling any other programmed numbers. If the event is not kissed off from any of the telephone numbers and the maximum re-tries limit is reached then the event is marked as unsent and will be added to the next event that causes the dialler to report. If this option is off, the dialler will send the event for the maximum re-tries count or until kissed off but it will then proceed to report the same event to any other telephone numbers programmed.
Option 2 Monitor Call Progress - Monitor call progress means that the dialler monitors the status of the dialling tones to determine whether the call is valid or not. If the call is not valid, eg engaged, the panel will know and hang up the call and try again.
Option 3 Blind Dial - When the dialler makes a call it looks for dial tone before making the call. If no dial tone is detected the panel hangs up and attempts another call. The panel will do this 3 times and if dial tone is still not detected it will make the call anyway. If blind dial is on, the panel skips the dial tone detection and dials 4 seconds after looping the line (used where non standard or low level dial tone exists).
Option 4 Use Group Numbers for Contact ID Reporting - When sending an alarm using Contact ID, the panel can send separate account codes to report the two areas or, use one account code (P62E1E Area A) and use the group number to identify the two areas. Turning this option on sends one account with group numbers.
Option 5 Stay On-line after Alarm report for Audio Listen-in - If this option is turned ON and the optional listen
-in board is fitted, the panel will send a command to the monitoring company in CID or SIA formats to tell the receiver to stay on-line so the operator can listen to the site for any sign of an intruder.
Option 6 Spare -
Option 7 Use the Dial Pre-fix Number - If the Telephone number does not provide sufficient digits for dialling purposes it is possible to program a dial pre-fix number (P175E8E). The pre-fix can be dialled before the telephone number. Turning this option on dials the pre-fix first followed by the telephone number.
Page 69
MAXIMUM DIAL RE-TRIES per TELEPHONE NUMBER
MAXIMUM DIAL RE-TRIES per TELEPHONE NUMBER - P184E 1-8E (Value 0-99)
The maximum dial re-tries is the number of times that the panel will dial a telephone number in an attempt to get kissed-off.
DIALLER REPORTING OPTIONS “A”
DIALLER REPORTING OPTIONS “A” - P186E 1-8E
Option 1 - Report Mains Fail
Option 2 - Report Battery Low
Option 3 - Report Radio Battery Low
Option 4 - Report Line Fail
Option 5 - Report System Tamper
Option 6 - Report Keypad Tamper
Option 7 - Report Zone Tamper
Option 8 - Report Radio Zone Tamper
Option 1 Report Mains Fail - If this option is on the panel will report a Mains fail after the report delay time
(P25E6E) has expired.
Option 2 Report Battery Low - If this option is on the panel will report a Battery Low.
Option 3 Report Radio Battery Low - If this option is on the panel will report a Battery Low from any radio zones that have the battery status monitored.
Option 4 Report Line Fail - If this option is on the panel will report a Telephone Line fail. The panel will send the line fail and the line restore at the same time.
Option 5 Report System Tamper - If this option is on the panel will report a Tamper Alarm on the panel tamper input.
Option 6 Report Keypad Tamper - If this option is on the panel will report a Tamper Alarm from a keypad fitted with a tamper switch or a wrong code alarm from a keypad.
Option 7 Report Radio Zone Tamper - If this option is on the panel will report a Radio Zone Tamper Alarm.
DIALLER REPORTING OPTIONS “B”
DIALLER REPORTING OPTIONS “B” - P187E 1-8E
Option 1 - Report Duress
Option 2 - Report Supervised Radio Alarm
Option 3 - Report Zone Inactivity Alarm
Option 4 - Report Manual Panic Alarm
Option 5 - Report Manual Fire Alarm
Option 6 - Report Manual Medical Alarm
Option 7 - Report Radio Pendant Panic Alarm
Option 8 - Report Zone Bypasses
Option 1 Report Duress - If this option is on the panel will report a Duress Alarm (see P25E2E).
Option 2 Report Supervised Radio Alarm - If this option is on the panel will report a Supervised radio Alarm
(see P25E4E).
Option 3 Report Zone Inactivity Alarm - If this option is on the panel will report a Zone Inactivity (Sensor-watch)
Alarm (see P163E).
Option 4 Report Manual Panic Alarm - If this option is on the panel will report a Keypad generated Panic Alarm.
Option 5 Report Manual Fire Alarm - If this option is on the panel will report a Keypad generated Fire Alarm.
Option 6 Report Manual Medical Alarm - If this option is on the panel will report a Keypad generated Medical
Alarm.
Page 70
Option 7 Report Radio Pendant Panic Alarm - If this option is on the panel will report a Panic Alarm generated by a radio key (pendant).
Option 8 Report Zone Bypasses - If this option is on the panel will report a Manual or Auto Bypass on a zone.
DIALLER REPORTING OPTIONS “C”
DIALLER REPORTING OPTIONS “C” - P188E 1-8E
Option 1 - Report Arm/Disarm
Option 2 - Report Stay Mode Arm/Disarm
Option 3 - Report Disarm only after an Alarm
Option 4 - Report Stay Mode Disarm only after an Alarm
Option 5 - Report Stay Mode Zone Alarms
Option 6 - Report Access to Program Mode
Option 7 - Report 24 Hour Alarms for Domestic/Voice Formats
Option 8 - Report Zone Restores
Option 1 Report Arm/Disarm - If this option is on then all Arm/Disarm signals will be reported to a Monitoring
Station if Contact ID or 4 + 2 is set as the reporting format.
Option 2 Report Stay Mode Arm/Disarm - If this option is on then all Stay Mode Arm/Disarm signals will be reported to a Monitoring Station if Contact ID or 4 + 2 is set as the reporting format.
Option 3 Send Disarm only after an Alarm - If this option is on, the panel will not normally send an Arm/Disarm signal to the monitoring company, however, if a zone alarm occurs then the panel will send a Disarm following the disarming of the panel to show it has been turned off by a valid user.
Option 4 Send Stay Mode Disarm only after an Alarm - If this option is on, the panel will not normally send a
Stay Mode Arm/Disarm signal to the monitoring company, however, if a zone alarm occurs then the panel will send a Stay Mode Disarm following the disarming of the panel to show it has been turned off by a valid user.
Option 5 Report Stay Mode Zone Alarms - If this option is on, the panel will report zone alarms in Stay Mode.
Option 6 Report Access to Program Mode - If this option is on the panel will report a Contact ID code to indicate that either Client or Installer program Modes have been accessed.
Option 7 Report 24 Hour Alarms for Domestic/Voice Formats - When the panel is set to send alarms via domestic or voice mode, No alarms will normally be sent for 24 hour zones. If 24 hour alarms are required to be reported in Domestic/Voice mode then this option must be turned on.
Option 8 Report Zone Restores - If this option is on the panel will report all zone restores in Contact ID or 4 + 2 formats. If this option is turned off the panel will only report the alarms.
DIALLER REPORTING OPTIONS “D”
DIALLER REPORTING OPTIONS “D” - P189E 1-8E
Option 1 - Report Latchkey Disarm
Option 2 - Report Delinquency Alarm
Option 3 - Report Test Calls
Option 4 - Report Fuse Failure
Option 5 - Report Output 1 or 2 Fail
Option 6 - Report RTC (Real Time Clock) Time changed
Option 7 - Report Keypad Buss Trouble
Option 8 - Report RF Interference (Jamming) Detected
Option 1 Report Latchkey Disarm - If the panel is armed in Latchkey Report Mode by using a Code, Key-switch,
<ARM>, <STAY>, <A> or <B> buttons, any code or key-switch without the Latchkey option (P4E or
P112E Option 6 off) used to Disarm the Alarm will cause a Latchkey Disarm report to be sent via the dialler. For Domestic or Voice reporting option 1 at P188E must also be turned ON.
Option 2 Report Delinquency Alarm - If the panel has been configured for Delinquency monitoring (P67E) and an area has not been armed for the time set at P67E, a Delinquency Alarm will be sent to the Monitoring
Page 71
Event
Description
Burglary
Un-typed Alarm
Hold-up
Fire
Medical
Panic
Emergency
Gas
Sprinkler
Water
Heat
Freeze
Equipment
Equip. Tamper
Station if Contact ID or 4 + 2 is set as the reporting format.
Option 3 Send Test Calls - If Contact ID format is used for reporting alarm, the panel can also send Automatic test calls. If this option is turned on the test calls will be sent but if test calls are not required they can be disabled by turning this option off.
Option 4 Report Fuse Failure - The panel has two on-board thermal fuses designed to protect the 12v DC outputs from short circuits. If this option is on and either of these fuses are open, a report will be sent to the monitoring station if Contact ID is set as the reporting format.
Option 5 Report Output 1 or 2 Fail - The panel has two high current Outputs (O/P 1 & 2). These Outputs are normally used to drive sirens or strobes for local alarm warning. If option 8 at location P37E is on for either O/P 1 or 2 the Output status will be monitored (eg wire to siren has been cut). If this option is on and a fault is detected on the output, a report will be sent to the monitoring station if Contact ID is set as the reporting format
Option 6 Report RTC (Real Time Clock) Time Changed - If the panel clock is changed and this option is turned on, the event will be reported to the monitoring station.
Option 7 Report Keypad Buss Trouble - If any connected keypads are removed from the system they will be reported as missing if this option is turned on.
Option 8 Report RF Interference (Jamming) Detected - If the radio receiver detects RF Interference (jamming) of the radio frequency the panel can report this event to the monitoring station if this option is turned on.
+++++SIA Alarm Report Codes+++++
The programmable SIA alarms events below are changed by programming a value from 1-14 (see chart below). For example, to send the SIA “Emergency Alarm” code when a keypad panic is generated you must program a value of
“7” at location P197E1E.
From the chart below you can select one of 14 options that should cover most of the custom requirements.
As an example, if you required zone 10 to send a fire alarm you would program a value of 4 at address P196E10E.
When you program a particular alarm type at any of the locations below, the panel will automatically send all of the other associated reports (if applicable) from the chart. Using the same example, if zone 10 was bypassed and the
SIA report code was set to type 4, the panel will send an “FB” event code to indicate that it is a fire zone bypass instead of the default burglar alarm bypass (BB).
CHART FOR THE PROGRAMMABLE SIA EVENT CODES
Program
Number
1
2
3
7
8
9
10
4
5
6
11
12
13
14
Alarm
QA
GA
SA
WA
KA
ZA
IA
TA
BA
UA
HA
FA
MA
PA
Restore
QH
GH
SH
WH
KH
ZH
IR
TH
BH
UH
HH
FH
MH
PH
Bypass
QB
GB
SB
WB
KB
ZB
-
TB
BB
UB
HB
FB
MB
PB
Un-
Bypass
BU
UU
HU
FU
MU
PU
QU
GU
SU
WU
KU
ZU
-
TU
Trouble
QT
GT
ST
WT
KT
ZT
-
TT
BT
UT
HT
FT
MT
PT
Trouble
Restore
BJ
UJ
HJ
FJ
MJ
PJ
QJ
GJ
SJ
WJ
KJ
ZJ
-
TJ
-
-
-
-
FA
-
-
Near
Alarm
BA
-
-
-
-
-
-
Verified
Alarm
BV
-
-
-
-
-
-
FM
-
-
-
-
-
-
Page 72
ZONE ALARM SIA REPORTING CODES
ZONE ALARM SIA REPORTING CODE - P196E 1-64E (Value from 1-14 taken from the chart above)
“PANIC” ALARM SIA REPORTING CODES
“PANIC” ALARM SIA REPORTING CODE - P197E 1E (Value from 1-14 taken from the chart above)
“FIRE” ALARM SIA REPORTING CODES
“FIRE” ALARM SIA REPORTING CODE - P197E 2E (Value from 1-14 taken from the chart above)
“MEDICAL” ALARM SIA REPORTING CODES
“MEDICAL” ALARM SIA REPORTING CODE - P197E 3E (Value from 1-14 taken from the chart above)
+++++Panel Diagnostic & Default Options+++++
PANEL SOFTWARE VERSION NUMBER
PANEL SOFTWARE VERSION NUMBER - P200E 1E
This location will display the software version of the panel.
KEYPAD ADDRESS NUMBER
KEYPAD ADDRESS NUMBER - P200E 2E
This location will display the keypad number of the keypad currently in program mode.
AREAS ASSIGNED to the KEYPAD
AREAS ASSIGNED to the KEYPAD - P200E 3E
This location will display the Areas assigned to the keypad currently in program mode.
DISPLAY TIME-ZONES CURRENTLY ACTIVE
DISPLAY TIME-ZONES CURRENTLY ACTIVE - P200E 4E
This location will display which of the 32 Time-zones are currently on.
DISPLAY BATTERY VOLTAGE
DISPLAY BATTERY VOLTAGE - P200E 5E
This location will display the system battery voltage measured by the panel.
WALK TEST MODE
WALK-TEST MODE - P200E 6E
This address is used to start walk-test mode while in installer or client program mode. By pressing P200E6E at the keypad, the keypad buzzer will beep at 1 second intervals to indicate walk-test mode is active. If a siren is connected to an Output and that output has option 1 turned on at location P36E the siren will give a 1 second beep every time a zone is triggered while walk-test mode is active. By walking past all of the detectors connected to the system and activating them, the associated zone will latch up at the keypad to allow verification that all zones are working properly. By pressing the <Program> or <Enter> button, walk-test mode will be terminated and the panel will leave program mode. The results of the walk-test will be saved in the memory event buffer and can be viewed by accessing memory display mode to verify which detectors were triggered during walk-test mode. If Output 1 or 2 are used for the Audible walk-test indication and a horn speaker is connected to the output (see P37E1 or 2E option 1), the siren on the output will give a single tone for the chirp instead of the swept tone used for alarms.
Page 73
UPDATE “FIRMWARE” to LCD KP, Zone & Output EXP.
UPDATE “FIRMWARE” TO LCD KP, ZONE AND OUTPUT EXPANDERS - P200E 7E
Once a panel firmware update has been performed any new updates for the full LCD keypad, Zone or Output expanders will transferred to the panel at the same time. By entering in P200E7E the panel will check to see if any devices connected to the keypad bus need a firmware update and it will send those updates down the keypad bus if required.
UPDATE “TEXT FILES” TO LCD KEYPADS
UPDATE “TEXT FILES” TO LCD KEYPADS - P200E 8E
Once a panel firmware update has been performed any new TEXT updates for the full LCD keypad will be transferred to the panel at the same time. By entering in P200E8E the panel will send the updated text files to all LCD keypads connected to the keypad bus.
DEFAULT CODES & TELEPHONE NUMBERS
DEFAULT CODES & TELEPHONE NUMBER - P200E 9E
This location is used to return the panels User and Installer Codes plus the Telephone Numbers & Account Codes to the default settings.
DEFAULT ALL PROGRAMMING TO FACTORY SETTINGS
DEFAULT ALL PROGRAMMING TO FACTORY SETTINGS - P200E 10E
This location is used to return the panels User and Installer Codes plus the Telephone Numbers & Account Codes to the default settings.
CLEAR ALARM MEMORY BUFFER
CLEAR ALARM MEMORY BUFFER - P200E 11E
This location is used to clear ALL of the events stored on memory.
INITIATE A CALL to the CALL-BACK NUMBER
INITIATE A CALL to the CALL-BACK NUMBER - P200E 12E
This location is used to force a call to the call-back number..
READ RSSI from PENDANTS and WIRELESS ZONES
READ RSSI from PENDANTS and ZONES - P200E 14E
This location is used to display the RSSI (received signal strength) from Pendants and Wireless Zones that are loaded into the panel. The feature was added at panel version V906.5 and requires the Arrowhead RX-16 MF receiver to be connected to the panel for RSSI data to be available. The RSSI reading will be shown along with the user or zone number that was received. The feature can only be displayed on LCD keypads with a software version of V208.5 and higher or the Icon LCD keypad
Page 74
IP ALARM SETUP
PANEL IP ADDRESS - P201E 1E
This location is where the control panel IP Address can be set (provided option 1 at P201E4E is off). The IP Address but be set to a spare IP number that matches the Local LAN IP numbering system used. The IP address se at this location can also be viewed in normal mode by pressing the number “9” for 5 seconds.
IP GATEWAY ADDRESS - P201E 2E
This location is where the internet gateway address can be set.
IP SUBNET MASK - P201E 3E
This is where the Subnet mask can be set. It would normally be a value of 255.255.255.0.
IP SETUP OPTIONS
P201E 4E
Option 1 - DHCP or Manual Panel IP address (Off = Automatic DHCP, On = Manual IP setting)
Option 2 - 8 - Spare
Option 1 Manual panel IP Address - If this is On the panel must have a manually assigned IP address programmed at P201E1E. If this option is Off DHCP will be turned on where the panel will ask for an IP and Gateway address form the local server.
DISPLAY PANEL MAC ADDRESS - P201E 5E
This Address allows you to view the internal panel MAC Address. It can also be viewed by pressing the number “8” for 5 seconds in normal mode.
IP REPORTING POLL TIMER - P202E 1-8E
There is a programmable poll timer for each of the possible 8 IP reporting numbers (P203E). The Poll timer can be set to a value between 0-9999 minutes.
MONITORING IP REPORTING NUMBER - P203E 1-8E
There are up to 8 IP Reporting Numbers that can be programmed into the panel.
MONITORING IP REPORTING PORT NUMBER - P204E 1-8E
There is a separate port number for each of the 8 IP Reporting Numbers.
Page 75
ELITE SX PROGRAM SUMMARY GUIDE
The following program summary is an abbreviated version of all the panel program addresses. This is intended as a quick guide to finding a program address. In many address locations, there is a main address (e.g. “P1E”), then a sub address (e.g. P1E “1E”). You must enter in the main address number, followed by the sub address, then you can enter the actual data. The program addresses are in numerical order with page references beside them so you can get more detailed information if required. This Summary is split into 13 headings. These are;
1) Users - Page 76 7) Zones -
2) Miscellaneous Panel & Clock Settings - Page 78 8) Time Zones -
3) Outputs - Page 79 9) Dialler -
Page 84
Page 87
Page 87
4) Areas -
5) Keypads -
6) Zone Key-Switches -
Page 80 10) Telephone Numbers -
Page 82 11) SIA Report Codes -
Page 88
Page 89
Page 84 12) Panel Diagnostic & Default Options - Page 89
13) IP Alarm Set-up -
+++++Users+++++
Page 90
Programming User Codes
P1E 1-2000E User Code 1-2000 -
Default for User Code # 1 (P1E1E) = 123 Codes can be 1-6 or 4-6 digits
. Page 24
(where 1E = User Code #1 to 2000E = User Code #2000)
NOTE:
The 2000 Users can be keypad Code, Radio or Access key Users. They can be mixed but the Maximum is 2000 Users.
The User type MUST be set to “0” (P2E User# E) for a code to be entered at the above address
.
User Type (Code/Radio/Access Tag-Card)
P2E
1-2000E User # 1-2000 Type -
0 = Keypad Code User {PIN}
(Default = 0) 1 = Radio User (Users 101-2000 only)
2 = Access Tag/Card User
3 = Both Code and Access Tag/Card User {Tag + PIN)
4 = Either Code or Access Tag/Card User {Tag or PIN}
Page 24
User Area Assignment
P3E
1-2000E User # 1-2000 Area -
01-32 = Assigned to Area 1-32
(Default = 1)
P4E 1-2000E Users 1-2000 Access Options
(Default = 1,3,4)
User Code Access Options
1 = Code can Arm Area
2 = Code can arm Stay Mode
3 = Code can Disarm Area
4 = Code can disarm Stay Mode
5 = Code is a Security Guard Code
6 = Code will Arm Latchkey Mode
7 = Spare
8 = Can View Event Memory
Page 25
Page 25
User Code Privileges
P5E 1-2000E Users 1-2000 Privileges
(Default User 1 = 2,3,4,5,6,7,8)
(Default User 2-2000 = All Off)
1 = User can Change their Code
2 = User can Change All Codes
Page 26
3 = User can Allow Access to Installer Mode/Edit all Codes
4 = User can Change Telephone Numbers
5 = User can Change the Clock
6 = User can Change DTMF Command Codes
P7E 101-2000E Radio User 101-2000 Type
(Default = 0)
7 = User can Learn New Radio Devices
8 = Spare
Radio User Type
0 = General Pendant Type
1 = Crow Freewave Pendant
21 = Ness Pendant
Page 26
Radio User Privileges
P8E 101-2000E Radio Users 101-2000 Privileges
(Default = 1)
P9E 1-2000E Time Zone to User # 1-2000
(Default = All Off)
1 = Pendant Can Disarm at All Times
2 = Pendant Causes Immediate Panic
3 = Pendant Causes Delayed Panic ( 1.5 Sec)
4 = Pendant only works during Entry Delay
5 = This User is a Duress Code (Users 21-100)
6 = Spare
Page 27
7 = Spare
8 = Spare
Time Zone Assigned to a User
01 = User Controlled by Time Zone # 1
Page 27
02 = User Controlled by Time Zone # 2
03 = User Controlled by Time Zone # 3
Page 76
04 = User Controlled by Time Zone # 4
05 = User Controlled by Time Zone # 5
06 = User Controlled by Time Zone # 6
07 = User Controlled by Time Zone # 7
08 = User Controlled by Time Zone # 8
â
32 = User Controlled by Time Zone # 32
User to Keypad Assignment
01 = Can Operate at Keypad # 1
Page 27
P10E
1-2000E User # 1-2000 Keypad Assignment
(Default = All On) 02 = Can Operate at Keypad # 2
03 = Can Operate at Keypad # 3
04 = Can Operate at Keypad # 4
05 = Can Operate at Keypad # 5
06 = Can Operate at Keypad # 6
07 = Can Operate at Keypad # 7
08 = Can Operate at Keypad # 8
â
32 = Can Operate at Keypad # 32
Radio Pendant Panic Beeps to Keypad
P11E
101-2000E Radio # 101-2000 Panic Beep to Keypad
01 = A Radio panic will Beep at Keypad # 1
(Default = All On) 02 = A Radio panic will Beep at Keypad # 2
03 = A Radio panic will Beep at Keypad # 3
04 = A Radio panic will Beep at Keypad # 4
05 = A Radio panic will Beep at Keypad # 5
06 = A Radio panic will Beep at Keypad # 6
07 = A Radio panic will Beep at Keypad # 7
08 = A Radio panic will Beep at Keypad # 8
â
32 = A Radio panic will Beep at Keypad # 32
Page 28
User can Turn an Output On
P13E
1-2000E User # 1-2000 Can Turn On an Output
01 = User Can Turn on Output # 1
(Default = All Off) 02 = User Can Turn on Output # 2
03 = User Can Turn on Output # 3
04 = User Can Turn on Output # 4
05 = User Can Turn on Output # 5
06 = User Can Turn on Output # 6
07 = User Can Turn on Output # 7
08 = User Can Turn on Output # 8
â
32 = User Can Turn on Output # 32
Page 28
User can Turn an Output Off
P14E
1-2000E User # 1-2000 Can Turn Off an Output
01 = User Can Turn on Output # 1
(Default = All Off) 02 = User Can Turn on Output # 2
03 = User Can Turn on Output # 3
04 = User Can Turn on Output # 4
05 = User Can Turn on Output # 5
06 = User Can Turn on Output # 6
07 = User Can Turn on Output # 7
08 = User Can Turn on Output # 8
â
32 = User Can Turn on Output # 32
Page 28
Radio Pendant Panic Alarm to an Output
P15E
101-2000E Radio # 101-2000 Panic Alarm to an O/P
01 = Radio panic to Output # 1
(Default = 1,2) 02 = Radio panic to Output # 2
03 = Radio panic to Output # 3
04 = Radio panic to Output # 4
05 = Radio panic to Output # 5
06 = Radio panic to Output # 6
07 = Radio panic to Output # 7
08 = Radio panic to Output # 8
â
32 = Radio panic to Output # 32
Page 28
Program LCD KP “User” Name
P16E 1-2000E Program LCD KP “User” Name Text
Page 28
Bulk COPY a User to a range of Users
P17E Template User #E Start User #E End User #E Bulk COPY a User to a range of USERS
Page 28
Learn Radio Pendant Codes
P18E 101-2000E Learn Radio Pendant Codes for Users 101-2000
(applies if the User Type, P2E, is set to 1)
Page 28
Delete a Specific Radio Pendant Code
P19E 101-2000E Delete a Specific Radio Pendant Code for Users 101-2000
(applies if the User Type, P2E, is set to 1)
Page 29
Page 77
Find Radio Pendant memory Location
P20E ENTER Enter this address then operate the Radio Pendant to find its user #
(applies if the User Type, P2E, is set to 1). After P20E press enter to start the find process.
Page 29
Learn Access Tag/Card Codes
P21E 1-2000E Learn Access Tag/Card Codes for Users 1-2000
(applies if the User Type, P2E, is set to 2, 3 or 4)
Page 29
Delete a Specific Access Tag/Card Code
P22E 1-2000E Delete a Specific Access Tag/Card Code for Users 1-2000
(applies if the User Type, P2E, is set to 2, 3 or 4)
Page 29
Find an Access Tag/Card memory Location
P23E ENTER Enter this address then operate the Access Tag/Card to find its user #
(applies if the User Type, P2E, is set to 2, 3 or 4). After P23E press enter to start the find process.
Page 29
Manually enter in a Card/Tag Printed Number
P24E 1-2000E Enter this address then type in the 10 digit printed card/tag number #
Page 30
Code/Tag/Radio User Usage Count
P1025E 1-2000E A value of 1-254 equals the number of times it can be used. 255 = always
Page 30
Code/Tag/Radio User Start Date
P1026E 1-2000E DD:MM:YY The date a Code/Tag/Radio User will start to function.
Page 30
Code/Tag/Radio User End Date
P1027E 1-2000E DD:MM:YY The date a Code/Tag/Radio User will cease to function.
Page 30
Code/Tag/Radio User Start Time
P1028E 1-2000E HH:MM The time a Code/Tag/Radio User will start to function.
Page 30
Code/Tag/Radio User End Time
P1029E 1-2000E HH:MM The time a Code/Tag/Radio User will cease to function.
Page 30
+++++Miscellaneous Panel & Clock Settings+++++
Installer Code
P25E 1E Installer Code -
( Default = 000000)
P25E 2E Duress Digit -
Value 1-9 (Default = 0 Duress Function Disabled)
Page 30
Duress Digit
Page 31
Dial Report Delay
P25E 3E Dial Report Delay -
Value 0-255 seconds (Default = 0)
P25E 4E Radio Detector Supervised Timer -
0-9999 Minutes (Default = 240 Minutes [4 Hours])
Page 31
Two Trigger Timer
P25E 5E Two Trigger Timer -
Value 0-255 Seconds (Default = 60 Sec)
Page 31
Radio Detector Supervised Timer
Page 31
Mains Fail Reporting Delay
P25E 6E Mains Fail Reporting Delay -
Value 0-9999 Seconds (Default = 600 Sec)
Page 31
Receiver Fail Delay
P25E 7E Receiver Fail Delay -
Value 0-9999 Seconds (Default = 0 Sec-Disabled)
Page 31
Upload/Download Site Code Number
P25E 8E
Upload/Download Site Code Number - Up to
8 Characters (Default = None)
Page 31
Temporary Output Disable
P25E 9E Temporary Output Disable -
Output 1-32
Page 31
Miscellaneous Panel Options
P25E 10E Misc. Panel Options
(Default = 2,6)
Miscellaneous Options
1 = Panel Tamper is 2k2 EOL
2 = Direct access to program mode for the installer code.
3 = Disable Mains Fail Test
4 = Spare
5 = Cannot arm the alarm if Receiver fail mode is active
6 = Enable iPSU AC and Battery Low monitoring
7 = Cannot arm if the system battery is low
8 = Installer Lockout
Page 32
Page 78
P25E 11E Installer Options
(Default = All Off)
Installer Options
Page 32
1 = Installer MUST enter program mode via Client mode to reset confirmed alarms
2 = Installer MUST enter program mode via Client mode to reset tamper alarms
3 = Installer MUST enter program mode via Client mode to reset low battery alarms
4 = Installer MUST enter program mode via Client mode to reset supervisory alarms
5 = Cannot Arm if there is a keypad Fault
6 = Cannot Arm if there is a Telephone Line Failure or Comms Fault
7 = 10 Incorrect Code Attempts locks out the keypad for 90 Seconds
8 = User Codes Must be 4-6 digits long
User Options
P25E 12E
User Options (NOTE: This Option can ONLY be accessed from Client Mode)
(Default = All Off) 1 = Hide User Codes from Installer
P25E 13E Misc. User Options
(Default = )
Miscellaneous User Options
Page 33
Page 33
1 = Code Required to View Memory
2 = Cancel Handover Zone Function in Stay Mode
3 = Output Control from Keypad is Disabled when Armed
4 = Keypad Codes are Disabled During Entry Delay
5 = Spare
6 = Spare
7 = Enable Keypad Tamper Switch Alarms
8 = Spare
LCD KP “Idle” Display Name
P25E 14E This location is where the LCD KP “Idle” Display Name can be Programmed.
Page 34
Setting Real Time Clock
P26E 1E Real Time Hour/Minute -
Value 0-2359
Page 34
P26E 2E Real Time Day of Week -
Value 1-7 (1=Sunday, 2=Monday ,etc)
P26E 3E Real Time Date/Month/Year -
Value DDMMYY (eg 020904 = 2nd Sept 2004)
P26E 4E Daylight Saving is Active
(If LED #1 is On, Daylight Saving is currently active) Turn this bit ON if you are in Daylight
Saving Time when the panel is installed.
Daylight Saving settings
P27E 1E Daylight Saving Start Sunday -
Value 0-5 - Default = 5 (0 = DLS disabled, 5 = last Sunday of Month)
Page 34
2E Daylight Saving End Sunday -
Value 0-5 - Default = 1 (0 = DLS disabled, 5 = last Sunday of Month)
P28E 1E Daylight Saving Start Month -
Value 1-12 - Default = 9
2E Daylight Saving End Month -
Value 1-12 - Default = 4
P29E 1E Daylight Saving Start Hour -
Value 0-23 - Default = 2
2E Daylight Saving End Hour -
Value 0-23 - Default = 3
+++++Outputs+++++
Bulk COPY an Output to a range of Outputs
P30E Template O/P #E Start O/P #E End O/P #E Bulk COPY an Output to a range of OUTPUTS
Page 35
Program LCD KP “Output” Name
P31E 1-32E Program LCD KP “Output” Name Text
P33E 1-2E
Page 35
Program Output Volume when Disarmed
The Volume of O/P 1 & 2 when the alarm is disarmed can be set to a value of 1-8 Page 35
(see P37E option 1 for details on setting O/P 1 & 2 as a siren output)
Programming Output Options “A”
P34E 1-32E Options “A” for Outputs 1-32
1 = Invert Output
(Default = All Off) 2 = Flash Output
3 = Single Pulse to Output
4 = Lockout Output
5 = DTMF Remote Control can operate Output
6 = User Can operate this Output
Page 35
7 = “Control” button Can Operate Output
8 = Chime Alarms will Flash this Output (linked to Pulse Timer)
Programming Output Options “B”
P35E 1-32E Options “B” for Outputs 1-32
1 = Mains Fail to Output (Operates when P25E6E time expires)
Page 36
(Default O/P’s 1&2 = 7) 2 = Fuse Failure to Output
(Default O/P’s 3-8 = All Off) 3 = Battery Low to output
4 = Telephone Line Failure to Output
5 = Supervised Radio Signal Failure
6 = Sensor-Watch Alarm
7 = System Tamper to Output
8 = Receiver Fail
Page 79
Programming Output Options “C”
P36E 1-32E Options “C” for Outputs 1-32
1 = Walk Test Pulse to Output
(Default = All Off) 2 = Pulse Output every 5 seconds when Disarmed
3 = Pulse Output on Kiss-off Following Arming
4 = Pulse Output on Kiss-off Following a Zone Alarm
5 = Output Disabled when P25E3E timer is running
6 = Output indicates In-coming phone call
7 = Play Doorbell tone on a Chime zone trigger
8 = Spare
Page 36
Programming Output Options “D”
P37E 1-32E Options “D” for Outputs 1-32
1 = Siren Driver to Output (requires a horn speaker, outputs 1&2)
Page 37
(Default = All Off) 2 = Output Reset-Chime timers are in minutes (off for seconds-1/10th seconds)
3 = Output ‘silenced’ for 10 seconds on key-press if alarm
4 = Turn Output OFF during Two Way Voice Mode
5 = Spare
6 = Spare
7 = Spare
8 = Monitored Output (can tell if siren cable is cut, outputs 1&2 only)
P38E 1-32E
Output 1-32 ON Delay Time -
0-9999 Seconds (Default = 0 Sec)
Output ON Delay Time
Page 38
Output Pulse Time
P39E 1-32E
Output 1-32 Pulse Time -
0-255;1/10th Sec increments (Default =2 which is 0.2 sec)
Page 38
Output Reset Time
P40E 1-32E
Output 1-32 Reset Time -
0-9999 Seconds (Default = 300 Sec)
(if option 2 at P37E is on the reset time is in minutes)
Page 38
Output Chime Mode Time
P41E 1-32E
Output 1-32 Chime Timer -
0-255;1/10th Sec increments (Default =10 which is 1 sec)
Page 38
Start of Output “Command Control” Status Messages
P42E 1-32E Reserved for future use.
Page 38
Un-Map an Output
P43E 1-32E
Un-map Outputs 1-32 (remove ALL Defaults from an Output) Page 38
Assigning a Time-zone to an Output
P44E 1-32E
Time-zones that will control Outputs 1-32 -
Value = Time-zone 01-32 (Default = All Off)
Page 38
(NOTE: If a TZ has turned an Output ON the TZ will override any reset time programmed for the Output. The reset, pulse or chime timers can resume controlling the Output once the TZ has ended and the output is OFF. The CONTROL to Output function is the only operation that can override the Output while the TZ is active.)
+++++Areas+++++
Area 1-32 Options A
P45E 1-32E Area 1-32 Options A
1 = Arm Button Required Before Code to Set
(Default = All Off) 2 = Stay Button Required Before Code to Set Stay Mode
3 = Code required to Set
4 = Code Required to Bypass Zones
5 = Spare
6 = Send Arm at the end of the Exit Delay
7 = Can Arm only if All Zones are Sealed (Ready)
8 = Can Arm Stay Mode only if All Zones are Sealed (Ready)
Page 39
Area 1-32 Options B
P46E 1-32E Area 1-32 Options B
1 = Near and Confirmed Alarm reporting for All zones in this Area (CID only)
Page 39
(Default = All Off) 2 = Area will arm at end of time-zone
3 = Area will disarm at beginning of time-zone
4 = Assign Chirps to Access tags
5 = Spare
6 = Spare
7 = Cannot Arm if Zone Unsealed at end of Exit Delay
8 = Spare
Area 1-32 Arm Indication to Output
P47E 1-32E
Area 1-32 Arm Indication to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 40
Area 1-32 Stay Arm Indication to Output
P48E 1-32E
Area 1-32 Stay Arm Indication to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 40
Area 1-32 Disarm Indication to Output
P49E 1-32E
Area 1-32 Disarm Indication to Output -
Value 01-32 (for Outputs 1-32)
Page 40
(Default = All Off)
Page 80
(NOTE: If an Area Disarm has turned an Output ON this will override any reset time programmed for the Output. The reset, pulse or chime timers can resume controlling the Output once the Area is armed and the output is OFF. The CONTROL to Output function is the only operation that can override the Output while disarmed.)
Area 1-32 Pendant (or Access Tag) Arm Chirp to Output
P50E 1-32E
Area 1-32 Arm Chirp to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 40
(One chirp to the output for arm)
Area 1-32 Pendant (or Access Tag) Stay Arm Chirp to Output
P51E 1-32E
Area 1-32 Stay Arm Chirp to Output -
Value 01-32 (for Outputs 1-32)
Page 41
(Default = All Off)
(One chirp to the output for stay arm)
Area 1-32 Pendant (or Access Tag) Disarm Chirp to Output
P52E 1-32E
Area 1-32 Disarm Chirp to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 41
(Two chirps to the output for disarm)
Area 1-32 Pendant Stay (or Access Tag) Disarm Chirp to Output
P53E 1-32E
Area 1-32 Stay Disarm Chirp to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 41
(Two chirps to the output for disarm)
Area 1-32 Arm Pulse to Output
P54E 1-32E
Area 1-32 Arm Pulse to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 41
Area 1-32 Stay Arm Pulse to Output
P55E 1-32E
Area 1-32 Stay Arm Pulse to Output -
Value 01-32 (for Outputs 1-32)
Page 41
(Default = All Off)
Area 1-32 Disarm Pulse to Output
P56E 1-32E
Area 1-32 Disarm Pulse to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 42
Area 1-32 Stay Disarm Pulse to Output
P57E 1-32E
Area 1-32 Stay Disarm Pulse to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 42
Area 1-32 Armed Mode Exit Delay Beeps to Keypad
P58E 1-32E
Area 1-32 Armed Exit Delay Beeps to Keypad -
Value 01-32 (for Keypads 1-32)
(Default, Area 1 = All On, Areas 2-32 = All Off)
Page 42
Area 1-32 Stay Mode Exit Delay Beeps to Keypad
P59E 1-32E
Area 1-32 Stay Exit Delay Beeps to Keypad -
Value 01-32 (for Keypads 1-32)
(Default Area 1 = All On, Areas 2-32 = All Off)
Page 42
Area 1-32 Armed Exit Delay Time
P60E 1-32E
Area 1-32 Exit Delay Time -
Value 0-255 seconds
(Default = 30 Seconds for all Areas)
Page 42
Area 1-32 Stay Armed Exit Delay Time
P61E 1-32E
Area 1-32 Stay Exit Delay Time -
Value 0-255 seconds
(Default = 30 Seconds for all Areas)
Page 42
Area 1-32 Monitoring Account Code Number
P62E 1-32E
Area 1-32 Account Code -
Value 0000-FFFF
(Default = 0000 for all Areas)
Page 43
Area 1-32 Remote “Command Control” Code Number
P63E 1-32E
Area 1-32 Command Control code -
Value 1-4 digit code (1-9999)
(Default = No code for all Areas)
Page 43
Start Message Number for Areas 1-32 “Command Control”
P64E 1-32E Reserved for future use
.
Page 43
Area 1-32 Armed Mode Exit Delay to Output
P65E 1-32E
Area 1-32 Armed Exit Delay to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 43
Area 1-32 Stay Mode Exit Delay to Output
P66E 1-32E
Area 1-32 Stay Exit Delay to Output -
Value 01-32 (for Outputs 1-32)
(Default = All Off)
Page 43
Area 1-32 Delinquency Delay
P67E 1-32E Area 1-32 Delinquency Delay
- value 0-99 Days, (0 = Off)
(Default = 0 for all Areas)
Page 44
Area 1-32 Auto Arm/Disarm Time-zones
P68E 1-32E
Area 1-32 Auto Arm/Disarm Time-zones -
Value 01-32 (for Time-zones 1-32)
(Default = All Off)
Page 44
Page 81
P69E 1-32E Program LCD KP “Area” Name Text
Program LCD KP “Area” Name
Page 44
Bulk COPY an Area to a range of Areas
P70E Template Area #E Start Area #E End Area #E Bulk COPY an Area to a range of AREAS
Page 44
+++++Keypads+++++
Keypad Area Assignment
P71E 1-32E Keypads Assigned To Areas
01-32 = Areas 1-32
(Default = 1,2)
P72E 1-32E Keypad Button Options
(Default = All 1,2)
Keypad Button Options
Page 44
1 = <CHIME> Button Enabled
2 = <BYPASS> Button Enabled
3 = Code or Tag can ARM only at this keypad
4 = Code or Tag can STAY ARM only at this keypad
5 = <CONTROL> + <CHIME> Panic Alarm Enabled
6 = <A> + <B> Fire Alarm Enabled
7 = <B> + <CHIME> Medical Alarm Enabled
8 = Stay Armed Beep to Keypad
Page 44
Alarm Beeps & LED Control to Keypad
P73E 1-32E Keypad Beep/LED Options
1 = Mains Fail Beeps Keypad Buzzer
(Default = 5) 2 = Fuse Failure Beeps Keypad Buzzer
3 = Battery Low Beeps Keypad Buzzer
4 = Telephone Line Failure Beeps Keypad Buzzer
5 = System Tamper Alarm Beeps Keypad Buzzer
6 = Receiver Fail Beeps Keypad Buzzer
7 = Turn Off Keypad LED’s when Armed
Page 45
8 = Turn Off Keypad & Backlight LED’s on Mains Failure
Keypad “ARM” Button Area Assignment
P74E 1-32E Keypad “ARM” Button Area
01-32 = “ARM” Button assigned to Area 1-32
(Default = 1)
Page 46
Keypad “ARM” Button Options
P75E 1-32E Keypad “ARM” Button Opts.
1 = “ARM” Button can Arm
(Default = 1,7) 2 = “ARM” Button can Stay Mode Arm
3 = “ARM” Button can Disarm at All Times
4 = “ARM” Button can Disarm Stay Mode at All Times
5 = “ARM” Button can Reset Alarms
6 = “ARM” Button can Arm Latchkey Mode
7 = “ARM” Button can Disarm During Exit Delay
8 = “ARM” Button can Disarm Stay Mode During Exit Delay
Page 46
Keypad “STAY” Button Area Assignment
P76E 1-32E Keypad “STAY” Button Area
01-32 = “STAY” Button assigned to Area 1-32
(Default = 1)
Page 47
Keypad “STAY” Button Options
P77E 1-32E Keypad “STAY” Button Opts.
1 = “STAY” Button can Arm
(Default K/P 1,2,3,4,6,7,8 = 2,8) 2 = “STAY” Button can Stay Mode Arm
(Default K/P 5 = 2,4) 3 = “STAY” Button can Disarm at All Times
Page 47
4 = “STAY” Button can Disarm Stay Mode at All Times
5 = “STAY” Button can Reset Alarms
6 = “STAY” Button can Arm Latchkey Mode
P78E 1-32E Keypad “A” Button Area
(Default = 1)
7 = “STAY” Button can Disarm During Exit Delay
8 = “STAY” Button can Disarm Stay Mode During Exit Delay
Keypad “A” Button Area Assignment
01-32 = “A” Button assigned to Area 1-32
Page 48
P79E 1-32E Keypad “A” Button Opts.
(Default = 1,7)
Keypad “A” Button Options
1 = “A” Button can Arm
2 = “A” Button can Stay Mode Arm
3 = “A” Button can Disarm at All Times
4 = “A” Button can Disarm Stay Mode at All Times
5 = “A” Button can Reset Alarms
6 = “A” Button can Arm Latchkey Mode
7 = “A” Button can Disarm During Exit Delay
Page 48
P80E 1-32E Keypad “B” Button Area
(Default = 2)
8 = “A” Button can Disarm Stay Mode During Exit Delay
Keypad “B” Button Area Assignment
01-32 = “B” Button assigned to Area 1-32
Page 49
Page 82
P81E 1-32E Keypad “B” Button Opts.
(Default = All Off)
Keypad “B” Button Options
1 = “B” Button can Arm
2 = “B” Button can Stay Mode Arm
3 = “B” Button can Disarm at All Times
4 = “B” Button can Disarm Stay Mode at All Times
5 = “B” Button can Reset Alarms
6 = “B” Button can Arm Latchkey Mode
7 = “B” Button can Disarm During Exit Delay
Page 49
8 = “B” Button can Disarm Stay Mode During Exit Delay
Keypad to Output Mask (for Access Control)
01-32 = The Keypad is linked to Output # 1-32
Page 49
P82E 1-32E Keypad to Output Mask
(Default = All Off)
“Control” Button to Output Mask (for Access Control)
P83E 1-32E
Keypad “Control” Button to Output Mask
(Default = All Off) 01-32 = The Keypad “Control” Button is linked to Output # 1-32
Page 50
“Control”+“Chime” Panic Alarm to Outputs
P84E 1-32E Keypad “Control”+“Chime” Panic Alarm to Outputs
(Default = 1,2)
Page 50
01-32 = The Keypad “Control”+“Chime” Panic Alarm will turn on Output # 1-32
“A”+”B” Fire Alarm to Outputs
P85E 1-32E Keypad “A”+”B” Fire Alarm to Outputs
(Default = 1,2) 01-32 = The Keypad “A”+”B” Fire Alarm will turn on Output # 1-32
Page 50
“B”+”Chime” Medical Alarm to Outputs
P86E 1-32E Keypad “B”+”Chime” Medical Alarm to Outputs
(Default = 1,2)
Page 50
01-32 = The Keypad “B”+”Chime” Medical Alarm will turn on Output # 1-32
“Duress” Alarm to Outputs
P87E 1-32E
Keypad “Duress” Alarm to Outputs
(Default = All Off) 01-32 = The Keypad “Duress” Alarm will turn on Output # 1-32
Page 50
Keypad “Tamper Switch” Alarm to Outputs
P88E 1-32E
Keypad “Tamper Switch” Alarm to Outputs
(Default = All Off)
Page 50
01-32 = The Keypad “Tamper Switch” Alarm will turn on Output # 1-32
Keypad “Wrong Code” Alarm to Outputs
P89E 1-32E
Keypad “Wrong Code” Alarm to Outputs
(Default = All Off)
Page 50
01-32 = The Keypad “Wrong Code” Alarm will turn on Output # 1-32
Manually Operated Panic Alarm Beeps to Keypads
P90E 1-32E
Panic Alarm Beeps to Keypads
(Default = All On) 01-32 = A Panic Alarm at the selected keypad will Beep KP # 1-32
Page 51
Manually Operated Fire Alarm Beeps to Keypads
P91E 1-32E
Fire Alarm Beeps to Keypads
(Default = All On)
Page 51
01-32 = A Fire Alarm at the selected keypad will Beep KP # 1-32
Manually Operated Medical Alarm Beeps to Keypads
P92E 1-32E
Medical Alarm Beeps to Keypads
(Default = All On)
Page 51
01-32 = A Medical Alarm at the selected keypad will Beep KP # 1-32
Wrong Code or Keypad Tamper Switch Alarm Beeps to Keypads
P93E 1-32E
Wrong Code or Keypad Tamper Switch Alarm Beeps to Keypads
(Default = All On)
Page 51
01-32 = Wrong Code or KP Tamper at Keypad 1-32 will Beep KP # 1-32
Chime Alarm Beep Time at a Keypad
P94E 1-32E
The Time the Chime Alarm will sound at Each Keypad -
Value =0-255 1/10th sec
(Default = 20 which is 2 Seconds)
P95E 1-32E LCD Keypad Back-light Setting
Page 51
LCD Keypad Back-light settings
0-100 = LCD B/L value 0-100%
Page 51
LCD Keypad Display Options
P96E 1-32E LCD Keypad Display Options
(Default = All Off)
1 = 2 x 20 Display Mode (On=AAP Logo Display)
Page 51
2 = Spare
3 = Show LCD System name (Off=Show KP Name)
4 = Display Armed Areas as numbers
5 = Spare
6 = Spare
7 = Double badge to ARM keypad
8 = Control button operates assigned outputs directly
Bulk COPY a Keypad to a range of Keypads
P97E Template KP #E Start KP #E End KP #E Bulk COPY a Keypad to a range of KEYPADS
Page 52
Page 83
Proximity Reader LED to Output Mapping
P98E 1-32E
Proximity Reader LED to Output Mapping
(Default = None)
Page 52
01-32 = Proximity Reader 1-32 LED will follow the state of Output # 1-32
Program LCD KP “Keypad” Name
P100E 1-32E Program LCD KP “Keypad” Name Text
Page 52
+++++Zones+++++
Bulk COPY a Zone to a range of Zones
P118E Template Zone #E Start Zone #E End Zone #E Bulk COPY a Zone to a range of ZONES
Page 53
Global EOL Zone Options
P119E 1E Global EOL Zone Options
0 = If set to 0 allows P125E to set individual values from 1-13
(Default = 3) 1 = 1k
2 = 1k5
3 = 2k2
4 = 3k3
5 = 3k9
6 = 4k7
7 = 5k6
8 = 6k8
9 = 10k
10 = 12k
11 = 22k
12 = 2k2 / 4k7 (Single Zone with tamper, Series combination)
13 = 3k3 / 6k8 (Single Zone with tamper, Series combination)
14 = 2k2 / 4k7 / 8k2 (Zone doubling with tamper, Series combination)
15 = 4k7 / 8k2 (Zone doubling no tamper, Series combination)
Page 53
16 = 4k7 / 8k2 (Zone doubling no tamper, Parallel combination)
Zone Key-switch Options
P120E 1-64E Zone Key-switch Options
(Default = All Off)
P121E 1-64E
Assigning Zones to Areas 1-32
(Default = 1)
P122E 1-64E Programming Zone Options A
(Default Zone 1-4 = 1,6,7,8)
(Default Zone 5-8 = 1,7,8)
(Default Zone 9-16 = 7,8)
1 = K/S can Arm Area
2 = K/S can arm Stay Mode
3 = K/S can Disarm Area
4 = K/S can disarm Stay Mode
5 = K/S has Security Guard Options
6 = K/S will Arm Latchkey Mode
7 = Key-switch is N/O (If turned off the K/S is N/C)
8 = Key-switch is Momentary (If turned off the K/S is Latching)
Programming Zones to Areas
01-32 = Assigned to Area 1-32
Page 54
Programming Zone Options A
1 = Zone is Active
2 = Zone is N/O (Off = N/C)
3 = Not an Exit Delay Zone
4 = Keypad Zone
5 = Zone is a Radio Zone
6 = Zone is a Stay Mode Zone
Page 53
Page 54
P123E 1-64E Programming Zone Options B
(Default = All Off)
7 = Zone can be Manually Bypassed
8 = Zone can be Auto-Bypassed
Programming Zone Options B
1 = Zone is a Handover Zone
Page 55
2 = Zone is a Two Trigger Zone
3 = Zone is a 24 Hour Zone
4 = Zone is a 24 Hour Auto-reset Zone
5 = Zone is a 24 Hour Fire Zone
6 = Zone is shared (Off = not shared)
7 = Zone is a Chime Zone
8 = Zone is a Permanent Chime Zone
Programming Zone Options C
P124E 1-64E Programming Zone Options C
(Default = 2)
1 = Can Arm if Zone is not Ready
2 = Will Send Multiple Reports via Dialler
3 = Sensor-Watch Zone
4 = Zone is on Soak Test
5 = Zone will report to Area B Account Number
6 = Zone will Not Report 24 hour Alarms via Dialler
7 = Pulse Output on Kiss-off Following an alarm
8 = Exit Terminator
Page 56
Page 84
Programming Zone EOL (End-of-line) Options
P125E 1-64E Programming Zone EOL Options
(Default = 3)
0 = Short Circuit
1 = 1k
(NOTE: P119E MUST be set to 0 for P125E to work) 2 = 1k5
3 = 2k2
4 = 3k3
5 = 3k9
6 = 4k7
7 = 5k6
8 = 6k8
9 = 10k
10 = 12k
11 = 22k
Page 57
12 = 2k2 / 4k7 (Single zone with tamper)
13 = 3k3 / 6k8 (Single zone with tamper)
Programming Zone Response
P126E 1-64E Programming Zone Response
(Default = 9)
1 to 8 Vibration mode
Page 57
(Zone EOL-P125E, for Vibration Mode MUST be type 3 only )
1 = highest and 8 is lowest sensitivity level.
9 to 26 Normal zone mode
Response time = approx 200ms –1sec
Programming the Radio Zone Detector Type
P127E 1-64E
Programming the Radio Zone Type from the List -
Value = 1-35
(Default = 4) 0 = Generic
1 = Crow Merlin PIR (supervised signal ignored)
2 = Crow Merlin PIR (supervised signal active)
3 = Freewave with checksum (supervised signal active)
4 = Freewave with checksum (non-supervised)
5 = Crow AE Series Battery low
6 = Crow AE Radio Reed Switch
11 = Ness Devices battery Low
12 = Ness Radio Reed Switch
31 = Visonic K900 Radio PIR
32 = Visonic Powercode (supervised signal ignored)
33 = Visonic Powercode (supervised signal active)
Page 58
Armed Zone Alarms to Outputs
P128E 1-64E
Armed Zone Alarms to Output
(Default = 1,2) 01-32 = A Zone Alarm will Turn On Output # 1-32
Page 59
Armed Stay Mode Zone Alarms to Outputs
P129E 1-64E
Armed Stay Mode Zone Alarms to Output
(Default = 2) 01-32 = A Stay Mode Zone Alarm will Turn On Output # 1-32
Page 59
24 Hour Zone Alarms to Outputs
P130E 1-64E
24 Hour Zone Alarms to Output
(Default = All Off) 01-32 = A 24 Hour Zone Alarm will Turn On Output # 1-32
Page 59
Chime Zone Alarms to Outputs
P131E 1-64E
Chime Zone Alarms to Output
(Default = All Off)
Page 59
01-32 = A Chime Zone Alarm will Turn On Output # 1-32
Zone Tamper Alarms to Outputs
P132E 1-64E
Zone Tamper Alarms to Output
(Default = 1,2) 01-32 = A Zone Tamper Alarm will Turn On Output # 1-32
Page 59
Armed Zone Alarm Beeps to Keypads
P134E 1-64E
Armed Zone Alarm Beeps to Keypads
(Default = All On) 01-32 = An Armed Zone Alarm will Beep Keypad #1-32
Page 59
Stay Mode Zone Alarm Beeps to Keypads
P135E 1-64E
Stay Mode Zone Alarm Beeps to Keypads
(Default = All On) 01-32 = A Stay Mode Zone Alarm will Beep Keypad #1-32
Page 60
24 Hour Zone Alarm Beeps to Keypads
P136E 1-64E
24 Hour Zone Alarm Beeps to Keypads
(Default = All On) 01-32 = A 24 Hour Zone Alarm will Beep Keypad #1-32
Page 60
Chime Zone Alarm Beeps to Keypads
P137E 1-64E
Chime Zone Alarm Beeps to Keypads
(Default = All Off) 01-32 = A Chime Zone Alarm will Beep Keypad #1-32
Page 60
Page 85
Zone Tamper Alarm Beeps to Keypads
P139E 1-64E
Zone Tamper Alarm Beeps to Keypads
(Default = All On) 01-32 = A Zone Tamper Alarm will Beep Keypad #1-32
Page 60
Radio Supervise Alarm Beeps to Keypads
P140E 1-64E
Radio Supervise Alarm Beeps to Keypads
(Default = All Off) 01-32 = A Radio Supervise Alarm will Beep Keypad #1-32
Page 60
Zone Sensor-watch Alarm Beeps to Keypads
P141E 1-64E
Zone Sensor-watch Alarm Beeps to Keypads
(Default = All Off) 01-32 = A Zone Sensor-watch Alarm will Beep Keypad #1-32
Page 60
Armed Zone Entry Delay Beeps to Keypads
P142E 1-64E
Armed Zone Entry Delay Beeps to Keypads
(Default = 1) 01-32 = Armed Zone Entry Delay will Beep Keypad #1-32
Page 60
Stay Mode Entry Delay Beeps to Keypads
P143E 1-64E
Stay Mode Entry Delay Beeps to Keypads
(Default = 1) 01-32 = Stay Mode Entry Delay will Beep Keypad #1-32
Page 61
Armed Zone Entry Delay Times
P144E 1-64E
Armed Zone Entry Delay Times -
Value 0-9999 seconds
(Default Zone # 1 = 20 Seconds, Zones # 2-64 = 0)
Page 61
P145E 1-64E
Stay Mode Entry Delay Times -
Value 0-9999 seconds
(Default Zones # 1-4 = 20 Seconds, Zones # 5-64 = 0)
Stay Mode Entry Delay Times
Page 61
Zone Re-trigger Count
P146E 1-64E
Zone Re-Trigger Count -
Value 0-15 (Maximum number of times a zone can re-trigger
(Default = 0) during armed state. 0=Unlimited Triggers)
P147E 1-64E
Zone Reports using this Area -
Value 1-32
Page 61
Zone Reports using this Area
Page 61
Zone Alarm Contact ID Reporting Codes
P157E 1-64E
Zone Alarm Contact ID Reporting Code -
(Default = 130)
Page 61
Zone Near Alarm Contact ID Reporting Codes
P158E 1-64E
Zone Near Alarm Contact ID Reporting Code -
(Default = 138)
Page 61
Zone Intrusion Verified Alarm Contact ID Reporting Codes
Page 61
P159E 1-64E
Zone Intrusion Verified Alarm Contact ID Reporting Code -
(Default = 139)
Zone Alarm Voice Message Number
P160E 1-64E
Zone Alarm Voice Message Number -
Value-0-99 (Default = 1)
Page 61
Away Zone Entry Delay to Outputs
P161E 1-64E
Away Zone Entry Delay to Outputs
(Default = All Off) 01-32 = Armed Zone Entry Delay to output #1-32
Page 62
Stay Mode Entry Delay to Outputs
P162E 1-64E
Stay Mode Entry Delay Beeps to Outputs
(Default = All Off) 01-32 = Stay Mode Entry Delay to output #1-32
Page 62
Sensor-Watch Timer
P163E 1-64E Sensor-Watch Timer -
0-9999 Minutes (Default = 7200 minutes [120 Hours])
Page 62
Enrolling Radio Zone Codes
P164E 1-64E Learn Radio Zone Codes
P165E 1-64E Delete a Specific Radio Zone Code
Page 62
Delete a Specific Radio Zone Code
Page 62
Find Radio Zone memory Location
P166E ENTER This will find the zone # of any Radio Zone code stored in the panel
Page 62
.After P166E press enter to start the find process
Zone Near Alarm to Outputs
P167E 1-64E
Zone Near Alarm to Outputs
(Default = All Off)
Page 62
01-32 = Zone Near Alarm to output #1-32
Zone Confirmed Alarm to Outputs
P168E 1-64E
Zone Confirmed Alarm to Outputs
(Default = All Off) 01-32 = Zone Confirmed Alarm to output #1-32
Page 63
Program LCD KP “Zone” Name
P169E 1-64E Program LCD KP “Zone” Name Text
Page 63
Page 86
+++++Time Zones+++++
P170E 1-32E
Holidays 1-32 Days - Value = DDMMYY
Programming Holidays
Page 63
Programming Time Zone Days
P171E 1-32E
Time Zones 1-32 Days
(Default = All Off) 1 = Sunday
2 = Monday
3 = Tuesday
4 = Wednesday
5 = Thursday
6 = Friday
7 = Saturday
8 = Invert
Page 63
Programming Time Zone Start & End Times
P172E 1-32E Time Zones 1-32 Start Time -
Value 0000-2359 (Default = 0000)
P173E 1-32E Time Zones 1-32 End Time -
Value 0000-2359 (Default = 0000)
Page 63
Time Zone Options
P174E 1-32E
Time Zone 1-32 Options
(Default = All Off) 1 = Ignore Holidays
2-8 = Spare
+++++Dialler+++++
P175E 1E Dialler options
(Default = 7)
Page 64
Dialler Programming Options
1 = Dialler is Enabled
2 = Fax Defeat
3 = Disable Telephone Line Monitoring
4 = DTMF or Pulse Dial (For DTMF, 4&5 must both be OFF)
5 = DTMF or Reverse Pulse Dial (For DTMF, 4&5 must both be OFF)
Page 64
P175E 2E Dialler options 2
(Default = 1)
6 = Send long DTMF tones during dialing
7 = Spare
8 = Spare
Dialler Programming Options 2
1 = Step number on each call
2 = Spare
3 = Spare
4 = Test calls only if armed
5 = Test Time Period is in days
6 = Hold line open following Domestic/Voice report for DTMF control
Page 64
P175E 3E
P175E 4E
P175E 5E
P175E 6E
7 = Ring Timeout (Off = 3 secs, On = 6.5 secs).
8 = Answer After 1 ring for Listen-in Mode
Auto-Answer Ring Count -
Value 0-99 (Default = 25)
Test Call Start Time -
Value 0000-2359 (Default = 2300)
Test Time Call Period -
Value 0-255 Hours: 0 = No Test (Default = 24)
Keypad Listen-in Options
(Default = 1,2,3,4,5,6,7) 1 = Enabled During Dialling in Disarm State only
2 = Enabled During Dialling in Armed State only
3 = Enabled During Dialling in Stay Mode State only
4 = Enabled Throughout the call in Disarm State only
5 = Enabled Throughout the call in Armed State only
6 = Enabled Throughout the call in Stay Mode State only
7 = Listen-in Enabled when the panel answers a call
Auto-Answer Ring Count
Page 65
Test Call Start Time
Page 65
Test Call Time Period
Page 65
Keypad Listen-in Options
Page 65
P175E 7E
8 = Enabled at All Times
Dialler Fail Line Switch Output
Dialler Fail Line Switch Output - Value = Output number 1 –32 Page 66
Page 87
P175E 8E
P175E 9E
P175E 10E
P175E 11E
P175E 12E
P175E 13E
P175E 14E
P175E 15E
P176E 1E
P176E 2E
P176E 3E
P176E 4E
P176E 5E
P176E 6E
P176E 7E
P176E 8E
P176E 9E
P176E 10E
P176E 11E
P181E 1-8E
P182E 1-8E
P183E 1-8E
P184E 1-8E
P186E 1-8E
Dialling Pre-fix Number -
Value 1-16 Digits (Default = 0)
Dialling Pre-fix Number
Page 66
“Panic” Alarm Contact ID Reporting Code
“Panic” Alarm CID Reporting Code -
(Default=120)
Page 66
“Fire” Alarm Contact ID Reporting Code
“Fire” Alarm CID Reporting Code -
(Default=110)
Page 66
“Medical” Alarm Contact ID Reporting Code
“Medical” Alarm CID Reporting Code -
(Default=100)
Page 66
Output “Command Control” Code Number
Output Command Control code -
Value 1-4 digit code (1-9999) (Default = 0)
Page 66
Microphone On/Off “Command Control” Code Number
Reserved for future use. Page 67
Dialler Acknowledge Code
Voice/Domestic Acknowledge Code -
Value 1-4 digit code (1-9999) (Default = 0)
Page 67
Force Test Call Code
Force Test Call Code -
Value 1-4 digit code (1-9999) (Default = 0, Feature disabled)
Page 67
Programming Voice Board Messages
Keypad or Radio “Panic” Alarm Voice Message Number -
Value 0-99 (Default = 0)
“Fire” Alarm Voice Message Number -
Value 0-99 (Default = 0)
Page 67
Page 67
“Medical” Alarm Voice Message Number -
Value 0-99 (Default = 0)
“Mains Failure” Voice Message Number -
Value 0-99 (Default = 0)
“Mains Restore” Voice Message Number -
Value 0-99 (Default = 0)
“Battery Low” Voice Message Number -
Value 0-99 (Default = 0)
“Battery Restored” Voice Message Number -
Value 0-99 (Default = 0)
“Tamper” (Zone/Radio/System) Voice Message Number -
Value 0-99 (Default = 0)
“Duress Alarm” Voice Message Number -
Value 0-99 (Default = 0)
“Latchkey Disarm” Voice Message Number -
Value 0-99 (Default = 0)
“Manual Test Initiated” Voice Message Number -
Value 0-99 (Default = 0)
Page 67
Page 67
Page 67
Page 67
Page 67
Page 67
Page 67
Page 67
Page 67
+++++Telephone Numbers+++++
Programming Telephone Numbers
Programming Telephone Numbers -
Value 1-16 Digits (Default = 0)
Page 68
Telephone Number Reporting Formats
Telephone Number Reporting Formats
(Default = 1) 1 = Contact ID
2 = Domestic Dial
Page 68
3 = Pager
4 = Speech Dialler
5 = CSV IP Extended (sends 4 digit zone/user field)
6 = Patriot IP
7 = XML IP
8 = CSV IP Normal
9 = Spare
10 = SIA Format
11 = SIA Slow Format
Telephone Number Reporting Options
Telephone Number Reporting Options
(Default = 1,2) 1 = Stop Dialling if Kissed off
2 = Monitor Call Progress
3 = Blind Dial
4 = Use Group Numbers for Contact ID Reporting
5 = Stay On-line after Alarm report for Audio Listen-in
6 = Spare
Page 69
7 = Use the Dialling Pre-fix
8 = Spare
Maximum Dial Attempts per Telephone Number
Maximum Dial Attempts per Telephone Number -
Value 0-99 (Default = 20)
Page 70
Dialler Reporting Options A
Dialler Options A
1 = Report Mains Failure
Page 70
Page 88
P187E 1-8E
P188E 1-8E
P189E 1-8E
(Default = All On)
Dialler Options B
(Default = All On)
Dialler Options C
(Default = 1,6,8)
Dialler Options D
(Default = 3,4,5
2 = Report Battery low
3 = Report Radio Battery Low
4 = Report Line Fail
5 = Report System Tamper
6 = Report Keypad Tamper
7 = Report Zone Tamper
8 = Report Radio Zone Tamper
1 = Report Duress Alarm
2 = Report Supervised Radio Alarm
3 = Report Zone Sensor-watch Alarm
4 = Report Manual Panic Alarm
5 = Report Manual Fire Alarm
6 = Report Manual Medical Alarm
7 = Report Radio Pendant Panic Alarm
8 = Report Zone Bypasses
Dialler Reporting Options B
Page 70
Dialler Reporting Options C
1 = Report Arm/Disarm
2 = Report Stay Mode Arm/Disarm
3 = Report Disarm only after an Activation
4 = Report Stay Mode Disarm only after an Activation
5 = Report Stay Mode Zone Alarms
6 = Report Access to Program Mode
Page 71
7 = Report 24 Hour Alarms when set to Domestic/Voice mode
8 = Report Zone Restores
Dialler Reporting Options D
1 = Report Latchkey Disarm
2 = Report Delinquent
3 = Report Tests
4 = Report Fuse Failure
5 = Report Output 1 or 2 Fail
6 = Report RTC Time changed
Page 71
7 = Report Keypad Buss Trouble
8 = Report RF Interference (Jamming) Detected
+++++SIA Alarm Report Codes+++++
(SIA event codes are entered by programming a value from the chart on Page 115. For example, to send the SIA
“Panic Alarm” code when a keypad panic is generated you must enter a value of “6” at location P197E1E)
Zone Alarm SIA Reporting Codes
P196E 1-64E
Zone Alarm SIA Reporting Code -
(Default value = 1, Alarm Event Code BA)
Page 73
“Panic” Alarm SIA Reporting Code
P197E 1E
“Panic” Alarm SIA Reporting Code -
(Default value = 6, Panic Alarm Event Code PA)
Page 73
“Fire” Alarm SIA Reporting Code
P197E 2E
P197E 3E
“Fire” Alarm SIA Reporting Code -
(Default value = 4, Fire Alarm Event Code FA)
Page 73
“Medical” Alarm SIA Reporting Code
“Medical” Alarm SIA Reporting Code -
(Default value = 5, Medical Alarm Event Code MA)
Page 73
+++++Panel Diagnostic & Default Options+++++
Display Panel Software Version Number
P200E 1E
P200E 2E
P200E 3E
P200E 4E
P200E 5E
P200E 6E
P200E 7E
Display the Panel Software Version Number
Display Keypad Address Number
Page 73
Display Keypad Address Number
Page 73
Display Areas Assigned to this Keypad
Display Areas Assigned to this Keypad
Page 73
Display Active Time Zones
Display Active Time Zones
Page 73
Display Battery Voltage
Display Battery Voltage
Walk Test Mode
Page 73
Walk Test Mode
Page 73
Update “Firmware” to LCD KP, Zone and Output Expanders
Update “Firmware” to LCD KP, Zone and output Expanders
Page 74
Page 89
P200E 8E
P200E 9E
P200E 10E
P200E 11E
P200E 12E
P200E 14E
P201E 1E
P201E 2E
P201E 3E
P201E 4E
P201E 5E
P202E 1-8E
P203E 1-8E
P204E 1-8E
Update “Text Files” to LCD Keypads
Update “Text Files” to ALL LCD Keypads
Page 74
Restore User & Installer Codes plus Telephone Numbers to Defaults
Restore User/Installer Codes & Telephone #’s to Default Values
Page 74
Restore All Factory Defaults
Restore All Factory Defaults
Clear Alarm Memory Buffer
Page 74
Clear Alarm Memory Buffer
Page 74
Initiate a Call to the Call-back
Initiate a Call to the Call-back
Page 74
Read RSSI from Pendants and Wireless Zones
Read RSSI from Pendants and Wireless Zones
Page 74
+++++IP Alarm Setup+++++
Panel IP Address
Control Panel IP Address
(Can also be viewed by pressing the number “9” for 5 seconds in normal mode)
IP Gateway Address
IP Subnet Mask
IP Setup Options
Page 75
IP Gateway Address
Page 75
IP Subnet Mask
Page 75
IP Setup Options
Page 75
1 = DHCP/Manual Panel IP address (Off= Automatic DHCP)
2 = Spare
3 = Spare
4 = Spare
5 = Spare
6 = Spare
7 = Spare
8 = Spare
Show Panel MAC Address
Show Panel MAC Address
(Can also be viewed by pressing the number “8” for 5 seconds in normal mode)
IP Reporting Poll Timer (0-9999 minutes)
Page 75
IP Reporting Poll Timer
Page 75
Monitoring IP Reporting Number
Monitoring IP Reporting Number (000.000.000.000)
IP Reporting Port Number
Page 75
IP Reporting Port Number
Page 75
Page 90
SPECIAL KEYPAD OPERATING FEATURES
ARMING or DISARMING MULTIPLE AREAS at a KEYPAD
If the panel is configured for Multiple Areas and the option “ARM” button required before code is turned on (P45E
Option 1 for each Area), there are a number of possible arming options.
If a user code is only assigned to one area and they press <ARM> <CODE> <ENTER> at the keypad, only the
Area assigned to their code will Arm.
If a user code is assigned to multiple areas but the keypad being used is only assigned to one area, pressing
<ARM> <CODE> <ENTER> will only arm the area assigned to the keypad.
If a user code is assigned to multiple areas and the keypad being used is also assigned to the same multiple areas, plus the ARM button is assigned to the same Areas (P74E), pressing <ARM> <CODE> <ENTER> will put the keypad into a “Ready to Arm” state. On the LCD keypad the display will show “Area/s to Arm” “X Y Z .
.” (where X, Y, Z, . . equal the area numbers), and on the Icon LCD keypad the zone indicators will show the assigned area numbers.
If you press the <ENTER> button now, all displayed areas will arm. If before pressing the enter button you wish to deselect one, or a number of the allowed areas before arming you can enter the two digit area numbers corresponding to the areas you don’t want to arm eg if Areas 1, 2, 3 & 4 were displayed but you only wanted to arm
Areas 1 & 2 you can enter in 03, 04 to deselect areas 3 & 4 then press the <ENTER> button to arm the remaining areas (which in this case will be Areas 1 & 2).
If you don’t do anything following pressing <ARM> <CODE> <ENTER> the panel will proceed with arming all displayed Areas after 10 seconds time has elapsed.
On disarming, after entering <CODE> <ENTER> the display on the LCD keypad will show “Area/s to Disarm” “X
Y Z . .” (where X, Y, Z, . . equal the area numbers), and on the Icon LCD keypad the zone indicators will show the assigned area numbers.
You can press the <ENTER> button at this point to disarm all areas. If before pressing the enter button you wish to deselect one, or a number of the allowed areas before disarming you can enter the two digit area numbers corresponding to the areas you don’t want to disarm eg if Areas 1, 2, 3 & 4 were displayed but you only wanted to disarm Areas 3 & 4 you can enter in 01, 02 to deselect areas 1 & 2 then press the <ENTER> button to disarm the remaining areas (which in this case will be Areas 3 & 4).
If you don’t do anything the panel will proceed with disarming all displayed areas after 10 seconds time has elapsed.
LCD QUICKVIEW MODE
If any zones are unsealed when disarmed the LCD keypad will scroll through each unsealed zone displaying the
20 character name for each zone. If a number of zones are unsealed simultaneously it can take sometime for the display to show all of the unsealed zones.
By pressing the <
È> button when zones are unsealed the keypad will enter the “Quick-view” mode. When in
“Quick-view” mode, each unsealed zone is displayed as a single two digit number eg “01 05 10”. Up to 7 unsealed zones maybe displayed at one time. If more than 7 zones are unsealed at the time the display will scroll to the next bank of 7 zones so the user can see quickly which zones are unsealed. If more than 7 zones are unsealed and the keypad enters “Quick-view” mode by pressing the <
È> button, you can force the display to mode to the enxt bank of zones by pressing the <
È> button again. To exit “Quick-view” mode you simply press the
<ENTER> button or the keypad will time out automatically in approximately 10 seconds.
TOGGLE CHIME MODE ON/OFF
On the LCD Keypad there is a “CHIME” button. Pressing and holding that button for two seconds will toggle
Chime Mode from On-Off or Off-On.
When “CHIME” mode is off any day zones in the same area associated with the keypad area will be disabled.
SEND MANUAL TEST CALL
If the panel is configured for Contact ID reporting and test calls are programmed to report, you can force a manual test call by pressing and holding <CONTROL> followed within 2 seconds by <0>. This will cause a manual test call to be sent to the monitoring company.
Page 91
ELITE S QUICK START GUIDE
The default settings of this panel have been chosen to allow the system to be up and running with a minimum of programming.
Because of this there are normally only a handful of program addresses that need to be changed to get the system fully functional.
As a guide to getting the system up and running as quickly as possible we have summarised the most commonly used addresses for you below.
CODES:
P1E
1-2000E Code 1 is P1E1E and is defaulted to “123”. Code 2 is P1E2E, etc up to P1E2000E for code
2000.
ENABLE DIALLER:
P175E 1E
By default the Dialler is turned Off. To turn On the dialler you must turn on Option 1 at address
P175E1E.
TELEPHONE NUMBERS:
P181E 1-8E
Telephone Number 1 is P181E1E and can be up to 16 digits long. Number 2 is P182E2E, etc up to P181E8E for Phone number 8.
TELEPHONE FORMAT:
P182E 1-8E
There are 9 different reporting formats that can be selected for each telephone number. The formats are listed on page 108.
ACCOUNT CODE:
P62E 1-32E Area “1” Account code is P62E1E and Area “2” Account code is P62E2E up to P62E32E for Area
“32” Account code. Alternatively only Area 1 account code will be used and a group number will be sent to identify each Area separately (see P183E option 4).
ARMED ENTRY DELAYS:
P144E 1-64E Zone 1 entry delay is P144E1E and can be a value of 0-9999 seconds through to Zone 64 entry delay being at address P144E64E. A value of “0” makes the zone instant.
STAY ENTRY DELAYS:
P145E 1-64E Zone 1 entry delay when armed in “Stay” Mode is P145E1E and can be a value of 0-9999 seconds through to Zone 64 Stay Mode entry delay being at address P145E64E. A value of “0” makes the zone instant.
ARMED EXIT DELAY:
P60E 1-32E Area 1 exit delay is programmed at P60E1E, Area 2 at P60E2E and can be a value of 0-255 seconds. A value of “0” makes the area arm instantly with no exit delay.
STAY EXIT DELAY:
P61E 1-32E Area 1 Stay Mode exit delay is programmed at P61E1E, Area 2 at P61E2E and can be a value of
0-255 seconds. A value of “0” arms Stay Mode instantly with no exit delay.
Page 92
USER PRIVILEGES CHART
P5E Options:
Option 8: Can force download
Option 7: Learn new radio devices
Option 6: Change DTMF command
Option 5: Change clock
Option 4: Change phone numbers
Option 3: Full access
Program
P1E
Option 2: Change others codes
Location
Option 1: Change own code
User codes
P2E User type
P3E
P4E
P5E
P7E
P8E
User areas
User access
User privileges
User pendant type
User radio privileges
P9E
P18E
P19E
P20E
P21E
P22E
User time zones
Learn radio user
Delete radio user
Find radio user
Learn access Tag/Card user
Delete access Tag/Card user
P23E Find access Tag/Card user
P25E12E User options (hide user codes to installer)
P26E (all) Time/Date and Daylight Savings
P170E
P63E
Change Holidays
Area A & B Command Code
P164E
P165E
P166E
Learn radio zone
Delete radio zone
Find radio zone
P175E3E Auto-answer rings
P175E4E Time to first test call
P175E5E Test call period
P175E8E Dial prefix
P175E12E Output DTMF command control code
P175E13E Microphone DTMF command control code
P175E14E Voice/Domestic DTMF acknowledge code
P175E15E Remote test initiate DTMF code
P181E
P194E
Telephone numbers
Divert telephone numbers
P200E1E Display panel version #
P200E2E Display keypad address
P200E3E Areas assigned to this keypad
P200E4E Display active time zones
P200E5E Display battery voltage
P200E6E Enter walk test mode
1
2 3 4 5 6 7 8
X X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X X X X X X X
X X X X X X X
X X X X X X X
X X X X X X X
X X X X X X X
X
Page 93
TELECOM INTERFACE
The dialler facility on this controller has been designed to provide optimum flexibility in the way in which alarm events are reported. This flexibility includes options for reporting to a central monitoring station using Contact ID format, a Domestic reporting option using alternating siren tones, a format for reporting alarms to an alpha numeric pager and a powerful Speech Dialler.
In accordance with the statutory requirements of the Telepermit standards we must bring the following points to your attention;
A readily accessible disconnect device shall be incorporated into the 230V fixed wiring.
In the event of any problem with this device, the by-pass switch should be operated. The user is to then arrange with the installer of the device to make the necessary repairs. Should the matter be reported to Telecom as a wiring fault, and the fault be proven to be due to the alarm panel, a call out charge will be incurred.
Should the control panel require relocation the Telecom connection must be disconnected before the power is disconnected. Similarly when reconnecting the dialler, it is necessary to power up the panel before connecting the dialler to the Telecom Network.
Connection to the Telecom network should be made in accordance with Access Standards Newsletter #65 dated
November 1993. This connection is to be readily accessible to allow disconnection in the event of a fault. An example of this connection method is shown below.
NOTE: The telephone line must not enter the cabinet through the same cable entry hole as any 230 volt
mains cables. A separate cable entry must be used for 230 volt cabling
When using one of the knock-outs around the side of the cabinet for supply entry, a suitable bushing must be used where the supply cables pass through a knock-out.
The transmit level from this device is set at a fixed level and because of this there may be circumstances where this device does not give its optimum performance. Before reporting such occurrences as faults, please check the line with a standard Telepermitted telephone, and do not report a fault unless the telephone performance is impaired.
This automatic dialling equipment shall not be set up to make calls to the
Telecom "111" Emergency Service
Page 94
Contact ID Reporting Code Summary
In addition to the programmable Contact ID Event Code assignments defined at P157E, P158E, P159E, P175E (9E-11E) there are a number of fixed event codes. The programmable and fixed event codes are all listed in the table below. Associated with the fixed and programmable event codes, there are a number of extension codes, that are also listed below. The list of extension codes is for your reference only and can not be changed in programming. For “Users” Above 998 the panel will report all as user
998 (eg users 998-2000 will all be reported as 998).
Event Type
System Tamper
Event Code
137
Extension
000
Comment
Panel & Sat Tamper etc
Zone Alarm (wired or wireless)
Zone Tamper - Low (short circuit)
Zone Tamper - High (open circuit)
Zone Tamper - Radio Zone
130
383
383
383
001 to 064
001 to 064
009 to 064
001 to 064
Alarm on Zone 1-64
Zone Input 1-64 short circuit
Zone Input 1-32 open circuit
Radio Zone 1-64
Zone Near Alarm
Zone Confirmed Alarm
Radio PIR / Reed Switch Battery Low
Radio PIR Supervised Alarm
Sensor-watch Alarm
Zone Excludes
Keypad Panic (or CONTROL+CHIME)
138
139
384
381
391
570
001 to 064
001 to 064
001 to 064
001 to 064
001 to 064
001 to 064
Zone Input 1-64
Zone Input 1-64
Radio Zone 1-64
Supervised Radio Zone 1-64
Zone 1-64
Exclude Zone 1-64
Radio-Key Panic
Keypad Fire (A+B)
Keypad Medical (B+CHIME)
Keypad Tamper Switch Alarm
Wrong Code Alarm
Arm/Disarm by "ARM key (Quick Arm)
120
120
110
100
137
461
001 to 032
101 to 998
001 to 032
001 to 032
001 to 032
001 to 032
Panic at keypad #1-32
Panic by Radio User # 101-2000
Fire Alarm at keypad #1-32
Medical Alarm at keypad #1-32
Keypad 1-32 Tamper Switch Activated
4 Incorrect code entries at KP # 1-32
Arm/Disarm by user code
Arm/Disarm by Radio-key
Arm/Disarm by Key-switch
Arm/Disarm by DTMF or Up/Download
Arm/Disarm by Time-Zone
Latchkey Disarm
Fail to Arm on Time-Zone
Delinquency Alarm
Stay Mode Arm/Disarm (part set)
Stay Mode Arm/Disarm (part set)
Stay Mode Arm/Disarm by Key-switch
AC Fail
Zone Expander AC Fail
Output Expander AC Fail
Wiegand Interface AC Fail
System Battery Low
Zone Expander Battery Low
Output Expander Battery Low
Wiegand Interface Battery Low
Checksum Fail (Corrupt EEPROM Data)
Fuse Fail
Radio-key Battery Low
Radio-PIR / Reed Switch Battery Low
455
454
441
441
442
301
301
301
301
302
302
302
302
303
408
401
400
409
407
403
642
312
384
384
000
001 to 998
101 to 998
001 to 064
000
000
001 to 998
000
000
000
001 to 998
000 to 064
000
001-007
101-108
201-232
000
001-007
101-108
201-232
001-008
000
101 to 998
001 to 064
Arm/Disarm by single button
Arm/Disarm by User #1-2000
Arm/Disarm by Radio User #101-2000
Zone Key-switch # 1-64 Arm/Disarm
Remote Arm/Disarm
Time-Zone Arm/Disarm
Latchkey User Disarm
Auto Arm fail
System not Armed within # days
Arm by “Stay” Button
Stay Mode Arm by User # 1-2000
Stay Mode Arm by Zone Key-switch # 1-64
Mains (AC) fail
AC Fail on Zone exp. 1-7
AC Fail on Output exp. 1-8
AC Fail on Wiegand IF 1-32
Control Panel Battery low
Battery Low on Zone exp. 1-7
Battery Low on Output exp. 1-8
Battery Low on Wiegand IF 1-32
Checksum block error
Fuse 1 or 2 Fail
Radio-key User #101-2000 low batt.
Radio Zone 1-64
602
601
351
000
000
000
24 hour test
User generated Test Call
Reported when line is restored
Automatic TEST Calls
Manual TEST Calls
Phone Line Failure
Duress Alarm
Program Mode Entry
Program Mode Exit
Zone Expander Tamper Alarm
Output Expander Tamper Alarm
Wiegand IF-2 Tamper Alarm
Zone Expander Module Fail
Output Expander Module Fail
Wiegand Interface Module Fail
121
627
628
145
354
137
333
333
333
001 to 032
000
000
001-007
001-008
001-032
001-007
101-108
201-232
Duress at Keypad #1-32
Program Mode entered
Program Mode exited
Zone expander board Tamper Alarm
Output expander board Tamper Alarm
Wiegand IF-2 board Tamper Alarm
Zone exp. 1-7 Fail
Output exp. 1-8 Fail
Wiegand IF 1-32 fail
Page 95
Output 1 or 2 Tamper
Time & Date Changed
Keypad Bus Trouble
RF Receiver jam detected
Dialler Failure
323
625
330
344
354
001 or 002
000
001 to 032
000
000
O/P 1 or 2 wires cut.
Time & Date has been changed
Keypad device 1-32 offline
RF Jamming Detected
Failure to get kiss off
Page 96
Event
Description
Burglary
Un-typed Alarm
Hold-up
Fire
Medical
Panic
Emergency
Gas
Sprinkler
Water
Heat
Freeze
Equipment
Equip. Tamper
SIA Reporting Code Summary
Most of the SIA Event Codes are fixed within the panel but some locations such as zones at P196E (1-64E) and Panic/Fire/
Medical at P197E (1-3E) can have a user defined report code from the table below. To follow are the default SIA reporting codes.
Unlike CID, users 1-2000 will be reported as 1-2000 in SIA format.
Event Type
Armed, 24 hour & Near Zone Alarms (programmable P196E)
Zone Verified Alarm Activated
SIA Alarm Code
BA
BV
SIA Restore Code
BH
BH
Zone Bypassed
Zone Tamper Activated
Sensor-Watch Fail
Radio Zone Supervise Fail
Pendant or Radio Zone Low Battery
Keypad or Pendant Panic Alarm (programmable P197E1E)
Keypad Fire Alarm (programmable P197E2E)
Medical Alarm (programmable P197E3E)
Area Armed by Key-Switch
Area Armed by Time Zone
Stay Mode Armed by User, Pendant, KS, STAY Button
Fail to Arm by Time-Zone
Program Mode Entry/Exit
Checksum Fail (Corrupt EEPROM Data)
Duress Alarm
Panel, Keypad or Wiegand IF-2 Tamper Switch Activated
Zone Expander Tamper Activated
Output Expander Tamper Activated
Zone, Output or Wiegand IF-2 fail
Battery Low (see CID for extension numbers)
AC Fail (see CID for extension numbers)
Output Tamper Alarm (O/P 1 & 2 only)
12V Output (fuse) Failure
Phone Line Fail
Automatic Test Message
Manual Test Call
Area Delinquency Alarm
Excessive Code Attempts Alarm
Armed by User, Pendant, ARM button, DTMF or PC
BB
BT
NA
BZ
XT
PA
FA
MA
HA
TA
ES
TT
EM
YT
AT
YA
YP
LT
RP
RX
CD
JA
CL
CS
CA
CG
CI
LB
YF
BU
BJ
NS
BR
XR
PH
FH
MH
HH
TR
EJ
TJ
EN
YR
AR
YH
YQ
LR
CT
JP
OP
OS
OA
OG
LX
Time Changed
Keypad Bus Trouble
Dialler Failure (No Kiss off)
RF Interference (jamming) Detected
JT
IA
YC
XQ
IR
XH
10
11
12
13
7
8
9
14
Program
Number
1
2
3
4
5
6
FA
MA
PA
QA
GA
SA
CHART FOR THE PROGRAMMABLE SIA EVENT CODES
Alarm Restore Bypass Un-
Bypass
Trouble Trouble
Restore
BA
UA
HA
BH
UH
HH
BB
UB
HB
BU
UU
HU
BT
UT
HT
BJ
UJ
HJ
FH
MH
PH
QH
GH
SH
FB
MB
PB
QB
GB
SB
FU
MU
PU
QU
GU
SU
FT
MT
PT
QT
GT
ST
FJ
MJ
PJ
QJ
GJ
SJ
WA
KA
ZA
IA
TA
WH
KH
ZH
IR
TH
WB
KB
ZB
-
TB
WU
KU
ZU
-
TU
WT
KT
ZT
-
TT
WJ
KJ
ZJ
-
TJ
-
-
-
-
-
-
-
-
Near
Alarm
BA
-
-
FA
-
-
-
-
-
-
-
-
-
-
Verified
Alarm
BV
-
-
FM
-
-
When you program one of the numbers in column 2 above at any of the addresses at P196E or P197E then all of the SIA codes associated with that event type will automatically be loaded, eg if Zone 10 (P196E10E) was programmed with a “4”, then when zone 10 activates it will send the fire alarm (FA) and the fire alarm restore (FH) and if zone 10 was bypassed it will send the fire bypass (FB) and the fire un-bypass (FU).
Page 97
Page 98
