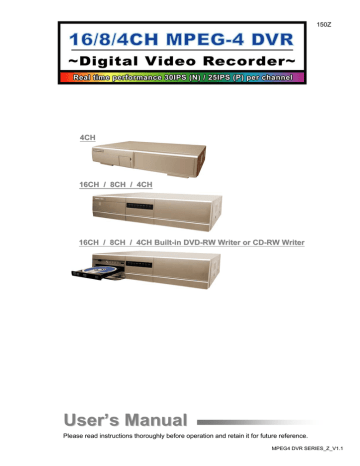

150Z

16CH / 8CH / 4CH Built in DVD RW Writer or CD RW Writer

User ’

’ s Manual

Please read instructions thoroughly before operation and retain it for future reference.

MPEG4 DVR SERIES_Z_V1.1

To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance-(servicing) instructions in the literature accompanying the appliance.

All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive.

The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do not dispose of these products as unsorted municipal waste.

CE Mark

This apparatus is manufactured to comply with the radio interference requirements.

We reserve the right to revise or remove any content in this manual at any time. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without notice.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR

THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN

COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING

MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-

COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY

MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL

INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC.

SEE HTTP://WWW.MPEGLA.COM.

Note: Firmware Version: 1066-10-J4-04-AA-12; AP Version: 1046

Note: For any changes of AP, please refer to your distributor.

Note: Any changes of this manual made to the actual product are subjects to no further notification.

1.1 FEATURES -------------------------------------------------------------------------------------------------------------------------

1.2 PACKAGE CONTENTS ---------------------------------------------------------------------------------------------------------

1.3 SPECIFICATION ------------------------------------------------------------------------------------------------------------------

1.4 FRONT PANEL --------------------------------------------------------------------------------------------------------------------

1.5 REAR PANEL ----------------------------------------------------------------------------------------------------------------------

2

4

1

1

8

2.1 GETTING STARTED -------------------------------------------------------------------------------------------------------------

10

3.1 RECORDING -----------------------------------------------------------------------------------------------------------------------

3.2 PLAYBACK -------------------------------------------------------------------------------------------------------------------------

11

12

4.1 MENU TREE ----------------------------------------------------------------------------------------------------------------------

4.2 MAIN MENU OPTIONS_ RECORD -----------------------------------------------------------------------------------------

4.3 MAIN MENU OPTIONS_ TIMER --------------------------------------------------------------------------------------------

4.4 MAIN MENU OPTIONS_ DATE ---------------------------------------------------------------------------------------------

4.5 MAIN MENU OPTIONS_ ADVANCE ---------------------------------------------------------------------------------------

4.6 ADVANCE MENU_ CAMERA ------------------------------------------------------------------------------------------------

4.7 ADVANCE MENU_ DETECTION --------------------------------------------------------------------------------------------

4.8 ADVANCE MENU_ DISPLAY ------------------------------------------------------------------------------------------------

4.9 ADVANCE MENU_ ALERT ---------------------------------------------------------------------------------------------------

4.10 ADVANCE MENU_ REMOTE ------------------------------------------------------------------------------------------------

4.11 ADVANCE MENU_ SYSTEM -------------------------------------------------------------------------------------------------

4.12 ADVANCE MENU_ NETWORK ---------------------------------------------------------------------------------------------

4.13 ADVANCE MENU_ BACKUP ------------------------------------------------------------------------------------------------

4.14 ADVANCE MENU_ HDD INFO ----------------------------------------------------------------------------------------------

4.15 ADVANCE MENU_ EVENT LOG --------------------------------------------------------------------------------------------

22

23

24

25

26

28

28

18

18

19

21

14

15

16

17

5.1 SEARCH -----------------------------------------------------------------------------------------------------------------------------

5.2 2X DIGITAL ZOOM ---------------------------------------------------------------------------------------------------------------

5.3 KEY LOCK --------------------------------------------------------------------------------------------------------------------------

5.4 SWITCH THE N/P SYSTEM ----------------------------------------------------------------------------------------------------

5.5 USB UPGRADE--------------------------------------------------------------------------------------------------------------------

5.6 LICENSED SOFTWARE AP----------------------------------------------------------------------------------------------------

INSTALL THE SOFTWARE -----------------------------------------------------------------------------------------------

AP BASIC OPERATION ---------------------------------------------------------------------------------------------------

AP ADVANCED SETTING -------------------------------------------------------------------------------------------------

Network ------------------------------------------------------------------------------------------------------------

DDNS ----------------------------------------------------------------------------------------------------------------

MAIL -----------------------------------------------------------------------------------------------------------------

FTP ------------------------------------------------------------------------------------------------------------------

DVR-CAMERA SETTING --------------------------------------------------------------------------------------

DEVICE -------------------------------------------------------------------------------------------------------------

DETECTION -------------------------------------------------------------------------------------------------------

NETWORK BACKUP & PLAYBACK ----------------------------------------------------------------------

SEARCH LIST ----------------------------------------------------------------------------------------------------

TIMER RECORD -------------------------------------------------------------------------------------------------

DATE ----------------------------------------------------------------------------------------------------------------

RECORD SETTING ----------------------------------------------------------------------------------------------

ALARM --------------------------------------------------------------------------------------------------------------

GENERAL ----------------------------------------------------------------------------------------------------------

ACCOUNT ----------------------------------------------------------------------------------------------------------

ONLINE USER INFO --------------------------------------------------------------------------------------------

FILE PATH ---------------------------------------------------------------------------------------------------------

5.7 OPERATION VIA IE BROWSER ----------------------------------------------------------------------------------------------

5.8 OPTIONAL PHERIPHERALS --------------------------------------------------------------------------------------------------

44

45

45

46

42

43

43

44

46

46

47

48

39

40

40

41

37

37

38

39

31

31

31

32

29

30

30

30

TROUBLE SHOOTING

6.1 FAQ -----------------------------------------------------------------------------------------------------------------------------------

48

APPENDIX #1

INSTALL THE HDD -----------------------------------------------------------------------------------------------------------

APPENDIX #2

PIN CONFIGURATION ------------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #

3

RS232 PROTOCOL -----------------------------------------------------------------------------------------------------------

APPENDIX #

3

RECORDING TIME TABLE ------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #

4

COMPATIBLE USB BRAND -----------------------------------------------------------------------------------------------

APPENDIX #

5

COMPATIBLE HDD BRAND -----------------------------------------------------------------------------------------------

49

51

53

54

55

56

Compression format providing crystal clear images with real time performance

Allow live display, record, playback, backup, and network all at the same time

Long

-

Recording Hours:

500GB can record more than 4 days. (16CH, Frame Best Quality, 120IPS)

Connect to Independent Disk Array (optional) to have more storage capacity

Support file backup with a USB flash drive, DVD WRITER or CD WRITER, and network remote recording & backup

The backup file via DVD Writer or CD Writer can be played directly in your PC via the supplied licensed AP, or via other media players (Ex: Windows Media Player or RealPlayer) after the file is converted to “AVI” format.

Support remote surveillance with the licensed software AP and IE browser

Web surveillance supports 5 users simultaneously

With advanced motion detection function, scheduled motion detection recording

(4 different adjustable factors for motion detection sensitivity) and convenient search function, customized security environments are achieved

Alarm trigger recording will send alerts with images to designated e-mails and the FTP address

Support pre-alarm recording (8MB)

A mask replaces the live image with a blank screen & the monitor shows nothing but recording is still on

Support 4 audio-in, 2 audio-out to record sounds

Support VGA output to monitor (optional)

Support multi-language OSD

System auto recovery after power reconnected

IR remote control of the system and PTZ through RS-485

Support daylight saving function

Support manual / timer / motion / alarm / network remote recording functions

Watermark function ensures the authentication of the recorded images

Support TCP/IP, PPPoE, DHCP and DDNS network connection

MODEL 16CH 8CH 4CH

Digital Video Recorder

Adapter

Licensed Software AP

IR Transmitter and IR Receiver

Power and Data Bus

DSUB PIN Connector

Screws

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

Optional

ˇ

ˇ

ˇ

NOTE: Please check the package contents to make sure that you receive all accessories shown above.

1

16CH / 8CH / 4CH

DVD-RW / CD-RW

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

ˇ

MODEL

Video System

Video Compression Format

Video Input

(Composite video signal 1 Vp-p 75Ω BNC)

Video Loop Out

(Composite video signal 1 Vp-p 75Ω BNC)

Video Output

Maximum Recording Rate (Frame)

Maximum Recording Rate (CIF)

Adjustable Recording Speed (Frame)

Adjustable Recording Speed (CIF)

Image Quality Setting

Hard Disk Storage

(IDE type, ATA66) (over 400GB)

HDD Quick Cleaning

Recording Mode

Watermark

Refresh Rate

Multiplex Operation

Audio I/O

Motion Detection Area

Motion Detection Sensitivity

Pre-alarm Recording

Backup Device

USB Interface

Web Transmitting Compression

Format

Ethernet

Web Interface

Remote Alarm Notification

Network Protocol

IR transmitter

PTZ control

Dwell Time (Sequential Channel

Switch)

Alarm I/O

Picture Zoom

16CH / 16CH (D)

16 Channels

8CH / 8CH (D)

NTSC / PAL (switchable)

MPEG 4

8 Channels

4CH / 4CH (D)

4 Channels

16 Channels 8 Channels 4 Channels

Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC

Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC

720 × 480 pixels with 120 IPS〈NTSC〉

720 × 576 pixels with 100 IPS 〈PAL

〉



〉



〉


352 × 288 pixels with 400 IPS 〈PAL〉





120, 60, 30, 15 IPS <NTSC>

100, 50, 25, 12 IPS <PAL>

480, 240, 120, 60 IPS <NTSC>

400, 200, 100, 50 IPS <PAL>

60, 30, 15, 7 IPS <NTSC>

50, 25, 12, 6 IPS <PAL>

240, 120, 60, 30 IPS <NTSC>

200, 100, 50, 25 IPS <PAL>

30, 15, 7, 3 IPS <NTSC>

25, 12, 6, 3 IPS <PAL>

120, 60, 30, 15 IPS <NTSC>

100, 50, 25, 12 IPS <PAL>

16CH: support HDD * 2

16CH (D): support HDD *1

Best, High, Normal, and Basic





Quick clean up the “index system” of the recorded files. 250GB under 2 seconds

480 IPS for NTSC

400 IPS for PAL

Manual／Timer／Motion／Alarm／Remote Network

Yes

240 IPS for NTSC

200 IPS for PAL live display, record, playback, backup, and network

120 IPS for NTSC

100 IPS for PAL

4 audio inputs, 2 audio outputs (Mono)

16 × 12 grids per camera for all channels

4 adjustable variables with precise calculation for motion detection

Yes (8 MB)

Support USB 1.1/ 2.0 flash drive backup and network remote backup

16CH (D) / 8CH (D) / 4CH (D) models also support DVD-WRITER or CD-WRITER backup front panel * 1, back panel * 1 front panel * 1

Motion JPEG

10/100 Base-T. Support remote control and live view via Ethernet

Support licensed software AP, and IE browser

E-mail images, and upload images to FTP site’s specific account

TCP/IP, PPPoE, DHCP and DDNS

Remotely control DVR and PTZ via IR transmitter (RS-485) (4CH: Optional)

Support PELCO-D protocol

16 inputs, 1 output

Programmable with adjustable dwell time (2, 4, 8, 16 sec.)

8 inputs, 1 output

Support 2X digital zoom function

4 inputs, 1 output

2

MODEL

Specification Continued …

Key Lock

Video Loss Detection

Camera Title

Video Adjustable

Date Display Format

Daylight Saving

Power Source

Power Consumption

Operating Temperature

Dimensions (mm)

System Recovery

Optional Peripherals

16CH / 16CH (D) 8CH / 8CH (D) 4CH / 4CH (D)

Yes

Yes

Support up to 6 letters

Hue／Color／Contrast／ Brightness

YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off

Yes

DC 19V

＜

64 W 4CH: ＜42 W ; 4CH (D): ＜64 W

10℃ ~ 40℃ (50℉~104℉)

432mm (W) × 90mm (H) × 326mm (D)

4CH:

343mm (W) × 59mm (H) × 223mm (D)

4CH (D):

432mm (W) × 90mm (H) × 326mm (D)

System auto recovery after power reconnected

Independent Disk Array ; VGA Converter

Independent Disk Array ; VGA

Converter ; IR Remote Control

Any modifications made to the actual product are subject to change without notice.

3

16CH / 8CH

16CH (D) / 8CH (D) / 4CH (D)

1) POWER:

Press “POWER” button to turn on/ turn off the DVR.

(Under the recording mode, please stop recording before turning off the DVR)

2) MENU:

Press “MENU” button to enter the main menu.

3) ENTER / RECORD:

Press “ENTER” button to confirm.

Press “RECORD” to activate the manual recording

4) “＋ “ “ － ” :

Press “＋“ or “－” button to change the setting in the menu / to select the channel.

Press “＋“ and “

－

” buttons simultaneously to open / close the DVD / CD WRITER.

5) USB:

Support firmware update and file backup.

6) LED LIGHT:

POWER: Power on

STANDBY: Standby

HDD: HDD is reading or recording

HDD Full: HDD is full.

ALARM: Once the alarm is triggered

TIMER: When timer recording is turned on.

REC: Under the recording status

PLAY: Under the playing status

7) MODE :

Press “MODE ” button to switch the channel display mode.

4

8) “ ” :

Press “ ” button to pause playing files.

9) “ ” :

Press “ ” button to stop playing files.

10) “ “ :

Under the playback mode, press “

11) “ “ :

Under the playback mode, press “

” button to fast rewind.

” to fast forward.

12) “ZOOM” :

Press “ZOOM” button to enlarge the picture of the selected channel (2X digital zoom).

13) “PLAY” :

Press “PLAY” button to play the recorded files.

14) “▲▼

◄►

“ :

Press “▲▼

◄►

” to move the cursor up / down / left / right.

15) “SHIFT” + “SEQ” :

Press “SHIFT” + “SEQ” to activate the call monitor function and press “SEQ” to escape the call monitor mode.

16) “SHIFT” + “AUDIO“ :

Press “SHIFT” + “AUDIO“ to select live or playback sounds of the 4 audio channels.

17) “SHIFT” + “SLOW“ :

Under the playback mode, press “SHIFT” + “SLOW“ to show slow playback.

18) “SHIFT” + “CH－ “ or “CH＋” :

Press “SHIFT” + “CH－ “ or “CH＋” to change the setting in the menu / to select the channel.

19) “SHIFT” + “SET” :

Press “SHIFT” + “SET” to change the position of the channel display.

Press “▲▼

◄►

” to select the channel you would like to change.

Press “＋” or “－” to select the channel you would like to show.


20) “SHIFT” + “SEARCH” :

Press “SHIFT” + “SEARCH” buttons to enter the search mode.

21) “

Press “ mode.

” + “

” + “

” :

” buttons at the same time to enter / exit the PTZ control

22) “

◄

” or “

►

” + “POWER”

Press and hold “

◄

” or “

►

”, and press “POWER” to switch to NTSC or PAL system. Please see “5.4 SWITCHING THE N/P SYSTEM” at P.30.

5

1.4 FRONT PANEL

Continued …

4CH

1) “HDD Cartridge Lock” :

Lock / Unlock the cartridge of the HDD.

2) “USB” :


3) “LED LIGHT” :

HDD: HDD is reading or recording

HDD Full: HDD is full.

ALARM: Once the alarm is triggered

TIMER: When timer recording is turned on

PLAY: Under the playing status

REC: Under the recording status

4) “MENU” :

Press “MENU” button to enter the main menu.

5) “ENTER” / “SET” :


Press “SET” to change the position of the channel display.

Press “▲▼

◄►

“ to select the channel you would like to change.

Press “＋” or “－” to select the channel You would like to show.

6) “SEARCH ” :

Press “SEARCH” button to enter the search mode.

7) “SLOW ” :

Under the playback mode, press “SLOW“ button to show slow playback.

6

8) “ZOOM ” :

Press “ZOOM” button to enlarge the picture of the selected channel (2X digital zoom).

9) “ ” / “ － ” :

Press “ “ button to show the 4 channel display mode.

Press “ － ” button to change the setting in the menu.

10) “SEQ” / “ ＋ ” :

Press “SEQ” button to activate the call monitor function and press “SEQ” button again to escape the call monitor mode.

Press “＋ ” button to change the setting in the menu.

11) “POWER” :

Press this button to turn on / turn off the DVR.

(Under the recording mode, please stop recording before turning off the DVR).

12) “CH1 ” “CH2 ” “CH3 ” “CH4 ” :

Press the button “1”, “2”, “3” or “4” to select the desired channel.

13) “REC” :

Press “REC” button to activate the manual recording.

14) “PLAY” :

Press “PLAY” button to playback the recorded files.

15) “

UP / PAUSE , DOWN / STOP, LEFT / FAST REWIND, RIGHT / FAST FORWARD

“ :

Press “▲▼

◄►

“ to move the cursor up / down / left / right.

16) “

Under the playback mode, press “ “ button to pause playback.

Under the playback mode, press “ “ button to stop playback.

Under the playback mode, press “ “ button to fast rewind.

Under the playback mode, press “ “ button to fast forward.

” :

17) “

Press these two buttons to select live or playback sounds of the 4 audio channels.

” :

Press these two buttons at the same time to enter / exit the PTZ control mode.

18) “

◄

” or “

►

” + “POWER”

Press and hold “

◄

” or “

►

”, and press “POWER” to switch to NTSC or PAL system.

Please see “5.4 SWITCHING THE N/P SYSTEM” at P.30.

7

16CH / 16CH (D)

14

15

16

17

13

12

LOOP

1

INPUT

2

DISK ARRAY

3 4 5

1 75?

8

IR

HI-IMPEDANCE

RS 485

6 7

EXTERNAL I/O

8 9 10 11 12 13 14 15 16 MONITOR

1

CALL

2

D / V

9 75?

HI-IMPEDANCE

16

LAN

USB

LINK

ACT.

DC19V

3

4

1

2

3 4

5 6 7 8

9

10

11

14

8CH / 8CH (D)

12 13

15

16

INPUT

LOOP

INPUT

LOOP

INPUT

3

LOOP

INPUT

LOOP

INPUT

LOOP

INPUT

LOOP

INPUT

LOOP

INPUT

LOOP

MONITOR

CALL

DISK ARRAY

IR

RS 485

EXTERNAL I/O

USB

D / V

LAN

LINK

ACT.

DC 19V

1

2

3

4

17

1

2

3 4 5

6 7

8

9

10

11

4CH / 4CH (D)

14

12 13

15

9

LOOP INPUT LOOP INPUT LOOP INPUT LOOP INPUT

MONITOR CALL

1 2 3 4

IN

2

1

D / V

IR

DISK ARRAY

EXTERNAL I/O

LAN

LINK

ACT.

16

4

3

17

OUT

DC 19V

6

2 1 4

8

7 8

10

11

1) DISK ARRAY PORT:

Connect to one disk array for extending HDD capacity.

2) IR PORT:

Connect to the IR receiver.

3) RS485 PORT:

1234

Connect to external devices (such as PTZ camera) with RS485-A and RS485-B.

2: RS485A

3: RS485B

4) EXTERNAL I/O PORT:

Insert the supplied 15PIN DSUB to this port for connecting external devices (alarm input, external alarm, PTZ camera).

For detailed I/O port PIN configuration, please refer to Appendix #2.

5) USB PORT:


6) D/V PORT (Digital Video Port):

Connect to a VGA converter card.

7) LAN:

Connect to Internet by a LAN cable.

8) LINK / ACT LED light:

When the Internet is activated, the LED light will be on.

9) CALL MONITOR:

Connect to CALL monitor. Show the channel switch display. When the alarm is triggered, the call monitor will show the image of the triggered channel for a period of time.

10) POWER:

Connect to the provided adapter.

11) FAN:

For ventilation.

12) VIDEO INPUT (CHANNEL 1 – 16 / CHANNEL 1 – 8 / CHANNEL 1 – 4):

Connect to video sources, such as cameras.

13) LOOP (CHANNEL 1 – 16 / CHANNEL 1 – 8 / CHANNEL 1 – 4):

Video output.

14) 75Ω / HI-IMPEDANCE:

When using Loop function, please switch to HI-IMPEDANCE. When you don’t use

Loop function, please switch to 75Ω.

15) MONITOR:

Connect to the Main monitor.

16) AUDIO IN (1-4):

Connect to audio sources, such as cameras equipped with the audio function.

When users start the recording function, the audio input will be recorded.

17) AUDIO OUT:

Connect to a monitor or speaker with 2 mono audio outputs from the same source.

9

Connect all the devices to construct a surveillance.

1) Install HDD:

The HDD must be installed before the DVR is turned on. Please refer to Appendix #1 for

HDD installation instructions.

2) Connect cameras, monitors and external devices. Please refer to “Section 1.5 Rear Panel” for connection, and Appendix#2 for pin configurations of the external I/O port.

NOTE: Be sure the cameras are connected and power-supplied before the DVR is powered on. Otherwise the DVR will not be able to detect N/P system automatically.

3) Connect the AC power cord to power adapter and plug into an electrical outlet.

The standby LED would be on as red. Press the “POWER” button.

The power LED will be on as red.

It takes approximately 10 to 15 seconds to boot the system.

System Time

Available Capacity of

Internal HDDs

Under HDD Overwrite

Mode

10

Channel Title

The DVR offers three recording modes: manual record, event record and timer record. If the power is off accidentally, recorded video files will still be stored in the

HDDs. The DVR will return to its original recording status after the power is on again.

1) MANUAL RECORDING (continuous recording):

Recording is initiated by manually pressing the “REC” button, indicated by the sign “

●

”.

2) EVENT RECORDING (triggered by motion and external alarm):

When this function is activated, the recording is triggered by a motion or external alarm, indicated by the sign “ ” (motion) and “ ” (external alarm).

3) TIMER RECORDING (scheduled time):

Recording is scheduled by Timer, indicated by the words “

TIMER RECORD

”.

There must be at least 8192 images of recorded data for playback to work properly.

If not, your DVR will stop the playback. For example, if the IPS is set to 30, the recording time should be at least 273 seconds (8192 images / 30 IPS) for the playback to work properly.

NOTE :

When the HDD is full under O/W recording mode, previous recorded files may be overwritten without further warning notices. Under

"Overwrite" mode, DVR will clear

8GB data from the oldest for overwriting once the HDD is full.

Under Recording

11

16CH / 8CH

16CH (D) / 8CH (D) / 4CH (D)

Press “ PLAY ” button, and the DVR will display the last recorded video.

1) FAST FORWARD (F.F. ) & FAST REWIND (REW):

You can increase the speed for fast forward and rewind on the DVR.

In the playback mode,

＊

Press ” ” once to get 4X speed forward and press twice to get 8X speed, etc., and the maximum speed is 32X.

＊

Press ” ” once to get 4X speed rewind and press twice to get 8X speed, etc., and the maximum speed is 32X.

＊

The type of recorded image size (Frame or CIF) will also be shown on the screen.

2) PAUSE / IMAGE JOG:

Press “ ” button to pause the current image displayed on the screen.

In the Pause mode,

＊

Press ” ” once to get one frame forward.

＊

Press ” ” once to get one frame rewind.

3) STOP:

Pressing “ ” button under all circumstances will return DVR to live monitoring mode.

4) CHANNEL SHIFT:

＊

Display mode:

Press MODE “ ” button to select the display mode.

＊

Full Screen Switch:

Press “＋” or “－” button to show the channel in the full screen.

＊

Channel display switch:

Press “ ” + “ ” buttons.

Press “▲” “▼” “

◄

” “

►


Press “＋” or “－” select the channel you would like to show.

Press “ENTER” button to confirm the setting.

5) SLOW PLAYBACK:

Press “ ” + “ to get 1/8X speed.

” button to get 1/4X speed playback and press twice

6) AUDIO:

Press “ channels.

” + “ “ to select live or playback sounds of the 4 audio

＊

AUDIO 1 (L) -- audio channel 1, live audio / AUDIO 1 (P) -- audio channel 1, playback audio

＊


＊


＊


12

4CH

Press “ PLAY ” button, and the DVR will display the last recorded video.

1) FAST FORWARD (F.F. ) & FAST REWIND (REW):

You can increase speed for fast forward and rewind on the DVR.

In the playback mode,

＊

Press “ “ once to get 4X speed forward and press twice to get 8X speed, etc., and the maximum speed is 32X.

＊

Press “ “ once to get 4X speed rewind and press twice to get 8X speed, etc., and the maximum speed is 32X.

＊

The type of recorded image size (Frame or CIF) will also be shown on the screen.

2) PAUSE / IMAGE JOG:

Press “ “ button to pause the current image displayed on the screen.

In the Pause mode,

＊

Press “

＊

Press “

“ once to get one frame forward.

“ once to get one frame rewind.

3) STOP:

Pressing “ “ button under all circumstances will return DVR to live monitoring mode.

4) CHANNEL SHIFT:

＊

Display mode:

Press MODE “ ” button to 4-channel display.

＊

Full Screen Switch:

Press “＋” or “－” button to show the channel in the full screen.

＊

Channel display switch:

Press “SET” to change the display position of the channel.

Press “ ▲▼

◄►

“ to select the channel you would like to change.

Press “＋” or “－” to select the channel you would like show.

Press “ENTER” button to confirm the setting.

5) SLOW PLAYBACK:

Press “SLOW” button to get 1/4X speed playback and press twice to get 1/8X.

6) AUDIO:

Press “ ” to select live or playback sounds of the 4 audio channels.

＊


＊


＊


＊


13

14

Press “MENU” button to enter the main menu list. The default admin password is 0000.

Enter the default password and press “ENTER”. (Users could alter the password later. Please refer to “Section 4.11 ADVANCE MENU_SYSTEM”)

Move the cursor to “RECORD”, press ”ENTER”, and the screen will show the following options.

(MENU)

►

RECORD

TIMER

DATE

ADVANCE

Use the following buttons for menu setting:

“▲▼◄► “ to move the cursor

“＋ , －” to choose the numbers / selections

MANUAL RECORD ENABLE

EVENT RECORD ENABLE

TIMER RECORD ENABLE

OVERWRITE

RECORD IMG SIZE

RECORD QUALITY

MANUAL RECORD IPS

EVENT RECORD IPS

TIMER RECORD IPS

TOTAL IPS SHARE

“ ENTER “ to go to the submenu / to confirm the selection

“ MENU “ to go to the menu OSD

/ to confirm the change / to exit the menu OSD

1) MANUAL RECORD ENABLE:

Start / stop the manual recording function.

2) EVENT RECORD ENABLE:

Start / stop the event recording function. When this function is activated, the recording will be triggered by the motion or external alarm.

3) TIMER RECORD ENABLE:

Start / stop the timer recording function.

4) OVERWRITE:

Select to overwrite the previous recorded video in HDD. When the HDD is full under

O/W recording mode, previous recorded files will be overwritten without further warning notices.

5) RECORD IMG SIZE:

There are two recording options: FRAME & CIF. If they want to change the record image size, users need to stop recording first.

6) RECORD QUALITY:

There are four quality settings: BEST, HIGH, NORMAL & BASIC.

The following (7) ~ (9) sections are for 16-channel DVRs.

For 8-channel DVRs, divide the IPS by 2. For 4-channel DVRs, divide the IPS by 4.

7) MANUAL RECORD IPS:

Recording is activated by pressing the “REC” button. Select the images per second for manual recording. The options are as the followings:

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

15

8) EVENT RECORD IPS:

Recording is activated by events (alarm and motion trigger). Select the images per second for event recording. The options are as the followings:

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

9) TIMER RECORD IPS:

Recording is activated by the timer schedule. Select the images per second for timer recording. The options are as the followings:

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

10) TOTAL IPS SHARE:

There are two IPS settings: (Take 16ch as an example)

IPS per channel = RECORD IPS ÷ 4 ÷ number of channels under recording within the group.

Ex.: If you set the record IPS as 120 IPS, then:

Channel 01 will get 30 IPS (120 / 4 / 1 = 30)

Channel 05 and 06 each will get 15 IPS (120 / 4 / 2 = 15)

“

●

“ means under recording

IPS share will be fixed. That means IPS per channel will be equal to record IPS divided by 16 channels.

●

01

●

05

●

06

Group 1 :

CH 01 ~ 04

Group 2 :

CH 05 ~ 08

Group 3 :

CH 09 ~ 12

Group 4 :

CH 13 ~ 16

(MENU)

RECORD

►

TIMER

DATE

ADVANCE

Move the cursor to “TIMER”, press ”ENTER”, and the screen will show the following options.

DATE

OFF

DAILY

SUN

START

00 : 00 -

08 : 00 -

06 : 00 -

MON-FRI 00 : 00 -

OFF 00 : 00 -

OFF

OFF

00 : 00 -

00 : 00 -

END

00 : 00

18 : 00

23 : 00

00 : 00

00 : 00

00 : 00

00 : 00

16

2)

3)

1) DATE:

A scheduled record date (SUN/MON/TUE/ WED/ THU/ FRI/ SAT/ MON–FRI / SAT-SUN

/ DAILY/OFF) could be set to activate the timer recording.

NOTE 1 : Specific date could be changed by “＋” or “－” button.

NOTE 2 : If you plan to set the timer recording across the midnight, there are two ways for setting the timer recording schedule. Please follow the instructions below.

Example 1 : If you only want to set the recording timer schedule from every Sunday

23:30 to Monday 23:30, then you could set it as Sunday from 23:30 to 23:30.

Example 2 : If you plan to set the timer recording from Sunday 08:00 to Monday 15:00, then you could set it as Sunday from 08:00 to 00:00, and Monday 00:00 to 15:00.

Note: Please turn on “TIMER RECORD ENABLE” in RECORD menu (refer to P.15).

START:

Select the start time for recording.

END:

Select the end time for recording.

(MENU)

RECORD

TIMER

►

DATE

ADVANCE

Move the cursor to “DATE”, press ”ENTER”, and the screen will show the following options.

1)

2)

3)

DATE

FORMAT

DAYLIGHT SAVING

2006-MAR-28 14:30:00

Y-M-D

ON

DATE:

Set the correct time of the DVR ( YEAR / MONTH / DAY / HOUR / MIN / SEC).

FORMAT:

There are three date formats: Y-M-D, M-D-Y, D-M-Y.

DAYLIGHT SAVING:

Specify whether to use daylight saving time and time period. ( START / END)

Daylight saving time can be adjusted manually.

Enter the daylight saving menu to set the start/end time, and adjust the hour of the daylight saving.

START

END

ADJUST

4TH-SUN-MAR 01: 00: 00

4TH-SUN-OCT 01: 00: 00

01 : 00

NOTE: The illustrated setting means: During the daylight saving time period (start from the 4 th Sunday of March, end on the 4 th

Sunday of October), the DVR system time will plus one hour.

17

(MENU)

RECORD

TIMER

DATE

►

ADVANCE

CAMERA

DETECTION

DISPLAY

ALERT

REMOTE

SYSTEM

NETWORK

BACKUP

HDD INFO

EVENT LOG

Move the cursor to “ADVANCE”, press ”ENTER”, and the screen will show the following options.

Move the cursor to “CAMERA”, press ”ENTER”, and the screen will show the following options.

TITLE

01

02

03

04

05

06

07

08

PREV

1)

2)

3)

4)

5)

BRIG

110

110

110

110

110

110

110

110

NEXT

CONT

128

128

128

128

128

128

128

128

SATU

128

128

128

128

128

128

128

128

HUE

128

128

128

128

128

128

128

128

COV

NO

NO

NO

NO

NO

NO

NO

NO

REC

YES

YES

YES

YES

YES

YES

YES

YES

TITLE:

Move the cursor to the title you want to change, and press “ENTER” to access the setting screen. Assign each channel a title (up to six characters (letters or symbols…)). The default title is the channel number.

BRIG / CONT / SATU / HUE:

Adjust the Brightness/Contrast/Saturation/Hue of each channel.

The level is from 0 to 255. The default value of BRIG is 110, and others are128.

COV (COVERT):

Select “YES” to mask the selected channel which is under recording.

When this function is activated, the “COV” word will be shown on the screen.

REC (RECORD):

Select “YES” to enable the record function. Select “NO” to disable the recording.

PREV / NEXT:

Select “PRE” to go to the previous page. Select “NEXT” to go the next page.

18

Move the cursor to “DETECTION”, press ”ENTER”, and the screen will show the following options.

DETECTION SETUP

DETECTION TIMER

1) DETECTION SETUP:

TITLE

01

02

03

04

05

06

07

08

PREV

DET

ON

ON

ON

ON

ON

ON

ON

ON

NEXT

AREA

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

SETUP

LS

07

07

07

07

07

07

07

07

SS

03

03

03

03

03

03

03

03

TS

02

02

02

02

02

02

02

02

RE

10

10

10

10

10

10

10

10

ALARM

OFF

LOW

HIGH

OFF

OFF

OFF

OFF

OFF a) TITLE:

Show the title of each channel of the camera.

b) DET:

Select “ON” to activate the motion detection function of each channel.

Select “OFF” to inactivate the motion detection function of each channel.

c) AREA:

Press the “ENTER” button to set the detection area.

Pink blocks represent the area that is not being detected while the transparent blocks are the area that is under detection.

Press “ENTER” to confirm the start area

Press ◄ or ► to choose the width of the area

Press ◄ or ► to choose the height of the area, and press

“ENTER” again to confirm.

Multi-detected areas

Press “－” to set the whole area under detection

19

Press “＋” to set the whole undetected

▲▼

◄►

: navigates between targets.

d) e)

LS :

The sensitivity of comparing two different images. The smaller the value, the higher the sensitivity for motion detection.

The highest sensitivity setting is 00, and the lowest sensitivity setting is 15.

The default value is 07.

SS :

The sensitivity towards the size of the triggered object on the screen (the number of motion detection grids). The smaller the value, the higher the sensitivity for motion detection.


The default setting is 03.

Note: The default setting of Spatial Sensitivity (SS) is 03, which means when 3 grids are detected for any motion at one time, the system will get triggered.

So the value of Spatial Sensitivity must be less than the number of grids which you set up for the motion detection area.

f) TS :

The sensitivity towards how long the object gets triggered. The smaller the value, the higher the sensitivity for motion detection.


The default setting is 02. g) h)

RE :

The value of RE is a reference for detection. The default value is 10, which means the DVR will compare 10 continuous images at one time according to the sensitivity of LS, SS, TS simultaneously. Therefore, the bigger the value, the higher the sensitivity for motion detection. The highest sensitivity is 61.

ALARM :

Select LOW / HIGH for the alarm polarity. The default alarm value is OFF. i) PRE / NEXT:

Select “PRE” to go to the previous page; Select “NEXT” to go the next page.

Targets set in the AREA.

2) DETECTION TIMER:

Set the date and start/end time of the detection function.

DATE

OFF

DAILY

SUN

START

00 : 00 -

08 : 00 -

06 : 00 -

MON-FRI 00 : 00 -

OFF 00 : 00 -

OFF

OFF

00 : 00 -

00 : 00 -

20

END

00 : 00

18 : 00

23 : 00

00 : 00

00 : 00

00 : 00

00 : 00

Move the cursor to “DISPLAY”, press ”ENTER”, and the screen will show the following options.

TITLE DISPLAY

DATE DISPLAY

HDD INFO

LOSS SCREEN

PLAYBACK INFO

DWELL DURATION (SEC)

DE-INTERLACE

MONITOR OUT

OSD

WATERMARK

ON

ON

ON

BLUE

NORMAL

2

ON

MAIN

SETUP

ON

1)

2)

3)

4)

5)

6)

7)

8)

TITLE DISPLAY:

Turn the channel title display on / off.

DATE DISPLAY:

Turn the date display on / off.

HDD INFO:

Turn the display information of internal HDD on / off.

LOSS SCREEN:

Set the color of the video loss screen (blue or black)

PLAYBACK INFO:

Set the position where playback information will be indicated on the left hand side of the bottom screen (center or normal).

DWELL DURATION (SEC):

Set the duration time of each channel for CALL MONITOR (2, 4, 8, 16 sec.)

DE-INTERLACE:

Set the “DE-INTERLACE” function on / off.

MONITOR OUT:

Select Select "MAIN" when the video output device is CRT monitor.

Select "VGA" when the video output device is LCD monitor.

Note: If the connected video output device is LCD monitor, but the setting here is "MAIN", motion detection area setting will be disabled.

9) OSD:

Customize OSD color.

10) WATERMARK:

In the playback mode of the software AP, users could prove the authenticity of the BACKUP VIDEO. If the BACKUP VIDEO had been altered, the video image will turn to light red

Please refer to P. 36 for detailed instruction.

21

Move the cursor to “ALERT”, press ”ENTER”, and the screen will show the following options.

EXT. ALERT

INT. BUZZER

KEY BUZZER

VLOSS BUZZER

MOTION BUZZER

ALARM BUZZER

HDD BUZZER

HDD NEARLY FULL (GB)

ALARM DURATION (SEC)

PRE-ALARM

ON

ON

ON

ON

ON

ON

ON

05

05

OFF

1)

2)

3)

4)

5)

6)

EXT. ALERT:

Set the sound on / off when the external alarm is triggered.

INT. BUZZER:

Set the sound of KEY / VLOSS / MOTION / ALARM / HDD FULL on or off.

KEY BUZZER:

Set the sound on / off when pressing the button.

VLOSS BUZZER:

Set the sound on / off when any video loss happened.

MOTION BUZZER:

Set the sound on / off when any motion alarm is triggered.

ALARM BUZZER:

Set the sound on / off when any internal alarm is triggered.

7)

8)

HDD BUZZER:

Set the sound on / off when the HDD is full.

HDD NEARLYFULL (GB):

If HDD BUZZER is on, you could choose to have a buzzer notification when the

HDD available capacity is only xxx GB left.

9) ALARM DURATION (SEC):

Press “ENTER” or “＋” or “－” button to set the duration time of alarm recording

(5, 10, 20, 40 sec.).

10) PRE-ALARM:

Set the pre-alarm function on (8MB) / off.

When pre-alarm and event recording functions are activated, the DVR will record 8MB file before any alarm / motion is triggered.

22

Move the cursor to “REMOTE”, press ”ENTER”, and the screen will show the following options.

05

06

07

08

TITLE

01

02

03

04

PREV

DEVICE

PTZ

CAMERA

CAMERA

CAMERA

CAMERA

CAMERA

CAMERA

CAMERA

NEXT

ID

001

002

003

004

005

006

007

008

PROTOCOL

P - D

NORMAL

NORMAL

NORMAL

NORMAL

NORMAL

NORMAL

NORMAL

RATE

02400

02400

02400

02400

02400

02400

02400

02400

1) TITLE:

Title of each camera.

2) DEVICE:

Select to control a normal camera or PTZ camera for each channel.

3) ID:

Set the ID number (0 ~ 255) of the PTZ camera.

Note: After connecting to a PTZ camera correctly, the default ID of the PTZ camera will be shown on the screen

.

Note: Please refer to the instruction “PTZ Connection and Control” below.

4) PROTOCOL:

Select NORMAL (our protocol) or PELCO-D protocol.

5) RATE:

Set the baud rate of each channel (2400, 4800, 9600, 19200, 57600). For the connected cameras, such as PTZ and speed dome cameras, etc., please make sure the baud rate setting is the same as the setting here.

1)

Device: Our own brand PTZ / Pelco-D protocol PTZ

2)

Connection: For detailed connection and instructions, please refer to your PTZ camera manual.

Note:

As for “RS485A and RS485B Port” connection, please refer to

“Section 1.5 Rear

Panel”, or refer to “Appendix #2 PIN Configuration”.

3)

Control Mode: Refer to the front panel or your IR remote control manual.

23

Move the cursor to “SYSTEM”, press ”ENTER”, and the screen will show the following options.

SERIAL TYPE

BAUD RATE

HOST ID

IR

PASSWORD

RESET DEFAULT

CLEAR HDD

UPGRADE

AUTO KEYLOCK

LANGUAGE

VERSION

VIDEO FORMAT

RS - 485

02400

003

ON

SETUP

RESET

MASTER

NO

NEVER

ENGLISH

1066-10-J4-04-AA-1

NTSC

1)

2)

3)

4)

5)

6)

7)

8)

9)

SERIAL TYPE:

Press “ENTER” or “＋” or “－” button to set the control serial type (RS-485, RS-232) of DVR.

BAUD RATE:

Press “ENTER” or “＋” or “－” button to set the BAUD RATE of DVR

(2400, 9600, 19200, 57600).

HOST ID:

Press “ENTER” or “＋” or “－” button to set the ID of DVR (0 ~ 255).

IR:

Press “ENTER” or “＋” or “－” button to set the IR function on / off.

PASSWORD:

Press “ENTER” to set the password for accessing DVR (The default admin

password is 0000 and the default guest password is 1111). Users who use guest password to access the DVR will be only allowed to view the live streaming video and sequence display, shift the channel display, and lock keys.

RESET DEFAULT:

Press “ENTER”, and select “YES” to confirm or “NO” to cancel.

CLEAR HDD:

Press “ENTER” and “YES” to confirm clear HDD or “NO” to cancel.

In this function, you can press “＋” or “－” to select the HDD MASTER HDD, SLAVE

HDD or DISK ARRAY which you plan to clear.

UPGRADE:

Press “ENTER”, and select “YES” to confirm upgrade or “NO” to cancel.

AUTO KEYLOCK:

Set the time-out after which the key lock function is activated.

(Never / 10 sec / 30 sec / 60 sec)

10) LANGUAGE (support multi-language):

Press “ENTER”, and select the language of the OSD.

11) VERSION:

The firmware version information will be shown on the screen.

12) VIDEO FORMAT:

The information of the DVR’s video format will be shown on the screen.

24

Move the cursor to “NETWORK”, press ”ENTER”, and the screen will show the following options.

NETWORK TYPE

DNS

PORT

STATIC

168. 95. 1. 1

0 0 8 0

1) NETWORK TYPE (STATIC):

Select NETWORK TYPE, press “＋” or “－” button to set the network type as

STATIC, and then press “ENTER” to go to the submenu of the network. In the submenu of the network type, use “＋” or “－” button to set all the information needed in the DVR. See the illustration below.

IP

GATEWAY

NETMASK

60. 121. 46. 236

60. 121. 46. 226

255. 255. 255. 254

2) NETWORK TYPE (DHCP):

This DHCP function needs to be supported by a router or cable modem network with DHCP service. For detailed DHCP settings, please refer to P.37 and P.38

(Licensed Software AP).

3) NETWORK TYPE (PPPoE):

This PPPoE function needs to have “username” and “password” subscribed from one ISP supplier. For detailed PPPoE settings, please refer to P.37 and P.38

(Licensed Software AP).

NOTE:

DHCP and PPPoE network types need to apply DDNS service to get “Hostname” to correspond to the dynamic IP address. For detailed DDNS settings, please refer to P.38.

25

16CH / 8CH / 4CH

16CH (D) / 8CH (D) / 4CH (D)

Move the cursor to “BACKUP”, press ”ENTER”, and the screen will show the following options.

USB BACKUP

Select “USB BACKUP” and then press “ENTER”. c d e f

5)

6)

7)

1)

2)

3)

4)

START TIME

END TIME

AVAILABLE SIZE

CHANNEL

HDD NUM

BACKUP TO USB

2006-05-12 16 : 00 : 00

2006-05-12 21 : 00 : 00

4083 MB

●

01

●

02 X 03 X 04

X 05 X 06 X 07 X 08

X 09 X 10 X 11 X 12

X 13 X 14 X 15 X 16

MASTER

START

START TIME:

Select the start time of the backup.

END TIME:

Select the end time of the backup.

AVAILABLE SIZE:

Display the available capacity in the inserted USB flash drive.

CHANNEL:

Select channels by pressing “ENTER” button to change the symbol in front of the channel number.

Symbol “X” means that this channel is not selected.

Symbol “●” means that this channel is selected.

HDD NUM:

Choose the HDD.

BACKUP TO USB:

Press “ENTER” to start backup the chosen file to the inserted USB flash drive.

Backup Image with Audio:

Only 4 channels support audio backup. If you want to backup images with audio, please connect the camera to the correct channels.

16CH / 16CH(D) models: CH13, CH14 , CH15 and CH16

8CH / 8CH(D) models: CH5, CH6, CH7 and CH8


Please use PC to format the USB flash drive as "FAT 32".

If the USB flash drive is not supported by the DVR, then the “USB

ERROR” message will be shown on the screen.

We recommend to clear all the files in the USB flash drive before you backup files in your USB flash drive.

The backup files can be viewed on the licensed software AP. Or users can convert the recorded file to AVI format. For detailed AP playback, please refer to P.36.

26

16CH (D) / 8CH (D) / 4CH (D)

Move the cursor to “BACKUP”, press ”ENTER”, and the screen will show the following options.

USB BACKUP

DISK BACKUP

Select “DISK BACKUP” and then press “ENTER”.

START TIME

END TIME

AVAILABLE SIZE

CHANNEL

HDD NUM

BACKUP TO DISK

2006-05-12 16 : 00 : 00

2006-05-12 21 : 00 : 00

4083 MB

●

01

●

02 X 03 X 04

X 05 X 06 X 07 X 08

X 09 X 10 X 11 X 12

X 13 X 14 X 15 X 16

MASTER

START

1)

2)

3)

4)

5)

Press “＋” and “－” buttons to open the DVD / CD WRITER.

Put the DISK into DVD / CD WRITER, and press “＋” and “－” buttons again to close.

(NOTE: Use DVD R DISK only)

Go to “DISK BACKUP” menu and set the start time, end time, channels and HDD number.

Note:

Select channels by pressing “ENTER” button to change the symbol in front of the channel number.

Symbol “X” means that this channel is not selected.

Symbol “●” means that this channel is selected.

Only 4 channels support audio backup. If you want to backup images with audio, please connect the camera to the correct channels.

16CH / 16CH(D) models: CH13, CH14 , CH15 and CH16



After setting up the backup information, move the cursor to “START”, and press “ENTER”.

While the files are backing up to DISK, users will see the backup completed percentage on the screen.

After backup files to DISK, “DISK BURN FINISH” message will be prompted on the screen.

Press “＋” and “－” to eject the DISK from DVD / CD WRITER.

Put DISK into the DVD / CD -ROM of your PC.

(O/S system: Windows XP and Windows2000).

And then double click the file Æ Convert the file

Æ Play the backup file at PC side.

NOTE:

1.

2.

The maximum number of backup files in the CD is 41.

The backup file can be played directly in your PC via the supplied licensed AP, or via other media players (Ex: Windows Media Player or RealPlayer) after the file is converted to “AVI” format.

27

You can get all the capacity information of the connected HDD.

HDD NUM

MASTER

EXT001

EXT003

EXT005

EXT007

EXT009

EXT011

HDD SIZE

400.517

400.517

400.517

NO HDD

NO HDD

NO HDD

NO HDD

HDD NUM

SLAVE

EXT 002

EXT 004

EXT 006

EXT 008

EXT 010

EXT 012

HDD SIZE

NO HDD

400.517

NO HDD

NO HDD

NO HDD

NO HDD

NO HDD

You can get all the information (event type, time, and channel) of the event list, including video loss list, net list, other lists (such as power on / off, key unlock, reset to default). Select the event list you want to see and press “ENTER”.

VLOSS LIST

NET LIST

OTHERS

CLEAN ALL

1)

2)

3)

4)

VLOSS LIST:

Show the information of the video loss time.

NET LIST:

Show the information of the net login time.

OTHERS:

Show the information of “power on / off”, “unlock”, and “reset to default” time.

CLEAN ALL:

Clear all the event log lists.

28

16CH / 8CH

16CH (D) / 8CH (D) / 4CH (D)

Press “ ” + “ ” buttons on the front panel of the DVR to enter the search mode. Then the screen will show the following options.

4CH

Press “SEARCH” button on the front panel of the DVR to enter the search mode.

Then the screen will show the following options.

1)

2)

3)

4)

5)

6)

7)

8)

HDD:

Master HDD.

FULL LIST:

Show the time list for all types of the recorded files. The capital letters stand for the following: R: RECORD /

S: SYSTEM / A: ALARM /

MS: MOTION / T: TIMER.

RECORD LIST:

List the time of manual recorded files.

HDD

FULL

RECORD

SYSTEM

ALARM

MOTION

EVENT

TIME

MASTER

LIST

LIST

LIST

LIST

LIST

SEARCH

SEARCH

SYSTEM LIST:

List the time of system recorded files.

Under the manual recording mode, the DVR system will save one recorded file every one hour.

ALARM LIST:

List the time of alarm trigger recorded files.

MOTION LIST:

List the time of motion trigger recorded files.

EVENT SEARCH:

Search the recorded files by the specific time period (YEAR / MONTH / DAY /

HOUR / MIN), channel, HDD, and event type (motion / alarm triggered recording).

When you playback the recorded videos, they will be played with the fast speed.

TIME SEARCH:

Search the recorded files by the specific time period (YEAR / MONTH / DAY /

HOUR / MIN).

NOTE:

Move the cursor to the specific recorded file and press “ENTER” to play the video.

Press stop “ ” button to return the live display.

29

Press “ZOOM” button on the front panel of the DVR to enlarge the picture of selected channel (2X digital zoom). You will have ¼ view size of the enlarged picture. Therefore use the “

▲▼

◄►

“ to navigate.

Normal View Zoom View

1) Press “ZOOM” button again to exit the zooming.

2) Press “

▲▼

◄►

“ button to move the zoom position.

3) Users can also press “Digital Zoom” button on the IR remote control.

1)

Key Lock On: c Press “MENU” + “ENTER” buttons on the DVR front panel to lock keys.

d Press “F2” button on the IR remote control to lock keys. e Auto key lock: refer to “Section 4.11 ADVANCE MENU_SYSTEM”.

2)

Key Lock Off:

Press any key (except “SHIFT” and “POWER” buttons) and then key in the password to exit Key Lock mode.

3)

Password:

For the password setting, please refer to “5) PASSWORD” in “Section 4.11

ADVANCE MENU_SYSTEM” at P.24.

1) Press “POWER” button on the DVR front panel to shutdown. Then press and hold

“

►

“ first, and press “POWER” to switch to PAL system.

(Press the buttons till the monitor shows the video image of the DVR)

2) Press “POWER” button on the DVR front panel to shutdown. Then press and hold

“

◄

“ first, and press “POWER” to switch to NTSC system.

(Press the buttons till the monitor shows the video image of the DVR.)

30

Users can use USB flash drives to upgrade.

Please format the USB memory device as FAT 32 format first.

1) Get the upgrade files from your distributor.

2) Save the upgrade files in your USB device (Do not change the file name).

3) Go to the “MENU – SYSTEM - UPGRADE” , and press “ENTER”.

4) Select “YES”, and press “ENTER” again to confirm upgrade.

UPGRADE

ARE YOU SURE?

YES NO

PLEASE WAIT…

UPGRADE KERNEL

OK

PLEASE WAIT…

UPGRADE BOOT

OK

PLEASE WAIT…

UPGRADE HTML

OK

UPGRADE SUCCESS

REBOOT

OK

SHUTDOWN

PLEASE WAIT…

OK

NOTE: c Please use PC to format your USB flash drive as "FAT 32".

d If the USB flash drive can’t be detected by the DVR, the “USB ERROR” message will be shown on the screen.

c

Place the attached CD into one CD-ROM drive and install application programs into PC (Including AP and JAVA program).

d After setup, users will see “ “ icon on the desktop.

NOTE:

For the latest version of the software AP, please refer to your distributor, or refer to

“Section 5.7 OPERATION VIA IE BROWSER”.

31

c d

Connect your DVR to PC via RJ45 network line.

e f g

The default DVR IP is “192.168.1.10”, and default “username” and

“password” are both “admin”. Users should set PC’s IP address as

“IP:192.168.1.

XXX

under the same domain.

Double click to enter login page.

Key in IP address (192.168.1.10), your username (admin), password

(admin), port (80) in the login page. After connecting to the DVR with local

LAN, users could modify the network settings in the DVR or in “SYSTEM

CONFIG” menu of the licensed software AP.

Network Type ~ Static IP :

Set the network information in the DVR menu (Section 4.12) or in “SYSTEM

CONFIG” menu of the licensed software AP (P.37).

Network Type ~ Dynamic IP (DHCP and

PPPoE

) :

Set the Network information in “SYSTEM CONFIG” menu of the licensed software AP.

For detailed DHCP and PPPoE settings, please refer to P.37 and P.38.

After setting up the network information, double click to enter login page. Key in “Username”, “ Password”, “IP” (Static IP) or “Host name”

(Dynamic IP), and “Port”. And then click the green button to connect.

h LOGIN AP Icon Explanation button to add a new IP into the IP Address Book or choose any preset IP address to access the software AP.

Search:

DVR IP addresses in the local area network and modify the network setting of the DVR.

copy all the software installation files, so users can keep all the settings of the video web server for next software installation on other

PC.

Upgrade Firmware: button to upgrade DVR firmware or OSD language files.

The provided firmware and

OSD files should be saved at

PC first.

Player: access and play the recorded files that are saved in your PC.

NOTE: The version of the licensed software will shown on the login page.

32

i AP Control Panel

a b c d e f g h i j.

k.

l.

m.

n.

e.

f.

c.

d.

a.

b.

o.

p.

q.

r.

s.

t.

u.

v.

w.

Image Transfer Rate Per Second

Data Transfer Rate

Connect / Disconnect

Resolution:

NTSC: 320 × 228 ; 640 × 456

PAL: 320 × 276 ; 640 × 552

Image Quality (High, Medium, Low)

Snapshot : press this button to have a snapshot of the image which will be saved in the designated destination you set in “SYSTEM CONFIG –

FILE PATH – Snapshot Path”.

33

o.

p.

q.

r.

g.

Record : press this button to start recording, and press this button again to stop recording. The recorded files will be saved to the designed path on the PC. Each recording file can be up to 18,000 frames. When the recorded file is full, the new recorded file will be saved as the second file.

If the HDD space is less than 200MB, the program will stop recording.

SYSTEM CONFIG: press this button to enter the setting page of the software AP.

Number of Online Users j.

k.

h.

i.

CH 1 ~ 16

4, 9, 16 Channel Display l.

Search m.

Record n.

Stop / Fast Rewind / Fast Forward / Pause / Slow Playback / Play

＋

: for changing system settings and switching channels

－

: for changing system settings and switching channels

Digital Zoom: digital zoom in/out

Set: Press this button to change the position of the channel display.

Press “

▲▼

◄►


Press “＋” or “－” select the channel you would like to show.

Press “Enter” button to confirm the setting.

s.

t.

u.

Sequence: Press this button to enter the call monitor function and press again to exit from the call monitor mode. When any motion is detected, the monitor will switch to the channel which is motion-triggered.

Enter: for confirming the system settings or entering your selection

PTZ Control On / Off:

When the PTZ control turned on, users could select the PTZ device, and press

“OK” button to enter the PTZ control AP screen. (Press “ESC” to exit from the

PTZ control AP screen and return to DVR control AP screen) v.

w.

Menu / Up / Down / Left / Right

Turbo ON/ OFF:

To speed up menu selection or the control of the PTZ camera under software AP, users can activate TURBO function by clicking this button. Users are allowed to change the turbo steps from 1 to 10.

Ex: If users activate TURBO function, and set the value of the turbo step as 3, then when users press one of the button up/down/left/right, one mouse click will function as clicking 3 times.

34

j.

k.

m.

n.

o.

p.

j.

k.

l.

q.

r.

l.

m.

n.

Preset 1 ~ 16

o.

p.

q.

AUTO

Zoom Tele Zoom Wide

Focus Near Focus Far

Max Zoom In Max Zoom Out

Enter

PTZ Control On / Off:

When the PTZ control mode is turned on, users can select the PTZ device and press “OK” button to enter the PTZ control AP screen. (Press

“ESC” to exit from the PTZ control AP screen and return to DVR control

AP screen)

Menu / Up / Down / Left / Right

Turbo:

To speed up menu selection or the control of the PTZ camera under the software AP, users can activate TURBO function by clicking this button.

Users are allowed to change the turbo steps from 1 to 10.

Ex: If users activate the TURBO function, and set the value of the turbo step as 3, then when users press one of the button up/down/left/right, one mouse click will function as clicking 3 times.

35

j

AP Playback Operation

AP Playback Window :

AP Config. Setting Box :

• De-interlace

• De-blocking

• OSD

• AVI Convert

• Config. Setting

• Watermark

• Open Previous File

• Open Next File

A B

C

D

E F

A.

Playback Information

Display information such as “Date”,

“Time”, “Resolution”, “ Rewind /

Forward Speed”, “Status” and

“Functions”, etc.

B.

Time Progress Bar

Show the playback progress status.

To snap a video clip, right-click of the mouse to make a starting point (red) and click one more

C.

Functions

De-interlace: Reduce the vibration of the paused picture.

De-blocking: Reduce the video mosaic phenomenon.

OSD: Display the OSD of the AP playback window.

AVI convertion: Convert the entire recorded file to AVI format.

Config. Setting: Enter AP config. setting box, and time to make a ending point. Then right-click to convert to AVI format.

set the file path, text color, and text color of progress status.

*

Mute

* AV sync.

Watermark: Proof the authenticity of the backup video.

Open Previous File: Open the previous backup video.

Open Next File: Open the next backup video.

D.

Playback Control Buttons

Play / Stop / Pause / Fast Rewind /

Fast Forward

E.

Snapshot

Press this button to take a snapshot of the current image which will be saved in the designated destination.

F.

Close the Player

• When users pause the playback picture, press

“ ” button to go to the previous frame, or press

“ ” button to go to the next frame.

• In the playback mode of the software AP, users could press ” “ button to check the authenticity of the

BACKUP VIDEO. If the BACKUP VIDEO had been altered, the video image will turn to light red playback will be paused.

Note:

• When users use remote AP recording, the watermark function is not supported.

36

3)

AP Advanced Setting:

Press “System Config ” button to enter the system setting page.

The network configuration allows the

DVR to connect to an Ethernet network or dial-up network.

c

Static IP:

Enter the “Server IP”, “Gateway”,

“Net Mask” and “Web Port”, then press “APPLY” to confirm.

d

PPPoE :

:

Enter the “User Name” and

“Password” provided by your ISP

(Internet Service Provider) supplier, then press “APPLY” to confirm.

e

DHCP:

This DHCP function need to be supported by a router or cable modem network with DHCP services. Choose “DHCP” IP type and press “APPLY” to confirm.

***Note***:

PPPoE and DHCP network connection types will require to apply

DDNS service

“

Hostname dynamic IP address.

Please refer to P.38 for details.

***Note***:

Some router brands may need to restart the DVR to get the IP address.

f

Web Port:

The DVR can be viewed over the network with the software AP or a web browser. Typically, the TCP port used by HTTP is 80. However in some cases, it is better to change this port number for added flexibility or security. The valid number ranges from 1 to 9999.

37

c DDNS is a service for transforming the dynamic IP corresponding to a specific

“Hostname”.

d

DDNS Apply:

Go to a website which provide free

DDNS services and apply a

“Hostname”. See the example below.

e

Enable the DDNS function

Enter your DDNS user name into “User

Name” column.

Enter your DDNS password into

“Password” column.

Enter your host name into “Domain” column.

Choose one DDNS system name from “System Name” column.

After setting, press “APPLY” to confirm.

f

Auto:

When using DHCP network connection, the "AUTO" check box will appear on this window. The system will automatically get DNS information from the Internet if this check box is selected.

Go to a website which provides free DDNS services.

For example, “http://www.dyndns.org”.

Create an account in DynDNS.

After created your account, users will receive a confirmation e-mail within few minutes.

To complete registration, please follow the instructions received.

Users must complete these steps within 48 hours to complete the registration.

If the confirmation e-mail is not received within an hour, request “password reset”

(http://www.dyndns.org/account/resetpass/) .

Use the DDNS username and password to login the DynDNS.

Create Hostname:

Login → “Account” → “My Service” → “Add Host Services” → “Add Dynamic

DNS Host” → Enter and choose the hostname → Click on “Add Host” → DDNS Hostname created.

YourHostName

YourHostName

38

c When the recording is triggered by an alarm or a motion, a video copy file can be captured. The DVR will send an e-mail notification to the assigned recipients (up to 5 recipients).

***Note***:

To activate the e-mail notification function, please enable the function of e-mail notification in the “Alarm” setting first (page 43).

d Add the recipients’ email accounts in “Mail Account” column.

For detailed information (SMTP server, username and password), please get from your e-mail system supplier.

e Please type the entire email address in the “Mail from” column to ensure emails will not be blocked by SMTP.

f In some cases, mail servers require to verify password. Please enter the “user

name” and “password”.

g After finishing the settings, press “APPLY” to confirm.

c d e

When the recording is triggered by an alarm or a motion, a video copy file can be captured. And the DVR will upload the captured images to the assigned FTP site.

Enter the detailed FTP information.

***Note***:

To activate the FTP notification function, please enable the function of FTP notification in the

“Alarm” setting first.

After setting, press “APPLY” to confirm.

39

DVR – Camera Setting

c Each camera channel can be adjusted independently.

d

Select the desired camera channel.

Press “

Edit e

Title:

Enter the camera channel name up to 6 characters.

f

Adjustment:

Adjust the BR (brightness) / CT

(contrast) / SU (saturation) / HU

(hue) / REC (recording) of the camera.

g After setting, press “OK” and then press “APPLY” to confirm.

c Select the desired channel of the installed external device.

Press “ Edit d

Device Type

Choose either general camera or

PTZ camera.

e

ID No.

Set the ID number (0 ~ 255) of the installed external PTZ device.

f

Protocol Type

Choose “

NORMAL own brand camera.

Choose “

P

-

D protocol camera.

g

Baud Rate

Set the baud rate of each channel

(2400, 4800, 9600, 19200, 38400,

57600, 115200).

h After setting, press “OK” and then press “APPLY” to confirm.

40

c Select the desired channel, and press “

Edit detection sensitivity and area setting box.

d

Motion Detection Sensitivity

Set the detection sensitivity in 4 different adjustable factors.

LS:

different images. The smaller the value, the higher the sensitivity for motion detection.

SS:

of the triggered object on the screen

(the number of motion detection grids). The smaller the value, the higher the sensitivity for motion detection.

TS:

the object stays in the detection area to get triggered. The smaller the value, the higher the sensitivity for motion detection.

f for the detection. The bigger the value is, the higher the sensitivity for motion detection.

e

Alarm:

Select LOW / HIGH for the alarm polarity.

Motion Detection Area

By clicking the area with your

mouse, one can choose the motion area to be detected.

The under

-

the undetected area is in pink color.

*Click the “Select All” to activate the detection area as full area.

*Click the “Clear All” to clean the previously selected detection area. g After setting, press “OK” and then press “APPLY” to confirm.

Note: Enable the motion detection function.

When any motion is detected, a “ ” icon will be shown on the screen. And the software AP will start recording automatically.

41

c Backup the recorded files from your

DVR to your PC via network.

d Enter the backup information and then press "Start" button. When the backup is succeeded, "DVR-Network

Backup" pop-up window will show.

Then, press "PLAY“ button to directly convert and play the file.

1 2

1.

Playback Information

2.

Time Progress Bar

3.

Functions

(1) De-interlace

(2) De-blocking

(3) OSD

(4) AVI Conversion

(5) Config. Setting

(6) Watermark

(7) Open Previous

(8) Open Next File

3

4

4.

Playback Control Buttons

Play / Stop / Pause / Fast Rewind / Fast

Forward

5.

Snapshot

6.

Close the Player

5 6

NOTE:

1. During the file backup process, users can still see the live image at the same time.

2. The maximum size per file for Network Backup is

500MB.

42

c

HDD Number

Select one HDD (Master).

d

List Type

Select one list type (All/ Manual/

System/ Alarm/ Motion).

e

Max List Number

Maximum number of the list (128) f

Download HDD List

Press this button to start downloading the list.

In this menu, you can schedule 7 different sets of time for recording.

c

DATE

Choose a day from “DATE” dropdown menu. The options are OFF,

SUN, MON,TUE, WED, THU, FRI,

SAT, MON-FRI, SAT-SUN and

DAILY.

d

START

Enter the start time of timer recording.

e

END

Enter the end time of timer recording.

Press “APPLY” if the settings are correct; press “EXIT” to quit without saving.

43

In this menu, you can set the date for your DVR. c

DATE

Choose the current date from “DATE” drop-down menu and enter the current time. When you click the dropdown menu, a calendar like the picture below shows for you to set the current date.

d

FORMAT

Choose the format for date display from the three options: Y-M-D, D-M-Y and M-D-Y.

e

DAYLIGHT SAVING

Specify whether to use daylight saving time (ON / OFF), time period (START

/ END), and adjust the daylight saving time in hour (ADJUST).

c

MANUAL RECORD

Specify whether to use manual recording (YES / ON) and set IPS number.

d

EVENT RECORD

Specify whether to user event recording (YES / ON) and set IPS number.

e

TIMER RECORD

Specify whether to use timer recording (YES / ON) and set IPS number.

f

OVER WRITE

Specify whether to overwrite the

HDD capacity when the HDD is full

(YES / NO).

g

RECORD IMG SIZE

Choose “FRAME” or “CIF”. This selection will affect the available IPS options in the 3 recording modes described above.

44 h

RECORD QUALITY

4 options are available from the drop-down menu: BEST, HIGH,

NORMAL and BASIC.

i

TOTAL IPS SHARE

Choose the IPS share as FIX or

GROUP.

c

Alarm Trigger

Enable or disable Email and FTP notification function.

d

Alarm Method

Two notification methods

— Email and / or FTP.

e

Post Numbers

Set MJPEG pictures (1-10 pictures).

f

Alarm Duration

Set the duration time of motion trigger recording (5 SEC, 10 SEC, 20

SEC, 40 SEC).

g

Alarm Refresh

Clean the alarm message “ ” which is shown on the screen.

Email Notification:

MJPEG pictures will be made at your designated space set in “File Path”, plus an e-mail contained with the MJPEG pictures (1-10 pictures) to be sent to the address which is set under “Mail”.

FTP Notification:

MJPEG pictures will be made at your designated space set in “File Path”, plus a FTP file contained with the MJPEG pictures (1-10 pictures) to be sent to the address which is set under “FTP”.

c Get the information of the DVR firmware version in this window.

d

Select “ Turbo Step ” (1

-

10)

To speed up menu selection or the control of the PTZ camera under video web servers, users can activate

"TURBO" function by clicking this button. Users are allowed to change the turbo steps from 1 to 10.

Ex: If the value of turbo step is “5“, it means that when users press one of the button up/down/left/right, one click is as clicking 5 times.

e

MAX LOG LIST

Set the maximum number of log list.

f

Server Log

Press “Server Log” button to enter the server log list window.

g Title

Name the title which will be shown on the top of the AP live viewer (up to 8 characters).

45

c Set up the user’s account ( Max 5 accounts), password, life time, and authority level ( Max 5 users on line at d User’s level:

SUPERVISOR

—

Control all the functions

(“a”, “b”, “c”, “d”, “e” and “f” ).

HIGH

—

Control only “a”, “b”, “c”, “d” and “e” functions, but cannot control “f” function.

NORMAL

—

Control only “a”, “d”, and “e” functions, but cannot control “b”, “c” and “f” functions.

GUEST

—

Watch the image only. Only “a” function can be used.

e

Life time

According to different authority levels, different accounts can stay online for different time periods (1 Min, 5 Min,

10 Min, 1 Hour, 1 Day, INFINITY).

a b c d e f c

Get all the current online users’ information list (Name, IP Address,

Authority Level, Resolution and

Image Quality).

c

Snapshot Path

Assign the route for saving the snapshot picture.

d

Record Path

Assign the route for saving the manually recorded file.

46

The surveillance images can also be viewed over the network with IE web browser. Please install the licensed software AP first.

*** This function is suitable in both Windows 2000 and Windows X

P ***

Step 1

Type one IP address into the URL address box and press Enter.

Then you’ll see the following page.

NOTE: If the TCP port number is not 80, see the example below.

IP address: 60.121.46.236 ; Port number: 888

Æ Key in “http://60.121.46.236 :888” into the URL address box and press Enter.

1) Press “Download Java” button to go to

JAVA website.

2) Select “Java Runtime Environment (JRE)

5.0 Update 7”, and press “Download”.

3) Press “Accept License Agreement”.

4) Choose “Windows offline installation” or

“Windows online installation”.

5) Take “Windows offline installation” for an example. After downloading the setup file, run the setup file on the PC.

NOTE: Users can download the latest AP version and update the JAVA program from the website.

The latest version of JAVA program is JRE 5.0 Update 7 at the time this manual goes to press.

Step 2

Key in “Username” and “Password” to login.

Please refer to

“

“ Section 6.6

Licensed Software AP ” ” .

Set the display position of the image

(LT: Upper Left; LD: Lower Left; RT: Upper Right; Lower Right)

47

For the operation of the following peripherals, please refer to their manuals individually.

1) IDA (independent disk array)

2) VGA converter

3) IR Remote Control (4CH DVR only)

Please refer to the FAQ table below for easy troubleshooting. The table below describes some typical problems and also their solutions. Please check them before calling your DVR dealer.

PROBLEM

No power

Not working when pressing any button

Timer record is not working

No live video

No recorded video

DVR keeps rebooting

Detect HDD fail

Can’t detect your USB flash drive

When two Seagate’s power-saving HDDs are installed, DVR can’t be turned on successfully.

Can’t view the DVR images over the network with IE web browser

Can’t play the recorded file on my DVR.

SOLUTION

Check power cord connection.

Confirm that there is power at the outlet.

Press any key and then enter the password to exit “Key

Lock” mode.

Check if the “RECORD ENABLE” is set to “YES”.

Check the camera’s video cable and connections.

Check the monitor’s video cable and connections.

Confirm the camera is power supplied.

Check the setting of the camera lens.

Check if the HDD is installed and connected properly

Make sure the power connector and HDD are connected closely, or change another suitable HDD.

Change another HDD for testing.

Change another HDD cable for testing.

Make sure HDD “Master”, “Slave” mode is correctly set.

Change another USB flash drive to test.

Please don’t use 2 Seagate’s power-saving HDDs simultaneously.

Update the JAVA program

Update the firmware of the software AP

There must be at least 8192 images of recorded data for playback to work properly. If not, your DVR will stop the playback.

For example, if the IPS is set to 30, the recording time should be at least 273 seconds (8192 images / 30 IPS) for the playback to work properly.

48

APPENDIX #1 – INSTALL THE HDD

16CH / 8CH

16CH (D) / 8CH (D) / 4CH (D)

Carefully follow the steps to ensure correct installation.

*** Note: If you want to install two HDDs, please set one HDD to “Master Mode” or “Single

Mode”, and the other one to “Slave Mode”. ***

1)

2)

3)

4)

Open the upper cover of the DVR and screw out the bracket.

Screw HDD to the HDD bracket.

~

~

Connect the HDD to the power connector and IDE BUS (make sure to align the HDD precisely to the pin connection).

~

Close the upper cover of the DVR.

49

4CH

Carefully follow the steps to ensure correct installation.

*** Note: Please set one HDD to “Master Mode” or “Single Mode” ***

•

•

Step 1

•

Step 2

•

Step 3

that you must to align the pins of the HDD with the pin marks of the cartridge. Then fasten the HDD correctly (Pic. 3 & 4). You must precisely align the hard disk to the pin connection to ensure correct installation.

•

•

Step 4

•

Step 5

A ( locked )

B ( unlocked )

Note : If you do not lock the HDD slot, the DVR system will not function properly.

•

•

Step 6 Close the cap (Pic. 9).

50

23

24

25

10

11

12

13

PIN

1

2~9

APPENDIX #2 – PIN CONFIGURATION

16CH / 8CH

16CH (D) / 8CH (D)

FUNCTION

GND

ALARM INPUT

DESCRIPTION

GROUND

When connecting the wire from ALARM INPUT (PIN 2 -- 9) to GND (PIN 1) connector, DVR will start recording and the buzzer will be on.

When “MENU -> ADVANCE -> DETECTION -> DETECTION SETUP -> ALARM” is set to “Low” : When the alarm input signal is “ Low ”, the unit starts to record and buzzer.

When “MENU -> ADVANCE -> DETECTION -> DETECTION SETUP -> ALARM” is set to “High” : When the alarm input signal is “ High ”, the unit starts to record and buzzer.

14

15~22

PIN OFF

TXD232

RS485-A

EXTERNAL

ALARM NO.

PIN OFF

ALARM INPUT

DVR can be controlled remotely by the keyboard of PC by using RS-232 serial communication signals.


Under the normal operation, COM disconnects with NO. But when any alarm is triggered, COM connects with NO.

Attention: The voltage restriction is under DC24V 1A.

RXD232

RS485-B

EXTERNAL

ALARM COM

When connecting the wire from ALARM INPUT (PIN 15 -- 22) to GND (PIN 1) connector, DVR will start recording and the buzzer will be on.

When “MENU -> ADVANCE -> DETECTION -> DETECTION SETUP -> ALARM” is set to “Low” : When the alarm input signal is “ Low ”, the unit starts to record and buzzer.

When “MENU -> ADVANCE -> DETECTION -> DETECTION SETUP -> ALARM” is set to “High” : When the alarm input signal is “ High ”, the unit starts to record and buzzer.





DC12V +

GND

DC12V +

GND

Solder Side of

DSUB 25 PIN

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

PIN Connection Application

When the magnetic contact is opened, the alarm will be triggered and the recording is on. At the same time, COM connects with

NO and the siren with strobe starts wailing and flashing.

NOTE: Please go to MENU -> ADVANCE ->

DETECTION -> DETECTION SETUP, and set ALARM to LOW on the local machine.

51

4CH / 4CH (D)

Solder Side of DSUB 15 PIN

8 7 6 5 4 3 2 1

15 14 13 12 11 10 9

16 17

PIN

1

2

3~6

7

8

9

10

11

12~13

14

15

16~17

FUNCTION

RS232-TX

RS232-RX

ALARM INPUT

EXTERNAL

ALARM NC

EXTERNAL

ALARM NO.

GND

RS485-B

RS485-A

PIN OFF

ALARM RESET

EXTERNAL

ALARM COM

GND

DESCRIPTION



To connect the wire from ALARM INPUT ( PIN 3 -- 6 ) to GND ( PIN 9 ) connector, DVR will start recording and the buzzer will be on.

When “MENU -> DETECTION -> DETECTION SETUP -> ALARM” is set to

“Low” : When the alarm input signal is “ Low ”, the unit starts to record and buzzer.

When “MENU -> DETECTION -> DETECTION SETUP -> ALARM” is set to

“High” : When the alarm input signal is “ High ”, the unit starts to record and buzzer.

Under the normal operation, COM connects with NC and disconnects from NO.

But when any alarm is triggered, COM disconnects with NC and connects with

NO.




Signal GND.



Connecting the wire from ALARM RESET (PIN 14) to GND (PIN 9) connector will disable alarms. An external signal to ALARM RESET (PIN 14) can be used to reset both ALARM OUTPUT signal and DVR’s internal buzzer. When any alarm has been triggered, the signal becomes “Low”, and all alarm activities will be stopped. Under the normal operation, the signal remains “High”.



Earth GND

52

APPENDIX #3 – RS -

232 Protocol

1) Use PC keyboards to simulate DVR keypads.

2) Data: REMOTE PROTOCOL uses 8 bit data, 1 start bit, 1 stop bit.

FUNCTION

KEY_MENU

KEY_ENTER

KEY_PLUS

KEY_MINUS

KEY_UP

KEY_DOWN

KEY_LEFT

KEY_RIGHT

KEY_POWER

KEY_REC

KEY_PLAY

KEY_SLOW

KEY_ZOOM

KEY_KEY LOCK

KEY_AUDIO

KEY_SEARCH

KEY_PTZ_MODE

KEY_PTZ_PRESET

KEY_PTZ_ZOOM_IN

KEY_PTZ_ZOOM_

OUT

KEY_MODE

KEY_4 CUT

KEY_9 CUT

KEY_16 CUT

ACT C0H ID FUNCTION STOP

(FFH) (7FH)

CODE

0x4D

0x0D

0x6b

0x6d

0x55

0x4E

0x4C

0x52

0x57

0x72

0x50

0x53

0x5A

0x4B

0x64

0x73

0x70

0x71

0x69

ASCII

M

ENTER

U

N

L

R k m

W r

P

S z

K d

S p q i

FUNCTION

KEY_SET_CHANNEL

KEY_DWELL

KEY_CH1

KEY_CH2

KEY_CH3

KEY_CH4

KEY_CH5

KEY_CH6

KEY_CH7

KEY_CH8

KEY_CH9

KEY_CH10

KEY_CH11

KEY_CH12

KEY_CH13

KEY_CH14

KEY_CH15

KEY_CH16

KEY_EJECT_DVD

CODE

0x6e

0x65

0x31

0x32

0x33

0x34

0x35

0x36

0x37

0x38

0x39

0x41

0x42

0x43

0x44

0x45

0x46

0x47

0x6a

ASCII

n e

3

4

5

6

1

2

7

8

9

A

B

C

D

E

F

G j

0x66

0x6f

0x61

0x62

0x63 f o a b c

KEY_IRIS_NEAR

KEY_IRIS_FAR

KEY_PTZ_LIGHT

KEY_PTZ_WIPER

0x67

0x68

0x6c

0x77 g h l w

53

APPENDIX #4 – RECORDING TIME TABLE

1) Recording time varies depending on the following factors:

* Different camera quality

* Different picture composition (such as frequency of the object movement)

2) Record day for 8CH: please multiply “Record day” by 2.

Record day for 4CH: please multiply “Record day” by 4.

Record mode

Frame

CIF

Quality

Best

High

Normal

Basic

Best

High

Normal

Basic

IPS

480

240

120

60

480

240

120

60

480

240

120

60

30

15

120

60

30

15

120

60

30

15

120

60

30

15

120

60

480

240

120

60

500GB record time(hour)

109

192

349

565

138

243

442

714

130

229

417

673

184

323

587

949

242

424

182

319

581

939

293

516

939

1517

773

1249

335

588

1071

1730

Record day

4.6

8.0

14.6

39.1

12.2

21.5

39.1

63.2

5.4

9.5

17.4

28.0

7.6

23.5

5.8

10.1

18.4

29.8

7.6

13.3

24.2

13.4

24.5

39.5

10.1

17.7

32.2

52.0

13.9

24.5

44.6

72.1

54

APPENDIX #5 – COMPATIBLE USB BRAND

Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the DVR, the "USB ERROR" message will be shown on the screen.

NOTE: Please use PC to format the USB flash drive as "FAT 32".

Transcend

Transcend

Kingston

Kingston

PQI

PQI

Apacer

Apacer

SanDisk

SanDisk

SanDisk

JetFlash 110

JetFlash 110

DataTraveler DTI KUSBDTI/256FE

DataTraveler DTI KUSBDTI/256FE

Cool Drive (U339)

Cool Drive (U339)

HANDY STENO HF202

HANDY STENO HF202

Cruzer Micro

Cruzer Micro

Cruzer Micro

256MB

512MB

256MB

512MB

256MB

512MB

256MB

512MB

128MB

256MB

512MB

55

APPENDIX #6 – COMPATIBLE HDD BRAND

Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table.

Maxtor

Maxtor

Maxtor

Maxtor

Maxtor

Seagate

Seagate

Seagate

Seagate

Seagate

Seagate

Seagate

Western Digital

Western Digital

Western Digital

Western Digital

Western Digital

HITACHI

HITACHI

HITACHI

HITACHI

HITACHI

HITACHI

HITACHI

IBM

IBM

Maxtor

Maxtor

Maxtor

Maxtor

Maxtor

Deskstar HDS728080PLAT20

Deskstar 180 GXP

Deskstar 7K250, HDS722516VLAT20

HDS722516VLAT80

HDS722516DLAT80

Deskstar 7K250, HDS722525VLAT80

Deskstar 511DHT0021

Deskstar 120GXP (80GB)

Deskstar 120GXP (120GB)

DiamondMax 536DX(60GB) 4W060H4

DiamondMax Plus 9

DiamondMax Plus 9, Model#6Y120L

DiamondMax Plus 9, Model#6Y160L0

DiamondMax 10 6L120PO

DiamondMax 10 6L160R0

DiamondMax 10 6L200R0

DiamondMax 10 6L200PO

MaxLine Plus Ⅱ, Model#7Y250P0

DiamondMax 10 6L250R0-3

Barracuda ATA IV, ST380021A

Barracuda ATA V, ST3120023A

Barracuda 7200.7 Plus, ST3160023A

Barracuda 7200.8 ST3200826A

Barracuda 7200.8 ST3250826A

Barracuda 7200.8 ST3300831A/P

Barracuda 7200.8 ST3400832A/P

Caviar WD1200BB-00CAA1

Caviar SE WD1200JB

Caviar SE WD1600JB

Caviar WD2000BB-00DWA0

CaviarSE WD2500JB

56

200GB

250GB

300GB

400GB

120GB

120GB

160GB

200GB

250GB

160GB

200GB

200GB

250GB

250GB

80GB

120GB

160GB

500GB

80GB

120GB

60GB

80GB

120GB

160GB

120GB

80GB

120GB

160GB

160GB

160GB

250GB

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

5400 rpm

7200 rpm

7200 rpm

7200 rpm

7200 rpm

No results
